UB120 UPRIGHT BIKE
1
Record Your Serial Number
Please record the Serial Number of this tness product
in the space provided below.
Serial Number
Register Your Purchase
The self-addressed product registration card must be completed in full and returned to
XTERRA Fitness. You can also go to www.xterratnessstore.com/warrantyreg.html
to register online.
Thank you for your purchase of this quality Upright Bike. Your new Upright Bike has been
manufactured by one of the leading tness manufacturers in the world and is backed by one
of the most comprehensive warranties available. XTERRA Fitness will do all we can to make
your ownership experience as pleasant as possible for many years to come.
If you have questions, or if parts are missing or damaged, or you require customer service,
call (870) 333-5500. Please have your model number and serial number handy when you call.
Please take a moment to record where you purchased your machine, as well as the date of
purchase for future reference. We appreciate your condence in XTERRA Fitness and we
will always remember that you are the reason that we are in business. Please complete and
mail your registration card today and enjoy your new Upright Bike.
Yours in Health,
XTERRA Fitness
Congratulations On Your New Upright Bike and Welcome to the XTERRA Fitness Family!
Product Registration
UB120_20191011
Version 4.0
Purchase Location
Purchase Date
2
UB120 UPRIGHT BIKE
WARNING - Read all instructions before using this appliance.
1. Use this equipment only for its intended use as described in this manual. Do not
attempt to ride this bike at high pedal speeds until you have ridden the bike for some
time and are comfortable riding at slower pedal speeds.
2. Serious injury or death may occur from over-training. Consult a medical doctor or
qualied tness instructor to determine an exercise program appropriate for your level
of tness.
3. Do not attempt to turn the pedal cranks by hand. Do not touch any driving mechanism
while it is in motion as possible injury could occur.
4. In a home setting, keep children away from the bike when it is not in use. Keep
children and pets away from the unit while it is in use.
5. Do not attempt to perform dip movements on handlebars.
6. Never drop or insert any object into any opening of the bike.
7. Only use the bike on a stable, level oor.
8. Follow instructions for safe use of the equipment including proper seat position,
handlebar position, and use of foot positioning system of pedals. For safe operation,
allow for at least 1 foot (30cm) of free space to either side of the unit and 2 feet (60cm)
of free space to the rear of the unit.
9. Weight Limit: 250 lbs.
Regularly examine the bike for damage and wear. Inoperable components should be
replaced immediately or the equipment should not be used until it is repaired.
Failure to follow all guidelines may compromise the effectiveness of the exercise
experience, expose yourself (and possibly others) to injury, and reduce the longevity
of the equipment.
SAVE THESE INSTRUCTIONS - THINK SAFETY!
Important Safety Instructions
WARNING: This product can expose you to chemicals including Toluene and Acrylamide which
are known to the State of California to cause cancer and birth defects or other reproductive harm.
For more information go to www.P65Warnings.ca.gov
UB120 UPRIGHT BIKE
3
1. Obtain a complete physical examination from your medical doctor and enlist a health/
tness professional’s aid in developing an exercise program suitable for your current
health status.
2. When working out for the rst time, start out slowly for a minimum of ve minutes.
After your muscles are warmed up, gradually increase the pedaling speed and/or
resistance.
3. The speed and duration of your exercise program should always be subject to how
you feel. Never permit peer pressure to exceed your personal judgment while
exercising.
4. This exercise equipment is not intended for use by persons with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge.
5. Overweight or severely de-conditioned individuals should be particularly cautious
when using the equipment for the rst time. Even though such individuals may not
have histories of serious physical problems, they may perceive the exercise to be far
less intense than it really is, resulting in the possibility of overexertion or injury.
6. Proper installation and regular maintenance are required to ensure user’s safety.
Maintenance is the sole responsibility of the owner.
Important Operation Instructions
WARNING - AS THE OWNER OF THIS EXERCISE EQUIPMENT, YOU SHOULD
INSIST THAT ALL USERS FOLLOW THE SAME GUIDELINES: YOU SHOULD MAKE
THIS MANUAL AVAILABLE TO ALL USERS.
4
UB120 UPRIGHT BIKE
31
04
52
40
41
53
27
28
10
21
25
45
02
24
48
19
11
07
12
01
13
39
50
33
26
09
34
06
19
22
22
19
35
44
29
43
47
49
46
36
32
49
47
40
40
40
40
44
40
40
44
30
51
44
30
37
05
09
42
54
55
03
17
15
14
08
48
23
38
20
28
16
18

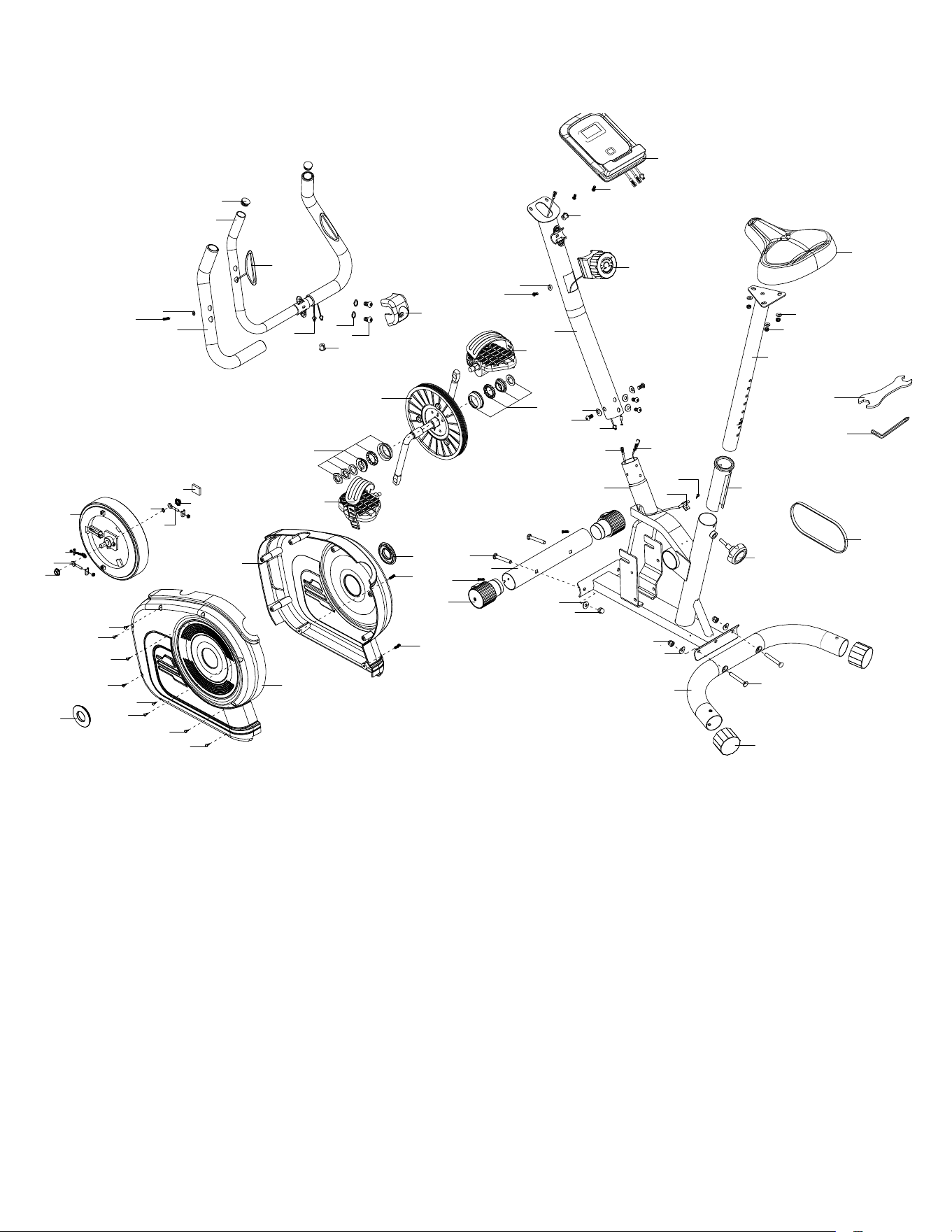

UB120 Exploded View Diagram
UB120 UPRIGHT BIKE
5
UB120 Parts List
Part
No.
Serial No. Description Q’TY
1 UB120-BK1036-PART01 Main Frame 1
2 UB120-BK1036-PART02 Front Post 1
3 UB120-BK1036-PART03 Seat Post 1
4 UB120-BK1036-PART04 Handlebar 1
5 UB120-BK1036-PART05 Front Stabilizer 1
6 UB120-BK1036-PART06 Rear Stabilizer 1
7 UB120-BK1036-PART07 Extension Sensor Wire 1
8 UB120-BK1036-PART08 Crank w/ Pulley 1
9 UB120-BK1036-PART09 Carriage Bolt M8x60L 4
10 UB120-BK1036-PART10 Allen Screw M8x30L 2
11 UB120-BK1036-PART11 Allen Screw M8x15L 4
12 UB120-BK1036-PART12 Sensor Wire 1
13 UB120-BK1036-PART13 Lower Tension Wire 1
14 UB120-BK1036-PART14 Seat Cushion KX6614 1
15 UB120-BK1036-PART15 Flat Washer φ8.5xφ20x1.5t 3
16 UB120-BK1036-PART16 Crossed Head Screw M5x10L 2
17 UB120-BK1036-PART17 Nylon Locknut M8x8.0t 3
18 UB120-BK1036-PART18 Console 1
19 UB120-BK1036-PART19 Arc Washer φ8.5xφ20x1.5t 8
20 UB120-BK1036-PART20 8-Level Tension Knob 1
21 UB120-BK1036-PART21 Spring Washer M8 2
22 UB120-BK1036-PART22 Domed Nut M8x16t 4
23 UB120-BK1036-PART23 Pedal L (1/2" axle) 1
24 UB120-BK1036-PART24 Pedal R (1/2" axle) 1
25 UB120-BK1036-PART25 Cover for Handlebar 1
26 UB120-BK1036-PART26 Club Knob M12 1
27 UB120-BK1036-PART27 Pulse Wire 2
28 UB120-BK1036-PART28 Grommet 2
29 UB120-BK1036-PART29 Chain Cover R 1
30 UB120-BK1036-PART30 Cover for Crank 2
31 UB120-BK1036-PART31 End Cap For Handlebar 2
32 UB120-BK1036-PART32 Flywheel Adjustor Assembly φ18x58L 1
33 UB120-BK1036-PART33 Seat Post Bushing 1
6
UB120 UPRIGHT BIKE
UB120 Parts List
34 UB120-BK1036-PART34 Transportation Wheel 2
35 UB120-BK1036-PART35 Leveling End Cap 2
36 UB120-BK1036-PART36 Flywheel Assembly 1
37 UB120-BK1036-PART37 Crossed Head Self-Tapping Screw st4.2x12L 2
38 UB120-BK1036-PART38 Curved Washer φ5.5xφ20x1.5t 1
39 UB120-BK1036-PART39 Crossed Head Self-Tapping Screw ST3.2x12L 1
40 UB120-BK1036-PART40 Crossed Head Self-Tapping Screw st4.2x20L 8
41 UB120-BK1036-PART41 Foam Grip For Handlebar 2
42 UB120-BK1036-PART42 Belt 310J J5 1
43 UB120-BK1036-PART43 EVA Pad 38Lx18Wx3t 1
44 UB120-BK1036-PART44 Self-Tapping Screw st4.2x20L 4
45 UB120-BK1036-PART45 Crossed Head Screw M5x40L 1
46 UB120-BK1036-PART46 Flat Washer φ12.5xφ20x1.5t 1
47 UB120-BK1036-PART47 Flange Nut M10 2
48 UB120-BK1036-PART48 Bearing Assembly 1
49 UB120-BK1036-PART49 Flywheel Adjustor 2
50 UB120-BK1036-PART50 Sensor Bracket 1
51 UB120-BK1036-PART51 Chain Cover L 1
52 UB120-BK1036-PART52 Flat Washer φ4.3xφ12x1t 2
53 UB120-BK1036-PART53 Pulse Sensor 2
54 UB120-BK1036-PART54 Allen Key 80Lx30W 1
55 UB120-BK1036-PART55 Multifunctional Wrench 1
UB120 UPRIGHT BIKE
7

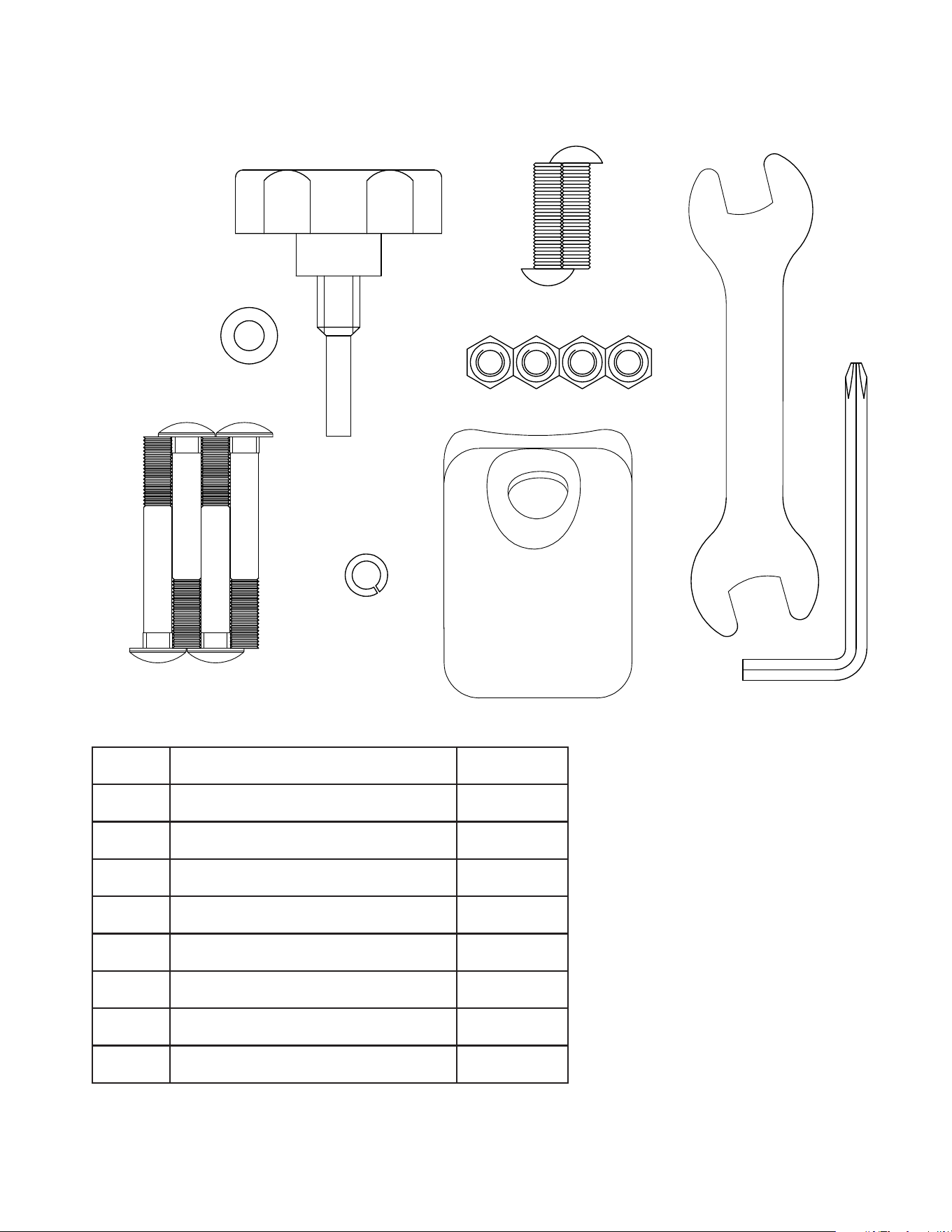

UB120 Assembly Pack Checklist
#19.
8.5 x 20 x
1.5t (4 pcs)
#09.
M8 x 60L
(4 pcs)
#21.
M8 (2 pcs)
#25.
(1 pc)
#26.
(1 pc)
#10.
M8 x 30L
(2 pcs)
#55.
(1 pc)
#54.
5mm
(1 pc)
#22.
M8
(4 pcs)
No. Description Q’ty
09 Carriage bolt M8*60L 4
10 Allen screw M8*30L 2
19 Curved washer φ8.5xφ20x1.5t 4
22 Domed nut M8 4
25 Cover for handlebar 1
26 Club knob 1
54 Allen key 5mm 1
55 Wrench 1
8
UB120 UPRIGHT BIKE
UB120 Assembly Pack Checklist
No. 01
No. 04
No. 14
No. 02
No. 05
No. 18
No. 03
No. 06
No. 23/24

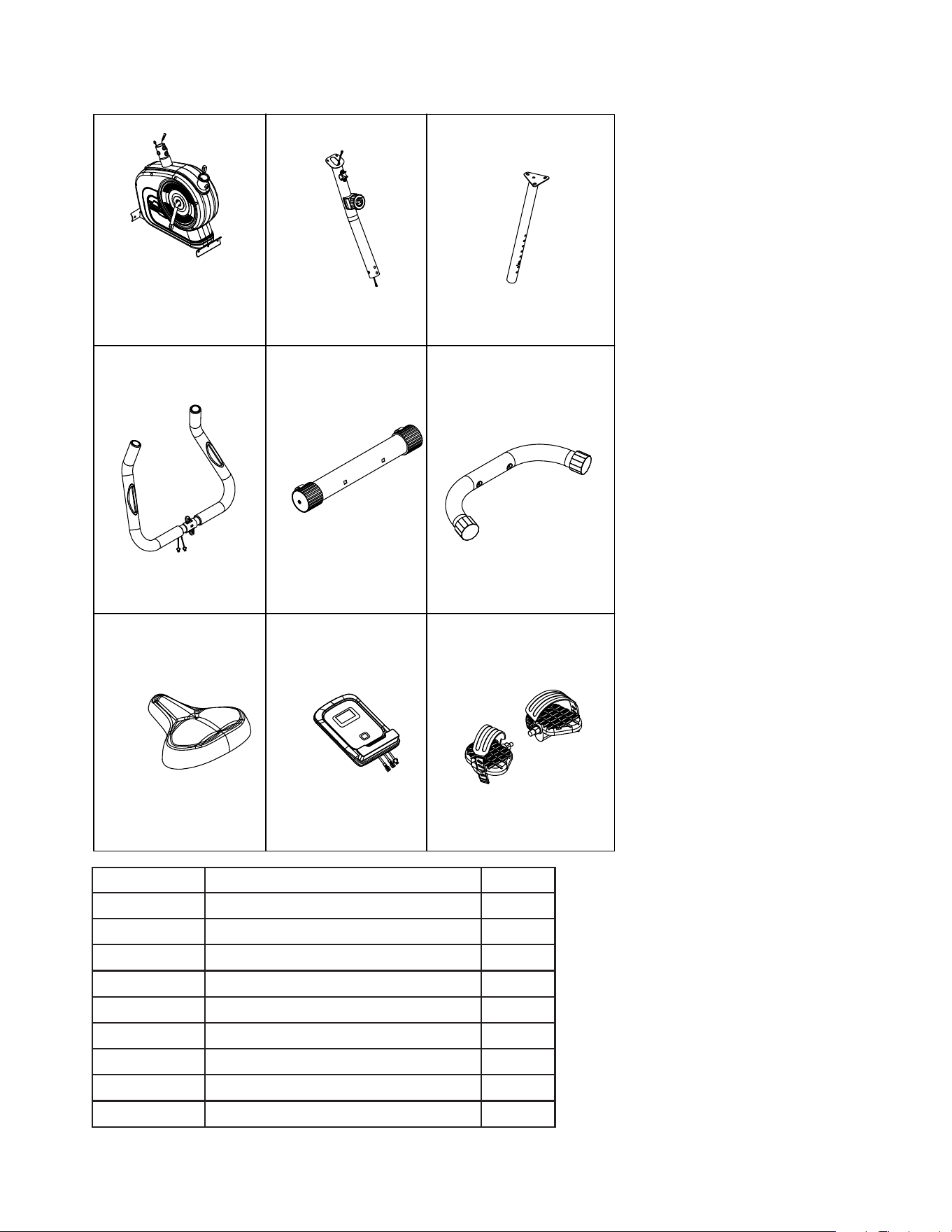

PART NO. DESCRIPTION Q’TY
01 Main Frame 1
02 Front post 1
03 Seat post 1
04 Handlebar 1
05 Front stabilizer 1
06 Rear stabilizer 1
14 Seat 1
18 Console 1
23/24 Pedal L& R 1/1
UB120 UPRIGHT BIKE
9

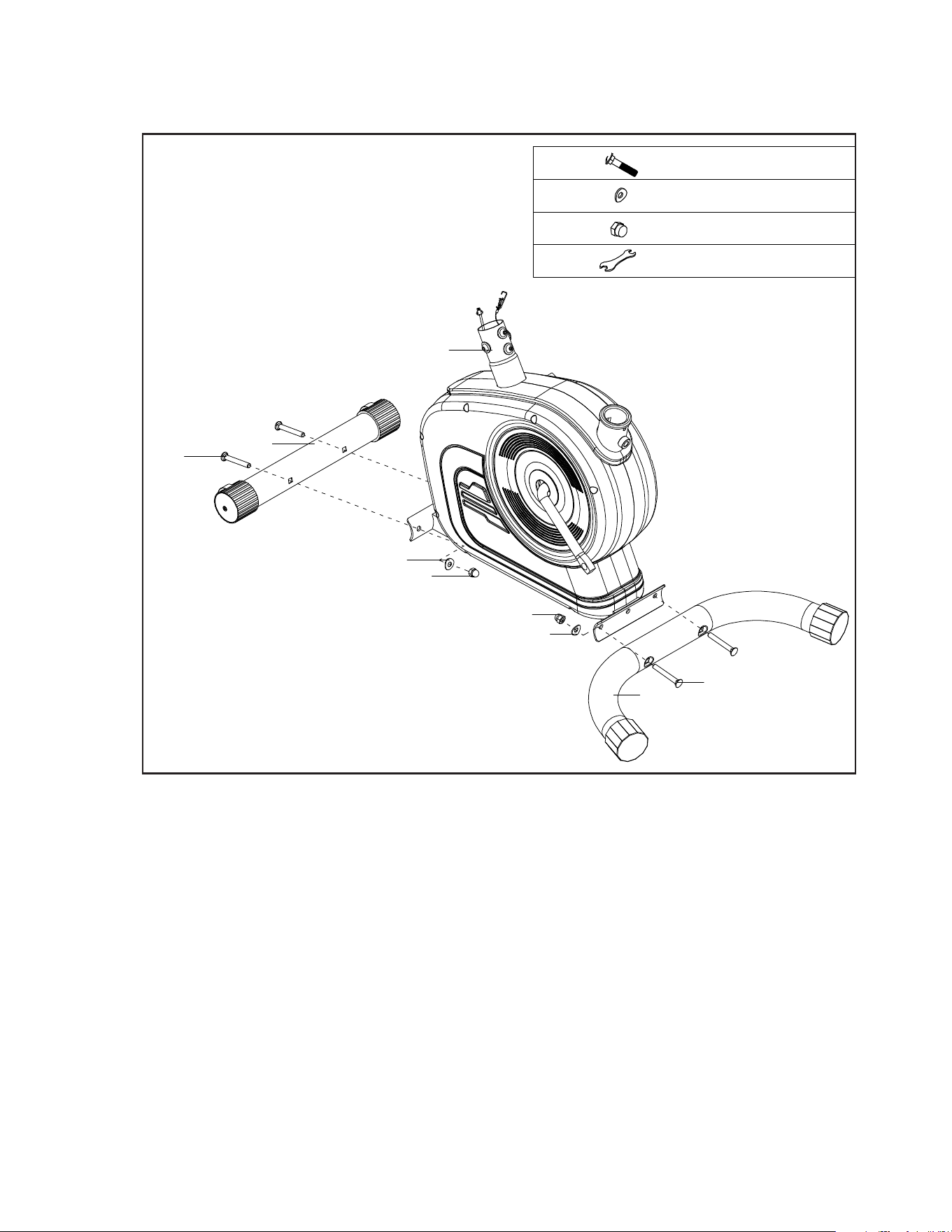

Stabilizers and Main Frame
1
1. Attach the Front Stabilizer (No. 05) to Main Frame (No. 01) using 2 Carriage
Bolts (No. 09), 2 Arc Washers (No. 19) and 2 Domed Nuts (No. 22).
2. Attach Rear Stabilizer (No. 06) to Main Frame (No. 01) using with 2 Carriage
Bolts (No. 09), 2 Arc Washers (No. 19) and 2 Domed Nuts (No. 22).
01
05
09
19
22
22
19
06
09
09
19
22
55
4pcs
4pcs
4pcs
M8 x 60L
8.5 x 20 x 1.5t
M8
Wrench
10
UB120 UPRIGHT BIKE

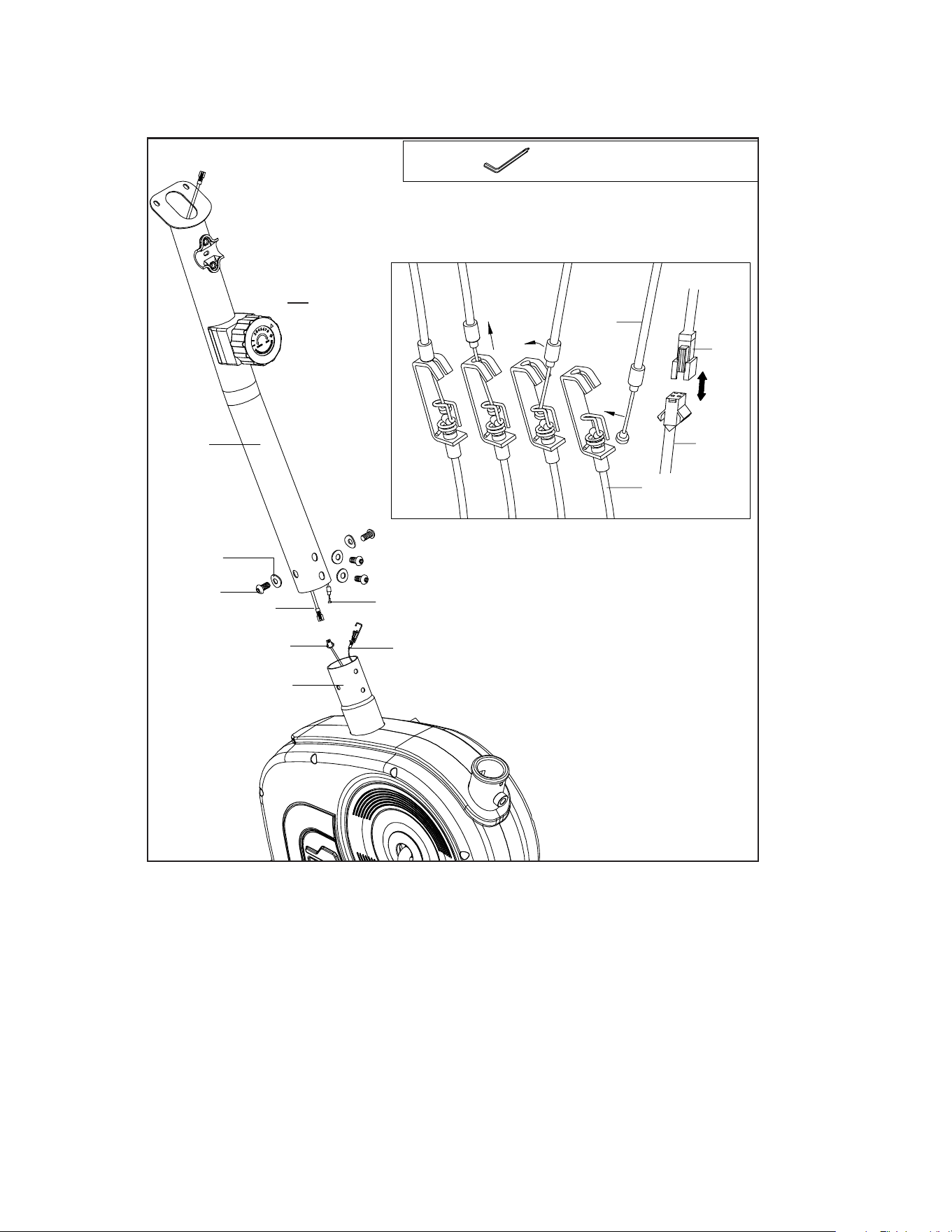

Attaching the Tension Wires and the Front Support
2
1. Remove the pre-installed 4 Allen Screws (No. 11) & 4 Arc Washers (No. 19) from
Front Post (No. 02).
2. Turn the Tension Knob (No. 20) to the 8th (highest) level, then connect it to the
Lower Tension Wire (No. 13).
3. Connect Extension Sensor Wire (No. 07) with Sensor Wire (No. 12).
4. Insert the Front Post (No. 02) into the Main Frame (No. 01) and secure with 4 Allen
Screws (No. 11) and 4 Arc Washers (No. 19).
02
19
11
07
20
13
12
01
13
12
07
20
54 Allen Key
20
UB120 UPRIGHT BIKE
11

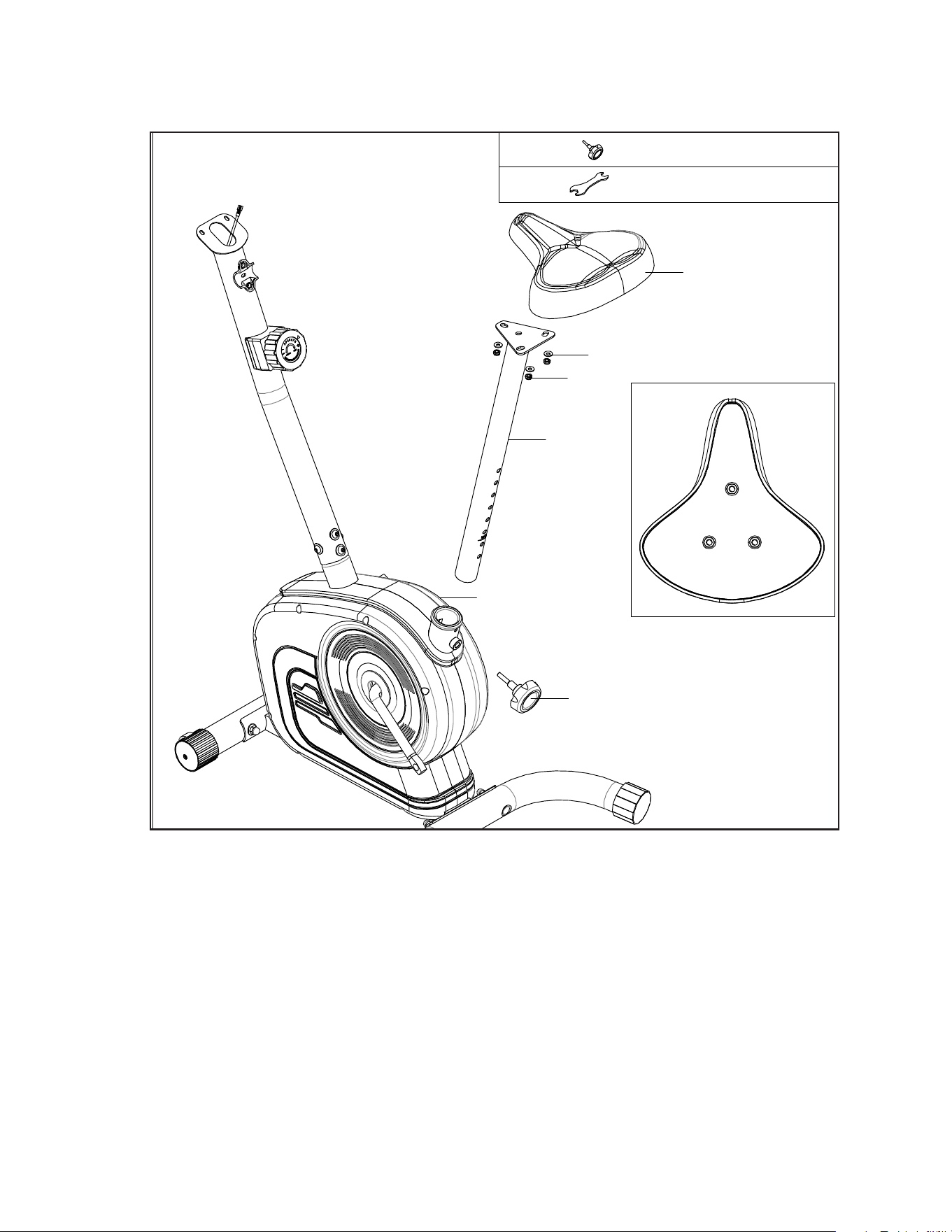

Installing the Seat
3
1. Remove the pre-installed 3 Flat Washers (No. 15) and 3 Nylon Locknuts (No.17)
from the back of Seat (No. 14) (see g. 3-1).
2. Attach the Seat (No. 14) to Seat Post (No. 03), securing with the 3 Flat Washers (No.
15) and 3 Nylon Locknuts (No. 17) which had been pre-assembled on the back of
Seat (No. 14).
3. Insert Seat Post (No. 03) into the Main Frame (No. 01). Line up the holes and fasten
the Seat Post (No. 03) in right position with Club Knob (No. 26).
26
55
14
15
17
03
01
26
Club Knob
Wrench
Fig. 3-1
12
UB120 UPRIGHT BIKE

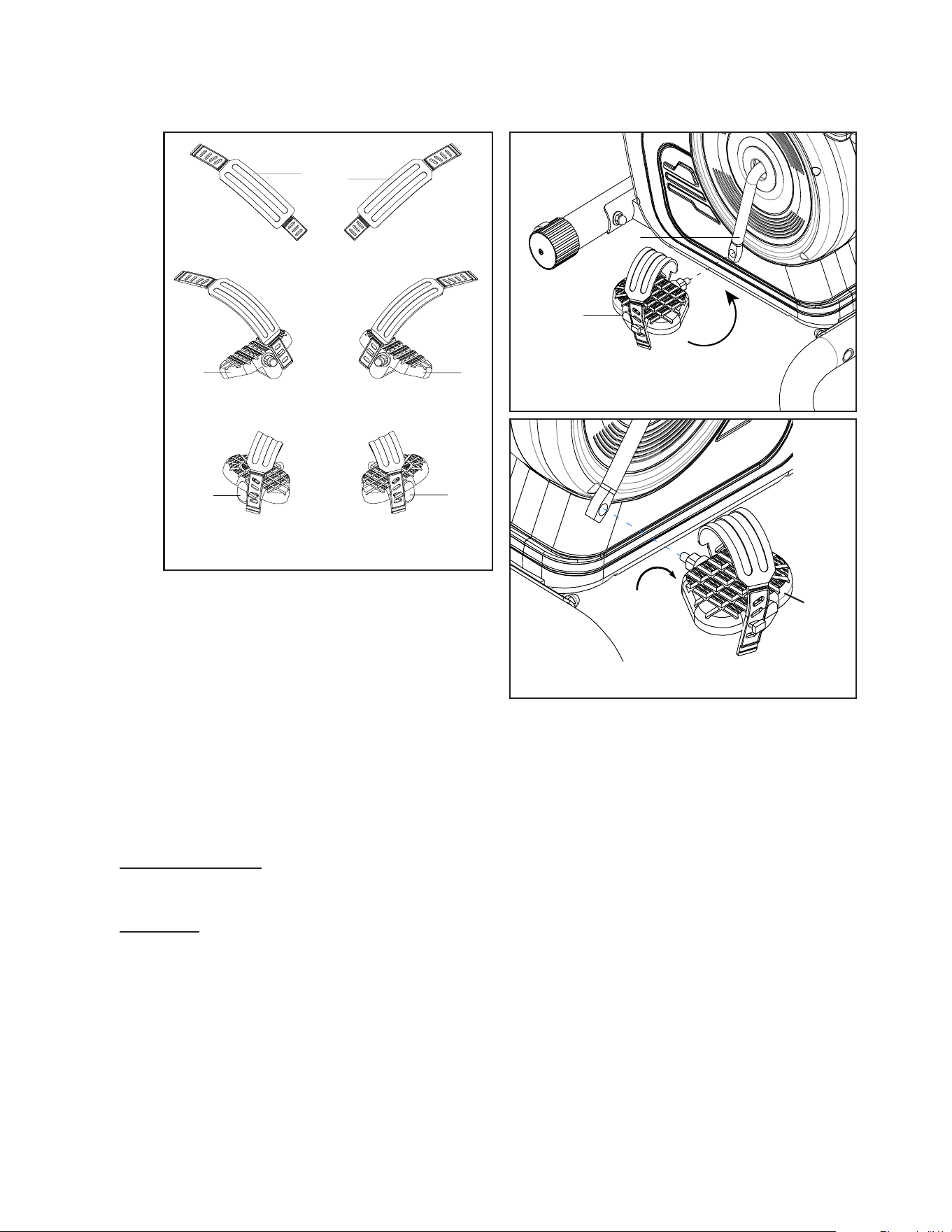

Installing the Pedals
4
1. Attach the (L) Strap to the Left Pedal (No. 23), and you can adjust the strap to the
length you need.
Use the same method to attach the (R) Strap to the Right Pedal (No. 24).
2. Connect Left Pedal (No. 23) to the left side of Crank w/ Pulley (No. 08), twist it
counterclockwise to tighten.
3. Connect the Right Pedal (No. 24) to the right side of Crank w/ Pulley (No. 08), twist it
clockwise to tighten.
NOTE: The straps should face outwards and the pedals should be mounted to their
respective sides to be functional.
L
R
23 24
24
23
24
01
23
08
55 Wrench
24
UB120 UPRIGHT BIKE
13

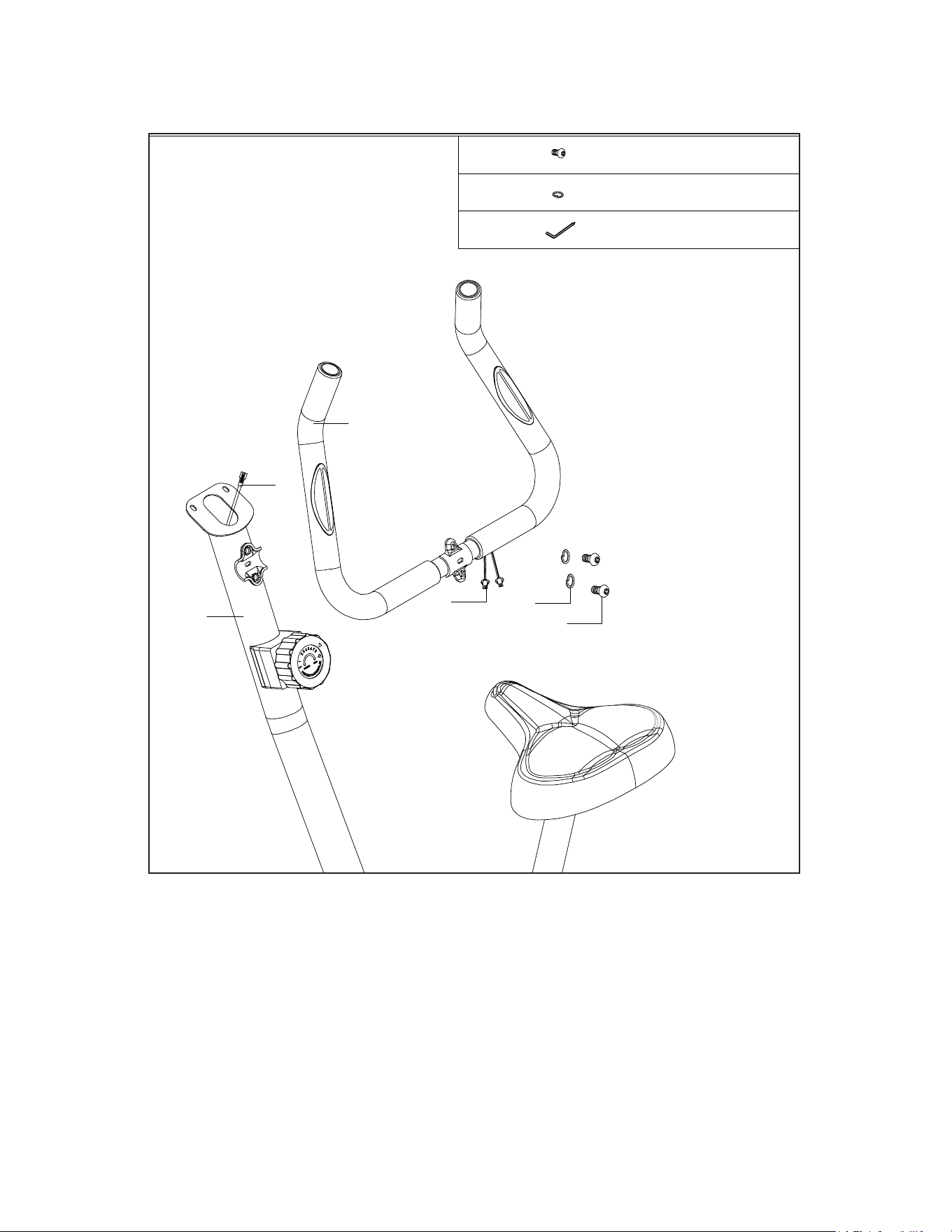

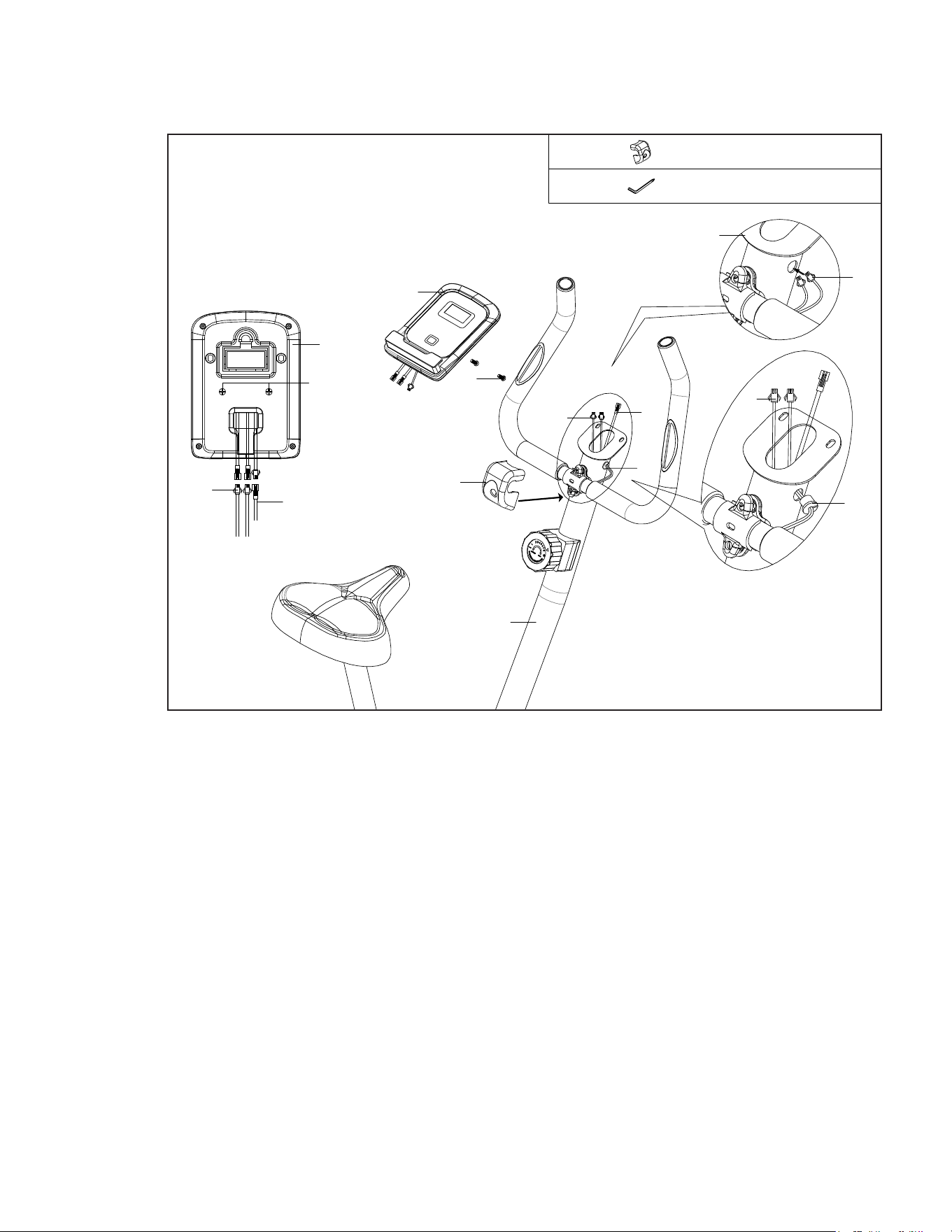

Handlebars
5
1. Connect the Handlebar (No. 04) to Front Post (No. 02), secure with 2 Spring
Washers (No. 21) and 2 Allen Screws (No. 10).
10
21
54
(2 pcs)
(2 pcs)
M8 x 30L
M8
Allen Key
04
07
02
27
21
10
14
UB120 UPRIGHT BIKE
Installing the Console
6
1. Remove the pre-installed 2 Crossed Head Screws (No. 16) from the back of
Console (No. 18), and also remove the Grommet (No. 28) from the Front Post
(No. 02).
2. Pull the Pulse Wires (No. 27) through the Grommet (No. 28) and then through
the hole of the Front Post (No. 02), nally plug the Grommet (No. 28) into the
Front Post (No. 02).
3. Connect the Pulse Wire (No. 27) and Extension Sensor Wire (No. 07) with
the wire from the Console (No. 18), then tighten the Console (No. 18) with 2
Crossed Head Screws (No. 16) to the Front Post (No. 02).
4. Press the Cover for Handlebar (No. 25) into the handlebar.
25
54
02
27
28
27
07
28
27
16
18
18
16
07
27
25
02
Handlebar Cover
Allen Key
*NOTE: CHECK TO ENSURE THAT ALL BOLTS AND NUTS ARE TIGHTENED BEFORE
USING THE MACHINE.
UB120 UPRIGHT BIKE
15
Final Considerations
• Tighten all bolts/nuts securely to complete your installation.
• The bike can be cleaned with a damp cloth and mild non-abrasive detergent. Do not use solvents.
• Make sure to tighten both pedals securely to the pedal crank arms as instructed.
• Store the bike Indoors. Excessive moisture can cause rust to the frame and damage to the
electronics.
• Place the bike in a such a way that there is room on all side of the bike to safely mount and dismount.
We recommend a minimum of 2 feet all around the bike to safely access the bike.
Adjusting Resistance
• Use the Tension Knob (No. 20) on the Front Post (No. 2) to adjust
the resistance. Level 1 is the minimum resistance.
Transporting the Bike
• There is a set of transport wheels on the Front Stabilizer. To move the bike carefully tilt
the handlebar forwards and roll away.
26
55
14
15
17
03
01
26
Club Knob
Wrench
16
UB120 UPRIGHT BIKE

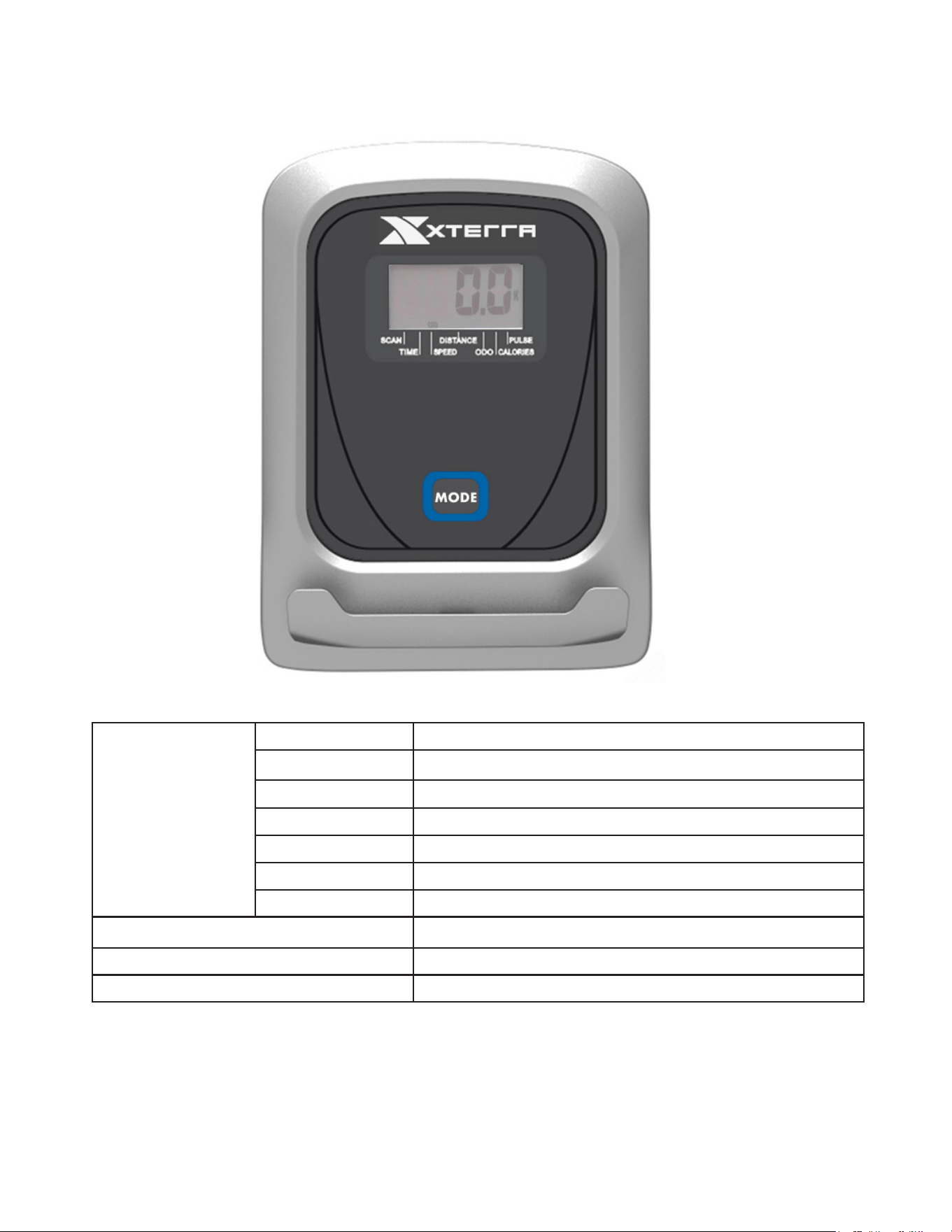

UB120 Console
Exploring Your New Bike
Getting Familiar with the Control Panel
Functions SCAN Every 6 seconds
TIME 0:00 ~ 99:59
SPEED 0.0 ~ 999.9 KM/H (MILE/H)
DISTANCE 0.00 ~ 999.9 KM (MILE)
CALORIES 0.0 ~ 999.9 CAL
ODOMETER 0.0 ~ 9999 KM (MILE)
PULSE 40 ~ 240 BPM
BATTERY TYPE 2 AAA or UM 4
OPERATING TEMPERATURE 0°C ~ +40°C, 32˚F ~ 104˚F
STORAGE TEMPERATURE -10°C ~ +60°C, 14˚F ~ 140˚F
The console turns on when you start pedaling or when you press a key.
The console turns off automatically after 4 minutes of inactivity.
UB120 UPRIGHT BIKE
17
Key Functions
Button Functions
MODE: Press to select functions. Press the button and hold for two seconds to reset all
functions to zero, except ODOMETER.
SCAN: Press MODE button until “▼” appears at SCAN position, the console displays: time,
speed, distance, calories, odometer and pulse, in sequence for 6 seconds at a time
TIME: Displays the time from exercise start to the end
SPEED: Displays the current speed
DISTANCE: Displays the distance from exercise start to the end
CALORIES: Displays the calories burned from the exercise start to the end.
The calorie readout is an estimate for an average user. It should be used only as comparison
between workouts on this unit.
ODOMETER: Display the total accumulated distance you have traveled. The odometer does
not reset unless you remove the batteries.
PULSE: Displays an average current heart beat rate in beats per minute (BPM). To use this
feature, place hands on the pulse grips and hold for 6 ~ 7 seconds to get a more accurate
reading.
Please note that due to contact delay, the heart rate will be higher than the actual heart
rate during the rst 2 ~ 3 seconds of measurement, then will return to normal level. The
measurement value shouldn’t be regarded as the basis of medical treatment.
18
UB120 UPRIGHT BIKE
Troubleshooting
Problem Solution
When display shows all 0’s, faded numbers,
incomplete numbers or blank screen
• Remove the computer and check
the wire that comes from the computer is
properly connected to the wire that comes
from the Upright.
• Check that the batteries are correctly
positioned and are in proper contact with the
battery springs.
• The batteries in the computer may
be dead. Remove and replace with new
batteries.
UB120 UPRIGHT BIKE
19
Manufacturer’s Limited Warranty
Effective September 11, 2019 - UB120 Upright Bike LIMITED WARRANTY
XTERRA Fitness Inc. warrants all its home use Upright Bike parts for a period of time listed below, from the date of retail sale, as determined
by a sales receipt or in the absence of a sales receipt, eighteen (18) months from the original factory shipping date. XTERRA Fitness’s
responsibilities include providing new or remanufactured parts, at XTERRA Fitness’s option, and technical support to our independent
dealers and servicing organizations. In the absence of a dealer or service organization, these warranties will be administered by XTERRA
Fitness directly to a consumer. The warranty period applies to the following components:
Home Use Limited WARRANTY
NORMAL RESPONSIBILITIES OF THE CONSUMER
This warranty applies only to products in ordinary household use. The consumer is responsible for the items listed below:
1. The warranty registration card must be completed and returned to the address listed on the card within 10 days of the original purchase
to validate the manufacturer’s limited warranty or register online at http://www.xterratnessstore.com/warrantyreg.html.
2. Proper use of the Upright Bike in accordance with the instructions provided in this manual, including maintenance.
3. Proper connection to a power supply of sufcient voltage, replacement of blown fuses, repair of loose connections or defects in house/
facility wiring.
4. Expenses for making the Upright Bike accessible for servicing, including any item that was not part of the Upright Bike at the time it was
shipped from the factory.
5. Damages to the Upright Bike nish during shipping, installation or following installation.
EXCLUSIONS
This warranty does not cover the following:
1. CONSEQUENTIAL, COLLATERAL, OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND INCIDENTAL EXPENSES
RESULTING FROM ANY BREACH OF THIS WRITTEN OR ANY IMPLIED WARRANTY. Note: Some states do not allow the exclusion
or limitation of incidental or consequential damages, so this limitation or exclusion may not apply to you.
2. Service call reimbursement to the consumer. Service call reimbursement to the dealer that does not involve malfunction or defects in
workmanship or material, for units that are beyond the warranty period, for units that are beyond the service call reimbursement period,
for Upright Bikes not requiring component replacement, or Upright Bikes not in ordinary household use.
3. Damages caused by services performed by persons other than authorized XTERRA Fitness service companies, use of parts other than
original XTERRA Fitness parts, or external causes such as alterations, modications, abuse, misuse, accident, improper maintenance,
inadequate power supply, or acts of God.
4. Products with original serial numbers that have been removed or altered.
5. Products that have been; sold, transferred, bartered, or given to a third party.
6. Products that are used as store display models.
7. Products that do not have a warranty registration on le at XTERRA Fitness, Inc. XTERRA Fitness reserves the right to request proof of
purchase if no warranty record exists for the product.
8. Product use in any environment other than a residential setting.
9. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES EXPRESSED OR IMPLIED, INCLUDING THE
WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR PURPOSE.
SERVICE
Keep your bill of sale. Twelve (12) months from the date on the bill of sale or eighteen (18) months from the date of factory shipping as
determined by the serial number establishes the warranty period should service be required. If service is performed, it is in your best interest
to obtain and keep all receipts. This written warranty gives you specic legal rights. You may also have other rights that vary from state to
state. Service under this warranty must be obtained by following these steps, in order:
1. Contact your selling authorized XTERRA Fitness dealer. OR
2. Contact your local authorized XTERRA Fitness service organization.
3. If there is a question as to where to obtain service, contact our service department at (800) 258-8511.
4. XTERRA Fitness’s obligation under this warranty is limited to repairing or replacing, at XTERRA Fitness’s option, the product through
one of our authorized service centers. All repairs must be preauthorized by XTERRA Fitness. If the product is shipped to a service
center freight charges to and from the service center will be the customer’s responsibility. For replacement parts shipped while the
product is under warranty, the customer will be responsible for shipping and handling charges. For in-home service, the customer
will be responsible for a trip charge. There will be an additional trip charge if the customer is located over 100 miles from the nearest
service center.
5. The owner is responsible for adequate packaging upon return to XTERRA Fitness. XTERRA Fitness is not responsible for damages in
shipping. Make all freight damage claims with the appropriate freight carrier. DO NOT SHIP ANY UNIT TO OUR FACTORY WITHOUT
A RETURN AUTHORIZATION NUMBER. All units arriving without a return authorization number will be refused.
6. For any further information, or to contact our service department by mail, send your correspondence to:
Product features or specications as described or illustrated are subject to change without notice. All warranties are made by
XTERRA Fitness, Inc. This warranty applies only in the 48 contiguous United States. NOTE: This does not apply to Alaska or Hawaii.
XTERRA Fitness, Inc.
P.O. Box 2037
Jonesboro, AR 72402-2037
Frame
1 Year
Parts Labor
1 Year None
20
UB120 UPRIGHT BIKE
UB120 UPRIGHT BIKE
21
3000 Nestle Road Jonesboro, AR 72401 - Phone: 870-336-4286 - Fax: 870-935-7611
www.xterrafitness.com
©2019 All Rights Reserved. UB120 Owner’s Manual
