1 Important
Safety
a Read these instructions.
b Keep these instructions.
c Heed all warnings.
d Follow all instructions.
e Do not use this apparatus near water.
f Clean only with dry cloth.
g Do not block any ventilation openings. Install in accordance
with the manufacturer’s instructions.
h Do not install near any heat sources such as radiators, heat
UHJLVWHUVVWRYHVRURWKHUDSSDUDWXVLQFOXGLQJDPSOLÀHUV
that produce heat.
i Protect the power cord from being walked on or pinched,
particularly at plugs, convenience receptacles, and the
point where they exit from the apparatus.
j 2QO\XVHDWWDFKPHQWVDFFHVVRULHVVSHFLÀHGE\WKH
manufacturer.
k Use only with the cart, stand, tripod,
EUDFNHWRUWDEOHVSHFLÀHGE\WKH
manufacturer or sold with the apparatus.
When a cart is used, use caution when
moving the cart/apparatus combination to
avoid injury from tip-over.
3EN
l U
nplug this apparatus during lightning storms or when
unused for long periods of time.
m 5HIHUDOOVHUYLFLQJWRTXDOLÀHGVHUYLFHSHUVRQQHO6HUYLFLQJ
is required when the apparatus has been damaged in any
way, such as power-supply cord or plug is damaged, liquid
has been spilled or objects have fallen into the apparatus,
the apparatus has been exposed to rain or moisture, does
not operate normally, or has been dropped.
n Battery usage CAUTION – To prevent battery leakage
which may result in bodily injury, property damage, or
damage to the unit:
Install all batteries correctly, + and - as marked on the
unit.
Do not mix batteries (old and new or carbon and
alkaline, etc.).
Remove batteries when the unit is not used for a long
time.
o Apparatus shall not be exposed to dripping or splashing.
p Do not place any sources of danger on the apparatus (e.g.
OLTXLGÀOOHGREMHFWVOLJKWHGFDQGOHV
q Where the MAINS plug or an appliance coupler is used as
the disconnect device, the disconnect device shall remain
readily operable.
4EN
Warning
Never remove the casing of this apparatus.
Never lubricate any part of this apparatus.
Never place this apparatus on other electrical equipment.
.HHSWKLVDSSDUDWXVDZD\IURPGLUHFWVXQOLJKWQDNHGÁDPHVRU
heat.
Never look into the laser beam inside this apparatus.
Ensure that you always have easy access to the power cord, plug
or adaptor to disconnect this apparatus from the power.
Notice
This product complies with the radio interference requirements of
the European Community.
$Q\FKDQJHVRUPRGLÀFDWLRQVPDGHWRWKLVGHYLFHWKDWDUHQRW
expressly approved by WOOX Innovations may void the user’s
authority to operate the equipment.
Your product is designed and manufactured with high quality
materials and components, which can be recycled and reused.
5EN
When this crossed-out wheeled bin symbol is attached to a
p
roduct it means that the product is covered by the European
Directive 2002/96/EC.
Please inform yourself about the local separate collection system
for electrical and electronic products.
Please act according to your local rules and do not dispose of
your old products with your normal household waste. Correct
disposal of your old product helps to prevent potential negative
consequences for the environment and human health.
Your product contains batteries covered by the European
Directive 2006/66/EC, which cannot be disposed with normal
household waste.Please inform yourself about the local rules on
separate collection of batteries because correct disposal helps to
prevent negative consequences for the environmental and human
health.
Environmental information
All unnecessary packaging has been omitted. We have tried
to make the packaging easy to separate into three materials:
cardboard (box), polystyrene foam (buffer) and polyethylene
(bags, protective foam sheet.)
Your system consists of materials which can be recycled and
reused if disassembled by a specialized company. Please observe
the local regulations regarding the disposal of packaging materials,
exhausted batteries and old equipment.
6EN
The making of unauthorized copies of copy-protected material,
L
QFOXGLQJFRPSXWHUSURJUDPVÀOHVEURDGFDVWVDQGVRXQG
recordings, may be an infringement of copyrights and constitute
a criminal offence. This equipment should not be used for such
purposes.
This apparatus includes this label:
7EN
2 Your clock radio
Congratulations on your purchase, and welcome to Philips! To fully
EHQHÀWIURPWKHVXSSRUWWKDW3KLOLSVRIIHUVUHJLVWHU\RXUSURGXFW
at www.philips.com/welcome.
Introduction
With this clock radio, you can:
Enjoy the FM radio
Know the time
Wake up to buzz, favorite radio tone, or recorded sound
Set two alarms to ring at different time.
What’s in the box
Check and identify the contents of your package:
Main unit x 1
AC power adaptor x 1
Decorative ring x 1
Knob x 2
User manual x 1
8EN
User Manual
9EN

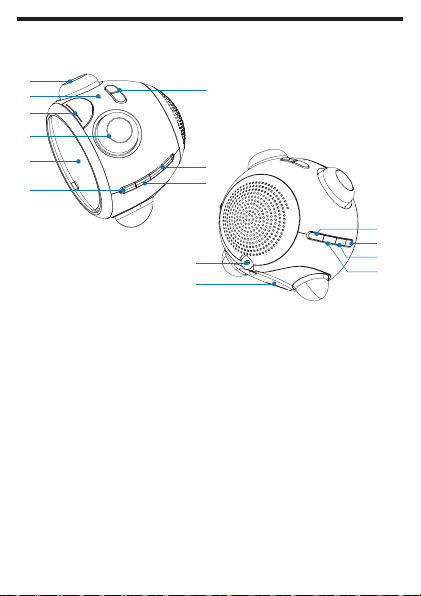

Overview of the main unit
a volume
Adjust volume.
b mic
Built-in microphone.
c repeat alarm/brightness control
Repeat the alarm.
Adjust the display brightness.
d tuning
Tune to a radio station.
e Display panel
k
j
i
c
a
b
d
e
f
m
n
o
l
h
g
10 EN
f ra
dio
Turn on/off the radio.
g Battery compartment
Antenna (Inside the battery compartment)
h AC IN jack
i set/scan
Set the clock.
Scan radio stations.
Program radio stations.
j +/-
Tune to a radio station.
Select a preset radio station.
Adjust time.
Select time format.
k
/
Set the alarm timer.
View the alarm time.
Turn on/off the alarm.
l rec/play
Record a piece of sound.
Play the recorded sound.
m display
Display information.
n nap
Select the nap time.
o sleep
Set sleep timer.
11EN
3 Get started
Always follow the instructions in this chapter in sequence.
Install batteries
Caution
Risk of explosion! Keep batteries away from heat, sunshine or
ÀUH1HYHUGLVFDUGEDWWHULHVLQÀUH
Risk of product damage! When the apparatus is not used for
long periods, remove the battery.
Batteries contain chemical substances, so they should be
disposed of properly.

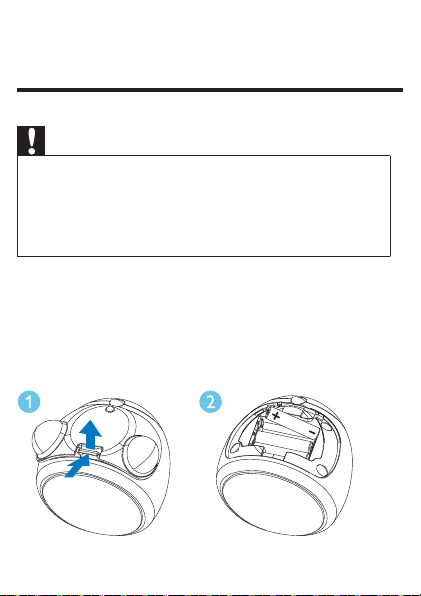

1 Open the battery compartment.
2 Insert 3 AAA batteries (not supplied) with correct polarity
(+/-) as indicated.
» The screen lights up for 5 seconds.
3 Close the battery compartment.
12 EN
Tip
When the unit is powered by battery, the screen lights up for 5
seconds after any operation.
Connect power
Caution
Risk of product damage! Ensure that the power supply
voltage corresponds to the voltage printed on the back or the
underside of the apparatus.
Risk of electric shock! When you unplug the AC power cord,
always pull the plug from the socket. Never pull the cord.
Before connecting the AC power cord, ensure you have
completed all other connections.
1 Connect the power cord to
the AC IN jack on the back of the main unit.
the power socket.
13EN
Set time and date
1 In clock mode, press set/scan.
» The hour digits begin to blink.
2 Press +/- to set hour.
3 Press set/scanWRFRQÀUP
4 Repeat steps 2-3 to set the minute.
5 Repeat steps 2-3 to select 12 hour or 24 hour format.
6 Repeat steps 2-3 to set the year.
7 Repeat steps 2-3 to set the date.
8 Repeat steps 2-3 to set the month-day display mode.
14 EN
4 Listen to radio
Tune to a radio station
1 Press radio to turn on the radio.
2 Rotate tuning clockwise or counter-clockwise to tune to a
radio station.
Program radio stations automatically
Note
You can program a maximum of 20 preset radio stations.
1 Press radio repeatedly to turn on the radio.
2 Press and hold set/scan for 2 seconds.
» All available stations are programmed in the order of
waveband reception strength.
» 7KHÀUVWSURJUDPHGUDGLRVWDWLRQEURDGFDVWVDXWRPDWLFDOO\
Program radio stations manually
Note
You can program a maximum of 20 preset radio stations.
1 Press radio repeatedly to turn on the radio.
15EN
2 Rotate tuning clockwise or counter-clockwise to tune to a
radio station.
3 Press set/scan.
» The number begins to blink.
4 Press +/- repeatedly to select a preset number.
5 Press set/scanWRFRQÀUP
6 Repeat the above steps to program more stations.
Tip
To overwrite a programmed station, program another station
in its place.
Select a preset radio station
1 Press radio to turn on radio.
2 Press +/- to select a radio station.
16 EN
5 Set the alarm timer
You can set two separate alarms. For the alarm tone, you can
select the buzz, the FM radio, or a piece of recorded sound.
1 Before you start, ensure that the time is set correctly.

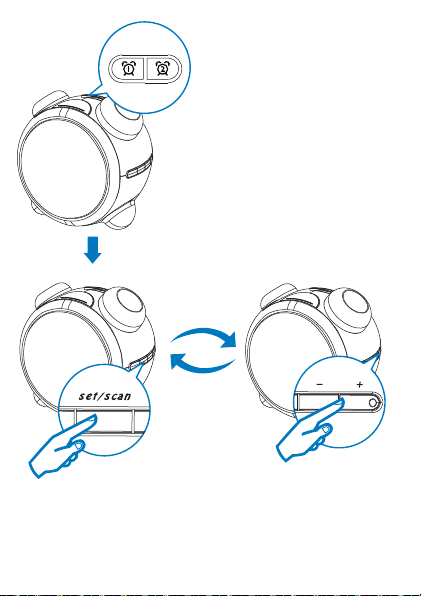

2 Press / .
»
or is displayed.
3 Press set/scan.
» The hour digits begin to blink.
4 Press +/- to set the hour.
5 Press set/scanWRFRQÀUP
» The minute digits begin to blink.
6 Repeat steps 3-5 to set the minute.
7 Repeat steps 3-5 to select select whether to ring alarm for
the whole week, on weekdays, or at weekend.
8 Repeat steps 3-5 to select an alarm source: buzz, radio, or
recorded sound.
» The apparatus turns on automatically at the set time and
rings with buzz or radio or recorded sound.
17EN
18 EN
Tip
You can also press and hold / to start alarm setting.
The gentle wake-up function is designed for buzzer/radio
source only.
7RDGMXVWYROXPHIRUWKHUDGLRVRXUFHH[LWWKHDODUPPRGHÀUVW
Turn on/off the alarm timer
Note
Ensure that you already set the alarms successfully.
Press or repeatedly to turn on or off the alarm timer.
» If the alarm timer is turned on,
or appears.
» If the alarm timer is turned off,
or disappears.
Repeat alarm
1 When the alarm rings, press repeat alarm/brightness
control.
» The alarm repeats ringing minutes later.
Tip
You can press repeat alarm/brightness control again to adjust
interval to repeat alarm (5, 10, 15, 20, 25, or 30 minutes).
19EN
Stop alarm ring
1 When the alarm rings, press the corresponding or .
» The alarm stops but the alarm settings remain.
View the alarm settings
1 Press / or display.
20 EN
6 Other features
Set the sleep timer
You can set the clock radio to turn off automatically after a certain
period of time.
1 Press sleeprepeatedly to select time (in minutes).
» The apparatus turns off automatically after the set period
of time.
To turn off the sleep timer:
1 Press sleeprepeatedly until [OFF] (off)appears or press
radio.
»
is displayed when sleep timer is on and disappears
when it is off.
Set nap timer
1 Press nap repeatedly to select the nap time (in minutes).
» The alarm rings after the set period of time.
To turn off the nap timer
1 Press nap repeatedly until [OFF] is displayed.
Record a piece of sound
Note
You can record for a maximum of 8 seconds.
21EN
1 Press and hold rec/play during the whole process of
recording.
» [
REC] is displayed.
» When the sound is recorded,
is displayed.
Tip
Keep the sound source close to mic on the top of the unit.
To play the recorded sound, press rec/play.
»
is displayed.
Adjust the volume level
1 Rotate volume to increase/decrease the volume level.
Adjust display brightness
1 Press repeat alarm/brightness control repeatedly to turn
on/off the backlight of the display.
Activate the backlight blinking function
1 Press and hold repeat alarm/brightness control for 5
seconds.
» The backlight blinks.
» When the alarm rings next time, the backlight blinks for
3 minutes.
22 EN
To deactivate the backlight blinking function
1 Press and hold repeat alarm/brightness control for 5
seconds again.
Change the decorative ring and knobs
Note
You can change the decorative ring and knobs with the supplied
ring and knobs.

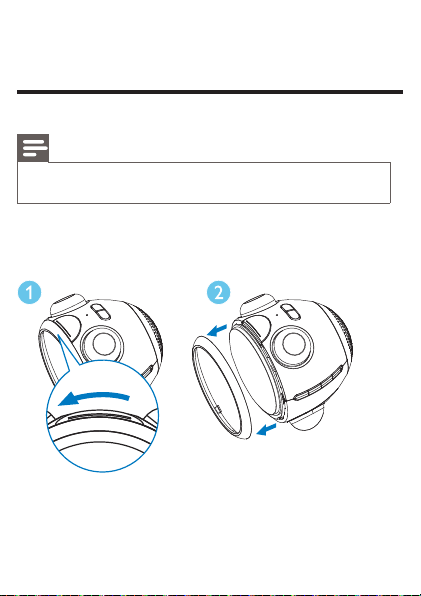

To change the decorative ring
1 Rotate the ring counter-clockwise.
» The ring separates from the main unit.

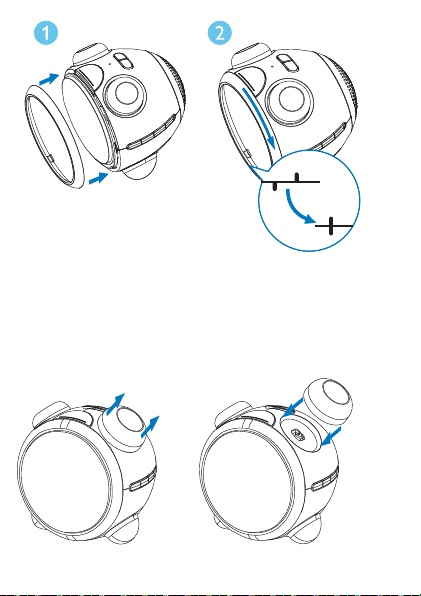

2 Place the ring to be installed onto the main unit.
23EN
3 Rotate the ring clockwise.
» The ring is installed.
To change the knobs
1 Pull the knobs directly out of the socket.
2 Plug the knobs to be installed into the sockets.
24 EN
7 Product information
Note
Product information is subject to change without prior notice.
6SHFLÀFDWLRQV
7XQHU)0
Tuning Range 87.5 - 108MHz
Tuning gr id 50 KHz
Sensitivity
- Mono, 26dB S/N Ratio
<22 dBf
Search Selectivity <32 dBf
Total Harmonic Distortion <3%
Signal to Noise Ratio >50dB
General information
Power - AC: Model: BA3514050018G
Input: 230 - 240V~ ,50Hz,
20 mA,
Output: 5V~, 180 mA
- DC: 3 x AAA batteries
25EN
Operation Power
Consumption
2W
Standby Power Consumption <0.5W
Dimensions
- Main Unit (W x H x D) 103 x 102 x 103 mm
Weight
- With Packing
- Main Unit
0.6 kg
0.3 kg
26 EN
8 Troubleshooting
Caution
Never remove the casing of this apparatus.
To keep the warranty valid, never try to repair the system yourself.
If you encounter problems when using this apparatus, check the
following points before requesting service. If the problem remains
unsolved, go to the Philips web site (www.philips.com/support).
When you contact Philips, ensure that your apparatus is nearby
and the model number and serial number are available.
No power
Ensure that the Mains cord is connected securely.
Ensure that there is power at the AC Mains.
Ensure that the batteries are inserted correctly.
No sound
Adjust the volume.
No response from the unit
Disconnect and reconnect the AC power plug, then turn on
the unit again.
Poor radio reception
Increase the distance between the apparatus and your TV
or VCR.
Fully extend the antenna.
Connect an outdoor antenna instead.
Timer does not work
Set the clock correctly.
Switch on the timer.
27EN
Clock/timer setting erased
Po
wer has been interrupted or the power plug has been
disconnected.
Reset the clock/timer.
2013 © WOOX Innovations Limited.
All rights reserved.
This product was brought to the market by WOOX
Innovations Limited or one of its affiliates, further referred
to in this document as WOOX Innovations, and is the
manufacturer of the product. WOOX Innovations is the
warrantor in relation to the product with which this booklet
was packaged. Philips and the Philips Shield Emblem are
registered trademarks of Koninklijke Philips N.V.
AJ3138_05_UM_V1.0
