- Remove your old thermostat
- Label wires and remove old wallplate
- Mark mounting position
- Mount thermostat base
- Connect wires
- Set adjustment lever (CT30/CT31 only)
- Finish installation
- Operation
- 1-year limited warranty
Table of contents
Owner’s Manual for Thermostat
Remove your old thermostat
TURN OFF POWER at heating/cooling system (or fuse/circuit-breaker panel). Remove cover and thermostat, but leave wallplate with wires attached.
Leave wallplate in place.
Is there a sealed tube containing mercury? If so, see mercury notice below.
MERCURY NOTICE If your old thermostat contains mercury, contact your local waste management authority for proper disposal instructions.

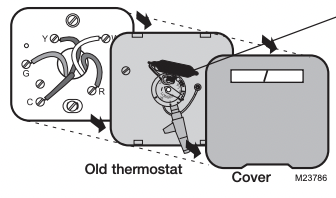

Label wires and remove old wallplate
Use a screwdriver to disconnect wires one by one. As you disconnect each wire, wrap it with the label matching the letter on your old thermostat. (Adhesive labels are supplied in your thermostat package.)
Remove the old wallplate only after all wires are labeled. Be careful not to let loose wires fall into the wall opening
Wrap supplied labels securely around each wire. Do not let wires fall into wall opening!
IGNORE WIRE COLORS: Use only letter designations to identify wire types.
For CT30/CT33: If your old thermostat has 3 or more wires (not counting terminals C or C1), you may have purchased the wrong replacement thermostat. Stop now and call 1-800-468-1502 for advice.
Mark mounting position
- Pull wires through base (CT31 only).
- Level base if desired.
- Mark positions of both screw holes.

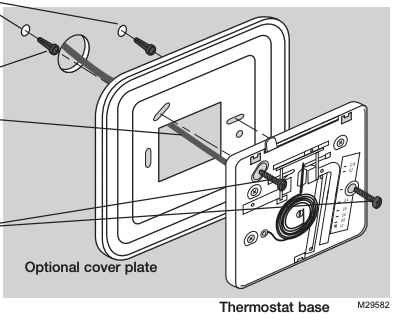

Mount thermostat base
- Drill holes at pencil-marked locations (3/16” holes for drywall, 7/32” holes for plaster).
- Use hammer to tap anchors into holes until flush with wall.
- Optional: Pull wires through cover plate (if needed to cover marks left by your old thermostat).
- Connect wires first (see page then insert screws. Check level if desired, then tighten screws.

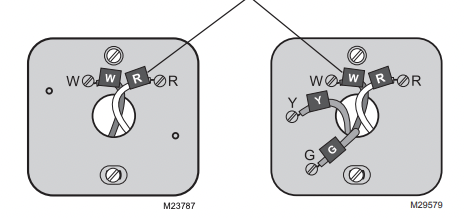

Connect wires
- Match each labeled wire with same letter on terminal.
- Use a screwdriver to loosen screw terminals, insert bare wires beneath screws, then tighten screws.
- Push any excess wire back into the wall opening.
Labels don't match?
If labels do not match letters on thermostat, see table below.
Connect to
[1] If this wire is present, you may have purchased the wrong thermostat. Call 1-800-468-1502 for help
Set adjustment lever (CT30/CT31 only)

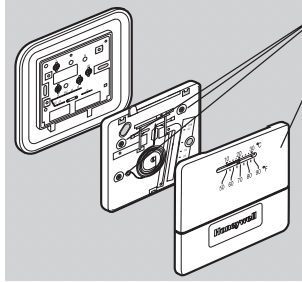

- Separate cover from thermostat, and remove the insert.
- Use a pencil to move the adjustment lever to the proper setting for your system (see table below).
|
Finish installation
- Mount thermostat on base and tighten three mounting screws (CT31 only).
- Align the 3 tabs on the cover with slots on the thermostat, then push gently until the cover snaps into place.
- Restore power at the heating/cooling system, or at the fuse/circuit-breaker panel.

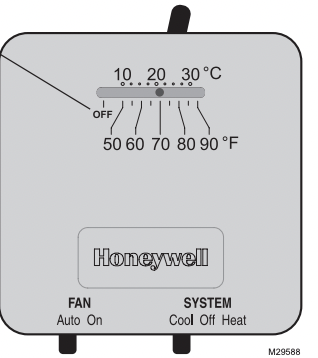

Operation
System off (select models)
Move lever to far left to turn off heating system.
Temperature setting
Adjust to set desired indoor temperature.
Fan switch (CT31)
- Auto: Fan runs only when heating or cooling system is on.
- On: Fan runs continuously.
System switch (CT31)
- Cool: Controls the cooling system.
- Heat: Controls the heating system.
- Off: All systems are off.
CAUTION: EQUIPMENT DAMAGE HAZARD (CT31). Do not operate cooling system when outdoor temperature is below 50°F (10°C).
