Frigidaire.com USA 1-800-374-4432 Frigidaire.ca Canada 1-800-265-8352
use
&
care
REFRIGERATOR
Introduction .......................................................2
Important Safety Information ....................3
Features ..............................................................7
Installation .........................................................8
Door Removal ................................................. 10
Door Handle Installation .............................14
Water Supply Connection .......................... 15
Controls and Settings .................................. 17
Automatic Ice and Water Dispenser ..... 22
Storage Features .......................................... 25
Storing Food and Saving Energy ........... 29
Normal Operating Sounds ........................30
Filter Replacement ....................................... 31
Care and Cleaning .......................................34
Troubleshooting ............................................ 36
Limited Warranty .......................................... 41
A21060101 (September 2021)
INTRODUCTION
Doors
Handles are secure and tight
Door seals completely to cabinet on
all sides
Leveling
Refrigerator is level side-to-side and
slightly elevated in front to assist
with door and drawer closing (front
should be higher than back)
Cabinet is setting solid on all corners
Electrical Power
House power turned on
Refrigerator plugged in
Ice Maker
House water supply connected to
refrigerator (Warning: Potable water
supply only.)
No water leaks present at all
connections - recheck in 24 hours
Ice maker is turned ON
Ice & water dispenser operates
correctly
Final Checks
Shipping material removed
Fresh food and freezer temperatures set
Registration submitted
Installation Checklist
Welcome to our
family
Thank you for bringing Frigidaire into
your home! We see your purchase as the
beginning of a long relationship together.
This manual is your resource for the use
and care of your product. Please read
it before using your appliance. Keep it
handy for quick reference. If something
doesn’t seem right, the troubleshooting
section will help you with common issues.
FAQs, helpful tips and videos, cleaning
products, and kitchen and home accessories
are available at Frigidaire.com.
We are here for you! Visit our website,
chat with an agent, or call us if you need
help. We may be able to help you avoid
a service visit. If you do need service, we
can get that started for you.
Let’s make it ocial! Be sure to register
your product.
Keep your product info here so it’s easy
to find.
Model Number
Serial Number
Purchase Date
jfdka; jfdk;a jfdk; jfdk;a j;da
jfdka; jfdk;a jfdk; jfdk;a j;da
Serial Number Location
2
WARNING
WARNING indicates a potentially
hazardous situation which, if not
avoided, could result in death or serious
injury.
IMPORTANT
IMPORTANT indicates installation, oper-
ation or maintenance information which
is important but not hazard-related.
DANGER
DANGER indicates an imminently
hazardous situation which, if not
avoided, will result in death or serious
injury.
CAUTION
CAUTION indicates a potentially
hazardous situation which, if not
avoided, may result in minor or
moderate injury.
Safety Definitions
This is the safety alert symbol. It is
used to alert of potential personal injury
hazards. Obey all safety messages that
follow this symbol to avoid possible injury
or death.
WARNING
CALIFORNIA RESIDENTS ONLY
Cancer and Reproductive Harm
www.P65Warnings.ca.gov
3
IMPORTANT SAFETY INFORMATION
WARNING
Please read all instructions before using
this refrigerator.
DANGER
DANGER Risk of fire or explosion.
Flammable refrigerant used. Do not use
mechanical devices to defrost refrigera-
tor. Do not puncture refrigerant tubing.
DANGER Risk of fire or explosion.
Flammable refrigerant used. To be
repaired only by trained service person-
nel. Use only manufacturer-authorized
service parts. Any repair equipment
used must be designed for flammable
refrigerants. Follow all manufacturer
repair instructions. Do not puncture
refrigerant tubing.
CAUTION
CAUTION Risk of fire or explosion.
Dispose of refrigerator properly
in accordance with the applicable
federal or local regulations. Flammable
refrigerant used.
CAUTION Risk of fire or explosion
due to puncture of refrigerant tubing.
Follow handling instructions carefully.
Flammable refrigerant used.
4
IMPORTANT SAFETY INFORMATION
Safety Instructions
• DO NOT store or use gasoline, or
other flammable liquids in the vicinity
of this or any other appliance. Read
product labels for warnings regard-
ing flammability and other hazards.
• DO NOT operate the refrigerator in
the presence of explosive fumes.
• Avoid contact with any moving parts
of automatic ice maker.
• Remove all staples from the carton.
Staples can cause severe cuts, and
also destroy finishes if they come in
contact with other appliances
or furniture.
IMPORTANT
CFC/HCFC Disposal
Some old refrigerators may have a cool-
ing system that used CFCs or HCFCs
(chlorofluorocarbons or hydrochloro-
fluorocarbons). CFCs and HCFCs are
believed to harm stratospheric ozone if
released to the atmosphere. Other re-
frigerants may also cause harm to the en-
vironment if released to the atmosphere.
If disposing of an old refrigerator, make
sure the refrigerant is removed for proper
disposal by a qualified technician. Inten-
tionally released refrigerant may subject
one to fines and imprisonment under
provisions of environmental legislation.
Before disposing of an old refrigerator/
freezer:
• Remove doors.
• Leave shelves in place so children
may not easily climb inside.
• Have refrigerant removed by a
qualified service technician.
WARNING
Do not use electrical appliances inside
the food storage compartments of the
appliance unless they are of the type
recommended by the manufacturer.
Child Safety
Destroy or recycle the carton, plastic
bags, and any exterior wrapping material
immediately after the refrigerator is
unpacked. Children should NEVER use
these items to play. Cartons covered with
rugs, bedspreads, plastic sheets or stretch
wrap may become airtight chambers, and
can quickly cause suocation.
Proper Disposal of Refrigerator
or Freezer
Risk of child entrapment
Child entrapment and suocation are not
problems of the past. Junked or aban-
doned refrigerators or freezers are still
dangerous – even if they will sit for “just
a few days”. When disposing of an old
refrigerator or freezer, please follow the in-
structions below to help prevent accidents.
Proper Disposal of Refrigerators/Freezers
We strongly encourage responsible appli-
ance recycling/disposal methods. Check
with the utility company or visit energy-
star.gov/recycle for more information on
recycling an old refrigerator.
5
IMPORTANT SAFETY INFORMATION
Grounding type wall receptacle
Power cord with
3-prong grounded plug
Do not, under
any circumstances,
cut, remove,
or bypass the
grounding prong.
Electrical information
• The refrigerator must be plugged
into its own dedicated 115 Volt, 60
Hz., 15 Amp, AC only electrical outlet.
The power cord of the appliance
is equipped with a three-prong
grounding plug for protection against
electrical shock hazards. It must
be plugged directly into a properly
grounded three prong receptacle.
The receptacle must be installed in
accordance with local codes and
ordinances. Consult a qualified
electrician. Avoid connecting
refrigerator to a Ground Fault
Interrupter (GFI) circuit. Do not use
an extension cord or adapter plug.
• If the power cord is damaged, it
should be replaced by an authorized
service technician to prevent any risk.
• Never unplug the refrigerator by
pulling on the power cord. Always
grip the plug firmly, and pull straight
out from the receptacle to prevent
damaging the power cord.
• Unplug the refrigerator before
cleaning and before replacing a light
bulb to avoid electrical shock.
• Performance may be aected if
the voltage varies by 10% or more.
Operating the refrigerator with
insucient power can damage the
compressor. Such damage is not
covered under the warranty.
• Do not plug the unit into an electrical
outlet controlled by a wall switch or
pull cord to prevent the refrigerator
from being turned o accidentally.
FCC Interference Statement
This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection
against harmful interference in a residential
environment. This equipment generates, uses,
and can radiate radio frequency energy and, if
not installed and used in accordance with the
instructions, may cause harmful interference
to radio communications. However, there is no
guarantee that interference will not occur in a
particular installation. If this equipment does
cause harmful interference to radio or television
reception, which can be determined by turning the
device o and on, the user is encouraged to try
to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the device and receiver.
• Connect the equipment into an outlet other than the one used for the receiver.
• Consult the dealer or an experienced radio/TV technician for assistance.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
This device must accept any interference received, including interference that may
cause undesired operation.
FCC CAUTION: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment.
Host Device Labeling
This device includes the following module. Contains FCC ID: 2AIBX-NIU5L
RF Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum 20 cm
between the radiator and your body. This transmitter must not be collocated or operating
in conjunction with any other antenna or transmitter unless authorized to do so by the FCC.
Industry Canada (IC) Statement
This Class B digital apparatus complies with Canadian ICES-003.
This device complies with Industry Canada license-exempt RSS standard(s). Operation
is subject to the following two conditions: (1) this device may not cause interference,
and (2) this device must accept any interference, including interference that may cause
undesired operation of the device.
RF Exposure
The antenna (or antennas) must be installed so as to maintain at all times a distance
minimum of at least 20 cm between the radiation source (antenna) and any individual. This
device may not be installed or used in conjunction with any other antenna or transmitter.
Host device Labeling
This device includes the following module. Contains IC: 21700-NIU5L
Host dispositif d’étiquetage
Ce dispositif inclut le module suivant. Contient module émetteur IC: 21700-NIU5L
Disclaimer: “The software in this product contains components that are based on free
and open source software. Electrolux gratefully acknowledges the contributions of
the open software and robotics communities to the development project.
To access the source code of these free and open source software components whose license
conditions require publishing, and to see their full copyright information and applicable license
terms, please visit: http://electrolux.opensoftwarerepository.com (folder NIU5)”
IMPORTANT SAFETY INFORMATION
6
IMPORTANT
Accessories are available for refrigerator and can be purchased at Frigidaire.com or
by calling 1-800-374-4432.
7
FEATURES
A Anti-tip Leg
B Lower Freezer Basket
C Upper Freezer Basket
D Custom-Flex™ Temp Drawer
E Ice/Water Dispenser
F External Appliance Control Display
G Adjustable Hinges
H Door Bin
I Flipper Mullion
J Ice Chute
K Ice Maker
L Flipper Guide
M Water Filter
N Dairy Compartment
O Air Filter
P Shelves
Q Adjustable Door Bin
R
CrispSeal
�
Fresh Crispers
S Gallon Door Bins
A
B
C
D
G
E
H
J
I
K O
N
P
Q
R
A
M
L
P
P
H
F
G
S
S
H
CAUTION
Do Not install the refrigerator where
the temperature will drop below 55°F
(13°C) or rise above 110°F (43°C).
The compressor will not be able to
maintain proper temperatures inside
the refrigerator.
WARNING
This appliance is intended to be used
in household and similar applications
such as:
• sta kitchen areas in shops, oces
and other working environments;
• farm houses and by clients in hotels,
motels and other residential type
environments;
• bed and breakfast type environments;
• catering and similar non-
retail applications.
WARNING
Installation
Allow the following clearances
for ease of installation, proper air
circulation, and plumbing and electrical
connections:
Sides & Top ⅜ inch (9.5 mm)
Back 1 inch (25.4 mm)
8
INSTALLATION
This Use & Care Manual provides general
installation and operating instructions for
this model. We recommend using a service
or kitchen contracting professional to
install the refrigerator. Use the refrigerator
only as instructed in this Use & Care
Manual. Before starting the refrigerator,
follow these important first steps.
Location
• Choose a place that is near a
grounded, non-GFCI, electrical outlet.
Do Not use an extension cord or an
adapter plug.
• If possible, place the refrigerator
out of direct sunlight and away from
the range, dishwasher, or other heat
sources.
• The refrigerator must be installed
on a floor that is level and strong
enough to support a fully loaded
refrigerator.
• Consider water supply availability for
models equipped with an automatic
ice maker.
Door opening
The refrigerator should be positioned
to allow easy access to a counter
when removing food. For best use of
refrigerator drawers and freezer baskets,
the refrigerator should be in a position
where both can be fully opened.
Tools Necessary:
Phillips Head
or
Quadrex Head
Screwdriver
(OR)
OR
8mm Socket
Wrench
Adjustable
Wrench
OR
⅜"
Fixed
Wrench
ANDAND
6mm
Allen Wrench
NOTE
If the refrigerator is placed with the
door hinge side against a wall, allow
additional space so the door can be
opened wider.
9
INSTALLATION
Cabinet Leveling & Refrigerator
Door Alignment (if necessary)
Guidelines for final positioning of refrigerator:
• All four corners of the cabinet must
rest firmly on the floor.
• The front should be slightly elevated
to ensure that doors close and
seal properly.
• Doors should align with each other
and be level.
Most of these conditions can be met by
raising or lowering the adjustable anti-tip legs.
To level the cabinet using the anti-tip legs:
1. Slightly open freezer drawer.
2. Lower anti-tip legs until they are
both touching the floor. Use a pair of
pliers to adjust.
To raise unit: turn leg clockwise
(as shown).
To lower unit: turn leg counterclockwise.
Raise
Flipper Mullion
Adjust the flipper mullion for proper
connection with the mullion guide by
ensuring the flipper mullion is folded
and perpendicular to the fresh food
door. If the mullion guide is not in the
correct position, it could prevent the door
from closing
completely.
WRONG
Anti-Tip
Legs
3. Ensure both doors are bind-free with
their seals touching the cabinet on all
4 sides and that cabinet is stable.
Door
Door
Door
Door
To make final door height adjustments:
1. Open Custom-Flex™ Temp drawer to
make the lower hinge visible.
2. Insert 6 mm Allen
TM
wrench into the
shaft of the lower hinge.
To lower door: turn the adjustment
screw clockwise.
To raise door: turn the adjustment
screw counterclockwise
(as shown below).
12.25 in
8.75 in
1 in
1 in
36.75 in
933.4 mm
25.4 mm
.37 in
9.5 mm
.37 in
9.5 mm
CAUTION
Be sure doors are set aside in a secure
position where they cannot fall and
cause personal injury, or damage to the
doors or handles.
10
DOOR REMOVAL
Getting through narrow spaces
If refrigerator will not fit through an
entrance area, doors can be removed.
Check first by measuring the entrance.
To prepare for removing the doors:
1. Make sure the electrical power cord
is unplugged from the wall outlet.
2. Remove any food from the door
shelves and close the doors.
To remove the refrigerator doors:
1. Open doors to 90°.
2. Remove all 5 Phillips
TM
screws from
top hinge cover and lift up. You can
easily access 3 Phillips™ screws. You
can access the other 2 screws by
removing the 2 panels from the top
hinge cover as shown.
5. Pull up on water line gently to
remove from door.
3. Trace lightly around the door’s top
hinges with a pencil. This makes
reinstallation easier.
4. Disconnect any electrical harnesses
running from the doors to the
hinge cover.
6. Remove three 8 mm bolts from both
top hinges. Lift doors up o lower
hinges and carefully set aside.
x2
NOTE
Use care while pulling the water tube
from the door to be sure that tube does
not kink.
NOTE
You will pull approximately 4 ft of water
tube from the refrigerator door.
IMPORTANT
Make sure the water line tubing goes
through the hole at the top of the
dispenser pocket. There is also a metal
wrap on the tubing to prevent damage
from the hinge rubbing against it. This
needs to be fixed back around the tube
in the proper location upon reinstallation
(just as long as the tube is protected
from the hinge).
11
DOOR REMOVAL
Lower Hinge Removal
Once both doors are in place, ensure they
are aligned with each other and level
(Reference INSTALLATION for more de-
tails), and replace the top hinge cover.
8. To reinstall the doors, reverse
the procedure.
7. In certain circumstances, you may need
to remove the lower hinges for clearance
purposes. To gain access to the lower
hinges, first extend the Custom-Flex
Temp Drawer. Unscrew the 3 lower hinge
screws and slide the hinge inward.
To remove the Custom-Flex
Temp Drawer
1. Fully open the drawer.
2. Remove the basket from the drawer.
3. Unsnap the 4 cable ties by pressing
clip sides together and pushing
them through the opening.
4. Remove the screw and the retaining
clip and disconnect the harness
NOTE
When reinserting the water tube and
replacing the top hinge cover, carefully
ensure the tube does not kink.
12
Reinstalling the Custom-Flex
TM
Temp Drawer
1. Place the drawer with the brackets
and sliders inside the compartment
and click the sliders into place on
each side.
2. Reconnect the cabinet harness.
3. Replace the retaining clip and secure it
with the screw.
4. Reattach the electrical harness by
positioning the cable clips over the
black markings on the harness and
push the 4 cable clips through the
openings in the rail to secure the
harness in place.
5. Slide the basket into place.
6. Close the drawer.
5. Remove the drawer by pressing
on the liner clips and slide the rail
past the clips on both sides to fully
remove drawer from cabinet.
DOOR REMOVAL
CAUTION
Drawer is heavy. Use caution when lifting.
13
DOOR REMOVAL
Removing Freezer Drawer
1. Open the drawer and fully extend it.
2. Remove the upper freezer drawer.
3. Remove the lower freezer basket.
4. Inside the cabinet, press the 2 tabs
on both sides to release the sliders.
5. Remove the drawer with brackets
and sliders.
Reinstalling Freezer Drawer
1. Place the drawer with brackets and
sliders inside the cabinet and click
into place.
2. Replace the lower freezer basket
first, and then the upper freezer
basket. Ensure the upper freezer
basket rollers are seated correctly
into the tracks before closing the
freezer drawer.
NOTE
For additional instructions, see
STORAGE FEATURES.
1
2
3
4
CAUTION
Wear gloves and safety goggles. Use extreme CAUTION when installing these handles.
14
NOTE
Tighten all set screws so the screw is below the surface of the handle. Draw the
handles tight to the doors/drawer with no gaps. Open the opposite door while
tightening the Allen screw to make installation easier.
The door handle may loosen over time if it was installed improperly. If this happens,
tighten the set screws on the handles.
Door Handle Mounting Instructions
Mounting Refrigerator Handles
DOOR HANDLE INSTALLATION
NOTE
When tightening the Allen set screws, you must apply force to the longer arm of the Al-
len wrench supplied in the handle packaging.
1. Remove handles from carton and
any other protective packaging.
2. Position fresh food handle end
caps over upper and lower pre-
installed shoulder bolts (A) that
are fastened into door, ensuring
the holes for the set screws are
facing towards the opposite door.
3. While holding handle firmly
against door, fasten upper and
lower Allen set screws (B) with
supplied Allen wrench.
4. Repeat steps 2 and 3 to install
opposite handle. Ensure the
holes for the set screws are
facing towards the first door.
CAUTION
To Avoid Property Damage:
• Copper or Stainless Steel braided
tubing is recommended for the
water supply line. Water supply
tubing made of ¼ inch plastic is not
recommended to be used. Plastic
tubing greatly increases the potential
for water leaks, and the manufacturer
will not be responsible for any
damage if plastic tubing is used for
the supply line.
• DO NOT install water supply tubing
in areas where temperatures fall
below freezing.
• Chemicals from a malfunctioning
water softener can damage the ice
maker. If a water softening system
is present, ensure the softener is
maintained and working properly.
15
WATER SUPPLY CONNECTION
IMPORTANT
Ensure that the water supply line con-
nections comply with all local plumbing
codes.
To install the water supply line, the
following are needed:
• Basic Tools: adjustable wrench,
flat-blade screwdriver, and Phillips
TM
screwdriver
• Access to a household cold water
line with water pressure between 30
and 100psi.
• A water supply line made of ¼inch
(6.4mm) OD, copper or braided
stainless steel tubing. To determine
the length of tubing needed,
measure the distance from the main
water inlet valve at the back of the
refrigerator to the cold water pipe.
Then add approximately 6ft. (1.8m),
so the refrigerator can be moved out
for cleaning.
• A shuto valve to connect the water
supply line to the household water
system. DO NOT use a self-piercing
type shuto valve.
• Do not reuse compression fitting or
use thread seal tape.
• A compression nut and ferrule
(sleeve) for connecting a copper
water supply line to the main water
inlet valve.
IMPORTANT
The refrigerator’s water supply system
includes several tubing lines, a water filter,
and a water valve. To ensure that the
water dispenser works properly, this sys-
tem must be completely filled with water
when the refrigerator is first connected to
the household water supply line.
WARNING
To avoid electric shock, which can
cause death or severe personal injury,
disconnect the refrigerator from
electrical power before connecting a
water supply line to the refrigerator.
NOTE
Check with local building authority for
recommendations on water lines and
associated materials prior to installing
refrigerator. Depending on local/state
building codes, Frigidaire recommends
for homes with existing valves its Smart
Choice
®
water line kit 5304437642 with
a 6ft. (1.8 meters) braided Stainless
Steel Water Line. Please refer to
Frigidaire.com for more information.
NOTE
Expect the first ice harvest within first
24hours of unit operation. To prevent any is-
sues concerning ice production, please ensure
that all water lines are primed. See “Priming
the water supply system” in the AUTOMATIC
ICE AND WATER DISPENSER section.
16
WATER SUPPLY CONNECTION
To Connect Water Tube to
Household Water Supply
1. Disconnect
refrigerator
from electrical
power source.
2. Place end of
water supply
line into sink
or bucket.
Turn ON water
supply and
flush supply
line until water
is clear. Turn
OFF water
supply at
shuto valve.
Place 7/16" wrench
here. Do not turn.
Place 1/2" wrench
here. Turn
clockwise.
6. Replace the connected tubes into
the clips and lock clips back in
place to keep the tubing in the right
position.
7. Turn ON water supply at shuto
valve and tighten any connections
that leak.
8. Reconnect refrigerator to electrical
power source.
9. Ensure ice maker is turned ON.
10. Purge air from Ice and Water Dispenser
System by operating the water
dispenser for 3-4 minutes. This will
require dispensing several glasses of
water.
3. Open the locking
clips and grab
water line
coming from
the refrigerator.
Remove plastic
cap from water
inlet fitting and
discard cap.
4. If using
(recommended) stainless steel
braided tubing - the nut and ferrule
are already assembled on the
tubing. Slide compression nut onto
water inlet fitting and finger tighten.
5. Using 1/2” and 7/16” wrenches (one
to hold the household water line nut
and the other to hold the water inlet
fitting nut), tighten a half turn with
wrench. DO NOT over tighten.
Water
inlet
fitting
Plastic
tubing
to
water
valve
6 ft. (1.8 Meters) Stainless
Steel water line from
household water supply line
Connection to Household Water Supply
with 1/4" compression
fitting
Plastic
Cap
Remove
plastic cap
from water
inlet fitting
Water Inlet
Brass
Fitting
¼ inch
plastic tube
to water
valve
To
household
water
supply
To
unit
water valve
17

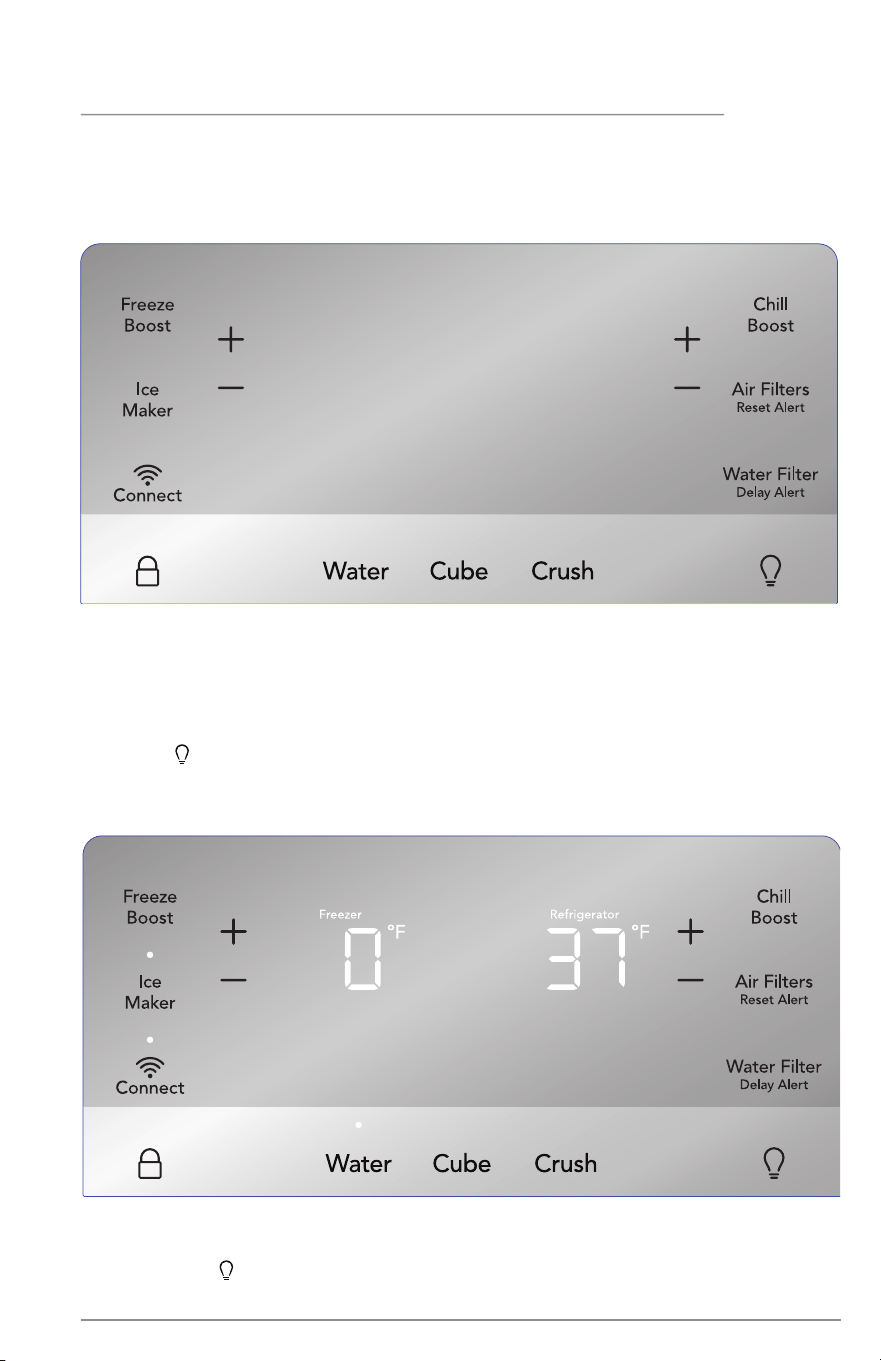

Awake Mode Display
Awake Mode
To change from sleep mode (on) to awake mode (o), simultaneously press and
hold Crush and
for 5 seconds. Display will show the current temperature/ice maker
status. Tone will confirm.
Sleep Mode Display
Sleep Mode
As a default, the display will go to sleep after a short time. If any icon is pressed, the
display will be awakened. After a short time, it will go back to sleep. When in sleep
mode, wake up the display to confirm ice maker is On/O. Sleep mode can be turned
o to have the display on full time (awake mode). When sleep mode is O, the display
will always be illuminated. To turn sleep mode On/O, simultaneously press and hold
Crush and for 5 seconds. Tone will confirm.
CONTROLS AND SETTINGS
External Dispenser Display
18
CONTROLS AND SETTINGS
External Dispenser Display
1
Freeze Boost (on/o)
Prior to grocery shopping, activate
Freeze Boost so newly purchased
food designated for the freezer will
be preserved as quickly as possible. It
automatically deactivates after 12 hours.
2
Ice Maker
Press and hold for 3 seconds to
turn the ice maker on/o. When the
indicator is lit, the ice maker is on.
When the ice maker is OFF, the Ice
Maker O indicator is lit. When the
ice maker is OFF, it will stop making
ice. When the sleep mode is enabled,
wake the display to confirm the ice
maker is on/o (see Sleep Mode
section). While o, ice dispensing
can continue as long as there is ice
in the bucket. When the ice maker
is o and ice is dispensing, the
indicator above Ice Maker and Ice
Maker O will both blink.
3
Connect
The Connect button connects the
refrigerator to your Wi-Fi enabled
mobile device. (See To connect the
refrigerator to your home internet
in CONTROLS AND SETTINGS for
more information”.)
4
The lock button can be used to lock
the display preventing it from being
used in certain situations. Press and
hold for 3 seconds to enable/dis-
able. While locked, no changes can
be made to settings on the display.
Dispensing ice and water will be
disabled. The indicator will flash and
an audible warning will sound.
5
Power Outage
In the event of a power failure,
Power Outage will illuminate once
power has been restored and
a tone will sound. The alert will
only illuminate if the refrigerator
or freezer reached unsafe
temperatures during the outage.
Press any button to silence the tone.
10
1
2
3
4
5
6
7
9
8
11 12
13
14
15
16
17
19
CONTROLS AND SETTINGS
External Dispenser Features (Continued)
6
Adjusting Temp
Illuminates when temperatures are
changed on the display and will
remain illuminated until the desired
temperatures are reached inside
the refrigerator and freezer. Press
either the + or — to adjust to desired
temperature setting.
Freezer temp
Control temperatures range from
-6°F / -21°C to +6°F / -15°C.
Refrigerator temp
Control temperatures range from
+34°F / +1°C to +44°F / +7°C. This
unit is designed to operate at 37°F
Refrigerator/0°F Freezer. The unit
should stabilize temperatures within
24 hours of installation.
7
Door Open
Illuminates whenever the doors
are open. If a door is left open for
5 minutes or more, an alarm will
sound and the display will illuminate
until the doors are shut. Pressing
any button will mute the alarm
temporarily. Check to make sure no
food is blocking the doorway.
8
Replace Water Filter
Display illuminates every 6
months or when filter needs
replacing. Replace the filter and
then press and hold Reset Water
Filter for 3 seconds to deactivate
the warning on display. See
FILTER REPLACEMENT for more
information.
9
Replace Air Filters
Display illuminates every 6 months
or when filter needs replacing.
Replace the filter and then press
and hold Reset Air Filter for 3
seconds to deactivate warning on
display. See FILTER REPLACEMENT
for more information.
10
Water
Press Water to dispense water. An
indicator light will illuminate above
the active feature.
11
Cube
Press Cube to dispense cubed ice.
An indicator light will illuminate
above the active feature.
12
Crush
Press Crush to dispense crushed ice.
An indicator light will be illuminated
above the active feature.
13
°F/°C
To toggle between Fahrenheit (°F)
and Celsius (°C), simultaneously
press and hold + and — for 5 seconds
on the refrigerator side of display.
14
Chill Boost
Chill Boost is a faster rate for chilling
food in the refrigerator compartment.
Use this feature when loading several
items into the refrigerator at one
time. It deactivates after 6 hours.
15
Reset Air Filters
After replacing the filter, press and
hold for 3 seconds to reset.
16
Reset Water Filter
After replacing the filter, press and
hold for 3 seconds to reset.
17
Toggles dispenser light On and
O. Press and hold for 5 seconds
to enable ambient lighting. Once
enabled, press and hold for 2
seconds to disable ambient lighting
IMPORTANT
If food is freezing in the fresh food
compartment, increase the temperature
setting 1 or 2 degrees.
IMPORTANT
Food placed within 1 inch in front of the
air ports may cause food to freeze.
NOTE
The recommended settings for a product
installed in a kitchen is 37˚F for the fresh
food compartment and 0˚F for the freezer.
20
Alarms
Power Outage
In the event of a power failure, the power
outage alert will be illuminated once
power has been restored and a tone will
sound. The alert will only be illuminated if
the refrigerator or freezer reached unsafe
temperatures during the outage. Press
any button to silence the tone.
Water Filter
When illuminated, the water filter needs
to be replaced. Change the water filter
every 6 months or when 125 gallons of
water has been dispensed. To reset, press
and hold button for 3 seconds. Tone will
sound once it has been reset.
Air Filter
When illuminated, air filter needs to be
replaced. Change the air filter every 6
months. To reset, press and hold button
for 3 seconds. Tone will sounds once it
has been reset.
Door
If a door has been left open for five min-
utes or more, an alarm will sound and the
door open indicator will illuminate on the
display. The alarm can be turned o by
closing the door or pressing any key. Con-
trol panel will return to normal operations
after the door is closed.
High Temperature
In the event of a high temperature condi-
tion, alarm will sound. The appliance
control display will show HI on whichever
compartment the alarm is detected. An
alarm will sound for at least 10 seconds
until the alert is acknowledged. This alarm
can be reset by touching any key or open-
ing a door.
CONTROLS AND SETTINGS
Sabbath Mode
The Sabbath Mode is a feature that
disables portions of the refrigerator
and its controls in accordance with
observance of the weekly Sabbath and
religious holidays within the Orthodox
Jewish community.
Sabbath Mode is turned ON and OFF by
simultaneously pressing and holding both
the FZ— and FF+ for 5 seconds. Other
than the High Temp alarm, no audible
sounds will occur until the user exits the
Sabbath mode. The display shows “Sb”
while in Sabbath mode.
In the Sabbath Mode, the High Temp
alarm is active for health reasons. For
example, if the door is left ajar the High
Temp alarm is activated. The refrigerator
will function normally once the door
is closed, without any violation of the
Sabbath/Holidays. The High Temp alarm
is permitted when cabinet temperature
is outside the safe zone for 20 minutes.
The alarm silences itself after 10 minutes
while the High Temp icon stays lit until the
Sabbath mode is exited.
For further assistance, guidelines for
proper usage and a complete
list of models with the Sabbath
feature, please visit the web at
star-k.org.
External Dispenser Features (Continued)
NOTE
Control features and alarms may vary
by model.
NOTE
While in Sabbath Mode, neither the lights,
dispenser, nor the control panel will work
until Sabbath Mode is deactivated.
Refrigerator stays in Sabbath Mode
after power failure recovery. It must be
deactivated with the buttons on the
control panel.
NOTE
Although the Sabbath Mode has been
initiated, the ice maker will complete
the cycle it had already started. The
ice cube compartment will remain cold
and new ice cubes can be made with
standard trays.
21
To connect the refrigerator to
your home internet:
Requirements:
• Apple iOS 11 or later or
Android 8.0 OS or later
• A secure password-protected 2.4 or
5 GHz internet connection on a
WPA/WPA2 compliant network
• Valid email address and password
• A Wi-Fi router that supports
IEEE 802.11 b/g/n
• When setting up your connection,
make sure you are in front of
the appliance.
Download the free Frigidaire® 2.0 app.
• Open the app and follow the
prompts to connect.
• On your product’s appliance
control display, press
any button to wake the
appliance display. Press
and hold the Connect or
button until it beeps
and the symbol begins to
blink. Some controls may
vary slightly. Check your
Use & Care Manual.
• Enjoy the convenience to remotely
control and monitor your appliance!
CONTROLS AND SETTINGS
Once you have connected, please confirm
you can see your appliance listed in the
app. Please send a command from the
app to the appliance. The app should
update to show the new settings and
the appliance should respond to the
command.
Need help?
For connectivity-related assistance, call
1-800-311-4667 Monday - Friday,
9:00 am - 6:00 pm EST or email
SmartHelp.US@Frigidaire.com. Frequently
Asked Questions can also be found on
Frigidaire.com.
CAUTION
For proper dispenser operation,
recommended water supply pressure
should fall between 30psi and 100psi.
Excessive pressure may cause the
system to malfunction.
IMPORTANT
The ice maker is turned on at the
factory so it can work as soon as the
refrigerator is installed. If it is not pos-
sible to connect a water supply, set the
ice maker’s On/O feature to O either
by using the display or by pressing
the switch (features vary by model).
Otherwise, the ice maker’s fill valve may
make a loud chattering noise when it
attempts to operate without water.
22
AUTOMATIC ICE AND WATER DISPENSER
NOTE
The water dispenser has a built-in de-
vice that shuts o the water flow after
two minutes of continuous use. To reset
this shuto device, simply release the
dispenser paddle.
Ice Maker Operation & Care
After the refrigerator is installed properly
and has cooled for several hours, the ice
maker can produce ice within 24hours.
The ice maker will fill the ice bin from the
rear. Dispense some ice to force the ice
forward in the bin. This will allow the bin
to fill completely.
Ice Maker and Storage
Bin Capacity
This ice maker should produce 3.2 to 3.7
pounds of ice per 24 hours. The ice bin
will hold about 4 pounds of ice.
NOTE
After the initial 26 ounces (750 ml),
water will remain room temperature
until the tank has refilled and been
given enough time to chill the next 26
ounces (750 ml) of water. May take up
to 8 hours to chill.
Using the ice maker after
installation
Before making ice for the first time, be
sure to prime the water supply system.
Air in new plumbing lines can result in
two or three empty ice maker cycles.
Furthermore, if the system is not flushed,
the first ice cubes may be discolored or
have an odd flavor.
Priming the water supply system
Dispenser
1. Begin filling the system by pressing
and holding a drinking glass against
the dispenser.
2. Keep the glass in this position until
water comes out of the dispenser. It
may take about 1
1
/
2
minutes.
3. Continue dispensing water for about
four minutes to flush the system
and plumbing connections of any
impurities (stopping to empty the
glass as necessary).
Turning the ice maker on and o
Press and hold Ice Maker on the external
appliance control display for 3 seconds to
turn ice production on and o.
CAUTION
If the water supply to the refrigerator is
softened, be sure the softener is properly
maintained. Chemicals from a water
softener can damage the ice maker.
IMPORTANT
Turning o the ice maker simply dis-
ables ice making. Existing ice can still be
dispensed, and water can be dispensed.
IMPORTANT
On occasion, unusually small ice cubes
may be noticed in the bucket or in dis-
pensed ice. This could occur in normal
operation of the ice maker. If happening
frequently, it may be an indication of
low water pressure or the water filter
needs to be replaced. As the water
filter nears the end of its useful life and
becomes clogged with particles, less
water is delivered to the ice maker dur-
ing each cycle. Remember, if it’s been
six months or longer since last chang-
ing the water filter, replace it with a
new one. Poor quality household water
may require the filter to be changed
more frequently.
23
NOTE
The ice maker also has a built-in plastic
signal arm that automatically stops ice
production when the ice bin is full. This
signal arm should not be used to manu-
ally stop the ice maker.
AUTOMATIC ICE AND WATER DISPENSER
Ice maker/dispenser tips
• If refrigerator is not connected to a
water supply or the water supply is
turned o, turn o the ice maker as
described in the previous section.
• The following sounds are normal
when the ice maker is operating:
- Motor running
- Ice dropping into ice bin
- Water valve opening or closing
- Running water
• If a large quantity of ice is needed
at one time, it is best to get cubes
directly from the ice bin.
• Ice cubes stored too long may
develop an odd flavor. Empty the ice
bin as explained below.
• When dispensing cubed ice, it is
normal to have a small quantity of
little pieces along with the whole
cubes.
• To avoid splashing, dispense ice into
the container before adding liquids.
• It is normal for ice to fill to the top of
the ice bin.
Cleaning the ice maker
Clean the ice maker and ice bin at regular
intervals, especially prior to vacation or
moving.
1. Turn o the ice maker using the
button on the display.
2. Remove the ice bin by lifting upward
and pulling straight out.
3. Empty and carefully clean the ice
bin with mild detergent. Do not use
harsh or abrasive cleaners. Do not
place in dishwasher. Rinse with clear
water.
4. Allow the ice bin to dry completely
before replacing in the freezer.
5. Replace the ice bin. Turn the ice
maker on.
CAUTION
NEVER use an ice pick or similar sharp
instrument to break up the ice. This
could damage the ice bin.
To loosen stuck ice, use warm water.
Before replacing the ice bin, make sure
it is completely dry.
24
AUTOMATIC ICE AND WATER DISPENSER
Remove and empty the ice bin if:
• An extended power failure (one hour
or longer) causes ice cubes in the
ice bin to melt and refreeze together
after power is restored, jamming the
dispenser mechanism.
• The ice dispenser is used
infrequently. Ice cubes will freeze
together in the bin, jamming the
dispenser mechanism. Shake the
bin to loosen the cubes, or clean as
explained above.
Removing Ice Bin
CAUTION
To avoid personal injury or property
damage, handle tempered glass shelves
carefully. Shelves may break suddenly
if nicked, scratched, or exposed to
sudden temperature change. Allow
the glass shelves to stabilize to room
temperature before cleaning. Do not
wash in dishwasher.
25
STORAGE FEATURES
NOTE
Features may vary according to model.
Shelf positions can easily be adjusted in
the fresh food compartments as needed.
The shelves have mounting brackets that
attach to slotted supports at the rear of
each compartment.
Change the Position of a Shelf
1. Remove all food from the shelf.
2. Lift the front edge up and pull the
shelf out.
3. Replace by inserting the mounting
bracket hooks into the desired
support slots.
4. Lower the shelf and lock it
into position.
To adjust the flip shelf:
1. Remove food from shelf.
2. Lift the right side edge of shelf
upwards and push to the left
towards ice maker.
Flip Shelf
Drawers
The refrigerator includes a variety of
storage drawers.
CrispSeal Fresh Crisper
Use our crisper to keep your produce fresh
for longer, or flip it around to use as an
open compartment to easily access items
such has beverages, yogurts or snacks.
Slide-Under Shelf
To adjust slide-under shelf:
1. Push front
half shelf
backward
toward the
rear of the
cabinet until
the rear half
shelf drops
down, and then gently continue
pushing the front half shelf back and
under the rear half shelf.
Flexible Storage with our Reversible Bin
Angle the bin up to reinstall
26
Removing CrispSeal Fresh Drawer
STORAGE FEATURES
Removing Auto Humidity
Control Membrane
Opening SnackZone
Recessed Snack Drawers
4. Remove the humidity membrane from
the housing by lifting up sliding over.
5. Clean humidity membrane with hot
soapy water.
6. Replace membrane in housing and
unit by reversing the steps above.
NOTE
Frigidaire does not recommend replac-
ing the auto-humidity membrane unless
it becomes damaged or ruined. If the
membrane becomes soiled, it can be
washed with soap and water. Ensure
membrane is dry before replacing in unit.
To remove the auto humidity control
membrane for cleaning:
1. Reach to back of humidity control
cover.
2. Place fingers between the humidity
control and the back wall, pull up on
cover.
3. Pull cover toward the front of
cabinet and remove.
Removing Auto Humidity
Control Membrane
To remove the CrispSeal Fresh drawer
for cleaning:
1. Pull the drawer out until it stops.
2. Lift the front slightly and remove
the drawer.
SnackZone - Recessed Snack Drawers
These drawers are ideal for storage of deli
meats and cheeses.
To open: slide back the cover to allow
access to the drawers.
NOTE
Remove the crisper insert and the
Produce Keeper Plus filter before
washing the crisper.
IMPORTANT
Do not use the Custom-Flex
TM
Temp Drawer
to store fresh produce as these items may
freeze and cause damage to the fruits and
leafy vegetables stored in the drawer.
27
STORAGE FEATURES
Doors
Storage bins
The doors to the fresh food compartment
use a system of modular storage bins.
All of these bins are removable for easy
cleaning. Bins can be adjusted as needed.
Door bins are ideal for storing jars, bottles, cans,
and large drink containers. They also enable
quick selection of frequently used items.
Adjustable door bins
Some models have adjustable door bins
that can be moved to suit individual needs.
To adjust the collapsible door bin:
1. Make sure bin is securely seated on rail
in door.
2. Grab one side of bin and place other
hand on adjustable side.
3. Pull on side of bin until the bin is
adjusted to desired width.
NOTE
It can be dicult to pull out the collapsible
bin. Some force may be required.
1 2 3 4 5 6
Using Your Custom-Flex Temp
Drawer Controls
1
The drawer automatically defaults to a
locked state to prevent any unwanted
use. To change the drawer’s settings, it
first needs to be unlocked. To unlock,
press and hold the UNLOCK icon for 3
seconds. It will automatically lock after
10 seconds without any interaction.
Custom-Flex Temp Drawer Dividers
To position
drawer dividers,
slide left or
right. For easier
repositioning,
dividers do not
lock but instead
use the weight
of stored items
to keep the
dividers in place.
Dividers may shift when opening/closing
drawer when fewer items are stored.
CAUTION
Do not store glass bottles in the Custom-
Flex Temp Drawer when the Temperature
setting is in Freezer, Meat/Seafood, or Cold
Drink modes. The glass may break and
shatter, causing physical harm and injury.
Freezer:
2
To change the drawer temperature
when in the freezer temp setting, use
the control panel display on the front
door. Changing the temp on the display
will change both the drawer temp
setting AND the freezer compartment.
Refrigerator:
3
Choosing Meat/Seafood will set drawer
temperature to 28°F (-2°C). A tone will
sound to confirm choice. Use this setting
for short term storage. Any meat to be kept
longer than two days should be frozen.
4
Choosing Cold Drinks will set drawer
temperature to 32°F (0°C). A tone will
sound to confirm choice.
5
Choosing Deli/Snacks will set drawer
temperature to 37°F (3°C). A tone will
sound to confirm choice.
6
Choosing Chilled Wine will set drawer
temperature to 45°F (7°C). A tone will
sound to confirm choice.
28
To remove upper freezer drawer:
1. Open freezer compartment completely.
2. Lift up and out to remove upper
freezer drawer.
3. Reverse the steps to reinstall drawer.
Freezer Drawer
Freezer Features
STORAGE FEATURES
NOTE
If basket is not resting on stabilizer bar retainer
clips, the drawer will not close properly.
Plastic Lower Basket Divider
Dividers
Grab hand hold on lower divider and pull
up slightly to slide to next position. (The
divider cannot be removed.)
IMPORTANT
There are wheels on the bottom of the
drawer. Make sure all wheels are aligned on
their respective tracks for proper function.
If drawer is not aligned properly, it will
cause problems with the door operation.
Adjustable Door Bins
To move door bin side-to-side:
4. Tilt bin up so the back of the bin is o
the door but the hook is still engaged.
5. Slide bin along rail to desired position.
6. Lower bin back into place.
To move door bin up or down:
7. Lift bin up disengaging the hook.
8. Move bin to desired rail location.
9. Push bin hook into rail engaging
the hook.
To remove freezer basket:
1. Open freezer compartment
completely.
2. Lift the
basket up
and remove.
3. Reverse
the steps
to reinstall
freezer
basket.
29
STORING FOOD AND SAVING ENERGY
Ideas for storing foods
Fresh food storage
• Keep the fresh food compartment
between 34°F and 44°F with an
optimum temperature of 37°F.
• Avoid overcrowding the refrigerator
shelves, which reduces air circulation
and causes uneven cooling.
• Avoid placing food in front of air ports.
(See CONTROLS AND SETTINGS for
illustration.)
Fruits and vegetables
• Store fruits and vegetables in crisper
drawers, where trapped moisture
helps preserve food quality for longer
time periods.
• Do not wash items until ready to use.
Remove excess water before placing
inside unit.
• Wrap any items that have strong
odors or high moisture content.
Meat
• Wrap raw meat and poultry separately
and securely to prevent leaks and
contamination of other foods or surfaces.
• Use the Custom-Flex
TM
Temp Drawer
to store meat/poultry for short-term
storage. Any meat to be kept longer
than two days should be frozen.
Frozen food storage
• Keep the freezer compartment at 0°F
(-18°C) or lower.
• A freezer operates most eciently
when it is at least ⅔ full.
Packaging foods for freezing
• To minimize food dehydration and quality
deterioration, use aluminum foil, freezer
wrap, freezer bags, or airtight containers.
Force as much air out of the packages as
possible and seal them tightly. Trapped air
can cause food to dry out, change color,
and develop an o-flavor (freezer burn).
• Wrap fresh meats and poultry with
suitable freezer wrap prior to freezing.
• Do not refreeze meat that has
completely thawed.
Loading the freezer
• Prior to grocery shopping, activate
Freeze Boost
so newly purchased
food designated for the freezer will
be preserved as quickly as possible.
• Activating Freeze Boost also will
help the freezer more eciently
maintain the selected temperature
after placing new purchases with
pre-existing frozen foods.
• Avoid adding too much warm food
to the freezer at one time. This
overloads the freezer, slows the
rate of freezing, and can raise the
temperature of frozen foods.
• Leave a space between packages, so
cold air can circulate freely, allowing
food to freeze as quickly as possible.
Ideas for saving energy
Installation
• Locate the refrigerator in the coolest
part of the room, out of direct
sunlight, and away from heating
ducts or registers.
• Do not place the refrigerator next to
heat-producing appliances such as a
range, oven, or dishwasher. If this is
not possible, a section of cabinetry or
an added layer of insulation between
the two appliances will help the
refrigerator operate more eciently.
• Level the refrigerator so that the
doors close tightly.
Temperature settings
• Refer to CONTROLS AND
SETTINGS for illustration and
recommended settings.
Food storage
• Avoid overcrowding the refrigerator
or blocking cold air vents. Doing so
causes the refrigerator to run longer
and use more energy.
• Cover foods and wipe containers
dry before placing them in the
refrigerator. This cuts down on
moisture build-up inside the unit.
• Organize the refrigerator to reduce
door openings. Remove as many
items as needed at one time and
close the door as soon as possible.
• Do not place a hot container directly
on a cold shelf. Remember, such an
extreme temperature change may
damage the glass.
30
NORMAL OPERATING SOUNDS
Understanding the sounds
coming from the refrigerator
High-eciency refrigerators may
introduce unfamiliar sounds. These
sounds normally indicate the refrigerator
is operating correctly. Some surfaces on
floors, walls, and kitchen cabinets may
make these sounds more noticeable.
The following is a list of major
components in the refrigerator and the
sounds they can cause:
A Evaporators Refrigerant through the
evaporators may create a boiling or
gurgling sound.
B Evaporator fans Sounds of air being
forced through the refrigerator by the
evaporator fans may be heard.
C Defrost heaters During defrost cycles,
water dripping onto the defrost
heaters may cause a hissing or sizzling
sound. After defrosting, a popping
sound may occur.
D Automatic ice maker When ice has
been produced, sounds of ice cubes
falling into the ice bin may be heard.
Ice maker fan, water valve activation,
and refrigerant gas fluid may create
sounds from its operation.
E Electronic control & automatic
defrost control These parts can
produce a snapping or clicking sound
when turning the cooling system on
and o.
F Condenser fan Sounds of air being
forced through the condenser may be
heard.
G Compressor Modern, high-eciency
compressors run much faster than
older models. The compressor may
have a high-pitched hum or pulsating
sound.
H Water valves Make a buzzing sound
each time they open to fill the ice
maker.
I Drain pan (not removable) Sounds
of water dripping into the drain pan
during the defrost cycle may be heard.
J Condenser May create minimal sounds
from forced air.
K Motorized damper May produce a
light humming during operation.
L Ice dispenser When dispensing ice, a
snapping, clicking, or popping sound
may be heard.
NOTE
Energy ecient foam in the refrigerator
is not a sound insulator.
NOTE
During automatic defrost cycle, a red
glow in the back wall vents of the freez-
er compartment is normal.
A
BC
D
G
E
JI
K
A
L
H
F
31
FILTER REPLACEMENT
Ordering Replacement Air Filters
Order replacement filters online at
Frigidaire.com, by calling 1-800-374- 4432
or through the dealer from which the
refrigerator was purchased. Frigidaire
recommends replacing filters at least once
every 6 months.
Here is the product number to request
when ordering:
Air Filter Replacement cartridge,
Part #FRGPAAF2
Air Filter (select models)
The air filter is located in the top center of
the fresh food compartment.
Replacing the
Pure
Air
TM
AF-2
Air Filter
To ensure optimal filtering of refrigerator
odors, change the air filter every 6
months (Replace Air Filter on the
appliance control display indicates
replacing the filter after 6 months).
1. Remove the air filter cover by
squeezing the top and bottom of the
cover together and removing from liner.
2. Remove the old filter and discard it.
3. Unpack the new filter and snap it
into the filter cover. The open face
(carbon media) of the filter should be
installed facing outward in the cover.
4. Replace
the air filter
cover by
squeezing
the sides
and
snapping it
back into
place.
5. To reset,
press and
hold Reset Air Filter on the
appliance
control display
for 3 seconds. Tone will
sounds once it has been reset.
Water Filter
The refrigerator is equipped with a water
filtering system. The water filtering
system filters all dispensed drinking water,
as well as the water used to produce ice.
The water filter is located at the top right
side of the fresh food compartment.
Accessing Your Water Filter
Change the water filter every 6 months to
ensure the highest possible water quality.
Replace Water Filter on the display indicates
when to replace the filter after a standard
amount of water (125 gallons/473 liters for
Pure
Pour Connect™ PWF-2™)
has flowed
through the system.
If the refrigerator has not been used
for a period of time (during moving
for example), change the filter before
reinstalling the
refrigerator.
To Remove: Pull
the cover forward
and the cover will
drop down and
allow access to
the filter. Push
on the end/face
of the filter to
remove it from
the unit and discard it.
To Reinstall: Push the cover up toward
the liner, and then push it toward the rear
of the cabinet. The filter cover will snap
back into place.
Ordering Replacement Water Filters
Order replacement filters online at
Frigidaire.com, by calling 1-800-374- 4432
or through the dealer from which the
refrigerator was purchased. Frigidaire
recommends replacing filters at least once
every 6 months.
Here is the product number to request
when ordering:
Pure
Pour Connect™ PWF-2™
Part #FPPWFU02
NOTE
When ordering replacement filters,
please reorder the same filter type that
is currently in the refrigerator.
32
Do not use with water that is
microbiologically unsafe or of unknown
quality without adequate disinfection
before or after the system. Use systems
certified for cyst reduction on disinfected
waters that may contain filterable cysts.
Test & certification results:
• Rated Capacity - 125 gal/453 L for
Pure
Pour Connect
ice and water filter
• Rated service flow - .50 gal/min.
• Operating Temp: Min. 33°F, Max. 100°F
• Maximum Rated Pressure - 100 lbs/in
2
• Recommended Minimum Operating
Pressure: 30lbs/in
2
Replacing your
Pure
Pour Connect
water filter:
It is not necessary to turn the water
supply o to change the filter. Be ready
to wipe up any small amounts of water
released during the filter replacement.
1. Turn O the ice maker(s).
2. Pull the water filter cover forward
and the cover will drop down to
allow access to the filter.
3. Remove the filter by pushing on the
end/face of the filter.
4. Slide the old water filter cartridge
straight out of the housing and
discard it.
5. Unpackage the new filter cartridge.
Remove the 2 clear plastic cap
covers on the filter connector. Using
the alignment guide, slide the filter
gently into the filter housing until it
stops against the snap-in connector
at the back of the housing.
6. Push firmly until the cartridge snaps
into place (you should hear a click as
the cartridge engages the
snap-in connector).
The
Pure
Pour Connect
ice and
water filter system is tested
and certified to NSF/ANSI
Standards 42, 53, 401 and
CSA B483.1 for the reduction
of claims specified on the
performance data sheet.
More about the Advanced
Water Filter
FILTER REPLACEMENT
Pure
Pour Connect™
PWF-2™
Water Filter
Keep safe, great-tasting water flowing
with a
Pure
Pour Connect
water filter. Using
a
Pure
Pour Connect water filter:
• Makes Safer Water Second Nature
Pure
Pour Connect
water filters are
certified to reduce contaminates*
and keep great-tasting water flowing
for you and your family.
• Produces Purity You Can Trust
Know for certain your
Pure
Pour
Connect
water filter is a protector.
Counterfeits and knockos put
your refrigerator and health at risk.
Frigidaire Genuine Filters are the
smarter, safer choice.
• Every Drop Gives Back
Partnered on sustainability eorts, the
use of a
Pure
Pour Connect
water filter
saves the cost of bottled water and
cuts back on plastic.
*For the complete list, please see Performance
DataSheet on Frigidaire.com
Pure
Pour Connect
Authentication
Your refrigerator contains a water filter
authentication system to protect you
from the harm that can occur when using
counterfeit filters. Frigidaire recommends
to use only the
Pure
Pour Connect
water
filter with this appliance. Using any other
filter can cause an error to appear on the
appliance control display.
Errors can occur:
• If an authentic expired filter is removed
and reinserted into the appliance
• If a non-authentic filter is installed or
not installed properly.
In the cases above, the appliance control
display may show an error code related
to the filter authentication, and you will
be alerted both on the appliance control
display and in the connected app. You can
still use dispensing functions while the
error is displayed. You can temporarily dis-
miss the error twice before it displays per-
manently until you install a new authentic
filter into the appliance.
33
7. Press a drinking glass against the
water dispenser while checking for
any leaks at the filter housing. Any
spurts and sputters that occur as
the system purges air out of the
dispenser system are normal.
8. Push the cover up toward the liner.
Then push the filter cover toward
the rear of the cabinet. The filter
cover will snap back into place.
9. After filling one glass of water,
continue flushing the system for about
4 minutes. See Priming the water
supply system for more information
10. Once you have properly installed
the filter, the authentication process
may take up to a few seconds to
complete. After authentication is
complete, the filter status on the
display will automatically update
based on the condition of the filter
11. Turn on the ice maker(s).
Pure
Air PK-2 Produce Keeper Plus™
Keep fruits and vegetables fresher longer
with
Pure
Air Produce Keeper Plus. Our
produce keeper absorbs ethylene gas, the
natural gas that causes produce to ripen
quicker. Reduce food waste, save money
and enjoy fresh-tasting produce with a
longer storage life.
Ordering Replacement Filters
Order replacement filters online at
Frigidaire.com, by calling 1-800-374-
4432 or through the dealer from which
the refrigerator was purchased. Frigidaire
recommends replacing filters at least
once every 12 months.
Here is the product number to request
when ordering:
Pure
Air PK-2
Produce Keeper Plus™
FRPAPK2RF™
.
=
FILTER REPLACEMENT
Installing the
Pure
Air Produce Keeper Plus:
1. Remove the plastic wrapper. Insert
the packet into the holder in the rear
of the Crisper.
2. For optimal results, replace the
refill every 12 months along with
your air filter.
CAUTION
DO NOT OPEN CLOTH POUCH. Keep
out of the reach of children.
DO NOT EAT. If ingested, seek medical
treatment immediately.
WASH HANDS AFTER HANDLING.
DO NOT SUBMERGE IN WATER.
IMPORTANT
When storing or moving refrigerator in freezing temperatures, be sure to completely drain
the water supply system. Failure to do so could result in water leaks when the refrigerator
is put back into service. Contact a service representative to perform this operation.
CAUTION
• Pull the refrigerator straight out to move it. Shifting it from side to side may damage
flooring. Be careful not to move the refrigerator beyond the plumbing connections.
• Damp objects stick to cold metal surfaces. Do not touch refrigerated surfaces
with wet or damp hands.
NOTE
Do not use abrasive cleaners such as window sprays, scouring cleansers, flammable
fluids, cleaning waxes, concentrated detergents, bleaches, or cleansers containing
petroleum products on plastic parts, interior doors, gaskets, or cabinet liners. Do
not use scouring pads or other abrasive cleaning materials.
NOTE
When setting temperature controls to turn o cooling, power to lights and other electrical
components will continue until the power cord is unplugged from the wall outlet.
34
CARE AND CLEANING
Care & Cleaning Tips
Keeping the refrigerator clean maintains its appearance and prevents odor build-up. Wipe up
any spills immediately and clean the freezer and fresh food compartments at least twice a year.
• Always unplug the electrical power cord from the wall outlet before cleaning.
• Remove adhesive labels by hand. Do not use razor blades or other sharp
instruments which can scratch the appliance surface.
• Do not remove the serial plate. Removal of the serial plate voids the warranty.
• Before moving refrigerator, raise the anti-tip brackets so the rollers will work
correctly. This will prevent the floor from being damaged.
Refer to the guide on the next page for details on caring and cleaning specific areas of refrigerator.
• Never use metallic scouring pads, brushes, abrasive cleaners, or strong alkaline
solutions on any surface.
• Never use CHLORIDE or cleaners with bleach to clean stainless steel.
• Do not wash any removable parts in a dishwasher.
Vacation and moving tips
Occasion Tips
Short
Vacations
• Leave refrigerator operating during vacations of 3 weeks or less.
• Use all perishable items from refrigerator compartment.
• Turn automatic ice maker o and empty ice bucket, even if only away a few days.
Long
Vacations
• Remove all food and ice if leaving for one month or more.
• Turn the cooling system o (see CONTROLS AND SETTINGS for the
location of On/O) and disconnect the power cord.
• Turn the water supply valve to close.
• Clean interior thoroughly.
• Leave both doors open to prevent odors and mold build-up. Block
doors open if necessary.
Moving • Unplug the unit.
• Remove all food and ice.
• If using a handcart, load from the side.
• Adjust rollers all the way up to protect them during sliding or moving.
• Pad cabinet to avoid scratching surface.
35
CARE AND CLEANING
Care & Cleaning Tips
Part What To Use Tips and Precautions
Interior & Door
Liners
• Soap and water
• Baking soda and
water
Use two tablespoons of baking soda in
one quart of warm water. Be sure to wring
excess water out of sponge or cloth
before cleaning around controls, light
bulb or any electrical part.
Door Gaskets • Soap and water Wipe gaskets with a clean soft cloth.
Drawers & Bins • Soap and water Use a soft cloth to clean drawer runners
and tracks.
Glass Shelves • Soap and water
• Glass cleaner
• Mild liquid sprays
Allow glass to warm to room temperature
before immersing in warm water.
Exterior &
Handles
• Soap and water
• Non Abrasive Glass
Cleaner
Do not use commercial household clean-
ers containing ammonia, bleach or alcohol
to clean handles. Use a soft cloth to clean
smooth handles or exterior. DO NOT use a
dry cloth to clean smooth doors.
Exterior &
Handles
(Stainless Steel
Models Only)
• Soap and water
• Stainless Steel
Cleaners such
as Frigidaire
ReadyClean™
Stainless Steel
Cleaner.
Never use CHLORIDE or cleaners with
bleach to clean stainless steel.
Clean stainless steel front and handles
with non-abrasive soapy water and a dish-
cloth. Rinse with clean water and a soft
cloth. Use a non-abrasive stainless steel
cleaner. These cleaners can be purchased
at most home improvement or major de-
partment stores. Always follow manufac-
turer’s instructions. Do not use household
cleaners containing ammonia or bleach.
NOTE: Always clean, wipe and dry with
the grain to prevent scratching. Wash the
rest of the cabinet with warm water and
mild liquid detergent. Rinse well, and wipe
dry with a clean soft cloth. Stainless steel
cleaning supplies can be purchased from
Frigidaire.com
36
TROUBLESHOOTING
1-800-265-8352 (Canada)
Frigidaire.ca
1-800-374-4432 (United States)
Frigidaire.com
Let us help you troubleshoot your concern! This section will help you with common
issues. If you need us, visit our website, chat with an agent, or call us. We may be able
to help you avoid a service visit. If you do need service, we can get that started for you!
Concern Potential Cause Common Solution
Automatic Ice Maker
Ice maker is
not making
any ice.
• Ice maker is turned o.
• Refrigerator is not con-
nected to water line or
water valve is not open.
• The water supply line
is kinked.
• The water filter is not
seated properly.
• The water filter may
be clogged with
foreign material.
• Press and hold the ice maker button
on the appliance control display for
3 seconds. The LED indicator will
illuminate to indicate that the ice
maker is ON.
• Connect the unit to the household
water supply and ensure the water
valve is open.
• Ensure that the supply line does not
kink when the refrigerator is pushed
into place against the wall.
• Remove and re-install the water
filter. Be sure to seat it fully into the
locked position.
• If water dispenses slowly or not at
all, or if the filter is six months old or
older, it should be replaced.
Ice maker is
not making
enough ice.
• Ice maker is producing
less ice than expected.
• The water filter may
be clogged with
foreign material.
• The water supply line
is kinked.
• Saddle valve on
cold water pipe is
clogged or restricted
by foreign material.
• Water pressure is ex-
tremely low. Cut-o and
cut-on pressures are too
low (well systems only).
• Reverse osmosis system
is in regenerative phase.
• Heavy trac, opening
or closing of the
doors excessively.
• The ice maker will produce
approximately 3.2 to 3.7 pounds of
ice every 24 hours depending on
usage conditions.
• If water dispenses slower than
normal, or if the filter is six months
old or older, it should be replaced.
• Ensure that the supply line does not
kink when the refrigerator is pushed
into place against the wall.
• Turn o household water line valve.
Remove valve. Ensure that valve
is not a self-piercing saddle valve.
Clean valve. Replace valve
if necessary.
• Have someone turn up the cut-o
and cut-on pressure on the water
pump system (well systems only).
• It is normal for a reverse osmosis
system to be below 20 psi during
the regenerative phase.
37
TROUBLESHOOTING
Concern Potential Cause Common Solution
Automatic Ice Maker (continued)
Ice cubes
are freezing
together.
• Ice cubes are not being
used frequently enough
or interruption of power
for prolonged time.
• Ice cubes are hollow
(shells of ice with water
inside). The hollow cubes
break open in the bin
and leak their water onto
existing ice, which causes
it to freeze together.
• Remove ice container and discard ice.
The ice maker will produce fresh sup-
ply. Ice should be used at least twice
weekly to keep the cubes separated.
• This generally occurs when the ice
maker does not get enough water.
This is usually the result of a clogged
water filter or restricted water supply.
Replace the water filter and if the con-
dition still occurs, check to see if the
water valve is not turned on all the way
or if there is a kinked water supply line.
Dispenser
Dispenser
will not
dispense
ice.
• There is no ice in the bin
to be dispensed.
• The refrigerator doors
are not completely
closed.
• Dispenser paddle has
been pressed too long
and the dispenser motor
has overheated.
• See the “Ice maker is not making
any ice” section.
• Be sure the refrigerator doors are
completely closed.
• The motor overload protector will
reset in about three minutes and
then ice can be dispensed.
Ice
dispenser is
jammed.
• Ice has melted and
frozen around auger
due to infrequent
use, temperature
fluctuations, and/or
power outages.
• Ice cubes are jammed
between ice maker and
back of ice container.
• Remove ice container, thaw,
and empty the contents. Clean
container, wipe dry, and replace in
proper position. When new ice is
made, dispenser should operate.
• Remove ice cubes that are jamming
the dispenser.
Dispenser
will not
dispense
water.
• Water filter not seated
properly.
• Water filter is clogged.
• Household water line
valve is not open.
• Remove and reinstall the water
filter. For
Pure
Pour Connect
, be sure
to push the filter in all the way until
it clicks into place and is secured
inside of the water filter housing.
• Replace filter cartridge. Be sure
to push filter all the way in until
it clicks into place and is secured
inside of the water filter housing.
• Open household water line valve.
See CONCERN column AUTOMATIC
ICE MAKER.
38
TROUBLESHOOTING
Concern Potential Cause Common Solution
Water
not cold
enough.
• As warmer tap water
goes through the
filter and enters the
water supply system,
the chilled water is
pushed through to the
dispenser. Once the
chilled water is used up,
it will take several hours
to bring the freshly
replaced water to a
cooler temperature.
• Add ice to cup or container before
dispensing water.
Note: Only first 26 ounces are
chilled.
Water has
an odd
taste and/or
odor.
• Water has not been
dispensed for an
extended period of time.
• Unit not properly
connected to cold water
line.
• Draw and discard 10-12 glasses of
water to freshen the supply.
• Connect unit to cold water line that
supplies water to the kitchen faucet.
Opening/Closing Of Doors/Drawers
Door(s) will
not close.
• Door was closed too
hard, causing other door
to open slightly.
• Refrigerator is not level.
It rocks on the floor
when moved slightly.
• Refrigerator is touching
a wall or cabinet.
• Food/packaging is
obstructing the door
from closing.
• Flipper mullion on left
fresh food door is not in
the correct position.
• Close both doors gently.
• Ensure floor is level and solid,
and can adequately support the
refrigerator. Contact a carpenter to
correct a sagging or sloping floor.
• Ensure floor is level and solid,
and can adequately support the
refrigerator. Contact a carpenter to
correct a sagging or sloping floor.
• Make sure there is no food/
packaging blocking the doorway.
• Ensure the flipper mullion is in the
correct position to allow the door
to close. (See “Flipper Mullion”
in INSTALLATION.)
Drawers are
dicult to
move.
• Food is touching shelf
on top of drawer.
• Track that drawers slide
on is dirty.
• Remove top layer of items in drawer.
• Ensure drawer is properly installed
on track.
• Clean drawer, rollers, and track. See
CARE AND CLEANING.
39
TROUBLESHOOTING
Concern Potential Cause Common Solution
Running of Refrigerator
Compressor
does not
run.
• Refrigerator is in defrost
cycle.
• Plug at electrical outlet
is disconnected.
• House fuse blown or
tripped circuit breaker.
• Power outage.
• This is normal for a fully automatic
defrost refrigerator. The defrost
cycle occurs periodically, lasting
about 30 minutes.
• Ensure plug is tightly pushed into
outlet.
• Check/replace fuse with a 15 amp
time-delay fuse. Reset circuit
breaker.
• Check house lights. Call local
electric company.
Refrigerator
seems to
run too
much or too
long.
• The variable speed
compressor is designed
to run 100% of the
time except during the
defrost cycle. At times
it will run faster, such as
after a defrost cycle.
• It is normal for the compressor to
run continuously except during
defrost mode.
Digital Temperature Setting Display
Digital
temperature
displays an
error.
• Electronic control
system has detected a
performance problem.
• For assistance with any errors or
codes flashing in the appliance
control display call 1-800-374-4432.
Water/Moisture/Frost Inside Refrigerator
Moisture
collects on
inside of
refrigerator
walls.
• Weather is hot and
humid.
• Flipper mullion
• The rate of frost buildup and
internal sweating increases.
• Adjust flipper mullion. (See “To
adjust the flipper mullion” in
INSTALLATION.)
Water
collects on
bottom side
of drawer
cover.
• Vegetables contain and
give o moisture.
• It is not unusual to have moisture on
the bottom side of the cover.
• Both crispers contain an automatic
humidity control, which should
adjust automatically to the varying
levels of moisture inside the
drawer without creating additional
condensation or drying out the air
inside the crisper drawer, works with
various types of produce. If excess
moisture is noticed, check to verify
humidity membrane is not damaged
and replace as necessary.
Water
collects in
bottom of
drawer.
• Washed vegetables and
fruit drain while in the
drawer.
• Dry items before putting them in
the drawer. Water collecting in
bottom of drawer is normal.
40
TROUBLESHOOTING
Concern Potential Cause Common Solution
Water/Moisture/Frost Outside Refrigerator
Moisture
collects on
outside of
refrigerator
or between
doors.
• Weather is humid. • This is normal in humid weather.
When humidity is lower, the
moisture should disappear.
Food/Drinks in Fresh Food Compartment/Custom-Flex™ Drawer
Food is
freezing.
• Temperature setting is
too low.
• Temperature sensor is
covered by food (right
side of fresh food area).
• Food is covering the air
ports.
• Move the setting to a higher degree.
• Allow space for air flow to the
sensor.
• Allow space between the air ports
and the food.
Connectivity
Diculty
connecting
the smart
appliance.
• Trouble connecting
the smart appliance to
your wifi network or
experiencing an issue
with the app.
• Please visit Frigidaire.com and
select the Owner Support section to
view “Frequently Asked Questions”.
Appliance
has lost
connection
to the
network
or shows
appliance
is not
connected.
• Possible power outage.
• Possible modem failure.
• Possible router failure.
• Possible internet outage
in the area.
• Check house lights. Call local
electric company.
• Check appliance for functionality
(i.e. open doors and make sure
lights work, press a key on the
control and see if it responds).
• Check that the router and modem
are power on and connected to
the internet.
• Ensure that other connected
devices in the home can
communicate with the internet.
41
LIMITED WARRANTY
Your appliance is covered by a one year limited warranty. For one year from your original date of
purchase, Electrolux will pay all costs for repairing or replacing any parts of this appliance that
prove to be defective in materials or workmanship when such appliance is installed, used and
maintained in accordance with the provided instructions.
Exclusions
This warranty does not cover the following:
1. Products with original serial numbers that have been removed, altered or cannot be readily
determined.
2. Product that has been transferred from its original owner to another party or removed
outside the USA or Canada.
3. Rust on the interior or exterior of the unit.
4. Products purchased “as-is” are not covered by this warranty.
5. Food loss due to any refrigerator or freezer failures.
6. Products used in a commercial setting.
7. Service calls which do not involve malfunction or defects in materials or workmanship, or
for appliances not in ordinary household use or used other than in accordance with the
provided instructions.
8. Service calls to correct the installation of your appliance or to instruct you how to use your
appliance.
9. Expenses for making the appliance accessible for servicing, such as removal of trim,
cupboards, shelves, etc., which are not a part of the appliance when it is shipped from the
factory.
10. Service calls to repair or replace appliance light bulbs, air filters, water filters, other
consumables, or knobs, handles, or other cosmetic parts.
11. Surcharges including, but not limited to, any after hour, weekend, or holiday service calls,
tolls, ferry trip charges, or mileage expense for service calls to remote areas, including the
state of Alaska.
12. Damages to the finish of appliance or home incurred during installation, including but not
limited to floors, cabinets, walls, etc.
13. Damages caused by: services performed by unauthorized service companies; use of parts
other than genuine Electrolux parts or parts obtained from persons other than authorized
service companies; or external causes such as abuse, misuse, inadequate power supply,
accidents, fires, or acts of God.
DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES
CUSTOMER’S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT
REPAIR OR REPLACEMENT AS PROVIDED HEREIN. CLAIMS BASED ON IMPLIED WARRANTIES,
INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE
LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW, BUT NOT LESS THAN ONE
YEAR. ELECTROLUX SHALL NOT BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH
AS PROPERTY DAMAGE AND INCIDENTAL EXPENSES RESULTING FROM ANY BREACH OF THIS
WRITTEN LIMITED WARRANTY OR ANY IMPLIED WARRANTY. SOME STATES AND PROVINCES DO
NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR
LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES, SO THESE LIMITATIONS OR EXCLUSIONS
MAY NOT APPLY TO YOU. THIS WRITTEN WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY
ALSO HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE.
If You Need Service
Keep your receipt, delivery slip, or some other appropriate payment record to establish the
warranty period should service be required. If service is performed, it is in your best interest
to obtain and keep all receipts. Service under this warranty must be obtained by contacting
Electrolux at the addresses or phone numbers below.
This warranty only applies in the USA and Canada. In the USA, your appliance is warranted
by Electrolux Major Appliances North America, a division of Electrolux Home Products, Inc. In
Canada, your appliance is warranted by Electrolux Canada Corp. Electrolux authorizes no person
to change or add to any obligations under this warranty. Obligations for service and parts under
this warranty must be performed by Electrolux or an authorized service company. Product
features or specifications as described or illustrated are subject to change without notice.
USA
1-800-374-4432
Frigidaire
10200 David Taylor Drive
Charlotte, NC 28262
Canada
1.800.265.8352
Electrolux Canada Corp.
5855 Terry Fox Way
Mississauga, Ontario, Canada
L5V 3E4
welcome
home
Frigidaire.com
1-800-374-4432
Frigidaire.ca
1-800-265-8352
owner support
accessories
service
Our home is your home. Visit us if you
need help with any of these things:
registration
(See your registration card
for more information.)
