3
Safety and warnings 5
Installation guide 7
Before your first wash 15
Safety features 16
Control panel 18
Wash cycles 22
Detergent and softener 27
Where to put the detergent 28
Wash preparation 31
Getting started quickly 32
Wash cycle options 34
Customising a wash cycle 41
Changing pre-set options 43
Caring for your washer 45
Before you call for service 50
Fault codes 52
Troubleshooting 53
Manufacturer’s warranty 59
Customer care 61
CONTENTS
Registration
To register your product visit our website: fisherpaykel.com/register
5
SAFETY AND WARNINGS
!
WARNING!
Electric Shock Hazard
Failure to follow this advice may result in
electric shock or death.
• If you are using an extension cord or a portable
electrical outlet device (eg multi-socket outlet
box), ensure that it is positioned so that it does
not come into contact with water or moisture.
READ AND SAVE THIS GUIDE
When using your clothes washer, follow basic precautions, including thefollowing:
General
z
This product has been designed for personal, family or household use. This product is
not designed for any commercial use. Any commercial use will terminate this product’s
manufacturer’s warranty.
z
A damaged power cord must be replaced by a Fisher & Paykel trained and supported
service technician or similarly qualified person in order to avoid a hazard. Do not use
the appliance until it has been repaired to avoid a risk of electric shock.
z
Do not operate this machine if it has been damaged during transport. Contact your
Fisher & Paykel dealer or Fisher & Paykel trained and supported service technician.
z
This clothes washer is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of experience and
knowledge,unless they are supervised or given instructions on how to use the
washerby someone responsible for their safety.
z
Keep children away from the washer while it is in operation.
z
Supervise children to ensure they do not play with the washer or climb inside thedrum.
z
The washer should only be used for washing and rinsing of textiles where this
isindicated on the care label.
z
Do not add petrol, dry-cleaning solvents, or other flammable or explosive substances to
the wash water. These substances give off vapours that could ignite or explode.
z
Do not wash articles that have been previously cleaned in, washed in, soaked in,
or spotted with gasoline, dry-cleaning solvents, or other flammable or explosive
substances as they give off vapours that could ignite or explode.
z
The door will be locked from the start of the cycle until the cycle is complete for safety
reasons. It is possible to open the door during the cycle under certain conditions. Never
force the door open.
z
Do not touch the door during a cycle as the door can become hot.
z
When 90°C temperature is selected, the door glass will become hot. Do not touch the
glass part of the door. Keep children away from the washer.
z
Do not touch or operate the machine with wet hands or with bare-feet.
z
Do not open the detergent dispenser during the cycle as hot water may come outofit.
z
Ensure the installation provides accessibility to the plug or incorporate a switch in the
fixed wiring in accordance with the wiring rules to allow disconnection of the appliance
from the supply after installation.
6
Installation
z
For guidance on how to install your product, please refer to ‘Installation guide’
contained in this document.
z
Install the machine on a solid and level floor surface ensuring it has at least 20mm
clearance on each side. The washer must not be installed on any textured floor
coverings (eg carpet, rugs).
z
This washer must not be installed or operated on a plinth.
Water supply requirements
z
Inlet water pressure: Max. 1MPa (145psi), Min. 30kPa (4.5psi)
z
Inlet water flow rate: Min. 6litres/minute
z
A pressure-reducing valve must be installed if pressure is higher than 1MPa.
z
For optimum wash performance check the supply pressure is within the
recommendedrange.
z
New hose sets provided with the washer should be used to connect the washer to the
water mains. Old hose sets should not be re-used.
z
We recommend the inlet hose(s) are changed every five years. WARNING: Failure to do
so may result in a flood and damage to property.
z
The hot water temperature should not exceed 65°C and the cold water temperature
should not exceed35°C. Temperatures above these may cause the machine to fault or
cause damage to the machine.
MODEL CODE MAXIMUM CAPACITY* (KG)
WH7560P, WH7560J 7.5
WH8060F, WH8060P, WH8060J 8.0
WH8560F, WH8560P, WH8560J 8.5
WH9060J, WH9060P 9.0
WH1060P, WH1060J 10.0
*Capacity refers to the maximum dry weight of items the washer can wash at any one time
SAFETY AND WARNINGS
z
Read and follow the detergent manufacturers’ instructions carefully. Instructions on
how to use the detergent will be clearly indicated on the pack. Remember to store your
detergents out of the reach of children.
z
Do not wash an electric blanket in your washer unless the care label specifically states
it is safe to do so.
z
Do not wash curtains in this washer, as sunlight makes them brittle and they may
disintegrate during washing.
z
The only user-removable parts of the washer are the inlet hose(s), dispenser and
pump filter. No other parts are designed to be removed by anyone other than a
Fisher&Paykel trained and supported service technician.
z
Do not overload your washing machine beyond its rated capacity.
Disposal
z
When disposing of the washer, it is recommended that the door is removed to
avoidchildren getting trapped inside, and that the electrical cable is cut off close to
thewasher.
7
INSTALLATION GUIDE
Accessories
Check if you received the following accessories with your Fisher&Paykel washer. Youwill
find them inside the drum or attached to the packaging.
z
1 x hot inlet hose (grey with red connectors) for WH8560F, WH8560P2, WH8060F,
WH8060P2 and WH7560P
z
1 x cold inlet hose (grey with white connectors) for all models.
z
4 x Plastic plugs to cover transit bolt holes
z
1 x Drain hose guide
Unpacking
Your washer is heavy, we recommend two people to remove the packaging.
To ensure the best performance from your new washer please follow the steps below before
using your washer.
1 Remove the outer packaging including the polystyrene
packer and plastic wrapping.
2 Lift the washer off the base.
3 Remove all packaging and accessories from inside the
drum.
4 Dispose of all packaging sustainably, ensuring these
materials are kept out of the reach of children.
INSTALLATION GUIDE
8
Removing transit safety bolts
z
The clothes washer is fitted with transit safety bolts at the rear to avoid possible damage
to the internal components during transportation.
z
The four transit bolts must be removed prior to operation of the washer. Failure
to remove these will result in damage to the washer and compromise your
manufacturer’s warranty.
z
The transit bolts must be removed in order to use the power cord.
To remove the bolt, grommet and
white plastic spacers, pull on the black
rubber grommets.
Use a spanner or socket to unscrew and
remove all four transit bolts at the back of
the washer.
Cover the transit bolt holes with the plastic
plugs delivered with the washer. Push to clip
into place.
1
2
3
Removing the transit bolts
INSTALLATION GUIDE
9
Product dimensions
FRONT
PLAN
E
G
H
I
F
D
MIN. CLEARANCES
WH1060P/J WH9060P/J WH8560F/P/J WH8060F/P WH7560P/J WH8060J
MM MM MM MM MM MM
E Cavity width 640 640 640 640 640 640
F Cavity depth 650 650 650 650 610 610
G Rear 20 20 20 20 20 20
H Sides*** 20 20 20 20 20 20
I Door to sides 320 320 320 320 330 330
*** Door clearance should also be considered depending on type of installation
A
B
C
PRODUCT DIMENSIONS
WH1060P/J WH9060P/J WH8560F/P/J WH8060F/P WH7560P/J WH8060J
MM MM MM MM MM MM
A Overall height* 850 850 850 850 850 850
B Overall width 600 600 600 600 600 600
C Overall depth** 655 655 655 655 590 590
D Depth of open door 1075 1075 1075 1075 1010 1010
Standpipe height min 600 600 600 600 600 600
* Exact height is dependent on foot adjustment
** Including dial and door (when closed)
INSTALLATION GUIDE
10
1
2
3

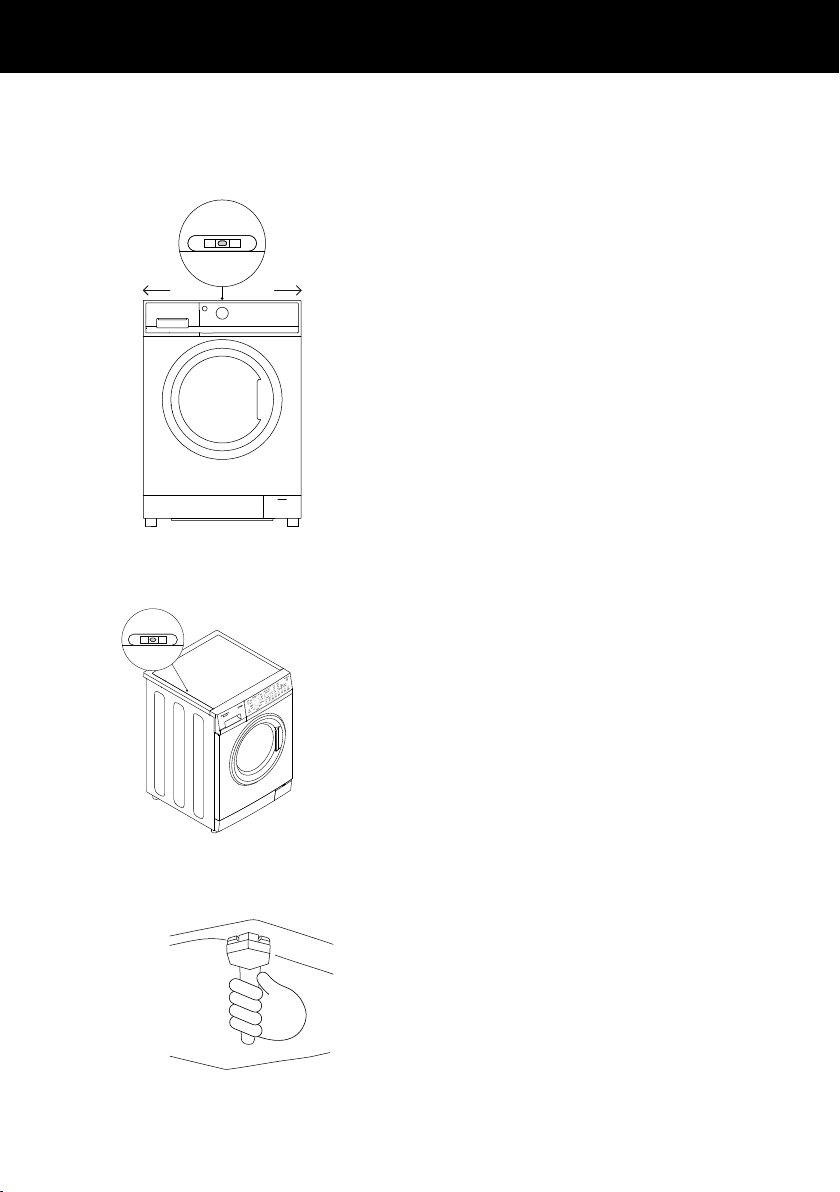

Before positioning your washer in its final
position, check that the machine is level,
front to back and side to side.
Level the washer side to side:
1 Place the level on the centre front of
the washer.
2 If you need to adjust the washer’s
position, loosen the lock nut using the
spanner provided and turn the feet up or
down until the washer is level side to side.
To wind the feet up turn clockwise, to wind
the feet down turn counter-clockwise.
Level the washer front to back:
1 Place the level on the left side, in line with
the centre of the washer.
2 Adjust the front left foot and then the
right foot until the washer is level.
There should be equal weight on both
front feet.
Using the spanner provided, tighten the
lock nuts against the base of the washer
tolockthe feet in position.
Move and centre the washer into its final
position within the cavity, using adjacent walls
as a guide and allowing 20mm clearance at
the back and sides of the washer.
Recheck the washer is level, front to back
and side to side. Repeat the above steps
if required.
Levelling the washer
It is IMPORTANT to level the washer. Having a level washer set up in its cavity will
ensure best performance for spinning, minimising noise, vibrations and wear and tear on
the washer.
INSTALLATION GUIDE
11
Water supply
Water supply requirements
If you have an uncontrolled water heating source (eg a wet back or solar heating system)
you should fit a tempering valve. This will ensure the hot water temperature remains within
safe limits. Contact your registered plumber to select and install the tempering valve.
Your cold water should not exceed 35°C and your hot water should not exceed 65°C.
Temperatures above these may cause the washer to fault or cause damage to the washer.
z
Inlet water static pressure: Max.1MPa(145psi) Min.30KPa (4.5psi).
z
Inlet water flow rate at tap: Min.6litres/min.
Cold supply only
For models WH8560F, WH8560P2, WH8060F, WH8060P2, and WH7560P, if you only have
a cold water supply, you must connect the inlet valve cap (blanking cap) provided with
your washer to the hot inlet valve. The cap prevents water leaking out of the hot valve. This
appliance incorporates backflow protection complying with AS3500.1/IEC61770. No further
backflow protection is required for connection to the water supply.
Your washer has an internal heater to heat water. If you do not connect a hot water inlet
hose, your washer will automatically recognise there is no hot water supply and its internal
heater will heat the cold water to the selected cycle temperature.
Inlet hose(s)
Failure to adhere to the following guidance may result in
a flood and damage to property. Only use the new hose
set(s) provided with your washer.
1 Connect the straight ends of the inlet hose(s) to the
tap(s), thereare washers fitted in both ends.
2 Connect the elbow ends to the corresponding washer
inlet valves. If present, the hot valve is coloured
orange to make this easier.
3 Tighten the inlet hose(s) ends by hand until the hose
seal just makes contact with the tap-sealing face.
Continue to tighten a further half-turn.
4 Make sure there are no kinks in the hose(s).
5 Turn the tap(s) on and check for leaks. Check for leaks
again after 24 hours.
INSTALLATION GUIDE
12

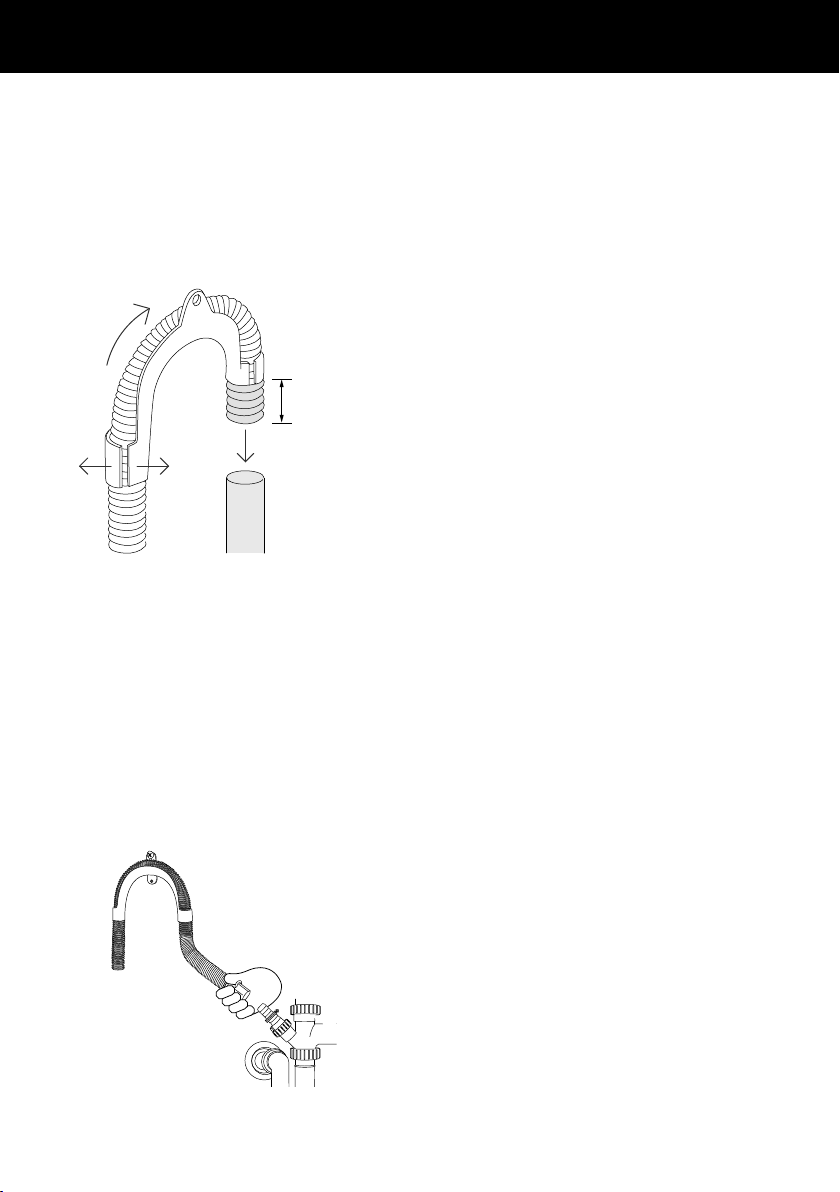

Draining
20mm
max.
Place the drain hose in a tub or standpipe
Attach drain hose to spigot
In multi-storey apartments or any upper floor, the washer should be installed on a floor
equipped with a drain. Draining must comply with local by-laws.
1 Flex the guide apart and pull the hose
through the guide.
2 Ensure a maximum of 20mm of hose is
left exposed at the end.
3 Secure the hose guide to prevent it
dislodging from the standpipe or tub.
If the drain hose is placed on the ground or if the tub or standpipe is less than 600mm
high, the washing machine will continuously drain (siphon) while being filled.
Tub or standpipe height should be a minimum of 600mm.
Regularly check that your tub or standpipe is free from lint or other obstructions. This may
affect operation or cause flooding.
The hose guide is used to hold the drain hose high enough to prevent continuous draining
(siphoning).
1 Flex the guide apart and pull the hose
through the guide.
2 Secure the hose guide to a wall or the
back wall of the cupboard using a screw.
3 Drill out the blanking insert from spigot to
ensure the washer can drain correctly.
4 Attach drain hose to spigot and secure
using a hose clamp.
5 Check for leaks.
The hose guide is used to hold the drain hose over the tub or standpipe.
INSTALLATION GUIDE
13
Complete your installation
z
Turn on the water and check all hose connections for leaks. Make sure there are
no kinks in the hose(s). Check the hose connections for leaks again after 24hours.
z
Uncoil power cord, remove and discard the plastic pin cover, and plug into
the wall socket.
z
Connect the appliance to an earthed outlet protected by a fuse of suitable capacity.
Test cycle
Your washer must be correctly installed before use. To check the installation and operation
of the washer follow the steps below:
1
Press to activate your washer.
2
Select a QUICK cycle. Ensure the drum is
empty and the door closed.
SPARE PART* PART NO.
Hose inlet long (2m) 422680P
Hose inlet large bore 426123P
* Available from your Fisher&Paykel dealer or a Fisher&Paykel trained and supported service technician
Electrical connection
z
This appliance must be connected to a 220V – 240V, 50Hz, sinusoidal, minimum 10A
electricalsupply.
z
Check the power cord for damage and make sure it is not squashed or twisted when
installing the washer.
z
Always remove the power cord from a socket by the plug, not by the cord.
Spare Parts
INSTALLATION GUIDE
14
A test cycle must be carried out anytime the washer is moved or tipped, this will ensure the
washer has been correctly re-installed.
If there are any problems, you must address these before proceeding with normal use. The
washer will automatically turn off at the end of the cycle if there are no problems.

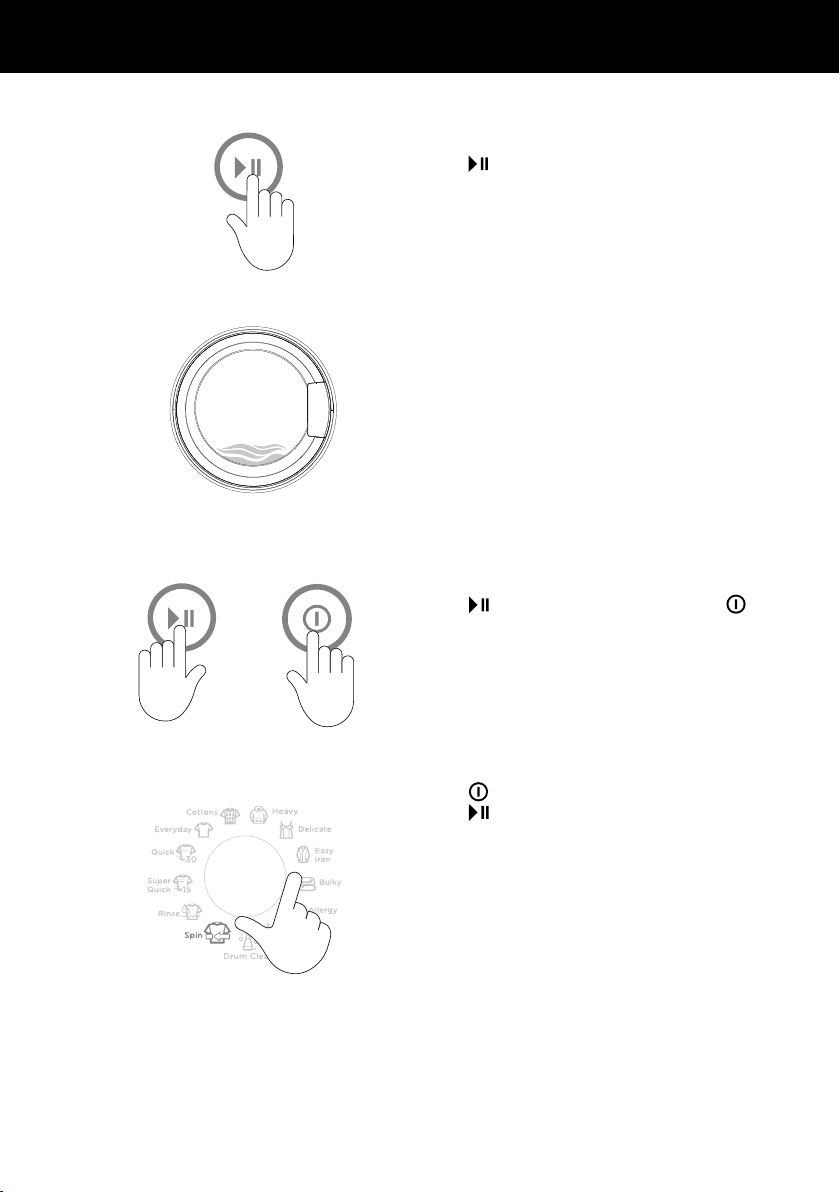

3
Press to start. The washer will start to fill.
4
Wait until you see water in the bottom
of the drum.
Press
to stop the cycle, then press
to turn the washer off.
Press
again, select the SPIN cycle and
press .
Check the drain hose is firmly secured to the
standpipe or tub, or spigot.
Observe that the washer pumps out the
water, and spins.
The washer will beep to signal the end of
the cycle. Any faults will be displayed on the
screen, refer to ‘Fault codes’.
5
6
15
BEFORE YOUR FIRST WASH
Check you have done everything you need to before you start your first wash:
Have the packaging and transit bolts been removed?
Is the washer correctly levelled, feet are extended and cabinet corners are clear of
the floor?
Is the drain hose threaded through the hose guide ‘U bend’ (with no more than
20mm extended) and hooked into your standpipe or tub, or attached to a spigot?
Have the taps been turned on?
Is the hot hose connected to the hot valve marked ‘H’?
Is the cold hose connected to the cold valve marked ‘C’?
Have you performed the test cycle? Refer to ‘Installation guide’.
Has the power cord been connected to an appropriate power supply and the power
turned on?
Complete a Drum Clean cycle with half-load amount of detergent and without a load
in order to remove any residues remaining in the machine from the manufacturing
process.
16
SAFETY FEATURES
Door lock
The door of your washer will lock once you press
and will stay locked until the washer
beeps at the end of the cycle, ensuring safety for you and your family while yourwasher is
operating.
To unlock the door during a cycle
Add a Garment (F/P models)
The
ADD A GARMENT function can be used to interrupt the cycle to add or remove a
garment at any time during the wash part of the cycle (provided the wash temperature
selected is lower than 60°C). If necessary the water in the washer will be drained to a level
where the door can be opened. Refer to ‘Wash cycle options’ for more information.
You can open the door to add or remove
items during thewash simply by pressing the
button.
The door will remain locked if the
temperature insidethe washer is above 60°C
and/or the waterlevelis above the bottom
of the door seal (awarning will be displayed
inthese circumstances).
1
Your washer also has the following protective measures:
z
Flood protection – turns off valves and turns pump on if a flood condition is detected.
z
Out-of-balance protection – stops and redistributes the load if an unbalanced load
condition is sensed, and/or slows the spin speed to compensate.
z
Excess suds protection – pauses to allow suds to break down before continuing the cycle.
Drum light (WH1060P, WH9060P, WH8560F, WH8060F, WH8560P3 and WH8060P3
models only)
Your washer has a drum light to help assist you when loading and unloading your washer.
When you press
, the LED light in the drum will turn on, aftertwo minutes it will
automatically turn off. At the end of the cycle, the drum light will turn on again for five
minutes to help facilitate unloading.
17
When power is restored, your washer will resume the interrupted wash cycle. If the cycle
doesn’t resume automatically, simply press to restart your washer.
SAFETY FEATURES

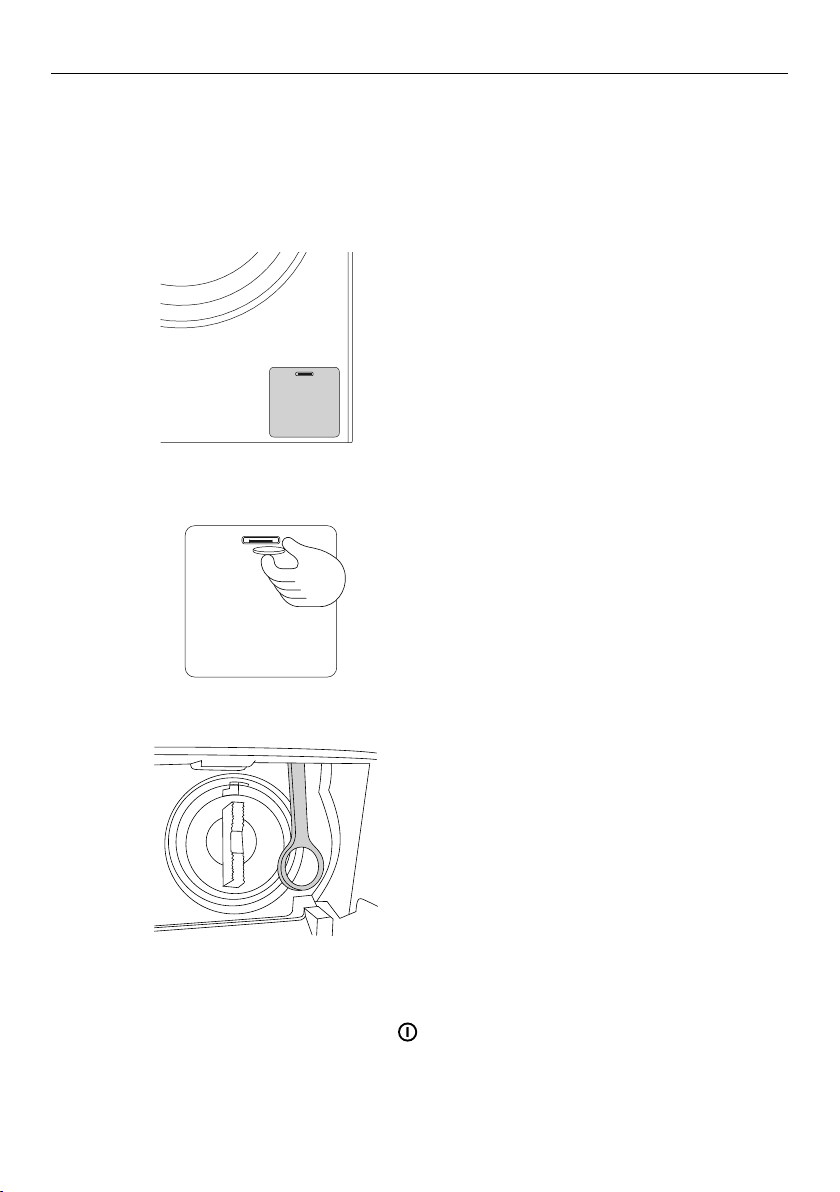

Opening the door during a power failure
If there is a power failure during a wash cycle your washer will stop and the door will
remain locked.
Locate thepump filter cover at the bottom
right of your washer.
Place a coin or key in the slot and tilt it
upwards to lever the cover open.
1
2
Pull the door release tab down from the ring.
Use a screwdriver tip, pen or key to get a
good grip.
3
Do not attempt to do this if the water level inthewasher is above the bottom of thedoor.
18
CONTROL PANEL
1 Power Press to turn the washer ON/OFF.
2 Keylock Press to disable all buttons on the control panel, except the
POWER
button. This prevents accidental button presses.
3 SmartTouch™
Control Dial
Rotate to select your desired wash cycle.
z
Red LED illuminates to indicate the selected wash cycle.
4 Digital display
screen
Shows the following:
z
TIME TO GO – the remaining time in the cycle that is
currently running.
z
Delayed start time of wash cycle.
z
Notifications if an error is detected or a warning is necessary.
5 Progess lights Indicates the current status of the wash cycle.
z
All lights are illuminated at the start of the wash cycle.
z
The light of the current status flashes, and then turns off
oncecompleted.
6 Delay Start
Less/More
Press
MORE to increase andLESS to decrease the delay start
time.
7 Time Saver Press toturn
TIME SAVER ON/OFF.
8 Wash Temp Press to increase or decrease wash water temperature.
9 Spin Speed Press to increase or decrease spin speed.
!0 Options Press to select
ECO RINSE, WRINKLE FREE and/or SOAK.
!1 Wash Boost Press to select
PRE WASH or RINSE+.
!2 Add a Garment Press to interrupt the wash part of the cycle to add or remove
agarment.
!3 Start/Pause Press to start or pause the selected wash cycle.
WH8560F and WH8060F models
1
2 4
3
6 7 8 9
5
!0 !1 !2
!3
19
CONTROL PANEL
1 Power Press to turn the washer ON/OFF.
2 Keylock Press to disable all buttons on the control panel, except the
POWER
button. This prevents accidental button presses.
3 SmartTouch™
Control Dial
Rotate to select your desired wash cycle.
z
Red LED illuminates to indicate the selected wash cycle.
4 Digital display
screen
Shows the following:
z
TIME TO GO – the remaining time in the cycle that is
currently running.
z
Delayed start time of wash cycle.
z
Notifications if an error is detected or a warning is necessary.
5 Progess lights Indicate the current status of the wash cycle.
z
All lights are illuminated at the start of the wash cycle.
z
The light of the current status flashes, and then turns off
oncecompleted.
6 Delay Start
Less/More
Press
MORE to increase andLESS to decrease the delay start
time.
7 Optimise Wash Press to select
ECO or SPEED.
8 Wash Temp Press to increase or decrease wash water temperature.
9 Spin Speed Press to increase or decrease spin speed.
!0 Wash Boost Press to select
PRE WASH, RINSE or WASH+.
!1 Options
Press to select
WRINKLE FREE.
!2 Add a Garment Press to interrupt the wash part of the cycle to add or remove
agarment.
!3 Start/Pause Press to start or pause the selected wash cycle.
WH1060P, WH9060P, WH8560P3 and WH8060P3 models
1
2 4
3
7 8 9
5
!0 !1 !2
!3
6
20
WH8560P2, WH8060P2 and WH7560P models
1
Power Press to turn the washer ON/OFF.
2
Keylock Press to disable all buttons on the control panel, except the
POWER button. This prevents accidental button presses.
3
SmartTouch™
Control Dial
Rotate to select your desired wash cycle.
z
Red LED illuminates to indicate the selected wash cycle.
4
Digital display
screen
Shows the following:
z
TIME TO GO – the remaining time in the cycle that is
currently running.
z
Delayed start time of wash cycle.
z
Notifications if an error is detected or a warning is necessary.
5
Progress lights Indicate the current status of the wash cycle.
z
All lights are illuminated at the start of the wash cycle.
z
The light of the current status flashes, and then turns off
oncecompleted.
6
Delay Start
Less/More
Press
MORE to increase andLESS to decrease the delay start
time.
7
Wash Temp Press to increase or decrease wash water temperature.
8
Spin Speed Press to increase or decrease spin speed.
9
Soil Level Press to select the level of soil in your load.
!0
Wash Boost Press to select PRE WASH or RINSE+.
!1
Options Press to select ECO and/or WRINKLE FREE.
!2
Add a Garment Press to interrupt the wash part of the cycle to add or remove
agarment.
!3
Start/Pause Press to start or pause the selected wash cycle.
CONTROL PANEL
1
2 4
3
7 8 9
5
!0 !1 !2
!3
6
21
WH1060J, WH9060J, WH8560J, WH8060J and WH7560J models
1
Power Press to turn the washer ON/OFF.
2
Keylock Press to disable all buttons on the control panel, except the
POWER button. This prevents accidental button presses.
3
SmartTouch™
Control Dial
Rotate to select your desired wash cycle.
z
Red LED illuminates to indicate the selected wash cycle.
4
Digital display
screen
Shows the following:
z
TIME TO GO – the remaining time in the cycle that is
currently running.
z
Delayed start time of wash cycle.
z
Notifications if an error is detected or a warning is necessary.
5
Progress lights Indicate the current status of the wash cycle.
z
All lights are illuminated at the start of the wash cycle.
z
The light of the current status flashes, and then turns off
oncecompleted.
6
Delay Start
Less/More
Press
MORE to increase andLESS to decrease the delay start
time.
7
Wash Temp Press to increase or decrease wash water temperature.
8
Spin Speed Press to increase or decrease spin speed.
9
Wash Boost Press to select PRE WASH or RINSE+.
!0
Options Press to select ECO.
!1
Start/Pause Press to start or pause the selected wash cycle.
CONTROL PANEL
1
2 64 7 8 9
5
!0
!1
3
22
WASH CYCLES
CYCLE DESIGNED FOR
MAX.
LOAD SIZE
(KG)**
WASH
TEMP.
(°C)
SPIN
SPEED
(RPM)
Cottons*
A comprehensive cycle specifically for
normally soiled cotton garments
8.0/8.5
40
(Cold-90)
1400
(0-1400)
Everyday
A faster cycle designed for mixed loads
with normal soil level
8.0/8.5
40
(Cold-90)
1400
(0-1400)
Heavy
A longer, hotter wash for heavy soiled
durable garments
8.0/8.5
60
(Cold-90)
1400
(0-1400)
Delicate
A gentle wash with more water to care
for lightly soiled delicate garments
4.0
40
(Cold-60)
500
(0-800)
Easy Iron
A cycle for normally soiled garments
with lower spin speeds to reduce ironing
4.0
40
(Cold-60)
800
(0-800)
Bulky
A warm gentle wash and slow spin for
special care of bulky items
4.0
60
(Cold-90)
800
(0-800)
Allergy
Longer, hotter wash with an extra rinse
to remove allergens and detergent
8.0/8.5
60
(Cold-90)
1400
(0-1400)
Wool***
An extra gentle wash action for machine
washable woollen items
2.0
40
(Cold-40)
800
(0-800)
Super
Quick
Freshening up of new or very lightly
soiled garments
2.0
30
(Cold-60)
800
(0-1400)
Sports
Specialised cycle with gradual heating for
sportswear cleaning
4.0
40
(Cold-40)
1100
(0-1400)
Rinse Items that require rinsing and spinning 8.0/8.5 Cold 1400
Spin Spinning wet items 8.0/8.5 n/a
1400
(500-1400)
Drum
Clean
An extra hot cycle designed to clean
your washer
n/a 90 1400
*’COTTONS’, ‘40°C’, ‘1400 rpm’, ECO RINSE selected is the recommended water and energy saving cycle for
normally soiled, everyday washing
**Depends on model
WH8560F and WH8060F models
Your washer has a number of wash cycles to suit your laundering needs. Selecting the
most appropriate cycle for each particular wash load will help ensure you get the best
wash result.
***Woolmark Apparel Care
The wool wash cycle of this machine has been approved by The Woolmark
Company for the washing of machinewashable wool products provided that
the products are washed according to the instructions on the garment label
and those issued by the manufacturer of these washing machines M1528. Only
the WH1060P, WH9060P, WH8560F and WH8060F models comply with
Woolmark Apparel Care requirements.
23
WASH CYCLES
WH1060P, WH9060P, WH8560P3 and WH8060P3 models
Your washer has a number of wash cycles to suit your laundering needs. Selecting the
most appropriate cycle for each particular wash load will help ensure you get the best
wash result.
CYCLE DESIGNED FOR
MAX.
LOAD SIZE
(KG)**
WASH
TEMP.
(°C)
SPIN
SPEED
(RPM)
Cottons*
A comprehensive cycle specifically for
normally soiled cotton garments
8.0/8.5
9.0/10.0
40
(Cold-90)
1400
(0-1400)
Everyday
A faster cycle designed for mixed loads
with normal soil level
8.0/8.5
9.0/10.0
30
(Cold-60)
1100
(0-1400)
Heavy
A longer, hotter wash for heavy soiled
durable garments
8.0/8.5
9.0/10.0
60
(Cold-90)
1100
(0-1400)
Delicate
A gentle wash with more water to care
for lightly soiled delicate garments
4.0
30
(Cold-40)
500
(0-800)
Easy Iron
A cycle for normally soiled garments
with lower spin speeds to reduce ironing
4.0
30
(Cold-60)
800
(0-800)
Bulky
A warm gentle wash and slow spin for
special care of bulky items
4.0
40
(Cold-90)
800
(0-800)
Steam
Refresh
A quick cycle for de-wrinkling and
removing light odours
2 items n/a n/a
Wool***
An extra gentle wash action for machine
washable woollen items
2.0
40
(Cold-40)
800
(0-800)
Quick 30 Cleaning lightly soiled loads quickly 4.0
30
(Cold-30)
800
(0-1400)
Quick 15
Freshening up of new or very lightly
soiled garments
2.0
30
(Cold-30)
800
(0-1400)
Rinse Items that require rinsing and spinning
8.0/8.5
9.0/10.0
Cold
1100
(0-1400)
Spin Spinning wet items
8.0/8.5
9.0/10.0
n/a
1100
(500-1400)
Drum
Clean
An extra hot cycle designed to clean
your washer
n/a 90 1400
*’COTTONS’, ‘40°C’, ‘1400 rpm’, ECO selected is the recommended water and energy saving cycle for normally
soiled, everyday washing
**Depends on model
***Woolmark Apparel Care
The wool wash cycle of this machine has been approved by The Woolmark
Company for the washing of machinewashable wool products provided that
the products are washed according to the instructions on the garment label
and those issued by the manufacturer of these washing machines M1528.
Only the WH1060P, WH9060P, WH8560F, WH8060F, WH8560P3 and
WH8060P3 models comply with Woolmark Apparel Care requirements.
24
WASH CYCLES
CYCLE DESIGNED FOR
MAX.
LOAD SIZE
(KG)**
WASH
TEMP.
(°C)
SPIN
SPEED
(RPM)
Cottons*
A comprehensive cycle specifically for
normally soiled cotton garments
7.5/8.0/8.5
40
(Cold-90)
1400
(0-1400)
Everyday
A faster cycle designed for mixed loads
with normal soil level
7.5/8.0/8.5
40
(Cold-90)
1400
(0-1400)
Heavy
A longer, hotter wash for heavy soiled
durable garments
7.5/8.0/8.5
60
(Cold-90)
1400
(0-1400)
Delicate
A gentle wash with more water to care
for lightly soiled delicate garments
4.0
40
(Cold-60)
500
(0-800)
Easy Iron
A cycle for normally soiled garments
with lower spin speeds to reduce ironing
4.0
40
(Cold-60)
800
(0-800)
Bulky
A warm gentle wash and slow spin for
special care of bulky items
4.0
60
(Cold-90)
800
(0-800)
Allergy
Longer, hotter wash with an extra rinse
to remove allergens and detergent
7.5/8.0/8.5
60
(Cold-90)
1400
(0-1400)
Handwash A very gentle wash for extra special items 2.0
30
(Cold-40)
500
(0-500)
Quick Cleaning lightly soiled loads quickly 4.0
40
(Cold-60)
800
(0-1400)
Super
Quick
Freshening up of new or very lightly
soiled garments
2.0
30
(Cold-60)
800
(0-1400)
Rinse Items that require rinsing and spinning 7.5/8.0/8.5 Cold
1400
(0-1400)
Spin Spinning wet items 7.5/8.0/8.5 n/a
1400
(500-1400)
Drum
Clean
An extra hot cycle designed to clean
your washer
n/a 90 1400
*’COTTONS’, ‘40°C’, ‘1400rpm’, with ECO selected is the recommended water and energy saving cycle for
normally soiled, everyday washing
**Depends on model
WH8560P2, WH8060P2 and WH7560P models
Your washer has a number of wash cycles to suit your laundering needs. Selecting the
most appropriate cycle for each particular wash load will help ensure you get the best
wash result.
25
WH9060J, WH8560J, WH8060J and WH7560J models
Your washer has a number of wash cycles to suit your laundering needs. Selecting the
most appropriate cycle for each particular wash load will help ensure you get the best
wash result.
CYCLE DESIGNED FOR
MAX.
LOAD SIZE
(KG)**
WASH
TEMP.
(°C)
SPIN
SPEED
(RPM)
Cottons*
A comprehensive cycle specifically for
normally soiled cotton garments
7.5/8.0
8.5/9.0
40
(Cold-90)
1200
(0-1200)
Everyday
A faster cycle designed for mixed loads
with normal soil level
7.5/8.0
8.5/9.0
40
(Cold-90)
1200
(0-1200)
Heavy
A longer, hotter wash for heavy soiled
durable garments
7.5/8.0
8.5/9.0
60
(Cold-90)
1200
(0-1200)
Delicate
A gentle wash with more water to care
for lightly soiled delicate garments
4.0
40
(Cold-60)
500
(0-800)
Easy Iron
A cycle for normally soiled garments
with lower spin speeds to reduce ironing
4.0
40
(Cold-60)
800
(0-800)
Quick Cleaning lightly soiled loads quickly 4.0
40
(Cold-60)
800
(0-800)
Rinse Items that require rinsing and spinning
7.5/8.0
8.5/9.0
Cold
1200
(0-1200)
Spin Spinning wet items
7.5/8.0
8.5/9.0
n/a
1200
(500-1200)

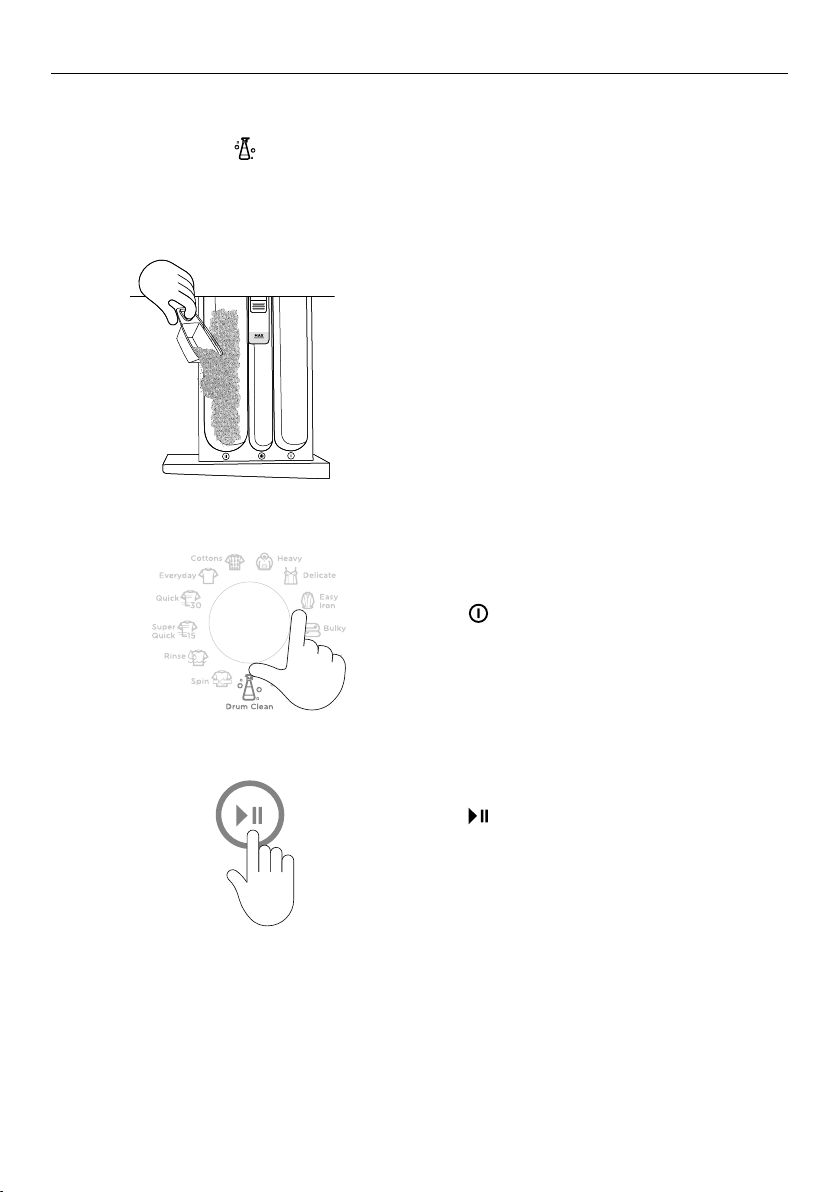

Drum
Clean
An extra hot cycle designed to clean
your washer
n/a 90 1200
*’COTTONS’, ‘40°C’, ‘1200rpm’, with ECO selected is the recommended water and energy saving cycle for
normally soiled, everyday washing
**Depends on model
WASH CYCLES
26
WH1060J
Your washer has a number of wash cycles to suit your laundering needs. Selecting the
most appropriate cycle for each particular wash load will help ensure you get the best
wash result.
CYCLE DESIGNED FOR
MAX.
LOAD SIZE
(KG)
WASH
TEMP.
(°C)
SPIN
SPEED
(RPM)
Cottons*
A comprehensive cycle specifically for
normally soiled cotton garments
10.0
40
(Cold-90)
1200
(0-1200)
Everyday
A faster cycle designed for mixed loads
with normal soil level
10.0
30
(Cold-60)
1200
(0-1200)
Heavy
A longer, hotter wash for heavy soiled
durable garments
10.0
60
(Cold-90)
1200
(0-1200)
Delicate
A gentle wash with more water to care
for lightly soiled delicate garments
4.0
30
(Cold-40)
500
(0-800)
Easy Iron
A cycle for normally soiled garments
with lower spin speeds to reduce ironing
4.0
30
(Cold-60)
800
(0-800)
Quick Cleaning of slightly soiled loads quickly 4.0
30
(Cold-30)
800
(0-1400)
Rinse Items that require rinsing and spinning 10.0 Cold
1200
(0-1200)
Spin Spinning wet items 10.0 n/a
1200
(500-1200)
Drum
Clean
An extra hot cycle designed to clean
your washer
n/a 90 1200
*’COTTONS’, ‘40°C’, ‘1200rpm’, with ECO selected is the recommended water and energy saving cycle for
normally soiled, everyday washing
WASH CYCLES
27
Detergent type
Your washer requires low-sudsing detergent to prevent oversudsing problems. Low sudsing
detergent comes in powder, liquid or pod form and is labelled front loading, low suds,
high efficiency or HE. Using top loader detergent in your front loader washer may lead to
excessive suds formation, which will lengthen the cycle time as the washer waits for the suds
to dissolve.
z

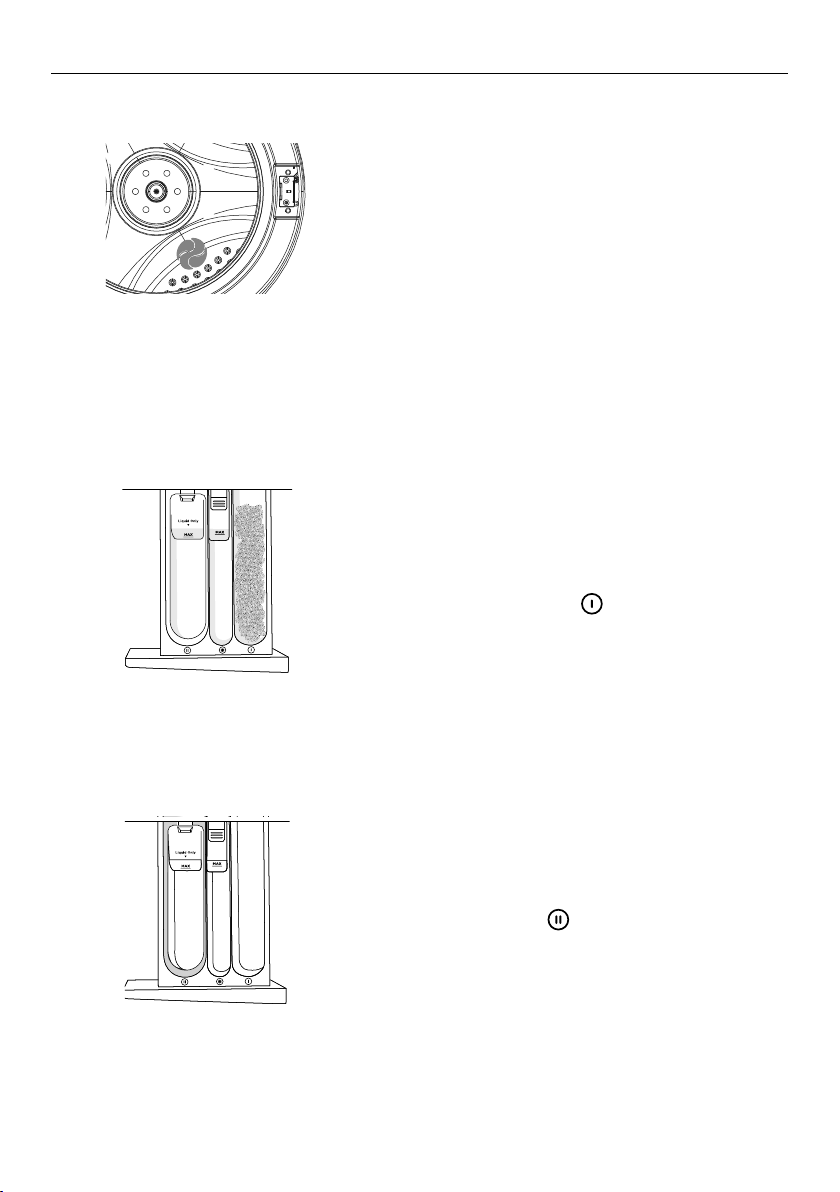

If using liquid detergent ensure the liquid detergent compartment is installed.
z
If using powder ensure the liquid detergent compartment has been removed.
z
Ensure the detergent drawer is completely closed before starting the cycle.
How much detergent?
Follow the instructions on the back of the detergent packet or bottle as a guide to the
correct amount of detergent to use. The correct amount of detergent will vary, depending
on level of soiling and size of load. Jeans and work clothes may need more detergent, while
towels usually need less. The larger your load, the more detergent you may have to add.
Detergent advice

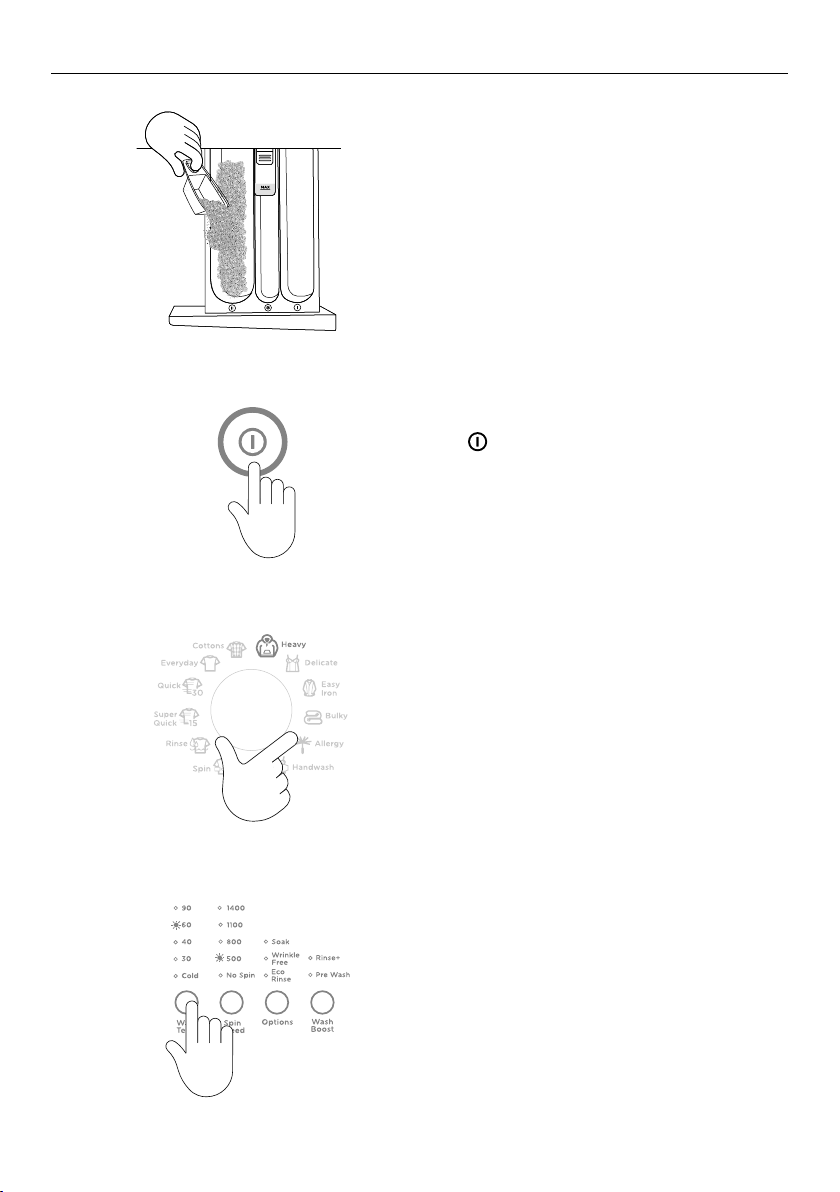

Add the detergent BEFORE starting the cycle, close the dispenser and do not open it while the
cycle is running. If you find foam leaking from your washer, check you are using a low sudsing
or front loader type detergent and check the quantity you are using against the detergent
manufacturers recommendation. You may need to reduce the amount you are using.
Fabric softener
Add fabric softener to the middle compartment of the dispenser marked with a
. Fabric
softener should not be used if you have selected the STEAM REFRESH or any QUICK cycle.
The washer will automatically flush the fabric softener during the rinse part of the cycle.
If you wish to use fabric softener we recommend to:
z
Use it sparingly. Measure it carefully and do not use more than 25ml (1/2cap), some
thicker varieties may need diluting.
z
Clean your dispenser regularly.
z
Clean your washer regularly using the DRUM CLEAN cycle.
z
Complete wash cycles at a wash temperature of 40°C or above at regular intervals
(eg every fifthwash) as washing in cold water increases the chance of scrud
occurring (see below).
z
If you fill beyond the MAX mark, the fabric softener will be dispensed into the drum
prematurely and contribute to scrud.
Scrud
Scrud is the name of the waxy build-up that can occur within any washer when fabric
softener comes in contact with detergent. This build-up is not brought about by a fault in
the washer. If scrud is allowed to build up in the washer it can result in stains on clothes and
an unpleasant smell in your washer. If you wash a particularly dirty load, we recommend
putting the washer through a
RINSE cycle once the cycle has finished and the load has been
removed, to clean outany residue from that cycle.
DETERGENT AND SOFTENER
28
WHERE TO PUT THE DETERGENT
F/P Model Washers
Liquid detergent
Detergent is added to the main wash
compartment on the left side of the dispenser
drawer marked with a .
As the washer fills, water is flushed into this compartment and is mixed with the detergent,
the detergent solution is then delivered into the drum. There may be a small volume of
water left in the liquid detergent dispenser at the end of the cycle. This is normal.
Detergent pods are a no mess alternative to
powdered or liquid detergent. They must be placed
at the back of the drum prior to loading your
clothes. This will ensure they are activated quickly
in the wash. Do not place pods in the detergent
dispenser drawer or on top of your clothes.
Pods
Pre Wash
When you select
PRE WASH, the pre wash compartment is flushed at the start of the cycle.
For more information refer to ‘Wash cycle options’. PRE WASH will not be available if the
ECO/ECO RINSE option has been selected.
If you wish to use the
PRE WASH option, liquid or
powdered detergent only must be placed in the pre
wash detergent compartment on the right side of
the drawer, marked with a .
29
Slide it back into the drawer marked .
1
2
WHERE TO PUT THE DETERGENT
To replace the liquid detergent compartment
To remove the liquid detergent
compartment, firmly grasp and twist the left
hand side of the internal compartment and
pull upwards.
1
Powdered detergent
If you wish to use powdered detergent, the liquid detergent compartment MUSTbe
removed from the dispenser drawer.
Press down in the middle until it clicks back
into place.
30
J Model Washers
Powdered or liquid detergent
Detergent is added to the main wash detergent
compartment on the left side of the dispensing
drawer marked with a
.
z
As the washer fills, water is flushed through
this compartment to deliver a detergent
solution into the drum.
z
If you select the PRE WASH option, you must
use a powdered detergent in the main wash
detergent compartment.
WHERE TO PUT THE DETERGENT
If using DELAY START we recommend using powdered detergent for the main wash.
31
Sorting
Sort items according to colour, fabric type, and soil type. Wash fine, delicate fabrics
separately from thick, heavy fabrics. Always separate coloured items from whites, especially
when they are new. Colour run could be an issue if you wash items at highertemperatures.
Some soils, like mud and blood are best washed in cold water. Oilysoils (eg some foods
and marks on shirt collars) are best washed in warm water. The care label will advise on
how the garment should be washed.
WASH PREPARATION
ITEMS/WASH
REQUIREMENTS
SUGGESTED CYCLE
AND OPTIONS*
SUGGESTED
TEMPERATURE
Towels, sheets, pillowcases Everyday, 1400 or 1100/1200 rpm 30°C or 40°C
Bulky items – doonas, duvets,
sleepingbags
Bulky 30°C or 40°C
Shirts, pants, other creasables Easy Iron or Steam Refresh, 800 rpm 30°C or 40°C
Woollens, silks Wool, Handwash, 500 rpm 30°C or 40°C
Delicates, fine fabrics Delicate, Wool or Handwash 30°C
Jeans Everyday or Heavy Cold or 30°C
Highly coloured items Everyday Cold or 30°C
Whites, cotton items Cottons, 1100/1200 or 1400 rpm 40°C or 60°C
Sensitive skin or extra rinsing Allergy, Cottons, Rinse+, 1400 rpm 40°C
Asthma/allergies Allergy, Cottons, Rinse+ 60°C
Lightly soiled items Quick, Super Quick, Speed, Timesaver 30°C
Muddy, sandy or linty items Everyday with Pre Wash and Rinse+ Cold
Unpleasant odour in washer Drum Clean 90°C
*Cycles and spin speeds available will depend on your washer model
Before you load
z
Check pockets for items that could damage your clothes or get caught in the washer.
z
Close zippers, hooks and eyes, and other fastenings (ie fasten the opening of duvet/
doona covers), and remove loose bra wires. All these can damage both your washer
and your clothes.
z
Place delicate items, such as lingerie, in a mesh laundry bag before placing in the washer.
z
Pre-treat any stains, taking care not to spray pre-treaters on your washer as they can
cause damage to the plastic surfaces.
Loading
Your washer will be more efficient when washing larger loads, so try to collect enough
items to loosely fill the drum when the items are dry.
32
2
Press to activate your washer.
3
Select your desired wash cycle by turning
the Control Dial. The wash cycle icons will
illuminate as you turn the dial showing which
cycle is selected, along with the default
wash cycle settings.
GETTING STARTED QUICKLY
1
Open the detergent drawer.
Pour liquid or powder detergent in the draw
or place the pod in the drum.
Pre-dissolving detergent in warm water when
washing can improve the performance of the
liquid and powder detergent.
Customise your wash as needed by selecting
specific temperature and spin speeds. Refer
to ‘Wash cycle options’ for more information.
4
33
GETTING STARTED QUICKLY
6
Use to lock the buttons on the control
panel, preventing them from being
activated accidently by a washing basket
or little fingers, refer to the ‘Wash cycle
options’ section.
5
Press to start the cycle. The washer will
start to fill with water and select the correct
wash action for your load.
For best fabric and colour care, remove your clothes as soon as the cycle has finished.
Failure to follow the advice in this guide may result in damage to your garments and your
expectations of wash performance may not be met.
34
WASH CYCLE OPTIONS
Once you have selected your wash cycle you may wish to change the default wash options.
Wash cycle options
All wash cycles default to the recommended options for that cycle based on the average
expected load to be washed. You can vary the options (eg
WASH TEMP, SPIN SPEED) to
create your desired cycle. Some options are not available on some cycles, for clothes care
reasons, or because the option is not appropriate for the cycle.
To change a wash option or options you have selected after a cycle has started
Press
and select your new setting(s),
then press again to resume the cycle with
the new setting(s).
1
Wash Temp
Your washer offers these wash temperatures:
COLD TAP
CONTROLLED
COLD
WARM/COLD WARM HOT EXTRA HOT
Incoming water
from tap
20°C 30°C 40°C 60°C 90°C
Simply press the WASH TEMP button to increase or decrease the wash temperature.
Some temperatures are not available on some cycles as a safeguard for your clothes
(egtemperatures above 40°C on the DELICATEcycle).
The washer will fill with both hot and cold water (if possible) to achieve the selected wash
temperature. If required, ie for cold supply or cold connection only, the washer will heat the
water to the selected temperature.
If you do not wish to heat the water to 20°C using the internal heater, refer to the ‘Changing
pre-set options’ section for detail on how to set
COLD TAP as the default temperature for
your cold water wash.
35
WASH CYCLE OPTIONS
No Spin
Selecting
NO SPIN will end the cycle after the rinse, allowing you to remove items you wish
to drip dry.
The washer will complete the default wash and rinse spins for the cycle; only the final spin
will not be completed. Remove the items you wish to drip dry and then select
SPIN and a
SPIN SPEED to spin out the remaining items.
Model RPM RPM RPM RPM NO SPIN
F/P 500 800 1100 1400
Y
J 500 800 1200 n/a
Y
Spin Speed
Your washer offers multiple spin speeds. To best care for your load, to select the speed you
want, press the SPIN SPEED button repeatedly until the desired spin speed illuminates.
Time Saver (WH8560F and WH8060F models)
Your washer offers a
TIME SAVER feature that, when selected, adjusts the cycle
programming, by combining special temperature profiling and a unique tumble sequence.
The result – excellent wash performance combined with time savings.
This option can be selected on the
EVERYDAY, COTTONS, HEAVY, EASY IRON, ALLERGY and
SPORTS cycles.
A number of factors can influence the amount of time saved on a cycle, including the load
size, cycle chosen, water flow rate and load distribution during spin.
Optimise Wash (WH1060P, WH9060P, WH8560P3 and WH8060P3 models)
Your washer offers you two optimise wash options –
SPEED and ECO – allowing you to save
time, or water and energy.
Speed
A special feature designed to offer a shorter cycle whilst providing good wash performance.
This option can be selected on the
COTTONS, HEAVY and EASY IRON cycles.
Eco
Use the
ECO option to save water and energy. Selecting ECO will reduce the wash
temperature slightly and alter the wash and rinse programming.
This option can be selected on the
EVERYDAY, COTTONS, HEAVY, EASY IRON and BULKY cycles.
z
SPEED and ECO cannot be selected together.
z
ECO will not be available if PRE WASH or RINSE+ has been selected.
36
WASH CYCLE OPTIONS
Wash Boost
Pre wash (all models)
For extra dirty loads you can perform a
PRE WASH. Your washer will start the wash with a
short wash in cool water to remove excess soil. After this the washer will drain and then fill
at the selected temperature for the main wash.
Simply press the
WASH BOOST button and select PRE WASH when choosing your wash
options. PRE WASH cannot be selected after a wash cycle has been started.
If you use the
PRE WASH option, liquid or powdered detergent needs to be placed in the
correct detergent compartment. The pre wash compartment is on the right hand side of the
drawer, marked . When you select PRE WASH, the compartment is flushed at the start of
the cycle.
PRE WASH will not be available if the ECO/ECO RINSE option has been selected.
Rinse+ (all models)
If you have a particularly dirty load, or you have sensitive skin and wish to give your clothes
an extra rinse, select RINSE+ from the WASH BOOST options. Your load will undergo an extra
rinse to get rid of any residual detergent or soil in the items.
RINSE+ will not be available if the ECO/ECO RINSE option has been selected.
Wash+ (WH1060P, WH9060P, WH8560P3 and WH8060P3 models)
WASH+ allows you to increase the wash time for heavy soiled items. The increase in wash
time gives the load the right amount of tumbling to remove the soil from items that might
need it.
Soil Level (WH8560P2, WH8060P2 and WH7560P models)
The
SOIL LEVEL option lets you adjust the wash to suit the amount of soil in your load. For
example, select HEAVY for dirty clothes; select LIGHT for items that are only lightly soiled.
This adjusts the wash time accordingly to give the load the right amount of agitation to
remove the soil.
37
Options
Soak (WH8560F and WH8060F models only)
The
SOAK option provides a two-hour soak during the middle of the wash phase of the
cycle. The washer will then complete the rest of the cycle. During SOAK, the washer will
agitate for a few seconds every minute.
SOAK is not available on WOOL, DRUM CLEAN, or SUPER QUICK cycles.
If the SOAK option is selected on a QUICK cycle, the soak time will be one hour only.
Ensure items are colourfast before using soak.
Do not use your washer to soak items in bleach or sanitiser and if you’ve soaked items in
a bucket, do not tip the contents of the bucket into your washer. The chemicals in these
products are very corrosive to metal surfaces and can damage your washer. Rinse and
wring items out thoroughly before placing them in your washer.
Wrinkle Free (F/P models)
We recommend you remove the clothes from the washer immediately after the completion
of the cycle to minimise wrinkling and creasing of items and to prevent dye run. However, if
you will not be present at the end of the wash you can select
WRINKLE FREE.
When WRINKLE FREE is selected, the washer will tumble the clothes once every 15minutes
for up to 12 hours after the cycle has finished. The WRINKLE FREE light and button will
flash, and the washer will beep at regular intervals to remind you to remove your load. To
remove the load during this phase, simply press the button.
Select
SOAK from the OPTIONS menu.
To exit
SOAK early, press and turn the dial
to select RINSE. Change the SPIN SPEED if
necessary (eg select 500 if washing delicate
or creasable items) and press .
WASH CYCLE OPTIONS
1
2
38
WASH CYCLE OPTIONS
Add a Garment (F/P models)
The ADD A GARMENT option enables you to add or remove items during the wash stage of
the cycle, under certain conditions.
Press the
ADD A GARMENT button.
Wait until you hear the door unlock. The
button will flash.
Open the door and add or remove items.
Close the door and press
to restart
the cycle.
1
2
Eco/Eco Rinse
Use the
ECO/ECO RINSE option to save water and energy. Selecting ECO/ECO RINSE will
reduce the wash temperature slightly and alter the wash and rinse programming.
This option will not be available if
PRE WASH or RINSE+ has been selected.
If you wish to, you can select both the
PRE WASH and RINSE+ WASH BOOST options to
perform on the same cycle. Likewise, you can select ECO/ECO RINSE and WRINKLE FREE to
perform on the same cycle. Press the appropriate button until both options are selected.
Repeat to deselect an option.
39
1
Press the button, then press and hold
for three seconds. This will activate the
control panel. Wash cycles and options can
now be selected.
If a button is pressed while
KEYLOCK is
activated, the LED above KEYLOCK will flash.
1
Press for three seconds.
When activated, the light above the
button
is illuminated.
To turn your washer on if KEYLOCK is on and the washer is powered off:
If
KEYLOCK is on and you want to pause your washer:
If
KEYLOCK is on and you want to power off your washer at any time:
Keylock
KEYLOCK can be used to lock the buttons on your washer. This will avoid accidental button
pushes during the wash cycle.
To turn
KEYLOCK on or off when the washer is powered on:
To pause your washer at any time during the
cycle, press and hold for threeseconds then
press .
1
1
Press .
WASH CYCLE OPTIONS
40
Delay Start
The
DELAY START option can delay the start of the wash cycle between five minutes and
12hours. This can be useful to time your washing to finish when you arrive home from work,
or to start once you have finished in the shower.
Avoid using
DELAY START for damp, non-colourfast items as this may cause dye run to occur.
Press the
MORE button to increase the
delay time, and LESS button to decrease
the time, or turn DELAY START off.
Press
to confirm your selection and start
the countdown. The display screen will show
the time until the cycle is set to begin.
1
2
WASH CYCLE OPTIONS
Washing bulky items
The
BULKY cycle takes special care of bulky items. Bulky garments and bedding wash most
effectively when they can move freely. Ensure that there is sufficient room in the drum for
the load to move during the wash.
When washing a single bulky item add a large beach towel to the wash, to ensure the load
is balanced for an effective spin.
Washing woollens
Many woollen items carry a machine washable care claim. The fibres of these woollens have
been treated to prevent felting when they are machine washed.
z
Check the care label.
z
Use a wool detergent.
z
Use the specially designed WOOL cycle.
z
To dry woollens lie them flat on a towel and pat into shape. Dry out of direct sunlight.
Most handcrafted garments are not made of machine washable wool and we recommend
that you wash them by hand only. Hand washed woollens may be spun in your washer
(select SPIN SPEED, 500).
Washing underlays and sheepskins is not recommended because they could produce
excessive amounts of lint that may cause pump blockages.
41
CUSTOMISING A WASH CYCLE
To customise a cycle
You can program your washer to remember the wash options you prefer for each wash
cycle. For instance, you may want to set the
EVERYDAY cycle to default to a COLD wash or
set HEAVY cycle to include a SOAK.
1
Press to activate your washer.
2
Turn the dial to select the wash cycle you
wish to customise, eg EVERYDAY.
Press and hold the button of the option
you want to customise, eg
WASH TEMP for
threeseconds. You will hear two quick beeps
and the wash cycle icon will flash. The screen
will display .
3
4
Continue to select any other options you wish
to customise for this cycle.
42
CUSTOMISING A WASH CYCLE
To change your customised wash cycle simply repeat these steps.
5
Press to store your customised cycle.
A long beep will sound to confirm that your
changes have been saved.
43
CHANGING PRE-SET OPTIONS
Option adjustment mode (Models WH1060P, WH9060P, WH8560P3 and WH8060P3)
This allows you to change the
CONTROLLED COLD default setting wash temperature to
COLD TAP. If your incoming cold water temperature is very low and you choose to do
a COLD TAP wash, the wash may be less effective.
To enter Option Adjustment mode:
The cold
WASH TEMP icon will flash on and off.
This is the default setting, where the machine
uses the internal heater to heat the water
to 20°C.
Press the
WASH TEMP button once, the
cold icon will stop flashing, indicating that
the temperature of the water will now be
the same as the incoming water from the
cold supply.
1
2
3
Turn your washer on at the wall but do
not press .
Press and hold the
and WASH TEMP
buttons together for three seconds. You will
hear a quick beep and will appear on
the screen indicating you have entered option
adjustment mode.
If you always use
COLD or CONTROLLED COLD water, we recommend that a warm or hot
wash be used regularly, eg every fifth wash should be at least 40°C or above. Warm water
is needed to help maintain the cleanliness of your washer.
Press
to save the setting.
Your washer will automatically remember
your changes for all future washes you do on
this cycle.
4
+
44
Factory reset
You can reset your washer to factory default settings by following the steps below.
To reset your washer to factory default settings:
1
Select the SPIN cycle.
2
Press MORE , LESS and OPTIONS buttons
together for threeseconds, will appear
on the screen and the washer will beep.
Your washer will now be reset to factory
default settings.
CHANGING PRE-SET OPTIONS
+
45
CARING FOR YOUR WASHER
1 To remove the drawer, pull it open, push down
on the tab in the fabric softener compartment
and pull out.
2 Wipe out the detergent dispenser drawer with a
damp cloth.
3 Rinse it under warm water and re-insert.
Clean the drawer regularly, especially if you use
fabric softener.
When you have finished using your washer
z
Turn off the taps to prevent the chance of
flooding should a hose burst.
z
Unplug the washer from the power socket.
Cleaning your washer
Before you start cleaning your washer, ensure that
it is disconnected from the power (ie unplug the
washer from the power socket).
Cleaning the control panel and outer surfaces of
the washer
Use a soft damp cloth to wipe all surfaces, and wipe
dry. Avoid using chemical or scouring cleaners, as
these will damage the paint and plastic surfaces of
your washer.
Cleaning the detergent dispenser drawer
46
Cleaning the inside of your washer
It is important that you regularly clean the inside of your washer using the
DRUM CLEAN
cycle. After 100cycles icon will flash every time you turn your washer on to remind
you to do this. If your washer starts to smell this is a sign that you should complete a
DRUM CLEAN cycle. We recommend that you do not have any items in the washer when
you run this cycle.
Add the washing machine cleaner
directly into the main wash detergent
compartment of the dispenser drawer.
Follow manufacturers’ instructions.
Press
to turn your washer on and select
the DRUM CLEAN cycle.
Press
to start the cycle.
NEED
1
3
2
CARING FOR YOUR WASHER
47
Aside from the detergent dispenser, water hose(s), and the pump filter, no other parts
are designed to be removed from the washer for cleaning. Do not attempt to remove any
other part of the washer.
Cleaning the drum and the door
z
Use a soft damp cloth to wipe the door, cleaning any water marks or residue off it.
z
Wipe the rubber seal around the door. Remove any items or lint accumulating in the
bottom of the seal catchment and wipe out any water accumulated here. If this is not
cleaned out, unpleasant odours will develop.
z
If the drum has any residual dirt or lint stuck to it, remove this and wipe the drum clean.
Do not leave any metal objects in the drum as these may rust and cause staining.
z
WH8560F and WH8060F models also have a self cleaning door flush that directs a
portion of the rinse water over the door during various stages of the cycle to help
to clean hair and insolubles from the inside of the door and surrounding parts. We
still recommend that you manually clean it with a soft cloth periodically as per the
instructions above.
Cleaning the hose(s)
Each hose has a filter in it, preventing any solid contaminants in the water entering your
washing machine. Occasionally you should disconnect the water inlet hose(s) where they
connect to the tap(s), check these for any build up of dirt and wash this out.
Detergent advice
z
If unpleasant odours are noticeable from your washer, it is possible that not enough
detergent is being used for the soil level of your loads. Run a DRUM CLEAN cycle and
either buy better quality detergent or use a higher dose. Different detergents have
different cleaning chemicals. Consider alternating detergents to help remove odour.
z
Add the detergent BEFORE starting the cycle, close the dispenser and do not open it
while the cycle is running.
Leave the door to your washer open when it is not in use to allow the washer to dry out,
otherwise it will develop unpleasant odours. When leaving the door open like this, it is
extremely important that children and pets are kept away from the washer so they cannot
be accidentally trapped inside it.
CARING FOR YOUR WASHER
48
CARING FOR YOUR WASHER
Cleaning the pump filter
Unhook the pump outlet hose and pull it out
(about 150mm). Remove the plug and allow
any water (approximately 250ml) to drain
into a shallow dish.
After the draining process is complete,
replace the plug intothe hose and refit the
hose back into the housing.
Turn the power off and unplug the washer.
Use a coin to open the filter cover. Place the
edge of the coin into the slot and tilt upwards
whilst levering the cover open.
2
1
Replace the filter by turning clockwise until
the turning handle stops in the vertical
position, and cannot be turned further.
Remove the filter by turning anti-clockwise.
Clean and rinseunder a tap. Check the pump
filter cavity for any further obstruction.
3
4
49
CARING FOR YOUR WASHER
Products that might damage your washer
z
Concentrated bleaches, laundry pre-soakers/sanitisers, stain removers and hydrocarbon
solvents (eg petrol and paint thinners) can cause damage to the surfaces eg control
panel, and components of your washer.
z
Be careful when washing garments stained with solvents as they are flammable. DO NOT
put them in your dryer.
z
Use of dyes in your washer may cause staining of the plastic components. The dye will
not damage the washer but we suggest you thoroughly clean your washer afterwards.
We do not recommend the use of dye strippers in your washer.
z
Nappy sanitisers and bleach are very corrosive to metal surfaces. DO NOT tip the
contents of a nappy bucket into your washer. Rinse and wring items out thoroughly
before placing them in the washer.
Moving your washer
Make sure any water in the washer is drained out. This can be done by cleaning out the
pump filter, refer to ‘Cleaning the pump filter’.
If you have the transit rods and you need to move your washer, replace them before
moving. This will protect the internal components of your washing machine from damage.
To replace the transit bolts, pull out the white plastic covers in the back of the washer. Refer
to ‘Installation guide’. Push the transit bolt rubber grommets and plastic spacers into the
hole and tighten with the spanner provided with the product.
Saving water, energy and the environment
Water-efficient washing machines will save you money, but it is also worth thinking about
energy use, recycling water and the environment. Some options to consider include
the following:
z
Turn the washer off at the wall when not in use.
z
Turn off the taps when not in use.
z
Select cooler wash temperatures.
z
Wash full loads rather than several smaller loads.
z
Use the ECO wash and ECO RINSE option/functions (where available).
z
Follow instructions on the detergent packet or bottle – do not overdose.
z
Use concentrated detergent – it costs less per wash.
z
Consider re-using the washing machines grey water on the garden or for flushing your
toilet – more information can be found on government websites promoting energy
and water saving.
50
BEFORE YOU CALL FOR SERVICE
User warnings
Your washer is capable of self diagnosis and may sound a series of beeps and display
anotification or warning to inform you when there is aproblem. In most cases you will be
able to address the problem the washer is alerting you to. Check this chart before you call
for service.
PROBLEM DISPLAYED AS WHAT TO DO
Keylock
is activated
Press and hold
button for threeseconds.
Pump filter
is blocked
Clean the pump filter
The washer
is not getting
any water
Check the taps have been turned on
If there is no hot water connection the washer will heat the
water itself, but there must be a cold water connection to the
cold valve.
Check the hose connections. If the cold water supply is
connected to the hot valve and there is no connection to the
coldvalve the washer will not fill.
Check the inlet hose filters are not blocked, the hose(s) are not
kinked and are attached correctly.
Check that the drain hose is not too low or pushed into the
standpipe too far. This will cause the water to siphon out of
thewasher.
Check that the cold water temperature does not exceed the
35°Ctemperature requirement.
Check the water flow rate. It maybe too low.
The washer is
out of balance
The wash load has gone out of balance at some point during the
cycle. Touch
to stop message. If you want to improve the
dryness of the load, manually re-distribute the load and remove
items if necessary. Close the door and select the
SPIN cycle on
the dial, adjust the spin speed if necessary and touch
to start
the washer.
Check the washer is level.
51
BEFORE YOU CALL FOR SERVICE
PROBLEM DISPLAYED AS WHAT TO DO
The washer has
too many suds
Washer will stop and flash while waiting for suds
todissipate. The washer will not beep during this time.
When the suds have dissipated the washer will automatically
restart. If a suds event has occurred during a cycle the washer
will also display this warning at the end of the cycle, to alert you
that this has occurred. This may help to explain any reduction
inperformance.
Check you are using a detergent suitable for front loaders.
Check you are not overdosing the detergent.
Check the standpipe height for the drain is a minimum
of 600mm.
Door is locked The temperature in the drum is over 60°C therefore it is not safe
to open the door. Wait until the temperature drops below 60°C.
Check the water level in the drum. If the level is above the
bottomof the door seal, the door cannot be opened. Use the
ADD A GARMENT button if you wish to add or remove items
(WH1060P, WH9060P, WH8060P2, WH8060F, WH8560P2,
WH8560F, WH8560P3, WH8060P3 and WH7560P models).
If the drum is still moving, wait for it to stop before attempting
toopen the door.
Door is open
Close the door fully and press
.
Try opening and closing the door again.
Reposition the load, make sure the load is correctly in the
drum and that protruding items are not stopping the door
from closing.
52
FAULT CODES
When a continuous series of beeps is sounded, all the lights turn off on the control panel
and a number appears on the display, a fault has occurred. The washer will automatically
enter this mode if a fault occurs. The fault code will be displayed as followed by
a number on the digital display. To stop the sound, press any button and perform the
following steps:
1 Turn your washer off at the power point.
2 Wait oneminute and turn it back on.
3 Check your washer is correctly levelled.
4 Remove your wash load.
5 Perform a
RINSE cycle.
6 If the fault re-occurs repeat steps
1
and
2
.
7 If the washer will still not work you will be required to call a Fisher & Paykel Authorised
Repairer to arrange service, refer to the ‘Customer care’ section. Record the fault code
number displayed and the serial number of your washer (located above the drum
opening when the door is open) before calling. The fault code will indicate to the
repairer what the problem could potentially be.
If a fault code is being displayed, you can still turn your washer off by pressing
.
53
TROUBLESHOOTING
The following is a list of problems you may encounter when using this appliance and some
suggestions that may help to correct the problem. If you still have problems, contact your
Fisher & Paykel trained and supported service technician.
PROBLEM POSSIBLE CAUSES WHAT TO DO
Washer not
turning on
Power not switched on at thewall.
Switch the power on at the wall. Press
.
Household power supply
notworking.
Try plugging in another electrical appliance.
Keylock may be activated.
Press and hold the
button for three seconds.
Pressing
does not start
the fill
Washer door not closed properly. Open and reclose door.
The washer has detected afault. Check if a code is being displayed onthe
control panel, refer to ‘Fault codes’.
Hot and cold taps not turnedon. Check that both hot and cold taps are
turned on (if using cold inlet only ensure
inlet valve cap is installed on the hot valve
on the washer).
Hot and cold taps not connected
to the corresponding valve on the
washer.
Check the cold tap is connected to the
cold valve on the washer and the hot tap is
connected to the hot valve.
Blocked hose filters. Check the tap end of the inlet hose(s)
for blockages.
Inlet hose leaking, twisted
ordamaged.
Check the inlet hose(s) for leaks or damage.
Check that the inlet hose(s) are not twisted.
Faulty water supply. Check taps that aren’t connected
to the washer are working.
Delay start maybe set. Refer to
‘DELAY START’.
Washer stops
working mid
cycle
The washer has detected afault. Refer to ‘User warnings’ or ‘Fault codes’.
Power or water failure. Check the power and/or water is
working correctly.
Washer has been paused.
Press the
button to continue.
Oversudsing. Washer is waiting for suds to dissolve before
continuing the cycle.
Washer drains
while filling
Drain hose too low. Ensure the height of the drain hose is atleast
600mm from the floor level, ‘Draining’.
Drain hose sitting in water. Clear the drain.
54
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSES WHAT TO DO
Washer is
not draining
Drain hose blocked. Clear the drain hose.
Pump filter blocked. Clear the pump filter, refer to ‘Cleaning the
pump filter’.
Drain hose guide higher than
1200mm above floor level.
Lower the level of the drain hose guide.
Refer to ‘Draining’.
Filling
continuously
Drain hose not connected to
standpipe, tub or spigot.
Connect drain hose correctly.
Refer to ‘Draining’.
Washer is siphoning. Ensure standpipe or tub is at least 600mm
from the floor level.
Poor rinsing Incorrect detergent used. Use low sudsing, front loader detergent only.
Too much detergent used. Ensure the correct dose of detergent is used
for the load size and soil level.
Refer to ‘Where to put the detergent’.
Not spinning
properly
Load has gone out of balance. Open the door and redistribute the load.
Restart the washer.
Suds build up. Check the amount of detergent used, reduce
if necessary.
Too many
soap suds
Incorrect type of detergentused. Use low sudsing, front loader detergent only.
Refer to ‘Where to put the detergent’.
Too much detergent used. Ensure the correct dose of detergent isused
for the load size and soil level. Refer to
‘Where to put the detergent’.
Inlet water pressure/flowrate too low. Ensure correct inlet water pressure and flow
rate as per installation instructions.
Small puddle of
water from under
the washer
Inlet hose(s) or drain hose leaking. Check inlet hose(s) and the drain hose are
correctly attached and not damaged.
Lots of suds. Suds may have leaked and then dissolved.
Dispenser compartments blocked. Refer to ‘Cleaning the detergent
dispenser drawer’.
Dispenser drawer not fullyclosed. Close dispenser drawer fully and ensure
itremains closed during the cycle.
Damage to door seal. Check seal inside door for damage.
If it sustains any damage it will need
to be replaced.
55
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSES WHAT TO DO
Cycle time
longer than usual
/ inaccurate
adjustment of
time remaining
during cycle
Cycle time is approximate. Cycle time is influenced by a number of
factors. Refer to ‘Wash cycles’.
Low water pressure or flowrate. Ensure that inlet hose filters are notblocked.
Out of balance or oversudsing. Recovery from out of balance or oversudsing
will extend cycle time. Refer to ‘Caring for
your washer’.
Washing a large load. Be aware that it will take longer for the
machne to fill.
Selecting various options. Be aware that some options will extend
cycle time.
Detergent or
fabric softener
remaining in
dispenser at the
end of the cycle
Dispenser drawer not properly closed
or was opened part way through
the cycle.
Ensure the dispenser drawer is fully closed
at the start of the cycle and remains closed
throughout the cycle.
Dirty or blocked dispenser. Clean the dispenser drawer. Refer to ‘Cleaning
the detergent dispenser drawer’.
Liquid sitting at the ‘Max’ level
at the end of the cycle indicates
a blockage.
Clean the fabric softener dispenser
compartment. Refer to ‘Cleaning the
detergent dispenser drawer’.
Dispenser over loaded
with detergent.
Clean out remaining detergent. Refer to
‘Detergent and softener’.
Composition of the powder
detergent makes it difficult
to dispense.
Dissolve detergent with water to aid
with dispensing.
Washing very
wet at the end of
the cycle
Cycle selected not appropriate. Particularly short or delicate cycles have
shorter spins which can result in wetter
washing at the end of the cycle.
Incorrect spin speed for load selected. Select a faster spin speed.
An out of balance load hasoccurred. The washer compensates for the out of
balance by using a lower spin speed, to
reduce noise and potential damage to
the product.
56
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSES WHAT TO DO
Vibrating Transit bolts left in place. Ensure transit bolts are removed prior
touse of the washer. Refer to ‘Removing the
transit bolts’.
Washer may not be level. Ensure washer is installed on an appropriate
surface and levelled correctly. Refer to
‘Levelling the washer’.
Load is out of balance. Wash an average sized load rather than
asmaller load or a single item. Washingone
item at a time is not recommended as it is
difficult for the washer to balance a single
item duringspin.
Creasing Washer overloaded. Do not overload the washer.
Incorrect cycle for loadtype. Use the
EASY IRON, DELICATE or
STEAM REFRESH cycle for creasable items.
Spin speed too fast. Select a slower spin speed.
Wet clothes left in washer or
laundry basket.
Laundry left sitting wet is more likely to
crease. If not removing clothes from washer
immediately at end of cycle, select the
WRINKLE FREE option. Do not leave wet
washing sitting in a washing basket.
Wash temperature too hot for
load type.
Select a lower wash temperature.
Check items care label for correct care.
Check the hot and cold taps are connected
to the correct valves. Refer to ‘Water supply’.
Items not sorted correctly. Sort load so that items of similar weight are
washed together.
57
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSES WHAT TO DO
Poor soil removal Incorrect wash cycle selected. Select a wash cycle that is appropriate for
the amount of dirt. Refer to ‘Wash cycles’.
Insufficient detergent. Ensure the correct dose of detergent isused
for the load size and soil level. Refer to
‘Detergent and softener’.
Washer overloaded. Ensure the washer is not overloaded interms
of its capacity or the cycle selected. Refer
to ‘Loading’.
Items require a longer wash time. Select a higher
SOIL LEVEL or WASH + option
if available.
Load was particularly dirty. Select
PRE WASH for particularly dirty loads.
Refer to ‘Wash cycle options’.
Items not sorted correctly. Wash heavily and lightly soiled
garments seperately.
Washer dirty from previouswash. After washing particularly dirty clothing, we
recommend putting the washer through a
RINSE cycle once the load has been removed.
This washes away any remnants of dirt that
could affect future wash performance.
Incorrect wash temperature selected
in relation to the type of soil.
Select a wash temperature suitable for
the type of soil, eg warm for greasy soils,
cold for muddy soils. Increasing the wash
temperature generally improves soil removal
and overall wash performance.
Ensure garments can be washed at the
increased temperature.
Dye transfer Coloured items not washed
separately from white/light
coloured items.
Remember to separate whites andcolours.
New or non-colourfast items not
washed separately.
Wash non-colourfast items separately and
select
COLD wash temperature.
Wet items have been left sitting for
too long.
Remove items from washer as soon as the
cycle is finished, or if items are not to be
removed from the washer immediately
select
WRINKLE FREE.
Wash temperature. Consider the wash temperature you
select for your coloured items. Lower the
temperature if you are concerned.
58
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSES WHAT TO DO
Black or grey
marks on clothes
Correct amount of detergent. Ensure the correct dose of detergent is
used for the load size and soil level. Refer to
‘Detergent and softener’.
Washer needs to be cleaned. Empty the machine and complete a
DRUM CLEANcycle. Refer to ‘Cleaning the
drum and the door’.
Tangling Items not sorted correctly. Separate larger items from smalleritems.
Washer loaded incorrectly. Load items loosely and individually into the
washer (ie not folded).
Incorrect cycle for load
type selected.
Use the
EASY IRON or STEAM REFRESH cycle
for items that crease easily
Overloaded in terms of its capacity
or the cycle selected.
Refer to ‘Wash cycles’ for recommended
maximum load size.
Delicate items. Wash pantyhose, bras and any
otherdelicate items prone to tangling in a
mesh laundry bag.
Washer Smells Not using enough detergent for the
soil level in your loads.
Run a
DRUM CLEAN cycle.
Buy a better quality detergent or use a
higher dose.
Different detergents have different cleaning
chemicals, consider alternating detergents
to help remove odour.
Wet patches on
clothes/items
Clothes are slightly damp from
the steam.
It is normal for items to be damp after using
the
STEAM REFRESH, this helps remove the
wrinkles. Remove the item from the washer
immediately at the end of the cycle and
hang up to dry.
Contact a Fisher & Paykel trained and supported service technician if a problem persists.
59
For New Zealand and Australia only. You automatically receive a two-year Manufacturer’s
Warranty with the purchase of this clothes washer covering parts and labour for servicing
within the country ofpurchase.
Fisher&Paykel undertakes to:
Repair or, at its option, replace without cost to the owner either for material or labour any
part of the product, the serial number of which appears on the product, which is found to
be defective within two years of the date of purchase.
You also receive an additional eight-year parts only Manufacturer’s Warranty on your
Direct Drive motor. This additional eight-year Manufacturer’s Warranty commences on the
day following the expiry of the two-year Manufacturer’s Warranty and excludes the motor
controller and labour. Fisher&Paykel will repair (as to parts) or, at its option, replace any
Direct Drive motor (but not the motor controller) which is found to be defective within this
additional Manufacturer’s Warranty period. You will be responsible for any labour costs.
Note: These Manufacturer’s Warranties are an extra benefit and do not affect your legalrights.
These Manufacturer’s Warranties DO NOT cover
A Service calls which are not related to any defect in the product. The cost
of a servicecallwill be charged if the problem is not found to be a product
fault. Forexample:
1 Correcting the installation, eg removal of bottom packer and transit bolts
(frontloading washers), levelling the washer, adjustment of the drain to correct
siphoning, noises, crossed, kinked or leaking inlet hose connections, turning on
water,noises caused by the waterhammer or power supplies.
2 Providing instruction on use of the product or changing the set-up of the product,
eginstruction on correct use of detergents and fabric softeners.
3 Replacing fuses in, or correcting house wiring or correcting house plumbing,
egunblockingdrains.
4 Correcting fault(s) caused by the user.
5 Noise or vibration that is considered normal, eg spin sounds, user warning beeps.
6 Correcting damage caused by pests, eg rats, cockroaches, etc.
7 Water on the floor due to incorrect loading or excessive suds.
8 Blocked pumps, removal of foreign objects/substances from the washer, including the
pump and inlet hose filters, eg bra wires, bread tags, nails, grit, scrud, etc.
9 Correcting corrosion or discolouration due to chemical attack.
B Defects caused by factors other than:
1 Normal domestic use; or
2 Use in accordance with the product’s User guide.
C Defects to the product caused by accident, neglect, misuse or ‘act of God’.
D The cost of repairs carried out other than by a Fisher&Paykel trained and supported
service technician or the cost of correcting such repairs.
E Normal recommended maintenance as set out in the product’s User guide.
F Repairs when the appliance has been dismantled, repaired or serviced by other than
aFisher&Paykel trained and supported service technician or the selling dealer.
G Pick-up and delivery.
H Transportation or travelling costs involved in the repair when the product is
installed outside the Fisher&Paykel trained and supported service technician’s
normal servicearea.
MANUFACTURER’S WARRANTY
60
MANUFACTURER’S WARRANTY
Nothing in this Manufacturer’s Warranty is intended to, nor limits, any rights you mayhave
under law to recover the costs of inspecting or returning the goods to us.
This product has been designed for use in a normal domestic (residential) environment. This
product is not designed for any commercial use (whatsoever). Any commercial useby a
customer will affect this product’s Manufacturer’s Warranty.
Service under these Manufacturer’s Warranties must be provided by a Fisher&Paykel
trained and supported service technician. Suchservice shall be provided during normal
business hours. ThisManufacturer’s Warranty certificate should be shown when making
any claim.
For Australian customers
This Manufacturer’s Warranty is an extra benefit and does not affect your legal rights. Our
goods come with guarantees that cannot be excluded under the Australian Consumer
Law. You are entitled to a replacement or refund for a major failure and compensation for
any other reasonably foreseeable loss or damage. You are also entitled to have the goods
repaired or replaced if the goods fail to be of acceptable quality and the failure does not
amount to a major failure.
Keep this user guide in a safe place.
61
CUSTOMER CARE
Before you call for service or assistance:
Check our website, fisherpaykel.com, for ‘Product Help’ to see the latest updates, hintsand
tips, and information about your product.
We recommend that you also refer to your user guide to ensure:
1 Your product is correctly installed.
2 You are familiar with its normal operation.
3 You have read the ‘Before you call for service’, ‘Fault codes’ and ‘Troubleshooting’
attheback of the book.
If after checking these points you still need assistance or parts, you can go online to our
website and book a service with your nearest Fisher&Paykel trained and supported service
technician. Our Customer Care team is also available to offer you assistance.
In New Zealand if you need service or assistance:
Go online to our website and book a service or call the Fisher&Paykel Customer Care
Centre and talk to one of our Customer CareConsultants.
Toll Free: 0800 FP CARE or 0800 372 273
Email: customer.care@fisherpaykel.com
Website: fisherpaykel.com
Postal address: Fisher&Paykel Appliances Ltd, PO Box 58550, Botany, Auckland 2163
Fisher&Paykel has a network of Fisher&Paykel trained and supported service technicians
who can carry out any service necessary on your appliance. Visit our website and book a
service with a Fisher&Paykel trained and supported service technician in your area.
In Australia if you need service or assistance:
Go online to our website and book a service or call the Fisher&Paykel Customer Care
Centre and talk to one of our Customer CareConsultants.
Toll Free: 1300 650 590
Email: customer.care@fisherpaykel.com
Website: fisherpaykel.com
Postal address: Fisher&Paykel Appliances Australia Pty Ltd, PO Box 798,
ClevelandQLD4163
Fisher&Paykel has a network of Fisher&Paykel trained and supported service technicians
who can carry out any service necessary on your appliance.
Visit our website and book a service with a Fisher&Paykel trained and supported service
technician in your area.
If you call, write to or contact us via our website, please provide your name and address,
model number, serial number, date of purchase and a complete description of the problem.
This information is needed in order to better respond to your requestforassistance.
Product details can be found on the rear of the washing machine, and/or above the drum
opening (when the door is open).
40218B 11.20
FISHERPAYKEL.COM
© Fisher & Paykel Appliances 2020. All rights reserved.
The models shown in this guide may not be available in all markets
and are subject to change at any time.
The product specifications in this guide apply to the specific products and
models described at the date of issue. Under our policy of continuous product
improvement, these specifications may change at any time.
For current details about model and specification availability in your country,
please go to our website or contact your local Fisher&Paykel dealer.
