Service Parts List
REV EB. Please disregard all earlier versions.
U2540RH
U2630HHG
U2630HHR
U2650HHR
U2650HHW
U2650HHB
U2160HH
U2170HH
U2200HHS
RU2240HHS
CLASSIC SERIES
U2250RS
U2251RS
U2000E
U2000R
U2000H
U2000H2
U2000HSB
U2000EB
U2000E2
U2000RB
U2000RB-1
U2000R-1
U2000RBBW
U2000RB2L-1
Type 1, 2, 3, 4, 5, 6, 7 & 8
Upright Vacuum
Cleaner Models
75337-01
Type Code: Represents product service
revision number.
Type 1: Initial ProductIon
Type 2: Improved strain relief
D-Grip Handle.
Type 3: Improved deflector and
removed collar set screw.
Type 4: Square cord retainer.
Type 5: Improved lower tube.
Type 6: Hardwire handle.
Type 7: Improved baseplate with one-
piece wireform.
Type 8: Aluminum wound motors
Julian Date Code:
Represents date of manufacture.
98 Represents the year.
166 Represents the day in that year
Data Label
2
Product Information
• Minimum water lift: 9 in. @ nozzle sealed suction
• Power consumption 120V/60Hz: 4.0 amps, 480 watts
• Weight: 8 lbs. without power cord
•
Switch rating: 8 amps, 120 volts
• Power cord rating - Domestic 18/2 SJT 105°C
Commercial: 18/3 SJT 105°C
WARNING - AVERTISSEMENT
TO REDUCE RISK OF ELECTRICAL SHOCK,
DO NOT USE OUTDOORS OR ON WET SURFACES.
POUR REDUIRE LES RESQUES DE CHOC
ELECTRIQUE NE PAS UTILISER A L'EXTERIEUR
ET NE PAS ASPIRER DE MATIERES HUMIDES
SN
2600HH00000000-
TYPE 1
MODEL
XL2600HH
120 VOLTS 60 HZ 4.0 AMP
NEW ORLEANS, LA 70123 U.S.A.
F
OR HOUSEHOLD USE ONLY
P
OUR USAGE MENAGER
98166
E5721
LISTED
296B
U
C
L
U
L
®
®
®
®
1
Service Information
• Component configuration on exploded view may differ in
c
ase of specific versions. However, the actual
components are distinguished by means of item and
part numbers.
• If a repair has been made, make sure that all functions
of the appliance are working correctly.
• Spare parts have been standardized as much as
possible and the part may not be the exact replacement
part.
• Only the new METAXALLOY™ motor fan available.
• Only the new soft single rear wheel style available.
• Only housings with belt access door available.
• When assembling fan seal to fan housing, use a small
bead of silicone.
• Only new plastic detent available.
• Baseplate assemblies with one-piece wireform are
interchangeable on Type 1-6 units.
# FASTENER FASTENER PART THAT FASTENER QTY TORQUE QTY
DESCRIPTION PART NO. IS USED ON REQ’D RANGE PER
(in/lb) PKG.
2 Cord Clamp 03-00613-01M Foot Switch Units 1 n/a 100
03-00619-01M D-Handle Units 1 n/a 100
3 Screw, #8 - 32 x .440 Nylock 03-00478-02M Handle Tube 2 18 - 22 100
Screw, #8 x .811 w/ Int Washer 03-00608-01M Handle Tube w/Through Bolt 1 18 - 22 100
Screw, #8-32 X .545 w/ Washer 03-00504-02M Handle Brace 1 18 - 22 100
Screw, #8 - 32 x 29/32 w/ Washer 03-00605-01M Handle Brace w/Through Bolt 2 18 - 22 100
15 Screw, #8 X .5 Phillips 03752-01M Headlight Cover, Bulb Holder, 2/2 13 - 16 100
Foot Switch, Cable Clamp 2/1
30 1/4 X 32 Yellow Chrome 03-00448-01M Fan 1 18 - 20 100
38 Screw, #8 X .75 Phillips 03-00456-01M D-Handle (small head) 4 17 - 20 100
Screw, #8 x .75 03-00476-01M D-Handle Type 6 & 7 Only 6 17 - 20 100
41 Wire Nut 03-00599-01M as req’d 35 - 55 100
48 Screw, #8 x .75 Phillips 03-00476-01M Baseplate, Belt Door, 5 / 1 13 - 16 100
Intake Pivot, 1 13 - 16 100
Motor 2 17 - 20 100
Screw, 7-18X0.75 TORX 03-00688-01M Baseplate, Belt Door, 5 / 1 13 - 16 100
(Use T-20 bit screwdriver) Intake Pivot, 1 13 - 16 100
Motor 2 17 - 20 100
49 Screw, #7 X .38 Phillips 03-00475-01M Edge Brush Type 1-6 Only, Detent 2 / 2 5 - 8 100
63 Screw, #10 x .5 Phillips 03-00450-01M Cord Bracket 1 13 - 16 100
68 Screw, #6-20 x 1/4” 03-00482-01M Collar Type 1& 2 Only 2 4 - 5 100
69 O-Ring 75191-02M Collar 2 n/a 100
72 Washer, Thrust 03-00479-01M Fan 1 n/a 100
73 Washer, Lock External Tooth 03-00480-01M Fan 1 n/a 100
74 1” x 3”, Loop Fastener 75304-01M Bag Support 1 n/a 100
75 1” x 1”, Hook Fastener 75303-01M Bag Dock 2 n/a 100
77 Retainer Clip 03528M Baseplate Type 1-6 Serviceable 2 n/a 100
78 Wireform 75194-03M Baseplate Type 1-6 Serviceable 2 n/a 100
82 Steel Bushing Ring 03-00598-01M D-Handle 1 n/a 100
84 Nut, Square 03-00606-01M Connector 1 n/a 100
85 Screw, #6-20 x 7/16 Flat Undercut 03-00626-01M Edge Brush, Channel Type 7 Only 2 / 3 6 - 8 100
86 Wireform, One-Piece 75698-01 BaseplateType 7 Only 1 n/a 1
88 JST Insulator 75679-01M Harness 1 n/a 100
89 Rivet 03-00453-01M Fan Housing 1 n/a 100
90 Bag Spring 75015-01M Fan Housing 1 n/a 100
91 Push Nut 03-00636-01M Fan Housing 1 n/a 100
3
STANDARD FASTENER HARDWARE LISTING
Fasteners Fit Uprights Listed in Service Manual
Parts
Diagram
43
44
42
48
28
29
30
48
32
35
36
34
60
39
48
40
27
26
26
25
24
23
15
22
21
15
14
13
7
12
18
19
16
6
5
9
20
4
2
3
33
65
41
55
38
56
53
54
55
57
59
58
62
11
8a
10
66
61
15
RIGHT
LEFT
69
68
68
72
73
4a
67
4
74
75
49
63
8
76
80
Wireforms serviceable
- Baseplate
(Type 3-6 Only)
has posts
Wireforms non-serviceable -
Baseplate (Before Type 4)
does not have posts
78
77
79
41
81
59
58
Type 6 &
7 Units
Only
82
83
84
51
50
47
46
52
86
85
85
87
51
Type 6 &
7 Units
Only
88
90
91
89
94
103
5

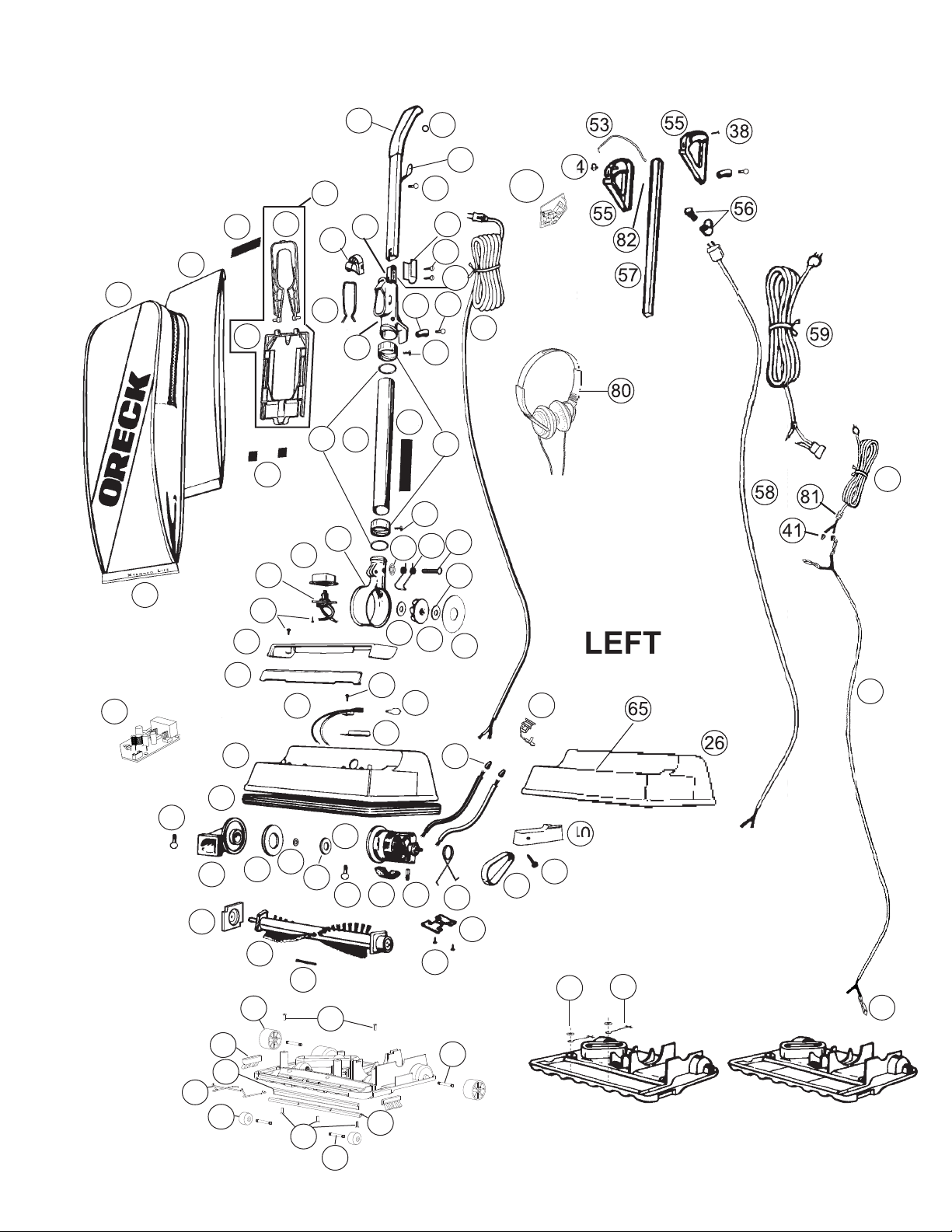

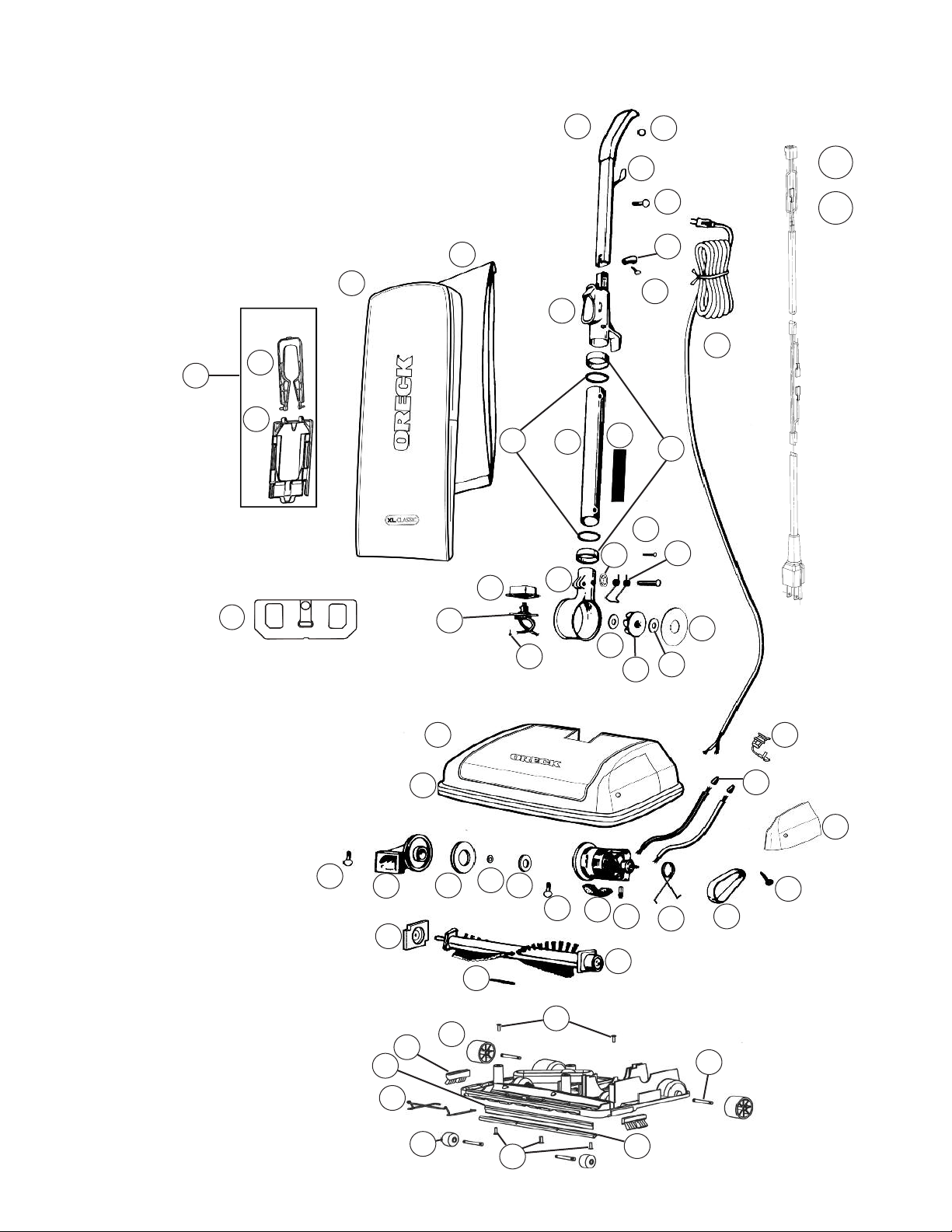

Classic Parts
Diagram
11
66
62
63
2
15
8
20
9
69
10
61
6
5
12
13
14
73
18
72
19
91
68
90
26
27
41
33
40
39
48
48
28
29
30
32
48
35
36
60
16
42
43
52
86
85
50
46
87
85
51
47
15
4a
67
83
92
101
102
6

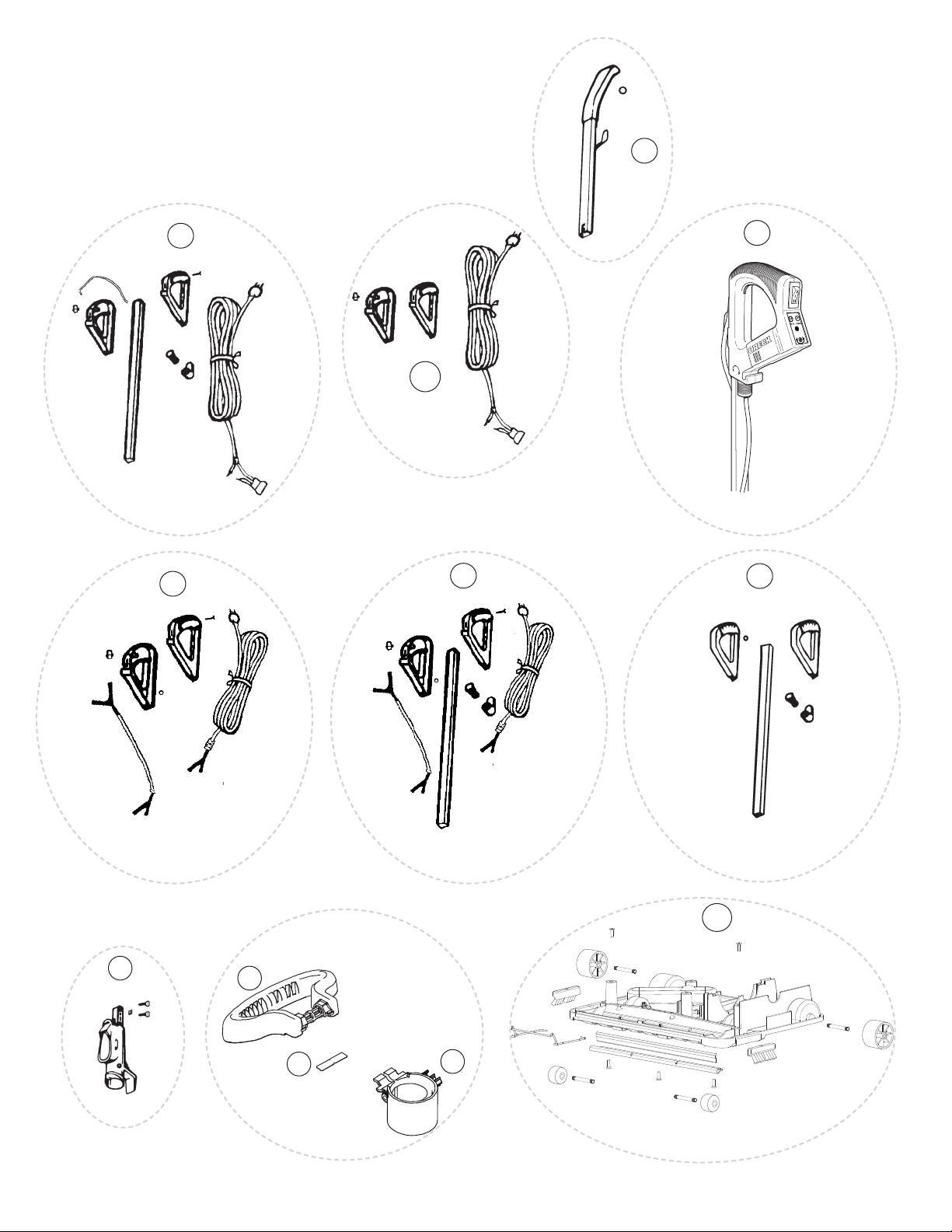

Parts
Assemblies
8
1a
45
1b
1c
1d
1e
1f
1g
97
99
98
Units With Carry Handle
7
Part Numbers Listing: XL2600HH, XL2610HH, XL2700HH & XL2700RH
Hypo Bag, Lights, Helping Hand Handle
# Item Order # Qty. Pk.
1b XL2600HH / XL2610HH: Handle Assembly, includes items 09-75288-01 11 NLA NLA NLA
#38, #53, #54, #55, #56, #57, #59 T
ype 1, 2, 3, 4 & 5 Units Only ORDER 1e
X
L2700HH / XL2700RH: Handle Assembly, includes , 09-75288-04
1
1 NLA NLA NLA
items #38, #53, #54, #55, #56, #57, #59 T
ype 1, 2, 3, 4 & 5 Units Only ORDER 1e
1c XL2600HH / XL2610HH: Tortuous Grip & Cord Assembly, 09-75342-01 11 NLA NLA NLA
includes items #54, #55, #59 Type 1 Units Only ORDER 1e
XL2700HH / XL2700RH: Tortuous Grip & Cord Assembly, 09-75342-04 11 NLA NLA NLA
includes items #54, #55, #59 Type 1 Units Only ORDER 1e
1e Kit, Retro, Handle Assembly, Residential, Black, includes items 09-75612-01 11
#38, #54, #55, #58, #59, #81 #82 Type 1, 2, 3, 4 & 5 Units Only
4a Docking Clip, Rear, Type CC (use w/#67 or order #83) 75583-03-480 11
5 Dust Bag, (8 Pk.) Hypo Allergenic CCPK8DW 18
Dust Bag, (25 Pk.) Hypo Allergenic CCPK25DW 1 25
6 XL2600HH / XL2610HH / XL2700HH: Outer Bag, Lt. Gray, 75246-10 11
Black, Dark Gray
XL2700RH: Outer Bag, Dark Gray, Black, Dark Gray 75246-11 11
7 XL2600HH: Bag Clip, Gray 09-75078-07 11
XL2610HH: Bag Clip, Gray w/ Gold 09-75078-14 11
XL2700HH / XL2700RH: Bag Clip, Black 09-75078-06 11
8 Connector Assembly Kit, includes items #3 & #84 09-75308-57 11
8a Deflector, Black, Snap Type 1 & 2 Units Only 75220-01-0327 11
9 Collar 75309-02-0327 21
10 Tube Assembly Type 1, 2, 3 & 4 Units Only 75188-01 11 NLA NLA NLA
Tube Assembly Type 5 & 6 Units Only 75198-05 11
12 Fan Housing Assembly includes Rivet & Spring 09-75343-03 11
16 End Cap 0134623 11
18 METAXALLOY™ Fan Kit w/Washers 09-75300-01 11
19 Fan Cup Seal 75012-01 11
20 Cord Set see #59
21 XL2600HH: Lamp Housing w/Reflectors, Gray 09-75073-08 11
XL2610HH: Lamp Housing w/Reflectors, Gray w/Gold 09-75073-12 11
XL2700HH / XL2700RH: Lamp Housing w/Reflectors, Black 09-75073-07 11
22 Lens 75058-01-0329 11
23 Bulb 00965-0019 21
24 Bulb Reflector 75034-01 41
25 Lamp Holder 75539-01 11
26 XL2600HH / XL2610HH: Housing w/Reflectors, Gray 09-75429-03 11
XL2700HH / XL2700RH: Housing w/Reflectors, Black 09-75429-01 11
27 Bumper, White 75181-03 11
28 Intake Pivot Assembly, with Felt Seal 09-75066-02 11
29 Felt Seal 75065-01 11
32 Felt Seal, Motor 75117-01M 1 100
33 XL2600HH / XL2610HH: Cord Retainer, Round Type 1, 2 & 3 Units Only 03-00455-01 11
XL2700HH / XL2700RH: Cord Retainer, Round Type 1, 2 & 3 Units Only 03-00455-02 11
Cord Retainer, Square Type 4, 5 & 6 Units Only 03-00494-01 11
34 Motor Assembly Kit 09-75505-01 11
35 Motor Seal 75095-01 21
36 Kit, Motor Brush (Large & Small) / Spring 09-75514-01 22
39 Drive Belt, (3 Pk.) 0300604 13
3
9a Drive Belt, Single 75024-01 11
40 XL2600HH / XL2610HH: Door Belt, Gray 75057-01-436 11
X
L2700HH / XL2700RH: Door Belt, Black 75057-01-0327 11
42 Brush Roll, Plastic Pulley 75104-02 11
43 Seal, Baseplate 75008-01 11
44 Plastic Detent, (uses 2 #49 screws) 75299-01 11
45 Complete Baseplate Assembly includes: #43, #46, #47, 09-75715-01 11
#50, #51, #52, #85, #86, #87
46 MICRO SWEEP Blade 75700-02 11
47 Channel 75007-02 11
50 Edge Brush w/Wheels, Left 09-75249-02 11
Edge Brush w/Wheels, Right 09-75250-02 11
51 Wheel Axle 03-00630-01M 2 100
52 Soft Rear Wheel, Black 75187-02-0327 21
53 Static Wire Type 1, 2, 3, 4 & 5 Units Only 75037-01 11
54 Switch, 2 Position Assembly Type 1, 2, 3, 4 & 5 Units Only 75110-02 11
Switch, 2 Position Assembly Type 6 Units Only 75559-01 11
55 XL2600HH / XL2610HH: Grips, Gray Set Type 2, 3, 4 & 5 Units Only 09-75301-09 11
(Type 1 Units Order Assembly 1e For Grips)
XL2600HH/XL2610HH: Grips, Gray Set Type 6 Units Only 09-75576-09 11
XL2700HH: Grips, Black Set Type 2, 3, 4 & 5 Units Only 09-75301-02 11
(Type 1 Units Order Assembly 1e For Grips)
56 XL2600HH / XL2610HH: Cord Wrap Assy, includes Post & Cord Wrap 09-75185-06 11
XL2700HH / XL2700RH: Cord Wrap Assy, includes Post & 09-75185-01 11
Cord Wrap
57 XL2600HH / XL2610HH: Handle Tube, Chrome 75190-07 11
XL2700HH / XL2700RH: Handle Tube, Chrome (Black is NLA) 75190-07 11
58 XL2600HH / XL2610HH: Cord, Harness Assembly, White 75081-01 11
Type 1, 2, 3, 4 & 5 Units Only
XL2600HH / XL2610HH: Cord, Harness Assembly, White 75896-01-328 11
Type 6 Units Only
XL2700HH / XL2700RH: Cord, Harness Assembly, Black 75081-02 11
Type 1, 2, 3, 4 & 5 Units Only
59 XL2600HH / XL2610HH: Cord Set, White Type 2, 3, 4 & 5 Units Only 75292-01-328 11 NLA NLA NLA
(Type 1 Units Order Assembly 1e For Cord Set)
XL2600HH / XL2610HH: Cord Set, White w/ #81 Type 6 Units Only 75896-01-328 11
XL2700HH / XL2700RH: Cord Set, Black Type 2, 3, 4 & 5 Units Only 75292-01-327 11 NLA NLA NLA
(Type 1 Units Order Assembly 1e For Cord Set)
60 Motor Spring 75283-01 21
61 Tube Label 75087-05 11
67 Bag Dock Hinge, Type CC (use w/#4a or order #83) 75582-03-480 11
User’s Manual 75416-05 11
Magnet Clean Vacuum Protector MC4BK 11
79 Stiffener (uses same length screws, notched) 75189-02 11 NLA Order Item #8
Stiffener, Through Bolt Connector (uses different length screws) 75619-01 11
81 Cord Flex Relief Type 6 Units Only 03-00600-01 11
83 Kit, Bag Dock, includes items #4a & #67 09-75657-01 11
8
Part Numbers Listing: XL2600HH, XL2610HH, XL2700HH & XL2700RH cont.
Hypo Bag, Lights, Helping Hand Handle
# Item Order # Qty. Pk.
Part Numbers Listing: XL2700RHY
Hypo Bag, Lights, Helping Hand Handle
# Item Order # Qty. Pk.
1b Handle Assembly, includes items #38, #53,#54, 09-75288-13
11 NLA NLA NLA
#
55, #56, #57, #59
ORDER 1e
1e Kit, Retro, Handle Assembly, Residential, Black, includes items 09-75612-01 11
#38, #54, #55, #58, #59, #81 #82 Type 1, 2, & 3 Units Only
4a Docking Clip, Rear, Type CC (use with #67 or order #83) 75583-03-480 11
5 Dust Bag, (8 Pk.) Hypo Allergenic CCPK8DW 18
Dust Bag, (25 Pk.) Hypo Allergenic CCPK25DW 1 25
6 Outer Bag, Lt. Gray, Black, Dark Gray 75246-11 11
7 Bag Clip, Gray 09-75078-12 11
8 Connector Assembly Kit, includes items #3 & #84 09-75308-57 11
9 Collar 75309-02-0327 21
10 Tube Assembly Type 1, 2, & 3 Units Only 75188-01 11 NLA NLA NLA
12 Fan Housing Assembly includes Rivet & Spring 09-75343-03 11
16 End Cap 0134623 11
18 METAXALLOY™ Fan Kit w/Washers 09-75300-01 11
19 Fan Cup Seal 75012-01 11
20 Cord Set see #59
21 Lamp Housing w/Reflectors, Yellow 09-75073-10 11
22 Lens 75058-01-0329 11
23 Bulb 00965-0019 21
24 Bulb Reflector 75034-01 41
25 Lamp Holder 75539-01 11
26 Housing w/Reflectors, Yellow 09-75270-06 11 NLA NLA NLA
27 Bumper, White 75181-03 11
28 Intake Pivot Assembly, with Felt Seal 09-75066-02 11
29 Felt Seal 75065-01 11
32 Felt Seal, Motor 75117-01M 1 100
33 Cord Retainer, Round 03-00455-01 11
34 Motor Assembly Kit 09-75505-01 11
35 Motor Seal 75095-01 21
36 Kit, Motor Brush (Large & Small) / Spring 09-75514-01 22
39 Drive Belt, (3 Pk.) 0300604 13
39a Drive Belt, Single 75024-01 11
40 Door Belt, Yellow 75057-01-449 11
42 Brush Roll, Plastic Pulley 75104-02 11
43 Seal, Baseplate 75008-01 11
44 Plastic Detent, (uses 2 #49 screws) 75299-01 11
45 Complete Baseplate Assembly includes: #43, #46, #47, 09-75715-01 11
#50, #51, #52, #85, #86, #87
46 MICRO SWEEP Blade 75700-02 11
9
4
7 Channel 75007-02 11
50 Edge Brush w/Wheels, Left 09-75249-02 11
Edge Brush w/Wheels, Right 09-75250-02 11
51 Wheel Axle 03-00630-01M 2 100
52 Soft Rear Wheel, Black 75187-02-0327 21
53 Static Wire Type 1, 2, & 3 Units Only 75037-01 11
54 Switch, 2 Position Assembly 75110-02 11
55 Grips, Yellow Set 09-75301-17 11
56 Cord Wrap Assy, includes Post & Cord Wrap 09-75185-01 11
57 Handle Tube, Chrome 75190-07 11
58 Cord, Harness Assembly, White 75081-01 11
59 Cord Set, White 75292-01-328 11 NLA NLA NLA
60 Motor Spring 75283-01 21
61 Tube Label 75087-05 11
67 Bag Dock Hinge, Type CC (use w/#4a or order #83) 75582-03-480 11
User’s Manual 75416-05 11
Magnet Clean Vacuum Protector MC4BK 11
79 Stiffener (uses same length screws, notched) 75189-02 11 NLA Order Item #8
Stiffener, Through Bolt Connector (uses different length screws) 75619-01 11
83 Kit, Bag Dock, includes items #4a & #67 09-75657-01 11
10
Part Numbers Listing: XL2700RHYcont.
Hypo Bag, Lights, Helping Hand Handle
# Item Order # Qty. Pk.
Part Numbers Listing: XL2800H2W, XL2800H2B & XL2800H2US
Hypo Bag, Lights, Helping Hand Handle, 2-Speed
# Item Order # Qty. Pk.
1
b XL2800H2W: Handle Assembly, Includes items #38, #53, #54, 09-75288-03
1
1 NLA NLA NLA
#
55, #56, #57, #59
ORDER 1e
XL2800H2B: Handle Assembly, Includes items #38, #53, #54, 09-75288-02 11 NLA NLA NLA
#55, #56, #57, #59 O
RDER 1e
XL2800H2US: Handle Assembly, Includes items #38, #53, #54, 09-75288-15 11 NLA NLA NLA
#55, #56, #57, #59 ORDER 1e
1c XL2800H2W: Tortuous Grip & Cord Assembly, 09-75342-03 11 NLA NLA NLA
i
ncludes items #54, #55, #59
O
RDER 1e
XL2800H2B: Tortuous Grip & Cord Assembly, 09-75342-02 11 NLA NLA NLA
i
ncludes items #54, #55, #59
ORDER 1e
1e Kit, Retro, Handle Assembly, Residential, Black, includes items 09-75612-01 11
#38, #54, #55, #58, #59, #81, #82 Type 1, 2, 3, 4 & 5 Units Only
4a Docking Clip, Rear, Type CC (use w/#67 or order #83) 75583-03-480 11
5 Dust Bag, (8 Pk.) Hypo Allergenic CCPK8DW 18
Dust Bag, (25 Pk.) Hypo Allergenic CCPK25DW 1 25
6 XL2800H2W / XL2800H2B: Outer Bag, Lt. Gray, Blk, Drk Gray 75246-10 11
XL2800H2US Outer Bag, Lt. Gray, Red, Red 75426-24 11
7 XL2800H2W: Bag Clip, White 09-75078-05 11
XL2800H2B: Bag Clip, Black 09-75078-06 11
XL2800H2US: Bag Clip, Navy 09-75078-15 11
8 Connector Assembly Kit, includes items #3 & #84 09-75308-57 11
8a Deflector, Black, Snap Type 1 & 2 Units Only 75220-01-0327 11
9 Collar 75309-02-0327 21
10 Tube Assembly Type 2, 3, & 4 Units Only 75188-01 11 NLA NLA NLA
Tube Assembly Type 5 Units Only 75198-05 11
12 Fan Housing Assembly includes Rivet & Spring 09-75343-03 11
16 End Cap 0134623 11
18 METAXALLOY™ Fan Kit w/Washers 09-75300-01 11
19 Fan Cup Seal 75012-01 11
20 Cord Set see #59
21 XL2800H2W: Lamp Housing w/Reflectors, White 09-75073-05 11
XL2800H2B / XL2800H2US: Lamp Housing w/Reflectors, Black 09-75073-04 11
22 Lens 75058-01-0329 11
23 Bulb 00965-0019 21
24 Bulb Reflector 75034-01 41
25 Lamp Holder 75539-01 11
26 XL2800H2W : Housing w/Reflectors, White 09-75429-02 11
XL2800H2B: Housing w/Reflectors, Black 09-75429-01 11
XL2800H2US : Housing, Navy 09-75780-39 11
27 Bumper, White 75181-03 11
28 Intake Pivot Assembly with Felt Seal 09-75066-02 11
29 Felt Seal 75065-01 11
32 Felt Seal, Motor 75117-01M 1 100
33 XL2800H2W: Cord Retainer, Round Type 1, 2 & 3 Units Only 03-00455-01 11
XL2800H2B: Cord Retainer, Round Type 1, 2 & 3 Units Only 03-00455-02 11
Cord Retainer, Square Type 4 & 5 Units Only 03-00494-01 11
34 Motor Assembly Kit 09-75505-01 11
11
12
35 Motor Seal 75095-01 21
36 Kit, Motor Brush (Large & Small) / Spring 09-75514-01 22
39 Drive Belt, (3 Pk.) 0300604 13
39a Drive Belt, Single 75024-01 11
40 XL2800H2W: Door Belt, White 75057-01-0431 11
XL2800H2B: Door Belt, Black 75057-01-0327 11
XL2800H2US: Door Belt, Navy 75057-01-0432 11
42 Brush Roll, Plastic Pulley 75104-02 11
43 Seal, Baseplate 75008-01 11
44 Plastic Detent, (uses 2 #49 screws) 75299-01 11
45 Complete Baseplate Assembly includes: #43, #46, #47, 09-75715-01 11
#50, #51, #52, #85, #86, #87
46 MICRO SWEEP Blade 75700-02 11
47 Channel 75007-02 11
50 Edge Brush w/Wheels, Left 09-75249-02 11
Edge Brush w/Wheels, Right 09-75250-02 11
51 Wheel Axle 03-00630-01M 2 100
52 Soft Rear Wheel, Black 75187-02-0327 21
53 Static Wire Type 1, 2, 3, 4 & 5 Units Only 75037-01 11
54 Switch, 3 Position Assembly w/Diode 75320-01 11
55 XL2800H2W: Grips, White Set Type 2, 3, 4 & 5 Units Only 09-75301-19 11
(Type 1 Units Order Assembly 1e For Grips)
XL2800H2B: Grips, Black Set Type 2, 3, 4 & 5 Units Only 09-75301-02 11
(Type 1 Units Order Assembly 1e For Grips)
XL2800H2US: Grips, Red Set 09-75301-08 11
56 XL2800H2W: Cord Wrap Assy, includes Post & Cord Wrap 09-75185-05 11
XL2800H2B: Cord Wrap Assy, includes Post & Cord Wrap 09-75185-01 11
XL2800H2US: Cord Wrap Assy, includes Post & Cord Wrap 09-75185-07 11
57 XL2800H2W / XL2800H2US: Handle Tube, Chrome 75190-07 11
XL2800H2B: Handle Tube, Chrome (Black is NLA) 75190-07 11
58 XL2800H2W / XL2800H2US: Cord, Harness Assembly 75081-01 11
XL2800H2B: Cord, Harness Assembly 75081-02 11
59 XL2800H2W / XL2800H2US: Cord Set, White
Type 2, 3, 4 & 5 Units Only 75292-01-328 11 NLA NLA NLA
(Type 1 Units Order Assembly 1e For Cord Set)
XL2800H2B: Cord Set, Black Type 2, 3, 4 & 5 Units Only 75292-01-327 11 NLA NLA NLA
(Type 1 Units Order Assembly 1e For Cord Set)
60 Motor Spring 75283-01 21
61 Tube Label 75087-05 11
67 Bag Dock Hinge, Type CC (use w/#4a or order #83) 75582-03-480 11
User’s Manual 75416-05 11
Magnet Clean Vacuum Protector MC4BK 11
79
Stiffener (uses same length screws, notched) 75189-02 11 NLA Order Item #8
Stiffener, Through Bolt Connector (uses different length screws) 75619-01 11
83 Kit, Bag Dock, includes items #4a & #67 09-75657-01 11
Part Numbers Listing: XL2800H2W, XL2800H2B & XL2800H2US cont.
Hypo Bag, Lights, Helping Hand Handle, 2-Speed
# Item Order # Qty. Pk.
Part Numbers Listing: XL2800HAY
Hypo Bag, Lights, Helping Hand Handle, 2-Speed
#
Item Order # Qty. Pk.
1d Handle Assembly 09-75443-02 11
4a Docking Clip, Rear, Type CC (use w/#67 or order #83) 75583-03-480 11
5 Dust Bag, (8 Pk.) Hypo Allergenic CCPK8DW 18
Dust Bag, (25 Pk.) Hypo Allergenic CCPK25DW 1 25
6 Outer Bag, Lt. Gray, Blk, Drk Gray 75246-10 11
7 Bag Clip, Yellow/Black 09-75078-12 11
8 Connector Assembly Kit, includes items #3 & #84 09-75308-57 11
9 Collar 75309-02-0327 21
10 Tube Assembly 09-75449-02 11
12 Fan Housing Assembly includes Rivet & Spring 09-75343-03 11
16 End Cap 0134623 11
18 METAXALLOY™ Fan Kit w/Washers 09-75300-01 11
19 Fan Cup Seal 75012-01 11
20 Cord Set see #59
21 Lamp Housing w/Reflectors, Yellow 09-75073-10 11
22 Lens 75058-01-0329 11
23 Bulb 00965-0019 21
24 Bulb Reflector 75034-01 41
25 Lamp Holder 75539-01 11
26 Housing w/Reflectors, Yellow 09-75429-08 11
27 Bumper, White 75181-03 11
28 Intake Pivot Assembly with Felt Seal 09-75066-02 11
29 Felt Seal 75065-01 11
32 Felt Seal, Motor 75117-01M 1 100
33 Cord Retainer, Round Type 3 Units Only 03-00455-01 11
Cord Retainer, Square Type 4, 5, 6 & 7 Units Only 03-00494-01 11
34 Motor Assembly Kit 09-75505-01 11
35 Motor Seal 75095-01 21
36 Kit, Motor Brush (Large & Small) / Spring 09-75514-01 22
39 Drive Belt, (3 Pk.) 0300604 13
39a Drive Belt, Single 75024-01 11
40 Door Belt, Yellow 75057-01-449 11
42 Brush Roll, Plastic Pulley 75104-02 11
43 Seal, Baseplate 75008-01 11
44 Plastic Detent, (uses 2 #49 screws) 75299-01 11
45 Complete Baseplate Assembly includes: #43, #46, #47, 09-75715-01 11
#50, #51, #52, #85, #86, #87
46 MICRO SWEEP Blade Type 3, 4, 5 & 6 Units Only 75700-02 11
MICRO SWEEP Blade Type 7 Units Only 75700-02 11
13
14
47 Channel Type 3, 4, 5 & 6 Units Only 75007-02 11
Channel Type 7 Units Only 75701-01 11
50 Edge Brush w/Wheels, Left Type 3, 4, 5 & 6 Units Only 09-75249-02 11
Edge Brush w/Wheels, Right Type 3, 4, 5 & 6 Units Only 09-75250-02 11
Edge Brush w/o Wheels, Left & Right 75766-02 21
51 Wheel Axle 03-00630-01M 2/4* 100
52 Soft Rear Wheel, Black 75187-02-0327 21
53 Static Wire 75037-01 11
54 Switch, 3 Position Assembly w/Diode 75320-01 11
55 Grips, Yellow Set 09-75474-01 11
56 Cord Wrap Assy, includes Post & Cord Wrap 09-75185-01 11
57 Handle Tube, Chrome 75190-07 11
58 Cord, Harness Assembly 75081-01 11
59 Cord Set 75438-01-328 11
60 Motor Spring 75283-01 21
61 Tube Label 75452-01 11
67 Bag Dock Hinge, Type CC (use w/#4a or order #83) 75582-03-480 11
User’s Manual 75416-05 11
79 Stiffener (uses same length screws, notched) 75189-02 11 NLA Order Item #8
Stiffener, Through Bolt Connector (uses different length screws) 75619-01 11
80 Headphones ESP-110 11
User’s Insert 75451-01 11
Magnet Clean Vacuum Protector MC4BK 11
83 Kit, Bag Dock, includes items #4a & #67 09-75657-01 11
87 Front Wheel Type 7 Units Only 75709-01 21
*Type 7 Units
Part Numbers Listing: XL2800HAY cont.
Hypo bag, lights, Helping Hand handle, 2-Speed
# Item Order # Qty. Pk.
Part Numbers Listing: XL2540RH / XL2320RH / U2640RH / U2510RH / U2520RH / U2530RH / U2540RH
Regular Bag, No Lights, Helping Hand Handle
# Item Order # Qty. Pk.
1b XL2540RH: Handle Assembly i
ncludes items #38, #53, #54, #55, #56, #57, #59
09-75288-07 11 NLA NLA NLA
ORDER 1e
XL2320RH: Handle Assembly includes items #38, #53, #54, 09-75288-18 11 NLA NLA NLA
#55, #56, #57, #59 ORDER 1e
1c XL2540RH: Tortuous Grip & Cord Assembly, includes items #54, #55, #59 09-75342-07 11 NLA NLA NLA
ORDER 1e
1e Kit, Retro, Handle Assembly, Residential, Black, includes items 09-75612-01 11
#38, #54, #55, #58, #59, #81, #82 Type 1, 2, 3, 4 & 5 Units Only
4a Docking Clip, Rear, Type CC (use w/#67 or order #83) 75583-03-480 11
5 Dust Bag, (8 Pk.) Regular CCPK8 18
Dust Bag, (25 Pk.) Regular CCPK25 1 25
6 XL2320RH: Outer Bag, Dark Gray, Red, USA 75246-11 11
XL2540RH / U2640RH: Outer Bag, Dk Gray, Black, Dark Gray 75246-11 11
U2510RH: Outer Bag, Dark Gray, Red, Red 75246-38 11
U2520RH: Outer Bag, Dark Gray, Black, White 75246-39 1 1 NLA ORDER 75246-11
U2530RH: Outer Bag, Dark Gray, Blue, Blue 75246-37 11
U2540RH: Outer Bag, Gray, Black, Blue 75645-28 11
7 XL2540RH: Bag Clip, Dark Green 09-75078-11 11
XL2320RH: Bag Clip, Navy / Silver 09-75078-15 11
U2640RH: Bag Clip, Black / Silver 09-75078-06 11
U2510RH: Bag Clip, Red / Silver 09-75078-08 11
U2520RH: Bag Clip, White / Silver 09-75078-22 11
U2530RH: Bag Clip, Blue / Silver 09-75078-24 11
U2540RH: Bag Clip Blue / Silver 09-75594-12 11
8 Connector Assembly Kit, includes items #3 & #84 09-75308-57 11
8a Deflector, Black, Snap Type 1 & 2 Units Only 75220-01-0327 11
9 Collar 75309-02-0327 21
10 Tube Assembly Type 1, 2, 3 & 4 Units Only 75188-01 11 NLA NLA NLA
Tube Assembly Type 5, 6 & 7 Units Only 75198-05 11
12 Fan Housing Assembly includes Rivet & Spring 09-75343-03 11
16 End Cap 0134623 11
18 METAXALLOY™ Fan Kit w/Washers 09-75300-01 11
19 Fan Seal Cup 75012-01 11
20 Cord Set see #59
26 XL2320RH: Housing, Navy w/Label 09-75426-14 11
XL2540RH / U2640RH: Housing, Gull Gray w/Label 09-75426-21 11
U2510RH: Housing, Red w/Label 09-75426-23 11
U2520RH: Housing, White w/Label 09-75426-24 11
U2530RH / U2540RH: Housing, Blue w/Label 09-75780-29 11
27 XL2540RH / XL2320RH / U2640RH / U2510RH / U2520RH / U2530RH: 75181-03 11
Bumper, White
28 Intake Pivot Assembly with Felt Seal 09-75066-02 11
29 Felt Seal 75065-01 11
32 Felt Seal, Motor 75117-01M 1 100
33 Cord Retainer, Round Type 1, 2 & 3 Units Only 03-00455-01 11
Cord Retainer, Square Type 4, 5, 6 & 7 Units Only 03-00494-01 11
34 Motor Assembly Kit 09-75505-01 11
35 Motor Seal 75095-01 21
36 Kit, Motor Brush (Large & Small) / Spring 09-75514-01 22
39 Drive Belt, (3 Pk.) 0300604 13
39a Drive Belt, Single 75024-01 11
40 XL2540RH: Door Belt, Dark Green 75057-01-439 11
XL2320RH: Door Belt, Navy 75057-01-0432 11
U2640RH: Door Belt, Gull Gray 75057-02-0384 11
U2510RH: Door Belt, Red 75057-01-441 11
U2520RH: Door Belt, White 75057-01-0431 11
15
16
Part Numbers Listing: XL2540RH / XL2320RH / U2640RH / U2510RH / U2520RH / U2530RH / U2540RH cont.
Regular Bag, No Lights, Helping Hand Handle
# Item Order # Qty. Pk.
U2530RH: Door Belt, Blue 75057-01-442 11
U2540RH: Door Belt, Navy 75057-01-0432 11
42 Brush Roll, Plastic Pulley 75104-02 11
43 Seal, Baseplate 75008-01 11
44 Plastic Detent, (uses 2 #49 screws) 75299-01 11
45 Complete Baseplate Assembly includes: #43, #46, #47, 09-75715-01 11
#50, #51, #52, #85, #86, #87
46 MICRO SWEEP Blade Type 1-6 Units Only 75700-02 11
MICRO SWEEP Blade Type 7 Units Only 75700-02 11
47 Channel T
ype 1-6 Units Only
75007-02 11
Channel T
ype 7 Units Only
75701-01 11
50 Edge Brush w/Wheel, Left Type 1-6 Units Only 09-75249-02 11
Edge Brush w/Wheel, Right T
ype 1-6 Units Only
09-75250-02 11
Edge Brush w/o Wheels, Left & Right 75766-02 21
51 Wheel Axle 03-00630-01M 2/4* 100
52 Soft Rear Wheel, Black 75187-02-0327 21
53 Static Wire T
ype 1, 2, 3, 4 & 5 Units Only
75037-01 11
54 XL2540RH / XL2320RH: Switch, 2 Position Assembly 75110-02 11
U2640RH / U2510RH / U2520RH / U2530RH: Switch, 75559-01 11
2 Position Assembly
55 XL2540RH: Grips, Dark Green Set T
ype 2, 3, 4 & 5 Units Only
09-75301-07 11
(Type 1 Units Order Assembly 1e For Grips)
XL2320RH: Grips, Navy Set 09-75301-21 11
U2640RH: Grips, Gull Gray Set 09-75576-29 11
U2510RH: Grips, Red Set 09-75576-28 11
U2520RH: Grips, White Set 09-75576-19 11
U2530RH: Grips, Blue Set 09-75576-30 11
U2540RH: Grips, Navy Set 09-75576-21 11
56 XL2540RH: Cord Wrap Assy, includes Post & Cord Wrap, Gray 09-75185-09 11
XL2320RH / U2640RH / U2530RH: Cord Wrap Assy, 09-75185-01 11
includes Post & Cord Wrap, Black
U2510RH: Cord Wrap Assy includes Post & Cord Wrap, Red 09-75185-07 11
U2520RH: Cord Wrap Assy includes Post & Cord Wrap, White 09-75185-05 11
57 XL2540RH / XL2320RH / U2640RH / U2510RH / U2520RH / U2530RH: 75190-07 11
Handle Tube, Chrome
58 XL2540RH / XL2320RH: Cord, Harness Assembly 75081-01 11
U2640RH: Cord, Harness Assembly 75896-02-327 11
U2510RH / U2520RH / U2530RH: Cord, Harness Assembly 75896-01-328 11
59 XL2540RH / XL2320RH: Cord Set, White Type 2, 3, 4 & 5 75292-01-328 11 NLA NLA NLA
Units Only (Type 1 Units Order Assembly 1e For Cord Set)
U2640RH: Cord Set, Black 75556-02-327 11
U2510RH / U2520RH / U2530RH / U2540RH: Cord Set, White, 30’ 75896-01-328 11
60 Motor Spring 75283-01 21
61 Tube Label 75087-05 11
65 “Oreck” Name Plate Label 75599-03 11
U2540RH: “Oreck” Name Plate Label 75599-06 11
67 Bag Dock Hinge, Type CC (use w/#4a or order #83) 75582-03-480 11
User’s Manual 75416-05 11
Vacuum Cleaner Cover VACCOVER 11 NLA NLA NLA
Magnet Clean Vacuum Protector MC4BK 11
79 Stiffener (uses same length screws, notched) 75189-02
11 NLA Order Item #8
Stiffener, Through Bolt Connector (uses different length screws) 75619-01 11
81 Cord Flex Relief Type 6 & 7 Units Only 03-00600-01 11
83 Kit, Bag Dock, includes items #4a & #67 09-75657-01 11
87 Front Wheel Type 7 Units Only 75709-01 21
*Type 7 Units
Part Numbers Listing: XL2400RS / U2420RSQ / XL2330HS / XL2330RS / U2330RD / U2740RD
Regular Bag, No Lights, Foot Switch
# Item Order # Qty. Pk.
1g XL2400RS: Handle Assembly, White 09-75093-53 1 1 N
LA Order Black Assy 09-75093-51
XL2330HS / XL2330RS / U2420RSQ: Handle Assembly 09-75093-53 1 1 NLA Order Black Assy 09-75093-51
U2330RD: Handle Assembly, includes #38, #55, #56, #57, #82 09-75093-53 1 1 NLA Order Black Assy 09-75093-51
U2740RD: Handle Assembly, includes #38, #55, #56, #57, #82 09-75093-01 11
4
a Docking Clip, Rear, Type CC (use w/#67 or order #83) 75583-03-480 11
5 Dust Bag, (8 Pk.) Regular CCPK8 18
Dust Bag, (25 Pk.) Regular CCPK25 1 25
U2420RSQ: Dust Bag, (8pk.) Hypo CCPK8DW 18
U2420RSQ: Dust bag, (25pk.) Hypo CCPK25DW 1 25
6 XL2400RS: Outer Bag, Dark Gray, Maroon, Maroon 75246-14 11
XL2330HS: Outer Bag, Lt. Gray, Black, Dark Gray 75246-10 11
XL2400RS / XL2330RS / U2330RD / U2740RD: Outer Bag, 75246-11 11
Dark Gray, Black, Dark Gray
U2420RSQ: Outer Bag, Oreck hotel 75246-40 11
7 XL2400RS: Bag Clip, Maroon 09-75078-10 11
XL2330HS / XL2330RS / U2330RD: Bag Clip, White 09-75078-05 11
U2740RD: Bag Clip, Black 09-75078-03 11
U2420RSQ: Bag Clip Maroon W/White 09-75078-25 11
8 Connector Assembly Kit, includes items #3 & #84 09-75308-57 11
8a Deflector, Black, Snap Type 1 & 2 Units Only 75220-01-0327 11
9 Collar 75309-02-0327 11
10 Tube Assembly Type 1, 2, 3 & 4 Units Only 75188-01 11 NLA NLA NLA
Tube Assembly Type 5, 6 & 7 Units Only 75198-05 11
11 XL2400RS / XL2330HS / XL2330RS / U2420RSQ: Grip, Handle, White 75272-01 11 NLA NLA NLA
12 Fan Housing Assembly includes Rivet & Spring 09-75343-03 11
13 Switch Cover 09-75266-01 11
14 Switch Assembly 75084-07 11
16 End Cap 0134623 11
18 METAXALLOY™ Fan Kit w/Washers 09-75300-01 11
19 Fan Seal Cup 75012-01 11
20 Cord Set 75163-03-328 11
26 XL2400RS: Housing, Maroon w/Label 09-75430-07 11
XL2330HS / XL2330RS / U2330RD: Housing, White w/Label 09-75430-02 11
U2740RD: Housing, Black w/Label 09-75426-30 11
U2420RSQ: Top Cover, Maroon 09-75426-29 11
27 Bumper, White 75181-03 11
28 Intake Pivot Assembly with Felt Seal 09-75066-02 11
29 Felt Seal 75065-01 11
32 Felt Seal, Motor 75117-01M 1 100
33 Cord Retainer, Round Type 1, 2 & 3 Units Only 03-00455-01 11
Cord Retainer, Square
Type 4, 5, 6 & 7 Units Only 03-00494-01 11
34 Motor Assembly Kit 09-75505-01 11
17
35 Motor Seal 75095-01 21
36 Kit, Motor Brush (Large & Small) / Spring 09-75514-01 22
3
9 Drive Belt, (3 Pk.) 0300604 13
39a Drive Belt, Single 75024-01 11
40 XL2400RS / U2420RSQ: Door Belt, Maroon 75057-01-437 11
XL2330HS / XL2330RS / U2330RD: Door Belt, White 75057-01-0431 11
U2740RD: Door Belt, Black 75057-01-0327 11
42 Brush Roll, Plastic Pulley 75104-02 11
43 Seal, Baseplate 75008-01 11
44 Plastic Detent, (uses 2 #49 screws) 75299-01 11
45 Complete Baseplate Assembly includes: #43, #46, #47, 09-75715-01 11
#50, #51, #52, #85, #86, #87
46 MICRO SWEEP Blade Type 1-6 Units Only 75700-02 11
MICRO SWEEP Blade Type 7 Units Only 75700-02 11
47 Channel Type 1-6 Units Only 75007-02 11
Channel Type 7 Units Only 75701-01 11
50 Edge Brush w/Wheels, Left Type 1-6 Units Only 09-75249-02 11
Edge Brush w/Wheels, Right Type 1-6 Units Only 09-75250-02 11
Edge Brush w/o Wheels, Left & Right 75766-02 21
51 Wheel Axle 03-00630-01M 2/4* 100
52 Soft Rear Wheel, Black 75187-02-0327 21
55 U2330RD: Grips, White, No Switch 09-75301-25 11
U2740RD: Grips, Black, No Switch 09-75301-03 11
XL2330HS/XL2330RS/U2420RSQ/U2330RD: Grips, Maroon, No Switch 09-75301-27 11
56 U2330RD: Cord Wrap Assy, includes Post & Cord Wrap 09-75185-05 11
U2740RD: Cord Wrap Assy, includes Post & Cord Wrap 09-75185-01 11
57 U2330RD / U2740RD: Handle Tube, Chrome 75190-07 11
60 Motor Spring 75283-01 21
61 Tube Label 75087-05 11
62 Cord Bracket 75245-01 11
65 “Oreck” Name Plate Label 75599-03 11
U2420RSQ: Label, Mylar Oreck 75599-06 11
66 Bushing 75275-01 11
67 Bag Dock Hinge, Type CC (use w/#4a or order #83) 75582-03-480 11
User’s Manual 75416-05 11
Vacuum Cleaner Cover VACCOVER 11 NLA NLA NLA
Magnet Clean Vacuum Protector MC4BK 11
79 Stiffener (uses same length screws, notched) 75189-02 11 NLA Order Item #8
Stiffener, Through Bolt Connector (uses different length screws) 75619-01 11
83 Kit, Bag Dock, includes items #4a & #67 09-75657-01 11
87 Front Wheel Type 7 Units Only 75709-01 21
Part Numbers Listing: XL2400RS / U2420RSQ / XL2330HS / XL2330RS / U2330RD / U2740RD cont.
Regular Bag, No Lights, Foot Switch
# Item Order # Qty. Pk.
18
Part Numbers Listing: XL2250RS / XL2260RS
Regular Bag, Lights, Foot Switch
# Item Order # Qty. Pk.
1g Handle Assembly, D Handle No Switch, Gray 09-75093-52 11
4a Docking Clip, Rear, Type CC (use w/#67 or order #83) 75583-03-480 11
5 Dust Bag, (8 Pk.) Regular CCPK8 18
Dust Bag, (25 Pk.) Regular CCPK25 1 25
6 Outer Bag, Dark Gray, Black, Dark Gray 75246-11 11
7 Bag Clip, Gray 09-75078-07 11
8 Connector Assembly Kit, includes items #3 & #84 09-75308-57 11
8a Deflector, Black, Snap Type 1 & 2 Units Only 75220-01-0327 11
9 Collar 75309-02-0327 11
10 Tube Assembly Type 1, 2, 3 & 4 Units Only 75188-01 11 NLA NLA NLA
Tube Assembly Type 5 & 6 Units Only 75198-05 11
11 Grip, Handle, White 75272-01 11 NLA NLA NLA
12 Fan Housing Assembly includes Rivet & Spring 09-75343-03 11
13 Switch Cover 09-75266-01 11
14 Switch Assembly 75084-07 11
16 End Cap 0134623 11
18 METAXALLOY™ Fan Kit w/Washers 09-75300-01 11
19 Fan Seal Cup 75012-01 11
20 Cord Set, White 75163-03-328 11
21 Lamp Housing w/Reflectors, Gray 09-75073-08 11
22 Lens 75058-01-0329 11
23 Bulb 00965-0019 21
24 Bulb Reflector 75034-01 41
25 Lamp Holder 75539-01 11
26 Housing w/Reflectors, Gray 09-75429-04 11
27 Bumper, White 75181-03 11
28 Intake Pivot Assembly with Felt Seal 09-75066-02 11
29 Felt Seal 75065-01 11
32 Felt Seal, Motor 75117-01M 1 100
33 Cord Retainer, Round Type 1, 2 & 3 Units Only 03-00455-01 11
Cord Retainer, Square Type 4, 5 & 6 Units Only 03-00494-01 11
34 Motor Assembly Kit 09-75505-01 11
35 Motor Seal 75095-01 21
36 Kit, Motor Brush (Large & Small) / Spring 09-75514-01 22
39 Drive Belt, (3 Pk.) 0300604 13
39a Drive Belt, Single 75024-01 11
40 Door Belt, Gray 75057-01-436 11
42 Brush Roll, Plastic Pulley 75104-02 11
43 Seal, Baseplate 75008-01 11
19
44 Plastic Detent, (uses 2 #49 screws) 75299-01 11
45 Complete Baseplate Assembly includes: #43, #46, #47, 09-75715-01 11
#50, #51, #52, #85, #86, #87
46 MICRO SWEEP Blade 75700-02 11
47 Channel 75007-02 11
50 Edge Brush w/Wheel, Left 09-75249-02 21
Edge Brush w/Wheel, Right 09-75250-02 11
51 Wheel Axle 03-00630-01M 2 100
52 Soft Rear Wheel, Black 75187-02-0327 21
55 Grips, Set, Gray 09-75301-24 11
60 Motor Spring 75283-01 21
61 Tube Label 75087-05 11
62 Cord Bracket 75245-01 11
66 Bushing 75275-01 11
67 Bag Dock Hinge, Type CC (use w/#4a or order #83) 75582-03-480 11
User’s Manual 75416-05 11
Magnet Clean Vacuum Protector MC4BK 11
79 Stiffener (uses same length screws, notched) 75189-02 11 NLA Order Item #8
Stiffener, Through Bolt Connector (uses different length screws) 75619-01 11
83 Kit, Bag Dock, includes items #4a & #67 09-75657-01 11
20
Part Numbers Listing: XL2250RS / XL2260RS cont.
Regular Bag, Lights, Foot Switch
# Item Order # Qty. Pk.
Part Numbers Listing: XL2500RH, XL2500HH
Lights, Helping Hand Handle
#
Item Order # Qty. Pk.
1b XL2500RH: Handle Assembly includes items #38, #53, #54, #55, 09-75288-07
11 NLA NLA NLA
#56, #57, #59 ORDER 1e
X
L2500HH: Handle Assembly includes items #38, #53, #54, #55, 09-75288-11
1
1 NLA NLA NLA
#56, #57, #59 ORDER 1e
1c Tortuous Grip & Cord Assembly, includes items #54, #55, #59 09-75342-07 11 NLA NLA NLA
1e Kit, Retro, Handle Assembly, Residential, Black, includes items 09-75612-01 11
#38, #54, #55, #58, #59, #81, #82 Type 1, 2, 3, 4 & 5 Units Only
4a Docking Clip, Rear, Type CC (use w/#67 or order #83) 75583-03-480 11
5 Dust Bag, (8 Pk.) Regular CCPK8 18
Dust Bag, (25 Pk.) Regular CCPK25 1 25
Dust Bag, (8 Pk.) Hypo Allergenic CCPK8DW 18
Dust Bag, (25 Pk.) Hypo Allergenic CCPK25DW 1 25
6 XL2500RH:
Outer Bag, Drk Gray, Black, Dark Gray
75246-11 11
XL2500HH:
Outer Bag, Lt. Gray, Black, Gray
75246-10 11
7 Bag Clip, Dark Green 09-75078-11 11
8 Connector Assembly Kit, includes items #3 & #84 09-75308-57 11
8a Deflector, Black, Snap Type 1 & 2 Units Only 75220-01-0327 11
9 Collar 75309-02-0327 21
10 Tube Assembly Type 1, 2, 3 & 4 Units Only 75188-01 11 NLA NLA NLA
Tube Assembly Type 5 Units Only 75198-05 11
12 Fan Housing Assembly includes Rivet & Spring 09-75343-03 11
16 End Cap 0134623 11
18 METAXALLOY™ Fan Kit w/Washers 09-75300-01 11
19 Fan Seal Cup 75012-01 11
20 Cord Set see #59
21 Lamp Housing w/Reflectors, Dark Green 09-75073-09 11
22 Lens 75058-01-0329 11
23 Bulb 00965-0019 21
24 Bulb Reflector 75034-01 41
25 Lamp Holder 75539-01 11
26 Housing w/Reflectors, Dark Green 09-75270-05 11
27 Bumper, White 75181-03 11
28 Intake Pivot Assembly with Felt Seal 09-75066-02 11
29 Felt Seal 75065-01 11
32 Felt Seal, Motor 75117-01M 1 100
33 Cord Retainer 03-00455-01 11
34 Motor Assembly Kit 09-75505-01 11
35 Motor Seal 75095-01 21
36 Kit, Motor Brush (Large & Small) / Spring 09-75514-01 22
39 Drive Belt, (3 Pk.) 0300604 13
39a Drive Belt, Single 75024-01 11
21
22
Part Numbers Listing: XL2500RH, XL2500HH cont.
Lights, Helping Hand Handle
# Item Order # Qty. Pk.
40 Door Belt, Dark Green 75057-01-439 11
42 Brush Roll, Plastic Pulley 75104-02 11
43 Seal, Baseplate 75008-01 11
44 Plastic Detent, (uses 2 #49 screws) 75299-01 11
45 Complete Baseplate Assembly includes: #43, #46, #47, 09-75715-01 11
#50, #51, #52, #85, #86, #87
46 MICRO SWEEP Blade 75700-02 11
47 Channel 75007-02 11
50 Edge Brush w/Wheel, Left 09-75249-02 11
Edge Brush w/Wheel, Right 09-75250-02 11
51 Wheel Axle 03-00630-01M 2 100
52 Soft Rear Wheel, Black 75187-02-0327 21
53 Static Wire Type 1, 2, 3, 4 & 5 Units Only 75037-01 11
54 Switch, 2 Position Assembly 75110-02 11
55 Grips, Dark Green Set Type 2, 3, 4 & 5 Units Only 09-75301-07 11
(Type 1 Units Order Assembly 1e For Grips)
56 Cord Wrap Assy, includes Post & Cord Wrap 09-75185-09 11
57 Handle Tube 75190-07 11
58 Cord, Harness Assembly 75081-01 11
59 Cord Set, White, 30’ Type 2, 3, 4 & 5 Units Only 75292-01-328 11 NLA NLA NLA
(Type 1 Units Order Assembly 1e For Cord Set)
60 Motor Spring 75283-01 21
61 Tube Label 75087-05 11
67 Bag Dock Hinge, Type CC (use w/#4a or order #83) 75582-03-480 11
User’s Manual 75416-05 11
Magnet Clean Vacuum Protector MC4BK 11
79 Stiffener (uses same length screws, notched) 75189-02 11 NLA Order Item #8
Stiffener, Through Bolt Connector (uses different length screws) 75619-01 11
83 Kit, Bag Dock, includes items #4a & #67 09-75657-01 11
23
Part Numbers Listing:XL2200RS / U2200RD / XL2300RS / XL2310RS / U2310RSF / U2310RD / U2200HHS / RU2240HHS
Regular Bag, No Lights, Foot Switch Type 1-8
#
Item Order # Qty. Pk.
1g XL2200RS / XL2310RS / U2310RSF / U2200RD/ U2200HHS: 09-75093-52 11
H
andle Assembly,
includes #38, #55, #56, #57, #82
X
L2300RS: Handle Assembly,
includes #38, #55, #56, #57, #82 0
9-75093-01 11
U
2310RD: Handle Assembly,
includes #38, #55, #56, #57, #82 0
9-75093-05 11
RU2240HHS: Handle Assembly, includes #38, #55, #56, #57, #82 09-75093-13 11
4a Docking Clip, Rear, Type CC (use w/#67 or order #83) 75583-03-480 11
5 Dust Bag, (8 Pk.) Regular CCPK8 18
Dust Bag, (25 Pk.) Regular CCPK25 1 25
6 XL2200RS / U2200RD / XL2300RS / XL2310RS / U2310RD / 75246-11 11
U2200HHS: Outer Bag, Dk Gray, Black, Dk Gray
XL2310RSB: Outer Bag, Dk Gray, Blue, Buck Master 75246-33 11
U2310RSF: Outer Bag, Dk Gray, Red, USA 75246-11 11
RU2240HHS: Outer Bag 76133-01 11
7 U2200RD: Bag Clip, Gray 09-75078-10 11
XL2200RS: Bag Clip, Gray XL Classic 09-75078-01 11
XL2300RS: Bag Clip, Black 09-75078-06 11
XL2310RS / U2310RSF / U2310RD: Bag Clip, Navy 09-75078-15 11
U2200HHS: Bag Clip, Straight XL Classic Stamp 09-75942-01 11
8 Connector Assembly Kit, includes items #3 & #84 09-75308-57 11
8a Deflector, Black, Snap Type 1 & 2 Units Only 75220-01-0327 11
9 Collar 75309-02-0327 11
10 Tube Assembly Type 1, 2, 3 & 4 Units Only 75188-01 11 NLA NLA NLA
Tube Assembly Type 5, 6 & 7 Units Only 75198-05 11
11 XL2200RS / XL2310RS: Grip, Handle, White 75272-01 11
XL2300RS / U2310RSF: Grip, Handle, Black NLA Use White 75272-02 11
12 Fan Housing Assembly includes Rivet & Spring 09-75343-03 11
13 Switch Cover 09-75266-01 11
RU2240HHS: Switch Cover 09-75266-02 11
14 Switch Assembly 75084-07 11
16 End Cap 0134623 11
18 METAXALLOY™ Fan Kit w/Washers 09-75300-01 11
19 Fan Seal Cup 75012-01 11
20 XL2200RS / U2200RD / XL2310RS / U2310RSF: Cord Set 75163-03-328 11
RU2240HHS: Cord Set 75163-06-328 11
XL2300RS: Cord Set 75079-02 11
26 XL2200RS / U2200RD / U2200HHS: Housing, Gray w/Label 09-75430-01 11
RU2240HHS: Housing 09-75976-01 11
XL2300RS: Housing, Black w/Label 09-75426-30 11
XL2310RS / U2310RSF / U2310RD: Housing, Navy w/Label 09-75426-13 11
27 Bumper, White 75181-03 11
28 Intake Pivot Assembly with Felt Seal 09-75066-02 11
29 Felt Seal 75065-01 11
32 Felt Seal, Motor 75117-01M 1 100
Part Numbers Listing:XL2200RS / U2200RD / XL2300RS / XL2310RS / U2310RSF / U2310RD / U2200HHS / RU2240HHS
Regular Bag, No Lights, Foot Switch
Type 1-8
# Item Order # Qty. Pk.
33 XL2200RS/: Cord Retainer, Round Type 1, 2 & 3 Units Only 03-00455-01 11
XL2300RS: Cord Retainer, Round Type 1, 2 & 3 Units Only 03-00455-02 11
Cord Retainer, Square Type 4, 5, 6 & 7 Units Only 03-00494-01 11
34 Motor, Assembly Kit 09-75505-01 11
34a Motor Assembly Kit - Aluminum Motor Kit Type 8 Only 09-75886-01 11
35 Motor Seal 75095-01 21
36 Kit, Motor Brush (Large & Small) / Spring 09-75514-01 22
39 Drive Belt, (3 Pk.) 0300604 13
39a Drive Belt, Single 75024-01 11
40 XL2200RS / U2200RD / U2200HHS: Door Belt, Gray 75057-01-436 11
XL2300RS: Door Belt, Black 75057-01-0327 11
XL2310RS / U2310RSF / U2310RD: Door Belt, Navy 75057-01-0432 11
42 Brush Roll, Plastic Pulley 75104-02 11
43 Seal, Baseplate 75008-01 11
44 Plastic Detent, (uses 2 #49 screws) 75299-01 11
45 Complete Baseplate Assembly includes: #43, #46, #47, 09-75715-01 11
#50, #51, #52, #85, #86, #87
46 MICRO SWEEP Blade Type 1-6 Units Only 75700-02 11
MICRO SWEEP Blade Type 7 Units Only 75700-02 11
47 Channel Type 1-6 Units Only 75007-02 11
Channel Type 7 Units Only 75701-01 11
50 Edge Brush w/Wheels, Left Type 1-6 Units Only 09-75249-02 11
Edge Brush w/Wheels, Right Type 1-6 Units Only 09-75250-02 11
Edge Brush w/o Wheels, Left & Right 75766-02 21
51 Wheel Axle 03-00630-01M 2/4* 100
52 Soft Rear Wheel, Black 75187-02-0327 21
55 XL2200RS / XL2310RS / U2310RSF / U2200RD / U2200HHS: 09-75301-24 11
Grips, Lt. Gray, No Switch
U2310RD: Grips, Navy, No Switch 09-75301-26 11
XL2300RS: Grips, Black, No Switch 09-75301-03 11
RU2240HHS: Grips, Peacoat, No Switch 09-75301-29 11
56 U2200RD / U2310RD/ RU2240HHS:
Cord Wrap Assy, includes Post & Cord Wrap 09-75185-01 11
57 U2200RD / U2310RD / RU2240HHS: Handle Tube, Chrome 75190-07 11
60 Motor Spring 75283-01 21
61 Tube Label 75087-05 11
62 Cord Bracket 75245-01 11
65 “Oreck” Name Plate Label 75599-03 11
66 Bushing 75275-01 11
67 Bag Dock Hinge, Type CC (use w/#4a or order #83) 75582-03-480 11
79 Stiffener (uses same length screws, notched) 75189-02 11 NLA Order Item #8
Stiffener, Through Bolt Connector (uses different length screws) 75619-01 11
83 Kit, Bag Dock, includes items #4a & #67 09-75657-01 11
87 Front Wheel Type 7 Units Only 75709-01 21
*Type 7 Units
24
Part Numbers Listing: XL2450RH
Lights, Helping Hand Handle
# Item Order # Qty. Pk.
1b Handle Assembly includes items #38, #53, #54, #55, 09-75288-62 11 NLA NLA NLA
#56, #57, #59 O
RDER 1e
1e Kit, Retro, Handle Assembly, Residential, Black, includes items 09-75612-01 11
#38, #54, #55, #58, #59, #81, #82 Type 1, 2, 3, 4 & 5 Units Only
4a Docking Clip, Rear, Type CC (use w/#67 or order #83) 75583-03-480 11
5 Dust Bag, (8 Pk.) Regular CCPK8 18
Dust Bag, (25 Pk.) Regular CCPK25 1 25
Dust Bag, (8 Pk.) Hypo Allergenic CCPK8DW 18
Dust Bag, (25 Pk.) Hypo Allergenic CCPK25DW 1 25
6
Outer Bag, Grey, Maroon, Maroon
75246-20 11
7 Bag Clip, Maroon 09-75078-25 11
8 Connector Assembly Kit, includes items #3 & #84 09-75308-57 11
9 Collar 75309-02-0327 21
10 Tube Assembly Type 1, 2, 3 & 4 Units Only 75188-01 11 NLA NLA NLA
Tube Assembly Type 5 Units Only 75198-05 11
12 Fan Housing Assembly includes Rivet & Spring 09-75343-03 11
16 End Cap 0134623 11
18 METAXALLOY™ Fan Kit w/Washers 09-75300-01 11
19 Fan Seal Cup 75012-01 11
20 Cord Set see #59
21 Lamp Housing w/Reflectors, Maroon 09-75073-61 11
22 Lens 75058-01-0329 11
23 Bulb 00965-0019 21
24 Bulb Reflector 75034-01 41
25 Lamp Holder 75539-01 11
26 Housing w/Reflectors, Light Gray 09-75429-03 11
27 Bumper, White 75181-03 11
28 Intake Pivot Assembly with Felt Seal 09-75066-02 11
29 Felt Seal 75065-01 11
32 Felt Seal, Motor 75117-01M 1 100
33 Cord Retainer, Round Type 1, 2 & 3 Units Only 03-00455-02 11
Cord Retainer, Square Type 4 & 5 Units Only 03-00494-01 11
34 Motor Assembly Kit 09-75505-01 11
35 Motor Seal 75095-01 21
36 Kit, Motor Brush (Large & Small) / Spring 09-75514-01 22
39 Drive Belt, (3 Pk.) 0300604 13
39a Drive Belt, Single 75024-01 11
40 Door Belt, Maroon 75057-01-437 11
42 Brush Roll, Plastic Pulley 75104-02 11
43 Seal, Baseplate 75008-01 11
44 Plastic Detent, (uses 2 #49 screws) 75299-01 11
25
26
45 Complete Baseplate Assembly includes: #43, #46, #47, 09-75715-01 11
#50, #51, #52, #85, #86, #87
46 MICRO SWEEP Blade 75700-02 11
47 Channel 75007-02 11
50 Edge Brush w/Wheel, Left 09-75249-02 11
Edge Brush w/Wheel, Right 09-75250-02 11
51 Wheel Axle 03-00630-01M 2 100
52 Soft Rear Wheel, Black 75187-02-0327 21
53 Static Wire Type 1, 2, 3, 4 & 5 Units Only 75037-01 11
54 Switch, 2 Position Assembly 75110-02 11
55 Grips, Maroon Set 09-75301-16 11
56 Cord Wrap Assy, includes Post & Cord Wrap 09-75185-01 11
57 Handle Tube 75190-07 11
58 Cord, Harness Assembly, Black 75081-02 11
59 Cord Set, Black, 25’ 75326-01-327 11 NLA Order Item 1e
60 Motor Spring 75283-01 21
61 Tube Label 75087-05 11
67 Bag Dock Hinge, Type CC (use w/#4a or order #83) 75582-03-480 11
User’s Manual 75416-05 11
Magnet Clean Vacuum Protector MC4BK 11
79 Stiffener (uses same length screws, notched) 75189-02 11
Stiffener, Through Bolt Connector (uses different length screws) 75619-01 11
83 Kit, Bag Dock, includes items #4a & #67 09-75657-01 11
Part Numbers Listing: XL2450RH cont.
Lights, Helping Hand Handle
# Item Order # Qty. Pk.
Part Numbers Listing: XL2000HH / XL2100HH / U2000HH
Hypo Bag, Helping Hand Handle, Commercial, No Lights
#
Item Order # Qty. Pk.
1b XL2000HH: Handle Assembly, includes items #38, #53, #54, 09-75288-05
11 NLA NLA NLA
#
55, #56, #57, #59
Type 1, 2, 3, 4 & 5 Units Only ORDER 1e
XL2100HH: Handle Assembly, includes items #38, #53, #54, 09-75288-06 11 NLA NLA NLA
#55, #56, #57, #59 Type 1, 2, 3, 4 & 5 Units Only ORDER 1e
1c XL2000HH: Tortuous Grip & Cord Assembly, 09-75342-05 11 NLA NLA NLA
includes items #54, #55, #59 Type 1 Units Only
XL2100HH: Tortuous Grip & Cord Assembly, 09-75342-06 11 NLA NLA NLA
includes items #54, #55, #59 Type 1 Units Only
1e Kit, Retro, Handle Assembly, Commercial, Red, includes items 09-75611-01 11
#38, #54, #55, #58, #59, #81, #82 Type 1, 2, 3, 4 & 5 Units Only
1f Kit, Retro, Handle Assembly, Commercial, Red, includes items 09-75562-09 11
#38, #53, #54, #55, #56, #57, #58, #59, #80, #81
4 Bag Retainer Spring 75035-02 11
5 Dust Bag, (9 Pk.) Hypo Allergenic PK80009DW 19
Dust Bag, (25 Pk.) Hypo Allergenic PK800025DW 1 25
6 XL2000HH: Outer Bag, Lt. Gray, Red, Red 75246-24 11
XL2100HH: Outer Bag, Lt. Gray, Blue, Blue 75246-17 11 NLA ORDER 75246-18 DK GRAY
U2000HH: Outer Bag, Lt. Gray, Red, Red 75246-24 11
7 XL2000HH / U2000HH: Bag Clip, Red 09-75078-08 11
XL2100HH: Bag Clip, Blue 09-75078-09 11
8 Connector Assembly Kit, includes items #3 & #84 09-75308-57 11
8a Deflector, Black, Snap Type 1 & 2 Units Only 75220-01-0327 11
9 Collar 75309-02-0327 21
10 Tube Assembly Type 1, 2, 3 & 4 Units Only 75188-01 11 NLA NLA NLA
Tube Assembly Type 5, 6 & 7 Units Only 75198-05 11
12 Fan Housing Assembly includes Rivet & Spring 09-75343-03 11
16 End Cap 0134623 11
18 METAXALLOY™ Fan Kit w/Washers 09-75300-01 11
19 Fan Cup Seal 75012-01 11
20 Cord Set see #59
26 XL2000HH / U2000HH: Housing, Red, w/Label 09-75430-03 11
U2000HH: Housing, Red, Rapid Replacement Type 7 Units Only 09-75430-03 11
XL2100HH: Housing, Blue, w/Label 09-75430-05 11
27 Bumper, Clear 75181-04 11
28 Intake Pivot Assembly, with Felt Seal 09-75066-02 11
29 Felt Seal 75065-01 11
32 Felt Seal, Motor 75117-01M 1 100
33 Cord Retainer, Round Type 1, 2 & 3 Units Only 03-00457-01 11
Cord Retainer, Square Type 4, 5, 6 & 7 Units Only 03-00494-01 11
34 Motor Assembly Kit 09-75505-01 11
35 Motor Seal 75095-01 21
36 Kit, Motor Brush (Large & Small) / Spring 09-75514-01 22
39 Drive Belt, (3 Pk.) 0300604 13
39a Drive Belt, Single 75024-01 11
27
40 XL2000HH / U2000HH: Door Belt, Red 75057-01-441 11
XL2100HH: Door Belt, Blue 75057-01-438 11
42 Brush Roll, Plastic Pulley 75104-02 11
43 Seal, Baseplate 75008-01 11
44 Plastic Detent, (uses 2 #49 screws) 75299-01 11
45 Complete Baseplate Assembly, Commercial 09-75715-03 11
includes: #43, #46, #47, #50, #51, #52, #85, #86, #87
46 MICRO SWEEP Blade Type 1-6 Units Only 75700-02 11
MICRO SWEEP Blade Type 7 Units Only 75700-02 11
47 Channel Type 1-6 Units Only 75007-02 11
Channel Type 7 Units Only 75701-01 11
50 Edge Brush, w/o wheels 75766-02 21
51 Wheel Axle 03-00630-01M 2/4* 100
52 Soft Rear Wheel, Black 75187-02-0327 21
53 Static Wire Type 1, 2, 3, 4 & 5 Units Only 75037-01 11
54 Switch, 2 Position Assembly Type 1, 2, 3, 4 & 5 Units Only 75110-02 11
Switch, 2 Position Assembly Type 6 & 7 Units Only 75559-01 11
55 XL2000HH: Grips, Red Set Type 2, 3, 4 & 5 Units Only 09-75301-08 11
(Type 1 Units Order Assembly 1e For Grips)
XL2000HH / U2000HH: Grips, Red Set Type 6 & 7 Units Only 09-75576-08 11
XL2100HH: Grips, Blue Set Type 2, 3, 4 & 5 Units Only 09-75301-06 11 NLA Order 09-75301-02
(Type 1 Units Order Assembly 1e For Grips)
XL2100HH: Grips, Blue Set Type 6 & 7 Units Only 09-75576-06 11
56 XL2000HH / U2000HH: Cord Wrap Assy, includes Post & Cord Wrap 09-75185-07 11
XL2100HH: Cord Wrap Assy, includes Post & Cord Wrap 09-75185-08 11
57 XL2000HH: Handle Tube, Chrome 75190-07 11
XL2100HH / U2000HH: Handle Tube, Chrome (Black is NLA) 75190-07 11
58 Cord, Harness Assembly, Black Type 1, 2, 3, 4 & 5 Units Only 75082-02 11 NLA NLA NLA
Cord, Harness Assembly, Red Type 6 & 7 Units Only 75557-03-441 11
59 Cord Set, Black Type 2, 3, 4 & 5 Units Only 75294-01-327 11 NLA Order Item 1e
(Type 1 Units Order Assembly 1e For Cord Set)
Cord Set, Red w/ #81 Type 6 & 7 Units Only 75558-02-441 11
60 Motor Spring 75283-01 21
61 Tube Label 75087-05 11
65 “Oreck Commercial” Name Plate Label 75599-02 11
“Rapid Replacement” Name Plate Label 75599-05 11
76 Handle Brace 75432-01 11
76a Handle Brace Kit 75435-01 11
User’s Manual 75417-05 11
Magnet Clean Vacuum Protector MC4BK 11
79 Stiffener (uses same length screws, notched) 75189-02 11
Stiffener, Through Bolt Connector (uses different length screws) 75619-01 11
81 Cord Flex Relief Type 6 & 7 Units Only 03-00600-01 11
87 Front Wheel Type 7 Units Only 75709-01 21
*Type 7 Units
28
Part Numbers Listing: XL2000HH / XL2100HH / U2000HH cont.
Hypo Bag, Helping Hand Handle, Commercial, No Lights
# Item Order # Qty. Pk.
Part Numbers Listing: XL2000RH, XL2100RH, XL2090RHM & XL2070RH
Regular Bag, Helping Hand Handle, Commercial, No Lights
# Item Order # Qty. Pk.
1b XL2000RH: Handle Assembly, includes items #38, #53, #54, 09-75288-05 11 NLA NLA NLA
#55, #56, #57, #59 Type 1, 2, 3, 4 & 5 Units Only ORDER 1e
XL2100RH: Handle Assembly, includes items #38, #53, #54, 09-75288-06 11 NLA NLA NLA
#55, #56, #57, #59 Type 1, 2, 3, 4 & 5 Units Only ORDER 1e
XL2090RHM: Handle Assembly, includes items #38, #53, #54, 09-75288-08 11 NLA NLA NLA
#
55, #56, #57, #59
Type 1, 2, 3, 4 & 5 Units Only ORDER 1e
1c XL2000RH: Tortuous Grip & Cord Assembly, 09-75342-05 11 NLA NLA NLA
i
ncludes items #54, #55, #59
Type 1 Units Only
XL2100RH: Tortuous Grip & Cord Assembly, 09-75342-06 11 NLA NLA NLA
i
ncludes items #54, #55, #59
Type 1 Units Only
XL2090RHM: Tortuous Grip & Cord Assembly, 09-75342-09 11 NLA NLA NLA
i
ncludes items #54, #55, #59
Type 1 Units Only
1e Kit, Retro, Handle Assembly, Commercial, Red, includes items 09-75611-01 11
#38, #54, #55, #58, #59, #81, #82 T
ype 1, 2, 3, 4 & 5 Units Only
1f Kit, Retro, Handle Assembly, Commercial, Red, includes items 09-75562-09 11
#38, #53, #54, #55, #56, #57, #58, #59, #81, #82
XL2090RHM: Kit, Retro, Handle Assembly, Commercial, Green, 09-75562-58 11
includes items #38, #53, #54, #55, #56, #57, #58, #59, #81, #82
4 Bag Retainer Spring 75035-02 11
5 Dust Bag, (9 Pk.) Regular PK80009 19
Dust Bag, (25 Pk.) Regular PK800025 1 25
6 XL2000RH: Outer Bag, Drk. Gray, Red, Red, Commercial 75246-16 11
XL2100RH: Outer Bag, Drk. Blue, Blue, Blue 75246-18 11
XL2090RHM: Outer Bag, Merry Maids 75246-08 11
XL2070RH: Outer Bag, Gray, White, Turquoise 75246-34 11
7 XL2000RH: Bag Clip, Red 09-75078-08 11
XL2100RH: Bag Clip, Blue 09-75078-09 11
XL2090RHM: Bag Clip, Kelly Green 09-75078-01 11
XL2070RH: Bag Clip, Turquoise 09-75078-20 11
8 Connector Assembly Kit, includes items #3 & #84 09-75308-57 11
8a Deflector, Black, Snap Type 1 & 2 Units Only 75220-01-0327 11
9 Collar 75309-02-0327 21
10 Tube Assembly Type 1, 2, 3 & 4 Units Only 75188-01 11 NLA NLA NLA
Tube Assembly Type 5, 6 & 7 Units Only 75198-05 11
12 Fan Housing Assembly includes Rivet & Spring 09-75343-03 11
16 End Cap, Left 0134623 11
18 METAXALLOY™ Fan Kit w/Washers 09-75300-01 11
19 Fan Cup Seal 75012-01 11
20 Cord Set see #59
26 XL2000RH: Housing, Red, w/Label Type 1, 2, 3, 4 & 5 Units Only 09-75430-03 11
XL2000RH: Housing, Red, Rapid Replacement Type 7 Units Only 09-75430-03 11
XL2000RH: Housing, Gray, Rapid Replacement Restauranteur 09-75426-27 11
Type 6 & 7 Units Only 11
XL2100RH: Housing, Blue, w/Label 09-75430-05 11
XL2090RHM: Housing, Kelly Green, w/Label 09-75430-17 11
XL2070RH: Housing, Turquoise w/Label 09-75426-17 11
27 Bumper, Clear 75181-04 11
28 Intake Pivot Assembly, with Felt Seal 09-75066-02 11
29 Felt Seal 75065-01 11
32 Felt Seal, Motor 75117-01M 1 100
33 Cord Retainer, Round Type 1, 2 & 3 Units Only 03-00457-01 11
Cord Retainer, Square Type 4, 5, 6 & 7 Units Only 03-00494-01 11
34 Motor Assembly Kit 09-75505-01 11
35 Motor Seal 75095-01 21
36 Kit, Motor Brush (Large & Small) / Spring 09-75514-01 22
39 Drive Belt, (3 Pk.) 0300604 13
39a Drive Belt, Single 75024-01 11
40 XL2000RH: Door, Belt, Red 75057-01-441 11
XL2000RH: Door, Belt, Gray Type 6 Units Only 75057-01-0384 11
XL2100RH: Door, Belt, Blue 75057-01-438 11
XL2090RHM: Door, Belt, Kelly Green 75057-01-0433 11
XL2070RH: Door, Belt, Turquoise 75057-01-458 11
29
42 XL2000RH / XL2100RH / XL2070RH: Brush Roll, Plastic Pulley 75104-02 11
XL2090RHM: Brush Roll, Metal Pulley 75104-02 11
42a XL2090RHM: Endcard, Metal Pulley Side, Left 75705-01 11
42b XL2090RHM: Brush Roll Pulley, Metal 75706-01 11
43 Seal, Baseplate 75008-01 11
4
4 Plastic Detent, (uses 2 #49 screws) 75299-01 11
4
5 Complete Baseplate Assembly, Commercial 09-75715-03 11
includes: #43, #46, #47, #50, #51, #52, #85, #86, #87
46 MICRO SWEEP Blade Type 1-6 Units Only 75700-02 11
MICRO SWEEP Blade Type 7 Units Only 75700-02 11
47 Channel Type 1-6 Units Only 75007-02 11
Channel T
ype 7 Units Only
75701-01 11
50 Edge Brush, w/o wheels 75766-02 21
51 Wheel Axle 03-00630-01M 2/4* 100
52 Soft Rear Wheel, Black 75187-02-0327 21
53 Static Wire Type 1, 2, 3, 4 & 5 Units Only 75037-01 11
54 Switch, 2 Position Assembly Type 1, 2, 3, 4 & 5 Units Only 75110-02 11
Switch, 2 Position Assembly Type 6 & 7 Units Only 75559-01 11
55 XL2000RH: Grips, Red Set Type 2, 3, 4 & 5 Units Only 09-75301-08 11
(Type 1 Units Order Assembly 1e For Grips)
XL2000RH: Grips, Red Set Type 6 & 7 Units Only 09-75576-08 11
XL2100RH: Grips, Blue Set Type 2, 3, 4 & 5 Units Only 09-75301-06 11 NLA Order 09-75301-02
(Type 1 Units Order Assembly 1e For Grips)
XL2100RH: Grips, Blue Set Type 6 & 7 Units Only 09-75576-06
XL2090RHM: Grips, Kelly Green Type 2, 3, 4 & 5 Units Only 09-75301-05 11
(Type 1 Units Order Assembly 1e For Grips)
XL2090RHM: Grips, Kelly Green Set Type 6 & 7 Units Only 09-75576-05 11
XL2070RH: Grips, Turquoise Set Type 6 & 7 Units Only 09-75576-25 11
56 XL2000RH: Cord Wrap Assy, includes Post & Cord Wrap 09-75185-07 11
XL2100RH: Cord Wrap Assy, includes Post & Cord Wrap 09-75185-08 11
XL2090RHM: Cord Wrap Assy, includes Post & Cord Wrap 09-75185-03 11
XL2070RH: Cord Wrap Assy, includes Post & Cord Wrap 09-75185-05 11
57 XL2000RH / XL2070RH: Handle Tube, Chrome (Black is NLA) 75190-07 11
XL2100RH / XL2090RHM: Handle Tube 75190-07 11
58 XL2000RH / XL2100RH: Cord, Harness Assembly, Black 75082-02 11 NLA NLA NLA
Type 1, 2, 3, 4 & 5 Units Only
XL2000RH / XL2100RH: Cord, Harness Assembly, Red 75557-03-441 11
Type 6 & 7 Units Only
XL2090RHM: Cord, Harness Assembly, Black 75082-02 11
Type 1, 2, 3, 4 & 5 Units Only
XL2090RHM /XL2070RH: Cord, Harness Assy, White Type 6 & 7 Units Only 75557-03-328 11
59 XL2100RH / XL2000RH: Cord Set, Red w/ #81 Type 6 & 7 Units Only 75558-02-441 11
XL2000RH / XL2100RH / XL2090RHM: Cord Set, Black 75294-01-327 11 NLA Order Item 1e
Type 2, 3, 4 & 5 Units Only (Type 1 Units Order Assembly 1e For
Cord Set)
XL2090RHM / XL2070RH: Cord Set, White w/ #81 Type 6 & 7 Units Only 75558-02-328 11
60 Motor Spring 75283-01 21
61 Tube Label 75087-05 11
65 “Oreck Commercial” Name Plate Label 75599-02 11
“Rapid Replacement Restauranteur” Name Plate Label 75599-04 11
“Rapid Replacement” Name Plate Label 75599-05 11
76 Handle Brace 75432-01 11
76a Handle Brace Kit 75435-01 11
User’s Manual 75417-05 11
Magnet Clean Vacuum Protector MC4BK 11
79 Stiffener (uses same length screws, notched) 75189-02 11
Stiffener, Through Bolt Connector (uses different length screws) 75619-01 11
81 Cord Flex Relief Type 6 & 7 Units Only 03-00600-01 11
87 Front Wheel Type 7 Units Only 75709-01 21
*Type 7 Units
30
Part Numbers Listing: XL2000RH, XL2100RH, XL2090RHM & XL2070RH cont.
Regular Bag, Helping Hand Handle, Commercial, No Lights
# Item Order # Qty. Pk.
31
Part Numbers Listing: XL2000RS, XL2100RS &
XL2090RSM
Regular Bag, Foot Switch, Commercial, No Lights
#
Item Order # Qty. Pk.
1g XL2000RS: Handle Assembly 09-75093-59 11
XL2100RS: Handle Assembly 09-75093-53 1 1 NLA Order Black Assy 09-75093-02
XL2090RSM: Handle Assembly 09-75093-01 11
4 Bag Retainer Spring 75035-02 11
5 Dust Bag, (9 Pk.) Regular PK80009 19
Dust Bag, (25 Pk.) Regular PK800025 1 25
6 XL2000RS: Outer Bag, Drk. Gray, Red, Red 75246-16 11
XL2100RS: Outer Bag, Drk. Blue, Blue, Blue 75246-18 11
XL2090RSM: Outer Bag, Merry Maids 75246-08 11
7 XL2000RS: Bag Clip, Red 09-75078-08 11
XL2100RS: Bag Clip, Blue 09-75078-09 11
XL2090RSM: Bag Clip, Kelly Green 09-75078-01 11
8 Connector Assembly Kit, includes items #3 & #84 09-75308-57 11
8a Deflector, Black, Snap Type 1 & 2 Units Only 75220-01-0327 11
9 Collar 75309-02-0327 11
10 Tube Assembly Type 1, 2, 3, & 4 Units Only 75188-01 11 NLA NLA NLA
Tube Assembly Type 5, 6 & 7 Units Only 75198-05 11
12 Fan Housing Assembly includes Rivet & Spring 09-75343-03 11
13 Switch Cover 09-75266-01 11
14 Switch Assembly 75084-05 11
16 End Cap 0134623 11
18 METAXALLOY™ Fan Kit w/Washers 09-75300-01 11
19 Fan Seal Cup 75012-01 11
20 XL2000RS / XL2100RS: Cord Set, Red 75080-05-441 11
XL2090RSM: Cord Set, White 75080-05-328 11
26 XL2000RS: Housing, Red, w/Label 09-75430-04 11
XL2100RS: Housing, Blue, w/Label 09-75430-06 11
XL2090RSM: Housing, Kelly Green, w/Label 09-75430-16 11
27 Bumper, Clear 75181-04 11
28 Intake Pivot Assembly with Felt Seal 09-75066-02 11
29 Felt Seal 75065-01 11
32 Felt Seal, Motor 75117-01M 1 100
33 Cord Retainer, Round Type 1, 2 & 3 Units Only 03-00457-01 11
Cord Retainer, Square Type 4, 5, 6 & 7 Units Only 03-00494-01 11
34 Motor Assembly Kit 09-75505-01 11
35 Motor Seal 75095-01 21
36 Kit, Motor Brush (Large & Small) / Spring 09-75514-01 22
Part Numbers Listing: XL2000RS, XL2100RS &
XL2090RSM cont.
Regular Bag, Foot Switch, Commercial, No Lights
# Item Order # Qty. Pk.
39 Drive Belt, (3 Pk.) 0300604 13
39a Drive Belt, Single 75024-01 11
40 XL2000RS: Door Belt, Red 75057-01-441 11
XL2100RS: Door Belt, Blue 75057-01-438 11
XL2090RSM: Door Belt, Kelly Green 75057-01-0433 11
42 XL2000RS / XL2100RS: Brush Roll, Plastic Pulley 75104-02 11
XL2090RSM: Brush Roll, Metal Pulley 75104-02 11
42a XL2090RSM: Endcard, Metal Pulley Side, Left 75705-01 11
42b XL2090RSM: Brush Roll Pulley, Metal 75706-01 11
43 Seal, Baseplate 75008-01 11
44 Plastic Detent, (uses 2 #49 screws) 75299-01 11
45 Complete Baseplate Assembly, Commercial 09-75715-03 11
includes: #43, #46, #47, #50, #51, #52, #85, #86, #87
46 MICRO SWEEP Blade Type 1-6 Units Only 75700-02 11
MICRO SWEEP Blade Type 7 Units Only 75700-02 11
47 Channel Type 1-6 Units Only 75007-02 11
Channel Type 7 Units Only 75701-01 11
50 Edge Brush, w/o wheels 75766-02 21
51 Wheel Axle 03-00630-01M 2/4* 100
52 Soft Rear Wheel, Black 75187-02-0327 21
55 XL2000RS: Grips, Set, Red 09-75301-28 11
XL2100RS: Grips, Set, White 09-75301-25 11
XL2090RSM: Grips, Set, Black 09-75301-03 11
60 Motor Spring 75283-01 21
61 Tube Label 75087-05 11
62 XL2000RS: Cord Bracket 75245-02 11
XL2100RS: Cord Bracket 75245-01 11
XL2090RSM: Cord Bracket 75245-02 11
65 “Oreck Commercial” Name Plate Label 75599-02 11
66 Bushing 75275-01 11
76 Handle Brace 75432-01 11
76a Handle Brace Kit 75435-01 11
User’s Manual 75417-05 11
Vacuum Cleaner Cover VACCOVER 11 NLA NLA NLA
Magnet Clean Vacuum Protector MC4BK 11
79 Stiffener (uses same length screws, notched) 75189-02 11
Stiffener, Through Bolt Connector (uses different length screws) 75619-01 11
87 Front Wheel Type 7 Units Only 75709-01 21
*Type 7 Units
32
Oreck Classic Series (
Type 7 Units)
Part Numbers Listing: U2250RS, U2251RS
Regular Bag, No Lights, Foot Switch
# Item Order # Qty. Pk.
1g U2250RS: Handle Assembly 09-75093-58 11
U
2251RS: Handle Assembly 09-75093-53
1
1
NLA Order Black Assy 09-75093-51
4a Docking Clip, Rear, Type CC (use w/#67 or order #83) 75583-03-480 11
5 Dust Bag, (8 Pk.) Regular CCPK8 18
Dust Bag, (25 Pk.) Regular CCPK25 1 25
6 U2250RS: Outer Bag, Gray 76063-01 11
U2251RS: Outer Bag, JCP 76063-05 11
8 Connector Assembly Kit, includes items #3 & #84 09-75308-57 11
9 Collar 75199-02-0327 11
10 Tube Assembly 75198-05 11
12 Fan Housing Assembly includes Rivet & Spring 09-75343-03 11
13 Switch Cover 09-75266-01 11
14 Switch Assembly 75084-07 11
U2251RS: Switch Assembly 75842-01 11
16 End Cap 0134623 11
18 METAXALLOY™ Fan Kit w/Washers 09-75300-01 11
19 Fan Seal Cup 75012-01 11
20 Cord Set, White 75163-03-328 11
U2251RS: Cord Set, White 75163-06-328 11
26 U2250RS: Top Cover w/Belt Door Assembly 09-76031-01 11
U2251RS: Top Cover w/Belt Door Assembly JCP 09-76031-04 11
27 Bumper, Clear 75765-01 11
28 Intake Pivot Assembly with Felt Seal 09-75066-02 11
29 Felt Seal 75065-01 11
32 Felt Seal, Motor 75117-01M 1 100
33 Strain Relief 03-00494-01 11
34 Motor Assembly Kit 09-75505-01 11
U2251RS: Aluminum Motor Kit 09-75886-01 11
35 Motor Seal 75095-01 21
36 Kit, Motor Brush (Large & Small) / Spring 09-75514-01 22
39 Drive Belt, (3 Pk.) 0300604 13
39a Drive Belt, Single 75024-01 11
40 U2250RS: Door Belt, Light Gray 76002-01-469 11
U2251RS: Door Belt, JCP 76002-01-0431 11
42 Brush Roll, Plastic Pulley 75104-02 11
43 Seal, Baseplate 75008-01 11
44 Plastic Detent, (uses 2 #49 screws) 75299-01 11
45 Complete Baseplate Assembly includes: #43, #46, #47, 09-75715-07 11
#50, #51, #52, #85, #86, #87
46 MICRO SWEEP Blade 75700-01 11
33
47 Channel 75701-01 11
50 Edge Brush, Silver ION 75766-03 21
51 Wheel Axle 03-00630-01M 2 100
52 Soft Rear Wheel, Black 75187-02-0327 21
55 U2250RS: Grip Set, Gray, No Switch 09-75301-24 11
U2251RS: Grip Set, White, No Switch 09-75301-25 11
60 Motor Spring 75283-01 21
61 Tube Label 75087-05 11
67 Bag Dock Hinge, Type CC (use w/#4a or order #83) 75582-03-480 11
User’s Manual N/A 11
79 Stiffener (uses same length screws, notched) 75189-02 11
Stiffener, Through Bolt Connector (uses different length screws) 75619-01 11
81 Cord Flex Relief 03-00600-01 11
83 Kit, Bag Dock, includes items #4a & #67 09-75657-01 11
87 Wheel and Tire Overmolded 75709-01 21
92 Bag Stiffener with Strap 76061-01-0327 11
98
U2251RS: Jumper Wire for Motor 75843-01 11
99 U2251RS: Mounting Bracket 75824-01 11
100 U2251RS: JST Insulator 75888-01 11
34
Oreck Classic Series (
Type 7 Units)
Part Numbers Listing: U2250RS, U2251RS
Regular Bag, No Lights, Foot Switch
# Item Order # Qty. Pk.
Oreck Classic Series Commercial (Type 7 Units)
Part Numbers Listing: U2000R, U2000E, U2000E2, U2000H, U2000H2
No Lights, Commercial, Classic Bag, Helping Hand Handle
#
Item Order # Qty. Pk.
4
Bag Retainer Spring 75035-02 11
5 Dust Bag, (8 Pk.) PK80009DW 18
Dust Bag, (25 Pk.) PK800025DW 1 25
6 U2000R: Outer Bag 75246-16 11
U2000E, U2000E2: Outer Bag 75246-30 11
U2000H, U2000H2: Outer Bag, Hypo 75246-15 11 NLA Order 75246-21 Black Bag
8 Connector Assembly Kit, includes items #3 & #84 09-75308-57 11
9 Collar 75199-02-0327 21
10 Tube Assembly 75198-05 11
12 Fan Housing Assembly includes Rivet & Spring 09-75343-03 11
16 End Cap 0134623 11
18 METAXALLOY™ Fan Kit w/Washers 09-75300-01 11
19 Fan Seal Cup 75012-01 11
20 Cord 75558-04-441 11
26 Top Cover w/Belt Door Assembly (Incl. mylar label & strain relief) 09-75430-03 11
U2000H2, U2000E2: Top Cover w/Belt Door Assy (Incl. mylar label & strain relief) 09-75430-20 11
27 Bumper, Clear 75181-04 11
28 Intake Pivot Assembly with Felt Seal 09-75066-02 11
29 Felt Seal 75065-01 11
32 Felt Seal, Motor 75117-01M 1 100
33 Strain Relief 03-00494-01 11
34 Motor Assembly Kit 09-75505-01 11
35 Motor Seal 75095-01 21
36 Kit, Motor Brush (Large & Small) / Spring 09-75514-01 22
39 Drive Belt, (3 Pk.) 0300604 13
39a Drive Belt, Single 75024-01 11
40 Door Belt, Red 76002-01-441 11
42 Brush Roll, Plastic Pulley 75104-02 11
43 Seal, Baseplate 75008-01 11
44 Plastic Detent, (uses 2 #49 screws) 75299-01 11
45 Complete Baseplate Assembly includes: #43, #46, #47, 09-75715-03 11
#50, #51, #52, #85, #86, #87
46 MICRO SWEEP Blade 75700-02 11
47 Channel 75701-01 11
50 Edge Brush, Silver ION 75766-03 21
51 Wheel Axle 03-00630-01M 2 100
52 Soft Rear Wheel, Black 75187-02-0327 21
35
54 Single Speed Switch 75559-01 11
U2000H2, U2000E2: Two Speed Switch 75585-01 11
55 Grips, Red Set Hardwire Handle 09-75576-08 11
60 Motor Spring 75283-01 21
61 Tube Label 75087-05 11
65 U2000H2, U2000E2: Mylar Label 75599-12 11
76 Handle Brace 75432-01 11
76a Handle Brace Kit 75435-01 11
79 Stiffener (uses same length screws, notched) 75189-02 11
Stiffener, Through Bolt Connector (uses different length screws) 75619-01 11
81 Cord Flex Relief 03-00600-01 11
87 Wheel and Tire Overmolded 75709-01 21
92 Bag Stiffener 76061-01-0327 11
36
Oreck Classic Series Commercial (Type 7 Units)
Part Numbers Listing: U2000R, U2000E, U2000E2, U2000H, U2000H2
No Lights, Commercial, Classic Bag, Helping Hand Handle
#
Item Order # Qty. Pk.
Oreck Classic Series (
Type 7 Units)
Part Numbers Listing: U2000RSB
Regular Bag, No Lights, Foot Switch, Commercial
# Item Order # Qty. Pk.
1g Handle Assembly 09-75093-59 11
4 Bag Retainer Spring 75035-02 11
5 Dust Bag, (8 Pk.) PK80009DW 18
Dust Bag, (25 Pk.) PK800025DW 1 25
6 Outer Bag 75246-16 11
8 Connector Assembly Kit, includes items #3 & #84 09-75308-57 11
9 Collar 75199-02-0327 11
10 Tube Assembly 75198-05 11
12 Fan Housing Assembly includes Rivet & Spring 09-75343-03 11
13 Switch Cover 09-75266-01 11
14 Switch, Foot 75084-07 11
16 End Cap 0134623 11
18 METAXALLOY™ Fan Kit w/Washers 09-75300-01 11
19 Fan Seal Cup 75012-01 11
20 Cord Set, Red 75080-05-441 11
26 Top Cover w/Belt Door Assembly 09-76031-03 11
27 Bumper, Clear 75181-04 11
28 Intake Pivot Assembly with Felt Seal 09-75066-02 11
29 Felt Seal 75065-01 11
32 Felt Seal, Motor 75117-01M 1 100
33 Strain Relief 03-00494-01 11
34 Motor Assembly Kit 09-75505-01 11
35 Motor Seal 75095-01 21
36 Kit, Motor Brush (Large & Small) / Spring 09-75514-01 22
39 Drive Belt, (3 Pk.) 0300604 13
39a Drive Belt, Single 75024-01 11
40 Door Belt, Red 76002-01-441 11
42 Brush Roll, Plastic Pulley 75104-02 11
43 Seal, Baseplate 75008-01 11
44 Plastic Detent, (uses 2 #49 screws) 75299-01 11
45 Complete Baseplate Assembly includes: #43, #46, #47, 09-75715-03 11
#50, #51, #52, #85, #86, #87
46 MICRO SWEEP Blade 75700-02 11
47 Channel 75701-01 11
50 Edge Brush 75766-03 21
51 Wheel Axle 03-00630-01M 2 100
52 Soft Rear Wheel, Black 75187-02-0327 21
55 Grips, Red Set, w/o Switch 09-75301-25 11
37
60 Motor Spring 75283-01 21
61 Tube Label 75087-05 11
76 Handle Brace 75432-01 11
76a Handle Brace Kit 75435-01 11
79 Stiffener (uses same length screws, notched) 75189-02 11
Stiffener, Through Bolt Connector (uses different length screws) 75619-01 11
81 Cord Flex Relief 03-00600-01 11
87 Wheel and Tire Overmolded 75709-01 21
92 Bag Stiffener 76061-01-0327 11
38
Oreck Classic Series (
Type 7 Units)
Part Numbers Listing: U2000RSB
Regular Bag, No Lights, Foot Switch, Commercial
#
Item Order # Qty. Pk.
39
Part Numbers Listing: U2630HHG, U2630HHR, U2650HHR, U2650HHW, U2650HHB
Hypo Bag, Lights, Helping Hand Handle
# Item Order # Qty. Pk.
4a Docking Clip, Rear, Type CC (use w/#67 or order #83) 75583-03-480 11
5 Dust Bag, (8 Pk.) Hypo Allergenic CCPK8DW 18
Dust Bag, (25 Pk.) Hypo Allergenic CCPK25DW 1 25
6 U2630HHG: Outer Bag, Dark Green 75645-21 11
U2630HHR: Outer Bag, Warm Red 75645-31 11
U
2650HHW/U2650HHR/U2650HHB:Outer Bag, Amer Heritage 75645-37 11
7 U2630HHG: Bag Clip, Dark Green 09-75078-11 11
U2630HHR: Bag Clip, Warm Red 09-75078-26 11
U2650HHR: Bag Clip, Red 09-75078-27 11
U2650HHW: Bag Clip, White 09-75078-29 11
U2650HHB: Bag Clip, Blue 09-75078-28 11
8 Connector Assembly Kit, includes items #3 & #84 09-75308-57 11
8a Deflector, Black, Snap Type 1 & 2 Units Only 75220-01-0327 11
9 Collar 75309-02-0327 21
10 Tube Assembly Type 1, 2, 3 & 4 Units Only 75188-01 11 NLA NLA NLA
Tube Assembly Type 5 & 6 Units Only 75198-05 11
12 Fan Housing Assembly includes Rivet & Spring 09-75343-03 11
16 End Cap 0134623 11
18 METAXALLOY™ Fan Kit w/Washers 09-75300-01 11
19 Fan Cup Seal 75012-01 11
20 Cord Set see #59
21 U2630HHG: Lamp Housing, Dark Green 09-75073-09 11
U2630HHR: Lamp Housing, Warm Red 09-75073-16 11
U2650HHR: Lamp Housing, Red 09-75260-15 11
U2650HHW: Lamp Housing, White 09-75260-16 11
U2650HHB: Lamp Housing, Blue 09-75260-17 11
22 Lens 75058-01-0329 11
23 Bulb 00965-0019 21
24 Bulb Reflector 75034-01 41
25 Lamp Holder 75539-01 11
26 U2630HHG: Housing w/Reflectors, Dark Green 09-75780-46 11
U2630HHR: Housing w/Reflectors, Warm Red 09-75780-17 11
U2650HHR: Housing w/belt door, Red 09-75780-55 11
U2650HHW: Housing w/belt door, White 09-75780-56 11 NLA Order 09-75780-44
U2650HHB: Housing w/belt door, Blue 09-75780-57 11
27 Bumper, White 75181-03 11
28 Intake Pivot Assembly, with Felt Seal 09-75066-02 11
29 Felt Seal 75065-01 11
32 Felt Seal, Motor 75117-01M 1 100
33 Cord Retainer, Square Type 4, 5 & 6 Units Only 03-00494-01 11
34 Motor Assembly Kit - Aluminum Motor Kit Type 8 Only 09-75886-01 11
35 Motor Seal 75095-01 21
36 Kit, Motor Brush (Large & Small) / Spring 09-75514-01 22
39 Drive Belt, (3 Pk.) 0300604 13
39a Drive Belt, Single 75024-01 11
40 U2630HHG: Door Belt, Dark Green 75057-01-439 11
U2630HHR: Door Belt, Warm Red 75057-01-472 11
U2650HHR: Belt door, Red 75057-01-444 11
U2650HHW: Belt door, White 75057-01-0431 11
U2650HHB: Belt door, Blue 75057-01-442 11
4
2 Brush Roll, Plastic Pulley 75104-02 11
43 Seal, Baseplate 75008-01 11
4
4 Plastic Detent, (uses 2 #49 screws) 75299-01 11
45 Complete Baseplate Assembly includes: #43, #46, #47, 09-75715-01 11
#50, #51, #52, #85, #86, #87
46 MICRO SWEEP Blade 75700-02 11
47 Channel 75007-02 11
50 Edge Brush w/Wheels, Left 09-75249-02 11
Edge Brush w/Wheels, Right 09-75250-02 11
51 Wheel Axle 03-00630-01M 2 100
52 Soft Rear Wheel, Black 75187-02-0327 21
53 Static Wire Type 1, 2, 3, 4 & 5 Units Only 75037-01 11
54 Switch, 2 Position Assembly Type 6 Units Only 75559-01 11
55 U2630HHG: Grips, Dark Green Set Type 6 Units Only 09-75576-10 11
U2630HHR: Grips, Warm Red Set Type 6 Units Only 09-75576-11 11
U2650HHR: Grips, Red Set Type 6 Units Only 09-75576-28 11
U2650HHW: Grips, White Set Type 6 Units Only 09-75576-19 11
U2650HHB: Grips, Blue Set Type 6 Units Only 09-75576-30 11
56 Cord Wrap Assy, includes Post & Cord Wrap 09-75185-01 11
57 Handle Tube, Chrome 75190-07 11
58 Cord, Harness Assembly, White 75896-01-328 11
59 Cord Set, White 75896-03-328 11
60 Motor Spring 75283-01 21
61 Tube Label 75087-05 11
67 Bag Dock Hinge, Type CC (use w/#4a or order #83) 75582-03-480 11
79 Stiffener, Through Bolt Connector (uses different length screws) 75619-01 11
81 Cord Flex Relief 03-00655-01 11
83 Kit, Bag Dock, includes items #4a & #67 09-75657-01 11
40
Part Numbers Listing: U2630HHG, U2630HHR, U2650HHR, U2650HHW, U2650HHB cont.
Hypo Bag, Lights, Helping Hand Handle
#
Item Order # Qty. Pk.
Part Numbers Listing: U2160HH, U2170HH
Hypo Bag, No Lights, Helping Hand Handle
# Item Order # Qty. Pk.
4a Docking Clip, Rear, Type CC (use w/#67 or order #83) 75583-03-480 11
5 Dust Bag, (8 Pk.) Regular CCPK8 18
Dust Bag, (25 Pk.) Regular CCPK25 1 25
6 U2160HH: Outer Bag, Black/Blue Target 75645-34 11 NLA Order 75645-21 Black Bag
U2170HH: Outer Bag, Lt. Gray, Lowes/Nexcom 75645-38 11
7 U2160HH: Bag Clip, Mineral Green 09-75822-03 11
U2170HH: Bag Clip, Black 09-75822-04 11
8 Connector Assembly Kit, includes items #3 & #84 09-75308-57 11
9 Collar 75199-02-0327 21
10 Tube Assembly 75198-05 11
12 Fan Housing Assembly includes Rivet & Spring 09-75343-03 11
16 End Cap 0134623 11
18 METAXALLOY™ Fan Kit w/Washers 09-75300-01 11
19 Fan Seal Cup 75012-01 11
20 Cord Set see #59
26 U2160HH: Assembly Housing and Belt Door, Mineral Green 09-75780-54 11
U2170HH: Assembly Housing and Belt Door, Dr Gray 09-75780-14 11
27 Bumper, Clear 75765-01 11
28 Intake Pivot Assembly with Felt Seal 09-75066-02 11
29 Felt Seal 75065-01 11
32 Felt Seal, Motor 75117-01M 1 100
33 Cord Retainer, Square 03-00494-01 11
34 Motor Assembly Kit - Aluminum Motor Kit 09-75886-01 11
35 Motor Seal 75095-01 21
36 Kit, Motor Brush (Large & Small) / Spring 09-75514-01 22
39 Drive Belt, (3 Pk.) 0300604 13
39a Drive Belt, Single 75024-01 11
40 U2160HH: Door Belt, Mineral Green 75057-01-479 11
U2170HH: Door Belt, Dr Gray 75057-01-436 11
42 Brush Roll, Plastic Pulley 75104-02 11
43 Seal, Baseplate 75008-01 11
44 Plastic Detent, (uses 2 #49 screws) 75299-01 11
45 Complete Baseplate Assembly includes: #43, #46, #47, 09-75715-01 11
#50, #51, #52, #85, #86, #87
46 MICRO SWEEP Blade 75700-02 11
47 Channel 75701-01 11
50 Edge Brush 75766-03 21
51 Wheel Axle 03-00630-01M 2/4* 100
52 Soft Rear Wheel, Black 75187-02-0327 21
54 Switch, 2 Position Assembly 75559-01 11
55 U2160HH: Grip Set, Mineral Green 09-75576-42 11
U2170HH: Grip Set, Lt Gray 09-75576-09 11
56 Cord Wrap Assy, includes Post & Cord Wrap, Black 09-75185-01 11
57 Handle Tube, Chrome 75190-07 11
58 Cord, Harness Assembly 75896-02-327 11
41
42
Part Numbers Listing: U2160HH, U2170HH
Hypo Bag, No Lights, Helping Hand Handle
# Item Order # Qty. Pk.
59 Cord Set, Black 75896-03-327 11
60 Motor Spring 75283-01 21
61 Tube Label 75087-05 11
65 U2160HH: “Oreck” Name Plate Label 75599-08 11
U2170HH: Mylar Label 75599-10 11
67 Bag Dock Hinge, Type CC (use w/#4a or order #83) 75582-03-480 11
79 Stiffener, Through Bolt Connector (uses different length screws) 75619-01 11
81 Cord Flex Relief 03-00600-01 11
83 Kit, Bag Dock, includes items #4a & #67 09-75657-01 11
87 Front Wheel 75709-01 21
Type 7 Unit
Oreck Classic Series Commercial (
Type 7 Units)
Part Numbers Listing: U2000EB
No Lights, Commercial, Classic Bag, Helping Hand Handle, Enduro Belt
# Item Order # Qty. Pk.
4 Bag Retainer Spring 75035-02 11
5 Dust Bag, (8 Pk.) PK80009DW 18
Dust Bag, (25 Pk.) PK800025DW 1 25
6 Outer Bag 75426-30 11
8 Connector Assembly Kit, includes items #3 & #84 09-75308-57 11
9 Collar 75199-02-0327 21
10 Tube Assembly 75198-05 11
12 Fan Housing Assembly includes Rivet & Spring 09-75343-03 11
16 End Cap 0134623 11
18 METAXALLOY™ Fan Kit w/Washers 09-75300-01 11
19 Fan Seal Cup 75012-01 11
20 Cord Set See #59
26 Top Cover w/Belt Door Assembly (Incl. mylar label & strain relief) 09-75430-19 11
27 Bumper, Clear 75181-04 11
28 Intake Pivot Assembly with Felt Seal 09-75066-02 11
29 Felt Seal 75065-01 11
32 Felt Seal, Motor 75117-01M 1 100
33 Strain Relief 03-00494-01 11
34 Motor, Kit 09-75505-02 11
35 Motor Seal 75095-01 21
39a Drive Belt, Single, Grooved 75855-01 11
40 Door Belt, Red, Vented 75894-04-441 11
42 Brush Roll, w/grooved pulley 75930-01 11
43 Seal, Baseplate 75008-01 11
44 Plastic Detent, (uses 2 #49 screws) 75299-01 11
45 Complete Baseplate Assembly includes: #43, #46, #47, 09-75715-05 11
#50, #51, #52, #85, #86, #87 (Vented)
46 MICRO SWEEP Blade 75700-02 11
47 Channel 75701-01 11
50 Edge Brush, Black 75766-04 21
51 Wheel Axle 03-00630-01M 2 100
52 Soft Rear Wheel, Black 75187-02-0327 21
54 Switch, 1 Speed 75559-01 11
55 Grips, Red Set Hardwire Handle 09-75576-08 11
56 Cord Wrap Assembly, includes Post & Cord Wrap 09-75185-07 11
57 Handle Tube, Chrome 75190-07 11
58 Cord, Harness Assembly, Red 75877-01-441 11
59 Cord Set, Red w/#81 75558-04-441 11
43
Oreck Classic Series Commercial (
Type 7 Units)
Part Numbers Listing: U2000EB
No Lights, Commercial, Classic Bag, Helping Hand Handle, Enduro Belt
# Item Order # Qty. Pk.
76 Handle Brace 75432-01 11
76a Handle Brace Kit 75435-01 11
79 Stiffener (uses same length screws, notched) 75189-02 11
Stiffener, Through Bolt Connector (uses different length screws) 75619-01 11
81 Cord Flex Relief 03-00600-01 11
87 Wheel and Tire Overmolded 75709-01 21
93 PCB Bracket 75880-01-0327 11
94 Main Circuit Board 75879-02 11
95 Circuit Board Harness 75878-02 11
96 Wire Harness 75877-01-447 11
44
Oreck Classic Series Commercial (Type 7 Units)
Part Numbers Listing: U2000RB, U2000RBBW, U2000RB-1, U2000R-1
No Lights, Commercial, Classic Bag, Helping Hand Handle, Permanent Belt
# Item Order # Qty. Pk.
4 Bag Retainer Spring 75035-02 11
5 Dust Bag, (8 Pk.) PK80009DW 18
Dust Bag, (25 Pk.) PK800025DW 1 25
6 U2000RB: Outer Bag 75246-16 11
U2000RB-1/U2000R-1: Outer Bag 75645-42 11
U2000RBBW: Outer Bag, Best Western 75246-41 11
7 U2000RB/U2000RB-1/U2000R-1: Bag Clip Assembly 09-75078-08 11
U2000RBBW: Bag Clip Assembly, Blue 09-75078-09 11
8 Connector Assembly Kit, includes items #3 & #84 09-75308-57 11
U2000RB-1/U2000R-1: Connector Assembly Welded W/Nut 09-75952-01 11
9 Collar 75199-02-0327 21
10 Tube Assembly 75198-05 11
12 Fan Housing Assembly includes Rivet & Spring 09-75221-12 11
16 End Cap 0134623 11
18 METAXALLOY™ Fan Kit w/Washers 09-75300-01 11
19 Fan Seal Cup 75012-01 11
20 Cord 75558-04-441 11
20a U2000RB-1/U2000R-1: Cord Extension 75956-01-441 11
26 U2000RB: Top Cover w/Belt Door Assy (Incl. mylar label & strain relief) 09-75430-20 11
U2000RB-1: Top Cover w/Belt Door Assy (Incl. mylar label & strain relief) 09-75430-19 11
U2000RBBW: Top Cover w/Belt Door Assy (Incl. mylar label & strain relief) 09-75430-05 11
U2000R-1: Top Cover w/Belt Door Assy (Incl. mylar label & strain relief) 09-75430-03 11
27 Bumper, Clear 75181-04 11
28 Intake Pivot Assembly with Felt Seal 09-75066-02 11
29 Felt Seal 75065-01 11
32 Felt Seal, Motor 75117-01M 1 100
33 Strain Relief 03-00494-01 11
34 Motor Assembly Kit 09-75505-02 11
35 Motor Seal 75095-01 21
36 Kit, Motor Brush (Large & Small) / Spring 09-75514-01 22
39a Drive Belt, Single Permanent 75855-01 11
40 U2000RB/U2000RB-1: Door Belt, Red Vented 75894-01-441 11
U2000RBBW: Door Belt, Blue Vented 75894-01-438 11
U2000RB-1: Door Belt, Red Vented 75057-01-441 11
42 Brush Roll, Permanent Belt 75930-01 11
U2000RB-1: Brush Roll 75104-02 11
43 Seal, Baseplate 75008-01 11
44 Plastic Detent, (uses 2 #49 screws) 75299-01 11
45 Complete Baseplate Assembly Commercial Vented 09-75900-01 11
U2000RB-1/U2000R-1:Complete Baseplate Assy Commercial Vented 09-75900-03 11
46 MICRO SWEEP Blade 75700-02 11
45
47 Channel 75701-01 11
50 Edge Brush 75766-04 21
5
1 Wheel Axle 03-00630-01M 2 100
52 Soft Rear Wheel, Black 75187-02-0327 21
54 Single Speed Switch 75559-01 11
55 U2000RB/U2000RB-1/U2000R-1: Grips, Red Hardwire Handle 09-75576-08 11
U2000RBBW: Grips, Blue Hardwire 09-75576-06 11
56 U2000RB-1/U2000R-1: Cord Wrap Assembly 09-75185-07 11
57 Handle Tube 75190-07 11
60 Motor Spring 75283-01 21
61 Tube Label 75087-05 11
65 Mylar Label 75599-11 11
U2000R-1: Mylar Label 75599-02 11
76 Handle Brace 75432-01 11
76a Handle Brace Kit 75435-01 11
79 Stiffener (uses same length screws, notched) 75189-02 11
Stiffener, Through Bolt Connector 75619-01 11
81 Cord Flex Relief 03-00600-01 11
87 Wheel and Tire Overmolded 75709-01 21
92 Bag Stiffener 76061-01-0327 11
93 PCB/Footswitch Bracket 75880-01-0327 11
94 Main Circuit Board Only on units with perm belt 75879-02 11
95 Circuit Board Harness Only on units with perm belt 75878-02 11
96 Wire Harness 75877-01-441 11
97 U2000RB-1
/U2000R-1
: Carrying Handle 77014-01-0387 11
98 U2000RB-1
/U2000R-1
: Clamp, For Carry Handle 75954-01-0327 11
99 U2000RB-1
/U2000R-1
: Detent 77066-01 11
100 U2000RB-1
/U2000R-1
: Cord, Red 120V 3 Cond. Pigtail* 75957-01-441 11
101 U2000RB-1
/U2000R-1
: Commercial Cord Lock 75955-01 11
102 U2000RB-1
/U2000R-1
: Insert for Commercial Cord Lock* 75978-01 11
*Item not shown in parts diagrams
46
Oreck Classic Series Commercial (Type 7 Units)
Part Numbers Listing: U2000RB, U2000RBBW, U2000RB-1
No Lights, Commercial, Classic Bag, Helping Hand Handle, Permanent Belt
# Item Order # Qty. Pk.
47
! "#$% &'($')! *#+, -.,
! "#$%&'(#)*'+%,-+)*$ ./01/203 4 4
/ 567(%"#$%89%:;< :=9000>5? 4 9
567(%"#$%83/%:;< :=90003/5? 4 3/
@
/0111230456A%%B6('+%"#$ ./@!/2!3 4 4
.
/01112304567))"#$%CD)-%E77'FGDH 0>2./0.920@ 4 4
9
CI**'J(I+%E77'FGDH%?'DK'K%LMN6( 0>2./>/3204 4 4
>CIDD#+ ./4>>2032013. 3 4
40 O6G'%E77'FGDH ./4>920/ 4 4
43 P#*%QI67)*$%E77'FGDH%)*JD6K'7%&)R'(%S%,-+)*$ 0>2./334243 4 4
49
TUOEVEWWBXY%P#*%=)(%LM?#7Z'+7 0>2./100204 4 4
4> P#*%,'#D%C6- ./043204 4 4
30 CI+K[%&'K%430\%1%CI*K6J(I+ ./>>>2042!!4 4 4
30#
/01112304567))CI+K%U]('*7)I* ./>/@2042!!4 4 4
3@
/01112304567))OI-%JIR'+%LM"'D(%5II+%E77H%8)*JD^%FHD#+%D#G'D%S%7(+#)*%+'D)'_< 0>2./!10234 4 4
3. "6F-'+[%CD'#+ ./49420! 4 4
39
`*(#;'%:)RI(%E77'FGDH%!"#$%&'(#%)'*( 0>2./0@@203 4 4
3> P'D(%,'#D ./0@/204 4 4
13 P'D(%,'#D[%TI(I+ ./44.204T 4 400
11 ,(+#)*%&'D)'_ 01200!>!204 4 4
1! TI(I+%E77'FGDH%=)( 0>2.//0/204 4 4
1/ TI(I+%,'#D ./44.204 3 4
1@ =)([%TI(I+%"+67Z%8W#+$'%S%,F#DD<M,-+)*$ 0>2.//4!204 3 3
1># 5+)R'%"'D([%,)*$D'%:'+F#*'*( ./>0.204 4 4
!0
/0111230456A%%5II+%"'D([%"D#J; ./0/.2032013. 4 4
!3
/01112304567))"+67Z+IDD ./>10204 4 4
!1 ,'#D[%"#7'-D#(' ./009204 4 4
!! :D#7()J%5'('*(%867'7%3%a!>%7J+'L7< ./3>>204 4 4
!/ CIF-D'('%"#7'-D#('%E77'FGDH 0>2./>00201 4 4
!@ T`C&B%,?UU:%"D#K' ./.00203 4 4
!. CZ#**'D ./.04204 4 4
/0 UK$'%"+67Z ./.@@20! 3 4
/4 ?Z''D%E]D' 01200@10204T 3 400
/3 ,I_(%&'#+%?Z''D[%"D#J; ./49.2032013. 3 4
/! 32,-''K%,L)(JZ .//9/203 4 4
//
/0111230456A%%b+)-7[%"D#J;%Q#+KL)+'%Q#*KD' 0>2.//.@2!1 4 4
/@
/0111230456A%%CI+K%?+#-%E77'FGDH 0>2./49/204 4 4
/. Q#*KD'%O6G' ./4>020. 4 4
@0 TI(I+%,-+)*$ ./391204 3 4
@4 O6G'%W#G'D ./09.20/ 4 4
@/ THD#+%W#G'D .//>>241 4 4
.@ Q#*KD'%"+#J' ./!13204 4 4
.@# Q#*KD'%"+#J'%=)( ./!1/204 4 4
9. ?Z''D%#*K%O)+'%BR'+FIDK'K ./.0>204 3 4
>3 "#$%,()__'*'+ .@0@42042013. 4 4
>1 :C"MPII(7L)(JZ%"+#J;'( ./9902042013. 4 4
>! T#)*%C)+J6)(%"I#+K ./>>1204 4 4
>. C#++H%Q#*KD' ..04!2042013. 4 4
>9 CD#F-[%C#++H%Q#*KD' ./>/!2042013. 4 4
>> 5'('*( ..0@@204 4 4
404 CIFF'+J)#D%CI+K%WIJ; ./>//204 4 4
403 `*7'+(%_I+%CIFF'+J)#D%CI+K%WIJ; ./>.9204 4 4
401 :C"MQ#*KD' ./>>!204 4 4
40! Q#DD2U__'J(%,'*7I+ ./>3.204 4 4
40/ c6F-'+ .>0>@204 4 4
&'$8.)499:);$'<$=)>?%%$'8<@A)BC+D$)0)/E<#F
-@'#)GH%I$'7))/0111230456
N
I%W)$Z(7[%CIFF'+J)#D[%Q'D-)*$%Q#*K%Q#*KD'[%:'+F#*'*(%"'D([%WUU5%CIF-D)#*(
48
HARDWIRE IN HANDLE
RESIDENTIAL SWITCH
IN HANDLE
W/O LIGHTS
SEE MOTOR
DETAIL A & B
RESIDENTAIL
SWITCH IN BASE
W/O LIGHTS
SEE MOTOR
DETAIL A & B
RESIDENTIAL
SWITCH IN BASE
W/LIGHTS
1 PARALLEL
LIGHT HARNESS
SEE MOTOR
DETAIL C & D
HARDWIRE
IN HANDLE
RESIDENTIAL
SWITCH IN HANDLE
W/LIGHTS
1 PARALLEL
LIGHT HARNESS
SEE MOTOR
DETAIL C & D
D-PLUG IN HANDLE
RESIDENTIAL
SWITCH IN HANDLE
W/O LIGHTS
SEE MOTOR
DETAIL A & B
BLACK BLACK
WHITE WHITE
WIRE NUT
SWITCH
TERMINAL
MOTOR
BLACK BLACK BLACK
WHITE
WIRE NUT
MOTOR
BLACK BLACK BLACK
BLACK
WHITE
WHITE
WIRE NUT
MOTOR
LIGHTLIGHT
TERMINAL
BLACK BLACK
BLACK
WHITE WHITE
WHITE
WIRE NUT
MOTOR
LIGHTLIGHT
WHITE
WHITE
PLUG
MOTOR
BROWN BROWN
BLACK
BLACK
RECEPTACLE
TERMINAL
WHITE
WHITE
PLUG
MOTOR
BROWN BROWN
BLACK
BLACK
RECEPTACLE
TERMINAL
LIGHTED SWITCH
IN HANDLE
WHITE
BLACK
SWITCH
33
RECEPTACLE
22
PIGGY BACK
TERMINAL
11
WHITE
BROWN
LIGHTED SWITCH
IN HANDLE
WHITE
TO MOTOR
BLACK
SWITCH
33
RECEPTACLE
22
WIRE NUT
11
WHITE
BLACK TO
MOTOR
DETAIL A
AMETEK MOTOR
RESIDENTIAL
W/O LIGHTS
DETAIL B
JOHNSON MOTOR
RESIDENTIAL
W/O LIGHTS
WHITE
FROM CORD
BLACK
FROM CORD
OR SWITCH
BLACK
FROM CORD
OR SWITCH
WHITE
FROM CORD
DETAIL C
AMETEK MOTOR
RESIDENTIAL
W/LIGHTS
1 PARALLEL HARNESS
LAMP
PIGGY-BACK
TERMINAL
BLACK
WHITE
WHITE
FROM CORD
LAMP
BLACK
FROM CORD
OR SWITCH
DETAIL D
JOHNSON MOTOR
RESIDENTIAL
W/LIGHTS
1 PARALLEL HARNESS
LAMP
BLACK
WHITE
LAMP
WHITE
FROM CORD
BLACK
FROM CORD
OR SWITCH
PIGGY-BACK
TERMINAL
75516-04 REV D 05/04 ECN# R-7618
49

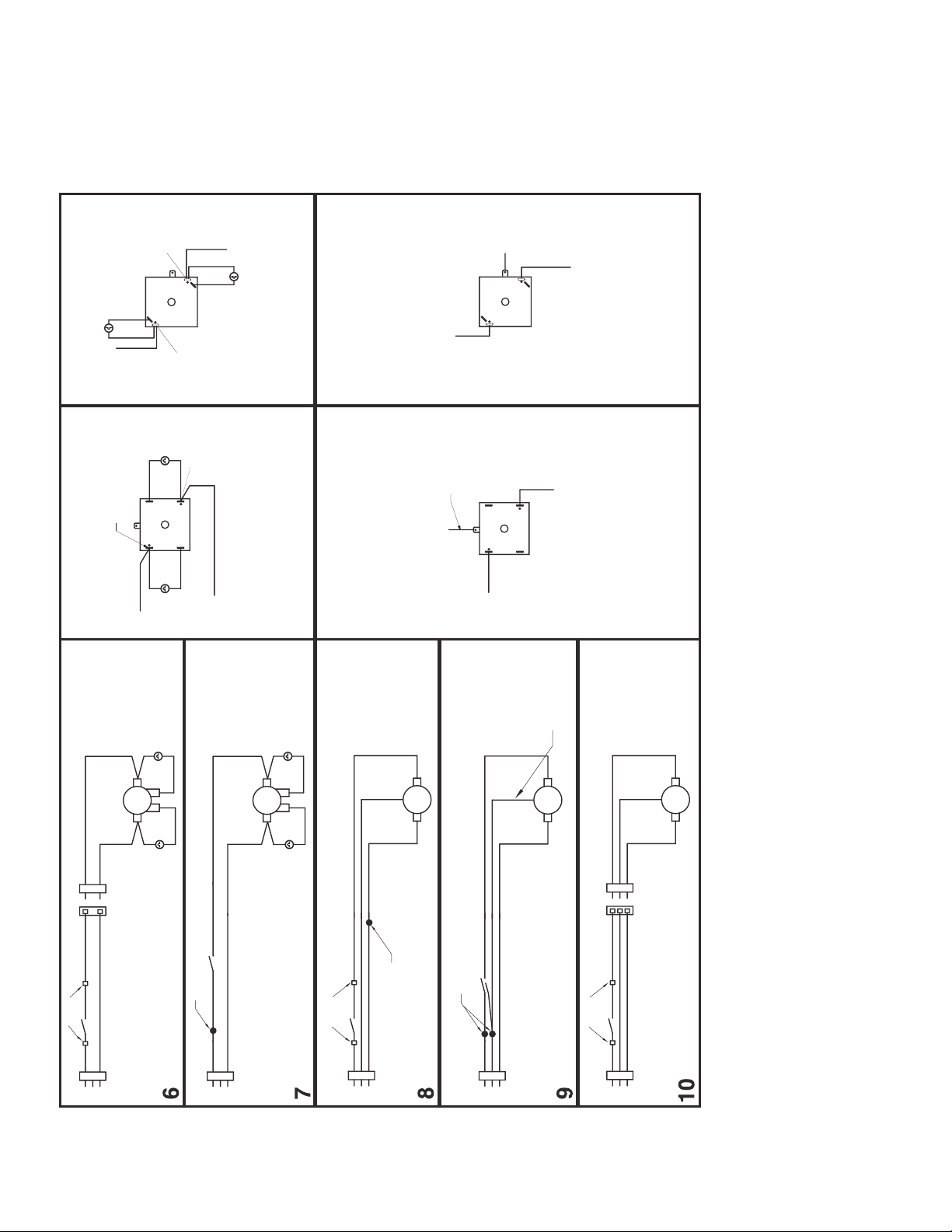

D-PLUG IN HANDLE
RESIDENTIAL
SWITCH IN HANDLE
W/LIGHTS
SEE MOTOR
DETAIL E & F
D-PLUG IN HANDLE
RESIDENTIAL
SWITCH IN BASE
W/LIGHTS
2 LIGHT HARNESS
SEE MOTOR
DETAIL E & F
HARDWIRE IN
HANDLE
COMMERCIAL
SWITCH IN HANDLE
SEE MOTOR
DETAIL G & H
COMMERCIAL
SWITCH IN BASE
SEE MOTOR
DETAIL G & H
D-PLUG IN HANDLE
COMMERCIAL
SWITCH IN HANDLE
SEE MOTOR
DETAIL G & H
WHITE WHITE
MOTOR
GREEN
BROWN
BROWN
BLACKBLACK
GREEN
TERMINAL
WHITE
WHITE
MOTOR
BROWN BROWN
BLACK
BLACK
TERMINAL
LIGHT
LIGHT
WHITE
MOTOR
BLACKBLACK
BLACK
LIGHT
LIGHT
WIRE NUT
WHITE WHITE
MOTOR
GREEN
BLACKBLACK
GREEN
TERMINAL
WIRE NUT
WHITE
MOTOR
GREEN
GREEN
BLACKBLACK
WIRE NUT
JUMPER WIRE
75506-01
BLACK
FROM CORD
OR SWITCH
DETAIL E
AMETEK MOTOR
RESIDENTIAL
W/LIGHTS
2 LIGHT HARNESS
WHITE
FROM CORD
LAMP
PIGGY-BACK
TERMINAL
PIGGY-BACK
TERMINAL
BLACK
WHITE
LAMP
WHITE
BLACK
DETAIL F
JOHNSON MOTOR
RESIDENTIAL
W/LIGHTS
2 LIGHT HARNESS
PIGGY-BACK
TERMINAL
PIGGY-BACK
TERMINAL
LAMP
BLACK
FROM
CORD
OR
SWITCH
WHITE
FROM
CORD
WHITE
BLACK
LAMP
WHITE
BLACK
DETAIL G
AMETEK MOTOR
FOR COMMERCIAL
WHITE
FROM CORD
BLACK
FROM CORD
OR SWITCH
JUMPER WIRE
75506-01 OR
GREEN FROM CORD
DETAIL H
JOHNSON MOTOR
FOR COMMERCIAL
BLACK
FROM
CORD
OR
SWITCH
WHITE
FROM
CORD
GREEN
®2004 Oreck Holdings, LLC. All rights reserved. All trademarks are owned and used under the authority of Oreck Holdings, LLC.
50

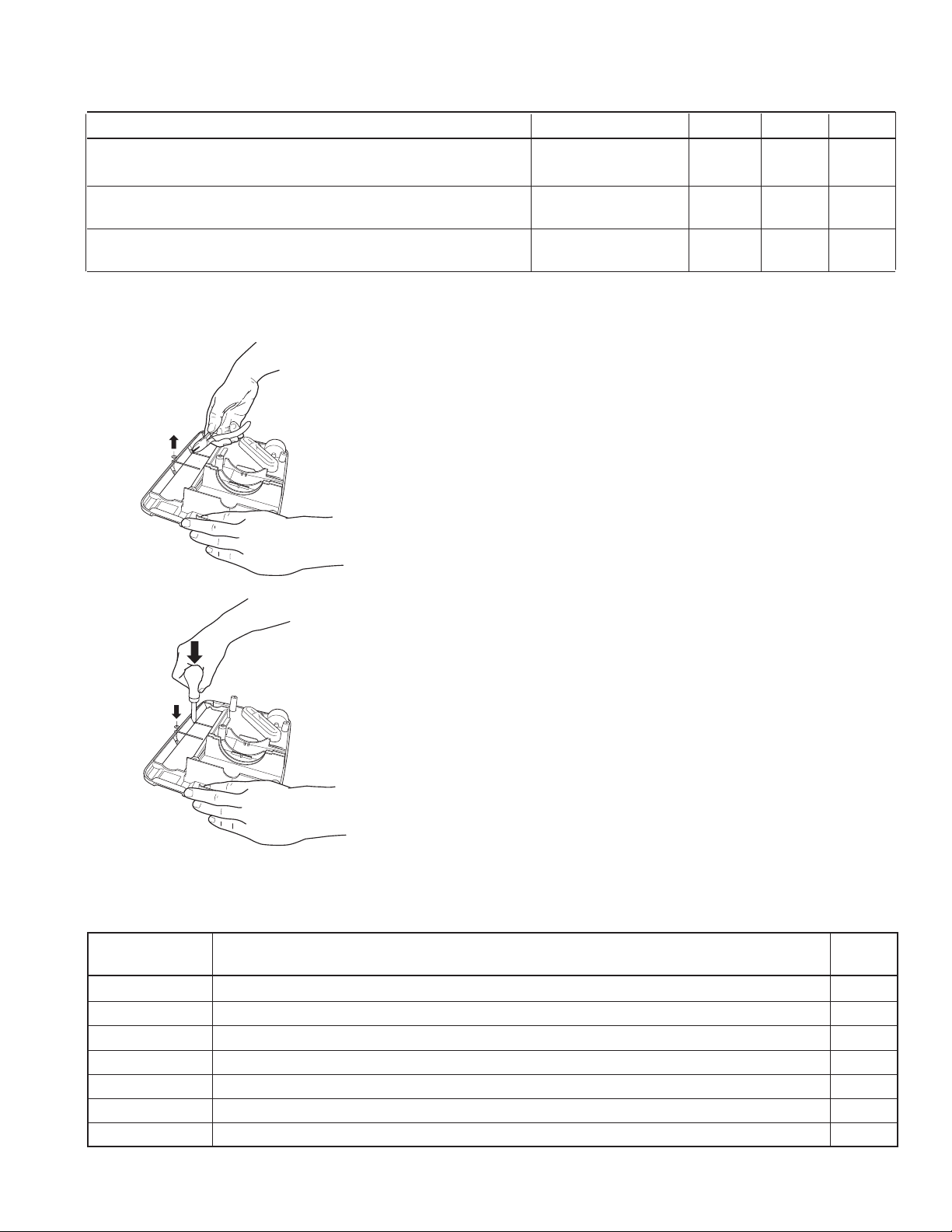

Kit Number Description
Note: Standard motor replacement kits
09-75505-01 Motor Kit
75086-01 Leads, Red
75086-02 Leads, White NLA
75506-01 Leads, Green
75329-01 50pc. Edge Brush Axle Kit order item #50 NLA
75338-01 20pc. Edge Brush Wheel Kit
03-00474-01M 100pc. Edge Brush Axle Kit, Pin, .125 x .5
Description Order #
Fan Housing Removal Tool (This tool is designed to assist in removing 75377-01
fan housing assembly from the motor.)
Strain Relief Pliers (This tool is designed to remove the cord retainer, 75383-01
p
art #33.)
Retainer Clip Tool (This tool is designed to assist in adding 75485-01 NLA NLA NLA
retainer clips, part #77, to Baseplate.) ****Use 7/32” nutdriver.
TOOLS
To remove the retainer clips from the
baseplate, using a pair of side cutting
pliers, carefully cut the retainer clips
away from the posts. Remove the
retainer clips. Be careful not to damage
the posts.
To replace the retainer clips, position the
retainer clips on the posts with indentation
facing downward. Use the retainer clip tool
(7/32” nutdriver) to force the retainer clips
down. Retainer clip should fit firmly against
wireform.
RETAINER CLIP REPLACEMENT
ADDITIONAL REPLACEMENT PARTS
51
Troubleshooting
Notice: Make sure the unit is unplugged before removing any part off the unit.
1. Problem Being Checked:
a. Solution
1. Dust Blowing from Bottom of Unit:
a. Change bag ensuring it’s properly installed on connector deflector.
b. Remove lower tube and check for clog. Remove any debris.
c. Remove baseplate and check inlet for clog. Remove any debris.
d. Check for cracked fan housing. Replace fan housing.
2. Unit not picking up:
a. Remove lower tube and check for clog.
b. Remove baseplate and check inlet for clog.
c. Change bag ensuring it’s properly installed on connector deflector.
d. Make sure belt is installed properly.
3. Brush Roll Not Spinning / Belt Breaks:
a. Belt is older than six months and slipping or may not be installed properly. Install new belt.
b. Bearings in brush roll worn, change brush roll.
4. Sparking from Plug to Handle (non-hardwire units):
a. Make sure plug fits firmly into handle.
5. Unit Dead:
a. Make sure unit is plugged into working outlet.
b. Check for failure. If bad, replace switch.
c. Check to see if motor wires are plugged and not loose.
d. Check motor brushes and motor brush springs to make sure they have good contact.
e. Check motor for failure. If bad, replace motor.
f. Check cord for failure. If bad, replace cord.
6. Parts Falling off Baseplate:
a. If wheels come off, replace wheels.
b. If channel, micro sweep blade, or wireform come off, replace baseplate.
7. Noisy Unit:
a. Check to see if brush roll has bad bearings. If so replace brush roll.
b. Check to see if an object is stuck in the fan housing.
c. Check fan in fan housing. Make sure there are no broken blades. Replace if broken.
8. Unit Will Not Stand Up:
a. Broken or missing detent.
An Oreck Authorized Service Center should do all technical servicing.
©2013 Oreck Holdings, LLC. All rights reserved. All trademarks are owned and used under the authority of Oreck Holdings, LLC.
75337-01 REV EB 04/13
ECN# 11276
