Summary of Contents for Bose WR SERIES1:
For your records
5
Before you begin
7
Unpacking the carton
8
Figure 1
8
Carton contents:
8
⢠Wave radio
8
⢠Power cord
8
⢠9V battery
8
⢠Remote control
8
⢠Lithium battery
8
⢠Mounting strip
8
Selecting a location for your radio
8
Installing the battery
9
1. Carefully turn your radio upside down.
9
2. Locate the battery compartment on the bottom (Figure 2).
9
3. Press the arrow on the cover to slide the compartment open.
9
4. Lift the battery clip out of the compartment and align it with the battery as shown.
9
5. Snap the terminals together firmly.
9
6. Place the battery in the compartment and slide the cover closed. Then turn the radio right sid...
9
Figure 2
9
Installing the battery
9
Connecting the power cord
10
1. Untie and straighten the bundled power cord completely to ensure the best FM reception. The FM...
10
2. Plug the small end of the power cord into the power jack on the back of your radio (Figure 3)....
10
3. Plug the other end of the power cord into an electric outlet. The display panel lights and the...
10
4. Press the Clock Set button once to stop the flashing. See âSetting the timeâ on page15 to set...
10

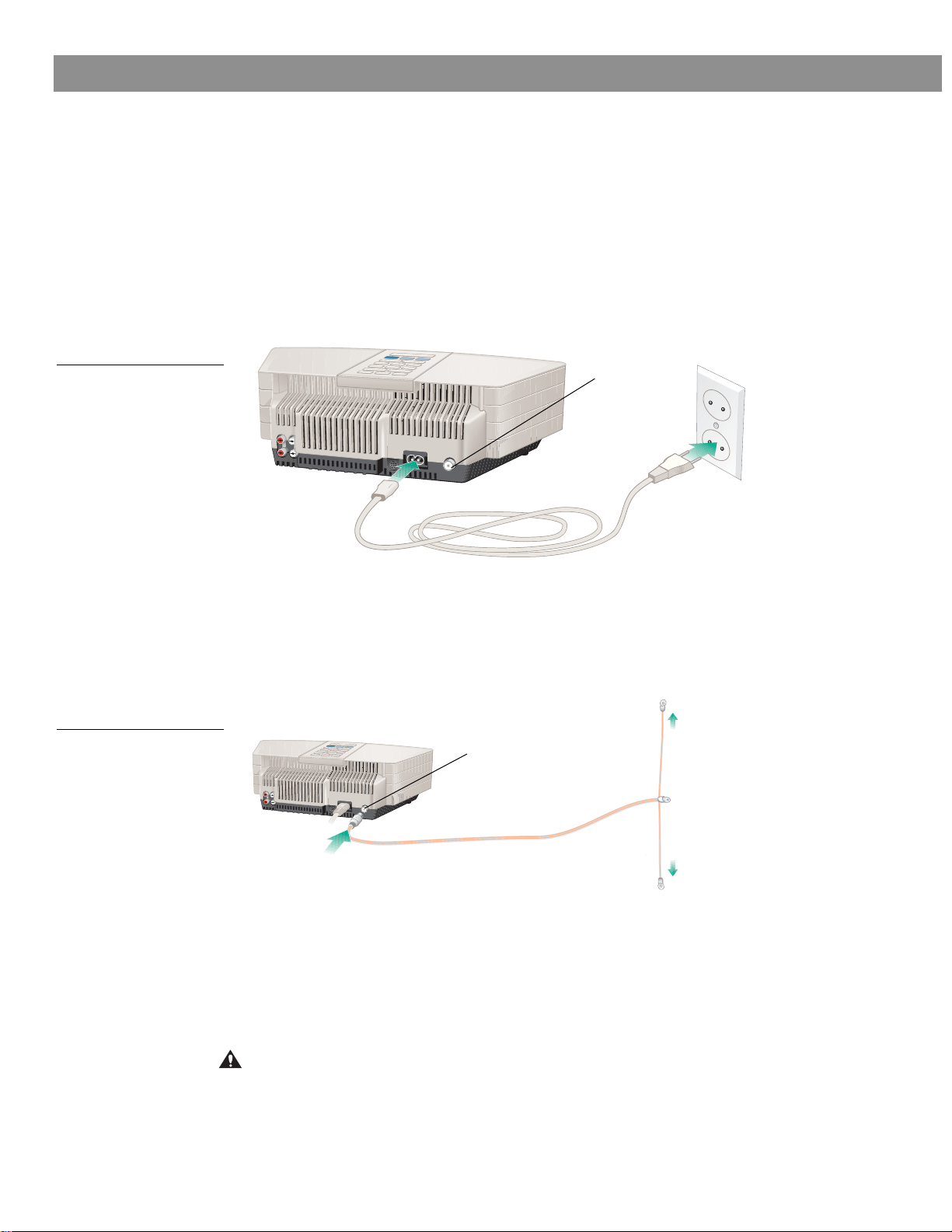

Figure 3
10
Connecting the power cord
10
Connecting the FM antenna
10
1. Plug the FM antenna into the FM 75W EXTERNAL connector (Figure 4).
10
2. For best FM tuning performance, straighten the antenna and extend the arms as far away from th...
10
Figure 4
10
Connecting and setting up the FM antenna
10
Connecting the coaxial cable
10
1. Plug the coaxial cable into the FM 75W EXTERNAL connector on the back of the Wave radio (Figur...
10
2. Connect the other end of the coaxial cable to the outlet in your wall.
10
Setting up the remote control
11
1. Place the remote control face down on a flat surface.
11
2. If your remote has a slot on the back (Figure 5), follow step A. Otherwise, follow step B and ...
11
A. Insert the tip of a ballpoint pen into the slot. Push to the side as shown and hold. Slide the...
11
B. Using your finger, push the tab lock to the side as shown and hold. Slide the battery compartm...
11
Figure 5
11
Locating the slot-type safety lock
11
Figure 6
11
Locating the tab-type safety lock
11
3. Keeping the remote control face down, insert the new battery into the compartment with the + s...
12
4. Gently slide the battery compartment closed. It locks automatically.
12
5. Use the supplied mounting strip if you want to attach the remote to a surface in your listenin...
12
Figure 7
12
Installing the mounting strip for the remote control
12
Connecting other components
13

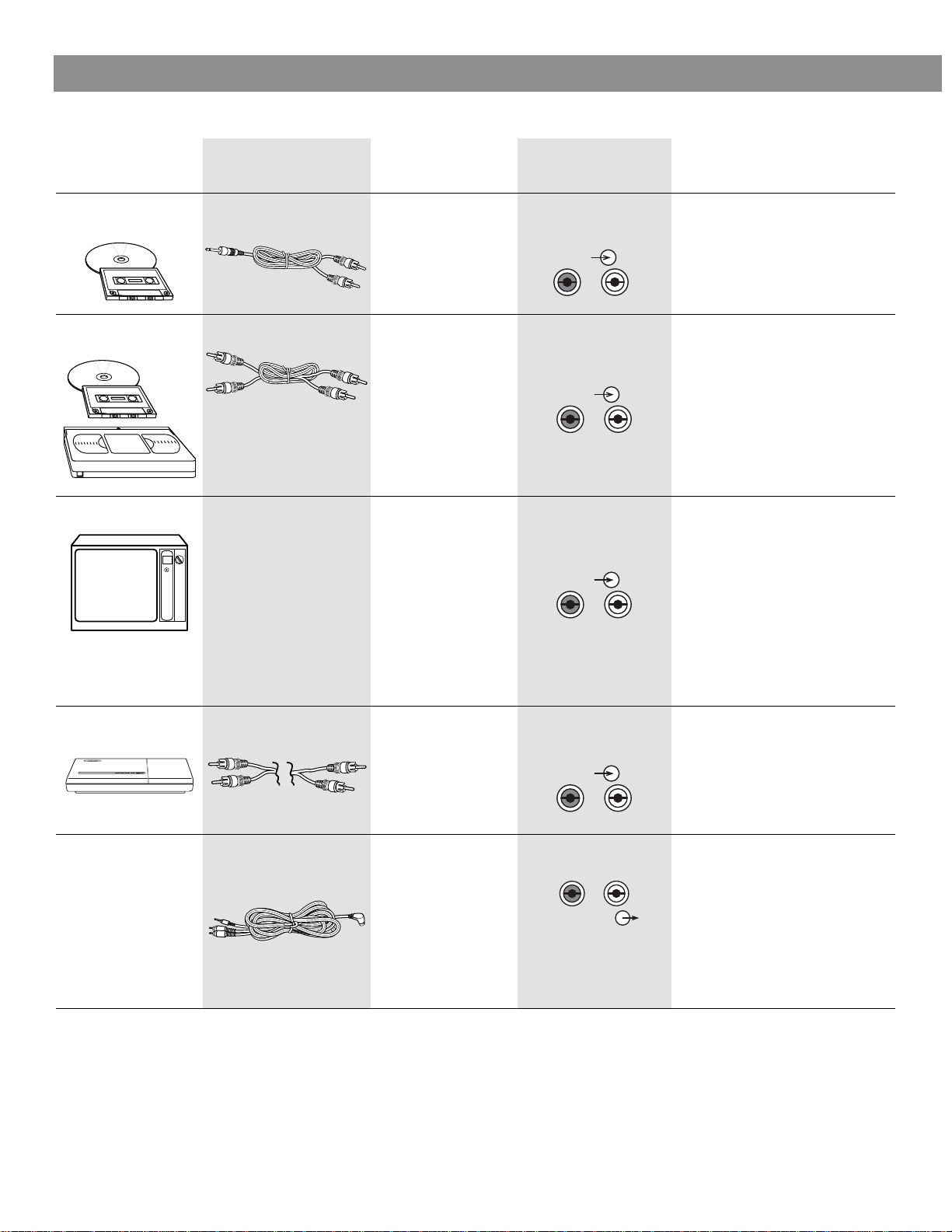

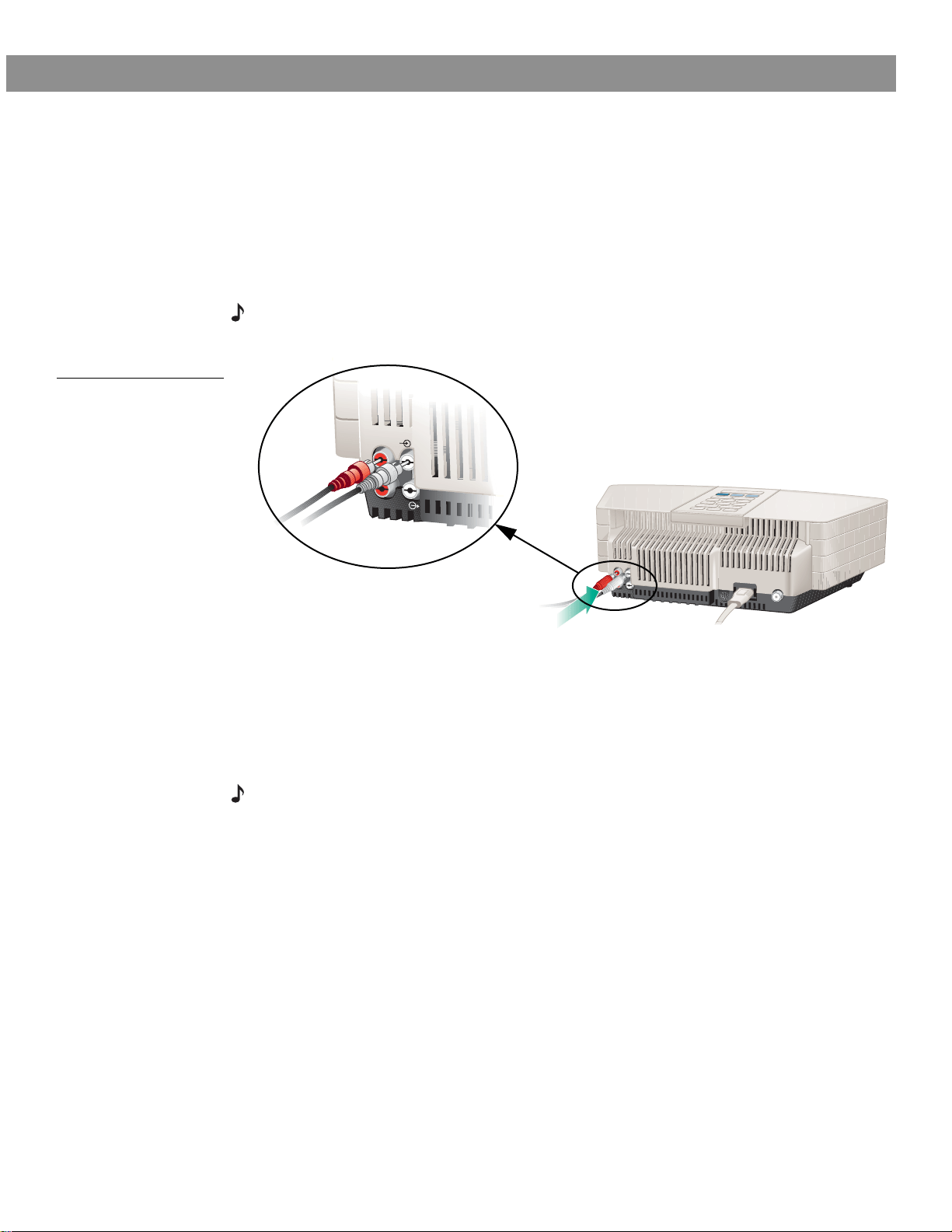

Figure 8
13
Connecting another component
13
Using other components
13
Operating the remote control
15

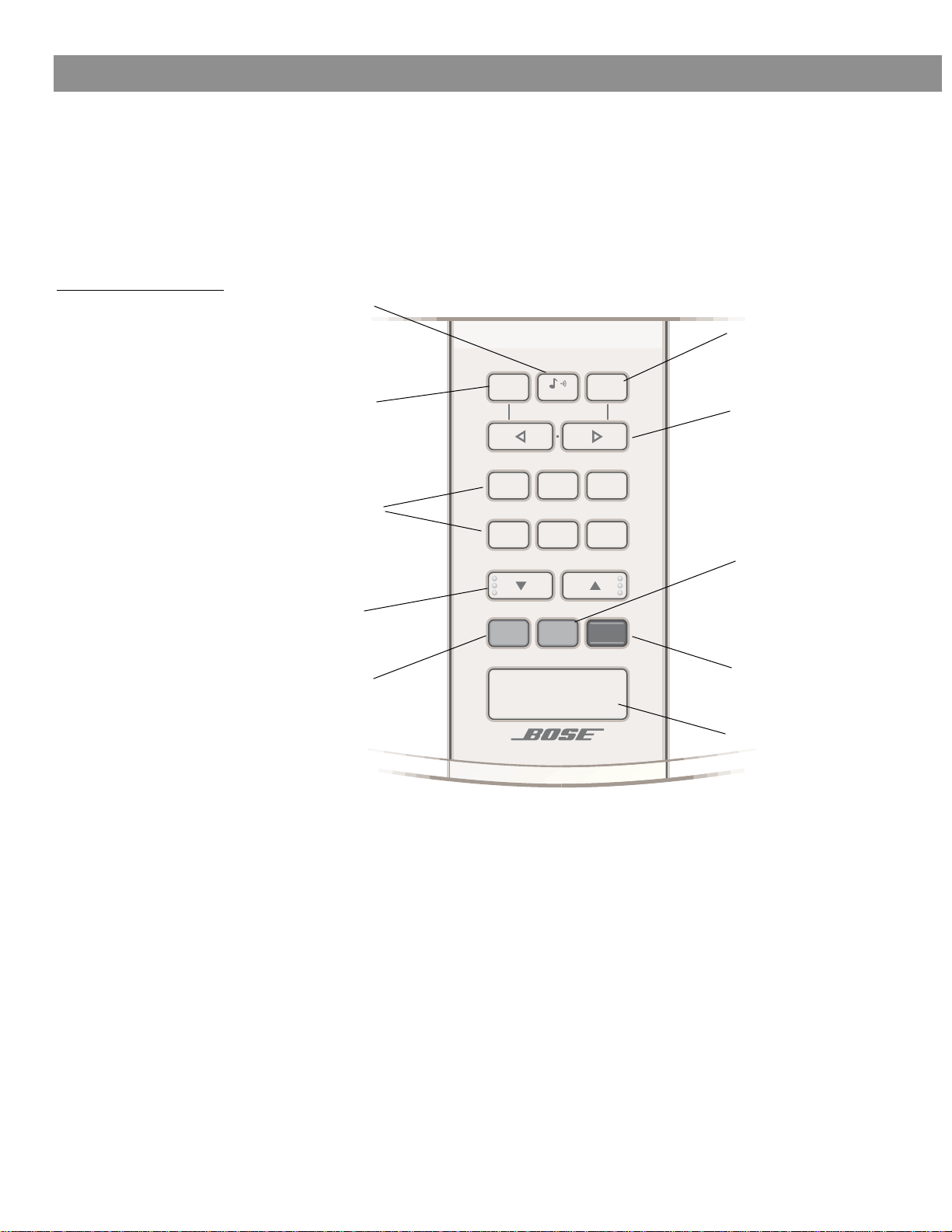

Figure 9
15
The Wave radio remote
15

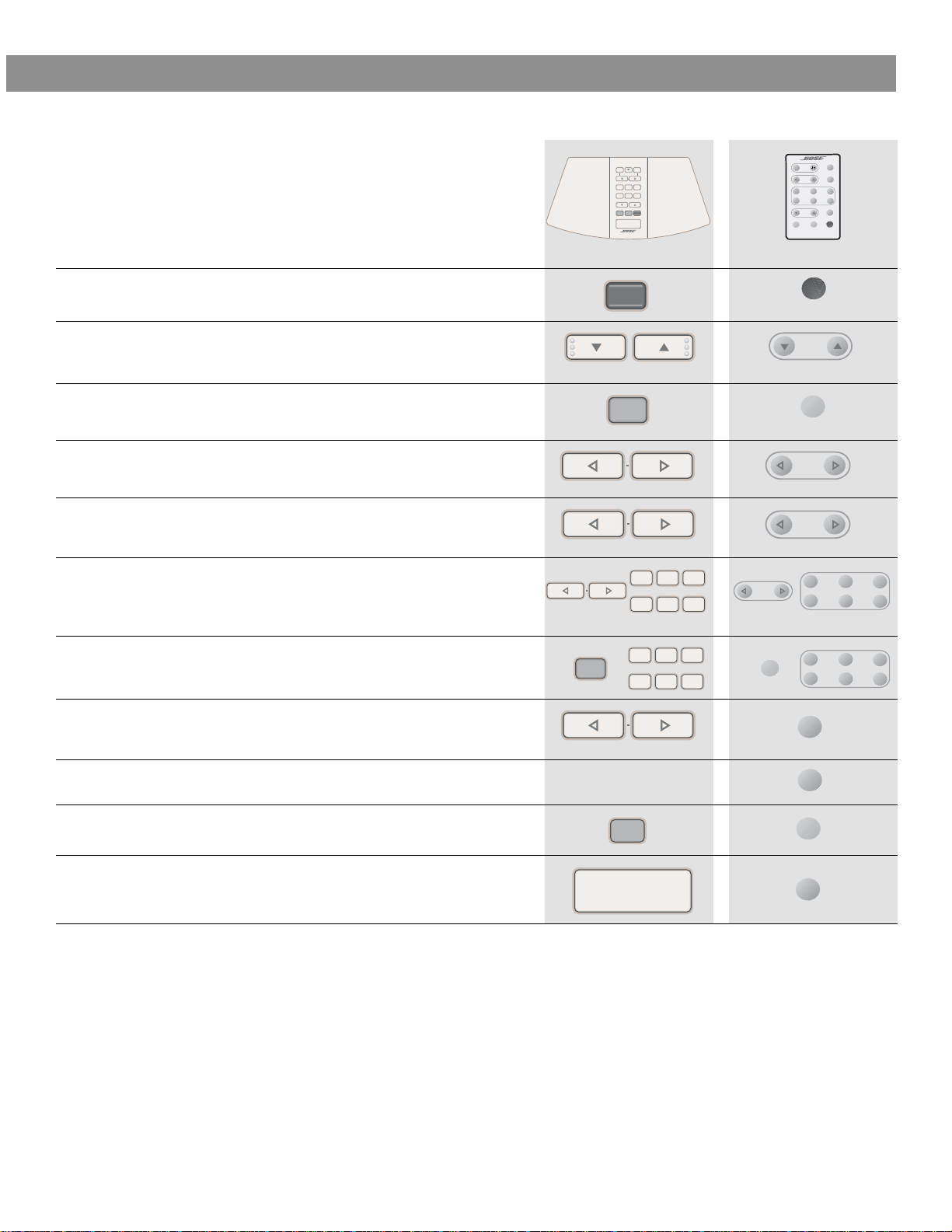

Operating the radio control panel
16
Figure 10
16
The Wave radio control panel
16
Reading the clock display
17

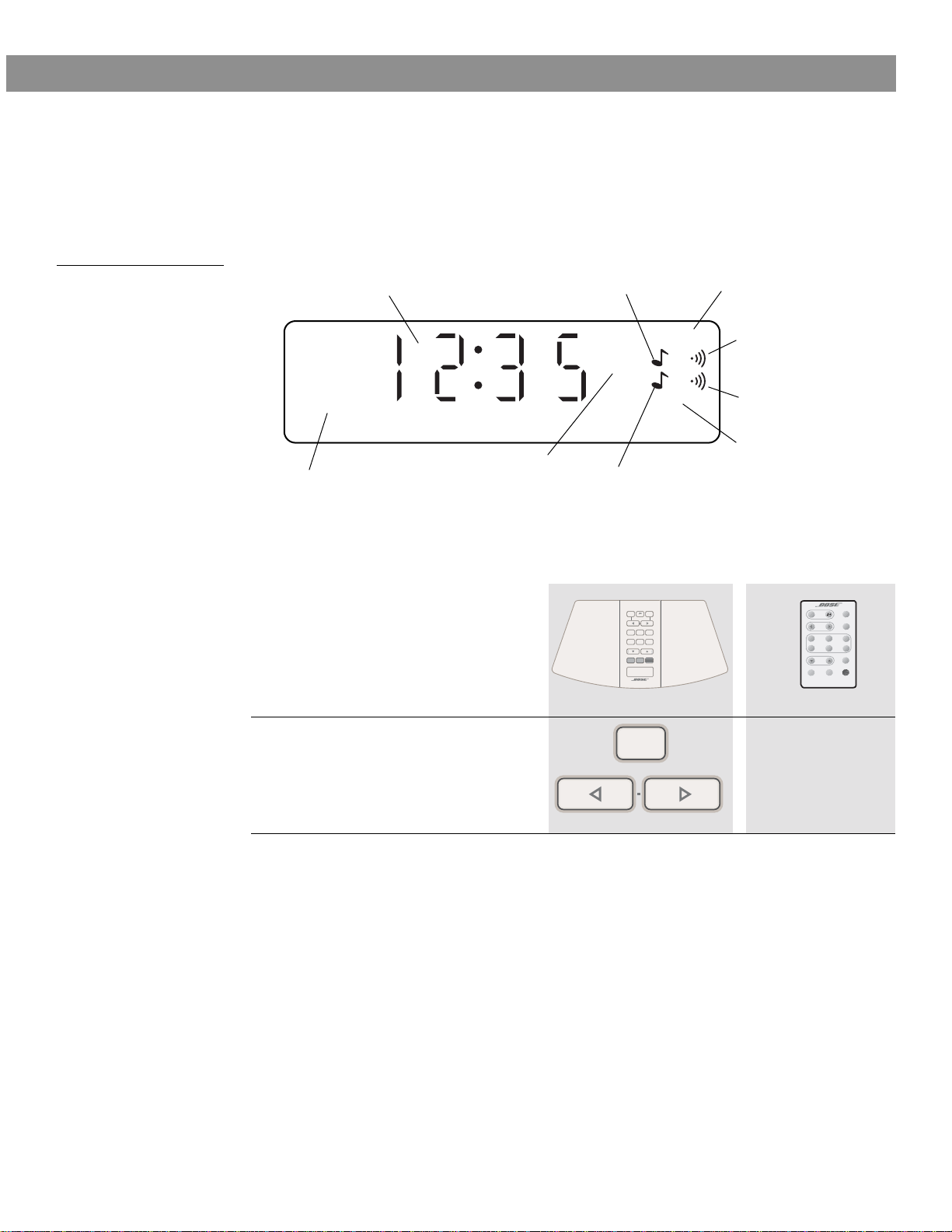

Figure 11
17
The clock display
17
Setting the time
17
Customizing the display
18
Listening to the radio
19
Reading the radio display
20
Figure 12
20
The radio display
20

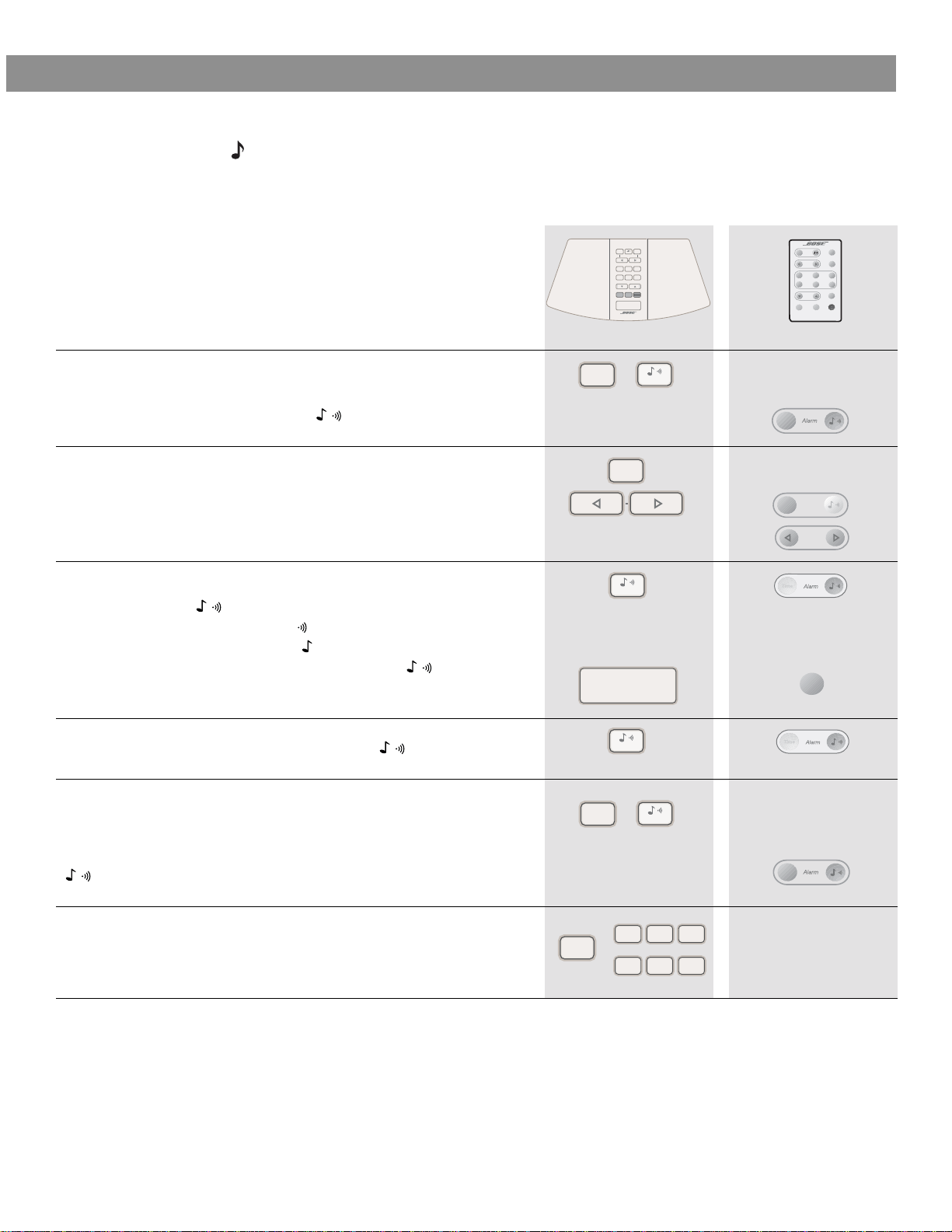

Setting the alarms
21

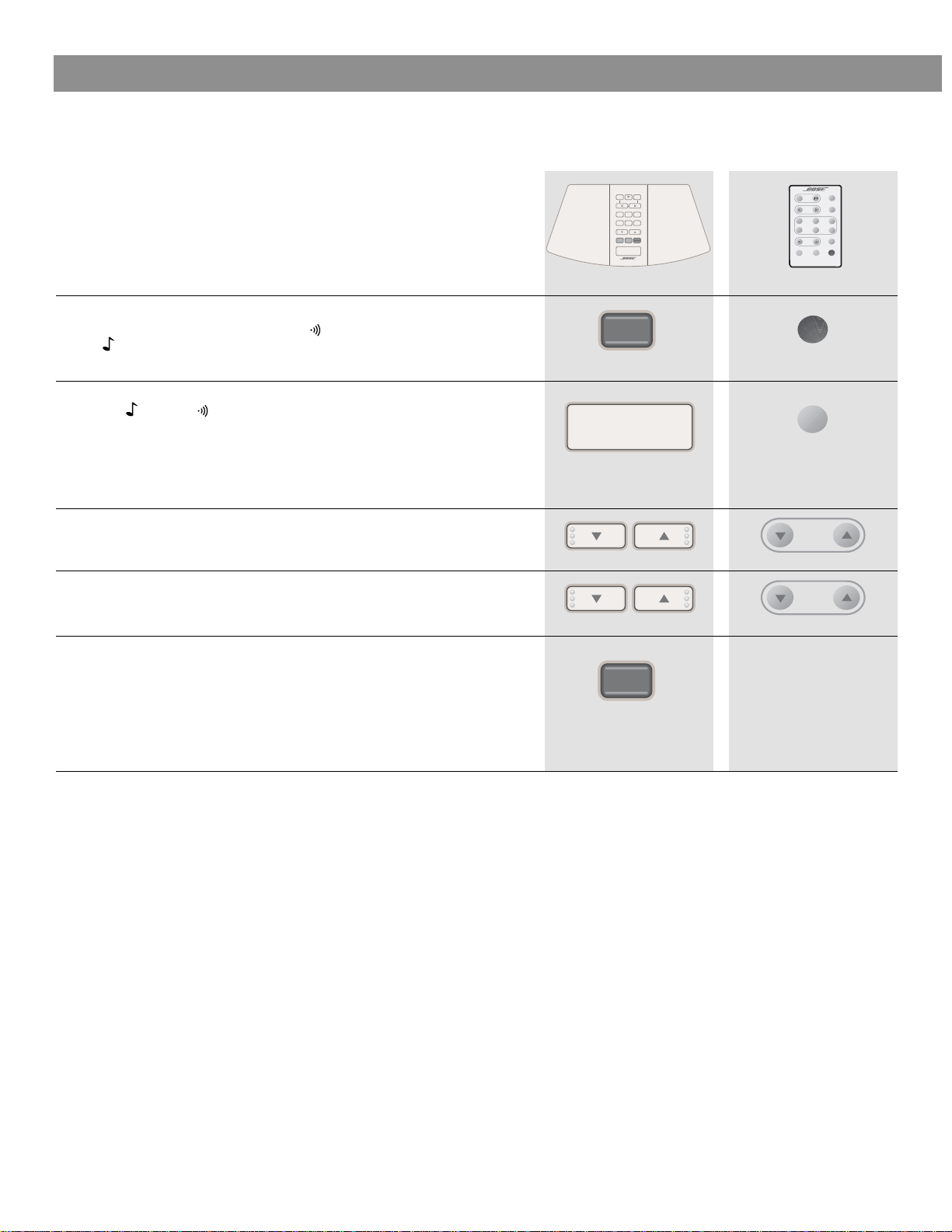

Using the Alarms
22
Taking care of your Wave radio
23
Cleaning your radio
23
Replacing the batteries
23
Technical information
23
AC power rating
23
Dimensions
23
Weight
23
Troubleshooting
24
Customer service
24
Limited warranty
25
What is covered:
25
For how long:
25
What we will do:
25
What you must do:
25
1. Call Bose Customer Service and ask for shipping instructions.
25
2. Properly pack the unit, if possible, in the original carton for shipping.
25
Other conditions:
25
A
26
B
26
C
26
D
26
E
26
F
26
G
26
I
26
K
26
L
26
M
26
N
26
O
26
P
26
R
26
S
26
T
26
U
26
V
26
W
26
Z
26
File type: PDF
File name: 7612165_wr-series1.pdf
File size: 958.15 KB
File Language: English
Pages: 27
Author: Bose
File created: 2004-03-18
Published: 2021-12-01
Updated: 2023-05-31
Download File
