WARNING
For outdoor use only.
DANGER
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. If odor continues, keep away from the appliance and immediately call your gas
supplier or fire department.
DANGER
• Do not store or use gasoline or other flammable vapors and liquids in the vicinity of
this or any other appliance. Do not store an LP-cylinder not connected for use in the
vicinity of this or any other appliance.
WARNING
• Improper installation, adjustment, alteration, service or maintenance can cause
property damage, injury or death. Read the installation, operation and maintenance
instructions thoroughly before installing or servicing this equipment.
DANGER
CARBON MONOXIDE HAZARD
• This appliance can produce carbon monoxide which has no odor.
• Using it in an enclosed space can kill you.
• Never use this appliance in an enclosed space such as a camper, tent,
car or home.
DANGER
• Failure to comply with the precautions and instructions provided with this heater can
result in death, serious bodily injury and property loss or damage from hazards of
fire, explosion, burn, asphyxiation, and/or carbon monoxide poisoning. Only persons
who can understand and follow the instructions should use or service this heater.
4
Welcome Guide • English
Contents:
Before getting started, ensure the package contains the following components:
A
x8
G
x3
B
x3
H
x2
C
x3
I
x1
D
x2
J
x6
E
x64
K
x4
F
x3
L
x1
5
1
2
3
4
6 7
8
9
11
12
10
14
15
16
5
13
1
Guard screen x4
7
Wheel x2
13
Emitter
2
Door panel
8
Control box
14
Reflector
3
Lower support x4
9
Back panel
15
Upper support x4
4
Side panel x2
10
Middle plate
16
Handle
5
Gas cylinder bracket x3
11
Silicone ring
6
Base plate
12
Flame tube
6
IMPORTANT SAFEGUARDS
Read these instructions carefully and retain them for future use. If this product is passed to a third party, then
these instructions must be included.
When using the product, basic safety precautions should always be followed to reduce the risk of injury including the
following:
• Alert children and adults to the hazards of high surface temperatures.
Stay away from these surfaces to avoid burning skin or igniting clothing.
• Carefully supervise young children when in the vicinity of the heater.
• Do not hang clothing or any other flammable materials from the heater, or
place on or near the heater.
• Replace any guard or protective device removed for servicing the
appliance prior to placing back in service.
• Installation and repair should be done by a qualified service person.
The heater should be inspected before use and annually by a qualified
service person. More frequent cleaning may be required as necessary. It
is imperative that the control compartment, burners, and circulating air
passageway of the appliance be kept clean.
• This manual contains important information about the assembly, operation and maintenance of this product.
General safety information is presented in these first few pages and is also located throughout the manual.
Keep this manual for future reference and to educate new users of this product. This manual should be read in
conjunction with the labeling on the product. Safety precautions are essential when any mechanical or LPG fueled
product is involved. These precautions are necessary when using, storing, and servicing. Using this product with
the respect and caution demanded will reduce the possibilities of personal injury or property damage. The following
symbols shown below are used extensively throughout this manual. Always heed these precautions, as they are
essential when using any mechanical or fueled product.
General Safety
• Never leave the product unattended when hot or in use.
• Keep out of reach of children.
• Certain materials or items, when stored under the product, will be subjected to radiant heat and could be seriously
damaged.
• Keep solid combustibles, such as building materials, paper or cardboard, a safe distance away from the product
as recommended by the instructions.
• Never use the product in spaces which do or may contain volatile or airborne combustibles, or products such as
gasoline, solvents, paint thinner, dust particles or unknown chemicals.
• During operation, this product can be a source of ignition. Keep the product area clear and free from combustible
materials, gasoline, paint thinner, cleaning solvents, and other flammable vapors and liquids. Do not use the
product in areas with high dust content.
• Provide for adequate accessibility of the product. Keep the area around the product free from obstructions.
• Minimum product clearances from combustible materials: 3.3ft from the sides and 3.3ft from the top.
• This product is red hot during use and can ignite flammables too close to the burner. Keep gasoline and other
flammable liquids well away from the product.
• Check with your local fire safety authority if you have questions about the product use.
• Carbon Monoxide (CO) poisoning produces flu-like symptoms, watery eyes, headaches, dizziness, fatigue and
possibly death. You cannot see it and you cannot smell it. Carbon Monoxide is an invisible killer. If these symptoms
are present during operation of this product, get fresh air immediately.
Product Safety
• This product must be installed and the gas cylinder stored in accordance with the regulations in force.
• Do not obstruct the ventilation holes of the cylinder housing.
• Do not move the product when in operation.
• In case of violent wind particular attention must be taken against tilting of the product.
7
• Shut off the valve at the gas cylinder or the regulator before moving the product.
• Only use the gas regulator supplied with the product. The outlet pressure shall be according to the table in the
chapter “Specifications”.
• The tubing or the flexible hose must be changed if it is cut or worn or kinked.
• Use only the type of gas and the type of cylinder specified by the manufacturer.
• For use outdoors or in amply ventilated areas. An amply ventilated area must have:
– Walls on all sides, but no overhead cover.
– An overhead cover and no more than 2 side walls. These side walls may be parallel, as in a breezeway, or at right
angles to each other.
– The minimum of 30% of the surface area permanently open. The surface area is the sum of the walls surface.
A
B
C
D
Total surface area A+B+C+D 100 %
Wall surface area A+B+C max. 70 %
Open surface area D min. 30 %
• Close the valve of the gas cylinder or regulator after use.
• The use of this product in enclosed areas can be dangerous and is PROHIBITED.
• Provide adequate clearances around air openings into the combustion chamber.
• This product is a combustion appliance. All combustion appliances produce carbon monoxide (CO) during the
combustion process. This product is designed to produce extremely minute, non-hazardous amounts of CO if
used and maintained in accordance with all warnings and instructions. Do not block air flow into or out of the
product.
• Never use inside the house, or other unventilated or enclosed areas.
• This product consumes air (oxygen). Do not use in unventilated or enclosed areas to avoid endangering your life.
• During set up, check all connections and fittings for leaks using soapy water. Never use a flame to check for leaks.
• Use as a heating product only. Never alter in any way or use with any device.
• This product contains small parts, which pose a choking hazard. Keep children away from small parts.
Gas Safety
• This product is fueled by LPG. LPG is invisible, odorless, and flammable. An odorant is sometimes added to help
detect leaks which can be described as a “rotten egg” smell. The odorant can fade over time so leaking gas is not
always detectable by smell alone.
• LPG is heavier than air and leaking LPG will sink to the lowest level possible. It can ignite by ignition sources
including matches, lighters, sparks or open flames of any kind many feet away from the original leak. Use only LPG
set up for vapor withdrawal.
• Store or use LPG in compliance with local ordinances and codes or with ANS/NFPA 58. Turn off LPG when not in
use.
• Keep all connections and fittings clean. Make sure the LPG cylinder valve outlet is clean.
• Store the LPG cylinder outdoors in a well ventilated space out of reach of children. Never store the LPG cylinder
in an enclosed area (house, garage, etc.). If the product is to be stored indoors, disconnect the LPG cylinder for
outdoor storage.
• Never store LPG near high heat, open flames, pilot lights, direct sunlight, other ignition sources or where
temperatures exceed 122°F.
• LPG vapors are heavier than air and can accumulate in low places. If you smell gas, leave the area immediately.
• Never install or remove the LPG cylinder while the product is lighted, near flames, pilot lights, or other ignition
sources, or while the product is hot to the touch.
• Change the gas cylinder in an amply ventilated area, away from any ignition source (candles, cigarettes, other
flame producing appliances).
8
Preparation
• Before beginning assembly of the product, make sure all parts are present. Compare parts with package contents
list and hardware contents list. If any part is missing or damaged, do not attempt to assemble the product. Contact
customer service for damaged or missing parts.
• Estimated assembly time: 90minutes for 2 adults.
• Required for assembly (not included):
– Soapy water.
Intended Use
• This product is intended for partially heating a patio.
• This product is intended for household use only. It is not intended for commercial use.
• This product is intended to be used in outdoor areas only. Do not use it indoors.
• No liability will be accepted for damages resulting from improper use or non-compliance with these instructions.
Before First Use
• Check for transport damages.
DANGER
Risk of suffocation! Keep any packaging materials away from children – these materials are a
potential source of danger, e.g. suffocation.
9
Assembly
Step 1:

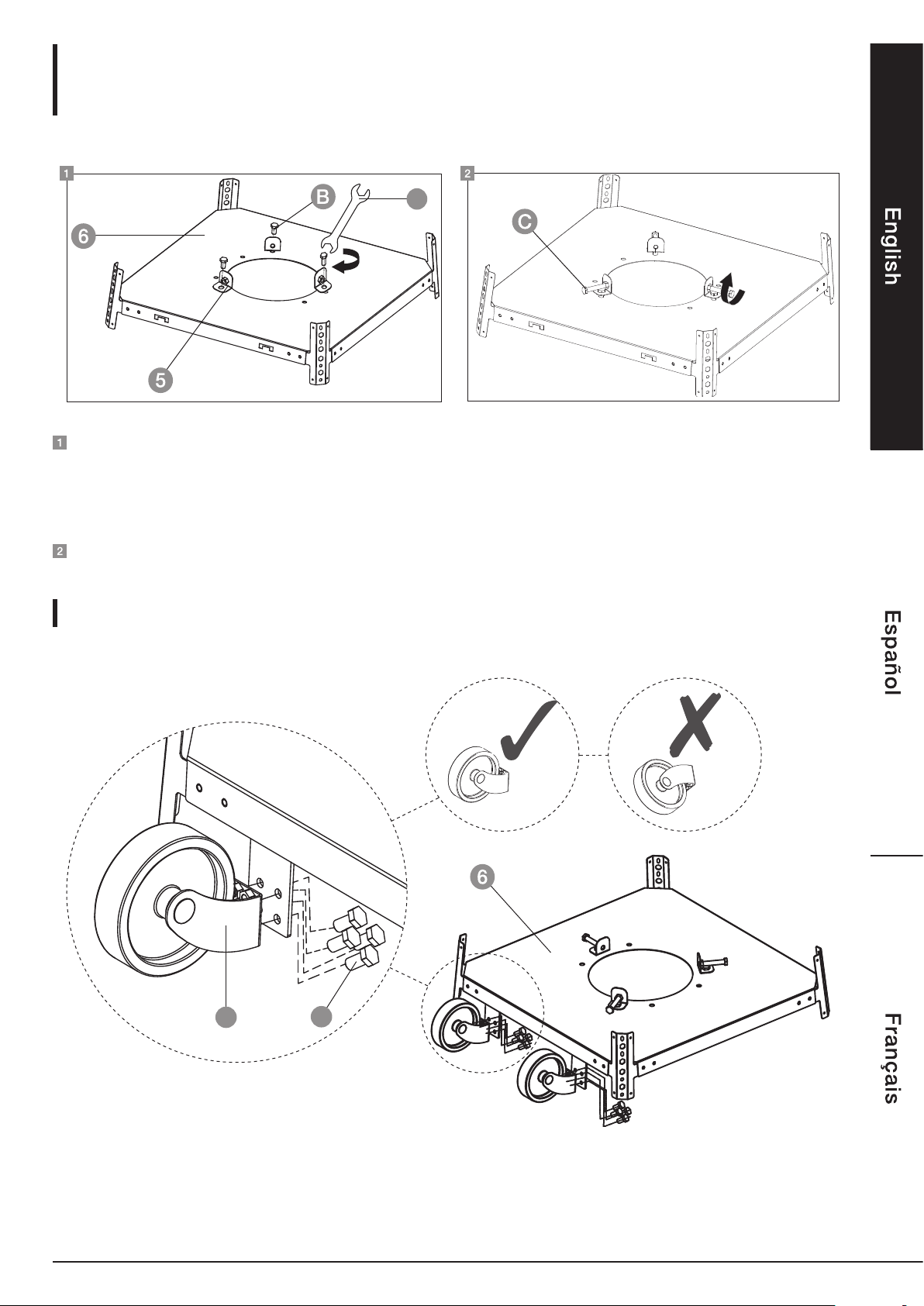

Hardware used: Short bolt (B) x3, Bolt C x3
H
Attach the gas cylinder brackets (5) to the base plate (6).
Align the gas cylinder brackets with the eyelets in the base plate surrounding the large center hole.
Fasten the gas cylinder brackets to the base plate using 3 short bolts(B).
Turn the vertical portion of the brackets toward the middle of the base plate.
Tighten the short bolts using a wrench (H).
Insert 3 long bolts (C) into the nuts welded onto the gas cylinder brackets eyelets. Do not tighten the long bolts
completely (this will be done in step 13 when securing the gas cylinder).
Step 2:
Hardware used: Bolt A x8
7
A
• Attach 2 wheels (7) to the base plate (6) with 8 bolts (A).
• Pay attention to the direction of the wheels when attaching. Make sure the wheel brackets point towards the upper
side of the base plate (the side where the gas cylinder brackets are attached).
• For easy access, turn the base plate over before attaching the wheels.
10
Assembly
Step 3:
Hardware used: Screw E x20
6
E
103

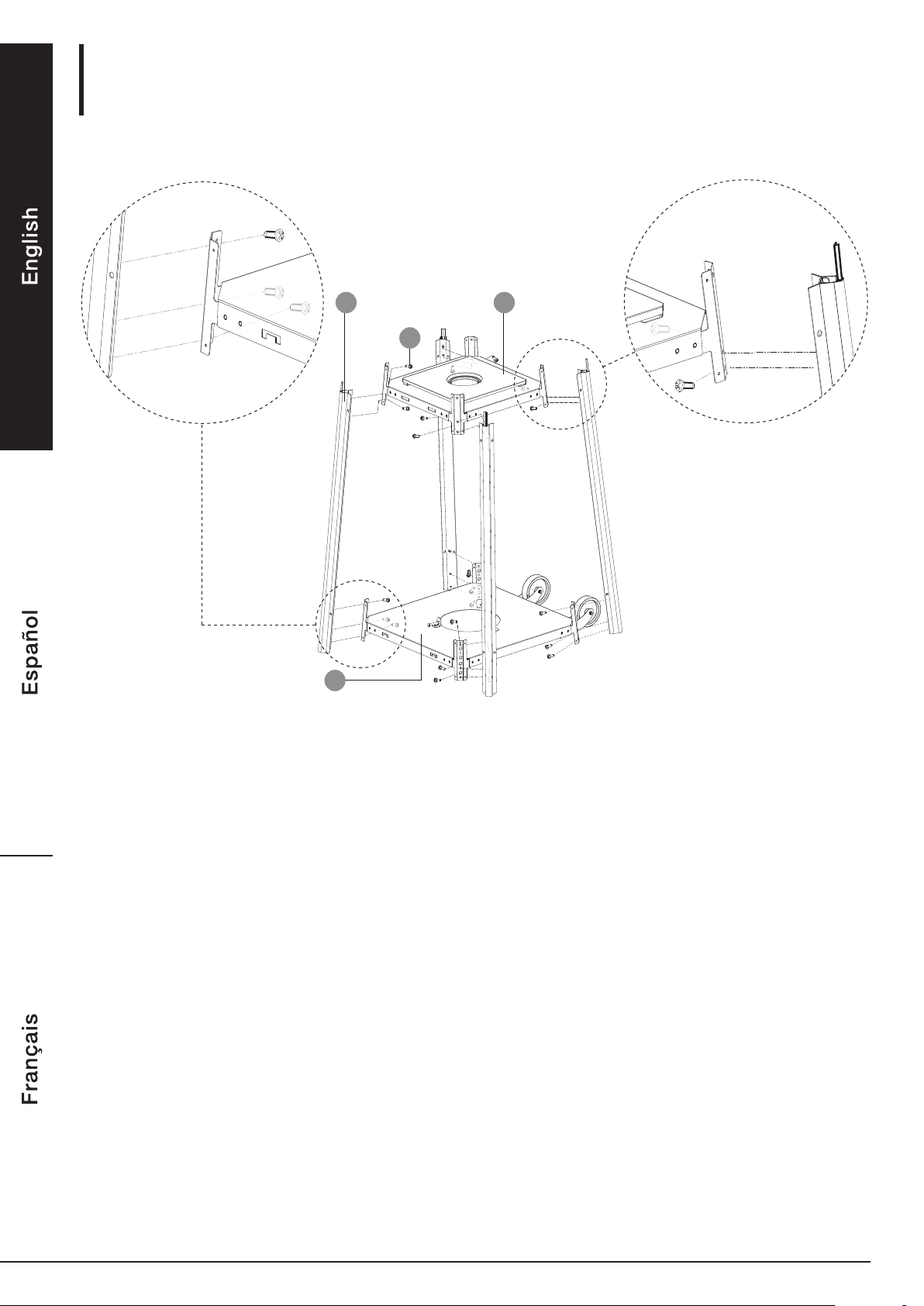

• Assemble the lower frame. Align the eyelets at the bottom of lower supports (3) with the small eyelets on the
corners of the base plate (6). Fasten the lower supports to the base plate using 12 screws (E). Attach the middle
plate (10) at the top of the lower supports using 8 screws (E).
• The arrow sticker on the middle plate must point in the same direction as the corresponding sticker on the base
plate.
11
Assembly
Step 4:
Hardware used: Screw E x12
15
3
15
E
E
3
Slide the 4 upper supports (15) onto the lower supports (3).
Slide the corresponding opening of the upper supports onto the v-shaped rail of the lower supports.
The upper and lower support brackets need to fit flush. Secure the connections using 12screws(E).
12
Assembly
Step 5:
Hardware used: Screw E x8
13
E
15
• Attach the emitter (13) to the upper supports (15) using 8 screws (E).
NOTICE
Assembly step 5 may require a ladder. Follow safety precautions when working on a ladder.
Step 6:
Hardware used: Screw E x4
E
8
10
• Attach the control box (8) to the bottom of the middle plate (10) using 4 screws (E).
13
Assembly
Step 7:
11
12
10
13
WARNING
The black silicone ring (11) must be in place around the lower rim of the flame tube (12) prior to
operating the product.
• Place the black silicone ring.
• Carefully install the flame tube by guiding it up.
• Insert the upper end through the center hole in the plate of the emitter (13).
• Do not force the tube.
• Slide the flame tube into place and settle it into the hole of the middle plate (10).
• Ensure that the tube is positioned properly to completely cover the center hole of the middle plate.
14
Assembly
Step 8:
Hardware used: Stud F x 3, Washer J x 6, Wing nut G x 3, Screw E x4, Guard bracket K x 4
G
J
14
F
E
K
13
• Attach the reflector (14) to the emitter (13). Screw the 3 reflector studs (F) into the top of the emitter, then slide
3 washers(J) onto the studs.
• Slide the reflector’s drilled holes onto the studs.
• Slide 3 washers onto the studs and secure the connection with 3 wing nuts (G).
• Attach the guard brackets (K) to all 4 sides of the emitter using 4 screws (E). Leave loosely attached until next step.
NOTICE
Assembly step 8 may require a ladder. Follow safety precautions when working on a ladder.
15
Assembly
Step 9:
E
K
15
• Assemble the guard screens (1).
• Hang the hooks of the guard screens onto the holes near the top, middle, and bottom of the upper supports (15).
• Secure the guard screens by tightening the screws (E) of the guard brackets (K) (attached to the emitter in previous
step).
16
Assembly
Step 10:
Hardware used: Screw E x16
E
3
9
4
E
• Attach the side panels (4) and the back panel (9) to the product using 4 screws (E) per panel.
• On the front side, insert the 4 screws (E) directly into the matching holes on the lower supports (3).
NOTICE
Do not cover the front, which is the side where the control knob of the control box faces.
17
Assembly
Step 11:
Hardware used: Screw D x2, Brace with chain (L) x 1
8
L
L
2
D
2
16
8
6
Attach the handle (16) on the outside of the door panel (2) and connect it with the brace with chain (L) on the
inside of the door panel using 2 screws (D).
Insert the tabs on the bottom of the door panel into the tab holes at the front of the base plate (6).
Attach the chain at the hook on the front of the control box (8).
18
Assembly
Step 12:
• Remove the door panel (2).
• Pry open the plastic cap of the sandbox (pre-installed on the base plate (6)).
• Fill the sandbox with sand or water, then securely close the plastic cap.
Step 13:
5 6
• Place an LPG cylinder (not included) on the base plate (6). Connect the regulator end of the gas hose with the
LPG cylinder (not included). Do not cross-thread. Secure the LPG cylinder with the gas cylinder brackets (5) by
tightening the 3 long bolts (C).
NOTICE
Only use a standard 20 lb LPG cylinder.
19
Information on Gas Cylinders
• Use this product only with a LPG vapor withdrawal supply system.
• Storage of the product indoors is permissible only if the cylinder is disconnected and removed from the product.
A cylinder must be stored outdoors in a well-ventilated area out of the reach of children. A disconnected cylinder
must have dust caps tightly installed and must not be stored in a building, garage or any other enclosed area.
• The pressure regulator and hose assembly supplied with the product must be used.
• Check the hose and regulator before use.
• Inspect the visible hose portion of the regulator before use. Check it completely at least annually.
• Replacements of the hose and regulator must be those specified by the manufacturer.
• The hose and regulator must be UL/CSA certified, the outlet pressure of the regulator must be according to the
table in the “Specifications” chapter. Suitable spare parts are available from specialist dealers.
• The installation must conform with local codes.
• A dented, rusted or damaged LPG cylinder may be hazardous and should be checked by your LPG supplier.
Never use a LPG cylinder with a damaged valve connection.
• The length of the hose cannot exceed 4.6 ft.
• The cylinder must have a listed overfilling prevention device.
• The cylinder must have a connection device compatible with the connection for the product.
• The cylinder must include a collar to protect the cylinder valve.
• Never connect an unregulated LPG cylinder to the product.
• Do not store a spare LPG cylinder under or near this product.
• Never fill the cylinder beyond 80 % full.
• Place the dust cap on the cylinder valve outlet whenever the cylinder is not in use. Only install the type of dust cap
on the cylinder valve that is provided with the cylinder valve. Other types of caps or plugs may result in leakage of
LPG.
Operation
Leak Check
WARNING
Risk of explosion!
• Perform all leak tests outdoors.
• Extinguish all open flames.
• Never leak test when smoking.
• Do not use the product until all connections have been leak tested and do not leak.
1. Make 2 – 3 fl oz of soapy water (1 part liquid dish washing detergent and 3 parts water).
2. Apply several drops of the soapy water where the hose attaches to the regulator.
20
3. Apply several drops of the soapy water where the regulator connects to the cylinder.
4. Make sure all valves are closed.
5. Open the cylinder valve.
If bubbles appear at any connection, there is a leak.
1. Turn the cylinder valve off.
2. If the leak is at the hose/regulator connection, tighten the connection and perform another leak test. If bubbles
continue appearing, the hose/regulator connection should be replaced by a qualified service person.
3. If the leak is at the regulator/cylinder valve connection, disconnect, reconnect, and perform another leak check.
If you continue to see bubbles after several attempts, the cylinder valve is defective and should be replaced by a
qualified service person.
4. In the event of a gas leakage, the product shall not be used or, if alight, the supply shall be shut off and the product
shall be investigated and rectified before it is used again.
If no bubbles appear at any connection, the connections are secure.
NOTICE
Whenever gas connections are loosened or removed, you must perform a complete leak test.
5. Complete installation.
DANGER
Carbon monoxide hazard! For outdoor use only. Never use inside house, or other unventilated or
enclosed areas. This product consumes air (oxygen). Do not use in unventilated or enclosed areas
to avoid endangering your life.
CAUTION
Risk of injury! Do not attempt to operate until you have read and understand all general safety
information in this manual and all assembly is complete and leak checks have been performed.
Before turning the gas supply on:
1. Your product was designed and approved for outdoor use only. Do not use it inside a building, garage, or any
other enclosed area.
2. Make sure the surrounding area is free of combustible materials, gasoline, and other flammable vapors or liquids.
3. Ensure that there is no obstruction to air ventilation. Be sure all gas connections are tight and there are no leaks.
4. Be sure the cylinder cover is clear of debris. Be sure any component removed during assembly or servicing is
replaced and fastened prior to starting.
Before Lighting
1. The product should be thoroughly inspected before use, and by a qualified service person at least annually. If
relighting a hot product, always wait at least 5 minutes.
2. Inspect the hose assembly for evidence of excessive abrasion, cuts, or wear. Suspected areas should be leak
tested. If the hose leaks, it must be replaced prior to operation. Only use the replacement hose assembly specified
by the manufacturer. The hose and regulator must be UL/CSA certified, the outlet pressure of the regulator must
be according to the table in the “Specifications” chapter.. Suitable spare parts are available from specialist dealers.
Lighting Instructions
1. Make sure the control knob is in the OFF position. Slowly open the LPG cylinder valve.
2. Press and turn the control knob to the PILOT position (counterclockwise). While holding the control knob in,
press the red piezoelectric ignition button several times in a row. You should hear a sparking or clicking sound of
the piezoelectric ignition. For the first ignition, hold the control knob down for 30 seconds to remove air from the
tube before pressing the red piezoelectric ignition button.
3. Continue to hold in the control knob and check for the pilot flame through the glass tube. If the pilot does not light,
press and turn the control knob clockwise to the OFF position. Repeat steps 2-3.
Figure 1 Figure 2
21
4. If after repeating steps 2-3, the product does not light, then:
– Lift the flame tube (12) and prop it to give at least 1/2” of clearance below the tube.
– Push in control knob and turn counterclockwise to PILOT (Figure 3).
– As you hold in the control knob, place long stem lighter beneath the flame tube to light the pilot (Figure 4).
5. Once the pilot flame is lit, turn the control knob counterclockwise to HIGH or whichever heat level you prefer.
6. To turn the product off, turn the control knob clockwise to PILOT position. Then depress the control knob and
turn clockwise to OFF position. Close the valve on your LPG cylinder when the product is not in use.
Figure 3 Figure 4 Figure 5
NOTICE
If pilot fails to remain lit, all valves should be closed and a waiting period of at least 5 minutes should
pass before attempting to light.
CAUTION
Avoid inhaling fumes emitted from the product’s first use. Smoke and odor from the burning of
oils used in manufacturing will appear. Both smoke and odor will dissipate after approximately
30minutes. The product should not produce thick black smoke.
NOTICE
The burner may be noisy when initially turned on. To eliminate excessive noise from the burner, turn
the control knob to the PILOT position. Then, turn the knob to the level of heat desired.
NOTICE
Under normal conditions, the height of flame at HIGH setting is approximately 2/3 of the height of
the flame tube, and the height of the flame at LOW setting is approximately 1/3 of the height of the
flame tube. The flame is stable and bright. It should not create an audible noise or black smoke. If
you notice noise or smoke, this is abnormal operation.
Normal flame
Abnormal flame
WARNING
Risk of injury! Be careful when attempting to manually ignite this product. Holding in the control
knob for more than 10 seconds before igniting the gas will cause a ball of flame upon ignition.
During Operation
The flame should be mostly blue and yellow. If excessive flame or smoke is detected, turn off the product and consult
“Troubleshooting”.
Re-lighting
NOTICE
For your safety, the control knob cannot be turned off without first depressing the control knob in the
PILOT position and then rotating it to the OFF position.
1. Turn the control knob to OFF.
2. Wait at least 5 minutes, to let gas dissipate, before attempting to relight pilot.
Repeat the previously described steps about lighting (Lighting Instructions).
WARNING
Risk of burning! The product will be hot after use. Handle with extreme care. Certain materials
or items, when stored under the product, will be subjected to radiant heat and could be seriously
damaged.
22
Shut Down
1. Turn the control knob clockwise to PILOT. Normally, the burner will make a slight popping sound when
extinguished. The burner will extinguish but the pilot will remain on.
2. To extinguish the pilot, depress the control knob and continue to turn it clockwise to OFF.
3. Turn the cylinder valve clockwise to OFF and disconnect the regulator when the product is not in use.
NOTICE
After use, some discoloration of the emitter is normal.
Checklist
NOTICE
For a safe and pleasant heating experience, perform this check before use.
1. I am familiar with the entire owner’s manual and understand all precautions noted.
2. All components are properly assembled, intact and operable.
3. No alterations have been made.
4. All gas connections are secure and do not leak.
5. Wind velocity is below 10mph.
6. The product will operate at reduced efficiency below 41°F.
7. The product is outdoors, not inside any enclosure.
8. There is adequate fresh air ventilation.
9. The product is away from gasoline or other flammable liquids or vapors.
10. The product is away from windows, air intake openings, sprinklers and other water sources.
11. The product is at least 3.3ft (all sides including top) away from combustible materials.
12. The product is on a hard and level surface.
13. There are no signs of spiderwebs or insect nests.
14. All burner passages are clear.
15. All air circulation passages are clear.
16. Children and adults should be alerted to hazards of high surface temperatures and should stay away to avoid
burns or clothing ignition.
17. Young children should be carefully supervised when they are in the area of the product.
18. Clothing or other protective material should not be hung from the product, or placed on or near the product.
19. Any guard or other protective device removed for servicing the product must be replaced prior to operating the
product.
20. Installation and repair should be done by a qualified service person. The product should be inspected before use
and at least annually by a qualified service person.
21. More frequent cleaning may be required as necessary. It is imperative that the control compartment, burner and
circulating air passageways of the product be kept clean.
NOTICE
Perform this check after use.
1. The control knob at the control box (8) is in the OFF position.
2. The cylinder valve is OFF.
3. The gas hose is disconnected.
WARNING
Risk of injury! Do not touch or move the product for at least 45 minutes after use. The reflector is
hot to the touch. Allow the reflector to cool before touching.
Cleaning and Maintenance
Cleaning
• Use warm soapy water for cleaning. Never use flammable or corrosive cleaning agents.
• While cleaning the product, keep the area around the burner and pilot assembly dry at all times.
• Do not submerge the control valve assembly. Do not use the control box (8) if it was submerged in water. The
control box must be replaced.
• Keep the product area clear and free from combustible materials, gasoline and other flammable vapors and liquids.
• Do not obstruct the flow of combustion and ventilation air.
• Keep the ventilation opening(s) of the cylinder enclosure free and clear from debris.
23
• Air flow must be unobstructed. Keep controls, burner, and circulating air passageways clean. Signs of possible
blockage include:
– Gas odor with extreme yellow tipping of flame.
– The product does not reach the desire temperature.
– The product glow is excessively uneven.
– The product makes popping noises.
– Spiders and insects can nest in the burner or orifices. This dangerous condition can damage the product and
render it unsafe for use. Clean the burner holes by using a heavy-duty pipe cleaner. Compressed air may help
clear away smaller particles.
– Carbon deposits may create a fire hazard. Disassemble the reflector, unscrew the reflector studs, take off the
emitter, take down one side of the guard screen. Then take the flame tube out of the product, wash to clean, and
let dry. Then reinsert the flame tube and reassemble the product.
NOTICE
In a salt-air environment (such as near an ocean), corrosion occurs more quickly than normal.
Frequently check for corroded areas and have them repaired/replaced promptly.
NOTICE
Use high-quality automobile wax to help maintain the appearance of your product. Apply to exterior
surfaces below the flame tube only. Do not apply to emitter, reflector, or flame tube.
24
Storage
Store the product between uses and/or during periods of extended inactivity or when transporting. Proceed as follows:
• Turn the control knob to the OFF position.
• Disconnect the LPG cylinder.
• Store the product upright in an area sheltered from direct exposure to inclement weather (rain, sleet, hail, wind,
snow, dust and debris).
• If desired, cover the product to protect the exterior surfaces and to help prevent build-up in air passages.
• Never leave LPG cylinder exposed to direct sunlight or excessive heat.
NOTICE
Wait until the product is cool before covering.
Service
Only a qualified service person should repair the gas passages and associated components.
CAUTION
Always allow the product to cool before attempting service.
Troubleshooting
Problem Possible cause Solution
Pilot does not light.
Note: The product operates at
reduced efficiency below 5 °F.
Cylinder valve is closed. Open valve.
Blockage in orifice or pilot tube. Clean or replace orifice or pilot tube.
Air in gas line. Open gas line and bleed it (pressing control
knob in) for not more than 1 to 2 minutes or
until you smell gas.
Low gas pressure with cylinder
valve fully open.
Turn cylinder valve OFF and replace
cylinder.
Piezo ignition fails. Use match to light pilot; obtain new igniter
and replace.
Pilot does not stay lit. Dirt built up around pilot. Clean dirt from around pilot.
Connection between gas valve
and pilot assembly is loose.
Tighten connection and perform leak
check.
Thermocouple is not operating
correctly.
Replace thermocouple.
Burner does not light. LPG cylinder is frosted over. Wait until the LPG cylinder warms up and
becomes unfrosted.
Blockage in orifice. Clear blockage.
Control knob is not in ON position. Turn control knob to ON.
Burner flame is low. Gas pressure is low. Turn cylinder valve OFF and replace
cylinder.
Outdoor temperature is less than
5°F and tank is less than 1/4 full.
Use a full cylinder.
Carbon build-up.
Thick black smoke.
Dirt or film on reflector and
burner screen (inside control
box (8)).
Clean reflector and burner screen.
Blockage in burner. Remove blockage and clean burner inside
and outside.*
Only qualified service persons using approved accessories shall replace components and service internal parts of
the product.
25
Specifications
Gas type LPG
Regulator output pressure 11 in water column (2.74 kPa)
Heat input 40,000 BTU/h
Dimensions approx. 20 x 24 x 88.6 in (50 x 61 x 225cm)
Net weight approx. 55.1 lbs (25kg)
Color B0753P16BL: Black and stainless steel B0753PHV8Z: Stainless steel
Feedback and Help
Love it? Hate it? Let us know with a customer review.
AmazonBasics is committed to delivering customer-driven products that live up to your high standards. We encourage
you to write a review sharing your experiences with the product.
amazon.com/review/review-your-purchases#
amazon.com/gp/help/customer/contact-us
MADE IN CHINA
FABRIQUÉ EN CHINE
HECHO EN CHINA
amazon.com/AmazonBasics
