Installer Guide
®
TM
smart connect
7330-100-01
7330
Wireless Remote Humidity Sensor
Please read all instructions before proceeding.
The wireless remote humidity sensor monitors the humidity passing through the
return air plenum and transmits the humidity data wirelessly to the thermostat.
The sensor can be used to view the current humidity level or to control external
humidification or dehumidification equipment. One wireless remote humidity
sensor can be connected.
1
Specifications
Operating Temperature: 14 - 140 ˚F
Storage Temperature: 14 - 140 ˚F
Operating Humidity: 5 - 95% Rh
AC Power: 24 Volt AC
Terminations: Rc, C, H1, H2, D

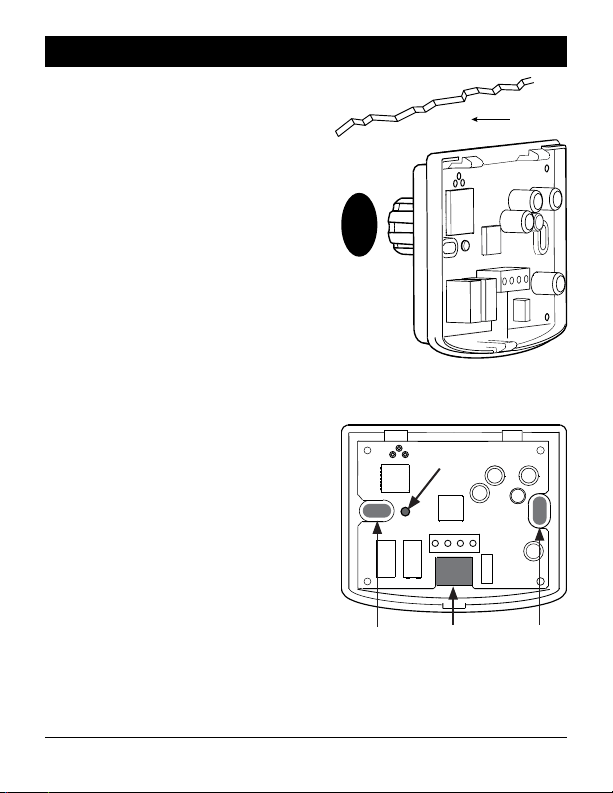

Blue LED Indicator
- 1 flash every 30 seconds: Normal operation
- 3 flashes every 10 minutes: Sending sensor data to thermostat
- 1 flash every 2 seconds: Sensor is in pairing mode
- Solid for 60 seconds: Successfully paired remote sensor
Red LED Indicator
- 1 flash every 10 seconds: Lost communication with thermostat
NOTE: LED indicators are only visible with the sensor cover off.
