Installation and Reference Guide
66856
Rev 01
English
Parts in the box ................................................4
Required tools ..................................................5
Installation ...........................................................7
Download the app.........................................17
Reference guide .............................................19
Table of contents
3
Parts in the box
Exterior assembly
Latch
Strike
Battery pack Interior assembly
Interior cover
1
Step
2
Step
actual
size
03809
46780
actual
size
4
Required
tools
Mounting
plate
Keys
Batteries
SmartKey™
tool
Phillips head
screwdriver
3
Step
4
Step
5
Step
actual
size
actual
size
actual
size
actual
size
64844
49191
64109
68611
No electric drills
5
Installation
C
B
A
*Use the longer
screws if the holes
are worn out.
You will have two
extra screws.
Extend the latch bolt.
UP is on top.
If the D-shaped hole
is not centered in the
door hole, rotate the
latch face to extend
the latch.
03809*
(2X)
If your door requires
a drive-in latch,
please contact
Kwikset at
1-800-327-5625.

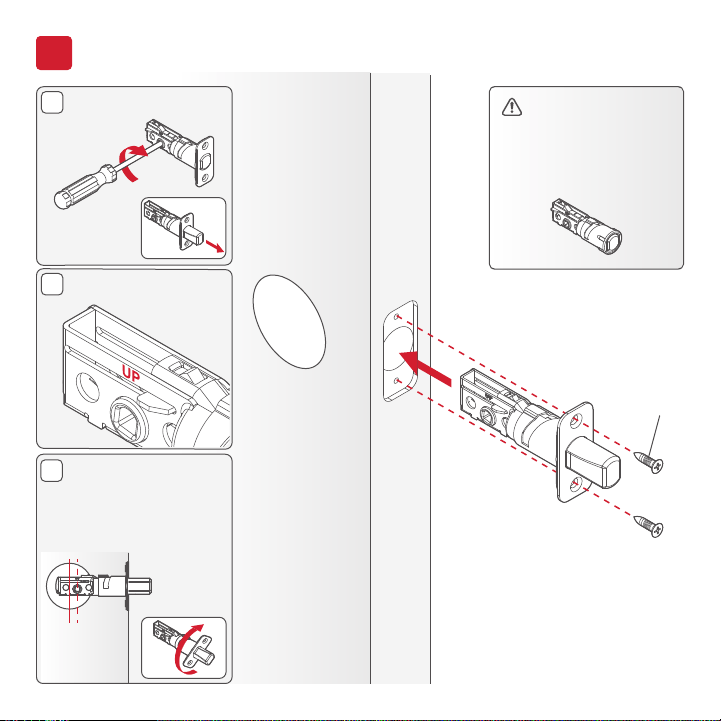

1
Install the latch
[OUTSIDE]
8
DOOR
JAMB
*Install the longer screws
closest to the door jamb.
1" (25 mm)
hole depth
46780*
(4X)
2
Install the strike
9
A

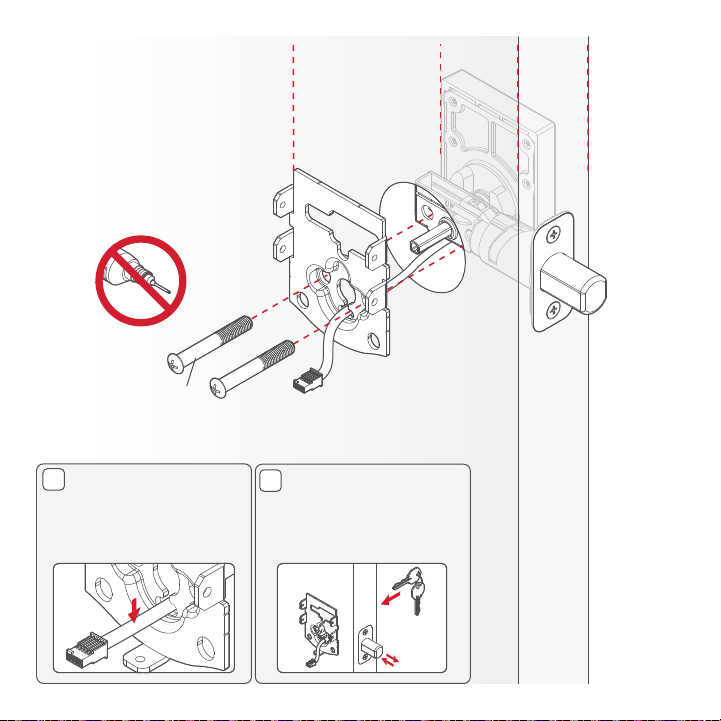

Install the exterior assembly
3
[OUTSIDE]
Cable goes under the latch.
10
C
B
Install the exterior assembly
[INSIDE]
Route the cable
through the center
hole, then push into
the bottom hole.
Insert the key and
test the latch. If the
latch does not extend
or retract smoothly,
adjust the screws.
Tighten the screws evenly.
DO NOT over-tighten.
Keep parallel to
the door edge
64844
(2X)
11
B
A
Install the interior assembly
4
Remove the interior
cover from the
interior assembly.
Make sure the turnpiece
shaft is pointing up as
shown below.
Incorrect:
If the turnpiece shaft
is not pointing up, put
the cover back on and
rotate the turnpiece
until you hear a click.
12
E
D
C
align
Secure the interior
assembly onto the
mounting plate.
49191
(2X)
Connect the cable.
Ensure a tight cable
connection.
Lay cable flat inside the
bottom of the interior
housing.
Ensure the spindle
fully engages with the
turnpiece shaft.
[INSIDE]
13
Perform the door handing process
5
With the door open, install
the battery pack to initiate
auto-handing. NOTE: Lock
must be installed on the door
before installing the battery.
Install 4 AA batteries into the
battery pack.
The latch will retract and extend to
learn the orientation of the door.
Then the status LED will indicate
success or failure.
GREEN: Successful. Proceed to the
next step.
RED: Unsuccessful. Make sure the
lock interior and batteries are
correctly installed. Perform
step 5 again. If your second
attempt is still unsuccessful,
follow the Manual Door
Handing instructions.
[INSIDE]
14
Status
LED
Secure the interior
cover onto the
interior assembly.
You may need to rotate the
turnpiece to align with the
turnpiece shaft.
For additional security, you may
choose to lock the window by
installing the security screw.
When the window is locked, you
will need to remove the entire
cover to access the battery pack
and buttons.
64109
(3X)
68611
(1X)
[INSIDE]
15
Download the app
& create an account
Reference Guide

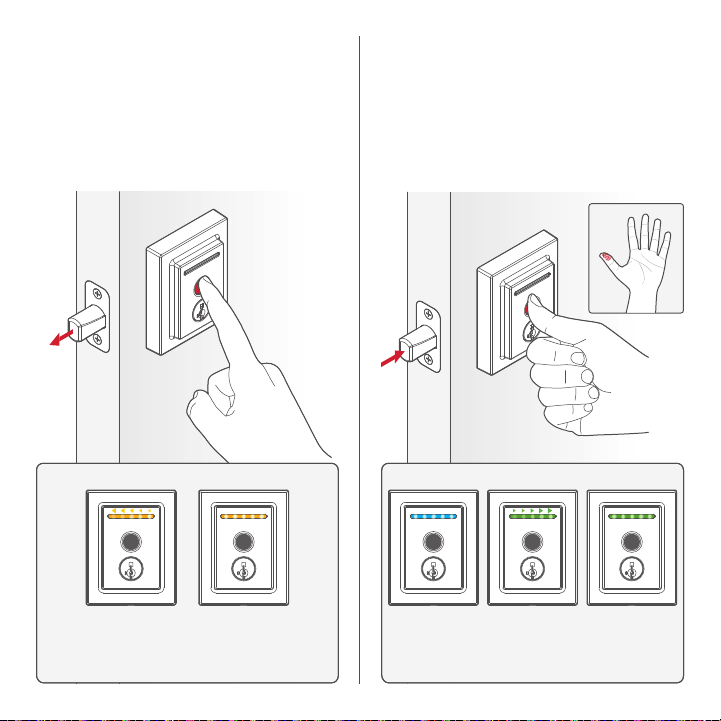

To lock your door, place any finger
on the fingerprint sensor. The
light bar will display the following
animations, beep once, and the
door will lock.
To unlock your door, place your
enrolled finger on the fingerprint
sensor. The light bar will display the
following animations, beep once,
and the door will unlock.
Locking Unlocking
Orange sweep,
moving toward
door edge
All LEDs
blue during
authentication
All LEDs
orange for
2 seconds
Green sweep,
moving away
from door edge.
All LEDs
green for
2 seconds
19
22
Orange:
Locking
Blue:
Authenticating fingerprint
Red:
Low battery or door jam
Green:
Unlocking
Exterior LED Indicators
23
Green
Blue Orange
Solid:
Action successful
Solid:
Bluetooth pairing
successful
Solid:
Door handing
unsuccessful
Solid:
Entering network
reset mode
Blinking:
Unlocked
Blinking:
Bluetooth pairing
mode
Blinking:
Low battery or
action unsuccessful
Blinking:
Locked or network/
system mode
Red
Interior LED Indicators
Device
Compatibility
Router
Compatibility
Please see the
Device Compatibility
list to see if your device
is compatible.
Please see the
Router Compatibility
list to see if your router
is compatible.
24
Device Compatibility
Router Compatibility
NOTE: Halo Touch implements
a standard based Wi-Fi radio
and should work with majority
of the routers available in the
market that are Wi-Fi certified.
25
If needed, the door handing process can be initiated manually.
This is useful if the lock is being moved to a dierent door.
1. Remove battery
pack.
3. Press the
Program button
once more.
2. Press and HOLD
the Program
button while
reinserting the
battery pack.
Release the
Program button
after 3 seconds.
The status LED
will flash red
and green.
4. The latch bolt will extend and
retract to learn the orientation
of the door. The LED will flash
green if handing is successful or
red if handing is unsuccessful.
Manual Door Handing
Status
LED
26
Factory Reset will:
• delete all Wi-Fi settings
• delete user associations
• reset all lock settings
including handing
• delete access codes and
event history from the
lock. Note: They will still
appear in the app and
cloud until the lock is
deleted from the app.
Factory reset should be
used when:
• you want to change the
lock owner
• you have lost your phone
• you are troubleshooting on
a new installation
Factory Reset
1. Delete the lock from the
Kwikset app.
2. Remove the lock from the
Bluetooth list on your device by
tapping “Forget Device” in the
Bluetooth settings.
Continue to the next page
for additional steps.
27
3. Remove battery pack.
5. After the beeping
stops, press
and release the
Program button
once more. The
LED will flash
green and red,
and the auto-
handing process
will begin.
Note: It can take
a few seconds
for the handing
to start.
4. Press and HOLD
the Program
button while
reinserting
the battery pack.
Keep holding
the button for 30
seconds or until
the lock beeps
and the status
LED flashes red.
Then release the
Program button.
6. The latch will retract and extend
to learn the orientation of the
door. This confirms the Factory
Reset has been completed.
The LED will flash green if auto-
handing is successful or red if
auto-handing is unsuccessful.
If the Factory Reset is not
successful, perform the steps
again until the LED flashes green
and red.
Status
LED
28
Halo Touch at a Glance
Exterior Interior
(cover removed)
SmartKey™
tool access
Light bar
Fingerprint
sensor
Keyway
Button “A”
Button “B”
Status LED
Program
button
Turnpiece
shaft
Battery
pack
Troubleshooting
If you have any issues, please visit our
support center: kwikset.com/halo-touch
or call us at 1-800-327-5625.
29
NOTE: Halo Touch implements a standard based Wi-Fi
radio and should work with majority of the routers
available in the market that are Wi-Fi certified.
Important Safeguards
Regulatory Compliance
1. Read all instructions in their entirety.
2. Familiarize yourself with all warning and
caution statements.
3. Remind all family members of
safety precautions.
4. Always have access to your lock’s
standard key.
5. If using the Auto-Lock features, make sure you
have your smartphone or standard key with you
to prevent locking yourself out.
6. Familiarize yourself with all light bar error
notifications.
7. Replace low batteries immediately.
8. Dispose of used batteries according to local
laws and regulations.
