Super Washer
Model: 824N
Fully Automatic Washer
Unpacking & Levelling
15
15
16
17
19
20

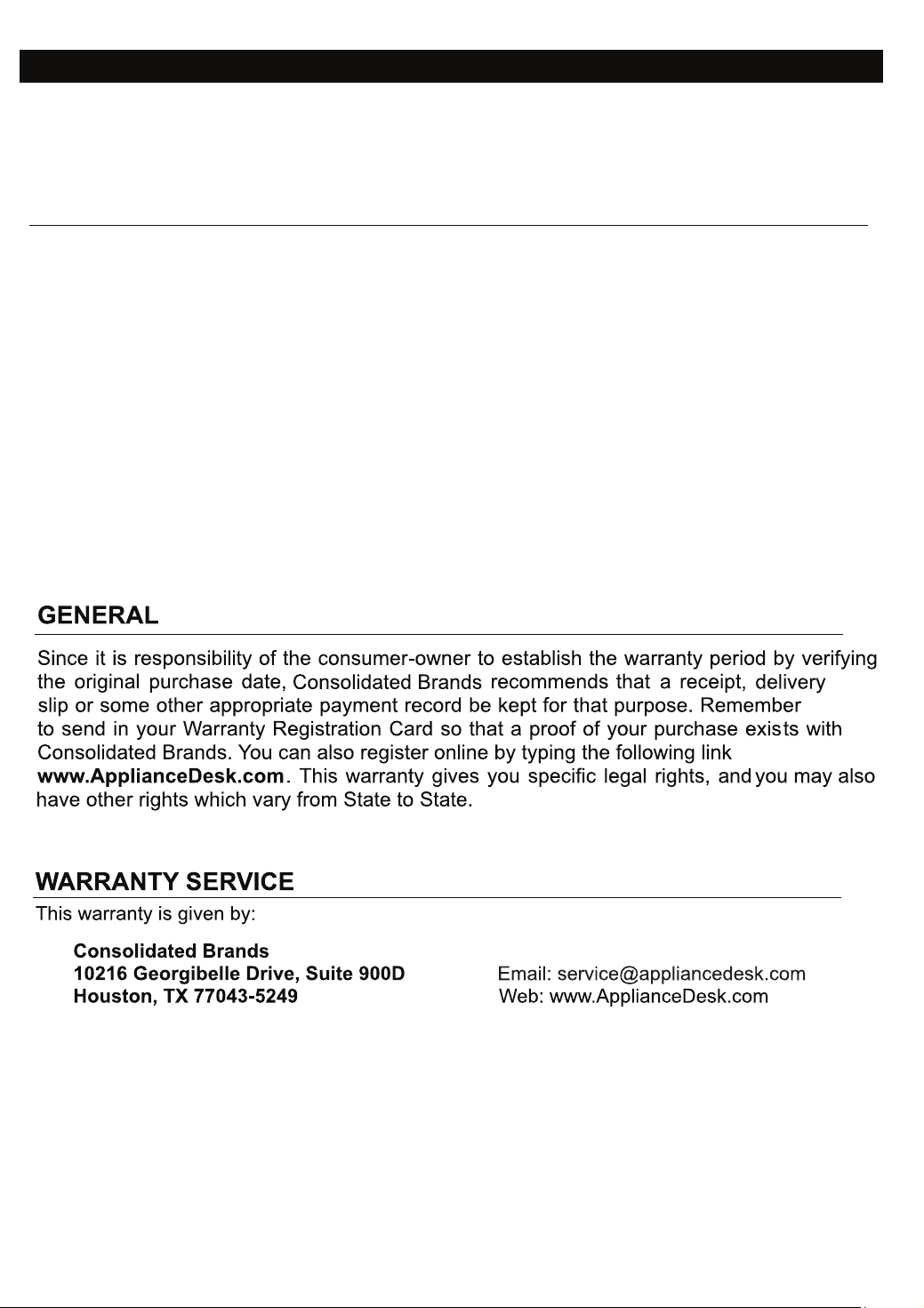

Your appliance is protected by this warranty under
normal, personal, family or household use (1Year),
and limited commercial use (90 days), in USA and Canada.
WARRANTY
Consolidated Brands undertakes to the consumer-owner to repair or, at our option, to replace
any part of this product which proves to be defective in workmanship or material under normal
personal, family or household use, in the USA and Canada, for a period of one year from the
date of original purchase. For commercial use, the product is warranted for a period of 90 days.
During this period, we will provide all labor and parts necessary to correct such defect, free of
charge, if the appliance has been installed and operated in accordance with the written
instruction with the appliance. Ready access to the appliance, for service, is the responsibility of
the consumer-owner. We may require return of products or parts to our warranty department
for which the shipping charges are to be incurred by the consumer. If a return or replacement is
required, allow 3-4 weeks to process. All repairs or replacements are warranted only for the
remainder of the original warranty period. Charges may incur if warranty coverage is not
applicable. Service would be provided from Monday to Friday between normal business hours.
WARRANTY INFORMATION
For Service Contact:
Phone or Text: 1-800-776-3538
1
Installation
1. Non-removal of shipping rods, causing vibration / internal damage.
2. Non-adjustment of feet to level machine, causing vibration / internal damage.

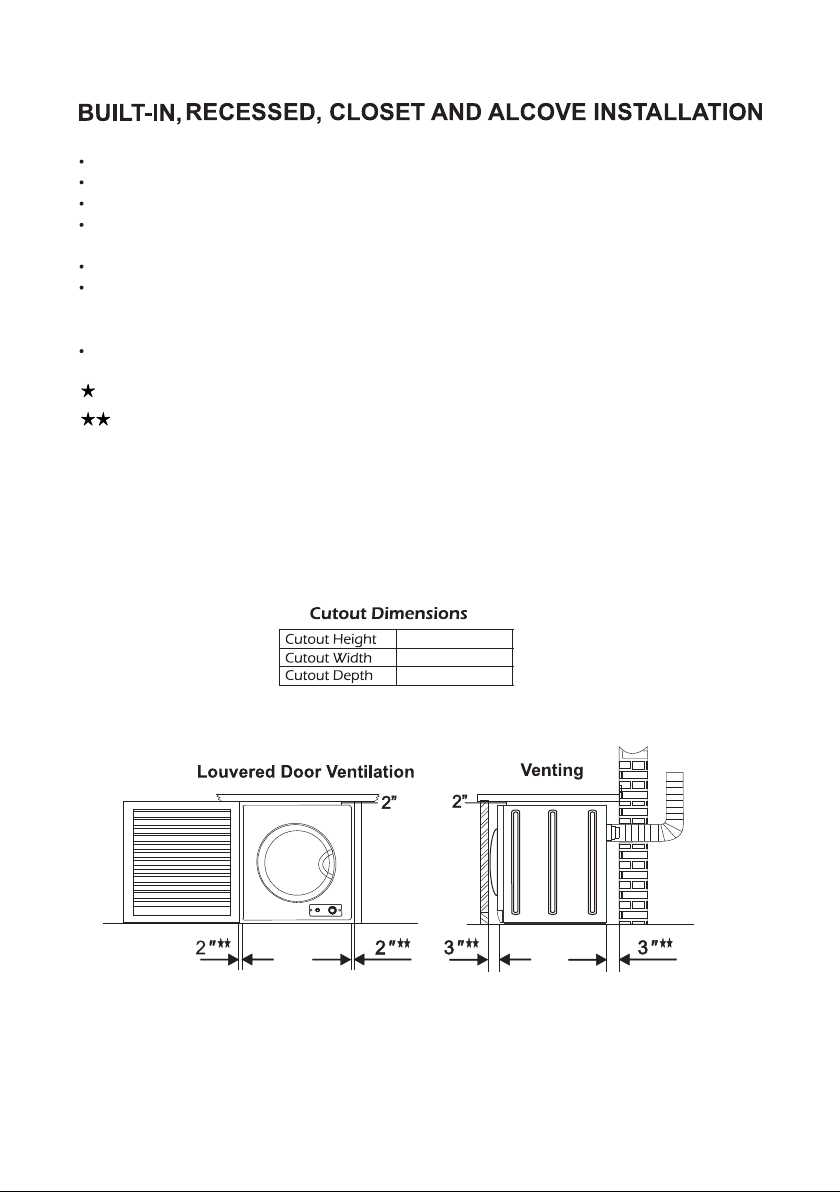

3. Not conforming to minimum space requirements for Built-in installation, causing excess heat
and resulting in damage to internal components.
4. Installation in a corrosive environment
5. Incorrect water pressure i.e below 7.25 psi or above 145 psi
6. Incorrect water inlet hose installation (use only factory supplied hoses with metric threads on
the L shaped side to fit water valves)
Maintenance

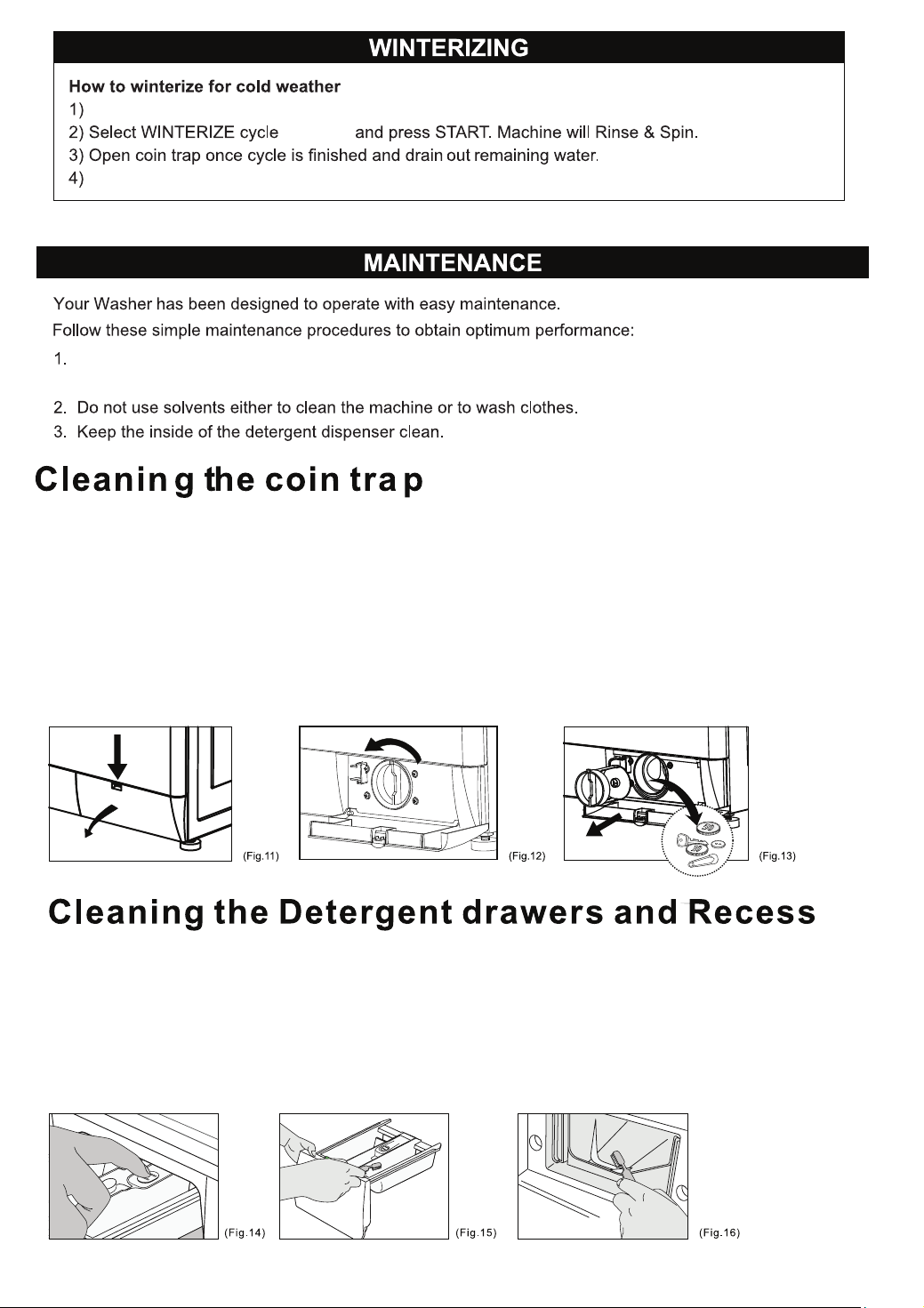

1. Non-cleaning of coin trap for debris, causing the unit to not drain out water and resulting in
drain pump malfunction.
2. Improper maintenance (such as but not limited to scale build-up, freeze damage)
Damage
1. Breakage of cosmetic parts eg. Door handle, knob.
Other
1. Accident, abuse or misuse
2. Using of solvents to clean the machine or wash clothes causing damage.
3. Misapplication of this product e.g. Use in a non household/commercial
environment.
4. Any other cause not due to defects in materials or workmanship
5. Problems or damage due to fires, flooding, electrical surges, freezing or any
acts of God
6. Any damage cause by poor water quality
7. Operating the appliance with anything other than potable water at all times
8. Force majeure
THE FOLLOWING WORK ARE NOT COVERED UNDER WARRANTY:
In no event shall Consolidated Brands be liable for incidental or consequential damages or for
damages resulting from external causes such as abuse, operation misuse, neglect, alterations,
normal wear and tear, incorrect voltage or acts of God. This warranty does not cover service calls
which involve defective workmanship, damage due to other products while combined use with this
product or materials covered by this warranty. Accordingly, diagnosis and repair costs for a service
call which involves defective workmanship or materials will be the responsibility of the consumer-
owner.
EXCLUSIONS
Most work is covered. The defining factor is has the machine malfunctioned (Consolidated Brands
is responsible) or has the customer omitted or done something to cause or limitation of incidental or
consequential damages, so the above limitation or exclusion may not apply to you.
N
Electrical Testing Laboratories
Note: All rights reserved.
Designs, Specifications and Manual subject to change without notice
2

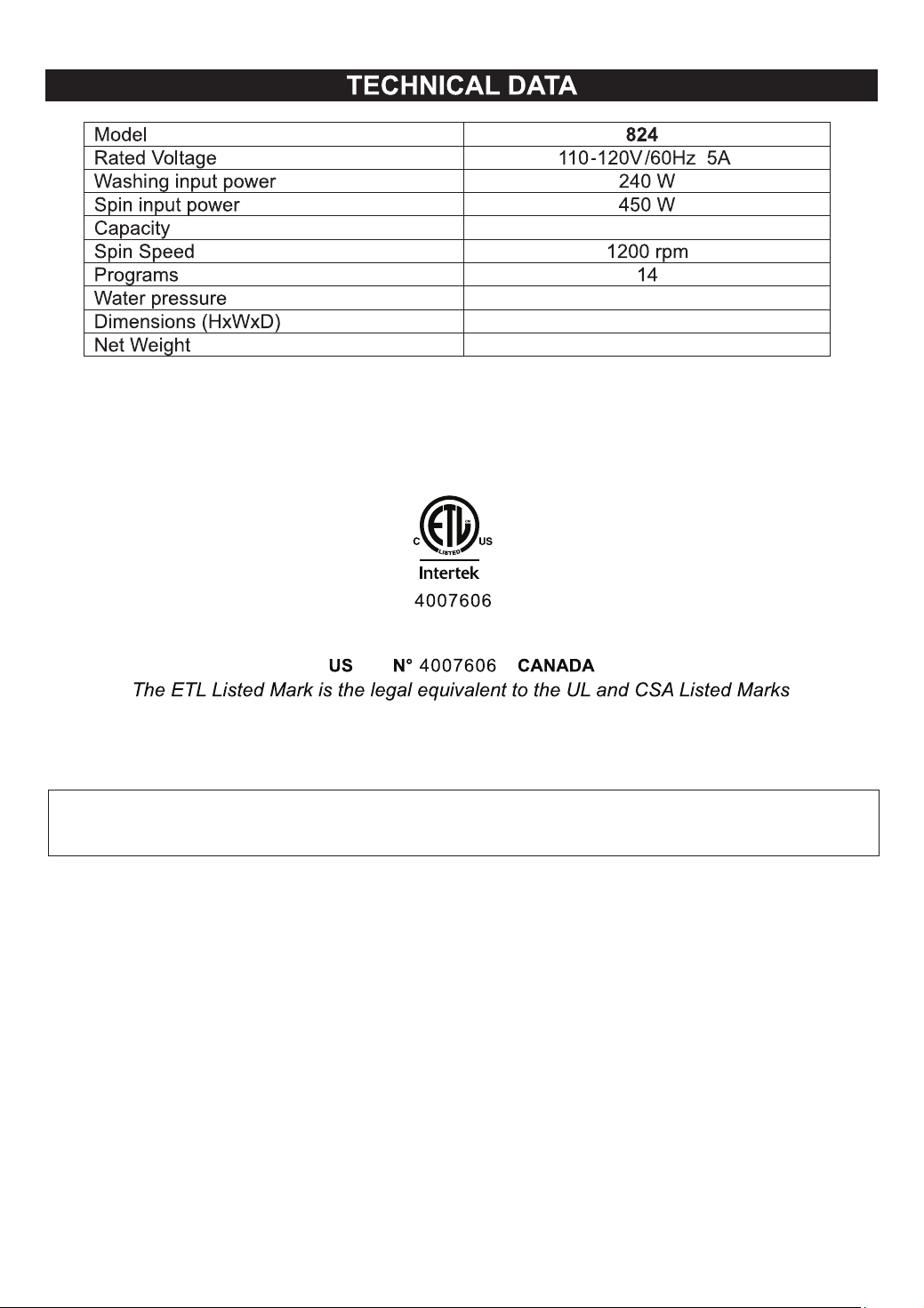

7.25-145 (psi) / 0.05-1(Mpa)
33.5x23.6x22 (in) / 85x60x55.8 (cms)
152lbs / 68.9Kg
13lbs / 6Kg
The washer is a compact size unit that can fit conveniently saving space in your home.
The washer’s compact size makes it perfect for placement in any room of your home.
The automatic water level feature determines the correct amount of water required based
on the quantity of clothes which helps save water.
This appliance is simple to use with easy to operate controls. Fully digital color coded
LED display that makes it easy to understand and operate the machine.
Add-a-sock
Lint Free Mainenance
Since the machine has a self-cleaning pump, this appliance needs no cleaning of lint
after drying. Instead, there is a convenient coin trap.
10. Energy Saving
The washer is a horizontal-axis machine which uses 1/3rd the water than a regular
top-loading machine. Energy is saved in heating the reduced amount of water.
This washer can be made portable with the installation of the Portability Kit
(Accessory Part# 1070 sold separately) where needed.
In this feature, the program can be stopped at any time to add forgotten items to the wash.
With a high spin speed of 1200 rpm, more water is extracted, allowing improved dry times.
This Washer has no agitator to damage your clothes so they look better and last longer.
2

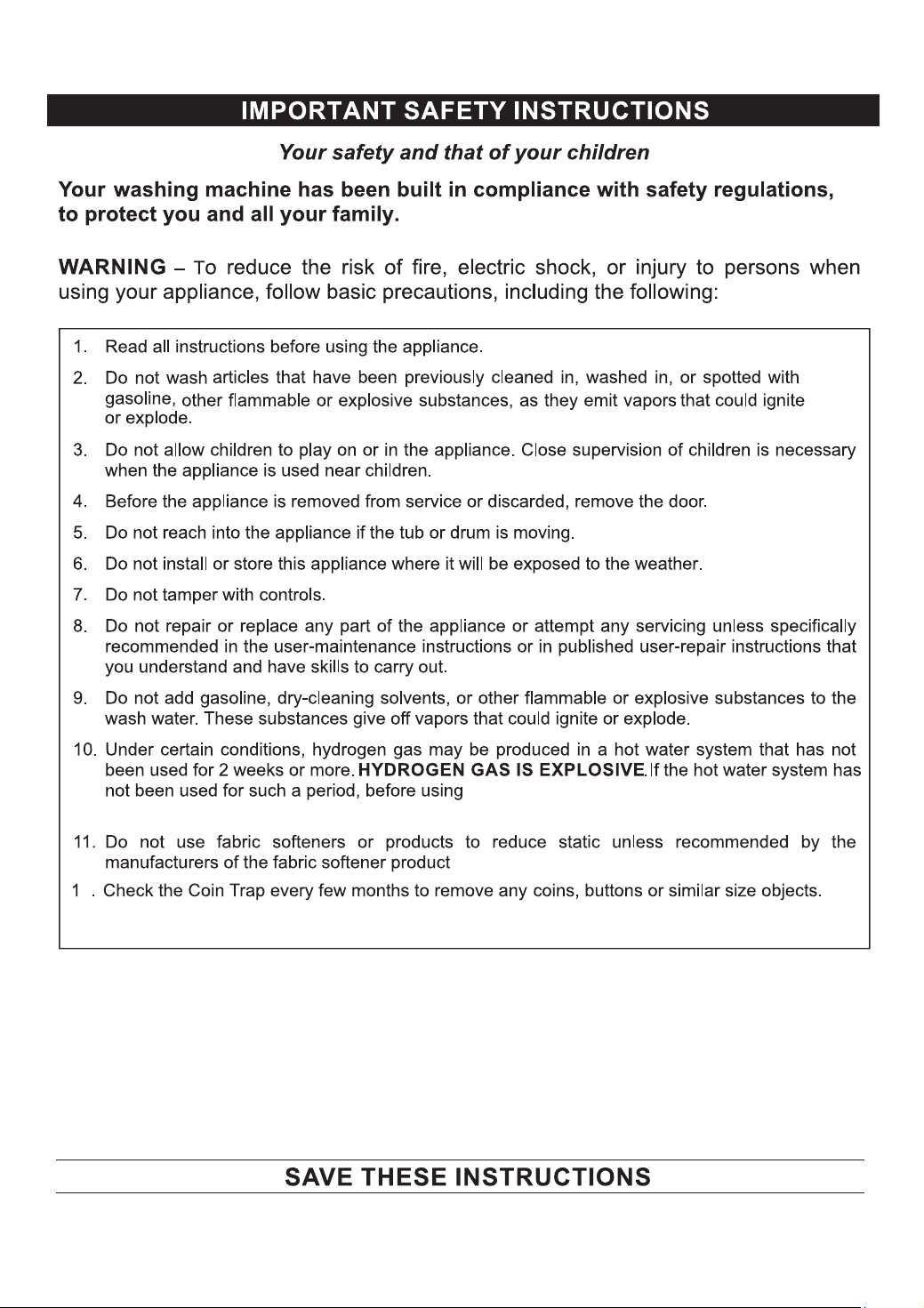

the washer, turn on all hot water faucets and let
the water flow from each for several minutes. This will release any accumulated Hydrogen.

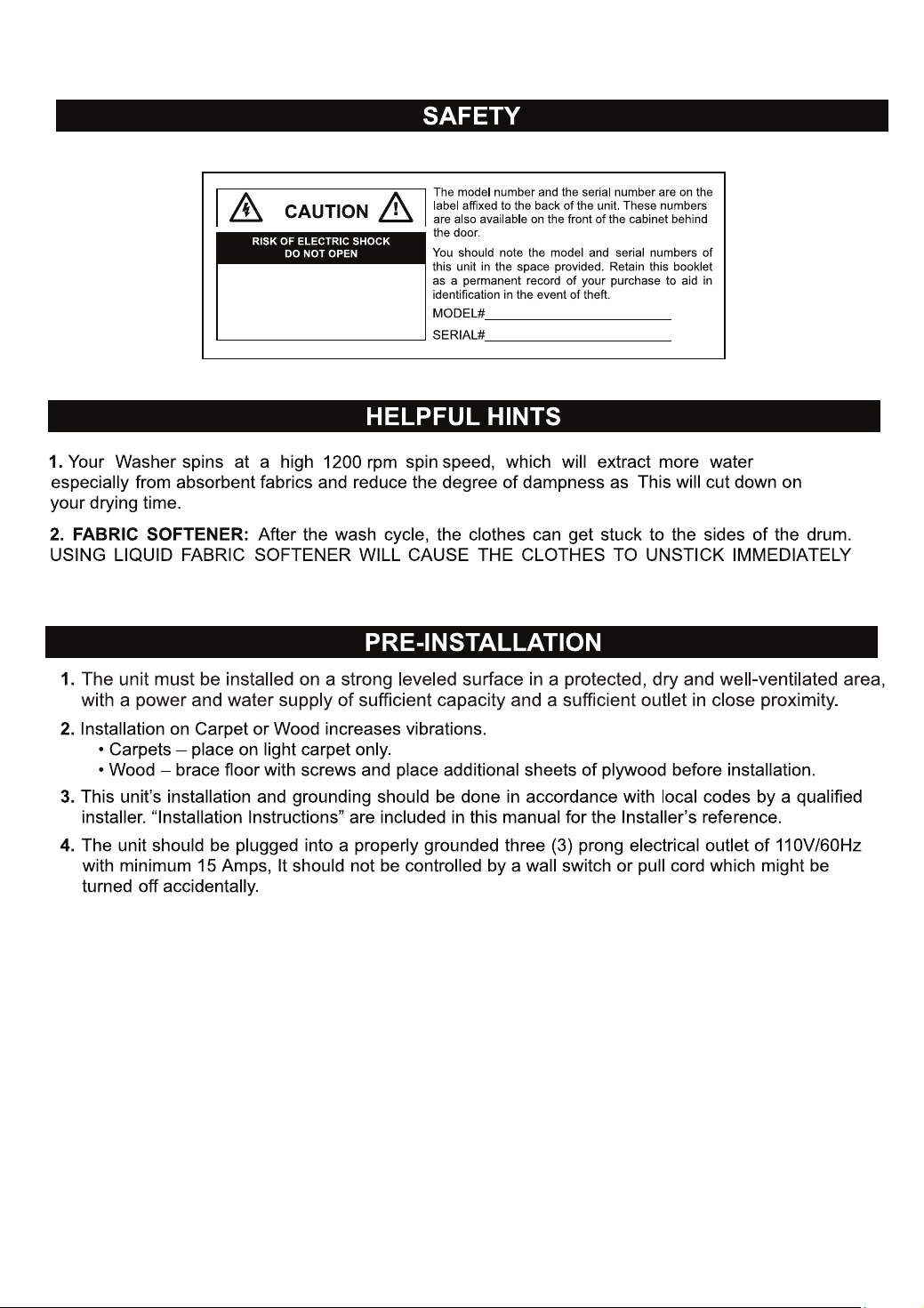

AND REDUCE WRINKLES.
CAU TI ON: TO RED UC E THE RIS K O F
ELECTR IC SH OC K, DO NOT RE MO VE
COVER (OR BACK). NO USER SERVICEABLE
PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PROFESSIONALS.
Blanking Caps
Factory supplied accessories
Disposing of the packing
The shipping package has protected your
new washing machine on its way to your home.
All packaging materials are non-poliituing and
recyclable. Please contribute to a better
environment by disposing of packing material
in an environmentally conscious manner.
Handling
Please handle the machine carefully and use
appropriate means while lifting and moving the
machine so that it does not get damaged. Do not
drag the machine to your floor and, or, to the
machine. Do not hold on to protruding parts when
lifting
Keep children away from the shipping cartoon
and packing components. Danger suffocation
from plastic foil and folding cartons.
Disposing of your old appliance
Old Appliances are not worthless trash! Valuable
raw material can be recycled from old appliances.
To prevent children from locking themselves in the
appliances, disable the door locking or remove
the door.

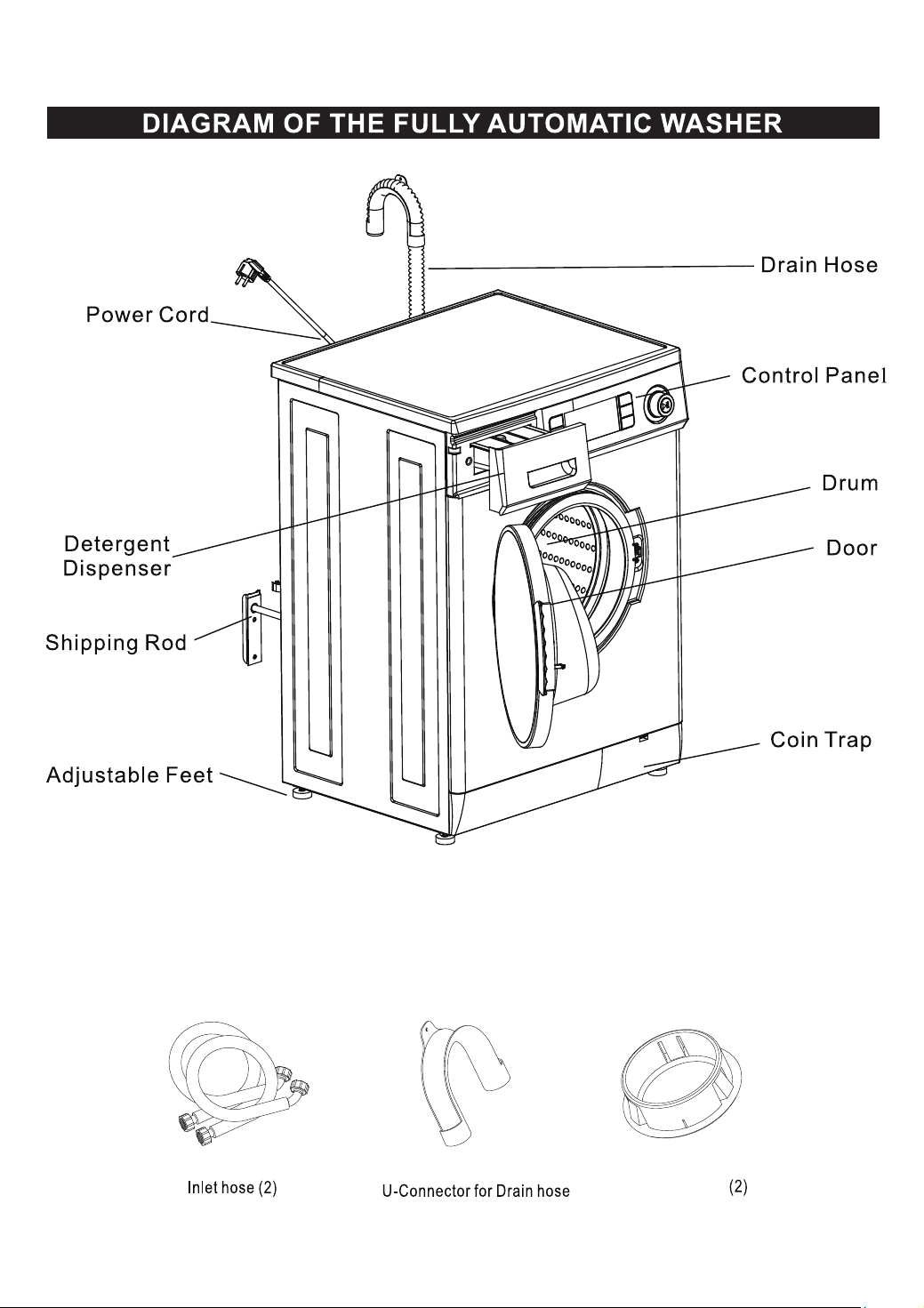

Factory - supplied Equipment
Inside the drum there is a packet of accessory
parts supplied with your washer. Check that all
the accessory parts supplied for your model
are there. If any parts are missing contact your
dealer.
Any residual moisture inside the drum is due to
the final testing which every washing machine
undergoes before leaving the factory.
Appliance stability is very important otherwise
washing machine could “wander” during the
spin cycles.
Do not install the washing machine outdoor
or in an area exposed to freezing condition.
frozen hoses can tear / burst.
The installation area must be solid and even.
Soft floor surfaces such as carpets or surfaces
with foam backing are not suitable.

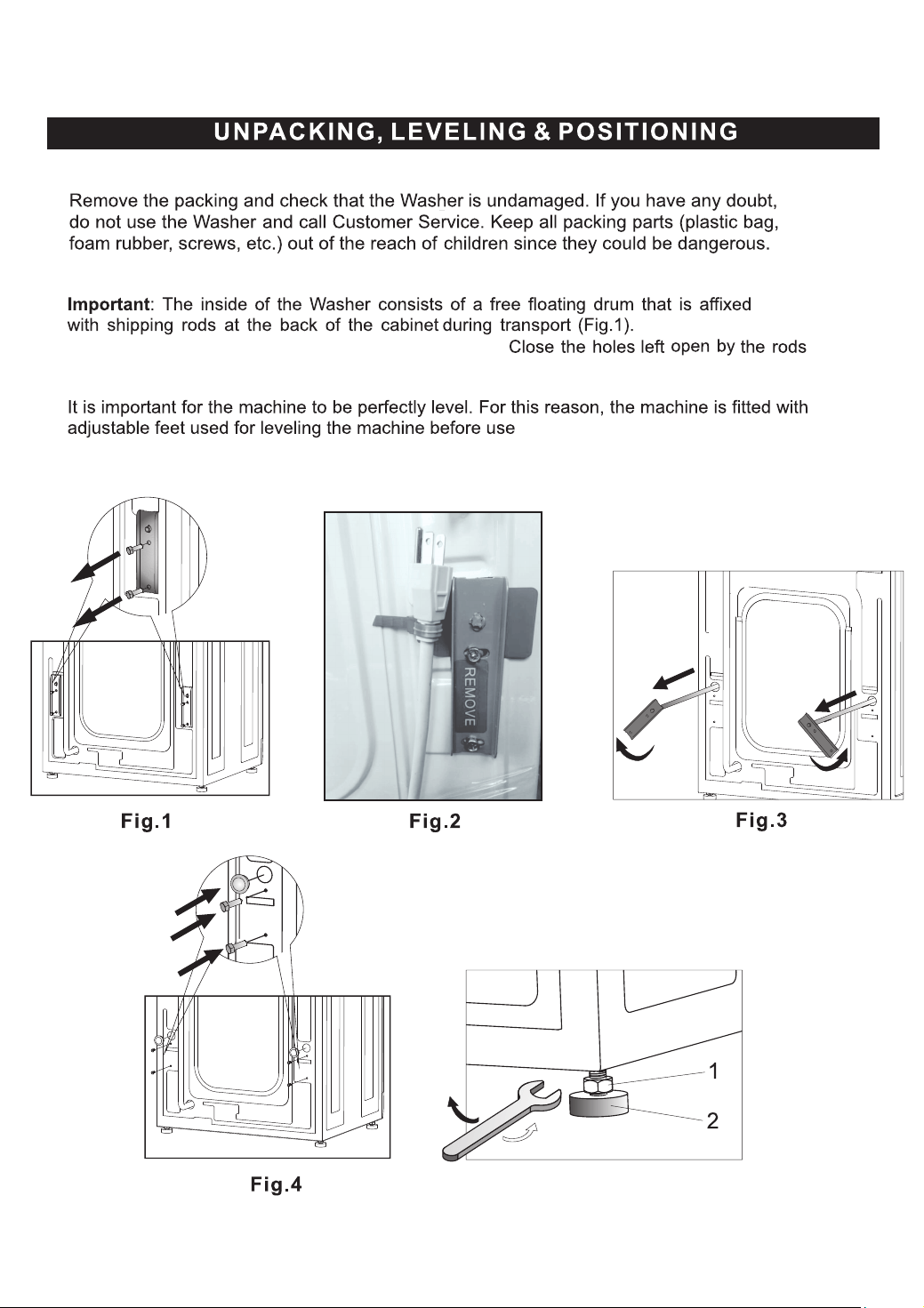

Removing the shipping rods
If the washing machine is located in a room
which will be exposed to temperatures below
freezing point, or if it is located in a cabin that is
being shutdown for the winter, any residual water
in the pump or water inlet hoses must be drained.
The shipping rods must be removed before
using the appliance for the first time and must
be retained for any future transport.
(e.g when moving)
Installation area
Fig. 5
The power cord can
be accessed by removing the shipping rods (Fig. 2 & 3).
with the caps provided (Fig. 4). The screws also need to be reinstalled (Fig. 4).
(Fig. 5).
overheating and burn out.

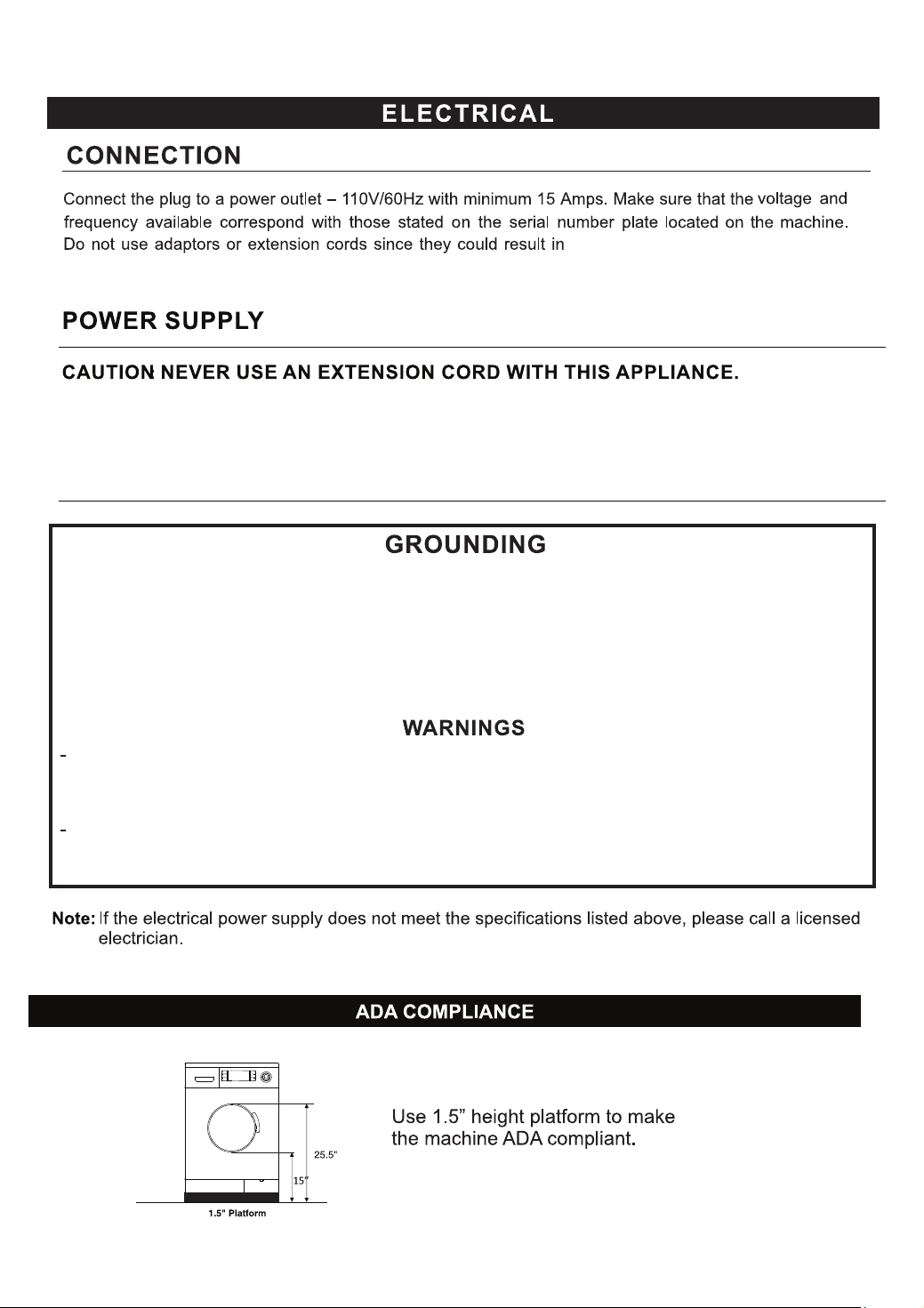

This washer must be connected to an individual circuit identical to the specified on the rating plate
of the loading port protected by fuses or circuit breaker conforming to local codes.
This appliance must be grounded. In the event of malfunction of breakdown, grounding will reduce the
risk of electric shock by providing a path of least resistance for electric current. This appliance is
equipped with a power cord having an equipment-grounding conductor and a grounding plug. The plug
must be plugged into an appropriate outlet that is properly installed and grounded in accordance with
all local codes and ordinances.
Do not modify the plug provided with the appliance: if it will not fit the outlet, have a proper outlet
installed by a qualified electrician.
Improper connection of the equipment -grounding conductor can result in a risk of electric shock.
Check with a qualified or service representative or personal if you are in doubt as to weather the
appliance is properly grounded.

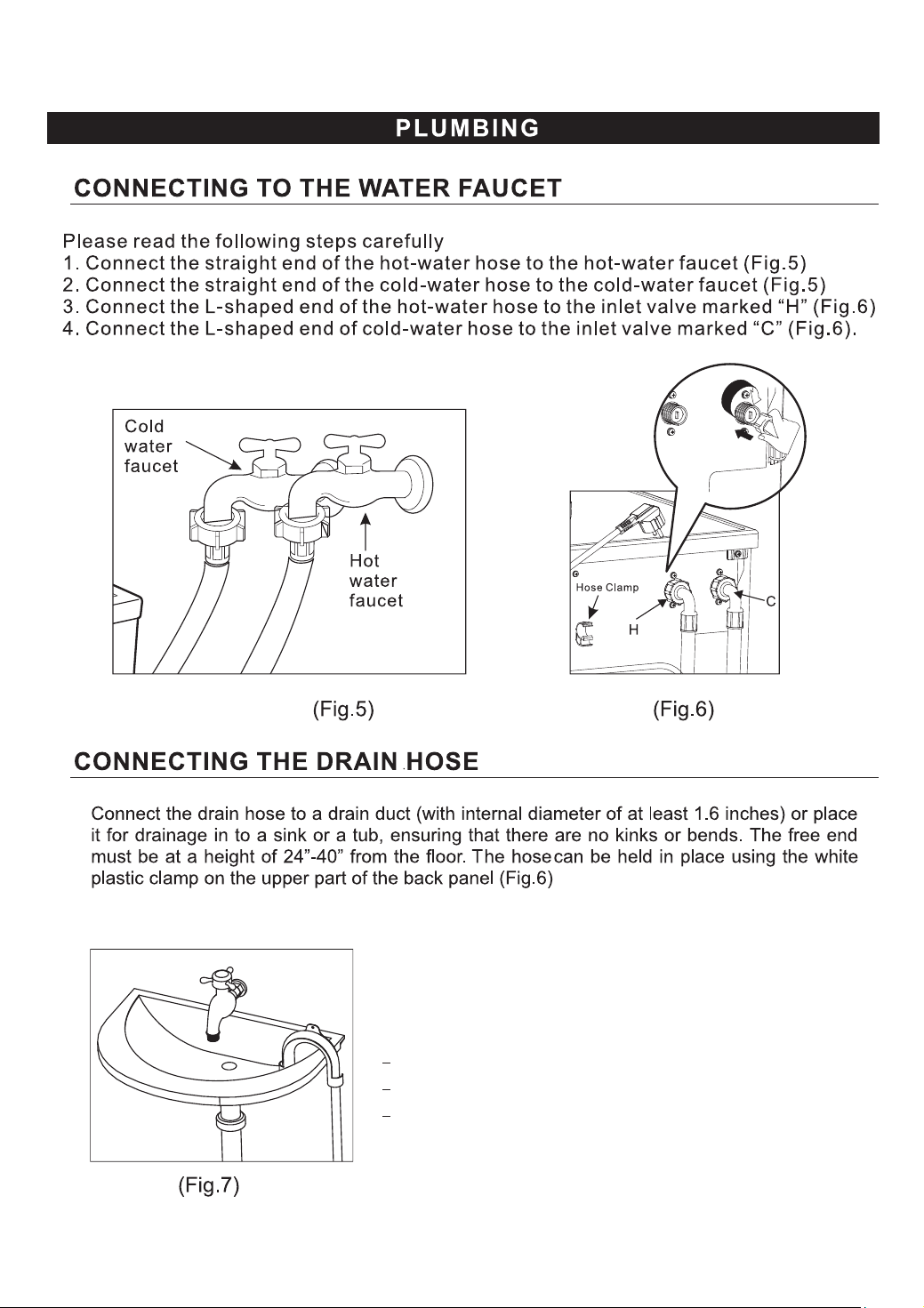

Height difference between the installation location of
the washing machine and the drainage point:
Minimum 24", and Maximum 40".
Attach water drain hose to U-Connector.
Hook the U-Connector over the side or stand pipe (Fig 7.)
When the water is being drained, check that the water flow
out of the hose is adequate.

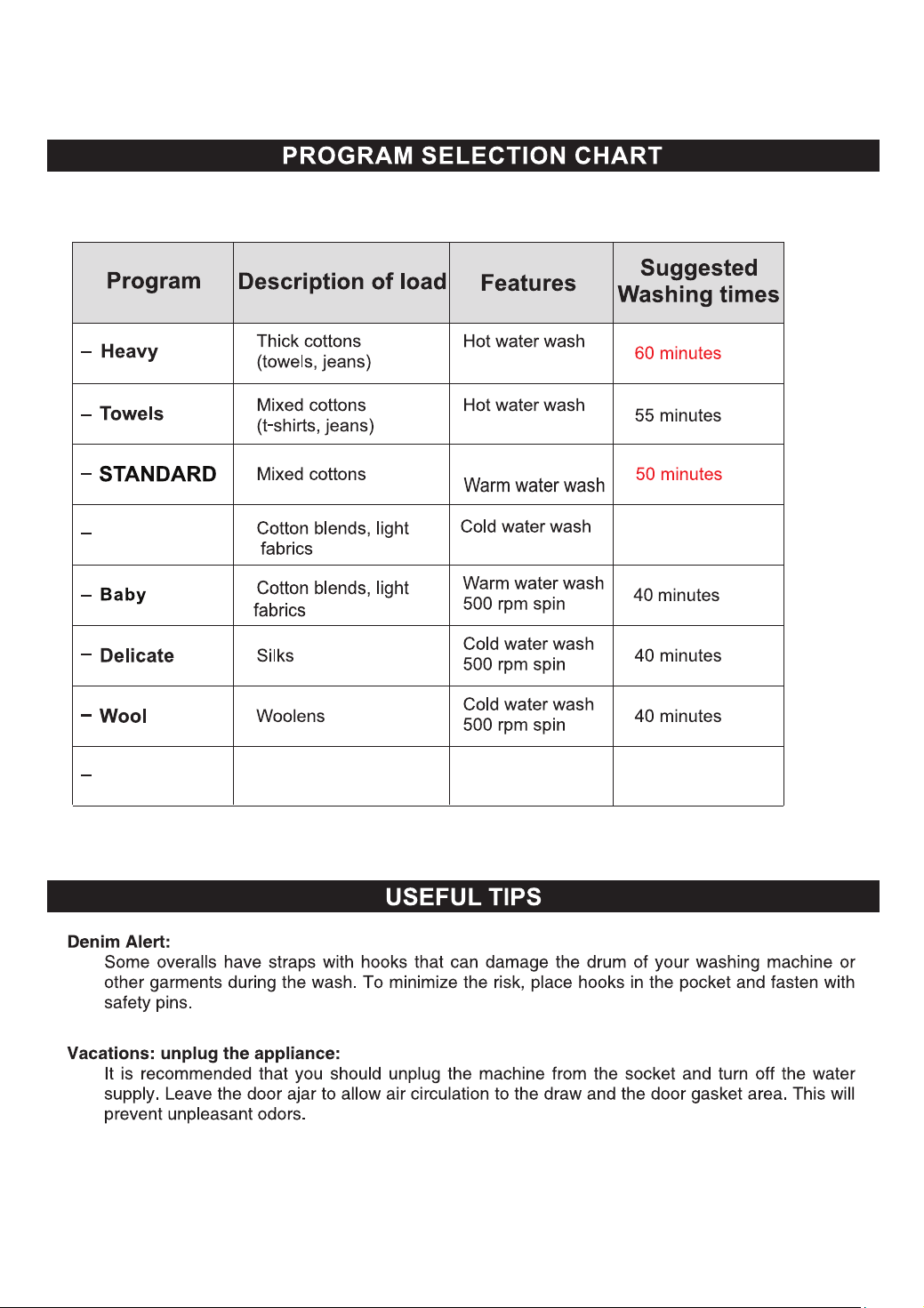

20 minutes
Quick 20
Quiet
Value by Atul
68
Light fabrics 35 minutes
Cold water wash
800 rpm spin
1200 rpm spin
1200 rpm spin
1200 rpm spin
1200 rpm spin
Value by Atul
55

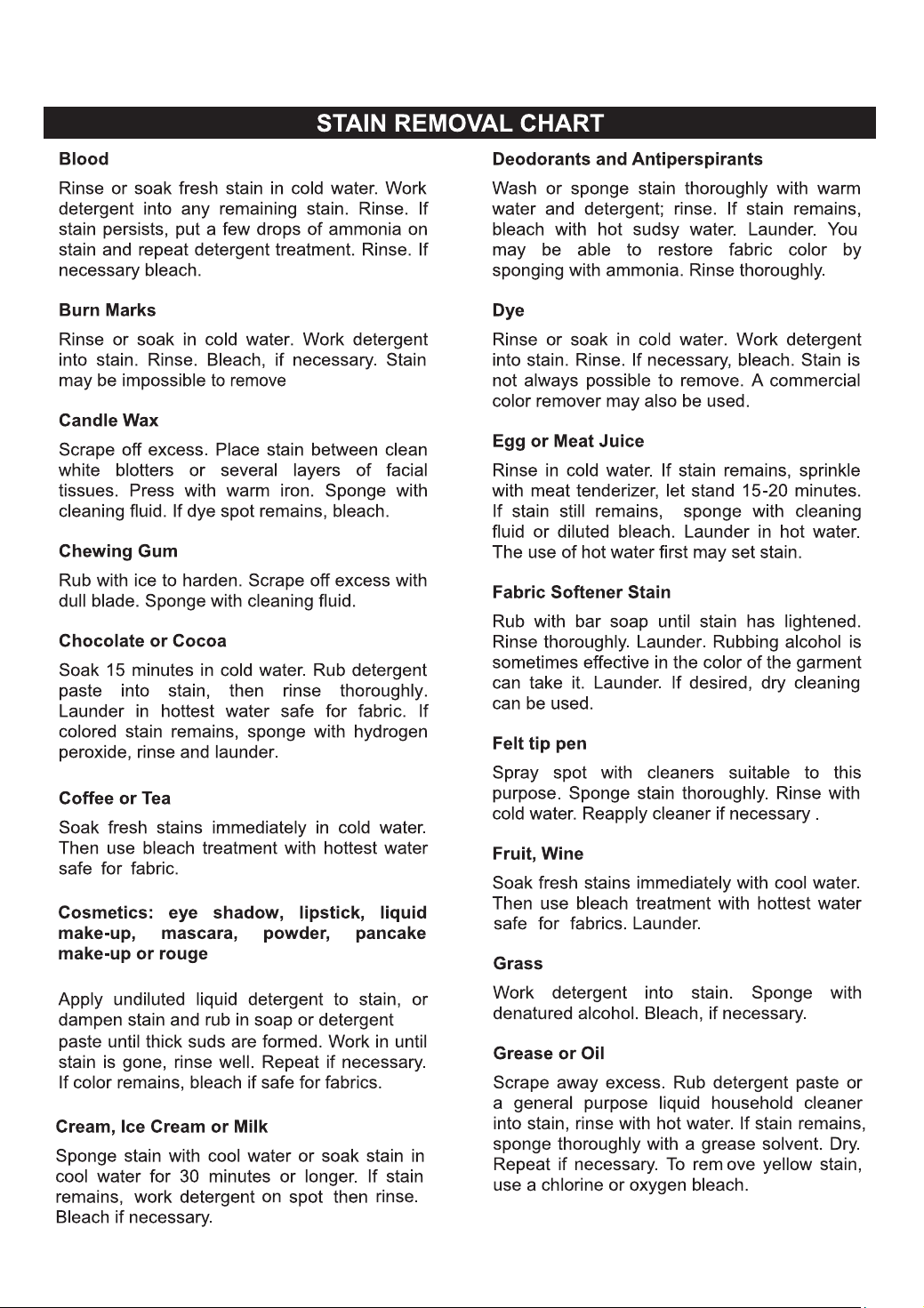

For small items such as socks, children’s garments and small towels please use
a Washing Net Bag.
Make sure

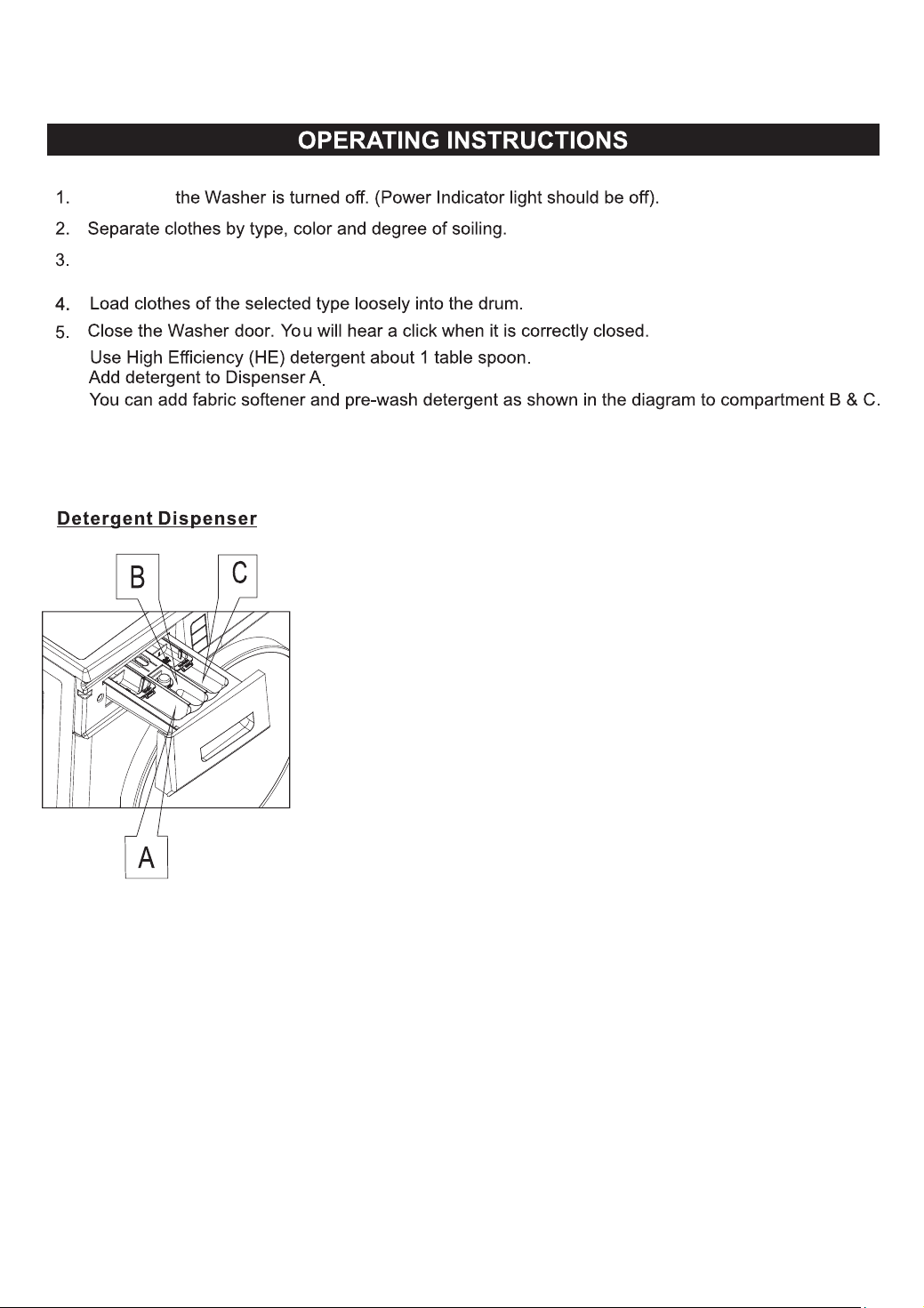

Add detergent in Dispenser C, only for Pre-Wash cycle.
Note : concentrated fabric softener must be diluted with a little water before
being poured into the dispenser
(This prevents the over flow siphon from getting blocked)
The blue cups are only for liquid detergent.
Please do not add powder in these cups.
Detergent for pre-wash
Fabric Softener
Detergent for main wash
Dispenser A:
Dispenser B:
Dispenser C:
2

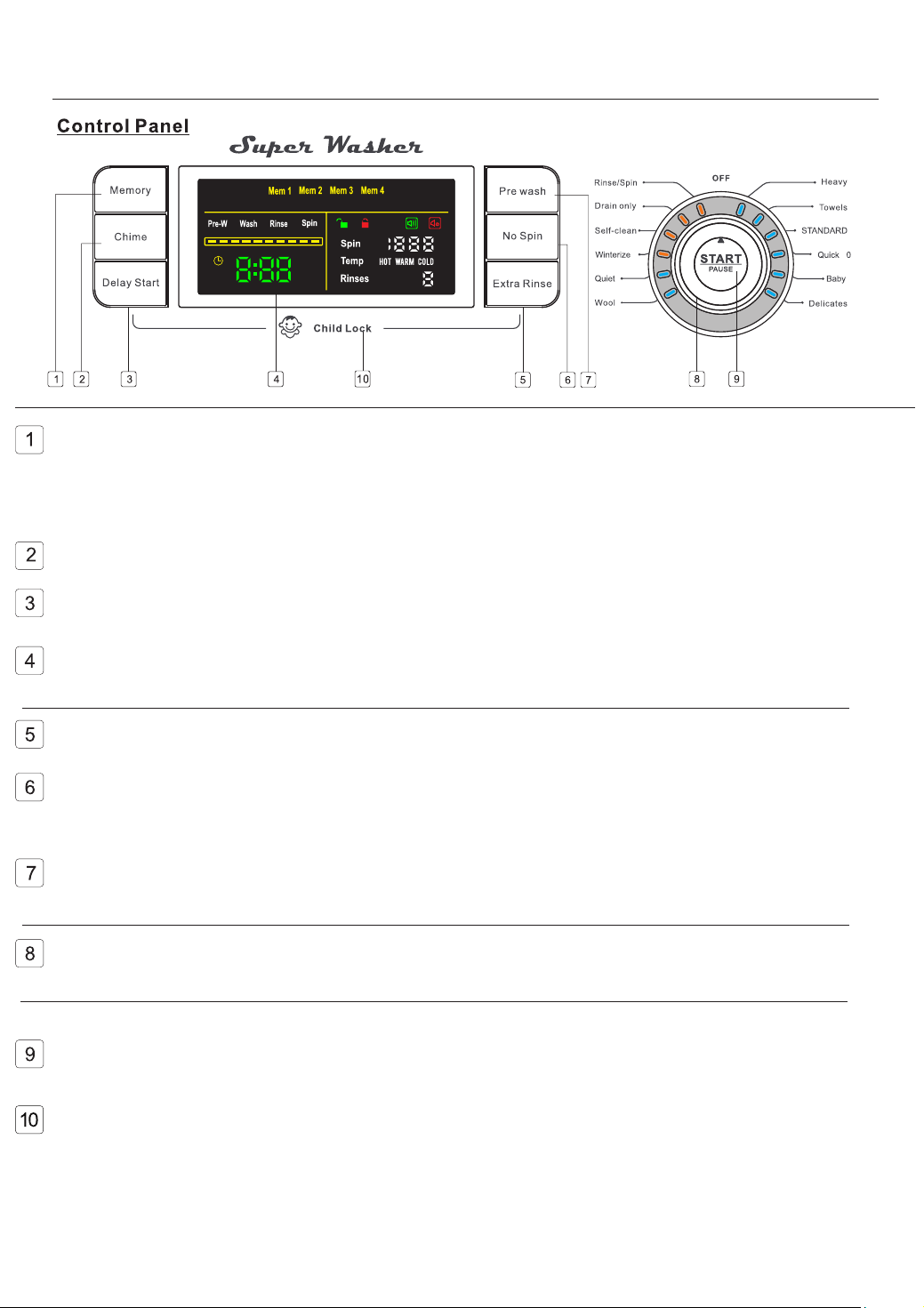

Press this button to select once of the four positions, then select the additional
options for your favorite washing cycles, then press Start/Pause button to run this
program, and this program will be memorized. If you want to run the memorized
program later, press this button to select one of them, then press Start/Pause button.
Turn the dial to align “OFF” to cancel the memory operation.
Press this button to turn on, or off the chime before you start the washing cycle.
Press this button to select the delay time from 1 to 24 hours in one hour increments
before the wash cycle started

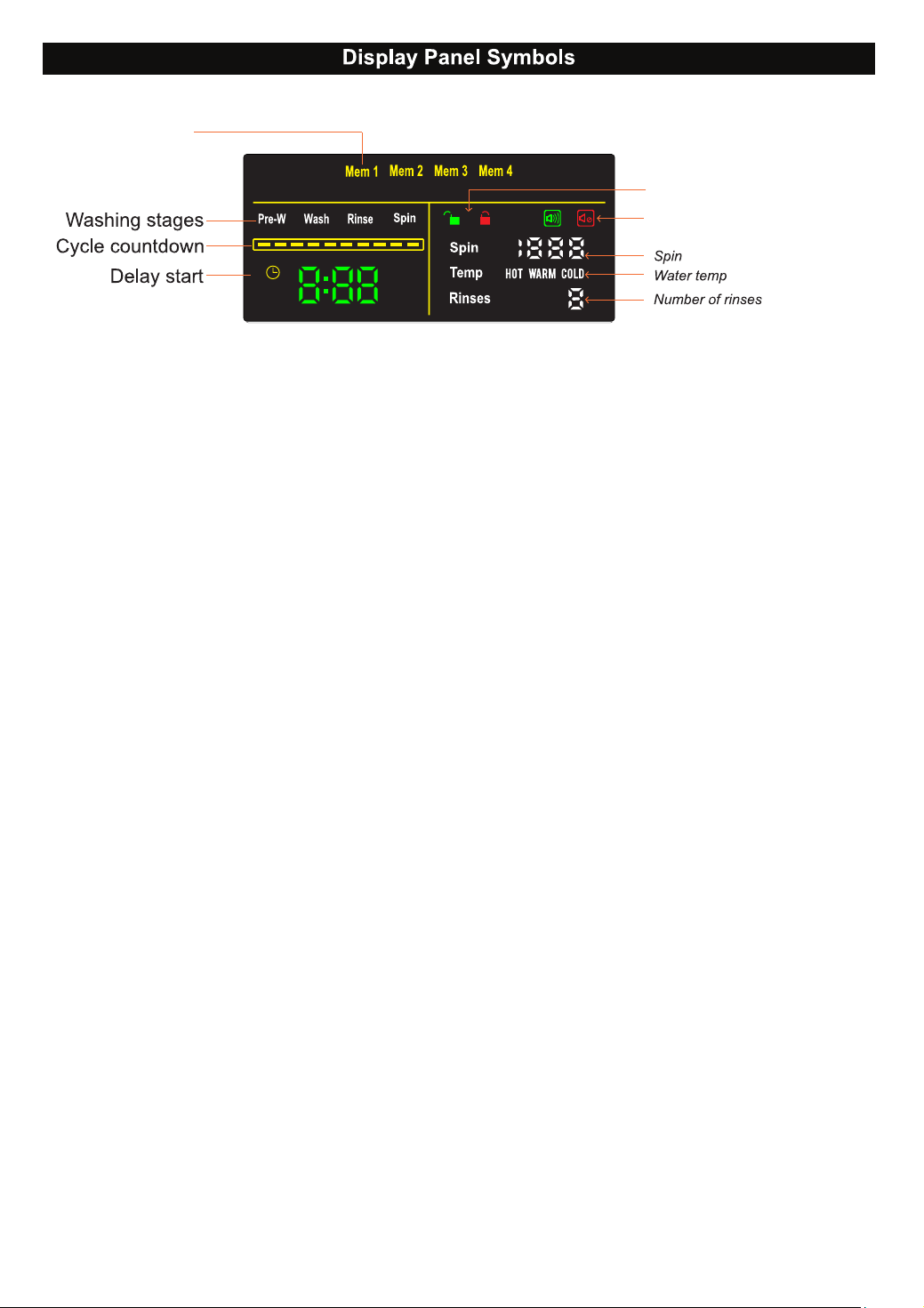

To display the selected program, such as the water selection, spin speed,
remaining time, rinse times, water level and error messages.
Press this selection button to add one more rinse cycle to the selected washing program.
Press this selection button to eliminate the spin function. This function will keep the
laundry in the rinse water after the last rinse cycle is finished. Press this button again,
it will drain out the water and proceed to last spin cycle.
Press this button to add a prewash cycle to the selected washing program.
This cycle is helpful to clean heavy soiled clothes
Turn dial to point to one of the 12 programs depending on the load to turn the unit on.
Move it to the off position to turn the unit off.
Press this button to start or interrupt the selected wash program, or to view the
program during a cycle.
In order to deactivate the function to the controls, to prevent altering cycle, press
and hold the “Extra Rinse” and “Delay Start” buttons.
Memory
button
Chime button
Delay Start
button
Color LED
Display
Extra Rinse
button
No Spin
button
Pre Wash
button
Program Dial
Start/Pause
button
Child Lock
How to Run a Wash Cycle
Memory Function
1. Rotate knob to one of the wash settings
2. Press START
(Standard settings, for custom settings select accordingly)
Door Unlocked / Locked
Wash settings
Chimes On/Off
How to stop the wash cycle
- The wash program can be stopped at any time.
- Press pause for 5 seconds
- Turn knob to OFF position
- To drain water turn knob to DRAIN ONLY on left side.
- Press pause for 5 seconds
- Door will open 2 mins after draining water so that it does not overflow.
- Load clothes. Close door.
- Press START The cycle will continue from the point it stopped

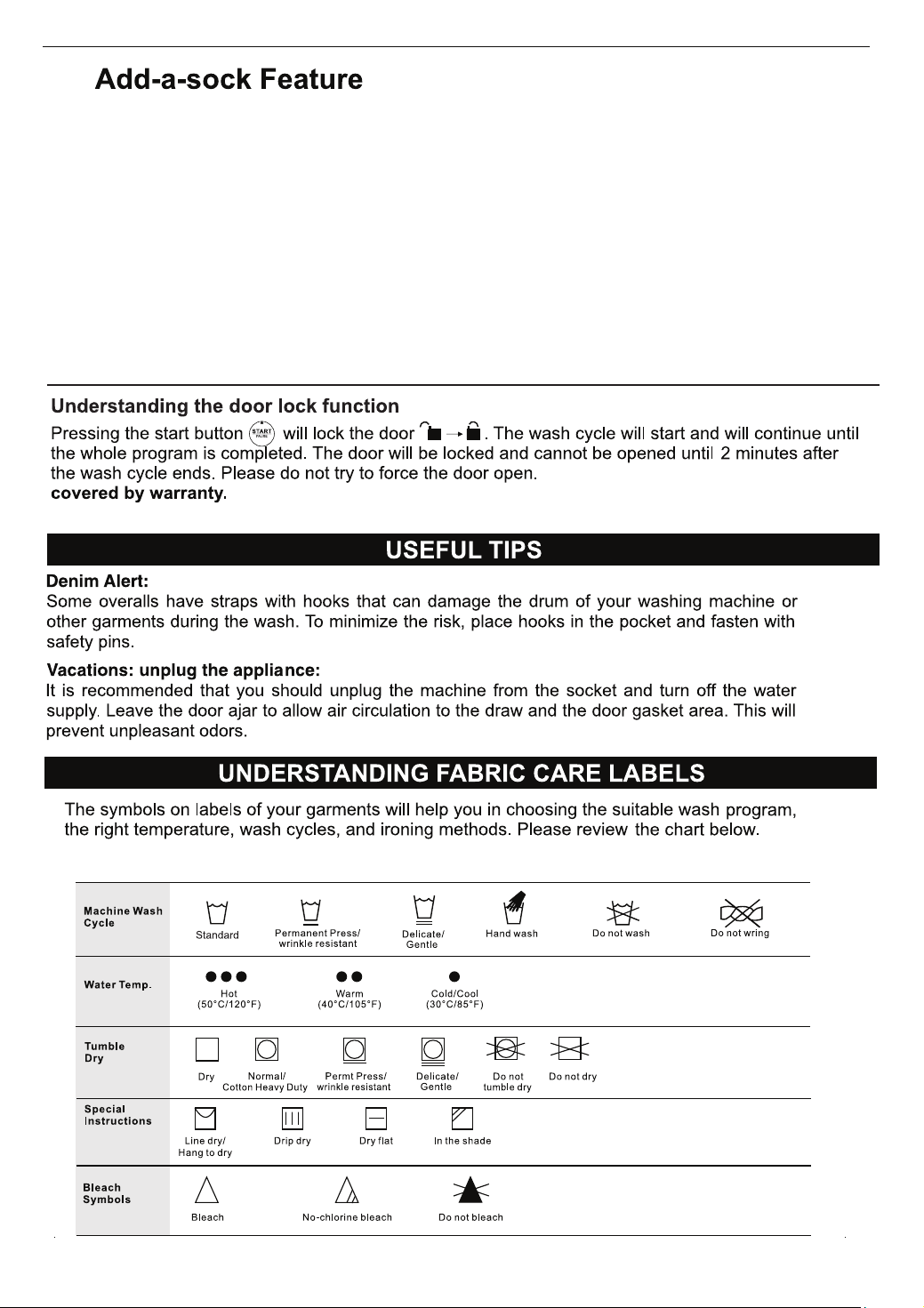

The wash program can be stopped at any time to add forgotten items to the laundry
Breakage of the door handle is not
Pour 2 cups of RV type Antifreeze in soap dispenser.
on knob
Shut off water at both faucets and disconnect water inlet hoses from faucets and drain

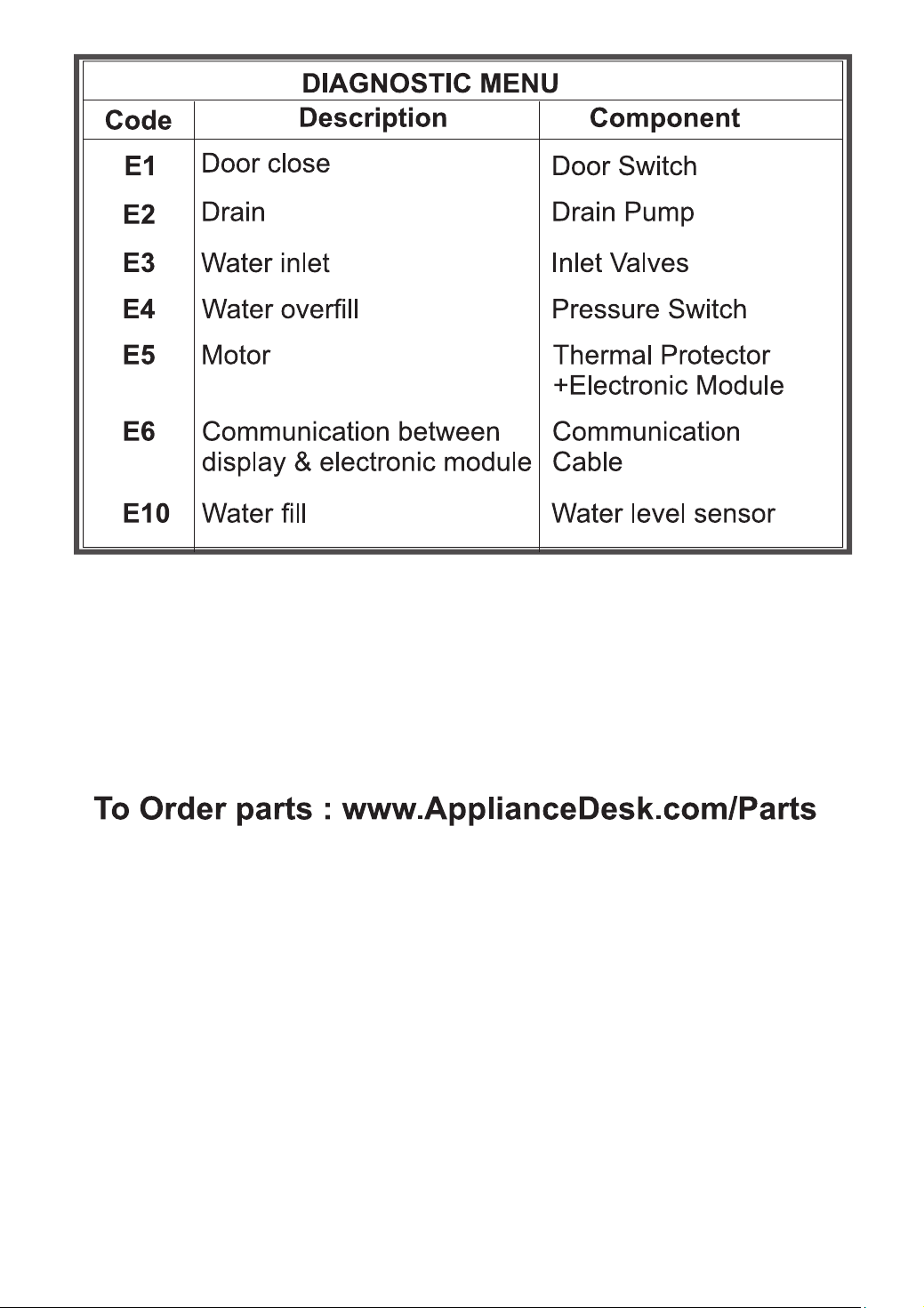

Make sure that your machine was installed according to the correct installation procedures mentioned
in this Manual.
- Press release lever on the inside of the drawer and pull it out. (Fig. 14)
- Remove the cap from the Fabric Softener compartment.
- Wash all of the parts under running water.
- Clean the drawer recess with a small brush. (Fig.15, Fig.16)
- Reinsert the cap (Pushing it firmly into place).
- Push the drawer back into place.
- Run a rinse program without any laundry in the drum.
- Switch off the Washer
- Open the service flap. (bottom right corner)(Fig.11)
- Carefully unscrew the coin-trap cover. Warning: Some residual water will flow out. (Approx. 1 Cup)[Fig.12]
- Remove foreign objects/fluff from inside and clean the interior. (Fig.13)
- The pump impeller wheel located behind the water filter, must be able to rotate.
Remove detergent residue and fluff from the pump cover thread and pump housing.
- Insert the coin-trap cover and screw tight.
- Insert and close the service flap.
Read the instructions carefully and keep for future reference
OWNER’S MANUAL

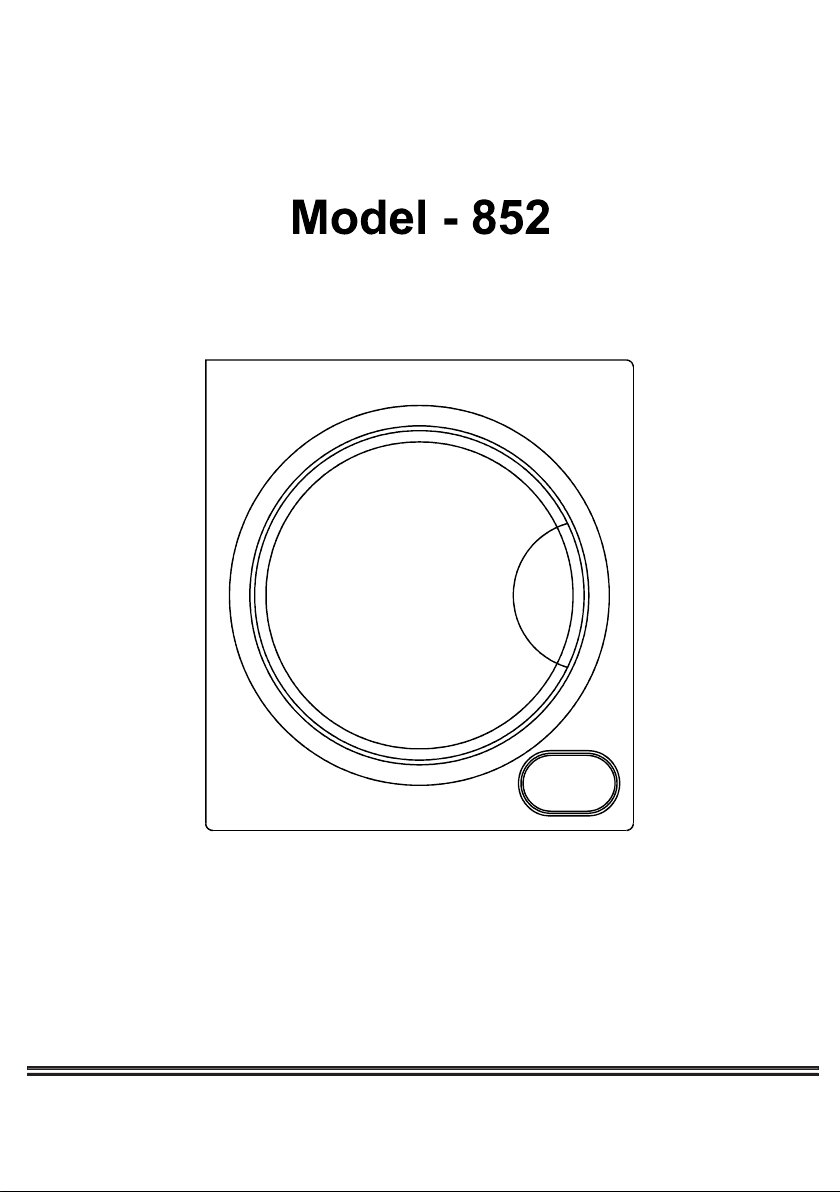

Compact Short Dryer
Consolidated Brands undertakes to the consumer-owner to repair
or, at our option, to replace any part of this product which proves
to be defective in workmanship or material under normal personal,
family or household use, in USA and Canada, for a period of one
year from the date of original purchase. During this period, we will
provide all labor and parts necessary to correct such defect, free
of charge, if the appliance has been assembled and operated in
accordance with the written instructions with the appliance.
In no event shall Consolidated Brands be liable for incidental
or consequential damages or for damages resulting from
external causes such as abuse, misuse, incorrect voltage or
acts of God. This warranty does not cover service calls which
do not involve defective workmanship or materials covered
by this warranty. Accordingly, diagnosis and repair costs for
a service call which does not involve defective workmanship
or materials will be the responsibility of the consumer-owner.
Warranty
Exclusions
Specifically, the following work is not covered under warranty
and does not constitute warranty work:
Most work is covered. The defining factor is, has the machine
malfunctioned (Consolidated Brand is responsible) or has the
customer omitted or done something to cause the appliance to
malfunction (customer is responsible). Some States do not
allow the exclusion or limitation of incidental or consequential
damages, so the above limitation or exclusion may not apply
to you.
Installation - e.g. incorrect attachment to rack or wall
Maintenance - e.g. failure to clean lint filters
Mishandling - e.g. breakage of door handle
You can register your Warranty by any of the following methods:
1. Mail in the Warranty Registration Card
2. Register online at www.ApplianceDesk.com
3. Scan the QR Code
Appliance Desk
Phone/Text: 1-800-776-3538
Email: [email protected]
Web: www.ApplianceDesk.com
Business hours: 9:00 am to 5:00 pm weekdays
For Customer Service:
This warranty is given by:
Consolidated Brands
10216 Georgibelle Drive, Suite 900D
Houston, Texas 77043-5249
Since it is a responsibility of the consumer-owner to establish
the warranty period by verifying the original purchase date,
Consolidated Brand recommends that a receipt, delivery slip or
some other appropriate payment record be kept for that purpose.
This warranty gives you specific legal rights, and you may also
have other rights which vary from State to State.
WARRANTY SERVICE
GENERAL

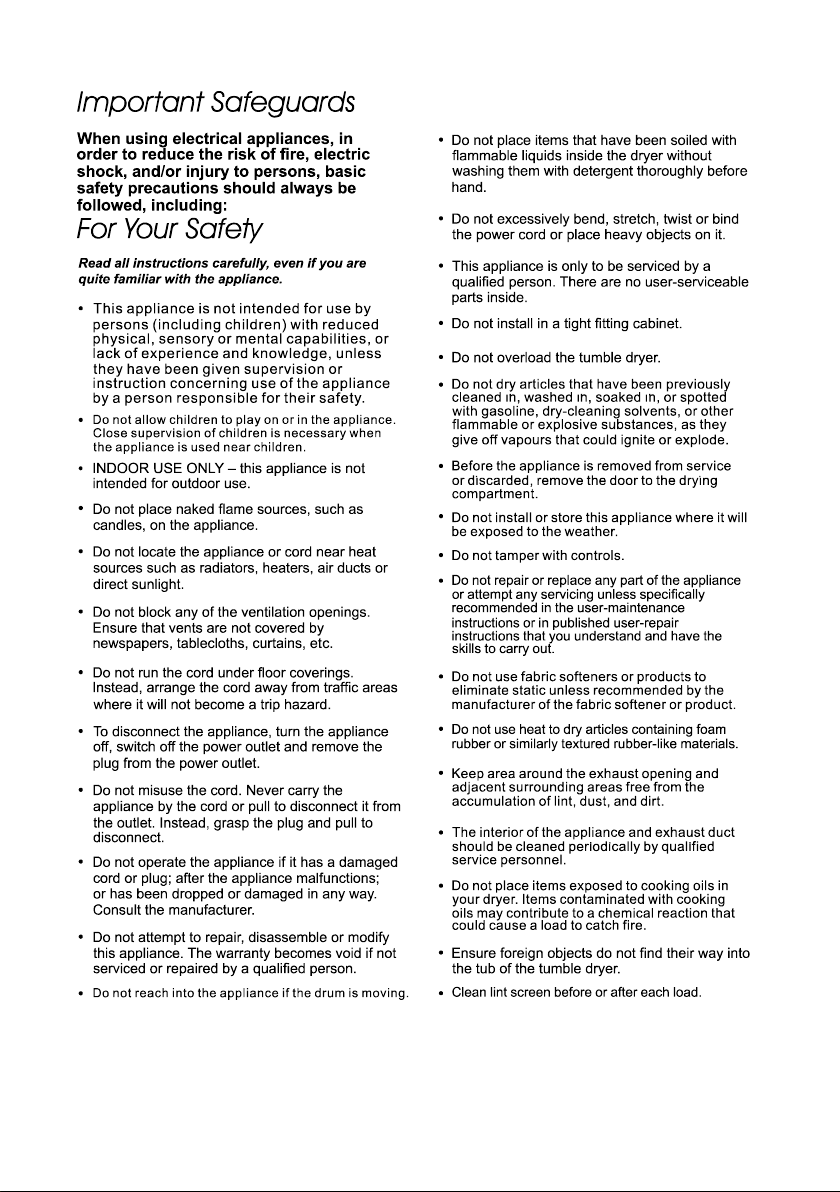

1

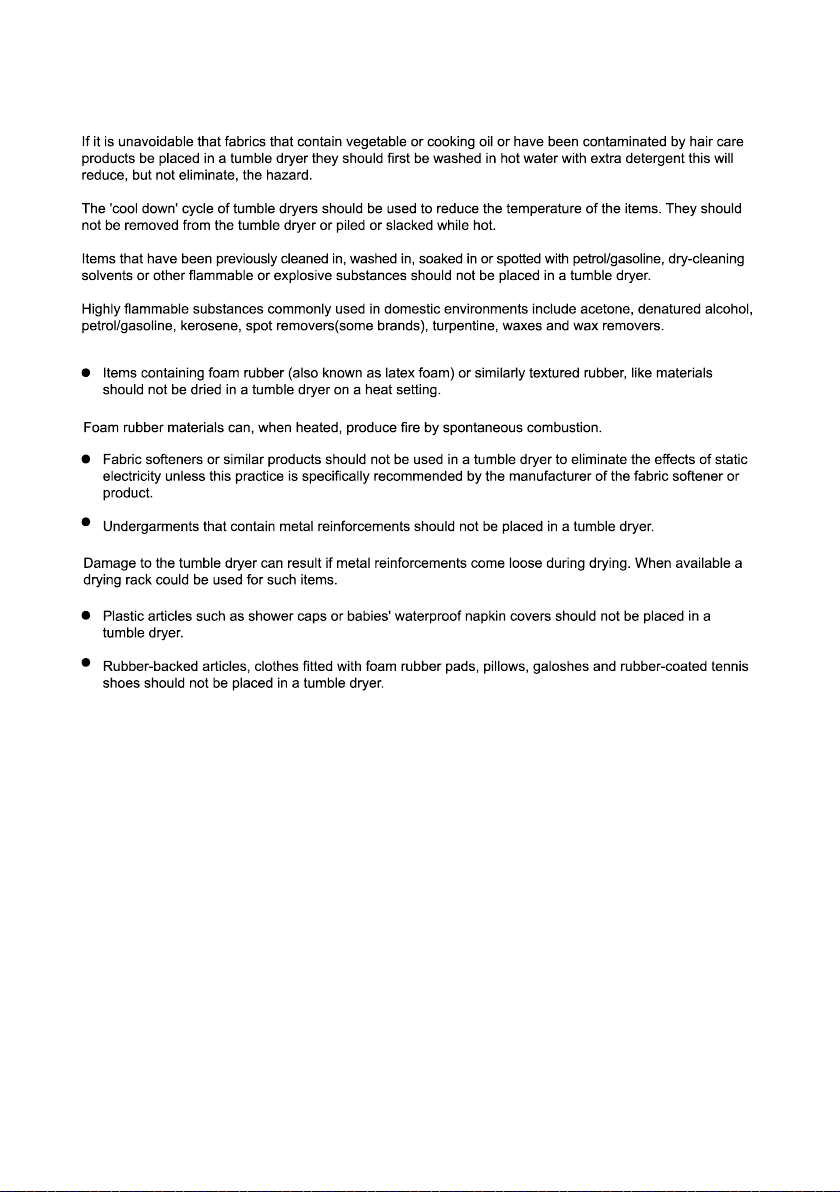

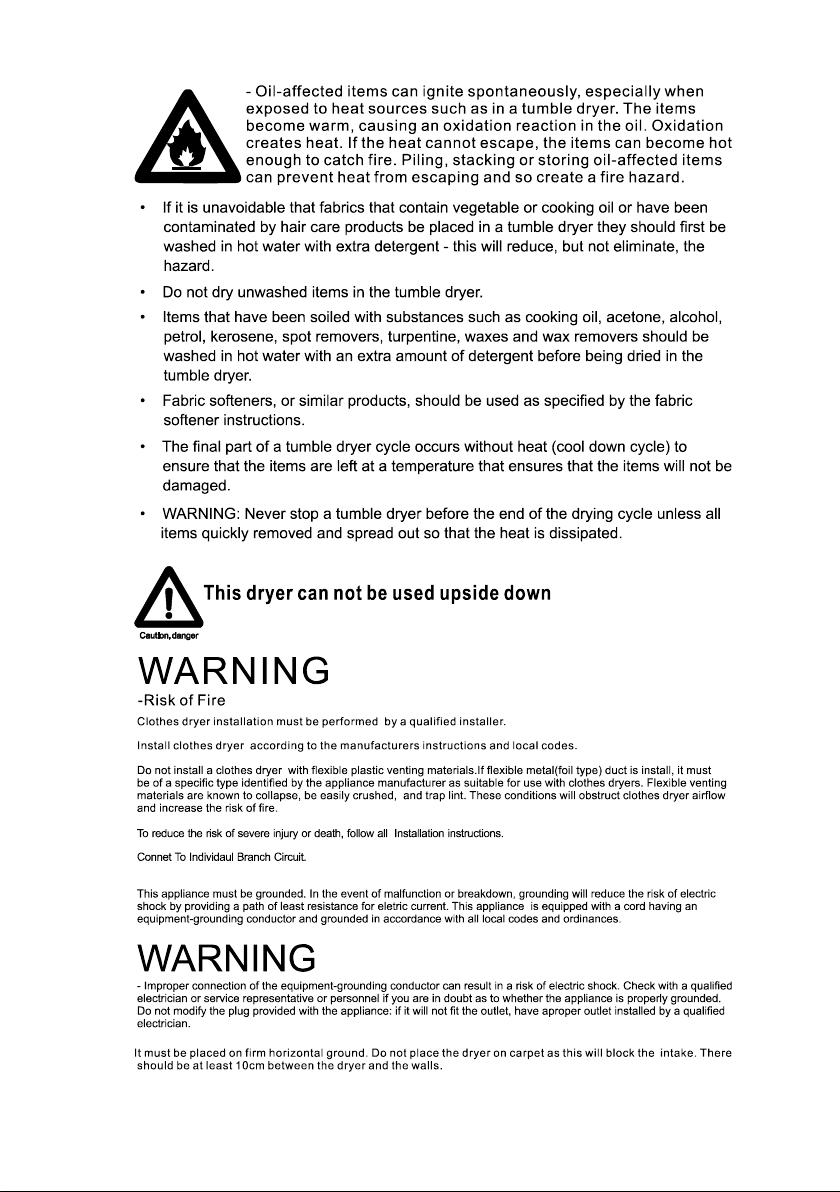

2
28.5 inches
27.5 inches
27.5 inches
The Dryer may be installed in a built-in, recessed area, closet or alcove.
The installation spacing is in inches and is the minimum acceptable.
Other installation must use the minimum dimension indicated.
Minimum clearance between dryer cabinet and adjacent walls are: 2" either side and 3" front
and rear.
Minimum vertical space from floor to overhead cabinets, etc. is 52" (132 cm).
Closet door must be louvered or otherwise ventilated and must contain a minimum of 60 sq.in.
of open area equally distributed. If closet contains both a washer and a dryer, doors must contain
a minimum of 120 sq.in. of open area equally distributed.
No other fuel-burning appliance shall be installed in the same closet with the dryer.
Additional clearances for wall, door and floor moulding may be required.
Additional space is needed when an external exhaust elbow is used.
NOTE: If a door is installed that potentially encloses the unit while running, the door must allow for
a minimum of 20 square inches of free air movement. There must also be a 1" additional space in
front of the unit to the closed door and 1" from back of the unit to the wall. Additional spacing should
be considered for easy installation, servicing and compliance with all applicable local, state, and
federal codes.
3
6 in (15 cm)
2 in (50 mm)
6 inches (15 cm)
22 in (563mm)
22 in
(563 mm)
(570 mm)
wood plank
wood plank
22.8 in
6 in (15 cm)
1 x 3 in
wood plank

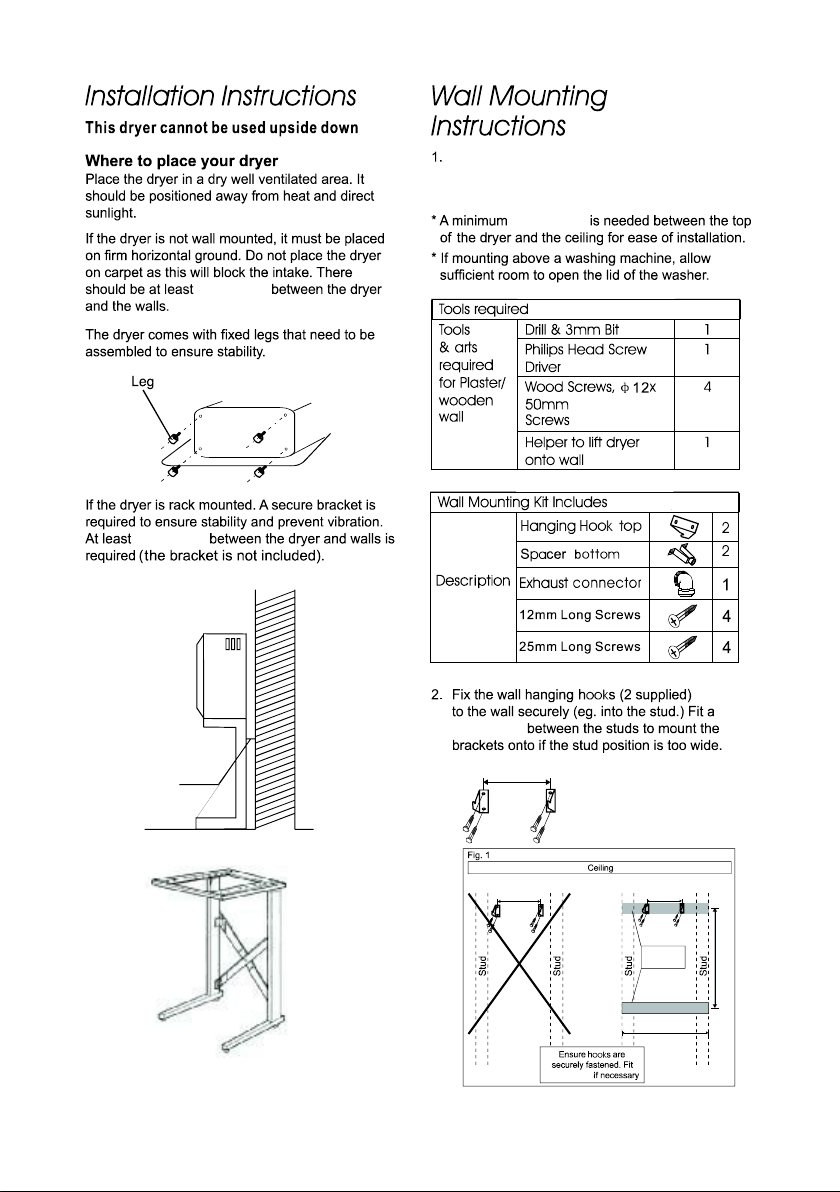

Determine and mark the dryer position on the wall.
This dryer is not suitable to be directly placed on top
of a washing machine.
( )
( )
22 in
(563 mm)
22.4 in
(580 mm)
wood plank
4

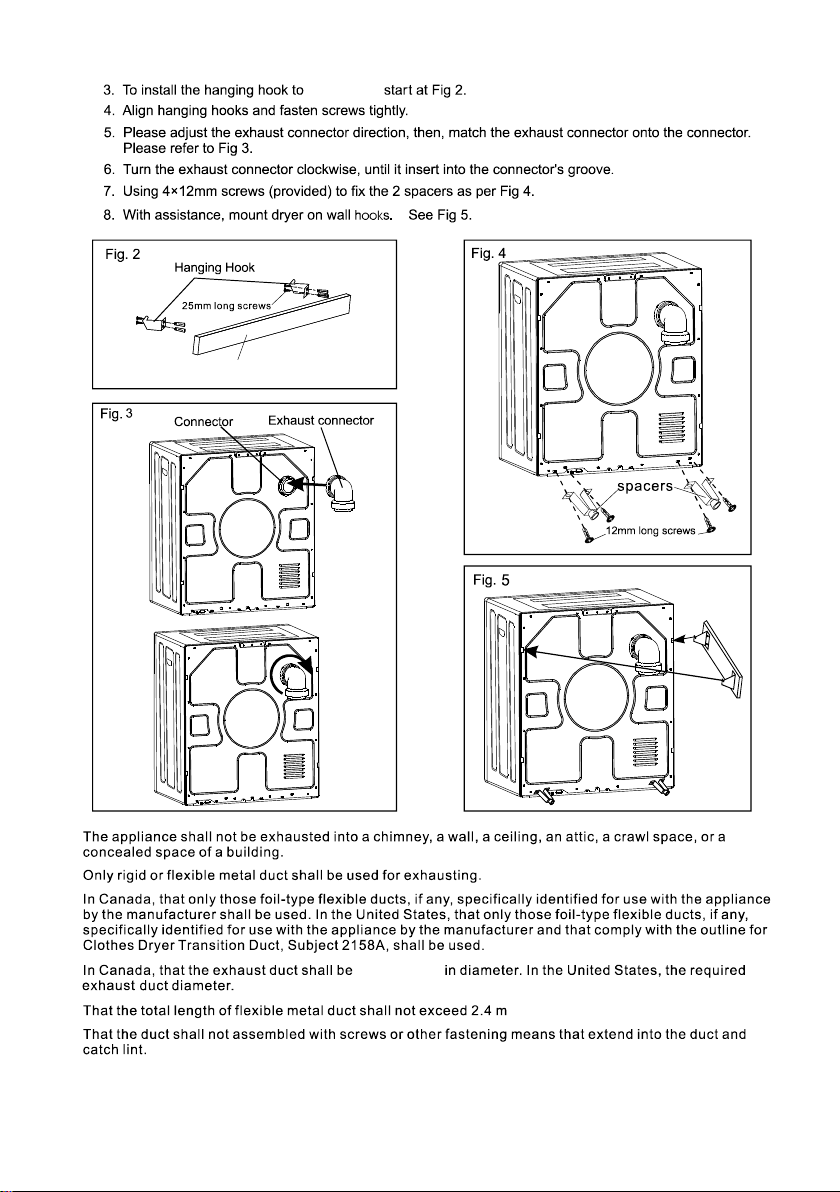

(8 ft).
4 in (102 mm)
wood plank,
wood plank (not included)

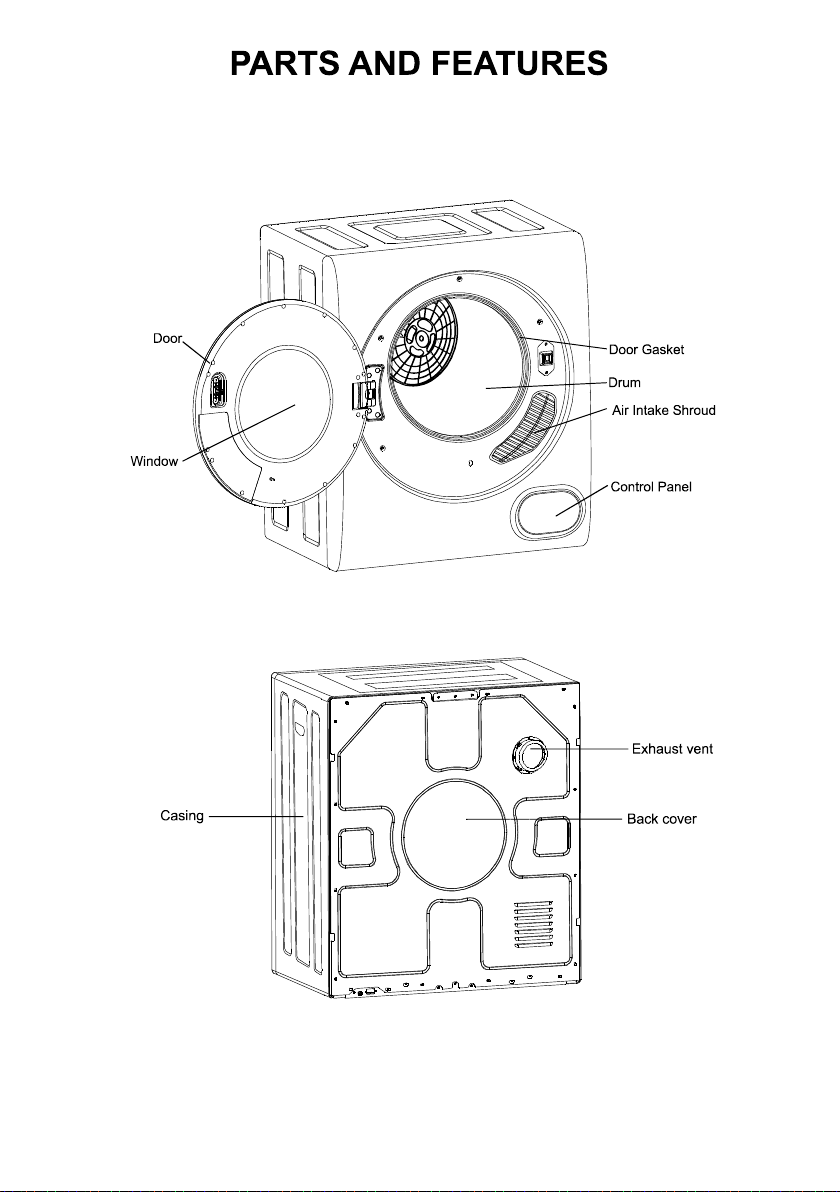

5
6
7

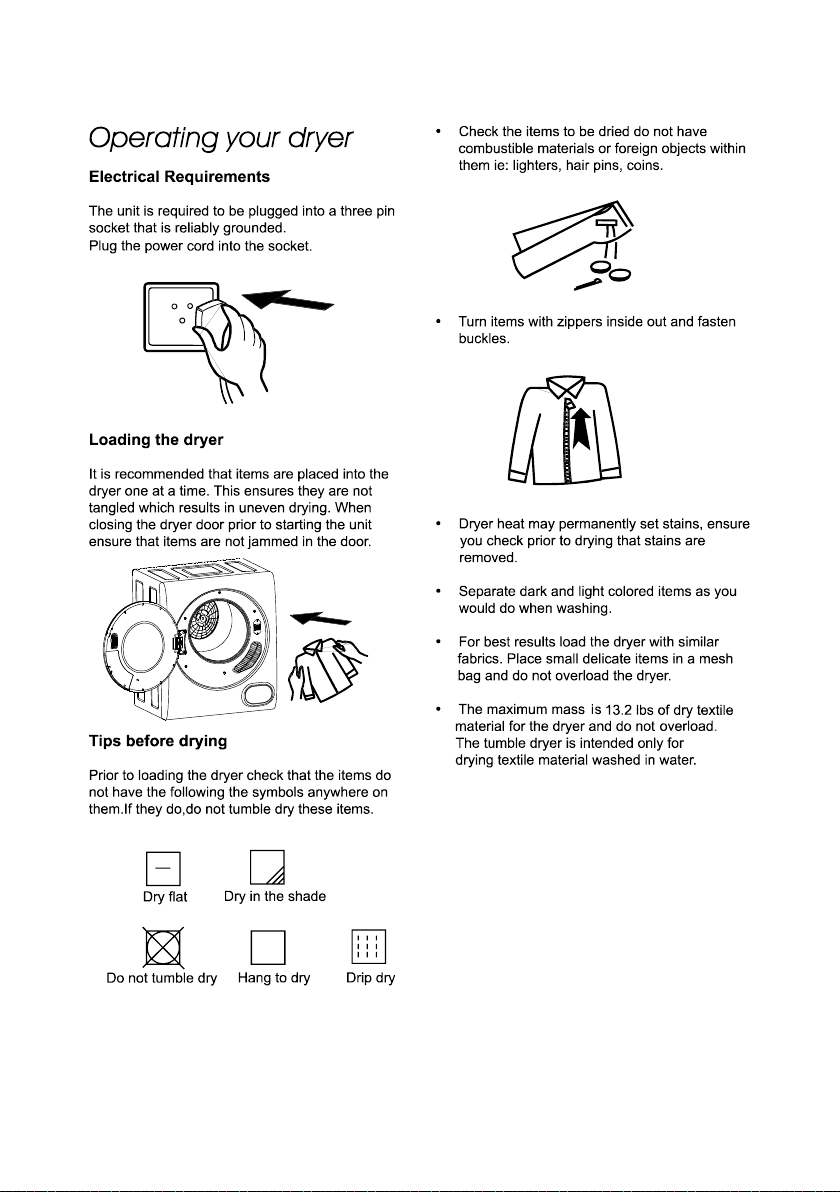

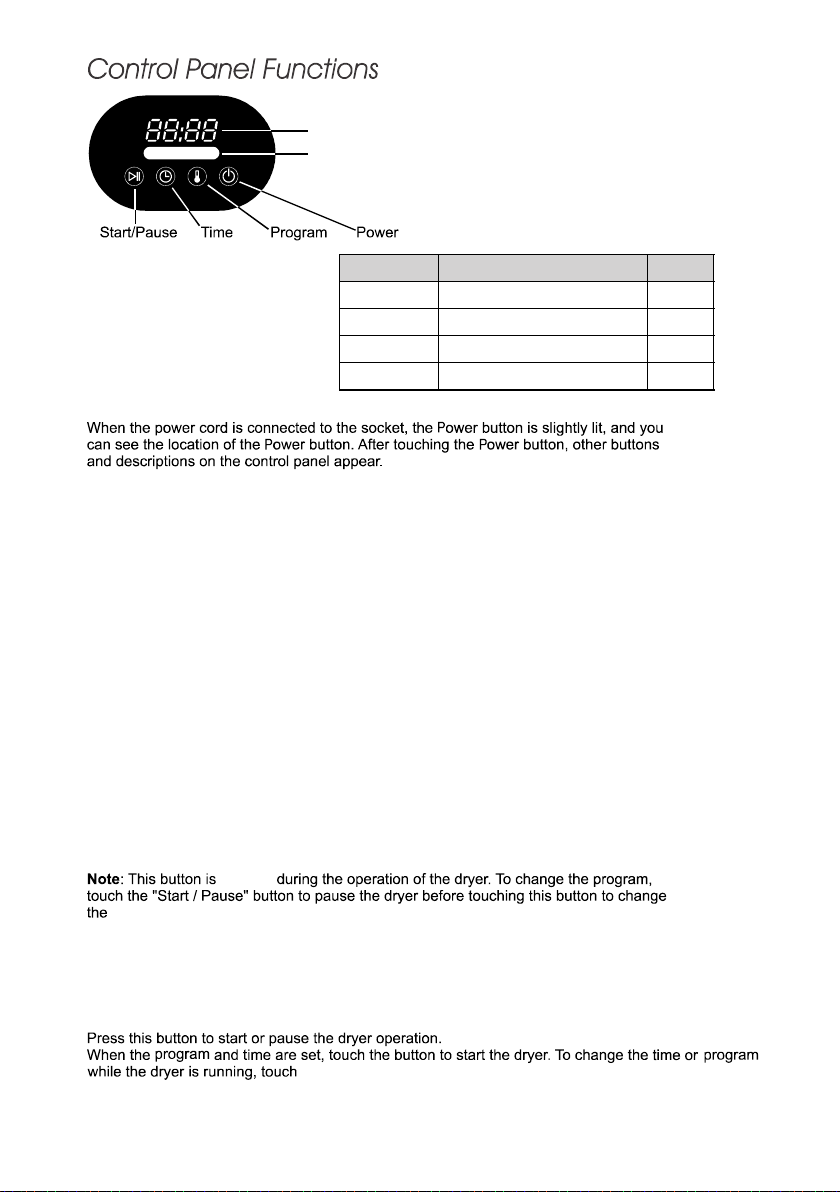

Time Display - Shows Program times and time remaining (minutes)
Light Bar - Shows colors for different programs
Step 2 - Program Button
This button is used to select a drying program. When you press the Program button, it first
shows red on the light bar. Each time you press it, will show a different color for each of the
4 different programs.
inactive
drying program.
This button is used to set the drying time. With each press of the button, the time increases in
20-minute increments, up to 200 minutes. To change the time once the drying program is running,
press the Start/Pause button, make the time change, and then press Start/Pause again to restart.
Step 3 - Time Button
Step 4 - Start/Pause
this button to pause. Select the desired program and then press this
button again to restart.
Each of the drying programs is described below:
a) Red: The dry cycle runs at high heat and the default time is 150 minutes. The time can be
changed by pressing the Time button. This program is best for drying a heavy load.
b) Light Blue: The dry cycle runs at high heat and the default time is 200 minutes. This
program works with a sensor and will adjust the time automatically and will stop when the
clothes are dry. The time cannot be changed in this program.
c) Dark Blue: The dry cycle runs at no heat, just air and the default time is 30 minutes. The
time can be changed by pressing the Time button. This program is best for delicates or if
you just want to refresh clothes.
d) Green: The dry cycle runs at half heat and the default time is 90 minutes. The time can be
changed by pressing the Time button. This program is best for drying a light to normal load
and if you want clothes to be damp dry for ironing or for hanging up to dry.
Red Time Dry: High Heat 150
Light Blue Sensor Dry: High Heat 200
Dark Blue Sensor Dry: Air + High Heat ECO
Green Time Dry: Half Heat 90
Color Program Display
8
Step 1 - Power Button
9

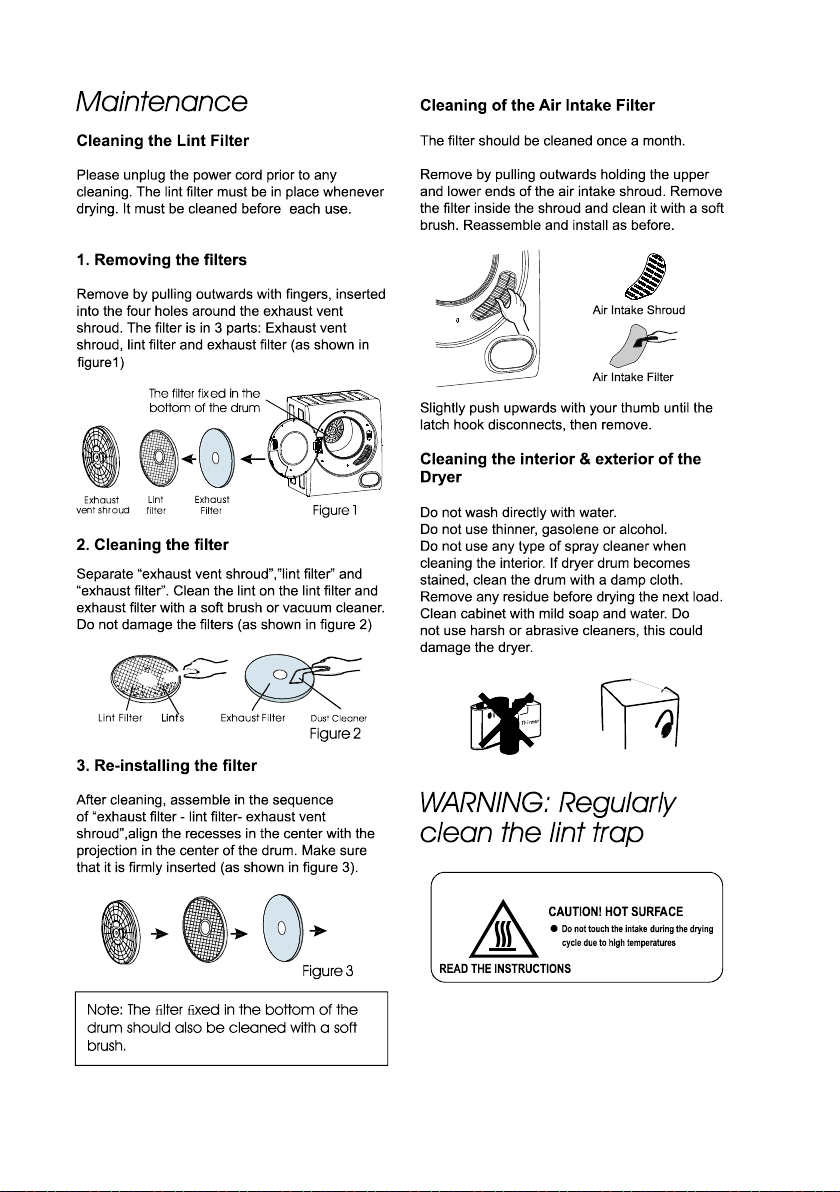

10

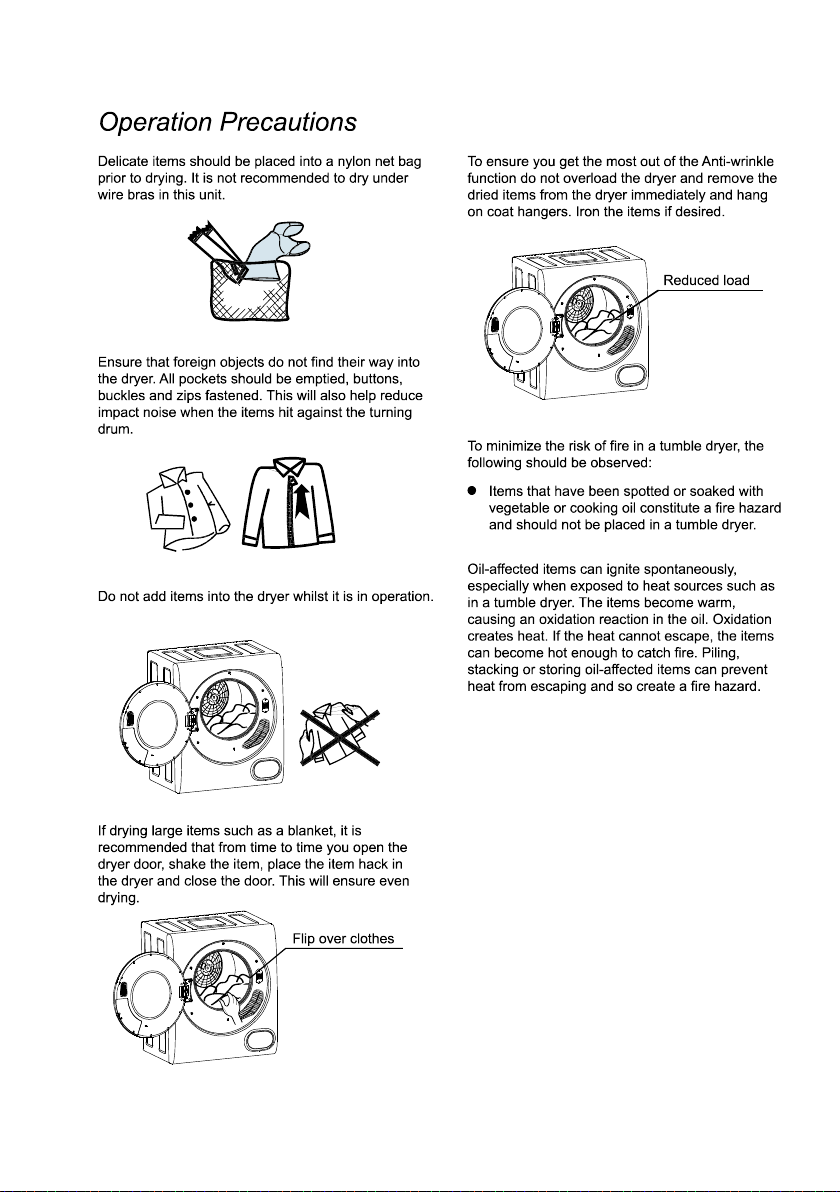

11

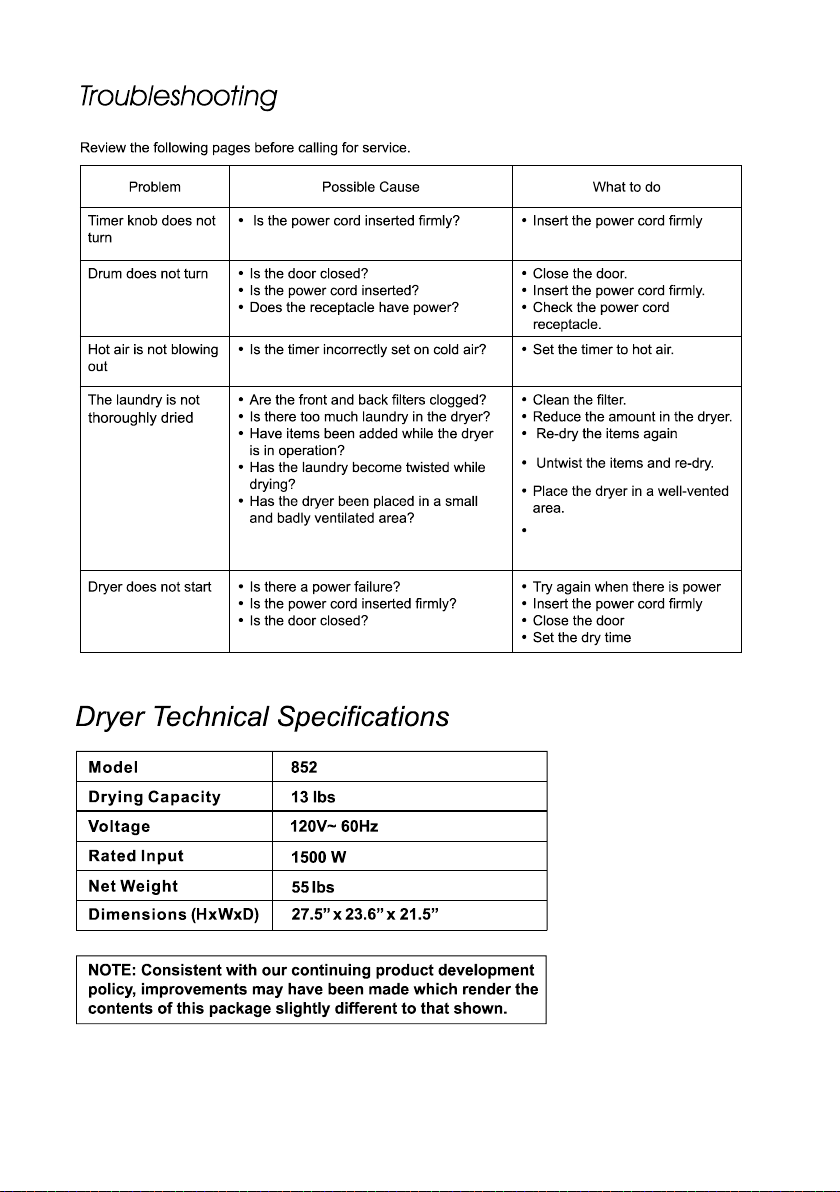

Use High Heat program and
increase dry time
12
