Speed Queen SWNMN2SP115TW01 - 26 Inch Commercial Top Load User Manual

Parts

www.alliancelaundry.com

Commercial

Topload Washers

Metered and Nonmetered

Refer to Page 3 for Model Numbers

TLW13C_204554

Part No. 204554R3

May 2020

204554 1

means without the expressed written consent of the publisher.

Table of Contents

Title Page

Parts Ordering Information........................................................................................................................................ 2

Serial Plate Location ................................................................................................................................................. 2

Model Identification ................................................................................................................................................... 3

Coin Slide Extension, Meter Case and Control......................................................................................................... 4

Meter Case ............................................................................................................................................................... 6

Non-Electronic Coin Drop ......................................................................................................................................... 8

Electronic Coin Drop ............................................................................................................................................... 10

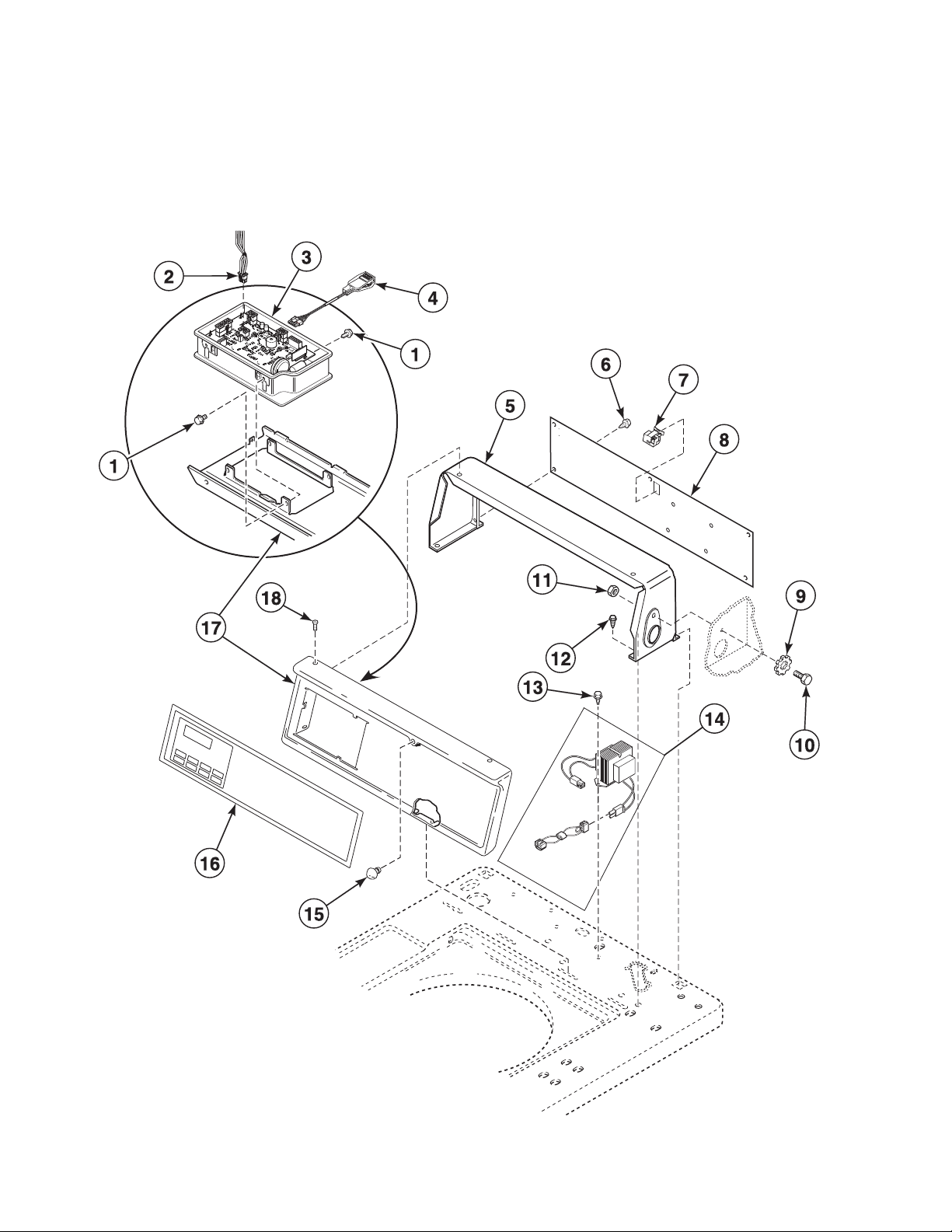

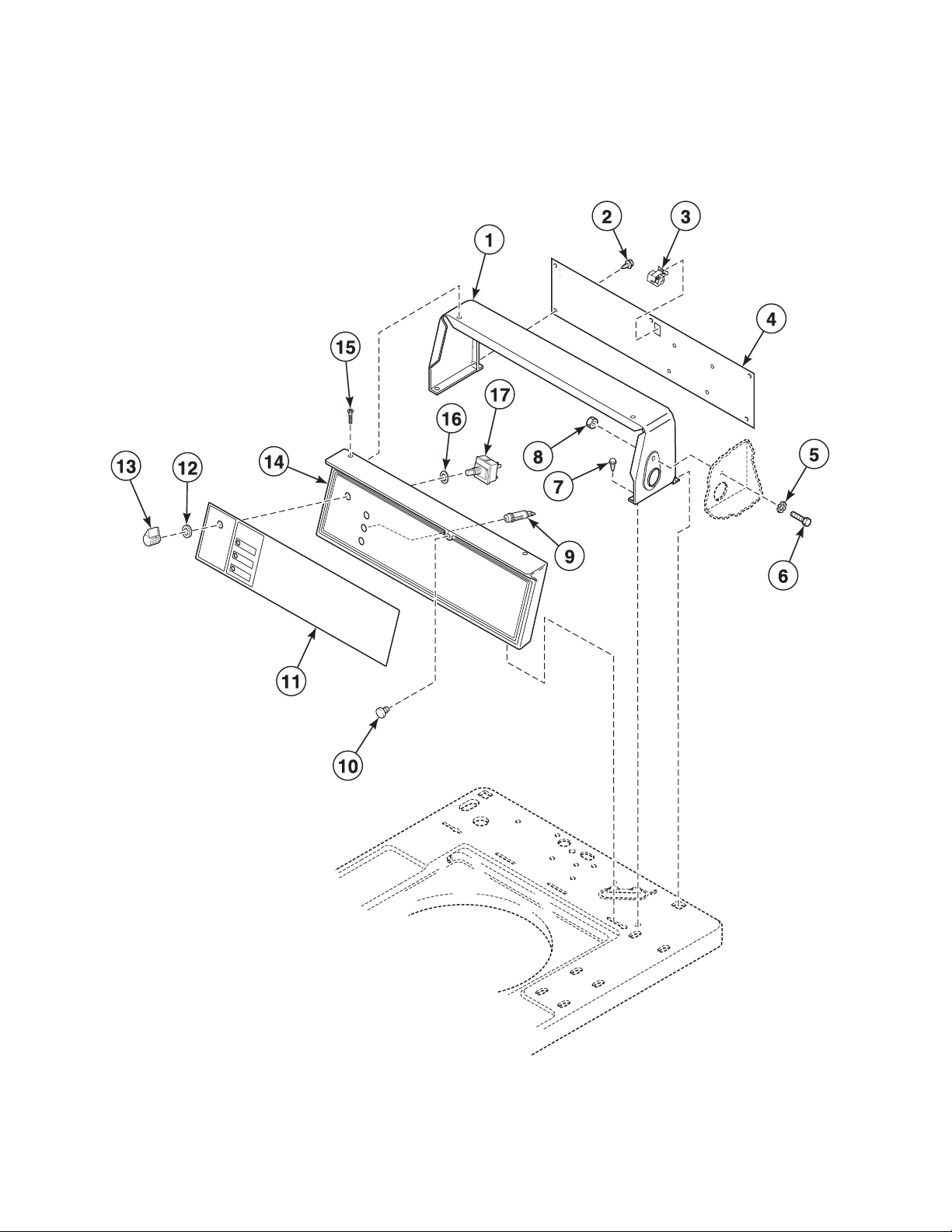

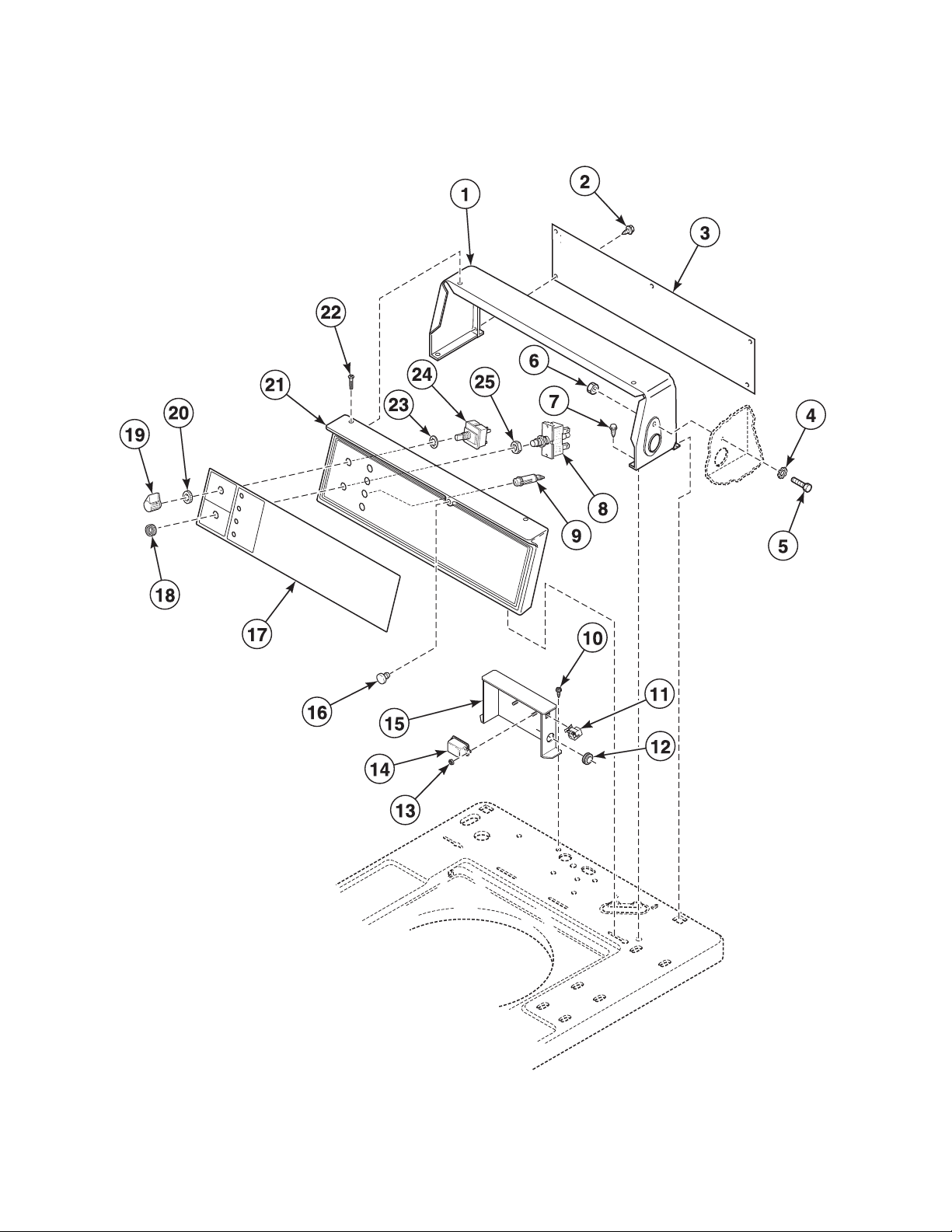

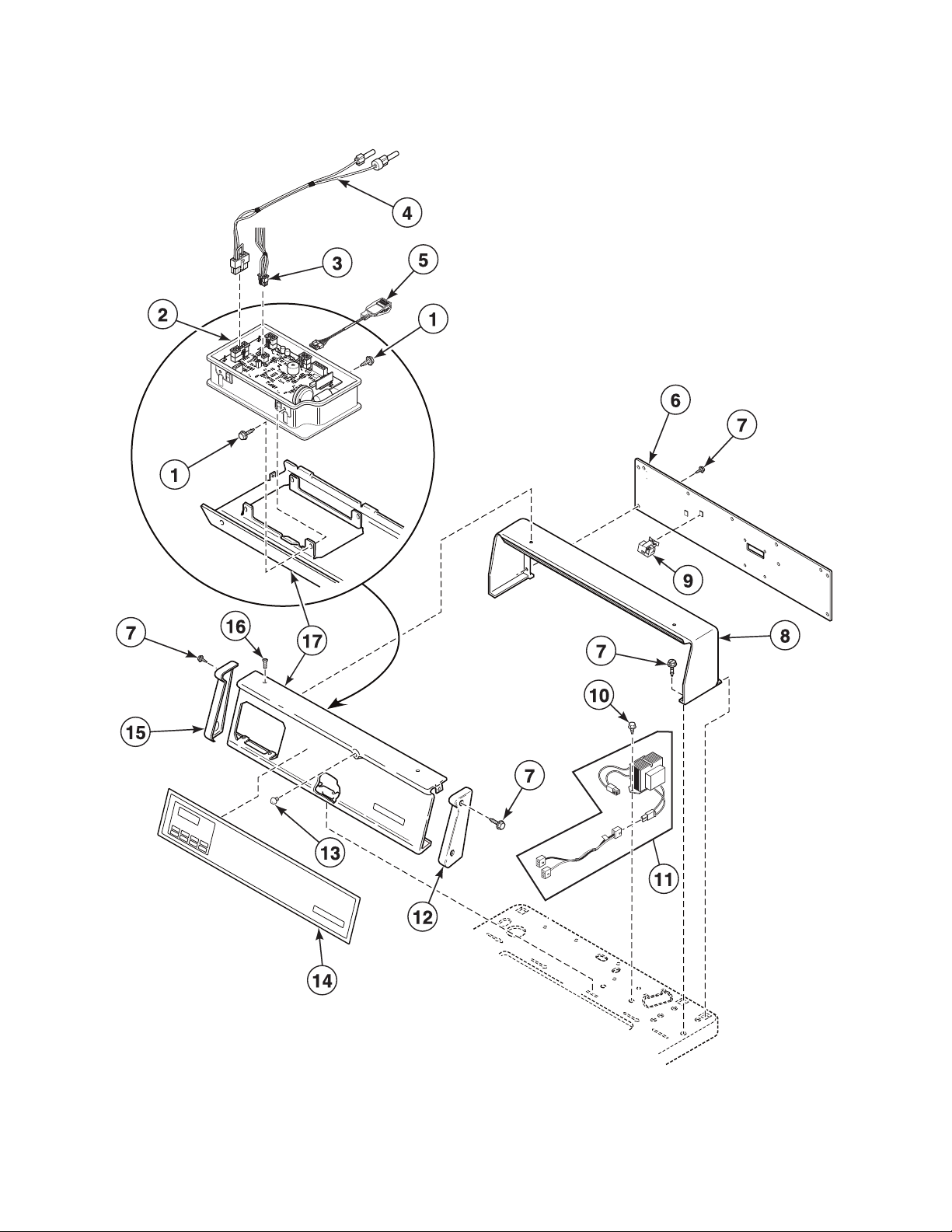

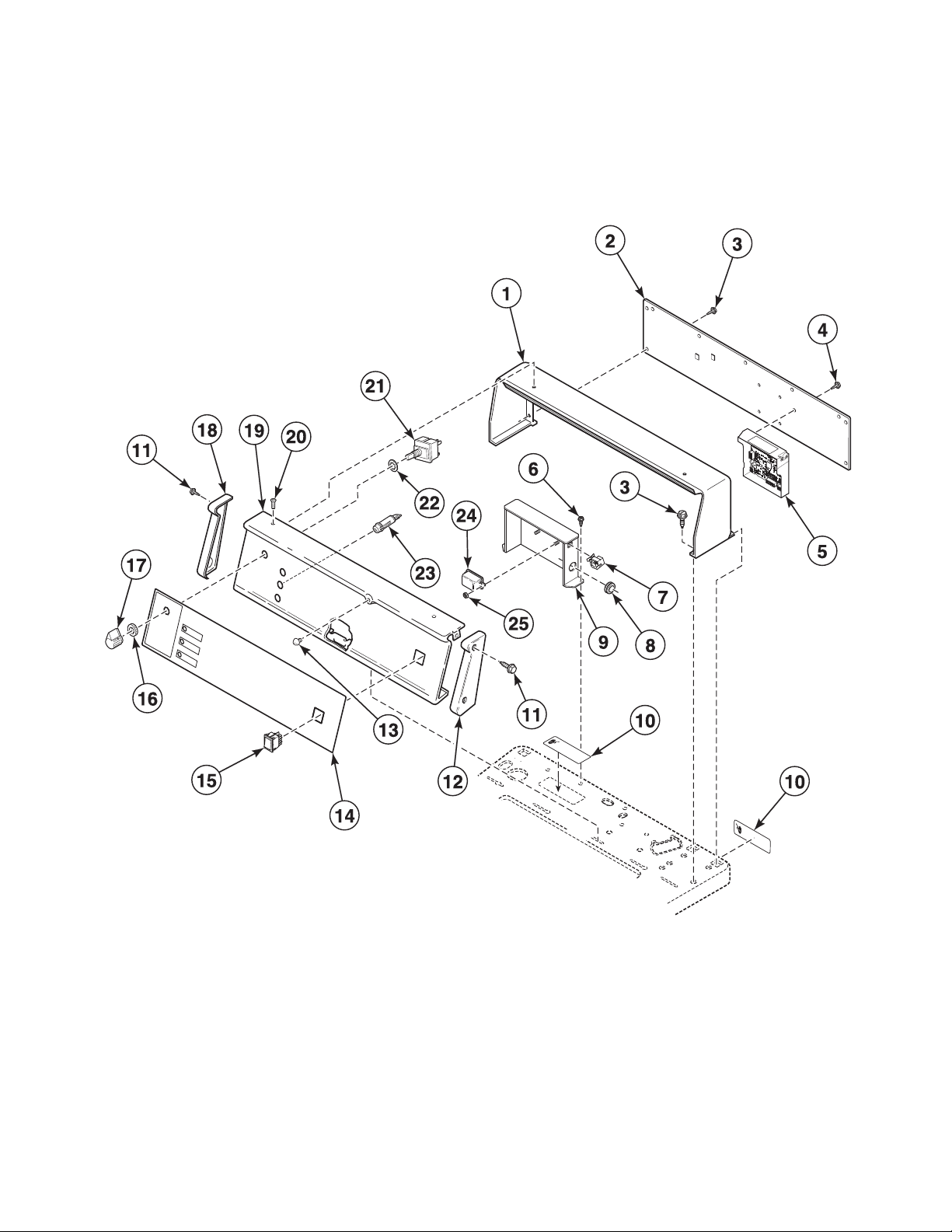

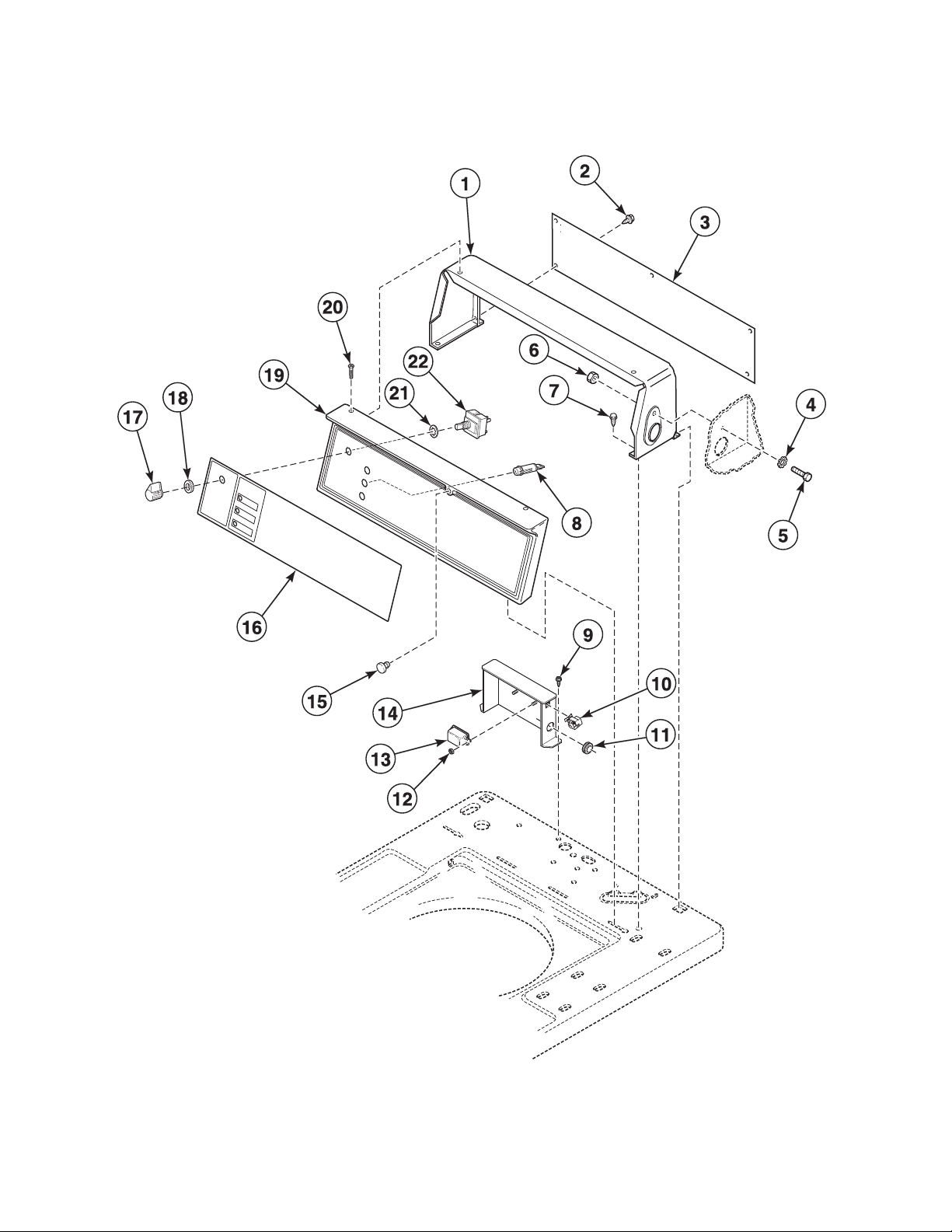

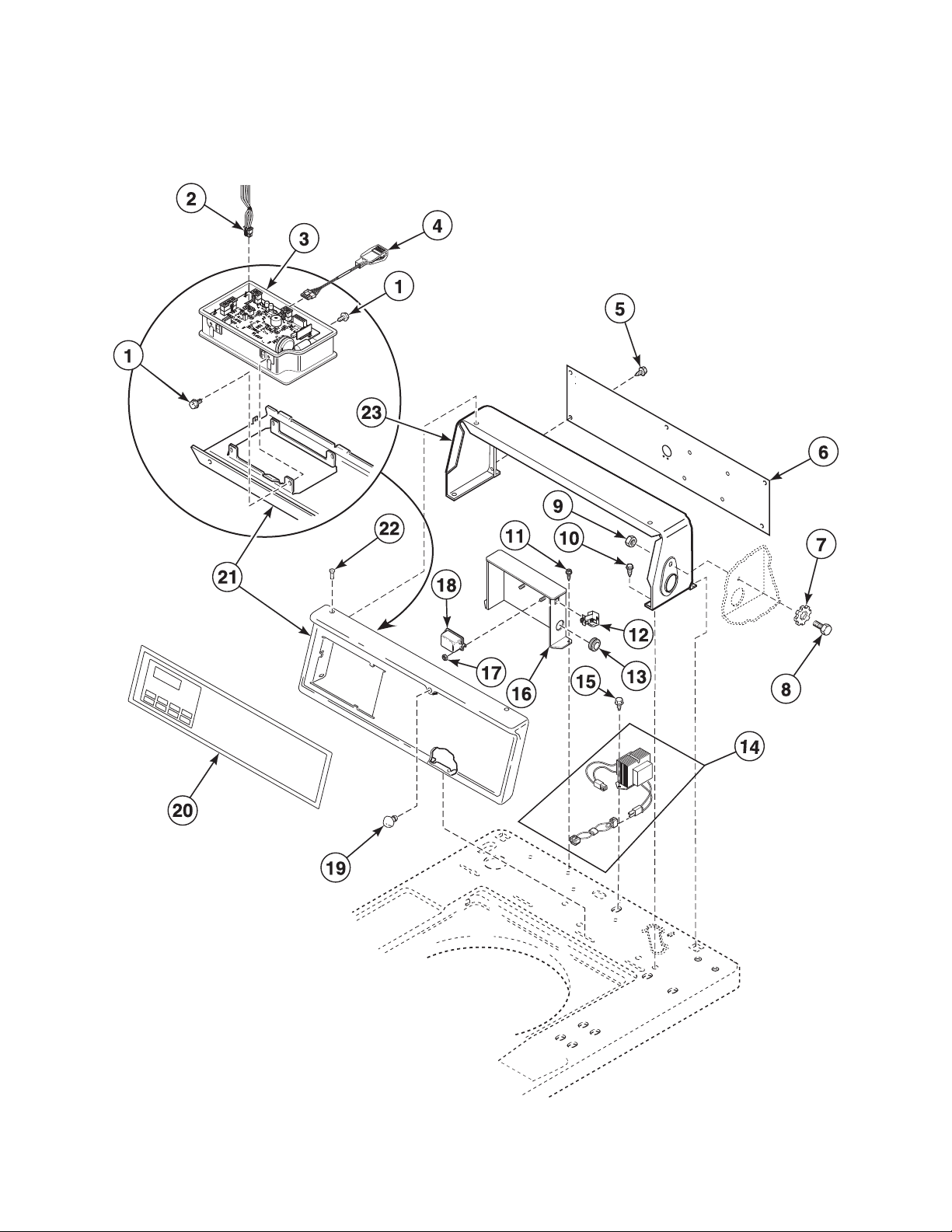

Control Panel, Control Hood and Controls (Drawing 1 of 9) ................................................................................... 12

Control Panel, Control Hood and Controls (Drawing 2 of 9) ................................................................................... 14

Control Panel, Control Hood and Controls (Drawing 3 of 9) ................................................................................... 16

Control Panel, Control Hood and Controls (Drawing 4 of 9) ................................................................................... 18

Control Panel, Control Hood and Controls (Drawing 5 of 9) ................................................................................... 20

Control Panel, Control Hood and Controls (Drawing 6 of 9) ................................................................................... 22

Control Panel, Control Hood and Controls (Drawing 7 of 9) ................................................................................... 24

Control Panel, Control Hood and Controls (Drawing 8 of 9) ................................................................................... 26

Control Panel, Control Hood and Controls (Drawing 9 of 9) ................................................................................... 28

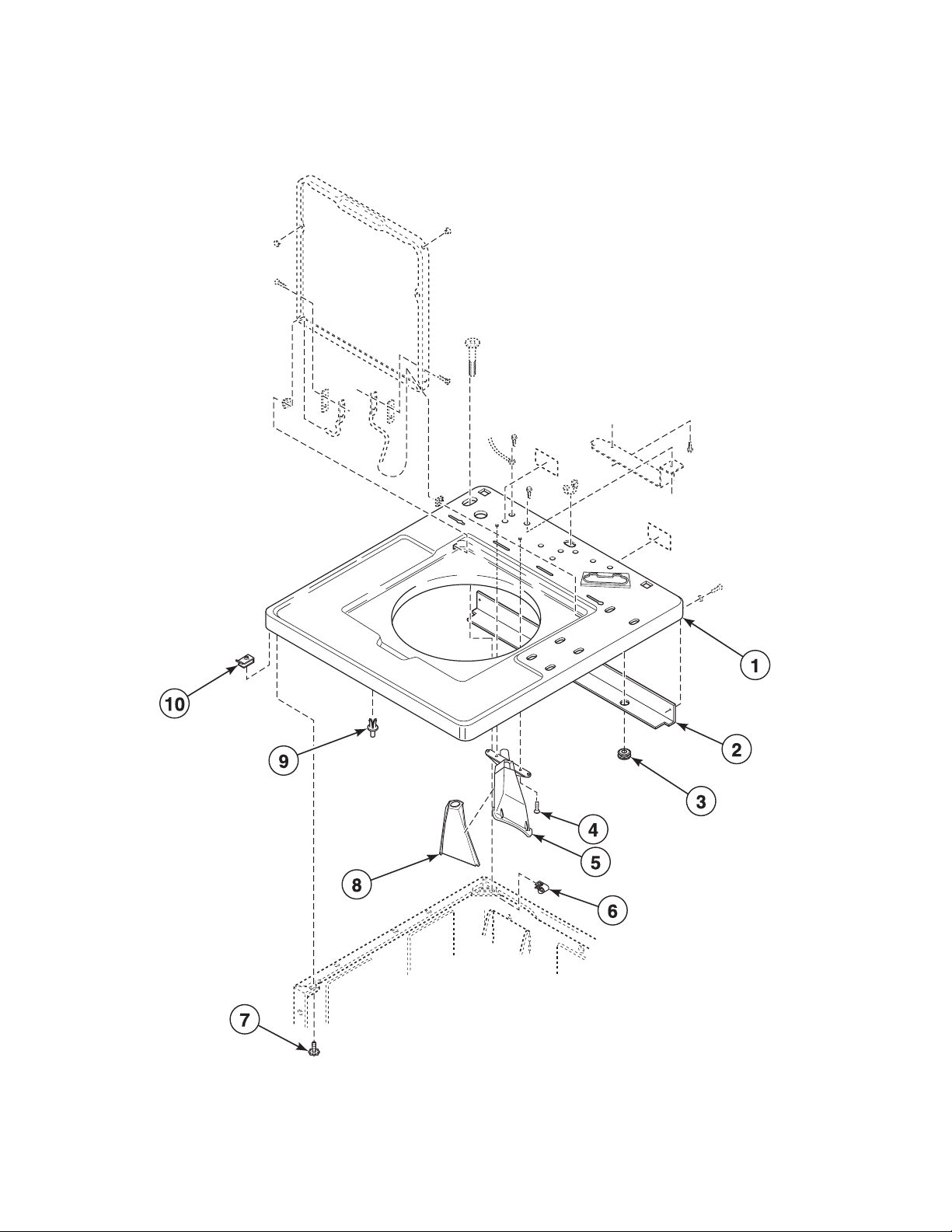

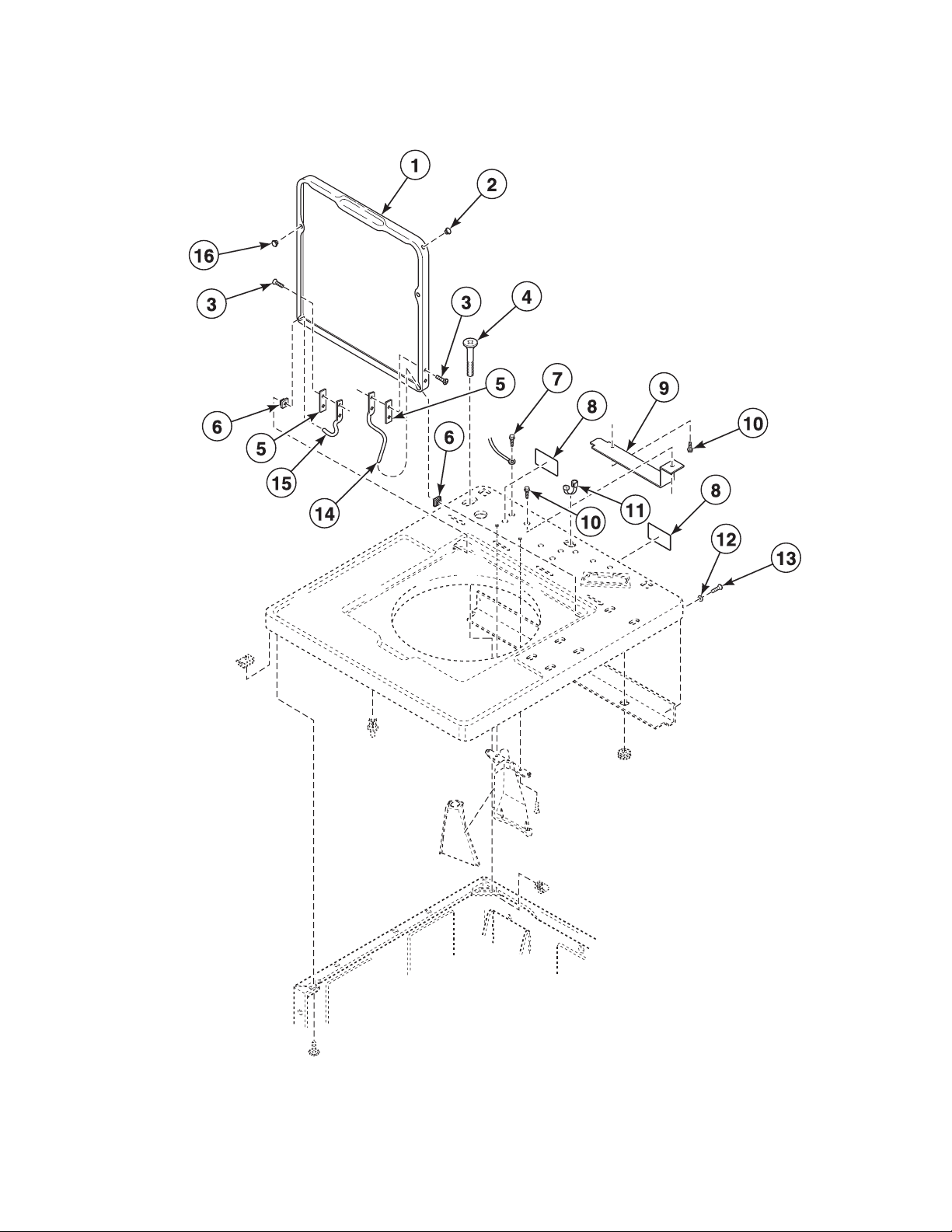

Lid and Cabinet Top (Drawing 1 of 2) ..................................................................................................................... 30

Lid and Cabinet Top (Drawing 2 of 2) ..................................................................................................................... 32

Lid, Lid Lock and Cabinet Top ................................................................................................................................ 34

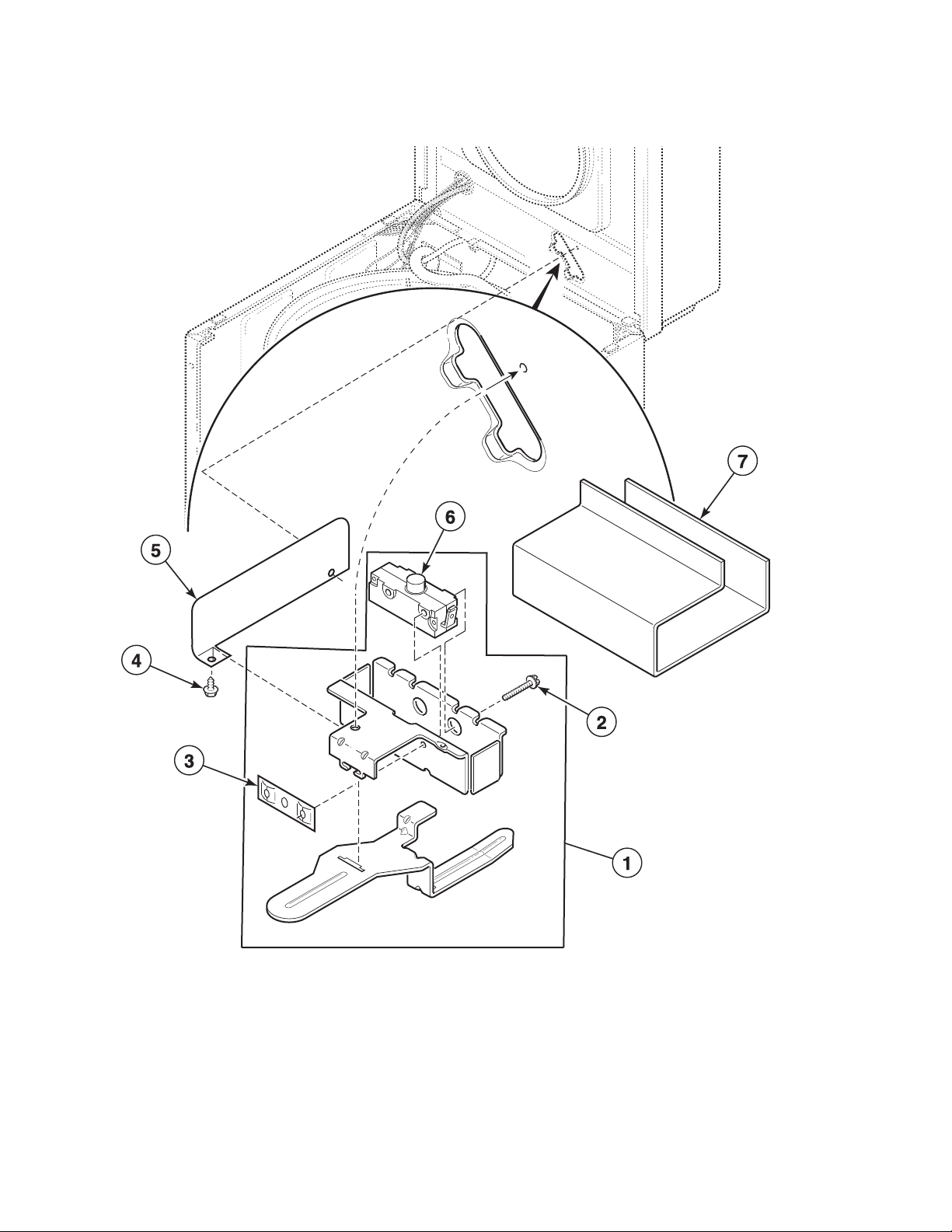

Lid Switch................................................................................................................................................................ 36

Mixing Valve (Drawing 1 of 2) ................................................................................................................................. 38

Mixing Valve (Drawing 2 of 2) ................................................................................................................................. 40

Mixing Valve-to-Inlet Hose ...................................................................................................................................... 42

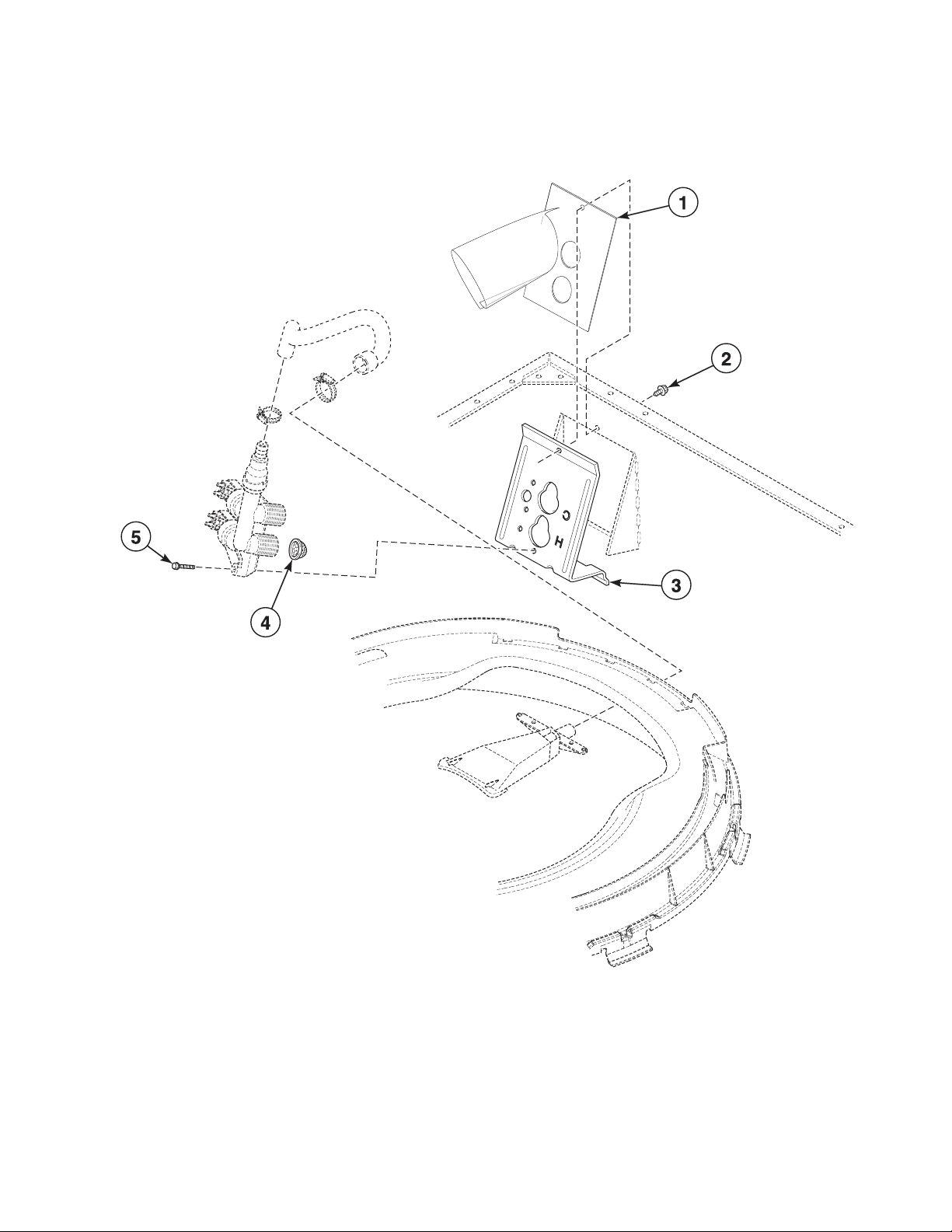

Mixing Valve Bracket .............................................................................................................................................. 44

Fill Hose .................................................................................................................................................................. 46

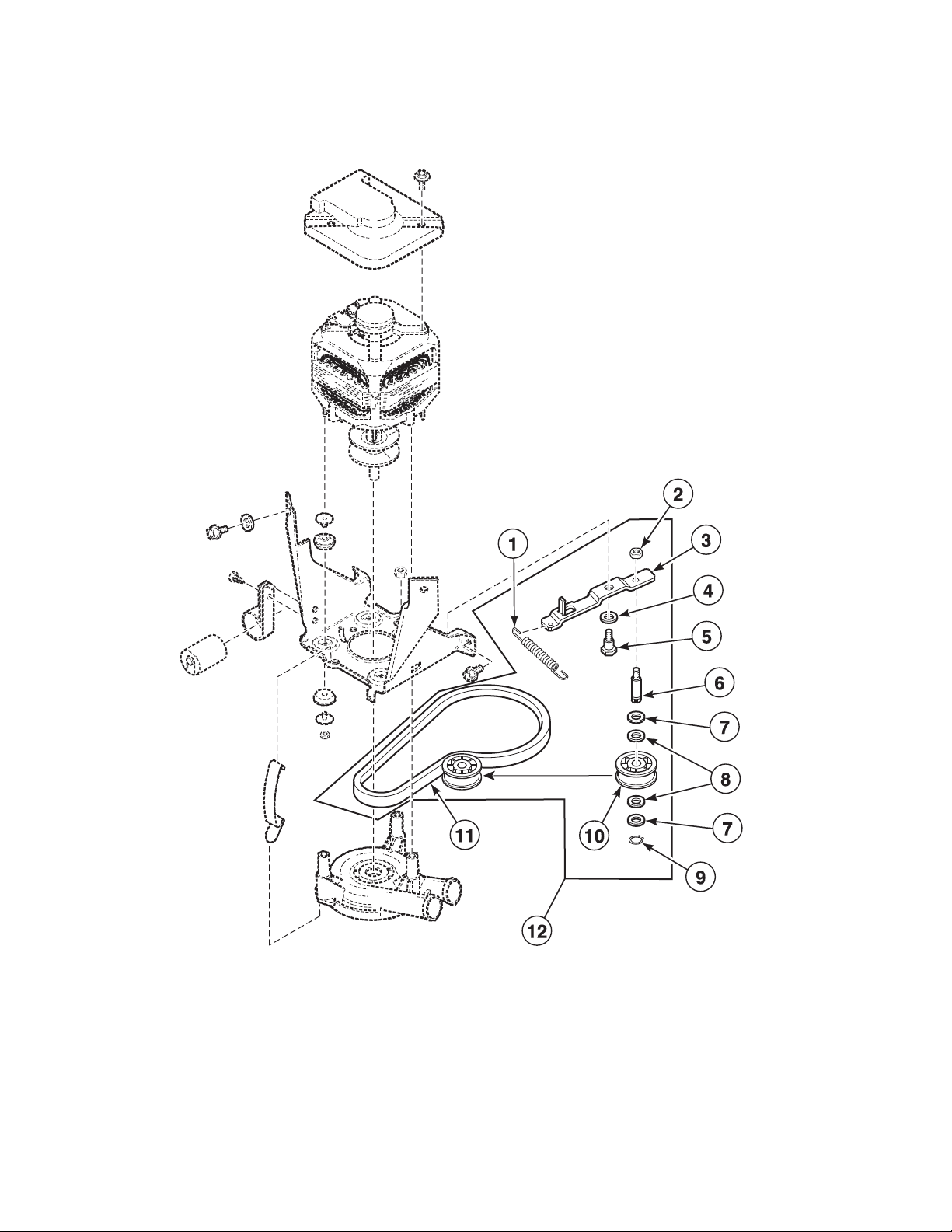

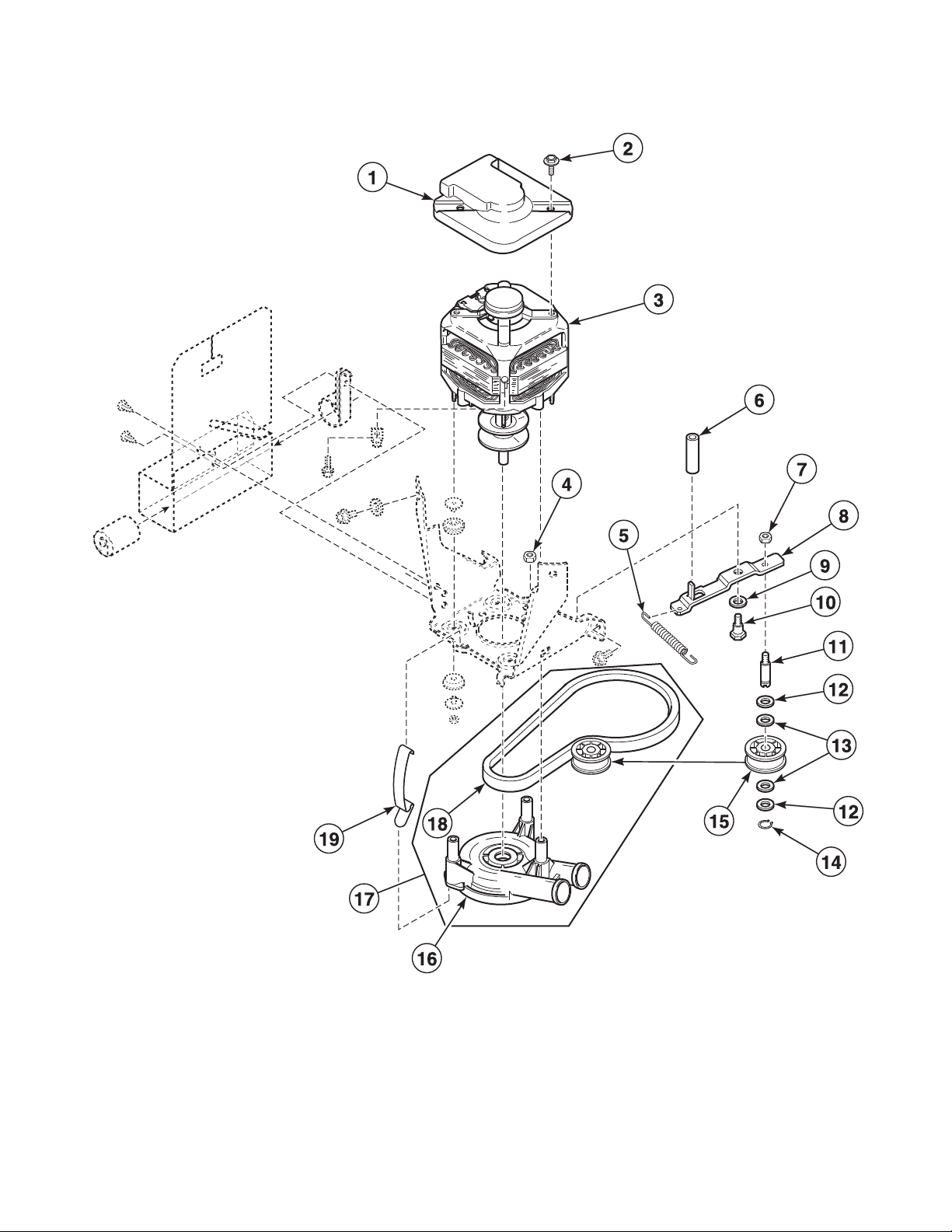

Motor, Belt, Pump and Idler Assembly (Drawing 1 of 2) ......................................................................................... 48

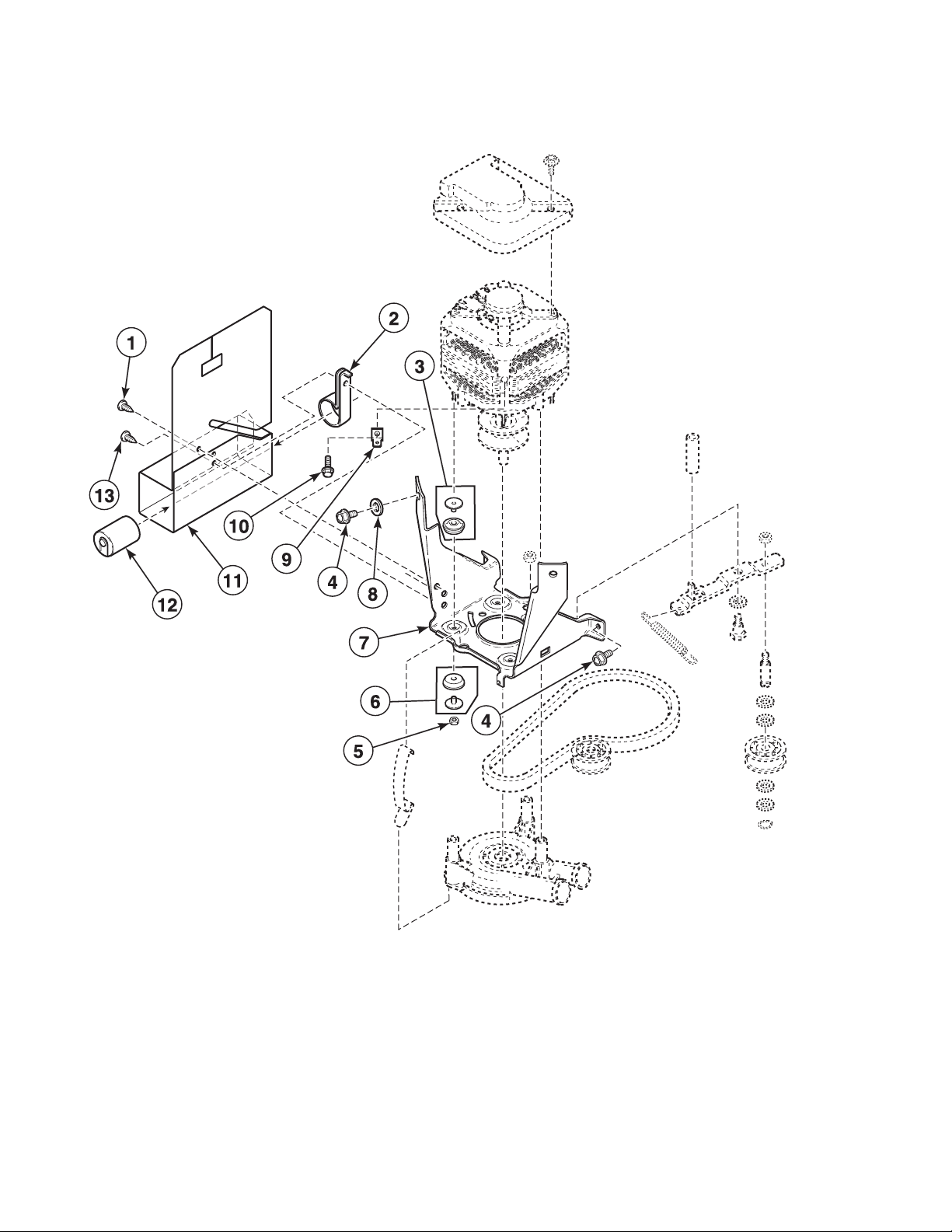

Motor, Belt, Pump and Idler Assembly (Drawing 2 of 2) ......................................................................................... 50

Idler Lever Kits ........................................................................................................................................................ 52

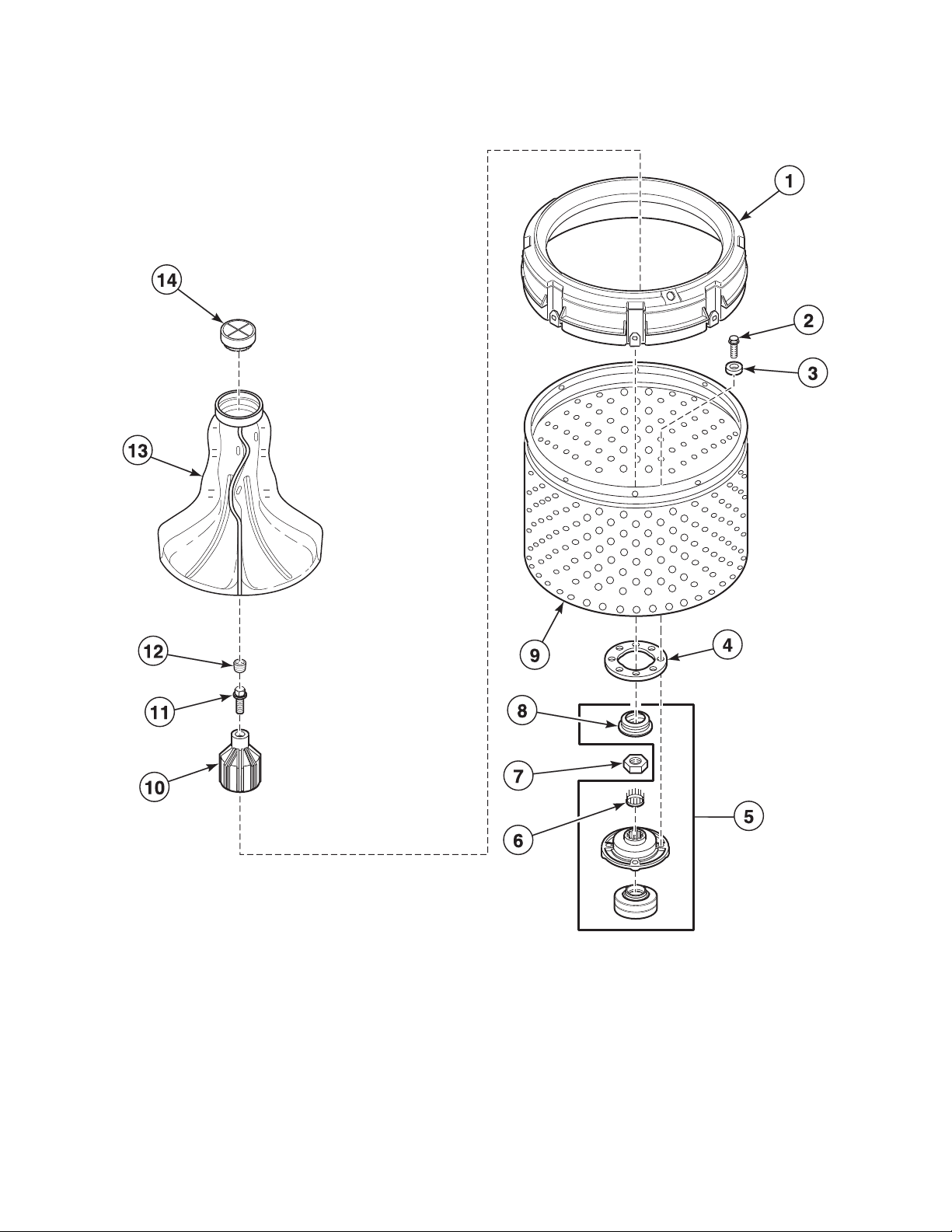

Agitator, Drive Bell, Hub and Lip Seal Kit and Washtub ......................................................................................... 54

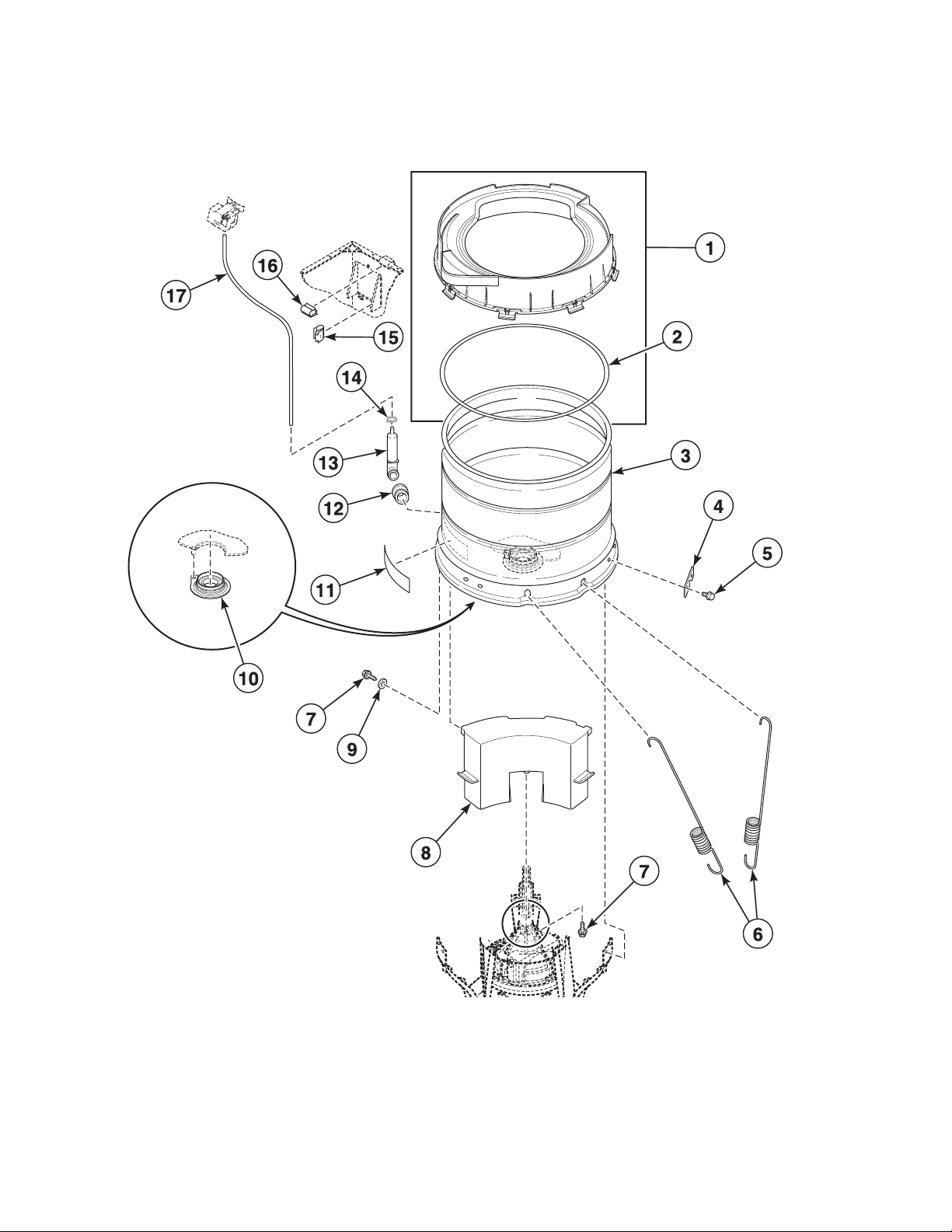

Outer Tub, Cover, Bearing and Seal Housing and Counterweight ......................................................................... 56

Transmission Assembly .......................................................................................................................................... 58

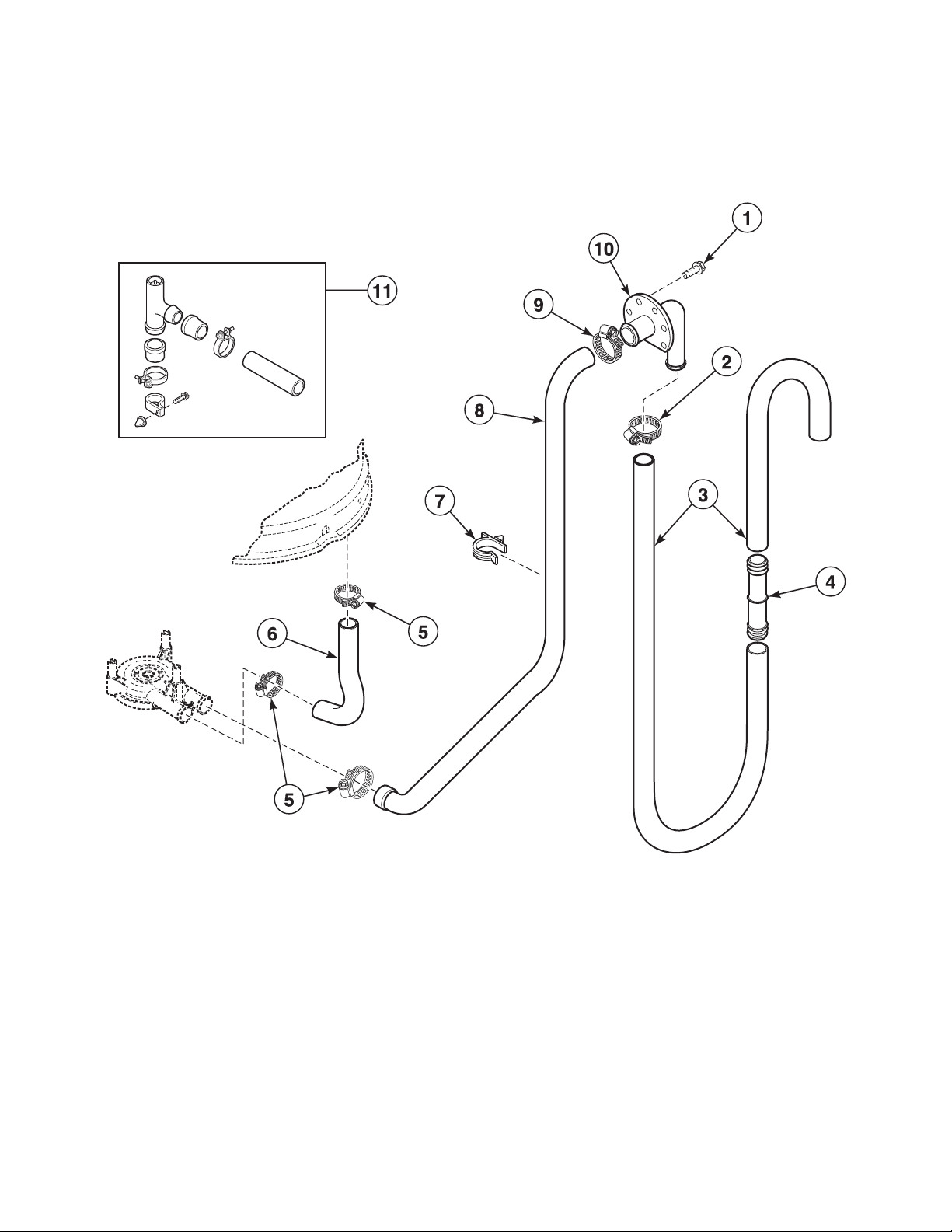

Drain Hoses and Siphon Break Kit ......................................................................................................................... 60

Weldment and Bearing Assembly, Brake and Pulley.............................................................................................. 62

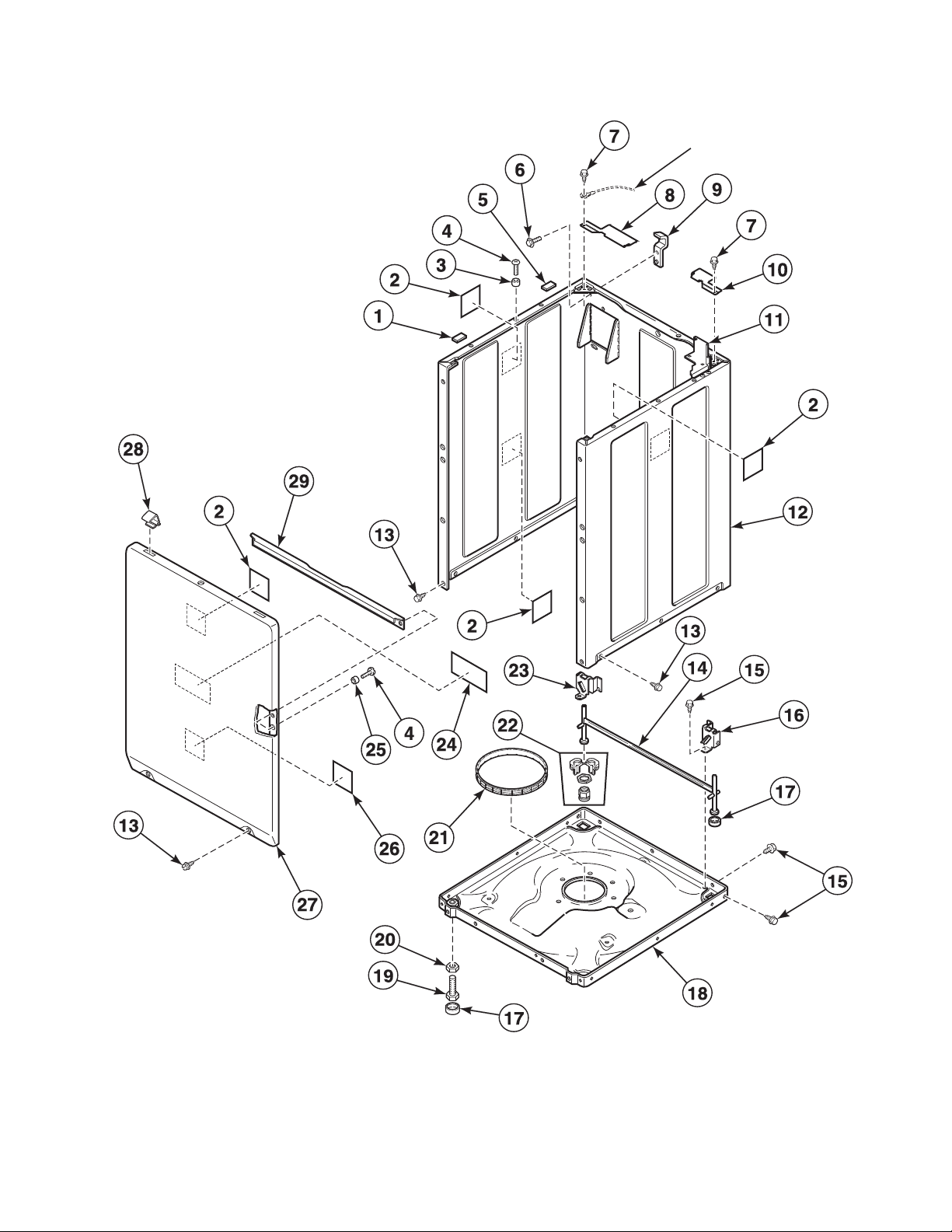

Front Panel, Base Assembly and Cabinet Kit ......................................................................................................... 64

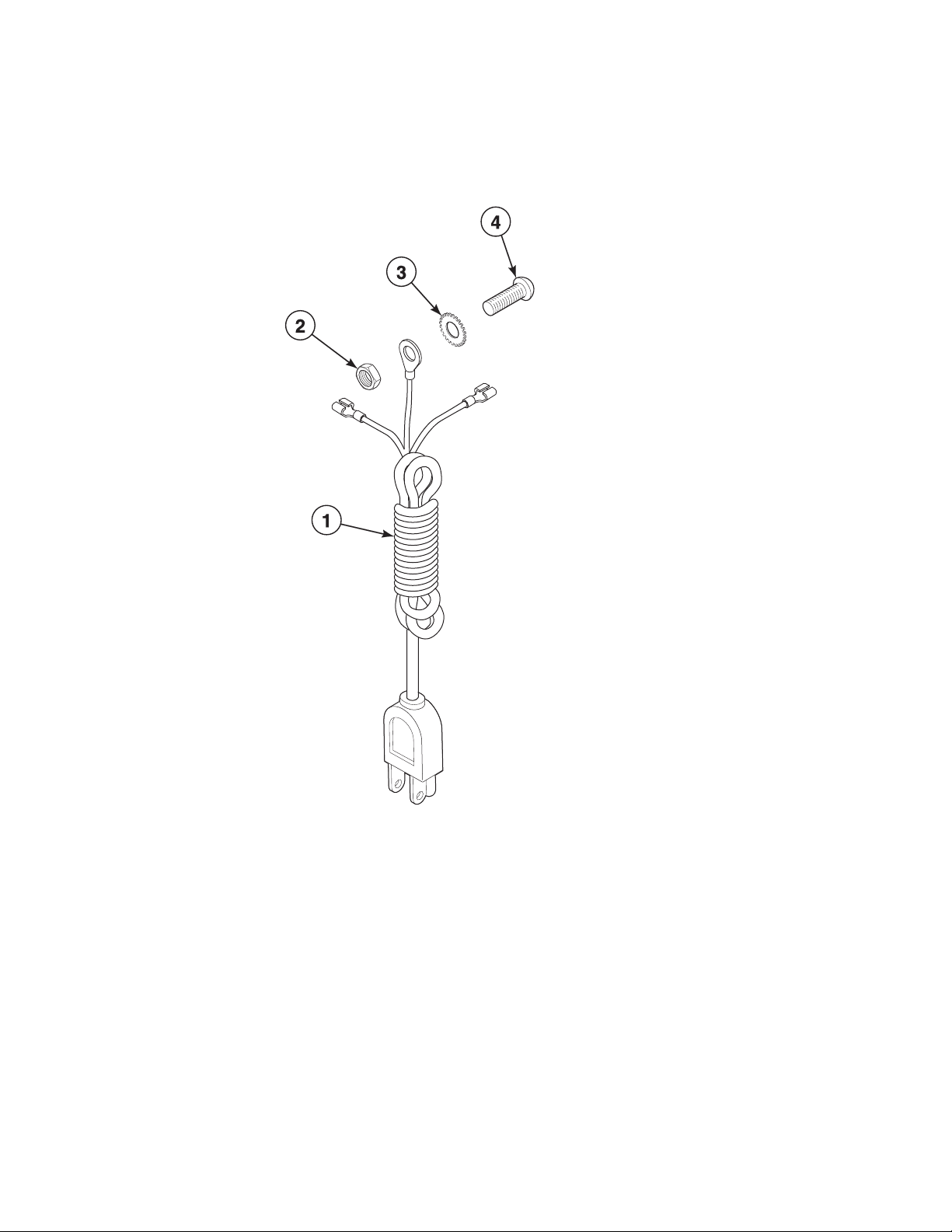

Lead-In Cord ........................................................................................................................................................... 66

Shipping Materials and Special Tools..................................................................................................................... 68

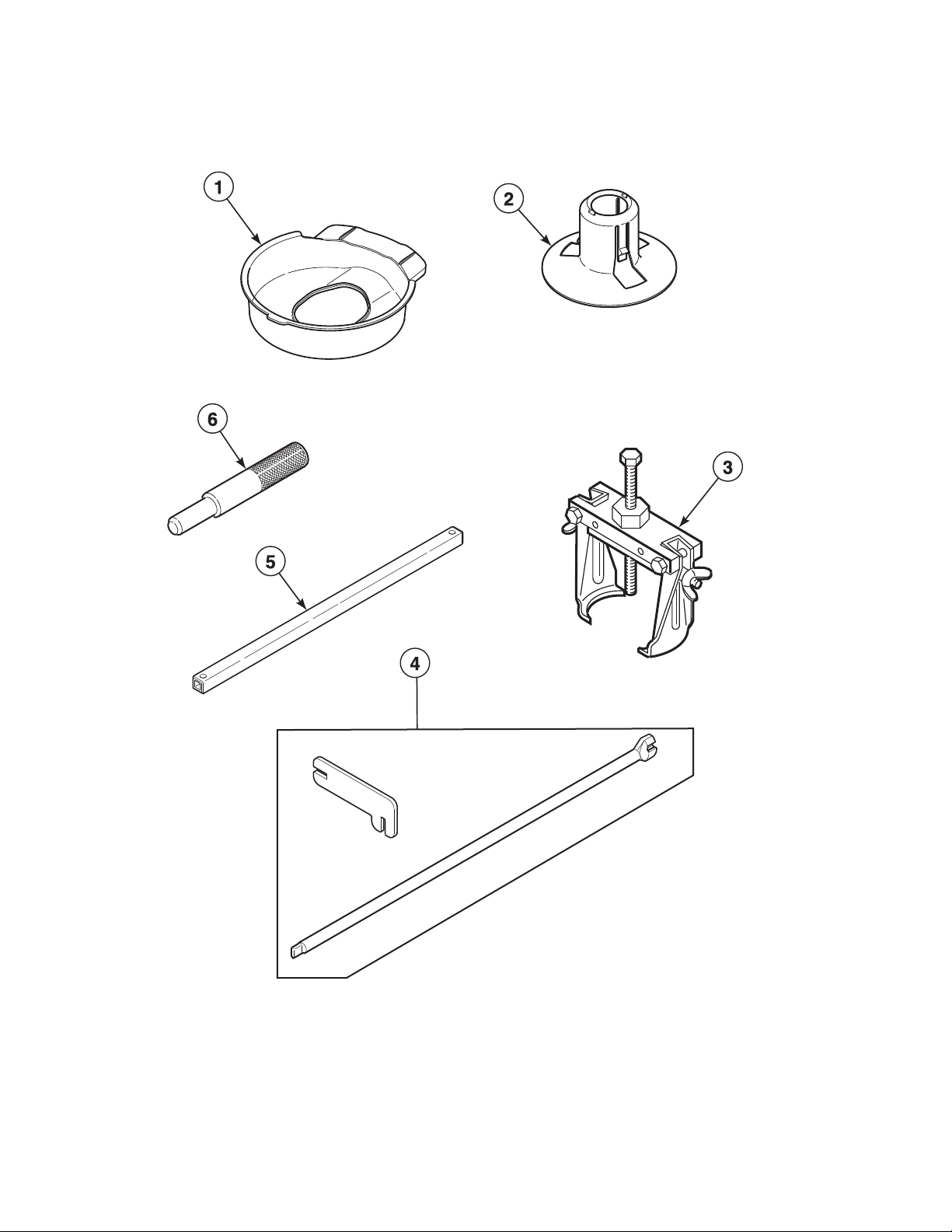

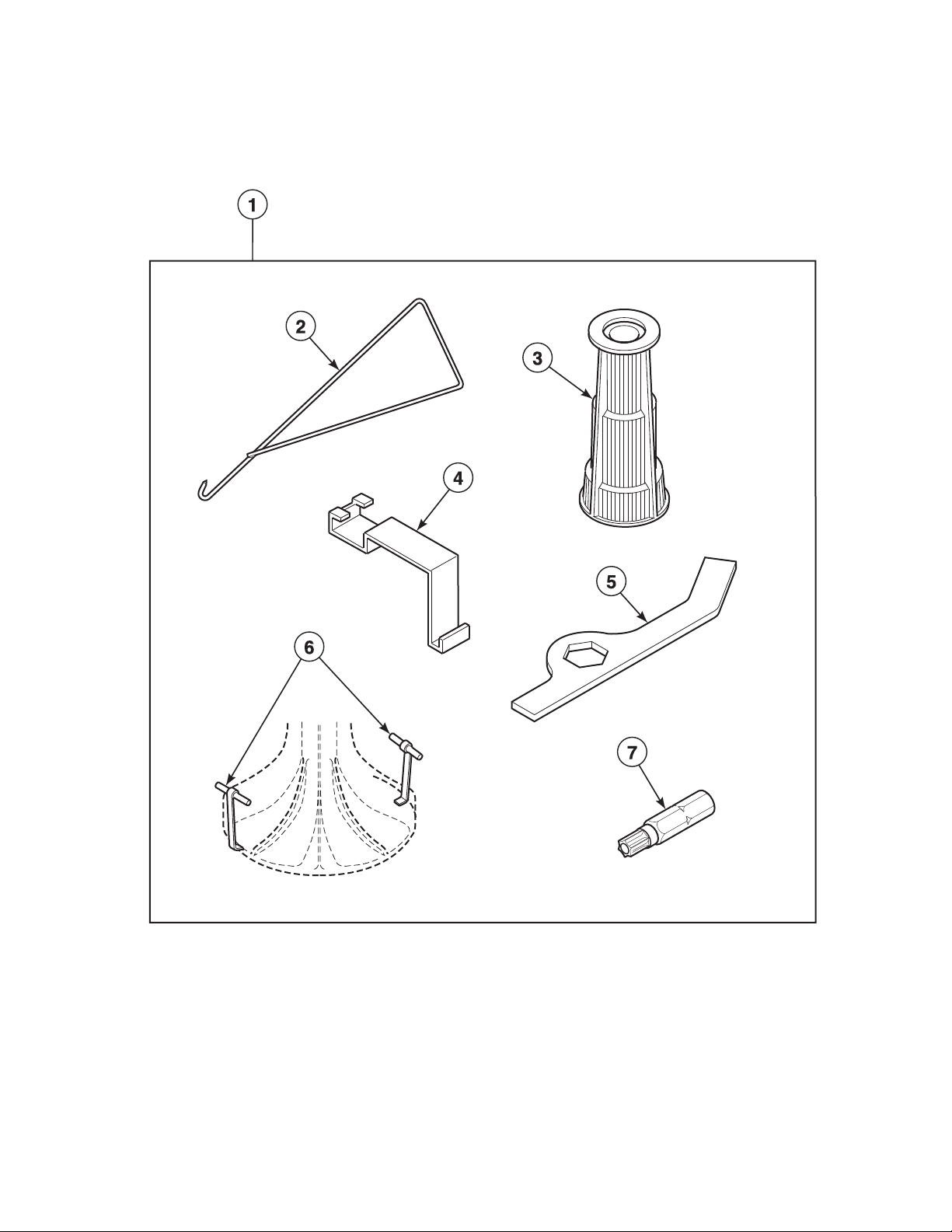

Special Tools .......................................................................................................................................................... 70

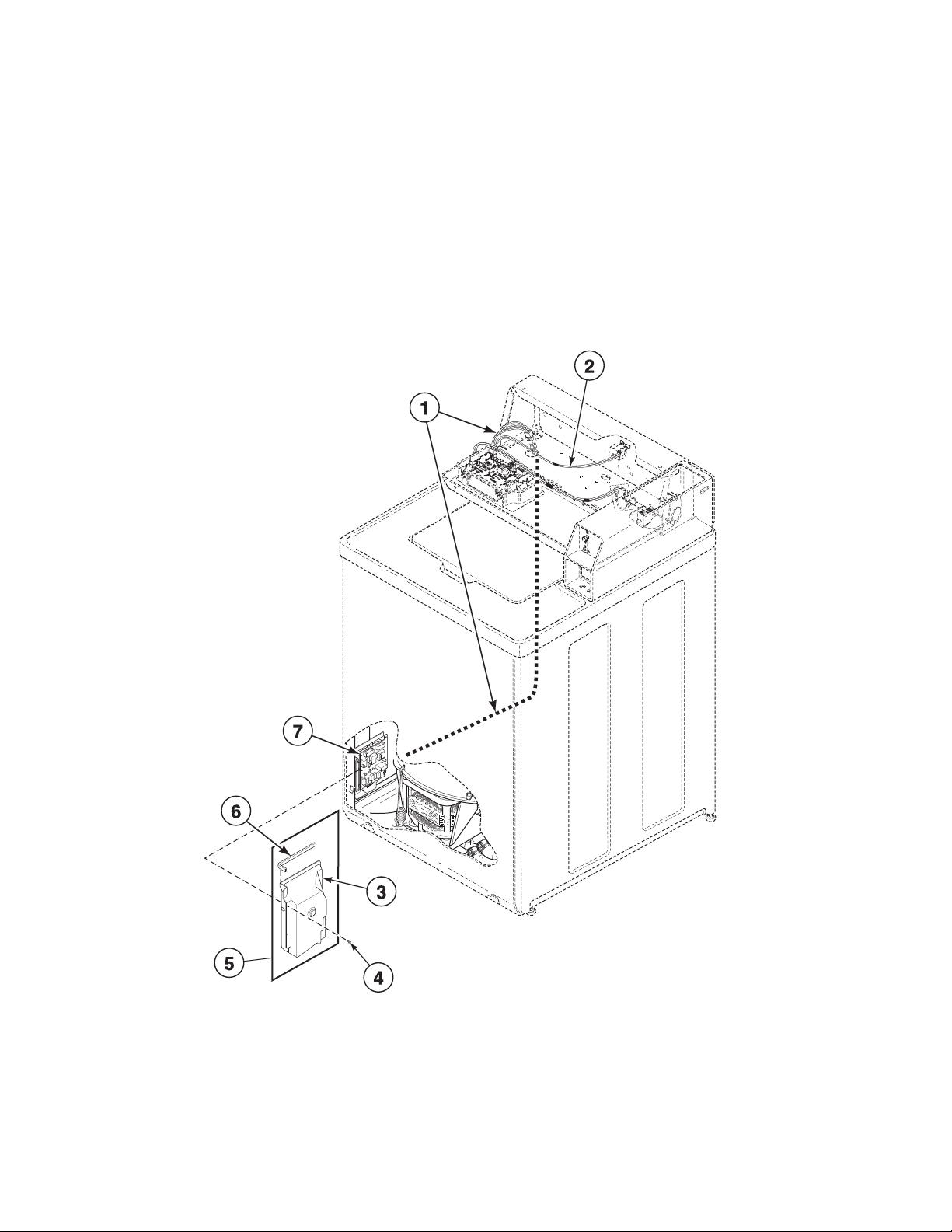

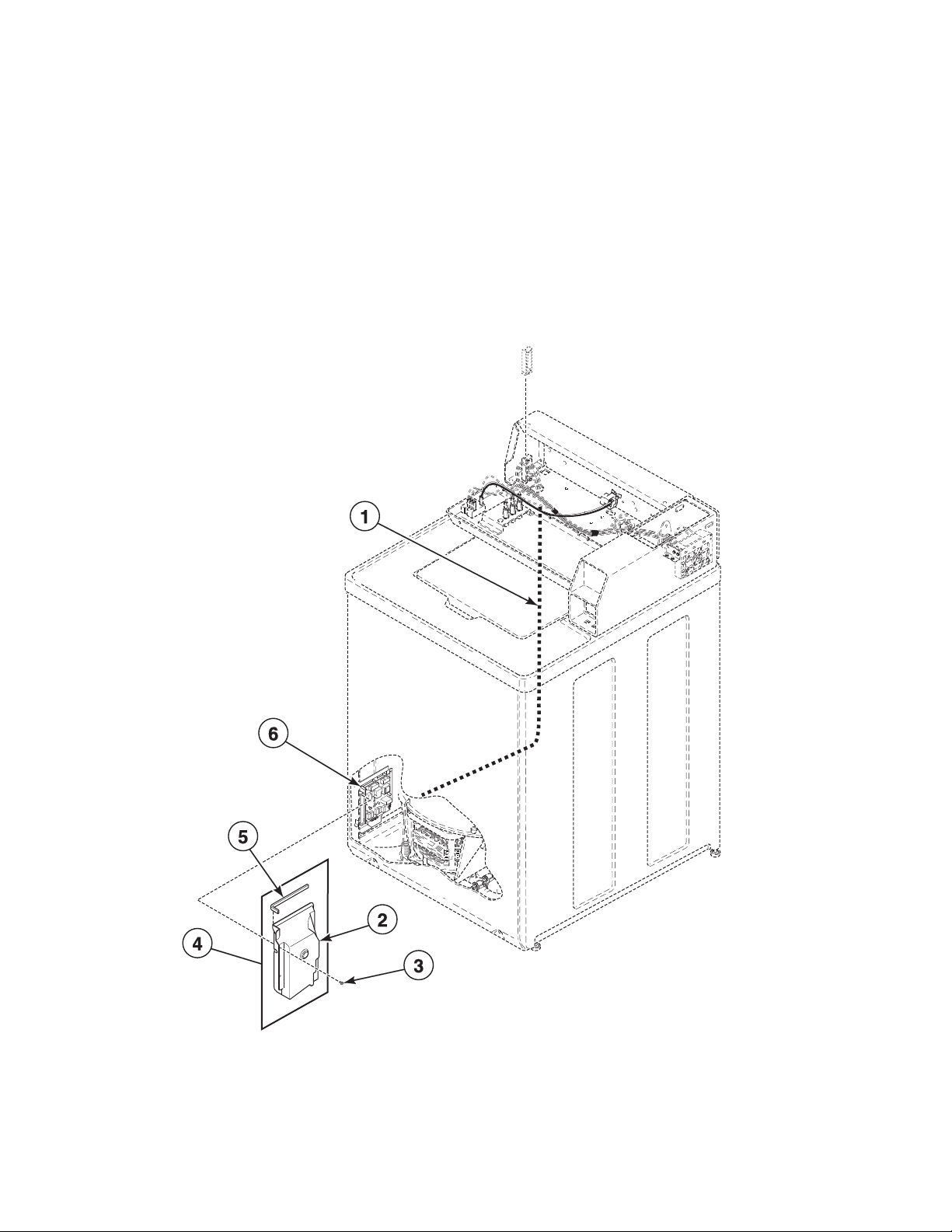

Output Board, Wire Harnesses and Wires (Drawing 1 of 3) ................................................................................... 72

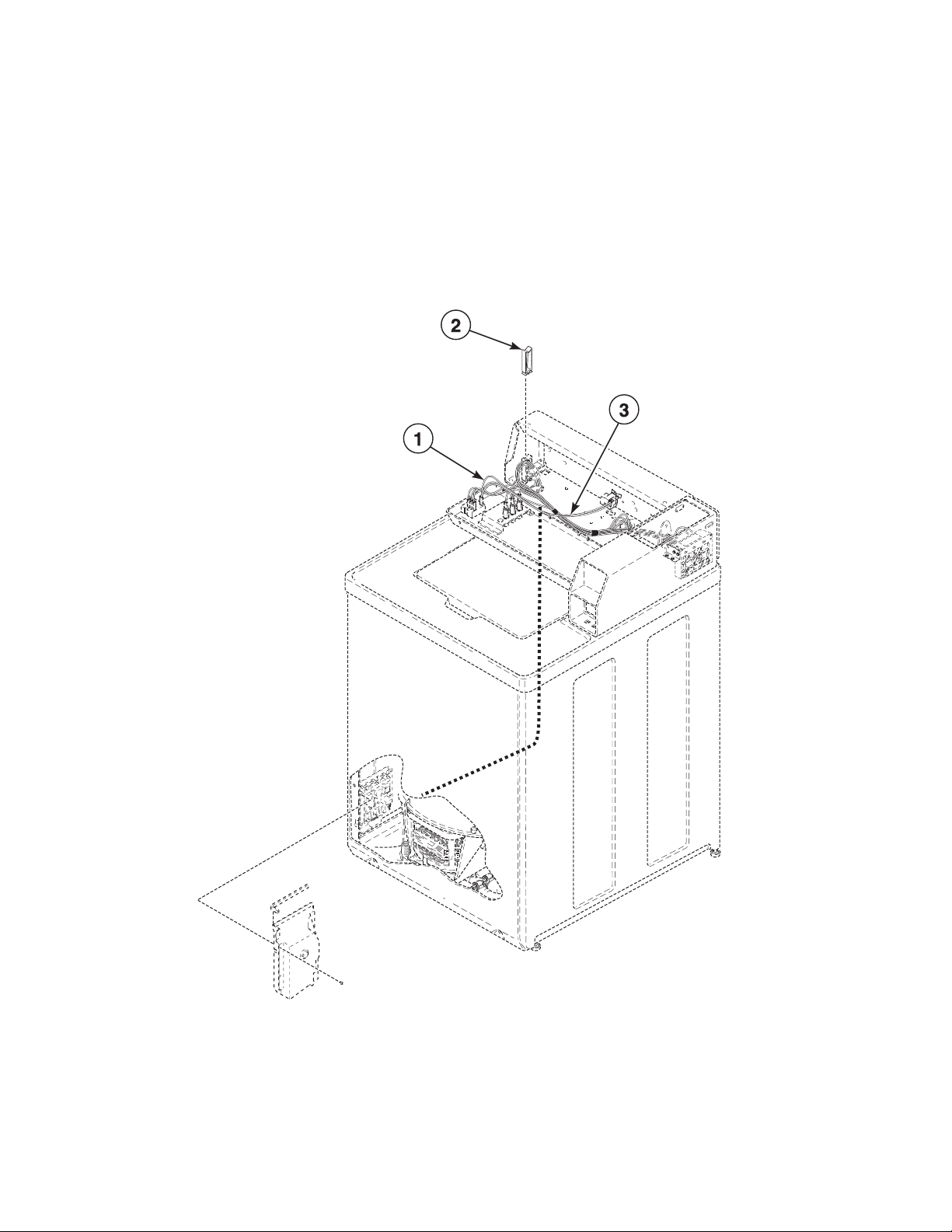

Output Board, Wire Harnesses and Wires (Drawing 2 of 3) ................................................................................... 74

Output Board, Wire Harnesses and Wires (Drawing 3 of 3) ........................................................................

........... 76

Parts Index.............................................................................................................................................................. 79

204554 2

Parts Ordering Information

If literature or replacement parts are required, con-

tact the source from whom the machine was pur-

chased or contact Alliance Laundry Systems at

(920) 748-3950 for the name and address of the

nearest authorized parts distributor.

For technical assistance, call the number listed

below:

(920) 748-3121 Ripon, Wisconsin

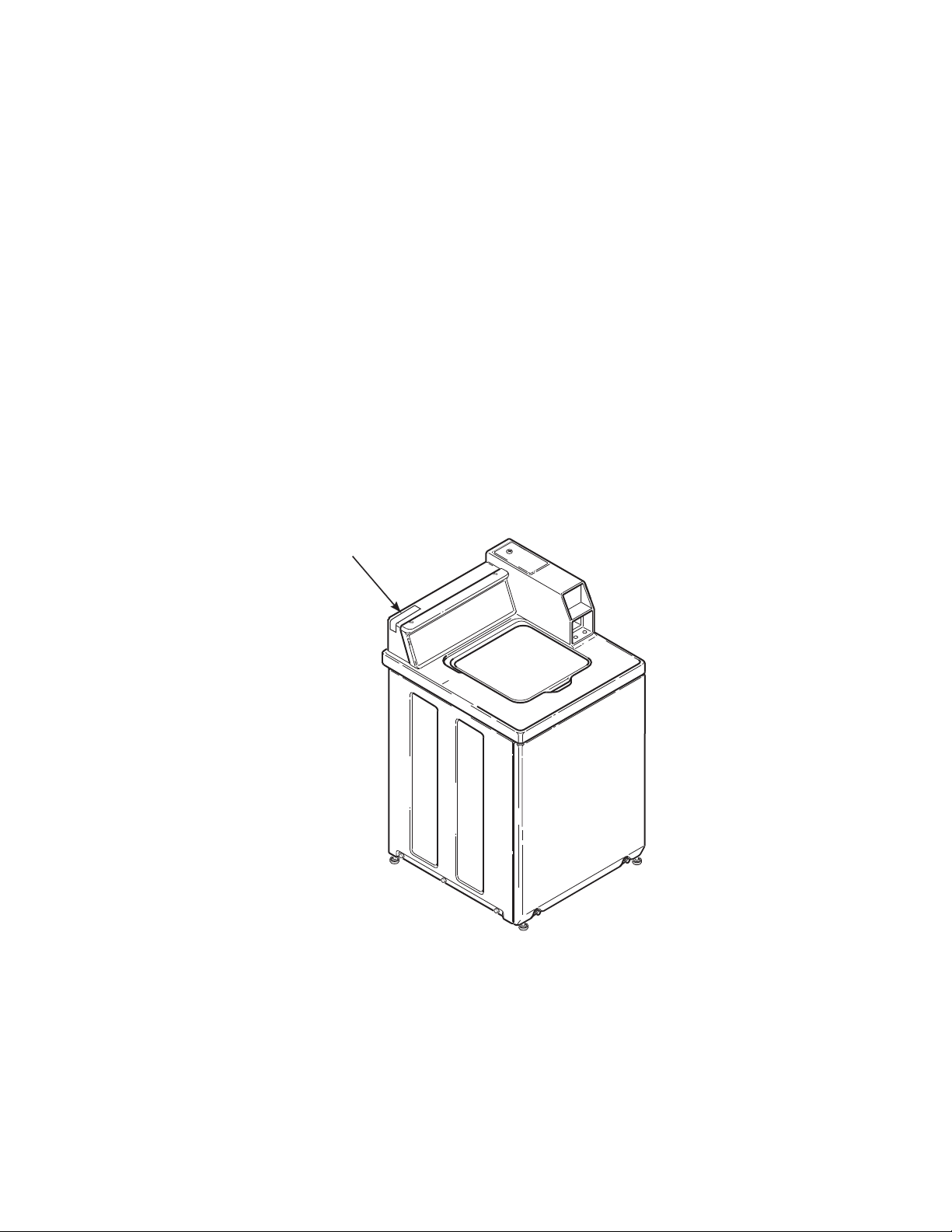

Serial Plate Location

When calling or writing about your product, be

sure to mention model and serial numbers. Model

and serial numbers are located on serial plate(s)

as shown.

TLW12C_204554

SERIAL PLATE

204554 3

Model Identification

Information in this manual is applicable to these washer models:

BWNBX2PP303AW01

BWNBX2SP303AW01

BWNMN2PP303AW01

BWNMN2SP303AW01

HWNBC2PP115TQ01

HWNBC2PP115TW01

HWNBC2SP115TW01

HWNBD2SP115CW01

HWNBE2SP115CW01

HWNBX2SP113FW01

HWNBX2SP115CW01

HWNBX2SP123DW01

HWNBX2SP303NW22

HWNBX2SP543DW01

HWNBY2PP115TW01

HWNBY2SP115CW01

HWNBY2SP115TW01

HWNKC2SP115TW01

HWNKD2SP115CW01

HWNKE2SP115CW01

HWNKX2SP115CW01

HWNKY2SP115CW01

HWNMN2PP115TW01

HWNMN2SP115CW01

HWNMN2SP115TW01

HWNSX2PP115TQ01

HWNSX2PP115TW01

HWNSX2SP115CW01

HWNSX2SP115TW01

HWNSX2SP303UW01

HWNZC2SP115TW01

KWNBX2SP115TW01

KWNMN2PP115TW01

KWNMN2PP303BW33

KWNMN2PP303NW16

KWNMN2SP115TW01

KWNMN2SP303BW33

KWNMN2SP303NW16

KWNSX2PP115TW01

KWNSX2PP303EW01

KWNSX2PP303NW16

KWNSX2SP115TW01

KWNSX2SP303EW01

KWNSX2SP303NW16

NWNBX2SP303LW01

NWNBX2SP303NW22

NWNBX2SP543NW23

NWNMN2SP303NW22

NWNMN2SP303WW01

NWNMN2SP543NW22

NWNSX2SP303NW22

PWNBC2PP115TG02

PWNBC2PP115TW02

PWNBE2PP115CG02

PWNBE2PP115CW02

PWNBX2PP115CG02

PWNBX2PP115CW02

PWNBX2PP115TG02

PWNBX2PP115TW02

PWNBX2PP303AG02

PWNBX2SP303AG01

PWNSX2PP115CG02

PWNSX2PP115CW02

PWNSX2PP115TG02

PWNSX2PP115TW02

SWNBC2SP115TW02

SWNBX2SP113FW01

SWNBX2SP113JW01

SWNBX2SP115TQ02

SWNBX2SP115TW02

SWNBX2SP123DW01

SWNBX2SP303AW01

SWNBX2SP303LW01

SWNBX2SP303NQ22

SWNBX2SP303NW22

SWNBX2SP543DW01

SWNBY2SP115TW01

SWNMN2SP115CW01

SWNMN2SP115TW01

SWNMN2SP303AW01

SWNMN2SP303NW22

SWNMN2SP303SW01

SWNMN2SP303WW01

SWNSX2PP113FW01

SWNSX2PP303AW01

SWNSX2SP113FW01

SWNSX2SP115CW02

SWNSX2SP115TQ02

SWNSX2SP115TW02

SWNSX2SP303AW01

SWNSX2SP303BW01

SWNSX2SP303EW01

SWNSX2SP303NW22

SWNSX2SP303SQ01

SWNSX2SP303SW01

SWNSX2SP303UW01

SWNSX2SP303WW01

SWNSX2SP543NW22

TWNBX2SP303NW22

UWNMN2SP115CW01

4 204554

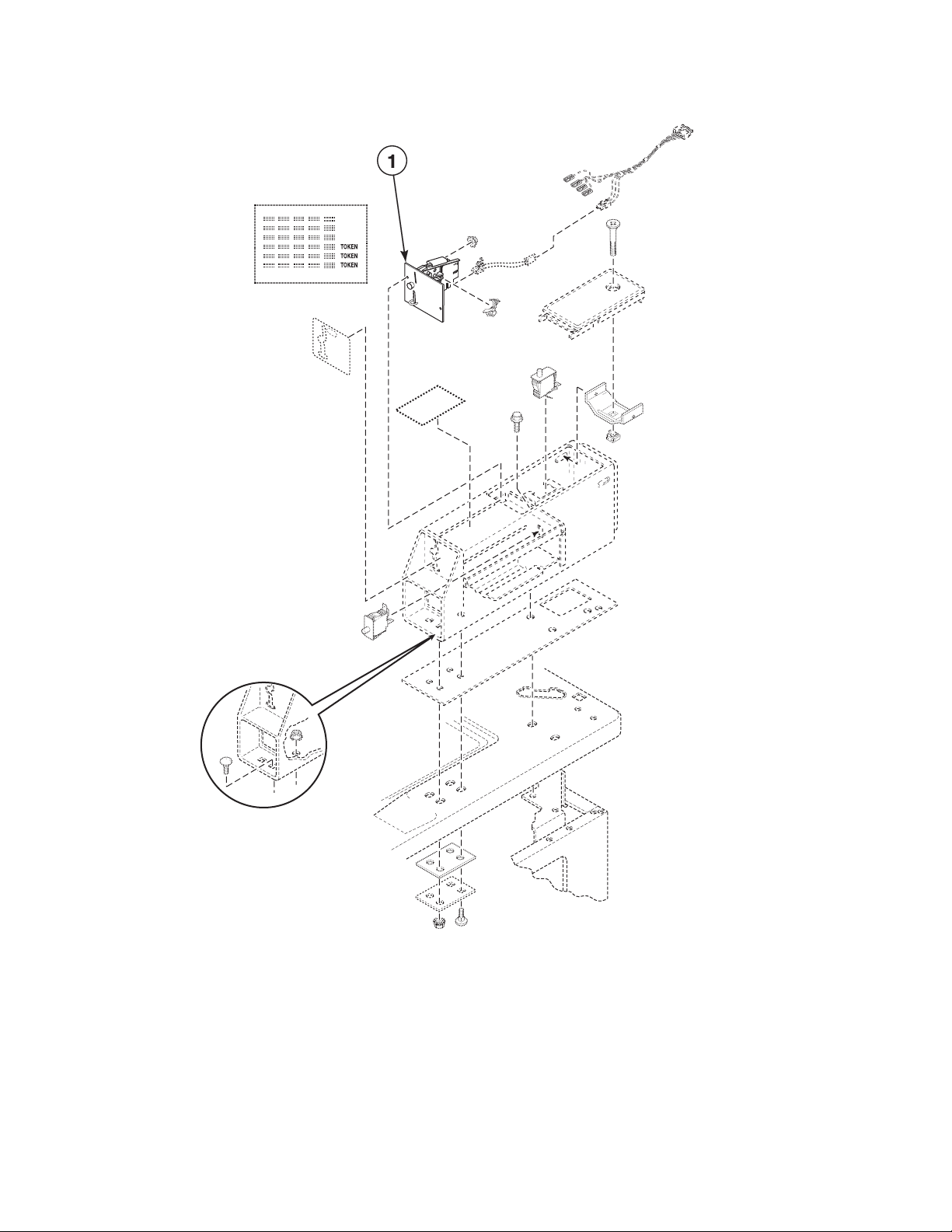

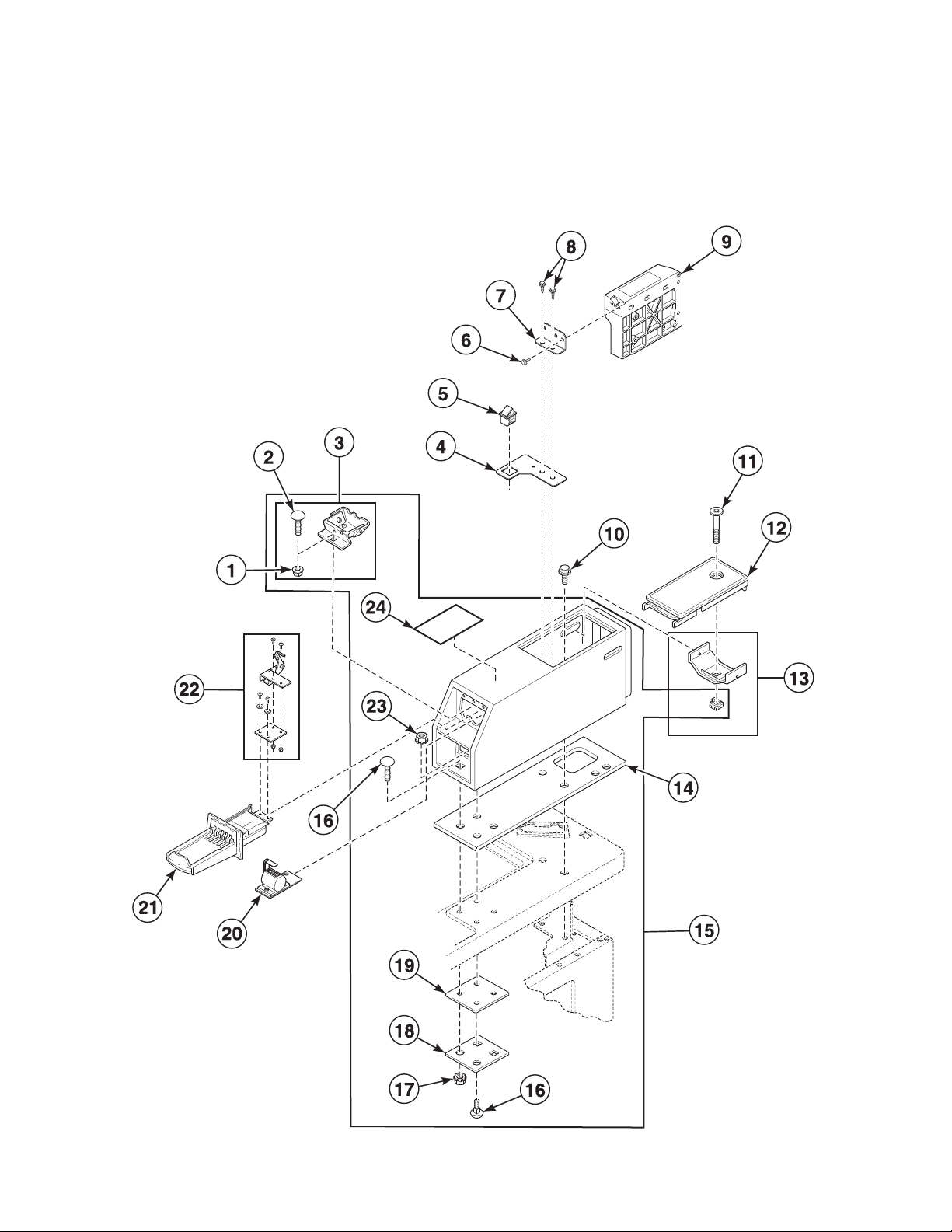

Coin Slide Extension, Meter Case and Control

Models HWNSX2PP115TQ01, HWNSX2PP115TW01, HWNSX2SP115CW01, HWNSX2SP115TW01, HWNSX2SP303UW01,

KWNSX2PP115TW01, KWNSX2PP303EW01, KWNSX2PP303NW16, KWNSX2SP115TW01, KWNSX2SP303EW01,

KWNSX2SP303NW16, NWNSX2SP303NW22, PWNSX2PP115CG02, PWNSX2PP115CW02, PWNSX2PP115TG02,

PWNSX2PP115TW02, SWNSX2PP113FW01, SWNSX2PP303AW01, SWNSX2SP113FW01, SWNSX2SP115CW02,

SWNSX2SP115TQ02, SWNSX2SP115TW02, SWNSX2SP303AW01, SWNSX2SP303BW01, SWNSX2SP303EW01,

SWNSX2SP303NW22, SWNSX2SP303SQ01, SWNSX2SP303SW01, SWNSX2SP303UW01, SWNSX2SP303WW01 and

SWNSX2SP543NW22

TLW1876P_204554

204554 5

Coin Slide Extension, Meter Case and Control

REF PART NO. DESCRIPTION COMMENTS

1 29796 Nut

2 29651 Bolt

3 523P3 Coin Funnel Kit

4 803662 Bracket

5 70529301 Switch

6 D501524 Screw

7 201581 Chassis Mounting Bracket

8 D503688 Screw

9 202792P Control Assembly

10 36048 Screw

11 D503673 Screw

12 39874QP Service Door Assembly Bisque; Models HWNSX2PP115TQ01, SWNSX2SP115TQ02

and SWNSX2SP303SQ01

12 39874DG Service Door Assembly Gray; Models PWNSX2PP115CG02 and PWNSX2PP115TG02

12 39874WP Service Door Assembly White; All other models

13 204616 Meter Case Locking Bracket Kit

14 26354 Meter Case Gasket

15 803575WP Meter Case Assembly Kit White; High capacity; Includes items 3, 4 and 11-13

15 803575DG Meter Case Assembly Kit Gray; High capacity; Includes items 3 and 4

15 803575Q Meter Case Assembly Bisque; High capacity; Includes items 3 and 4

15 803578P Coin Box Extension Kit Use with 803575W, 803575Q or 803575DG Meter Case

Assembly to extend shorter 7-inch coin boxes

15 201010QP Meter Case Kit Bisque; Standard capacity; Includes items 3, 13, 14, 16-19 and

15 807398W Meter Case Kit White; Standard capacity; Includes switch, harness, items 3,

13, 14, 16-19 and 23

16 203798 Bolt

17 29786 Nut

18 35525 Meter Case Lockdown Bracket

19 35526 Meter Case Bracket Gasket

20 201280P Mechanical Counter Kit Assembly

21 CK001 Coin Slide Kit U.S.A.; Vert 5 Greenwald

21 CK009 Coin Slide Kit STD-118-1 Token

21 CK010P Coin Slide Kit STD-118-5 Token

21 CK011 Coin Slide Kit STD-118-10 Token

21 CK014 Coin Slide Kit U.S.A.; Vert 8 ESD; Includes standard capacity coin box

21 CK124 Coin Slide Kit U.S.A.; Vert 8 ESD; Includes high capacity coin box

21 CK017 Coin Slide Kit Chilly Willy Token

21 CK027 Slide Tokette

22 200913 Coin Slide Extension Kit Includes spring and items 4 and 5

22 804794 Spring

23 802337 Nut

24 203152 Operation Instruction Label

6 204554

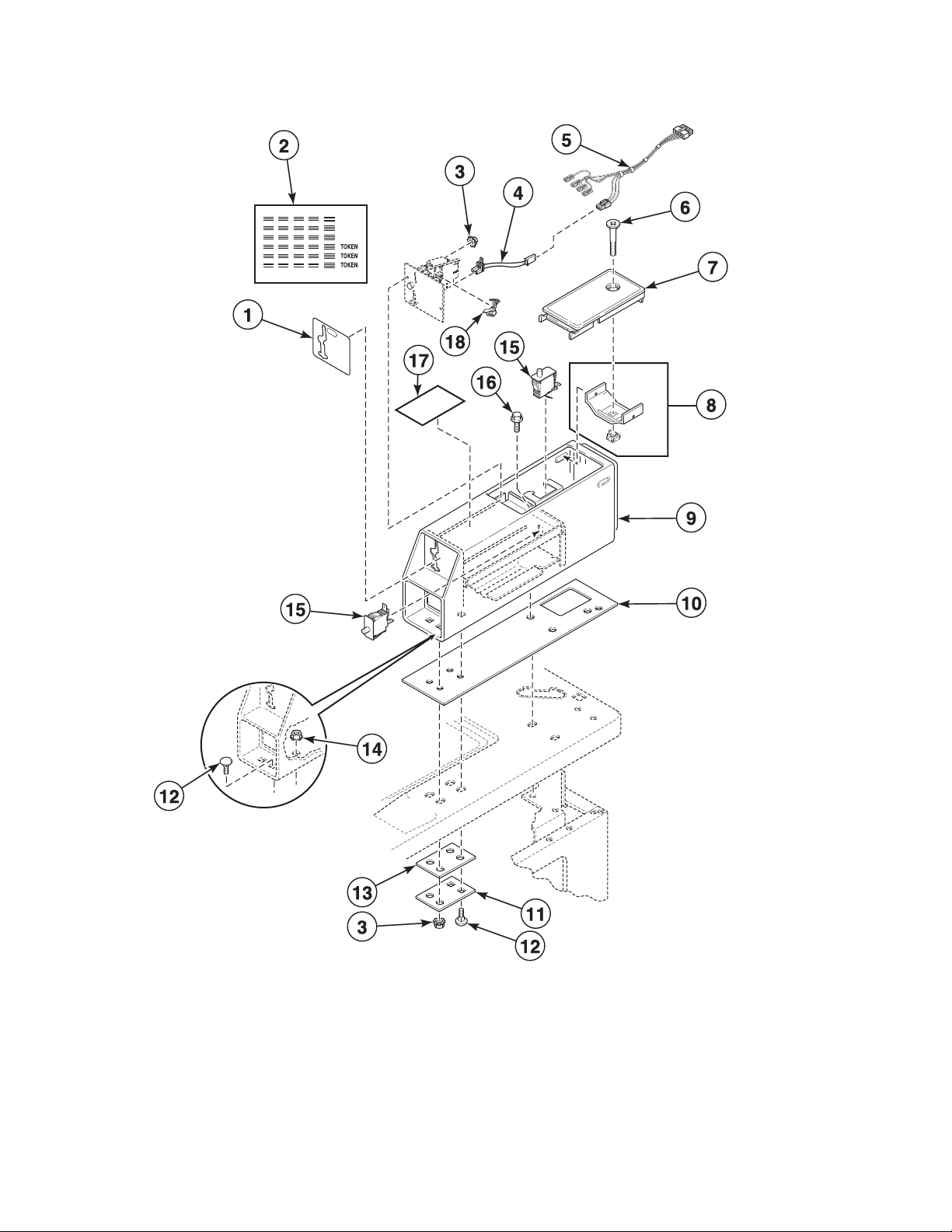

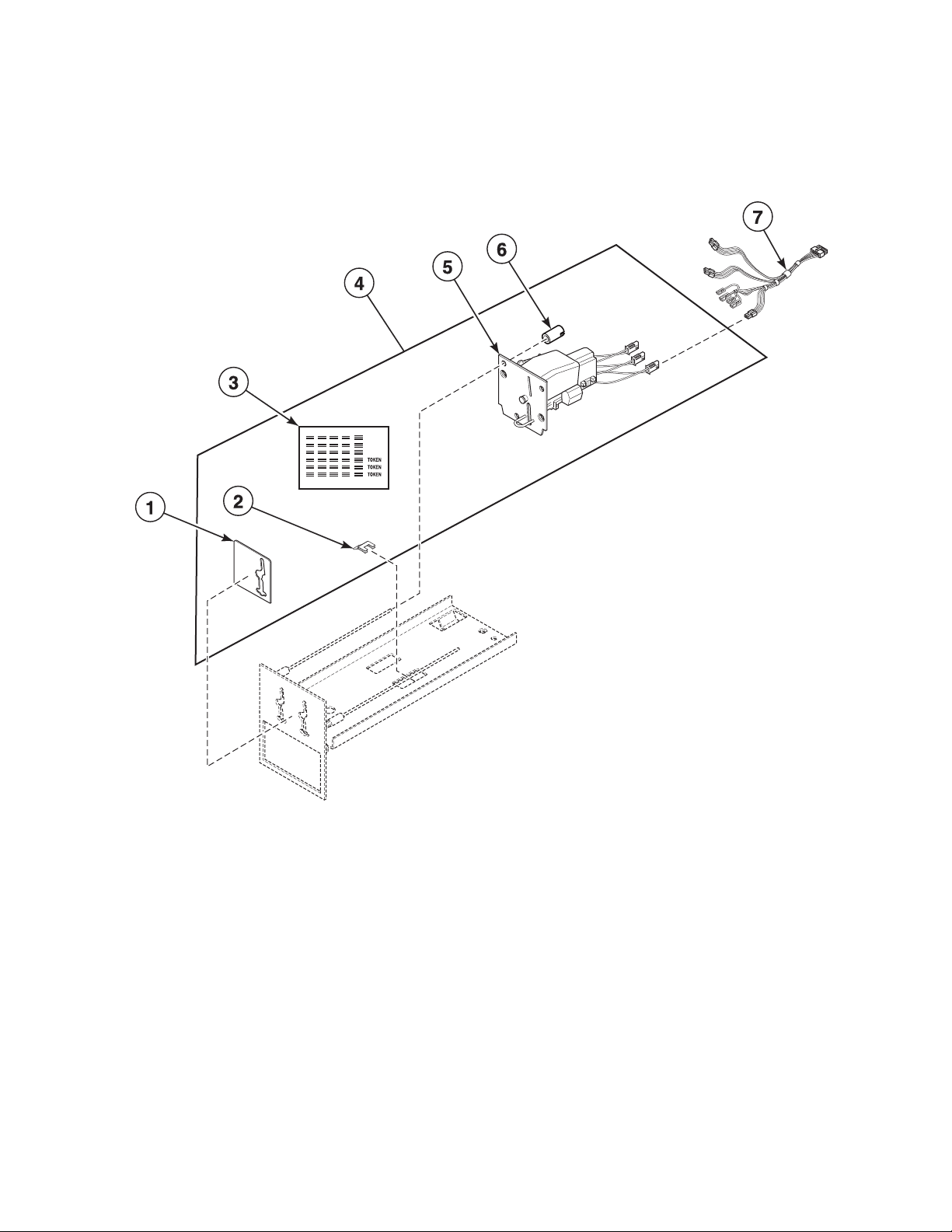

Meter Case

Coin Drop Models

TLW1741P_204554

204554 7

Meter Case

REF PART NO. DESCRIPTION COMMENTS

1 38717 Single Overlay $.25

1 38676 Overlay Kit Dual; Includes item 2

1 39073 Dual Overlay $.25 and $1.00

2 38725 Coin Identification Paper

3 29786 Nut

4 200674P Opto Coupler

5 202870 Single Coin Harness Assembly

5 806827 Dual Coin Harness Assembly Models HWNKD2SP115CW01, HWNKE2SP115CW01

and HWNKX2SP115CW01

5 202871 Dual Coin Harness Assembly All other models

6 D503673 Screw

7 39874WP Service Door Assembly White

7 39874QP Service Door Assembly Bisque

7 39874DG Service Door Assembly Dark gray

8 204616 Meter Case Locking Bracket Kit

9 802505W Meter Case Assembly Model HWNBE2SP115CW01; Standard capacity

9 807406W Meter Case Assembly Model HWNBE2SP115CW01; High capacity

9 202877W Meter Case Assembly White; All other models; Standard capacity

9 202877Q Meter Case Assembly Bisque; All other models; Standard capacity

9 807401W Meter Case Assembly Kit White; All other models; High capacity; Includes switch

and harness

9 807401Q Meter Case Assembly Bisque; All other models; High capacity

9 807401DG Meter Case Assembly Gray; All other models; High capacity

9 803578P Coin Box Extension Kit Use with high capacity meter cases to extend shorter 7

inch coin boxes

10 26354 Meter Case Gasket

11 35525 Meter Case Lockdown Bracket

12 203798 Bolt

13 35526 Meter Case Bracket Gasket

14 802337 Nut

15 D512973 Switch

16 36048 Screw

17 203152 Operation Instruction Label

18 201595P Wire Guard Anti-stringing security device

8 204554

Non-Electronic Coin Drop

Coin Drop Models

TLW1741PA_204554

204554 9

Non-Electronic Coin Drop

REF PART NO. DESCRIPTION COMMENTS

1 70441601P Coin Drop Single; U.S.A.; $.25

1 200731 Coin Drop Single; U.S.A.; $1.00

1 70441603 Coin Drop Dual; U.S.A.; $.25 and $1.00

1 38467 Coin Drop Assembly Dual; Australia; $0.20 and $1.00

1 70447301 Coin Drop Assembly Dual; Australia; $1.00 and $2.00

1 38464P Coin Drop Assembly Single; Canada; .25

1 70441602 Coin Drop Assembly Dual; Canada; .25 and 1.00

1 38472 Coin Drop Assembly Dual; England; 20 pence and 1 pound

1 38519 Coin Drop Assembly Dual; Japan; 100 yen and 500 yen

1 38521 Coin Drop Assembly Dual; Korea; 100 won and 500 won

1 CK114 Coin Drop Assembly Single; Singapore; Old $1.00

1 CK123 Coin Drop Kit Single: Singapore; New $1.00

1 70482401 Coin Drop Assembly Dual; New Zealand ; $1.00 and $2.00

1 38462P Coin Drop Assembly Single; Token; STD 118-1

1 38463 Coin Drop Assembly Single; Token; STD 118-5

1 38963P Coin Drop Single; Token STD 118-16

1 553192 Coin Drop Assembly Dual; Danish Crown

1 39157 Coin Drop Assembly Dual; Israel; 1 and 5 Shekel

1 38475 Coin Drop Assembly Single; Japan; 100 yen

1 210195 Coin Drop Assembly Dual; 0.20 and 1.00 Euro

1 210196 Coin Drop Assembly Dual; 0.50 and 1.00 Euro

1 70281102 Coin Drop Assembly Dual; Taiwan; 10 and 50 NT

1 70506901 Coin Drop Assembly Single; Singapore; $1.00 NEW

1 39748 Coin Drop Single; Jeton 08MS

1 201141 Coin Drop Assembly Single; Token; Jeton wh121

1 CK055 Coin Drop Kit Token STD 118-1

1 CK056 Coin Drop Kit Token STD 118-5

1 CK057 Coin Drop Kit Single; Canada; $0.25

1 CK058 Coin Drop Kit Dual; Canada; $0.25 and $1.00

1 CK077 Coin Drop Kit Single; Taiwan; 10 NT

1 CK060 Coin Drop Kit Dual; Australia; $0.20 and $1.00

1 CK071 Coin Drop Kit Dual; Japan; 100 yen and 500 yen

1 CK078 Coin Drop Kit Single; U.S.A.; $0.25

1 CK085 Coin Drop Kit Single; Token STD 118-16

1 CK086 Coin Drop Kit Dual; Israel; 1 and 5 Shekel

1 CK089 Coin Drop Kit Single; Japan; 100 yen

1 CK090 Coin Drop Kit Single; U.S.A.; $1.00

1 CK091 Coin Drop Kit Dual; 0.20 and 1.00 Euro

1 CK097 Coin Drop Kit Single; Token; Jeton 08MS

1 CK098 Coin Drop Kit Single; Token; Jeton wh121

1 CK107 Coin Drop Kit Dual; Taiwan; 10 and 50 NT

1 CK111 Coin Drop Kit Dual; Australia; $1.00 and $2.00

1 CK122 Coin Drop Kit Dual; New Zealand; $1.00 and $2.00

10 204554

Electronic Coin Drop

Coin Drop Models

FLW1769P_204554

204554 11

Electronic Coin Drop

REF PART NO. DESCRIPTION COMMENTS

1 201091 Overlay

2 201572 Clip

3 38725 Coin Identification Paper

4 CK115 Electronic Coin Drop Kit Includes items 1-3 and 5-7; U.S. and Canada coins;

Models HWNBC2PP115TQ01, HWNBC2PP115TW01,

HWNBD2SP115CW01, HWNKC2SP115TW01,

HWNKD2SP115CW01, HWNKE2SP115CW01,

HWNKX2SP115CW01, HWNZC2SP115TW01,

PWNBC2PP115TG02, PWNBC2PP115TW02 and

SWNBC2SP115TW02 must also order item 7

4 CK099 Electronic Coin Drop Kit Includes items 1-3 and 5-7; Australia, New Zealand, Hong

Kong and South Korea coins

4 CK100 Electronic Coin Drop Kit Includes items 1-3 and 5-7; Euro and Great Britain coins

4 CK101 Electronic Coin Drop Kit Includes items 1-3 and 5-7; Euro, Denmark and Norway

coins

4 CK103 Electronic Coin Drop Kit Includes items 1-3 and 5-7; Euro, Lithuania and Latvia

coins

4 CK116 Electronic Coin Drop Kit Includes items 1-3 and 5-7; Malaysia (old and new) and

China coins

4 CK108 Electronic Coin Drop Kit Includes items 1-3 and 5-7; South African 1, 2, 5 rand coins

4 CK109 Electronic Coin Drop Kit Includes items 1-3 and 5-7; Euro coins

4 CK110 Electronic Coin Drop Kit Includes items 1-3 and 5-7; Mexico, Ecuador and United

States coins

4 CK113 Electronic Coin Drop Kit Includes items 1-3 and 5-7; Japan and Taiwan coins

4 CK120 Electronic Coin Drop Kit Includes items 1-3 and 5-7; Chile coins

4 CK121 Electronic Coin Drop Kit Includes items 1-3 and 5-7; Singapore coins

4 CK117 Electronic Coin Drop Kit Includes items 1-3 and 5-7; Russian coins

4 CK118 Electronic Coin Drop Kit Includes items 1-3 and 5-7; Philippine coins

4 CK119 Electronic Coin Drop Kit Includes items 1-3 and 5-7; Thailand coins

5 70513302 Electronic Coin Drop Assembly Euro and Great Britain coins

5 70294122 Electronic Coin Drop Assembly Great Britain coins

5 70294104 Electronic Coin Drop Assembly Euro, Denmark and Norway coins

5 70294107 Electronic Coin Drop Assembly Euro, Lithuania and Latvia coins

5 70294117 Electronic Coin Drop Assembly Russia coins

5 70294110 Electronic Coin Drop Assembly South African 1, 2, 5 rand coins

5 70294111 Electronic Coin Drop Assembly Euro coins

5 70294106 Electronic Coin Drop Assembly Mexico, Ecuador and United States coins

5 70294120 Electronic Coin Drop Assembly Chile coins

5 70294121 Electronic Coin Drop Assembly Singapore coins

5 70294103P Electronic Coin Drop Assembly Euro and Great Britain coins

5 70513311 Electronic Coin Drop Assembly Malaysia (old and new) and China coins

5 70294119 Electronic Coin Drop Assembly Thailand coins

6 201216 Nut

7 806827 Dual Coin Harness Assembly Models HWNKD2SP115CW01, HWNKE2SP115CW01 and

HWNKX2SP115CW01

7 202871 Dual Coin Harness Assembly All other models

12 204554

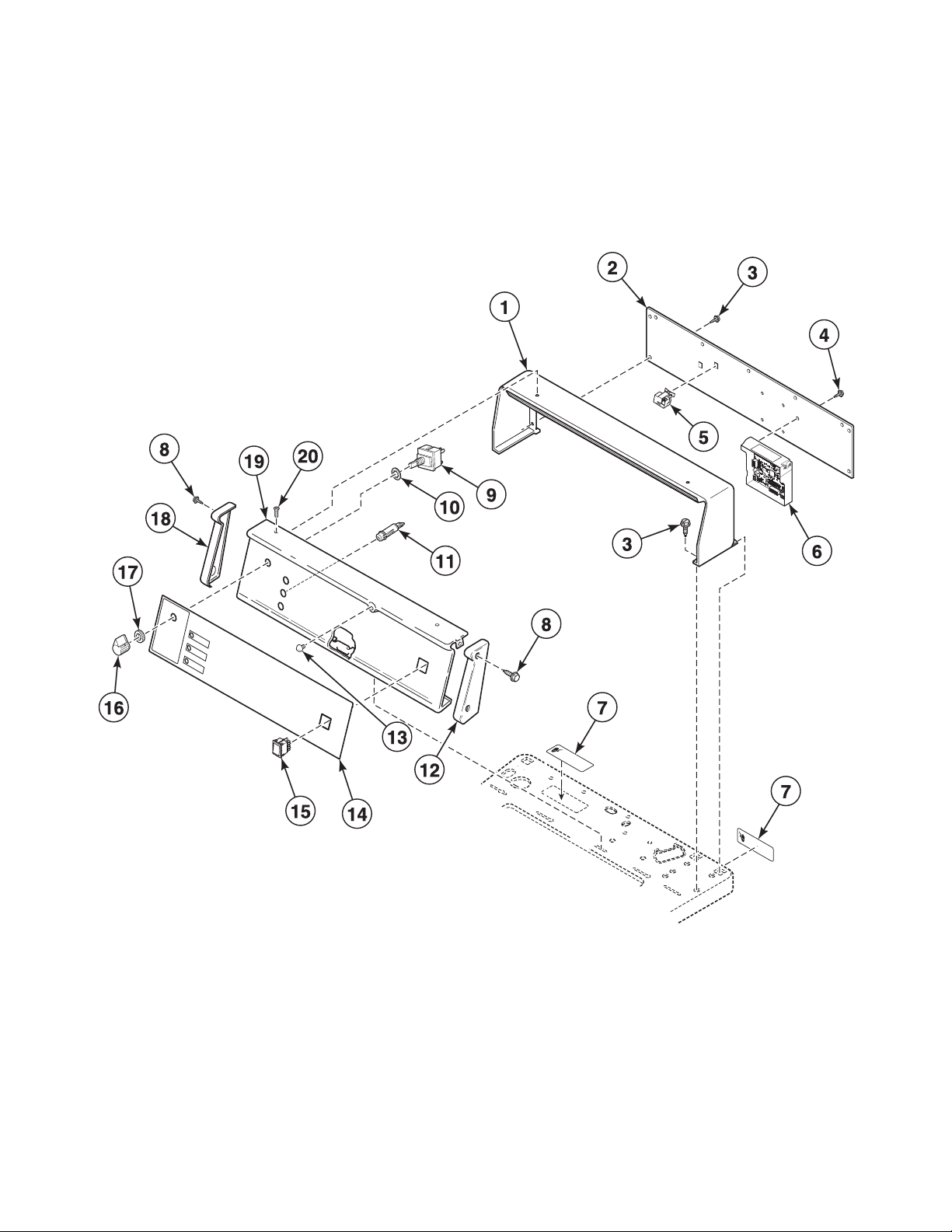

Control Panel, Control Hood and Controls (Drawing 1 of 9)

Models HWNMN2PP115TW01, HWNMN2SP115CW01, HWNMN2SP115TW01, KWNMN2PP115TW01,

KWNMN2PP303BW33, KWNMN2PP303NW16, KWNMN2SP115TW01, KWNMN2SP303BW33, KWNMN2SP303NW16,

NWNMN2SP303NW22, NWNMN2SP543NW22, SWNMN2SP115CW01, SWNMN2SP115TW01, SWNMN2SP303NW22 and

UWNMN2SP115CW01

TLW1829P_204554

204554 13

Control Panel, Control Hood and Controls (Drawing 1 of 9)

REF PART NO. DESCRIPTION COMMENTS

1 210142W Control Hood

2 201732 Rear Panel Through Serial No. 1806000001

2 203818 Rear Panel Starting Serial No. 1806000001

3 D501086 Screw

4 804608 Screw

5 203843 Pressure Sensor Mounted here through Serial No. 1806000001; Mounted

to mixing valve bracket starting serial No. 1806000001

6 202792P Control Assembly

7 D505281 Disconnect Power Warning Label

8 23222 Screw

9 201686 Cycle Selector Switch

10 91176 Washer

11 801431 Light

12 210108W End Cap Right

13 202469 Control Panel Bumper

13 M400795 Bumper Extra thick

14 203592 Control Overlay Models HWNMN2PP115TW01, HWNMN2SP115CW01

and HWNMN2SP115TW01

14 203595 Control Overlay Models KWNMN2PP115TW01, KWNMN2PP303BW33,

KWNMN2PP303NW16, KWNMN2SP115TW01 and

KWNMN2SP303NW16

14 204617 Control Overlay Model KWNMN2SP303BW33

14 203500 Control Overlay Models NWNMN2SP303NW22 and

NWNMN2SP543NW22

14 203594 Control Overlay Model UWNMN2SP115CW01

14 203494 Control Overlay All other models

15 70455101 Rocker Switch

16 39897 Switch Knob

17 24205 Nut

18 210109W End Cap Left

19 201742W Control Panel Assembly

20 52864 Screw

14 204554

Control Panel, Control Hood and Controls (Drawing 2 of 9)

Models BWNMN2PP303AW01, BWNMN2SP303AW01, NWNMN2SP303WW01, SWNMN2SP303AW01,

SWNMN2SP303SW01 and SWNMN2SP303WW01

TLW1839P_204554

204554 15

Control Panel, Control Hood and Controls (Drawing 2 of 9)

REF PART NO. DESCRIPTION COMMENTS

1 210142W Control Hood

2 203818 Rear Panel

3 D501086 Screw

4 804608 Screw

5 202792P Control Assembly

6 D503688 Screw

7 203843 Pressure Sensor Mounted here through Serial No. 1806000001; Mounted

to mixing valve bracket starting Serial No. 1806000001

8 80262 Grommet

9 203068 Junction Box

10 F8211201 Electrical Shock Label

11 23222 Screw

12 210108W End Cap Right

13 202469 Control Panel Bumper

13 M400795 Bumper Extra thick

14 203593 Control Overlay Models BWNMN2PP303AW01 and

BWNMN2SP303AW01

14 203500 Control Overlay Model NWNMN2SP303WW01

14 203494 Control Overlay All other models

15 70455101 Rocker Switch

16 24205 Nut

17 39897 Switch Knob

18 210109W End Cap Left

19 201742W Control Panel Assembly

20 52864 Screw

21 201686 Cycle Selector Switch

22 91176 Washer

23 801431 Light

24 804864 Line Filter

25 29787 Nut

16 204554

Control Panel, Control Hood and Controls (Drawing 3 of 9)

Models HWNSX2PP115TQ01, HWNSX2PP115TW01, HWNSX2SP115CW01, HWNSX2SP115TW01, KWNSX2PP115TW01,

KWNSX2PP303NW16, KWNSX2SP115TW01, KWNSX2SP303NW16, NWNSX2SP303NW22, PWNSX2PP115CG02,

PWNSX2PP115CW02, PWNSX2PP115TG02, PWNSX2PP115TW02, SWNSX2SP115CW02, SWNSX2SP115TQ02,

SWNSX2SP115TW02, SWNSX2SP303NW22 and SWNSX2SP543NW22

TLW1831P_204554

204554 17

Control Panel, Control Hood and Controls (Drawing 3 of 9)

REF PART NO. DESCRIPTION COMMENTS

1 37075W Control Hood White

1 37075Q Control Hood Bisque

1 37075DG Control Hood Gray

2 23222 Screw

3 203843 Pressure Sensor Mounted here through Serial No. 1806000001; Mounted

to mixing valve bracket starting Serial No. 1806000001

4 37020 Rear Hood Panel Through Serial No. 1806000001

4 202465 Hood Back Panel Starting Serial No. 1806000001

5 M400017 Washer

6 02916 Screw

7 D501086 Screw

8 44087101 Nut

9 801431 Light

10 202469 Control Panel Bumper

10 M400795 Bumper Extra thick

11 203479 Control Overlay Models HWNSX2PP115TQ01, HWNSX2PP115TW01,

HWNSX2SP115CW01 and HWNSX2SP115TW01

11 203598 Control Overlay Models KWNSX2PP115TW01, KWNSX2PP303NW16

and KWNSX2SP115TW01

11 203597 Control Overlay Model NWNSX2SP303NW22

11 204321 Control Overlay Models PWNSX2PP115CG02, PWNSX2PP115CW02,

PWNSX2PP115TG02 and PWNSX2PP115TW02

11 203493 Control Overlay All other models

12 24205 Nut

13 39897 Switch Knob

14 36521WP Control Panel and Bracket Assembly White

17 36521QP Control Panel and Bracket Assembly Bisque

14 36521 Control Panel and Bracket Assembly Gray

15 D500226 Screw Phillips head

15 35528 Screw Torx head

16 91176 Washer

17 201686 Cycle Selector Switch

18 204554

Control Panel, Control Hood and Controls (Drawing 4 of 9)

Models SWNSX2PP113FW01, SWNSX2PP303AW01, SWNSX2SP113FW01, SWNSX2SP303AW01, SWNSX2SP303BW01,

SWNSX2SP303SQ01, SWNSX2SP303SW01 and SWNSX2SP303WW01

TLW1877P_204554

204554 19

Control Panel, Control Hood and Controls (Drawing 4 of 9)

REF PART NO. DESCRIPTION COMMENTS

1 37075W Control Hood White

1 37075Q Control Hood Bisque

2 23222 Screw

3 202465 Hood Back Panel

4 M400017 Washer

5 02916 Screw

6 44087101 Nut

7 23962 Screw

8 801431 Light

9 D503688 Screw

10 203843 Pressure Sensor Mounted here through Serial No. 1806000001; Mounted

to mixing valve bracket starting Serial No. 1806000001

11 80262 Grommet

12 29787 Nut

13 804864 Line Filter

14 203068 Junction Box

15 202469 Control Panel Bumper

15 M400795 Bumper Extra thick

16 203493 Control Overlay

17 39897 Switch Knob

18 24205 Nut

19 203551W Control Panel and Bracket Assembly White

19 203551 Control Panel and Bracket Assembly Bisque

20 52864 Screw Phillips head

20 35528 Screw Torx head; Optional for added security

21 91176 Washer

22 201686 Cycle Selector Switch

20 204554

Control Panel, Control Hood and Controls (Drawing 5 of 9)

Models HWNSX2SP303UW01, KWNSX2PP303EW01, KWNSX2SP303EW01, SWNSX2SP303EW01 and

SWNSX2SP303UW01

TLW1840P_204554

204554 21

Control Panel, Control Hood and Controls (Drawing 5 of 9)

REF PART NO. DESCRIPTION COMMENTS

1 37075W Control Hood

2 23222 Screw

3 202465 Hood Back Panel

4 M400017 Washer

5 02916 Screw

6 44087101 Nut

7 23962 Screw

8 55882 Switch Assembly

9 801431 Light

10 D503688 Screw

11 203843 Pressure Sensor Mounted here through Serial No. 1806000001; Mounted

to mixing valve bracket starting Serial No. 1806000001

12 80262 Grommet

13 29787 Nut

14 804864 Line Filter

15 203068 Junction Box

16 202469 Control Panel Bumper

16 M400795 Bumper Extra thick

17 203491 Control Overlay Model HWNSX2SP303UW01

17 203492 Control Overlay Models KWNSX2PP303EW01 and

KWNSX2SP303EW01

17 203490 Control Overlay All other models

18 24206 Nut

19 39897 Switch Knob

20 24205 Nut

21 203551W Control Panel and Bracket Assembly

22 52864 Screw Phillips head

22 35528 Screw Torx head; Optional for added security

23 91176 Washer

24 201686 Cycle Selector Switch

25 F430339 Washer

22 204554

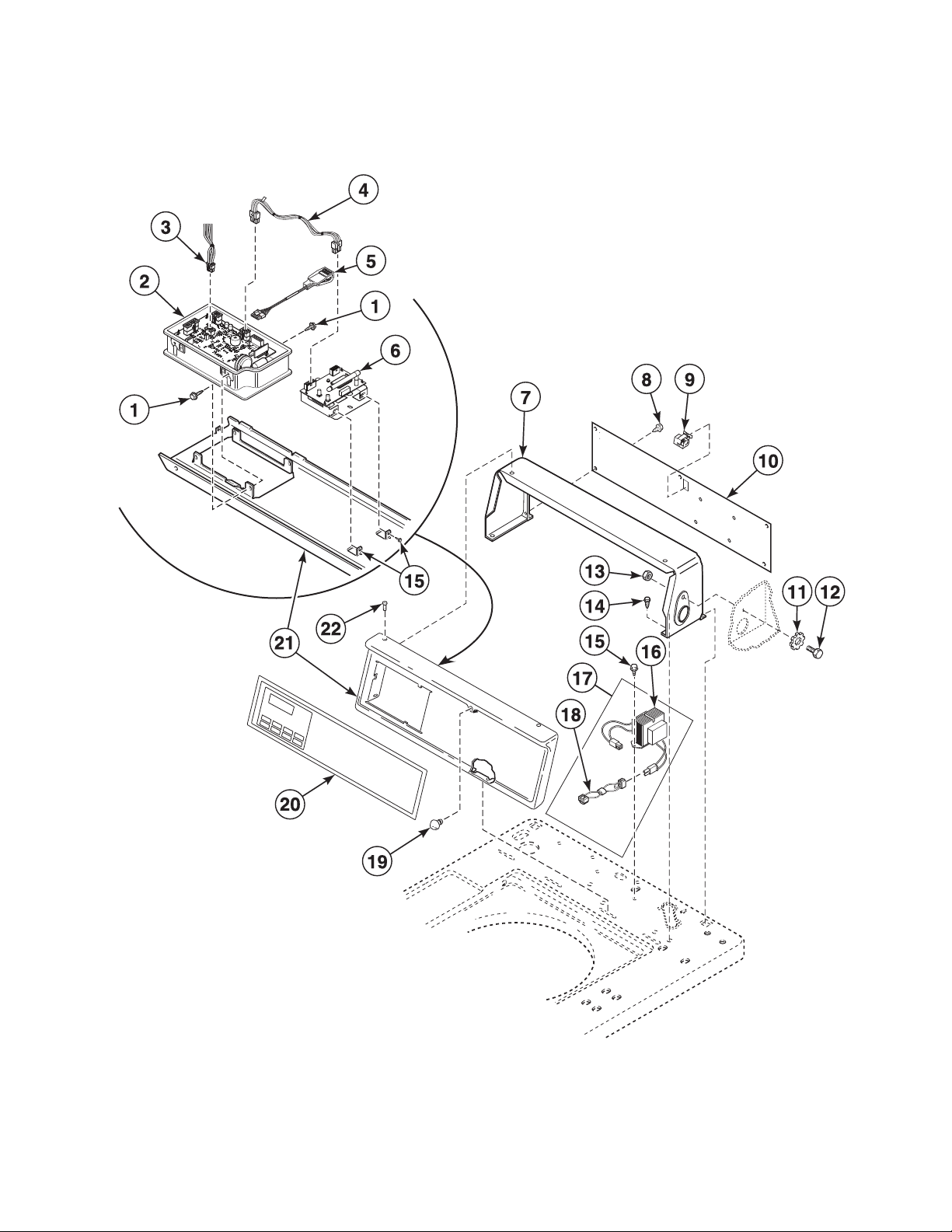

Control Panel, Control Hood and Controls (Drawing 6 of 9)

Models HWNBC2PP115TQ01, HWNBC2PP115TW01, HWNBC2SP115TW01, HWNBD2SP115CW01, HWNBE2SP115CW01,

HWNBX2SP115CW01, HWNBX2SP303NW22, HWNKC2SP115TW01, HWNKD2SP115CW01, HWNKE2SP115CW01,

HWNKX2SP115CW01, KWNBX2SP115TW01, NWNBX2SP303NW22, NWNBX2SP543NW23, PWNBC2PP115TG02,

PWNBC2PP115TW02, PWNBE2PP115CG02, PWNBE2PP115CW02, PWNBX2PP115CG02, PWNBX2PP115CW02,

PWNBX2PP115TG02, PWNBX2PP115TW02, PWNBX2SP303AG01, SWNBC2SP115TW02, SWNBX2SP115TQ02,

SWNBX2SP115TW02, SWNBX2SP303NQ22, SWNBX2SP303NW22 and TWNBX2SP303NW22

TLW1826P_204554

204554 23

Control Panel, Control Hood and Controls (Drawing 6 of 9)

REF PART NO. DESCRIPTION COMMENTS

1 804608 Screw

2 805427 Central Pay Harness

3 203566 Control Assembly Models PWNBC2PP115TG02, PWNBC2PP115TW02,

PWNBE2PP115CG02, PWNBE2PP115CW02,

PWNBX2PP115CG02, PWNBX2PP115CW02,

PWNBX2PP115TG02 and PWNBX2PP115TW02

3 203564P Control Assembly All other models

4 203361P Machine ID Control Assembly Model or serial number is required when ordering

5 37075W Control Hood White

5 37075Q Control Hood Bisque

5 37075DG Control Hood Gray

6 23222 Screw

7 203843 Pressure Sensor Mounted here through Serial No. 1806000001; Mounted

to mixing valve bracket starting Serial No. 1806000001

8 37020 Rear Hood Panel Through Serial No. 1806000001

8 202465 Hood Back Panel Starting Serial No. 1806000001

9 M400017 Washer

10 02916 Screw

11 44087101 Nut

12 D501086 Screw

13 D503661 Screw

14 204379 Transformer Model HWNKX2SP115CW01

14 203424 Transformer Kit 240 Volt; Models HWNBX2SP303NW22,

NWNBX2SP303NW22, NWNBX2SP543NW23,

SWNBX2SP303NQ22, SWNBX2SP303NW22 and

TWNBX2SP303NW22

14 203423 Transformer Kit 120 Volt; All other models

15 202469 Control Panel Bumper

15 M400795 Bumper Extra thick

16 203515 Control Overlay Model HWNBX2SP303NW22

16 203476 Control Overlay Models HWNBC2PP115TQ01, HWNBC2PP115TW01,

HWNBC2SP115TW01, HWNBD2SP115CW01,

HWNBE2SP115CW01, HWNBX2SP115CW01,

HWNKC2SP115TW01, HWNKD2SP115CW01,

HWNKE2SP115CW01 and HWNKX2SP115CW01

16 203682 Control Overlay Models PWNBC2PP115TG02, PWNBC2PP115TW02,

PWNBE2PP115CG02, PWNBE2PP115CW02,

PWNBX2PP115CG02, PWNBX2PP115CW02,

PWNBX2PP115TG02 and PWNBX2PP115TW02

16 203501 Control Overlay Model TWNBX2SP303NW22

16 204939 Control Overlay Model KWNBX2SP115TW01

16 203514 Control Overlay All other models

17 210042W Control Panel Assembly White

17 210042Q Control Panel Assembly Bisque

17 210042DG Control Panel Assembly Gray

18 52864 Screw Phillips head

18 35528 Screw Torx head

24 204554

Control Panel, Control Hood and Controls (Drawing 7 of 9)

Model HWNZC2SP115TW01

TLW1866P_204554

204554 25

Control Panel, Control Hood and Controls (Drawing 7 of 9)

REF PART NO. DESCRIPTION COMMENTS

NA NK320 Ethernet Gateway Kit Wireless

NA NK330 USB Gateway Kit Wireless

1 804608 Screw

2 203564P Control Assembly

3 805427 Central Pay Harness

4 F8536002 Wireless Network Board Harness Through Serial No. 1902000001

4 F8674006 Wireless Network Harness Starting Serial No. 1902000001

5 203361P Machine ID Control Assembly Model or serial number is required when ordering

6 203532 Wireless Network Control Assembly Through Serial No. 1902000001

6 807211 Wireless Network Control Assembly Starting Serial No. 1902000001

7 37075W Control Hood

8 23222 Screw

9 203843 Pressure Sensor

10 37020 Rear Hood Panel

11 M400017 Washer

12 02916 Screw

13 44087101 Nut

14 D501086 Screw

15 D503661 Screw

16 202757 Transformer

17 203423 Transformer Kit Includes items 16 and 18

18 804832 Harness

19 202469 Control Panel Bumper

19 M400795 Bumper Extra thick

20 203476 Control Overlay

21 210042W Control Panel Assembly

22 52864 Screw Phillips head

22 35528 Screw Torx head

26 204554

Control Panel, Control Hood and Controls (Drawing 8 of 9)

Models BWNBX2PP303AW01, BWNBX2SP303AW01, HWNBX2SP113FW01, HWNBX2SP123DW01,

HWNBX2SP543DW01, NWNBX2SP303LW01, PWNBX2PP303AG02, PWNBX2SP303AG01,

SWNBX2SP113FW01, SWNBX2SP113JW01, SWNBX2SP123DW01, SWNBX2SP303AW01,

SWNBX2SP303LW01 and SWNBX2SP543DW01

TLW1827P_204554

204554 27

Control Panel, Control Hood and Controls (Drawing 8 of 9)

REF PART NO. DESCRIPTION COMMENTS

1 804608 Screw

2 805427 Central Pay Harness

3 203566 Control Assembly Models PWNBX2PP303AG02 and

PWNBX2SP303AG01

3 203564P Control Assembly All other models

4 203361P Machine ID Control Assembly Model or serial number is required when ordering

5 23222 Screw

6 37020 Rear Hood Panel Through Serial No. 1806000001

6 202465 Hood Back Panel Starting Serial No. 1806000001

7 M400017 Washer

8 02916 Screw

9 44087101 Nut

10 D501086 Screw

11 800258 Screw

12 203843 Pressure Sensor Mounted here through Serial No. 1806000001; Mounted

to mixing valve bracket starting Serial No. 1806000001

13 80262 Grommet

14 203424 Transformer Kit 240 Volt; Models BWNBX2PP303AW01,

BWNBX2SP303AW01, HWNBX2SP543DW01,

PWNBX2PP303AG02, PWNBX2SP303AG01,

SWNBX2SP303AW01 and SWNBX2SP543DW01

14 203423 Transformer Kit 120 Volt; All other models

15 D503661 Screw

16 203068 Junction Box

17 29787 Nut

18 804864 Line Filter

19 202469 Control Panel Bumper

19 M400795 Bumper Extra thick

20 203515 Control Overlay Models HWNBX2SP113FW01, HWNBX2SP123DW01

and HWNBX2SP543DW01

20 203477 Control Overlay Models BWNBX2PP303AW01 and

BWNBX2SP303AW01

20 203682 Control Overlay Models PWNBX2PP303AG02 and

PWNBX2SP303AG01

20 203474 Control Overlay Models SWNBX2SP303AW01 and

SWNBX2SP303LW01

20 203514 Control Overlay All other models

21 210042W Control Panel Assembly White

21 210042DG Control Panel Assembly Gray

22 52864 Screw Phillips head

22 35528 Screw Torx head

23 37075W Control Hood White

23 37075DG Control Hood Gray

28 204554

Control Panel, Control Hood and Controls (Drawing 9 of 9)

Models HWNBY2PP115TW01, HWNBY2SP115CW01, HWNBY2SP115TW01, HWNKY2SP115CW01 and

SWNBY2SP115TW01

TLW1814P_204554

204554 29

Control Panel, Control Hood and Controls (Drawing 9 of 9)

REF PART NO. DESCRIPTION COMMENTS

1 804608 Screw

2 203564P Control Assembly

3 805427 Central Pay Harness

4 202869 Wiring Harness Assembly Diagnostic

5 203361P Machine ID Control Assembly Model or serial number is required when ordering

6 210143 Rear Panel Through Serial No. 1806000001

6 203818 Rear Panel Starting Serial No. 1806000001

7 D501086 Screw

8 210142W Control Hood

9 203843 Pressure Sensor Mounted here through Serial No. 1806000001; Mounted to

mixing valve bracket starting Serial No. 1806000001

10 D503661 Screw

11 203423 Transformer Kit

12 210108W End Cap Right

13 202469 Control Panel Bumper

13 M400795 Bumper Extra thick

14 203497 Control Panel Overlay Models HWNBY2PP115TW01, HWNBY2SP115CW01,

HWNBY2SP115TW01 and HWNKY2SP115CW01

14 203648 Control Panel Overlay Model SWNBY2SP115TW01

15 210109W End Cap Left

16 52864 Screw

17 210137W Control Panel Assembly

30 204554

Lid and Cabinet Top (Drawing 1 of 2)

All Models Except HWNSX2SP303UW01, KWNSX2PP303EW01, KWNSX2SP303EW01, SWNSX2SP303EW01 and

SWNSX2SP303UW01

TLW1832P_204554

204554 31

Lid and Cabinet Top (Drawing 1 of 2)

REF PART NO. DESCRIPTION COMMENTS

1 33450DG Lid Gray

1 204615W Lid White

1 203045 Lid Warning Label

2 34153 Lid Plug

3 34337 Screw

4 D503673 Screw Optional; For added security

5 34338 Hinge Gasket

6 33446 Bushing

7 52909 Screw

8 F8211201 Electrical Shock Label Icon

8 D500316 Warning Label English/French

8 D505281 Disconnect Power

Warning Label

English

9 202083 Bracket All models except BWNBX2PP303AW01, BWNBX2SP303AW01,

BWNMN2PP303AW01, BWNMN2SP303AW01, HWNBC2SP115TW01,

HWNBX2SP113FW01, HWNBX2SP123DW01, HWNBX2SP543DW01,

KWNMN2SP303BW33, KWNMN2SP303NW16, NWNMN2SP303WW01,

PWNBX2PP303AG02, PWNBX2SP303AG01, SWNBX2SP113FW01,

SWNBX2SP113JW01, SWNBX2SP123DW01, SWNBX2SP303AW01,

SWNBX2SP543DW01, SWNMN2SP303AW01, SWNMN2SP303SW01,

SWNMN2SP303WW01, SWNSX2PP113FW01, SWNSX2PP303AW01,

SWNSX2SP113FW01, SWNSX2SP303AW01, SWNSX2SP303BW01,

SWNSX2SP303SQ01, SWNSX2SP303SW01 and

SWNSX2SP303WW01

10 23962 Screw

11 38384 Strain Relief

12 39249 Washer Models BWNBX2PP303AW01, BWNBX2SP303AW01,

BWNMN2PP303AW01, BWNMN2SP303AW01, HWNBC2SP115TW01,

HWNBX2SP113FW01, HWNBX2SP123DW01, HWNBX2SP543DW01,

KWNMN2SP303BW33, KWNMN2SP303NW16, NWNMN2SP303WW01,

PWNBX2PP303AG02, PWNBX2SP303AG01, SWNBX2SP113FW01,

SWNBX2SP113JW01, SWNBX2SP123DW01, SWNBX2SP303AW01,

SWNBX2SP303LW01, SWNBX2SP543DW01, SWNMN2SP303AW01,

SWNMN2SP303SW01, SWNMN2SP303WW01, SWNSX2PP113FW01,

SWNSX2PP303AW01, SWNSX2SP113FW01, SWNSX2SP303AW01,

SWNSX2SP303BW01, SWNSX2SP303SQ01, SWNSX2SP303SW01

and SWNSX2SP303WW01

13 431287 Screw Models BWNBX2PP303AW01, BWNBX2SP303AW01,

BWNMN2PP303AW01, BWNMN2SP303AW01, HWNBC2SP115TW01,

HWNBX2SP113FW01, HWNBX2SP123DW01, HWNBX2SP543DW01,

KWNMN2SP303BW33, KWNMN2SP303NW16, NWNMN2SP303WW01,

PWNBX2PP303AG02, PWNBX2SP303AG01, SWNBX2SP113FW01,

SWNBX2SP113JW01, SWNBX2SP123DW01, SWNBX2SP303AW01,

SWNBX2SP303LW01, SWNBX2SP543DW01, SWNMN2SP303AW01,

SWNMN2SP303SW01, SWNMN2SP303WW01, SWNSX2PP113FW01,

SWNSX2PP303AW01, SWNSX2SP113FW01, SWNSX2SP303AW01,

SWNSX2SP303BW01, SWNSX2SP303SQ01, SWNSX2SP303SW01

and SWNSX2SP303WW01

14 36437 Lid Hinge Right

15 36438 Lid Hinge Left

16 21685 Bumper

32 204554

Lid and Cabinet Top (Drawing 2 of 2)

All Models Except HWNSX2SP303UW01, KWNSX2PP303EW01, KWNSX2SP303EW01, SWNSX2SP303EW01 and

SWNSX2SP303UW01

TLW1832PA_204554

204554 33

Lid and Cabinet Top (Drawing 2 of 2)

REF PART NO. DESCRIPTION COMMENTS

1 210173WP Top Assembly Models BWNMN2PP303AW01, BWNMN2SP303AW01,

HWNBC2SP115TW01, HWNBY2PP115TW01, HWNBY2SP115CW01,

HWNBY2SP115TW01, HWNKY2SP115CW01, HWNMN2PP115TW01,

HWNMN2SP115CW01, HWNMN2SP115TW01, KWNMN2PP115TW01,

KWNMN2PP303BW33, KWNMN2PP303NW16, KWNMN2SP115TW01,

KWNMN2SP303BW33, KWNMN2SP303NW16, NWNMN2SP303NW22,

NWNMN2SP303WW01, NWNMN2SP543NW22, SWNBY2SP115TW01,

SWNMN2SP115CW01, SWNMN2SP115TW01, SWNMN2SP303AW01,

SWNMN2SP303NW22, SWNMN2SP303SW01, SWNMN2SP303WW01

and UWNMN2SP115CW01

1 203579DG Top Gray; Models PWNBC2PP115TG02, PWNBE2PP115CG02,

PWNBX2PP115CG02, PWNBX2PP115TG02, PWNBX2PP303AG02,

PWNBX2SP303AG01, PWNSX2PP115CG02 and PWNSX2PP115TG02

1 39167QP Top Bisque; Models HWNBC2PP115TQ01, HWNSX2PP115TQ01,

SWNBX2SP115TQ02, SWNBX2SP303NQ22, SWNSX2SP115TQ02 and

SWNSX2SP303SQ01

1 39167WP Top White; All other models

2 203947 Top Shield Models BWNBX2PP303AW01, BWNBX2SP303AW01,

BWNMN2PP303AW01, BWNMN2SP303AW01, HWNBC2SP115TW01,

HWNBX2SP113FW01, HWNBX2SP123DW01, HWNBX2SP543DW01,

KWNMN2SP303BW33, KWNMN2SP303NW16, NWNBX2SP303LW01,

NWNMN2SP303WW01, PWNBX2PP303AG02, PWNBX2SP303AG01,

SWNBX2SP113FW01, SWNBX2SP113JW01, SWNBX2SP123DW01,

SWNBX2SP303AW01, SWNBX2SP303LW01, SWNBX2SP543DW01,

SWNMN2SP303AW01, SWNMN2SP303SW01, SWNMN2SP303WW01,

SWNSX2PP113FW01, SWNSX2PP303AW01, SWNSX2SP113FW01,

SWNSX2SP303AW01, SWNSX2SP303BW01, SWNSX2SP303SQ01,

SWNSX2SP303SW01 and SWNSX2SP303WW01

3 80262 Grommet Models BWNBX2PP303AW01, BWNBX2SP303AW01,

BWNMN2PP303AW01, BWNMN2SP303AW01, HWNBC2SP115TW01,

HWNBX2SP113FW01, HWNBX2SP123DW01, HWNBX2SP543DW01,

KWNMN2SP303BW33, KWNMN2SP303NW16, NWNBX2SP303LW01,

NWNMN2SP303WW01, PWNBX2PP303AG02, PWNBX2SP303AG01,

SWNBX2SP113FW01, SWNBX2SP113JW01, SWNBX2SP123DW01,

SWNBX2SP303AW01, SWNBX2SP303LW01, SWNBX2SP543DW01,

SWNMN2SP303AW01, SWNMN2SP303SW01, SWNMN2SP303WW01,

SWNSX2PP113FW01, SWNSX2PP303AW01, SWNSX2SP113FW01,

SWNSX2SP303AW01, SWNSX2SP303BW01, SWNSX2SP303SQ01,

SWNSX2SP303SW01 and SWNSX2SP303WW01

4 23962 Screw

5 203509 Inlet Deflector

6 27222 Nut Optional; For added security

7 23008 Screw

8 202894 Inlet Cover

9 56534 Support Barrel

10 36020 Nut

34 204554

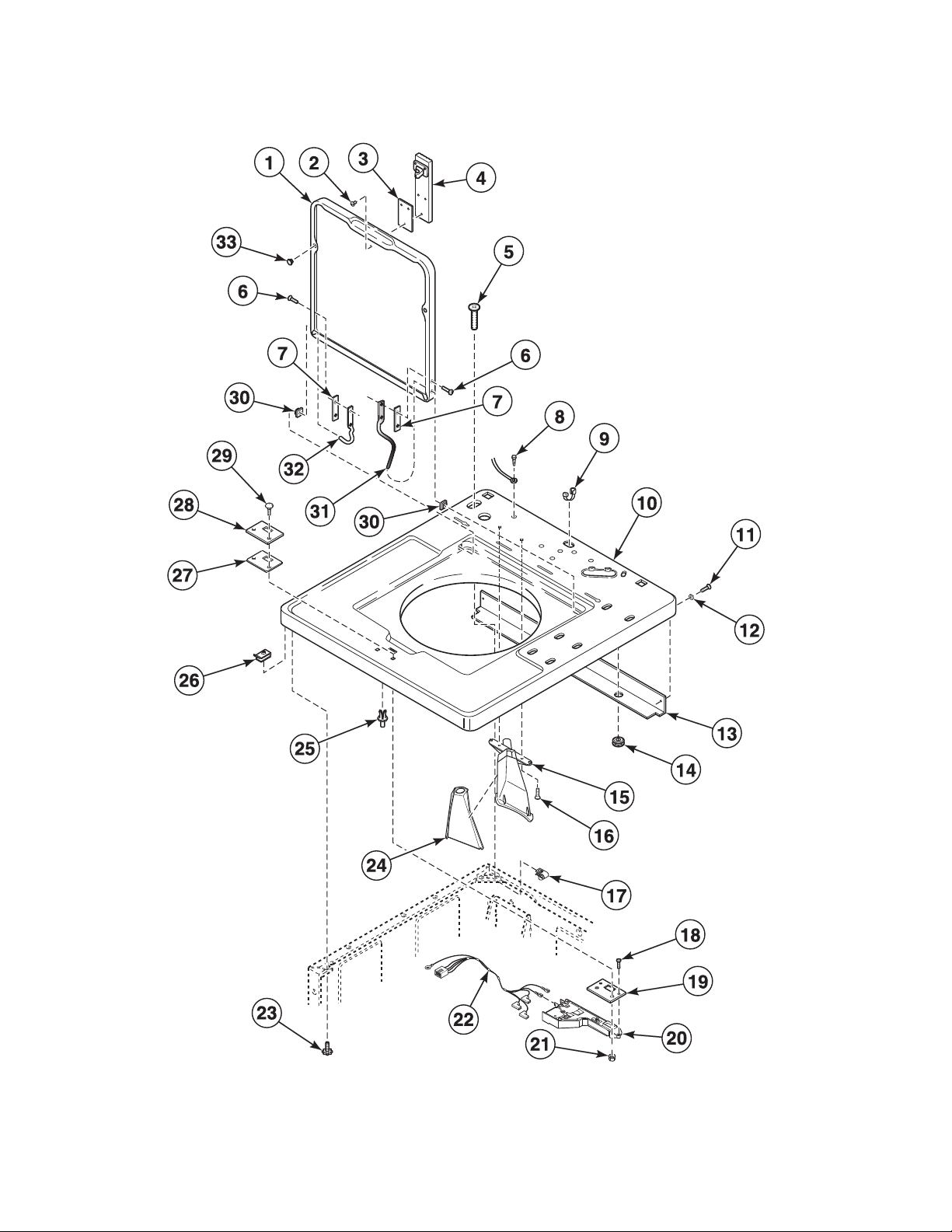

Lid, Lid Lock and Cabinet Top

Models HWNSX2SP303UW01, KWNSX2PP303EW01, KWNSX2SP303EW01, SWNSX2SP303EW01 and

SWNSX2SP303UW01

TLW1846P_204554

204554 35

Lid, Lid Lock and Cabinet Top

REF PART NO. DESCRIPTION COMMENTS

NA 837P3 Lid Lock Kit Includes items 4, 18 and 20

1 200892WP Lid

2 201415 Screw

3 201414 Door Lock Spacer

4 201307P Lid Lock Catch Assembly Includes item 3

5 D503673 Screw Optional; For added security

6 34337 Screw

7 34338 Hinge Gasket

8 52909 Screw

9 38384 Strain Relief

10 39184WP Top Assembly

11 431287 Screw

12 39249 Washer

13 203947 Top Shield

14 80262 Grommet

15 203509 Inlet Deflector

16 23962 Screw

17 27222 Nut Optional; For added security

18 202623 Screw

19 29676 Switch Mounting Plate

20 202434 Lid Lock

21 22001 Nut

22 203471 Lid Lock Wire Harness Assembly

23 23008 Screw

24 202894 Inlet Cover

25 56534 Support Barrel

26 36020 Nut

27 30378 Lid Lock Gasket

28 37828P Cover Plate

29 32184 Bolt

30 33446 Bushing

31 36437 Lid Hinge Right

32 36438 Lid Hinge Left

33 21685 Bumper

36 204554

Lid Switch

TLW1803P_204554

204554 37

Lid Switch

REF PART NO. DESCRIPTION COMMENTS

1 39256 Switch Assembly Models HWNSX2SP303UW01, KWNSX2PP303EW01,

KWNSX2SP303EW01, SWNSX2SP303EW01 and

SWNSX2SP303UW01

1 204696 Lid Switch Kit All other models

2 M402574 Screw Models HWNSX2SP303UW01, KWNSX2PP303EW01,

KWNSX2SP303EW01, SWNSX2SP303EW01 and

SWNSX2SP303UW01

2 204656 Screw All other models

3 M400981 Nut Models HWNSX2SP303UW01, KWNSX2PP303EW01,

KWNSX2SP303EW01, SWNSX2SP303EW01 and

SWNSX2SP303UW01

3 M400979 Nut All other models

4 23962 Screw

5 202697 Lid Switch Shield Models BWNBX2PP303AW01, BWNBX2SP303AW01,

BWNMN2PP303AW01, BWNMN2SP303AW01,

HWNBC2SP115TW01, HWNBX2SP113FW01,

HWNBX2SP123DW01, HWNBX2SP543DW01,

HWNSX2SP303UW01, KWNMN2PP303BW33,

KWNMN2PP303NW16, KWNMN2SP303BW33,

KWNMN2SP303NW16, KWNSX2PP303EW01,

KWNSX2PP303NW16, KWNSX2SP303EW01,

KWNSX2SP303NW16, NWNMN2SP303WW01,

PWNBX2PP303AG02, PWNBX2SP303AG01,

SWNBX2SP113FW01, SWNBX2SP113JW01,

SWNBX2SP123DW01, SWNBX2SP303AW01,

SWNBX2SP543DW01, SWNMN2SP303AW01,

SWNMN2SP303SW01, SWNMN2SP303WW01,

SWNSX2PP113FW01, SWNSX2PP303AW01,

SWNSX2SP113FW01, SWNSX2SP303AW01,

SWNSX2SP303BW01, SWNSX2SP303EW01,

SWNSX2SP303SQ01, SWNSX2SP303SW01,

SWNSX2SP303UW01 and SWNSX2SP303WW01;

Through Serial No. 1810000001

6 37830 Switch Models HWNSX2SP303UW01, KWNSX2PP303EW01,

KWNSX2SP303EW01, SWNSX2SP303EW01 and

SWNSX2SP303UW01

7 204538 Lid Switch Drip Shield Models BWNBX2PP303AW01, BWNBX2SP303AW01,

BWNMN2PP303AW01, BWNMN2SP303AW01,

HWNBC2SP115TW01, HWNBX2SP113FW01,

HWNBX2SP123DW01, HWNBX2SP543DW01,

HWNSX2SP303UW01, KWNMN2PP303BW33,

KWNMN2PP303NW16, KWNMN2SP303BW33,

KWNMN2SP303NW16, KWNSX2PP303EW01,

KWNSX2PP303NW16, KWNSX2SP303EW01,

KWNSX2SP303NW16, NWNBX2SP303LW01,

NWNMN2SP303WW01, PWNBX2PP303AG02,

PWNBX2SP303AG01, SWNBX2SP113FW01,

SWNBX2SP113JW01, SWNBX2SP123DW01,

SWNBX2SP303AW01, SWNBX2SP303LW01,

SWNBX2SP543DW01, SWNMN2SP303AW01,

SWNMN2SP303SW01, SWNMN2SP303WW01,

SWNSX2PP113FW01, SWNSX2PP303AW01,

SWNSX2SP113FW01, SWNSX2SP303AW01,

SWNSX2SP303BW01, SWNSX2SP303EW01,

SWNSX2SP303SQ01, SWNSX2SP303SW01,

SWNSX2SP303UW01 and SWNSX2SP303WW01

38 204554

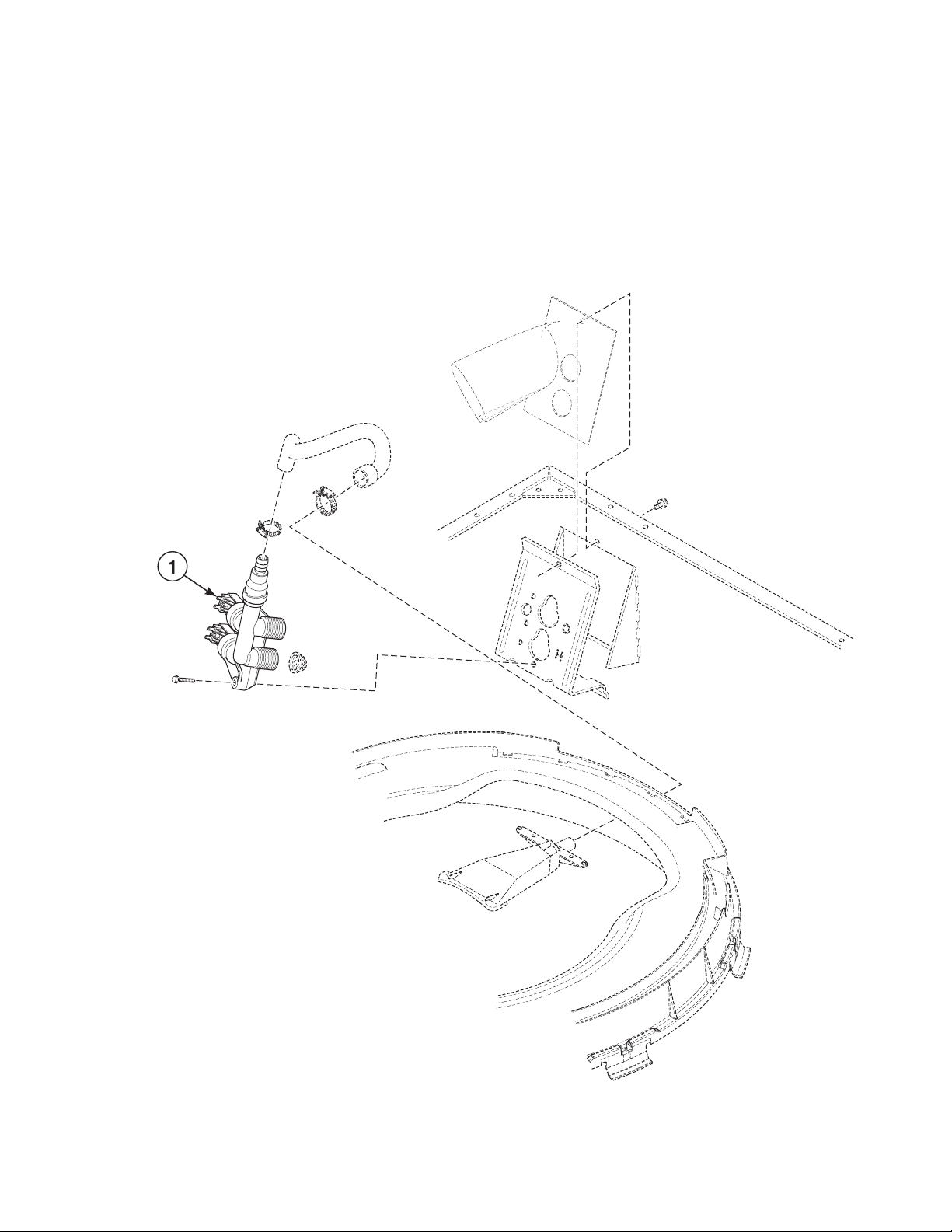

Mixing Valve (Drawing 1 of 2)

Models BWNBX2PP303AW01, BWNBX2SP303AW01, BWNMN2PP303AW01, BWNMN2SP303AW01, HWNBX2SP113FW01,

HWNBX2SP123DW01, HWNBX2SP303NW22, HWNBX2SP543DW01, HWNSX2SP303UW01, KWNMN2PP303BW33,

KWNMN2PP303NW16, KWNMN2SP303BW33, KWNMN2SP303NW16, KWNSX2PP303EW01, KWNSX2PP303NW16,

KWNSX2SP303EW01, KWNSX2SP303NW16, NWNBX2SP303LW01, NWNBX2SP303NW22, NWNBX2SP543NW23,

NWNMN2SP303NW22, NWNMN2SP303WW01, NWNMN2SP543NW22, NWNSX2SP303NW22, PWNBX2PP303AG02,

PWNBX2SP303AG01, SWNBX2SP113FW01, SWNBX2SP113JW01, SWNBX2SP123DW01, SWNBX2SP303AW01,

SWNBX2SP303LW01, SWNBX2SP303NQ22, SWNBX2SP303NW22, SWNBX2SP543DW01, SWNMN2SP303AW01,

SWNMN2SP303NW22, SWNMN2SP303SW01, SWNMN2SP303WW01, SWNSX2PP113FW01, SWNSX2PP303AW01,

SWNSX2SP113FW01, SWNSX2SP303AW01, SWNSX2SP303BW01, SWNSX2SP303EW01, SWNSX2SP303NW22,

SWNSX2SP303SQ01, SWNSX2SP303SW01, SWNSX2SP303UW01, SWNSX2SP303WW01, SWNSX2SP543NW22 and

TWNBX2SP303NW22

TLW1836P_204554

204554 39

Mixing Valve (Drawing 1 of 2)

REF PART NO. DESCRIPTION COMMENTS

1 202396P Mixing Valve GHT thread; Models BWNBX2PP303AW01, BWNBX2SP303AW01,

BWNMN2PP303AW01, BWNMN2SP303AW01, HWNBX2SP303NW22,

HWNBX2SP543DW01, HWNSX2SP303UW01, KWNMN2PP303BW33,

KWNMN2PP303NW16, KWNMN2SP303BW33, KWNMN2SP303NW16,

KWNSX2PP303EW01, KWNSX2PP303NW16, KWNSX2SP303EW01,

KWNSX2SP303NW16, NWNBX2SP303LW01, NWNBX2SP303NW22,

NWNBX2SP543NW23, NWNMN2SP303NW22,

NWNMN2SP303WW01, NWNMN2SP543NW22,

NWNSX2SP303NW22, PWNBX2PP303AG02, PWNBX2SP303AG01,

SWNBX2SP303AW01, SWNBX2SP303LW01, SWNBX2SP303NQ22,

SWNBX2SP303NW22, SWNBX2SP543DW01, SWNMN2SP303AW01,

SWNMN2SP303NW22, SWNMN2SP303SW01,

SWNMN2SP303WW01, SWNSX2PP303AW01, SWNSX2SP303AW01,

SWNSX2SP303BW01, SWNSX2SP303EW01, SWNSX2SP303NW22,

SWNSX2SP303SQ01, SWNSX2SP303SW01, SWNSX2SP303UW01,

SWNSX2SP303WW01, SWNSX2SP543NW22 and

TWNBX2SP303NW22; Through Serial No. 1809999999

1 202395P Mixing Valve GHT thread; Models HWNBX2SP113FW01, HWNBX2SP123DW01,

SWNBX2SP113FW01, SWNBX2SP113JW01, SWNBX2SP123DW01,

SWNSX2PP113FW01 and SWNSX2SP113FW01; Through Serial No.

1809999999

1 203928 Mixing Valve BSPP thread; Models BWNBX2PP303AW01, BWNBX2SP303AW01,

BWNMN2PP303AW01, BWNMN2SP303AW01, HWNBX2SP303NW22,

HWNSX2SP303UW01, KWNMN2PP303BW33, KWNMN2PP303NW16,

KWNMN2SP303BW33, KWNMN2SP303NW16, KWNSX2PP303EW01,

KWNSX2PP303NW16, KWNSX2SP303EW01, KWNSX2SP303NW16,

NWNBX2SP303LW01, NWNBX2SP303NW22, NWNBX2SP543NW23,

NWNMN2SP303NW22, NWNMN2SP303WW01,

NWNMN2SP543NW22, NWNSX2SP303NW22, PWNBX2PP303AG02,

PWNBX2SP303AG01, SWNBX2SP303AW01, SWNBX2SP303LW01,

SWNBX2SP303NQ22, SWNBX2SP303NW22, SWNMN2SP303AW01,

SWNMN2SP303NW22, SWNMN2SP303SW01,

SWNMN2SP303WW01, SWNSX2PP303AW01, SWNSX2SP303AW01,

SWNSX2SP303BW01, SWNSX2SP303EW01, SWNSX2SP303NW22,

SWNSX2SP303SQ01, SWNSX2SP303SW01, SWNSX2SP303UW01,

SWNSX2SP303WW01, SWNSX2SP543NW22 and

TWNBX2SP303NW22; Starting Serial No. 1810000001

1 203742 Mixing Valve GHT thread; Models HWNBX2SP543DW01 and SWNBX2SP543DW01;

Starting Serial No. 1810000001

1 203927 Mixing Valve BSPP thread; Model SWNBX2SP113JW01; Starting Serial No.

1810000001

1 203741 Mixing Valve GHT thread; Models HWNBX2SP113FW01, HWNBX2SP123DW01,

SWNBX2SP113FW01, SWNBX2SP123DW01, SWNSX2PP113FW01

and SWNSX2SP113FW01; Starting Serial No. 1810000001

40 204554

Mixing Valve (Drawing 2 of 2)

Models HWNBC2PP115TQ01, HWNBC2PP115TW01, HWNBC2SP115TW01, HWNBD2SP115CW01, HWNBE2SP115CW01,

HWNBX2SP115CW01, HWNBY2PP115TW01, HWNBY2SP115CW01, HWNBY2SP115TW01, HWNKC2SP115TW01,

HWNKD2SP115CW01, HWNKE2SP115CW01, HWNKX2SP115CW01, HWNKY2SP115CW01, HWNMN2PP115TW01,

HWNMN2SP115CW01, HWNMN2SP115TW01, HWNSX2PP115TQ01, HWNSX2PP115TW01, HWNSX2SP115CW01,

HWNSX2SP115TW01, HWNZC2SP115TW01, KWNBX2SP115TW01, KWNMN2PP115TW01, KWNMN2SP115TW01,

KWNSX2PP115TW01, KWNSX2SP115TW01, PWNBC2PP115TG02, PWNBC2PP115TW02, PWNBE2PP115CG02,

PWNBE2PP115CW02, PWNBX2PP115CG02, PWNBX2PP115CW02, PWNBX2PP115TG02, PWNBX2PP115TW02,

PWNSX2PP115CG02, PWNSX2PP115CW02, PWNSX2PP115TG02, PWNSX2PP115TW02, SWNBC2SP115TW02,

SWNBX2SP115TQ02, SWNBX2SP115TW02, SWNBY2SP115TW01, SWNMN2SP115CW01, SWNMN2SP115TW01,

SWNSX2SP115CW02, SWNSX2SP115TQ02, SWNSX2SP115TW02 and UWNMN2SP115CW01

TLW1836P_204554

204554 41

Mixing Valve (Drawing 2 of 2)

REF PART NO. DESCRIPTION COMMENTS

1 202395P Mixing Valve GHT thread; Through Serial No. 1812016076

1 203741 Mixing Valve GHT thread; Starting Serial No. 1812016077

42 204554

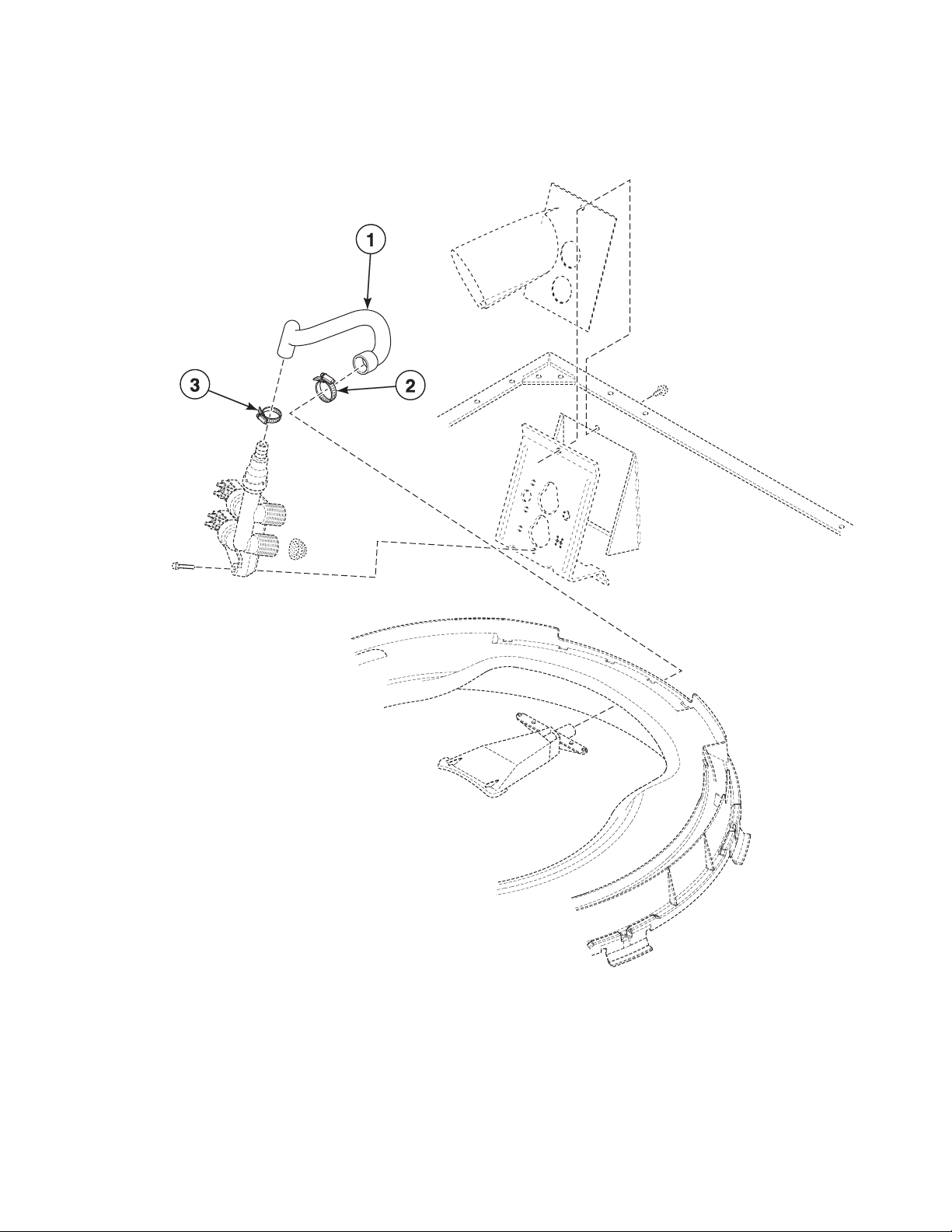

Mixing Valve-to-Inlet Hose

TLW1836PA_204554

204554 43

Mixing Valve-to-Inlet Hose

REF PART

NO.

DESCRIPTION COMMENTS

1 202884 Valve to Inlet Hose Models HWNBC2PP115TQ01, HWNBC2PP115TW01,

HWNBC2SP115TW01, HWNBD2SP115CW01, HWNBE2SP115CW01,

HWNBX2SP115CW01, HWNBY2PP115TW01, HWNBY2SP115CW01,

HWNBY2SP115TW01, HWNKC2SP115TW01, HWNKD2SP115CW01,

HWNKE2SP115CW01, HWNKX2SP115CW01, HWNKY2SP115CW01,

HWNMN2PP115TW01, HWNMN2SP115CW01, HWNMN2SP115TW01,

HWNSX2PP115TQ01, HWNSX2PP115TW01, HWNSX2SP115CW01,

HWNSX2SP115TW01, HWNZC2SP115TW01, KWNBX2SP115TW01,

KWNMN2PP115TW01, KWNMN2SP115TW01, KWNSX2PP115TW01,

KWNSX2SP115TW01, PWNBC2PP115TG02, PWNBC2PP115TW02,

PWNBE2PP115CG02, PWNBE2PP115CW02, PWNBX2PP115CG02,

PWNBX2PP115CW02, PWNBX2PP115TG02, PWNBX2PP115TW02,

PWNSX2PP115CG02, PWNSX2PP115CW02, PWNSX2PP115TG02,

PWNSX2PP115TW02, SWNBC2SP115TW02, SWNBX2SP115TQ02,

SWNBX2SP115TW02, SWNBY2SP115TW01, SWNMN2SP115CW01,

SWNMN2SP115TW01, SWNSX2SP115CW02, SWNSX2SP115TQ02,

SWNSX2SP115TW02 and UWNMN2SP115CW01 starting Serial No.

1806000001 and continuing through Serial No. 1812016076; All other

models starting Serial No. 1806000001 and continuing through Serial

No. 1809999999

1 204400 Valve to Inlet Hose Models HWNBC2PP115TQ01, HWNBC2PP115TW01,

HWNBC2SP115TW01, HWNBD2SP115CW01, HWNBE2SP115CW01,

HWNBX2SP115CW01, HWNBY2PP115TW01, HWNBY2SP115CW01,

HWNBY2SP115TW01, HWNKC2SP115TW01, HWNKD2SP115CW01,

HWNKE2SP115CW01, HWNKX2SP115CW01, HWNKY2SP115CW01,

HWNMN2PP115TW01, HWNMN2SP115CW01, HWNMN2SP115TW01,

HWNSX2PP115TQ01, HWNSX2PP115TW01, HWNSX2SP115CW01,

HWNSX2SP115TW01, HWNZC2SP115TW01, KWNBX2SP115TW01,

KWNMN2PP115TW01, KWNMN2SP115TW01, KWNSX2PP115TW01,

KWNSX2SP115TW01, PWNBC2PP115TG02, PWNBC2PP115TW02,

PWNBE2PP115CG02, PWNBE2PP115CW02, PWNBX2PP115CG02,

PWNBX2PP115CW02, PWNBX2PP115TG02, PWNBX2PP115TW02,

PWNSX2PP115CG02, PWNSX2PP115CW02, PWNSX2PP115TG02,

PWNSX2PP115TW02, SWNBC2SP115TW02, SWNBX2SP115TQ02,

SWNBX2SP115TW02, SWNBY2SP115TW01, SWNMN2SP115CW01,

SWNMN2SP115TW01, SWNSX2SP115CW02, SWNSX2SP115TQ02,

SWNSX2SP115TW02 and UWNMN2SP115CW01 starting Serial No.

1812016077; All other models starting Serial No. 1810000001

2 800803 Hose Clamp

3 36801 Hose Clamp

44 204554

Mixing Valve Bracket

TLW1836PB_204554

204554 45

Mixing Valve Bracket

REF PART

NO.

DESCRIPTION COMMENTS

1 202899 Mixing Valve Shield Models BWNBX2PP303AW01, BWNBX2SP303AW01,

BWNMN2PP303AW01, BWNMN2SP303AW01, HWNBC2SP115TW01,

HWNBX2SP113FW01, HWNBX2SP123DW01, HWNBX2SP543DW01,

HWNSX2SP303UW01, KWNMN2PP303BW33, KWNMN2PP303NW16,

KWNMN2SP303BW33, KWNMN2SP303NW16, KWNSX2PP303EW01,

KWNSX2PP303NW16, KWNSX2SP303EW01, KWNSX2SP303NW16,

NWNMN2SP303WW01, PWNBX2PP303AG02, PWNBX2SP303AG01,

SWNBX2SP113FW01, SWNBX2SP113JW01, SWNBX2SP123DW01,

SWNBX2SP303AW01, SWNBX2SP543DW01, SWNMN2SP303AW01,

SWNMN2SP303SW01, SWNMN2SP303WW01, SWNSX2PP113FW01,

SWNSX2PP303AW01, SWNSX2SP113FW01, SWNSX2SP303AW01,

SWNSX2SP303BW01, SWNSX2SP303EW01, SWNSX2SP303SQ01,

SWNSX2SP303SW01, SWNSX2SP303UW01 and

SWNSX2SP303WW01

1 204247 Mixing Valve Shield Models NWNBX2SP303LW01 and SWNBX2SP303LW01

2 33562 Screw

3 39407 Mixing Valve Mounting

Bracket

Through Serial No. 1805999999

3 204117 Mixing Valve Mounting

Bracket

Models HWNBC2PP115TQ01, HWNBC2PP115TW01,

HWNBC2SP115TW01, HWNBD2SP115CW01, HWNBE2SP115CW01,

HWNBX2SP115CW01, HWNBY2PP115TW01, HWNBY2SP115CW01,

HWNBY2SP115TW01, HWNKC2SP115TW01, HWNKD2SP115CW01,

HWNKE2SP115CW01, HWNKX2SP115CW01, HWNKY2SP115CW01,

HWNMN2PP115TW01, HWNMN2SP115CW01, HWNMN2SP115TW01,

HWNSX2PP115TQ01, HWNSX2PP115TW01, HWNSX2SP115CW01,

HWNSX2SP115TW01, HWNZC2SP115TW01, KWNBX2SP115TW01,

KWNMN2PP115TW01, KWNMN2SP115TW01, KWNSX2PP115TW01,

KWNSX2SP115TW01, PWNBC2PP115TG02, PWNBC2PP115TW02,

PWNBE2PP115CG02, PWNBE2PP115CW02, PWNBX2PP115CG02,

PWNBX2PP115CW02, PWNBX2PP115TG02, PWNBX2PP115TW02,

PWNSX2PP115CG02, PWNSX2PP115CW02, PWNSX2PP115TG02,

PWNSX2PP115TW02, SWNBC2SP115TW02, SWNBX2SP115TQ02,

SWNBX2SP115TW02, SWNBY2SP115TW01, SWNMN2SP115CW01,

SWNMN2SP115TW01, SWNSX2SP115CW02, SWNSX2SP115TQ02,

SWNSX2SP115TW02 and UWNMN2SP115CW01 starting Serial No.

1806000001 and continuing through Serial No. 1812016076; All other

models starting Serial No. 1806000001 and continuing through Serial

No. 1809999999; Pressure sensor mounted here

3 203558 Mixing Valve Mounting

Bracket

Models HWNBC2PP115TQ01, HWNBC2PP115TW01,

HWNBC2SP115TW01, HWNBD2SP115CW01, HWNBE2SP115CW01,

HWNBX2SP115CW01, HWNBY2PP115TW01, HWNBY2SP115CW01,

HWNBY2SP115TW01, HWNKC2SP115TW01, HWNKD2SP115CW01,

HWNKE2SP115CW01, HWNKX2SP115CW01, HWNKY2SP115CW01,

HWNMN2PP115TW01, HWNMN2SP115CW01, HWNMN2SP115TW01,

HWNSX2PP115TQ01, HWNSX2PP115TW01, HWNSX2SP115CW01,

HWNSX2SP115TW01, HWNZC2SP115TW01, KWNBX2SP115TW01,

KWNMN2PP115TW01, KWNMN2SP115TW01, KWNSX2PP115TW01,

KWNSX2SP115TW01, PWNBC2PP115TG02, PWNBC2PP115TW02,

PWNBE2PP115CG02, PWNBE2PP115CW02, PWNBX2PP115CG02,

PWNBX2PP115CW02, PWNBX2PP115TG02, PWNBX2PP115TW02,

PWNSX2PP115CG02, PWNSX2PP115CW02, PWNSX2PP115TG02,

PWNSX2PP115TW02, SWNBC2SP115TW02, SWNBX2SP115TQ02,

SWNBX2SP115TW02, SWNBY2SP115TW01, SWNMN2SP115CW01,

SWNMN2SP115TW01, SWNSX2SP115CW02, SWNSX2SP115TQ02,

SWNSX2SP115TW02 and UWNMN2SP115CW01 starting Serial No.

1812016077; All other models starting Serial No. 1810000001; Pressure

sensor mounted here

4 24122 Mixing Valve Screen

5 39397 Screw

46 204554

Fill Hose

TLW1833P_204554

204554 47

Fill Hose

REF PART NO. DESCRIPTION COMMENTS

1 803615 Washer Filter screen

1 802254 Washer Flow restrictor; Water pressure reducer; Available for

water pressure up to but not exceeding 120 psi

2 203750 Fill Hose Marked for cold water; 4 feet; 1 BSPP thread hose

coupling and 1 GHT thread hose coupling

2 203718 Fill Hose Marked for hot water; 4 feet; 1 BSPP thread hose

coupling and 1 GHT thread hose coupling

2 203720 Fill Hose Marked for cold water; 4 feet; 2 GHT thread hose

couplings

2 203719 Fill Hose Marked for hot water; 4 feet; 2 GHT thread hose

couplings

2 204103 Fill Hose Marked for cold water; 4 feet; 2 BSPP thread hose

couplings

2 204102 Fill Hose Marked for hot water; 4 feet; 2 BSPP thread hose

couplings

3 20290 Washer

48 204554

Motor, Belt, Pump and Idler Assembly (Drawing 1 of 2)

TLW1768P_204554

204554 49

Motor, Belt, Pump and Idler Assembly (Drawing 1 of 2)

REF PART NO. DESCRIPTION COMMENTS

1 34754 Motor Shield

2 36639 Screw

3 202544P Motor Assembly Models BWNBX2PP303AW01, BWNBX2SP303AW01,

BWNMN2PP303AW01, BWNMN2SP303AW01, HWNBC2SP115TW01,

HWNBX2SP303NW22, HWNSX2SP303UW01, KWNMN2PP303BW33,

KWNMN2PP303NW16, KWNMN2SP303BW33, KWNMN2SP303NW16,

KWNSX2PP303EW01, KWNSX2PP303NW16, KWNSX2SP303EW01,

KWNSX2SP303NW16, NWNBX2SP303LW01, NWNBX2SP303NW22,

NWNBX2SP543NW23, NWNMN2SP303NW22,

NWNMN2SP303WW01, NWNSX2SP303NW22, PWNBX2PP303AG02,

PWNBX2SP303AG01, SWNBX2SP303AW01, SWNBX2SP303LW01,

SWNBX2SP303NQ22, SWNBX2SP303NW22, SWNMN2SP303AW01,

SWNMN2SP303NW22, SWNMN2SP303SW01,

SWNMN2SP303WW01, SWNSX2PP303AW01, SWNSX2SP303AW01,

SWNSX2SP303BW01, SWNSX2SP303EW01, SWNSX2SP303NW22,

SWNSX2SP303SQ01, SWNSX2SP303SW01, SWNSX2SP303UW01,

SWNSX2SP303WW01 and TWNBX2SP303NW22

3 202960 Motor Assembly Models HWNBX2SP543DW01, NWNBX2SP543NW23,

NWNMN2SP543NW22, SWNBX2SP543DW01 and

SWNSX2SP543NW22

3 202971 Motor Assembly Models HWNBX2SP123DW01 and SWNBX2SP123DW01

3 38034P Motor Kit All other models

4 52566 Nut

5 201189 Idler Lever Spring

5 202032 Idler Lever Spring Use on units experiencing low RPM

6 202333 Tube Models BWNBX2PP303AW01, BWNBX2SP303AW01,

BWNMN2PP303AW01, BWNMN2SP303AW01, HWNBC2SP115TW01,

NWNBX2SP303LW01, PWNBX2PP303AG02, PWNBX2SP303AG01,

SWNBX2SP303AW01, SWNMN2SP303AW01, SWNMN2SP303SW01,

SWNSX2PP303AW01, SWNSX2SP303AW01, SWNSX2SP303SQ01

and SWNSX2SP303SW01

7 28803 Nut

8 38011 Idler Lever

9 81392 Washer

10 27229 Screw

11 210186 Idler Shaft

12 D504082 Washer

13 52549 Washer Nylatron

14 23748 Retaining Ring

15 38225P Idler Pulley

16 201566P Pump

16 201442P Pump Assembly Heavy duty

17 RB150003 Belt and Pump Kit Includes items 15 and 17

18 200923 Agitate and Spin Belt Models BWNBX2PP303AW01, BWNBX2SP303AW01,

BWNMN2PP303AW01, BWNMN2SP303AW01, HWNBC2SP115TW01,

HWNBX2SP303NW22, HWNSX2SP303UW01, KWNMN2PP303BW33,

KWNMN2PP303NW16, KWNMN2SP303BW33, KWNMN2SP303NW16,

KWNSX2PP303EW01, KWNSX2PP303NW16, KWNSX2SP303EW01,

KWNSX2SP303NW16, NWNBX2SP303LW01, NWNBX2SP303NW22,

NWNBX2SP543NW23, NWNMN2SP303NW22,

NWNMN2SP303WW01, NWNSX2SP303NW22, PWNBX2PP303AG02,

PWNBX2SP303AG01, SWNBX2SP303AW01, SWNBX2SP303LW01,

SWNBX2SP303NQ22, SWNBX2SP303NW22, SWNMN2SP303AW01,

SWNMN2SP303NW22, SWNMN2SP303SW01,

SWNMN2SP303WW01, SWNSX2PP303AW01, SWNSX2SP303AW01,

SWNSX2SP303BW01, SWNSX2SP303EW01, SWNSX2SP303NW22,

SWNSX2SP303SQ01, SWNSX2SP303SW01, SWNSX2SP303UW01,

SWNSX2SP303WW01 and TWNBX2SP303NW22

18 38174 Agitate and Spin Belt All other models

19 210202 Spring Clip

50 204554

Motor, Belt, Pump and Idler Assembly (Drawing 2 of 2)

TLW1768PA_204554

204554 51

Motor, Belt, Pump and Idler Assembly (Drawing 2 of 2)

REF PART NO. DESCRIPTION COMMENTS

1 203978 Screw

2 37535 Capacitor Clamp

3 204063 Motor Mount and

Isolator Assembly

4 35369 Screw

5 35423 Nut

6 204062 Motor Mount and

Isolator Assembly

7 200941 Motor Mount Bracket

8 37772 Washer

9 00177 Male Tab Terminal Models BWNBX2PP303AW01, BWNBX2SP303AW01,

BWNMN2PP303AW01, BWNMN2SP303AW01, HWNBC2SP115TW01,

HWNSX2SP303UW01, KWNSX2PP303EW01, KWNSX2SP303EW01,

NWNBX2SP303LW01, NWNMN2SP303WW01, PWNBX2PP303AG02,

PWNBX2SP303AG01, SWNBX2SP303AW01, SWNMN2SP303AW01,

SWNMN2SP303SW01, SWNMN2SP303WW01, SWNSX2PP303AW01,

SWNSX2SP303AW01, SWNSX2SP303BW01, SWNSX2SP303EW01,

SWNSX2SP303SQ01, SWNSX2SP303SW01, SWNSX2SP303UW01

and SWNSX2SP303WW01

10 20530 Screw Models BWNBX2PP303AW01, BWNBX2SP303AW01,

BWNMN2PP303AW01, BWNMN2SP303AW01, HWNBC2SP115TW01,

HWNKC2SP115TW01, HWNKE2SP115CW01, HWNKX2SP115CW01,

HWNSX2SP303UW01, HWNZC2SP115TW01, KWNMN2SP303BW33,

KWNSX2PP303EW01, KWNSX2SP303EW01, NWNBX2SP303LW01,

NWNMN2SP303WW01, PWNBX2PP303AG02, PWNBX2SP303AG01,

SWNBX2SP303AW01, SWNMN2SP303AW01, SWNMN2SP303SW01,

SWNMN2SP303WW01, SWNSX2PP303AW01, SWNSX2SP303AW01,

SWNSX2SP303BW01, SWNSX2SP303EW01, SWNSX2SP303SQ01,

SWNSX2SP303SW01, SWNSX2SP303UW01 and

SWNSX2SP303WW01

11 203053 Motor Drip Shield Through Serial No. 1811000001

12 203140 Capacitor Models BWNBX2PP303AW01, BWNBX2SP303AW01,

BWNMN2PP303AW01, BWNMN2SP303AW01, HWNBC2SP115TW01,

HWNBX2SP543DW01, HWNSX2SP303UW01, KWNMN2PP303BW33,

KWNSX2PP303EW01, KWNSX2SP303EW01, NWNBX2SP303LW01,

NWNMN2SP303WW01, PWNBX2PP303AG02, PWNBX2SP303AG01,

SWNBX2SP303AW01, SWNBX2SP303LW01, SWNBX2SP543DW01,

SWNMN2SP303AW01, SWNMN2SP303SW01,

SWNMN2SP303WW01, SWNSX2PP303AW01, SWNSX2SP303AW01,

SWNSX2SP303BW01, SWNSX2SP303EW01, SWNSX2SP303SQ01,

SWNSX2SP303SW01, SWNSX2SP303UW01 and

SWNSX2SP303WW01

12 203141 Capacitor Models HWNBX2SP113FW01, HWNBX2SP123DW01,

SWNBX2SP113FW01, SWNBX2SP113JW01, SWNBX2SP123DW01,

SWNSX2PP113FW01 and SWNSX2SP113FW01

12 39259P Capacitor and Clamp

Kit

Models HWNBX2SP303NW22, KWNMN2PP303NW16,

KWNMN2SP303BW33, KWNMN2SP303NW16, KWNSX2PP303NW16,

KWNSX2SP303NW16, NWNBX2SP303LW01, NWNBX2SP303NW22,

NWNBX2SP543NW23, NWNMN2SP303NW22, NWNMN2SP543NW22,

NWNSX2SP303NW22, SWNBX2SP303NQ22, SWNBX2SP303NW22,

SWNMN2SP303NW22, SWNSX2SP303NW22, SWNSX2SP543NW22

and TWNBX2SP303NW22

12 37377 Capacitor All other models

13 52909 Screw

52 204554

Idler Lever Kits

TLW1731PA_204554

204554 53

Idler Lever Kits

REF PART NO. DESCRIPTION COMMENTS

1 202032 Idler Lever Spring

2 28803 Nut

3 38011 Idler Lever

4 81392 Washer

5 27229 Screw

6 210186 Idler Shaft

7 D504082 Washer

8 52549 Washer Nylatron

9 23748 Retaining Ring

10 38225P Idler Pulley

11 200923 Agitate and Spin Belt Models BWNBX2PP303AW01, BWNBX2SP303AW01,

BWNMN2PP303AW01, BWNMN2SP303AW01,

HWNBC2SP115TW01, HWNBX2SP303NW22,

HWNSX2SP303UW01, KWNMN2PP303BW33,

KWNMN2PP303NW16, KWNMN2SP303BW33,

KWNMN2SP303NW16, KWNSX2PP303EW01,

KWNSX2PP303NW16, KWNSX2SP303EW01,

KWNSX2SP303NW16, NWNBX2SP303LW01,

NWNBX2SP303NW22, NWNBX2SP543NW23,

NWNMN2SP303NW22, NWNMN2SP303WW01,

NWNSX2SP303NW22, PWNBX2PP303AG02,

PWNBX2SP303AG01, SWNBX2SP303AW01,

SWNBX2SP303LW01, SWNBX2SP303NQ22,

SWNBX2SP303NW22, SWNMN2SP303AW01,

SWNMN2SP303NW22, SWNMN2SP303SW01,

SWNMN2SP303WW01, SWNSX2PP303AW01,

SWNSX2SP303AW01, SWNSX2SP303BW01,

SWNSX2SP303EW01, SWNSX2SP303NW22,

SWNSX2SP303SQ01, SWNSX2SP303SW01,

SWNSX2SP303UW01, SWNSX2SP303WW01 and

TWNBX2SP303NW22

11 38174 Agitate and Spin Belt All other models

12 202972 Idler Lever and Belt Kit Models BWNBX2PP303AW01, BWNBX2SP303AW01,

BWNMN2PP303AW01, BWNMN2SP303AW01,

HWNBC2SP115TW01, HWNBX2SP303NW22,

HWNSX2SP303UW01, KWNMN2PP303BW33,

KWNMN2PP303NW16, KWNMN2SP303BW33,

KWNMN2SP303NW16, KWNSX2PP303EW01,

KWNSX2PP303NW16, KWNSX2SP303EW01,

KWNSX2SP303NW16, NWNBX2SP303NW22,

NWNBX2SP543NW23, NWNMN2SP303NW22,

NWNMN2SP303WW01, NWNSX2SP303NW22,

PWNBX2PP303AG02, PWNBX2SP303AG01,

SWNBX2SP303AW01, SWNBX2SP303LW01,

SWNBX2SP303NQ22, SWNBX2SP303NW22,

SWNMN2SP303AW01, SWNMN2SP303NW22,

SWNMN2SP303SW01, SWNMN2SP303WW01,

SWNSX2PP303AW01, SWNSX2SP303AW01,

SWNSX2SP303BW01, SWNSX2SP303EW01,

SWNSX2SP303NW22, SWNSX2SP303SQ01,

SWNSX2SP303SW01, SWNSX2SP303UW01,

SWNSX2SP303WW01 and TWNBX2SP303NW22;

Includes items 1-11

12 959P3 Idler Lever Kit All other models; Includes items 1-11

54 204554

Agitator, Drive Bell, Hub and Lip Seal Kit and Washtub

TLW1483P_204554

204554 55

Agitator, Drive Bell, Hub and Lip Seal Kit and Washtub

REF PART NO. DESCRIPTION COMMENTS

1 39837 Balance Ring Assembly

2 27202 Screw

3 28094 Washer Rubber; Use with porcelain washtub

4 39122 Washtub Gasket

5 766P3A Hub and Lip Seal Kit DO NOT use any sealant other than 200996P Sealant;

Includes item 10 and installation tool

5 200996P Sealant Use with hub and lip seal kit

6 29728 Spline Insert

7 29220 Nut

8 36425 Bell and Transmission Tube Seal

8 36765P Grease Use with bell and transmission tube seal

9 39250P Tub Kit Blue porcelain; Models BWNBX2PP303AW01,

BWNMN2PP303AW01, HWNBC2PP115TQ01,

HWNBC2PP115TW01, HWNBY2PP115TW01,

HWNMN2PP115TW01, HWNSX2PP115TQ01,

HWNSX2PP115TW01, KWNMN2PP115TW01,

KWNMN2PP303NW16, KWNSX2PP115TW01,

KWNSX2PP303EW01, KWNSX2PP303NW16,

PWNBC2PP115TG02, PWNBC2PP115TW02,

PWNBE2PP115CG02, PWNBE2PP115CW02,

PWNBX2PP115CG02, PWNBX2PP115CW02,

PWNBX2PP115TG02, PWNBX2PP115TW02,

PWNBX2PP303AG02, PWNSX2PP115CG02,

PWNSX2PP115CW02, PWNSX2PP115TG02,

PWNSX2PP115TW02, SWNSX2PP113FW01 and

SWNSX2PP303AW01

9 719P3 Washtub Kit Stainless steel; All other models

10 39508P Drive Bell and Seal Kit Includes items 8, 11 and 12

11 39432 Screw

12 36511 Bell Plug

13 36507 Flex Vane Agitator Models SWNMN2SP303SW01, SWNSX2SP303SQ01

and SWNSX2SP303SW01

13 33174 Agitator All other models

14 36515 Agitator Cap

56 204554

Outer Tub, Cover, Bearing and Seal Housing and Counterweight

TLW1837P_204554

204554 57

Outer Tub, Cover, Bearing and Seal Housing and Counterweight

REF PART NO. DESCRIPTION COMMENTS

1 203539 Tub Cover Assembly

2 38359 Tub Cover Gasket

3 203603P Outer Tub Assembly

4 27926 Leg Plate

5 35369 Screw

6 201521 Leg Spring Marked with green paint. Use to replace the two rear springs closest to

counterweight; Models BWNBX2PP303AW01, BWNBX2SP303AW01,

BWNMN2PP303AW01, BWNMN2SP303AW01, HWNBC2SP115TW01,

HWNBX2SP303NW22, HWNBX2SP543DW01, HWNSX2SP303UW01,

KWNMN2PP303BW33, KWNMN2PP303NW16, KWNMN2SP303BW33,

KWNMN2SP303NW16, KWNSX2PP303EW01, KWNSX2PP303NW16,

KWNSX2SP303EW01, KWNSX2SP303NW16, NWNBX2SP303LW01,

NWNBX2SP303NW22, NWNBX2SP543NW23, NWNMN2SP303NW22,

NWNMN2SP303WW01, NWNMN2SP543NW22,

NWNSX2SP303NW22, PWNBX2PP303AG02, PWNBX2SP303AG01,

SWNBX2SP303AW01, SWNBX2SP303LW01, SWNBX2SP303NQ22,

SWNBX2SP303NW22, SWNBX2SP543DW01, SWNMN2SP303AW01,

SWNMN2SP303NW22, SWNMN2SP303SW01,

SWNMN2SP303WW01, SWNSX2PP303AW01, SWNSX2SP303AW01,

SWNSX2SP303BW01, SWNSX2SP303EW01, SWNSX2SP303NW22,

SWNSX2SP303SQ01, SWNSX2SP303SW01, SWNSX2SP303UW01,

SWNSX2SP303WW01, SWNSX2SP543NW22 and

TWNBX2SP303NW22

6 37575 Leg Spring

7 39566 Screw

8 38769 Counterweight

Assembly

9 39249 Washer

10 766P3A Hub and Lip Seal Kit

10 200996P Sealant Use with hub and lip seal kit

11 F8615701 Pinch Warning Label Icon

11 D500049 Warning Label English

11 D500314 Warning Label English/French

12 29175 Grommet

13 30907 Pressure Bulb

14 39282 Hose Clamp

15 36985 Hose Clip

16 21036 Cable Clip

17 202700 Tubing Through Serial No. 1806000001

17 203802 Tubing Starting Serial No. 1806000001

58 204554

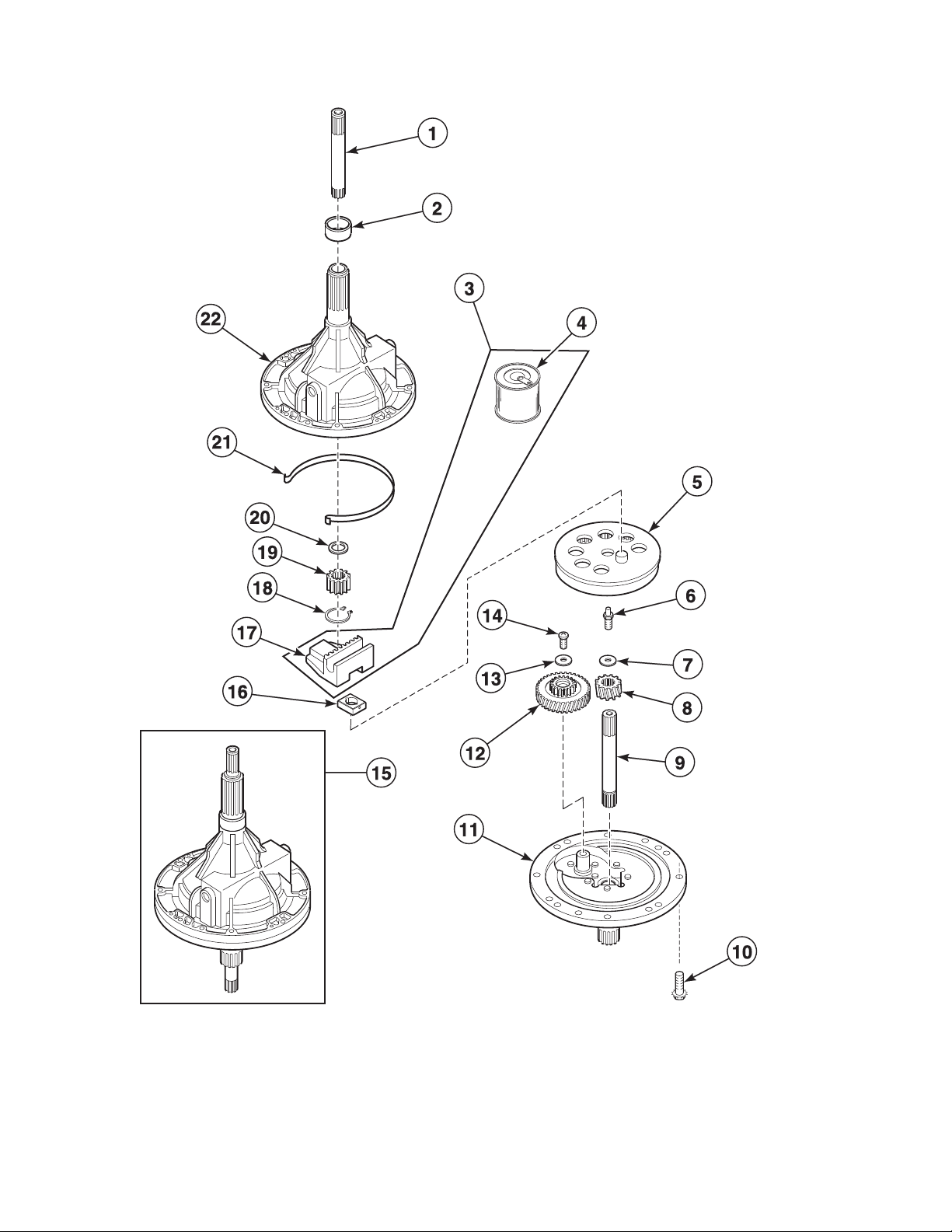

Transmission Assembly

TLW1720P_204554

204554 59

Transmission Assembly

REF PART NO. DESCRIPTION COMMENTS

NA 27604P Anti-Seize Compound Apply to the smooth area of both the upper and lower

transmission shafts

NA 37577P Transmission Sealant Use between transmission case and cover

1 36570P Output Shaft

2 201212 Hub Spacer

3 RB150004 Transmission Rebuild Kit Includes 37577P Transmission Sealant

4 27243P Transmission Oil 1 fill

5 26577 Gear and Stud Assembly

6 201773 Screw

7 26509 Washer

8 37405 Drive Pinion

9 38268P Input Shaft

10 32814 Screw

11 37471 Transmission Cover Assembly

12 37404P Reduction Gear

13 29260 Washer

14 29273 Screw

15 38165P Transmission Assembly

16 26493 Slide

17 201664 Rack

18 27197 Retaining Ring

19 27003 Agitator Pinion

20 35092 Washer

21 38864 Gear Sleeve

22 33223P Transmission Case Assembly

60 204554

Drain Hoses and Siphon Break Kit

W354P_204554

204554 61

Drain Hoses and Siphon Break Kit

REF PART NO. DESCRIPTION COMMENTS

NA 451P3 Drain Extension Kit

1 52909 Screw

2 20211 Hose Clamp

3 28293 Drain Hose

4 25863 Hose Coupler If drain hose must be shortened, cut hose between

molded end and molded elbow; Use one hose coupler to

splice hose

5 F200204 Hose Clamp

6 38351 Tub-to-Pump Hose

7 39177 Hose Retainer Clip

8 38273 Pump-to-Drain Elbow Hose

9 20391 Hose Clamp

10 35766 Drain Hose Elbow Models BWNBX2PP303AW01, BWNBX2SP303AW01,

BWNMN2PP303AW01, BWNMN2SP303AW01,

HWNBC2SP115TW01, HWNBX2SP303NW22,

HWNSX2SP303UW01, KWNMN2PP303BW33,

KWNMN2PP303NW16, KWNMN2SP303BW33,

KWNMN2SP303NW16, KWNSX2PP303EW01,

KWNSX2PP303NW16, KWNSX2SP303EW01,

KWNSX2SP303NW16, NWNBX2SP303LW01,

NWNBX2SP303NW22, NWNBX2SP543NW23,

NWNMN2SP303NW22, NWNMN2SP303WW01,

NWNSX2SP303NW22, PWNBX2PP303AG02,

PWNBX2SP303AG01, SWNBX2SP303AW01,

SWNBX2SP303LW01, SWNBX2SP303NQ22,

SWNBX2SP303NW22, SWNMN2SP303AW01,

SWNMN2SP303NW22, SWNMN2SP303SW01,

SWNMN2SP303WW01, SWNSX2PP303AW01,

SWNSX2SP303AW01, SWNSX2SP303BW01,

SWNSX2SP303EW01, SWNSX2SP303NW22,

SWNSX2SP303SQ01, SWNSX2SP303SW01,

SWNSX2SP303UW01, SWNSX2SP303WW01 and

TWNBX2SP303NW22

10 36990 Drain Hose Elbow All other models

11 562P3 Siphon Break Kit Siphon break kit must be installed in drain hose if drain

receptacle is lower than cabinet top of washer

62 204554

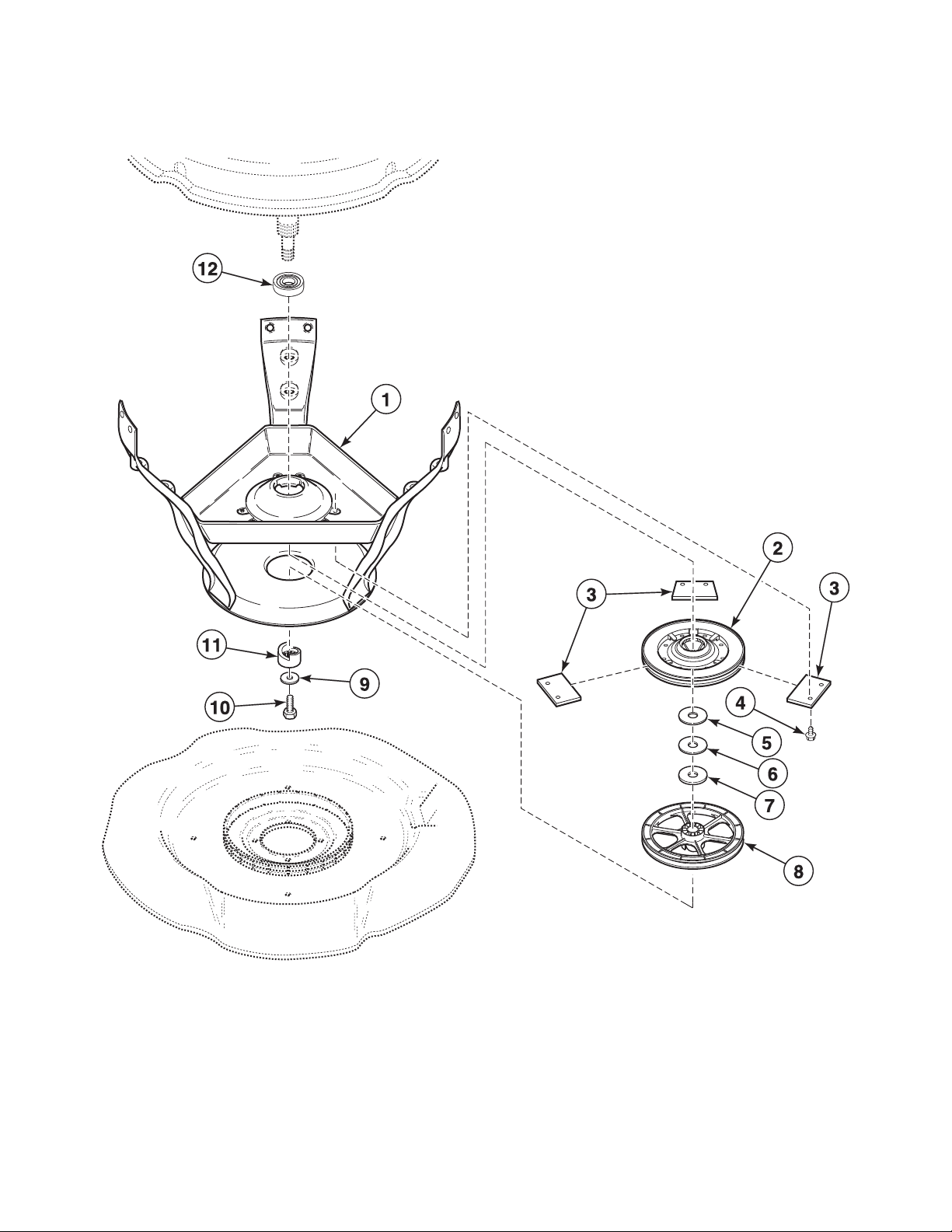

Weldment and Bearing Assembly, Brake and Pulley

TLW1841P_204554

204554 63

Weldment and Bearing Assembly, Brake and Pulley

REF PART NO. DESCRIPTION COMMENTS

1 39253 Weldment and Bearing Assembly

2 38505P Brake Kit

3 735P3 Brake Pad Kit Includes 3 pads

3 204253 Silicone Grease Apply small amount to each new brake pad

4 39739 Screw

5 35535 Washer Thin

6 27015 Washer Thick

7 203950 Washer

7 204253 Silicone Grease Apply small amount to washer

8 204942 Pulley Models BWNBX2PP303AW01, BWNBX2SP303AW01,

BWNMN2PP303AW01, BWNMN2SP303AW01,

HWNBX2SP303NW22, HWNSX2SP303UW01,

KWNMN2PP303BW33, KWNMN2PP303NW16,

KWNMN2SP303BW33, KWNMN2SP303NW16,

KWNSX2PP303EW01, KWNSX2PP303NW16,

KWNSX2SP303EW01, KWNSX2SP303NW16,

NWNBX2SP303LW01, NWNBX2SP303NW22,

NWNMN2SP303NW22, NWNMN2SP303WW01,

NWNSX2SP303NW22, PWNBX2PP303AG02,

PWNBX2SP303AG01, SWNBX2SP303AW01,

SWNBX2SP303NQ22, SWNBX2SP303NW22,

SWNMN2SP303AW01, SWNMN2SP303NW22,

SWNMN2SP303SW01, SWNMN2SP303WW01,

SWNSX2PP303AW01, SWNSX2SP303AW01,

SWNSX2SP303BW01, SWNSX2SP303EW01,

SWNSX2SP303NW22, SWNSX2SP303SQ01,

SWNSX2SP303SW01, SWNSX2SP303UW01,

SWNSX2SP303WW01 and TWNBX2SP303NW22

8 204486 Pulley All other models

9 26509 Washer

10 27220 Screw

11 38008 Helix

12 28944RP Lower Bearing

64 204554

Front Panel, Base Assembly and Cabinet Kit

TLW1897P_204554

Ground

Wire

204554 65

Front Panel, Base Assembly and Cabinet Kit

REF PART NO. DESCRIPTION COMMENTS

NA 122P4P Porcelain Touch-Up Paint White

NA 370P4P Porcelain Touch-Up Paint Bisque

NA 806436P Paint Dark gray

NA 803260 Warning Label English/French; Disconnect power

NA F8211201 Electrical Shock Label Icon; Electric shock

NA D516073 Notice Label Icon; Read instructions

1 56128 Bumper Pad

2 39480 Foam Pad

3 56079 Panel Locator

4 39733 Screw

5 36226 Bumper Pad

6 D501524 Screw

7 D501086 Screw

8 204245 EMI Bracket Left; Models BWNMN2SP303AW01,

KWNMN2SP303BW33, NWNMN2SP303WW01,

SWNMN2SP303AW01, SWNMN2SP303SW01 and

SWNMN2SP303WW01

9 27103 Hold-Down Lug Hinge

10 204246 EMI Bracket Right; Models BWNMN2SP303AW01,

KWNMN2SP303BW33, NWNMN2SP303WW01,

SWNMN2SP303AW01, SWNMN2SP303SW01 and

SWNMN2SP303WW01

11 35915 Meter Case Mounting Bracket

Assembly

12 38612WP Service Cabinet Kit White

12 38612QP Service Cabinet Kit Bisque

12 38612DG Service Cabinet Kit Dark gray

13 27196 Screw Slotted hex head

13 431287 Screw Torx head

14 34443 Leg and Stabilizer Assembly

15 35148 Screw

16 36036 Bracket Right

17 34318 Rubber Foot

18 39788 Base Assembly

19 34319 Leveling Leg

20 21899 Nut

21 37937 Friction Ring

22 566P3 Adjustable Leg Extension Kit Provides adjustment capabilities to rear self-leveling legs

23 36037 Bracket Left

24 36204 Front Panel Pad

25 28102 Panel Locator

26 203484 Foam Pad

27 204870 Front Panel White

27 38335QP Front Panel Bisque

27 38335DG Front Panel Dark gray

28 35865 Hold-Down Clip

29 35097 Front Panel Brace

66 204554

Lead-In Cord

TLW1089P_204554

204554 67

Lead-In Cord

REF PART NO. DESCRIPTION COMMENTS

1 203120 Lead-In Cord Models BWNBX2PP303AW01, BWNBX2SP303AW01,

BWNMN2PP303AW01, BWNMN2SP303AW01,

HWNBC2SP115TW01, PWNBX2PP303AG02,

PWNBX2SP303AG01, SWNBX2SP303AW01,

SWNMN2SP303AW01, SWNSX2PP303AW01 and

SWNSX2SP303AW01

1 203108 Lead-In Cord Models SWNMN2SP303SW01, SWNSX2SP303SQ01

and SWNSX2SP303SW01

1 203119 Power Cord Assembly Models KWNSX2PP303EW01, KWNSX2SP303EW01,

NWNMN2SP303WW01, SWNMN2SP303WW01,

SWNSX2SP303EW01 and SWNSX2SP303WW01

1 203122 Lead-In Cord Models HWNBX2SP113FW01, SWNBX2SP113FW01,

SWNSX2PP113FW01 and SWNSX2SP113FW01

1 203345 Lead-In Cord Models HWNBX2SP303NW22, KWNMN2PP303BW33,

KWNMN2PP303NW16, KWNMN2SP303NW16,

KWNSX2PP303NW16, KWNSX2SP303NW16,

NWNBX2SP303NW22, NWNBX2SP543NW23,

NWNMN2SP303NW22, NWNMN2SP543NW22,

NWNSX2SP303NW22, SWNBX2SP303NQ22,

SWNBX2SP303NW22, SWNMN2SP303NW22,

SWNSX2SP303NW22, SWNSX2SP543NW22 and

TWNBX2SP303NW22

1 203106 Lead-In Cord Assembly Models HWNBX2SP123DW01, HWNBX2SP543DW01,

SWNBX2SP123DW01 and SWNBX2SP543DW01

1 203121 Lead-In Cord Model HWNSX2SP303UW01

1 203309 Lead-In Cord Model SWNBX2SP113JW01

1 203717 Lead-In Cord Models KWNMN2SP303BW33 and

SWNSX2SP303BW01

1 203315 Lead-In Cord Models NWNBX2SP303LW01 and

SWNBX2SP303LW01

1 202777 Lead-In Cord All other models

2 03673 Nut

3 21735 Washer

4 20267 Screw

68 204554

Shipping Materials and Special Tools

TLW1834P_204554

204554 69

Shipping Materials and Special Tools

REF PART NO. DESCRIPTION COMMENTS

1 203517 Shipping Brace Install whenever moving washer; Remove before use

2 38149 Shipping Plug Install whenever moving washer; Remove before use

3 294P4 Agitator Drive Bell Puller For removal and installation of drive bell to transmission

shaft

4 CK096 Mounting Tool Kit Use to install and remove electronic coin drops

5 310P4 Ratchet Extension Tool 1/4 inch; Use to install and remove non-electronic coin

drops

6 305P4 Transmission Pin Tool Use pin tools in place of dowel pins when reassembling

transmission cover and case; 2 required

70 204554

Special Tools

TLW1845P_204554

204554 71

Special Tools

REF PART NO. DESCRIPTION COMMENTS

1 725P3 Tool Kit Includes items 2-7

2 321P4 Spring Hook Tool For removal of centering springs from outer tub

3 293P4 Drive Bell Seal Tool For installation of 36426 Bell and Transmission Tube

Seal

4 273P4 Tub Cover Removal Tool Use to install 38359 Tub Cover Gasket in outer tub cover

5 306P4 Hex Wrench Tool For removal of locknut from washtub hub

6 254P4P Agitator Hook Use to remove agitator from drive bell; Set of 2

7 281P4 Torx Bit T15; For removal and installation of control hood security

screws

7 282P4 Torx Bit T25; For removal and installation of front panel security

screws

72 204554

Output Board, Wire Harnesses and Wires (Drawing 1 of 3)

Models BWNMN2PP303AW01, BWNMN2SP303AW01, HWNMN2PP115TW01, HWNMN2SP115CW01,

HWNMN2SP115TW01, HWNSX2PP115TQ01, HWNSX2PP115TW01, HWNSX2SP115CW01, HWNSX2SP115TW01,

HWNSX2SP303UW01, KWNMN2PP115TW01, KWNMN2PP303BW33, KWNMN2PP303NW16, KWNMN2SP115TW01,

KWNMN2SP303BW33, KWNMN2SP303NW16, KWNSX2PP115TW01, KWNSX2PP303EW01, KWNSX2PP303NW16,

KWNSX2SP115TW01, KWNSX2SP303EW01, KWNSX2SP303NW16, NWNMN2SP303NW22, NWNMN2SP303WW01,

NWNMN2SP543NW22, NWNSX2SP303NW22, PWNSX2PP115CG02, PWNSX2PP115CW02, PWNSX2PP115TG02,

PWNSX2PP115TW02, SWNMN2SP115CW01, SWNMN2SP115TW01, SWNMN2SP303AW01, SWNMN2SP303NW22,

SWNMN2SP303SW01, SWNMN2SP303WW01, SWNSX2PP113FW01, SWNSX2PP303AW01, SWNSX2SP113FW01,

SWNSX2SP115CW02, SWNSX2SP115TQ02, SWNSX2SP115TW02, SWNSX2SP303AW01, SWNSX2SP303BW01,

SWNSX2SP303EW01, SWNSX2SP303NW22, SWNSX2SP303SQ01, SWNSX2SP303SW01, SWNSX2SP303UW01,

SWNSX2SP303WW01, SWNSX2SP543NW22 and UWNMN2SP115CW01

TLW1835P_204554

204554 73

Output Board, Wire Harnesses and Wires (Drawing 1 of 3)

REF PART NO. DESCRIPTION COMMENTS

NA 45001 18 Gauge Wire Black; Order wire by foot and terminals as required

NA 45380 12 Gauge Wire Orange; Order wire by foot and terminals as required

1 203472 Control Harness Models HWNSX2SP303UW01, KWNSX2PP303EW01,

KWNSX2SP303EW01, SWNSX2SP303EW01 and

SWNSX2SP303UW01 through Serial No. 1912999999

1 204795 Control Harness Models HWNSX2SP303UW01, KWNSX2PP303EW01,

KWNSX2SP303EW01, SWNSX2SP303EW01 and

SWNSX2SP303UW01 starting Serial No. 2001000001

1 203079 Wire Harness Assembly Models SWNSX2PP113FW01 and SWNSX2SP113FW01 through

Serial No. 1912999999

1 204713 Control Harness Models SWNSX2PP113FW01 and SWNSX2SP113FW01 starting

Serial No. 2001000001

1 204711 Control Harness Models BWNMN2PP303AW01, BWNMN2SP303AW01,

KWNMN2PP303BW33, KWNMN2SP303BW33,

NWNMN2SP303WW01, SWNMN2SP303AW01,

SWNMN2SP303SW01, SWNMN2SP303WW01,

SWNSX2PP303AW01, SWNSX2SP303AW01,

SWNSX2SP303BW01, SWNSX2SP303SQ01,

SWNSX2SP303SW01 and SWNSX2SP303WW01 through Serial

No. 1912999999

1 204711 Control Harness Models BWNMN2PP303AW01, BWNMN2SP303AW01,

NWNMN2SP303WW01, SWNMN2SP303AW01,

SWNMN2SP303SW01, SWNMN2SP303WW01,

SWNSX2PP303AW01, SWNSX2SP303AW01,

SWNSX2SP303BW01, SWNSX2SP303SQ01,

SWNSX2SP303SW01 and SWNSX2SP303WW01 starting Serial

No. 2001000001

1 204710 Control Harness Models KWNMN2PP303NW16, KWNMN2SP303NW16,

KWNSX2PP303NW16, KWNSX2SP303NW16,

NWNMN2SP303NW22, NWNMN2SP543NW22,

NWNSX2SP303NW22, SWNMN2SP303NW22,

SWNSX2SP303NW22 and SWNSX2SP543NW22 starting Serial

No. 2001000001

1 204714 Control Harness Models HWNMN2PP115TW01, HWNMN2SP115CW01,

HWNMN2SP115TW01, HWNSX2PP115TQ01,

HWNSX2PP115TW01, HWNSX2SP115CW01,

HWNSX2SP115TW01, KWNMN2PP115TW01,

KWNMN2SP115TW01, KWNSX2PP115TW01,

KWNSX2SP115TW01, PWNSX2PP115CG02,

PWNSX2PP115CW02, PWNSX2PP115TG02,

PWNSX2PP115TW02, SWNMN2SP115CW01,

SWNMN2SP115TW01, SWNSX2SP115CW02,

SWNSX2SP115TQ02, SWNSX2SP115TW02 and

UWNMN2SP115CW01 starting Serial No. 2001000001

1 202684 Control Harness All other models through Serial No. 1912999999

2 202939 Output Control Shield

3 804667 Screw

4 202965 Shield Assembly Includes items 2 and 5

5 202964 Output Board Cover

Gasket

6 202508P Output Board Control

Assembly

Through Serial No. 1912999999

6 204782 Output Board Control

Assembly

Models HWNSX2SP303UW01, KWNSX2PP303EW01,

KWNSX2SP303EW01, SWNSX2SP303EW01 and

SWNSX2SP303UW01 starting Serial No. 2001000001

6 204783 Output Board Control

Assembly

All other models starting Serial No. 2001000001

NOTE: Individual wires are not available separately. Order complete harness, or order wire by the foot. When applying terminals to

wires, it is recommended that the terminals be soldered to the wires.

74 204554

Output Board, Wire Harnesses and Wires (Drawing 2 of 3)
