Contents
Safety information 4
What you need to know about the safety instructions 4
Important safety symbols 4
Important safety precautions 5
To minimize the risk of fire in a tumble dryer, the following should be observed 7
Critical installation warnings 8
Critical usage warnings 9
Usage cautions 10
Critical cleaning warnings 12
Care for preventing freezing 12
Installation 13
What’s included 13
Installation requirements 15
Step-by-step installation 16
Door reversal 20
Environment 24
Before you start 25
Initial setup 25
Drying guidelines 26
Operations 28
Control panel 28
Operating a cycle 30
Cycle overview 31
Additional functions 34
System functions 36
Special features 38
Maintenance 43
Emptying the water tank 43
Cleaning 44
Untitled-1 2 8/25/2020 2:17:29 PM
English
English4
Safety information
Congratulations on your new Samsung dryer. This manual contains important information on the
installation, use, and care of your appliance. Please take the time to read this manual to take full advantage
of your dryer’s many benefits and features.
What you need to know about the safety instructions
Warnings and Important Safety Instructions in this manual do not cover all possible conditions and
situations that may occur. It is your responsibility to caution and care when installing, maintaining, or
operating your dryer.
Always contact your manufacturer about problems or conditions you do not understand.
Important safety symbols
What the icons and signs in this user manual mean:
WARNING
Hazards or unsafe practices that may result in severe personal injury, death and/or property damage.
CAUTION
Hazards or unsafe practices that may result in personal injury and/or property damage.
CAUTION
To reduce the risk of fire or explosion, follow these basic precautions.
NOTE
Indicates that a risk of personal injury or material damage exists.
Read the instructions
These warning signs are here to prevent injury to yourself and others.
Please follow them explicitly.
After reading this manual, store it in a safe place for future reference.
Read all instructions before using the appliance.
As with any equipment that uses electricity and moving parts, potential hazards exist. To safely operate this
appliance, familiarize yourself with its operation and exercise care when using it.
WARNING
Risk of Fire
• Clothes dryer installation must be performed by a qualified technician.
• Install the clothes dryer according to the manufacturer’s instructions and local codes.
• To reduce the risk of severe injury or death, follow all installation instructions.
Untitled-1 4 8/25/2020 2:17:31 PM
English
English 5
Important safety precautions
WARNING
To reduce the risk of fire, electric shock, or injury to persons when using your
appliance, follow basic precautions, including the following:
1. This appliance is not to be used by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction concerning use of the
appliance by a person responsible for their safety.
2. For use in Europe: This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or mental capabilities
or lack of experience and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way and understand the
hazards involved. Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
3. Children should be supervised to ensure that they do not play with the
appliance.
4. If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualified persons in order to avoid a hazard.
5. The new hose-sets supplied with the appliance are to be used and that old hose-
sets should not be reused.
6. For appliances with ventilation openings in the base, that a carpet must not
obstruct the openings.
7. For use in Europe: Children of less than 3 years should be kept away unless
continuously supervised.
8. CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal
cut-out, this appliance must not be supplied through an external switching
device, such as a timer, or connected to a circuit that is regularly switched on
and off by the utility.
9. The tumble dryer is not to be used if industrial chemicals have been used for
cleaning.
Untitled-1 5 8/25/2020 2:17:31 PM
English
Safety information
English6
10. The lint trap has to be cleaned frequently, if applicable.
11. Lint must not to be allowed to accumulate around the tumble dryer. (not
applicable for appliances intended to be vented to the exterior of the building)
12. Adequate ventilation has to be provided to avoid the back flow of gases into the
room from appliances burning other fuels, including open fires.
13. Do not dry unwashed items in the tumble dryer.
14. Items that have been soiled with substances such as cooking oil, acetone,
alcohol, petrol, kerosene, spot removers, turpentine, waxes and wax removers
should be washed in hot water with an extra amount of detergent before being
dried in the tumble dryer.
15. Items such as foam rubber (latex foam), shower caps, waterproof textiles,
rubber backed articles and clothes or pillows fitted with foam rubber pads
should not be dried in the tumble dryer.
16. Fabric softeners, or similar products, should be used as specified by the fabric
softener instructions.
17. The final part of a tumble dryer cycle occurs without heat (cool down cycle) to
ensure that the items are left at a temperature that ensures that the items will
not be damaged.
18. Remove all objects from pockets such as lighters and matches.
19. WARNING: Never stop a tumble dryer before the end of the drying cycle unless
all items are quickly removed and spread out so that the heat is dissipated.
20. Exhaust air must not be discharged into a flue which is used for exhausting
fumes from appliances burning gas or other fuels.
21. The appliance must not be installed behind a lockable door, a sliding door or a
door with a hinge on the opposite side to that of the tumble dryer, in such a way
that a full opening of the tumble dryer door is restricted.
22. WARNING: The appliance must not be supplied through an external switching
device, such as a timer, or connected to a circuit that is regularly switched on
and off by a utility.
Untitled-1 6 8/25/2020 2:17:31 PM
English
English 7
Heat pump model only: The instructions shall also include the substance of the
following:
WARNING: In the appliance enclosure or in the built-in structure, keep
ventilation openings clear of obstruction.
WARNING: Do not damage the refrigerant circuit.
To minimize the risk of fire in a tumble dryer, the following should be observed
CAUTION
Items that have been spotted or soaked with vegetable or cooking oil constitute a fire hazard and should
not be placed in a tumble dryer. Oil-affected items can ignite spontaneously, especially when exposed to
heat sources such as in a tumble dryer. The items become warm, causing an oxidation reaction in the oil.
Oxidation creates heat. If the heat cannot escape, the items can become hot enough to catch fire. Piling,
stacking or storing oil-affected items can prevent heat from escaping and so create a fire hazard. If it is
unavoidable that fabrics that contain vegetable or cooking oil or have been contaminated by hair care
products be placed in a tumble dryer they should first be washed in hot water with extra detergent – this
will reduce, but not eliminate, the hazard. The ‘cool down’ cycle of tumble dryers should be used to reduce
the temperature of the items. They should not be removed from the tumble dryer or piled or stacked while
hot.
Items that have been previously cleaned in, washed in, soaked in or spotted with petrol/gasoline, dry-
cleaning solvents or other flammable or explosive substances should not be placed in a tumble dryer.
Highly flammable substances commonly used in domestic environments include acetone, denatured
alcohol, petrol/gasoline, kerosene, spot removers(some brands), turpentine, waxes and wax removers.
Items containing foam rubber(also known as latex foam) or similarly textured rubber. Like materials should
not be dried in a tumble dryer on a heat setting. Foam rubber materials can, when heated, produce fire by
spontaneous combustion.
Fabric softeners or similar products should not be used in a tumble dryer to eliminate the effects of static
electricity unless this practice is specifically recommended by the manufacturer of the fabric softener or
product.
Undergarments that contain metal reinforcements should not be placed in a tumble dryer. Damage to the
tumble dryer can result if metal reinforcements come loose during drying. When available a drying rack
could be used for such items.
Plastic articles such as shower caps or babies’ waterproof napkin covers should not be placed in a tumble
dryer.
Rubber-backed articles, clothes fitted with foam rubber pads, pillows, galoshes and rubber-coated tennis
shoes should not be placed in a tumble dryer.
Do not dry unwashed items in the tumble dryer(or washing machine drying mode,etc).
Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, Kerosene, spot
removers, turpentine, waxes and wax removers should be washed in hot water with an extra amount of
detergent before being dried in the tumble dryer.
Untitled-1 7 8/25/2020 2:17:31 PM
English
Safety information
English8
Items such as foam rubber(latex foam), shower caps, waterproof textiles, rubber backed articles and clothes
or pillows fitted with foam rubber pads should not be dried in the tumble dryer.
Fabric softeners, or similar products, should be used as specified by the fabric softener instructions.
The final part of a tumble dryer cycle occurs without heat(cool down cycle) to ensure that the items are left
at a temperature that ensures that the items will not be damaged.
Oil-affected items can ignite spontaneously, especially when exposed to heat sources such as in a tumble
dryer. The items become warm, causing an oxidation reaction in the oil. Oxidation creates heat. If the heat
cannot escape, the items can become hot enough to catch fire. Piling, stacking or storing oil-affected items
can prevent heat from escaping and so create a fire hazard.
If it is unavoidable that fabrics that contain vegetable or cooking oil or have been contaminated by hair care
products be placed in a tumble dryer they should first be washed in hot water with extra detergent - this
will reduce, but not eliminate, the hazard.
Never stop a tumble dryer before the end of the drying cycle unless all items are quickly removed and
spread out so that the heat is dissipated.
Remove all objects from pockets such as lighters and matches.
The tumble dryer(or washing machine drying mode, etc) is not to be used if industrial chemicals have been
used for cleaning.
Critical installation warnings
WARNING
The installation of this appliance must be performed by a qualified technician or service company.
• Failure to do so may result in electric shock, fire, an explosion, problems with the product, or injury.
Plug the power cord into a wall socket and use the socket for this appliance only. In addition, do not use an
extension cord.
• Sharing a wall socket with other appliances using a power strip or extending the power cord may result
in electric shock or fire.
• Ensure that the power voltage, frequency and current are the same as those of the product
specifications. Failure to do so may result in electric shock or fire. Failure Plug the power plug into the
wall socket firmly.
Remove all foreign substances such as dust or water from the power plug terminals and contact points
using a dry cloth on a regular basis.
• Unplug the power plug and clean it with a dry cloth.
• Failure to do so may result in electric shock or fire.
Keep all packaging materials well out of the reach of children, as packaging materials can be dangerous to
children.
• If a child places a bag over its head, it may result in suffocation.
This appliance must be properly grounded.
Do not ground the appliance to a gas pipe, plastic water pipe, or telephone line.
• This may result in electric shock, fire, an explosion, or problems with the product
Untitled-1 8 8/25/2020 2:17:32 PM
English
English 9
• Never plug the power cord into a socket that is not grounded correctly and make sure that it is in
accordance with local and national codes.
Do not install or keep the product exposed to the outdoor elements.
Do not use a damaged power plug, damaged power cord or loose wall socket.
• This may result in electric shock or fire.
If the plug (power supply cord) is damaged, it must be replaced by the manufacturer or its service agent or a
similar qualified technician in order to avoid a hazard.
This appliance should be positioned to be accessible to the power plug after installation.
Do not pull or excessively bend the power cord.
Do not twist or tie the power cord.
Do not hook the power cord over a metal object, place a heavy object on the power cord, insert the power
cord between objects, or push the power cord into the space behind the appliance.
• This may result in electric shock or fire.
Do not pull the power cord, when unplugging the power plug.
• Unplug the power plug by holding the plug.
• Failure to do so may result in electric shock or fire.
This appliance must be properly grounded. Never plug the power cord into a receptacle that is not grounded
adequately and in accordance with local and national codes. See installation instructions for grounding this
appliance.
Install this appliance in a location with solid, level floor.
• Failing to do so may result in abnormal vibrations, noise or problems with the product.
Since an ingredient in hair spray may degrade the hydrophile property of the heat exchanger so that dew
may appear on the outer surface of the appliance when the cooling operation is running, do not install the
appliance in a beauty salon.
This appliance should be positioned so that the power plug, the water supply taps, and the drain pipes are
accessible.
Critical usage warnings
WARNING
Do not let children or pets on or into the product. In addition, when disposing of this product, disassemble
the door lock (lever).
• This may result in children falling and injuring themselves.
• If children become locked in the product, there is a danger of suffocation.
Do not try to access the inside of the product when the drum is rotating.
Do not sit on the product or lean against the door.
• This may result in the product turning over and resulting in injury.
Dry the laundry only after it was spun by an appropriate washing machine.
Do not dry unwashed items in the tumble dryer.
Untitled-1 9 8/25/2020 2:17:32 PM
English
Safety information
English10
Do not drink the condensed water.
Never stop a tumble dryer before the end of the drying cycle unless all items are quickly removed and
spread out so that the heat is dissipated.
Do not dry laundry contaminated by inflammable materials such as gasoline, kerosene, benzene, thinner,
alcohol, etc.
• This may result in electric shock, fire or explosion.
Do not let pets chew or play with the dryer.
• This may result in electric shock or injury.
When disposing of the product, separate the door and the power cord before disposing of the product.
• Failing to do so may result in damage to the power code or an injury.
Do not touch the power plug with wet hands.
• This may result in electric shock.
When gas (city gas, propane gas, LP gas) leaks, do not touch this appliance or the power cord, ventilate
immediately.
• At this time, do not use the ventilating fan.
• A spark may cause an explosion or fire.
Do not repair, replace, or attempt to service any part of the appliance unless specifically recommended in
the user-repair instructions. You must also have the skills necessary to service this appliance.
Do not attempt to repair, disassemble, or modify the appliance yourself.
• Do not use any fuse(such as cooper, steel wire, etc.) other than the standard fuse.
• When repairing or reinstalling the appliance is required, contact your nearest service center.
• Failure to do so may result in electric shock, fire, problems with the product, or injury.
The product you have purchased is designed for domestic use only.
The use for business purposes qualifies as product misuse. In this case, the product will not be covered
by the standard warranty provided by Samsung and no responsibility can be attributed to Samsung for
malfunctions or damages resulting from such misuse.
If the product generates strange noise, smells of something burning, or generates smoke, immediately cut-
off the power and contact the service center.
• Otherwise, it may cause an electric shock or fire as a result.
Do not let children (or pets) play in or on your product. The product door does not open easily from the
inside and children may be seriously injured if trapped inside.
Usage cautions
CAUTION
Do not stand on top of the appliance or place objects (such as laundry, lighted candles, lighted cigarettes,
dishes, chemicals, metal objects, etc.) on the appliance.
• This may result in electric shock, fire, problems with the product, or injury.
Untitled-1 10 8/25/2020 2:17:32 PM
English
English 11
Do not touch the glass door and inside of the drum during or just after drying as it is hot.
• This may result in burns.
The door glass becomes hot during drying. Therefore, do not touch the door glass.
Also, do not allow children to play around the dryer or touch the door glass.
• This may result in burns.
Do not press the buttons using sharp objects such as pins, knifes, fingernails, etc.
• This may result in electric shock or injury.
Do not dry laundry containing forming rubber (latex) or similar rubber textures.
• If forming rubber is heated, it may start a fire.
Do not dry laundry contaminated by vegetable oil or cooking oil as a large amount of the oil will not be
removed when washing the laundry. In addition, use the unheated dry cycle so that the laundry is not
heated.
• The oxidization heat of the oil may start a fire.
Do not dry laundry contaminated by foreign substances such as oil, cream, lotion, or other chemicals that
are used in places such as skincare room, massage parlor, beauty salon, or hospital.
• This may result in electric shock, fire, malfunction, and injury.
Make sure that the pockets of all clothing to be dried are empty.
• Hard, sharp objects, such as coins, safety pins, nails, screws, or stones can cause extensive damage to the
appliance.
Do not dry clothing with large buckles, buttons, or other heavy metal (zippers, hooks and eyelets, button-up
covers).
If necessary, use the laundry net for small and lightweight laundry such as fabric tie belt, apron strings, and
underwire bras which can dissolve or break during a cycle.
Dryer sheets are compatible with this model, and are recommended for better drying performance.
Dryer sheets are also beneficial in reducing the static electricity generated during a drying cycle. Static
electricity could lead to damage of laundry items and potentially the appliance.
Do not use the dryer near dangerous powders such as coal dust, wheat flour, etc.
• This may result in electric shock, fire or an explosion.
Do not place inflammable materials near the product.
• This may result in toxic gases from the product, damage to parts, electric shock, fire or an explosion.
• The appliance should not be placed behind lockable doors etc.
Do not touch the rear side of the appliance during or immediately after drying is complete.
• The appliance remains hot and may cause burns.
Untitled-1 11 8/25/2020 2:17:32 PM
English
Safety information
English12
Critical cleaning warnings
WARNING
Do not clean the appliance by spraying water directly onto it.
Do not use benzene, thinner or alcohol to clean the appliance.
• This may result in discoloration, deformation, damage, electric shock or fire.
Before cleaning or performing maintenance, unplug the appliance from the wall socket.
• Failure to do so may result in electric shock or fire.
Clean the filter case before and after using the dryer.
Clean the inside of the product on a regular basis by asking an authorized service engineer.
Clean the Heat Exchanger with a soft brush or vacuum cleaner once a month, Do not touch the heat
exchanger with your hand. Otherwise, it may cause an injury.
The interior of the dryer should be cleaned periodically by qualified service personnel.
Care for preventing freezing
• Install the dryer in an area where the temperature does not drop below zero degree Celsius.
• If draining directly using a long drain hose, water remaining inside the hose can freeze in winter. Make
sure there is no water left inside the hose after use.
• If the drain hose has frozen, wrap the hose with a towel soaked in warm water for approximately ten
minutes to thaw it.
Untitled-1 12 8/25/2020 2:17:32 PM
English
English 13
Installation
What’s included
Carefully unpack the dryer. Keep all packaging materials away from children. The parts and location of parts
shown below may differ from your dryer. Before installation, make sure the dryer has all the parts listed
here. If the dryer and/or parts are damaged or missing, contact the nearest Samsung customer service
center.

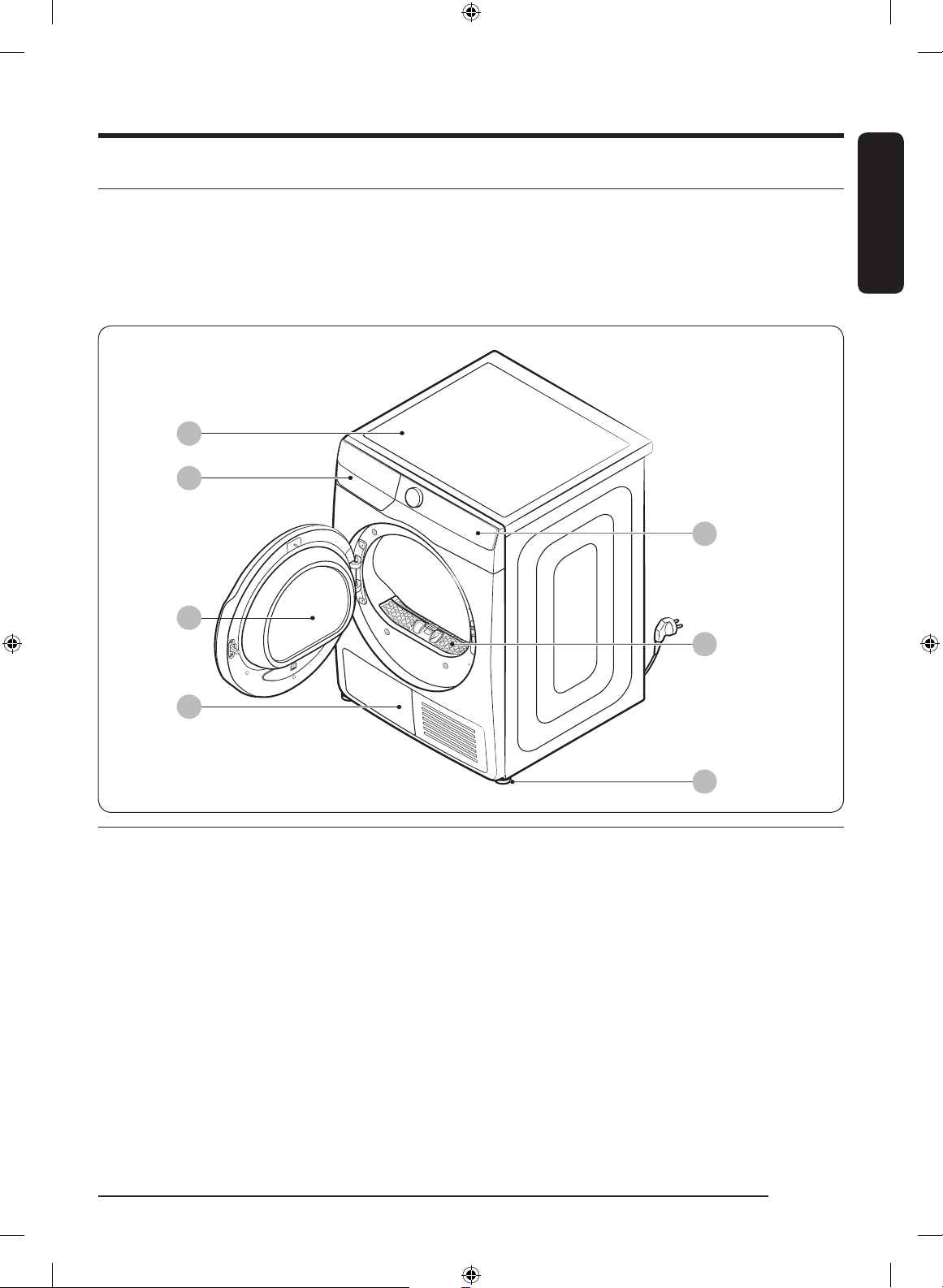

Dryer at a glance
01
02
03
04
05
06
07
01 Top cover 02 Water tank
03 Door 04 Heat exchanger
05 Control panel 06 Lint filter
07 Levelling leg
Untitled-1 13 8/25/2020 2:17:33 PM
English
Installation
English14

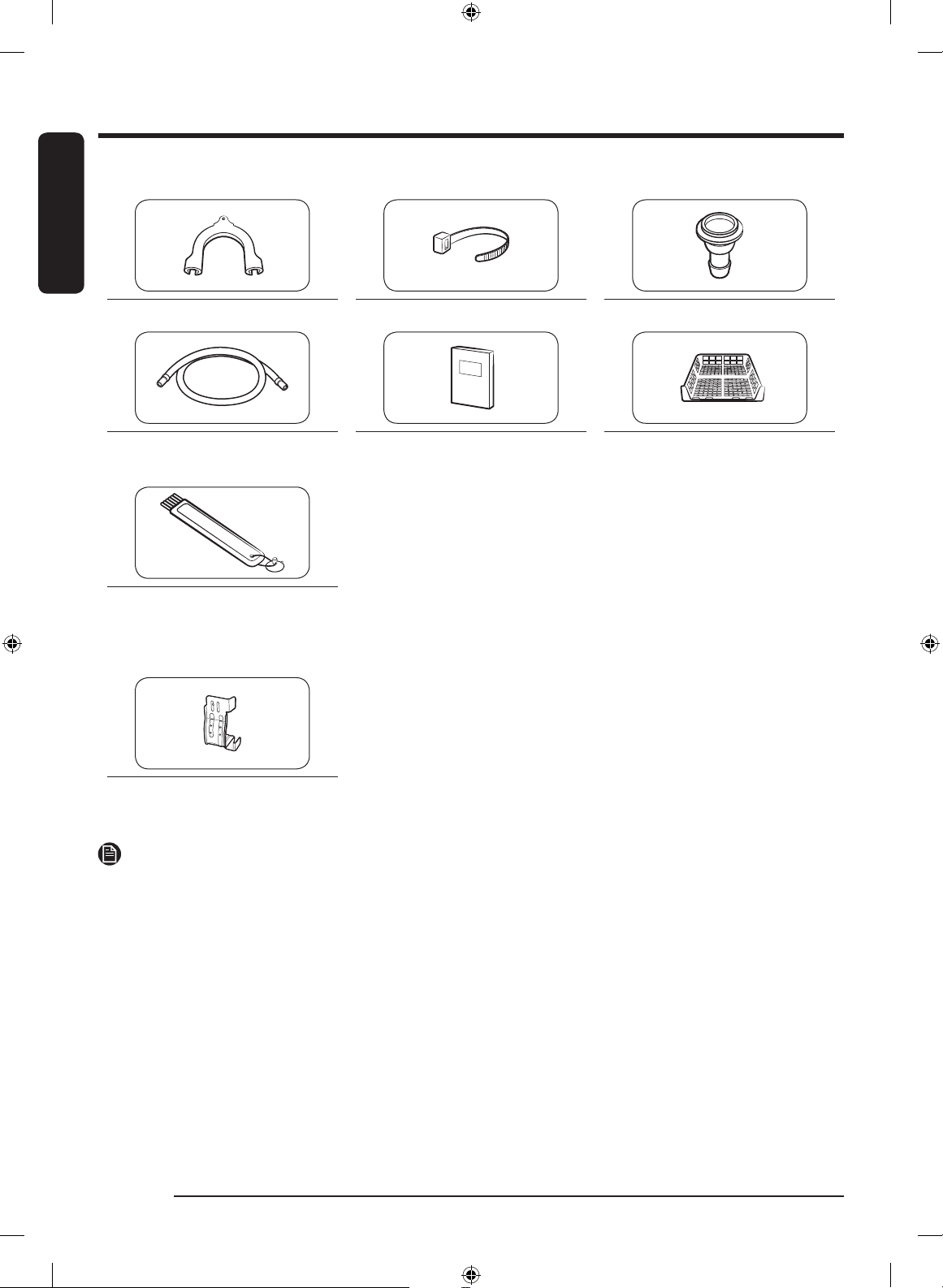

Accessories (supplied)
Hose guide Cable tie Hose connector
Long drain hose (2 m) User manual Drying rack (applicable models
only)
Cleaning brush
Accessories (not supplied)
Stacking kit bracket
(Part # SK-DH; SK-DA; SKK-DF)
NOTE
• For stacking instructions with the dryer, see the installation manual included in the stacking kit.
• For information on which stacking kit model you can use to stack your dryer on the washing machine,
see the user manual included in your Samsung washing machine.
Untitled-1 14 8/25/2020 2:17:36 PM
English
English 15
Installation requirements
NOTE
This dryer must be installed by a qualified installer. If service is required due to poor or faulty installation,
it is considered the owner’s responsibility and may void the warranty. Keep these instructions for future
reference.
WARNING
• Do not plug the power cord into a wall outlet before the dryer is completely installed.
• Have two or more persons help move the dryer.
• Do not let children or pets play in, on, or around the dryer. Proper supervision is necessary at all times.
• Keep all packaging materials away from children.
• Do not replace a damaged power cord or power plug yourself. Have Samsung or a qualified service
technician replace a damaged power cord or power plug.
• Do not attempt to repair, disassemble, or modify the dryer. For any repairs, contact the nearest Samsung
service center.
• Remove the door/lids from all discarded appliances to avoid children from suffocating.
• If the dryer generates a strange noise, burning smells, or smoke, unplug the power plug immediately
and contact the nearest Samsung service center.
• Do not unplug the dryer while it is operating.
• Do not place flammable objects near the dryer.
Electrical and grounding requirements
• The dryer must be properly grounded. If the dryer malfunctions or breaks down, grounding reduces the
risk of electric shock by providing a path of least resistance for the electric current. The dryer comes
with a power cord that has a 3-prong grounding plug. The plug must be plugged into an appropriate
outlet that is properly installed and grounded in accordance with all local codes and ordinances.
• If you have any questions regarding the electrical or grounding requirements, please contact Samsung
or a qualified electrician.
WARNING
• Plug the power cord into a grounded, 3-prong outlet.
• Do not use a damaged power plug, cord, or loose or damaged wall outlet.
• Do not use an adapter or an extension cord.
• Improper connection of the equipment-grounding conductor may result in electric shock. If you are
unsure if the dryer is properly grounded, check with a qualified electrician.
• Do not modify the power plug, power cord, or power outlet in any way.
• Do not connect the ground wire to plastic plumbing lines, gas lines, or hot water pipes.
Untitled-1 15 8/25/2020 2:17:36 PM
English
Installation
English16
Alcove or closet installation
For alcove or closet installation, the dryer requires the following minimum clearances:
Sides Top Front Rear
25 mm 25 mm 490 mm 50 mm
If installing the dryer with a washing machine, the front of the alcove or closet must have an unobstructed
air opening of at least 550 mm.
Step-by-step installation
Before you install your dryer, make sure you have read Installation requirements on page 15.
STEP 1 Select a location
Location requirements
Select a level, well-constructed surface that will withstand vibrations. Select a location where a grounded,
3-prong outlet is easily accessible.
For convenience, consider installing the dryer next to your washing machine.
WARNING
• Install the dryer indoors only.
• Do not install the dryer in areas exposed to the weather.
• Do not install the dryer where the temperature may fall below 5 °C or rise above 35 °C.
• Do not install the dryer where gas may leak.
Untitled-1 16 8/25/2020 2:17:36 PM
English
English 17

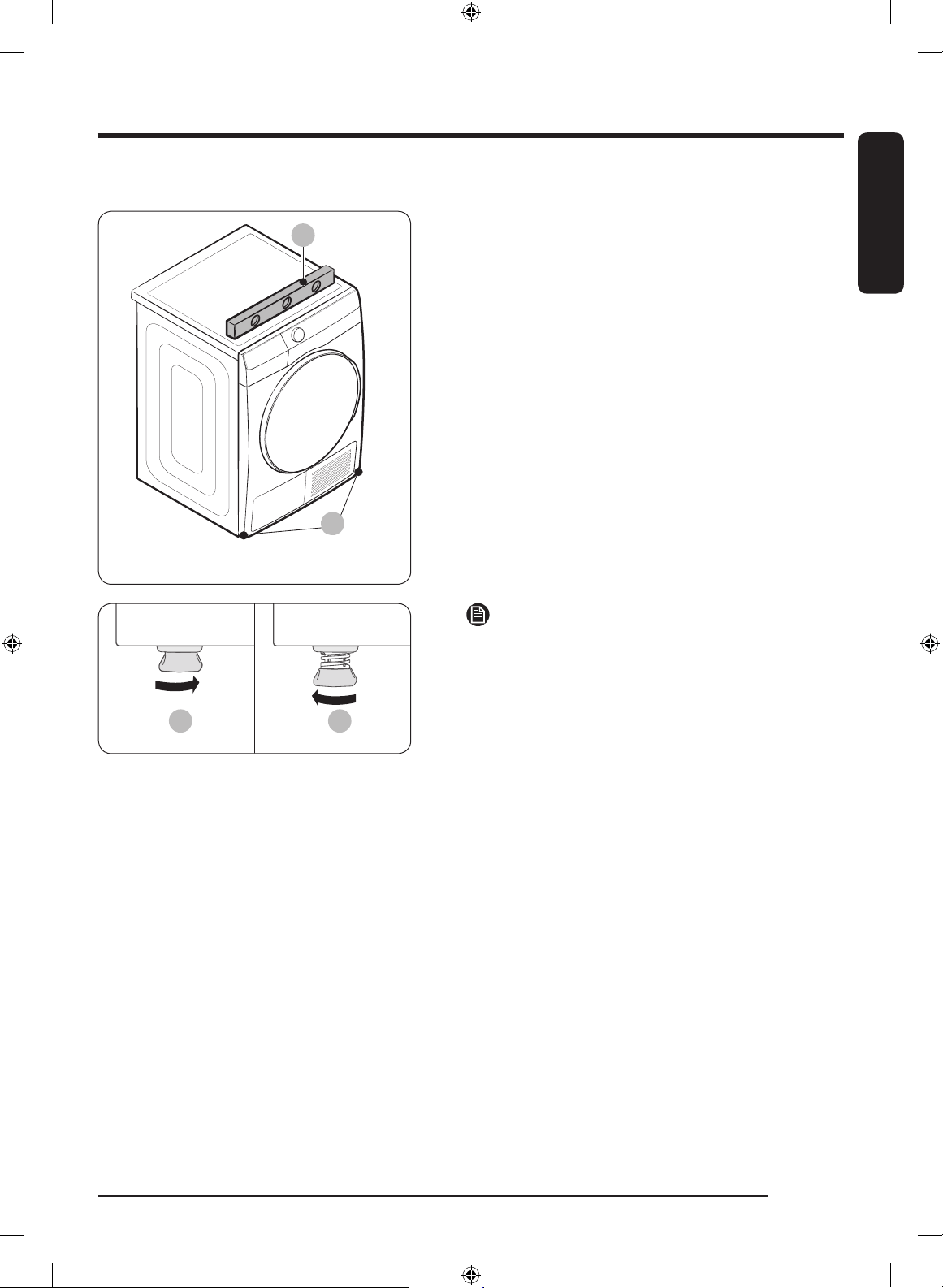

STEP 2 Adjust the levelling feet
B
A
1. Gently slide the dryer into the desired location.
2. Use a level (A) and check the levelness of the dryer
from side to side and front to back.
3. If the dryer is not level, turn the levelling feet (B)
left or right to adjust the height.
4. Once the dryer is level, make sure the dryer stands
firmly on the floor.
5. Plug in the dryer.
C D
NOTE
• To set the dryer to the same height as the washing
machine, turn the levelling feet to the right until
it fully retracts (C). Then, turn the levelling feet
to the left to extend (D) it until the dryer and the
washing machine are the same height.
• Extend the levelling leg only as much as necessary.
Extending the levelling leg more than necessary
can cause the dryer to vibrate.
Untitled-1 17 8/25/2020 2:17:37 PM
English
Installation
English18
STEP 3 Connect the drain hose
• We strongly recommend connecting the drain hose
to your drainage system.
• If the drain hose connected on the dryer is too
short to reach the drainage system, use the
provided accessory hose (long drain hose).
• Use the built-in water tank only if you cannot
connect the drain hose to a drainage system.
NOTE
As a factory default, this dryer is set to use the built-in
water tank to drain condensed water.
A
B
1. Remove the drain hose from hole (A), and insert it
into part (B).
A
2. Insert one end of the accessory hose (long drain
hose) into hole (A).
3. Insert the other end (outlet) of the accessory hose
to the drainage system in one of the following
ways:
Untitled-1 18 8/25/2020 2:17:37 PM
English
English 19
Over a wash basin:
A
CB
1. Make sure to place the end of the accessory hose
lower than 90 cm (*) from the bottom of dryer.
2. To bend some point of the accessory hose, use
the supplied plastic hose guide (B) and secure the
guide to the wall with a hook or to the tap with a
piece of string. Assemble the drain hose (A) and
the hose guide (B) and fix them with the cable-tie
(C).
3. You can drain the condensed water by connecting
the accessory hose (long drain hose) to the drain-
outlet directly.
CAUTION
Do not extend the drain hose. Water may leak from
the connected area. Use a long drain hose.
By using the drain pipe of the wash basin:
A
1. Assemble the hose connector (A), and attach it to
the end of the accessory hose as shown.
CAUTION
To prevent water leak, make sure to connect the hose
and the connector firmly.
2. Connect the hose adapter directly to the drain pipe
of the wash basin.
Untitled-1 19 8/25/2020 2:17:38 PM
English
Installation
English20
STEP 4 Check the installation
• All packaging material is completely removed and properly disposed.
• The dryer is level and standing firmly on the floor.
• Make sure no accessory remains inside the drum.
• Do not block the air inlet hole of the cooling grill at the front of the dryer.
• Do not place inflammable objects near the dryer and keep the surroundings clean.
• Do not remove the adjustable levelling legs of the dryer. They are necessary to keep the dryer level with
the ground.
• After installation, we recommend that you wait at least 1 hour before using the dryer.
STEP 5 Power on
Plug the power cord into a wall socket protected by a fuse or circuit breaker. Then, tap to turn on the
dryer.
NOTE
Run the Time Dry cycle for 20 minutes to make sure that it runs, heats, and shuts off. If the HC information
code is displayed, contact a local service center.
Door reversal
You might want to reverse the direction of the door, depending on your site conditions or to your needs.
WARNING
Make sure door reversal is performed by a qualified technician.
1. Open the door, and then remove the two screws on
the door hinge. While holding the door with both
hands, slightly lift to remove it.
Untitled-1 20 8/25/2020 2:17:38 PM
English
English 21
2. Use a thin object to remove the door sealing.
3. Remove the upper 3 screws and the lower 3 screws
on the glass holder.
4. Remove the glass holder, and then rotate the door
cover by 180 degrees.
Untitled-1 21 8/25/2020 2:17:39 PM
English
Installation
English22
5. Insert the glass holder into the new position of
the door cover. Make sure the door hinge is in the
same position as in the figure.
6. Tighten the upper 3 screws and the lower 3 screws
on the glass holder.
NOTE
The screw shapes differ by dimension. Make sure you
tighten the correct screw.
7. Insert the door sealing in the correct position.
Untitled-1 22 8/25/2020 2:17:39 PM
English
English 23
8. Remove the 2 screws that remain after removing
the door hinge.
9. Remove the 4 screws on the door lock. Remove the
door lock, and then reinsert it to the opposite side.
10. Tighten the 2 screws that were removed from step
8 on the hinge frame at the opposite side. Note
that you must tighten them on the right (top-right
and bottom-right) of the frame.
Untitled-1 23 8/25/2020 2:17:40 PM
English
Installation
English24
11. Remove the screw on the bottom of the door
hinge, and the fasten it on the top of the door
hinge.
12. Put the door hinge on the opposite side, and then
tighten the 2 screws to fix the door to the dryer.
NOTE
To return the door to the initial position, follow the steps again. Please note that the door, hinges, and other
parts would be in the opposite orientation as listed in these steps.
Environment
Please dispose of the packaging materials for this product in an “environmentally friendly” manner. For
further detail, please contact your local area authority.
Untitled-1 24 8/25/2020 2:17:40 PM
English
English 25
Before you start
Initial setup
• When you turn on your dryer for the first time, the screen shows the initial setup process. Follow the on-
screen instructions to complete it.
• If you complete the initial setup and operate a cycle for more than a minute, the initial setup will not
appear again.
• The initial setup includes language selection and a brief tutorial.
• When tapping a button, tap exactly over the icon.
• Operating the washing machine and dryer at the same time may result in a loss of power depending on
where they are installed and your electrical power status.
01 Language selection 02 Welcome screen
Turn dial & Tap O
English(US)
English(AU)
Welcome!
03 Tutorial
Let’s explore your new dryer!
[Tap O to skip] [Tap O to skip]
Turn the dial to explore cycles
[Tap O to skip]
Now hold to start a cycle
[Tap O to skip]
Tap to see
additional functions
Try saving favourites
in My Cycles
A dryer that knows you!
All Done!
Untitled-1 25 8/25/2020 2:17:42 PM
English
Before you start
English26
Drying guidelines
STEP 1 Sort
• Do not mix heavy and lightweight items together.
• Wash and dry dark-colored items separately from light-colored items.
• Unless recommended on the care label, do not dry woolens or fiberglass items.
• Do not dry items soiled with oil, alcohol, gasoline, etc.
• Avoid drying unwashed items
• Do not dry wet items that have not been fully spin-dried after washing. This could cause an odor inside
the dryer or cause the dryer to malfunction.
• Using a laundry net is recommended for baby socks and other small, light items.
STEP 2 Empty pockets and turn them inside out
• Turn dark-colored clothes inside out before drying them. This will prevent fabric damage due to friction
during the drying process and protect internal parts of the dryer from discoloration and damage.
• Turn the items with buttons or embroideries inside out before drying them.
CAUTION
• Empty the pockets. Metallic objects such as coins, pins, and buckles on clothing may damage other
laundry items as well as the drum.
• Remove any metallic objects attached to items, pull up zippers, and latch hooks before drying. Metallic
objects attached to items may damage other items as well as the drum.
STEP 3 Check the lint filter
Ensure that the lint filter is installed correctly before putting items in the dryer. The dryer does not work
without the lint filter.
• Always clean the lint filter before drying. For more information on filter cleaning, see the “Lint filter”
section on page 44
Untitled-1 26 8/25/2020 2:17:42 PM
English
English 27
STEP 4 Determine the load capacity
Do not overload the dryer. Overloading reduces the tumbling action, resulting in uneven drying and
wrinkling.
• Put one wash load in the dryer at a time.
• To improve drying efficiency for one or two items, add a dry towel to the load.
• For best results, untangle items before inserting them into the dryer. Tangled items may degrade the
drying efficiency or cause the door to open.
CAUTION
Add or remove items into or from the dryer with the lint filter installed. If the filter is not in place, small
items can fall into the filter slot and cause the dryer to malfunction.
STEP 5 After finishing the drying
• Empty the water tank to prevent leaks. For more information on emptying the water tank, see the
“Emptying the water tank” section on page 43
• If the “Clean heat exchanger” message appears on the display, refer to the “Heat exchanger” section on
page 46 and clean the heat exchanger.
• Keep the dryer door and the heat exchanger cover open after finishing the drying to keep the inside of
the dryer more hygienic.
Untitled-1 27 8/25/2020 2:17:42 PM
English
English28
Operations

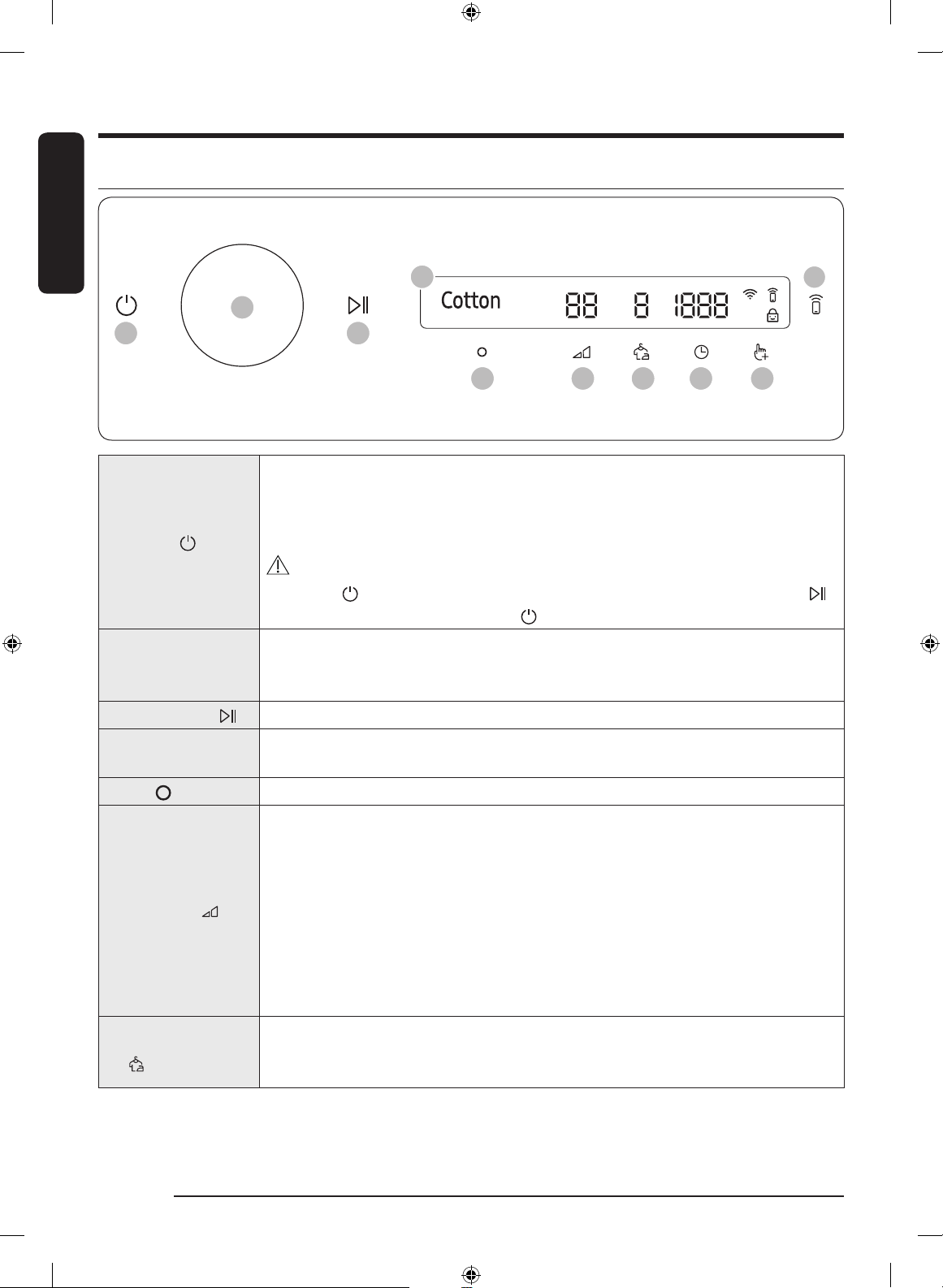

Control panel
3
hrs
40
min
max 9kg
04
10
05 06 07 08 09
01 03
02
01 Power
Tap to turn the dryer on or off.
• If you do not manipulate the control panel for 10 minutes after the dryer is
turned on, the dryer automatically turns off.
• The dryer automatically turns off when the drying completes.
CAUTION
Do not tap to turn the dryer off while the drying is in progress. Tap and hold
to pause the cycle first, and then tap to turn the dryer off.
02 Navigation dial
Turn the Navigation dial left or right to navigate through cycles and functions.
When you turn the Navigation dial, the display shows your selection (such as cycle,
additional functions, and system functions).
03 Start/Pause
Tap and hold to start or pause an operation.
04 Display
The display shows the current cycle, estimated time remaining, cycle options, and
other useful or alert messages.
05 OK
Tap to confirm your selection of function or setting.
06 Dry Level
Tap to change the dry level for the selected cycle. You can select from level 1 to 4,
but available level depends on the selected cycle.
• 4: Suitable for large and thick items.
• 3: Standard drying level.
• 2: The Damp dry level is designed to partially dry items. Use for items that lay
flat or hang to dry.
• 1: Gently dries items to protect fabric. Suitable for delicate items or items you
want to naturally dry (by hanging or laying flat on drying rack) while they are
damp.
07 Wrinkle Prevent
Tap to turn the Wrinkle Prevent function on or off. When the function is on, the
dryer rotates the drum intermittently after completing the dry cycle to prevent
wrinkles.
Untitled-1 28 8/25/2020 2:17:43 PM
English
English 29
08 Time
Tap to select the cycle time for Time Dry, Warm Air, or Cool Air. You can set the
drying time between 20 minutes and 240 minutes. Available drying time depend
on the selected cycle.
09 Additional
Functions
• Tap to enter the additional functions menu.
• Tap and hold for 3 seconds to enter the system functions menu.
10 Smart Control
Tap to activate or deactivate the Smart Control function.
• When the Smart Control function is activated, you can control your dryer
remotely using the SmartThings app in your smartphone.
Icon description
Wi-Fi This icon indicates that the dryer is connected to Wi-Fi.
Smart Control
This icon indicates that Smart Control is on. For more information on
“Smart Control”, see page 38.
Child Lock
This icon indicates that Child Lock is on.
For more information on “Child Lock”, see page 35.
Untitled-1 29 8/25/2020 2:17:44 PM
English
Operations
English30
Operating a cycle
3
hrs
40
min
max 9kg
05 03 04
01 06
02
1. Tap to turn on the dryer.
2. Turn the Navigation dial to select the cycle you want. For more information on “Cycle overview”, see
page 31.
3. Tap , , or to change the default cycle settings.
4. Tap , and then turn the Navigation dial to select additional function. For more information on
“Additional functions”, see page 34.
5. Tap to change the settings for selected additional function. Not all cycles have additional functions
available.
6. Tap and hold to start operation. Once you set the cycle you want, the screen displays a brief cycle
description, maximum laundry load, and cycle time. You can also check the cycle progress, remaining
cycle time, and information codes.
Untitled-1 30 8/25/2020 2:17:44 PM
English
English 31
Cycle overview
NOTE
Other cycles can be used after adding them to your cycle list using the My Cycles function. For more
information, see the “My Cycles” section on page 35.
Sensor dry cycles
Cycle Description
Max load (kg)
DV9*** DV8***
Cotton
For cottons, bed linen, table linen, underwear, towels,
and shirts.
• ‘Cotton + Dry Level 3’ is the test programme used for
energy labelling in accordance with AS/NZS 2442.
9.0 8.0
AI Dry
Dries with cycle settings optimized by AI according to the
load and indoor temperature.
9.0 8.0
Super Speed
For mixed loads consisting of cotton and synthetic
fabrics.
• DV9*T8***** / DV9*T7***** / DV8*T7***** models
only.
3.0
Synthetics
For blouses, and shirts that are made of polyester
(Diolen, Trevira), polyamide (Perlon, nylon), or other
similar blends.
4.5 4.0
Delicates
For the delicate items to be handled with care such as
lingerie.
2.0
Towels Use to dry loads such as bath towels. 4.0
Bedding
For bulky items such as blankets, sheets, comforters, and
light duvets.
2.0
Shirts Use to quickly dry one item such as a shirt. 1.0
Wool
For machine washable and tumble dryable wool only.
For best results, turn laundry inside out before drying.
1.0
Outdoor
For outdoor wear such as skiwear and mountain clothing,
and also for fabrics such as spandex, stretch, and
microfiber. It is recommended to use this cycle after you
have washed your laundry using the Outdoor with your
washing machine.
2.0
Silent Dry
For mixed loads of cotton and synthetic fabrics that you
want to dry silently. This can be used with the Wrinkle
Prevent option, so you can start a cycle before going to
bed and have it completed in the morning.
• DV9*T8***** models only.
9.0 8.0
Untitled-1 31 8/25/2020 2:17:44 PM
English
Operations
English32
Cycle Description
Max load (kg)
DV9*** DV8***
Iron Dry
This cycle finishes the drying process in a moist state,
which facilitates ironing.
4.0
Manual dry cycles
Cycle Description Max load (kg)
Time Dry
Use to set a desired dry time.
Turn the Navigation dial to select Time Dry and tap to set
the drying time between 20 minutes and 240 minutes. Tap
repeatedly to select the available time options in this order: 20 / 30
/ 40 / 50 / 60 / 90 / 120 / 150 / 180 / 240.
NOTE
• The actual cycle time may differ depending on the dryness of
items.
• If you use this cycle for additional drying after finishing one
of the Sensor Dry cycles (listed on page 31), set the minimum
drying time (20 minutes). Excessive drying may cause damage or
deform to an item.
-
Warm Air
For small, pre-dried items.
Timed cycle for all types of fabric except for wool and silk. Dry
laundry that is still slightly damp or has already been pre-dried.
Also suitable for the subsequent drying of multi-layered, thick
laundry that does not dry readily.
Turn Navigation dial to select Warm Air and tap to set the drying
time between 20 minutes and 240 minutes. Tap repeatedly to
select the available time options in this order: 20 / 30 / 40 / 50 / 60
/ 90 / 120 / 150 / 180 / 240.
-
Cool Air
All types of fabric. For freshening up or airing items of laundry that
have not been worn for long.
Turn Navigation dial to select Cool Air and tap to set the drying time
between 20 minutes and 240 minutes. Tap repeatedly to select
the available time options in this order: 20 / 30 / 40 / 50 / 60 / 90 /
120 / 150 / 180 / 240.
-
Quick Dry 35’
For drying light cotton synthetics or items that needs quick drying.
The default dry time is 35 minutes.
1.0
Untitled-1 32 8/25/2020 2:17:44 PM
English
English 33
Other cycles
Cycle Description Max load (kg)
Hygiene Care+
For sanitizing wet and dry clothes, linen, and toys to eliminate
bacteria.
• DV9*T8***** / DV9*T7***** / DV8*T7***** / DV9*T6***** /
DV8*T6***** models only.
2.0
Air Wash
Use this cycle to disinfect clothes and make them feel fresher and
cleaner.
• DV9*T8***** / DV9*T7***** / DV8*T7***** / DV9*T6***** /
DV8*T6***** models only.
1.0
Self Tub Dry
Use this cycle to keep both the drum and the heat exchanger fresh.
• Do not use this cycle while there is any laundry stored in the
drum.
-
Untitled-1 33 8/25/2020 2:17:44 PM
English
Operations
English34
Additional functions
Using Additional Functions
Damp Alert
Tap O to set alert
Off
03 01
02
02
1. Tap .
2. Turn the Navigation dial to select the desired additional function.
3. Tap to change the selected function’s settings or start the function.
NOTE
• To return to the main screen, tap again or turn the Navigation dial to select Back and tap .
• If the selected function is not supported, the "Currently not supported" message is displayed, and the
button is not activated.
• When you select an additional function, a brief help message appears for the first ten times of use.
• If you do not manipulate the control panel for 7 seconds after entering the Additional Functions menu,
the display returns to the main screen.
Damp Alert
This function alerts you when shirts and other items that require ironing are dry enough to be suitable for
ironing.
1. Select a cycle and change the cycle settings as necessary.
- This function is available for Cotton, Synthetics, Mixed Load, and Silent Dry with the Dry Level set
to 2 or 3.
2. Tap .
3. Turn the Navigation dial to select Damp Alert, and then tap .
4. Tap and hold .
Alarm during drying:
1. Tap and hold to pause the cycle.
2. Open the door and take out the items you want to iron.
3. Close the door, and then tap and hold to dry the remaining items.
Untitled-1 34 8/25/2020 2:17:44 PM
English
English 35
My Cycles
Add or remove cycles to create a personal cycle list.
1. Tap .
2. Turn the Navigation dial to select My Cycles, and then tap .
- You can only edit a cycle to create a personal cycle when the dryer is not operating.
3. Turn the Navigation dial to select a desired cycle.
4. Tap to add or remove the selected cycle.
- Addition and removal of a cycle is saved automatically.
5. Once you finish creating My Cycles, tap to return to the cycles screen.
NOTE
The Cotton, Synthetics, and Iron Dry cycles cannot be removed from the cycles list.
Child Lock
To prevent children or infants from accidentally starting or setting the dryer, Child Lock locks all buttons
except for and .
1. Close the door.
2. Tap .
3. Turn the Navigation dial to select Child Lock, and then tap .
4. Tap to select On or Off.
- The Child Lock icon turns on when the function is on.
- You cannot turn on Child Lock with the door open. If you get the "Door is open" message on the
display while you try to turn on Child Lock, close the door and try again.
NOTE
• When Child Lock is on, all buttons are disabled except for and .
• It you tap a button with Child Lock on, an alarm triggers with the “Child Lock on” message.
• If you open and close the door with Child Lock on, an alarm triggers with the “Open door & check inside”
and “Child Lock on” message.
• To dismiss a notification message, turn off Child Lock or the power.
Drum Light
This turns on the light inside the drum so you can check the status of the items inside.
1. Tap .
2. Turn the Navigation dial to select Drum Light, and then tap .
- Even if the dryer is turned off, the drum light will turn on as long as the power cable is connected.
- Once the Drum Light function is enabled, the drum light will turn off automatically after 2 minutes.
- Opening the dryer door automatically turns on the drum light. The light will then turn off
automatically after 2 minutes.
Untitled-1 35 8/25/2020 2:17:45 PM
English
Operations
English36
System functions
Using System Functions
AI Patten
Tap O for most used cycle
Off
03 01
02
*
02
* Tap and hold 3 seconds.
1. Tap and hold for 3 seconds.
2. Turn the Navigation dial and select the desired system function, and then tap .
3. Tap to change the selected function’s settings or start the function.
NOTE
• To return to the main screen, tap again or turn the Navigation dial to select Back and tap .
• If you do not manipulate the control panel for 7 seconds after entering the System Functions menu, the
display returns to the main screen.
AI Pattern
This function saves your frequently used cycles and settings.
1. Tap and hold for 3 seconds.
2. Turn the Navigation dial to select AI Pattern, and then tap .
3. Tap to select On or Off.
- The default setting is On. Set it to Off if you do not want to use this function.
- When you turn the function on, the dryer remembers frequently used cycles and their settings (Dry
Level , Time ) and save them in frequently used order.
- When you turn off the function, all the saved data resets.
Alarm
You can enable/disable alarm sounds.
1. Tap and hold for 3 seconds.
2. Turn the Navigation dial to select Alarm, and then tap .
3. Tap to select On or Off.
- The default setting is On.
NOTE
The setting remains unchanged even if you restart the dryer.
Untitled-1 36 8/25/2020 2:17:45 PM
English
English 37
Calibration
You can run calibration again for accurate weight detection.
1. Tap and hold for 3 seconds.
2. Turn the Navigation dial to select Calibration, and then tap .
- Calibration does not start if the door is not closed properly.
- The drum rotates clockwise and anticlockwise for about 3 minutes.
3. When calibration is complete, the “Calibration complete” message appears on the display and the dryer
turns off automatically.
Wi-Fi
You can turn the dryer's Wi-Fi on or off.
1. Tap and hold for 3 seconds.
2. Turn the Navigation dial to select Wi-Fi, and then tap .
3. Tap to select On or Off.
- The dryer's Wi-Fi is off as a factory default setting. However, the dryer's Wi-Fi turns on automatically
when you turn on the dryer for the first time. Then, the final Wi-Fi setting maintains regardless of the
dryer power status.
- Once you turn on the dryer's Wi-Fi and connect to a network, the dryer remains connected to the
network even when you turn off the power.
- The Wi-Fi indicates that the dryer is connected to the router through the Wi-Fi connection.
Language
You can change the system language.
1. Tap and hold for 3 seconds.
2. Turn the Navigation dial to select Language, and then tap .
3. Turn the Navigation dial to select the desired language, and then tap .
Factory Reset
You can reset your dryer.
1. Tap and hold for 3 seconds.
2. Turn the Navigation dial to select Factory Reset, and then tap .
- Your dryer resets to the factory setting.
Untitled-1 37 8/25/2020 2:17:45 PM
English
Operations
English38
Special features
Smart Control
You can connect to the SmartThings app and control your dryer remotely.
Connecting your dryer
• Download and open the SmartThings app on your mobile device
• Tap and hold to turn on the dryer.
• Tap and hold on the dryer.
a. The dryer enters AP mode and connects to your mobile device.
b. Tap to authenticate your dryer on your mobile device.
c. Once the authentication process is complete, your dryer is successfully connected to the app. Use
various features available in the SmartThings app.
NOTE
• If your dryer fails to connect with the SmartThings app, try again.
• Check your router if you experience any Internet connection problem after connecting your dryer with
the SmartThings app.
• If the Wi-Fi is off, tap and hold for 3 seconds to navigate to System Functions, select Wi-Fi and tap
to turn it on.
• Turning the dryer's Wi-Fi on allows you connect to the dryer via SmartThings app on your smartphone
regardless of the power status of the dryer. However, the dryer appears offline on the SmartThings app
if the dryer's Wi-Fi is off.
• Close the door before starting the Smart Control function.
• If you use the dryer 20 times without being connected to SmartThings, the next time you turn the dryer
on, a pop-up about Smart Control connection will appear for 3 seconds.
• If the dryer's Wi-Fi is not connected to an AP (access point), the Wi-Fi will turn off when you turn of the
power.
Stay Connect
Set up the Stay Connect function in your SmartThings app. Your dryer stays connected to the app so you can
use the dryer when you are away from home.
1. If you turn on the Stay Connect function on the SmartThings app, the dryer will stay in standby power
saving mode after completing a cycle.
- The Stay Connect function will remain active for up to 24 hour if the door remains closed.
2. When the Stay Connect function is active, the Smart Control and Wi-Fi turn on your dryer display.
3. Conveniently control your dryer using the SmartThings app
NOTE
The dryer switches to standby power saving mode when operation is paused even if the machine is not
connected to the SmartThings app.
Untitled-1 38 8/25/2020 2:17:45 PM
English
English 39
SmartThings
Wi-Fi connection
On your smartphone, go to Settings and turn on the wireless connection and select an AP (Access Point).
• This appliance supports the Wi-Fi 2.4 GHz protocols.
Download
On an app market (Google Play Store, Apple App Store, Samsung Galaxy Apps), find the SmartThings app
with a search term of “SmartThings”. Download and install the app on your device.
NOTE
The app is subject to change without notice for improved performance.
In addition, the further updates on app or the function in the app may stop due to usability and security
reasons, even if updates are currently supported on your OS.
Log in
You must first log into SmartThings with your Samsung account. To create a new Samsung account, follow
the instructions on the app. You don’t need a separate app to create your account.
NOTE
If you have a Samsung account, use the account to log in. A registered Samsung smartphone user
automatically logs in.
To register your appliance to SmartThings
1. Make sure your smartphone is connected to a wireless network. If not, go to Settings and turn on the
wireless connection and select an AP (Access Point).
2. Open SmartThings on your smartphone.
3. If a message of “A new device is found.”, select Add.
4. If no message appears, select + and select your appliance in a list of devices available. If your appliance
is not listed, select Device Type > Specific Device Model, and then add your appliance manually.
5. Register your appliance to the SmartThings app as follows.
a. Add your appliance to SmartThings. Make sure your appliance is connected to SmartThings.
b. When registration is complete, your appliance appears on your smartphone.
Untitled-1 39 8/25/2020 2:17:46 PM
English
Operations
English40
Open Source Announcement
The software included in this product contains open source software. You may obtain the complete
corresponding source code for a period of three years after the last shipment of this product by contacting
our support team via http://opensource.samsung.com (Please use the “Inquiry” menu.)
It is also possible to obtain the complete corresponding source code in a physical medium such as a CD-
ROM; a minimal charge will be required.
The following URL http://opensource.samsung.com/opensource/SMART_AT_051/seq/0 leads to the
open source license information as related to this product. This offer is valid to anyone in receipt of this
information.
NOTE
Hereby, Samsung declares that this radio equipment is in compliance with Directive 2014/53/EU and
with the relevant statutory requirements in the UK. The full text of the EU declaration of conformity and
the UK declaration of conformity is available at the following internet address: The official Declaration of
conformity may be found at http://www.samsung.com, go to Support > Support home and enter the model
name.
Wi-Fi max transmitter power : 20 dBm at 2.412 GHz – 2.472 GHz
Untitled-1 40 8/25/2020 2:17:46 PM
English
English 41

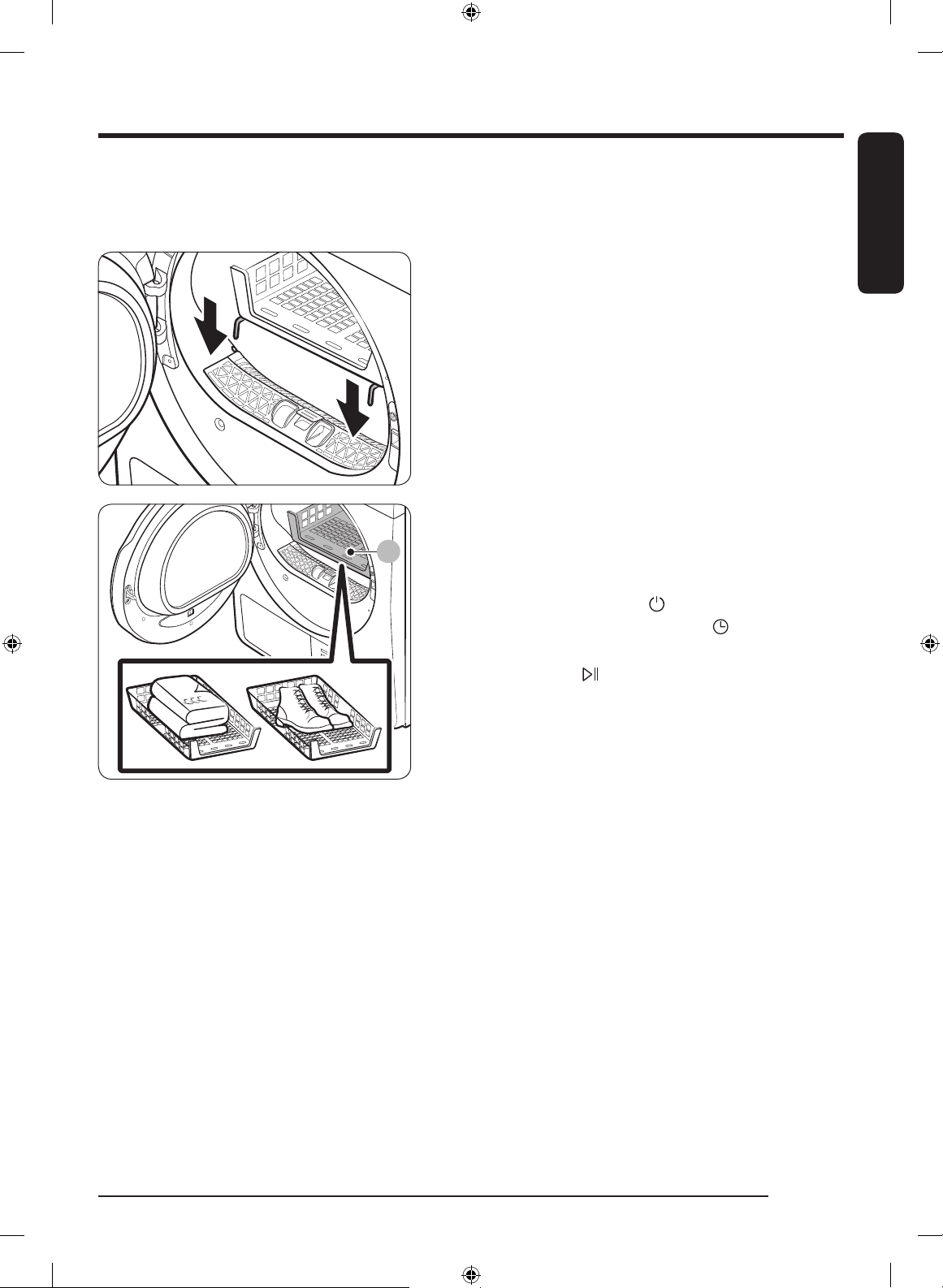

Using the drying rack (applicable models only)
Set the drying time up to 150 minutes according to the moisture and weight of the items to dry. When
drying laundry using the drying rack, the Time Dry cycle is recommended.
1. Position the drying rack in the drum, inserting the
front lips of the rack into the holes of the door
diaphram.
A
A. Drying rack
2. Place items on the rack, leaving enough space
where air can circulate. For clothing items, fold and
place flat on the rack. For shoes, place shoes with
their soles facing down.
3. Close the door and tap . Turn the Navigation dial
to select Time Dry, and then tap to select the
drying time.
4. Tap and hold .
Untitled-1 41 8/25/2020 2:17:46 PM
English
Operations
English42
Drying suggestions
Items (max 1.5 kg) Description
Washable sweaters (block to shape and lay flat on
rack)
When drying the laundry using the rack, fold
and place the clothes on the rack to prevent the
clothing from becoming wrinkled.
Stuffed toys (cotton or polyester fiber filled)
Stuffed toys (foam or rubber-filled)
Foam rubber pillows
Sneakers To dry sports shoes, place the shoes on the rack so
that the soles of the shoes are facing downwards.
CAUTION
• Drying foam rubber, plastic, or rubber on a heat setting may cause damage to the items and lead to a fire
hazard.
• To prevent damage to shoes, use the drying rack.
Untitled-1 42 8/25/2020 2:17:46 PM
English
English 43
Maintenance
Emptying the water tank
Empty the water tank after each use to prevent leaks.
A
1. Remove the water tank (A) from the dryer.
- Pull the water tank handle with one hand until
the tank is halfway out.
- Once the water tank is halfway out, support the
bottom of the tank with the other hand and pull
it slowly with both hands.
CAUTION
• The water tank is heavy. Slowly remove the water
tank using both hands while keeping the tank at a
level.
• Be careful when removing the full water tank. It is
very heavy and can cause injury if you drop it.
B
2. Empty the water through the drain hole (B), and
then clean inside the water tank.
- Mix some neutral detergent in lukewarm water.
Fill the water tank with the mixture through the
drain hole (B) and leave it for 30 minutes. Then,
rinse the tank with clean water and completely
dry it.
3. Place the water tank back into place.
NOTE
If the dryer displays the “Empty the tank” message and stops while drying is in progress, empty the water
tank and tap and hold . The “Empty the tank” message will disappear, and the dryer will resume drying.
Untitled-1 43 8/25/2020 2:17:47 PM
English
Maintenance
English44
Cleaning
WARNING
• Do not clean the dryer by directly spraying water onto the dryer.
• Do not clean the dryer with benzene, thinner, alcohol, or acetone. This may cause discoloration,
deformation, damage, electric shock, or fire.
• Before cleaning the dryer, be sure to unplug the power cord.
Exterior
Clean with a soft, damp cloth. Do not use abrasive cleaners. Avoid using or placing sharp or heavy objects
near/on the dryer. Keep detergent and laundry supplies on the pedestal (sold separately) or in a separate
storage container.
Control panel
Clean with a soft, damp cloth. Do not use abrasive cleaners. Do not spray cleaners directly on the panel.
Immediately wipe up any spills or liquids from the control panel.
Drum
Clean with a damp cloth with a mild, non-abrasive cleaner suitable for stainless steel.
Wipe remaining residue with a clean, dry cloth.
Door
Foreign substances can contaminate or build up on the inside of the door. Clean the inside of the door using
a soft piece of cloth or brush.
CAUTION
Do not detach the door’s rubber sealing.
Lint filter
Clean the lint filter after each use.
1. Open the dryer door, grab the top of the lint filter,
and pull to remove the filter.
- Do not detach the rubber sealing after
removing the filter.
Untitled-1 44 8/25/2020 2:17:47 PM
English
English 45

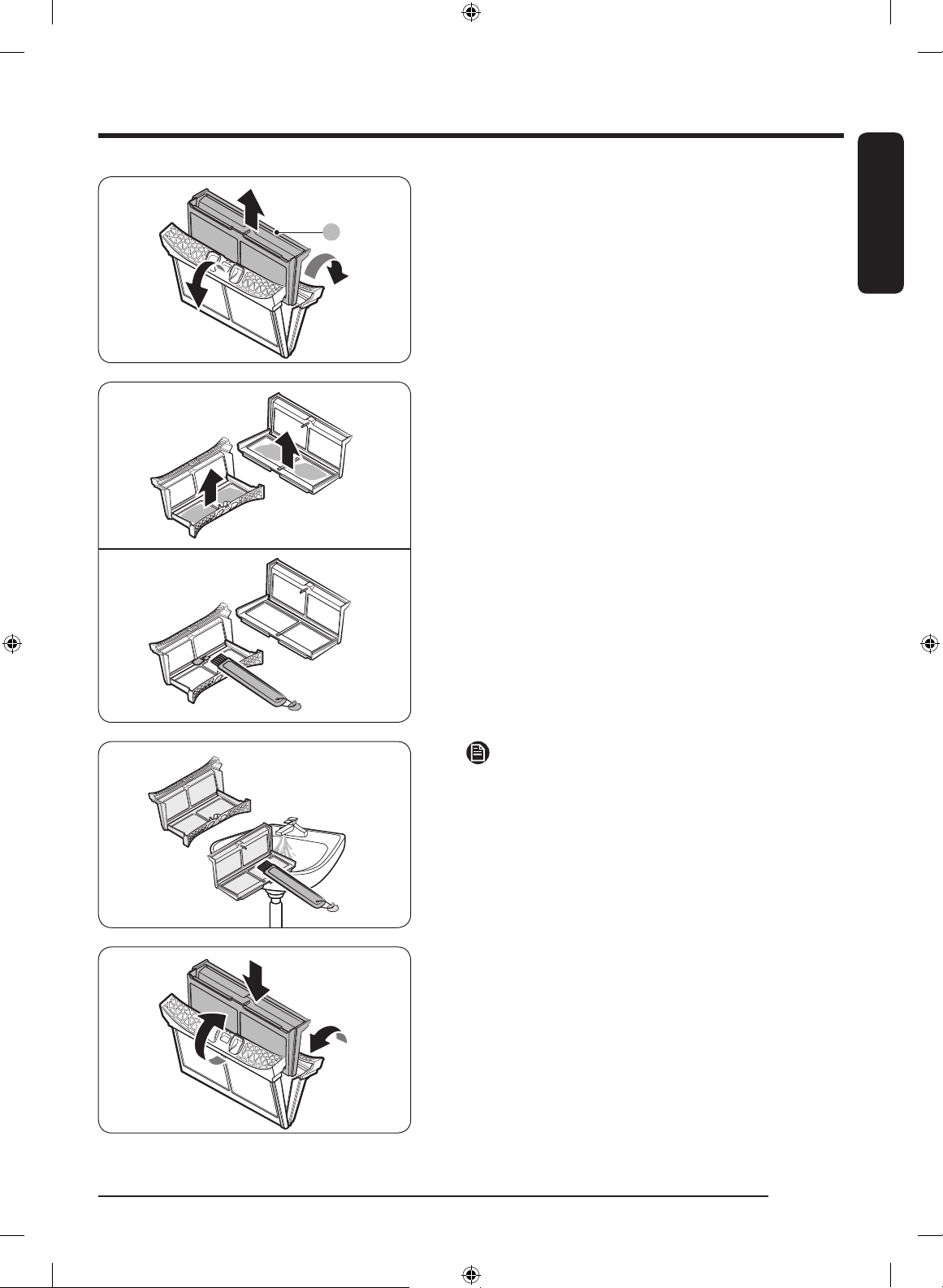

A
2. Open the outer filter and remove the inner filter
(A).
3. Spread open the outer filter and the inner filter.
4. Remove the lint from both filters, and then clean
the filters with the cleaning brush.
NOTE
To clean the filters thoroughly, clean the filters in
running water, and then dry them completely.
5. Put the inner filter into the outer filter, and then
reinsert the lint filter into the original position.
Untitled-1 45 8/25/2020 2:17:48 PM
English
Maintenance
English46
CAUTION
• Clean the lint filter after each load. Otherwise, the drying performance may decrease.
• If the filter surface is wet, allow it to completely dry before use.
- Inserting the filter while it is wet can cause mold and/or odor to form and/or result in less drying.
• When cleaning or removing the lint filter, do not shake or tap on the filter. Doing so can damage the
filter.
• Opening the outer and inner filters carelessly and with excessive force can damage the filters.
Heat exchanger
When it is time to clean the heat exchanger, the dryer will alert you by displaying the “Clean heat
exchanger” message.
A dirty heat exchanger will hinder the product’s performance and should be cleaned regularly.
NOTE
• Water droplets can form around the heat exchanger due to condensation caused by a temperature
difference. This is normal and is not a sign of a leak.
• If you are not planning on using the dryer for a long period of time, open the heat exchanger cover and
ventilate.
A
1. Gently press the top part of the outer cover (A) to
open.
B
B
2. Unlock the inner cover fixers (B), and then pull the
inner cover to remove.
Untitled-1 46 8/25/2020 2:17:48 PM
English
English 47

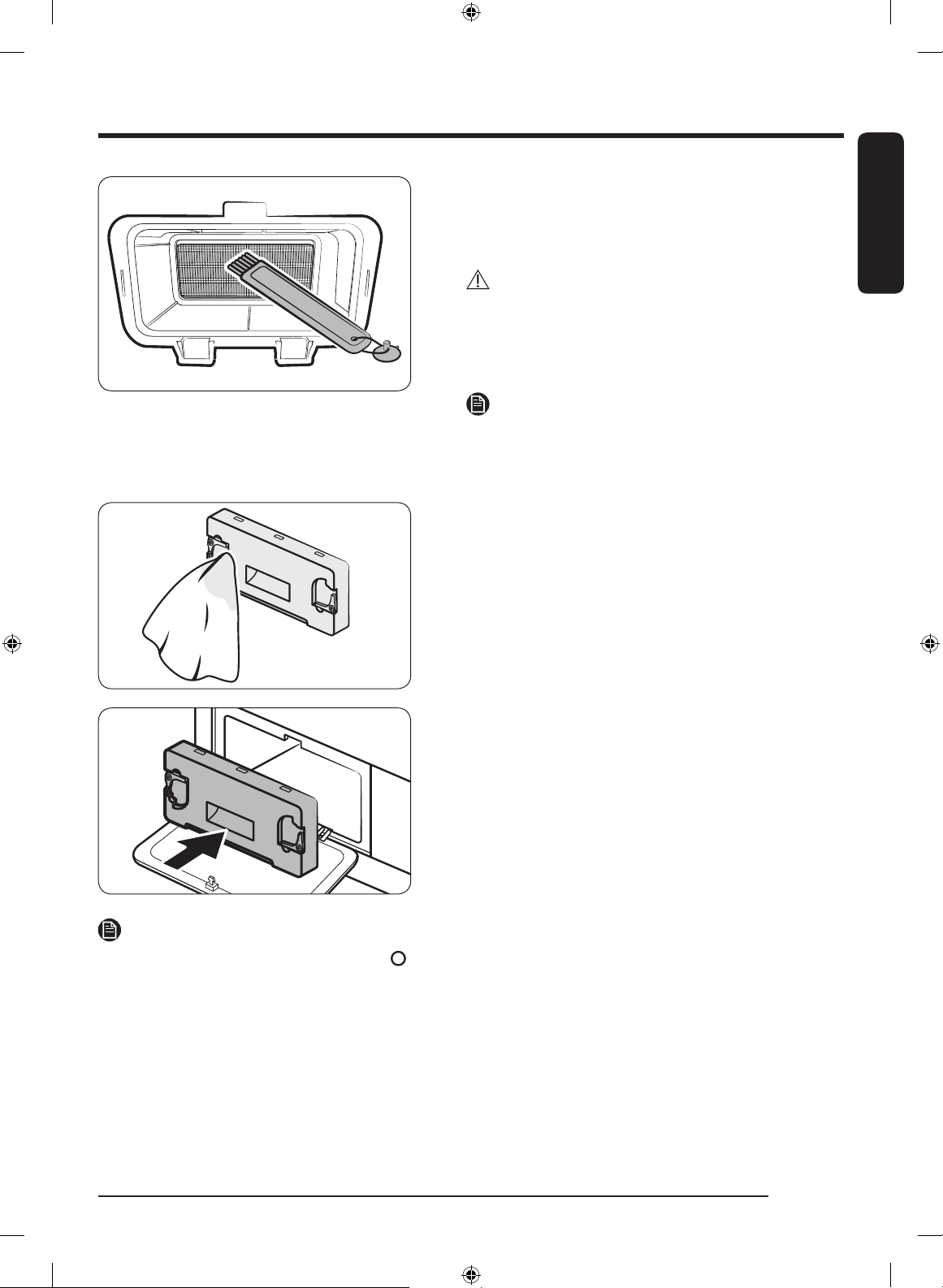

3. Clean the dust on the heat exchanger using the
provided brush.
- After cleaning with the brush, wipe off the
remaining dust using a smooth, damp cloth.
CAUTION
• To avoid physical injury and burns, do not touch or
clean the heat exchanger with bare hands.
• When cleaning the heat exchanger, be careful not
to damage the fins.
NOTE
If the heat exchanger is completely dry and therefore
hard to clean, spray some water on the heat
exchanger and clean using a brush.
4. Clean the inner cover with a smooth, damp cloth.
- There may be moisture and/or foreign
substances around the inner cover.
5. Reinsert the inner cover to its original position, and
then lock the fixers.
6. Close the heat exchanger’s outer cover.
NOTE
• After cleaning the heat exchanger, tap to dismiss the notification message. The message remains on
until you dismiss it.
• If the alarm continues after you have dismissed it, unplug and then plug in the power cord or remove
and reinsert the heat exchanger's inner cover.
Untitled-1 47 8/25/2020 2:17:49 PM
English
English48
Troubleshooting
Checkpoints
If you encounter a problem with the dryer, first check the table below and try the suggestions.
Problem Action
Dryer does not start.
• Make sure the dryer is plugged in.
• Make sure the door is properly closed.
• Check the fuse or reset the circuit breaker.
• If you opened the door during a cycle, tap and hold again.
• Clean the filter.
• Make sure Child Lock is not activated.
The dryer does not warm
up.
• Check the fuse or reset the circuit breaker.
• Check the lint filter and the heat exchanger. Clean them if necessary.
• The dryer may be in the cooling down process of the cycle.
Items are not dried.
Check all of the above. Additionally:
• Do not overload the dryer. If the dryer is overloaded, it could take longer
for items to dry.
• Dry heavy fabrics separately from light fabrics.
• The item(s) are too small and may not getting enough spinning inside the
drum.
• Clean the filter.
• Clean the heat exchanger.
• If a drain hose is connected, make sure water is draining properly.
The dryer is too loud.
• Look for coins, loose buttons, nails, and other objects and remove them
immediately.
• Check the lint filter. Remove any items stuck inside the lint filter.
• Make sure the dryer is level and standing firmly on the floor.
• The dryer may hum due to air moving through the drum and fan. This is
normal.
Items are not dried evenly.
• Seams, pockets, and other parts of clothing are harder to dry than others.
This is normal.
• Sort heavy and light items separately.
There is a smell coming
from the dryer.
• The smell of paint, varnish, cleaning agents, and other household items
could have circulated in the air and entered the dryer. If you notice such a
smell, ventilate completely before using the dryer.
• If drying in an enclosed area, the dryer could cause the ambient
temperature to rise. Accordingly, make sure to open a window and
ventilate the area.
• Do not attempt to dry wet items after leaving them in the washing
machine or dryer for a long time.
The dryer turns off before
the items are dry.
• The load is too small. Throw in few additional items like towels and try
drying again.
Untitled-1 48 8/25/2020 2:17:49 PM
English
English 49
Problem Action
The clothes have lint on
them.
• Always make sure the lint filter is clean before putting items into the
dryer. When drying items that generate a large amount of lint, you may
need to clean the lint filter in the middle of a cycle.
• Some fabrics (such as white towels) causes more lint and should be dried
separately from fabrics that lint attaches easily (such as black linen
pants).
• Check the inside of the pockets to make sure they are empty before
drying.
The ambient temperature
around the dryer rises or
there is a damp, soggy
smell.
• Heat pump dryers circulate ambient air inside and outside the dryer
during the drying process to cool the system. Using the dryer in a poorly
ventilated area may, depending on the operating environment, raise the
ambient humidity level and/or cause a damp, soggy smell to develop.
Ensure proper ventilation when using the dryer.
Water is not draining.
• Check the draining hose for twists and kinks.
Straighten out the hose if it is twisted or kinked and securely connect it
to the drain on the floor.
• Check to see if the draining hose is frozen.
If the hose is frozen, submerge it in warm water to allow the water inside
the hose to melt and drain out. Reconnect the hose and check for proper
draining.
If a problem persists, contact a local Samsung service center.
Untitled-1 49 8/25/2020 2:17:49 PM
English
Troubleshooting
English50
Information codes
If the dryer fails to operate, you may see an information code on the screen. Check the table below and try
the suggestions.
Information code Meaning Action
Door is open
Dryer operation with the door
open
• Close the door and start again.
• If this continues, call for service.
• Check if Child Lock is on. If Child Lock is
on, you may get this message when you
open the door even though the dryer is not
operating.
Open door & check
inside (Child Lock
on)
Child Lock is on. Open the door
and check inside the drum.
• If Child Lock is on, turn off Child Lock or the
power.
Check filter Lint filter problem
• Check the lint filter assembly.
• If this continues, call for service.
Check inner cover
of heat exchanger
Internal heat exchanger cover
problem
• Check the internal heat exchanger cover
assembly.
• If this continues, call for service.
Check drainage /
Empty the tank
Draining malfunction
Draining pump malfunction
Frozen draining hose
Water tank full
• Make sure the draining hose is not bent or
damaged.
• If the hose is frozen, wrap the hose
with a towel soaked in warm water for
approximately ten minutes to thaw the
hose.
• Empty the water tank, turn on the dryer, and
start again.
• If this continues, call for service.
tC Air temperature sensor problem
• Clean the lint filter or the heat exchanger.
• If this continues, call for service.
tC5
Compressor temperature sensor
problem
• Wait two to three minutes.
• Turn the power back on and start again.
tC7
Check the Eva In temperature
sensor
• Turn the power back on and start again.
• If this continues, call for service.
tC8
Check the Eva Out temperature
sensor
• Turn the power back on and start again.
• If this continues, call for service.
tCA
Check the Compressor Top
temperature sensor
• Turn the power back on and start again.
• If this continues, call for service.
3C Check the motor for operation.
• Try restarting the cycle.
• If this continues, call for service.
Untitled-1 50 8/25/2020 2:17:49 PM
English
English 51
Information code Meaning Action
3CA Check the inverter compressor
• Turn the power back on and start again.
• If this continues, call for service.
AC6
Check communications between
the main and the inverter PBAs.
• Try restarting the cycle.
• If this continues, call for service.
HC Compressor overheating • Call for service.
If any information code keeps appearing on the screen, contact a local Samsung service center.
Untitled-1 51 8/25/2020 2:17:49 PM
English
English52
Appendix
Fabric care chart
The following symbols provide garment care
direction. The Clothing care labels include
symbols for drying, bleaching, drying and ironing,
or dry cleaning when necessary. The use of
symbols ensures consistency among garment
manufacturers of domestic and imported items.
Follow care label directions to maximize garment
life and reduce laundering problems.
Wash cycle
Normal
Permanent Press / Wrinkle Resistant /
Wrinkle Control
Gentle / Delicates
Hand Wash
Water Temperature**
Hot
Warm
Cold
NOTE
** The dot symbols represent appropriate wash
water temperatures for various items. The
temperature range for Hot is 41-52 °C, for Warm
29-41 °C and for Cold 16-29 °C. (Wash water
temperature must be a minimum of 16 °C for
detergent activation and effective cleaning.)
Bleach
Any Bleach (when needed)
Only Non-Chlorine (color-safe)
Bleach (when needed)
Tumble Dry Cycle
Normal
Permanent Press / Wrinkle Resistant /
Wrinkle Control
Gentle / Delicates
Special instructions
Line Dry / Hang to Dry
Drip Dry
Dry Flat
Heat setting
High
Medium
Low
Any Heat
No Heat / Air
Untitled-1 52 8/25/2020 2:17:52 PM
English
English 53
Iron dry or steam temperatures
High
Medium
Low
Warning symbols for laundering
Do Not Wash
Do Not Wring
Do Not Bleach
Do Not Tumble Dry
No Steam (added to iron)
Do Not Iron
Dry-clean
Dry-clean
Do Not dry-clean
Line Dry / Hang to Dry
Drip Dry
Dry Flat
Protecting the environment
• This appliance is manufactured from recyclable materials. If you decide to dispose of this appliance,
please observe local waste disposal regulations. Cut off the power cord so that the appliance cannot be
connected to a power source. Remove the door so that animals and small children cannot get trapped
inside the appliance.
• Contains fluorinated greenhouse gases.
Hermetically sealed equipment.
Do not vent gases into the atmosphere.
Refrigerant (Type): R-134a (GWP = 1430)
Refrigerant (Charging) : 0.46 kg, 0.658 tCO2e
Untitled-1 53 8/25/2020 2:17:54 PM
English
Appendix
English54

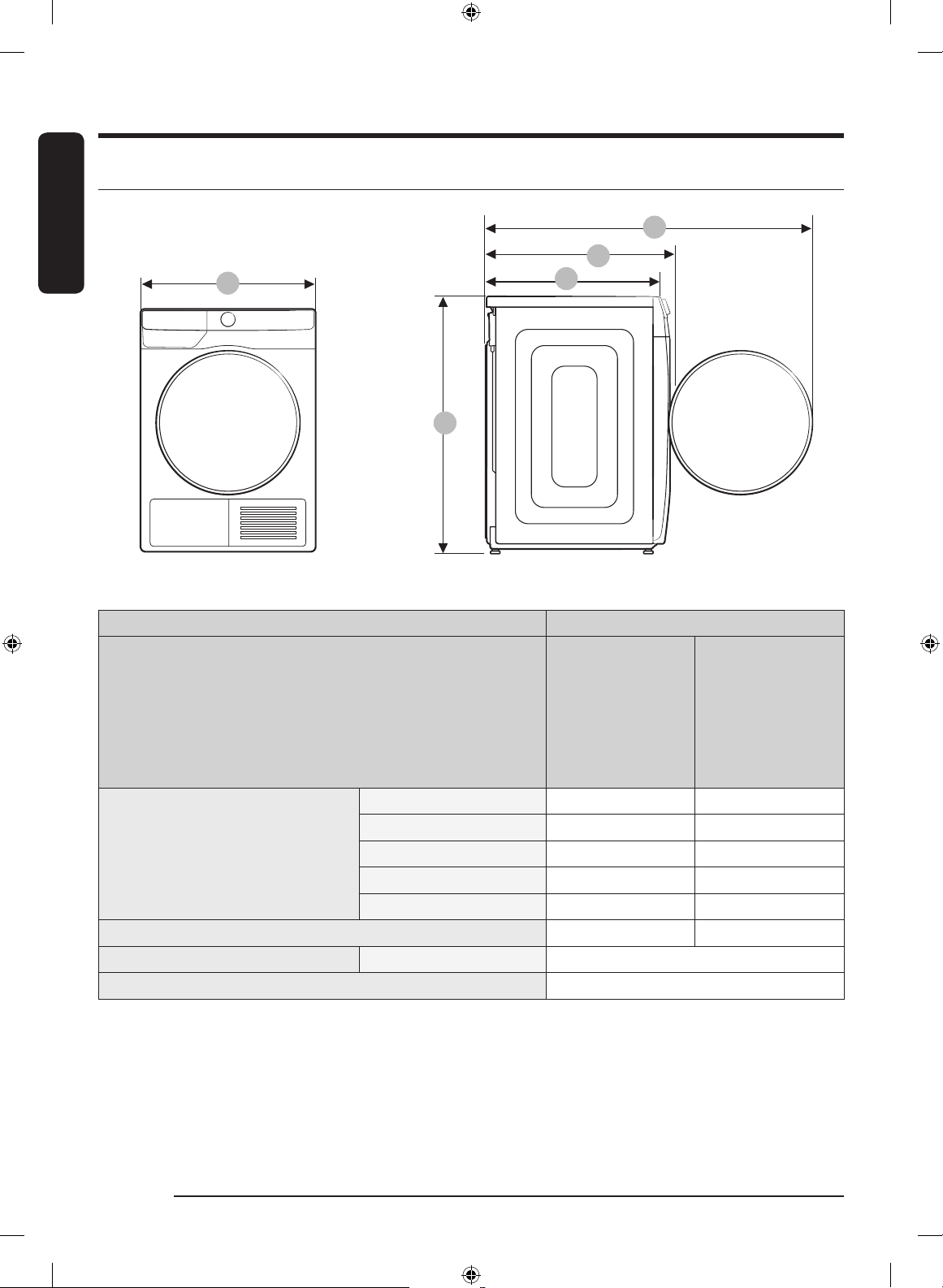

Specification
B
A
D
E
C
TYPE FRONT LOADING DRYER
MODEL NAME
DV9*T7*****
DV8*T7*****
DV9*T6*****
DV8*T6*****
DV9*T5*****
DV8*T5*****
DV9*T8*****
DIMENSIONS
A 600 mm 600 mm
B 850 mm 850 mm
C 600 mm 600 mm
D 650 mm 660 mm
E 1100 mm 1110 mm
WEIGHT 50.0 kg 54.0 kg
ELECTRICAL REQUIREMENTS AC 220–240 V / 50 Hz 1300 W
ALLOWABLE TEMPERATURE 5-35 °C
Untitled-1 54 8/25/2020 2:17:54 PM
Memo
Untitled-1 55 8/25/2020 2:17:54 PM
QUESTIONS OR COMMENTS?
COUNTRY CALL OR VISIT US ONLINE AT
AUSTRALIA 1300 362 603 (Other) www.samsung.com/au/support
NEW ZEALAND 0800 726 786 (All Product) www.samsung.com/nz/support
DC68-04169H-00
Untitled-1 56 8/25/2020 2:17:54 PM
