Heat Pump Dryer
user manual
imagine the possibilities
Thank you for purchasing this Samsung product.
DV9 Series
DV8 Series
DV7 Series
This manual is made with 100% recycled paper.
DV90F5E6HGW-03297J-06_EN_150706.indd 1DV90F5E6HGW-03297J-06_EN_150706.indd 1 2015-07-06 1:07:502015-07-06 1:07:50
English - 2
contents
INSTALLING YOUR DRYER
10
10 Unpacking your dryer and Installing guide
10 See Dryer Exterior
11 Check before installing
11 Before using the product
11 Important to installer
11 Location considerations
12 Alcove or closet installation
12 Electrical requirements
12 Grounding
13 Installation side by side
13 Final installation checklist
14 Draining water without using the water tank
14 Connecting the drain hose
16 Installation stacking

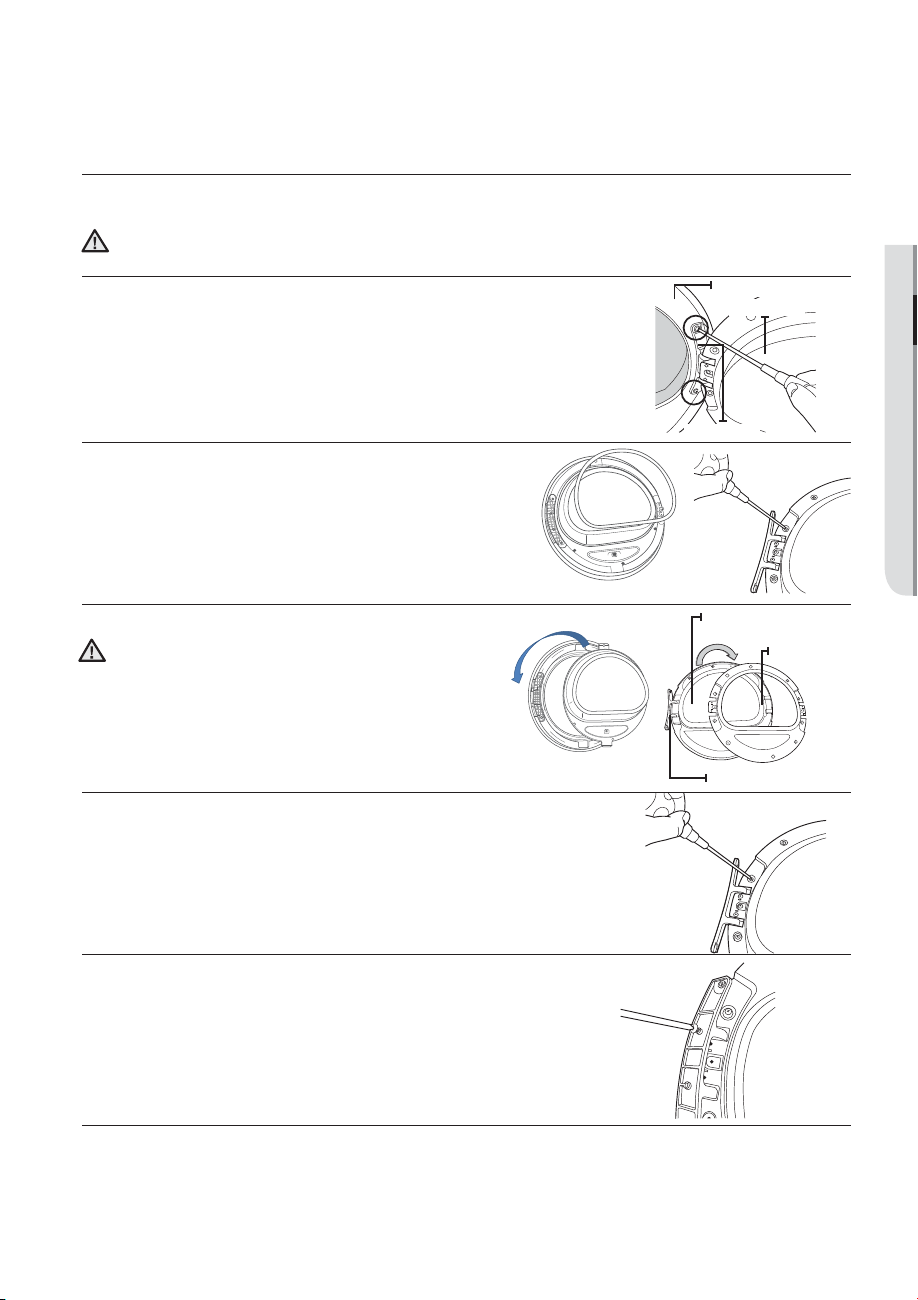

17 Door Reversal
18 Environment
OPERATING INSTRUCTIONS, TIPS
19

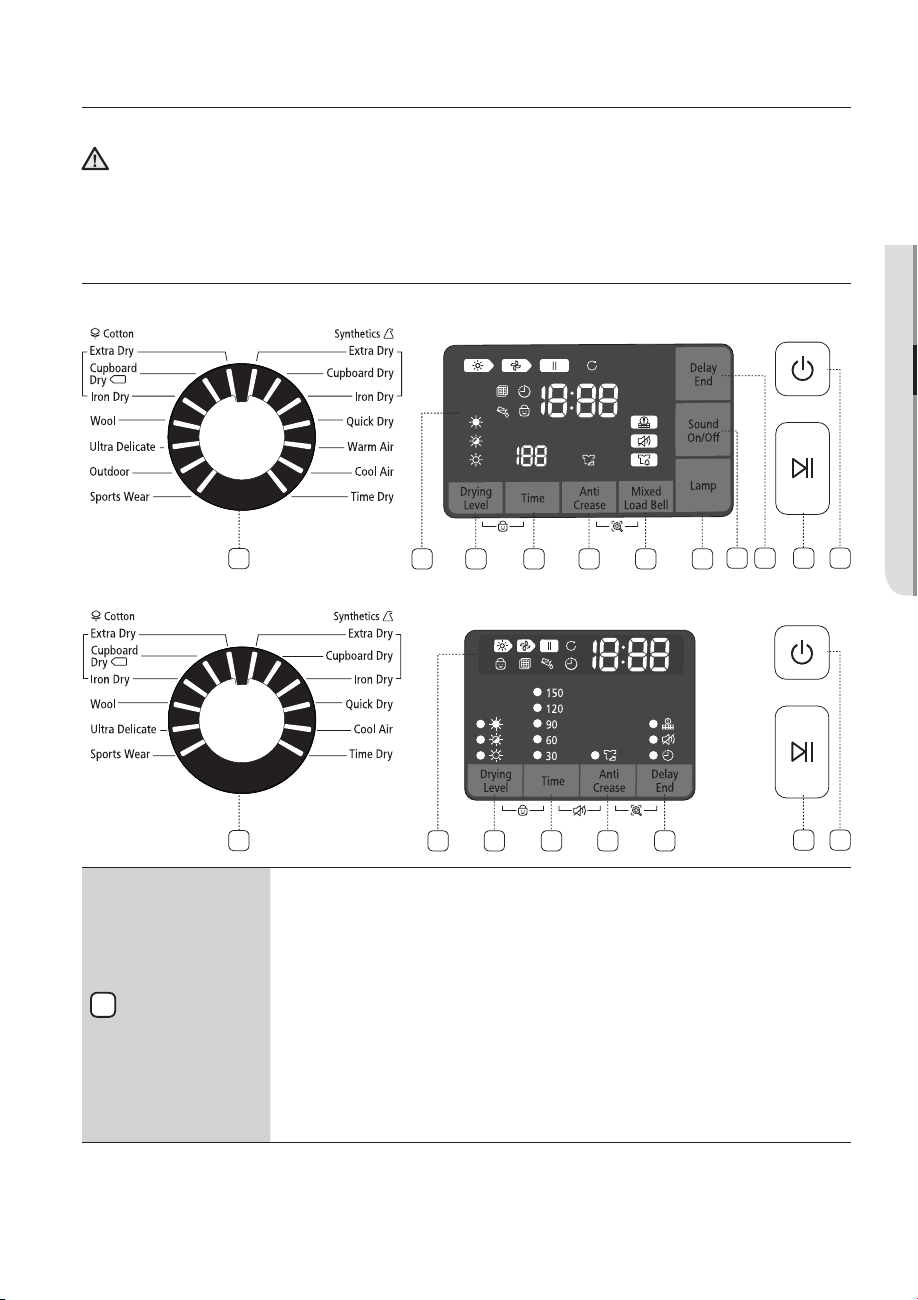

19 Overview of the control panel
22 Child lock
22 Delay End
23 Smart Check
24 Rack Dry (DV8 Series Only)
25 Load the dryer properly
25 Getting started
CARE AND CLEANING
26
26 Clean the heat exchange
26 Control Panel
26 Stainless Steel Tumbler
26 Dryer Exterior
27 Dumping condensed water (
)
27 Cleaning the fi lter case (
)

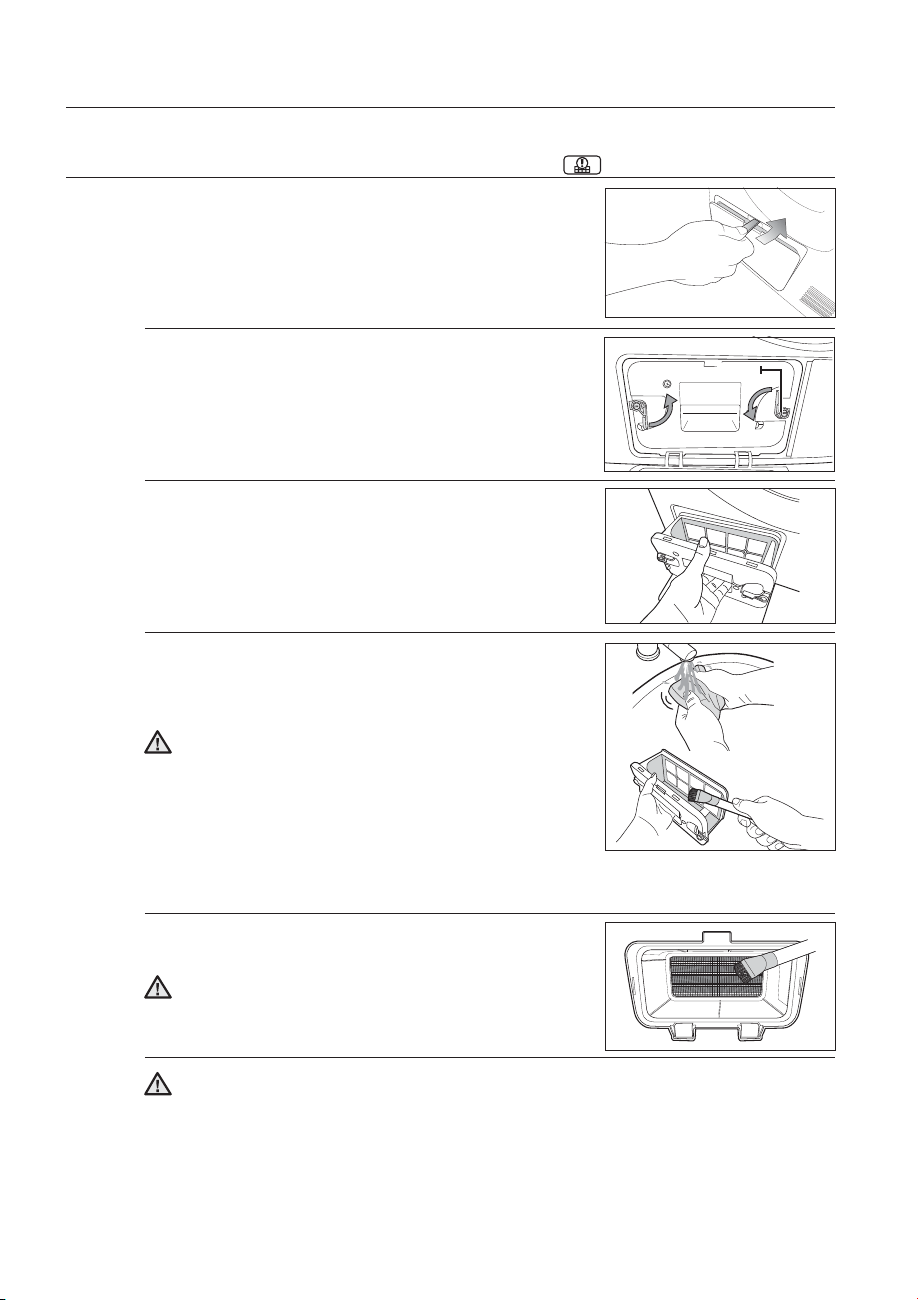

28 Cleaning the Heat Exchanger Filter (
)
SPECIAL LAUNDRY TIPS
29
29 Special laundry tips
TROUBLESHOOTING
30
30 Check these points if your dryer…
32 Information codes
APPENDIX
33
33 Fabric care chart
34 Protecting the environment
34 Specifi cations
35 Cycle chart
35 Consumption data
SAFETY INFORMATION
3
3 What you need to know about Safety
Instructions
3 Important safety symbols and precautions
DV90F5E6HGW-03297J-06_EN_150706.indd Sec9:2DV90F5E6HGW-03297J-06_EN_150706.indd Sec9:2 2015-07-06 1:07:532015-07-06 1:07:53
English - 3
SAFETY INFORMATION
safety information
Congratulations on your new Samsung Dryer. This manual contains important
information on the installation, use, and care of your appliance. Please take the time
to read this manual to take full advantage of your dryer’s many benefi ts and features.
WARNING - Risk of Fire
• Clothes dryer installation must be performed by a qualifi ed technician.
• Install the clothes dryer according to the manufacturer’s instructions and local codes.
• To reduce the risk of severe injury or death, follow all installation instructions.
WHAT YOU NEED TO KNOW ABOUT SAFETY INSTRUCTIONS
Warnings and Important Safety Instructions in this manual do not cover all possible conditions and
situations that may occur. It is your responsibility to use common sense, caution, and care when installing,
maintaining, or operating your dryer.
Always contact your manufacturer about problems or conditions you do not understand.
IMPORTANT SAFETY SYMBOLS AND PRECAUTIONS
WARNING
Hazards or unsafe practices that may result in severe personal injury or
death and/or property damage.
CAUTION
Hazards or unsafe practices that may result in minor personal injury or
property damage.
CAUTION
To reduce the risk of fi re, explosion, electric shock, or personal injury when
using your tumble dryer, follow these basic safety precautions:
CAUTION
To reduce the risk of fi re or explosion, follow these basic precautions.
Do NOT attempt.
Do NOT disassemble.
Do NOT touch.
Follow directions explicity.
Unplug the power plug from the wall socket.
Make sure the machine is grounded to prevent electric shock.
Call the service center for help.
Note
Read operator’s manual
These warning icons are here to prevent injury to you and others.
Please follow them explicitly.
After reading this section, keep it in a safe place for future reference.
Read all instructions before using the appliance.
DV90F5E6HGW-03297J-06_EN_150706.indd Sec1:3DV90F5E6HGW-03297J-06_EN_150706.indd Sec1:3 2015-07-06 1:07:532015-07-06 1:07:53
English - 4
To reduce the risk of fi re, electric shock, or injury to persons when using your appliance, follow
basic precautions, including the following:
Do not let children (or pets) play in or on your product. The product door does not
open easily from the inside and children may be seriously injured if trapped inside.
This appliance is not to be used by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction concerning use of the
appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
For use in Europe: This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or mental capabilities
or lack of experience and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way and understand the
hazards involved. Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
If the supply cord is damaged, it must be replaced by the manufacturer, its service
agent or similarly qualifi ed persons in order to avoid a hazard.
This appliance should be positioned so that the power plug, the water supply
taps, and the drain pipes are accessible.
For appliances with ventilation openings in the base, that a carpet must not
obstruct the openings.
The new hose-sets supplied with the appliance are to be used and that old hose-
sets should not be reused.
CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal
cut-out, this appliance must not be supplied through an external switching device,
such as a timer, or connected to a circuit that is regularly switched on and o by
the utility.
The tumble dryer is not to be used if industrial chemicals have been used for
cleaning.
The lint trap has to be cleaned frequently, if applicable.
Lint must not to be allowed to accumulate around the tumble dryer. (not applicable
for appliances intended to be vented to the exterior of the building)
Adequate ventilation has to be provided to avoid the back fl ow of gases into the
room from appliances burning other fuels, including open fi res.
WARNING
safety information
DV90F5E6HGW-03297J-06_EN_150706.indd Sec1:4DV90F5E6HGW-03297J-06_EN_150706.indd Sec1:4 2015-07-06 1:07:532015-07-06 1:07:53
English - 5
SAFETY INFORMATION
Do not dry unwashed items in the tumble dryer.
Items that have been soiled with substances such as cooking oil, acetone, alcohol,
petrol, kerosene, spot removers, turpentine, waxes and wax removers should be
washed in hot water with an extra amount of detergent before being dried in the
tumble dryer.
Items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber
backed articles and clothes or pillows fi tted with foam rubber pads should not be
dried in the tumble dryer.
Fabric softeners, or similar products, should be used as specifi ed by the fabric
softener instructions.
The fi nal part of a tumble dryer cycle occurs without heat (cool down cycle) to
ensure that the items are left at a temperature that ensures that the items will not
be damaged.
Remove all objects from pockets such as lighters and matches.
WARNING: Never stop a tumble dryer before the end of the drying cycle unless
all items are quickly removed and spread out so that the heat is dissipated.
Exhaust air must not be discharged into a fl ue which is used for exhausting fumes
from appliances burning gas or other fuels.
The appliance must not be installed behind a lockable door, a sliding door or a
door with a hinge on the opposite side to that of the tumble dryer, in such a way
that a full opening of the tumble dryer door is restricted.
For use in Europe: Children of less than 3 years should be kept away unless
continuously supervised.
To minimize the risk of fi re in a tumble dryer, the following should be observed:
Items that have been spotted or soaked with vegetable or cooking oil constitute a fi re hazard and should not be
placed in a tumble dryer. Oil-a ected items can ignite spontaneously, especially when exposed to heat sources
such as in a tumble dryer. The items become warm, causing an oxidation reaction in the oil. Oxidation creates
heat. If the heat cannot escape, the items can become hot enough to catch fi re. Piling, stacking or storing oil-
a ected items can prevent heat from escaping and so create a fi re hazard. If it is unavoidable that fabrics that
contain vegetable or cooking oil or have been contaminated by hair care products be placed in a tumble dryer
they should fi rst be washed in hot water with extra detergent – this will reduce, but not eliminate, the hazard. The
‘cool down’ cycle of tumble dryers should be used to reduce the temperature of the items. They should not be
removed from the tumble dryer or piled or stacked while hot.
Items that have been previously cleaned in, washed in, soaked in or spotted with petrol/gasoline, dry-cleaning
solvents or other fl ammable or explosive substances should not be placed in a tumble dryer. Highly fl ammable
substances commonly used in domestic environments include acetone, denatured alcohol, petrol/gasoline,
kerosene, spot removers(some brands), turpentine, waxes and wax removers.
Items containing foam rubber(also known as latex foam) or similarly textured rubber. Like materials should not be
dried in a tumble dryer on a heat setting. Foam rubber materials can, when heated, produce fi re by spontaneous
combustion.
Fabric softeners or similar products should not be used in a tumble dryer to eliminate the e ects of static electricity
unless this practice is specifi cally recommended by the manufacturer of the fabric softener or product.
CAUTION
DV90F5E6HGW-03297J-06_EN_150706.indd Sec1:5DV90F5E6HGW-03297J-06_EN_150706.indd Sec1:5 2015-07-06 1:07:532015-07-06 1:07:53
English - 6
Undergarments that contain metal reinforcements should not be placed in a tumble dryer. Damage to the tumble
dryer can result if metal reinforcements come loose during drying. When available a drying rack could be used for
such items.
Plastic articles such as shower caps or babies’ waterproof napkin covers should not be placed in a tumble dryer.
Rubber-backed articles, clothes fi tted with foam rubber pads, pillows, galoshes and rubber-coated tennis shoes
should not be placed in a tumble dryer.
Do not dry unwashed items in the tumble dryer(or washing machine drying mode,etc).
Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, Kerosene, spot
removers, turpentine, waxes and wax removers should be washed in hot water with an extra amount of detergent
before being dried in the tumble dryer.
Items such as foam rubber(latex foam), shower caps, waterproof textiles, rubber backed articles and clothes or
pillows fi tted with foam rubber pads should not be dried in the tumble dryer.
Fabric softeners, or similar products, should be used as specifi ed by the fabric softener instructions.
The fi nal part of a tumble dryer cycle occurs without heat(cool down cycle) to ensure that the items are left at a
temperature that ensures that the items will not be damaged.
Oil-a ected items can ignite spontaneously, especially when exposed to heat sources such as in a tumble dryer.
The items become warm, causing an oxidation reaction in the oil. Oxidation creates heat. If the heat cannot
escape, the items can become hot enough to catch fi re. Piling, stacking or storing oil-a ected items can prevent
heat from escaping and so create a fi re hazard.
If it is unavoidable that fabrics that contain vegetable or cooking oil or have been contaminated by hair care
products be placed in a tumble dryer they should fi rst be washed in hot water with extra detergent - this will
reduce, but not eliminate, the hazard.
Never stop a tumble dryer before the end of the drying cycle unless all items are quickly removed and spread out
so that the heat is dissipated.
Remove all objects from pockets such as lighters and matches.
SEVERE WARNING SIGNS FOR INSTALLATION
The installation of this appliance must be performed by a qualifi ed technician or service
company.
- Failure to do so may result in electric shock, fi re, an explosion, problems with the product, or
injury.
Plug the power cord into an AC 220~240 V / 50 Hz wall socket or higher and use the socket for
this appliance only. In addition, do not use an extension cord.
- Sharing a wall socket with other appliances using a power strip or extending the power cord
may result in electric shock or fi re.
- Ensure that the power voltage, frequency and current are the same as those of the product
specifi cations. Failure to do so may result in electric shock or fi re. Failure Plug the power plug
into the wall socket fi rmly.
Remove all foreign substances such as dust or water from the power plug terminals and contact
points using a dry cloth on a regular basis.
- Unplug the power plug and clean it with a dry cloth.
- Failure to do so may result in electric shock or fi re.
Keep all packaging materials well out of the reach of children, as packaging materials can be
dangerous to children.
- If a child places a bag over its head, it may result in su ocation.
WARNING
CAUTION
WARNING
safety information
DV90F5E6HGW-03297J-06_EN_150706.indd Sec1:6DV90F5E6HGW-03297J-06_EN_150706.indd Sec1:6 2015-07-06 1:07:532015-07-06 1:07:53
English - 7
SAFETY INFORMATION
This appliance must be properly grounded.
Do not ground the appliance to a gas pipe, plastic water pipe, or telephone line.
- This may result in electric shock, fi re, an explosion, or problems with the product
- Never plug the power cord into a socket that is not grounded correctly and make sure that it
is in accordance with local and national codes.
Do not install or keep the product exposed to the outdoor elements.
Do not use a damaged power plug, damaged power cord or loose wall socket.
- This may result in electric shock or fi re.
If the plug (power supply cord) is damaged, it must be replaced by the manufacturer or its
service agent or a similar qualifi ed technician in order to avoid a hazard.
This appliance should be positioned to be accessible to the power plug after installation.
Do not pull or excessively bend the power cord.
Do not twist or tie the power cord.
Do not hook the power cord over a metal object, place a heavy object on the power cord, insert
the power cord between objects, or push the power cord into the space behind the appliance.
- This may result in electric shock or fi re.
Do not pull the power cord, when unplugging the power plug.
- Unplug the power plug by holding the plug.
- Failure to do so may result in electric shock or fi re.
This appliance must be properly grounded. Never plug the power cord into a receptacle that
is not grounded adequately and in accordance with local and national codes. See installation
instructions for grounding this appliance.
Install this appliance in a location with solid, level fl oor.
- Failing to do so may result in abnormal vibrations, noise or problems with the product.
Since an ingredient in hair spray may degrade the hydrophile property of the heat exchanger
so that dew may appear on the outer surface of the appliance when the cooling operation is
running, do not install the appliance in a beauty salon.
SEVERE WARNING SIGNS FOR USING
Do not let children or pets on or into the product. In addition, when disposing of this product,
disassemble the door lock (lever).
- This may result in children falling and injuring themselves.
- If children become locked in the product, there is a danger of su ocation.
Do not try to access the inside of the product when the drum is rotating.
Do not sit on the product or lean against the door.
- This may result in the product turning over and resulting in injury.
Dry the laundry only after it was spun by an appropriate washing machine.
Do not dry unwashed items in the tumble dryer.
Do not drink the condensed water.
Never stop a tumble dryer before the end of the drying cycle unless all items are quickly
removed and spread out so that the heat is dissipated.
Do not dry laundry contaminated by infl ammable materials such as gasoline, kerosene, benzene,
thinner, alcohol, etc.
- This may result in electric shock, fi re or explosion.
Do not let pets chew or play with the dryer.
- This may result in electric shock or injury.
When disposing of the product, separate the door and the power cord before disposing of the
product.
- Failing to do so may result in damage to the power code or an injury.
WARNING
DV90F5E6HGW-03297J-06_EN_150706.indd Sec1:7DV90F5E6HGW-03297J-06_EN_150706.indd Sec1:7 2015-07-06 1:07:532015-07-06 1:07:53
English - 8
Do not touch the power plug with wet hands.
- This may result in electric shock.
When gas (city gas, propane gas, LP gas) leaks, do not touch this appliance or the power cord,
ventilate immediately.
- At this time, do not use the ventilating fan.
- A spark may cause an explosion or fi re.
- Oil-a ected items can ignite spontaneously, especially when exposed to heat sources such
as in a tumble dryer. The items become warm, causing an oxidation reaction in the oil.
Oxidation creates heat. If the heat cannot escape, the items can become hot enough to
catch fi re. Piling, stacking or storing oil-a ected items can prevent heat from escaping and so
create a fi re hazard.
- If it is unavoidable that fabrics that contain vegetable or cooking oil or have
beencontaminated by hair care products be placed in a tumble dryer they should fi rst be
washed in hot water with extra detergent - this will reduce, but not eliminate, the hazard.
- Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol,
kerosene, spot removers, turpentine, waxes and wax removers should be washed in hot
water with an extra amount of detergent before being dried in the tumble dryer.
- Items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber backed
articles and clothes or pillows fi tted with foam rubber pads should not be dried in the tumble
dryer.
- Fabric softeners, or similar products, should be used as specifi ed by the fabric softener
instructions.
- The fi nal part of a tumble dryer cycle occurs without heat (cool down cycle) to ensure that the
items are left at a temperature that ensures that the items will not be damaged.
- Remove all objects from pockets such as lighters and matches.
Do not repair, replace, or attempt to service any part of the appliance unless specifi cally
recommended in the user-repair instructions. You must also have the skills necessary to service
this appliance.
Do not attempt to repair, disassemble, or modify the appliance yourself.
- Do not use any fuse(such as cooper, steel wire, etc.) other than the standard fuse.
- When repairing or reinstalling the appliance is required, contact your nearest service center.
- Failure to do so may result in electric shock, fi re, problems with the product, or injury.
The product you have purchased is designed for domestic use only.
The use for business purposes qualifi es as product misuse. In this case, the product will not be
covered by the standard warranty provided by Samsung and no responsibility can be attributed
to Samsung for malfunctions or damages resulting from such misuse.
If the product generates strange noise, smells of something burning, or generates smoke,
immediately cut-o the power and contact the service center.
- Otherwise, it may cause an electric shock or fi re as a result.
CAUTION SIGNS FOR USING
Do not stand on top of the appliance or place objects (such as laundry, lighted candles, lighted
cigarettes, dishes, chemicals, metal objects, etc.) on the appliance.
- This may result in electric shock, fi re, problems with the product, or injury.
Do not touch the glass door and inside of the drum during or just after drying as it is hot.
- This may result in burns.
Do not press the buttons using sharp objects such as pins, knifes, fi ngernails, etc.
- This may result in electric shock or injury.
Do not dry laundry containing forming rubber (latex) or similar rubber textures.
- If forming rubber is heated, it may start a fi re.
CAUTION
safety information
DV90F5E6HGW-03297J-06_EN_150706.indd Sec1:8DV90F5E6HGW-03297J-06_EN_150706.indd Sec1:8 2015-07-06 1:07:532015-07-06 1:07:53
English - 9
SAFETY INFORMATION
Do not dry laundry contaminated by vegetable oil or cooking oil as a large amount of the oil will
not be removed when washing the laundry. In addition, use the Cool Down cycle so that the
laundry is not heated.
- The oxidization heat of the oil may start a fi re.
Make sure that the pockets of all clothing to be dryed are empty.
- Hard, sharp objects, such as coins, safety pins, nails, screws, or stones can cause extensive
damage to the appliance.
Do not dry clothing with large buckles, buttons, or other heavy metal (zippers, hooks and
eyelets, button-up covers).
If necessary, use the laundry net for small and lightweight laundry such as fabric tie belt , apron
strings, and underwire bras which can dissolve or break during a cycle.
Recommend against using drying sheets to reduce static electricity as this could lead to damage
to your laundry and also potential damage to the appliance.
- This may result in damage to the laundry.
Do not use the dryer near dangerous powders such as coal dust, wheat fl our, etc.
- This may result in electric shock, fi re or an explosion.
Do not place infl ammable materials near the product.
- This may result in toxic gases from the product, damage to parts, electric shock, fi re or an
explosion.
- The appliance should not be placed behind lockable doors etc.
Do
not
touch the rear side of the appliance during or immediately after drying is complete.
- The appliance remains hot and may cause burns.
Contains fl uorinated greenhouse gases covered by the Kyoto Protocol.
Hermetically sealed system.
Do not vent gases into the atmosphere.
Refrigerant (Type): R-134a (GWP = 1430)
Refrigerant (Charging): 0.4 kg, 572 kgCO
2
e
SEVERE WARNING SIGNS FOR CLEANING
Do not clean the appliance by spraying water directly onto it.
Do not use benzene, thinner or alcohol to clean the appliance.
- This may result in discolouration, deformation, damage, electric shock or fi re.
Before cleaning or performing maintenance, unplug the appliance from the wall socket.
- Failure to do so may result in electric shock or fi re.
Clean the fi lter case before and after using the dryer.
Clean the inside of the product on a regular basis by asking an authorized service engineer.
Clean the Heat Exchanger with a soft brush or vacuum cleaner once a month, Do not touch the
heat exchanger with your hand. Otherwise, it may cause an injury.
The interior of the dryer should be cleaned periodically by qualifi ed service personnel.
WARNING
DV90F5E6HGW-03297J-06_EN_150706.indd Sec1:9DV90F5E6HGW-03297J-06_EN_150706.indd Sec1:9 2015-07-06 1:07:532015-07-06 1:07:53
English - 10
installing your dryer
UNPACKING YOUR DRYER AND INSTALLING GUIDE
Hire a professional to install this dryer properly. If there is a service call performed as a result of poor setup,
adjustment, and connection, it is considered the responsibility of the installer. It is recommended that a
professional is called to install this appliance, especially for more di cult installations involving draining to the
mains water supply or product stacking. If problems of installation result in a service visit to fi x a fault, this is
typically considered to be the responsibility of the installer.
Make sure you have everything necessary for proper installation (AC 220~240V/50Hz).
A GROUNDED ELECTRICAL OUTLET is required. See Electrical Requirements (See page 11).
SEE DRYER EXTERIOR
Parts
Hose guide Cable tie Hose
connector
Long drain hose (2m) Manual
book
Rack Dry
(8 Series)
Water tank
Control panel
Door
Levelling feet
Cover Top
Filter case
DV90F5E6HGW-03297J-06_EN_150706.indd Sec3:10DV90F5E6HGW-03297J-06_EN_150706.indd Sec3:10 2015-07-06 1:07:532015-07-06 1:07:53
English - 11
CHECK BEFORE INSTALLING
• Do not plug the power cord into the wall outlet before completing the dryer installation.
• Check the appearance of the product for any damaged parts before starting the product installation.
• If there are any parts that appear to be damaged, please contact your nearest Samsung Customer
Service Center.
• When moving the product, do not move the product by yourself.
• Take care of the edges of the dryer as they can be sharp.
• Do not install the dryer in a location exposed to frost. Cold water may damage the product.
• Use the product indoors only.
• Do not place the dryer on one side when lifting it, and do not move the dryer in such a way that the
internal parts shake. This may result in damage to the internal parts of the product.
BEFORE USING THE PRODUCT
• Check if there are any accessories remaining inside the drum.
• Plug in the power cord just before operating the product.
• Do not block the air inlet hole of the cooling grill at the front of the dryer.
• Do not place infl ammable objects near the dryer and keep the surroundings clean.
• Keep the dryer level with the ground.

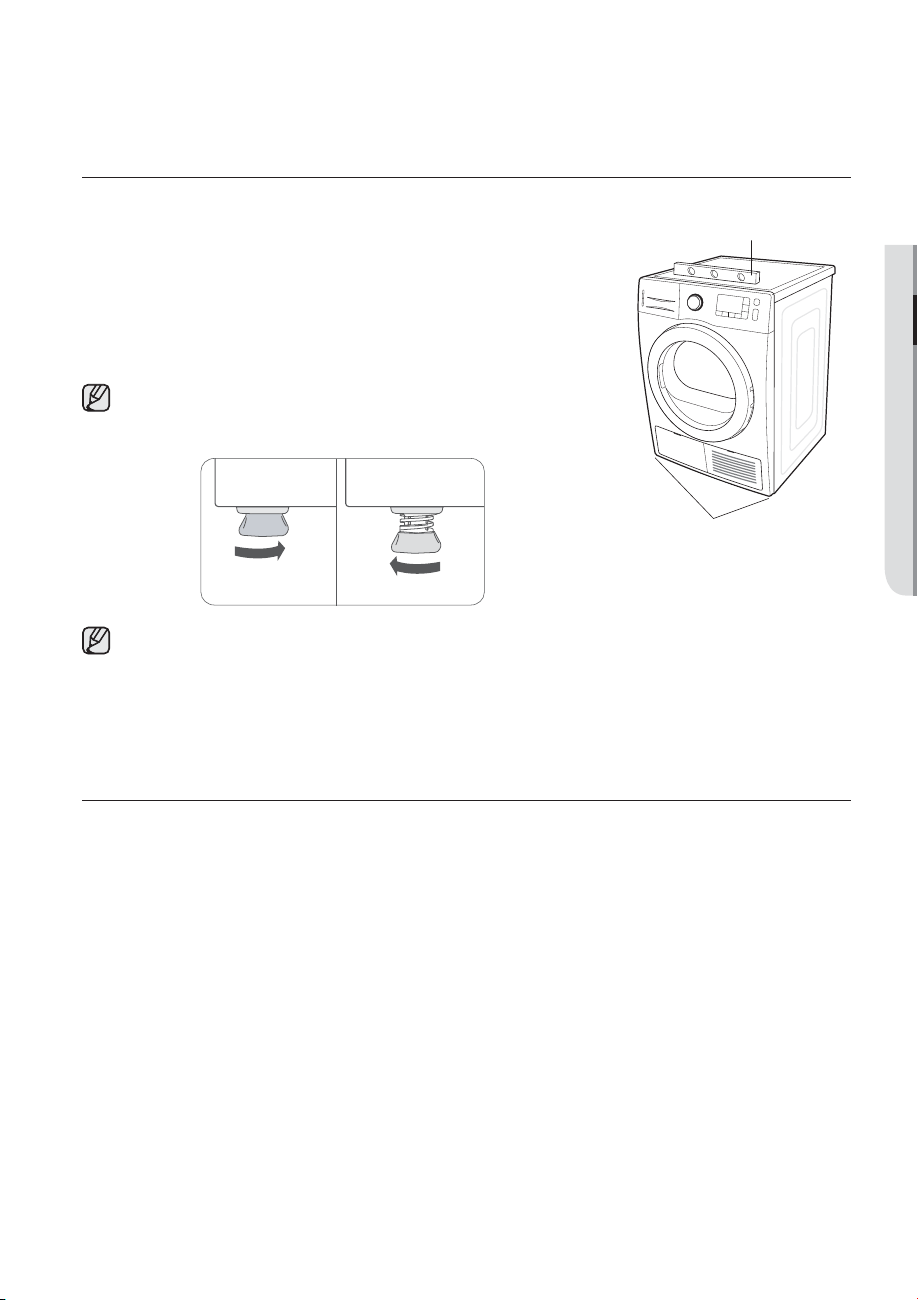

• Do not remove the adjustable levelling feet of the dryer. They are necessary to keep the product level
with the ground.
IMPORTANT TO INSTALLER
Please read the following instructions carefully before installing the dryer. These instructions should be kept
for future reference.
REMOVE THE DOOR FROM ALL DISCARDED APPLIANCES TO AVOID THE DANGER OF A CHILD
SUFFOCATING.
LOCATION CONSIDERATIONS
Because a condensing type has been adopted, which condenses and processes air inside the dryer,
external ventilation is not required.
Therefore, The dryer can be installed and used in any location where the temperature is between 5 and 35
degrees centigrade, unlike a conventional dryer that requires an external exhaust system.
WARNING
INSTALLING YOUR DRYER
DV90F5E6HGW-03297J-06_EN_150706.indd Sec3:11DV90F5E6HGW-03297J-06_EN_150706.indd Sec3:11 2015-07-06 1:07:532015-07-06 1:07:53
English - 12
ALCOVE OR CLOSET INSTALLATION
To operate safely and properly, your new Dryer requires minimum clearances of:
Sides – 25 mm Rear – 51 mm
Top – 25 mm Front – 470 mm
If both the washing machine and a dryer are installed together, the front of the alcove or closet must have at
least 465 mm unobstructed air opening.
ELECTRICAL REQUIREMENTS
Electrical Requirements is AC 220~240 V / 50 Hz.
• Improper connection of the equipment grounding conductor can result in a risk of electric shock.
Check with a qualifi ed electrician or serviceman if you are in doubt as to whether your dryer is
properly grounded. Do not modify the plug provided with your dryer – if it doesn’t fi t the outlet,
have a proper outlet installed by a qualifi ed electrician.
• To prevent unnecessary risk of fi re, electrical shock, or personal injury, all wiring and grounding
must be done in accordance with local codes, or in the absence of local codes, It is your
responsibility to provide adequate electrical services for your dryer.
GROUNDING
Your dryer must be grounded. If your dryer malfunctions or breaks down, grounding will reduce the risk of
electric shock by providing a path of least resistance for the electric current.
Your dryer comes with a power cord having a three-prong grounding plug for use in a properly installed and
grounded outlet.
Never connect the ground wire to plastic plumbing lines, gas lines, or hot water pipes.
Improperly connecting the equipment-grounding conductor can result electrical shock.
Check with a qualifi ed electrician or serviceman if you are unsure if the dryer is properly grounded. Do
not modify the plug provided with the dryer. If it does not fi t the outlet, have a proper outlet installed by a
qualifi ed electrician.
If the product is not grounded, there is a danger of fi re or electric shock.
WARNING
WARNING
installing your dryer
DV90F5E6HGW-03297J-06_EN_150706.indd Sec3:12DV90F5E6HGW-03297J-06_EN_150706.indd Sec3:12 2015-07-06 1:07:532015-07-06 1:07:53
English - 13
INSTALLATION SIDE BY SIDE
For proper installation, we recommend that you hire a professional. To install:
1. Move your dryer to an appropriate location for installation. Consider
installing the dryer and washer side-by-side. Lay two of the carton
cushion-tops on the fl oor. Tip your dryer on its side so it will lay across
both cushion-tops.
2. Set your dryer back in an upright position.
3. To ensure that the dryer provides optimal drying performance, it must
be level. To minimize vibration, noise, and unwanted movement,the
fl oor must be a perfectly level, solid surface.
To set the dryer to the same height as the washer, fully retract the
levelling feet by turning them counterclockwise, then loosen the legs
by turning them clockwise
Adjust the levelling feet only as much as necessary to level the dryer.Extending the levelling feet more
than necessary can cause the dryer to vibrate.
4. Review Electrical Requirements section (See page 11).
BEFORE OPERATING OR TESTING.
5. With a level, check your dryer and make necessary adjustments to the levelling legs.
6. Plug in your dryer, and check operation by using the checklist below.
FINAL INSTALLATION CHECKLIST
Dryer is plugged into electrical outlet and is properly grounded.
Dryer is leveled and is sitting fi rmly on the fl oor.
Start your dryer to confi rm that it runs, heats, and shuts o .
Finally, check if the HE error occurs when after running the Time Dry cycle for 20 minutes.
INSTALLING YOUR DRYER
Level
Levelling feet
Retract fully Then loosen
DV90F5E6HGW-03297J-06_EN_150706.indd Sec3:13DV90F5E6HGW-03297J-06_EN_150706.indd Sec3:13 2015-07-06 1:07:532015-07-06 1:07:53
English - 14
DRAINING WATER WITHOUT USING THE WATER TANK
You can use the dryer without using the water tank by following the procedures below.
Install the drain hose so that water can be drained well.
- Otherwise, the water may overfl ow and it may cause damage to the properties.
CONNECTING THE DRAIN HOSE
The Dryer can pump the condensed water outside of the DRYER directly
with dain hose provide.
The procedures to connect the drain hose are as follows.
1. Disconnect the drain hose
A
.
2. Connect the drain hose
A
to the other hole.
3. Connect accessory hose(long drain hose)
B
to the hole
next to the hole that is connected to drain hose
A
.
• Because the dryer’s drain pump can only pump up
the drain water to a 90 cm height, when you connect
the drain hose
B
to the drain point, make sure that
the height of drain point does not exceed 90 cm.
A drainage error may occur if the drain point exceeds
90 cm. If a drainage error occurs, the control panel
displays an error code.
• After connecting the drain hose, you can directly drain the condensed water via the
drain-outlet through the connected drain hose or through the washstand or the drain-
outlet of the washstand.
CAUTION
installing your dryer
A
A
B
DV90F5E6HGW-03297J-06_EN_150706.indd Sec3:14DV90F5E6HGW-03297J-06_EN_150706.indd Sec3:14 2015-07-06 1:07:542015-07-06 1:07:54
English - 15
Connecting the drain hose
Do not extend the drain hose.
- Since water may leak from the connected part, be sure to one long drain hose instead of
connecting short ones. If you cannot help connecting more than one hose, be sure to seal
the connected parts with silicone sealant. (Do not use the electric insulating tape for sealing.)
The end of the drain hose can be positioned in three ways:
1. Over the edge of a wash basin: The drain hose must be placed lower than 90cm. If the end
of the drain hose needs to be placed above the ground, we recommend a height of 60cm ~
90cm. To keep the drain hose spout bent, use the supplied plastic hose guide. Secure the
guide to the wall with a hook or to the tap with a piece of string to prevent the drain hose
from moving.
2. Assemble the drain hose and the hose guide and fi x them with the cable-tie.
3. You can drain the condensed water by connecting the accessory hose (long drain hose) to
the drain-outlet directly.
Connecting the direct-hose
You can immediately drain the condensed water that comes out while drying, by connecting the
drain hose to the tap.
1. Assemble the hose connector and the hose.
Since there is a danger of water leaking from the hose
connecter and accessory hose, make sure that they are
connected fi rmly.
2. Connect the end of the hose to the tap.
CAUTION
CAUTION
INSTALLING YOUR DRYER
Hose Connecter
Drain hose
Hose guide
90 cm
Cable Tie
DV90F5E6HGW-03297J-06_EN_150706.indd Sec3:15DV90F5E6HGW-03297J-06_EN_150706.indd Sec3:15 2015-07-06 1:07:542015-07-06 1:07:54
English - 16
INSTALLATION STACKING
In case of purchasing the additional stacking kit, contact our Samsung service center or local
distributers. [Part no. SK-DH / SK-DA / SKK-DF]
The stacking kit di ers depending on the model.
Only use the product in 1 hour after installing the stacking kit by tilting the product so that the product
can run after the oil in the compressor becomes stable.
1. Carefully lay the dryer on its side. Use the packing material so
you don’t scratch the fi nish on the dryer.
2. Install rubber pads to dryer base.
• Locate the 4 rubber pads in the parts package. Insert the
rubber pads into the holes at the bottom of the levelling legs.
• Purchase the stacking-kit package additionally.
3. Set the dryer upright.
The stacking kit can only be installed for Samsung family products.
4. Install bracket to dryer.
• Remove washer top cap screw from the rear left. Align left
bracket holes with top cap screw hole on rear left of the unit
and replace screw.
Leave screw loose so dryer hole alignment will be easier.
• Repeat the above step with the right side.
5. Install dryer and bracket on washer
• Lift the dryer on top of the washer. Protect the washer
control panel with cardboard or other protection. Be sure to
lift the dryer high enough to clear the washer control panel.
Personal Injury. More than two people are recommended
to lift the dryer into position because of its weight and size.
Failure to do so could result in injury.
• Align the holes in the bracket with the holes in the back of the dryer.Using a Phillips
screwdriver, attach the M4x12 tapping screws.
• Tighten the washer bracket screws ; then tighten all stacking kit screws.
6. Finalise the installation
• Refer to the washer Installation Instructions to complete
the washer installation.
• Refer to the dryer Installation Instructions to complete the
dryer installation.
• Carefully slide or walk the stacked washer and dryer
into place. Use felt pads or other sliding device to assist
moving and to protect fl ooring.
Do not push on the dryer once installed to top of the
washer. Pushing on the dryer may result in pinched fi ngers.
CAUTION
WARNING
WARNING
installing your dryer
Dryer
Washer
Bracket-Stacking
Screw
DV90F5E6HGW-03297J-06_EN_150706.indd Sec3:16DV90F5E6HGW-03297J-06_EN_150706.indd Sec3:16 2015-07-06 1:07:542015-07-06 1:07:54
English - 17
DOOR REVERSAL
Depending on your requirements (installation location, space constraints), you can change the direction the
door opens.
This is done according to the customer’s needs. The qualifi ed technician or customer can do this
themselves directly.
1. Unplug the power cord.
2. Remove the two screws from the door-hinge.
3. Lift the door to separate it.
4. Remove the 16 screws.
Disassemble the air seal and remove the 6 screws (3 fl at
head screws at the top and 3 round head screws at the
bottom).
(Only for Crystal Gloss door models)
5. After removing the screw, rotate the Assy hinge door,
the handle door by 180° as shown in the fi gure.
•
Work carefully so that the door-seal is not removed.
6. Fasten the 16 screws in the correct positions.
Fasten the 6 screws and replace the air seal.
(Only for Crystal Gloss door models)
7. Note that two of the screws have a di erent length from the others.
(Use the longer screws for the door-lever.)
8. Move the position of the screw at the back of the door-hinge.
WARNING
CAUTION
INSTALLING YOUR DRYER
Frame-Front
Assy-Door
Hinge-Door
Crystal Gloss Door
Door-Glass
Assy hinge door
Handle Door
Crystal Gloss Door
DV90F5E6HGW-03297J-06_EN_150706.indd Sec3:17DV90F5E6HGW-03297J-06_EN_150706.indd Sec3:17 2015-07-06 1:07:542015-07-06 1:07:54
English - 18
9. Fasten the screw in the bottom hole.
10. Remove the two screws holding the front-frame at the left.
11. Remove the two screws holding the holder-lever at the left.
12. Now, move to the right side of the product and fasten the two screws
holding the front-frame and the two screws holding the lever-holder.
13. Align the door with the fi xing holes.
14. Fasten the two screws holding the door-hinge.
You can restore the direction the door opens by following the procedures above, if necessary.
ENVIRONMENT
Please dispose of the packaging materials for this product in an “environmentally friendly” manner.
For further detail, please contact your local area authority.
installing your dryer
Holer-Lever
Inside the drum
DV90F5E6HGW-03297J-06_EN_150706.indd Sec3:18DV90F5E6HGW-03297J-06_EN_150706.indd Sec3:18 2015-07-06 1:07:552015-07-06 1:07:55
English - 19
operating Instructions, tips
To reduce the risk of fi re, electric shock, or injury to persons, read the IMPORTANT SAFETY
INSTRUCTIONS before operating this appliance.
If the Anti Crease option is not selected, take out the laundry immediately after it is washed and dried.
Leaving the laundry inside the drum may produce wrinkles.
OVERVIEW OF THE CONTROL PANEL
1
Digital Graphic
Display
Displays the remaining drying cycle time, all cycle information, and error
messages.
The display window shows the estimated time remaining in the cycle after you
have pressed the Start/Pause button. The estimated time remaining may
fl uctuates as the cycle progresses.
The Drying light will illuminate and remain lit until the cycle is complete.
When your dryer is in the cool-down phase, the Cooling light will illuminate.
When your dryer is in the Anti Crease phase, the “Anti Crease light” will
illuminate.
When the cycle is complete, “End” will appear in the display panel until you
push the Start/Pause button or the Power button. If your dryer is paused
during a cycle, the indicators will light up until you press the Start/Pause
button.
WARNING
OPERATING INSTRUCTIONS, TIPS
3 4 5 6 71
108 9 11
2
3 4 5 91
10 11
2
[DV9, DV8 Series]
[DV7 Series]
DV90F5E6HGW-03297J-06_EN_150706.indd Sec5:19DV90F5E6HGW-03297J-06_EN_150706.indd Sec5:19 2015-07-06 1:07:552015-07-06 1:07:55
English - 20
2
Cycle Selector
When you turn on your dryer, the [Cotton] Cupboard Dry
cycle is selected
as default.
Turn the Cycle Selector to select the cycle you want.
Cotton - For averagely or lightly soiled cottons, bed linen, table linen,
underwear, towels, shirts, etc.
• Extra Dry - Use for heavy-duty fabrics or items that should be very dry.
• Cupboard Dry
- Use this cycle to dry loads such as cotton, underwear,
and linen (NOT appropriate for jeans).
• Iron Dry - Finishes the dry cycle in a moist state appropriate for Ironing.
Synthetics - For averagely or lightly soiled blouses, shirts, etc., made of
polyester (diolen, trevira), polyamide (perlon, nylon) or other similar blends.
• Extra Dry - Use for heavy-duty fabrics or items that should be very dry.
• Cupboard Dry - Use this cycle to dry loads such as shirts, blouses, bed
linen and table linen. (NOT appropriate for jeans).
• Iron Dry - Finishes the dry cycle in a moist state appropriate for Ironing.
Quick Dry - 60 min is automatically set as the drying time.
Warm Air - For small items, pre-dried laundry and normal fabrics in
30minutes. (DV9, DV8 Series)
Cool Air - For all fabrics to need freshing tumbles without heating.
Time Dry - Time Dry allows you to select the desired cycle time.
Turn the cycle selector dial to Time Dry, then press Time Button to set the
drying time. Press the Time button repeatedly to scroll through the time
settings. The drying time increase in every 30 minutes up to 150 minutes.
After drying the laundry with the normal airy dry cycle, and you feel that the
laundry has not dried completely, you can extend the drying time using the
Time Dry cycle.
After drying the laundry using a drying cycle, and you feel that the laundry has
not dried completely, you can extend the drying time using the Time Dry cycle.
Sports Wear - Use for light sportswear such as sweatsuit.
Outdoor - For water-proof items such as mountain clothing, skiwear and
sports wear. Fabrics include functional technology fi nishes and fi bres such as
spandex, stretch, and micro-fi bre. We recommend that you use this drying
cycle after you wash your laundry using the Outdoor Care cycle with your
washing machine. (DV9, DV8 Series)
Ultra Delicate - The Delicates cycle is designed For lingeries.
Wool - For machine washable and tumble dryable wool only.
For better drying results, turn the laundry inside out before drying it.
Overloading the dryer may not yield the same results. For the Max Load
of each drying course, refer to the Cycle Chart in the appendix
3
Drying Level
button
To select the dry level in the Cotton, Synthetics cycles, press the
Drying Level button. An indicator light will illuminate next to the dryness level
you selected.
Press the button repeatedly to scroll through the settings. Larger or bulkier
loads may require the icon “ or ” Dry setting for complete dryness.
the icon “
” is designed to partially dry items. Use for items that lay fl at or
hang to dry.
operating Instructions, tips
DV90F5E6HGW-03297J-06_EN_150706.indd Sec5:20DV90F5E6HGW-03297J-06_EN_150706.indd Sec5:20 2015-07-06 1:07:552015-07-06 1:07:55
English - 21
4
Time button
When using Time Dry, Warm Air, Cool Air cycles, time can be adjusted by
pressing the Time button.
30 min 60 min 90 min 120 min 150 min (120 min and 150 min time
options are not available for Warm Air and Cool Air cycles.)
Except the Time Dry, Quick Dry, Warm Air, Cool Air cycle, the time indicator
of manual is o because exact drying times are determined by fl uctuating
humidity levels.
5
Anti Crease
button
Anti Crease provides approximately 120 minutes of intermittent tumbling
in unheated air at the end of the cycle to reduce wrinkling. Press the
Anti Crease button to activate this feature.
The indicator light above the pad will illuminate when Anti Crease is selected.
Dried laundry is prevented from becoming wrinkled by periodic drum rotations
after the completion of the drying course. (Even after “End” is displayed, the
drum rotates intermittently.)
6
Mixed Load Bell
button
This is an alarm that notifi es the user when the average drying level is damp
dry (80 % dried) when the laundry contains various types of materials and
fabric.
If the corresponding condition is satisfi ed, the Mixed load bell LED blinks
7
Lamp button
Lights the dryer drum while the dryer is running. (DV9, DV8 Series)
It can be set while your dryer is not only running but also when it is
stopped. If you do not turn the Drum Light o within 5 minutes of turning
it on, it is automatically turned o .
8
Sound On/O
button
The Sound On/O function can be selected during all courses. When this
function is selected, sound is turned o for all courses. Even if the power is
turned on and o repeatedly, the setting is retained.
For DV7 Series model, press the Time and Anti Crease buttons at the
same time for 3 seconds.
9
Delay End
button
Press this button repeatedly to cycle through the available Delay End options.
(from 3 hours to 19 hours in one hour increments).
The hour displayed indicates the time when the dry cycle will be fi nished.
See page 21 for detail.
10
Start/Pause
button
Press to start a dry cycle. If the dryer is running, press it once and it will pause
the dryer. Press it again to restart the dry cycle.
11
Power button
Press once to turn your dryer on, press again to turn it o . If your dryer is left
on for more than 10 minutes without any buttons being touched, the power
automatically turns o .
If you insert laundry into your dryer while it is extremely tangled immediately after your washer has
fi nished a wash or spin cycle, it may degrade the drying e ciency or cause the door to open.
We recommend that you disentangle your laundry appropriately before inserting it.
Each indicator on the graphic display means:
Drying in Progress Drying Level 3 (Strong)
Cooling in Progress Drying Level 2 (Normal)
Stop Drying Level 1 (Gentle)
Anti Crease in Progress Anti Crease
Filter Check Heat Exchanger Filter Clean Alarm
Delay End Sound On/O
Dumping Condensed Water Mixed Load Bell
Child Lock On/O Smart Check
OPERATING INSTRUCTIONS, TIPS
DV90F5E6HGW-03297J-06_EN_150706.indd Sec5:21DV90F5E6HGW-03297J-06_EN_150706.indd Sec5:21 2015-07-06 1:07:552015-07-06 1:07:55
English - 22
CHILD LOCK
A function to prevent children from playing with your dryer.
Activating/Deactivating
If you want to activating/deactivating the Child Lock, press
both the Drying Level and Time buttons simultaneously for
3seconds.
The “Child Lock
” will be lit when this feature is activated.
• When the power is turned on, the Child Lock function is
available.
• Once you set the Child Lock function, no button, except
for the Power button, will respond until you release the
Child Lock function.
• If the dryer is powered on again, the Child Lock function
stays on.
• When other buttons, except for the Power button, do
not respond, check the Child Lock indicator to see if the
function is on.
DELAY END
You can set the dryer to fi nish your drying cycle automatically at a later time, choosing a delay of between
3to 19 hours (in 1 hour increments). The hour displayed indicates the time at which the dry will be fi nished.
1. Manually or automatically set your drying machine according to the type of laundry you are drying.
2. Press the Delay End button repeatedly until the required delay time is set. If the delay time is set, the
“Delay End” function becomes ON state.
3. Press the Start/Pause button. The “Delay End
” indicator will blink and the clock will begin counting
down until it reaches the set time.
4. To cancel a Delay End function, press the Power button and then turn the dryer on again.
operating Instructions, tips
[DV9, DV8 Series]
[DV7 Series]
3 sec.
DV90F5E6HGW-03297J-06_EN_150706.indd Sec5:22DV90F5E6HGW-03297J-06_EN_150706.indd Sec5:22 2015-07-06 1:07:562015-07-06 1:07:56
English - 23
SMART CHECK
This function enables you to check the status of the dryer using a smartphone.
The Smart Check function has been optimized for:
Galaxy & iPhone series (cannot be supported for some models)
Downloading the Samsung Smart Washer app
Download the Samsung Smart Washer app to your mobile phone from the Android market or
Apple App store and install it. You can easily fi nd it by searching for “Samsung Smart Washer”.
Using the Smart Check function
1. Hold down the Anti Crease and Mixed Load Bell
buttons at the same time for 3 seconds when an error
occurs to run the Smart Check function. Alternatively, the
Smart Check function can be run if no button is pressed
after the dryer is turned on.
2. The LED segments on the display panel rotate for 2 or
3seconds and the Smart Check code is displayed on the
dryer’s display panel.
3. Run the Samsung Smart Washer app on your smart phone and tap the Smart Check
button.
‘Smart Check’ may be changed to ‘Smart Care’ according to the language selection.
4. Focus your smart phone’s camera on the Smart Check code displayed on the dryer’s display
panel.
• If light from a light bulb, fl uorescent bulb or lamp is refl ected on the display panel of the dryer,
the smart phone may not be able to easily recognize the Smart Check code.
• If you hold the smart phone at a too wide angle relative to the front of the display panel, it
may not be able to recognize the error code. For best results, hold the smart phone so that
the front of the display panel and the smart phone are parallel or nearly parallel.
5. If it focuses correctly, the Smart Check code is automatically recognized, and the detailed
information of the status of your dryer, the error and the countermeasures are displayed on
your smart phone.
6. If the smart phone fails to recognize the Smart Check code more than twice, please enter the
Smart Check code displayed on your dryer’s display panel into the Samsung Smart Washer
app manually.
OPERATING INSTRUCTIONS, TIPS
[DV9, DV8 Series]
[DV7 Series]
3 sec.
DV90F5E6HGW-03297J-06_EN_150706.indd Sec5:23DV90F5E6HGW-03297J-06_EN_150706.indd Sec5:23 2015-07-06 1:07:562015-07-06 1:07:56
English - 24
RACK DRY (DV8 SERIES ONLY)
Installing the drying rack
1. Open the dryer door.
2. Position the drying rack in the tumbler, placing the front lip of the drying rack on the top of
the lint fi lter case.
3. Place the rear legs in the two recessed areas of the dryer’s back wall then push down the
middle of the drying rack to fi x.
4. Place the items to be dried on the rack, leaving space between them so air can circulate.
5. Close the dryer door.
6. Press the Power button.
7.
Select Time Dry by using the cycle selector dial, set the Time button.
• You can set the drying time up to 150 minutes. Select the time according to the moisture and
weight of the items. It may be necessary to reset the timer if a longer drying time is needed.
(When you dry laundry using the drying rack, using the Time Dry cycle is recommended.)
8. Press the Start/Pause button.
SUGGESTED ITEMS REMARKS (MAX 1.5kg)
Washable sweaters
(block to shape and lay fl at on
rack)
When drying the laundry using the Rack, fold and place
the clothes on the Rack to prevent the clothing from
becoming wrinkled.
Stu ed toys
(cotton or polyester fi berfi lled)
Stu ed toys
(foam or rubber-fi lled)
Foam rubber pillows
Sneakers
To dry sports shoes, place the shoes on the Rack so that
the soles of the shoes are facing downwards.
Drying foam rubber, plastic, or rubber on a heat setting may cause damage to the items
and lead to a fi re hazard.
Since damage may result when drying shoes, use the Rack Dry course to dry shoes.
WARNING
CAUTION
operating Instructions, tips
Rack dry
DV90F5E6HGW-03297J-06_EN_150706.indd Sec5:24DV90F5E6HGW-03297J-06_EN_150706.indd Sec5:24 2015-07-06 1:07:562015-07-06 1:07:56
English - 25
LOAD THE DRYER PROPERLY
• Place only one wash load in your dryer at a time.
• Mixed loads of heavy and lightweight fabrics will dry di erently, which may result in lightweight fabrics
being dry while heavy fabrics remain damp at the end of a drying cycle.
• Add one or more similar items to your dryer when only one or two articles of clothing need drying.
This improves the tumbling action and drying e ciency.
• Overloading restricts tumbling action, resulting in uneven drying as well as excessive wrinkling of some
fabrics.
• Make sure to insert laundry that has been spun by an appropriate washing machine.
• No unwashed textiles should be dried
• Textiles which have been in contact with oil, alcohol, petrol etc. should not be dried.
GETTING STARTED
1. Load your dryer loosely – DO NOT overload.
2. Close the door.
3. Select the appropriate cycle and options for the load.
4. Press the Start/Pause button.
5. The dryer indicator light will illuminate.
6. The estimated cycle time will appear in the display.
The time may fl uctuate to better indicate drying time remaining in the cycle.
• When the cycle is complete and “End” will appear in the display.
• Pressing Power cancels the cycle and stops your dryer.
• The Drying, Cooling, and Anti Crease indicator lights will illuminate during those portions of the
cycle.
OPERATING INSTRUCTIONS, TIPS
DV90F5E6HGW-03297J-06_EN_150706.indd Sec5:25DV90F5E6HGW-03297J-06_EN_150706.indd Sec5:25 2015-07-06 1:07:562015-07-06 1:07:56
English - 26
care and cleaning
Do not clean the dryer by directly spraying water onto the dryer. Do not clean the dryer with benzene,
thinner, alcohol, or acetone.
- Otherwise, it may cause discoloration, deformation, damage, electric shock or fi re.
When cleaning the product, be sure to unplug the power cord.
During the drying cycle, the control panel or the door may accumulate moisture.
CLEAN THE HEAT EXCHANGE
Since the surface of the heat exchanger is sharp, clean it with a soft brush or vacuum cleaner.
(It is recommended to clean it at least once every month.)
Do not touch the heat exchanger with your hand. Otherwise, it may cause an injury.
CONTROL PANEL
Clean with a soft, damp clothes. Do not use abrasive substances.
Do not spray cleaners directly on the panel.
The control panel fi nish may be damaged by some laundry pre-treatment soil and stain remover products.
Apply such products away from your dryer and wipe up any spills or overspray immediately.
STAINLESS STEEL TUMBLER
To clean the stainless steel tumbler, use a damp cloth with a mild, non-abrasive cleaner suitable for stainless
steel surfaces.
Remove the cleaner residue and dry with a clean cloth.
DRYER EXTERIOR
The entire dryer has a high-gloss fi nish. Clean with a soft, damp cloth. Do not use abrasive substances.
Protect the surface from sharp objects as they may scratch or damage the fi nish.
Do not place any heavy or sharp objects or a detergent box on the dryer. Keep them on the purchased
pedestal or in a separate storage box.
WARNING
WARNING
CAUTION
DV90F5E6HGW-03297J-06_EN_150706.indd Sec10:26DV90F5E6HGW-03297J-06_EN_150706.indd Sec10:26 2015-07-06 1:07:572015-07-06 1:07:57
English - 27
DUMPING CONDENSED WATER ( )
1. Pull the water-tank forwards to separate it.
When removing the water tank from the product, hold the
water tank using both hands as it is heavy and take care
not to spill any water inside the tank. Otherwise, it may
cause an injury to your wrist.
2. Remove the condensed water inside the water-tank.
• Remove the condensed water in the tank after every
drying operation.
Since there is a danger of water leaking if you do not
drain the water after using the product, make sure to
drain the water.
If you empty the water tank and press the Start button,
the Water Tank Full (
) in the LED panel is turned o .
CLEANING THE FILTER CASE ( )
1. Open the door and remove the fi lter by pulling it upwards.
2. Open and clean the fi lter case.
• Clean the fi lter case after the drying operation is
completed.
• Since the drying performance may be degraded and there is a danger of fi re if you do not
clean the fi lter case after the specifi ed period of use, clean the fi lter case at the specifi ed
cleaning interval.
• Clean the fi lter case after every drying operation.
• If the surface of the fi lter is wet, use the fi lter after drying it completely.
CAUTION
WARNING
CAUTION
CARE AND CLEANING
Filter case
Water-Tank
Drain hole
DV90F5E6HGW-03297J-06_EN_150706.indd Sec10:27DV90F5E6HGW-03297J-06_EN_150706.indd Sec10:27 2015-07-06 1:07:572015-07-06 1:07:57
English - 28
CLEANING THE HEAT EXCHANGER FILTER ( )
1. Use a key or coin to open the cover.
2. Unlock the fi xer.
3. Remove the Heat Exchanger Filter.
4. If the heat exchange fi lter is not cleaned regularly, a display
indicator will be turned on or blinked as a reminder.
If so, check the heat exchanger fi lter and clean it to make
sure that the fi ler is not blocked with lints.
• Remove the sponge from the fi lter assembly and clean
it by rubbing in running water. Dust o the mesh part
with soft brush. After cleaning with water, dry the Heat
Exchanger Filter thoroughly before reinserting it back.
• Clean the heat exchanger fi lter after every 2 cycle is
completed.
• When the indicator is turned on or blink, check the heat
exchanger and clean it to make sure that the fi lter is not
blocked with lints.
5. Clean it with a soft brush or vacuum cleaner.
(It is recommended to clean it at least once every month.)
Do not touch the heat exchanger with your hand.
Otherwise, it may cause an injury.
• When assembling the Heat Exchanger Filter after cleaning it, make sure to that the fi xer
is set to the lock position.
CAUTION
CAUTION
CAUTION
care and cleaning
Fixer
DV90F5E6HGW-03297J-06_EN_150706.indd Sec10:28DV90F5E6HGW-03297J-06_EN_150706.indd Sec10:28 2015-07-06 1:07:572015-07-06 1:07:57
English - 29
special laundry tips
SPECIAL LAUNDRY TIPS
Please follow the care label or manufacturer’s instructions for drying special items. If care label instructions
are not available, use the following information as a guide.
Bedspreads & Comforters • Follow the care label instructions or dry on the
Cotton(Cupboard Dry ) and High temperature.
• Make sure the item is thoroughly dry before using or storing.
• May require repositioning to ensure even drying.
Blankets
• Use Cotton (Cupboard Dry
) and dry only one blanket at a time
for best tumbling action.
• Make sure the item is thoroughly dry before using or storing.
Cloth Nappies
• Use the Cotton (Cupboard Dry
) and the High temperature
settings for soft,fl u y diapers.
Down–fi lled Items (jackets,
sleeping bags, comforters,
etc.)
• Use the Cotton (Cupboard Dry
) and the Low or Low temperature
setting.
• Adding a couple of dry towels shortens drying time and absorbs
moisture.
Foam Rubber (rug backs,
stu ed toys, shoulder pads,
etc.)
• DO NOT dry on a heat setting. Use the Cool Air cycle (no heat).
• WARNING – Drying a rubber item with heat may damage it or be a
fi re hazard.
Pillows
• Use the Cotton (Cupboard Dry
).
• Add a couple of dry towels to help the tumbling action and to fl u the
item.
• DO NOT dry kapok or foam pillows in dryer. Use the Cool Air cycle.
Plastics (shower curtains,
outdoor furniture covers,
etc.)
• Use the Cool Air cycle or the Time Dry cycle and the Low or Low
temperature settings depending on the care label instructions.
THINGS TO AVOID :
• Fiberglass items (curtains, draperies, etc.).
• Woolens, unless recommended on the label.
• Vegetable or cooking oil-soaked items.
SPECIAL LAUNDRY TIPS
DV90F5E6HGW-03297J-06_EN_150706.indd Sec8:29DV90F5E6HGW-03297J-06_EN_150706.indd Sec8:29 2015-07-06 1:07:572015-07-06 1:07:57
English - 30
troubleshooting
CHECK THESE POINTS IF YOUR DRYER…
PROBLEM SOLUTION
Doesn’t run. • Make sure the door is latched shut.
• Be sure the power cord is plugged into a live electrical outlet.
• Check the home’s circuit breaker and fuses.
• Press the Start/Pause button again if the door is opened during the
cycle.
• Empty the water in the condensed water tank.
• Clean the fi lter case.
Doesn’t heat. • Check the home’s circuit breaker and fuses.
• Select a heat setting other than Cool Air.
• Check the case fi lter and Heat Exchanger Filter and clean them if
necessary.
• Dryer may have moved into the cool-down phase of the cycle.
Doesn’t dry. • Check all of the above, plus...
• Do not overload. 1 wash load = 1 dryer load.
• Sort heavy items from lightweight items.
• Large, bulky items like blankets or comforters may require
repositioning to ensure even drying.
• Check that the dryer is draining properly to extract adequate water
from the load.
• Load may be too small to tumble properly. Add a few towels.
• Clean the fi lter case.
• Clean the Heat Exchanger Filter.
Is noisy. • Check the load for objects such as coins, loose buttons, nails, etc.
Remove promptly.
• Be sure the dryer is leveled properly as outlined in the installation
instruction.
• It is normal for the dryer to hum due to the high velocity of air moving
through the dryer drum and fan.
Dries unevenly. • Seams, pockets, and other similarly heavy areas may not be
completely dry when the rest of the load has reached the selected
dryness level. This is normal. Select the Extra Dry setting if desired.
• If one heavy item is dried with a lightweight load, such as one towel
with sheets, it is possible that the heavy item will not be completely
dry when the rest of the load has reached the selected dryness level.
Sort heavy items from lightweight items for best drying results.
Has an odour. • Household odors from painting, varnishing, strong cleaners, etc.
may enter the dryer with the surrounding room air. This is normal as
the dryer draws the air from the room, heats it, pulls it through the
tumbler, and exhausts it outside.
• When these odors linger in the air, ventilate the room completely
before using the dryer.
Shuts o before load is dry. • Dryer load is too small. Add more items or a few towels and restart
the cycle.
• Dryer load is too large. Remove some items and restart the dryer.
DV90F5E6HGW-03297J-06_EN_150706.indd Sec6:30DV90F5E6HGW-03297J-06_EN_150706.indd Sec6:30 2015-07-06 1:07:572015-07-06 1:07:57
English - 31
PROBLEM SOLUTION
Lint on clothes. • Make sure the case fi lter is cleaned before every load. With some
loads that produce high amounts of lint, it may be necessary to clean
the fi lter case during the cycle.
• Some fabrics are lint producers (for example, a fuzzy white cotton
towel) and they should be dried separately from clothes that are lint
trappers (for example, a pair of black linen pants)
• Divide larger loads into smaller loads for drying
• Check pockets thoroughly before drying and drying clothes.
Garments still wrinkled after
Anti Crease.
• Small loads of 1 to 4 items work best.
• Load fewer garments.Load similar-type garments.
Odours remain in clothing
after Cool air.
• Fabrics containing strong odors should be washed.
TROUBLESHOOTING
DV90F5E6HGW-03297J-06_EN_150706.indd Sec6:31DV90F5E6HGW-03297J-06_EN_150706.indd Sec6:31 2015-07-06 1:07:572015-07-06 1:07:57
English - 32
INFORMATION CODES
Information codes may be displayed to help you better understand what is occurring with your Dryer.
ERROR DISPLAY MEANING SOLUTION
tE
Air temperature sensor error
Clean the fi lter case or heat exchanger fi lter.
If the problem continues call for service.
tE5
Compressor temperature sensor
error
Turn the power on after 2~3 minutes and
start again from the beginning.
dE
Running the dryer with door open
Close the door and then restart.
If the problem continues call for service.
HE
Compressor overheat Call for service
2E
It occurs when low voltage is
detected.
Check if the power cord is plugged in. If
the problem continues, please contact the
service center.
5E
The water tank is full of water.
The drain pump is out of order.
Empty the water tank, turn the power on
again and start again from the beginning.
If the problem continues call for service.
For any codes not listed above, or if the suggested solution doesn’t fi x the problem, call your Samsung
Service Centre or local Samsung dealer.
Do not let an unauthorized engineer disassemble or repair the product.
troubleshooting
DV90F5E6HGW-03297J-06_EN_150706.indd Sec6:32DV90F5E6HGW-03297J-06_EN_150706.indd Sec6:32 2015-07-06 1:07:572015-07-06 1:07:57
English - 33
appendix
FABRIC CARE CHART
The following symbols provide garment care direction. The Clothing care labels include symbols for drying,
bleaching, drying and ironing, or dry cleaning when necessary. The use of symbols ensures consistency
among garment manufacturers of domestic and imported items. Follow care label directions to maximize
garment life and reduce laundering problems.
Wash Cycle Special Instructions
Warning Symbols for
Laundering
Normal Line Dry/ Hang to Dry Do Not Wash
Permanent Press /
Wrinkle Resistant /
Wrinkle Control
Drip Dry Do Not Wring
Gentle/Delicates Dry Flat Do Not Bleach
Hand Wash Heat Setting Do Not Tumble Dry
Water Temperature**
High
No Steam (added to
iron)
Hot Medium Do Not Iron
Warm Low Dryclean
Cold Any Heat Dry Clean
Bleach
No Heat/Air Do Not Dry Clean
Any Bleach (when
needed)
Iron-Dry or Steam
Temperatures
Line Dry/ Hang to Dry
Only Non-Chlorine
(color-safe)
Bleach (when needed)
High Drip Dry
Tumble Dry Cycle Medium Dry Flat
Normal
Low
Permanent Press/
Wrinkle Resistant/
Wrinkle Control
Gentle/ Delicates
** The dot symbols represent appropriate wash water temperatures for various items. The temperature
range for Hot is 41 – 52 °C, for Warm 29 – 41 °C and for Cold 16 – 29 °C. (Wash water temperature must
be a minimum of 16 °C for detergent activation and e ective cleaning.)
APPENDIX
DV90F5E6HGW-03297J-06_EN_150706.indd Sec4:33DV90F5E6HGW-03297J-06_EN_150706.indd Sec4:33 2015-07-06 1:07:572015-07-06 1:07:57
English - 34
PROTECTING THE ENVIRONMENT
This appliance is manufactured from recyclable materials. If you decide to dispose of this appliance, please
observe local waste disposal regulations. Cut o the power cord so that the appliance cannot be connected
to a power source. Remove the door so that animals and small children cannot get trapped inside the
appliance.
SPECIFICATIONS
TYPE FRONT LOADING DRYER
DIMENSIONS
A. Height 85.0 cm
B. Width 60.0 cm
C. Depth with door open 90° 110.1 cm
D. Depth 60.0 cm
WEIGHT 50 kg
ELECTRICAL REQUIREMENTS 220-240 V / 50 Hz 950 - 1100 W
ALLOWABLE TEMPERATURE 5 ~ 35 °C
appendix
A
B
C
D
DV90F5E6HGW-03297J-06_EN_150706.indd Sec4:34DV90F5E6HGW-03297J-06_EN_150706.indd Sec4:34 2015-07-06 1:07:582015-07-06 1:07:58
English - 35
CYCLE CHART
( user option)
Cycle
Max load (kg)
(Dry Laundry)
Drying
Level
Anti
Crease
Mixed Load Bell
(Only DV9, DV8)
Interior Lamp
(Only DV9, DV8)
Sound
On/O
Delay
End
DV9 DV8 DV7
Cotton
Extra Dry 9 8 7
Cupboard Dry
987
Iron Dry 9 8 7
-
Synthetics
Extra Dry 4.5 4 3.5
Cupboard Dry 4.5 4 3.5
Iron Dry 4.5 4 3.5
-
Wool 222 -
-
Ultra Delicate 1.5 1.5 1.5 -
-
Outdoor (Only DV9, DV8 Series) 2 2 - -
-
Sports Wear 222 -
-
Quick Dry 111 -
-
Warm Air (Only DV9, DV8 Series) - - - -
-
Cool Air --- -
-
Time Dry --- -
-
* 9 : DV9 Series (9 kg)
* 8 : DV8 Series (8 kg)
* 7 : DV7 Series (7 kg)
CONSUMPTION DATA
Model Program Load (kg)* Energy (kWh)
Max. Duration
(Minutes)
DV9 Series
Cotton Cupborad**
9 2.2 190
4.5 1.12 120
Cotton Iron** 9 1.7 155
Synthetics Cupboard 4.5 0.85 78
DV8 Series
Cotton Cupborad**
8 1.98 170
4 1.04 110
Cotton Iron** 8 1.54 140
Synthetics Cupboard 4 0.78 72
DV7 Series
Cotton Cupborad**
7 1.75 150
3.5 0.95 100
Cotton Iron** 7 1.43 130
Synthetics Cupboard 3.5 0.67 68
1. * : Weight of dry laundry
** : EN 61121:2013 test program
2. All data without a “star” against it was calculated using EN 61121:2013
Consumption data can vary from the nominal values given above depending in the size of the
load, types of textiles, residual moisture levels after spinning, fl uctuations in the electricity supply
and any extra options selected.
APPENDIX
DV90F5E6HGW-03297J-06_EN_150706.indd Sec4:35DV90F5E6HGW-03297J-06_EN_150706.indd Sec4:35 2015-07-06 1:07:582015-07-06 1:07:58
QUESTIONS OR COMMENTS?
Country CALL OR VISIT US ONLINE AT
AUSTRALIA 1300 362 603 www.samsung.com/au/support
DC68-03297J-06
DV90F5E6HGW-03297J-06_EN_150706.indd Sec4:36DV90F5E6HGW-03297J-06_EN_150706.indd Sec4:36 2015-07-06 1:07:582015-07-06 1:07:58
