Contents
Contents
....................Instruments & Controls .
................Basic Operation & Riding .
....................................Scooter Safety .
.....................................Before Riding .
1
9
35
53
These pages give an overview of the
contents of your owner’s manual. The first
page of each section lists the topics
covered in that section.
Important safety information you
should know, plus a look at the safety-
related labels on your scooter.
The location and function of
indicators, gauges and controls on
your scooter and operating
instructions for various controls and
features.
The importance of wearing a helmet
and other protective gear, how to
make sure you and your scooter are
ready to ride, and important
information about loading.
How to start and stop the engine, and
use the brakes. Also, includes riding
precautions and important
information about riding with a
passenger or cargo.
０９／１２／１４ １４：４３：２３ ３１ＭＧＦ６１０ ０００７
Contents
Contents
........‘‘Reporting Safety Defects’’ .
......................Servicing Your Honda .
......................................................Tips .
.......Taking Care of the Unexpected .
......................Technical Information .
.....................Consumer Information .
....................................................Index .
Quick Reference
77
165
171
193
215
224
226
ID numbers, technical specifications,
and other technical facts.
Information on warranties, emission
controls, how to get Honda service
manuals, and...
Why your scooter needs regular
maintenance, what you need to know
before servicing your Honda, an
owner maintenance schedule, and
instructions for specific maintenance
and adjustment items.
How to store and transport your
scooter and how to be an
environmentally responsible rider.
What to do if you have a flat tire,
your engine won’t start, etc.
Handy facts about fuel, engine oil, tire
sizes, and air pressures.
０９／１２／１４ １４：４３：３４ ３１ＭＧＦ６１０ ０００８

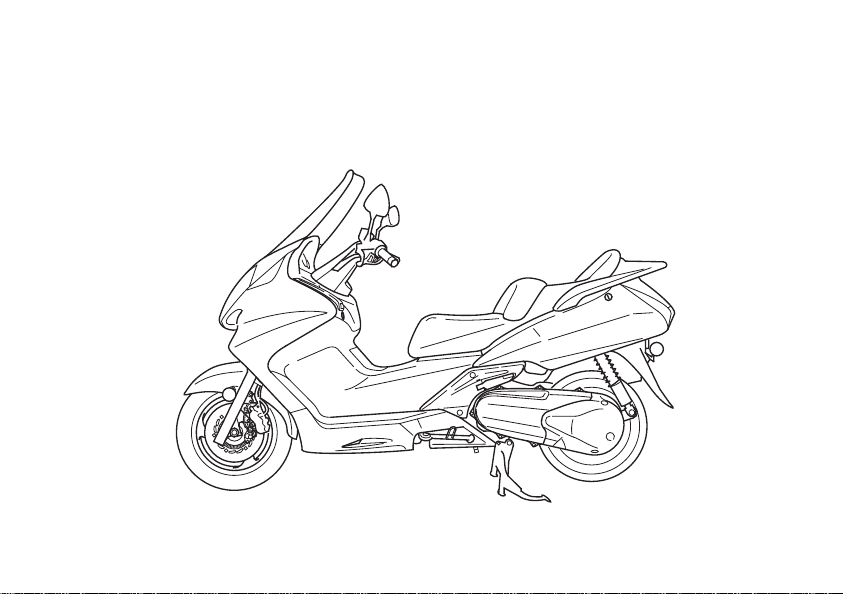

2010
Honda FSC600/A
SILVER WING
OWNER’S MANUAL
０９／１２／１４ １４：４２：５３ ３１ＭＧＦ６１０ ０００２
−
Introduction
Introduction
When you own a Honda, you’re part of a
worldwide family of satisfied customers
people who appreciate Honda’s
reputation for building quality into every
product.
We also recommend that you read this
owner’s manual before you ride. It’s full
of facts, instructions, safety information,
and helpful tips. To make it easy to use,
the manual contains a detailed list of
topics at the beginning of each section and
an index at the back of the book.
Congratulations on choosing your Honda
scooter.
Before riding, take time to get acquainted
with your scooter and how it works. To
protect your investment, we urge you to
take responsibility for keeping your
scooter well maintained. Scheduled
service is a must, of course. But it’s just as
important to observe the break-in
guidelines, and perform all pre-ride and
other periodic checks detailed in this
manual.
As you read this manual, you will find
information that is preceded by a
symbol. This information is
intended to help you avoid damage to your
Honda, other property, or the environment.
０９／１２／１４ １４：４２：５９ ３１ＭＧＦ６１０ ０００３
Introduction
Introduction
WARNING:
Read the Warranties Booklet (page )
thoroughly so you understand the
coverages that protect your new Honda
and are aware of your rights and
responsibilities.
If you have any questions, or if you ever
need special service or repairs, remember
that your Honda dealer knows your
scooter best and is dedicated to your
complete satisfaction.
You may also want to visit our website at
www.honda.com.
Happy riding!
California Proposition 65 Warning
This product contains or
emits chemicals known to the State of
California to cause cancer and birth
defects or other reproductive harm.
Please report any change of address or
ownership to your Honda dealer so we
will be able to contact you concerning
important product information.
219
０９／１２／１４ １４：４３：０５ ３１ＭＧＦ６１０ ０００４
A Few Words About Safety
Safety Messages
Safety Labels
Safety Messages
DANGER, WARNING, CAUTION
These signal words mean:
Your safety, and the safety of others, is very important. And operating this scooter safely is
an important responsibility.
To help you make informed decisions about safety, we have provided operating procedures
and other information on labels and in this manual. This information alerts you to potential
hazards that could hurt you or others.
Of course, it is not practical or possible to warn you about all hazards associated with
operating or maintaining a scooter. You must use your own good judgment.
You will find important safety information in a variety of forms, including:
–– on the scooter.
–– preceded by a safety alert symbol and one of three signal words:
or .
０９／１２／１４ １４：４３：０９ ３１ＭＧＦ６１０ ０００５
You WILL be KILLED or SERIOUSLY HURT if you
don’t follow instructions.
You CAN be KILLED or SERIOUSLY HURT if you don’t
follow instructions.
You CAN be HURT if you don’t follow instructions.
A Few Words About Safety
Safety Messages
Safety Headings
Safety Section
Instructions
This entire manual is filled with important safety information –– please read it carefully.
–– such as Important Safety Reminders or Important Safety Precautions.
–– such as Scooter Safety.
–– how to use this scooter correctly and safely.
０９／１２／１４ １４：４３：１５ ３１ＭＧＦ６１０ ０００６
1
Scooter Safety
Scooter Safety
This section presents some of the most
important information and
recommendations to help you ride your
scooter safely. Please take a few moments
to read these pages. This section also
includes information about the location of
safety labels on your scooter.
................Important Safety Information .
.................Accessories & Modifications .
..........................................Safety Labels .
2
5
7
０９／１２／１４ １４：４３：４２ ３１ＭＧＦ６１０ ００１０
−
2
Important Safety Information
Always Wear a Helmet
Scooter Safety
There is much that you can do to protect
yourself when you ride. You’ll find many
helpful recommendations throughout this
manual. The following are a few that we
consider to be most important.
It’s a proven fact: helmets significantly
reduce the number and severity of head
injuries. So always wear an approved
motorcycle helmet and make sure your
passenger does the same. We also
recommend that you wear eye protection,
sturdy boots, gloves, and other protective
gear (page ).
Your scooter can provide many years of
service and pleasure if you take
responsibility for your own safety and
understand the challenges you can meet
while riding.
36
０９／１２／１４ １４：４３：４６ ３１ＭＧＦ６１０ ００１１
3
Important Safety Information
Scooter Safety
Ride Defensively
Take Time to Learn & Practice
Make Yourself Easy to See
You and
Your Motorcycle Riding Tips,
The most frequent scooter collision
happens when a car turns left in front of a
scooter. Another common situation is a car
moving suddenly into your lane.
Even if you have ridden other scooters,
take time to become familiar with how
this scooter works and handles. Practice in
a safe area until you build your skills and
get accustomed to the scooter’s size and
weight.
Because many crashes involve
inexperienced or untrained riders, we urge
all riders to take a motorcycle operator
course approved by the Motorcycle Safety
Foundation (MSF). See page .
Some drivers do not see scooters because
they are not looking for them. To make
yourself more visible, wear bright
reflective clothing, position yourself so
other drivers can see you, signal before
turning or changing lanes, and use your
horn when it will help others notice you.
Always pay attention to other vehicles
around you, and do not assume that other
drivers see you. Be prepared to stop
quickly or make an evasive maneuver. For
other riding tips, see the booklet,
which came
with your new scooter.
38
０９／１２／１４ １４：４３：５１ ３１ＭＧＦ６１０ ００１２
4
Important Safety Information
Don’t Drink and Ride
Ride within Your Limits Keep Your Honda in Safe Condition
Scooter Safety
Alcohol and riding don’t mix. Even one
drink can reduce your ability to respond to
changing conditions, and your reaction
time gets worse with every additional
drink. So don’t drink and ride, and don’t
let your friends drink and ride either.
Pushing limits is another major cause of
scooter crashes. Never ride beyond your
personal abilities or faster than conditions
warrant. Remember that alcohol, drugs,
fatigue, and inattention can significantly
reduce your ability to make good
judgments and ride safely.
It’s important to keep your scooter
properly maintained and in safe riding
condition. To help avoid problems, inspect
your scooter before every ride and
perform all recommended maintenance.
Never exceed load limits (page ), and
do not modify your scooter (page ) or
install accessories that would make your
scooter unsafe (page ).
44
6
5
０９／１２／１４ １４：４３：５７ ３１ＭＧＦ６１０ ００１３
Improper accessories or
modifications can cause a crash in
which you can be seriously hurt or
killed.
Follow all instructions in this
owner’s manual regarding
accessories and modifications.
5
Accessories
Accessories & Modifications
Scooter Safety
Make sure the accessory does not
obscure any lights, reduce ground
clearance and lean angle, limit
suspension travel or steering travel, alter
your riding position, or interfere with
operating any controls. (cont’d)
Modifying your scooter or using non-
Honda accessories can make your scooter
unsafe. Before you consider making any
modifications or adding an accessory, be
sure to read the following information.
We strongly recommend that you use only
Honda Genuine Accessories that have
been specifically designed and tested for
your scooter. Because Honda cannot test
all other accessories, you must be
personally responsible for proper selection,
installation, and use of non-Honda
accessories.
Check with your Honda dealer for
assistance and always follow these
guidelines:
０９／１２／１４ １４：４４：０３ ３１ＭＧＦ６１０ ００１４
6
Modifications
Accessories & Modifications
Scooter Safety
Do not add any electrical equipment
that will exceed the scooter’s electrical
system capacity (page ). A blown
fuse can cause a loss of lights or engine
power (page ).
Do not pull a trailer or sidecar with your
scooter. This scooter was not designed
for these attachments, and their use can
seriously impair your scooter’s handling.
We strongly advise you not to remove any
original equipment or modify your scooter
in any way that would change its design or
operation. Such changes could seriously
impair your scooter’s handling, stability,
and braking, making it unsafe to ride.
Removing or modifying your lights,
exhaust system, emission control system,
or other equipment can also make your
scooter illegal.
201
185
０９／１２／１４ １４：４４：０８ ３１ＭＧＦ６１０ ００１５
7

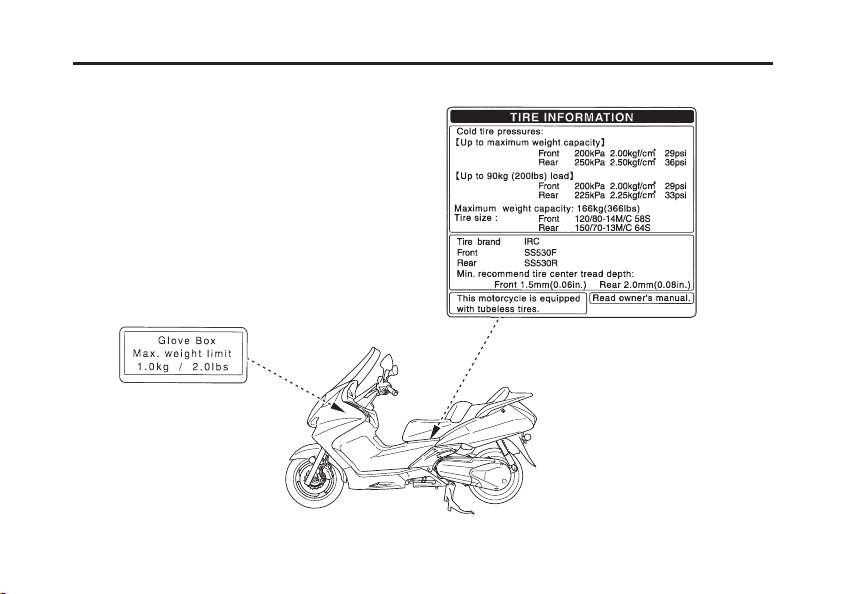

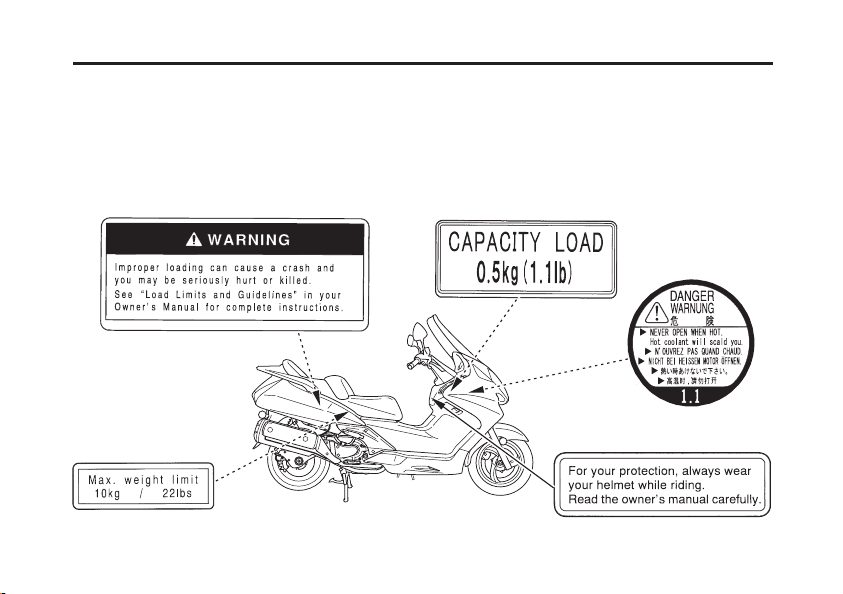

Safety Labels
Scooter Safety
If a label comes off or becomes hard to read, contact your Honda dealer for a replacement.
Safety labels on your scooter either warn you of potential hazards that could cause serious
injury or they provide important safety information. Read these labels carefully and don’t
remove them.
０９／１２／１４ １４：４４：１９ ３１ＭＧＦ６１０ ００１６
8
Safety Labels
Scooter Safety
０９／１２／１４ １４：４４：２７ ３１ＭＧＦ６１０ ００１７
9
Instruments & Controls
Instruments & Controls
The items listed on this page are described
in this section. Instructions for other
components are presented in other sections
of this manual where they will be most
useful.
This section shows the location of all
gauges, indicators, and controls you would
normally use before or while riding your
scooter.
...........Operation Component Locations .
...............Gauges, Indicators & Displays .
.......................Multi-function Display .
...............Coolant Temperature Meter .
..........................................Fuel Gauge .
...............Odometer/Tripmeter A & B .
......................................Digital Clock .
................................Controls & Features .
...................................Ignition Switch .
.........................................Start Button .
............................Engine Stop Switch .
.................Headlight Dimmer Switch .
.............................Turn Signal Switch .
........................................Horn Button .
....................................RESET Button .
....................................MODE Button .
............................Parking Brake Lock .
10
13
20
21
23
24
25
28
28
29
29
30
30
31
31
31
32
０９／１２／１４ １４：４４：４０ ３１ＭＧＦ６１０ ００１８
turn signal switch
horn button start button
engine stop
switch
throttle grip
rear brake lever
headlight
dimmer switch
front brake lever
left fairing pocket left fairing pocket lock
ignition switch
right fairing pocket
10
Instruments & Controls
Operation Component Locations
０９／１２／１４ １４：４４：４５ ３１ＭＧＦ６１０ ００１９
center compartment
parking
brake lever
11
Instruments & Controls
Operation Component Locations
０９／１２／１４ １４：４４：４９ ３１ＭＧＦ６１０ ００２０
helmet holder
seat lock
12
Instruments & Controls
Operation Component Locations
０９／１２／１４ １４：４４：５２ ３１ＭＧＦ６１０ ００２１
(14)
(3)(2)(1) (4) (6)(5) (8)(7)
(13)(12)(11)(10)(9)(15)
13
Instruments & Controls
Gauges, Indicators & Displays
The gauges and indicators on your scooter
keep you informed, alert you to possible
problems, and make your riding safer and
more enjoyable. Refer to the gauges and
indicators frequently. Their functions are
described on the following pages.
(1) tachometer
(2) tachometer red zone
(3) left turn signal indicator
(4) speedometer
(5) right turn signal indicator
(6) low oil pressure indicator
(7) high coolant temperature indicator
(8) multi-function display
(9) RESET button
(10) MODE button
(11) high beam indicator
(12) V-matic indicator
(13) PGM-FI malfunction indicator lamp
(MIL)
(14) parking brake indicator
(15) anti-lock brake system (ABS)
indicator (FSC600A)
０９／１２／１４ １４：４４：５９ ３１ＭＧＦ６１０ ００２２
−
14
Instruments & Controls
Gauges, Indicators & Displays
Lamp
Check.
Lamp Check
The low oil pressure indicator comes on
when you turn the ignition switch ON so
you can check that it is working. The
indicator remains on until after the engine
is started.
When applicable, the parking brake and
high beam indicators come on when you
turn the ignition switch ON and remains
on until you release the parking brake
lever or select the low beam.
If one of these indicators does not come
on when it should, have your Honda dealer
check for problems.
The high coolant temperature indicator
and V-matic indicator light for a few
seconds and then go off when you turn the
ignition switch ON.
These indicators are identified in the table
on pages with the words:
The PGM-FI malfunction indicator lamp
lights for a few seconds and then goes off
when you turn the ignition switch ON.
The anti-lock brake system (ABS)
indicator comes on when you turn the
ignition switch ON. This indicator goes
off after you ride the scooter at a speed
above 6 mph (10 km/h).
16(FSC600A only) 19
０９／１２／１４ １４：４５：０６ ３１ＭＧＦ６１０ ００２３
(1)
(1) multi-function display
15
Gauges, Indicators & Displays
Instruments & Controls
Display Check.
Display Check
When the ignition switch is turned ON, the
multi-function display ( ) will display
from the bottom up in sequence.
Thereafter, it will temporarily show all the
modes and digital segments so you can
make sure the liquid crystal display is
functioning properly.
The displays are identified in the table on
page with the words:
If any part of these displays does not come
on when it should, have your Honda dealer
check for problems.
17
1
０９／１２／１４ １４：４５：１２ ３１ＭＧＦ６１０ ００２４
16
Gauges, Indicators & Displays
Instruments & Controls
Lamp Check
Lamp Check.
tachometer Shows engine speed in revolutions per minute (rpm).
tachometer red zone Shows excessive engine rpm range (indicated from
the beginning of the tachometer red zone) in which
operation may damage the engine. Do not let the
tachometer needle enter the red zone.
left turn signal indicator
(amber)
Flashes when the left turn signal operates.
speedometer Shows riding speed in miles or kilometers per hour.
right turn signal indicator
(amber)
Flashes when the right turn signal operates.
low oil pressure indicator
(red)
Lights when engine oil pressure is low enough to
cause engine damage. If the low oil pressure
indicator lights during operation, pull safely to the
side of the road. See page for instructions and
cautions. .
Lights when the coolant is over the specified
temperature. If the indicator comes on, pull safely to
the side of the road. See page for instructions
and cautions.
high coolant temperature
indicator (red)
1
2
3
4
5
6
7
184
182
０９／１２／１４ １４：４５：２３ ３１ＭＧＦ６１０ ００２５
4.23 US gal (16.0 )
0.92 US gal (3.5
)
17
Gauges, Indicators & Displays
Instruments & Controls
Display Check.
8 multi-function display The display includes the following functions:
coolant temperature
meter
Shows coolant temperature (page ).
fuel gauge Shows approximate fuel supply available (page ).
When segment F comes on, the fuel tank capacity is:
When segment E flashes while riding, fuel reserved
in the tank is about:
odometer Shows the total miles ridden.
Shows the number of miles ridden since you last reset
the meter. The tripmeter has two sub modes, ‘‘A’’ and
‘‘B.’’ To zero (0) the tripmeter, press and hold the
RESET button (page ).
tripmeter A & B
digital clock Shows hour and minute (page ).
21
23
24
25
０９／１２／１４ １４：４５：３４ ３１ＭＧＦ６１０ ００２６
18
Gauges, Indicators & Displays
Instruments & Controls
Lamp
Check
Resets the tripmeter to zero (0) (page ).
Also used to set the digital clock (page ).
RESET button
MODE button Selects tripmeter A, tripmeter B, or odometer (page
).
Also used to set the digital clock (page ).
high beam indicator
(blue)
Lights when the headlight is on high beam.
V-matic indicator
(amber)
Lights when V-matic parts have to be replaced. If
the indicator lights, see your Honda dealer.
.
9
10
11
12
24
24
25
25
０９／１２／１４ １４：４５：４２ ３１ＭＧＦ６１０ ００２７
19
Gauges, Indicators & Displays
Instruments & Controls
Lamp Check.
ABS indicator light
Lamp Check.
Lights as a reminder that you have not released the
parking brake lever.
13
14
15
PGM-FI malfunction
indicator lamp (MIL)
(red)
parking brake indicator
(red)
anti-lock brake system
(ABS) indicator (red)
Flashes when there is any abnormality in the PGM-
FI (Programmed Fuel Injection) system. Should also
light for a few seconds and then go off when the
ignition switch is turned ON and the engine stop
switch is at RUN. If the indicator comes on at any
other time, reduce speed and take your scooter to a
Honda dealer as soon as possible.
Lights when there is any abnormality in the anti-lock
brake system (ABS). Normally, this indicator comes
on when the ignition switch is turned ON, and goes
off after you ride the scooter at a speed above 6 mph
(10 km/h). If the indicator comes on while riding,
stop the scooter in a safe place and turn off the
engine. Refer to , page . For
information about ABS, see page .
(FSC600A)
70
71
０９／１２／１４ １４：４５：４８ ３１ＭＧＦ６１０ ００２８
(6)(7)
(1)
(2)
(5)
(5) digital clock
(6) RESET button
(7) MODE button
(1) multi-function display
(2) coolant temperature meter
(3) odometer/tripmeter A & B
(4) fuel gauge
(4)
(3)
20
Multi-function Display
Gauges, Indicators & Displays
Instruments & Controls
The multi-function display ( ) includes
the following functions:
Both the digital clock and tripmeter will
reset if the battery is disconnected.
1
coolant temperature meter
odometer/tripmeter A & B
fuel gauge
digital clock
０９／１２／１４ １４：４５：５５ ３１ＭＧＦ６１０ ００２９
(1)
(1) coolant temperature meter
21
Coolant Temperature Meter
Gauges, Indicators & Displays
Instruments & Controls
The coolant temperature meter ( ) shows
the coolant temperature digitally.
1
０９／１２／１４ １４：４６：００ ３１ＭＧＦ６１０ ００３０
−
(2)(3)
(2) segment H
(3) high coolant temperature indicator
22
Gauges, Indicators & Displays
Instruments & Controls
Continuing to ride with an overheated
engine can cause serious engine damage.
Overheating Message:
When the coolant temperature rises above
a certain level, segment H ( ) goes on. At
the same time, the high coolant
temperature indicator ( ) lights.
If this occurs, stop the engine and check
the reserve tank coolant level. Read pages
and do not ride the scooter
until the problem has been corrected.
118 121
2
3
０９／１２／１４ １４：４６：０６ ３１ＭＧＦ６１０ ００３１
4.23 US gal (16.0 )
0.92 US gal (3.5
)
(1)
(3)
(1) fuel gauge
(2) segment F
(3) segment E
(2)
23
Fuel Gauge
Gauges, Indicators & Displays
Instruments & Controls
When segment E ( ) flashes, you should
refill the tank as soon as possible.
The amount of fuel remaining when the
flashing starts is approximately:
The fuel gauge liquid crystal display ( )
shows the approximate fuel supply
available in a graduated display. When
segment F ( ) goes on, the fuel tank
capacity is:
1
2
3
０９／１２／１４ １４：４６：１２ ３１ＭＧＦ６１０ ００３２
(2)
(3)
(4)
(5)
(4) MODE button
(5) RESET button
(1) odometer
(2) tripmeter A
(3) tripmeter B
(1)
24
Odometer/Tripmeter A & B
Instruments & Controls
Gauges, Indicators & Displays
The odometer ( ) shows the total miles
ridden.
The tripmeter A ( ) and tripmeter B ( )
show number of miles ridden since you
last reset the meter.
To select the odometer, tripmeter A or
tripmeter B, press the MODE button ( ).
To reset the tripmeter, press and hold the
RESET button ( ) for more than 2
seconds when the display is in the
tripmeter A or tripmeter B.
1
23
4
5
０９／１２／１４ １４：４６：２１ ３１ＭＧＦ６１０ ００３３
(2) (3)
(1) digital clock
(2) MODE button
(3) RESET button
(1)
25
Digital Clock
Gauges, Indicators & Displays
Instruments & Controls
(cont’d)
The digital clock ( ) shows the hour and
minute. To adjust the time, proceed as
follows:
Press and hold both the MODE button
( ) and RESET button ( ) for more
than 2 seconds. The clock will be set in
the adjust mode with the hour display
flashing.
Turn the ignition switch ON.1.
2.
1
32
０９／１２／１４ １４：４６：２９ ３１ＭＧＦ６１０ ００３４
−
26
Gauges, Indicators & Displays
Instruments & Controls
To set the hour, press the RESET button
until the desired hour and AM/PM are
displayed.
Press the MODE button. The minute
display will start flashing.
Quick setting press and hold the
RESET button until the desired hour
appears.
3. 4.
０９／１２／１４ １４：４６：３７ ３１ＭＧＦ６１０ ００３５
−
27
Gauges, Indicators & Displays
Instruments & Controls
To set the minute, press the RESET
button until the desired minute is
displayed. The minute display will
return to ‘‘00’’ when ‘‘60’’ is reached
without affecting the hour display.
To end the adjustment, press the MODE
button or turn the ignition switch OFF.
The display will stop flashing
automatically.
The adjustment will be cancelled if the
button is not pressed within about 2
minutes.
Quick setting press and hold the
RESET button until the desired
minute appears.
5. 6.
０９／１２／１４ １４：４６：４３ ３１ＭＧＦ６１０ ００３６
ON
OFF
Electrical circuits on.
No electrical
circuits function.
No electrical circuits
function. Locks the
steering head.
LOCK
(steering
lock)
(1)
FRONT
(1) ignition switch
Key Position Function
ON
OFF
LOCK
28
Ignition Switch
Controls & Features
Instruments & Controls
To unlock the steering lock, insert and
push down on the key and turn it to the
right to the OFF position.
The ignition switch ( ) is used for starting
and stopping the engine (page ) and to
lock the steering for theft prevention
(page ). Insert the key and turn it to the
right for the ON position. Push down on
the key and turn it to the left to the LOCK
(steering lock) position.
1
55
73
０９／１２／１４ １４：４６：５３ ３１ＭＧＦ６１０ ００３７
(1)
RIGHT HANDLEBAR
(2)
OFF
RUN
(1) start button
(2) engine stop switch
29
Start Button Engine Stop Switch
Controls & Features
Instruments & Controls
Starting Procedure,
The start button ( ) is used for starting the
engine. Pushing the button in starts the
engine. See page .
The electric starter will only work when
the rear brake lever is pulled in and the
side stand is up.
The engine will not operate if the engine
stop switch is in the OFF position when
the start button is pushed.
The engine stop switch ( ) is used to stop
the engine in an emergency. To operate,
push the switch to the OFF position. The
switch must be in the RUN position to
start the engine, and it should normally
remain in the RUN position even when the
engine is OFF.
When the start button is pushed, the starter
motor will crank the engine; the headlight
will automatically go out, but the position
light, taillight and license light will stay on.
1
56
2
０９／１２／１４ １４：４７：０１ ３１ＭＧＦ６１０ ００３８
(1)
(2)
HI
LO
(3)
LEFT HANDLEBAR
(1) headlight dimmerswitch
(2) turn signal switch
(3) horn button
30
Turn Signal Switch
Headlight Dimmer Switch
Controls & Features
Instruments & Controls
Theturnsignalswitch( )isusedtosignal
a turn or a lane change. To operate, move
the switch all the way in the proper
direction and release it. The appropriate
turn signal lights will start blinking. To
cancel the light, push the switch in.
If your scooter is stopped with the ignition
switch ON and the engine stop switch
OFF, the headlight and taillight will
remain on, resulting in battery discharge.
The headlight dimmer switch ( ) is used
to change between the high and low beams
of the headlight. To operate, turn the
switch to HI for high beam, LO for low
beam.
1
2
０９／１２／１４ １４：４７：０８ ３１ＭＧＦ６１０ ００３９
−
31
Horn Button
RESET Button
MODE Button
Controls & Features
Instruments & Controls
The horn is used to alert other motorists.
To operate, push the horn button ( ).
The RESET button is used to reset (zero)
the tripmeter. To reset the tripmeter, press
and hold the button for 2 3 seconds
(page ).
TheMODEbuttonisusedtoselect
odometer, tripmeter A or tripmeter B. To
select from one tripmeter to the other,
press the button (page ).
TheRESETbuttonisalsousedtosetthe
digital clock (page ).
TheMODEbuttonisalsousedtosetthe
digital clock (page ).
25
24
25
24
3
０９／１２／１４ １４：４７：１６ ３１ＭＧＦ６１０ ００４０
32
Parking Brake Lock
Controls & Features
Instruments & Controls
Pull the parking brake lever ( ) back to
lock the rear wheel.
(See illustration on page ).
The parking brake lock will not be applied
if the parking brake is not adjusted
properly (page ).
Before riding, check that the parking
brake indicator is turned OFF and make
sure that the rear brake is fully released so
there is no drag on the rear wheel.
Be sure the parking brake is applied while
starting and warming up the engine.
The parking brake lock will not function if
the parking brake is not adjusted properly
(page ).
Before starting to ride the scooter, release
the parking brake lever ( ) while lightly
pulling down on the rear of the lever.
To Apply the Parking Brake Lock
To Release the Parking Brake Lock
1
33
141
141
1
０９／１２／１４ １４：４７：２３ ３１ＭＧＦ６１０ ００４１
＜＞
＜＞
(1) parking brake lever
To release
To apply
(1)
(1)
RIGHT SIDE
33
Controls & Features
Instruments & Controls
０９／１２／１４ １４：４７：２７ ３１ＭＧＦ６１０ ００４２
34
Instruments & Controls
０９／１２／１４ １４：４７：３０ ３１ＭＧＦ６１０ ００４３
35
Before Riding
Before Riding
Before each ride, you need to make sure
you and your Honda are both ready to ride.
To help get you prepared, this section
discusses how to evaluate your riding
readiness, what items you should check on
your scooter, and adjustments to make for
your comfort, convenience, or safety. This
section also includes important
information about loading.
For information about adjusting the
suspension on your Honda, see page .
........................Are You Ready to Ride? .
..............................Protective Apparel .
....................................Rider Training .
.............Is Your Scooter Ready to Ride? .
.............................Pre-ride Inspection .
......................Load Limits & Guidelines .
...............................................Loading .
........................................Load Limits .
............................Loading Guidelines .
..............................Cargo Compartments .
..........................Center Compartment .
..........................Right Fairing Pocket .
.............................Left Fairing Pocket .
........................Comfort & Convenience .
...........................Adjustable Backrest .
.........................................Trunk Light .
132
36
36
38
40
40
43
43
44
45
47
47
49
50
51
51
52
０９／１２／１４ １４：４７：４３ ３１ＭＧＦ６１０ ００４４
36
Protective Apparel
Are You Ready to Ride?
Before Riding
Read this owner’s manual.
Make sure you understand all the safety
messages.
Know how to operate all the controls.
You feel well and are in good physical
and mental condition.
Before each ride, be sure: For your safety, we strongly recommend
that you always wear an approved
motorcycle helmet, eye protection, boots,
gloves, long pants, and a long-sleeved
shirt or jacket whenever you ride.
Although complete protection is not
possible, wearing proper gear can reduce
the chance of injury when you ride.
Following are suggestions to help you
choose the proper gear.
Before you ride your scooter for the first
time, we urge you to:
Youarewearinganapproved
motorcycle helmet (with chin strap
tightened securely), eye protection, and
other protective clothing.
You don’t have any alcohol or drugs in
your system.
Make sure your passenger is ready to ride,
too, and is wearing proper gear including a
helmet.
If you must carry an extra helmet while
riding, use a commercially available
elastic cord, strap, or net to secure the
helmet to the seat.
０９／１２／１４ １４：４７：５２ ３１ＭＧＦ６１０ ００４５
Not wearing a helmet increases
the chance of serious injury or
death in a crash.
Be sure you and your passenger
always wear a helmet, eye
protection, and other protective
apparel when you ride.
37
Are You Ready to Ride?
Before Riding
(cont’d)
Helmet and Eye Protection
Your helmet is your most important piece
of riding gear because it offers the best
protection against head injuries. A helmet
should fit your head comfortably and
securely. A bright-colored helmet and
reflective strips can make you more
noticeable in traffic.
Leather gloves to help protect your
hands.
Sturdy boots with non-slip soles to help
protect your feet and ankles.
In addition to a helmet and eye protection,
we also recommend:
Additional Riding Gear
An open-face helmet offers some
protection, but a full-face helmet offers
more. Regardless of the style, look for a
DOT (Department of Transportation)
sticker on any helmet you buy. Always
wear a face shield or goggles to protect
your eyes and help your vision.
０９／１２／１４ １４：４８：００ ３１ＭＧＦ６１０ ００４６
38
Rider Training
Are You Ready to Ride?
Before Riding
Riding Tips
We urge all riders to take a motorcycle
operator course approved by the
Motorcycle Safety Foundation (MSF).
New riders should start with the basic
course, and even experienced riders will
find the advanced course beneficial. For
information about the MSF training course
nearest you, call the national toll-free
number: (800) 446-9227.
A motorcycle riding suit or jacket for
comfort as well as protection.
Bright-colored and reflective clothing
can help make you more noticeable in
traffic. Avoid loose clothes that could
get caught on any part of your scooter.
Developing your riding skills is an on-
going process. Even if you have ridden
other scooters, take time to become
familiar with how this scooter works and
handles. Practice riding the scooter in a
safe area to build your skills. Do not ride
in traffic until you get accustomed to the
scooter’s controls, and feel comfortable
with its size and weight.
Other riding tips can be found in the
booklet that came with your
scooter.
０９／１２／１４ １４：４８：０５ ３１ＭＧＦ６１０ ００４７
39
Are You Ready to Ride?
Before Riding
ALWAYS wear a helmet.
You should also wear a face shield or goggles.
Wear bright or reflective clothing. Wear gloves.
Clothes should be close-fitting.
Boots should be close-fitting, have low heels and offer ankle protection.
０９／１２／１４ １４：４８：０９ ３１ＭＧＦ６１０ ００４８
Improperly maintaining this
scooter or failing to correct a
problem before riding can cause a
crash in which you can be
seriously hurt or killed.
Always perform a pre-ride
inspection before every ride and
correct any problems.
40
Pre-ride Inspection
Is Your Scooter Ready to Ride?
Before Riding
Tires
&
Wheels
Before each ride, it’s important to inspect
your scooter and make sure any problem
you find is corrected. A pre-ride
inspection is a must, not only for safety,
but because having a breakdown, or even
a flat tire, can be a major inconvenience.
Check the following items before you get
on the scooter:
Look at the tires. If a tire
appears low, use an air
pressure gauge to check its
pressure. Also look for
signs of excessive wear
(page ) or damage to
the tires and wheels.
144
０９／１２／１４ １４：４８：１５ ３１ＭＧＦ６１０ ００４９
41
Is Your Scooter Ready to Ride?
Before Riding
Leaks,
Loose
Parts
Lights
Load Limits
Cargo
Adjustments
Walk around your scooter
and look for anything that
appears unusual, such as a
leak or loose cable.
Make sure the headlight,
brakelight, taillight, and
turn signals are working
properly.
If you are carrying a passenger or cargo,
also check the following:
Make sure you do not
exceed the load limits
(page ).
Check that all cargo is
secure.
Adjust the rear suspension
(page ) according to
your load.
44
133
０９／１２／１４ １４：４８：２５ ３１ＭＧＦ６１０ ００５０
42
Is Your Scooter Ready to Ride?
Before Riding
Periodic MaintenanceThrottle
Brakes
Indicators
If you haven’t ridden the scooter in over a
week, you should also check other items,
such as the oil level and other fluids. See
(page ).
Periodic maintenance should also be done
at least once a month, no matter how often
you ride.
Remember, be sure to take care of any
problem you find, or have your Honda
dealer correct it before you ride.
Check these items after you get on the
scooter:
Rotate the throttle to check
it moves smoothly without
binding.
Pull the front and rear
brake levers to check that
they operate normally.
Turn the ignition on and
check for normal operation
of the gauges and
indicators (page ).13
84
０９／１２／１４ １４：４８：３３ ３１ＭＧＦ６１０ ００５１
Overloading or improper loading
can cause a crash and you can be
seriously hurt or killed.
Follow all load limits and other
loading guidelines in this manual.
43
Loading
Load Limits & Guidelines
Before Riding
Your scooter has been designed to carry
you and one passenger. When you carry a
passenger, you may feel some difference
during acceleration and braking. But so
long as you keep your scooter well-
maintained, with good tires and brakes,
you can safely carry loads within the
given limits and guidelines.
However, exceeding the weight limit or
carrying an unbalanced load can seriously
impair your scooter’s handling, braking,
and stability. Non-Honda accessories,
improper modifications, and poor
maintenance can also reduce your safety
margin.
How much weight you put on your scooter,
and how you load it, are important to your
safety. Anytime you ride with a passenger
or cargo, you should be aware of the
following information.
０９／１２／１４ １４：４８：３９ ３１ＭＧＦ６１０ ００５２
366 lb (166 kg)
25 lb (11.5 kg)
22 lb (10 kg)
2.0 lb (1.0 kg)
1.1 lb (0.5 kg)
44
Load Limits
maximum weight capacity:
maximum cargo weight:
Load Limits & Guidelines
Before Riding
Following are the load limits for your
scooter:
includes following maximum
compartment weights:
The weight of added accessories will
reduce the maximum cargo weight you
can carry.
The left and right fairing pockets are for
lightweight items.
includes the weight of the rider,
passenger, all cargo, and all accessories.
center compartment:
left fairing pocket:
right fairing pocket:
０９／１２／１４ １４：４８：４７ ３１ＭＧＦ６１０ ００５３
−
−
−
22 lb (10 kg)
2.0 lb (1.0 kg)
1.1 lb (0.5 kg)
45
Loading Guidelines
Load Limits & Guidelines
Before Riding
Your scooter is primarily intended for
transporting you and a passenger. You
may wish to secure a jacket or other small
items to the seat when you are not riding
with a passenger.
If you wish to carry more cargo, check
with your Honda dealer for advice, and be
sure to read the information regarding
accessories on page .5
center compartment;
weight limit
left fairing pocket;
weight limit
right fairing pocket;
weight limit
０９／１２／１４ １４：４８：５３ ３１ＭＧＦ６１０ ００５４
46
Load Limits & Guidelines
Before Riding
Follow these guidelines whenever you
carry a passenger or cargo:
Check that both tires are properly
inflated, and that pressure in the rear
tire is increased to suit the load
(page ).
If you change your normal load, you
may need to adjust the rear suspension
(page ).
To prevent loose items from creating a
hazard, make sure that all cargo is tied
down securely before you ride.
Place cargo weight as low and close to
the center of your scooter as possible.
Balance cargo weight evenly on both
sides.
Improperly loading your scooter can
affect its stability and handling. Even if
your scooter is properly loaded, you
should ride at reduced speeds and never
exceed 80 mph (130 km/h) when carrying
cargo.
133
142
０９／１２／１４ １４：４９：００ ３１ＭＧＦ６１０ ００５５
22 lb (10 kg).
(4)
(5)
(2)
(3)
(1)
(4) hooks
(5) seat catch
(1) center compartment
(2) ignition key
(3) seat lock
47
Center Compartment
Cargo Compartments
Before Riding
However, regardless of compartment
capacity, be sure you do not exceed the
maximum load and cargo weight limits.
The center compartment ( ) is designed to
carry up to
To Open the Center Compartment
Insert the ignition key (2) into the seat
lock (3) and turn it clockwise.
To Close the Center Compartment
Lower and push down on the opposite
side of the hooks (4) until it locks.
Remove the ignition key from the seat
lock.
1.
2.
1
０９／１２／１４ １４：４９：０６ ３１ＭＧＦ６１０ ００５６
48
Before Riding
Cargo Compartments
Before riding, make sure the seat is closed
securely. If not closed, the center
compartment light will remain lit,
resulting in battery discharge.
Do not place luggage or clothing near the
seat catch ( ). It could make the seat
difficult to open if it gets caught between
the seat hook and catch while closing the
seat.
5
０９／１２／１４ １４：４９：１０ ３１ＭＧＦ６１０ ００５７
2.0 lb (1.0 kg)
BELOW HANDLEBAR
(1)
(3)
(1) left fairing pocket
(2) ignition key
(3) knob
(4) left fairing
pocket cover
(4)
((22))
49
Left Fairing Pocket
Cargo Compartments
Before Riding
The left fairing pocket ( ) is for
lightweight items.
Cargo in the left fairing pocket should not
exceed:
Be careful not to flood this area when
washing your scooter.
To Open the Left Fairing Pocket
Insert the ignition key (2) and turn it
clockwise.
To Close the Left Fairing Pocket
Close the left fairing pocket cover and
turn the ignition key counterclockwise.
Remove the ignition key.
Make sure the cover is closed securely.
Raise the knob ( ) by pushing it, then
open the left fairing pocket cover ( ).
1
3
4
０９／１２／１４ １４：４９：２１ ３１ＭＧＦ６１０ ００５８
1.1 lb (0.5 kg)
(2)
(1)
BELOW HANDLEBAR
(3)
(1) right fairing pocket
(2) knob
(3) right fairing pocket cover
50
Right Fairing Pocket
Before Riding
Cargo Compartments
The right fairing pocket ( ) is for
lightweight items.
Cargo in the right fairing pocket should
not exceed:
Be careful not to flood this area when
washing your scooter.
To Open the Right Fairing Pocket
To Close the Right Fairing Pocket
Push the cover closed and check that it is
secure.
Do not open and close the right fairing
pocket while riding the scooter.
Do not store valuables or fragile articles in
the right fairing pocket.
Raise the knob ( ) by pushing it, then
open the right fairing pocket cover ( ).
1
2
3
０９／１２／１４ １４：４９：３０ ３１ＭＧＦ６１０ ００５９
(1) backrest
(2) bolts
(2)
(1)
51
Adjustable Backrest
Comfort & Convenience
Before Riding
The seat is equipped with a backrest ( )
which allows the seat to be adjusted to the
rider’s preference.
To Adjust the Backrest
Open the seat (page ), remove the bolts
( ) on the back and move the backrest
back and forth to the rider’s preference.
Install the bolts.
After cleaning or riding in the rain, wipe
off water collected under the backrest
before riding the scooter again.
1
2
47
０９／１２／１４ １４：４９：３８ ３１ＭＧＦ６１０ ００６０
(1)
(1) trunk light
52
Trunk Light
Comfort & Convenience
Before Riding
The trunk light ( ) turns ON
automatically when the seat is opened. It
remains ON as long as the seat is opened
regardless of the position of the ignition
switch.
1
０９／１２／１４ １４：４９：４３ ３１ＭＧＦ６１０ ００６１
53
Basic Operation & Riding
Basic Operation & Riding
To protect your new engine and enjoy
optimum performance and service life,
refer to Break-in Guidelines (page ).
This section gives basic riding instructions,
including how to start and stop your
engine, and how to use the throttle and
brakes. It also provides important
information on riding with a passenger or
cargo.
To protect the catalytic converter in your
scooter’s exhaust system, avoid extended
idling and the use of leaded gasoline.
.........................Safe Riding Precautions .
.............Starting & Stopping the Engine .
..........................................Preparation .
..............................Starting Procedure .
..................................Flooded Engine .
Bank Angle Sensor Ignition Cut-off
................................................System .
.....................How to Stop the Engine .
.....................................................Riding .
...................................................Braking .
....................................................Parking .
..........Riding with a Passenger or Cargo .
........................Theft-prevention Tips .
54
55
55
56
59
59
60
61
68
72
75
76
203
０９／１２／１４ １４：４９：５４ ３１ＭＧＦ６１０ ００６２
54
Safe Riding Precautions
Basic Operation & Riding
Scooter Safety
Before Riding
Before riding your scooter for the first
time, please review the
section beginning on page 1, and the
section beginning on
page .
Even if you have ridden other scooters,
take time to become familiar with how
this scooter works and handles. Practice in
a safe area until you build your skills and
get accustomed to the scooter’s size and
weight.
Make sure flammable materials such as
dry grass or leaves do not come in contact
with the exhaust system when riding,
idling, or parking your scooter.
35
０９／１２／１４ １４：４９：５８ ３１ＭＧＦ６１０ ００６３
55
Preparation
Starting & Stopping the Engine
Basic Operation & Riding
Always follow the proper starting
procedure described below.
For your safety, avoid starting or operating
the engine in an enclosed area such as a
garage. Your scooter’s exhaust contains
poisonous carbon monoxide gas which can
collectrapidlyinanenclosedareaand
cause illness or death.
Your scooter is equipped with a side stand
ignition cut-off system. If the side stand is
down––the engine cannot be started.
Do not use the electric starter for more
than 5 seconds at a time. Release the start
button for approximately 10 seconds
before pressing it again.
Operate the start button for slightly longer
than usual without opening the throttle if
the scooter has been left standing for a
long time or when the fuel tank has just
been refilled.
Before starting, insert the key, turn the
ignition switch ON, and confirm the
following:
The engine stop switch is set to RUN.
The low oil pressure indicator is ON.
The PGM-FI malfunction indicator
lamp (MIL) is OFF.
The high coolant temperature indicator
is OFF.
The V-matic indicator is OFF.
The ABS indicator light is ON.
(FSC600A)
０９／１２／１４ １４：５０：０９ ３１ＭＧＦ６１０ ００６４
Contact with the spinning rear
wheel can cause you to be hurt.
Set the parking brake when the
scooter is on its center stand.
56
Starting Procedure
Starting & Stopping the Engine
Basic Operation & Riding
Lock the rear wheel by squeezing the
rear brake lever ( ) and setting the
parking brake lever ( ).
The electric starter will only work when
the rear brake lever is pulled in and the
side stand is up.
Any Air Temperature
Place the scooter on its center stand.
This scooter has a fuel-injected engine
with an automatic fast idle. Follow the
procedure indicated below.
1.
2.
2
1
０９／１２／１４ １４：５０：１６ ３１ＭＧＦ６１０ ００６５
(3) ignition switch
OONN
(3)
LEFT HAN
DLEBAR
(1) rear brake lever
(2) parking brake lever
(2)
(1)
BELOW HANDLEBAR
57
Starting & Stopping the Engine
Basic Operation & Riding
Make sure the engine stop switch is at
RUN.
Turn the ignition switch ( ) ON.
(cont’d)
The low oil pressure indicator should go
off a few seconds after the engine starts.
If the low oil pressure indicator lights
during operation, stop the engine
immediately and check the engine oil level.
3.
4. 3
０９／１２／１４ １４：５０：２４ ３１ＭＧＦ６１０ ００６６
(5) throttle
(5)
(4) start button
PUSH
(4)
CLOSED
58
Starting & Stopping the Engine
Basic Operation & Riding
Riding,
Allow the engine to warm up before
riding (see page ).
Do not ‘‘blip’’ (rapidly open and close)
the throttle. This action may cause the
scooter to move forward suddenly.
With the throttle closed, push the start
button ( ). Release the start button as
soon as the engine starts.
Be sure to keep the throttle ( ) closed
and the parking brake locked while
starting and warming up the engine.
Snapping the throttle or fast idling for
more than about 5 minutes at normal air
temperature may cause exhaust pipe
discoloration.
The engine will not start if the throttle is
fully open (because the electronic control
module cuts off the fuel supply).
6.
7.
5
61
5.
4
０９／１２／１４ １４：５０：３２ ３１ＭＧＦ６１０ ００６７
−
59
Flooded Engine Bank Angle Sensor Ignition
Cut-off System
Starting & Stopping the Engine
Basic Operation & Riding
If
Your Engine Quits or Won’t Start,
If the engine fails to start after repeated
attempts, it may be flooded with excess
fuel. To clear a flooded engine:
Leave the engine stop switch set to
RUN.
Open the throttle fully.
Press the start button for 5 seconds.
Follow the normal starting procedure.
If the engine starts, open the throttle
slightly if idling is unstable.
If the engine does not start, wait 10
seconds, then follow steps again.
If the engine still won’t start, refer to
page .
Your scooter’s banking (lean angle) sensor
system is designed to automatically stop
the engine and fuel pump if the scooter is
overturned.
Before restarting the engine, you must
turn the ignition switch to the OFF
position and then back to ON. The engine
will not restart until you perform this
procedure.
1.
2.
3.
4.
5.
41
173
０９／１２／１４ １４：５０：４２ ３１ＭＧＦ６１０ ００６８
60
How to Stop the Engine
Starting & Stopping the Engine
Basic Operation & Riding
Normal Engine Stop
The engine stop switch should normally
remain in the RUN position even when the
engine is OFF.
Emergency Engine Stop
To stop the engine in an emergency, use
the engine stop switch. To operate, press
the switch to the OFF position.
To stop the engine, turn the ignition switch
OFF.
If your scooter is stopped with the engine
stop switch OFF and the ignition switch
ON, the headlight, position light, taillight,
and license light will remain on, resulting
in battery discharge.
０９／１２／１４ １４：５０：４８ ３１ＭＧＦ６１０ ００６９
(1) parking brake lever
(1)
61
Riding
Basic Operation & Riding
Stand on the left side of the scooter and
push it forward and off the center stand.
(cont’d)
To prevent unexpected movement,
make sure the throttle is closed and the
parking brake is locked (page )
before moving the scooter off its center
stand.
1. 2.
32
０９／１２／１４ １４：５０：５４ ３１ＭＧＦ６１０ ００７０
(1) parking brake lever
(1)
62
Riding
Basic Operation & Riding
Mount the scooter from the left side,
keeping at least one foot on the ground
to steady the scooter.
To unlock the rear wheel, release the
parking brake lever ( ).
3. 4.
1
０９／１２／１４ １４：５０：５９ ３１ＭＧＦ６１０ ００７１
OPEN
CLOSED
(2)
(2) throttle
63
Riding
Basic Operation & Riding
Before starting off, indicate your
direction with the turn signals, and
check for safe traffic conditions. Grasp
the handlebars firmly with both hands.
To accelerate, open the throttle ( )
gradually. The scooter will move
forward.
To decelerate, close the throttle.
Do not blip (rapidly open and close) the
throttle as the scooter will move forward
suddenly.
(cont’d)
5. 6.
7.
2
０９／１２／１４ １４：５１：０７ ３１ＭＧＦ６１０ ００７２
CLOSED
(2)
(2) throttle
(3)
(3) front brake lever
(4) rear brake lever
(4)
FSC600 only:
64
Riding
Basic Operation & Riding
To slow the scooter, reduce the throttle
( ) and apply the front ( ) and rear ( )
brakes together.
Using only one brake reduces stopping
performance.
These models are not equipped with an
Anti-lock Brake System. Excessive brake
application may cause either wheel to lock,
reducing control of the scooter.
8.
2
34
０９／１２／１４ １４：５１：１３ ３１ＭＧＦ６１０ ００７３
(2) throttle
(2)
(4)
(3) front brake lever (4) rear brake lever
(3)
CLOSED
65
Riding
Basic Operation & Riding
After completing a turn, open the
throttle gradually to accelerate the
scooter.
(cont’d)
When approaching a corner or turn,
slow the scooter by closing the throttle
( ) fully and applying both the front
( ) and rear ( ) brakes at the same
time.
9. 10.
2
43
０９／１２／１４ １４：５１：２０ ３１ＭＧＦ６１０ ００７４
(2) throttle
(4)
(4) rear brake lever(3) front brake lever
CCLLOOSSEEDD
(2)
(3)
66
Riding
Basic Operation & Riding
When descending a steep grade, close
the throttle ( ) fully and apply both the
front ( ) and rear ( ) brakes to slow
the scooter.
Avoid continued use of the brakes,
which may cause the brakes to overheat
and reduce braking efficiency.
11.
4
2
3
０９／１２／１４ １４：５１：２５ ３１ＭＧＦ６１０ ００７５
67
Riding
Basic Operation & Riding
When riding in wet or rainy conditions
or loose surfaces, the ability to
maneuver and stop is reduced. For your
safety:
Exercise extreme caution when
braking, accelerating, or turning.
Ride at slower speeds and allow for
extra stopping distance.
Keep the scooter as upright as
possible.
Use extreme caution when riding
over slippery surface such as railroad
tracks, iron plates, manhole covers,
painted lines, etc.
12.
０９／１２／１４ １４：５１：２９ ３１ＭＧＦ６１０ ００７６
FSC600A only:
FSC600 only:
68
Braking
Basic Operation & Riding
Applying the brakes too hard may cause
the wheels to lock and slide, reducing
control of your scooter. If this happens,
release the brake controls, steer straight
ahead until you regain control, then
reapply the brakes more gently.
To slow or stop, apply the front and rear
brake levers smoothly.
Gradually increase braking as you feel the
brakes slowing your speed.
For support, before coming to a complete
stop, put your left foot down first, then
your right foot down.
Your scooter is equipped with a Combined
Braking System. Operating the front brake
lever applies the front brake. Operating
the rear brake lever applies the rear brake
and a portion of the front brake. For full
braking effectiveness, use the front and
rear brake levers simultaneously.
This model is also equipped with an Anti-
lock Brake System (page ).
This model is not equipped with an Anti-
Lock Brake System. As with a
conventional scooter braking system,
excessively hard application of the brake
controls may cause wheel lock, reducing
control of the scooter.
70
０９／１２／１４ １４：５１：３５ ３１ＭＧＦ６１０ ００７７
69
Braking
Basic Operation & Riding
Your ability to brake in a turn and to brake
hard in an emergency situation are
important riding skills. We suggest
attending a Motorcycle Safety Foundation
experienced rider training course
(page ) to retain these skills.
When possible, reduce your speed or
complete braking before entering a turn.
Avoid braking or closing the throttle
quickly while turning. Either action may
cause one or both wheels to slip and
reduce your control of your scooter.
When riding in wet or rainy conditions, or
on loose surfaces, the ability to maneuver
and stop will be reduced. All of your
actions should be smooth under these
conditions. Rapid acceleration, braking or
turning may cause loss of control.
For your safety, exercise extreme caution
when braking, accelerating or turning.
When descending a long, steep grade,
use both brakes intermittently.
Continuous brake application can
overheat the brakes and reduce their
effectiveness.
Riding with your hand on either brake
lever may actuate the brakelight, giving
a false indication to other drivers. It
may also overheat the brakes, reducing
effectiveness.
38
０９／１２／１４ １４：５１：４１ ３１ＭＧＦ６１０ ００７８
−
FSC600A only:
70
Anti-lock Brake System (ABS)
Braking
Basic Operation & Riding
This model is also equipped with an Anti-
lock Brake System (ABS) designed to help
prevent wheel lock up during hard braking
on uneven or other poor surfaces while
running straight. Although the wheel may
not lock up if you are braking too hard
in a turn the scooter can still lose traction,
causing a loss of control.
In some situations, a scooter with ABS
may require a longer stopping distance to
stop on loose or uneven surfaces than an
equivalent scooter without ABS.
ABS cannot make up for road conditions,
bad judgment, or improper operation of
the brakes. It is still your responsibility to
ride at reasonable speeds for weather, road
surface, and traffic conditions, and to
leave a margin of safety.
ABS may be activated by riding over a
sharpdroporriseintheroadlevel.
It is important to follow the tire
recommendations (page ). The ABS
computer works by comparing wheel
speed. Non-recommended tires can affect
wheel speed and may confuse the ABS
computer.
ABS does not function if the battery is
discharged.
ABS is self-checking and is always on.
ABS does not function at low speeds
(approximately 6 mph (10 km/h) or
below).
148
０９／１２／１４ １４：５１：４８ ３１ＭＧＦ６１０ ００７９
FSC600A only:
71
ABS Indicator Light
Braking
Basic Operation & Riding
Normally, this light comes on when the
ignition is turned ON, and goes off after
you ride the scooter at speed above 6 mph
(10 km/h). If there is an ABS problem, the
indicator light comes on and remains on.
The ABS system does not operate when
the ABS indicator light is on.
If the ABS indicator light comes on while
riding, stop the scooter in a safe place and
turn off the engine.
Turn the ignition ON again. The light
should come on, and go off after you ride
the scooter at speeds above 6 mph
(10 km/h). If it does not go off, ABS is
not functioning, but the brakes still work
the Combined Brake System and provide
normal stopping ability. However, you
should have the system checked by Honda
dealer as soon as possible.
The ABS indicator light may come on if
you turn the rear wheel at high speed for
more than 30 seconds while the scooter is
upright on the stand. This is normal. Turn
the ignition OFF, then turn it ON. The
indicator should come on, then go off
after you run the scooter above 19 mph
(30 km/h).
０９／１２／１４ １４：５１：５３ ３１ＭＧＦ６１０ ００８０
USE CENTER STAND
72
Parking
Basic Operation & Riding
Catalytic
Converter
Look for a level parking area. If you
can’t park on a paved surface, make
sure the ground surface is firm,
especially under the center stand.
To lower the side stand, use your
foot to guide it down.
Use the side or center stand to support
the scooter while parked.
If you must park on a hill, position the
rear tire against the curb at a 45 degree
angle.
If you have to park on a soft surface,
insert something solid under the stand
for support.
To lower the center stand, stand on
the left side of the scooter. Hold the
left handle grip and the left passenger
handrail. Press down on the tip of the
stand with your right foot and,
simultaneously, pull up and back.
Make sure flammable materials such as
dry grass or leaves do not come in
contact with the exhaust system when
parking your scooter. Refer to
,page .
Check that the side stand is down all
the way so that the side stand ignition
cut-off system (page ) is activated.
1.
2.
55
211
０９／１２／１４ １４：５２：０１ ３１ＭＧＦ６１０ ００８１
(1) ignition key (A) push in
(B)turntoLOCK
(C)turntoOFF
((AA))
((AA))
((CC))
(1)
((BB))
To lock
To
unlock
LOCK STEERING
73
Parking
Basic Operation & Riding
Use the steering lock, which locks the
handlebar in place. Turn the handlebar
all the way to the left or right. Push in
on the ignition key ( ) and turn it to
LOCK. Remove the key.
(To unlock the steering lock, insert and
push the key in and turn it to the right to
the OFF position.)
(cont’d)
3.
1
09/12/18 09:34:00 31MGF610_082
(2)
(2) holder hook
74
Parking
Basic Operation & Riding
Use the helmet holder to secure your
helmet with your scooter:
Open the seat (page ).
Hang your helmet on the holder hook
().
Close the seat. Check that it is locked.
4.
47
2
０９／１２／１４ １４：５２：１４ ３１ＭＧＦ６１０ ００８３
75
Theft-prevention Tips
Parking
Basic Operation & Riding
If you decide to use an anti-theft device,
select one of good quality and be sure to
follow the manufacturer’s instructions.
Always take the ignition key with you.
Always use the steering lock (page ),
even if you’re parking for just a minute
or two. A thief can easily push an
unlocked scooter to a waiting truck.
In addition to the steering lock, use a
good quality anti-theft device made
specifically to lock a scooter to a secure
object.
Keep your owner’s manual, current
registration, and insurance information
with your scooter. This will make it
easier for the authorities to find you if
your scooter is stolen and recovered.
Park your scooter in a locked garage
whenever possible. If a garage isn’t
available, park in a concealed area or in
a well-lit area with enough pedestrian
traffic to discourage a thief.
73
０９／１２／１４ １４：５２：２１ ３１ＭＧＦ６１０ ００８４
76
Riding with a Passenger or Cargo
Basic Operation & Riding
Load Limits,
Loading Guidelines,
Before riding with a passenger, make sure
your passenger is wearing the proper
protective apparel (page ).
Your scooter is designed to carry you and
one passenger. Whenever you add a
passenger or cargo, you must be careful
not to exceed the total load limits for this
vehicle ( page ). Make
sure your cargo is properly secured
(page).
Tell your passenger to hold the passenger
handrails or your waist, lean with you in
the turns, and keep their feet on the
passenger footpegs at all times, even when
the scooter is stopped at a traffic light.Also consider adjusting the suspension
(page ) for the extra load.
Be aware that carrying a passenger or
heavy cargo can affect acceleration,
braking, and handling.
44
45
36
133
０９／１２／１４ １４：５２：２７ ３１ＭＧＦ６１０ ００８５
77
Servicing Your Honda
Servicing Your Honda
Maintenance, replacement or repair of
the emission control devices and
systems may be performed by any
motorcycle repair establishment or
individual using parts that are
‘‘certified’’ to EPA standards.
Before You Service Your Honda
(cont’d)
To help keep your scooter in good shape,
this section includes a Maintenance
Schedule for required service, a list of
periodic checks you should perform at
least once a month, and step-by-step
instructions for specific maintenance tasks.
You’ll also find important safety
precautions, information on fuels and oils,
and tips for keeping your Honda looking
great.
For information about the exhaust
emission and noise emission requirements
of the U.S. Environmental Protection
Agency (EPA) and the California Air
Resources Board (CARB), see page .
For information about replacing fuses, see
page .
............The Importance of Maintenance .
................................Maintenance Safety .
.............Important Safety Precautions .
.............................Periodic Maintenance .
...........................Maintenance Schedule .
...............................Maintenance Record .
80
81
82
84
86
91
185
204
０９／１２／１４ １４：５２：３６ ３１ＭＧＦ６１０ ００８６
78
Servicing Your Honda
Servicing Your Honda
Service Preparations
Service Procedures
Engine
Chassis
Electrical
Fluids & Filters
......Maintenance Component Locations .
...................................................Tool Kit .
........................Owner’s Manual Storage .
..............................Rear Cover Removal .
.......................Left Side Cover Removal .
................Right Side Cover Removal .
...........Right Fairing Pocket Removal .
.....................................................Fuel .
..Engine Oil, Filter & Strainer Screen .
................................................Coolant .
.........................................Air Cleaner .
............................Crankcase Breather .
...............................................Throttle .
...............................Engine Idle Speed .
..........................................Suspension .
.................................................Brakes .
....................................................Tires .
...........................................Side Stand .
................................................Battery .
................................Appearance Care .
.........................................Spark Plugs .
93
96
97
98
99
101
103
104
108
118
122
124
125
127
129
132
135
142
150
151
156
０９／１２／１４ １４：５２：５３ ３１ＭＧＦ６１０ ００８７
＊
＊＊
＊
＊＊
79
Servicing Your Honda
Servicing Your Honda
Type of Inspection/Service
Maintenance Schedule
Periodic Maintenance
Pre-ride Inspection
interval on schedule
monthly
before every ride
your Honda dealer
you
you
Who PerformsWhen PerformedRefer to page:
40
84
86
unless you have the proper tools and service data and are mechanically qualified
The following table summarizes the three types of inspections and servicing
recommendations for your scooter. Both the pre-ride inspection and the scheduled
maintenance at the recommended intervals are necessary to assure safe and dependable
performance. The periodic checks provide additional confidence in your scooter’s
performance.
more often if you ride frequently or long distances; or anytime you clean your scooter
０９／１２／１４ １４：５３：０６ ３１ＭＧＦ６１０ ００８８
Improperly maintaining this
scooter or failing to correct a
problem before you ride can
causeacrashinwhichyoucanbe
seriously hurt or killed.
Always follow the inspection and
maintenance recommendations
and schedules in this owner’s
manual.
80
The Importance of Maintenance
Servicing Your Honda
Keeping your scooter well-maintained is
absolutely essential to your safety. It’s
also a good way to protect your
investment, get maximum performance,
avoid breakdowns, and have more fun. A
properly maintained scooter will also help
to reduce air pollution.
Remember, proper maintenance is the
owner’s responsibility. Be sure to inspect
your scooter before each ride, perform the
periodic checks, and follow the
Maintenance Schedule in this section.
If your scooter overturns or is involved in
a crash, be sure your Honda dealer
inspects all major parts, even if you are
able to make some repairs.
０９／１２／１４ １４：５３：１１ ３１ＭＧＦ６１０ ００８９
Failure to properly follow
maintenance instructions and
precautions can cause you to be
seriously hurt or killed.
Always follow the procedures and
precautions in this owner’s
manual.
81
Maintenance Safety
Servicing Your Honda
Other tasks that are more difficult and
require special tools are best performed by
professionals. Wheel removal should
normally be handled only by a Honda
technician or other qualified mechanic.
Instructions are included in this manual
only to assist in emergency service.
Some of the most important safety
precautions follow. However, we cannot
warn you of every conceivable hazard that
can arise in performing maintenance. Only
you can decide whether or not you should
perform a given task.
This section includes instructions on how
to perform some important maintenance
tasks. If you have basic mechanical skills,
you can perform many of these tasks with
the tools provided with your scooter.
０９／１２／１４ １４：５３：１６ ３１ＭＧＦ６１０ ００９０
82
Important Safety Precautions
Maintenance Safety
Servicing Your Honda
Carbon monoxide poisoning from
engine exhaust.
Burns from hot scooter parts.
Injury from moving parts.
Read the instructions before you begin,
and make sure you have the tools and
skills required.
Make sure the engine is off before you
begin any maintenance or repairs. This
will help eliminate several potential
hazards:
Be sure there is
adequate ventilation whenever you
operate the engine.
Let the
engine and exhaust system cool before
touching.
Do not run
the engine unless instructed to do so.
To help prevent the scooter from falling
over, park it on a firm, level surface,
using the side stand, center stand or a
maintenance stand to provide support.
To reduce the possibility of a fire or
explosion, be careful when working
around gasoline. Use only
non-flammable solvent, not gasoline, to
clean parts. Keep cigarettes, sparks, and
flames away from all fuel-related parts.
Be sure the rear brake lock is set before
running the engine while the scooter is
supported by the center stand. This will
prevent the rear wheel from spinning
and avoid the possibility of someone
being injured from contacting the wheel.
０９／１２／１４ １４：５３：２２ ３１ＭＧＦ６１０ ００９１
83
Maintenance Safety
Servicing Your Honda
Remember that your Honda dealer knows
your scooter best and is fully equipped to
maintain and repair it. To ensure the best
quality and reliability, use only new
Honda Genuine Parts or their equivalents
for repair and replacement. If you have the
tools and skills required for additional
maintenance jobs, you can purchase an
official Honda Service Manual
(page ).216
０９／１２／１４ １４：５３：２６ ３１ＭＧＦ６１０ ００９２
84
Periodic Maintenance
Servicing Your Honda
Check the odometer reading and perform
any scheduled maintenance checks that are
needed (page ). Remember, more
frequent checks may be needed for riding
in severe conditions.
In addition to the regularly scheduled
maintenance (page ) and daily pre-ride
inspection (page ), consider performing
the periodic checks on the following page
at least once a month, even if you haven’t
ridden your scooter, or as often as once a
week if you ride frequently or for long
distances. It’s a good idea to perform this
maintenance any time you clean your
scooter.
40
86
86
０９／１２／１４ １４：５３：３０ ３１ＭＧＦ６１０ ００９３
85
Periodic Maintenance
Servicing Your Honda
Fluids
Make sure the headlight, brakelight, taillight, and turn signals are
working properly.
Lights
Freeplay
Fuses Make sure you have a full supply of spare fuses.
Nuts & Bolts Check the major fasteners and tighten as needed.
Check the freeplay of the parking brake lever (page ), and throttle
grip.
Check the levels of the engine oil (page ), coolant (page ),
and brake fluid (page ). Add the correct fluid as necessary, and
investigate the cause of any low fluid level.
Check the air pressure with a gauge and add air if needed (page ).
Examine the tread for wear (page ).
Look closely for nails, embedded objects, cuts, and other types of
damage (page ). Roll your scooter so you can inspect the entire
surface.
Check the condition of the wheels.
Tires
&
Wheels
142
144
144
136
141
112 119
０９／１２／１４ １４：５３：４０ ３１ＭＧＦ６１０ ００９４
86
Servicing Your Honda
Maintenance Schedule
Some items in the Maintenance Schedule
can be performed with basic mechanical
skills and hand tools. Procedures for these
items are provided in this manual. Other
items involve more extensive procedures
and may require special training, tools,
and equipment. We recommend that you
have your Honda dealer perform these
tasks unless you have advanced
mechanical skills and the required tools
and equipment. Procedures for such items
in this schedule are provided in an official
Honda Service Manual available for
purchase (page ).
The service intervals in this Maintenance
Schedule are based on average riding
conditions. Some items will need more
frequent service if you ride in unusually
wet or dusty areas or at full throttle.
Consult your Honda dealer for
recommendations applicable to your
individual needs and use.
The required Maintenance Schedule that
follows specifies how often you should
have your scooter serviced, and what
things need attention. It is essential to have
your scooter serviced as scheduled to
maintain safe, dependable performance
and proper emission control.
216
０９／１２／１４ １４：５３：４５ ３１ＭＧＦ６１０ ００９５
＊＊＊
＊
＊＊
87
Maintenance Schedule
Servicing Your Honda
Perform the pre-ride inspection (page )
and owner maintenance (page ) at each
scheduled maintenance period.
Each item on the maintenance schedule
requires some mechanical knowledge.
Certain items (particularly those marked
and ) may require more technical
information and tools. Consult your
Honda dealer.
If you do not feel capable of performing a
given task or need assistance, remember
that your Honda dealer knows your
scooter best and is fully equipped to
maintain and repair it. If you decide to do
your own maintenance, use only Honda
Genuine Parts or their equivalents for
repair or replacement to ensure the best
quality and reliability.
In the interest of safety, we recommend
these items be serviced only by your
Honda dealer.
Should be serviced by your Honda
dealer, unless you have the proper tools
and service data and are mechanically
qualified. Refer to the official Honda
Service Manual (page ).
40
86 216
０９／１２／１４ １４：５３：５１ ３１ＭＧＦ６１０ ００９６
88
Servicing Your Honda
Maintenance Schedule
Summary of Maintenance Schedule Notes
& Procedures:
At higher odometer readings, repeat at
the frequency interval established here.
Maintenance Procedures:
I: inspect and clean, adjust, lubricate,
or replace, if necessary
C: clean
A: adjust
L: lubricate
R: replaceService more frequently if the scooter is
ridden in unusually wet or dusty areas.
Service more frequently if the scooter is
ridden often at full throttle or in the rain.
Inspect every 12,000 mi (19,200 km)
after replacement.
Replace every 2 years, or at indicated
odometer interval, whichever comes
first. Replacement requires mechanical
skill.
Replace every 2 years.
Replacement requires mechanical skill.
NOTES:
1.
2.
3.
4.
5.
6.
０９／１２／１４ １４：５３：５９ ３１ＭＧＦ６１０ ００９７
×
×
−
−
−
−
ー
＊
＊
＊
＊
＊
＊
＊
＊
＊
1,000 mi
1,000 km
0.6
1.0
R
I
4
6.4
C
I
NOTE
2
3
5
8
12.8
I
I
C
R
R
C
I
I
I
I
12
19.2
R
C
I
I
16
25.6
I
I
C
R
I
R
C
I
I
I
I
20
32.0
C
I
24
38.4
I
I
R
C
R
R
C
I
R
I
I
I
FUEL LINE
THROTTLE OPERATION
AIR CLEANER
CRANKCASEBREATHER
SPARK PLUG
VALVE CLEARANCE
ENGINE OIL
ENGINE OIL FILTER
ENGINE OIL STRAINER
SCREEN
ENGINE IDLE SPEED
RADIATOR COOLANT
COOLING SYSTEM
SECONDARYAIR SUPPLY
SYSTEM
EVAPORATIVE EMISSION
CONTROL SYSTEM
Refer to
page
125
122
124
129
108
113
113
127
118
ODOMETER READING (Note 1)
ITEM
FREQUENCY
INITIAL=
REGULAR=
600 mi (1,000 km) or 1 month: R
EVERY 8,000 mi (12,800km)
or 12months: R
EMISSIONS-RELATEDITEMS
89
Servicing Your Honda
Maintenance Schedule
Should be serviced by your Honda dealer, unless you have the proper tools and service data and are
mechanically qualified. Refer to the official Honda Service Manual (page ).216
０９／１２／１４ １４：５４：０９ ３１ＭＧＦ６１０ ００９８
×
×
−
−
−
−
−
−
−
−
−
＊
＊
＊
＊
＊
＊＊
＊
＊
＊＊
＊＊
＊
＊＊
1,000 mi
1,000 km
NOTE
4
6
5
0.6
1.0
I
I
I
I
4
6.4
I
I
I
I
8
12.8
C
I
I
I
I
I
I
I
I
I
I
I
12
19.2
I
R
I
I
I
16
25.6
R
C
I
I
I
I
I
I
I
I
I
I
I
20
32.0
I
I
I
I
24
38.4
I
C
R
I
I
I
I
I
I
I
I
I
I
DRIVE BELT
BELT CASE AIRCLEANER
FINAL DRIVE OIL
BRAKE FLUID
BRAKE PADS WEAR
BRAKE SYSTEM
BRAKE LOCK OPERATION
HEADLIGHTAIM
CLUTCH SHOES WEAR
SIDE STAND
SUSPENSION
NUTS, BOLTS, FASTENERS
WHEELS/TIRES
STEERING HEAD BEARINGS
Refer to
page
136
139
135
32
150
ODOMETER READING (Note 1)
ITEM
FREQUENCY
NON-EMISSION-RELATED ITEMS
90
Maintenance Schedule
Servicing Your Honda
Should be serviced by your Honda dealer, unless you have the proper tools and service data and are
mechanically qualified. Refer to the official Honda Service Manual (page ).
In the interest of safety, we recommend these items be serviced only by your Honda dealer.
216
０９／１２／１４ １４：５４：１９ ３１ＭＧＦ６１０ ００９９
91
Maintenance Record
Servicing Your Honda
Miles (km) Odometer Date Performed By: Notes
600 (1,000)
4,000 (6,400)
8,000 (12,800)
12,000 (19,200)
16,000 (25,600)
20,000 (32,000)
Keeping an accurate maintenance record will help ensure that your scooter is properly
maintained. Retain detailed receipts to verify the maintenance was performed. If the scooter
is sold, these receipts should be transferred with the scooter to the new owner. Make sure
whoever performs the maintenance completes this record. All scheduled maintenance,
including the 600 mile (1,000 km) initial maintenance, is considered a normal owner
operating cost and will be charged for by your dealer. Use the space under Notes to record
anything you want to remind yourself about or mention to your dealer.
０９／１２／１４ １４：５４：２６ ３１ＭＧＦ６１０ ０１００
92
Maintenance Record
Servicing Your Honda
Miles (km) Odometer Date NotesPerformed By:
24,000 (38,400)
28,000 (44,800)
32,000 (51,200)
36,000 (57,600)
40,000 (64,000)
44,000 (70,400)
48,000 (76,800)
52,000 (83,200)
56,000 (89,600)
60,000 (96,000)
64,000 (102,400)
68,000 (108,800)
０９／１２／１４ １４：５４：３２ ３１ＭＧＦ６１０ ０１０１
front brake fluid reservoir
rear brake lever
rear brake fluid reservoir
front brake lever
throttle grip
93
Servicing Your Honda
Maintenance Component Locations
０９／１２／１４ １４：５４：３６ ３１ＭＧＦ６１０ ０１０２
parking
brake lever
coolant
reserve tank
rear brake caliper engine oil filler cap/dipstick
fuel fill cap
rear suspension
spring pre-load
adjuster
air cleaner
engine oil filter
owner’s manual
tool kit
storage compartment
throttle stop screw
(engine idle speed)
94
Servicing Your Honda
Maintenance Component Locations
０９／１２／１４ １４：５４：４１ ３１ＭＧＦ６１０ ０１０３
spark plugs
crankcase breather tube
rear suspension
spring pre-load
adjuster
battery
engine oil strainer screen
engine oil strainer cap
front brake caliper
fuse box
fuse box
main fuse B
main fuse A
95
Servicing Your Honda
Maintenance Component Locations
０９／１２／１４ １４：５４：４５ ３１ＭＧＦ６１０ ０１０４
(1) tool kit
(1)(2)
UNDER SEAT
(2) storage compartment
96
Tool Kit
Servicing Your Honda
An optional, larger tool kit may be
available. Check with your Honda dealer’s
parts department.
The tool kit ( ) is stored in the storage
compartment ( ) under the seat (page ).2
1
47
０９／１２／１４ １４：５４：５１ ３１ＭＧＦ６１０ ０１０５
(1)
(2) storage compartment
UNDER SEAT
(2)
(1) plastic storage bag
97
Owner’s Manual Storage
Servicing Your Honda
Be careful not to flood this area when
washing your scooter.
Your scooter provides storage for the
owner’s manual so you’ll have it with you
for easy reference. Store your owner’s
manual (and other documents) in the
plastic storage bag ( ) in the storage
compartment ( ) under the seat.2
1
０９／１２／１４ １４：５４：５６ ３１ＭＧＦ６１０ ０１０６
(1) screws (2) rear cover
(2)
(1)
98
Servicing Your Honda
Rear Cover Removal
Safety PrecautionsRefer to on page .
Removal
The rear cover must be removed to
remove the left and right side cover.
Remove the screws (1).
Remove the rear cover (2).
Installation
Installation can be done in the reverse
order of removal.
2.
1.
82
０９／１２／１４ １４：５５：０３ ３１ＭＧＦ６１０ ０１０７
(1)
(1) A screws (2) B screw
(2)
99
Left Side Cover Removal
Servicing Your Honda
Safety PrecautionsRefer to on page .
Removal
(cont’d)
Remove the rear cover (page 98).
Open the seat (page 47).
Remove the A screws (1) and B screw
(2).
The left side cover must be removed to
service the main fuse A.
1.
2.
3.
82
０９／１２／１４ １４：５５：１０ ３１ＭＧＦ６１０ ０１０８
(8)
(10)
(8) (6) (4)
(6)
(3)
(5)
(5)
(7)
(7)
(9)
(7) prongs
(8) grommets
(9) C hooks
(10) C slots
(3) A hook
(4) turn signal light case
(5) B hooks
(6) B slots
100
Left Side Cover Removal
Servicing Your Honda
Installation
Installation can be done in the reverse
order of removal.
Remove the A hook (3) from the side of
turn signal light case (4).
Remove the B hooks (5) from the B
slots (6).
Remove the prongs (7) from the
grommets (8).
Remove the C hooks (9) from the C
slots (10).
4.
5.
6.
7.
０９／１２／１４ １４：５５：１７ ３１ＭＧＦ６１０ ０１０９
(1)
(1) A screws
101
Servicing Your Honda
Right Side Cover Removal
Safety PrecautionsRefer to on page .
The right side cover must be removed to
service the air cleaner.
Removal
(cont’d)
Remove the rear cover (page 98).
Open the seat (page 47).
Remove the A screws (1).
1.
2.
3.
82
０９／１２／１４ １４：５５：２４ ３１ＭＧＦ６１０ ０１１０
(6) prongs
(7) grommets
(8) C hooks
(9) C slots
(6)
(8)
(8)
(2)
(4)
(5)
(5)
(3)
(7)
(9)
(7)
(6)
(2) A hook
(3) turn signal light case
(4) B hooks
(5) B slots
102
Right Side Cover Removal
Servicing Your Honda
Remove the A hook (2) from the side of
turn signal light case (3).
Remove the B hooks (4) from the B
slots (5).
Remove the prongs (6) from the
grommets (7).
Remove the C hooks (8) from the C
slots (9).
Installation can be done in the reverse
order of removal.
Installation
4.
5.
6.
7.
０９／１２／１４ １４：５５：３１ ３１ＭＧＦ６１０ ０１１１
(2)
RIGHT SIDE
(2)
(1) screw
(2) right fairing pocket
(3) hooks
(3)(1)
(3)
103
Right Fairing Pocket Removal
Servicing Your Honda
Safety PrecautionsRefer to on page . Removal
The right fairing pocket must be removed
to access the coolant reserve tank.
Open the right fairing pocket cover
(page ).
Close the right fairing pocket cover.
Remove the right fairing pocket by
pulling it toward you.
Installation
Installation can be done in the reverse
order of removal.
Remove the screw (1).
Pry up on the edge of the right fairing
pocket ( ) to release the right and left
hooks ( ) as shown.
1.
2.
3.
4.
5.
82
50
2
3
０９／１２／１４ １４：５５：４１ ３１ＭＧＦ６１０ ０１１２
unleaded
86 (or higher)
type
pump octane
number
104
Fuel Recommendation
Fuel
Servicing Your Honda
Safety PrecautionsRefer to on page .
Use only unleaded fuel in your Honda.
The use of leaded fuel will damage the
catalytic converter(s). If you ride your
Honda in a country where leaded fuel
might be available, take precautions to use
only unleaded fuel.
Your engine is designed to use any
unleaded gasoline that has a pump octane
number of 86 or higher. Gasoline pumps
at service stations normally display the
pump octane number. For information on
the use of oxygenated fuels, see page .
82
212
０９／１２／１４ １４：５５：４８ ３１ＭＧＦ６１０ ０１１３
105
Fuel
Servicing Your Honda
Use of lower octane gasoline can cause
persistent ‘‘pinging’’ or ‘‘spark knock’’ (a
loud rapping noise) which, if severe, can
lead to engine damage. Light pinging
experienced while operating under a heavy
load, such as climbing a hill, is no cause
for concern.
If pinging or spark knock occurs at a
steady engine speed under normal load,
change brands of gasoline. If pinging or
spark knock persists, consult your Honda
dealer.
Never use stale or contaminated gasoline
or an oil/gasoline mixture. Avoid getting
dirt, dust, or water in the fuel tank.
０９／１２／１４ １４：５５：５３ ３１ＭＧＦ６１０ ０１１４
4.23 US gal (16.0 )
(1)
(1) fuel tank lid
106
Refueling ProcedureFuel Capacity
Fuel
Servicing Your Honda
Safety PrecautionsRefer to on page .Fuel tank capacity:
Open the fuel tank lid ( ).
The tank should be refilled as soon as
possible when the E segment in the fuel
gauge flashes.
1. 1
82
０９／１２／１４ １４：５６：００ ３１ＭＧＦ６１０ ０１１５
Gasoline is highly flammable and
explosive. You can be burned or
seriously injured when handling
fuel.
Stop the engine and keep heat,
sparks and flame away.
Handle fuel only outdoors.
Wipe up spills immediately.
(4)
(2) ignition key
(3) fuel fill cap
(4) filler neck
(3)
(2)
107
Servicing Your Honda
Fuel
Insert the ignition key ( ) in the fuel
fill cap ( ) and turn it clockwise.
Add fuel until the level reaches the
bottom of the filler neck ( ). Avoid
overfilling the tank. There should be no
fuel in the filler neck.
After refueling, install the fuel fill cap
by turning it clockwise.
Turn the ignition key counterclockwise
and remove it.
Close the fuel tank lid.
Remove the fuel fill cap by turning it
counterclockwise.
2.
3.
4.
5.
2
3
6.
7.
4
０９／１２／１４ １４：５６：０８ ３１ＭＧＦ６１０ ０１１６
108
Servicing Your Honda
Engine Oil, Filter & Strainer Screen
Engine oil quality is a major factor that
affects both the performance and the
service life of the engine.
Change the engine oil as specified in the
maintenance schedule on page .
When running in very dusty conditions, oil
changes should be performed more
frequently than specified in the
maintenance schedule.
Using the proper oil (page ) and filter,
and regularly checking, adding, and
changing oil will help extend your
engine’s life. Even the best oil wears out.
Changing oil helps get rid of dirt and
deposits in the engine. Operating the
engine with old or dirty oil can damage
your engine. Running the engine with
insufficient oil can cause serious damage
to the engine and transmission.
109
89
０９／１２／１４ １４：５６：１４ ３１ＭＧＦ６１０ ０１１７
＊
＊
SG or higher
except oils
labeled as energy
conserving on the
circular API
service label
SAE 10W-30
MA
Pro Honda GN4 4-stroke oil or an
equivalent motorcycle oil.API
classification
JASO T 903
standard
viscosity
(weight)
suggested oil
109
Oil Recommendation
Servicing Your Honda
Engine Oil, Filter & Strainer Screen
Suggested oils are equal in performance
to SJ oils that are not labeled as energy
conserving on the circular API service
label.
０９／１２／１４ １４：５６：２２ ３１ＭＧＦ６１０ ０１１８
OKNOT RECOMMENDED
110
Servicing Your Honda
Engine Oil, Filter & Strainer Screen
Other viscosities shown in the following
chart may be used when the average
temperature in your riding area is within
the indicated range.
Do not use API SH or higher oils
displaying a circular API ‘‘energy
conserving’’ service label on the
container. They may affect lubrication
and clutch performance.
Your scooter does not need oil additives.
Use the recommended oil.
Do not use non-detergent, vegetable, or
castor based racing oils.
０９／１２／１４ １４：５６：３１ ３１ＭＧＦ６１０ ０１１９
(1)
(2)
(1) code number of the sales company
of the oil
(2) oil classification
111
Servicing Your Honda
Engine Oil, Filter & Strainer Screen
JASO T 903 standard
The JASO T 903 standard is an index for
engine oils for 4-stroke motorcycle
engines.
There are two classes: MA and MB.
Oil conforming to the standard is labeled
on the oil container. For example, the
following label shows the MA
classification.
０９／１２／１４ １４：５６：３６ ３１ＭＧＦ６１０ ０１２０
−
−
RIGHT SIDE
(1)
(2)
(3)
(1) oil filler cap/dipstick
(2) upper level mark
(3) lower level mark
112
Checking & Adding Oil
Servicing Your Honda
Engine Oil, Filter & Strainer Screen
Safety PrecautionsRefer to on page .
Remove the oil fill cap/dipstick ( ) and
wipe it clean.
Stop the engine and wait 2 3 minutes.
Start the engine and let it idle for 3 5
minutes.
Park your scooter on its center stand on
a firm, level surface.
Insert the oil fill cap/dipstick until it
seats, but don’t screw it in.
2.
3.
4.
5.
1.
82
1
０９／１２／１４ １４：５６：４５ ３１ＭＧＦ６１０ ０１２１
113
Changing Engine Oil & Filter
and Cleaning Engine Oil
Strainer Screen
Servicing Your Honda
Engine Oil, Filter & Strainer Screen
Safety Precautions
Using the wrong oil filter may result in
leaks or engine damage.
If the oil is at or near the upper level
mark ( ) –– you do not have to add
oil.
If the oil is below or near the lower
level mark ( ) –– add the
recommended oil until it reaches the
upper level mark. (Do not overfill.)
Reinstall the oil fill cap/dipstick.
Check for oil leaks.
Refer to on page .
This procedure requires mechanical skill
and professional tools such as a torque
wrench, as well as a means for disposing
of the drained fluid (page ). If you do
not have the skills or the tools, see your
Honda dealer.
Remove the oil fill cap/dipstick and
check the oil level.
6.
7.
8.
2
3
82
170
０９／１２／１４ １４：５６：５２ ３１ＭＧＦ６１０ ０１２２
−
−
RIGHT SIDE
UNDER ENGINE
(1) oil plug
(2) oil filler cap/
dipstick
(3) O-ring
(4) spring
(5) oil strainer
screen
(2)
(3)
(1)
(4)
(5)
114
Servicing Your Honda
Engine Oil, Filter & Strainer Screen
Drain the Engine Oil:
Park the scooter on its center stand on a
firm, level surface.
If the engine is cold, start it and let it
idle for 3 5 minutes. Turn the engine
off. Wait 2 3 minutes for the oil to
settle.
Place a drain pan under the oil plug ( ).
To drain the oil, remove the oil filler
cap/dipstick ( ), oil plug, O-ring ( ),
spring ( ) and oil strainer screen ( ).
1.
2.
3.
4.
1
45
23
０９／１２／１４ １４：５７：０２ ３１ＭＧＦ６１０ ０１２３
UNDER ENGINE
(6)
(6) oil filter
115
Servicing Your Honda
Engine Oil, Filter & Strainer Screen
Install a New Oil Filter:
Improper disposal of drained fluids is
harmful to the environment.
Remove the oil filter ( ) with a filter
wrench and let the remaining oil drain
out. Discard the oil filter in an approved
manner (page ).
(cont’d)
Pour the drained oil into a suitable
container and dispose of it in an
approved manner (page ).
5.
6.
6
170
170
０９／１２／１４ １４：５７：０９ ３１ＭＧＦ６１０ ０１２４
19 lbf·ft (26 N·m , 2.7 kgf·m)
11 lbf·ft (15 N·m , 1.5 kgf·m)
2.3 US qt (2.2
)
(7) rubber seal
(7)
116
Servicing Your Honda
Engine Oil, Filter & Strainer Screen
Apply a thin coat of engine oil to the
rubber seal ( ) of a new oil filter.
Fill the crankcase with the
recommended oil (page ),
approximately:
Install the oil fill cap/dipstick securely.
Install the new oil filter and tighten it by
hand.
Using an oil filter wrench attachment
and a torque wrench, tighten the new oil
filter to the specified torque:
Clean the oil strainer screen.
Check the oil strainer screen, sealing
rubber, and oil plug O-ring are in good
condition.
Install the oil strainer screen, spring,
and oil plug. Tighten the oil plug to the
specified torque:
7.
8.
9.
11.
10.
12.
13.
14.
109
7
０９／１２／１４ １４：５７：１８ ３１ＭＧＦ６１０ ０１２５
−
−
117
Servicing Your Honda
Engine Oil, Filter & Strainer Screen
Lock the rear wheel (page ).
Check that there are no oil leaks.
If a torque wrench is not used for
installation, see your Honda dealer as soon
as possible to verify proper assembly.
Start the engine and let it idle for 3 5
minutes.
Stop the engine and wait 2 3 minutes.
With the scooter on its center stand,
check that the oil level is at upper level
mark on the oil filler cap/dipstick.
3215.
16.
17.
18.
19.
０９／１２／１４ １４：５７：２５ ３１ＭＧＦ６１０ ０１２６
118
Coolant Recommendation
Coolant
Servicing Your Honda
Using coolant with silicate inhibitors may
cause premature wear of water pump
seals or blockage of radiator passages.
Using tap water may cause engine
damage.
Maintaining the coolant will allow the
cooling system to work properly and
prevent freezing, overheating, and
corrosion.
Use Pro Honda HP coolant or an
equivalent high quality ethylene glycol
antifreeze containing corrosion protection
inhibitors specifically recommended for
use in aluminum engines. Check the
antifreeze container label.
Use only distilled water as a part of the
coolant solution. Water that is high in
mineral content or salt may be harmful to
the aluminum engine.
Your scooter’s liquid cooling system
dissipates engine heat through the coolant
jacket that surrounds the cylinder and
cylinder head.
The factory provides a 50/50 solution of
antifreeze and water in this scooter. This
coolant solution is recommended for most
operating temperatures and provides good
corrosion protection.
０９／１２／１４ １４：５７：３２ ３１ＭＧＦ６１０ ０１２７
(1)
(1) UPPER level mark
(2) LOWER level mark
(2)
RIGHT FRONT
119
Checking & Adding Coolant
Coolant
Servicing Your Honda
Safety PrecautionsRefer to on page .
Decreasing the concentration of antifreeze
to less than 40% will not provide proper
corrosion protection.
Increasing the concentration of antifreeze
is not recommended because it decreases
cooling system performance. Higher
concentrations of antifreeze (up to 60%)
should only be used to provide additional
protection against freezing. Check the
cooling system frequently during freezing
weather.
82
０９／１２／１４ １４：５７：３８ ３１ＭＧＦ６１０ ０１２８
(3)
(1)
(1) UPPER level mark
(3) reserve tank cap
120
Coolant
Servicing Your Honda
If the reserve tank is empty, or if
coolant loss is excessive, check for
leaks and see your Honda dealer for
repair.
With the engine at normal operating
temperature, check the coolant level in
the reserve tank. It should be between
theUPPER( )andLOWER( )level
marks.
Remove the reserve tank cap ( ).
Always add coolant to the reserve tank.
Do not attempt to add coolant by
removing the radiator cap.
Addcoolanttothereservetankas
required to bring the coolant level to the
UPPER level mark.
Remove the right fairing pocket (page
).
Reinstall the right fairing pocket.
3.
4.
1.
2.
21
3
103
5.
０９／１２／１４ １４：５７：４５ ３１ＭＧＦ６１０ ０１２９
Removing the radiator cap while
the engine is hot can cause the
coolant to spray out, seriously
scalding you.
Always let the engine and radiator
cool down before removing the
radiator cap.
121
Coolant Replacement
Coolant
Servicing Your Honda
You & the Environment,
Improper disposal of drained fluids is
harmful to the environment.
Safety Precautions
To properly dispose of drained coolant,
refer to
page .
Refer to on page .
Coolant should be replaced by your Honda
dealer, unless you have the proper tools
and service data and are mechanically
qualified. Refer to the official Honda
Service Manual (page ).
82
216
170
０９／１２／１４ １４：５７：５２ ３１ＭＧＦ６１０ ０１３０
122
Air Cleaner
Servicing Your Honda
Safety Precautions
Using the wrong air cleaner may result in
premature engine wear.
Improper or lack of proper air cleaner
maintenance can cause poor performance
and premature engine wear.
Refer to on page .
Service the air cleaner more frequently if
you ride in unusually wet or dusty areas.
Your Honda dealer can help you
determine the correct service interval for
your riding conditions.
Proper air cleaner maintenance can
prevent premature engine wear or damage,
expensive repairs, low engine power, poor
gas mileage, and spark plug fouling.
Your scooter’s air cleaner has very
specific performance requirements. Use a
new Honda Genuine air cleaner specified
for your model or an air cleaner of
equivalent quality.
82
０９／１２／１４ １４：５７：５８ ３１ＭＧＦ６１０ ０１３１
RIGHT SIDE
RIGHT SIDE
(1)
(3)
(3)
(2)
(3)
(3)
(4)
(3) A screws
(4) air cleaner
housing cover
(5) B screw
(6) air cleaner
(5) (6)
(1) wire harness
(2) guide
123
Replacement
Air Cleaner
Servicing Your Honda
Release the wire harness ( ) from the
guide ( ).
Remove the B screw (5) that secures the
air cleaner (6).
Discard the air cleaner.
Install a new air cleaner.
Install the removed parts in reverse
order of removal.
Remove the A screws (3) that secure the
air cleaner housing cover (4).
Remove the right side cover (page ).1.
2.
4.
5.
6.
7.
2
1
3.
101
０９／１２／１４ １４：５８：０７ ３１ＭＧＦ６１０ ０１３２
(1) crankcase breather tube plug
(1)
LEFT SIDE
124
Draining
Crankcase Breather
Servicing Your Honda
Safety PrecautionsRefer to on page .
Place a drain pan under the crankcase
breather tube plug ( ).
Remove the plug to drain the deposits in
the tube.
Reinstall the crankcase breather tube
plug.
Service the crankcase breather more
frequently if your scooter is ridden in the
rain or often at full throttle. Service the
breather if you can see deposits in the
transparent section of the drain tube.
1.
2.
3.
1
82
０９／１２／１４ １４：５８：１３ ３１ＭＧＦ６１０ ０１３３
−−
＋
−−
＋
−
1/16 1/4 in (2 6 mm)
RIGHT HANDLEBAR
(1)
(3)
(2)
()
(( ))
(1) throttle
cable boot
(2) adjuster
(3) lock nut
( ) increase
( ) decrease
125
Throttle Freeplay
Throttle
Servicing Your Honda
Safety PrecautionsRefer to on page .
Inspection
Check freeplay at the throttle grip flange.
Freeplay:
If necessary, adjust to the specified range.
Adjustment
Slide the throttle cable boot ( ) off the
adjuster ( ).
Loosen the lock nut ( ).
Tighten the lock nut and return the
throttle cable boot securely over the
adjuster.
After adjustment, check for smooth
rotation of the throttle grip from fully
closed to fully open in all steering
positions.
Turn the adjuster.
1.
2.
3.
4.
5.
1
82
2
3
０９／１２／１４ １４：５８：２４ ３１ＭＧＦ６１０ ０１３４
126
Throttle Inspection
Throttle
Servicing Your Honda
Safety PrecautionsRefer to on page .
Check that the throttle assembly is
positioned properly and the securing
bolts are tight.
Check for smooth rotation of the
throttle from fully open to fully closed
in all steering positions. If there is a
problem, see your Honda dealer.
1.
2.
82
０９／１２／１４ １４：５８：２９ ３１ＭＧＦ６１０ ０１３５
＋
−
−−
＋＋
(1)
(1) throttle stop screw ( ) increase
( ) decrease
UNDER SEAT
(( ))
(( ))
127
Idle Speed Adjustment
Engine Idle Speed
Servicing Your Honda
Safety PrecautionsRefer to on page .
Remember, idle speed adjustment is not a
‘‘cure-all’’ for other problems in your
engine’s fuel-delivery system. Adjusting
the idle will not compensate for a fault
elsewhere.
The engine must be at normal operating
temperature for accurate idle speed
adjustment.
If the engine is cold, start it and warm it
up with 10 minutes of stop-and-go
riding. Stop the engine.
Place your scooter on its center stand on
a firm, level surface.
(cont’d)
1.
2.
82
０９／１２／１４ １４：５８：３７ ３１ＭＧＦ６１０ ０１３６
±1,300 100 rpm
128
Engine Idle Speed
Servicing Your Honda
Open the seat (page ).
Lock the rear wheel by lowering
parking brake lever and squeezing the
rear brake lever (page ). Start the
engine.
Adjust idle speed with the throttle stop
screw ( ).
Idle speed:
3.
4.
5.
1
47
32
０９／１２／１４ １４：５８：４３ ３１ＭＧＦ６１０ ０１３７
U24FER9 (DENSO)
CR8EH-9 (NGK) or
standard
spark plug
(1) screws (2) plug maintenance lid
(1)
(1)(2)
129
Spark Plug Recommendation Spark Plug Replacement
Servicing Your Honda
Spark Plugs
Safety Precautions
Using spark plugs with an improper heat
range can cause engine damage.
Refer to on page .
Use only the recommended type of spark
plugs in the recommended heat range.
Open the seat (page ).
Remove the screws ( ).
Close the seat.
Push the plug maintenance lid ( )
backward.
(cont’d)
1.
2.
3.
4.
47
1
2
82
０９／１２／１４ １４：５８：５３ ３１ＭＧＦ６１０ ０１３８
(2) plug maintenance lid
(2)
(4)
(3) spark plug caps
(4) spark plug wrench
(3)
130
Servicing Your Honda
Spark Plugs
Remove the plug maintenance lid ( ).
Clean any dirt from around the spark
plug bases.
Disconnect the spark plug caps ( ).
Take care to avoid damaging the spark
plug wire when disconnecting the caps.
Usingasparkplugwrench( ),remove
the spark plugs.
5. 6.
7.
32
4
０９／１２／１４ １４：５９：００ ３１ＭＧＦ６１０ ０１３９
131
Servicing Your Honda
Spark Plugs
Improperly tightened spark plugs can
damage the engine. If a plug is too loose,
a piston may be damaged. If a plug is too
tight, the threads may be damaged.
Reinstall the spark plug caps. Take care
to avoid pinching any cables or wires.
Install the remaining parts in the
reverse order of removal.
First, tighten the plug:
NGK: turn after it seats.
DENSO: turn after it seats.
Then loosen the plug.
Next, tighten the plug again:
1/8 turn after it seats.
If installing a new plug, tighten it
twice to prevent loosening:
If the old plug is good:
1/8 turn after it seats.
With the plug washers attached, thread
the spark plugs in by hand to prevent
cross-threading.
Tighten each spark plug:
Discard the spark plugs.
a)
b)
c)
11.
12.
10.
8.
9.
1/2
1
０９／１２／１４ １４：５９：０８ ３１ＭＧＦ６１０ ０１４０
132
Suspension
Servicing Your Honda
Your front and rear suspension systems
use springs and hydraulic damping devices
that suspend your weight and most of the
weight of your scooter.
The spring pre-load for your rear
suspension system adjusts the amount of
force required to begin compression of the
spring.
Consider adjusting your rear suspension
pre-load whenever you change your
normal load, when adding or subtracting a
passenger, cargo, or accessories, or when
the road or riding conditions change.
The way you ride your scooter and the
type of ride you want to experience can
also influence your suspension needs.
Lower spring pre-load provides a softer
ride and is usually preferred for light loads
and smooth roads. Higher spring pre-load
provides a firmer ride and is
recommended for heavy loads, rough road
conditions, and faster, more challenging
riding.
０９／１２／１４ １４：５９：１４ ３１ＭＧＦ６１０ ０１４１
23 451
LEFT SIDE (right side similar)
(2)
(3)
(1)
(1) spring pre-load adjuster
(2) pin spanner
(3) shock absorber
133
Rear Suspension Adjustment Rear Suspension Spring Pre-load
Suspension
Servicing Your Honda
The rear suspension can be adjusted for
rider (and passenger) weight and riding
conditions by changing the spring pre-load.
Do not attempt to disassemble, service, or
dispose of the damper; see your Honda
dealer. The instructions found in this
owner’s manual are limited to adjustments
of the shock assembly only.
To adjust, use an appropriate pin spanner
or see your Honda dealer.
０９／１２／１４ １４：５９：２２ ３１ＭＧＦ６１０ ０１４２
134
Suspension
Servicing Your Honda
The spring pre-load adjuster ( ) has
positions for different load or riding
conditions.
Use the pin spanner ( ) to adjust the rear
shock spring pre-load.
Position 1: for a light load and smooth
road conditions.
Position 2: standard position.
Always adjust the shock absorber position
in sequence (1-2-3-4-5 or 5-4-3-2-1).
Attempting to adjust directly from 1 to 5
or 5 to 1 may damage the shock absorber.
Positions 3 to 5: for when the scooter is
more heavily loaded. (Also increase spring
pre-load for stiffer rear suspension.)
Make sure that both shock absorbers ( )
are adjusted to the same position.
5
2
3
1
０９／１２／１４ １４：５９：２９ ３１ＭＧＦ６１０ ０１４３
135
Brakes
Servicing Your Honda
As the brake pads wear, the brake fluid
level will drop. A leak in the system will
also cause the level to drop.
Frequently inspect the system to ensure
there are no fluid leaks. Periodically
inspect the brake fluid level and the brake
pads for wear.
If the brake lever freeplay does not feel
within the normal range while riding,
check the brake pads for wear (page ).
Worn pads should be replaced. If the pads
are not worn beyond the recommended
limit, there is probably air in the brake
system. See your Honda dealer to have the
air bled from the system.
The hydraulic braking systems on your
scooter dissipate the heat generated by the
friction of the brake pads on the brake
discs as the wheels are slowed.
139
０９／１２／１４ １４：５９：３４ ３１ＭＧＦ６１０ ０１４４
Honda DOT 4 Brake
Fluid
brake
fluid
136
Fluid Level InspectionBrake Fluid Recommendation
Brakes
Servicing Your Honda
Safety Precautions
Brake fluid can damage plastic and
painted surfaces. Handle with care.
Refer to on page .
If your inspection indicates a low fluid
level, have your Honda dealer add the
recommended brake fluid.
Do not add or replace brake fluid, except
in an emergency. If you do add fluid, have
your Honda dealer check the system as
soon as possible.
The recommended brake fluid is Honda
DOT 4 Brake Fluid, or any brake fluid of
equal quality and performance. Use fresh
brake fluid from a sealed container. Be
sure to read the label before opening the
sealed container. An opened container
may be contaminated or may have
absorbed moisture from the air.
82
０９／１２／１４ １４：５９：４２ ３１ＭＧＦ６１０ ０１４５
RIGHT HANDLEBAR
(1)
(1) LOWER level mark
LEFT HANDLEBAR
(1)
(1) LOWER level mark
137
Brakes
Servicing Your Honda
Wipe up spills immediately. Avoid brake
fluid contact with skin or eyes. If it comes
in contact with your eyes, wash them out
with clean water and immediately call a
doctor. If it comes in contact with your
skin, wash with clean water and, if
necessary, call a doctor.
Place your scooter in an upright position
on a firm, level surface.
Check the fluid level.
It should be above the LOWER level
mark ( ).
If the level is at or below the LOWER
level mark, check the brake pads for
wear (page ).
1.
2.
1
139
０９／１２／１４ １４：５９：４９ ３１ＭＧＦ６１０ ０１４６
138
Brakes
Servicing Your Honda
Worn pads should be replaced. If the pads
are not worn beyond the recommended
limit, have your brake system inspected
for leaks.
Other Inspections
Make sure there are no fluid leaks.
Check for deterioration or cracks in the
hoses and fittings.
０９／１２／１４ １４：５９：５４ ３１ＭＧＦ６１０ ０１４７
(1) cutouts
LEFT FRONT
(1)
139
Brake Pad Wear
Brakes
Servicing Your Honda
Safety PrecautionsRefer to on page .
Brake pad wear depends upon the severity
of usage, the type of riding, and road
conditions. Generally, the pads will wear
faster on wet and dirty roads. Inspect the
pads at each regular maintenance interval
(page ).
Check the cutouts ( ) in each pad. If
either pad is worn to the cutout, replace
both pads as a set. See your Honda dealer
for this service.
Front Brake
82
90
1
０９／１２／１４ １５：００：０１ ３１ＭＧＦ６１０ ０１４８
(1) cutouts
RIGHT REAR
(1)
140
Brakes
Servicing Your Honda
Check the cutouts ( ) in each pad. If
either pad is worn to the cutout, replace
both pads as a set. See your Honda dealer
for this service.
Rear Brake
1
０９／１２／１４ １５：００：０６ ３１ＭＧＦ６１０ ０１４９
−3 6 clicks
(1)
(1) parking brake lever
RIGHT SIDE
141
Parking Brake Lever Freeplay
Brakes
Servicing Your Honda
Safety PrecautionsRefer to on page .
Stop the engine and put the scooter on
its center stand on level ground.
If adjustment is necessary, have the brake
adjusted by your Honda dealer for this
service.
Count the number of clicks before the
brakestartstotakeholdbyslowly
pulling the lever down from the fully
returned position.
Parking brake lever ( ) freeplay is:
1.
2.
82
1
０９／１２／１４ １５：００：１２ ３１ＭＧＦ６１０ ０１５０
Using tires that are excessively
worn or improperly inflated can
causeacrashinwhichyoucanbe
seriously hurt or killed.
Follow all instructions in this
owner’s manual regarding tire
inflation and maintenance.
142
Air Pressure
Tires
Servicing Your Honda
Safety Precautions
To safely operate your scooter, your tires
must be the proper type and size, in good
condition with adequate tread, and
correctly inflated for the load you are
carrying.
The following pages give detailed
informationonhowandwhentocheck
your air pressure, how to inspect your tires
for wear and damage, and our
recommendations for tire repair and
replacement.
Refer to on page .
Properly inflated tires provide the best
combination of handling, tread life, and
riding comfort. Generally, underinflated
tires wear unevenly, adversely affect
handling, and are more likely to fail from
being overheated. Overinflated tires make
your scooter ride harshly, are more prone
to damage from road hazards, and wear
unevenly.
82
０９／１２／１４ １５：００：１９ ３１ＭＧＦ６１０ ０１５１
＊
＊
＊
33 psi
(225 kPa , 2.25 kgf/cm
)
29 psi
(200 kPa , 2.00 kgf/cm
)
36 psi
(250 kPa , 2.50 kgf/cm
)
includes the weight of the rider,
passenger, all cargo & all accessories
rear
front
with less than 200 lb
(90 kg) of added weight
with more than 200 lb
(90 kg) of added weight
143
Tires
Servicing Your Honda
We recommend that you visually check
your tires before every ride and use an air
pressure gauge to measure the air pressure
at least once a month or any time you
think the tires might be low. Even tires
that are in good condition may lose one to
two psi per month if not checked and
adjusted regularly.
Tubeless tires have some degree of self-
sealing ability if they are punctured.
However, because leakage is often very
slow, you should look closely for
punctures whenever a tire is not fully
inflated.
The recommended ‘‘cold’’ tire pressures
are:
Always check air pressure when your tires
are ‘‘cold’’ –– after the scooter has been
parked for at least three hours. If you
check air pressure when your tires are
‘‘warm’’ –– even if your scooter has only
been ridden for a few miles –– the
readings will be higher. If you let air out
of warm tires to match the recommended
cold pressures, the tires will be
underinflated.
０９／１２／１４ １５：００：２７ ３１ＭＧＦ６１０ ０１５２
(1)
(2)
(1) wear indicator
(2) wear indicator location mark
144
Inspection
Tires
Servicing Your Honda
Safety PrecautionsRefer to on page .
Whenever you check the tire pressures,
you should also look for:
Bumps or bulges in the side of the tire
or the tread. Replace any tire that has a
bump or bulge.
Cuts, slits, or cracks in the tires.
Replace the tire if you can see fabric or
cord.
Nails or other foreign objects embedded
in the side of the tire or tread.
Excessive tread wear.
Also, if you hit a pothole or hard object
while riding, pull to the side of the road as
soon as you safely can and carefully
inspect the tires for damage.
Tread Wear
82
０９／１２／１４ １５：００：３６ ３１ＭＧＦ６１０ ０１５３
×××× ××××
0.06 in (1.5 mm)
0.08 in (2.0 mm)
front
rear
145
Tire Service Life
Tires
Servicing Your Honda
For the best performance, you should
replace a tire before the tread depth at the
center reaches the following limits:
If the wear indicators are visible, replace
the tire immediately as it is no longer safe.
The service life of your tires is dependent
on many factors, including, but not limited
to, riding habits, road conditions, vehicle
loading, tire pressure, maintenance history,
speed, and environmental conditions (even
when the tires are not in use).
In addition to your regular inspections and
tire pressure maintenance, it is
recommended that you have annual
inspections performed once the tires reach
5 years old. It is also recommended that all
tires be removed from service after 10
years from the date of manufacture,
regardless of their condition or state of
wear.
The last four digits of the TIN (tire
identification number) ( ) are found on
the sidewall of the tire, and indicate the
date of manufacture.
Tire Identification Number (TIN)
The tire identification number (TIN) is a
group of numbers and letters that look like
the following example. The TIN is located
on the sidewall of the tire.
(cont’d)
DOT 22 07
1
(2) (3) (4)
０９／１２／１４ １５：００：４５ ３１ＭＧＦ６１０ ０１５４
−
×××× −
×××× −
−
TIRE LABELING EXAMPLE
(1)
(1) tire identification number (TIN)
146
Tire Repair
Tires
Servicing Your Honda
Safety PrecautionsRefer to on page .
We strongly recommend that you replace,
not repair, any tire that is punctured or
damaged. As discussed below, a tire that is
repaired, either temporarily or
permanently, will have lower speed and
performance limits than a new or
undamaged tire.
DOT This indicates that the tire meets
all requirements of the U.S. Department of
Transportation.
Factory code
Tire type code
22 07 Date of manufacture
(2)
(3)
(4)
Year
Week
82
０９／１２／１４ １５：００：５２ ３１ＭＧＦ６１０ ０１５５
147
Tire Replacement
Tires
Servicing Your Honda
If You Have a Flat Tire,
Safety Precautions
A temporary repair can sometimes be
made in an emergency situation.
However, since a temporary repair may
not hold, you must ride very slowly,
preferably without any cargo or passenger,
and have the tire replaced or permanently
repaired as soon as possible.
(For more information on temporary
repairs, see
page .)
A permanent repair, such as an internal
plug patch, can be made if a tire has only a
small puncture in the tread area. With such
a repair, you should not exceed 50 mph
(80 km/h) for the first 24 hours, or 80 mph
(130 km/h) at any time thereafter. In
addition, you may not be able to safely
carry as much weight. If you choose to
have a tire repaired, be sure the repair
work is performed by a professional and
that the wheel is balanced before you ride.
If you have a tire professionally repaired
at a non-Honda facility, we recommend
that you have the work checked by your
Honda dealer.
Refer to on page .
The tires that came on your scooter were
designed to match the performance
capabilities of your scooter and provide
the best combination of handling, braking,
durability, and comfort.
82
178
０９／１２／１４ １５：００：５８ ３１ＭＧＦ６１０ ０１５６
120/80-14M/C 58S
IRC SS530F
150/70-13M/C 64S
IRC SS530R
bias-ply, tubeless
front
rear
Installing improper tires on your
scooter can affect handling and
stability. This can cause a crash in
which you can be seriously hurt or
killed.
Always use the size and type of
tires recommended in this owner’s
manual.
type
148
Tires
Servicing Your Honda
The recommended tires for your scooter
are:
When replacing, use the original
equipment tires or equivalent tires of the
same size, construction, speed rating, and
load range as the originals.
Whenever you replace a tire, remember:
Have the wheel balanced after the tire is
installed.
Have the tire replaced by your Honda
dealer if possible.
０９／１２／１４ １５：０１：０８ ３１ＭＧＦ６１０ ０１５７
149
Tires
Servicing Your Honda
If you have a tire professionally replaced
at a non-Honda facility, we recommend
that you have the work checked by your
Honda dealer.
Important Safety Reminders
Do not install a tube inside a tubeless
tire on this scooter. Excessive heat
build-up can cause the tube to burst.
Use only tubeless tires on this scooter.
The rims are designed for tubeless tires,
and during hard acceleration or braking,
a tube-type tire could slip on the rim
and cause the tire to rapidly deflate.
０９／１２／１４ １５：０１：１４ ３１ＭＧＦ６１０ ０１５８
LEFT SIDE
(1) side stand spring
(1)
150
Side Stand
Servicing Your Honda
Safety PrecautionsRefer to on page .
Check the side stand ignition cut-off
system:
Start the engine.
Check that the side stand assembly is
working properly. If the side stand is
stiff or squeaky, clean the pivot area
and lubricate the pivot bolt with clean
grease.
Lower the side stand all the way.
The engine should stop as you lower the
side stand. If the engine doesn’t stop,
see your Honda dealer for service.
Sit astride the scooter.
Raise the side stand.
Pull the rear brake lever in.
Check the side stand spring ( ) for
damage or loss of tension.
1.
2.
3.
4.
5.
82 1
０９／１２／１４ １５：０１：２３ ３１ＭＧＦ６１０ ０１５９
151
Battery
Servicing Your Honda
WARNING:
Wash your hands after
handling.
Your battery is a maintenance-free type
and can be permanently damaged if the
cap strip is removed.
Battery
Charging,
Battery Storage,
Your scooter has a maintenance-free type
battery. You do not have to check the
battery electrolyte level or add distilled
water as you would with a conventional-
type battery.
Electrical accessories use current from the
battery, even when the ignition is OFF.
Limited operation also allows the battery
to discharge. If you have electrical
accessories on your scooter or do not ride
frequently, we recommend that you
charge the battery frequently (see
page ).
If you do not expect to ride your scooter
for at least two weeks, we recommend you
remove the battery, or at least disconnect
the battery cables (negative cable first).
If you plan to store your scooter, see
page .
If your battery seems weak and/or is
leaking electrolyte (causing slow starting
or other electrical problems), see your
Honda dealer.
Battery posts, terminals and
related accessories contain lead and lead
compounds.
155
152
０９／１２／１４ １５：０１：３０ ３１ＭＧＦ６１０ ０１６０
The battery gives off explosive
hydrogen gas during normal
operation.
A spark or flame can cause the
battery to explode with enough
force to kill or seriously hurt you.
Wear protective clothing and a
face shield, or havea skilled
mechanic do the battery
maintenance.
152
Battery Storage
Battery
Servicing Your Honda
Battery Charging,
Safety Precautions
If you do not remove the battery, we
recommend disconnecting the battery
cables (negative cable first).
You will get the best storage results from
removing the battery and slow charging it
every 30 days (see
page ).
Before you remove the battery, be sure to
read all the information that follows, as
well as the information on the battery
label.
If you plan to store your scooter, we
recommend you remove the battery and
store it where it can be charged at least
every 30 days to maintain its service life.
Refer to on page .82
155
０９／１２／１４ １５：０１：３７ ３１ＭＧＦ６１０ ０１６１
−
＋
−
＋
(4)
UNDER SEAT
(5)
(3)
UNDER SEAT
(2) battery cover(1) screw
(3) negative ( ) terminal lead
(4) positive ( ) terminal lead
(5) battery
(2)
(1)
153
Battery
Servicing Your Honda
The battery is located in the battery box
below the seat.
Disconnect the negative ( ) terminal
lead ( ) from the battery first, then
disconnect the positive ( ) terminal
lead ( ).
Pull the battery ( ) out of the battery
box.
Removal
Make sure the ignition switch is OFF.
Open the seat (page ).
Remove the screw ( ), then remove the
battery cover ( ).
(cont’d)
1.
2.
5
3
4
3.
4.
5.
47
1
2
０９／１２／１４ １５：０１：４８ ３１ＭＧＦ６１０ ０１６２
＋
−
154
Battery
Servicing Your Honda
Charge the battery (see following
section), unless you have been riding
regularly.
Store your battery in an easy-to-reach
location off the floor, in an area
protected from freezing temperatures
and direct sunlight.
Clean the battery box after removing
the battery for storage. Dry the battery
box and, if paint is missing, re-paint the
area.
Slow charge the battery (see following
section) once every 30 days.
Installation
Reinstall in the reverse order of removal.
Be sure to connect the positive ( )
terminal first, then the negative ( )
terminal.
Check all bolts and other fasteners are
secure.
1.
2.
6.
7.
8.
9.
０９／１２／１４ １５：０１：５５ ３１ＭＧＦ６１０ ０１６３
(1)
(1) charger
155
Battery Charging
Battery
Servicing Your Honda
Safety PrecautionsRefer to on page .
Be sure to read the information that came
with your battery charger and follow the
instructions on the battery. Improper
charging may damage the battery.
We recommend using a charger designed
specifically for your Honda, which can be
purchased from your Honda dealer. These
units can be left connected for long
periods without risking damage to the
battery. However, do not intentionally
leave the charger connected longer than
the time period recommended in the
charger’s instructions.
Avoid using an automotive-type battery
charger. An automotive charger can
overheat a scooter battery and cause
permanent damage.
82
０９／１２／１４ １５：０２：０１ ３１ＭＧＦ６１０ ０１６４
−
−
−
−
156
General Recommendations
Appearance Care
Servicing Your Honda
Safety Precautions
Frequent cleaning and polishing will keep
your Honda looking newer longer.
Frequent cleaning also identifies you as an
owner who values your scooter. A clean
scooter is also easier to inspect and service.
Avoid products that contain harsh
detergents or chemical solvents that
could damage the metal, paint, and
plastic on your scooter.
If your scooter is still warm from recent
operation, give the engine and exhaust
system time to cool off.
Park in a shady area. Washing your
scooter in bright sunlight may cause the
finish to fade because water droplets
intensify the sun’s brightness. Spotting
is also more likely because surface
water can dry before you have time to
wipe it off.
Clean your scooter regularly to protect
surface finishes.
Refer to on page .
To clean your scooter, you may use:
water
a mild, neutral detergent and water
a mild spray and wipe cleaner/
polisher
a mild spray and rinse cleaner/
degreaser and water
82
０９／１２／１４ １５：０２：０９ ３１ＭＧＦ６１０ ０１６５
157
Appearance Care
Servicing Your Honda
High pressure water (or air) can damage
certain parts of your scooter.
We recommend the use of a garden
hose to wash your scooter. High
pressure washers (like those at coin-
operated car washes) can damage
certain parts of your scooter.
After cleaning, inspect for damage,
wear, and leaks (fuel, oil, coolant, and
brake fluid).
０９／１２／１４ １５：０２：１５ ３１ＭＧＦ６１０ ０１６６
158
Washing Your Scooter with a
Mild Detergent
Appearance Care
Servicing Your Honda
Safety PrecautionsRefer to on page .
Start the engine and let it idle for
several minutes. The engine heat will
help dry moist areas.
Rinse your scooter thoroughly with cool
water to remove loose dirt.
Fill a bucket with cool water. Mix in a
mild, neutral detergent, such as dish
washing liquid or a product made
especially for washing scooters or
automobiles.
Wash your scooter with a sponge or a
soft towel. As you wash, check for
heavy grime. If necessary, use a mild
cleaner/degreaser to remove the grime.
After washing, rinse your scooter
thoroughly with plenty of clean water to
remove any residue. Detergent residue
can corrode alloy parts.
Dry your scooter with a chamois or a
soft towel. Leaving water on the surface
to air dry can cause dulling and water
spots. As you dry, inspect for chips and
scratches.
1.
2.
3.
4.
5.
6.
82
０９／１２／１４ １５：０２：２３ ３１ＭＧＦ６１０ ０１６７
TEST BRAKES
159
Cleaning Your Windscreen
Appearance Care
Servicing Your Honda
Safety Precautions
To avoid possible scratching or other
damage, use only water and a soft cloth
or sponge to clean the windscreen.
As a precaution, ride your scooter at a
slow speed and apply the brakes several
times. This will help dry the brakes and
restore normal braking performance.
If the inside of the headlight lens
appears clouded immediately after
washing, it should clear after a few
minutes of riding.
Refer to on page .
Using plenty of water, clean the
windscreen with a soft cloth or sponge.
(Avoid using detergents or any kind of
chemical cleaner on the windscreen.) Dry
with a soft, clean cloth.
7.
82
０９／１２／１４ １５：０２：３０ ３１ＭＧＦ６１０ ０１６８
160
Spray Cleaning Your Scooter
Appearance Care
Servicing Your Honda
Safety PrecautionsRefer to on page .
Avoid using spray cleaner products on the
tires or suspension components.
Suggestions for using spray cleaner(s)
follow:
Replace the windscreen if scratches
cannot be removed and they obstruct clear
vision.
Take care to keep battery electrolyte,
brake fluid, or other chemical solvents off
the windscreen. They will damage the
plastic.
For a dirtier windscreen, use a diluted
neutral detergent with a sponge and plenty
of water. Make sure to wash off all the
detergent. (Detergent residue may cause
windscreen cracks.)
82
０９／１２／１４ １５：０２：３６ ３１ＭＧＦ６１０ ０１６９
Apply a spray cleaner/polish and wipe the
paint, chrome, glass, and clear plastic.
Dust and fingerprint smudges.
Light road grime. Spray any difficult-to-reach or very dirty
areas with a spray cleaner/degreaser.
Rinse and dry.
Apply a spray cleaner/polish and wipe with
a non-abrasive cloth.
Use a spray cleaner/degreaser.
If necessary, rub with a sponge. Rinse and
dry.
Apply a spray cleaner/polish and wipe with
a non-abrasive cloth.
Apply a high quality chrome/aluminum
polish and wipe with a non-abrasive cloth.
Dull, corroded chrome or
aluminum.
Heavy grime. Oil leaks. Brake
dust.
Recommended CleaningScooter Condition
161
Appearance Care
Servicing Your Honda
０９／１２／１４ １５：０２：４４ ３１ＭＧＦ６１０ ０１７０
162
Painted Aluminum Wheel
Maintenance
Clean the Matte Painted Surface
Appearance Care
Servicing Your Honda
Safety Precautions
Safety Precautions
Refer to on page .
Aluminum may corrode from contact with
dirt, mud, or road salt. Clean the wheels
after riding through any of these
substances. Use a wet sponge and mild
detergent. Avoid stiff brushes, steel wool,
or cleaners containing abrasives or
chemical compounds.
After washing, rinse with plenty of water
and dry with a clean cloth.
If the paint is chipped, apply touch-up
paint.
Refer to on page .
Use a soft cloth or sponge, plenty of water,
and a mild detergent to clean the matte
paint. Dry with a soft, clean cloth.
Do not use polishing compounds or wax
containing polishing compounds. These
can damage or discolor the paint.
To keep your Honda looking new, clean
and polish it frequently.
82
82
０９／１２／１４ １５：０２：５１ ３１ＭＧＦ６１０ ０１７１
163
Finishing Touches
Exhaust Pipe Maintenance
Appearance Care
Servicing Your Honda
Safety Precautions
Safety Precautions
Refer to on page .
The exhaust pipe is stainless steel, but may
become stained by oil or mud. If necessary,
remove heat stains with a liquid kitchen
abrasive.
After washing your scooter, consider
using a commercially available spray
cleaner/polish or quality liquid or paste
wax to finish the job. Use only a non-
abrasive polish or wax made specifically
for scooters or automobiles. Apply the
polish or wax according to the instructions
on the container.
Refer to on page .
If a surface on your scooter is chipped or
scratched, your Honda dealer has touch-up
paint to match your scooter’s color. Be
sure to use your scooter’s color code
(page ) when you buy touch-up paint.
If the frame has a chip that exposes the
metal, first apply primer (to prevent
corrosion) and then apply the touch-up
paint. Several thin layers of touch-up paint
are better than one thick coat.
82
82
196
０９／１２／１４ １５：０２：５８ ３１ＭＧＦ６１０ ０１７２
164
Servicing Your Honda
０９／１２／１４ １５：０３：０１ ３１ＭＧＦ６１０ ０１７３
165
Tips
Tips
Here’s a few helpful tips on how to store
and transport your Honda, and how to be
an environmentally responsible scooter
owner.
...........................Storing Your Honda .
.................Transporting Your Scooter .
.....................You & the Environment .
166
169
170
０９／１２／１４ １５：０３：０６ ３１ＭＧＦ６１０ ０１７４
166
Preparation for Storage
Storing Your Honda
Tips
Safety Precautions
Honda Winter Storage Guide,
Refer to on page .
If you won’t be riding for an extended
period, such as during the winter,
thoroughly inspect your scooter and
correct any problem before storing it. That
way, needed repairs won’t be forgotten
and it will be easier to get your scooter
running again.
This procedure requires a means for
draining and disposing of drained fuel
(page ).
Fill the fuel tank. Make sure the fuel fill
cap is properly installed.
Make sure the cooling system is filled
with a 50/50% antifreeze solution
(page ).
Change the engine oil and filter.
Clean the engine oil strainer screen
(page ).
For more information about storage, refer
to the
available from your Honda dealer.
We suggest you perform the following
procedures to keep your scooter in top
condition. These storage procedures will
reduce the deterioration that can occur
during storage.
1.
2.
3.
113
82
170
118
０９／１２／１４ １５：０３：１４ ３１ＭＧＦ６１０ ０１７５
−
167
Storing Your Honda
Tips
(cont’d)
With the engine stop switch in the
RUN position, press the start button
several times to crank the engine and
distribute the oil.
Remove the battery and charge it fully.
Store it in an area protected from
freezing temperatures and direct
sunlight. Slow charge the battery
(page ) once a month.
Wash and dry your scooter. Wax all
painted surfaces. Apply rust-inhibiting
oil to the chrome pieces.
Inflate the tires to their recommended
pressures (page ).
Reinstall the spark plugs and spark
plug caps.
To prevent rusting in the cylinders,
perform the following:
Remove the spark plug caps from the
spark plugs (page ). Using tape or
string, secure the caps to any
convenient plastic body part so that
they are positioned away from the
spark plugs.
Pour a tablespoon (15 20 cc) of
clean engine oil into each cylinder
and cover the spark plug holes with a
piece of cloth.
Remove the spark plugs from the
engine and store them in a safe place.
Do not connect the spark plugs to the
spark plug caps.
4.
5.
6.
7.
130
142
155
０９／１２／１４ １５：０３：２３ ３１ＭＧＦ６１０ ０１７６
168
Removal from Storage
Storing Your Honda
Tips
Safety Precautions
Store your scooter in an unheated area,
free of dampness, away from sunlight,
with a minimum of daily temperature
variation.
Place your scooter on blocks to lift both
tires off the floor.
Cover your scooter with a porous
material. Avoid using plastic or similar
non-breathing, coated materials that
restrict air flow and allow heat and
moisture to accumulate.
Refer to on page .
Uncover and clean your scooter.
If your scooter has been stored for more
than two months –– ask your Honda
dealer to drain and replace the fuel.
If your scooter has been stored for more
than four months –– change the engine
oil (page ).
Charge the battery (page ) as
required. Install the battery.
Perform a pre-ride inspection (page ),
then test-ride your scooter at low speeds.
8.
9.
10.
1.
2.
3.
4.
5. 40
82
113
155
０９／１２／１４ １５：０３：３２ ３１ＭＧＦ６１０ ０１７７
169
Transporting Your Scooter
Tips
If your scooter needs to be transported, it
should be carried on a motorcycle trailer,
or a truck or trailer with a flatbed area. Do
not tow your scooter, as towing can
seriously damage the transmission.
When contacting a towing or transporting
service, be sure to ask if they have a
flatbed area, a loading ramp or power
ramp to safely lift the scooter, and
motorcycle tie-down straps.
０９／１２／１４ １５：０３：３６ ３１ＭＧＦ６１０ ０１７８
170
Recycle Wastes.
Choose Sensible Cleaners.
You & the Environment
Tips
It’s illegal and
thoughtless to put used engine oil in the
trash, down a drain, or on the ground.
Used oil, gasoline, coolant, and
cleaning solvents contain poisons that
can hurt refuse workers and
contaminate our drinking water, lakes,
rivers, and oceans. Before changing
your oil, make sure you have the proper
containers. Put oil and other toxic
wastes in separate sealed containers and
take them to a recycling center. Call
your local or state office of public
works or environmental services to find
a recycling center in your area, and to
get instructions on how to dispose of
non-recyclable wastes.
Owning and riding a scooter can be
enjoyable, but you must do your part to
protect nature.
Following are tips on how you can be an
environmentally responsible scooter
owner.
Use a
biodegradable detergent when you wash
your scooter. Avoid aerosol spray
cleaners that contain
chlorofluorocarbons (CFCs) which
damage the atmosphere’s protective
ozone layer. Don’t throw cleaning
solvents away; see the following
guidelines for proper disposal.
０９／１２／１４ １５：０３：４１ ３１ＭＧＦ６１０ ０１７９
171
Taking Care of the Unexpected
Taking Care of the Unexpected
This section discusses the more common
problems that can occur with your scooter
while you’re riding. It tells you how to
evaluate each problem and what actions
you can take to try to resume riding. If the
problem cannot be safely solved, this
section also gives instructions on the
proper way to have your scooter
transported.
For information about transporting your
scooter, see page .
.If Your Engine Quits or Won’t Start .
......................If You Have a Flat Tire .
..................If Your Engine Overheats .
If the Low Oil Pressure Indicator
..................................................Lights .
...................................IfaFuseBlows .
.......................................If You Crash .
.......................If You Lose Your Key .
......If Your Battery Is Low (or Dead) .
.............................General Guidelines .
169
172
173
178
182
184
185
189
190
191
０９／１２／１４ １５：０３：５０ ３１ＭＧＦ６１０ ０１８０
SYMPTOM:
WHAT TO DOPOSSIBLE CAUSE
faulty starter motor If all possible causes are negative, the starter
motor may be faulty. See yourHonda dealer.
Charge the battery (page ). If charging doesn’t
help, see your Honda dealer.
low (or dead) battery
battery lead loose Tighten the battery lead.
blown fuse Replace with a newfuse of the same rating
(page ).
side stand down
ignition switch OFF
Raise the side stand.
Turn the ignition switch ON.
engine stop switch OFF Turn the engine stop switch to RUN.
155
185
Starter motor doesn’t operate.
174
If Your Engine Quits or Won’t Start
Taking Care of the Unexpected
０９／１２／１４ １５：０４：１３ ３１ＭＧＦ６１０ ０１８３
SYMPTOM:
POSSIBLE CAUSE
idles roughly, too fast, stalls
overheating
WHAT TO DO
Check engine idle adjustment (page ). If the
problem persists, see your Honda dealer.
runs erratically, misfires
low oil pressure
Check the high coolant temperature indicator.
Refer to page .
Check the low oil pressure indicator. Refer to
page .
May damage catalytic converter.
blubbers (rich fuel mixture) See your Honda dealer.
See your Honda dealer.
127
184
182
Engine starts, but runs poorly.
If Your Engine Overheats,
If
the Low Oil Pressure Indicator Lights,
176
If Your Engine Quits or Won’t Start
Taking Care of the Unexpected
０９／１２／１４ １５：０４：３４ ３１ＭＧＦ６１０ ０１８５
WHAT TO DOPOSSIBLE CAUSE
SYMPTOM:
sooty exhaust (rich fuel
mixture)
detonates or pings under
load
afterfires (backfires)
See your Honda dealer.
If applicable, switch to the recommended octane
gasoline (page ) or change your brand of
gasoline. If the problem persists, see your Honda
dealer.
pre-ignition (runs on after
ignition switched OFF) See your Honda dealer.
See your Honda dealer.
May damage catalytic converter.
May damage catalytic converter.
104
Engine starts, but runs poorly (cont’d).
177
If Your Engine Quits or Won’t Start
Taking Care of the Unexpected
０９／１２／１４ １５：０４：４３ ３１ＭＧＦ６１０ ０１８６
178
If You Have a Flat Tire
Taking Care of the Unexpected
A flat tire is always unwelcome,
especially if you are far from help. If you
think you are losing air, or you hit a
pothole or hard object, pull safely to the
side of the road so you can inspect the
tires and assess the situation. (Be sure to
park on a firm, level surface and use the
center stand for support.) You should
examine the tire treads and sidewalls for
foreign objects or damage. If you find a
tire that has been punctured or damaged,
you have two options.
Option 1:
Have Your Scooter Transported
If a tire has a major puncture or a cut in
the tread or sidewall, or the bead has come
loose from the rim, there is probably not
much you can do except have your scooter
transported to a Honda dealer or other
qualified service facility. Even with a
simple puncture, this may be the safest
and least troublesome solution. For
transporting instructions, see page .
Option 2:
Make a Temporary Roadside Repair
If a tire has only a minor nail puncture and
is not completely flat, you may be able to
make an emergency repair that could
allow you to continue riding to where you
can get the tire replaced or permanently
repaired.
169
０９／１２／１４ １５：０４：４９ ３１ＭＧＦ６１０ ０１８７
Riding your scooter with a
temporary tire repair can be risky.
If the temporary repair fails, you
can crash and be seriously injured
or killed.
If you must ride with a temporary
tire repair, ride slowly and
carefully and do not exceed 30
mph(50km/h)untilthetireis
permanently repaired or replaced.
179
Types of Temporary Repairs
If You Have a Flat Tire
Taking Care of the Unexpected
Due to the uncertainty of any temporary
repair, you should ride slowly (not over 30
mph, 50 km/h) and carefully (preferably
without a passenger or cargo) until the tire
is replaced or permanently repaired. Stop
frequently and check the air pressure. If
the tire is losing pressure, it may be unsafe
to continue riding. As the tire gets low, it
will affect the handling of your scooter
(especially with a passenger and cargo)
and it may overheat and blow out.
The following types of temporary repairs
generally require a source of air to inflate
the tire. Possible sources include CO
cartridges or cans of compressed air
designed to inflate a tire.
2
０９／１２／１４ １５：０４：５４ ３１ＭＧＦ６１０ ０１８８
180
Should You Repair or Replace a
Tire?
If You Have a Flat Tire
Taking Care of the Unexpected
Inflate the tire:
Plug the hole:
Tubeless tires have
some self-sealing ability if they are
punctured and the result is usually just a
slow leak. If this is the case, you can try
inflating the tire to see if it will hold air
pressure. If you can see a nail or other
object embedded in the tire tread, do not
remove it at this time.
Theideahereistodo
something to temporarily stop the leak.
If you have a tubeless tire repair kit,
you can pull out the nail and try
insertinganexternalpluginthe
puncture. Follow the instructions that
came with the repair kit and be sure to
inflate the tire to the correct pressure.
We strongly recommend that you replace,
not permanently repair, any tire that is
punctured or damaged, even if the tire has
only a minor puncture. For a full
discussion of repairs and replacement, see
page .146
０９／１２／１４ １５：０４：５９ ３１ＭＧＦ６１０ ０１８９
181
Emergency Wheel
Removal/Installation
If You Have a Flat Tire
Taking Care of the Unexpected
Safety PrecautionsRefer to on page .
We recommend wheel removal be done
only by your Honda dealer or another
qualified mechanic. Do not attempt to
remove the wheel on your own. Wheel
removal requires mechanical skill and
professional tools.
82
０９／１２／１４ １５：０５：０４ ３１ＭＧＦ６１０ ０１９０
182
If Your Engine Overheats
Taking Care of the Unexpected
Continuing to ride with an overheated
engine can cause serious engine damage.
A steaming engine indicates a coolant
leak. Shut the engine off and wait until
the steaming stops. Look for a leak, but
don’t touch the engine or radiator
system. Let everything cool off first.
Normally, the coolant temperature on your
temperature meter will rise and then level
off. Hot weather may cause the
temperature to rise higher than normal. So
will temporary stress such as climbing a
hill. If you’re stuck in stop-and-go traffic,
the temperature may climb some, but the
radiator fan is designed to prevent
overheating. Be aware of these variations
as you monitor the meter.
If there’s no obvious problem, leave the
engine on so the fan and coolant
circulating system can continue
working. Monitor the temperature meter.
The temperature may drop to the
normal range after a brief stop with no
load on the engine.
If the high coolant temperature indicator
comes on, and the coolant temperature
meter displays five segments for no
apparent reason, pull safely to the side of
the road. If possible, park in a shady area.
０９／１２／１４ １５：０５：１０ ３１ＭＧＦ６１０ ０１９１
183
If Your Engine Overheats
Taking Care of the Unexpected
Check the radiator fan.
If the fan is not working, turn the
engine off. Open the fuse box (page
) and check the radiator fan fuse.
If the fuse is blown, replace it with the
proper (same rating) spare fuse. Start
the engine. If the high coolant
temperature indicator come on, and the
coolant temperature meter displays five
segments, turn the engine off.
If the radiator fan is working, visually
check the coolant level in the reserve
tank, located under the right fairing
pocket (page ). It isn’t necessary to
touch the radiator system.
If you are able to resume riding, continue
to monitor the meter frequently.
If the reserve tank is low or empty, don’t
ride without adding coolant (page ).
After adding coolant, turn the engine on
and check the temperature meter.
If the temperature doesn’t drop, do not
ride. The engine needs repair. Transport
your scooter to a Honda dealer (page
).
If the temperature drops to normal,
check the coolant level. If it has gone
down, add more coolant.
If there’s a mild leak, you can ride for
awhile, carefully watching the meter. Be
prepared to stop and add more coolant or
water. If the leak is bad, transport your
scooter to a Honda dealer (page ).
119
119
185
169
169
０９／１２／１４ １５：０５：１５ ３１ＭＧＦ６１０ ０１９２
184
If the Low Oil Pressure Indicator Lights
Taking Care of the Unexpected
Continuing to ride with low oil pressure
can cause serious engine damage.
If you check your engine oil level
regularly, you should never see the low oil
pressure indicator while riding. Normally,
it will only light momentarily when you
turn the ignition switch ON. Occasionally,
it may flicker at or near idling speed.
Lowoilpressuremaybecausedbyanoil
leak, a low oil level, or some problem in
the engine’s lubrication system.
Check for an oil leak.
If the indicator comes on while you’re
riding, don’t ignore it. Pull safely to the
side of the road. Stop the engine as soon
as it’s safe to do so.
Then check the oil level. If necessary,
add the recommended oil (page ) to
the upper level mark. If you must leave
your scooter to get oil, secure it as much
as possible.
After adding oil, start the engine, and
check that the low oil pressure indicator
goes off. Check for a possible leak.
If the indicator goes off and there is no
leak –– resume riding. If there is a leak
–– do not ride the scooter until the leak
is repaired by a Honda dealer.
109
０９／１２／１４ １５：０５：２２ ３１ＭＧＦ６１０ ０１９３
30A
30A, 15A,
10A
15A, 10A
30A
FSC600:
FSC600A:
main fuse A
main fuse B
other fuses
185
If a Fuse Blows
Taking Care of the Unexpected
All of the electrical circuits on your
scooter have fuses to protect them from
damage caused by excess current flow
(short circuit or overload).
If something electrical on your scooter
stops working, the first thing you should
check for is a blown fuse.
Determine from the chart on the circuit
fuse box cover which fuse or fuses control
that component. Check those fuses first,
but check all the fuses before looking
elsewhere for another possible cause of
the problem. Replace any blown fuses and
check component operation.
(cont’d)
The main fuse A (and spare) is located
on the starter motor magnetic switch
inside the left side cover.
The main fuse B and circuit fuse boxes
(including spare fuses) are located
under the seat.
Recommended Fuses
To prevent an accidental short circuit,
turn the ignition switch OFF before
checking or replacing the fuses.
The spare circuit fuses are located in the
fuse boxes.
1.
０９／１２／１４ １５：０５：３２ ３１ＭＧＦ６１０ ０１９４
(1) (2)
(3)
MAIN FUSE
(4) blown fuse
(4)
LEFT SIDE
(5)
(1) main fuse A
(2) wire connector
(3) starter magnetic switch
(5) spare main fuse A
186
If a Fuse Blows
Taking Care of the Unexpected
Main Fuse A Access: Disconnect the wire connector ( ) of
the starter magnetic switch ( ).
Pull the main fuse out. If it is blown ( ),
install the spare main fuse ( ).
Install the left side cover.
Reconnect the wire connector.
To access the main fuse A ( ), remove
the left side cover (page ).
3.
4.
2.
5.
6.
2
99
1
4
5
3
０９／１２／１４ １５：０５：４１ ３１ＭＧＦ６１０ ０１９５
UNDER SEAT
CIRCUIT FUSE
(6) (7)
(9)
(9)
(8)
(8) blown fuse
(6) fuse box covers
(7) main fuse B
(9) spare fuses
187
If a Fuse Blows
Taking Care of the Unexpected
Main Fuse B and Circuit Fuse Access:
Replacing a fuse with one that has a
higher rating greatly increases the chance
of damage to the electrical system.
Open the seat (page ).
Open the fuse box covers ( ).
To check or replace a main fuse B ( )
and circuit fuse, pull the old fuse out of
its retaining clips. Look for a burned
wire inside the fuse. If the fuse is blown
( ), replace it with a spare fuse ( ) of
thesamerating.
If you do not have a replacement fuse with
the proper rating for the circuit, install one
with a lower rating.
Close the seat.
Close the fuse box covers.
47
8.
7.
9.
6
7
98 10.
11.
０９／１２／１４ １５：０５：５２ ３１ＭＧＦ６１０ ０１９６
188
If a Fuse Blows
Taking Care of the Unexpected
If you replace a blown fuse with a spare
fuse that has a lower rating, replace the
fuse with the correct rating as soon as you
can. Also remember to replace any spare
fuses that were installed.
If you do not have a spare fuse and you
cannot ride the scooter without fixing the
problem, take a fuse of the same rating or
a lower rating from one of the other
circuits that you can do without
temporarily.
If the replacement fuse of the same rating
burns out in a short time, there is probably
a serious electrical problem on your
scooter. Leave the blown fuse in that
circuit and have your scooter checked by
your Honda dealer.
０９／１２／１４ １５：０５：５７ ３１ＭＧＦ６１０ ０１９７
189
If You Crash
Taking Care of the Unexpected
Transporting Your Scooter,
Personal safety is your first priority after a
crash. If you or anyone else has been
injured, take time to assess the severity of
the injuries and whether it is safe to
continue riding. Call for emergency
assistance if needed. Also follow
applicable laws and regulations if another
person or vehicle is involved in the crash.
If there is minor damage, or you are
unsure about possible damage, ride slowly
and cautiously. Sometimes, crash damage
is hidden or not immediately apparent, so
you should have your scooter thoroughly
checked at a qualified service facility as
soon as possible. Also, be sure to have
your Honda dealer check the frame and
suspension after any serious crash.
If your scooter cannot be ridden, see
page .
If you decide that you are capable of
riding safely, first evaluate the condition
of your scooter. If the engine is still
running, turn it off and look it over
carefully; inspect it for fluid leaks, check
the tightness of critical nuts and bolts, and
secure such parts as the handlebar, control
levers, brakes, and wheels.
169
０９／１２／１４ １５：０６：０３ ３１ＭＧＦ６１０ ０１９８
(1) key number plate
(1)
190
Taking Care of the Unexpected
If You Lose Your Key
You should receive a key number plate
( ) with your keys. Store this plate in a
safe place.
Be sure to record your key number in the
Quick Reference section at the rear of the
manual. You’ll need this number to have a
duplicate key made.
A lost key won’t be a problem if you take
preventative action. Store one duplicate
key in a safe place at home and carry a
second duplicate in your wallet.
If you lose your key and aren’t carrying a
duplicate, either get your spare or have
one made. If you don’t know your key
number, call the dealer where you
purchased your Honda. They may have it
listed in their records. If they don’t,
transport your scooter to them or the
nearest Honda dealer. The dealer will
probably have to remove the ignition
switch assembly to find the key number so
they can make a key for you.
1
０９／１２／１４ １５：０６：０８ ３１ＭＧＦ６１０ ０１９９
191
If Your Battery Is Low (or Dead)
Taking Care of the Unexpected
Bump starting is also not recommended.
If you can’t charge the battery or it
appears unable to hold a charge, contact
your Honda dealer.
Jump starting is not recommended,
especially if you use an automobile battery.
The greater amperage of an automobile
battery when the car engine is running can
damage your scooter’s electrical system.
０９／１２／１４ １５：０６：１２ ３１ＭＧＦ６１０ ０２００
192
Taking Care of the Unexpected
０９／１２／１４ １５：０６：１５ ３１ＭＧＦ６１０ ０２０１
193
Technical Information
Technical Information
This section contains dimensions,
capacities, and other technical data, plus
information on government requirements
and how to break-in your scooter.
.........................Vehicle Identification .
.....................................Specifications .
...........................Break-in Guidelines .
.................Emission Control Systems .
............................Catalytic Converter .
...............................Oxygenated Fuels .
194
197
203
204
211
212
０９／１２／１４ １５：０６：２１ ３１ＭＧＦ６１０ ０２０２
(1)
(2)
RIGHT FRONT (under air cover)
(1) VIN
(2) right front air cover
194
Serial Numbers
Vehicle Identification
Technical Information
The VIN and engine serial number are
required when you register your scooter.
Theymayalsoberequiredwhenordering
replacement parts. You may record these
numbers in the Quick Reference section at
the rear of this manual.
The VIN (vehicle identification number)
is stamped on the right side of the frame
body and also appears on the Safety
Certification Label attached under the
right front air cover.
０９／１２／１４ １５：０６：２７ ３１ＭＧＦ６１０ ０２０３
RIGHT SIDE
LEFT SIDE
(3)
(4)
(4) engine number
(3) VIN
195
Vehicle Identification
Technical Information
The engine number ( ) is stamped on the
left side of the crankcase.
4
０９／１２／１４ １５：０６：３２ ３１ＭＧＦ６１０ ０２０４
(1) color label
(1)
INSIDE CENTER COMPARTMENT
196
Color Label & Code
Vehicle Identification
Technical Information
The color label is located in the center
compartment.
The color code is helpful when ordering
replacement parts. You may record the
color and code in the Quick Reference
section at the rear of this manual.
０９／１２／１４ １５：０６：３７ ３１ＭＧＦ６１０ ０２０５
89.6 in (2,275 mm)
30.3 in (770 mm)
56.3 in (1,430 mm)
62.8 in (1,595 mm)
5.5 in (140 mm)
overall length
overall width
overall height
wheelbase
ground clearance
Dimensions
197
Specifications
Technical Information
０９／１２／１４ １５：０６：４５ ３１ＭＧＦ６１０ ０２０６
unleaded gasoline, pump octane number of 86 or higher
4.23 US gal (16.0
)
2.7 US qt (2.6
)
2.1 US qt (2.0
)
2.3 US qt (2.2
)
3.17 US qt (3.00
)
API Service Classification SG or higher except oils
labeled as energy conserving on the circular API service
label, SAE 10W-30, JASO T 903 standard MA,
Pro Honda GN4 4-stroke oil or an equivalent motorcycle
oil
including reserve
after disassembly:
after draining:
after draining & oil filter change:
fuel recommendation
fuel tank capacity
engine oil capacity
engine oil
recommendation
cooling system,
recommendation
cooling system,
capacity
Pro Honda HP Coolant or an equivalent high quality ethylene
glycol antifreeze containing corrosion protection inhibitors
specifically recommended for use in aluminum engines
Fuel & Lubricants
198
Specifications
Technical Information
０９／１２／１４ １５：０６：５５ ３１ＭＧＦ６１０ ０２０７
××
±
−−
operator, one passenger
rider, passenger, all cargo and accessories
35.5 cu-in (582 cm
)
2.83 2.81 in (72.0 71.5 mm)
10.2 : 1
CR8EH-9 (NGK) U24FER9 (DENSO)
0.006 in (0.16 mm)
0.009 in (0.22 mm)
1,300 100 rpm
intake:
exhaust:
or
0.031 0.035 in (0.80 0.90 mm)
366 lb (166 kg)
passenger capacity
maximum weight
capacity
displacement
bore & stroke
compression ratio
spark plug (standard)
spark plug gap
valve clearance
(cold)
idle speed
Capacities
Engine Specifications
199
Specifications
Technical Information
０９／１２／１４ １５：０７：０８ ３１ＭＧＦ６１０ ０２０８
−
−
120/80-14M/C 58S
4.1 in (105 mm)
28°30’
V-Belt
6.016
150/70-13M/C 64S
29 psi (200 kPa , 2.00 kgf/cm
)
33 psi (225 kPa , 2.25 kgf/cm
)
36 psi (250 kPa , 2.50 kgf/cm
)
with less than 200 lb
(90 kg) of added weight
with more than 200 lb
(90 kg) of added weight
IRC SS530F
IRC SS530R
bias-ply, tubeless
tire size, front
trail
caster
primary reduction
final reduction
tire size, rear
tire type
tire pressure, front
(cold)
tire pressure, rear
(cold)
Chassis & Suspension
Power Transmission
200
Specifications
Technical Information
０９／１２／１４ １５：０７：２１ ３１ＭＧＦ６１０ ０２０９
×
×
×
×
12V-3.4W
12V-5W
12V-21W 2
12V-21W 2
12V-21/5W 2
12V-55W 2
(front)
(rear)
0.44 kW/5,000 rpm
12V-11 (10) Ah
trunk light
license light
turn signal lights
brake/tail light
headlight
battery
generator
Lights
Electrical
201
Specifications
Technical Information
０９／１２／１４ １５：０７：３２ ３１ＭＧＦ６１０ ０２１０
30A
11 lbf·ft (15 N·m , 1.5 kgf·m)
30A, 15A, 10A
15A, 10A
30A
19 lbf·ft (26 N·m , 2.7 kgf·m)
FSC600:
FSC600A:
other fuses
main A
main B
engine oil drain plug
engine oil filter
Fuses
Torque Specifications
202
Specifications
Technical Information
０９／１２／１４ １５：０７：４１ ３１ＭＧＦ６１０ ０２１１
203
Break-in Guidelines
Technical Information
Help assure your scooter’s future
reliability and performance by paying
extra attention to how you ride during the
first 300 miles (500 km).
During this period, avoid full-throttle
starts and rapid acceleration.
０９／１２／１４ １５：０７：４４ ３１ＭＧＦ６１０ ０２１２
(1)
UNDER SEAT
(1) vehicle emission control information
label
204
Emission Control Systems
Technical Information
Exhaust Emission Requirements
Noise Emission Requirements
Warranty Compliance
The U. S. Environmental Protection
Agency (EPA) and the California Air
Resources Board (CARB) require that
your scooter comply with applicable
exhaust emissions standards during its
useful life, when operated and maintained
according to the instructions provided.
The EPA also requires that scooters built
after January 1, 1983 comply with
applicable noise emission standards for
one year or 3,730 miles (6,000 km) after
the time of sale to the ultimate purchaser,
when operated and maintained according
to the instructions provided.
Compliance with the terms of the
Distributor’s Warranties for Honda
Scooter Emission Control Systems is
necessary in order to keep the emissions
system warranty in effect.
０９／１２／１４ １５：０７：４９ ３１ＭＧＦ６１０ ０２１３
205
Emission Control Systems
Technical Information
Source of Exhaust Emissions
The combustion process produces carbon
monoxide (CO), oxides of nitrogen (NOx),
and hydrocarbons (HC). Control of
hydrocarbons and oxides of nitrogen is
very important because, under certain
conditions, they react to form
photochemical smog when subjected to
sunlight. Carbon monoxide does not react
in the same way, but it is toxic.
Honda Motor Co., Ltd. utilizes various
systems to reduce hydrocarbons, oxides of
nitrogen, and carbon monoxide.
The Vehicle Emission Control
Information label ( ) is attached to the
inside of the center compartment.
1
０９／１２／１４ １５：０７：５４ ３１ＭＧＦ６１０ ０２１４
206
Programmed Fuel Injection (PGM-FI)
System
Ignition Timing Control System
Exhaust Emission Control System
Emission Control Systems
Technical Information
The PGM-FI system has four subsystems:
Air Intake, Engine Control, Fuel Control,
and Exhaust Control.
The Engine Control Module (ECM) uses
various sensors to determine how much air
is going into the engine. It then controls
how much fuel is injected under all
operating conditions.
The system constantly adjusts the ignition
timing, reducing the amount of HC, CO
and NOx produced.
The exhaust emission control system
includes a secondary air injection system,
ignition timing control system, PGM-FI
system, three-way catalytic converter, and
heated oxygen sensor.
No adjustment to these systems should be
made although periodic inspection of the
components is recommended.
０９／１２／１４ １５：０７：５８ ３１ＭＧＦ６１０ ０２１５
207
Secondary Air Injection System
Evaporative Emission Control System
Three-Way Catalytic Converter
Emission Control Systems
Technical Information
The secondary air injection system
introduces filtered air into the exhaust
gases in the exhaust port. The secondary
air injection system helps improve
emission control performance.
This scooter complies with the
requirements of the California Air
Resources Board (CARB) evaporative
emission regulations. Fuel vapor from the
fuel tank is directed into the charcoal
canister and air cleaner where it is
adsorbed and stored while the engine is
stopped. When the engine is running and
the purge control solenoid valve is open,
fuel vapor in the charcoal canister and air
cleaner is drawn into the engine through
the throttle body.
The three-way catalytic converter is in the
exhaust system. Through chemical
reactions, it converts HC, CO, and NOx in
the engine’s exhaust to carbon dioxide
(CO ), nitrogen (N), and water vapor.
2
09/12/18 09:34:04 31MGF610_216
208
Problems That May Affect Scooter
Exhaust Emissions
Crankcase Emission Control System
Emission Control Systems
Technical Information
Hard starting or stalling after starting
Rough idle
Misfiring or backfiring during
acceleration
After-burning (backfiring)
Poor performance (driveability) and
poor fuel economy
If you are aware of any of the following
symptoms, have the vehicle inspected and
repaired by your authorized Honda scooter
dealer.
Symptoms:
The engine is equipped with a closed
crankcase system to prevent discharging
crankcase emissions into the atmosphere.
Blow-by gas is returned to the combustion
chamber through the air cleaner and the
intake manifold.
1.
2.
3.
4.
5.
０９／１２／１４ １５：０８：０８ ３１ＭＧＦ６１０ ０２１７
209
Noise Emission Control System
Emission Control Systems
Technical Information
TAMPERING WITH THE NOISE
CONTROL SYSTEM IS PROHIBITED:
U. S. federal law prohibits, or Canadian
provincial laws may prohibit the following
acts or the causing thereof: ( ) The
removal or rendering inoperative by any
person, other than for purposes of
maintenance, repair or replacement, of any
device or element of design incorporated
into any new vehicle for the purpose of
noise control prior to its sale or delivery to
the ultimate purchaser or while it is in use;
or ( ) the use of the vehicle after such
device or element of design has been
removed or rendered inoperative by any
person.
Removal of, or puncturing the muffler,
baffles, header pipes or any other
component which conducts exhaust
gases.
Removal of, or puncturing of any part
of the intake system.
Lack of proper maintenance.
Replacing any moving parts of the
vehicle, or parts of the exhaust or intake
system, with parts other than those
specified by the manufacturer.
AMONG THOSE ACTS PRESUMED
TO CONSTITUTE TAMPERING ARE
THE FOLLOWING ACTS:
1.
2.
3.
4.
1
2
０９／１２／１４ １５：０８：１３ ３１ＭＧＦ６１０ ０２１８
210
Emission Control Systems
Technical Information
Fuel Permeation Emission Control
System
This vehicle complies with the Fuel
Permeation Emission Control regulations
of the U.S. Environmental Protection
Agency (EPA) and the California Air
Resources Board (CARB). The fuel tank,
fuel hoses, and fuel vapor charge hoses
used on this vehicle incorporate fuel
permeation control technologies.
Tampering with the fuel tank, fuel hoses,
or fuel vapor charge hoses to reduce or
defeat the effectiveness of the fuel
permeation technologies is prohibited by
federal regulations.
０９／１２／１４ １５：０８：１７ ３１ＭＧＦ６１０ ０２１９
211
Catalytic Converter
Technical Information
A defective catalytic converter contributes
to air pollution, and can impair your
engine’s performance. Follow these
guidelines to protect your scooter’s
catalytic converter.
Always use unleaded gasoline. Even a
small amount of leaded gasoline can
contaminate the catalyst metals, making
the catalytic converter ineffective.
Keep the engine in good running
condition. A poorly running engine can
cause the catalytic converter to overheat
causing damage to the converter or the
scooter.
If your engine is misfiring, backfiring,
stalling, or otherwise not running
properly, stop riding and turn off the
engine. Have your scooter serviced as
soon as possible.
This scooter is equipped with a three-way
catalytic converter.
The catalytic converter contains precious
metals that serve as catalysts, promoting
chemical reactions to convert the exhaust
gasses without affecting the metals.
The catalytic converter acts on HC, CO,
and NOx. A replacement unit must be an
original Honda part or its equivalent.
The catalytic converter must operate at a
high temperature for the chemical
reactions to take place. It can set fire to
any combustible materials that come near
it. Park your scooter away from high
grasses, dry leaves, or other flammables.
０９／１２／１４ １５：０８：２１ ３１ＭＧＦ６１０ ０２２０
212
Oxygenated Fuels
Technical Information
If you use an oxygenated fuel, be sure it is
unleaded and meets the minimum octane
rating requirement.
Before using an oxygenated fuel, try to
confirm the fuel’s contents. Some states/
provinces require this information to be
posted on the pump.
The following are the EPA-approved
percentages of oxygenates:
ETHANOL (ethyl or grain alcohol) 10%
by Volume
You may use gasoline containing up to
10% ethanol by volume. Gasoline
containing ethanol may be marketed
under the name ‘‘Gasohol’’.
MTBE (Methyl Tertiary Butyl Ether) 15%
by Volume
You may use gasoline containing up to
15% MTBE by volume.
Some conventional gasolines are being
blended with alcohol or an ether
compound. These gasolines are
collectively referred to as oxygenated
fuels. To meet clean air standards, some
areas of the United States use oxygenated
fuels to help reduce emissions.
０９／１２／１４ １５：０８：２７ ３１ＭＧＦ６１０ ０２２１
213
Oxygenated Fuels
Technical Information
Oxygenated fuels can damage paint and
plastic. Damage caused by spilled fuel is
not covered by warranty.
Fuel system damage or performance
problems resulting from the use of an
oxygenated fuel containing more than the
percentages of oxygenates mentioned
above are not covered under warranty.
Oxygenated fuels can damage paint and
plastic. Be careful not to spill fuel when
filling the fuel tank. Wipe up any spills
immediately.
If you notice any undesirable operating
symptoms, try another service station or
switch to another brand of gasoline.
METHANOL (methyl or wood alcohol)
5% by Volume
You may use gasoline containing
methanol containing up to 5% methanol
by volume as long as it also contains
cosolvents and corrosion inhibitors to
protect the fuel system. Gasoline
containing more than 5% methanol by
volume may cause starting and/or
performance problems. It may also
damage metal, rubber, and plastic parts
of your fuel system.
０９／１２／１４ １５：０８：３３ ３１ＭＧＦ６１０ ０２２２
214
Technical Information
０９／１２／１４ １５：０８：３５ ３１ＭＧＦ６１０ ０２２３
215
Consumer Information
Consumer Information
This section contains information on your
warranty and how to get an official Honda
Service Manual.
...........................Authorized Manuals .
............................Warranty Coverage .
................................Warranty Service .
...............................Contacting Honda .
............................Your Honda Dealer .
....................The Honda Rider’s Club .
...................Reporting Safety Defects .
216
219
220
221
222
223
224
０９／１２／１４ １５：０８：４２ ３１ＭＧＦ６１０ ０２２４
＊
＊
$60.00
$48.00
$16.00
61MCT08
61CM002
31MGF610
2010 FSC600/A SILVER WINGService Manual
Common Service Manual
2010 FSC600/A SILVER WINGOwner’sManual
Publication Item No. Description Price Each
Prices are subject to change without notice and without incurring obligation.
216
Authorized Manuals
Consumer Information
The Service Manual used by your authorized Honda dealer is available from Helm, Inc.
Also available but not necessary to service your model is the Honda Common Service
Manual which explains theory of operation and basic service information for various systems
common to all Honda motorcycles, motor scooters and ATVs.
These Honda manuals are written for the professional technician, but most mechanically
capable owners should find them easy to use if they have the proper tools and observe proper
safety standards. Special Honda tools are necessary for some procedures.
09/12/18 09:34:11 31MGF610_225
−−
＊
＊
Prices are subject to change without notice and without incurring
obligation.
Orders are mailed within 10 days. Please allow adequate time for
delivery.
Publication
Item No.
Item Description Qty. Price
Each
Total
Price
Sub Total
Purchaser’s Sales Tax
Mich. add 6 %
Calif. add 8.25 %
Handling Charge
Grand Total
$3.75
217
Consumer Information
Order On-Line: www.helminc.com
Order Toll Free: 1-888-CYCLE93
OR
(NOTE: For Credit Card Orders Only)
(1-888-292-5393)
Monday Friday 8:00 AM 6:00 PM EST
By completing this form you can order the materials desired. You can pay by check or
money order, or charge to your credit card. Mail to Helm, Inc. at the address shown on the
back of this order form.
０９／１２／１４ １５：０８：５９ ３１ＭＧＦ６１０ ０２２６
−
NOTE: Dealers and Companies please provide dealer or companyname, andalso thename of the person to whose attention the
shipment should be sent.
Customer Name Attention
Zip CodeStateCity
Daytime Telephone Number
Checkhere if your billing address is different from the
shipping address shown above.
Check ormoney order enclosed payableto HelmInc.
U.S. funds only. Do not send cash.
MasterCard
VISA
Discover
Account Number
Date
These Publications cannot be returned for credit without receiving advance authorization within 14 days of delivery. For returns, a restocking fee may
be applied against the original order.
Expiration: Mo. Yr.
Customer Signature
Apartment NumberStreet address/P. O. BOX
Security Code
()
P.O. BOX 07280, DETROIT, MICHIGAN 48207
HELM
P
A
Y
M
E
N
T
S
H
I
P
T
O
218
Consumer Information
０９／１２／１４ １５：０９：１３ ３１ＭＧＦ６１０ ０２２７
219
Warranty Coverage
Consumer Information
Your new Honda is covered by these
warranties:
Your warranty coverage will not be
voided if you choose to perform your own
maintenance. However, you should have
the proper tools and service information
and be mechanically qualified. Failures
that occur due directly to improper
maintenance are not covered.
Scooter Limited Warranty
Emission Control System Warranty
Noise Control Warranty
It is important to realize that your
warranty applies to defects in material or
workmanship of your Honda. Your
warranty coverage does not apply to
normal wear or deterioration associated
with using the scooter.
There are responsibilities, restrictions, and
exclusions which apply to these warranties.
Please read the Warranties Booklet given
to you by your Honda dealer at the time of
purchase. Be sure to keep your Honda
owner’s card with your Warranties
Booklet.
Almost all of your warranty coverage can
be extended through the Honda Protection
Plan. For more information, see your
Honda dealer.
０９／１２／１４ １５：０９：２０ ３１ＭＧＦ６１０ ０２２８
220
Warranty Service
Consumer Information
Please remember that recommended
maintenance interval servicing is not
included in your warranty coverage.
Additionally, your warranty does not
apply to the normal wear of items (such as
brakes, tires, etc.).
If you have questions about warranty
coverage or the nature of the repair, it is
best to talk to the Service Manager of your
Honda dealer.
Sometimes, in spite of the best intentions
of all concerned, a misunderstanding may
occur. If you aren’t satisfied with your
dealer’s handling of the situation, we
suggest you discuss your problem with the
appropriate member of the dealership’s
management team. If the problem has
already been reviewed with the Service
Manager, Parts Manager, Sales Manager,
etc., contact the Owner of the dealership
or their designated representative.
If you believe you have a problem with
your scooter, call the service department
of your Honda dealer. Make an
appointment for an inspection and
diagnosis. Remember, as the owner of the
scooter, you will be asked to authorize that
inspection. Your dealer will give you the
results of the inspection. If the problem is
covered under warranty, your dealer will
perform the warranty repairs for you.
０９／１２／１４ １５：０９：２５ ３１ＭＧＦ６１０ ０２２９
221
Consumer Information
Contacting Honda
Your owner’s manual was written to cover
most of the questions you might ask about
your Honda. Any questions not answered
in the owner’s manual can be answered by
your Honda dealer. If your dealer doesn’t
have the answer right away, they will get
it for you.
If you have a difference of opinion with
your dealer, please remember that each
dealership is independently owned and
operated. That’s why it’s important to
work to resolve any differences at the
dealership level.
If you wish to comment on your
experiences with your Honda or with your
dealer, please send your comments to the
following address:
Motorcycle Division, American Honda
Motor Co., Inc., P.O. Box 2200, Torrance,
CA 90509-2200, mailstop: 100-4C-7B,
telephone: (866) 784-1870.
Please include the following information
in your letter:
name, address, and telephone number
product model, year, and VIN
date of purchase
dealer name and address
We will likely ask your Honda dealer to
respond, or possibly acknowledge your
comments directly.
０９／１２／１４ １５：０９：３１ ３１ＭＧＦ６１０ ０２３０
222
Consumer Information
Your Honda Dealer
Once you purchase your new Honda, get
familiar with the organization of your
Honda dealer so you can utilize the full
range of services available.
The service department is there to perform
regular maintenance and unexpected
repairs. It has the latest available service
information from Honda. The service
department will also handle warranty
inspections and repairs.
The parts department offers Honda
Genuine Parts, Pro Honda products, and
Honda Genuine Accessories. The same
quality that went into your Honda can be
found in Honda Genuine replacement
parts. You’ll also find comparable quality
in the accessories and products available
from the parts department.
The sales department offers the Honda
Protection Plan to extend almost all of
your warranty coverage.
Your Honda dealer can inform you about
competition and other riding events in
your area. You’ll also find that your dealer
is a source of information about safety
training available in your local area and
the Honda Rider’s Club of America.
We’re sure you’ll be as pleased with the
service your Honda dealer continues to
provide after the sale as you are with the
quality and dependability of your Honda.
０９／１２／１４ １５：０９：３７ ３１ＭＧＦ６１０ ０２３１
223
Consumer Information
The Honda Rider’s Club
www.hrca.honda.
com.
You may be eligible for a Honda Rider’s
Club of America (HRCA) membership
with the purchase of your new Honda.
You can log on to the HRCA Clubhouse
website for details at
０９／１２／１４ １５：０９：４０ ３１ＭＧＦ６１０ ０２３２
224
Consumer Information
Reporting Safety Defects
http://www.safercar.gov
http://www.safercar.gov.
If you believe that your vehicle has a
defect which could cause a crash or
could cause injury or death, you should
immediately inform the National
Highway Traffic Safety Administration
(NHTSA) in addition to notifying
American Honda Motor Co., Inc.
To contact NHTSA, you may call the
Vehicle Safety Hotline toll-free at
1-888-327-4236 (TTY: 1-800-424-
9153); go to ;
or write to: Administrator, NHTSA,
1200 New Jersey Avenue, SE.,
Washington, DC 20590.
You can also obtain other information
about motor vehicle safety from
If NHTSA receives similar complaints,
it may open an investigation, and if it
finds that a safety defect exists in a
group of vehicles, it may order a recall
and remedy campaign. However,
NHTSA cannot become involved in
individual problems between you, your
dealer, or American Honda Motor Co.,
Inc.
０９／１２／１４ １５：０９：４５ ３１ＭＧＦ６１０ ０２３３
225
Consumer Information
０９／１２／１４ １５：０９：４７ ３１ＭＧＦ６１０ ０２３４
226
Index
Index
A
C
B
............................ABS indicator . 13, 19, 71
...............................................accessories . 5
............................................air cleaner . 122
..................................air pressure, tires . 142
...............American Honda, contacting . 221
...............anti-lock brake system (ABS) . 70
.................................apparel, protective . 36
...................................appearance care . 156
..............................authorized manuals . 216
..................................bank angle sensor . 59
..................................................battery . 151
brakes,
..................................................fluid . 136
...........................................pad wear . 139
...........parking brake lever freeplay . 141
...................................................braking . 68
..............................break-in guidelines . 203
button,
....................................................horn . 31
.......................MODE . 13, 18, 24, 25, 31
.......................RESET . 13, 18, 24, 25, 31
.....................................................start . 29
.......................................capacity, fuel . 106
..................................care, appearance . 156
...............................catalytic converter . 211
...................cleaning, appearance care . 156
....................................clock, digital . 17, 25
............................................color label . 196
compartment,
..................................................center . 47
..........................................storage . 96, 97
０９／１２／１４ １５：０９：５２ ３１ＭＧＦ６１０ ０２３５
227
Index
Index
D
E
F
(cont’d)
.........................consumer information . 215
..................................control & features . 28
..................................................coolant . 118
...............coolant temperature meter . 17, 21
..................................customer service . 221
......................................defects, safety . 224
.....................................digital clock . 17, 25
display,
..................................................check . 15
....................................multi-function . 20
..................................................flat tire . 178
.......................................flooded engine . 59
.....................emission control systems . 204
engine,
...............................................flooded . 59
.........................................idle speed . 127
................................low oil pressure . 184
.............................................number . 195
.....................................................oil . 108
..........................................overheats . 182
.............................................pinging . 105
...............................................starting . 55
.........................................stop switch . 29
..............................................stopping . 60
........................................won’t start . 173
.........................................environment . 170
０９／１２／１４ １５：０９：５８ ３１ＭＧＦ６１０ ０２３６
228
Index
Index
G
H
I
fuel,
..................................................gauge . 23
.......................................oxygenated . 212
..............................recommendation . 104
....................................tank capacity . 106
.....................................................fuses . 185
.................................................gasohol . 212
................................................gasoline . 104
................gauges, indicators & displays . 13
.......................headlight dimmer switch . 30
.........................high beam indicator . 13, 18
high coolant temperature
...................................indicator . 13, 16, 182
............................................holder hook . 74
Honda,
........................................contacting . 221
................................................dealer . 222
.....................................Rider’s Club . 223
.................................service manual . 216
.............................................horn button . 31
..........................identification, vehicle . 194
................................idle speed, engine . 127
ignition cut-off system,
..............................bank angle sensor . 59
...........................................side stand . 55
.......................................ignition switch . 28
................................................indicators . 13
................................inspection, pre-ride . 40
０９／１２／１４ １５：１０：０４ ３１ＭＧＦ６１０ ０２３７
229
Index
Index
M
N
L
K
................................................key, lost . 190
...................................................kit, tool . 96
........low oil pressure indicator . 13, 16, 184
............................................labels, safety . 7
.............................................lamp check . 14
..................................left fairing pocket . 49
..........................left side cover removal . 99
...........................................limit, weight . 44
..............................................load limits . 44
..................................loading guidelines . 45
..........................................lock, steering . 73
maintenance,
..........................component locations . 93
.........................................importance . 80
..............................................periodic . 84
.................................................record . 91
..................................................safety . 81
.............................................schedule . 86
....................................manual, service . 216
..........................maximum weight limit . 44
................MODE button . 13, 18, 24, 25, 31
...........................................modifications . 6
.....................................numbers, serial . 194
０９／１２／１４ １５：１０：１０ ３１ＭＧＦ６１０ ０２３８
230
Index
Index
R
P
O
................................................odometer . 24
oil,
...............................................engine . 108
.....................................low pressure . 184
.............operation component locations . 10
...................................overheat, engine . 182
.........................owner’s manual storage . 97
..................................oxygenated fuels . 212
...................................................parking . 72
...................parking brake indicator . 13, 19
.................................parking brake lock . 32
PGM-FI malfunction indicator lamp
...............................................(MIL) . 13, 19
....................................pinging, engine . 105
..........................................plugs, spark . 129
.....................pre-load, rear suspension . 133
.................................pre-ride inspection . 40
..........................problems, unexpected . 171
..................................protective apparel . 36
.......................................rear brake lock . 32
.................................rear cover removal . 98
removal,
....................................left side cover . 99
...........................................rear cover . 98
..........................right fairing pocket . 103
................................right side cover . 101
.......................reporting safety defects . 224
...............RESET button . 13, 18, 24, 25, 31
......................................rider training . 3, 38
............................Rider’s Club, Honda . 223
０９／１２／１４ １５：１０：１４ ３１ＭＧＦ６１０ ０２３９
231
Index
Index
S
(cont’d)
riding,
...................................basic operation . 53
..............................................clothing . 36
.........................................precautions . 54
....................................................safety . 2
..............................safety precautions . 54
.....................with passenger or cargo . 76
........................right fairing pocket . 50, 103
......................right side cover removal . 101
safety,
........................important precautions . 82
....................................................labels . 7
..............................reporting defects . 224
..............................riding precautions . 54
...........................schedule, maintenance . 86
.................................sensor, bank angle . 59
......................................serial numbers . 194
service,
...........................................customer . 221
............................................manuals . 216
...........................................warranty . 220
side cover removal,
......................................................left . 99
..................................................right . 101
.............................................side stand . 150
.........side stand ignition cut-off system . 55
..........................................spark knock . 105
...........................................spark plugs . 129
.......................................specifications . 197
.....................................speedometer . 13, 16
............................................stand, side . 150
.............................................start button . 29
０９／１２／１４ １５：１０：１９ ３１ＭＧＦ６１０ ０２４０
232
Index
Index
T
V
starting,
.................................................engine . 55
................................troubleshooting . 173
...........................................steering lock . 73
................................stop switch, engine . 29
......................................stopping engine . 60
storage,
.................................owner’s manual . 97
..............................................scooter . 166
.....................suspension, rear pre-load . 133
switch,
.........................................engine stop . 29
...............................headlight dimmer . 30
...............................................ignition . 28
..........................................turn signal . 30
.......................................tachometer . 13, 16
..............temperature meter, coolant . 17, 21
..............................theft-prevention tips . 75
..................................................throttle . 125
tires,
.......................................air pressure . 142
....................................................flat . 178
..........................................replacing . 147
....................................................tool kit . 96
.....................................training, rider . 3, 38
.....................transporting your scooter . 169
.................................................tripmeter . 24
.............................trouble, unexpected . 171
......................troubleshooting, starting . 173
.........................turn signal indicator . 13, 16
...................................turn signal switch . 30
..vehicle identification no. (VIN) . 194, 195
.............................V-matic indicator . 13, 18
０９／１２／１４ １５：１０：２５ ３１ＭＧＦ６１０ ０２４１
233
Index
Index
W
warranty,
...........................................coverage . 219
...........................................extended . 219
..............................................service . 220
...........................washing your scooter . 158
............................................weight limit . 44
０９／１２／１４ １５：１０：２８ ３１ＭＧＦ６１０ ０２４２
How to Avoid Costly Repairs
Quick Reference
Quick Reference
The following is a brief, but important
collection of information you need to
know about your Honda. You’ll also find
space to record important notes. The engine of your Honda can be the most
expensive component to repair. Proper
maintenance, especially the use of the
recommended fluids and filters, prevents
premature wear and damage.
Frequent causes of costly repairs are:
Engine oil –– insufficient quantity,
improper oil.
Air cleaner –– dirty, leaking because of
improper installation (poor seal).
Record important information on the
following page:
０９／１２／１４ １５：１０：４０ ３１ＭＧＦ６１０ ０２４５
Quick Reference
Quick Reference
VIN
Engine No.
Ignition Key No.
Color Label
Owner’s Name
Address
City/State
Phone
Dealer’s Name
Address
City/State
Phone
Service Mgr.
０９／１２／１４ １５：１０：４４ ３１ＭＧＦ６１０ ０２４６
4.23 US gal (16.0 )
366 lb (166 kg)
Quick Reference
Quick Reference
Scheduled
Maintenance
Pre-ride
Inspection
Periodic
Checks
Fuel/Capacity
Initial: 600 miles (1,000 km)
Regular: every 4,000 miles (6,400 km)
unleaded gasoline, pump octane number 86 or higher
Engine Oil
Check the following items monthly (page ): tires & wheels, fluids,
lights, freeplay, fuses, nuts & bolts.
Check the following items each time before you ride (page ): tires &
wheels, leaks, loose parts, lights, throttle, brakes, indicators.
API Service Classification SG or higher except oils labeled as energy
conserving on the circular API service label,
SAE 10W-30, JASO T 903 standard MA,
Pro Honda GN4 4-stroke oil or equivalent
Maximum
Weight
Capacity
rider, passenger, all cargo and accessories
40
84
０９／１２／１４ １５：１０：５３ ３１ＭＧＦ６１０ ０２４７
120/80-14M/C 58S
IRC SS530F
150/70-13M/C 64S
IRC SS530R
bias-ply, tubeless
29 psi (200 kPa , 2.00 kgf/cm
)
33 psi (225 kPa , 2.25 kgf/cm
)
36 psi (250 kPa , 2.50 kgf/cm
)
CR8EH-9 (NGK) U24FER9 (DENSO)
30A
30A
15A, 10A
30A, 15A, 10A
FSC600:
FSC600A:
Quick Reference
Quick Reference
Tires
Tire Pressure
(cold)
Spark Plugs
Coolant
Fuses
ethylene glycol antifreeze (silicate-free) for aluminum engines in 50/50
solution with Pro Honda HP Coolant or an equivalent distilled water
Front:
Front:
Rear:
standard:
main A:
main B:
other:
or
with less than 200 lb (90 kg) of added weight
with more than 200 lb (90 kg) of added weight
Rear:
Type:
０９／１２／１４ １５：１１：０５ ３１ＭＧＦ６１０ ０２４８
−
−
−
−
Quick Reference
Quick Reference
These symbols are used in Controls & Features section:
SYMBOL SEE PAGECOMPONENT
START button
HI headlight dimmer switch
LO headlight dimmer switch
turn signal switch
horn button
RUN engine stop switch
OFF engine stop switch
29
29
29
30
30
30
31
０９／１２／１４ １５：１１：１５ ３１ＭＧＦ６１０ ０２４９
