1 2 3 4 5 6
Programme selector / OffDisplay panel / Buttons
Display panel and settings
ʑ
Display panel (status indicators)
p
(Fluff filter/
Exhaust air duct)
Clean the fluff filter apage 4/11
or check the exhaust air duct a page 8.
H|]+
- Æ-§Ê
(Programme
sequence)
These indicators show the programme progress in the next steps
of the drying cycle:
H Drying;
|] Iron Dry;
+Cupboard Dry;
- Æ- Programme pause aif required;
§ÊProgramme end.
(
(Childproof lock)
You can lock the dryer to prevent the functions you have set from being
changed inadvertently. To activate/deactivate ((Childproof lock) start
the programme and then press and hold the $Start/Pause button for
5 seconds until a long acoustic signal is heard. The option
activated/deactivated a((Childproof lock) indicator light on/off.
[h:min]
(Remaining time)
When a programme is selected, the anticipated drying time (remaining
time) for the recommended load is displayed. While drying, the moisture
sensors detect the actual load and correct the programme length. This is
shown by jumps in the remaining time in the display panel.
ʑ
Settings (indicators lights and buttons)
Selected option activated/deactivated aindicator light on/off.
See the separate Energy-saving mode instructions.
Drying time
Drying time, available only for timed programmes, can be selected
from min. 0:20 h to max. 3:00 h, in 10-minute steps.
y
Fine adjust
The dryness levels can be increased in three levels.
The laundry is made drier. Default = 0. Selectable values: 0, 1, 2, 3.
After setting the level of the fine adjustment for a programme, it is also
retained for other programmes, until yFine adjust is changed again.
³¤- ¤
ÈFinished in
The time when the programme has to end can be set by selecting
the È÷Finished in time. The ÈFinished in time can be selected in
one-hour steps, up to a maximum of 24 hours. Select the ÈFinished in
button repeatedly until the required number of hours is displayed. Then
press the $Start/Pause button to activate the ÈFinished in option.
The programme ends after the selected number of hours.
Several minutes after activating ÈFinished in option the display switches
off to save energy. To switch it on select any button, close/open the door
or turn the programme selector.
V
Low Heat
Reduced temperature for delicate fabrics, e.g. polyacrylic, polyamide
or elastane, with a longer drying time.
4
Wrinkle Guard
Plus
After the programme finishes, the drum moves at regular intervals
to prevent creases. Laundry remains loose and fluffy.
The standard setting for each programme is 60 min. Automatic
anti-crease function can be extended by up to 60 min.
&ü
Buzzer
For switching the buzzer on and off. &üBuzzer indicates program end
if it is activated. Other sounds are not influenced by this option.
Programmes / Fabrics
Detailed overview of the programmes and fabrics
aProgramme overview, page 7.
Observe the care instructions on the care label.
LCottons Hard-wearing fabrics.
ISynthetics Fabrics made from synthetic
or blended fabrics.
Dryness levels to select with the LCottons and ISynthetics programmes:
+: Extra Dry/Very Dry Thick and multi-layered fabrics.
+. Cupboard Dry Single-layered laundry.
|Iron Dry Laundry suitable for ironing after drying.
$÷Sportswear Functional clothing made of microfibre.
ØTowels Terry-towelling laundry e.g. towels
and bathrobes.
1÷Mixed Load A mixed load of fabrics made of cotton
and synthetic fabrics.
Timed program
warm
All types of fabric except for wool
and silk.
Timed program
cold
cShirts/Blouses Cotton or linen fabrics that are still damp
and easy-care fabrics.
cSuper 40’ Synthetics, cotton or blended fabrics.
O÷Wool finish Woollen fabrics that are suitable for use
in washers.
cDelicate/Silk Lingerie made of synthetic fibres, cotton
or blended fabric.
Your new dryer
Congratulations - You have chosen to buy a modern, high-quality
Bosch domestic appliance.
A distinctive feature of your dryer is its low energy consumption.
Every dryer which leaves our factory is carefully checked to ensure
that it functions correctly and is in perfect condition.
Should you have any questions, our after-sales service will be
pleased to help.
Disposal in an environmentally-responsible manner
This appliance is labelled in accordance with European
Directive 2012/19/EU concerning used electrical and electronic
appliances (waste electrical and electronic equipment - WEEE).
The guideline determines the framework for the return and recycling
of used appliances as applicable throughout the EU.
For further information about our products, accessories,
spare parts and services, please visit: www.bosch-home.com
Intended use
Preparation
Set and adjust the
programme individually
1
2
Drying
ʋexclusively for domestic use,
ʋonly for drying fabrics which have been washed using
water.
Keep children younger than 3 years old away from
the dryer.
Do not let children make the cleaning and
maintenance work on the dryer without supervision.
Do not leave children unsupervised near the dryer.
Keep pets away from the dryer.
The dryer may be operated by children from 8 years
of age, by persons who have limited physical,
sensory or mental abilities and by persons who have
inadequate experience or knowledge, provided they
are supervised or have been instructed by
a responsible person.
This appliance is intended for use up to a maximum
height of 4000 metres above sea level.
Drying
Close the door
3
Contents Page
ʋPreparation . . . . . . . . . . . . . . . . . . . . . . 2
ʋControl panel . . . . . . . . . . . . . . . . . . . . . 2
ʋDrying . . . . . . . . . . . . . . . . . . . . . . . . .3/4
ʋDisplay panel and settings . . . . . . . . . . . 5
ʋNotes on laundry . . . . . . . . . . . . . . . . . . 6
ʋOverview of programmes . . . . . . . . . . . . 7
ʋCare and cleaning . . . . . . . . . . . . . . . . . 8
ʋInstallation . . . . . . . . . . . . . . . . . . . . . . . 9
ʋOptional accessories . . . . . . . . . . . . . . 10
ʋTechnical data . . . . . . . . . . . . . . . . . . . 10
ʋConsumption rates . . . . . . . . . . . . . . . . 10
ʋAfter-sales service . . . . . . . . . . . . . . . 11
ʋWhat to do if ... . . . . . . . . . . . . . . . . 11/12
ʋSafety instructions. . . . . . . . . . . . . . . . . 13
Never start the dryer if it is damaged!
Inform your after-sales service!
Inspect the dryer
Sort the laundry
Remove all items from pockets,
especially cigarette lighters.
The drum must be empty prior to loading.
Make sure your hands are dry.
Only grasp the plug by the plug
body.
Connect the
mains plug
Clean the fluff filter
Do not operate the dryer without a fluff filter
or with a defective fluff filter. A clean fluff filter
minimises energy consumption.
Clean the fluff filter after each drying cycle:
1. Open the door. Remove any fluff from
the door/around the door and pull out
the fluff filter.
2. Remove the fluff from the shaft of the
fluff filter.
3. Remove the fluff (sweep your hand over
the fluff filter). If the fluff filter is very dirty
or blocked, rinse with warm water and
dry thoroughly.
4. Insert the fluff filter so that you hear
it engage.
6
End of the programme...
Interrupt the programme
1. Open the door or press the $Start/Pauseübutton;
the drying cycle is interrupted.
2. Add or remove laundry and close the door.
3. If required, select a new programme and additional
functions. Select the $Start/Pause button. The
remaining time is updated after a few minutes.
The drum and door may be hot!
Notes on laundry ...
Labelling of fabrics
Follow the manufacturer's care instructions.
hcSuitable for tumble drying.
(cDry at normal temperature.
'cDry at low temperature a in addition, select VLow Heat.
)cDo not tumble dry.
Do not tumble dry the following fabrics:
– Non-breathable fabrics (e.g. rubber-coated).
– Delicate materials (silk, curtains made from synthetic material) a these may crease.
– Oil-stained laundry.
Before drying for the first time
– Do not put any laundry in the machine. Turn the programme selector to Timed program
(a page 7) and select $Start/Pause. At the end of the programme, turn the programme
selector to Off.
Drying tips
– To ensure a consistent drying result, sort the laundry by fabric type and drying programme.
– Always dry very small fabrics (e.g. baby socks) together with large items of laundry
(e.g. towels).
– Close zips, hooks and eyelets, and button up covers. Tie cloth belts, apron strings, etc.
together or use a laundry bag.
– Do not over-dry easy-care laundry a risk of creasing. Allow laundry to finish drying in
the air.
– Do not dry woollens in the dryer. They may, however, be refreshed in the dryer apage 7,
O÷Wool finish programme (depending on model).
– Do not iron laundry immediately after drying; fold items up and leave for a while a residual
moisture will then be distributed evenly.
– Knitted fabrics (e.g. T-shirts, jerseys) often shrink slightly the first time they are tumble-dried.
a Do not use the +: Extra Dry programme.
– Starched laundry is not always suitable for dryers a starch leaves behind a coating that
reduces the drying effect.
– When washing laundry that is to be tumble dried afterwards, use the correct amount of
fabric softener as specified in the manufacturer's instructions.
– For pre-dried, multi-layered fabrics or small, individual items of laundry, use the timed
programme. Also suitable for subsequent drying.
Environmental protection / Energy-saving tips
– Before drying, spin the laundry in the washing machine a higher spin speeds minimise
the drying time and reduce energy consumption.
– Use the maximum recommended capacity, but do not exceed it a Programme
overview, page 7.
– Make sure the room is well ventilated during drying.
– Clean the fluff filter after every drying cycle a Clean the fluff filter, page 4/11.
Remove the laundry and switch off
the dryer
5
4

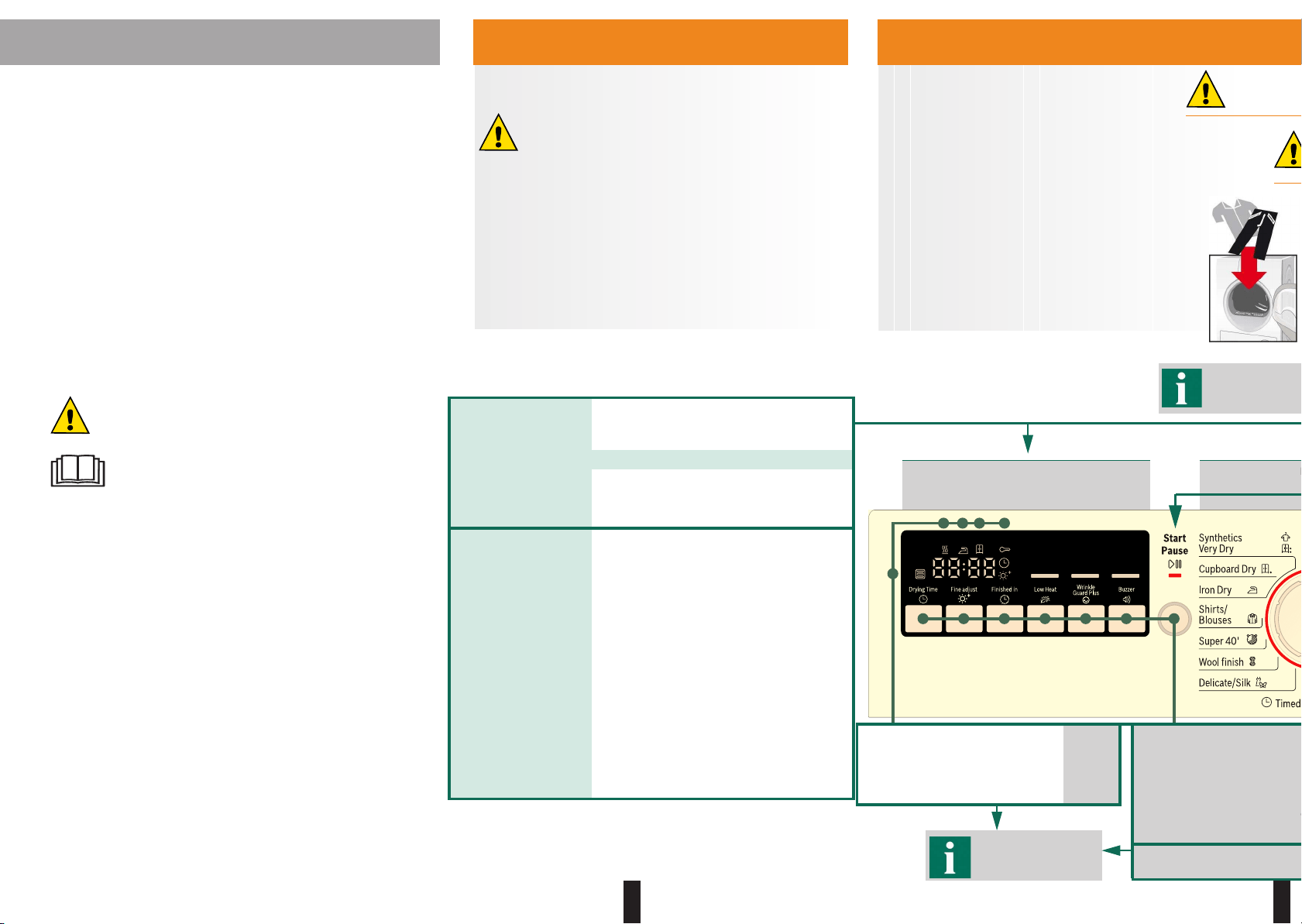

Control panel
Fluff filter
Select
$Start/Pause
Door
Installation apage 9
and Exhaust air duct installation instruction.
Observe the safety instructions on page 13.
Read these instructions, the Installation
Instructions and the separate Energy-saving
mode instructions before operating the dryer.
Before using the dryer for the first time
run the drying cycle without any laundry a page 6.
Programme selector for setting
the programme and switching the appliance
on/off. Can be turned in both directions.
`
Programme sequence H|]+
- Æ-§Ê
Drying Time Setting the drying time available only for timed programmes.
yyFine adjust Fine adjustment of dryness level.
Childproof lock
(
³¤- ¤ÈFinished in Setting the programme end.
Fluff filter/Exhaust air duct pVLow Heat Low-heat drying reduced temperature.
4Wrinkle Guard Plus Extends the anti-crease function.
&Buzzer Buzzer on/off.
$Start/Pause Starts, pauses and continues the programme;
activates or deactivates ((Childproof lock).
Further information
can be found
on page 5
7
Programme overview see also page 6.
Sort the laundry according to type of textile and fabric. Fabrics must be suitable for tumble drying.
After drying, laundry is to be ...
cironed lightly ironed @cnot ironed cmangled
PROGRAMMES TEXTILE TYPE AND INFORMATION
*LCottons
max. 7 kg
Hard-wearing fabrics, boil-proof fabrics made of cotton or linen.
*ISynthetics
max. 3.5 kg
Non-iron laundry made of synthetic fibres and mixed fabric, easy-care cotton.
|Iron Dry c÷@c
The condition of the laundry means it is suitable for ironing (iron clothes in order to avoid creases).
+. Cupboard Dry @
Single-layered laundry.
+: Extra Dry/Very Dry @
Laundry with thick, multi-layered parts.
$÷Sportswear
max. 1.5 kg
Fabrics with membrane coating, water-repellent fabrics, functional clothing, fleece fabrics (dry jackets/trousers with removable
internal lining separately).
ØTowels
max. 6 kg
Terry-towelling laundry e.g. towels and bathrobes.
1÷Mixed Load
max. 3 kg
Mixed items of laundry made of cotton and synthetics (Mix).
Timed program warm
max. 3 kg
Pre-dried, multi-layered, sensitive fabrics made of acrylic fibres, or separate small items of laundry. Also for subsequent drying.
Timed program cold
max. 3 kg
All types of fabrics. For freshening up or airing of items of laundry that have been worn for a short period of time.
cShirts/Blouses
max. 1.5 kg
Cotton or linen fabrics that are still damp and easy-care fabrics. Creasing in fabrics is reduced. Fabrics are not dried completely.
Hang up fabrics!
ASuper 40’
max. 2 kg
Laundry made of synthetic fibres, cotton or blended fabrics (for example) that needs to be dried quickly. The values may differ from
the those specified depending on the type of fabric, mixture of laundry to be dried, residual moisture in the fabric and loading capacity.
O÷Wool finish
max. 3 kg
Woollen fabrics suitable for washers. Fabrics become fluffier but not dry. Remove fabrics once the programme has ended and allow
to dry.
cDelicate/Silk
max. 1 kg
Lingerie made of synthetic fibres, cotton or blended fabric.
*Dryness levels can be selected individually a+: Extra Dry/Very Dry, +. Cupboard Dry and | Iron Dry (depending on the model).
Degree of dryness can be finely adjusted; multi-layered textiles require a longer drying time than single-layered items of clothing. Recommendation: Dry separately.
9505 / 9001117644
*1117644*
Robert Bosch Hausgeräte GmbH
Carl-Wery-Str. 34
81739 München/Deutschland
WTA74200AU
Loading ...
Loading ...
Loading ...
