Installation and operating instructions
Tumble dryer
WTN85201GB
Loading ...
Loading ...
Loading ...
1
2
3
4
5
6
>
Summary of Contents for Bosch WTN85201GB:
en Installation and operating instructions
1
Tumble dryer
1
Your new tumble dryer
2
Display rules
2
: Warning!
2
Caution!
2
Note/tip
2
1. 2. 3. / a) b) c)
2
Contentsen Installation and operating instructions
3
8 Intended use 4
3
( Safety instructions 4
3
7 Environmental protection 12
3
5 Installation and connection 13
3
Œ Draining the condensation water 15
3
Y The main points in brief 17
3
* Getting to know your appliance 18
3
Z Laundry 21
3
/ Programs and buttons 22
3
1 Operating the appliance 25
3
M Signal setting 28
3
D Cleaning 30
3
3 Faults and what to do about them 32
3
J After-sales service 34
3
[ Consumption values 35
3
J Technical data 36
3
8 Intended use
4
Intended use
4
( Safety instructions
4
Safety instructions
4
Children/people/pets
4
: Warning
4
Risk of death!
4
: Warning
5
Risk of death!
5
: Warning
5
Risk of suffocation!
5
: Warning
5
Risk of poisoning!
5
: Warning
5
Eye/skin irritation!
5
Installation
6
: Warning
6
Risk of electric shock/fire/ material damage/damage to the appliance!
6
: Warning
6
Risk of electric shock/fire/ material damage/damage to the appliance!
6
: Warning
7
Risk of fire/material damage/ damage to the appliance!
7
: Warning
7
Risk of injury/material damage/damage to the appliance!
7
: Warning
8
Risk of injury!
8
Operation
8
: Warning
8
Risk of explosions/fire!
8
: Warning
8
Risk of explosions/fire!
8
: Warning
8
Risk of fire/material damage/ damage to the appliance!
8
: Warning
9
Risk of poisoning/material damage!
9
: Warning
9
Risk of poisoning!
9
: Warning
9
Risk of injury!
9
: Warning
9
Risk of burns!
9
Caution!
10
Material damage/damage to the appliance
10
Cleaning/Maintenance
10
: Warning
10
Risk of death!
10
: Warning
11
Risk of poisoning!
11
: Warning
11
Risk of electric shock/material damage/damage to the appliance!
11
: Warning
11
Risk of injury/material damage/damage to the appliance!
11
Caution!
11
Material damage/damage to the appliance
11
7 Environmental protection
12
Environmental protection
12
Packaging/old appliance
12
Energy-saving tips
12
Note:
12
5 Installation and connection
13
Installation and connection
13
Scope of delivery
13
Installing and connecting the dryer
13
: Warning
13
Risk of death!
13
: Warning
13
Children may lock themselves in the dryer, putting their lives at risk!
13
Caution!
13
Risk of injury
13
Caution!
13
Risk of material damage to the dryer or fabrics.
13
Note:
13
Note:
13
Optional accessories
14
Transport and frost protection
14
1. Use the program selector to select any program.
14
2. Press the Start button.
14
3. Wait for 5 minutes.
14
Note:
14
4. Empty the condensate container again.
14
5. Switch off the dryer.
14
Caution!
14
Any residual water may leak out and cause material damage.
14
Œ Draining the condensation water
15
Draining the condensation water
15
1. Remove the accessories from the dryer drum.
15
2. When the dryer is delivered from the factory, the hose for discharging the condensation into the condensation container is fastened to the connecting piece.
15
3. Detach the condensation hose from the socket.
15
4. Place the condensation hose in the "parked" position.
15
5. Take the drain hose from the accessories and secure it to the free connecting piece.
15
6. Fasten the other end of the drain hose with the remaining accessories, depending on the connection situation (A, B or C).
16
Caution!
16
Accumulated water can be drawn back into the dryer and may cause material damage.
16
Caution!
16
Material damage due to leaks or draining water.
16
Note:
16

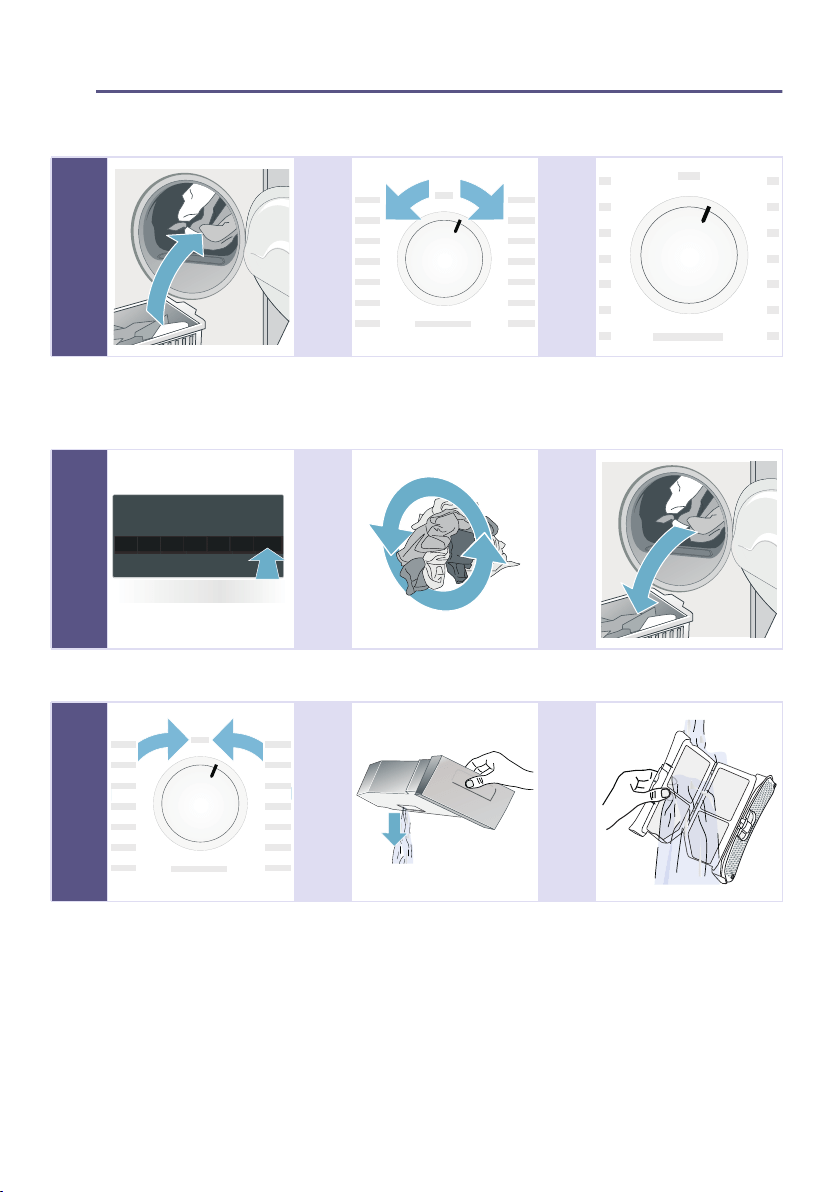

Y The main points in brief
17
The main points in brief
17
* Getting to know your appliance
18
Getting to know your appliance
18
Dryer
18
Control panel
19
Display panel
20
Buttons in the display panel
20
Display panel
20
Z Laundry
21
Laundry
21
Preparing the laundry
21
: Warning
21
Risk of explosion or fire!
21
Caution!
21
The dryer drum and fabrics may be damaged.
21
Notes
21
Sorting laundry according to:
21
Note:
21
Caution!
21
Possibility of material damage to the dryer or laundry.
21
Do not tumble-dry the following fabrics:
21
/ Programs and buttons
22
Programs and buttons
22
Programs
22
Program and fabrics
22
Maximum load and program settings/info
22
Notes
23
Notes
23
Buttons
24
Buttons
24
Explanations and notes
24
Note:
24
Note:
24
1 Operating the appliance
25
Operating the appliance
25
Loading laundry and switching on the dryer
25
Note:
25
1. Place the laundry in the drum.
25
2. To switch the dryer on, turn the program selector to any program.
25
3. Close the dryer door.
25
Caution!
25
Risk of material damage to the dryer or laundry.
25
Setting a program
25
Note:
25
1. Select the required program; detailed information on the programs can be found from ~ Page 22 onwards.
25
2. Use the program selector to set the required program. The default program settings for the selected program appear in the display panel.
25
Note:
25
3. If required, adjust the default program settings. You can find detailed information on this from ~ Page 22 onwards.
25
Starting the program
25
Note:
25
Program sequence
25
Note:
25
Changing the program or adding laundry
26
1. To pause the program, open the dryer door or press the Start button.
26
2. Add or remove laundry.
26
3. Select another program or an additional function, if required.
26
4. Close the dryer door.
26
5. Press the Start button.
26
Note:
26
Program interruption
26
Caution!
26
Risk of fire. Laundry may catch fire.
26
Program end
26
Removing laundry and switching off the dryer
26
1. Remove the laundry.
26
2. Turn the program selector to the "off" position.
26

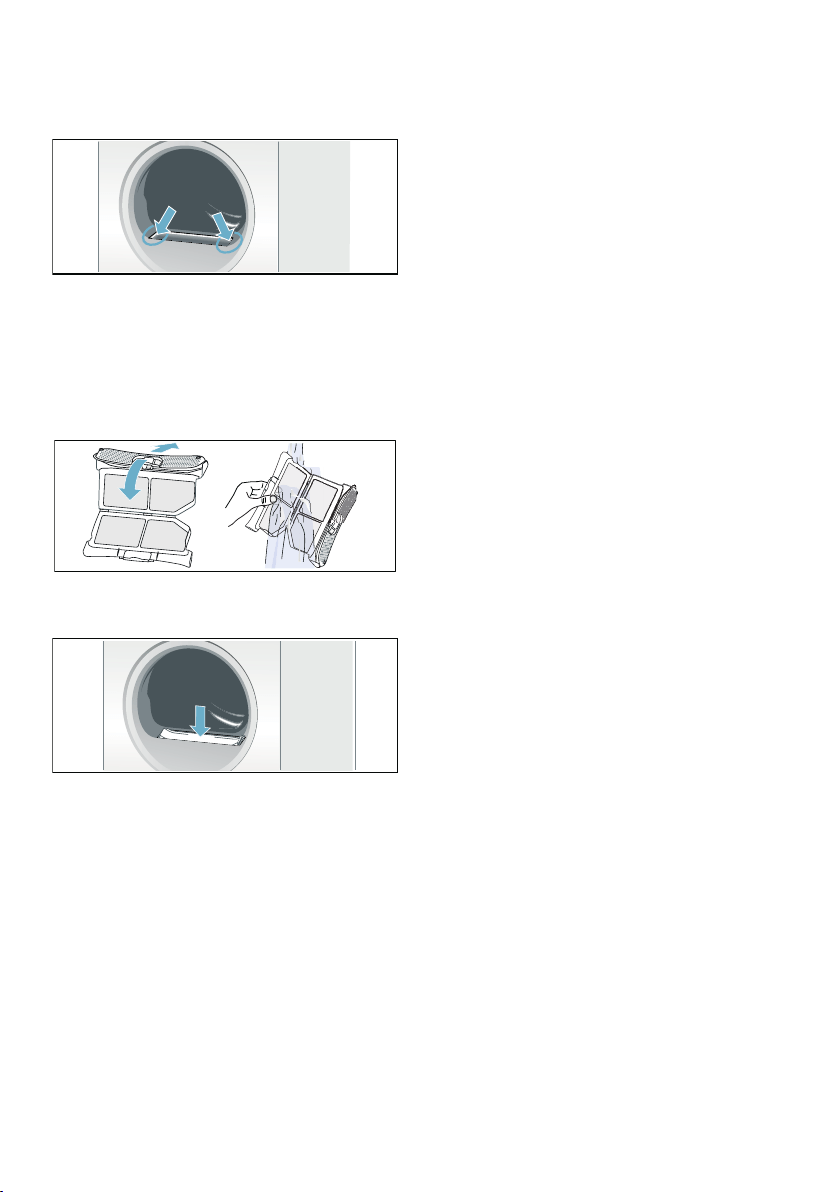

Clean the fluff filter
26
Note:
26
1. Open the dryer door and remove all fluff from the door.
26
2. Remove the fluff filter.
26
3. Remove the fluff from the recess in the fluff filter.
27
Note:
27
4. Open the fluff filter and remove all the fluff.
27
5. Rinse away the fluff under running water or clean the fluff filter in the dishwasher.
27
6. Dry the fluff filter, close it and reinsert the fluff filter.
27
Caution!
27
The dryer may be damaged.
27
Emptying the condensate container
27
1. Pull out the condensate container horizontally.
28
2. Pour out the condensation water.
28
Caution!
28
Dirty condensation water may be harmful to your health and cause material damage.
28
3. Push in the condensate container until you feel it lock back into place in the dryer.
28
M Signal setting
28
Signal setting
28
Activating setting mode
28
1. Switch the dryer on.
28
2. Select the "Cottons" programme in position 1 and wait for five seconds.
28
1. Press and hold the Start button and, at the same time, turn the programme selector clockwise to position 2.
28
2. The spin speed is shown in the display.
28
3. Press the "Finish in" time button or the drying time button to change the spin speed.
28
4. Turn the program selector clockwise to position 3.
28
5. The volume of the audible signal at the end of the program is shown in the display.
29
6. Press the "Finish in" time button or the drying time button to change the volume.
29
7. Turn the program selector clockwise to position 4.
29
8. The volume for the audible button signal is shown in the display.
29
9. Press the "Finish in" time button or the drying time button to change the volume.
29
D Cleaning
30
Cleaning
30
Cleaning the dryer and the control panel
30
: Warning
30
Risk of death!
30
Cleaning the heat exchanger
30
Notes
30
1. Allow the dryer to cool down and place an absorbent cloth beneath the maintenance flap.
30
Note:
30
2. Open the maintenance flap fully.
30
3. Turn both locking levers towards each other.
30
4. Remove the top cap from the heat exchanger.
30
5. Remove the heat exchanger.
30
6. Flush water through the heat exchanger from all sides to completely remove all fluff.
30
Caution!
30
There is a risk of damage to the heat exchanger.
30
7. Remove all fluff from the seals on the dryer and on the heat exchanger.
30
8. Allow all the water to drip off.
30
9. First insert the heat exchanger, and then fit the heat exchanger's top cap in place.
31
10. Turn both locking levers back and close the maintenance flap until it locks into place.
31
11. Close the maintenance flap and press on it until you feel it click in place.
31
Cleaning the moisture sensor
31
Note:
31
Caution!
31
Moisture sensor may be damaged.
31
3 Faults and what to do about them
32
Faults and what to do about them
32
Faults
32
Cause/remedy
32
Note:
32
Note:
33
J After-sales service
34
After-sales service
34
[ Consumption values
35
Consumption values
35
Consumption values table
35
Program
35
7 kg
35
3.5 kg
35
7 kg
35
3.5 kg
35
1400 rpm
35
97 min
35
59 min
35
3.93 kWh
35
2.19 kWh
35
1000 rpm
35
119 min
35
73 min
35
4.15 kWh
35
2.31 kWh
35
800 rpm
35
141 min
35
87 min
35
4.37 kWh
35
2.43 kWh
35
1400 rpm
35
70 min
35
44 min
35
3.08 kWh
35
1.67 kWh
35
1000 rpm
35
92 min
35
58 min
35
3.30 kWh
35
1.79 kWh
35
800 rpm
35
114 min
35
72 min
35
3.53 kWh
35
1.91 kWh
35
3.5 kg
35
3.5 kg
35
800 rpm
35
46 min
35
1.42 kWh
35
600 rpm
35
56 min
35
1.75 kWh
35
Most efficient programme for cotton fabrics
35
Standard programmes for cottons in accordance with current EU regulation 932/2012
35
Programme
35
Load
35
Energy consumption
35
Programme length
35
J Technical data
36
Technical data
36
*9001525176*
40
Thank you for buying a Bosch Home Appliance!
40
Looking for help? You´ll find it here.
40
File type: PDF
File name: Bosch WTN85201GB Serie 4 Condenser Tumble Dryer 7 kg.pdf
File size: 2.41 MB
File Language: English
Pages: 40
Author: Bosch
Published: 2021-03-18
Updated: 2023-06-15
Verified by
Shany D'Amore
on 2023-06-15
Download File
Specifications
Brand:
Bosch
Model: WTN85201GB
Category:
Washers & Dryers
View in the file:
Full Specifications
See other models:
WTH84000GB
WTR85V21GB
WTR88T81GB
WTW85231GB
WTX88RH9GB
Photos
Download User Manual
Bosch in United States
1-800-944-2904
Twitter
Website
Related Products
Bosch WTN85200GB
Bosch WTN83201GB
Bosch WTN85280GB
Bosch WTM85230GB
Bosch WTH85200GB
Bosch WTW85231GB
Bosch WTM85250GB
Bosch WTW85250GB
Bosch WTW85260GB
Bosch WTH85222GB
Bosch WTH85223GB
Bosch WTH84001GB
Bosch WTE84301GB/43
Bosch WTM85250GB/01
Bosch WTN83202
Table of Contents
×
en Installation and operating instructions
1
Tumble dryer
1
Your new tumble dryer
2
Display rules
2
: Warning!
2
Caution!
2
Note/tip
2
1. 2. 3. / a) b) c)
2
Contentsen Installation and operating instructions
3
8 Intended use 4
3
( Safety instructions 4
3
7 Environmental protection 12
3
5 Installation and connection 13
3
Œ Draining the condensation water 15
3
Y The main points in brief 17
3
* Getting to know your appliance 18
3
Z Laundry 21
3
/ Programs and buttons 22
3
1 Operating the appliance 25
3
M Signal setting 28
3
D Cleaning 30
3
3 Faults and what to do about them 32
3
J After-sales service 34
3
[ Consumption values 35
3
J Technical data 36
3
8 Intended use
4
Intended use
4
( Safety instructions
4
Safety instructions
4
Children/people/pets
4
: Warning
4
Risk of death!
4
: Warning
5
Risk of death!
5
: Warning
5
Risk of suffocation!
5
: Warning
5
Risk of poisoning!
5
: Warning
5
Eye/skin irritation!
5
Installation
6
: Warning
6
Risk of electric shock/fire/ material damage/damage to the appliance!
6
: Warning
6
Risk of electric shock/fire/ material damage/damage to the appliance!
6
: Warning
7
Risk of fire/material damage/ damage to the appliance!
7
: Warning
7
Risk of injury/material damage/damage to the appliance!
7
: Warning
8
Risk of injury!
8
Operation
8
: Warning
8
Risk of explosions/fire!
8
: Warning
8
Risk of explosions/fire!
8
: Warning
8
Risk of fire/material damage/ damage to the appliance!
8
: Warning
9
Risk of poisoning/material damage!
9
: Warning
9
Risk of poisoning!
9
: Warning
9
Risk of injury!
9
: Warning
9
Risk of burns!
9
Caution!
10
Material damage/damage to the appliance
10
Cleaning/Maintenance
10
: Warning
10
Risk of death!
10
: Warning
11
Risk of poisoning!
11
: Warning
11
Risk of electric shock/material damage/damage to the appliance!
11
: Warning
11
Risk of injury/material damage/damage to the appliance!
11
Caution!
11
Material damage/damage to the appliance
11
7 Environmental protection
12
Environmental protection
12
Packaging/old appliance
12
Energy-saving tips
12
Note:
12
5 Installation and connection
13
Installation and connection
13
Scope of delivery
13
Installing and connecting the dryer
13
: Warning
13
Risk of death!
13
: Warning
13
Children may lock themselves in the dryer, putting their lives at risk!
13
Caution!
13
Risk of injury
13
Caution!
13
Risk of material damage to the dryer or fabrics.
13
Note:
13
Note:
13
Optional accessories
14
Transport and frost protection
14
1. Use the program selector to select any program.
14
2. Press the Start button.
14
3. Wait for 5 minutes.
14
Note:
14
4. Empty the condensate container again.
14
5. Switch off the dryer.
14
Caution!
14
Any residual water may leak out and cause material damage.
14
Œ Draining the condensation water
15
Draining the condensation water
15
1. Remove the accessories from the dryer drum.
15
2. When the dryer is delivered from the factory, the hose for discharging the condensation into the condensation container is fastened to the connecting piece.
15
3. Detach the condensation hose from the socket.
15
4. Place the condensation hose in the "parked" position.
15
5. Take the drain hose from the accessories and secure it to the free connecting piece.
15
6. Fasten the other end of the drain hose with the remaining accessories, depending on the connection situation (A, B or C).
16
Caution!
16
Accumulated water can be drawn back into the dryer and may cause material damage.
16
Caution!
16
Material damage due to leaks or draining water.
16
Note:
16
Y The main points in brief
17
The main points in brief
17
* Getting to know your appliance
18
Getting to know your appliance
18
Dryer
18
Control panel
19
Display panel
20
Buttons in the display panel
20
Display panel
20
Z Laundry
21
Laundry
21
Preparing the laundry
21
: Warning
21
Risk of explosion or fire!
21
Caution!
21
The dryer drum and fabrics may be damaged.
21
Notes
21
Sorting laundry according to:
21
Note:
21
Caution!
21
Possibility of material damage to the dryer or laundry.
21
Do not tumble-dry the following fabrics:
21
/ Programs and buttons
22
Programs and buttons
22
Programs
22
Program and fabrics
22
Maximum load and program settings/info
22
Notes
23
Notes
23
Buttons
24
Buttons
24
Explanations and notes
24
Note:
24
Note:
24
1 Operating the appliance
25
Operating the appliance
25
Loading laundry and switching on the dryer
25
Note:
25
1. Place the laundry in the drum.
25
2. To switch the dryer on, turn the program selector to any program.
25
3. Close the dryer door.
25
Caution!
25
Risk of material damage to the dryer or laundry.
25
Setting a program
25
Note:
25
1. Select the required program; detailed information on the programs can be found from ~ Page 22 onwards.
25
2. Use the program selector to set the required program. The default program settings for the selected program appear in the display panel.
25
Note:
25
3. If required, adjust the default program settings. You can find detailed information on this from ~ Page 22 onwards.
25
Starting the program
25
Note:
25
Program sequence
25
Note:
25
Changing the program or adding laundry
26
1. To pause the program, open the dryer door or press the Start button.
26
2. Add or remove laundry.
26
3. Select another program or an additional function, if required.
26
4. Close the dryer door.
26
5. Press the Start button.
26
Note:
26
Program interruption
26
Caution!
26
Risk of fire. Laundry may catch fire.
26
Program end
26
Removing laundry and switching off the dryer
26
1. Remove the laundry.
26
2. Turn the program selector to the "off" position.
26
Clean the fluff filter
26
Note:
26
1. Open the dryer door and remove all fluff from the door.
26
2. Remove the fluff filter.
26
3. Remove the fluff from the recess in the fluff filter.
27
Note:
27
4. Open the fluff filter and remove all the fluff.
27
5. Rinse away the fluff under running water or clean the fluff filter in the dishwasher.
27
6. Dry the fluff filter, close it and reinsert the fluff filter.
27
Caution!
27
The dryer may be damaged.
27
Emptying the condensate container
27
1. Pull out the condensate container horizontally.
28
2. Pour out the condensation water.
28
Caution!
28
Dirty condensation water may be harmful to your health and cause material damage.
28
3. Push in the condensate container until you feel it lock back into place in the dryer.
28
M Signal setting
28
Signal setting
28
Activating setting mode
28
1. Switch the dryer on.
28
2. Select the "Cottons" programme in position 1 and wait for five seconds.
28
1. Press and hold the Start button and, at the same time, turn the programme selector clockwise to position 2.
28
2. The spin speed is shown in the display.
28
3. Press the "Finish in" time button or the drying time button to change the spin speed.
28
4. Turn the program selector clockwise to position 3.
28
5. The volume of the audible signal at the end of the program is shown in the display.
29
6. Press the "Finish in" time button or the drying time button to change the volume.
29
7. Turn the program selector clockwise to position 4.
29
8. The volume for the audible button signal is shown in the display.
29
9. Press the "Finish in" time button or the drying time button to change the volume.
29
D Cleaning
30
Cleaning
30
Cleaning the dryer and the control panel
30
: Warning
30
Risk of death!
30
Cleaning the heat exchanger
30
Notes
30
1. Allow the dryer to cool down and place an absorbent cloth beneath the maintenance flap.
30
Note:
30
2. Open the maintenance flap fully.
30
3. Turn both locking levers towards each other.
30
4. Remove the top cap from the heat exchanger.
30
5. Remove the heat exchanger.
30
6. Flush water through the heat exchanger from all sides to completely remove all fluff.
30
Caution!
30
There is a risk of damage to the heat exchanger.
30
7. Remove all fluff from the seals on the dryer and on the heat exchanger.
30
8. Allow all the water to drip off.
30
9. First insert the heat exchanger, and then fit the heat exchanger's top cap in place.
31
10. Turn both locking levers back and close the maintenance flap until it locks into place.
31
11. Close the maintenance flap and press on it until you feel it click in place.
31
Cleaning the moisture sensor
31
Note:
31
Caution!
31
Moisture sensor may be damaged.
31
3 Faults and what to do about them
32
Faults and what to do about them
32
Faults
32
Cause/remedy
32
Note:
32
Note:
33
J After-sales service
34
After-sales service
34
[ Consumption values
35
Consumption values
35
Consumption values table
35
Program
35
7 kg
35
3.5 kg
35
7 kg
35
3.5 kg
35
1400 rpm
35
97 min
35
59 min
35
3.93 kWh
35
2.19 kWh
35
1000 rpm
35
119 min
35
73 min
35
4.15 kWh
35
2.31 kWh
35
800 rpm
35
141 min
35
87 min
35
4.37 kWh
35
2.43 kWh
35
1400 rpm
35
70 min
35
44 min
35
3.08 kWh
35
1.67 kWh
35
1000 rpm
35
92 min
35
58 min
35
3.30 kWh
35
1.79 kWh
35
800 rpm
35
114 min
35
72 min
35
3.53 kWh
35
1.91 kWh
35
3.5 kg
35
3.5 kg
35
800 rpm
35
46 min
35
1.42 kWh
35
600 rpm
35
56 min
35
1.75 kWh
35
Most efficient programme for cotton fabrics
35
Standard programmes for cottons in accordance with current EU regulation 932/2012
35
Programme
35
Load
35
Energy consumption
35
Programme length
35
J Technical data
36
Technical data
36
*9001525176*
40
Thank you for buying a Bosch Home Appliance!
40
Looking for help? You´ll find it here.
40
Search:
×
Search
