Installation and operating instructions
Tumble dryer
WTX87MH0TH
Loading ...
Loading ...
Loading ...
1
2
3
4
5
6
>
Summary of Contents for Bosch WTX87MH0TH:
en Installation and operating instructions
1
Tumble dryer
1
Your new tumble dryer
2
Display rules
2
: Warning!
2
Caution!
2
Note/tip
2
1. 2. 3. / a) b) c)
2
Table of contentsen Installation and operating instructions
3
8 Intended use 4
3
( Safety instructions 5
3
7 Energy-saving tips 13
3
5 Installing and connecting the appliance 13
3
9 Quick reference guide 18
3
* Familiarising yourself with your appliance 19
3
Y Display 21
3
/ Overview of programmes 23
3
0 Settings 25
3
Z Laundry 27
3
1 Operating the appliance 28
3
2 Appliance settings 32
3
o Home Connect 33
3
Œ Draining the condensation water 42
4
D Cleaning and maintenance 45
4
Ö Appliance care 50
4
3 Help with the appliance 56
4
L Transporting the appliance 59
4
[ Consumption values 60
4
{ Technical data 61
4
) Disposal 61
4
4 Customer Service 62
4
8 Intended use
4
Intended use
4
( Safety instructions
5
Safety instructions
5
Children/people/pets
5
: Warning
5
Risk of death!
5
: Warning
5
Risk of death!
5
: Warning
6
Risk of suffocation!
6
: Warning
6
Risk of poisoning!
6
: Warning
6
Eye/skin irritation!
6
Installation
6
: Warning
6
Risk of electric shock/fire/ material damage/damage to the appliance!
6
: Warning
7
Risk of electric shock/fire/ material damage/damage to the appliance!
7
: Warning
7
Risk of fire/material damage/ damage to the appliance!
7
: Warning
7
Risk of injury/material damage/damage to the appliance!
7
: Warning
8
Risk of injury!
8
Operation
8
: Warning
8
Risk of explosions/fire!
8
: Warning
9
Risk of explosions/fire!
9
: Warning
9
Risk of fire/material damage/ damage to the appliance!
9
: Warning
9
Risk of fire/material damage/ damage to the appliance!
9
: Warning
10
Risk of poisoning/material damage!
10
: Warning
10
Risk of poisoning!
10
: Warning
10
Risk of injury!
10
Caution!
10
Material damage/damage to the appliance
10
Cleaning/Maintenance
11
: Warning
11
Risk of death!
11
: Warning
12
Risk of poisoning!
12
: Warning
12
Risk of electric shock/material damage/damage to the appliance!
12
: Warning
12
Risk of injury/material damage/damage to the appliance!
12
Caution!
12
Material damage/damage to the appliance
12
7 Energy-saving tips
13
Energy-saving tips
13
Note:
13
If the maximum load is exceeded, this extends the programme duration and increases energy consumption.
13
Note:
13
If Wi-Fi is activated, the appliance will not switch itself off automatically.
13
5 Installing and connecting the appliance
13
Installing and connecting the appliance
13

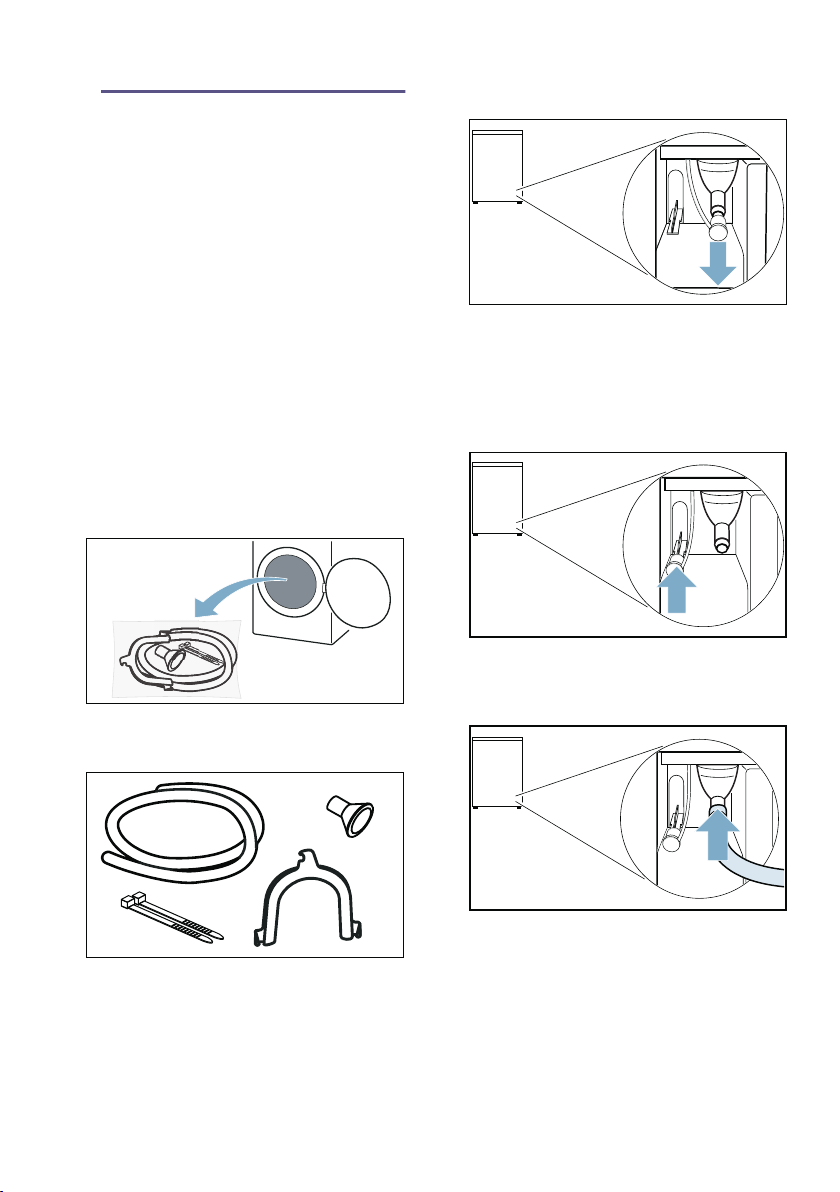

Included with the appliance
13
1. Remove any packaging and protective covers completely from the appliance.
14
2. Open the door.
14
3. Remove all the accessories from the drum.
14
Caution!
14
Risk of material damage and damage to the appliance
14
Installing the appliance
14
: Warning
14
Risk of death!
14
: Warning
14
Risk of explosions/fire!
14
: Warning
14
Risk of fire/material damage/damage to the appliance!
14
: Warning
14
Risk of injury/material damage/ damage to the appliance!
14
: Warning
15
Risk of injury!
15
Caution!
15
Material damage/damage to the appliance
15
Caution!
15
Risk of material damage and damage to the appliance
15
1. Place the appliance on a clean, even, solid surface.
15
2. Check that the appliance is level using a spirit level.
15
3. If necessary, turn the appliance feet to make sure it is level.
15
Notes
15
Connecting the appliance
16
: Warning
16
Risk of electric shock/fire/material damage/damage to the appliance!
16
: Warning
16
Risk of electric shock/fire/material damage/damage to the appliance!
16
: Warning
16
Risk of fire/material damage/damage to the appliance!
16
: Warning
16
Risk of injury!
16

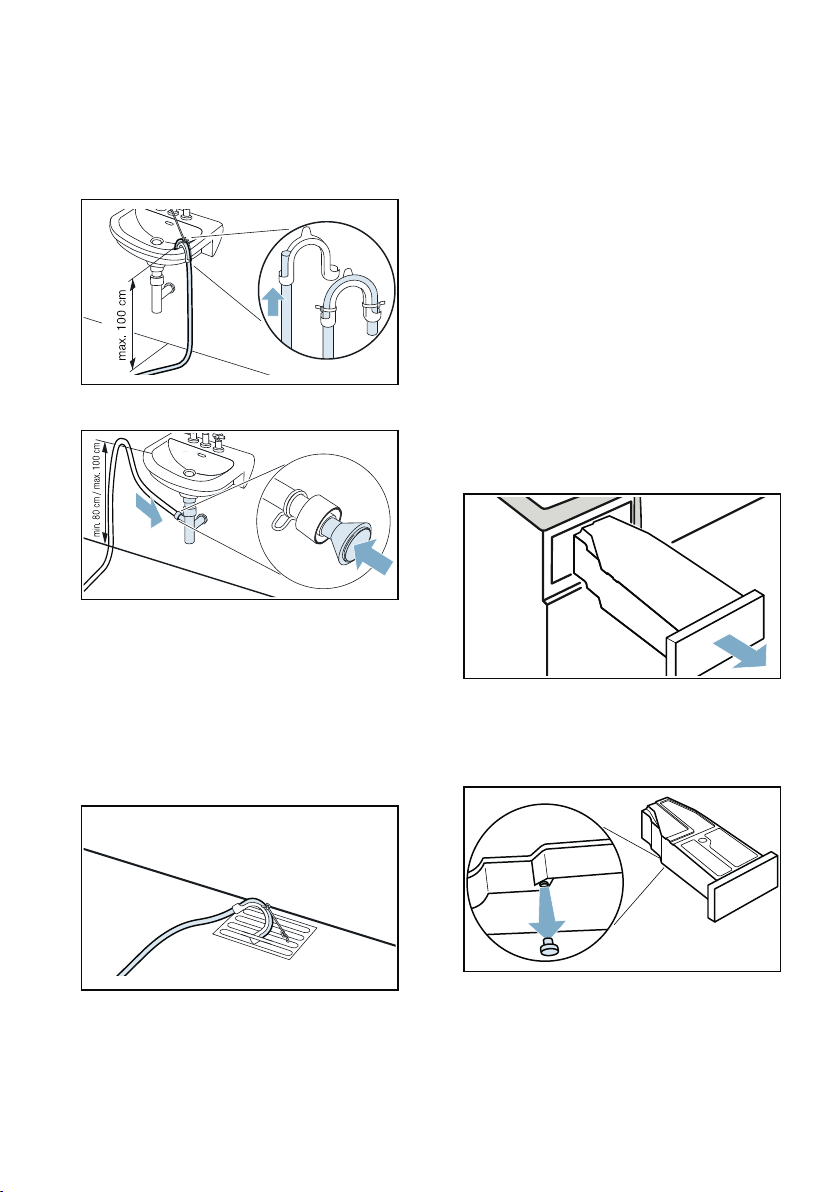

1. Connecting the drain hose. ~ Page 42
17
2. Plug the appliance's mains plug into the designated socket.
17
3. Check that the mains plug is in securely.
17
Caution!
17
Risk of material damage/damage to the appliance
17
Note:
17
If in doubt, have your appliance connected by a qualified professional.
17
Before using the appliance for the first time
17
Note:
17
Once the appliance has been properly installed and connected, it is ready to use. No further steps are necessary.
17
Optional accessories
17

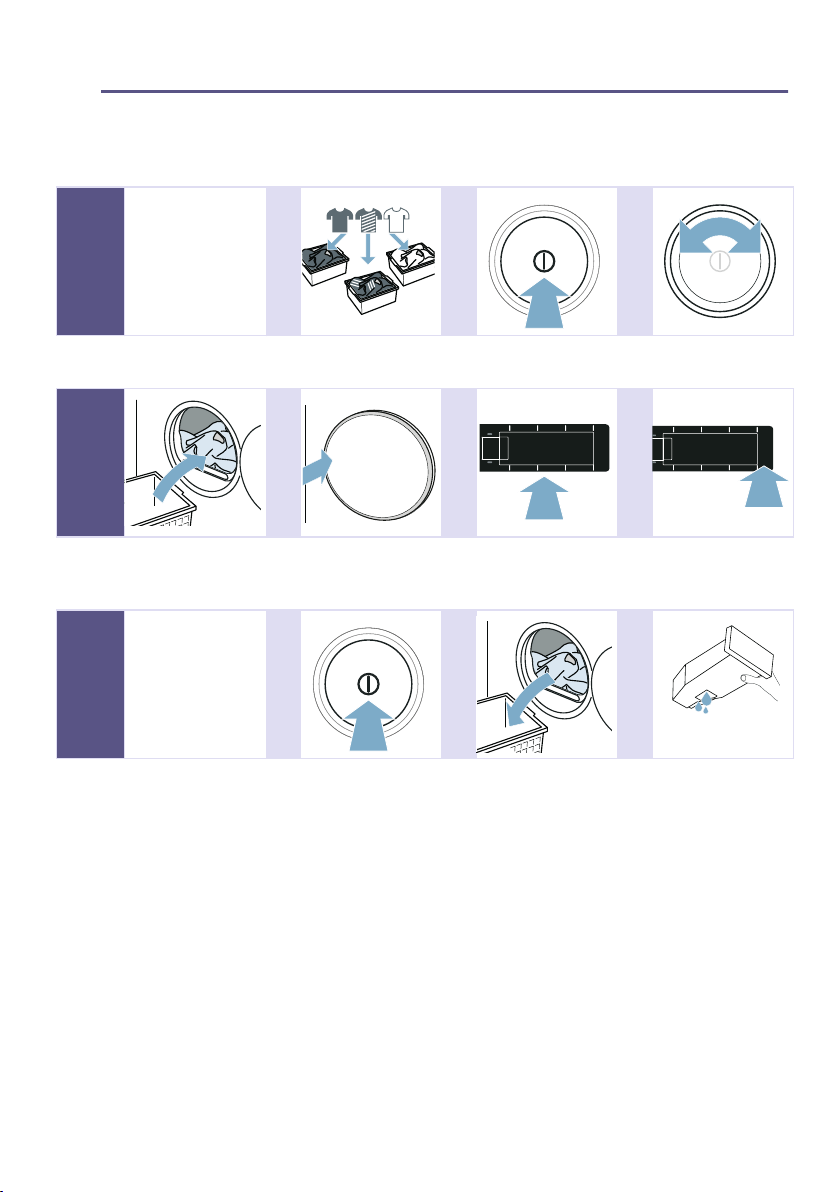

9 Quick reference guide
18
Short introduction
18
Note:
18
The appliance must be correctly installed and connected. ~ Page 13
18
* Familiarising yourself with your appliance
19
Familiarising yourself with your appliance
19

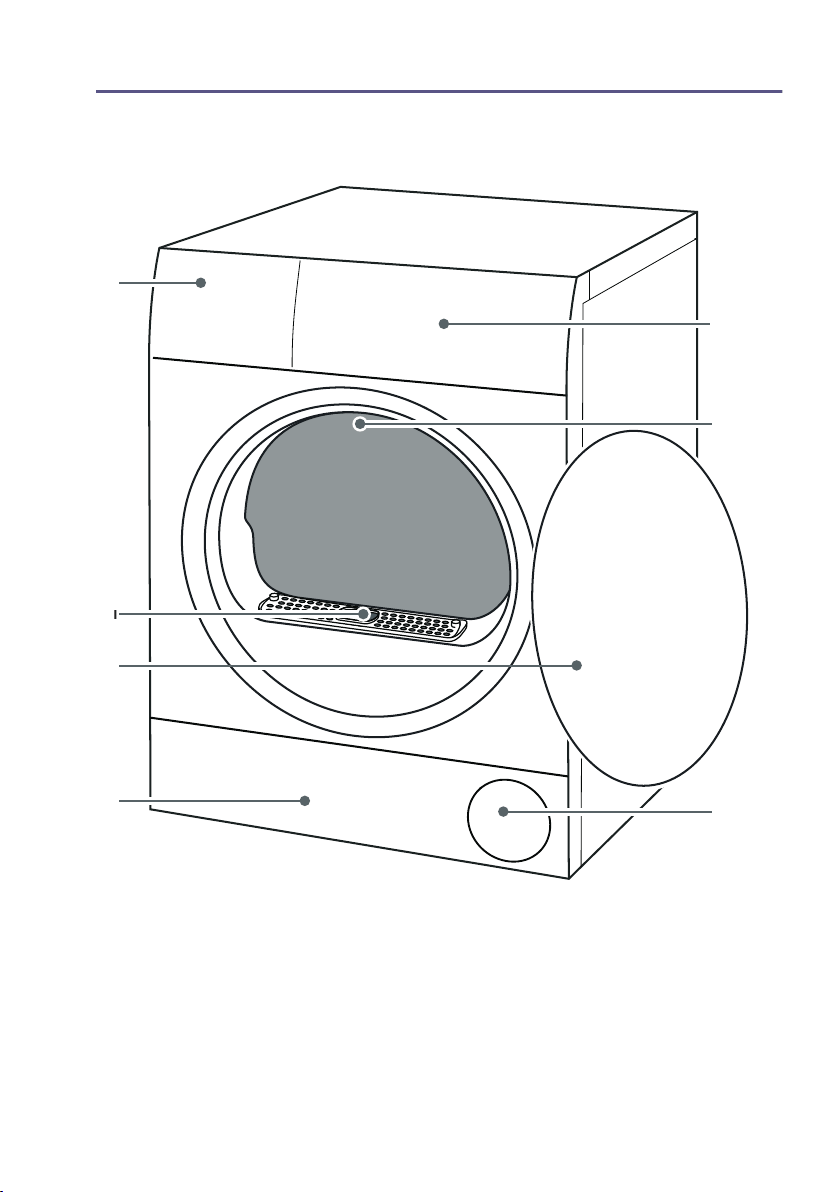

Appliance overview
19
Fascia
20
Programme selector
20
Y Display
21
Display
21
Indicator/symbol
21
Description
21
Information
21
Notes
22
/ Overview of programmes
23
Overview of programmes
23
Programme
23
Maximum load
23
Notes
23
Notes
23
Notes
23
Note:
24
Note:
24
Notes
24
Note:
24
0 Settings
25
Programme setting
25
Function
25
Note:
25
Notes
25
Note:
25
Appliance setting
26
Function
26
Z Laundry
27
Laundry
27
Preparing laundry
27
: Warning
27
Risk of explosions/fire!
27
Caution!
27
Risk of damage to the drum and laundry
27
Notes
27
Sorting laundry
27
Note:
27
Load the laundry item by item into the appliance. For more effective drying, do not stuff an entire bundle of laundry into the dryer at once.
27
Caution!
27
Risk of material damage to the dryer or laundry
27
Note:
28
You can select a timed programme to add extra drying time for laundry that is still damp.
28
Caution!
28
Risk of material damage to the appliance and laundry
28
1 Operating the appliance
28
Operating the appliance
28

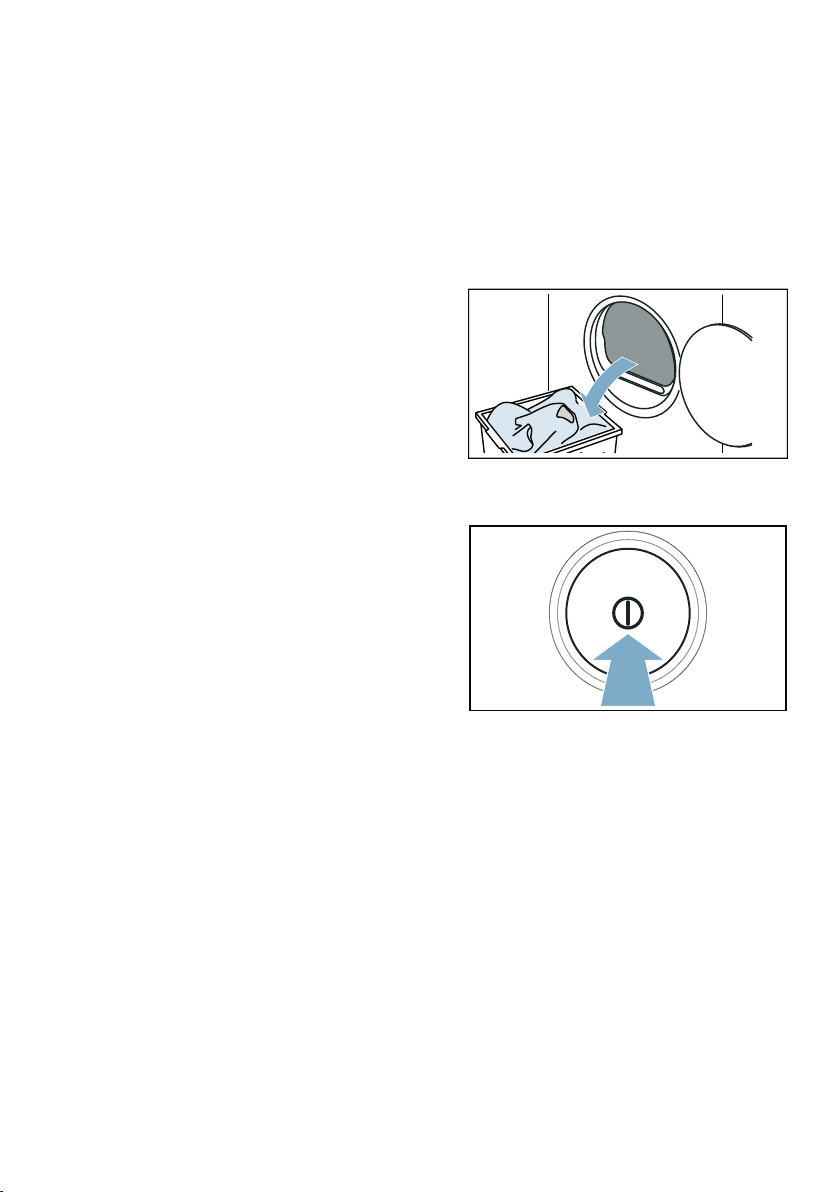

Loading laundry and switching on the appliance
28
Note:
28
The appliance must be correctly installed and connected. ~ Page 13
28
1. Prepare and sort the laundry.
28
2. Press # to switch on the appliance.
28
3. Open the door.
28

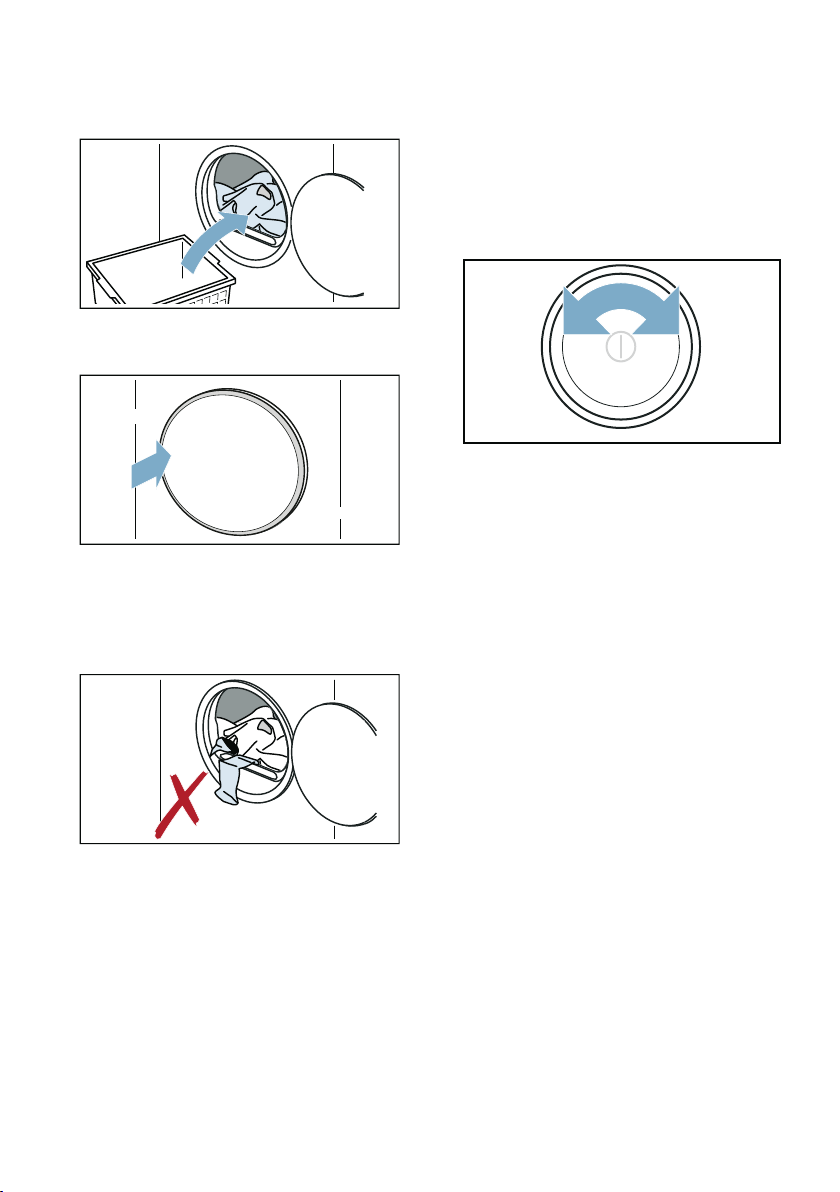

4. Load the laundry unfolded into the drum.
29
5. Close the appliance door.
29
Caution!
29
Risk of material damage to the appliance or laundry.
29
Note:
29
The appliance's drum is lit up after the door is opened and closed and once the programme has started. The drum's interior light goes out on its own.
29
Setting a programme
29
Note:
29
If you have activated the childproof lock, you must deactivate it before you can set a programme. ~ Page 32
29
1. Set the programme you require.
29
2. Adjust the programme settings, if required.
29
Starting the programme
29
Note:
29
If you want to prevent the programme from being adjusted inadvertently, activate the childproof lock. ~ Page 32
29
Programme progress
29
Note:
29
When a programme is selected, the expected drying time for the maximum permitted load is displayed. The moisture sensor measures the residual moisture in the laundry as it is being dried. The programme duration and the remaining time indicated on the...
29
Changing the programme or adding more laundry
30
1. Open the door or press Start/ A Reload/Pause to pause the programme.
30
Note:
30
2. Add or remove laundry.
30
3. If required, select a different programme or a different programme setting.~ "Overview of programmes" on page 23
30
Note:
30
4. Close the appliance door.
30
5. Press Start/ A Reload/Pause .
30
Note:
30
The programme duration is updated on the display, depending on the load and on the residual moisture in the laundry. The values displayed may change when the programme or load is changed.
30
Cancelling the programme
30
Caution!
30
Risk of fire. Laundry may catch fire.
30
End of programme
30
Removing laundry and switching off the appliance
30
1. Remove the laundry.
30
2. Press # to switch off the appliance.
30

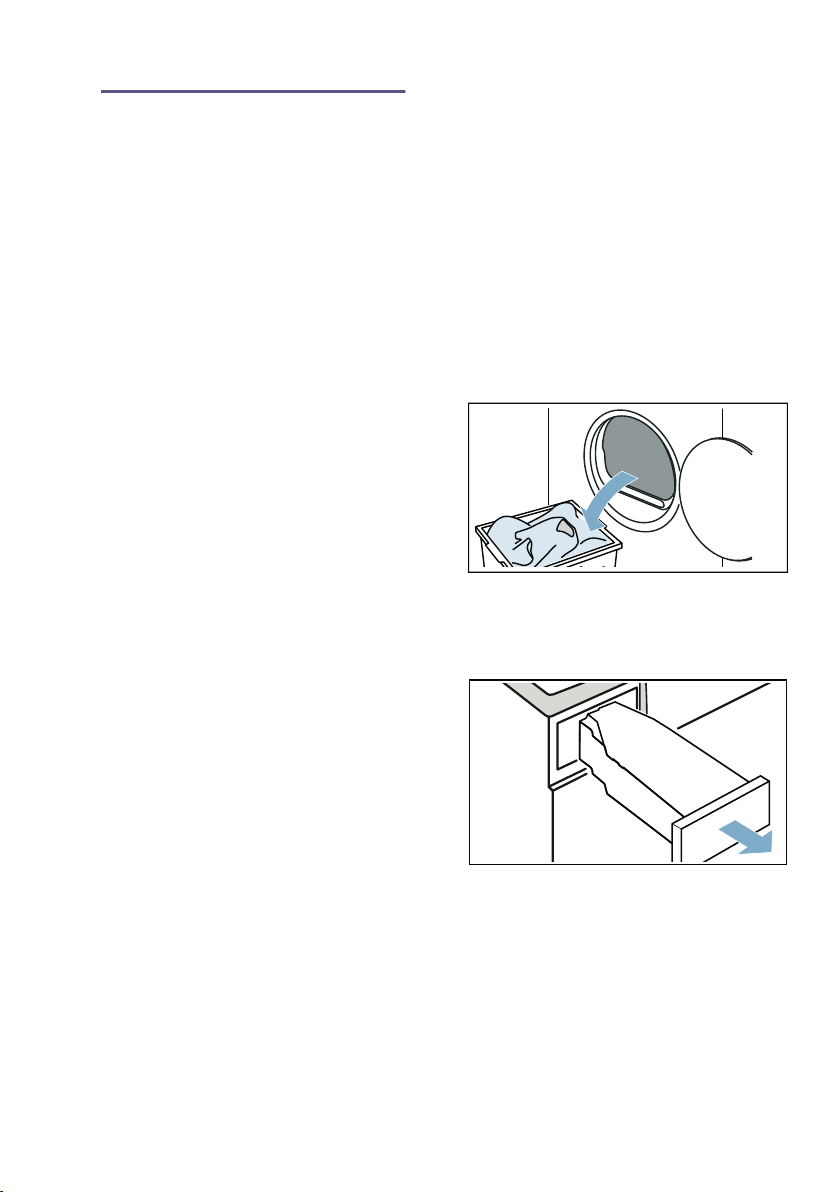

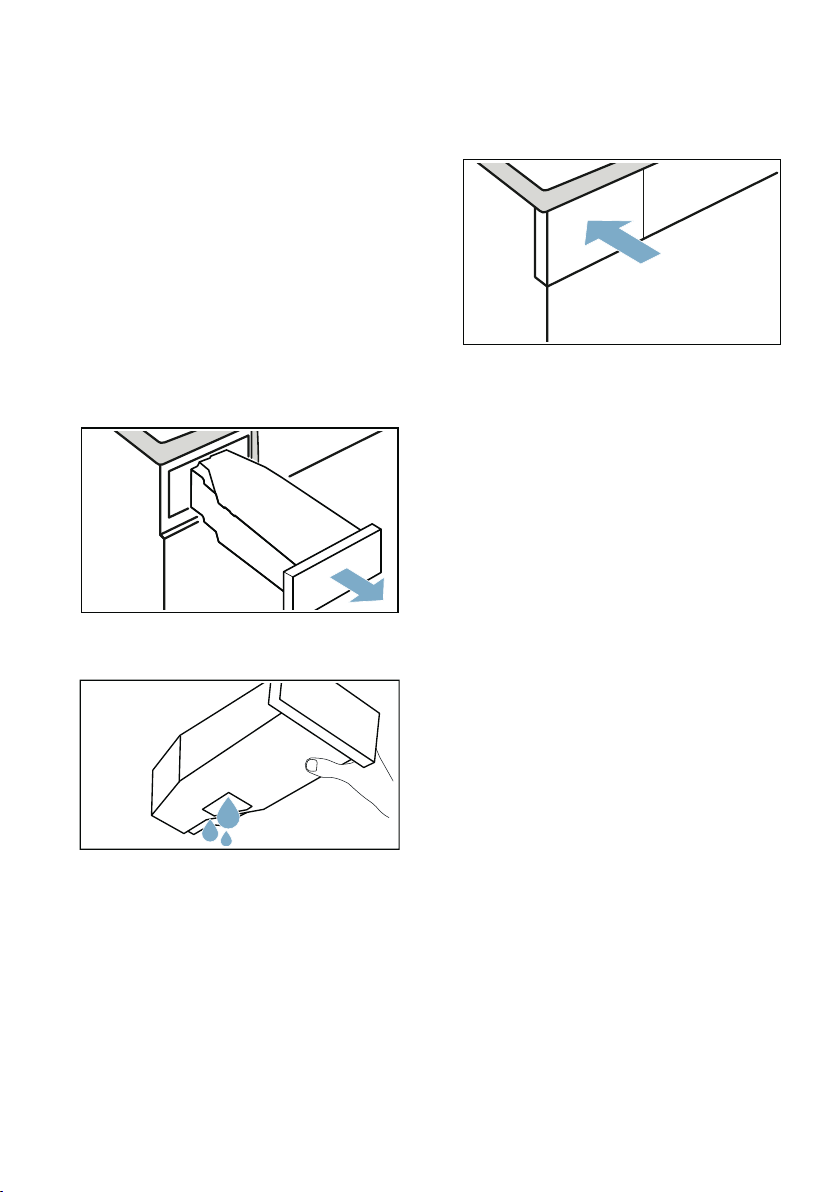

Emptying the condensation container
31
1. Pull out the condensation container horizontally.
31
2. Pour out the condensation water.
31
Caution!
31
Risk of harm to health and material damage
31
3. Push the condensation container back into the appliance until you feel it lock into place.
31
Note:
31
The filter in the condensation container filters the condensation water, which is used during the appliance's automatic cleaning cycle. The filter is cleaned by emptying out the condensation water. You should still check the filter regularly for any ...
31
2 Appliance settings
32
Appliance settings
32
Childproof lock
32
Note:
32
The childproof lock will remain active, even once the appliance has been switched off. If you wish to change settings on the control panel when you turn on the appliance, you will need to deactivate the childproof lock.
32
Notification signal
32
Note:
32
If a signal does not sound when the programme ends even though the notification signal is activated, you can change the appliance setting.
32
Basic settings
32
1. Set the programme to the ( position.
32
2. Press Drying Aim ‰ and, at the same time:
32
3. Set the programme to the 0 position.
32
4. Release Drying Aim ‰.
33
Settings:
33
Adjust and activate/deactivate the basic settings as follows
33
1. Position of the required basic setting.
33
2. Change the setting using:
33
3. Adjust any additional basic settings you require or save and exit the basic settings.
33
Save and exit the basic settings as follows
33
Note:
33
The selected settings are retained even after the appliance has been switched off.
33
o Home Connect
33
Home Connect
33
1. Install the Home Connect app on your mobile device.
33
2. Register in the Home Connect app.
33
3. Connect your appliance to your home network automatically or manually (you only need to do this the first time).
33
4. Connect your appliance to the Home Connect app.
33
Notes
34
Calling up the Home Connect menu
34
1. Switch on the appliance.
34
2. Press and hold } Remote Start for at least 3 seconds.
34
Note:
34
Briefly press } Remote Start to exit the Home Connect menu.
34
Connecting to the home network and the Home Connect app
34
Notes
34
Note:
34
To connect your appliance to the home network, Wi-Fi must be activated on the appliance. Wi-Fi is deactivated on the appliance by default and is activated automatically when you connect your appliance to your home network.
34
Connecting to your home network automatically
35
1. Press Start/ A Reload/Pause.
35
2. Activate the WPS function on your home network router within the next 2 minutes.
35
Note:
35
If you are not able to establish a connection, check whether your appliance is within range of your home network. Try connecting automatically again or connect your appliance manually.
35
Connecting to your home network manually
35
1. Set the programme to position 2.
35
2. Press Start/ A Reload/Pause.
35
3. Call up the Wi-Fi setting on the mobile device.
35
4. Connect the mobile device to the Home Connect Wi-Fi network and enter the password (key) HomeConnect.
36
5. Once you have connected successfully, open the Home Connect app on your mobile device and carry out the steps in the app.
36
6. In the Home Connect app, enter the network name (SSID) and password (key) for your home network.
36
7. Carry out the last steps in the Home Connect app to connect your appliance.
36
Note:
36
If you are not able to establish a connection, check whether your appliance is within range of your home network. Try connecting manually again.
36
Connecting to the Home Connect app
36
1. Set the programme to position 3.
36
2. Press Start/ A Reload/Pause.
36
3. Once your appliance is displayed in the app, carry out the last steps in the Home Connect app.
36
Note:
36
If you were not able to establish a connection, check whether your mobile end device is within range of your home network or is connected to this. Try connecting to the Home Connect app again.
36
Activating/deactivating Wi-Fi
37
1. Set the programme to position 4.
37
2. Press Start/ A Reload/Pause.
37
Notes
37
Resetting your network settings
37
1. Set the programme to position 5.
37
2. Press Start/ A Reload/Pause.
37
3. Press Start/ A Reload/Pause.
37
Note:
37
If you want to operate your appliance via the Home Connect app again, you will need to reconnect it to your home network and to the Home Connect app.
37
Updating the software
38
1. Set the programme to position 6.
38
2. Press Start/ A Reload/Pause.
38
3. Press Start/ A Reload/Pause.
38
Note:
38
The software update may take several minutes. Do not switch the appliance off while updates are being installed.
38
Energy management
38
Notes
38
1. Set the programme to position 7.
38
2. Press Start/ A Reload/Pause.
38
3. Activate Flexstart if you want the smart energy system (Energy manager) to start up your appliance.
38
Flex Start
39
Note:
39
Your smart energy system (Energy manager) cannot start your appliance until it is connected to the appliance.
39
1. Select the programme you require.
39
2. Use the N and M selection buttons for the "Finished in" time to set the required time.
39
3. Press Start/ A Reload/Pause .
39
4. Press } Remote Start .
39
Notes
39
Note:
39
If the Flex Start function has already been activated but the programme has not yet started, you will still be able to load more laundry or remove some from the drum.
39
1. Press Start/ A Reload/Pause .
39
2. Open the door.
39
3. Add or remove laundry.
39
4. Close the appliance door.
39
5. Press Start/ A Reload/Pause .
39
6. Press } Remote Start .
39
Intelligent program recommendation
40
Therefore please note the following:
40
1. Switch on the appliance.
40
2. Set the program to Smart Dry Ç.
40
3. To cancel the analysis, set a different program or switch the appliance off.
40
4. Press Start/ A Reload/Pause .
40
Note:
40
If a suitable program cannot be found, an audible signal will sound and { {{ will appear on the display.
40
Possible reasons:
40
Remote diagnostics
40
Note:
40
For more information and to check whether the remote diagnostics service is available in your country, please visit the Help & Support area of the Home Connect website for your country: www.home-connect.com
40
Information on data protection
41
Note:
41
Ensure that the Home Connect functions can be used only in conjunction with the Home Connect app. Information on data protection can be accessed in the Home Connect app.
41
Declaration of Conformity
41
Œ Draining the condensation water
42
Draining the condensation water
42
Connect the drain hose as follows:
42
1. Remove any accessories from the drum.
42
2. Remove all items from the bag.
42
3. Remove the cap from the socket.
42
Notes
42
4. Push the cap into its "park position".
42
5. Push the drain hose as far as it will go onto the uncovered socket.
42
6. Secure the other side of the drain hose using the remaining accessories, depending on the connection situation.
43
Caution!
43
Risk of material damage due to leaks or draining water.
43
Caution!
43
Risk of accumulated water being drawn back into the appliance and causing material damage.
43
7. Pull out the condensation container horizontally and empty it.
43
8. Turn the condensation container 180° onto its underside and remove the stopper that is fitted.
43
9. Turn the condensation container 180° again and insert the stopper into the recess in the top of the condensation container.
44
10. Slide in the condensation container until it clicks into place.
44
Note:
44
If you want to drain the condensation water back into the condensation container, reverse these steps.
44
Caution!
44
Risk of material damage/damage to the appliance
44
D Cleaning and maintenance
45
Cleaning and maintenance
45
Cleaning the appliance
45
: Warning
45
Risk of death!
45
: Warning
45
Risk of poisoning!
45
: Warning
45
Risk of electric shock/material damage/damage to the appliance!
45
Caution!
45
Material damage/damage to the appliance
45
Cleaning the base unit
45
Note:
45
Allow the appliance to cool down for approximately 30 minutes after use before commencing cleaning.
45

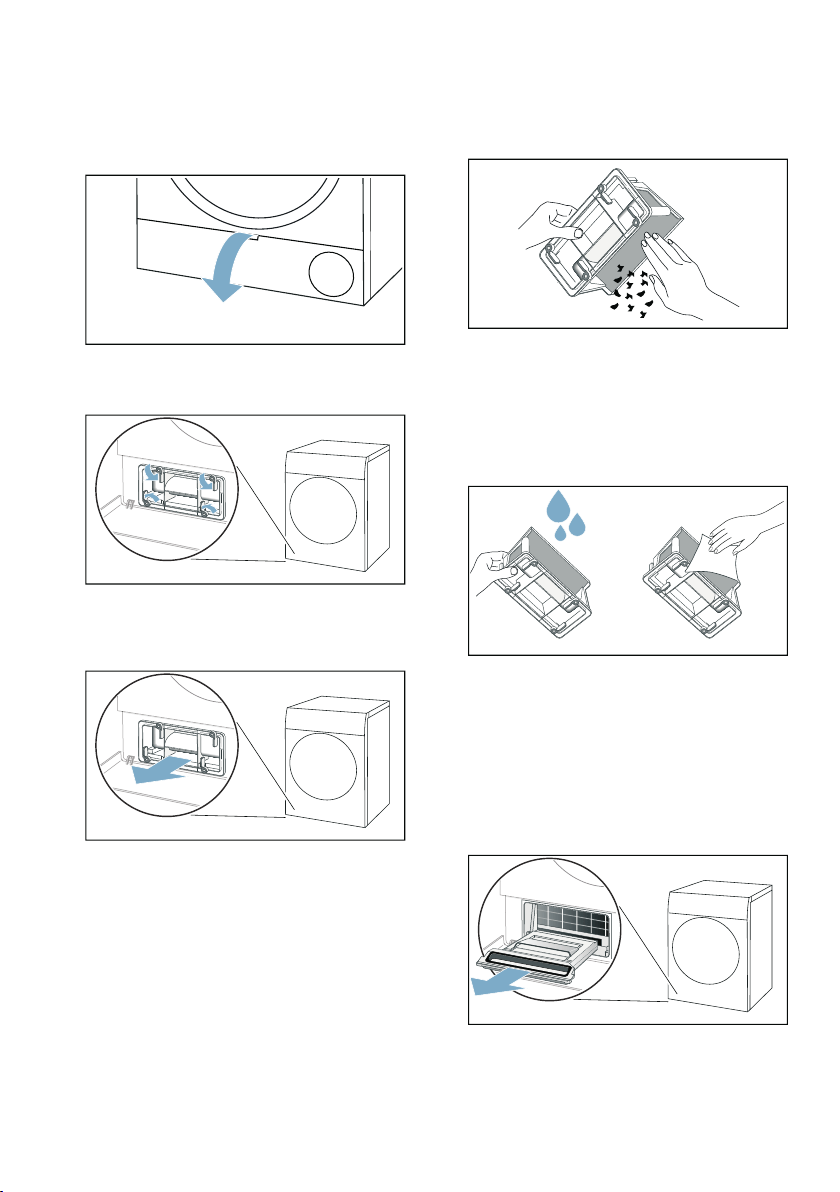

1. Open the maintenance flap by the handle.
46
2. Unlock the levers on the heat exchanger cover.
46
3. Pull the heat exchanger cover out by its grip.
46
4. Remove all of the fluff from the heat exchanger cover and remove the fluff filter.
46
Note:
46
5. Rinse the inside of the heat exchanger cover and the fluff filter thoroughly under running water and dry them.
46
Notes
46

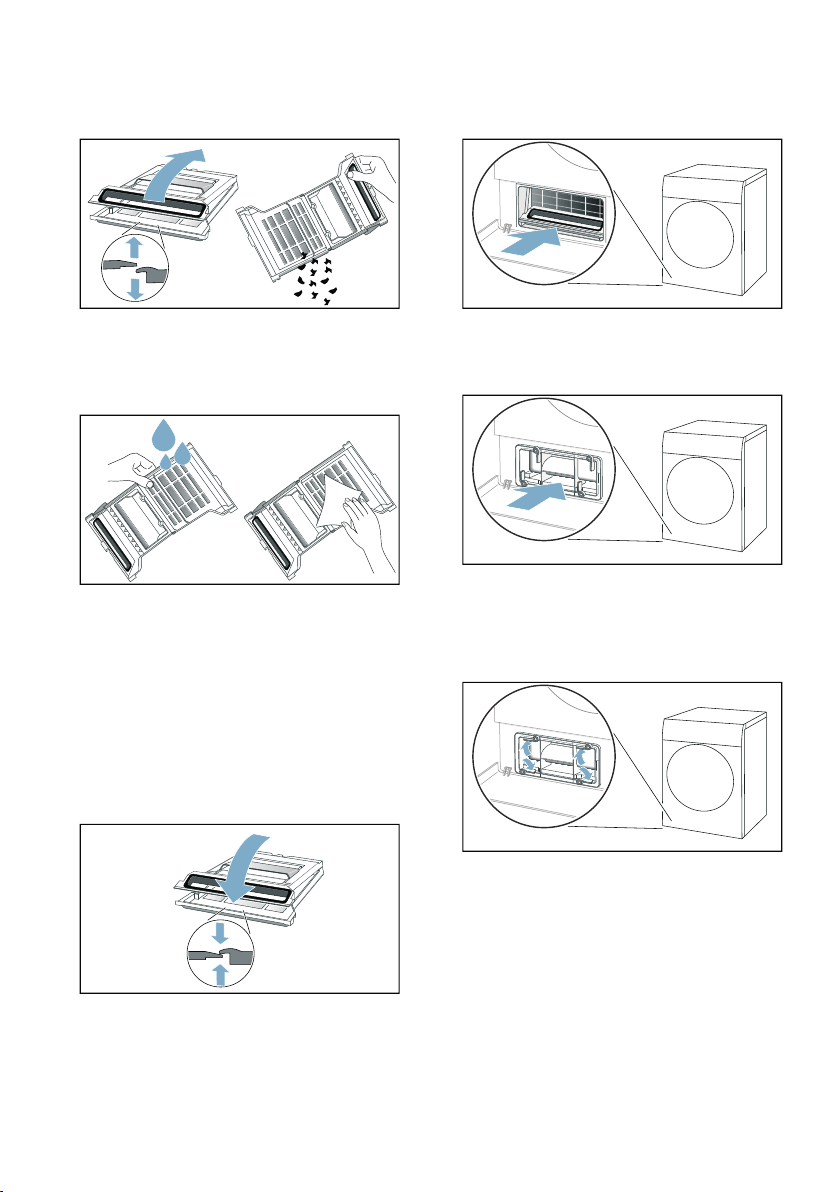

6. Pull the fluff collector out horizontally.
46
Note:
46
7. Open the fluff collector and remove any fluff.
47
8. Rinse the fluff collector's filter thoroughly under running water and dry it.
47
Notes
47
9. Close the fluff collector.
47
Note:
47
10. Slide the fluff collector in horizontally as far as it will go.
47
11. Slide the heat exchanger cover in by its grip.
47
Note:
47
12. Lock the levers on the heat exchanger cover.
47
13. Close the maintenance flap.
48
Caution!
48
Material damage/damage to the appliance
48
Cleaning the moisture sensor
48
Note:
48
The moisture sensor measures the amount of moisture in the laundry. After long periods of usage, the moisture sensor may become covered by a fine layer of limescale or detergent and care product residue. These deposits must be removed regularly, othe...
48
1. Open the door.
48
2. Clean the moisture sensor with a rough sponge.
48
Caution!
48
Risk of damaging the moisture sensor.
48
Cleaning the filter in the condensation container
49
Note:
49
The filter in the condensation container cleans the condensation water, which is used during the appliance's automatic cleaning cycle.
49
1. Pull out the condensation container horizontally.
49
2. Pour out the condensation water.
49
3. Remove the filter.
49
4. Clean the filter under warm, running water or in the dishwasher.
49
Note:
49
5. Push the filter in until you feel it lock into place.
49
Caution!
49
If the filter is not inserted, fluff can find its way inside the appliance and damage it.
49
6. Push the condensation container in until you feel it lock into place.
49
Ö Appliance care
50
Appliance care
50
: Warning
50
Risk of scalding/material damage/ damage to the appliance!
50
: Warning
50
Risk of poisoning/material damage!
50
Preparing the appliance for appliance care
50
Preparing the appliance for appliance care
50
1. Clean the base unit.~ Page 45
50
2. Open the door.
50
3. Remove the laundry.
50
4. Close the appliance door.
50
5. Pull out the condensation container horizontally and empty it.
50
6. Press # to switch on the appliance.
51

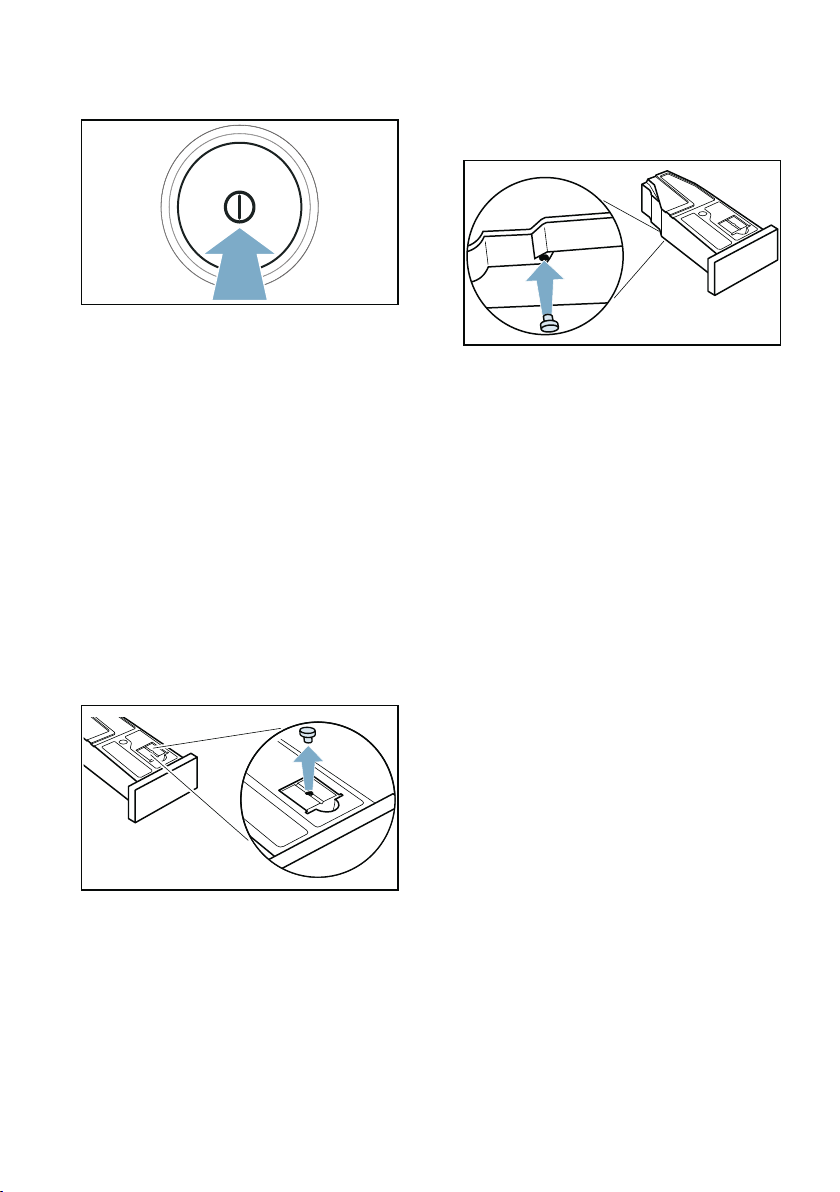

Preparing the condensation container for appliance care
51
1. Remove the stopper inserted in the recess on the condensation container.
51
2. Turn the condensation container 180° onto its underside and insert the stopper.
51
3. Clean the filter in the condensation container.~ Page 49
51
Note:
51
If you are draining the condensation water from the appliance using the drain hose, reverse these steps after running the basic or intensive appliance care programme.
51
Running the basic appliance care programme
51
Notes
51

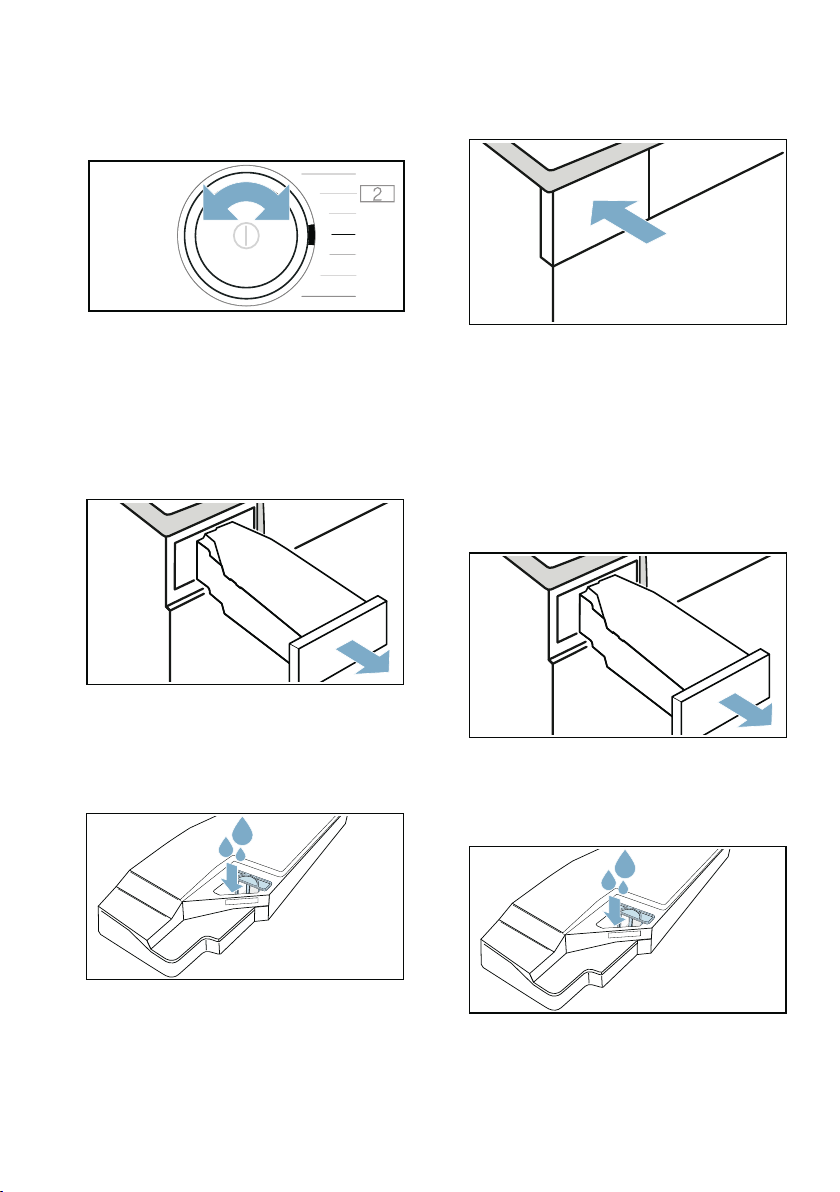

1. Prepare the appliance for appliance care. ~ Page 50
52
2. Set the programme to position 1.
52
3. Press and hold Drying Aim Š . At the same time:
52
4. Set the programme to position 4.
52
5. Pour approx. 1 ^ litre of warm tap water into the condensation container.
52
Note:
52
6. Slide in the condensation container until it clicks into place.
52
7. Press Start/ A Reload/Pause .
52
8. Pull out the condensation container horizontally and empty it.
52
9. Slide in the condensation container until it clicks into place.
52
10. Press # to switch off the appliance.
53
Running the intensive appliance care programme
53
Notes
53
: Warning
53
Risk of injury/material damage/ damage to the appliance!
53
Caution!
53
Material damage/damage to the appliance
53

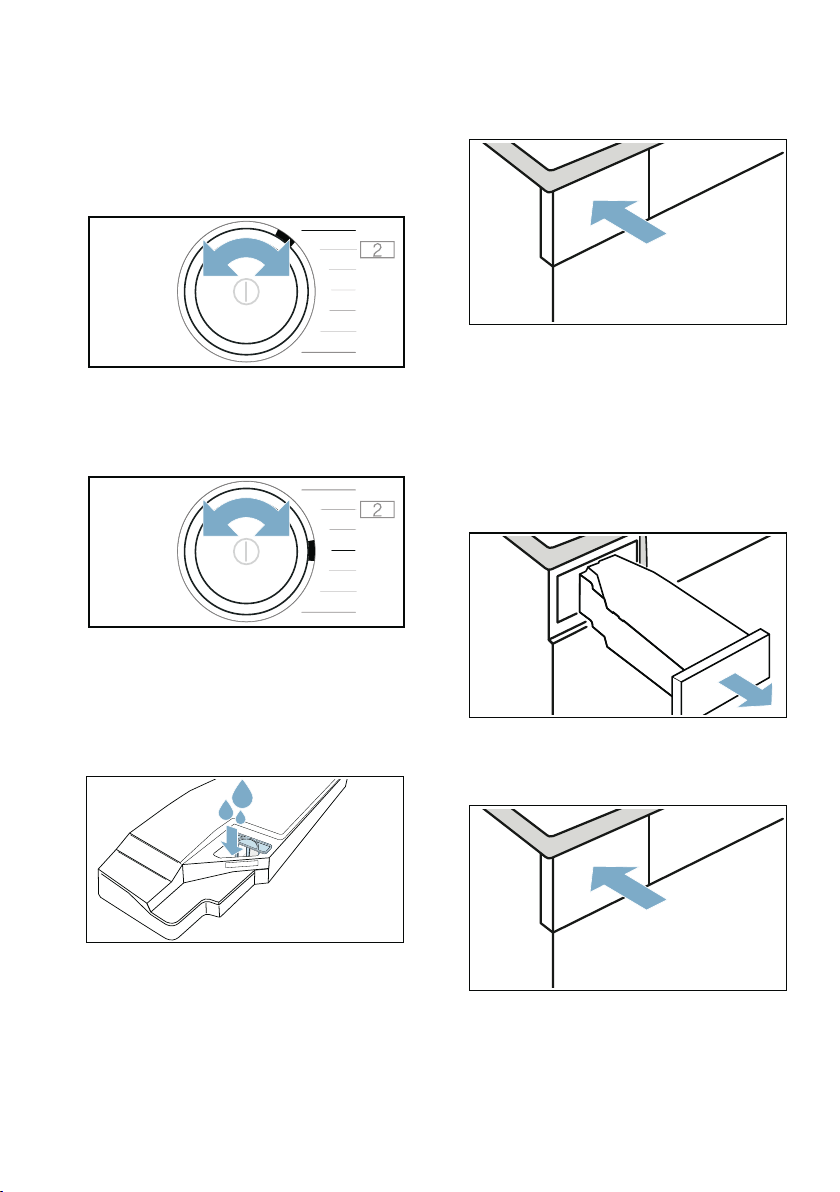

1. Prepare the appliance for appliance care. ~ Page 50
53
2. Set the programme to position 1.
53
3. Press and hold Drying Aim Š . At the same time:
54
4. Set the programme to position 4.
54
5. Press N.
54
6. Pull out the condensation container horizontally and empty it.
54
7. Pour a bottle of the original appliance care product and approx. 1 ^ litre of warm tap water into the condensation container.
54
Note:
54
8. Slide in the condensation container until it clicks into place.
54
9. Press Start/ A Reload/Pause .
54
10. Pull out the condensation container horizontally and empty it.
54
11. Pour approx. 1 ^ litre of warm tap water into the condensation container.
54
Note:
54

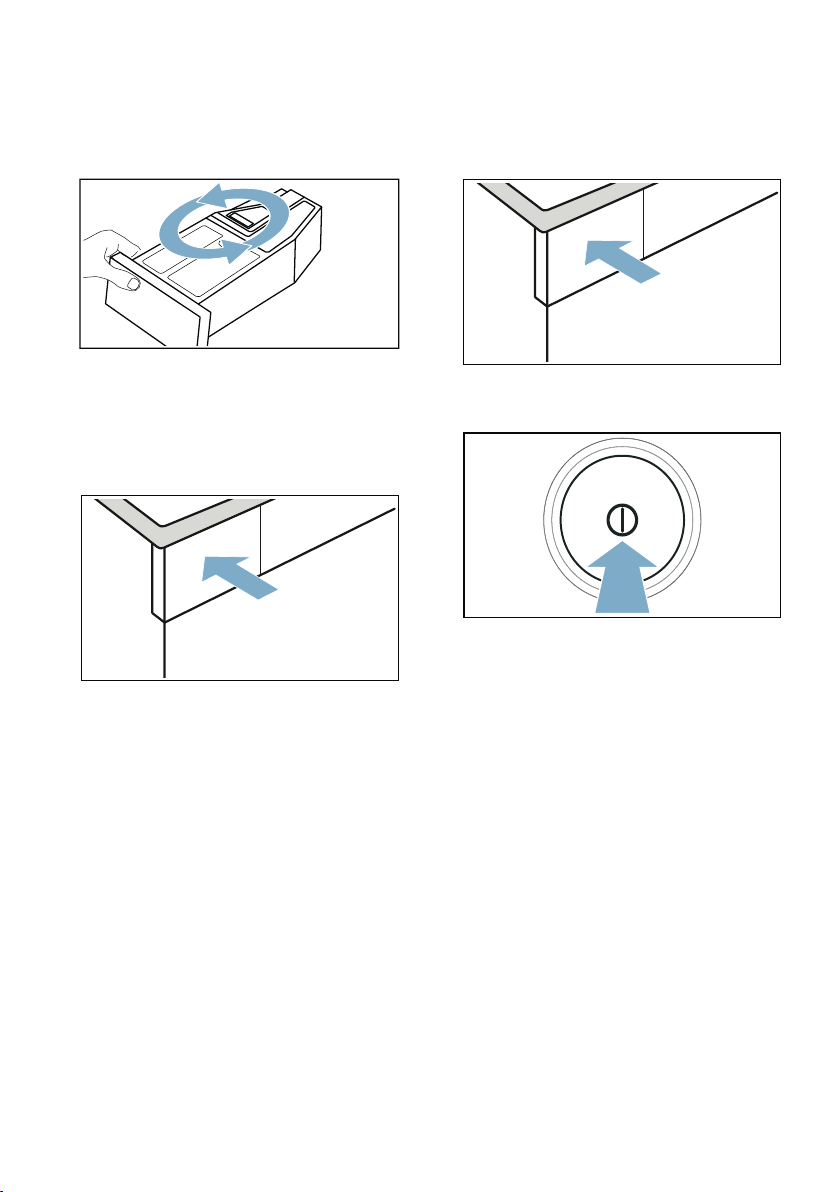

12. Carefully swing the condensation container round horizontally and empty it to dispose of any remaining original appliance care product.
55
13. Pour approx. another 1 ^ litre of warm tap water into the condensation container.
55
14. Slide in the condensation container until it clicks into place.
55
15. Press Start/ A Reload/Pause .
55
16. Empty the condensation container again.
55
17. Slide in the condensation container until it clicks into place.
55
18. Press # to switch off the appliance.
55
3 Help with the appliance
56
Help with the appliance
56
Faults
56
Cause/Remedy
56
Note:
56
Note:
57
Note:
57
Note:
58
If you cannot rectify the fault yourself by turning the appliance off and then on again, please contact our after-sales service.~ Page 62
58
L Transporting the appliance
59
Transporting the appliance
59
: Warning
59
Risk of injury/material damage/ damage to the appliance!
59
: Warning
59
Risk of injury!
59
1. Pull out the condensation container horizontally and empty it.
59
2. Push the condensation container back into the appliance until you feel it lock into place.
59
3. Switch on the appliance.
59
4. Set any programme.
59
5. Press Start/ A Reload/Pause .
59
6. Wait for 5 minutes.
59
7. Empty the condensation container again.
59
8. If installed, remove the drain hose from the washbasin, siphon or floor drain. ~ Page 42
59
Caution!
59
9. Switch off the appliance.
59
10. Disconnect the appliance's mains plug from the power supply.
59
Caution!
59
Risk of material damage/damage to the appliance
59
[ Consumption values
60
Consumption values
60
Consumption values table
60
9 kg
60
4.5 kg
60
9 kg
60
4.5 kg
60
1400
60
152
60
99
60
1.81
60
1.09
60
1000
60
171
60
109
60
2.10
60
1.24
60
800
60
190
60
119
60
2.39
60
1.39
60
1400
60
115
60
74
60
1.24
60
0.73
60
1000
60
134
60
84
60
1.53
60
0.88
60
800
60
153
60
94
60
1.82
60
1.03
60
3.5 kg
60
3.5 kg
60
800
60
64
60
0.58
60
600
60
73
60
0.69
60
{ Technical data
61
Technical data
61
) Disposal
61
Disposal
61
Caution!
61
Risk of fire/risk of poisoning/risk of material damage and damage to the appliance
61
4 Customer Service
62
Customer Service
62
*9001492767*
64
Thank you for buying a Bosch Home Appliance!
64
Looking for help? You´ll find it here.
64
File type: PDF
File name: 94508144_wtx87mh0th.pdf
File size: 2.83 MB
File Language: English
Pages: 64
Author: Bosch
File created: 2019-09-19
Published: 2022-06-14
Updated: 2023-04-23
Verified by
Shany D'Amore
on 2023-04-23
Download File
Specifications
Brand:
Bosch
Model: WTX87MH0TH
Category:
Washers & Dryers
View in the file:
Full Specifications
See other models:
NIT5060UC
NITP060SUC
BBH3ZOO25-B
SMP66MX05A
NIT8060UC
Photos
Download User Manual
Bosch in United States
1-800-944-2904
Twitter
Website
Related Products
Bosch WTX87M40
Bosch WTX87M00
Bosch WTX87EH0PL/01
Bosch WTX87KH0BY/01
Bosch WTX87EH0ES/01
Bosch WTX87KX0
Bosch WTX87K90
Bosch WTX87E90
Bosch WTX87E40
Bosch WTR85VH0
Bosch WTR85TH0
Bosch WTH85VH0
Bosch WTX88EH9GB
Bosch WTX88RH9GB
Bosch WTN86205TH
Table of Contents
×
en Installation and operating instructions
1
Tumble dryer
1
Your new tumble dryer
2
Display rules
2
: Warning!
2
Caution!
2
Note/tip
2
1. 2. 3. / a) b) c)
2
Table of contentsen Installation and operating instructions
3
8 Intended use 4
3
( Safety instructions 5
3
7 Energy-saving tips 13
3
5 Installing and connecting the appliance 13
3
9 Quick reference guide 18
3
* Familiarising yourself with your appliance 19
3
Y Display 21
3
/ Overview of programmes 23
3
0 Settings 25
3
Z Laundry 27
3
1 Operating the appliance 28
3
2 Appliance settings 32
3
o Home Connect 33
3
Œ Draining the condensation water 42
4
D Cleaning and maintenance 45
4
Ö Appliance care 50
4
3 Help with the appliance 56
4
L Transporting the appliance 59
4
[ Consumption values 60
4
{ Technical data 61
4
) Disposal 61
4
4 Customer Service 62
4
8 Intended use
4
Intended use
4
( Safety instructions
5
Safety instructions
5
Children/people/pets
5
: Warning
5
Risk of death!
5
: Warning
5
Risk of death!
5
: Warning
6
Risk of suffocation!
6
: Warning
6
Risk of poisoning!
6
: Warning
6
Eye/skin irritation!
6
Installation
6
: Warning
6
Risk of electric shock/fire/ material damage/damage to the appliance!
6
: Warning
7
Risk of electric shock/fire/ material damage/damage to the appliance!
7
: Warning
7
Risk of fire/material damage/ damage to the appliance!
7
: Warning
7
Risk of injury/material damage/damage to the appliance!
7
: Warning
8
Risk of injury!
8
Operation
8
: Warning
8
Risk of explosions/fire!
8
: Warning
9
Risk of explosions/fire!
9
: Warning
9
Risk of fire/material damage/ damage to the appliance!
9
: Warning
9
Risk of fire/material damage/ damage to the appliance!
9
: Warning
10
Risk of poisoning/material damage!
10
: Warning
10
Risk of poisoning!
10
: Warning
10
Risk of injury!
10
Caution!
10
Material damage/damage to the appliance
10
Cleaning/Maintenance
11
: Warning
11
Risk of death!
11
: Warning
12
Risk of poisoning!
12
: Warning
12
Risk of electric shock/material damage/damage to the appliance!
12
: Warning
12
Risk of injury/material damage/damage to the appliance!
12
Caution!
12
Material damage/damage to the appliance
12
7 Energy-saving tips
13
Energy-saving tips
13
Note:
13
If the maximum load is exceeded, this extends the programme duration and increases energy consumption.
13
Note:
13
If Wi-Fi is activated, the appliance will not switch itself off automatically.
13
5 Installing and connecting the appliance
13
Installing and connecting the appliance
13
Included with the appliance
13
1. Remove any packaging and protective covers completely from the appliance.
14
2. Open the door.
14
3. Remove all the accessories from the drum.
14
Caution!
14
Risk of material damage and damage to the appliance
14
Installing the appliance
14
: Warning
14
Risk of death!
14
: Warning
14
Risk of explosions/fire!
14
: Warning
14
Risk of fire/material damage/damage to the appliance!
14
: Warning
14
Risk of injury/material damage/ damage to the appliance!
14
: Warning
15
Risk of injury!
15
Caution!
15
Material damage/damage to the appliance
15
Caution!
15
Risk of material damage and damage to the appliance
15
1. Place the appliance on a clean, even, solid surface.
15
2. Check that the appliance is level using a spirit level.
15
3. If necessary, turn the appliance feet to make sure it is level.
15
Notes
15
Connecting the appliance
16
: Warning
16
Risk of electric shock/fire/material damage/damage to the appliance!
16
: Warning
16
Risk of electric shock/fire/material damage/damage to the appliance!
16
: Warning
16
Risk of fire/material damage/damage to the appliance!
16
: Warning
16
Risk of injury!
16
1. Connecting the drain hose. ~ Page 42
17
2. Plug the appliance's mains plug into the designated socket.
17
3. Check that the mains plug is in securely.
17
Caution!
17
Risk of material damage/damage to the appliance
17
Note:
17
If in doubt, have your appliance connected by a qualified professional.
17
Before using the appliance for the first time
17
Note:
17
Once the appliance has been properly installed and connected, it is ready to use. No further steps are necessary.
17
Optional accessories
17
9 Quick reference guide
18
Short introduction
18
Note:
18
The appliance must be correctly installed and connected. ~ Page 13
18
* Familiarising yourself with your appliance
19
Familiarising yourself with your appliance
19
Appliance overview
19
Fascia
20
Programme selector
20
Y Display
21
Display
21
Indicator/symbol
21
Description
21
Information
21
Notes
22
/ Overview of programmes
23
Overview of programmes
23
Programme
23
Maximum load
23
Notes
23
Notes
23
Notes
23
Note:
24
Note:
24
Notes
24
Note:
24
0 Settings
25
Programme setting
25
Function
25
Note:
25
Notes
25
Note:
25
Appliance setting
26
Function
26
Z Laundry
27
Laundry
27
Preparing laundry
27
: Warning
27
Risk of explosions/fire!
27
Caution!
27
Risk of damage to the drum and laundry
27
Notes
27
Sorting laundry
27
Note:
27
Load the laundry item by item into the appliance. For more effective drying, do not stuff an entire bundle of laundry into the dryer at once.
27
Caution!
27
Risk of material damage to the dryer or laundry
27
Note:
28
You can select a timed programme to add extra drying time for laundry that is still damp.
28
Caution!
28
Risk of material damage to the appliance and laundry
28
1 Operating the appliance
28
Operating the appliance
28
Loading laundry and switching on the appliance
28
Note:
28
The appliance must be correctly installed and connected. ~ Page 13
28
1. Prepare and sort the laundry.
28
2. Press # to switch on the appliance.
28
3. Open the door.
28
4. Load the laundry unfolded into the drum.
29
5. Close the appliance door.
29
Caution!
29
Risk of material damage to the appliance or laundry.
29
Note:
29
The appliance's drum is lit up after the door is opened and closed and once the programme has started. The drum's interior light goes out on its own.
29
Setting a programme
29
Note:
29
If you have activated the childproof lock, you must deactivate it before you can set a programme. ~ Page 32
29
1. Set the programme you require.
29
2. Adjust the programme settings, if required.
29
Starting the programme
29
Note:
29
If you want to prevent the programme from being adjusted inadvertently, activate the childproof lock. ~ Page 32
29
Programme progress
29
Note:
29
When a programme is selected, the expected drying time for the maximum permitted load is displayed. The moisture sensor measures the residual moisture in the laundry as it is being dried. The programme duration and the remaining time indicated on the...
29
Changing the programme or adding more laundry
30
1. Open the door or press Start/ A Reload/Pause to pause the programme.
30
Note:
30
2. Add or remove laundry.
30
3. If required, select a different programme or a different programme setting.~ "Overview of programmes" on page 23
30
Note:
30
4. Close the appliance door.
30
5. Press Start/ A Reload/Pause .
30
Note:
30
The programme duration is updated on the display, depending on the load and on the residual moisture in the laundry. The values displayed may change when the programme or load is changed.
30
Cancelling the programme
30
Caution!
30
Risk of fire. Laundry may catch fire.
30
End of programme
30
Removing laundry and switching off the appliance
30
1. Remove the laundry.
30
2. Press # to switch off the appliance.
30
Emptying the condensation container
31
1. Pull out the condensation container horizontally.
31
2. Pour out the condensation water.
31
Caution!
31
Risk of harm to health and material damage
31
3. Push the condensation container back into the appliance until you feel it lock into place.
31
Note:
31
The filter in the condensation container filters the condensation water, which is used during the appliance's automatic cleaning cycle. The filter is cleaned by emptying out the condensation water. You should still check the filter regularly for any ...
31
2 Appliance settings
32
Appliance settings
32
Childproof lock
32
Note:
32
The childproof lock will remain active, even once the appliance has been switched off. If you wish to change settings on the control panel when you turn on the appliance, you will need to deactivate the childproof lock.
32
Notification signal
32
Note:
32
If a signal does not sound when the programme ends even though the notification signal is activated, you can change the appliance setting.
32
Basic settings
32
1. Set the programme to the ( position.
32
2. Press Drying Aim ‰ and, at the same time:
32
3. Set the programme to the 0 position.
32
4. Release Drying Aim ‰.
33
Settings:
33
Adjust and activate/deactivate the basic settings as follows
33
1. Position of the required basic setting.
33
2. Change the setting using:
33
3. Adjust any additional basic settings you require or save and exit the basic settings.
33
Save and exit the basic settings as follows
33
Note:
33
The selected settings are retained even after the appliance has been switched off.
33
o Home Connect
33
Home Connect
33
1. Install the Home Connect app on your mobile device.
33
2. Register in the Home Connect app.
33
3. Connect your appliance to your home network automatically or manually (you only need to do this the first time).
33
4. Connect your appliance to the Home Connect app.
33
Notes
34
Calling up the Home Connect menu
34
1. Switch on the appliance.
34
2. Press and hold } Remote Start for at least 3 seconds.
34
Note:
34
Briefly press } Remote Start to exit the Home Connect menu.
34
Connecting to the home network and the Home Connect app
34
Notes
34
Note:
34
To connect your appliance to the home network, Wi-Fi must be activated on the appliance. Wi-Fi is deactivated on the appliance by default and is activated automatically when you connect your appliance to your home network.
34
Connecting to your home network automatically
35
1. Press Start/ A Reload/Pause.
35
2. Activate the WPS function on your home network router within the next 2 minutes.
35
Note:
35
If you are not able to establish a connection, check whether your appliance is within range of your home network. Try connecting automatically again or connect your appliance manually.
35
Connecting to your home network manually
35
1. Set the programme to position 2.
35
2. Press Start/ A Reload/Pause.
35
3. Call up the Wi-Fi setting on the mobile device.
35
4. Connect the mobile device to the Home Connect Wi-Fi network and enter the password (key) HomeConnect.
36
5. Once you have connected successfully, open the Home Connect app on your mobile device and carry out the steps in the app.
36
6. In the Home Connect app, enter the network name (SSID) and password (key) for your home network.
36
7. Carry out the last steps in the Home Connect app to connect your appliance.
36
Note:
36
If you are not able to establish a connection, check whether your appliance is within range of your home network. Try connecting manually again.
36
Connecting to the Home Connect app
36
1. Set the programme to position 3.
36
2. Press Start/ A Reload/Pause.
36
3. Once your appliance is displayed in the app, carry out the last steps in the Home Connect app.
36
Note:
36
If you were not able to establish a connection, check whether your mobile end device is within range of your home network or is connected to this. Try connecting to the Home Connect app again.
36
Activating/deactivating Wi-Fi
37
1. Set the programme to position 4.
37
2. Press Start/ A Reload/Pause.
37
Notes
37
Resetting your network settings
37
1. Set the programme to position 5.
37
2. Press Start/ A Reload/Pause.
37
3. Press Start/ A Reload/Pause.
37
Note:
37
If you want to operate your appliance via the Home Connect app again, you will need to reconnect it to your home network and to the Home Connect app.
37
Updating the software
38
1. Set the programme to position 6.
38
2. Press Start/ A Reload/Pause.
38
3. Press Start/ A Reload/Pause.
38
Note:
38
The software update may take several minutes. Do not switch the appliance off while updates are being installed.
38
Energy management
38
Notes
38
1. Set the programme to position 7.
38
2. Press Start/ A Reload/Pause.
38
3. Activate Flexstart if you want the smart energy system (Energy manager) to start up your appliance.
38
Flex Start
39
Note:
39
Your smart energy system (Energy manager) cannot start your appliance until it is connected to the appliance.
39
1. Select the programme you require.
39
2. Use the N and M selection buttons for the "Finished in" time to set the required time.
39
3. Press Start/ A Reload/Pause .
39
4. Press } Remote Start .
39
Notes
39
Note:
39
If the Flex Start function has already been activated but the programme has not yet started, you will still be able to load more laundry or remove some from the drum.
39
1. Press Start/ A Reload/Pause .
39
2. Open the door.
39
3. Add or remove laundry.
39
4. Close the appliance door.
39
5. Press Start/ A Reload/Pause .
39
6. Press } Remote Start .
39
Intelligent program recommendation
40
Therefore please note the following:
40
1. Switch on the appliance.
40
2. Set the program to Smart Dry Ç.
40
3. To cancel the analysis, set a different program or switch the appliance off.
40
4. Press Start/ A Reload/Pause .
40
Note:
40
If a suitable program cannot be found, an audible signal will sound and { {{ will appear on the display.
40
Possible reasons:
40
Remote diagnostics
40
Note:
40
For more information and to check whether the remote diagnostics service is available in your country, please visit the Help & Support area of the Home Connect website for your country: www.home-connect.com
40
Information on data protection
41
Note:
41
Ensure that the Home Connect functions can be used only in conjunction with the Home Connect app. Information on data protection can be accessed in the Home Connect app.
41
Declaration of Conformity
41
Œ Draining the condensation water
42
Draining the condensation water
42
Connect the drain hose as follows:
42
1. Remove any accessories from the drum.
42
2. Remove all items from the bag.
42
3. Remove the cap from the socket.
42
Notes
42
4. Push the cap into its "park position".
42
5. Push the drain hose as far as it will go onto the uncovered socket.
42
6. Secure the other side of the drain hose using the remaining accessories, depending on the connection situation.
43
Caution!
43
Risk of material damage due to leaks or draining water.
43
Caution!
43
Risk of accumulated water being drawn back into the appliance and causing material damage.
43
7. Pull out the condensation container horizontally and empty it.
43
8. Turn the condensation container 180° onto its underside and remove the stopper that is fitted.
43
9. Turn the condensation container 180° again and insert the stopper into the recess in the top of the condensation container.
44
10. Slide in the condensation container until it clicks into place.
44
Note:
44
If you want to drain the condensation water back into the condensation container, reverse these steps.
44
Caution!
44
Risk of material damage/damage to the appliance
44
D Cleaning and maintenance
45
Cleaning and maintenance
45
Cleaning the appliance
45
: Warning
45
Risk of death!
45
: Warning
45
Risk of poisoning!
45
: Warning
45
Risk of electric shock/material damage/damage to the appliance!
45
Caution!
45
Material damage/damage to the appliance
45
Cleaning the base unit
45
Note:
45
Allow the appliance to cool down for approximately 30 minutes after use before commencing cleaning.
45
1. Open the maintenance flap by the handle.
46
2. Unlock the levers on the heat exchanger cover.
46
3. Pull the heat exchanger cover out by its grip.
46
4. Remove all of the fluff from the heat exchanger cover and remove the fluff filter.
46
Note:
46
5. Rinse the inside of the heat exchanger cover and the fluff filter thoroughly under running water and dry them.
46
Notes
46
6. Pull the fluff collector out horizontally.
46
Note:
46
7. Open the fluff collector and remove any fluff.
47
8. Rinse the fluff collector's filter thoroughly under running water and dry it.
47
Notes
47
9. Close the fluff collector.
47
Note:
47
10. Slide the fluff collector in horizontally as far as it will go.
47
11. Slide the heat exchanger cover in by its grip.
47
Note:
47
12. Lock the levers on the heat exchanger cover.
47
13. Close the maintenance flap.
48
Caution!
48
Material damage/damage to the appliance
48
Cleaning the moisture sensor
48
Note:
48
The moisture sensor measures the amount of moisture in the laundry. After long periods of usage, the moisture sensor may become covered by a fine layer of limescale or detergent and care product residue. These deposits must be removed regularly, othe...
48
1. Open the door.
48
2. Clean the moisture sensor with a rough sponge.
48
Caution!
48
Risk of damaging the moisture sensor.
48
Cleaning the filter in the condensation container
49
Note:
49
The filter in the condensation container cleans the condensation water, which is used during the appliance's automatic cleaning cycle.
49
1. Pull out the condensation container horizontally.
49
2. Pour out the condensation water.
49
3. Remove the filter.
49
4. Clean the filter under warm, running water or in the dishwasher.
49
Note:
49
5. Push the filter in until you feel it lock into place.
49
Caution!
49
If the filter is not inserted, fluff can find its way inside the appliance and damage it.
49
6. Push the condensation container in until you feel it lock into place.
49
Ö Appliance care
50
Appliance care
50
: Warning
50
Risk of scalding/material damage/ damage to the appliance!
50
: Warning
50
Risk of poisoning/material damage!
50
Preparing the appliance for appliance care
50
Preparing the appliance for appliance care
50
1. Clean the base unit.~ Page 45
50
2. Open the door.
50
3. Remove the laundry.
50
4. Close the appliance door.
50
5. Pull out the condensation container horizontally and empty it.
50
6. Press # to switch on the appliance.
51
Preparing the condensation container for appliance care
51
1. Remove the stopper inserted in the recess on the condensation container.
51
2. Turn the condensation container 180° onto its underside and insert the stopper.
51
3. Clean the filter in the condensation container.~ Page 49
51
Note:
51
If you are draining the condensation water from the appliance using the drain hose, reverse these steps after running the basic or intensive appliance care programme.
51
Running the basic appliance care programme
51
Notes
51
1. Prepare the appliance for appliance care. ~ Page 50
52
2. Set the programme to position 1.
52
3. Press and hold Drying Aim Š . At the same time:
52
4. Set the programme to position 4.
52
5. Pour approx. 1 ^ litre of warm tap water into the condensation container.
52
Note:
52
6. Slide in the condensation container until it clicks into place.
52
7. Press Start/ A Reload/Pause .
52
8. Pull out the condensation container horizontally and empty it.
52
9. Slide in the condensation container until it clicks into place.
52
10. Press # to switch off the appliance.
53
Running the intensive appliance care programme
53
Notes
53
: Warning
53
Risk of injury/material damage/ damage to the appliance!
53
Caution!
53
Material damage/damage to the appliance
53
1. Prepare the appliance for appliance care. ~ Page 50
53
2. Set the programme to position 1.
53
3. Press and hold Drying Aim Š . At the same time:
54
4. Set the programme to position 4.
54
5. Press N.
54
6. Pull out the condensation container horizontally and empty it.
54
7. Pour a bottle of the original appliance care product and approx. 1 ^ litre of warm tap water into the condensation container.
54
Note:
54
8. Slide in the condensation container until it clicks into place.
54
9. Press Start/ A Reload/Pause .
54
10. Pull out the condensation container horizontally and empty it.
54
11. Pour approx. 1 ^ litre of warm tap water into the condensation container.
54
Note:
54
12. Carefully swing the condensation container round horizontally and empty it to dispose of any remaining original appliance care product.
55
13. Pour approx. another 1 ^ litre of warm tap water into the condensation container.
55
14. Slide in the condensation container until it clicks into place.
55
15. Press Start/ A Reload/Pause .
55
16. Empty the condensation container again.
55
17. Slide in the condensation container until it clicks into place.
55
18. Press # to switch off the appliance.
55
3 Help with the appliance
56
Help with the appliance
56
Faults
56
Cause/Remedy
56
Note:
56
Note:
57
Note:
57
Note:
58
If you cannot rectify the fault yourself by turning the appliance off and then on again, please contact our after-sales service.~ Page 62
58
L Transporting the appliance
59
Transporting the appliance
59
: Warning
59
Risk of injury/material damage/ damage to the appliance!
59
: Warning
59
Risk of injury!
59
1. Pull out the condensation container horizontally and empty it.
59
2. Push the condensation container back into the appliance until you feel it lock into place.
59
3. Switch on the appliance.
59
4. Set any programme.
59
5. Press Start/ A Reload/Pause .
59
6. Wait for 5 minutes.
59
7. Empty the condensation container again.
59
8. If installed, remove the drain hose from the washbasin, siphon or floor drain. ~ Page 42
59
Caution!
59
9. Switch off the appliance.
59
10. Disconnect the appliance's mains plug from the power supply.
59
Caution!
59
Risk of material damage/damage to the appliance
59
[ Consumption values
60
Consumption values
60
Consumption values table
60
9 kg
60
4.5 kg
60
9 kg
60
4.5 kg
60
1400
60
152
60
99
60
1.81
60
1.09
60
1000
60
171
60
109
60
2.10
60
1.24
60
800
60
190
60
119
60
2.39
60
1.39
60
1400
60
115
60
74
60
1.24
60
0.73
60
1000
60
134
60
84
60
1.53
60
0.88
60
800
60
153
60
94
60
1.82
60
1.03
60
3.5 kg
60
3.5 kg
60
800
60
64
60
0.58
60
600
60
73
60
0.69
60
{ Technical data
61
Technical data
61
) Disposal
61
Disposal
61
Caution!
61
Risk of fire/risk of poisoning/risk of material damage and damage to the appliance
61
4 Customer Service
62
Customer Service
62
*9001492767*
64
Thank you for buying a Bosch Home Appliance!
64
Looking for help? You´ll find it here.
64
Search:
×
Search
