Samsung NX58M5600SW/AA 5.8 cu. ft. Freestanding Gas Range - Use Manual

Samsung NX58M5600SW/AA 5.8 cu. ft. Freestanding Gas Range - Use Manual - Use Guide PDF download or read online.

Free-Standing Gas

Range
user manual

NX58H5650W*  NX58H5600S*  NX58J5600S*  NX58M5600S*

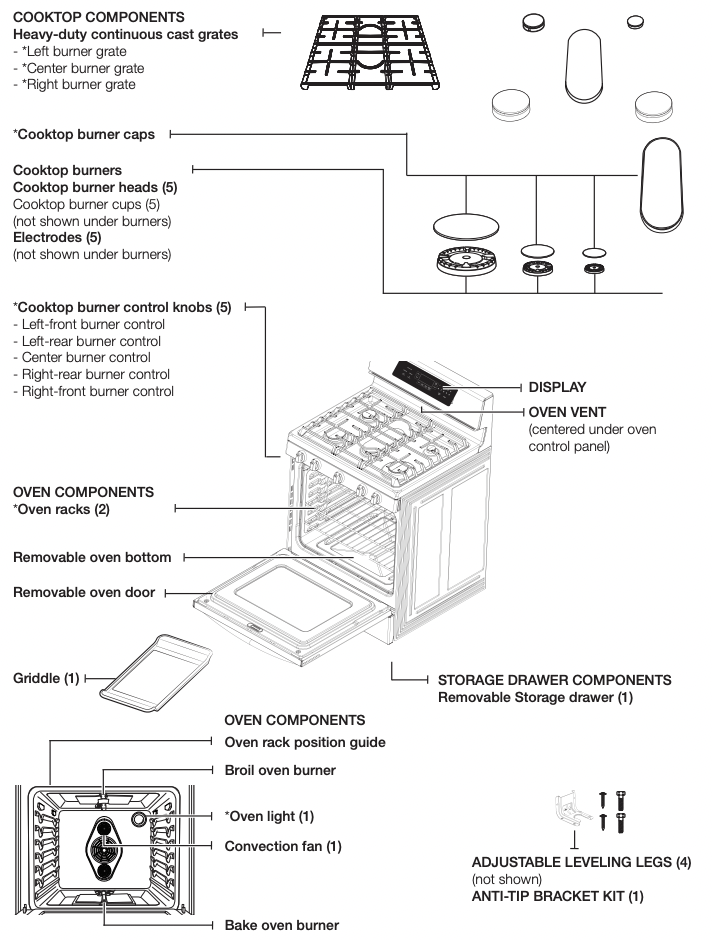

OVEN VENT

The oven vent is located under the oven control panel. Do not block or place items in front of the oven vent. Proper air circulation prevents oven burner combustion problems and ensures good cooking results. Since the vent and area around the vent can become hot, use care when placing items near the oven vent. Hot steam could heat or melt items placed in front of the oven vent.

OVEN LIGHT

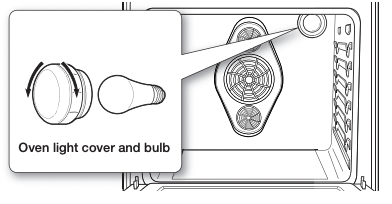

The oven has a light that is located on the rear oven wall in the upper right-rear corner. The light can be turned on or off by touching the Oven Light pad on the oven control panel. The oven light allows you to check cooking progress without opening the oven door. Always use a 40-watt appliance bulb when replacing the oven light. See page 61 for light-changing instructions.

BAKING

The Bake function lets you program the oven to bake at any temperature between 150 °F (66 °C) and 550 °F (288 °C).

How to set the oven temperature

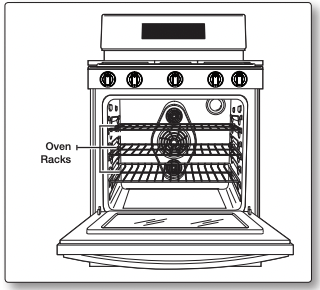

1. Position the oven rack in the desired location.

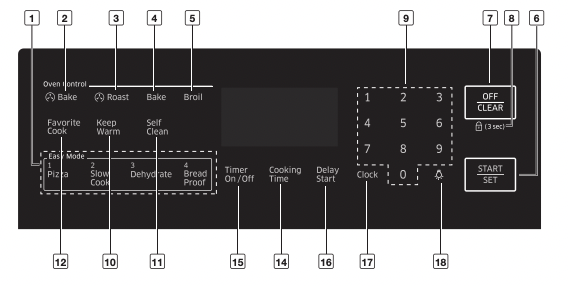

2. Press the Bake pad. The oven will beep every time a pad is pressed.

The default temperature, 350°, and the Start indicator will blink on the display. If the default temperature is the desired cooking temperature, skip to step 4.

3. Press the number pads to enter the desired cooking temperature (for example, 3, 7, 5).

The selected cooking temperature and the Start indicator will blink on the display.

4. Press the START/SET pad.

The oven will automatically light and start preheating. The display will show a blinking •, along with 150°, Bake, and the bake element icon, until the oven reaches 150°. Then, the display will just show the actual oven t
