WARNING BEFORE USING THE SURFACE BURNERS, make sure to follow all the safety warnings and precautions listed on page 6. Failure to do so could result in product damage, personal injury, and/or death.

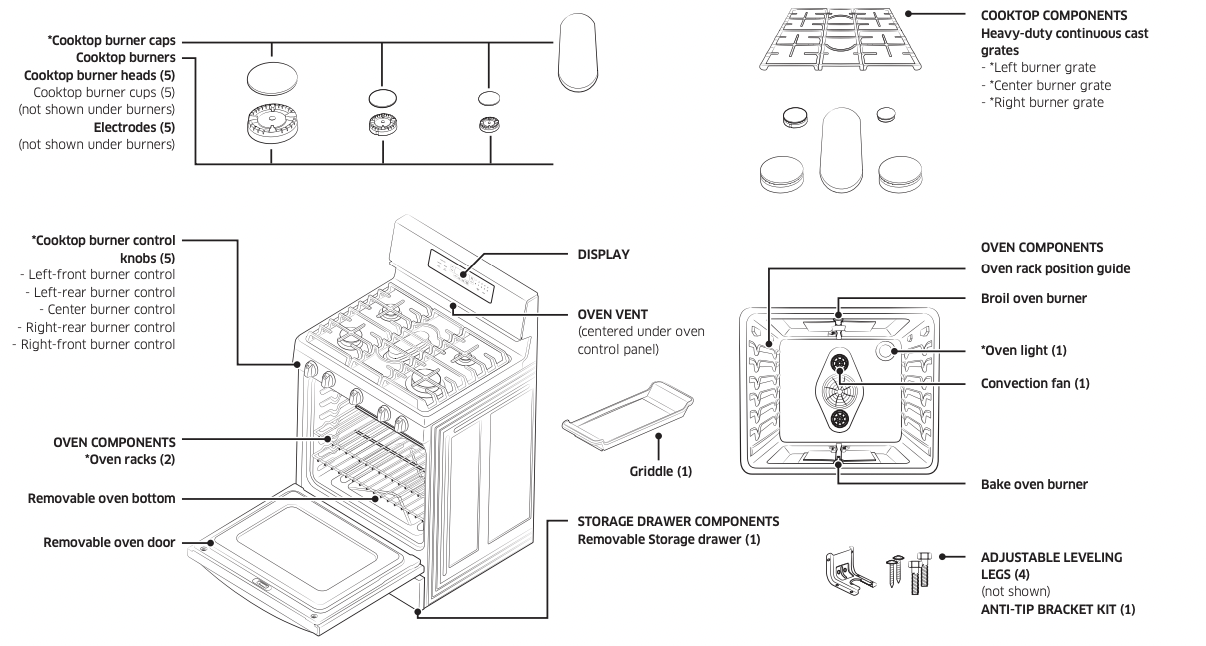

Make sure all surface burners are positioned and assembled properly

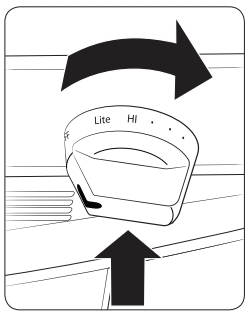

1. Push in and turn the control knob to the LITE position. You will hear a “clicking” sound indicating the electronic ignition system is working properly.
2. After the surface burner lights, turn the control knob to adjust the power setting of the surface burner and turn off the electronic ignition system.
NOTE We highly recommend using the left rear side burner for simmering tomato sauce and right rear side burner for melting chocolate
If a power failure occurs, the surface burners can still be lit manually.
NOTE Use extreme caution when manually lighting a surface burner.
1. Hold a long gas grill lighter to the surface burner you want to light.
2. Push in and turn the control knob for that burner to the LITE position.
3. After the burner has lit, set the control knob and the burner to the desired setting.
WARNING
Flames larger than the bottom of the cookware will not result in faster heating, but could result in a fire hazard and/or personal injury.
The flames on the burners should always stay under the cookware. The flames should never extend beyond the bottom surface and/or up the sides of the cookware.
Always watch the flames when adjusting the heat setting with the control knob(s). The flames should always match the size of the cookware being used.

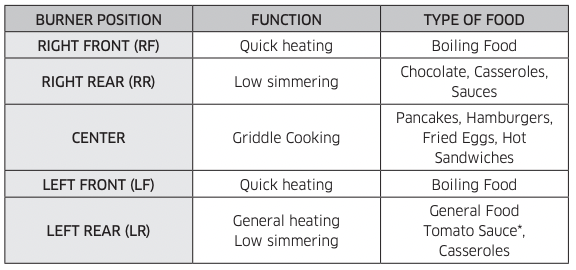

Your gas range cooktop has five gas burners. All sealed cooktop burners use an open-port design which provides easy assembly and accurate and dependable operation. The different burner sizes ensure you have the proper heat source for the desired cooking job.
The right rear side burner provides precise cooking performance for delicate foods and foods that require low heat for long cooking times. The right rear side burner lets you use the LO setting for a very low simmer setting. The left rear side and center round burners are general-purpose burners that can be used for most cooking. The HI to LO settings provide a wide range of cooking temperatures to meet your cooking needs.
The right and left front side burners provide maximium output. These burners can also be used as general-purpose burners, but they are designed to provide quick heat to large cookware. The right and left front side burners spread out the heat with a larger circle of flames. This provides better heat distribution for larger cookware (12”/30.5 cm) or larger pots and pans.
NOTE
* Tomato sauce needs to be stirred during the low simmering. The center oval burner can also be used for large pots and pans, but is designed to be used with the center burner grate and/or the center griddle accessory (if equipped). The oval burner spreads out the heat more evenly over the large center cooking area.
Each surface burner has a control knob with settings from HI to LO. They also have a LITE setting that is only used to light the flame. The electronic ignition system sparks when the control knob is in the LITE position. The surface burner indicator next to the control knob shows which burner the knob controls.
Using the correct cookware can prevent many problems, such as uneven cooking or extended cooking times. Using the proper pans will reduce cooking times and cook food more evenly. Look for the following pan characteristics:
What your cookware is made of determines how evenly and quickly heat is transferred from the surface burner to the pan bottom.
NOTE Do not place a small pan or pot with a bottom diameter of about 6” or less on the center grate. It is likely that the pan or pot will tip over. We strongly recommend you place small-sized pots or pans on the rear of either side grate.
Samsung gas ranges come with a center burner grate. This grate fits over the center oval burner. The center burner grate should not be placed over any other burners and no other center stovetop grates should be used with this range.
The non-fixed coated griddle provides an extra-large cooking surface for meats, pancakes, or other food usually prepared in a frying pan or skillet. How to Place the Griddle: The griddle can only be used with the center burner. The griddle must be properly placed on the center grate as shown in the figure below.
WARNING DO NOT remove the center grate when using the griddle.

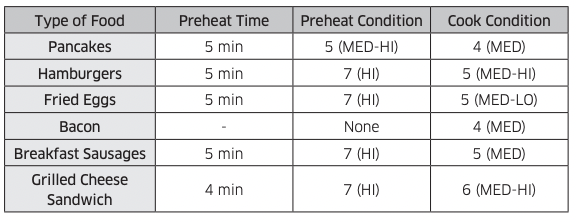

How to cook: Preheat the griddle according to the guide below, and then adjust for the cooking conditions.
CAUTION
NOTE
Important Note:

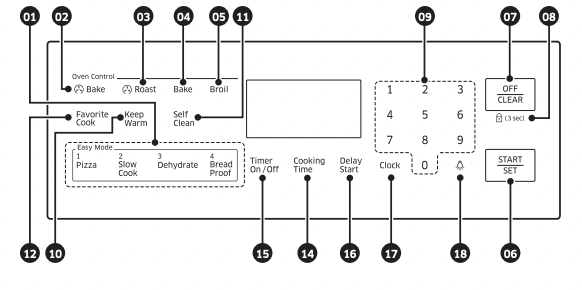

NOTE All oven operations are controlled with electronic touch pads. Use the following pads to program and operate all oven cooking, cleaning, and timing functions. All programmed settings and cooking statuses will show on the digital display.
): Activates the convection bake function. Use this function to cook large amounts of baked goods on multiple shelves at the same time.
): Activates the convection roast function. Use this function to cook large cuts of meat.The clock must be set to the correct time of day for the automatic oven timing functions to work properly. The clock can be adjusted to show a 12-hour or 24- hour display. The 12-hour display is the default setting. The time of day cannot be changed during a timed cooking, delayed start, selfcleaning, or Sabbath function operation.
How to set the clock
1. Press the Clock pad.
2. Enter the current time in hours and minutes using the number pads (e.g., 1, 3, 0). The display will show the time of day, and the Start indicator will blink.
3. Press the START/SET pad to set and start the clock. The display will show the time of day, and the Start indicator will turn off.
How to change between a 12-hour and 24-hour display
1. Press and hold the Clock and 0 pads for seconds. The display will show the present mode (e.g., 12Hr).
NOTE
If one pad is pressed before the other, will appear in the display. Press the OFF/CLEAR pad and start again.
2. Press the 0 pad to toggle between the 12-hour and 24-hour display setting. 12Hr or 24Hr will show in the display depending on your selection.
3. Press the START/SET pad to change the clock display mode.
The timer counts down time remaining and beeps when the set time has elapsed. It does not start or stop cooking functions. You can use the kitchen timer at the same time as any other range functions and set it for any amount of time between 1 minute and 9 hours and 99 minutes.
How to set the timer
1. Press the Timer On/Off pad once for hours/minutes and twice for seconds. Press the pad three times to turn off the kitchen timer or cancel it before it starts to run. The display will show Timer, and -hr --min will blink in the display. (Hr and min characters are not displayed on the NX58H5600S* or NX58J5600S.)
2. Press the number pads to enter the amount of time you want in minutes, hours and minutes, or seconds (e.g., 1, 5). The set time will show in the display
3. Press the Timer On/Off pad to start the timer. The display will show the remaining time. When time has elapsed, the oven will beep and the display will show End until you press the Timer On/Off pad. After the pad is pressed, the display will go back to showing the time of day. You can cancel the timer at any time by pressing the Timer On/Off pad.
The Bake function lets you program the oven to bake at any temperature between 150 °F (66 °C) and 550 °F (288 °C).
How to set the oven temperature

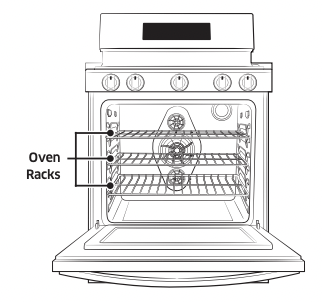

1. Position the oven rack in the desired location.
2. Press the Bake pad. The oven will beep every time a pad is pressed. The default temperature, 350°, and the Start indicator will blink on the display. If the default temperature is the desired cooking temperature, skip to step 4.
3. Press the number pads to enter the desired cooking temperature (for example, 3, 7, 5). The selected cooking temperature and the Start indicator will blink on the display
Press the START/SET pad. The oven will automatically light and start preheating. The display will show a blinking “•”, along with 150°, Bake, and the bake element icon, until the oven reaches 150°. Then, the display will just show the actual oven temperature. When the oven reaches the desired baking temperature, it will beep 6 times.
4. Place the food in the oven, and then close the oven door. Preheating is very important for good baking results.
5. When baking is complete, remove the item(s) from the oven, close the oven door, and then press the OFF/CLEAR pad. The oven will shut off, and the display will show the time of day.
To change a programmed baking temperature, press the Bake pad, enter the new baking temperature, and then press the START/SET pad. If the oven temperature is higher than the new setting, the oven will beep 6 times, then show the new setting. The oven will complete cooking at the new temperature.
If your baking results are not what you are used to, the preset oven cooking temperature can be adjusted ±30 °F (±15 °C) as follows:
1. Press and hold the Bake and 0 pads for 3 seconds. The display will show AdJ and 0.
2. Press the Bake pad to toggle between + or – temperature adjustments.
3. Press the number pads to enter the desired temperature adjustment (for example, 1, 0). The display will show AdJ and 10.
4. Press the START/SET pad. The oven will beep twice, and the display will show the time of day. The next time you bake, the oven will use the new temperature setting.
NOTE This adjustment will not affect the broiling or the self-cleaning temperatures. The adjustment will be retained in memory after a power failure.
The Convection Bake function lets you program the oven to bake at any temperature between 150 °F (66 °C) and 550 °F (288 °C). The Convection Roast function lets you program the oven to roast at any temperature between 150 °F (66 °C) and 550 °F (288 °C). The convection fan in the back of the oven cavity circulates the hot air evenly throughout the oven cavity. As a result, foods are evenly cooked and browned in less time than with regular heat.
Convection baking
• Ideal for foods being cooked on multiple racks.
• Good for large quantities of baked foods.
• Provides good results with cookies, biscuits, brownies, cupcakes, cream puffs, sweet rolls, angel food cake, and bread.
• Cookies have best cooking results when cooked on flat cookie sheets.
• When convection baking on a single rack, place the oven rack in position 3 or 4. When convection baking on multiple racks, place the oven racks in position 2 and 5.
NOTE The oven automatically adjusts the temperature for convection baking with the Convection Auto Conversion feature. See page 56 for details.
Convection roasting
• Good for larger tender cuts of meat, uncovered.
• Place a broil pan and grid under the meat or poultry during convection roast for best results. The pan catches grease spills and the grid prevents grease spatters.
Meat and poultry are browned on all sides as if they were cooked on a rotisserie. Heated air will be circulated over, under, and around the food being roasted. The heated air seals in juices quickly for a moist and tender interior while creating a rich, golden-brown exterior. See the Convection roasting guide on page 40 for recommended cooking times and temperatures.
1. Position the oven rack in the desired location.
2. Press the Convection Bake (
) or Convection Roast (
) pad. The oven will beep every time a pad is pressed. The default temperature, 350°, will blink on the display. If the default temperature is the desired cooking temperature, skip to step 4.
3. Press the number pads to enter the desired cooking temperature (for example, 4, 2, 5). The selected cooking temperature will blink on the display
Press the START/SET pad. The oven will automatically light and start preheating. The display will show a blinking “•”, along with 150°, Conv. Bake ( ), and the convection bake element and fan icons, until the oven reaches 150°. Then, the display will just show the actual oven temperature. When the oven reaches the desired baking or roasting temperature, it will beep 6 times.
4. Place the food in the oven, and then close the oven door. Preheating is very important for good baking results. All roasting should be done on a broil pan and grid.
5. When baking or roasting is complete, remove the item(s) from the oven, close the oven door, and press the OFF/CLEAR pad. The oven will shut off, and the display will show the time of day
To change a programmed baking or roasting temperature, press the Convection Bake ( ) or Convection Roast ( ) pad, enter the new cooking temperature, and then press the START/SET pad.
If the oven temperature is above the new setting, the oven will beep 6 times, then show the new setting. The oven will complete cooking at the new temperature.

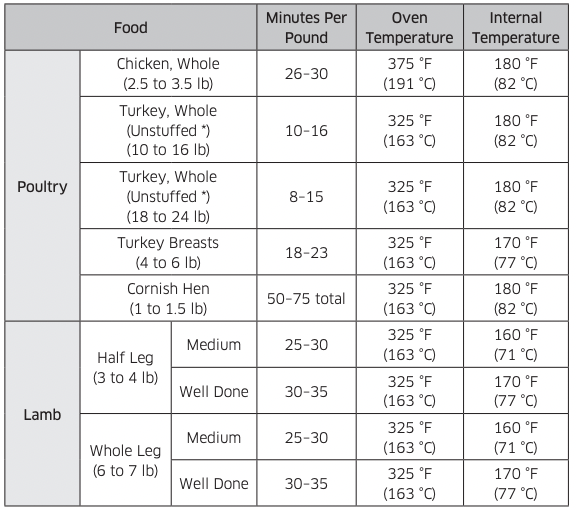

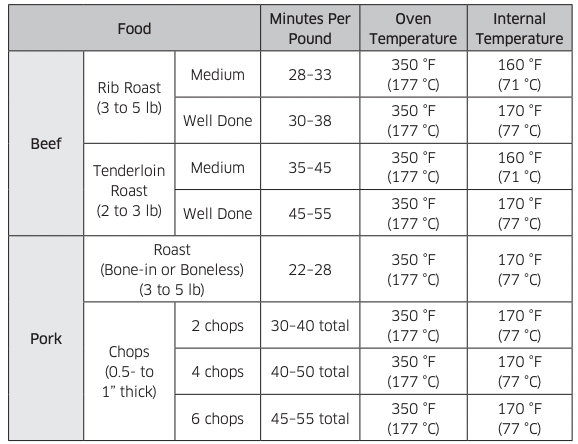

Convection roasting guide
The size, weight, thickness, roasting temperature setting, and your preference of doneness will affect the roasting time.
The following guide is based on foods starting at refrigerator temperature.
NOTE * Stuffed turkey requires additional roasting time. The minimum safe temperature for stuffing in poultry is 165 °F (74 °C).
The Cook Time function lets you program the oven to cook food at a set temperature for a desired length of time. At the end of the set time, the oven will automatically shut off.
CAUTION
Use caution when using the Cooking Time or Delay Start functions. These functions are best used when cooking cured or frozen meats and most fruits and vegetables.
Foods that can easily spoil, like milk, eggs, fish, poultry, and meats, should be chilled in a refrigerator before they are placed in the oven. Even when chilled, they should not stand for more than 1 hour before cooking begins and should be removed promptly when cooking is completed. Eating spoiled food can result in sickness from food poisoning.
How to set the oven for timed cooking
1. Position the oven rack in the desired location. Place the food in the oven, and then close the oven door.
2. Press the Bake pad. The default temperature, 350°, will blink on the display. If the default temperature is the desired cooking temperature, skip to step 4.
3. Press the number pads to enter the desired cooking temperature (for example, 3, 7, 5). The selected cooking temperature will blink on the display.
4. Press the Cooking Time pad. The display will show -hr --min. (hr, min characters are not displayed on the NX58H5600S*/NX58J5600S*)
5. Press the number pads to enter the desired cooking time. The display will show the selected time, and the Start indicator will blink. You can set the time to any duration between 1 minute and 9 hours and 99 minutes.
Press the START/SET pad. The oven will automatically light and start preheating. The display will show a blinking “•” along with the default or selected temperature, Bake, and the bake element icon, until the oven reaches that temperature. When the oven reaches the desired temperature, it will beep 6 times. The oven will start cooking for the set amount of time, and the remaining cooking time will be displayed. To see the time of day, press and hold the Clock pad. When the Clock pad is released, the display will go back to the remaining cooking time. When the cooking time has elapsed, the oven will automatically shut off and the display will show the time of day.
To change a programmed baking temperature, press the Bake pad, enter the new baking temperature, and press the START/SET pad. If the oven temperature is above the new setting, the oven will beep 6 times, then show the new setting. The oven will complete cooking at the new temperature.
To change a programmed cooking time, press the Cooking Time pad, enter the new cooking time, and then press the START/SET pad. The oven will continue cooking for the remaining new set time.
NOTE
Place food in the oven after preheating if the recipe calls for it. Preheating is important for good baking results. After the oven has reached the desired cooking temperature, it will beep 6 times.
The Delay Start function lets you use the kitchen timer to automatically start and stop another cooking program (Bake, Convection Bake, or Convection Roast). Delay Start can be set before other cooking operations by up to 12 hours. The clock must be set to the correct time of day for Delay Start to work properly.
CAUTION
Use caution when using the Cooking Time or Delay Start functions. These functions are best used when cooking cured or frozen meats and most fruits and vegetables.
Foods that can easily spoil, like milk, eggs, fish, poultry, and meats, should be chilled in a refrigerator before they are placed in the oven. Even when chilled, they should not stand for more than 1 hour before cooking begins and should be removed promptly when cooking is completed. Eating spoiled food can result in sickness from food poisoning.
How to set the oven for delay timed cooking
3. Press the number pads to enter the desired cooking temperature (for example, 3, 7, 5). The selected cooking temperature and the Start indicator will blink on the display.
4. Press the Cooking Time pad. The display will show the selected cooking temperature, Bake, and -hr --min. (HR, min characters are not displayed on the NX58H5600S*/NX58J5600S*)
5. Press the number pads to enter the desired cooking time. The display will show the selected cooking time, and the Start indicator will blink. You can set the time to any amount of time between 1 minute and 9 hours and 99 minutes.
6. Press the Delay Start pad. The display will show Delay, and -- -- will blink.
7. Press the number pads to enter the time you want the oven to turn on (for example, 4, 3, 0). The Start indicator will blink under Delay and the selected start time.
8. Press the START/SET pad. The oven will automatically turn on and beep when the set start time is reached. The oven will automatically light and start preheating. When the oven reaches the desired cooking temperature, it will beep 6 times. The display will count down the set cooking time. When the cooking time has elapsed, the oven will automatically shut off and the display will show the time of day.
To change a programmed starting time, press the Delay Start pad, enter the new starting time, and then press the START/SET pad. The oven will start cooking at the new start time.
To change a programmed baking temperature, press the Bake pad, enter the new baking temperature, and then press the START/SET pad. If the oven temperature is above the new setting, the oven will beep 6 times, then show the new setting. The oven will complete cooking at the new temperature.
To change a programmed cooking time, press the Cooking Time pad, enter the new cooking time, and then press the START/SET pad. The oven will continue cooking for the remaining new set time.
NOTE
Place food in the oven after preheating if the recipe calls for it. Preheating is important for good baking results. After the oven has reached the desired cooking temperature, it will beep 6 times.
The Broil function allows you to cook and brown foods using only a top heat source. The oven door must remain closed during broiling. The meat or fish should always be placed on a broiling grid in a broiling pan.
CAUTION
If a fire occurs during broiling, leave the oven door closed and turn off the oven. If the fire continues, throw baking soda on the fire or use a foam-type fire extinguisher. Do not throw water or flour on the fire. Flour may explode and water can cause a grease fire to spread. Both can cause personal injury and/or property damage.
How to set the oven for broiling
1. Place the food on a broiling pan with insert grid. Place the food and pan on the top oven rack, positioned as recommended in the Broiling guide on page 46. Close the oven door.
2. Press the Broil pad once for Hi and twice for Lo. The oven will beep every time a pad is pressed. The Start indicator will blink to the right of Hi or Lo and Broil on the display. Use Lo to cook foods such as poultry or thick cuts of meat thoroughly without overbrowning them.
3. Press the START/SET pad. The oven will automatically light the top oven burner and start cooking. The display will show the selected broil setting (Hi or Lo), the broil element icon, and Broil. Broil on one side until food is browned; turn and cook on the other side. When cooking is completed, press the OFF/CLEAR pad to shut off the oven or to cancel broiling at any time. The display will show the time of day
To change a programmed broiling setting, press the Broil pad to toggle the setting between Hi and Lo. Press the START/SET pad to complete cooking at the new setting

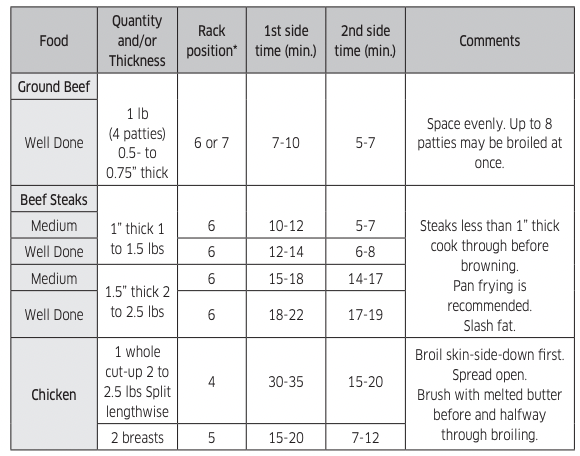

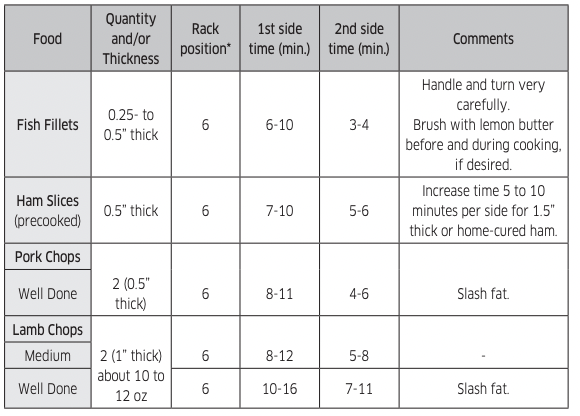

Broiling guide
The size, weight, thickness, broiling temperature setting, and your preference of doneness will affect the broiling time. The following guide is based on meats and/ or fish starting at refrigerator temperature.
NOTE * See illustration on page 34 for description of rack positions.
The Keep Warm function allows you to keep cooked foods warm at a low baking temperature. The Keep Warm feature keeps cooked food warm for serving up to 3 hours after cooking has finished. After 3 hours, the feature automatically shuts off the oven.
How to use the keep warm feature
1. Position the oven rack in the desired location. Place the food in the oven and close the oven door.
2. Press the Keep Warm pad. The Start indicator will blink under the time of day and Warm appears on the display.
3. Press the START/SET pad. The oven will automatically light and start preheating to the Keep Warm temperature (approx. 170 °F [77 °C]). The display will show the oven element icon, Warm, and the time of day. To cancel Keep Warm and shut the oven off, press the OFF/CLEAR pad. The display will show the time of day.
To program Keep Warm after a timed cooking function, press the Keep Warm pad after you program the timed cooking function. When Time Cook is complete, the oven will beep 6 times and lower the oven temperature to the Keep Warm setting. The oven will maintain that temperature until Keep Warm is canceled.
Pizza
The pizza function is designed to produce a crisp and browned bottom while keeping the topping moist.
How to set the Pizza function
1. Press the Pizza pad.
2. Press the START/SET pad to begin pizza cooking.
NOTE
• Use only 1 rack and place the rack in position 3 or 4 for the best results when using the pizza feature.
• The default temperature is 400 °F. You may adjust the oven temperature to fit your needs.
• Follow the package instructions for preheating and baking times.
The Slow Cook feature can be used to cook food more slowly at lower oven temperatures. The extended cooking times allow better distribution of flavors in many recipes. This feature is ideal for roasting beef, pork, and poultry. Slow cooking meat may cause the exterior of the meat to become dark but nor burnt. This is normal.
How to set the Slow Cook
1. Press the Slow Cook pad once for HI or twice for LO.
2. Press the START/SET pad to begin slow cooking.
NOTE
• Use only 1 rack and place the rack in position 3 or 4 for the best results.
• Preheating the oven will not be necessary.
This function is designed to dry food or remove the moisture from food using heat circulation.
How to set the Dehydrate function
1. Press the Dehydrate pad.
2. Press the number pads for the desired temperature. (set between 100 ˚F and 175 ˚F)
3. Press the START/SET pad to start the dehydrate mode.
4. When the food is dehydrate, press the OFF/CLEAR pad.
NOTE
• Do not preheat the oven for this function.
• After drying the food, keep it in a cool and dry place.
• If the temperature setting is out of range, an error will be displayed.

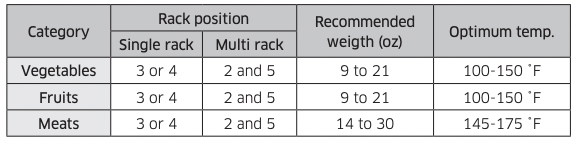

Dehydrate guide
The proofing feature maintains a warm environment useful for rising yeastleavened products.
How to set the oven for proofing
1. Enter the proofing mode. Press the Bread Proof pad.
2. Start the proofing function. Press the pad. The proofing feature automatically provides the optimum temperature for the proof process, and therefore does not have a temperature adjustment.
3. Press the OFF/CLEAR pad at any time to turn off the proofing feature.
NOTE
(For use on the Jewish Sabbath and Holidays)
The Sabbath function can only be used with the Bake and Cooking Time settings. The oven will operate at the set temperature and stay on until the Sabbath function is cancelled or the set Cooking Time has elapsed. When Sabbath is selected, it overrides the preset factory energy-saving features. All display lighting, oven signals, most control pads, and the convection fan will be deactivated.
How to set the Sabbath function
1. Position the oven rack in the desired location. See page 34.
2. Press the Bake pad. The oven will beep every time a pad is pressed until the Sabbath function is activated. The default temperature, 350°, will blink on the display. If the default temperature is the desired cooking temperature, skip to step 4.
3. Press the number pads to enter the desired cooking temperature (for example, 3, 7, 5). The selected cooking temperature will blink on the display.
4. Press the START/SET pad.
5. Press and hold the Clock and Timer On/ Off pad at the same time for 3 seconds. The display will show SAb. The oven signals, display LEDs, and all oven controls except the number, Bake, Cooking Time, START/SET, and OFF/ CLEAR pads will be deactivated. In approximately 20 seconds, the control panel will “click” and the oven will start the lighting and preheating process. After the oven reaches the selected cooking temperature, the oven will continue to cook at that temperature until the Cook Time has elapsed or the Sabbath function is cancelled. The display will not count down the set cook time, but the oven will shut off at the end of the set time.
How to set timed bake in Sabbath mode
To set timed bake in Sabbath mode, follow steps 1 through 3 from How to set the Sabbath function, and then follow the steps below.
1. Press the Cooking Time pad. The display will show -hr --min. (Hr and min characters are not displayed on the NX58H5600S* or NX58J5600S.)
2. Press the number pads to enter the desired cooking time. The START indicator will blink on the display. You can set the time to any length of time between 1 minute and 9 hours and 99 minutes. Proceed to step 4 from How to set the Sabbath function.
How to change the temperature and exit the Sabbath function
To change a programmed baking temperature, press the Bake pad, enter the new baking temperature, and then press the START/SET pad. In approximately 20 seconds, the control panel will “click” and the oven will complete cooking at the new temperature
To exit the Sabbath function, press and hold the Clock and Timer On/Off pad at the same time for 3 seconds. The display will show the time of day.
WARNING
• Always make sure the controls are OFF and all surfaces are cool before removing and/or cleaning any of the range parts. This will prevent you from getting burned.
• If the range is pulled out from the wall for any reason, make sure the anti-tip device is reengaged after the range has been pushed back into place. Failure to take this precaution could result in the range tipping and personal injury.
The oven and surface burner control panels can be easily cleaned with a damp cloth and/or glass cleaner. Heavily soiled areas can be cleaned with warm, soapy water.
NOTE Never use steel wool or abrasive cleansers. Protect the surface from sharp objects. All of the above items can damage the surface.
Oven control panel
1. To lock the oven controls and the oven door, press and hold the OFF/CLEAR pad for 3 seconds. This prevents accidental oven operation and appliance tipping. The oven will beep and the display will show Loc, the time of day, and the Lock icon.
2. Clean spatters with a damp cloth, glass cleaner, or warm, soapy water.
3. To unlock the controls and the door, press and hold the OFF/CLEAR pad for 3 seconds. To unlock just the controls, hold the door slightly open while pressing and holding the OFF/CLEAR pad for 3 seconds. The oven will beep, and Loc and the Lock icon will disappear from the display. Close the oven door, if you are holding it open.

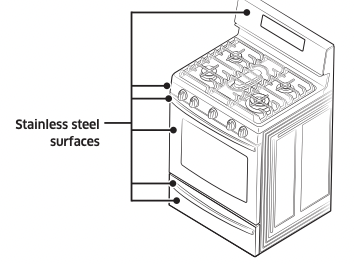

Stainless steel surfaces
WARNING Do not use a steel-wool pad or abrasive cleaners on stainless steel surfaces. Abrasive pads and cleaners will scratch the surface and damage the surface finish.
NOTE To prevent any discolorations and/or grease stains, we recommend cleaning and removing any spills, spots, and grease from the range after each use.
1. Wipe off any spills with a damp, soft cloth.
2. Apply an approved stainless steel cleaner to a damp, clean cloth or paper towel. Clean a small area carefully following the instructions on the cleaner. Stainless steel should always be cleaned with the grain in the stainless steel, if applicable.
3. Dry and buff with a clean, dry, soft cloth.
4. Repeat steps 2 and 3 as necessary.
WARNING Do not spray any type of cleaner into the manifold panel holes. Within these holes are ignition switches which carry the current that lights the surface burners. Spraying into them could damage the range.
Oven racks
• If the racks are left in the oven during a self-cleaning cycle, their color will turn slightly blue and the finish will be dull. After the self-cleaning cycle is complete and the oven has cooled, rub the sides of the racks with wax paper or a cloth containing a small amount of oil. This will help the racks glide more easily into their tracks.
• Gliding racks may be cleaned by hand with an abrasive cleaner or steel wool. During cleaning, be careful not to allow water or cleaner to enter the slides on the sides of rack.
NOTE
• Do not clean in a dishwasher.
• If the rack becomes hard to remove or replace, lightly wipe the oven rack guides with cooking oil. Do not wipe cooking oil on the slides.
• If the rack becomes difficult to slide, the rack may need to be lubricated using Graphite Lubrication.
To lubricate the slides
1. Remove the rack from the oven. See removing the gliding rack in the Using the gliding rack section.
2. Fully extend the rack on a table or countertop. Newspaper may be placed underneath the rack for easy cleanup.
3. If there is debris in the slide tracks, wipe it away using a paper towel.(Any graphite lubricant wiped away must be replaced - See steps 4 through 7.
4. Shake the graphite lubricant before opening it. Starting with the left (front and back) slide mechanism of the rack, place four (4) small drops of lubricant on the two (2) bottom tracks of the slide close to the bearing carriers.
5. Repeat for the right (front and back) slide mechanism of the rack.
6. Open and close the rack several times to distribute the lubricant.
7. Replace the cap on the lubricant and shake it again. Turn the rack over and repeat steps 3, 4, 5 and 6.
8. Close the rack, turn rack right-side-up and place in the oven. See installing the gliding rack in the Using the gliding rack section.
NOTE Do not spray the gliding rack with cooking spray or other lubricant sprays.
Oven racks
To keep racks shiny and looking like new, remove racks from the oven and clean by hand in hot, soapy water with a plastic or soap-filled scouring pad.
CAUTION Do not leave the oven racks in the oven during a self-cleaning cycle. The extreme heat in the self-cleaning cycle will permanently discolor the oven racks and make them difficult to slide. If racks become difficult to slide, rub the side rails with wax paper or a cloth containing a small amount of cooking oil. This will help the racks slide more easily in the tracks.
Oven door
WARNING
Do not allow moisture to enter the door or contact the door gasket during cleaning. Moisture entering the door assembly and or getting on the door gasket will damage the gasket.

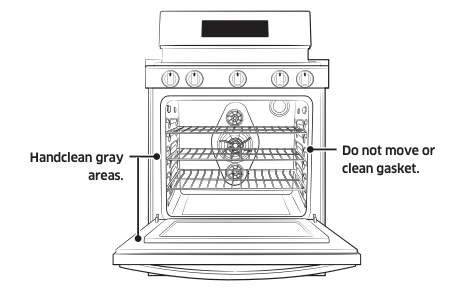

The oven door has multiple surfaces that require different cleaning techniques. The gasket on the inside surface of the oven door should never be cleaned or moved to clean other surfaces. The gasket is made of woven material which is essential for a good heat seal.
The inside door surface outside of the gasket should be cleaned by hand with hot, soapy water and a soapy plastic scouring pad. Rinse and dry thoroughly with a clean, soft cloth. Do not get the gasket wet or allow moisture to get inside the door assembly.
The inside door surface inside of the gasket and the inside door glass are cleaned during the oven’s self-cleaning cycle.
The outside door surface is stainless steel and should be cleaned using the instructions on page 59.
The outside glass surface can be cleaned with glass cleaner or warm, soapy water with a thorough rinse. Do not let moisture get inside of the door assembly.
Surface burner controls
1. Make sure all surface burner knobs are in the OFF position.
2. Pull the control knobs straight off the surface burner control valve stems.
CAUTION Do not clean the control knobs in a dishwasher. They are not dishwasher-safe.
3. Clean the control knobs in warm, soapy water. Rinse and completely dry all surfaces (including back and stem hole).
WARNING Do not use spray cleaners on the surface burner control panel. Spray entering the valve holes could contact electrical components resulting in death, personal injury, or product damage.
4. Clean stainless steel surfaces with stainless steel cleaner on a damp, soft cloth. See page 59.
5. Replace the control knobs in the OFF position by pushing them straight onto the control valve stems.
Surface burner grates and assemblies
1. Turn off all controls and make sure all parts have cooled.
2. Lift off and remove the burner grates from the cooktop. Make note of the burner sizes and locations of all the surface burners.
3. Lift off burner caps from top of the burner heads.
4. Lift the burner heads off the valve manifolds and starter electrodes.
5. Clean all removable burner parts in warm, soapy water. Do not use steelwool pads or abrasive cleaners on any burner part.
6. Rinse thoroughly and completely dry all parts before they are reassembled.
NOTE
Starter electrodes are not removable and should only be wiped clean when the controls are in the OFF position.
7. Set all burner heads on top of the manifold valves in the same location you removed them from. The hole on the side of the burner heads goes over the electrodes. The burner heads are correctly installed when they are flat on the top of the manifold valves.
8. Set all burner caps on top of the burner heads. These also need to be flat on top of the burner heads to ensure proper and safe operation.
NOTE The caps on Precise simmer burner (RR) and inside Double-ring Burner (RF) can be interchangeably used.
9. Replace burner grates on top of the range cooktop.
10. Push in and turn each surface burner control knob to the LITE position, let each burner light, and then set each control knob back to a burner setting to make sure each burner operates properly.
Cooktop surface
The cooktop surface is a porcelain-enamel surface. To prevent this surface from becoming dull, wipe up and clean spills as they happen. Foods with a lot of acid tomatoes, sauerkraut, fruit juices, etc.) or foods with high sugar content can cause dull spots if allowed to set.
WARNING
Do not use a steel-wool pad or abrasive cleaners on porcelain-enamel surfaces. Abrasive pads and cleaners will scratch and damage the surface.
1. Make sure all surface burners are OFF.
2. When surfaces have cooled, remove the burner grates.
WARNING Do not remove or lift the cooktop during cleaning. Doing so could damage the gas lines leading to the surface burner manifolds, causing poor and/or dangerous operation.
3. Clean the cooktop surface with warm, soapy water and a soft, damp cloth. If spill goes under a surface burner, remove the surface burner cap and head to access and clean the spill.
4. Rinse with clean water and dry and polish with a soft, dry cloth.
5. Reassemble burner components (if removed) and replace the burner grates.
The oven light is a standard 40-watt appliance bulb. It will automatically come on when the oven door is opened. It can also be turned on and off when the oven door is closed by pressing the Oven Light pad on the oven control panel.
NOTE The oven light will not work during a self-cleaning cycle.
WARNING Disconnect electrical power to the range before replacing the oven light. This will prevent any personal injury due to electric shock.
1. Make sure the oven and the light bulb are cool.
2. Open the oven door.
NOTE If the oven racks are in the way, they can be repositioned or removed before you change the oven light.
3. Turn the glass light cover in the rear upper-right corner counterclockwise to remove it.
4. Turn the bulb counterclockwise to remove it from its socket.
5. Replace the bulb with a new 40-watt appliance bulb. Turn the bulb clockwise until it is seated securely in the socket.
6. Replace the glass light cover by turning it clockwise until it is seated securely.
7. Close the oven door and reconnect the electrical power to the range.
WARNING
• The oven door is very heavy. Do not lift it by the handle and be careful not to drop the door during removal. Improper handling could result in personal injury.
• Disconnect the electrical power to the range before removing the oven door. This prevents the oven from accidentally being turned on while the door is removed.
To remove the door

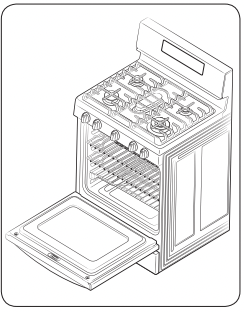

1. Completely open the oven door

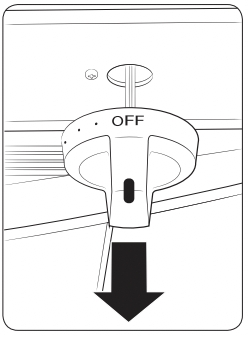

2. Unlock the two hinge locks. Pull each hinge lock down towards the door frame to unlock it so they look like the illustration to the right.
3. Close the door to the removal position, approximately 5 degrees from vertical.
4. Firmly grasp both sides of the oven door and lift the door up and out until the hinge arms clear the slots in the bottom of the oven door.
5. Carefully place the door in a safe location.
To replace the door
1. Make sure hinge arms are unlocked and in the removal position.
2. Firmly grasp both sides of the door.
3. While supporting the oven door, insert both door hinge arms into the slots in the bottom sides of the door frame. When the door is held at about 5 degrees, the hinge arms will slide in and down.
4. Completely open the oven door. If the door will not fully open, the hinge arms are not correctly inserted into the slots in the bottom of the door.

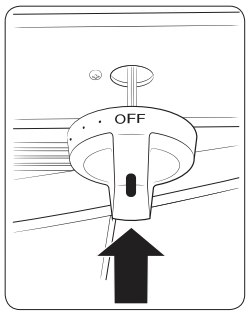

5. Lock both hinge locks. Push each lock up against the front frame of the oven cavity.
6. Close the door.
7. Reconnect power to the range.
Samsung works hard to ensure that you don’t have problems with your new gas range. If you experience a problem, look first for a solution in the table below. If, after trying the suggested solution, you’re still having trouble, call Samsung at 1-800-SAMSUNG (726-7864).
You smell gas.
There is a gas leak.
The surface burner knob is not in the ‘off’ position, yet the burner itself is not ignited.
The range is not level.
The appliance has been installed improperly. The leveling leg(s) is (are) damaged or uneven.
The kitchen cabinets are not properly aligned and make the range appear to be not level.
The oven control beeps and displays an error code.
You have a function error code. See the Troubleshooting and information codes chart on page 79.
All burners do not light.
The power cord is not plugged into the electrical outlet.
A fuse in your home may be blown or the circuit breaker tripped.
The gas supply is not properly connected or turned on.
Surface burners do not light.
The control knob is not set properly.
The burner caps are not in place. The burner base is misaligned.
Surface burner clicks during operation.
The control knob has been left in the LITE position.
The burners do not burn evenly.
Surface burner components and caps are not assembled correctly and level.
Surface burners are dirty.
Very large or yellow surface burner flames.
Wrong orifice is assembled.
Surface burners light but oven burners do not light.
The oven door lock is turned on.
Gas Pressure Regulator shut off switch is in the ‘off position.
Display goes blank.
The electrical outlet Ground Fault Interrupter (GFI or GFCI) has been tripped and needs to be reset. Your digital control has been damaged.
Very large or yellow oven burner flames.
The oven burner air adjustment shutters need to be adjusted.
Gas supply is not properly connected or turned on.
Food does not bake or roast properly in the oven.
Wrong cooking mode is selected.
The oven racks have not been positioned properly for the foods being cooked.
Incorrect cookware or cookware of improper size being used.
Oven thermostat needs adjustment.
There is aluminum foil on racks and/or oven bottom.
Clock or timers not set correctly.
Food does not broil properly in the oven.
Oven controls not set properly.
Oven door was not closed during broiling.
The rack has not been properly positioned.
Oven temperature is too hot or cold.
Oven thermostat needs adjustment.
Oven burner will not shut off.
The oven door lock is turned on.
The Sabbath function has been activated.
Oven light (lamp) will not turn on.
The oven door lock is turned on.
The Sabbath function has been activated.
Loose or burned-out bulb.
The switch operating the oven light needs to be replaced.
Oven smokes excessively during broiling.
Meat or food was not properly prepared before broiling.
Improperly positioned top oven rack.
Controls are not being set properly.
Greasy buildup on oven surfaces.
Oven will not self-clean.
The oven door lock is turned on.
The warming drawer is being used.
The oven is too hot.
The self-cleaning oven controls are not properly set.
Crackling or popping sound.
This is normal.
Excessive smoking during a selfcleaning cycle.
This is the first time the oven has been cleaned.
Oven door will not open after a self-cleaning cycle.
This is normal.
Oven not clean after a selfcleaning cycle.
A fine dust or ash is normal.
Steam or smoke coming from under the control panel.
This is normal.
Burning or oily odor emitting from the vent.
This is normal for a new oven and will disappear within 1/2 hour of the first bake cycle.
Strong odor.
This is temporary.
Oven racks are difficult to slide.
Fan noise.
This is normal.
Convection fan is not working.
Warming drawer will not work (Model NX58H5650W*).
The controls are not set properly.
The Self-Clean or Sabbath function is being used.
The oven controls have been locked.
There is a blown fuse or tripped circuit breaker.
Excessive condensation in the warming drawer (Model NX58H5650W*).
The temperature setting is too high.
The foods being warmed are not covered with a lid or aluminum foil.
You are trying to warm liquids.
Warming drawer or storage drawer does not slide smoothly or drags.
The drawer is not properly aligned with the fullextension roller guide rails or nylon drawer guides.
The contents in the drawer are too heavy.
SE
Shorted Key.
Check the Touch PBA signals.
E-27
Oven sensor opened problem.
E-28
Oven sensor shorted problem.
E-OA
Oven overheating.
E-OE
Door locking error.
For any codes not listed above, or if the suggested solution does not fix the problem, call 1-800-SAMSUNG (726-7864).
Reference file: Samsung NX58J5600SG/AA 5.8 cu. ft. Freestanding Gas Range with Convection
Additionally, the document applies to other Samsung models: NX58H5650W*, NX58H5600S*, NX58J5600S*, NX58J5600SG
