2006 Civic Hybrid Online Reference Owner's Manual
Use these links (and links throughout this manual) to navigate through this reference.
For a printed owner's manual, click on authorized manuals or go to www.helminc.com.
Contents
Owner's Identification Form
Introduction ......................................................................................................................................... i
A Few Words About Safety.................................................................................................................ii
Your Vehicle at a Glance.....................................................................................................................3
Driver and Passenger Safety ..............................................................................................................5
Proper use and care of your vehicle's seat belts, and Supplemental Restraint System.
Instruments and Controls.................................................................................................................55
Instrument panel indicator and gauge, and how to use dashboard and steering column controls.
Comfort and Convenience Features .............................................................................................. 99
How to operate the climate control system, the audio system, and other convenience features.
Before Driving..................................................................................................................................149
What gasoline to use, how to break-in your new vehicle, and how to load luggage and other cargo.
Driving ..............................................................................................................................................163
The proper way to start the engine, shift the transmission, and park, plus towing a trailer.
Maintenance.....................................................................................................................................177
The Maintenance Schedule shows you when you need to take your vehicle to the dealer.
Taking Care of the Unexpected......................................................................................................215
This section covers several problems motorists sometimes experience, and how to handle them.
Technical Information.....................................................................................................................239
ID numbers, dimensions, capacities, and technical information.
Warranty and Customer Relations (U.S. and Canada)................................................................251
A summary of the warranties covering your new Acura, and how to contact us.
Authorized Manuals (U.S. only)......................................................................................................255
How to order manuals and other technical literature.
Index...................................................................................................................................................... I
Service Information Summary
A summary of information you need when you pull up to the fuel pump.
Accord Value Package Audio System
This owner’s manual should be
considered a permanent part of the
vehicle and should remainwith the
vehicle when it is sold.
This owner’s manual covers all
models of the Civic Hybrid. You may
find descriptions of equipment and
features that are not on your
particular model.
The information and specifications
included in this publication were in
effect at the time of approval for
printing. Honda Motor Co., Ltd.
reserves the right, however, to
discontinue or change specifications
or design at any time without notice
and without incurring any obligation
whatsoever.
Owner’s Identification
OWNER
ADDRESS
V. I. N.
DELIVERY DATE
DEALER NAME DEALER NO.
ADDRESS
OWNER’S SIGNATURE
DEALER’S SIGNATURE
STREET
CITY STATE/PROVINCE ZIP CODE/
POSTAL CODE
(Date sold to original retail purchaser)
STREET
CITY STATE/PROVINCE ZIP CODE/
POSTAL CODE
０５／０９／０９ １７：５７：０６ ３１ＳＮＣ６００ ０００１
Main Menu
One of the best ways to enhance the enjoyment of your new vehicle is to
read this manual. In it, you will learn how to operate its driving controls and
convenience items. Afterwards, keep this owner’s manual in your vehicle so
youcanrefertoitatanytime.
Several warranties protect your new vehicle. Read the warranty booklet
thoroughly so you understand the coverages and are aware of your rights
and responsibilities.
Maintaining your vehicle according to the schedules given in this manual
helps to keep your driving trouble-free while it preserves your investment.
When your vehicle needs maintenance, keep in mind that your dealer’s staff
is specially trained in servicing the many systems unique to your vehicle.
Your dealer is dedicated to your satisfaction and will be pleased to answer
any questions and concerns.
As you read this manual, you will
find information that is preceded by
a symbol. This
information is intended to help you
avoid damage to your vehicle, other
property, or the environment.
California Proposition 65 Warning
This product contains
or emits chemicals known to the
state of California to cause cancer
and birthdefectsorother
reproductive harm.
Event Data Recorders
This vehicle is equipped with one or
more recording devices commonly
referred to as event data recorders
or sensing and diagnostic modules.
Congratulations! Your selection of a 2006 Honda Civic Hybrid was a wise
investment. It will give you years of driving pleasure.
Introduction
WARNING:
i
０５／０９／０９ １７：５７：１２ ３１ＳＮＣ６００ ０００２
Main Menu
−
−
−
−
−
−
To help you make informed
decisions about safety, we have
provided operating procedures and
other information on labels and in
this manual. This information alerts
you to potential hazards that could
hurt you or others.
You will find this important safety information in a variety of forms,
including:
preceded by a safety alert symbol and one of
three signal words: , , or .
These signal words mean:
such as Important Safety Reminders or Important
Safety Precautions.
such as Driver and Passenger Safety.
This entire book is filled with important safety information please read it
carefully.
Your safety, andthe safetyof others,
is very important. And operating this
vehicle safely is animportant
responsibility.
Of course, it is not practical or
possible to warn you about all the
hazards associated with operating or
maintaining your vehicle. You must
use your own good judgement.
on the vehicle.
how to use this vehicle correctly and safely.
AFewWordsAboutSafety
Safety Messages
Safety Headings
Safety Section
Safety Labels
Instructions
DANGER WARNING CAUTION
ii
You WILL be KILLED or SERIOUSLY
HURT if you don’t follow instructions.
You CAN be KILLED or SERIOUSLY
HURT if you don’t follow instructions.
You CAN be HURT if you don’t follow
instructions.
０５／０９／０９ １７：５７：２２ ３１ＳＮＣ６００ ０００３
Main Menu

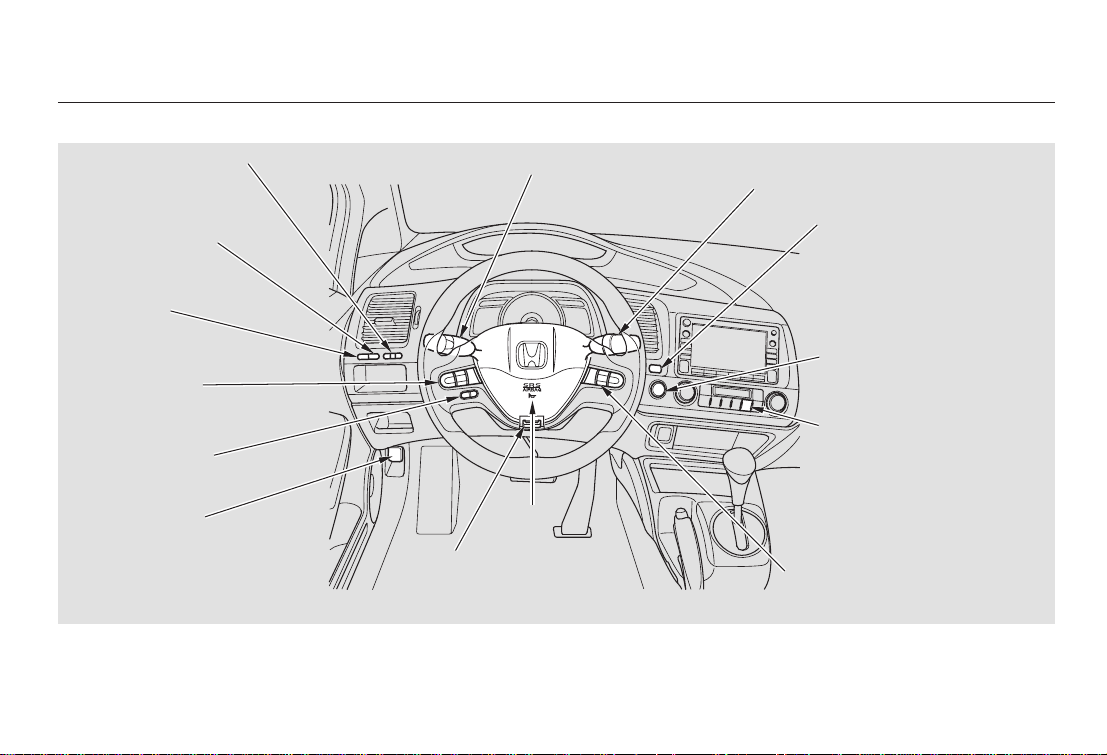

Your Vehicle at a Glance
Your Vehicle at a Glance
3
POWER WINDOW
SWITCHES
GAUGES
FUEL FILL DOOR
RELEASE HANDLE
TRUNK RELEASE
HANDLE
DRIVER’S FRONT
AIRBAG

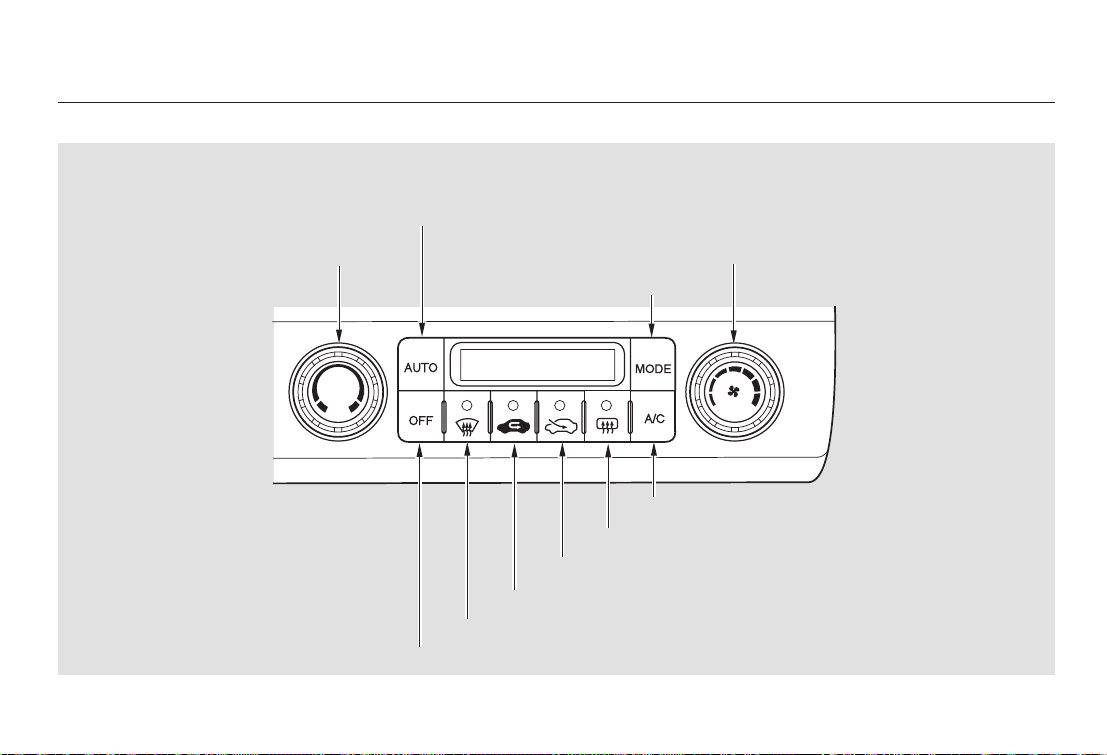

HEATING/COOLING
CONTROLS
MIRROR CONTROLS

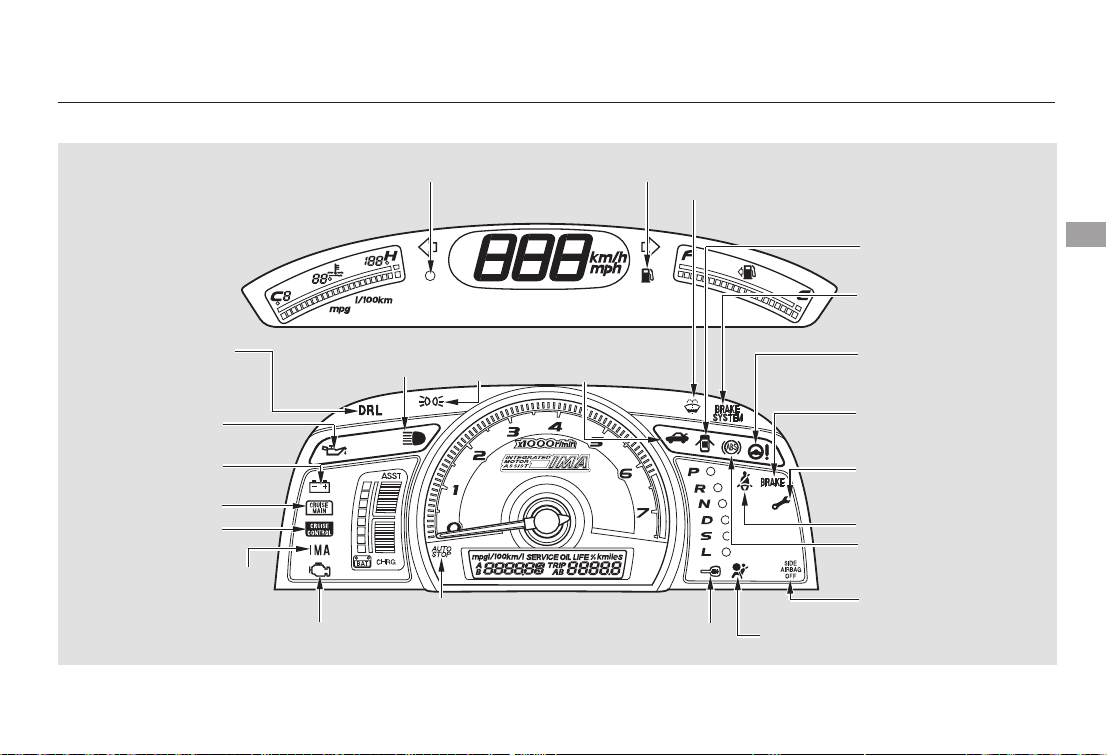

INSTRUMENT PANEL INDICATORS
(P. 151)

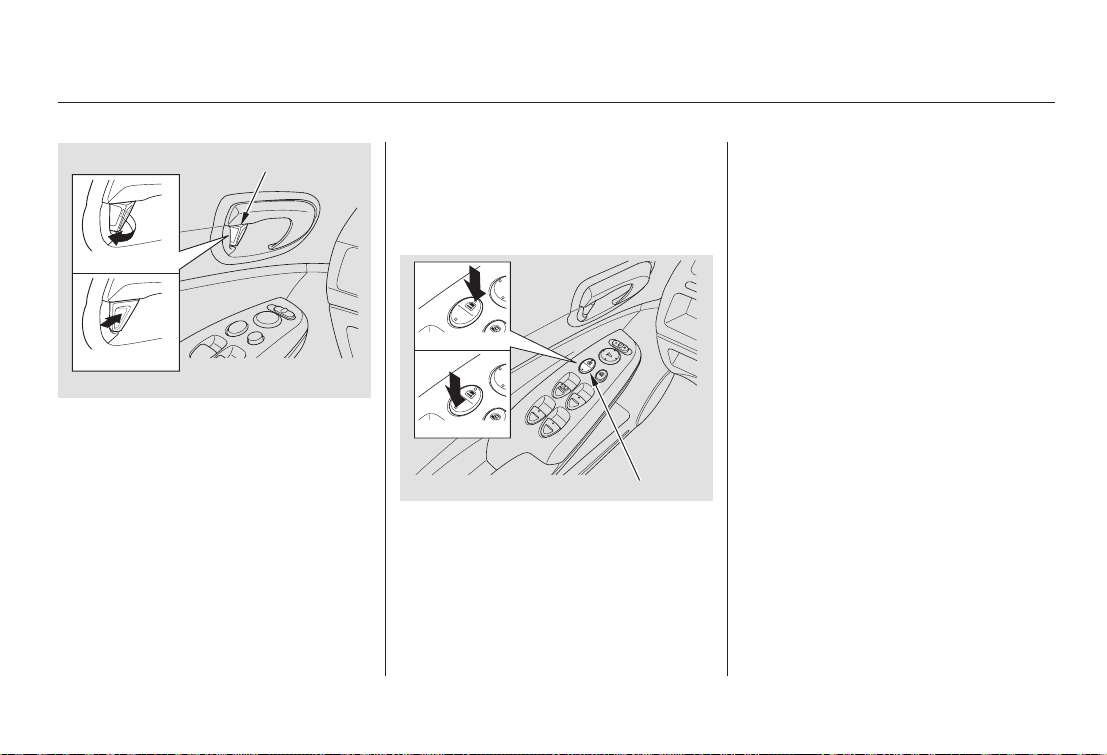

POWER DOOR LOCK
MASTER SWITCH

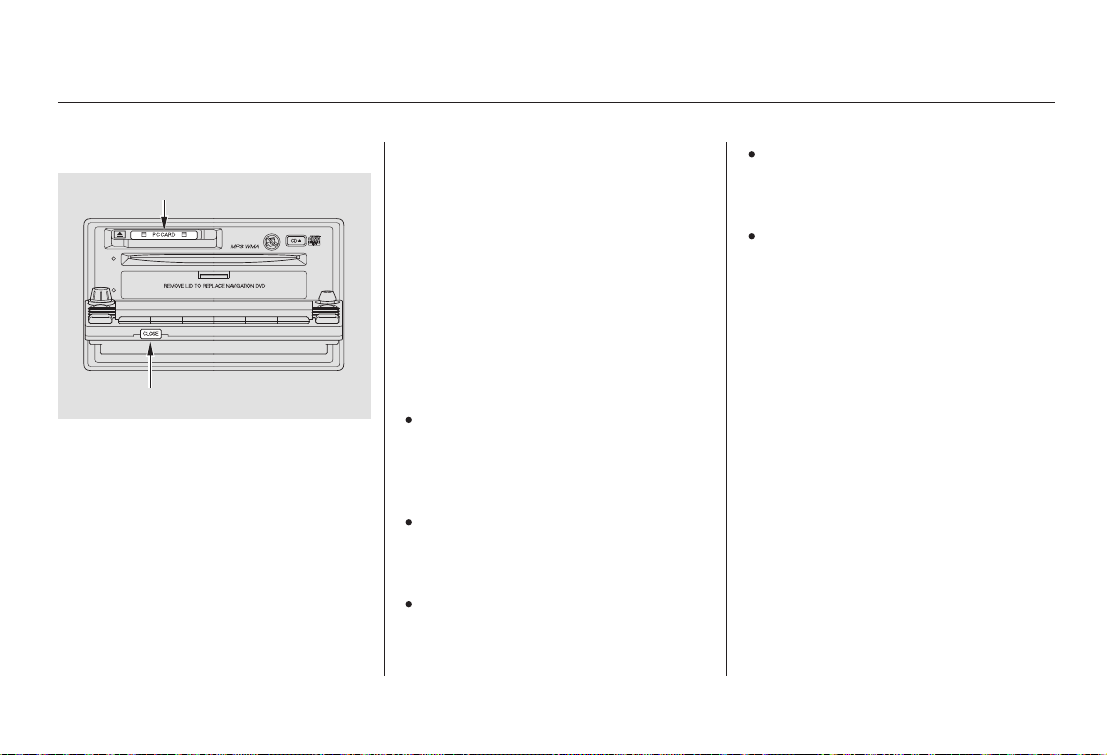

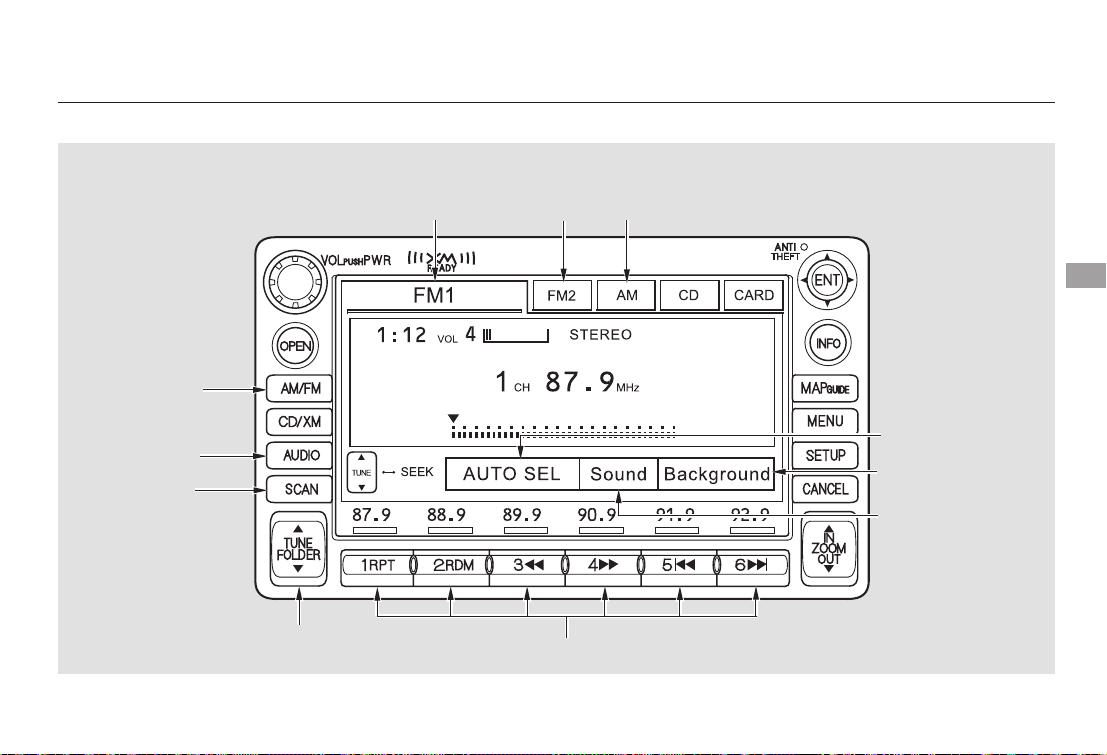

AUDIO SYSTEM (P. 106)
DOOR LOCK
SWITCH
Vehicle with navigation system is shown
FRONT PASSENGER’S AIRBAG
AUTOMATIC
TRANSMISSION
(CVT)
AUXILIARY INPUT JACK
(P. 166)
ACCESSORY
POWER SOCKET
(P. 64)
(P. 58)
(P.9,24)
(P. 93)
(P. 80)
(P. 92)
(P. 86)
(P. 143)
(P. 96)
(P. 80)
(P. 100)
(P.9,24)
０５／０９／０９ １７：５７：５５ ３１ＳＮＣ６００ ０００６
Main Menu
＊
＊
＊
＊
＊
＊
＊
Only on vehicles equipped with navigation system. Refer to the navigation system manual.
To use the horn, press the center pad of the steering wheel.
:
1:
2:
If equipped
Your Vehicle at a Glance
4
HEADLIGHTS/TURN SIGNALS
DISPLAY CHANGE
BUTTON
SEL/RESET
BUTTON
VOICE CONTROL
SWITCHES

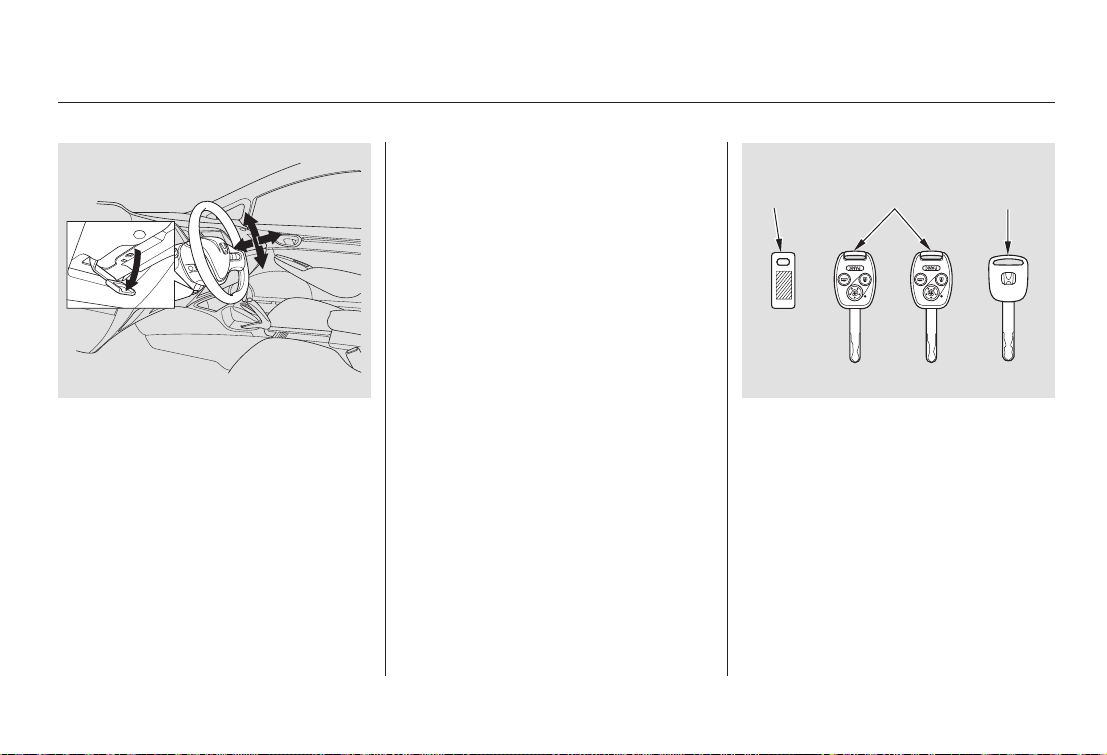

STEERING WHEEL
ADJUSTMENT

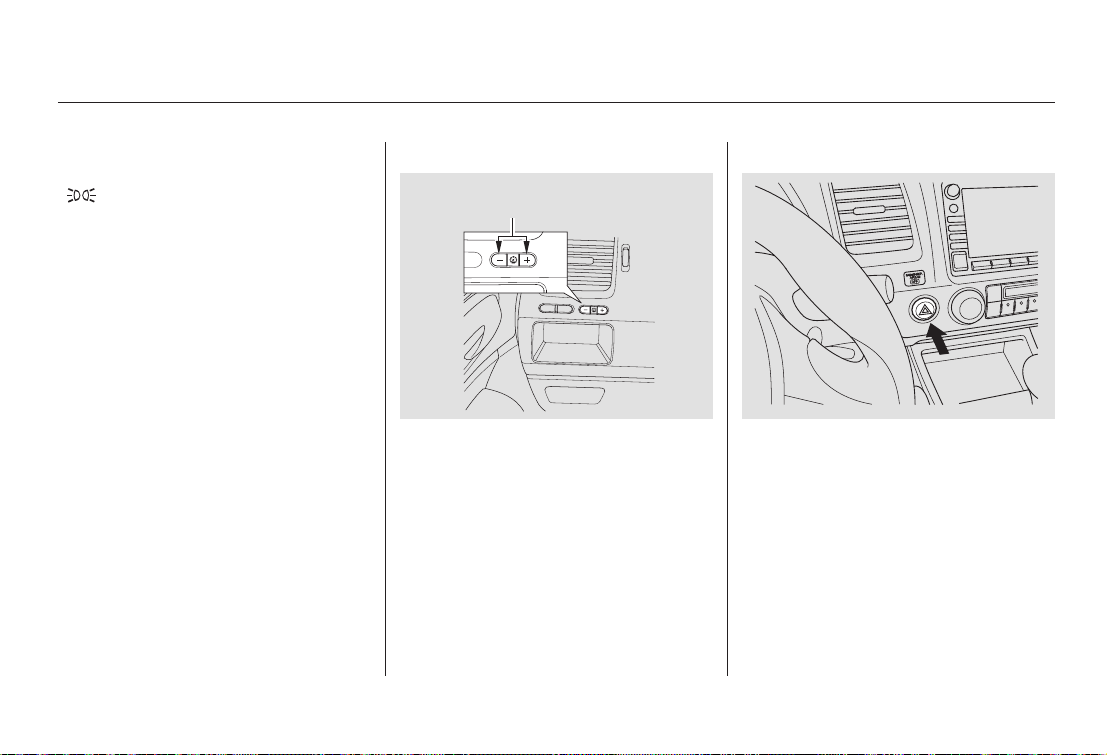

HAZARD WARNING BUTTON

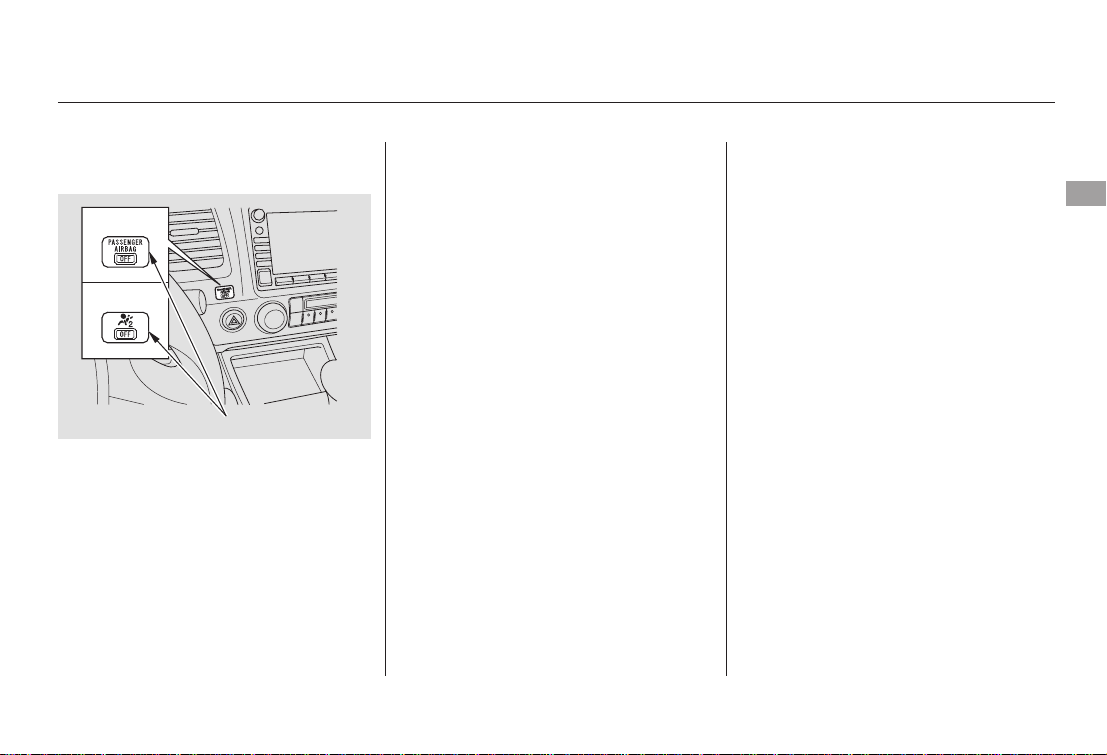

PASSENGER AIRBAG OFF
INDICATOR

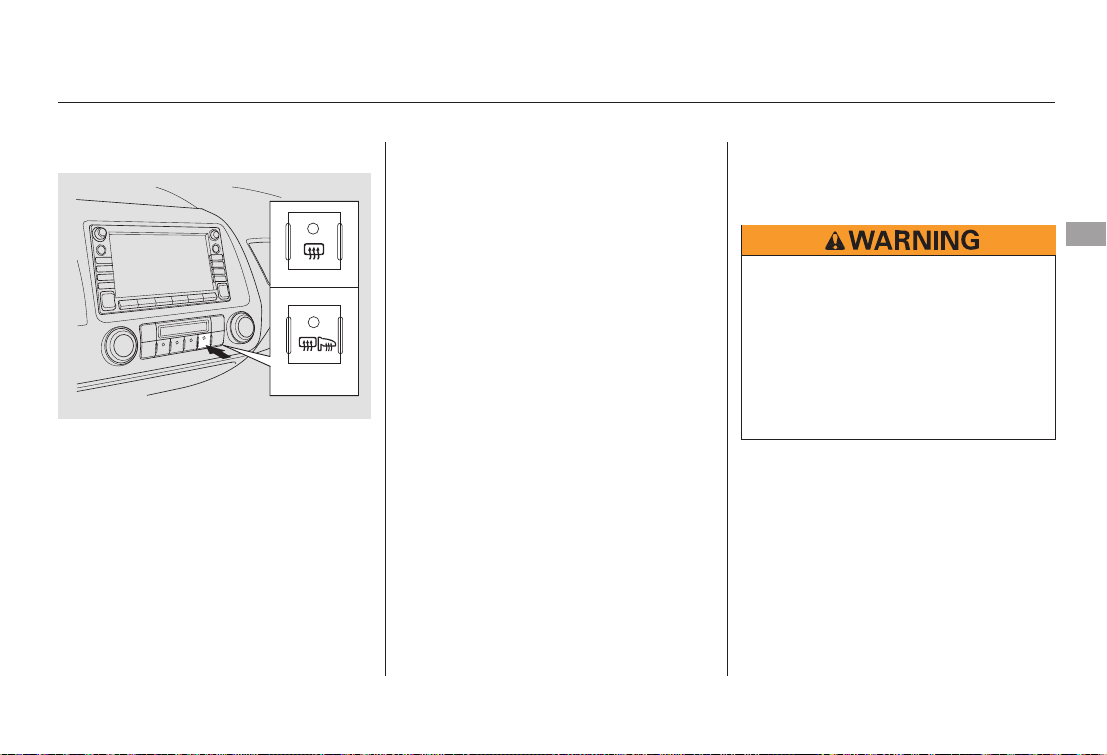

REAR WINDOW DEFOGGER
(P. 65)
(P. 143)
(P. 152)
(P. 145)
HOOD RELEASE
HANDLE
WINDSHIELD WIPERS/WASHERS
HEATED MIRRORS
HORN
INSTRUMENT PANEL
BRIGHTNESS

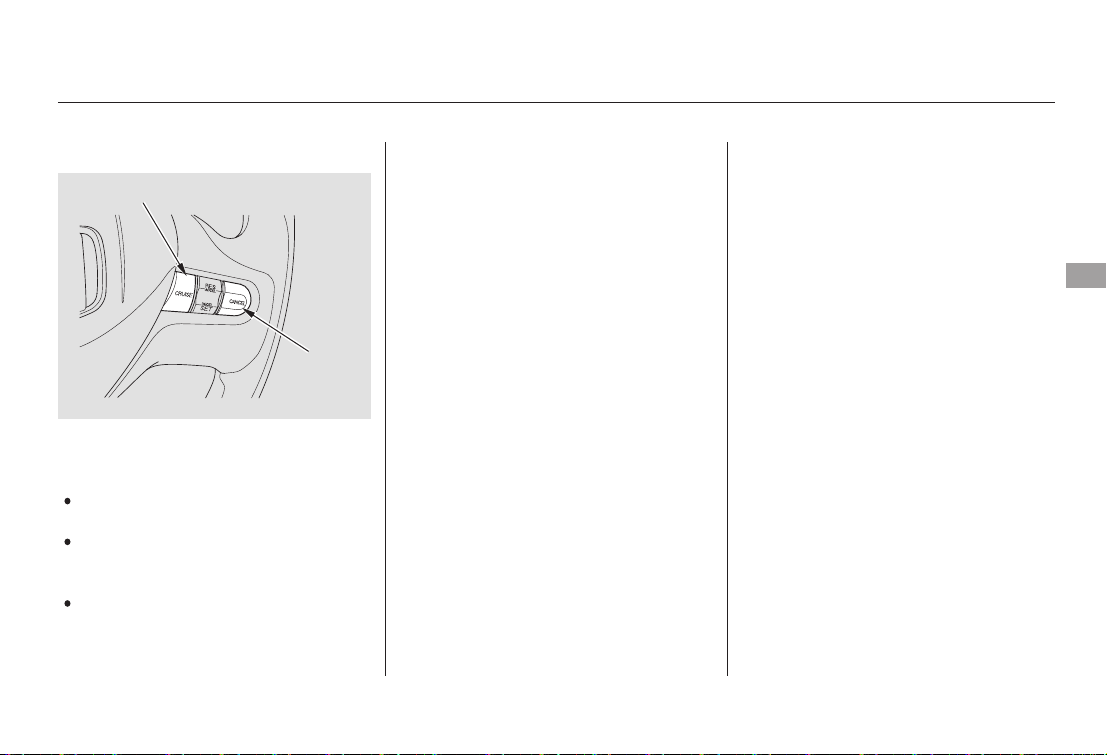

CRUISE CONTROL BUTTONS
Vehicle with navigation system is shown
REMOTE AUDIO
CONTROLS
(P. 74)
(P. 64)
(P. 75)
(P. 94)
(P. 75)
(P. 74)
(P. 31)
(P. 72)
(P. 73)
2
1
1
０５／０９／０９ １７：５８：０２ ３１ＳＮＣ６００ ０００７
Main Menu
−
This section gives you important
information about how to protect
yourself and your passengers. It
shows you how to use seat belts. It
explains how your airbags work. And
it tells you how to properly restrain
infants and children in your vehicle.
.........Important Safety Precautions . 6
.......Your Vehicle’s Safety Features . 7
.......................................Seat Belts . 8
...........................................Airbags .9
.........Protecting Adults and Teens . 11
.....1. Close and Lock the Doors . 11

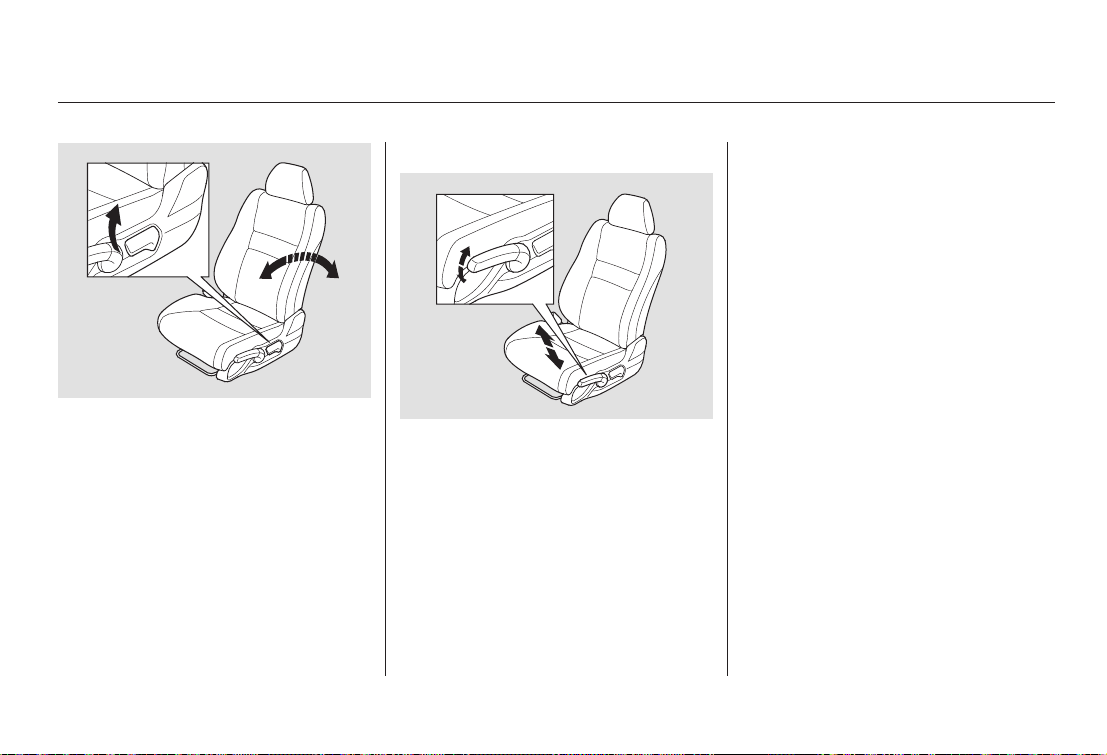

...........2. Adjust the Front Seats . 11
............3. Adjust the Seat-Backs . 12

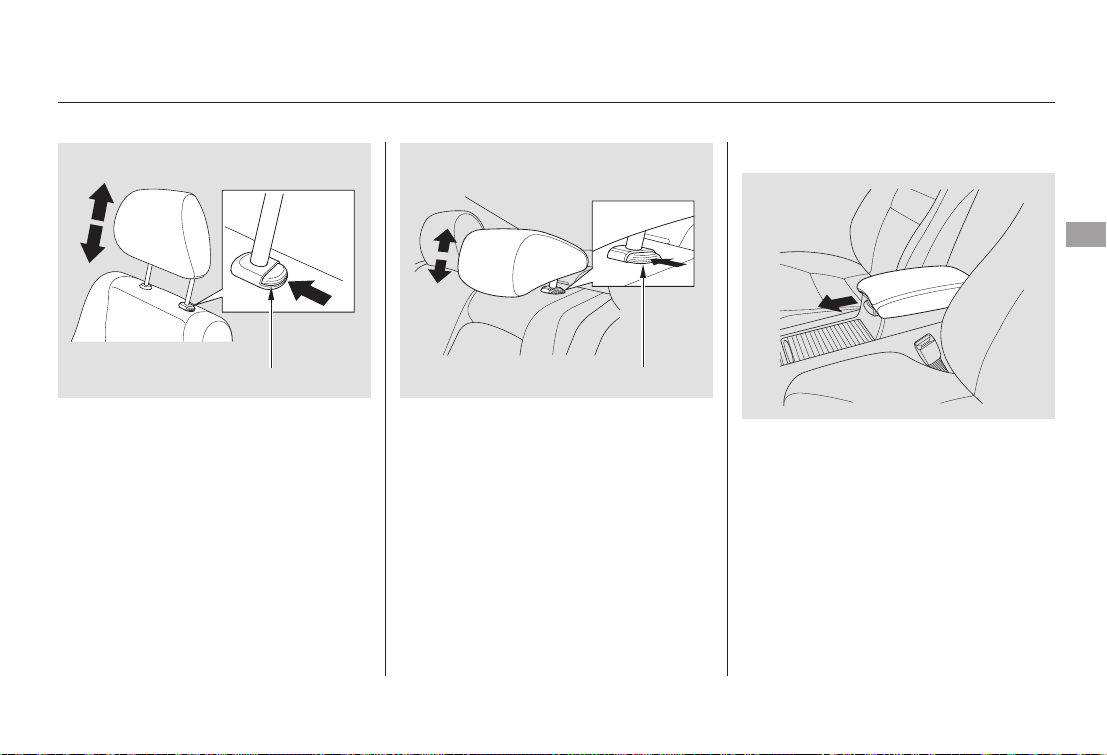

...4. Adjust the Head Restraints . 13
5. Fasten and Position the
.............................Seat Belts . 14

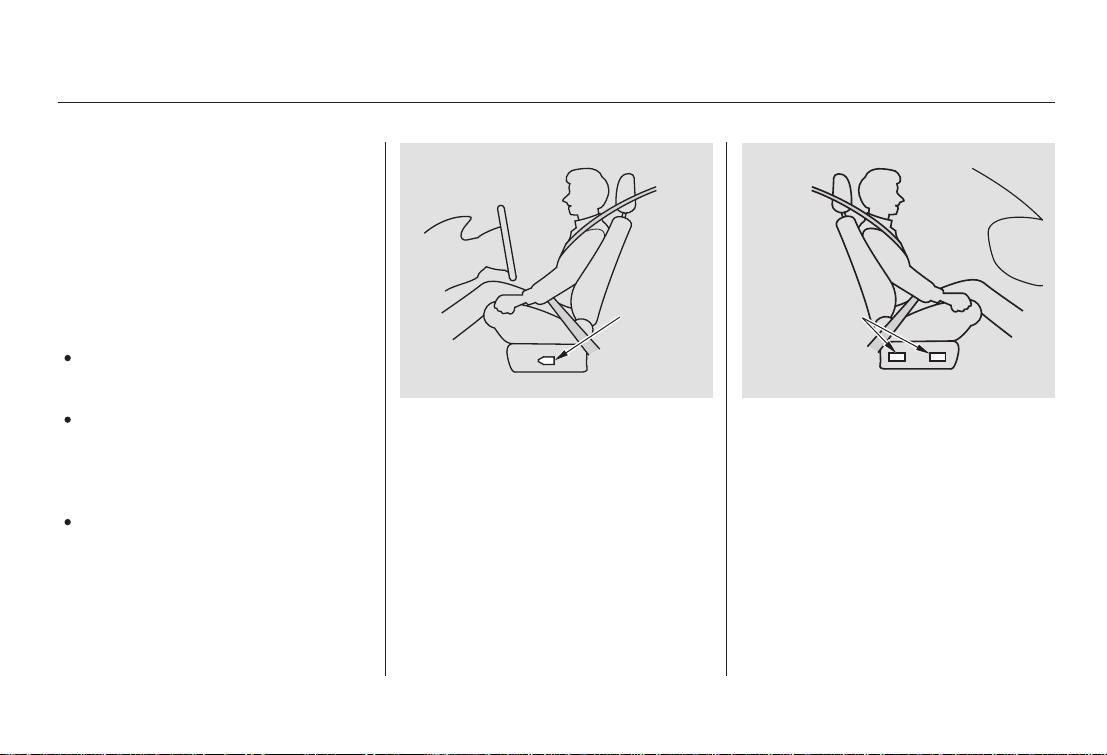

6. Maintain a Proper Sitting
................................Position . 15

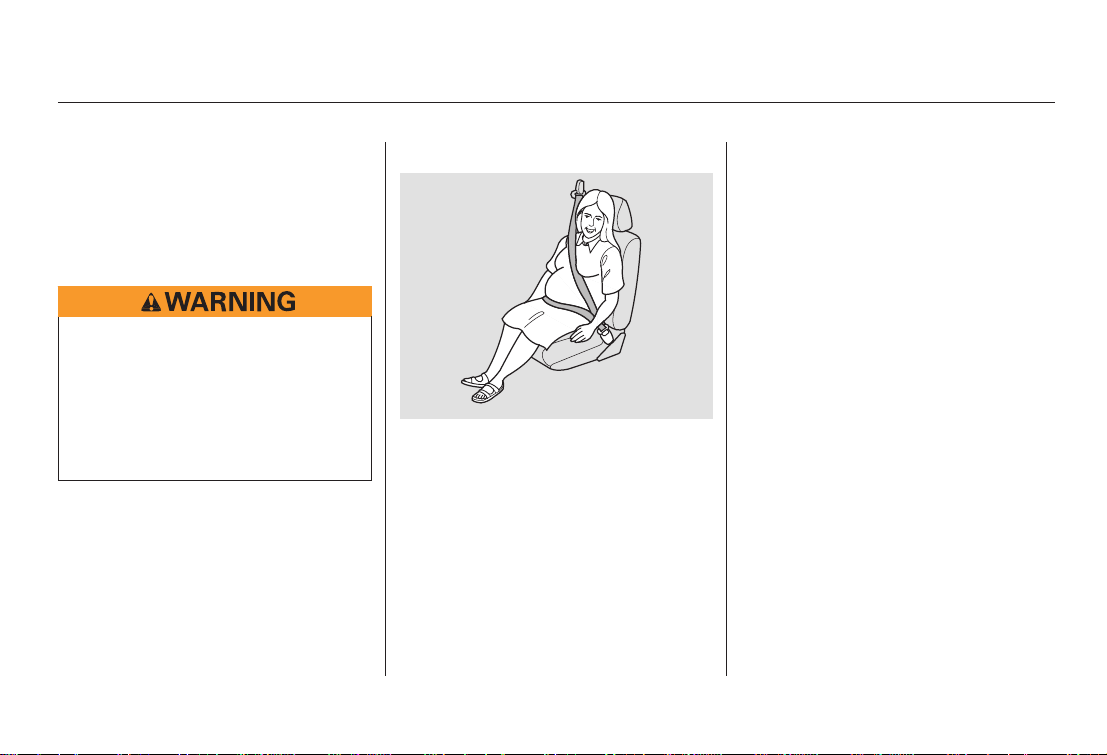

.....Advice for Pregnant Women . 16
...AdditionalSafety Precautions .17
Additional Information About Your
.................................Seat Belts . 18
..Seat Belt System Components . 18
......................Lap/Shoulder Belt . 19
Automatic Seat Belt
...............................Tensioners . 19
...............Seat Belt Maintenance . 20
Additional Information About
...........................YourAirbags .21

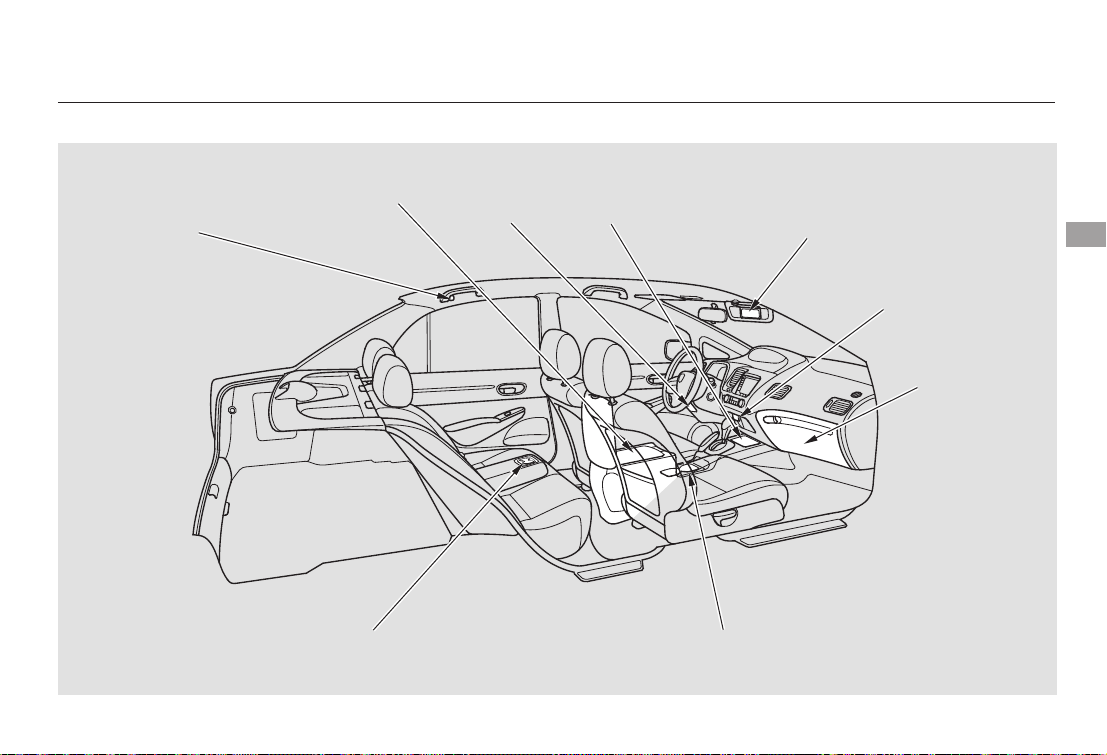

......Airbag System Components . 21
How Your Front Airbags
.........................................Work . 24
...How Your Side Airbags Work . 28
How Your Side Curtain Airbags
.........................................Work . 29
..How the SRS Indicator Works . 30
How the Side Airbag Off
......................Indicator Works . 30
How the Passenger Airbag Off
......................Indicator Works . 31
.............................Airbag Service . 32
...AdditionalSafety Precautions . 32
Protecting Children General
................................Guidelines . 34
All Children Must Be
...............................Restrained . 34
All Children Should Sit in a
.................................Back Seat . 35
The Passenger’s Front Airbag
................Poses Serious Risks . 35
If You Must Drive with Several
...................................Children . 37
If a Child Requires Close
..................................Attention . 37
...AdditionalSafety Precautions . 38
Protecting Infants and Small
.......................................Children . 39
.......................Protecting Infants . 39
.........Protecting Small Children . 40
.....................Selecting a Child Seat . 41

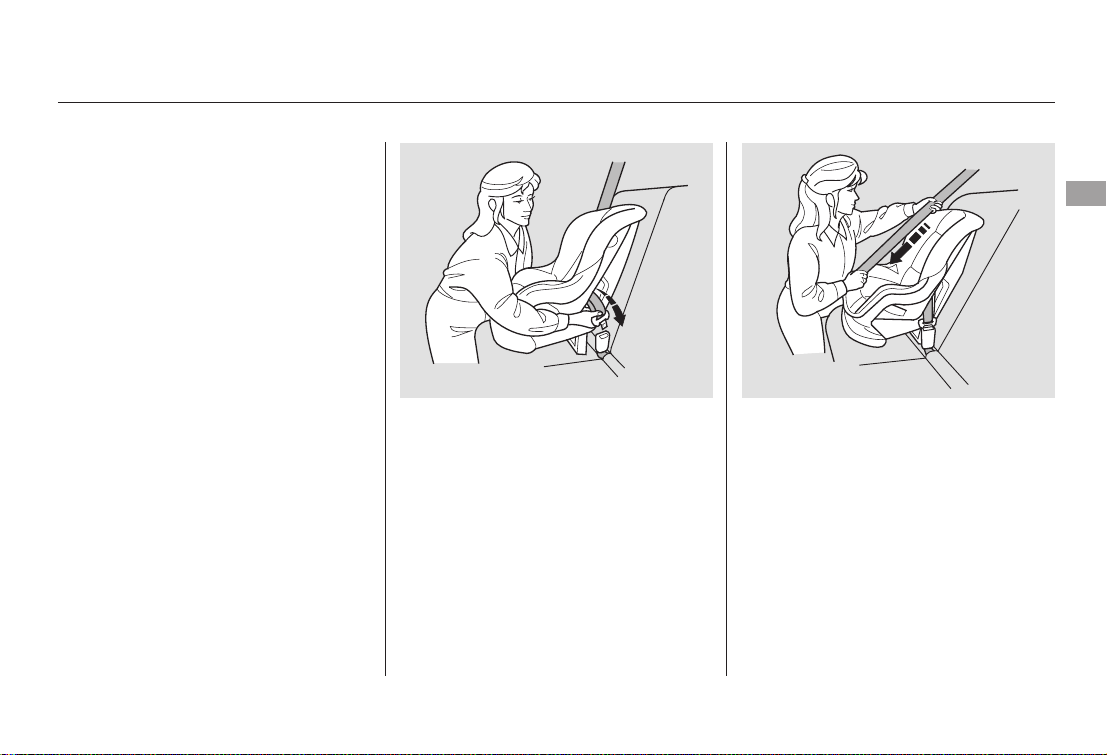

....................Installing a Child Seat . 42
...............................With LATCH .43
..........With a Lap/shoulder Belt . 45
..............................With a Tether . 46
...........Protecting Larger Children . 48
...............Checking Seat Belt Fit . 48
..................Using a Booster Seat . 49
..When Can a Child Sit in Front . 50
...AdditionalSafety Precautions . 51
.............Carbon Monoxide Hazard . 52
...................................Safety Labels . 53
Driver and Passenger Safety
Driver and Passenger Safety
5
０５／０９／０９ １７：５８：０６ ３１ＳＮＣ６００ ０００８
Main Menu
−
You’ll find many safety
recommendations throughout this
section, and throughout this manual.
Therecommendationsonthispage
are the ones we consider to be the
most important.
A seat belt is your best protection in
all types of collisions. Airbags are
designed to supplement seat belts,
not replace them. So even though
your vehicle is equipped with airbags,
make sure you and your passengers
always wear your seat belts, and
wear them properly (see page ).
Alcohol and driving don’t mix. Even
one drink can reduce your ability to
respond to changing conditions, and
your reaction time gets worse with
every additional drink. So don’t drink
and drive, and don’t let your friends
drink and drive, either.
Excessive speed is a major factor in
crash injuries and deaths. Generally,
the higher the speed, the greater the
risk, but serious injuries can also
occur at lower speeds. Never drive
faster than is safe for current
conditions, regardless of the
maximum speed posted.While airbags can save lives, they
can cause serious or fatal injuries to
occupants who sit too close to them,
or are not properly restrained.
Infants, young children, and short
adults are at the greatest risk. Be
sure to follow all instructions and
warnings in this manual.
Children age 12 and under should
ride properly restrained in a back
seat, not the front seat. Infants and
smallchildrenshouldberestrained
in a child seat. Larger children
should use a booster seat and a lap/
shoulder belt until they can use the
belt properly without a booster seat
(see pages ).
Having a tire blowout or a
mechanical failure can be extremely
hazardous. To reduce the possibility
of such problems, check your tire
pressures and condition frequently,
and perform all regularly scheduled
maintenance (see page ).
14
34 51
178
Important Safety Precautions
Always Wear Your Seat Belt
Control Your Speed
Keep Your Vehicle in Saf e
Condition
Don’t Drink and Drive
Be Aware of Airbag Hazards
Restrain All Children
6
０５／０９／０９ １７：５８：１６ ３１ＳＮＣ６００ ０００９
Main Menu
Table of Contents
Your vehicle is equipped with many
featuresthat work together to
protect you and your passengers
during a crash.
Some features do not require any
action on your part. These include a
strong steel framework that forms a
safety cage around the passenger
compartment; front and rear crush
zones; a collapsible steering column;
and tensioners that tighten the front
seat belts in a crash.
However, you and your passengers
can’t take full advantage of these
features unless you remain sitting in
a proper position and
. In fact,some safety
features can contribute to injuries if
they are not used properly.
The following pages explain how you
cantakeanactiveroleinprotecting
yourself and your passengers.
Your Vehicle’s Safety Features
always wear
your seat belts
Driver and Passenger Safety
7
(9)
(2)
(6)
(4)
(3)
(1)
(8)
(7)
(5)
(2)
(11)
(9)
(10)
(8)
(8) Side Airbags
(9) Side Curtain Airbags
(10) Front Seat Belt Tensioners
(11) Door Locks
(1) Safety Cage
(2) Crush Zone
(3) Seats and Seat-Backs
(4) Head Restraints
(5) Collapsible Steering Column
(6) Seat Belts
(7) Front Airbags
０５／０９／０９ １７：５８：２３ ３１ＳＮＣ６００ ００１０
Main Menu
Table of Contents
Your vehicle is equipped with seat
belts in all seating positions.
Your seat belt system also includes
an indicator on the instrument panel
to remind you and your passengers
to fasten your seat belts.
Seat belts are the single most
effectivesafetydeviceforadultsand
larger children. (Infants and smaller
children must be properly restrained
in child seats.)
Not wearing a seat belt properly
increases the chance of serious
injury or death in a crash, even
though your vehicle has airbags.
Inaddition, most statesand all
Canadian provinces require you to
wear seat belts.
When properly worn, seat belts:
Keep you connected to the vehicle
so you can take advantage of the
vehicle’s built-in safety features.
Help protect you in almost every
type of crash, including frontal,
side, and rear impacts and
rollovers.
Help keep you from being thrown
against the inside of the vehicle
and against other occupants.
Keep youfrom being thrown out
of the vehicle.
Help keep you in a good position
should the airbags ever deploy. A
good position reduces the risk of
injury from an inflating airbag and
allows you to get the best
advantage from the airbag.
Of course, seat belts cannot
completely protect you in every
crash.Butinmostcases,seatbelts
can reduce your risk of serious
injury.
Always wear your seat belt, and
make sure you wear it properly.
Your Vehicle’s Safety Features
Seat Belts
Why Wear Seat Belts
What You Should Do:
8
Not wearing a seat belt properly
increases the chance of serious
injury or death in a crash, even
though your vehicle has airbags.
Be sure you and your
passengers always wear seat
belts and wear them properly.
０５／０９／０９ １７：５８：３４ ３１ＳＮＣ６００ ００１１
Main Menu
Table of Contents
CONTINUED
Your vehicle has a supplemental
restraint system (SRS) with front
airbags to help protect the heads and
chests of the driver and a front seat
passenger during a moderate to
severe frontal collision (see page
for more information on how
your front airbags work).
Your vehicle also has side airbags to
help protect the upper torso of the
driver or a front seat passenger
during a moderate to severe side
impact (see page for more
information on how your side airbags
work).
Your vehicle also has side curtain
airbags to help protect the heads of
the driver, front passenger, and
passengers in the outer rear seating
positions during a moderate to
severe side impact (see page for
more information on how your side
curtainairbags work).
24
28
29
Your Vehicle’s Safety Features
Airbags
Driver and Passenger Safety
9
０５／０９／０９ １７：５８：４１ ３１ＳＮＣ６００ ００１２
Main Menu
Table of Contents
The most important things you need
to know about your airbags are:
They are designed to supplement
the seat belts.
Todo
their job, airbags must inflate with
tremendous force. So while
airbags helpsave lives, they can
cause minor injuries or more
serious or evenfatal injuries if
occupants are not properly
restrained or sitting properly.
Always wear
your seat belt properly, and sit
upright and as far back from the
steering wheel as possible while
allowing full control of the vehicle. A
front passenger should move their
seat as far back from the dashboard
as possible.
The rest of this section gives more
detailed information about how you
can maximize your safety.
Remember, however, that no safety
system can prevent all injuries or
deaths that can occur in a severe
crash, even when seat belts are
properly worn and the airbags deploy.
Your Vehicle’s Safety Features
Airbags do not replace seat belts.
Airbags of fer no protection in rear
impacts, or minor frontal or side
collisions.
Airbags can pose hazards.
What you should do:
10
０５／０９／０９ １７：５８：４７ ３１ＳＮＣ６００ ００１３
Main Menu
Table of Contents
−
Adjust the driver’s seat as far to the
rear as possible while allowing you to
maintain full control of the vehicle.
Have a front passenger adjust their
seat as far to the rear as possible.
The following pages provide
instructions on how to properly
protect the driver, adult passengers,
and teenage children who are large
enough and mature enough to drive
or ride in the front.
See pages for important
guidelines on how to properly
protect infants, small children, and
larger children who ride in your
vehicle.
After everyone has entered the
vehicle, be sure the doors are closed
and locked.
Your vehicle has a door-open
indicator on the instrument panel to
indicate when any door is not tightly
closed.
Locking the doors reduces the
chance of someone being thrown out
of the vehicle during a crash, and it
helps prevent passengers from
accidentally opening a door and
falling out.
Locking the doors also helps prevent
an outsider from unexpectedly
opening a door when you come to a
stop.
See page for how to lock the
doors, and page for how the door-
open indicator works.
Auto door locking/unlocking
features. See page for how to set
them.
34
80
81
51
60
CONTINUED
Adjust the Front SeatsIntroduction
Close and Lock the Doors1.
2.
Protecting Adults and Teens
Driver and Passenger Safety
11
０５／０９／０９ １７：５８：５８ ３１ＳＮＣ６００ ００１４
Main Menu
Table of Contents
Adjust the driver’s seat-back to a
comfortable, upright position,
leaving ample space between your
chest and the airbag cover in the
center of the steering wheel.
Passengers with adjustable seat-
backs should also adjust their seat-
back to a comfortable, upright
position.
If you sit too close to the steering
wheel or dashboard, you can be
seriously injured by an inflating front
airbag, or by striking the steering
wheel or dashboard.
The National Highway Traffic Safety
Administration and Transport
Canada recommend that drivers
allow at least 10 inches (25 cm)
between the center of the steering
wheel and the chest. In addition to
adjusting the seat, you can adjust the
steering wheel up and down, and in
and out (see page ).
If you cannot get far enough away
from the steering wheel and still
reach the controls, we recommend
that you investigate whether some
type of adaptive equipment may help.
Afterthefrontpassenger’sseatis
adjusted correctly, rock it back and
forthtomakesureitislockedinto
position.
See page for how to adjust the
front seats.
75
89
Protecting Adults and Teens
Adjust the Seat-Backs3.
12
Sitting too close to a front
airbag can result in serious
injury or death if the front
airbags inflate.
Always sit as far back from the
front airbags as possible.
０５／０９／０９ １７：５９：０５ ３１ＳＮＣ６００ ００１５
Main Menu
Table of Contents
Adjust the driver’s head restraint so
the back of your head rests against
the center of the restraint.
Reclining a seat-back so that the
shoulder part of the belt no longer
rests against the occupant’s chest
reduces the protective capability of
the belt. It also increases the chance
of sliding under the belt in a crash
and being seriously injured. The
farther a seat-back is reclined, the
greater the risk of injury.
See page for how to adjust the
seat-backs.
Have passengers adjust their head
restraints properly as well. Taller
persons should adjust their restraint
as high as possible.
When a passenger is seated in the
rear center seating position, make
sure the head restraint is adjusted to
its highest position.
Properly adjusted head restraints
will help protect occupants from
whiplash and other crash injuries.
See page for how to adjust the
head restraints.
89 91
Adjust the Head Restraints4.
Protecting Adults and Teens
Driver and Passenger Safety
13
Reclining the seat-back too far
can result in serious injury or
death in a crash.
Adjust the seat-back to an
upright position, and sit well
back in the seat.
Improperly positioning head
restraints reduces their
effectiveness and you can be
seriously injured in a crash.
Make sure head restraints are
in place and positioned properly
before driving.
０５／０９／０９ １７：５９：１４ ３１ＳＮＣ６００ ００１６
Main Menu
Table of Contents
If necessary, pull up on the belt again
to remove any slack, then check that
thebelt restsacrossthe centerof
your chest and over your shoulder.
This spreads the forces of a crash
over the strongest bones in your
upper body.
Position the lap part of the belt as
low as possible across your hips,
then pull up on the shoulder part of
the belt so the lap part fits snugly.
This lets your strong pelvic bones
take the forceof a crash and reduces
the chance of internal injuries. If the seat belt touches or crosses
your neck, or if it crosses your arm
instead of your shoulder, you need to
adjust the seat belt anchor height.
Insert the latch plate into the buckle,
then tugon the belt to makesure the
belt is securely latched. Check that
thebelt is not twisted,because a
twistedbelt can causeserious
injuries in a crash.
Protecting Adults and Teens
Fasten and Position the Seat
Belts
5.
14
Improperly positioning the seat
belts can cause serious injury
or death in a crash.
Make sure all seat belts are
properly positioned before
driving.
０５／０９／０９ １７：５９：２０ ３１ＳＮＣ６００ ００１７
Main Menu
Table of Contents
After all occupants have adjusted
their seats and put on seat belts, it is
very important that they continue to
sit upright, well back in their seats,
with their feet on the floor, until the
vehicle is parked and the engine is
off.
Sitting improperly can increase the
chance of injury during a crash. For
example, if an occupant slouches,
lies down, turns sideways, sits
forward, leans forward or sideways,
or puts one or both feet up, the
chance of injury during a crash is
greatly increased.
This could cause
very serious injuries in a crash.
If a seat belt does not seem to work
properly, it may not protect the
occupant in a crash.
Using a seat
belt that is not working properly can
result in serious injury or death.
Have your dealer check the belt as
soon as possible.
See page for additional
information about your seat belts
and how totake care of them.
The front seats have adjustable seat
belt anchors. To adjust the height of
an anchor,press and hold the release
button and slide the anchor up or
down as needed (it has four
positions).
18
CONTINUED
Maintain a Proper Sitting
Position
6.
Never place the shoulder portion of a
lap/shoulder belt under your arm or
behind your back.
No one should sit in a seat with an
inoperative seat belt.
Protecting Adults and Teens
Driver and Passenger Safety
15
RELEASE
BUTTON
０５／０９／０９ １７：５９：２８ ３１ＳＮＣ６００ ００１８
Main Menu
Table of Contents
If you are pregnant, the best way to
protect yourself and your unborn
child when driving or riding in a
vehicle is to always wear a seat belt,
and keep the lap part of the belt as
low as possible across the hips.
When driving, remember to sit
upright and adjust the seat as far
back as possible while allowing full
control of the vehicle. When riding
as a front passenger, adjust the seat
as far back as possible.
This will reduce the risk of injuries
to both you and your unborn child
that can be caused by a crashor an
inflating front airbag.
Each time you have a checkup, ask
your doctor if it’s okay for you to
drive.
In addition, an occupant who is out of
position in the front seat can be
seriously or fatally injured in a crash
by strikinginterior parts of the
vehicle or being struck by an
inflating front airbag.
Advice for Pregnant Women
Protecting Adults and Teens
16
Sitting improperly or out of
position can result in serious
injury or death in a crash.
Always sit upright, well back in
the seat, with your feet on the
floor.
０５／０９／０９ １７：５９：３４ ３１ＳＮＣ６００ ００１９
Main Menu
Table of Contents
Carrying hard or sharp
objects on your lap, or driving with
a pipe or other sharp object in
your mouth, can result in injuries
if your front airbag inflates.
If they do, they
could be very seriously injured in a
crash.
Objects on
the covers marked ‘‘SRS AIRBAG’’
could interfere with the proper
operation of the airbags or be
propelled inside the vehicle and
hurt someone if the airbags inflate.
If your
hands or arms are close to an
airbag cover, they could be injured
if the airbag inflates.
Devices intended to improve
occupant comfort or reposition the
shoulder part of a seat belt can
reduce the protective capability of
the seat belt and increase the
chance of serious injury in a crash.
If a side airbag or a
side curtain airbag inflates, a cup
holder or other hard object
attached on or near the door could
be propelled inside the vehicle and
hurt someone.
Do not place hard or sharp objects
between yourself and a front
airbag.
Two people should never use the
same seat belt.
Do not attach or place objects on
the front airbag covers.
Keep your hands and arms away
from the airbag covers.
Do not put any accessories on seat
belts.
Do not attach hard objects on or
near a door.
Additional Safety Precautions
Protecting Adults and Teens
Driver and Passenger Safety
17
０５／０９／０９ １７：５９：４０ ３１ＳＮＣ６００ ００２０
Main Menu
Table of Contents
Your seat belt system includes lap/
shoulder belts in all five seating
positions. The front seat belts are
also equippedwith automatic seat
belt tensioners.
The seat belts use the same
monitoring system as the front
airbags. The system may not work
properly under these conditions:
Placing heavy items on the front
passenger’s seat.
The front passenger is not sitting
properly.
The front passenger’s seat-back is
pressed forward by a folded-down
rear seat.
The seat belt system
includes an indicator on the
instrument panel and a beeper to
remind you and your passengers to
fasten your seat belts.
This system monitors the front seat
belts.
If youturntheignition switch to the
ON (II) position before your seat
belt is fastened, the beeper will
sound and the indicator will flash. If
your seat belt is not fastened before
the beeper stops, the indicator will
stop flashing but remain on.
If a front passenger does not fasten
their seat belt, the indicator will
come on about 6 seconds after the
ignition switch is turned to the ON
(II) position.
If either the driver or a front
passenger does not fasten their seat
belt while driving, the beeper will
sound and the indicator will flash
again at regular intervals.
When no one is sitting in the front
passenger’s seat, or a small child is
riding there, the indicator will not
come on and the beeper will not
sound.
Have your vehicle checked by a
dealer if the indicator comes on or
the beeper sounds when there is no
front passenger or objects on the
front seat.
Additional Information About Your Seat Belts
Seat Belt System Components
18
０５／０９／０９ １７：５９：４８ ３１ＳＮＣ６００ ００２１
Main Menu
Table of Contents
CONTINUED
For added protection, the front seat
belts are equipped with automatic
seat belt tensioners. When activated,
the tensioners immediately tighten
the belts to help hold the driver and
a front passenger in place.
The tensioners are designed to
activate in any collision severe
enough to cause a front, side, or side
curtainairbagtoinflate.
The lap/shoulder belt goes over
your shoulder, across your chest,
and across your hips.
To fasten the belt, insert the latch
plate into the buckle, then tug on the
belt to make sure the buckle is
latched (see page for how to
properly position the belt).
To unlock the belt, press the red
PRESSbuttononthebuckle.Guide
the belt across your body so that it
retracts completely. After exiting the
vehicle, be sure the belt is out of the
way and will not get closed in the
door.
All seat belts have an emergency
locking retractor. In normal driving,
the retractor lets you move freely in
your seat while it keeps some
tension on the belt. During a collision
or sudden stop, the retractor
automatically locks the belt to help
restrain your body.
The seat belts in all seating positions
except the driver’s have an additional
locking mechanism that must be
activated to secure a child seat (see
page ).
If the shoulder part of the belt is
pulled allthe wayout,the locking
mechanism willactivate. The belt
will retract, but it will not allow the
passenger to move freely.
To deactivate the locking
mechanism, unlatch the buckle and
let the seat belt fully retract. To
refasten the seat belt, pull it out only
as far as needed.
14
42
Additional Information About Your Seat Belts
Automatic Seat Belt TensionersLap/Shoulder Belt
Driver and Passenger Safety
19
０５／０９／０９ １７：５９：５８ ３１ＳＮＣ６００ ００２２
Main Menu
Table of Contents
If a seat belt is worn during a crash,
it must be replaced by the dealer. A
belt that has been worn during a
crash may not provide the same level
of protection in a subsequent crash.
The dealer should also inspect the
anchors for damage and replace
them if needed. If the automatic seat
belt tensioners activate during a
crash, they must be replaced.
For safety, you should check the
condition of your seat belts regularly.
Pull each belt out fully, and look for
frays, cuts, burns, and wear. Check
that the latches work smoothly and
the belts retract easily. If a belt does
not retract easily, cleaning the belt
may correct the problem (see page
). Any belt that is not in good
condition or working properly will
not provide good protection and
should be replaced as soon as
possible.
Honda provides a lifetime warranty
on seat belts for U.S. models. See
your
booklet for details.
If a side curtain airbag deploys
during a side impact, the tensioner
on that side of the vehicle will also
deploy.
The tensioners can also be activated
during a collision in which the front
airbags . In this case, the
airbags would not be needed, but the
additional restraint could be helpful.
When the tensioners are activated,
the seat belts will remain tight until
they are unbuckled in the normal
manner.
If the front seat belt tensioners ever
activate, they must be replaced as
the belts will no longer retract
properly.
203
Honda Warranty Information
do not deploy
Additional Information About Your Seat Belts
Seat Belt Maintenance
20
Not checking or maintaining
seat belts can result in serious
injury or death if the seat belts
do not work properly when
needed.
Check your seat belts regularly,
and have any problem
corrected as soon as possible.
０５／０９／０９ １８：００：０６ ３１ＳＮＣ６００ ００２３
Main Menu
Table of Contents
CONTINUED

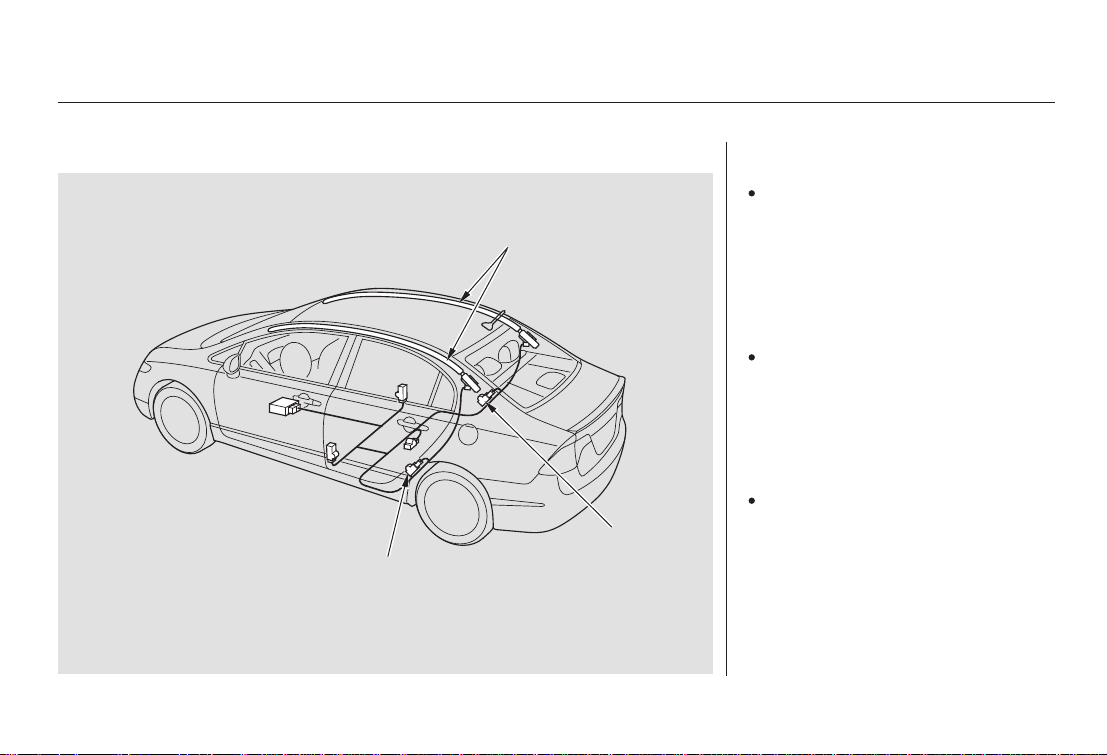

Airbag System Components
Additional Information About Your Airbags
Driver and Passenger Safety
21
(9)
(8)
(1) (2)
(3) (11)
(5)
(4)
(13)
(7)
(10)
(14)
(5)
(4)
(6)
(10)
(12)
(1) Driver’s Airbag
(2) Front Passenger’s Airbag
(3) Control Unit
(4) Front Seat Belt Tensioners
(5) Side Airbags
(6) Driver’s Seat Position Sensor
(7) Front Passenger’s Weight Sensors
(12) Front Passenger’s Weight Sensors/OPDS Sensors Control Unit
(13) Seat Belt Buckle Tensioners
(14) Rear Safing Sensor
(8) Front Impact Sensors
(9) Passenger Airbag Off Indicator
(10) Side Impact Sensors (First)
(11) Side Airbag Cutoff Sensors
０５／０９／０９ １８：００：１２ ３１ＳＮＣ６００ ００２４
Main Menu
Table of Contents
Two SRS (supplemental restraint
system) front airbags. The driver’s
airbag is stored in the center of
the steering wheel; the front
passenger’sairbagisstoredinthe
dashboard. Both are marked ‘‘SRS
AIRBAG’’ (see page ).
Two side airbags, one for the
driver and one for a front
passenger. The airbags are stored
in the outer edges of the seat-
backs. Both are marked ‘‘SIDE
AIRBAG’’ (see page ).
Two side curtain airbags, one for
each side of the vehicle. The
airbags are stored in the ceiling,
above the side windows. The front
and rear pillars are marked ‘‘SIDE
CURTAIN AIRBAG’’ (see page
).
Your airbag system includes:
24
28
29
Additional Information About Your Airbags
22
(16)
(15)
(15)
(15) Side Impact Sensor (Second)
(16) Side Curtain Airbags
０５／０９／０９ １８：００：１８ ３１ＳＮＣ６００ ００２５
Main Menu
Table of Contents
Sensors that can detect a
moderate to severe front impact or
side impact.
An indicator on the instrument
panel that alerts you that the
passenger’s side airbag has been
turned off (see page ).
An indicator on the dashboard that
alerts you that the passenger’s
front airbag has been turned off
(see page ).
Emergency backup power in case
your vehicle’s electrical system is
disconnected in a crash.
A driver’s seat position sensor that
monitors the distance of the seat
from the front airbag. If the seat is
too far forward, the airbag will
inflate with less force (see page
).
Weight sensors that monitor the
weight on the front passenger’s
seat. If the weight of an infant
or small child is detected, the
passenger’s front airbag will be
turned off (see page ).
Automatic front seat belt
tensioners (see page ).
A sophisticated electronic system
that continually monitors and
records information about the
sensors, the control unit, the
airbag activators, the seat belt
tensioners, and driver and front
passenger seat belt use when the
ignition switch is in the ON (II)
position.
An indicator on the instrument
panel that alerts you to a possible
problem with your airbags,
sensors, or seat belt tensioners
(see page ).
Sensors that can detect whether
a child is in the passenger’s side
airbag path and signal the
control unit to turn the airbag
off (see page ).
19
31
26
26
30
30
31
Additional Information About Your Airbags
Driver and Passenger Safety
23
０５／０９／０９ １８：００：２６ ３１ＳＮＣ６００ ００２６
Main Menu
Table of Contents
The total time for inflation and
deflation is one-tenth of a second, so
fast that most occupants are not
aware that the airbags deployed until
they see them lying in their laps.
After inflating, the front airbags
immediately deflate, so they won’t
interfere with the driver’s visibility,
or the ability to steer or operate
other controls.
During a frontal crash, your seat belt
restrains your lower body and torso,
and the front airbag helps protect
your head and chest.
Although both airbags normally
inflate within a split second of each
other, it is possible for only one
airbag to deploy.
This can happen if the severity of a
collision is at the margin, or
threshold, that determines whether
or not the airbags will deploy. In
such cases, the seat belt will provide
sufficient protection, and the
supplemental protection offered by
the airbag would be minimal.
If you ever have a moderate to
severe frontal collision, sensors will
detect the vehicle’s rapid
deceleration.
If the rate of deceleration is high
enough, the control unit will instantly
inflate the driver’s and front
passenger’s airbags, at the time and
with the force needed.
Only the driver’s airbag will deploy if
there is no passenger in the front
seat, or if the advanced airbag
system has turned the passenger’s
airbag off (see page ).31
How Your Front Airbags Work
Additional Information About Your Airbags
24
０５／０９／０９ １８：００：３４ ３１ＳＮＣ６００ ００２７
Main Menu
Table of Contents
Your front airbags are also dual-
threshold airbags. Airbags with this
feature have two deployment
thresholds that depend on whether
or not the occupant is wearing a seat
belt.
If the occupant’s belt is ,
the airbag will deploy at a slightly
lower threshold, because the
occupant would need extra
protection.
If the occupant’s belt is , the
airbag will inflate at a slightly higher
threshold,when the airbag would be
needed to supplement the protection
provided by the seat belt.
Your front airbags are dual-stage
airbags. This meansthey have two
inflation stages that can be ignited
sequentially or simultaneously,
depending on crash severity.
In a crash, both stages
will ignite simultaneously to provide
the quickest and greatest protection.
In a crash, one stage will
ignite first, then the second stage
will ignite a split second later. This
provides longer airbag inflation time
with a little lessforce.
After a crash, you may see what
looks like smoke. This is actually
powder from the airbag’ssurface.
Although the powder is not harmful,
people with respiratory problems
mayexperiencesometemporary
discomfort. If this occurs, get out of
the vehicle as soon as it is safe to do
so.
CONTINUED
Additional Information About Your Airbags
Dual-Threshold Airbags
not latched
latched
Dual-Stage Airbags
more severe
less severe
Driver and Passenger Safety
25
０５／０９／０９ １８：００：４２ ３１ＳＮＣ６００ ００２８
Main Menu
Table of Contents
The driver’s advancedfront airbag
system includes a seat position
sensor under the seat. If the seat is
too far forward, the airbag will
inflate with less force, regardless of
the severity of the impact.
Your front airbags are also advanced
airbags. The main purpose of this
feature isto help prevent airbag-
caused injuries to short drivers and
children who ride in front.
For both advanced airbags to work
properly:
Occupants must sit upright and
wear their seat belts properly.
Do not spill any liquids on or
under the seats, cover the sensors,
or put any cargo or metal objects
under the front seats.
Back-seat passengers should not
put their feet under the front seats.
Failure to follow these instructions
could damage the sensors or prevent
them from working properly.
If there is a problem with the sensor,
the SRS indicator will come on, and
the airbag will inflate in the normal
manner regardless of the driver’s
seating position.
The passenger’s advanced front
airbag system has weight sensors
under the seat. Although Honda
does not encourage carrying an
infant or small child in front, if the
sensors detect the weight of an
infant or small child, the system will
automatically turn the passenger’s
front airbagoff.
Advanced Airbags
Additional Information About Your Airbags
26
DRIVER’S
SEAT
POSITION
SENSOR
PASSENGER’S
SEAT WEIGHT
SENSORS
０５／０９／０９ １８：００：５１ ３１ＳＮＣ６００ ００２９
Main Menu
Table of Contents
When the airbag is turned off, an
indicator in the center of the
dashboard will come on indicating
passenger airbag ‘‘OFF’’ (see page
).
Moving the front seat forcibly
back against cargo on the seat or
floor behind it.
To ensure that the passenger’s
advanced front airbag system will
work properly,
This includes:
A rear passenger pushing or
pulling on the back of the front
passenger’s seat.
If the weight sensors detect that
there is no passenger in the front
seat, the airbag will be off. However,
the Passenger Airbag Off indicator
will not come on.
Also,makesurethefloormatbehind
the front passenger’s seat is hooked
to the floor mat anchor. If it is not,
themat may interferewith the
proper operation of the sensors and
operation of the seat.
Hanging heavy items on the front
passenger seat, or placing heavy
items in the seat-back pocket.
31
If equipped
Additional Information About Your Airbags
do not do anything
that would increase or decrease the
weight on the front passenger’s seat.
Driver and Passenger Safety
27
０５／０９／０９ １８：００：５８ ３１ＳＮＣ６００ ００３０
Main Menu
Table of Contents
To get the best protection from the
side airbags, front seat occupants
should wear their seat belts and sit
upright and well back in their seats.
Only one airbag will deploy during a
side impact. If the impact is on the
passenger’s side, the passenger’s
side airbag will deploy even if there
is no passenger.
If you ever have a moderate to
severe side impact, sensors will
detect rapid deceleration and signal
the control unit to instantly inflate
either the driver’s or the passenger’s
side airbag.
Your vehicle has a side airbagcutoff
system designed primarily to protect
a child riding in the front passenger’s
seat.
Although Honda does not encourage
children to ride in front, if sensors in
the seat detect a child has leaned
into the side airbag’s deployment
path, the airbag will shut off.
Thesideairbagmayalsoshutoffifa
short adult leans sideways, or a
larger adult slouches and leans
sideways into the airbag’s
deployment path.
Objects placed on the front
passenger seat can also cause the
side airbag to be shut off.
How Your Side Airbags Work
Additional Information About Your Airbags
Side Airbag Cutoff System
28
０５／０９／０９ １８：０１：０５ ３１ＳＮＣ６００ ００３１
Main Menu
Table of Contents
If the side airbag off indicator comes
on (see page ), have the
passenger sit upright. Once the
passenger is out of the airbag’s
deployment path, the system will
turn the airbagbackon, and the
indicator will go out.
There will be some delay between
the moment the passenger moves
into or out of the airbag deployment
pathandwhentheindicatorcomes
on or goes off.
A front seat passenger should not
use a cushion or other object as a
backrest. It may prevent the cutoff
system from working properly.
In a moderate to severe side impact,
sensors will detect rapid deceleration
and signal the control unit to
instantly inflate the side curtain
airbag on the driver’s or the
passenger’s side of the vehicle.
If the impact is on the passenger’s
side, the passenger’s side curtain
airbag will inflate even if there are no
occupants on that side of the vehicle.
To get the best protection from the
side curtain airbags, occupants
should wear their seat belts and sit
upright and well back in their seats.
31
Additional Information About Your Airbags
How Your Side Curtain Airbags
Work
Driver and Passenger Safety
29
SIDE CURTAIN AIRBAG
０５／０９／０９ １８：０１：１２ ３１ＳＮＣ６００ ００３２
Main Menu
Table of Contents
If the indicator comes on at any
other time, or does not come on at all,
you should have the system checked
by your dealer. For example:
If the SRS indicator does not come
on after you turn the ignition
switch to the ON (II) position.
If the indicator stays on after the
engine starts.
If the indicator comes on or
flashesonandoffwhileyoudrive.
This indicator alerts you that the
passenger’s side airbag has been
automatically shut off. It does
mean there is a problem with your
side airbags.
When you turn the ignition switch to
the ON (II) position, this indicator
comes on for several seconds then
goes off. This tells you the system is
working properly.
When you turn the ignition switch to
the ON (II) position, the indicator
should come on for several seconds
andthengooff(seepage ).Ifit
doesn’t come on, stays on, or comes
on while driving without a passenger
in the front seat,havethesystem
checked.
If you see any of these indications,
the airbags and seat belt tensioners
may not work properly when you
need them.
The SRS indicator alerts
you to a potential problem
with your airbags, sensors, or seat
belt tensioners.
59
How the SRS Indicator Works How the Side Airbag Off
Indicator Works
Additional Information About Your Airbags
not
30
U.S. Canada
Ignoring the SRS indicator can
result in serious injury or death
if the airbag systems or
tensioners do not work properly.
Have your vehicle checked by a
dealer as soon as possible if
the SRS indicator alerts you to
a possible problem.
０５／０９／０９ １８：０１：２２ ３１ＳＮＣ６００ ００３３
Main Menu
Table of Contents
The passenger airbag off indicator
may also come on and off repeatedly
if totalweight on the seat is near the
airbag cutoff threshold.
If this happens, have the passenger
ride properly restrained in the back
seat. If the passenger must ride in
front,move the seat as farto the
rear as possible, have the passenger
sit upright and wear the seat belt
properly.
If no one is riding in the front seat,
the airbag will be automatically shut
off. However, the indicator will not
come on.
If the indicator comes onwith no
passenger in the front, or with an
adult in the seat, there may be a
problem with the advanced airbag
system. Have the vehicle checked by
your dealer as soon as possible.
This indicator alerts you that the
passenger’s front airbag has been
shut off because weight sensors
detect an infant or small child may
be in the front passenger’s seat. It
does mean there is a problem
with the airbag.
Additional Information About Your Airbags
How the Passenger Airbag Off
Indicator Works
not
Driver and Passenger Safety
31
PASSENGER AIRBAG OFF INDICATOR
Canada
U.S.
０５／０９／０９ １８：０１：２９ ３１ＳＮＣ６００ ００３４
Main Menu
Table of Contents
Your airbag systems are virtually
maintenance free, and there are no
parts you can safely service.
However, you must have your
vehicle serviced if:
Any airbag
that has deployed must be
replaced along with the control
unit and other related parts. Any
seat belt tensioner that activates
must also be replaced.
Do not try to remove or replace
anyairbagbyyourself.Thismust
be done by your dealer or a
knowledgeable body shop.
Take your vehicle to an
authorized dealer as soonas
possible. If you ignore this
indication, your airbags may not
operate properly.
Even if your
airbags do not inflate, your dealer
should inspect the driver’s seat
position sensor, the front
passenger’s weight sensors, the
front seat belt tensioners, and all
seat belts worn during the crash to
make sure they are operating
properly.
Together, airbags and
seat belts provide the best
protection.
Tampering could cause
the airbags to deploy, possibly
causing very serious injury.
Airbag Service Additional Safety Precautions
An airbag ever inflates.
The SRS indicator alerts you to a
problem.
If your vehicle has a moderate to
severe impact.
Donotattempttodeactivateyour
airbags.
Do not tamper with airbag
components or wiring for any
reason.
Additional Information About Your Airbags
32
０５／０９／０９ １８：０１：３６ ３１ＳＮＣ６００ ００３５
Main Menu
Table of Contents
Improperly replacing
or covering front seat-back covers
can prevent your side airbags from
inflating during a side impact.
If water or another liquid
soaks into a seat-back, it can
prevent the side airbag cutoff
system from working properly.
Thiswill cause the
front passenger’s weight sensors
to work improperly. The system
may shut off the front passenger’s
airbag and the passenger airbag
off indicator will come on. The
seat belt reminder indicator for a
front seat passenger may also
work improperly.
Make sure that the folded-down
rear seat does not press the front
passenger’s seat-back. Check the
passenger airbag off indicator to
confirm that the passenger’s
advanced front airbag is operating
properly.
Thiscouldmakethe
driver’s seat position sensor or the
front passenger’s weight sensors
ineffective. If it is necessary to
remove or modify a front seat to
accommodate a person with
disabilities, first contact Honda
Automobile Customer Service at
(800) 999-1009.
Do not cover or replace f ront seat-
back covers without consulting
your dealer.
Do not expose the front seat-backs
to liquid.
Do not recline the front passenger’s
seat-back as far to the rear as
possible with the right rear seat
folded down.
Do not remove or modify a front
seat without consulting your
dealer.
Additional Information About Your Airbags
Driver and Passenger Safety
33
０５／０９／０９ １８：０１：４１ ３１ＳＮＣ６００ ００３６
Main Menu
Table of Contents
−
−
−
Children depend on adults to protect
them. However, despite their best
intentions, many adults do not know
how to protect child
passengers.
If you have children, or ever need to
drive with a child in your vehicle, be
sure to read this section. It begins
with important general guidelines,
then presents special information for
infants, small children, and larger
children.
Each year, many children are injured
or killed in vehicle crashes because
they are either unrestrained or not
properly restrained. In fact, vehicle
accidents are the number one cause
of the death of children ages 12 and
under.
To reduce the number of child
deaths and injuries, every state and
Canadian province requires that
infants and children be properly
restrained when they ride in a
vehicle.
(see pages ).
(see pages ).39 47
5148
properly
All Children Must Be Restrained
Larger children must be restrained
with a lap/shoulder belt and ride on
a booster seat until the seat belt fits
them properly
Infants and small children must be
restrained in an approved child seat
that is properly secured to the
vehicle
Protecting Children General Guidelines
34
Children who are unrestrained
or improperly restrained can be
seriously injured or killed in a
crash.
Any child too small for a seat
belt should be properly
restrained in a child seat. A
larger child should be properly
restrained with a seat belt and
use a booster seat if necessary.
０５／０９／０９ １８：０１：４９ ３１ＳＮＣ６００ ００３７
Main Menu
Table of Contents
−
If the vehicle seat is too
farforward,orthechild’sheadis
thrown forward during a collision, an
inflating front airbag can strike the
child with enough force to kill or
very seriously injure a small child.
Whenever possible,
larger children should sit in the back
seat, on a booster seat if needed, and
be properly restrained with a seat
belt (see page for important
information about protecting larger
children).
Front airbags have been designed to
help protect adults in a moderate to
severe frontal collision. To do this,
the passenger’s front airbag is quite
large, and it can inflate with enough
force to cause very serious injuries.
According to accident statistics,
children of all ages and sizes are
safer when they are restrained in a
back seat.
The National Highway Traffic Safety
Administration and Transport
Canada recommend that all children
aged 12 and under be properly
restrained in a back seat. Some
states have laws restricting where
children may ride.
Children who ride in back are less
likely to be injured by striking
interior vehicle parts during a
collision or hard braking. Also,
children cannot be injured by an
inflating front airbag when they ride
in the back.
Even though your vehicle has an
advanced front airbag system that
automatically turns the passenger’s
front airbag off (see page ),
please follow these guidelines:
If
the airbag inflates, it can hit the back
of the childseat with enough force
to kill or very seriously injure an
infant.
31
48
CONTINUED
Placing a f orward-facing child seat in
the front seat of a vehicle equipped
with passenger’s front airbag can be
hazardous.
Children who have outgrown child
seats are also at risk of being injured
or killed by an inflating passenger’s
front airbag.
Never put a rear-facing child seat in
the front seat of a vehicle equipped
with a passenger’s f ront airbag.
Small Children
Larger Children
Infants
All Children Should Sit in a Back
Seat
The Passenger’s Front Airbag
Poses Serious Risks
Protecting Children General Guidelines
Driver and Passenger Safety
35
０５／０９／０９ １８：０１：５８ ３１ＳＮＣ６００ ００３８
Main Menu
Table of Contents
−
To remind you of the passenger’s
front airbag hazards, and that
children must be properly restrained
in a back seat, your vehicle has
warninglabelsonthedashboard
(U.S. models) and on the front visors.
Please read andfollow the
instructions on these labels.
Canadian Models
U.S. Models
Protecting Children General Guidelines
36
Sun Visor Dashboard
Sun Visor
０５／０９／０９ １８：０２：１０ ３１ＳＮＣ６００ ００３９
Main Menu
Table of Contents
−
Many parents say they prefer to put
an infant or a small child in the front
passenger seat so they can watch the
child, or because the child requires
attention.
Placing a child in the front seat
exposes the child to hazards in a
frontal collision, and paying close
attention to a child distracts the
driver from the important tasks of
driving, placing both of you at risk.
If a child requires close physical
attention or frequent visual contact,
we strongly recommend that another
adult ride with the child in a back
seat. The back seat is far safer for a
child than the front.
Your vehicle has a back seat where
children can be properly restrained.
If you ever have to carry a group of
children, and a child must ride in
front:
Place the largest child in the front
seat, provided the child is large
enough to wear the lap/shoulder
belt properly (see page ).
Move the vehicle seat as far to the
rear as possible (see page ).
Have the child sit upright and well
backintheseat(seepage ).
Make sure the seat belt is properly
positioned and secured (see page
).
15
14
48
89
If You Must Drive with Several
Children
If a Child Requires Close
Attention
Protecting Children General Guidelines
Driver and Passenger Safety
37
０５／０９／０９ １８：０２：１８ ３１ＳＮＣ６００ ００４０
Main Menu
Table of Contents
−
If they do, they
could be very seriously injured in a
crash.
Even very young
children learn how to unlock
vehicle doors, turn on the ignition
switch, and open the trunk, which
can lead to accidental injury or
death.
If you are not wearing a
seat belt in a crash, you could be
thrown forward and crush the
child against the dashboard or a
seat-back. If you are wearing a
seat belt, the child can be torn
from your arms and be seriously
hurt or killed.
Leaving children without
adult supervision is illegal in most
states and Canadian provinces,
and can be very hazardous.
For example, infants and small
childrenleftinavehicleonahot
day can die from heatstroke. A
child left alone with the key in the
ignition switch can accidentally set
the vehicle in motion, possibly
injuring themselves or others.
Children
who play in vehicles can
accidentally get trapped inside.
Teach your children not to play in
or around vehicles. Know how to
operate the emergency trunk
opener and decide if your children
should be shown how to use this
feature(seepage ).
During a crash, the
belt could press deep into the child
and cause serious or fatal injuries.
This can prevent
children from accidentally falling
out (see page ).81
80
Additional Safety Precautions
Never let two children use the
same seat belt.
Keep vehicle keys and remote
transmitters out of the reach of
children.
Neverholdaninfantorchildon
your lap.
Do not leave children alone in a
vehicle.
Lock all doors and the trunk when
your vehicle is not in use.
Never put a seat belt over yourself
and a child.
Use the childproof door locks to
prevent children from opening the
rear doors.
Protecting Children General Guidelines
38
０５／０９／０９ １８：０２：２５ ３１ＳＮＣ６００ ００４１
Main Menu
Table of Contents
When properly installed, a rear-
facing child seat may prevent the
driver or a front passenger from
moving their seat as far back as
recommended, or from locking their
seat-back in the desired position.
Two types of seats may be used: a
seat designed exclusively for infants,
or a convertible seat used in the rear-
facing, reclining mode.
If placed
facing forward, an infant could be
very seriously injured during a
frontal collision.
A rear-facing child seat can be placed
in any seating position in the back
seat, but not in the front.
If the passenger’s front airbag
inflates, it can hit the back of the
child seat with enough force to kill or
seriously injure an infant.
An infant must be properly
restrained in a rear-facing, reclining
child seat until the child reaches the
seat maker’s weight or height limit
for the seat, and the child is at least
one year old.
Only a rear-facing child seat provides
proper support for a baby’s head,
neck, and back.
It could also interfere with proper
operation of the passenger’s
advanced front airbag system.
CONTINUED
Protecting Infants
Child Seat Type
Do not put a rear-f acing child seat in
a forward-f acing position.
Rear-facing Child Seat Placement
Never put a
rear-facing child seat in the front
seat.
Protecting Infants and Small Children
Driver and Passenger Safety
39
０５／０９／０９ １８：０２：３４ ３１ＳＮＣ６００ ００４２
Main Menu
Table of Contents
A child who is at least 1 year old, and
who fits within the child seat maker’s
weight and height limits, should be
restrained in a forward-facing,
upright child seat.
Of the different seats available, we
recommend those that have a five-
point harness system as shown.
In any of these situations, we
strongly recommend that you install
the child seat directly behind the
front passenger’s seat, move the seat
as far forward as needed, and leave it
unoccupied. Or, you may wish to get
a smaller rear-facing child seat.
We also recommend that a small
child use the child seat until the child
reaches the weight or height limit
for the seat.
We strongly recommend placing a
forward-facing child seat in a back
seat, not the front.
If the vehicle seat is too
farforward,orthechild’sheadis
thrown forward during a collision, an
inflating airbag can strike the child
with enough force to cause very
seriousor fatal injuries.
Even with advanced front airbags,
whichcan automatically turnthe
passenger’s front airbagoff (see
page ), a back seat is the safest
place for a small child.
31
Protecting Small Children
Child Seat Type
Child Seat Placement
Placing a f orward-facing child seat in
the front seat of a vehicle equipped
with a passenger’s airbag can be
hazardous.
Protecting Infants and Small Children
40
Placing a rear-facing child seat
in the front seat can result in
serious injury or death if the
passenger’s front airbag inflates.
Always place a rear-facing child
seat in the back seat, not the
front.
０５／０９／０９ １８：０２：４３ ３１ＳＮＣ６００ ００４３
Main Menu
Table of Contents
In seating positions and vehicles not
equipped with LATCH, a LATCH-
compatible child seat can be installed
using a seat belt.
Whatever type of seat you choose, to
provide proper protection, a child
seat should meet three
requirements:
Look for FMVSS
213 or CMVSS 213 on the box.
Rear-facing for infants, forward-
facing for small children.
When buying a child seat, you need
to choose either a conventional child
seat, or one designed for use with
the lower anchors and tethers for
children (LATCH) system.
Conventional child seats must be
secured to a vehicle with a seat belt,
whereas LATCH-compatible seats
are secured by attaching the seat to
hardware built into the two outer
seating positions in the back seat.
Since LATCH-compatible child seats
are easier to install and reduce the
possibility of improper installation,
we recommend selecting this style.
If it is necessary to put a forward-
facing child seat in the front, move
the vehicle seat as far to the rear as
possible, and be sure the child seat is
firmly secured to the vehicle and the
child is properly strapped in the seat.
We also recommend selecting a
LATCH-compatible seat with a rigid,
rather than a flexible, anchor (see
page ).43
The child seat should meet U.S. or
Canadian Motor Vehicle Safety
Standard 213.
The child seat should be of the
proper type and size to f it the child.
The child seat should fit the
vehicle seating position (or
positions) where it will be used.
1.
2.
3.
Selecting a Child Seat
Protecting Infants and Small Children, Selecting a Child Seat
Driver and Passenger Safety
41
Placing a forward-facing child
seat in the front seat can result
in serious injury or death if the
front airbag inflates.
Ifyoumustplaceaforward-
facing child seat in front, move
the vehicle seat as far back as
possible, and properly restrain
the child.
０５／０９／０９ １８：０２：５２ ３１ＳＮＣ６００ ００４４
Main Menu
Table of Contents
A child seat secured with a seat belt
should be installed as firmly as
possible. However, it does not need
to be ‘‘rock solid.’’ Some side-to-side
movement can be expected and
should not reduce the child seat’s
effectiveness.
Before purchasing a conventional
child seat, or using a previously
purchased one, we recommend that
you test the seat in the specific
vehicle seating position or positions
where the seat will be used.
After installing a child
seat, push and pull the seat
forward and from side-to-side to
verify that it is secure.
All child seats must be
secured to the vehicle with the lap
part of a lap/shoulder belt or with
the LATCH (lower anchors and
tethers for children) system.A
child whose seat is not properly
secured to the vehicle can be
endangered in a crash.
After selecting a proper child seat
and a good place to installthe seat,
there arethreemain steps in
installing the seat: If the child seat is not secure, try
installing it in a different seating
position, or use a different style of
child seat that can be firmly secured.
Make sure the child is properly
strappedinthechildseat
according to the child seat maker’s
instructions. A child who is not
properly secured in a child seat
canbeseriouslyinjuredinacrash.
The following pages provide
guidelines on how to properly install
a child seat. A forward-facing child
seat is used in all examples, but the
instructions are the same for a rear-
facing child seat.
Make sure the child seat is firmly
secured.
Properly secure the child seat to
the vehicle.
Secure the child in the child seat.
1.
2.
3.
Installing a Child Seat
Selecting a Child Seat, Installing a Child Seat
42
０５／０９／０９ １８：０２：５９ ３１ＳＮＣ６００ ００４５
Main Menu
Table of Contents
Your vehicle is equipped with
LATCH (lower anchors and tethers
for children) at the outer rear seats.
To install a LATCH-compatible child
seat:
Place the child seat on the vehicle
seat, then attach the seat to the
lower anchors according to the
child seat maker’s instructions.
Some LATCH-compatible seats
have a rigid-type connector as
shown above.Make sure there are no objects
near the anchors that could
prevent a secure connection
between the child seat and the
anchors.
Move the seat belt buckle or
tongue away from the lower
anchors.
The lower anchors are located
between the seat-back and seat
bottom, and are to beused only with
a child seat designed for use with
LATCH.
The location of each lower anchor is
indicatedby a small button above the
anchor point.
1.
2.
3.
CONTINUED
Installing a Child Seat with
LATCH
Installing a Child Seat
Driver and Passenger Safety
43
LOWER ANCHORS
Rigid type
BUTTON
０５／０９／０９ １８：０３：０８ ３１ＳＮＣ６００ ００４６
Main Menu
Table of Contents
Other LATCH-compatible seats have
a flexible-type connector as shown
above.
Whatever type you have, follow
the child seat maker’s instructions
for adjusting or tightening the fit.
Pushandpullthechildseat
forward and from side to side to
verify that it is secure.
Attach the tether strap hook to the
tether anchor, then tighten the
strap as instructed by the child
seat maker.
Lift the head restraint (see page
),thenroute the tether strap
throughthe legs of the head
restraint and over the seat-back,
makingsure thestrapis not
twisted.
If the tether strapis toolongand
cannot be tightened firmly, find a
route where the strap can be
tightened securely.
6.
5.
4.
7.
90
Installing a Child Seat
44
TETHER STRAP
HOOK
Flexible type
Front
ANCHOR
０５／０９／０９ １８：０３：１５ ３１ＳＮＣ６００ ００４７
Main Menu
Table of Contents
When not using the LATCH system,
all child seats must be secured to the
vehicle with the lap part of a lap/
shoulder belt.
With the childseat inthe desired
seating position, route the belt
through the child seat according
to the seat maker’s instructions,
then insert thelatchplate into the
buckle.
To activate the lockable retractor,
slowly pull the shoulder part of the
belt all the way out until it stops,
then let the belt feedback intothe
retractor.
After the belt has retracted, tug on
it. If the belt is locked, you will not
be able to pull it out. If you can pull
thebeltout,itisnotlocked,and
you will need to repeat these steps.
In addition, the lap/shoulder belts in
all seating positions except the
driver’s have a locking mechanism
that must be activated to secure a
child seat.
1. 2.
3.
CONTINUED
Installing a Child Seat with a Lap/
Shoulder Belt
Installing a Child Seat
Driver and Passenger Safety
45
０５／０９／０９ １８：０３：２３ ３１ＳＮＣ６００ ００４８
Main Menu
Table of Contents
After confirming that the belt is
locked, grab the shoulder part of
the belt near the buckle, and pull
up to remove any slack fromthe
lap part of the belt. Remember, if
thelappart of the belt is not tight,
the child seat will not be secure.
Push and pull the child seat
forward and from side-to-side to
verify that it is secure enough to
stay upright during normal driving
maneuvers. If the child seat is not
secure, unlatch the belt, allow it to
retract fully, then repeat these
steps.
To remove slack, it may help to
putweightonthechildseat,or
push on the back of the seat while
pulling up on the belt.
To deactivate the locking
mechanism andremove a child seat,
unlatch the buckle, unroute the seat
belt, and let the belt fully retract.
A child seat with a tether canbe
installed in any seating position in
theback seat,using one of the
anchorage points shown above.
Since a tether can provide additional
security to the lap/shoulder belt
installation, we recommend using a
tether whenever one is required or
available.
4. 5.
Installing a Child Seat with a
Tether
Installing a Child Seat
46
COVER
ANCHORAGE POINTS
ANCHOR
０５／０９／０９ １８：０３：３０ ３１ＳＮＣ６００ ００４９
Main Menu
Table of Contents
After properly securing the child
seat (see page ), lift the head
restraint, thenroute the tether
strap over the seat-back and
through the head restraint legs.
Lift the anchor cover, thenattach
thetether strap hook tothe
anchor, making sure the strap is
not twisted.
Tighten the strap according to the
seat maker’s instructions.
1. 2.
3.
45
Installing a Child Seat
Driver and Passenger Safety
47
TETHER STRAP
HOOK
Front
TETHER STRAP
HOOK
ANCHOR
ANCHOR
Front
Outer Position Center Position
０５／０９／０９ １８：０３：３７ ３１ＳＮＣ６００ ００５０
Main Menu
Table of Contents
To determine if a lap/shoulder belt
properly fits a child, have the child
put on the seat belt, then ask
yourself:
Does the child sit all the way back
against the seat?
Do the child’s knees bend
comfortably over the edge of the
seat?
When a child reaches the
recommended weight or height limit
foraforward-facingchildseat,the
child should sit in a back seat on a
booster seat and wear a lap/shoulder
belt.
The following pages give
instructions on how to check proper
seat belt fit, what kind of booster
seat to use if one is needed, and
important precautions for a child
who must sit in front.
1.
2.
Checking Seat Belt Fit
Protecting Larger Children
48
Allowing a child age 12 or under
to sit in front can result in injury
or death if the passenger’s front
airbag inflates.
If a child must ride in front,
move the vehicle seat as far
back as possible, use a booster
seat if needed, have the child
sit up properly and wear the
seat belt properly.
０５／０９／０９ １８：０３：４３ ３１ＳＮＣ６００ ００５１
Main Menu
Table of Contents
Does the shoulder belt cross
between the child’s neck and arm?
Is the lap part of the belt as low as
possible, touching the child’s
thighs?
Will the child be able to stay
seated like this for the whole trip?
If you answer yes to all these
questions, the child is ready to wear
the lap/shoulder belt correctly. If
you answer no to any question, the
child needs to ride on a booster seat. A child who has outgrown a forward-
facing child seat should ride in a
back seat and use a booster seat
until the lap/shoulder belt fits them
properly without the booster.
Some states and Canadian provinces
also require children to use a booster
seat until they reach a given age or
weight (e.g., 6 years or 60 lbs). Be
sure to check current laws in the
states or provinces where you intend
to drive.
If a child who uses a booster seat
must ride in front, move the vehicle
seat as far back as possible and be
sure the child is wearing the seat
belt properly.
Booster seats can be high-back or
low-back. Whichever style you select,
make sure the booster seat meets
federal safety standards (see page
) and that you follow the booster
seat maker’s instructions.
A child may continue using a booster
seat until the tops of their ears are
evenwith the topof the vehicle’sor
booster’sseat-back.A child of this
height should be tall enough to use
the lap/shoulder belt without a
boosterseat.
3.
4.
5.
41
Using a Booster Seat
Protecting Larger Children
Driver and Passenger Safety
49
０５／０９／０９ １８：０３：５２ ３１ＳＮＣ６００ ００５２
Main Menu
Table of Contents
The National Highway Traffic Safety
Administration and Transport
Canada recommend that all children
aged 12 and under be properly
restrained in a back seat.
If the passenger’s front airbag
inflates in a moderate to severe
frontal collision, the airbag can cause
serious injuries to a child who is
unrestrained, improperly restrained,
sitting too close to the airbag, or out
of position.
A side airbag also poses risks. If any
part of a larger child’s body is in the
path of a deploying side airbag, the
child could receive possibly serious
injuries.
Physically, a child must be large
enough for the lap/shoulder belt to
properly fit (see pages and ). If
the seat belt does not fit properly,
with or without thechild sitting on a
boosterseat,thechild shouldnot sit
in front.
To safely ride in front, a child must
be able to follow the rules, including
sitting properly, and wearing the seat
belt properly throughout a ride.
If you decide that a child can safely
ride up front, be sure to:
Carefully read the owner’s manual,
and make sure you understand all
seat belt instructions and all safety
information.
Move the vehicle seat tothe rear-
most position.
Have the childsit up straight, back
against the seat, and feet on or
near the floor.
Check that the child’s seat belt is
properly and securely positioned.
Supervise the child. Even mature
children sometimes need to be
reminded to fasten the seat belts
or sit properly.
Of course, children vary widely. And
while age may be one indicator of
when a child can safely ride in front,
there are other important factors you
should consider.
14 48
When Can a Larger Child Sit in
Front
Physical Size
Maturity
Protecting Larger Children
50
０５／０９／０９ １８：０４：０２ ３１ＳＮＣ６００ ００５３
Main Menu
Table of Contents
This could result
in serious neck injuries during a
crash.
Thiscould
cause very serious injuries during
a crash. It also increases the
chance that the child will slide
under the belt in a crash and be
injured.
If they do, they
could be very seriously injured in a
crash.
Devices intended to
improve a child’s comfort or
reposition the shoulder part of a
seat belt can make the belt less
effective and increase the chance
of serious injury in a crash.
Additional Safety Precautions
Do not let a child wear a seat belt
across the neck.
Do not let a child put the shoulder
part of a seat belt behind the back
or under the arm.
Two children should never use the
same seat belt.
Do not put any accessories on a
seat belt.
Protecting Larger Children
Driver and Passenger Safety
51
０５／０９／０９ １８：０４：０６ ３１ＳＮＣ６００ ００５４
Main Menu
Table of Contents
Your vehicle’s exhaust contains
carbon monoxide gas. You should
have no problem with carbon
monoxide entering the vehicle in
normal driving if you maintain your
vehicle properly.
High levels of carbon monoxide can
collect rapidly in enclosed areas,
such asa garage. Do not run the
engine with the garage door closed.
Even with the door open, run the
engine only long enough to move the
vehicle out of the garage.
If you must sit in your parked vehicle
with the engine running, even in an
unconfined area, adjust the heating
and cooling system as follows:
Select the fresh air mode.
Select the mode.
Turn the fan onhigh speed.
Set thetemperature controlto a
comfortable setting.
The vehicle is raised for an oil
change.
Have the exhaust system inspected
for leaks whenever:
You notice a change in the sound
of the exhaust.
The vehicle was in an accident
that may have damaged the
underside.
With the trunk open, airflow can pull
exhaust gas into your vehicle’s
interior and create a hazardous
condition. If you must drive with the
trunk open, open all the windows,
and set the heating and cooling
system as shown below.
1.
2.
3.
4.
Carbon Monoxide Hazard
52
Carbon monoxide gas is toxic.
Breathing it can cause
unconsciousness and even kill
you.
Avoid any enclosed areas or
activities that expose you to
carbon monoxide.
０５／０９／０９ １８：０４：１４ ３１ＳＮＣ６００ ００５５
Main Menu
Table of Contents
These labels are in the locations
shown. They warn you of potential
hazards that could cause serious
injury or death. Read these labels
carefully. If a label comes off or
becomeshardtoread(exceptforthe
U.S. dashboard label which is
removed by the owner), contact your
dealer for a replacement.
U.S. models
Canadian models
U.S. models only
Safety Labels
Driver and Passenger Safety
53
DASHBOARD
RADIATOR CAP
SUN VISOR
０５／０９／０９ １８：０４：２８ ３１ＳＮＣ６００ ００５６
Main Menu
Table of Contents
Canadian models
U.S. models
U.S. models
Canadian models
Canadian models
U.S. models
Safety Labels
54
HOOD
DOORJAMBS
０５／０９／０９ １８：０４：５２ ３１ＳＮＣ６００ ００５７
Main Menu
Table of Contents
This section gives information about
thecontrols and displays that
contribute to the daily operation of
your vehicle. All the essential
controls are within easy reach.
...........................Control Locations . 56
............................Instrument Panel . 57
..........Instrument Panel Indicators . 58
.............................................Gauges . 64
.....................................Odometer . 64
..............Display Change Button . 65
...................................TripMeter .65
.................Current Fuel Mileage . 66
................Average Fuel Mileage . 66
..................................Fuel Gauge . 66
...................Temperature Gauge . 67
OutsideTemperature
...................................Indicator . 67
..........Check Fuel Cap Indicator . 68
..................Maintenance Minder . 68
.........IMA Battery Level Gauge . 69
................Charge/Assist Gauge . 70
Controls Near the Steering
...........................................Wheel . 71
.Windshield Wipers and Washers . 72
...........Turn Signal and Headlights . 73
............Daytime Running Lights . 74
........Instrument Panel Brightness . 74
.................Hazard Warning Button . 74
.................Rear Window Defogger . 75
..........Steering Wheel Adjustment . 75
...............................Keys and Locks . 76
........................Immobilizer System . 78
................................Ignition Switch . 79
......................................Door Locks . 80
......................Power Door Locks . 80
..............Childproof Door Locks . 81
.Auto Door Locking/Unlocking . 81
.....................Auto Door Locking . 81
.................Auto Door Unlocking . 83
................................................Trunk . 86
........Emergency Trunk Opener . 86
.......................RemoteTransmitter . 87
.................................................Seats . 89
..............................Power Windows . 92
.............................................Mirrors . 93
.................................Parking Brake . 94
...........Interior Convenience Items . 95
.........................Beverage Holder . 96
...........Accessory Power Socket . 96
....................................Glove Box . 96
...............Console Compartment . 96
.................................Interior Lights .97
Instruments and Controls
Instruments and Controls
55
０５／０９／０９ １８：０４：５６ ３１ＳＮＣ６００ ００５８
Main Menu
Control Locations
56
POWER WINDOW
SWITCHES
HEATING/COOLING
CONTROLS
MIRROR CONTROLS
FUEL FILL DOOR
RELEASE HANDLE
(P. 151)
(P. 166)
TRUNK RELEASE
HANDLE
INSTRUMENT PANEL INDICATORS
GAUGES
AUDIO SYSTEM
AUTOMATIC
TRANSMISSION (CVT)
POWER DOOR LOCK
MASTER SWITCH
Vehicle with navigation system is shown
(P. 106)
ACCESSORY POWER
SOCKET
DOOR LOCK SWITCH
AUXILIARY INPUT JACK
(P. 58)
(P. 64)
(P. 93)
(P. 80)
(P. 92)
(P. 86)
(P. 143)
(P. 96)
(P. 80)
(P. 100)
０５／０９／０９ １８：０５：０１ ３１ＳＮＣ６００ ００５９
Main Menu
Table of Contents
＊
＊
＊
The U.S. instrument panel is shown. Differences for the Canadian models are noted in the text.
Instrument Panel
Inst rument s and Cont rols
57
CHARGING SYSTEM
INDICATOR
SUPPLEMENTAL RESTRAINT
SYSTEM INDICATOR
TRUNK-OPEN
INDICATOR
LOW OIL PRESSURE
INDICATOR
CRUISE MAIN
INDICATOR
CRUISE CONTROL
INDICATOR
IMA SYSTEM INDICATOR
HIGH BEAM
INDICATOR
LIGHT ON
INDICATOR
SECURITY SYSTEM INDICATOR
SIDE AIRBAG OFF
INDICATOR
DOOR-OPEN INDICATOR
WASHER LEVEL INDICATOR
ELECTRIC POWER
STEERING (EPS)
INDICATOR
Canadian model only
LOW FUEL INDICATOR
MALFUNCTION INDICATOR LAMP
(P. 62)
(P. 61)
(P. 61)
DAYTIME RUNNING
LIGHTS INDICATOR
(P. 60)
(P. 62)
(P. 62)
(P. 61)
(P. 61)
(P. 62)
(P. 62)
(P. 59)
(P. 58)
(P. 60)
(P. 60)
(P. 60)
(P. 60)
IMMOBILIZER SYSTEM
INDICATOR
(P. 59)
(P. 59)
(P. 63)
(P. 63)
MAINTENANCE MINDER
INDICATOR
SEAT BELT REMINDER
INDICATOR
(P. 61)
ANTI-LOCK BRAKE
SYSTEM INDICATOR
(P. 59)

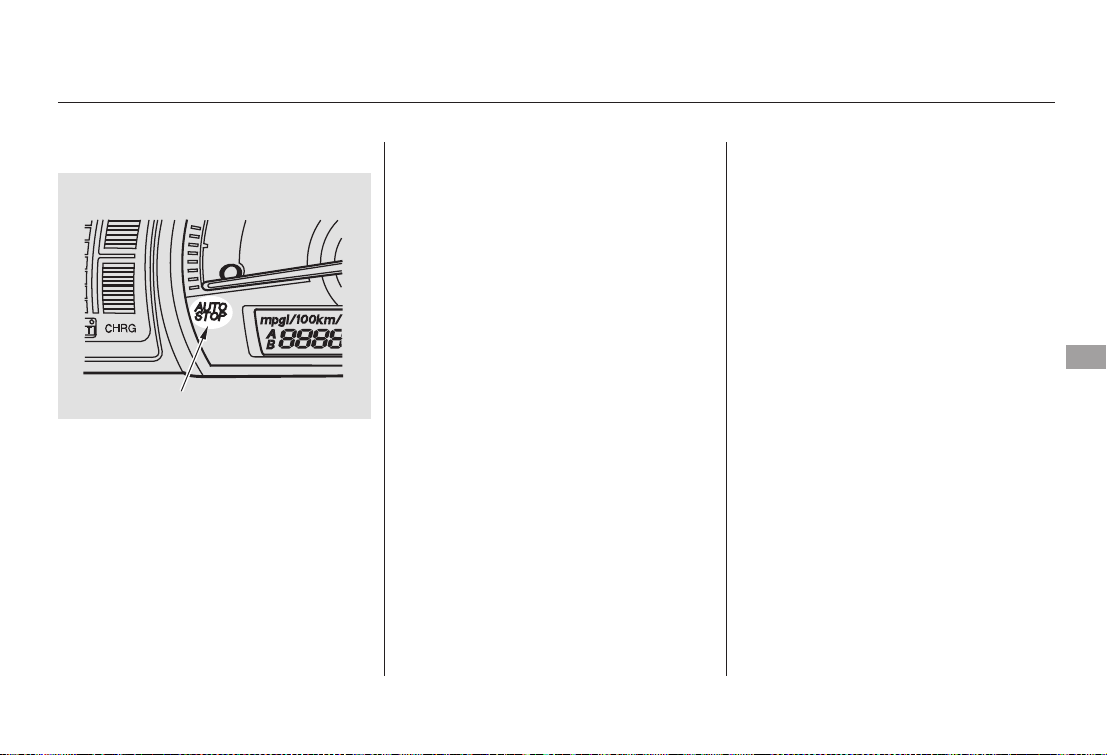

AUTO IDLE STOP INDICATOR (P. 62)
BRAKE SYSTEM
INDICATOR (AMBER)
PARKING BRAKE AND
BRAKE SYSTEM
INDICATOR (RED)
(P. 58)
０５／０９／０９ １８：０５：１０ ３１ＳＮＣ６００ ００６０
Main Menu
Table of Contents
The instrument panel has many
indicators to give you important
information about your vehicle.
If it stays on after you have fully
released the parking brake while
the engine is running, or if it
comes on while driving, there
could be a problem with the brake
system. For more information, see
page .
When the engine starts and when
you press the brake pedal repeatedly,
the brake indicator (red) may turn
on. If your vehicle is in good
condition, it goes off several seconds
after you release the brake pedal.
This indicator reminds you and your
passengers to fasten your seat belts.
If you turn the ignition switch to the
ON (II) position before fastening
your seat belt, the beeper sounds,
and the indicator flashes. If you do
notfastenyourseatbeltbeforethe
beeper stops, the indicator stops
flashing but remains on.
If your front passenger does not
fasten their seat belt, the indicator
comes on about 6 seconds after the
ignition switch is turned to the ON
(II) position.
If either of you do not fasten your
seat belt while driving, the beeper
will sound and the indicator will flash
again at regular intervals. For more
information, see page .
This indicator has two functions:
Itcomesonwhenyouturnthe
ignition switch to theON(II)
position. It is a reminder to check
the parking brake. A beeper
sounds if you try to drive with the
parking brake not fully released.
Driving with the parking brake not
fully releasedcan damage the
brakes and tires.
1.
2.
230
18
Instrument Panel Indicators
Seat Belt Reminder
Indicator
Parking Brake
and Brake
System
Indicator (Red)
58
U.S. Canada
０５／０９／０９ １８：０５：１８ ３１ＳＮＣ６００ ００６１
Main Menu
Table of Contents
This indicator comes on briefly when
you turn the ignition switch to the
ON (II) position. It will then go off if
you have inserted a properly-coded
ignition key. If it is not a properly-
coded key, the indicator will blink,
and the engine will not start (see
page ).
This indicator normally comes on for
a few seconds when you turn the
ignition switch to the ON (II)
position. If it comes on at any other
time, there is a problem with the
ABS. If this happens, have your
vehicle checked at a dealer. With
this indicator on, your vehicle still
has normal braking ability but no
anti-lock function. For more
information, see page .
This indicator comes on for several
seconds when you turn the ignition
switch to the ON (II) position. If it
comes on at any other time, it
indicates a potential problem with
your front airbags. This indicator will
also alert you to a potential problem
with your side airbags, passenger’s
side airbag automatic cutoff system,
side curtain airbags, automatic seat
belt tensioners, driver’s seat position
sensor, or the front passenger’s
weight sensors. For more
information, see page .
This indicator comes on for several
seconds when you turn the ignition
switch to the ON (II) position. If it
comes on at any other time, it
indicates that the passenger’s side
airbag has automatically shut off.
For more information, see page .
30
30
174
78
Supplemental Restraint
System Indicator
Immobilizer System
Indicator
Anti-lock Brake System
(ABS) Indicator
Side Airbag Off
Indicator
Instrument Panel Indicators
Instruments and Controls
59
U.S. Canada
０５／０９／０９ １８：０５：２８ ３１ＳＮＣ６００ ００６２
Main Menu
Table of Contents
This indicator comes on if the trunk
lid is not closed tightly.
This indicator comes on if any door
is not closed tightly.
This indicator reminds you that the
exterior lights are on. It comes on
when the light switch is in either the
or position. If you turn the
ignition switch to the ACCESSORY
(I) or LOCK (0) position without
turning off the light switch, this
indicator will stay on. A reminder
chime will also sound when you open
the driver’s door.
The left or right turn signal indicator
blinks when you signal a lane change
or turn. If an indicator does not blink
or blinks rapidly, it usually means
one of the turn signal bulbs is
burned out (see pages and ).
Replace the bulb as soon as possible,
since other drivers cannot see that
you are signaling.
When you press the hazard warning
button, both turn signal indicators
and all turn signals on the outside of
the vehicle flash.
If this indicator comes on when the
ignition switch is turned to the ON
(II) position and the parking brake is
released, it means there is a problem
in the high beam headlight’s circuit.
Have your vehicle checked by your
dealer.
This indicator also comes on with
reduced brightness when the
daytime running lights (DRL) are on
(see page ).
This indicator comes on with the
high beam headlights. For more
information, see page .
199 200
73
74
Instrument Panel Indicators
Turn Signal and
Hazard Warning
Indicators
Trunk-open Indicator
Door-open Indicator
Lights On Indicator‘‘Daytime Running
Lights’’ Indicator
High Beam Indicator
60
０５／０９／０９ １８：０５：３８ ３１ＳＮＣ６００ ００６３
Main Menu
Table of Contents

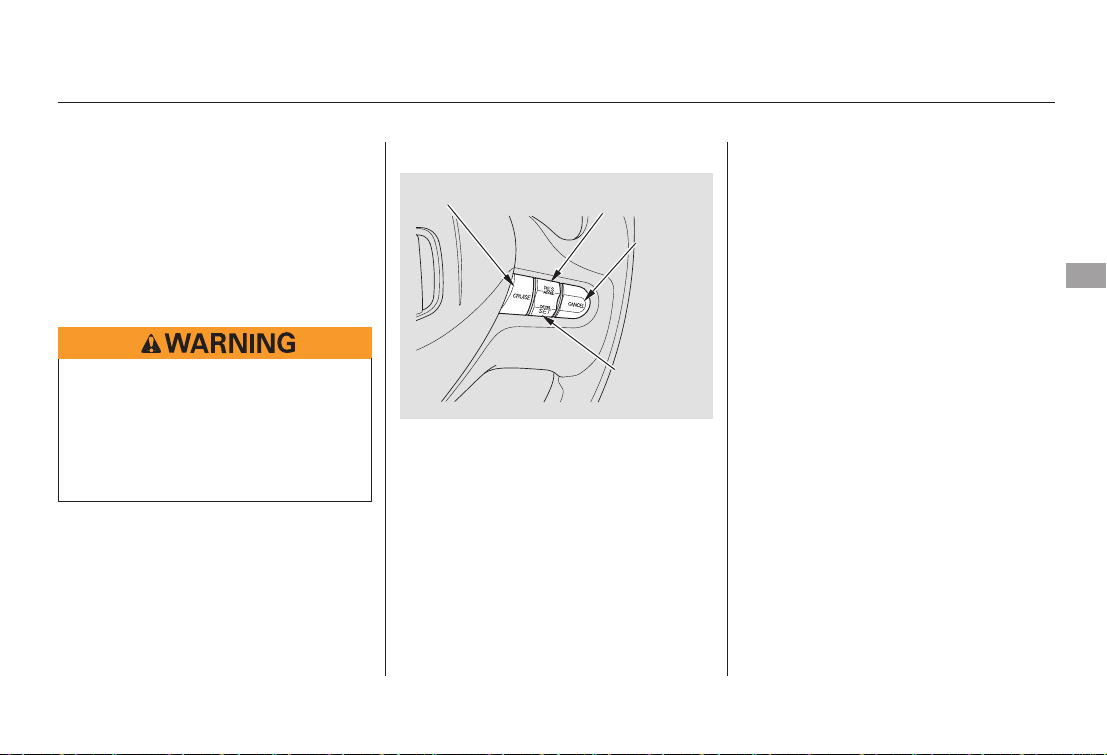

This indicator comes on when you
turn on the cruise control system by
pressing the CRUISE button (see
page ).
This indicator comes on when you
set the cruise control. See page
for information on operating the
cruise control.
This indicator comes on when the
washer fluid level is low. Add washer
fluidwhenyouseethisindicator
come on (see page ).
This indicator reminds you that it is
time to take your vehicle in for
scheduled maintenance. The
maintenance main items and sub
items will be displayed in the
information display. See page for
more information on the
maintenance minder.
This indicator goes off when your
dealer resets it after completing the
required maintenance service.
This indicator is in the fuel gauge. It
comesonasareminderthatyou
must refuel soon. When the indicator
comes on, there is about 1.71 US gal
(6.2
) of fuel remaining in the tank
before the readingreaches E. There
is a small reserve of fuel remaining
in the tank when the reading does
reach E.
145
145
194
179
Canadian models only
Instrument Panel Indicators
Cruise Main Indicator Maintenance Minder
Indicator
Cruise Control Indicator
Washer Level Indicator
Low Fuel Indicator
Instruments and Controls
61
０５／０９／０９ １８：０５：４９ ３１ＳＮＣ６００ ００６４
Main Menu
Table of Contents
The engine can be severely damaged
if this indicator flashes or stays on
when the engine is running. For
more information, see page .
If this indicator comes on when the
engine is running, the battery is not
being charged. For more information,
see page .
See page .
This indicator comes on when the
security system is set. See page
for more information on the
security system.
This indicator normally comes on for
a few seconds when you turn the
ignition switch to the ON (II)
position. If it comes on at any other
time, it indicates a problem in the
integrated motor assist (IMA)
system. With the IMA indicator on,
the vehicle may not accelerate as it
normally does. Have the vehicle
checkedby the dealer as soonas
possible.
See pages and .144
229
227
228 170 171
Instrument Panel Indicators
Security System Indicator Malfunction Indicator
Lamp
Low Oil Pressure
Indicator
Charging System
Indicator
IMA System Indicator
Auto Idle Stop Indicator
62
SECURITY SYSTEM INDICATOR
０５／０９／０９ １８：０６：００ ３１ＳＮＣ６００ ００６５
Main Menu
Table of Contents
If you turn the steering wheel to the
full left or right position repeatedly
while stopping or driving at very low
speed, you may feel slightly harder
steering due to overheating of the
steering gear box.
Continuously driving under those
condition could damage the power
steering system.
This indicator normally comes on
when you turn the ignition to ON (II)
and goes off after the engine starts.
If it comes on at any other time,
there is a problem in the Electric
Power Steering system. If this
happens, stop the vehicle in a safe
place and turn off the engine. Reset
the system by restarting the engine.
The indicator will not turn off
immediately. If it does not go off
after driving a short distance, or
comes back on again while driving,
take the vehicle to your dealer to
have it checked. With the indicator
on, the EPS may be turned off,
making the vehicle harder to steer.
This indicator normally comes on for
a few seconds when you turn the
ignition switch to the ON (II)
position. When the brake system
indicator (amber) is on, there is the
problem with the Cooperative
Control with regenerative brake,
Creep Aid System or Brake Assist
(the normal brake operates
properly). Have your vehicle
checked by your dealer.
For more information, see page .173
Electric Power Steering
(EPS) Indicator
Brake System
Indicator
(Amber)
Instrument Panel Indicators
Instruments and Controls
63
U.S. CANADA
０５／０９／０９ １８：０６：０７ ３１ＳＮＣ６００ ００６６
Main Menu
Table of Contents
To switch the information display
between the odometer, trip meter,
outside temperature, and engine oil
life and maintenance item code(s),
press the SEL/RESET button
repeatedly.
The odometer showsthetotal
distance your vehicle has been
driven. It measures in miles or
kilometers. It is illegal under U.S.
federal law and Canadian provincial
regulations to disconnect, reset, or
alter the odometer with the intent to
change the number of miles or
kilometers indicated.
Gauges
Odometer
64
TRIP METER
SPEEDOMETER
FUEL
GAUGE
SEL/RESET BUTTON DISPLAY CHANGE BUTTON
INFORMATION
DISPLAY
TACHOMETER
ODOMETER/OUTSIDE
TEMPERATURE INDICATOR
INSTRUMENT PANEL BRIGHTNESS CONTROL BUTTONS
CURRENT FUEL MILEAGE/
TEMPERATURE GAUGE
０５／０９／０９ １８：０６：１４ ３１ＳＮＣ６００ ００６７
Main Menu
Table of Contents
Each trip meter works independently,
so you can keep track of two
different distances.
To reset a trip meter,display it,and
then press and hold the Select/Reset
button until the number resets to
‘‘0.0.’’
This tripmeter showsthenumber of
miles or kilometers driven since you
last reset it.
There are two trip meters: TRIP A
and TRIP B. Switch between these
displays by pressing the SEL/
RESET button repeatedly.
Every time you press the display
change button, the display changes
fromthecurrent fuelmileagetothe
temperature gauge, or from the
temperature gauge to the current
fuel mileage.
Press and hold the display change
button until you hear a beep. Each
timeyou press the button, the
speedometer, trip meter, average
fuel mileage and current fuel
mileage readings switches their
measures.
Depending on the selected measures
(mph or km/h), the trip meter and
odometer readings are shown with
miles or km. The average fuel
mileage and current fuel mileage are
shown with mpg or l/100 km.
Gauges
Trip MeterDisplay Change Button
Instruments and Controls
65
０５／０９／０９ １８：０６：２１ ３１ＳＮＣ６００ ００６８
Main Menu
Table of Contents
When either of the trip meters (trip
A or trip B) is displayed, your
vehicle’s average fuelmileage since
you last reset that trip meter can be
shownontheinformationdisplay
(mpg or l/100km). This number is
updated once per 10 seconds. To see
the average fuel mileage, press and
release the SEL/RESET button
repeatedly.
When you reset a trip meter, the
average fuel mileage for that trip
meter also resets.
It shows the number of mpg or l/100
km
This display shows the current, or
instantaneous fuel mileage you are
getting.
This shows how much fuel you have.
It may show slightly more or less
than the actual amount.
Average Fuel MileageCurrent Fuel Mileage Fuel Gauge
Gauges
66
Avoid driving with an extremely low
fuel level. Running out of fuel could
cause the engine to misfire, damaging
the catalytic converter.
０５／０９／１２ １４：２９：２９ ３１ＳＮＣ６００ ００６９
Main Menu
Table of Contents
±±
−−−−
−−−
−
This shows the temperature of the
engine’s coolant. During normal
operation, the reading should be in
the middle of the gauge. In severe
driving conditions, the reading may
reach near the red mark. If it
reaches the red mark, pull safely to
thesideoftheroad.Turntopage
for instructions and precautions
on checking the engine cooling
system.
This indicator displays the outside
temperature in Centigrade. To see
the outside temperature, press and
release the SEL/RESET button until
thetemperature is shown inthe
information display.
The temperature sensor is in the
front bumper. Therefore, the
temperature reading can be affected
by heat reflection from the road
surface, engine heat, and the
exhaust from surrounding traffic.
This can cause an incorrect
temperature reading when your
speed is under 19 mph (30 km/h).
The sensor delays the display update
until it reaches the correct outside
temperature. This may take several
minutes.
If the outside temperature is
incorrectly displayed, you can adjust
it up to 5°F ( 3°C) warmer or
cooler.
NOTE: The temperature must be
stabilized before doing this
procedure.
Select the outside temperature
display, then press the SEL/RESET
button for 10 seconds. The following
sequence will appear for 1 second
each:0,1,2,3,4,5, 5, 4, 3, 2,
1,0(U.S.)or0,1,2,3, 3, 2,
1, 0 (Canada).
In certain weather conditions,
temperature readings near freezing
(32°F, 0°C) could mean that ice is
forming on the road surface.
When it reaches the desired value,
release the SEL/RESET button. You
should see the new outside
temperature displayed.
225
Gauges
Temperature Gauge Outside Temperature Indicator
Instruments and Controls
67
０５／０９／０９ １８：０６：３８ ３１ＳＮＣ６００ ００７０
Main Menu
Table of Contents
If your fuel cap is loose or missing, a
‘‘CHECK FUEL CAP’’ message
appears in the information display
after you start the engine. Turn the
engine off and confirm the fuel cap is
installed. If it is, loosen the cap, then
retighten it until it clicks at least
once. When you restart the engine,
the message appears again. To clear
the message, press and hold the
SEL/RESET button until it goes
away.
If the system still detects a loose or
missing fuel fill cap, the malfunction
indicator lamp (MIL) comes on.
Turn the engine off, and check or
retighten the fuel fill cap until it
clicks at least once. The MIL goes
out after several days of normal
driving once the cap is tightened or
replaced. If it does not go out, have
your dealer inspect the vehicle. For
more information, see page .
The information display in the
instrument panel shows you the
engine oil life and maintenance
service items when the ignition
switch is in the ON (II) position. This
information helps to keep you aware
of the periodic maintenance your
vehicle needs for continued trouble-
free driving. Refer to page for
more information.229
179
Gauges
Check Fuel Cap Indicator Maintenance Minder
68
０５／０９／０９ １８：０６：４３ ３１ＳＮＣ６００ ００７１
Main Menu
Table of Contents
This gauge shows you the state of
charge of the battery for the
Integrated Motor Assist (IMA). This
battery is recharged by the engine,
anddischargedbytheIMAwhenit
is assisting the engine with powering
the vehicle.
The battery level gauge does not
read the battery level directly. It
calculates the level by continuously
measuring the current flow, voltage,
and temperature.
Since the level is not read directly,
small sensing errors can, over time,
cause the gauge to read higher than
the actual battery level. The system
will then perform a correction, and
the battery level gauge reading will
drop suddenly. When this happens,
IMA assist and Auto Idle Stop are
disabled until the IMA battery is
sufficiently recharged by normal
driving. This should take only a few
minutes.
This correction of the battery level
gauge is normal and does not
indicate a problem. If the IMA
battery develops a problem or
becomes deteriorated, the IMA
system indicator will come on. If this
happens, have the vehicle checked
by your dealer as soon as possible.
The gauge reading may drop near
the bottom under driving conditions
that require IMA motor assistance
for a long time, such as prolonged
acceleration or climbing a long hill.
The engine will recharge the battery
as you continue driving.
If the battery ismostly discharged,
the auto idle stop function is disabled
(see page ).
170
IMA Battery Level Gauge
Gauges
Instruments and Controls
69
BATTERY LEVEL GAUGE
０５／０９／０９ １８：０６：５０ ３１ＳＮＣ６００ ００７２
Main Menu
Table of Contents
This gauge shows youthe status of
the Integrated Motor Assist (IMA).
When theIMA battery isbeing
charged, the bottomside of the
gauge illuminates. When the IMA is
assisting the engine, the upper side
of the gauge illuminates.
If the IMA battery is toohot or too
cold, the IMA system limits the IMA
battery’s output power to protect the
battery. This disables the IMA assist
and Auto Idle Stop, even though the
Battery Level Gauge may show that
thebattery is well-charged.
Therefore, if the motor assist is
frequently used, the battery
becomes hot and starts to limit its
output power.
It takes the IMA system a few
minutes in cold weather to normalize
theIMA battery’s output power, and
about 15 minutes in hot weather.
Charge/Assist Gauge
Gauges
70
IMA ASSIST GAUGE
IMA CHARGE GAUGE
０５／０９／０９ １８：０６：５５ ３１ＳＮＣ６００ ００７３
Main Menu
Table of Contents
＊
＊
＊
＊
＊
＊
To use the horn, press the center pad of the steering wheel.
Only on vehicles equipped with navigation system. Refer to the navigation system manual.
Canadian model only
:
1:
2:
Controls Near the Steering Wheel
Instruments and Cont rols
71
HEADLIGHTS/
TURN SIGNALS
HAZARD WARNING
BUTTON
PASSENGER AIRBAG
OFF INDICATOR
SEL/RESET BUTTON
HORN
HOOD RELEASE HANDLE
(P. 143)
(P. 152)
WINDSHIELD
WIPERS/WASHERS
STEERING WHEEL
ADJUSTMENT
INSTRUMENT PANEL BRIGHTNESS
DISPLAY CHANGE BUTTON
(P. 65)
REAR WINDOW
DEFOGGER
HEATED MIRRORS
Vehicle with navigation system is shown.
REMOTE AUDIO CONTROLS
CRUISE CONTROL
BUTTONS
(P. 145)
(P. 74)
(P. 64)
(P. 94)
(P. 75)
(P. 74)
(P. 31)
(P. 72)(P. 73)
(P. 75)
VOICE CONTROL
SWITCHES
1
2
０５／０９／０９ １８：０７：０３ ３１ＳＮＣ６００ ００７４
Main Menu
Table of Contents
−
−
−
−
−
−
−
−
−
MIST
OFF
INT Intermittent
LO Low speed
HI High speed
Windshield washers
Push the right lever up or down to
select a position.
The wipers run at high
speed until you release the
lever.
The wipers are not activated.
The length of the wiper
interval is varied
automatically according to
the vehicle’s speed.
Varythedelay byturning theINT
TIME ring.
Ifyouturnittotheshortestdelay,
the wipers will change to low
speed operation when the vehicle
speed exceeds 12 mph (20 km/h).
The wipers run at low speed.
The wipers run at high speed.
Pull the
wiper control lever toward you,
andholdit.Thewashersspray
until you release the lever. The
wipers run at low speed, then
complete one more sweep after
you release the lever.
While the vehicle is stopped and in
gear, the wipers sweep the
windshield whenever you remove
your foot from the brake pedal.
1.
2.
3.
4.
5.
6.
MIST
OFF
INT
LO
HI
Windshield Washer
Windshield Wipers and Washers
72
０５／０９／０９ １８：０７：１２ ３１ＳＮＣ６００ ００７５
Main Menu
Table of Contents
−
−
−
Push down on the
lever to signal a left turn and up to
signal a right turn. To signal a lane
change, push lightly on the lever,
and hold it. The lever will return to
center when you release it or
complete a turn.
Turning the switch to
the ‘‘ ’’ position turns on the
parking lights, taillights, instrument
panel lights, side-marker lights, and
rear license plate lights.
Turn signal
Off
Parking and interior lights
Headlights
High beams
Flashhighbeams
Turning the switch to the ‘‘ ’’
position turns on the headlights.
If you leave the lights on with the
key removed from the ignition
switch, you will hear a reminder
chime when you open the driver’s
door.
When the light switch is in the
‘‘ ’’ or ‘‘ ’’ position, the
lights on indicator comes on as a
reminder. This indicator stays on if
you leave the light switch on and
turn the ignition switch to the
ACCESSORY (I) or the LOCK (0)
position.
Push the lever
forward until you hear a click. The
high beam indicator will come on
(see page ). Pull it back to return
to low beams.
To flash the high beams, pull the
lever back lightly, then release it.
The high beams will stay on as long
as you hold the lever back.
1.
2.
3.
4.
5.
6.
60
Turn Signal
Headlights
High Beams
Turn Signal and Headlights
Instruments and Controls
73
０５／０９／０９ １８：０７：２０ ３１ＳＮＣ６００ ００７６
Main Menu
Table of Contents
＋−
The buttons under the left side vent
control the brightness of the
instrument panel. Push the or
button to adjust the brightness.
Pushthebuttontoturnonthe
hazard warning lights (four-way
flashers). This causes all four
outside turn signals and both turn
indicators inthe instrument panel to
flash. Use the hazard warning lights
if you need to park in a dangerous
area near heavy traffic, or if your
vehicle is disabled.
Separate adjustments can be made
when the headlights are on and off.
With the headlight switch off or
position, the high beam
headlights come on with reduced
brightness when you turn the
ignition switch to theON(II)
position and release the parking
brake. They remain on until you turn
the ignition switch off, even if you
set the parking brake.
The headlights revert to normal
operation when you turn them on
with the switch.
Daytime Running Lights Instrument Panel Brightness Hazard Warning Button
Headlights, Instrument Panel Brightness, Hazard Warning Button
74
INSTRUMENT PANEL BRIGHTNESS
CONTROL BUTTONS
０５／０９／０９ １８：０７：２８ ３１ＳＮＣ６００ ００７７
Main Menu
Table of Contents
The rear window defogger will clear
fog, frost, and thin ice from the
window. Push the defogger button to
turn it on and off. The indicator in
the button comes on to show the
defogger is on. If you do not turn it
off, the defogger will shut itself off
after about 15 minutes. It also shuts
off when you turn off the ignition
switch. You have to turn the
defogger on again when you restart
the vehicle.
Make sure the rear window is clear
and you have good visibility before
starting to drive.
The defogger and antenna wires on
the inside of the rear window can be
accidentally damaged. When
cleaning the glass, always wipe side-
to-side.
Make any steering wheel adjustment
before you start driving.
Pushingthisbutton alsoturns the
mirror heaters on or off. For more
information, see page .94
CONTINUED
On Canadian models
Rear Window Defogger Steering Wheel Adjustment
Rear Window Defogger, Steering Wheel Adjustment
Instruments and Controls
75
Canadian
model
U.S. model
Adjusting the steering wheel
position while driving may
cause you to lose control of the
vehicle and be seriously injured
inacrash.
Adjust the steering wheel only
when the vehicle is stopped.
０５／０９／０９ １８：０７：３５ ３１ＳＮＣ６００ ００７８
Main Menu
Table of Contents
Push the lever under the steering
column all the way down.
Move the steering wheel up or
downandinorouttothedesired
position. Make sure you can see
the instrument panel gauges and
theindicators.
Push thelever up to lockthe
steering wheel in that position.
Make sure you have securely
locked the steering wheelin place
by trying to move it up, down, in,
and out.
The master key fits allthe locks on
your vehicle.
The valet key works only in the
ignition and the door locks. You can
keep the trunk and trunk release
handle locked when you leave your
vehicle andthe valet key at a parking
facility.
1.
4.
2.
3.
Steering Wheel Adjustment, Keys and Locks
76
KEY
NUMBER
TAG
VALET
KEY
(Gray)
MASTER KEY
WITH REMOTE
TRANSMITTER
０５／０９／０９ １８：０７：４２ ３１ＳＮＣ６００ ００７９
Main Menu
Table of Contents
Youshouldhavereceivedakey
number tag with your set of keys.
You will need this key number if you
ever have to get a key replaced. Use
only Honda-approved key blanks.
These keys contain electronic
circuits that are activated by the
immobilizer system. They will not
work to start the engine if the
circuits are damaged.
Protect the keys from direct
sunlight, high temperature, and
high humidity.
Donotdropthekeysorsetheavy
objects on them.
Keep the keys away from liquids.
If they get wet, dry them
immediately with a soft cloth.
The keys without a remote
transmitter donot containbatteries.
Donot try to takethem apart.
Keys and Locks
Instruments and Controls
77
０５／０９／０９ １８：０７：４８ ３１ＳＮＣ６００ ００８０
Main Menu
Table of Contents
If the system repeatedly does not
recognize the coding of your key,
contact your dealer.
Donot attempt to alter this system
or add other devicesto it. Electrical
problems could result that may make
your vehicle undrivable.
If you have lost your key and cannot
start your engine, contact your
dealer.
The Immobilizer System protects
your vehicle from theft. If an
improperly-coded key (or other
device) is used, the engine’s fuel
system is disabled.
When you turn the ignition switch to
the ON (II) position, the immobilizer
system indicator should come on
briefly, then go off. If the indicator
starts to blink, it means the system
does not recognize the coding of the
key.Turnthe ignition switch to the
LOCK (0) position, remove the key,
reinsert it, and turn the ignition
switch to the ON (II) position again.
The system may not recognize your
key’s coding if another immobilizer
key or other metal object (i.e. key
fob) is near the ignition switch when
you insert the key.
As required by the FCC:
This device complies with Part 15 of the
FCC rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any
interference received, including
interference that may cause undesired
operation.
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s
authority to operate the equipment.
This device complies with Industry
Canada Standard RSS-210.
Operation is subject to the following two
conditions: (1) this device may not cause
interference, and (2) this device must
accept any interference that may cause
undesired operation of the device.
Immobilizer System
78
０５／０９／０９ １８：０７：５４ ３１ＳＮＣ６００ ００８１
Main Menu
Table of Contents
−
−
−
−
The ignition switch has four
positions: LOCK (0), ACCESSORY
(I), ON (II), and START (III).
You caninsert or
remove the key only in this position.
To turn the key, the shift lever must
be in Park, and you must push the
key in slightly. If the front wheels
are turned, the anti-theft lock may
makeit difficult toturn the key.
Firmly turnthesteeringwheelto the
left or to the right as you turn the
key.
You can
operate the audiosystem and the
accessory power sockets in this
position.
This is the normal key
position when driving. Several of the
indicators on the instrument panel
come on as a test when you turn the
ignition switch from the
ACCESSORY (I) to the ON (II)
position.
Use this position
only to start the engine. The switch
returns to the ON (II) position when
you let go of the key.
You will hear a reminder beeper if
you leave the key in the LOCK (0) or
the ACCESSORY (I) position and
open the driver’s door. Remove the
key to turn off the beeper.
TheshiftlevermustbeinPark
before you can remove the key from
theignition switch.
LOCK (0)
ACCESSORY (I)
ON (II)
START (III)
Ignition Switch
Instruments and Controls
79
０５／０９／０９ １８：０８：０１ ３１ＳＮＣ６００ ００８２
Main Menu
Table of Contents
Each door has a lock tab next to the
inside door handle. Pull the tab out
to lock the door, and push it in to
unlock the door.
The lock tab on each door locks and
unlocks that door. Pulling out on the
driver’s door lock tab locks all doors.
To unlock the driver’s door from the
outside, turn the key and release it.
Ifyouturnitagain,allthedoors
unlock.
To lock any door when getting out of
the vehicle, pull the lock tab out, and
close the door.
To lock the doorswhengetting out
of the vehicle, remove the key from
theignition switch, andpush the top
of the master door lock switch, then
close the door.
Each front door has a master door
lock switch. Either switch locks and
unlocks all doors. Push the top of the
switch to lock all doors; push the
bottom to unlock them.
With any door open and the key in
the ignition, both master door lock
switches and driver’s door lock tab
are disabled. They are not disabled
when all the doors are closed, or
when the key is not in the ignition.
Door Locks
Power Door Locks
Lockout Prevention
80
MASTER DOOR LOCK SWITCH
LOCK TAB
To lock
To unlock
To lock
To unlock
０５／０９／０９ １８：０８：０９ ３１ＳＮＣ６００ ００８３
Main Menu
Table of Contents
The childproof door locks are
designed to prevent children seated
in the rear from accidentally opening
the rear doors. Each rear door has a
lock lever near the edge. With the
lever in the LOCK position, the door
cannot be opened from the inside
regardless of the position of the lock
tab. To open the door, push the lock
tab in, and use the outside door
handle.
Your vehicle has two custom door
lock settings: auto door locking and
auto door unlocking. Make all
settings before you start driving.
The auto door locking feature has
three possible settings:
The doors lock when the vehicle
speed reaches 9 mph (15 km/h).
The auto door locking is
deactivated all the time.
This is the default setting.
The doors lock whenever you
move the shift lever out of the
Park position.
Set the parking brake.
Turnthe ignition switch to the ON
(II) position.
Make sure the shift lever is in
Park (P), and close the driver’s
door.
1.
2.
3.
Locks all doors when the vehicle’s speed
reaches about 9 mph (15 km/h).
Childproof Door Locks Auto Door Locking/Unlocking
Auto Door Locking
To activate an auto door lock mode:
Door Locks
Instruments and Controls
81
LEVER
Unlock
Lock
０５／０９／０９ １８：０８：２０ ３１ＳＮＣ６００ ００８４
Main Menu
Table of Contents
Turnthe ignition switch to the ON
(II) position.
Set the parking brake.
Pushandholdthelocksideofthe
master door lock switch on the
driver’s door. You will hear a
clicking sound after about 5
seconds.
Release the switch, and turn the
ignition switch to the
ACCESSORY (I) position within 5
seconds.
Push and hold the brake pedal,
then move the shift lever out of
Park (P).
Pushandholdthelocksideofthe
master door lock switch on the
driver’s door. You will hear a
clicking sound, and after about 5
seconds, you will hear another
clicking sound.
Make sure the shift lever is in
Park (P), and open the driver’s
door.
Release the switch, move the shift
lever to Park (P), and turnthe
ignition switch to the
ACCESSORY (I) position within 5
seconds.
5.
4.
6.
1.
2.
3.
4.
5.
To turn of f the auto door lock
modes:
Door Locks
82
０５／０９／０９ １８：０８：２８ ３１ＳＮＣ６００ ００８５
Main Menu
Table of Contents
Pushandholdthelocksideofthe
master door lock switch on the
driver’s door. You will hear a
clicking sound, and after about 5
seconds, you will hear another
clicking sound.
Release the switch, and turn the
ignition switch to the
ACCESSORY (I) position within 5
seconds.
Make sure the shift lever is in
Park (P), and close the driver’s
door.
Turnthe ignition switch to the ON
(II) position.
The auto door unlocking feature has
three possible settings:
The driver’s door unlocks
whenever you turn the ignition
switch to theACCESSORY (I)
position.
The auto door unlocking is
deactivated all the time.
This is the default setting.
The driver’s door unlocks when
you move the shift lever to the
Park position.
3.
4.
1.
2.
Locks all doors when the shift lever is
moved out of Park (P).
Auto Door Unlocking
To activate an auto door lock mode:
Door Locks
Instruments and Controls
83
０５／０９／０９ １８：０８：３７ ３１ＳＮＣ６００ ００８６
Main Menu
Table of Contents
Unlocks driver’s door when the ignition
switch is moved out of the ON (II)
position.
Turnthe ignition switch to the ON
(II) position.
Set the parking brake.
Push and hold the brake pedal,
then move the shift lever out of
Park (P).
Pushandholdtheunlocksideof
themaster door lock switch onthe
driver’s door. You will hear a
clicking sound, and after about 5
seconds, you will hear another
clicking sound.
Release the switch, move the shift
lever to Park (P), and turnthe
ignition switch to the
ACCESSORY (I) position within 5
seconds.
Make sure the shift lever is in
Park (P), and close the driver’s
door.
Turnthe ignition switch to the ON
(II) position.
Set the parking brake.
Make sure the shift lever is in
Park (P), and open the driver’s
door.
1.
2.
3.
4.
5.
6.
1.
2.
3.
To activate an auto door unlock
mode:
To turn of f the auto door unlock
modes:
Door Locks
84
０５／０９／０９ １８：０８：４８ ３１ＳＮＣ６００ ００８７
Main Menu
Table of Contents

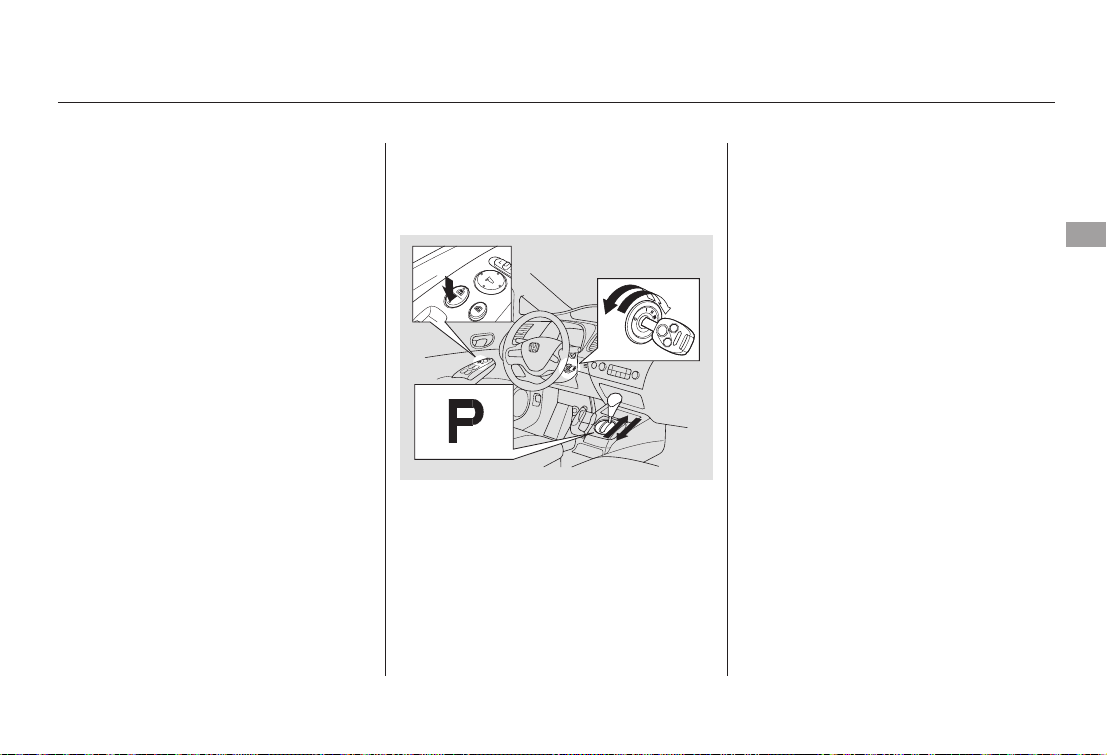

Pushandholdtheunlocksideof
themaster door lock switch onthe
driver’s door. You will hear a
clicking sound, and after about 5
seconds, you will hear another
clicking sound.
Release the switch, and turn the
ignition switch to the
ACCESSORY (I) position within 5
seconds.
Pushandholdtheunlocksideof
themaster door lock switch onthe
driver’s door. You will hear a
clicking sound, and after about 5
seconds, you will hear another
clicking sound.
Release the switch, and turn the
ignition switch to the
ACCESSORY (I) position within 5
seconds.
Make sure the shift lever is in
Park (P), and close the driver’s
door.
Turnthe ignition switch to the ON
(II) position.
4.
5.
1.
2.
3.
4.
Unlocks driver’s door when shift lever is
moved to Park (P).
To activate an auto door unlock
mode:
Door Locks
Instruments and Controls
85
０５／０９／０９ １８：０８：５６ ３１ＳＮＣ６００ ００８８
Main Menu
Table of Contents
As a safety feature, your vehicle has
a release lever on the trunk latch so
the trunk can be opened from inside.
To open the trunk, push the release
lever to the left.
To open the trunk, pull the trunk
releasehandletotheleftofthe
driver’s seat. To protect items in the
trunk when you need to give the key
to someone else, lock the trunk
releasehandlewiththemasterkey
and give the other person the valet
key.
You can also use the master key to
open the trunk lock.
Parents should decide if their
children should be shown how to use
this feature. For more information
about child safety, see page .
To close the trunk, press down on
the trunk lid.
Keep the trunk lid closed at all times
while driving to avoid damaging it,
and to prevent exhaust gas from
getting into the interior. See
,page .
Press and hold the trunk release
button onthe remote transmitter. 52 38
Emergency Trunk Opener
Carbon
Monoxide Hazard
Trunk
86
MASTER KEY
MASTER KEY
TRUNK RELEASE
HANDLE
RELEASE LEVER
PULL
０５／０９／１０ １４：３０：４３ ３１ＳＮＣ６００ ００８９
Main Menu
Table of Contents
−
−
−
−
Press this button once
to unlock the driver’s door. Push it
twice to unlock the other doors.
Some exterior lights will flash twice
eachtimeyou press the button.
Press this button once to
lock all doors. Some exterior lights
will flash. When you push LOCK
twice within 5 seconds, you will hear
a beep to verify that the doorsare
locked. You cannot lock it if any door
is not fully closed or the key is in the
ignition switch.
If you push the LOCK button twice
within 5 seconds, you will hear a
beep to verify that the security
system has set.
The ceiling light (if the ceiling light
switch is in the door activated
position) will come on when you
press the UNLOCK button. If you do
not open any door, the light stays on
for about 30 seconds, then fades out.
If you relock the doors with the
remote transmitter before30
seconds have elapsed, the light goes
off immediately.
Pressthisbuttonfor
about 1 secondto attract attention;
the horn will sound, and the exterior
lights will flash for about 30 seconds.
To cancel panic mode, press any
other buttonon the remote
transmitter,or insert thekey.
If you unlock the doors with the
remote transmitter, but do not open
any of the doors within 30 seconds,
the doors automatically relock and
thesecurity system will alsoset.
If youlose atransmitter, the
replacement needs to be
reprogrammed by your dealer.
Donot immerse the transmitter in
any liquid.
Protect the transmitter from
extreme temperature.
Avoid dropping or throwing the
transmitter.
Press this
button for about 1 second to open
the trunk. You cannot open the trunk
if the key is in the ignition switch.
UNLOCK
LOCK
PANIC
TRUNK RELEASE
Remote Transmitter Care
Remote Transmitter
Instruments and Controls
87
UNLOCK
BUTTON
LOCK
BUTTON
PANIC
BUTTON
０５／０９／０９ １８：０９：１４ ３１ＳＮＣ６００ ００９０
Main Menu
Table of Contents
＋
If it takes several pushes on the
button to lock or unlock the doors,
replace the battery as soon as
possible.
Battery type: CR1616

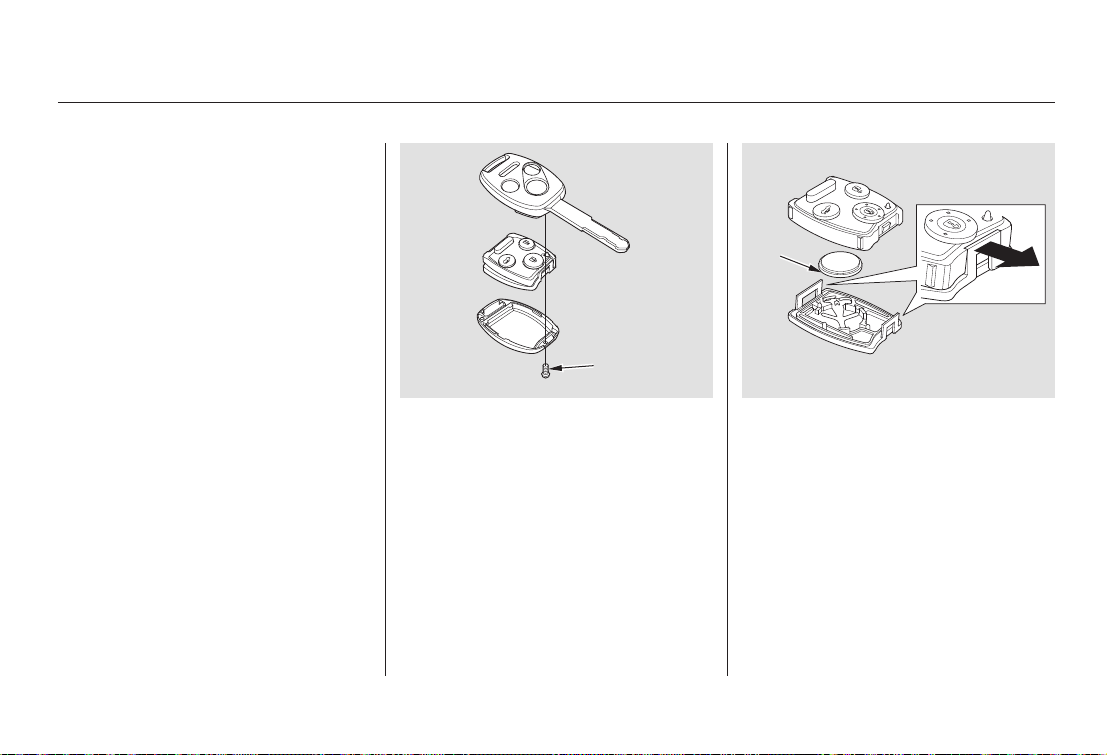

To replace the battery:
Remove the screw at the base of
thetransmitter witha small
Phillips-head screwdriver.
Separate the transmitter byprying
its middle seam with your
fingernail.
Inside the transmitter,separate
the inner cover from the keypad
by releasing the two tabs on the
cover.
Remove the old battery from the
back of the inner cover, and note
the polarity. Make sure the
polarity of thenew battery isthe
same ( side facing down), then
insert it into the back of the cover.
Install the parts in reverse order.
1.
2.
3.
4.
5.
Replacing the Transmitter Battery
Remote Transmitter
88
SCREW
BATTERY
０５／０９／０９ １８：０９：２３ ３１ＳＮＣ６００ ００９１
Main Menu
Table of Contents
−
To adjust the seat forward or
backward, pull up on the bar under
the seat cushion’s front edge. Move
the seat to the desired position, and
releasethebar.Trytomovetheseat
to make sure it is locked in position.
Make all adjustments before you
start driving.
See pages for important safety
information and warnings about how to
properly position seats and seat-backs.
As required by the FCC:
This device complies with Part 15 of the
FCC rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any
interference received, including
interference that may cause undesired
operation.
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s
authority to operate the equipment.
This device complies with Industry
Canada Standard RSS-210.
Operation is subject to the following two
conditions: (1) this device may not cause
interference, and (2) this device must
accept any interference that may cause
undesired operation of the device.
11 13
CONTINUED
FrontSeatAdjustments
Remote Transmitter, Seats
Instruments and Controls
89
０５／０９／０９ １８：０９：３０ ３１ＳＮＣ６００ ００９２
Main Menu
Table of Contents
To change the seat-back angle of the
front seat, pull up on the lever on the
outside of the seat bottom.
Once your seat is adjusted correctly,
rock it back and forth to make sure it
is locked in position.
The height of your driver’s seat is
adjustable. To raise the seat,
repeatedly pull up the lever on the
outside of the seat cushion. To lower
the seat, push the lever down
repeatedly.
Your vehicle is equipped with head
restraints in all seating positions to
help protect you and your
passengers from whiplash and other
injuries.
They are most effective when you
adjust them so the back of the
occupant’s head rests against the
center of the restraint.
See page for important safety
information and a warning about how to
properly position the head restraints.
13
Driver’s Seat Height Adjustment Head Restraints
Seats
90
０５／０９／０９ １８：０９：３７ ３１ＳＮＣ６００ ００９３
Main Menu
Table of Contents
The head restraints adjust for height.
You need both hands to adjust a
restraint. Do not attempt to adjust it
while driving. To raise it, pull upward.
To lower the restraint, push the
release button sideways, and push
therestraint down.
The lid of the console compartment
canbeusedasanarmrestbymoving
it forward and backward. Make sure
the armrest is securely latched.
Make sure your passenger’s hands
orfingersareawayfromthearmrest
before moving it.
When a passenger is seated in the
rear center seating position, make
sure the head restraint is adjusted to
its highest position.
The rear seat armrest is in the
center of the rear seat. Pivot it down
to use it.
Armrest
Seats
Instruments and Controls
91
Rear Center Position
RELEASE BUTTON
RELEASE BUTTON
０５／０９／０９ １８：０９：４５ ３１ＳＮＣ６００ ００９４
Main Menu
Table of Contents
−
−
The windows will operate for up to
10 minutes after you turn off the
ignition switch. Opening either front
door cancels this function.
If the MAIN switch is OFF,the
passenger windows cannot be raised
or lowered. Keep the MAIN switch
offwhenyouhavechildreninthe
vehicle so they do not injure
themselves by operatingthe
windows unintentionally.
Turnthe ignition switch to the ON
(II) position to raise or lower any
window. To open a window, push the
switchdownandholdit.Releasethe
switch when you want the window to
stop. Pull back on the switch and
hold it to close the window.
To open or close the
driver’s window, push or pull the
window switch firmly down or up to
the second detent, and release it.
The window will automatically go
down or up all the way. To stop the
window, pull or push the window
switch briefly.
If the driver’s
window senses any obstacle while it
is closing automatically, it will
reverse direction, and then stop. To
close the window, remove the
obstacle,thenuse the window switch
again.
Auto reverse stops sensing when the
window is almost closed. You should
always check that all passengers and
objects are away from the window
before closing it.
AUTO
AUTO REVERSE
Power Windows
92
DRIVER’S WINDOW SWITCH
MAIN SWITCH
Closing a power window on
someone’s hands or fingers can
cause serious injury.
Make sure your passengers are
away from the windows before
closing them.
０５／０９／０９ １８：０９：５２ ３１ＳＮＣ６００ ００９５
Main Menu
Table of Contents
Keeptheinsideandoutsidemirrors
clean and adjusted for best visibility.
Be sure to adjust the mirrors before
you start driving.
The inside mirror has day and night
positions. The night position reduces
glare from headlights behind you.
Flip the tab on the bottomedge of
the mirror to select the day or night
position.
Turnthe ignition switch to the ON
(II) position.
Move the selector switch to L
(driver’s side) or R (passenger’s
side).
Push the appropriate edge of the
adjustment switch to move the
mirrorright,left,up,ordown.
When you finish, move the
selector switch to thecenter (off)
position. This turns the
adjustment switch off to keep your
settings.
1.
2.
3.
4.
Mirrors
Adjusting the Power Mirrors
Instruments and Controls
93
SELECTOR SWITCH
TAB
ADJUSTMENT SWITCH
０５／０９／０９ １８：１０：００ ３１ＳＮＣ６００ ００９６
Main Menu
Table of Contents
On Canadian models
The outside mirrors are heated to
remove fog and frost. With the
ignition switch in the ON (II)
position, turn on the heaters by
pressing the button. The indicator in
the button comes on as a reminder.
Press the button again to turn the
heaters off. Pressing this button also
turns the rear window defogger on
and off.
To apply the parking brake, pull the
lever up fully. To release it, pull up
slightly, push the button, and lower
the lever. The parking brake
indicator on the instrument panel
should go out when the parking
brake is fully released (see page ).58
Mirrors, Parking Brake
Heated Mirrors Parking Brake
94
HEATED MIRROR BUTTON
PARKING BRAKE LEVER
Driving the vehicle with the parking
brake applied can damage the rear
brakes and axles. A beeper will sound
if the vehicle is driven with the parking
brake on.
０５／０９／０９ １８：１０：０７ ３１ＳＮＣ６００ ００９７
Main Menu
Table of Contents
Interior Convenience Items
Instruments and Controls
95
COAT HOOK
CONSOLE COMPARTMENT
COIN BOX CENTER POCKET
GLOVE BOX
BEVERAGE HOLDERS BEVERAGE HOLDERS
VANITY MIRROR
ACCESSORY
POWER SOCKET
０５／０９／０９ １８：１０：１１ ３１ＳＮＣ６００ ００９８
Main Menu
Table of Contents
Be careful when you are using the
beverage holders. A spilled liquid
that is very hot canscald you or your
passengers. Spilled liquids can
damage the upholstery, carpeting,
and electrical components in the
interior.
The rear seat also has a beverage
holder in the center armrest. To use
it, pivot the armrest down.
This socket is intended to supply
power for 12 volt DC accessories
that are rated 120 watts or less (10
amps). It will not power an
automotivetype cigarette lighter
element.
To use an accessory power socket,
theignition switch must be inthe
ACCESSORY (I) or ON (II) position.

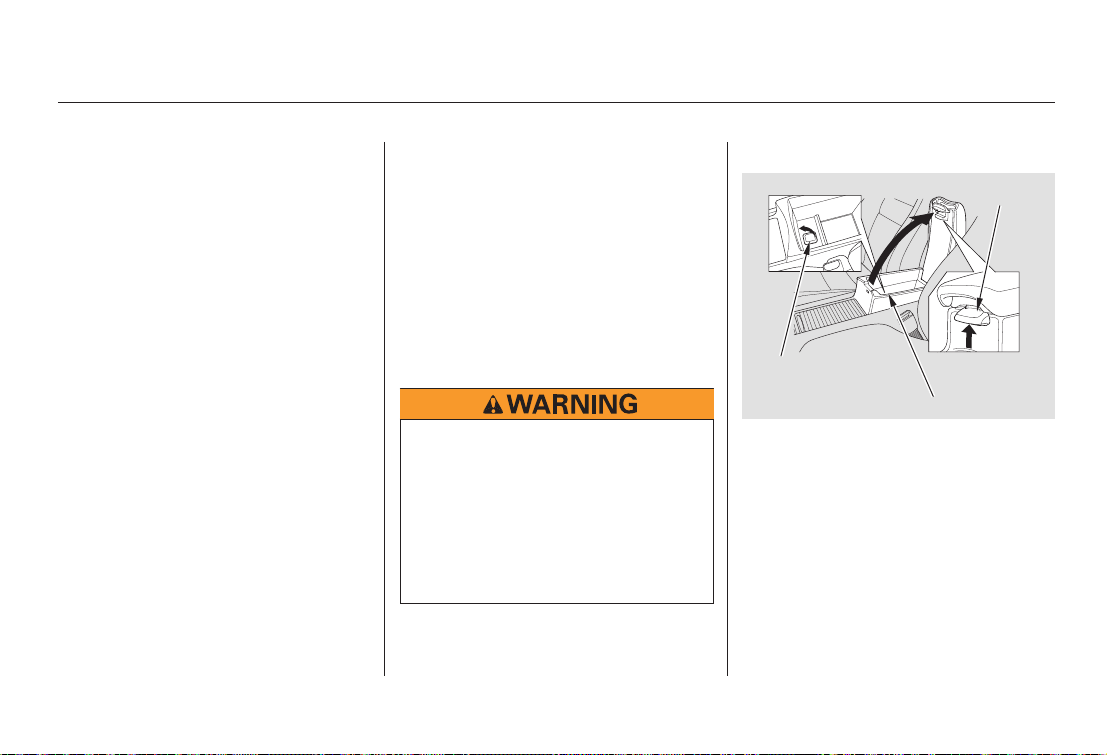

To open the console compartment,
pull up on the lever, and lift the lid.
To close, lower the lid, and push it
down until it latches.
Open the front beverage holder by
sliding its cover backward.
Another accessory power socket in
thecenterconsole compartment.
When more than one socket is being
used, the combined power rating of
the accessories should be 120 watts
or less (10 amps).
Open the glove box by pulling the
handle to the left. Close it with a firm
push.
Beverage Holders Console Compartment
Accessory Power Socket
Glove Box
Interior Convenience Items
96
LEVER
CONSOLE COMPARTMENT
ACCESSORY
POWER SOCKET
An open glove box can cause
serious injury to your passenger
inacrash,evenifthe
passenger is wearing the seat
belt.
Always keep the glove box
closed while driving.
０５／０９／０９ １８：１０：２１ ３１ＳＮＣ６００ ００９９
Main Menu
Table of Contents
The ceiling light has a three-position
switch;ON(right),DoorActivated,
andOFF(left).IntheDoor
Activated (center) position, the light
comesonwhenyou:
Open any door.
Unlock the doors with the key or
remote transmitter.
After all doorsareclosedtightly, the
light dims slightly, then fades out in
about 30 seconds.
Remove the keyfromthe ignition.
The front ceiling light has two
spotlights. Push the spotlight lenses
to turn themon andoff.
If you do not open either door after
you unlock the driver’s door or
remove the key fromthe ignition
switch, the light fades out in about
30 seconds.
If you leave either door open without
thekey is in the ignition switch, the
ceiling light will go off after 3
minutes.
Ceiling Light Spotlights
Interior Lights
Instruments and Controls
97
DOOR ACTIVATED
ON
OFF
０５／０９／０９ １８：１０：２９ ３１ＳＮＣ６００ ０１００
Main Menu
Table of Contents
Main Menu
The standard audio system has
many features. This section
describes those features and how to
use them. (If you have an optional
audio system, refer to the operating
instructions that came with it.)
The heating and air conditioning
system in your vehicle provides a
comfortable driving environment in
all weather conditions.
Your vehicle has ananti-theft audio
system that requires a code number
to enable it.
The security system helps to dis-
courage vandalism and theft of your
vehicle.
.............Vents, Heating, and A/C . 100
...........................Using the A/C . 102
................................Audio System . 106
..........................Playing the Radio . 109
................................Playing a Disc . 112
.......Disc Player Error Messages . 118
..........................Setting the Clock . 119
Playing the Radio (Vehicles with
..................Navigation System) . 121
Playing a Disc (Vehicles with
..................Navigation System) . 125
Playing a PC Card (Vehicles with
..................Navigation System) . 129
Disc Player Error Messages
(Vehicles with Navigation
..................................System) . 138

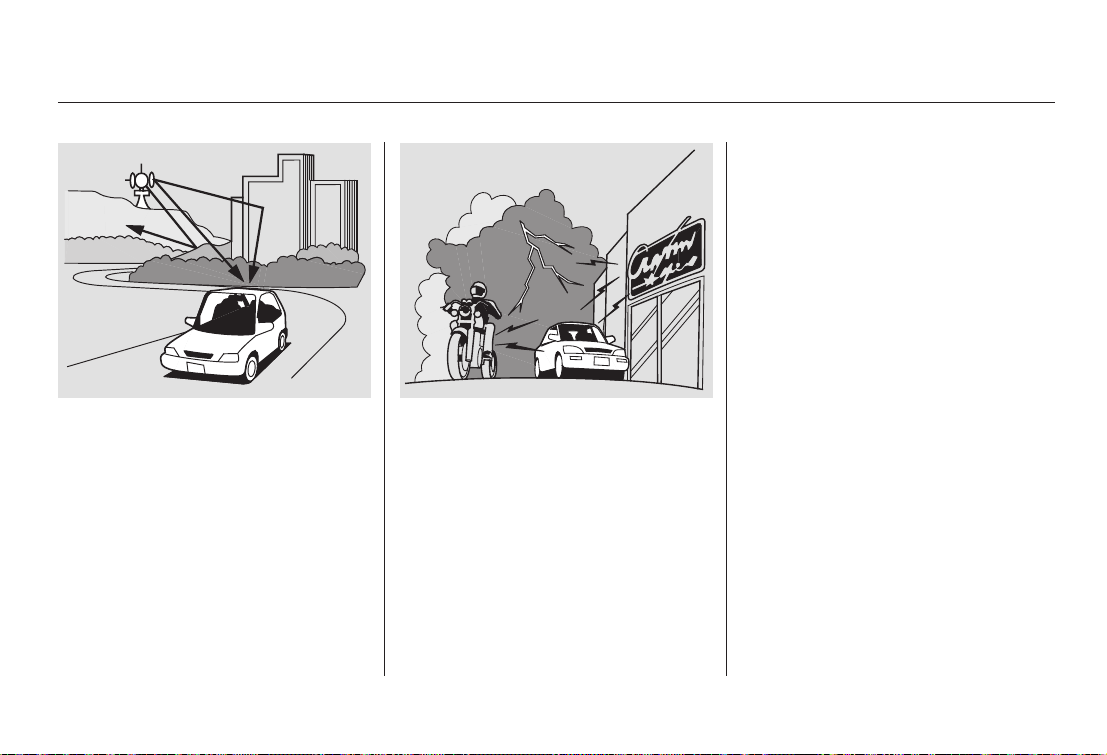

............................Radio Reception . 139
..................Protecting Your Discs . 141
.................Radio Theft Protection . 142
................RemoteAudio Controls . 143
............................Security System . 144
...............................Cruise Control . 145
Features
Features
99
０５／０９／０９ １８：１０：３７ ３１ＳＮＣ６００ ０１０２
Main Menu
Vents, Heating, and A/C
100
AIR CONDITIONING BUTTON
OFF BUTTON
REAR WINDOW DEFOGGER BUTTON
TEMPERATURE CONTROL
DIAL
AUTO BUTTON
MODE CONTROL BUTTON
FAN CONTROL DIAL
FRESH AIR BUTTON
WINDSHIELD DEFROST BUTTON
RECIRCULATION BUTTON
０５／０９／０９ １８：１０：４１ ３１ＳＮＣ６００ ０１０３
Main Menu
Table of Contents
CONTINUED
Only on models equipped with
Navigation System
The climate control system for your
vehicle can also be operated using
the voice control system. See
NavigationsectioninyourQuick
Start Guide for an overview of this
system and the Navigation System
manual for complete details.
Airflow is divided between
theventsin the dashboardand the
floor vents.
Use the mode control button to
select the ventsthe air flows from.
Some air will flow from the
dashboard vents in all modes.
Thesystemshouldbeleftinfresh
air mode under almost all conditions.
Keeping the system in recirculation
mode, particularly with the A/C off,
can cause the windows to fog up.
Air flows fromthe center
and corner ventsin the dashboard.
When the flesh air indicator is on, air
is brought in from the outside of the
vehicle.
The outside air intakes for the
heating and cooling system are at
the base of the windshield. Keep this
area clear of leaves and other debris.
To select recirculation mode when
driving through dusty or smoky
conditions, thenreturnto fresh air
mode.
When therecirculationindicator is
on, air from the vehicle’s interior is
sent throughout the system again.
This button turns the air
conditioning on and off. The
indicatorinthebuttonisonwhen
the A/C is on.
Turning this dial clockwise increases
thetemperature of the airflow.
When the dial is set to AUTO, the
system controls the fan speed
automatically.
Turnthisdial to increase or decrease
the fan speed and airflow.
Air flows from the floor
vents.
Vents, Heating, and A/C
Voice Control System
Mode Control Button
Fresh Air Button
Recirculation Button
Air Conditioning (A/C) Button
Temperature Control Dial
Fan Control Dial
Features
101
０５／０９／０９ １８：１０：５７ ３１ＳＮＣ６００ ０１０４
Main Menu
Table of Contents
Air conditioning places an extra load
on the engine. Watch the engine
coolant temperature gauge (see page
). If it moves near the red zone,
turn off the A/C until the gauge
reading returns to normal.
you can
cool it down more rapidly by partially
opening the windows, turning on the
A/C, andsetting the fan to
maximum speed in fresh air mode.
Turn on the A/C by pressing the
button. The indicator in the button
comesonwhenafanspeedis
selected.
Make sure the temperature is set
to maximum cool.
Select .
If the outside air is humid, select
recirculation mode. If the outside
air is dry, select fresh air mode.
Set the fan to the desired speed.
The flow-through ventilation system
draws in outside air, circulates it
throughthe interior, thenexhausts it
through vents near the rear window.
Select .
When you select , the system
automatically switchesto the fresh
air mode.
Set the fan to the desired speed.
Adjust the warmth of the air with
the temperature control dial.
The heater uses engine coolant to
warm the air. If the engine is cold, it
will be several minutes before you
feel warm air coming from the
system.
Set the temperature to the lower
limit.
Make sure the A/C is off.
Select and fresh air mode.
Set the fan to the desired speed.
Airflow is divided between
the floor vents and the defroster
vents at the base of the windshield.
Air flows from the defroster
vents at the base of the windshield.
When you select or ,
the system automatically switches to
Fresh Air mode and turns on the
A/C.
In AUTO mode, the system controls
the airflow direction automatically
between the dashboard vents and
the floor vents.
1.
2.
3.
4.
1.
2.
3.
4.
5.
1.
2.
3.
67
If the interior is very warm,
Using the A/CVentilation
Using the Heater
Vents, Heating, and A/C
102
０５／０９／０９ １８：１１：１０ ３１ＳＮＣ６００ ０１０５
Main Menu
Table of Contents
Air conditioning, as it cools, removes
moisture fromthe air. Whenused in
combination with the heater, it
makes the interior warm and dry.
This setting is suitable for all driving
conditions whenever the outside
temperature is above 32°F (0°C).
To remove fog from the inside of the
windows:
Turnthe fanon.
Turn on the air conditioning.
Select and fresh air mode.
Adjust the temperature to your
preference.
Set the fan to the desired speed, or
high for faster defrosting.
Select . When you select
, the system automatically
switches to fresh air mode and
turns on the A/C. The A/C
indicator will not come on, if it was
previously off.
Adjust the temperature sothe
airflow feels warm.
Select to help clear the
rear window.
To increase airflow to the
windshield, close the corner vents.
When you switch to or
from or , the
A/C will stay on or off depending on
howitwassetpreviously.
When you switch to , from
or , the A/C stays on.
This helps prevent the windows from
rapidly fogging up when the air is
suddenly routed away from the
windshield. If you want to turn the
A/C off,pressandrelease the A/C
button untiltheindicator in the
buttoncomesonandthengoesoff.
In the ‘‘FULL AUTO’’ mode, the air
conditioner may not work if the
humidity inside the vehicle is low. To
activate the air conditioner, press
A/C button.
1.
2.
3.
4.
1.
2.
3.
4.
5.
Dehumidify the Interior To Defog and Defrost
Vents, Heating, and A/C
Features
103
０５／０９／０９ １８：１１：２０ ３１ＳＮＣ６００ ０１０６
Main Menu
Table of Contents
Select . When you select
, the system automatically
switches to fresh air mode and
turns on the A/C. The A/C
indicator will not come on, if it was
previously off.
Select .
Set the fan and temperature
controls to maximum level.
To clear the windows faster, you can
close the dashboard corner vents by
rotating thewheel below each vent.
This sends more warm air to the
windshield defroster vents. Once the
windshield is clear, select fresh air
mode to avoid fogging the windows.
Making any manual selection causes
thewordAUTOinthedisplaytogo
out.
You can manually select various
functions of the climate control
system when it is in full automatic
mode. All other features remain
automatically controlled.
In cold weather, the fan will not
come onautomatically until the
heater starts to develop warm air.
When you set the temperature to its
lower limit ( ) or its upper limit
( ), the system runs at full
cooling or heating only. It does not
regulate the interior temperature.
The system automatically selects the
proper mix of conditioned and/or
heated air that will, as quickly as
possible, raise or lower the interior
temperature to your preference.
The automatic climate control
system adjusts the fan speed and
airflow levels to maintainthe interior
temperature you select.
For your safety, make sure you have
a clear view through all the windows
before driving.
Set the desired temperature by
turning the temperature control
dial. You will see AUTO in the
system’s display.
Press the AUTO button.
1.
2.
3.
To Remove Exterior Frost or Ice
From the Windows
Semi-automatic Operation
Using Automatic Climate Control
Vents, Heating, and A/C
104
０５／０９／０９ １８：１１：３２ ３１ＳＮＣ６００ ０１０７
Main Menu
Table of Contents
Press the OFF button. However, a
lack of airflow can cause the
windowstofogup.Youshouldkeep
the fan onat all times so stale air and
moisture do not build up in the
interior and cause fogging.
To regulate the interior temperature
and humidity, the climate control
system has two sensors. A sunlight
sensor is located in the top of the
dashboard and a temperature/
humidity sensor is next to the
steering column. Do not cover the
sensors or spill any liquid on them.
Sunlight and Temperature
Sensors
To Turn Everything Off
Vents, Heating, and A/C
Features
105
SUNLIGHT SENSOR
TEMPERATURE/HUMIDITY SENSOR
０５／０９／０９ １８：１１：３８ ３１ＳＮＣ６００ ０１０８
Main Menu
Table of Contents
Read the appropriate pages in this
section for operation of the audio
systems installed in your vehicle.
page to for A andB type
page to for C type
If your vehicle has a different audio
system, refer to its manual for
operating instructions.
108
121
120
138
Audio System
(A type)
106
Canadian model
０５／０９／０９ １８：１１：４３ ３１ＳＮＣ６００ ０１０９
Main Menu
Table of Contents
Audio System
(B type)
(C type)
Features
107
U.S. model without navigation system
U.S. model with navigation system
０５／０９／０９ １８：１１：４７ ３１ＳＮＣ６００ ０１１０
Main Menu
Table of Contents
Playing the Radio
(A type)
(B type)
108
PRESET BARS TUNE/SOUND KNOB
PRESET BARS
AUTO SELECT BUTTONAM/FM BUTTON
SEEK BAR
SEEK BAR
AM
BUTTON
FM
BUTTON
SCAN
BUTTON
AUTO SELECT BUTTON
PWR/VOL KNOB
TUNE/SOUND KNOB
PWR/VOL KNOB
SCAN
BUTTON
Canadian model
U.S. model without navigation system
０５／０９／０９ １８：１１：５３ ３１ＳＮＣ６００ ０１１１
Main Menu
Table of Contents
−
−
−
−
−
−
CONTINUED
The ignition switch must be in the
ACCESSORY (I) or ON (II) position.
Turnthe systemon by pushing the
PWR/VOL knob. Adjust the volume
by turning the same knob.
The band and frequency that the
radio was last tuned to is displayed.
To change bands, press the AM/FM
button (AM orFM button). On the
FM band, ST will be displayed if the
stationisbroadcastinginstereo.
Stereo reproduction in AM is not
available.
If you do nothing, the system will
then scan for the next strong station
andplayitfor10seconds.Whenit
plays a station you want to listen to,
press the SCAN button again.
Each side of the bars
(1 6) canstore one stationonAM,
and two stations on FM.
Use the TUNE knob to
tune the radio to a desired frequency.
Turnthe knobright totune to a
higher frequency, or left to tune to a
lower frequency.
The SEEK function
searches up and down from the
current frequency to find a station
with a strong signal. To activate it,
press the or side of the
SEEK bar, then release it.
The scan function samples
all stations with strong signalson the
selected band. To activate it, press
theSCAN button, then release it.
You will see SCAN in the display.
The system will scan for a station
with a strong signal. When it finds
one, it will stop and play that station
for about 10 seconds. Repeat steps 1 through 3 to store a
total of six stations onAM and
twelve stations onFM.
Pick a preset number (1 6), and
hold it until you hear a beep.
Usethetune,seek,orscan
functionto tune the radioto a
desiredstation.
Select the desired band, AM or
FM. FM1 and FM2 let you store
twelve stations.
You can use any of five methods to
find radiostationsonthe selected
band: the
preset buttons, and .
1.
2.
3.
4.
Playing the Radio
To Play the Radio
To Select a Station
PRESET
TUNE
SEEK
SCAN
TUNE,SEEK,SCAN,
AUTO SELECT
Features
109
０５／０９／０９ １８：１２：０４ ３１ＳＮＣ６００ ０１１２
Main Menu
Table of Contents
− You will see a ‘‘0’’ displayed after
pressing a preset bar if auto select
cannot find a strong station for every
preset bar.
If you do not like the stations auto
select has stored, you can store
other frequencies on the preset bars
as previously described.
,pressthe
A. SEL button. This restores the
presets you originally set.
Press the SOUND (TUNE) knob
repeatedly to display the bass (BAS),
treble (TRE), fader (FAD), balance
(BAL), and speed-sensitive volume
compensation(SVC) settings.
Eachmodeisshowninthedisplayas
it changes. Turn the SOUND
(TUNE) knob to adjust the setting to
your liking. When the level reaches
the center, you will see ‘‘ ’’ in
the display. The system will
automatically return the display to
the selected audio mode about 5
seconds after you stop adjusting a
mode.
If you are
traveling far fromhome and can no
longer receive your preset stations,
youcan use the auto select feature to
find stations in the local area.
Press the A. SEL button. ‘‘A.SEL’’
flashes in the display, and the system
goes into scan mode for several
seconds. It stores the frequencies of
six AM, and twelve FM stations in
the preset bars.
To turn off auto select
Playing the Radio
Adjusting the SoundAUTO SELECT
110
０５／０９／０９ １８：１２：１１ ３１ＳＮＣ６００ ０１１３
Main Menu
Table of Contents
−
−
−
These two
modes adjust the strength of the
sound coming from each speaker.
BALANCE adjusts the side-to-side
strength, while FADER adjusts the
front-to-back strength.
You can use the instrument panel
brightness control buttons to adjust
the illumination of the audio system
(see page ). The audio system
illuminates when the parking lights
are on, even if the radio is off.
The SVC
mode controls the volume based on
vehicle speed. The faster you go, the
louder the audio volume becomes.
As you slow down, the audio volume
decreases.
The SVC has four modes; SVC OFF,
SVC LOW, SVC MID, and SVC
HIGH. The default setting is MID.
Turn the SOUND (TUNE) knob to
adjust thesetting to your liking.
If you feel the sound is too loud,
choose low. If you feel the sound is
too quiet, choose high.
Use the TREBLE/
BASS modes to adjust the tone to
your liking.
74
Playing the Radio
Balance/Fader
Audio System LightingSpeed-sensitive volume
compensation (SVC)
Treble/Bass
Features
111
０５／０９／０９ １８：１２：１７ ３１ＳＮＣ６００ ０１１４
Main Menu
Table of Contents
Playing a Disc
(A type) (B type)
112
SCAN
BUTTON
FOLDER KNOB
SCAN
BUTTON
FOLDER KNOB
PWR/VOL KNOB
SEEK/SKIP BAR
PWR/VOL KNOB
SEEK/SKIP BAR
DISPLAY
BUTTON
RANDOM
BUTTON
REPEAT
BUTTON
LOAD
INDICATOR
EJECT
BUTTON
CD
BUTTON
EJECT
BUTTON
LOAD
INDICATOR
DISPLAY
BUTTON
RANDOM
BUTTON
CD
BUTTON
REPEAT
BUTTON
Canadian model
U.S. model without navigation system
０５／０９／０９ １８：１２：２３ ３１ＳＮＣ６００ ０１１５
Main Menu
Table of Contents
To load or play discs, the ignition
switch must be in the ACCESSORY
(I) or ON (II) position.
Youoperate the CDplayer with the
same controls used for the radio. To
select the CD player, press the CD
button. You will see ‘‘CD’’ in the
display. The number of the track
playing is shown in the display. The
system will continuously play a disc
until you change modes.
The specifications of the compatible
MP3 file are:
Sampling frequency: 32/44.1/48 kHz
(MPEG1), 24, 22.05, 16 kHz
(MPEG2)
Bit rate: 32/40/48/56/64/80/96/
112/128/160/192/224/256/320 kbps
(MPEG1), 8/16/24/32/40/48/56/
64/80/96/112/128/160 kbps
(MPEG2)
Compatible with variable bit rate and
multi-session.
Maximum layers
(including ROOT): 8 layers
Sampling frequency: 32/44.1/48 kHz
Bit rate: 48/64/80/96/128/160/192
kbps
Compatible with variable bit rate and
multi-session.
Maximum layers (including ROOT):
8 layers
The specifications of the compatible
WMA file are:
Insert a disc into the slot. The drive
will pull the disc in the rest of the
waytoplayit.Whenthesystem
reaches the end of the disc, it will
return to the beginningand play the
disc again.
You can also play 3-inch (8-cm) discs
without using an adapter ring.
To play the radiowhen a disc is
playing, press the AM/FM button
(AM or FM button). Press the CD
button again toswitchback to the
CD player.The CD player can also play CD-Rs
andCD-RWsinMP3andWMA
compressed formats. When playing a
disc in MP3 or WMA, you will see
‘‘MP3’’ or ‘‘WMA’’ in the display. You
can select up to 255 folders or tracks.
VideoCDs and DVDs willnot work
in this unit.
CONTINUED
To Play a Disc
Playing a Disc
Features
113
Do not use discs with adhesive labels.
The label can curl up and cause the
disc to jam in the unit.
０５／０９／０９ １８：１２：３３ ３１ＳＮＣ６００ ０１１６
Main Menu
Table of Contents
You can use the SEEK/SKIP bar
while a disc is playing to select
passages and change tracks (files in
MP3/WMA mode).
In MP3/WMA mode, use the
FOLDER (TUNE) knob to select
folders in the disc, and use the
SEEK/SKIP bar to change files.
Eachtimeyou press the DISP button
while playing a CD-TEXT, the
display mode changes from album
name, to artist name, to track name,
andthentonormaldisplay.When
playing a disc in MP3/WMA, the
display mode changes from folder
name,tofilename,toartisttag,to
album tag,to track tag, andthento
normal display.
If the title is too long, it will not show
all at once. Press and hold the DISP
button, and the rest of the title will
show in the display.
You willalsosee the album and track
name (CD-TEXT), or the folder and
file name (MP3/WMA) under these
conditions:
When you insert a disc, and the
system begins to play.
Eachtimea new track, file, or
folder plays, other than in normal
display mode.
Playing a Disc
To Change or Select Tracks/FilesName Display Function
114
０５／０９／０９ １８：１２：４１ ３１ＳＮＣ６００ ０１１７
Main Menu
Table of Contents
−
−
−
In MP3/WMA mode
To
select a differentfolder,turnthe
FOLDER (TUNE) knob clockwise to
move to thebeginning of the next
folder.Turntheknob
counterclockwise to move to the
beginning of the current folder. Turn
it counterclockwise again to skip to
the beginning of the previous folder.
Each time you
press and release the side, the
player skips forward to the
beginning of the next track (files in
MP3/WMA mode). Press and
release the side to skip
backward to the beginning of the
current track. Press it again to skip
to the beginning of the previous
track.
To move rapidly within a track, press
and hold the or side of the
SEEK/SKIP bar.
To continuously replay
atrack(fileinMP3/WMAmode),
press and release the RPT button.
You will see RPT in the display.
Press and holdthe RPT button to
turnit off.
CONTINUED
Playing a Disc
FOLDER SELECTION
SEEK/SKIP REPEAT (TRACK/FILE
REPEAT)
Features
115
０５／０９／０９ １８：１２：４６ ３１ＳＮＣ６００ ０１１８
Main Menu
Table of Contents
−− −
In MP3/WMA mode In MP3/WMA mode
Thisfeature,
when activated, replays all the files
on the selected folder in the order
they are compressed in MP3/WMA.
To activate folder repeat mode, press
theRPT button repeatedly untilyou
see F-RPT in the display. The system
continuously replays the current
folder.PressandholdtheRPT
button to turn it off.
Each time you press and release the
RPT button, the mode changes from
file repeat to folder repeat, then to
normal playing.
This feature plays the track
within a disc in random order. In
MP3/WMA mode, this feature only
plays folders within a disc in random
order. Files in the folder are played
in recorded order. To activate
random play, press and release the
RDM button. In MP3/WMA mode,
press theRDM button twice to select
within a disc random play. You will
seeRDMinthedisplay.Pressand
release the RDM buttonagainto
return to normal play.
This
feature, when activated, plays the
files in the current folder in random
order, rather thanin the order they
are compressed in MP3/WMA. To
activate folder random play, press
theRDM button. Youwillsee
F-RDM in the display. The system
will then select and play files
randomly. This continues until you
deactivate folder random play by
pressing and holding the RDM
button.
Each time you press and release the
RDM button, the mode changes
from folder random play to within a
disc random play, then to normal
playing.
Playing a Disc
FOLDER-REPEAT
RANDOM (Random within a
Disc) FOLDER-RANDOM
116
０５／０９／０９ １８：１２：５２ ３１ＳＮＣ６００ ０１１９
Main Menu
Table of Contents
−
−
In MP3/WMA mode
Press the eject button ( ) to
remove the CD. If you eject the CD,
but do not remove it from the slot,
the system will automatically reload
the CD after 10 seconds and put it in
pause mode. To begin playing, press
the CD button.
Press the AM/FM button (AM or
FM button) to switch to the radio
while a CD is playing. Press the CD
button to play the CD.
If you turn the system off while a
disc is playing, either with the PWR/
VOL knob or by turning off the
ignition switch, the disc will stay in
the drive. When you turn the system
back on, the disc will begin playing
where it left off.
For information on how to handle
and protect compact discs, see page
.
The SCAN function
samples all the tracks/files on the
disc in the order they are recorded
on the disc. To activate the scan
feature, press the SCAN button. You
will see SCAN in the display. You will
get a 10 second sampling of each
track on the disc. You will also see a
track/file name in the display. Press
andholdtheSCANbuttontogetout
of the system andplay the last track
sampled.
This feature, when
activated, samples the first file of
each folder for 10 seconds. To
activate the folder scan feature,
press the SCAN button until you see
F-SCAN in the display. The folder
name is also displayed. To hear the
rest of the folder, press the SCAN
button, within 10 seconds. If you do
not,the systemadvances to thenext
folder, plays 10 seconds of it, and
continues throughout the rest of the
folderthesameway.Whenthe
system samples the first file of all
folders, F-SCAN is canceled, and the
disc plays normally.
141
Playing a Disc
To Stop Playing a DiscSCAN
Protecting Discs
F-SCAN
Features
117
０５／０９／０９ １８：１２：５９ ３１ＳＮＣ６００ ０１２０
Main Menu
Table of Contents
Indication
If you see an error message in the
display while playing a disc, find the
cause in the chart to the right. If you
cannot clear the error message, take
your vehicle to your dealer.
SolutionCause
Press the EJECT button, and pull out the disc.
Check if it is inserted correctly in the disc
player.
Make sure the disc is not scratched or damaged.
Press the EJECT button, and pull out the disc.
Check the disc for damage or deformation.
If the disc cannot be pulled out, or the error
message does not disappear after the disc is
ejected, see your dealer.
Will disappear when the temperature returns to
normal.
FOCUS Error
Mechanical Error
High temperature
Disc Player Error Messages
118
０５／０９／０９ １８：１３：０５ ３１ＳＮＣ６００ ０１２１
Main Menu
Table of Contents
CONTINUED
Setting the Clock
(A type)
(B type)
Features
119
CLOCK BUTTON
H BUTTON
R BUTTON
M BUTTON
CLOCK BUTTON
H BUTTON R BUTTON
M BUTTON
Canadian model
U.S. model without navigation system
０５／０９／０９ １８：１３：１１ ３１ＳＮＣ６００ ０１２２
Main Menu
Table of Contents
Youcan quicklyset thetimeto the
nearest hour. If the displayed time is
before the half hour, pressing the
CLOCK button until you hear a beep,
then pressingtheR (preset 3) button
sets the clockbackto the previous
hour. If the displayed time is after
thehalf hour, the clocksets forward
to the beginning of the next hour.
To set the time, press the CLOCK
(AM/FM or AM) button until you
hear a beep, then release the button.
The displayed time begins to blink.
ChangethehourbypressingtheH
(preset 1) button until the numbers
advance to the desiredtime. Change
theminutebypressingtheM
(preset 2) button until the numbers
advance to the desiredtime.
Press the CLOCK button againto
enter the set time.
Setting the Clock
120
０５／０９／０９ １８：１３：１６ ３１ＳＮＣ６００ ０１２３
Main Menu
Table of Contents
Playing the Radio (Vehicles with Navigation System)
Features
(C type)
121
AM/FM BUTTON
AUDIO BUTTON
SCAN BUTTON
BACKGROUND ICON
SOUND ICON
AM ICON
TUNE BAR
FM1 ICON FM2 ICON
PRESET BUTTONS
AUTO SELECT
ICON
with navigation system
０５／０９／０９ １８：１３：２０ ３１ＳＮＣ６００ ０１２４
Main Menu
Table of Contents
−
−
▲
▼
▲▼
−
▲▼
The scan function samples
all stations with strong signalson the
selected band. To activate it, press
theSCAN button, then release it.
You will see SCAN in the display.
The system will scan for a station
with a strong signal.Whenit finds
one, it will stop and play that station
for about 10 seconds.
If you do nothing, the system will
scan for the next strong station and
play it for 10 seconds. When it plays
a station that you want to listento,
press the SCAN button again.
In addition to the standard audio
controls, the audio system in your
vehicle canbe operated using the
voice control system. See the Navi
section in your Quick Start Guide for
an overview of this system, and the
navigation system manual for
complete details.
The ignition switch must be in the
ACCESSORY (I) or ON (II) position.
Turnthe systemon by pushing the
PWR/VOL knob. Adjust the volume
by turning the same knob.
Push theAUDIO button to show the
audio system screen. You can also
operate the audiosystem without
showing the audio system screen by
using the standard controls. The
statusbar is shown at the bottomof
the screen each time you press a
button.
The band and frequency that the
radio was last tuned to is displayed.
To change bands, press the AM/FM
button, or touch the desired band
icon (FM1, FM2, or AM). On the FM
band, STEREO will be displayed if
thestationis broadcasting in stereo.
Stereo reproduction on AM is not
available.
You can use any of five methods to
find radio stations on the selected
band: the
preset buttons, and .
Use the TUNE bar to tune
the radio to a desired frequency.
Press the bar to tune to a higher
frequency, and the bar to tune to
a lower frequency. When you press
andholdthe or bar,thesystem
beeps twice, and the frequency goes
up or down until you release the bar.
The SEEK function
searches up and down from the
current frequency to find a station
with a strong signal. To activate it,
press and hold or on the TUNE
bar until you hear a beep, then
release the bar.
Playing the Radio (Vehicles with Navigation System)
Voice Control System
SCAN
To Play the Radio
TUNE,SEEK,SCAN,
AUTO SELECT
To Select a Station
TUNE
SEEK
122
０５／０９／０９ １８：１３：３０ ３１ＳＮＣ６００ ０１２５
Main Menu
Table of Contents
−−
Select the desired band, AM or
FM. FM1 and FM2 let you store
two frequencies with each preset
button.
Usethetune,seek,orscan
functionto tune the radioto a
desiredstation.
Repeat steps1 through 3 tostore a
total of six stations onAM and
twelve stations onFM.
Each preset button can
store one frequency on AM and two
frequencies on FM.
If you are
traveling far fromhome and can no
longer receive your preset stations,
youcan use the auto select feature to
find stations in the local area.
Press the AUTO SEL icon. ‘‘AUTO
SEL’’ flashes in the display, and the
system goes into scan mode for
several seconds. It stores the
frequencies of six AM, and twelve
FM stations in the preset buttons.
If you do not like the stations auto
select has stored, you can store
other frequencies on the preset
buttons. UsetheTUNE, SEEK, or
SCAN functions tofind stations, then
store them in the preset buttons as
described.
press the
AUTO SEL icon. This restores the
presets you originally set.
You will see a ‘‘0’’ displayed after
pressing a preset button if auto
select cannot find a strong station for
every preset button.
There are three modes of display:
level (the audio level appears as ten
vertical bar graphs), spectrum
analysis (the audio level appears as
ripples of water), and off (a plain
background is displayed). Each time
you touch the Background icon, the
mode changes.
Pick a preset button, and hold it
until you hear a beep.
1.
2.
3.
4.
To turn off Auto Select,
CONTINUED
Preset AUTO SELECT
To Change the Background Image
Playing the Radio (Vehicles with Navigation System)
Features
123
０５／０９／０９ １８：１３：４０ ３１ＳＮＣ６００ ０１２６
Main Menu
Table of Contents
−
＋−
−
−
To adjust the sound, push the
AUDIO button, then enter the sound
grid by touching the SOUND icon on
the display.
You can use the instrument panel
brightness control buttons to adjust
the illumination of the audio system
(see page ). The audio system
illuminates when the parking lights
are on, even if the radio is off.
Toadjust the treble
and bass,touch or oneach side
of the treble or bass adjustment bar,
or move the joystick. The adjustment
bar shows you the current setting.
These modes adjust
the strength of the sound coming
from each speaker. Left/Right
balance adjusts the side-to-side
strength, while Front/Rear fader
adjusts the front-to-back strength.
To adjust the left/right balance,
touch the ‘‘L’’ or ‘‘R’’ icon, or move
the joystick. To adjust the front/rear
fader, touch the ‘‘FR’’ or ‘‘RR’’ icon,
or move the joystick.
The SVC
mode controls the volume based on
vehicle speed. The faster you go, the
louder the audio volume becomes.
As you slow down, the audio volume
decreases.
The default setting is Mid. If you feel
the sound is too loud, choose low. If
you feel the sound is too quiet,
choose Hi.
To see the audio display when you
are finished adjusting the sound,
wait 5 seconds.
74
Adjusting the Sound
Playing the Radio (Vehicles with Navigation System)
Audio System Lighting
Treble/Bass
Left/Right Balance and Front/
Rear Fader
Speed-sensitive volume
compensation (SVC)
124
SOUND ICON
０５／０９／０９ １８：１３：５０ ３１ＳＮＣ６００ ０１２７
Main Menu
Table of Contents
−
＋
Playing a Disc (Vehicles with Navigation System)
Features
(C type)
125
CD ICON
OPEN BUTTON
CD BUTTON
AUDIO BUTTON
SCAN BUTTON
REPEAT BUTTON
SKIP BUTTON
SKIP BUTTON
RANDOM
BUTTON
FAST FORWARD
BUTTON
REWIND BUTTON
with navigation system
０５／０９／０９ １８：１３：５５ ３１ＳＮＣ６００ ０１２８
Main Menu
Table of Contents
−
With the ignition inthe
ACCESSORY (I) or ON (II) position,
press the OPEN button, and insert a
disc about halfway into the disc slot.
The drive will pull the disc in the rest
of the way, and the disc will begin to
play. You operate the disc player
with the same controls usedforthe
radio. The number of the track
playing is shown in the display. The
system will continuously play a disc
until you change modes.
Push the button to play the next
track on the disc. Push the
button once to replay the track
in play; press it twice to replay the
previous track. To move rapidly
within a track, press and hold the
or the button.
Push theAUDIO button to show the
audio system screen. You can also
operate the audiosystem without
showing the audio system screen by
using the standard controls. The
statusbar is shown at the bottomof
the screen each time you press a
button.
When you play CD-TEXT, you will
see the track name, artist name, and
album name on the screen. When
you play MP3/WMA discs, you will
see the track name and folder name
on the screen. If the disc was not
recorded with this information, it will
not be displayed.
The player can also play CD-TEXT,
MP3, and WMA formats.
Press the RPT button
to continuously replay a track. You
will see REPEAT in the display.
Press the RPT button againto turnit
off. In MP3/WMA mode, press and
holdthe RPT button to activate
folder repeat. Folder repeat
continuously replays the folder.
Playing a Disc (Vehicles with Navigation System)
Disc Player To Change Tracks
REPEAT
126
CLOSE BUTTON
DISC SLOT
Avoid using discs with adhesive labels.
The label can curl up and cause the
disc to jam in the unit.
０５／０９／０９ １８：１４：０２ ３１ＳＮＣ６００ ０１２９
Main Menu
Table of Contents
−
−

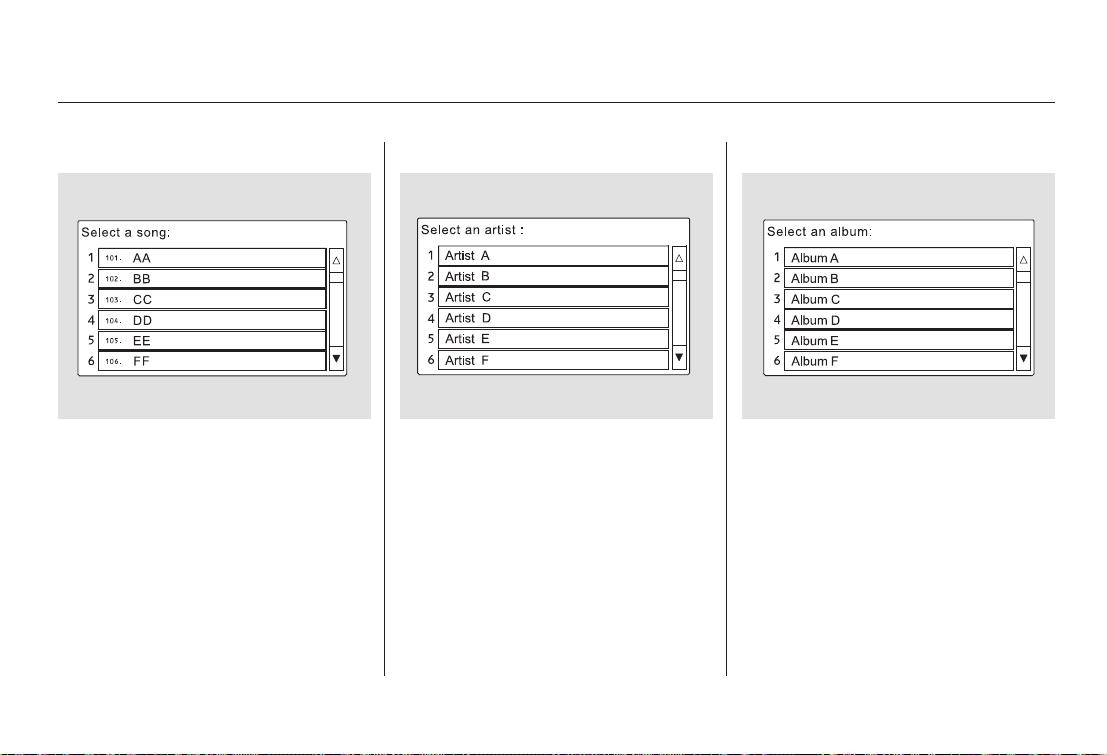

You can also choose a track directly
from a track list. Touch TRACK
LIST on the screen, and the track list
screen is shown.
If you are playing a CD, the screen
shows the track number. If you are
playing a CD-TEXT disc, the track
name is also shown. If you are
playinganMP3orWMAdisc,the
folders will also be shown.
If there are no tracknames, the
track numbers are displayed.You
will see the current track highlighted.
Select the desired track. If you are
checking the track list and want to
go back to previous screen, touch
Return.
Press the RDM
button to play thetracks in random
order. You will see RANDOM in the
display. Press the RDM button again
to return to normal play. InMP3/
WMA mode, press and hold the
RDM button to activate folder
random. Folder random plays the
tracks in random order within the
current folder.
The SCAN function
samples all the tracks on the disc in
the order they are recorded. To
activate it, press and release the
SCAN button. You will see SCAN in
the display, and you will get a 10
second sampling of each track on the
disc. Pressthe SCAN buttonagainto
get out of scan mode. In MP3/WMA
mode,pressandholdtheSCAN
button to activate folder scan. Folder
scan samples the first track of each
folder.
To Choose a TrackRANDOM
SCAN
Playing a Disc (Vehicles with Navigation System)
Features
127
０５／０９／０９ １８：１４：０９ ３１ＳＮＣ６００ ０１３０
Main Menu
Table of Contents
To take the system out of disc mode,
press the AM/FM button or CD/XM
button (if the XM radio is connected).
You can also touch the FM1, FM2,
AM, or CARD icon on the screen. To
return to disc mode, press the CD/
XM button or touch the CD icon.
Press the OPEN button. The screen
folds back, and the disc player
appears. Press the eject button
( ) to remove the disc. If you
eject the disc, but do not remove it
from the slot, the system will
automatically reload it after 10
seconds and will remain there in a
pause mode.
To close the screen, press the
CLOSE button. The screen will not
close if you have a partially inserted
CD or PC card.
The disc player plays MP3/WMA
folders in recorded order. Maximum
playable folder layers are 8, total
playable folders are 99, and total
playable tracks are 999 per disc. If
your disc has a complex structure,
the disc player takes some time to
read the disc before playing it.
For information on how to handle
and protect discs, see page .141
To Stop Playing a Disc Removing a Disc
Playing an MP3/WMA Disc
Protecting Discs
Playing a Disc (Vehicles with Navigation System)
128
EJECT BUTTON
CLOSE BUTTON
０５／０９／０９ １８：１４：１６ ３１ＳＮＣ６００ ０１３１
Main Menu
Table of Contents
−
＋
Playing a PC Card (Vehicles with Navigation System)
Features
(C type)
129
PLAY MODE ICON
FAST FORWARD
BUTTON
REWIND BUTTON
SKIP BUTTON
SKIP BUTTON
REPEAT BUTTON
RANDOM
BUTTON
PC CARD ICON
TRACK LIST ICON
OPEN BUTTON
CD/XM BUTTON
AUDIO BUTTON
SCAN BUTTON
With navigation system
０５／０９／０９ １８：１４：２１ ３１ＳＮＣ６００ ０１３２
Main Menu
Table of Contents
With the ignition inthe
ACCESSORY (I) or ON (II) position,
press the OPEN button, insert a PC
card all the way into the card slot,
then press the CLOSE button.The
PC card will begin to play. You
operate the PC card withthe same
controls used for the radio. The
number of the track playing is shown
in the display. The system will
continuously play a card until you
change modes.
Push theAUDIO button to show the
audio system screen. You can also
operate the audiosystem without
showing the audio system screen by
using the standard controls. The
statusbar is shown at the bottomof
the screen each time you press a
button.
You cannot close the display until
thePC cardis inserted allthe way
in or removed.
Never insert foreign objects into
thePC cardslot.
ThePCcardplayercanplayMP3
and WMA formats.
When you insert a PC card into
the slot, make sure you put it in
straight. If you cannot insert it,
remove it, andinsert again.
Do not keep PC cards in the
vehicle. Direct sunlight and high
heat will damage them.
To avoid damaging the card
reader, do not insert hard disc
drive cards into the PC card slot.
Thesystemmaynotbeableto
read some memory cards
depending on the type of memory
card or combination of PC card
adaptor andmemory card.
Recommended memory cards are
CompactFlash and Flash ATA
memory cards.
Playing a PC Card (Vehicles with Navigation System)
PC Card
130
NOTE:
PC CARD SLOT
CLOSE BUTTON
０５／０９／０９ １８：１４：３０ ３１ＳＮＣ６００ ０１３３
Main Menu
Table of Contents
CONTINUED
Playing a PC Card (Vehicles with Navigation System)
Play Mode
Features
131
FOLDER MODE
ARTIST MODE
ALBUM MODE
MODE INDICATOR
MODE INDICATOR
MODE INDICATOR
PLAY MODE ICON
PLAY MODE ICON
PLAY MODE ICON
０５／０９／０９ １８：１４：３７ ３１ＳＮＣ６００ ０１３４
Main Menu
Table of Contents
There are three modes to choose
from: folder, artist, and album.
Touch the PLAY MODE icon, then
choose one.
Choose ‘‘Continue playing the
current song’’ or ‘‘Play a new track
list.’’ Continue playing the Current
Song plays the current song, then
goesintotheplaymodeyouchose.
Play a new track list plays the play
mode you chose.
Push the button to play the next
track. Pushthe buttononce to
replay the track in play; press it twice
to replay the previous track. To
move rapidly within a track, press
and hold the or the button.
Foldermodeplaystracksinthe
order they are recorded in. Artist
modeplaystracksinalphabetical
order by artist and song title. Album
mode plays albums in alphabetical
order. If the ID3 tag information is
not in your card, the play mode
might not work properly.
You can always goback to the
previous screen by pressing the
CANCEL button. Press the AUDIO
button to exit.
Playing a PC Card (Vehicles with Navigation System)
To select a play mode
To Change Tracks
132
０５／０９／０９ １８：１４：４５ ３１ＳＮＣ６００ ０１３５
Main Menu
Table of Contents
−
−
−
Press the RPT button
to continuously replay a track. You
will see TRACK REPEAT in the
display. Press RPT button again to
turnit off.
Press and hold the RPT button until
you hear a beep. Folder, artist, or
album repeat will be activated
depending on which play mode you
chose. Folder repeat continuously
replays the folder. Artist repeat
continuously replays by that artist.
Album repeat continuously replays
thealbum.Press theRPT button
again to turn it off.
Press the RDM
button to play thetracks in random
order. You willsee TRACK
RANDOM in the display. Press the
RDM button again to return to
normal play.
Press and hold the RDM button until
you hear a beep. Folder, artist, or
album random will be activated
depending on which play mode you
chose. Folder random plays the
tracks inrandom order within a
folder. Artist random plays the artist’s
tracks in random order. Album
random plays the tracks in random
order within an album. Press the
RDM button again to turn it off.
The SCAN function
samples all the tracks on the PC card
in the order they are recorded. To
activate it, press and release the
SCAN button. You will see TRACK
SCAN in the display, and you will get
a10secondsamplingofeachtrack
on the card. PresstheSCAN button
again to get out of scan mode.
Press and holdthe SCAN button
until you hear a beep. Folder, artist,
or albumscan willbe activated
depending on which play mode you
chose. You will get a 10 second
sampling of each track. Folder scan
samples the first track of each folder.
Artist scan samples the first track of
each artist. Album scan samples the
first track of each album. To hear
the rest of the folder, the artist, or
thealbum,presstheSCAN button,
within 10 seconds. If you do not, the
system advances to the next folder,
artist,oralbum,playsfor10seconds
of it, and continues throughout the
rest of folders, artists, or albums the
same way. When the system reaches
the last folder, artist, or album, the
scan mode is cancelled, and the PC
card plays normally.
Playing a PC Card (Vehicles with Navigation System)
REPEAT
RANDOM
SCAN
Features
133
０５／０９／０９ １８：１４：５１ ３１ＳＮＣ６００ ０１３６
Main Menu
Table of Contents
Playing a PC Card (Vehicles with Navigation System)
To Choose a Track
134
SONG SEARCH ICON
TRACK LIST ICON
(Folder Mode)
(Artist Mode)
(Album Mode)
SONG SEARCH ICON
SONG SEARCH ICON
０５／０９／０９ １８：１５：０１ ３１ＳＮＣ６００ ０１３７
Main Menu
Table of Contents
You can also choose a track directly
from a track list. Touch TRACK
LIST on the screen, and the track list
screen will be shown. The display
changes depending on which play
mode you chose. You will see the
current track highlighted. Select the
desired track. If you want to go back
to the previous screen, press Return.
If you want to search for a particular
song, select Song Search on the
track list screen. You can search a
songfromTitlebyKeyword,Artist,
or Album.
If you choose Title by Keyword,
enter the titleor any keyword, then
press List. The system will search to
find the song or songs.
Ifyoucannotfindcharacters,select
More to show other characters.
CONTINUED
Playing a PC Card (Vehicles with Navigation System)
Search by Title by Keyword
Features
135
Folder mode is shown
SONG SEARCH ICON
RETURN ICON
ARTIST ICON
ALBUM ICON
TITLE BY KEYWORD ICON
MORE ICON
LIST ICON
０５／０９／０９ １８：１５：１０ ３１ＳＮＣ６００ ０１３８
Main Menu
Table of Contents
Then select a song. If you choose Artist, select an artist,
then select a song.
If you choose Album, select an
album, then select a song.
Playing a PC Card (Vehicles with Navigation System)
Search by Artist Search by Album
136
０５／０９／０９ １８：１５：１７ ３１ＳＮＣ６００ ０１３９
Main Menu
Table of Contents
The player plays recorded MP3/
WMA cards in recorded order.
Maximum playable folder layers are
8, total playable folders are 99, and
total playable tracks are 999 per card.
If your card has a complex structure,
theplayertakessometimetoread
the card before playing it.
Press the OPEN button. The screen
folds back, and the player appears.
Press the eject button ( ), and
remove the card, then press the
CLOSE button.
You cannot close the display until
thePC cardis inserted allthe wayin
or removed.
To takethe systemout of card mode,
press the AM/FM button or CD/XM
button (if a disc is loaded or the XM
radio is connected). You can also
touch the FM1, FM2, AM, or CD
icon on the screen. To return to card
mode, presstheCD/XMbuttonor
touch the CARD icon.
Playing a PC Card (Vehicles with Navigation System)
Playing an MP3/WMA Card Removing a PC CardTo Stop Playing a Card
Features
137
EJECT BUTTON
CLOSE BUTTON
０５／０９／０９ １８：１５：２４ ３１ＳＮＣ６００ ０１４０
Main Menu
Table of Contents
If you see an error message in the
display while playing a disc, find the
cause in the chart to the right. If you
cannot clear the error message, take
your vehicle to your dealer.
Indication Cause Solution
FOCUS Error
Mechanical Error
High temperature
Press the EJECT button, and pull out the disc.
Check if it is inserted correctly in the disc
player.
Make sure the disc is not scratched or damaged.
Press the EJECT button, and pull out the disc.
Check the disc for damage or deformation.
If the disc cannot be pulled out, or the error
message does not disappear after the disc is
ejected, see your dealer.
Will disappear when the temperature returns to
normal.
Disc Player Error Messages (Vehicles with Navigation System)
138
０５／０９／０９ １８：１５：２９ ３１ＳＮＣ６００ ０１４１
Main Menu
Table of Contents
Radio signals, especially on the FM
band, are deflected by large objects
such as buildings and hills. Your
radio then receives both the direct
signal from the station’s transmitter,
and the deflected signal. This causes
thesound to distort or flutter. This is
a main cause of poor radio reception
in city driving.
Radio reception can be affected by
atmospheric conditions such as
thunderstorms, high humidity, and
even sunspots. You may be able to
receive a distant radio station one
day and not receive it the next day
because of a change in conditions.
Electrical interference from passing
vehicles and stationary sources can
cause temporary reception problems.
As required by the FCC:
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s
authority to operate the equipment.
Radio Reception
140
０５／０９／０９ １８：１５：４５ ３１ＳＮＣ６００ ０１４３
Main Menu
Table of Contents
If you lose the card, you must obtain
the code number from a dealer. To
do this,you will need thesystem’s
serial number.
Your vehicle’s audio system will
disable itself if it is disconnected
from electrical power for any reason.
To make it work again, you must
enter a specific five-digit code
(except for model with navigation
system)/four-digit code (model with
navigation system) in the preset
buttons. Because there are hundreds
of number combinations possible
fromfiveorfour-digits,makingthe
system work without knowing the
exact code is nearly impossible.
Youshouldhavereceivedacardthat
lists your audio system’s code and
serialnumbers. It is best to store this
card in a safe place at home. In
addition, you should write the audio
system’s serial number in this owner’s
manual.
If you make a mistake entering the
code, do not start over; complete the
five-digit (except for model with
navigation system)/four-digit (model
with navigation system) sequence,
then enter the correct code. You
have 10 tries to enter the correct
code. If you are unsuccessful in 10
attempts, you must thenleave the
system on for 1 hour before trying
again.
If your vehicle’s battery is
disconnected or goes dead, or the
radio fuse is removed, the audio
system will disable itself. Use the
preset buttons to enter the five-digit
code (except for model with
navigation system)/four-digit code
(model with navigation system). The
code is on the radio code card
included in your owner’s manual kit.
When it is entered correctly, the
radio will start playing.
Radio Theft Protection
142
０５／０９／０９ １８：１５：５９ ３１ＳＮＣ６００ ０１４５
Main Menu
Table of Contents
With the system set, you can still
open the trunk with the master key
or the remote transmitter without
triggering the alarm. The alarm will
sound if the trunk lock is forced, or
the trunk is opened with the trunk
release handle.
The security system will not set if
the hood, trunk, or any door is not
fully closed. If the system will not set,
check the door and trunk open
indicators on the instrument panel
(see page ) to see if the doors and
trunk are fully closed. Since it is not
part of the monitor display, manually
check the hood.
To see if the system is set
after you exit the vehicle, press the
LOCK buttononthe remote
transmitter within5 seconds. If the
system is set, the horn will beep
once.
The security system helps to protect
your vehicle and valuables from theft.
The horn sounds and a combination
of headlights (low beam), parking
lights, side marker lights, and
taillights flash if someone attempts
to break into your vehicle or remove
the radio. This alarm continues for 2
minutes, then it stops. To reset an
alarmingsystem before the 2
minutes have elapsed, unlock the
driver’sdoor with the keyorthe
remote transmitter.
The security system automatically
sets 15 secondsafter you lock the
doors, hood, and trunk. For the
system to activate, you must lock the
doors from the outside with the key,
driver’s lock tab, door lock switch, or
remote transmitter. The security
system indicator on the instrument
panel starts blinking immediately to
show you the system is setting itself.
Once the security system is set,
opening any door, the trunk, or the
hood without using the key or the
remote transmitter willcause it to
alarm. It also alarms if the radio is
removedfrom the dashboard or the
wiring is cut.
Donot attempt to alter this system
or add other devices to it.
62
Security System
144
NOTE:
SECURITY SYSTEM
INDICATOR
０５／０９／０９ １８：１６：１５ ３１ＳＮＣ６００ ０１４７
Main Menu
Table of Contents
Push theCRUISE button onthe
steering wheel. The CRUISE
MAIN indicator on the instrument
panel comes on.
Accelerate to the desiredcruising
speedabove25mph(40km/h).
Press and release the DECEL/
SET button on the steering wheel.
The CRUISECONTROL indicator
on the instrument panel comes on
to show thesystem isnow
activated.
Cruise control may not hold the set
speed when you are going up and
down hills. If your speed increases
going down a hill, use the brakes to
slowdown.Thiswillcancelcruise
control. To resume the set speed,
press the RES/ACCEL button. The
indicator on the instrument panel will
come back on.
When climbing a steep hill, the
automatic transmission may
downshifttoholdthesetspeed.
Cruise control allows you to maintain
asetspeedabove25mph(40km/h)
without keeping your foot on the
accelerator pedal. It should be used
for cruising on straight, open
highways. It is not recommended for
city driving, winding roads, slippery
roads, heavy rain, or badweather.
1.
2.
3.Using the Cruise Control
Cruise Control
Features
145
CANCEL
BUTTON
DECEL/SET
BUTTON
CRUISE BUTTON
RES/ACCEL
BUTTON
Improper use of the cruise
control can lead to a crash.
Use the cruise control only
when traveling on open
highways in good weather.
０５／０９／０９ １８：１６：２３ ３１ＳＮＣ６００ ０１４８
Main Menu
Table of Contents
You can increase the set cruising
speed in any of these ways:
Press and hold the RES/ACCEL
button. When you reach the
desired cruising speed, release the
button.
To increase your speed in very
small amounts, tap the RES/
ACCEL button. Each time youdo
this, the vehicle will speed up
about 1 mph (1.6 km/h).
Press and hold the DECEL/SET
button. Release the button when
you reach the desired speed.
To slow down in very small
amounts, tap the DECEL/SET
button. Each time you dothis,
your vehicle will slow down about
1 mph (1.6 km/h).
You can decrease the set cruising
speed in any of these ways:
Evenwith the cruise control turned
on, you can still use the accelerator
pedal to speed up for passing. After
completing the pass, take your foot
off the accelerator pedal. The vehicle
will return to theset cruising speed.
Push onthe accelerator pedal.
Accelerate to the desiredcruising
speed, and press the DECEL/SET
button.
Tap the brake pedal lightly with
your foot. The CRUISE
CONTROL indicator on the
instrument panel goes out. When
the vehicle slows to the desired
speed, press the DECEL/SET
button.
Resting your foot on the brake pedal
causes cruise control to cancel.
Changing the Set Speed
Cruise Control
146
０５／０９／０９ １８：１６：３１ ３１ＳＮＣ６００ ０１４９
Main Menu
Table of Contents
You can cancel cruise control in any
of these ways:
Push theCANCEL button on the
steering wheel.
When you push the CANCEL button,
or tapthebrake or clutch pedal, the
system will remember the
previously-set cruising speed. To
return to that speed, accelerate to
above25mph(40km/h)thenpress
and release the RES/ACCEL button.
The CRUISECONTROL indicator
comes on. The vehicle will accelerate
to the same cruisingspeed as before.
Pressing the CRUISE button turns
thesystemoff anderasesthe
previous cruising speed.
Push theCRUISE button onthe
steering wheel.
Tap the brake pedal.
Canceling Cruise Control Resuming the Set Speed
Cruise Control
Features
147
CRUISE BUTTON
CANCEL
BUTTON
０５／０９／０９ １８：１６：３８ ３１ＳＮＣ６００ ０１５０
Main Menu
Table of Contents
Main Menu
Before you begin driving your
vehicle, you should know what
gasoline to use and how to check the
levels of important fluids. You also
need to know how to properly store
luggage or packages. The
information in this section will help
you. If you plan to add any
accessories to your vehicle, please
read theinformation inthis section
first.
.............................Break-in Period . 150
.................Fuel Recommendation . 150
.........Service Station Procedures . 151
....................................Refueling . 151
OpeningandClosingthe
.......................................Hood . 152
...................................Oil Check . 153
.............Engine Coolant Check . 154
...............................Fuel Economy . 154
...Accessories and Modifications . 156
.............................Carrying Cargo . 158
Before Driving
Before Driving
149
０５／０９／０９ １８：１６：４５ ３１ＳＮＣ６００ ０１５２
Main Menu
Help assure your vehicle’s future
reliability and performance by paying
extra attention to how you drive
during the first 600 miles (1,000 km).
During this period:
Avoid full-throttlestarts and rapid
acceleration.
You should also follow these
recommendations with an
overhauled or exchanged engine, or
when the brakes are replaced.
Your vehicle is designed to operate
on unleaded gasoline with a pump
octane number of 87 or higher. Use
of a lower octane gasoline can cause
a persistent, heavy metallic rapping
noise that can lead to engine damage.
Do not change the oil until the
scheduled maintenance time.
Avoidhardbrakingforthefirst
200 miles (300 km).
Using gasoline containing lead will
damage your vehicle’s emissions
controls. This contributes to air
pollution.
Inaddition, inorder to maintain good
performance, fuel economy, and
emissions control, we strongly
recommend, in areas where it is
available, the use of gasoline that
does NOT contain manganese-based
fuel additives such as MMT.
We recommended using a quality
gasoline containing detergent
additives that help prevent fuel
system and engine deposits.
Use of gasoline with these additives
may adversely affect performance,
and cause the malfunctionindicator
lamp on your instrument panel to
come on. If this happens, contact
your authorized dealer for service.
Some gasoline today is blended with
oxygenates such as ethanol or
MTBE. Your vehicle is designed to
operate on oxygenated gasoline
containing up to 10 % ethanol by
volume and up to 15 % MTBE by
volume. Do not use gasoline
containing methanol.
If you notice any undesirable
operating symptoms, try another
service stationor switch toanother
brand of gasoline.
For further important fuel-related
information, please refer to your
.
Break-in Period Fuel Recommendation
Quick Start Guide
Break-in Period, Fuel Recommendation
150
０５／０９／０９ １８：１６：５６ ３１ＳＮＣ６００ ０１５３
Main Menu
Table of Contents
Park with the driver’s side closest
to the gas pump.
even though the tank is not full,
there may be a problem with your
vehicle’s fuel vapor recovery
system. The system helps keep
fuel vapors from going into the
atmosphere. Consult your dealer.
Stop filling the tank after the fuel
nozzle automatically clicks off. Do
not try to ‘‘top off’’ the tank. Leave
some room for the fuel to expand
with temperature changes.
Removethefuelfillcapslowly.
You may hear a hissing sound as
pressure inside the tank escapes.
Place the cap in the holder on the
fuelfilldoor.
To open the fuel fill door, push
down the lever on the left of the
driver’s seat.
1.
2.
3.
4.
If the fuel nozzle keeps clicking off
CONTINUED
Service Station Procedures
Refueling
Before Driving
151
Push
HOLDER
FUEL FILL CAP
Gasoline is highly flammable
and explosive. You can be
burned or seriously injured
when handling fuel.
Stop the engine, and keep
heat, sparks, and flame away.
Handle fuel only outdoors.
Wipe up spills immediately.
０５／０９／０９ １８：１７：０５ ３１ＳＮＣ６００ ０１５４
Main Menu
Table of Contents
If the hood latch handle moves
stiffly, or if you can open the hood
without lifting the handle, the
mechanism should be cleaned and
lubricated.
Put your fingers under the front
edge of the hood near the center.
Slide your hand to the left until
you feel the hood latch handle.
Push this handle up to release it.
Lift up the hood.
Push the fuel fill door closed until
it latches.
Screw the fuel fill cap back on
until it clicks at least once. If you
do not properly tighten the cap,
the malfunction indicator lamp
maycomeon(seepage ).You
will also see a ‘‘CHECK FUEL
CAP’’ message on the information
display.
Park the vehicle, and set the
parking brake. Pull the hood
release handle under the lower left
corner of the dashboard. The
hood will pop up slightly.
Holding the grip (the rod can be
hot if the engine has been
running), pull the support rod out
of its clip. Insert theend into the
designated hole in the hood.
2.
1.
3.
5.
6.
229
Service Station Procedures
Opening and Closing the Hood
152
HOOD
RELEASE
HANDLE
LATCH
０５／０９／０９ １８：１７：１３ ３１ＳＮＣ６００ ０１５５
Main Menu
Table of Contents
Remove the dipstick again, and
check the level. It should be
between the upper and lower
marks.
Wait a few minutes after turning the
engine off before you check the oil.
Remove the dipstick (orange loop).
Wipe the dipstick with a clean
cloth or paper towel.
Insert it all the way back in its tube.
To close the hood, lift it up slightly to
remove the support rod from the
hole. Put the support rod back into
its holding clip. Lower the hood to
about a foot (30 cm) above the
fender, then let it drop. Make sure it
is securely latched.
If it is near or below the lower mark,
see on page .
2.
3.
1.
4.
192
Service Station Procedures
Oil Check
Adding Engine Oil
Before Driving
153
DIPSTICK
UPPER MARK
LOWER MARK
SUPPORT ROD
CLIP
GRIP
０５／０９／０９ １８：１７：２３ ３１ＳＮＣ６００ ０１５６
Main Menu
Table of Contents
Drive moderately. Rapid
acceleration, abrupt cornering,
and hard braking use more fuel.
Always drive in the highest gear
possible.
Always maintain your vehicle
according to the maintenance
schedule. See
(see page
).
an underinflated tire
causes more ‘‘rolling resistance,’’
which uses more fuel.
Engine oil also affects fuel
economy. The fuel efficient, low-
viscosity 0W-20 oil recommended
for your Civic Hybrid is
formulated to help the engine use
less fuel. This oil is available at
your dealer.
The build-up of snow or mud on
your vehicle’s underside adds
weight and rolling resistance.
Frequent cleaning helps your fuel
mileage and reduces the chance of
corrosion.
Look at the coolant level in the
radiator reserve tank. Make sure it is
between the MAX and MIN lines. If
it is below the MIN line, see
on page .
Refer to
on page for information
about checking other items on your
vehicle.
You may find that your Civic Hybrid’s
unique combination of an engine and
an electric motor has driving
characteristicsthat are somewhat
different from what you are used to.
192
184
184
For example,
Service Station Procedures, Fuel Economy
Improving Fuel Economy
Owner’s
Maintenance Checks
Engine Coolant Check
Adding
Engine Coolant
Owner’s Maintenance
Checks
154
MAX
MIN
RESERVE TANK
０５／０９／０９ １８：１７：３２ ３１ＳＮＣ６００ ０１５７
Main Menu
Table of Contents
Youmay notice that usingthe A/C
causes a greater drop in fuel
economy than you are used to in
other vehicles. Althoughtheamount
of extra fuel used by the A/C load on
the engine is no greater than other
vehicles, it is more noticeable
because of your Civic Hybrid’s
excellent fuel mileage. Using the
A/C in hot weather may result in
fuel economy that is lower than
expected.
The air conditioning puts an extra
load on the engine which makes it
usemorefuel.Usethefresh-air
ventilation when possible.
Try to maintain a constant speed.
Everytimeyouslowdownand
speed up, your vehicle uses extra
fuel. Use cruise control when
appropriate.
Wind resistance causes vehicles to
usemorefuelathigherspeeds.
Driving at moderate speeds on the
highway also reduces wind
resistance and conserves fuel.
The current fuel mileage display
allows you to monitor your fuel
mileage and adjust your driving
habitsto save fuel.
Combine several short trips into
one.
Fuel Economy
Before Driving
155
０５／０９／０９ １８：１７：３８ ３１ＳＮＣ６００ ０１５８
Main Menu
Table of Contents
Your dealer has Honda accessories
that allow you to personalize your
vehicle. These accessories have
been designed and approved for your
vehicle, and are covered by warranty.
When properly installed, cellular
phones, alarms, two-way radios, and
low-powered audio systems should
not interfere with your vehicle’s
computer controlled systems, such
as your airbags and anti-lock brakes.
Before installing any accessory:
Make sure the accessory does not
obscure any lights, or interfere
with proper vehicle operation or
performance.
Be sure electronic accessories do
not overload electrical circuits
(see page ) or interfere with
proper operation.
Modifying your vehicle, or installing
some non-Honda accessories, can
make it unsafe. Before you make any
modifications or add any accessories,
be sure to read the following
information.
Although non-Honda accessories
may fit on your vehicle, they may not
meet factory specifications, and
could adversely affect your vehicle’s
handling and stability.
Before installing any electronic
accessory, have the installer
contact your dealer for assistance.
If possible, have your dealer
inspect the final installation.
Do not install accessories on the
side pillars or across the rear
windows. In these areas,
accessories may interfere with
proper operation of the side
curtain airbags.
231
Accessories
Accessories and Modifications
156
Improper accessories or
modifications can affect your
vehicle’s handling, stability, and
performance, and cause a
crash in which you can be hurt
or killed.
Follow all instructions in this
owner’s manual regarding
accessories and modifications.
０５／０９／０９ １８：１７：４５ ３１ＳＮＣ６００ ０１５９
Main Menu
Table of Contents
Some examples are:
Larger or smaller wheels and tires
can interfere with the operation of
your vehicle’s anti-lock brakes and
other systems.
Removingparts from your vehicle,
or replacing components with
non-Honda components could
seriously affect your vehicle’s
handling, stability, and reliability.
Lowering the vehicle with a non-
Honda suspension kit that
significantly reduces ground
clearance can allow the
undercarriage to hit speed bumps
or other raised objects, which
could cause the airbags to deploy.
Raising your vehicle with a
non-Honda suspension kit can
affect the handling and stability.
Non-Honda wheels, because they
are a universal design, can cause
excessive stress on suspension
components.
If you plan to modify your vehicle,
consult your dealer.
Modifying your steering wheel or
any other part of your vehicle’s
safetyfeaturescanmakethe
systems ineffective.
Modifying Your Vehicle
Accessories and Modifications
Before Driving
157
０５／０９／０９ １８：１７：５３ ３１ＳＮＣ６００ ０１６０
Main Menu
Table of Contents
Your vehicle has several convenient
storage areas:
Glove box
Console compartment
Trunk
Center pocket
Door pockets
However, carrying too much cargo,
or improperly storing it, can affect
your vehicle’s handling, stability,
stopping distance, and tires, and
make it unsafe. Before carrying any
type of cargo, be sure to read the
following pages.
Carrying Cargo
158
CONSOLE COMPARTMENT
CENTER POCKET
TRUNK
GLOVE BOX
DOOR POCKETS
０５／０９／０９ １８：１８：００ ３１ＳＮＣ６００ ０１６１
Main Menu
Table of Contents
−×
Steps for determining correct load
limit:
Locate the statement, ‘‘the
combined weight of occupants and
cargo should never exceed 850
lbs’’ on your vehicle’s placard.
[The placard is on the driver’s
doorjamb.]
Determine the combined weight
of the driver and passengers that
will be riding in your vehicle.
Determine the combined weight
of luggage and cargo being loaded
in the vehicle. That weight may
not safely exceed the available
cargoand luggage load capacity in
step 4.
Inaddition, thetotal weight of the
vehicle, all passengers,
accessories, and cargo must not
exceed the Gross Vehicle Weight
Rating (GVWR)or the Gross Axle
Weight Rating(GAWR).Both are
on a label on the driver’s doorjamb.
The maximum load for your vehicle
is 850 lbs (385 kg) for U.S.A, 395 kg
for Canada. This figure includes the
total weight of all occupants, cargo,
and accessories, and the tongue load
if you are towing a trailer.
Subtract the combined weight of
the driver and passengers from
850 lbs.
The resulting figure equals the
available amount of cargo and
luggage load capacity.
For example, if the maximum load
is 850 lbs and there will be five 150
lb. passengers in your vehicle, the
amount of available cargo and
luggage load capacity is 100 lbs.
[850 750 (5 150) = 100 lbs.]
1.
2.
3.
4.
5.
Load Limits
Carrying Cargo
Before Driving
159
Overloading or improper
loading can affect handling and
stability and cause a crash in
which you can be hurt or killed.
Follow all load limits and other
loading guidelines in this
manual.
０５／０９／０９ １８：１８：０８ ３１ＳＮＣ６００ ０１６２
Main Menu
Table of Contents
Store or secure all items that could
be thrown around and hurt
someone during a crash.
Distribute cargo evenly on the
floor of the trunk, placing the
heaviest items on the bottom and
as far forward as possible.
Do not put any items on the rear
shelf that could cover the IMA
battery air intake. They can block
your view, or be thrown around
the vehicle during a crash.
If you carry large items that
prevent you from closing the trunk,
exhaust can enter the passenger
area. To avoid the possibility of
,
follow the instructions on page .
The air intake for the IMA battery
and electronics is located on top of
the rear shelf. Do not block this air
intake; it may causetheIMA battery
and the power control unit to
overheat, causing the IMA system to
shut down. It will start working again
after it cools.
Be sure items placed on the floor
behind the front seats cannot roll
under the seats and interfere with
the pedals or seat operation.
Keep the glove box closed while
driving. If it is open, a passenger
could injure their knees during a
crash or sudden stop.
52
Air IntakeCarrying Cargo in the TrunkCarrying Cargo in the Passenger
Compartment
carbon monoxide poisoning
Carrying Cargo
160
AIR INTAKE
０５／０９／０９ １８：１８：１６ ３１ＳＮＣ６００ ０１６３
Main Menu
Table of Contents
Do not spill any liquids over the air
intake or put any small foreign
objects in it. This may damage the
IMA battery and the power control
unit.
Carrying Cargo
Before Driving
161
０５／０９／０９ １８：１８：１９ ３１ＳＮＣ６００ ０１６４
Main Menu
Table of Contents
Main Menu
This section gives you tips on
starting the engine under various
conditions, andhow to operate the
manual and automatic transmissions.
It also includes important
information on parkingyour vehicle,
and the braking system.
........................Preparing to Drive . 164
.......................Starting the Engine . 165
.Automatic Transmission (CVT) . 166
...........................................Parking . 172
.............................Braking System . 173
...............Anti-lock Brakes(ABS) .174
...........................Towing a Trailer . 175
Driving
Driving
163
０５／０９／０９ １８：１８：２５ ３１ＳＮＣ６００ ０１６６
Main Menu
Make sure all windows, mirrors,
and outside lights are clean and
unobstructed. Remove frost, snow,
or ice.
Check that any items you may be
carrying are stored properly or
fastened down securely.
Check the seat adjustment (see
page ).
Check the adjustment of the
inside and outside mirrors (see
page ).
Check the steering wheel
adjustment (see page ).
Make sure the doors are securely
closed and locked.
Fasten your seat belt. Check that
your passengers have fastened
their seat belts (see page ).
Youshoulddothefollowingchecks
and adjustments before you drive
your vehicle.
When you start the engine, check
the gauges and indicators in the
instrument panel (see page ).
Check that the hood and trunk are
fully closed.
Visually check the tires. If a tire
looks low, use a gauge to check its
pressure (see page ).
1.
2.
3.
8.
7.
6.
14
9.4.
5.
207
93
75
89
57
10.
Preparing to Drive
164
０５／０９／０９ １８：１８：３５ ３１ＳＮＣ６００ ０１６７
Main Menu
Table of Contents
Apply the parking brake.
In cold weather, turn off all
electrical accessories to reduce
the drain on the battery.
If the engine does not start within
15 seconds, or starts but stalls
right away, repeat step 4 with the
accelerator pedal pressed halfway
down. If the engine starts, release
pressure on the accelerator pedal
so the engine does not race.
If the engine fails to start, press
the accelerator pedal all the way
down, and hold it there while
starting to clear flooding. If the
engine still does not start, return
to step 5.
In cold weather, conventional starter
is used instead of the IMA system
starter. This is normal.
Make sure the shift lever is in
Park. Press on the brake pedal.
Without touching the accelerator
pedal, turn the ignition key to the
START (III) position. Do not hold
the key in the START (III)
position for more than 15 seconds
at a time. If the engine does not
start right away, pause for at least
10 seconds before trying again.
1.
2.
3.
4.
5.
6.
78
Starting theEngine
Starting in Cold Weather
Driving
165
The immobilizer system protects your
vehicle from theft. If an improperly-
coded key (or other device) is used, the
engine’s fuel system is disabled. For
more information, see page .
The engine is harder to start in cold
weather. Also, the thinner air found at
altitudes above 8,000 feet (2,400
meters) adds to this problem.
０５／０９／０９ １８：１８：４３ ３１ＳＮＣ６００ ０１６８
Main Menu
Table of Contents
Honda’s Continuously Variable
Transmission’s unique design
provides a smooth, constant flow of
power. It is electronically controlled
for more precise operation and
better fuel economy.
These indicators on the instrument
panel show which position the shift
lever is in.
The ‘‘D’’ indicator comes on for a
few seconds when you turn the
ignition switch to theON(II)
position. If it flashes while driving (in
any shift position), it indicates a
possible problem in the transmission.
If the malfunction indicator lamp
comes on along with the ‘‘D’’
indicator,there isa problem in the
automatictransmission control
system. Avoid rapid acceleration, and
have the transmission checked by
your dealer as soon as possible.
Continuously Variable
Transmission (CVT)
Shift Lever Position Indicators
Automatic Transmission (CVT)
166
０５／０９／０９ １８：１８：４９ ３１ＳＮＣ６００ ０１６９
Main Menu
Table of Contents
−
To shift from any position, press
firmly on the brake pedal and press
the release button on the front of the
shiftlever.Youcannotshiftoutof
Park when the ignition switch is in
the LOCK (0) or ACCESSORY (I)
position.
This position mechani-
cally locks the transmission. Use
Park whenever you are turning off or
starting the engine. To shift out of
Park, you must press on the brake
pedal and have your foot off the
accelerator pedal. Press the release
buttononthefrontoftheshiftlever
to move it.
If you have done all of the above and
still cannot move the lever out of
Park, see on
page .
You must also press the release
button to shift into Park.To avoid
transmission damage, come to a
complete stop before shifting into
Park. The shift lever must be in Park
before you can remove the key from
theignition switch.
169
Toshift from:
PtoR
RtoP
NtoR
StoL
LtoS
StoD
DtoN
DtoS
NtoD
RtoN
Do this:
Press the brake pedal and
press the release button.
Press the release button.
Move the lever.
CONTINUED
Park (P)
Shift Lock Release
Shifting
Automatic Transmission (CVT)
Driving
167
SHIFT LEVER
RELEASE BUTTON
０５／０９／０９ １８：１８：５６ ３１ＳＮＣ６００ ０１７０
Main Menu
Table of Contents
−
−
−
−
−
When the vehicle reaches the
maximum speed in any shift position,
you may feel the engine cut in and
out. This is caused by a limiter (112
mph, 180 km/h) in the engine’s
computer controls. The engine will
run normally when you reduce the
speed to below the maximum.
Press the brake
pedal and press the release button
on the front of the shift lever to shift
from Park to reverse. To shift from
reverse to neutral, come to a
completestopandthenshift.Press
the release button before shifting
into reverse from neutral.
Use this position for
your normal driving. The
transmission automatically adjusts to
keep the engine at the best speed for
driving conditions. To help the
engine warm up faster, the
transmission will select ratios that
allow the engine to run at higher
speedswhenitiscold.
Use neutral if you
need to restart a stalled engine, or if
it is necessary to stop briefly with
the engine idling. Shift to the Park
position if you need to leave your
vehicle for any reason. Press on the
brake pedal when you are moving
theshift lever from neutral to
another gear.
Selecting Second
shifts the transmissioninto a lower
range of ratios for better
acceleration and increased engine
braking. Use Second when you are
going down a steep hill, or in stop-
and-go driving.
To shift to Low, press
therelease button on the front of the
shift lever. Use Low to get more
power when climbing, and for
maximum engine braking when
going down steep hills.
ForfasteraccelerationwheninD,S
or L, the transmission will
automatically ‘‘kick down’’ to a lower
range of ratios by pushing the
accelerator pedalto thefloor.
Engine Speed LimiterReverse (R)
Drive (D)
Neutral (N)
Second (S)
Low (L)
Automatic Transmission (CVT)
168
０５／０９／０９ １８：１９：０３ ３１ＳＮＣ６００ ０１７１
Main Menu
Table of Contents
Do this if pushing on the brake pedal
and pressing the release button do
not shift the transmission out of
Park:
Remove the keyfromthe ignition
switch.
Set the parking brake.
Insert a key intothe Shift Lock
Release slot.
Push down on the key while you
pressthereleasebuttononthe
shift lever and move the lever out
of Park to neutral.
Remove the keyfromthe shift
lock release slot, then install the
cover. Make sure the notch on the
cover is on the shift lever side.
Returnthekey to theignition
switch, press the brake pedal, and
restart the engine.
If you need to use the shift lock
release, it means your vehicle is
developing a problem. Have it
checked by your dealer.
Putaclothonthenotchofthe
shift lock release slot cover. Using
a small flat-tipped screwdriver or a
metal fingernail file, carefully pry
on the notch of the cover to
remove it.
1.
2.
3.
4.
5.
6.
Shift Lock Release
Automatic Transmission (CVT)
Driving
169
SHIFT LOCK
RELEASE SLOT
COVER
RELEASE
BUTTON
NOTCH
０５／０９／１０ １４：３０：５４ ３１ＳＮＣ６００ ０１７２
Main Menu
Table of Contents
−
−
To maximize fuel economy, your
Civic Hybridhas an Auto Idle Stop
function. Under certain conditions,
the engine will shut off when you
come to a stop. Those conditions are:
The engine coolant is nearly up to
normal operating temperature.
The shift lever isinDor N.
You are not pressingon the
accelerator pedal.
The IMA battery is charged
enough to operate the system.
You are pressing on the brake
pedal.
Fan speed lower fan speeds, in
either AUTO or manual modes.
The front window defroster is off.
Outsidetemperature is between
10 100 degrees F.
The Auto Idle Stop function activates
if you speed up to 8 mph (12 km/h)
over and brake to a stop. And it can
activate twice even if you speed up to
8 mph (12 km/h) or below and brake
to a stop.
The engine will start again when you
release the brake pedal. It will also
restart, even if you are still pressing
the brake pedal, under these
conditions:
You move the shift lever from D
or N to R or L.
You press the accelerator pedal.
You are on an incline, and the
vehicle begins rolling.
The Auto Idle Stop function may
activate when you slow down.
Auto Idle Stop
Automatic Transmission (CVT)
170
０５／０９／０９ １８：１９：２２ ３１ＳＮＣ６００ ０１７３
Main Menu
Table of Contents
If you open the driver’s door when
AutoStop is active, the indicatorwill
blink and you will hear a continuous
beep. The beep will stop when you
close the door.
With the driver’s door open, you will
hear a continuous beep even if the
Auto Idle Stop function is
deactivated and the engine restarts.
Alwaysturn the ignitionswitchto
LOCK (0) and remove the key if you
are getting out of the vehicle.
The indicator blinks as a reminder
that the engine has stopped because
of the Auto Idle Stop function. You
cannot restart the engine with the
ignition switch when this indicator is
blinking.
Auto Idle Stop Indicator
Automatic Transmission (CVT)
Driving
171
AUTO IDLE STOP INDICATOR
０５／０９／０９ １８：１９：２８ ３１ＳＮＣ６００ ０１７４
Main Menu
Table of Contents
Always use the parking brake when
you park your vehicle. Make sure
the parking brake is set firmly, or
your vehicle may roll if it is parked
on an incline.
If your vehicle has an automatic
transmission, set the parking brake
before you put the transmission in
Park. This keeps the vehicle from
moving and putting pressure on the
parking mechanism in the
transmission.
Make sure the windows are closed.
Turn off the lights.
Place any packages, valuables, etc.,
in the trunk or takethem with you.
Lockthedoorswiththekeyorthe
remote transmitter.
Check the indicator on the
instrument panel to verify that the
security system is set.
Never park over dry leaves,tall
grass, or other flammable
materials.The hot three way
catalytic converter could cause
these materialsto catch onfire.
If the vehicle is facing uphill, turn
the front wheels away from the
curb.
If the vehicle is facing downhill,
turn the front wheels towardthe
curb.
Make sure the parking brake is
fully released before driving away.
Driving with the parking brake
partially set can overheat or
damage the rear brakes.
Parking Tips
Parking
172
Never install a sunshade between the
upper and lower meters on the
instrument panel. If you do, you could
cause heat damage to the upper meter
on a very hot day.
０５／０９／０９ １８：１９：３７ ３１ＳＮＣ６００ ０１７５
Main Menu
Table of Contents
Your vehicle is equipped with front
disc brakes. The brakes on the rear
wheels are drum. A power assist
helps reduce the effort needed on
thebrakepedal.TheABShelpsyou
retain steering control when braking
very hard.
Resting your foot on the pedal keeps
the brakes applied lightly, builds up
heat, and reduces their effectiveness.
It also keeps your brake lights on all
the time, confusing drivers behind
you.
Constant application of the brakes
when going down a long hill builds
up heat and reduces their effective-
ness. Use the engine to assist the
brakes by taking your foot off the
accelerator and downshifting to a
lower gear.
Check the brakes after driving
through deep water. Apply the
brakes moderately to see if they feel
normal. If not, apply them gently and
frequently until they do. Be extra
cautious in your driving.
Your vehicle is equipped with an
advanced hydraulic booster.
The advancedhydraulic booster has
some features.
This feature enables you to press the
brakepedalwithlessforcebythe
help of hydraulic pressure in the oil
pressure pump.
This feature controls the braking
pressure appropriately, coordinating
with the regenerating brake of the
IMA motor.
When you release the brake pedal
while your vehicle idles, this feature
keeps the braking pressure until the
engine starts, and prevents the
vehicle from dropping back.
This feature helps you apply the
brakes with less force during an
emergency braking situation.
Power-Assist
Brake-Assist
Cooperative Control with Regenerative
Brake
Creep Aid System
Braking System
Driving
173
０５／０９／０９ １８：１９：４６ ３１ＳＮＣ６００ ０１７６
Main Menu
Table of Contents
If this indicator comes on, the anti-
lock function of the braking system
has shut down. The brakes still work
like a conventional system, but
without anti-lock. You should have
your dealer inspect your vehicle as
soon as possible.
If the ABS indicator comes on while
driving, test the brakes as shown on
page .
You will feel a pulsation in the brake
pedal when the ABS activates, and
you may hear some noise. This is
normal:it is the ABS rapidly
pumpingthebrakes.Ondry
pavement, you will need to press on
thebrakepedalveryhardbeforethe
ABS activates. However, you may
feel the ABS activate immediately if
you are trying to stop on snow or ice.The anti-lock brake system (ABS)
helps prevent the brakes from
locking up and helps you retain
steering control by pumping the
brakes rapidly; much faster than a
person.
The ABS also balances the front-to-
rear braking distribution according
to vehicle loading.
Let the ABS work for you by always
keeping firm, steady pressure on the
brake pedal. This is sometimes
referred to as ‘‘stomp and steer.’’
The hydraulic system that operates
the brakes has two separate circuits.
Each circuit works diagonally across
the vehicle (the left-front brake is
connected with the right-rear brake,
etc.). If one circuit should develop a
problem, you will still have braking
at two wheels.
If the brake pads need replacing, you
will hear a distinctive, metallic
screeching sound when you apply
the brake pedal. If you do not have
the brake pads replaced, they will
screech all the time. It is normal for
the brakes to occasionally squeal or
squeak when you apply them.
230
You should never pump the brake pedal.
Anti-lock Brakes (ABS)
ABS Indicator
Braking System Design
Brake Pad Wear Indicators
174
０５／０９／０９ １８：１９：５６ ３１ＳＮＣ６００ ０１７７
Main Menu
Table of Contents
Your vehicle is not designed to tow a
trailer; Attempting to do so can void
your warranties.It only helps with steering
control during braking.
such as trying to take a
corner too fast or making a sudden
lane change.
Always steer moderately
when you are braking hard. Severe
or sharp steering wheel movement
can still cause your vehicle to veer
into oncoming traffic or off the road.
on loose or
uneven surfaces, such as gravel or
snow, than a vehicle without anti-
lock.
If the ABS indicator and the brake
system indicator come on together,
and the parking brake is fully
released, the front-to-rear braking
distribution system may also be shut
down.
Test your brakes as instructed on
page . If the brakes feel normal,
drive slowly and have your vehicle
repaired by your dealer as soon as
possible. Avoid sudden hard braking
which could cause the rear wheels to
lock up and possibly lead to a loss of
control.
230
Anti-Lock Brakes (ABS), Towing a Trailer
Towing a TrailerImportant Safety Reminders
ABS does not reduce the time or
distance it takes to stop the
vehicle;
ABS will not prevent a skid that
results from changing direction
abruptly,
ABS cannot prevent a loss of
stability.
A vehicle with ABS may require a
longer distance to stop
Driving
175
０５／０９／０９ １８：２０：０３ ３１ＳＮＣ６００ ０１７８
Main Menu
Table of Contents
Main Menu
If you have the skills and tools to
perform more complex maintenance
tasks on your vehicle, you may want
to purchase the service manual. See
page for information on how to
obtain a copy, or see your dealer.
This section explains why it is
important to keep your vehicle well
maintained and how to follow basic
maintenance safety precautions.
This section also includes
instructions on how to read the
maintenance minder messages on
theinformation display, a
maintenance record, and instructions
for simple maintenance tasks you
may want to take care of yourself.
......................Maintenance Safety . 178
....................Maintenance Minder . 179
....................Maintenance Record . 186
..............................Fluid Locations . 188
........................Adding Engine Oil . 189
.........Changing the Oil and Filter . 190
..............................Engine Coolant . 192
....................Windshield Washers . 194
........................Transmission Fluid .195
Continuously Variable
............Transmission (CVT) . 195
....................................Brake Fluid . 196
.............................................Lights . 197
................................Roof Antenna . 202
................Cleaning the Seat Belts . 203
.....................................Floor Mats . 203
..................DustandPollenFilter .204
.................................Wiper Blades . 205
...............................................Tires . 207
......Checking the 12 Volt Battery . 212
.............................Vehicle Storage . 213
255
Maintenance
Maintenance
177
０５／０９／０９ １８：２０：１１ ３１ＳＮＣ６００ ０１８０
Main Menu
To eliminate potentialhazards, read
the instructions before you begin,
and make sure you have the tools
and skills required.
To clean parts, use a commercially
available degreaser or parts
cleaner, not gasoline.
To reduce the possibility of fire or
explosion, keep cigarettes, sparks,
and flames away from the battery
and all fuel-related parts.
Make sure your vehicle is parked
on level ground, the parking brake
is set, and the engine is off.
All service items not detailed in this
section should be performed by a
certified technician or other qualified
mechanic.
Some of the most important safety
precautions are given here. However,
we cannot warn you of every
conceivable hazard that can arise in
performing maintenance. Only you
can decide whether or not you
should perform a given task.
Do
not run the engine unless
instructed to do so.
Let the
engine and exhaust system cool
before touching any parts.
Wear eye protection and
protective clothing when working
with the battery or compressed air.
Be sure there is
adequate ventilation whenever you
operate the engine.
Maintenance Safety
Important Safety Precautions
Injury from moving parts.
Burns from hot parts.
Carbon Monoxide poison f rom
engine exhaust.
Potential Vehicle Hazards
178
Failure to properly follow
maintenance instructions and
precautions can cause you to
be seriously hurt or killed.
Always follow the procedures
and precautions in this owner’s
manual.
Improperly maintaining this
vehicle, or failing to correct a
problem before driving can
cause a crash in which you can
be seriously hurt or killed.
Always follow the inspection
and maintenance
recommendations and
schedules in this owner’s
manual.
０５／０９／０９ １８：２０：２０ ３１ＳＮＣ６００ ０１８１
Main Menu
Table of Contents
−
−
−
−
−
−
−
−
−
−
−
−
CONTINUED
Calculated Engine
Oil Life (%)
100 % 91 %
90 % 81 %
80 % 71 %
70 % 61 %
60 % 51 %
50 % 41 %
40 % 31 %
30 % 21 %
20 % 16 %
15 % 11 %
10 % 6 %
5% 1%
0%
Displayed
Engine Oil Life (%)
100 %
90 %
80 %
70 %
60 %
50 %
40 %
30 %
20 %
15 %
10 %
5%
0%
Your vehicle displays engine oil life
and maintenance service items on
the information display to show you
when you should have your dealer
perform engine oil replacement and
indicated maintenance service.
Based on the engine operating
conditions and accumulated engine
revolutions, the onboard computer in
your vehicle calculates the remaining
engine oil life and displays it as a
percentage.
The remaining engine oil life is
displayed on the engine oil life
display according to this table:
To see the current engine oil life,
turn the ignition switch to the ON
(II) position, and press the SEL/
RESET button repeatedly until the
engine oil life display appears (see
page ).
64
Maintenance Minder
Engine Oil Life Display
Maintenance
179
SEL/RESET BUTTON
ENGINE OIL LIFE DISPLAY
０５／０９／０９ １８：２０：２７ ３１ＳＮＣ６００ ０１８２
Main Menu
Table of Contents
The maintenance item code or codes
indicate the main and sub items
required at the time of the oil change
(see page ).
If the remaining engine oil life is 15
to 6 percent, you will see the engine
oil life indicator every time you turn
theignition switch to the ON (II)
position. The maintenance minder
indicator will also come on, and the
maintenance itemcode(s)forother
scheduled maintenance items
needing service will be displayed
next to the engine oil life indicator.
When the remaining engine oil life is
5 to 1 percent, you will see a
‘‘SERVICE OIL LIFE’’ message
along with the same maintenance
item code(s), every time you turn the
ignition switch to theON(II)
position.
185
Maintenance Minder
180
ENGINE OIL
LIFE DISPLAY
MAINTENANCE
MINDER INDICATOR
０５／０９／０９ １８：２０：３３ ３１ＳＮＣ６００ ０１８３
Main Menu
Table of Contents
−
If you still donot perform the
indicated maintenance, you will see
negative mileage. It is displayed
when you drive more than 10 miles
(for U.S. models) or 10 km (for
Canadian models) after seeing the 0
percent message. Afterward, it
shows your driving distance if you
continue to drive. Immediately have
the indicated maintenance done by
your dealer.
When the remaining engine oil life is
0 percent, the engine oil life indicator
will blink. The display comes on
everytimeyouturntheignition
switch to the ON (II) position. When
you see this message, have the
indicated maintenance performed by
your dealer as soon as possible.
The maximum total mileage shown
is ‘‘ 9999.’’
When the engine oil life is 0 percent
or negative mileage, the
maintenance minder indicator
remainsonevenifyouchangethe
information display.
Immediately have the service
performed, and make sure to reset
the display as described on the next
page.
You can change the information
display from the engine oil life
display to the odometer, the trip
meter,ortheoutside temperature
every time you press and release the
SEL/RESET button.
Maintenance Minder
Maintenance
181
０５／０９／０９ １８：２０：４０ ３１ＳＮＣ６００ ０１８４
Main Menu
Table of Contents
Your dealer will reset the display
after completing the required
maintenance service. You will see
‘‘OIL LIFE 100 %’’ on the information
display the next time you turn the
ignition switch to the ON (II)
position.
Press the SEL/RESET button
repeatedly until the engine oil life
is displayed.
Turn the ignition switch to the ON
(II) position.
If maintenance service is done by
someone other than your dealer,
reset the maintenance minder as
follows:
All maintenance items displayed in
the information display are in code.
For an explanation of these
maintenance codes, see page .
Press the SEL/RESET button for
about 10 seconds. The engine oil
life and the maintenance item
code(s) will blink.
1.
2.
3.
185
Maintenance Minder
Maintenance Main Items and Sub
Items
Resetting the Engine Oil Life
Display
182
MAINTENANCE MAIN ITEM
MAINTENANCE
SUB ITEM
０５／０９／０９ １８：２０：４８ ３１ＳＮＣ６００ ０１８５
Main Menu
Table of Contents
If you have the required service
done but do not reset the display, or
reset the display without doing the
service, the system will not show the
proper maintenance intervals. This
canleadtoseriousmechanical
problems because you will no longer
have an accurate record of when
maintenance is needed.
Your authorized Honda dealer
knows your vehicle best and can
provide competent, efficient service.
However, service at a dealer is not
mandatory to keep your warranties
in effect. Maintenance may be done
by any qualified service facility or
person who is skilled in this type of
automotive service. Make sure to
have the service facility or person
reset the display as previously
described. Keep all receipts as proof
of completion, and have the person
who does the work fillout the
maintenance record. Check your
warranty booklet for more
information.
We recommend using Honda parts
and fluids whenever you have
maintenance done. These are
manufactured to the same high-
quality standards as the original
components, so you can be confident
of their performance and durability.
Press the SEL/RESET button for
more than 5 seconds. The
maintenance item code(s) will
disappear, and the engine oil life
will reset to ‘‘100.’’
4.
CONTINUED
Maintenance Minder
Important Maintenance
Precautions
Maintenance
183
０５／０９／０９ １８：２０：５５ ３１ＳＮＣ６００ ０１８６
Main Menu
Table of Contents
＃
−
−
−
−
−
−U.S. Vehicles:
According to state and federal
regulations, failure to perform
maintenance on the items marked
with will not void your emissions
warranties. However, all
maintenance services should be
performed in accordance with the
intervals indicated by the
information display.
Youshouldcheckthefollowing
items at the specified intervals. If
you are unsure of how to perform
any check, turn to the appropriate
page listed.
Engine oil level Check every
time you fill the fuel tank. See
page .
Engine coolant level Check the
radiator reserve tank every time
youfillthefueltank.Seepage .
Automatic transmission Check
the fluid level monthly. See page
.
Brakes Check the fluid level
monthly. See page .
Tires Check the tire pressure
monthly. Examine the tread for
wear and foreign objects. See page
.
Lights Check the operation of
the headlights, parking lights,
taillights, high-mount brake light,
and license plate lights monthly.
See page .
153
154
195
196
207
197
Maintenance Minder
Maintenance,
replacement, or repair of
emissions control devices and
systems may be done by any
automotive repair establishment
or individual using parts that are
‘‘certified’’ to EPA standards.
Owner’s Maintenance Checks
184
０５／０９／０９ １８：２１：０３ ３１ＳＮＣ６００ ０１８７
Main Menu
Table of Contents
＃
＃
＃
Maintenance Minder
185
:
Maintenance Sub Items
Rotate tires
Replace air cleaner element
If you drive in dusty conditions, replace
every 15,000 miles (24,000 km).
Replace dust and pollen filter
If you drive primarily in urban areas that have high
concentrations of soot in the air from industry and
from diesel-powered vehicles, replace every 15,000
miles (24,000 km).
Inspect drive belt
Replace transmission fluid
Replace spark plugs
Inspect valve clearance
Replace engine coolant
Maintenance Main Items
Replace engine oil
Replace engine oil and oil filter
Inspect front and rear brakes
Check parking brake adjustment
Inspect these items:
Tie rod ends, steering gear box, and boots
Suspension components
Driveshaft boots
Brake hoses and lines (including ABS)
All fluid levels and condition of fluids
Exhaust system
Fuel lines and connections
A
B
Symbol Symbol
1
2
3
4
5
If the message ‘‘SERVICE OIL’’ does not appear more than 12 months after
the display is reset, change the engine oil every year.
See information on maintenance and emissions warranty on page .
Independent of the maintenance minder display, replace the brake fluid
every 3 years.
Inspect idle speed every 160,000 miles (256,000 km).
Adjust the valves during services A, B, 1, 2, or 3 only if they are noisy.
NOTE:
185
1:
1
1
Maintenance Minder
０５／０９／０９ １８：２１：１１ ３１ＳＮＣ６００ ０１８８
Main Menu
Table of Contents
Maintenance Record
186
mi
mi
mi
mi
mi
mi
mi
mi
mi
mi
mi
mi
mi
mi
You or the servicing dealer can record all completed maintenance here. When maintenance is performed, record the mileage, circle the coded item(s)
completed, and write in any other non-coded items (such as brake fluid replacement) below the codes. Keep the receipts for all work done on your
vehicle. Maintenance can also be recorded in your Honda service history booklet.
Mileage
km
km
km
km
km
km
km
Signature
Date
Mileage
km
km
km
km
km
km
km
Signature
Date
Maintenance
Performed
AB12345
AB12345
AB12345
AB12345
AB12345
AB12345
AB12345
Maintenance
Performed
AB12345
AB12345
AB12345
AB12345
AB12345
AB12345
AB12345
０５／０９／０９ １８：２１：１７ ３１ＳＮＣ６００ ０１８９
Main Menu
Table of Contents
Maintenance Record
Maintenance
187
mi
mi
mi
mi
mi
mi
mi
mi
mi
mi
mi
mi
mi
mi
Mileage
km
km
km
km
km
km
km
Signature
Date
Mileage
km
km
km
km
km
km
km
Signature
Date
Maintenance
Performed
AB12345
AB12345
AB12345
AB12345
AB12345
AB12345
AB12345
Maintenance
Performed
AB12345
AB12345
AB12345
AB12345
AB12345
AB12345
AB12345
０５／０９／０９ １８：２１：２３ ３１ＳＮＣ６００ ０１９０
Main Menu
Table of Contents
Fluid Locations
188
RADIATOR CAP
ENGINE OIL DIPSTICK
(Orange loop)
ENGINE OIL
FILL CAP
WASHER FLUID
(Blue cap)
AUTOMATIC
TRANSMISSION (CVT)
FLUID DIPSTICK
(Yellow loop)
ENGINE COOLANT
RESERVOIR
BRAKE FLUID
(Black cap)
０５／０９／０９ １８：２１：２７ ３１ＳＮＣ６００ ０１９１
Main Menu
Table of Contents
The oil viscosity or weight is
provided on the container’s label.
Oil is a major contributor to your
engine’s performance and longevity.
Always use a premium-grade 0W-20
detergent oil displaying the API
Certification Seal. This seal indicates
the oil is energy conserving, and that
it meets the American Petroleum
Institute’s latest requirements.
Honda Motor Oil is the preferred
0W-20 lubricant for your vehicle. It is
highly recommended that you use
Honda Motor Oil in your vehicle for
optimum engine protection. Make
sure the API Certification Seal says
‘‘For Gasoline Engines’’.
A very low-viscosity, fuel-efficient
0W-20 oilis the preferred engine
lubricant for your Civic Hybrid. This
special oil is formulated to help your
engine use less fuel. It is available at
your dealer. A 5W-20 oil may be used
if 0W-20 is not available.
Unscrew and remove the engine oil
fill cap on the valve cover. Pour in
the oil slowly and carefully so you do
not spill any. Clean up any spills
immediately. Spilled oil could
damage components in the engine
compartment.
Reinstall the engine oil fill cap, and
tighten it securely. Wait a few
minutes, and recheck the oil level on
the engine oil dipstick. Do not fill
above the upper mark; you could
damage the engine.
Recommended Engine Oil
Adding Engine Oil
Maintenance
189
API CERTIFICATION SEAL
ENGINE OIL
FILL CAP
Ambient Temperature
０５／０９／１０ １４：３１：０６ ３１ＳＮＣ６００ ０１９２
Main Menu
Table of Contents
Your vehicle does not require any oil
additives. Additivesmay adversely
affect the engine or transmission
performance and durability.
You may use a synthetic motor oil if
it meets the same requirements
given for a conventional motor oil: it
displays the API Certification Seal,
and it is the proper weight. You must
follow the oil and filter change
intervals shown ontheinformation
display.
Always change the oil and filter
according to the maintenance
messages shown on the information
display. The oil and filter collect
contaminants that can damage your
engine if they are not removed
regularly.
Changing the oil and filter requires
special tools and access from
underneath the vehicle. The vehicle
should be raised on a service station-
type hydraulic lift for this service.
Unless you have the knowledge and
proper equipment, you should have
this maintenance done by a skilled
technician.
Run the engine until it reaches
normal operating temperature,
thenshutitoff.
Open the hood, andremove the
engine oil fill cap.
Removethenineholdingclips
with a flat-tipped screwdriver and
two bolts, then pull the under-
cover down.
1.
2.
3.
Changing the Oil and FilterSynthetic Oil
Engine Oil Additives
Adding Engine Oil, Changing the Oil and Filter
190
HOLDING CLIP
BOLTS
０５／０９／１０ １４：３１：１７ ３１ＳＮＣ６００ ０１９３
Main Menu
Table of Contents
Refill the engine with the
recommended oil.
Engine oil change capacity
(including filter):
Let the engine run for several
minutes, then check the drain bolt
and oil filter for leaks.
Remove the oil filter, and let the
remaining oil drain. A special
wrench (available from your
dealer) is required.
Put a new washer on the drain bolt,
then reinstall the drain bolt.
Tighten the drain bolt to:
Open the hood, and remove the
engine oil fill cap. Remove the oil
drain bolt and washer from the
bottom of the engine. Drain the oil
into an appropriate container.
Install a new oil filter according to
the instructions that come with it.
Check the oil filter to make sure
its gasket did not stick to the
engine block. A stuck gasket could
cause an oil leak.
Reinstall the engine oil fill cap.
Start the engine. The oil pressure
indicator should go out within 5
seconds. If it does not, turn off the
engine, and check your work.
7.
8.
9.
4. 5.
6.
10.
CONTINUED
Changing the Oil and Filter
Maintenance
191
DRAIN BOLT
WASHER
OIL FILTER
3.4 US qt (3.2 )
29 lbf·ft (39 N·m , 4.0 kgf·m)
０５／０９／０９ １８：２１：５５ ３１ＳＮＣ６００ ０１９４
Main Menu
Table of Contents
Turn off the engine, let it sit for
several minutes, then check the oil
level on the dipstick. If necessary,
add more oil.
Put the under-cover back in place
and reinstall the nine holding clips.
Locktheclipssecurelybypushing
on the center of each clip.
If the coolant level in the reserve
tank is at or below the MIN line, add
coolant to bring it up to the MAX line.
Inspect the cooling system for leaks.
Always use Honda Long-life Anti-
freeze/Coolant Type 2. This coolant
is pre-mixed with 50 percent
antifreeze and 50 percent water.
Never add straight antifreeze or
plain water.
If Honda Long-life antifreeze/
coolant is not available, you may use
another major-brand non-silicate
coolant as a temporary replacement.
Make sure it is a high-quality coolant
recommended for aluminum engines.
Continued use of any non-Honda
coolant can result in corrosion,
causingthecoolingsystemto
malfunction or fail. Have the cooling
system flushed and refilled with
Honda Long-life antifreeze/coolant
as soon as possible.
11.
12.
Adding Engine Coolant
Changing the Oil and Filter, Engine Coolant
192
RESERVE TANK
Improper disposal of engine oil can be
harmful to the environment. If you
change your own oil, please dispose of
the used oil properly. Put it in a sealed
container and take it to a recycling
center. Do not discard it in a trash bin
or dump it on the ground.
０５／０９／０９ １８：２２：０２ ３１ＳＮＣ６００ ０１９５
Main Menu
Table of Contents
If the reserve tankiscompletely
empty, you should also check the
coolant level in the radiator.
The coolant level should be up to
the base of the filler neck. Add
coolant if it is low.
Do not add any rust inhibitors or
other additives to your vehicle’s
cooling system. They may not be
compatible with the coolant or
engine components.
Pour coolant into the reserve tank.
Fill it to halfway between the MAX
and MIN marks. Put the cap back
on the reserve tank.
Pourthecoolantslowlyand
carefully so you do not spill any.
Clean up any spill immediately; it
could damage components in the
engine compartment.
Make sure the engine and radiator
are cool.
Relieve any pressure in the cooling
system by turning the radiator cap
counterclockwise, without
pressing down.
Remove the radiator cap by
pushing down and turning
counterclockwise.
Put the radiator cap back on, and
tighten it fully.
1.
2.
3.
4.
5.
6.
Engine Coolant
Maintenance
193
RADIATOR CAP
Removing the radiator cap
while the engine is hot can
cause the coolant to spray out,
seriously scalding you.
Always let the engine and
radiator cool down before
removing the radiator cap.
０５／０９／１２ １３：４９：１９ ３１ＳＮＣ６００ ０１９６
Main Menu
Table of Contents
Check the fluid level in the
windshield washer reservoir at least
monthly during normal use.
The low washer
level indicator comes on when the
level is low (see page ).
Check the fluid level by removing
the cap and looking at the level
gauge.
Fill the reservoir with a good-quality
windshield washer fluid. This
increases the cleaning capability and
prevents freezing in cold weather.
When you refill the reservoir, clean
the edges of the windshield wiper
blades with windshield washer fluid
on a clean cloth. This will help to
condition them.
61
On Canadian models:
Windshield Washers
194
Do not use engine antifreeze or a
vinegar/water solution in the
windshield washer reservoir. Antifreeze
can damage your vehicle’s paint, while
a vinegar/water solution can damage
the windshield washer pump. Use only
commercially-available windshield
washer fluid.
０５／０９／０９ １８：２２：１７ ３１ＳＮＣ６００ ０１９７
Main Menu
Table of Contents
Check the fluid level with the engine
at normal operating temperature.
Remove the dipstick (yellow loop)
from the transmission, and wipe it
with a cleancloth.
Insert the dipstick all the way into
the transmissionsecurely as
shown in the illustration.
Remove the dipstick and check
the fluid level. It should be
between the upper andlower
marks within the HOT range.
Park the vehicle on level ground.
Shut off the engine.
NOTE: For accurate results, wait at
least 60 seconds, and no more than
90 seconds, after turning off the
engine to check the fluid level.
If the level is below the lower
mark, add fluid into the dipstick
hole to bring it to the level
between the upper andlower
marks.
Pour the fluid slowly and carefully
so you do not spill any. Clean up
any spill immediately; it could
damage components in the engine
compartment.
Always use Honda CVT Fluid
(Continuously Variable
Transmission fluid).
3.
4.
5.
1.
2.
CONTINUED
Continuously Variable
Transmission (CVT)
Transmission Fluid
Maintenance
195
DIPSTICK
UPPER
MARK
LOWER
MARK
HOT
Range
０５／０９／０９ １８：２２：２７ ３１ＳＮＣ６００ ０１９８
Main Menu
Table of Contents
To thoroughly flush the
transmission, the technician
should drain and refill it with
Honda CVT fluid, then drive the
vehicle for a short distance. Do
this three times. Then drain and
refill the transmission a final time.
Insert the dipstick all the way back
into the transmission securely.
The transmission should be drained
and refilled with new fluid when this
service is indicated by a maintenance
message on the information display.
If you are not sure how to add fluid,
contact your dealer.
Brake fluid marked DOT 5 is not
compatible with your vehicle’s
braking system and can cause
extensive damage.
Using any non-Honda brake fluid can
cause corrosion and decrease the life
of the system.Have the brake
system flushed and refilled with
Honda Heavy Duty Brake Fluid
DOT 3 as soon as possible.
Always use Honda Heavy Duty
Brake Fluid DOT 3. If it is not
available, you should use only DOT 3
or DOT 4 fluid, from a sealed
container, as a temporary
replacement.
Replace the brake fluid according to
thetimerecommendationsinthe
maintenance minder schedule.
Check the brake fluid level in the
reservoirs monthly.
Check the fluid level several seconds
afteryou turn the ignition switchto
the ON (II) position. The fluid level
should be between the MIN and
MAXmarksonthesideofthe
reservoir. If the level is at or below
the MIN mark, your brake system
needs attention. Have the brake
system inspected for leaks or worn
brake pads.
6.
Transmission Fluid, Brake Fluid
Brake System
196
MAX
MIN
０５／０９／０９ １８：２２：３７ ３１ＳＮＣ６００ ０１９９
Main Menu
Table of Contents
CONTINUED
Theheadlightswereproperlyaimed
when your vehicle was new. If you
regularly carry heavy items in the
trunk, readjustment may be required.
Adjustment should be done by your
dealer or other qualified mechanic.
Your vehicle has halogen headlight
bulbs. When replacing a bulb, handle
it by its base, and protect the glass
from contact with your skin or hard
objects. If you touch the glass, clean
it with denatured alcohol and a clean
cloth.
Open the hood.
To change a bulb on the left side,
remove the coolant tube from the
two clips.
Remove the reserve tank from its
holder by pulling it straight up.
1.
Headlight Aiming
Replacing a Headlight Bulb
Lights
Maintenance
197
COOLANT TUBE
CLIP
CLIP
HOLDER
Halogen headlight bulbs get very hot
when lit. Oil, perspiration, or a scratch
on the glass can cause the bulb to
overheat and shatter.
０５／０９／１２ １３：４９：３０ ３１ＳＮＣ６００ ０２００
Main Menu
Table of Contents
Ifyoureplacedaheadlightbulbon
the driver’s side, reinstall the
engine coolant reserve tank.
Insert the socket into the hole, and
turn it one-quarter turn clockwise
to lock it in place.
Push the electrical connector back
ontothenewsocket.Makesureit
is on all the way.
Turn on the headlights to test the
new socket.
Removethe socket fromthe
headlight assembly by turning it
one-quarter turn counterclockwise.
Remove the electrical connector
from the socket by pushing on the
tab and pulling the connector
down.
To change the bulb on the driver’s
side, start the engine, turn the
steering wheel all the way to the
right, and turn off the engine. To
change the bulb on the passenger’s
side, turn the steering wheel to the
left.
Use a flat-tipped screwdriver to
remove the two holding clips from
the inner fender, and pull the inner
fender cover back.
2.
3.
2.
4.
5.
6.
7.
1.
Low Beam Headlight
Lights
198
TAB
HOLDING CLIP
SOCKET
CONNECTOR
０５／０９／０９ １８：２２：５４ ３１ＳＮＣ６００ ０２０１
Main Menu
Table of Contents
To change the bulb on the driver’s
side, start the engine, turn the
steering wheel all the way to the
right, and turn off the engine. To
change the bulb on the passenger’s
side, turn the steering wheel to the
left.
Reinstall the inner fender cover.
Then reinstall the holding clips,
andlocktheminplacebypushing
on their centers.Removethe socket fromthe
headlight assembly by turning it
one-quarter turn counterclockwise.
Remove the electrical connector
from the socket by pushing on the
tab and pulling the connector
down.
Push the electrical connector back
ontothenewsocket.Makesureit
is on all the way.
Turn on the headlights to test the
new socket.
Insert thenew socket into the hole,
and turn it one-quarter turn
clockwise to lock it in place.
5.
6.
1.
7.
8.
3.
4.
CONTINUED
Replacing the Front Side Marker/
Parking/Turn Signal Light Bulb
Lights
Maintenance
199
TAB
HOLDING CLIP
SOCKET
０５／０９／０９ １８：２３：０３ ３１ＳＮＣ６００ ０２０２
Main Menu
Table of Contents
Open the trunk.
Removethe socket fromthe
headlight assembly by turning it
one-quarter turn counterclockwise.
Use a flat-tipped screwdriver to
remove the two holding clips from
the inner fender, and pull the inner
fender cover back.
Remove the bulb from the socket
by pushing the bulb in and turning
it counterclockwise until it unlocks.
Remove the screw fromthe center
of each fastener on the side of the
trunk lining. Pull the lining back.
Determine which of the four bulbs
is burned out: stop/taillight, back-
up light, turn signal, or side
marker.
Install the new bulb in the socket.
Turn it clockwise to lock it in place.
Insert the socket back into the
headlight assembly. Turn it
clockwise to lock it in place.
Testthelightstomakesurethe
new bulb is working.
Reinstall the inner fender cover.
Then reinstall the holding clips,
andlocktheminplacebypushing
on their centers.
1.
4.
5.
6.
7.
8.
3.
2.
2.
Replacing Rear Bulbs
(In Fenders)
Lights
200
FASTENER
FASTENER
０５／０９／１０ １４：３１：４２ ３１ＳＮＣ６００ ０２０３
Main Menu
Table of Contents
Open the trunk.Remove the socket by turning it
one-quarter turn counterclockwise.
Pull the bulb straight out of its
socket. Push the new bulb straight
intothe socket untilit bottoms.
Reinstall the socket into the light
assembly by turning it clockwise
until it locks.
Put the fasteners into the holes on
the side of the trunk lining.
Reinstall the screws.
Reinstall the trunk lining. Make
sure it is installed under the edge
of the trunk seal.
Testthelightstomakesurethe
new bulb is working.
Remove the screw fromthe center
of each fastener on the trunk lid
trim. Pull the trimback.
1.
2.
4.
5.
6.
7.
8.
3.
CONTINUED
Replacing Rear Bulbs
(in Trunk Lid)
Lights
Maintenance
201
BULBS
SOCKETS
SOCKETS
BULB
BULB
FASTENERS
０５／０９／１０ １４：３１：５５ ３１ＳＮＣ６００ ０２０４
Main Menu
Table of Contents
Remove the socket by turning it
one-quarter turn counterclockwise.
Pull the bulb straight out of its
socket. Push the new bulb straight
intothe socket untilit bottoms.
Insert the socket back into the
light assembly. Turn it clockwise
to lock it in place.
Testthelightstomakesurethe
new bulb is working.
Push the trunk lid trim back into
position.
Put the fasteners into the holes on
thetrunk lid trim.Reinstallthe
screws.
Beforeusinganautomaticcarwash,
remove the radioantenna so it does
not get damaged. Remove the
antenna by unscrewing it. When you
reinstall the antenna, tighten it
securely.
Before entering or parking in areas
with low ceiling height,remove the
antenna.
4.
5.
6.
7.
8.
3.
Roof Antenna
Lights, Roof Antenna
202
BULB
SOCKET
０５／０９／１０ １４：３２：０５ ３１ＳＮＣ６００ ０２０５
Main Menu
Table of Contents
If your seat belts get dirty, use a soft
brush with a mixture of mild soap
and warm water to clean them. Do
not use bleach, dye, or cleaning
solvents. Let the belts air dry before
you use the vehicle.
Dirt build-up in the loops of the seat
belt anchors can cause the belts to
retract slowly.Wipetheinsides of
the loops with a clean cloth
dampened in mild soap and warm
water or isopropyl alcohol.
If you remove the driver’s floor mat,
make sure to re-anchor it when you
putitbackinyourvehicle.
The floor mat that came with your
vehicle hook over the floor mat
anchors. This keeps them from
sliding forward and possibly
interfering with the pedals.
If equipped
CONTINUED
Seat Belts Floor Mats
Cleaning the Seat Belts, Floor Mats
Maintenance
203
LOOP
０５／０９／０９ １８：２３：４２ ３１ＳＮＣ６００ ０２０６
Main Menu
Table of Contents
If you use non-Honda floor mats,
make sure they fit properly and that
theycanbeusedwiththefloormat
anchors. Do not put additional floor
mats ontopof the anchored mats.
This filter removes the dust and
pollenthatisbroughtinfromthe
outside throughthe heatingand
cooling system.
Have your dealer replace the filter
when this service is indicated by a
maintenance message on the
information display. It should be
replaced every 15,000 miles (24,000
km) if you drive primarily in urban
areas that have high concentrations
of soot in the air, or if the flow from
theheatingand coolingsystem
becomeslessthanusual.
Check the condition of the wiper
blades at least every 6 months.
Replace them if you find signs of
cracking in the rubber, and areas
that aregetting hard or if they leave
streaks and unwiped areas when
used.
Floor Mats, Dust and Pollen Filter
Dust and Pollen Filter
204
０５／０９／０９ １８：２３：４７ ３１ＳＮＣ６００ ０２０７
Main Menu
Table of Contents
CONTINUED
To replace a wiper blade:
Lift thewiper armoff the
windshield, raising the driver’s
side first, then the passenger’s
side.
Remove the cover, by squeezing
the two tabs and pulling it straight
out.
As shown above, cover the tip of a
flat-tipped screwdriver with a cloth
and move the screwdriver in the
direction of the arrow.
2.
1.
Wiper Blades
Maintenance
205
COVER
WIPER ARMS
Do not open the hood when the wiper
arms are raised, or you will damage the
hood and wiper arms.
０５／０９／０９ １８：２３：５５ ３１ＳＮＣ６００ ０２０８
Main Menu
Table of Contents
Examine the new wiper blades. If
they have no plastic or metal
reinforcement along the back
edge, remove the metal
reinforcement strips from the old
wiper blade, and install them in
theslotsalongthe edge of thenew
blade.
Disconnect the blade assembly
fromthewiperarm:
Press and hold the lock tab.
Slide the blade assembly toward
the lock tab until it releases
fromthewiperarm.
When replacing a wiper blade,
make sure not to drop the wiper
blade or wiper arm down on the
windshield.
Remove the blade fromthe blade
assembly:
Findthesideoftheblade
labeled ‘‘LOCK.’’ This is the side
you pull out.
Pull back the end of the blade
assembly on the ‘‘LOCK’’ side of
theblade.Thengrabtheendof
the blade, and slide it out.
3. 4. 5.
Wiper Blades
206
BLADE ASSEMBLY
TAB
WIPER BLADE
REINFORCEMENT
STRIP
０５／０９／０９ １８：２４：０３ ３１ＳＮＣ６００ ０２０９
Main Menu
Table of Contents
Keeping the tires properly inflated
provides the best combination of
handling, tread life, and riding
comfort.
Underinflated tires wear unevenly,
adversely affect handling and fuel
economy, and are more likely to
failfrombeingoverheated.
Overinflated tires can make your
vehicleridemoreharshly,are
more prone to damage from road
hazards, and wear unevenly.
We recommend that you visually
check your tires every day. If you
think a tire might be low, check it
immediately with a tire gauge.
Install the new blade onto the
blade assembly:
Pull back either end of the blade
assembly.
Place the side of the blade not
labeled‘‘LOCK’’ontheendof
the blade assembly, and slide
thebladeontothe assembly
until it is fully installed.
Slide the wiper blade assembly
ontothe wiper arm. Make sureit
locks in place.
Reinstall the cover onto the blade
assembly.
Make sure the blade is completely
installed and that its edge is not
bunched up.
Lower the wiper arm down against
the windshield, the passenger’s
side first, then the driver’sside.
To safely operate your vehicle, your
tires must be the proper type and
size, in good condition with adequate
tread, and correctly inflated.
The following pages give more
detailed information on how to take
care of your tires and what to do
when they need to be replaced.
6.
7.
8.
9.
10.
Inflation GuidelinesTires
Wiper Blades, Tires
Maintenance
207
Using tires that are excessively
worn or improperly inflated can
cause a crash in which you can
be seriously hurt or killed.
Follow all instructions in this
owner’s manual regarding tire
inflation and maintenance.
０５／０９／１０ １３：３０：１６ ３１ＳＮＣ６００ ０２１０
Main Menu
Table of Contents
Use a gauge to measure the air
pressure in each tire at least once a
month. Even tires that are in good
condition may lose 1 to 2 psi (10 to
20 kPa, 0.1 to 0.2 kgf/cm ) per
month. Remember to check the
sparetireatthesametime.
Check the air pressures when the
tires are cold. This means the
vehicle has been parked for at least 3
hours, or driven less than 1 mile (1.6
km). Add or release air, if needed, to
match the recommended cold tire
pressures.
If you check air pressures when the
tires are hot (driven for several
miles), you will see readings 4 to 6
psi (30 to 40 kPa, 0.3 to 0.4 kgf/cm )
higher than the cold readings. This
is normal. Do not let air out to match
the recommended cold air pressure.
The tire will be underinflated.
Youshouldgetyourowntire
pressure gauge and use it whenever
you check your tire pressures. This
will make it easier for you to tell if a
pressure loss is due to a tire problem
and not dueto a variation between
gauges.
While tubeless tires have some
ability to self-seal if they are
punctured, you should look closely
for puncturesif a tirestarts losing
pressure.
The following chart shows the
recommended cold tire pressures for
most normal driving conditions and
speeds.
Thecompactsparetirepressureis:
Tire Size
Cold Tire Pressure
Tires
Recommended Tire Pressures
208
60 psi (420 kPa , 4.2 kgf/cm )
P195/65R15 89S
32 psi (220 kPa , 2.2
kgf/cm
)
Front/Rear:
０５／０９／０９ １８：２４：２４ ３１ＳＮＣ６００ ０２１１
Main Menu
Table of Contents
In addition to proper inflation,
correct wheel alignment helps to
decrease tire wear. If you find a tire
is worn unevenly, have your dealer
check the wheel alignment.
Have your dealer check the tires if
you feel a consistent vibration while
driving. A tire should always be
rebalanced if it is removed from the
wheel. When you have new tires
installed, make sure they are
balanced. This increases riding
comfort and tire life. For best results,
have the installer perform a dynamic
balance.
Your tires have wear indicators
molded into the tread. When the
tread wears down, you will see a
band 1/2 inch (12.7 mm) wide across
the tread. This shows there is less
than 1/16 inch (1.6 mm) of tread left
on the tire.
A tire this worn gives very little
traction on wet roads. You should
replace the tire if you can see three
or more tread wear indicators.
Every time you check inflation, you
should also examine the tires for
damage, foreign objects, and wear.
Youshouldlookfor:
Bumps or bulges in the tread or
side of the tire. Replace the tire if
youfindeitheroftheseconditions.
Cuts, splits, or cracks in the side
of the tire. Replace the tire if you
can see fabric or cord.
Excessive tread wear.
Tire MaintenanceTire Inspection
Tires
Maintenance
209
INDICATOR LOCATION MARKS
TREAD WEAR INDICATOR
Improper wheel weights can damage
your wheels. Use only genuine Honda
wheel weights for balancing.
０５／０９／０９ １８：２４：３３ ３１ＳＮＣ６００ ０２１２
Main Menu
Table of Contents
Replace your tires with radial tires of
the same size, load range, speed
rating, and maximum cold tire
pressure rating (as shown on the
tire’s sidewall).
Mixing radial and bias-ply tires on
your vehicle can reduce braking
ability, traction, and steering
accuracy. Usingtires of a different
size or construction can cause the
ABS to work inconsistently.
It is best to replace all four tires at
thesametime.Ifthatisnotpossible
or necessary, replace the two front
tires or two rear tires as a pair.
Replacing just one tire can seriously
affect your vehicle’s handling.
TheABSworksbycomparingthe
speed of the wheels. When replacing
tires, use the same size originally
supplied with the vehicle. Tire size
and construction can affect wheel
speed and may cause the system to
activate.
If you ever replace a wheel, make
sure the new one matches the
specifications of the original.
Replacement wheels are available at
your dealer.
To help increase tire life and
distribute wear more evenly, rotate
the tires according to the
maintenance messages displayed on
theinformation display. Move the
tires to the positions shown in the
chart each time they are rotated. If
you purchase directional tires, rotate
only front-to-back.
Replacing Tires and WheelsTire Rotation
Tires
210
Front Front
(Front Non-directional
Tires and Wheels)
(Front Directional
Tires and Wheels)
Installing improper tires on your
vehicle can affect handling and
stability. This can cause a crash
in which you can be seriously
hurt or killed.
Always use the size and type of
tires recommended in this
owner’s manual.
０５／０９／０９ １８：２４：４２ ３１ＳＮＣ６００ ０２１３
Main Menu
Table of Contents
＋
When installing cables, follow the
manufacturer’s instructions, and
mount them as tight as you can.
Make sure they are not contacting
the brake lines or suspension. Drive
slowly with them installed. If you
hear them coming into contact with
the body or chassis, stop and
investigate. Remove them as soon as
you begin driving on cleared roads.
If you mount snow tires on your
vehicle, make sure they are radial
tires of the same size and load range
as original tires. Mount snow tires on
all four wheels. The traction
provided by snow tires on dry roads
maybelowerthanyouroriginaltires.
Check with the tire dealer for
maximum speed recommendations.
Because your vehicle has limited tire
clearance, mount only SAE Class ‘‘S’’
cable-type traction devices, with
rubber chain tensioners on the front
tires. Use traction devices only when
required by driving conditions or
local laws. Make sure they are the
correct size for your tires. Metal link-
type ‘‘chains’’ should not be used.
Wheels:
Tires:
See page for DOT tire quality
grading information, and page
for tire size information.
Tires marked ‘‘M S’’ or ‘‘All
Season’’ onthe sidewallhave an all-
weather tread design suitable for
most winter driving conditions.
For the best performance in snowy
or icy conditions, you should install
snow tires or tire chains. They may
be required by local laws under
certain conditions.
244
246
Snow Tires
Tire Chains
Wheel and Tire Specifications
Winter Driving
Tires
Maintenance
211
15x6J
P195/65R15 89S
Traction devices that are the wrong
size or improperly installed can
damage your vehicle’s brake lines,
suspension, body, and wheels. Stop
driving if they are hitting any part of
the vehicle.
０５／０９／０９ １８：２４：５２ ３１ＳＮＣ６００ ０２１４
Main Menu
Table of Contents
−
Check the condition of the 12 volt
battery monthly by looking at the
test indicator window. The label on
thebattery explains the test
indicator’s colors.
If your vehicle’s 12 volt battery is
disconnected or goes dead, the IMA
battery level gauge readingwill not
be correct the next time you turnthe
ignition switch to theON(II)
position. It will show less than the
actual leveltemporarily. It will show
the correct level after you drive for
at least 30 minutes.
Check the terminals for corrosion (a
white or yellowish powder). To
remove it, cover the terminals with a
solution of baking soda and water. It
will bubble up and turn brown. When
this stops, wash it off with plain
water. Dry off the battery with a
cloth or paper towel. Coat the
terminals with grease to help prevent
further corrosion.
If additional battery maintenance is
needed, see your dealer or a
qualified technician.
Battery posts,
terminals, and related accessories
contain lead and lead compounds.
If youneed to connect the battery to
a charger, disconnect both cables to
prevent damaging your vehicle’s
electrical system. Always disconnect
the negative ( ) cable first, and
reconnect it last.
Checking the 12 Volt Battery
WARNING:
Wash your hands after handling.
212
TEST INDICATOR WINDOW
The battery gives off explosive
hydrogen gas during normal
operation.
A spark or flame can cause the
battery to explode with enough
force to kill or seriously hurt you.
Wear protective clothing and a
face shield, or have a skilled
mechanic do the battery
maintenance.
０５／０９／０９ １８：２４：５９ ３１ＳＮＣ６００ ０２１５
Main Menu
Table of Contents
Fill the fuel tank.
Change the engine oil and filter.
Block the rear wheels.
If the vehicle is to be stored for a
longer period, it should be
supported on jackstands so the
tires are off the ground.
Wash and dry the exterior
completely.
Cleantheinterior.Makesurethe
carpeting, floor mats,etc., are
completely dry.
If you need to park your vehicle for
an extended period (more than 1
month), there are several things you
should do to prepare it for storage.
Proper preparation helps prevent
deterioration and makes it easier to
get your vehicle back on the road. If
possible, store your vehicle indoors. Leave one window open slightly (if
the vehicle is being stored
indoors).
Cover the vehicle with a
‘‘breathable’’ cover, one made
from a porous material such as
cotton. Non-porous materials, such
as plastic sheeting,trap moisture,
which can damage the paint.
To minimize sticking, apply a
silicone spray lubricant to all door
and trunk seals. Also, apply a
vehiclebodywaxtothepainted
surfaces that mate with the door
and trunk seals.
Support the front wiper blade
arms with a folded towel or rag so
they do not touch the windshield.
Disconnect the 12 volt battery.
Reconnect the 12 volt battery and
drive your vehicle every month for
about 30 minutes. This will keep
the IMA battery charged and in
good condition.
Leave the parking brake off. Put
the transmission in Park.
If possible, periodically run the
engine until it reaches full
operatingtemperature (the
cooling fan cycles twice).
Preferably, do this once a month.
Vehicle Storage
Maintenance
213
０５／０９／０９ １８：２５：１０ ３１ＳＮＣ６００ ０２１６
Main Menu
Table of Contents
Main Menu
This section covers the more
common problems that motorists
experience with their vehicles. It
gives you information about how to
safely evaluate the problem andwhat
to doto correct it. If the problem has
stranded you on the side of the road,
youmay be able to get going again.
If not, you will also find instructions
on getting your vehicle towed.
......................Compact Spare Tire . 216
....................Changing a Flat Tire . 217
.............If the Engine Won’t Start . 221
................................Jump Starting . 223
..............If the Engine Overheats . 225
.........Low Oil Pressure Indicator . 227
..........Charging System Indicator . 228
.......Malfunction Indicator Lamp . 229
...............Brake System Indicator . 230
..............................................Fuses . 231
..............................Fuse Locations . 235
......................Emergency Towing . 237
Taking Care of the Unexpected
Taking Care of the Unexpected
215
０５／０９／０９ １８：２５：１６ ３１ＳＮＣ６００ ０２１８
Main Menu
Check the inflation pressure of the
compact spare tire every time you
check the other tires. It should be
inflated to:
Follow these precautions:
Never exceed 50 mph (80 km/h).
This tire gives a harsher ride and
less tractiononsome roadsur-
faces. Use greater caution while
driving.
Replace the tire when you can see
the tread wear indicator bars. The
replacement should be the same size
and design tire, mounted on the
samewheel.Thesparetireisnot
designed to be mounted on a regular
wheel, and the spare wheel is not
designed for mounting a regular tire.
Do not mount snow chains on the
compact spare tire.
Do not use your compact spare
tire on another vehicle unless it is
thesamemakeandmodel.
Use the compact spare tire as a
temporary replacement only. Get
your regular tire repaired or replaced,
and put it back on your vehicle as
soon as you can.
Compact Spare Tire
216
INDICATOR LOCATION MARK
TREAD WEAR INDICATOR BAR
60 psi (420 kPa , 4.2 kgf/cm )
０５／０９／０９ １８：２５：２３ ３１ＳＮＣ６００ ０２１９
Main Menu
Table of Contents
CONTINUED
If you have a flat tire while driving,
stop in a safe place to change it.
Drive slowly along the shoulder until
you get to an exit or an area to stop
thatisfarawayfromthetrafficlanes.
Park the vehicle on firm, level, and
non-slippery ground. Put the
transmission in Park. Apply the
parking brake.
Open the trunk. Raise the trunk
floor by lifting up on the back edge.
Turn on the hazard warning lights,
and turn the ignitionswitch tothe
LOCK (0) position. Have all
passengers get out of the vehicle
while you change the tire.
Take the tool case out of the spare
tire.
Unscrew the wing bolt, and take
thespare tire out of itswell.
5.
4.
3.
2.
1.
Changing a Flat Tire
Taking Care of the Unexpected
217
JACK
SPARE TIRETRUNK FLOOR
TOOL CASE
The vehicle can easily roll off
the jack, seriously injuring
anyone underneath.
Follow the directions for
changing a tire exactly, and
never get under the vehicle
when it is supported only by the
jack.
０５／０９／１２ １３：５０：４２ ３１ＳＮＣ６００ ０２２０
Main Menu
Table of Contents
Loosen each wheel nut 1/2 turn
with the wheel nut wrench.
Place the jack under the jacking
point. Turn the end bracket
clockwise until the top of the jack
contacts the jacking point. Make
sure the jacking point tab is
restinginthejacknotch.
Remove the center cap fromthe
wheel with the extension.
6. 7. 8.
Changing a Flat Tire
218
JACKING POINTS
WHEEL NUT WRENCH
０５／０９／１０ １４：３２：１３ ３１ＳＮＣ６００ ０２２１
Main Menu
Table of Contents
Use the extension and the wheel
nut wrench as shown to raise the
vehicle until the flat tire is off the
ground.
Remove the wheel nuts, then
remove the flat tire. Handle the
wheel nuts carefully; they may be
hot from driving. Place the flat tire
on the ground with the outside
surface facing up.
Before mounting the spare tire,
wipeanydirtoffthemounting
surface of the wheel and hub with
a clean cloth. Wipe the hub
carefully;itmaybehotfrom
driving.
Put on the spare tire. Put the
wheel nuts back on finger-tight,
then tighten themin a crisscross
pattern withthe wheelnut wrench
until the wheel is firmly against
thehub. Donot try to tighten
them fully.
Lower the vehicle to the ground,
and remove the jack.
9.
10.
11.
12.
13.
CONTINUED
Changing a Flat Tire
Taking Care of the Unexpected
219
BRAKE HUB
WHEEL NUT WRENCH EXTENSION
０５／０９／１０ １４：３２：２３ ３１ＳＮＣ６００ ０２２２
Main Menu
Table of Contents
Tighten the wheel nuts securely in
the same crisscross pattern. Have
the wheel nut torque checked at
thenearest automotive service
facility.
Tighten the wheel nuts to:
Remove the center cap before
storing the flat tire in the trunk
well.
Place the flat tire face down in the
spare tire well.
Remove the spacer cone from the
wing bolt, turn it over, and put it
back on the bolt.
Securetheflattirebyscrewing
thewing bolt backinto its hole.
Store the jack in the tool case.
Lower the trunk floor, and close
the trunk lid.
Store the center cap in the trunk.
Make sure it does not get
scratched or damaged.
14.
15.
16.
17.
18.
19.
20.
21.
Changing a Flat Tire
220
SPACER CONEWING BOLT
For normal
tire
For spare
tire
80 lbf·ft (108 N·m , 11 kgf·m)
Loose items can fly around the
interior in a crash and could
seriously injure the occupants.
Store the wheel, jack, and tools
securely before driving.
０５／０９／０９ １８：２５：５５ ３１ＳＮＣ６００ ０２２３
Main Menu
Table of Contents
Diagnosing why the engine won’t
start falls into two areas, depending
on what you hear when you turn the
ignition switch to the START (III)
position:
If the headlights dim noticeably or
go out when you try to start the
engine, either the battery is
discharged or the connections are
corroded. Check the condition of
the 12 volt battery and terminal
connections (see page ). You
canthentryjumpstartingthe
vehicle from a booster battery
(see page ).
You hear nothing, or almost
nothing. The engine’s starter
motor does not operate at all, or
operates very slowly.
You can hear the starter motor
operating normally, or the starter
motor sounds like it is spinning
faster than normal, but the engine
does not start up and run.
When you turn the ignition switch to
the START (III) position, you do not
hear the normal noise of the engine
trying to start. You may hear a
clicking sound or series of clicks, or
nothing at all.
Check these things:
Check the transmission interlock.
The transmission must be in Park
or neutral or the starter will not
operate.
Turn the ignition switch to the ON
(II) position. Turn on the
headlights, and check their
brightness. If the headlights are
very dim or do not come on at all,
the battery is discharged. See
on page .
Turn the ignition switch to the
START (III) position. If the
headlights do not dim, check the
condition of the fuses. If the fuses
areOK,thereisprobably
something wrong with the
electrical circuit for the ignition
switch or starter motor. You will
need a qualified technician to
determine the problem (see
on page ).
223 223
212
237
Nothing Happens or the Starter
Motor Operates Very Slowly
Jump Starting
Emergency Towing
IftheEngineWon’tStart
Taking Care of the Unexpected
221
０５／０９／０９ １８：２６：０４ ３１ＳＮＣ６００ ０２２４
Main Menu
Table of Contents
Are you using a properly coded
key? An improperly coded key will
cause the immobilizer system
indicator in the instrument panel
to blink rapidly (see page ).
Are you using the proper starting
procedure? Refer to
on page .
Do you have fuel? Check the fuel
gauge; the low fuel indicator may
not be working.
There may be an electrical
problem, such as no power to the
fuel pump. Check all the fuses
(see page ).
Ifyoufindnothingwrong,youwill
need a qualified technician to find
the problem. See
on page .
In this case, the starter motor’s
speed sounds normal, or even faster
than normal,when youturnthe
ignition switch to the START (III)
position, but the engine does not run.
165
231
237
59
The Starter Operates Normally
Starting the
Engine
Emergency
Towing
IftheEngineWon’tStart
222
０５／０９／０９ １８：２６：１０ ３１ＳＮＣ６００ ０２２５
Main Menu
Table of Contents
−
Start the vehicle. If the starter
motor still operates slowly,check
that the jumper cables have good
metal-to-metalcontact.
Keep the ends of the jumper cables
away fromeach other and any metal
on the vehicle until everything is
disconnected. Otherwise, you may
cause an electrical short.
If the booster battery is inanother
vehicle, have an assistant start
that vehicle andrun it at a fast idle.
Once your vehicle is running,
disconnect the negative cable from
your vehicle, then from the
boosterbattery.Disconnect the
positive cable from your vehicle,
then from the booster battery.
If your vehicle’s 12 volt battery is
disconnected or goes dead, the IMA
battery level gauge readingwill not
be correct the next time you turnthe
ignition switch to theON(II)
position. It will show less than the
actual leveltemporarily. It will show
the correct level after you drive for
at least 30 minutes.
Connect the second jumper cable
to the negative ( ) terminal on
theboosterbattery.Connect the
other end to the grounding strap
as shown. Do not connect this
jumper cable to any other part of
the engine.
7.
6.
4.
5.
Jump Starting
224
０５／０９／０９ １８：２６：２６ ３１ＳＮＣ６００ ０２２７
Main Menu
Table of Contents
The reading on the vehicle’s
temperature gauge should stay in
the midrange. If it climbs to the red
mark, you should determine the
reason (hot day, driving up a steep
hill, etc.).
If your vehicle overheats, you should
take immediate action. The only
indicationmaybethetemperature
gauge climbing to or above the red
mark. Or you may see steam or
spray coming from under the hood.
Safely pull to the side of the road.
Put the transmission in Park, and
set the parking brake. Turn off all
accessories, and turn on the
hazard warning indicators.
If you see steam and/or spray
coming from under the hood, turn
off the engine. Wait until you see
no more signs of steam or spray,
then open the hood.
If you do not see steam or spray,
leave the engine running, and
watch the temperature gauge. If
the high heat is due to overloading,
the engine should start to cool
down almost immediately. If it
does, wait until the temperature
gauge reading comes down to the
midpoint, then continue driving.
If the temperature gauge reading
stays at the red mark, turn off the
engine.
Look for any obvious coolant leaks,
such asa split radiator hose.
Everything is still extremely hot,
so use caution. If you find a leak, it
must be repaired before you
continue driving (see
on page ).
1.
2.
3.
4.
5.
237
CONTINUED
Emergency
Towing
IftheEngineOverheats
Taking Care of the Unexpected
225
Steam and spray from an
overheated engine can
seriously scald you.
Do not open the hood if steam
is coming out.
Driving with the temperature gauge
reading at the red mark can cause
serious damage to the engine.
０５／０９／０９ １８：２６：３４ ３１ＳＮＣ６００ ０２２８
Main Menu
Table of Contents
If the temperature stays normal,
check the coolant level in the
radiator reserve tank. If it has
gone down, add coolant to the
MAX mark. Put the cap back on
tightly.
If you do not find an obvious leak,
check the coolant level in the
radiator reserve tank. Add coolant
if the level is below the MIN mark.
Using gloves or a large heavy
cloth, turn the radiator cap
counterclockwise, without pushing
down, to the first stop. After the
pressure releases, push down on
the cap, and turn it until it comes
off.
Put the radiator cap back on
tightly. Run the engine, and watch
the temperature gauge. If it goes
back to the red mark, the engine
needs repair (see
on page ).If there wasno coolant inthe
reserve tank, you may need to add
coolant to the radiator. Let the
engine cool down until the reading
reaches the middle of the
temperature gauge or lower
before checking the radiator.
Start the engine, and set the
temperature control dial to
maximum. Add coolant to the
radiator up to the base of the filler
neck. If you do not have the
proper coolant mixture available,
youcan add plain water.
Remember to have the cooling
system drained and refilled with
the proper mixture as soon as you
can.
8.
9.
7.
6. 10.
11.
237
Emergency
Towing
IftheEngineOverheats
226
Removing the radiator cap
while the engine is hot can
cause the coolant to spray out,
seriously scalding you.
Always let the engine and
radiator cool down before
removing the radiator cap.
０５／０９／０９ １８：２６：４１ ３１ＳＮＣ６００ ０２２９
Main Menu
Table of Contents
If necessary, add oil to bring the
level back to the full mark on the
dipstick (see page ).
Let the vehicle sit for a minute.
Open the hood, and check the oil
level (see page ). An engine
very low on oil can lose pressure
during cornering and other driving
maneuvers.
Safely pull off the road, and shut
off the engine. Turn on the hazard
warning indicators.
This indicator should never
come on when the engine is
running. If it starts flashing
or stays on, the oil pressure has
dropped very low or lost pressure.
Serious engine damage is possible,
and you should take immediate
action.
Start the engine, and watch the oil
pressure indicator. If it does not go
out within 10 seconds, turn off the
engine. There is a mechanical
problem that needs to be repaired
before you can continue driving
(see on page
).
The engine running generates the oil
pressure. When the Auto Idle Stop is
activated, the engine is stopped, the
oil pressure is dropped, and the low
oil pressure indicator does not come
on.
1.
2.
3.
4.
153
189
237
Emergency Towing
Low Oil Pressure Indicator
Taking Care of the Unexpected
227
Running the engine with low oil
pressure can cause serious mechanical
damage almost immediately. Turn off
the engine as soon as you can safely get
the vehicle stopped.
０５／０９／０９ １８：２６：４８ ３１ＳＮＣ６００ ０２３０
Main Menu
Table of Contents
−
−
IftheAutoIdleStopisactiveforan
extended period, the charging
system indicator may come on. If it
happens, start the engine.
The charging system indicator may
also come on if the Integrated Motor
Assist (IMA) battery charge drops
below a desired level and the engine
starts to recharge the battery.
This indicator may blink after you
start the vehicle in the morning
when the temperature is below 20
°F ( 30°C). It will stop blinking
whenthe IMA battery warms up.
If the charging system
indicator comes on brightly
when the engine is running,
the12volt batteryis not being
charged.
Immediately turn off all electrical
accessories. Try not to use other
electrically operated controls such as
the power windows and rear window
defogger. Keep the engine running;
starting the engine will discharge the
battery rapidly.
Go to a service station or garage
where you can get technical
assistance.
Charging System Indicator
228
０５／０９／０９ １８：２６：５４ ３１ＳＮＣ６００ ０２３１
Main Menu
Table of Contents
If the indicator comes on repeatedly,
even though it may turn off as you
continue driving, have the vehicle
checked by the dealer as soon as
possible.
If the indicator comes on
while driving, it means one
of the engine’s emissions
control systems may have a problem.
Even though you may feel no
difference in your vehicle’s
performance, it can reduce your fuel
economy and cause increased
emissions. Continued operation may
cause serious damage.
If the battery in your vehicle has
been disconnected or gone dead,
these codes are erased. It takes at
least three days of driving under
various conditions to set the codes
again.
To check if they are set, turn the
ignition switch to the ON (II)
position, without starting the engine.
The malfunction indicator lamp will
come on for 20 seconds. If it then
goes off, the readiness codes are set.
If it blinks five times, the readiness
codes are not set. If possible, do not
take your vehicle for a state
emissions test until the readiness
codes are set. Refer to
for more
information (see page ).
If you have recently refueled your
vehicle, the indicator coming on
could be due to a loose or missing
fuel fill cap. You will also see a
‘‘CHECK FUEL CAP’’ message on
the information display. Tighten the
cap until it clicks at least once (see
page ). Tightening the cap will
not turn the indicator off
immediately; it can take several days
of normal driving.
Your vehicle has certain ‘‘readiness
codes’’ that are part of the on-board
diagnostics for the emissions
systems. In some states, part of the
emissions testing is to make sure
these codes are set. If they are not
set, the test cannot be completed.
151
250
State
Emissions Testing
Readiness Code
Malfunction Indicator Lamp
Taking Care of the Unexpected
229
If you keep driving with the
Malfunction Indicator Lamp on, you
can damage your vehicle’s emissions
controls and engine. Those repairs may
not be covered by your vehicle’s
warranties. This indicator may also
come on with the ‘‘D’’ indicator.
０５／０９／０９ １８：２７：０１ ３１ＳＮＣ６００ ０２３２
Main Menu
Table of Contents
If the ABS indicator comes on with
the brake system indicator, have
your vehicle inspected by your
dealer immediately.
However, if the brake pedal does not
feel normal, you should take
immediate action. A problem in one
part of the system’s dual circuit
design will still give you braking at
two wheels. You will feel the brake
pedal go down much farther before
the vehicle begins to slow down, and
you will have to press harder on the
pedal.
Slow down by shifting to a lower
gear, and pull to the side of the road
when it is safe. Because of the long
distance needed to stop, it is
hazardous to drive the vehicle. You
should have it towed and repaired as
soon as possible (see
on page ).
If you must drive the vehicle a short
distance in this condition, drive
slowly and carefully.
The brake system
indicator normally
comes on when
you turn the ignition switch to the
ON (II) position and as a reminder to
check the parking brake. It will stay
on if you do not fully release the
parking brake.
If the brake system indicator comes
on while driving, the brake fluid level
is probably low. Press lightly on the
brake pedal to see if it feels normal.
If it does, check the brake fluid level
thenexttimeyoustopataservice
station (see page ).
If the fluid level is low, take your
vehicle to a dealer, and have the
brake system inspected for leaks or
worn brake pads.
If the brake system indicator
(amber) comes on with the parking
brake system indicator (red) with
the parking brake released, there
may be a malfunctionwith the
power-assist feature. When the
power-assist feature malfunctions,
the brake indicator (red) comes on
and a buzzer sounds for a second.
The power-assist feature may stop
when the brake effect is weak. Stop
your vehicle immediately at a safe
place and contact a dealer.
196
237
Emergency
Towing
Brake System Indicator
230
CanadaU.S.
０５／０９／０９ １８：２７：０８ ３１ＳＮＣ６００ ０２３３
Main Menu
Table of Contents
The vehicle’s fuses are contained in
threefuseboxes.
The primary and secondary under-
hood fuse boxes are in the engine
compartment on the driver’s side.
The interior fuse box is underneath
the steering column.
Fuses
Taking Care of the Unexpected
231
TAB
UNDER-HOOD (PRIMARY)
UNDER-HOOD (SECONDARY)
INTERIOR
FUSE LABEL
０５／０９／１０ １４：３７：０７ ３１ＳＮＣ６００ ０２３４
Main Menu
Table of Contents
Check each of the large fuses in
the primary under-hood fuse box
by looking through the top at the
wire inside. Removing these fuses
requires a Phillips-head
screwdriver.
Turn the ignition switch to the
LOCK (0) position. Make sure the
headlights and all other
accessories are off.
Remove the cover from the fuse
box.
If something electrical in your
vehicle stops working, the first thing
youshouldcheckforisablownfuse.
Determine from the chart on pages
and or the diagram on the
fuseboxlid,whichfusescontrolthat
device. Check those fuses first, but
check all the fuses before deciding
that a blown fuse is the cause.
Replace any blown fuses, and check
if the device works.
1.
2.
3.
235 236
Checking and Replacing Fuses
Fuses
232
BLOWN
FUSE BLOWN
０５／０９／０９ １８：２７：２２ ３１ＳＮＣ６００ ０２３５
Main Menu
Table of Contents
If you cannot drive the vehicle
without fixing the problem, and you
do not have a spare fuse, take a fuse
of the same rating or a lower rating
from one of the other circuits. Make
sureyoucandowithoutthatcircuit
temporarily (such as the accessory
power socket or radio).
If you replace the blown fuse with a
spare fuse that has a lower rating, it
might blow out again. This does not
indicate anything wrong. Replace the
fuse with one of the correct ratingas
soon as you can.
Check the smaller fuses in the
under-hood fuse boxes and all the
fusesintheinteriorfuseboxby
pulling out each one with the fuse
puller provided in the primary
under-hood fuse box.
Look for a blown wire inside the
fuse. If it is blown, replace it with
oneofthesparefusesofthesame
rating or lower. The spare fuses
are provided back of the under-
hood fuse cover.
4. 5.
CONTINUED
Fuses
Taking Care of the Unexpected
233
FUSE PULLER
BLOWN
０５／０９／０９ １８：２７：２８ ３１ＳＮＣ６００ ０２３６
Main Menu
Table of Contents
If the replacement fuse of the
same rating blows in a short time,
there is probably a serious
electrical problem in your vehicle.
Leave the blown fuse in that
circuit and have your vehicle
checked by a qualified mechanic.
When the audio system is disabled,
theclock setting inthe audio system
will be canceled. You will need to
reset the clock according to the
instructions in the audio system
sectiononthisowner’smanual.
6.
Fuses
234
Replacing a fuse with one that has a
higher rating greatly increases the
chances of damaging the electrical
system. If you do not have a
replacement fuse with the proper rating
for the circuit, install one with a lower
rating.
０５／０９／０９ １８：２７：３２ ３１ＳＮＣ６００ ０２３７
Main Menu
Table of Contents
−
−
＊
＊
No.Circuits ProtectedAmps.No. Amps. Circuits Protected
No. Amps. Circuits Protected
:
1
2
3
Main Fuse
EPS
Option Main
Ignition Switch Main
ABS
ABS
100 A
70 A
80 A
50 A
30 A
30 A
1
2
3
10 A
7.5 A
15 A
IMA2
IMA1
Booster MS
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
50 A
40 A
40 A
20 A
20 A
30 A
40 A
10 A
15 A
15 A
15 A
15 A
7.5 A
20 A
15 A
7.5 A
15 A
7.5 A
10 A
Headlight Main
Power Window Main
Booster Motor
Sub Fan Motor
Main Fan Motor (A/T)
Rear Defogger
Blower
Hazard
FI Sub
Stop and Horn
IG Coil (EX)
IG Coil (IN)
Oil Level
Not Used
Not Used
IG Coil
FI Main
MG Clutch
DBW
Interior Light
Back Up
If equipped
Fuse Locations
Taking Care of the Unexpected
235
UNDER-HOOD PRIMARY FUSE BOX
UNDER-HOOD SECONDARY FUSE BOX
０５／０９／０９ １８：２７：４１ ３１ＳＮＣ６００ ０２３８
Main Menu
Table of Contents
−
−
−
−
−
−
−
−
−
＊
＊
＊
No. No.
No.
Amps. Circuits ProtectedAmps. Circuits Protected
Amps. Circuits Protected
:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
7.5 A
7.5 A
10 A
10 A
10 A
7.5 A
7.5 A
10 A
ODS
METER
SRS
Right Headlight High
Left Headlight High
Small (Interior)
Small (Exterior)
Right Headlight Low
7.5 A
15 A
10 A
7.5 A
Power Window
Fuel Pump
Alternator
ABS Unit
Not Used
Not Used
Not Used
Not Used
10 A
20 A
15 A
20 A
(7.5 A)
(7.5 A)
20 A
20 A
(15 A)
15 A
20 A
20 A
20 A
7.5 A
10 A
7.5 A
30 A
Left Headlight Low
Headlight High Main
Small (Main)
Not Used
Headlight Low Main
(HAC)
STS
Not Used
Door Lock
Driver’s Power Window
Not Used
Rear ACC Socket
ACC
Passenger’s Power Window
Not Used
Right Rear Power Window
Left Rear Power Window
Not Used
ACC Radio
HAC
Daytime Running Light
Wiper
If equipped
Fuse Locations
236
INTERIOR FUSE BOX
０５／０９／０９ １８：２７：４９ ３１ＳＮＣ６００ ０２３９
Main Menu
Table of Contents
−
−
CONTINUED
If, due to damage, your vehicle must
be towed with the front wheels on
the ground, do this:
Release the parking brake.
Start the engine.
ShifttoD,thentoN.
Turn off the engine.
With the front wheels on the ground,
it is best totow thevehicle no farther
than 50 miles (80 km), and keep the
speedbelow35mph(55km/h).
Leavetheignition switch in the
ACCESSORY (I) position so the
steering wheel does not lock.
If your vehicle needs to be towed,
call a professional towing service or
organization. Never tow your vehicle
with just a rope or chain. It is very
dangerous.
Therearetwowaystotowyour
vehicle:
The tow
truck uses two pivotingarmsthat go
under the tires (front) and lift them
off the ground. The other two tires
remain on the ground.
The operator
loads your vehicle on the back of a
truck.
Wheel-lift Equipment
Flat-bed Equipment
This is an
acceptable way to tow your
vehicle.
This is the best way to trans-
port your vehicle.
Emergency Towing
Taking Care of the Unexpected
237
Improper towing preparation will
damage the transmission. Follow the
above procedure exactly. If you cannot
shift the transmission or start the
engine, your vehicle must be
transported with the front wheels off
the ground.
０５／０９／０９ １８：２７：５８ ３１ＳＮＣ６００ ０２４０
Main Menu
Table of Contents
Emergency Towing
238
The steering system can be damaged if
the steering wheel is locked. Leave the
ignition switch in the ACCESSORY (I)
position, and make sure the steering
wheel turns freely before you begin
towing.
Trying to lift or tow your vehicle by the
bumpers will cause serious damage.
The bumpers are not designed to
support the vehicle’s weight.
０５／０９／０９ １８：２８：０１ ３１ＳＮＣ６００ ０２４１
Main Menu
Table of Contents
Thediagramsinthissectiongive
you the dimensions and capacities of
your vehicle, and the locations of the
identification numbers. It also
includes information you should
know about your vehicle’s tires and
emissions control systems.
................Identification Numbers . 240
................................Specifications . 242
DOT Tire Quality Grading
......................(U.S. Vehicles) . 244
Uniform Tire Quality
..................................Grading . 244
.................................Treadwear . 244
......................................Traction . 244
.............................Temperature . 245
.................................Tire Labeling . 246
.......................Emissions Controls . 247
.....................The Clean Air Act . 247
Crankcase Emissions Control
....................................System . 247
Evaporative Emissions Control
....................................System . 247
Onboard Refueling Vapor
................................Recovery . 247
...Exhaust Emissions Controls . 248
....................PGM-FI System . 248
Ignition Timing Control
................................System . 248
Exhaust Gas Recirculation
...................(EGR) System . 248
Three Way Catalytic
...........................Converter . 248
....................Replacement Parts . 248
..Three Way Catalytic Converter . 249
..............State Emissions Testing . 250
Technical Information
Technical Information
239
０５／０９／０９ １８：２８：０５ ３１ＳＮＣ６００ ０２４２
Main Menu
Your vehicle has several identifying
numbers in various places.
The vehicle identification number
(VIN) is the 17-digit number your
dealer uses to register your vehicle
for warranty purposes. It is also
necessary for licensing and insuring
your vehicle. The easiest place to
find theVINison a platefastenedto
the top of the dashboard. You can
seeitbylookingthroughthe
windshield on the driver’s side. It is
also onthecertification label
attachedtothedriver’s doorjamb,
and is stamped on the engine
compartment bulkhead. The VIN is
also provided in bar code on the
certification label.
The VIN is also located on the
engine bulkhead. Slide the cover on
the engine compartment bulkhead to
view the VIN. Always close the cover
when finished.
Identification Numbers
240
CERTIFICATION LABEL
VEHICLE IDENTIFICATION NUMBER
COVER
０５／０９／０９ １８：２８：１０ ３１ＳＮＣ６００ ０２４３
Main Menu
Table of Contents
The engine number is stamped into
the engine block.
The transmission number is on a
label on top of the transmission.
The IMA Motor Number is stamped
on the motor housing.
Identification Numbers
Technical Information
241
ENGINE NUMBER
IMA MOTOR
NUMBER
TRANSMISSION NUMBER
０５／０９／０９ １８：２８：１５ ３１ＳＮＣ６００ ０２４４
Main Menu
Table of Contents
＊
＊
＊
＊
Specifications
242
Dimensions
Weights
Engine
Capacities
176.7 in (4,489 mm)
69.0 in (1,752 mm)
56.3 in (1,430 mm)
106.3 in (2,700 mm)
59.1 in (1,501 mm)
60.2 in (1,529 mm)
2.87 x 3.15 in (73.0 x 80.0 mm)
82 cu-in (1.339 cm
)
10.8
Length
Width
Height
Wheelbase
Track
Gross vehicle weight rating See the certification label attached
to the driver’s doorjamb.
Type
BorexStroke
Displacement
Compression ratio
Spark plugs ILFR6J-11K
SK20HPR-L11
Fuel tank
Engine
coolant
Engine oil
Automatic
transmission
fluid
3.0 US qt (2.8
)
5.4 US qt (5.1
)
2.6 US qt (2.5
)
4.8 US qt (4.5
)
Including the coolant in the reserve tank and that remaining in the
engine
Reserve tank capacity: 0.108 US gal (0.41 )
Excluding the oil remaining in the engine
12.4 US gal (47
)
1.255 US gal (4.75
)
1.53 US gal (5.8
)
3.4 US qt (3.2
)
3.2 US qt (3.0
)
4.0 US qt (3.8
)
Water cooled 4-stroke SOHC i-VTEC
with Hybrid Electric
Front
Rear
Approx.
1:
2:
Change
Total
Change
Without filter
Total
Change
Total
U.S. Vehicles
Canada Vehicles
(NGK)
(DENSO)
Windshield
washer reservoir
1
2
Including filter
０５／０９／０９ １８：２８：２９ ３１ＳＮＣ６００ ０２４５
Main Menu
Table of Contents
−−
−
−
−
−
−
−
−
−
−
−
−
−
−
−
−
Specifications
Technical Inf ormation
243
Air Conditioning Fuses
Alignment
12 Volt Battery
Tires
Lights
HFC-134a (R-134a)
16 18 oz (450 500 g)
SE-10Y
12 V 60 W
12 V 3 CP
12 V 21/5 W
12 V 21 W
7°6’
1°39’
0°3’
0.00 in (0.0 mm)
P195/65R15 89S
2.0 in (2.0 mm)
Refrigerant type
Charge quantity
Lubricant oil type
Interior
Under-hood
Toe-in
Camber
Caster
12 V 21/5 W
12 V 51 W
12 V 21 W
12 V
12 V
12 V
12 V
3CP
8W
8W
5W
Capacity 12 V 35 AH/20 HR
T125/70D15 95M
32 psi (220 kPa , 2.2 kgf/cm
)
60 psi (420 kPa , 4.2 kgf/cm
)
Size
Pressure
Headlights
Front Parking/Front turn
signal/side marker lights
Rear turn signal lights
Brake/Taillights
Back-up lights
Rear side marker lights
Taillights
License plate lights
Ceiling light
Spotlights
Trunk light
12 V 2 CP
See page 231 or the fuse label
attached to the inside of the fuse
box door under the steering
column.
See page 231 or the fuse box
cover.
Front
Rear
Front
Rear
Front
High
Low
(HB3)
(HB4)
Front/Rear
Spare
Front/Rear
Spare
０５／０９／０９ １８：２８：４８ ３１ＳＮＣ６００ ０２４６
Main Menu
Table of Contents
−
Quality grades can be found where
applicable on the tire sidewall
between the tread shoulder and the
maximum section width. For
example:
All passenger car tires must conform
to Federal Safety Requirements in
additionto thesegrades.
The traction grades, from highest to
lowest,areAA,A,B, and C.Those
grades represent the tire’s ability to
stop on wet pavement asmeasured
under controlled conditions on
specified government test surfaces
of asphalt and concrete. A tire
marked C may have poor traction
performance.
Warning: The tractiongrade
assignedtothistireisbasedon
straight-ahead braking traction tests,
and does not include acceleration,
cornering, hydroplaning, or peak
traction characteristics.
The tires on your vehicle meet all
U.S. Federal Safety Requirements.
All tires are also graded for
treadwear,traction, andtemperature
performance according to
Department of Transportation
(DOT) standards. The following
explains these gradings.
The treadwear grade is a compara-
tive ratingbasedon the wearrateof
the tire when tested under controlled
conditions on a specified government
test course. For example, a tire
graded 150 would wear one and one-
half (1 1/2) times as well on the
government course as a tire graded
100. The relative performance of
tires depends upon the actual condi-
tions of their use, however,and may
depart significantly from the norm
due to variations in driving habits,
service practices, and differences in
road characteristics and climate.
Uniform Tire Quality Grading
Treadwear 200
Traction AA
Temperature A
Treadwear Traction AA, A, B, C
DOT Tire Quality Grading (U.S. Vehicles)
244
０５／０９／０９ １８：２８：５６ ３１ＳＮＣ６００ ０２４７
Main Menu
Table of Contents
−
The temperature grades are A (the
highest), B, and C, representing the
tire’s resistanceto the generationof
heat, and its ability to dissipate heat
when tested under controlled
conditions on a specified indoor
laboratory test wheel. Sustained high
temperature can cause the material
of the tire to degenerate and reduce
tire life,and excessive temperature
can lead to sudden tire failure. Grade
C corresponds to a level of
performance that all passenger car
tires must meet under the Federal
Motor Vehicle Safety Standard No.
109. Grades B and A represent
higher levels of performance on the
laboratory test wheel thanthe
minimum required by law.
Warning: The temperature grade for
this tire is established for a tire that
is properly inflated and not
overloaded. Excessive speed,
underinflation, or excessive loading,
either separately or in combination,
can cause heat buildup andpossible
tire failure.
Temperature A,B,C
DOT Tire Quality Grading (U.S. Vehicles)
Technical Information
245
０５／０９／０９ １８：２９：０１ ３１ＳＮＣ６００ ０２４８
Main Menu
Table of Contents
−
−
−
−
−
−
−
−
−
−
−
−
−
The tires that came on your vehicle
have a number of markings. Those
you should be aware of are described
below.
Rim diameter in inches.
Load index (a numerical code
associated with the maximum
load the tire can carry).
Speed symbol (an
alphabetical code indicating
the maximum speed rating).
Whenever tires are replaced, they
should be replaced with tires of the
same size. The following is an
exampleoftiresizewithan
explanation of what each component
means.
Tire construction code (R
indicates radial).
Aspect ratio (the tire’s section
height as a percentage of its
width).
Tire width in millimeters.
Vehicletype(Pindicates
passenger vehicle).
The tire identification number (TIN)
is a group of numbers and letters
that look like the following example
TIN.
This indicates that the tire
meets all requirements of
the U.S. Department of
Transportation.
Manufacturer’s
identification mark.
Tiretypecode.
Date of manufacture.
Max Press The maximum air
pressurethetirecan
hold.
Max Load The maximum load the
tire can carry at
maximum air pressure.
P
R
DOT
B97R
FW6X
2202
S
195
65
15
89
Tire Labeling
Tire Size
Tire Identification Number
Maximum Tire Pressure
Maximum Tire Load
246
DOT B97R FW6X 2202
P195/65 R15 89S
０５／０９／０９ １８：２９：１６ ３１ＳＮＣ６００ ０２４９
Main Menu
Table of Contents
＊
＊
The burning of gasoline in your
vehicle’s engine produces several by-
products. Some of these are carbon
monoxide (CO), oxides of nitrogen
(NOx), and hydrocarbons (HC).
Gasoline evaporating from the tank
also produces hydrocarbons. Con-
trolling the production of NOx, CO,
and HC isimportant tothe environ-
ment. Under certain conditions of
sunlight and climate, NOx and HC
react to form photochemical ‘‘smog.’’
Carbon monoxide does not contri-
bute to smog creation, but it is a
poisonous gas.
The United States Clean Air Act
sets standards for automobile
emissions. It also requires that
automobile manufacturers explain to
owners how their emissions controls
workandwhattodotomaintain
them. This section summarizes how
the emissions controls work.
In Canada, Honda vehicles comply
with the Canadian emission
requirements, as specified in an
agreement with Environment
Canada, at the time they are
manufactured.
Your vehicle has a positive
crankcase ventilation system. This
keeps gasses that build up in the
engine’s crankcase from going into
the atmosphere. The positive
crankcase ventilation valve routes
them from the crankcasebackto the
intake manifold. They are then
drawn into the engine and burned.
As gasoline evaporates in the fuel
tank, an evaporative emissions
control canister filled with charcoal
adsorbs the vapor. It is stored in this
canister while the engine is off. After
the engine is started and warmed up,
the vapor is drawn into the engine
and burned during driving.
The onboard refueling vapor
recovery (ORVR) system captures
the fuel vapors during refueling. The
vapors are adsorbed ina canister
filled with activated carbon. While
driving, the fuel vapors are drawn
into the engine and burned off.
The Clean Air Act
Crankcase Emissions Control
System
Evaporative Emissions Control
System
Onboard Refueling Vapor
Recovery
Emissions Controls
Technical Information
247
０５／０９／０９ １８：２９：２４ ３１ＳＮＣ６００ ０２５０
Main Menu
Table of Contents
The exhaust emissions controls
include four systems: PGM-FI,
ignition timing control, exhaust gas
recirculation, and three way catalytic
converter. These four systems work
together to control the engine’s
combustion and minimize the
amount of HC, CO, and NOx that
come out the tailpipe. The exhaust
emissions control systems are
separate from the crankcase and
evaporative emissions control
systems.
This system constantly adjusts the
ignition timing, reducing the amount
of HC, CO, and NOx produced.
The three way catalytic converter is
in the exhaust system. Through
chemical reactions, it converts HC,
CO, and NOx in the engine’s exhaust
to carbon dioxide (CO ), nitrogen
(N ), and water vapor.
The emissions control systems are
designed and certified to work to-
gether in reducing emissions to
levels that comply with the Clean Air
Act. To make sure the emissions
remain low, you should use only new
Honda replacement parts or their
equivalent for repairs. Using lower
quality parts may increase the
emissions from your vehicle.
The emissions control systems are
covered by warranties separate from
the rest of your vehicle. Read your
warranty manual for more informa-
tion.
The exhaust gas recirculation (EGR)
system takes some of the exhaust
gas and routes it back into the intake
manifold. Adding exhaust gas to the
air/fuel mixture reduces the amount
of NOx produced when the fuel is
burned.
The PGM-FI System uses sequential
multiport fuel injection.
It has three subsystems: air intake,
engine control, and fuel control. The
transmission control module (TCM)
inautomatic transmission (CVT)
vehicles or the engine control
module (ECM) in manual
transmission vehiclesuses various
sensors to determine how much air
is going into the engine. It then
controls how much fuel to inject
under all operating conditions.
2
2
Exhaust Emissions Controls Replacement Parts
PGM-FI System
Ignition Timing Control System
Exhaust Gas Recirculation (EGR)
System
Three Way Catalytic Converter
Emissions Controls
248
０５／０９／０９ １８：２９：３４ ３１ＳＮＣ６００ ０２５１
Main Menu
Table of Contents
The three way catalytic converter
contains precious metals that serve
as catalysts, promoting chemical
reactions to convert the exhaust
gasses without affecting the metals.
The catalytic converter is referred to
as a three-way catalyst, since it acts
on HC, CO, and NOx. A replacement
unit must be an original Honda part
or its equivalent.
The three way catalytic converter
must operate at a high temperature
for the chemical reactions to take
place. It can set on fire any
combustible materials that come
near it. Park your vehicle away from
high grass, dry leaves, or other
flammables.
A defective threewaycatalytic
converter contributes to air pollution,
and can impair your engine’s per-
formance. Follow these guidelines to
protect your vehicle’s three way
catalytic converter.
Always use unleaded gasoline.
Evena small amount of leaded
gasoline cancontaminate the
catalyst metals, making the three
way catalytic converter ineffective.
Keep the engine tuned-up.
Have your vehicle diagnosed and
repaired if it is misfiring, back-
firing, stalling, or otherwise not
running properly.
Three Way Catalytic Converter
Technical Information
249
THREE WAY CATALYTIC CONVERTER
０５／０９／０９ １８：２９：４１ ３１ＳＮＣ６００ ０２５２
Main Menu
Table of Contents
If you take your vehicle for a state
emissions test shortly after the
battery has been disconnected or
gone dead, it may not pass the test.
This is because of certain ‘‘readiness
codes’’ that must be set in the on-
board diagnostics for the emissions
systems. These codes are erased
whenthe battery is disconnected,
and set again only after several days
of driving under a variety of
conditions.
If the testing facility determines that
the readiness codes are not set, you
willbe requested to return at a later
date to complete the test. If you must
get the vehicle retested within the
next two or three days, you can
condition the vehicle for retesting by
doing the following.
Make sure the gas tank is nearly,
but not completely, full (around
3/4).
Make sure the vehicle has been
parked with the engine off for 8
hours or more.
Make sure the ambient
temperature is between 20° and
95°F.
Without touching the accelerator
pedal, start the engine, and let it
idle for 20 seconds.
Keep the vehicle in Park. Increase
the engine speed to 2,000 rpm, and
hold it there until the temperature
gauge rises to at least 1/4 of the
scale (about 3 minutes).
Select a nearby lightly traveled
major highway where you can
maintain a speed of 50 to 60 mph
(80to97km/h)foratleast20
minutes. Drive on the highway in
D. Do not use the cruise control.
Whentrafficallows,drivefor90
seconds without moving the
accelerator pedal. (Vehicle speed
may vary slightly; this is okay.) If
you cannot do this for a
continuous 90 seconds because of
traffic conditions, drive for at least
30 seconds, then repeat it two
more times(for a total of 90
seconds).
Then drive in city/suburban
traffic for at least 10 minutes.
When traffic conditions allow, let
the vehicle coast for several
seconds without using the
accelerator pedalor thebrake
pedal.
Stop the vehicle, turn off the
ignition switch, and leave it off for
30 minutes.
If the testing facility determinesthe
readiness codes are still not set, see
your dealer.
Testing of Readiness Codes
State Emissions Testing
250
０５／０９／０９ １８：２９：５０ ３１ＳＮＣ６００ ０２５３
Main Menu
Table of Contents
....Customer Service Information . 252
....................Warranty Coverages . 253
Reporting Safety Defects
..........................(U.S. Vehicles) . 254
.....................Authorized Manuals . 255
Warranty and Customer Relations
Warranty and Customer Relations
251
０５／０９／０９ １８：２９：５３ ３１ＳＮＣ６００ ０２５４
Main Menu
Honda dealership personnel are
trained professionals. They should
be able to answer all your questions.
If you encounter a problem that your
dealership does not solve to your
satisfaction, please discuss it with
the dealership’s management. The
service manager or general manager
can help. Almost all problems are
solved in this way.
If you are dissatisfied with the
decision made by the dealership’s
management, contact your Honda
Customer Service Office.
U.S. Owners:
Canadian Owners:
In Puerto Rico and the U.S. Virgin
Islands:
When you call or write, please give
us this information:
Vehicle Identification Number
(see page )
Name and address of the dealer
who services your vehicle
Date of purchase
Mileage on your vehicle
Your name, address, and tele-
phone number
A detailed description of the
problem
Name of the dealer who sold the
vehicle to you
240
Customer Service Information
252
CUSTOMER RELATIONS
RELATIONS AVEC LA CLIENTÈLE
American Honda Motor Co., Inc.
Honda Automobile Customer Service
Mail Stop 500-2N-7A
1919 Torrance Boulevard
Torrance, California 90501-2746
Tel: (800) 999-1009
Honda Canada Inc.
715 Milner Avenue
Toronto, ON
M1B 2K8
Tel: 1-888-9-HONDA-9
Fax: Toll-free 1-877-939-0909
Toronto (416) 287-4776
Bella International
P.O. Box 190816
San Juan, PR 00919-0816
Tel: (787) 620-7028
０５／０９／０９ １８：３０：０１ ３１ＳＮＣ６００ ０２５５
Main Menu
Table of Contents
−
−
−
−
−
−
−
−
−
Your new vehicle is covered by these
warranties:
covers your new vehicle, except for
thebattery,emissions control
systems, and accessories, against
defects in materials and
workmanship.
these two
warranties cover your vehicle’s
emissions control systems. Time,
mileage, and coverage are
conditional.Please read your
warranty booklet for exact
information.
a seat
belt that fails to function properly is
covered for the useful life of the
vehicle.
all exterior body panels are
covered for rust-through from the
inside for the specified time period
with no mileage limit.
Honda accessories are covered
under this warranty. Time and
mileage limits depend on the type of
accessory and other factors. Please
read your warranty booklet for
details.
covers all Honda
replacement parts against defects in
materials and workmanship.
provides
coverageforaslongasthepur-
chaser of the muffler owns the
vehicle.
provides prorated
coverage for a replacement battery
purchased from your dealer.
this warranty gives up
to 100 % credit toward a replacement
battery.
Restrictions and exclusions apply to
all these warranties. Please read the
2006 Honda warranty information
booklet that came with your vehicle
for precise informationon warranty
coverages. Your vehicle’s original
tires are covered by their
manufacturer. Tire warranty
information is in a separate booklet.
Please refer to the 2006 warranty
manual that came with your vehicle.
Warranty Coverages
U.S. Owners
Canadian Owners
New Vehicle Limited Warranty
Emissions Control Systems Def ects
Warranty and Emissions
Performance Warranty
Seat Belt Limited Warranty
Rust Perforation Limited Warranty
Accessory Limited Warranty
Replacement Parts Limited
Warranty
Replacement Muff ler Lifetime
Limited Warranty
Replacement Battery Limited
Warranty
Original Equipment Battery Limited
Warranty
Warranty and Customer Relations
253
０５／０９／０９ １８：３０：１１ ３１ＳＮＣ６００ ０２５６
Main Menu
Table of Contents
If NHTSA receives similar com-
plaints, it may open an investigation,
and if it finds that a safety defect
exists in a group of vehicles, it may
order a recall and remedy campaign.
However, NHTSA cannot become
involved in individual problems
between you, your dealer, or
American Honda Motor Co., Inc.
If you believe that your vehicle has a
defect which could cause a crash or
could cause injury or death, you
should immediately inform the
National Highway Traffic Safety
Administration (NHTSA) in addition
to notifying American Honda Motor
Co., Inc.
To contact NHTSA, you may call the
VehicleSafetyHotlinetoll-freeat1-
800-327-4236 (TTY 1-800 -424-9153);
go to http://www.safercar.gov; or
write to: Administrator, NHTSA, 400
Seventh Street, SW., Washington,
DC 20590.
You can also obtain other
information about motor vehicle
safety from http://www.safercar.gov.
Reporting Safety Defects (U.S. Vehicles)
254
０５／０９／０９ １８：３０：１５ ３１ＳＮＣ６００ ０２５７
Main Menu
Table of Contents
−
＊
＊
＊
＊
２
０
０
６
Ｈ
Ｏ
Ｎ
Valid only for sales within the United States. Canadian
owners should contact their authorized Honda dealer.
The publications shown below can be purchased from Helm
Incorporated. You can order in any of three ways:
Detach andmail the order form on the right half of this page
Call Helm Inc. at 1-800-782-4356
Go online at
If you are interested in other years or models, contact Helm Inc.
at 1-800-782-4356.
(credit cardorders only)
Purchasing Factory Authorized Manuals (U.S. only)
Authorized Manuals
Authorized Manuals
255
ORDER TOLL FREE: 1-800-782-4356
OR
(NOTE: For Credit Card Holder Orders Only)
MINIMUM CREDIT CARD PURCHASE $10.00
Form Description
2006 Honda Civic Hybrid
Electrical Troubleshooting Manual
2006 Honda Civic 2/4 Door
Body Repair Manual
2006 Honda Civic Hybrid
Navigation System Owner’s Manual
2006 Honda Civic Hybrid
Honda Service History
2006 Honda Civic Hybrid
Quick Start Guide
Order Form for Previous Years-
Indicate Year and Model Desired
Publication
Form Number
61SNC00
61SNC00EL
61SNA30
31SNC600
31SNC700
31SNCM00
31SNCQ00
HON-R
Price
Each
$75.00
$50.00
$44.00
$35.00
$29.00
$12.00
$12.00
FREE
2006 Honda Civic Hybrid Service Manual
2006 Honda Civic Hybrid Owner’s Manual
PUBLICATION NUMBER
VEHICLE MODEL
Name Year
Qty
Price
Each
Total
Price
GRAND TOTAL
HANDLING CHARGE
Mich. Purchases
Add 6% Sales Tax
TOTAL MATERIAL
$6.95
Monday-Friday 8:00 A.M. 6:00 P.M. EST
By completing this form you can order the materials desired. You can
pay by check or money order, or charge to your credit card. Mail to
Helm Incorporated at the address shown on the back of the order form.
Prices are subject to change without
notice and without incurring obligation.
Orders are mailed within 10 days. Please
allow adequate time for delivery.
Prices are subject to change without notice and without incurring obligation.
www. helminc. com
０５／０９／０９ １８：３０：２５ ３１ＳＮＣ６００ ０２５８
Main Menu
Table of Contents
−
−
−
Ｓ
Ｈ
Ｉ
Ｐ
Ｔ
Ｏ
Ｐ
Ａ
Ｙ
Ｍ
Ｅ
Ｎ
Ｔ
This manual covers maintenance and recommended
procedures for repair to engine and chassis components.
It is written for the journeyman mechanic, but is simple
enough for most mechanically-inclined owners to under-
stand.
This manual describes the procedures involved in the
replacement of damagedbody parts.
This manual complements the service manual by
providing in-depth troubleshooting information for each
electrical circuit in your vehicle.
Authorized Manuals
Service Manual:
Electrical Troubleshooting Manual:
Body Repair Manual:
256
NOTE: Dealers and Companies please provide dealer or company name,
and also the name of the person to whose attention the shipment should
be sent. For purchases outside U.S.A. please write to the address shown
below for a quotation.
P.O. BOX 07280·DETROIT, MICHIGAN 48207·1-800-782-4356
Customer Name
Attention
Apartment Number
State & Zip Code
City
Daytime Telephone Number
Check or money order enclosed payable to Helm Inc U.S. funds only.
Do not send cash
Master
Card
VISA Check here if your billing address is different
from the shipping address shown above.
Account Number
Expiration: Mo. Yr.
CUSTOMER SIGNATURE
DATE
Street Address No P.O. Box Number
()
These Publications cannot be returned for credit without receiving advance authorization within 14
days of delivery. On returns, a restocking fee may be applied against the original order.
０５／０９／０９ １８：３０：３３ ３１ＳＮＣ６００ ０２５９
Main Menu
Table of ContentsTable of Contents
CONTINUED
Battery
Charging System
...........................Indicator . 57, 228
............................Jump Starting . 223
..............................Maintenance . 212
............................Specifications . 243
..............................Before Driving . 149
....................................Belts,Seat .8,18
.............................Beverage Holder . 96
Brakes
...........Anti-lock System (ABS) . 174
.............Break-in, New Linings . 150
....................Bulb Replacement . 200
...........................................Fluid . 196
...................Pad Wear Indicator . 174
.........................................Parking . 94
...........System Indicator . 58, 63, 230
.............................Braking System . 173
.................Break-in, New Vehicle . 150
..Brightness Control, Instruments . 74
........................Brights, Headlights . 73
....................................Accessories . 156
ACCESSORY (Ignition Key
.......................................Position) . 79
...............Accessory Power Socket . 96
....................Additives, Engine Oil . 190
...............................Airbag (SRS) . 9, 21
...Airbags, Additional Information .21
...AdditionalSafety Precautions . 32
..........AdvancedAirbagSystem .28
.............................Airbag Service . 32
How the Passenger Airbag Off
......................Indicator Works . 31
How the Side Airbag Off
......................Indicator Works . 30
..How the SRS Indicator Works . 30
How Your Front Airbags
.........................................Work . 24
...How Your Side Airbags Work . 28
How Your Side Curtain Airbags
.........................................Work . 31
........................SRS Components . 21
..............Air Conditioning System . 100
.......................Air Pressure, Tires . 208
......................................Antifreeze . 192
Anti-lock Brakes(ABS)
...............................Indicator . 59, 174
...................................Operation . 174
..............Anti-theft, Audio System . 142
Anti-theft Steering Column
..............................................Lock .79
........................................Armrest . 91
................................Audio System . 106
.....Auto Door Locking/Unlocking . 81
.........................Auto Door Locking . 81
.....................Auto Door Unlocking . 83
........................Auto Idle Stop . 170, 171
...Automatic Seat Belt Tensioners . 19
.............Automatic Speed Control . 145
.Automatic Transmission (CVT) . 166
..........................Capacity,Fluid .242
...............Checking Fluid Level . 195
.......................................Shifting . 167
Shift Lever Position
...............................Indicators . 166
................Shift Lever Positions . 167
....................Shift Lock Release . 169
Index
A B
INDEX
I
０５／０９／０９ １８：３０：３８ ３１ＳＮＣ６００ ０２６０
Main Menu
＊
Bulb Replacement
..........................Back-up Lights . 201
.....................Brake Lights . 200, 201
........Front Side Marker Lights . 199
...........Front Turn Signal Light . 199
.................................Headlights . 197
..........................Parking Lights . 199
.........Rear Side Marker Lights . 200
..........Rear Turn Signal Lights . 200
............................Specifications . 243
..............................Bulbs, Halogen . 197
................DANGER, Explanation of . ii
...................................Dashboard . 3, 56
................Daytime Running Lights . 73
.........Defects, Reporting Safety . 254
........................Defog and Defrost . 103
................Defogger, Rear Window . 75
..............Defrosting the Windows . 103
....................................Dimensions . 242
...............Dimming the Headlights . 73
Dipstick
..........Automatic Transmission . 195
..................................Engine Oil . 154
..........................Directional Signals . 73
Disc Brake Pad Wear
...................................Indicators . 173
.....................................Disc Player . 112
..................Display Change Button . 64
.....................Disposal of Used Oil . 192
Doors
.Auto Door Locking/Unlocking . 81
.....................Auto Door Locking . 81
.................Auto Door Unlocking . 83
..............Locking and Unlocking . 80
......................Power Door Locks . 80
.........................................Card, PC . 129
............................Capacities Chart . 242
.............Carbon Monoxide Hazard . 52
.............................Carrying Cargo . 158
..............CAUTION, Explanation of .ii
.......................................CD Player . 112
....................................Ceiling Light . 97
........................Certification Label . 240
............................................Chains . 211
....................Changing a Flat Tire . 217
Changing Oil
........................................How to . 190
......................................When to . 179
...Charging System Indicator . 62, 228
..............Check Fuel Cap Indicator . 68
............Checklist, Before Driving . 164
.....................................Child Safety . 34
Child Seats
.............LATCH Anchor System . 43
.............................Lower Anchor . 43
............................Tether Anchor . 46
..................Childproof Door Locks . 81
.........................Clock,Setting the .119
........................CO in the Exhaust . 247
............Cold Weather, Startingin . 165
..............................Compact Spare . 216
.................Consumer Information . 252
.............Controls, Instruments and . 55
Coolant
........................................Adding . 192
....................................Checking . 154
.........................Proper Solution . 192
...................Temperature Gauge . 67
Crankcase Emissions Control
........................................System . 247
............Cruise Control Operation . 145
....Customer Service Information . 252
Index
C
D
II
０５／０９／０９ １８：３０：４４ ３１ＳＮＣ６００ ０２６１
Main Menu
＊
CONTINUED
........DOT Tire Quality Grading . 244
...........Driver and Passenger Safety . 5
...........................................Driving . 163
....................................Economy . 154
..................Dust and Pollen Filter . 204
..............................Economy, Fuel . 154
............Emergencies on the Road . 215
.............Battery,Jump Starting . 223
...........Brake System Indicator . 230
................Changing a Flat Tire . 217
.....Charging System Indicator . 228
..................Checking the Fuses . 213
.....Low Oil Pressure Indicator . 227
...Malfunction Indicator Lamp . 229
..................Overheated Engine . 225
...........................Emergency Brake . 94
......................Emergency Flashers . 74
......................Emergency Towing . 237
............Emergency Trunk Opener . 86
.......................Emissions Controls . 247
.............Emissions Testing, State . 250
Engine
....Coolant Temperature Gauge . 67
..............Engine Speed Limiter . 168
Malfunction Indicator
................................Lamp . 62, 229
........Oil Pressure Indicator . 62, 227
..............Oil, What Kind to Use . 189
...............................Overheating . 225
............................Specifications . 242
.......................................Starting . 165
.Evaporative Emissions Controls . 247
...............................Exhaust Fumes . 52
Expectant Mothers, Use of Seat
........................................Belts by . 16
...................................Fan, Interior . 101
...........................................Features . 99
....................Filling the Fuel Tank . 151
Filters
.........................Dust and Pollen . 204
...............................................Oil . 190
.............Flashers,Hazard Warning . 74
...................Flat Tire, Changing a . 217
Fluids
..........Automatic Transmission . 195
..........................................Brake . 196
..................Windshield Washer . 194
FM Stereo Radio
...................................Reception . 139
..........................Four-way Flashers . 74
..............................Front Airbags . 9, 21
.................................................Fuel . 150
......................Fill Door and Cap . 151
...........................................Gauge . 66
................Octane Requirement . 150
...............................Oxygenated . 150
........................Reserve Indicator . 61
........................Tank, Filling the . 151
.....................Fuses, Checking the . 231
...............Gas Mileage, Improving . 154
..........................................Gasohol . 150
.........................................Gasoline . 150
...............Fuel Reserve Indicator . 61
...........................................Gauge . 66
................Octane Requirement . 150
........................Tank, Filling the . 151
................Gas Station Procedures . 151
Index
F
E
G
INDEX
III
０５／０９／０９ １８：３０：５０ ３１ＳＮＣ６００ ０２６２
Main Menu
Gauges
...Engine Coolant Temperature . 67
...............................................Fuel . 66
Gearshift Lever Positions
..........Automatic Transmission . 166
........................................Glove Box . 96
.............Halogen Headlight Bulbs . 197
..............Hazard Warning Flashers . 74
Headlights
........................................Aiming . 197
............Daytime Running Lights . 73
..................High Beam Indicator . 60
........................Reminder Beeper . 73
........Replacing Halogen Bulbs . 197
...................................Turning on . 73
..............................Head Restraints . 91
...............................Heated Mirrors . 94
.....................Heating and Cooling . 100
.............High Altitude, Starting at . 165
.................High-Low Beam Switch . 73
.......................Hood, Opening the . 152
..................................................Horn . 71
...Identification Number, Vehicle . 240
Ignition
..............................................Keys . 76
...........................................Switch . 79
............Timing Control System . 248
.........Important Safety Precautions . 6
.........Indicators, Instrument Panel . 55
...............................Infant Restraint . 39
Infant Seats
......LATCH Anchorage System . 43
...........................Lower Anchors .43
...........................Tether Anchors . 46
.....Inflation, Recommended Tire . 208
...................................Pressures . 203
........................Information Display . 64
...................................Inside Mirror . 93
.............................Inspection, Tire . 209
............................Instrument Panel . 57
................Instrument Panel Lights . 58
........Instrument Panel Brightness . 74
.................................Interior Lights .97
........................................Introduction . i
.................Jacking up the Vehicle . 217
.......................................Jack, Tire . 217
................................Jump Starting . 223
..................................................Keys . 76
.......................Label, Certification . 240
.................Lane Change, Signaling . 73
..................Lap/Shoulder Belts . 14, 18
...........LATCH Anchorage System . 43
Lights
....................Bulb Replacement . 197
.......................................Indicator . 60
.........................................Parking . 73
..................................Turn Signal . 73
....................................LoadLimits .159
......LOCK (Ignition Key Position) . 79
Locks
.......Anti-theft Steering Column . 79
............................Fuel Fill Door . 151
Index
I
H
J
K
L
IV
０５／０９／０９ １８：３０：５７ ３１ＳＮＣ６００ ０２６３
Main Menu
CONTINUED
.................................Power Door . 80
...........................................Trunk . 86
........................Low Coolant Level . 154
.........................Low Fuel Indicator . 61
................................Lower Anchors . 43
...Low Oil Pressure Indicator . 62, 227
...Lubricant Specifications Chart . 242
..................................Maintenance . 177
........................................Minder . 179
.........................Minder Indicator . 61
Owner’s Maintenance
...................................Checks . 184
.................................Record . 186-187
..........................................Safety . 178
.Malfunction Indicator Lamp . 62, 229
..........................Meters, Gauges .57, 64
....................Methanol in Gasoline .150
..........................Mirrors, Adjusting . 93
.....................................MP3/WMA .112
...................Neutral Gear Position . 168
..................New Vehicle Break-in . 150
...................NOTICE, Explanation of . i
...............Numbers, Identification . 240 ..............Panel Brightness Control . 74
........................Park Gear Position . 167
...........................................Parking . 172
.................................Parking Brake . 94
Parking Brake and Brake
.................System Indicator . 58, 230
.................................Parking Lights . 73
..Parking Over Things that Burn . 172
.............................PGM-FI System . 248
..........................Playing the Radio . 109
................................Playing a Disc . 112
.........................Playing a PC Card . 129
.........Pregnancy, Using Seat Belts . 16
.........Protecting Adults and Teens . 11
...AdditionalSafety Precautions . 17
.....Advice for Pregnant Women . 16
........................Protecting Children . 34
.....................General Guidelines . 34
...........................Protecting Infants . 39
.............Protecting Small Children . 40
.....................Selecting a Child Seat . 41
....................Installing a Child Seat . 42
...Octane Requirement, Gasoline . 150
.........................................Odometer . 64
................................Odometer,Trip . 64
Oil
........................Change, How to . 190
......................Change, When to . 179
......................Checking Engine . 153
..............Pressure Indicator . 62, 227
.......Selecting Proper Viscosity . 189
...........ON (Ignition Key Position) . 79
Onboard Refueling Vapor
....................................Recovery . 247
..............................Outside Mirrors . 93
....OutsideTemperature Indicator .67
....................Overheating, Engine . 225
....Owner’s Maintenance Checks . 184
.........................Oxygenated Fuels . 150
Index
M
N
O
P
INDEX
V
０５／０９／０９ １８：３１：０３ ３１ＳＮＣ６００ ０２６４
Main Menu
＊
＊
...........Protecting Larger Children . 48
..................................Safety Belts . 8, 18
.........SafetyDefects,Reporting .254
.................................Safety Features . 7
...........................................Airbags .9
.......................................Seat Belts . 8
.............Safety Labels, Location of . 53
...............................Safety Messages . ii
.....................................Seat Belts . 8, 18
...............Additional Information . 18
Automatic Seat Belt
...............................Tensioners . 19
................Lap/Shoulder Belt . 14, 18
........................Maintenance . 20, 203
Reminder Light and
................................Beeper . 18, 59
...................System Components . 18
...............Use During Pregnancy . 16
Wearing a Lap/Shoulder
.....................................Belt . 14, 18
........................Seats, Adjusting the . 89
............................Security System . 144
...............................Serial Number . 240
...........................Service Intervals . 185
...........................Service Manual . 255
.........Service Station Procedures . 151
..........................Setting the Clock . 119
...Shift Lever Position Indicators . 166
........................Shift Lock Release . 169
................................Side Airbags . 9, 28
..........................Off Indicator . 30, 59
......................Side Curtain Airbags . 29
Side Marker Lights, Bulb
..............................Replacement . 199
...............................Signaling Turns . 73
.....................................Snow Tires . 211
................................Sound System . 106
Spare Tire
......................................Inflating . 216
............................Specifications . 243
....................Specifications Charts . 242
................................Speed Control . 145
Speed-Sensitive Volume
.......Compensation (SVC) . 111, 124
...................Radiator Overheating . 225
............Radio/CD/Sound System . 106
Radio/CD/PC Card Sound
........................................System . 121
...................Readiness Codes . 229, 250
Rear Lights, Bulb
......................Replacement . 200, 201
............................Rear View Mirror . 93
.................Rear Window Defogger . 75
................Reclining the Seat-backs . 89
.............................Reminder Lights . 61
.......................RemoteTransmitter . 87
Replacement Information
..............Dust and Pollen Filter . 204
................Engine Oil and Filter . 190
..........................................Fuses . 232
................................Light Bulbs . 197
................Maintenance Minder . 179
...........................................Tires . 207
.............................Wiper Blades . 205
Replacing Seat Belts After a
............................................Crash . 20
Reserve Tank, Engine
...............................Coolant . 153, 192
...............................Restraint, Child . 34
..................Reverse Gear Position . 168
.................................Potation, Tire . 210
Index
R
S
VI
０５／０９／０９ １８：３１：０８ ３１ＳＮＣ６００ ０２６５
Main Menu
＊
＊
CONTINUED
.........................................Spotlights . 63
..........SRS, Additional Information . 21
...AdditionalSafety Precautions . 32
.............................Airbag Service . 32
How the Passenger Airbag Off
......................Indicator Works . 31
How the Side Airbag Off
......................Indicator Works . 30
..How the SRS Indicator Works . 30
How Your Front Airbags
.........................................Work . 24
...How Your Side Airbags Work . 28
How Your Side Curtain
..........................Airbags Work .29
........................SRS Components . 21
.............................SRS Indicator . 30, 59
....START (Ignition Key Position) . 79
..............State Emissions Testing . 250
.......................Starting the Engine . 165
In Cold Weather at High
..................................Altitude . 165
................Witha DeadBattery .223
........Steam Coming from Engine . 225
Steering Wheel
..................................Adjustment . 75
.............Anti-theft Column Lock . 79
...................Stereo Sound System . 106
....................Storing Your Vehicle . 213
Supplemental Restraint
..................................System .9,21
......................................Servicing . 32
.........................SRS Indicator . 30, 59
...................System Components . 21
.........................................SVC . 111, 124
..................................Synthetic Oil . 190
Taillights, Changing
..................................Bulbs . 200, 201
.Taking Care of the Unexpected . 215
Technical Descriptions
....DOT Tire Quality Grading . 244
.....Emissions Control Systems . 247
.....................Oxygenated Fuels . 150
..........State Emissions Testing . 250
Three Way Catalytic
...............................Converter . 249
.................................Tire Labeling . 246
.......................Temperature Gauge . 67
..............Tether Anchorage Points . 46
............................Theft Protection . 142
..Three Way Catalytic Converter . 209
..........................Time,Setting the .119
....................................Tire Chains . 211
.........Tire, How to Change a Flat . 217
.........................Tire Information . 244
...............................................Tires . 207
..............................Air Pressure . 208
.........................Checking Wear . 209
..........................Compact Spare . 216
......DOT Tire Quality Grading . 244
......................................Inflation . 207
..................................Inspection . 209
..............................Maintenance . 209
...................................Replacing . 210
......................................Rotating . 210
...........................................Snow . 211
............................Specifications . 243
................................Tire Chains . 211
...................Tools, Tire Changing . 217
Towing
.....................................A Trailer . 175
..................Emergency Towing . 237
...........................Traction Devices . 211
Index
INDEX
T
VII
０５／０９／０９ １８：３１：１３ ３１ＳＮＣ６００ ０２６６
Main Menu
＊
＊
Transmission
Checking Fluid Level,
..............................Automatic . 195
..................Fluid Selection . 195, 196
..............Identification Number . 241
.............Shifting the Automatic . 166
...................................Treadwear . 244
.......................................TripMeter . 65
................................................Trunk . 86
........................................Opening . 86
...................Open Monitor Light . 60
....................................Turn Signals . 73
Unexpected, Taking Care
..........................................of the . 215
....Uniform Tire Quality Grading . 244
........................Unleaded Gasoline . 150
.......Used Oil, How to Dispose of . 192
..................................Vanity Mirror . 95
.................Vehicle Capacity Load . 159
......................Vehicle Dimensions . 242
....Vehicle Identification Number . 240
.............................Vehicle Storage . 213
.....................................Ventilation . 102
.................................................VIN . 240
..................................Viscosity, Oil . 189
............WARNING, Explanation of . ii
.........Warning Labels, Location of . 53
....................Warranty Coverages . 253
Washer, Windshield
........Checking the Fluid Level . 194
.......................................Indicator . 61
.....................................Operation . 72
Wheels
...............Adjusting the Steering . 75
............Alignment and Balance . 209
..........................Compact Spare . 216
...............................Nut Wrench . 217
Windows
..................Operating the Power . 92
...........................Rear, Defogger . 75
Windshield
.......................................Cleaning . 72
...................................Defroster . 103
.......................................Washers . 72
Wipers, Windshield
.......................Changing Blades . 205
.....................................Operation . 72
....................................Worn Tires . 207
.....Wrecker, Emergency Towing . 237
:U.S.only
Index
V
W
U
VIII
０５／０９／０９ １８：３１：１９ ３１ＳＮＣ６００ ０２６７
Main Menu
Service Information Summary
Gasoline:
Fuel Tank Capacity:
Brake Fluid:
Tire Pressure (measured cold):
Recommended Engine Oil:
Automatic Transmission Fluid
(CVT):
32 psi (220 kPa , 2.2 kgf/cm
)
60 psi (420 kPa , 4.2 kgf/cm
)
Honda Heavy Duty Brake Fluid
DOT 3 preferred, or a DOT 3 or
DOT 4 brake fluid as a temporary
replacement (see page ).
Front/Rear:
Spare Tire:
Unleaded gasoline, pump octane
number of 87 or higher.
12.4 US gal (47
)
API Premium grade 0W-20
detergent oil (see page ).
Oil change capacity (including
filter):
3.4 US qt (3.2
)
Use Honda CVT Fluid
(Continuously Variable
Transmission Fluid) only
3.0 US qt (2.8
)
Capacity:
189
196
０５／０９／０９ １８：３１：３２ ３１ＳＮＣ６００ ０２６９
