2006 Accord Hybrid Online Reference Owner's Manual
Use these links (and links throughout this manual) to navigate through this reference.
For a printed owner's manual, click on authorized manuals or go to www.helminc.com.
Contents
Owner's Identification Form
Introduction..................................................................................................................................................... i
A Few Words About Safety ..........................................................................................................................ii
Your Vehicle at a Glance...............................................................................................................................4
Driver and Passenger Safety .......................................................................................................................7
Proper use and care of your vehicle's seat belts, and Supplemental Restraint System.
Instruments and Controls...........................................................................................................................51
Instrument panel indicator and gauge, and how to use dashboard and steering column controls.
Comfort and Convenience Features....................................................................................................... 99
How t
o operate the climate control system, the audio system, and other convenience features.
Before Driving ..............................................................................................................................
...............149
What gasoline to use, how to break-in your new vehicle, and how to load luggage and other cargo.
Driving...........................................................................................................................................................163
The proper way to start the engine, shift the transmission, and park, plus towing a trailer.
Maintenance.................................................................................................................................................185
T
he Maintenance Schedule shows you when you need to take your vehicle to the dealer.
Taking Care of the Unexpected...............................................................................................................225
This section covers several problems motorists sometimes experience, and how to handle them.
Technical Information...............................................................................................................................249
ID numbers, dimensions, capacities, and technical information.
Warranty and Customer Relations (U.S. and Canada)..................................................................... 263
A summary
of the warranties covering your new Honda, and how to contact us.
Authorized Manuals (U.S. only)...............................................................................................................267
How t
o order manuals and other technical literature.
Index .................................................................................................................................................................I
Service Information Summary
A summary of information you need when you pull up to the fuel pump.
The information and specifications included
in this publication were in effect at the time
of approval for printing. Honda Motor Co.,
Ltd. reserves the right, however, to
discontinue or change specifications or
design at any time without notice and
without incurring any obligation whatsoever.
This owner’s manual should be considered
a permanent part of the vehicle and should
remain with the vehicle when it is sold.
This owner’s manual covers all models of
theAccordHybrid.Youmayfind
descriptions of equipment and features that
are not on your particular model.
Owner’s Identification
POUR CLIENTS CANADIEN
AVIS IMPORTANT: Si vous avez
besoin d’un Manuel du Conducteur en
français, veuillez demander à votre
concessionnaire de commander le
numéro de pièce 33SDRC10 .
OWNER
ADDRESS
V. I. N.
DELIVERY DATE
DEALER NAME DEALER NO.
ADDRESS
OWNER’S SIGNATURE
DEALER’S SIGNATURE
STREET
CITY STATE/PROVINCE ZIP CODE/
POSTAL CODE
(Date sold to original retail purchaser)
STREET
CITY STATE/PROVINCE ZIP CODE/
POSTAL CODE
０５／０９／０２ １１：３４：１９ ３１ＳＤＲ６１０ ０００１
Main Menu
California Proposition 65 Warning
This product contains
or emits chemicals known to the
state of California to cause cancer
and birth defects or other
reproductive harm.
Event Data Recorders
This vehicle is equipped with one or
more recording devices commonly
referred to as event data recorders
or sensing and diagnostic modules.
One of the best ways to enhance the enjoyment of your new vehicle is to
read this manual. In it, you will learn how to operate its driving controls and
convenience items. Afterwards, keep this owner’s manual in your vehicle so
youcanrefertoitatanytime.
Several warranties protect your new vehicle. Read the warranty booklet
thoroughly so you understand the coverages and are aware of your rights
and responsibilities.
As you read this manual, you will
find information that is preceded by
a symbol. This
information is intended to help you
avoid damage to your vehicle, other
property, or the environment.
Congratulations! Your selection of a 2006 Honda Accord Hybrid was a wise
investment. It will give you years of driving pleasure.
Maintaining your vehicle according to the maintenance minder shown in the
instrument panel helps to keep your driving trouble-free while it preserves
your investment. When your vehicle needs maintenance, keep in mind that
your dealer’s staff is specially trained in servicing the many systems unique
to your vehicle. Your Honda dealer is dedicated to your satisfaction and will
be pleased to answer any questions and concerns.
Introduction
WARNING:
i
０５／０９／０２ １１：３４：２５ ３１ＳＤＲ６１０ ０００２
Main Menu
−
−
−
−
−
−
To help you make informed
decisions about safety, we have
provided operating procedures and
other information on labels and in
this manual. This information alerts
you to potential hazards that could
hurt you or others.
You will find this important safety information in a variety of forms,
including:
preceded by a safety alert symbol and one of
three signal words: , , or .
These signal words mean:
such as Important Safety Reminders or Important
Safety Precautions.
such as Driver and Passenger Safety.
how to use this vehicle correctly and safely.
This entire book is filled with important safety information please read it
carefully.
Your safety, and the safety of others,
is very important. And operating this
vehicle safely is an important
responsibility.
Of course, it is not practical or
possible to warn you about all the
hazards associated with operating or
maintaining your vehicle. You must
use your own good judgement.
on the vehicle.
AFewWordsAboutSafety
Safety Messages
Safety Headings
Safety Section
Instructions

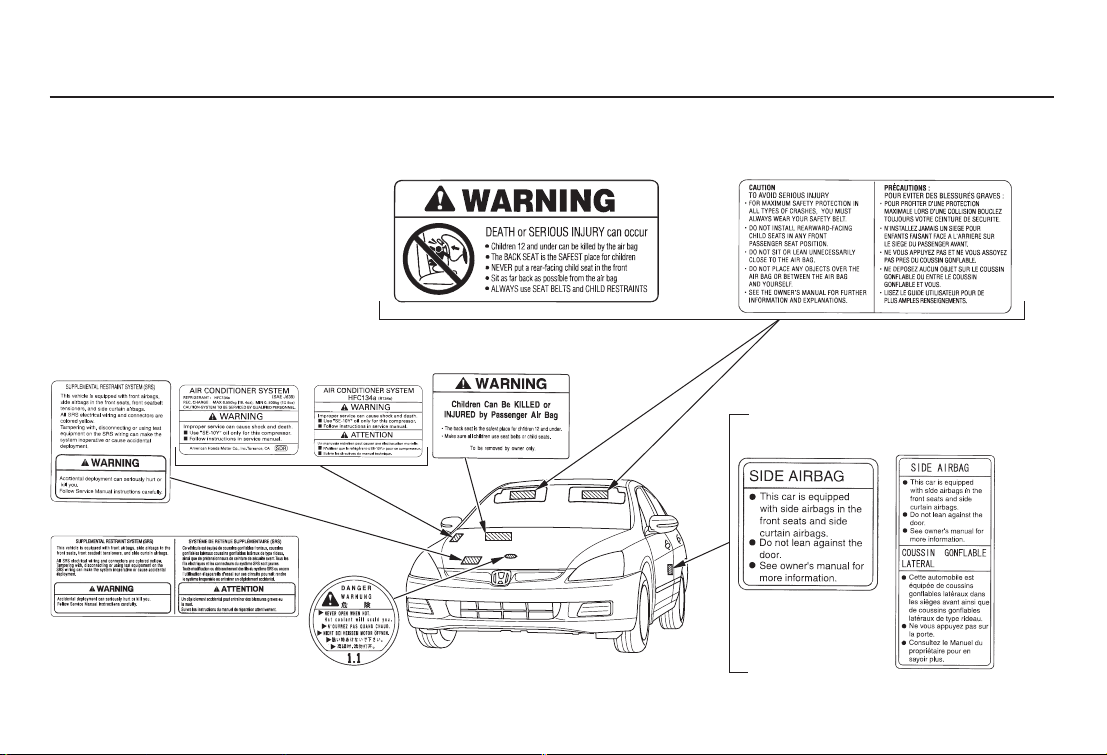

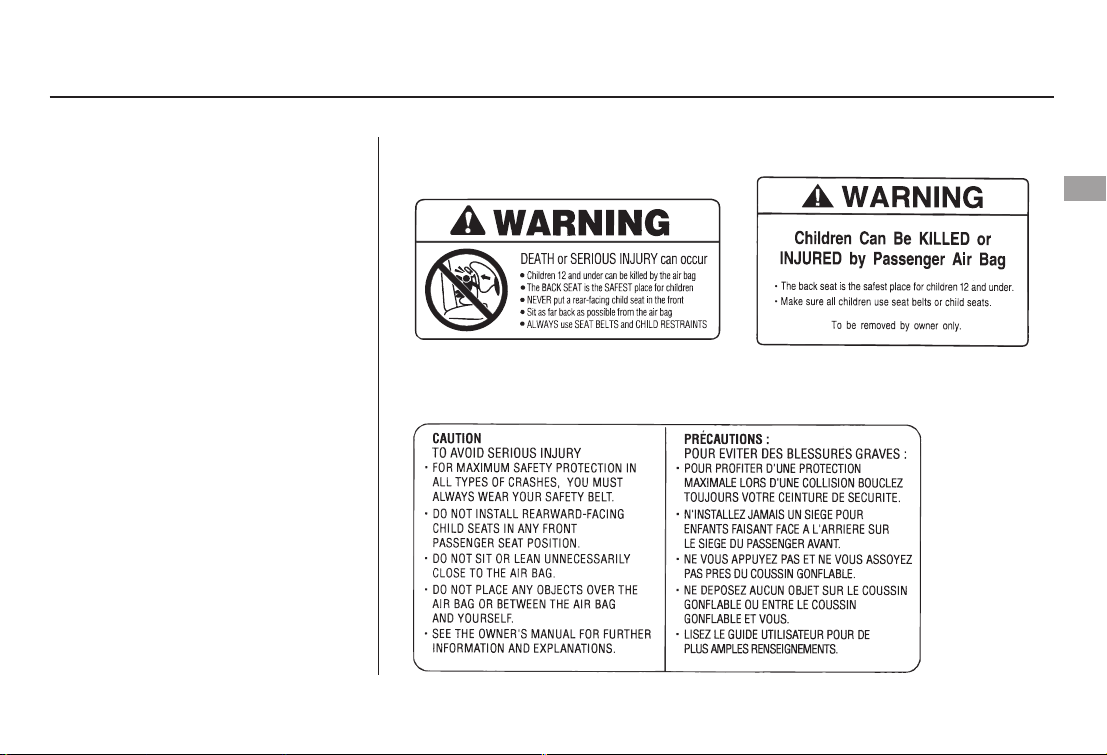

Safety Labels
DANGER WARNING CAUTION
ii
You WILL be KILLED or SERIOUSLY
HURT if you don’t follow instructions.
You CAN be KILLED or SERIOUSLY
HURT if you don’t follow instructions.
You CAN be HURT if you don’t follow
instructions.
０５／０９／０２ １１：３４：３４ ３１ＳＤＲ６１０ ０００３
Main Menu

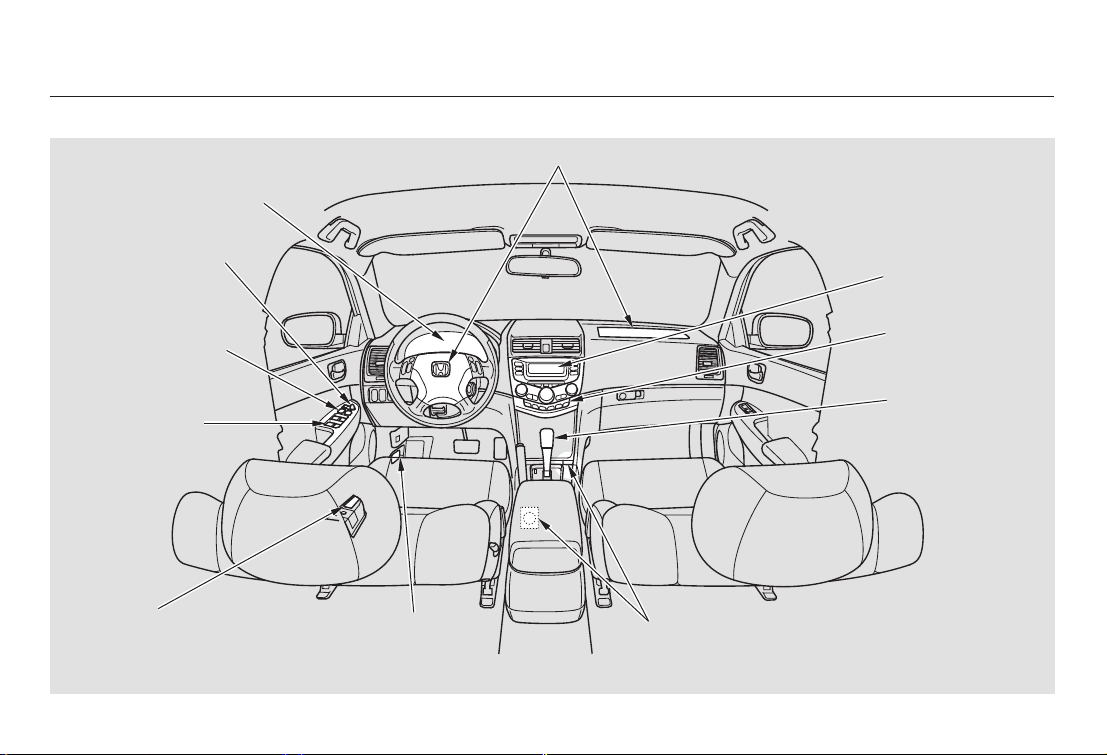

Your Vehicle at a Glance
4

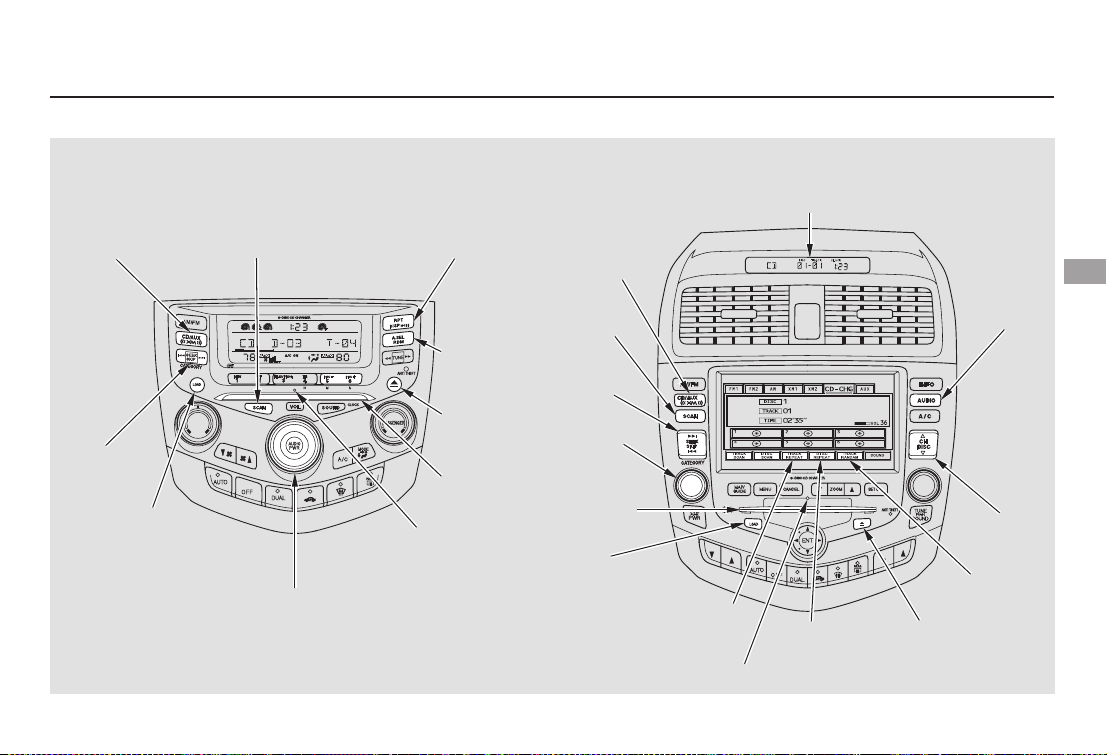

HEATING/COOLING
CONTROLS
MIRROR CONTROLS
POWER WINDOW
SWITCHES
GAUGES
HOOD RELEASE
HANDLE
ACCESSORY POWER SOCKETS
AUDIO SYSTEM
AUTOMATIC
TRANSMISSION
AIRBAGS
(P.11, 23)
INDICATORS
TRUNK RELEASE LEVER
FUEL FILL DOOR RELEASE LEVER
(P.53)
(P.112)
(P.100)
(P.62)
(P.88)
POWER DOOR LOCK
MASTER SWITCH
(P.79)
(P.89)
(P.83)
(P.151)
(P.152)
(P.96)
(P.166)
０５／０９／０２ １１：３５：０８ ３１ＳＤＲ６１０ ０００７
Main Menu
＊
＊ Only on vehicles equipped with navigation system. Refer to the navigation system manual.:
Your Vehicle at a Glance
Your Vehicle at a Glance
5
WINDSHIELD
WIPERS/WASHERS
INSTRUMENT PANEL
BRIGHTNESS
VOICE CONTROL
SWITCHES
HEADLIGHTS/
TURN SIGNALS
REMOTE AUDIO
CONTROLS

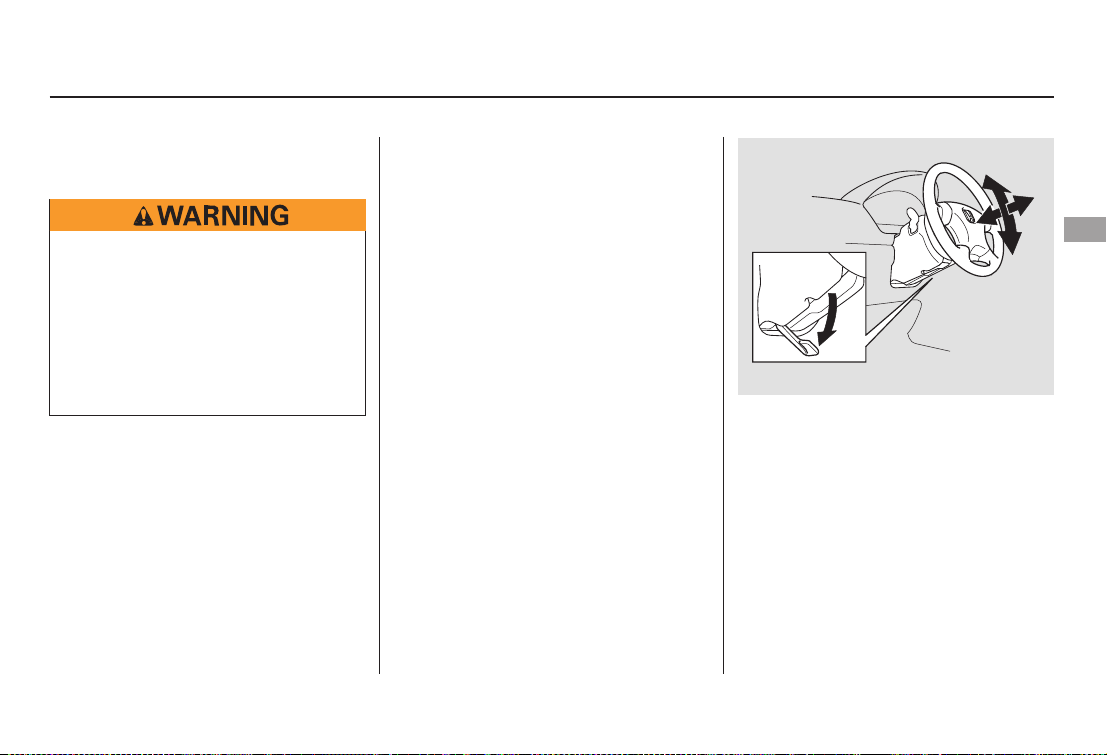

HORNSTEERING WHEEL
ADJUSTMENT
CRUISE CONTROLS
REAR WINDOW
DEFOGGER
HAZARD
WARNING BUTTON
VSA OFF SWITCH
(P.73)
(P.71)
(P.137)
(P.178)
(P.75)
(P.74, 103, 106)
(P.141)
(P.74)
(P.70)
MOONROOF
SWITCH
(P.92)
０５／０９／０２ １１：３５：１３ ３１ＳＤＲ６１０ ０００８
Main Menu
Main Menu
−
This section gives you important
information about how to protect
yourself and your passengers. It
shows you how to use seat belts. It
explains how your airbags work. And
it tells you how to properly restrain
infants and children in your vehicle.
.........Important Safety Precautions . 8
.......Your Vehicle’s Safety Features . 9
.....................................Seat Belts . 10
.........................................Airbags . 11
.........Protecting Adults and Teens . 13
.....1. Close and Lock the Doors . 13
...........2. Adjust the Front Seats . 13
............3. Adjust the Seat-Backs . 14
...4. Adjust the Head Restraints . 15
5. Fasten and Position the Seat
.....................................Belts . 16
6. Maintain a Proper Sitting
................................Position . 17
.....Advice for Pregnant Women . 18
...Additional Safety Precautions . 19
Additional Information About Your
.................................Seat Belts . 20
..Seat Belt System Components . 20
......................Lap/Shoulder Belt . 20
........ 21
...............Seat Belt Maintenance . 21
Additional Information About Your
.....................................Airbags . 23
......Airbag System Components . 23
......... 24
...How Your Side Airbags Work . 26
How Your Side Curtain Airbags
.........................................Work . 27
..How the SRS Indicator Works . 28
How the Side Airbag Off
......................Indicator Works . 28
.............................Airbag Service . 29
...Additional Safety Precautions . 30
Protecting Children General
................................Guidelines . 31
All Children Must Be
...............................Restrained . 31
All Children Should Sit in a
.................................Back Seat . 32
The Passenger’s Front Airbag
................Poses Serious Risks . 32
If You Must Drive with Several
...................................Children . 34
If a Child Requires Close
..................................Attention . 34
...Additional Safety Precautions . 35
Protecting Infants and
.........................Small Children . 36
.......................Protecting Infants . 36
.........Protecting Small Children . 37
.....................Selecting a Child Seat . 38
....................Installing a Child Seat . 39
Installing a Child Seat
............................with LATCH . 40
......with a Lap/Shoulder Belt . 42
...........................with a Tether . 44
...........Protecting Larger Children . 45
..................Using a Booster Seat . 46
When Can a Larger Child
...............................Sit in Front . 47
...Additional Safety Precautions . 48
.............Carbon Monoxide Hazard . 49
...................................Safety Labels . 50
Automatic Seat Belt Tensioners
How Your Front Airbags Work
Driver and Passenger Safety
Driver and Passenger Safety
7
０５／０９／０２ １１：３５：２０ ３１ＳＤＲ６１０ ００１０
Main Menu
−
You’ll find many safety
recommendations throughout this
section, and throughout this manual.
Therecommendationsonthispage
are the ones we consider to be the
most important.
Excessive speed is a major factor in
crash injuries and deaths. Generally,
the higher the speed, the greater the
risk, but serious injuries can also
occur at lower speeds. Never drive
faster than is safe for current
conditions, regardless of the
maximum speed posted.
Having a tire blowout or a
mechanical failure can be extremely
hazardous. To reduce the possibility
of such problems, check your tire
pressures and condition frequently,
and perform all regularly scheduled
maintenance (see page ).
A seat belt is your best protection in
all types of collisions. Airbags are
designed to supplement seat belts,
not replace them. So even though
your vehicle is equipped with airbags,
make sure you and your passengers
always wear your seat belts, and
wear them properly (see page ).
Children age 12 and under should
ride properly restrained in a back
seat. Infants and small children
should be restrained in a child seat.
Larger children should use a booster
and a lap/shoulder belt until they
canusethebeltproperlywithouta
booster (see pages ).
While airbags can save lives, they
can cause serious or fatal injuries to
occupants who sit too close to them,
or are not properly restrained.
Infants, young children, and short
adults are at the greatest risk. Be
sure to follow all instructions and
warnings in this manual.
Alcohol and driving don’t mix. Even
one drink can reduce your ability to
respond to changing conditions, and
your reaction time gets worse with
every additional drink. So don’t drink
and drive, and don’t let your friends
drink and drive, either.
16
4831
185
Important Safety Precautions
Always Wear Your Seat Belt
Control Your Speed
Keep Your Vehicle in Safe
Condition
Restrain All Children
Be Aware of Airbag Hazards
Don’t Drink and Drive
8
０５／０９／０２ １１：３５：３０ ３１ＳＤＲ６１０ ００１１
Main Menu
Table of Contents
Your vehicle is equipped with many
features that work together to
protect you and your passengers
during a crash.
The following pages explain how you
cantakeanactiveroleinprotecting
yourself and your passengers.
However, you and your passengers
can’t take full advantage of these
features unless you remain sitting in
a proper position and
. In fact, some safety
features can contribute to injuries if
they are not used properly.
Some features do not require any
action on your part. These include a
strong steel framework that forms a
safety cage around the passenger
compartment, front and rear crush
zones, a collapsible steering column,
and tensioners that tighten the front
seat belts in a crash.

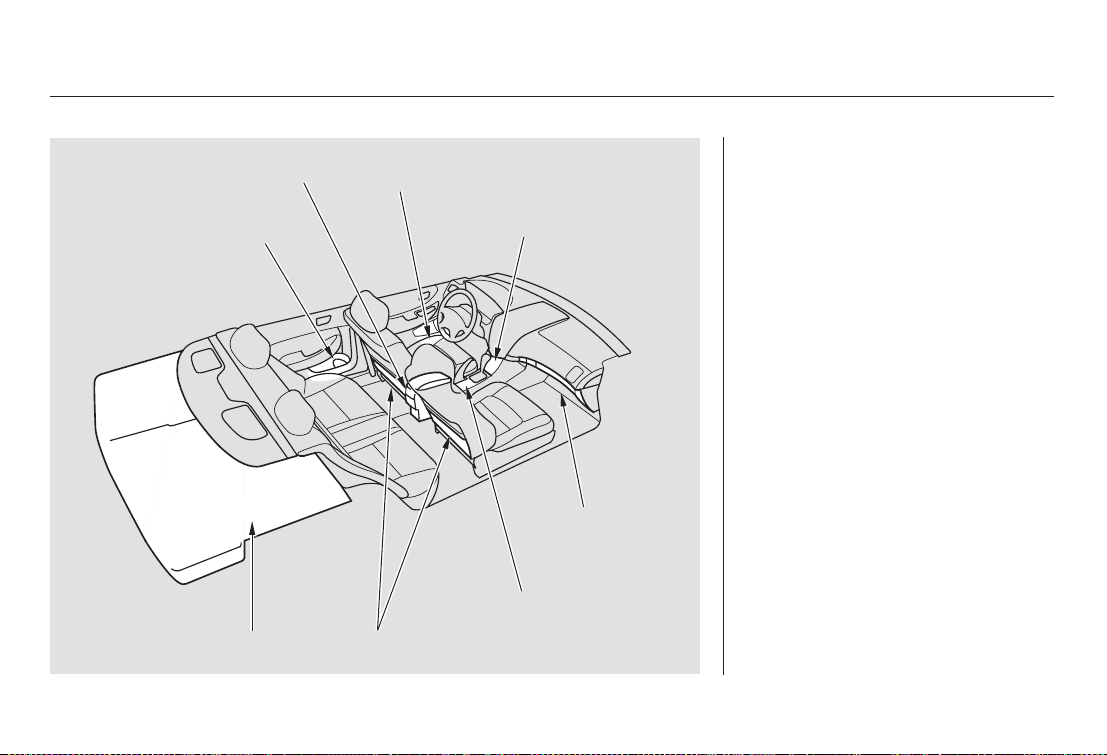

Your Vehicle’s Safety Features
always wear
your seat belts
Driver and Passenger Safety
9
(1)
(2)
(2)
(3) (4)
(5)
(6)
(7)
(8)
(7)
(10)
(11)
(9)
(8)
(1) Safety Cage
(2) Crush Zones
(3) Seats and Seat-Backs
(4) Head Restraints
(5) Collapsible Steering Column
(6) Seat Belts
(7) Front Airbags
(8) Side Airbags
(9) Side Curtain Airbags
(10) Door Locks
(11) Seat Belt Tensioners
０５／０９／０２ １１：３５：３７ ３１ＳＤＲ６１０ ００１２
Main Menu
Table of Contents
Your vehicle is equipped with seat
belts in all seating positions.
Seat belts are the single most
effectivesafetydeviceforadultsand
larger children. (Infants and smaller
children must be properly restrained
in child seats.)
In addition, most states and all
Canadian provinces require you to
wear seat belts.
Not wearing a seat belt properly
increases the chance of serious
injury or death in a crash, even
though your vehicle has airbags.
Keep you connected to the vehicle
so you can take advantage of the
vehicle’s built-in safety features.
When properly worn, seat belts:
Help keep you from being thrown
against the inside of the vehicle
and against other occupants.
Keep you from being thrown out
of the vehicle.
Help keep you in a good position
should the airbags ever deploy. A
good position reduces the risk of
injury from an inflating airbag and
allows you to get the best
advantage from the airbag.
Of course, seat belts cannot
completely protect you in every
crash.Butinmostcases,seatbelts
can reduce your risk of serious
injury.
Always wear your seat belt, and
make sure you wear it properly.
Your seat belt system also
includes an indicator on the
instrument panel and a beeper to
remind you and your passengers to
fasten your seat belts.
Help protect you in almost every
type of crash, including frontal,
side, and rear impacts, and
rollovers.
Seat Belts
Why Wear Seat Belts
What You Should Do:
Your Vehicle’s Safety Features
10
Not wearing a seat belt properly
increases the chance of serious
injury or death in a crash, even
though your vehicle has airbags.
Be sure you and your
passengers always wear seat
belts and wear them properly.
０５／０９／０２ １１：３５：４７ ３１ＳＤＲ６１０ ００１３
Main Menu
Table of Contents
CONTINUED
Your vehicle has a supplemental
restraint system (SRS) with front
airbags to help protect the heads and
chests of the driver and a front seat
passenger during a moderate to
severe frontal collision (see page
for more information on how
your front airbags work).
Your vehicle has side airbags to help
protect the upper torso of the driver
or a front seat passenger during a
moderate to severe side impact (see
page for more information on how
your side airbags work).
Your vehicle also has side curtain
airbags to help protect the heads of
the driver, front passenger, and
passengers in the outer rear seating
positions during a moderate to
severe side impact (see page for
more information on how your side
curtain airbags work).
24
27
26
Your Vehicle’s Safety Features
Airbags
Driver and Passenger Safety
11
０５／０９／０２ １１：３５：５４ ３１ＳＤＲ６１０ ００１４
Main Menu
Table of Contents
The most important things you need
to know about your airbags are:
To do
their job, airbags must inflate with
tremendous force. So while
airbags help save lives, they can
cause minor injuries or more
serious or even fatal injuries if
occupants are not properly
restrained or sitting properly.
Always wear
your seat belt properly, and sit
upright and as far back from the
steering wheel as possible while
allowing full control of the vehicle. A
front passenger should move their
seat as far back from the dashboard
as possible.
The rest of this section gives more
detailed information about how you
can maximize your safety.
Remember, however, that no safety
system can prevent all injuries or
deaths that can occur in a severe
crash, even when seat belts are
properly worn and the airbags deploy.
They are designed to supplement
the seat belts.
Your Vehicle’s Safety Features
Airbags can pose hazards.
What you should do:
Airbags do not replace seat belts.
Airbags offer no protection in rear
impacts, or minor frontal or side
collisions.
12
０５／０９／０２ １１：３６：００ ３１ＳＤＲ６１０ ００１５
Main Menu
Table of Contents
−
CONTINUED
Adjust the driver’s seat as far to the
rear as possible while allowing you to
maintain full control of the vehicle.
Have a front passenger adjust their
seat as far to the rear as possible.

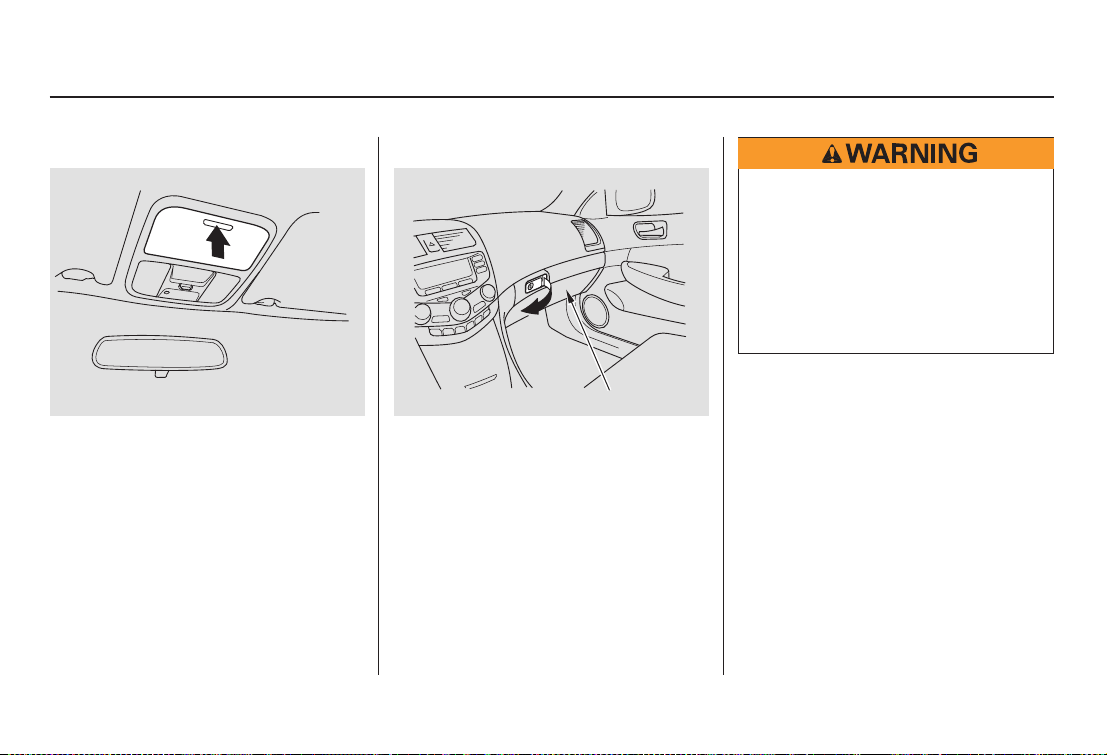

Locking the doors reduces the
chance of someone being thrown out
of the vehicle during a crash, and it
helps prevent passengers from
accidentally opening a door and
falling out.
Locking the doors also helps prevent
an outsider from unexpectedly
opening a door when you come to a
stop.
The following pages provide
instructions on how to properly
protect the driver, adult passengers,
and teenage children who are large
enough and mature enough to drive
or ride in the front.
See pages for important
guidelines on how to properly
protect infants, small children, and
larger children who ride in your
vehicle.
After everyone has entered the
vehicle, be sure the doors are closed
and locked.
See page for how to lock the
doors, and page for how the door
monitor indicator works.
Your vehicle has a door and
trunk open monitor on the
instrument panel to indicate when a
specific door or the trunk is not
tightly closed.
48
56
79
31
Protecting Adults and Teens
Introduction Adjust the Front Seats
Close and Lock the Doors1.
2.
Driver and Passenger Safety
13
０５／０９／０２ １１：３６：１０ ３１ＳＤＲ６１０ ００１６
Main Menu
Table of Contents

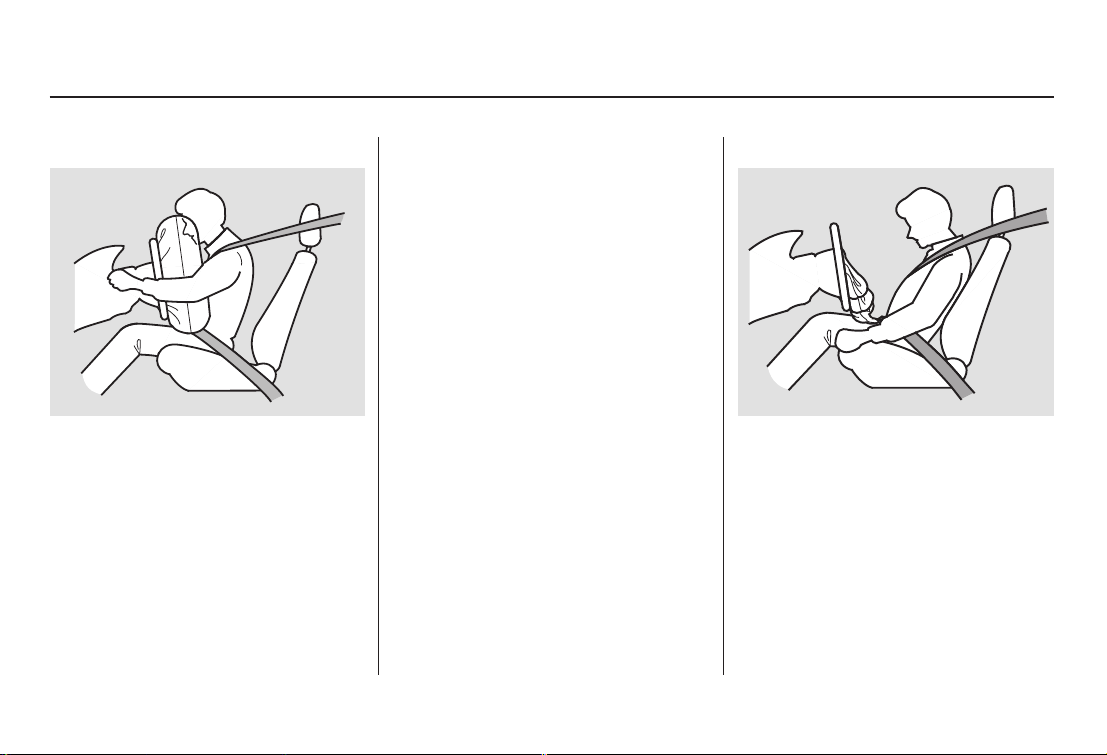

If you sit too close to the steering
wheel or dashboard, you can be
seriously injured by an inflating front
airbag, or by striking the steering
wheel or dashboard.
The National Highway Traffic Safety
Administration and Transport
Canada recommend that drivers
allow at least 10 inches (25 cm)
between the center of the steering
wheel and the chest. In addition to
adjusting the seat, you can adjust the
steering wheel in and out (see page
). Adjust the driver’s seat-back to a
comfortable, upright position,
leaving ample space between your
chest and the airbag cover in the
center of the steering wheel.
Passengers with adjustable seat-
backs should also adjust their seat-
back to a comfortable, upright
position.
If you cannot get far enough away
from the steering wheel and still
reach the controls, we recommend
that you investigate whether some
type of adaptive equipment may help.
After the passenger’s seat is
adjusted correctly, it should be
rocked back and forth to make sure
it is locked in position.
See page for how to adjust the
front seats.
75
85
Protecting Adults and Teens
Adjust the Seat-Backs3.
14
Sitting too close to a front
airbag can result in serious
injury or death if the front
airbags inflate.
Always sit as far back from the
front airbags as possible.
０５／０９／０２ １１：３６：１８ ３１ＳＤＲ６１０ ００１７
Main Menu
Table of Contents
Adjust the driver’s head restraint so
the back of your head rests against
the center of the restraint.
Have passengers with adjustable
head restraints adjust their restraints
properly as well. Taller persons
should adjust their restraint as high
as possible.
Properly adjusted head restraints
will help protect occupants from
whiplash and other crash injuries.
See page for how to adjust the
head restraints.
See page for how to adjust the
seat-backs.
Reclining a seat-back so that the
shoulder part of the belt no longer
rests against the occupant’s chest
reduces the protective capability of
the belt. It also increases the chance
of sliding under the belt in a crash
and being seriously injured. The
farther a seat-back is reclined, the
greater the risk of injury.
85
87
Protecting Adults and Teens
Adjust the Head Restraints4.
Driver and Passenger Safety
15
Reclining the seat-back too far
can result in serious injury or
death in a crash.
Adjust the seat-back to an
upright position, and sit well
back in the seat.
Improperly positioning head
restraints reduces their
effectiveness, and you can be
seriously injured in a crash.
Make sure head restraints are
in place and positioned properly
before driving.
０５／０９／０２ １１：３６：２５ ３１ＳＤＲ６１０ ００１８
Main Menu
Table of Contents

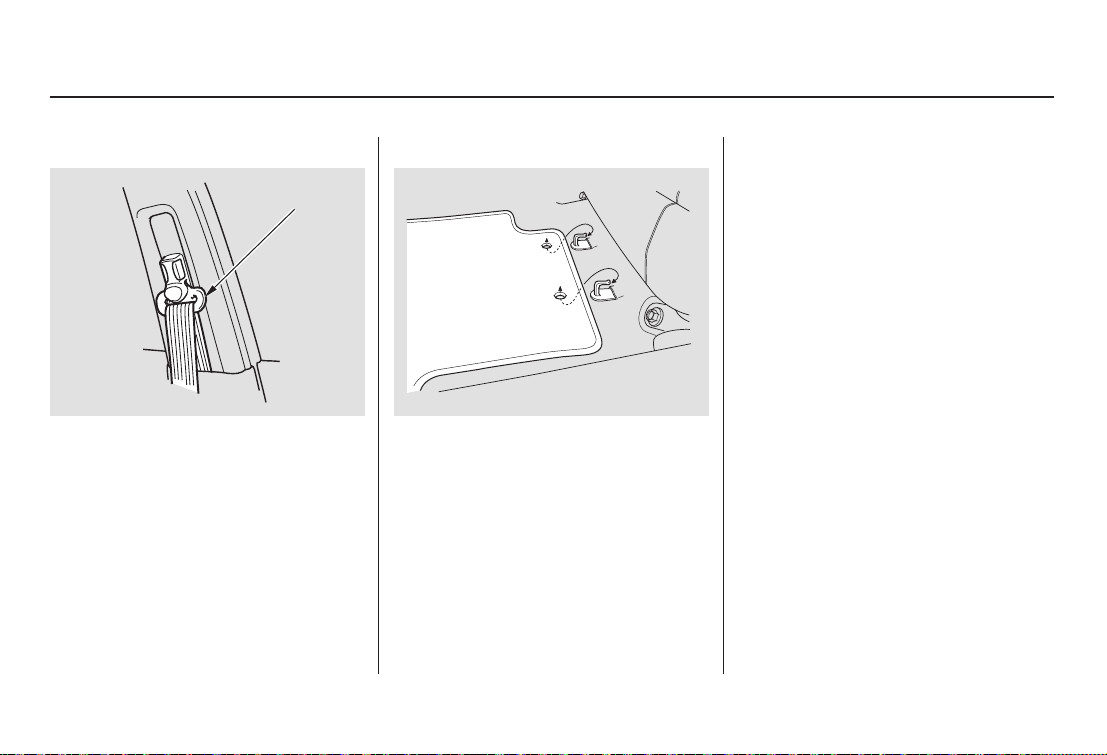

If the seat belt touches or crosses
your neck, or if it crosses your arm
instead of your shoulder, you need to
adjust the seat belt anchor height.
Insert the latch plate into the buckle,
then tug on the belt to make sure the
belt is securely latched. Check that
the belt is not twisted, because a
twisted belt can cause serious
injuries in a crash.
This spreads the forces of a crash
over the strongest bones in your
upper body.
Position the lap part of the belt as
low as possible across your hips,
then pull up on the shoulder part of
the belt so the lap part fits snugly.
This lets your strong pelvic bones
take the force of a crash and reduces
the chance of internal injuries.
If necessary, pull up on the belt again
to remove any slack, then check that
the belt rests across the center of
your chest and over your shoulder.
Protecting Adults and Teens
Fasten and Position the Seat
Belts
5.
16
Improperly positioning the seat
belts can cause serious injury
or death in a crash.
Make sure all seat belts are
properly positioned before
driving.
０５／０９／０２ １１：３６：３２ ３１ＳＤＲ６１０ ００１９
Main Menu
Table of Contents
After all occupants have adjusted
their seats and put on seat belts, it is
very important that they continue to
sit upright, well back in their seats,
with their feet on the floor, until the
vehicle is parked and the engine is
off.
Sitting improperly can increase the
chance of injury during a crash. For
example, if an occupant slouches,
lies down, turns sideways, sits
forward, leans forward or sideways,
or puts one or both feet up, the
chance of injury during a crash is
greatly increased.
This could cause
very serious injuries in a crash.
See page for additional
information about your seat belts
and how to take care of them.
If a seat belt does not seem to work
properly, it may not protect the
occupant in a crash.
Using a seat
belt that is not working properly can
result in serious injury or death.
Have your dealer check the belt as
soon as possible.
The front seats have adjustable seat
belt anchors. To adjust the height of
an anchor, squeeze the two release
buttons, and slide the anchor up or
down as needed (it has four
positions).
20
CONTINUED
Maintain a Proper Sitting
Position
6.
Protecting Adults and Teens
Never place the shoulder portion of a
lap/shoulder belt under your arm or
behind your back.
No one should sit in a seat with an
inoperative seat belt.
Driver and Passenger Safety
17
RELEASE
BUTTONS
０５／０９／０２ １１：３６：４１ ３１ＳＤＲ６１０ ００２０
Main Menu
Table of Contents
When driving, remember to sit
upright and adjust the seat as far
back as possible while allowing full
control of the vehicle. When riding
as a front passenger, adjust the seat
as far back as possible.
This will reduce the risk of injuries
to both you and your unborn child
that can be caused by a crash or an
inflating front airbag.
Each time you have a checkup, ask
your doctor if it’s okay for you to
drive.If you are pregnant, the best way to
protect yourself and your unborn
child when driving or riding in a
vehicle is to always wear a seat belt,
and keep the lap part of the belt as
low as possible across the hips.
In addition, an occupant who is out of
position in the front seat can be
seriously or fatally injured in a crash
by striking interior parts of the
vehicle or being struck by an
inflating front airbag.
Protecting Adults and Teens
Advice for Pregnant Women
18
Sitting improperly or out of
position can result in serious
injury or death in a crash.
Always sit upright, well back in
the seat, with your feet on the
floor.
０５／０９／０２ １１：３６：４７ ３１ＳＤＲ６１０ ００２１
Main Menu
Table of Contents
If your
hands or arms are close to an
airbag cover, they could be injured
if the airbag inflates.
Objects on
the covers marked ‘‘SRS AIRBAG’’
could interfere with the proper
operation of the airbags or be
propelled inside the vehicle and
hurt someone if the airbags inflate.
If they do, they
could be very seriously injured in a
crash.
Carrying hard or sharp
objects on your lap, or driving with
a pipe or other sharp object in
your mouth, can result in injuries
if your front airbag inflates.
Devices intended to improve
occupant comfort or reposition the
shoulder part of a seat belt can
reduce the protective capability of
thebeltandincreasethechanceof
serious injury in a crash.
If a side airbag or a
side curtain airbag inflates, a cup
holder or other hard object
attached on or near the door could
be propelled inside the vehicle and
hurt someone.
Protecting Adults and Teens
Keep your hands and arms away
from the airbag covers.
Do not attach or place objects on
the front airbag covers.
Two people should never use the
same seat belt.
Do not place hard or sharp objects
between yourself and a front
airbag.
Do not put any accessories on seat
belts.
Do not attach hard objects on or
near a door.
Additional Safety Precautions
Driver and Passenger Safety
19
０５／０９／０２ １１：３６：５３ ３１ＳＤＲ６１０ ００２２
Main Menu
Table of Contents
Your seat belt system includes lap/
shoulder belts in all five seating
positions. The front seat belts are
also equipped with automatic seat
belt tensioners.
The seat belt system
includes an indicator on the
instrument panel and a beeper to
remind you to fasten your seat belt.
If you turn the ignition switch to ON
(II) before fastening your belt, the
beeper will sound and the indicator
will flash.
The lap and shoulder belt goes over
your shoulder, across your chest,
and across your hips.
To fasten the belt, insert the latch
plate into the buckle, then tug on the
belt to make sure the buckle is
latched (see page for how to
properly position the belt).
To unlock the belt, press the red
PRESSbuttononthebuckle.Guide
the belt across your body so that it
retracts completely. After exiting the
vehicle, be sure the belt is out of the
way and will not get closed in the
door.
All seat belts have an emergency
locking retractor. In normal driving,
the retractor lets you move freely in
your seat while it keeps some
tension on the belt. During a collision
or sudden stop, the retractor
automatically locks the belt to help
restrain your body.
The seat belts in all positions except
the driver’s have an additional
locking mechanism that must be
activated to secure a child seat (see
page ).
If the shoulder part of the belt is
pulled all the way out, the locking
mechanism will activate. The belt
will retract, but it will not allow the
passenger to move freely.
To deactivate the locking
mechanism, unlatch the buckle and
let the seat belt fully retract. To
refasten the seat belt, pull it out only
as far as needed.
If you continue driving without
fastening your seat belt, the beeper
will sound and the indicator will flash
again at regular intervals.
If you do not fasten your seat belt
before the beeper stops, the
indicator will stop flashing but
remain on.
16
42
Additional Information About Your Seat Belts
Seat Belt System Components Lap/Shoulder Belt
20
０５／０９／０２ １１：３７：０２ ３１ＳＤＲ６１０ ００２３
Main Menu
Table of Contents
CONTINUED
For added protection, the front seat
belts are equipped with automatic
seat belt tensioners. When activated,
the tensioners immediately tighten
the belts to help hold the driver and
a front passenger in place.
For safety, you should check the
condition of your seat belts regularly.
The tensioners are designed to
activate in any collision severe
enough to cause the front airbags to
deploy.
If a side curtain airbag deploys
during a side impact, the tensioner
on that side of the vehicle will also
activate.
The tensioners can also be activated
during a collision in which the front
airbags . In this case, the
airbags would not be needed, but the
additional restraint could be helpful.
When the tensioners are activated,
the seat belts will remain tight until
they are unbuckled in the normal
manner.
If the front seat belt tensioners ever
activate, they must be replaced as
the belts will no longer retract
properly.
Pull each belt out fully, and look for
frays, cuts, burns, and wear. Check
that the latches work smoothly and
the belts retract easily. If a belt does
not retract easily, cleaning the belt
may correct the problem (see page
). Any belt that is not in good
condition or working properly will
not provide good protection and
should be replaced as soon as
possible.
Honda provides a lifetime warranty
on seat belts for U.S. models. See
your
booklet for details.
212
do not deploy
Honda Warranty Information
Additional Information About Your Seat Belts
Seat Belt MaintenanceAutomatic Seat Belt Tensioners
Driver and Passenger Safety
21
０５／０９／０２ １１：３７：１２ ３１ＳＤＲ６１０ ００２４
Main Menu
Table of Contents
If a seat belt is worn during a crash,
it must be replaced by the dealer. A
belt that has been worn during a
crash may not provide the same level
of protection in a subsequent crash.
The dealer should also inspect the
anchors for damage and replace
them if needed. If the automatic seat
belt tensioners activate during a
crash, they must be replaced.
Additional Information About Your Seat Belts
22
Not checking or maintaining
seat belts can result in serious
injury or death if the seat belts
do not work properly when
needed.
Check your seat belts regularly
and have any problem
corrected as soon as possible.
０５／０９／０２ １１：３７：１６ ３１ＳＤＲ６１０ ００２５
Main Menu
Table of Contents
Your airbag system includes:
A sophisticated electronic system
that continually monitors and
records information about the
sensors, the control unit, the
airbag activators, the seat belt
tensioners, and driver and front
passenger seat belt use when the
ignition switch is in the ON (II)
position.
Two side curtain airbags, one for
each side of the vehicle. The
airbags are stored in the ceiling,
above the side windows. The front
and rear pillars are marked ‘‘SIDE
CURTAIN AIRBAG’’ (see page
).
Two side airbags, one for the
driver and one for a front
passenger. The airbags are stored
in the outer edges of the seat-
backs. Both are marked ‘‘SIDE
AIRBAG’’ (see page ).
Two SRS (supplemental restraint
system) front airbags. The driver’s
airbag is stored in the center of
the steering wheel; the front
passenger’sairbagisstoredinthe
dashboard. Both are marked ‘‘SRS
AIRBAG’’ (see page ).
Automatic front seat belt
tensioners (see page ).
Sensors that can detect a
moderate to severe frontal or side
impact.
Sensors that can detect whether
a child is in the passenger’s side
airbag path and signal the
control unit to turn the airbag
off (see page ).
Emergency backup power in case
your vehicle’s electrical system is
disconnected in a crash.
An indicator on the instrument
panel that alerts you that the
passenger’s side airbag has been
turned off (see page ).
An indicator on the instrument
panel that alerts you to a possible
problem with your airbags,
sensors, or seat belt tensioners
(see page ).
27
21
26
28
26
28
24
Airbag System Components
Additional Information About Your Airbags
Driver and Passenger Safety
23
０５／０９／０２ １１：３７：２６ ３１ＳＤＲ６１０ ００２６
Main Menu
Table of Contents
After inflating, the front airbags will
immediately deflate, so they won’t
interfere with the driver’s visibility,
or the ability to steer or operate
other controls.
The total time for inflation and
deflation is one-tenth of a second, so
fast that most occupants are not
aware that the airbags deployed until
they see them lying in their laps.
During a frontal crash, your seat belt
restrains your lower body and torso,
and the front airbag helps protect
your head and chest.
Although both airbags normally
inflate within a split second of each
other, it is possible for only one
airbag to deploy.
This can happen if the severity of a
collision is at the margin, or
threshold, that determines whether
or not the airbags will deploy. In
such cases, the seat belt will provide
sufficient protection, and the
supplemental protection offered by
the airbag would be minimal.
If you ever have a moderate to
severe frontal collision, sensors will
detect the vehicle’s rapid
deceleration.
If the rate of deceleration is high
enough, the control unit will instantly
inflate the driver’s and front
passenger’s airbags, at the time and
with the force needed.
How Your Front Airbags Work
Additional Information About Your Airbags
24
０５／０９／０２ １１：３７：３４ ３１ＳＤＲ６１０ ００２７
Main Menu
Table of Contents
Your front airbags are also dual-
threshold airbags. Airbags with this
feature have two deployment
thresholds that depend on whether
or not the occupant is wearing a seat
belt.
If the occupant’s belt is ,
the airbag will deploy at a slightly
lower threshold, because the
occupant would need extra
protection.
Your front airbags are dual-stage
airbags. This means they have two
inflation stages that can be ignited
sequentially or simultaneously,
depending on crash severity.
In a crash, both stages
will ignite simultaneously to provide
the quickest and greatest protection.
In a crash, one stage will
ignite first, then the second stage
will ignite a split second later. This
provides longer airbag inflation time
with a little less force.
After a crash, you may see what
looks like smoke. This is actually
powder from the airbag’s surface.
Although the powder is not harmful,
people with respiratory problems
mayexperiencesometemporary
discomfort. If this occurs, get out of
the vehicle as soon as it is safe to do
so.
If the occupant’s belt is , the
airbag will inflate at a slightly higher
threshold, when the airbag would be
needed to supplement the protection
provided by the seat belt.
Dual-Threshold Airbags
not latched
Dual-Stage Airbags
more severe
less severe
latched
Additional Information About Your Airbags
Driver and Passenger Safety
25
０５／０９／０２ １１：３７：４１ ３１ＳＤＲ６１０ ００２８
Main Menu
Table of Contents
If you ever have a moderate to
severe side impact, sensors will
detect rapid deceleration and signal
the control unit to instantly inflate
either the driver’s or the passenger’s
side airbag.
Only one airbag will deploy during a
side impact. If the impact is on the
passenger’s side, the passenger’s
side airbag will deploy even if there
is no passenger.
To get the best protection from the
side airbags, front seat occupants
should wear their seat belts and sit
upright and well back in their seats.
Thesideairbagmayalsoshutoffifa
short adult leans sideways, or a
larger adult slouches and leans
sideways into the airbag’s
deployment path.
Objects placed on the front
passenger seat can also cause the
side airbag to be shut off.
Your vehicle has a side airbag cutoff
system designed primarily to protect
a child riding in the front passenger’s
seat.
Although Honda does not encourage
children to ride in front, if the height
and position sensors in the seat
detect a child has leaned into the
side airbag’s deployment path, the
airbag will shut off.
Additional Information About Your Airbags
How Your Side Airbags Work
Side Airbag Cutoff System
26
０５／０９／０２ １１：３７：４８ ３１ＳＤＲ６１０ ００２９
Main Menu
Table of Contents
If the side airbag off indicator comes
on (see page ), have the
passenger sit upright. Once the
passenger is out of the airbag’s
deployment path, the system will
turn the airbag back on, and the
indicator will go out.
There will be some delay between
the moment the passenger moves
into or out of the airbag deployment
pathandwhentheindicatorcomes
on or goes off.
A front seat passenger should not
use a cushion or other object as a
backrest. It may prevent the cutoff
system from working properly.
If the impact is on the passenger’s
side, the passenger’s side curtain
airbag will inflate even if there are no
occupants on that side of the vehicle.
To get the best protection from the
side curtain airbags, occupants
should wear their seat belts and sit
upright and well back in their seats.
In a moderate to severe side impact,
sensors will detect rapid deceleration
and signal the control unit to
instantly inflate the side curtain
airbag on the driver’s or the
passenger’s side of the vehicle.
28
Additional Information About Your Airbags
How Your Side Curtain Airbags
Work
Driver and Passenger Safety
27
SIDE CURTAIN AIRBAG
０５／０９／０２ １１：３７：５５ ３１ＳＤＲ６１０ ００３０
Main Menu
Table of Contents
When you turn the ignition switch to
the ON (II) position, this indicator
comes on briefly then goes off. This
tells you the system is working
properly.
The SRS indicator alerts
you to a potential problem
with your airbags or seat belt
tensioners.
If you see any of these indications,
the airbags and seat belt tensioners
may not work properly when you
need them.
This indicator
alerts you that the
passenger’s side
airbag has been automatically shut
off. It does mean there is a
problem with your side airbags.
If the indicator comes on or
flashesonandoffwhileyoudrive.
If the indicator stays on after the
engine starts.
If the SRS indicator does not come
on after you turn the ignition
switch to the ON (II) position.
If the indicator comes on at any
other time, or does not come on at all,
you should have the system checked
by your dealer. For example:
When you turn the ignition switch to
the ON (II) position, the indicator
should come on briefly and then go
out(seepage ).Ifitdoesn’tcome
on, stays on, or comes on while
driving without a passenger in the
front seat, have the system checked.
55
Additional Information About Your Airbags
How the SRS Indicator Works How the Side Airbag Off
Indicator Works
not
28
CanadaU.S.
Ignoring the SRS indicator can
result in serious injury or death
if the airbag systems or
tensioners do not work properly.
Have your vehicle checked by a
dealer as soon as possible if
the SRS indicator alerts you to
a possible problem.
０５／０９／０２ １１：３８：０５ ３１ＳＤＲ６１０ ００３１
Main Menu
Table of Contents
Take your vehicle to an
authorized dealer as soon as
possible. If you ignore this
indication, your airbags may not
operate properly.
Even if your
airbags do not inflate, your dealer
should inspect the driver’s seat
position sensor and the front
passenger’s weight sensors to
make sure they are operating
properly.
Your airbag systems are virtually
maintenance free, and there are no
parts you can safely service.
However, you must have your
vehicle serviced if:
Any airbag
that has deployed must be
replaced along with the control
unit and other related parts. If a
front airbag inflates, the seat belt
tensioners must also be replaced.
Do not try to remove or replace
anyairbagbyyourself.Thismust
be done by your dealer or a
knowledgeable body shop.
Additional Information About Your Airbags
The SRS indicator alerts you to a
problem.
If your vehicle has a moderate to
severe impact.
An airbag ever inflates.
Airbag Service
Driver and Passenger Safety
29
０５／０９／０２ １１：３８：１１ ３１ＳＤＲ６１０ ００３２
Main Menu
Table of Contents
Together, airbags and
seat belts provide the best
protection.
Tampering could cause
the airbags to deploy, possibly
causing very serious injury.
Improperly replacing
or covering front seat-back covers
can prevent your side airbags from
inflating during a side impact.
If water or
another liquid soaks into the seat-
back, it can prevent the side airbag
cutoff system from working
properly.
Additional Safety Precautions
Donotattempttodeactivateyour
airbags.
Do not tamper with airbag
components or wiring for any
reason.
Do not cover or replace front seat-
back covers without consulting
your dealer.
Do not expose the front passenger’s
seat-back to liquid.
Additional Information About Your Airbags
30
０５／０９／０２ １１：３８：１６ ３１ＳＤＲ６１０ ００３３
Main Menu
Table of Contents
−
−
−
If you have children, or ever need to
drive with a child in your vehicle, be
sure to read this section. It begins
with important general guidelines,
then presents special information for
infants, small children, and larger
children.
To reduce the number of child
deaths and injuries, every state and
Canadian province requires that
infants and children be properly
restrained when they ride in a
vehicle.
(see pages ).
(see pages ).
Children depend on adults to protect
them. However, despite their best
intentions, many adults do not know
how to protect child
passengers.
Each year, many children are injured
or killed in vehicle crashes because
they are either unrestrained or not
properly restrained. In fact, vehicle
accidents are the number one cause
of the death of children aged 12 and
under.
36 44
45 48
properly
All Children Must Be Restrained
Infants and small children must be
restrained in an approved child seat
that is properly secured to the
vehicle
Larger children must be restrained
with a lap/shoulder belt and ride on
a booster seat until the seat belt fits
them properly
Protecting Children General Guidelines
Driver and Passenger Safety
31
Children who are unrestrained
or improperly restrained can be
seriously injured or killed in a
crash.
Any child too small for a seat
belt should be properly
restrained in a child seat. A
larger child should be properly
restrained with a seat belt and
use a booster seat if necessary.
０５／０９／０２ １１：３８：２４ ３１ＳＤＲ６１０ ００３４
Main Menu
Table of Contents
−
Front airbags have been designed to
help protect adults in a moderate to
severe frontal collision. To do this,
the passenger’s front airbag is quite
large, and it can inflate with enough
force to cause very serious injuries.
If the vehicle seat is
too far forward, or the child’s head is
thrown forward during a collision, an
inflating front airbag can strike the
child with enough force to kill or
very seriously injure a small child.
Whenever possible,
larger children should sit in the back
seat, on a booster seat if needed, and
be properly restrained with a seat
belt (see page for important
information about protecting larger
children).
If
the airbag inflates, it can hit the back
of the child seat with enough force
to kill or very seriously injure an
infant.
According to accident statistics,
children of all ages and sizes are
safer when they are restrained in a
back seat.
The National Highway Traffic Safety
Administration and Transport
Canada recommend that all children
aged 12 and under be properly
restrained in a back seat. Some
states have laws restricting where
children may ride.
Children who ride in the back are
less likely to be injured by striking
interior vehicle parts during a
collision or hard braking. Also,
children cannot be injured by an
inflating front airbag when they ride
in the back.
45
Small Children
Placing a forward-f acing child seat in
the front seat of a vehicle equipped
with a passenger’s front airbag can
be hazardous.
Larger Children
Children who have outgrown child
seats are also at risk of being injured
or killed by an inflating passenger’s
front airbag.
Infants
Never put a rear-facing child seat in
the front seat of a vehicle equipped
with a passenger’s front airbag.
All Children Should Sit in a Back
Seat
The Passenger’s Front Airbag
Poses Serious Risks
Protecting Children General Guidelines
32
０５／０９／０２ １１：３８：３２ ３１ＳＤＲ６１０ ００３５
Main Menu
Table of Contents
−
To remind you of the passenger’s
front airbag hazards, and that
children must be properly restrained
in a back seat, your vehicle has
warninglabelsonthedashboard
(U.S. model) and on the front visors.
Please read and follow the
instructions on these labels.
Protecting Children General Guidelines
U.S. Model:
Canadian Model:
Driver and Passenger Safety
33
SUN VISOR
SUN VISOR
DASHBOARD
０５／０９／０２ １１：３８：４６ ３１ＳＤＲ６１０ ００３６
Main Menu
Table of Contents
−
Many parents say they prefer to put
an infant or small child in the front
passenger seat so they can watch the
child, or because the child requires
attention.
Placing a child in the front seat
exposes the child to hazards in a
frontal collision, and paying close
attention to a child distracts the
driver from the important tasks of
driving, placing both of you at risk.
Your vehicle has a back seat where
children can be properly restrained.
If you ever have to carry a group of
children, and a child must ride in
front:
Place the largest child in the front
seat, provided the child is large
enough to wear the lap/shoulder
belt properly (see page ).
Move the vehicle seat as far to the
rear as possible (see page ).
Have the child sit upright and well
backintheseat(seepage ).
Make sure the seat belt is properly
positioned and secured (see page
).
If a child requires close physical
attention or frequent visual
contact, we strongly recommend
that another adult ride with the
child in a back seat. The back seat
is far safer for a child than the
front.
16
13
45
17
If a Child Requires Close
Attention
If You Must Drive with Several
Children
Protecting Children General Guidelines
34
０５／０９／０２ １１：３８：５４ ３１ＳＤＲ６１０ ００３７
Main Menu
Table of Contents
−
During a crash, the
belt could press deep into the child
and cause serious or fatal injuries.
If they do, they
could be very seriously injured in a
crash.
This can prevent children
from accidentally falling out (see
page ).
Leaving children without
adult supervision is illegal in most
states and Canadian provinces,
and can be very hazardous.
For example, infants and small
childrenleftinavehicleonahot
day can die from heatstroke. A
child left alone with the key in the
ignition switch can accidentally set
the vehicle in motion, possibly
injuring themselves or others.
Children
who play in vehicles can
accidentally get trapped inside.
Teach your children not to play in
or around vehicles. Know how to
operate the emergency trunk
opener and decide if your children
should be shown how to use this
feature(seepage ).
Even very young
children learn how to unlock
vehicle doors, turn on the ignition
switch, and open the trunk, which
can lead to accidental injury or
death.
If you are not wearing a
seat belt in a crash, you could be
thrown forward and crush the
child against the dashboard or a
seat-back. If you are wearing a
seat belt, the child can be torn
from your arms and be seriously
hurt or killed.
80
84
Additional Safety Precautions
Never put a seat belt over yourself
and a child.
Never let two children use the
same seat belt.
Use childproof door locks to
prevent children from opening the
doors.
Do not leave children alone in a
vehicle.
Lock all doors and the trunk when
your vehicle is not in use.
Keep vehicle keys and remote
transmitters out of the reach of
children.
Neverholdaninfantorchildon
your lap.
Protecting Children General Guidelines
Driver and Passenger Safety
35
０５／０９／０２ １１：３９：０２ ３１ＳＤＲ６１０ ００３８
Main Menu
Table of Contents
An infant must be properly
restrained in a rear-facing, reclining
child seat until the child reaches the
seat maker’s weight or height limit
for the seat, and the child is at least
one year old.
Only a rear-facing child seat provides
proper support for a baby’s head,
neck, and back.
Two types of seats may be used: a
seat designed exclusively for infants,
or a convertible seat used in the rear-
facing, reclining mode.
If placed
facing forward, an infant could be
very seriously injured during a
frontal collision.
A rear-facing child seat can be placed
in any seating position in the back
seat, but not in the front.
If the passenger’s front airbag
inflates, it can hit the back of the
child seat with enough force to kill or
seriously injure an infant.
When properly installed, a rear-
facing child seat may prevent the
driver or a front passenger from
moving their seat as far back as
recommended, or from locking their
seat-back in the desired position.
Protecting Infants
Child Seat Type
Child Seat Placement
Do not put a rear-facing child seat in
a forward-facing position.
Never put a
rear-facing child seat in the front
seat.
Protecting Infants and Small Children
36
０５／０９／０２ １１：３９：１０ ３１ＳＤＲ６１０ ００３９
Main Menu
Table of Contents
A child who is at least 1 year old, and
who fits within the child seat maker’s
weight and height limits, should be
restrained in a forward-facing,
upright child seat.
Of the different seats available, we
recommend those that have a five-
point harness system as shown.
If the vehicle seat is too
far forward, or the child’s head is
thrown forward during a collision, an
inflating airbag can strike the child
with enough force to cause very
serious or fatal injuries.
We strongly recommend placing a
forward-facing child seat in a back
seat, not the front.
In any of these situations, we
strongly recommend that you install
the child seat directly behind the
front passenger’s seat, move the seat
as far forward as needed, and leave it
unoccupied. Or, you may wish to get
a smaller rear-facing child seat.
We also recommend that a small
child use the child seat until the child
reaches the weight or height limit
for the seat.
Protecting Small Children
Child Seat Type
Placing a forward-f acing child seat in
the front seat of a vehicle equipped
with a passenger’s airbag can be
hazardous.
Child Seat Placement
Protecting Infants and Small Children
Driver and Passenger Safety
37
Placing a rear-facing child seat
in the front seat can result in
serious injury or death if the
passenger’s front airbag inflates.
Always place a rear-facing child
seat in the back seat, not the
front.
０５／０９／０２ １１：３９：１８ ３１ＳＤＲ６１０ ００４０
Main Menu
Table of Contents

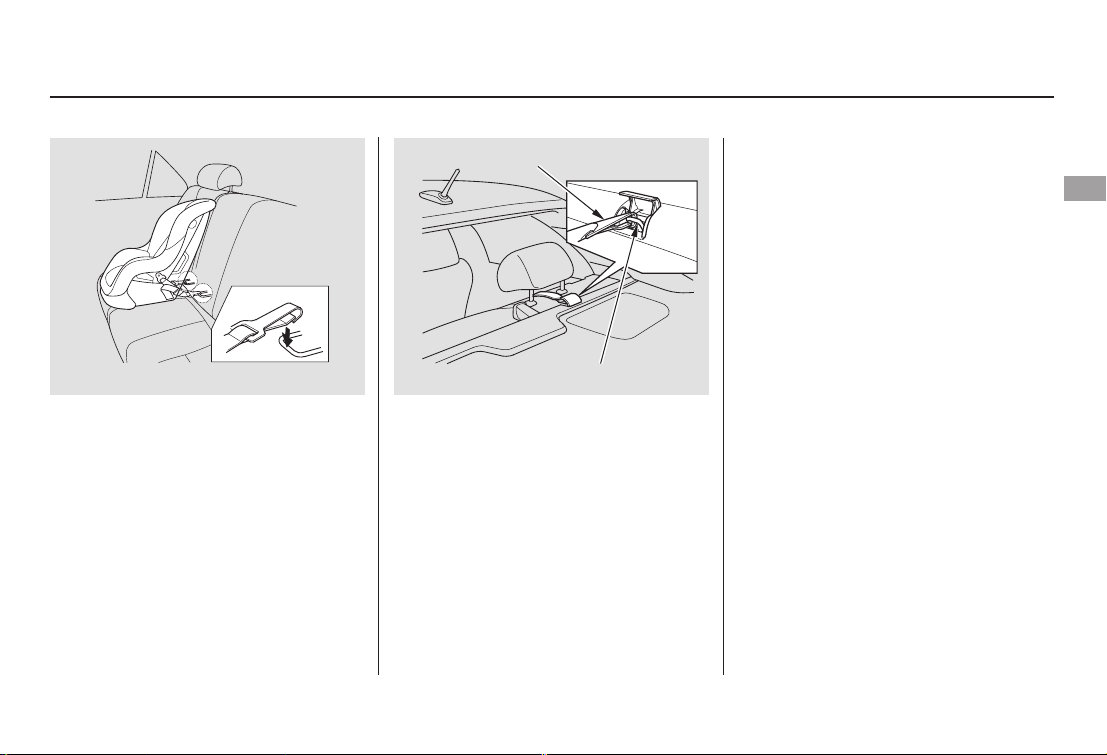

Conventional child seats must be
secured to a vehicle with a seat belt,
whereas LATCH-compatible seats
are secured by attaching the seat to
hardware built into the two outer
seating positions in the back seat.
Since LATCH-compatible child seats
are easier to install and reduce the
possibility of improper installation,
we recommend selecting this style.
We also recommend selecting a
LATCH-compatible seat with a rigid,
rather than a flexible, anchor (see
page ).
In seating positions and vehicles not
equipped with LATCH, a LATCH-
compatible child seat can be installed
using a seat belt.
If it is necessary to put a forward-
facing child seat in the front, move
the vehicle seat as far to the rear as
possible, and be sure the child seat is
firmly secured to the vehicle and the
child is properly strapped in the seat. Whatever type of seat you choose, to
provide proper protection, a child
seat should meet three
requirements:
Look for FMVSS
213 or CMVSS 213 on the box.
Rear-facing for infants, forward-
facing for small children.
When buying a child seat, you need
to choose either a conventional child
seat, or one designed for use with
the lower anchors and tethers for
children (LATCH) system.
1.
2.
40
Selecting a Child Seat
The child seat should meet U.S. or
Canadian Motor Vehicle Safety
Standard 213.
The child seat should be of the
proper type and size to fit the child.
Protecting Infants and Small Children, Selecting a Child Seat
38
Placing a forward-facing child
seat in the front seat can result
in serious injury or death if the
front airbag inflates.
Ifyoumustplaceaforward-
facing child seat in front, move
the vehicle seat as far back as
possible, and properly restrain
the child.
０５／０９／０２ １１：３９：２６ ３１ＳＤＲ６１０ ００４１
Main Menu
Table of Contents
After selecting a proper child seat
and a good place to install the seat,
there are three main steps in
installing the seat:
All child seats must be
secured to the vehicle with the lap
part of a lap/shoulder belt or with
the LATCH (lower anchors and
tethers for children) system. A
child whose seat is not properly
secured to the vehicle can be
endangered in a crash.
After installing a child
seat, push and pull the seat
forward and from side-to-side to
verify that it is secure.
A child seat secured with a seat belt
should be installed as firmly as
possible. However, it does not need
to be ‘‘rock solid.’’ Some side-to-side
movement can be expected and
should not reduce the child seat’s
effectiveness.
If the child seat is not secure, try
installing it in a different seating
position, or use a different style of
child seat that can be firmly secured.
Before purchasing a conventional
child seat, or using a previously
purchased one, we recommend that
you test the seat in the specific
vehicle seating position or positions
where the seat will be used.
Make sure the child is properly
strappedinthechildseat
according to the child seat maker’s
instructions. A child who is not
properly secured in a child seat
can be seriously injured in a crash.
The following pages provide
guidelines on how to properly install
a child seat. A forward-facing child
seat is used in all examples, but the
instructions are the same for rear-
facing child seats.
3.
1.
2.
3.
Installing a Child Seat
Properly secure the child seat to
the vehicle.
Make sure the child seat is firmly
secured.
The child seat should fit the
vehicle seating position (or
positions) where it will be used.
Secure the child in the child seat.
Selecting a Child Seat, Installing a Child Seat
Driver and Passenger Safety
39
０５／０９／０２ １１：３９：３５ ３１ＳＤＲ６１０ ００４２
Main Menu
Table of Contents
Make sure there are no objects
near the anchors that could
prevent a secure connection
between the child seat and the
anchors.
Move the seat belt buckle or
tongue away from the lower
anchors.
To install a LATCH-compatible child
seat:
Place the child seat on the vehicle
seat, then attach the seat to the
lower anchors according to the
child seat maker’s instructions.
Some LATCH-compatible seats
have a rigid-type connection as
shown above.
Your vehicle is equipped with
LATCH (lower anchors and tethers
for children) at the outer rear seats.
The lower anchors are located
between the seat-back and seat
bottom, and are to be used only with
a child seat designed for use with
LATCH.
The location of each lower anchor is
indicated by a small button above the
anchor point.
1.
2.
3.
Installing a Child Seat with
LATCH
Installing a Child Seat
40
Rigid type
LOWERANCHORMARKS
０５／０９／０２ １１：３９：４４ ３１ＳＤＲ６１０ ００４３
Main Menu
Table of Contents
Other LATCH-compatible seats
have a flexible-type connection as
shown above.
Whatever type you have, follow
the child seat maker’s instructions
for adjusting or tightening the fit.
Push and pull the child seat
forward and from side-to-side to
verify that it is secure.
Lift the head restraint (see page
), then route the tether strap
through the legs of the head
restraint, making sure the strap is
not twisted.
Attach the tether strap hook to the
tether anchor, then tighten the
strap as instructed by the child
seat maker.
4.
5.
6.
7.
87
Installing a Child Seat
Driver and Passenger Safety
41
TETHER STRAP HOOK
Flexible type
ANCHOR
０５／０９／０２ １１：３９：５０ ３１ＳＤＲ６１０ ００４４
Main Menu
Table of Contents
When not using the LATCH system,
all child seats must be secured to the
vehicle with the lap part of a lap/
shoulder belt.
With the child seat in the desired
seating position, route the belt
through the child seat according
to the seat maker’s instructions,
then insert the latch plate into the
buckle.
To activate the lockable retractor,
slowly pull the shoulder part of the
belt all the way out until it stops,
then let the belt feed back into the
retractor.
After the belt has retracted, tug on
it. If the belt is locked, you will not
be able to pull it out. If you can pull
thebeltout,itisnotlocked,and
you will need to repeat these steps.
In addition, the lap/shoulder belts in
all seating positions except the
driver’s have a locking mechanism
that must be activated to secure a
child seat.
1. 2.
3.
Installing a Child Seat with a Lap/
Shoulder Belt
Installing a Child Seat
42
０５／０９／０２ １１：３９：５７ ３１ＳＤＲ６１０ ００４５
Main Menu
Table of Contents
After confirming that the belt is
locked, grab the shoulder part of
the belt near the buckle, and pull
up to remove any slack from the
lap part of the belt. Remember, if
the lap part of the belt is not tight,
the child seat will not be secure.
To deactivate the locking
mechanism and remove a child seat,
unlatch the buckle, unroute the seat
belt, and let the belt fully retract.
Push and pull the child seat
forward and from side-to-side to
verify that it is secure enough to
stay upright during normal driving
maneuvers. If the child seat is not
secure, unlatch the belt, allow it to
retract fully, then repeat these
steps.
To remove slack, it may help to
putweightonthechildseat,or
push on the back of the seat while
pulling up on the belt.
4. 5.
Installing a Child Seat
Driver and Passenger Safety
43
０５／０９／０２ １１：４０：０３ ３１ＳＤＲ６１０ ００４６
Main Menu
Table of Contents
A child seat with a tether can be
installed in any seating position in
the back seat, using one of the
anchorage points shown above.
Since a tether can provide additional
security to the lap/shoulder belt
installation, we recommend using a
tether whenever one is required or
available.
Tighten the strap according to the
seat maker’s instructions.
After properly securing the child
seat (see page ), route the
tether strap over the seat-back.
Followsteps2and3fromthe
previous column.Lift the anchor cover, then attach
the tether strap hook to the
anchor, making sure the strap is
not twisted.
After properly securing the child
seat (see page ), lift the head
restraint, then route the tether
strap through the head restraint
legs.
1.
2.
3.
1.
2.
4242
Installing a Child Seat with a
Tether
Using an Outer Anchor Using the Center Anchor
Installing a Child Seat
44
TETHER STRAP HOOK
TETHER ANCHORAGE POINTS
TETHER STRAP HOOK
ANCHOR
ANCHOR
０５／０９／０２ １１：４０：１３ ３１ＳＤＲ６１０ ００４７
Main Menu
Table of Contents
To determine if a lap/shoulder belt
properly fits a child, have the child
put on the seat belt, then ask
yourself:
When a child reaches the
recommended weight or height limit
for a forward-facing child seat, the
child should sit in a back seat on a
booster seat and wear a lap/shoulder
belt.
Does the child sit all the way back
against the seat?
Do the child’s knees bend
comfortably over the edge of the
seat?
The following pages give
instructions on how to check proper
seat belt fit, what kind of booster
seat to use if one is needed, and
important precautions for a child
who must sit in front.
1.
2.
Checking Seat Belt Fit
Protecting Larger Children
Driver and Passenger Safety
45
Allowing a child age 12 or under
to sit in front can result in injury
or death if the passenger’s front
airbag inflates.
If a larger child must ride in front,
move the vehicle seat as far
back as possible, use a booster
seat if needed, have the child
sit up properly and wear the
seat belt properly.
０５／０９／０２ １１：４０：２０ ３１ＳＤＲ６１０ ００４８
Main Menu
Table of Contents
Does the shoulder belt cross
between the child’s neck and arm?
Is the lap part of the belt as low as
possible, touching the child’s
thighs?
Will the child be able to stay
seated like this for the whole trip?
If you answer yes to all these
questions, the child is ready to wear
the lap/shoulder belt correctly. If
you answer no to any question, the
child needs to ride on a booster seat. A child who has outgrown a forward-
facing child seat should ride in a
back seat and use a booster seat
until the lap/shoulder belt fits them
properly without the booster.
Some states and Canadian provinces
also require children to use a booster
seat until they reach a given age or
weight (e.g., 6 years or 60 lbs). Be
sure to check current laws in the
states or provinces where you intend
to drive.
Booster seats can be high-back or
low-back. Whichever style you select,
make sure the booster meets federal
safety standards (see page ) and
that you follow the booster seat
maker’s instructions.
If a child who uses a booster seat
must ride in front, move the vehicle
seat as far back as possible and be
sure the child is wearing the seat
belt properly.
A child may continue using a booster
seat until the tops of the ears are
even with the top of the seat-back. A
child of this height should be tall
enough to use the lap/shoulder belt
without a booster.
4.
5.
3.
38
Using a Booster Seat
Protecting Larger Children
46
０５／０９／０２ １１：４０：２８ ３１ＳＤＲ６１０ ００４９
Main Menu
Table of Contents
If you decide that a child can safely
ride up front, be sure to:
Carefully read the owner’s manual,
and make sure you understand all
seat belt instructions and all safety
information.
Move the vehicle seat to the rear-
most position.
Have the child sit up straight, back
against the seat, and feet on or
near the floor.
Check that the child’s seat belt is
properly and securely positioned.
Supervise the child. Even mature
children sometimes need to be
reminded to fasten the seat belts
or sit properly.
Of course, children vary widely. And
while age may be one indicator of
when a child can safely ride in front,
there are other important factors you
should consider.
If the passenger’s front airbag
inflates in a moderate to severe
frontal collision, the airbag can cause
serious injuries to a child who is
unrestrained, improperly restrained,
sitting too close to the airbag, or out
of position.
A side airbag also poses risks. If any
part of a larger child’s body is in the
path of a deploying side airbag, the
child could receive possibly serious
injuries.
Physically, a child must be large
enough for the lap/shoulder belt to
properly fit (see page ). If the seat
belt does not fit properly, with or
without the child sitting on a booster
seat, the child should not sit in front.
To safely ride in front, a child must
be able to follow the rules, including
sitting properly, and wearing the seat
belt properly throughout a ride.
The National Highway Traffic Safety
Administration and Transport
Canada recommend that all children
aged 12 and under be properly
restrained in a back seat.
45
Physical Size
Maturity
When Can a Larger Child Sit in
Front
Protecting Larger Children
Driver and Passenger Safety
47
０５／０９／０２ １１：４０：３８ ３１ＳＤＲ６１０ ００５０
Main Menu
Table of Contents
This could result
in serious neck injuries during a
crash.
Devices intended to
improve a child’s comfort or
reposition the shoulder part of a
seat belt can make the belt less
effective and increase the chance
of serious injury in a crash.
This could
cause very serious injuries during
a crash. It also increases the
chance that the child will slide
under the belt in a crash and be
injured.
If they do, they
could be very seriously injured in a
crash.
Do not let a child wear a seat belt
across the neck.
Do not put any accessories on a
seat belt.
Do not let a child put the shoulder
part of a seat belt behind the back
or under the arm.
Two children should never use the
same seat belt.
Additional Safety Precautions
Protecting Larger Children
48
０５／０９／０２ １１：４０：４３ ３１ＳＤＲ６１０ ００５１
Main Menu
Table of Contents
Your vehicle’s exhaust contains
carbon monoxide gas. You should
have no problem with carbon
monoxide entering the vehicle in
normal driving if you maintain your
vehicle properly.
High levels of carbon monoxide can
collect rapidly in enclosed areas,
such as a garage. Do not run the
engine with the garage door closed.
Even with the door open, run the
engine only long enough to move the
vehicle out of the garage.
Have the exhaust system inspected
for leaks whenever:
With the trunk open, airflow can pull
exhaust gas into your vehicle’s
interior and create a hazardous
condition. If you must drive with the
trunk open, open all the windows and
set the climate control system as
shown below.
If you must sit in your parked vehicle
with the engine running, even in an
unconfined area, adjust the climate
control system as follows:
Select the fresh air mode.
Select the mode.
Turn the fan on high speed.
Set the temperature control to a
comfortable setting.
The vehicle is raised for an oil
change.
You notice a change in the sound
of the exhaust.
The vehicle was in an accident
that may have damaged the
underside.
1.
2.
3.
4.
Carbon Monoxide Hazard
Driver and Passenger Safety
49
Carbon monoxide gas is toxic.
Breathing it can cause
unconsciousness and even kill
you.
Avoid any enclosed areas or
activities that expose you to
carbon monoxide.
０５／０９／０２ １１：４０：５１ ３１ＳＤＲ６１０ ００５２
Main Menu
Table of Contents

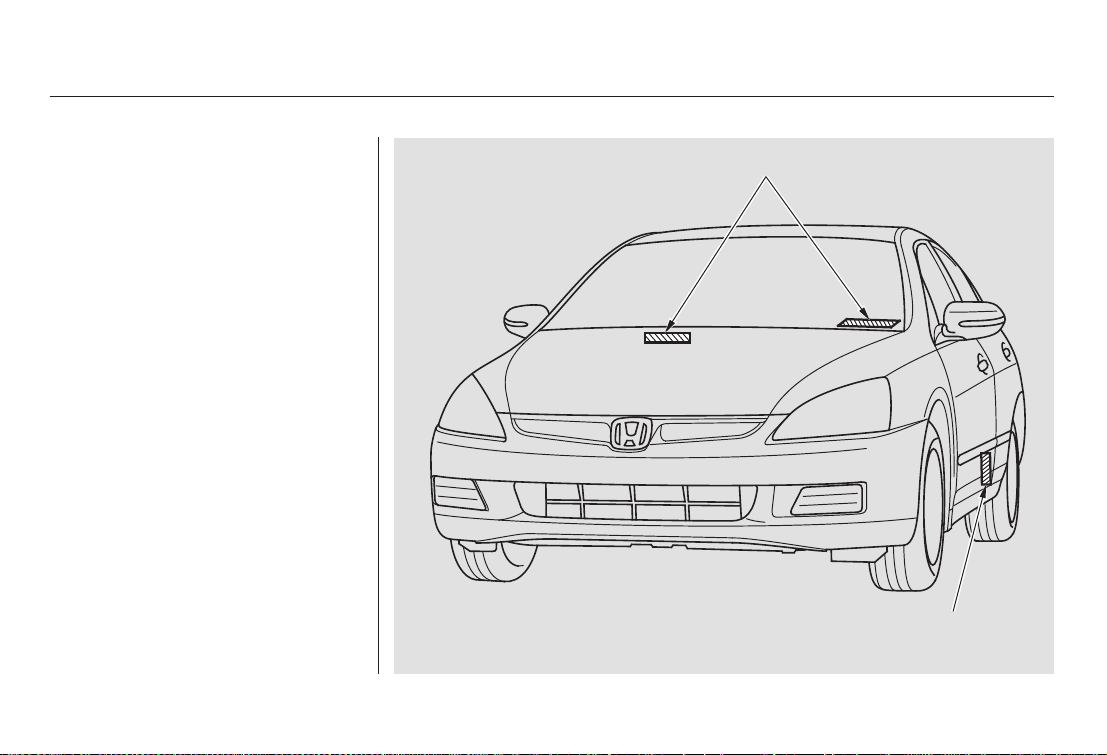

These labels are in the locations
shown. They warn you of potential
hazards that could cause serious
injury or death. Read these labels
carefully. If a label comes off or
becomeshardtoread(exceptforthe
U.S. dashboard label which is
removed by the owner), contact your
dealer for a replacement.
Canadian models
U.S. model
U.S. model
U.S. model Canadian model
Canadian model
U.S. model
U.S. model only
Canadian model
Safety Labels
50
SUN VISOR
HOOD
DOORJAMBS
RADIATOR
CAP
ENGINE COMPARTMENT
DASHBOARD
０５／０９／２２ １０：４６：２９ ３１ＳＤＲ６１０ ００５３
Main Menu
Table of Contents
This section gives information about
the controls and displays that
contribute to the daily operation of
your vehicle. All the essential
controls are within easy reach.
...........................Control Locations . 52
............................Instrument Panel . 53
..........Instrument Panel Indicators . 54
.............................................Gauges . 62
Controls Near the Steering
.......................................Wheel . 69
..................Wipers and Washers . 70
.......Turn Signal and Headlights . 71
Automatic Lighting Off
.....................................Feature . 72
............Daytime Running Lights . 73
....Instrument Panel Brightness . 73
..........................Hazard Warning . 74
.............Rear Window Defogger . 74
......Steering Wheel Adjustment . 75
...............................Keys and Locks . 76
........................Immobilizer System . 77
................................Ignition Switch . 78
......................................Door Locks . 79
..................Childproof Door Locks . 80
.......................Remote Transmitter . 80
................................................Trunk . 83
........Emergency Trunk Opener . 84
............................................Armrest . 84
....................................Seat Heaters . 85
...................................................Seat . 85
.......Adjusting the Driver’s Seat . 85
...........Driver’s Lumbar Support . 86
Adjusting the Passenger’s
...........................................Seat . 86
..........................Head Restraints . 87
.............................................Mirrors . 88
....Adjusting the Power Mirrors . 88
................Power Mirror Heaters . 89
..............................Power Windows . 89
.........................................Moonroof . 92
.................................Parking Brake . 93
..........................................Sun Visor . 94
..................................Vanity Mirror . 94
.................................Interior Lights . 95
...........Interior Convenience Items . 96
.......................Beverage Holders . 96
..........Accessory Power Sockets . 96
...............Console Compartment . 97
.......................Center CD Pocket . 97
......................Sunglasses Holder . 98
....................................Glove Box . 98
Instruments and Controls
Instruments and Controls
51
０５／０９／０２ １１：４１：２８ ３１ＳＤＲ６１０ ００５４
Main Menu
Control Locations
52
POWER WINDOW
SWITCHES
MIRROR CONTROLS
ACCESSORY POWER SOCKETS
AUDIO SYSTEM
HEATING/COOLING
CONTROLS
HAZARD WARNING
BUTTON
CRUISE CONTROLS
TRUNK RELEASE LEVER HOOD RELEASE
HANDLE
INDICATORS
GAUGES
FUEL FILL DOOR RELEASE LEVER
(P.53)
(P.100)
(P.112)
AUTOMATIC
TRANSMISSION
(P.88)
POWER DOOR LOCK
MASTER SWITCH
(P.79)
(P.83)
(P.151)
(P.152)
(P.96)
(P.166)
(P.74)
(P.141)
(P.89)
(P.62)
０５／０９／０２ １１：４１：３３ ３１ＳＤＲ６１０ ００５５
Main Menu
Table of Contents

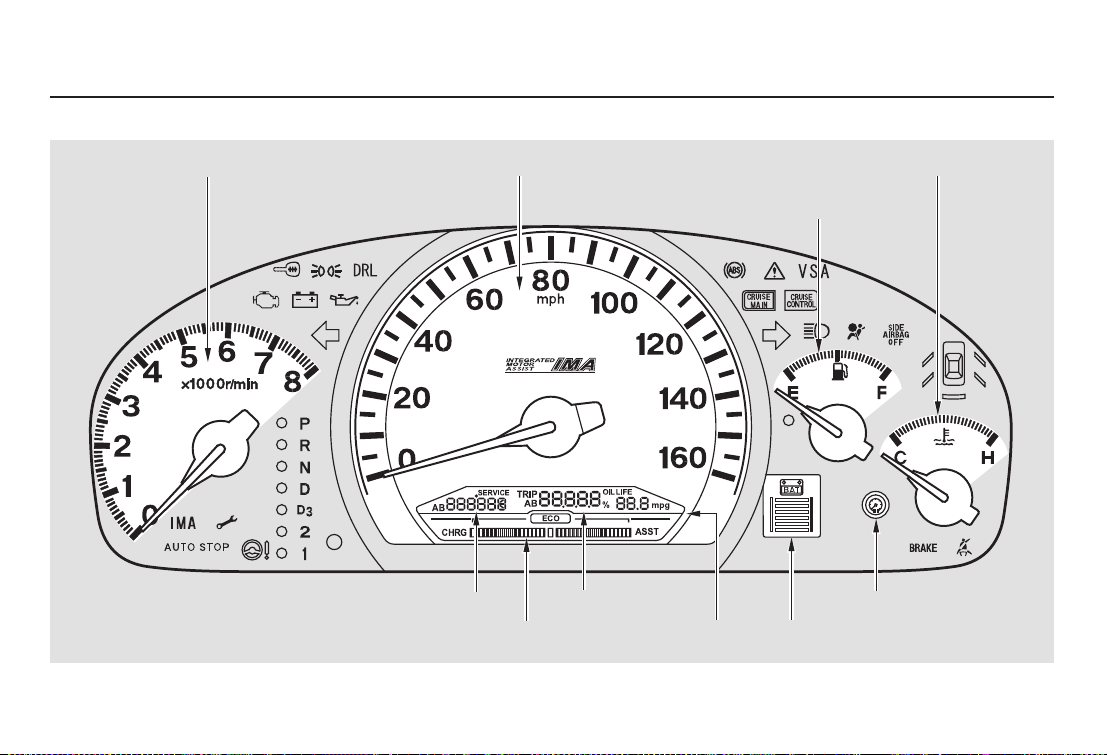

The U.S. instrument panel is shown. Differences for the Canadian models are noted in the text.
Instrument Panel
Instruments and Controls
53
MALFUNCTION
INDICATOR LAMP
SUPPLEMENTAL
RESTRAINT SYSTEM
INDICATOR
DOOR AND TRUNK
OPEN MONITOR
LIGHTS ON INDICATOR
SIDE AIRBAG OFF
INDICATOR
CRUISE CONTROL INDICATOR
LOW OIL PRESSURE INDICATOR (P.54)
(P.56)
(P.59)
(P.56)
(P.55)
(P.55)
(P.54)
(P.58)
(P.60)
IMA SYSTEM
INDICATOR
(P.60)
(P.60)
(P.57)
(P.54)
(P.54)
(P.58)
CRUISE CONTROL
MAIN INDICATOR
(P.59)
FUEL ECONOMY INDICATOR
SEAT BELT REMINDER
INDICATOR
(P.61)
VSA ACTIVATION INDICATOR
(P.57)
(P.59)
HIGH BEAM
INDICATOR
ANTI-LOCK BRAKE SYSTEM (ABS) INDICATOR (P.55)
DAYTIME RUNNING LIGHTS
INDICATOR
(P.58)
SECURITY SYSTEM
INDICATOR
CHARGING SYSTEM
INDICATOR
IMMOBILIZER SYSTEM
INDICATOR
TURN SIGNAL
AND HAZARD
WARNING
INDICATORS
AUTO IDLE STOP
INDICATOR
(P.54)
PARKING BRAKE AND BRAKE
SYSTEM INDICATOR
(P.57)
LOW FUEL
INDICATOR
TURN SIGNAL AND HAZARD WARNING INDICATORS
ELECTRIC POWER STEERING
(EPS) INDICATOR
(P.57)
MAINTENANCE
MINDER INDICATOR
(P.59)
VEHICLE STABILITY ASSIST (VSA)
SYSTEM INDICATOR
(P.56)
０５／０９／０２ １１：４１：４２ ３１ＳＤＲ６１０ ００５６
Main Menu
Table of Contents

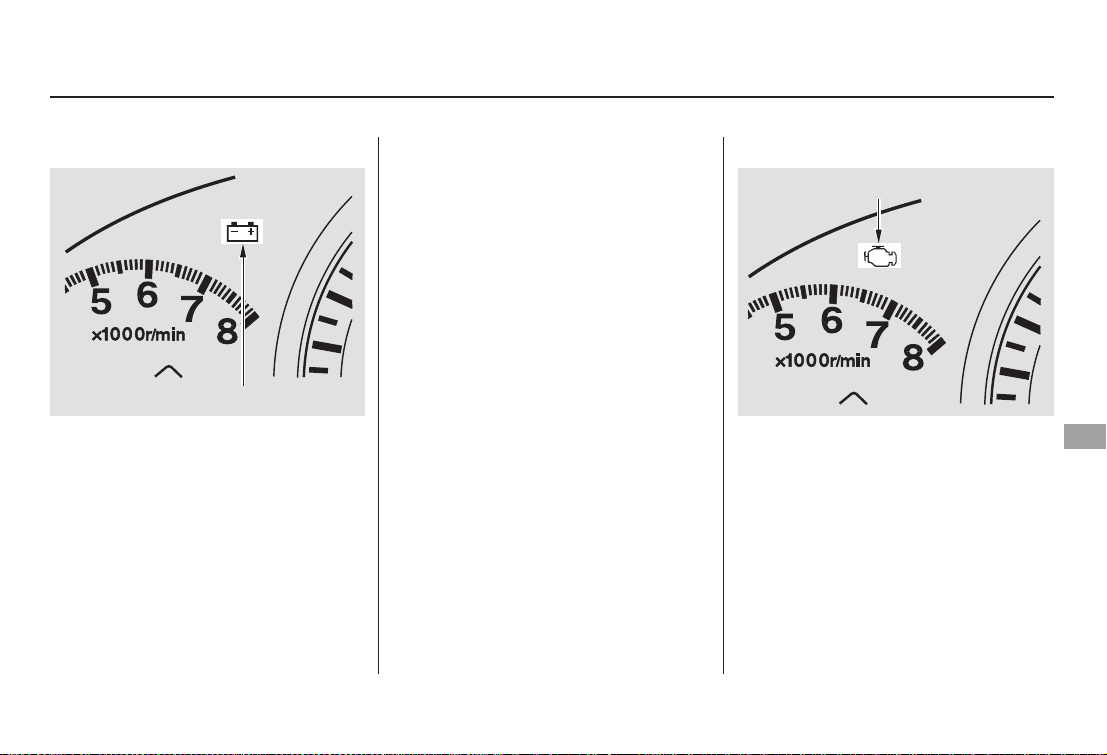

The instrument panel has many
indicators to give you important
information about your vehicle.
If this indicator comes on when the
engine is running, the battery is not
being charged. For more information,
see page .
See page .
This indicator has two functions:This indicator comes on when you
turn the ignition switch to the ON
(II) position. It reminds you and your
passengers to fasten your seat belts.
A beeper also sounds if you have not
fastened your seat belt.
If you continue driving without
fastening your seat belt, the beeper
sounds and the indicator flashes
again at regular intervals.
Itcomesonwhenyouturnthe
ignition switch to the ON (II)
position. It is a reminder to check
the parking brake. A beeper
sounds if you try to drive with the
parking brake not fully released.
Driving with the parking brake not
fully released can damage the
brakes and tires.
The engine can be severely damaged
if this indicator flashes or stays on
when the engine is running. For
more information, see page .
If you turn the ignition switch to the
ON (II) position before fastening
your seat belt, the beeper sounds
and the indicator flashes. If you do
notfastenyourseatbeltbeforethe
beeper stops, the indicator stops
flashing but remains on.
If it remains lit after you fully
release the parking brake while
the engine is running, or if it
comes on while driving, there
could be a problem with the brake
system. For more information, see
page .
1.
2.
236
237
237
239
Low Oil Pressure
Indicator
Charging System
Indicator
Malfunction Indicator
Lamp
Seat Belt Reminder
Indicator
Parking Brake and Brake
System Indicator
Instrument Panel Indicators
54
U.S. Canada
０５／０９／０２ １１：４１：５３ ３１ＳＤＲ６１０ ００５７
Main Menu
Table of Contents
This indicator normally comes on for
a few seconds when you turn the
ignition switch to the ON (II)
position, and when the ignition
switch is turned to the START (III)
position. If it comes on at any other
time, there is a problem with the
ABS. If this happens, have your
vehicle checked at a dealer. With
this on, your vehicle still has normal
braking ability but no anti-lock
brakes. For more information, see
page .
This indicator comes on when you
turn the ignition switch to the ON
(II) position. If it comes on at any
other time, it indicates that the
passenger’s side airbag has
automatically shut off. For more
information, see page .
This indicator comes on briefly when
you turn the ignition switch to the
ON (II) position. If it comes on at
any other time, it indicates a
potential problem with your front
airbags. This indicator will also alert
you to a potential problem with your
side airbags, side curtain airbags,
and automatic seat belt tensioners.
For more information, see page .28
28
175
Supplemental Restraint
System Indicator
Anti-lock Brake System
(ABS) IndicatorSide Airbag Off
Indicator
Instrument Panel Indicators
Instruments and Controls
55
U.S.
Canada
０５／０９／０２ １１：４２：００ ３１ＳＤＲ６１０ ００５８
Main Menu
Table of Contents
This indicator normally comes on for
a few seconds when you turn the
ignition switch to the ON (II)
position. For more information, see
page .
This indicator has three functions:
Itcomesonasareminderthatyou
have turned off the vehicle
stability assist (VSA) system.
It flashes when VSA is active (see
page ).
It comes on along with the VSA
system indicator if there is a
problem with the VSA system.
This indicator normally comes on for
a few seconds when you turn the
ignition switch to the ON (II)
position.
Ifitcomesonandstaysonatany
other time, or if it does not come on
when you turn the ignition switch to
the ON (II) position, there is a
problem with the VSA system. Take
your vehicle to a dealer to have it
checked. Without VSA, your vehicle
still has normal driving ability, but
will not have VSA traction and
stability enhancement. See page
for more information on the
VSA system.
If the trunk or any door is not tightly
closed, the monitor reminds you to
close the open trunk or door(s)
before you start driving.
All the indicators in the monitor
come on for a few seconds when you
turn the ignition switch to the ON
(II) position.
1.
2.
3.177
177
177
Door and Trunk Open MonitorVSA Activation IndicatorVehicle Stability Assist
(VSA) System Indicator
Instrument Panel Indicators
56
０５／０９／０２ １１：４２：１１ ３１ＳＤＲ６１０ ００５９
Main Menu
Table of Contents
This indicator comes on as a
reminder that you must refuel soon.
The left or right turn signal indicator
blinks when you signal a lane change
or turn. If the indicators do not blink,
or if they blink rapidly, it usually
means one of the turn signal bulbs is
burned out (see page ). Replace
the bulb as soon as possible, since
other drivers cannot see that you are
signaling.
Whenyouturnonthehazard
warning button, both turn signal
indicators blink. All turn signals on
the outside of the vehicle should
flash.
This indicator reminds you that the
exterior lights are on. It comes on
when the light switch is in either the
or position. If you turn the
ignition switch to the ACCESSORY
(I) or LOCK (0) position without
turning off the light switch, this
indicator will stay on. A reminder
chime will also sound when you open
the driver’s door.

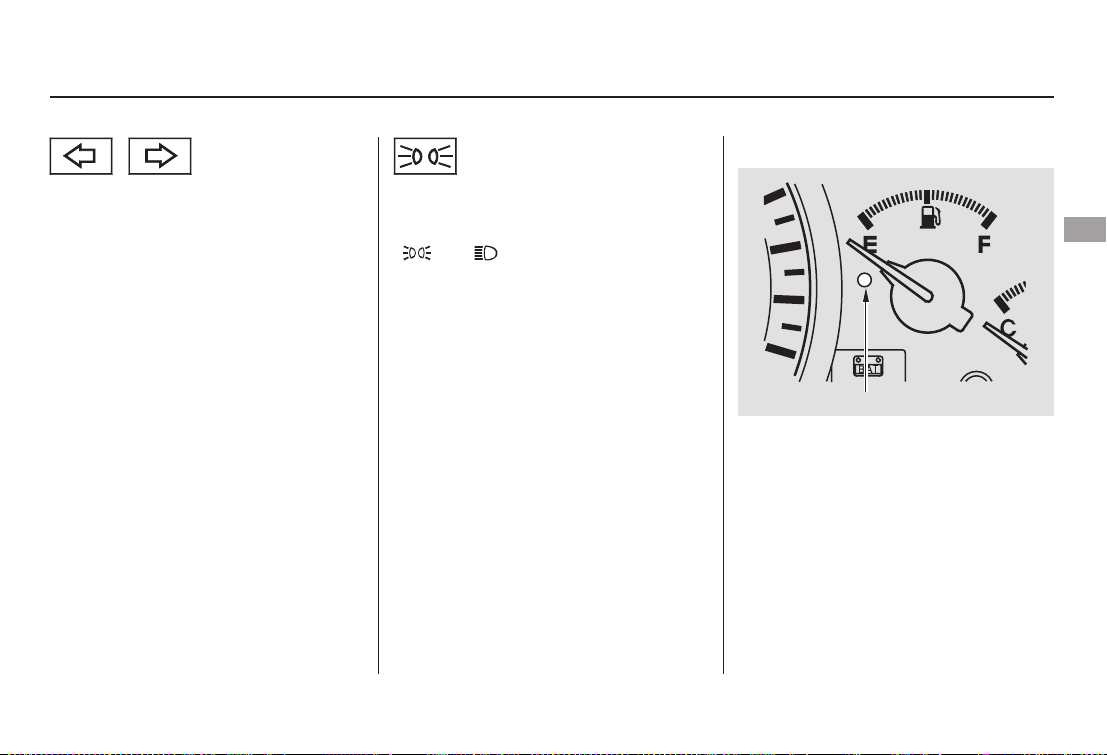

When the indicator comes on, there
is about 2.62 U.S. gal (9.9 Liter)of
fuel remaining in the tank before the
reading reaches E. There is a small
reserve of fuel remaining in the tank
when the reading does reach E.
209
Turn Signal and
Hazard Warning
Indicators
Lights On Indicator Low Fuel Indicator
Instrument Panel Indicators
Instruments and Controls
57
LOW FUEL INDICATOR
０５／０９／０２ １１：４２：１８ ３１ＳＤＲ６１０ ００６０
Main Menu
Table of Contents
This indicator comes on when the
security system is set. See page
for more information on the
security system.

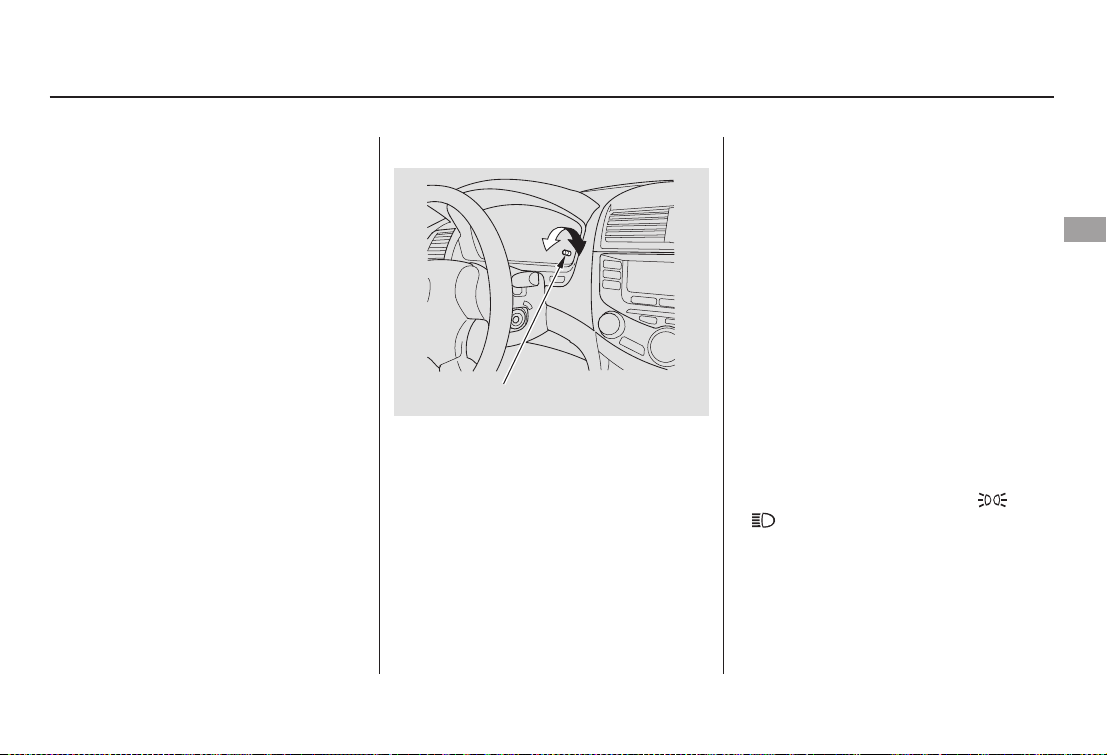

This indicator comes on with the
high beam headlights. For more
information, see page .
When the daytime running lights
(DRL) are on, this indicator comes
on with reduced brightness.
If this indicator comes on when the
ignition switch is turned to the ON
(II) position and the parking brake is
released, it means there is a problem
in the high beam headlight’s circuit.
Have your vehicle checked by your
dealer.
140
72
Security System Indicator High Beam IndicatorDaytime Running Lights
Indicator
Instrument Panel Indicators
58
SECURITY SYSTEM INDICATOR
０５／０９／０２ １１：４２：２４ ３１ＳＤＲ６１０ ００６１
Main Menu
Table of Contents
This indicator comes on when you
turn on the cruise control master
button (see page ).
This indicator comes on when you
set the cruise control. See page
for information on operating the
cruise control.
This indicator comes on for a few
seconds when you turn the ignition
switch to the ON (II) position. It will
gooffifyouhaveinserteda
properly-coded ignition key. If it is
not a properly-coded key, the
indicator will blink and the engine
will not start (see page ).
This indicator also blinks several
times when you turn the ignition
switch from the ON (II) position to
the ACCESSORY (I) or LOCK (0)
position.
This indicator comes on when the
washer fluid level is low. Add washer
fluidwhenyouseethisindicator
come on (see page ).
This indicator reminds you that it is
time to take your vehicle in for
scheduled maintenance. The
maintenance main items and sub
items will be displayed in the
information display. See page for
more information on the
maintenance minder.
This indicator goes off when your
dealer resets it after completing the
required maintenance service.
141
187
77
200
141
Canadian model only
Cruise Control Indicator
Cruise Control Main
Indicator
Immobilizer System
Indicator
Washer Level Indicator
Maintenance Minder
Indicator
Instrument Panel Indicators
Instruments and Controls
59
０５／０９／０２ １１：４２：３６ ３１ＳＤＲ６１０ ００６２
Main Menu
Table of Contents
This indicator normally comes on for
a few seconds when you turn the
ignition switch to the ON (II)
position. If it comes on at any other
time, it indicates a problem in the
integrated motor assist (IMA)
system. With the IMA indicator on,
the vehicle may not accelerate as it
normally does. Have the vehicle
checked by the dealer as soon as
possible.
See page .
If the power steering system
overheats while driving, the assisting
power is reduced and steering may
feel slightly harder.
If you drive with the system
overheated continuously or
repeatedly, this can damage the
power steering system.
This indicator normally comes on
when you turn the ignition switch to
the ON (II) position and goes off
after the engine starts. If it comes on
at any other time, there is a problem
in the electric power steering system.
If this happens, stop the vehicle in a
safe place, and turn off the engine.
Reset the system by restarting the
engine. The indicator will not turn
off immediately. If it does not go off
after driving a short distance, or
comes back on again while driving,
take the vehicle to your dealer to
have it checked. With the indicator
on, the EPS may be off, making the
vehicle harder to steer.
172
Instrument Panel Indicators
Electric Power Steering
(EPS) Indicator
IMA System Indicator
Auto Idle Stop Indicator
60
０５／０９／０２ １１：４２：４４ ３１ＳＤＲ６１０ ００６３
Main Menu
Table of Contents
While the engine is operating in its
most economical range, this
indicator may come on and stay on.
If the vehicle on board diagnostic
system continues to detect a
problem, the Malfunction Indicator
Lamp (MIL) will illuminate. If the
MIL does not go off, have your
dealer inspect the vehicle. For more
information, see page .
If your fuel cap is loose or missing, a
‘‘CHECK FUEL CAP’’ message will
appear in the information display. As
soon as it is safely possible, turn the
engine off and check that the fuel
cap is installed. If it is, loosen the cap
and tighten it to at least 1 click.
Although you can use the Select/
Reset knob to cycle the fuel cap
warning off of the display, it will be
displayed again each time the engine
is started. It will take several days of
normal driving for the vehicle to turn
the warning off.
237
Fuel Economy IndicatorCheck Fuel Cap Display
Instrument Panel Indicators
Instruments and Controls
61
０５／０９／０２ １１：４２：４９ ３１ＳＤＲ６１０ ００６４
Main Menu
Table of Contents
Gauges
62
SELECT/RESET KNOBTRIP METER
U.S. model is shown.
TEMPERATURE GAUGE
FUEL GAUGE
SPEEDOMETERTACHOMETER
CHARGE/ASSIST GAUGE
IMA BATTERY LEVEL GAUGEINFORMATION DISPLAY
ODOMETER/OUTSIDE TEMPERATURE DISPLAY
０５／０９／０２ １１：４２：５３ ３１ＳＤＲ６１０ ００６５
Main Menu
Table of Contents
This display shows the outside
temperature in Fahrenheit (U.S.
models) or Centigrade (Canadian
models). To see the outside
temperature, press and release the
Select/Reset knob until the
temperature is displayed.
The temperature sensor is in the
front bumper. Therefore, the
temperature reading can be affected
by heat reflection from the road
surface, engine heat, and the
exhaust from surrounding traffic.
This can cause an incorrect
temperature reading when your
speed is under 19 mph (30 km/h).
The sensor delays the display update
until it reaches the correct outside
temperature. This may take several
minutes.
The odometer shows the total
distance your vehicle has been
driven. It measures miles in U.S.
models and kilometers in Canadian
models. It is illegal under U.S.
federal law and Canadian provincial
regulations to disconnect, reset, or
alter the odometer with the intent to
change the number of miles or
kilometers indicated.
The information display provides
various information; odometer,
outside temperature, trip meter, trip
mileage, engine oil life, and
maintenance service items. To
switch the display, press the Select/
Reset knob repeatedly. When you
turn the ignition switch to the ON
(II) position, what you last selected is
shownintheinformationdisplay.
Gauges
Outside Temperature DisplayOdometer
Instruments and Controls
63
０５／０９／０２ １１：４２：５８ ３１ＳＤＲ６１０ ００６６
Main Menu
Table of Contents
±±
−−−−
− −−−
This meter shows the number of
miles (U.S.) or kilometers (Canada)
driven since you last reset it.
There are two trip meters: Trip A
and Trip B. Switch between these
displays and the odometer/outside
temperature display by pressing the
Select/Reset knob repeatedly. Each
trip meter works independently, so
you can keep track of two different
distances.
If the outside temperature is
incorrectly displayed, you can adjust
it up to 5°F ( 3°C) warmer or
cooler.
NOTE: The temperature must be
stabilized before doing this
procedure.
Select the outside temperature
display, then press the Select/Reset
knob for 10 seconds. The following
sequences appear, 1 second at a
time:0,1,2,3,4,5, 5, 4, 3, 2,
1, 0, 1 (0, 1, 2, 3, 3, 2, 1, 0, 1).
When the temperature reaches the
desired value, release the Select/
Reset knob. You should see the new
outside temperature displayed.
In certain weather conditions,
temperature readings near freezing
(32°F, 0°C) could mean that ice is
forming on the road surface.
When you turn the ignition switch to
the ON (II) position, what you last
selected is displayed.
To reset a trip meter, display it, and
then press and hold the Select/Reset
knob until the number resets to ‘‘0.0’’.
Trip Meter
Gauges
64
０５／０９／０２ １１：４３：０５ ３１ＳＤＲ６１０ ００６７
Main Menu
Table of Contents
The display will turn back on when
you repeat the same procedure in
step 3.
You can temporarily turn off the Trip
Mileage display.
Turn the ignition switch to the ON
(II) position and make sure the
transmission is in Park and the
parking brake is set.
When either of the trip meters (trip
A or trip B) is displayed, your
vehicle’s average fuel mileage since
you last reset that trip meter can be
shownontheinformationdisplay.
This number is updated once every
10 seconds. To see the average fuel
mileage, press and release the
Select/Reset knob repeatedly.
Use the Select/Reset knob to
select the odometer display.
Press and hold the Select/Reset
knob for about 5 to 10 seconds,
then release it. The Trip Mileage
display will turn off.
When you reset a trip meter, the
average fuel mileage for that trip
meter also resets.
It shows the number of mpg (U.S.)
or l/100 km (Canada).
1.
2.
3.
Trip Mileage Turning Off the Trip Mileage
Display
Gauges
Instruments and Controls
65
TRIP METER
TRIP MILEAGE
DISPLAY
０５／０９／０２ １１：４３：１３ ３１ＳＤＲ６１０ ００６８
Main Menu
Table of Contents
The battery level gauge does not
read the battery level directly. It
calculates the level by continuously
measuring the current flow, voltage,
and temperature.
Since the level is not read directly,
small sensing errors can, over time,
cause the gauge to read higher than
the actual battery level. The system
will then perform a correction, and
the battery level gauge reading will
drop suddenly. When this happens,
IMA assist and Auto Idle Stop are
disabled until the IMA battery is
sufficiently recharged by normal
driving. This should take only a few
minutes.
This correction of the battery level
gauge is normal and does not
indicate a problem. If the IMA
battery develops a problem or
becomes deteriorated, the IMA
system indicator will come on. If this
happens, have the vehicle checked
by your dealer as soon as possible.
If the battery is mostly discharged,
the auto idle stop function is disabled
(see page ).
This gauge shows you the state of
charge of the battery for the
integrated motor assist (IMA). This
battery is recharged by the IMA
motor, and discharged by the IMA
when it is assisting the engine with
powering the vehicle.
The gauge reading may drop near
the bottom under driving conditions
that require assistance for a long
time, such as prolonged acceleration
or climbing a long hill. The IMA
motor will recharge the battery as
you continue driving.
171
IMA Battery Level Gauge
Gauges
66
IMA BATTERY LEVEL GAUGE
０５／０９／０２ １１：４３：２０ ３１ＳＤＲ６１０ ００６９
Main Menu
Table of Contents
The battery temperature will
normalize after a few minutes of
driving, and the IMA system will
work normally.
This gauge shows you the status of
the integrated motor assist (IMA).
When the IMA battery is being
charged, the left side of the gauge
illuminates. When the IMA is
assisting the engine, the right side of
the gauge illuminates.
This shows the temperature of the
engine’s coolant. During normal
operation, the reading should be in
the middle of the gauge. In severe
driving conditions, such as very hot
weather or a long period of uphill
driving, the reading may reach near
the red mark. If it reaches the red
(Hot) mark, pull safely to the side of
the road. See page for
instructions and precautions on
checking the engine’s cooling
system.
If the IMA battery is too hot or too
cold, the IMA system shuts down to
protect the battery. This disables the
IMA assist and auto idle stop, even
though the battery level gauge may
show that the battery is well-charged.
Therefore, those functions may not
operate when you first start driving
in very hot or very cold weather.
234
Charge/Assist Gauge Temperature Gauge
Gauges
Instruments and Controls
67
CHARGE/ASSIST GAUGE
０５／０９／０２ １１：４３：２６ ３１ＳＤＲ６１０ ００７０
Main Menu
Table of Contents
This shows how much fuel you have.
It may show slightly more or less
than the actual amount. The needle
returns to the bottom after you turn
off the ignition.
Fuel Gauge
Gauges
68
Avoid driving with an extremely low
fuel level. Running out of fuel could
cause the engine to misfire, damaging
the catalytic converter.
０５／０９／０２ １１：４３：３０ ３１ＳＤＲ６１０ ００７１
Main Menu
Table of Contents
＊
＊ Only on vehicles equipped with navigation system. Refer to the navigation system manual.:
Controls Near the Steering Wheel
Instruments and Controls
69
WINDSHIELD
WIPERS/WASHERS
INSTRUMENT PANEL
BRIGHTNESS
VOICE CONTROL
SWITCHES
HEADLIGHTS/
TURN SIGNALS
REMOTE AUDIO
CONTROLS
HORNSTEERING WHEEL
ADJUSTMENT
CRUISE CONTROLS
REAR WINDOW
DEFOGGER
HAZARD
WARNING BUTTON
(P.73)
(P.71)
(P.137)
(P.178)
(P.75)
(P.74, 103, 106)
(P.141)
(P.74)
(P.70)
VSA OFF SWITCH
MOONROOF
SWITCH
(P.92)
０５／０９／０２ １１：４３：３５ ３１ＳＤＲ６１０ ００７２
Main Menu
Table of Contents
−
−
−
−
−
−
−
−
−
MIST
OFF
INT Intermittent
LO Low speed
HI High speed
Windshield washers
Push the right lever up or down to
select a position.
The wipers run at high
speed until you release the lever.
The wipers are not activated.
The wipers run at low speed.
The wipers run at high speed.
The length of the wiper
interval is varied automatically
according to the vehicle’s speed.
Vary the delay by turning the INT
TIME ring. If you turn it to the
shortest delay, the wipers will
change to low speed operation when
the vehicle speed exceeds 12 mph
(20 km/h).
Pull the
wiper control lever toward you, and
hold it. The washers spray until you
release the lever. The wipers run at
low speed, then complete one more
sweep after you release the lever.
1.
2.
3.
4.
5.
6.
Windshield Wiper
MIST
OFF
LO
HI
INT
Windshield Washer
Wipers and Washers
70
０５／０９／０２ １１：４３：４２ ３１ＳＤＲ６１０ ００７３
Main Menu
Table of Contents
−−
Turn signal
Off
Parking and interior lights
Headlight on
High beams
Flashhighbeams
Push down on the
left lever to signal a left turn and up
to signal a right turn. To signal a lane
change, push lightly on the lever in
the proper direction and hold it. The
lever will return to center when you
release it or complete a turn.
Turning the switch
on the left lever to the position
turns on the parking lights, taillights,
side marker lights, rear license plate
lights and lights on indicator.
Turning the switch to the
position turns on the
headlights. If you leave the lights on
with the ignition switch in the
ACCESSORY (I) or LOCK (0)
position, you will hear a reminder
chime when you open the driver’s
door.
When the light switch is in either of
these positions, the lights on
indicator comes on as a reminder.
1.
2.
3.
4.
5.
6.
Turn Signal and Headlights Turn Signal Headlights
Turn Signal, Headlights
Instruments and Controls
71
０５／０９／０２ １１：４３：４９ ３１ＳＤＲ６１０ ００７４
Main Menu
Table of Contents
− If you remove the key from the
ignition switch with the headlight
switch on, but do not open the door
and get out, the lights will turn off
after 10 minutes.
The lights will turn on again when
you unlock or open the driver’s door.
If you unlock the door, but do not
open it within 15 seconds, the lights
will go off. With the driver’s door
open, you will hear a lights-on
reminder chime.
To turn on the high
beams, push the lever forward until
you hear a click. The blue high beam
indicator will come on (see page ).
To turn off the high beams, pull the
lever back. To flash the high beams,
pull the lever farther back, and then
release it. The high beams remain on
until the lever is released.
This feature turns off the headlights,
parking lights, side marker lights,
taillights, and rear license plate lights
within 15 seconds of removing the
key from the ignition switch and
closing the driver’s door.
This feature activates if you leave
the headlight switch in the or
position, remove the key, then
open and close the driver’s door.
58
Automatic Lighting Off FeatureHigh Beams
Headlights, Automatic Lighting Off Feature
72
０５／０９／０２ １１：４３：５５ ３１ＳＤＲ６１０ ００７５
Main Menu
Table of Contents
With the headlight switch off, the
high beam headlights and the high
beam indicator come on with
reduced brightness when you turn
the ignition switch to the ON (II)
position and release the parking
brake. They remain on until you turn
the ignition switch off, even if you
set the parking brake.
The headlights revert to normal
operation when you turn them on
with the switch.
The instrument panel will illuminate
with reduced brightness when you
open the driver’s door. The
brightness will increase slightly
when you insert the key in the
ignitionswitch,thengotonormal
brightness when you turn the
ignition switch to the ON (II)
position.
The Select/Reset knob on the
instrument panel controls the
brightness of the instrument panel
lights. Turn the knob to adjust the
brightness.
If you do not insert the key in the
ignition switch after opening the
driver’s door, the illumination turns
off about 30 seconds after you close
the door.
To reduce glare at night, the instru-
ment panel illumination dims when
you turn the light switch to or
. Turning the Select/Reset
knob fully to the right until you hear
a click will cancel the reduced bright-
ness.
If you insert the key but do not turn
the ignition switch to the ON (II)
position, the illumination turns off in
about 10 seconds.
Instrument Panel BrightnessDaytime Running Lights
Daytime Running Lights, Instrument Panel Brightness
Instruments and Controls
73
SELECT/RESET KNOB
０５／０９／０２ １１：４４：０２ ３１ＳＤＲ６１０ ００７６
Main Menu
Table of Contents
Push the button between the center
vents to turn on the hazard warning
lights (four-way flashers). This
causes all four outside turn signals
and both turn indicators in the
instrument panel to flash. Use the
hazard warning lights if you need to
park in a dangerous area near heavy
traffic, or if your vehicle is disabled.
The rear window defogger will clear
fog, frost, and thin ice from the
window. Push the defogger button to
turn it on and off. The indicator in
the button comes on to show the
defogger is on. It shuts off when you
turn off the ignition. You have to
turn the defogger on again when you
restart the vehicle.
Make sure the rear window is clear
and you have good visibility before
starting to drive.
The defogger wires on the inside of
the rear window can be accidentally
damaged. When cleaning the glass,
always wipe side to side.
Rear Window DefoggerHazard Warning
Hazard Warning Light, Rear Window Defogger
74
Vehicles without navigation system
HAZARD WARNING BUTTON
Vehicles with navigation system
０５／０９／０２ １１：４４：１０ ３１ＳＤＲ６１０ ００７７
Main Menu
Table of Contents
Make any steering wheel adjustment
before you start driving.
Move the steering wheel up or
down, and in or out to the desired
position. Make sure you can see
the instrument panel gauges and
the indicator lights.
Insert the key in the ignition
switch, and unlock the steering
column.
Push the lever under the steering
column all the way down.
1.
2.
3.
Steering Wheel Adjustment
Instruments and Controls
75
Adjusting the steering wheel
position while driving may
cause you to lose control of the
vehicle and be seriously injured
inacrash.
Adjust the steering wheel only
when the vehicle is stopped.
０５／０９／０２ １１：４４：１６ ３１ＳＤＲ６１０ ００７８
Main Menu
Table of Contents
Youshouldhavereceivedakey
number tag with your keys. You will
need this key number if you ever
have to get a lost key replaced. Use
only Honda-approved key blanks.
These keys contain electronic
circuits that are activated by the
immobilizer system. They will not
work to start the engine if the
circuits are damaged.
Protect the keys from direct
sunlight, high temperature, and
high humidity.
Donotdropthekeysorsetheavy
objects on them.
Keep the keys away from liquids.
If they get wet, dry them
immediately with a soft cloth.
The master key fits all the locks on
your vehicle. The valet key works
only in the ignition and the door
locks. You can keep the trunk
release handle, rear seat trunk
access, and glove box locked when
you leave your vehicle and the valet
key at a parking facility.
Push the lever up to lock the
steering wheel in that position.
Make sure you have securely
locked the steering wheel in place
by trying to move it up, down, in,
and out.
4.
5.
Keys and Locks
Steering Wheel Adjustment, Keys and Locks
76
KEY
NUMBER
TAG
VALET KEY
(LIGHT GREY)
MASTER
KEYS WITH
REMOTE
TRANSMITTER
０５／０９／０２ １１：４４：２４ ３１ＳＤＲ６１０ ００７９
Main Menu
Table of Contents
If the system repeatedly does not
recognize the coding of your key,
contact your dealer.
Do not attempt to alter this system
or add other devices to it. Electrical
problems could result that may make
your vehicle undrivable.
If you lose your key and you cannot
start the engine, contact your dealer.
The immobilizer system protects
your vehicle from theft. If an
improperly-coded key (or other
device) is used, the engine will not
start.
When you turn the ignition switch to
the ON (II) position, the immobilizer
system indicator should come on for
a few seconds, then go off. If the
indicator starts to blink, it means the
system does not recognize the
coding of the key. Turn the ignition
switch to the LOCK (0) position,
remove the key, reinsert it, and turn
the ignition switch to the ON (II)
position again.
The system may not recognize your
key’s coding if another immobilizer
key or other metal object (i.e. key
fob) is near the ignition switch when
you insert the key.
As required by the FCC:
This device complies with Part 15 of the
FCC rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any
interference received, including
interference that may cause undesired
operation.
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s
authority to operate the equipment.
This device complies with Industry
Canada Standard RSS-210.
Operation is subject to the following two
conditions: (1) this device may not cause
interference, and (2) this device must
accept any interference that may cause
undesired operation of the device.
Immobilizer System
Instruments and Controls
77
０５／０９／０２ １１：４４：３１ ３１ＳＤＲ６１０ ００８０
Main Menu
Table of Contents
−
−
−
−

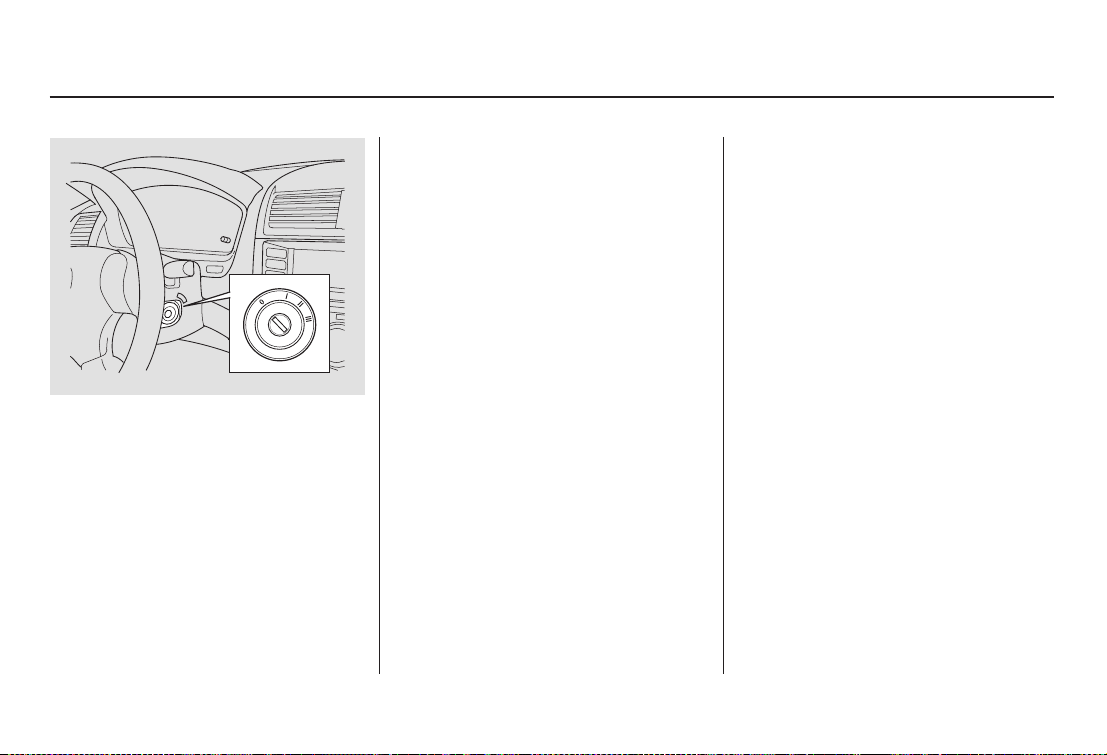

The ignition switch has four
positions: LOCK (0), ACCESSORY
(I), ON (II), START (III)
You can insert or
remove the key only in this position.
To turn the key, the shift lever must
be in Park, and you must push the
key in slightly. If the front wheels
are turned, the anti-theft lock may
make it difficult to turn the key.
Firmly turn the steering wheel to the
left or to the right as you turn the
key.
You can
operate the audio system and the
accessory power sockets in this
position.
This is the normal key
position when driving. Several of the
lights on the instrument panel come
on as a test when you turn the
ignition switch from the
ACCESSORY (I) to the ON (II)
position.
A reminder beeper sounds if the
ignition switch is in the LOCK (0) or
ACCESSORY(I) position when you
open the driver’s door. Remove the
key from the ignition switch to turn
off the beeper.
Before removing the key from the
ignition switch, make sure the shift
lever is in the Park position.
Use this position
only to start the engine. The switch
returns to the ON (II) position when
you let go of the key.
LOCK (0)
ACCESSORY (I)
ON (II)
START (III)
Ignition Switch
78
０５／０９／０２ １１：４４：３７ ３１ＳＤＲ６１０ ００８１
Main Menu
Table of Contents
With the driver’s door open and the
key in the ignition, both door lock
switches are disabled. They are not
disabled if the driver’s door is closed.
Pushing the switch down on the
open passenger’s door will lock all
doors.
Each front door has a power door
lock master switch. Either switch
locks and unlocks all doors. Push the
top of the switch to lock all doors;
push the bottom to unlock them.
Each door has a lock tab on it. Push
down the tab to lock the door and
pull it up to unlock. When you push
down the tab on the driver’s door, all
the doors lock.
To lock any passenger’s door when
getting out of the vehicle, push the
lock tab down, and close the door.
All doors can be locked from the
outsidebyusingthekeyinthe
driver’s door. To unlock only the
driver’s door, insert the key, turn it
clockwise, and release it. The
remaining doors unlock when you
turn the key a second time within a
few seconds.
Lockout Prevention
Door Locks
Instruments and Controls
79
top
bottom
POWER DOOR LOCK MASTER SWITCH
０５／０９／０２ １１：４４：４４ ３１ＳＤＲ６１０ ００８２
Main Menu
Table of Contents
−
−
The childproof door locks are
designed to prevent children seated
in the rear from accidentally opening
the rear doors. Each rear door has a
lock lever near the edge. When the
lock lever is pushed down, the door
cannot be opened from the inside
regardless of the position of the lock
tab. To open the door, pull the lock
tab up, and use the outside door
handle.
Press this button once to
lock all doors. Some exterior and
interior lights will flash. The doors
do not lock if they are not fully
closed or the key is in the ignition
switch.
When you push LOCK twice within 5
seconds, you will hear a beep to
verify that the security system is
active.
Pressthisbuttononce
to unlock the driver’s door. Push it
twice to unlock the other doors.
The ceiling light (if the ceiling light
switch is in the center position) will
come on when you press the
UNLOCK button. If you do not open
any door, the light stays on for about
30 seconds, then fades out. If you
relock the doors with the remote
transmitter before 30 seconds have
elapsed, the light will go off
immediately.
You cannot lock the doors with the
remote transmitter if they are not
fully closed or the key is in the
ignition switch.
Remote TransmitterChildproof Door Locks
LOCK
UNLOCK
Childproof Door Locks, Remote Transmitter
80
LEVER
LOCK
BUTTON
UNLOCK
BUTTON
PANIC
BUTTON
LED
TRUNK
RELEASE
BUTTON
０５／０９／０２ １１：４４：５２ ３１ＳＤＲ６１０ ００８３
Main Menu
Table of Contents
−
−
Avoid dropping or throwing the
transmitter.
Protect the transmitter from
extreme temperature.
Do not immerse the transmitter in
any liquid.
If you lose a transmitter, the
replacement needs to be
reprogrammed by your dealer.
After the doors automatically relock,
the security system will be active.
Pressthisbuttonfor
about 1 second to attract attention;
thehornwillsoundandtheexterior
lights will flash for about 30 seconds.
To cancel panic mode, press any
other button on the remote
transmitter, or turn the ignition
switch to the ON (II) position.
Press this
button for about 1 second to open
the trunk. You cannot open the trunk
if the key is in the ignition switch.
Battery type: CR1616
If it takes several pushes on the
button to lock or unlock the doors,
replace the battery as soon as
possible.
If you unlock the doors with the
remote transmitter, but do not open
any of the doors within 30 seconds,
the doors automatically relock.
Remote Transmitter
PANIC
TRUNK RELEASE
Remote Transmitter Care Replacing the Transmitter
Battery
Instruments and Controls
81
０５／０９／０２ １１：４５：００ ３１ＳＤＲ６１０ ００８４
Main Menu
Table of Contents
＋
To replace the battery:
Remove the screw at the base of
the transmitter with a small
Phillips-head screwdriver.
Separate the transmitter by prying
its middle seam with your
fingernail.
Inside the transmitter, separate
the inner cover from the keypad
by releasing the two tabs on the
cover.
Remove the old battery from the
back of the inner cover, and note
the polarity. Make sure the
polarity of the new battery is the
same ( side facing down), then
insert it into the back of the cover.
Install the parts in reverse order.
1.
2.
3.
4.
5.
As required by the FCC:
This device complies with Part 15 of the
FCC rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any
interference received, including
interference that may cause undesired
operation.
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s
authority to operate the equipment.
This device complies with Industry
Canada Standard RSS-210.
Operation is subject to the following two
conditions: (1) this device may not cause
interference, and (2) this device must
accept any interference that may cause
undesired operation of the device.
Remote Transmitter
82
SCREW
BATTERY
TAB
０５／０９／０２ １１：４５：０９ ３１ＳＤＲ６１０ ００８５
Main Menu
Table of Contents
Pull up on the trunk release lever
located to the left of the driver’s
seat.
Lockthetrunkreleaseleverwith
your master key to prevent someone
from opening the trunk. If they need
to lock/unlock the doors or drive
your vehicle, give them your valet
key.
You can open the trunk in either of
the following ways:
Press and hold the trunk release
button on the remote transmitter.
To close the trunk, press down on
the trunk lid.
See page for cargo loading and
weight limit information. Keep the
trunk lid closed at all times while
driving to avoid damaging the lid,
and to prevent exhaust gas from
getting into the interior. See
on page .
158
49
Trunk
Carbon
Monoxide Hazard
Instruments and Controls
83
Pull
TRUNK RELEASE LEVER
MASTER
KEY
０５／０９／０２ １１：４５：１６ ３１ＳＤＲ６１０ ００８６
Main Menu
Table of Contents
As a safety feature, your vehicle has
a release lever on the trunk latch so
the trunk can be opened from the
inside.
To open the trunk, push the release
lever to the left.
To use the console lid as an armrest,
slide it to the desired position.
Make sure the passenger’s hands or
fingersareawayfromthearmrest
before moving it.
For more information about child
safety, see page .35
Emergency Trunk Opener Armrest
Trunk, Armrest
84
RELEASE LEVER
０５／０９／０２ １１：４５：２３ ３１ＳＤＲ６１０ ００８７
Main Menu
Table of Contents
−See pages for important safety
information and warnings about how to
properly position seats and seat-backs.
13
15
The controls for the adjustable
driver’s power seat are on the
outside edge of the seat bottom. You
can adjust the power seat with the
ignition switch in any position. Make
all seat adjustments before you start
driving.
Moving the long horizontal switch
adjusts the seat bottom in several
directions. The seat bottom adjusts
in the direction you move the switch.
The short vertical switch adjusts the
seat back angle.
Both front seats are equipped with
seat heaters. The driver’s seat has
heaters in both the seat-back and
seat cushion, but because of the
sensors for the side airbag system,
there is no heater in the passenger’s
seat-back. The ignition switch must
be in the ON (II) position to use the
heaters.
If the engine is left idling for an
extended period, do not use the
seat heaters even on the LO
setting. It can weaken the battery,
causing hard starting.
Use the HI setting only to heat the
seats quickly, because it draws
large amounts of current from the
battery.
Follow these precautions whenever
you use the seat heaters:
In LO, the heater runs continuously.
It does not cycle with temperature
changes.
In HI, the heater turns off when the
seat gets warm, and turns back on
after the seat temperature drops.
After the seat reaches a comfortable
temperature, select LO by pushing
the back of the switch. This will keep
the seat warm.
Adjusting the Driver’s SeatSeat Heaters
Seat Heaters, Seats
Instruments and Controls
85
０５／０９／０２ １１：４５：３３ ３１ＳＤＲ６１０ ００８８
Main Menu
Table of Contents
To adjust the seat forward and
backward, pull up on the lever under
the right side of the seat cushion’s
front edge. Move the seat to the
desired position and release the lever.
Trytomovetheseattomakesureit
is locked in position.
Moves the seat
forward and backward.
Moves the front of the
seat up or down and
the rear of the seat up
or down.
Raises or lowers the
seat.
Adjusts the seat-back
angle forward or
backward.
To change the lumbar support, move
the lever on the right side of the
seat-back forward or backward.
Keep moving the lever forward or
backward until you find a suitable
position.
Adjusting the Passenger’s SeatDriver’s Lumbar Support
Seats
86
０５／０９／０２ １１：４５：４３ ３１ＳＤＲ６１０ ００８９
Main Menu
Table of Contents
To change the seat-back angle, pull
up on the lever on the outside of the
seat bottom.
Your vehicle is equipped with head
restraints in all seating positions to
help protect you and your
passengers from whiplash and other
injuries.
They are most effective when you
adjust them so the back of the
occupant’s head rests against the
center of the restraint.
The front and rear head restraints
adjust for height. You need both
hands to adjust the restraint. Do not
attempt to adjust it while driving. To
raise it, pull upward. To lower the
restraint, push the release button
and push the restraint down.
See page for important safety
information and a warning about how to
properly position the head restraints.
15
Head Restraints
Seats
Instruments and Controls
87
RELEASE BUTTON
０５／０９／０２ １１：４５：４９ ３１ＳＤＲ６１０ ００９０
Main Menu
Table of Contents
Turn the ignition switch to the ON
(II) position.
Push or pull the adjustment knob
right, left, up, or down to move the
mirror.
Keeptheinsideandoutsidemirrors
clean and adjusted for best visibility.
Be sure to adjust the mirrors before
you start driving.
The inside mirror has day and night
positions. The night position reduces
glare from headlights behind you.
Flip the tab on the bottom edge of
the mirror to select the day or night
position.
Turn the adjustment knob to L
(driver’s side) or R (passenger’s
side).
When you finish, turn the
adjustment knob to the center
(off) position. This turns off the
adjustment knob to keep your
setting.
1.
2.
3.
4.
Mirrors
Adjusting the Power Mirrors
88
TAB
ADJUSTMENT KNOB
０５／０９／０２ １１：４５：５７ ３１ＳＤＲ６１０ ００９１
Main Menu
Table of Contents
− To open the driver’s
window, push the window switch
firmly down, then release it. To stop
the window from going all the way
down, pull back on the window
switch briefly.
To close the driver’s window fully,
pull back the window switch firmly,
then release it. To stop the window
from going all the way up, push
down on the window switch briefly.
The outside mirrors are heated to
remove fog and frost. With the
ignition switch in the ON (II)
position, turn on the heaters by
pressing the button. The indicator in
the button comes on as a reminder.
Press the button again to turn the
heaters off.
Turn the ignition switch to the ON
(II) position to raise or lower any
window. To open the window, push
the switch down and hold it. Release
the switch when you want to stop the
window. Pull back on the switch and
hold it to close the window.
Power Windows
AUTO
Power Mirror Heaters
Mirrors, Power Windows
Instruments and Controls
89
DRIVER’S WINDOW
SWITCH
MAIN SWITCH
HEATED MIRROR BUTTON
Closing a power window on
someone’s hands or fingers can
cause serious injury.
Make sure your passengers are
away from the windows before
closing them.
０５／０９／０２ １１：４６：０４ ３１ＳＤＲ６１０ ００９２
Main Menu
Table of Contents
− If the driver’s
window senses any obstacle while it
is closing automatically, it will
reverse direction, and then stop. To
close the window, remove the
obstacle, then use the window switch
again.
Auto reverse stops sensing when the
window is almost closed. You should
always check that all passengers and
objects are away from the window
before closing it.
If your vehicle’s battery is
disconnected or goes dead, or the
driver’s window fuse is removed, the
AUTO function will be disabled. The
power window system needs to be
reset after reconnecting the battery
or installing the fuse.
Start the engine. Push down and
hold the driver’s window switch
until the window is fully open.
Pull and hold the driver’s window
switch to close the window
completely, then hold the switch
for about 2 seconds.
If the power windows do not operate
properly after resetting, have your
vehicle checked by your dealer.
To open or close the driver’s window
partially, push down or pull back on
the window switch lightly and hold it.
The window will stop when you
release the switch.
The passenger windows cannot be
raised or lowered if the MAIN switch
is OFF. Keep the MAIN switch off
whenyouhavechildreninthe
vehicle so they do not injure
themselves by operating the
windows unintentionally.
1.
2.
AUTO REVERSE
Power Windows
90
０５／０９／０２ １１：４６：１１ ３１ＳＤＲ６１０ ００９３
Main Menu
Table of Contents
The power window system has a key-
off delay function. The windows will
stilloperateforupto10minutes
after you turn off the ignition switch.
Opening either front door cancels
the delay function. You must turn
the ignition switch to the ON (II)
position again before you can raise
or lower the windows.
You can open and close the windows
with the key in the driver’s door lock.
To open:
Insert the key in the driver’s door
lock.
Turn the key clockwise, then
release it.
You cannot close the windows with
the remote transmitter.
To open the windows further,
press the button again.
Press the UNLOCK button a
second time, and hold it. The
passenger’s doors unlock, and all
four windows start to open. To
stop the windows, release the
button.
Press the UNLOCK button once
to unlock the driver’s door.
You can open all of the windows
from the outside with the remote
transmitter.
1.
2.
3.
1.
2.
Opening/Closing the Windows with
the Key
Opening the Windows with the
Remote Transmitter
Power Windows
Power Window Control
Operations
Instruments and Controls
91
UNLOCK BUTTON
Open
Close
０５／０９／０２ １１：４６：２２ ３１ＳＤＲ６１０ ００９４
Main Menu
Table of Contents
Turnthekeyclockwiseagain,and
hold it. All four windows start to
open. To stop the windows,
release the key.
To open the windows further, turn
andholdthekeyagain.
To close:
Insert the key in the driver’s door
lock.
Turn the key counterclockwise,
then release it.
Turn the key counterclockwise
again, and hold it. All four
windowsstarttoclose.Tostopthe
windows, release the key.
To close the windows further, turn
andholdthekeyagain.
The moonroof has two positions: it
can be tilted up in the back for
ventilation, or it can be slid back into
the roof. Use the switch under the
left dashboard vent to operate the
moonroof. The ignition switch must
be in the ON (II) position.
To tilt up the back of the moonroof,
press and hold the center button
. To close the moonroof, press
and hold the upper button . To
open the moonroof, press and hold
the lower button . Release the
button when the moonroof gets to
the desired position. Make sure
everyone’s hands are away from the
moonroof before opening or closing
it.
1.
2.
3.
4.
3.
4.
Power Windows, Moonroof
Moonroof
92
MOONROOF SWITCH
０５／０９／０２ １１：４６：３２ ３１ＳＤＲ６１０ ００９５
Main Menu
Table of Contents
To apply the parking brake, pull the
lever up fully. To release it, pull up
slightly, push the button, and lower
the lever. The parking brake light on
the instrument panel should go out
when the parking brake is fully
released with the engine running
(see page ).
The moonroof has a key-off delay
function. You can still open and close
the moonroof for up to 10 minutes
after you turn off the ignition switch.
The key-off delay function cancels as
soon as you open either front door.
You must then turn the ignition
switch to the ON (II) position to
operate the moonroof.
54
Parking Brake
Moonroof, Parking Brake
Instruments and Controls
93
PARKING BRAKE LEVER
Opening or closing the
moonroof on someone’s hands
or fingers can cause serious
injury.
Make sure all hands and fingers
are clear of the moonroof
before opening or closing it.
If you try to open the moonroof in
below-freezing temperatures, or when
it is covered with snow or ice, you can
damage the moonroof panel or motor.
０５／０９／０２ １１：４６：３８ ３１ＳＤＲ６１０ ００９６
Main Menu
Table of Contents
The vanity mirror lights come on
when you pull up the cover.
Touseavanitymirroronthebackof
the sun visor, pull up the cover.
If you drive without fully releasing
the parking brake, the beeper
sounds continuously.
To use a sun visor, pull it down. You
can also use a sun visor at the side
window. Remove the support rod
from the clip, and swing the sun
visor toward the side window.
Vanity MirrorSun Visor
Parking Brake, Sun Visor, Vanity Mirror
94
Driving the vehicle with the parking
brake applied can damage the rear
brakes and hubs.
０５／０９／０２ １１：４６：４４ ３１ＳＤＲ６１０ ００９７
Main Menu
Table of Contents
There is a ceiling light on the middle
of the ceiling.
There are two ceiling lights on the
front of the ceiling.
Push the light covers to turn the
lights on and off.
The courtesy light comes on when
youturntheparkinglightson.To
adjust its brightness, turn the Select/
Reset knob on the instrument panel.
When the switch is in the center
position, the light comes on when
you open any door or unlock the
doors with the key or remote
transmitter. After you close all the
doors tightly, the light dims slightly,
then fades out in about 30 seconds.
The courtesy light in each door
comes on when you open that door.
The light around the ignition switch
only comes on when you open the
driver’s door. After you close the
door, the ignition switch light fades
out in about 30 seconds.
Ceiling Lights Individual Interior Lights
Interior Lights
Instruments and Controls
95
ON
OFF
COURTESY LIGHT
CENTER
０５／０９／０２ １１：４６：５２ ３１ＳＤＲ６１０ ００９８
Main Menu
Table of Contents
Be careful when you are using the
beverage holders. A spilled liquid
that is very hot can scald you or your
passengers. Liquid can also spill
from the door pocket beverage
holders when you close the doors.
Use only resealable containers in the
door pockets.
Spilled liquids can damage the
upholstery, carpeting, and electrical
components in the interior.
These sockets are intended to supply
power for 12 volt DC accessories
that are rated 120 watts or less (10
amps). None of the sockets will
power an automotive type cigarette
lighter element. When more than
one socket is being used, the
combined power rating of the
accessories should be 120 watts or
less (10 amps).
Interior Convenience Items
Beverage Holders
Accessory Power Sockets
96
BEVERAGE HOLDERS
GLOVE BOX
TRUNK SEAT-BACK POCKETS
CONSOLE COMPARTMENT and
ACCESSORY POWER SOCKET
REAR DOOR POCKET and
BEVERAGE HOLDER
FRONT DOOR POCKET and
BEVERAGE HOLDER
CENTER POCKET, COIN POCKET and
ACCESSORY POWER SOCKET
０５／０９／０２ １１：４６：５８ ３１ＳＤＲ６１０ ００９９
Main Menu
Table of Contents
To open the console compartment,
pull up on the right lever and lift the
armrest.
To close, lower the armrest, and
push it down until it latches.
You can put small items in the tray
located in the console compartment
lid. To use the tray, pull up on the
left lever and lift up the armrest.
Thetrayintheconsolecompartment
has a coin holder.
To open the center CD pocket, push-
down on the center of the lid to
unlatch it. It will swing open
automatically.
To close it, push the lid down until it
latches.
This pocket can store up to 12 CDs.
For vehicles without Navigation System
Interior Convenience Items
Console Compartment Center CD Pocket
Instruments and Controls
97
CONSOLE COMPARTMENT
RIGHT LEVER
LEFT LEVER
Push
０５／０９／０２ １１：４７：０７ ３１ＳＤＲ６１０ ０１００
Main Menu
Table of Contents
Open the glove box by pulling the
handle to the left. Close it with a firm
push. Lock or unlock the glove box
with the master key.
To open the sunglasses holder, push
on the front edge. Make sure the
holder is closed while you are driving.
The glove box light is on when the
parking lights are on.
Sunglasses Holder Glove Box
Interior Convenience Items
98
GLOVE BOX
An open glove box can cause
serious injury to your passenger
inacrash,evenifthe
passenger is wearing the seat
belt.
Always keep the glove box
closed while driving.
０５／０９／０２ １１：４７：１４ ３１ＳＤＲ６１０ ０１０１
Main Menu
Table of Contents
Your heating and air conditioning
system provides a comfortable
environment in all weather
conditions.
The standard audio system has
many features. This section de-
scribes those features and how to
use them.
Your vehicle has an anti-theft audio
system that requires a code number
to enable it.
The security system helps prevent
your vehicle from being broken into
or being stolen.
.............Vents, Heating, and A/C . 100
..........Dual Temperature Control . 109
..............Climate Control Sensors . 111
..........Playing the AM/FM Radio . 112
...............Voice Control System . 113
.....To Play the AM/FM Radio . 113
....................To Select a Station . 113
.................Adjusting the Sound . 116
....................Radio Frequencies . 117
........................Radio Reception . 117
..................................Playing a CD . 119
..........Playing a CD, CD Changer . 120
.............................To Play a CD . 120
...............To Stop Playing a CD . 123
Removing CDs from the
.................................Changer . 124
.........CD Player Error Messages . 125
.....................Protecting your CDs . 126
.................General Information . 126
..........................Protecting CDs . 126
...............................Playing a Tape . 127
..........................To Play a Tape . 128
............To Stop Playing a Tape . 128
............Tape Search Functions . 129
Caring for the Tape and
.....................................Player . 130
Playing the XM Satellite
......................................Radio . 131
...............Satellite Digital Radio . 131
...To Play XM Satellite Radio . 132
..................To Select a Channel . 132
..............Satellite Radio Signals . 134
Receiving Satellite Radio
....................................Service . 135
.............Steering Wheel Controls . 137
.................Radio Theft Protection . 138
..........................Setting the Clock . 139
............................Security System . 140
...............................Cruise Control . 141
HomeLink Universal
................................Transceiver . 144
Features
Features
99
TM
TM
０５／０９／０２ １１：４７：１９ ３１ＳＤＲ６１０ ０１０２
Main Menu

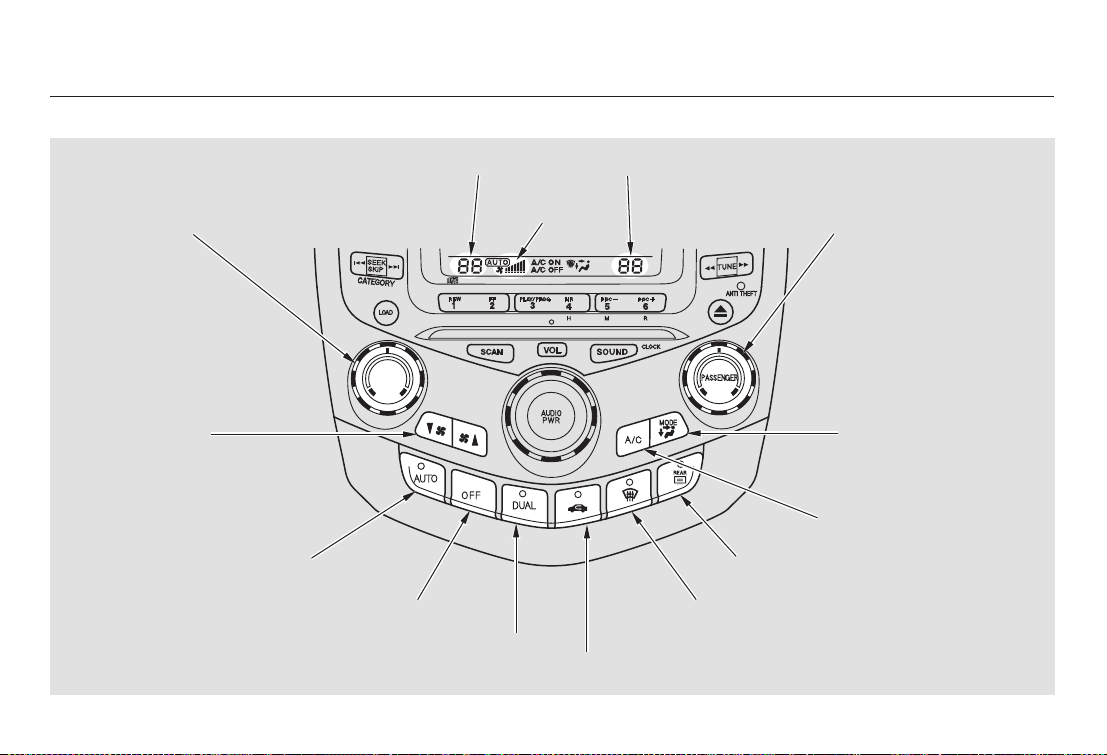

Vents, Heating, and A/C
100
REAR WINDOW
DEFOGGER BUTTON
FAN CONTROL
BUTTONS
AUTO BUTTON
OFF BUTTON
DUAL BUTTON
A/C BUTTON
TEMPERATURE CONTROL DIAL
(DRIVER’S SIDE)
FAN SPEED
INDICATOR
TEMPERATURE DISPLAY
TEMPERATURE CONTROL DIAL
(PASSENGER’S SIDE)
Without Navigation System
MODE BUTTON
WINDSHIELD DEFROST BUTTON
RECIRCULATION BUTTON
(U.S. model shown)
０５／０９／０２ １１：４７：２４ ３１ＳＤＲ６１０ ０１０３
Main Menu
Table of Contents
Vents, Heating, and A/C
Features
101
AUTO BUTTON
MODE ICONS
A/C BUTTON
AIR CONDITIONING ICONS
FAN CONTROL ICONS
DUAL BUTTON
TEMPERATURE CONTROL
BUTTONS (PASSENGER’S SIDE)
RECIRCULATION BUTTON
WINDSHIELD DEFROST BUTTON
REAR WINDOW DEFOGGER BUTTON
TEMPERATURE CONTROL
BUTTONS (DRIVER’S SIDE)
OFF BUTTON
TEMPERATURE DISPLAY

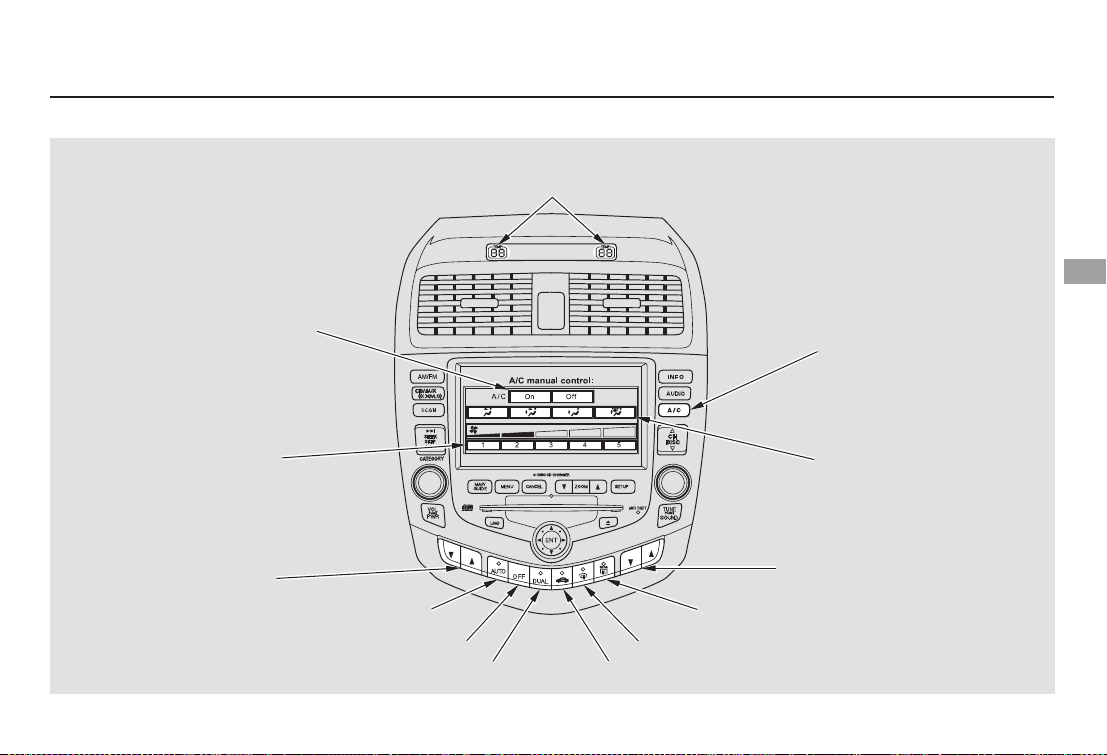

With Navigation System
(U.S. model shown)
０５／０９／０２ １１：４７：２９ ３１ＳＤＲ６１０ ０１０４
Main Menu
Table of Contents
▲▼
The climate control system for your
vehicle can also be operated using
the voice control system. See
NavigationsectioninyourQuick
Start Guide for an overview of this
system and the Navigation System
manual for complete details.
Turn the temperature control dial on
the driver’s side to adjust the airflow
temperature on both the driver’s and
passenger’s sides at the same time.
When you press the DUAL button,
the indicator comes on. When it is on,
the airflow temperatures on the
driver’s and passenger’s sides can be
adjusted individually.
Press the temperature control
buttons and on the driver’s side
to adjust the airflow temperature on
both the driver’s and passenger’s
sides at the same time.
When you press the DUAL button,
the indicator comes on. When it is on,
the airflow temperatures on the
driver’s and passenger’s sides can be
adjusted individually.
You can manually select the fan
speed by pressing the fan control
buttons. The fan speed is
represented by vertical bars in the
display.
You can manually select the fan
speed by pressing the A/C button
next to the display, and then
pressing the fan control icons.
For vehicles without Navigation System
For vehicles with Navigation System
For vehicles without Navigation System
For vehicles with Navigation System
Only on models equipped with
Navigation System
Vents, Heating, and A/C
Voice Control System Temperature ControlFan Control
102
０５／０９／０２ １１：４７：３９ ３１ＳＤＲ６１０ ０１０５
Main Menu
Table of Contents
When the recirculation indicator is
on, air from the vehicle’s interior is
sent throughout the system again.
When the indicator is off, air is
brought in from the outside of the
vehicle (fresh air mode).
The outside air intakes for the
heating and cooling system are at
the base of the windshield. Keep this
area clear of leaves and other debris.
Thesystemshouldbeleftinfresh
air mode under almost all conditions.
Keeping the system in recirculation
mode, particularly with the A/C off,
can cause the windows to fog up.
Switch to recirculation mode when
driving through dusty or smoky
conditions, then return to fresh air
mode.
Press the A/C button to turn the air
conditioning on and off. The display
shows ‘‘A/C ON’’ when the air
conditioning is on. The display
shows ‘‘A/C OFF’’ when the air
conditioning is off.
The display shows ‘‘ON’’ and ‘‘OFF’’
after you press the A/C button. The
display shows ‘‘A/C ON’’ after you
touch ‘‘ON’’ to turn the air
conditioning on. The display shows
‘‘A/C OFF’’ after you touch ‘‘OFF’’ to
turn the air conditioning off.
When the A/C is off, the airflow
temperature does not fall below the
outside air temperature. When you
set the airflow temperature lower
than the outside air temperature,
make sure the A/C is on.
This button turns the rear window
defogger on and off (see page ).74
For vehicles without Navigation System
For vehicles with Navigation System
Air Conditioning (A/C) Button
Rear Window Defogger Button
Recirculation Button
Vents, Heating, and A/C
Features
103
０５／０９／０２ １１：４７：５０ ３１ＳＤＲ６１０ ０１０６
Main Menu
Table of Contents
Use the mode control buttons or
icons to select the vents the air flows
from. Some air flows from the
dashboard corner vents in all modes.
Air flows from the center
and corner vents in the dashboard.
Air flows from the floor
vents.
Airflow is divided between
the vents in the dashboard and the
floor vents.
The flow-through ventilation system
draws in outside air, circulates it
through the interior, then exhausts it
through vents near the rear window.
Set the temperature to the lower
limit.
Make sure the A/C is off.
Select and fresh air mode.
Set the fan to the desired speed.
Airflow is divided between
the floor vents and the defroster
vents at the base of the windshield.
Air flows from the defroster
vents at the base of the windshield.
When you select , the system
automatically switches to fresh air
mode and turns on the A/C.
Each time you press the MODE
button, the display shows the mode
selected.
Press the A/C button to view the
display, then touch any of the mode
icons on the display.
In AUTO mode, the system controls
the airflow direction automatically
between the dashboard vents and
the floor vents.
1.
2.
3.
4.
For vehicles without Navigation System
For vehicles with Navigation System
Mode Control Ventilation
Vents, Heating, and A/C
104
０５／０９／０２ １１：４８：０３ ３１ＳＤＲ６１０ ０１０７
Main Menu
Table of Contents
▲▼
The heater uses engine coolant to
warm the air. If the engine is cold, it
will be several minutes before you
feel warm air coming from the
system.
Air conditioning places an extra load
on the engine. Watch the engine
coolant temperature gauge (see page
). If it moves near the red zone,
turn off the A/C until the gauge
reading returns to normal.
Press the A/C button; the manual
operation A/C screen will appear.
Select the ON icon on the display.
Select the desired temperature
and MODE selections. If the
outside air is humid, select the
Recirculation mode. If the outside
air is dry, select Fresh Air mode.
you can
cool it down more rapidly by partially
opening the windows, turning on the
A/C, and setting the fan to
maximum speed in fresh air mode.
Turn on the A/C by pressing the
A/C button.
Make sure the temperature
control dial or button is set to
maximum cool.
Select .
If the outside air is humid, select
Recirculation mode. If the outside
air is dry, select Fresh Air mode.
Set the fan to the desired speed.
Select .
Set the fan to the desired speed.
Adjust the warmth of the air with
the temperature control dial.
Press the A/C button; the manual
operation A/C screen will appear.
Select the desired mode and fan
speed icons on the display.
Adjustforwarmthwiththe
temperature buttons ( or ).
1.
2.
3.
1.
2.
3.
4.
5.
1.
2.
3.
1.
2.
3.
67
If the interior is very warm,
For vehicles without Navigation System
For vehicles with Navigation System
For vehicles without Navigation System
For vehicles with Navigation System
Using the Heater Using the A/C
Vents, Heating, and A/C
Features
105
０５／０９／０２ １１：４８：１４ ３１ＳＤＲ６１０ ０１０８
Main Menu
Table of Contents
Air conditioning, as it cools, removes
moisture from the air. When used in
combination with the heater, it
makes the interior warm and dry.
Turn the fan on.
Turn on the air conditioning.
Select and Fresh Air mode.
Adjust the temperature control
dial or buttons to your preference.
This setting is suitable for all driving
conditions whenever the outside
temperature is above 32°F (0°C).
To remove fog from the inside of the
windows:
Set the fan to the desired speed, or
high for faster defrosting.
Select . The system
automatically switches to fresh air
mode and turns on the A/C. The
A/C indicator will not come on if it
was previously off.
Adjust the temperature so the
airflow feels warm.
Select to help clear the
rear window.
To increase airflow to the
windshield, close the corner vents.
Select . The system
automatically switches to fresh air
mode and turns on the A/C. The
A/C indicator will not come on if it
was previously off.
Select .
Set the fan and temperature
controls to maximum level.
To clear the windows faster, you can
close the dashboard corner vents by
rotating the wheel below it. This will
send more warm air to the
windshield defroster vents. Once the
windshield is clear, select the fresh
air mode to avoid fogging the
windows.
For your safety, make sure you have
a clear view through all the windows
before driving.
1.
2.
3.
4.
1.
2.
3.
4.
5.
1.
2.
3.
To Defog and DefrostTo Dehumidify the Interior To Remove Exterior Frost or Ice
From the Windows
Vents, Heating, and A/C
106
０５／０９／０２ １１：４８：２４ ３１ＳＤＲ６１０ ０１０９
Main Menu
Table of Contents
▲▼
−
The automatic climate control
system adjusts the fan speed and
airflow levels to maintain the interior
temperature you select.
Press the AUTO button.
Set the desired temperature by
turning the temperature control
dial. You will see AUTO in the
system’s display.
Set the desired temperature by
pressing the driver’s side
temperature control buttons. Press
to raise the temperature or
to lower it. The selected
temperature will show in the upper
display.
The system automatically selects the
proper mix of conditioned and/or
heated air that will, as quickly as
possible, raise or lower the interior
temperature to your preference.
If you set the temperature to its
lowest limit (Lo), or its highest limit
(Hi), the system runs at full cooling
or heating only. It does not regulate
the interior temperature.
In cold weather, the fan will not
come on automatically until the
heater starts to develop warm air.
When
the indicator in the Dual button is on,
the driver’s side and passenger’s side
temperature can be controlled
independently (see page ).
109
Dual Temperature Control
For vehicles without Navigation System
For vehicles with Navigation System
Vents, Heating, and A/C
Automatic Climate Control
Features
107
０５／０９／０２ １１：４８：３２ ３１ＳＤＲ６１０ ０１１０
Main Menu
Table of Contents
−
−
You can manually select various
functions of the automatic climate
controlsystemwhenitisinAUTO.
All other features remain
automatically controlled.
Making any manual selection causes
thewordAUTOinthedisplaytogo
out.
If you press the A/C button next to
the display, the manual selections
will show in the display. Making any
manual selection causes the
indicator in the AUTO button to turn
off.
Press the OFF button. However, a
lack of airflow can cause the
windowstofogup.Youshouldkeep
the fan on at all times so stale air and
moisture do not build up in the
interior and cause fogging.
IfyoupressOFF,theclimatecontrol
system shuts off.
Keep the system off for short
periods only.
To keep stale air and mustiness
from collecting, you should have
the fan running at all times.
When the Climate Control System is
turned OFF, the temperature in the
upper display will also turn off.
For vehicles without Navigation System
For vehicles with Navigation System
For vehicles with Navigation System
Vents, Heating, and A/C
Semi-automatic Operation To Turn Everything Off
108
０５／０９／０２ １１：４８：４２ ３１ＳＤＲ６１０ ０１１１
Main Menu
Table of Contents
CONTINUED
Your vehicle has two temperature
control dials, one for the driver, and
one for the front passenger.
Your vehicle has four temperature
control buttons, two for the driver,
and two for the passenger.
Thedriver’ssideandthepassenger’s
side can be controlled independently
by adjusting these dials or buttons
when the indicator in the DUAL
button is on.
Push AUTO or to turn on the
system. The selected temperatures
appears in the display (in the upper
display with the navigation system).
When the indicator in the DUAL
button is off, you can adjust both
sides to the same temperature by
adjusting the driver’s side
temperature control dial or buttons.
For vehicles without Navigation System
For vehicles with Navigation System
Dual Temperature Control
Temperature Control Dials/Buttons
Features
109
DUAL BUTTON
Without Navigation System
DUAL BUTTON
DRIVER’S SIDE
TEMPERATURE
CONTROL BUTTONS
PASSENGER’S SIDE
TEMPERATURE
CONTROL BUTTONS
With Navigation System
DRIVER’S SIDE
TEMPERATURE
CONTROL DIAL
PASSENGER’S SIDE
TEMPERATURE
CONTROL DIAL
０５／０９／０２ １１：４８：５０ ３１ＳＤＲ６１０ ０１１２
Main Menu
Table of Contents
▲▼
▲▼
To set the driver’s side temperature
to a different value than the
passenger’s, press the DUAL button,
then turn the driver’s control dial or
press the or buttons on the
driver’s side. To set the passenger’s
side to a different value than the
driver’s, turn the passenger’s control
dial or press the or buttons on
the passenger’s side. You can adjust
the passenger’s side without
pressing the DUAL button first.
When you set the temperature to its
lower or upper limit, it is displayed as
or .
Dual Temperature Control
110
DRIVER’S SIDE PASSENGER’S SIDE
０５／０９／０２ １１：４８：５５ ３１ＳＤＲ６１０ ０１１３
Main Menu
Table of Contents
Theclimatecontrolsystemhastwo
sensors. A sunlight sensor is in the
top of the dashboard, and a
temperature sensor is next to the
steering column. Do not cover the
sensors or spill any liquid on them.
Sunlight Sensor/Temperature
Sensor
Climate Control Sensors
Features
111
SUNLIGHT SENSOR
TEMPERATURE SENSOR
０５／０９／０２ １１：４９：００ ３１ＳＤＲ６１０ ０１１４
Main Menu
Table of Contents

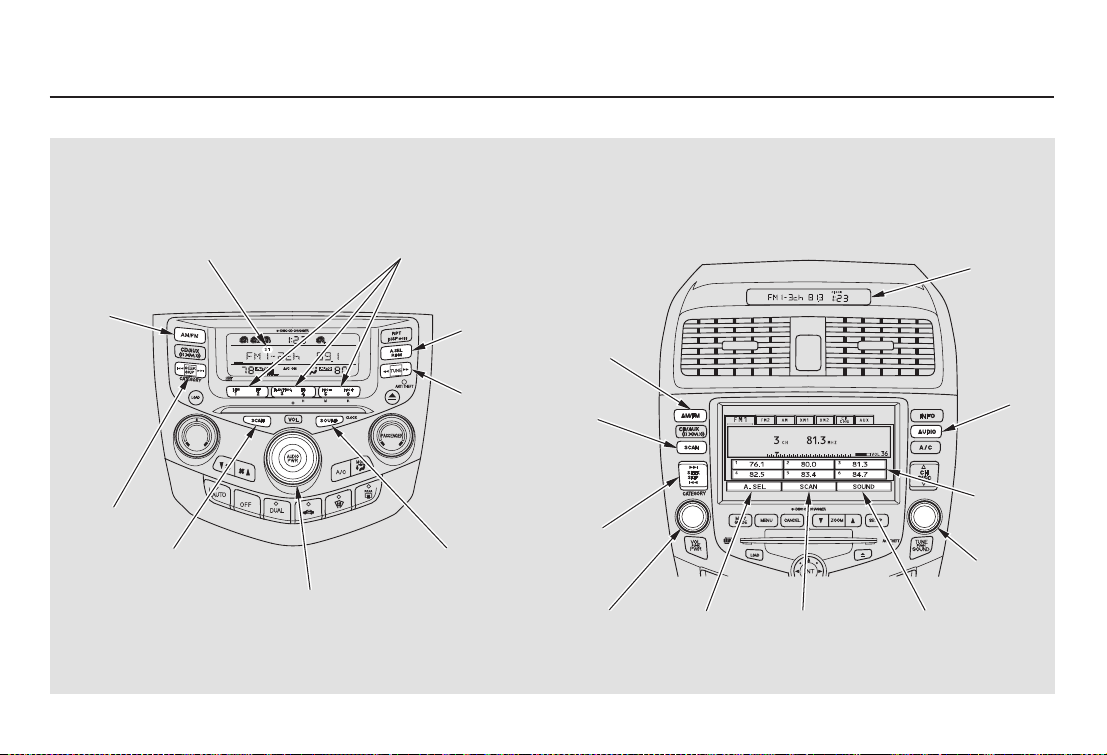

Playing the AM/FM Radio
112
STEREO INDICATOR
SEEK BAR
PRESET BARS
PWR/VOL KNOB
SEEK BAR
SCAN
BUTTON
PWR/VOL
KNOB
UPPER
DISPLAY
PRESET
ICONS
AUDIO
DISPLAY
BUTTON
TUNE/
SOUND
KNOB
SCAN BUTTON
TUNE
BAR
A.SEL
BUTTON
SOUND BUTTON
AM/FM
BUTTON
AM/FM
BUTTON
SOUND ICONSCAN
ICON
Without Navigation System With Navigation System
(U.S. model shown)
(U.S. model shown)
A.SEL ICON
０５／０９／０２ １１：４９：０５ ３１ＳＤＲ６１０ ０１１５
Main Menu
Table of Contents
−
−
You can use any of five methods to
find radio stations on the selected
band: TUNE, SEEK, SCAN, AUTO
SELECT, and the preset bars or
icons.
Use the TUNE bar or
knob to tune the radio to a desired
frequency. Press the side of the
bar or turn the knob to the right to
tune to a higher frequency, and the
side or turn the knob to the left
to tune to a lower frequency.
The seek function
searches up and down from the
current frequency to find a station
with a strong signal. To activate it,
press the or side of the
bar, then release it.
The ignition switch must be in the
ACCESSORY (I) or the ON (II)
position. Turn the system on by
pushingthePWR/VOLknoborthe
FM/AM button. Adjust the volume
by turning the PWR/VOL knob.
Pushing the AUDIO DISPLAY
button will also turn on the system.
The band and frequency that the
radio was last tuned to is displayed.
To change bands, press the FM/AM
button. On the FM band, ST will be
displayed if the station is broadcast-
ing in stereo. Stereo reproduction on
AM is not available.
XM satellite radio information is
available on page .
The audio system for your vehicle
can also be operated using the voice
control system. See Navigation
section in your Quick Start Guide for
an overview of this system and the
Navigation System manual for
complete details.
131
For vehicles with Navigation System
Only on models equipped with
Navigation System
To Select a Station
TUNE
SEEK
To Play the RadioVoice Control System
Playing the AM/FM Radio
Features
113
０５／０９／０２ １１：４９：１４ ３１ＳＤＲ６１０ ０１１６
Main Menu
Table of Contents
−−−− Pick the preset number (1 6)
you want for that station. Press
the left or right side of the bar or
iconandholdituntilyouheara
beep.
Repeat steps 1 through 3 to store a
total of six stations on AM and
twelve stations on FM.
Each side of the bars (1
6) or preset icon can store one
frequency on AM, and two
frequencies on FM.
Select the desired band, AM or
FM. FM1 and FM2 let you store
two frequencies with each preset
baroricon.
The scan function samples
all stations with strong signals on the
selected band. To activate it, press
the SCAN button, then release it.
You will see SCAN in the display.
The system will scan for a station
with a strong signal. When it finds
one, it will stop and play that station
for about 5 seconds.
If you do nothing, the system will
scan for the next strong station and
play it for 5 seconds. When it plays a
station you want to listen to, press
the SCAN button again.
Push the AUDIO DISPLAY button
to view the preset icons.
Usethetune,seek,orscan
function to tune the radio to a
desired station.
1.
2.
3.
4.
For vehicles with Navigation System
PresetSCAN
Playing the AM/FM Radio
114
０５／０９／０２ １１：４９：２１ ３１ＳＤＲ６１０ ０１１７
Main Menu
Table of Contents
−
−
If you do not like the stations Auto
Select has stored, you can store
other frequencies on the preset bars
or icons. Use the TUNE, SEEK, or
SCAN function to find stations, then
store them in the preset bars or
icons as described previously.
If you are
traveling far from home and can no
longer receive your preset stations,
you can use the auto select feature to
find stations in the local area.
The preset frequencies will be lost if
your vehicle’s battery goes dead, is
disconnected, or the radio fuse is
removed.
Press the A. SEL button or touch the
A. SEL icon. A. SEL will flash in the
display, and the system will go into
scan mode for several seconds. It
stores the frequencies of six AM,
and twelve FM stations in the preset
bars (1 6) or icons. You will see a
‘‘0’’ displayed after pressing a preset
bar or icon if Auto Select cannot find
a strong station for every preset bar
or icon.
press the
A. SEL button or A. SEL icon. This
restores the presets you originally
set.
To turn off Auto Select,
Playing the AM/FM Radio
AUTO SELECT
Features
115
０５／０９／０２ １１：４９：２６ ３１ＳＤＲ６１０ ０１１８
Main Menu
Table of Contents
−
−
＋−
For vehicles without Navigation System
For vehicles with Navigation System
For vehicles with Navigation System
Press the SOUND button or icon, or
press the TUNE knob repeatedly to
display the BASS, TREBLE,
BALANCE, and FADER settings.
These two
modes adjust the strength of the
sound coming from each speaker.
BALANCE adjusts the side-to-side
strength, while FADER adjusts the
front-to-back strength.
Use the TREBLE/
BASS modes to adjust the tone to
your liking.
If you want to adjust the sound while
the radio/CD is playing, push the
AUDIO DISPLAY button, then touch
the SOUND icon in the display.
Eachmodeisshowninthedisplayas
it changes. Turn the PWR/VOL
knob to adjust the setting to your
liking. When the level reaches the
center, you will see a ‘‘ ’’ in the
display.
To adjust treble and bass, touch the
‘‘ ’’ or ‘‘ ’’ icon on each side of the
TREBLE or BASS adjustment bar.
The adjustment bars show you the
current settings.
To adjust balance, touch the ‘‘L’’ or
‘‘R’’ icon. To adjust fader, touch the
‘‘RR’’ or ‘‘FR’’ icon. The adjustment
bars show you the current settings.
You can also make an adjustment
with the joystick. Move it up and
down to switch the mode, and move
it right and left to change the setting.
The system will automatically return
the display to the selected audio
mode about five seconds after you
stop adjusting a mode.
Adjusting the Sound
Balance/Fader
Treble/Bass
Playing the AM/FM Radio
116
０５／０９／０２ １１：４９：３６ ３１ＳＤＲ６１０ ０１１９
Main Menu
Table of Contents
The radio can receive the complete
AM and FM bands.
Those bands cover these frequen-
cies:
AM band: 530 to 1,710 kilohertz
FM band: 87.7 to 107.9 megahertz
How well the radio receives stations
is dependent on many factors, such
as the distance from the station’s
transmitter, nearby large objects,
and atmospheric conditions.
Driving very near the transmitter of
a station that is broadcasting on a
frequency close to the frequency of
the station you are listening to can
also affect your radio’s reception.
You may temporarily hear both
stations,orhearonlythestationyou
are close to.
A radio station’s signal gets weaker
as you get farther away from its
transmitter. If you are listening to an
AM station, you will notice the sound
volume becoming weaker, and the
stationdriftinginandout.Ifyouare
listening to an FM station, you will
see the stereo indicator flickering off
and on as the signal weakens.
Eventually, the stereo indicator will
go off and the sound will fade
completely as you get out of range of
the station’s signal.
Radio stations on the AM band are
assigned frequencies at least 10
kilohertz apart (530, 540, 550).
Stations on the FM band are
assigned frequencies at least 0.2
megahertz apart (87.9, 88.1, 88.3).
Stations must use these exact
frequencies. It is fairly common for
stations to round off the frequency in
their advertising, so your radio could
display a frequency of 100.9 even
though the announcer may identify
the station as ‘‘FM101.’’
Radio Frequencies Radio Reception
Playing the AM/FM Radio
Features
117
０５／０９／０２ １１：４９：４５ ３１ＳＤＲ６１０ ０１２０
Main Menu
Table of Contents
Radio signals, especially on the FM
band, are deflected by large objects
such as buildings and hills. Your
radio then receives both the direct
signal from the station’s transmitter,
and the deflected signal. This causes
the sound to distort or flutter. This is
a main cause of poor radio reception
in city driving.
Radio reception can be affected by
atmospheric conditions such as
thunderstorms, high humidity, and
even sunspots. You may be able to
receive a distant radio station one
day and not receive it the next day
because of a change in conditions.
Electrical interference from passing
vehicles and stationary sources can
cause temporary reception problems.
As required by the FCC:
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s
authority to operate the equipment.
Playing the AM/FM Radio
118
０５／０９／０２ １１：４９：５１ ３１ＳＤＲ６１０ ０１２１
Main Menu
Table of Contents
Playing a CD
Features
119
AUDIO
DISPLAY
BUTTON
SEEK/SKIP
BAR
CD LOAD
INDICATOR
CD BUTTON
SEEK BAR
PWR/VOL
KNOB
LOAD
BUTTON
CD SLOT
CD LOAD INDICATOR
LOAD BUTTON
RPT BUTTON
RDM
BUTTON
EJECT
BUTTON
CD SLOT
PWR/VOL KNOB
CD BUTTON
UPPER DISPLAY
CHANGE
DISC
BUTTON
Without Navigation System With Navigation System
(U.S. model shown)
(U.S. model shown)
SCAN BUTTON
SCAN
BUTTON
TRACK
REPEAT
ICON
TRACK
RANDOM
ICON
EJECT
BUTTON
DISC REPEAT
ICON
０５／０９／０２ １１：４９：５８ ３１ＳＤＲ６１０ ０１２２
Main Menu
Table of Contents
To load or play CDs, the ignition
switch must be in the ACCESSORY
(I) or the ON(II) position.
To listen to satellite radio when a CD
is playing, press the CD/AUX XM
button.
You operate the CD changer with
the same controls used for the radio.
To select the CD changer, press the
CD button. The numbers of the disc
andtruckplayingareshowninthe
display. On vehicles with navigation
system, these numbers also appear
in the upper display. The system will
continuously play a disc until you
change modes.
To play the radio when a CD is
playing, press the AM/FM button.
Press the CD button again to switch
back to the CD player.
To play a tape when a CD is playing,
insert a tape in the player (optional).
If a tape is in the player, press the
CD/AUX button. Press the CD/AUX
button again to switch back to the
CD player.
If you turn the system off while a CD
is playing, either with the PWR/VOL
knob or by turning off the ignition,
the disc will stay in the drive. When
youturnthesystembackon,theCD
will begin playing where it left off.
For vehicles with Satellite Radio
To Play a CD
Playing a CD, CD Changer
120
Do not use discs with adhesive labels.
The label can curl up and cause the
disc to jam in the unit.
０５／０９／０２ １１：５０：０５ ３１ＳＤＲ６１０ ０１２３
Main Menu
Table of Contents
−−
＋
▲
▼
You can also load a CD into an empty
position while a CD is playing. Select
the empty position (the disc number
indicator is not highlighted) and
press the appropriate preset bar or
touch a disc icon. The current CD
stops playing and starts the loading
sequence. The CD just loaded will
play.
To select a different disc, press the
appropriate side of a preset bar
(1 6) or use the Preset 5 (DISC )
to select the previous disc or Preset
6 (DISC ) to select the next disc in
sequence. On vehicles with
navigation system, touch the
appropriate disc icon or press the
or side of the CH/DISC bar. If
youselectanemptypositioninthe
CD changer, the system will try to
load the CD in the next available slot.
Repeat steps 1 through 3 until all
six positions are loaded. If you are
not loading all six positions, the
system begins playing the last CD
loaded.
When the CD load indicator turns
green and ‘‘LOAD’’ appears in the
screen again, insert the next CD in
the slot.
Insert the disc into the CD slot
when the green CD load indicator
comes on. Insert it only about
halfway; the drive will pull it in the
rest of the way. You will see
‘‘BUSY’’ in the display as the CD
load indicator turns red and blinks
as the CD is loaded.
The disc number for an empty
position is highlighted and the red
light starts blinking.
Press and hold the LOAD button
until you hear a beep and see
‘‘LOAD’’ in the display, then
release the button.
1.
2.
3.
4.
5.
Playing a CD, CD Changer
Loading CDs in the In-dash CD
Changer
Features
121
０５／０９／０２ １１：５０：１２ ３１ＳＤＲ６１０ ０１２４
Main Menu
Table of Contents
−
−
−
−
−
−
−
−
To use the controls, press the
AUDIO DISPLAY button; the control
icons will appear on the screen.
Push the to
play the next track on the disc. Push
the oncetoreplaythetrackin
play; press it twice to replay the
previous track. To move rapidly
within a track, press and hold the
or button.
Press the RPT button
to continuously replay a track. You
will see RPT in the display. Press the
RPT button again to turn it off.
To continuously
replay the current CD, press and
hold the RPT button for about a
second. You will see D-RPT in the
display. The system switches to the
normal repeat mode when you press
the RPT button during the disc
repeat mode.
Press the RDM
button to play the tracks in random
order. You will see RDM in the
display. Press the RDM button again
to return to normal play.
The SCAN function
samples all the tracks on the
selected disc in the order they are
recorded. To activate it, press and
release the SCAN button. You will
see SCAN in the display, and you will
get a 10 second sampling of each
track on the selected CD. Press the
SCAN button again to get out of scan
mode.
When you press and
hold the SCAN button for more than
2 seconds, the system gives you a 10
second sampling of the first track on
each disc in the in-dash CD changer.
You will see D-SCAN in the display.
Touch the SCAN button again to get
out of disc scan mode.
When you
touch the TRACK REPEAT icon on
the audio display, the system
continuously plays the same track.
You will see REPEAT beside the
track information on the audio
screen, and RPT in the upper display.
Press the icon again to get out of
track repeat mode.
When you touch
theDISCREPEATiconontheaudio
display, the system continuously
replays the current CD. You will see
REPEAT beside the disc information
on the audio screen, and D-RPT in
the upper display. Touch the icon
again to get out of disc repeat mode.
For vehicles without Navigation System For vehicles with Navigation System
Playing a CD, CD Changer
SEEK/SKIP
REPEAT
DISC REPEAT
RANDOM
SCAN
DISC SCAN
TRACK REPEAT
DISC REPEAT
122
０５／０９／０２ １１：５０：２２ ３１ＳＤＲ６１０ ０１２５
Main Menu
Table of Contents
−− −When you touch
this icon on the audio display or
press the SCAN button, you will get
a10secondsamplingofeachtrack
on the current CD. You will see
SCAN beside the track information
on the audio screen, and SCAN in
the upper display. Press the icon or
button again to get out of track scan
mode.
When you touch the
DISC SCAN icon on the audio
display, or press and hold the SCAN
button for more than 2 seconds, the
system gives you a 10 second
sampling of the first track on each
disc in the in-dash CD changer. You
will see SCAN beside the disc
information on the audio screen, and
D-SCAN in the upper display. The
system switches to the track scan
mode when you press the SCAN
button. To get out of disc scan mode,
touch the icon again, or press and
hold the SCAN button for more than
2 seconds.
When you
touch the TRACK RANDOM icon on
the audio display, the system plays
the tracks on the current CD in
random order. You will see
RANDOM beside the track
information on the audio screen.
Press the icon again to get out of
track random mode.
Playing a CD, CD Changer
TRACK SCAN DISC SCAN TRACK RANDOM
Features
123
０５／０９／０２ １１：５０：２７ ３１ＳＤＲ６１０ ０１２６
Main Menu
Table of Contents
To remove the disc that is currently
playing, press the eject button. You
will see ‘‘EJECT’’ in the display.
When you press the eject button, the
system switches to the previous
mode (AM/FM radio, satellite radio
(U.S. models), or tape player
(optional for U.S. models)).
To remove a different disc from the
changer,firstselectitwiththe
appropriate preset bar or icon. When
that CD begins playing, press the
eject button. Continue pressing the
EJECT button to remove all the discs
from the changer.
To remove all the discs in the
changer in a sequence, press and
hold the eject button for about 2
seconds.
To play a tape when a CD is playing,
insert a tape in the player (optional).
If a tape is in the player, press the
CD/AUX button. Press the CD/AUX
button again to switch back to the
CD player.
If you turn the system off while a CD
is playing, the CD will stay in the
drive. When you turn the system
back on, the CD will begin playing
where it left off.
Press the eject button ( ) to
remove the CD. If you eject the CD,
but do not remove it from the slot,
the system will automatically reload
the CD after 15 seconds and put it in
pause mode. To begin playing, press
the CD button.
PresstheAM/FMorCD/AUX
(XM)buttontoswitchtotheradioor
satellite radio while a CD is playing.
To play the CD, press the CD button
again.
Playing a CD, CD Changer
Removing CDs from the ChangerTo Stop Playing a CD
124
０５／０９／０２ １１：５０：３４ ３１ＳＤＲ６１０ ０１２７
Main Menu
Table of Contents
If you see an error message in the
display while playing a CD, find the
cause in the chart to the right. If you
cannot clear the error message, take
the vehicle to your dealer.
Error Message Cause Solution
FOCUS Error
Mechanical Error
High Temperature
Press the eject button and pull out the disc.
Check if the disc is inserted correctly in the CD
player.
Make sure the disc is not scratched or damaged.
Press the eject button and pull out the disc.
Check the disc for damage or deformation.
If the CD cannot be pulled out or the error
indication does not disappear after the disc is
ejected, see your dealer.
Do not try to force the disc out of the player.
Will disappear when the temperature returns to
normal.
or
or
CD Player Error Messages
Features
125
０５／０９／０２ １１：５０：４１ ３１ＳＤＲ６１０ ０１２８
Main Menu
Table of Contents
When a CD is not being played, store
it in its case to protect it from dust
and other contamination. To prevent
warpage, keep CDs out of direct
sunlight and extreme heat.
To clean a CD, use a clean soft cloth.
Wipe across the CD from the center
to the outside edge.
AnewCDmayberoughonthe
inner and outer edges. The small
plastic pieces causing this roughness
can flake off and fall on the re-
cording surface of the CD, causing
skipping or other problems. Remove
these pieces by rubbing the inner
and outer edges with the side of a
pencil or pen.
Never try to insert foreign objects in
the CD player or the magazine.
Play only standard round CDs.
Odd-shaped CDs may jam in the
driveorcauseotherproblems.
Handle your CDs properly to
prevent damage and skipping. See
this page.
When using CD-R or CD-RW discs,
use only high quality discs labeled
for audio use.
When recording a CD-R or
CD-RW, the recording must be
closedforittobeusedbythe
system.
CD-R and CD-RW discs will not
work in this unit.
Handle a CD by its edges; never
touch either surface. Do not place
stabilizer rings or labels on the CD.
These, along with contamination
from fingerprints, liquids, and felt-tip
pens, can cause the CD to not play
properly or possibly jam in the drive.
For vehicles without Navigation System
For vehicles with Navigation System
General Information Protecting CDs
Protecting Your CDs
126
０５／０９／０２ １１：５０：５１ ３１ＳＤＲ６１０ ０１２９
Main Menu
Table of Contents
Playing a Tape (U.S. Vehicles)
Features
127
PWR/VOL KNOB
UPPER
DISPLAY
AUDIO
DISPLAY
BUTTON
SEEK BAR
CD/AUX
BUTTON
SEEK BAR
RPT INDICATOR TAPE DIRECTION
INDICATOR
RPT
BUTTON
PWR/VOL
KNOB
RPT INDICATOR TAPE DIRECTION INDICATOR
CH/DISC
BAR
PRESET BARS
Without Navigation System With Navigation System
(U.S. model shown) (U.S. model shown)
REPEAT
ICON
TAPE
DIRECTION
ICONS
NR ICON
CD/AUX XM
BUTTON
０５／０９／０２ １１：５０：５８ ３１ＳＤＲ６１０ ０１３０
Main Menu
Table of Contents
＊
＊
The ignition switch must be in the
ACCESSORY (I) or ON (II) position.
Make sure the open side of the tape
is facing right, then insert the tape
most of the way into the slot. The
system will pull the tape in the rest
of the way, and begin to play it.
Dolby noise reduction turns on
when you insert a tape. The
indicator will light in the
display. If the tape was not recorded
in Dolby, turn it off by pressing the
Preset 4 (NR) side of the preset bar
or touching the NR icon. Dolby
remains off until you press the
preset bar or the icon again.
The tape direction indicator will
show you which side of the tape is
playing. If you want to play the other
side, press the Preset 3 (PLAY/
PROG) side of the preset bar, or
press the AUDIO DISPLAY button
and then touch the appropriate tape
direction icon. When the player
reaches the end of the tape, it will
automatically reverse direction and
play the other side.
To remove the tape, press the eject
button. If you want to turn the player
off, press the PWR/VOL knob or
turn off the ignition. The tape will
remain in the drive. When you turn
the system back on, the tape will
begin playing where it left off.
To switch to the AM/FM radio,
Satellite Radio, or CD changer while
a tape is playing, press the AM/FM
or CD/AUX (XM) button. To change
back to the tape player, push the
CD/AUX (XM) button.
Dolby noise reduction is manufactured under
license from Dolby Laboratories Licensing
Corporation. ‘‘DOLBY’’ and the double-D
symbol are trademarks of Dolby
Laboratories Licensing Corporation.
Optional on all U.S. models
To Play a Tape To Stop Playing a Tape
Playing a Tape (U.S. Vehicles)
128
０５／０９／０２ １１：５１：０５ ３１ＳＤＲ６１０ ０１３１
Main Menu
Table of Contents
−
−
−
▲
▼
−
Press the side to find
the beginning of the current song or
passage. Press the side to find
the beginning of the next song or
passage. When the system reaches
the beginning of a song or passage, it
begins to play it.
If you see the error message
‘‘ ’’ on the display, press the
tape eject button to remove the tape
from the unit. Make sure the tape is
not damaged. If the tape will not
eject or the error message stays on
after the tape ejects, take your
vehicle to your dealer.
To rewind the tape,
push the preset 1 (REW) side of the
preset bar. You will see REW in the
display. To fast forward the tape,
push the preset 2 (FF) side of the
preset bar. You will see FF displayed.
Press the preset 1, 2, or 3 side of the
bars to take the system out of rewind
or fast forward.
To fast forward the
tape, push the upper side ( ) of the
CH/DISC bar, or touch the FF icon
on the audio display. You will see FF
in the upper display. To rewind the
tape, push the lower side ( ) of the
CH/DISC bar, or touch the REW
icon. You will see REW displayed.
Pressthebarortouchtheiconagain
to take the system out of rewind or
fast forward.
Press the RPT button
or touch the REPEAT icon on the
audio display to continuously play a
song or passage. You will see RPT
displayed. The track will repeat until
you press the button or touch the
icon again.
The skip and repeat
functions use silent periods on the
tape to find the end of a song or
passage. These features may not
work if there is almost no gap
between selections, a high noise
level, or a silent period in the middle
of a selection.
For vehicles with Navigation System
For vehicles with Navigation System
Tape Search Functions SKIP
FF/REW
FF/REW
REPEAT
Playing a Tape (U.S. Vehicles)
Features
129
NOTE:
０５／０９／０２ １１：５１：１３ ３１ＳＤＲ６１０ ０１３２
Main Menu
Table of Contents
If the tape is loose, tighten it by
turning the hub with a pencil or your
finger. If the label is peeling off,
remove it or it could cause the tape
to jam in the player. Never try to
insert a warped or damaged tape in
the player.
Store tapes in their cases to protect
them from dust and moisture. Never
place tapes where they will be
exposed to direct sunlight, high heat,
or high humidity. If a tape is exposed
to extreme heat or cold, let it reach a
moderate temperature before
inserting it into the player.
Thetapeplayerpicksupdirtand
oxides from the tape. This
contamination builds up over time
and causes the sound quality to
degrade. To prevent this, you should
clean the player after every 30 hours
of use.
If you do not clean the tape player
regularly, it may eventually become
impossible to remove the
contamination with a normal
cleaning kit. Your dealer has a
cleaning kit available.
Use 100-minute or shorter tapes.
Tapes longer than that may break or
jam the drive.
Never try to insert foreign objects
into the tape player.
Caring for the Tape and Player
Playing a Tape (U.S. Vehicles)
130
０５／０９／０２ １１：５１：１８ ３１ＳＤＲ６１０ ０１３３
Main Menu
Table of Contents
Your vehicle is capable of receiving
XM Satellite Radio anywhere in the
United States except Hawaii, Alaska,
and Canada.
XM
is a registered trademark of
XM Satellite Radio, Inc.
Satellite radio is available in U.S.
models only.
SatelliteDigital Radio
Playing the XM SatelliteRadio
Features
131
DISP
BUTTON
SAT RADIO
BUTTON
SCAN
BUTTON
SCAN
BUTTON
TUNE
KNOB
TUNE
BAR
CATEGORY/CHANNEL
MODE INDICATOR
CATEGORY/CHANNEL
MODE INDICATOR
PWR/VOL
KNOB
SAT RADIO
BUTTON
PWR/VOL KNOB
AUDIO
DISPLAY
BUTTON
PRESET
BARS
PRESET
ICONS
Without Navigation System With Navigation System
SEEK/
SKIP
BAR
SEEK/
SKIP
BAR
SCAN ICON
MODE ICON
TM
TM
０５／０９／０２ １１：５１：２８ ３１ＳＤＲ６１０ ０１３４
Main Menu
Table of Contents
−
−
The ignition switch must be in the
ACCESSORY (I) or the ON (II)
position.
Turn the system on:
Turn the PWR/VOL knob to adjust
the volume.
Push any of the following: PWR/
VOL knob or the CD/AUX XM
button.
Push any of the following: PWR/
VOL knob, the CD/AUX XM, or
AUDIO button.
When in the satellite radio mode,
you can use any of three methods to
find channels: TUNE, SEEK/SKIP
(CATEGORY), and SCAN.
Turn the TUNE knob to change
channels. Turn the knob right for
higher numbered channels and left
for lower numbered channels.
Press the TUNE bar to change
channel selections. Press for
higher numbered channels and
for lower numbered channels.
The
seek/skip function selects the
various categories in XM, such as
Jazz/Blues, Rock, Classical, etc.
Push the to change the
category forward. Push the to
change the category backward. To
search for channels within a
category, turn the TUNE knob
clockwise or press the TUNE bar
.
For vehicles without Navigation System
For vehicles with Navigation System
For vehicles with Navigation System
For vehicles without Navigation System
To Play XM SatelliteRadio To Select a Channel
TUNE
SEEK/SKIP (CATEGORY)
Playing the XM SatelliteRadio
132
TM
TM
０５／０９／０２ １１：５１：３８ ３１ＳＤＲ６１０ ０１３５
Main Menu
Table of Contents
−−
Once your XM channels are preset,
pressing the CH DISC button will
select your preset channels.
The scan function samples
all channels for 5 seconds. To
activate the function, push the SCAN
button. Push it again to get out of the
sequence.
Each preset icon or button
canstoreonechannelinXM1and
one in XM2.
Push the CD/AUX XM button.
(You will see XM1 or XM2.)
Use the TUNE, SEEK or SCAN
function to tune the radio to a
desired channel.
Pick a preset icon or button and
hold it until you hear a beep.
Repeat steps 1 to 3 to store a total
of six stations on XM1 and XM2.
1.
2.
3.
4.
For vehicles with Navigation System
Playing the XM SatelliteRadio
SCAN Preset
Features
133
TM
０５／０９／０２ １１：５１：４５ ３１ＳＤＲ６１０ ０１３６
Main Menu
Table of Contents
Satellite radio receives signals from
two satellites to produce clear, high-
quality digital reception. It offers
many channels in several categories.
Along with a large selection of
different types of music, satellite
radio also allows you to view channel
and category selections in the audio
display.
The XM satellites are in orbit over
the equator; therefore, objects south
of the vehicle may cause satellite
reception interruptions. To help
compensate for this, ground-based
repeaters are placed in major
metropolitan areas. Satellite signals
aremorelikelytobeblockedbytall
buildings and mountains the farther
north you travel from the equator.
Satellite Radio Signals
Playing the XM SatelliteRadio
134
SATELLITE
GROUND
REPEATER
Signals may be
blocked by
mountains or
large obstacles
to the south.
TM
０５／０９／０２ １１：５１：５０ ３１ＳＤＲ６１０ ０１３７
Main Menu
Table of Contents
Depending on where you drive, you
may experience reception problems.
Interference can be caused by any of
these conditions:
Drivingonaneast/westroadwith
a mountain on the south side of
the road.
There may be other geographic
situations that could affect satellite
radio reception.
Driving on a single lane road
alongside dense trees taller than
50 ft. (15 m) to the south of you.
Driving on the lower level of a
multi-tiered road.
Driving on a road beside a vertical
wall, steep cliff, or hill to the south
of you.
Driving in tunnels.
Driving on the north side of a
large commercial truck on an
east/west road.
If your XM Radio service has expired
or you purchased your vehicle from
a previous owner, you can listen to a
sampling of the broadcasts available
on XM Satellite Radio. With the
ignition switch in the ACCESSORY
(I) or ON (II) position, push the
PWR/VOL knob to turn on the audio
system and press the CD/AUX XM
button. A variety of music types and
styles will play.
As required by the FCC:
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s
authority to operate the equipment.
Receiving Satellite Radio Service
Playing the XM SatelliteRadio
Features
135
TM
０５／０９／０２ １１：５１：５８ ３１ＳＤＲ６１０ ０１３８
Main Menu
Table of Contents
While awaiting activation, make sure
your vehicle remains in an open area
with good reception. Once your
audio system is activated, ‘‘category’’
or ‘‘CH’’ will appear in the display
and you will be able to listen to XM
Radio broadcasts. XM Radio will
continue to send an activation signal
to your vehicle for at least 12 hours
from activation request. If the
service has not been activated after
36 hours, contact XM Radio.
If you decide to purchase XM
satellite radio service, contact XM
Radio at , or at
1-800-852-9696. You will need to give
them your radio I.D. number and
your credit card number.
Turn the TUNE knob until ‘‘0’’
appears in the display. Your I.D. will
appear in the display.
After you have registered with XM
Radio, keep your audio system in the
satellite radio mode while you wait
for activation. This should take about
30 minutes.
www.xmradio.com
To get your XM Satellite radio ID
number:
Playing the XM SatelliteRadio
136
TM
０５／０９／０２ １１：５２：０３ ３１ＳＤＲ６１０ ０１３９
Main Menu
Table of Contents
▲▼
＋
−
＋
−
＋
−
The VOL button adjusts the volume
up ( ) or down ( ). Press the top
or bottom of the button, hold it until
the desired volume is reached, then
release it.
IfyouareplayingaCD,thesystem
skips to the beginning of the next
track each time you press the top
( ) of the CH button. Press the
bottom ( ) to return to the
beginning of the current track. Press
it twice to return to the previous
track. You will see the disc and track
numbers in the display.
Ifyouareplayingatapeinthe
optional tape player, press the top
( ) of the CH button to advance to
the next selection. Press the bottom
( ) to go back to the previous
selection. The system senses a silent
period, then resumes playing.
The MODE button changes the
mode. Pressing the button
repeatedly selects FM1, FM2, AM,
XM1, XM2, CD, or a tape.
If you are listening to the radio, use
the CH button to change stations.
Each time you press the top ( ) of
the button, the system goes to the
next preset station on the band you
are listening to. Press the bottom
( ) to go back to the previous
station.
Three controls for the audio system
are mounted in the steering wheel
hub. These let you control basic
functions without removing your
hand from the wheel.
Steering Wheel Controls
Features
137
CH BUTTON
VOL BUTTON
MODE BUTTON
０５／０９／０２ １１：５２：０９ ３１ＳＤＲ６１０ ０１４０
Main Menu
Table of Contents
−
If your vehicle’s battery is discon-
nected or goes dead, the audio
system will disable itself. If this
happens, you will see ‘‘CODE’’ in the
frequencydisplaythenexttimeyou
turn on the system. Use the preset
buttons to enter the five-digit code.
Thecodeisontheradiocodecard
included in your owner’s manual kit.
When it is entered correctly, the
radio will start playing.
If ‘‘0’’ is the first digit in your code,
press and release the TUNE knob to
store it.
If your vehicle is equipped with a
navigation system, press and release
the TUNE knob; the number ‘‘0’’
appears on the display.
If you make a mistake entering the
code, do not start over; complete the
five-digit sequence, then enter the
correct code. You have 10 tries to
enter the correct code. If you are
unsuccessful in 10 attempts, you
must then leave the system on for 1
hour before trying again.
Ifthecodecardislost,adealercan
access your code with your radio’s
serial number. To access the serial
number, turn the radio on. It must
display ‘‘CODE’’, then turn the radio
off. Push the preset 1, preset 6, and
power buttons at the same time, then
quickly release.
You will have to store your favorite
stations on each side of the preset
bars (1 6) after the system begins
working. Your original settings were
lost when power was disconnected.
If ‘‘0’’ is not the first digit in your
code, turn the TUNE knob left or
right until the first digit is displayed.
Press and release the TUNE knob to
store it. Enter the remaining three
digits the same way.Your vehicle’s audio system will
disable itself if it is disconnected
from electrical power for any reason.
To make it work again, you must
enter a specific five-digit code using
the preset bars or the TUNE knob.
Because there are hundreds of
number combinations possible from
the five digits, making the system
work without knowing the exact
code is nearly impossible.
Youshouldhavereceivedacardthat
lists your audio system code number
and serial number. It is best to store
this card in a safe place at home. In
addition, you should write the audio
system’s serial number in this owner’s
manual.
If you lose the card, you must obtain
the code number from a dealer. To
do this, you will need the system’s
serial number.
Radio Theft Protection
138
０５／０９／０２ １１：５２：１７ ３１ＳＤＲ６１０ ０１４１
Main Menu
Table of Contents
If your vehicle’s battery is
disconnected or goes dead, you will
need to set the clock.
You can quickly set the time to the
nearest hour. Pressing and holding
the SOUND button, then pressing
theR(Preset6)sideofthebarsets
the clock back to the previous hour.
If the displayed time is after the half
hour, the clock sets the clock
forward to the beginning of the next
hour.
For example:
1:06 would RESET to 1:00.
1:52 would RESET to 2:00.
Refer to the Navigation System
Owner’s Manual to set up the time.
Press and hold the SOUND button
until you hear a beep. The displayed
time begins to blink. Press on the H
(Preset 4) side of the bar until the
numbers advance to the desired time.
Change the minutes by pressing the
M (Preset 5) side of the bar until the
numbers advance to the desired time.
When you are finished, press the
SOUND button again to set the time.
For vehicles without Navigation System
For vehicles with Navigation System
Setting the Clock
Features
139
DIGITAL CLOCK
SOUND BUTTON
PRESET BARS
(U.S. model shown)
Without Navigation System
０５／０９／０２ １１：５２：２６ ３１ＳＤＲ６１０ ０１４２
Main Menu
Table of Contents
Once the security system is set,
opening any door (without using the
key or the remote transmitter), the
hood, or the trunk will cause it to
sound. It also sounds if the radio is
removed from the dashboard or the
wiring is cut.
Do not attempt to alter this system
or add other devices to it.
The security system helps to protect
your vehicle and valuables from theft.
The horn sounds and a combination
of headlights, parking lights, side
marker lights and taillights flashes if
someone attempts to break into your
vehicleorremovetheradio.This
alarm continues for two minutes,
then the system resets. To reset an
alarming system before the two
minutes have elapsed, unlock either
front door with the key or the
remote transmitter.
With the system set, you can still
open the trunk with the remote
transmitter without triggering the
alarm. The alarm will sound if the
trunk lock is forced, or the trunk is
opened with the trunk release lever
or the emergency trunk opener.
The security system will not set if
the hood, trunk, or any door is not
fully closed. If the system will not set,
check the door and trunk open
monitor on the instrument panel (see
page ) to see if the doors and
trunk are fully closed. Since it is not
part of the monitor display, manually
check the hood.
The security system automatically
sets 15 seconds after you lock the
doors, hood, and trunk. For the
system to activate, you must lock the
doors from the outside with the key,
lock tab, door lock switch, or remote
transmitter. The security system
indicator on the instrument panel
starts blinking immediately to show
you the system is setting itself.
56
Security System
140
SECURITY SYSTEM INDICATOR
０５／０９／０２ １１：５２：３２ ３１ＳＤＲ６１０ ０１４３
Main Menu
Table of Contents
Accelerate to the desired cruising
speedabove25mph(40km/h).
Cruise control allows you to maintain
asetspeedabove25mph(40km/h)
without keeping your foot on the
accelerator pedal. It should be used
for cruising on straight, open
highways. It is not recommended for
city driving, winding roads, slippery
roads, heavy rain, or bad weather.
Push in the cruise control master
buttononthesteeringwheel.The
CRUISE MAIN indicator on the
instrument panel comes on.
Press and release the DECEL/
SET button on the steering wheel.
The CRUISE CONTROL indicator
on the instrument panel comes on
to show the system is now
activated.
Cruise control may not hold the set
speed when you are going up and
down hills. If your speed increases
going down a hill, use the brakes to
slow down. This will cancel the
cruise control. To resume the set
speed, press the RES/ACCEL button.
The CRUISE CONTROL indicator
on the instrument panel will come
back on.
1.
2.
3.Using the Cruise Control
Cruise Control
Features
141
CRUISE CONTROL MASTER BUTTON
CANCEL
BUTTON
RES/ACCEL
BUTTON
DECEL/SET
BUTTON
Improper use of the cruise
control can lead to a crash.
Use the cruise control only
when traveling on open
highways in good weather.
０５／０９／０２ １１：５２：３９ ３１ＳＤＲ６１０ ０１４４
Main Menu
Table of Contents
You can increase the set cruising
speed in any of these ways:
Press and hold the RES/ACCEL
button. When you reach the
desired cruising speed, release the
button.
Push on the accelerator pedal.
Accelerate to the desired cruising
speed, and press the DECEL/SET
button.
To increase the speed in very
small amounts, tap the RES/
ACCEL button. Each time you do
this, your vehicle will speed up
about 1 mph (1.6 km/h).
You can decrease the set cruising
speed in any of these ways:
Press and hold the DECEL/SET
button. Release the button when
you reach the desired speed.
To slow down in very small
amounts, tap the DECEL/SET
button repeatedly. Each time you
do this, your vehicle will slow
down about 1 mph (1.6 km/h).
Tap the brake pedal lightly with
your foot. The CRUISE
CONTROL indicator on the
instrument panel will go out.
When the vehicle slows to the
desired speed, press the DECEL/
SET button.
Even with the cruise control turned
on, you can still use the accelerator
pedal to speed up for passing. After
completing the pass, take your foot
off the accelerator pedal. The vehicle
will return to the set cruising speed.
Resting your foot on the brake pedal
causes cruise control to cancel.
Cruise Control
Changing the Set Speed
142
０５／０９／０２ １１：５２：４７ ３１ＳＤＲ６１０ ０１４５
Main Menu
Table of Contents
You can cancel cruise control in any
of these ways:
Push the CANCEL button on the
steering wheel.
Pushthecruisecontrolmaster
button.
Tap the brake pedal.
When you push the CANCEL button,
or tap the brake pedal, the system
will remember the previously-set
cruising speed. To return to that
speed, accelerate to above 25 mph
(40 km/h) and then press and
release the RES/ACCEL button. The
CRUISE CONTROL indicator comes
on. The vehicle will accelerate to the
same cruising speed as before.
Pressingthecruisecontrolmaster
button turns the system completely
off and erases the previous cruising
speed.
Canceling Cruise Control Resuming the Set Speed
Cruise Control
Features
143
０５／０９／０２ １１：５２：５４ ３１ＳＤＲ６１０ ０１４６
Main Menu
Table of Contents
−
Todothis,pressandholdthetwo
outside buttons on the HomeLink
transceiver for about 20 seconds,
until the red indicator flashes.
Release the buttons, then proceed to
step 1.
If you just
received your vehicle and have not
trained any of the buttons in
HomeLink before, you should erase
any previously learned codes before
training the first button.
If you are training the second or
third buttons, go directly to step 1.
Unplug the garage door opener
motor from the electrical outlet.
Holdtheendofthegaragedoor
opener remote 2 to 5 inches from
HomeLink.Makesureyouarenot
blocking your view of the red
indicator in HomeLink.
The HomeLink
universal
transceiver built into your vehicle
canbeprogrammedtooperateupto
three remotely controlled devices
around your home, such as garage
doors, lighting, or home security
systems.
If you are training HomeLink to
operate a garage door or gate, you
should unplug the motor for that
device during training. Repeatedly
pressing the remote control button
could burn out the motor.
HomeLink stores the code in a
permanent memory. There should
be no need to retrain HomeLink if
your vehicle’s battery goes dead or is
disconnected. If your garage door
opener was manufactured before
April 1982, you may not be able to
program HomeLink to operate it.
They do not have the safety feature
that causes the motor to stop and
reverse if an obstacle is detected
during closing, increasing the risk of
injury.
Always refer to the opening
instructions and safety information
that came with your garage door
opener or other equipment you
intend to operate with HomeLink. If
you do not have this information,
contact the manufacturer of the
equipment.
For quick and accurate training,
make sure the remote control
transmitter for the device (garage
door, automatic gate, security
system, etc.) has a fresh battery.
1.
2.
Training HomeLink
General Information
Important Safety Precautions
Before you begin
HomeLink Universal Transceiver
144
０５／０９／０２ １１：５３：０４ ３１ＳＤＲ６１０ ０１４７
Main Menu
Table of Contents
Plug in the garage door opener
motor, then test the HomeLink
button by pushing it for about 1
second.
If the button works,
programming is complete.
If the button does not work go
to step 6.
Press and hold the remote
transmitter button and one of the
HomeLink buttons at the same
time.
If the red indicator in HomeLink
begins to flash slowly at first,
then rapidly, release both
buttons, and go to step 5.
Press and hold the remote
transmitter button and one of the
HomeLink buttons at the same
time. While continuing to hold the
HomeLink button, press and
release the remote transmitter
button every 2 seconds.
If the red indicator in HomeLink
begins to flash slowly at first,
then rapidly, release both
buttons, and go to step 5.
If the red indicator in HomeLink
continues to flash slowly (does
not begin to flash rapidly),
repeat steps 2 thru 4.
Repeat these steps to train the
other two HomeLink buttons to
operate any other compatible
remotely controlled devices
around your home (lighting,
automatic gate, security system,
etc.).
If the indicator stays on or
flashes slowly, repeat steps 2
thru 5.
PushandholdtheHomeLink
button for a few seconds, then
watch the red indicator on
HomeLink.
If the red indicator in HomeLink
continues to flash slowly (does
not flash rapidly), your remote
transmitter may stop
transmitting after a short time.
Go to step 4.
If the indicator flashes rapidly
for 2 seconds then stays on, you
have a rolling code transmitter:
go to ‘‘Training with a Rolling
Code System’’ (see page ).
3.
4.
5.
6.
7.
146
HomeLink Universal Transceiver
Features
145
０５／０９／０２ １１：５３：１５ ３１ＳＤＲ６１０ ０１４８
Main Menu
Table of Contents
For security purposes, newer garage
door opening systems use a ‘‘rolling’’
or variable code. Information from
the remote control and the garage
door opener are needed before
HomeLink can operate the garage
door opener.
Find the ‘‘training’’ button on your
garage door opener unit. The
location will vary, depending on
the manufacturer.
Make sure you have properly
completed the ‘‘Training
HomeLink’’ procedure.
Press the HomeLink button again.
It should operate the garage door.
The ‘‘Training HomeLink’’
procedure trains HomeLink to the
proper garage door opener code.
The following procedure
synchronizes HomeLink to the
garage door opener so it sends and
receives the correct codes.
Press the training button on the
garage door opener unit until the
indicator next to the button comes
on. The indicator may blink, or
comeonandstayon.Youthen
have approximately 30 seconds to
complete the following steps.
Press and hold the button on
HomeLink for 3 to 4 seconds.
Press and hold the HomeLink
button again for 3 to 4 seconds.
This should turn off the training
indicator on the garage door
opener unit. (Some systems may
require you to press the button up
to three times.)
6.
2.
4.
5.
1.
3.
Training With a Rolling Code
System
HomeLink Universal Transceiver
146
TRAINING BUTTON
０５／０９／０２ １１：５３：２３ ３１ＳＤＲ６１０ ０１４９
Main Menu
Table of Contents
Youshoulderaseallthreecodes
before selling the vehicle.
Toerasethecodesstoredinallthree
buttons, press and hold the two
outside buttons until the red
indicator begins to flash, then
release the buttons.
If you want to retrain a programmed
button for a new device, you do not
have to erase all button memory.
You can replace the existing memory
code using this procedure:
If a standard transmitter was
programmed, the indicator will
stay on for about 25 seconds.
HomeLink
is a registered
trademark of Johnson Controls, Inc.
If you have problems with training
the HomeLink Universal Transceiver,
or would like information on home
products that can be operated by
HomeLink, call (800) 355-3515. On
the Internet, go to
www.homelink.com.
Once the HomeLink indicator
begins to flash slowly, continue to
hold the HomeLink button, and
follow steps 3 thru 6 under
‘‘Training HomeLink’’ (see page
).
If a rolling code transmitter was
previously programmed, the
indicator will flash rapidly for 2
seconds, and then stay on for
about 23 seconds.
Press and hold the HomeLink
button to be trained until the
HomeLink indicator begins to
flash slowly.
1.
2.
144
As required by the FCC:
This device complies with Part 15 of the
FCC rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any
interference received, including
interference that may cause undesired
operation.
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s
authority to operate the equipment.
This device complies with Industry
Canada Standard RSS-210.
Operation is subject to the following two
conditions: (1) this device may not cause
interference, and (2) this device must
accept any interference that may cause
undesired operation of the device.
Erasing Codes
Retraining a Button
Customer Assistance
HomeLink Universal Transceiver
Features
147
０５／０９／０２ １１：５３：３４ ３１ＳＤＲ６１０ ０１５０
Main Menu
Table of Contents
Main Menu
Before you begin driving your
vehicle, you should know what
gasoline to use and how to check the
levels of important fluids. You also
need to know how to properly store
luggage or packages. The
information in this section will help
you. If you plan to add any
accessories to your vehicle, please
read the information in this section
first.
.............................Break-in Period . 150
.................Fuel Recommendation . 150
.........Service Station Procedures . 151
....................................Refueling . 151
Opening and Closing the
.......................................Hood . 152
...................................Oil Check . 153
.............Engine Coolant Check . 154
...............................Fuel Economy . 155
........Improving Fuel Economy . 155
...Accessories and Modifications . 156
................................Accessories . 156
...........Modifying Your Vehicle . 157
.Additional Safety Precautions . 157
.............................Carrying Cargo . 158
................................Load Limits . 159
Carrying Cargo in the Trunk
.................or on a Roof Rack . 160
Carrying Cargo in the
.....Passenger Compartment . 160
Before Driving
Before Driving
149
０５／０９／０２ １１：５３：４１ ３１ＳＤＲ６１０ ０１５２
Main Menu
Help assure your vehicle’s future
reliability and performance by paying
extra attention to how you drive
during the first 600 miles (1,000 km).
During this period:
Avoid full-throttle starts and rapid
acceleration.
Do not change the oil until the
scheduled maintenance time.
Avoidhardbrakingforthefirst
200 miles (300 km).
Do not tow a trailer.
You should also follow these
recommendations with an
overhauled or exchanged engine, or
when the brakes are replaced.
Your vehicle is designed to operate
on unleaded gasoline with a pump
octane number of 87 or higher. Use
of a lower octane gasoline can cause
a persistent, heavy metallic rapping
noise that can lead to engine damage.
We recommend quality gasoline
containing detergent additives that
help prevent fuel system and engine
deposits.
In addition, in order to maintain good
performance, fuel economy, and
emissions control, we strongly
recommend, in areas where it is
available, the use of gasoline that
does NOT contain manganese-based
fuel additives such as MMT.
Use of gasoline with these additives
may adversely affect performance,
and cause the malfunction indicator
lamp on your instrument panel to
come on. If this happens, contact
your authorized dealer for service.
Some gasoline today is blended with
oxygenates such as ethanol or
MTBE. Your vehicle is designed to
operate on oxygenated gasoline
containing up to 10 percent ethanol
by volume and up to 15 percent
MTBE by volume. Do not use
gasoline containing methanol.
If you notice any undesirable
operating symptoms, try another
service station or switch to another
brand of gasoline.
For further important fuel-related
information, please refer to your
.
Break-in Period, Fuel Recommendation
Break-in Period Fuel Recommendation
Quick Start Guide
150
０５／０９／０２ １１：５３：５１ ３１ＳＤＲ６１０ ０１５３
Main Menu
Table of Contents

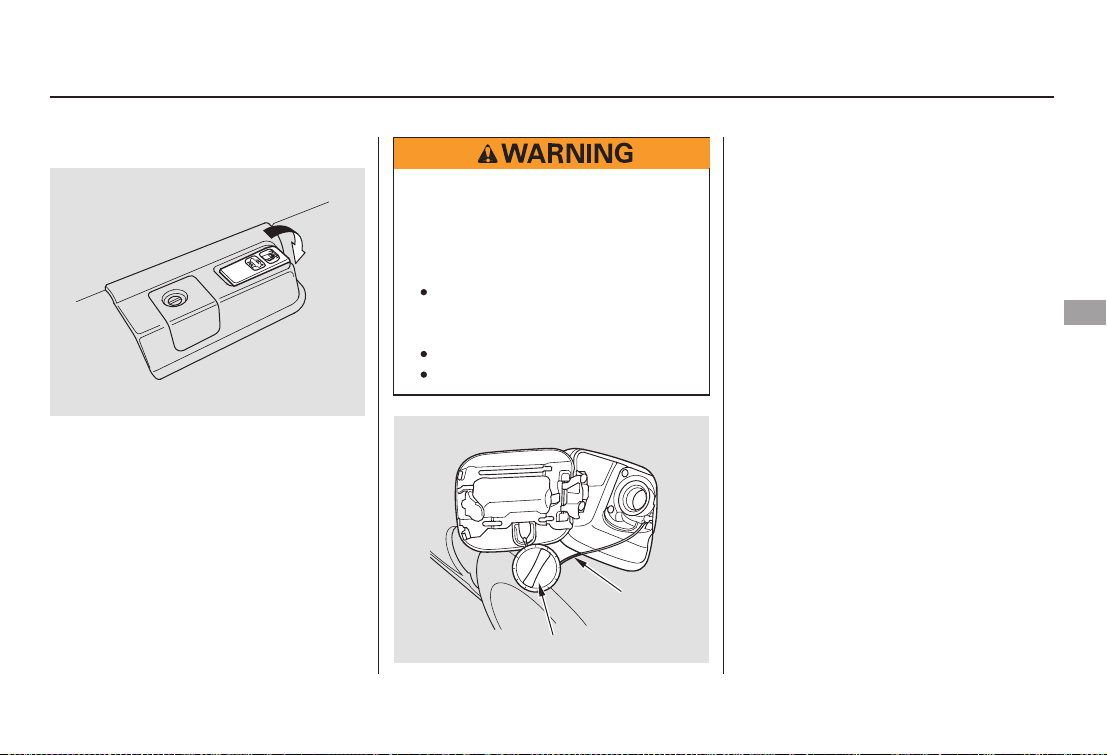

Remove the fuel fill cap slowly.
You may hear a hissing sound as
pressure inside the tank escapes.
The fuel fill cap is attached to the
fuel filler with a tether. Put the
attachment on the fuel fill cap into
the slit on the fuel fill door.
Stop filling the tank after the fuel
nozzle automatically clicks off. Do
not try to ‘‘top off’’ the tank. Leave
some room for the fuel to expand
with temperature changes.
Park with the driver’s side closest
to the gas pump.
To open the fuel fill door, push
down on the lever located to the
left of the driver’s seat.
even though the tank is not full,
there may be a problem with your
vehicle’s fuel vapor recovery
system. The system helps keep
fuel vapors from going into the
atmosphere. Try filling at another
pump. If this does not fix the
problem, consult your dealer.
3.
4.
1.
2.
If the fuel nozzle keeps clicking off
CONTINUED
Refueling
Service Station Procedure
Before Driving
151
FUEL FILL CAP
Push
TETHER
Gasoline is highly flammable
and explosive. You can be
burned or seriously injured
when handling fuel.
Stop the engine, and keep
heat, sparks, and flames
away.
Handle fuel only outdoors.
Wipe up spills immediately.
０５／０９／０２ １１：５４：０１ ３１ＳＤＲ６１０ ０１５４
Main Menu
Table of Contents

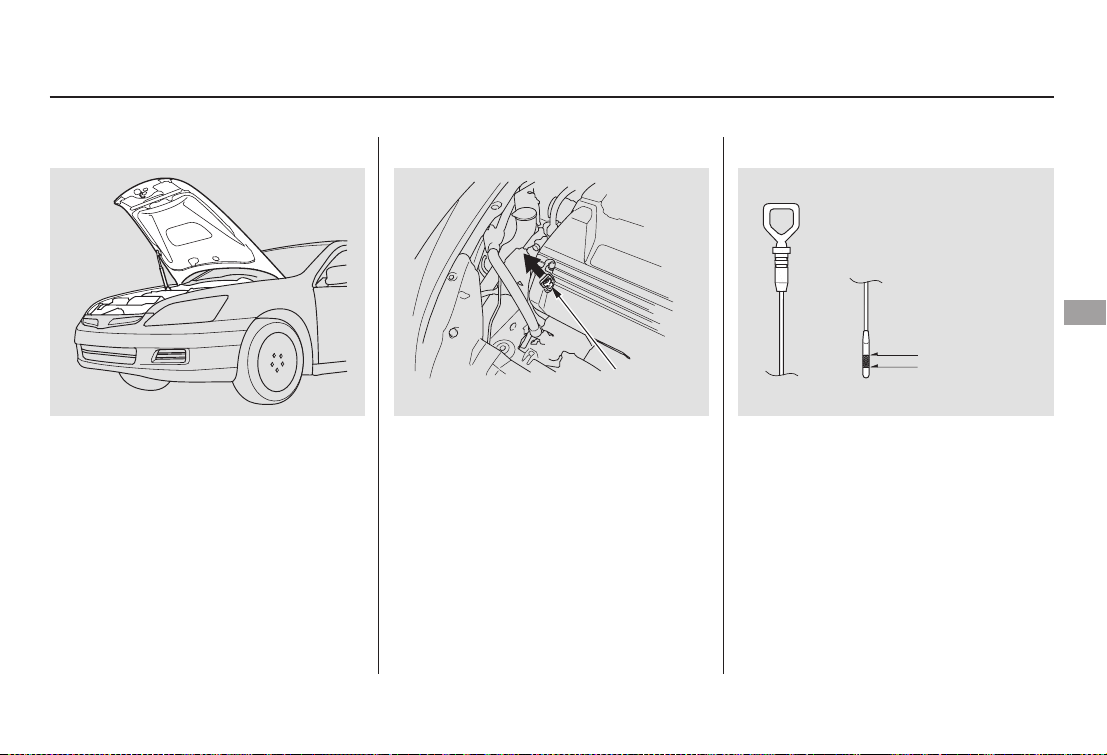

To Open the Hood:
Park the vehicle, and set the
parking brake. Pull the hood
release handle located under the
lower left corner of the dashboard.
The hood will pop up slightly.
Put your fingers under the front
edge of the hood near the center.
Slide your hand to the left until
you feel the hood latch handle.
Push this handle up to release it.
Lift up the hood.
If the hood latch handle moves stiffly,
or if you can open the hood without
lifting the handle, the mechanism
should be cleaned and lubricated.
Push the fuel fill door closed until
it latches.
Screw the fuel fill cap back on
until it clicks at least once. If you
do not properly tighten the cap,
the malfunction indicator lamp
maycomeon(seepage ).You
will also see a ‘‘CHECK FUEL
CAP’’ message on the information
display.
1.
2.
5.
6.
237
Opening and Closing the Hood
Service Station Procedure
152
HOOD RELEASE HANDLE LATCH
０５／０９／０２ １１：５４：０９ ３１ＳＤＲ６１０ ０１５５
Main Menu
Table of Contents
Remove the dipstick again, and
check the level. It should be
between the upper and lower
marks.
If it is near or below the lower mark,
see on page .
Insert it all the way back in its hole.
Wipe the dipstick with a clean
cloth or paper towel.
Remove the dipstick (orange
handle).
Wait a few minutes after turning the
engine off before you check the oil.
Lift the hood up most of the way.
The hydraulic supports will lift it up
therestofthewayandholditup.
To close the hood, lower the hood to
about a foot (30 cm) above the
fender, then firmly press down on
the front edge of the hood. Make
sure it is securely latched.
1.
2.
3.
4.
196Adding Oil
Oil Check
Service Station Procedure
Before Driving
153
DIPSTICK
(orange handle)
UPPER MARK
LOWER MARK
０５／０９／０２ １１：５４：１８ ３１ＳＤＲ６１０ ０１５６
Main Menu
Table of Contents
Look at the coolant level in the
radiator reserve tank. Make sure it is
between the MAX and MIN lines. If
it is below the MIN line, see
on page for
information on adding the proper
coolant.
Refer to
on page for information
about checking other items on your
vehicle.
201
191
Engine Coolant Check
Adding
Engine Coolant
Owner’s Maintenance
Checks
Service Station Procedure
154
MAX
RESERVE TANK
MIN
０５／０９／０２ １１：５４：２４ ３１ＳＤＲ６１０ ０１５７
Main Menu
Table of Contents
Always drive in the highest gear
possible.
Try to maintain a constant speed.
Everytimeyouslowdownand
speed up, your vehicle uses extra
fuel. Use cruise control when
appropriate.
Combine several short trips into
one.
The air conditioning puts an extra
load on the engine which makes it
usemorefuel.Usethefresh-air
ventilation when possible.
Drive moderately. Rapid
acceleration, abrupt cornering,
and hard braking use more fuel.
The build-up of snow or mud on
your vehicle’s underside adds
weight and rolling resistance.
Frequent cleaning helps your fuel
mileage and reduces the chance of
corrosion.
an underinflated tire
causes more ‘‘rolling resistance,’’
which uses more fuel.
Always maintain your vehicle
according to the maintenance
minder. See
(see page
).191
For example,
Improving Fuel Economy
Owner’s
Maintenance Checks
Fuel Economy
Before Driving
155
０５／０９／０２ １１：５４：３１ ３１ＳＤＲ６１０ ０１５８
Main Menu
Table of Contents
Before installing any accessory:
Make sure the accessory does not
obscure any lights, or interfere
with proper vehicle operation or
performance.
When properly installed, cellular
phones, alarms, two-way radios, and
low-powered audio systems should
not interfere with your vehicle’s
computer controlled systems, such
as your airbags and anti-lock brakes.
Modifying your vehicle, or installing
some non-Honda accessories, can
make your vehicle unsafe. Before
you make any modifications or add
anyaccessories,besuretoreadthe
following information.
Your dealer has Honda accessories
that allow you to personalize your
vehicle. These accessories have
been designed and approved for your
vehicle, and are covered by warranty. Before installing any electronic
accessory, have the installer
contact your dealer for assistance.
If possible, have your dealer
inspect the final installation.
Do not install accessories on the
side pillars or across the rear
windows. In these areas,
accessories may interfere with
proper operation of the side
curtain airbags.
Although non-Honda accessories
may fit on your vehicle, they may not
meet factory specifications, and
could adversely affect your vehicle’s
handling and stability.
Be sure electronic accessories do
not overload electrical circuits
(see page ) or interfere with
proper operation of your vehicle.
243
Accessories
Accessories and Modifications
156
Improper accessories or
modifications can affect your
vehicle’s handling, stability, and
performance, and cause a
crash in which you can be hurt
or killed.
Follow all instructions in this
owner’s manual regarding
accessories and modifications.
０５／０９／０２ １１：５４：３９ ３１ＳＤＲ６１０ ０１５９
Main Menu
Table of Contents
Removing parts from your vehicle,
or replacing components with
aftermarket components could
seriously affect your vehicle’s
handling, stability, and reliability.
Some examples are:
Larger or smaller wheels and tires
can interfere with the operation of
your vehicle’s anti-lock brakes and
other systems.
If you plan to modify your vehicle,
consult your dealer.
Modifying your steering wheel or
any other part of your vehicle’s
safety features can make the
systems ineffective.Lowering the vehicle with a non-
Honda suspension kit that
significantly reduces ground
clearance can allow the
undercarriage to hit speed bumps
or other raised objects, which
could cause the airbags to deploy.
Raising your vehicle with a
non-Honda suspension kit can
affect the handling and stability.
Non-Honda wheels can cause
excessive stress on suspension
components.
If a side airbag
or a side curtain airbag inflates, a
cupholderorotherhardobject
attached on or near the door could
be propelled inside the vehicle and
hurt someone.
Covering the outside edge of a
front seat-back, with a non-Honda
seat cover for example, could
prevent the airbag from inflating
properly.
Any object
attached to or placed on the covers
marked ‘‘SRS AIRBAG’’ in the
center of the steering wheel and
on top of the dashboard, could
interfere with the proper operation
of the airbags. Or, if the airbags
inflate, the objects could be
propelled inside the vehicle and
hurt someone.
Modifying Your Vehicle
Additional Safety Precautions
Accessories and Modifications
Do not attach hard objects on or
near a front door.
Do not place any objects over the
outsideedgeofafrontseat-back.
Do not attach or place objects on
the front airbag covers.
Before Driving
157
０５／０９／０２ １１：５４：４９ ３１ＳＤＲ６１０ ０１６０
Main Menu
Table of Contents
Your vehicle has several convenient
storage areas:
Glove box
Roof-rack (if installed)
Console compartment
Center pocket
Trunk
Door pockets
Seat-back pockets
However, carrying too much cargo
or improperly storing it can affect
your vehicle’s handling, stability,
stopping distance, and tires, and
make it unsafe. Before carrying any
type of cargo, be sure to read the
following pages.
Carrying Cargo
158
GLOVE BOXSEAT-BACK POCKET
TRUNK
DOOR POCKET CONSOLE COMPARTMENT
CENTER POCKET
０５／０９／０２ １１：５４：５７ ３１ＳＤＲ６１０ ０１６１
Main Menu
Table of Contents
−×
The maximum load for your vehicle
is 850 lbs (395 kg). This figure
includes the total weight of all
occupants, cargo, and accessories,
and the tongue load if you are towing
a trailer.
Determine the combined weight
of luggage and cargo being loaded
in the vehicle. That weight may
not safely exceed the available
cargo and luggage load capacity in
step 4.
If your vehicle will be towing a
trailer, the load from your trailer
will be transferred to your vehicle.
Consult this manual to determine
how this reduces the available
cargo and luggage load capacity of
yourvehicle(seepage ).
The resulting figure equals the
available amount of cargo and
luggage load capacity.
For example, if the maximum load
is 850 lbs and there will be five 150
lb passengers in your vehicle, the
amount of available cargo and
luggage load capacity is 100 lbs.
(850 750 (5 150) = 100 lbs.)
Subtract the combined weight of
the driver and passengers from
850 pounds or 395 kilograms.
Determine the combined weight
of the driver and passengers that
will be riding in your vehicle.
Locate the statement, ‘‘the
combined weight of occupants and
cargo should never exceed 850
lbs’’ on your vehicle’s placard.
[The placard is on the driver’s
doorjamb.]
Steps for determining correct load
limit:
1.
2.
5.
6.
3.
4.
179
Load Limits
Carrying Cargo
Before Driving
159
Overloading or improper
loading can affect handling and
stability and cause a crash in
which you can be hurt or killed.
Follow all load limits and other
loading guidelines in this
manual.
０５／０９／０２ １１：５５：０６ ３１ＳＤＲ６１０ ０１６２
Main Menu
Table of Contents
Store or secure all items that could
be thrown around and hurt
someone during a crash.
If you carry large items that
prevent you from closing the trunk
lid, exhaust gas can enter the
passenger area. To avoid the
possibility of
, follow the instructions
on page .
If you carry any items on a roof
rack,besurethetotalweightof
the rack and the items does not
exceed 165 lbs (75 kg).
If you use an accessory roof rack,
the roof rack weight limit may be
lower. Refer to the information that
came with your roof rack.
In addition, the total weight of the
vehicle, all passengers and
accessories must not exceed the
Gross Vehicle Weight Rating
(GVWR) or the Gross Axle Weight
Rating (GAWR). Both are on a label
on the driver’s doorjamb.
Distribute cargo evenly on the
floor of the trunk, placing the
heaviest items on the bottom and
as far forward as possible. Tie
down items that could be thrown
about the vehicle during a crash or
sudden stop.
Do not put any items on top of the
rear shelf. They can block your
view and be thrown around the
vehicle during a crash.
Be sure items placed on the floor
behind the front seats cannot roll
under the seats and interfere with
the driver’s ability to operate the
pedals or the seat.
Keep the glove box closed while
driving so that someone in the
passenger seat can avoid injuries
to their knees in a crash or a
sudden stop.
Do not store any perishable items
near the IMA battery vent (see
page ).
Do not put any objects on the IMA
battery air intake on the rear shelf
(see page ).
49
161
161
carbon monoxide
poisoning
Carrying Cargo in the Trunk or on
a Roof Rack
Carrying Cargo in the Passenger
Compartment
Carrying Cargo
160
０５／０９／０２ １１：５５：１５ ３１ＳＤＲ６１０ ０１６３
Main Menu
Table of Contents
Do not spill any liquids over the air
intake or put any small foreign
objects in it. This may damage the
IMA battery and the power control
unit.
Air used to cool the IMA battery is
vented into the right side of the
trunk. Do not leave perishable items
near this vent.
The air intake for the IMA battery
and electronics is located on top of
the rear shelf. Do not block this air
intake; it may cause the IMA battery
and the power control unit to
overheat, causing the IMA system to
shut down. It will start working again
after it cools.
Carrying Cargo
IMA Battery Air Intake IMA Battery Air Vent
Before Driving
161
AIR INTAKE AIR VENT
０５／０９／０２ １１：５５：２２ ３１ＳＤＲ６１０ ０１６４
Main Menu
Table of Contents
Main Menu
........................Preparing to Drive . 164
.......................Starting the Engine . 165
..............Automatic Transmission . 166
Shift Lever Position
...............................Indicators . 166
.......................................Shifting . 166
..............Engine Speed Limiter . 168
....................Shift Lock Release . 169
............................Auto Idle Stop . 171
...........Auto Idle Stop Indicator . 172
...........................................Parking . 173
.............................Braking System . 174
...............Brake System Design . 174
.............Brake Wear Indicators . 174
...........Anti-lock Brakes (ABS) . 175
Activating the Anti-lock
................................Brakes . 175
........................ABS Indicator . 175
Vehicle Stability Assist (VSA)
....................................System . 177
.........VSA Activation Indicator . 177
..............VSA System Indicator . 177
.........................VSA Off Switch . 178
...........................Towing a Trailer . 179
This section gives you tips on
starting the engine under various
conditions, and how to operate the
automatic transmission. It also
includes important information on
parking your vehicle, the braking
system, the vehicle stability assist
(VSA) system, and facts you need if
you are planning to tow a trailer.
Driving
Driving
163
０５／０９／０２ １１：５５：２８ ３１ＳＤＲ６１０ ０１６６
Main Menu
Youshoulddothefollowingchecks
and adjustments before you drive
your vehicle.
Make sure all windows, mirrors,
and outside lights are clean and
unobstructed. Remove frost, snow,
or ice.
Make sure the doors are securely
closed and locked.
Fasten your seat belt. Check that
your passengers have fastened
their seat belts (see page ).
Check the steering wheel
adjustment (see page ).
Check that the hood is fully closed.
Check that the trunk is fully
closed.
Visually check the tires. If a tire
looks low, use a gauge to check its
pressure.
Check that any items you may be
carrying are stored properly or
fastened down securely.
Check the seat adjustment (see
pages to ).
Check the adjustment of the
inside and outside mirrors (see
pages and ).
When you start the engine, check
the gauges and indicators in the
instrument panel (see pages to
).
3.
2.
1.
4.
5.
6.
7.
8.
9.
11.
10.
16
85 87
88 89
75
68
53
Preparing to Drive
164
０５／０９／０２ １１：５５：３８ ３１ＳＤＲ６１０ ０１６７
Main Menu
Table of Contents
Apply the parking brake.
In cold weather, turn off all
electrical accessories to reduce
the drain on the battery.
Make sure the shift lever is in
Park. Press on the brake pedal.
Turn the ignition key to the
START (III) position. Do not hold
the key in START (III) for more
than 15 seconds at a time. If the
engine does not start right away,
pause for at least 10 seconds
before trying again.
If the engine does not start within
15 seconds, or starts but stalls
right away, repeat step 4 with the
accelerator pedal pressed halfway
down. If the engine starts, release
pressure on the accelerator pedal
so the engine does not race.
If the engine fails to start, press
the accelerator pedal all the way
downandholdittherewhile
starting to clear flooding. Return
to step 5 if the engine does not
start.
In cold weather, conventional starter
is used instead of the IMA system
starter. This is normal.
1.
2.
3.
4.
5.
6.
77
Starting the Engine
Starting in Cold Weather
Driving
165
The immobilizer system protects your
vehicle from theft. If an improperly-
coded key (or other device) is used, the
engine’s fuel system is disabled. For
more information, see page .
The engine is harder to start in cold
weather. Also, the thinner air found at
altitudes above 8,000 feet (2,400
meters) adds to this problem.
０５／０９／０２ １１：５５：４６ ３１ＳＤＲ６１０ ０１６８
Main Menu
Table of Contents
These indicators between the tacho-
meter and speedometer show which
position the shift lever is in.
The ‘‘D’’ indicator comes on for a
few seconds when you turn the
ignition switch to the ON (II)
position. If it flashes while driving (in
any shift position), it indicates a
possible problem in the transmission.
If the malfunction indicator lamp
comes on along with the ‘‘D’’
indicator, there is a problem with the
automatic transmission control
system. Avoid rapid acceleration and
have the transmission checked by
your dealer as soon as possible.
To shift from any position, press the
release button on the bottom of the
shift lever to move it. You cannot
shift out of Park when the ignition
switch is in the LOCK (0) or
ACCESSORY (I) position.
To shift from:
PtoR
RtoP
NtoR
Dto2
2to1
1to2
2toD
DtoD
DtoN
DtoD
NtoD
RtoN
Do this:
Press the brake pedal and
press the release button.
Press the release button.
Move the lever.
3
3
3
3
Automatic Transmission
Shift Lever Position Indicators
Shifting
166
SHIFT LEVER
RELEASE BUTTON
０５／０９／０２ １１：５５：５５ ３１ＳＤＲ６１０ ０１６９
Main Menu
Table of Contents
−−
−
−
−
If you have done all of the above and
still cannot move the lever out of
Park, see on
page .
You must also press the release
button to shift into Park. To avoid
transmission damage, come to a
complete stop before shifting into
Park. The shift lever must be in Park
before you can remove the key from
the ignition switch.
Press the brake
pedal and press the release button to
shift from Park to Reverse. To shift
from Reverse to Neutral, come to a
completestopandthenshift.
This position is similar
to D, except only the first three
gears are selected instead of all five.
Use D when towing a trailer in hilly
terrain, or to provide engine braking
when going down a steep hill. D can
also keep the transmission from
cycling between third and fourth
gears in stop-and-go driving.
Use this position for
your normal driving. The
transmission automatically selects a
suitable gear for the vehicle speed
and acceleration. You may notice the
transmission shifting up at higher
speeds when the engine is cold. This
helps the engine warm up faster.
Use Neutral if you
need to restart a stalled engine, or if
it is necessary to stop briefly with
the engine idling. Shift to the Park
position if you need to leave your
vehicle and apply the parking brake.
Press on the brake pedal when you
are moving the shift lever from
Neutral to another gear.
This position
mechanically locks the transmission.
Use Park whenever you are turning
off or starting the engine. To shift
outofPark,youmustpressonthe
brake pedal and have your foot off
the accelerator pedal. Press the
release button on the bottom of the
shift lever to move it.
169
3
3
CONTINUED
Automatic Transmission
Shift Lock Release
Reverse (R) Drive (D )
Drive (D)
Neutral (N)
Park (P)
3
Driving
167
０５／０９／０２ １１：５６：０１ ３１ＳＤＲ６１０ ０１７０
Main Menu
Table of Contents
−−This position locks
the transmission in second gear. It
does not downshift to first gear
when you come to a stop.
Use second gear:
For starting out on a slippery
surface or in deep snow.
To help reduce wheel spin.
When driving downhill with a
trailer.
If you exceed the maximum speed
for the gear you are in, the engine
speed will enter into the tachometer’s
red zone. If this occurs, you may feel
the engine cut in and out. This is
caused by a limiter in the engine’s
computer controls. The engine will
run normally when you reduce the
rpm below the red zone.
For more power when climbing.
To increase engine braking when
going down steep hills.
To shift from Second to
First, press the release button on the
bottom of the shift lever. This
position locks the transmission in
first gear. By upshifting and
downshifting through 1, 2, D , and D,
you can operate this transmission
much like a manual transmission
without a clutch pedal.
3
Automatic Transmission
Second (2) Engine Speed LimiterFirst (1)
168
０５／０９／０２ １１：５６：０９ ３１ＳＤＲ６１０ ０１７１
Main Menu
Table of Contents
Put a cloth on the edge of the shift
lock release slot cover next to the
shift lever. Use a small flat-tipped
screwdriverorfingernailfileto
remove the cover. Carefully pry
off the edge of the cover.
Insert the key in the shift lock
release slot.This allows you to move the shift
lever out of Park if the normal
method of pushing on the brake
pedal and pressing the release
button does not work.
Remove the key from the ignition
switch.
Set the parking brake.1.
2.
3.
4.
CONTINUED
Automatic Transmission
Shift Lock Release
Driving
169
COVER
０５／０９／０２ １１：５６：１６ ３１ＳＤＲ６１０ ０１７２
Main Menu
Table of Contents
Push down on the key while you
pressthereleasebuttononthe
shift lever and move the shift lever
out of Park to neutral.
Remove the key from the Shift
Lock Release slot, then reinstall
thecover.Makesurethenotchon
the cover is on the left side.
Depress the brake pedal and
restart the engine.
If you need to use the shift lock
release, it means your vehicle is
developing a problem. Have the
vehicle checked by your dealer.
5.
6.
Automatic Transmission
170
RELEASE
BUTTON
SHIFT LOCK RELEASE SLOT
０５／０９／０２ １１：５６：２１ ３１ＳＤＲ６１０ ０１７３
Main Menu
Table of Contents
−
−
The engine restarts when you
release the brake pedal. Even while
you are pressing down on the brake
pedal, the engine restarts if the
conditions below are met.
You move the shift lever from N to
R, or from D3 to 2nd.
Youstepontheacceleratorpedal.
Your vehicle has an auto idle stop
system. After your vehicle comes to
a halt, the engine shuts off
automatically if all the following
conditions are met.
The vehicle speed is over 8 mph
(12km/h)beforethevehicle
comes to a stop.
The engine coolant is nearly up to
normal operating temperature.
TheshiftleverisinD,D3orN.
You are pressing on the brake
pedal.
You are not pressing on the
accelerator pedal.
The IMA battery is charged
enough to operate the system.
Fan speed lower fan speeds, in
either AUTO or manual modes.
During Auto Idle Stop, the IMA
charge and power brake vacuum
reserve is monitored by the system.
If the vacuum reserve drops below
an optimal level, the engine will
restart to replenish the vacuum
supply. If the IMA charge drops
below an optimal level, the engine
will restart to recharge the IMA
battery.
The auto idle stop system may not
work if the temperature of the IMA
battery is extremely high or
extremely low.
While the auto idle stop system is
working, the auto idle stop indicator
blinks (see page ).
Outside temperature is between
10 100 degrees F.
The vent mode is neither in
nor .
172
Automatic Transmission
Auto Idle Stop
Driving
171
０５／０９／０２ １１：５６：３３ ３１ＳＤＲ６１０ ０１７４
Main Menu
Table of Contents
If you open the driver’s door when
Auto Stop is active, the indicator will
blink and you will hear a continuous
beep. The beep will stop when you
close the door.
With the driver’s door open, you will
hear a continuous beep even if the
Auto Idle Stop function is
deactivated and the engine restarts.
Always turn the ignition switch to
LOCK (0) and remove the key if you
are getting out of the vehicle.
The indicator blinks as a reminder
that the engine has stopped because
of the Auto Idle Stop function. You
cannot restart the engine with the
ignition switch when this indicator is
blinking.
Automatic Transmission
Auto Idle Stop Indicator
172
AUTO IDLE STOP INDICATOR
０５／０９／０２ １１：５６：３８ ３１ＳＤＲ６１０ ０１７５
Main Menu
Table of Contents
Always use the parking brake when
you park your vehicle. Make sure
the parking brake is set firmly, or
your vehicle may roll if it is parked
on an incline.
Set the parking brake before you put
the transmission in Park. This keeps
the vehicle from moving and putting
pressure on the parking mechanism
in the transmission.
If the vehicle is facing uphill, turn
the front wheels away from the
curb.
If the vehicle is facing downhill,
turn the front wheels toward the
curb.
Make sure the parking brake is
fully released before driving away.
Driving with the parking brake
partially set can overheat or
damage the rear brakes.
Make sure the moonroof and the
windows are closed.
Check the indicator on the
instrument panel to verify that the
security system is set.
Lockthedoorswiththekeyorthe
remote transmitter.
Place any packages, valuables, etc.,
in the trunk or take them with you.
Turn off the lights.
Never park over dry leaves, tall
grass, or other flammable
materials. The hot three way
catalytic converter could cause
these materials to catch on fire.
Parking Tips
Parking
Driving
173
０５／０９／０２ １１：５６：４７ ３１ＳＤＲ６１０ ０１７６
Main Menu
Table of Contents
Check the brakes after driving
through deep water. Apply the
brakes moderately to see if they feel
normal. If not, apply them gently and
frequently until they do. Be extra
cautious in your driving.
The hydraulic system that operates
the brakes has two separate circuits.
Each circuit works diagonally across
the vehicle (the left-front brake is
connected with the right-rear brake,
etc.). If one circuit should develop a
problem, you will still have braking
at two wheels.
Your vehicle is equipped with disc
brakes. A power assist helps reduce
the effort needed on the brake pedal.
The ABS helps you retain steering
control when braking very hard.
Put your foot on the brake pedal only
when you intend to brake. Resting
your foot on the pedal keeps the
brakes applied lightly, builds up heat,
increases wear and reduces their
effectiveness. It also keeps your
brake lights on all the time,
confusing drivers behind you.
Constant application of the brakes
when going down a long hill builds
up heat and reduces their effective-
ness. Use the engine to assist the
brakes by taking your foot off the
accelerator and downshifting to a
lower gear.
If the brake pads need replacing, you
will hear a distinctive, metallic
screeching sound when you apply
the brake pedal. If you do not have
the brake pads replaced, they will
screech all the time. It is normal for
the brakes to occasionally squeal or
squeak when you apply them.
Braking System
Brake Wear Indicators
Braking System Design
174
０５／０９／０２ １１：５６：５３ ３１ＳＤＲ６１０ ０１７７
Main Menu
Table of Contents
The anti-lock brake system (ABS)
helps prevent the brakes from
locking up, and helps you retain
steering control by pumping the
brakes rapidly, much faster than a
person can do it.
The ABS also balances the front-to-
rear braking distribution according
to vehicle loading.
this defeats the purpose of the ABS.
Let the ABS work for you by always
keeping firm, steady pressure on the
brake pedal as you steer away from
the hazard. This is sometimes
referred to as ‘‘stomp and steer.’’
If this indicator comes on, the anti-
lock function of the braking system
has shut down. The brakes still work
like a conventional system, but
without anti-lock. You should have
your dealer inspect your vehicle as
soon as possible.
If the ABS indicator and the brake
system indicator come on together,
and the parking brake is fully
released, the front-to-rear braking
distribution system may also be shut
down.
You will feel a pulsation in the brake
pedal when the ABS activates, and
you may hear some noise. This is
normal: it is the ABS rapidly
pumpingthebrakes.Ondry
pavement, you will need to press on
thebrakepedalveryhardbeforethe
ABS activates. However, you may
feel the ABS activate immediately if
you are trying to stop on snow or ice.
You should never pump the brake pedal;
CONTINUED
Anti-lock Brakes (ABS)
Anti-lock Brakes (ABS) Activating the Anti-lock Brakes ABS Indicator
Driving
175
０５／０９／０２ １１：５７：０１ ３１ＳＤＲ６１０ ０１７８
Main Menu
Table of Contents
Test your brakes as instructed on
page . If the brakes feel normal,
drive slowly and have your vehicle
repaired by your dealer as soon as
possible. Avoid sudden hard braking
which could cause the rear wheels to
lock up and possibly lead to a loss of
control.
The VSA indicator will come on
alongwiththeABSindicator.
on loose or
uneven surfaces, such as gravel or
snow, than a vehicle without anti-
lock. Slow down, and allow a greater
distance between vehicles under
those conditions.
It only helps with the
steering control during braking.
such as trying to take a
corner too fast or making a sudden
lane change. Always drive at a safe
speed for the road and weather
conditions.
Always steer moderately
when you are braking hard. Severe
or sharp steering wheel movement
can still cause your vehicle to veer
into oncoming traffic or off the road.
239
Anti-lock Brakes (ABS)
A vehicle with ABS may require a
longer distance to stop
Important Safety Reminders
ABS does not reduce the time or
distance it takes to stop the
vehicle.
ABS will not prevent a skid that
results from changing direction
abruptly,
ABS cannot prevent a loss of
stability.
176
ABS INDICATOR
０５／０９／０２ １１：５７：０８ ３１ＳＤＲ６１０ ０１７９
Main Menu
Table of Contents
When VSA activates, you will see the
VSA activation indicator blink. There
mayalsobesomeunusualnoise
from the modulator.
When VSA activates, you may notice
that the engine does not respond to
the accelerator in the same way it
does at other times. There may also
be some unusual noise from the
modulator.
The VSA system cannot enhance the
vehicle’s driving stability in all
situations and does not control your
vehicle’s entire braking system. It is
still your responsibility to drive and
corner at reasonable speeds and to
leave a sufficient margin of safety.
If the VSA system indicator comes
on while driving, pull to the side of
theroadwhenitissafe,andturnoff
the engine. Reset the system by
restarting the engine. If the VSA
system indicator stays, or comes
back on while driving, have the VSA
system inspected by your dealer.
The vehicle stability assist (VSA)
system helps to stabilize the vehicle
during cornering if the vehicle turns
more or less than desired. It also
assists you in maintaining traction
while accelerating on loose or
slippery road surfaces. It does this
by regulating the engine’s output and
by selectively applying the brakes.
VSA Activation Indicator
VSA System Indicator
Vehicle Stability Assist (VSA) System
Driving
177
VSA SYSTEM
INDICATOR
VSA ACTIVATION
INDICATOR
０５／０９／０２ １１：５７：１７ ３１ＳＤＲ６１０ ０１８０
Main Menu
Table of Contents
Without VSA, your vehicle will have
normal braking and cornering ability,
but it will not have VSA traction and
stability enhancement.
VSA is turned on every time you
start the engine, even if you turned it
off the last time you drove the
vehicle.
Driving with varying tire or wheel
sizes may cause the VSA to
malfunction. When replacing tires,
make sure they are of the same size
and type as your original tires (see
page ).
Deactivate the VSA system if you
need to drive with the compact spare
tire installed (see page ).
If you install winter tires, make sure
they are the same size as those that
were originally supplied with your
vehicle. Exercise the same caution
during winter driving as you would if
your vehicle was not equipped with
VSA.
When VSA is off, the VSA activation
indicator comes on as a reminder.
If the indicator does not come on
when the ignition switch is turned to
the ON (II) position, there may be a
problem with the VSA system. Have
your dealer inspect your vehicle as
soon as possible.
This switch is under the left vent.
Press it to turn the VSA system on
and off.
218
226
VSA Off Switch
VSA and Tire Sizes
Vehicle Stability Assist (VSA) System
178
VSA OFF SWITCH
０５／０９／０２ １１：５７：２５ ３１ＳＤＲ６１０ ０１８１
Main Menu
Table of Contents
Your vehicle has been designed to
primarily carry passengers and their
cargo. You can also use it to tow a
trailer if you carefully observe the
load limits, use the proper equipment,
and follow the guidelines in this
section.
The
maximum allowable weight of the
trailer and everything in or on it
must not exceed 1,000 lbs (450 kg).
Towing a load that is too heavy
can seriously affect your vehicle’s
handling and performance. It can
also damage the engine and
drivetrain.
The weight that
the tongue of a fully-loaded trailer
puts on the hitch should be
approximately 10 percent of the
trailer weight. Too much tongue
load reduces front-tire traction and
steering control. Too little tongue
load can make the trailer unstable
and cause it to sway.
Load Limits
Total Trailer Weight: Tongue Load:
Towing a Trailer
Driving
179
Exceeding any load limit or
improperly loading your vehicle
and trailer can cause a crash in
which you can be seriously hurt
or killed.
Check the loading of your
vehicle and trailer carefully
beforestartingtodrive.
０５／０９／０２ １１：５７：３１ ３１ＳＤＲ６１０ ０１８２
Main Menu
Table of Contents
To achieve a proper tongue load,
start by loading 60 % of the load
toward the front of the trailer and 40
% toward the rear, then re-adjust the
load as needed.
The total weight of the vehicle, all
occupants, all cargo, and the
tongue load must not exceed:
The total weight of each axle must
not exceed:
The best way to confirm that vehicle
and trailer weights are within limits
is to have them checked at a public
scale. To locate the public scales in
your area, consult your local yellow
pages or ask your dealer for
assistance.
Using a suitable scale or a special
tongue load gauge, check the tongue
load the first time you set up a
towing combination (a fully-loaded
vehicle and trailer), then recheck the
tongue load whenever the conditions
change.
on the front axle
on the rear axle
Checking Loads
Gross Vehicle Weight Rating
(GVWR):
Gross Axle Weight Rating
(GAWR):
Towing a Trailer
180
4,565 lbs (2,070 kg)
2,470 Ibs (1,120 kg)
2,140 Ibs (970 kg)
０５／０９／０２ １１：５７：３７ ３１ＳＤＲ６１０ ０１８３
Main Menu
Table of Contents
Honda recommends that any trailer
having a total weight of 1,000 lbs
(450 kg) or more be equipped with
its own electric or surge-type brakes.
If you choose electric brakes, be
sure they are electrically actuated.
Do not attempt to tap into your
vehicle’s hydraulic system. No
matter how successful it may seem,
any attempt to attach trailer brakes
to your vehicle’s hydraulic system
will lower braking effectiveness and
create a potential hazard.
Seeyourtrailerdealerformore
information on installing electric
brakes.
Any hitch used on your vehicle must
be properly bolted to the underbody.
Always use safety chains when you
tow a trailer. Make sure the chains
are secured to the trailer and hitch,
and that they cross under the tongue
and can catch the trailer if it
becomes unhitched. Leave enough
slack to allow the trailer to turn
corners easily, but do not let the
chains drag on the ground.
Towing can require a variety of
equipment, depending on the size of
your trailer, how it will be used, how
much load you are towing, and
where you tow. To ensure the best
quality, we recommend that you
purchase Honda equipment
whenever possible.
Discuss your needs with your trailer
sales or rental agency, and follow the
guidelines in the rest of this section.
Also make sure that all equipment is
properly installed and that it meets
federal, state, province, and local
regulations.
Towing Equipment and
Accessories
Trailer BrakesHitches
Safety Chains
Towing a Trailer
Driving
181
０５／０９／０２ １１：５７：４６ ３１ＳＤＲ６１０ ０１８４
Main Menu
Table of Contents
Askyourtrailersalesorrental
agency if any other items are
recommended or required for your
towing situation.
Since lighting and wiring vary by
trailer type and brand, you should
have a qualified technician install a
suitable connector between the
vehicle and the trailer. Improper
equipment or installation can cause
damage to your vehicle’s electrical
system and affect your vehicle
warranty.
Trailer lights and equipment must
comply with federal and state
regulations. Check with your trailer
sales or rental agency for the
requirements in your area, and use
only equipment designed for your
vehicle.
Many states and provinces require
special outside mirrors when towing
a trailer. Even if they don’t, you
should install special mirrors if you
cannot clearly see behind you, or if
the trailer creates a blind spot.
Trailer Lights Additional Towing Equipment
Towing a Trailer
182
０５／０９／０２ １１：５７：５１ ３１ＳＤＲ６１０ ０１８５
Main Menu
Table of Contents
When preparing to tow, and before
driving away, be sure to check the
following:
The vehicle has been properly
serviced, and the tires, brakes,
suspension, cooling system, and
lights are in good operating
condition.
The lights and brakes on your
vehicle and the trailer are working
properly.
All items in or on the trailer are
properly secured and cannot shift
while you drive.
Thehitch,safetychains,andany
other attachments are secure.
All weights and loads are within
limits (see pages and ).
Your vehicle tires and spare are
properly inflated (see page ),
and the trailer tires and spare are
inflated as recommended by the
trailer maker.
Foryoursafetyandthesafetyof
others,taketimetopracticedriving
maneuvers before heading for the
open road, and follow the guidelines
below.
The added weight, length, and
height of a trailer will affect your
vehicle’s handling and performance,
so driving with a trailer requires
some special driving skills and
techniques.
Drive slower than normal in all
driving situations, and obey posted
speed limits for vehicles with trailers.
Use the D position when towing a
trailer on level roads. Do not exceed
55 mph (88 km/h). At higher speeds,
the trailer may sway or affect vehicle
handling.
D is the proper shift lever position
to use when towing a trailer in hilly
terrain.179 180
216
3
Pre-Tow Checklist
Driving Safely With a Trailer
Towing Speeds and Gears
Towing a Trailer
Driving
183
０５／０９／０２ １１：５８：０１ ３１ＳＤＲ６１０ ０１８６
Main Menu
Table of Contents
Maketurnsmoreslowlyandwider
than normal. The trailer tracks a
smaller arc than your vehicle, and it
canhitorrunoversomethingthe
vehicle misses. Allow more time and
distance for braking. Do not brake or
turn suddenly as this could cause the
trailer to jackknife or turn over.
When climbing hills, closely watch
your temperature gauge. If it nears
the red (Hot) mark, turn the air
conditioning off, reduce speed and, if
necessary, pull to the side of the
road to let the engine cool.
Always drive slowly and have
someone guide you when backing up.
Grip the of the steering
wheel; then turn the wheel to the left
to get the trailer to move to the left,
andturnthewheelrighttomovethe
trailer to the right.
Follow all normal precautions when
parking, including firmly setting the
parking brake and putting the
transmission in Park. Also, place
wheel chocks at each of the trailer’s
tires.
Crosswinds and air turbulence
caused by passing trucks can disrupt
your steering and cause the trailer to
sway. When being passed by a large
vehicle, keep a constant speed, and
steer straight ahead. Do not try to
make quick steering or braking
corrections.
When driving down hills, reduce
your speed, and shift down to second
gear. Do not ‘‘ride’’ the brakes, and
remember, it will take longer to slow
downandstopwhentowingatrailer.
If you must stop when facing uphill,
use the foot brake or parking brake.
Do not try to hold the vehicle in
placebypressingontheaccelerator,
as this can cause the automatic
transmission to overheat.
bottom
Making Turns and Braking
Driving on Hills
Handling Crosswinds and Buf f eting
Backing Up
Parking
Towing a Trailer
184
０５／０９／０２ １１：５８：１０ ３１ＳＤＲ６１０ ０１８７
Main Menu
Table of Contents
If you have the skills and tools to
perform more complex maintenance
tasks on your vehicle, you may want
to purchase the service manual. See
page for information on how to
obtain a copy, or see your dealer.
This section explains why it is
important to keep your vehicle well
maintained and how to follow basic
maintenance safety precautions.
This section also includes
instructions on how to read the
maintenance minder messages on
the information display, a
maintenance record, and instructions
for simple maintenance tasks you
may want to take care of yourself.
......................Maintenance Safety . 186
....................Maintenance Minder . 187
....................Maintenance Record . 193
..............................Fluid Locations . 195
........................Adding Engine Oil . 196
.......Recommended Engine Oil . 196
..............................Synthetic Oil . 197
................Engine Oil Additives . 197
.........Changing the Oil and Filter . 198
....................Windshield Washers . 200
..............................Engine Coolant . 201
.......................Transmission Fluid . 203
....................................Brake Fluid . 204
....................................Timing Belt . 205
.............................................Lights . 206
.......................................Seat Belts . 212
........................Driver’s Floor Mat . 212
.................................Wiper Blades . 213
...............................................Tires . 215
..................Inflation Guidelines . 215
.Recommended Tire Pressure . 216
..........................Tire Inspection . 217
.....................Tire Maintenance . 217
.............................Tire Rotation . 218
...Replacing Tires and Wheels . 218
......................Wheels and Tires . 219
..........................Winter Driving . 219
.............................Snow Tires . 219
............................Tire Chains . 220
...................Checking the Battery . 221
.............................Vehicle Storage . 222
267
Maintenance
Maintenance
185
０５／０９／０２ １１：５８：１５ ３１ＳＤＲ６１０ ０１８８
Main Menu
All service items not detailed in this
section should be performed by a
certified technician or other qualified
mechanic.
To eliminate potential hazards, read
the instructions before you begin,
and make sure you have the tools
and skills required.
To clean parts, use a commercially
available degreaser or parts
cleaner, not gasoline.
To reduce the possibility of fire or
explosion, keep cigarettes, sparks,
and flames away from the battery
and all fuel-related parts.
Wear eye protection and
protective clothing when
working near the battery or
when using compressed air.
Be sure
there is adequate ventilation
whenever you operate the
engine.
Let the
engine and exhaust system cool
before touching any parts.
Do
not run the engine unless
instructed to do so.
Some of the most important safety
precautions are given here. However,
we cannot warn you of every
conceivable hazard that can arise in
performing maintenance. Only you
can decide whether or not you
should perform a given task.
Make sure your vehicle is parked
on level ground, the parking brake
is set, and the engine is off.
Maintenance Safety
Important Safety Precautions
Carbon Monoxide poison
from engine exhaust.
Burns from hot parts.
Injury from moving parts.
Potential Vehicle Hazards
186
Failure to properly follow
maintenance instructions and
precautions can cause you to
be seriously hurt or killed.
Always follow the procedures
and precautions in this owner’s
manual.
Improperly maintaining this
vehicle or failing to correct a
problem before driving can
cause a crash in which you can
be seriously hurt or killed.
Always follow the inspection,
maintenance recommendations,
and schedules in this owner’s
manual.
０５／０９／０２ １１：５８：２５ ３１ＳＤＲ６１０ ０１８９
Main Menu
Table of Contents
Your vehicle displays engine oil life
and maintenance service items on
the information display to show you
when you should have your dealer
perform engine oil replacement and
indicated maintenance service.
Based on the engine operating
conditions and accumulated engine
revolutions, the onboard computer in
your vehicle calculates the remaining
engine oil life and displays it as a
percentage.
To see the current engine oil life,
turn the ignition switch to the ON
(II) position, and push and release
the Select/Reset knob repeatedly
until the engine oil life display
appears (see page ).
If the remaining engine oil life is 15
to 6 percent, you will see the engine
oil life indicator every time you turn
the ignition switch to the ON (II)
position. The maintenance minder
indicator will also come on, and the
maintenance item code(s) for other
scheduled maintenance items
needing service will be displayed
next to the engine oil life indicator.
63
CONTINUED
Maintenance Minder
Engine Oil Life Indicator
Maintenance
187
ENGINE OIL LIFE MAINTENANCE ITEM CODE
０５／０９／０２ １１：５８：３２ ３１ＳＤＲ６１０ ０１９０
Main Menu
Table of Contents
−
When the remaining engine oil life is
5 to 1 percent, you will see a
‘‘SERVICE’’ message in the
information display, along with the
same maintenance item code(s),
everytimeyouturntheignition
switch to the ON (II) position.
When the remaining engine oil life is
0percent,youwillseetheabove
display. In this display, the remaining
oil life indicator will be blinking. This
display comes on and stays on every
time you turn the ignition switch to
the ON (II) position. When you see
this message, have the indicated
maintenance performed by your
dealer as soon as possible.
If you still do not perform the
indicated maintenance, you will see a
negative mileage, for example ‘‘ 10,’’
blinking in the display. This negative
mileage means that you should have
performed the indicated
maintenance 10 miles for U.S. (10
km for Canada) ago. Immediately
have the indicated maintenance done
by your dealer.
Maintenance Minder
188
０５／０９／０２ １１：５８：３８ ３１ＳＤＲ６１０ ０１９１
Main Menu
Table of Contents
When the vehicle needs
maintenance, maintenance codes
appear on the information display.
For an explanation of the
maintenance codes, see page .
Turn the ignition switch to the ON
(II) position.
If maintenance service is done by
someone other than your dealer,
reset the maintenance minder as
follows:
Press the Select/Reset knob until
the engine oil life indicator is
displayed.
Press the Select/Reset knob for
more than 10 seconds. The engine
oil life indicator and the
maintenance item code(s) will
blink.
Your dealer will reset the display
after completing the required
maintenance service. You will see
‘‘OIL LIFE 100 %’’ on the information
display the next time you turn the
ignition switch to the ON (II)
position.
3.
1.
2.
192
CONTINUED
Resetting the Engine Oil Life
Indicator
Maintenance Main Items and Sub
Items
Maintenance Minder
Maintenance
189
MAINTENANCE ITEM CODE
０５／０９／０２ １１：５８：４８ ３１ＳＤＲ６１０ ０１９２
Main Menu
Table of Contents
If you have the required service
done but do not reset the display, or
reset the display without doing the
service, the system will not show the
proper maintenance intervals. This
canleadtoseriousmechanical
problems because you will no longer
have an accurate record of when
maintenance is needed.
Your authorized Honda dealer
knows your vehicle best and can
provide competent, efficient service.
Press the Select/Reset knob for
more than 5 seconds. The
maintenance items code(s) will
disappear, and the engine oil life
will reset to ‘‘100.’’
However, service at a dealer is not
mandatory to keep your warranties
in effect. Maintenance may be done
by any qualified service facility or
person who is skilled in this type of
automotive service. Make sure to
have the service facility or person
reset the display as previously
described. Keep all receipts as proof
of completion, and have the person
who does the work fill out the
maintenance record in this owner’s
manual, or in the Honda service
history booklet. Check your
warranty booklet for more
information.
We recommend the use of Honda
parts and fluids whenever you have
maintenance done. These are
manufactured to the same high-
quality standards as the original
components, so you can be confident
of their performance and durability.
4.
Important Maintenance
Precautions
Maintenance Minder
190
０５／０９／０２ １１：５８：５４ ３１ＳＤＲ６１０ ０１９３
Main Menu
Table of Contents
−
−
−
−
−
−
＃
U.S. Vehicles:
Youshouldcheckthefollowing
items at the specified intervals. If
you are unsure of how to perform
any check, turn to the appropriate
page listed.
Lights Check the operation of
the headlights, parking lights,
taillights, high-mount brake light,
and license plate lights monthly.
See page .
Engine coolant level Check the
radiator reserve tank every time
you fill the fuel tank. See page .
Engine oil level Check every
time you fill the fuel tank. See
page .
Automatic transmission Check
the fluid level monthly. See page
.
Brakes Check the fluid level
monthly. See page .
Tires Check the tire pressure
monthly. Examine the tread for
wear and foreign objects. See page
.
According to state and federal
regulations, failure to perform
maintenance on the items marked
with will not void your emissions
warranties. However, all
maintenance services should be
performed in accordance with the
intervals indicated by the
information display.
153
154
203
204
215
206
Maintenance, replacement, or
repair of emissions control
devices and systems may be done
by any automotive repair
establishment or individual using
parts that are ‘‘certified’’ to EPA
standards.
Owner’s Maintenance Checks
Maintenance Minder
Maintenance
191
０５／０９／０２ １１：５９：０３ ３１ＳＤＲ６１０ ０１９４
Main Menu
Table of Contents
＊
＊
＃
＃
−
−
＃
＊
Maintenance Minder
192
Maintenance Main Items
Replace engine oil
Replace engine oil and oil filter
Inspect front and rear brakes
Check parking brake adjustment
Inspect these items:
Tie rod ends, steering gear box, and boots
Suspension components
Driveshaft boots
Brake hoses and lines (including ABS)
All fluid levels and condition of fluids
Exhaust system
Fuel lines and connections
Maintenance Sub Items
Rotate tires
Replace air cleaner element
Replace dust and pollen filter
Inspect drive belt
Replace transmission fluid
Replace spark plugs
Replace timing belt and inspect water pump
(V6 engine only)
Inspect valve clearance
Replace engine coolant
:
A
B
Symbol
1
2
3
4
5
Symbol
1
1
See information on maintenance and emissions warranty in the first column
on page .
Inspect idle speed every 160,000 miles (256,000 km).
Adjust the valves during services A, B, 1, 2, or 3 if they are noisy.
If the message ‘‘SERVICE’’ does not appear more than 12 months after the
display is reset, change the engine oil every year.
Independent of the maintenance messages in the information display,
replace the brake fluid every 3 years.
NOTE:
1:
191
If you drive in dusty conditions, replace every 15,000
miles (24,000 km).
If you drive primarily in urban areas that have high
concentrations of soot in the air from industry and from
diesel-powered vehicles, replace every 15,000 miles
(24,000 km).
Driving in mountainous areas at very low vehicle speeds
or trailer towing results in higher transmission and
transfer temperatures. This requires transmission and
transfer fluid changes more frequently than
recommended by the Maintenance Minder. If you
regularly drive your vehicle under these conditions, have
the transmission and transfer fluid changed at 60,000
miles (100,000 km), then every 30,000 miles (48,000 km).
If you drive regularly in very high temperatures (over
110°F, 43°C), or in very low temperatures (under 20°F,
29°C), replace every 60,000 miles (U.S.)/100,000 km
(Canada).
Maintenance Minder
０５／０９／０２ １１：５９：１１ ３１ＳＤＲ６１０ ０１９５
Main Menu
Table of Contents
Maintenance Record
Maintenance
193
mi
mi
mi
mi
mi
mi
mi
mi
mi
mi
mi
mi
mi
mi
You or the servicing dealer can record all completed maintenance here. When maintenance is performed, record the mileage, circle the coded item(s)
completed, and write in any other non-coded items (such as brake fluid replacement) below the codes. Keep the receipts for all work done on your
vehicle.
Maintenance
Performed
AB12345
AB12345
AB12345
AB12345
AB12345
AB12345
AB12345
Signature
Date
Maintenance
Performed
AB12345
AB12345
AB12345
AB12345
AB12345
AB12345
AB12345
Signature
Date
Mileage
km
km
km
km
km
km
km
Mileage
km
km
km
km
km
km
km
０５／０９／０２ １１：５９：１７ ３１ＳＤＲ６１０ ０１９６
Main Menu
Table of Contents
Maintenance Record
194
mi
mi
mi
mi
mi
mi
mi
mi
mi
mi
mi
mi
mi
mi
Maintenance
Performed
AB12345
AB12345
AB12345
AB12345
AB12345
AB12345
AB12345
Signature
Date
Maintenance
Performed
AB12345
AB12345
AB12345
AB12345
AB12345
AB12345
AB12345
Signature
Date
Mileage
km
km
km
km
km
km
km
Mileage
km
km
km
km
km
km
km
０５／０９／０２ １１：５９：２２ ３１ＳＤＲ６１０ ０１９７
Main Menu
Table of Contents
Fluid Locations
Maintenance
195
ENGINE OIL FILL CAP
RADIATOR CAP
ENGINE OIL DIPSTICK
(Orange loop)
WASHER FLUID
(Blue cap)
BRAKE FLUID
(Gray cap)
AUTOMATIC
TRANSMISSION
FLUID DIPSTICK
(Yellow loop)
ENGINE COOLANT
RESERVOIR
０５／０９／０２ １１：５９：２６ ３１ＳＤＲ６１０ ０１９８
Main Menu
Table of Contents
Oil is a major contributor to your
engine’s performance and longevity.
Always use a premium-grade 5W-20
detergent oil displaying the API
Certification Seal. This seal indicates
the oil is energy conserving, and that
it meets the American Petroleum
Institute’s latest requirements.
Install the engine oil fill cap, and
tighten it securely. Wait a few
minutes, and recheck the oil level.
Do not fill above the upper mark; you
could damage the engine.
Unscrew and remove the engine oil
fill cap on top of the valve cover.
Pour in the oil slowly and carefully so
you do not spill any. Clean up any
spills immediately. Spilled oil could
damage components in the engine
compartment.
Recommended Engine Oil
Adding Engine Oil
196
ENGINE OIL FILL CAP
０５／０９／０２ １１：５９：３２ ３１ＳＤＲ６１０ ０１９９
Main Menu
Table of Contents
Honda Motor Oil is the preferred
5W-20 lubricant for your vehicle. It is
highly recommended that you use
Honda Motor Oil in your vehicle for
optimum engine protection. Make
sure the API Certification Seal says
‘‘For Gasoline Engines.’’
Your vehicle does not require any oil
additives. Additives may adversely
affect the engine or transmission
performance and durability.
The oil viscosity or weight is
provided on the container’s label.
5W-20 oil is formulated for year-
round protection of your vehicle to
improve cold weather starting and
fuel economy.
You may use a synthetic motor oil if
it meets the same requirements
given for a conventional motor oil: it
displays the API Certification Seal,
and it is the proper weight. You must
follow the oil and filter change
intervals shown on the information
display.
CONTINUED
Synthetic Oil
Engine Oil Additives
Adding Engine Oil
Maintenance
197
API CERTIFICATION SEAL
Ambient Temperature
０５／０９／０２ １１：５９：４０ ３１ＳＤＲ６１０ ０２００
Main Menu
Table of Contents
Open the hood, and remove the
engine oil fill cap. Remove the oil
drain bolt and washer from the
bottom of the engine. Drain the oil
into an appropriate container.Run the engine until it reaches
normal operating temperature,
then shut it off.
Changing the oil and filter requires
special tools and access from
underneath the vehicle. The vehicle
should be raised on a service station-
type hydraulic lift for this service.
Unless you have the knowledge and
proper equipment, you should have
this maintenance done by a skilled
mechanic.
Always change the oil and filter
according to the maintenance
minder (see page ). The oil and
filter collect contaminants that can
damage your engine if they are not
removed regularly.
Remove the oil filter, and let the
remaining oil drain. A special
wrench (available from your
dealer) is required.
Check the oil filter to make sure
its gasket did not stick to the
engine block. A stuck gasket could
cause an oil leak.
3.
2.
1.
4.
187
Changing the Oil and Filter
198
WASHEROIL DRAIN BOLT
０５／０９／０２ １１：５９：４６ ３１ＳＤＲ６１０ ０２０１
Main Menu
Table of Contents
Install a new oil filter according to
the instructions that come with it.
Put a new washer on the drain bolt,
then reinstall the drain bolt.
Tighten it to:
Make sure to clean off any dirt
and dust on the connecting
surface of a new oil filter.
Refill the engine with the recom-
mended oil.
Engine oil change capacity
(including filter):
Replace the engine oil fill cap.
Start the engine. The oil pressure
indicator should go out within 5
seconds. If it does not, turn off the
engine, and check your work.
Let the engine run for several
minutes, then check the drain bolt
and oil filter for leaks.
Turn off the engine, let it sit for
several minutes, then check the oil
level on the dipstick. If necessary,
add more oil.
5.
6.
7.
8.
9.
10.
Changing the Oil and Filter
Maintenance
199
OIL FILTER
29 lbf·ft (39 N·m , 4.0 kgf·m)
4.5 US qt (4.3
)
Improper disposal of engine oil can be
harmful to the environment. If you
change your own oil, please dispose of
the used oil properly. Put it in a sealed
container and take it to a recycling
center. Do not discard it in a trash bin
or dump it on the ground.
０５／０９／０２ １１：５９：５５ ３１ＳＤＲ６１０ ０２０２
Main Menu
Table of Contents
Check the level in the windshield
washer reservoir at least monthly
during normal use.
When you refill the reservoir, clean
the edges of the windshield wiper
blades with windshield washer fluid
on a clean cloth. This will help to
condition the blade edges.
Fill the reservoir with a good-quality
windshield washer fluid. This
increases the cleaning capability and
prevents freezing in cold weather.
Check the reservoir’s fluid level by
removing the cap and looking at the
level gauge attached to the cap.
The low washer level
indicator will come on when the level
is low (see page ).59
Canadian model:
Windshield Washers
200
LEVEL GAUGE
Do not use engine antifreeze or a
vinegar/water solution in the
windshield washer reservoir. Antifreeze
can damage your vehicle’s paint, while
a vinegar/water solution can damage
the windshield washer pump. Use only
commercially-available windshield
washer fluid.
０５／０９／０２ １２：００：０２ ３１ＳＤＲ６１０ ０２０３
Main Menu
Table of Contents
If Honda antifreeze/coolant is not
available, you may use another
major-brand non-silicate coolant as a
temporaryreplacement.Makesureit
is a high-quality coolant
recommended for aluminum engines.
Continued use of any non-Honda
coolant can result in corrosion,
causing the cooling system to
malfunction or fail. Have the cooling
system flushed and refilled with
Honda antifreeze/coolant as soon as
possible.
If the reserve tank is completely
empty, you should also check the
coolant level in the radiator.
If the coolant level in the reserve
tank is at or below the MIN line, add
coolant to bring it up to the MAX line.
Inspect the cooling system for leaks.
Always use Honda Long-Life
Antifreeze/Coolant Type 2. This
coolant is pre-mixed with 50 %
antifreeze and 50 % water. Never add
straight antifreeze or plain water.
CONTINUED
Adding Engine Coolant
Engine Coolant
Maintenance
201
RESERVE TANK
Removing the radiator cap
while the engine is hot can
cause the coolant to spray out,
seriously scalding you.
Always let the engine and
radiator cool down before
removing the radiator cap.
０５／０９／０２ １２：００：０８ ３１ＳＤＲ６１０ ０２０４
Main Menu
Table of Contents
Pour coolant into the reserve tank.
Fill it to halfway between the MAX
and MIN marks. Put the cap back
on the reserve tank.
Do not add any rust inhibitors or
other additives to your vehicle’s
cooling system. They may not be
compatible with the coolant or
engine components.
The coolant level should be up to
the base of the filler neck. Add
coolant if it is low.
Pourthecoolantslowlyand
carefully so you do not spill any.
Clean up any spill immediately; it
could damage components in the
engine compartment.
Put the radiator cap back on and
tighten it.
Make sure the engine and radiator
are cool.
Relieve any pressure in the cooling
system by turning the radiator cap
counterclockwise, without
pressing down.
Remove the radiator cap by
pushing down and turning
counterclockwise.
4.
1.
2.
3.
5.
6.
Engine Coolant
202
RADIATOR CAP
０５／０９／０２ １２：００：１６ ３１ＳＤＲ６１０ ０２０５
Main Menu
Table of Contents
If the level is below the lower
mark, remove the fill plug and add
fluid into the tube to bring it to the
upper mark.
Pour the fluid slowly and carefully
so you do not spill any. Clean up
any spill immediately; it could
damage components in the engine
compartment.
Always use Honda ATF-Z1
(automatic transmission fluid). If it’s
not available, you may use a
DEXRON
III automatic
transmission fluid as a temporary
replacement. However, continued
use can affect the shift quality. Have
the transmission flushed and refilled
with Honda ATF-Z1 as soon as it is
convenient.
Check the fluid level with the engine
at normal operating temperature.
Park the vehicle on level ground.
Shut off the engine.
Remove the dipstick (yellow loop)
from the transmission, and wipe it
with a clean cloth.
Insert the dipstick all the way into
the transmission.
Make sure the rubber cap on the
dipstick fits in the dipstick guide
and that you push the dipstick in
all the way.
Remove the dipstick and check
the fluid level. It should be
between the upper and lower
marks.
5.
3.
4.
1.
2.
CONTINUED
Automatic Transmission
Transmission Fluid
Maintenance
203
UPPER MARK
LOWER MARK
DIPSTICK
０５／０９／０２ １２：００：２６ ３１ＳＤＲ６１０ ０２０６
Main Menu
Table of Contents
To thoroughly flush the transmission,
the technician should drain and refill
it with Honda ATF-Z1 (Automatic
Transmission Fluid), then drive the
vehicle for a short distance. Do this
three times. Then drain and refill the
transmission a final time.
Insert the dipstick all the way back
into the transmission.
If you are not sure how to add fluid,
contact your dealer.
The transmission should be drained
and refilled with new fluid according
to the maintenance minder (see page
).
Check the fluid level in the brake
fluid reservoir monthly.
Replace the brake fluid according to
the maintenance minder (see page
).
Always use Honda Heavy Duty
Brake Fluid DOT 3. If it is not
available, you should use only DOT 3
or DOT 4 fluid, from a sealed
container, as a temporary
replacement.
Using any non-Honda brake fluid can
cause corrosion and decrease the life
of the system. Have the brake
system flushed and refilled with
Honda Heavy Duty Brake Fluid
DOT 3 as soon as possible.
Brake fluid marked DOT 5 is not
compatible with your vehicle’s
braking system and can cause
extensive damage.
6.
187
187
Brake Fluid
Transmission Fluid, Brake Fluid
204
０５／０９／０２ １２：００：３４ ３１ＳＤＲ６１０ ０２０７
Main Menu
Table of Contents
−−The fluid level should be between
theMINandMAXmarksontheside
of the reservoir. If the level is at or
below the MIN mark, your brake
system needs attention. Have the
brake system inspected for leaks or
worn brake pads.
The timing belt should be replaced
according to the maintenance
minder (see page ).
Replace the timing belt every 60,000
miles (U.S.) or every 100,000 km
(Canada) if you regularly drive your
vehicleinanyofthefollowing
conditions:
In very high temperatures
(over 110°F, 43°C).
In very low temperatures
(under 20°F, 29°C).
Frequently tow a trailer.
187
Brake Fluid, Timing Belt
Timing Belt
Maintenance
205
MAX
MIN
０５／０９／０２ １２：００：４１ ３１ＳＤＲ６１０ ０２０８
Main Menu
Table of Contents
Theheadlightswereproperlyaimed
when your vehicle was new. If you
regularly carry heavy items in the
trunk or pull a trailer, readjustment
may be required. Adjustments
should be performed by your dealer
or other qualified mechanic.
Your vehicle has two bulbs on each
side, four in total. Make sure you are
replacing the bulb that is burned out.
Your vehicle uses halogen headlight
bulbs. When replacing a bulb, handle
it by its plastic case and protect the
glass from contact with your skin or
hard objects. If you touch the glass,
clean it with denatured alcohol and a
clean cloth.
Headlight Aiming Replacing a Headlight Bulb
Lights
206
Halogen headlight bulbs get very hot
when lit. Oil, perspiration, or a scratch
on the glass can cause the bulb to
overheat and shatter.
０５／０９／０２ １２：００：４６ ３１ＳＤＲ６１０ ０２０９
Main Menu
Table of Contents
Remove the electrical connector
from the bulb by squeezing the
connector to unlock the tab, then
slide the connector off the bulb.
Remove the bulb by turning it
approximately one-quarter turn
counterclockwise.
Install the new bulb, and turn it
one-quarter turn clockwise to lock
it in place.
Push the electrical connector onto
the bulb.
Turn on the headlights to test the
new bulb.
Open the hood. To change a bulb
on the driver’s side, undo the two
fasteners and remove the air
intake cover.
Reinstall the air intake cover.
Reinstall the two fasteners and
secure them by pushing on the
heads until they lock.
1. 3.
2.
4.
5.
6.
7.
High Beam Headlight
Lights
Maintenance
207
AIR INTAKE
COVER
FASTENERS
TAB
BULB
０５／０９／０２ １２：００：５５ ３１ＳＤＲ６１０ ０２１０
Main Menu
Table of Contents
To change the passenger’s side
bulb, start the engine, turn the
steering wheel all the way to the
left, and turn off the engine. To
change the driver’s side bulb, turn
the steering wheel to the right.
Use a flat-tipped screwdriver to
remove the two holding clips from
the inner fender.
Pull the inner fender cover away
from the fender and bumper.
Remove the bulb by turning it
approximately one-quarter turn
counterclockwise.
Remove the electrical connector
from the bulb by squeezing the
connector to unlock the tab, then
slide the connector off the bulb.
Install the new bulb, and turn it
one-quarter turn clockwise to lock
it in place.
Push the electrical connector onto
the bulb.
Turn on the headlights to test the
new bulb.
Put the inner fender cover in place.
Install the two holding clips. Lock
each one in place by pushing on
the center.
3.
4.
5.
1.
2.
6.
7.
8.
9.
Low Beam Headlight
Lights
208
HOLDING CLIPS
BULB
０５／０９／０２ １２：０１：０５ ３１ＳＤＲ６１０ ０２１１
Main Menu
Table of Contents
To change the passenger’s side
bulb, start the engine, turn the
steering wheel all the way to the
left, and turn off the engine. To
change the driver’s side bulb, turn
the steering wheel to the right.
Use a flat-tipped screwdriver to
remove the two holding clips from
the inner fender.
To remove the burned out bulb,
push it in and turn it
counterclockwise until it unlocks.
Install the new bulb and turn it
clockwise to lock it in place.
Insert the socket into the
headlight assembly. Turn it
clockwise to lock it in place.
Test the new bulb to make sure it
works.
Put the inner fender cover in place.
Install and lock each holding clip
bypushingonthecenter.
Pull the inner fender cover away
from the fender and bumper.
Remove the socket from the
headlight assembly by turning it
one-quarter turn counterclockwise.
1.
3.
2.
4.
8.
7.
6.
9.
5.Replacing the Front Side Marker/
Turn Signal and Parking Light
Bulb
Lights
Maintenance
209
HOLDING CLIPS
BULB
０５／０９／０２ １２：０１：１４ ３１ＳＤＲ６１０ ０２１２
Main Menu
Table of Contents
Open the trunk.
Remove the holding clips from the
lining by using a flat-tipped
screwdriver.
Remove the socket by turning it
one-quarter turn counterclockwise,
and pull the bulb straight out of its
socket.
Push a new bulb straight into the
socket until it bottoms, and
reinstall the socket into the light
assembly by turning it clockwise
until it locks.
Testthenewbulbtomakesureit
works.
Set the lining back.
2.
1.
4.
3.
5.
6.
Replacing Rear Turn Signal Light
Bulbs
Lights
210
HOLDING CLIPS
BULB
SOCKET
０５／０９／０２ １２：０１：２３ ３１ＳＤＲ６１０ ０２１３
Main Menu
Table of Contents
Open the trunk. Carefully bend back the corner of
the trunk lid trim to expose the
bulbs.
Remove the socket by turning it
one-quarter turn counterclockwise,
and pull the bulb straight out of its
socket.
Install a new bulb into the socket,
and reinstall the socket into the
light assembly.
Test the light.
Push the trunk lid trim back into
position.
Press the trim clips back into their
holes.
Remove the trim clips from the
right or left corner of the trunk lid
trim by carefully prying them
using a small, flat-tip screwdriver
wrapped with tape.
1. 3.
2.
4.
5.
6.
7.
8.
Replacing Back-up Light Bulbs
Lights
Maintenance
211
TRIM CLIPS
BULB
SOCKET
SOCKET
BULB
０５／０９／０２ １２：０１：３２ ３１ＳＤＲ６１０ ０２１４
Main Menu
Table of Contents
Dirt build-up in the loops of the seat
belt anchors can cause the belts to
retract slowly. Wipe the insides of
the loops with a clean cloth
dampened in mild soap and warm
water or isopropyl alcohol.
Clean dirty seat belts with a soft
brush and a mixture of mild soap and
warm water. Do not use bleach, dye,
or cleaning solvents that can weaken
the belt material. Let the belts air
drybeforeyouusethevehicle.
If you remove the driver’s floor mat,
make sure to re-anchor it when you
putitbackinyourvehicle.
If you use non-Honda floor mats,
make sure they fit properly and that
theycanbeusedwiththefloormat
anchors. Do not put additional floor
mats on top of the anchored mats.
The driver’s floor mat that came
with your vehicle hooks over the
floor mat anchors. This keeps the
floor mat from sliding forward and
possibly interfering with the vehicle
operation.
Seat Belts Driver’s Floor Mat
Seat Belts, Floor Mats
212
LOOP
０５／０９／０２ １２：０１：３９ ３１ＳＤＲ６１０ ０２１５
Main Menu
Table of Contents
Check the condition of the wiper
blades at least every six months.
Look for signs of cracking in the
rubber, or areas that are getting
hard. Replace the blades if you find
these signs, or if they leave streaks
and unwiped areas when used.
To replace a wiper blade:
Raise the wiper arm off the
windshield. Raise the driver’s side
first, then the passenger’s side.
Disconnect the blade assembly
fromthewiperarmbypushingin
the lock tab. Hold the lock tab in
while you push the blade assembly
toward the base of the arm.
2.
1.
Wiper Blades
Maintenance
213
WIPER ARMS
LOCK TAB
Do not open the hood when the wiper
arms are raised, or you will damage the
hood and wiper arms.
０５／０９／０２ １２：０１：４６ ３１ＳＤＲ６１０ ０２１６
Main Menu
Table of Contents
Remove the blade from its holder
by grasping the tabbed end of the
blade. Pull firmly until the tabs
come out of the holder.
Examine the new wiper blades. If
they have no plastic or metal
reinforcement along the back
edge, remove the metal
reinforcement strips from the old
wiper blade, and install them in
the slots along the edge of the new
blade.
Slide the new wiper blade into the
holder until the tabs lock.
Slide the wiper blade assembly
onto the wiper arm. Make sure it
locks in place.
Lower the wiper arm down against
the windshield, the passenger’s
side first, then the driver’s side.
3. 4.
5.
6.
7.
Wiper Blades
214
BLADE BLADE
REINFORCEMENT
０５／０９／０２ １２：０１：５３ ３１ＳＤＲ６１０ ０２１７
Main Menu
Table of Contents
Keeping the tires properly inflated
provides the best combination of
handling, tread life, and riding
comfort.
Underinflated tires wear unevenly,
adversely affect handling and fuel
economy, and are more likely to
fail from being overheated.
Overinflated tires can make your
vehicleridemoreharshly,are
more prone to damage from road
hazards, and wear unevenly.
We recommend that you visually
check your tires every day. If you
think a tire might be low, check it
immediately with a tire gauge.
To safely operate your vehicle, your
tires must be the proper type and
size, in good condition with adequate
tread, and correctly inflated.
The following pages give more
detailed information on how to take
care of your tires and what to do
when they need to be replaced. Check the air pressures when the
tires are cold. This means the
vehicle has been parked for at least 3
hours, or driven less than 1 mile (1.6
km). Add or release air, if needed, to
match the recommended cold tire
pressures on the next page.
Use a gauge to measure the air
pressure in each tire at least once a
month. Even tires that are in good
condition may lose 1 to 2 psi (10 to
20 kPa, 0.1 to 0.2 kgf/cm ) per
month. Remember to check the
sparetireatthesametime.
Inflation Guidelines
Tires
Maintenance
215
Using tires that are excessively
worn or improperly inflated can
cause a crash in which you can
be seriously hurt or killed.
Follow all instructions in this
owner’s manual regarding tire
inflation and maintenance.
０５／０９／０２ １２：０２：００ ３１ＳＤＲ６１０ ０２１８
Main Menu
Table of Contents
If you check air pressures when the
tires are hot (driven for several
miles), you will see readings 4 to 6
psi (30 to 40 kPa, 0.3 to 0.4 kgf/cm )
higher than the cold readings. This
is normal. Do not let air out to match
the recommended cold air pressure.
The tire will be underinflated.
While tubeless tires have some
ability to self-seal if they are
punctured, you should look closely
for punctures if a tire starts losing
pressure.
Keep the inflation pressure of your
normal tires at 32 psi (220 kPa,
2.2 kgf/cm ).
Youshouldgetyourowntire
pressure gauge and use it whenever
you check your tire pressures. This
will make it easier for you to tell if a
pressure loss is due to a tire problem
and not due to a variation between
gauges.
Keep the inflation pressure of your
compact spare tire at 60 psi (420 kPa,
4.2 kgf/cm ).
See page or refer to the tire
placard on the driver’s doorjamb for
correct tire pressure.
253
Recommended Tire Pressure
Tires
216
０５／０９／０２ １２：０２：０６ ３１ＳＤＲ６１０ ０２１９
Main Menu
Table of Contents
Every time you check inflation, you
should also examine the tires for
damage, foreign objects, and wear.
Youshouldlookfor:
Have your dealer check the tires if
you feel a consistent vibration while
driving. A tire should always be
rebalanced if it is removed from the
wheel. When you have new tires
installed, make sure they are
balanced. This increases riding
comfort and tire life. For best results,
have the installer perform a dynamic
balance.
In addition to proper inflation,
correct wheel alignment helps to
decrease tire wear. If you find a tire
is worn unevenly, have your dealer
check the wheel alignment.
Bumps or bulges in the tread or
side of the tire. Replace the tire if
youfindeitheroftheseconditions.
Your tires have wear indicators
molded into the tread. When the
tread wears down, you will see a
band 1/2 inch (12.7 mm) wide across
the tread. This shows there is less
than 1/16 inch (1.6 mm) of tread left
on the tire.
A tire this worn gives very little
traction on wet roads. You should
replace the tire if you can see three
or more tread wear indicators.
Excessive tread wear.
Cuts, splits, or cracks in the side
of the tire. Replace the tire if you
can see fabric or cord.
Tire Inspection Tire Maintenance
Tires
Maintenance
217
TREAD WEAR INDICATORS
Improper wheel weights can damage
your vehicle’s aluminum wheels. Use
only genuine Honda wheel weights for
balancing.
０５／０９／０２ １２：０２：１５ ３１ＳＤＲ６１０ ０２２０
Main Menu
Table of Contents
To help increase tire life and
distribute wear more evenly, rotate
the tires according to the
maintenance messages displayed on
the information display. Move the
tires to the positions shown in the
chart each time they are rotated. If
you purchase directional tires, rotate
only front-to-back.
Replace your tires with radial tires of
the same size, load range, speed
rating, and maximum cold tire
pressure rating (as shown on the
tire’s sidewall).
Mixing radial and bias-ply tires on
your vehicle can reduce braking
ability, traction, and steering
accuracy. Using tires of a different
size or construction can cause the
ABS to work inconsistently.
It is best to replace all four tires at
thesametime.Ifthatisnotpossible
or necessary, replace the two front
tires or two rear tires as a pair.
Replacing just one tire can seriously
affect your vehicle’s handling.
If you ever replace a wheel, make
sure that the wheel’s specifications
match those of the original wheels.
Replacement wheels are available at
your dealer.
Tire Rotation Replacing Tires and Wheels
Tires
218
(For Non-directional
Tires and Wheels)
Front Front
(For Directional
Tires and Wheels)
Installing improper tires on your
vehicle can affect handling and
stability. This can cause a crash
in which you can be seriously
hurt or killed.
Always use the size and type of
tires recommended in this
owner’s manual.
０５／０９／０２ １２：０２：２３ ３１ＳＤＲ６１０ ０２２１
Main Menu
Table of Contents
＋Wheel:
Tire:
See page for DOT tire quality
grading information, and page
for tire size information.
Tires marked ‘‘M S’’ or ‘‘All
Season’’ on the sidewall have an all-
weather tread design suitable for
most winter driving conditions.
For the best performance in snowy
or icy conditions, you should install
snow tires or tire chains. They may
be required by local laws under
certain conditions.
If you mount snow tires on your
vehicle, make sure they are radial
tires of the same size and load range
as original tires. Mount snow tires on
all four wheels. The traction
provided by snow tires on dry roads
maybelowerthanyouroriginaltires.
Check with the tire dealer for
maximum speed recommendations.
254
253
Wheels and Tires Winter Driving
Snow Tires
Tires
Maintenance
219
16x61/2JJ
P215/60R16 94V
０５／０９／０２ １２：０２：３１ ３１ＳＤＲ６１０ ０２２２
Main Menu
Table of Contents
When installing cables, follow the
manufacturer’s instructions, and
mount them as tight as you can.
Make sure they are not contacting
the brake lines or suspension. Drive
slowly with them installed. If you
hear them coming into contact with
the body or chassis, stop and
investigate. Remove them as soon as
youbegindrivingonclearedroads.
Because your vehicle has limited tire
clearance, Honda strongly
recommends using the chains listed
below, made by Security Chain
Company (SCC).
Mount tire chains on your tires when
required by driving conditions or
local laws. Install them only on the
front tires.
Cable-types: SCC Radial Chain
CH2311T or SCC SC Cable SC1030
Tire Chains
Tires
220
Using the wrong chains, or not
properly installing chains, can
damage the brake lines and
cause a crash in which you can
be seriously injured or killed.
Follow all instructions in this
owner’s manual regarding the
selection and use of tire chains.
０５／０９／０２ １２：０２：３７ ３１ＳＤＲ６１０ ０２２３
Main Menu
Table of Contents
−Check the condition of the battery
monthlybylookingatthetest
indicator window. The label on the
battery explains the test indicator’s
colors.
Battery posts,
terminals, and related accessories
contain lead and lead compounds.
If you need to connect the battery to
a charger, disconnect both cables to
prevent damaging your vehicle’s
electrical system. Always disconnect
the negative ( ) cable first, and
reconnect it last.
Check the terminals for corrosion (a
white or yellowish powder). To
remove it, cover the terminals with a
solution of baking soda and water. It
will bubble up and turn brown. When
this stops, wash it off with plain
water. Dry off the battery with a
cloth or paper towel. Coat the
terminals with grease to help prevent
future corrosion.
If additional battery maintenance is
needed, see your dealer or a
qualified mechanic.
WARNING:
Wash your hands after handling.
Checking the Battery
Maintenance
221
TEST INDICATOR WINDOW
０５／０９／０２ １２：０２：４３ ３１ＳＤＲ６１０ ０２２４
Main Menu
Table of Contents
If you need to park your vehicle for
an extended period (more than 1
month), there are several things you
should do to prepare it for storage.
Proper preparation helps prevent
deterioration and makes it easier to
get your vehicle back on the road. If
possible, store your vehicle indoors.
Fill the fuel tank.
Change the engine oil and filter.
Wash and dry the exterior
completely.
Clean the interior. Make sure the
carpeting, floor mats, etc., are
completely dry.
Vehicle Storage
Checking the Battery, Vehicle Storage
222
The battery gives off explosive
hydrogen gas during normal
operation.
A spark or flame can cause the
battery to explode with enough
force to kill or seriously hurt you.
Wear protective clothing and a
face shield, or have a skilled
mechanic do the battery
maintenance.
０５／０９／０２ １２：０２：４９ ３１ＳＤＲ６１０ ０２２５
Main Menu
Table of Contents
Support the front wiper blade
arms with a folded towel or rag so
they do not touch the windshield.
To minimize sticking, apply a
silicone spray lubricant to all door
and trunk seals. Also, apply a
vehiclebodywaxtothepainted
surfaces that mate with the door
and trunk seals.
Cover the vehicle with a
‘‘breathable’’ cover, one made
from a porous material such as
cotton. Non-porous materials, such
as plastic sheeting, trap moisture,
which can damage the paint.
Leave the parking brake off. Put
the transmission in Park.
Block the rear wheels.
If the vehicle is to be stored for a
longer period, it should be
supported on jackstands so the
tires are off the ground.
Leave one window open slightly (if
the vehicle is being stored
indoors).
Reconnect the 12 volt battery and
drive your vehicle every month for
about 30 minutes. This will keep
the IMA battery charged and in
good condition.
Disconnect the 12 volt battery.
Vehicle Storage
Maintenance
223
If this vehicle is unused for over one
month, the service life of the 144V
Nickel-Metal Hydride battery will be
reduced and the battery may be
permanently damaged.
０５／０９／２２ １０：４６：３８ ３１ＳＤＲ６１０ ０２２６
Main Menu
Table of Contents
Main Menu
This section covers the more
common problems that motorists
experience with their vehicles. It
gives you information about how to
safely evaluate the problem and what
to do to correct it. If the problem has
stranded you on the side of the road,
you may be able to get going again.
If not, you will also find instructions
on getting your vehicle towed.
......................Compact Spare Tire . 226
....................Changing a Flat Tire . 227
.............If the Engine Won’t Start . 230
Nothing Happens or the
Starter Motor Operates
............................Very Slowly . 230
The Starter Operates
................................Normally . 231
................................Jump Starting . 232
..............If the Engine Overheats . 234
.........Low Oil Pressure Indicator . 236
..........Charging System Indicator . 237
.......Malfunction Indicator Lamp . 237
.......................Readiness Codes . 238
...............Brake System Indicator . 239
..................Closing the Moonroof . 240
......................Emergency Towing . 241
..............................................Fuses . 243
Taking Care of the Unexpected
Taking Care of the Unexpected
225
０５／０９／０２ １２：０３：０１ ３１ＳＤＲ６１０ ０２２８
Main Menu
Check the inflation pressure of the
compact spare tire every time you
check the other tires. It should be
inflated to:
Follow these precautions:
Never exceed 50 mph (80 km/h).
This tire gives a harsher ride and
less traction on some road sur-
faces. Use greater caution while
driving.
Do not mount snow chains on the
compact spare tire.
Do not use the compact spare tire
if you are towing a trailer.
Replace the tire when you can see
the tread wear indicator bars. The
replacement should be the same size
and design tire, mounted on the
same wheel. The spare tire is not
designed to be mounted on a regular
wheel, and the spare wheel is not
designed for mounting a regular tire.
Use the compact spare tire as a
temporary replacement only. Get
your regular tire repaired or replaced,
and put it back on your vehicle as
soon as you can.
Do not use your compact spare
tire on another vehicle unless it is
thesamemakeandmodel.
Turn off the VSA system (see
pages and ). Driving with
thecompactsparetiremay
activate the VSA.
177 178
Compact Spare Tire
226
INDICATOR LOCATION MARK
TREAD WEAR INDICATOR BAR
60 psi (420 kPa , 4.2 kgf/cm )
０５／０９／０２ １２：０３：１０ ３１ＳＤＲ６１０ ０２２９
Main Menu
Table of Contents
If you have a flat tire while driving,
stop in a safe place to change it.
Drive slowly along the shoulder until
you get to an exit or an area that is
far away from the traffic lanes.
Loosen the wheel nuts 1/2 of a
turn with the wheel wrench.
Unscrew the wing bolt and take
the spare tire out of its well.
Take the tool tray out of the trunk,
and take the tools out of the tool
tray.
Park the vehicle on firm, level, and
non-slippery ground. Put the
transmission in Park. Apply the
parking brake.
If you are towing a trailer, unhitch
the trailer.
Turn on the hazard warning lights,
and turn the ignition switch to the
LOCK (0) position. Have all
passengers get out of the vehicle
while you change the tire.
The tools are in the trunk. Open
the trunk and raise the trunk floor
by lifting up on the back edge.
5.
4.3.
2.
1.
6.
Changing a Flat Tire
Taking Care of the Unexpected
227
TOOL TRAY
The vehicle can easily roll off
the jack, seriously injuring
anyone underneath.
Follow the directions for
changing a tire exactly, and
never get under the vehicle
when it is supported only by the
jack.
０５／０９／０２ １２：０３：１８ ３１ＳＤＲ６１０ ０２３０
Main Menu
Table of Contents
Before mounting the spare tire,
wipe any dirt off the mounting
surface of the wheel and hub with
a clean cloth. Wipe the hub
carefully;itmaybehotfrom
driving.Remove the wheel nuts and flat
tire. Place the flat tire on the
ground with the outside surface of
the wheel facing up.
Use the extension and the wheel
nut wrench as shown to raise the
vehicle until the flat tire is off the
ground.
Place the jack under the jacking
point nearest the tire you need to
change. Turn the end bracket
clockwise until the top of the jack
contacts the jacking point. Make
sure the jacking point tab is
restinginthejacknotch.
8.
9.
7. 10.
Changing a Flat Tire
228
EXTENSION
BRAKE HUB
WHEEL WRENCH
JACKING POINT
０５／０９／０２ １２：０３：２５ ３１ＳＤＲ６１０ ０２３１
Main Menu
Table of Contents
Tighten the wheel nuts securely in
the same crisscross pattern. Have
the wheel nut torque checked at
the nearest automotive service
facility.
Tighten the wheel nuts to:
Put on the spare tire. Put the
wheel nuts back on finger-tight,
then tighten them in a crisscross
pattern with the wheel nut wrench
until the wheel is firmly against
the hub. Do not try to tighten
them fully.
Lower the vehicle to the ground,
and remove the jack.
Remove the center cap before
storing the flat tire in the trunk
well.
Place the flat tire face down in the
spare tire well.
Remove the spacer cone from the
wing bolt, turn it over, and put it
back on the bolt.
Securetheflattirebyscrewing
the wing bolt back into its hole.
Store the jack and tools in the tool
tray, and place the tool tray back
in the trunk.
11.
12.
13.
14.
15.
16.
17.
18.
CONTINUED
Changing a Flat Tire
Taking Care of the Unexpected
229
WING BOLT
SPACER CONE
80 lbf·ft (108 N·m , 11 kgf·m)
０５／０９／０２ １２：０３：３５ ３１ＳＤＲ６１０ ０２３２
Main Menu
Table of Contents
Diagnosing why the engine won’t
start falls into two areas, depending
on what you hear when you turn the
ignition switch to the START (III)
position:
When you turn the ignition switch to
the START (III) position, you do not
hear the normal noise of the engine
trying to start. You may hear a
clicking sound or series of clicks, or
nothing at all.
Store the center cap in the trunk.
Make sure it does not get
scratched or damaged.
Lower the trunk floor, then close
the trunk lid.
You can hear the starter motor
operating normally, or the starter
motor sounds like it is spinning
faster than normal, but the engine
does not start up and run.
You hear nothing, or almost
nothing. The engine’s starter
motor does not operate at all, or
operates very slowly.
Turn the ignition switch to the ON
(II) position. Turn on the
headlights, and check their
brightness. If the headlights are
very dim or do not come on at all,
the battery is discharged. See
on page .
Check the transmission interlock.
If you have a manual transmission,
the clutch pedal must be pushed
all the way to the floor or the
starter will not operate. With an
automatic transmission, it must be
in Park or neutral.
Check these things:
232
19.
If the Engine Won’t Start Nothing Happens or the Starter
Motor Operates Very Slowly
Jump Starting
Changing a Flat Tire, If the Engine Won’t Start
230
Loose items can fly around the
interior in a crash and could
seriously injure the occupants.
Store the wheel, jack, and tools
securely before driving.
０５／０９／０２ １２：０３：４４ ３１ＳＤＲ６１０ ０２３３
Main Menu
Table of Contents
Turn the ignition switch to the
START (III) position. If the
headlights do not dim, check the
condition of the fuses. If the fuses
areOK,thereisprobably
something wrong with the
electrical circuit for the ignition
switch or starter motor. You will
need a qualified technician to
determine the problem (see
on page ).
In this case, the starter motor’s
speed sounds normal, or even faster
than normal, when you turn the
ignition switch to the START (III)
position, but the engine does not run.
Are you using the proper starting
procedure? Refer to
on page .
Are you using a properly coded
key? An improperly coded key will
cause the immobilizer system
indicator in the instrument panel
to blink rapidly (see page ).
Do you have fuel? Check the fuel
gauge; the low fuel indicator may
not be working.
There may be an electrical
problem, such as no power to the
fuel pump. Check all the fuses
(see page ).
If the headlights dim noticeably or
go out when you try to start the
engine, either the battery is dis-
charged or the connections are
corroded. Check the condition of
the battery connections (see page
). You can then try jump
starting the vehicle from a booster
battery (see page ).
Ifyoufindnothingwrong,youwill
need a qualified mechanic to find the
problem. See
on page .
241
232
221
165
77
243
241
Emergency Towing
The Starter Operates Normally
Starting the
Engine
Emergency Towing
IftheEngineWon’tStart
Taking Care of the Unexpected
231
０５／０９／０２ １２：０３：５２ ３１ＳＤＲ６１０ ０２３４
Main Menu
Table of Contents
＋
＋
Although this seems like a simple
procedure, you should take several
precautions. Open the hood, and check the
physical condition of the battery.
In very cold weather, check the
condition of the electrolyte. If it
seems slushy or frozen, do not try
jump starting until it thaws.
To jump start your vehicle:
You cannot start your vehicle by
pushing or pulling it.
The numbers in the illustration show
the order to connect the jumper
cable.
Put the transmission in neutral or
Park, and set the parking brake.
Turn off all the electrical acces-
sories: heater, A/C, climate
control, stereo system, lights, etc.
Connect one jumper cable to the
positive ( ) terminal on your
battery. Connect the other end to
the positive ( ) terminal on the
booster battery.
1.
2.
3.
Jump Starting
232
BOOSTER
BATTERY
A battery can explode if you do
not follow the correct procedure,
seriously injuring anyone
nearby.
Keep all sparks, open flames,
and smoking materials away
from the battery.
If a battery sits in extreme cold, the
electrolyte inside can freeze.
Attempting to jump start with a frozen
battery can cause it to rupture.
０５／０９／０２ １２：０４：０１ ３１ＳＤＲ６１０ ０２３５
Main Menu
Table of Contents
−
Once your vehicle is running,
disconnect the negative cable from
your vehicle, then from the
booster battery. Disconnect the
positive cable from your vehicle,
then from the booster battery.
Keep the ends of the jumper
cables away from each other and
any metal on the vehicle until
everything is disconnected.
Otherwise, you may cause an
electrical short.
If the booster battery is in another
vehicle, have an assistant start
that vehicle and run it at a fast idle.
Start the vehicle. If the starter
motor still operates slowly, check
that the jumper cables have good
metal-to-metal contact.
Connect the second jumper cable
to the negative ( ) terminal on
the booster battery. Connect the
other end to the grounding strap
as shown. Do not connect this
jumper cable to any other part of
the engine.
7.
6.
5.
4.
Jump Starting
Taking Care of the Unexpected
233
０５／０９／０２ １２：０４：０７ ３１ＳＤＲ６１０ ０２３６
Main Menu
Table of Contents
Using gloves or a large heavy
cloth, turn the radiator cap
counterclockwise, without pushing
down, to the first stop. After the
pressure releases, push down on
the cap, and turn it until it comes
off.
Start the engine and set the
temperature control dial to
maximum (climate control to
FULL AUTO at 90°F/32°C). Add
coolant to the radiator up to the
base of the filler neck. If you do
not have the proper coolant
mixture available, you can add
plain water. Remember to have
the cooling system drained and
refilled with the proper mixture as
soon as you can.
Put the radiator cap back on
tightly. Run the engine, and watch
the temperature gauge. If it goes
back to the red mark, the engine
needs repair (see
on page ).
If the temperature stays normal,
check the coolant level in the
radiator reserve tank. If it has
gone down, add coolant to the
MAX mark. Put the cap back on
tightly.
If you do not find an obvious leak,
check the coolant level in the
radiator reserve tank. Add coolant
if the level is below the MIN mark.
If there was no coolant in the
reserve tank, you may need to add
coolant to the radiator. Let the
engine cool down until the pointer
reaches the middle of the tempera-
ture gauge, or lower, before check-
ing the radiator.
7.
6. 8.
9.
241
10.
11.
Emergency
Towing
IftheEngineOverheats
Taking Care of the Unexpected
235
Removing the radiator cap
while the engine is hot can
cause the coolant to spray out,
seriously scalding you.
Always let the engine and
radiator cool down before
removing the radiator cap.
０５／０９／０２ １２：０４：２３ ３１ＳＤＲ６１０ ０２３８
Main Menu
Table of Contents
Start the engine and watch the oil
pressure indicator. If it does not go
outwithin10seconds,turnoffthe
engine. There is a mechanical
problem that needs to be repaired
before you can continue driving
(see on page
).
This indicator should never come on
when the engine is running. If it
starts flashing or stays on, the oil
pressure has dropped very low or
lost pressure. Serious engine
damage is possible, and you should
take immediate action. If necessary, add oil to bring the
level back to the full mark on the
dipstick (see page ).
Let the vehicle sit for a minute.
Open the hood, and check the oil
level (see page ). An engine
very low on oil can lose pressure
during cornering and other driving
maneuvers.
Safely pull off the road, and shut
off the engine. Turn on the hazard
warning lights.
1.
2.
3.
4.
153
196
241
Emergency Towing
Low Oil Pressure Indicator
236
LOW OIL PRESSURE INDICATOR
Running the engine with low oil
pressure can cause serious mechanical
damage almost immediately. Turn off
the engine as soon as you can safely get
the vehicle stopped.
０５／０９／０２ １２：０４：２９ ３１ＳＤＲ６１０ ０２３９
Main Menu
Table of Contents
If the charging system indicator
comes on brightly when the engine
is running, the battery is not being
charged.
If the indicator comes on while
driving, it means one of the engine’s
emission control systems may have a
problem. Even though you may feel
no difference in your vehicle’s
performance, continued operation
may cause serious damage.
Immediately turn off all electrical
accessories. Try not to use other
electrically operated controls such as
the power windows. Keep the engine
running; starting the engine will
discharge the battery rapidly.
Go to your dealer to have the vehicle
inspected.
Malfunction Indicator LampCharging System Indicator
Charging System Indicator, Malfunction Indicator Lamp
Taking Care of the Unexpected
237
CHARGING SYSTEM INDICATOR
MALFUNCTION INDICATOR LAMP
０５／０９／０２ １２：０４：３６ ３１ＳＤＲ６１０ ０２４０
Main Menu
Table of Contents
If the indicator remains on or the
fuel cap was not loose or missing,
have the vehicle checked by the
dealer as soon as possible.
If your vehicle’s battery has been
disconnected or gone dead, these
codes are erased. It takes at least
three days of driving under various
conditions to set the codes again.
Your vehicle has certain ‘‘readiness
codes’’ that are part of the on-board
diagnostics for the emissions
systems. In some states, part of the
emissions testing is to make sure
these codes are set. If they are not
set, the test cannot be completed.
To check if they are set, turn the
ignition switch to the ON (II)
position, without starting the engine.
The malfunction indicator lamp will
come on for 20 seconds. If it then
goes off, the readiness codes are set.
If it blinks five times, the readiness
codes are not set. If possible, do not
take your vehicle for a state
emissions test until the readiness
codes are set. Refer to
for more
information (see page ).
If you have recently refueled your
vehicle, the cause of this indicator
coming on could be a loose or
missing fuel fill cap. Check the cap
or replace it. Tightening the cap will
not make the indicator turn off
immediately; it takes several days of
normal driving.
260
Readiness Codes
State
Emissions Testing
Malfunction Indicator Lamp
238
If you keep driving with the
Malfunction Indicator Lamp on, you
can damage your vehicle’s emissions
controls and engine. Those repairs may
not be covered by your vehicle’s
warranties. This indicator may also
come on with the ‘‘D’’ indicator.
０５／０９／０２ １２：０４：４２ ３１ＳＤＲ６１０ ０２４１
Main Menu
Table of Contents
However, if the brake pedal does not
feel normal, you should take
immediate action. A problem in one
part of the system’s dual circuit
design will still give you braking at
two wheels. You will feel the brake
pedal go down much farther before
the vehicle begins to slow down, and
you will have to press harder on the
pedal.
If the ABS indicator comes on with
this indicator, have the vehicle
inspected by your dealer
immediately.
If this indicator comes on while
driving, the brake fluid level is
probably low in the reservoir. Press
lightly on the brake pedal to see if it
feels normal. If it does, check the
brake fluid level the next time you
stop at a service station (see page
). If the fluid level is low, take
the vehicle to your dealer and have
the brake system inspected for leaks
or worn brake pads.
If you must drive the vehicle a short
distance in this condition, drive
slowly and carefully.
Slow down by shifting to a lower
gear, and pull to the side of the road
when it is safe. Because of the long
distance needed to stop, it is
hazardous to drive the vehicle. You
should have it towed and repaired as
soon as possible (see
on page ).241
204
Emergency
Towing
Brake System Indicator
Taking Care of the Unexpected
239
BRAKE SYSTEM INDICATOR
U.S. model
０５／０９／０２ １２：０４：４８ ３１ＳＤＲ６１０ ０２４２
Main Menu
Table of Contents
Use a screwdriver or coin to
remove the round plug in the
center of the headliner.
Insert the moonroof wrench into
the socket behind this plug. Turn
the wrench until the moonroof is
fully closed.
Remove the wrench. Reinstall the
round plug.
If you need to close the moonroof
manually, it means the moonroof
opening/closing function is
developing a problem. Have your
vehicle checked by your dealer.
If the electric motor will not close
the moonroof, do the following:
Check the fuse for the moonroof
motor (see page ). If the fuse
is blown, replace it with one of the
same or lower rating.
Try closing the moonroof. If the
new fuse blows immediately or the
moonroof motor still does not
operate, you can close the
moonroof manually.
Get the moonroof wrench out of
the tool kit in the trunk.
5.
6.
4.
3.
1.
2.
243
Closing the Moonroof
240
ROUND PLUG
SOCKET
０５／０９／０２ １２：０４：５６ ３１ＳＤＲ６１０ ０２４３
Main Menu
Table of Contents
−
−
If your vehicle needs to be towed,
call a professional towing service or
an organization. Never tow your
vehicle with just a rope or chain. It is
very dangerous.
Therearetwowaystotowyour
vehicle:
The operator
loads your vehicle on the back of a
truck.
The tow
truck uses two pivoting arms that go
under the tires (front or rear) and lift
them off the ground. The other two
tires remain on the ground.
Release the parking brake.
Start the engine.
ShifttoD,thentoN.
If, due to damage, your vehicle must
be towed with the front wheels on
the ground, do the following:
Turn off the engine.
Leave the ignition switch in the
ACCESSORY (I) position so the
steering wheel does not lock.
CONTINUED
Flat-bed Equipment
Wheel-lift Equipment
This is the best way to trans-
port your vehicle.
This is
an acceptable way to tow your
vehicle.
Emergency Towing
Taking Care of the Unexpected
241
Improper towing preparation will
damage the transmission. Follow the
above procedure exactly. If you cannot
shift the transmission or start the
engine, your vehicle must be
transported with the front wheels off
the ground.
０５／０９／０２ １２：０５：０５ ３１ＳＤＲ６１０ ０２４４
Main Menu
Table of Contents
With the front wheels on the ground,
it is best to tow the vehicle no farther
than 50 miles (80 km), and keep the
speedbelow35mph(55km/h).
If your vehicle is equipped with a
front spoiler, remove it before
towing so it is not damaged.
Emergency Towing
242
The steering system can be damaged if
the steering wheel is locked. Leave the
ignition switch in the ACCESSORY (I)
position, and make sure the steering
wheel turns freely before you begin
towing.
Trying to lift or tow your vehicle by the
bumpers will cause serious damage.
The bumpers are not designed to
support the vehicle’s weight.
０５／０９／０２ １２：０５：０９ ３１ＳＤＲ６１０ ０２４５
Main Menu
Table of Contents
The interior fuse box is on the
driver’s lower left side. To remove
the fuse box lid, pull it toward you
and take it out of its hinges.
The under-hood fuse box is located
near the back of the engine compart-
ment on the driver’s side. To open it,
pushthetabsasshown.
If something electrical in your
vehicle stops working, the first thing
youshouldcheckforisablownfuse.
Determine from the chart on pages
and , or the diagram on the
fuse box lid, which fuse or fuses
control that component. Check those
fuses first, but check all the fuses
before deciding that a blown fuse is
not the cause. Replace any blown
fuses and check if the device works.
Turn the ignition switch to the
LOCK (0) position. Make sure the
headlights and all other
accessories are off.
Remove the cover from the fuse
box.
1.
2.
246 247
CONTINUED
Checking and Replacing Fuses
Fuses
Taking Care of the Unexpected
243
INTERIOR UNDER-HOOD
TAB
０５／０９／０２ １２：０５：１７ ３１ＳＤＲ６１０ ０２４６
Main Menu
Table of Contents
Check each of the large fuses in
the under-hood fuse box by
looking at the wire inside.
Removing these fuses requires a
Phillips-head screwdriver.
Check the smaller fuses in the
under-hood fuse box and all the
fuses in the interior fuse box by
pulling out each one with the fuse
puller provided in the under-hood
fuse box.
Look for a burned wire inside the
fuse. If it is burned out, replace it
withoneofthesparefusesofthe
same rating or lower.
3. 4.
5.
Fuses
244
BLOWN
BLOWN
BLOWN
０５／０９／０２ １２：０５：２３ ３１ＳＤＲ６１０ ０２４７
Main Menu
Table of Contents
If you cannot drive the vehicle
without fixing the problem, and you
do not have a spare fuse, take a fuse
of the same rating or a lower rating
from one of the other circuits with
the fuse puller provided in the under-
hood fuse box. Make sure you can
do without that circuit temporarily
(such as the accessory power socket
or radio).
If you replace the blown fuse with a
spare fuse that has a lower rating, it
might blow out again. This does not
indicate anything wrong. Replace the
fuse with one of the correct rating as
soon as you can.
If the replacement fuse of the
same rating blows in a short time,
there is probably a serious
electrical problem with your
vehicle. Leave the blown fuse in
that circuit, and have your vehicle
checked by a qualified mechanic.
6.
Fuses
Taking Care of the Unexpected
245
FUSE PULLER
Replacing a fuse with one that has a
higher rating greatly increases the
chances of damaging the electrical
system. If you do not have a
replacement fuse with the proper rating
for the circuit, install one with a lower
rating.
０５／０９／０２ １２：０５：２９ ３１ＳＤＲ６１０ ０２４８
Main Menu
Table of Contents
−
＋
No. No.Amps. Circuits Protected
No.
Circuits ProtectedAmps.
Amps. Circuits Protected
1
2
3
4
5
6
7
8
9
10
10 A
30 A
10 A
15 A
10 A
Left Headlight Low
Rear Defroster Coil
Left Headlight Hi
Small Light
Right Headlight Hi
11
12
13
14
15
16
17
18
19
20
21
22
23
Right Headlight Low
Back Up
FI ECU
Condenser fan
Not Used
10 A
7.5 A
15 A
20 A
30 A
7.5 A
15 A
40 A
40 A
15 A
30 A
40 A
40 A
40 A
40 A
120 A
70 A
50 A
50 A
Cooling Fan
MG. Clutch
Horn, Stop
Rear Defroster
Back Up, ACC
Hazard
VSA Motor
VSA
Option
Option
Heater Motor
Battery
EPS
BIG1Main
Power Window Main
Fuses
246
UNDER-HOOD FUSE/RELAY BOX
０５／０９／０２ １２：０５：３６ ３１ＳＤＲ６１０ ０２４９
Main Menu
Table of Contents
−
−
−
−
−
No.
No. Amps.Amps.No. Circuits Protected Circuits Protected
Amps. Circuits Protected
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
10
11
12
13
14
15
16
7.5 A
30 A
20 A
20 A
20 A
15 A
15 A
10 A
15 A
10 A
7.5 A
10 A
20 A
20 A
1
2
3
4
5
6
7
8
9
DrivebyWire
Ignition Coil
Day Light
Laf Heater
Radio
Interior Light
Back-Up Lights
Door Lock
Front Accessory Socket
OPDS
Wiper
Not Used
Not Used
Driver’s Power Seat (Slide)
Heated Seat
Driver’s Power Seat
(Recline)
15 A
15 A
10 A
7.5 A
10 A
7.5 A
20 A
20 A
20 A
20 A
20 A
7.5 A
7.5 A
7.5 A
20 A
7.5 A
15 A
10 A
Not Used
ACG
Fuel Pump
Washer
Meter
SRS
IGP
Power Window (Left Rear)
Power Window (Right Rear)
Power Window (Passenger)
Power Window (Driver)
Moonroof
Hybrid A/C
A/C
Not Used
ACC
Not Used
Rear Accessory Socket
STS
ACM
IMA
Fuses
Taking Care of the Unexpected
247
INTERIOR FUSE BOX
０５／０９／０２ １２：０５：４４ ３１ＳＤＲ６１０ ０２５０
Main Menu
Table of Contents
Main Menu
Thediagramsinthissectiongive
you the dimensions and capacities of
your vehicle, and the locations of the
identification numbers. It also
includes information you should
know about your vehicle’s tires and
emissions control systems.
................Identification Numbers . 250
................................Specifications . 252
DOT Tire Quality Grading
.....................(U.S.Vehicles) .254
Uniform Tire Quality
..................................Grading . 254
.................................Treadwear . 254
......................................Traction . 254
.............................Temperature . 255
.................................Tire Labeling . 256
.......................Emissions Controls . 257
.....................The Clean Air Act . 257
Crankcase Emissions Control
....................................System . 257
Evaporative Emissions Control
....................................System . 257
Onboard Refueling Vapor
................................Recovery . 257
...Exhaust Emissions Controls . 258
....................PGM-FI System . 258
Ignition Timing Control
................................System . 258
Exhaust Gas Recirculation
...................(EGR) System . 258
Three Way Catalytic
...........................Converter . 258
....................Replacement Parts . 258
..Three Way Catalytic Converter . 259
..............State Emissions Testing . 260
Technical Information
Technical Information
249
０５／０９／０２ １２：０５：５０ ３１ＳＤＲ６１０ ０２５２
Main Menu
Your vehicle has several identifying
numbers in various places.
The vehicle identification number
(VIN) is the 17-digit number your
dealer uses to register your vehicle
for warranty purposes. It is also
necessary for licensing and insuring
your vehicle. The easiest place to
find the VIN is on a plate fastened to
the top of the dashboard. You can
seeitbylookingthroughthe
windshield on the driver’s side. It is
also on the certification label
attached to the driver’s doorjamb,
and is stamped on the engine
compartment bulkhead. The VIN is
also provided in bar code on the
certification label.
Identification Numbers
250
VEHICLE IDENTIFICATION NUMBER
CERTIFICATION LABEL
０５／０９／０２ １２：０５：５４ ３１ＳＤＲ６１０ ０２５３
Main Menu
Table of Contents
The transmission number is on a
label on top of the transmission.
The engine number is stamped on
the front of the engine block.
Identification Numbers
Technical Information
251
AUTOMATIC TRANSMISSION NUMBER
ENGINE NUMBER
０５／０９／０２ １２：０５：５８ ３１ＳＤＲ６１０ ０２５４
Main Menu
Table of Contents
−−
＊
＊
＊
＊
Specifications
252
Dimensions
Weights
Air Conditioning
Capacities
Capacities
HFC-134a (R-134a)
17.6 19.4 oz (500 550 g)
107.9 in (2,740 mm)
61.1 in (1,553 mm)
61.2 in (1,554 mm)
Length
Width
Height
Wheelbase
Track
Gross vehicle weight rating See the certification label attached
to the driver’s doorjamb.
SE-10Y
Refrigerant type
Charge quantity
Lubricant type
Fuel tank
17.09 US gal (64.7 )
Engine
coolant
Engine oil
Automatic
transmission
fluid
Windshield
washer
reservoir
1.77 US gal (6.7 )
2.22 US gal (8.4 )
4.5 US qt (4.3 )
4.2 US qt (4.0 )
5.3 US qt (5.0 )
2.6 US qt (2.5
)
4.8 US qt (4.5
)
Including the coolant in the reserve tank and that remaining in the
engine
Reserve tank capacity: 0.16 US gal (0.6
)
Excluding the oil remaining in the engine
3.6 US qt (3.4
)
8.5 US qt (8.0 )
190.9 in (4,850 mm)
71.7 in (1,820 mm)
57.2 in (1,453 mm)
Approx.
Front
Rear
1:
2:
Change
Total
Change
Including
filter
Without
filter
Total
Change
Total
U.S.
Canada
1
2
０５／０９／０２ １２：０６：１１ ３１ＳＤＲ６１０ ０２５５
Main Menu
Table of Contents
−
−
−
−
−
−
−
−
−
−
−
−
−
Specifications
Technical Information
253
Engine
Alignment
Tires
Lights
Battery
Fuses
12 V 60 W (HB3)
12 V 51 W (HB4)
12 V 21 W
12 V 24/2.2 CP
SOHC i-VTEC 6-cylinder (V6),
gasoline engine
3.39 x 3.39 in (86.0 x 86.0 mm)
182.8 cu-in (2,997 cm )
10.5 : 1
IZFR6K-11
SKJ20DR-M11
Type
BorexStroke
Displacement
Compression ratio
Spark plugs
Toe-in
Camber
Caster
0.00 in (0.0 mm)
0.08 in (2.0 mm)
0°
1°
3°15’
Size
Pressure
P215/60R16 94V
T135/80D16
32 psi (220 kPa , 2.2 kgf/cm )
32 psi (220 kPa , 2.2 kgf/cm
)
60 psi (420 kPa , 4.2 kgf/cm )
Headlights
Front side marker/Parking/
Turn signal light
Rear turn signal lights
Back-up lights
License plate light
Front ceiling lights
Center ceiling light
Trunk light
Door courtesy light
Vanity mirror lights
12 V
12 V
12 V
12 V
12 V
12 V
12 V
21 W
3CP
8W
8W
5W
2CP
1.1 W
Capacity
Interior
Under-hood
12 V 52 AH/5 HR
See page 247 or the fuse label
attached to the inside of the fuse
box door on each side of the
dashboard.
See page 246 or the fuse box
cover.
Front
Rear
Front
Rear
Front
High
Low
NGK:
DENSO:
Front/Rear
Spare
Front
Rear
Spare
(Amber)
(Amber)
０５／０９／０２ １２：０６：３２ ３１ＳＤＲ６１０ ０２５６
Main Menu
Table of Contents
−
Quality grades can be found where
applicable on the tire sidewall
between the tread shoulder and the
maximum section width. For
example:
The treadwear grade is a compara-
tive rating based on the wear rate of
the tire when tested under controlled
conditions on a specified government
test course. For example, a tire
graded 150 would wear one and one-
half (1 1/2) times as well on the
government course as a tire graded
100. The relative performance of
tires depends upon the actual condi-
tions of their use, however, and may
depart significantly from the norm
due to variations in driving habits,
service practices, and differences in
road characteristics and climate.
The traction grades, from highest to
lowest, are AA, A, B, and C. Those
grades represent the tire’s ability to
stop on wet pavement as measured
under controlled conditions on
specified government test surfaces
of asphalt and concrete. A tire
marked C may have poor traction
performance.
Warning: The traction grade
assignedtothistireisbasedon
straight-ahead braking traction tests,
and does not include acceleration,
cornering, hydroplaning, or peak
traction characteristics.
All passenger vehicle tires must
conform to Federal Safety
Requirements in addition to these
grades.
The tires on your vehicle meet all
U.S. Federal Safety Requirements.
All tires are also graded for
treadwear, traction, and temperature
performance according to
Department of Transportation
(DOT) standards. The following
explains these gradings.
Uniform Tire Quality Grading
Treadwear 200
Traction AA
Temperature A
Treadwear Traction AA, A, B, C
DOT Tire Quality Grading (U.S. Vehicles)
254
０５／０９／０２ １２：０６：４０ ３１ＳＤＲ６１０ ０２５７
Main Menu
Table of Contents
− Warning: The temperature grade for
this tire is established for a tire that
is properly inflated and not
overloaded. Excessive speed,
underinflation, or excessive loading,
either separately or in combination,
can cause heat buildup and possible
tire failure.
The temperature grades are A (the
highest), B, and C, representing the
tire’s resistance to the generation of
heat and its ability to dissipate heat
when tested under controlled
conditions on a specified indoor
laboratory test wheel. Sustained high
temperature can cause the material
of the tire to degenerate and reduce
tire life, and excessive temperature
can lead to sudden tire failure. The
grade C corresponds to a level of
performance, which all passenger
vehicle tires must meet under the
Federal Motor Vehicle Safety
Standard No. 109. Grades B and A
represent higher levels of
performance on the laboratory test
wheel than the minimum required by
law.
Temperature A,B,C
DOT Tire Quality Grading (U.S. Vehicles)
Technical Information
255
０５／０９／０２ １２：０６：４４ ３１ＳＤＲ６１０ ０２５８
Main Menu
Table of Contents
−
−
−
−
−
−
−
−
−
−
−
−
−
Whenever tires are replaced, they
should be replaced with tires of the
same size. Following is an example
of tire size with an explanation of
what each component means.
The tires that came on your vehicle
have a number of markings. Those
you should be aware of are described
below.
Vehicletype(Pindicates
passenger vehicle).
Tire width in millimeters.
Aspect ratio (the tire’s section
height as a percentage of its
width).
Tire construction code (R
indicates radial).
Rim diameter in inches.
Load index (a numerical code
associated with the maximum
load the tire can carry).
Speed symbol (an
alphabetical code indicating
the maximum speed rating).
The tire identification number (TIN)
is a group of numbers and letters
that look like the following example
TIN.
This indicates that the tire
meets all requirements of
the U.S. Department of
Transportation.
Manufacturer’s
identification mark.
Tire type code.
Date of manufacture.
The maximum air
pressurethetirecan
hold.
The maximum load the
tire can carry at
maximum air pressure.
P
R
V
16
DOT
B97R
FW6X
2202
205
60
91
Max Press
Max Load
Tire Labeling
Tire Size
Tire Identification Number
Maximum Tire Pressure
Maximum Tire Load
Tire Labeling
256
P205/60R16 91V
DOT B97R FW6X 2202
０５／０９／０２ １２：０７：００ ３１ＳＤＲ６１０ ０２５９
Main Menu
Table of Contents
＊
＊
The burning of gasoline in your
vehicle’s engine produces several by-
products. Some of these are carbon
monoxide (CO), oxides of nitrogen
(NOx), and hydrocarbons (HC).
Gasoline evaporating from the tank
also produces hydrocarbons. Con-
trolling the production of NOx, CO,
and HC is important to the environ-
ment. Under certain conditions of
sunlight and climate, NOx and HC
react to form photochemical ‘‘smog.’’
Carbon monoxide does not contri-
bute to smog creation, but it is a
poisonous gas.
The United States Clean Air Act
sets standards for automobile
emissions. It also requires that
automobile manufacturers explain to
owners how their emissions controls
workandwhattodotomaintain
them. This section summarizes how
the emissions controls work.
In Canada, Honda vehicles comply
with the Canadian emission
requirements, as specified in an
agreement with Environment
Canada, at the time they are
manufactured.
Your vehicle has a positive
crankcase ventilation system. This
keeps gasses that build up in the
engine’s crankcase from going into
the atmosphere. The positive
crankcase ventilation valve routes
them from the crankcase back to the
intake manifold. They are then
drawn into the engine and burned.
As gasoline evaporates in the fuel
tank, an evaporative emissions
control canister filled with charcoal
adsorbs the vapor. It is stored in this
canister while the engine is off. After
the engine is started and warmed up,
the vapor is drawn into the engine
and burned during driving.
The onboard refueling vapor
recovery (ORVR) system captures
the fuel vapors during refueling. The
vapors are adsorbed in a canister
filled with activated carbon. While
driving, the fuel vapors are drawn
into the engine and burned off.
The Clean Air Act
Crankcase Emissions Control
System
Evaporative Emissions Control
System
Onboard Refueling Vapor
Recovery
Emissions Controls
Technical Information
257
０５／０９／０２ １２：０７：０８ ３１ＳＤＲ６１０ ０２６０
Main Menu
Table of Contents
The exhaust emissions controls
include four systems: PGM-FI,
ignition timing control, exhaust gas
recirculation, and three way catalytic
converter. These four systems work
together to control the engine’s
combustion and minimize the
amount of HC, CO, and NOx that
come out the tailpipe. The exhaust
emissions control systems are
separate from the crankcase and
evaporative emissions control
systems.
The emissions control systems are
designed and certified to work to-
gether in reducing emissions to
levels that comply with the Clean Air
Act. To make sure the emissions
remain low, you should use only new
Honda replacement parts or their
equivalent for repairs. Using lower
qualitypartsmayincreasethe
emissions from your vehicle.
The emissions control systems are
covered by warranties separate from
the rest of your vehicle. Read your
warranty manual for more informa-
tion.The PGM-FI system uses sequential
multiport fuel injection.
It has three subsystems: air intake,
engine control, and fuel control. The
powertrain control module (PCM)
uses various sensors to determine
how much air is going into the
engine. It then controls how much
fuel to inject under all operating
conditions.
This system constantly adjusts the
ignition timing, reducing the amount
of HC, CO, and NOx produced.
The exhaust gas recirculation (EGR)
system takes some of the exhaust
gas and routes it back into the intake
manifold. Adding exhaust gas to the
air/fuel mixture reduces the amount
of NOx produced when the fuel is
burned.
The three way catalytic converter is
in the exhaust system. Through
chemical reactions, it converts HC,
CO, and NOx in the engine’s exhaust
to carbon dioxide (CO ), nitrogen
(N ), and water vapor.
2
2
Exhaust Emissions Controls Replacement Parts
PGM-FI System
Ignition Timing Control System
Exhaust Gas Recirculation (EGR)
System
Three Way Catalytic Converter
Emissions Controls
258
０５／０９／０２ １２：０７：１７ ３１ＳＤＲ６１０ ０２６１
Main Menu
Table of Contents
The three way catalytic converter
contains precious metals that serve
as catalysts, promoting chemical
reactions to convert the exhaust
gasses without affecting the metals.
The catalytic converter is referred to
as a three-way catalyst, since it acts
on HC, CO, and NOx. A replacement
unit must be an original Honda part
or its equivalent.
Always use unleaded gasoline.
Even a small amount of leaded
gasoline can contaminate the
catalyst metals, making the three
way catalytic converter ineffective.
The three way catalytic converter
must operate at a high temperature
for the chemical reactions to take
place. It can set on fire any
combustible materials that come
near it. Park your vehicle away from
high grass, dry leaves, or other
flammables.
A defective three way catalytic
converter contributes to air pollution,
and can impair your engine’s per-
formance. Follow these guidelines to
protect your vehicle’s three way
catalytic converter.
Keep the engine tuned-up.
Have your vehicle diagnosed and
repaired if it is misfiring, back-
firing, stalling, or otherwise not
running properly.
Three Way Catalytic Converter
Technical Information
259
THREE WAY CATALYTIC CONVERTERS
０５／０９／０２ １２：０７：２３ ３１ＳＤＲ６１０ ０２６２
Main Menu
Table of Contents
Make sure the gas tank is nearly,
but not completely, full (around
3/4).
Without touching the accelerator
pedal, start the engine, and let it
idle for 20 seconds.
If you take your vehicle for a state
emissions test shortly after the
battery has been disconnected or
gone dead, it may not pass the test.
This is because of certain ‘‘readiness
codes’’ that must be set in the on-
board diagnostics for the emissions
systems. These codes are erased
when the battery is disconnected,
and set again only after several days
of driving under a variety of
conditions.
If the testing facility determines that
the readiness codes are not set, you
will be requested to return at a later
date to complete the test. If you must
get the vehicle retested within the
next two or three days, you can
condition the vehicle for retesting by
doing the following.
Keep the vehicle in Park. Increase
the engine speed to 2,000 rpm, and
hold it there until the temperature
gauge rises to at least 1/4 of the
scale (about 3 minutes).
Make sure the vehicle has been
parked with the engine off for 6
hours or more.
Make sure the ambient
temperature is between 40° and
95°F.
Testing of Readiness Codes
State Emissions Testing
260
０５／０９／０２ １２：０７：２９ ３１ＳＤＲ６１０ ０２６３
Main Menu
Table of Contents
Then drive in city/suburban
traffic for at least 10 minutes.
When traffic conditions allow, let
the vehicle coast for several
seconds without using the
accelerator pedal or the brake
pedal.
If the testing facility determines the
readiness codes are still not set, see
your dealer.
Select a nearby lightly traveled
major highway where you can
maintain a speed of 50 to 60 mph
(80to97km/h)foratleast20
minutes. Drive on the highway in
D. Do not use the cruise control.
When traffic allows, drive for 90
seconds without moving the
accelerator pedal. (Vehicle speed
may vary slightly; this is okay.) If
you cannot do this for a
continuous 90 seconds because of
traffic conditions, drive for at least
30 seconds, then repeat it two
more times (for a total of 90
seconds).
State Emissions Testing
Technical Information
261
０５／０９／０２ １２：０７：３３ ３１ＳＤＲ６１０ ０２６４
Main Menu
Table of Contents
Main Menu
....Customer Service Information . 264
....................Warranty Coverages . 265
Reporting Safety Defects
............................(U.S. Vehicle) . 266
.....................Authorized Manuals . 267
Warranty and Customer Relations
Warranty and Customer Relations
263
０５／０９／０２ １２：０７：３９ ３１ＳＤＲ６１０ ０２６６
Main Menu
Honda dealership personnel are
trained professionals. They should
be able to answer all your questions.
If you encounter a problem that your
dealership does not solve to your
satisfaction, please discuss it with
the dealership’s management. The
service manager or general manager
can help. Almost all problems are
solved in this way.
If you are dissatisfied with the
decision made by the dealership’s
management, contact your Honda
Customer Service Office.
U.S. Owners:
Canadian Owners:
In Puerto Rico and the U.S. Virgin
Islands:
When you call or write, please give
us this information:
Vehicle identification number (see
page )
Name and address of the dealer
who services your vehicle
Date of purchase
Mileage on your vehicle
Your name, address, and
telephone number
A detailed description of the
problem
Name of the dealer who sold the
vehicle to you
250
Customer Service Information
264
CUSTOMER RELATIONS
RELATIONS AVEC LA CLIENTÉLE
American Honda Motor Co., Inc.
Automobile Customer Service
Mail Stop 500-2N-7A
1919 Torrance Boulevard
Torrance, California 90501-2746
Tel: (800) 999-1009
Honda Canada Inc.
715 Milner Avenue
Toronto, ON
M1B 2K8
Tel: 1-888-9-HONDA-9
Fax: Toll-free 1-877-939-0909
Toronto (416) 287-4776
Bella International
P.O. Box 190816
San Juan, Puerto Rico 00919-0816
Tel: (787) 250-4327
０５／０９／０２ １２：０７：４７ ３１ＳＤＲ６１０ ０２６７
Main Menu
Table of Contents
−
−
−
−
−
−
−
−
−
Your new vehicle is covered by these
warranties:
covers your new vehicle, except for
the battery, emissions control
systems, and accessories, against
defects in materials and
workmanship.
provides prorated
coverage for a replacement battery
purchased from your dealer.
these two
warranties cover your vehicle’s
emissions control systems. Time,
mileage, and coverage are
conditional. Please read your
warranty booklet for exact
information.
a seat
belt that fails to function properly is
coveredfortheusefullifeofthe
vehicle.
all exterior body panels are
covered for rust-through from the
inside for the specified time period
with no mileage limit.
Honda accessories are covered
under this warranty. Time and
mileage limits depend on the type of
accessory and other factors. Please
read your warranty booklet for
details.
covers all Honda
replacement parts against defects in
materials and workmanship.
provides
coverageforaslongasthepur-
chaser of the muffler owns the
vehicle.
this warranty gives up
to 100 percent credit toward a
replacement battery.
Restrictions and exclusions apply to
all these warranties. Please read the
2006 Honda warranty information
booklet that came with your vehicle
for precise information on warranty
coverages. Your vehicle’s original
tires are covered by their
manufacturer. Tire warranty
information is in a separate booklet.
Please refer to the 2006 warranty
manual that came with your vehicle.
Warranty Coverages
U.S. Owners
Canadian Owners
New Vehicle Limited Warranty
Replacement Battery Limited
Warranty
Emissions Control Systems Defects
Warranty and Emissions
Performance Warranty
Seat Belt Limited Warranty
Rust Perforation Limited Warranty
Accessory Limited Warranty
Replacement Parts Limited
Warranty
Replacement Muffler Lifetime
Limited Warranty
Original Equipment Battery Limited
Warranty
Warranty and Customer Relations
265
０５／０９／０２ １２：０７：５７ ３１ＳＤＲ６１０ ０２６８
Main Menu
Table of Contents
If NHTSA receives similar com-
plaints, it may open an investigation,
and if it finds that a safety defect
exists in a group of vehicles, it may
order a recall and remedy campaign.
However, NHTSA cannot become
involved in individual problems
between you, your dealer, or
American Honda Motor Co., Inc.
If you believe that your vehicle has a
defect which could cause a crash or
could cause injury or death, you
should immediately inform the
National Highway Traffic Safety
Administration (NHTSA), in addition
to notifying American Honda Motor
Co., Inc.
To contact NHTSA, you may call the
VehicleSafetyHotlinetoll-freeat1-
800-327-4236 (TTY 1-800-424-9153);
go to
http://www.safercar.gov;
or
wr
it
e to: Administrator, NHTSA, 400
Seventh Street, SW., Washington,
DC 20590.
You can also obtain other
information about motor vehicle
safety from
http://www.safercar.gov.
Reporting Safety Defects (U.S. Vehicles)
266
０５／０９／０２ １２：０８：０１ ３１ＳＤＲ６１０ ０２６９
Main Menu
Table of Contents
−
＊
＊
＊
＊
２
０
０
６
Ｈ
Ｏ
Ｎ
The publications shown below can be purchased from Helm
Incorporated. You can order in any of three ways:
Detach and mail the order form on the right half of this page
Call Helm Inc. at 1-800-782-4356
Go online at
If you are interested in other years or models, contact Helm Inc.
at 1-800-782-4356.
(credit card orders only)
Valid only for sales within the United States. Canadian
owners should contact their authorized Honda dealer.
Authorized Manuals
Purchasing Factory Authorized Manuals(U.S. only)
Authorized Manuals
267
ORDER TOLL FREE: 1-800-782-4356
OR
(NOTE: For Credit Card Holder Orders Only)
MINIMUM CREDIT CARD PURCHASE $10.00
Publication
Form Number
61SDR01
61SDR01EL
61SDA30
61SDR31
31SDR610
31SDR710
31SDRM10
31SDRQ10
HON-R
Price
Each
$75.00
$50.00
$44.00
$44.00
$35.00
$29.00
$12.00
$12.00
FREE
Form Description
2005-2006 Honda Accord Hybrid
Service Manual
2005-2006 Honda Accord Hybrid
Electrical Troubleshooting Manual
2003-2006 Honda Accord 2/4 door
Body Repair Manual
2005-2006 Honda Accord Hybrid
Body Repair Manual Supplement
2006 Honda Accord Hybrid
Navigation System Owner’s Manual
2006 Honda Accord Hybrid
Honda Service History
Order Form for Previous Years-
Indicate Year and Model Desired
2006 Honda Accord Hybrid Owner’s Manual
2006 Honda Accord Hybrid Quick Start Guide
PUBLICATION NUMBER
VEHICLE MODEL
Name Year
Qty
Price
Each
Total
Price
GRAND TOTAL
HANDLING CHARGE
Mich.Purchases
Add 6% Sales Tax
TOTAL MATERIAL
$6.95
Monday-Friday 8:00 A.M. 6:00 P.M. EST
By completing this form you can order the materials desired. You can
pay by check or money order, or charge to your credit card. Mail to
Helm Incorporated at the address shown on the back of the order form.
Prices are subject to change without
notice and without incurring obligation.
Orders are mailed within 10 days. Please
allow adequate time for delivery.
Prices are subject to change without notice and without incurring obligation.
www. helminc. com
０５／０９／０２ １２：０８：１１ ３１ＳＤＲ６１０ ０２７０
Main Menu
Table of Contents
−
−
−
Ｓ
Ｈ
Ｉ
Ｐ
Ｔ
Ｏ
Ｐ
Ａ
Ｙ
Ｍ
Ｅ
Ｎ
Ｔ
This manual covers maintenance and recommended
procedures for repair to engine and chassis components.
It is written for the journeyman mechanic, but is simple
enough for most mechanically-inclined owners to under-
stand.
This manual complements the service manual by
providing in-depth troubleshooting information for each
electrical circuit in your vehicle.
This manual describes the procedures involved in the
replacement of damaged body parts.
Authorized Manuals
Service Manual:
Electrical Troubleshooting Manual:
Body Repair Manual:
268
NOTE: Dealers and Companies please provide dealer or company name,
and also the name of the person to whose attention the shipment should
be sent. For purchases outside U.S.A. please write to the address shown
below for a quotation.
P.O. BOX 07280·DETROIT, MICHIGAN 48207·1-800-782-4356
Customer Name
Attention
Apartment Number
State & Zip Code
City
Daytime Telephone Number
Check or money order enclosed payable to Helm Inc U.S. funds only.
Do not send cash
Master
Card
VISA Check here if your billing address is different
from the shipping address shown above.
Account Number
Expiration: Mo. Yr.
CUSTOMER SIGNATURE
DATE
Street Address No P.O. Box Number
()
These Publications cannot be returned for credit without receiving advance authorization within 14
days of delivery. On returns, a restocking fee may be applied against the original order.
０５／０９／０２ １２：０８：１９ ３１ＳＤＲ６１０ ０２７１
Main Menu
Table of Contents
CONTINUED
....................................Accessories . 156
ACCESSORY (Ignition Key
.......................................Position) . 78
...............Accessory Power Socket . 96
....................Additives, Engine Oil . 197
...................................Airbag (SRS) . 11
..........Airbag System Components . 23
............................Air Conditioning . 100
.........................................Usage . 102
...............Air Intake, IMA Battery . 161
.......................Air Pressure, Tires . 216
..................Air Vent, IMA Battery . 161
Anti-lock Brakes (ABS)
...............................Indicator . 55, 175
...................................Operation . 175
.Anti-theft Steering Column Lock . 78
............................................Armrest . 84
................................Audio System . 112
................................Auto Idle Stop . 171
...............Auto Idle Stop Indicator . 172
.............Automatic Speed Control . 141
..............Automatic Transmission . 166
..........................Capacity, Fluid . 252
.......................................Shifting . 166
.Shift Lever Position Indicator . 166
................Shift Lever Positions . 166
....................Shift Lock Release . 169
Battery
Charging System
...........................Indicator . 54, 237
............................Jump Starting . 232
..............................Maintenance . 221
............................Specifications . 253
..............................Before Driving . 149
........................................Belts, Seat . 10
....................................Booster Seat . 46
Brakes
...........Anti-lock System (ABS) . 175
.............Break-in, New Linings . 150
...........................................Fluid . 204
.........................................Parking . 93
.................System Indicator . 54, 239
........................Wear Indicators . 174
.............................Braking System . 174
........................Break-in, New Car . 150
..Brightness Control, Instruments . 73
........................Brights, Headlights . 71
Bulb Replacement
................Front Parking Lights . 209
.........................Headlights . 207, 208
............................Specifications . 253
....................Turn Signal Lights . 209
..............................Bulbs, Halogen . 206
............................Capacities Chart . 252
.............Carbon Monoxide Hazard . 49
.............................Carrying Cargo . 158
..............CAUTION, Explanation of . ii
.......................................CD Player . 119
..........................Error Message . 125
........................Certification Label . 250
............................................Chains . 220
....................Changing a Flat Tire . 227
Changing Oil
........................................How to . 198
......................................When to . 187
....................Charge/Assist Gauge . 67
...Charging System Indicator . 54, 237
..............Check Fuel Cap Indicator . 61
Index
A
B
C
INDEX
I
０５／０９／０２ １２：０８：２４ ３１ＳＤＲ６１０ ０２７２
Main Menu
................DANGER, Explanation of . ii
...................................Dashboard . 4, 52
................Daytime Running Lights . 73
............Defects, Reporting Safety . 266
................Defogger, Rear Window . 74
....................................Dimensions . 252
...............Dimming the Headlights . 71
Dipstick
..........Automatic Transmission . 203
..................................Engine Oil . 153
..........................Directional Signals . 71
........Disc Brake Wear Indicators . 174
.....................Disposal of Used Oil . 199
Doors
..............Locking and Unlocking . 79
..........DOT Tire Quality Grading . 254
...........Driver and Passenger Safety . 7
...........................................Driving . 163
....................................Economy . 155
..........Dual Temperature Control . 109
............Checklist, Before Driving . 164
..................Childproof Door Locks . 80
............................Child Seats . 31, 36-44
...........Lower Anchorage Points . 40
..........Tether Anchorage Points . 44
..............Climate Control Sensors . 111
.........................Clock, Setting the . 139
..................CO in the Exhaust . 49, 257
............Cold Weather, Starting in . 165
..............................Compact Spare . 226
...................Console Compartment . 97
.................Consumer Information . 264
.............Controls, Instruments and . 51
Coolant
........................................Adding . 201
....................................Checking . 154
.........................Proper Solution . 201
...................Temperature Gauge . 67
Crankcase Emissions Control
........................................System . 257
............Cruise Control Operation . 141
.............Customer Service Office . 264
..............................Economy, Fuel . 155
Electric Power Steering (EPS)
.......................................Indicator . 60
............Emergencies on the Road . 225
.............Battery, Jump Starting . 232
...........Brake System Indicator . 239
................Changing a Flat Tire . 227
.....Charging System Indicator . 237
..................Checking the Fuses . 243
.....Low Oil Pressure Indicator . 236
...Malfunction Indicator Lamp . 237
..................Overheated Engine . 234
...........................Emergency Brake . 93
......................Emergency Flashers . 74
......................Emergency Towing . 241
.......................Emissions Controls . 257
Engine
....Coolant Temperature Gauge . 67
Malfunction Indicator
......................................Lamp . 237
..............Oil Pressure Indicator . 236
..............Oil, What Kind to Use . 196
...............................Overheating . 234
............................Specifications . 252
............................Speed Limiter . 168
................................Starting . 76, 165
...................Engine Speed Limiter . 168
.Evaporative Emissions Controls . 257
...............................Exhaust Fumes . 49
Index
D
E
II
０５／０９／０２ １２：０８：２９ ３１ＳＤＲ６１０ ０２７３
Main Menu
CONTINUED
Expectant Mothers, Use of Seat
........................................Belts by . 18
...................................Fan, Interior . 102
...........................................Features . 99
....................Filling the Fuel Tank . 151
........................................Filter, Oil . 198
.............Flashers, Hazard Warning . 74
......................Flat Tire, Changing . 227
.......................................Floor Mat . 212
Fluids
..........Automatic Transmission . 203
..........................................Brake . 204
..................Windshield Washer . 200
..........................Four-way Flashers . 74
.................................................Fuel . 150
...............................Cap Message . 61
.....................Economy Indicator . 61
......................Fill Door and Cap . 151
...........................................Gauge . 68
................Octane Requirement . 150
........................Tank, Filling the . 151
.....................Fuses, Checking the . 243
...............Gas Mileage, Improving . 155
.........................................Gasoline . 150
...........................................Gauge . 68
................Octane Requirement . 150
........................Tank, Filling the . 151
................Gas Station Procedures . 151
Gauges
...Engine Coolant Temperature . 67
...............................................Fuel . 68
Gearshift Lever Positions
..........Automatic Transmission . 166
........................................Glove Box . 98
.............Halogen Headlight Bulbs . 206
..............Hazard Warning Flashers . 74
........................................Headlights . 71
........................................Aiming . 206
..............Automatic Lighting Off . 72
............Daytime Running Lights . 73
............Low Beams, Turning on . 71
.........................Reminder Chime . 71
........Replacing Halogen Bulbs . 206
...................................Turning on . 71
..............................Head Restraints . 87
.....................Heating and Cooling . 100
HomeLink Universal
................................Transceiver . 144
..Hood, Opening and Closing the . 152
...Identification Number, Vehicle . 250
Ignition
..............................................Keys . 76
...........................................Switch . 78
............Timing Control System . 258
....................IMA System Indicator . 60
........................Immobilizer System . 77
.........Important Safety Precautions . 8
.........Indicators, Instrument Panel . 53
...............................Infant Restraint . 36
......................................Infant Seats . 36
..........Tether Anchorage Points . 44
...................Inflation, Proper Tire . 215
...................................Inside Mirror . 88
.............................Inspection, Tire . 217
Index
F
G
H
I
INDEX
III
０５／０９／０２ １２：０８：３５ ３１ＳＤＲ６１０ ０２７４
Main Menu
....................Installing a Child Seat . 39
..........Tether Anchorage Points . 44
.............................Using LATCH . 40
............................Instrument Panel . 53
........Instrument Panel Brightness . 73
........................................Introduction . i
.................Jacking up the Vehicle . 227
.......................................Jack, Tire . 227
................................Jump Starting . 232
..................................................Keys . 76
.......................Label, Certification . 250
.................Lane Change, Signaling . 71
........................Lap/Shoulder Belts . 20
Lights
....................Bulb Replacement . 206
.......................................Indicator . 57
.......................................Parking . 209
..................................Turn Signal . 57
....................................Load Limits . 159
......LOCK (Ignition Key Position) . 78
Locks
.......Anti-theft Steering Column . 78
............................Fuel Fill Door . 151
....................................Glove Box . 98
....................Lockout Prevention . 79
.................................Power Door . 79
...........................................Trunk . 83
........................Low Coolant Level . 154
...Lower Gear, Downshifting to a . 166
...Low Oil Pressure Indicator . 54, 236
...Lubricant Specifications Chart . 252
.........................................Luggage . 158
..................................Maintenance . 185
...Owner Maintenance Checks . 191
........................................Record . 193
.........................Minder Indicator . 59
..........................................Safety . 186
................................Minder . 187-192
.Malfunction Indicator Lamp . 54, 237
...............................Meters, Gauges . 62
..........................Mirrors, Adjusting . 88
.................................Modifications . 157
.........................................Moonroof . 92
...................Neutral Gear Position . 167
..................New Vehicle Break-in . 150
...................NOTICE, Explanation of . i
...............Numbers, Identification . 250
...Octane Requirement, Gasoline . 150
.........................................Odometer . 63
Oil
........................Change, How to . 198
...............Change, When to . 187-192
......................Checking Engine . 153
..............Pressure Indicator . 54, 236
Selecting Proper Viscosity
......................................Chart . 196
...........ON (Ignition Key Position) . 78
..............................Outside Mirrors . 88
.....................Outside Temperature . 63
....................Overheating, Engine . 234
Index
J
K
L
M
N
O
IV
０５／０９／０２ １２：０８：４３ ３１ＳＤＲ６１０ ０２７５
Main Menu
CONTINUED
..............Panel Brightness Control . 73
........................Park Gear Position . 167
.................................Parking Brake . 93
.................................Parking Lights . 71
Parking Over Things that
....................................Burn . 173, 259
..................................Parking Tips . 173
.............................PGM-FI System . 258
....................Power Mirror Heaters . 89
.........Pregnancy, Using Seat Belts . 18
.........Protecting Adults and Teens . 13
...Additional Safety Precautions . 19
.....Advice for Pregnant Women . 18
........................Protecting Children . 31
Protecting Infants and Small
.......................................Children . 36
...........Protecting Larger Children . 45
.....................Using Booster Seat . 46
...................Radiator Overheating . 234
Radio/CD Sound
........................................System . 112
Rear Lights, Bulb
......................Replacement . 210, 211
............................Rear View Mirror . 88
.................Rear Window Defogger . 74
.........Reclining the Seat Backs . 86, 87
.............................Reminder Lights . 53
.......................Remote Transmitter . 80
Replacement Information
................Engine Oil and Filter . 198
..........................................Fuses . 243
................................Light Bulbs . 206
................................Minder . 187-192
...........................................Tires . 218
.............................Wiper Blades . 213
Replacing Seat Belts After a
............................................Crash . 21
.................Reserve Tank, Coolant . 201
...............................Restraint, Child . 31
..................Reverse Gear Position . 167
................................Rotation, Tire . 218
......................................Safety Belts . 10
............Safety Defects, Reporting . 266
.................................Safety Features . 9
.........................................Airbags . 11
.....................................Seat Belts . 10
.............Safety Labels, Location of . 50
...............................Safety Messages . ii
................................Satellite Radio . 131
.........................................Seat Belts . 10
...............Additional Information . 20
Automatic Seat Belt
...............................Tensioners . 21
......................Lap/Shoulder Belt . 20
................................Maintenance . 21
Reminder Indicator and
................................Beeper . 20, 54
...................System Components . 20
...............Use During Pregnancy . 18
...Wearing a Lap/Shoulder Belt . 20
........................Seats, Adjusting the . 85
............................Security System . 140
.....................Selecting a Child Seat . 38
.........................Select/Reset Knob . 73
...............................Serial Number . 250
....................Service Intervals . 187-192
....Owner’s Maintenance Checks . 191
Index
P
RS
INDEX
V
０５／０９／０２ １２：０８：４９ ３１ＳＤＲ６１０ ０２７６
Main Menu
.............................Service Manual . 267
...........Service Station Procedure . 151
..........................Setting the Clock . 139
.....Shift Lever Position Indicator . 166
........................Shift Lock Release . 169
..............................Side Airbags . 11, 26
...How Your Side Airbags Work . 26
How the Side Airbag Off
......................Indicator Works . 28
................Side Curtain Airbags . 11, 27
How Your Side Curtain
..........................Airbags Work . 27
...............................Signaling Turns . 71
.....................................Snow Tires . 219
................................Sound System . 112
Spare Tire
......................................Inflating . 226
............................Specifications . 253
....................Specifications Charts . 252
................................Speed Control . 141
................................Speed Limiter . 168
..........SRS, Additional Information . 23
...Additional Safety Precautions . 30
.............................Airbag Service . 29
How Your SRS Indicator
.......................................Works . 28
How Your Front Airbags
.......................................Works . 24
How Your Side Airbags
.......................................Works . 26
........................SRS Components . 23
.............................SRS Indicator . 28, 55
....START (Ignition Key Position) . 78
.......................Starting the Engine . 165
................With a Dead Battery . 232
........Steam Coming from Engine . 234
Steering Wheel
..................................Adjustment . 75
.............Anti-theft Column Lock . 78
...................Stereo Sound System . 112
..........................................Sun Visor . 94
..........................Sunglasses Holder . 98
Supplemental Restraint
................................System . 11, 23
......................................Servicing . 29
.........................SRS Indicator . 28, 55
...................System Components . 23
..................................Synthetic Oil . 197
.Taking Care of the Unexpected . 225
Technical Descriptions
......DOT Tire Quality Grading . 254
.....Emissions Control Systems . 257
Three Way Catalytic
...............................Converter . 259
.......................Temperature Gauge . 67
..............Tether Anchorage Points . 44
..Three Way Catalytic Converter . 259
..........................Time, Setting the . 139
....................................Timing Belt . 205
....................................Tire Chains . 220
.........Tire, How to Change a Flat . 227
.................................Tire Labeling . 256
...............................................Tires . 215
..............................Air Pressure . 216
.........................Checking Wear . 217
..........................Compact Spare . 226
......DOT Tire Quality Grading . 254
......................................Inflation . 215
..................................Inspection . 217
...................................Replacing . 218
......................................Rotating . 218
...........................................Snow . 219
............................Specifications . 253
...................Tools, Tire Changing . 227
Index
T
VI
０５／０９／０２ １２：０８：５３ ３１ＳＤＲ６１０ ０２７７
Main Menu
Unexpected, Taking Care
..........................................of the . 225
....Uniform Tire Quality Grading . 254
........................Unleaded Gasoline . 150
.....................Upholstery Cleaning . 212
.......Used Oil, How to Dispose of . 199
.............WARNING, Explanation of . ii
.........Warning Labels, Location of . 50
....................Warranty Coverages . 265
Washer, Windshield
........Checking the Fluid Level . 200
.....................................Operation . 70
Wheels
...............Adjusting the Steering . 75
............Alignment and Balance . 217
..........................Compact Spare . 226
......................................Wrench . 227
Windows
..................Operating the Power . 89
...........................Rear, Defogger . 74
Windshield
.......................................Cleaning . 70
.......................................Washers . 70
Wipers, Windshield
.......................Changing Blades . 213
.....................................Operation . 70
....................................Worn Tires . 217
.....Wrecker, Emergency Towing . 241
Towing
.....................................A Trailer . 179
................Emergency Wrecker . 241
Transmission
Checking Fluid Level,
..............................Automatic . 203
...........................Fluid Selection . 203
..............Identification Number . 250
.............Shifting the Automatic . 166
.....................................Treadwear . 217
.......................................Trip Meter . 64
................................................Trunk . 83
....................Emergency Opener . 84
.................................Opening the . 83
.............Open Monitor Indicator . 56
....................................Turn Signals . 71
..................................Vanity Mirror . 94
.................Vehicle Capacity Load . 159
......................Vehicle Dimensions . 252
....Vehicle Identification Number . 250
Vehicle Stability Assist (VSA)
....................................System . 177
............Activation Indicator . 56, 177
..................................Off Switch . 178
.................System Indicator . 56, 177
.............................Vehicle Storage . 222
.................................................VIN . 250
..................................Viscosity, Oil . 196
...........Voice Control System . 102, 113
Index
U
V
W
INDEX
VII
０５／０９／０２ １２：０８：５９ ３１ＳＤＲ６１０ ０２７８
Main Menu
Service Information Summary
Gasoline:
Fuel Tank Capacity:
Recommended Engine Oil:
Brake Fluid:
Tire Pressure:
Automatic Transmission Fluid:
SpareTirePressure:
17.09 US gal (64.7
)
Unleaded gasoline, pump octane
number of 87 or higher.
API Premium grade 5W-20
detergent oil (see page ).
Honda Heavy Duty Brake Fluid
DOT 3 preferred, or a DOT 3 or
DOT 4 brake fluid as a temporary
replacement (see page ).
Oil change capacity (including
filter):
4.5 US qt (4.3
)
Honda ATF-Z1 (Automatic
Transmission Fluid) preferred, or
aDEXRON
III ATF as a
temporary replacement (see
pages and ).
32 psi (220 kPa , 2.2 kgf/cm
)
60 psi (420 kPa , 4.2 kgf/cm
)
196
203 204
204
