CD-BK147V Video CD Mini System consisting of CD-BK147V (main unit), CP-
BK147 (front speakers) and 92L2390137W010 (surround speakers).
VIDEO CD MINI SYSTEM
MODEL
CD-BK147V
OPERATION MANUAL
Please refer to pages E-1 to E-35.
ENGLISH
NTSC/PAL
CD-BK147V
CP-BK147 92L2390137W010
CD-BK147V
CD-BK147V(FRONT) 01.9.28, 10:251
Downloaded from: http://www.usersmanualguide.com/
E-1
CD-BK147V(S)E1.fm01/9/28
ENGLISH
CD-BK147V
ENGLISH
Important Instruction
- Introduction / Contents -
Introduction
Thank you for purchasing this SHARP product. To obtain the best performance from
this product, please read this manual carefully. It will guide you in operating your
SHARP product.
Contents
Page
„
Important Instruction
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Special notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
„
General Information
Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Controls and indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 6
„
Preparation for Use
System connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 10
Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
„
Basic Operation
General control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

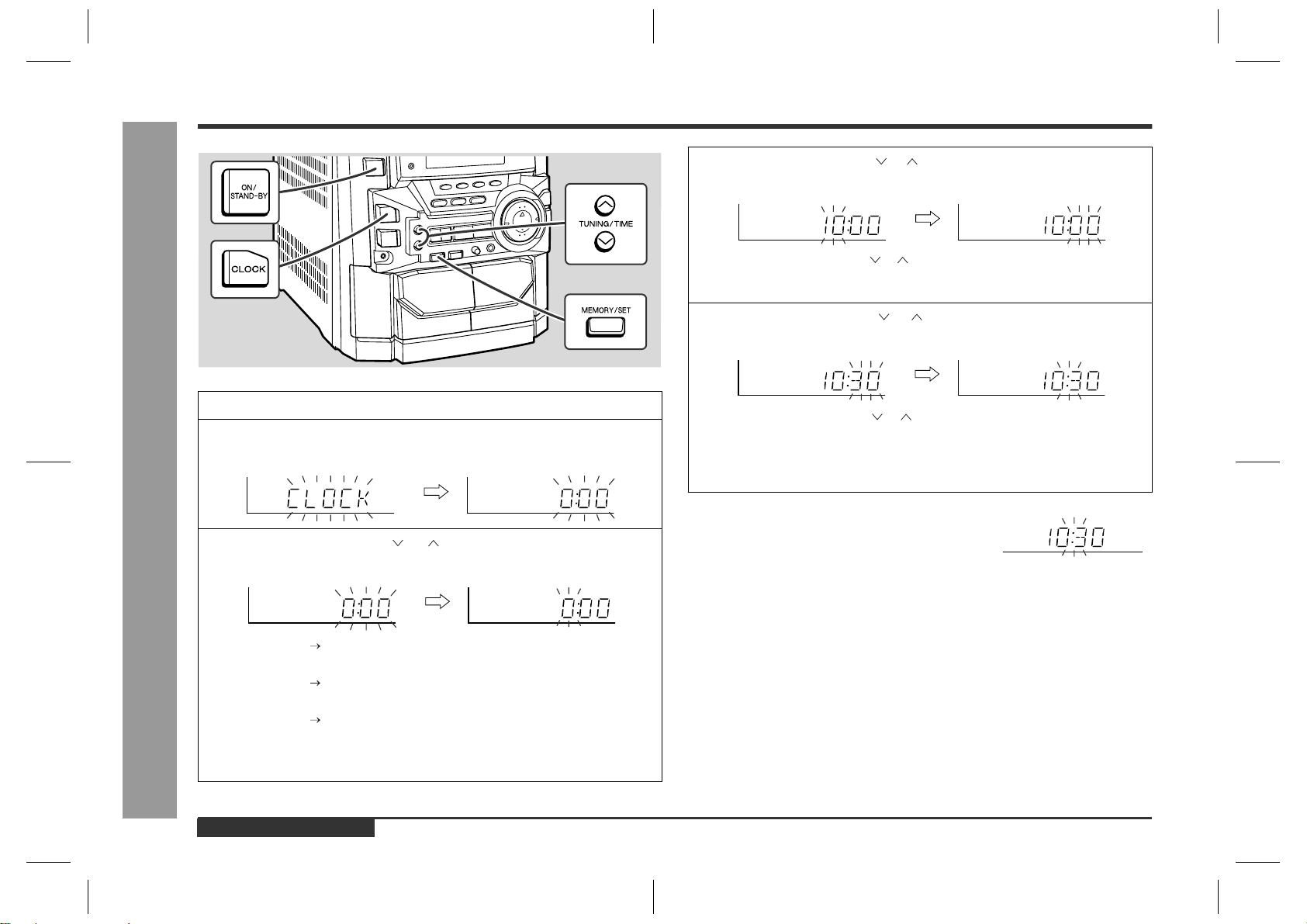

Setting the clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
„
Video CD Playback
Video CD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Preparation for video CD playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13, 14
Playback of a video CD (CDs) with P. B. C. (Version 2.0) . . . . . . . . . . . . . . .15, 16
Playback of a video CD (CDs) without P. B. C. (Version 1.1) . . . . . . . . . . . .17, 18
„
Advanced Video CD (Version 1.1) Playback
Programmed play . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Repeat or random play . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Time search selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

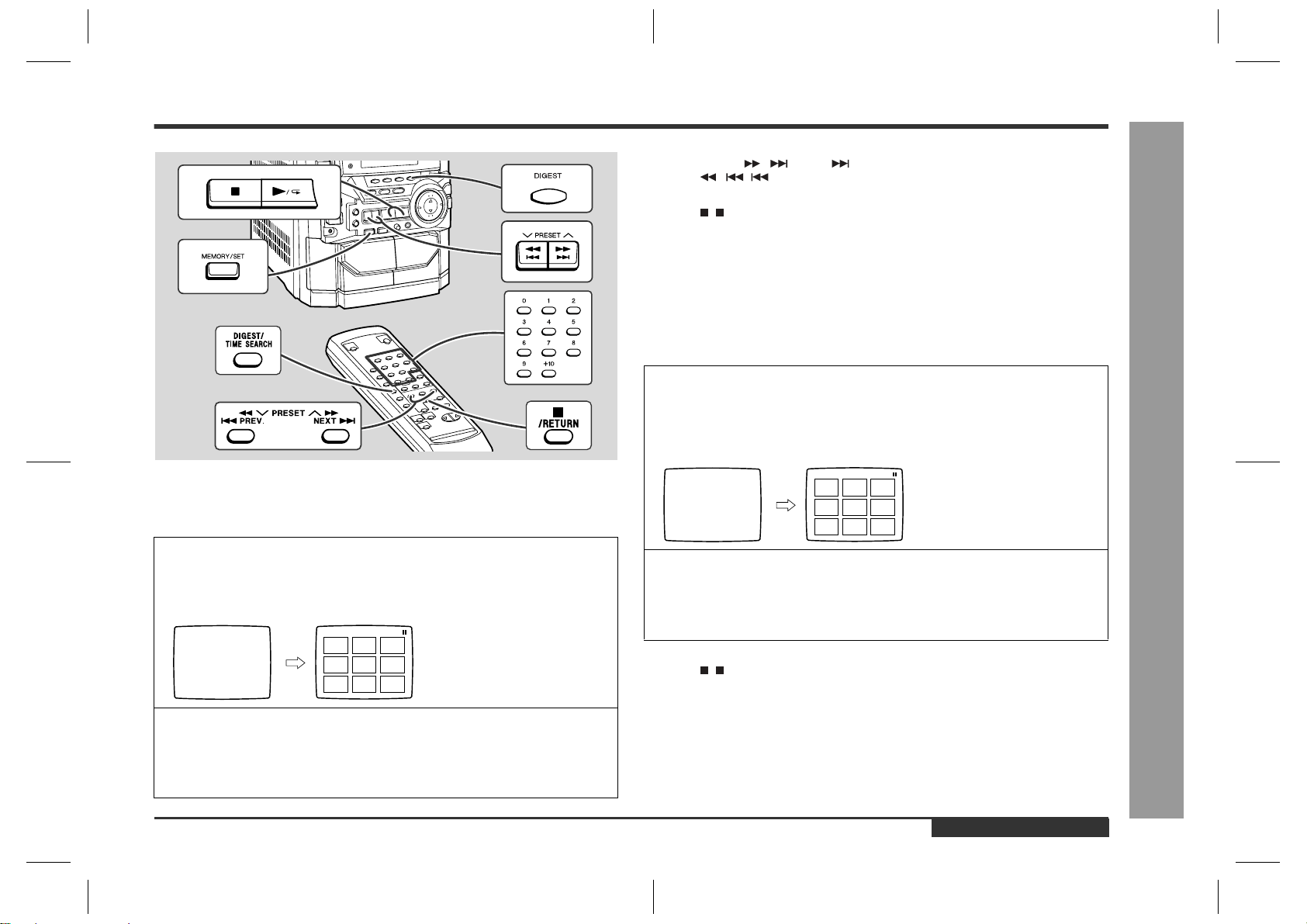

Digest selection of discs and tracks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Bookmark function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Resume play . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
To play back the video CD manually . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Changing the TV screen display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Page
„
CD Playback
Listening to a CD (CDs) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24, 25
„
Radio

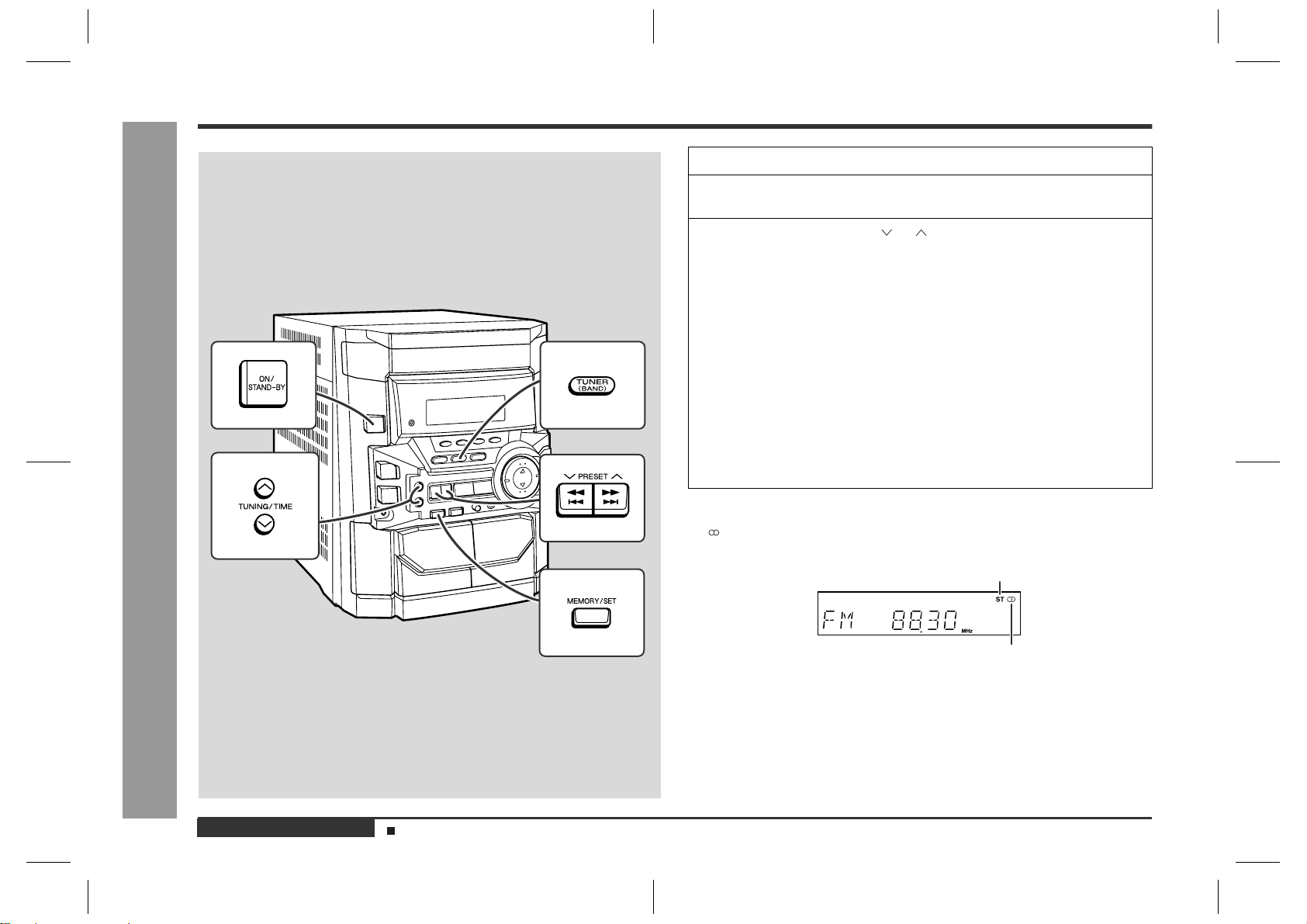

Listening to the radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Listening to the memorised station . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
„
Tape Playback
Listening to a cassette tape (TAPE 1 or TAPE 2) . . . . . . . . . . . . . . . . . . . . . . . .28
„
Karaoke
Playing karaoke . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
„
Tape Recording
Recording to a cassette tape . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30, 31
„
Advanced Features
Timer and sleep operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32, 33
„
References
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

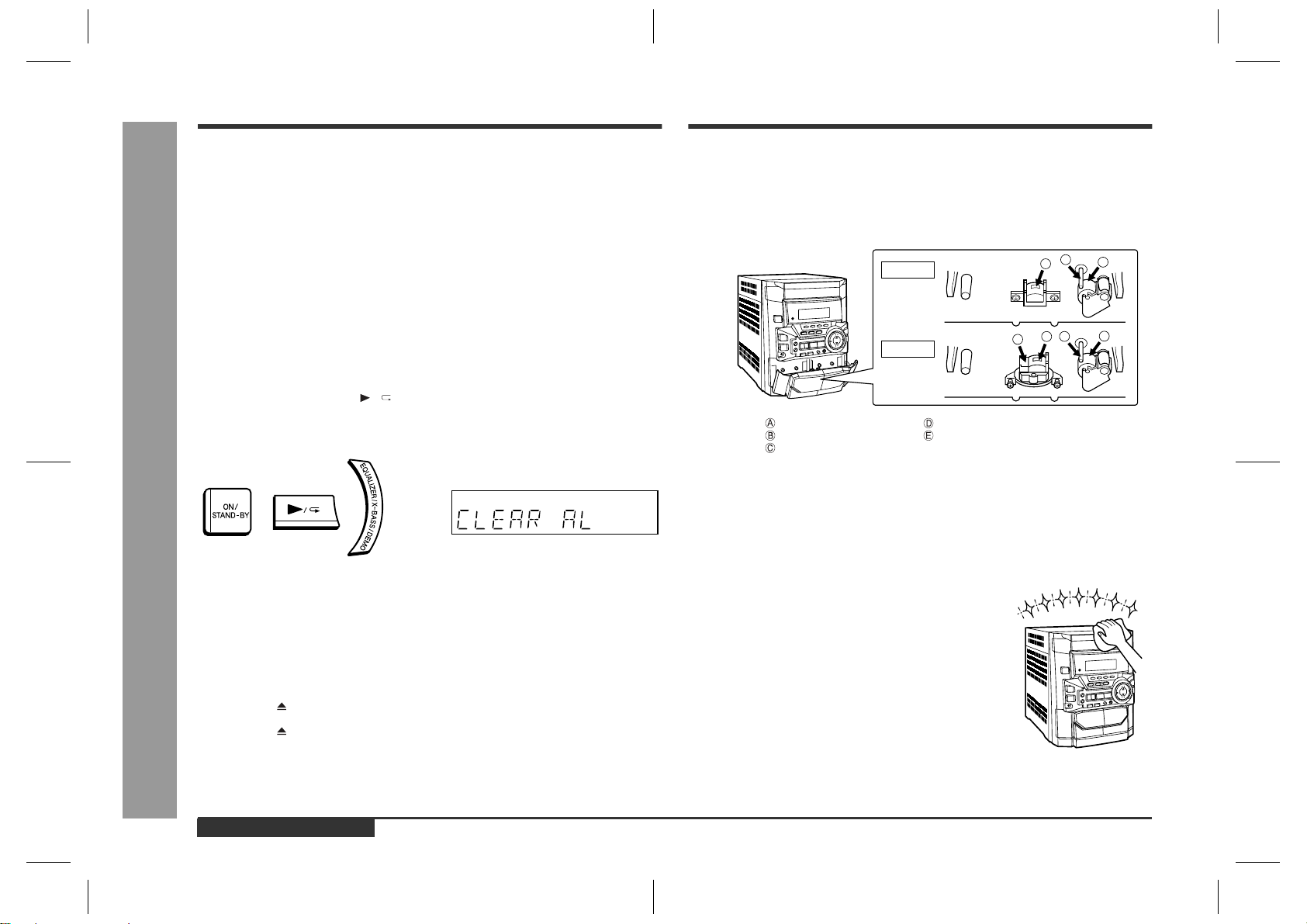

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
Downloaded from: http://www.usersmanualguide.com/
E-2
CD-BK147V(S)E1.fm01/9/28
ENGLISH
CD-BK147V
Important Instruction
- Accessories / Special notes -

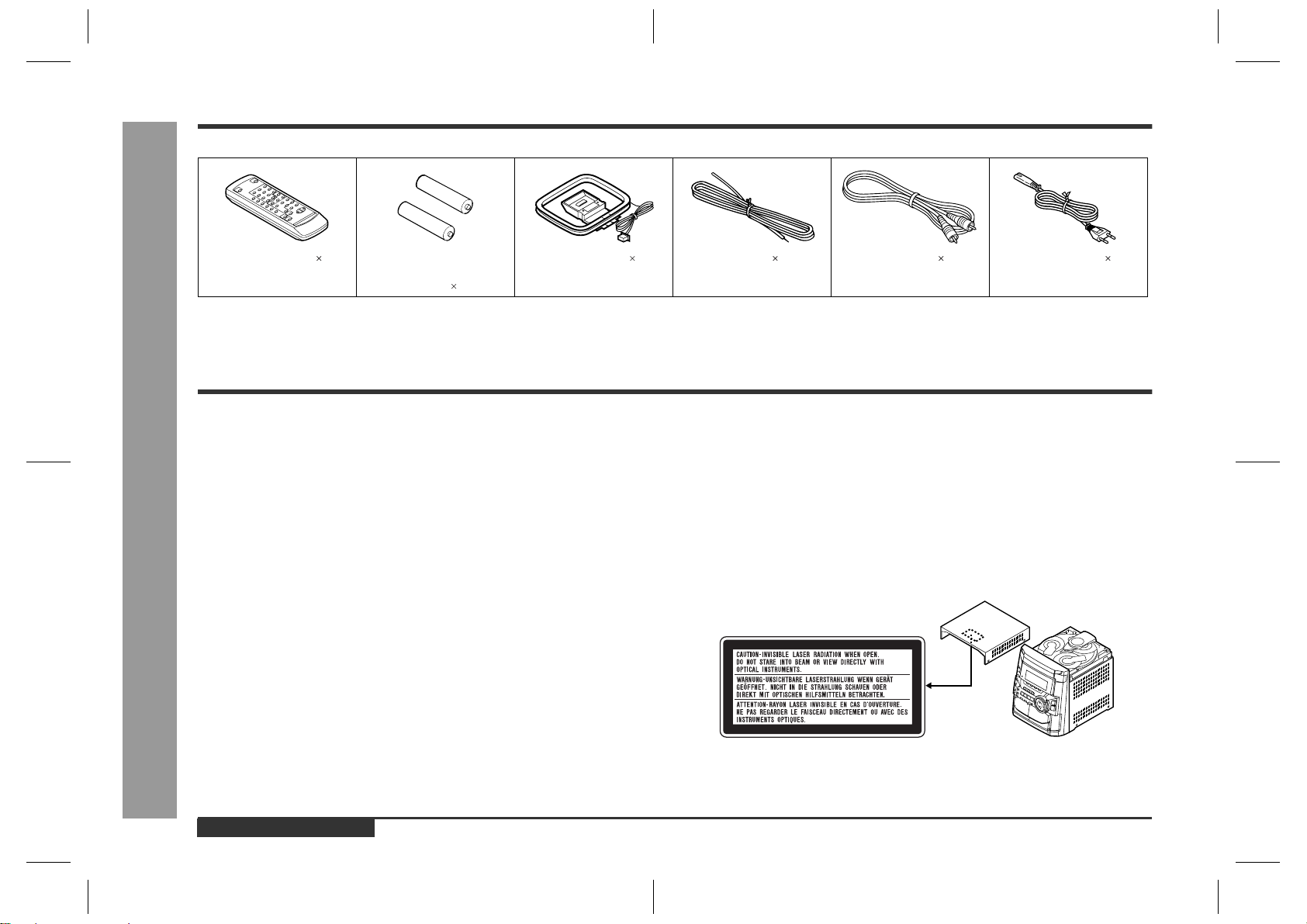

Accessories
Please confirm that the following accessories are included.
Note:
Only the above accessories are included.
Special notes
Warning:
z
When the ON/STAND-BY button is set at STAND-BY position, mains voltage is still
present inside the unit. When the ON/STAND-BY button is set at STAND-BY posi-
tion, the unit may be brought into operation by the timer mode or remote control.
z
This unit contains no user serviceable parts. Never remove covers unless qualified
to do so. This unit contains dangerous voltages, always remove mains plug from
the socket before any service operation and when not in use for a long period.
z
To prevent fire or shock hazard, do not expose this appliance to dripping or splash-
ing. No objects filled with liquids, such as vases, shall be placed on the apparatus.
CAUTION
Note:
Audio-visual material may consist of copyrighted works which must not be recorded
without the authority of the owner of the copyright. Please refer to the relevant laws in
your country.
Remote control 1 "AA" size battery (UM/
SUM-3, R6, HP-7 or
similar) 2
AM loop aerial 1 FM aerial 1 Video cable 1 AC power lead 1
z
This product is classified as a CLASS 1 LASER product.
z
Use of controls, adjustments or performance of procedures other than those spec-
ified herein may result in hazardous radiation exposure.
As the laser beam used in this compact disc player is harmful to the eyes, do not
attempt to disassemble the cabinet. Refer servicing to qualified personnel only.
Laser Diode Properties
Material: GaAIAs
Wavelength: 780 nm
Emission Duration: continuous
Laser Output: max. 0.6 mW
Downloaded from: http://www.usersmanualguide.com/
E-3
CD-BK147V(S)E1.fm01/9/28
ENGLISH
CD-BK147V
General Information
- Precautions -
Precautions
„
General
z
Please ensure that the equipment is positioned in a well-ventilated area and
ensure that there is at least 10 cm (4") of free space along the sides, top and back
of the unit.
z
Use the unit on a firm, level surface free from vibration.
z
Keep the unit away from direct sunlight, strong magnetic fields, excessive dust,
humidity and electronic/electrical equipment (home computers, facsimiles, etc.)
which generates electrical noise.
z
Do not place anything on top of the unit.
z
Do not expose the unit to moisture, to temperatures higher than 60°C (140°F) or to
extremely low temperatures.
z
If your system does not work properly, disconnect the AC power lead from the wall
socket. Plug the AC power lead back in, and then turn on your system.
z
In case of an electrical storm, unplug the unit for safety.
z
Hold the AC power plug by the head when removing it from the wall socket, as
pulling the lead can damage internal wires.
z
Do not remove the outer cover, as this may result in electric shock. Refer
internal service to your local SHARP service facility.
z
The ventilation should not be impeded by covering the ventilation openings with
items, such as newspapers, tablecloths, curtains, etc.
z
No naked flame sources, such as lighted candles, should be placed on the appa-
ratus.
z
Attention should be drawn to the environmental aspects of battery disposal.
z
This unit should only be used within the range of 5°C - 35°C (41°F - 95°F).
Warning:
The voltage used must be the same as that specified on this unit. Using this product
with a higher voltage other than that which is specified is dangerous and may result in
a fire or other type of accident causing damage. SHARP will not be held responsible
for any damage resulting from use of this unit with a voltage other than that which is
specified.
„
Volume control
The sound level at a given volume setting depends on speaker efficiency, location,
and various other factors. It is advisable to avoid exposure to high volume levels,
which occurs whilst turning the unit on with the volume control setting up high, or
whilst continually listening at high volumes.
„
Condensation
„
Care of compact discs
Compact discs are fairly resistant to damage, however mistracking can occur due to
an accumulation of dirt on the disc surface. Follow the guidelines below for maximum
enjoyment from your CD collection and player.
z
Do not write on either side of the disc, particularly the non-label side from which
signals are read. Do not mark this surface.
z
Keep your discs away from direct sunlight, heat, and excessive moisture.
z
Always hold the CDs by the edges. Fingerprints, dirt, or water on the CDs can
cause noise or mistracking. If a CD is dirty or does not play properly, clean it with a
soft, dry cloth, wiping straight out from the centre, along the radius.
10 cm (4")
10 cm (4")
10 cm (4")
10 cm (4")
Sudden temperature changes, storage or opera-
tion in an extremely humid environment may
cause condensation inside the cabinet (CD pick-
up, tape heads, etc.) or on the transmitter on the
remote control.
Condensation can cause the unit to malfunction.
If this happens, leave the power on with no disc
(or cassette) in the unit until normal playback is
possible (about 1 hour). Wipe off any condensa-
tion on the transmitter with a soft cloth before op-
erating the unit.
NO
YES
Correct
Downloaded from: http://www.usersmanualguide.com/
E-4
CD-BK147V(S)E1.fm01/9/28
ENGLISH
CD-BK147V
General Information
- Controls and indicators -

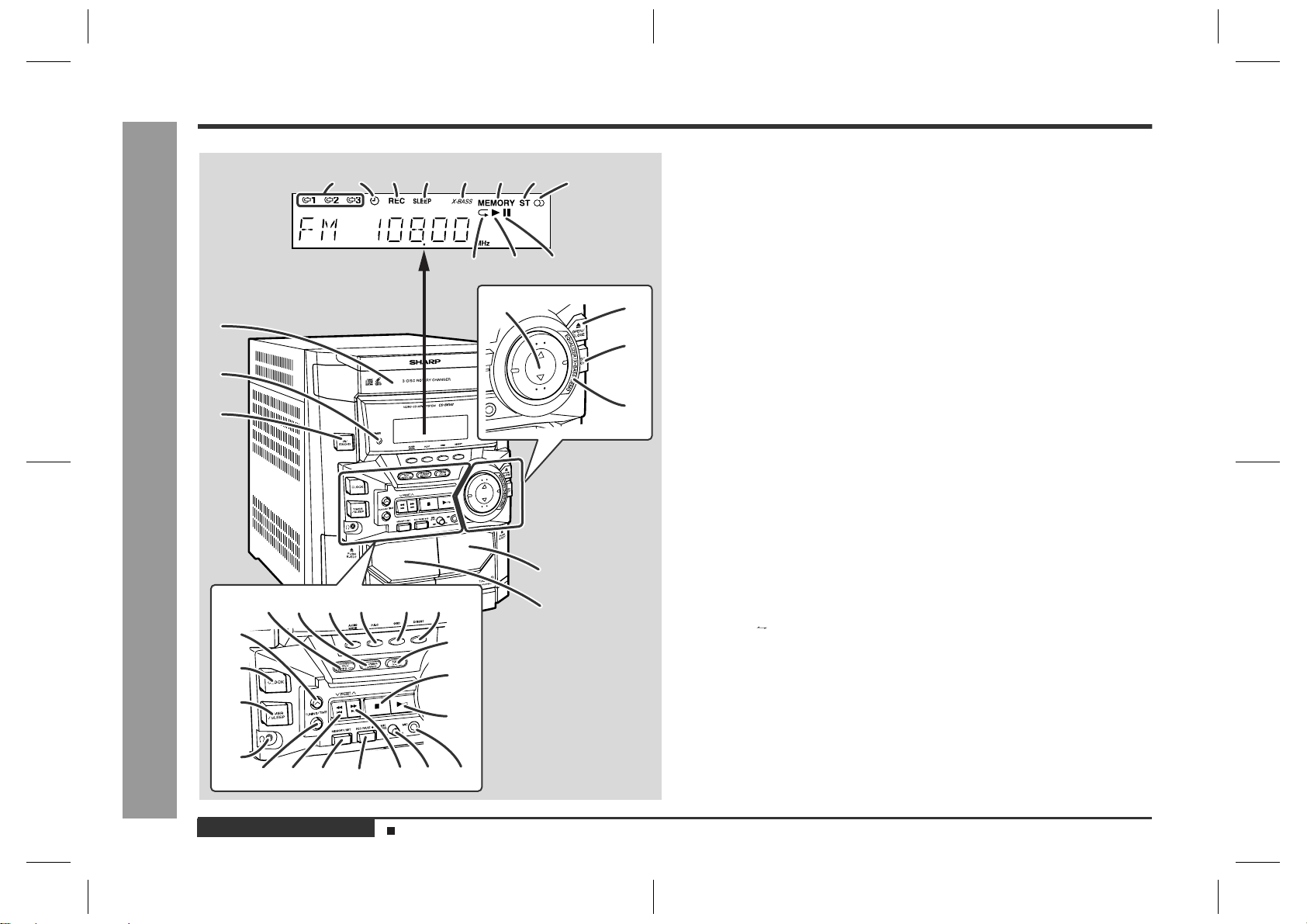

Controls and indicators
„
Display
1.Disc Number Indicators
2.Timer Indicator
3.Tape 2 Record Indicator
4.Sleep Indicator
5.Extra Bass Indicator
6.Disc or Tuner Memory Indicator
7.FM Stereo Mode Indicator
8.FM Stereo Receiving Indicator
9.Disc Repeat Play Indicator
10.Disc or Tape Play Indicator
11.Disc Pause Indicator
„
Front panel
Reference page
1.Disc Tray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
2.Timer Set Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
3.On/Stand-by Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
4.Volume Up and Down Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
5.Disc Tray Open/Close Button . . . . . . . . . . . . . . . . . . . . . . . . . . . 15, 17, 24
6.Disc Skip Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15, 17, 24
7.Equaliser Mode Select/Extra Bass/Demo Mode Button . . . . . . . . . . . . 11
8.Tape 2 Cassette Compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28, 31
9.Tape 1 Cassette Compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28, 31
10.Video CD/CD Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15, 17, 24
11.Tuner (Band) Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
12.Audio Mode Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
13.Video CD Playback Control Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
14.Video CD On Screen Display On/Off Button . . . . . . . . . . . . . . . . . . . . . 23
15.Video CD Digest/Time Search Button . . . . . . . . . . . . . . . . . . . . . . . 20, 21
16.Tuning and Time Up Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12, 26
17.Clock Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12, 32
18.Timer/Sleep Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32, 33
19.Headphone Socket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
20.Tape (1 2) Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28, 31
21.Video CD Stop or Return, CD/Tape Stop Button . . . . . . . . 16, 17, 25, 28
22.Video CD Play or Repeat or Select or Resume, CD Play or Repeat,
Tape Play Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15, 17, 20, 23, 24, 28
23.Tuning and Time Down Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12, 26
24.Video CD Skip or Previous, CD Track Down or Fast Reverse,
Tape 2 Rewind, Tuner Preset Down Button . . . . . . . . . . 16, 18, 25, 27, 28
25.Memory/Set Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12, 19, 27
26.Tape 2 Record Pause Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30, 31
27.Video CD Skip or Next, CD Track Up or Fast Forward,
Tape 2 Fast Forward, Tuner Preset Up Button . . . . . . . 16, 18, 25, 27, 28
28.Microphone Level Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
29.Microphone Socket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
8
9
1
2
3
4
5
6
7
18
2523
17
13 14 15121110
16
27
24
29
26
28
19
20
21
22
123 4 5 6 7 8
11109

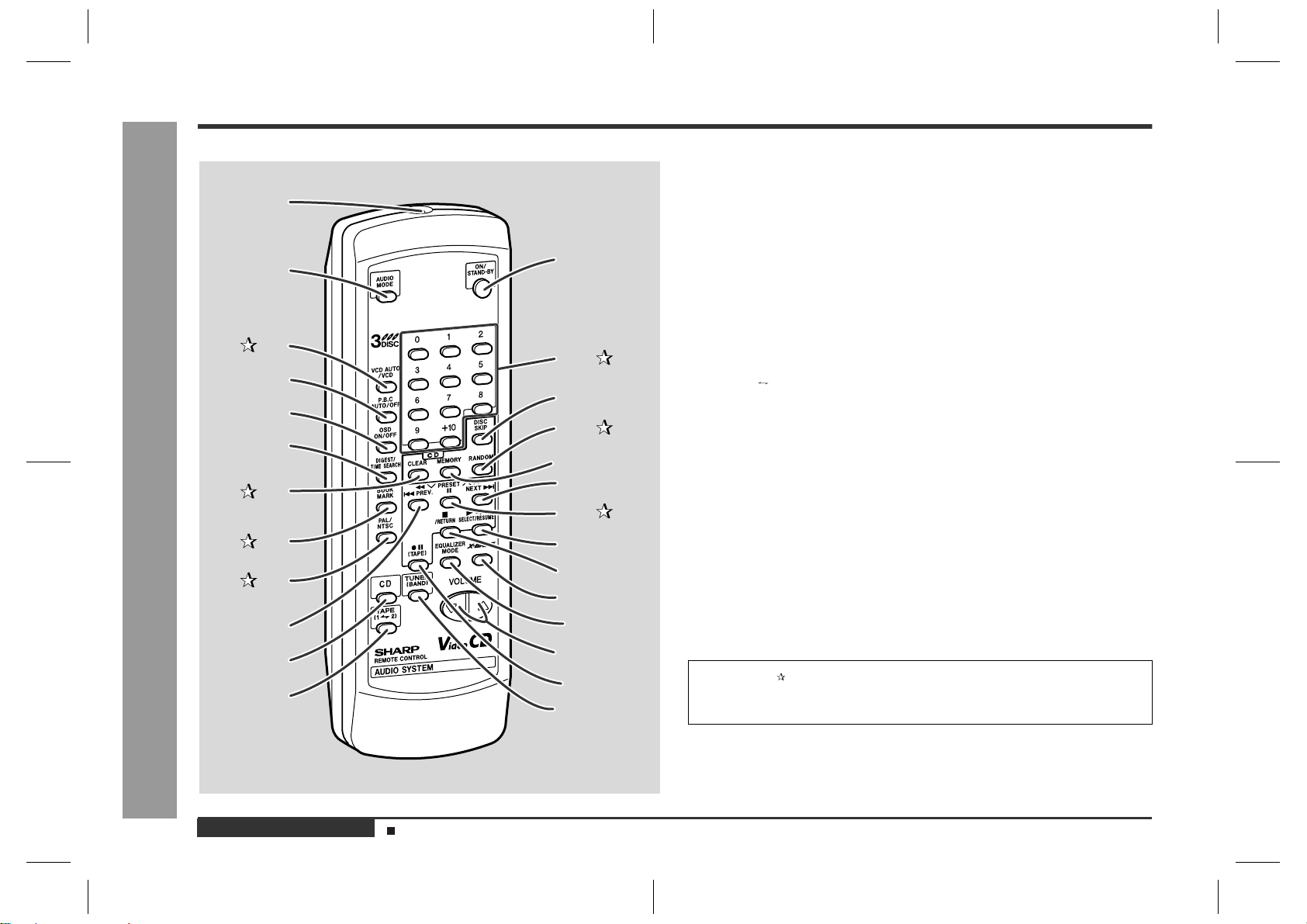

Description of remote control (See page 6.)
Downloaded from: http://www.usersmanualguide.com/
E-5
CD-BK147V(S)E1.fm01/9/28
ENGLISH
CD-BK147V
General Information
- Controls and indicators -
„
Rear panel
Reference page
1.Video Output Socket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
2.AC Power Input Socket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7, 9
3.AC Voltage Selector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
4.Surround Speaker Terminals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7, 8
5.Front Speaker Terminals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7, 8
6.Span Selector Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
7.AM Loop Aerial Socket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
8.FM Aerial Earth Terminal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
9.FM 75 Ohms Aerial Terminal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
„
Front speaker
1.Full-Range Speaker
2.Bass Reflex Duct
3.Speaker Wire
„
Surround speaker
1.Full-Range Speaker
2.Speaker Wire
213456789
2
2
1
1
1
2
3
Downloaded from: http://www.usersmanualguide.com/
E-6
CD-BK147V(S)E1.fm01/9/28
ENGLISH
CD-BK147V
General Information
- Controls and indicators -
Controls and indicators (continued)
„
Remote control
Reference page
1.
Remote Control Transmitter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
2.
Audio Mode Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
3.Video CD Auto/On Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
4.
Video CD Playback Control Auto/Off Button . . . . . . . . . . . . . . . . . . . .16
5.
Video CD On Screen Display On/Off Button . . . . . . . . . . . . . . . . . . . .23
6.
Video CD Digest/Time Search Button . . . . . . . . . . . . . . . . . . . . . .20, 21
7.Disc Clear Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
8.Video CD Bookmark Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
9.PAL/NTSC Select Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
10.
Video CD Skip or Previous, CD Track Down or Fast Reverse,
Tape 2 Rewind, Tuner Preset Down Button . . . . . . . . .16, 18, 25, 27, 28
11.
Video CD/CD Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15, 17, 24
12.
Tape (1 2) Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28, 31
13.
On/Stand-by Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
14.Disc Direct Search Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16, 18
15.
Disc Skip Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15, 17, 24
16.Disc Random Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
17.
Disc Memory Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
18.
Video CD Skip or Next, CD Track Up or Fast Forward,
Tape 2 Fast Forward, Tuner Preset Up Button . . . . . . .16, 18, 25, 27, 28
19.Disc Pause Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16, 17, 25
20.
Video CD Play or Repeat or Select or Resume, CD Play or Repeat,
Tape Play Button . . . . . . . . . . . . . . . . . . . . . . . . . .15, 17, 20, 23, 24, 28
21.
Video CD Stop or Return, CD/Tape Stop Button . . . . . . . .16, 17, 25, 28
22.
Extra Bass Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
23.
Equaliser Mode Select Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
24.
Volume Up and Down Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
25.
Tape 2 Record Pause Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30, 31
26.
Tuner (Band) Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
1
2
14
16
15
17
19
18
20
24
6
3
4
5
7
8
9
10
25
13
22
21
23
26
12
11
Buttons with " " mark in the illustration can be operated on the remote control
only.
Other buttons can be operated both on the main unit and the remote control.
Battery installation for remote control (See page 10.)
Downloaded from: http://www.usersmanualguide.com/
E-7
CD-BK147V(S)E1.fm01/9/28
ENGLISH
CD-BK147V
Preparation for Use
- System connections -
System connections
„
Aerial connection
Note:
Placing the aerial on the unit or near the AC power lead may cause noise pickup.
Place the aerial away from the unit for better reception.
Installing the AM loop aerial:
External FM aerial:
Use an external FM aerial if you require better reception. Consult your dealer.
Note:
When an external FM aerial is used, disconnect the supplied FM aerial wire.
FM aerial
AM loop aerial
Front speaker
(Right)
Front speaker
(Left)
Surround
speaker
(Left)
Surround
speaker
(Right)
TV/monitor (See page 13.)
Wall socket
(See page 9.)
Supplied FM aerial:
Connect the FM aerial wire to the FM 75 OHMS
terminal and position the FM aerial wire in the
direction where the strongest signal can be re-
ceived.
Supplied AM loop aerial:
Connect the AM loop aerial wire to the AM
LOOP socket. Position the AM loop aerial for
optimum reception. Place the AM loop aerial on
a shelf, etc., or attach it to a stand or a wall with
screws (not supplied).
< Assembling > < Attaching to the wall >
Wall Screws (not supplied)
External
FM aerial
75 ohm
coaxial cable
Downloaded from: http://www.usersmanualguide.com/
E-8
CD-BK147V(S)E1.fm01/9/28
ENGLISH
CD-BK147V
Preparation for Use
- System connections -
System connections (continued)
„
Speaker connection
Front speakers
Connect the black wire to the FRONT (-) terminal, and the red wire to the FRONT (+)
terminal.
Surround speakers
Connect the black wire to the SURROUND (-) terminal, and the white wire to the
SURROUND (+) terminal.
Caution:
„
Placing the speaker system
To enjoy the surround effect, we recommend that you place each speaker as shown
to the below.
Note:
The speaker grilles on the front and surround speakers are not removable.
Installation of the surround speakers:
If possible, mount the surround speakers on the wall. Install them 60 cm - 90 cm (23"
- 35") above the height of your ears when you are seated.
z
If you use other speakers with impedance lower than that
specified, the unit may be damaged. Front speakers: 8
ohms Surround speakers: 16 ohms
z
Do not mistake the right and the left channels. The right
speaker is the one on the right side when you face the unit.
z
Do not let the bare speaker wires touch each other.
z
Do not allow any objects to fall into or to be placed in the
bass reflex ducts.
z
Do not stand or sit on the speakers. You may be injured.
Incorrect
Black
Red
White
Front speaker (Right)
Surround speaker (Right) Surround speaker (Left)
Front speaker (Left)
Notes:
z
The front speakers are magnetically shielded.
Therefore, they do not affect the display even you use them near the TV. However,
some colour variation may occur, depending on the type of TV used.
If colour variation occurs...
Turn off the TV (from the power switch).
After 15 - 30 minutes, turn the TV on again.
If the colour variation is still present...
Move the front speakers further away from the TV.
z
If any kind of magnet or an electromagnet is placed too close to the TV and the sys-
tem, irregular colours may appear on the TV screen.
Main unit
Front speaker
(Left)
Front speaker
(Right)
Surround speaker
(Left)
Surround speaker
(Right)
TV
Wall
Example: when installed on the wall Example: when installed vertically
60 - 90 cm
(23" - 35")
Downloaded from: http://www.usersmanualguide.com/
E-9
CD-BK147V(S)E1.fm01/9/28
ENGLISH
CD-BK147V
Preparation for Use
- System connections -
„
To mount the surround speakers on the
wall
The design of the surround speakers allows them to be hung on the wall. Be sure to
use the type and size of screw that is shown to the below.
„
Setting the AC voltage selector
Check the setting of the AC voltage selector located on the rear panel before plug-
ging the unit into an AC socket. If necessary, adjust the selector to correspond to the
AC power voltage used in your area.
Turn the selector with a screwdriver until the appropriate voltage num-
ber appears in the window (110 V, 127 V, 220 V or 230 V - 240 V AC).
„
Connecting the AC power lead
After making all connections, connect the AC power lead to the unit
and then into the wall socket. If you plug in the unit first, it will enter
the demonstration mode.
Notes:
z
Unplug the AC power lead from the AC socket if the unit will not be in use for a pro-
longed period of time.
z
Never use a power lead other than the one supplied. Use of a power lead
other than the one supplied may cause an electric shock or fire.
„
Headphones
1
Drive one screw through the
wall for each speaker.
z
Make sure that both the screw
and the wall can support a load
of 20 kg (45 lbs.).
z
Drive the screws, so there is
about a 5 mm (3/16") space be-
tween the wall and the head of
the screw.
2
Mount the surround speaker
on the wall so that the screw
head is inserted into the slot
on the surround speaker.
5 mm (3/16")
3.2 mm (1/8")
Min. 22 mm (7/8")
9 mm (3/8")
5 mm (3/16")
Wall mounting screw
Min. 17 mm (11/16")
Wall surface
Wall surface
z
Before plugging in or unplugging the headphones, reduce
the volume.
z
Be sure your headphones have a 3.5 mm (1/8") diameter
plug and are between 16 ohms and 50 ohms impedance.
The recommended impedance is 32 ohms.
z
Plugging in the headphones disconnects the speakers
automatically. Adjust the volume using the VOLUME but-
tons.
Wall socket
Demonstration mode (See page 11.)
Downloaded from: http://www.usersmanualguide.com/
E-10
CD-BK147V(S)E1.fm01/9/28
ENGLISH
CD-BK147V
Preparation for Use
- System connections / Remote control -
System connections (continued)
„
Setting the FM/AM span selector
The International Telecommunication Union (ITU) has established that member coun-
tries should maintain either a 100 kHz or a 50 kHz interval between broadcasting fre-
quencies of FM stations and 10 kHz or 9 kHz for AM station. The illustration shows
the 50/9 kHz zones (regions 1 and 3), and the 100/10 kHz zone (region 2).
Before using the unit, set the SPAN SELECTOR switch (on the rear panel) to the
interval (span) of your area.
To change the tuning zone:
Caution:
This operation will erase all data stored in memory including clock, timer settings,
tuner preset, and CD programme.
Remote control
„
Battery installation
Precautions for battery use:
z
Replace all old batteries with new ones at the same time.
z
Do not mix old and new batteries.
z
Remove the batteries if the unit will not be used for long periods of time. This will
prevent potential damage due to battery leakage.
Caution:
z
Do not use rechargeable batteries (nickel-cadmium battery, etc.).
z
Installing the batteries incorrectly may cause the unit to malfunction.
Notes concerning use:
z
Replace the batteries if the operating distance is reduced or if the operation
becomes erratic. Purchase 2 "AA" size batteries (UM/SUM-3, R6, HP-7 or similar).
z
Periodically clean the transmitter on the remote control and the sensor on the unit
with a soft cloth.
z
Exposing the sensor on the unit to strong light may interfere with operation.
Change the lighting or the direction of the unit.
z
Keep the remote control away from moisture, heat, shock, and vibrations.
„
Test of the remote control
1 Press the ON/STAND-BY button to enter the stand-by mode.
2 Set the SPAN SELECTOR switch (on the rear panel) as follows.
z
For 50 kHz FM interval (9 kHz in AM) 50/9
z
For 100 kHz FM interval (10 kHz in AM) 100/10
3 Whilst pressing down the / button and the EQUALIZER/X-BASS/DEMO but-
ton, press the ON/STAND-BY button until "CLEAR AL" appears.
1 Remove the battery cover.
2 Insert the supplied batteries according to the direction indicated in
the battery compartment.
When inserting or removing the batteries, push them towards the battery termi-
nals.
3 Replace the cover.
Face the remote control directly to the remote
sensor on the unit.
The remote control can be used within
the range shown:
Press the ON/STAND-BY button. Does the pow-
er turn on? Now, you can enjoy the music.
Remote sensor
0.2 m - 6 m
(8" - 20')
Downloaded from: http://www.usersmanualguide.com/
E-11
CD-BK147V(S)E2.fm01/9/28
ENGLISH
CD-BK147V

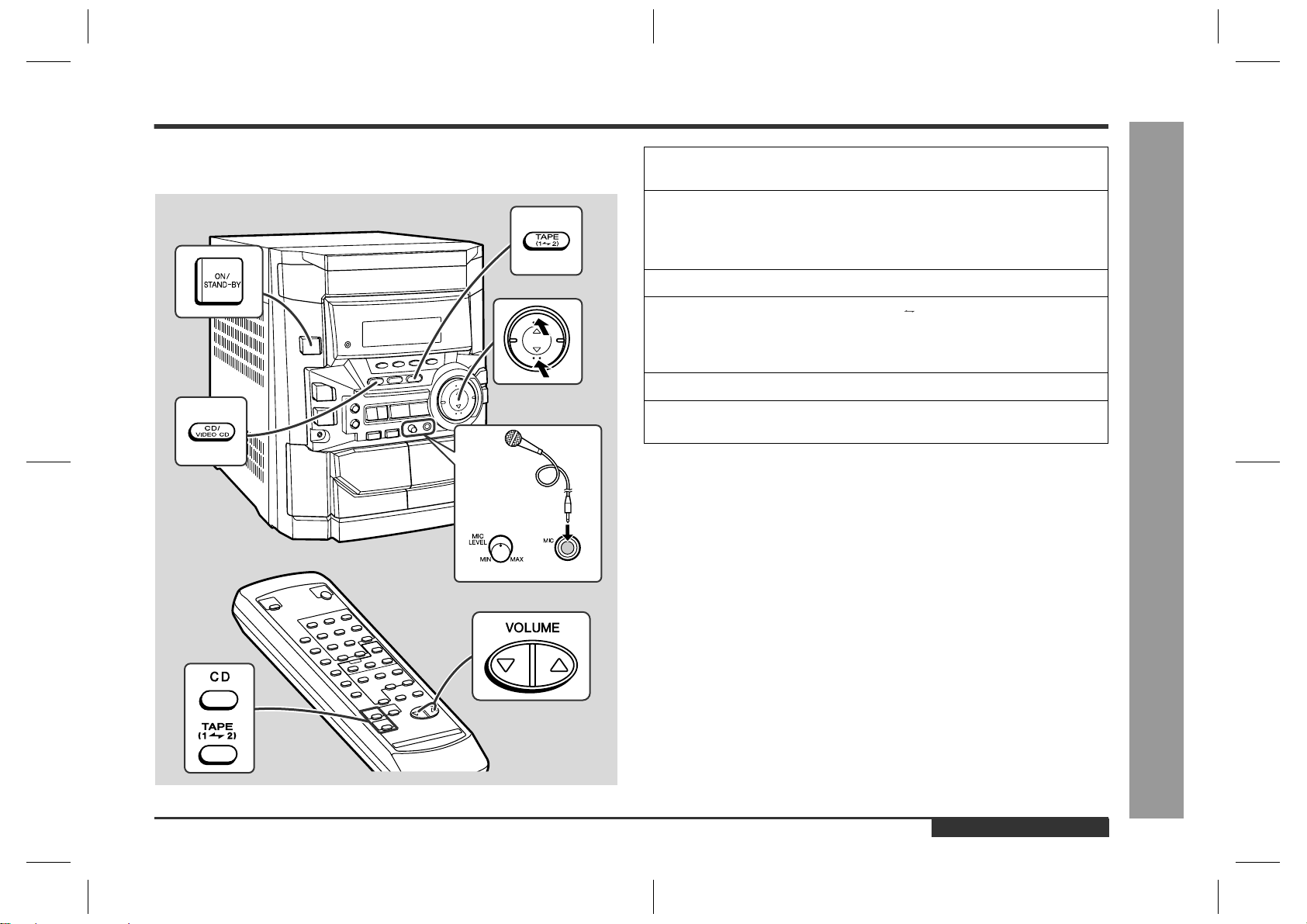

Basic Operation
- General control -
General control
„
Demonstration mode
To cancel the demonstration mode:
When the unit is in the power stand-by mode (demonstration mode), press the
EQUALIZER/X-BASS/DEMO button. The demonstration mode will be cancelled and
the display will disappear.
To return to the demonstration mode:
When the unit is in the power stand-by mode, press the EQUALIZER/X-BASS/DEMO
button again.
Note:
When the power is on, the EQUALIZER/X-BASS/DEMO button can be used to select
the extra bass mode.
„
To turn the power on
Press the ON/STAND-BY button to turn the power on.
To set the unit to stand-by mode:
Press the ON/STAND-BY button again.
„
Volume control
Press the VOLUME button to increase the volume and the VOLUME button for
decreasing.
„
Extra bass (X-BASS)/Pre-programmed
equaliser
(Main unit operation)
You can select the extra bass and pre-programmed equaliser modes with the same
button on the main unit.
Changing the mode:
When the EQUALIZER/X-BASS/DEMO button is pressed, the current mode setting
will be displayed. To change to a different mode, press the EQUALIZER/X-BASS/
DEMO button repeatedly until the desired sound mode appears.
(Remote control operation)
To enter or cancel the extra bass mode:
When the power is first turned on, the unit will enter the extra bass mode which
emphasises the bass frequencies, and "X-BASS" will appear. To cancel the extra
bass mode, press the X-BASS button.
Selecting a pre-programmed equaliser mode:
When the EQUALIZER MODE button is pressed, the current mode setting will be dis-
played. To change to a different mode, press the EQUALIZER MODE button repeat-
edly until the desired sound mode appears.
The first time the unit is plugged in, the unit will enter
the demonstration mode. You will see words scroll.
012 29 30 MAXIMUM
.....
FLAT (X-BASS on)
ROCK (X-BASS on)
POPS (X-BASS on)
JAZZ (X-BASS on)
CLASSIC (X-BASS on)
VOCAL (X-BASS on)
VOCAL (X-BASS off)
CLASSIC (X-BASS off)
JAZZ (X-BASS off)
POPS (X-BASS off)
ROCK (X-BASS off)
FLAT (X-BASS off)
FLAT
ROCK
POPS
JAZZ
CLASSIC
VOCAL
The sound is not modified.
Bass and treble are emphasised.
Bass and treble are slightly emphasised.
Treble is cut a little.
Treble is reduced a lot.
Vocals (midrange tones) are emphasised.
Downloaded from: http://www.usersmanualguide.com/
E-12
CD-BK147V(S)E2.fm01/9/28
ENGLISH
CD-BK147V
Basic Operation
- Setting the clock -
Setting the clock
In this example, the clock is set for the 24-hour (0:00) display.
Note:
The "CLOCK" or time will flash at the push of the CLOCK button when the AC power
supply is restored after a power failure or unplugging the unit.
Readjust the clock as follows.
To readjust the clock:
Perform "Setting the clock" from the beginning. If the time display is flashing, step 3
(for selecting the 24-hour or 12-hour display) will be skipped.
To change the 24-hour or 12-hour display:
1
Press the ON/STAND-BY button to turn the power on.
2
Press the CLOCK button and within 5 seconds, press the MEMO-
RY/SET button.
3
Press the TUNING/TIME ( or ) button to select 24-hour or 12-
hour display and then press the MEMORY/SET button.
"0:00" The 24-hour display will appear.
(0:00 - 23:59)
"AM 12:00" The 12-hour display will appear.
(AM 12:00 - PM 11:59)
"AM 0:00" The 12-hour display will appear.
(AM 0:00 - PM 11:59)
Note that this can only be set when the unit is first installed or it has been reset.
[Refer to "Clearing all the memory (reset)" on page 34 for details.]
4
Press the TUNING/TIME ( or ) button to adjust the hour and then
press the MEMORY/SET button.
z
Press the TUNING/TIME ( or ) button once to advance the time by 1 hour.
Hold it down to advance continuously.
z
When the 12-hour display is selected, "AM" will change automatically to "PM".
5
Press the TUNING/TIME ( or ) button to adjust the minutes and
then press the MEMORY/SET button.
z
Press the TUNING/TIME ( or ) button once to advance the time by 1
minute. Hold it down to change the time in 5-minute intervals.
z
The hour will not advance even if minutes advance from "59" to "00".
z
The clock begins counting from "0" seconds. (Seconds are not displayed.)
The time display will disappear after a few seconds.
To confirm the time display:
Press the CLOCK button.
The time display will appear for about 5 seconds.
1 Clear all the programmed contents. [Refer to "Clearing all the memory (reset)" on
page 34 for details.]
2 Perform "Setting the clock" from the beginning.
Downloaded from: http://www.usersmanualguide.com/
E-13
CD-BK147V(S)E2.fm01/9/28
ENGLISH
CD-BK147V
Video CD Playback
- Video CD / Preparation for video CD playback -
Video CD
Any CD that contains motion pictures can be played.
You can enjoy motion pictures with the sound quality of MDs and the picture quality of
VHS tapes.
Digital compression technology allows the continuous playback of up to 74 minutes
from a 12 cm disc.
With video CDs, you can select the items you want to watch from the on-screen
menu. Discs which support "Playback control" can display still pictures. (See pages
15 - 16.)
The disc symbols are found on the disc labels or jackets.
„
Types of discs
This unit handles video CDs that support PBC (version 2.0). (PBC is an abbreviation
of "Playback control".)
You can enjoy the following two types of playback, depending on the disc.
Notes:
z
Video CDs are recorded in PAL or NTSC format.
z
Analogue system CDVs (12 cm) cannot be played.
z
Photo CDs and CD-ROMs cannot be played.
Preparation for video CD play-
back
„
Connecting the TV/monitor
If the TV/monitor has a video input, connect it to VIDEO OUT socket on the rear of
the unit.
Note:
If the TV/monitor does not have a video input, the VIDEO OUT socket on the unit
should be connected to a VCR with a video input, which in turn should be connected
to the TV/monitor through the TV ANTENNA/CABLE input. (Be sure to turn on the
VCR, and set the VCR's input mode to "auxiliary".)
„
Adjusting the TV and VCR
The TV and VCR input varies according to connection method. Be sure to make the
settings correctly. (Then, follow the playback procedure on pages 15 - 16 to check the
settings.)
Symbol
Size
8 cm (3") 12 cm (5")
Label sides
1 side 1 side
Audio recording format
Digital (max. 20 min) Digital (max. 74 min)
Video recording format
MPEG 1
Disc type Features
Video CDs without PBC
(version 1.1)
Sound and motion pictures can be played using
the same control operations as applied to music
CDs.
Video CDs with PBC
(version 2.0)
In addition to the features shown above (for discs
without PBC), PBC CDs have a menu that is dis-
played on the TV screen. You can play interactive
games and make use of other software with the
retrieval function (menu playback). You can also
display high resolution or normal still pictures.
TV/monitor
To video
input socket
Video cable
VCR
TV
Set the input selector
to AUX.
Set the TV/VCR selector
to VCR.
Set the input selector
to VCR.
<For TV sets with a video input socket>
<For TV sets without a video input socket>
Downloaded from: http://www.usersmanualguide.com/
E-14
CD-BK147V(S)E2.fm01/9/28
ENGLISH
CD-BK147V
Video CD Playback
- Preparation for video CD playback -
Preparation for video CD playback (continued)
„
Selecting the video output format
Video CD is recorded in PAL or NTSC format.
Select the video output format (NTSC, PAL or PAL 60) according to your TV or VCR.
To select the video output format:
Whilst in the stop mode, press the PAL/NTSC button.
Each time this button is pressed, the format will change in the following order:
Notes:
z
Video CDs are recorded in PAL or NTSC format. When you watch a PAL disc in
the NTSC mode or an NTSC disc in the PAL mode, the vertical size of the picture
will not be modified.
z
If a multi-mode TV is equipped with an input selector switch, set the switch to
"MULTI MODE". For the details, refer to the TV operation manual.
z
Do not change the video output format during playback. If you do, the picture sig-
nal may not be output properly.
z
Picture may be distorted when the setting is switched. This is not the malfunction
of the unit.
z
A few hours after the unit is unplugged, the setting will change back to the state at
the factory shipment (default setting).
„
To change the audio mode
Sound of the playback source can be switched among the STEREO, L-CH, and R-
CH modes.
The audio mode function is used when the left and right channels have individual sig-
nals from each other.
Press the AUDIO MODE button until the desired audio mode is dis-
played.
Each time the AUDIO MODE button is pressed, the mode will change as follows:
Notes:
z
The initial audio mode setting is "STEREO".
z
The setting will remain unchanged when you change the disc, you set the unit to
the stand-by mode or the function is changed from the CD/VIDEO CD (CD) to
another function.
z
When playing a sound multiplexed disc on which a vocal and music have been
separately recorded, select the audio mode as desired.
PAL 60 NTSC PAL
STEREO
Sounds on the left and right channels are played.
L-CH
Sounds on the left channel only are played.
R-CH
Sounds on the right channel only are played.
STEREO L-CH
R-CH
Downloaded from: http://www.usersmanualguide.com/
E-15
CD-BK147V(S)E2.fm01/9/28
ENGLISH
CD-BK147V
Video CD Playback
- Playback of a video CD (CDs) with P. B. C. (Version 2.0) -
Playback of a video CD (CDs) with P. B. C. (Version 2.0)
Playback control:
Video CDs that support "Playback control" can display still pictures. This function can
be used with video CD software (video CDs with playback control) that have a play-
back method recorded on them. You can select items you want to watch from the
menu displayed on the TV screen, or you can show still pictures.
Continued to the next page
1
Turn on the TV and set the input selector to "VCR".
2
Press the ON/STAND-BY button to turn the power on.
3
Press the CD/VIDEO CD (CD) button.
4
Press the OPEN/CLOSE button to open the disc tray.
5
Place the video CD(s) with P.B.C. on the disc tray, label side up.
When loading a third disc, press the DISC SKIP button to turn the
disc tray, then place the video CD in the open position.
z
Video CDs can be placed in any open position in the disc tray.
z
Be sure to place 8 cm (3") Video CD(s) in the middle of the disc positions.
6
Press the OPEN/CLOSE button to close the disc tray.
Total number of tracks on the
video CD whose number is flashing
Total playing time of the video CD
whose number is flashing
7
To select the video CD you want to listen to first, press the DISC
SKIP button.
8
Press the / ( /SELECT/RESUME) button.
A menu will appear on the TV and playback will be
paused.
12 cm (5")
8 cm (3")
1
2
<TV screen>
General control (See page 11.)
Downloaded from: http://www.usersmanualguide.com/
E-16
CD-BK147V(S)E2.fm01/9/28
ENGLISH
CD-BK147V
Video CD Playback
- Playback of a video CD (CDs) with P. B. C. (Version 2.0) -
Playback of a video CD (CDs) with P. B. C. (Version 2.0) (continued)
To interrupt playback:
Press the button on the remote control.
To resume playback from the same point, press the /SELECT/RESUME button.
To stop the current operation and return to the menu:
Press the ( /RETURN) button for less than 0.5 seconds.
To completely stop the video CD:
Hold down the ( /RETURN) button for more than 1 second.
To remove the video CDs:
Whilst in the stop mode, press the OPEN/CLOSE button.
The disc tray will open. Remove the two discs. Then, press the DISC SKIP button to
rotate the disc tray and remove the remaining disc.
After use:
Press the ON/STAND-BY button to enter the power stand-by mode.
Notes:
z
Playback control allows a video CD to be played back according to instructions
recorded on the disc. The "previous", "next", "return" and "select" operations may
function differently, depending on the PBC CDs.
z
Some video CDs with playback control may have an "auto pause" recorded on
them. When such a disc is played, the screen will stop automatically at the point
where an "auto pause signal" has been inserted.
z
If the picture looks dirty when a video CD is played back, there may be a scratch
on the video CD. Replace it with another video CD in good condition.
The P.B.C. function will not work in the following conditions.
z
When repeat, random, programme, bookmark, resume, disc digest, track digest or
time search play has been selected and playback begins.
z
When track numbers are selected using the direct search, the / (NEXT )
or / ( PREV.) button, and playback begins.
„
To move the menu screen (menu screen
with more than 1 page)
Notes:
z
This function may not work, depending on the disc.
z
The PREV. or NEXT button on the remote control allows you to locate the
desired portion.
„
To play without activating the playback
control function
You can play a video CD with P.B.C. without activating the playback control function.
In this case, the menu screen will not appear, and the disc will be played in the same
way as a video CD without P.B.C.
Notes:
z
The P.B.C. function can also be cancelled whilst in the playback mode.
z
Some video CDs with P.B.C. cannot be played back when the P.B.C. mode is off.
z
See pages 17 - 23 to perform various playback functions without activating the
P.B.C. function.
9
Select the desired menu number using the direct search buttons
on the remote control.
z
Playback will begin.
z
After playback has finished, the menu will reappear. Select the menu number
you want to play.
To move to the next menu screen:
Whilst in the stop mode, press the / button.
To return to the previous menu screen:
Whilst in the stop mode, press the / button.
1
Whilst in the stop mode, press the P.B.C. (P.B.C. AUTO/OFF) but-
ton to cancel the P.B.C. mode.
The P.B.C. function cannot be cancelled whilst the menu screen is displayed.
2
Press the / ( /SELECT/RESUME) button.
Playback will begin.
PBC OFF
<TV screen>
Downloaded from: http://www.usersmanualguide.com/
E-17
CD-BK147V(S)E2.fm01/9/28
ENGLISH
CD-BK147V
Video CD Playback
- Playback of a video CD (CDs) without P. B. C. (Version 1.1) -
Playback of a video CD (CDs) without P. B. C. (Version 1.1)
To interrupt playback:
Press the button on the remote control.
To resume playback from the same point, press the /SELECT/RESUME button.
To stop playback:
Press the ( /RETURN) button.
To remove the video CDs:
Whilst in the stop mode, press the OPEN/CLOSE button.
The disc tray will open. Remove the two discs. Then, press the DISC SKIP button to
rotate the disc tray and remove the remaining disc.
After use:
Press the ON/STAND-BY button to enter the power stand-by mode.
1
Turn on the TV and set the input selector to "VCR".
2
Press the ON/STAND-BY button to turn the power on.
3
Press the CD/VIDEO CD (CD) button.
4
Press the OPEN/CLOSE button to open the disc tray.
5
Place the video CD(s) on the disc tray, label side up.
When loading a third disc, press the DISC SKIP button to turn the
disc tray, then place the video CD in the open position.
z
Video CDs can be placed in any open position in the disc tray.
z
Be sure to place 8 cm (3") Video CD(s) in the middle of the disc positions.
6
Press the OPEN/CLOSE button to close the disc tray.
Total number of tracks on the
video CD whose number is flashing
Total playing time of the video CD
whose number is flashing
7
To select the video CD you want to listen to first, press the DISC
SKIP button.
8
Press the / ( /SELECT/RESUME) button to start playback.
z
Playback will begin from track 1 on the disc you have selected to play. After
that disc finishes playing, the next disc will automatically start playback.
z
When the last track on the third disc has finished playing, the unit will stop au-
tomatically.
z
When there is no video CD in one of the disc 1 - 3 positions, the next video
CD will be played.
General control (See page 11.)
Downloaded from: http://www.usersmanualguide.com/

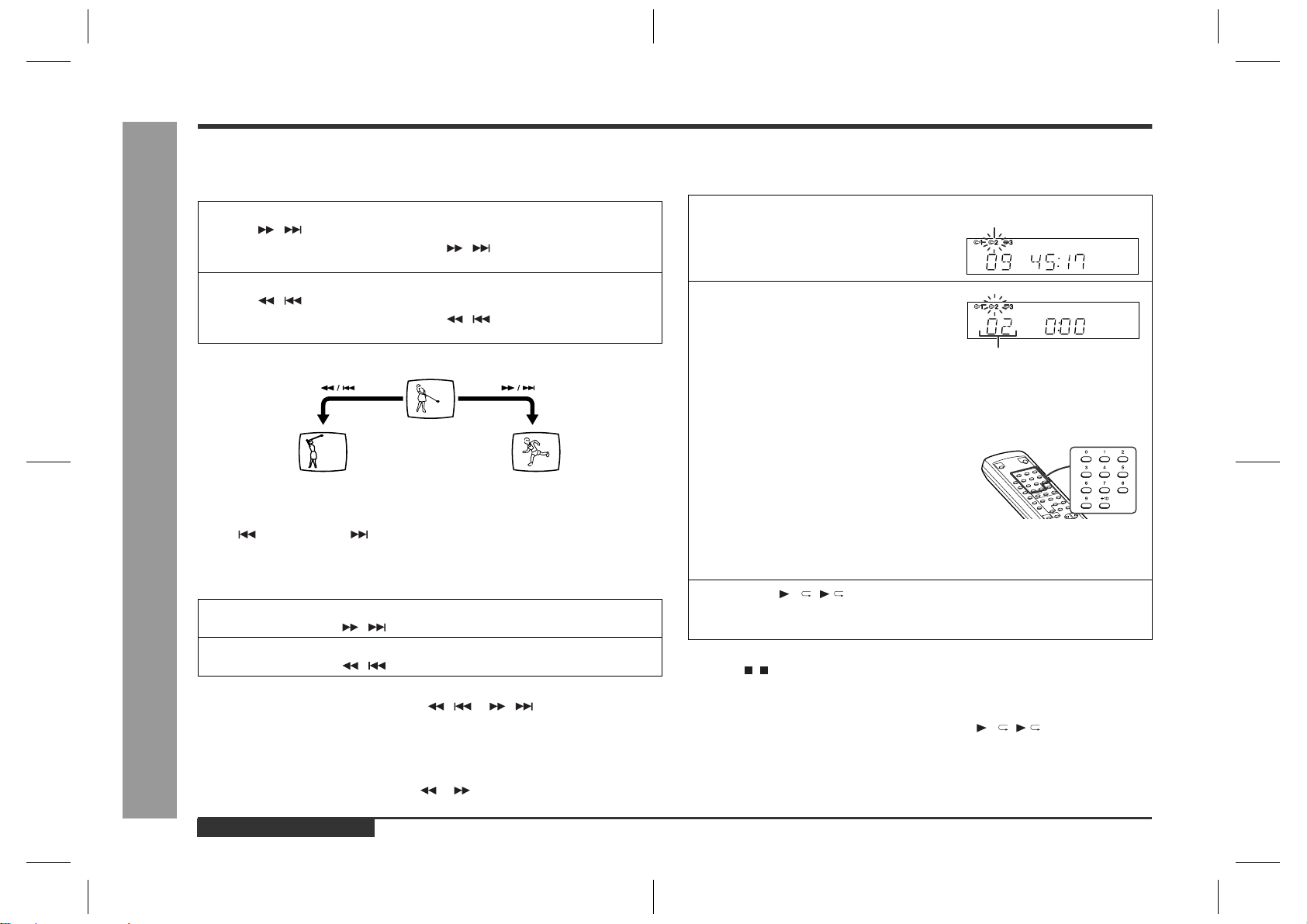

E-18
CD-BK147V(S)E2.fm01/9/28
ENGLISH
CD-BK147V
Video CD Playback
- Playback of a video CD (CDs) without P. B. C. (Version 1.1) -
Playback of a video CD (CDs) without P. B. C. (Version 1.1) (continued)
„
To skip to the beginning of a track (skip
search)
Notes:
z
You can skip to the beginning of a track on a single disc only.
z
The PREV. or NEXT button on the remote control allows you to locate the
beginning of a track.
„
Scan play
Notes:
z
Normal playback will resume when the / or / button is released.
z
You can locate the desired portion on a single disc only.
z
During scan play, colours may fade, pictures may be distorted, or noise bars may
be seen.
z
Pictures are shown intermittently and no sound is heard during fast forward or fast
reverse on video CDs.
z
This can be operated by pressing the or button on the remote control.
„
Direct search system
By using the direct search buttons, the desired tracks can be played.
To stop playback:
Press the ( /RETURN) button.
Notes:
z
The selected track can be started simply by pressing the direct search buttons
during playback. [It is not necessary to press the / ( /SELECT/RESUME)
button.]
z
A track number higher than the number of tracks on the disc cannot be selected.
z
During random play, direct search system is not possible.
To move to the beginning of the next track:
Press the / button for less than 0.5 seconds during playback.
z
You can skip to any track by pressing the / button repeatedly until the de-
sired track number appears.
To restart the track being played:
Press the / button for less than 0.5 seconds during playback.
z
You can skip to any track by pressing the / button repeatedly until the de-
sired track number appears.
[Example] When the current track is 9
Beginning of track 9 Beginning of track 10
For fast forward:
Press and hold down the / button during playback.
For fast reverse:
Press and hold down the / button during playback.
1
Whilst in the stop mode, press the
DISC SKIP button to select the de-
sired disc.
Selected disc number
2
Use the direct search buttons on the
remote control to select the desired
track.
Selected track number
z
The direct search buttons allow you to select up to number 10.
z
When selecting number 11 or more, use the "+10" button.
A. For example, to choose 13
1 Press the "+10" button once.
2 Press the "3" button.
B. For example, to choose 30
1 Press the "+10" button three times.
2 Press the "0" button.
3
Press the / ( /SELECT/RESUME) button to start playback.
Playback of the selected track is started. When the end of last track of the disc
selected is reached, the next disc will be automatically started.
Downloaded from: http://www.usersmanualguide.com/
E-19
CD-BK147V(S)E2.fm01/9/28
ENGLISH
CD-BK147V
Advanced Video CD (Version 1.1) Playback
- Programmed play -
Programmed play
You can choose up to 32 selections for playback in the order you like.
Adding tracks to the programme:
If a programme has been previously stored, the "MEMORY" indicator will be dis-
played. Then follow steps 1 - 3 to add tracks. The new tracks will be stored after the
last track of the original programme.
Notes:
z
Opening the disc tray automatically cancels the programmed sequence.
z
Even if you press the ON/STAND-BY button to enter the stand-by mode or the
function is changed from CD/VIDEO CD (CD) to another, the programmed selec-
tions will not be cleared.
z
During programme operation, random play is not possible.
z
The programme function will not work in the P.B.C. mode. Whilst the programme
function is active, the P.B.C. function will be cancelled automatically.
1
Whilst in the stop mode, press the
DISC SKIP button to select the de-
sired disc.
Selected disc number
2
Press the direct search buttons on
the remote control to select the de-
sired track.
Selected track number
You can also select a track by pressing the / ( PREV.) or /
(NEXT ) button.
3
Press the MEMORY/SET (MEMORY)
button to save the track number.
Playback order
When the track is memorised, "MEMORY" will appear.
4
Repeat steps 1 - 3 for other tracks. Up to 32 tracks can be pro-
grammed.
If you make a mistake, the programmed tracks can be cleared by pressing the
CLEAR button.
5
Press the / ( /SELECT/RESUME) button to start playback.
To clear the programmed selections:
Press the CLEAR button on the remote control
whilst the "MEMORY" indicator is lit.
Each time the button is pressed, one track will
be cleared, beginning with the last track pro-
grammed. When all the tracks are cleared,
"MEMORY" will disappear.
Downloaded from: http://www.usersmanualguide.com/
E-20
CD-BK147V(S)E2.fm01/9/28
ENGLISH
CD-BK147V
Advanced Video CD (Version 1.1) Playback
- Repeat or random play / Time search selection -
Repeat or random play
„
Repeat play
All tracks on up to 3 discs, or a programmed sequence can be continuously repeated.
To repeat a desired track:
Perform steps 1 - 4 in the "Programmed play" section and then press the / ( /
SELECT/RESUME) button twice.
To cancel repeat play:
Press the / ( /SELECT/RESUME) button again.
" " will go out.
„
Random play
The tracks on the disc(s) can be played in random order automatically.
To cancel random play:
Press the /SELECT/RESUME button.
"R" will go out.
Notes:
z
If you press the NEXT button during random play, you can move to the track
selected next by the random operation. On the other hand, the PREV. button
does not allow you to move to the previous track. The beginning of the track being
played will be located.
z
In random play, the CD player will select and play tracks automatically. (You cannot
select the order of the tracks.)
z
Repeat or random function will not work during P.B.C. play. Cancel the P.B.C. mode
before using this function on a video CD with P.B.C.
Caution:
After performing repeat or random play, be sure to press the ( /RETURN) button.
Otherwise, the disc(s) will play continuously.
Time search selection
You can play back from the desired scene by specifying the time.
To cancel the time search operation:
Press the ( /RETURN) button.
Notes:
z
Time search mode will be cancelled automatically if the desired time is not entered
within 10 seconds.
z
The time search function will not work during P.B.C. and programme play. Cancel
the P.B.C. mode before using this function on a video CD with P.B.C.
z
This operation is not accepted by still pictures (menu display, photo, etc.).
To repeat all tracks on up to 3 discs:
Press the / ( /SELECT/RESUME) button twice.
Press the RANDOM button on the re-
mote control to begin random play.
"R" will appear.
1
Whilst in the stop or playback mode, hold down the DIGEST (DI-
GEST/TIME SEARCH) button to enter the time search mode.
During playback, the current track number is displayed.
2
Use the direct search buttons on the remote control to specify the
time and track number.
[For example, to select track No. 3, 2 minutes and 30 seconds.]
Press "0", "2", "3", "0" and "3" successively.
Selected track number Selected time
z
If you enter an incorrect time in the time search mode or if you want to change
the entered time, press the CLEAR button on the remote control. Each time
the CLEAR button is pressed, the last digit will be erased.
z
The track number can be changed only after setting the time.
3
Press the DIGEST (DIGEST/TIME SEARCH) button again to start
playback from the selected time.
When the last track on the third disc has finished playing, the unit will stop auto-
matically.
TIME SEARCH
TNO 01 - - : - -
<TV screen>
DI SC NO.02
TNO 03 2:30
<TV screen>
Downloaded from: http://www.usersmanualguide.com/
E-21
CD-BK147V(S)E3.fm01/9/28
ENGLISH
CD-BK147V
Advanced Video CD (Version 1.1) Playback
- Digest selection of discs and tracks -
Digest selection of discs and tracks
„
Disc digest selection
You can play back a desired track by selecting one from the 9 displayed tracks on the
screen.
When there are more than 9 tracks on the video CD:
Each press of the / (NEXT ) button will display the next 9 tracks.
Press the / ( PREV.) button to return to the previous display.
To cancel the disc digest:
Press the ( /RETURN) button.
Notes:
z
The disc digest function is available only in the stop mode.
z
This function is not available with an audio CD.
„
Track digest selection
Each track is divided into 9 sections.
You can look at the sections and select the scene you want to start watching from.
This function is convenient when you want to start from the middle of an undivided
track, for example, a movie.
To cancel the track digest operation:
Press the ( /RETURN) button.
Notes:
z
The track digest function works only during playback.
z
This operation is not accepted by a short time track (less than one minute), still
pictures (menu display, photo, etc.) and audio CDs.
z
One track is divided into nine frames of equal playing time.
Caution:
Digest function of discs and tracks will not work during P.B.C. and programme play.
Cancel the P.B.C. mode before using this function on a video CD with P.B.C.
1
Whilst in the stop mode, press the DIGEST (DIGEST/TIME
SEARCH) button.
Up to 9 tracks will be displayed on the screen.
2
Press the direct search buttons on the remote control to select the
desired track.
z
Playback will be started from the selected track.
z
When the last track on the third disc has finished playing, the unit will stop au-
tomatically.
1
4
7
2
5
8
3
6
9
<TV screen>
DISC DIGEST
1
During playback, press the DIGEST (DIGEST/TIME SEARCH) but-
ton.
The track being played back will be divided into 9 sections and playback will be
paused.
2
Press the direct search buttons on the remote control to select the
scene you want to watch.
z
Playback will be started from the selected scene.
z
When the last track on the third disc has finished playing, the unit will stop au-
tomatically.
1
4
7
2
5
8
3
6
9
<TV screen>
TRACK DIGEST
Downloaded from: http://www.usersmanualguide.com/
E-22
CD-BK147V(S)E3.fm01/9/28
ENGLISH
CD-BK147V
Advanced Video CD (Version 1.1) Playback
- Bookmark function -
Bookmark function
This function marks the desired scene on the video CD to play it back easily. (Up to 9
scenes per disc can be marked.)
„
To create a bookmark
„
To recall a bookmarked scene
To cancel the bookmark function:
Press the ( /RETURN) button.
Notes:
z
This function works only with video CDs.
z
Even if the unit is set to the stand-by mode or the function is changed from CD/
VIDEO CD (CD) to some other function, the marks will not be erased.
z
Opening the disc tray automatically erases the marks.
z
Marks created on one of the discs 1 - 3 will be erased when creating marks on
other discs.
z
The bookmark function will not work during P.B.C. and programme play. Cancel
the P.B.C. mode before using this function on a video CD with P.B.C.
z
This function is invalid with still pictures (menu display, photo, etc.) and audio CD.
z
Every marked scene will be erased automatically when the programme is
memorised.
1
Press the DISC SKIP button to select the desired disc.
2
Press the / ( /SELECT/RESUME) button.
3
Press the BOOKMARK button on the remote control when the de-
sired scene is displayed.
"BOOKMARK MEMORY" will appear on the TV screen for a few seconds.
4
Repeat step 3.
z
Up to 9 scenes can be marked.
z
If more than 10 bookmarks are created, bookmarks will be erased in the order
they were created.
<TV screen>
BOOKMARK MEMORY
TNO 01 1 : 2 5
1
Whilst in the stop or playback mode, hold down the BOOKMARK
button on the remote control for more than 1 second.
The marked scenes and numbers will be displayed on the TV screen. After dis-
playing every scene, this unit will enter the pause mode automatically.
2
Press the direct search buttons on the remote control to select the
scene you want to play back.
z
Playback will begin from the selected scene.
z
When the third disc has finished, the unit will stop automatically.
<TV screen>
1
4
2
5
3
Downloaded from: http://www.usersmanualguide.com/
E-23
CD-BK147V(S)E3.fm01/9/28
ENGLISH
CD-BK147V
Advanced Video CD (Version 1.1) Playback
- Resume play / To play back the video CD manually / Changing the TV screen display -
Resume play
This function is to restart playback from the point where it has stopped.
Notes:
z
You can perform the resume play even if the unit is set to the stand-by mode or the
function is changed from CD/VIDEO CD (CD) to another.
z
Resume play cannot be performed in the P.B.C. mode.
z
Resume play cannot be performed whilst opening the disc tray or after changing
the disc.
To play back the video CD
manually
Usually this unit detects the video CD and plays back pictures and sounds. In case
this unit fails to judge it correctly, you can play back the video CD manually.
To return to the automatic video CD detection mode:
Notes:
z
This setting will be cancelled when you change the discs.
z
Whilst in the "VCD ON" state, you cannot play back audio CDs.
Changing the TV screen dis-
play
You can check the operation of the main unit by the on-screen display.
Each time the OSD (OSD ON/OFF) button is pressed during playback
or in the stop mode, the display will change as follows:
[During stop mode]
[During playback]
Note:
The displays may differ depending on the discs.
During the stop mode, hold down the / ( /SELECT/RESUME)
button for more than 1 second.
Playback will begin at the point where playback has stopped.
1
Press the VCD AUTO/VCD button until "VCD ON" appears on the
TV screen.
2
Press the /SELECT/RESUME button.
Press the VCD AUTO/VCD button until "VCD
AUTO" appears on the TV screen.
VCD ON
<TV screen>
VCD AUTO
<TV screen>
DI SC NO.01
TNO 10 44 :16
No display
Total number
of tracks
Total playing
time
DI SC NO.01
TNO 02 1:26
No display
Track number Elapsed time
Downloaded from: http://www.usersmanualguide.com/
E-24
CD-BK147V(S)E3.fm01/9/28
ENGLISH
CD-BK147V
CD Playback
- Listening to a CD (CDs) -
Listening to a CD (CDs)
1
Press the ON/STAND-BY button to turn the power on.
2
Press the CD/VIDEO CD (CD) button.
3
Press the OPEN/CLOSE button to open the disc tray.
4
Place the CD(s) on the disc tray, label side up.
When loading a third disc, press the DISC SKIP button to turn the
disc tray, then place the CD in the open position.
z
CDs can be placed on any open position on the disc tray.
z
Be sure to place 8 cm (3") CD(s) in the middle of the disc positions.
5
Press the OPEN/CLOSE button to close the disc tray.
Total number of tracks on the
CD whose number is flashing
Total playing time of the CD whose
number is flashing
6
To select the CD you want to listen to first, press the DISC SKIP
button.
7
Press the / ( /SELECT/RESUME) button to start playback.
z
Playback will begin from track 1 on the disc you have selected to play. After
that disc finishes playing, the next disc will automatically start playback.
z
When the last track on the third disc has finished playing, the CD player will
stop automatically.
z
When there is no CD in one of the disc 1 - 3 positions, that position will be
skipped and the next CD will be played.
General control (See page 11.)
Downloaded from: http://www.usersmanualguide.com/
E-25
CD-BK147V(S)E3.fm01/9/28
ENGLISH
CD-BK147V
CD Playback
- Listening to a CD (CDs) -
To interrupt playback:
Press the button on the remote control.
To resume playback from the same point, press the /SELECT/RESUME button.
To stop playback:
Press the ( /RETURN) button.
To remove the CDs:
Whilst in the stop mode, press the OPEN/CLOSE button.
The disc tray will open. Remove the two discs. Then, press the DISC SKIP button to
rotate the disc tray and remove the remaining disc.
After use:
Press the ON/STAND-BY button to enter the power stand-by mode.
The following playback functions are the same as video CD opera-
tions.
Page
Direct search system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Programmed play . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Repeat or random play . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Note:
Whilst in the "VCD ON" state, you cannot play back audio CDs.
Caution:
z
Do not place two CDs in one disc tray.
z
Do not push the disc tray whilst it is moving.
z
Do not turn the disc tray by hand. This may cause malfunctions.
z
If the power fails whilst the tray is open, wait until the power is restored.
z
If the disc tray is stopped forcibly, "ERR 0203" will appear in the display and the
unit will not function. If this occurs, press the ON/STAND-BY button to enter the
power stand-by mode and then turn the power on again.
z
If TV or radio interference occurs during CD operation, move the unit away from
the TV or radio.
z
If a disc is damaged, dirty, or loaded upside down, the disc will be skipped.
„
To locate the beginning of a track
Notes:
z
You can locate the beginning of a track on a single disc only.
z
The PREV. or NEXT button on the remote control allows you to locate the
beginning of a track.
„
To locate the desired portion
Notes:
z
Normal playback will resume when the / or / button is released.
z
The or button on the remote control allows you to locate the desired por-
tion.
z
You can locate the desired portion on a single disc only.
z
When the end of the last track is reached during fast forward, "END" will appear on
the display and CD operation will be paused. When the beginning of the first track
is reached during fast reverse, the unit will enter the playback mode.
To move to the beginning of the next track:
Press the / button for less than 0.5 seconds during playback.
z
You can skip to any track by pressing the
/ button repeatedly until the desired
track number appears.
To restart the track being played:
Press the / button for less than 0.5 seconds during playback.
z
You can skip to any track by pressing the
/ button repeatedly until the desired
track number appears.
For audible fast forward:
Press and hold down the / button during playback.
For audible fast reverse:
Press and hold down the / button during playback.
Downloaded from: http://www.usersmanualguide.com/
E-26
CD-BK147V(S)E3.fm01/9/28
ENGLISH
CD-BK147V
Radio
- Listening to the radio -
Listening to the radio
To receive an FM stereo transmission:
Press the TUNER (BAND) button to display the "ST" indicator.
z
" " will appear when an FM broadcast is in stereo.
z
If the FM reception is weak, press the TUNER (BAND) button to extinguish the
"ST" indicator. The reception changes to monaural, and the sound becomes
clearer.
After use:
Press the ON/STAND-BY button to enter the power stand-by mode.
1
Press the ON/STAND-BY button to turn the power on.
2
Press the TUNER (BAND) button repeatedly to select the desired
frequency band (FM or AM).
3
Press the TUNING/TIME ( or ) button to tune in to the desired
station.
Manual tuning:
Press the TUNING/TIME button as many times as required to tune in to the de-
sired station.
Auto tuning:
When the TUNING/TIME button is pressed for more than 0.5 seconds, scanning
will start automatically and the tuner will stop at the first receivable broadcast sta-
tion.
Notes:
z
When radio interference occurs, auto scan tuning may stop automatically at
that point.
z
Auto scan tuning will skip weak signal stations.
z
To stop the auto tuning, press the TUNING/TIME button again.
FM stereo mode indicator
FM stereo receiving indicator
General control (See page 11.)
Downloaded from: http://www.usersmanualguide.com/
E-27
CD-BK147V(S)E3.fm01/9/28
ENGLISH
CD-BK147V
Radio
- Listening to the memorised station -
Listening to the memorised station
„
Memorising a station
You can store 40 AM and FM stations in memory and recall them at the push of a but-
ton. (Preset tuning)
Note:
The backup function protects the memorised stations for a few hours should there be
a power failure or the AC power lead disconnection.
„
To recall a memorised station
„
To scan the preset stations
The stations saved in memory can be scanned automatically. (Preset memory scan)
„
To erase entire preset memory
1
Perform steps 1 - 3 in "Listening to the radio" on page 26.
2
Press the MEMORY/SET button to enter the preset tuning saving
mode.
3
Within 30 seconds, press the PRESET ( or ) button to select the
preset channel number.
Store the stations in memory, in order, starting with preset channel 1.
4
Within 30 seconds, press the MEMORY/SET button to store that
station in memory.
If the "MEMORY" and preset number indicators go out before the station is
memorised, repeat the operation from step 2.
5
Repeat steps 1 - 4 to set other stations, or to change a preset sta-
tion.
When a new station is stored in memory, the station previously memorised will
be erased.
Press the PRESET ( or ) button for less than 0.5 seconds to select
the desired station.
Preset channel Frequency and frequency band
1
Press the PRESET ( or ) button for more than 0.5 seconds.
The preset number will flash and the programmed stations will be tuned in se-
quentially, for 5 seconds each.
2
Press the PRESET ( or ) button again when the desired station
is located.
1 Press the ON/STAND-BY button to enter the stand-by mode.
2 Whilst pressing down the TUNER (BAND) button and the EQUALIZER/X-BASS/
DEMO button, press the ON/STAND-BY button until "TUNER CL" appears.
Listening to the radio (See page 26.)
Downloaded from: http://www.usersmanualguide.com/
E-28
CD-BK147V(S)E3.fm01/9/28
ENGLISH
CD-BK147V
Tape Playback
- Listening to a cassette tape (TAPE 1 or TAPE 2) -
Listening to a cassette tape (TAPE 1 or TAPE 2)
Before playback:
Playback is possible in TAPE 1 compartment as well as in TAPE 2.
To stop playback:
Press the ( /RETURN) button.
Fast forward/rewind: (TAPE 2 only)
Caution:
z
To remove the cassette, press the ( /RETURN) button, and then open the com-
partment.
z
Before changing from one tape operation to another, press the ( /RETURN) but-
ton.
z
If a power failure occurs during tape operation, the tape head will remain engaged
with the tape and the cassette door will not open. In this case, wait until the power
is restored.
z
For playback, use normal or low-noise tapes for the best sound.
(Metal or CrO tapes are not recommended.)
z
Do not use C-120 tapes or poor-quality tapes, as they may cause mal-
functions.
z
Before loading a tape into the cassette compartment, tighten the slack
with a pen or a pencil.
1
Press the ON/STAND-BY button to turn the power on.
2
Open the cassette door by pushing the area marked " PUSH
EJECT".
3
Load a cassette into the TAPE 1 or TAPE 2
cassette compartment with the side to be
played facing toward you.
4
Press the TAPE (1 2) button to select the cassette you want to
listen to.
5
Press the / ( /SELECT/RESUME) button to start playback.
1 Press the ( /RETURN) button, then press the TAPE (1 2) button to select
TAPE 2.
2 To advance the tape, press the / ( ) button. To rewind it, press the /
( ) button.
TAPE 1 TAPE 2
General control (See page 11.)
Downloaded from: http://www.usersmanualguide.com/
E-29
CD-BK147V(S)E3.fm01/9/28
ENGLISH
CD-BK147V
Karaoke
- Playing karaoke -
Playing karaoke
You can enjoy karaoke to video CDs, CDs and cassettes by connecting a separately
available microphone to this unit.
Notes:
z
When you sing too loud through the microphone, your voice may be distorted
depending on the devices connected. If this happens, lower the microphone vol-
ume.
z
If an extremely sensitive microphone is used, howling may be generated.
z
Unidirectional microphone is more appropriate for vocal use.
If squealing occurs:
z
Reduce the microphone volume.
z
Change the direction of the microphone.
z
Reduce the volume of the main unit.
z
Move the microphone away from the speakers.
Caution:
z
When not using the microphone, remove it from the MIC socket.
z
When connecting or disconnecting the microphone, set the MIC LEVEL control to
MIN.
1
Set the MIC LEVEL control to MIN to protect the speakers from
shock noise and to avoid disturbing noises.
2
Connect the microphone to the MIC socket.
z
Use a microphone with a 6.3 mm (1/4") plug, an impedance of 600 ohms.
z
Use a standard plug adaptor when using a microphone with a 3.5 mm (1/8")
diameter plug.
3
Press the ON/STAND-BY button to turn the power on.
4
Press the CD/VIDEO CD or TAPE (1 2) button to select the audio
source and play it.
If you wish to record, start recording in the TAPE 2 compartment. (Refer to pages
30 - 31 for details.)
5
Adjust the volume of the audio source using the VOLUME buttons.
6
Turn the MIC LEVEL control towards MAX to increase the micro-
phone volume and towards MIN to decrease it.
Downloaded from: http://www.usersmanualguide.com/
E-30
CD-BK147V(S)E3.fm01/9/28
ENGLISH
CD-BK147V
Tape Recording
- Recording to a cassette tape -
Recording to a cassette tape
Before recording:
z
When recording important selections, make a preliminary test to ensure that the
desired material is properly recorded.
z
SHARP is not liable for damage or loss of your recording arising from malfunction
of this unit.
z
The volume and sound controls can be adjusted with no effect on the recorded
signal (Variable Sound Monitor).
z
For recording, use only normal tapes. Do not use metal or CrO tapes.
Recording can be operated in the TAPE 2 compartment. The TAPE 1 is for playback
only.
„
Recording from a CD (CDs)
You can record 3 CDs continuously.
To perform programmed recording:
To stop recording:
Press the ( /RETURN) button.
The CD and tape will stop.
Note:
When the end of the tape is reached whilst recording, the CD player will display the
track number which was being played at that time, and stop automatically. If you want
to restart recording from the beginning of the interrupted track, turn over the tape,
press the REC PAUSE [ (TAPE)] button and then the / ( /SELECT/
RESUME) button. (If tracks have been stored in memory using the programmed
recording, recording will restart from the first track stored in memory.)
1
Press the ON/STAND-BY button to turn the power on.
2
Load a cassette into the TAPE 2 cassette compartment with the
side to be recorded on facing you.
Wind past the leader of the tape, on which recording cannot be performed.
3
Press the CD/VIDEO CD (CD) button and load the desired disc.
4
Press the DISC SKIP button to select the disc to be recorded first.
5
Press the REC PAUSE [
(TAPE)] button.
Recording will be paused.
6
Press the / ( /SELECT/RESUME) button to start recording.
z
CD playback will start approximately 7 seconds after the tape starts.
z
Recording is started from the selected CD. When the playback of the last disc
is finished or the end of the tape is reached, the CD and the cassette will stop
automatically.
1 Programme discs and tracks. (See page 19.)
2 Press the REC PAUSE [ (TAPE)] button.
3 Press the / ( /SELECT/RESUME) button.
Programmed play (See page 19.)
Downloaded from: http://www.usersmanualguide.com/
E-31
CD-BK147V(S)E4.fm01/9/28
ENGLISH
CD-BK147V
Tape Recording
- Recording to a cassette tape -
„
Recording from the radio
To interrupt recording:
Press the REC PAUSE [ (TAPE)] button.
To resume recording, press the / ( /SELECT/RESUME) button.
To stop recording:
Press the ( /RETURN) button.
Note:
If you hear a whistling noise whilst recording an AM station, move the AM loop aerial.
„
Dubbing from tape to tape
You can record from TAPE 1 to TAPE 2.
For recording, use only normal tapes. Do not use metal or CrO tapes.
To stop dubbing:
Press the ( /RETURN) button.
TAPE 1 and TAPE 2 will simultaneously stop.
„
Erasing recorded tapes
Note:
Make sure that the TAPE 1 is not in use.
1
Tune in to the desired station. (See page 26.)
2
Load a cassette into the TAPE 2 cassette compartment with the
side to be recorded on facing you.
Wind past the leader of the tape, on which recording cannot be performed.
3
Press the REC PAUSE [
(TAPE)] button.
Recording will be paused.
4
Press the / ( /SELECT/RE-
SUME) button to start recording.
Erase-prevention tab of cassette tapes:
z
When recording on a cassette tape, make
sure that the erase-prevention tabs are not re-
moved. Cassettes have removable tabs that
prevent accidental recording or erasing.
z
To protect the recorded sound, remove the tab
after recording. Cover the tab hole with adhe-
sive tape to record on the tape without the tab.
Side A
Tab for side B
Tab for side A
1
Press the ON/STAND-BY button to turn the power on.
2
Load a prerecorded cassette into
the TAPE 1 cassette compart-
ment. Insert a blank tape into the
TAPE 2 cassette compartment.
It is recommended that the recording
tape is the same length as the master
tape.
3
Press the TAPE (1 2) button un-
til "TAPE 1" appears on the dis-
play.
4
Press the REC PAUSE [
(TAPE)] button.
Recording will be paused.
5
Press the / ( /SELECT/RE-
SUME) button to start dubbing.
1 Load the tape to be erased into the TAPE 2 cassette compartment with the side to
be erased facing toward you.
2 Press the TAPE (1 2) button until "TAPE 2" appears on the display.
3 Press the REC PAUSE [ (TAPE)] button.
4 Press the / ( /SELECT/RESUME) button to start erasing.
Listening to the radio (See page 26.)
Downloaded from: http://www.usersmanualguide.com/
E-32
CD-BK147V(S)E4.fm01/9/28
ENGLISH
CD-BK147V
Advanced Features
- Timer and sleep operation -
Timer and sleep operation
Timer playback:
The unit turns on and plays the desired source (video CD, CD, tuner, tape) at the pre-
set time.
Timer recording:
The unit turns on and starts recording from the tuner at the preset time.
Sleep operation:
The radio, video CD, CD and cassette tape can all be turned off automatically.
„
Timer playback or timer recording
Before setting timer:
1 Press the CLOCK button to check that the clock is on time.
2 For timer playback: Load a cassette or discs to be played.
For timer recording: Load a cassette for recording in the TAPE 2 cas-
sette compartment.
1
Press the ON/STAND-BY button to turn the power on.
2
Press the CD/VIDEO CD, TUNER (BAND) or TAPE (1 2) button to
select the desired function.
To select the timer playback source: CD/VIDEO CD, TUNER (BAND) or TAPE
(1 2).
To select the timer recording source: TUNER (BAND).
When you selected the TUNER (BAND), tune in to the desired sta-
tion.
3
Adjust the volume using the VOLUME buttons.
Do not turn the volume up too high.
4
Press the TIMER/SLEEP button repeatedly to select timer playback
or timer recording.
Display the " " for timer playback and the " REC" for timer re-
cording.
Setting the clock (See page 12.)
Downloaded from: http://www.usersmanualguide.com/
E-33
CD-BK147V(S)E4.fm01/9/28
ENGLISH
CD-BK147V
Advanced Features
- Timer and sleep operation -
To reset or change the timer setting:
Perform "Timer playback or timer recording" from the beginning.
Note:
Once the time is set, the setting will be retained until a new time is entered.
„
Sleep operation
To cancel the sleep operation:
Press the ON/STAND-BY button whilst the sleep timer is set.
To confirm the remaining sleep time:
Press the TIMER/SLEEP button whilst the sleep timer is set.
The remaining sleep time is displayed for about 5 seconds.
Note:
Once the sleep time is set, it will remain unchanged until a new time is entered.
5
Press the TUNING/TIME ( or ) button to specify the hour to start,
then press the MEMORY/SET button.
The illustrations show the timer playback setting.
6
Press the TUNING/TIME ( or ) button to specify the minutes,
then press the MEMORY/SET button.
7
The unit will enter the timer stand-by mode automatically.
To cancel the timer playback/timer recording:
Press the ON/STAND-BY button to turn the power on.
8
When the preset time is reached, playback or recording will start.
The volume will increase gradually until it reaches the volume you were listening
at before your system enters the timer stand-by mode.
9
In timer playback:
If you select CD/VIDEO CD or TAPE, the unit will enter the stand-by mode after
the playback. If you select TUNER, it will enter the stand-by mode one hour after
the timer playback starts.
In timer recording:
When the recording tape reaches its end, the timer recording will end, and the
unit will enter the stand-by mode.
1
Play back the desired sound source.
2
Press the TIMER/SLEEP button repeatedly until "SLEEP" is dis-
played.
To change the sleep time:
Whilst the sleep time is displayed, press the TUNING/TIME ( or ) button.
(Maximum: 3 hours - Minimum: 1 minute)
z
3 hours - 5 minutes 5-minute intervals
z
5 minutes - 1 minute 1-minute intervals
3
Press the MEMORY/SET button.
4
Your system will enter the power stand-by mode automatically af-
ter the preset time has elapsed.
The volume will be turned down 1 minute before the sleep operation finishes.
Listening to the radio (See page 26.)
Downloaded from: http://www.usersmanualguide.com/
E-34
CD-BK147V(S)E4.fm01/9/28
ENGLISH
CD-BK147V
References
- Troubleshooting / Maintenance -
Troubleshooting
„
If trouble occurs
When this product is subjected to strong external interference (mechanical shock,
excessive static electricity, abnormal supply voltage due to lightning, etc.) or if it is
operated incorrectly, it may malfunction.
If such a problem occurs, do the following:
1 Set the unit to the stand-by mode and turn the power on again.
2 If the unit is not restored in the previous operation, unplug and plug in the unit,
and then turn the power on.
Note:
If neither operation above restores the unit, clear all the memory by resetting it.
„
Clearing all the memory (reset)
1 Press the ON/STAND-BY button to enter the power stand-by mode.
2 Whilst pressing down the / button and the EQUALIZER/X-BASS/DEMO but-
ton, press the ON/STAND-BY button until "CLEAR AL" appears.
Caution:
This operation will erase all data stored in memory including clock, timer settings,
tuner preset, and CD programme.
„
Before transporting the unit
Maintenance
„
Cleaning the tape-handling parts
z
Dirty heads, capstans or pinch rollers can cause poor sound and tape jams. Clean
these parts with a cotton swab moistened with commercial head/pinch roller
cleaner or isopropyl alcohol.
z
When cleaning the heads, pinch rollers, etc., unplug the unit which contains high
voltages.
z
After long use, the deck's heads and capstans may become magnetised, causing
poor sound. Demagnetise these parts once every 30 hours of playing/recording
time by using a commercial tape head demagnetiser. Read the demagnetiser's
instructions carefully before use.
„
Cleaning the cabinet
1 Press the ON/STAND-BY button to turn the power on.
2 Press the CD/VIDEO CD button.
3 Press the OPEN/CLOSE button to open the disc tray.
Remove all discs from the unit.
4 Press the OPEN/CLOSE button to close the disc tray.
Make sure that "NO DISC" is displayed.
5 Press the ON/STAND-BY button to enter the stand-by mode, and then unplug
the AC power lead from the wall socket.
Playback head Erase head
Capstan Recording/Playback head
Pinch roller
Periodically wipe the cabinet with a soft cloth and a diluted
soap solution, then with a dry cloth.
Caution:
z
Do not use chemicals for cleaning (petrol, paint thinner,
etc.). It may damage the cabinet finish.
z
Do not apply oil to the inside of the unit. It may cause
malfunctions.
TAPE 1
TAPE 2
A
C
C
D
E
B
B
Downloaded from: http://www.usersmanualguide.com/
E-35
CD-BK147V(S)E4.fm01/9/28
ENGLISH
CD-BK147V
References
- Specifications -
Specifications
As part of our policy of continuous improvement, SHARP reserves the right to make
design and specification changes for product improvement without prior notice. The
performance specification figures indicated are nominal values of production units.
There may be some deviations from these values in individual units.
„
General
„
Amplifier
„
Video CD
„
CD player
„
Tuner
„
Cassette deck
„
Front speaker
„
Surround speaker
Power source
AC 110/127/220/230 - 240 V, 50/60 Hz
Power consumption
85 W
Dimensions
Width: 270 mm (10-5/8")
Height: 300 mm (11-4/5")
Depth: 344 mm (13-1/2")
Weight
6.2 kg (13.7 lbs.)
Output power
MPO: 104 W (52 W + 52 W) (10 % T.H.D.)
RMS: 66 W (33 W + 33 W) (10 % T.H.D.)
Output terminals
Front speakers: 8 ohms
Surround speakers: 16 ohms
Headphones: 16 - 50 ohms (recommended: 32 ohms)
Video out: 1 Vp-p (75 ohms)
Video output format
PAL/PAL 60/NTSC
Type
3-disc multi-play compact disc player
Signal readout
Non-contact, 3-beam semiconductor laser pickup
D/A converter
1-bit D/A converter
Frequency response
20 - 20,000 Hz
Dynamic range
90 dB (1 kHz)
Frequency range
FM: 88 - 108 MHz
AM: 531 - 1,602 kHz
Frequency response
50 - 14,000 Hz (Normal tape)
Signal/noise ratio
55 dB (TAPE 1, playback)
50 dB (TAPE 2, recording/playback)
Wow and flutter
0.3 % (WRMS)
Type
Twin-Drive speaker system
10 cm (4") full-range speaker 2
Maximum input power
66 W
Rated input power
33 W
Impedance
8 ohms
Dimensions
Width: 200 mm (7-9/10")
Height: 300 mm (11-4/5")
Depth: 229 mm (9")
Weight
3.0 kg (6.6 lbs.)/each
Type
8 cm (3-3/32") full-range speaker
Maximum input power
30 W
Rated input power
15 W
Impedance
16 ohms
Dimensions
Width: 150 mm (6")
Height: 150 mm (6")
Depth: 78 mm (3")
Weight
0.4 kg (0.9 lbs.)/each
Downloaded from: http://www.usersmanualguide.com/
This file has been downloaded from:
www.UsersManualGuide.com
User Manual and User Guide for many equipments like mobile phones, photo cameras, monther board, monitors, software, tv, dvd, and othes..
Manual users, user manuals, user guide manual, owners manual, instruction manual, manual owner, manual owner's, manual guide,
manual operation, operating manual, user's manual, operating instructions, manual operators, manual operator, manual product,
documentation manual, user maintenance, brochure, user reference, pdf manual
Downloaded from: http://www.usersmanualguide.com/
