SAFETY FIRST
1. Installation of this TV Wall Mount will be easier with two people.
2. Some images in this guide may vary slightly from the actual
components supplied.
3. Ensure this instruction manual is completely read and
understood before attempting installation.
4. This TV Wall Mount MUST NOT be installed solely in
plasterboard, fibre cement and similar surfaces.
5. This TV Wall Mount MUST be installed in sound supporting
structures such as those made of timber, steel or masonry
using appropriate fasteners.
6. The supporting structure must be capable of sustaining
the combined weight of the TV Wall Mount and the display
otherwise the structure must be reinforced.
7. The fasteners supplied in this hardware pack allow for fixing
into timber and masonry only. If installing into a supporting
structure made of steel, appropriate fasteners must be used
and sourced from an appropriate supplier.
8. Use appropriate tools and safety equipment and ensure
adequate ventilation during installation.
9. If uncertain about any aspect of installation, contact
The Crest Company or an installation professional.
Please retain these instructions for future reference.
Hardware Kit Contents
ITEM DESCRIPTION QTY ITEM DESCRIPTION QTY
M-A M4 x 14mm Bolt 4
W-B Concrete Anchor 3
M-B M5 x 14mm Bolt 4
W-C D6 Washer 3
M-C M6 x 14mm Bolt 4
A Wall Mount 1
M-D M8 x 20mm Bolt 4 1
M-E D5 Washer 2 B Cable Clip 1
M-F D8 Washer 2 C Allen Key 6mm 1
M-G Spacer 8
D
1
W-A Lag Bolt ST6.3 x 55mm 3
E
1
Tools Required

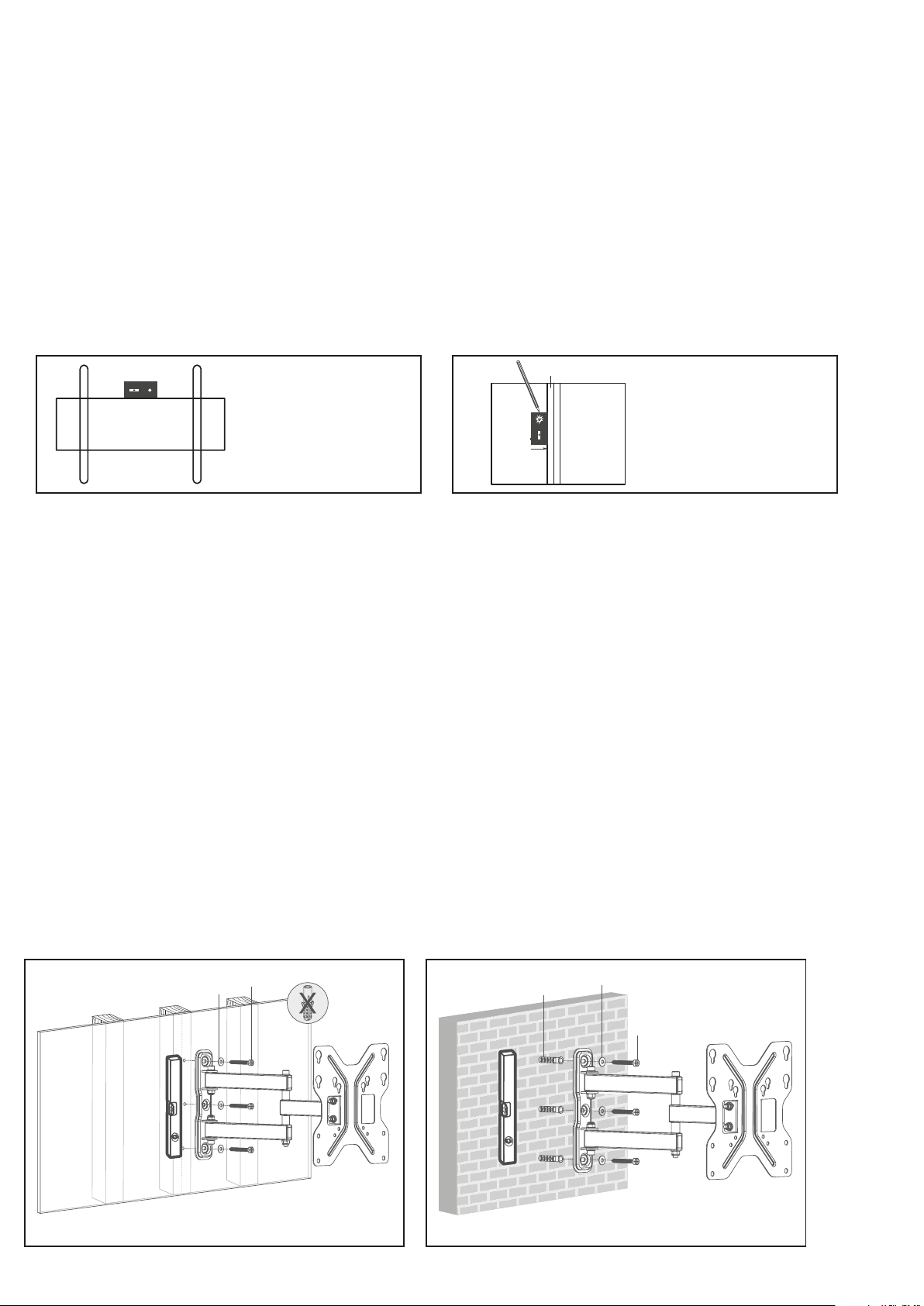

DRYWALL INSTALLATION (TIMBER SUPPORTS):
• Adjustable spanner/socket set
• Philips head screwdriver
• Power drill
• High speed 4.5mm drill bit
• Pencil
MASONRY INSTALLATION:
• Adjustable spanner/socket set
• Philips head screwdriver
• Power drill with hammer function
• 10mm masonry drill bit
• Pencil
• Hammer
MFP7FM
TV Wall Mount
Compatible TV Size
This TV Wall Mount fits 20-42”
(51x106cm) TV Screens
20-42”
Maximum TV Weight
This TV Wall Mount supports TVs
weighing up to 30kg
HOLDS
30
kg
Maximum Mounting Pattern
This TV Wall Mount has a mounting
hole pattern up to 200x200mm (HxW)
200x200mm

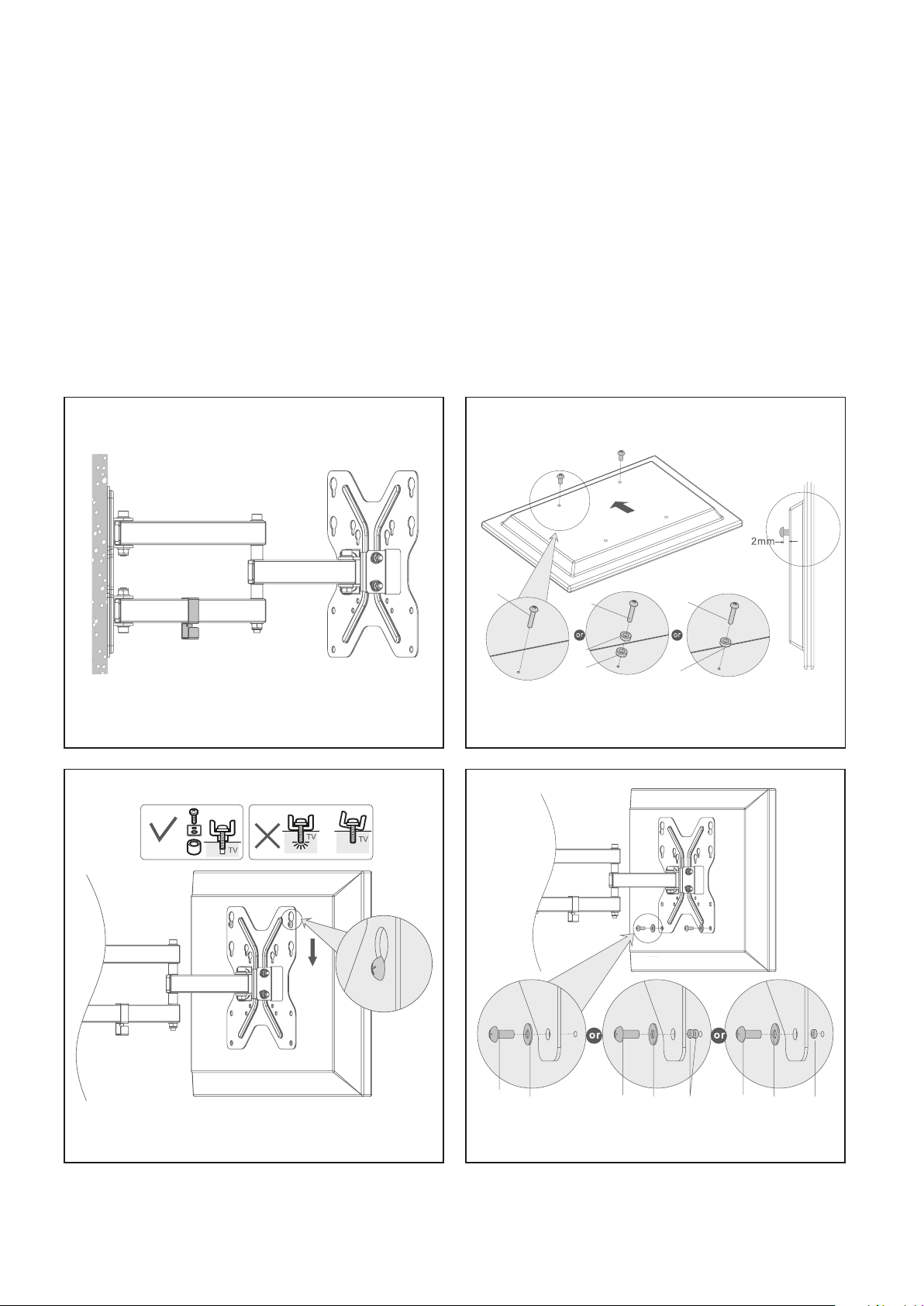

Full Motion
This TV Wall Mount allows you to move
your TV at all angles and extends out
up to 39cm from your wall
Stud Finder with Spirit Level
M6/M8 Wrench
10.
