MFP1F
TV Wall Mount
Compatible TV Size
This TV Wall Mount fits 37-80”
(94-203cm) TV Screens
37-80”
Maximum TV Weight
This TV Wall Mount supports TVs
weighing up to 50kg
HOLDS
50
kg
600x400mm
Maximum Mounting Pattern
This TV Wall Mount has a mounting
hole pattern up to 600x400mm (WxH)
Fixed Position
This TV Wall Mount fixes your TV flat
to the wall without any movement
SAFETY FIRST
1. Installation of this TV Wall Mount will be easier with two people.
2. Some images in this guide may vary slightly from the actual
components supplied.
3. Ensure this instruction manual is completely read and
understood before attempting installation.
4. This TV Wall Mount MUST NOT be installed solely in
plasterboard, fibre cement and similar surfaces.
5. This TV Wall Mount MUST be installed in sound supporting
structures such as those made of timber, steel or masonry
using appropriate fasteners.
6. The supporting structure must be capable of sustaining
the combined weight of the TV Wall Mount and the display
otherwise the structure must be reinforced.
7. The fasteners supplied in this hardware pack allow for fixing
into timber and masonry only. If installing into a supporting
structure made of steel, appropriate fasteners must be used
and sourced from an appropriate supplier.
8. Use appropriate tools and safety equipment and ensure
adequate ventilation during installation.
9. If uncertain about any aspect of installation, contact
The Crest Company or an installation professional.
Please retain these instructions for future reference.
10.
Hardware Kit Contents
ITEM DESCRIPTION QTY ITEM DESCRIPTION QTY
A Lag Bolt 6 I M6 x 15mm Bolt
4
B Concrete Anchor 6 J M8 x 30mm Bolt 4
C Multi-sized Washer 4 K M8 x 15mm Bolt 4
D Spacer 4 L Wall Plate 1

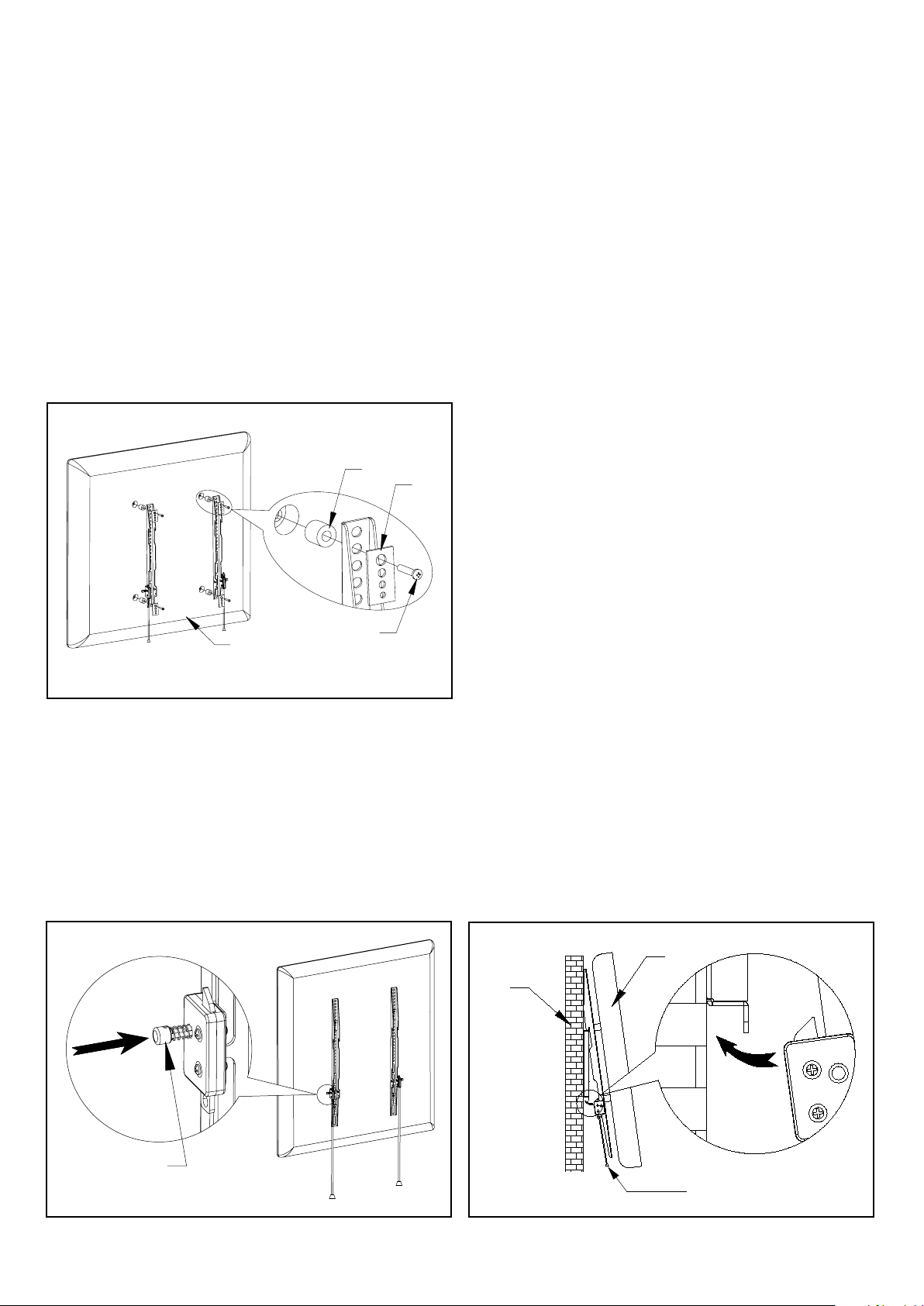

E D8 Washer 6 M Left Mounting Arm 1
F M5 x 30m Bolt 4 N Right Mounting Arm 1
G M5 x 15mm Bolt 4
O Wall Plate End Caps 2
H M6 x 30mm Bolt 4
P 1
Spirit Level (included)
Tools Required
DRYWALL INSTALLATION (TIMBER SUPPORTS):
• Adjustable spanner/socket set
• Philips head screwdriver
• Power drill
• High speed 6mm drill bit
• Spirit level (included) and pencil
MASONRY INSTALLATION:
• Adjustable spanner/socket set
• Philips head screwdriver
• Power drill with hammer function
• 10mm Masonry drill bit
• Spirit level (included) and pencil
• Hammer
