SAFETY FIRST
1. Installation of this TV Wall Mount will be easier with
two people.
2. Some images in this guide may vary slightly from
the actual components supplied.
3. Ensure this instruction manual is completely read
and understood before attempting installation.
4. This TV Wall Mount MUST NOT be installed
solely in plasterboard, bre cement and similar
surfaces.
5. This TV Wall Mount MUST be installed in sound
supporting structures such as those made of
timber, steel or masonry using appropriate
fasteners.
6. The supporting structure must be capable of
sustaining the combined weight of the TV Wall
Mount and the display otherwise the structure
must be reinforced.
7. The fasteners supplied in this hardware pack
allow for xing into timber and masonry only. If
installing into a supporting structure made of
steel, appropriate fasteners must be used and
sourced from an appropriate supplier.
8. Use appropriate tools and safety equipment and
ensure adequate ventilation during installation.
9. If uncertain about any aspect of installation,
contact The Crest Company or an installation
professional.
10. Please retain these instructions for future reference.
1737/2
PO Box 5658 Brendale
QLD Australia 4500
Customer Support
1800 812 261
www.crest.com.au
AUSTRALIAN OWNED
Proudly brought to you by:
Hardware Kit Contents
UP TO 528mm
-4° TO 4°
-12° TO 5°
LEVEL
ADJUSTMENT
Tools Required
DRYWALL INSTALLATION (TIMBER SUPPORTS):
• Adjustable spanner/socket set
• Philips head screwdriver
• Power drill
• High speed 4.5mm drill bit
• Stud nder
• Spirit level and pencil
MASONRY INSTALLATION:
• Adjustable spanner/socket set
• Philips head screwdriver
• Power drill with hammer function
• 10mm Masonry drill bit
• Spirit level and pencil
• Hammer
MFPLFM
FULL MOTION
TV WALL MOUNT
MEDIUM-LARGE
600 x 400 MAX
VESA COMPATIBILITY
60kg MAX
TV WEIGHT
The maximum supported
weight is up to 60k
g
-60° TO 60°
PAN
EXTEND
37"-80"
100x200, 200x200, 200x300, 300x200,
300x300, 300x400, 400x300, 400x400,
600x400
8mm Washer
6mm Washer
10

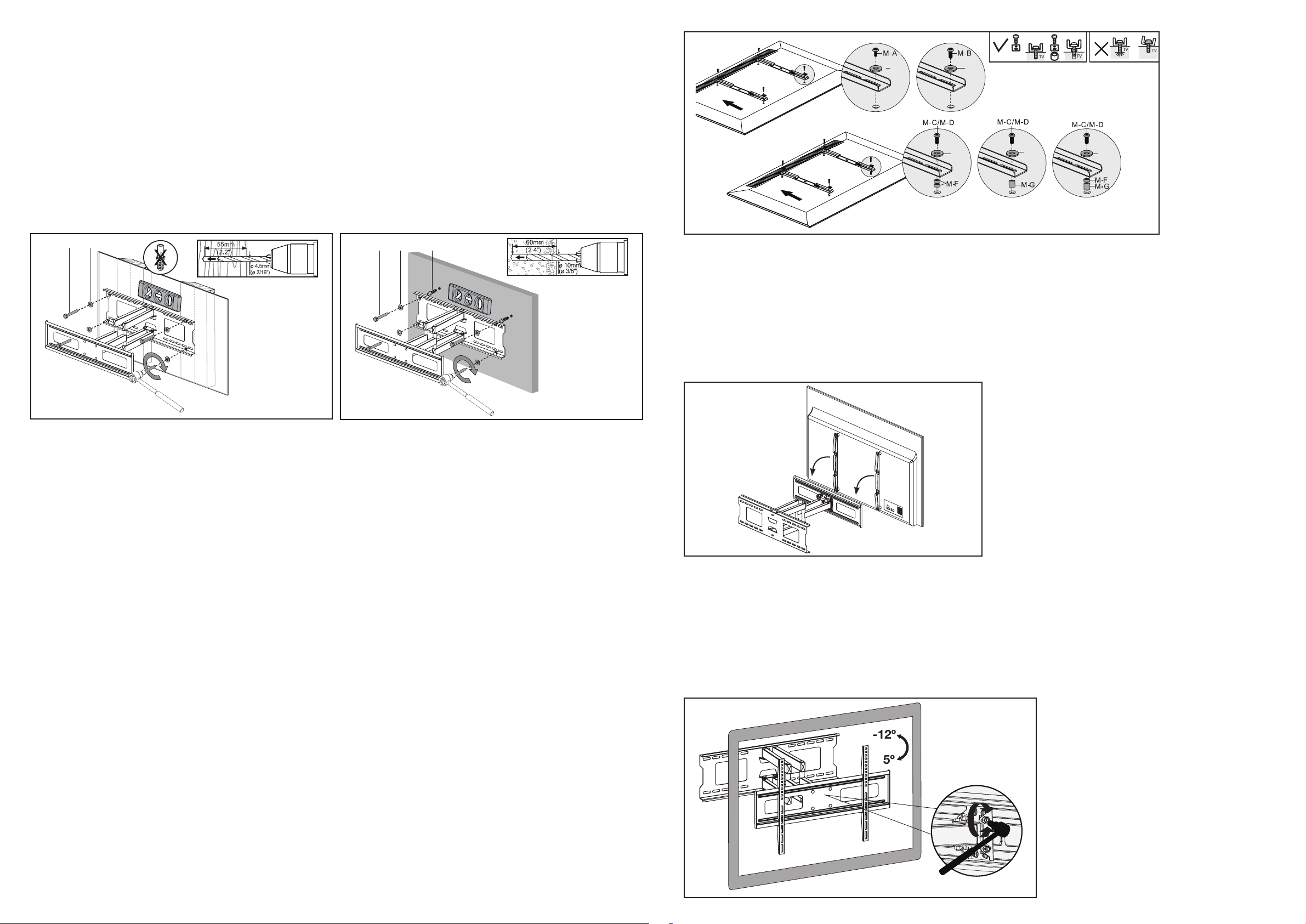

Step 5: Level Adjustment
1. In some instances a slight adjustment might be required to level the TV.
2. Using a second person to help, extend the bracket out as far as it will go as shown in gure 3 and have the second person hold the TV.
3. Loosen the tension of the 4 bolts directly behind the mounting plate (as shown in gure 5) enough so you can carefully adjust the left and
right level of the TV.
4. Once the correct position has been reached tighten the bolts back up again to lock the levels position. It is important not to over tighten
the bolts.
5
+/- 4°
MAX: 600
636
661
051
78-528
012
610
650
MAX: 400
+5°/-12°
