OWNER'S MANUAL
IPS LED MONITOR
(LED LCD MONITOR)
27EA83
27EA83R
Please read the safety information carefully before using the product.
IPS LED Monitor (LED LCD Monitor) Model List
ENGLISH
2
ENG
ENGLISH
Table of Contents
TABLE OF CONTENTS
3 LICENSE
4 ASSEMBLING AND
PREPARING
4 Product composition
4 Separate purchase
5 Component and Button Description
6 Moving and Lifting the Monitor
7 Installing the Monitor
7 - Assembling the stand base
8 - Detaching the stand base
8 - Installing onto a table
9 - Adjusting the stand height
10 - Adjusting the angle
11 - Tidying cables
11 - Pivot feature
12 - Using the Kensington lock
13 - Installing the wall mount plate
13 - Installing to a wall
15 Power Adapter Mount
15 - Mounting the Power adapter
15 - Removing the Power Adapter Mount
16 USING THE MONITOR
16 Connecting to a PC
16 - DVI connection
17 - Display port connection
17 - HDMI connection
18 Connecting to AV Devices
18 - USB 3.0 cable-PC connection
18 - Headphone port connection
19 INSTALLING TUSB3410
DRIVER
20 INSTALLING TRUE COLOR
PRO/FINDER
22 INSTALLING SCREEN SPLIT
24 CUSTOMIZING SETTINGS
24 Activating the Main Menu
25 CUSTOMIZING SETTINGS
25 - Menu Settings
26 - Ratio Settings
27 - ECO Settings
28 - Color Mode Settings
29 - PIP settings
30 - Picture
31 - Color
32 - Settings
33 TROUBLESHOOTING
35 SPECIFICATIONS
36 Factory support mode
36 (Preset Mode, DVI-D/HDMI/PC Display
Port)
36 HDMI
36 Power Indicator
37 PROPER POSTURE
37 Proper Posture When Using a Monitor
37 Adjust the screen so that you can
comfortably look at it at a slight downward
angle from your natural eye level.
3
ENG
ENGLISH
LICENSE
LICENSE
Each model has different licenses. Visit www.lg.com for more information on the license.
VESA, VESA logo, Display Port Compliance Logo and Display Port
Compliance Logo for dual-mode source are all registered trademarks of the
Video Electronics Standards Association.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the
HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC
in the United States and other countries.
4
ENG
ENGLISH
ASSEMBLING AND PREPARING
ASSEMBLING AND PREPARING
y
Note that the components may look different from those shown here.
y
Without prior notice, all information and specifications in this manual are subject to change to im-
prove the performance of the product.
y
Separate purchase are not included for all models. To purchase optional accessories, visit an elec-
tronics store or online shopping site or contact the retail store where you purchased the product.
NOTE

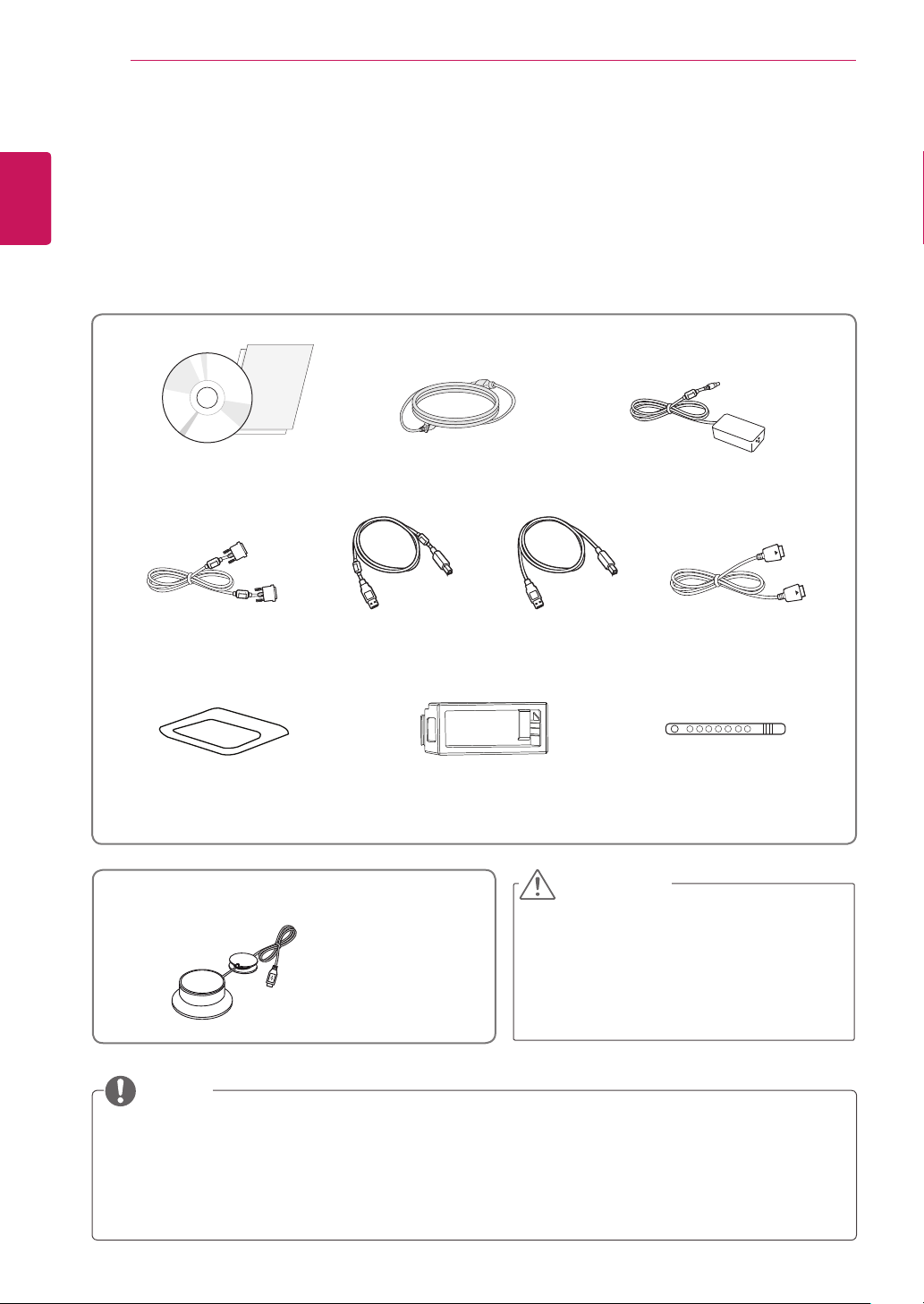

Product composition
Please check whether all the components are included in the box before using the product. If there are
missing components, contact the retail store where you purchased the product. Note that the product and
components may look different from those shown here.
y
Always use genuine components to en-
sure safety and product performance.
y
The product warranty will not cover dam-
age or injury caused by the use of coun-
terfeit components.
CAUTION
Power Cord
A-B Type USB 3.0 Cable Display Port Cable
Stand Base
Adapter Management
Cover
AC/DC Adapter
DVI-D Dual Cable
User Manual/Card
Cable Tie
or
Calibrator
(ACB8300)
Separate purchase
5
ENG
ENGLISH
ASSEMBLING AND PREPARING

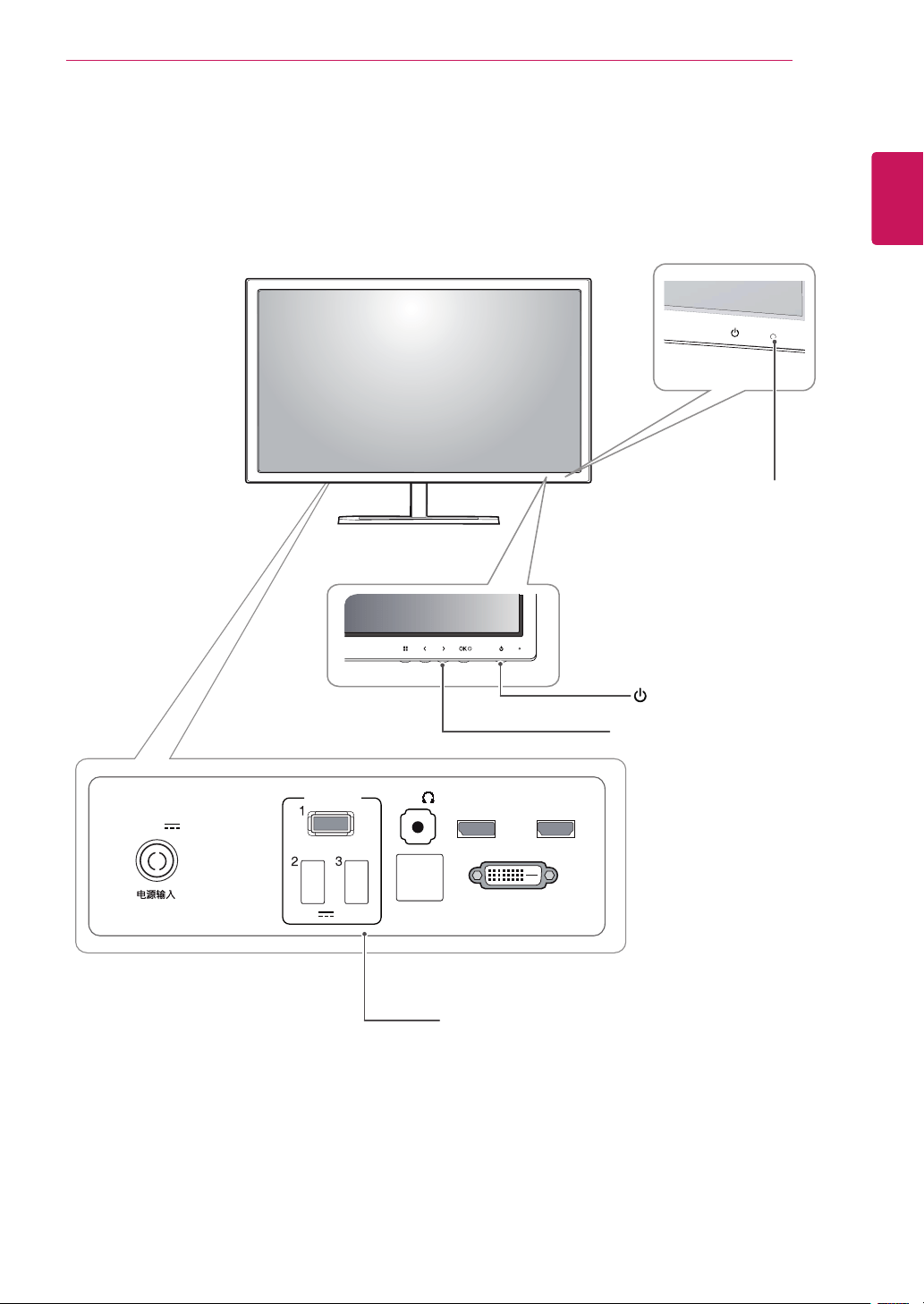

Component and Button Description
DVI-D IN
HDMI IN
DP IN
H/P
USB UP
(CALIBRATOR)
USB IN
5 V 0.9 A
DC-IN
(19.5 V )
Power Indicator
y
On: power is on
y
Off: power is off
Touch buttons on the bottom of
the monitor
Input Connector
(Power Button)
6
ENG
ENGLISH
ASSEMBLING AND PREPARING
Moving and Lifting the Monitor
When moving or lifting the monitor, follow these
instructions to prevent the monitor from being
scratched or damaged and to ensure safe trans-
portation regardless of its shape or size.
y
As much as possible, avoid touching the
monitor screen. This may result in damage
to the screen or some of the pixels used to
create images.
CAUTION
y
It is advisable to place the monitor in the
original box or packing material before at-
tempting to move it.
y
Before moving or lifting the monitor, discon-
nect the power cord and all cables.
y
Hold the top and bottom of the monitor frame
firmly. Do not hold the panel itself.
y
When holding the monitor, the screen should
face away from you to prevent it being
scratched.
y
When transporting the monitor, do not ex-
pose the monitor to jolts or excessive vibra-
tion.
y
When moving the monitor, keep it upright,
never turn the monitor on its side or tilt it
sideways.
7
ENG
ENGLISH
ASSEMBLING AND PREPARING
Installing the Monitor
Assembling the stand base
1
Place the screen face down.
y
To protect the screen from scratches, cover
the surface with a soft cloth.
CAUTION
2
Rotate the stand body 90˚ counterclockwise.
y
To avoid scratching the head, make sure
that when rotating the stand body, the stand
body does not make contact with the head.
Stand Body
(Stand Body)
Head
3
Insert the stand base into the hook of the
stand body.
4
Fix by turning the screw to the right with a coin.
WARNING
8
ENG
ENGLISH
ASSEMBLING AND PREPARING
Detaching the stand base
1
Place the screen face down.
2
y
To protect the screen from scratches, cover
the surface with a soft cloth.
CAUTION
Turn the screw to the left using a coin.
Detach the stand base.
1
2
Installing onto a table
1
Lift the monitor and place it on the table in an
upright position.
Place at least 10 cm away from the wall to
ensure sufficient ventilation.
2
Connect the adapter to the monitor, then plug
the power cord into the power outlet.
3
Press the (Power) button on the bottom of
the monitor to turn it on.
10 cm
10 cm
10 cm
10 cm
y
Disconnect the power cord first, and then
move or install the Monitor set. There is risk
of electric shock.
CAUTION
y
The components in the illustrations may dif-
fer from the actual product.
y
Do not carry the monitor upside down, as this
may cause it to fall off its stand and result in
damage or injury.
y
To avoid damaging the screen when lifting
or moving the monitor, only hold the stand or
the plastic cover. This avoids putting unnec-
essary pressure on the screen.
CAUTION
9
ENG
ENGLISH
ASSEMBLING AND PREPARING
y
Once the pin is removed, it is not necessary
to re-insert it to adjust the height.
Adjusting the stand height
1
Place the monitor mounted on the stand base
in an upright position.
2
Remove the tape attached at the bottom rear
of the stand body, then pull out the locking
pin.
4
The height can be adjusted up to 110.0 mm.
y
Do not put your fingers or
hand between the screen
and the base (chassis) when
adjusting the screen's height.
Tape
Locking Pin
Stand Body
CAUTION
WARNING
110.0 mm
3
Push the Head downward and pull out the
Locking Pin.
Head
Locking pin
10
ENG
ENGLISH
ASSEMBLING AND PREPARING
-515
y
Be careful not to touch or press the screen
area when adjusting the angle of the monitor.
WARNING
-515
-515
-515
Adjusting the angle
1
Place the monitor in an upright position, mount-
ed on the stand base.
2
Adjust the angle of the screen. The angle of
the screen can be adjusted forwards or back-
wards from -5° to 15° for a comfortable viewing
experience.
y
To avoid injury to the fingers when adjusting
the screen, do not hold the lower part of the
monitor's frame as illustrated below.
WARNING
Front SideRear Side
11
ENG
ENGLISH
ASSEMBLING AND PREPARING
y
To avoid scratching the stand base, make
sure that when rotating the monitor using
the pivot feature, the stand does not make
contact with the monitor.
WARNING
Pivot feature
The pivot feature allows the monitor to rotate 90
clockwise.

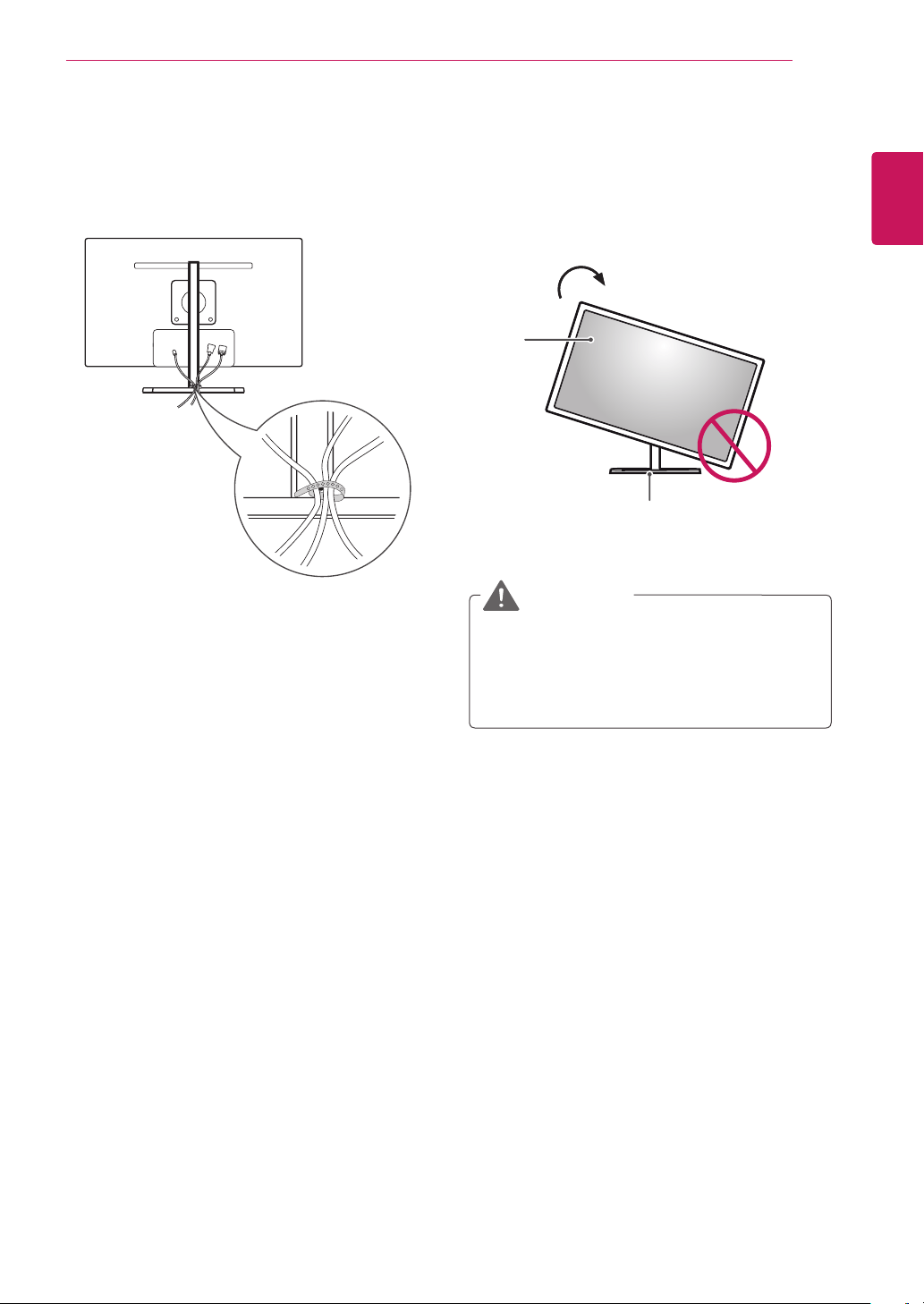

Tidying cables
Gather and bind the cables with the supplied cable
tie.
Head
Stand
12
ENG
ENGLISH
ASSEMBLING AND PREPARING
Using the Kensington lock
The Kensington security system connector is locat-
ed at the back of the Monitor set.
For more information on installation and usage,
refer to the Kensington lock user manual or visit
the website at http://www.kensington.com.
Connect the Kensington security system cable
between the Monitor set and a table.
y
The Kensington security system is optional.
You can obtain additional accessories from
most electronics stores.
NOTE
y
An image displayed on the monitor's screen
does not rotate according to the screen ori-
entation.
NOTE
y
Take care when rotating the monitor if the
cable is connected.
WARNING
1
Raise the monitor up to the maximum height.
2
Adjust the angle of the monitor in the
direction of the arrow as shown in the figure.
3
Rotate the monitor clockwise as shown in the
figure.
4
Complete the installation by rotating the monitor
90° as shown below.
13
ENG
ENGLISH
ASSEMBLING AND PREPARING

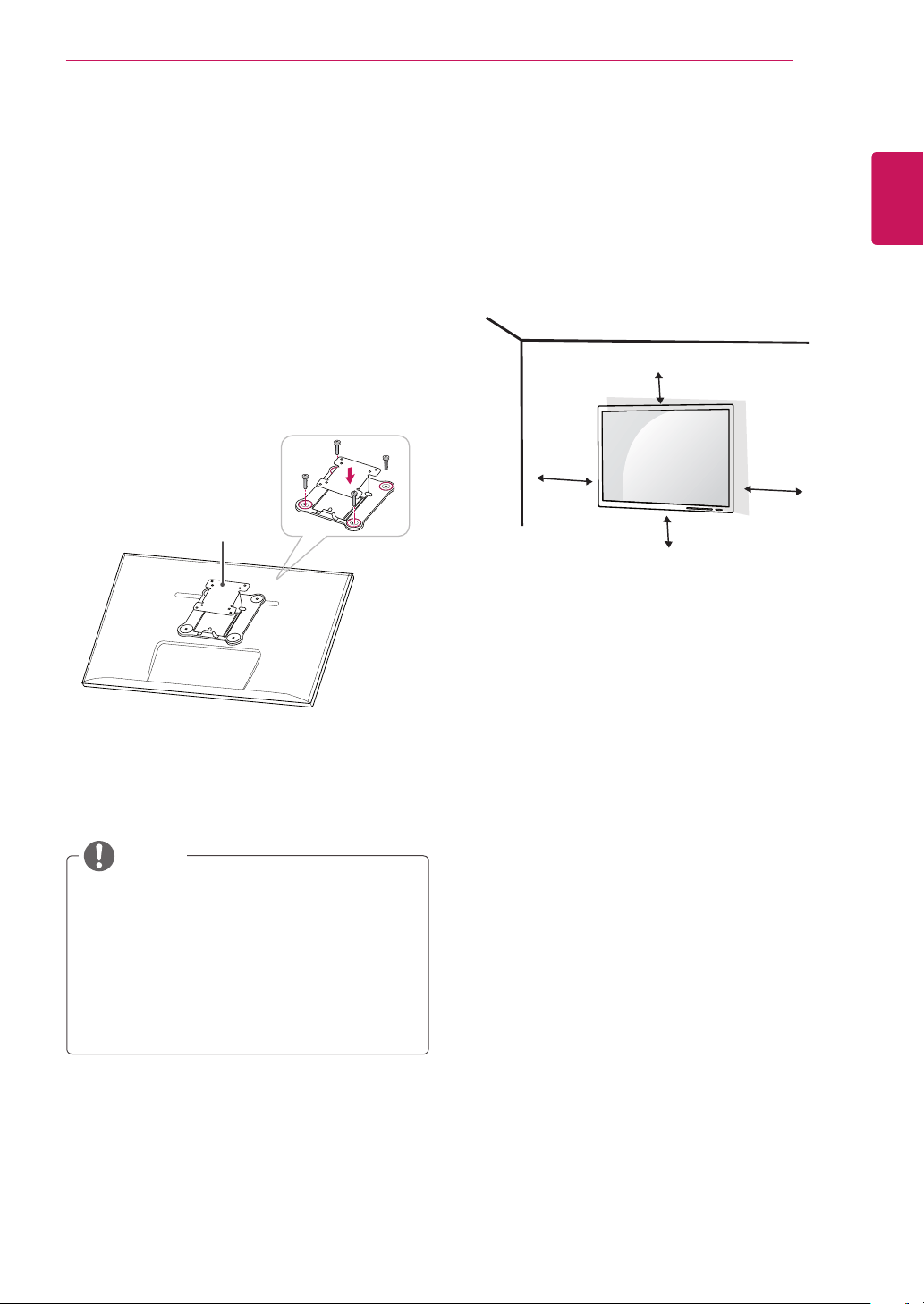

Installing the wall mount plate
This monitor supports the specification of the stan-
dard wall mount plate or compatible device.
1
Place the screen face down. To protect the
screen from scratches, cover the surface with a
soft cloth.
2
Place the wall mount plate onto the monitor
and align it with the screw holes.
3
Using a screwdriver, tighten the four screws to
attach the plate to the monitor.
y
The wall mount plate is sold separately.
y
For more information on installation, refer to
the wall mount plate's installation guide.
y
Be careful not to use excessive force when
mounting the wall mount plate, as this can
damage the monitor's screen.
Wall Mount Plate
NOTE
To install the monitor to a wall, attach a wall mount-
ing bracket (optional) to the back of the monitor.
Make sure that the wall mounting bracket is se-
curely fixed to the monitor and to the wall.
1 Use the screws and wall mounting bracket that
comply with the VESA standard.
2 Screws which are longer than the standard
length may damage the inside of the monitor.
3 A non-VESA standard screw may damage the
product and cause the monitor to fall. LG Elec-
tronics is not liable for any accidents relating to
the use of non-standard screws.
4 The monitor is VESA standard compliant.
5 Use it according to the VESA standard as speci-
fied below.
y
784.8 mm or less
* Thickness of the wall mount plate: 2.6 mm
* Fastening screw: Diameter 4.0 mm x Pitch 0.7
mm x Length 10 mm
y
787.4 mm or greater
* Use the wall mount plate and screws that
conform to the VESA standard.
Installing to a wall
Install the monitor at least 10 cm away from the
wall and leave about 10 cm of space at each side
of the monitor to ensure sufficient ventilation. De-
tailed installation instructions can be obtained from
your local retail store. Please refer to the manual
to install and set up a tilting wall mounting bracket.
10 cm
10 cm
10 cm
10 cm
14
ENG
ENGLISH
ASSEMBLING AND PREPARING
y
Do not adjust the angle of the monitor in the
direction of the arrow shown in the figure
below when mounting it onto a wall.
Avoid damage to the screen when adjusting
the angle.
CAUTION
y
Unplug the power cord before moving or in-
stalling the monitor to avoid electric shocks.
y
Installing the monitor on the ceiling or on a
slanted wall may result in the monitor falling
off, which could lead to injury. Use an au-
thorized LG wall mount installed by qualified
personnel.
y
Applying excessive force when fastening
screws may cause damage to the monitor.
Damage caused in this way will not be cov-
ered by the product warranty.
y
Use the wall mounting bracket and screws
that conform to the VESA standard. Damage
caused by the use or misuse of inappropri-
ate components will not be covered by the
product warranty.
y
Use the screws specified by the VESA stan-
dard.
y
The wall mount kit includes the installation
guide and all necessary parts.
y
The wall mounting bracket is optional. The
accessories can be purchased at your local
retail store.
y
The length of the screw may differ for each
wall mounting bracket. Be sure to use the
proper length.
y
For more information, please refer to the
user manual for the wall mounting bracket.
CAUTION
NOTE
Model
27EA83
27EA83R
VESA (A x B)
100 x 100
Stand Screw
M4
Required Screws
4
Wall Mount Plate
(Optional)
RW120
15
ENG
ENGLISH
ASSEMBLING AND PREPARING
Mounting the Power adapter
Removing the Power Adapter
Mount
3
Pull the adapter out of the adapter
management cover.
Power Adapter Mount
y
When assembling or disassembling the
adapter cover, you may leave scratches on
the back cover and the management cover.
CAUTION
1
Insert the adapter into the adapter management
cover.
2
Insert the adapter management cover into
groove 1 and then slide it into groove 2.
3
Connect the power cord.
386 +
386 +
1
Disconnect the power cord.
2
Press PUSH to remove the adapter
management cover from the back of the
monitor.
386 +
386 +
386 +
386 +
386+
386+
386+
386+
y
To prevent the power cable from being en-
tangled when using the pivot feature, place
the power cable between the stand body and
the monitor.
CAUTION
stand body
16
ENG
ENGLISH
USING THE MONITOR
USING THE MONITOR
Connecting to a PC
y
This monitor supports the *Plug and Play
feature.
*Plug and Play: A feature that allows you to
add a device to your computer without having
to reconfigure anything or install any manual
drivers.
DVI connection
Transmits digital video signals to the monitor. Con-
nect the monitor using the DVI cable as illustrated
below.
Press the menu ( ) button and then select the
input option from the input menu.
DVI
-
D
IN
HDMI
IN
DP IN
H
/P
US
B
UP
(
CALIBRATOR
)
US
B I
N
5 V 0.9 A
DVI-D IN
HDMI
IN
DP
IN
H
/P
US
B
UP
(
CALIBRATOR
)
US
B I
N
5 V 0.9 A
DVI
-
D
IN
HDMI
IN
DP I
N
H/P
USB UP
(
CALIBRATOR
)
US
B I
N
5 V 0.9 A
DVI
-
D
IN
HDMI
IN
DP
IN
H
/P
USB UP
(
CALIBRATOR
)
US
B I
N
5 V 0.9 A
DVI-D I
N
HDMI IN
DP
IN
H
/P
U
S
B U
P
(
CALIBRATOR
)
U
S
B I
N
5 V 0.9 A
DP OUT
DVI-I(D) OUT
PC
y
Connect the input signal cable and
turn in the direction of the arrow.
To prevent disconnection secure
the cable tightly.
y
Do not press on the screen for a
prolonged period of time. This may cause
image distortion.
y
Do not display a still image on the screen
for a prolonged period of time. This may
cause image retention. Use a screensaver if
possible.
CAUTION
y
When connecting the power cord to the out-
let, use a grounded (3-hole) multi-socket or a
grounded power outlet.
y
The monitor may flicker when turned on in an
area of low temperature. This is normal.
y
Sometimes red, green, or blue spots may ap-
pear on the screen. This is normal.
NOTE
17
ENG
ENGLISH
USING THE MONITOR
y
HDMI PC may cause device compatibility
issues.
HDMI connection
Transmits the digital video and audio signals from
your PC and A/V devices to the monitor. Connect
your PC and AV device to the monitor with the
HDMI cable as illustrated below.
Press the menu ( ) button and then select the
input option from the input menu.
Display port connection
Transmits the digital video and audio signals from
your PC to the monitor. Connect your PC to the
monitor using the display port cable as illustrated
below.
Press the menu ( ) button and then select the
input option from the input menu.
NOTE
y
Sound may not be available depending on
the DP version of your PC.
NOTE
DVI
-
D
IN
HDMI
IN
DP IN
H
/P
US
B
UP
(
CALIBRATOR
)
US
B I
N
5 V 0.9 A
DVI-D IN
HDMI
IN
DP
IN
H
/P
US
B
UP
(
CALIBRATOR
)
US
B I
N
5 V 0.9 A
DVI
-
D
IN
HDMI
IN
DP I
N
H/P
USB UP
(
CALIBRATOR
)
US
B I
N
5 V 0.9 A
DVI
-
D
IN
HDMI
IN
DP
IN
H
/P
USB UP
(
CALIBRATOR
)
US
B I
N
5 V 0.9 A
DVI-D I
N
HDMI IN
DP
IN
H
/P
U
S
B U
P
(
CALIBRATOR
)
U
S
B I
N
5 V 0.9 A
DP OUT
DVI-I(D) OUT
PC
DVI
-
D
IN
HDMI
IN
DP IN
H
/P
US
B
UP
(
CALIBRATOR
)
US
B I
N
5 V 0.9 A
DVI-D IN
HDMI
IN
DP
IN
H
/P
US
B
UP
(
CALIBRATOR
)
US
B I
N
5 V 0.9 A
DVI
-
D
IN
HDMI
IN
DP I
N
H/P
USB UP
(
CALIBRATOR
)
US
B I
N
5 V 0.9 A
DVI
-
D
IN
HDMI
IN
DP
IN
H
/P
USB UP
(
CALIBRATOR
)
US
B I
N
5 V 0.9 A
DVI-D I
N
HDMI IN
DP
IN
H
/P
U
S
B U
P
(
CALIBRA
TOR
)
U
S
B
I
N
5 V 0.9 A
DP OUT
DVI-I(D) OUT
PC
(sold separately)
18
ENG
ENGLISH
USING THE MONITOR
y
Depending on the audio settings of the PC
and external device, headphone and speaker
functions may be limited.
NOTE
y
Peripheral devices are sold separately.
y
The USB 3.0 ports can be used to con-
nect the keyboard, mouse, and other USB
devices.
y
For an angle plug earphone, it is difficult
connect it with a peripheral device, so use a
straight type.
NOTE
Angle Type Straight Type
Headphone port connection
Use the headphone port to connect a peripheral
device to the monitor. Connect as illustrated.
y
Please install the latest Windows service
pack before use.
NOTE
Connecting to AV Devices

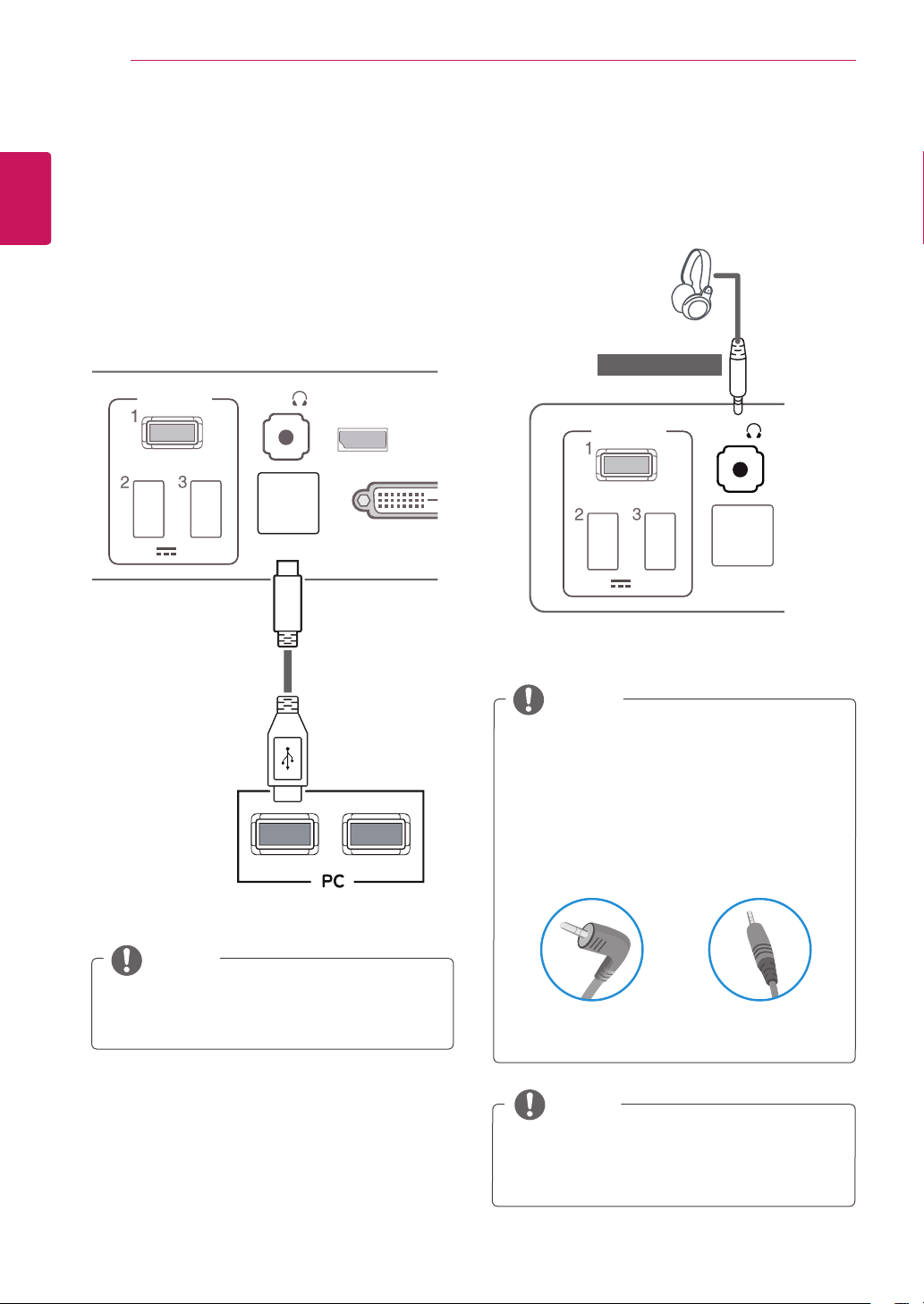

USB 3.0 cable-PC connection
The USB 3.0 function acts as a USB hub on the
product.
To use USB 3.0, connect the A-B type USB 3.0
cable included with the product to the PC.
Peripheral devices connected to the USB IN port
can be controlled from the PC.
DVI
-
D
IN
HDMI
IN
DP IN
H
/P
US
B
UP
(
CALIBRATOR
)
US
B I
N
5 V 0.9 A
DVI-D IN
HDMI
IN
DP
IN
H
/P
US
B
UP
(
CALIBRATOR
)
US
B I
N
5 V 0.9 A
DVI
-
D
IN
HDMI
IN
DP I
N
H/P
USB UP
(
CALIBRATOR
)
US
B I
N
5 V 0.9 A
DVI
-
D
IN
HDMI
IN
DP
IN
H
/P
USB UP
(
CALIBRATOR
)
US
B I
N
5 V 0.9 A
DVI-D I
N
HDMI IN
DP
IN
H
/P
U
S
B U
P
(
CALIBRATOR
)
U
S
B I
N
5 V 0.9 A
DP OUT
DVI-I(D) OUT
PC
DVI
-
D
IN
HDMI
IN
DP IN
H
/P
US
B
UP
(
CALIBRATOR
)
US
B I
N
5 V 0.9 A
DVI-D IN
HDMI
IN
DP
IN
H
/P
US
B
UP
(
CALIBRATOR
)
US
B I
N
5 V 0.9 A
DVI
-
D
IN
HDMI
IN
DP I
N
H/P
USB UP
(
CALIBRATOR
)
US
B I
N
5 V 0.9 A
DVI
-
D
IN
HDMI
IN
DP
IN
H
/P
USB UP
(
CALIBRATOR
)
US
B I
N
5 V 0.9 A
DVI-D I
N
HDMI IN
DP
IN
H
/P
U
S
B U
P
(
CALIBRATOR
)
U
S
B I
N
5 V 0.9 A
DP OUT
DVI-I(D) OUT
PC
(sold separately)
19
ENG
ENGLISH
INSTALLING TUSB3410 DRIVER
INSTALLING TUSB3410 DRIVER
2
Click the TUSB3410 driver.
3
Click the TUSB3410 Driver or True Color Pro/
Finder on the CD's main screen. When the
file download window appears, click the Run
button. (The file download window may vary
depending on the operating system and the
Internet Explorer version, but the installation
procedures are same.)
1
Set the default Web browser to Internet Explorer.
6
The installation proceeds as described below.
7
Complete the installation.
4
When the TUSB3410 driver installer starts, click
[Next].
5
Check "I Agree" on the License Agreement
screen and then click [Next].
You must install the TUSB3410 driver before installing True Color Pro/Finder.
Insert the the owner's manual CD included in the product package into your PC's CD Drive and install the
TUSB3410 driver.
y
Click "Run" to proceed the drive installation.
If you click "Save", the installation will not
continue.
CAUTION
20
ENG
ENGLISH
INSTALLING TRUE COLOR PRO/FINDER
INSTALLING TRUE COLOR PRO/FINDER
Insert the the owner's manual CD included in the product packaging into your PC's CD driver and install the
True Color Pro/Finder software.

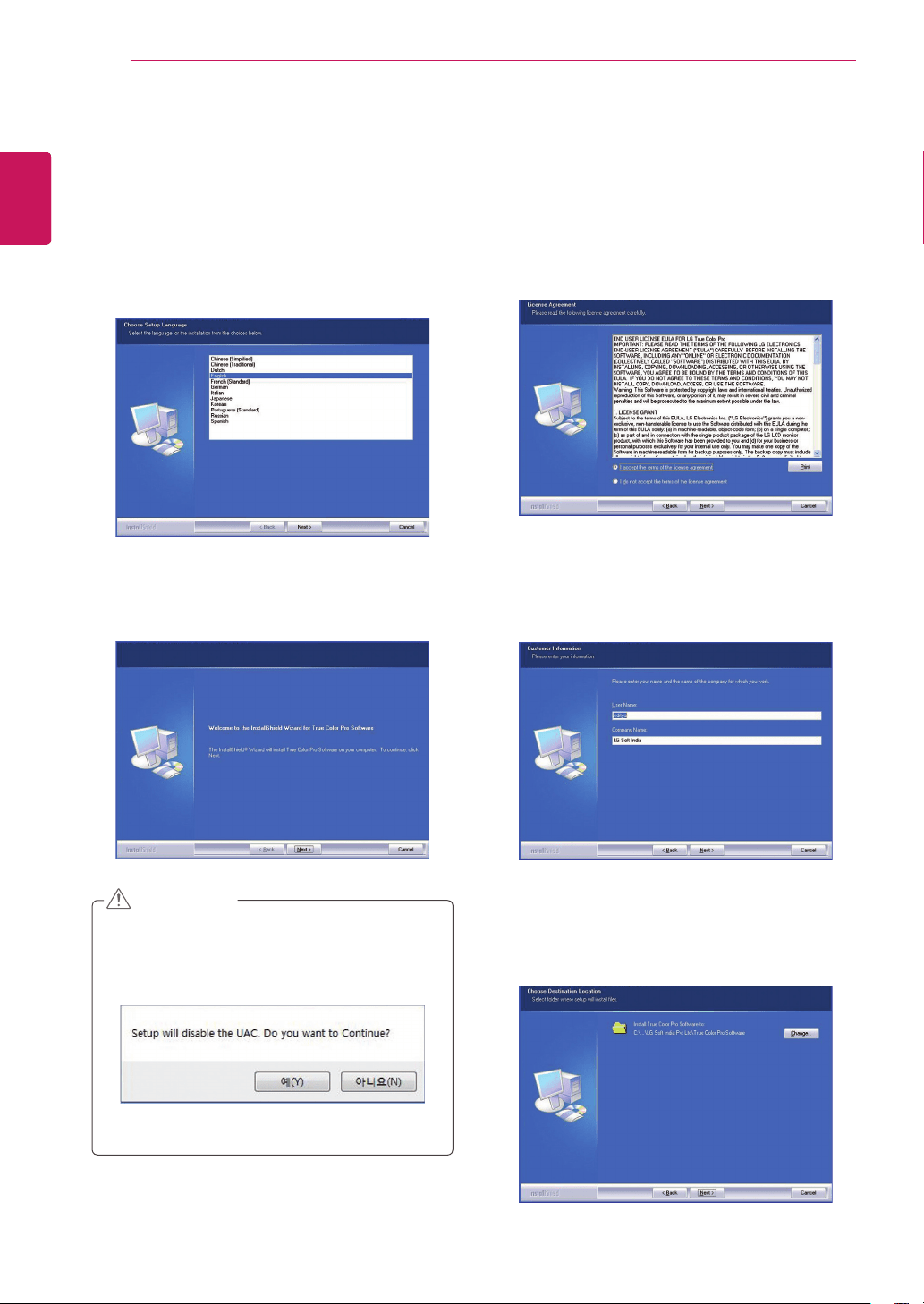

1
When the
True Color Pro/Finder installer starts,
the window appears as shown below. Select a
language and click [Next].
2
Click
[Next]
.
3
Check "I accept...." on the License Agreement
screen and then click [Next].
5
Click
[Change] to change the installation path.
Click
[Next]
.
4
Enter your User Name and Company Name,
and click [Next].
CAUTION
Click [Yes] to continue the installation.
y
On Windows 7, a step to disable the UAC
control is added.
21
ENG
ENGLISH
INSTALLING TRUE COLOR PRO/FINDER
6
Click
[Install]
to start the installation process.
7
When the
installation is complete, restart the
system.
y
If an incompatible calibration application is
installed on your PC, a warring message ap-
pears asking you to remove the application
during the installation.
CAUTION
8
When you run the True Color Pro/Finder
software, the True Color Pro/Finder icon
[ ] appears in the system tray at the right
bottom of the PC screen.
Right-click the True Color Pro/Finder icon
and select "Start Program" to start the pro-
gram.
y
Once you have completed the monitor
calibration with the True Color Pro/Finder
software, remove the calibrator from the
monitor and store it at room temperature
away from direct sunlight or put it in the box.
- If the calibrator's measuring part is exposed
to direct sunlight for a long time, this may
cause damage to the calibrator.
- Do not store it in an environment with too
low/high temperature and high humidity.
y
If any third-party calibration application is
already installed on your PC, the image
quality may be affected by a conflict
between the two applications. For the best
performance, it is recommended to uninstall
the other calibration application.
CAUTION
y
To use the True Color Pro/Finder function,
you must purchase the supported calibrator.
y
For details on supported calibrators and
graphic cards, see the True Color Pro/Finder
user guide.
y
If you have changed the input port, it is
recommend that you calibrate the monitor's
picture quality again.
NOTE
22
ENG
ENGLISH
INSTALLING SCREEN SPLIT
INSTALLING SCREEN SPLIT
1
When the Screen Split installer starts, the
window appears as shown below.
Select a
language and click [Next].
2
Click
[Next]
.
4
Enter your User Name and Company Name,
and click [Next].
3
Check "I accept...." on the License Agreement
screen and then click [Next].
5
Click
[Change] to change the installation path.
Click
[Next]
.
6
Click
[Install]
to start the installation process.
Insert the owner's manual CD included in the product packaging into your PC's CD Driver and install the
Screen Split software.
23
ENG
ENGLISH
INSTALLING SCREEN SPLIT
7
When the
installation is complete, restart the
system.
24
ENG
ENGLISH
CUSTOMIZING SETTINGS
CUSTOMIZING SETTINGS
Activating the Main Menu
1
Press the Menu ( ) button.
2
Use the <, > button to adjust the options.
To return to the upper menu or set other menu items, use the Menu ( ) button.
3
Press and hold the Menu ( ) button to exit the OSD menu.
Monitor buttons
NOTE
All of the buttons are touch sensitive and can be operated by simply touching them on the bottom
front of the monitor with your finger.
Button Description
Menu ( )
If the menu is inactive
Activates the main menu.
If the menu is active Goes to the previous screen when the button is pressed;
exits the OSD menu when the button is pressed and held for over 3 sec-
onds.
If the menu is inactive
Adjusts the volume level of the monitor.
If the menu is active Left directional key
If the menu is inactive
Adjusts the volume level of the monitor.
If the menu is active Right directional key
OK
If the menu is active: pressing OK selects the function.
If the menu is inactive: pressing OK shows the resolution of the current signal (only when there is
input signal).
(Power But-
ton)
Powers on or off.
Power Indicator When the monitor is in operating mode, the power indicator will turn red (on
mode).
When the monitor is in power-saving mode, the power indicator will blink
red.
25
ENG
ENGLISH
CUSTOMIZING SETTINGS
Each option is described below.
CUSTOMIZING SETTINGS
Menu Settings
1
To view the menu OSD, press the Menu ( ) button at the bottom of the monitor.
2
Use the < or > button to set the options.
3
Select to exit the OSD menu.
To return to the upper menu or set other menu items, use the Menu ( ) button.
Brightness
Contrast Volume Input Ratio ECO
Color Mode
100 70 30 DVI Wide Off Custom
PicturePIP Color Settings Reset Exit
All
Menu Description
Brightness
Adjusts the brightness and contrast of the screen.
Contrast
Volume Adjusts the volume.
NOTE
y
The volume is disabled in the DVI input mode.
y
Selecting the Menu button in the Volume menu will enable/disable the Mute
function.
Input Selects the current input mode.
Wide/Original Adjusts the screen ratio.
ECO Enables or disables the ECO function.
Color Mode
Sets to Custom, sRGB, Adobe RGB(Only 27EA83 model) or Calibration.
PIP Displays the screens of two input modes on one monitor.
Picture Adjusts the sharpness, black level, and response time of the screen.
Color Adjusts the gamma, color temperature and color balance of the screen
Settings Sets the language, main audio, button tone, power indicator, DDC/CI, and OSD lock.
Reset Resets to the default settings as of the day of purchase. Press the < or > button to reset immedi-
ately.
Exit Exits the OSD menu.
26
ENG
ENGLISH
CUSTOMIZING SETTINGS
Each option is described below.
Menu > Ratio Description
Wide Displays the video in wide-screen, regardless of the video signal input.
Original Displays a video according to the input video signal aspect ratio.
1:1
The aspect ratio is not adjusted from the original.
Back
Moves to the previous OSD screen.
Exit
Exits the OSD menu.
Ratio Settings
1
To view the menu OSD, press the Menu ( ) button at the bottom of the monitor.
2
Press < or > to go to Ratio.
3
Press OK to select Ratio.
4
Use the < or > button to set the options.
5
Select to exit the OSD menu.
To return to the upper menu or set other menu items, use the Menu ( ) button.
Sub Menu
Wide Original 1:1 Back Exit
Ratio
NOTE
y
The display may look the same for Wide, Original and 1:1 options at the recommended resolution
(2560 x 1440).
y
The ratio is disabled in the interlaced signal.
27
ENG
ENGLISH
CUSTOMIZING SETTINGS
Each option is described below.
Menu > ECO Description
ECO On Enables the ECO function, which allows you to save energy according to the ECO
efficiency level.
Off Disables the ECO function.
Reset Resets the ECO data.
ECO Settings
1
To view the menu OSD, press the Menu ( ) button at the bottom of the monitor.
2
Press < or > to go to ECO.
3
Press OK to select ECO.
4
Use the < or > button to set the options.
5
Select to exit the OSD menu.
To return to the upper menu or set other menu items, use the Menu ( ) button.
ECO
Off
Sub Menu
On OffYou saved 00.00 trees! Reset Back Exit
ECO
28
ENG
ENGLISH
CUSTOMIZING SETTINGS
Color Mode Settings
1
To view the menu OSD, press the Menu ( ) button at the bottom of the monitor.
2
Press < or > to go to Color Mode.
3
Press OK to select Color Mode.
4
Use the < or > button to set the options.
5
Select to exit the OSD menu.
To return to the upper menu or set other menu items, use the Menu ( ) button.
Color Mode
Custom
Sub Menu
Menu > Color
Mode
Description
Custom Allows the user to adjust each element. The color mode of the main menu can be adjusted.
sRGB A standard RGB color space for the monitor and printer.
AdobeRGB
(Only 27EA83
model)
A much larger color space than sRGB. This option is suitable for printing pictures.
Calibration Applies the value calibrated by True Color Pro/Finder.
Back Moves to the previous OSD screen.
Exit Exits the OSD menu.
NOTE
Run the True Color Pro/Finder program.
Each option is described below.
Custom sRGB
AdobeRGB
(Only 27EA83 model)
Calibration
Back Exit
29
ENG
ENGLISH
CUSTOMIZING SETTINGS
PIP settings
1
To view the menu OSD, press the Menu ( ) button at the bottom of the monitor.
2
Press < or > to go to PIP.
3
Press OK to select PIP.
4
Use the < or > button to set the options.
5
Select to exit the OSD menu.
To return to the upper menu or set other menu items, use the Menu ( ) button.
PIP
Sub Menu
PIP Size Position
BalancedOff Bottom R
PIP
Reset Back Exit
Each option is described below.
Menu > PIP Description
PIP Displays the screens of two input modes on one monitor.
(DVI+DP, HDMI+DP, DP+DVI, DP+HDMI)
Size Adjusts the size of the secondary screen.
Balanced Uses a balanced size for the secondary screen.
Small
Shows the secondary screen in a small size display.
Medium Shows the secondary screen in a normal size display.
Large
Shows the secondary screen in a large size display.
Position Adjusts the position of the secondary screen.
The default value is Bottom Right.
Bottom
Right
Shows the secondary screen in the bottom right of the display.
Bottom
Left
Shows the secondary screen in the bottom left of the display.
Top Left Shows the secondary screen in the top left of the display.
Top
Right
Shows the secondary screen in the top right of the display.
Reset Resets the PIP function to the default settings.
Back Moves to the previous OSD screen.
Exit Exits the OSD menu.
NOTE
y
If the PIP mode is off, Position is disabled.
y
If Size is set to Balance, Position is disabled.
30
ENG
ENGLISH
CUSTOMIZING SETTINGS
1
To view the menu OSD, press the Menu ( ) button at the bottom of the monitor.
2
Press < or > to go to Picture.
3
Press OK to select Picture.
4
Use the < or > button to set the options.
5
Select to exit the OSD menu.
To return to the upper menu or set other menu items, use the Menu ( ) button.
Each option is described below.
Sub Menu
Sharpness Black Level Response
Time
Low5 Normal
Reset Back Exit
Menu > Picture Description
Sharpness Adjusts the sharpness of the screen.
Black Level Sets the offset level (for HDMI only).
y
Offset: as a reference for a video signal, this is the darkest color the monitor can display.
High The picture of the screen gets brighter.
Low The picture of the screen gets darker.
Response Time Sets a response time for displayed pictures based on the speed of the screen. For a normal en-
vironment, it is recommended that you use Normal. For a fast-moving picture, it is recommended
that you use High.
Setting to High may cause image sticking.
High Sets the response time to High.
Middle Sets the response time to Middle.
Low Sets the response time to Low.
Reset Resets the picture function to the default settings.
Back Moves to the previous OSD screen.
Exit Exits the OSD menu.
31
ENG
ENGLISH
CUSTOMIZING SETTINGS

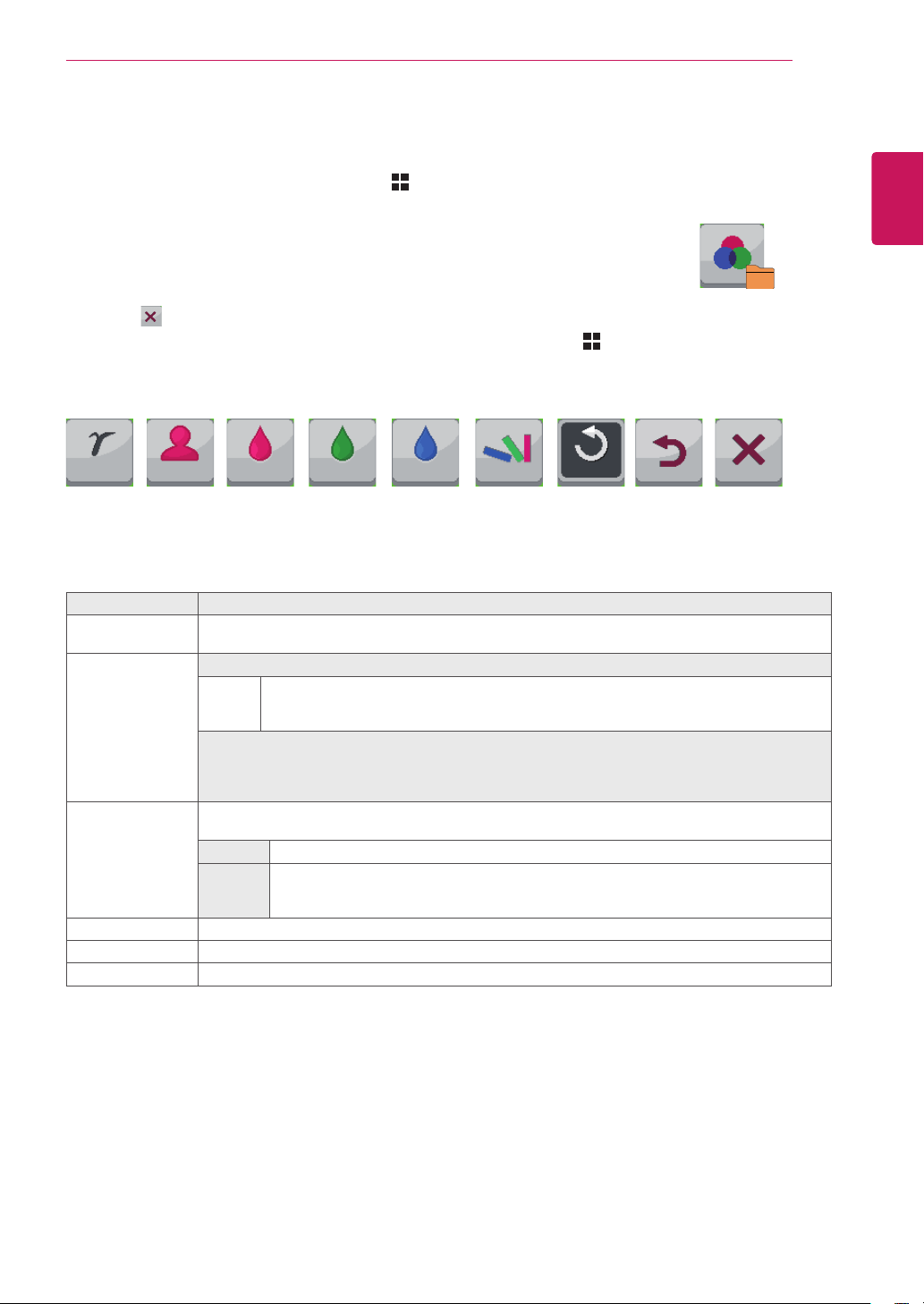

Color
1
To view the menu OSD, press the Menu ( ) button at the bottom of the monitor.
2
Press < or >to go to Color.
3
Press OK to select Color.
4
Use the < or > button to set the options.
5
Select to exit the OSD menu.
To return to the upper menu or set other menu items, use the Menu ( ) button.
Each option is described below.
Menu > Color Description
Gamma Custom gamma setting: When using the gamma 0, gamma 1, and gamma 2 monitor settings,
higher gamma settings mean a brighter image is displayed and vice versa.
Color Temp User
• Red
• Green
• Blue
You can customize the picture color using Red, Green, and Blue colors.
Selects the factory default picture color.
Warm: Sets the screen color to a reddish tone.
Medium: Sets the screen color between a red and blue tone.
Cool: Sets the screen color to a bluish tone.
Six Color Meets the user requirements for colors through adjusting the color and saturation of the six colors
(red, green, blue, cyan, magenta, yellow) and saving the settings.
Hue Adjusts tone of the screen.
Satura-
tion
Adjusts the saturation of the screen colors. The lower the value, less saturated and
bright the colors become. The higher the value, the more saturated and dark the colors
become.
Reset Returns the color settings to the default settings.
Back Moves to the previous OSD screen.
Exit Exits the OSD menu.
Color
Sub Menu
Gamma
Color Temp
Red Green Blue
Six Color
UserGamma 1 50 50 50
Color
Reset Back Exit
32
ENG
ENGLISH
CUSTOMIZING SETTINGS
Settings
1
To view the menu OSD, press the Menu ( ) button at the bottom of the monitor.
2
Press < or > to go to Settings.
3
Press OK to select Settings.
4
Use the < or > button to set the options.
5
Select to exit the OSD menu.
To return to the upper menu or set other menu items, use the Menu ( ) button.
Each option is described below.

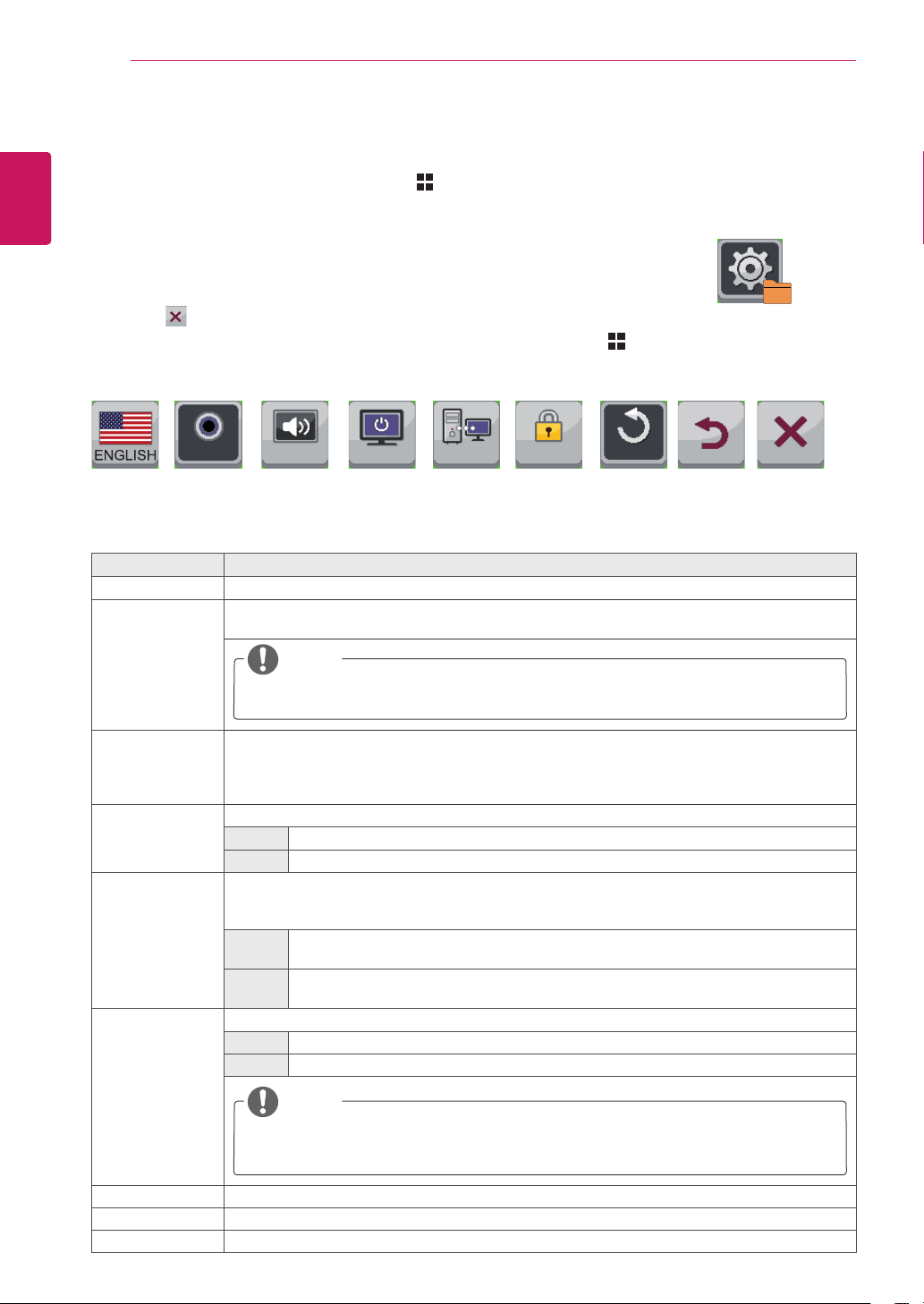

Settings
Sub Menu
Language Button
Sound
Main Audio
Power
LED
DDC/CI
OSD Lock
On On On Off
SettingsHDMI
Reset Back Exit
Menu > Settings Description
Language Sets the menu screen to the desired language.
Main Audio Outputs the sound through the monitor's headset connected the digital input (HDMI and Display
Port).
Button Sound Controls the button tone.
The button tone is heard for the following actions.
DC Power On/Off
Menu OSD On/Off
Power LED Turns the power indicator on the front side of the monitor on/off.
On The power indicator is automatically turned on.
Off The power indicator is turned off.
DDC/CI This is the protocol for communications between the PC and the monitor. This allows the detailed
function adjustments and settings performed through the OSD menu on the monitor to be con-
trolled from the PC.
On Communication between the PC and the monitor allows you to adjust the monitor using
the PC.
Off The monitor cannot be controlled using the PC as the communication between the PC
and the monitor is disabled.
OSD Lock Prevents incorrect key input.
On Key input is disabled.
Off Key input is enabled.
Reset Resets the settings to default.
Back Moves to the previous OSD screen.
Exit Exits the OSD menu.
NOTE
All functions except for the OSD Lock mode and the Exit button for Brightness, Contrast,
Volume, Input, and Settings are disabled.
NOTE
When DVI + DP is selected, the main audio is automatically set to DP.
33
ENG
ENGLISH
TROUBLESHOOTING
TROUBLESHOOTING
Nothing is displayed on the screen.
Is the monitor's power cord plugged
in?
y
Check if the power cord is correctly plugged in to the power outlet.
Is the power indicator on?
y
Check the power indicator.
Is the power indicator displaying
red?
y
Check that the connected input is enabled (Menu - Input).
Is the power indicator blinking?
y
If the monitor is in power-saving mode, move the mouse or press any
key on the keyboard to switch the display on.
y
Check if the computer is turned on.
Is the "OUT OF RANGE" message
displayed?
y
This occurs when signals transferred from the PC (video card) are out
of the horizontal or vertical frequency range of the monitor. Please see
the "Product Specification" section of this manual to set the appropri-
ate frequency.
Is the "CHECK SIGNAL CONNEC-
TION" message is displayed?
y
This is displayed when the signal cable between the PC and the moni-
tor is missing or disconnected. Check the cable and reconnect.
The "OSD LOCKED" message is displayed.
Are some functions unavailable
when pressing the Menu button?
y
The OSD is locked. Go to Menu > Settings and set "OSD Lock" to
Unlock.
The screen retains an image.
Does image sticking occur even
when the monitor is turned off?
y
Displaying a still image for a prolonged time may cause damage to the
screen, resulting in the retention of the image.
y
Use a screen saver to protect the screen when using the monitor for a
prolonged period of time.
y
Vertical Frequency: In order to display an image, the screen must be refreshed dozens of times per
second like a fluorescent lamp.
The number of times the screen is refreshed per second is called vertical frequency or refresh rate
and is represented by Hz.
y
Horizontal Frequency: The time it takes to display one horizontal line is called the horizontal cycle.
The number of horizontal lines displayed in one second can be calculated by dividing one by the
horizontal cycle. This is called horizontal frequency and is represented by kHz.
NOTE
34
ENG
ENGLISH
TROUBLESHOOTING
y
Check if the video card's resolution or frequency is within the range allowed by the monitor and set to
the recommended (optimal) resolution in Control Panel > Display > Settings.
y
Failing to set the video card to the recommended (optimal) resolution may result in blurred text, a
dimmed screen, a truncated display area or misalignment of the display.
y
The configuration procedure may differ depending on your computer and/or operating system. Also,
some video cards may not support certain resolutions. If this is the case, contact the manufacturer of
the computer or video card for assistance.
NOTE
The display color is abnormal.
Does the display appear discolored
(16 color)?
y
Set the color to 24 bit (true color) or higher. In Windows, go to Control
Panel > Display > Settings > Color Quality.
Does the display color appear un-
stable or in monochrome?
y
Check if the signal cable is connected properly. Reconnect the cable
or reinsert the PC's video card.
Are there spots on the screen?
y
When using the monitor, pixilated spots (red, green, blue, white or
black) may appear on the screen. This is normal for the LCD screen.
It is not an error nor is it related to the monitor's performance.
35
ENG
ENGLISH
SPECIFICATIONS
SPECIFICATIONS
LCD Screen Type 68.47 cm TFT (Thin Film Transistor)
LCD (Liquid Crystal Display) Screen
Diagonal length of the screen: 68.47 cm
Pixel Pitch 0.2331 mm x 0.2331 mm
Resolution Maximum Resolution 2560 x 1440 @ 60 Hz
Recommended Resolution 2560 x 1440 @ 60 Hz
Video Signal
(Video Signal)
Horizontal Frequency 30 kHz to 90 kHz
Vertical Frequency 57 Hz to 75 Hz
Synchronization Separate Sync.
Input Connector DVI-D, HDMI, Display Port, H/P Out, USB UP (USB 3.0), USB IN (USB 3.0)
Power Voltage 19.5 V 4.2 A
27EA83 -
Power consumption (Typ.)
On Mode: 70 W
Power Saving Mode ≤ 0.5 W
Off Mode ≤ 0.5 W
27EA83R -
Power consumption (Typ.)
On Mode: 50 W
Power Saving Mode ≤ 0.5 W
Off Mode ≤ 0.5 W
Dimension Monitor Size (Width x Height x Depth)
With stand 643 mm x 459.4 mm x 225.4 mm
Without Stand 643 mm x 381.2 mm x 37.6 mm
Weight (Without
Packaging)
27EA83 : 7.3 kg
27EA83R : 7.0 kg
AC/DC adapter AAM-00 type, manufactured by AMPOWER Technology., Co.Ltd.
Output: 19.5 V 5.65 A
Stand Angle
Adjustment
Forwards/Backwards: -5° to 15° (Head)
Environmental
Conditions
Operating Condition Temperature: 10°C to 35°C; Humidity: 10% to 80%
Storing Condition Temperature: -20°C to 60°C; Humidity: 5% to 90%
The specifications are subject to change without notice.
36
ENG
ENGLISH
SPECIFICATIONS
Factory support mode
(Preset Mode, DVI-D/HDMI/PC Display Port)
Preset Mode, PC
Horizontal Frequen-
cy (kHz)
Vertical Frequency
(Hz)
Polarity (H/V) Remarks
720 x 400 31.468 70.08 -/+
640 x 480 31.469 59.94 -/-
640 x 480 37.5 75 -/-
800 x 600 37.879 60.317 +/+
800 x 600 46.875 75 +/+
1024 x 768 48.363 60 -/-
1024 x 768 60.123 75.029 +/+
1152 x 864 67.5 75 +/+
1280 x 1024 63.981 60.02 +/+
1280 x 1024 79.976 75.025 +/+
1680 x 1050 65.29 59.954 -/+
1600 x 1200 75 60 +/+
1920 x 1080 67.5 60 +/-
1920 x 1200 74.038 59.950 +/-
2560 x 1440 88.79 59.95 +/-
HDMI
Preset Mode, PC
Horizontal Fre-
quency (kHz)
Vertical Fre-
quency (Hz)
480P 31.50 60
576P 31.25 50
720P 37.50 50
720P 45.00 60
1080i 28.12 50
1080i 33.75 60
1080P 56.25 50
1080P 67.50 60
Power Indicator
Mode LED Color
On Mode Red
Power-saving Blinking in red
Off Mode Off
37
ENG
ENGLISH
PROPER POSTURE
PROPER POSTURE

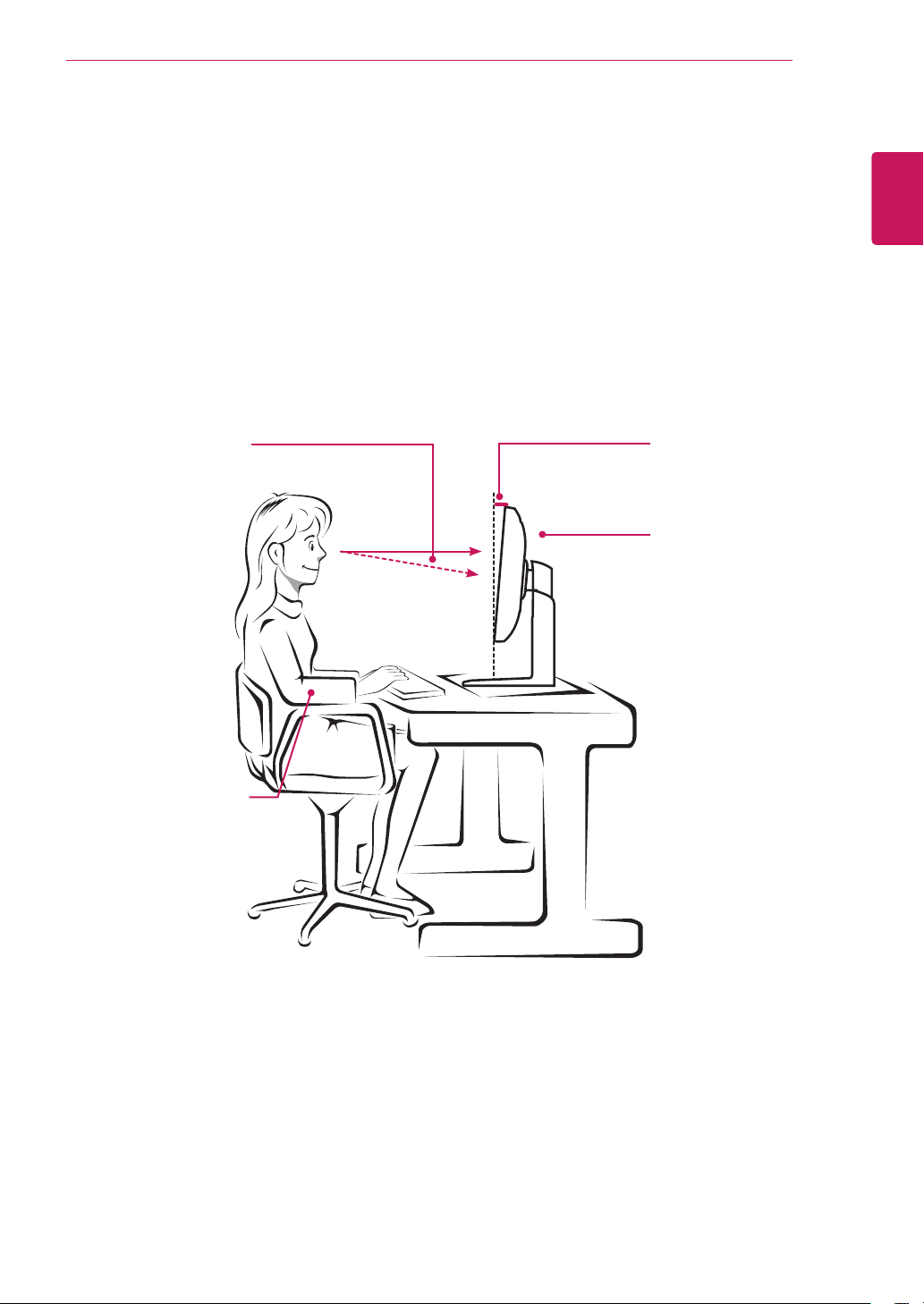

Proper Posture When Using a Monitor
Adjust the screen so that you can comfortably look at it at a slight downward angle from your natural eye
level.
y
Take a break for approximately 10 minutes every hour to reduce any fatigue caused by long-time
usage.
y
The stand of the touch monitor allows the product to be used in the optimum position.
Adjust the stand angle from -5° to 15° to obtain the best view of the screen.
You should be looking
slightly down at the
screen.
Place your hands gently
on the keyboard,
keeping your arms bent
at the elbows
and extended
horizontally in front of
you.
Adjust the angle
-5° to 15°
So that there is no
reflection or glare from
the screen.
This device meets the EMC requirements
for home appliances (Class B) and is
intended for home usage.
This device can be used in all regions.
Read the owner's manual (CD) carefully
and keep it at hand.
The product label contains necessary
information for after-service.
Model
Serial No.
NOTE
y ENERGY STAR(EPA) can not be supported
in 27EA83 model.
support
27EA83R
o
27EA83
x
