User Manual for LED TV

Base installation instruction

The Stand Base must be securely installed as shown below, unless the TV Is wall-mounted.

1. Carefully place the TV face down on a soft towel or cloth to prevent scratches.

2. Take one leg; align the screw holes on the leg with the screw holes on the base of the TV as shown.

3. Insert and tighten the screws to fix the leg to the TV securely.

4. Repeat this procedure for the other leg.

Connecting To An Antenna

To receive TV stations, you will need to connect the TV to a TV antenna.

Ideally the antenna is of the outdoor type (roof-mounted), for best reception.

Some indoor antennas may work depending on your location to the broadcasting tower, however they usually won't tune all available channels and can produce intermittent reception. We recommend connection to a professionally installed external antenna.

Overview Of The Television

Please Note:

The receiving range for the remote control signal is 6 metres from the front Of the remote sensor, with a window of 30 degrees to the left or right, and 20 degrees above or below.

Please Note:

Some USB memory devices, such as external hard drives and some portable hard drives, require their own power supply to operate.See also the Technical Specifications section for compatible file types and storage limits.
All 4 HDMI ports support HDCP1.4 and 2.2.

Remote Control Operation

Installing Batteries

1 .Slide to the direction shown by the arrow to open the battery compartment cover, on the back of the remote control.

2. Load two AAA alkaline batteries in thecompartment.

3. Replace the battery compartment cover.

Precautions

Make sure that there is no obstacle between the remote control and television set.

Keep the remote control away from heat source or humid area toensure effective performance of the remote control.

As strong light may interfere with the signals, change your position to operate the remote control if the television cannot be turned on or off as you expect.

Make sure that two AAA 1.5V alkaline batteries are loaded.The batteries must be installed properly.

Remote Operation

Selecting An Input Source

• Press SOURCE button to display the input source list,
• Press button to select an input source:

DTV: Digital TV

ATV: Analogue TV

AV: composite input

Component: 'YPbPr' component video HDMI1, HDMI2,HDMI3,HDMI4 : HDMI inputs

Media: Media port for file playback from a compatible USB memory device

• Press ENTER button to enter the input source.
• Press EXIT button to quit.

TV Mode Operation

Channel

Press MENU button to display the main menu.

Press ◄ / ► button to select CHANNEL in the main menu.

1. Press ▼ / button to select the option that you want to adjust in the CHANNEL menu.

2. Press ENTER button to adjust.

3. After you have completed the adjustment, press ENTER button to save and return to the previous menu.

Auto Tuning

Press ▼ / button to select Auto Tuning, then press ENTER/► button to enter.

Country

Press ◄ / ► button to select Country , then press ENTER button to enter.

Tuner Type

Press ◄ / ► button to select Tune Type, then press ENTER button to enter. (Available Systems: ATV,DTV,DTV+ATV)

ATV Manual Tuning

Current CH

Set the channel number.

Colour System

Select the colour system
(Available Systems: AUTO,PAL,SECAM)

Sound

System Select the sound system.

Fine-Tune

Adjust the frequency of the channel.

Search

Start searching channel.

DTV Manual Tuning

Press button to select DTV Manual Tuning, then press ENTER button to enter.

Program Edit

Press / button to select Program Edit, then press ENTER button to enter sub-menu.

The four coloured keys are shortcuts for programing the channel.

First press to highlight the channel you want to select, then:

Press the Red button to delete the program in the list.

Press the Green button to rename the program in the list.

Press the button to move the channel in program list.

Press the Blue button to skip the selected channel.

(your TV set will skip the channel automatically when using CH+/- to view the channels).

Press FAV. button to add or remove the channel from your favourite list.

Note: Rename is only available for analogue channels.

Schedule List

Press button to select Schedule List, then press ENTER button to enter.

Signal Information

Press button to select Signal Information, then press ENTER button to enter.


Press MENU button to display the main menu.

Press ◄ / ► button to select PICTURE in the main menu.

1. Press button to select an option to adjust in the PICTURE menu.

2. Press ENTER button to adjust.

3. After you have completed the adjustment, press MENU button to save and return to the previous menu.

Picture Mode

Press button to select Picture Mode, then press ENTER button to enter sub-menu.

You can change the value of contrast, brightness, colour, sharpness and tint when the picture is in PERSONAL mode.

Contrast/ Brightness/Colour/ Tint / Sharpness

Press button to select an option, then press ◄ / ► button to adjust.

Contrast Press to adjust the contrast of the picture.

Brightness Press to adjust the brightness of the picture.

Colour Press to adjust the saturation of the colour according to your own preference.

Tint Press to shift the colour of the picture to compensate for any errors in transmission.

Sharpness Press to adjust the detail in the picture.

Colour Temperature

Press ▼ / ▲ button to select Colour Temperature, then press ENTER button to enter sub-menu.

Press button to select (Available Colour temperature: Cool, Normal, Warm).

Cool Produces a blue-hued Image.

Normal Produces a vivid Image.

Warm Produces a red-hued Image.

Noise Reduction

To filter out and reduce the Image noise and Improve picture quality.

Press ▼ / ▲ button to select Noise Reduction, then press ENTER button to enter sub-menu.

Off Select to turn off video noise detection.

Low Detect and reduce low video noise.

Middle Detect and reduce moderate video noise.

High Detect and reduce enhanced video noise.

DefauIt Set as default.

HDMI Mode

Press ▼ / ▲ button to select HDMI Mode, then press-4 / ► button to select Auto,Video.

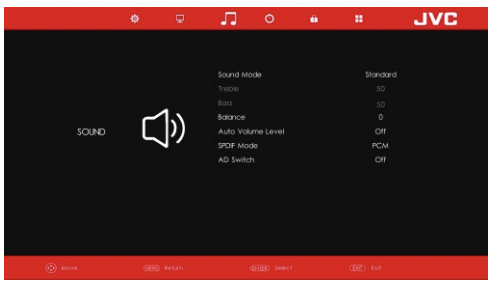

Sound Menu

Press MENU button to display the main menu.

Press ◄ / ► button to select SOUND In the main menu.

1. Press ▼ / ▲ button to select the option that you want to adjust in the SOUND menu.

2. Press ENTER button to adjust.

3. After you have completed the adjustment, press ENTER button to save and return to the previous menu.

Sound Mode

Press ▼/ ▲ button to select Sound Mode, then press ENTER button to enter sub-menu. Press ▼/ ▲ button to select.

You can change the value of Treble and Bass when the sound is in PERSONAL MODE.

Movie. Enhances treble and bass for a rich sound experience

Sports. Enhances vocals for sports.

Music Preserves the original sound.Good for musical programs.

Standard Produces a balanced sound in all environments.

Personal Select to customise sound settings.

Balance

Press button to select Balance and press ◄ / ► button to adjust.

Auto Volume Level

Press button to select Auto Volume, then press ◄ / ► button to select On or Off.

SPDIF Mode

Press button to select SPDIF Mode, then press ◄ / ► button to select Off / PCM /Auto.

AD Switch

Press button to select AD Switch, then press ◄ / ► button to select On or Off.

Please Note:

Balance: This item adjusts the speaker's output enabling you to hear the sound perfectly well in whichever position you are seated.

Auto Volume: This Item Is used to automatically reduce the difference between channel and programme volume.

Time Menu

Press MENU button to display the main menu.

Press ◄ / ► button to select TIME In the main menu.

1. Press button to select the option that you want to adjust in the TIME menu.

2. Press ENTER button to adjust.

3. After you have completed the adjustment, press ENTER button to save and return to the previous menu.

Clock

Press ▼ / ▲ button to select Clock, then press Enter button to enter sub-menu. Press ◄ / ► button to select.

Sleep Timer

Press button to select Sleep Timer, then press ENTER button to enter sub-menu. Press button to select (Available options: 0ff ,15min, 30min,45min, 60min, 90min,120min, 240min)

Time Zone

Press button to select Time Zone, then press Enter button to enter sub-menu.

Press ◄/► button to select.

Auto Standby

Press button to select Auto Standby, then press ENTER button to enter sub-menu.

Press button to select.

Please note: If the remote control is not operated within the specified sleep time the television will switch to standby automatically.

OSD Timer

Press button to select OSD Timer, then press ENTER button to enter sub-menu. Press ◄ / ► button to select.

Lock Menu

Press MENU button to display the main menu.

Press ◄ / ► button to select Lock in the main menu.

1. Press button to select the option that you want to adjust in the LOCK SYSTEM men u.

2. Press ENTER /◄ / ► button to adjust.

3. After you have completed the adjustment, press MENU button to return to the previous menu.

System Lock

Press button to select System Lock, then press ENTER button to make the following 3 options valid: Channel Lock/Parental Guidance/ Key Lock.

Default password is 0000. If you forget the set password, please call the service centre.

Set Password

Press button to select Set Password, then press ENTER button to enter sub-menu to set a new password.

Channel Lock

Press button to select Channel Lock then press ENTER button to entersub-menu to select.

Press Green button to lock or unlock the channel.

Parental Guidance
Press button to select Parental Guidance, then press ◄ / ► button to select Off or On.

Key Lock

Press button to select Key Lock, then press ◄ / ► button to select Off or On.When Key Lock is on, you cannot use the Key Panel buttons.

Setup Menu

Press MENU button to display the main menu.

Press ◄ / ► button to select Setup in the main menu.

1. Press button to select the option that you want to adjust in the SETUP menu.

2. Press ENTER button to adjust.

3. After you have completed the adjustment, press ENTER button to save and return to the previous menu. OSD

OSD Language

Press to select an OSD language. Press / ◄ / ► button to select Menu Language.

Audio Languages

Press to select an Audio Language. Press / ◄ / ►button to select Sub-menu.

Subtitle Language

Press to select a Subtitle Language. Press / ◄ / ► button to select Sub-menu .

Hearing Impaired

Press button to select Hearing Impaired, then press ENTER button to select On or Off.

PVR File System

Press to select PVR File System. Press ▼ / ▲ / ◄ / ► button to select Sub-menu

Aspect Ratio

Press button to select Aspect Ratio, then press ENTER button to enter sub-menu. Press button to select aspect ratio(Available options are: 4:3,16:9, Zooml, Zoom2).

Blue Screen

Press button to select Blue Screen, then press ENTER button to select On or Off.

First Time Installation

Press to select First Time Installation Press / button to select Sub-menu

Reset

Press button to select Reset, then press ENTER button to enter sub-menu.

HDMI CEC

Press button to select HDMI CEC, then press Enter button to enter sub-menu. Consumer Electronics Control (CEC) allows you to control multiple CEC-enabled devices connected using HDMI, with a single remote control.

CEC Control

Press ▼ /▲ button to select CEC Control, then press◄ / ► button to select On or Off.

Audio Receiver (HDMI CEC)

Press button to select Audio Receiver, then press Enter / ► button to select On or Off.

Device Auto PowerOff (HDMI ARC)

Press button to select Device Auto Power Off, then press Enter/ ► button to select On or Off.

Audio Return Channel (ARC) returns audio though the same HDMI channel that is used to send video to the TV. If switched on, you won't need a separate audio cable to return sound from the TV.

TV Auto Power Off

Press ▼/ ▲ button to select TV Auto Power Off, then press Enter / ► button to select On or Off.

Device List

Press button to select Device List, then press Enter button to open the main menu of device.

Note: HDMI CEC Control is available on all four HDMI ports (HDM11,2,3,4).ARC feature is available only for HDMI 1.

EPG

EPG stands for Digital Electronic Program Guide. It is supplied by the program providers and offers information about the programs to be broadcast. You can access it in digital mode by pressing the EPG button on the remote control.

1 .Press the EPG button to bring up the EPG interface (below). On the list below, the channel you are currently watching will be highlighted.

Press the RED button to set recording.

Press the GREEN button to set the time you want to seta reminder for the program you. want to see.

Press the YELLOW button to display previous date.

Press the BLUE button to display next date.

Press [REC ] button to enter PVR mode and start recording.

You can select various settings from the PVR control baron the screen.

Use ENTER button to change recording menu mode.

If you wish to stop the recording, press [■] button and the recording will stop.

PVR

PVR Settings (DTV Mode)

Press Y/A button to select PVR Settings, then press Enter button to enter sub-menu. It will check the USB.

Under DTV mode,pressing SIZE (Stop) key will pop up PVR setting menu.

Note:

For any type of recording with this TV, you must have plugged a USB device into the appropriate USB port at the back of the television to record on.

1 .Please insert the external high-speed storage devices, insert must be formatted before.

2.Select the DTV program and channel you wish to record.

3.Press the REC button, enter PVR mode. PVR control baron the screen shown below. You can select the appropriate settings required.

Time shift

The Timeshift function allows you to pause a live program and replay it later.

Note: A USB device must be connected to one of the USB ports for this function. Press time shift button to pause the program , and press the same button to continue the program.

Please note: Before you operate foe Media menu, plug In foe USB device, then press SOURCE button to set the Input Source to Media.

Press ▼ / ▲ button to select MEDIA In foe source menu, then press ENTER button to enter.

Press ◄ / ► button to select foe option you want to adjust in the main Media menu, then press ENTER button to enter.

Photo Menu

Press ◄ / ► button to select PHOTO in the main menu, then press ENTER button to enter. Press Exit button to return to the previous menu and Exit button again to quit

When highlighting foe option selected, the file information will appear on the right and the picture will be previewed in the centre.

Media Operation

Music Menu

Press ◄ / ► button to select MUSIC in the main menu, then press ENTER button to enter.

Press Exit button to return to the previous menu and Exit button again to quit.

Press ◄ / ► button to select the drive disc you want to listen to, then press ENTER button to enter. Press ◄ / ► button to return to the previous menu.

Movie Menu

Press ◄ / ► button to select MOVIE in the main menu, then press ENTER button to enter. Press Exit button to return to the previous menu and Exit button again to quit.

Press button to select a disc drive to watch, then press ENTER button to enter.

Press media button to play the selected movie.

Press display button to select the menu at the bottom of the screen, then press ENTER button to operate.

Press Exit button to go back to the previous menu and Exit button again to quit the entire menu.

Text Menu

Press ◄ / ► button to select TEXT in the main menu, then press ENTER button to enter. Press Exit button to return to the previous menu and Exit button again to quit.

Press◄ / ► button to select a disc drive to watch, then press ENTER button to enter.

Press ◄ / ► button to select on the next page.

Troubleshooting

Before consulting service personnel, check the following chart for a possible cause of the trouble you are experiencing and for a solution.
