USER GUIDE
ZeTrack
- 2 -
GET STARTED
1. What’s in the box
2. Overview
3. Charging
4. Basic operations
5. Display
6. Wearing
PAIRING
7. Pairing
8. Update
ACTIVITY TRACKING & SPORT MODES
9. Activity
10. Heart rate
11. Sleep
CONNECTED FEATURES
12. Reminders
13. Notification
14. Weather
15. Inactivity alert
16. Camera remote
17. Apps
18. Settings
MAINTENANCE
19. Unpair/update/reset/delete
20. Tech specs
REGULATORY & SAFETY NOTICES
03
03
04
05
06
07
07
09
09
11
11
12
12
13
13
14
14
15
16
17
18
TABLE OF CONTENTS
- 3 -
1. WHAT’S IN THE BOX
2. OVERVIEW
ZETRACK USB EXTENSION CABLE GET STARTED GUIDE
Button
Touchscreen
Optical HR sensor
- 4 -
3. CHARGING
Hidden beneath the strap is a built-in USB charger which allows easy charging
on any USB ports. Do not hesitate to use the USB extension cable included in the
ZeTrack packaging if needed.
Before your first use, charge ZeTrack for at least one hour.
1. Take o the strap.
2. Plug the USB part into any USB port such as a computer or into
USB wall charger.
3. A battery indicator will fill to indicate charging is in progress.
Once ZeTrack is fully charged, the battery indicator will be full.
It takes around 1 hour to fully charge ZeTrack.
When the battery level gets low, a battery indicator
will appear.
View ZeTrack battery level at any time. From the home
screen, the battery level icon is in the top right corner.
A fully charged ZeTrack has a battery life of 5 days. Please
note that battery life depends on usage and the features you
enable.
i
i
- 5 -
4. BASIC OPERATIONS
I TURN ON THE SCREEN
Touch the Navigation button when the screen is in standby mode
I MOVE BETWEEN SCREENS
Simply touch the navigation button to toggle from one screen to the next one
I ENTER A MENU
Long press the Navigation button on the screen in which you want to access
I EXIT A MENU
Long press the Navigation button from the selected feature screen
I SELECT AND CONFIRM
Touch the Navigation button to choose and long press to confirm
I CHANGE THE WATCH FACE
To select one of the 3 watch faces available, simply long press on the active one to toggle to the
next one and so on until you find your preferred watch face
To ensure ZeTrack is responding accurately to your taps, we recommend using your
fingertip and not your nail.
i
- 6 -
HOME
SCREEN
ACTIVITY
RESUME
WEATHER NOTIFICATIONS HEART
RATE
SLEEP
APPS STOPWATCH FIND
MY PHONE
SETTINGS WRIST
FLICK
SOUND
BRIGHTNESS WATCH
INFO
CAMERA
REMOTE
INCOMING
CALL
INACTIVITY
ALERT
REMINDER
LOW
BATTERY
CHARGING FULL
BATTERY
SWITCH
OFF
5. DISPLAYS
26
°C
MAX 23
°C
MIN 14
°C
00:00
HOURS
4
8000
7.5
330
KCAL
KM
STEPS
25°
Shake
your wrist
to take
a picture
- 7 -
Visit www.mykronoz.com to get the latest compatibility list.
-
iOS
-
iOS9+ devices with Bluetooth 4.0 BLE
iPhone 4s, 5, 5c, 5s, 6, 6 Plus, 7, 7 Plus,
8, 8 Plus, X, XR, XS, XS Max
-
ANDROID
-
Select Android 6.0+ devices
that support Bluetooth 4.0 BLE
I DAILY WEAR
For all-day wear, we recommend you to wear ZeTrack on your non dominant hand above your wrist
bone. A wristwatch should not be worn too tightly. If the watch leaves an imprint on your wrist, it
means that its too tight and it should be loosened.
I EXERCISE & WORKOUT
During our workout, we suggest you to wear ZeTrack higher on your wrist for recording more
accurate heart-rate reading.
• Make sure ZeTrack is in contact with your skin.
• Wear ZeTrack on your non-dominant hand.
• Do not fasten the wristband too tight for better comfort and not to restrict bloodstream.

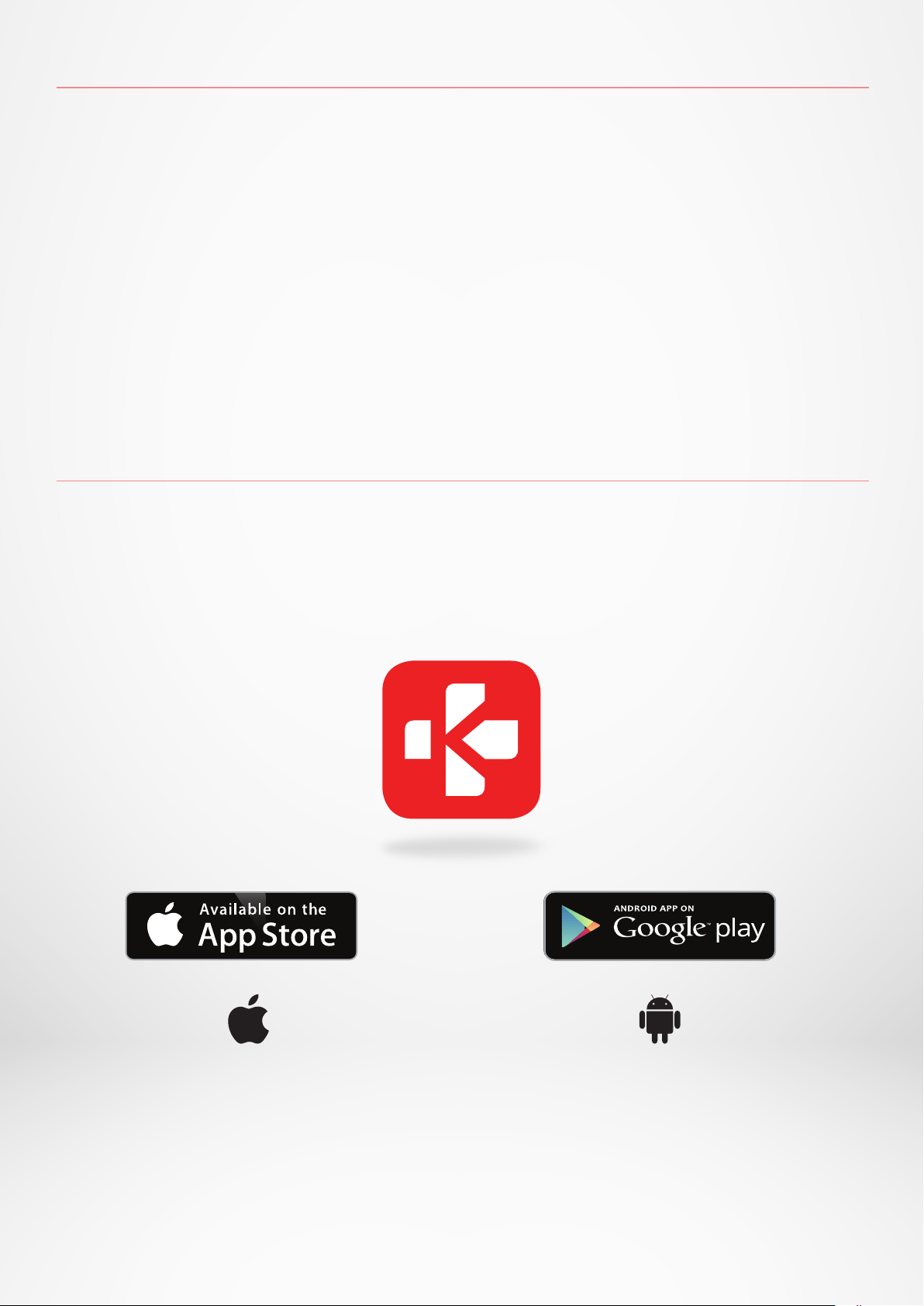

Get the MyKronoz App
To set up your ZeTrack using your mobile device, your first need to get the MyKronoz
App. Search for the MyKronoz App in the App Store or Google Play store, download
and install the app on your mobile device.
6.WEARING
7. PAIRING
- 8 -
1. Enable Bluetooth on your mobile device.
2. Open the MyKronoz App on your mobile device. Sign up if you are a new member or login
with your existing account. After entering your personal information, tap Select and pair
your device.
3. Make sure ZeTrack is nearby, select ZeTrack model and choose your device.
4. When ZeTrack is successfully paired, you will be notified on your mobile phone’s screen.
At the end of the setup process, you might be prompted to install a new version of the watch
firmware. We strongly advise you to do it before you start using ZeTrack. This will ensure that
you have the most up-to-date software on your device and benefit from all the latest features.
Before the update make sure to have more than 30% battery on your smartphone
After the initial pairing, ZeTrack will automatically connect to your phone as long as it is turned
on and within range. If you want to pair your ZeTrack with another account or smartphone, you
first need to unpair it from the current one. On the mobile app, go to settings > click on Paired
watches > Unpair ZeTrack. Then, repeat the pairing procedure described above.
i
- 9 -
8. FIRMWARE UPDATE
9.ACTIVITY
MyKronoz will provide regular firmware updates which you will need to install in
order to access our latest upgrades and features for your watch. With ZeTrack, all
these updates need to be done by OTA (Over The Air) and through the mobile app.
Updates are performed over the air using the mobile app. Before updating, make
sure your phone and your watch have more than 30% battery.
Your watch has a built-in 3-axis accelerometer that allows you to track your daily acti
-
vity based on your movements. This, together with your profile information, allows
your tracker to calculate your steps, walking distance and calories burned. In order
to get the most accurate results we recommend you to wear your watch on your left
wrist if you’re a right-handed and to your right one if you are a left-handed.
I IN ORDER TO UPDATE YOUR WATCH
ZeTrack tracks throughout the day:
• Connect your ZeTrack to the mobile app
• If a new update is available you will be prompted from the mobile app home page
or the Paired watches section.
• You must click on the banner and confirm in order to start the updating process
I VIEW YOUR STATS
ZeTrack tracks throughout the day:
• Number of steps taken
• Distance travelled
• Calories burned
You can view your daily activity in real-time from your device.
During remove all the whole update process you must keep your watch near to your smart-
phone and your application must be open. Avoid using your phone during the update process.
i
8000
7.5
330
KCAL
KM
STEPS
- 10 -
The activity tracker resets at midnight.
To save your latest activity, go to the Activity tab of the MyKronoz App. Your activity will sync
automatically as soon as you open this page. To sync your data manually, slide your finger
down the screen. ZeTrack has the ability to store up to 5 days of your activity data. Then, you
will have to synchronize your ZeTrack with your mobile app in order to avoid loss of data.
We recommend you to set ambitious but realistic goals in order to keep a healthy daily
activity. You can obviously raise your goals over time to increase your performance.
On average it is recommended to have at least 30 minutes of physical activity per day.
i
i

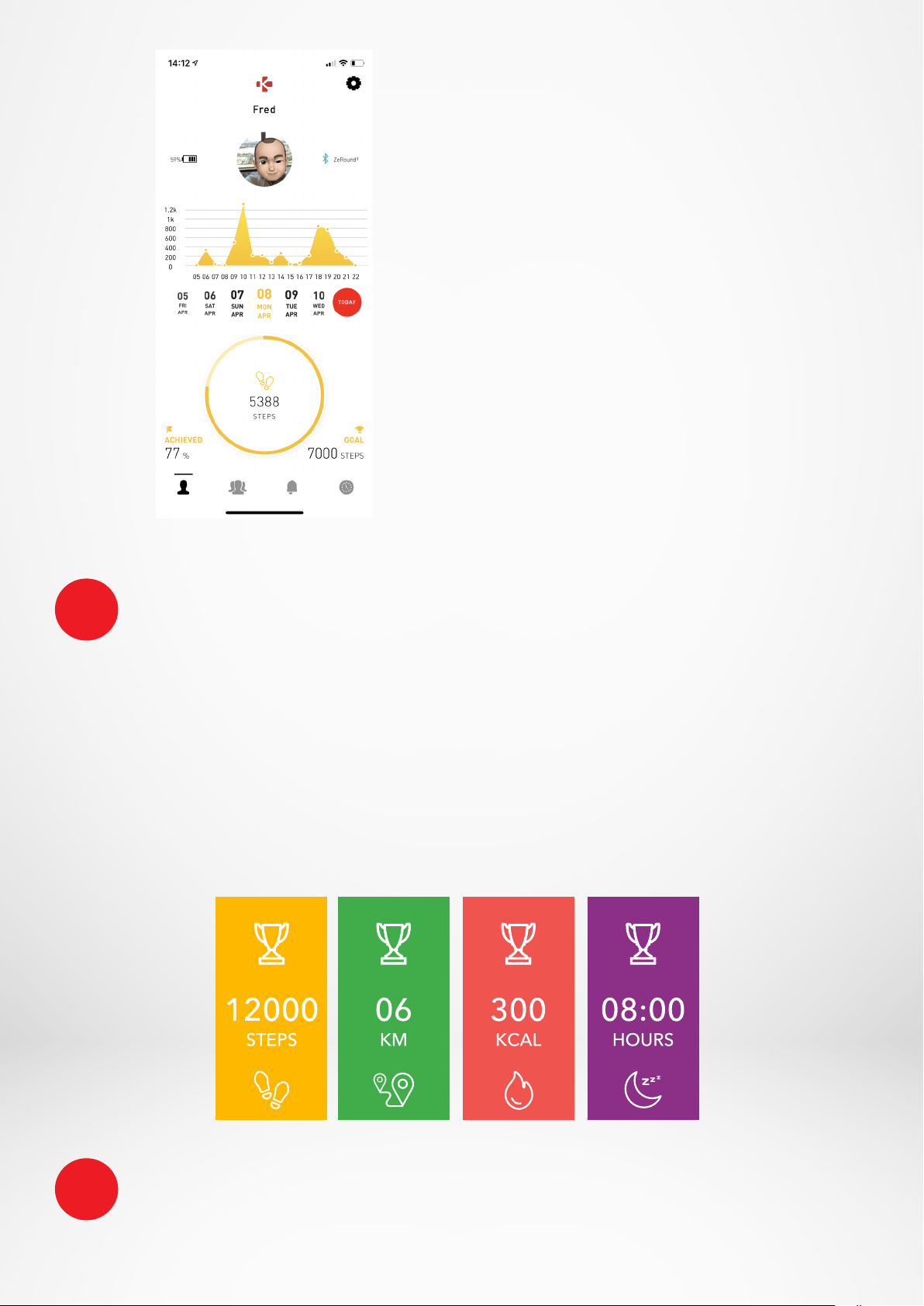

You can also monitor your activity data and history from
the MyKronoz Mobile App. On the main activity screen,
you can check your performance level against your
daily goals. Click on any activity bar to get a detailed
graph of your daily, weekly and monthly performance.
I DEFINE A DAILY GOAL
Reach the goals settings menu of the MyKronoz App to set daily goals for steps taken,
distance travelled, calories burned and hours slept. On the Steps screen of your ZeTrack,
a progress bar will show how close you are to your daily goal. Once you hit one of your
daily goals, ZeTrack will gently vibrate and display a Goal achieved interface.
- 11 -
10.HEART RATE
11.SLEEP
Equipped with an optical heart rate sensor, ZeTrack measures manually or automati-
cally your heart rate frequency throughout the day.
ZeTrack tracks the hours slept and the quality of your sleep (light sleep, deep sleep,
awake times).
I MANUAL MODE
• Securely attach your ZeTrack around your wrist.
• Go to the heart rate menu of your watch.
• As soon as you reach at the HR interface,
ZeTrack will start measuring your heart rate. It
takes about 10 seconds for your device to give
you accurate information.
I ENABLE PRESET SLEEP MODE
Open the MyKronoz App > Go to the Settings menu > Advanced
Settings > Click on Sleep to enter your desired bed and wake up times.
By default, ZeTrack will track your sleep from 11pm until 7am.
You can also view your last saved data directly from the device.
I AUTO HR TRACKING
You can also enable automatic monitoring by going to the Settings tab of your mobile
App > Click on Heart rate > enable Automatic tracking.
Once activated, two green LED lights will start flashing on the back of the device.
Setting automatic HR monitoring on a very regular basis will impact the battery life.
i
- 12 -

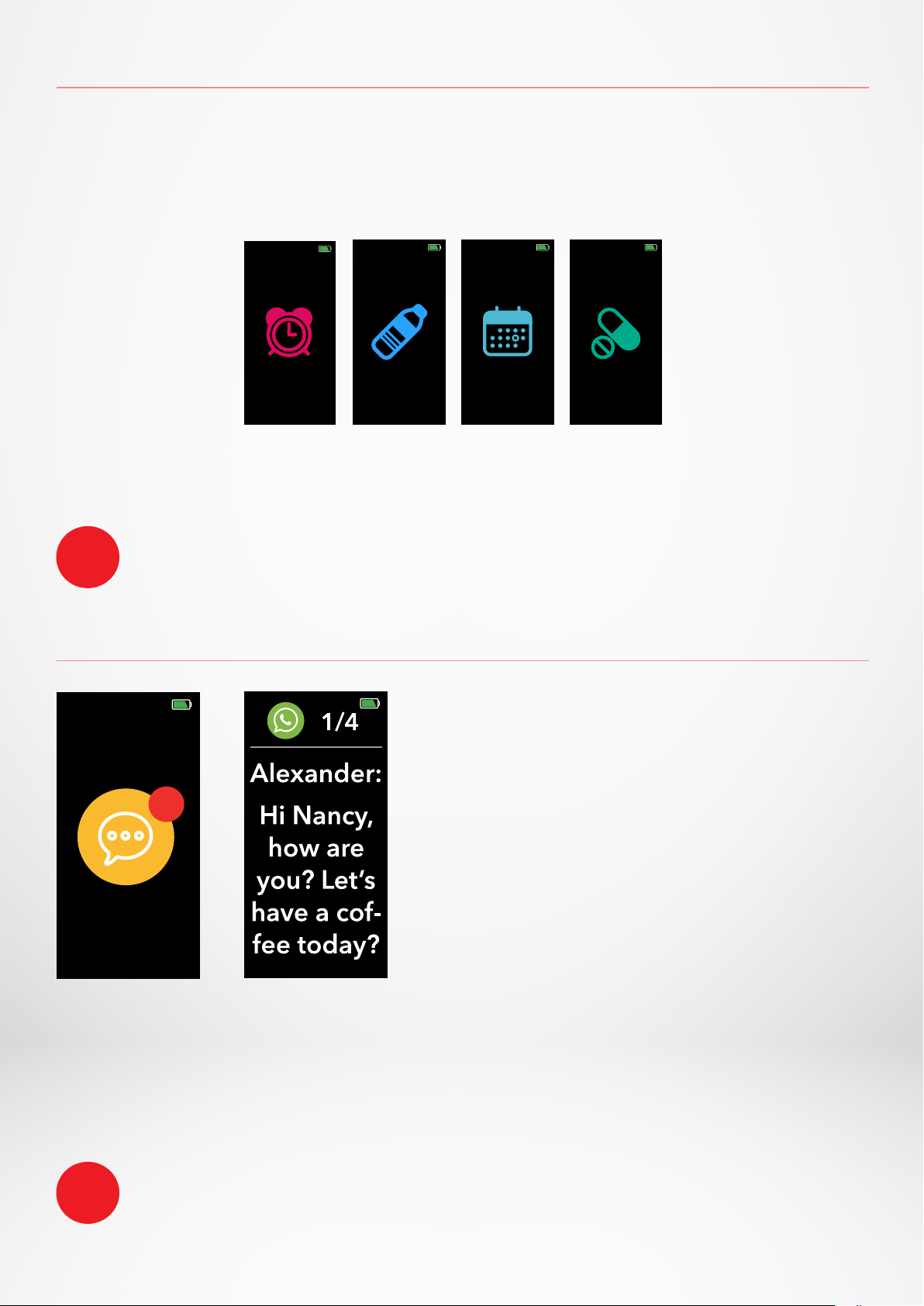

12.REMINDERS
13.NOTIFICATIONS
Tap on the Reminders tab of the MyKronoz App to add daily life reminders. You can
set up_ reminders, and choose the type of reminder and preferred time and day.
ZeTrack will gently vibrate and display the corresponding reminder icon to alert you.
A single tap on your ZeTrack Navigation button can dismiss the reminder. If not
dismissed, the same alert will repeat according to the saved snooze time.
ZeTrack shows notifications of incoming
calls, SMS, email, social media activity &
emails.
Open the MyKronoz App, tap on the Settings
tab> Notifications to select the notifications
you want to receive onto your ZeTrack. If you
wish to disable certain notifications types,
swipe the selection button to the left.
For each alarm, ZeTrack will vibrate and ring continuously for 1 minute. You can snooze wake up
alarms several times. Snooze length can be set in the advanced settings from the mobile app.
ZeTrack supports showing 10 of the most recent notifications and 3 screens of detailed information for
each notification. For some very popular applications, ZeTrack displays the original application icon.
For other applications, ZeTrack displays a generic icon.
i
i
4
I SETTING UP NOTIFICATIONS FOR IOS USERS
• Go to the settings of your iOS device.
• Tap on Notification Center.
• Select which type of notifications you wish to receive on ZeTrack.
• Enable ”Show in Notification Centre” and to receive the notification on ZeTrack.
- 13 -
15.INACTIVITY ALERT
Thanks to these particular alerts, you’ll always make sure to have the right amount
of activity throughout the day. You can set up when and how frequently you want to
your ZeTrack to alert you.
I ENABLE PRESET SLEEP MODE
• Go to the Settings menu of the MyKronoz App.
• Click on Advanced settings and select Inactivity alert.
• Simply customize your inactivity alert pattern and
click on save to enable it.
To dismiss an incoming inactivity alert, simply touch the screen or press
any button on the watch.
If the weather condition for your current location seems wrong or doesn’t appear, make sure
that the location services for the MyKronoz App are switched ON.
i
To change the temperature unit or set your location
manually, go to the settings of the MyKronoz App >
Click on Advanced > Select Weather.
14.WEATHER
To check the current weather, go to the Weather interface on your ZeTrack.
By default, the weather screen shows your current location.
26
°C
MAX
23°C
MIN
14°C
- 14 -
17.APPS
Several applications can be found in this menu:
I STOPWATCH
From the stopwatch interface, single press to start the stopwatch and
press once to pause. To restart the stopwatch, make sure that the timer
is in paused and long press the Navigation button.
I FIND MY PHONE
To enjoy this feature, make sure ZeTrack is connected to your
smartphone via Bluetooth. Enabling the Find my phone function will
make your phone ring and help you find it. Press the Navigation
button to start and stop the searching mode.
To quit the Apps menu, access to the exit door interface and long press the Navigation
button.
i
16.CAMERA REMOTE
This feature is useful for group photos or selfies.
Open the camera from the MyKronoz App > Click on the Settings tab
> Select Camera > Move your wrist to release the camera shutter.
As soon as you open the camera from the MyKronoz App,
a message will pop up on the ZeTrack screen to confirm that the
feature is enabled. Just shake your wrist to launch the counter and
take a successful photo.
Shake
your wrist
to take
a picture
This feature only works if you open the camera from the MyKronoz App.
i
- 15 -
I BRIGHTNESS
Tap the Navigation button to set the brightness
I WATCH INFO
To quit the Settings menu, access to the exit door interface and long press the Navigation
button. You can also find other settings such as do not disturb mode, inactivity alert and time
format settings from the MyKronoz App.
i
18.SETTINGS
Several applications can be found in this menu:
I WRIST FLICK
The wrist flick mode will enable you to light-up your screen by
simply lifting your wrist towards your face. By default this feature is
disabled in order to save battery life.
I VIBRATION
Tap the Navigation button to set the vibration ON or OFF
- 16 -

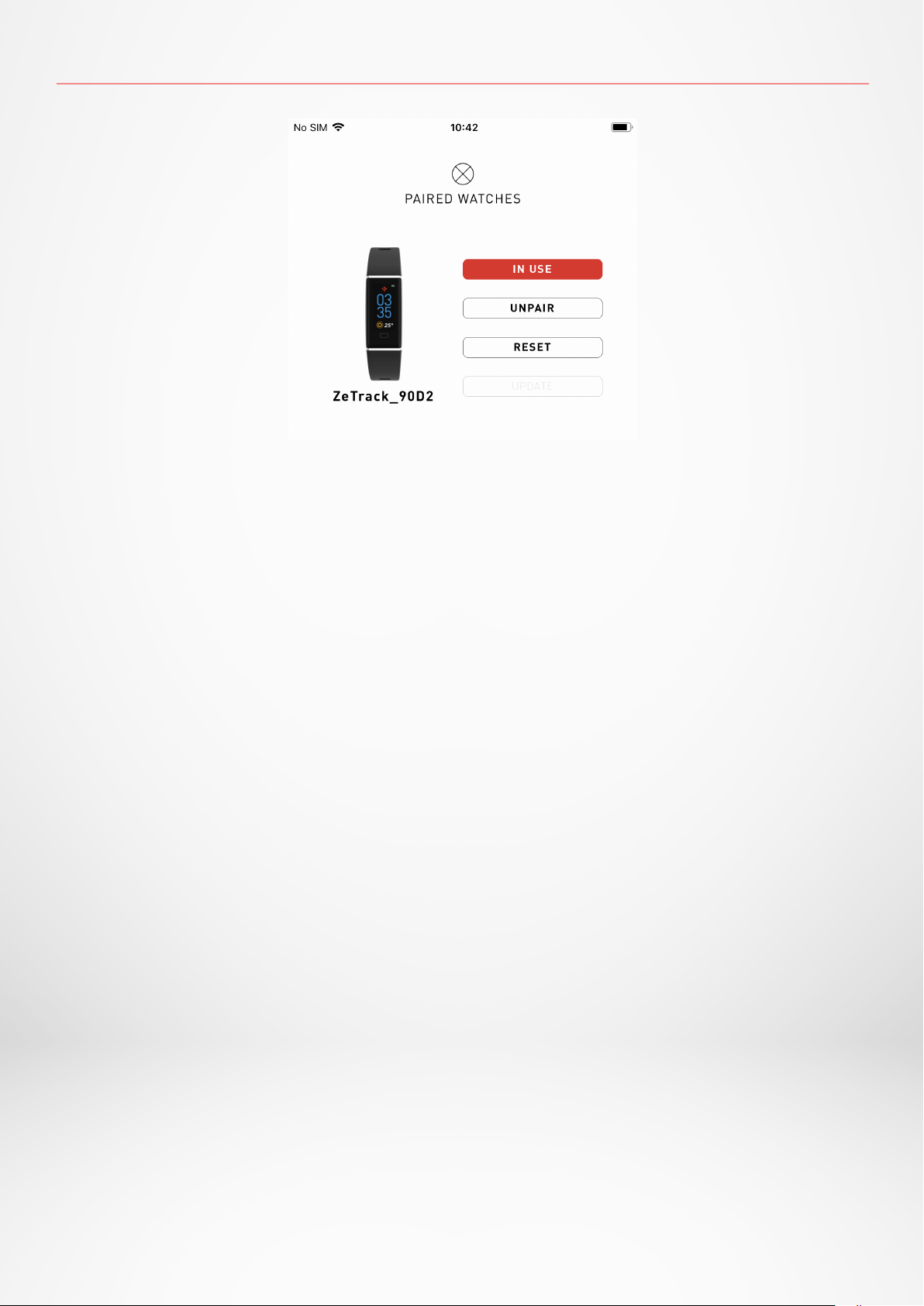

19.UNPAIR, RESET, UPDATE & DELETE
I UNPAIR
If you want to pair your ZeTrack with another smartphone, pair another MyKronoz device,
give it to another person or return it, go to the MyKronoz App > Settings menu > Click on
Paired watches > Click on Unpair.
For iOS users, make sure to forget the device from the Bluetooth settings of your phone.
I UPDATE
Make sure to update your ZeTrack to get the latest improvements and device updates.
When a new update is available, a notification appears in the MyKronoz App and the pai-
red watches section. After starting an update, a progress bar appears in the MyKronoz
App and an Upgrading message appears on the screen of the ZeTrack until the update is
fully complete.
To avoid any issue, make sure to keep your tracker and smartphone close to each other
during the process.
I RESET
If you can’t sync ZeTrack, go to the Settings menu > Click on Paired Watches > Click on
Unpair > Then click on Use or enable the Bluetooth on your phone and enable it again.
If the issue persists, reset your device from the MyKronoz App > Settings menu > Click on
Paired Watches > Click on Reset.
I DELETE
To erase a device from your list of paired watches, go to the MyKronoz App > Click on the
Settings menu > Click on Paired Watches > Click on Delete.
- 17 -
Dimensions 41 x 20 x 10,6 mm
Watch band size 16 mm (width)
Weight 20 gr
Display size and resolution IPS-LCD 0.96” / 128 x 64 px
Material Polycarbonate, aluminium, silicone
Battery type Lithium polymer 90 mAh
Battery life Up to 5 days
Connectivity Bluetooth® BLE 4.0
Memory 7 days of activity
Sensors 3-axis accelerometer & Optical Heart rate
Water resistance IP67
Operating temperature -10°C to + 60°C
Compatibility iOS & Android
Accessories included USB Cable - Quick start guide
International warranty 1 year
20. TECH SPECS
- 18 -
WARNING
I
Connecting the built-in USB port improperly may cause serious damage to
the device. Any damage caused by misuse is not covered by the warranty.
Unplug ZeTrack when it is fully charged.
I
This product is not a medical device and should not be used to diagnose
or treat any medical condition.
I
This device is not waterproof so keep it away from all sources of heat or
humidity. Do not use it near sink or other wet areas. Do not place it in water.
ZeTrack only conforms to IP67 protection.
ABOUT THIS MANUAL
SUPPORT
The features of
ZeTrack
and the contents of the user manual are subject
to change.
To get the latest instructions on how to use this product, please refer to
the online user manual available on www.mykronoz.com
If you have any question or require assistance regarding our product,
please visit www.mykronoz.com/support/ submit a request at
https://support.mykronoz.com/hc/en-us/requests/new
- 19 -
Before using the device, read these instructions carefully.
• ZeTrack has built-in batteries. Do not disassemble the battery on your own. KRONOZ LLC is not
responsible for any damage or personal injury caused by the removal of the battery or any component.
• Do not expose your product to extremely high or low temperatures. Excessive temperature during
charging could cause heat, smoke, fire or deformation of the battery or even explosion. Do not expose
the battery in the sun, excessive smoke or dust. Charge the battery in a cool, ventilated room.
• Do not open, crush, bend, deform, puncture or shred secondary cells or batteries. In the event of a
battery break or leak, prevent battery liquid contact with skin or eyes. If this happens, immediately
flush the areas with water (do not rub the eye) or seek medical help.
• Do not short-circuit. Short-circuiting can occur when a metallic object, such as coins, causes direct
connection of positive and negative terminals of the battery. Short-circuiting may damage the battery.
• Do not use batteries that have been damaged or have been exhausted.
• Keep the batteries out of children’s reach and in a safe place to prevent danger.
• Do not place the batteries in the water. Do not expose your product to water at high pressure, such as
ocean waves or waterfall. Do not use your product in a sauna or steam room.
• Do not dispose of batteries in fire as they may cause explosion. Dispose of used batteries in
accordance
with your local regulations (such as recycling). Do not dispose as household waste.
• Use only the USB cable supplied to charge this battery. Do not charge for more than 24 hours.
• Do not attempt to repair or maintain the watch by yourself, service and maintenance should be
performed
by authorized technicians.
• Risk of explosion if battery is replaced by an incorrect type.
• Dispose of used batteries according to these instructions.
•
This device has a recording function. Please be sure to comply with the relevant laws and regulations
on the use of these features. In accordance with relevant regulations, without permissions any
personal characteristic sound recording being copied and disseminated may be seen as an
invasion of privacy. Inappropriate use of photography, video and photo, audio recording function
records could violate the copyright owner’s right. For this, the user must assume full responsibility.
KRONOZ LLC is not responsible for any damage caused by improper use of the device.
•
This device is not waterproof. Do not immerse the device in water or any other liquids.
SAFETY INSTRUCTIONS
CAUTION
- 20 -
USA
FCC STATEMENT
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions : (1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
CAUTIONS
Changes or modifications not expressly approved by the party responsible for compliance could void
the user’s authority to operate this equipment.
FCC NOTICE
This equipment complies within the limits of a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protections against radio and TV interference
in residential areas. However, even during normal operation, this equipment may cause TV or radio
interference. If the equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment o and on, the user is encouraged to try one or more of
the following corrective measures:
• Reposition the receiving antenna.
• Increase the distance between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
RF EXPOSURE STATEMENTS
This equipment complies with FCC radiation exposure requirement set forth for an uncontrolled
environment.End users must follow the specific operating instructions for satisfying RF exposure
compliance.
CANADA
INDUSTRY CANADA IC STATEMENT
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject
to the following two conditions : (1) this device may not cause interference, and (2) this device must
accept any interference, including interference that may cause undesired operation of the device.
Cet appareil est conforme à la norme CNR d’Industrie Canada applicable aux appareils radio exempts de
licence. Son utilisation est soumise aux deux conditions suivantes: (1) cet appareil ne doit pas provoquer
d’interférences et (2) cet appareil doit accepter toute interférence, y compris les interférences qui
peuvent causer un fonctionnement indésirable du dispositif.
REGULARY NOTICE
FCC ID: 2AA7D-ZTRA
IC: 12131A-ZTRA
- 21 -
RF EXPOSURE STATEMENTS
This device complies with the ISED RSS-102 RF exposure requirement set forth for an uncontrolled
environment and are safe for intended operation as described in this manual.
Cet appareil est conforme aux exigences d’exposition RF de l‘ISED RSS-102 définies pour un
environnement non contrôlé et est sûr pour le fonctionnement prévu comme décrit dans ce manuel.
EUROPEAN UNION
CE DIRECTIVE
Declaration of conformity with regard to the EU Directive 2014/53/EU.
Kronoz LLC hereby declares that this device is in compliance with the essential requirements and
other relevant provisions of the RE Directive 2014/53/EU. The complete declaration of conformity is
available at: www.mykronoz.com/assets/certifications-ce-zetrack.pdf
Déclaration de conformité à l’égard de la directive européenne 2014/53/EU.
Kronoz LLC déclare que cet appareil est conforme aux exigences essentielles et aux autres dispositions
pertinentes de la directive RE 2014/53/EU. La déclaration de conformité complète est disponible sur:
www.mykronoz.com/assets/certifications-ce-zetrack.pdf
RUSSIA
CUSTOMS UNION CERTIFICATION
視力保護注意事項：
（1）使用30 分鐘請休息10 分鐘。
（2）未滿2歲幼兒不看螢幕，2歲以上每天看螢幕不要超過1 小時。
依據低功率電波輻射性電機管理辦法
第十二條
※經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、加大
功率或變更原設計之特性及功能。
第十四條
※低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用，
並改善至無干擾時方得繼續使用。
-前項合法通信，指依電信法規定作業之無線電通信。
-低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。
ACCESS TO THE REQUIRED INFORMATION ON THE ELABEL
Users can access the E-Label screen on ZeTrack by going to Settings > General > Regulatory. No
special access codes or permissions are required to go through the above steps beyond ente
-
ring a user-defined password to protect against unauthorized access to the device. Additional
regulatory information are in « Regulatory notices » of this document. The information is stored on
the device, no special accessories or supplemental plug-ins (e.g., a SIM/USIM card) are required to
access the information.
- 22 -
DISPOSAL AND RECYCLING INFORMATION
After the implementation of the European Directive 2012/19/EU in the national legal system, the
following applies : electrical and electronic devices may not be disposed of with domestic waste.
Consumers are obliged by law to return electrical and electronic device at the end of their service
lives to the public collecting points set up for this purpose or point of sale. Details to this are defined
by the national law of the respective country. This symbol on the product, the instruction manual
or the package indicates that a product is subject to these regulations. By recycling, reusing
the materials or other forms of utilizing old devices, you are making an important contribution to
protecting our environment.
©2019 Kronoz LLC, all rights reserved.
Kronoz LLC, Avenue Louis-Casai 18 - 1209 Geneva - Switzerland
All brands or product names are or may be trademarks of their respective owners.
Pictures and specifications are not contractual. Les marques citées sont des marques
déposées par leur fabricant respectif. Photos et caractéristiques non contractuelles.
Designed in Switzerland - Assembled in China.
mykronoz.com
JOIN US @ MYKRONOZ
