Contents
Before driving
Introduction 2
Instrumentation 4
Controls and features 14
Seating and safety restraints 44
Starting and driving
Starting 76
Driving 84
Roadside emergencies 107
Servicing
Maintenance and care 125
Capacities and specifications 183
Reporting safety defects (U. S. only) 189
Index 190
1
CDW I_IIImpr_Cont_en MM 5/15/97 7:41 PM Page 2
Introduction
2
ICONS
Indicates a warning. Read the
following section on Warnings for
a full explanation.
Indicates that vehicle information
related to recycling and other
environmental concerns will follow.
We must all play our part in
protecting the environment.
Correct vehicle usage and the
authorized disposal of waste
cleaning and lubrication materials
are significant steps toward this
aim.
BREAKING IN YOUR VEHICLE
There are no particular breaking-in
rules for your vehicle. Simply avoid
driving too fast during the first
1 600 km (1 000 miles). Vary
speeds frequently. This is
necessary to give the moving parts
a chance to break in.
WARNINGS
How can you reduce the risk of
personal injury and prevent
possible damage to others, your
vehicle and its equipment?
In this owner’s guide, answers to
such questions are contained in
comments highlighted by the
warning triangle symbol.
CDW II_A1_en MM 5/15/97 7:41 PM Page 2
Introduction
3
INFORMATION ABOUT THIS
GUIDE
The information found in this guide
was in effect at the time of
printing. Ford may change the
contents without notice and
without incurring obligation.
If possible, you should avoid hard
braking for the first 1 600 km
(1 000 miles).
From 1 600 km (1 000 miles)
onwards you can gradually increase
the performance of your vehicle up
to the permitted maximum speeds.
CDW II_A1_en MM 5/15/97 7:41 PM Page 3
4

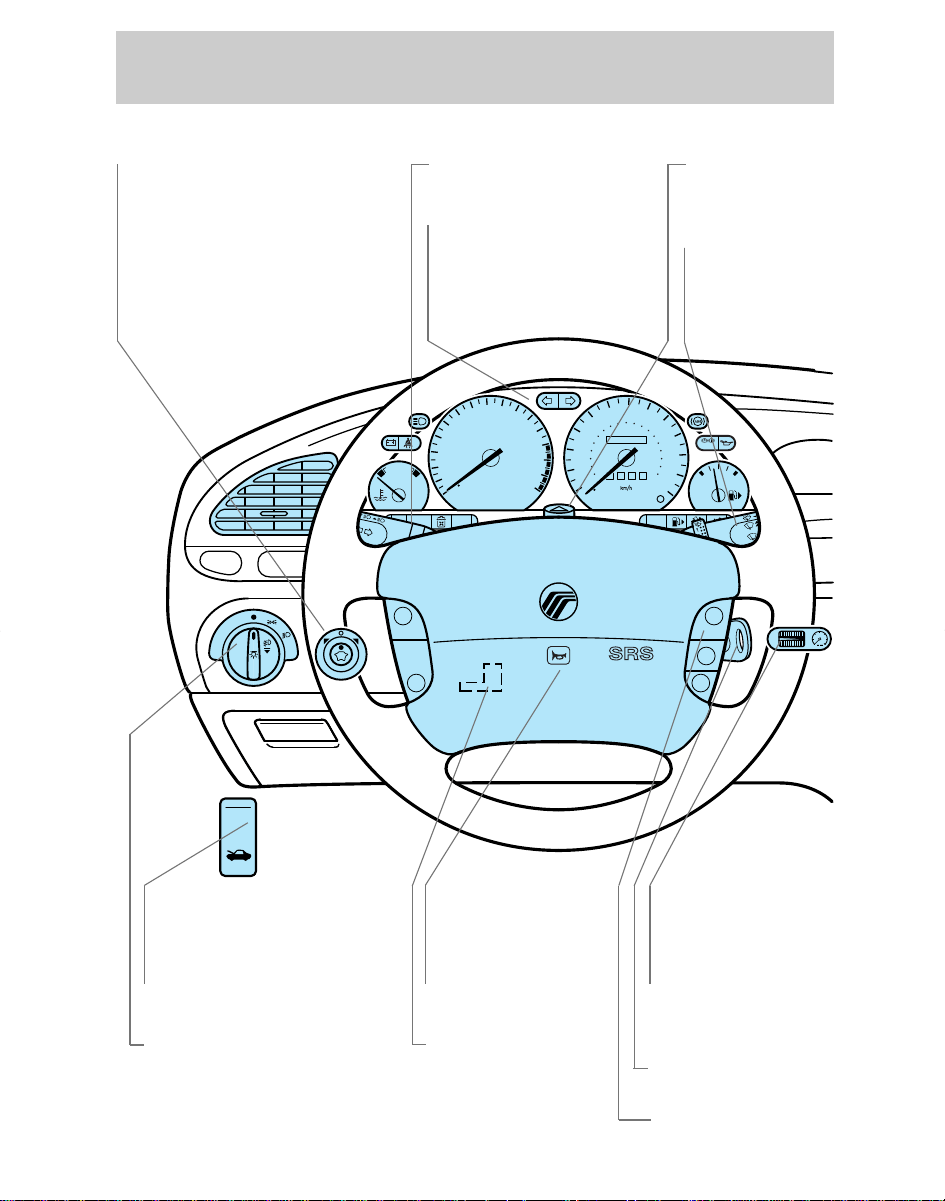

Instrumentation
Page 27

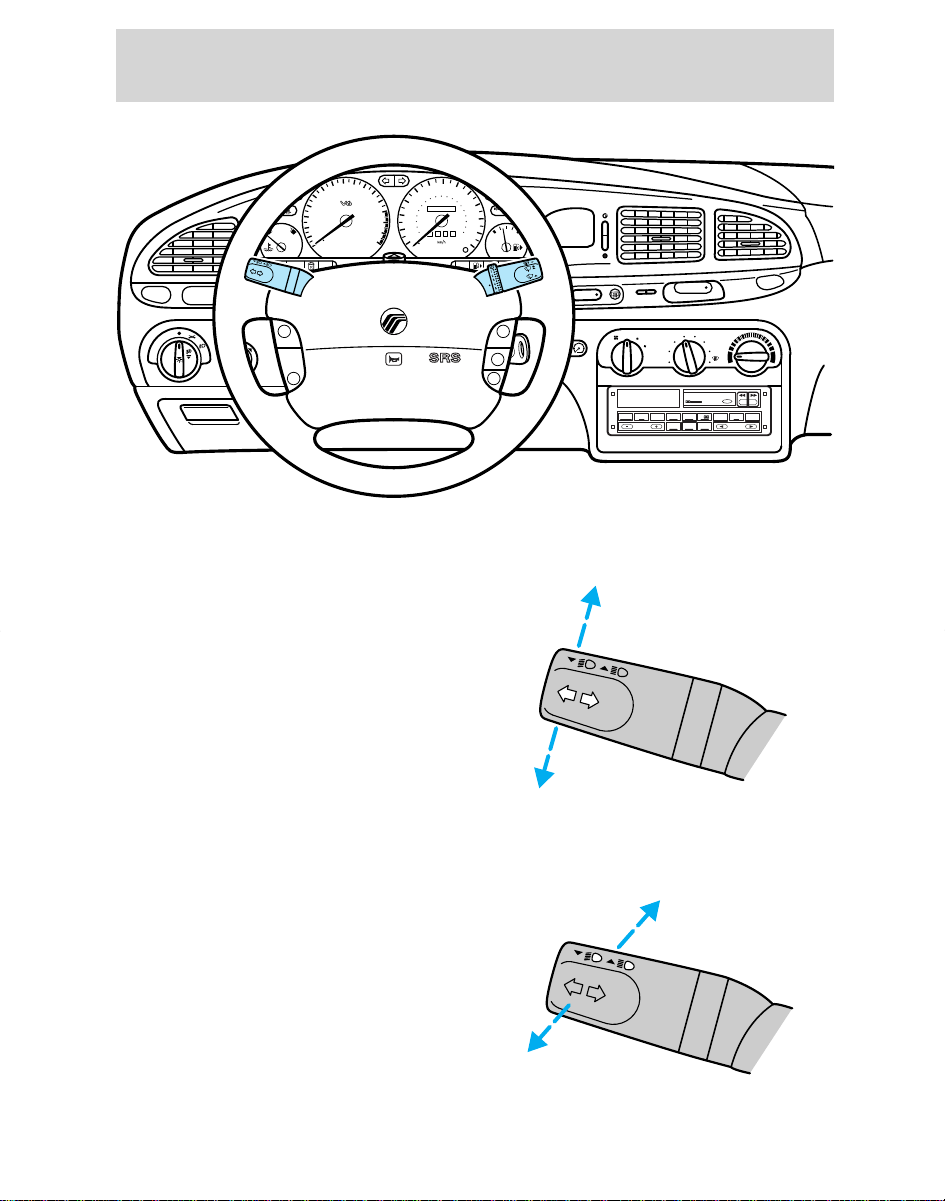

Turn signal/high beam
Page 6
Instrument cluster
Page 26
Hazard flasher
control
Page 28

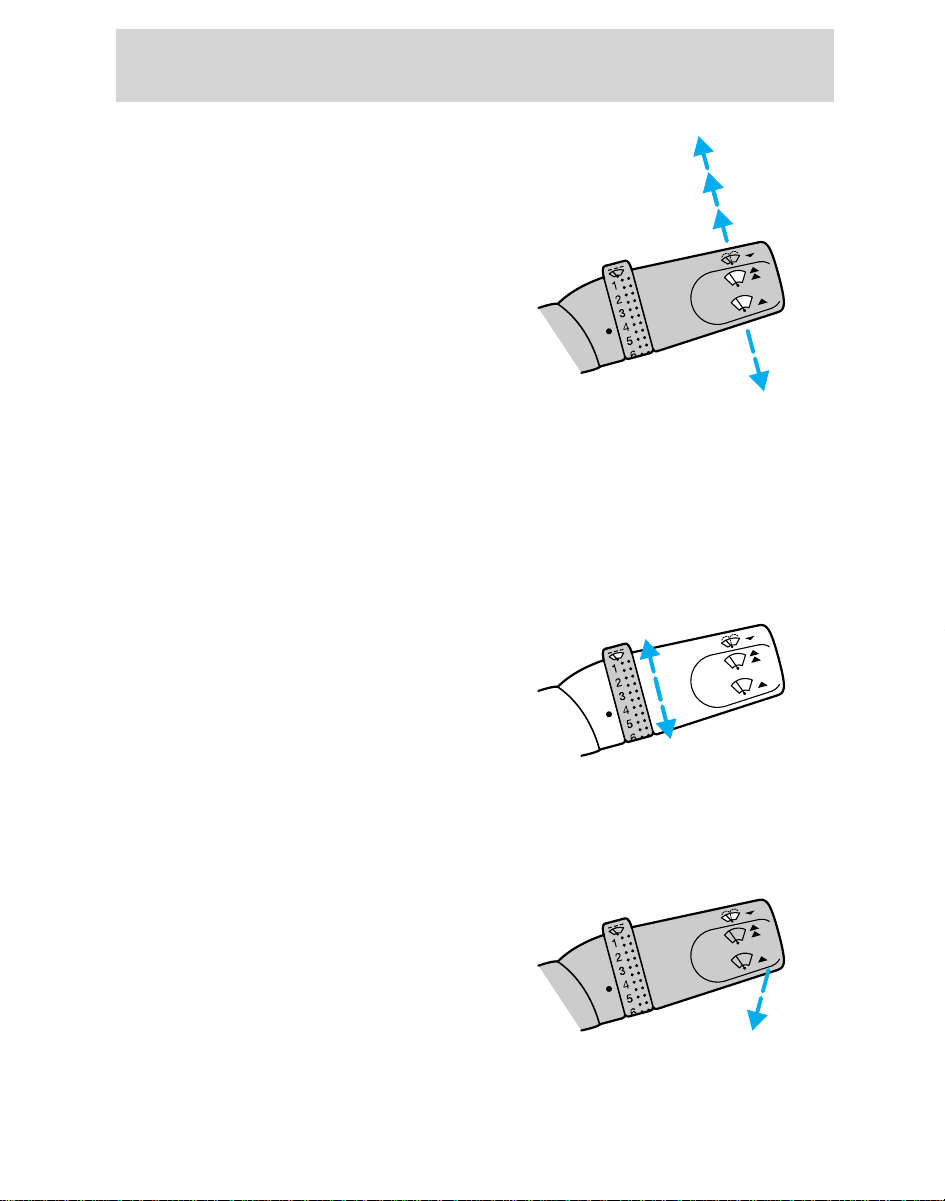

Windshield
wiper/washer
control
Page 129

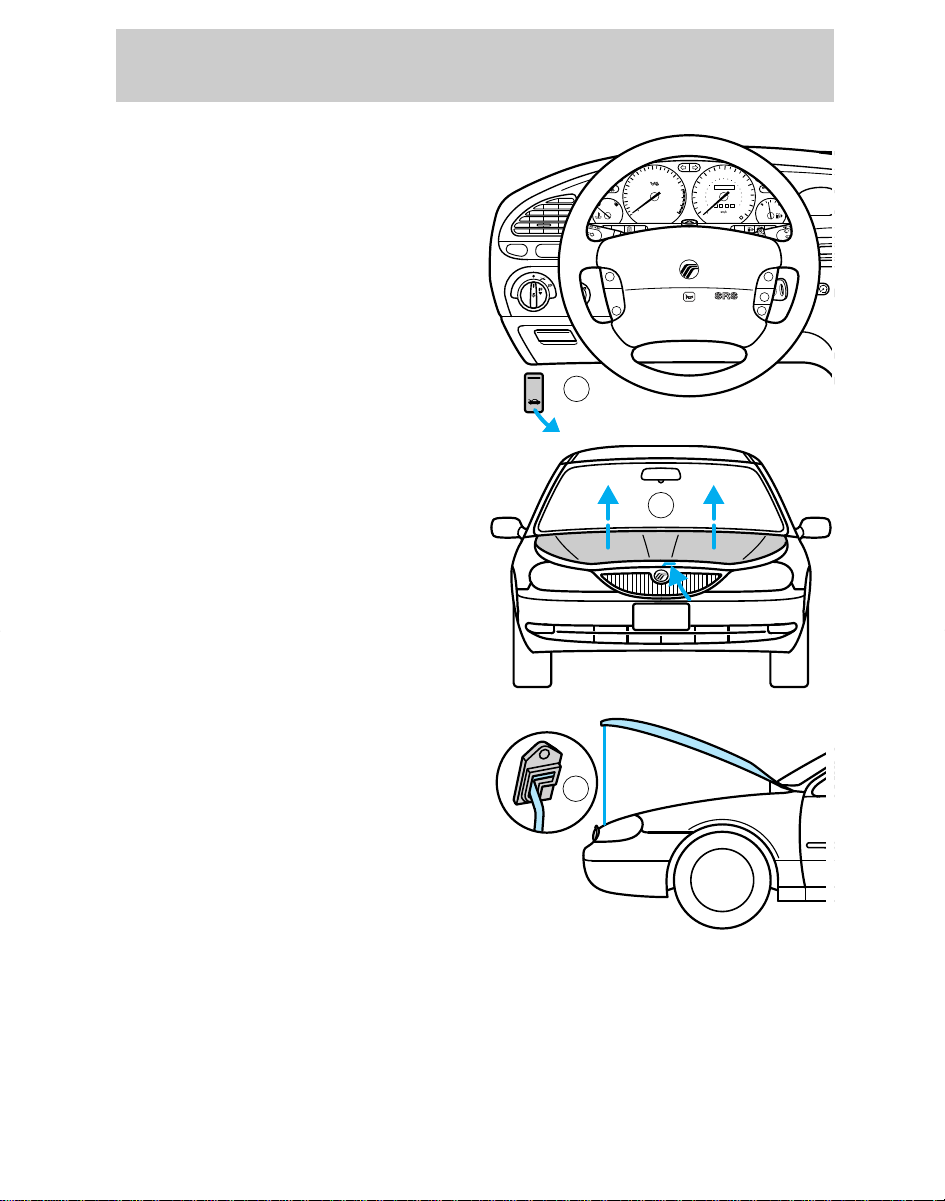

Hood release
Page 14

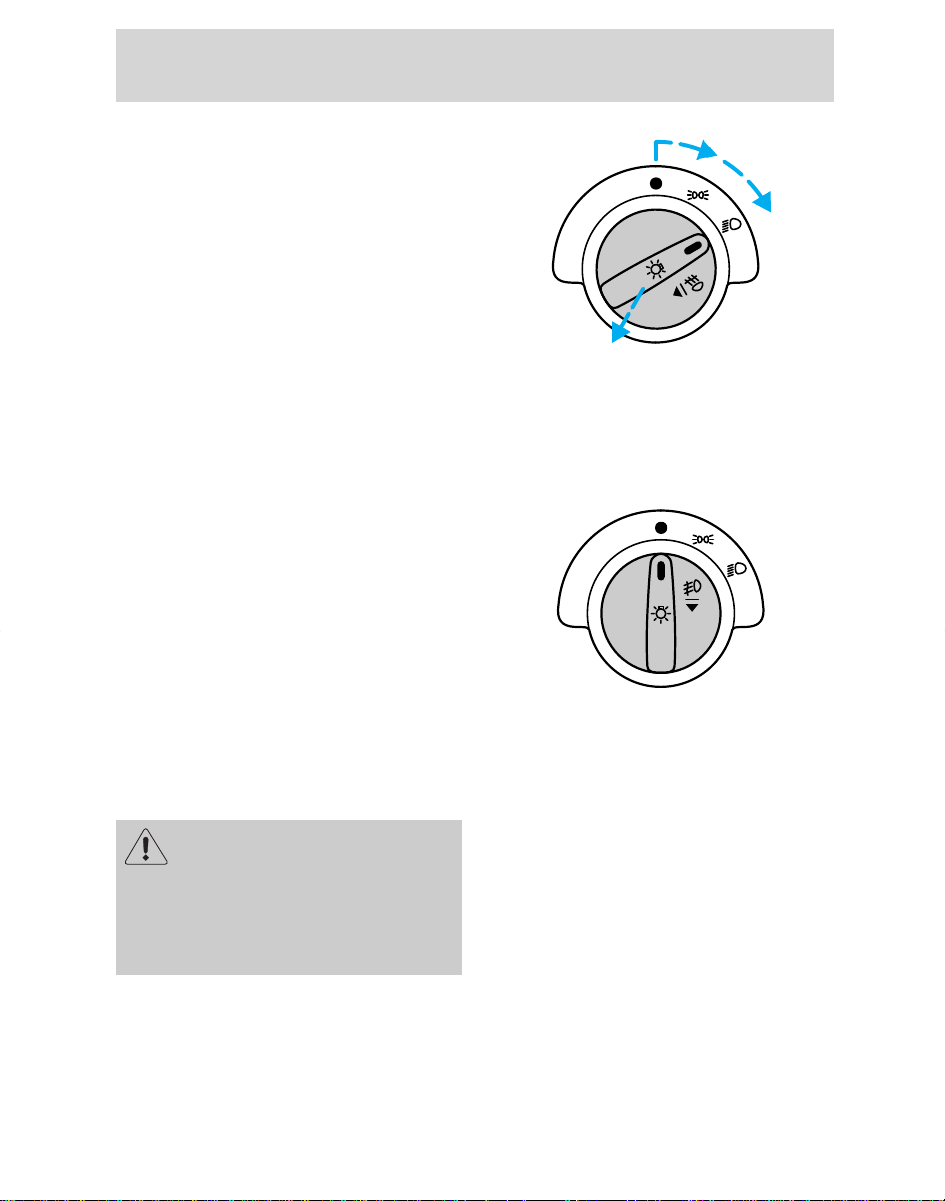

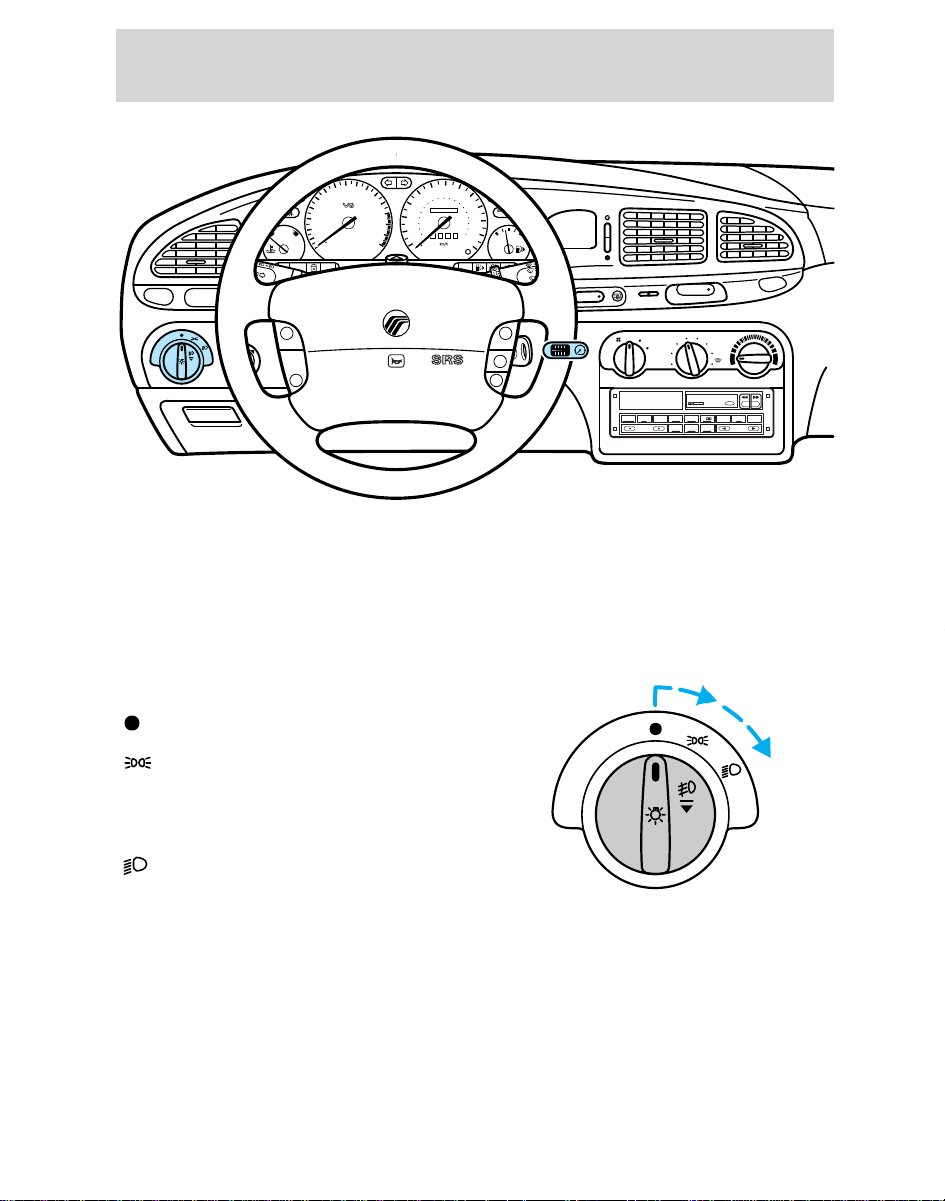

Headlamp control/
Foglamp control*
Page 26

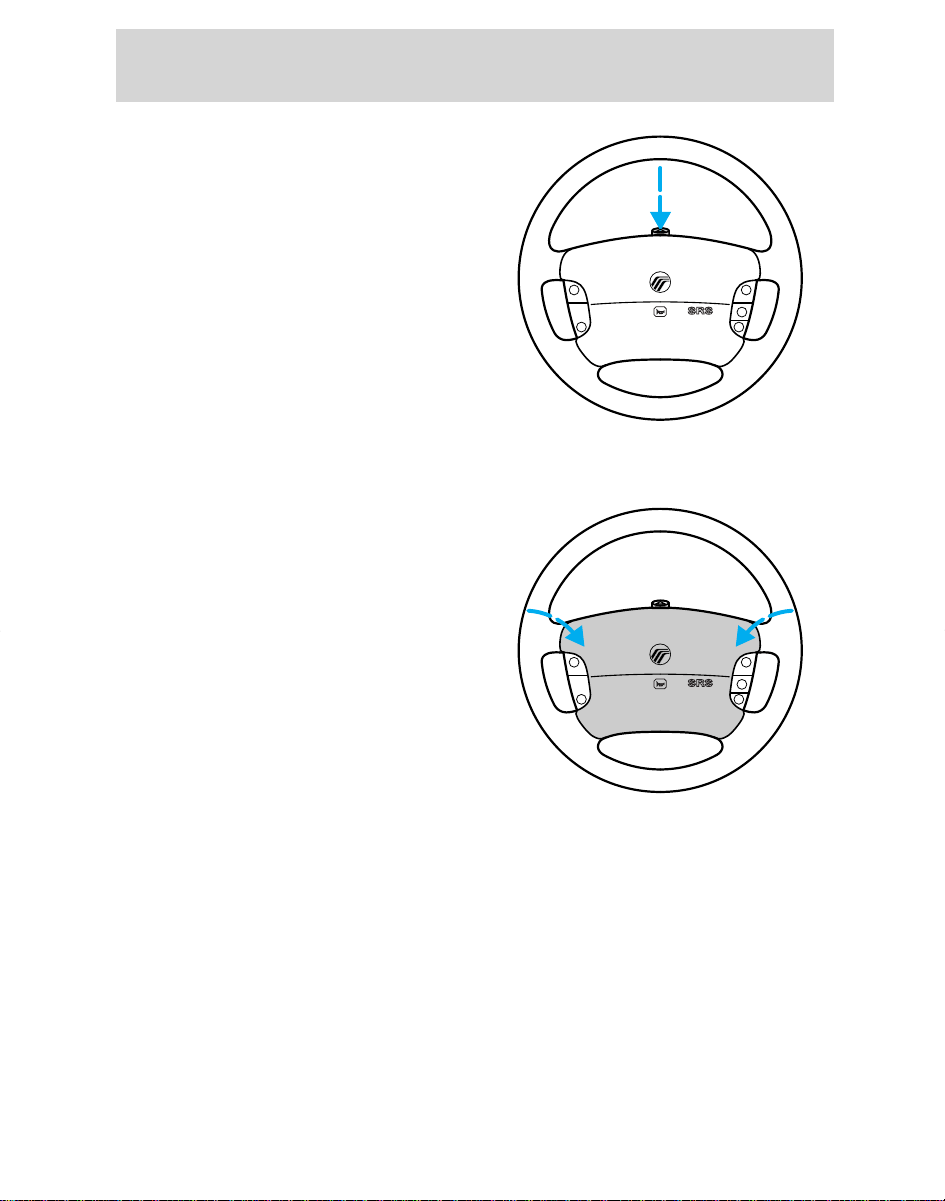

Horn
Page 25

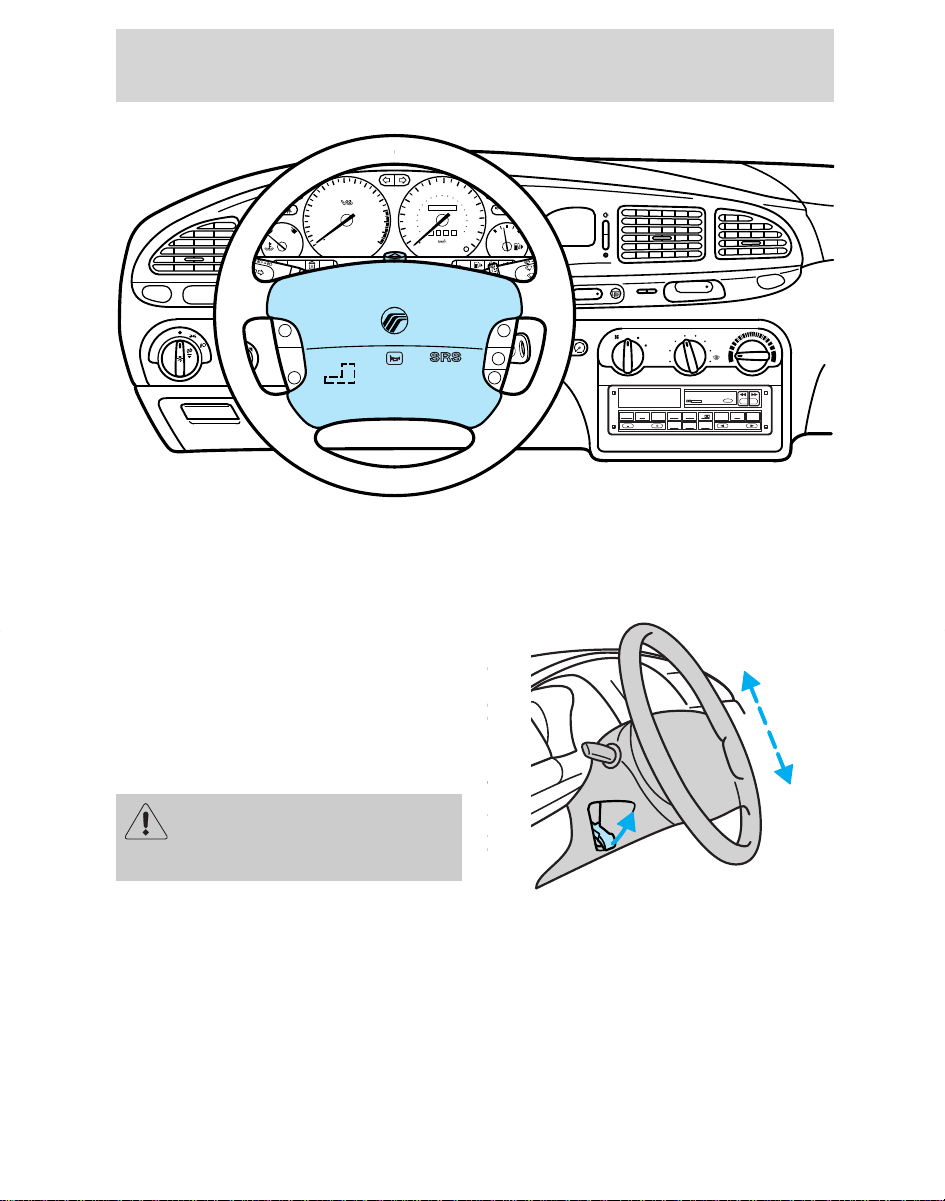

Tilt steering
wheel lever
Page 16
Instrument panel
dimmer switch
Page 24

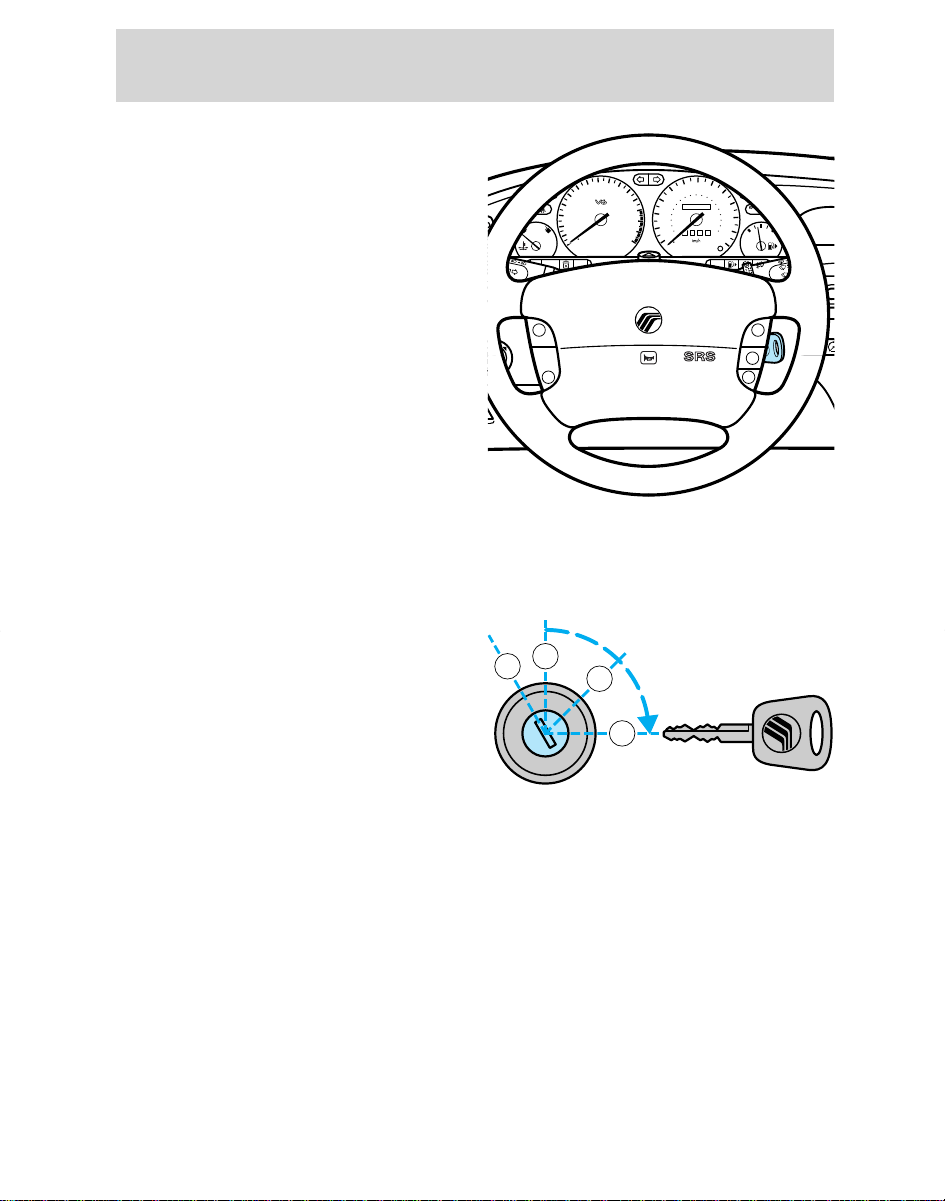

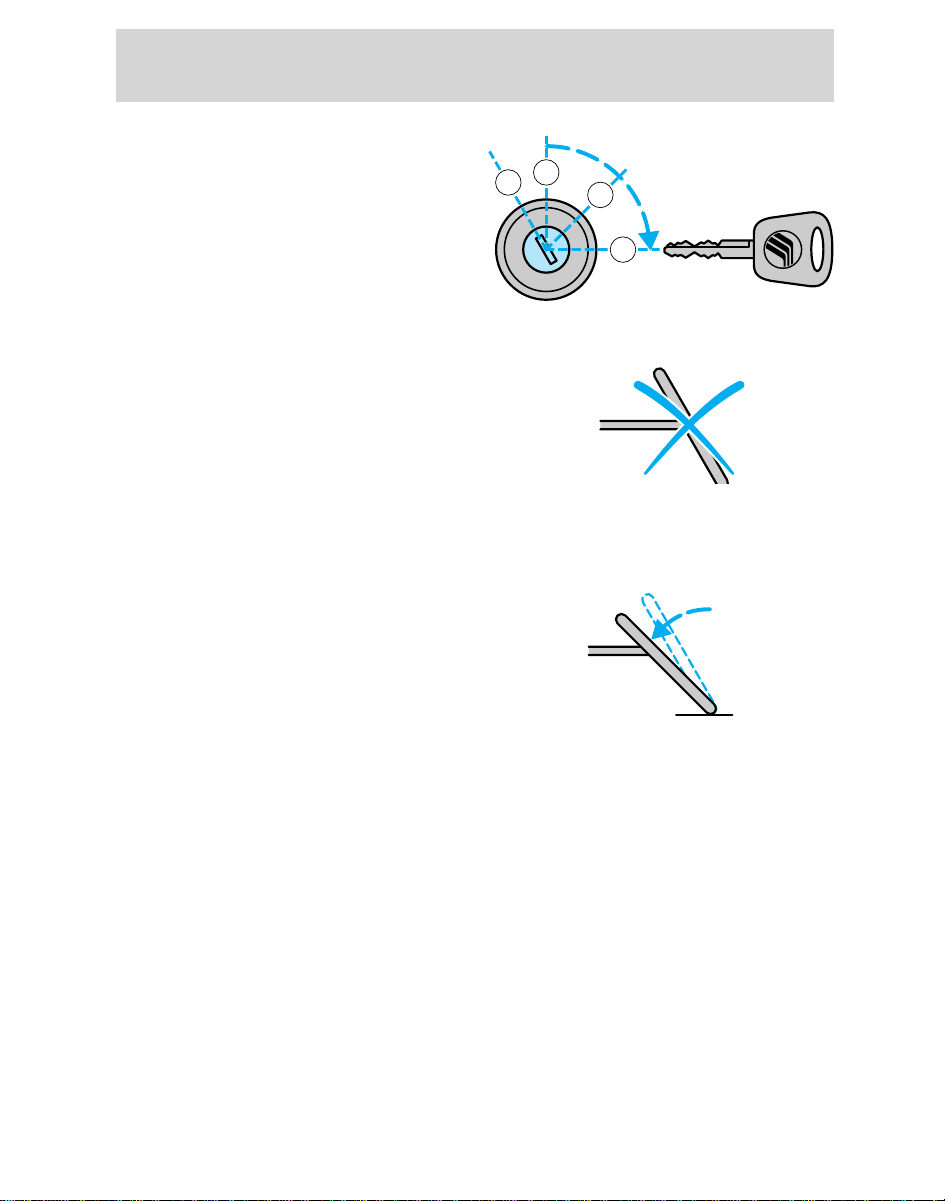

Ignition switch
Page 29
Speed control*
Page 17
Power mirrors
CHECK
ENGINE
O/D
OFF
Off
Res
Set
Acc
Coast
On
M
I
R
R
O
R
S
N
O
R
M
A
L
1
2
0
3
x 1000
4
5
6
7
8
000123
0 0 0 0
10
20
30
40
50
60
70
80
90
100
110
120
130
MPH
20
40
60
55
80
120
100
140
160
180
200
E F
1
/
2
UNLEADED FUEL ONLY
BRAKE
CDW IIA2Instrum_en MM 5/15/97 7:43 PM Page 4

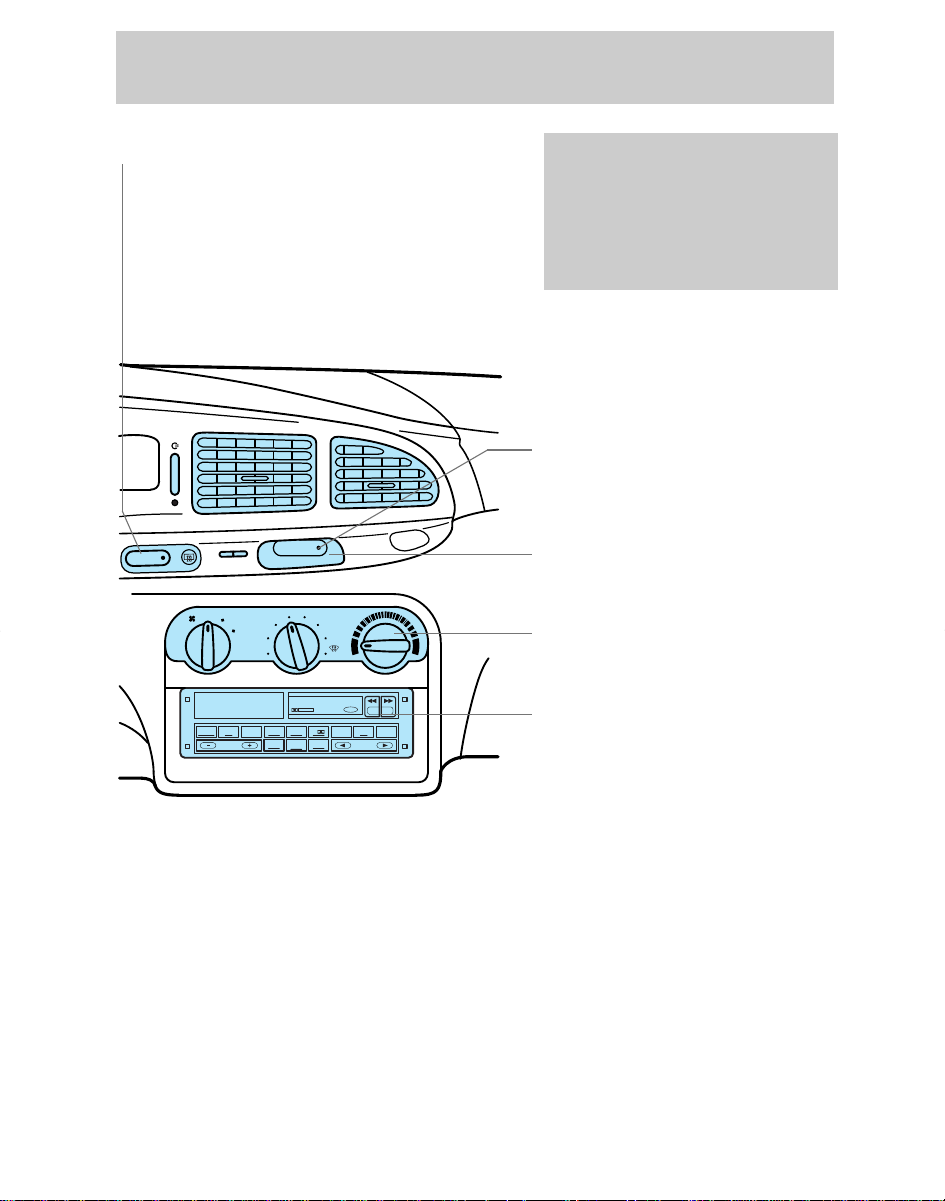

5
Instrumentation
Page 18
Clock
Page 16
Rear window
defroster control*
On various models the
appearance and location of
some items may differ from
those shown here. However,
the page references given
still apply.
POWER AUDIO AM/FM
SCAN
SEEK
31
2
64
5
ANS
SIDE 1-2
EJECT
VOLUME
DEF
LO
HI
OFF PNL/FLR
PANEL
A/C
FLOOR
FLR
DEF
MAX
A/C
:
I0 20
Page 19
Climate control system
Page 42
Anti-theft system status
indicator*
Electronic sound system;
refer to “Audio Guide”
* if equipped
CDW IIA2Instrum_en MM 5/15/97 7:43 PM Page 5

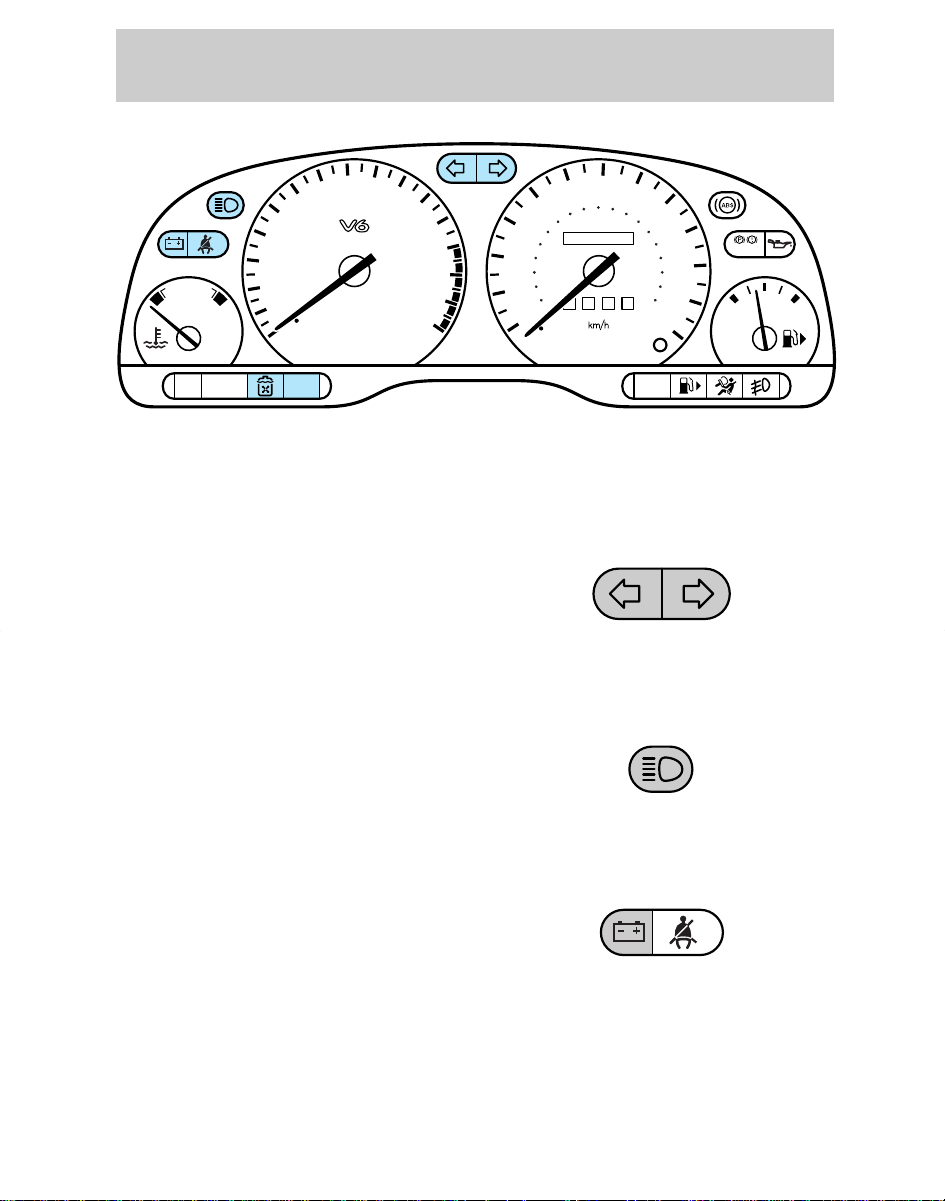

High beams
Illuminates when the headlamp
high beams are on.
Instrumentation
6
Turn signal
Flashes when the left or right turn
signal or hazard lights are
activated.
Charging system
Briefly illuminates when the
ignition is turned on and the engine
is off. The light also illuminates
when the battery is not charging
properly and the vehicle may
require electrical system service.
000123
0 0 0 0
10
20
30
40
50
60
70
80
90
110
120
130
MPH
20
40
60
55
80
120
100
140
160
180
200
100
E F
1
/
2
UNLEADED FUEL ONLY
1
2
0
3
x 1000
4
5
6
7
8
N
O
R
M
A
L
BRAKE
CHECK
ENGINE
TRACTION
CONTROL
O/D
OFF

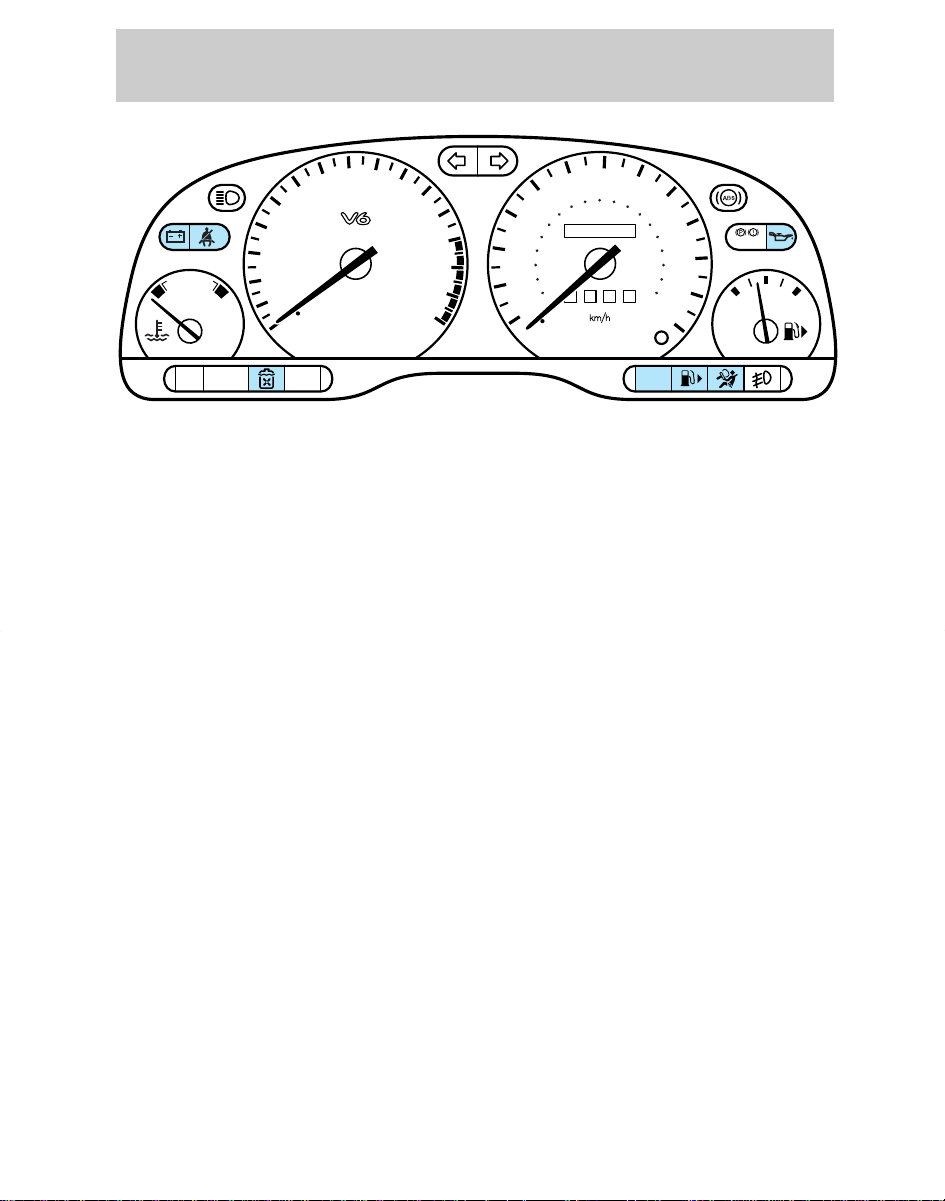

INSTRUMENT CLUSTER
LIGHTS AND CHIMES
CDW IIA2Instrum_en MM 5/15/97 7:43 PM Page 6
Instrumentation
7

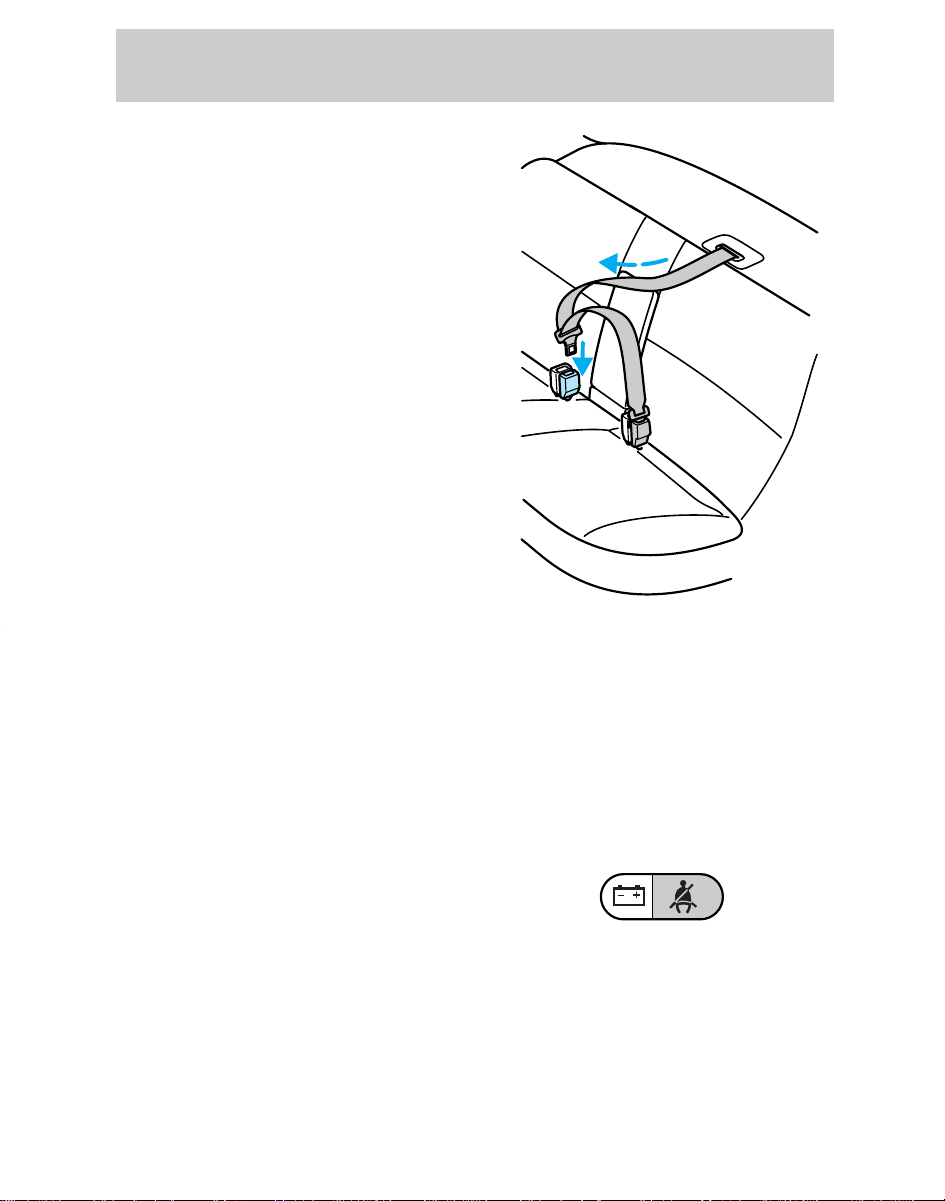

Safety belt
Illuminates when the ignition is
switched on as a reminder to fasten
the safety belts. For more
information, refer to Safety belt
indicator light and warning
chime in the Seating and safety
restraints chapter.
O/D Off indicator
(Automatic transaxle only)
Illuminates and remains
illuminated when the transaxle
control switch (TCS) on the end of
the gearshift lever is pressed and
overdrive is turned off.
Indicates the status of the
transaxle and will flash steadily if a
malfunction is detected. If the
flashing persists, have your
transaxle serviced by your dealer
or a qualified service technician as
soon as possible.
If the condition persists, your
transaxle may be damaged.
TRACTION
CONTROL
O/D
OFF
TRACTION
CONTROL
O/D
OFF
Low coolant (if equipped)
Briely illuminates when the ignition
is turned on and the engine is off.
Illuminates when the engine
coolant level is low. Refer to the
Maintenance and care chapter to
check the engine coolant level.
CDW IIA2Instrum_en MM 5/15/97 7:43 PM Page 7
Instrumentation
8
Check engine
Illuminates when the ignition is
turned on and the engine is off.
Also illuminates when the engine’s
emission control system requires
service or if the fuel filler cap is
not fitted correctly.
CHECK
ENGINE
CHECK
ENGINE

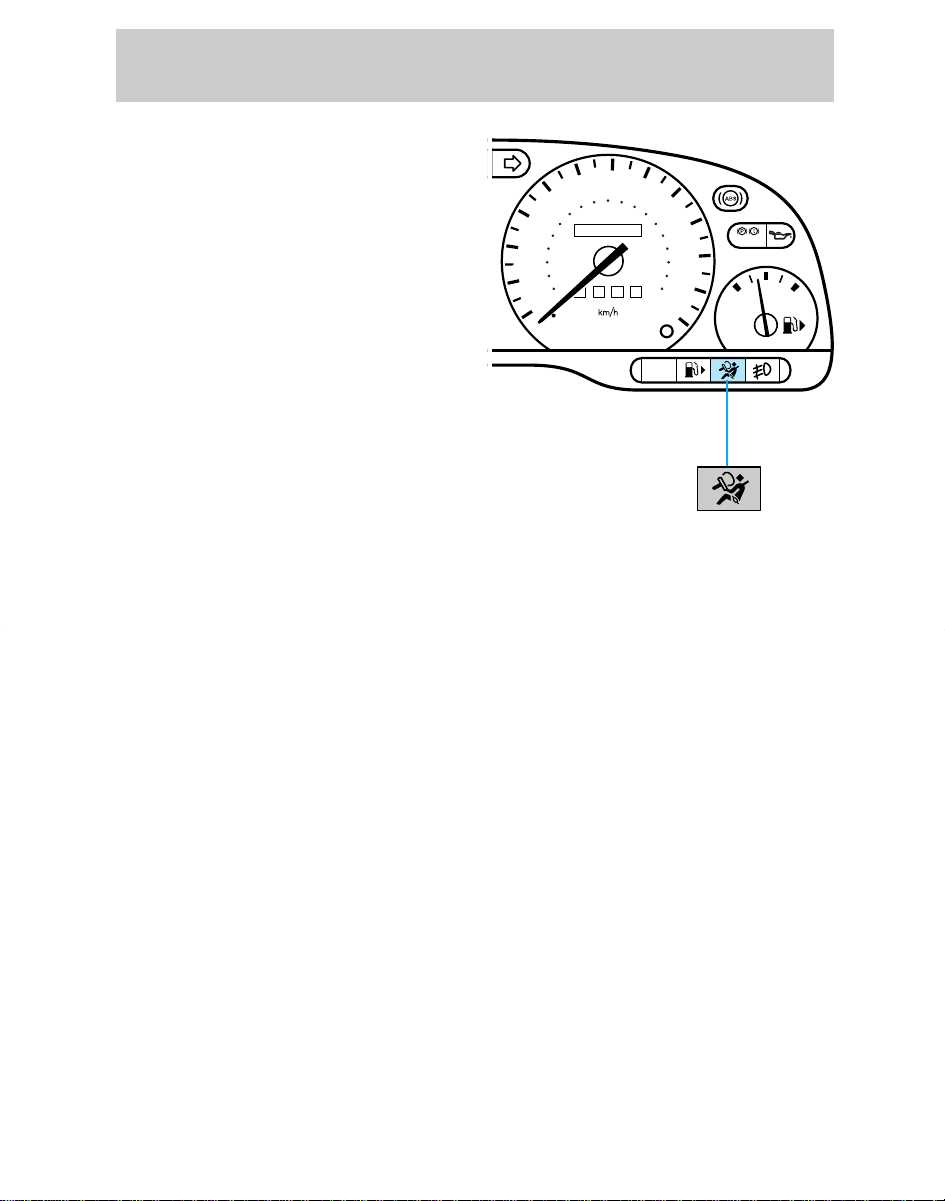

Air bag readiness
Briefly illuminates when the
ignition is turned on. If the light
fails to illuminate, continues to
flash or remains on, have the
system serviced immediately.
000123
0 0 0 0
10
20
30
40
50
60
70
80
90
110
120
130
MPH
20
40
60
55
80
120
100
140
160
180
200
100
E F
1
/
2
UNLEADED FUEL ONLY
1
2
0
3
x 1000
4
5
6
7
8
N
O
R
M
A
L
BRAKE
CHECK
ENGINE
TRACTION
CONTROL
O/D
OFF

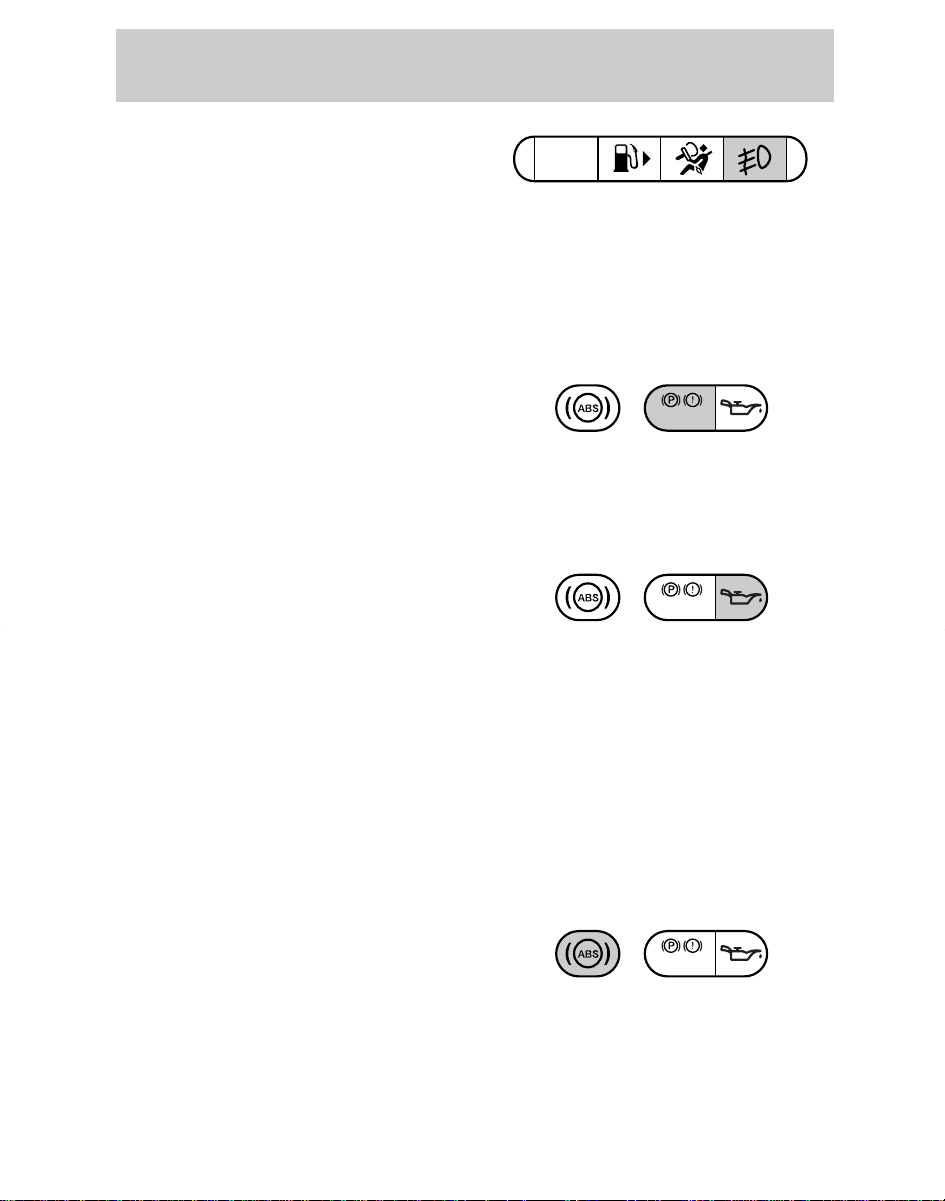

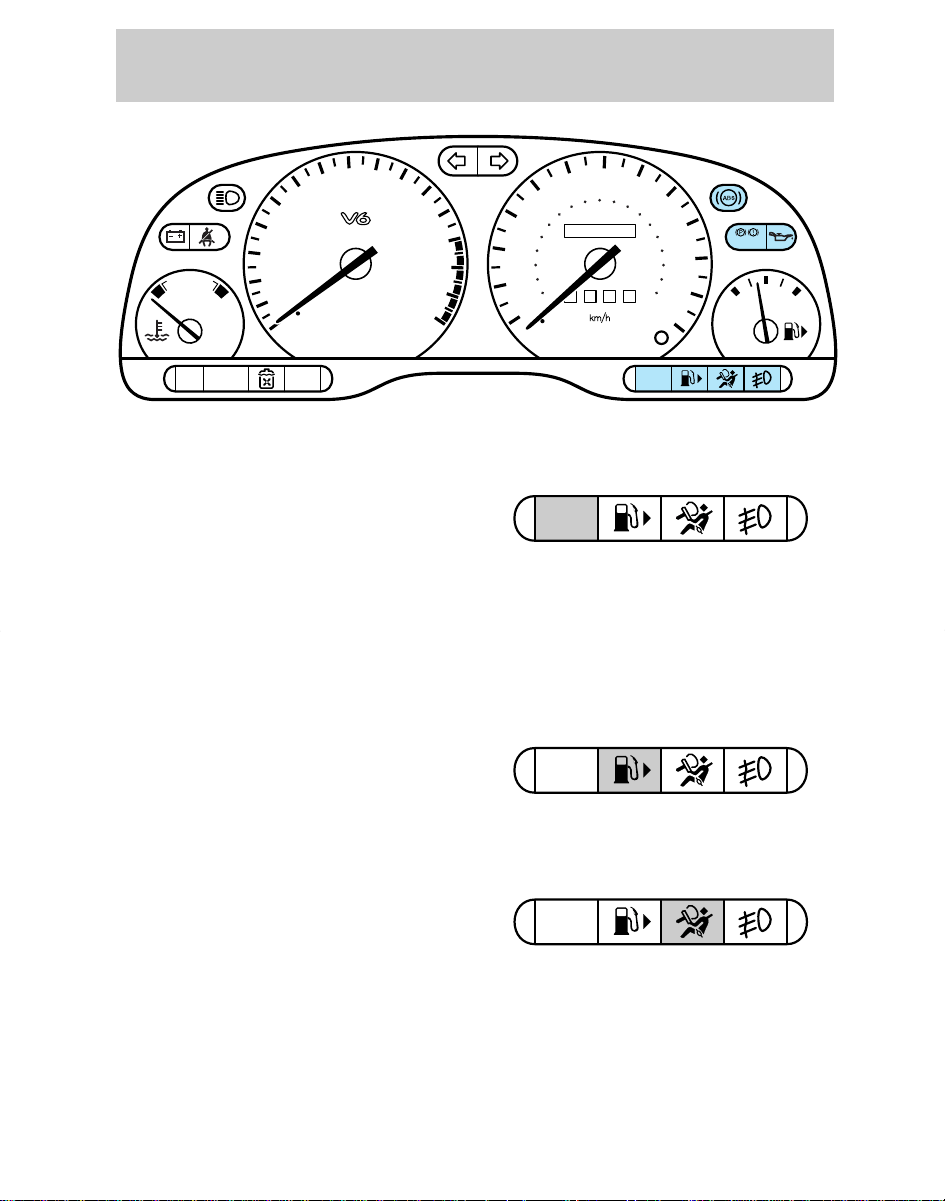

Low fuel
Illuminates when the fuel level is
low.
CHECK
ENGINE
CDW IIA2Instrum_en MM 5/15/97 7:43 PM Page 8
Instrumentation
9
Front foglamps
Illuminates when foglamps are
switched on.
Refer to Foglamps control in the
Controls and features chapter for
notes on use.
CHECK
ENGINE
Brake system warning light
Extinguishes when the parking
brake is released. Illuminates after
releasing the parking brake to
indicate low brake fluid level.
Anti-lock brake system (ABS)
(if equipped)
Momentarily illuminates when the
ignition is turned on and the engine
is off. If the light stays on or
continues to flash, the ABS needs
to be serviced.
Engine oil pressure
Briefly illuminates when the
ignition is turned on and the engine
is off. The light also illuminates
when engine oil pressure has been
lost. Refer to the Maintenance
and care chapter to check the
engine oil level as soon as possible.
If the engine oil level is correct and
the light stays on, see your dealer
or qualified service technician.
BRAKE
BRAKE
BRAKE
CDW IIA2Instrum_en MM 5/15/97 7:43 PM Page 9
Instrumentation
10
Testing the warning and
indicator lights and chimes
Turn the ignition key to the on
position without starting the
engine. The following warning and
indicator lights will illuminate
briefly: charging system, safety belt
(does not illuminate, if the driver’s
safety belt is fastened), low
coolant, low fuel, engine oil
pressure, check engine and air bag
readiness.
If any of these lights do not
illuminate, see your dealer or
qualified service technician.
000123
0 0 0 0
10
20
30
40
50
60
70
80
90
110
120
130
MPH
20
40
60
55
80
120
100
140
160
180
200
100
E F
1
/
2
UNLEADED FUEL ONLY
1
2
0
3
x 1000
4
5
6
7
8
N
O
R
M
A
L
BRAKE
CHECK
ENGINE
TRACTION
CONTROL
O/D
OFF
CDW IIA2Instrum_en MM 5/15/97 7:43 PM Page 10
Instrumentation
11
Headlamps on warning chime
Sounds when the headlamps are
on, the ignition is off (and the key
is not in the ignition) and the
driver’s door is open.
Key-in-ignition warning chime
Sounds when the key is left in the
off/lock or accessory position and
the driver’s door is open.
Safety belt warning chime
For information on the safety belt
warning chime, refer to the
Seating and safety restraints
chapter.
Air bag supplemental restraint
system (SRS) warning chime
For information on the SRS
warning chime, refer to the
Seating and safety restraints
chapter.
CDW IIA2Instrum_en MM 5/15/97 7:43 PM Page 11
Instrumentation
12
N
O
R
M
A
L

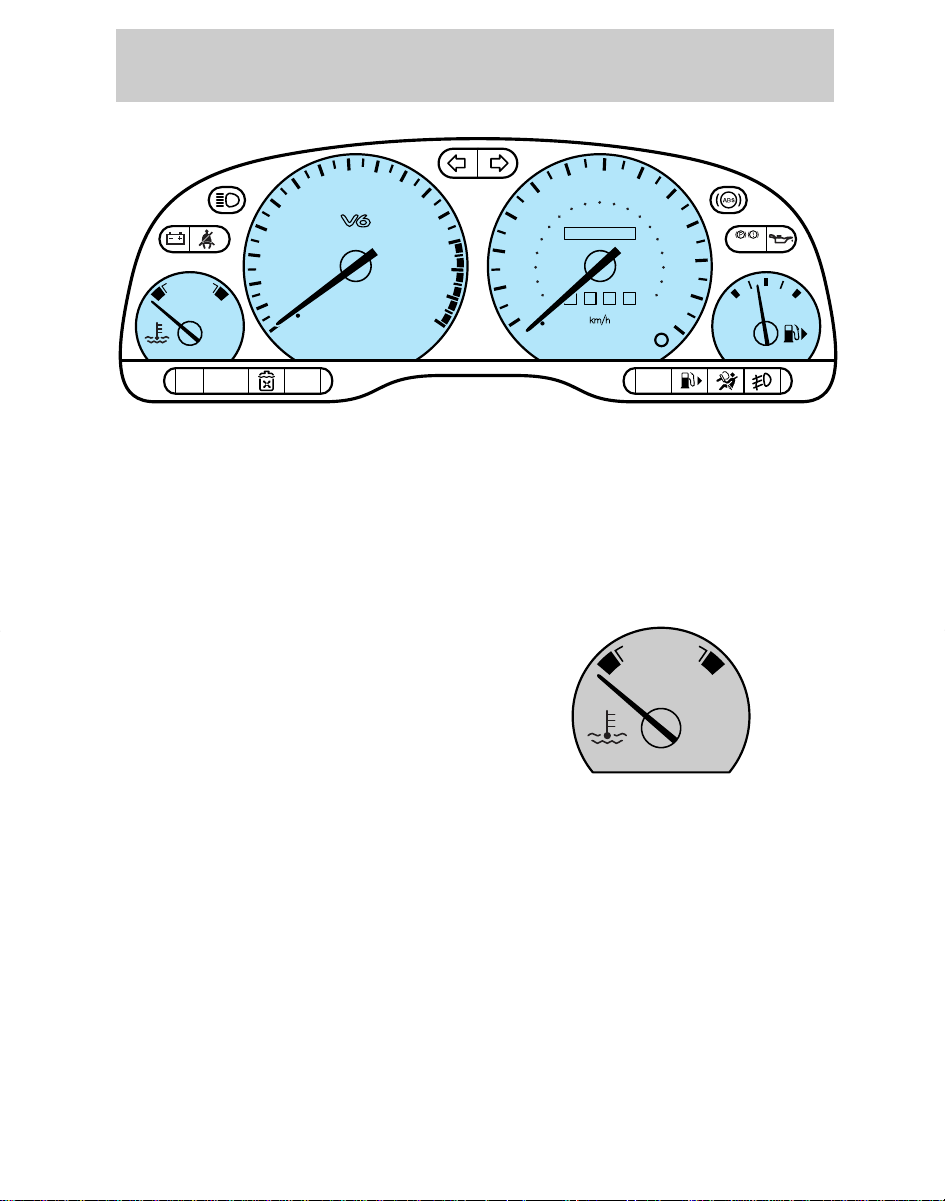

Engine coolant temperature
gauge
Indicates the temperature of the
engine coolant. At normal
operating temperature, the needle
remains within the NORMAL area.
If it enters the red section, the
engine is overheating. Switch off
the ignition and determine the
source of the problem. Refer to
Checking and adding engine
coolant in the Maintenance and
care chapter.
000123
0 0 0 0
10
20
30
40
50
60
70
80
90
110
120
130
MPH
20
40
60
55
80
120
100
140
160
180
200
100
E F
1
/
2
UNLEADED FUEL ONLY
1
2
0
3
x 1000
4
5
6
7
8
N
O
R
M
A
L
BRAKE
CHECK
ENGINE
TRACTION
CONTROL
O/D
OFF
INSTRUMENT CLUSTER
GAUGES
CDW IIA2Instrum_en MM 5/15/97 7:43 PM Page 12
Instrumentation
13

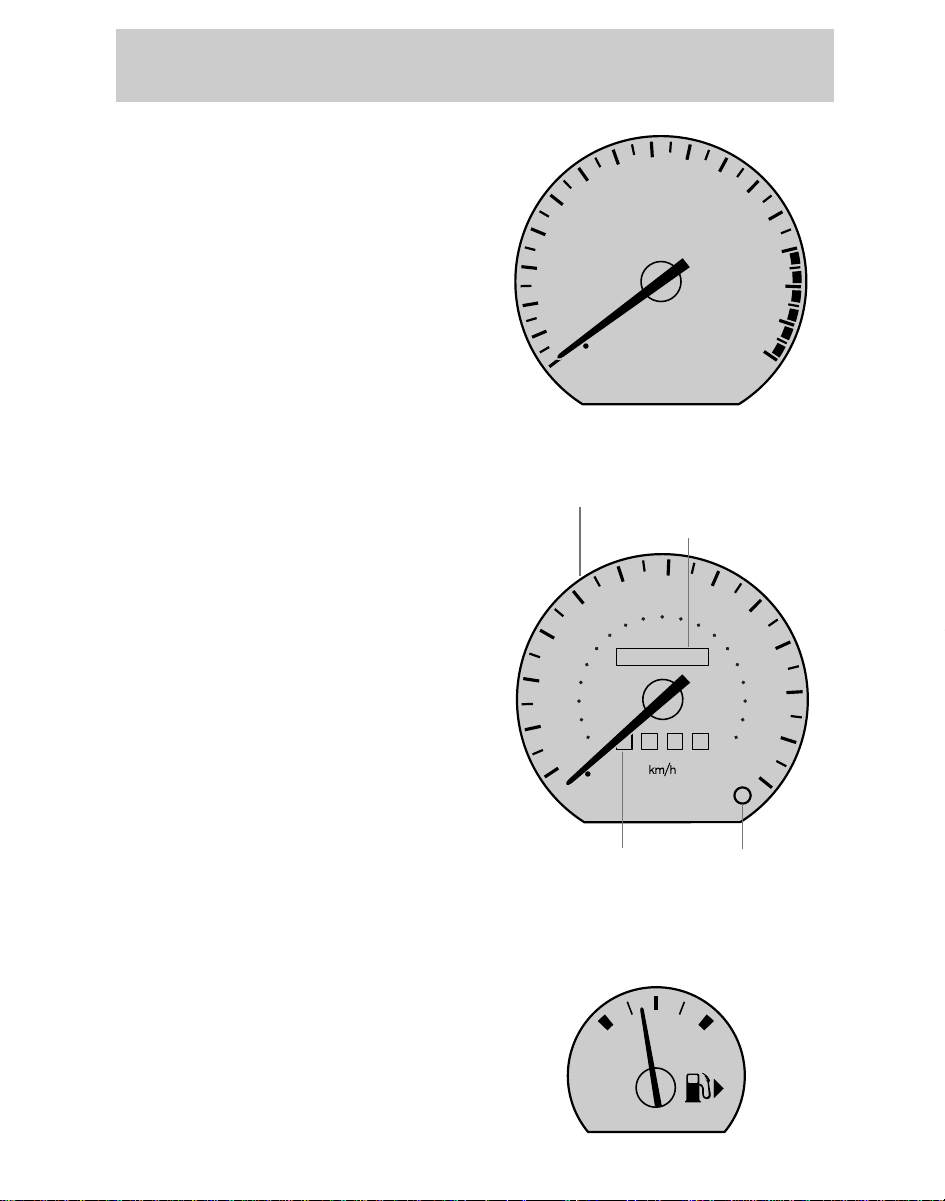

Trip odometer
The trip odometer can register the
mileage of individual journeys. To
reset, depress the button.
000123
0 0 0 0
10
20
30
40
50
60
70
80
90
110
120
130
MPH
20
40
60
55
80
120
100
140
160
180
200
100
Speedometer
Odometer
Trip odometer Reset button
E F
1
/
2
UNLEADED FUEL ONLY
Fuel gauge
The fuel gauge displays the
approximate level of usable fuel left
in the fuel reservoir.
Tachometer
Indicates the engine speed in
revolutions per minute (rpm).
1
2
0
3
x 1000
4
5
6
7
8
Speedometer
Indicates the current vehicle
speed.
Odometer
Registers the total mileage of the
vehicle.
CDW IIA2Instrum_en MM 5/15/97 7:43 PM Page 13
Controls and features
14
POWER AUDIO AM/FM
SCAN
SEEK
31
2
64
5
ANS
SIDE 1-2
EJECT
VOLUME
M
I
R
R
O
R
S
DEF
LO
HI
OFF PNL/FLR
PANEL
A/C
FLOOR
FLR
DEF
MAX
A/C
T/C OFF
000123
0 0 0 0
10
20
30
40
50
60
70
80
90
100
110
120
130
MPH
20
40
60
55
80
120
100
140
160
180
200
E F
1
/
2
UNLEADED FUEL ONLY
1
2
0
3
x 1000
4
5
6
7
8
N
O
R
M
A
L
BRAKE
CHECK
ENGINE
TRACTION
CONTROL
O/D
OFF
:
I0 20
Off
Res
Set
Acc
Coast
On
INSTRUMENT PANEL
CONTROLS
Headlamp control
Lamps off.
Turn one position clockwise:
Parking lamps, instrument panel
lamps, license plate lamps and tail
lamps on
Turn two positions clockwise:
Headlamps on.
CDW IIIC3Cont en MM 5/15/97 7:45 PM Page 14
Controls and features
15
Daytime running light (DRL)
(Canadian vehicles only)
The DRL system turns on the
highbeam headlamps, with a
reduced light output, when:
• the vehicle is running and the
ignition is in the on position,
• the vehicle has a fully released
parking brake, and
• the headlamp system is in the off
position.
Foglamp control (if equipped)
Pull out the control while the
headlamps are on to turn the
foglamps on.
Push the control in to deactivate
the foglamps.
The daytime running light
(DRL) system will not
illuminate the tail lamps and
parking lamps. Turn on your
headlamps at dusk. Failure to do
so may result in a collision.
CDW IIIC3Cont en MM 5/15/97 7:45 PM Page 15
Controls and features
16
Panel dimmer control
Adjust the control to vary the
intensity of the panel lighting.
Operates only when the exterior
lights are switched on.
Rear window defroster
(if equipped)
Press the defroster control to clear
the rear window of thin ice and fog.
The ignition must be in the on
position to operate the rear
window defroster.
The defroster turns off
automatically after 10 minutes or
when the ignition is turned to the
off position. To manually turn off
the defroster, push the control
again.
CDW IIIC3Cont en MM 5/15/97 7:45 PM Page 16
Controls and features
17

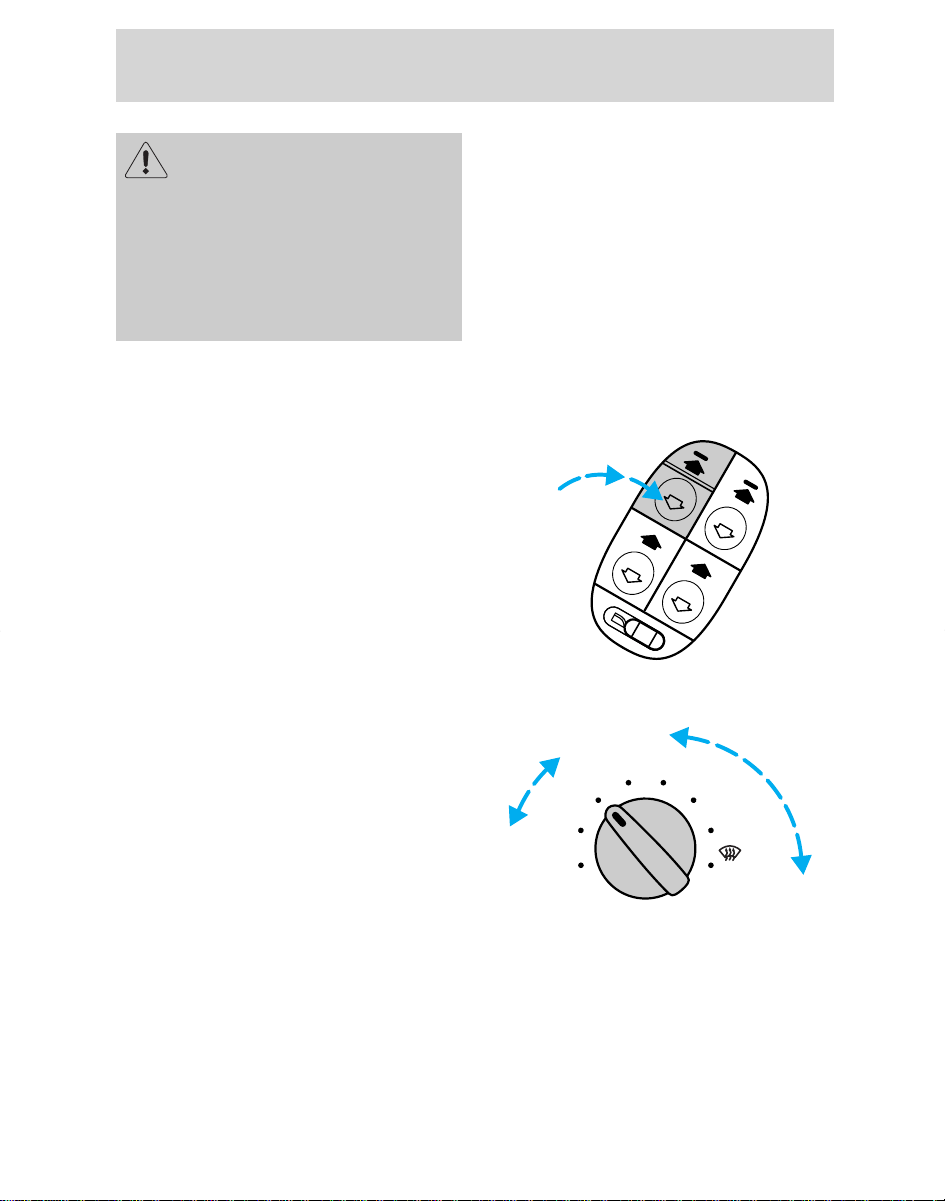

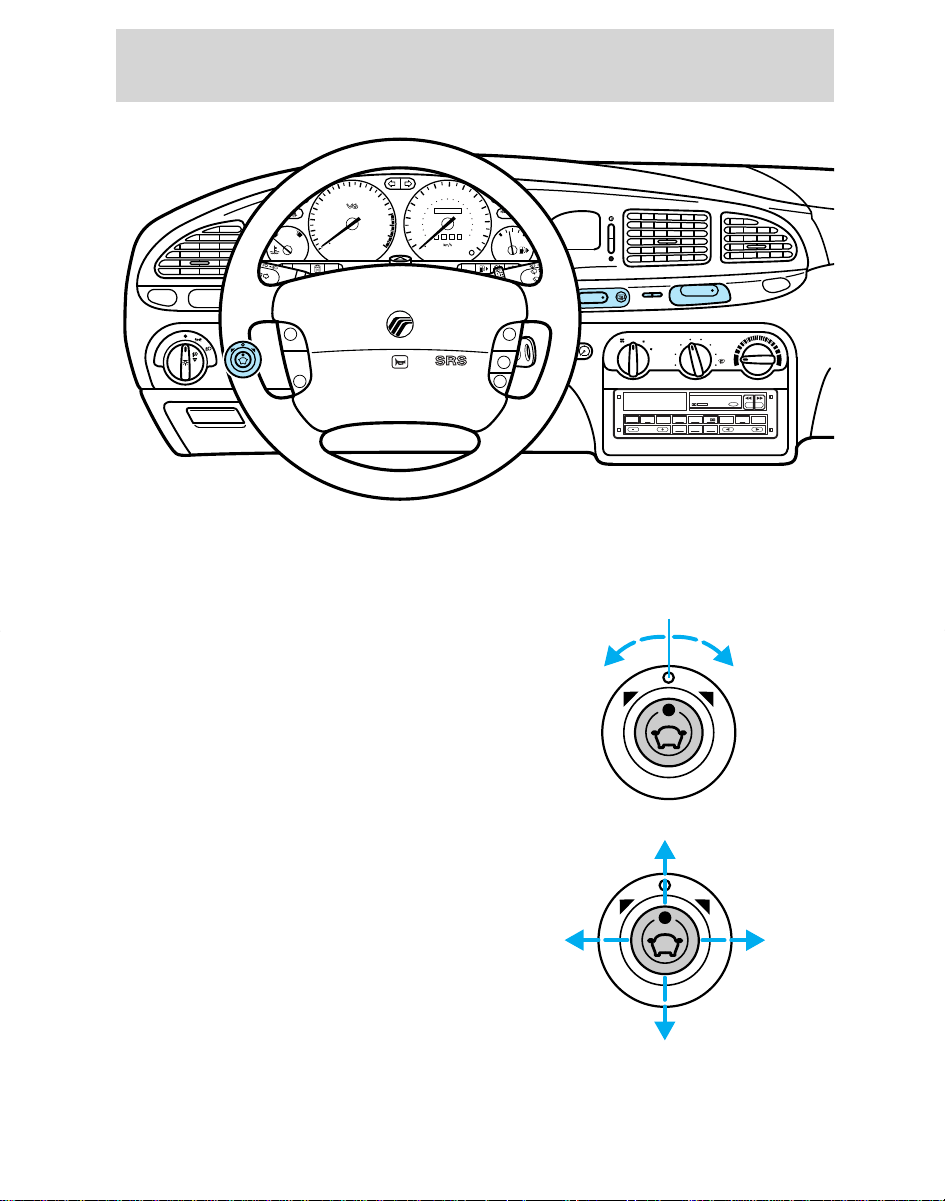

Power mirrors
The control can be swivelled and
turned.
Turn the control counterclockwise
to adjust the driver’s side mirror,
clockwise to adjust the passenger’s
side mirror. Adjust the selected
mirror by moving the center
control in the desired direction.
Then turn the control back to the
center position.
M
I
R
R
O
R
S
M
I
R
R
O
R
S
POWER AUDIO AM/FM
SCAN
SEEK
31
2
64
5
ANS
SIDE 1-2
EJECT
VOLUME
DEF
LO
HI
OFF PNL/FLR
PANEL
A/C
FLOOR
FLR
DEF
MAX
A/C
000123
0 0 0 0
10
20
30
40
50
60
70
80
90
100
110
120
130
MPH
20
40
60
55
80
120
100
140
160
180
200
E F
1
/
2
UNLEADED FUEL ONLY
1
2
0
3
x 1000
4
5
6
7
8
N
O
R
M
A
L
BRAKE
CHECK
ENGINE
TRACTION
CONTROL
O/D
OFF
:
I0 20
Off
Res
Set
Acc
Coast
On
M
I
R
R
O
R
S
CDW IIIC3Cont en MM 5/15/97 7:45 PM Page 17
To toggle between 12 or 24 hour
format, depress the H button and
the M button simultaneously and
then release them.
To advance the hours, press the H
button; to advance the minutes
press the M button. To advance
rapidly, depress and hold the
corresponding button.
Hours Minutes
:
I0 20
Audio system
For information on the audio
system, refer to the “Audio Guide”.
Digital clock
Switch the ignition on: The clock
can be set to either 12 or 24 hour
format.
Controls and features
18
CDW IIIC3Cont en MM 5/15/97 7:45 PM Page 18
Controls and features
19
POWER AUDIO AM/FM
SCAN
SEEK
31
2
64
5
ANS
SIDE 1-2
EJECT
VOLUME
M
I
R
R
O
R
S
DEF
LO
HI
OFF PNL/FLR
PANEL
A/C
FLOOR
FLR
DEF
MAX
A/C
000123
0 0 0 0
10
20
30
40
50
60
70
80
90
100
110
120
130
MPH
20
40
60
55
80
120
100
140
160
180
200
E F
1
/
2
UNLEADED FUEL ONLY
1
2
0
3
x 1000
4
5
6
7
8
N
O
R
M
A
L
BRAKE
CHECK
ENGINE
TRACTION
CONTROL
O/D
OFF
:
I0 20
Off
Res
Set
Acc
Coast
On

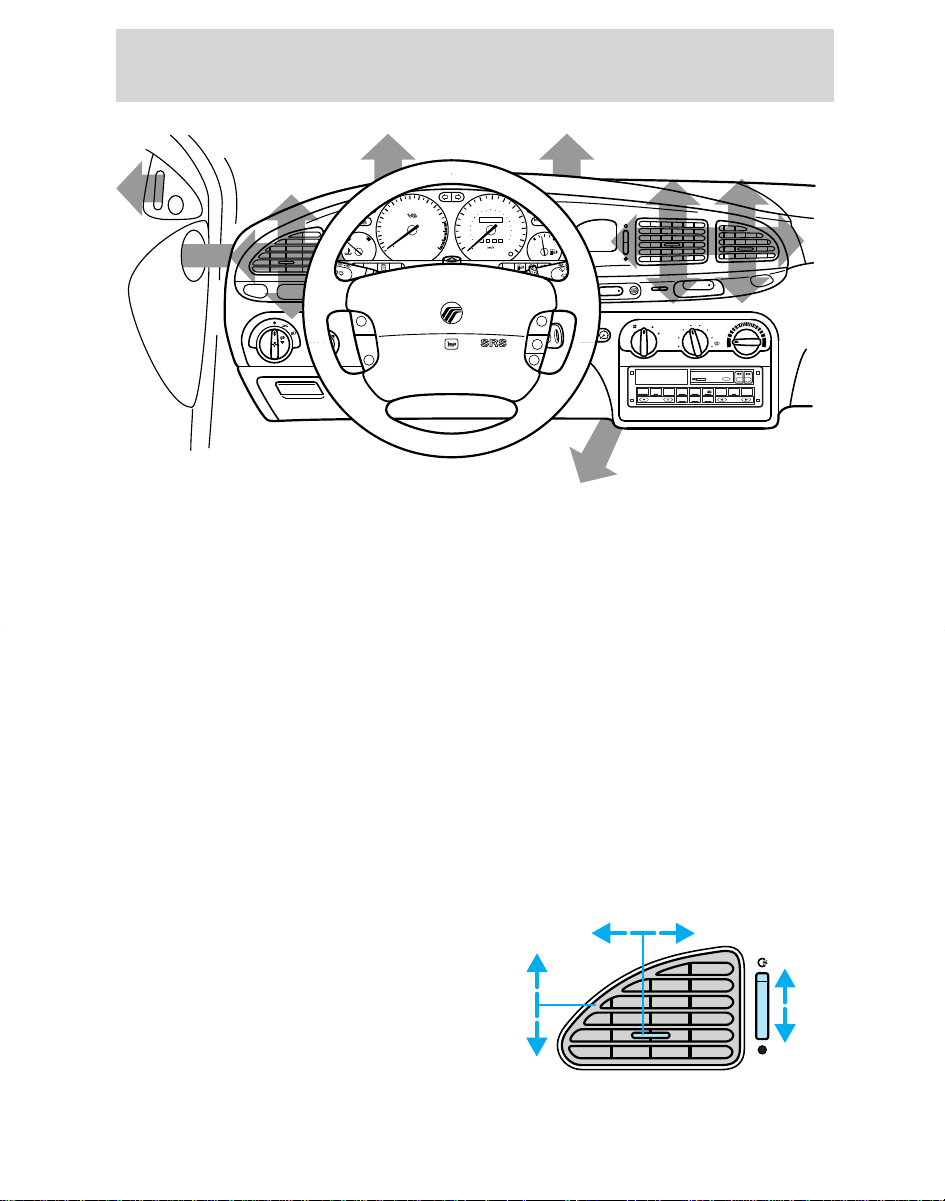

Climate controls
Vents
Airflow from the vents may be
adjusted by moving the horizontal
control or vertically adjusting the
vent according to your airflow
preference.
Your vehicle has one of the
following climate control systems:
• Manual heating system
• Manual heating and air
conditioning system
In some modes, the two systems
function similarly. In modes where
the systems do not function
similarly, the different functions
are noted.
CDW IIIC3Cont en MM 5/15/97 7:45 PM Page 19
Controls and features
20
Controlling airflow
Turn the mode control to the
desired airflow position.
The A/C compressor (if equipped)
operates in the positions marked *.
OFF PNL/FLR
PANEL
A/C
*
FLOOR
DEF
*
FLR
DEF
*
MAX
*
A/C
Fan speed
Turn the fan speed control to the
desired speed.
LO
HI
Temperature
Turn the temperature control to
the desired mix of warm or cool air
(left for cooler and right for
warmer).
CDW IIIC3Cont en MM 5/15/97 7:45 PM Page 20
Controls and features
21

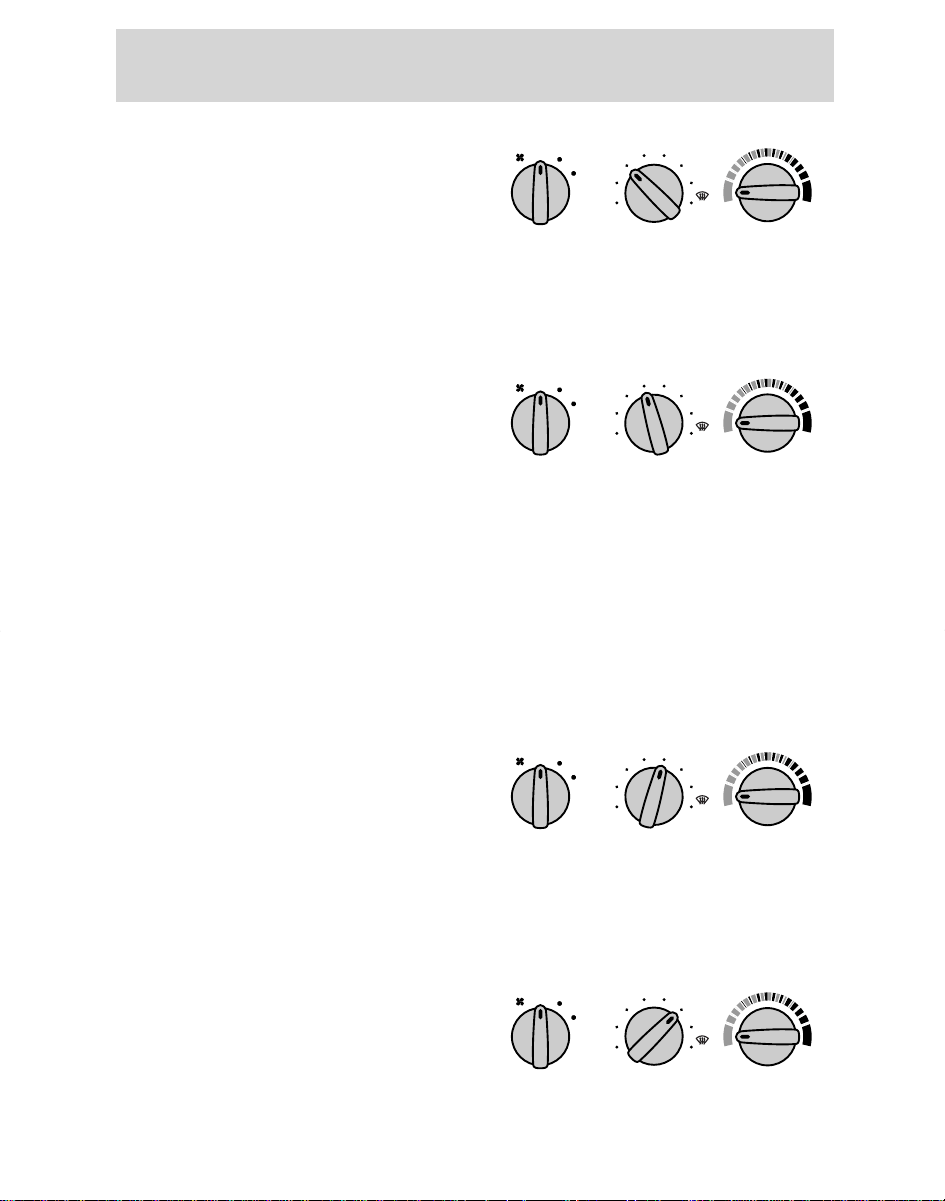

Using MAX A/C mode
(if equipped)
The MAX A/C mode recirculates
the air and directs it to flow
through the instrument panel
vents.
This mode is noisier, but provides
quicker cooling than the A/C mode.
The A/C compressor only functions
if the outside temperature is above
10°C (50°F).
LO
HI
OFF PNL/FLR
PANEL
A/C
FLOOR
DEF
FLR
DEF
MAX
A/C
Using A/C mode (if equipped)
The A/C mode directs outside
conditioned air to flow through the
instrument panel vents. The A/C
mode can be used for heating,
ventilating and air conditioning.
The A/C compressor only functions
in the A/C mode if the outside
temperature is above 10°C (50°F).
LO
HI
OFF PNL/FLR
PANEL
A/C
FLOOR
DEF
FLR
DEF
MAX
A/C
CDW IIIC3Cont en MM 5/15/97 7:45 PM Page 21
Controls and features
22
Using the PANEL mode
The panel mode directs outside air
to the panel vents.
LO
HI
OFF PNL/FLR
PANEL
A/C
FLOOR
DEF
FLR
DEF
MAX
A/C
OFF mode
Select the off position for all
climate control functions to cease.
The outside inlet door will close
and the fan will shut off.
Drive with the climate control
system on (either in heating or A/C
mode) to reduce humidity in your
vehicle.
Using the PNL/FLR mode
The panel/floor mode directs
outside air to flow through both the
panel and floor vents.
LO
HI
OFF PNL/FLR
PANEL
A/C
FLOOR
DEF
FLR
DEF
MAX
A/C
LO
HI
OFF PNL/FLR
PANEL
A/C
FLOOR
DEF
FLR
DEF
MAX
A/C
Using the FLOOR mode
The floor mode directs outside air
to the floor vents.
LO
HI
OFF PNL/FLR
PANEL
A/C
FLOOR
DEF
FLR
DEF
MAX
A/C
CDW IIIC3Cont en MM 5/15/97 7:45 PM Page 22
Controls and features
23
Using the FLR/DEF mode
The floor/defrost mode directs
outside air to flow through the floor
vents and windshield defroster
vents. The A/C compressor (if
equipped) will function to
dehumidify the windows provided
the outside temperature is above
10°C (50°F).
LO
HI
OFF PNL/FLR
PANEL
A/C
FLOOR
DEF
FLR
DEF
MAX
A/C
Using the DEF mode
In addition to defogging and
demisting the front windshield, the
defrost mode of your vehicle also
has the capability to demist the
front side windows. The A/C
compressor (if equipped) will
function to dehumidify the
windows provided the outside
temperature is above 10°C (50°F).
LO
HI
OFF PNL/FLR
PANEL
A/C
FLOOR
DEF
FLR
DEF
MAX
A/C
Passenger compartment air
filter
Your vehicle is equipped with an air
filter that removes pollen and road
dust from outside air before it is
directed to the interior of the
vehicle. Refer to the Maintenance
and care chapter for maintenance
of this filter.
CDW IIIC3Cont en MM 5/15/97 7:45 PM Page 23
Controls and features
24
STEERING COLUMN
CONTROLS
Ignition
1. Ignition off, steering wheel
locked.
On vehicles with automatic
transaxles, the ignition key can
return to this position only if the
gearshift lever is in P (Park).
2. The accessory position. Steering
unlocked, radio operational.
Ignition and all main electrical
circuits are disabled.
The ignition key should not be left
in this position for too long to avoid
discharging the battery
unnecessarily.
3. Ignition switched on, all
electrical circuits operational.
Warning and indicator lights
illuminate. This key position is for
normal driving.
4. Starter motor activated. Release
the key as soon as the engine
starts.
3
4
2
1
M
I
R
R
O
R
S
000123
0 0 0 0
10
20
30
40
50
60
70
80
90
100
110
120
130
MPH
20
40
60
55
80
120
100
140
160
180
200
E F
1
/
2
UNLEADED FUEL ONLY
1
2
0
3
x 1000
4
5
6
7
8
N
O
R
M
A
L
BRAKE
CHECK
ENGINE
TRACTION
CONTROL
O/D
OFF
Off
Res
Set
Acc
Coast
On
CDW IIIC3Cont en MM 5/15/97 7:45 PM Page 24
Controls and features
25
POWER AUDIO AM/FM
SCAN
SEEK
31
2
64
5
ANS
SIDE 1-2
EJECT
VOLUME
M
I
R
R
O
R
S
DEF
LO
HI
OFF PNL/FLR
PANEL
A/C
FLOOR
FLR
DEF
MAX
A/C
000123
0 0 0 0
10
20
30
40
50
60
70
80
90
100
110
120
130
MPH
20
40
60
55
80
120
100
140
160
180
200
E F
1
/
2
UNLEADED FUEL ONLY
1
2
0
3
x 1000
4
5
6
7
8
N
O
R
M
A
L
BRAKE
CHECK
ENGINE
TRACTION
CONTROL
O/D
OFF
:
I0 20
Off
Res
Set
Acc
Coast
On
Tilt steering
Pull the locking lever on the
steering column cover up to adjust
the steering column position.
Secure the wheel by pushing the
locking lever down.
Never adjust the steering
wheel while the vehicle is
moving.
CDW IIIC3Cont en MM 5/15/97 7:45 PM Page 25
Controls and features
26
Hazard flasher control
Use only in an emergency to warn
traffic of vehicle breakdown or
approaching danger. Depress to
activate. Depress again to switch
off. The hazard lights can be
operated when the ignition is off.
Off
Res
Set
Acc
Coast
On
Off
Res
Set
Acc
Coast
On
Horn
Press the pad. The horn can be
operated when the ignition is off.
CDW IIIC3Cont en MM 5/15/97 7:45 PM Page 26
Controls and features
27
POWER AUDIO AM/FM
SCAN
SEEK
31
2
64
5
ANS
SIDE 1-2
EJECT
VOLUME
M
I
R
R
O
R
S
DEF
LO
HI
OFF PNL/FLR
PANEL
A/C
FLOOR
FLR
DEF
MAX
A/C
000123
0 0 0 0
10
20
30
40
50
60
70
80
90
100
110
120
130
MPH
20
40
60
55
80
120
100
140
160
180
200
E F
1
/
2
UNLEADED FUEL ONLY
1
2
0
3
x 1000
4
5
6
7
8
N
O
R
M
A
L
BRAKE
CHECK
ENGINE
TRACTION
CONTROL
O/D
OFF
:
I0 20
Off
Res
Set
Acc
Coast
On
Multi-function switch
The turn signal functions are
available only with the ignition
switch on.
Right turn signal
Move the lever up.
Left turn signal
Move the lever down.
Flash-to-pass
Pull the lever toward you and
release quickly for “flash-to-pass”
operation.
High beam Headlamps
Push the lever toward the
instrument panel.
CDW IIIC3Cont en MM 5/15/97 7:45 PM Page 27
Controls and features
28
Wipers
Lift the windshield wiper lever to
the desired speed interval.
• Intermittent: push lever up to the
first position.
• Low: push lever up to the second
position.
• High: push lever up to the third
position.
For a single wipe, push the lever
downward.
Windshield wipers and washer
Intermittent wiper control
(if equipped)
Rotate the variable intermittent
wiper control to the desired speed.
1 = Short time interval
6 = Extended time interval
Washer
Pull the lever toward the steering
wheel. The washer operates in
conjunction with the windshield
wipers.
CDW IIIC3Cont en MM 5/15/97 7:45 PM Page 28
Controls and features
29

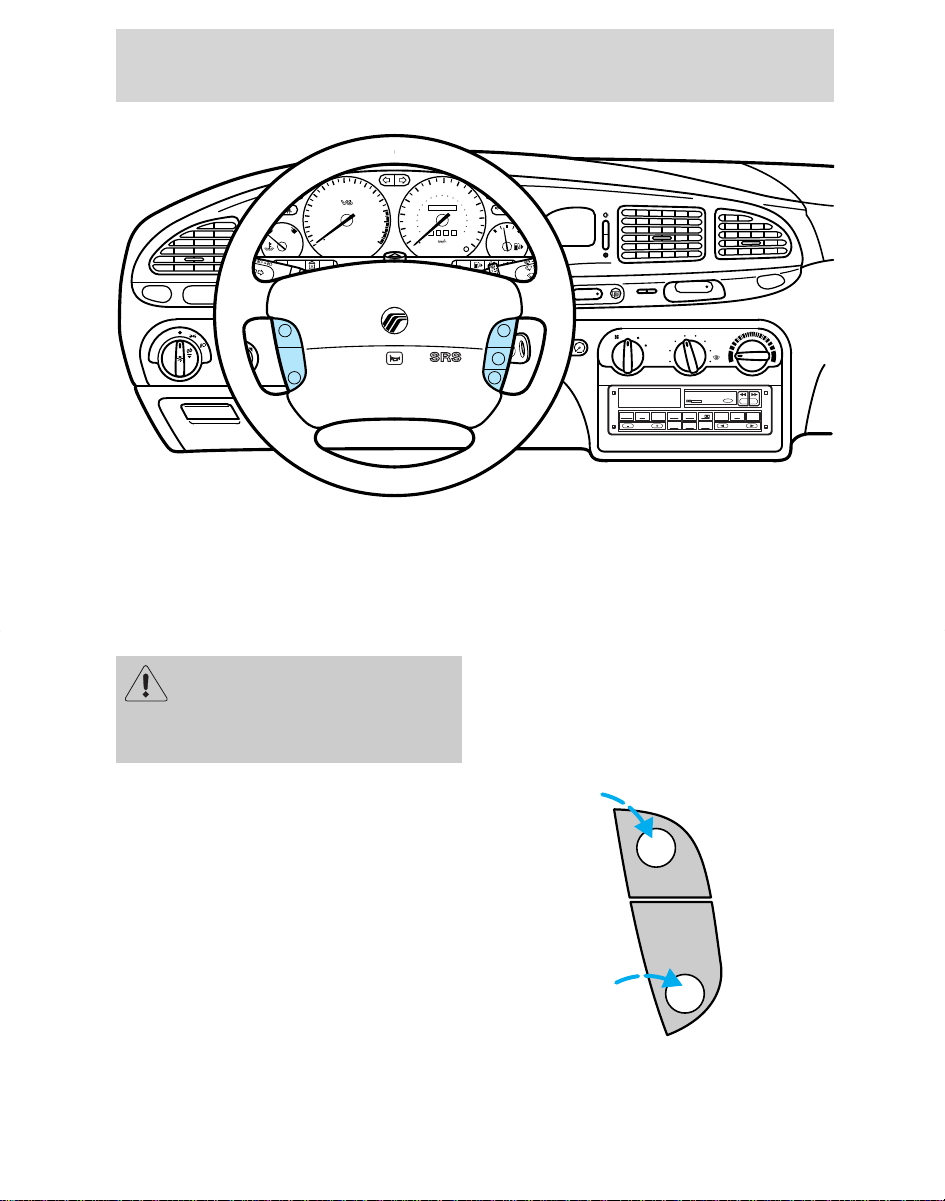

Do not use the speed control
in heavy traffic or on roads
that are winding, slippery, or
unpaved.
Off
On
Speed control (if equipped)
To turn speed control off
• Press Off or
• turn off the vehicle ignition.
Once speed control is switched off,
the previously programmed set
speed will be erased.
To turn speed control on
• Press On.
POWER AUDIO AM/FM
SCAN
SEEK
31
2
64
5
ANS
SIDE 1-2
EJECT
VOLUME
M
I
R
R
O
R
S
DEF
LO
HI
OFF PNL/FLR
PANEL
A/C
FLOOR
FLR
DEF
MAX
A/C
000123
0 0 0 0
10
20
30
40
50
60
70
80
90
100
110
120
130
MPH
20
40
60
55
80
120
100
140
160
180
200
E F
1
/
2
UNLEADED FUEL ONLY
1
2
0
3
x 1000
4
5
6
7
8
N
O
R
M
A
L
BRAKE
CHECK
ENGINE
TRACTION
CONTROL
O/D
OFF
:
I0 20
Off
Res
Set
Acc
Coast
On
CDW IIIC3Cont en MM 5/15/97 7:45 PM Page 29
Controls and features
30
To set a speed
Press Set Acc. For speed control to
operate, the speed control must be
on and the vehicle speed must be
greater than 48 km/h (30 mph).
If you drive up or down a steep hill,
your vehicle speed may vary
momentarily slower or faster than
the set speed. This is normal.
Speed control cannot reduce the
vehicle speed if it increases above
the set speed on a downhill. If your
vehicle speed is faster than the set
speed while driving on a downhill
in overdrive, you may want to shift
to the next lower gear to reduce
your vehicle speed.
Res
Set
Acc
Coast
Res
Set
Acc
Coast
If your vehicle slows down more
than 16 km/h (10 mph) below your
set speed on an uphill, your speed
control will disengage. This is
normal. Press Res to re-engage it.
CDW IIIC3Cont en MM 5/15/97 7:45 PM Page 30
Controls and features
31
Res
Set
Acc
Coast
To set a lower speed
• Press and hold Coast. Release the
control when the desired vehicle
speed is reached, or
• press and release Coast. Each
press will decrease the set speed
by 1.6 km/h (1 mph), or
• depress the brake pedal. When
the desired vehicle speed is
reached, press Set Acc.
To set a higher speed
• Press and hold Set Acc. Release
when the desired set speed is
reached, or
• press and release Set Acc. Each
press will increase the set speed
by 1.6 km/h (1 mph) or
• accelerate with your accelerator
pedal, then press Set Acc.
You may accelerate with the
accelerator pedal at any time
during speed control usage.
Releasing the accelerator pedal will
return your vehicle speed to the
previously set speed.
Res
Set
Acc
Coast
CDW IIIC3Cont en MM 5/15/97 7:45 PM Page 31
Controls and features
32
Res
Set
Acc
Coast
To return to a set speed
• Press Res. For Res to operate,
the vehicle speed must be faster
than 48 km/h (30 mph).
To disengage speed control
• Depress the brake pedal.
Disengaging the speed control will
not erase the previously
programmed set speed.
CDW IIIC3Cont en MM 5/15/97 7:45 PM Page 32
Controls and features
33
Door delay
Off
On
12
SEC
On Off 12 SEC

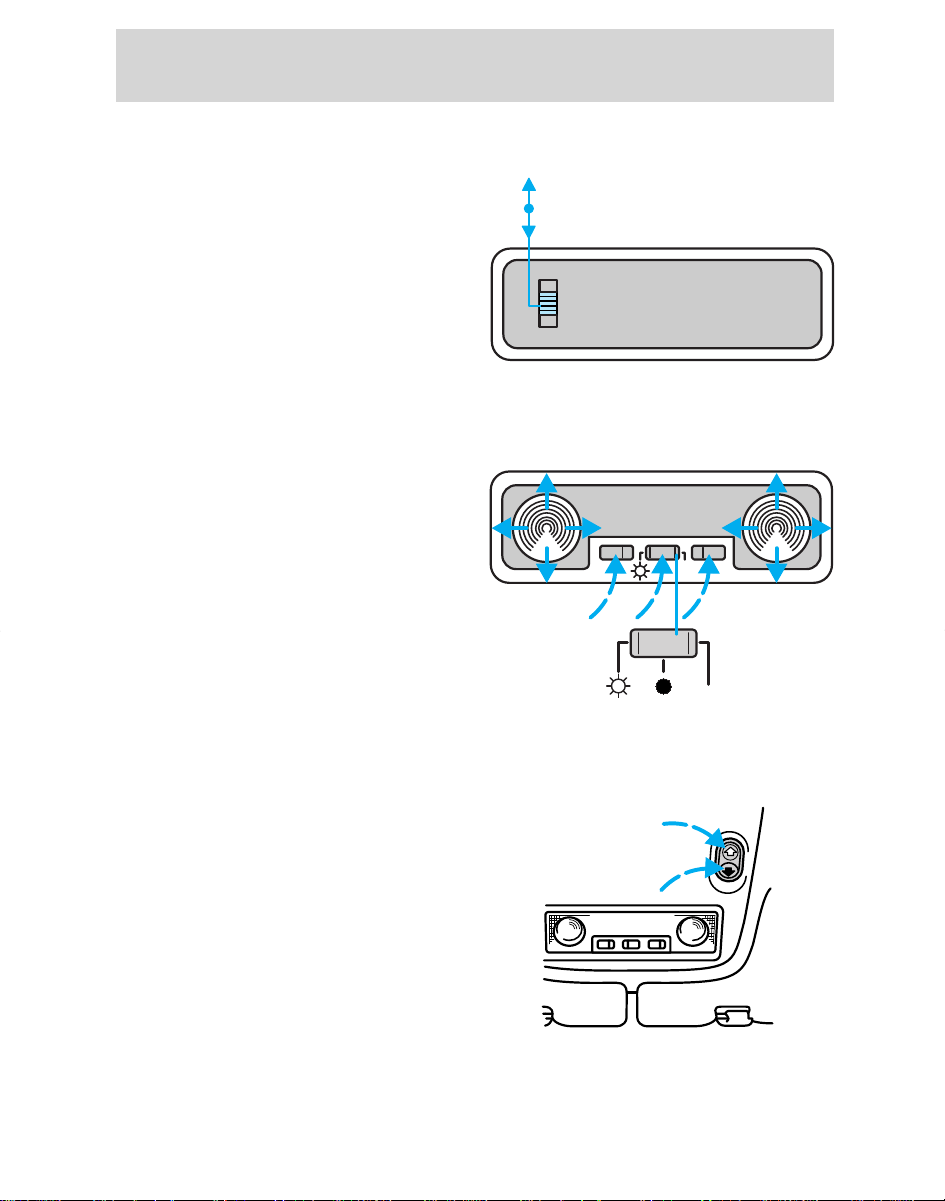

Interior lamps
The interior lamps have three
switch positions: door delay, off
and on.
When the control is switched to
door delay (12 SEC), the interior
light stays on for 12 seconds after
the doors are closed with the
ignition off.
Reading lamps (if equipped)
The reading lamps are operated by
separate on/off switches and can be
adjusted to point in the desired
direction.
Open/Lift
Close
Sunroof (if equipped)
The electric sunroof can be
operated only when the ignition is
switched on.
To open and close the sunroof
Press the rear part of the control
on the rocker switch in the roof
console to open the sunroof. Press
the front control to close it.
OVERHEAD CONTROLS
To lift the rear of the sunroof
Close the sunroof and press the
front part of the control again.
Press the rear control to lower the
sunroof.
CDW IIIC3Cont en MM 5/15/97 7:45 PM Page 33
Controls and features
34

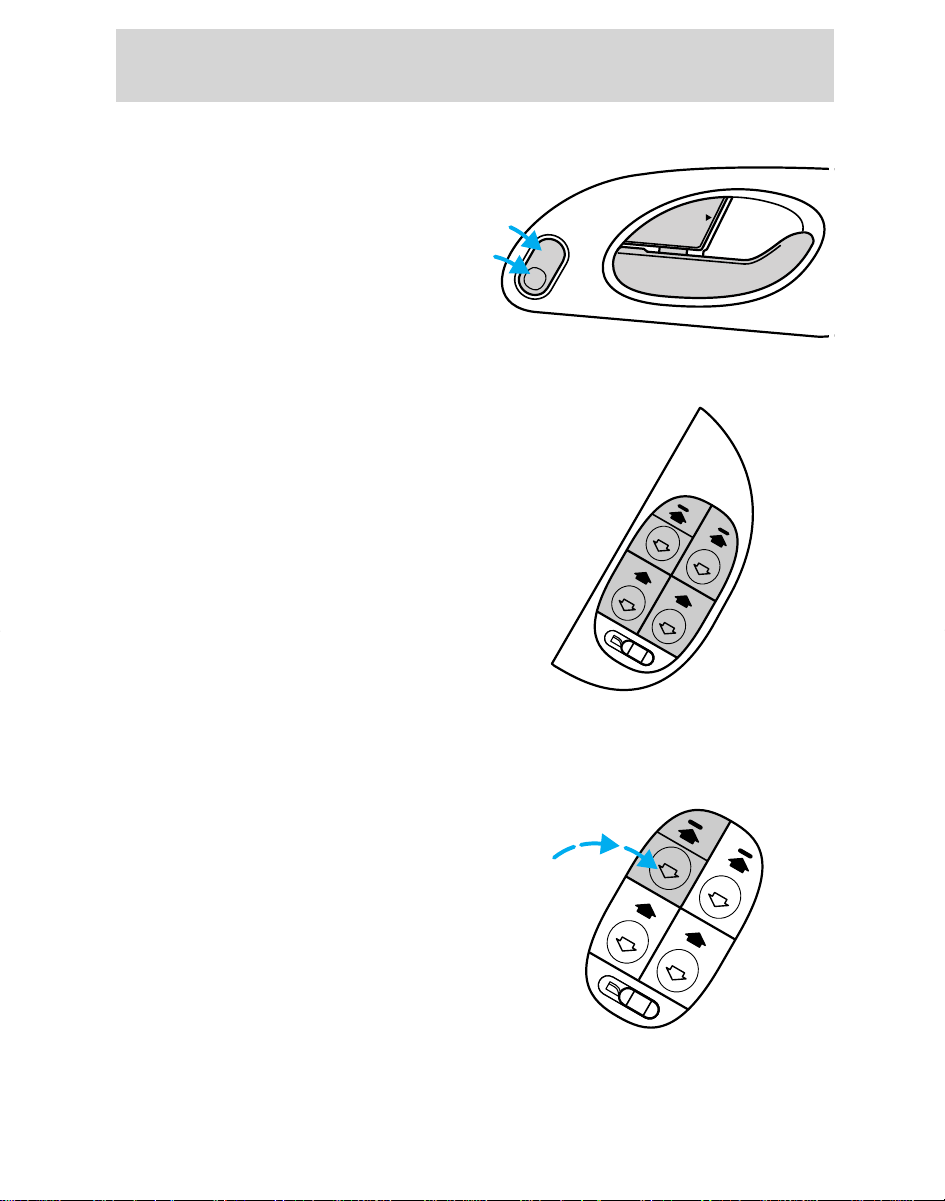

Power door locks (if equipped)
Push to lock or unlock all doors.
AUTO
Power windows (if equipped)
The windows will only operate
when the ignition is switched on.
Press the appropriate control to
operate the power windows at each
door position. All of the windows
can be controlled from the control
on the driver’s door. The
passenger’s door window and the
rear windows can be operated
individually with separate door
controls on the respective door.
AUTO
One-touch down feature
(driver only)
Briefly press the control to the
second action point: the window
opens automatically.
Press again to stop the window
while it is in motion.
DOOR MOUNTED CONTROLS
U
L
DOOR LOCK
LOCK
CDW IIIC3Cont en MM 5/15/97 7:45 PM Page 34
Controls and features
35

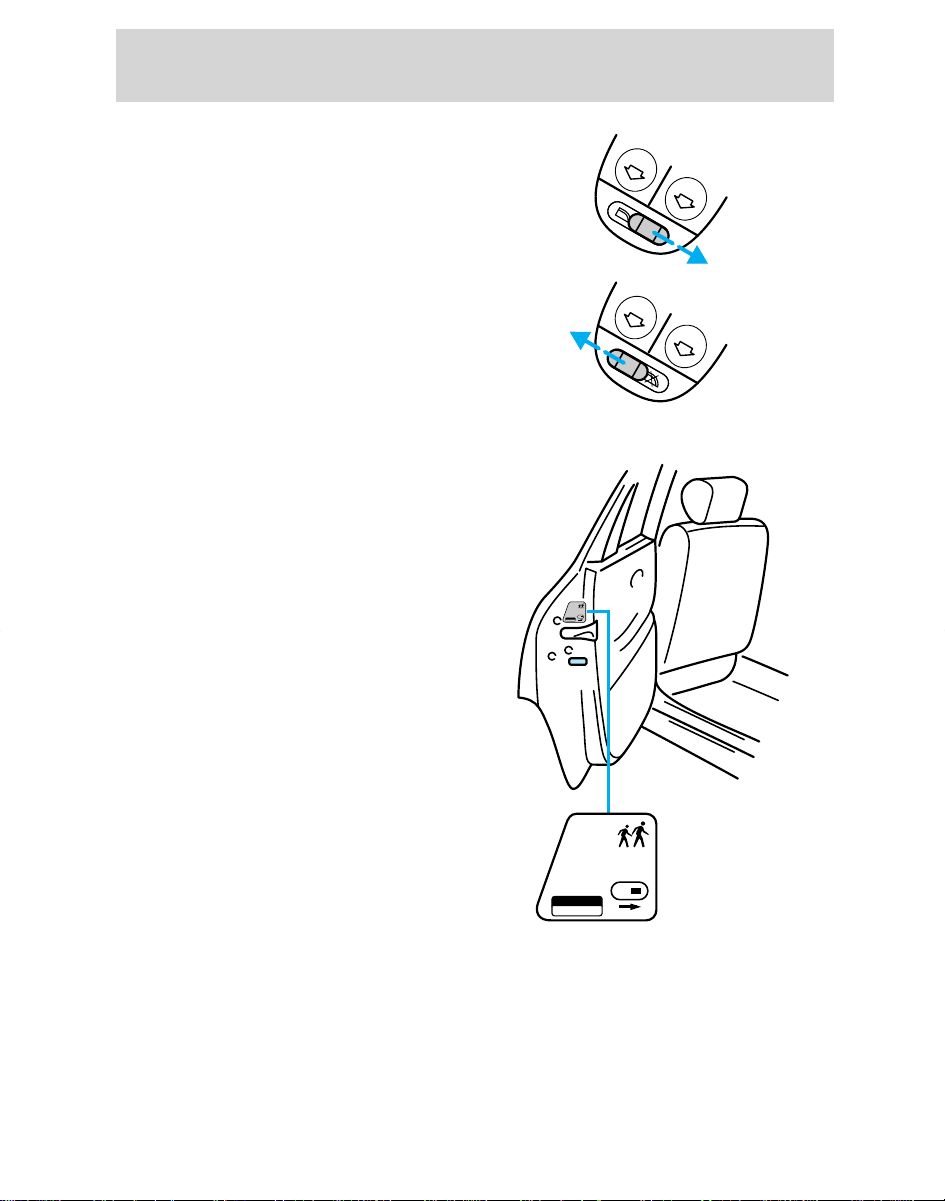

Safety switch
Move the switch to the right to
prevent passengers from operating
the windows.
Move the switch to the left to allow
passengers to operate the windows.
CHILD LOCK BELOW
SECURITE ENFANTS CI-DESSOUS
´
VERROUILLEE
,
LOCKED
WHEN LOCKED,
DOOR WON`T
OPEN FROM INSIDE.
´
VERROULEE AINSI, LA PORTE
NE PEUT S´OUVRIR DE
L´INTERIEUR
.
CHILD LOCK BELOW
SECURITE ENFANTS CI-DESSOUS
´
VERROUILLEE
,
LOCKED
WHEN LOCKED,
DOOR WON`T
OPEN FROM INSIDE.
´
VERROULEE AINSI, LA PORTE
NE PEUT S´OUVRIR DE
L´INTERIEUR
.
Rear door childproof safety
locks
When the lever in the rear door
lock is pushed inwards, the door
can be opened only from the
outside of the vehicle.
CDW IIIC3Cont en MM 5/15/97 7:45 PM Page 35
Controls and features
36
PULL
Remote luggage compartment
control
Pull the control located on the left
of the driver’s seat to open the
luggage compartment.
To disable the remote luggage
compartment release, depress the
control on the luggage
compartment latch that is marked
in orange before closing the
luggage compartment.
FLOOR MOUNTED CONTROLS

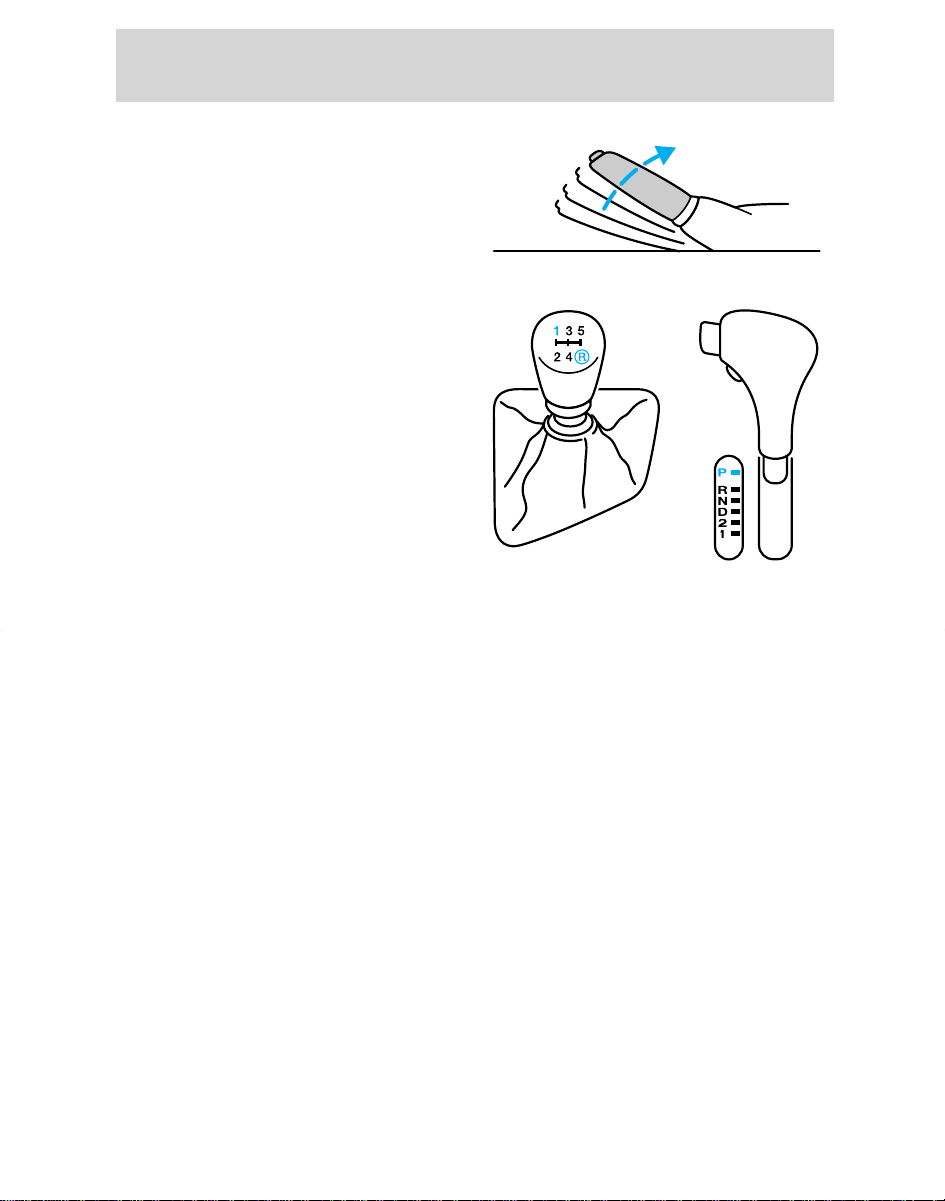

Parking brake
For information on the parking
brake, refer to Preparing to start
the vehicle in the Starting
chapter.
CDW IIIC3Cont en MM 5/15/97 7:45 PM Page 36
Controls and features
37

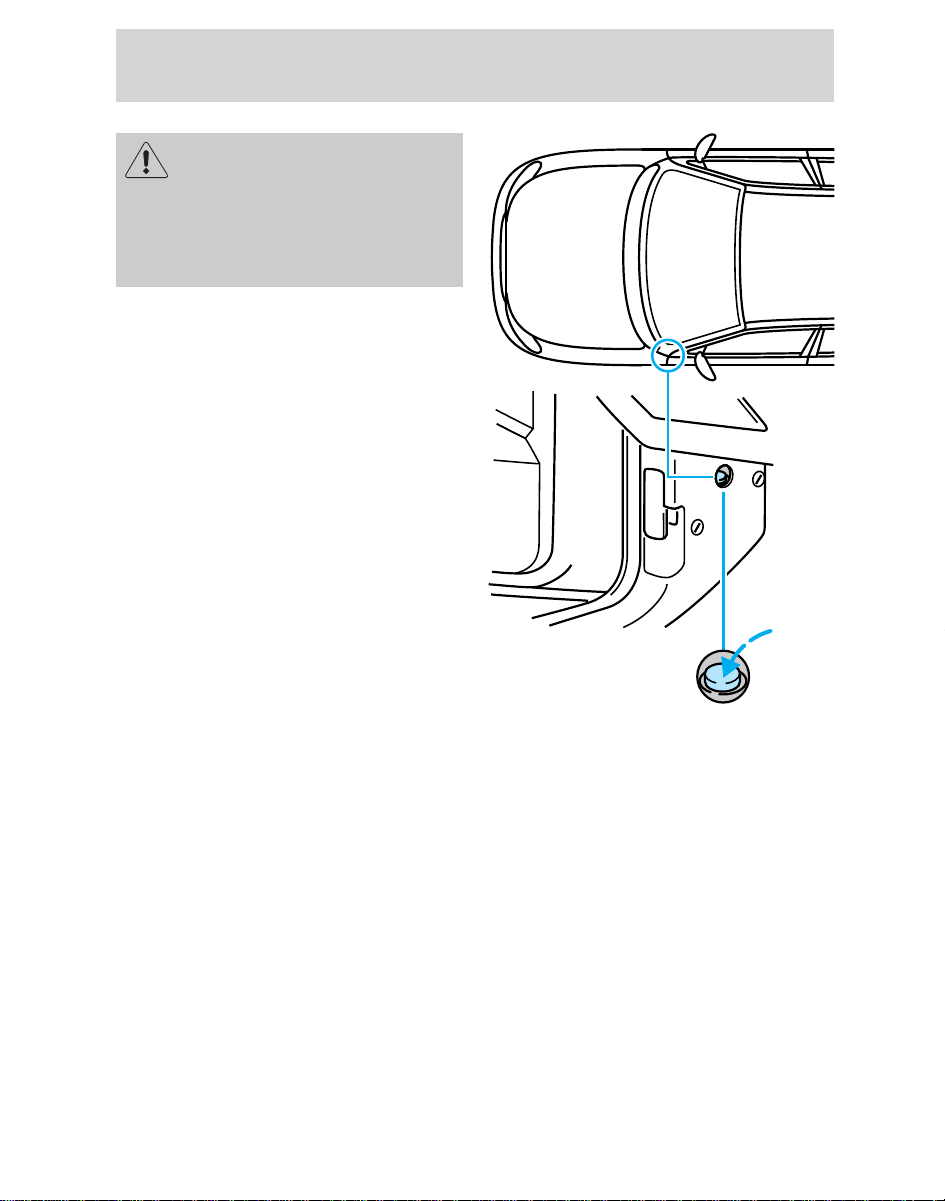

Fuel pump shut-off switch
For information on the fuel pump
shut-off switch, refer to Fuel
pump shut-off switch in the
Roadside emergencies chapter.

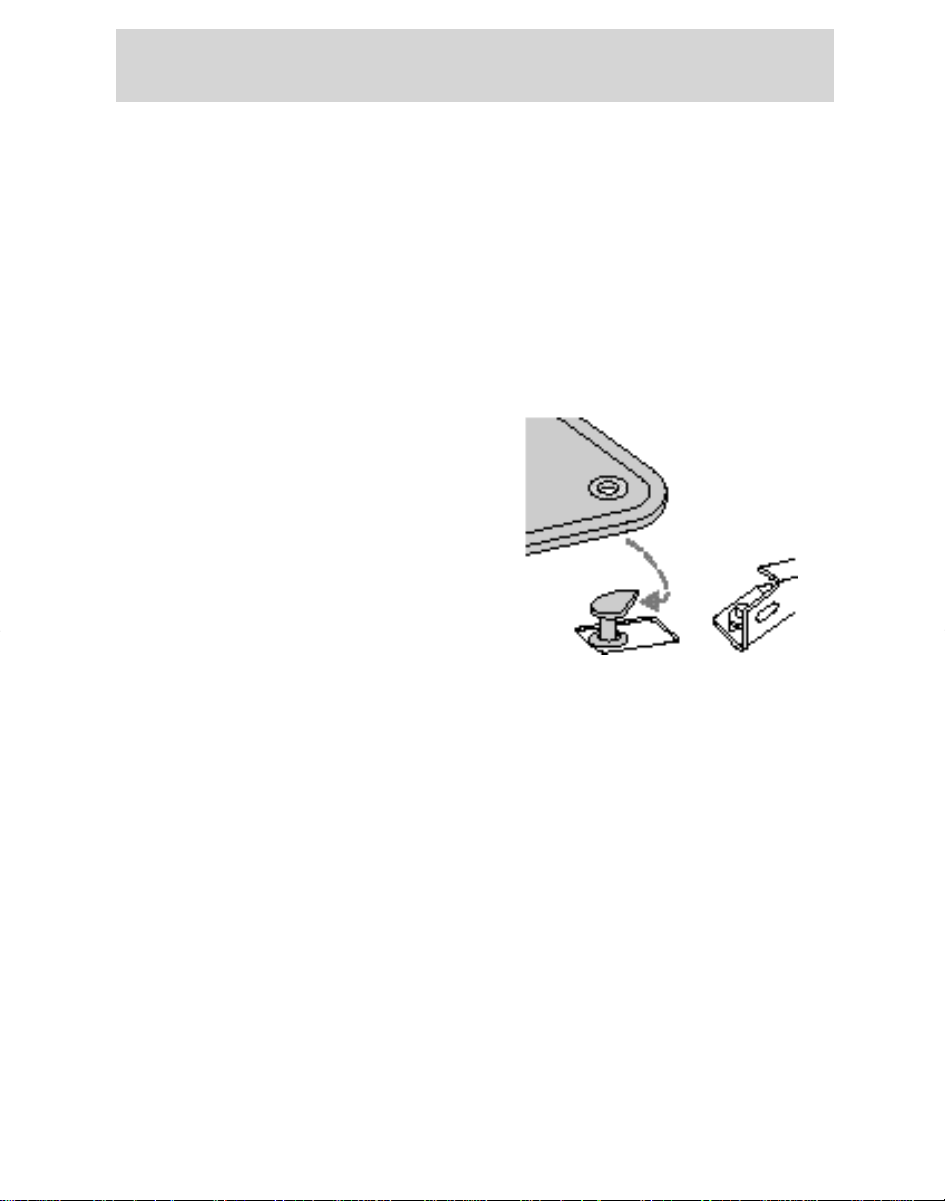

Positive retention floor mat
(if equipped)
(Standard in Canada)
Position the floor mat in the
footwell. Place the mat eyelet over
the pointed end of the retention
post from the rear and rotate
forward to install. Adjust the floor
mat position to allow proper
operation of accelerator pedal,
brake pedal and clutch pedal (if
equipped).
To remove, lift the floor mat just
forward of the retention post and
rotate it rearward to disengage it
from the retention post.
CDW IIIC3Cont en MM 5/15/97 7:45 PM Page 37
Controls and features
38
TRUNK
UN
LOCK
PANIC
LOCK

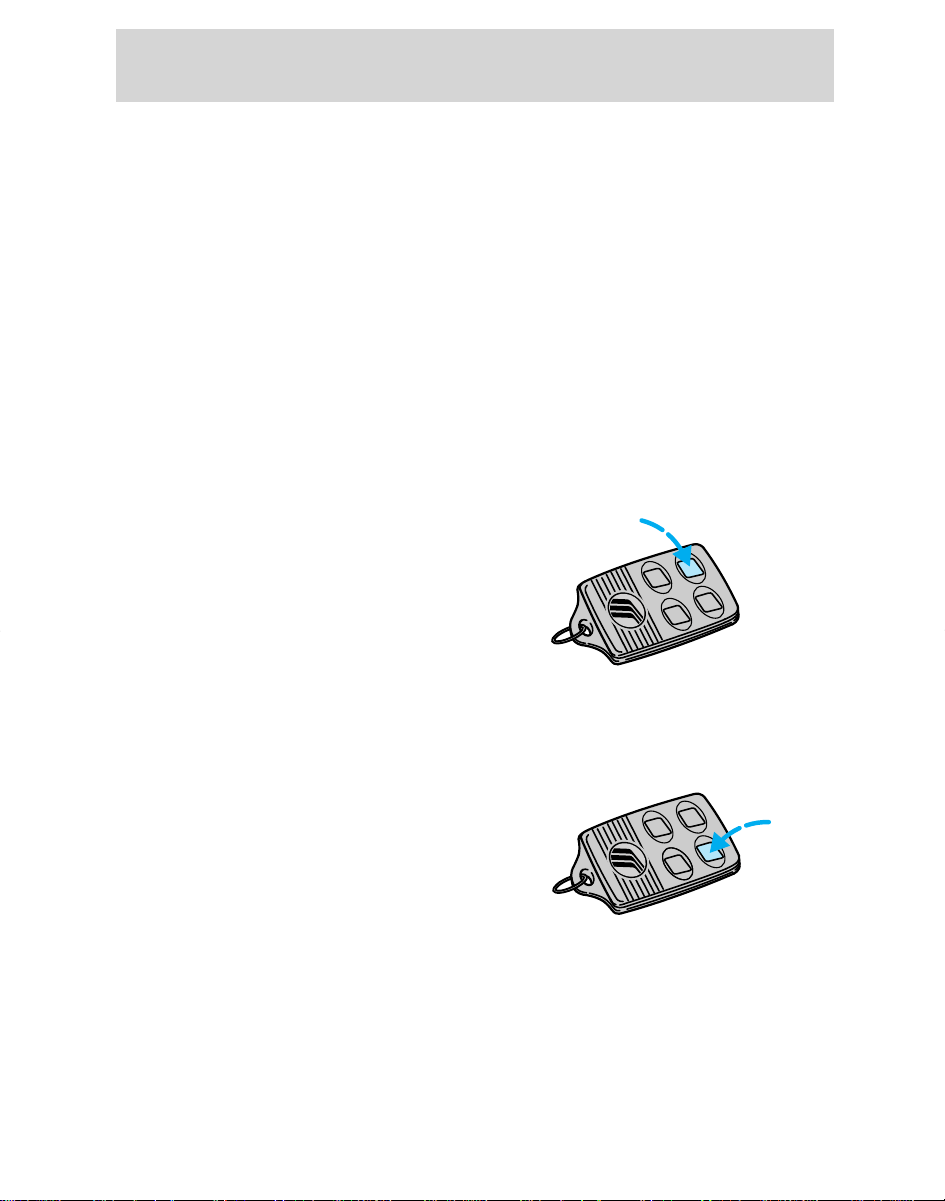

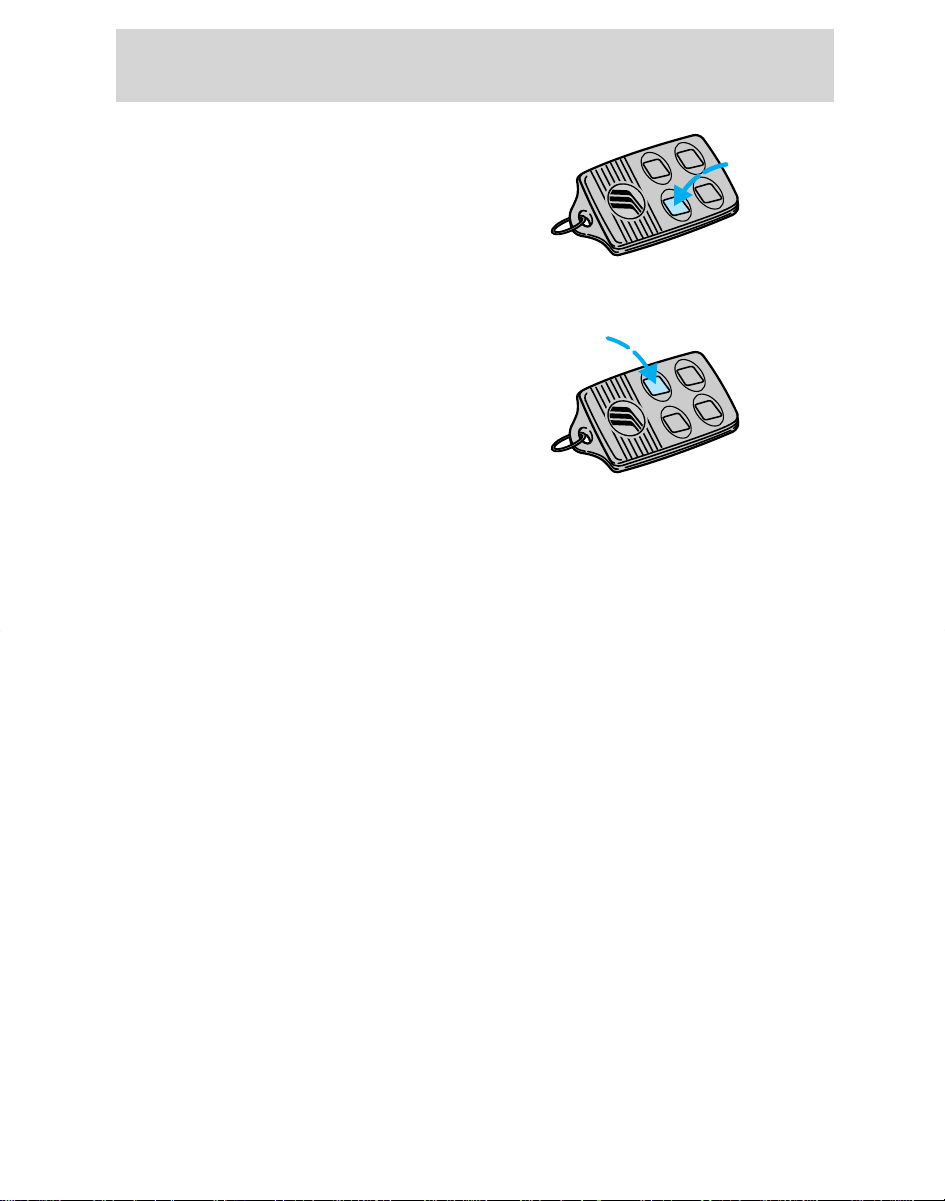

REMOTE KEYLESS ENTRY
SYSTEM
(if equipped)
If your vehicle has a remote entry
system, you can lock and unlock
the vehicle doors and open the
luggage compartment without
using a key. The remote also has a
personal alarm feature.
The remote entry feature only
operates with the ignition in the off
position.
Locking the doors
Press the LOCK control.
To signal that the doors are locked,
press the LOCK control again
within five seconds. The doors will
lock again and the horn will sound.
Unlocking the doors
Press the UNLOCK control to open
the driver’s door.
To unlock the other doors, press
the UNLOCK control a second time
within five seconds.
TRUNK
LOCK
PANIC
UN
LOCK
CDW IIIC3Cont en MM 5/15/97 7:45 PM Page 38
Controls and features
39
Opening the luggage
compartment
Press the TRUNK control.
Sounding the panic alarm
Press the PANIC control. The horn
will sound and the headlamps and
tail lamps will flash for
approximately two minutes and
forty-five seconds.
To deactivate the alarm, press the
PANIC control again or turn the
ignition key to the on position.
UN
LOCK
LOCK
PANIC
TRUNK
TRUNK
UN
LOCK
LOCK
PANIC

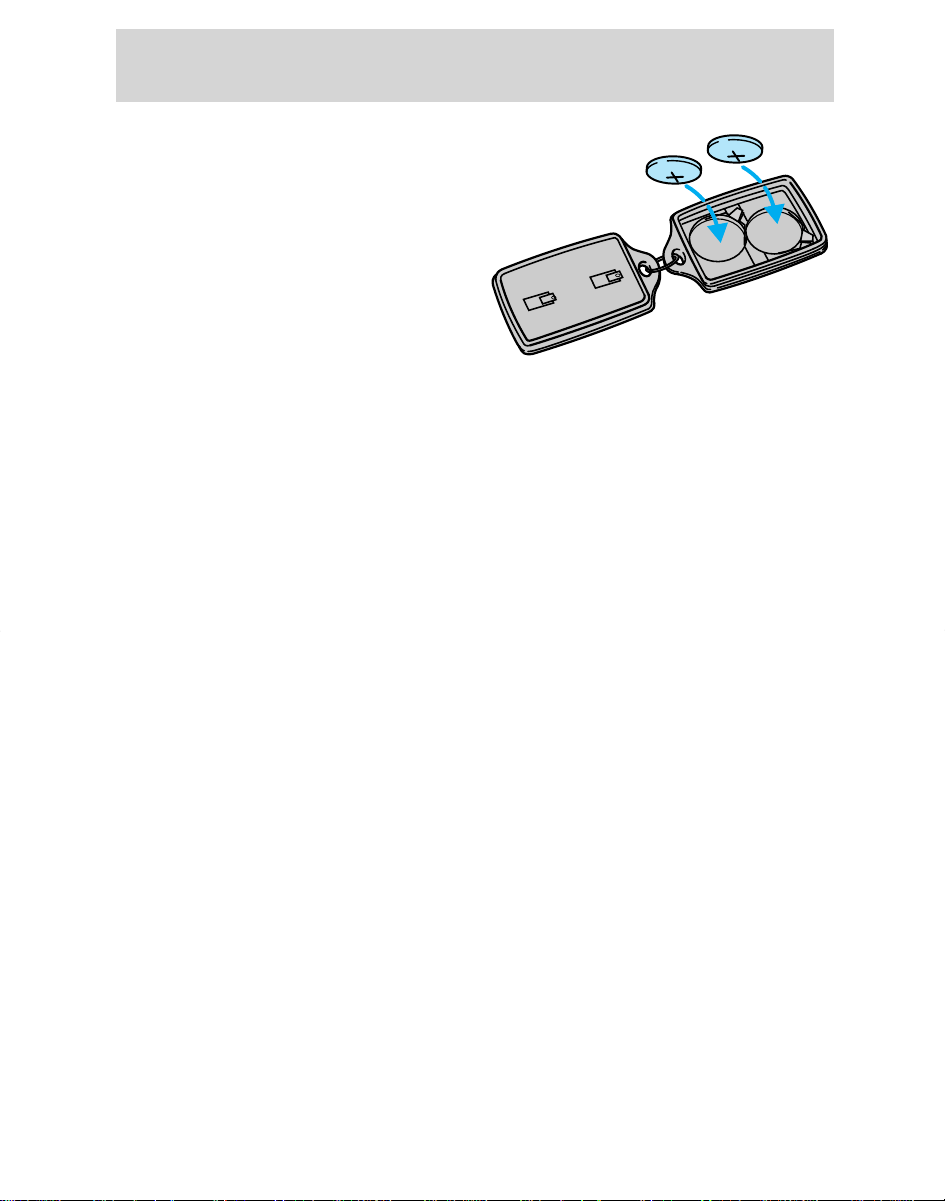

Replacing the batteries
The transmitter is powered by two
coin-type, three-volt lithium
batteries. A decrease in operating
range can be caused by:
• battery failure,
• weather conditions, or
• structures around the vehicle.
Replacement batteries for the
remote entry system transmitters
may be purchased at pharmacies,
watch stores or at authorized
dealers.
CDW IIIC3Cont en MM 5/15/97 7:45 PM Page 39
Controls and features
40
Replacing lost transmitters
Take your transmitters to the
dealer for reprogramming if:
• a transmitter is lost or
• you want to purchase additional
transmitters.
This device complies with part 15
of the FCC rules. Operation is
subject to the two following
conditions: (1) The device may not
cause harmful interference, and
(2) This device must accept any
interference received, including
interference that may cause
undesired operation.
To replace the batteries:
1. Twist a thin coin between the
two halves of the transmitter. Do
not take the front part of the
transmitter apart.
2. Remove the old batteries.
3. Place the positive (+) side of the
new batteries down.
4. Snap the two halves of the
transmitter back together.
CDW IIIC3Cont en MM 5/15/97 7:45 PM Page 40
Controls and features
41
PASSIVE ANTI-THEFT SYSTEM
(if equipped)
The Passive Anti-Theft system
(PATS) is an engine immobilization
system. It is an additional theft
protection feature which prevents
the engine from being started
unless a coded key is used..
This system is only available with
2.5 l engines.
POWER AUDIO AM/FM
SCAN
SEEK
31
2
64
5
ANS
SIDE 1-2
EJECT
VOLUME
DEF
LO
HI
OFF PNL/FLR
PANEL
A/C
FLOOR
FLR
DEF
MAX
A/C
E F
1
/
2
UNLEADED FUEL ONLY
BRAKE
:
I0 20
Res
Set
Acc
Coast

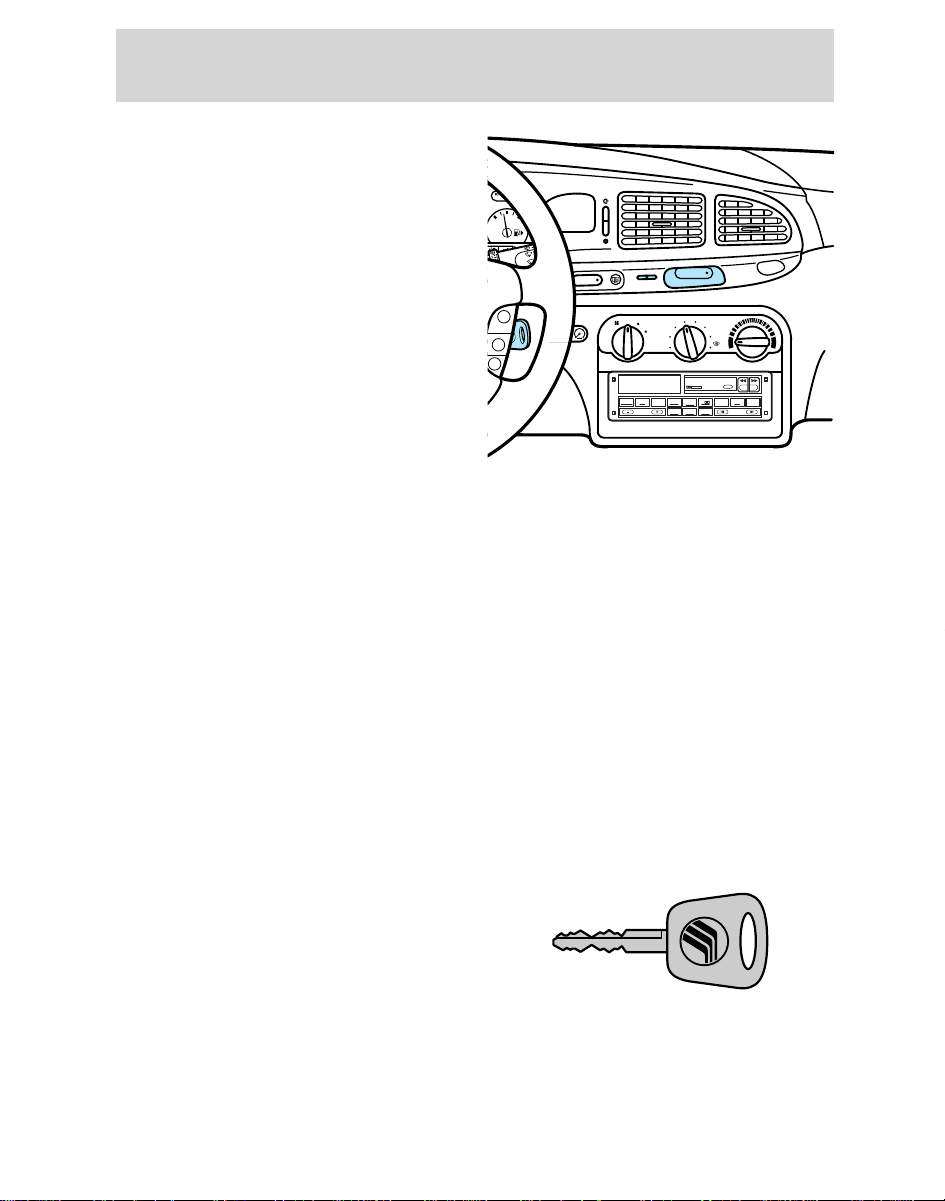

Automatic arming
The system is armed five seconds
after switching off the ignition.
The armed status is indicated when
the control light flashes every
two seconds.
Automatic disarming
Switching on the ignition disarms
the system if the correct code is
recognized.
Keys
Your vehicle is supplied with two
coded keys.
Only these keys can be used to
start your vehicle.
CDW IIIC3Cont en MM 5/15/97 7:45 PM Page 41
Controls and features
42
:
I0 20

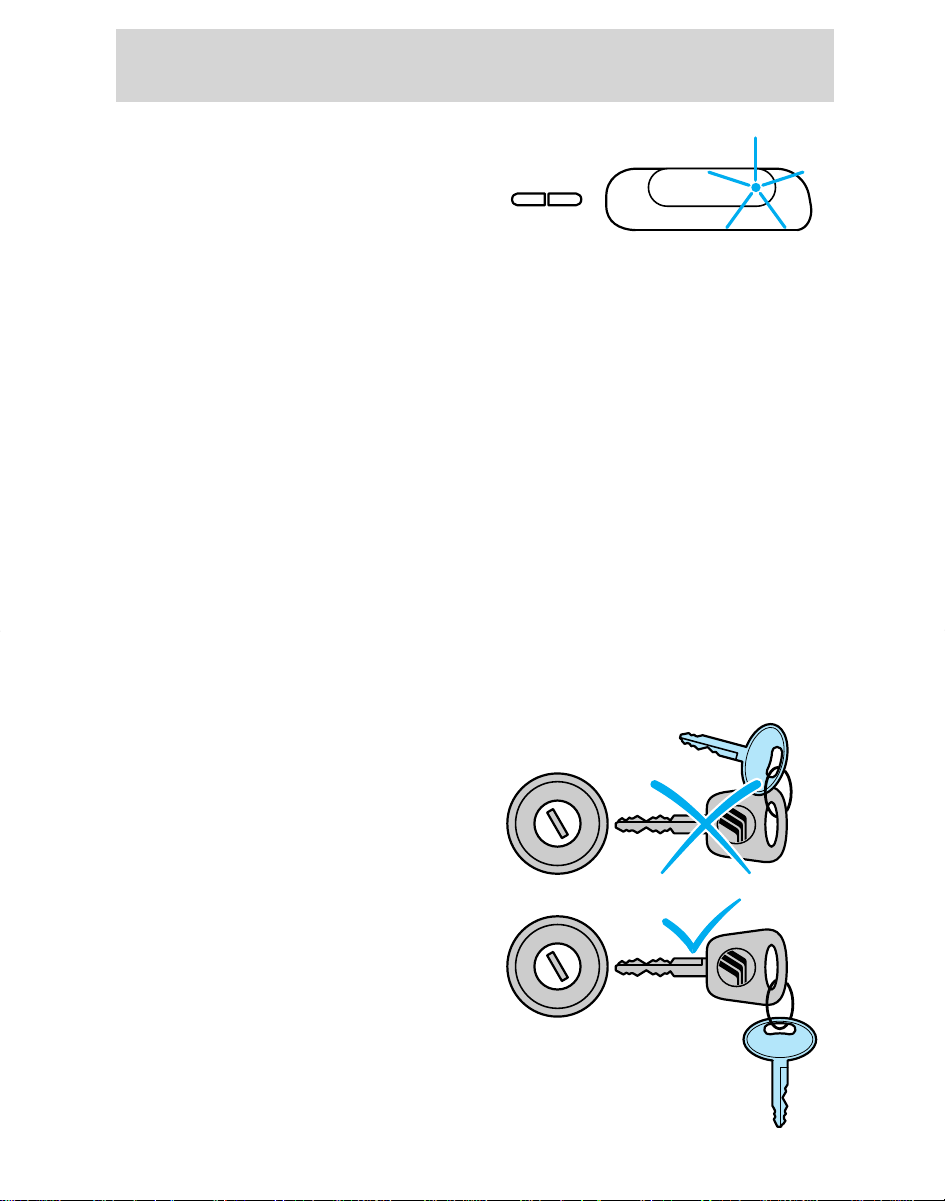

Functional check
When the ignition is switched on,
the control light in the digital clock
will illuminate for approximately
three seconds to indicate that the
system is operating correctly.
If the control light flashes rapidly
for approximately one minute and
then repeatedly at irregular
intervals, the system did not
recognize the key code. Remove
the key and try again.
If the control light illuminates
continuously for approximately
one minute and then flashes
repeatedly at irregular intervals, a
system malfunction has occurred.
Have the malfunction repaired by
your dealer or a qualified
technician as soon as possible.
To ensure a trouble-free exchange
between vehicle and key, do not
shield the keys with any metal
objects.
CDW IIIC3Cont en MM 5/15/97 7:45 PM Page 42
Controls and features
43
Key coding
Replacement keys or a maximum of
15 duplicate keys can be coded.
To program a key, cycle ignition
switch from (3) to (1) with a
programmed key. Within five
seconds of this cycle, insert a new
PATS key into ignition and turn to
(3) or (4). If successful, the theft
warning indicator will glow for two
seconds, and the vehicle can be
started. Repeat until all chosen
keys have been programmed.
The control light illuminates to
indicate a successful programming
operation.
Repeat the procedure to program
additional keys.
Your dealer can also delete keys
already programmed.
The system is maintenance free.
If keys become lost, you must have
your dealer clear and reprogram
the code for security reasons.
3
4
2
1
CDW IIIC3Cont en MM 5/15/97 7:45 PM Page 43

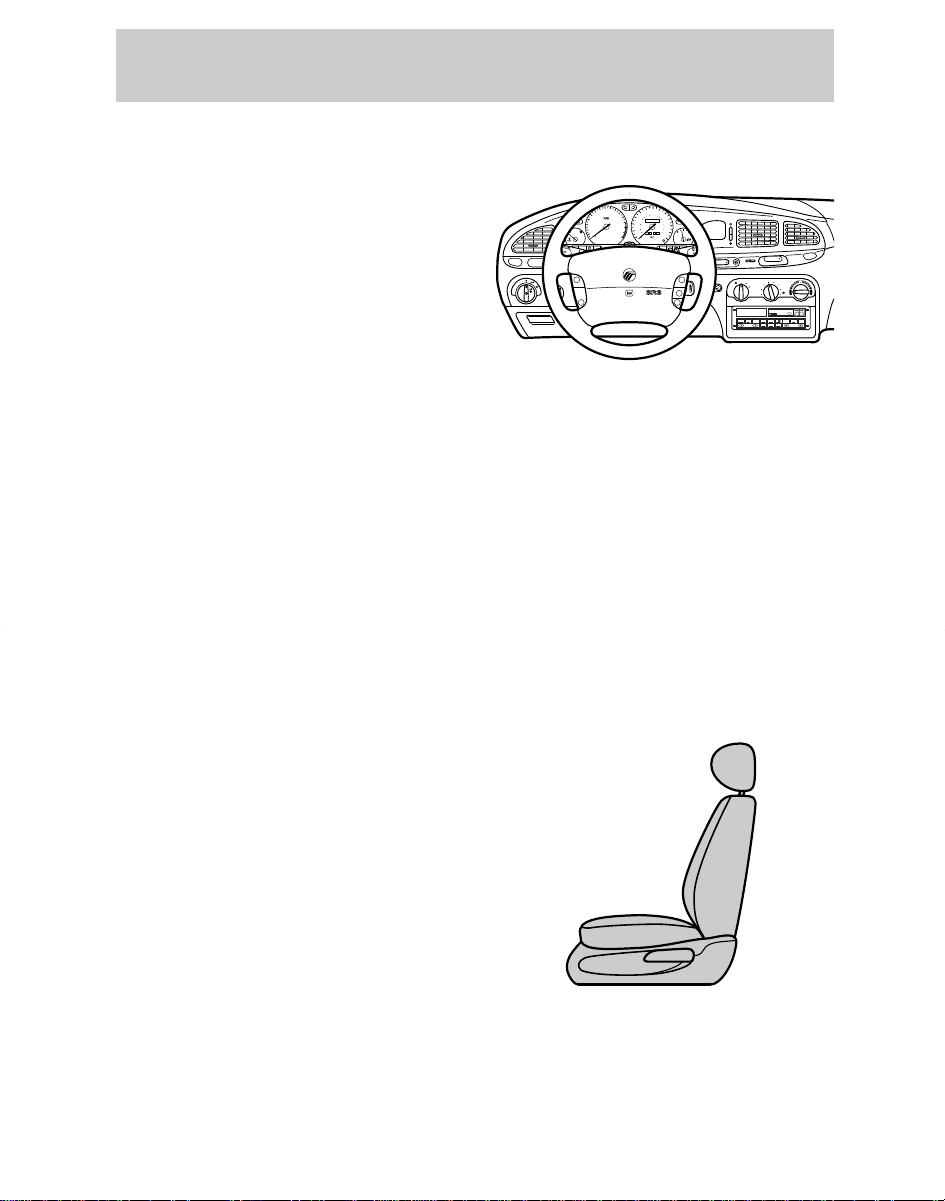

Seating and safety restraints
44

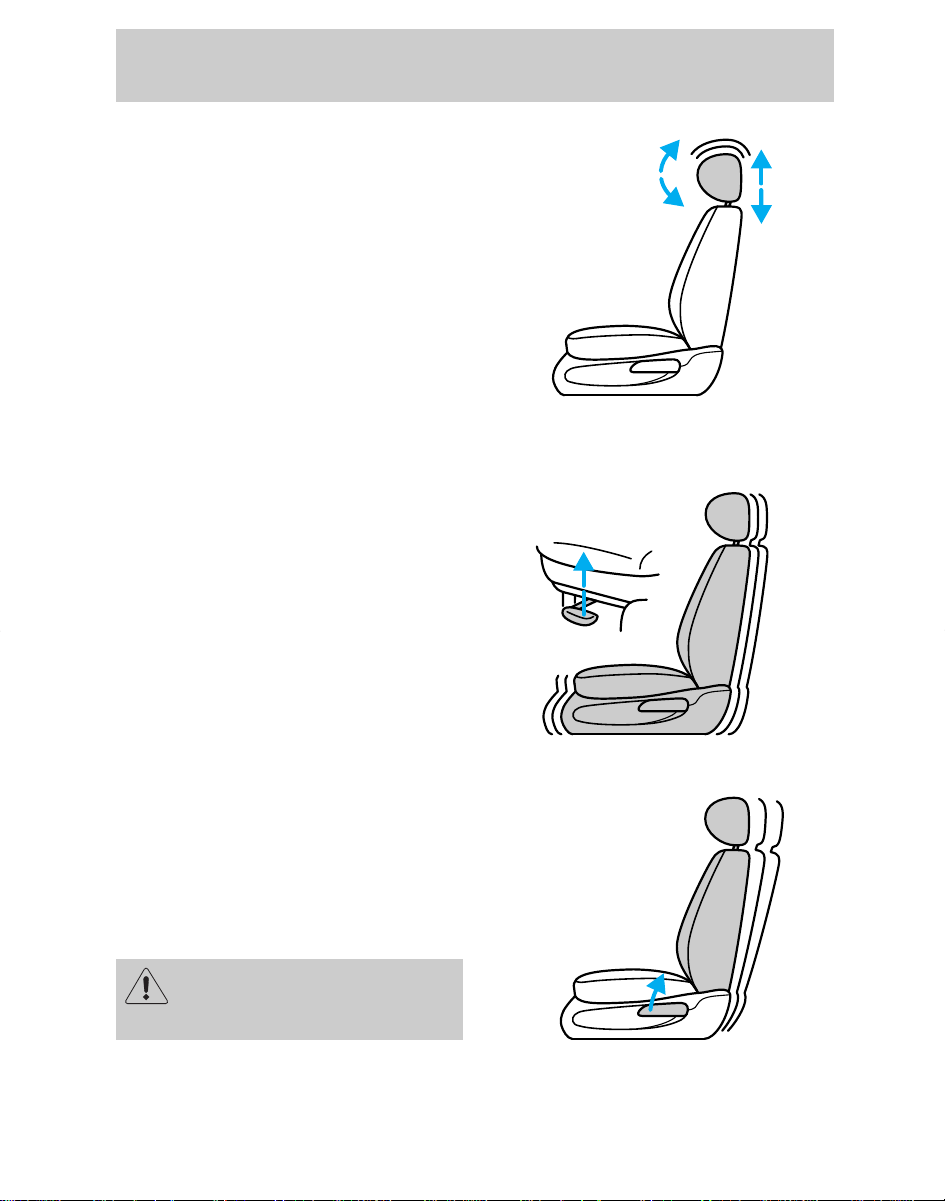

Adjusting the head restraints
Push or pull the head restraint to
the desired height.
Swivel the head restraint forward
or backward to the desired angle.
SEATING
Manually adjusting the seats
Pull the lever located inside the
front edge of the seat to move the
seat forward or backward.
Pull the lever on the outside of the
seat to recline the seat.
HEAD RESTRAINTS
Never adjust the driver’s
seat or seatback when the
vehicle is moving.
CDW IIID Seat en MM 5/15/97 7:48 PM Page 44
Seating and safety restraints
45

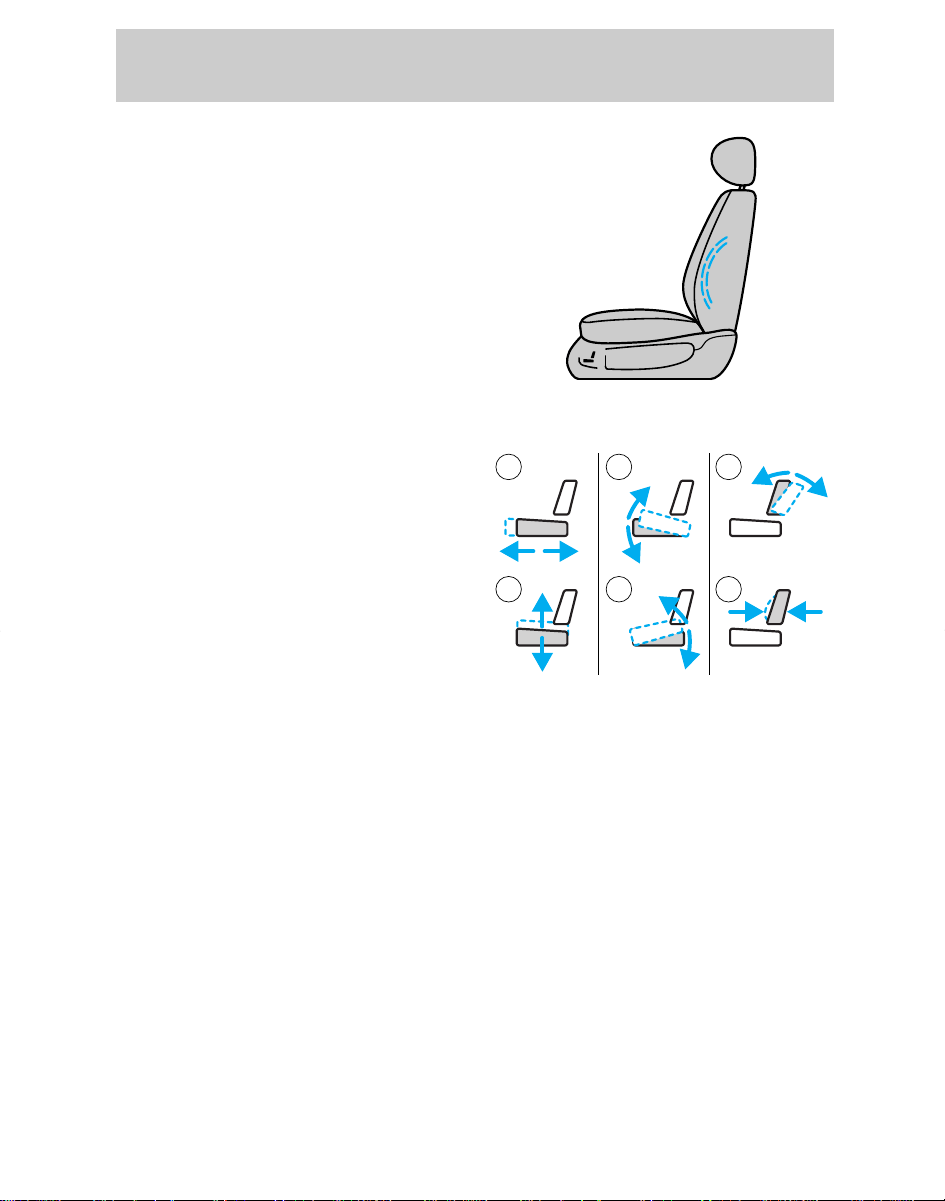

Adjusting the power seats
(if equipped)
Move the relevant control in the
respective direction to adjust the
seat, seatback and lumbar as
follows:
1
2
3
4 6
5
Seat
(1) Forward and backward
(2) Height of the entire seat
(3) Height of the front of the seat
(4) Height of the rear of the seat
Seatback
(5) Seatback inclination
Lumbar support
(6) Lumbar support
CDW IIID Seat en MM 5/15/97 7:48 PM Page 45
Seating and safety restraints
46

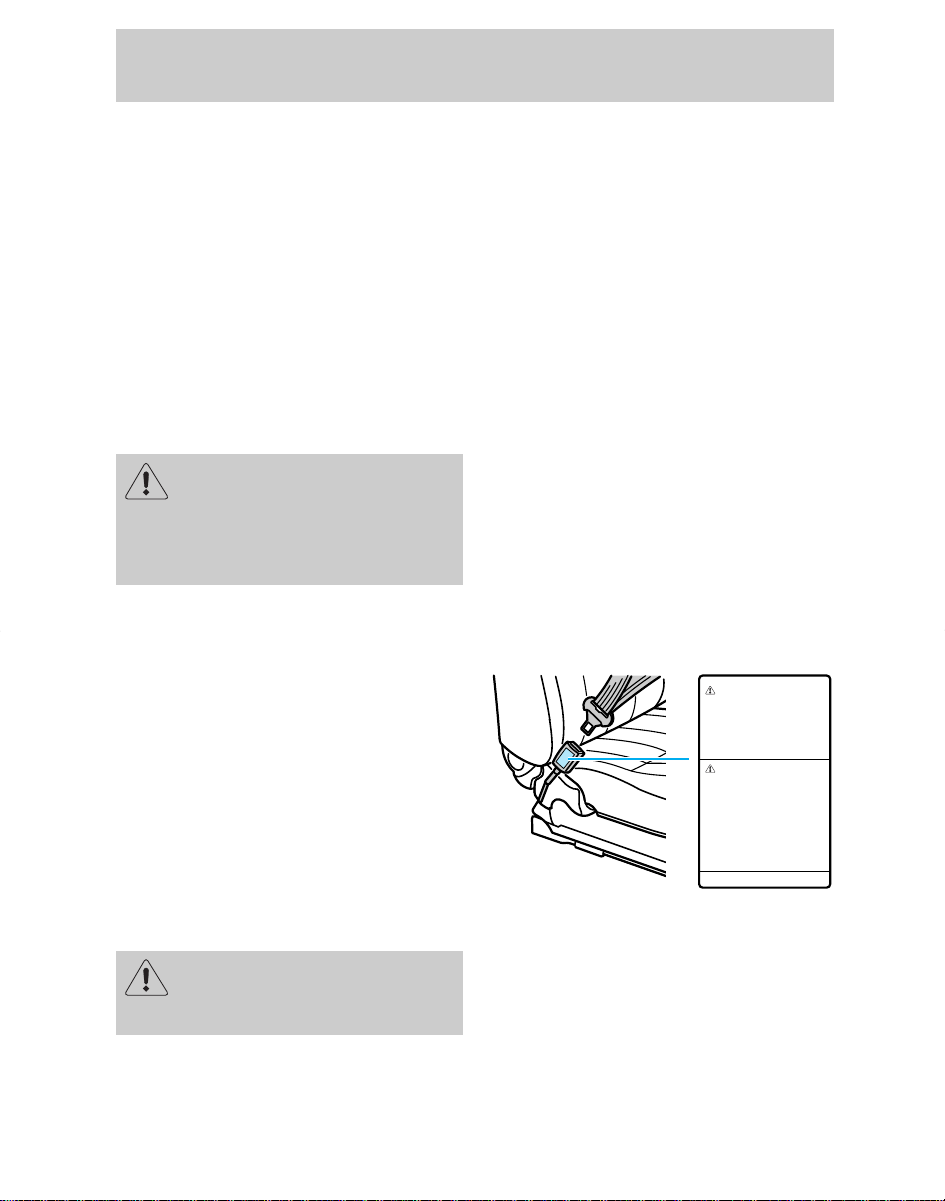

Folding rear seats (if equipped)
Pull the release knob located in the
luggage compartment. Fold down
the seat. The seatback cannot be
released while the built-in childseat
(if equipped) is open.
If you are carrying objects that
might damage the center rear
three-point safety belt, you can
unbuckle the end of the belt from
the small buckle on the seat
cushion and let the retractor reel it
up. Reconnect the belt tongue to
the buckle when you fold the seat
back up.
To raise the rear seatback, push the
seatback upward until it locks in
place. Make sure it is firmly latched
by pushing forward and back on it.
Check to see that the seat
and seatback are latched
securely in position. Keep luggage
area free of objects that would
prevent proper engagement.
CDW IIID Seat en MM 5/15/97 7:48 PM Page 46
Seating and safety restraints
47
Important safety restraints
precautions
The use of safety belts helps to
restrain both driver and passenger
in case of a collision. In most states
and Canada, the law requires the
use of safety belts.

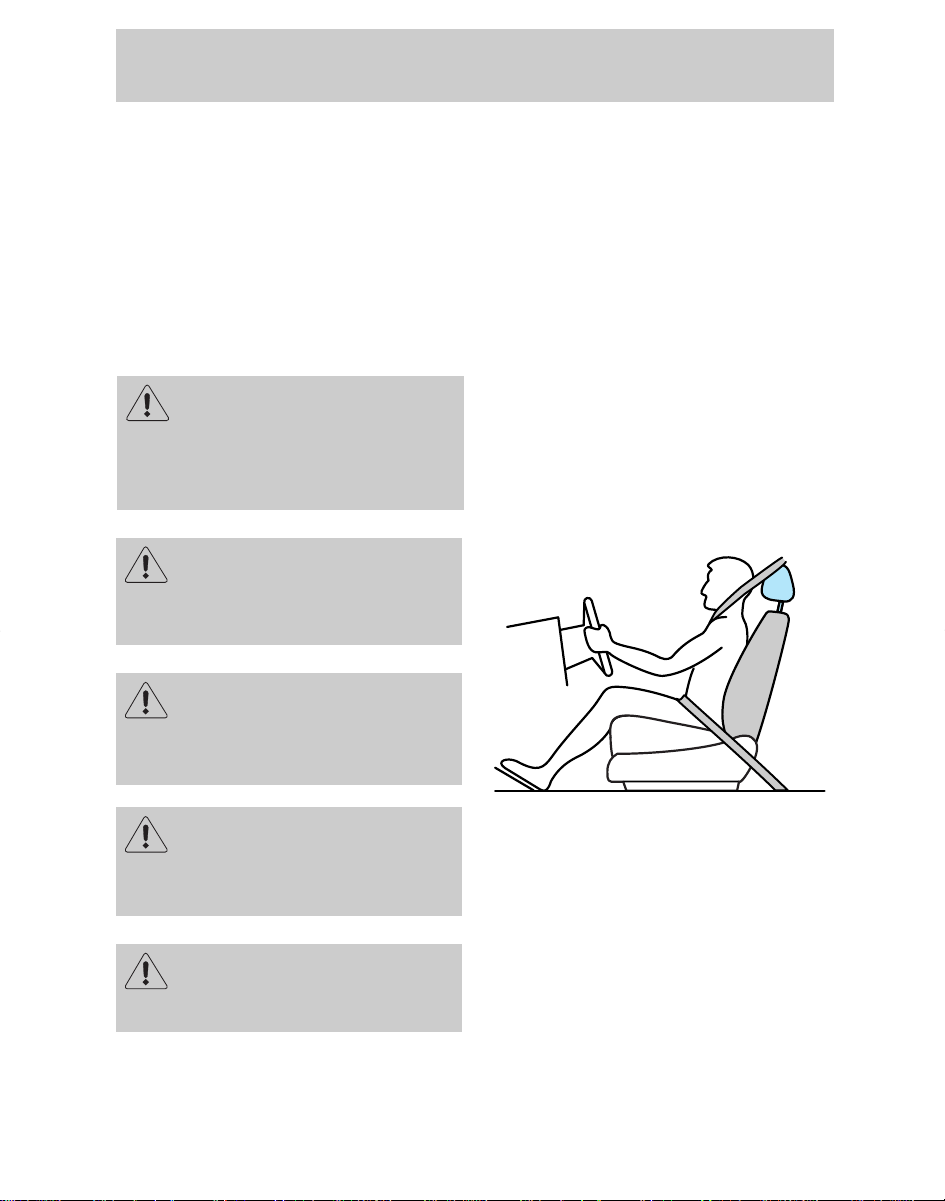

Always drive and ride with
your seatback upright and
the lap belt snug and low across
the hips.
Lock the doors of your
vehicle before driving to
lessen the risk of the door coming
open in a collision.
Cargo should always be
secured to prevent it from
shifting and causing damage to the
vehicle or harm to passengers.
To prevent the risk of injury,
make sure children sit where
they can be properly restrained.
SAFETY RESTRAINTS
Front and rear seat
occupants including
pregnant women, should wear
safety belts for optimum
protection in an accident.
CDW IIID Seat en MM 5/15/97 7:48 PM Page 47
Seating and safety restraints
48

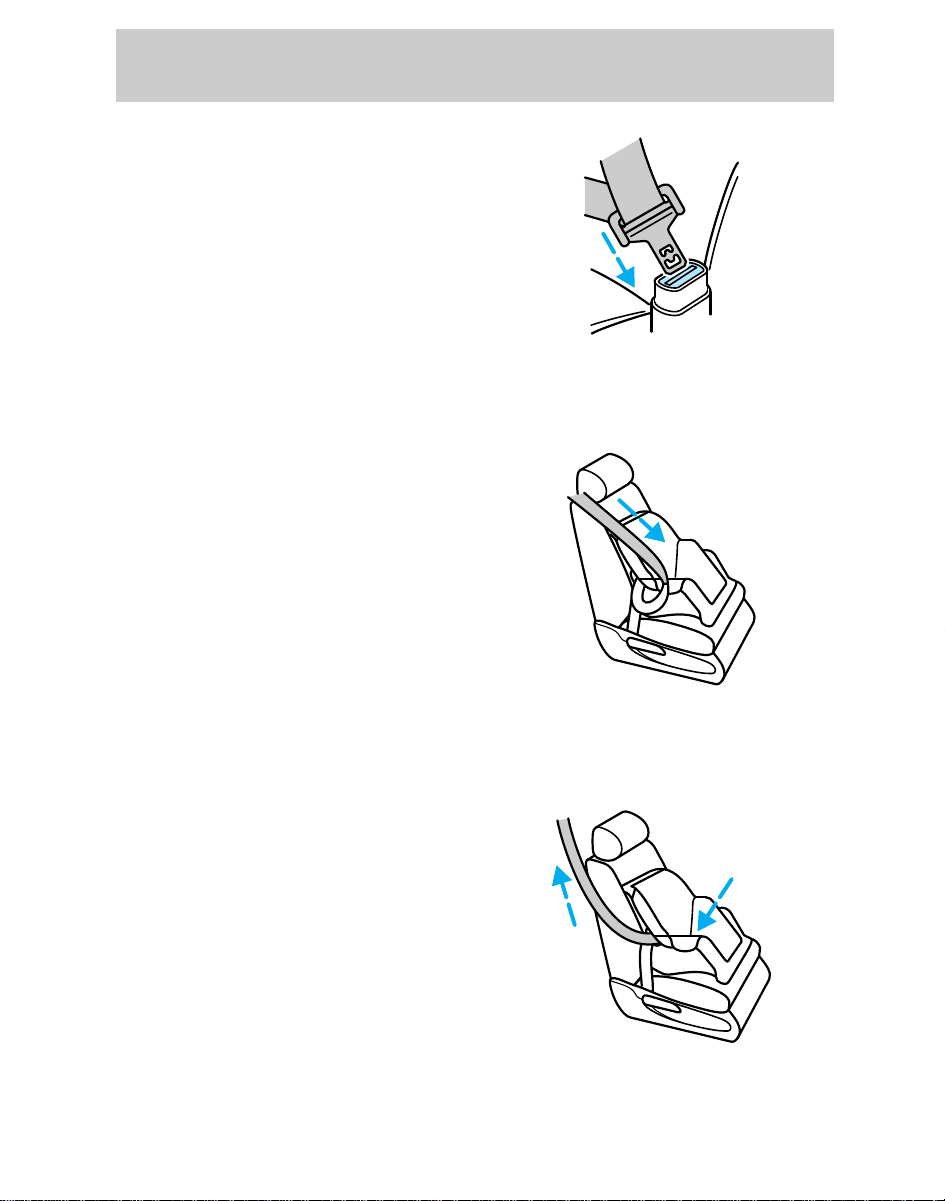

Combination lap and shoulder
belt
Insert the tongue into the slot in
the buckle to fasten.
Push the red release button and
remove the tongue from the slot to
unfasten.
The passenger safety restraints in
the vehicle are combination lap and
shoulder belts. The front and rear
seat passenger safety belts have
two types of locking modes.
Using safety restraints properly
Each seating position in your
vehicle has a specific safety
belt assembly which is made up of
one buckle and one tongue that
are designed to be used as a pair.
Use the shoulder belt on the
outside shoulder only. Never wear
the shoulder belt under the arm.
Never swing it around your neck
over the inside shoulder.
Never use a single belt for more
than one person.
CDW IIID Seat en MM 5/15/97 7:48 PM Page 48
Seating and safety restraints
49
Automatic locking mode
In this mode, the shoulder belt is
automatically prelocked; however,
the belt will react to remove any
slack in the shoulder belt.
The automatic locking mode is not
available on the driver’s safety belt.
When to use the automatic
locking mode
• When a tight lap and shoulder
belt fit is desired.
• Any time a child safety seat is
installed in the vehicle. For
information on the proper use of
a child safety seat, refer to Child
safety seats later in this chapter.
Vehicle sensitive (emergency)
locking mode
The vehicle sensitive mode is the
normal retractor mode which locks
the belts in response to vehicle
movement. For example, if the
driver brakes suddenly, turns a
corner sharply or your vehicle
receives an impact of 8 km/h
(5 mph) or more the combination
safety belts will lock to help reduce
the forward movement of the
driver and passengers.
The retractor can be made to lock
by pulling sharply on the belt.
CDW IIID Seat en MM 5/15/97 7:48 PM Page 49
Seating and safety restraints
50
Canceling automatic locking
mode
Disconnect the combination lap
and shoulder belt and allow it to
completely retract. This will cancel
the automatic locking mode and
activate the vehicle sensitive
(emergency) locking mode.

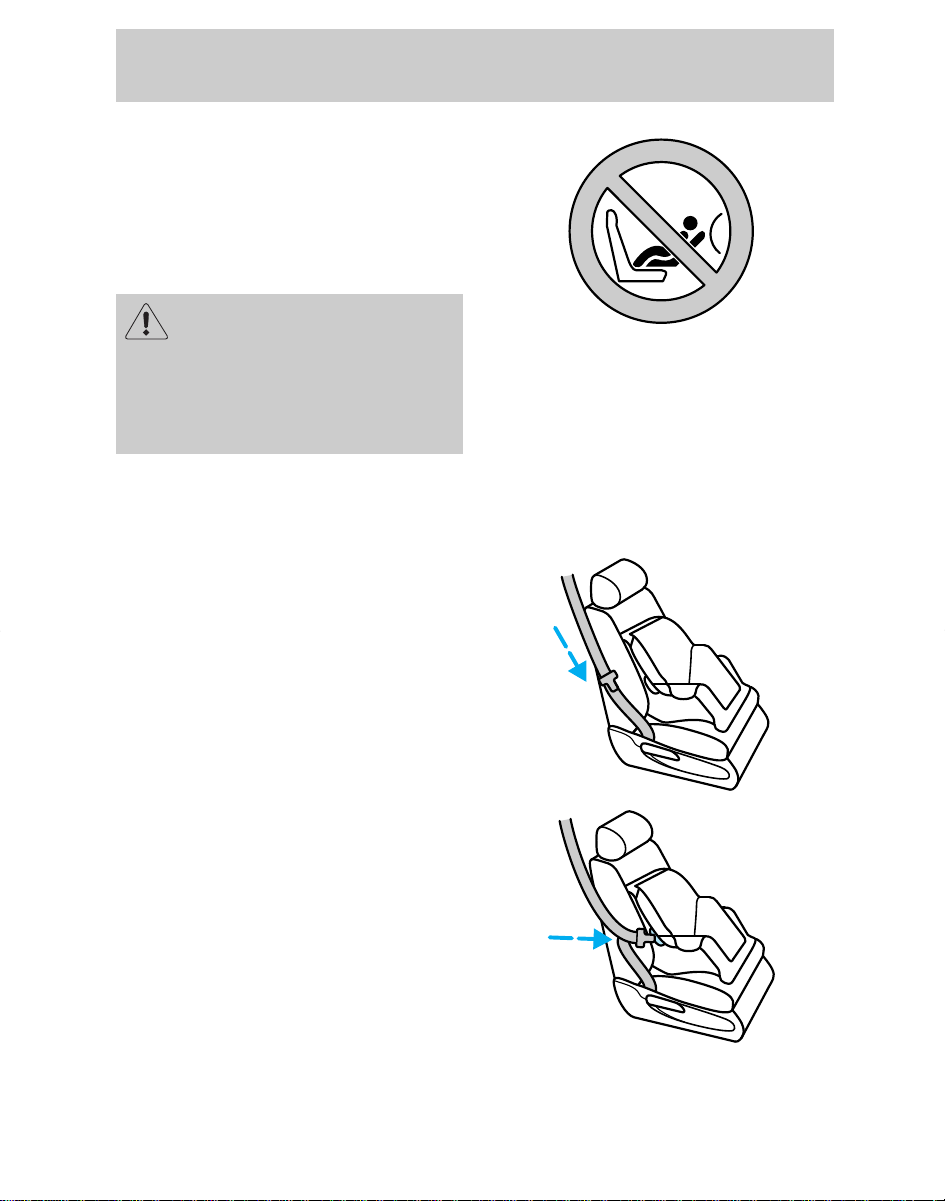

Using automatic locking mode
The automatic locking mode must
be used when installing a child
safety seat in any passenger seat.
1. Buckle the combination lap and
shoulder belt.
2. Grasp the shoulder belt portion
and pull downward until the entire
belt is extracted.
3. Allow the belt to retract. As the
belt retracts, you will hear a
clicking sound. This indicates that
the safety belt is now in the
automatic locking mode.
CDW IIID Seat en MM 5/15/97 7:48 PM Page 50
Seating and safety restraints
51

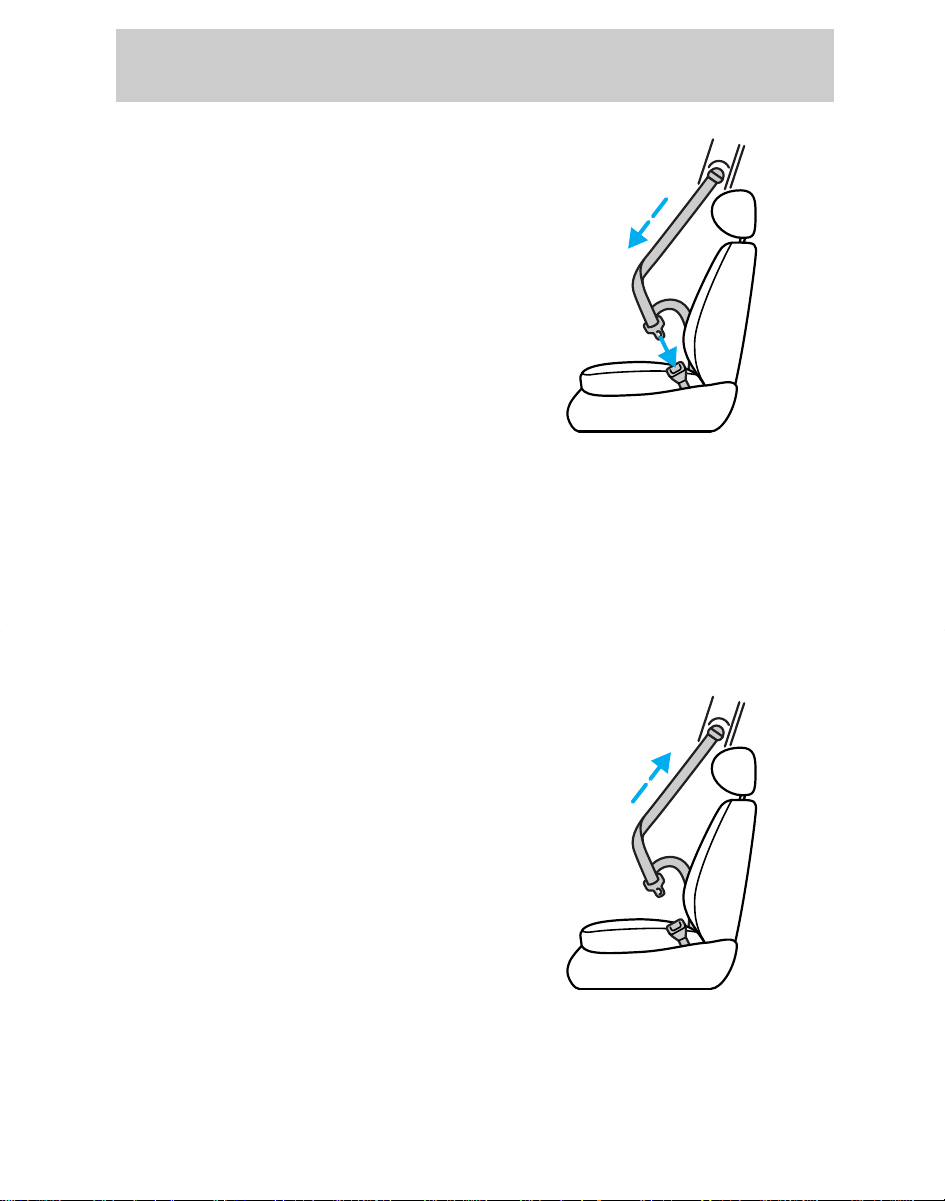

Front seat safety belt height
adjustment
To lower the height of the shoulder
belt:
1. Push the control down.
2. Slide down.
To raise the height of the shoulder
belt:
1. Slide up.
2. Pull down on the height adjuster
to make sure that it is locked in
place.
Position the shoulder belt
height adjuster so that the
belt rests across the middle of
your shoulder. Be sure the
shoulder belt is properly
positioned on your shoulder each
time you use the belt. If the
shoulder belt is off your shoulder,
on your upper arm or neck, there
is a greater risk of severe injury in
a collision.
CDW IIID Seat en MM 5/15/97 7:48 PM Page 51
Seating and safety restraints
52
Safety belt indicator light and
warning chime
Illuminates in the instrument
cluster and a chime sounds to
remind the occupants to fasten
their safety belts.

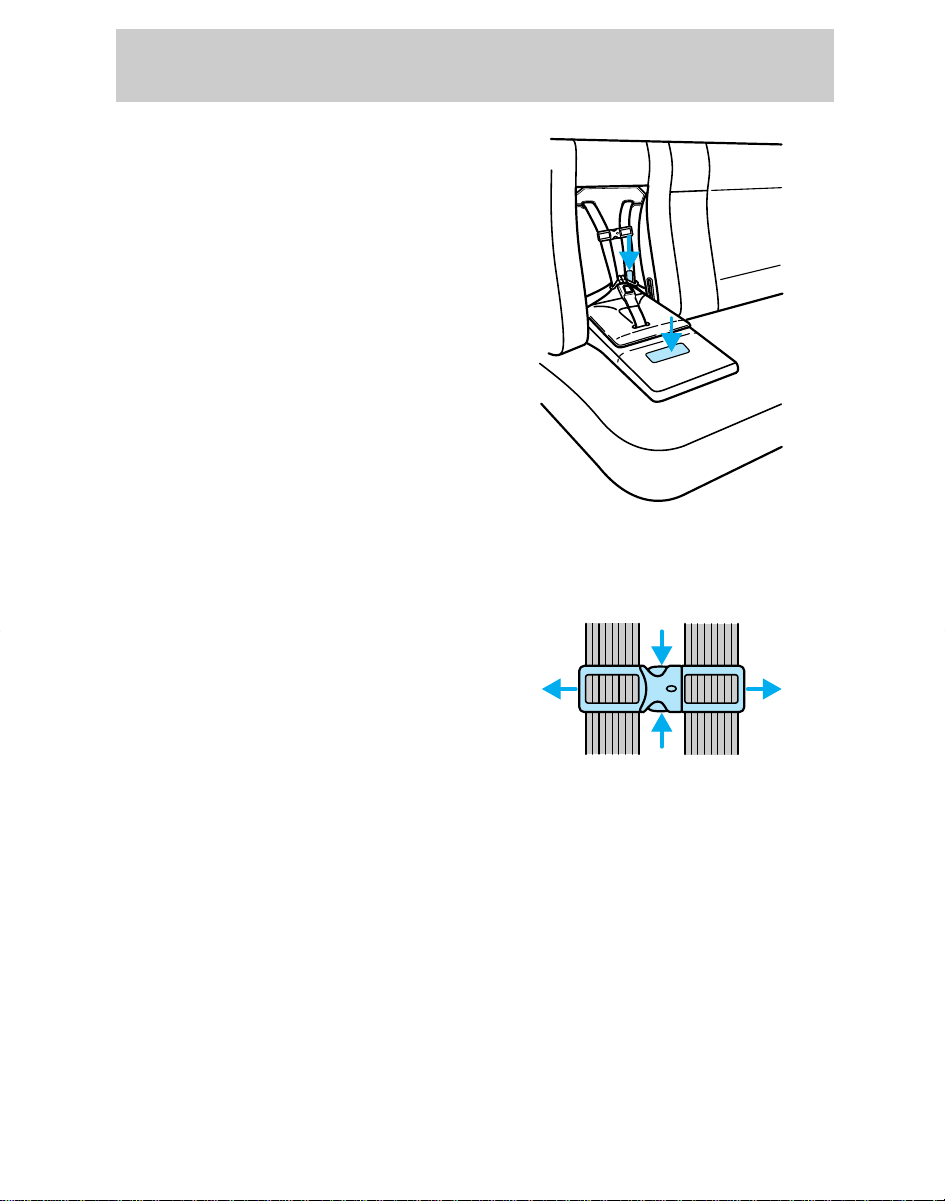

Center position three-point
safety belts
If the lower end of the belt has
been unbuckled, pull the belt
steadily from the reel and insert
the small tongue into the small
buckle until a distinct “click” is
heard.
This buckle should be left buckled
except when the seatback is folded
down and cargo that might damage
the seatbelt or get it dirty is being
hauled.
Pull the seat belt across the hips
and insert the big (sliding) tongue
into the appropriate buckle until a
distinct “click” is heard.
Should the center rear belt need to
be unlatched from its anchorage, a
thin probe is required to be
inserted into the hole located on
the underside of the floor mounted
buckle. If the buckle and tongue
are not reconnected, then the belt
is not save to be used.
CDW IIID Seat en MM 5/15/97 7:48 PM Page 52
Seating and safety restraints
53
Safety belt extension assembly
The safety belt may be too short
even when fully extended.
Approximately 20 cm (8 inches)
may be added to the length of the
belt with a safety belt extension
(part number 611C22). Safety belt
extensions are available at no cost
from your dealer.
Only use extensions manufactured
by the same supplier as the safety
belt. Manufacturer identification is
on the label located at the end of
the webbing.
Do not use the extension to change
the fit of the shoulder belt across
the torso.
Conditions of operation
If the driver’s safety belt is not
buckled before the ignition key is
turned to on, the safety belt
indicator illuminates for
1-2 minutes and the warning chime
sounds for 4-8 seconds.
If the driver’s safety belt is buckled
while the indicator light is
illuminated and the reminder
chime is sounding, the safety belt
indicator light and reminder turn
off.
CDW IIID Seat en MM 5/15/97 7:48 PM Page 53
Seating and safety restraints
54
Care of safety belts
Periodically check the belts for
damage or fraying. Check the
security of the anchorage points
and the locking action of the inertia
reels by giving each belt a sharp
tug.
Belts subjected to strain, as in the
result of an accident, should be
replaced and the anchorages
checked by your dealer or a
qualified technician.
Failure to follow these
instructions will affect the
performance of the safety belts
and increase the risk of personal
injury.
Safety belt warning label
A warning label has been placed on
the buckle of each of your vehicle’s
front seat safety belts.
In a collision of sufficient severity
while the safety belt is in use, the
safety belt buckle will pull out of
the sleeve so that all or part of the
orange portion of the lavel is
visible.
Whenever the orange
portion of the label is visible,
the safety belt must be replaced.
WARNING Replace buckle
assembly if this vehicle is in a collision
or if any orange portion of this label
is visible. (See Owner Guide). Failure
to replace this buckle assembly under
the above conditions could result in
severe personal injuries in the event
of collision.
AVERTISSEMENT Remplacer
l'ensemble de boucle de ceinture en
cas de collision avec ce véhicule, ou si
la partie orange de cette étiquette
est visible (Voir le Guide du
proprietare). Faute de remplacer cet
ensemble de boucle, des blessures
graves pourraient être encourues en
cas de collision.
REPLACE BUCKLE/REMPLACER BOUCLE
CDW IIID Seat en MM 5/15/97 7:48 PM Page 54
Seating and safety restraints
55

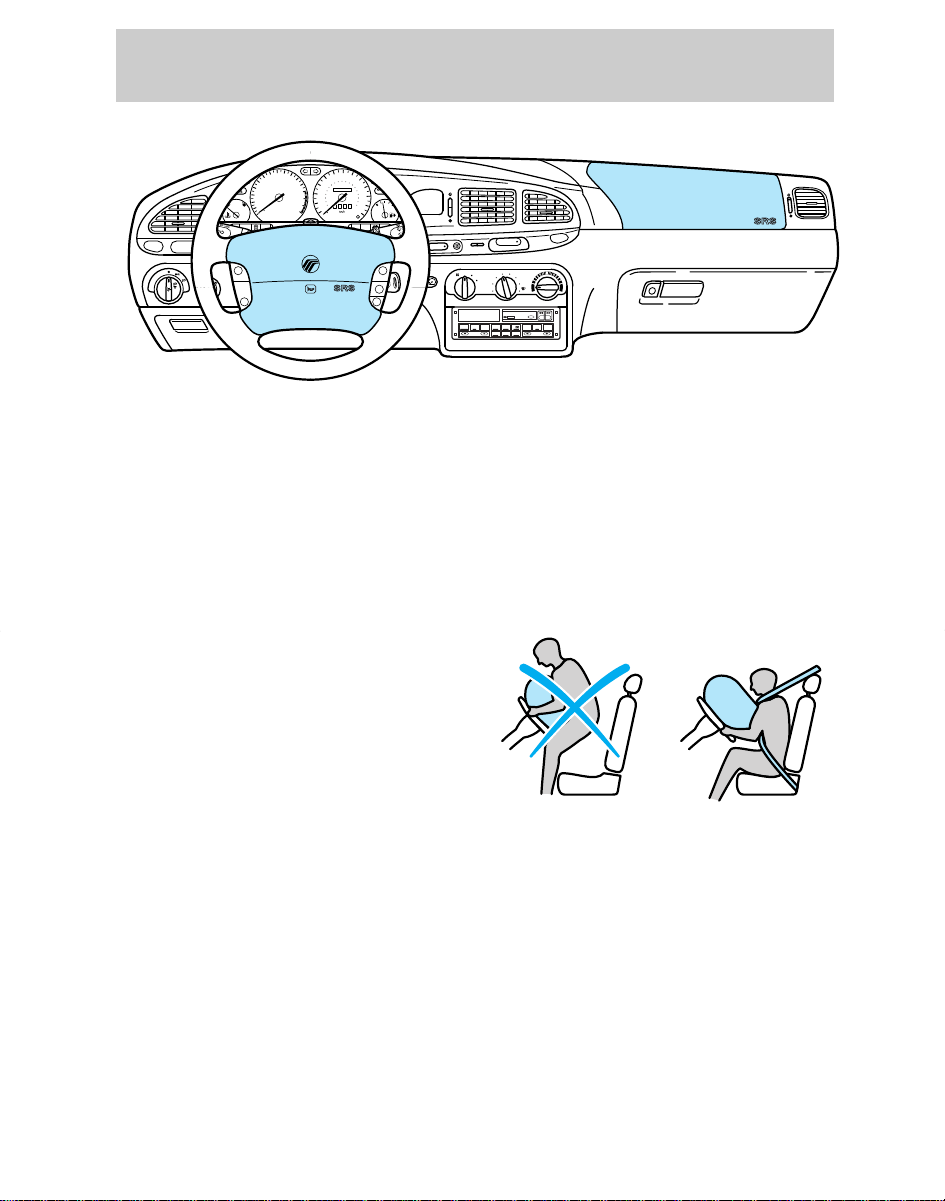

Important supplemental
restraint system (SRS)
precautions
The supplemental restraint system
is designed to:
• work with the safety belt to
protect the driver and right front
passenger.
• reduce certain upper body
injuries.
AIR BAG SUPPLEMENTAL
RESTRAINT SYSTEM (SRS)
POWER AUDIO AM/FM
SCAN
SEEK
31
2
64
5
ANS
SIDE 1-2
EJECT
VOLUME
M
I
R
R
O
R
S
DEF
LO
HI
OFF PNL/FLR
PANEL
A/C
FLOOR
FLR
DEF
MAX
A/C
T/C OFF
000123
0 0 0 0
10
20
30
40
50
60
70
80
90
100
110
120
130
MPH
20
40
60
55
80
120
100
140
160
180
200
E F
1
/
2
UNLEADED FUEL ONLY
1
2
0
3
x 1000
4
5
6
7
8
N
O
R
M
A
L
BRAKE
CHECK
ENGINE
TRACTION
CONTROL
O/D
OFF
Off
Res
Set
Acc
Coast
On
:
I0 20
CDW IIID Seat en MM 5/15/97 7:48 PM Page 55
Seating and safety restraints
56
AIRBAG

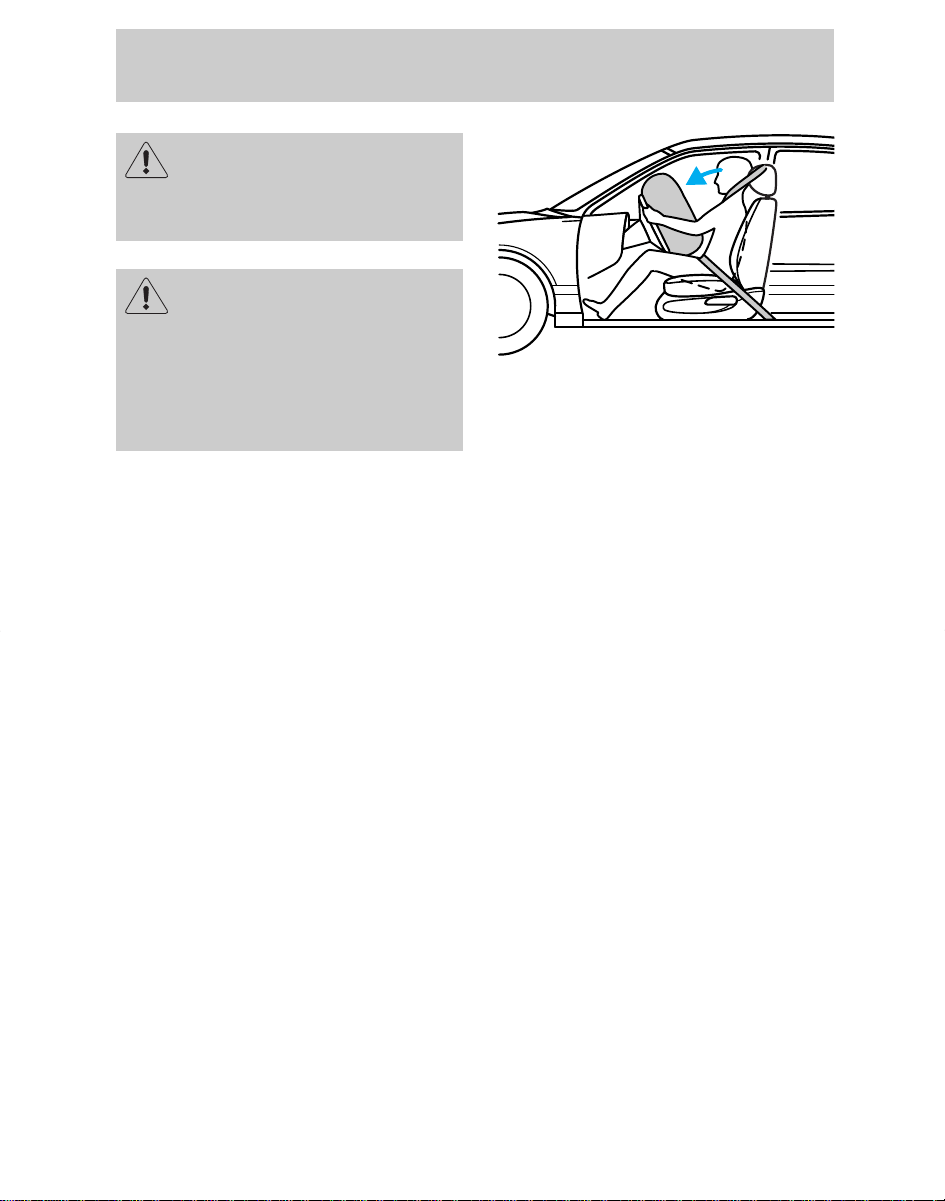

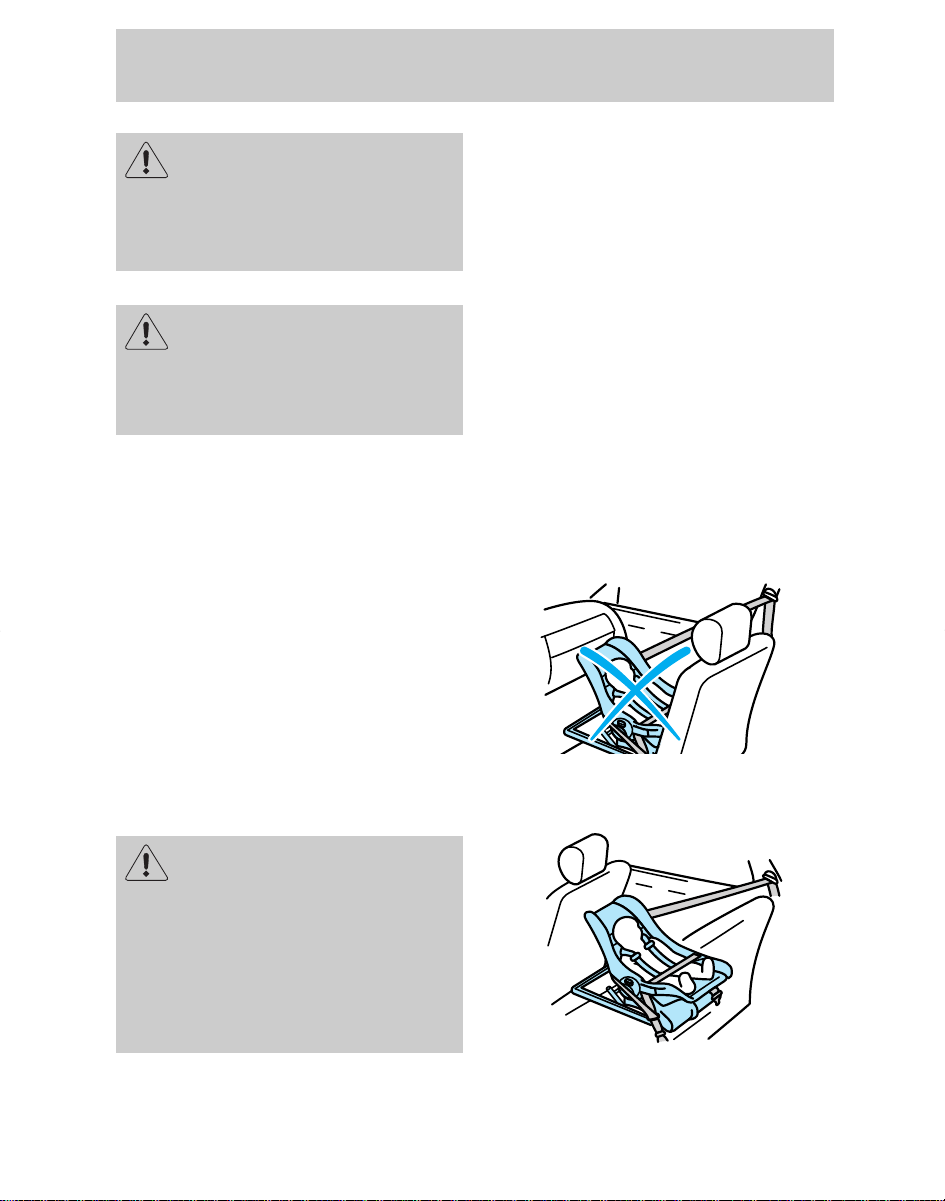

When installing forward-
facing child seats in the
front seat always move the
passenger seat as far back from
the instrument panel as possible.
Never install rear-facing child
seats or rear-facing infant seats in
the front seat.
Children and air bags
For additional important safety
information, read all information on
safety restraints in this guide.
Children should always wear safety
belts. Failure to follow these
instructions may increase the risk
of injury in a collision.
Do not attempt to service,
repair, or modify the air bag
Supplemental Restraint System or
its fuses. See your Ford or
Lincoln-Mercury dealer.
Do not place objects or
mount equipment on or near
the air bag covers that may come
into contact with an inflating air
bag.
CDW IIID Seat en MM 5/15/97 7:48 PM Page 56
Seating and safety restraints
57

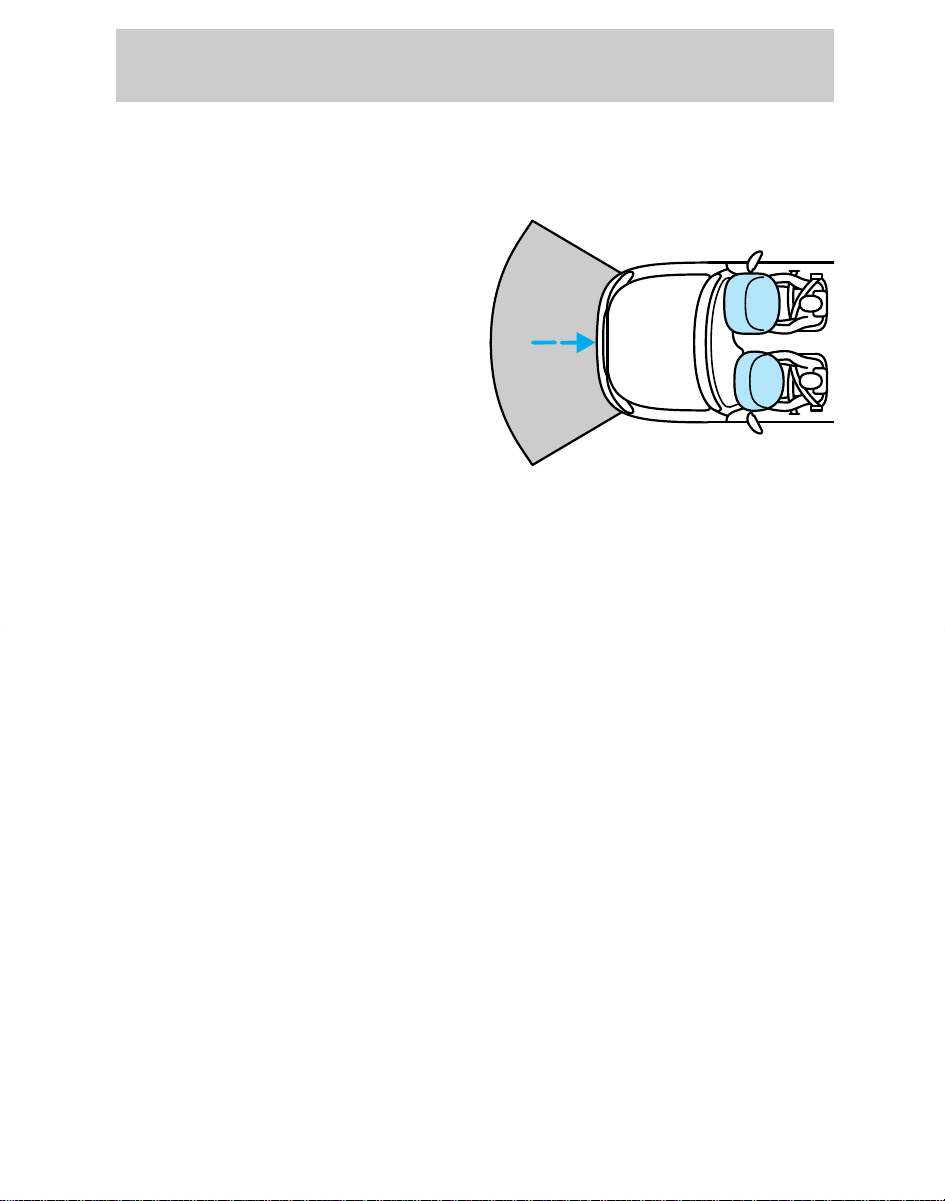

How does the air bag
supplemental restraint system
(SRS) work?
The SRS is designed to activate
when the vehicle is in a collision,
similar to hitting a fixed barrier
head on at 12-24 km/h (8-14 mph).
The fact that the air bags did not
inflate in a collision does not mean
that something is wrong with the
system. Rather, it means the forces
were not of the type sufficient to
cause activation.
The air bags inflate and deflate
rapidly upon activation.
After air bag deployment, it is
normal to notice a smoke-like,
powdery residue or smell the
burned propellant. This may
consist of cornstarch, talcum
powder (to lubricate the bag) or
sodium compounds (e.g., baking
soda) that result from the
combustion process that inflates
the air bag. Small amounts of
sodium hydroxide may be present
which may irritate the skin and
eyes, but none of the residue is
toxic.
CDW IIID Seat en MM 5/15/97 7:48 PM Page 57
Seating and safety restraints
58
The SRS consists of the following:
• driver and passenger air bag
modules (which include the
inflators and air bags),
• one or more impact and safing
sensors,
• a readiness light and tone,
• and the electrical wiring and
components.
The diagnostic module monitors its
own internal circuits and the
supplemental air bag electrical
system readiness (including the
impact sensors), the system wiring,
the air bag system readiness light,
the air bag back up power and the
air bag ignitors.
If the air bag is inflated, the
air bag will not function
again and must be replaced
immediately. If the air bag is not
replaced, the unrepaired area will
increase the risk of injury in a
collision.
Several air bag system
components get hot after
inflation. Do not touch them after
inflation.
CDW IIID Seat en MM 5/15/97 7:48 PM Page 58
Seating and safety restraints
59
Determining if the system is
operational
The SRS uses a readiness light in
the instrument cluster or a chime
to indicate the condition of the
system. Refer to the Air bag
readiness section in the
Instrumentation chapter. Routine
maintenance of the air bag is not
required.
A difficulty with the system is
indicated by one or more of the
following:
• The readiness light will either
flash or stay lit.
• The readiness light will not
illuminate after ignition is turned
on.
• A group of five beeps will be
heard. The tone pattern will
repeat periodically until the
problem and light are repaired.
If any of these things happen, even
intermittently, have the SRS
serviced at your dealership or by a
qualified technician immediately.
Unless serviced, the system may
not function properly in the event
of a collision.
000123
0 0 0 0
10
20
30
40
50
60
70
80
90
110
120
130
MPH
20
40
60
55
80
120
100
140
160
180
200
100
E F
1
/
2
UNLEADED FUEL ONLY
BRAKE
CHECK
ENGINE
CDW IIID Seat en MM 5/15/97 7:48 PM Page 59
Seating and safety restraints
60
Disposal of air bags and air bag
equipped vehicles
For disposal of air bags or air bag
equipped vehicles, see your local
dealership or a qualified technician.
Air bags MUST BE disposed of by
qualified personnel.
Res
Coast
Set
Acc
Off
On
CDW IIID Seat en MM 5/15/97 7:48 PM Page 60
Seating and safety restraints
61
CHILDREN AND SAFETY
RESTRAINTS
It is extremely dangerous to
ride in a cargo area, inside or
outside of a vehicle. In a collision,
people riding in these areas are
more likely to be seriously injured
or killed. Do not allow people to
ride in any area of your vehicle
that is not equipped with seats
and safety belts. Be sure everyone
in your vehicle is in a seat and
using a safety belt properly.
Safety belts and seats can
become hot in a vehicle that
has been closed up in sunny
weather; they could burn a small
child. Check seat covers and
buckles before you place a child
anywhere near them.
Do not leave children,
unreliable adults, or pets
unattended in your vehicle.
To prevent the risk of injury,
make sure children sit where
they can be properly restrained.
Whenever possible, put
children in one of the rear
seats in your vehicle. Accident
statistics indicate that children are
safer when properly restrained in
the rear seats than in the front
seats.
CDW IIID Seat en MM 5/15/97 7:48 PM Page 61
Seating and safety restraints
62
Important child restraint
precautions
You are required by law to use
safety restraints for children in the
U.S. and Canada. If small children
ride in your vehicle (generally
children who are four years old or
younger and who weigh 18 kg
[40 lbs] or less), you must put them
in safety seats made especially for
children. Check your local and
state or provincial laws for specific
requirements regarding the safety
of children in your vehicle.
Never let a passenger hold a
child on his or her lap while
the vehicle is moving. The
passenger cannot protect the child
from injury in a collision.
Always follow the instructions and
warnings that come with any infant
or child restraint you might use.
When possible, place children in
the rear seat of your vehicle.
Accident statistics suggest that
children are safer when properly
restrained in the rear seating
positions than in the front seating
position.
CDW IIID Seat en MM 5/15/97 7:48 PM Page 62
Seating and safety restraints
63

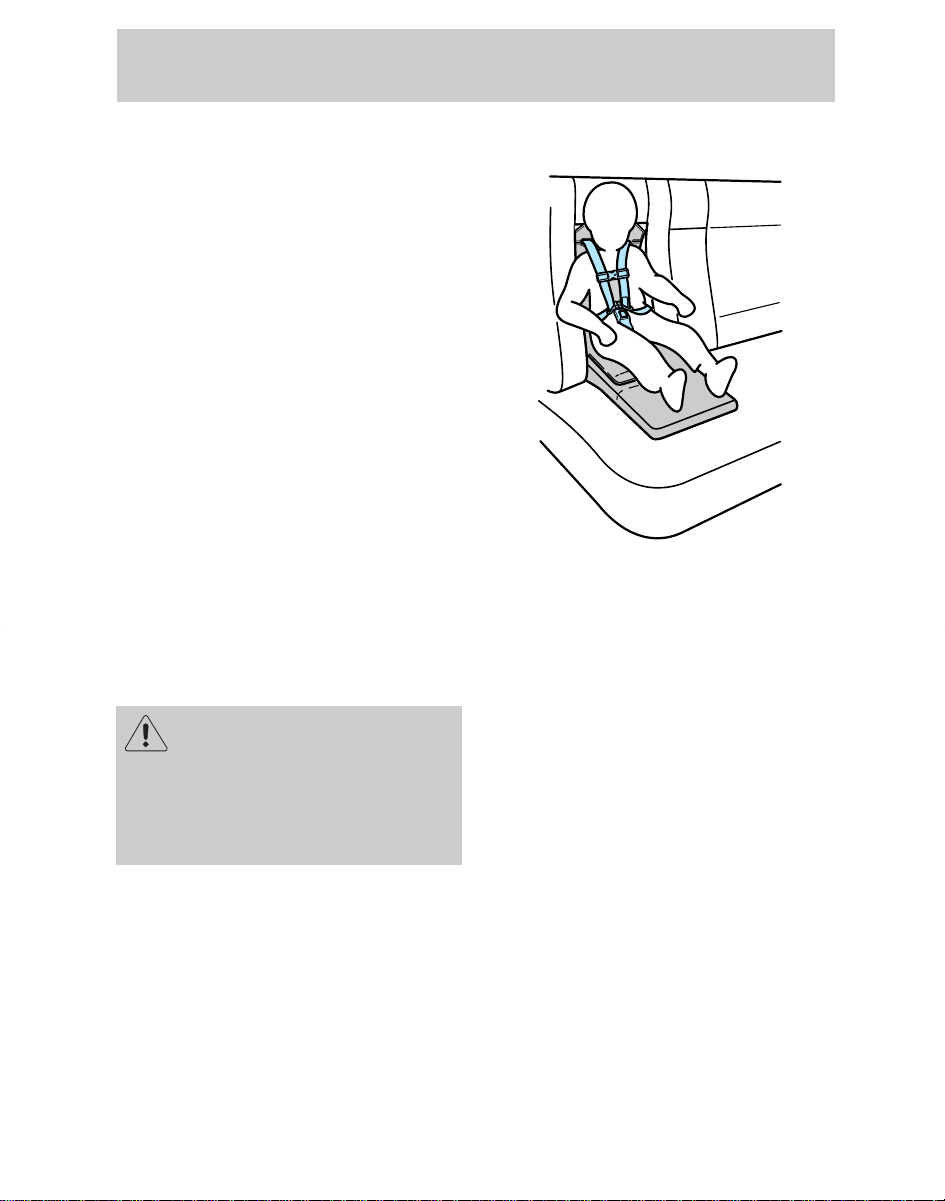

Children and safety belts
Children who are too large for child
safety seats (as specified by the
child safety seat manufacturer)
should always wear safety belts.
Follow all the important safety
restraints and air bag precautions
that apply to adult passengers in
your vehicle.
If the shoulder belt portion of a
combination lap and shoulder belt
can be positioned so it does not
cross or rest in front of the child’s
face or neck, the child should wear
the lap and shoulder belt. Moving
the child closer to the center of the
vehicle may help provide a good
shoulder belt fit.
If the shoulder belt cannot be
properly positioned:
• move the child to one of the seats
with a lap belt only (if equipped).
OR
• if the child is the appropriate
size, restrain the child in a safety
seat.
CDW IIID Seat en MM 5/15/97 7:48 PM Page 63
Seating and safety restraints
64
To improve the fit of lap and
shoulder belts on children who
have outgrown child safety seats,
Ford recommends use of a belt-
positioning booster seat that is
labelled as conforming to all federal
motor vehicle safety standards.
Belt-positioning booster seats raise
the child and provide a shorter,
firmer seating posture and better
fit of lap and shoulder belts on the
child. A belt-positioning booster
seat should be used if the shoulder
belt rests in front of the child’s face
or neck, or if the lap belt does not
fit snugly on both thighs, or if the
thighs are too short to let the child
sit all the way back on the seat
cushion when the lower legs hang
over the edge of the seat cushion.
You may wish to dicuss the special
needs of your child with your
pediatrician.
CDW IIID Seat en MM 5/15/97 7:48 PM Page 64
Seating and safety restraints
65

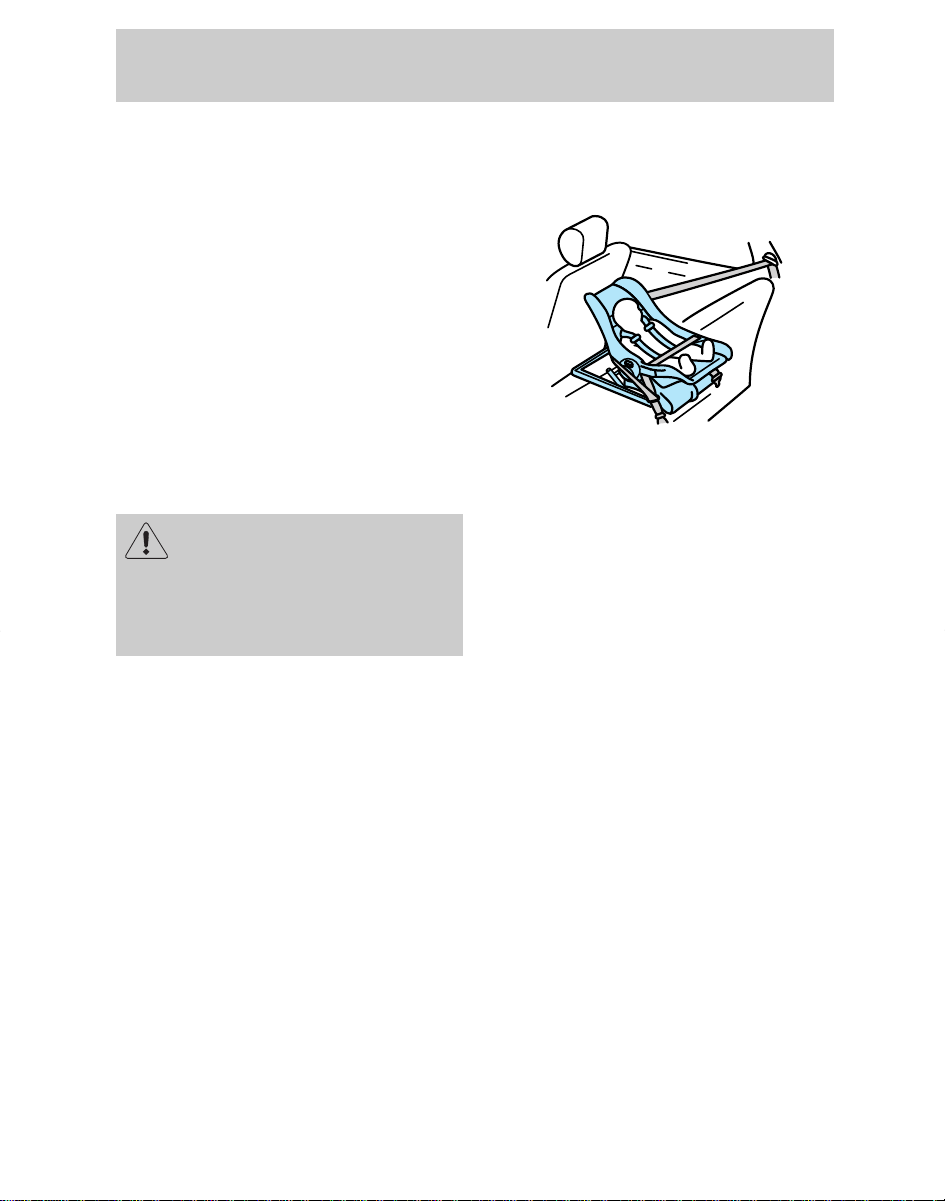

Built-in child safety seat
(if equipped)
The rear seat may include a built-in
child seat. This child seat conforms
to all Federal and local motor
vehicle safety standards. Read the
labels located on the child seat
cushion and shoulder belt for
information on the built-in child
seat.
Use the built-in child seat only if
the child is at least one year old,
weighs 10-27 kg (22-60 lbs) and
the child’s shoulders fit below the
shoulder harness slots on the built-
in child seat.
Children not meeting these
requirements should be secured in
an aftermarket seat. Refer to Child
safety seats in this chapter.
Built-in child seat
All built-in child restraints,
including seats, buckles,
retractors, seat latches, interlocks,
and attaching hardware should be
inspected by a qualified dealer
technician after any collision.
CDW IIID Seat en MM 5/15/97 7:48 PM Page 65
Seating and safety restraints
66
Built-in child seat retractors
The belts on built-in child seats are
equipped with a retractor. The
retractor will automatically snug
the belts around the child. If the
belts do not remain snug, take the
vehicle to your dealer or a qualified
technician for child seat repair. The
belts will not remain snug during a
collision if the retractor is not
functioning properly.
Child seat interlock safety
feature
The interlock ensures that a child
is not placed in the integrated child
seat when the folding seatback is
not securely latched.
It prevents the seatback from being
unlatched while the child seat is in
use. When the child seat is
deployed, the seatback cannot be
released.
CDW IIID Seat en MM 5/15/97 7:48 PM Page 66
Seating and safety restraints
67
1. Make sure that the seatback is
securely latched in place.
2. Grasp the child seat cushion and
pull the top forward to release the
latch. Continue to unfold the child
seat until it rests on the seat in the
fully open position.
Placing your child in the built-in
child seat
Failure to follow all of the
instructions on the use of
this child restraint system can
result in your child striking the
vehicle’s interior during a sudden
stop or crash.
Never use the built-in child
seat as a booster cushion
with the adult safety belts. A child
using the adult belts could slide
forward and out from under the
safety belts.
The rear seatback must be
fully locked before operating
the child safety restraint system.
CDW IIID Seat en MM 5/15/97 7:48 PM Page 67
Seating and safety restraints
68
4. If connected, squeeze the tabs
on the top and bottom of the chest
clip and pull the halves apart to
open the chest clip. Then release
the lower half of belt by pressing
the red button.
5. Place the child on the child seat
and position the shoulder belts
over each shoulder.
3. Read all the information and
warnings on the child seat cushion
and shoulder safety belt. Make sure
the child is not too large for the
child seat.
CDW IIID Seat en MM 5/15/97 7:48 PM Page 68
Seating and safety restraints
69
If both tongues do not latch
in the buckle, do not use the
child seat. See your dealer for
repairs.
7. Fasten both halves of the chest
clip below the child’s shoulders and
adjust it to comfortably hold the
shoulder belts in place on the
child’s chest. The color green must
appear in the indicator window
when fastened.
8. Pull the lap portion of the belts
toward you to make sure the crotch
safety belt buckle is properly
fastened and the retractor is
locked.
9. If the belts become too tight,
unbuckle the crotch safety belt
buckle to unlock the retractors,
then reinsert both belt tongues.
6. Insert either the left or the right
safety belt tongue into the single
opening of the crotch safety belt
buckle (it doesn’t matter which
tongue is inserted first). Insert the
other tongue. The color green must
appear in the indicator window on
each tongue when buckled. Allow
belts to retract and fit snugly.
CDW IIID Seat en MM 5/15/97 7:48 PM Page 69
Seating and safety restraints
70
To stow the built-in child seat
Return the child seat cushion to
the upright position, then press
firmly in the center and top of the
child seat.
Inspecting the built-in child seat
after a collision
All built-in child restraints,
including seats, buckles, retractors,
seat latches, interlocks and
attaching hardware should be
inspected by your dealer or a
qualified technician after any
collision. If the child seat was in
use during a collision, Ford
recommends replacing it. Built-in
child restraints not in use during a
collision should be inspected and
replaced if either damage or
improper operation is noted.
Removing your child from the
built-in child seat
1. Squeeze the tabs on the top and
the bottom of the chest clip and
pull the halves apart to open the
chest clip.
2. Press the release button on the
crotch safety belt buckle.
3. Slide the shoulder belts off the
child’s shoulders and remove the
child.
CDW IIID Seat en MM 5/15/97 7:48 PM Page 70
Seating and safety restraints
71
Carefully follow all of the
manufacturer’s instructions
included with the safety seat you
put in your vehicle. If you do not
install and use the safety seat
properly, the child may be injured
in a sudden stop or collision.
Ford recommends the use of a
child safety seat having a top tether
strap. Install the child safety seat in
a seating position which is capable
of providing a tether anchorage.
For more information on top tether
straps see Attaching safety seats
with tether straps in this chapter.
When installing a child safety seat:
• Use the correct safety belt buckle
for that seating postion.
• Make sure the tongue is securely
fastened in the buckle.
• Keep the buckle release button
pointing up and away from the
safety seat, with the tongue
between the child seat and the
release button, to prevent
accidental unbuckling.
• Put the safety belt in the
automatic locking mode. Refer to
Using automatic locking mode
in this chapter.
Child safety seats
CDW IIID Seat en MM 5/15/97 7:48 PM Page 71
Seating and safety restraints
72
A
I
R
B
A
G
Installing child safety seats in
combination lap and shoulder
belt seat positions

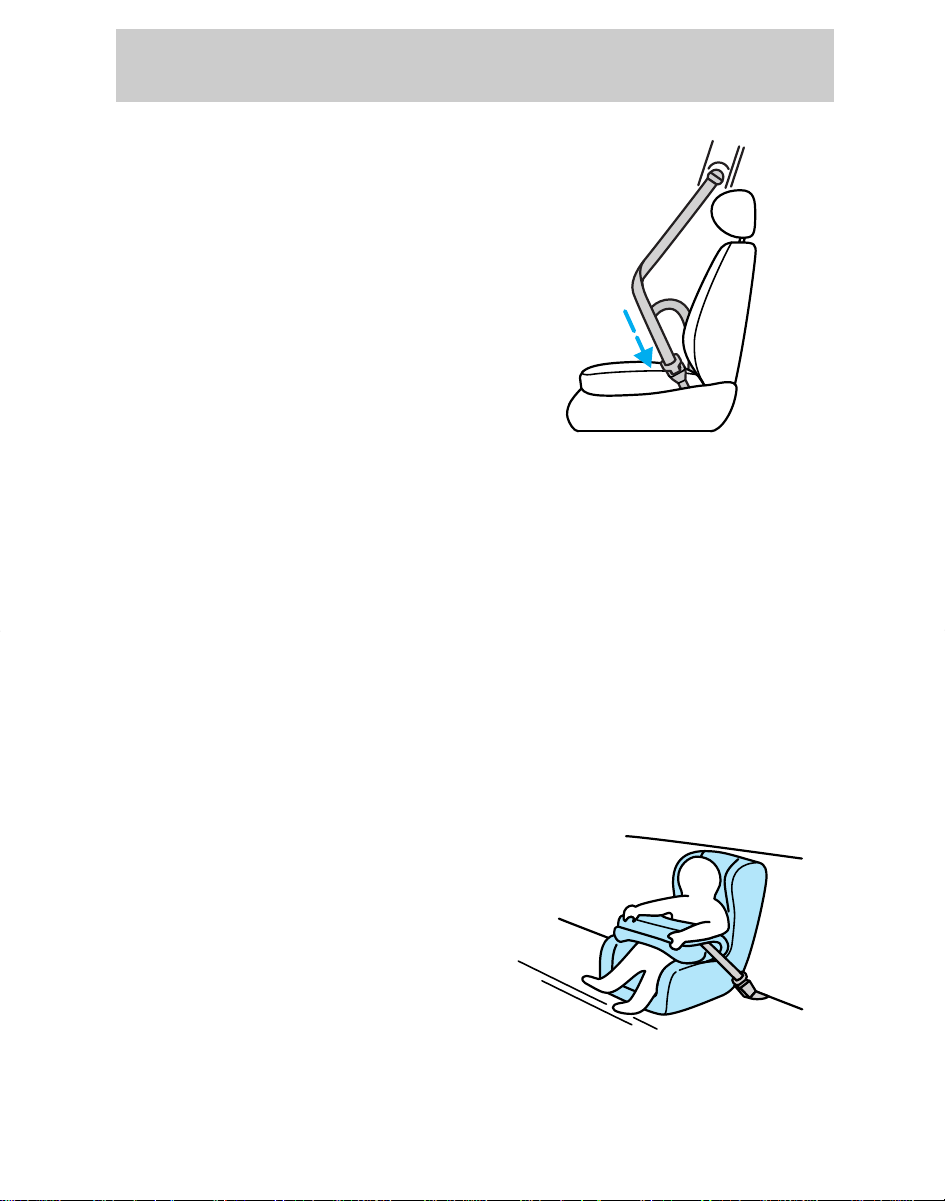

1. Position the child safety seat in a
seat with a combination lap and
shoulder belt.
2. Pull down on the shoulder belt
and then grasp the shoulder belt
and lap belt together.
3. While holding the shoulder and
lap belt portions together, route
the tongue through the child seat
according to the child seat
manufacturer’s instructions. Be
sure the belt webbing is not
twisted.

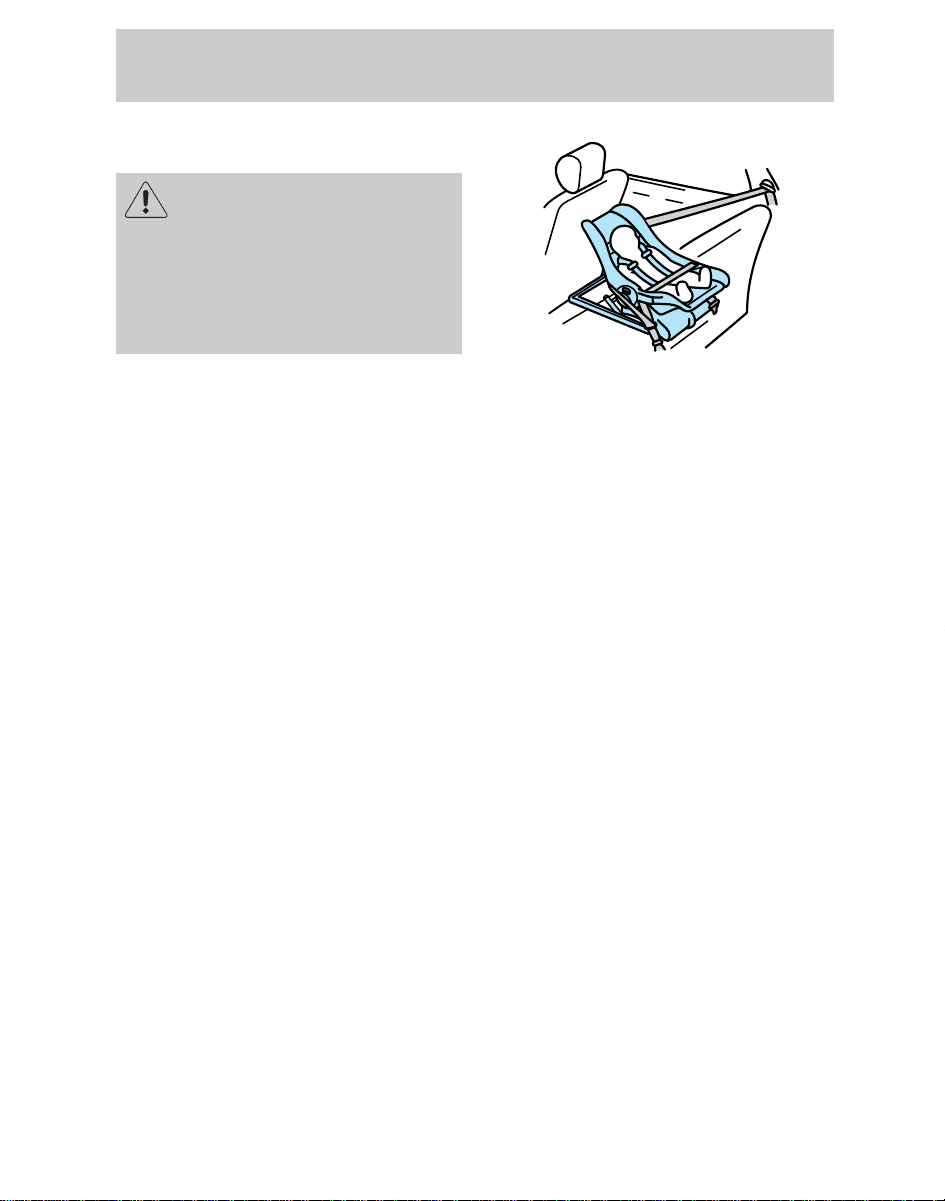

When using forward-facing
child seats move the
passenger seat as far back from
the instrument panel as possible.
Never secure rear-facing infant
seats in the front seat.
CDW IIID Seat en MM 5/15/97 7:48 PM Page 72
Seating and safety restraints
73
5. To put the retractor in the
automatic locking mode, grasp the
shoulder portion of the belt and
pull downward until all of the belt
is extracted and a click is heard.
6. Allow the belt to retract. The
belt will click as it retracts to
indicate it is in the automatic
locking mode.
7. Pull the lap belt portion across
the child seat toward the buckle
and pull up on the shoulder belt
while pushing down with your knee
on the child seat.
4. Insert the belt tongue into the
proper buckle for that seating
position until you hear and feel the
latch engage. Make sure the tongue
is latched securely by pulling on it.
CDW IIID Seat en MM 5/15/97 7:48 PM Page 73
Seating and safety restraints
74
8. Allow the safety belt to retract to
remove any slack in the belt.
9. Before placing the child in the
seat, forcibly tilt the seat forward
and back to make sure the seat is
securely held in place.
10. Try to pull the belt out of the
retractor to make sure the
retractor is in automatic locking
mode (you should not be able to
pull more belt out). If the retractor
is not locked, unbuckle the belt and
repeat steps two through nine.
Check to make sure the child seat
is properly secured before each
use.
Attaching safety seats with
tether straps
Some manufacturers make safety
seats that include a tether strap
that goes over the back of the
vehicle seat and attaches to an
anchoring point. Other
manufacturers offer their tether
strap as an accessory. Contact the
manufacturer of your child safety
seat for information about ordering
a tether strap.
CDW IIID Seat en MM 5/15/97 7:48 PM Page 74
Seating and safety restraints
75
To install a tether from a child
safety seat in the front seat, route
the tether strap under the vehicle
seat head restraint and hook the
tether hook into the hole in the
tongue of the center rear lap belt.
After the hook is in the hole, pull
on the loose end of the lap belt
webbing to shorten the belt and
tighten the tether strap.
To install a tethered child safety
seat in the rear seat, you will need
tether anchor hardware.
Tether anchor hardware
Tether anchor hardware kits (part
number 613D74), including
instructions, may be obtained at no
charge from any Ford or Lincoln-
Mercury dealer. All vehicles built
for sale in Canada include a tether
anchor hardware kit.
Tighten the anchor
according to specifications.
Otherwise, the safety seat may not
be properly secured and the child
may be injured in a sudden stop or
collision.
CDW IIID Seat en MM 5/15/97 7:48 PM Page 75
Starting
76
Extended idling at high
engine speeds can produce
very high temperatures in the
engine and exhaust system,
creating the risk of fire or other
damage.
IMPORTANT SAFETY
PRECAUTIONS
A computer system controls the
engine’s idle revolutions per minute
(rpm). When the engine starts, the
idle rpm runs faster to warm the
engine. If the engine idle speed
does not slow down automatically,
have the vehicle checked by your
dealer or a qualified servcie
technician. Do not allow the vehicle
to idle for more than ten minutes.
Do not park, idle, or drive
your vehicle in dry grass or
other dry ground cover. The
emission system heats up the
engine compartment and exhaust
system, which can start a fire.
CDW IVA1_2 Starting en MM 5/15/97 7:50 PM Page 76
Starting
77
IMPORTANT VENTILATION
INFORMATION
If the engine is idling while the
vehicle is stopped in an open area
for long periods of time, open the
windows at least 2.5 cm (1 inch).
AUTO
OFF PLN/FLR
PANEL
A/C
FLOOR
DEF
FLR
DEF
MAX
A/C
Adjust the heating or air
conditioning to bring in fresh air.
Do not start your vehicle in a
closed garage or in other
enclosed areas. Exhaust fumes
can be toxic. Always open the
garage door before you start the
engine. See Guarding against
exhaust fumes in this chapter for
more instructions.
CDW IVA1_2 Starting en MM 5/15/97 7:50 PM Page 77
Starting
78
Improve vehicle ventilation by
keeping all air inlet vents clear of
snow, leaves and other debris.
Guarding against exhaust
fumes
Although odorless and colorless,
carbon monoxide is present in
exhaust fumes. Take precautions to
avoid its dangerous effects.
Have the exhaust and body
ventilation system checked
whenever:
• the vehicle is raised for service.
• the sound of the exhaust system
changes.
• the vehicle has been damaged in
a collision.
If you ever smell exhaust
fumes of any kind inside
your vehicle, have your dealer
inspect and fix your vehicle
immediately. Do not drive if you
smell exhaust fumes. These fumes
are harmful and could kill you.
CDW IVA1_2 Starting en MM 5/15/97 7:50 PM Page 78
Starting
79
PREPARING TO START THE
VEHICLE
Engine starting is controlled by the
spark ignition system. This system
meets all Canadian Interference-
Causing Equipment standard
requirements regulating the
impulse electrical field strength of
radio noise.
When starting a fuel-injected
engine, avoid pressing the
accelerator pedal before or during
starting. Only use the accelerator
pedal when you have difficulty
starting the engine. For more
information on starting the vehicle,
refer to Starting the engine in this
chapter.
Before starting the vehicle:
1. Make sure all vehicle occupants
have buckled their safety belts. For
more information on safety belts
and their proper usage, refer to the
Seating and safety restraints
chapter.
2. Make sure the headlamps and
vehicle accessories are off.
CDW IVA1_2 Starting en MM 5/15/97 7:50 PM Page 79
Starting
80

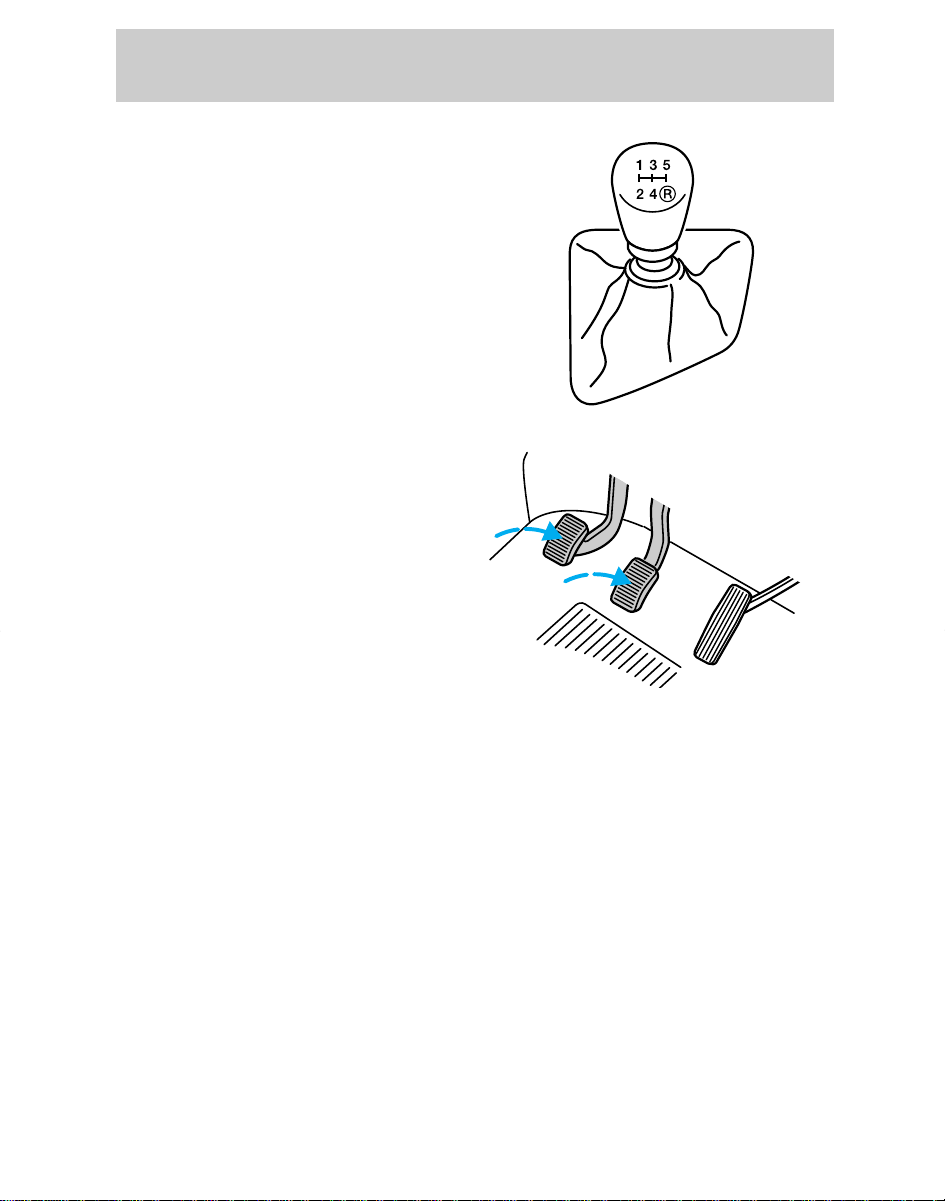

If starting a vehicle with a manual
transaxle:
• Make sure the parking brake is
set.
• Push the clutch pedal to the
floor. Otherwise, the engine will
not crank (turn over).
• Put the gearshift into neutral.
If starting a vehicle with an
automatic transaxle:
• Make sure the parking brake is
set.
• Make sure the gearshift is in P
(Park).
CDW IVA1_2 Starting en MM 5/15/97 7:50 PM Page 80
Starting
81
3. Turn the key to the on position
(without turning the key to start).
Make sure the following lights
illuminate briefly. If a light fails to
illuminate, have the vehicle
serviced by your dealer or a
qualified service technician.
• If the driver’s safety belt is
fastened the warning light does
not illuminate.
BRAKE
CHECK
ENGINE
CDW IVA1_2 Starting en MM 5/15/97 7:50 PM Page 81
Starting
82
STARTING THE ENGINE
1. Turn the key to the start
position (4) without pressing the
accelerator pedal and release as
soon as the engine starts. The key
will return to the on (3) position.
3
4
2
1
2. If the engine does not start
within five seconds, wait ten
seconds and try again.
3. If the engine does not start in
two attempts OR the temperature
is below -12°C (10°F), depress the
accelerator pedal and start the
engine while holding the
accelerator pedal down. Release
accelerator pedal when the engine
starts.
Vehicles equipped with the 2.0 l
engine: If the engine fails to start,
continue to crank with the
accelerator depressed about 1/4 of
the way down and hold that
position until the engine starts.
DO NOT crank for more than
30 seconds or you could damage
the starter.
4. After idling the engine for a few
seconds, apply the brake and
release the parking brake
CDW IVA1_2 Starting en MM 5/15/97 7:50 PM Page 82
Starting
83
USING THE ENGINE BLOCK
HEATER (if equipped)
An engine block heater warms the
engine coolant, which improves
starting, warms up the engine
faster and allows the heater-
defroster system to respond
quickly. It is strongly recommended
if you live in a region where
temperatures reach –23°C (–10°F)
or below.
For best results, plug the heater in
at least three hours before starting
the vehicle. Using the heater for
more than three hours will not
harm the engine, so the heater can
be plugged in the night before
starting the vehicle.
To prevent electrical shock,
do not use your heater with
ungrounded electrical systems or
two-pronged (cheater) adapters.
CDW IVA1_2 Starting en MM 5/15/97 7:50 PM Page 83
Driving
84
BRAKES
Your brakes are self-adjusting.
Refer to the “Service Guide” for
maintenance intervals.
Anti-lock braking system (ABS)
(if equipped)
The ABS operates by detecting the
onset of wheel lock up during
brake applications and
compensating for this tendency.
The wheels are prevented from
locking even when the brakes are
firmly applied, helping to ensure
that the vehicle can be steered and
the driver can avoid obstacles.

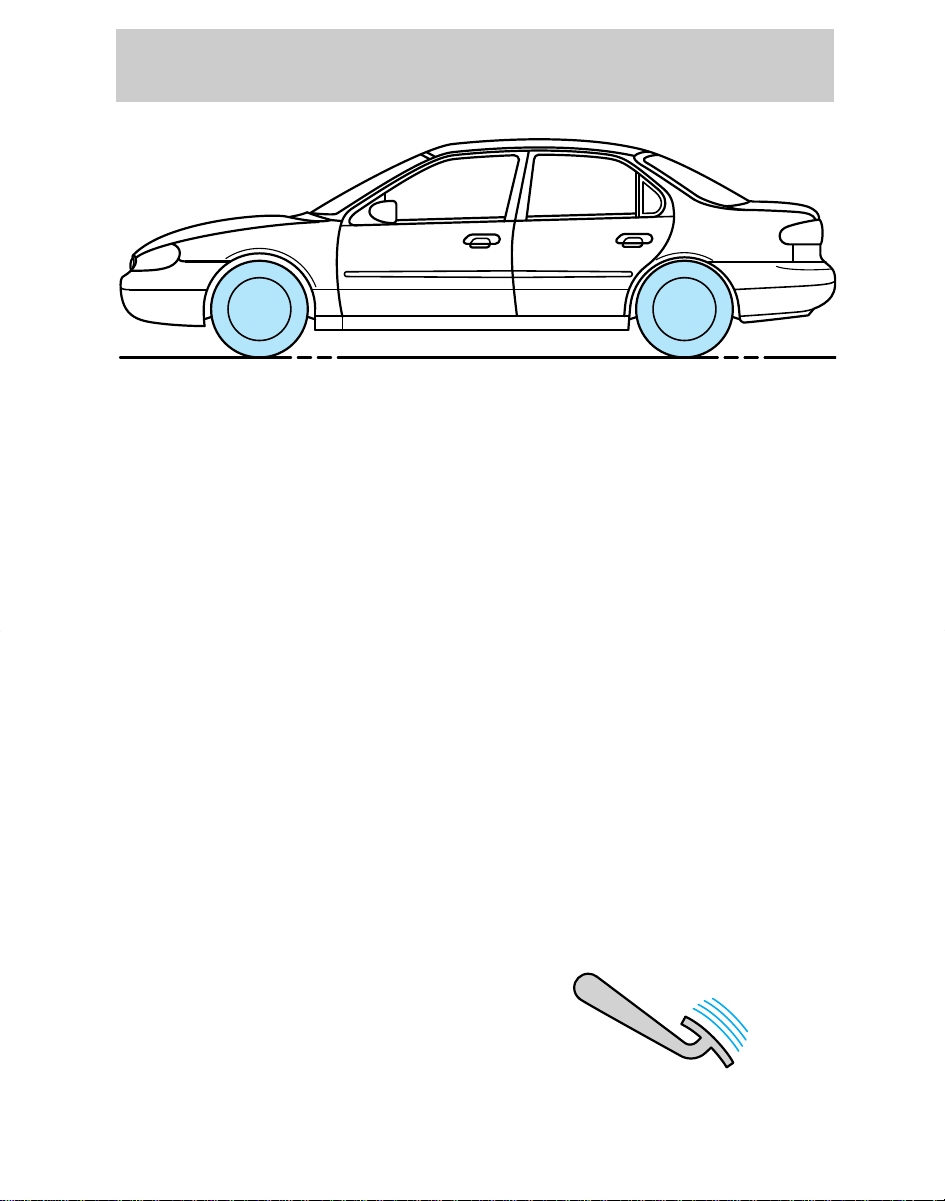

Operation of the anti-lock
braking system
The anti-lock braking system is not
employed during normal braking. It
becomes operational only when it
senses differences in the rotational
speed of the road wheels,
indicating that they are about to
lock up. Its operation is indicated
by a pulsing of the brake pedal.
CDW IVB1-10Driving en MM 5/15/97 7:51 PM Page 84
Driving
85
Two important
rules when
braking in
emergencies with
ABS:
1.
Apply full force
on both brake
and clutch pedal
(if equipped).
Braking with ABS
• In an emergency, apply full force
on the brake pedal. In vehicles
with manual transaxles, you must
also depress the clutch pedal.
The anti-lock braking system will
be activated immediately,
allowing you to retain full
steering control of your vehicle
and, providing there is sufficient
space, will enable you to avoid
obstacles.
• We recommend that you
familiarize yourself with this
braking technique. However,
avoid taking any unnecessary
risks.

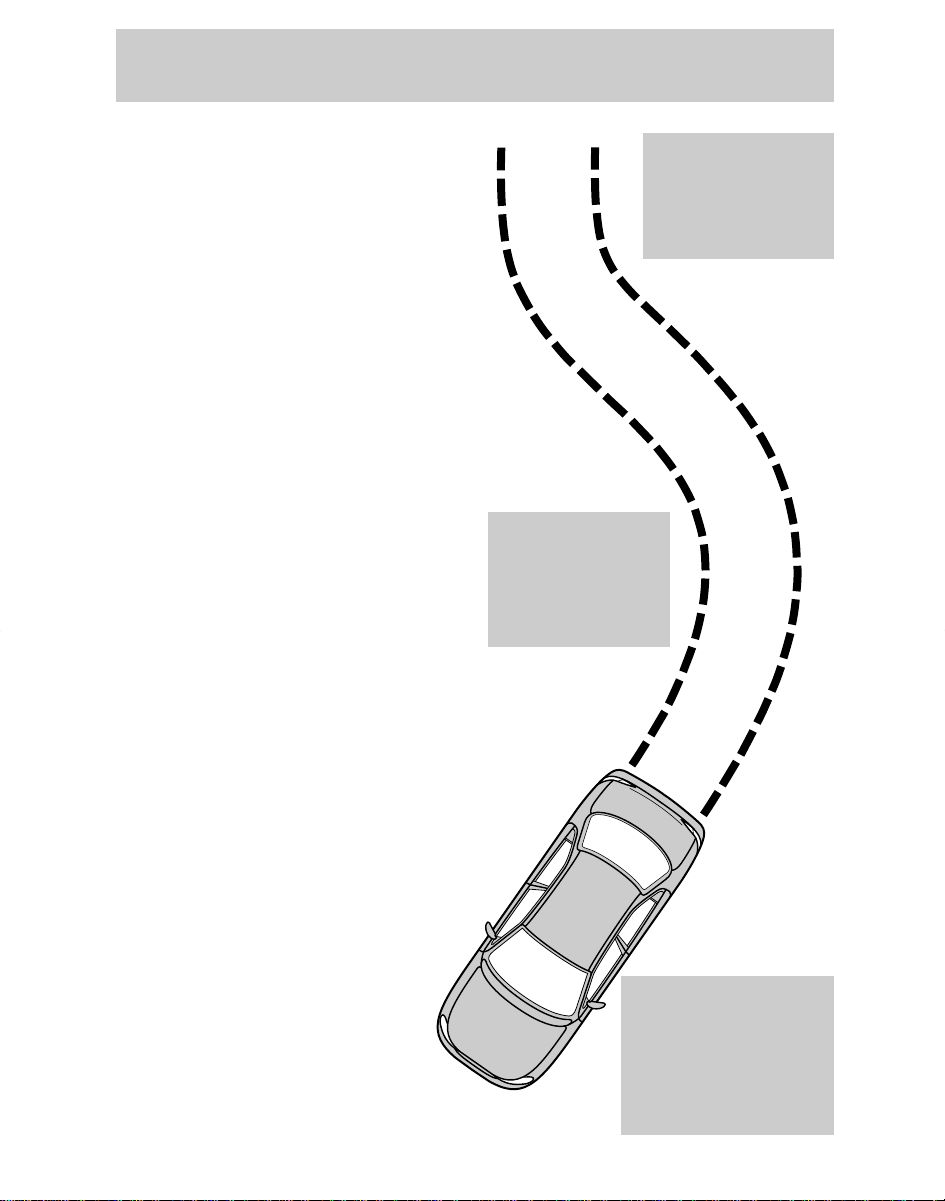

2.
Steer around the
obstacle. No matter
how hard you brake,
steering control is
maintained.
CDW IVB1-10Driving en MM 5/15/97 7:51 PM Page 85
Driving
86

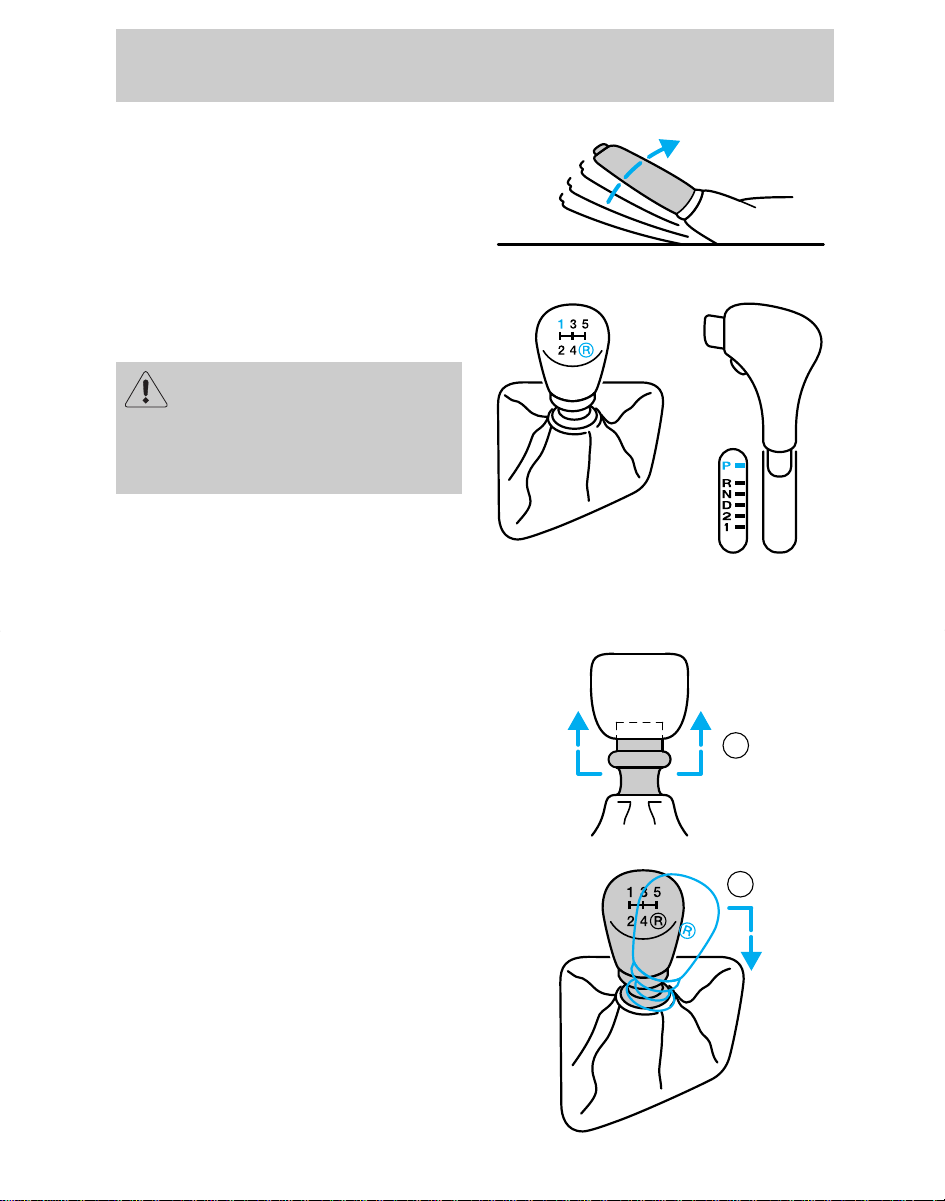

Parking brake
To engage the parking brake:
Pull the handle upward.
To release the parking brake:
1. Press and hold the release
button.
2. Pull the handle upward to
disengage the brake.
3. Push handle downward to the off
position.
Always set the parking brake
fully and make sure that the
gearshift is securely latched in P
(Park) (automatic transaxle) or in
1 (first) (manual transaxle).
To prevent personal injury,
do not release the parking
brake while outside the vehicle.
CDW IVB1-10Driving en MM 5/15/97 7:51 PM Page 86
Driving
87

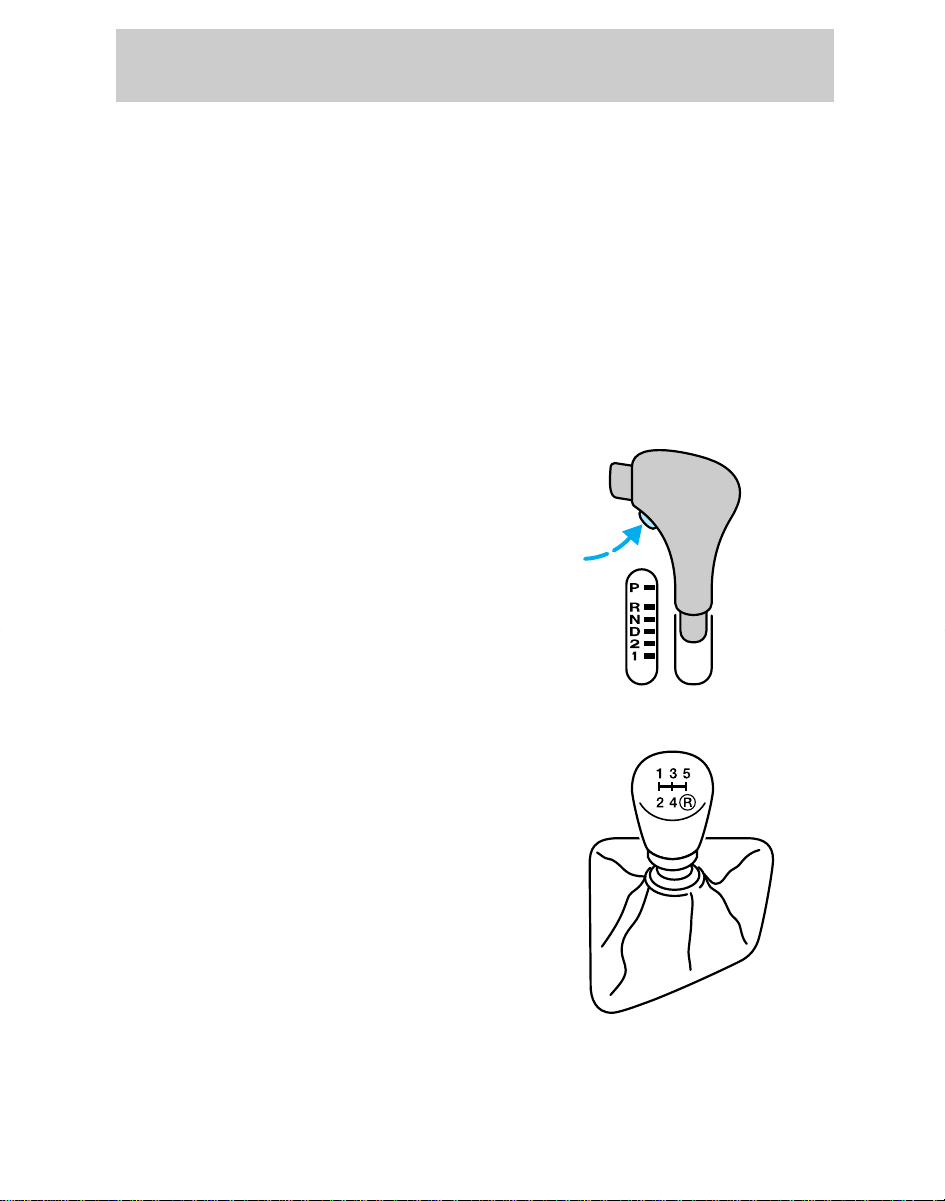

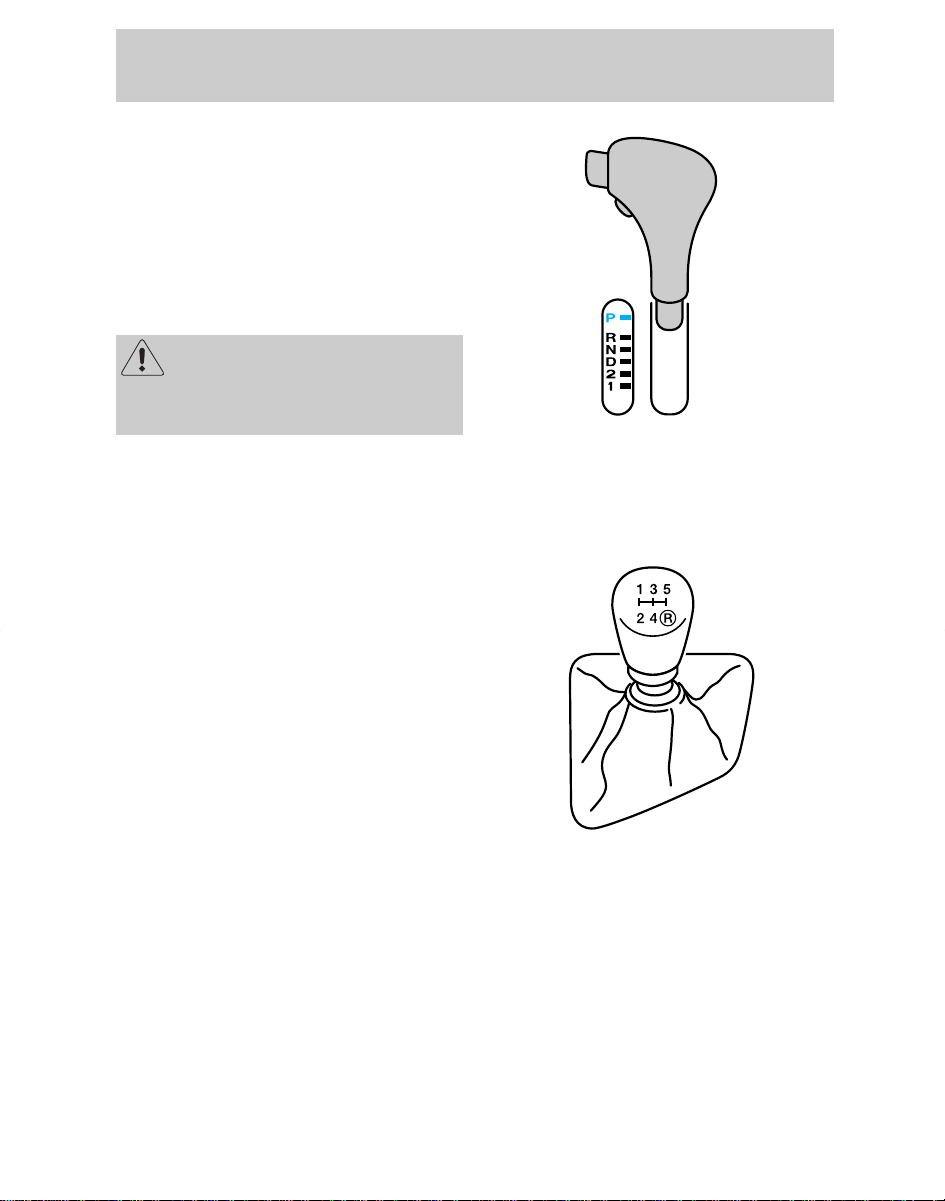

Automatic transaxle
(if equipped)
Vehicles equipped with an
automatic transaxle are equipped
with a brake-shift interlock feature
that prevents the gearshift lever
from being moved from the P
(Park) position unless the brake
pedal is depressed.

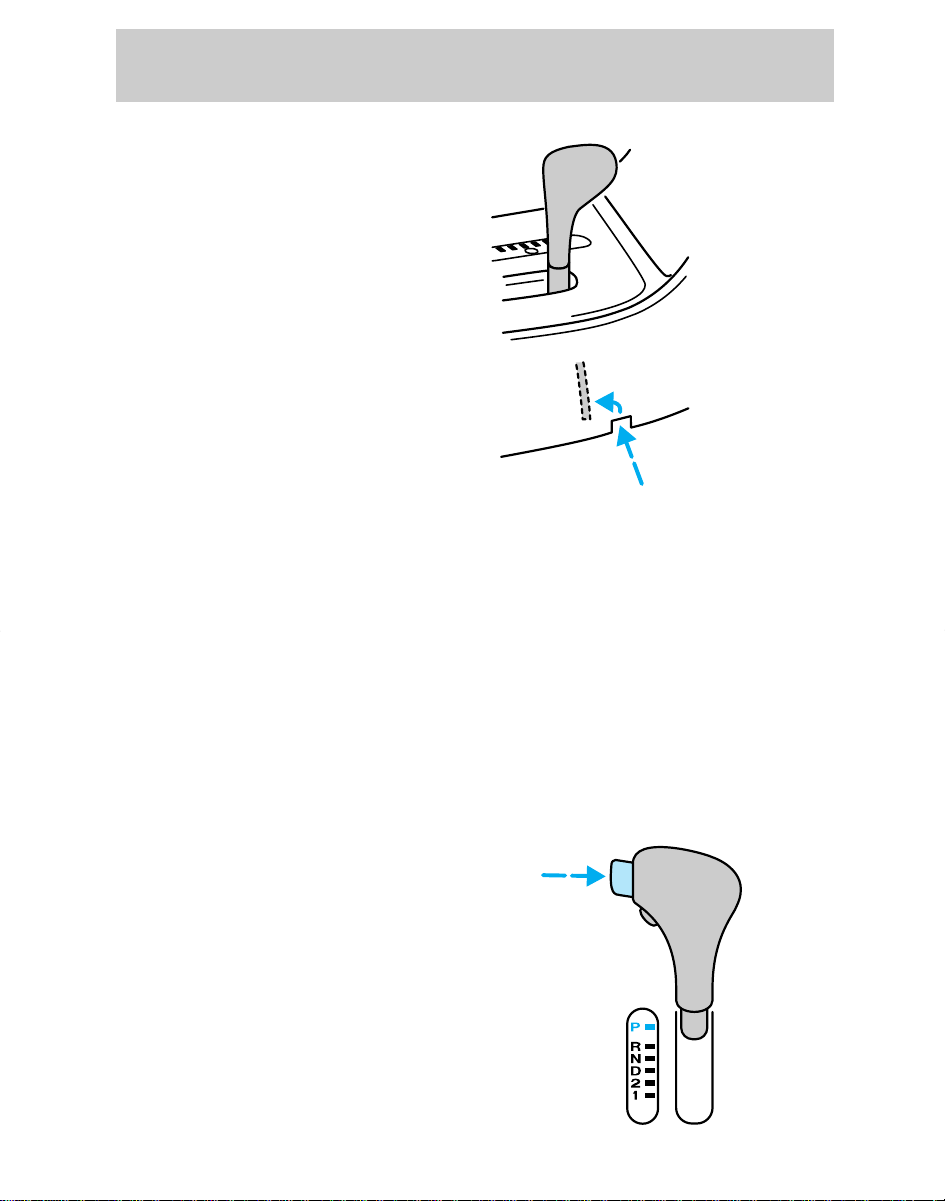

TRANSAXLE OPERATION
Putting your vehicle in gear
You must push the thumb button to
move the gearshift to the position
you choose.
To operate:
1. Start the engine.
2. Depress and hold the brake
pedal.
3. Move the gearshift lever out of P
(Park).
CDW IVB1-10Driving en MM 5/15/97 7:51 PM Page 87
Driving
88
5. Push and hold the thumb button
and move the gearshift.
6. Remove the screwdriver when
the gearshift moves from the P
(Park) position.
Overriding the brake-shift
interlock feature
If it is necessary to use this
procedure to move the gearshift
lever, it is possible that a fuse has
blown and the vehicle’s brakelamps
may not be working. Refer to Fuses
and relays in the Roadside
emergencies chapter.
If you cannot move the gearshift
lever from P (Park) with the brake
pedal depressed:
1. Turn the ignition off and remove
the ignition key.
2. Apply the parking brake and the
brake pedal.
3. Insert a screwdriver or similar
item about 5 cm (2 inches) into the
square opening to the right of the
gearshift at the base of the console.
4. Rotate the screwdriver point
rearward.
CDW IVB1-10Driving en MM 5/15/97 7:51 PM Page 88
Driving
89
The console-mounted gearshift will
lock when you turn the key to the
lock position. When the gearshift is
in any position except P (Park),
the ignition key cannot be turned
to lock or removed from the
steering column. To remove the
key, the gearshift lever must be in
P (Park).
Once the gearshift is secure in the
desired position, release the brake
pedal and use the accelerator as
necessary.
Driving
Never leave a vehicle
unattended while it is
running.
• P (Park)
Always come to a complete stop
before shifting into P (Park). This
locks the transaxle and prevents
the front wheels from rotating.
•
R (Reverse)
The vehicle only moves backward.
Always come to a complete stop
before shifting in or out of R
(Reverse).
P = Park . . . . . . . . . . . . . .
R = Reverse . . . . . . . . . . .
N = Neutral. . . . . . . . . . . .
D = Drive: Gear 1 to 4
with overdrive. . . . . .
Gear 1 to 3
with overdrive
cancelled . . . . . . . . . .
2 = Gear 2 . . . . . . . . . . . .
1 = Gear 1 . . . . . . . . . . . .
CDW IVB1-10Driving en MM 5/15/97 7:51 PM Page 89
Driving
90
•
D (Overdrive)
Note that the vehicle’s gearshift is
console-mounted on the floor. The
transaxle control switch (TCS) is
located on the gearshift handle.
The transaxle control indicator
light (O/D light) is located on the
instrument panel.
Overdrive is not shown on the
display, but is the default mode for
the D gearshift position. This is the
normal driving mode for the best
fuel economy. The transaxle
operates in gears one through four.
The O/D light is off (not
illuminated) during normal vehicle
operation.
Overdrive can be deactivated by
pressing the transaxle control
switch (TCS) located on the
gearshift handle. The O/D OFF
indicator light will illuminate in the
instrument cluster.
•
N (Neutral)
The wheels of the transaxle are not
locked. Your vehicle will roll freely,
even on the slightest incline, unless
the parking brake or brakes are on.
CDW IVB1-10Driving en MM 5/15/97 7:51 PM Page 90
Driving
91
TRACTION
CONTROL
O/D
OFF
•
D (Drive)
D (Drive) provides more engine
braking than overdrive and is
useful when driving through hilly
terrain or if your vehicle requires
additional power for climbing hills.
Activate by pressing the transaxle
control switch (TCS) located on
the gearshift handle. The O/D OFF
indicator light will illuminate in the
instrument cluster. Transaxle
operates in gears one through
three.
To return to overdrive mode, press
the transaxle control switch.The
O/D OFF indicator light will
extinguish.
When starting your vehicle, the
transaxle will automatically return
to normal overdrive mode when the
D (Drive) gearshift position is
selected.
CDW IVB1-10Driving en MM 5/15/97 7:51 PM Page 91
Driving
92
•
1 (First)
Use the 1 (First) position to
provide maximum engine braking
on steep downgrades. Upshifts will
not occur while the gearshift lever
remains in the 1 (First) position.
Upshifts may be made by shifting
to the 2 (second) position or to D
(Drive). Selecting the 1 (First)
position at high speeds causes the
transaxle to downshift through the
gears and will shift to 1 (First)
after the vehicle decelerates to the
transaxle first gear designed speed.
Do not go faster then 60 km/h
(38 mph) in this gear.
•
2 (Second)
Use the 2 (Second) position to
start up on slippery roads or to
provide additional braking on
downgrades. When your vehicle is
in 2 (Second), it automatically
starts off in second gear. Do not go
faster than 90 km/h (55 mph) in
this gear.
CDW IVB1-10Driving en MM 5/15/97 7:51 PM Page 92
Driving
93
Manual transaxle (if equipped)
Vehicles equipped with a manual
transaxle have a starter interlock
that prevents cranking the engine
unless the clutch pedal is fully
depressed.
Using the clutch
When starting a vehicle with a
manual transaxle:
1. Hold down the brake pedal.
2. Depress the clutch pedal.
3. Put the gearshift lever in neutral.
4. Start the vehicle.
5. Put the gearshift in 1 (First) or R
(Reverse).
6. Release the clutch slowly while
pressing gradually down on the
accelerator pedal.
Do not drive with your foot resting
on the clutch pedal. Do not use the
clutch to hold your vehicle at a
standstill while waiting on a hill.
These actions may reduce the
clutch life.
CDW IVB1-10Driving en MM 5/15/97 7:51 PM Page 93
Driving
94
*The vehicle can be shifted at lower speeds to improve fuel economy.
22
Recommended shift speeds
2.0 litre engine 5-speed transaxle
shift speed schedules
Recommended
upshifts:
Shift from km/h mph
14
25
33
48
40
53
77
mph
12
20
29
40
km/h
19
32
64
First to second
Second to third
Third to fourth
Fourth to fifth
During acceleration: During cruise*:
46
2.5 litre engine 5-speed transaxle
shift speed schedules
km/h mph km/h mph
10
20
31
40
16
32
50
64
14
25
33
45
22
40
53
73
Shift from
First to second
Second to third
Third to fourth
Fourth to fifth
Recommended
upshifts:
During acceleration: During cruise*:
CDW IVB1-10Driving en MM 5/15/97 7:51 PM Page 94
Driving
95
Parking
1. Apply the brake and the clutch
and shift into neutral.
2. Engage the parking brake.
3. Shift into 1 (First) or R
(Reverse).
4. Turn the ignition off.
Do not park your vehicle in
Neutral, it may move
unexpectedly and injure someone.
Use 1 (first) gear and set the
parking brake.
Reverse
To shift into R (Reverse):
1. Completely stop your vehicle.
2. Depress the clutch pedal to the
floor and place the gearshift lever
in the neutral position. Do not
release the clutch pedal.
3. If the following direction is not
followed, a grinding noise may
occur.
Wait a miminum of three seconds
before attempting to shift into R
(Reverse) gear.
4. Push the gearshift lever
completely to the right, pull up the
ring on the stalk of the gearshift
lever, and then pull rearward on
the gearshift lever to engage the R
(Reverse) gear.
5. If the R (Reverse) gear is
engaged, slowly release the clutch
pedal from the floor.
1
2
CDW IVB1-10Driving en MM 5/15/97 7:51 PM Page 95
Driving
96
LOADING YOUR VEHICLE
Before loading your vehicle,
familiarize yourself with these
terms.
GVW (Gross Vehicle Weight)
Base curb weight plus the payload
weight. The GVW is not a limit or a
specification.
Payload
Combined maximum allowable
weight of passengers, cargo and
optional equipment.
Base curb weight
Weight of the vehicle including any
standard equipment, fluids and
lubricants. It does not include
passengers or aftermarket
equipment.
CDW IVB1-10Driving en MM 5/15/97 7:51 PM Page 96
Driving
97
GCW (Gross Combined Weight)
The GCW is the maximum
combined weight of the towing
vehicle (including passengers and
cargo) and the loaded trailer. The
GCW is specified by the
manufacturer to indicate the
combined maximum loaded weight
that the vehicle is designed to tow.
GAWR (Gross Axle Weight
Rating)
Carrying capacity for each axle
system (front and rear). The
GAWR is specific to each vehicle
and is listed on the Safety
Compliance Certification Label on
the driver’s door pillar.
GVWR (Gross Vehicle Weight
Rating)
Maximum total weight of the base
vehicle, passengers, optional
equipment and cargo. The GVWR is
specific to each vehicle and is listed
on the Safety Compliance
Certification Label on the driver’s
door pilar.
CDW IVB1-10Driving en MM 5/15/97 7:51 PM Page 97
Driving
98
-9%
-6%
-3%
900 m
(3000 ft)
600 m
(2000 ft)
300 m
(1000 ft)
0
Payload = GVWR minus Base
curb weight
To obtain the correct weight for
your vehicle, try taking your
vehicle to a shipping company or
an inspection station for trucks.
Do not use replacement tires with
lower weight capacities than the
originals because they might lower
the vehicle’s GVWR and GAWR.
(Replacement tires with a higher
weight limit than the originals do
not increase the GVWR and GAWR
limitations.)
In high altitudes, engines will lose
power at a rate of 3% power per
300 m (1 000 ft) increase in
elevation. A reduction in GVW and
GCW is recommended for
maximum vehicle performance.
Do not exceed the GVWR or
the GAWR specified on the
Safety Compliance Certification
Label.
CDW IVB1-10Driving en MM 5/15/97 7:51 PM Page 98
Driving
99
It is extremly dangerous to
ride in a cargo area, inside or
outside of a vehicle. In a collision,
people riding in these areas are
more likely to be seriously injured
or killed. Do not allow people to
ride in any area of your vehicle
that is not equipped with seats
and safety belts. Be sure everyone
in your vehicle is in a seat and
using a safety belt properly.
Driving with a heavy load
The total weight of the vehicle plus
the total weight of passengers and
cargo should never exceed the
GVWR.
The weight that the vehicle carries
over the front and rear axles
should never exceed the GAWR for
the respective axle.
The weight limits of your vehicle’s
tires affect the GVWR and GAWR
limitations. Using tires with higher
weight limits than the original tires
will not increase the GVWR or
GAWR of your vehicle; using tires
with lower weight limits may lower
the GVWR or GAWR of your
vehicle.
CDW IVB1-10Driving en MM 5/15/97 7:51 PM Page 99
Driving
100
TRAILER TOWING
Your vehicle is capable of towing a
trailer of up to a maximum of
454 kg (1 000 lbs) gross trailer
weight with a maximum tongue
load of 45 kg (100 lbs). It should
also have 2.3 sq. meters (25 sq.
feet) or less frontal area. Do not
drive faster than 72 km/h (45 mph)
while towing a 454 kg (1 000 lb)
trailer.
Your vehicle does not come from
the factory fully equipped to tow.
No towing packages are available
through Ford or Lincoln/Mercury
dealers.
Trailer towing puts additional loads
on your vehicle’s engine, transaxle,
axle, brakes, tires, and suspension.
For your safety and to maximize
vehicle performance, be sure to use
the proper equipment while
towing.
CDW IVB1-10Driving en MM 5/15/97 7:51 PM Page 100
Driving
101
Follow these guidelines to ensure
safe towing procedure:
• Stay within your vehicle’s load
limits.
• Thoroughly prepare your vehicle
for towing. Refer to Preparing to
tow in this chapter.
• Use extra caution when driving
while trailer towing. Refer to
Driving while towing a trailer
in this chapter.
• Service your vehicle more
frequently if you tow a trailer.
Refer to the severe duty schedule
in the ”Service Guide”.
• Do not tow a trailer until your
vehicle has been driven at least
800 km (500 miles).
• Refer to the instructions included
with towing accessories for the
proper installation and
adjustment specifications.
CDW IVB1-10Driving en MM 5/15/97 7:51 PM Page 101
Driving
102
Preparing to tow
Use the proper equipment for
towing a trailer and make sure that
it is properly attached to your
vehicle. See your dealer or a
reliable trailer retailer if you
require assistance.
Auxiliary coolers are recommended
for the power steering system and
automatic transaxle system if you
are planning on:
• Traveling farther than 80 km
(50 miles).
• Towing in hilly terrain.
• Towing frequently.
Towing trailers beyond the
maximum recommended
gross trailer weight exceeds the
limit of the vehicle and could
result in engine damage, transaxle
damage, structural damage, loss of
control, and personal injury.
Do not exceed the maximum loads
listed on the Safety Compliance
Certification Label. For load
specification terms found on the
label, refer to Loading your
vehicle in this chapter. Remember
to figure in the tongue load of your
loaded vehicle when figuring the
total weight.
CDW IVB1-10Driving en MM 5/15/97 7:51 PM Page 102
Driving
103
Using a hitch
Do not use hitches that:
• Clamp onto the vehicle bumper.
• Attach to the axle.
Distribute the load so that only 10
to 15% of the total weight of the
trailer is on the tongue. Tie down
the load so that it does not shift
and change weight on the hitch.
Follow the instructions of a
reputable rental agency.
Using trailer lamps
See your local trailer retailer or
rental agency for proper
instructions and equipment for
hooking up trailer lamps.
Do not hook the trailer lamps
directly into the vehicle’s wiring
system. If the trailer lamps are not
working properly, the warning
lights in the instrument cluster may
not work properly.
CDW IVB1-10Driving en MM 5/15/97 7:51 PM Page 103
Driving
104
Using safety chains
Always connect the trailer’s safety
chains to the vehicle. To connect
the chains, cross the chains under
the trailer tongue and attach to the
vehicle frame or hook retainers
(not the bumper). Make sure there
is enough slack to allow the vehicle
to turn corners.
Do not connect a trailer’s
hydraulic brake system
directly to your vehicle’s brake
system. Your vehicle may not have
enough braking power and your
chances of having a collision
greatly increase.
Using trailer brakes
Use electric brakes or manual,
automatic or surge type hydraulic
brakes that meet Federal and local
regulations. Install and adjust
brakes according to the
manufacturer’s instructions.
CDW IVB1-10Driving en MM 5/15/97 7:51 PM Page 104
Driving
105
Driving while towing a trailer
Do not drive faster than 72 km/h
(45 mph) while towing a 454 kg
(1 000 lb) trailer. Do not drive
faster than 72 km/h (45 mph) with
any weight trailer while towing in
hilly terrain or on hot days.
Speed control (if equipped) may
not work properly while towing on
long, steep grades.
If driving with an automatic
transaxle:
• Use D (Drive) or a low gear
rather than D (Overdrive) while
towing up or down steep inclines.
• Anticipate stops and brake
gradually.
If driving with a manual transaxle:
• Select a gear that avoids jerking
or excessive engine speed.
• Avoid driving excessively in first
or second gear. If you need to
drive excessively in first or
second gear, the trailer may be
too big or too heavily loaded for
the vehicle drivetrain.
• Shift to a lower gear while towing
up or down steep hills.
• Anticipate stops and brake
gradually.
CDW IVB1-10Driving en MM 5/15/97 7:51 PM Page 105
Driving
106
FUEL CONSUMPTION
Fuel economy can be improved by
avoiding:
• lack of regular, scheduled
maintenance,
• excessive speed,
• rapid acceleration,
• driving with the brake pedal
depressed,
• sudden stops,
• extended engine idling,
• use of speed control in hilly
terrain,
• extended use of the air
conditioner, defroster, rear
window defroster and other
accessories,
• underinflated tires,
• heavy loads,
• aftermarked add-ons such as
bike, ski or luggage racks, bug
deflectors, etc.
CDW IVC1-6Roads en MM 5/15/97 7:53 PM Page 106
Roadside emergencies
107
HAZARD FLASHER CONTROL
Use only in an emergency to warn
traffic of vehicle breakdown or
approaching danger. Depress to
activate. Depress again to switch
off. The hazard lights can be
operated when the ignition is off.
Off
Res
Set
Acc
Coast
On
FUEL PUMP SHUT-OFF SWITCH
If the engine cranks, but does not
start or does not start after a
collision, the fuel pump shut-off
switch may have been activated.
The shut-off switch is a device
intended to stop the electric fuel
pump when your vehicle has been
involved in a substantial jolt.
Once the shut-off switch is
activated, you must reset the
switch by hand before you can start
your vehicle. The switch is located
on the side panel in front of the
driver’s side door.
CDW IVC1-6Roads en MM 5/15/97 7:53 PM Page 107
Roadside emergencies
108
If your engine cranks but does not
start after a collision or substantial
jolt:
1. Turn the ignition key to the off
position.
2. Check under the vehicle for
leaking fuel.
3. If you do not see or smell fuel,
push the red reset button down. If
the button is already set, you may
have a different mechanical
problem.
4. Turn the ignition key to the on
position for a few seconds, then
turn it to the off position.
5. Check under the vehicle again
for leaking fuel. If you see or smell
fuel, do not start your vehicle
again. If you do not see or smell
fuel, you can try to start your
vehicle again.
If you see or smell fuel, do
not reset the switch or try to
start your vehicle. Have all the
passengers get out of the vehicle
and call the local fire department
or a towing service.
CDW IVC1-6Roads en MM 5/15/97 7:53 PM Page 108
Roadside emergencies
109
Even after a fuse is replaced, it will
continue to blow if the cause of the
overload is not identified and
corrected. If the fuse continues to
blow, have the vehicle’s electrical
system checked by your dealer or a
qualified service technician.
The passenger compartment fuse
panel is located on the driver’s side
under the instrument panel. The
power distribution box is located
on the driver’s side of the engine
compartment.
They contain the main fuses and
the main relays. The circuits
protected are identified by
numbers on the passenger
compartment fuse panel and inside
the cover on the power distribution
box.

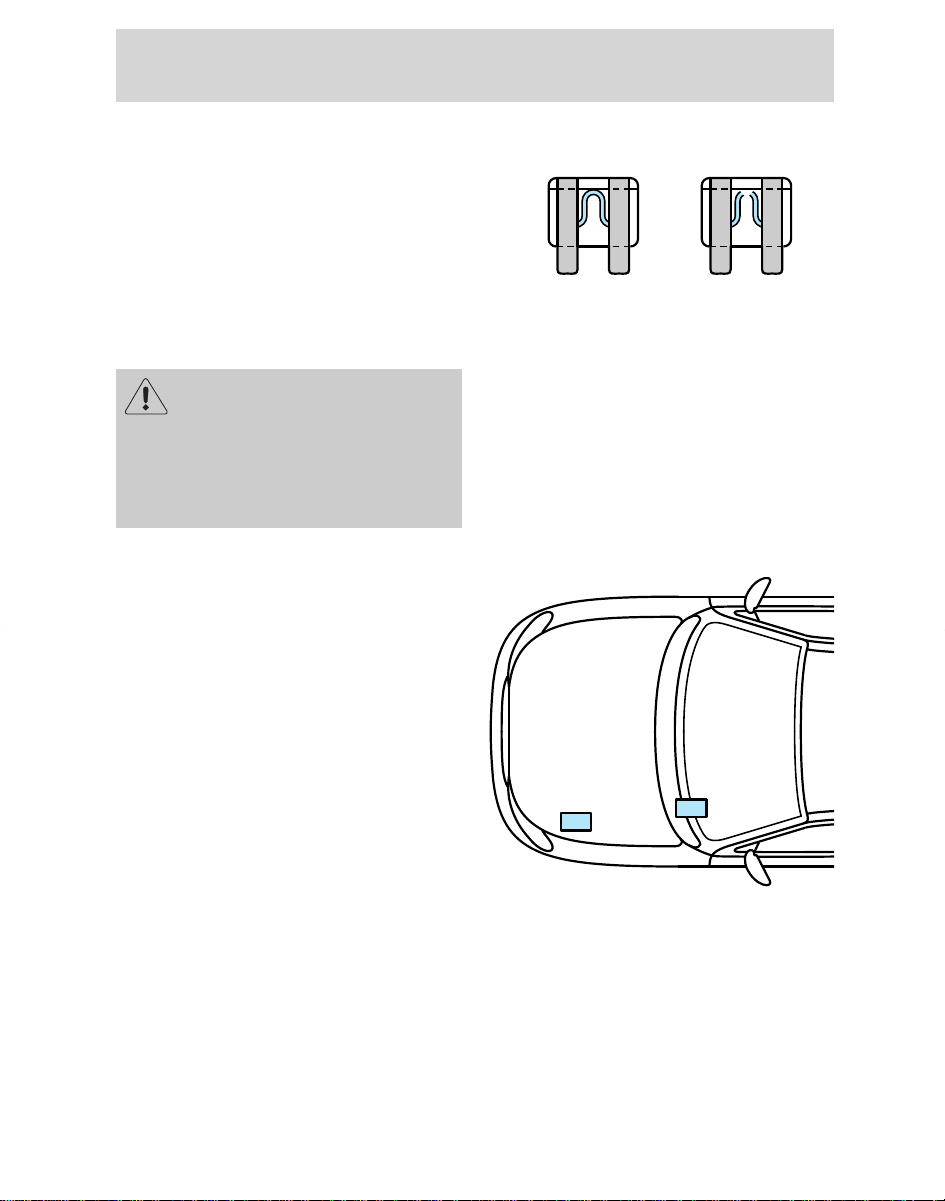

FUSES AND RELAYS
If electrical components in the
vehicle are not working, a fuse may
have blown. Blown fuses are
identified by a broken wire. Check
the appropriate fuses before
replacing any electrical
components.
Always replace a fuse with
one that has the specified
amperage rating. Using a fuse with
higher amperage rating can cause
severe wire damage and could
start a fire.
CDW IVC1-6Roads en MM 5/15/97 7:53 PM Page 109
Roadside emergencies
110
1
2
Power distribution box
To check or replace a fuse or a
relay, remove the cover of the fuse
box in the engine compartment by
releasing the latch (1) and lifting
up.
A blown fuse can be identified by a
break in the wire. Use the fuse
puller (2) attached to the cover of
the power distribution box to
change a fuse.
All fuses are a push fit.
Five reserve fuses with different
current ratings are attached to the
inside cover of the power
distribution box in case of
emergency fuse replacement.
2
R10
R9
15 16
R11
10
18
17
R8R7
11 12 13 14
R6
R4
R3
3
2
1
R1 R2
R5
D1
4 5 6 7 8
9
Blown fuse
Always replace the cover to
the Power Distribution Box
before reconnecting the battery or
refilling fluid reservoirs.
CDW IVC1-6Roads en MM 5/15/97 7:53 PM Page 110
Roadside emergencies
111
Ampere
rating
Power distribution box (engine compartment)
Color
Circuits protected
1*
2*
3*
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
80
60
60
20
15
—
20
—
20
20
3
15
20
15
10
10
10
10
black
yellow
yellow
yellow
light blue
—
yellow
—
light blue
light blue
violet
light blue
yellow
light blue
red
red
red
red
Main power supply to vehicle
electrical system
Engine cooling fan
ABS braking system, heater
blower
Ignition and EEC module
Foglamp
Not used
ABS system
not used
Electronic Engine Control (EEC)
Ignition switch
EEC ignition module (memory)
Horn and hazard flasher warning
system
HEGO sensor
Electrically operated fuel pump
Low beam headlamp –
(passenger’s side)
Low beam headlamp –
(driver’s side)
High beam headlamp –
(passenger’s side)
High beam headlamp –
(driver’s side)
* Have these fuses replaced by your dealer or qualified technician.
Fuse
CDW IVC1-6Roads en MM 5/15/97 7:53 PM Page 111
Roadside emergencies
112

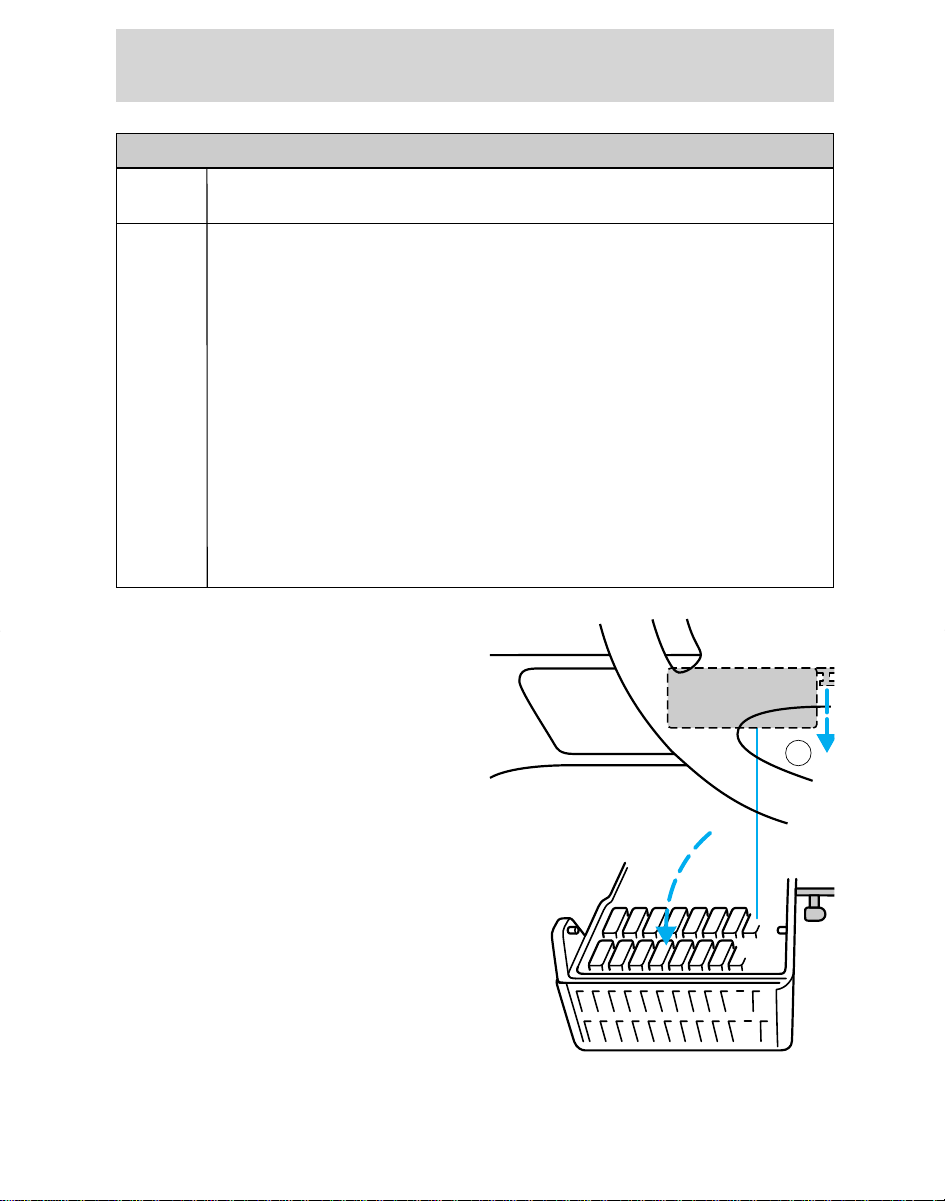

Passenger compartment fuse
panel
To check or change a fuse or a
relay, open the fuse box by pulling
down the lock release lever (1).
1
Power distribution box (engine compartment)
Relay
Circuits switched
R 1
R 2
R 3
R 4
R 5
R 6
R 7
R 8
R 9
R 10
R 11
D1
Daytime running lights
Radiator fan relay (high speed)
Air conditioning
Air conditioning clutch relay
Radiator fan relay (low speed)
Starter solenoid
Horn
Electrically operated fuel pump
Low beam headlamps
High beam headlamps
EEC module
Reverse voltage protection
CDW IVC1-6Roads en MM 5/15/97 7:53 PM Page 112
Roadside emergencies
113
A blown fuse can be identified by a
break in the wire. Use the fuse
puller (2) attached to the cover of
the power distribution box to
change a fuse.
All fuses are a push fit.
Five reserve fuses with different
current ratings are attached to the
inside cover of the power
distribution box in case of
emergency fuse replacement.
19 20 21
R16
R15
R14
R12
R13
22 23 24 25 26 27 28
29 30 31 32 33 34 35 36 37 38
D2
Passenger compartment fuse panel (below instrument panel)
Relay
Circuit switched
R 12
R 13
R 14
R 15
R 16
D 2
Interior lighting
Rear window defrost
Heater blower motor
Wiper motor
Ignition
Reverse voltage protection
CDW IVC1-6Roads en MM 5/15/97 7:53 PM Page 113
Roadside emergencies
114
Passenger compartment fuse panel (below instrument panel)
Fuse
Ampere
rating
Color Circuits protected
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
—
C10
40
7.5
15
15
20
7.5
15
30
30
7.5
7.5
7.5
7.5
7.5
7.5
10
30
—
—
black
orange
brown
light blue
light blue
yellow
brown
light blue
light green
light green
brown
brown
brown
brown
brown
brown
red
light green
–
Not used
Wiper motors (circuit breaker)
Power windows
ABS module
Backup lamps
Brake lamps
Door locks
Main light
Cigar lighter
Electric seats
Rear window defrost
Engine management system
Instrument panel illumination
Radio
Parking lamps - driver’s side
Interior lighting/electric mirror
adjustment/clock
Parking lamps - passenger’s side
Air bag
Heater blower motor
Not used
CDW IVC1-6Roads en MM 5/15/97 7:53 PM Page 114
Roadside emergencies
115
Fuse rating
7.5 amp
10 amp
15 amp
20 amp
30 amp
30 amp fuse link
40 amp
60 amp fuse link
80 amp fuse link
100 amp fuse link
Color
brown
red
blue
yellow
light green
pink
green
yellow
black
blue
Relay
R 18
R 20
R 21
R 22
R 23
R 24
R 25
R 26
“One touch” switch
(driver’s window)
Not used
Not used
Foglamps
Turn signals
Panic alarm –
driver’s side
Panic alarm –
right-hand side
Not used
Driver’s door
—
—
Module bracket
Steering column
Door lock module bracket
Door lock module bracket
—
Circuits switched
Location
Standard fuse amperage ratings
and colors
3 amp violet
Auxiliary relays (outside of fuse boxes)
CDW IVC1-6Roads en MM 5/15/97 7:53 PM Page 115
Roadside emergencies
116
CHANGING TIRES
Park your vehicle in such a position
that neither the traffic nor you are
hindered or endangered when
changing the tire. Ensure that the
vehicle is on firm, level ground. If
necessary, secure your vehicle
further by blocking the wheels with
chocks.
Activate the hazard lights.
Apply the parking brake and
engage first or reverse gear or, if
the vehicle has an automatic
transaxle, select the P (Park)
position.
If parking on a slope is unavoidable,
secure the wheels with suitable
chocks.
CDW IVC1-6Roads en MM 5/15/97 7:53 PM Page 116
Roadside emergencies
117
80
MAX
km/h
When driving with a temporary
spare tire:
• Do not exceed the maximum
speed of 80 km/h (50 mph) and
only drive the shortest possible
distance.
• Do not exceed the permissible
gross weight of the vehicle.
• Do not install more than one
spare wheel on your vehicle at
any one time.
• Do not use snow chains on this
type of wheel.
• Do not drive through an
automatic car wash.
50
MAX
mph
The temporary spare tire
The vehicle may have a high
pressure temporary spare tire. This
spare is smaller than a regular tire
and is designed for emergency use
only. This tire should be replaced
as soon as possible.
If you use the temporary
spare tire continuously or do
not follow these precautions, the
tire could fail, causing you to lose
control of the vehicle, possibly
injuring yourself or others.
CDW IVC1-6Roads en MM 5/15/97 7:53 PM Page 117
Roadside emergencies
118

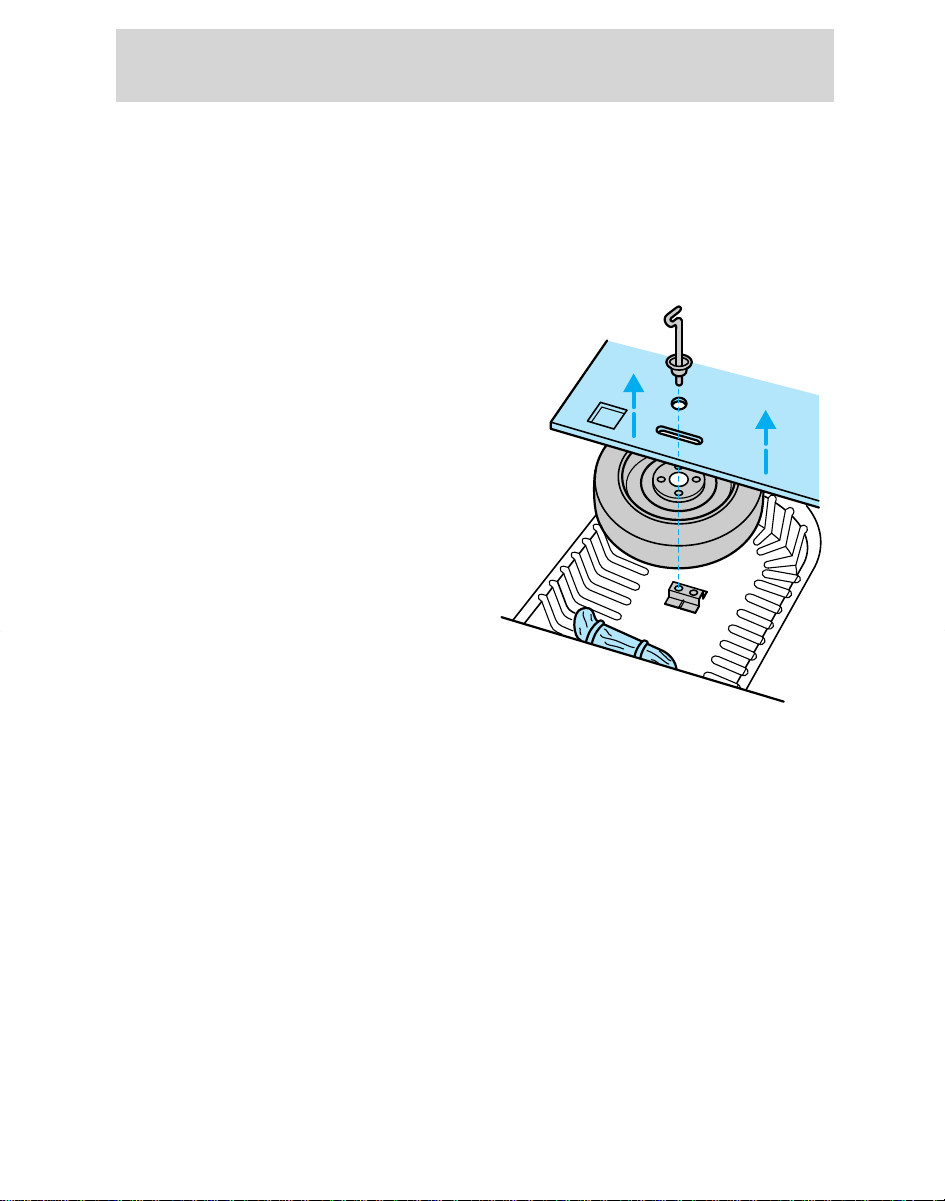

Spare tire location
The spare tire and tools are located
under the floor cover in the
luggage compartment.
Removing the spare tire and
tools
1. Raise the rear of the floor cover
in the luggage compartment and
fold it forward.
2. Completely unscrew the bolt and
remove the wheel cover panel with
the holder.
3. Remove the wheel cover panel.
4. Lift out the spare wheel.
5. Remove the jack which is located
in the tool pack.
CDW IVC1-6Roads en MM 5/15/97 7:53 PM Page 118
Roadside emergencies
119
Removing a tire
1. Apply the parking brake and 1
(first) gear (manual transaxle) or
the P (Park) position (automatic
transaxle).
2. Activate the hazard flashers.
3. The driver and all passengers
must leave the vehicle.
4. Secure the vehicle against rolling
or sliding.

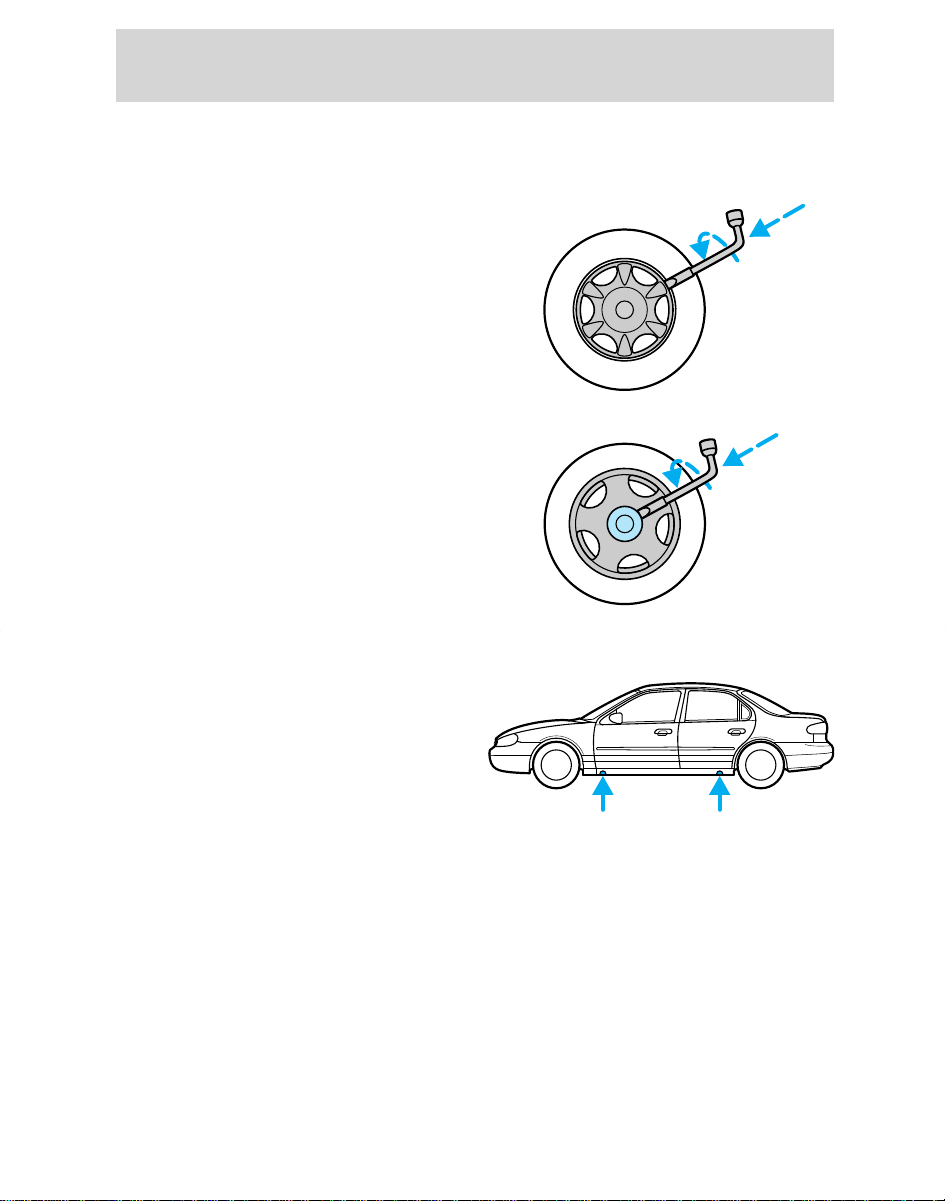

5. Insert the tapered end of the
jack handle between the rim and
hub cover and push in. Twist off to
remove the cover.
6. Loosen the wheel nuts slightly.
Tire changing procedure
7. Place jack with complete support
surface on the ground.
8. The jack must be applied exactly
vertical to the jacking point of the
vehicle.
9. Jack up the vehicle until the tire
is clear of the ground. Unscrew and
remove the wheel nuts and remove
the wheel.
CDW IVC1-6Roads en MM 5/15/97 7:53 PM Page 119
Roadside emergencies
120

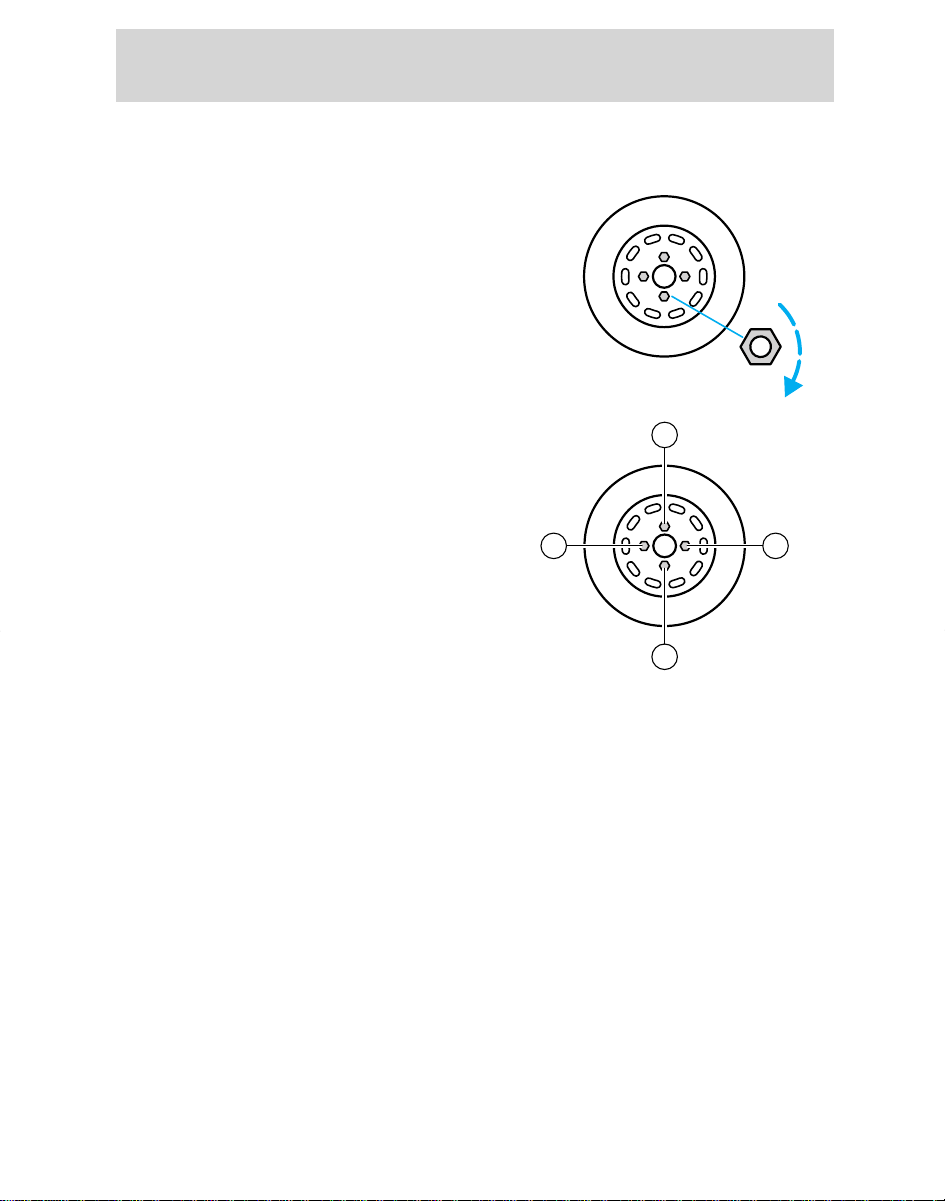

Replacing a tire
1. Push the spare tire onto the
wheel studs.
2. Screw on the wheel nuts,
ensuring the tapered end of the
wheel nuts are facing the wheel,
and secure in a clockwise direction.
3. Lower the vehicle and remove
the jack by turning the handle
counterclockwise.
4. Fully tighten the wheel nuts in a
crosswise pattern.
5. Align the hub cap with the valve
and push firmly into position with
the ball of the hand.
6. Stow the jack and damaged tire
in the luggage compartment by
reversing the spare tire removal
instructions.
3
4
21
CDW IVC1-6Roads en MM 5/15/97 7:53 PM Page 120
Roadside emergencies
121

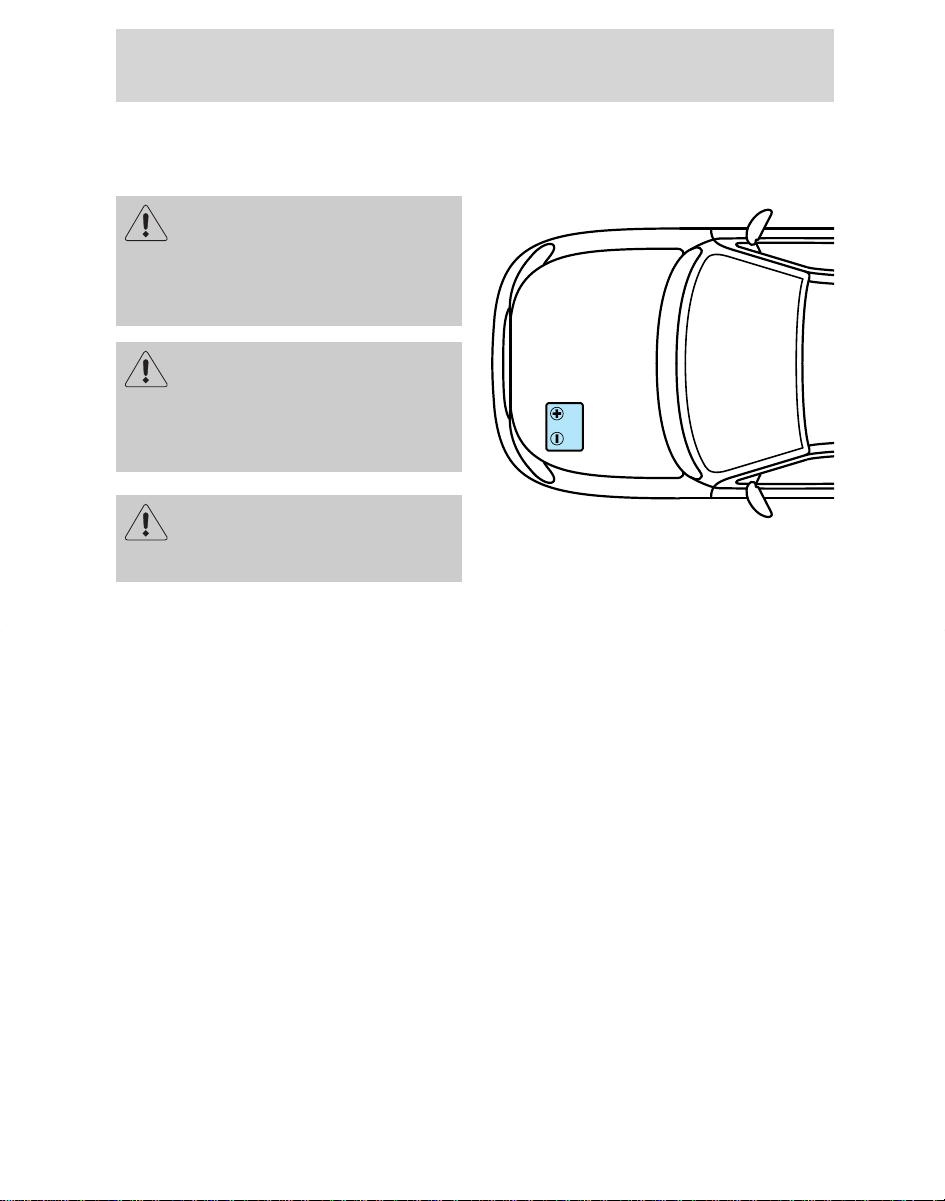

JUMP STARTING YOUR
VEHICLE
The gases around the
battery can explode if
exposed to flames, sparks, or lit
cigarettes. An explosion could
result in injury or vehicle damage.
Do not push start your
vehicle. You could damage
the catalytic converter. For
further information, see Jumper
cables in the index.
Batteries contain sulfuric
acid which burns skin, eyes,
and clothing.
CDW IVC1-6Roads en MM 5/15/97 7:53 PM Page 121
Roadside emergencies
122

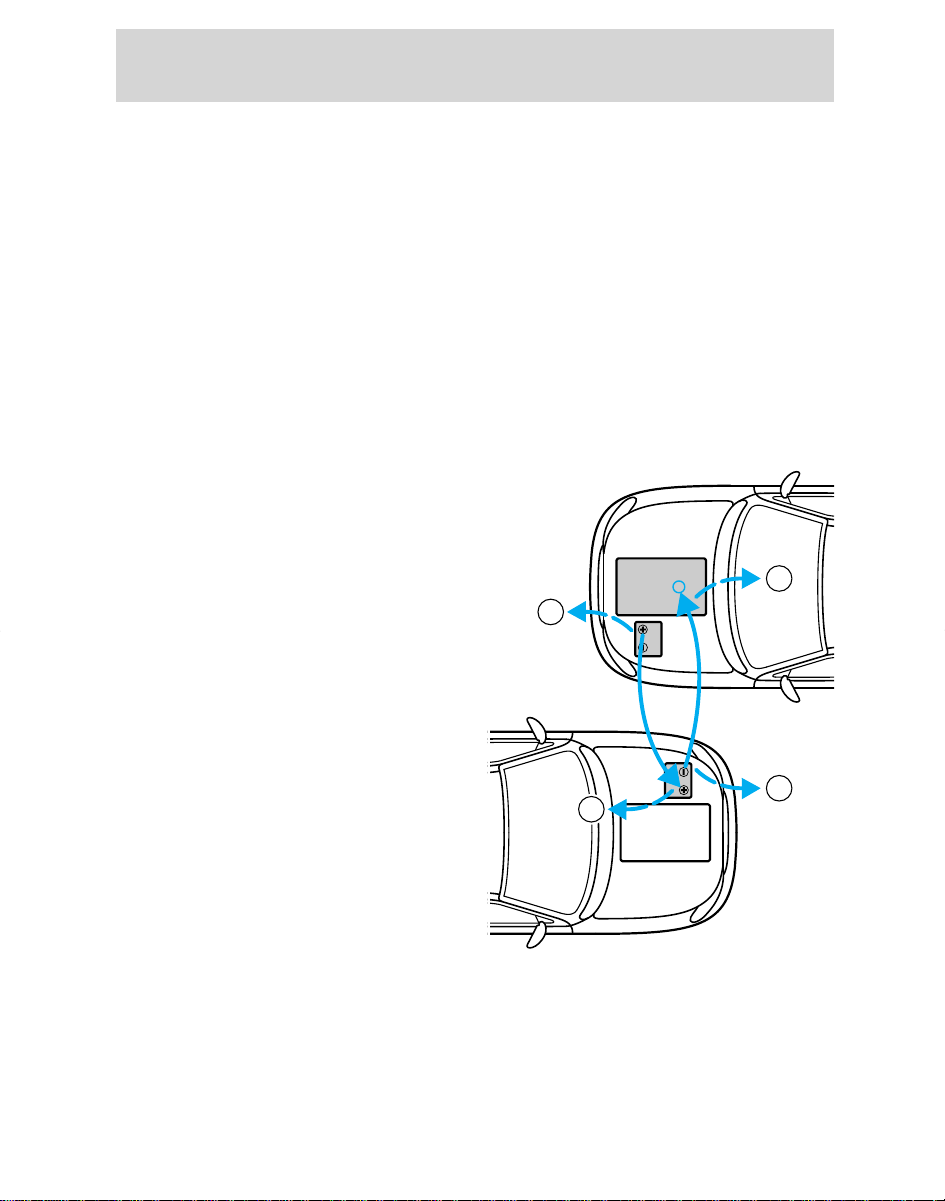

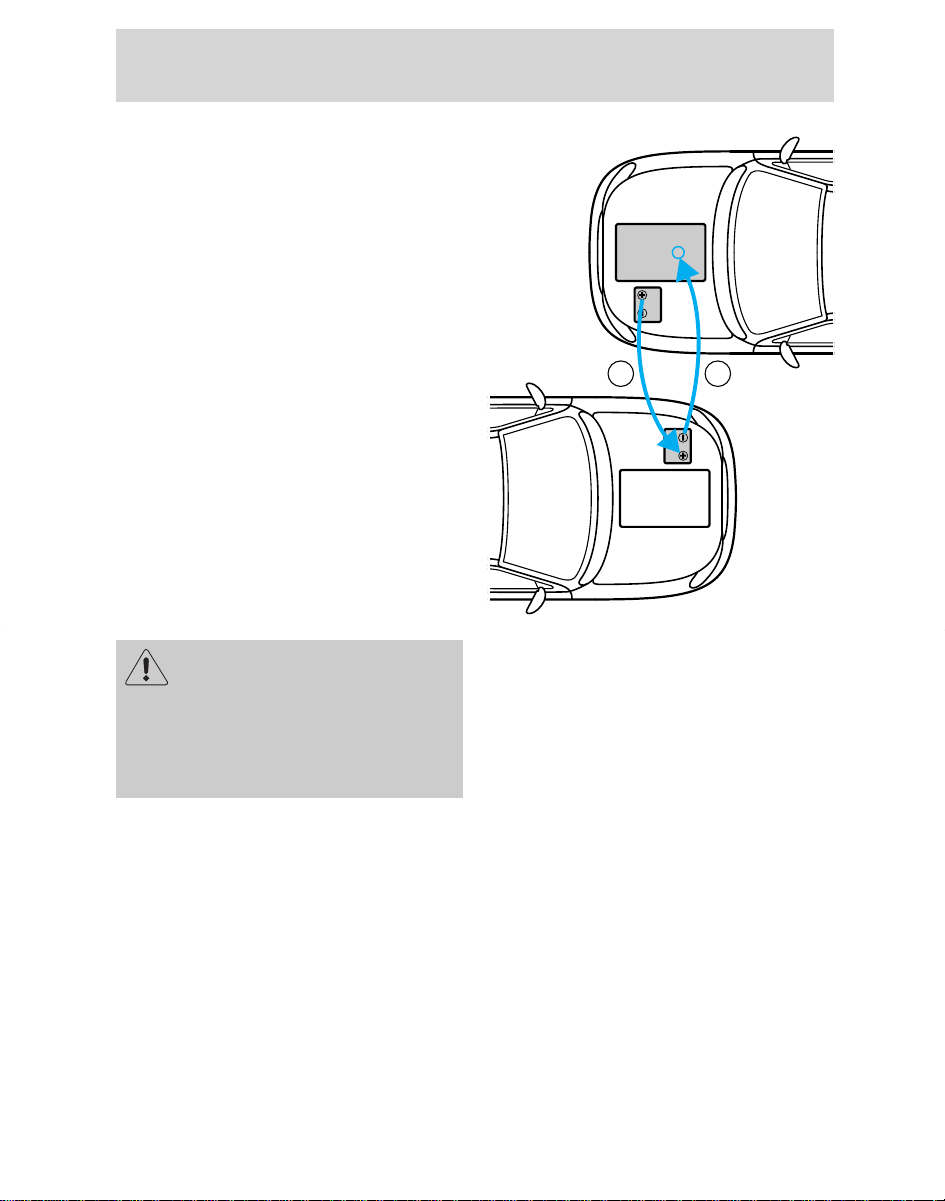

Connecting jumper cables
1. Position the vehicles so that they
do not touch one another.
2. Switch off the engine. Switch off
any unnecessary electrical
equipment.
3. Connect the positive (+)
terminal of the discharged battery
to the positive (+) terminal of the
booster battery (1).
4. Connect one end of the second
lead to the negative (–) terminal of
the booster battery and the other
end to a metal part of the engine to
be started (2).
5. Make sure that the jumper
cables are clear of moving parts of
the engine.
1
2
Do not connect the end of
the second cable to the
negative (-) terminal of the
battery to be jumped. A spark may
cause an explosion of the gases
that surround the battery.
CDW IVC1-6Roads en MM 5/15/97 7:53 PM Page 122
Roadside emergencies
123
Jump starting
1. Start the booster vehicle and run
the engine at moderately increased
speed.
2. Start the engine of the vehicle
with the discharged battery.
3. Once the engine has been
started, run both vehicles for an
additional three minutes before
disconnecting the cable leads.
Removing jumper cables
1. Remove the jumper cables in
reverse order. Take the cable off
the metallic surface first (1), then
the cable on the negative (-)
booster battery terminal (2).
2. Remove the cable from the
positive (+) terminal of the booster
battery (3) and then the
discharged battery (4).
3. After the disabled vehicle has
been started, allow it to idle for a
while so the engine can “relearn”
its idle conditions.
2
1
3
4
CDW IVC1-6Roads en MM 5/15/97 7:53 PM Page 123
Roadside emergencies
124

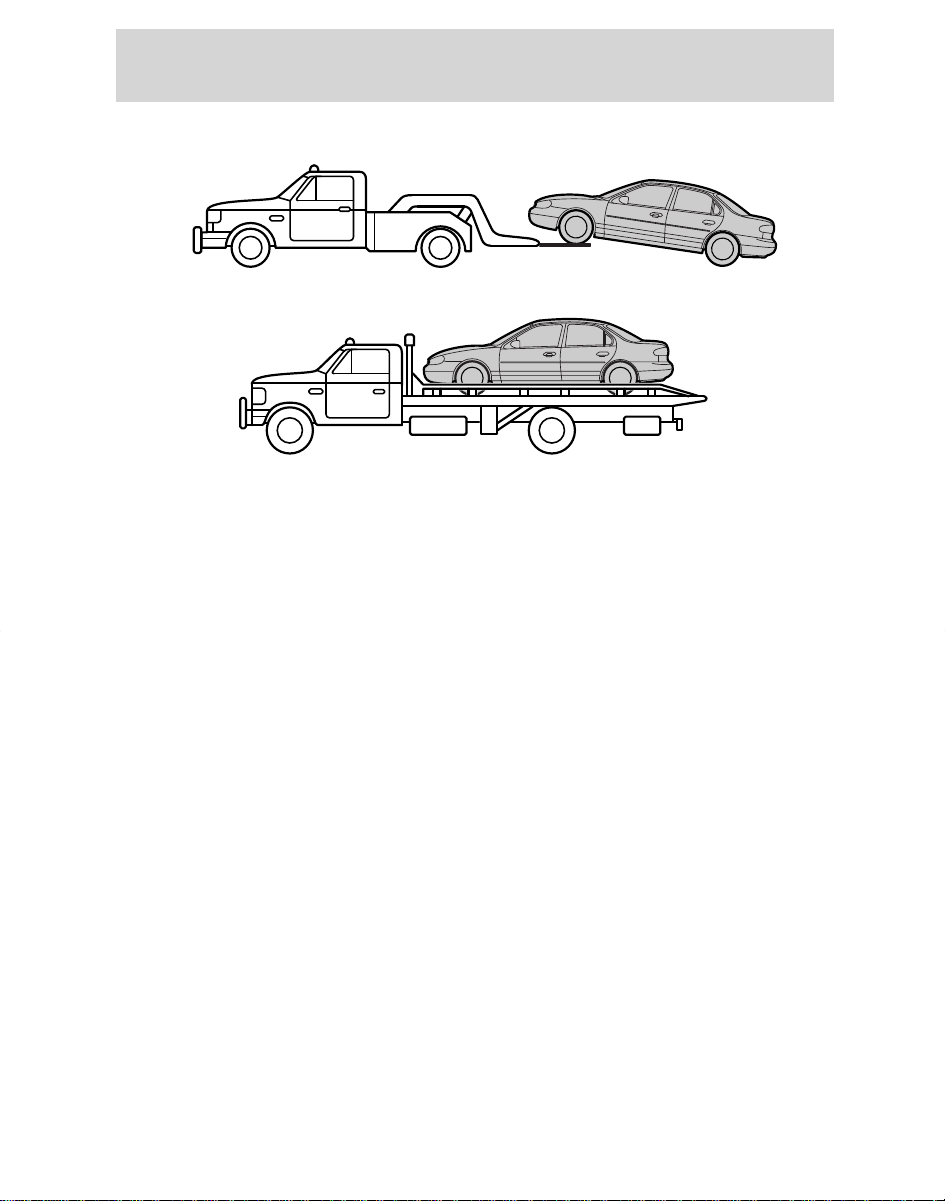

If towing is necessary, it is
recommended that your vehicle be
towed with a wheel lift or flatbed
equipment. Do not tow with
slingbelt equipment. Ford Motor
Company has not developed or
approved a T-hook or slingbelt
towing procedure.
TOWING YOUR VEHICLE
BEHIND ANOTHER VEHICLE
Before you have your vehicle
towed:
• release the parking brake,
• move the gearshift to N
(Neutral),
• turn the ignition to the off
position and
• unlock the steering wheel.
Do not tow your vehicle at a speed
faster than 55 km/h (35 mph) or
for a distance greater than 80 km
(55 miles) unless the drive wheels
are placed on dollies.
WRECKER TOWING
CDW VA1-19Maint en MM 5/15/97 7:55 PM Page 124
Maintenance and care
125
SERVICE RECOMMENDATIONS

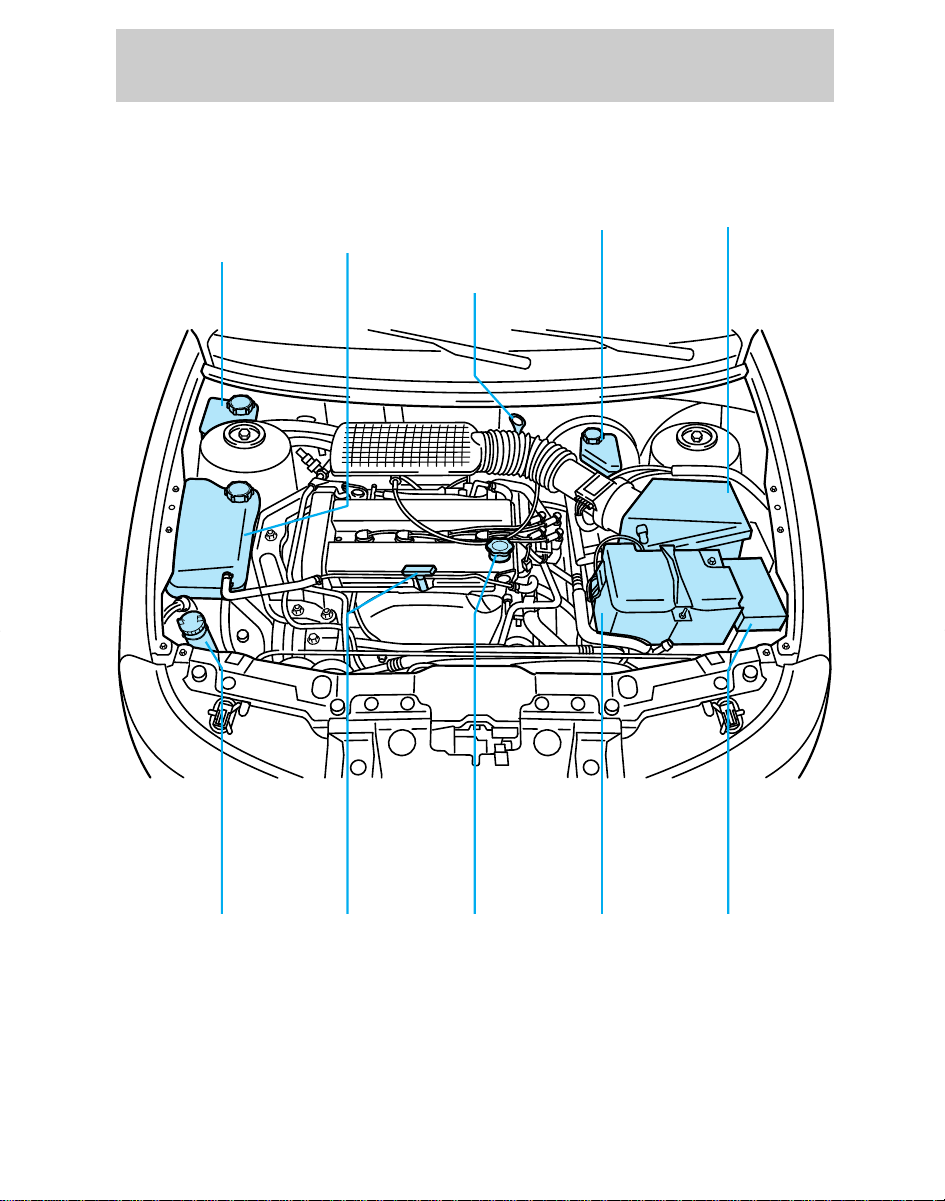

• We highlight do-it-yourself items
in the engine compartment for
easy location.
• As possible, we design parts that
can be replaced without tools.
• We provide you with a “Service
Guide” which makes tracking
routine service for your vehicle
easy.
If your vehicle requires
professional service, your Ford
dealership can provide necessary
parts and service. Check your
“Warranty Guide” to find out which
parts and services are covered.
Use only recommended fuels,
lubricants, fluids and service parts
conforming to specifications.
Motorcraft parts are designed and
built to provide the best
performance in your vehicle.
CDW VA1-19Maint en MM 5/15/97 7:55 PM Page 125
Maintenance and care
126
Precautions when servicing
your vehicle
Be especially careful when
inspecting or servicing your
vehicle. Here are some general
precautions for your safety:
• Do not work on a hot engine.
The cooling fan is automatic
and may come on at any
time. Always disconnect the
negative terminal of the battery
before working near the fan.
• If you must work with the engine
running, avoid wearing loose
clothing or jewelry that could get
caught in moving parts. Take
precautions with long hair.
• Do not work on a vehicle with the
engine running in an enclosed
space, unless you are sure you
have enough ventilation.
• Keep all lit cigarettes, open
flames and other lit material
away from the battery and all fuel
related parts.
If you disconnect the battery, the
engine must “relearn” its idle
conditions before your vehicle will
drive properly, as explained under
Battery in this chapter.
CDW VA1-19Maint en MM 5/15/97 7:55 PM Page 126
Maintenance and care
127
Working with engine off
(automatic transaxle)
1. Set the parking brake fully and
ensure the gearshift is securely
latched in P (Park).
2. Turn off the engine and remove
the key.
3. Block the wheels to prevent the
vehicle from moving unexpectedly.
Working with engine off
(manual transaxle)
1. Set the parking brake, depress
the clutch and place the gearshift
in 1 (first) or R (Reverse).
2. Turn off the engine and remove
the key.
3. Block the wheels to prevent the
vehicle from moving unexpectedly.
CDW VA1-19Maint en MM 5/15/97 7:55 PM Page 127
Maintenance and care
128
Working with engine on
(automatic transaxle)
1. Set the parking brake fully and
ensure the gearshift is securely
latched in P (Park).
2. Block the wheels to prevent the
vehicle from moving unexpectedly.
Do not start your engine with
the air cleaner removed and
do not remove it while the engine is
running.
Working with engine on
(manual transaxle)
1. Set the parking brake, depress
the clutch and place the gearshift
in neutral.
2. Block the wheels to prevent the
vehicle from moving unexpectedly.
CDW VA1-19Maint en MM 5/15/97 7:55 PM Page 128
Maintenance and care
129
Opening the hood
• Pull the handle (1) located under
the instrument panel.
M
I
R
R
O
R
S
000123
0 0 0 0
10
20
30
40
50
60
70
80
90
100
110
120
130
MPH
20
40
60
55
80
120
100
140
160
180
200
E F
1
/
2
UNLEADED FUEL ONLY
1
2
0
3
x 1000
4
5
6
7
8
N
O
R
M
A
L
BRAKE
CHECK
ENGINE
TRACTION
CONTROL
O/D
OFF
1
Off
Res
Set
Acc
Coast
On
• Release the safety catch by
reaching under the hood (2)
(adjacent to the Mercury
emblem) and pushing it up.
2
3
• Raise the hood and support it
with the strut (3) in the yellow
colored retainer, ensuring it is
secure. Hold the support at the
yellow colored insulation section.
To close, replace the support strut
in its retaining clip, lower the hood
and allow it to drop into the catch
for the last 20 – 30 cm
(8 – 12 inches).
Always check to ensure that the
hood lock is fully engaged.
CDW VA1-19Maint en MM 5/15/97 7:55 PM Page 129
Maintenance and care
130
For ease of identification, all filler caps and the engine oil dipstick are
marked yellow/black.
2.0 litre EFI-engine compartment
Power
steering
reservoir
Engine
coolant
reservoir
Automatic
transaxle
dipstick
(if equipped)
Brake fluid
reservoir
BatteryWindshield
washer fluid
reservoir
Engine oil
dipstick
Power
distribution
box
Air
cleaner
Engine oil
filler cap
CDW VA1-19Maint en MM 5/15/97 7:55 PM Page 130
Maintenance and care
131
Power
steering
reservoir
Engine
coolant
reservoir

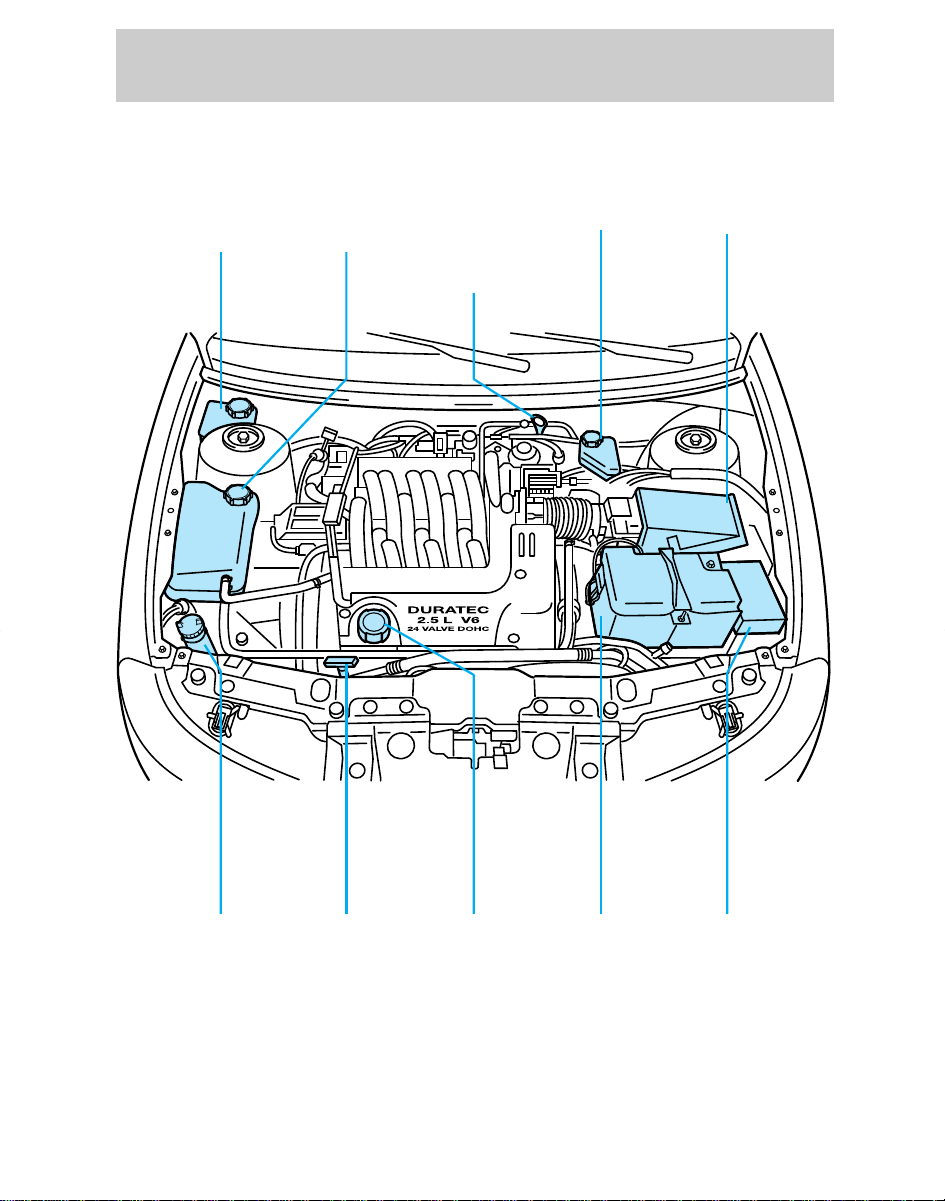

2.5 litre EFI-engine compartment
For ease of identification, all filler caps and the engine oil dipstick are
marked yellow/black.
Air
cleaner
Brake fluid
reservoir
Automatic
transaxle
dipstick
(if equipped)
BatteryWindshield
washer fluid
reservoir
Engine oil
dipstick
Power
distribution
box
Engine oil
filler cap
CDW VA1-19Maint en MM 5/15/97 7:55 PM Page 131
Maintenance and care
132
Engine oil
Use SAE 5W-30 motor oil
CERTIFIED FOR GASOLINE
ENGINES by the American
Petroleum Institute.
Do not use supplemental engine oil
additives, oil treatments or engine
treatments. They are unnecessary
and could, under certain
conditions, lead to engine damage
which is not covered by Ford
Warranty.
Checking the engine oil
Check the engine oil each time you
fuel your vehicle.
To check the oil:
1. Make sure the vehicle is on level
ground. If the engine is warm, turn
the engine off and wait a few
minutes for the oil to drain into the
oil pan.
2. Set the parking brake and ensure
the gearshift is securely latched in
P (Park).
3. Open the hood. Protect yourself
from engine heat.
4. Locate and carefully remove the
engine oil dipstick.

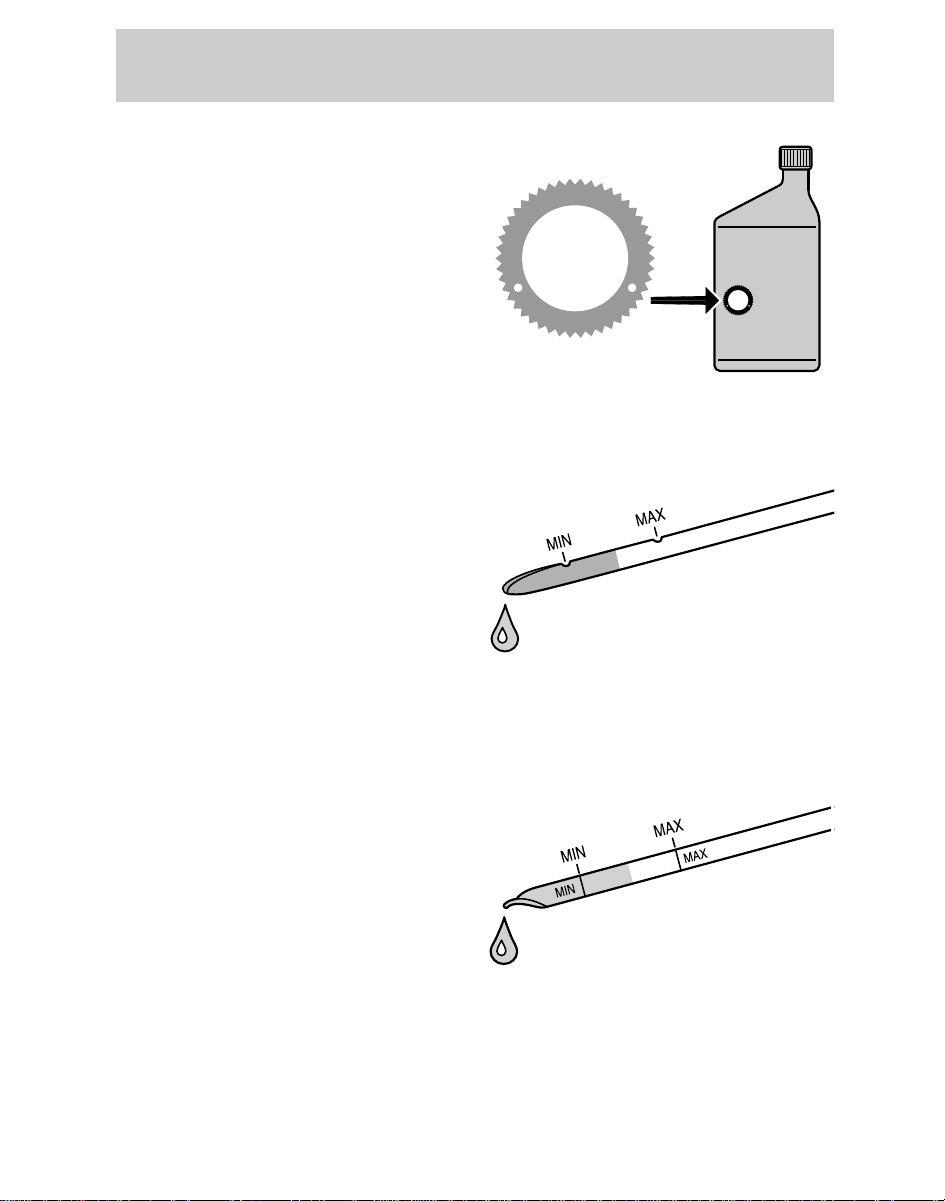

5. Wipe the dipstick clean. Insert
the dipstick fully, then remove it
again. The oil level should be in the
range shown on the dipstick.
2.0 l DOHC
2.5 l DOHC
A
M
E
R
I
C
A
N
P
E
T
R
O
L
E
U
M
I
N
S
T
I
T
U
T
E
C
E
R
T
I
F
I
E
D
FOR
GASOLINE
ENGINES
A
M
E
R
I
C
A
N
P
E
T
R
O
L
E
U
M
I
N
S
T
I
T
U
T
E
C
E
R
T
I
F
I
E
D
FOR
GASOLINE
ENGINES
Motorcraft
Do not exceed MAX!
Do not exceed MAX!
CDW VA1-19Maint en MM 5/15/97 7:55 PM Page 132
Maintenance and care
133
6. If the oil level is below the
minimum line, add engine oil as
necessary. If the oil level is beyond
the maximum line, engine damage
or high oil consumption may occur
and some oil must be removed
from the engine by a service
technician.
7. Put the dipstick back in and
ensure it is fully seated.
Continuous contact with
used motor oil has caused
cancer in laboratory mice.
Adding engine oil
1. Check the engine oil. For
instructions, refer to Checking the
engine oil in this chapter.
2. If the fluid level is not within the
normal range, add only certified
engine oil of the preferred
viscosity. Add engine oil through
the oil filler cap. Remove the filler
cap and use a funnel to pour oil in
the opening.
3. Recheck the oil level. Make
sure the oil level is not above
the MAX mark on the dipstick.
Change your engine oil and oil filter
according to these mileage and
time requirements, whichever
occurs first.
5 000 miles (8 000 km)
or 6 months
Normal schedule
3 000 miles (5 000 km)
or 3 months
Severe duty schedule:
• Extensive idling
• Trailer towing
• Driving in severe dust
• Police, taxi, or delivery service
CDW VA1-19Maint en MM 5/15/97 7:55 PM Page 133
Maintenance and care
134
Empty and used oil
containers must be disposed
of at an authorized waste disposal
facility.
Engine oil filler cap
The design of the filler cap varies
by engine. To open, turn in the
direction of the arrow and pull. Do
not open the cap while the engine
is running.
Refer to the ”Maintenance
Schedule” booklet for additional
information.
Always dispose of used
automotive fluids in a
responsible manner. Follow your
community’s standards for
disposing of these types of fluids.
Call your local recycling center to
find out more about recycling
automotive fluids.
It is recommended you use the
appropriate Motorcraft oil filter (or
another brand meeting Ford
specifications) for your engine
application.
CDW VA1-19Maint en MM 5/15/97 7:55 PM Page 134
Maintenance and care
135

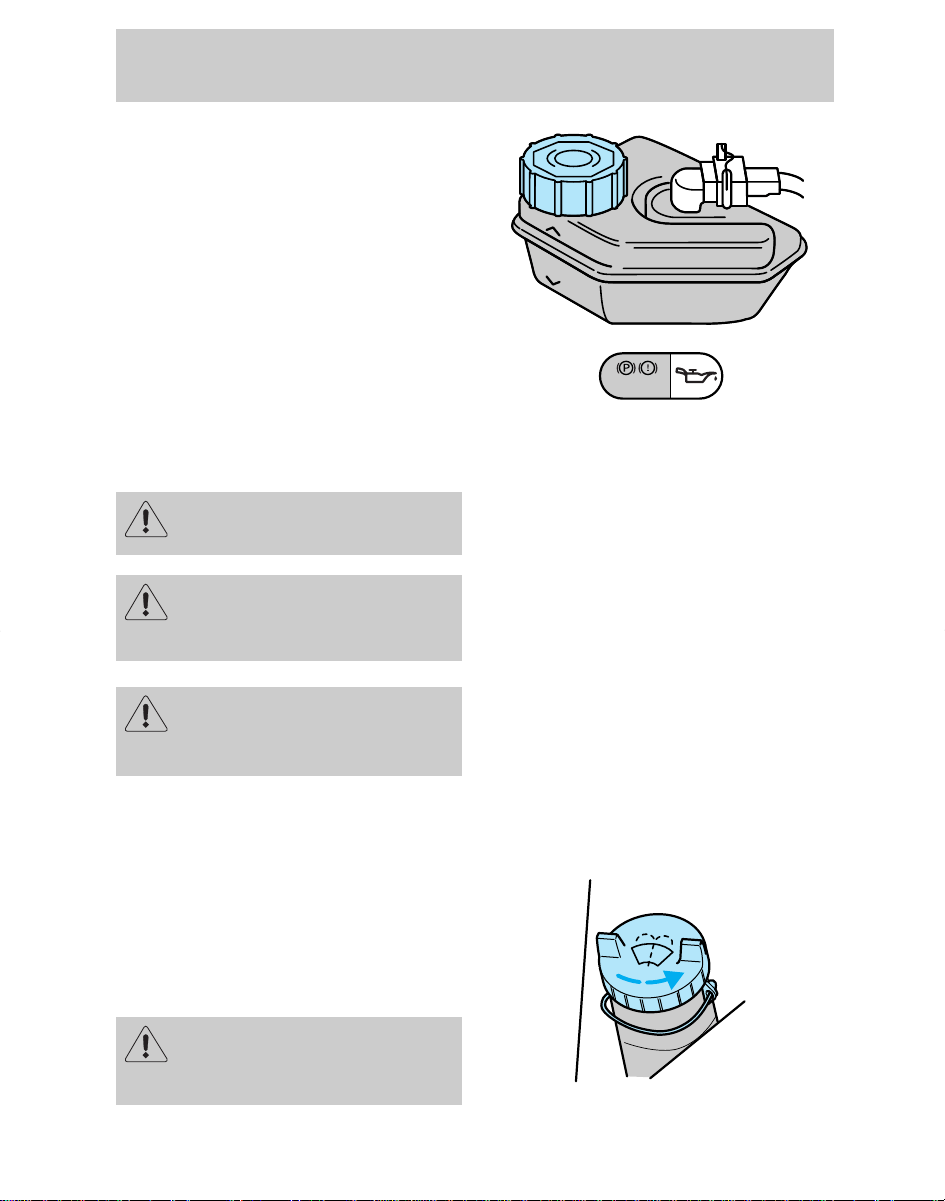

Brake/clutch fluid reservoir
Brake and clutch fluid systems are
supplied from the same reservoir.
The level of the fluid must lie
between the MIN and MAX marks
on the side of the reservoir. If the
level falls below the MIN mark, the
brake fluid level warning light on
the instrument panel will
illuminate. Add only brake fluid
that meets the Ford specification
(see the chapter Capacities and
specifications).
MAX
MIN
Brake fluid is toxic.
BRAKE
If you use a brake fluid that
is not DOT 3, you will cause
permanent damage to your brakes.
Do not let the reservoir for
the master cylinder run dry.
This may cause the brakes to fail.
Windshield washer system
If necessary, add enough washer
fluid to fill the reservoir. Follow the
instructions on the washer fluid
label.
Do not put engine coolant in
the container for the
windshield washer fluid.
CDW VA1-19Maint en MM 5/15/97 7:55 PM Page 135
Maintenance and care
136

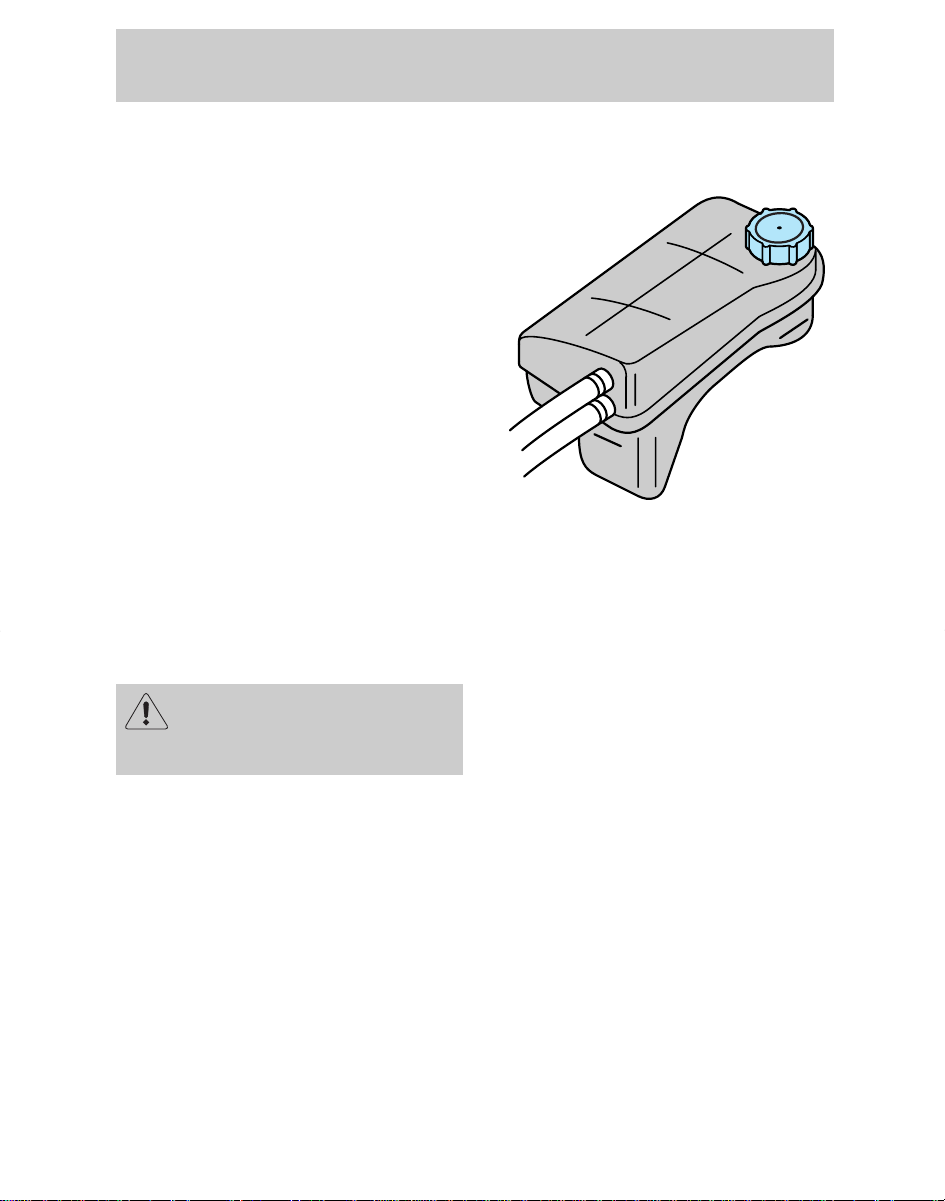

Engine coolant maintenance
MAX
MIN
Checking and adding engine
coolant
Check the level of the coolant in
the reservoir at least once a month.
Be sure to read and understand
Precautions when servicing your
vehicle in this chapter.
If the engine coolant has not been
checked for a long period of time,
the engine coolant reservoir may
eventually empty. If this occurs,
add engine coolant to the coolant
reservoir. For more information
refer to Adding engine coolant in
this chapter.
Automotive fluids are not
interchangeable; do not use engine
coolant, antifreeze or windshield
washer fluid outside its specified
function and vehicle location.
Do not put windshield
washer fluid in the container
for engine coolant.
CDW VA1-19Maint en MM 5/15/97 7:55 PM Page 136
Maintenance and care
137
When adding engine coolant
Ford recommends Ford Premium
Cooling System Fluid, which is an
optimized formula that will protect
all metals and rubber elastomers
used in Ford engines for four years
or 80 000 km (50 000 miles).
It is neither necessary nor
recommended to use supplemental
coolant additives in your gasoline-
powered vehicle. These additives
may harm your engine coolant
system.
When you change or add engine
coolant, it is important to maintain
engine coolant concentration
between 40% (-24°C [-11°F]) and
60% (-52°C [-62°F]), depending on
your local climate conditions.
A coolant concentration below 40%
will result in a loss of freeze
protection. A concentration above
60% may cause the engine to
overheat on a warm day.
Refer to Lubricant specifications
in the Capacities and
specifications chapter. Use only a
premium nationally-recognized
brand name engine coolant or
equivalent.
CDW VA1-19Maint en MM 5/15/97 7:55 PM Page 137
Maintenance and care
138
Always dispose of used
automotive fluids in a
responsible manner. Follow your
community’s standards for
recycling and disposing of
automotive fluids.
Recycled engine coolant
Ford Motor Company recommends
that Ford and Lincoln-Mercury
dealers use recycled engine coolant
produced by Ford-approved
processes. Not all coolant recycling
processes produce coolant which
meets Ford specifications ESE-
M97B44-A, and use of such coolant
may harm engine and cooling
system components.
CDW VA1-19Maint en MM 5/15/97 7:55 PM Page 138
Maintenance and care
139
MAX
MIN

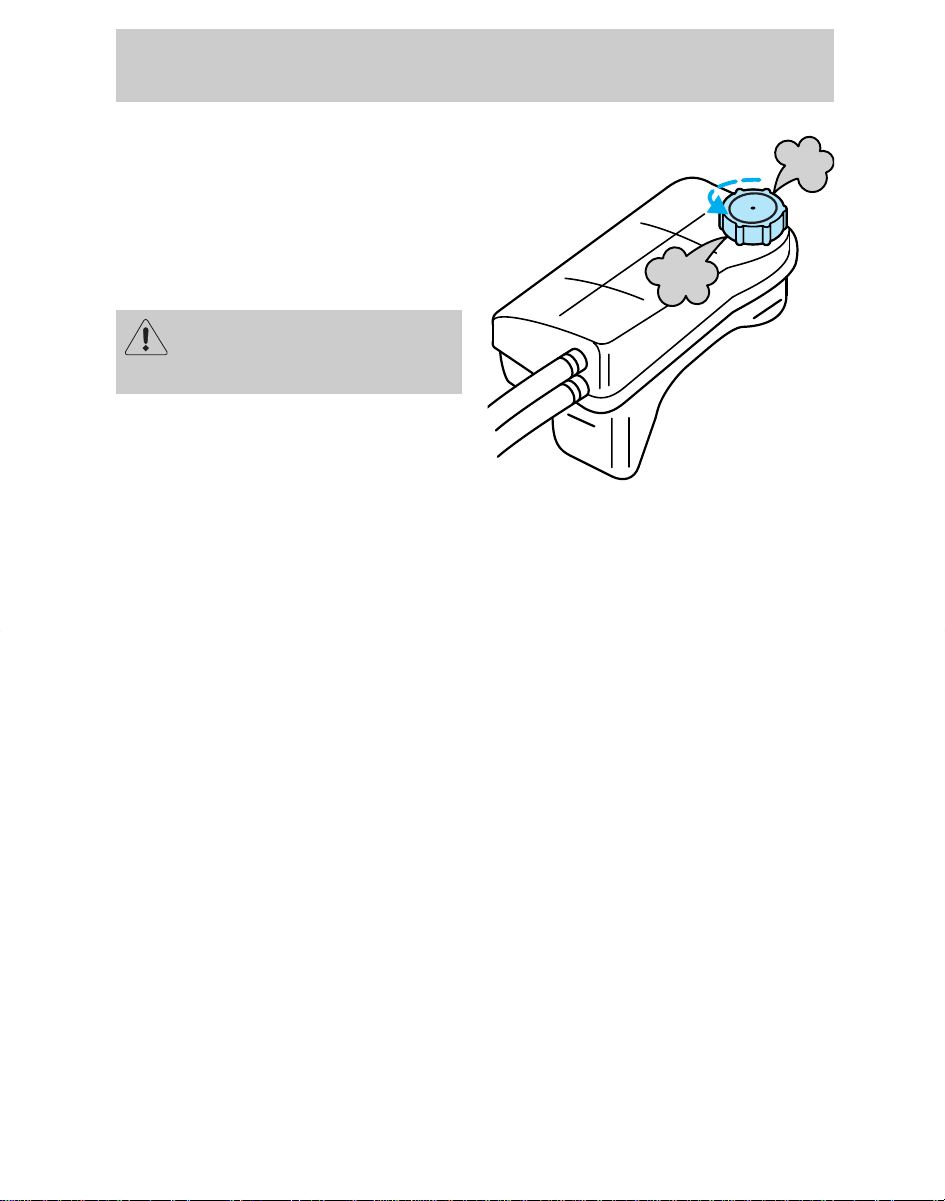

Adding engine coolant
1. Before removing the engine
coolant recovery cap, turn the
engine off and allow it to cool.
2. When the engine is cool, turn
and remove the cap.
• Step back for a moment while the
pressure in the reservoir is
released.
• Stand away from the reservoir
opening. Hot steam or coolant
spray may be released.
3. Add engine coolant until the
fluid level in the reservoir is
between the MAX and MIN lines on
the reservoir.
Follow the recommended service
interval for changing engine
coolant as outlined in the “Service
Guide”. Refer to Capacities and
specifications for more
information on engine coolant
specifications.
Have your dealer or a qualified
service technician check the engine
coolant system for leaks if you have
to add more than a litre (quart) of
engine coolant per month.
Never remove the coolant
recovery cap while the
engine is running or hot.
CDW VA1-19Maint en MM 5/15/97 7:55 PM Page 139
Maintenance and care
140
Checking and adding power
steering fluid
Switch off the engine. With the
steering system at normal
operating temperature, the fluid
level should come up to the MAX
mark.
If the fluid level drops below the
MIN mark, add the specified fluid.
Refer to the Capacities and
specifications chapter.
Severe winter climate
If you drive in extremely cold
climates (less than -36°C [-34°F]),
it may be necessary to increase the
coolant concentration above 50%.
Refer to the chart on the coolant
container to ensure the coolant
concentration in your vehicle is
such that the coolant will not
freeze at the temperature level in
which you drive during the winter
months. Never increase the engine
coolant concentration above 60%.
Leave a 50/50 mixture of engine
coolant and water in your vehicle
year-round in non-extreme
climates.
MAX
MIN
CDW VA1-19Maint en MM 5/15/97 7:55 PM Page 140
Maintenance and care
141
Automatic transaxle fluid
Check the automatic transaxle fluid
according to the scheduled
intervals in the “Service Guide”.
However, if the transaxle is not
working properly (slipping, shifting
slowly or fluid leakage) the fluid
level should be checked.
Adding automatic transaxle
fluid
Before adding any fluid, make sure
the correct type will be used. This
information is stamped on the
dipstick.
Check the fluid after your vehicle
has reached normal operating
temperature, which is reached
after driving approximately 32 km
(20 miles).
Add fluid in 0.25 litre (0.5 pint)
increments through the filler tube
until the fluid is at the correct level
on the dipstick. If an overfill
occurs, excess fluid should be
removed by your dealer or a
qualified service technician.
CDW VA1-19Maint en MM 5/15/97 7:56 PM Page 141
Maintenance and care
142
Checking the automatic
transaxle fluid
With the vehicle on a level surface
and the brake fully applied, start
the engine and move the gearshift
lever through all of the gears.
Securely latch the lever in P
(Park). Set parking brake and leave
the engine running.
Wipe off the dipstick cap and pull
the dipstick out. Wipe indicator
clean. Put dipstick back into filler
tube and make sure it is fully
seated. Pull the dipstick out and
read the fluid level.
Note that your vehicle should not
be driven until some fluid has been
added if the fluid level is below the
bottom dimple on the dipstick and
the outside temperature is above
10°C (50°F). Add only enough fluid
to bring the level above the bottom
hole.
If the vehicle has not been driven
and the fluid level is above the
bottom dimple on the dipstick,
don’t add fluid. Recheck the level
after driving your vehicle
approximately 30 km (20 miles)
when the engine has reached
normal operating temperature. The
fluid level should be within the
crosshatched area on the dipstick.
CDW VA1-19Maint en MM 5/15/97 7:56 PM Page 142
Maintenance and care
143
Motorcraft
SUPERSTART
Pb

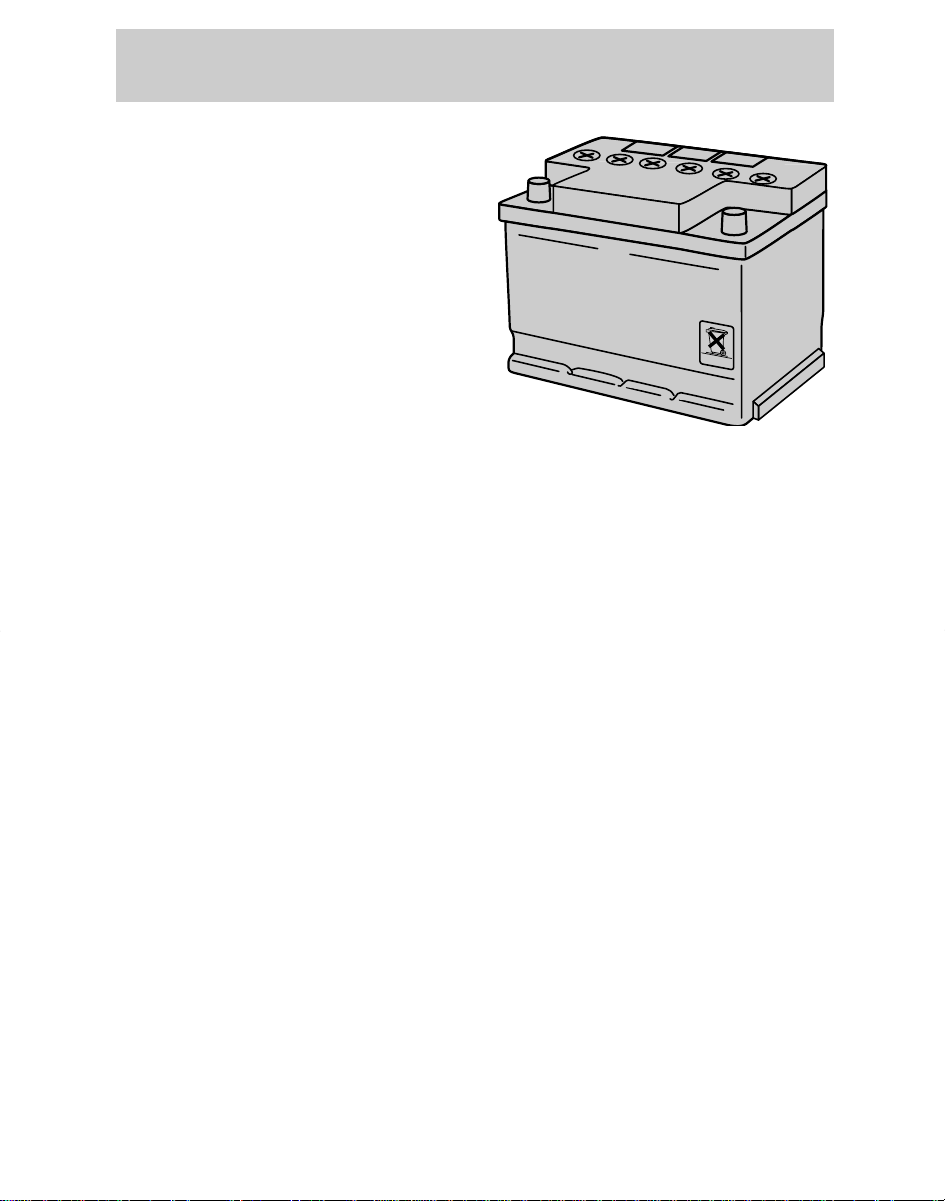

Battery
Your vehicle may be equipped with
a Motorcraft maintenance-free
battery. The Motorcraft
maintenance-free battery normally
does not require additional water
during its life of service. However,
for severe service usage or in high
temperature climates, check your
battery electrolyte level, at least
every 24 months or 40 000 km
(24 000 miles). Keep the
electrolyte in each cell up to the
“level” indicator. Do not overfill the
battery cell.
For longer, trouble-free operation,
keep the top of the battery clean
and dry. Also, make certain the
battery cables are always tightly
fastened to the battery terminals.
If you see any corrosion on the
battery cables or terminals, remove
the cables from the terminal(s) and
clean with a wire brush. You can
neutralize the acid with a solution
of baking soda and water. Reinstall
the cables when you are done
cleaning them, and apply a small
quantity of grease to the top of
each battery terminal to help
prevent corrosion.
CDW VA1-19Maint en MM 5/15/97 7:56 PM Page 143
Maintenance and care
144
Battery replacement
If your original equipment battery
requires replacement while under
warranty, it will be replaced with a
Motorcraft service battery,
identical in design technology. Like
the original equipment battery, it
should not require water addition
during its normal life of service;
however, for severe service usage
or in high temperature climates,
check your battery electrolyte
level, at least every 24 months or
40 000 km (24 000 miles). Do not
overfill the battery cell.
If the electrolyte level in your
battery gets low, you can add plain
tap water to the battery, as long as
you do not use hard water (water
with a high mineral or alkali
content). If possible, however, try
to only fill the battery cell with
distilled water. If the battery needs
water often, have the charging
system checked.
CDW VA1-19Maint en MM 5/15/97 7:56 PM Page 144
Maintenance and care
145
Batteries normally produce
explosive gases which can
cause personal injury. Do not allow
flames, sparks or lit tobacco to
come near the battery. Always
cover your face and protect your
eyes and also provide ventilation.
Applying too much pressure
on the ends when lifting a
battery could cause acid to spill.
Lift the battery with a carrier or
with your hands on the opposite
corners.
Follow these steps to
minimize risk of personal
injury.
Always dispose of automotive
batteries in a responsible
manner. Follow your community’s
local standards for disposal. Call
your local recycling center to find
out more about recycling
automotive batteries.
CDW VA1-19Maint en MM 5/15/97 7:56 PM Page 145
Maintenance and care
146
Relearning the idle function
Because your vehicle’s engine is
electronically controlled, some
control conditions are maintained
by power from the battery. When
the battery is disconnected or a
new battery is installed, the
computer must “relearn” its idle
conditions before your vehicle can
drive properly. To begin this
process:
1. Put the automatic transaxle
gearshift in P (Park). Put the
manual transaxle gearshift in
neutral.
2. Turn off all accessories and start
the vehicle.
3. Let the engine idle for at least
one minute.
4. The “relearning” process will
automatically complete as you
drive the vehicle.
• If you do not allow the engine to
“relearn” its idle, the idle quality
of your vehicle may be adversely
affected until the idle is
eventually “relearned”.
• If the battery has been
disconnected or if a new battery
has been installed, the clock and
preset radio stations must be
reset once the battery is
reconnected.
CDW VA1-19Maint en MM 5/15/97 7:56 PM Page 146
Maintenance and care
147
Checking wiper blades
Check the wiper blades on your
vehicle for roughness by running
the tips of your fingers over the
edge of the blade.
Traces of grease, silicone and fuel
prevent wiper blades from
functioning properly. We
recommend Ford cleaning
solutions or equivalent to clean
wiper blades.
Change the wiper blades on your
vehicle at least once a year.
Cabin air filter replacement
In your climate control system, you
have a filter that cleans the air
before it enters the interior of the
vehicle. This filter should be
replaced at the intervals in the
”Maintenance Schedule” booklet.
To replace the cabin air filter:
1. Remove both windshield wiper
arms. With the wiper arm in the
horizontal position, lift the arm
away from the windshield while
pulling the retaining clip at the
base toward the windshield.
Release the wiper arm, then lift it
off the base.
CDW VA1-19Maint en MM 5/15/97 7:56 PM Page 147
Maintenance and care
148

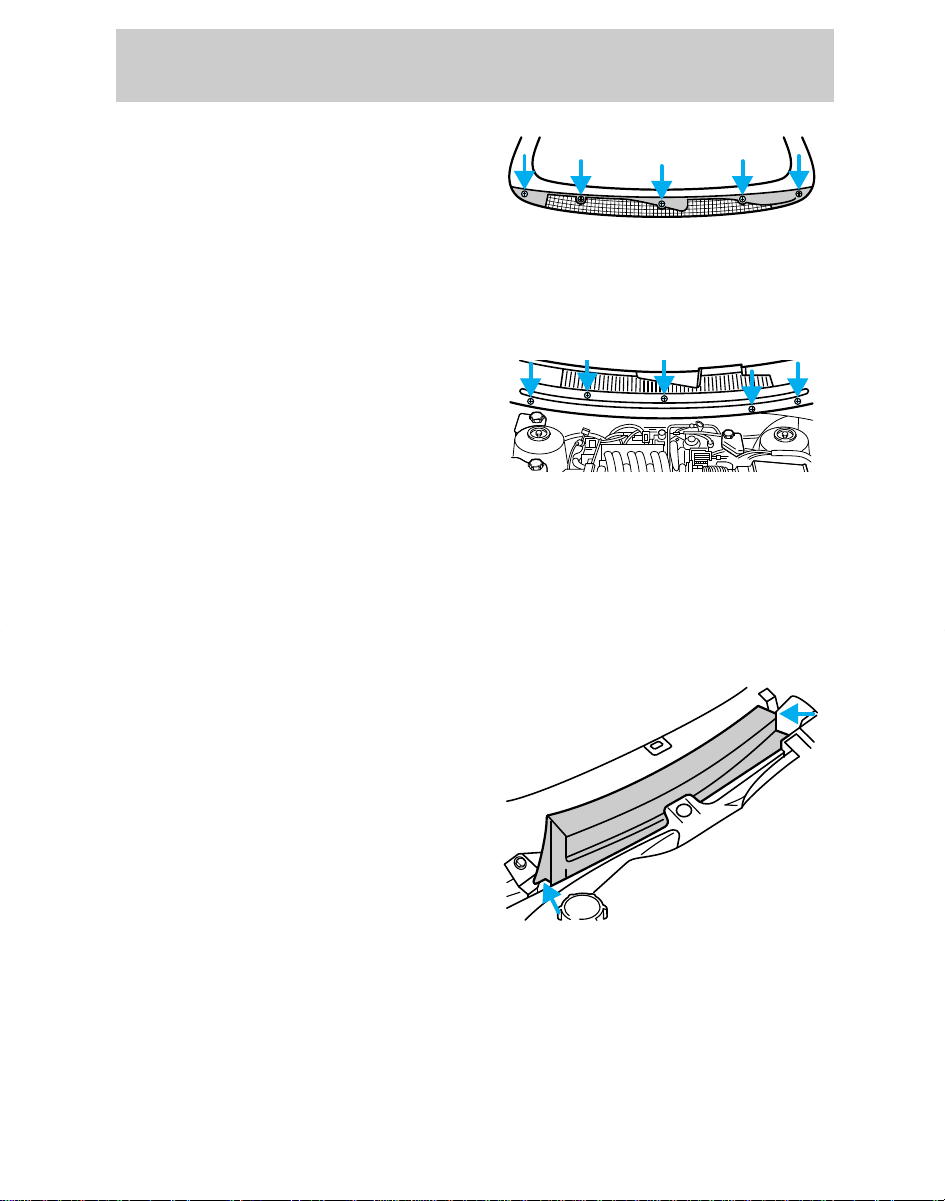

2. Remove the plastic caps from
the screws on the grille. Remove
the screws.
3. Open the hood. Pull off the
rubber weatherstrip at the back of
the engine compartment. Remove
the screws that hold the grille,
separate the two halves and
remove the grille.
4. The filter is in a housing at the
back of the engine compartment,
on the left side. Pull off the two
clips on the sides of the housing.
Slide out the housing and filter.
5. Slide the filter out of the
housing, replace with the new filter
and slide the housing and cabin air
filter back into place. Reinstall the
clips on the housing.
6. Replace the grille and wiper
arms.
CDW VA1-19Maint en MM 5/15/97 7:56 PM Page 148
Maintenance and care
149
Information about tire quality
grades
New vehicles are fitted with tires
that have their Tire Quality Grade
(described below) molded into the
tire’s sidewall. These Tire Quality
Grades are determined by
standards that the United States
Department of Transportation has
set.
Tire Quality Grades apply to new
pneumatic tires for use on
passenger cars. They do not apply
to deep tread, winter-type snow
tires, space-saver or temporary use
spare tires, tires with nominal rim
diameters of 25 to 30 cm (10 to 12
inches) or limited production tires
as defined in Title 49 Code of
Federal Regulation Part
575.104(c)(2).
U.S. Department of
Transportation – Tire quality
grades:
The U.S. Department of
Transportation requires Ford to
give you the following information
about tire grades exactly as the
government has written it.
IMPORTANT TIRE
MAINTENANCE INFORMATION
CDW VA1-19Maint en MM 5/15/97 7:56 PM Page 149
Maintenance and care
150
Treadwear
The treadwear grade is a
comparative rating based on the
wear rate of the tire when tested
under controlled conditions on a
specified government test course.
For example, a tire grade of 150
would wear one and one-half
(1 1/2) times as well on the
government course as a tire grade
100. The relative performance of
tires depends upon the actual
conditions of their use, however,
and may depart significantly from
the norm due to variations in
driving habits, service practices,
and differences in road
characteristics and climate.
Traction A B C
The traction grades, from highest
to lowest are A, B, and C, and they
represent the tire’s ability to stop
on wet pavement as measured
under test surfaces of asphalt and
concrete. A tire marked C may
have poor traction performance.
Warning: The traction grade
assigned to this tire is based on
braking (straightahead) traction
tests and does not include
cornering (turning) traction.
CDW VA1-19Maint en MM 5/15/97 7:56 PM Page 150
Maintenance and care
151
Temperature A B C
The temperature grades are A (the
highest), B, and C, representing
the tire’s resistance to the
generation of heat when tested
under controlled conditions on a
specified indoor laboratory test
wheel. Sustained high temperature
can cause the material of the tire to
degenerate and reduce tire life, and
excess temperature can lead to
sudden tire failure. The grade C
corresponds to a level of
performance which all passenger
cars tires must meet under the
Federal Motor Vehicle Safety
Standard No. 109. Grades B and A
represent higher levels of
performance on the laboratory test
wheel than the minimum required
by law.
The temperature grade for
this tire is established for a
tire that is properly inflated and
not overloaded.
Excessive speed,
underinflation, or excessive
loading can cause heat buildup
and possible tire failure.
CDW VA1-19Maint en MM 5/15/97 7:56 PM Page 151
Maintenance and care
152
Checking tire pressure
Check the tire pressure
periodically and inflate the tires as
necessary. To check the tire
pressure, insert the tire pressure
gauge into the valve.
The cold pressure amount is listed
on the Safety Compliance
Certification label.
Improperly inflated tires can
affect vehicle handling and
can fail suddenly, possibly
resulting in loss of vehicle control.
Rotating tires
Rotate your tires at regular
intervals for even wear. Rotation
intervals are listed in the “Service
Guide”.
CDW VA1-19Maint en MM 5/15/97 7:56 PM Page 152
Maintenance and care
153
Failure to follow these
precautions may adversely
affect the handling of the vehicle
and make it easier to lose control
and roll over.

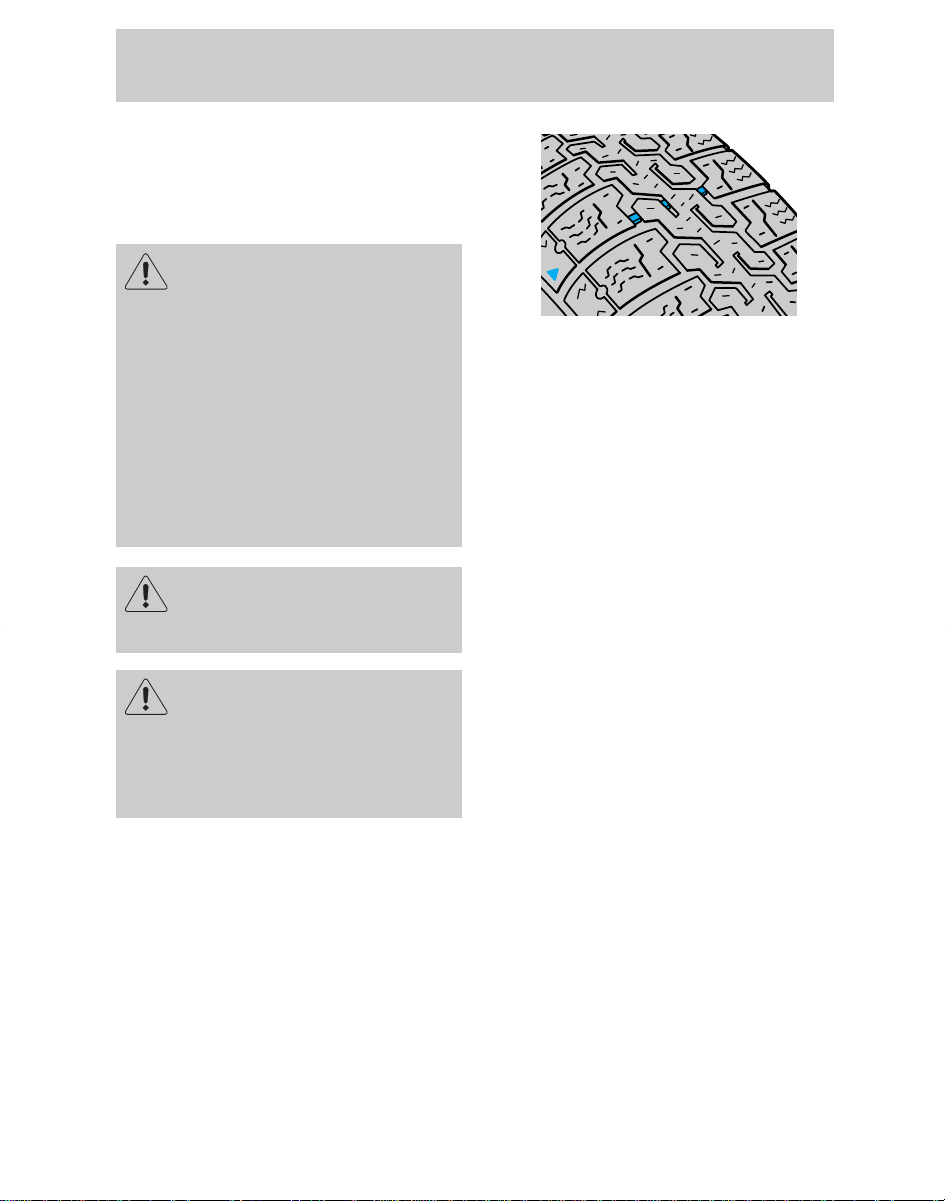

Replacing tires
Replace tires when the wear band
is visible through the tire treads.
When replacing full size
tires, never mix radial, bias-
belted, or bias-type tires. Use only
the tire sizes that are listed on the
tire pressure decal. Make sure that
all tires are the same size, speed
rating, and load-carrying capacity.
Use only the tire combinations
recommended on the decal. If you
do not follow these precautions,
your vehicle may not drive
properly and safely.
Do not replace your tires
with “high performance”
tires or larger size tires.
CDW VA1-19Maint en MM 5/15/97 7:56 PM Page 153
Maintenance and care
154
Dispose of worn tires in
accordance with local
environmental regulations.
Refer to the Safety Compliance
Certification label to determine the
specific size tire and wheel Ford
Motor Company recommends for
use on this vehicle.
When purchasing replacement tires
for your vehicle, consult your
dealer or a qualified service
technician to ensure that the
correct tire type is used.
CDW VA1-19Maint en MM 5/15/97 7:56 PM Page 154
Maintenance and care
155
The tires on your vehicle have all-
weather treads to provide traction
in rain and snow. However, in some
climates, using snow tires and
chains may be necessary. Ford
offers snow chains as a Ford
approved accessory and
recommends use of these or their
equivalents on approved tires. See
your dealer or a qualified service
technician for more information on
tire chains for your vehicle. Follow
these guidelines when using snow
tires and chains:
• Install chains securely, verifying
that the chains do not touch any
wiring, brake lines or fuel lines.
• Install the chains on the front
tires only.
• Do not use tire chains 205/60
tires and 205/55R16 Z rated tires.
Steering, suspension and body
components may be damaged by
use of chains.
Snow tires must be the same
size and grade as the tires
you currently have on your
vehicle.
Using snow tires and chains
CDW VA1-19Maint en MM 5/15/97 7:56 PM Page 155
Maintenance and care
156
Change over from winter to
summer tires as soon as road
conditions allow, this will reduce
fuel consumption and noise in the
vehicle’s interior.
• Drive cautiously. If you hear the
chains rub or bang against the
vehicle, stop and retighten them.
If this does not work, remove the
chains to prevent vehicle
damage.
• Local regulations may prohibit or
restrict the use of tire chains.
Investigate the laws and
regulations in your area before
installing chains.
• Avoid overloading your vehicle.
• Do not use tire chains on
temporary spare tires.
• Remove the tire chains when
they are no longer needed. Do
not use chains on dry roads.
• The suspension insulation and
bumpers will help prevent
vehicle damage. Do not remove
these components from the
vehicle when using snow tires
and chains.
CDW VA1-19Maint en MM 5/15/97 7:56 PM Page 156
Maintenance and care
157
IMPORTANT FUEL
INFORMATON
Important safety precautions
Do not overfill the fuel tank.
The pressure in an overfilled
tank may cause leakage and lead
to fuel spray and fire.
If you do not use the proper
fuel cap, the pressure in the
fuel tank can damage the fuel
system or cause it to work
improperly in a collision.
The fuel system may be
under pressure. If the fuel
cap is venting vapor or if you hear
a hissing sound, wait until it stops
before completely removing the
cap.
Automotive fuels can cause
serious injury or death if
misused or mishandled.
CDW VA1-19Maint en MM 5/15/97 7:56 PM Page 157
Maintenance and care
158
Observe the following guidelines
when handling automotive fuel:
• Extinguish all smoking materials
and any open flames before
fueling your vehicle.
• Always turn off the vehicle
before fueling.
• Make sure the fuel cap is
correctly fitted after fueling.
Failure to do so may cause the on
board diagnostic system to
illuminate the CHECK ENGINE
light.
• Automotive fuels can be harmful
or fatal if swallowed. If fuel is
swallowed, call a physician
immediately, even if no
symptoms are immediately
apparent. The toxic effects of
fuel may not be visible for hours.
• Fuels can also be harmful if
absorbed through the skin. If fuel
is splashed on the skin, promptly
remove contaminated clothing
and wash skin thoroughly with
soap and water.
• If fuel is splashed in the eyes,
remove contact lenses (if worn),
flush with water for 15 minutes
and seek medical attention.
• Be particularly careful if you are
taking “Antabuse” or other forms
of disulfiram for the treatment of
alcoholism. Breathing gasoline
vapors or skin contact could
cause an adverse reaction.
Consult a physician immediately.
CDW VA1-19Maint en MM 5/15/97 7:56 PM Page 158
Maintenance and care
159
Choosing the right fuel
Use only UNLEADED FUEL. The
use of leaded fuel is prohibited by
law and could damage your vehicle.
The damage may not be covered by
your warranty.
Your vehicle was not designed to
use fuel containing manganese-
based additives such as MMT.
Additionally, vehicles certified to
California emission standards
(indicated on the underhood
Vehicle Emission Control
Information label) are designed to
operate on California reformulated
gasolines. If California reformulated
gasoline is not available when you
refuel, your vehicle can be
operated on non-California fuels.
However, even though your engine
will perform adequately on other
gasolines, the performance of the
emission control devices and
systems may be adversely affected.
Repair of damage caused by a fuel
that your vehicle was not designed
for may not be covered by your
warranty.
CDW VA1-19Maint en MM 5/15/97 7:56 PM Page 159
Maintenance and care
160
Octane recommendations
Your vehicle is designed to use
regular gasoline with an (R+M)/2
octane rating of 87. We do not
recommend gasolines labeled as
“regular” in high altitude areas that
are sold with octane ratings of 86
or even less.
Do not be concerned if your vehicle
sometimes knocks lightly. However,
if it knocks heavily under most
driving conditions on the
recommended octane, see your
dealer or a qualified service
technician to prevent any engine
damage.
87
MINIMUM OCTANE RATING
(R+M)/2 Method
CDW VA1-19Maint en MM 5/15/97 7:56 PM Page 160
Maintenance and care
161
Fuel quality
If you are experiencing starting,
rough idle or hesitation problems
try a different brand of fuel. If the
condition persists, see your dealer
or qualified service technician.
The American Automobile
Manufacturers Association
(AAMA) issued a gasoline
specification to provide information
on high quality fuels that optimize
the performance of your vehicle.
We recommend the use of gasolines
that meet the AAMA specification
if they are available.
It should not be necessary to add
any aftermarket products to your
fuel tank if you continue to use a
high-quality fuel.
Cleaner air
Ford approves the use of gasolines
to improve air quality, including
reformulated gasolines that contain
oxygenates such as a maximum of
10% ethanol or 15% MTBE. There
should be no more than 5%
methanol with cosolvents and
additives to protect the fuel
system.
CDW VA1-19Maint en MM 5/15/97 7:56 PM Page 161
Maintenance and care
162
Calculating fuel economy
To accurately calculate your
vehicle’s fuel economy:
1. Fill the tank completely and
record the initial odometer reading.
2. Each time you fill the tank,
record the amount of fuel added
(in litres or gallons)
3. After at least three to five fill-
ups, fill the fuel tank and record
the current mileage reading.
4. Use one of the following
equations to calculate fuel
economy.
Litres used x 100 / Total kilometres
traveled
Total miles traveled / Total gallons
used
Keep a record for at least one
month. This will provide an
accurate estimate of the vehicle’s
fuel economy.
CDW VA1-19Maint en MM 5/15/97 7:56 PM Page 162
Maintenance and care
163
WHAT YOU SHOULD KNOW
ABOUT THE EMISSION
CONTROL SYSTEM
For more information about your
vehicle’s emission control system,
refer to the Vehicle Emission
Control Information Decal located
on the inside, left of the engine
compartment.
The catalytic converter enables the
vehicle’s emission control system to
operate properly.
Follow these guidelines to ensure
proper emission system operation:
• Use unleaded fuel only.
• Avoid running out of fuel.
E F
1
/
2
UNLEADED FUEL ONLY
• Do not turn off the ignition while
your vehicle is in motion.
• Have maintenance performed
according to intervals in the
“Service Guide”.
Exhaust leaks may result in
the entry of harmful and
potentially lethal fumes into the
passenger compartment. Under
extreme conditions excessive
exhaust temperatures could
damage the fuel system, the
interior floor covering, or other
vehicle components, possibly
causing a fire.
CDW VA1-19Maint en MM 5/15/97 7:56 PM Page 163
Maintenance and care
164
BRAKE
TRACTION
CONTROL
O/D
OFF
If you notice one or more of the
following, the emission system may
not be functioning properly; have
the vehicle serviced as soon as
possible:
• Fluid leaks.
• The charging system, engine oil
pressure or low coolant warning
lights illuminate in the
instrument cluster and remain lit.
• Strange odors.
• Engine runs for more than five
seconds after shut off or engine
misfires, surges, stalls or
backfires.
• Loss of oil pressure.
CDW VA1-19Maint en MM 5/15/97 7:56 PM Page 164
Maintenance and care
165
Do not park, idle or drive
your vehicle in dry grass or
other dry ground cover. The
emission system heats up the
engine compartment and exhaust
system, which can start a fire.
Important emission control
imformation
By law, anyone who manufactures,
repairs, services, leases, trades
vehicles or supervises a fleet of
vehicles is not permitted to
intentionally remove an emission
control device or prevent it from
working. Do not make any
unauthorized changes to the
vehicle or engine. Changes that
cause more unburned fuel to reach
the exhaust system can increase
the temperature of the engine or
exhaust system.
When your vehicle is serviced,
never use a metal exhaust
collector. The use of a metal
collector may melt or deform
plastic parts.
CDW VA1-19Maint en MM 5/15/97 7:56 PM Page 165
Maintenance and care
166
Preparing your vehicle for
inspection/maintenance (I/M)
testing
In some localities it may be a legal
requirement to pass an I/M test of
the on-board diagnostic(OBD) II
system. If your vehicle’s powertrain
system or battery has just been
serviced, the OBD II system is reset
to a condition unready for I/M
testing. To ready the OBD II system
for I/M testing, the law specifies
that additional city and highway
driving is necessary to complete
the check of the OBD II system.
The driving mode required to reach
the ready condition consists of a
minimum of 30 minutes of city and
highway driving:
• At least 20 minutes driving in
stop and go city-type traffic with
at least four idle periods.
• At least 10 minutes of driving on
an expressway or highway.
Before completing the above
driving modes, the engine must be
warmed up and at operating
temperature. Once started, the
vehicle must not be turned off
during these modes.
CDW VA1-19Maint en MM 5/15/97 7:56 PM Page 166
Maintenance and care
167

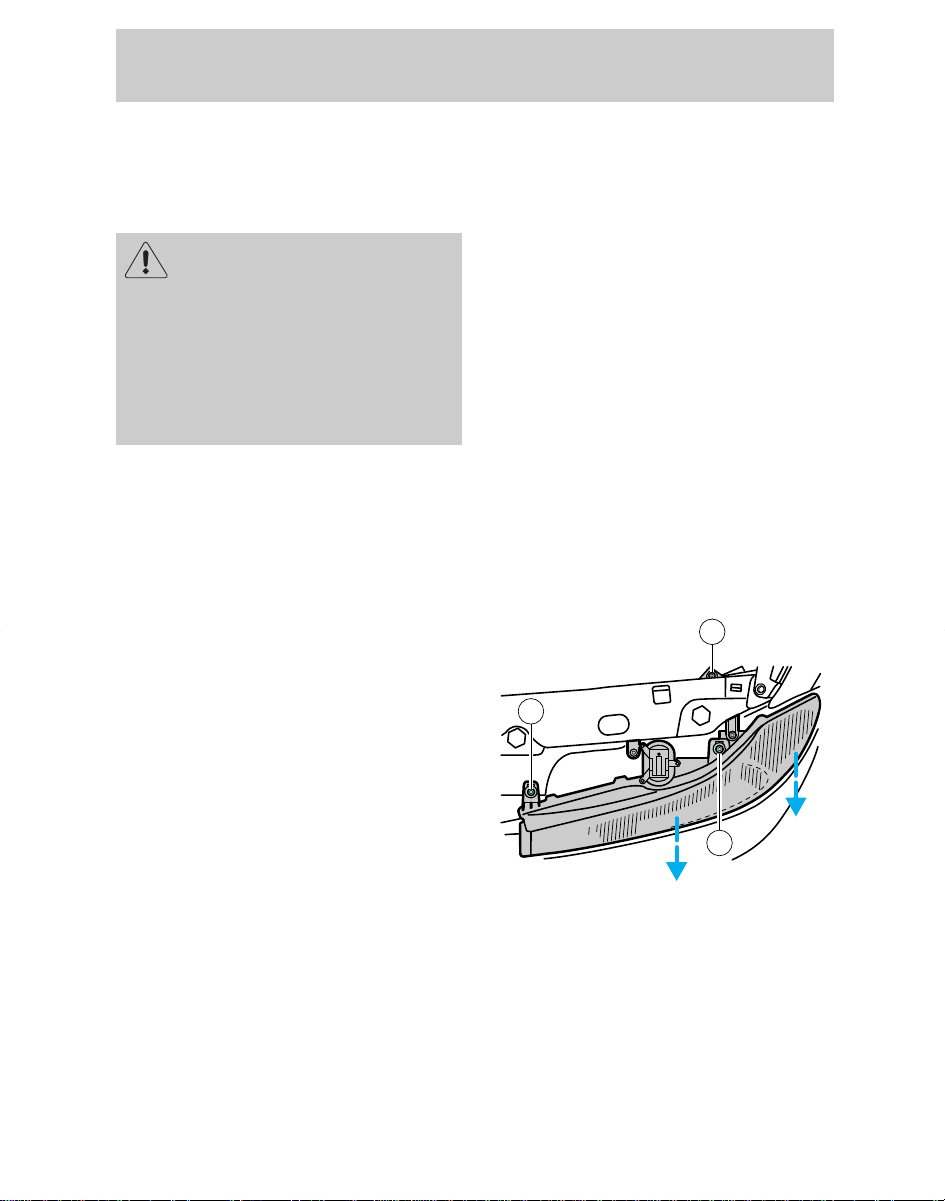

1
1
2
The bulbs for the low beam, high
beam, turn signals and side lamps
are housed in the lamp assembly.
To replace a bulb, the complete
lamp assembly has to be removed
as follows:
1. Switch off the lamps.
2. Open the hood.
3. Remove the lower screw (2)
from the headlamp housing.
4. Remove the two upper screws
(1) from the headlamp housing.
5. Gently pull the headlamp
housing outward.
6. Replace the headlamp bulbs.
BULB REPLACEMENT
Handle a halogen headlamp
bulb carefully and keep out
of children’s reach.Grasp the bulb
only by its plastic base and do not
touch the glass. The oil from your
hand could cause the bulb to
break the next time the
headlamps are operated.
Removing the headlamps
assembly
CDW VA1-19Maint en MM 5/15/97 7:56 PM Page 167
Maintenance and care
168
Reinstalling the headlamp
assembly
The gasket lining must be seated
properly around the lamp assembly
when reinstalling.
All bulb connectors must be
correctly connected.
Install in the reverse order.

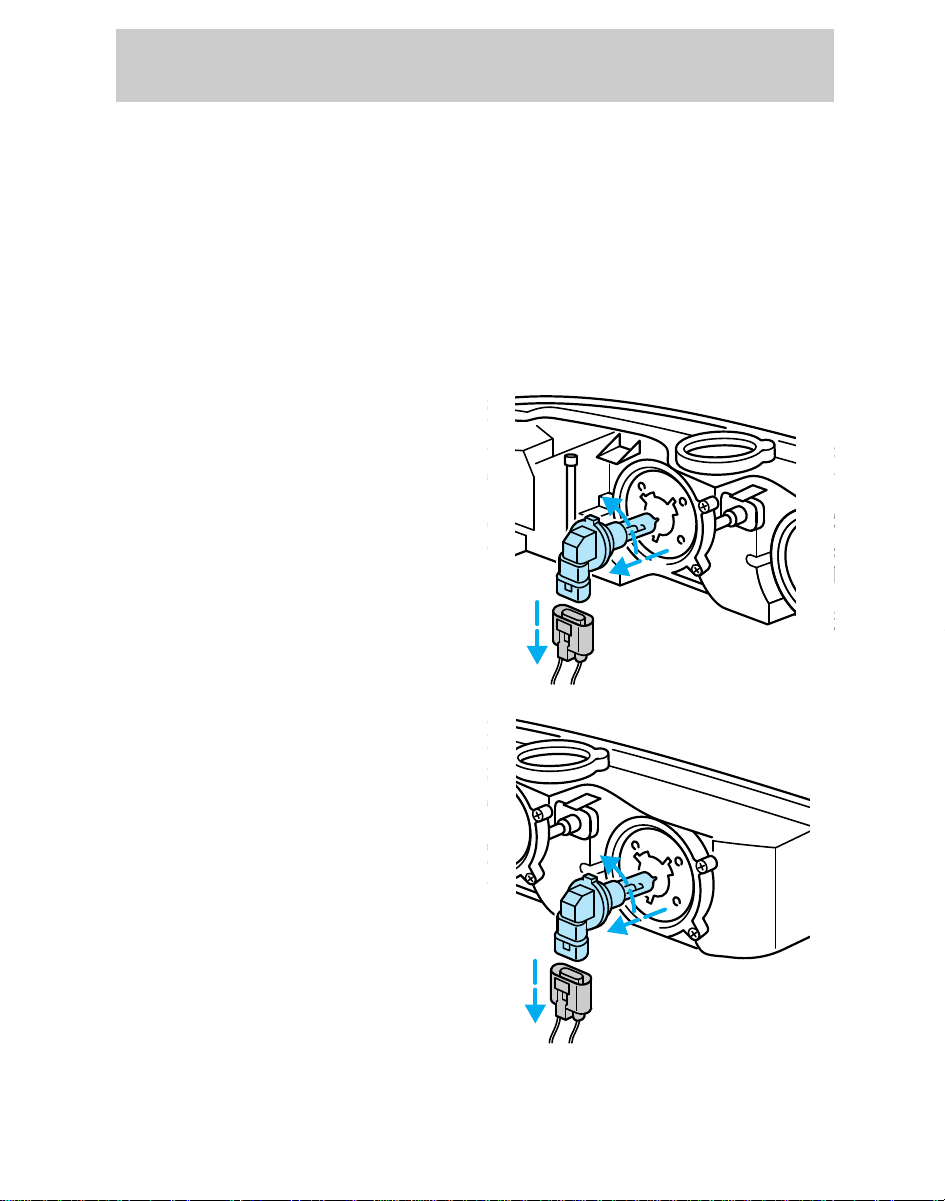

Headlamp – low beam
Pull off the connector, release the
wire clip and replace the bulb.
Pay attention to the tab guides
when replacing.
Headlamp alignment
Check the headlamp alignment
after each replacement of a bulb.
Refer to Aiming the headlamps.
Headlamps – high beam
Replacement instructions are the
same as for the low beam
headlamp.
CDW VA1-19Maint en MM 5/15/97 7:56 PM Page 168
Maintenance and care
169

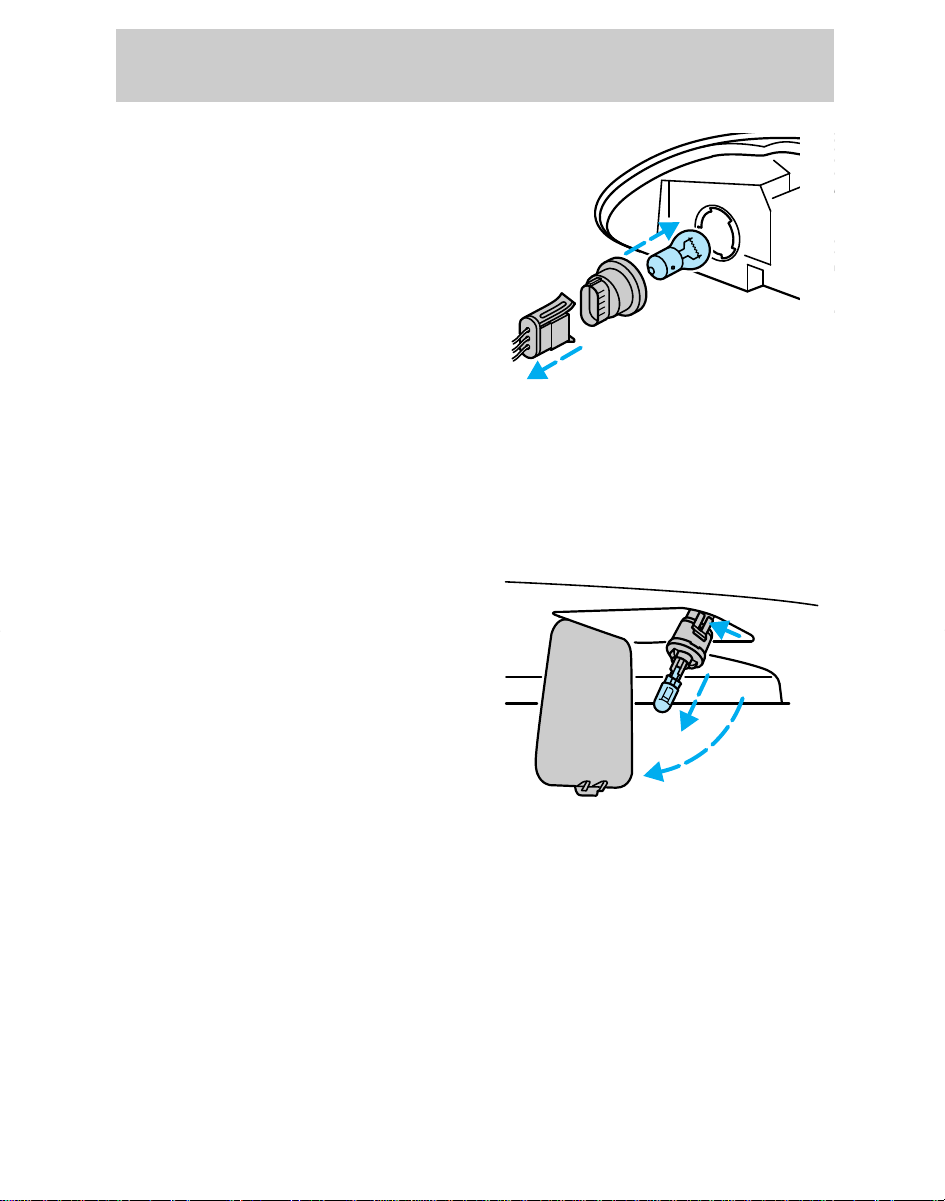

Front turn signal/side lamps
Pull the socket out. Pull the bulb
out and replace it.
Foglamps (if equipped)
1. Detach the cover (access at
bottom of front bumper).
2. Turn the bulb counterclockwise
and pull it out of the light assembly.
3. Remove the electrical connector.
4. Fit the new bulb in reverse order
(do not touch the glass part of the
bulb).
CDW VA1-19Maint en MM 5/15/97 7:56 PM Page 169
Maintenance and care
170

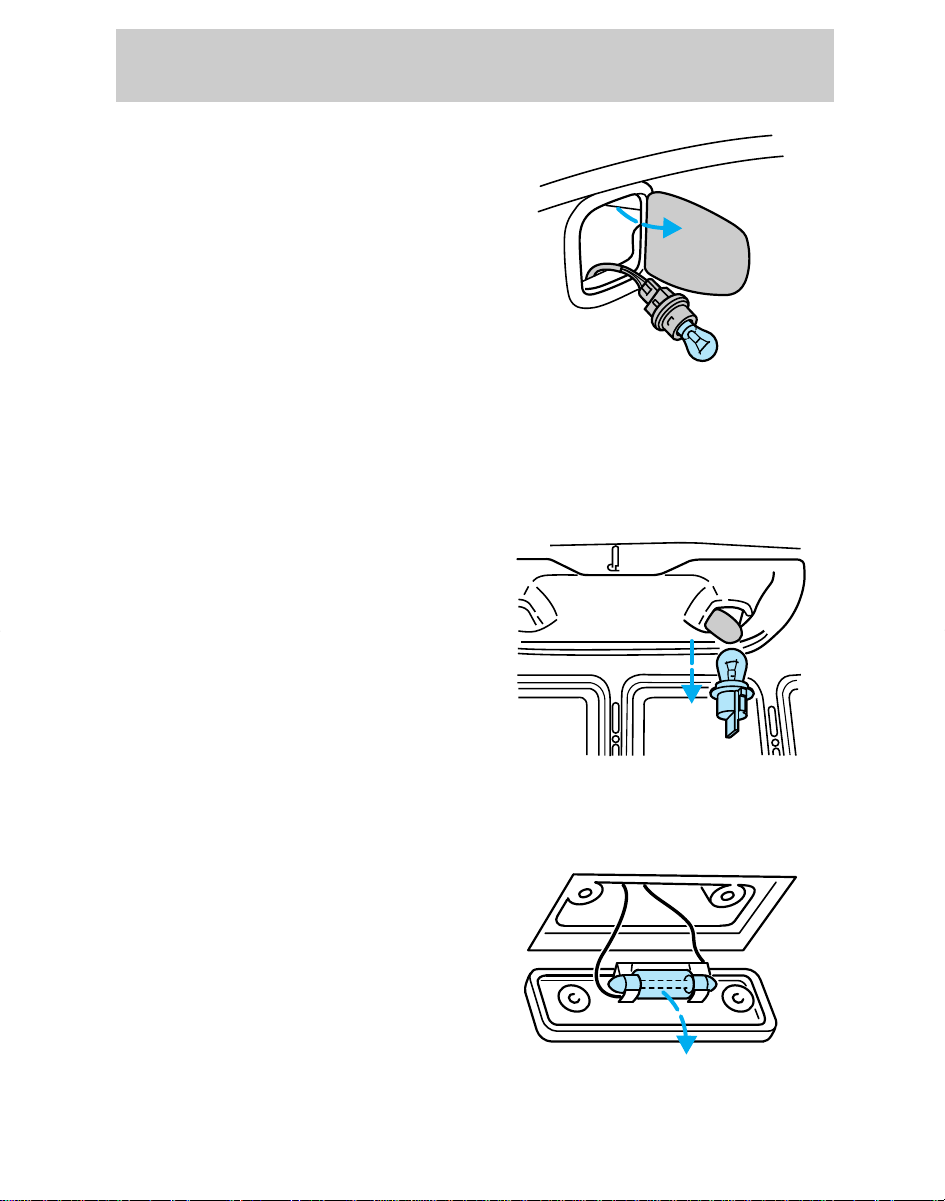

License plate lamp
Unscrew the bulb holder with a
screwdriver. Remove the bulb from
the clip holder.
Replace the new bulb in reverse
sequence.
Brake/turn signal/tail lamps
1. Disconnect the electrical
conector.
2. Turn the socket
counterclockwise and pull it out.
3. Turn the bulb counterclockwise
and pull it out.
4. To install, fit the new bulb in
reverse order.
Backup lamps
The backup lamps are located in
the trunk lid. Replacement
instructions are the same as for the
brake/turn signal/tail lamps.
CDW VA1-19Maint en MM 5/15/97 7:56 PM Page 170
Maintenance and care
171

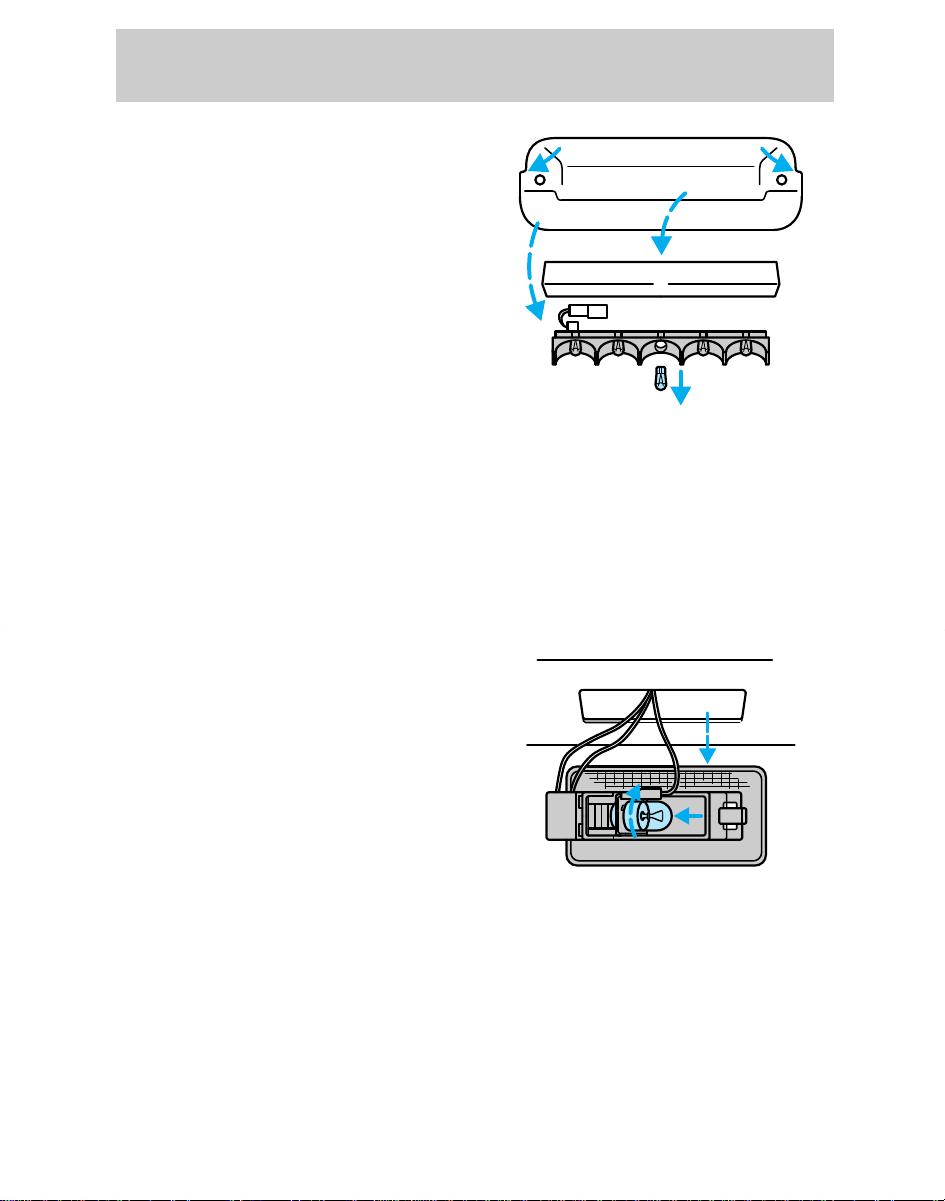

High-mounted brake lamp
Enter the rear seat compartment.
Unscrew both screws and remove
the complete lamp assembly. Bend
the housing outwards to unclip the
lamp module. Press the reflector
fitting from the four locking points
and pull it off. Pull out the wedge
base bulb and replace.
To install, fit the new bulb in
reverse sequence.
On vehicles equipped with a rear
spoiler, the high-mounted brake
lamp is included in the spoiler.
Luggage compartment lamp
Pry out the light assembly from the
holder with a flat screwdriver. Turn
the spherical bulb under slight
pressure counterclockwise and
remove.
CDW VA1-19Maint en MM 5/15/97 7:56 PM Page 171
Maintenance and care
172

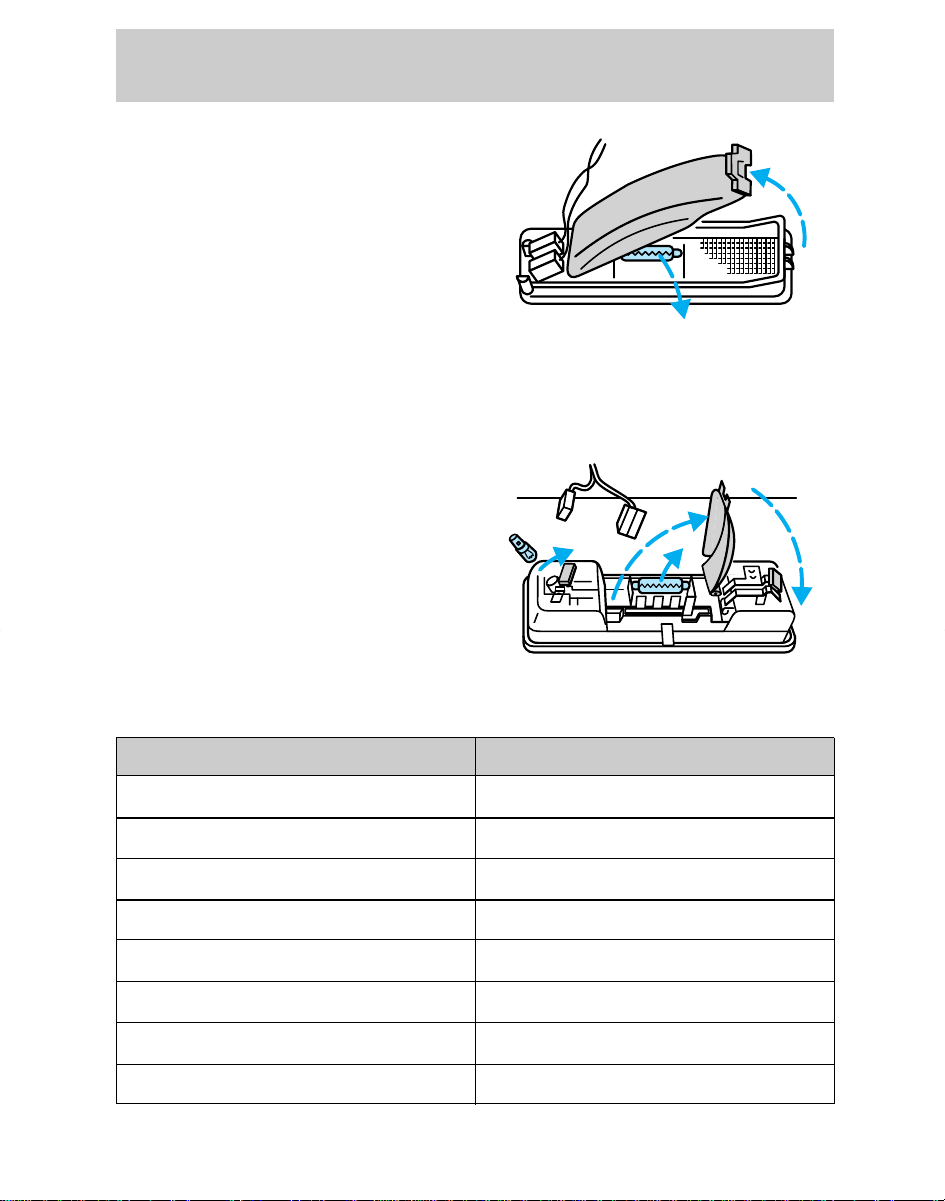

Function Trade number
3457 NA
9005
9006
893
1157
1156
Front /turn lamp
Headlamp (high)
Headlamp (low)
Fog lamp
Rear tail/turn/brake lamp
Backup lamp
Bulb specifications
2723
C5W
High-mounted brake lamp
License plate lamp
Reading lamps (if equipped)
Open the lamp assembly.
The bulbs can be replaced after the
contact plate has been hinged
back.
Interior lamps
Switch off the interior lamps
(middle switch position). Pry out
the lamp assembly with a flat
screwdriver, release the reflector at
the side and replace the festoon
bulb.
To install, fit the new bulb in
reverse sequence.
CDW VA1-19Maint en MM 5/15/97 7:56 PM Page 172
Maintenance and care
173
Aiming the headlamps
Your vehicle is equipped with a
Vehicle Headlamp Aim Device
(VHAD) on each headlamp body.
Each headlamp may be properly
aimed in the horizontal direction
(left/right) and the vertical position
(up/down).
A non-zero bubble reading does not
necessarily indicate out-of-aim
headlamps. If your vehicle is not
positioned on a level surface, the
slope will be included in the level
indicator. Therefore, vertical
headlamp adjustment should be
performed only when beam
direction appears to be incorrect
and a level surface can be verified.
AIMING THE HEADLAMPS
The alignment of your headlamps
should be checked if:
• Oncoming motorists frequently
signal you to deactivate your high
beams, and your high beams are
not activated.
• The headlamps do not seem to
provide enough light for clear
night vision.
• The headlamp beams are pointed
substantially away from a slightly
down and to the right position.
CDW VA1-19Maint en MM 5/15/97 7:56 PM Page 173
Maintenance and care
174

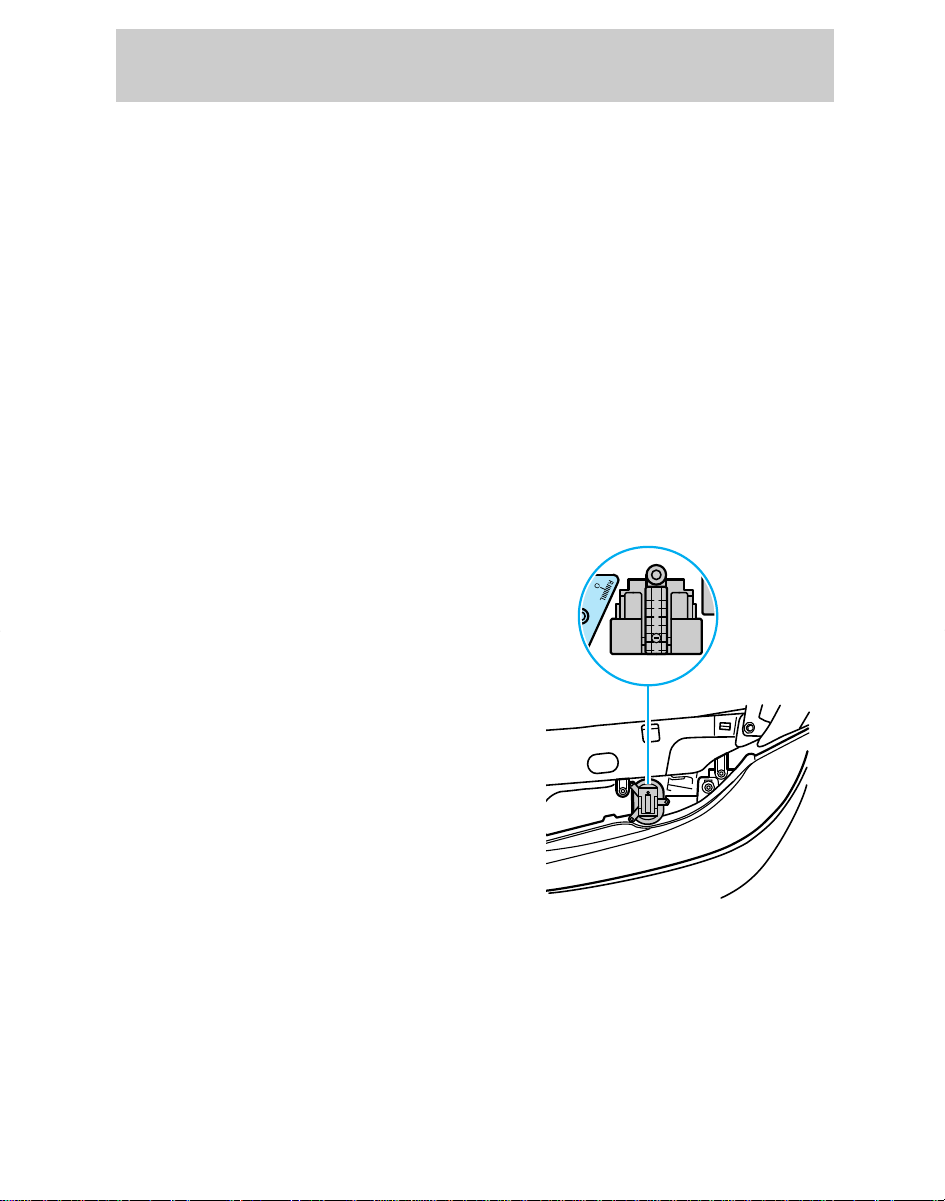

Adjusting the horizontal aim
1. Make sure the vehicle is on a
level surface.
2.With the hood open, locate the
horizontal indicator and adjusting
screw.
3. Turn the horizontal adjusting
screw until the reference mark on
the reflector extension aligns with
the “0” reference mark on the
horizontal indicator when viewed
directly from above.
4. When the horizontal aim has
been adjusted, close the headlamp
access panel.
The horizontal aim must be
adjusted first. You will need one 7
mm box wrench, open end wrench
or T-15 Torx drive.
The following procedures assumes
that the vehicle’s front structure is
properly aligned. If the vehicle has
been in an accident requiring the
front end of the vehicle to be
repaired, the horizontal indicator
should be recalibrated by your
dealer or a qualified service
technician.
CDW VA1-19Maint en MM 5/15/97 7:56 PM Page 174
Maintenance and care
175

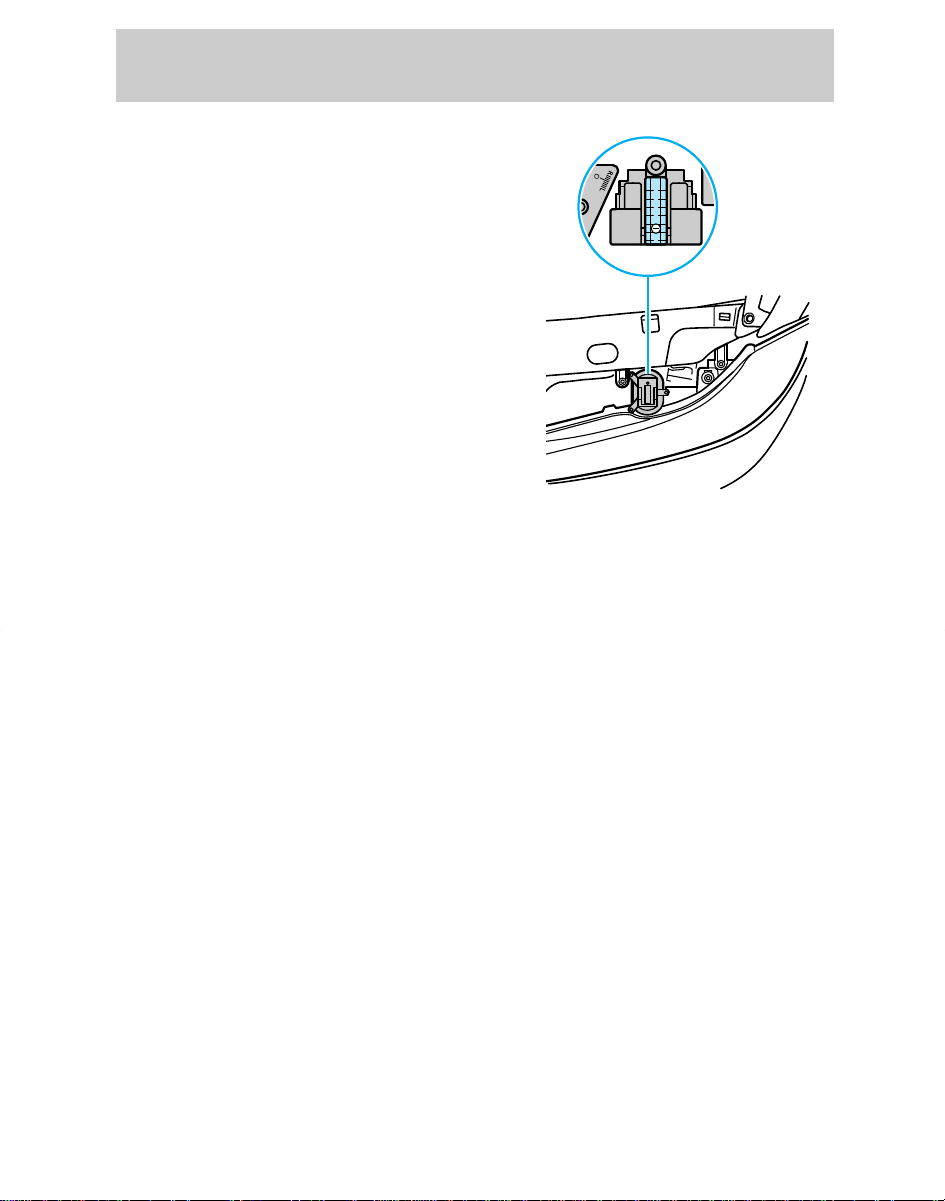

Adjusting the vertical aim
The numbers shown on the vial
indicate beam direction in degrees
up or down.
1. Do not adjust the vertical aim
until after adjusting the horizontal
aim.
2. With the hood open, locate the
bubble level vertical aim indicator.
It is visible when viewed from the
above rear of the headlamp.
3. Turn the vertical adjusting screw
until the reference mark on the
reflector extension aligns with the
“0” reference mark on the vertical
indicator when viewed from
directly above.
4. Close the hood.
CDW VA1-19Maint en MM 5/15/97 7:56 PM Page 175
Maintenance and care
176
Washing your vehicle
Only use car washing areas
that have environmentally
friendly drainage systems.
VEHICLE CARE
Wash your vehicle regularly with
cold or lukewarm water. Never use
strong detergents or soap. If your
vehicle is particularly dirty, use a
quality car wash detergent. Always
use a clean sponge, washing glove
or similar device and plenty of
water for best results. To avoid
spots, avoid washing when the
hood is still warm, immediately
after or during exposure to strong
sunlight.
CDW VA1-19Maint en MM 5/15/97 7:56 PM Page 176
Maintenance and care
177
Waxing your vehicle
The best way to determine when
the paintwork needs waxing is by
noting when water stops beading
on the surface. This could be every
three or four months depending on
operating conditions.
Use only carnauba or synthetic-
based waxes. Remove any bugs and
tar before waxing the vehicle. Use
cleaning fluid or alcohol with a
clean cloth to remove bugs. Use tar
remover to remove any tar spots.
During winter months, it is
especially important to wash the
vehicle on a regular basis. Large
quantities of dirt and road salt are
difficult to remove, and they also
cause damage to the vehicle.
Remove or lower any exterior
accessories, such as antennas,
before entering a car wash.
Remove particles such as bird
droppings, tree sap, insect remains,
tar spots, road salt and industrial
fallout immediately.
After washing, apply the brakes
several times to dry them.
CDW VA1-19Maint en MM 5/15/97 7:56 PM Page 177
Maintenance and care
178
Repairing paint chips
Minor scratches or paint damage
from road debris may be repaired
with touch-up paint, paint repair
foil or aerosol spray from the Ford
accessories line. Observe the
application instructions on the
products.
Cleaning the wheels
Wash the wheels with the same
detergent you use to clean the
body of your vehicle. Do not use
acid-based wheel cleaners, steel
wool, fuel or strong detergents.
Never use abrasives that will
damage the finish of special wheel
surfaces. Use a tar remover to
remove grease and tar.
CDW VA1-19Maint en MM 5/15/97 7:56 PM Page 178
Maintenance and care
179
Cleaning the engine
Engines are more efficient when
they are clean because grease and
dirt buildup act as insulators and
keep the engine warmer than
normal. Follow these guidelines to
clean your engine:
• Take care when using a power
washer to clean the engine. The
high pressure fluid could
penetrate the sealed parts and
cause damage.
• Do not spray with cold water, to
avoid cracking the engine block.
• Cover the alternator to prevent
water damage when cleaning the
engine.
• Never wash or rinse the engine
while it is running; water in the
running engine may cause
internal damage.
CDW VA1-19Maint en MM 5/15/97 7:56 PM Page 179
Maintenance and care
180
Cleaning plastic exterior parts
Use a vinyl cleaner for routine
cleaning of plastic. Clean with a tar
remover if necessary. Do not clean
plastic parts with thinners, solvents
or petroleum-based cleaners.
Cleaning the exterior lamps
Wash the exterior lamps with the
same detergent you use to wash
the exterior of your vehicle. Use
glass cleaner or tar remover if
necessary.
To avoid scratching the lamps, do
not use a dry paper towel, chemical
solvents or abrasive cleaners to
clean the lamps.
Cleaning the wiper blades
If the wiper blades do not wipe
properly, clean both the windshield
and wiper blades using undiluted
windshield wiper solution or a mild
detergent. Rinse thoroughly with
clean water. To avoid damaging the
blades, do not use fuel, kerosene,
paint thinner or other solvents.
CDW VA1-19Maint en MM 5/15/97 7:56 PM Page 180
Maintenance and care
181
Cleaning the interior fabric
Remove dust and loose dirt with a
whisk broom or a vacuum cleaner.
Remove fresh spots immediately.
Follow the directions that come
with the cleaner.
Cleaning leather seats
(if equipped)
For routine cleaning, wipe the
surface with a soft, damp cloth. For
more thorough cleaning, wipe the
surface with a leather and vinyl
cleaner or a mild soap.
Cleaning the instrument panel
POWER AUDIO AM/FM
SCAN
SEEK
31
2
64
5
ANS
SIDE 1-2
EJECT
VOLUME
M
I
R
R
O
R
S
DEF
LO
HI
OFF PNL/FLR
PANEL
A/C
FLOOR
FLR
DEF
MAX
A/C
000123
0 0 0 0
10
20
30
40
50
60
70
80
90
100
110
120
130
MPH
20
40
60
55
80
120
100
140
160
180
200
E F
1
/
2
UNLEADED FUEL ONLY
1
2
0
3
x 1000
4
5
6
7
8
N
O
R
M
A
L
BRAKE
CHECK
ENGINE
TRACTION
CONTROL
O/D
OFF
:
I0 20
Off
Res
Set
Acc
Coast
On
Clean the instrument panel with a
damp cloth, then dry with a dry
cloth.
Any cleaner or polish that
increases the gloss of the upper
portion of the instrument panel
should be avoided. The dull finish
in this area is to help protect the
driver from undesirable windshield
reflection.
CDW VA1-19Maint en MM 5/15/97 7:56 PM Page 181
Maintenance and care
182
Cleaning and caring for your
vehicle
Refer to the “Customer Assistance
Guide” for a list of Ford-approved
cleaners, polishes and waxes.
Cleaning and maintaining the
safety belts
Clean the safety belts with a mild
soap solution recommended for
cleaning upholstery or carpets and
warm water. Do not bleach or dye
the belts, because these actions
may weaken the belt webbing.
Check the safety belt system
periodically to make sure there are
no nicks, wear or cuts.
Ford recommends that all
safety belt assemblies and
attaching hardware should be
inspected by a qualified technician
after any collision. Safety belt
assemblies not in use during a
collision should also be inspected
and replaced if either damage or
improper operation is noted.
CDW_VB1-5_ Caps_en_MM 5/15/97 7:59 PM Page 182
Capacities and specifications
183
*Refer to Vehicle Emission Control Information (VECI) decal for spark plug
and gap specifications.
**If a spark plug is removed for examination, it must be reinstalled in the same
cylinder. If a spark plug needs to be replaced, use only spark plugs with the
service part number suffix letter “FE” as shown on the engine decal.
Motorcraft parts
Component
Spark plug*
Air filter
Passenger compartment
air filter
Fuel filter
Oil filter
Battery
PCV valve
Crankcase ventilation
filter
2.0 litre engine
AZFS-22F # 1+2**
AZFS-22FE# 3+4
FA-1612
FP4
FG-800A
FL-2005
BXT-40R
EV-224
FA-1621
2.5 litre engine
AWSF-32F
FA-1613
FP4
FG-800A
FL-820
BXT-40R
EV-152
—
Part number
CDW_VB1-5_ Caps_en_MM 5/15/97 7:59 PM Page 183
Engine oil
- with filter
- without
Manual transaxle 2.6 l (2.7 qts)
Automatic transaxle
with oil cooler
Power steering
Cooling system with heating
Windshield washer fluid
Fuel tank
Braking system
4.25 l (4.5 qts)
3.75 l (4.0 qts)
8.5 l (9.0 qts.)
6.6 l (7.0 qts)*
7.1 l (7.5 qts)**
Fill to MAX mark
Fill to top of reservoir
61.5 l (16.2 gallons)
Fill to MAX mark
5.5 l (5.8 qts)
5.0 l (5.3 qts)
9.6 l (10.2 qts)
9.5 l (10.0 qts)*
9.7 l (10.2 qts)**
* Total capacity
** with automatic transaxle
Capacities
2.0 litre
engine
2.5 litre
engine
Capacities and specifications
184
CDW_VB1-5_ Caps_en_MM 5/15/97 7:59 PM Page 184
Capacities and specifications
185
Lubricant Specifications
Item
Ford part name
or equivalent
High performance
DOT 3 brake fluid
Premium engine
coolant
Motorcraft motor
oil 5W-30 super
premium
MERCON
®
power steering
fluid
Motorcraft
MERCON
®
ATF
Ultra-clear
windshield washer
concentrate
Ford
part number
C6AZ-19542-AB
E2FZ-19549-AA
CXC-8-B*
XO-5W30-QSP
E6AZ-19582-AA
XT-2-QDX
C9AZ-19550-AA
or
C9AZ-19550-BA
Ford
specification
ESA-M6C25-A
WSE-97B44-A
American Petroleum
Institute Certification
Mark and
WSS-M2C153-G
MERCON
®
MERCON
®
ESR-M17P5-A
Brake fluid
Engine coolant
Engine oil
Power steering
fluid
Transaxle fluid
automatic/
5-speed manual
Windshield
washer
fluid
CDW_VB1-5_ Caps_en_MM 5/15/97 7:59 PM Page 185
Capacities and specifications
186
2.0 litre
Engine
2.5 litre
Engine
1988 2544
96 (125)
5500
125 (170)
6250
176 (130)
4000
220 (162)
4250
6150
6700
6375 6925
800±50
(880±50)
725±50
(725±50)
1-3-4-2 1-4-2-5-3-6
1.3
Electronically controlled
Idle speed
(manual transaxle)
Engine
cm
3
Capacity
kW (HP)
at rpm
Power output
Nm (lb-ft)
at rpm
Max. torque
Fuel required
87 Octane
rpm
Continuous engine
speed
rpm
Max. intermittent
engine speed
rpm
Mixture preparation
Injection system
Firing order
mm
Spark plug gap
Ignition system
0.14 mm
0.30 mm
Valve Inlet
clearances Exhaust
Hydraulic valve
adjusters
0.11-0.18*
0.27-0.34*
Engine data
* Mechanical valve adjuster
CDW_VB1-5_ Caps_en_MM 5/15/97 7:59 PM Page 186
Capacities and specifications
187

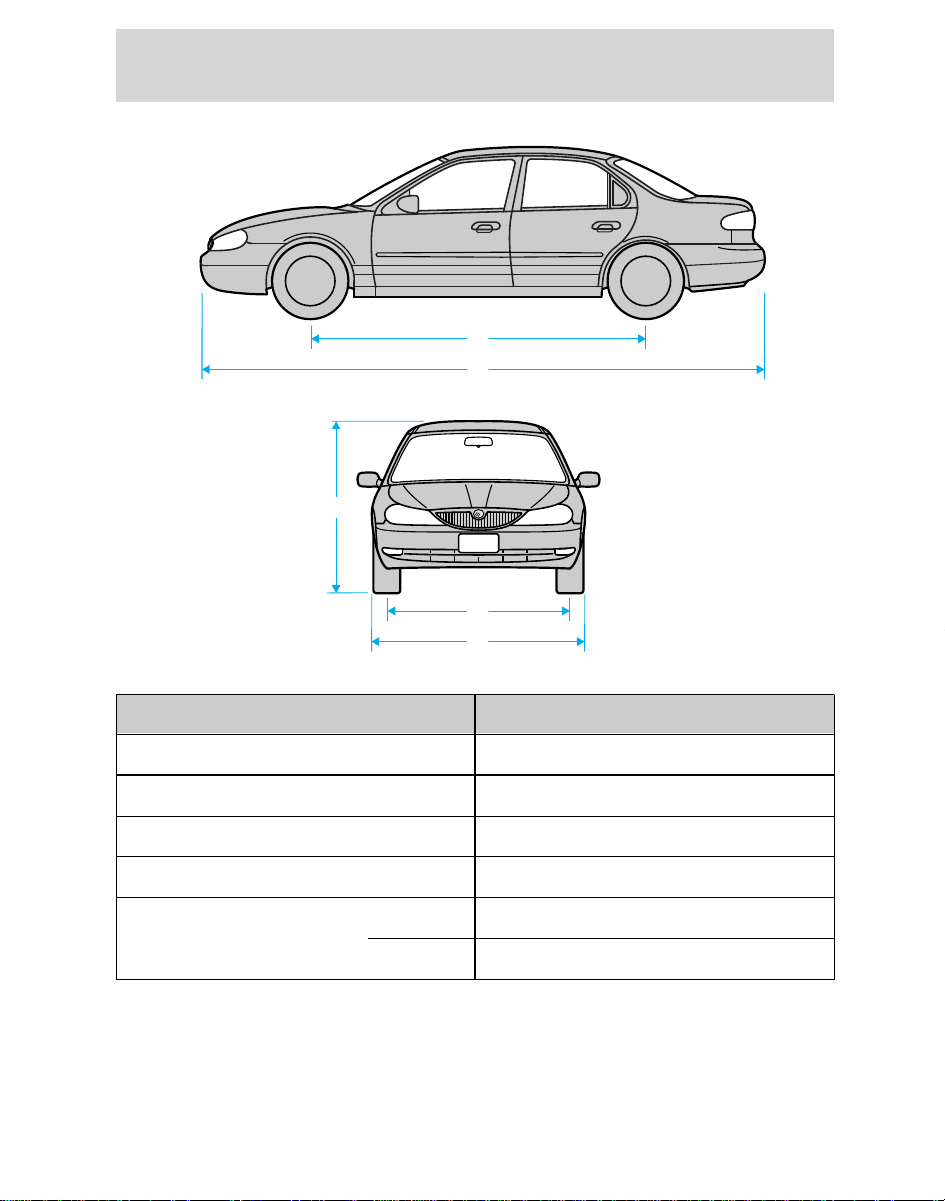

D
A
E
B
C
Dimensions mm (inches)
4556 (179.4)
1751 (68.9)
1380 - 1427 (54.3 - 56.2)
2704 (106.5)
1499 - 1518* (59.0 - 59.8)
1483 - 1502* (58.4 - 59.1)
A = Maximum length
B = Overall width (without mirrors)
C = Overall height (curb weight)
D = Wheelbase
E = Track
Front
Rear
* Dependent on tyre size
CDW_VB1-5_ Caps_en_MM 5/15/97 7:59 PM Page 187
Capacities and specifications
188
VEHICLE IDENTIFICATION
NUMBER
The vehicle identification number
(VIN) is attached to a metal tag
and is located on the front driver’s
side of the instrument panel. The
VIN tag may be seen by looking
through the windshield from the
outside of the vehicle.
CDW_VB1-5_ Caps_en_MM 5/15/97 7:59 PM Page 188
Reporting safety defects
189
REPORTING SAFETY DEFECTS
(U.S. ONLY)
If you believe that your vehicle has
a defect that could cause a crash,
or could cause injury or death, you
should immediately inform the
National Highway Traffic Safety
Administration (NHTSA) in
addition to Ford Motor Company.
If NHTSA receives similar
complaints, it may open an
investigation, and if it finds that a
safety defect exists in a group of
vehicles, it may order a recall and
remedy campaign. However,
NHTSA cannot become involved in
individual problems between you,
your dealer or Ford Motor
Company.
To contact NHTSA, you may either
call the Auto Safety Hotline
toll–free at 1-800-424-9393
(202-366-0123 in the Washington
D.C. area) or write to
NHTSA
U.S.Department of Transportation
400 Seventh Street
Washington D.C. 20590
You can also obtain other
information about motor vehicle
safety from the hotline.
CDW_VB1-5_ Caps_en_MM 5/15/97 7:59 PM Page 189
190
Index
A Page
Accessory position on
the ignition . . . . . . . . . . . . . . . . . .24
Additives, engine oil . . . . . . . . .132
Air bag supplemental
restraint system
and child safety seats . . . . . . . .56
description . . . . . . . . . . . . . . . . .55
disposal . . . . . . . . . . . . . . . . . . .60
indicator light . . . . . . . . . . . .8, 59
operation . . . . . . . . . . . . . . . . . .57
wearing safety belts . . . . . . . . .55
Air conditioning
(see Climate control system)
Alarm, activating panic . . . . . . . .39
Antenna, radio
(see Audio sytem) . . . . . . . . . . . .18
Anti-lock brake system (ABS) . .84
Anti-theft system (see Passive
Anti-Theft System) . . . . . . . . . . .41
Antifreeze (see Engine coolant)
Audio system . . . . . . . . . . . . . . . .18
Automatic transaxle
driving with . . . . . . . . . . . . . . . .89
fluid, adding . . . . . . . . . . . . . . .141
fluid, checking . . . . . . . . . . . . .142
fluid, refill capacities . . . . . . . .184
fluid, specification . . . . . . . . . .185
B
Backing up . . . . . . . . . . . . . . .89, 95
Battery
charging system warning light . .6
jumping a disabled battery . . .121
proper disposal, recycling . . . .145
replacement, specifications . .183
servicing . . . . . . . . . . . . . . . . . .143
B Page
Brake fluid
checking and adding . . . . . . . .135
specifications . . . . . . . . . . . . . .185
Brake-shift interlock . . . . . . . . . .88
Brakelamps
(see Bulb replacement)
Brakes
anti-lock brake system (ABS) .84
brake warning light . . . . . . . . . . .9
fluid, checking and adding . . .135
fluid, refill capacities . . . . . . . .184
fluid, specification . . . . . . . . . .185
parking . . . . . . . . . . . . . . . . . . . .86
Built-in child seat
folding up the seat . . . . . . . . . .70
inspection after a collision . . . .70
interlock safety feature . . . . . . .66
operation . . . . . . . . . . . . . . . . . .65
retractors . . . . . . . . . . . . . . . . . .69
Break-in period . . . . . . . . . . . . . . .2
Bulbs, replacing
foglamps . . . . . . . . . . . . . . . . .169
headlamps . . . . . . . . . . . . . . . .168
high-mounted brake lamp . . . .171
license plate lamp . . . . . . . . . .170
rear lamps . . . . . . . . . . . . . . . .170
specifications . . . . . . . . . . . . . .172
C
Cabin air filter . . . . . . . . . . . . . .147
Capacities for refilling fluids . . .184
Carbon monoxyde in exhaust . .163
Catalytic converter . . . . . . . . . .163
Chains, tires . . . . . . . . . . . . . . . .155
Changing a tire . . . . . . . . . . . . .116
Charging system warning light . . .6
CDW_Index_en _MM 5/15/97 8:00 PM Page 190
Index
191
C Page
Child safety restraints
built-in child seat . . . . . . . . . . .65
child safety seats . . . . . . . . . . . .71
children and safety belts . . .61, 63
Child safety seats
and air bags . . . . . . . . . . . . . . . .56
attaching with tether straps . . .74
automatic locking mode . . . . . .49
Childproof safety locks . . . . . . . .35
Chimes . . . . . . . . . . . . . . . . . . . . .10
Circuit breakers . . . . . . . . . . . . .109
Cleaning your vehicle
engine compartment . . . . . . . .179
exterior lamps . . . . . . . . . . . . .180
fabric . . . . . . . . . . . . . . . . . . . .181
instrument panel . . . . . . . . . . .181
plastic exterior parts . . . . . . . .180
safety belts . . . . . . . . . . . . . . .182
wheels . . . . . . . . . . . . . . . . . . .178
wiper blades . . . . . . . . . . . . . .180
Climate control system
air conditioning . . . . . . . . . . . . .21
controlling airflow . . . . . . . . . . .20
defrosting . . . . . . . . . . . . . . . . . .23
temperature . . . . . . . . . . . . . . . .20
vents . . . . . . . . . . . . . . . . . . . . . .19
Clock . . . . . . . . . . . . . . . . . . . . . .18
Clutch
operation . . . . . . . . . . . . . . . . . .93
recommended shift speeds . . . .94
Cold engine starting . . . . . . . . . .82
Controls
instrument panel . . . . . . . . . . . .14
mirrors . . . . . . . . . . . . . . . . . . . .17
power seats . . . . . . . . . . . . . . . .45
steering column . . . . . . . . . . . . .24
D Page
Daytime running lights . . . . . . . .15
Defects, reporting . . . . . . . . . . .189
Defrost
rear window . . . . . . . . . . . . . . . .16
windshield . . . . . . . . . . . . . . . . .23
Dipstick, engine oil . . . . . . . . . .130
Door mounted controls . . . . . . . .34
Driving under special conditions
heavy load . . . . . . . . . . . . . . . . .99
towing a trailer . . . . . . . . . . . .100
E
Electrical system
fuses . . . . . . . . . . . . . . . . . . . . .109
Emergencies, roadside
fuel pump shut-off switch . . . .107
jump starting . . . . . . . . . . . . . .121
towing . . . . . . . . . . . . . . . . . . .124
Emergency brake (see Parking
brake)
Emission control system . . . . . .163
Engine
check engine warning light . . . . .8
fuel pump shut-off switch . . . .107
lubricant specifications . . . . . .185
preparing to start . . . . . . . . . . .79
refill capacities . . . . . . . . . . . .184
starting . . . . . . . . . . . . . . . . . . . .82
Engine block heater . . . . . . . . . .83
Engine coolant
checking and adding . . . . . . . .136
disposal . . . . . . . . . . . . . . . . . .138
low coolant warning light . . . . . .7
refilll capacities . . . . . . . . . . . .184
specifications . . . . . . . . . . . . . .185
Engine fan . . . . . . . . . . . . . . . . .126
CDW_Index_en _MM 5/15/97 8:00 PM Page 191
Index
192
E Page
Engine oil
changing oil and filter . . . . . . .133
checking and adding . . . . . . . .132
dipstick . . . . . . . . . . . . . . . . . .130
disposal . . . . . . . . . . . . . . . . . .134
engine oil pressure
warning light . . . . . . . . . . . . . . . .9
filter specifications . . . . . . . . .183
refill capacities . . . . . . . . . . . .184
specifications . . . . . . . . . . . . . .185
Exhaust fumes . . . . . . . . . . .78, 163
F
Fan (see Engine fan)
Flasher, hazard . . . . . . . . . .26, 107
Flashing the lights . . . . . . . . . . . .27
Floor mats . . . . . . . . . . . . . . . . . .37
Fluid refill capacities . . . . . . . . .184
Foglamps . . . . . . . . . . . . . . .15, 169
Fuel
calculating fuel economy . . . .162
capacity . . . . . . . . . . . . . . . . . .184
choosing the right fuel . . . . . .159
consumption . . . . . . . . . . . . . .106
fuel gauge . . . . . . . . . . . . . . . . .13
low fuel warning light . . . . . . . . .8
octane rating . . . . . . . . . . . . . .160
quality . . . . . . . . . . . . . . . . . . .161
running out of fuel . . . . . . . . .163
safety information relating
to automotive fuels . . . . . . . . .157
Fuel pump shut-off switch . . . .107
Fuse panels
engine compartment . . . . . . . .110
instrument panel . . . . . . . . . . .113
F Page
Fuses
charts . . . . . . . . . . . . . . . .111, 114
checking and replacing . . . . . .109
G
Gas mileage (see Fuel economy)
Gauges
engine coolant temperature . . .12
fuel . . . . . . . . . . . . . . . . . . . . . . .13
odometer . . . . . . . . . . . . . . . . . .13
speedometer . . . . . . . . . . . . . . .13
trip odometer . . . . . . . . . . . . . .13
GAWR
(Gross Axle Weight Rating) . . . .97
Gearshift . . . . . . . . . . . . . . . .87, 93
GVWR
(Gross Vehicle Weight Rating) . .97
H
Hazard flashers . . . . . . . . . .26, 107
Head restraints . . . . . . . . . . . . . .44
Headlamps
aiming . . . . . . . . . . . . . . . . . . .173
bulb specifications . . . . . . . . .172
daytime running light . . . . . . . .15
flashing . . . . . . . . . . . . . . . . . . .27
high beam . . . . . . . . . . . . . . . . .27
replacing bulbs . . . . . . . . . . . .167
turning on and off . . . . . . . . . . .14
warning chime . . . . . . . . . . . . . .11
High beams
indicator light . . . . . . . . . . . . . . .6
operation . . . . . . . . . . . . . . . . . .27
CDW_Index_en _MM 5/15/97 8:00 PM Page 192
Index
193
H Page
High-mount brakelamp . . . . . . .171
Hood
latch location . . . . . . . . . . . . . .129
release lever . . . . . . . . . . . . . .129
Horn . . . . . . . . . . . . . . . . . . . . . . .26
I
Identification Number, Vehicle
(VIN) . . . . . . . . . . . . . . . . . . . . .188
Idle, relearning . . . . . . . . . . . . .146
Idle, speed . . . . . . . . . . . . .146, 186
Ignition
chime . . . . . . . . . . . . . . . . . . . . .11
positions on the ignition . . . . . .24
Instrument cluster . . . . . . . . . . . . .6
Instrument panel
cleaning . . . . . . . . . . . . . . . . . .181
lighting up the panel . . . . . . . . .16
Integrated child seat (see Built-in
child seat)
Intermittent wipers . . . . . . . . . . .28
Introduction . . . . . . . . . . . . . . . . . .2
J
Jack
positioning . . . . . . . . . . . . . . . .119
storage . . . . . . . . . . . . . . . . . . .118
Jump starting your vehicle
attaching cables . . . . . . . . . . . .122
disconnecting cables . . . . . . . .123
K
Keys
key in ignition warning chime .11
positions of the ignition . . . . . .24
L Page
Lamps
bulb replacement specification
chart . . . . . . . . . . . . . . . . . . . . .172
daytime running light system . .15
flashing the lamps . . . . . . . . . . .27
foglamps . . . . . . . . . . . . . .15, 169
hazard flashers . . . . . . . . .26, 107
headlamps . . . . . . . . . . . . . . . . .14
high beams . . . . . . . . . . . . . . . . .27
high-mounted brake lamp . . . .171
instrument panel, dimming . . .16
interior lamps . . . . . . . . . . . . . .33
reading lamps . . . . . . . . . . . . . .33
replacing bulbs . . . . . . . . . . . .167
rear lamps . . . . . . . . . . . . . . . .170
Lights, warning and indicator
air bag . . . . . . . . . . . . . . . . . . . . .8
anti-lock brakes (ABS) . . . . . . . .9
brake . . . . . . . . . . . . . . . . . . . . . .9
charging system . . . . . . . . . . . . .6
check engine . . . . . . . . . . . . . . . .8
engine oil pressure . . . . . . . . . . .9
high beam . . . . . . . . . . . . . . . . . .6
low coolant . . . . . . . . . . . . . . . . .7
low fuel . . . . . . . . . . . . . . . . . . . .8
overdrive off . . . . . . . . . . . . . . . .7
safety belt . . . . . . . . . . . . . . . . . .7
testing the warning lights . . . . .10
turn signal indicator . . . . . . . . . .6
Load limits . . . . . . . . . . . . . . . . . .96
Lubricant specifications . . . . . .187
Luggage compartment . . . . . . . .36
CDW_Index_en _MM 5/15/97 8:00 PM Page 193
Index
194
M Page
Maintenance (see Servicing)
Manual transaxle
backing up (reverse) . . . . . . . . .95
clutch . . . . . . . . . . . . . . . . . . . . .93
fluid, capacity . . . . . . . . . . . . .184
fluid, checking and adding . . .141
shift speeds . . . . . . . . . . . . . . . .94
Mileage, calculating fuel
economy . . . . . . . . . . . . . . . . . . .162
Mirrors
side view mirrors (power) . . . .17
Motorcraft parts . . . . . . . . . . . .183
N
National Highway Traffic Safety
Administration . . . . . . . . . . . . . .189
O
Octane rating . . . . . . . . . . . . . . .160
Odometer . . . . . . . . . . . . . . . . . . .13
Oil (see Engine oil)
Oil filter . . . . . . . . . . . . . . .133, 183
On-board diagnostic (OBD II)
system . . . . . . . . . . . . . . . . . . . .166
Overdrive . . . . . . . . . . . . . . . . .7, 90
Overhead controls . . . . . . . . . . . .33
P
Panel dimmer control . . . . . . . . .16
Panic alarm, remote entry sytem39
Parking brake . . . . . . . . . . . . . . .86
Parts (see Motorcraft parts) . . .138
Passenger compartment
air filter (see Cabin air filter) . .147
Passive Anti-Theft
System (PATS) . . . . . . . . . . . . . .41
P Page
Power distribution box
(see Fuses)
Power door locks . . . . . . . . . . . . .34
Power features
mirrors . . . . . . . . . . . . . . . . . . . .17
seats . . . . . . . . . . . . . . . . . . . . . .45
sunroof . . . . . . . . . . . . . . . . . . . .33
windows . . . . . . . . . . . . . . . . . . .34
Power steering
fluid, checking and adding . . .140
fluid, refill capacity . . . . . . . . .184
fluid, specification . . . . . . . . . .185
R
Radio (see Audio system) . . . . . .18
Rear window defroster . . . . . . . .16
Refill capacities for fluids . . . . .184
Relays . . . . . . . . . . . . . . . . . . . . .109
Remote control
luggage compartment . . . . . . . .36
Remote entry system
locking/unlocking doors . . . . . .38
opening the trunk . . . . . . . . . . .39
panic alarm . . . . . . . . . . . . . . . .39
replacing the batteries . . . . . . .39
replacement/additional
transmitters . . . . . . . . . . . . . . . .40
Repairing paint chips . . . . . . . .178
Reporting safety defects . . . . . .189
Restraints, safety . . . . . . . . . . . . .47
Rotating the tires . . . . . . . . . . . .152
CDW_Index_en _MM 5/15/97 8:00 PM Page 194
Index
195
S Page
Safety belts
(see Safety restraints)
Safety chains, when towing
a trailer . . . . . . . . . . . . . . . . . . . .104
Safety Compliance Certification
Label . . . . . . . . . . . . . . . . . . . . . .102
Safety defects, reporting . . . . . .189
Safety restraints
adjusting the safety belts . .47, 51
automatic locking mode
(retractors) . . . . . . . . . . . . . . . .49
cleaning the safety belts . . . . .182
extention assembly . . . . . . . . . .53
for children . . . . . . . . . . . . . . . .61
head restraints . . . . . . . . . . . . .44
lap and shoulder belts . . . . . . . .48
maintenance . . . . . . . . . . .54, 182
vehicle sensitive locking mode .49
warning light and chime . . . .7, 11
Safety seats for children
and air bags . . . . . . . . . . . . .56, 72
attaching with tether straps . . .74
automatic locking mode
(retractors) . . . . . . . . . . . . .49, 71
built-in child seat . . . . . . . . . . .65
in front seat . . . . . . . . . . . . .56, 72
tether anchorage hardware . . .75
Seats
adjusting the seats, manual . . .44
adjusting the seats, power . . . .45
folding rear seats . . . . . . . . . . . .46
head restraints . . . . . . . . . . . . .44
Servicing your vehicle . . . . . . . .125
Shift-lock system . . . . . . . . . . . . .88
Shift positions (see Gearshift)
Snow tires and chains . . . . . . . .155
S Page
Spare tire
changing the tire . . . . . . . . . . .116
removing the spare tire . . . . . .118
temporary spare tire . . . . . . . .117
Spark plugs, certifications . . . .183
Specification charts, lubricants 185
Speed control
disengaging speed control . . . .32
return to a set speed . . . . . . . . .32
set a speed . . . . . . . . . . . . . . . . .30
set a higher speed . . . . . . . . . . .31
set a lower speed . . . . . . . . . . . .31
turn speed control off . . . . . . . .29
turn speed control on . . . . . . . .29
Speedometer . . . . . . . . . . . . . . . .13
Starting your vehicle
preparing to start the vehicle . .79
starting the engine . . . . . . . . . .82
Steering column controls . . . . . .24
Steering wheel
horn . . . . . . . . . . . . . . . . . . . . . .26
speed control . . . . . . . . . . . . . . .29
tilting . . . . . . . . . . . . . . . . . . . . .25
Sunroof . . . . . . . . . . . . . . . . . . . .33
Supplemental restraint
system . . . . . . . . . . . . . . . . . .11, 53
T
Tachometer . . . . . . . . . . . . . . . . .13
Tail lamps (see Rear lamps)
Temperature control
(see Climate control)
Testing the warning lights . . . . . .10
Tether anchor installation
(see Child safety restraints)
Tilt steering wheel . . . . . . . . . . . .25
CDW_Index_en _MM 5/15/97 8:00 PM Page 195
Index
196
T Page
Tires
changing . . . . . . . . . . . . . . . . .116
checking tire pressure . . . . . .152
cleaning . . . . . . . . . . . . . . . . . .178
inspection and maintenance . .152
replacing . . . . . . . . . . . . . . . . .120
rotating . . . . . . . . . . . . . . . . . .152
snow tires and chains . . . . . . .155
spare tire . . . . . . . . . . . . . . . . .117
tire grades . . . . . . . . . . . . . . . .149
treadwear . . . . . . . . . . . . .150, 153
wearbands . . . . . . . . . . . . . . . .153
Towing your vehicle . . . . . . . . .124
Trailer towing . . . . . . . . . . . . . .100
Transaxle
automatic, operation . . . . . . . . .87
fluid, checking and adding
(automatic) . . . . . . . . . . . . . . .141
fluid, refill capacities . . . . . . . .184
lubricant specifications . . . . . .185
manual, operation . . . . . . . . . . .93
Transmitter (see Remote entry)
Trip odometer . . . . . . . . . . . . . . .13
Trunk (see Luggage compartment)
remote release lever . . . . . . . . .36
using the remote entry system .39
Turn signal
indicator lights . . . . . . . . . . . . . .6
lever . . . . . . . . . . . . . . . . . . . . . .27
U
Used engine oil, disposal . . . . . .134
V Page
Variable interval wipers . . . . . . . .28
Vehicle care . . . . . . . . . . . . . . . .176
Vehicle Identification Number
(VIN) . . . . . . . . . . . . . . . . . . . . .188
Vehicle Emission Control
Information(VECI) . . . . . . . . . .163
Vehicle loading . . . . . . . . . . . . . .96
Ventilating your vehicle . . . . . . .77
Viscosity (see Engne oil)
W
Warning chimes
headlamps on . . . . . . . . . . . . . .11
key in ignition . . . . . . . . . . . . . .11
safety belt . . . . . . . . . . . . . . . . .11
Warning lights (see Lights)
Washer fluid reservoir . . . . . . . .130
Weight limits (GAWR, GVWR) . .96
Wheels
cleaning . . . . . . . . . . . . . . . . . .178
inspection and maintenance . .152
Windows
one-touch down . . . . . . . . . . . .34
power windows, operating . . . .34
rear, defrosting . . . . . . . . . . . . .16
Windshield washer fluid and wipers
checking and adding fluid . . . .135
checking and replacing
wiper blades . . . . . . . . . . . . . .147
operation . . . . . . . . . . . . . . . . . .28
fluid, specification . . . . . . . . . .185
variable interval wipers . . . . . . .28
Wrecker towing . . . . . . . . . . . . .124
