• Page 2: EN Manual EN 3 EN 35 Pictograms used Important information Tip
• Page 3 - English - : EN 3 TABLE OF CONTENTS Your touch control gasinduction hob Introduction 4 Description 5 Induction zone operation 6 Wok burner operation 7 Safety Temperature safety induction zones 8 Cooking time limiter 8 Induction use Induction cooking 9 Operation of the touchsensitive buttons 9 How induction works 10 Induction sounds 10 Pans 11 Wok burner use Pans 13 Wok burner position 14 Operation Eco standby mode 15 Standby mode 15 Child lock 16 Pause 16 Recognising a mode 17 TimerKitchen timer 17 Switching the audio signal on and off 18 Induction operation Switching on and power setting 19 Residual heat indicator 20 Boost 20 Two cooking zones behind each other 20 Bridge induction 21 Switching off 22 Automatic cooking programs 22 Cooking settings 24 Wok burner operation Ignition and adjustment 26 Residual heat indicator 26 Menu function 26 Maintenance Cleaning glass top 28 Cleaning wok burner elements 29 Faults General 30 Troubleshooting table 30 Technical data Information according regulation EU 662014 34 Environment Disposal of the appliance and packaging 35
• Page 4 - English - : EN 4 Introduction This hob has been designed for the real lover of cooking The hob consists of a gas wok burner and induction cooking zones Cooking on an induction hob has a number of advantages It is easy because the hob reacts quickly and can also be set to a very low power level Because moreover it can also be set to a high power level it can bring things to the boil very quickly The ample space between the cooking zones makes cooking comfortable Cooking on an induction hob is different from cooking on a traditional appliance Induction cooking makes use of a magnetic field to generate heat This means that you cannot use just any pan on it The pans section gives more information about this You can prepare wok dishes much more effectively with the highpower wok burner gas The burner ignites automatically when it is turned on Thanks to the touch control the burner flame be controlled accurately For optimum safety the touch control gasinduction hob is fitted with a thermoelectric flame protection The hob is equipped with several temperature protections and a residual heat indicator which shows which cooking zones or the wok burner are still hot This manual describes how you can make the best possible use of the touch control gasinduction hob In addition to information about operation you will also find background information that can assist you in using this product You will also find cooking tables and maintenance tips Read the manual thorougly before using the appliance and store these instructions in a safe place for future reference YOUR TOUCH CONTROL GASINDUCTION HOB

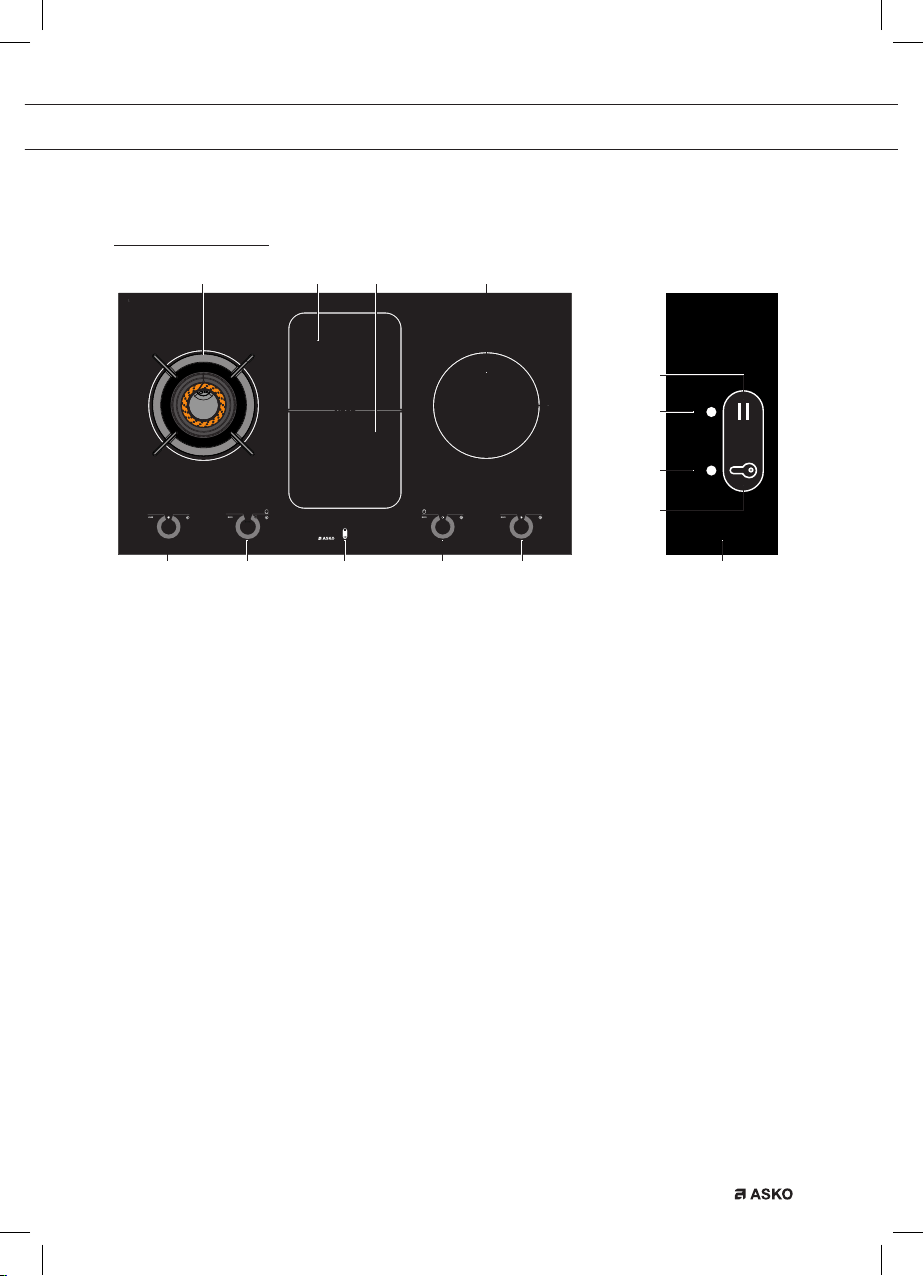

• Page 5 - English - : EN 5 Description 1 Wok burner gas 2 Bridge induction zone 3 Induction zone 4 Wok burner operation 5 Bridge induction zone front middle operation 6 Pause buttonkey button 7 Bridge induction zone rear middle operation 8 Right induction zone operation 9 Pause button 10 Pause indicator 11 Child lock indicator eco standby indicator 12 Key button child lockeco standby function YOUR TOUCH CONTROL GASINDUCTION HOB 6 7 8 2 2 1 3

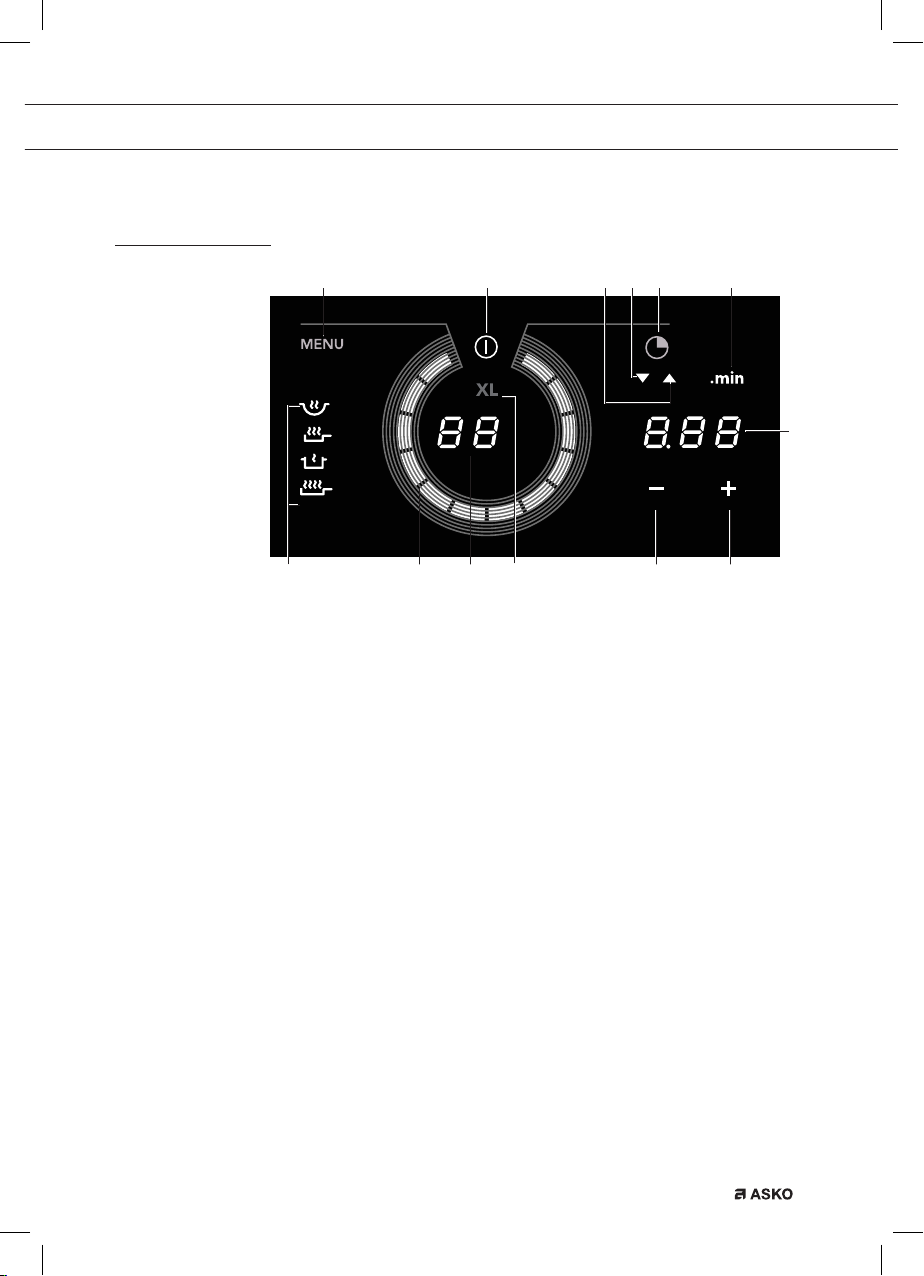

• Page 6 - English - : EN 6 Induction zone operation YOUR TOUCH CONTROL GASINDUCTION HOB 1 Induction menu functions 2 Slide control 12 settings 3 Settings indicator 4 Boost indicator 5 Time reduce button 6 Time increase button 7 Timerkitchen timer 8 Minutes indicator 9 Kitchen timer buttontimer button 10 Kitchen timer indicator 11 Timer indicator 12 Bridge button front zone only 13 OnOff button 14 Menu button 15 Cooking zone indicator 4 5 6 2 12 15
• Page 7 - English - : EN 7 YOUR TOUCH CONTROL GASINDUCTION HOB Wok burner operation 1 Menu functions burner wok burner programs 2 Slide control 12 settings 3 Settings indicator 4 Searing setting XL indicator 5 Time reduce button 6 Time increase button 7 Timerkitchen timer 8 Minutes indicator 9 Kitchen timer buttontimer button 10 Kitchen timer indicator 11 Timer indicator 12 OnOff button 13 Menu button to select the burner speed 4 5 6 2
• Page 8 - English - : EN 8 Read the separate safety instructions before use Temperature safety induction zones Each induction zone is equipped with a sensor This sensor measures the temperature of the base of the pan and the sections of the hob This facility prevents overheating for example through a pan boiling dry In case of temperatures rising too high the power of the cooking zonehub is reduced automatically or shut off completely Cooking time limiter If a cooking zone or the wok burner is switched on for an unusually long time it will be switched off automatically Depending on the setting you have chosen the cooking time will be limited as follows Cooking setting The cooking zone or wok burner switches off automatically after 1 and 2 9 hours 3 4 and 5 5 hours 6 7 and 8 4 hours 9 3 hours 10 2 hours 11 and 12 1 hour The cooking zone or wok brander switches off automatically when the abovestated time has elapsed Cooking setting The cooking zone switches to setting 12 automatically after boost 10 minutes SAFETY

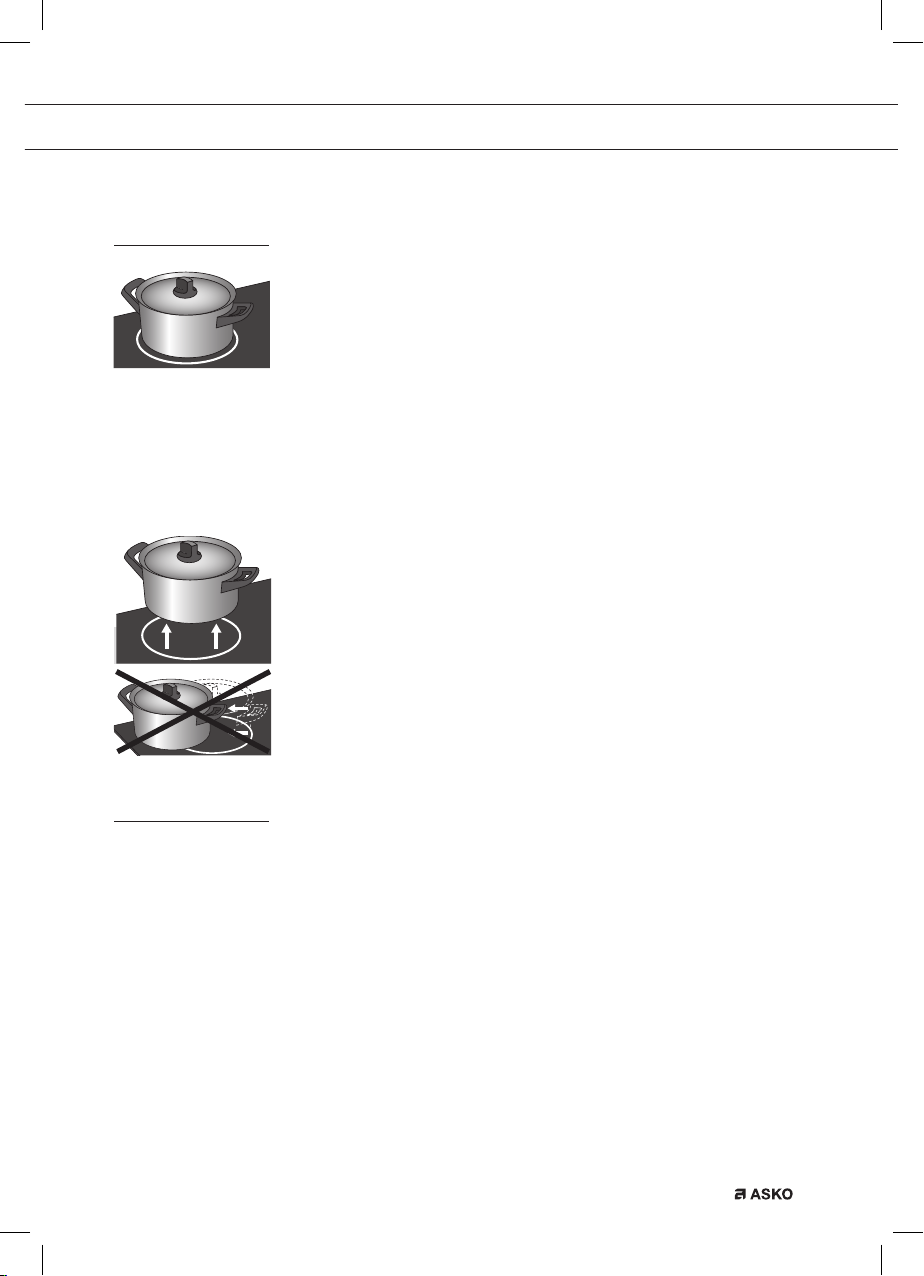

• Page 9 - English - : EN 9 INDUCTION USE Induction cooking Induction cooking is fast To start with you will be surprised by the speed of induction cooking Especially at higher settings foods and liquids will come to the boil very rapidly It is best not to leave pans unattended to avoid them boiling over or boiling dry The power level adjusts itself In induction cooking only the zone on which the pan is placed is used If you use a small pan on a large zone the power will be adjusted to the diameter of the pan The power will thus be lower and it will take longer before the food comes to the boil Please note Grains of sand may cause scratches which cannot be removed Therefore only put pans with a clean base on the cooking surface and always pick pans up to move them Do not use the hob as a worktop To avoid energy loss always keep the lid on the pan when cooking Pans that have already been used for cooking on a gas hob are no longer suitable for use on an induction hob Operation of the touchsensitive buttons For optimum working place your finger tips flat on the buttons You dont have to push hard The sensors under the buttons are located on the sliders outer ring The touch sensors have been set in such a way that they only react to the pressure and size of finger tips The hob cant be operated with other objects and wont for instance be switched on if your pet walks over the hob With induction cooking there is no heat loss and the handles stay cool
• Page 10 - English - : EN 10 INDUCTION USE How induction works A magnetic field is generated in the appliance By placing a pan with an iron base on a cooking zone a current is induced in the pan base This induced current generates heat in the base of the pan Easy The electronic controls are accurate and easy to set On the lowest setting you can melt chocolate directly in the pan for example or cook ingredients that you would normally heat in au bainmarie Quick Thanks to the induction hobs high power levels bringing food to the boil is very quick Cooking food through takes just as long as for other types of cooking Clean The hob is easy to clean Because the cooking zones do not get any hotter than the pans themselves food spills cannot burn into the glass Safe The heat is generated in the pan itself The glass top does not get any hotter than the pan This means that the cooking zone is considerably cooler than a ceramic hob for example Once a pan has been removed the cooking zone cools down quickly Induction sounds Ticking sound A light ticking sound is caused by the capacity limiter on the front and back zones A soft ticking sound can also occur at lower settings Pan makes sounds The pan can make sounds during cooking This is caused by the energy flowing from the hob to the pan This is normal for certain pans particularly at high settings This is not harmful for the pans or the hob The coil 1 in the hob 2 generates a magnetic field 3 By placing a pan with an iron base 4 on the coil a current is induced in the base of the pan
• Page 11 - English - : EN 11 Ventilator makes sounds The appliance is fitted with a ventilator in order to increase the lifespan of electronic components If you use the appliance intensively the ventilator will be switched on and you will hear a humming sound The ventilator can also make sounds after you have switched off the appliance Automatic pan detection When automatic pan detection APd is active a ticking sound is observable even when the zone is not in use Pans Pans for induction cooking Induction cooking requires a particular type of pan in terms of quality Pans that have already been used for cooking on a gas hob are no longer suitable for use on an induction hob Only use pans that are suitable for electric and induction cooking with a thick base of a minimum of 225 mm a flat base The best pans are those with the Class Induction quality mark Tip You can use a magnet to check whether your pans are suitable A pan is suitable if the base of the pan is attracted by the magnet Suitable Unsuitable Special stainless steel pans Earthenware Class Induction Stainless steel Solid enamelled pans Porcelain Enamelled castiron pans Copper Plastic Aluminium INDUCTION USE
• Page 12 - English - : EN 12 Please note Be careful with thin enamelled sheet steel pans the enamel may come loose from the steel at high settings if the pan boils dry high power level settings may cause the base of the pan to warp Please note Never use pans with a misshapen base A hollow or rounded base can interfere with the operation of the overheating protection causing the appliance to become too hot This may lead to the glass top cracking and the pan base melting Damage caused by using unsuitable pans or boiling dry is excluded from the guarantee Pan diameter The minimum diameter for the pan base is 12 cm If a pan is too small the zone will not work Pressure cookers Induction cooking is very suitable for pressure cookers The fast reacting cooking zone brings the pressure cooker to pressure quickly As soon as you switch off a cooking zone the dish stops cooking immediately INDUCTION USE

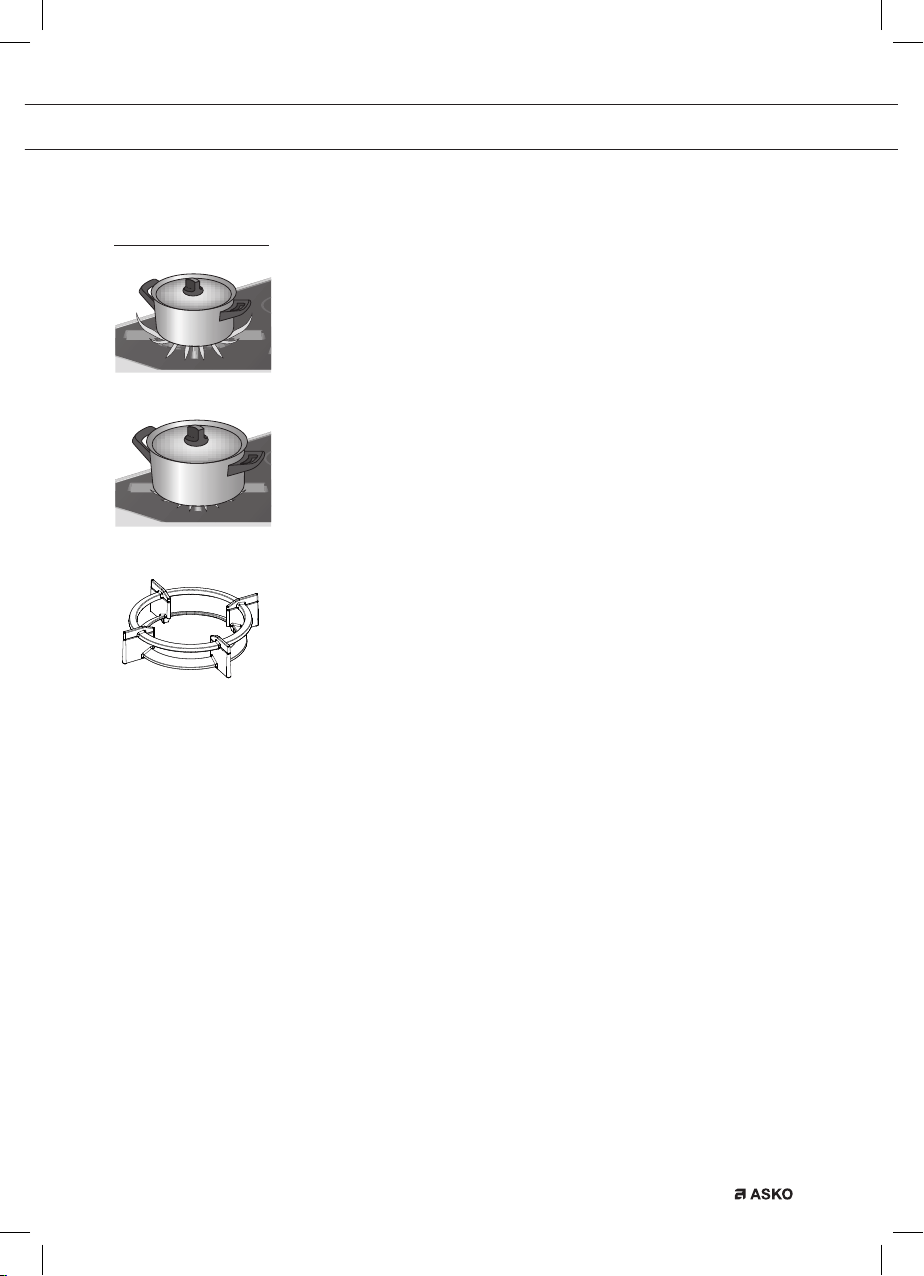

• Page 13 - English - : EN 13 Pans Pans Always ensure that the flames remain under the pan A lot of energy is lost when flames burn around the outside of the pan The handles could also become too hot Do not use pans with a base diameter smaller than 12 cm Smaller pans are not as stable Wok ring The wok ring supplied with the wok burner provides extra stability for roundbased woks Only use the wok ring on the wok stand in combination with a roundbased wok The wok ring may discolour if used on the searing setting Pan support Place the pan support vertically without sliding it over the glass top Use the positioning notches to position the pan support on the glass top wok ring wrong good WOK BURNER USE

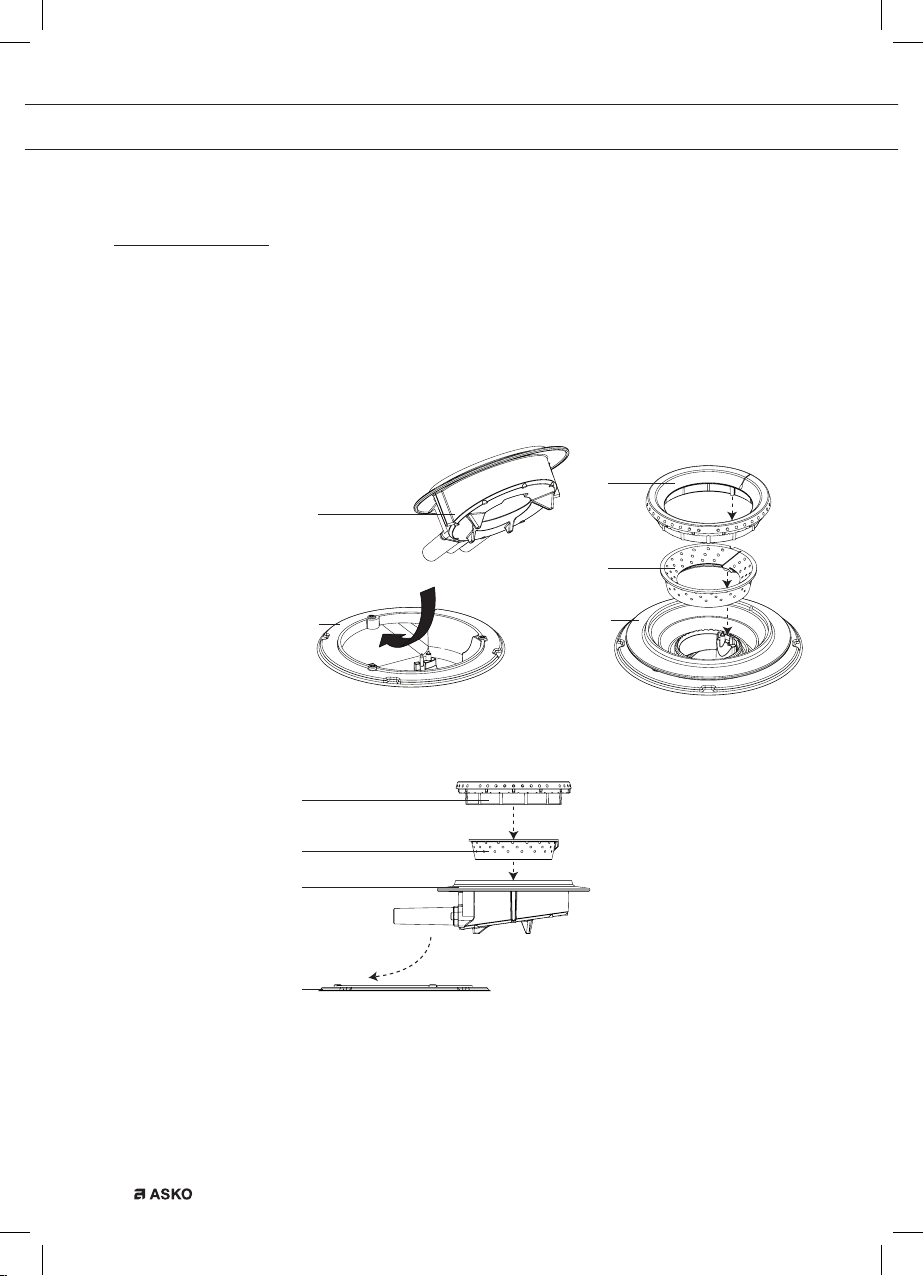

• Page 14 - English - : EN 14 Wok burner position Place the wok burner in the correct way Placing the wok burner parts incorrectly can result in a poorly functioning burner 1 Place the burner distributor 2 in the burner housing 1 2 Use the positioning notches to place the inner ring 3 on the burner distributor 2 3 Use the positioning notches to place the outer ring 4 on the burner distributor 2 WOK BURNER USE position distributor side view position rings
• Page 15 - English - : EN 15 OPERATION Eco standby mode In the eco standby mode the hob is switched off and it uses as little energy as possible The hob can also be switched to the eco standby mode from the standby mode and when cooking zones are still active Switching the hob to the eco standby mode Press the key button briefly A single audio signal sounds The eco standby mode is active the red light next to the key button flashes slowly From the eco standby mode you cant immediately start cooking To be able to the hob first needs to be switched to the standby mode Standby mode In standby mode the induction hob is switched on but all zones are off You can switch to the standby mode from the eco standby mode or by switching off all separate cooking zones From standby mode you can immediately start cooking Press the onoff button for the desired cooking zone or the wok burner or place a pan on an induction zone and select the desired power Switching the hob from the eco standby mode to the standby mode The red light next to the key button flashes slowly Press the key button briefly to activate the standby mode You will hear a single audio signal All lights on the hob are out except possibly the residual heat indicator H Tip The hob uses less than 05 Watt in the eco standby mode After 30 minutes in the standby mode the hob will automatically switch to the eco standby mode to prevent unnecessary energy consumption F00002557 LED Screen ATAG TC 700002940000 240809 IH
• Page 16 - English - : EN 16 Child lock Your induction hob is equipped with a childproof lock that lets you lock the appliance It prevents unintended switching on of the cooking zones Switching on the childproof lock Press the key button for 2 seconds A double audio signal will be heard All buttons are now inactive except for the key button The hob first switches to the eco standby mode and then to the childproof lock mode The red light is constantly on Press the child lock button again for 2 seconds to switch off the childproof lock A single audio signal will be heard The hob is now in standby mode The red light next to the key button is off Tip Set the hob to the childproof lock mode before cleaning the hob to prevent it from accidentally switching on When the hob is set to childproof mode it uses just as little energy as when it is in eco standby mode Pause With this pause function you can set the entire hob to pause for 5 minutes during cooking The energy supply to the cooking zone will stop without losing settings However do remember that the cooking zone will stay warm for some time preferably remove delicate dishes from the cooking zone Switching the hob to pause mode Press the pause button once A double audio signal will be heard and the red light next to the pause button flashes Any set timerskitchen timers stop All cooking zones are automatically switched back to setting 1 or 2 the wok burner will return to the lowest setting All buttons are inactive except for the key button and the pause button The onoff button of the individual cooking zones also remain active they do however react with a delay of two seconds so that you can clean the control panel F00002557 LED Screen ATAG TC 700002940000 240809 IH F00002557 LED Screen ATAG TC 700002940000 240809 IH OPERATION
• Page 17 - English - : EN 17 If you press the pause button again within 5 minutes the paused cooking processes will resume A double audio signal will be heard the hob resumes the settings as they were set before the pause If you do not undertake any further action within 5 minutes All active cooking zones will switch off automatically After that the pause button will keep flashing for 25 minutes to indicate the cooking processes have been ended by the pause mode The hob automatically switches from the pause mode to the eco standby mode after 25 minutes Recognising a mode The eco standby mode The red light next to the key button flashes slowly The standby mode Not a single light is lit The childproof lock mode The red light next to the key button is lit constantly The pause mode The red light next to the pause button flashes TimerKitchen timer Please note Theres one timerkitchen timer available per cooking zone The timerkitchen timer function can also be used without activating an accompanying cooking zone Switching on the timer Press the timerkitchen timer button of the cooking zone once The display of the timer lights up and youll see three zeroes flashing A and appear below If you do not set a time with the or button the timer will start running automatically after 3 seconds The timer can go as far as 9 hours and 59 minutes The red arrow pointing upwards lights up and the time increases Press the timercooking timer button again to switch it off OPERATION
• Page 18 - English - : EN 18 Switching on the kitchen timer Press the timercooking timer button of the cooking zone once Press the or button to switch from the timer function to the kitchen timer function After that you can set the desired cooking time with the button Then you can change the set time with the button The red arrow pointing downwards lights up Time is counting down Press the timercooking timer button once more to switch it off again Please note The kitchen timer is linked to the cooking zone if the accompanying cooking zone is switched on If the kitchen timer is linked to a cooking zone the cooking zone will switch off after the set time has passed The kitchen timer alarm goes off and releases an audio signal for a quarter of an hour while decreasing as the time passes while 000 and the downwards red arrow keep flashing Press the timerkitchen timer button again or remove the pan from the cooking zone to switch off the kitchen timer alarm Tip You can press and hold the or button to set the desired cooking time quicker Switching the audio signal on and off Press and hold the menu button and the timercooking timer button of a random cooking zone until you hear an audio signal The audio signal is now switched off for all button operations except for the pause button and the key button Please note the kitchen timer alarm and the audio signal for error messages cannot be switched off Use the same button combination to switch the sound back on OPERATION
• Page 19 - English - : EN 19 Switching on and power setting 1 Press the key button A single audio signal sounds 2 Place a pan in the middle of a cooking zone The APd registers a pan and a flashing appears in the display If you dont do anything else the cooking zone will switch off automatically after 10 seconds 3 Slide with your finger over the slide control clockwise or tap with your finger on the slide control to set the desired setting The cooking zone starts automatically at the setting that has been set 4 Set a higher or lower power by sliding with your finger over the slide control or by tapping the slide control The cooking zones have 12 settings There is also a boost setting for the induction zones Please note If the APd function is switched off activate a cooking zone using the onoff button Automatic pan detection APd Once the hob is switched on if a pan is placed on an inactive cooking zone the corresponding control will light up and can be operated immediately without operating the onoff button If the cooking zone is not switched on within 10 seconds it will switch itself off again The cooking zone can be reactivated by removing the pan and replacing it on the cooking zone or by using the onoff button This function is active as standard but can also be disabled Disable the function by switching off the hob Then from the Eco standby mode operating the Pause button 09 for 5 seconds The display will read APd OFF By repeating this action the function will be reactivated and APd On will appear in the display Please note If the hob doesnt detect a pan with or without iron content after a power level has been set the display will continue to flash and the cooking area will remain cold If no pan with or without iron content is placed on the zone within one minute the cooking zone will switch off automatically F00002557 LED Screen ATAG TC 700002940000 240809 IH INDUCTION OPERATION

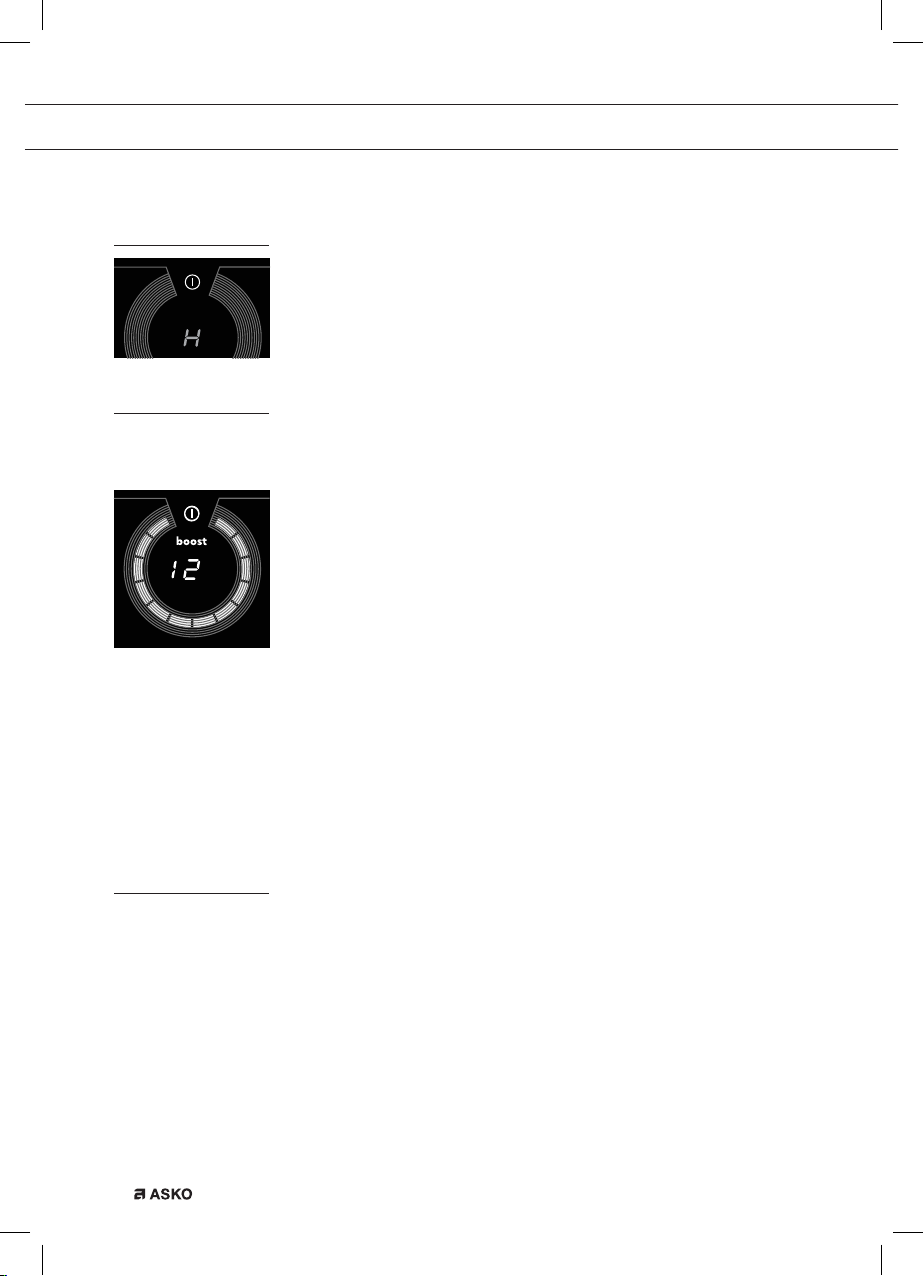

• Page 20 - English - : EN 20 Residual heat indicator After use the cooking zone used may stay hot for several minutes As long as the cooking zone is still hot an H will be visible in the display Boost You can use the boost function to cook at the highest power level during a short period of time max 10 minutes After the maximum boost time has passed the power will be reduced to setting 12 Switching on boost 1 Put a pan on a cooking zone and switch on the cooking zone 2 Tap twice at the end of the slide control with your finger to set the boost setting 12 and boost appear in the display Switching off boost Boost has been switched on the display shows setting 12 and boost 1 Tap anywhere on the slider with your finger In the display you will see a lower setting Or 2 Press the onoff button of the cooking zone you want to switch off You will hear a single audio signal and the display dims The cooking zone has been switched off completely Two cooking zones behind each other The two cooking zones which are behind each other affect each other When both of these cooking zones are switched on at the same time the power is shared between them automatically The first set cooking zone will remain at the set setting at all times The maximum set setting for the cooking zone to the front or back that is added later depends on the setting of the first cooking zone When you have reached the maximum amount of cooking setting combinations the last set setting will start to flash and is automatically lowered to the highest possible setting Two cooking zones next to each other will not influence each other You can set both cooking zones on a high setting F00002557 LED Screen ATAG TC 700002940000 240809 IH F00002557 LED Screen ATAG TC 700002940000 240809 IH INDUCTION OPERATION

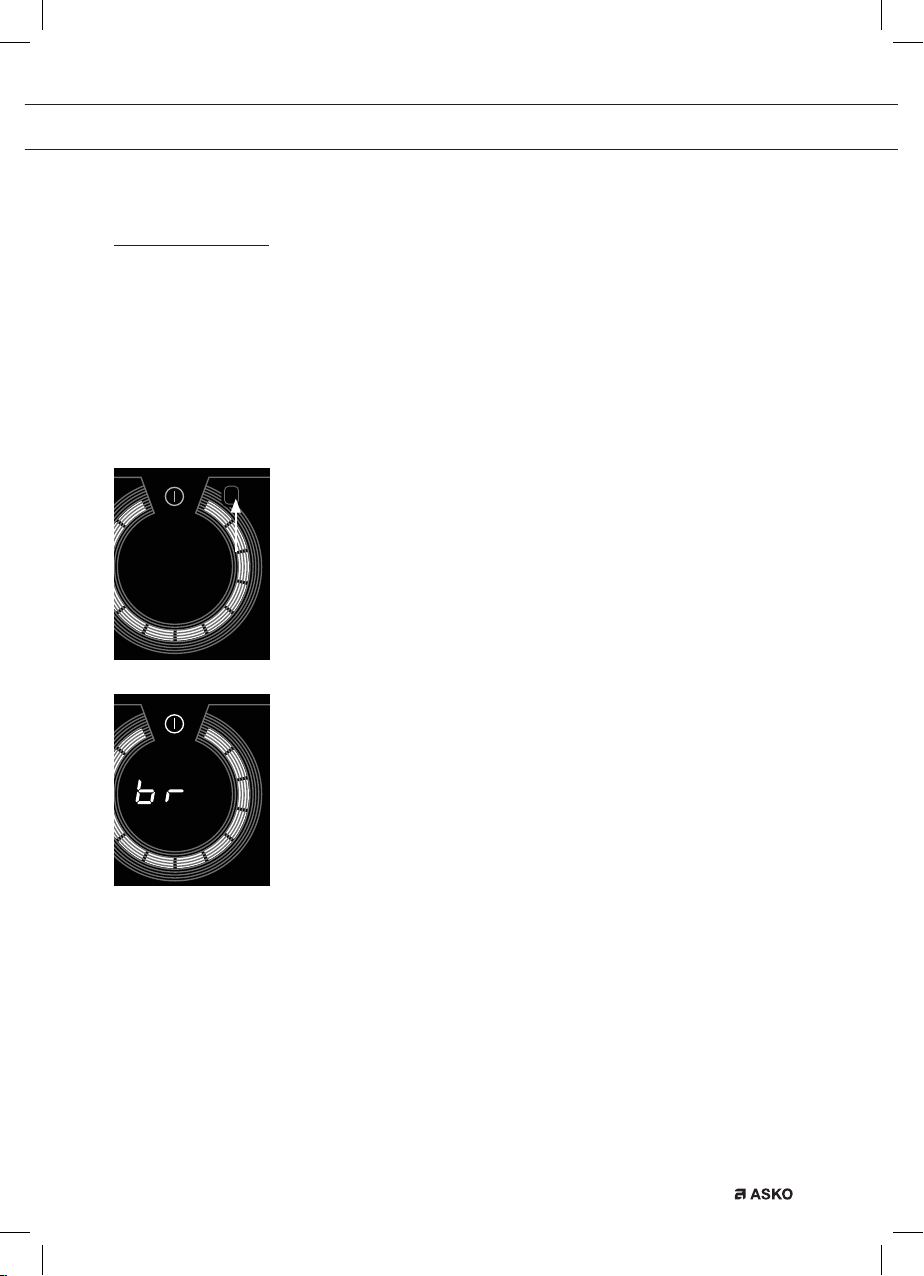

• Page 21 - English - : EN 21 Bridge induction The Bridge induction zones can be linked to each other This creates 1 large zone that can be used for example for a large fish pan or various pans on the same power If the Bridge induction zones are linked they cannot be set to boost and the menu functions cannot be used Use a fish or other pan that covers at least one of the Bridge induction zones in the middle Switching on the Bridge function 1 Place a large pan on both cooking zones so that both zones are well covered 2 Switch on the front cooking zone 3 Press the bridge button of the front slide zone control for two seconds to select the bridge setting br will appear in the display of the rear zone The rear zone can no longer be controlled Both zones are heated according to the setting set in the front cooking zone 4 Slide over the front slide control with your finger clockwise or tap on the slide control with your finger to set the desired setting Switching off the Bridge function 1 Press the bridge button of the front slide control for two seconds to switch off the bridge setting The bridge function switches off the rear cooking zone display dims and setting 1 appears in the front cooking zone display Or 2 Press the onoff button of the front cooking zone to switch off both cooking zones You will hear a single audio signal and the display dims The cooking zone has been switched off completely INDUCTION OPERATION
• Page 22 - English - : EN 22 Switching off Switching off one cooking zone Press the onoff button of the cooking zone you want to switch off You will hear a single audio signal and the slider dims If all cooking zones have been switched off in this way the hob will automatically be in the standby mode also refer to standby mode Switching off all cooking zones Press the key button briefly to switch off all the cooking zones at the same time A single audio signal sounds The red light next to the key button will flash slowly The hob is now in eco standby mode see also eco standby mode Automatic cooking programs Each induction zone is equipped with 6 automatic cooking programs You can set any end time of an automatic cooking program with the aid of the kitchen timer function refer to page 17 The cooking programs are based on regular quantities These menu functions work best if they are started at the beginning of the cooking process To set an automatic program The cooking zone is switched on Press the menu button A series of 6 icons will light up 1 of which brighter than the others Again press the menu button or press and hold down the menu button to go to the next menu function The selected cooking program automatically starts after 3 seconds An A for automatic appears in the display If an automatic cooking program is active you can go back to the manual cooking process by tapping the slide control with your finger Please note The cooking programs do not work if the zones are bridged F00002557 LED Screen ATAG TC 700002940000 240809 IH INDUCTION OPERATION
• Page 23 - English - : EN 23 Heatingupcooking function This function brings the content of the pan to a boil 100 C and keeps it boiling An audio signal can be heard when the content is cooking or if the food has to be added This function only works without the lid on the pan Simmering function The temperature of the dish is constantly kept near the boiling point 90 C 95 C The simmer setting works best with a lid on the pan Thicker dishes have to be stirred every 15 minutes The maximum simmering time is 8 hours unless a shorter time has been set with the aid of a timer Keepwarm function The temperature of a dish is automatically kept at a constant temperature of 70 C 75 C The keepwarm setting works best with a lid on the pan Larger quantities and thicker dishes need to be stirred occasionally The maximum time for keeping warm is 8 hours unless a shorter time has been set with the aid of a timer Wok function The wok setting provides an optimal wok temperature for both the oil and the wok After the audio signal the pan has reached its temperature the oil can be put in the pan and then the dish Searing function The searing setting provides the optimal searing temperature After the audio signal the pan has reached its temperature The oil or butter can be put into the pan and then the dish Grill function The grill setting provides the optimal grilling temperature An audio signal can be heard when the pan has reached its temperature INDUCTION OPERATION
• Page 24 - English - : EN 24 Cooking settings Because the settings depend on the quantity and composition of the pan and its contents the table below is intended as a guideline only Use boost and settings 11 and 12 to bring food or liquid to the boil quickly shrink greens heat oil and fat bring a pressure cooker up to pressure use a wok Use settings 9 and 10 to sear meats fry fish fry omelets fry boiled potatoes deep fry Use settings 7 and 8 to fry thick pancakes fry thick slices of breaded meat fry up bacon fry raw potatoes make French toast fry breaded fish cook through pasta fry thin slices of meat roast large pieces of meat Use settings 4 to 6 to cook food through defrost hard vegetables fry thick slices of meat steam INDUCTION OPERATION
• Page 25: EN 25 Use settings 1 to 3 to simmer bouillon poach keep warm stew meats simmer vegetables melt chocolate melt cheese INDUCTION OPERATION

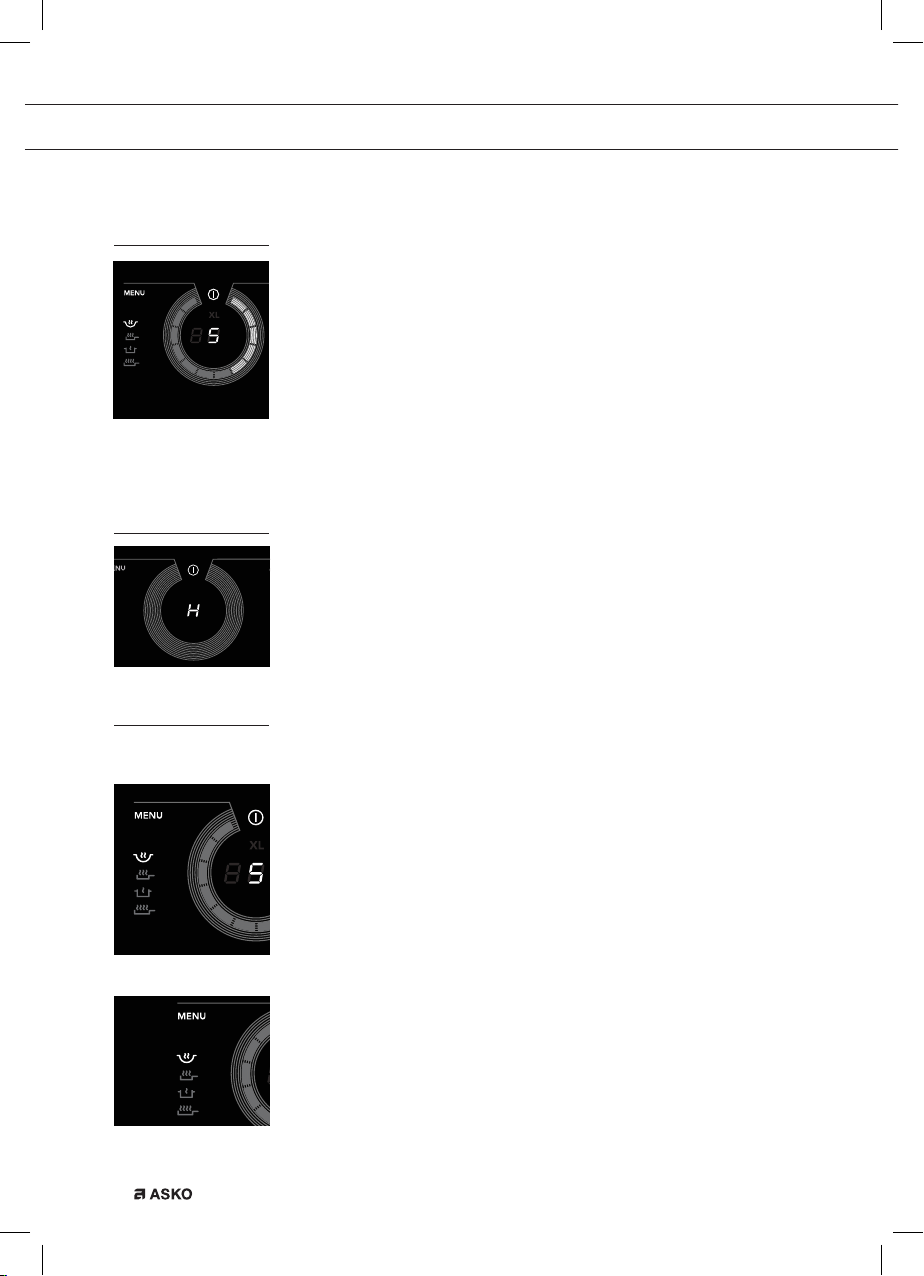

• Page 26 - English - : EN 26 Ignition and adjustment 1 Place the pan in the middle of a cooking grid 2 Press the key button A single audio signal sounds 3 Press the onoff button of the wok burner The burner will light and will heat at setting 5 Setting 5 will appear in the display and you will hear a single audio signal 4 Set a higher or lower setting by sliding over the slide control with your finger or by tapping on the slide control The burner can be set at 12 settings Residual heat indicator After use the wok burner may stay hot for several minutes As long as the burner is still hot an H will be visible in the display Menu function The wok burner is equipped with 4 burner settings The burner is set to the wok setting automatically Use the Menu button to select a searing setting simmer setting or XL searing setting Setting a burner setting Press the menu button or press and hold down the menu button to go to the next menu function The selected cooking program automatically starts after 3 seconds The icon concerned will light up Wok setting The wok setting provides concentrated heat to the core of the pan Use the wok grille provided to ensure that the wok remains stable WOK BURNER OPERATION
• Page 27 - English - : EN 27 Searing setting Use this setting to sear dishes The outer burner is switched on and provides an equal distribution of heat in the pan Simmer setting This setting is suitable for slow cooking and keeping your dish warm With twelve settings the desired power can be controlled very precisely XL searing setting Use this setting to sear dishes on high power This setting is suitable for large pans gt28 cm The outer burner is switched on and with the maximum available power provides an equal distribution of heat in the pan WOK BURNER OPERATION
• Page 28 - English - : EN 28 MAINTENANCE Cleaning glass top Tip Activate the child lock before cleaning the hob Daily cleaning Although food spills cannot burn into the glass we nevertheless recommend you clean the hob immediately after use For daily cleaning a damp cloth with a mild cleaning agent is best Dry off with kitchen paper or a dry tea towel Stubborn stains Stubborn stains can also be removed with a mild cleaning agent washingup liquid for example Remove water circles and limescale with cleaning vinegar Traces of metals caused by sliding pans can be difficult to remove Special products are available for this Use a glass scraper to remove food spills Melted plastic and sugar are also best removed with a glass scraper Please note Never use abrasives These leave scratches in which dirt and limescale can accumulate Never use anything sharp such as steel wool or scourers
• Page 29 - English - : EN 29 MAINTENANCE Cleaning wok burner elements Please note Burner parts should not be cleaned in the dishwasher Dishwasher detergents can corrode burner parts Persistent stains on enamel pan supports burner caps Persistent stains can best be removed with a fluid detergent or a plastic scouring sponge Never use scouring powder scouring pads sharp objects or aggressive cleaning products Brass wok burner parts Some wok burner parts are made of brass It is not unusual to see a change in the colour of the brass as a result of the high temperatures involved in wok use Please note Consult the wwwaskocom website for additional maintenance and cleaning instructions
• Page 30 - English - : EN 30 FAULTS General If you notice a crack in the glass top however small switch off the hob immediately unplug the hob and close off the gas supply Then contact the Service Department Troubleshooting table If your hob does not work properly it does not always mean that it is defective Make sure to check the points mentioned below in the table or visit our website wwwaskocom for more information Please note If the square red light above the pause button flashes and none of the malfunctions below apply please contact the service department Symptom Possible cause Solution Induction zones Characters appear in the displays when the appliance is connected for the first time This is the standard setup routine Normal operation The fan runs on for several minutes after the hob has been switched off The hob is cooling down Normal operation A slight smell is noticeable the first few times the hob is used The new appliance is heating up This is normal and disappears after the hob has been used a few times Ventilate the kitchen You can hear a ticking sound in your hob This is caused by the capacity limiter on the front and back zones A soft ticking sound can also occur at lower settings APd checks the presence of a pan Normal operation Remove the pan or switch off the APd function page 19 The pans make a noise while cooking This is caused by the energy flowing from the hob to the saucepan This is normal for certain pans particularly at high settings This is not harmful for the pans or the hob You have switched a cooking zone on but the display keeps flashing The pan you are using is not suitable for induction cooking or has a diameter of less than 12 cm Use a suitable pan see pages 11 and 12
• Page 31 - English - : EN 31 FAULTS Symptom Possible cause Solution A cooking zone suddenly stops working and you hear a signal The preset time has ended Switch off the signal by pressing the or button on the timer The hob is not working and nothing appears in the display There is no power supply due to a defective cable or a faulty connection Check the fuses or the electric switch if there is no plug A fuse blows as soon as the hob is switched on The appliance is incorrectly connected Check the electrical connections br appears in the display and the controls do not respond The bridge function is switched on Switch off the bridge function see page 21 Error code F00the red light next to the child lock button is lit and the light above the pause button is flashing The control panel is dirty or has water on it Clean the control panel Error codes F0 to F6 and FC Defective generator Please contact your service centre Error code F7 The ambient temperature is not good Switch off all heat sources in the vicinity of the cooking plate Error codes F8 and F08the red light next to the child lock button is lit and the light above the pause button is flashing Appliance overheated Let the appliance cool down and start cooking again Error code F9 andor continuous audio signal The appliance has been connected incorrectly andor the mains voltage is too high Have your connection changed Error code F99the red light next to the child lock button is lit and the light above the pause button is flashing 2 or more buttons are being operated simultaneously Do not operate more than 1 button at a time Error code FA Mains voltage is too low Contact your energy supplier Error code FAN Air circulation not good Make sure the venting holes under the cooking plate are open Other error codes Please contact your service centre

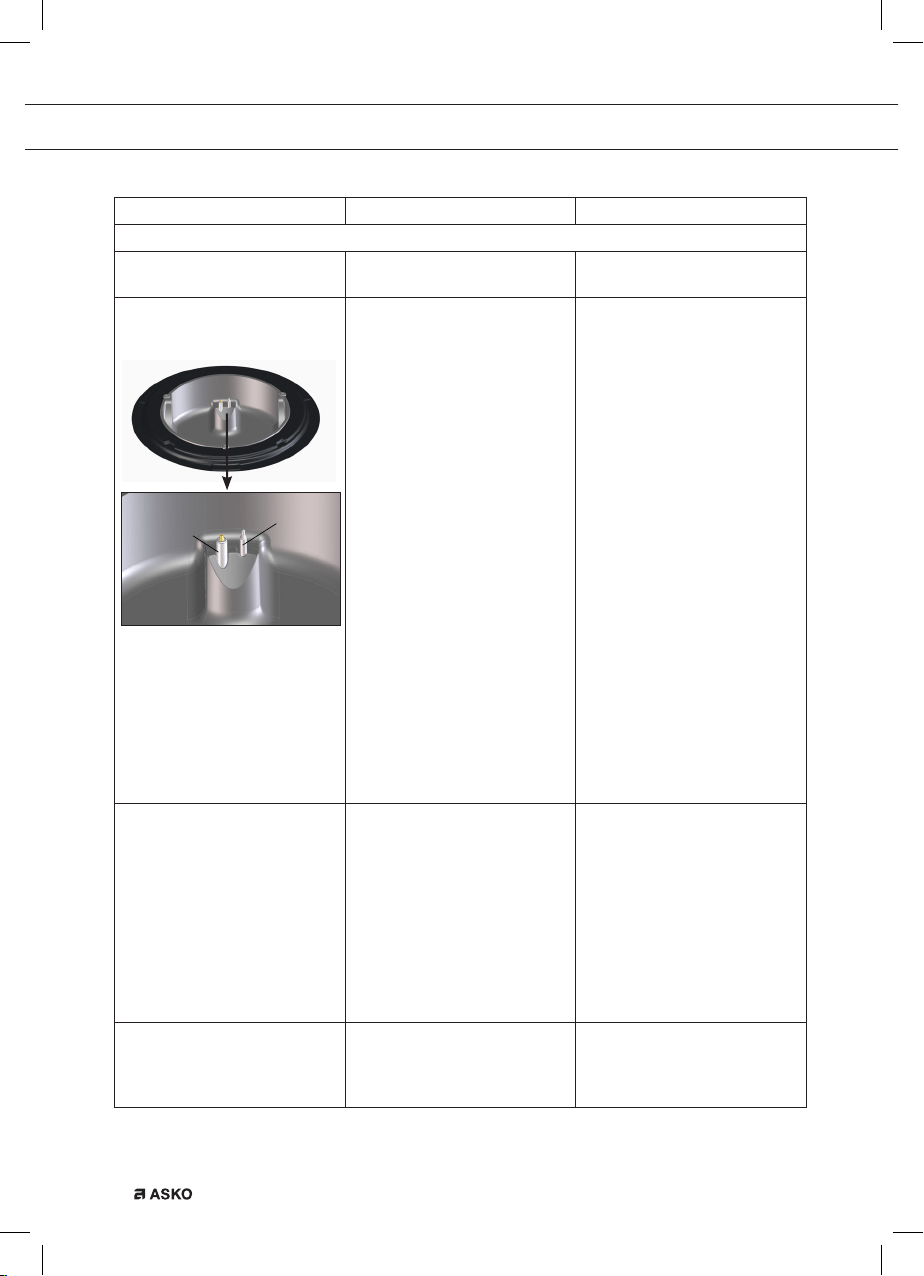

• Page 32 - English - : EN 32 FAULTS Symptom Possible cause Solution Wok burner There is a smell of gas near the appliance The appliance connection is leaking Turn off the main gas supply valve Contact your installer The burner does not ignite Error code F4066 Electrical connection not correct Fuse defectivefuse switched off in fuse cupboard Spark plug 1 dirtydamp Burner parts not placed correctly Burner parts dirtydamp Main gas supply valve closed Fault in gas mains Gas bottle or tank is empty Wrong type of gas used Contact your installer Replace the fuse or switch on the fuse again in the fuse box Cleandry the spark plug Use the centring notches to put the burner parts together Cleandry the burner parts Make sure that the outflow holes are open Open the main gas valve Consult you gas supplier Connect a new gas bottle or have the tank refilled Check whether the gas used is suitable for the appliance Contact your installer if it is not correct The burner does not burn evenly Burner parts not placed correctly Burner parts dirtydamp Wrong type of gas used Use the centring notches to put the burner parts together Cleandry the burner parts Make sure that the outflow holes are open Check whether the gas used is suitable for the appliance Contact your installer if it is not correct Burner extinguishes after igniting Error code F3 Thermocouple 2 is dirty Cleandry the thermocouple
• Page 33 - English - : EN 33 Symptom Possible cause Solution Ceramic glass plate broken Close the gas main switch and pull the plug out of the socket Contact your installer Please note Do not throw a broken ceramic glass plate in the glass recycling bin but take it to the municipalitys waste recycling centre Other error codes Please contact your service centre Reset error code switch the hob off on using the key button Then switch on the gas zone using the slider FAULTS
• Page 34 - English - : EN 34 TECHNICAL DATA Information according regulation EU 662014 Measurements according EN603502 EN 3021 Model identification HIG1944MF HIG1944MB Type of hob Gasinduction hob Gasinduction hob Number of electric cooking zones andor areas 3 3 Heating technology Induction cooking zones and cooking areas Induction cooking zones and cooking areas For circular electric cooking zones diameter of useful surface area per electric heated cooking zone in cm Ø 210 Ø 210 For noncircular cooking zones or areas lenght and width of useful surface area per electric heated cooking zone or area 220X180 cm 220X180 cm Energy consumption per cooking zone or area calculated per kg EC electric hob in Whkg 1936 1888 1936 1888 Number of gas burners 1 1 Energy efficiency per gas burner EEgas burner in 591 591
