2004 S2000 Online Reference Owner's Manual
Use these links (and links throughout this manual) to navigate through this reference.
For a printed owner's manual, click on authorized manuals or go to www.helminc.com.
Contents
Owner's Identification Form
Introduction ......................................................................................................................................... i
A Few Words About Safety.................................................................................................................ii
Your Vehicle at a Glance.....................................................................................................................2
Driver and Passenger Safety ..............................................................................................................5
Proper use and care of your vehicle's seat belts, and Supplemental Restraint System.

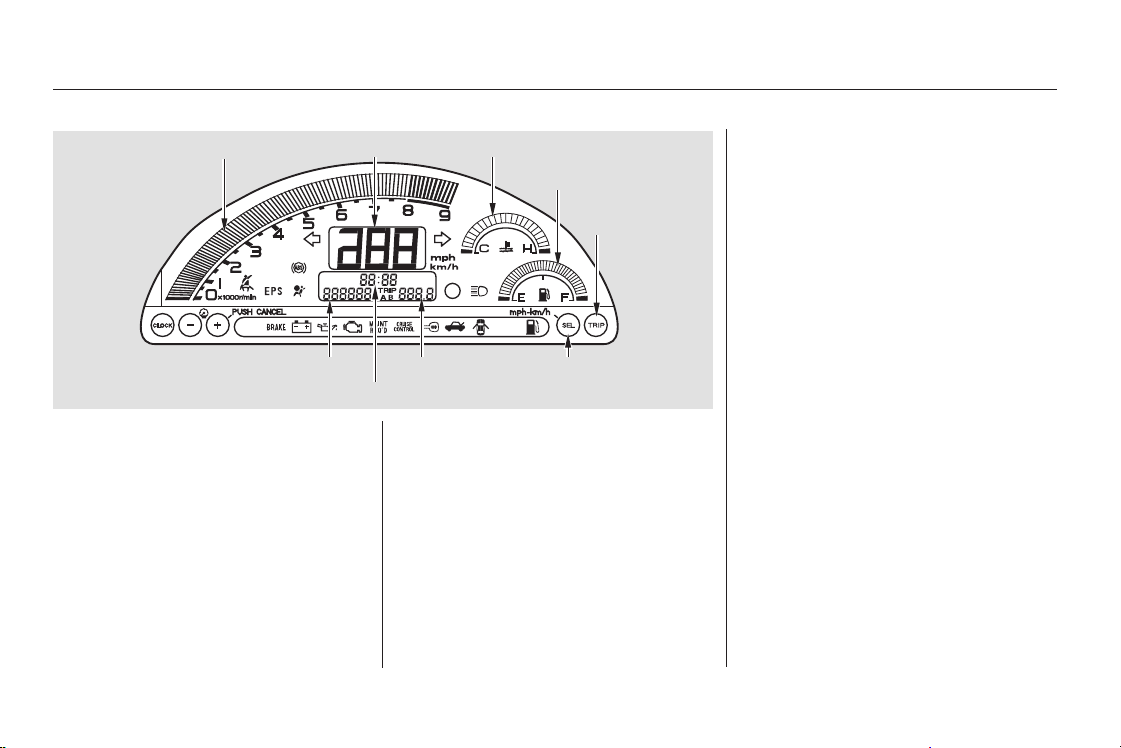

Instruments and Controls.................................................................................................................37
Instrument panel indicator and gauge, and how to use dashboard and steering column controls.
Comfort and Convenience Features ................................................................................................73
How to operate the climate control system, the audio system, and other convenience features.
Before Driving....................................................................................................................................99
What gasoline to use, how to break-in your new vehicle, and how to load luggage and other cargo.
Driving ..............................................................................................................................................111
The proper way to start the engine, shift the transmission, and park, plus towing a trailer.
Maintenance.....................................................................................................................................119
The Maintenance Schedule shows you when you need to take your vehicle to the dealer.
Taking Care of the Unexpected......................................................................................................153
This section covers several problems motorists sometimes experience, and how to handle them.
Technical Information.....................................................................................................................177
ID numbers, dimensions, capacities, and technical information.
Warranty and Customer Relations (U.S. and Canada)................................................................191
A summary of the warranties covering your new Acura, and how to contact us.
Authorized Manuals (U.S. only)......................................................................................................195
How to order manuals and other technical literature.
Index...................................................................................................................................................... I
Service Information Summary
A summary of information you need when you pull up to the fuel pump.
This Owner’s Manual should be considered
a permanent part of the vehicle, and should
remain with the vehicle when it is sold.
This Owner’s Manual covers all models of
the S2000. You may find descriptions of
equipment and features that are not on your
particular model.
The information and specifications included
in this publication were in effect at the time
of approval for printing. Honda Motor Co.,
Ltd. reserves the right, however, to
discontinue or change specifications or
design at any time without notice and
without incurring any obligation whatsoever.
Owner’s Identification
OWNER
ADDRESS
V. I. N.
DELIVERY DATE
DEALER NAME DEALER NO.
ADDRESS
OWNER’S SIGNATURE
DEALER’S SIGNATURE
STREET
CITY STATE/PROVINCE ZIP CODE/
POSTAL CODE
(Date sold to original retail purchaser)
STREET
CITY STATE/PROVINCE ZIP CODE/
POSTAL CODE
Main Menu
Congratulations on your selection of the 2004 Honda S2000. We are certain
you will be pleased with your purchase of one of the most sophisticated and
technologically-advanced sports cars in the world.
One of the best ways to enhance the enjoyment of your new Honda is to
read this manual. In it, you will learn how to operate its driving controls and
convenience items. Afterwards, keep this owner’s manual in your vehicle so
youcanrefertoitatanytime.
Several warranties protect your new Honda. Read the warranty booklet
thoroughly so you understand the coverages and are aware of your rights
and responsibilities.
Maintaining your vehicle according to the schedules given in this manual
helps to keep your driving trouble-free while it preserves your investment.
When your vehicle needs maintenance, keep in mind that your Honda
dealer’s staff is specially trained in servicing the many systems unique to
your Honda. Your Honda dealer is dedicated to your satisfaction and will be
pleased to answer any questions and concerns.
California Proposition 65 Warning
This product contains or emits chemicals known to the State of
California to cause cancer and birth defects or other reproductive harm.
As you read this manual, you will
find information that is preceded by
a symbol. This information
is intended to help you avoid damage
to your Honda, other property, or the
environment.
Introduction
WARNING:
NOTICE:
i
Main Menu
−
−
−
−
−
−
Your safety, and the safety of others,
is very important. And operating this
vehicle safely is an important
responsibility.
To help you make informed
decisions about safety, we have
provided operating procedures and
other information on labels and in
this manual. This information alerts
you to potential hazards that could
hurt you or others.
Of course, it is not practical or
possible to warn you about all the
hazards associated with operating or
maintaining your vehicle. You must
use your own good judgement.
You will find this important safety information in a variety of forms,
including:
on the vehicle.
preceded by a safety alert symbol and one of
three signal words: , , or .
These signal words mean:
such as Important Safety Reminders or Important
Safety Precautions.
such as Driver and Passenger Safety.
This entire book is filled with important safety information please read it
carefully.
how to use this vehicle correctly and safely.
AFewWordsAboutSafety
Safety Labels
Safety Messages
Safety Headings
Safety Section
Instructions
DANGER WARNING CAUTION
ii
You WILL be KILLED or SERIOUSLY
HURT if you don’t follow instructions.
You CAN be KILLED or SERIOUSLY
HURT if you don’t follow instructions.
You CAN be HURT if you don’t follow
instructions.
Main Menu

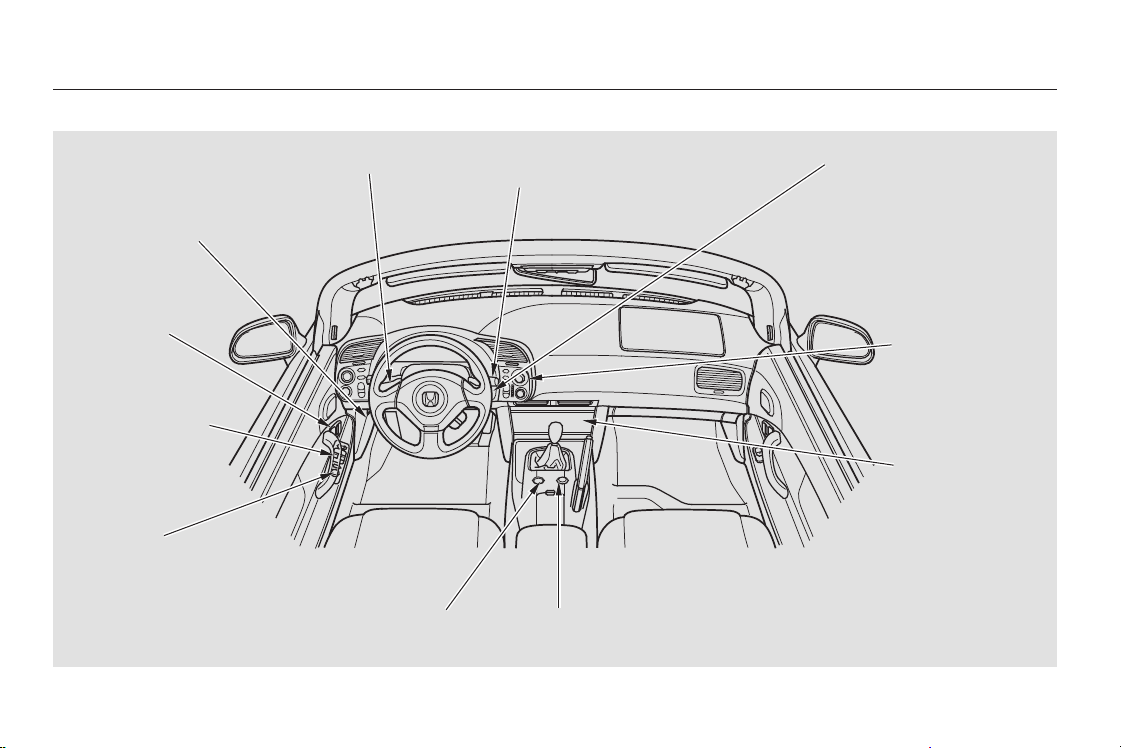

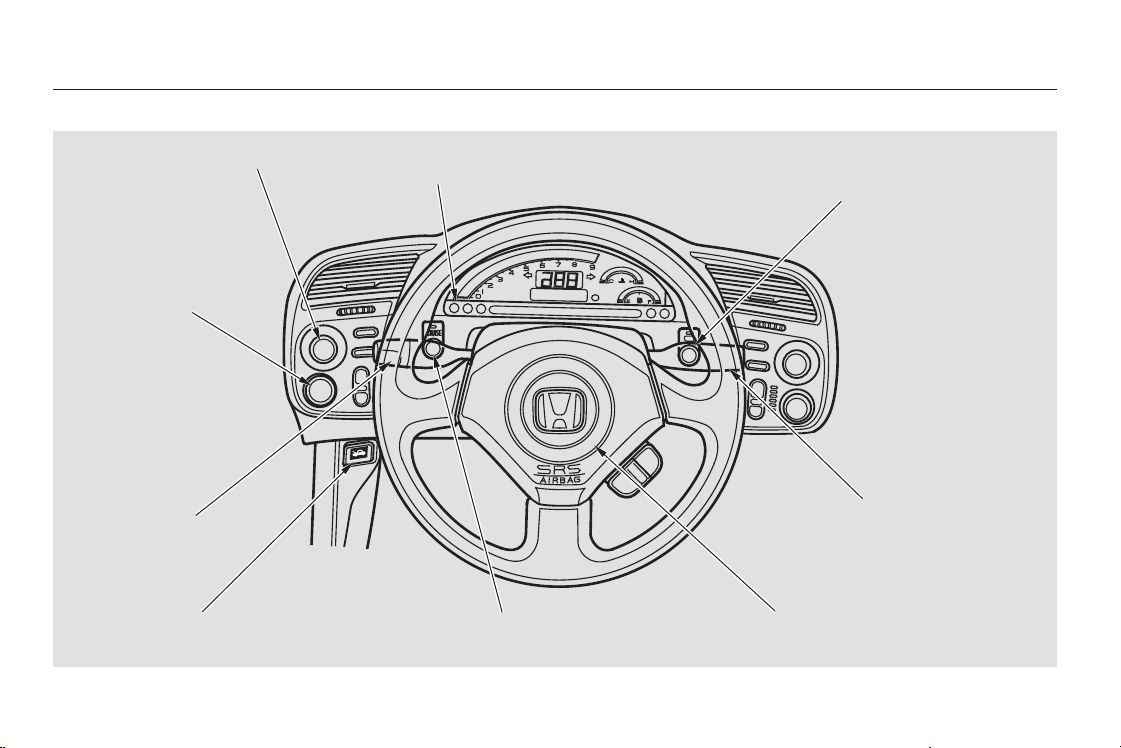

Your Vehicle at a Glance
2

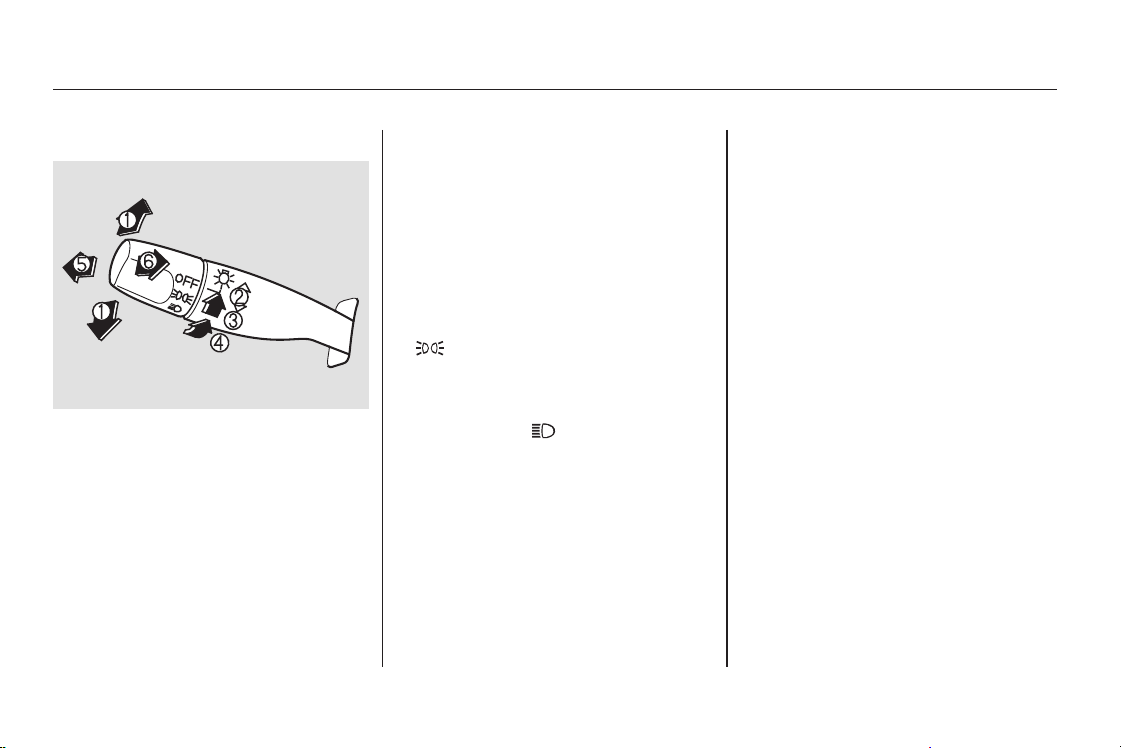

HEADLIGHTS/TURN SIGNAL SWITCH
HOOD RELEASE
HANDLE

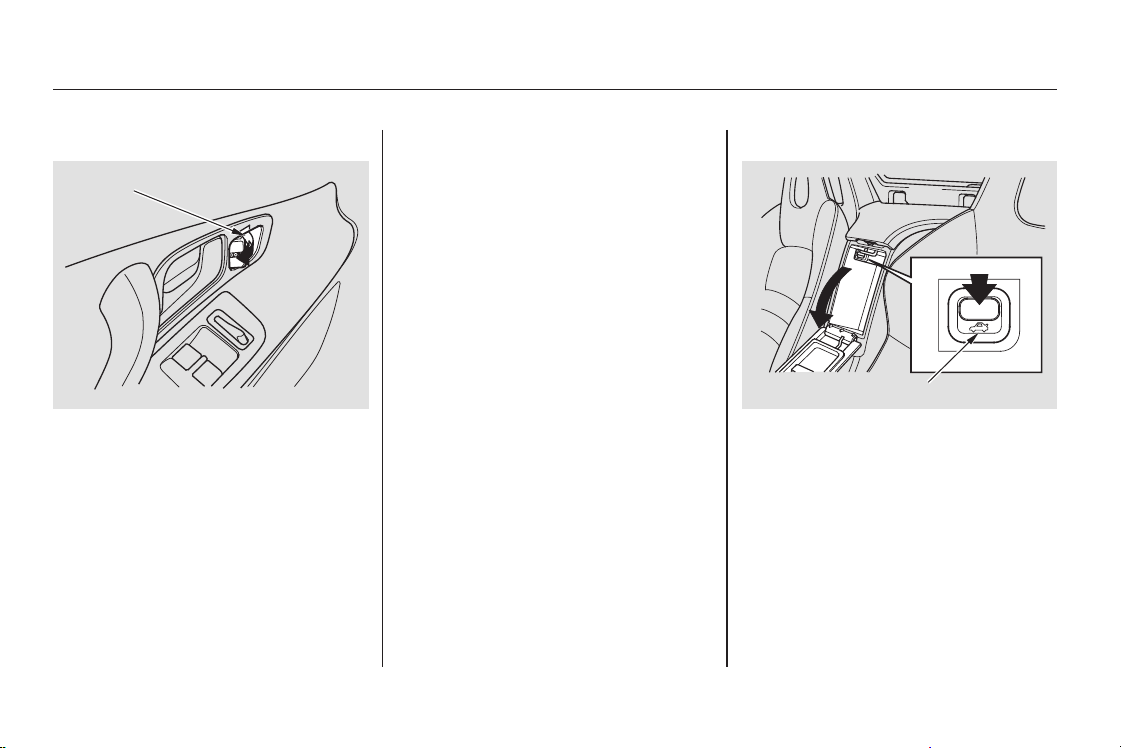

DOOR LOCK
SWITCH

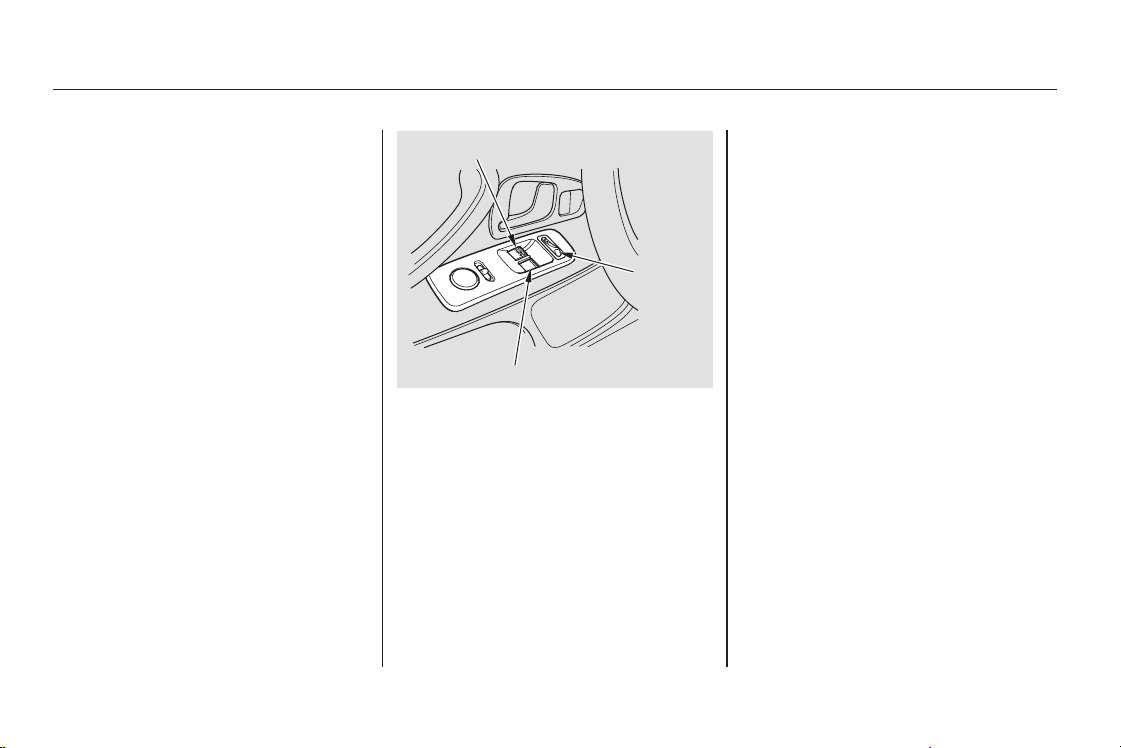

POWER WINDOW
SWITCHES
MIRROR
CONTROLS
ROOF SWITCH

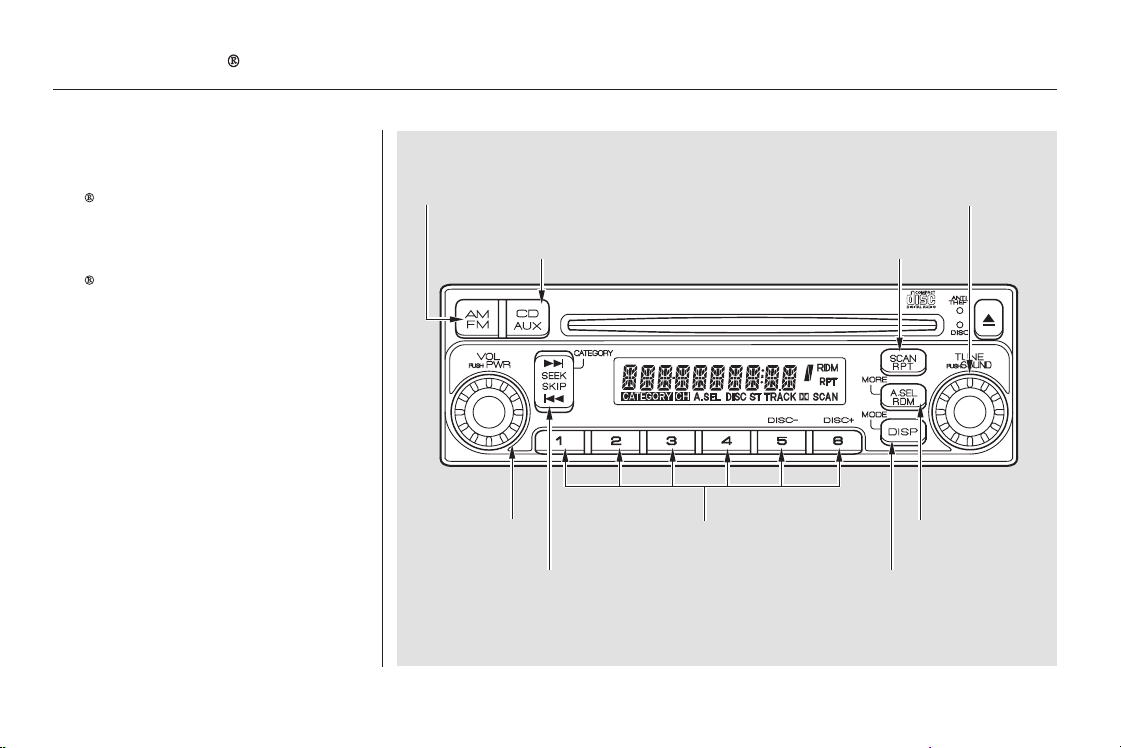

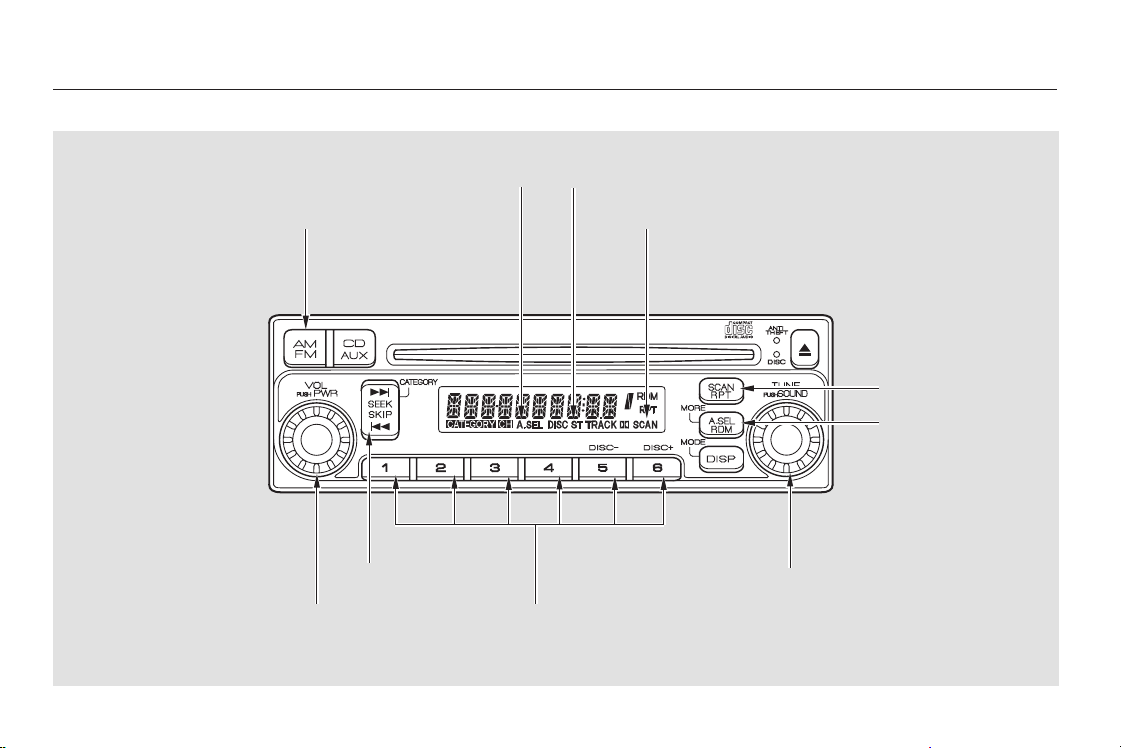

AUDIO SYSTEM

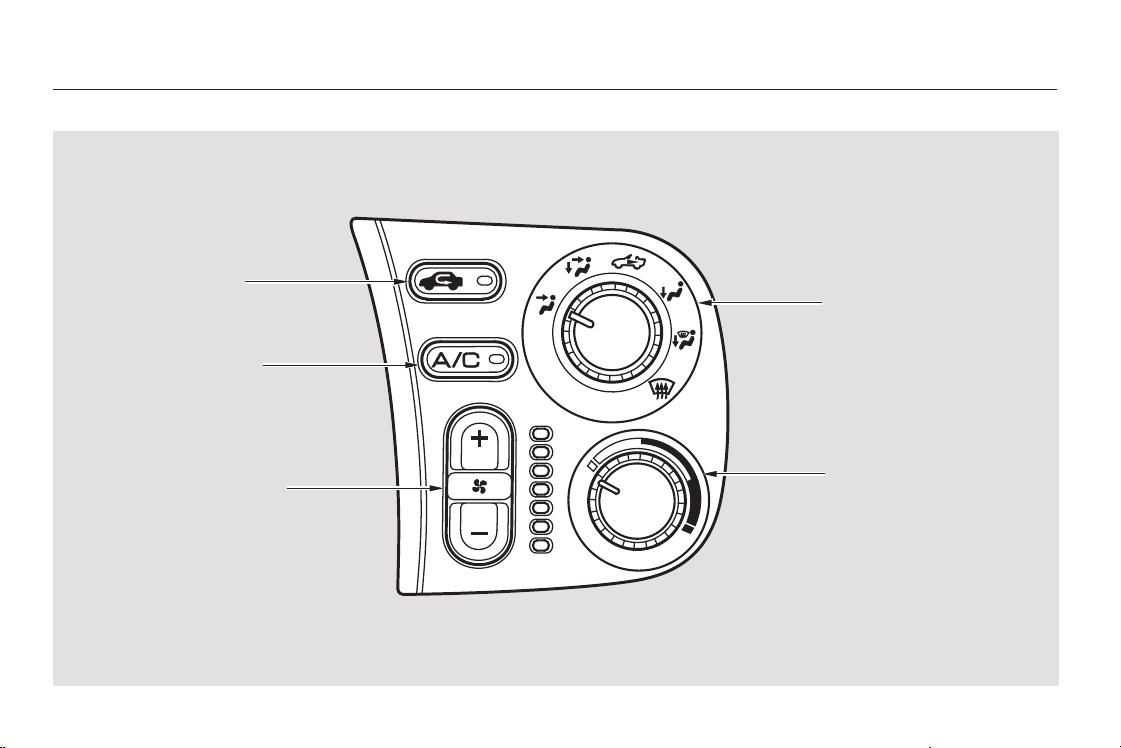

HEATING AND AIR
CONDITIONING
REAR WINDOW DEFOGGER
BUTTON

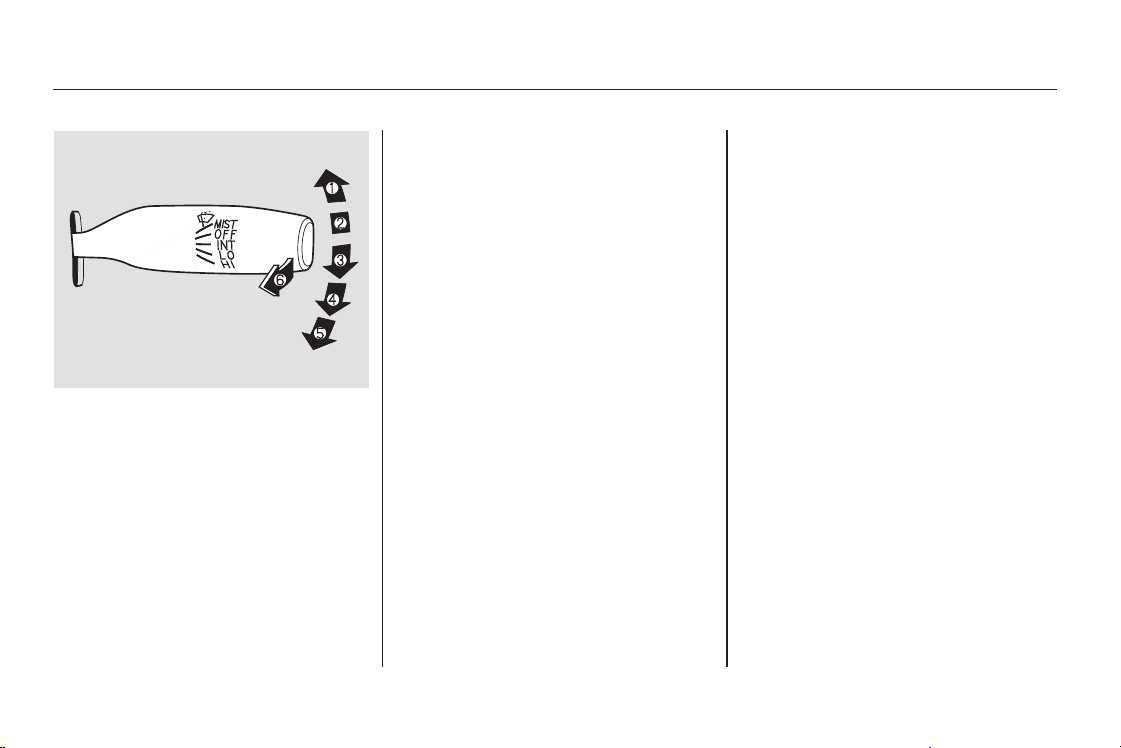

WINDSHIELD WIPER CONTROLS
HAZARD WARNING BUTTON
(P.48)
(P.102)
(P.54)
(P.59)
(P.66)
(P.47)
(P.50)
(P.74)
(P.78)
(P.49)
(P.62)
Main Menu
4
Main Menu
−
This section gives you important
information about how to protect
yourself and your passengers. It
shows you how to use seat belts. It
explains how your airbags work, and
it tells you how to properly restrain
children in your vehicle.
.........Important Safety Precautions . 6
.......Your Vehicle’s Safety Features . 7
.......................................Seat Belts . 8
...........................................Airbags . 9
.........Protecting Adults and Teens . 10
.....1. Close and Lock the Doors . 10

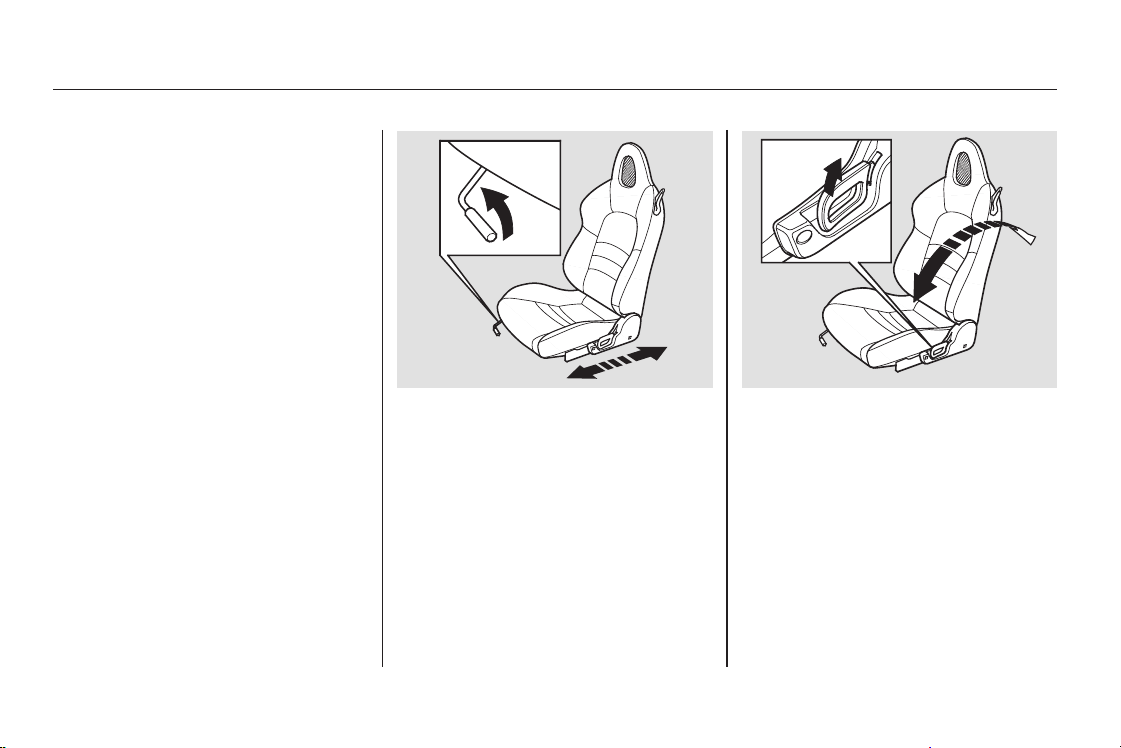

......................2. Adjust the Seats . 10
............3. Adjust the Seat-Backs . 11
4. Fasten and Position the
.............................Seat Belts . 12
5. Maintain a Proper Sitting
................................Position . 13

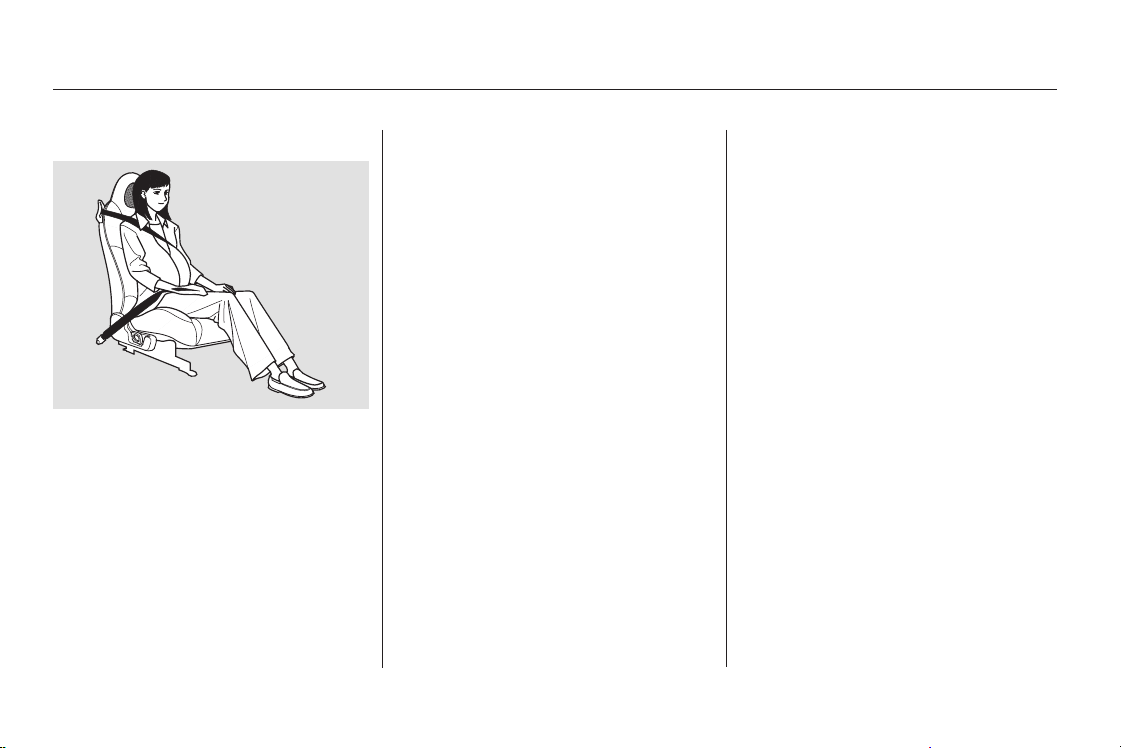

.....Advice for Pregnant Women . 14
...Additional Safety Precautions . 15
Additional Information About Your
.................................Seat Belts . 15
..Seat Belt System Components . 15
......................Lap/Shoulder Belt . 16
Automatic Seat Belt
...............................Tensioners . 16
...............Seat Belt Maintenance . 17
Additional Information About Your
.....................................Airbags . 18
....................Airbag Components . 18
...........How Your Airbags Work . 18
How the SRS Indicator
.......................................Works . 20
.............................Airbag Service . 21
...Additional Safety Precautions . 21
Protecting Children General
....................................Guidelines . 22
All Children Must Be
...............................Restrained . 22
Your Vehicle is Not
Recommended for Child
..........................Passengers . 23
The Passenger’s Airbag Can
.................Pose Serious Risks . 23
...Additional Safety Precautions . 25
.............Protecting Small Children . 26
......................Selecting Child Seats . 27
......................Installing Child Seats . 27
...........Protecting Larger Children . 30
...............Checking Seat Belt Fit . 30

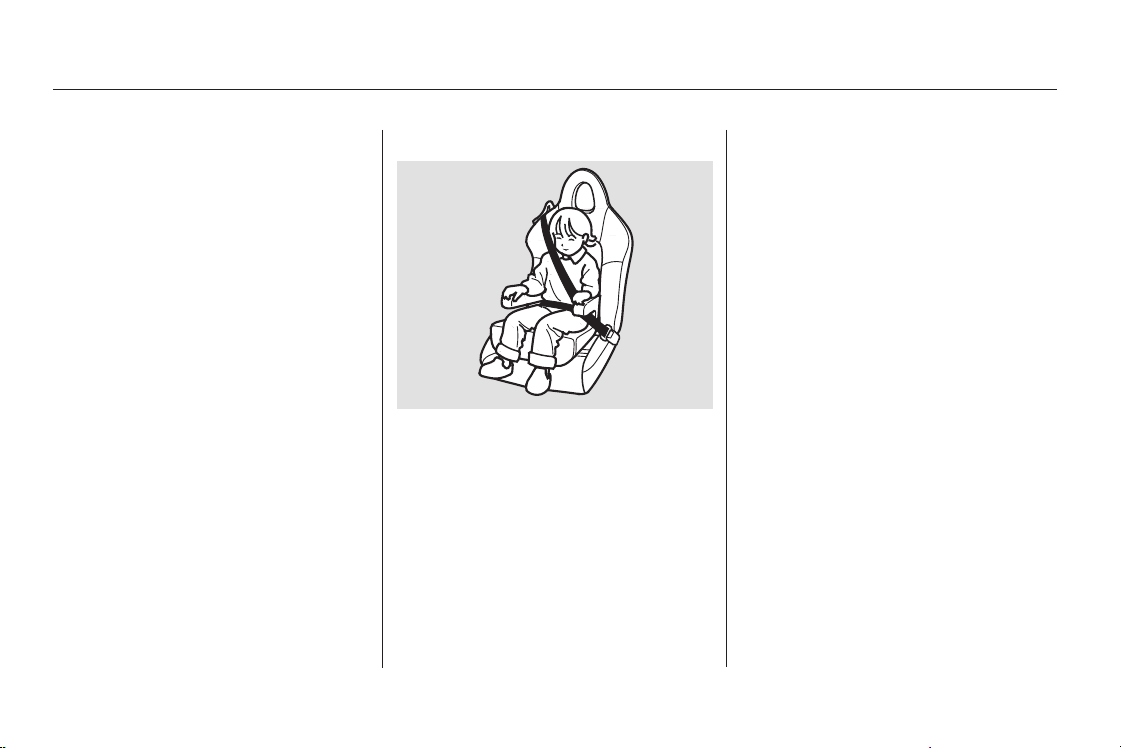

..................Using a Booster Seat . 31
...Additional Safety Precautions . 33
.............Carbon Monoxide Hazard . 34

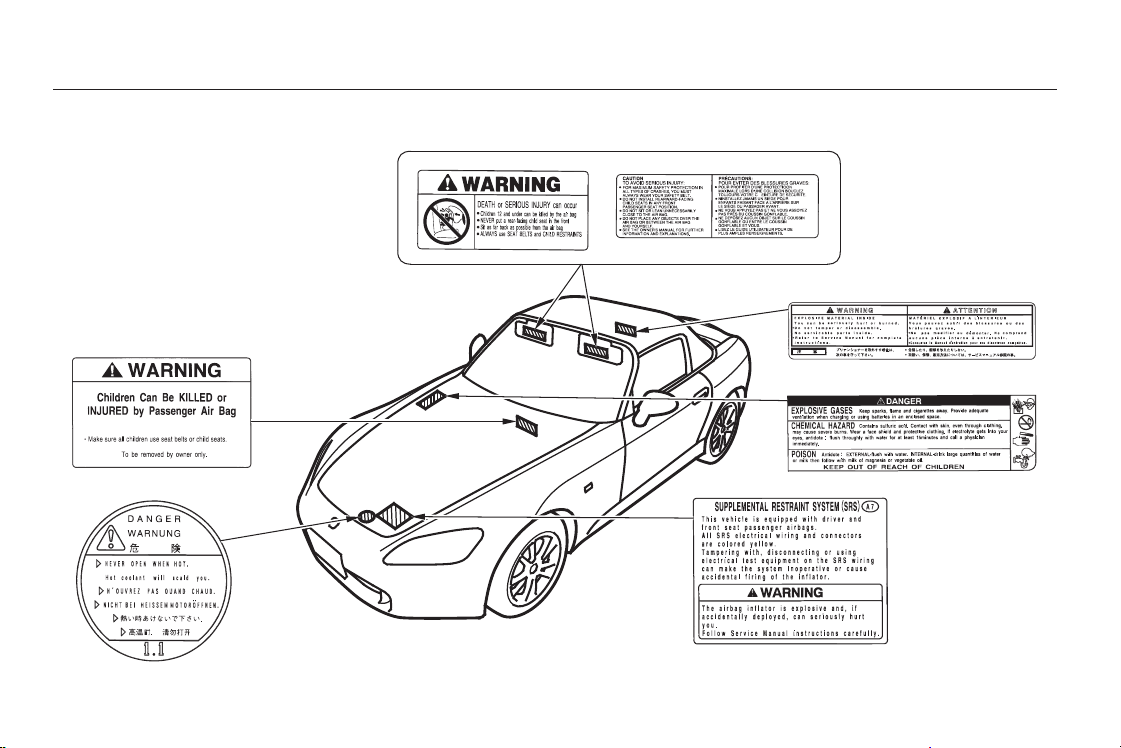

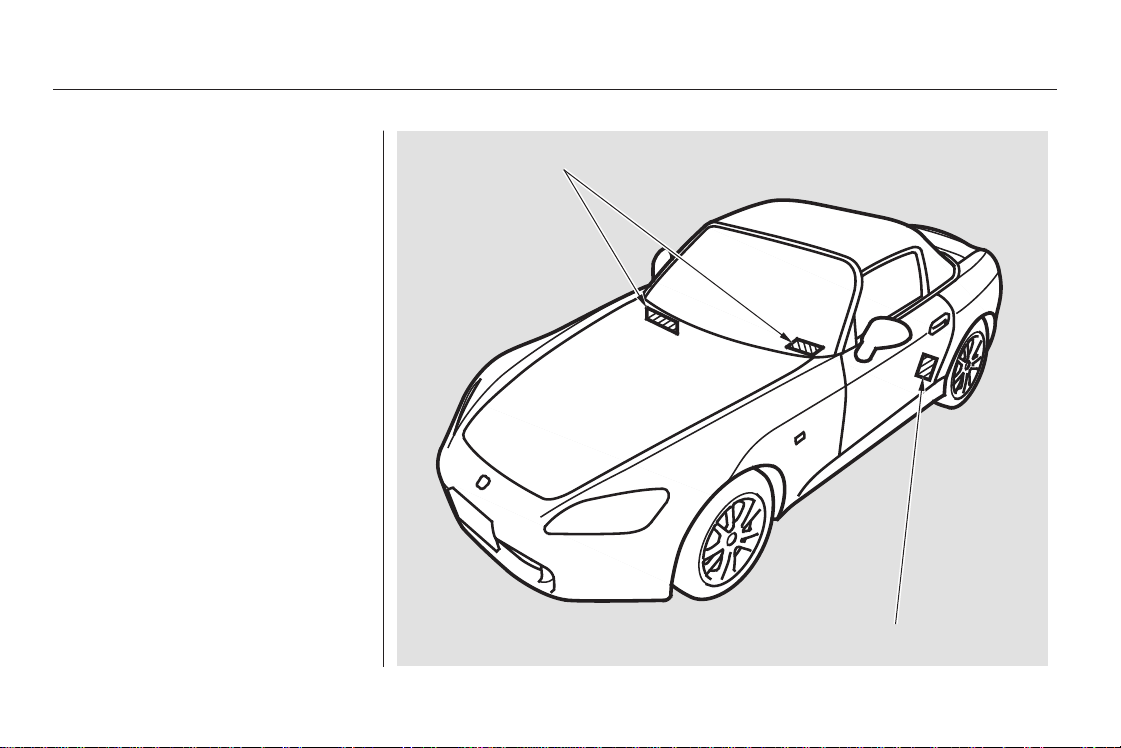

...................................Safety Labels . 35
Driver and Passenger Safety
Driver and Passenger Saf ety
5
Main Menu
You’ll find many safety
recommendations throughout this
section, and throughout this manual.
Therecommendationsonthispage
are the ones we consider to be the
most important.
A seat belt is your best protection in
all types of collisions. Airbags
supplement seat belts, but airbags
are designed to inflate only in a
moderate to severe frontal collision.
So even though your vehicle is
equipped with airbags, make sure
you and your passenger always wear
your seat belts, and wear them
properly. (See page ).
Since all children are safest in the
back seat of a vehicle, and your
vehicle does not have a back seat, we
recommend that you do not carry a
child passenger.
If a small child who must be
restrained in a forward-facing child
seat, or a larger child, must ride in
this vehicle, be sure to follow all
instructions and safety warnings in
this manual (see pages and ).
While airbags can save lives, they
can cause serious or fatal injuries to
occupants who sit too close to them,
or are not properly restrained.
Infants, young children, and short
adults are at the greatest risk. Be
sure to follow all instructions and
warnings in this manual.
Alcohol and driving don’t mix. Even
one drink can reduce your ability to
respond to changing conditions, and
your reaction time gets worse with
every additional drink. So don’t drink
and drive, and don’t let your friends
drink and drive, either.
Excessive speed is a major factor in
crash injuries and deaths. Generally,
the higher the speed, the greater the
risk, but serious injuries can also
occur at lower speeds. Never drive
faster than is safe for current
conditions, regardless of the
maximum speed posted.
Having a tire blowout or a
mechanical failure can be extremely
hazardous. To reduce the possibility
of such problems, check your tire
pressures and condition frequently,
and perform all regularly scheduled
maintenance (see page ).
26
12
30
121
Important Safety Precautions
Driver and Passenger Saf ety
Always Wear Your Seat Belt
Your Vehicle is Not
Recommended f or Child
Passengers
Be Aware of Airbag Hazards
Don’t Drink and Drive
Control Your Speed
Keep Your Vehicle in Safe
Condition
Due to the
passenger’s airbag hazard, you
should never carry an infant in a
rear-facing child seat in this vehicle.
6
Main Menu
Table of Contents

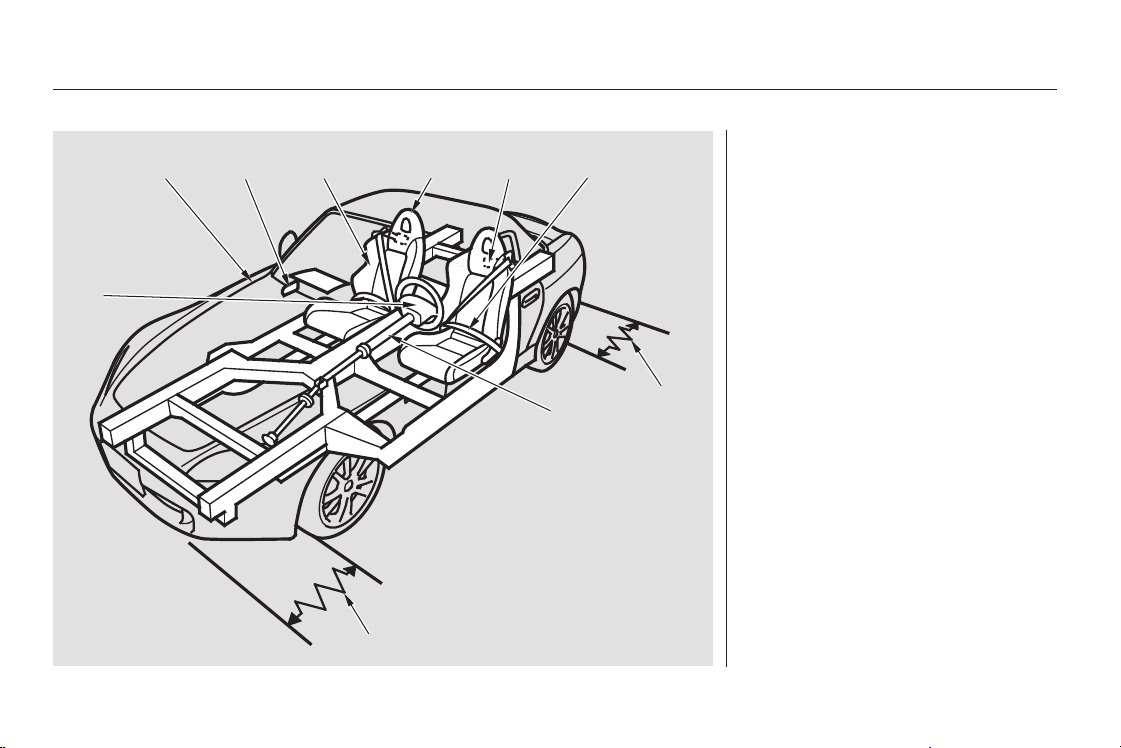

Your vehicle is equipped with many
features that work together to
protect you and your passengers
during a crash.
Some safety features do not require
anyactiononyourpart.These
include a strong steel framework
that forms a safety cage around the
passenger compartment; front and
rear crush zones, a collapsible
steering column, and seat belt
tensioners that tighten the seat belts
in the event of a crash.
However, you and your passenger
can’t take full advantage of these
safety features unless you remain
sitting in a proper position and
always wear your seat belts properly.
Infact,somesafetyfeaturescan
contribute to injuries if they are not
used properly.
The following pages explain how you
cantakeanactiveroleinprotecting
yourself and your passenger.
Your Vehicle’s Safety Features
Driver and Passenger Saf ety
7
(8)
(1) (9) (3) (4) (7) (6)
(2)
(5)
(2)
(1) Safety Cage
(2) Crush Zones
(3) Seats and Seat-Backs
(4) Head Restraints
(5) Collapsible Steering Column
(6) Seat Belts
(7) Seat Belt Tensioners
(8) Airbags
(9) Door Locks
Main Menu
Table of Contents
Your vehicle is equipped with seat
belts in both seating positions.
Your seat belt system also includes
an indicator on the instrument panel
to remind you and your passenger to
fasten your seat belts.
Seat belts have proven to be the
singlemosteffectivesafetydevice.
Not wearing a seat belt properly
increases the chance of serious
injury or death in a crash, even
though your vehicle has airbags.
In addition, most states and all
Canadian provinces require you to
wear seat belts.
When properly worn, seat belts:
Keep you connected to the vehicle
so you can take advantage of the
vehicle’s built-in safety features.
Help protect you in almost every
type of crash, including frontal,
side,rearimpacts,androllovers.
Help keep you from being thrown
against the inside of the vehicle
and against another occupant.
Keep you from being thrown out
of the vehicle.
Help keep you in a good position
should the airbags ever deploy. A
good position reduces the risk of
injury from an inflating airbag, and
allows you to get the best
advantage from the airbag.
Of course, seat belts cannot
completely protect you in every
crash.Butinmostcases,seatbelts
can reduce your risk of serious
injury.
Always wear your seat belt, and
make sure you wear it properly.
Your Vehicle’s Safety Features
Seat Belts
Why Wear Seat Belts
What You Should Do:
Driver and Passenger Saf ety
8
Not wearing a seat belt properly
increases the chance of serious
injury or death in a crash, even
though your vehicle has airbags.
Be sure you and your
passenger always wear seat
belts and wear them properly.
Main Menu
Table of Contents

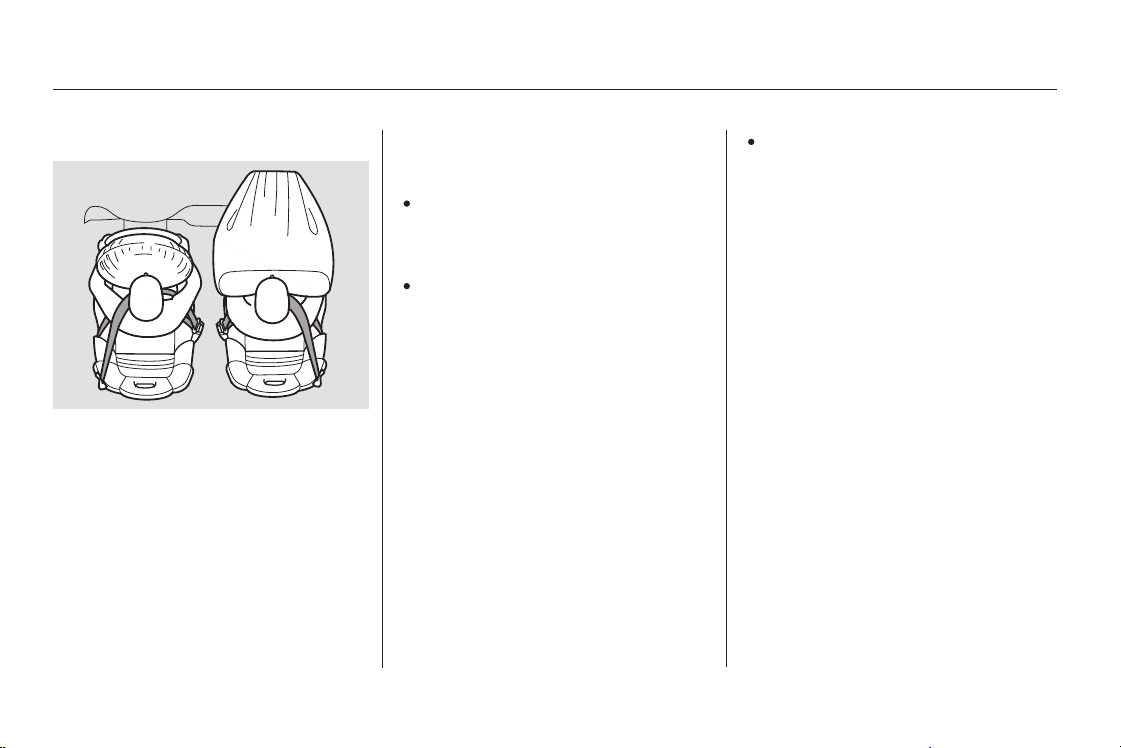

Your vehicle has a Supplemental
Restraint System (SRS) with frontal
airbags to help protect the heads and
chests of the driver and a passenger
during a moderate to severe frontal
collision (see page for more
information on how your airbags
work).
The most important things you need
to know about your airbags are:
They are designed to supplement
the seat belts.
To do
their job, airbags must inflate with
tremendous force. So while
airbags help save lives, they can
cause minor injuries or more
serious or even fatal injuries if
occupants are not properly
restrained or sitting properly.
Always wear
your seat belt properly, and sit
upright and as far back from the
steering wheel while allowing full
control of the vehicle. A passenger
should move the seat as far back
from the dashboard as possible.
18
Your Vehicle’s Safety Features
Driver and Passenger Saf ety
Airbags
Airbags do not replace seat belts.
Airbags offer no protection in side
impacts, rear impacts, rollovers,
or minor collisions.
Airbags can pose hazards.
What you should do:
9
Main Menu
Table of Contents
The rest of this section gives more
detailed information about how you
can maximize your safety.
Remember however, that no safety
system can prevent all injures or
deaths that can occur in severe
crashes, even where seat belts are
properly worn and the airbags deploy.
The following pages provide
instructions on how to properly
protect the driver, adult passengers
and teenage children who are large
enough and mature enough to ride in
your Honda.
See page for important guidelines
on how to properly protect small
children and larger children who ride
in your vehicle.
After everyone has entered the
vehicle, be sure the doors are closed
and locked.
Locking the doors also helps prevent
an outsider from unexpectedly
opening a door when you come to a
stop.
See page for how to lock the
doors.
Adjust driver’s seat as far to the rear
as possible while allowing you to
maintain control of the vehicle. Have
a passenger adjust his or her seat as
far to the rear as possible.
If you sit too close to the steering
wheel or dashboard, you can be
seriously injured by an inflating
airbag, or by striking the steering
wheel or dashboard.
Locking the doors reduces the
chance of someone being thrown out
of the vehicle during a crash, and it
helps prevent a passenger from
accidentally opening a door and
falling out.
22 54
Protecting Adults and Teens
Driver and Passenger Saf ety
Close and Lock the Doors Adjust the Seats1. 2.
10
Main Menu
Table of Contents
Insert the latch plate into the buckle,
then tug on the belt to make sure the
belt is securely latched. Also check
that the belt is not twisted, because a
twisted belt can cause serious
injuries in a crash.
Position the lap part of the belt as
low as possible across your hips,
then pull up on the shoulder part of
the belt so the lap part fits snugly.
This lets your strong pelvic bones
take the force of a crash and reduces
the chance of internal injuries.
If necessary, pull up on the belt again
to remove any slack, then check that
the belt rests across the center of
your chest and over your shoulder.
This spreads the forces of a crash
over the strongest bones in your
upper body.
This could cause
very serious injuries in a crash.
Protecting Adults and Teens
Fasten and Position the Seat
Belts
4.
Never place the shoulder portion of a
lap/shoulder belt under your arm or
behind your back.
Driver and Passenger Saf ety
12
Improperly positioning the seat
belts can cause serious injury
or death in a crash.
Make sure all seat belts are
properly positioned before
driving.
Main Menu
Table of Contents
If a seat belt does not seem to work
as it should, it may not protect the
occupant in a crash.
Using a seat
belt that is not working properly can
result in serious injury or death.
Have your Honda dealer check the
belt as soon as possible.
See page for additional
information about your seat belts
and how to take care of them.
After occupants have adjusted their
seats and put on seat belts, it is very
important that they continue to sit
upright, well back in their seats, with
their feet on the floor, until the
vehicle is parked and the engine is
off.
Sitting improperly can increase the
chance of injury during a crash. For
example, if an occupant slouches,
lies down, turns sideways, sits
forward, leans forward or sideways,
or puts one or both feet up, the
chance of injury during a crash is
greatly increased.
In addition, an occupant who is out of
position can be seriously or fatally
injured in a crash by striking interior
parts of the vehicle, or being struck
by an inflating front airbag.
15
Protecting Adults and Teens
Driver and Passenger Saf ety
No one should sit in a seat with an
inoperative seat belt.
Maintain a Proper Sitting
Position
5.
13
Sitting improperly or out of
position can result in serious
injury or death.
Always sit upright, well back in
the seat, with your feet on the
floor.
Main Menu
Table of Contents

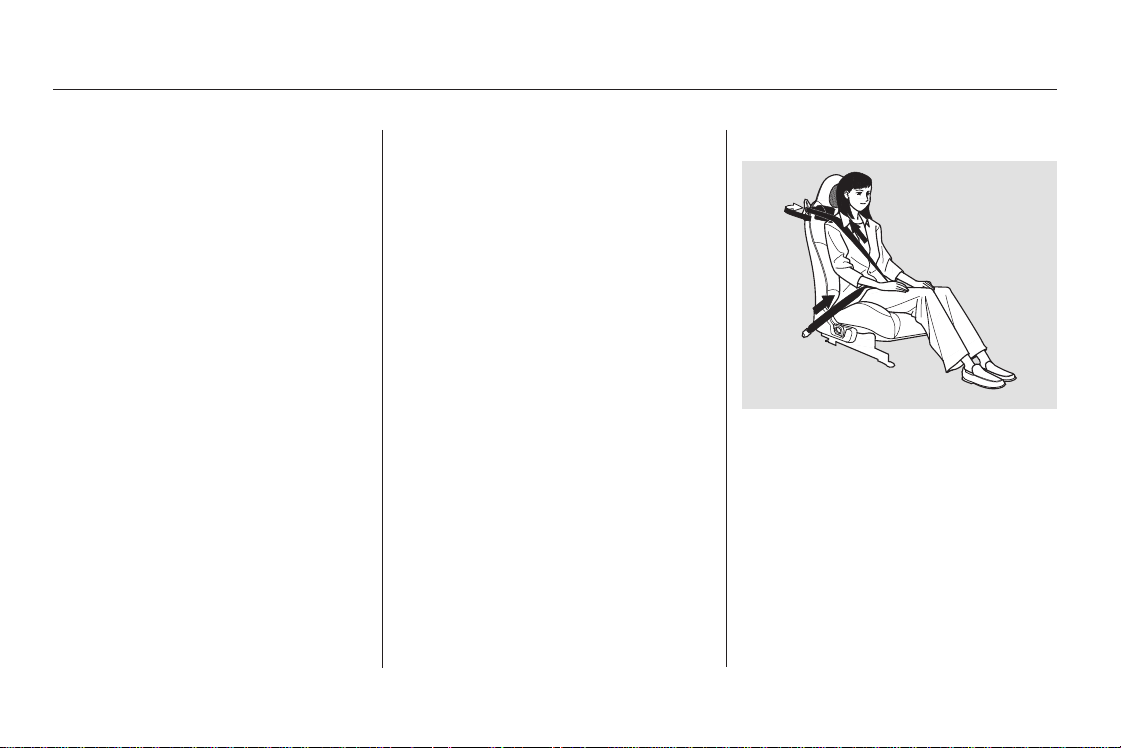

If you are pregnant, the best way to
protect yourself and your unborn
child when driving or riding in a
vehicle is to always wear a seat belt,
and keep the lap part of the belt as
low as possible across the hips.
Each time you have a check-up, ask
your doctor if it’s okay for you to
drive.
When driving, remember to sit
upright and adjust the seat as far
back as possible while allowing full
control of the vehicle. When riding
as a passenger, adjust the seat as far
back as possible.
This will reduce the risk of injuries
to both you and your unborn child
that can be caused by a crash or an
inflating airbag.
Protecting Adults and Teens
Driver and Passenger Saf ety
Advice for Pregnant Women
14
Main Menu
Table of Contents
If they do, they
could be very seriously injured in a
crash.
Devices intended to improve
occupant comfort or reposition the
shoulder part of a seat belt can
reduce the protective capability of
thebeltandincreasethechanceof
serious injury in a crash.
Carrying hard or sharp objects on
your lap, or driving with a pipe or
other sharp object in your mouth,
can result in injuries if your
airbags inflate.
If your
hands or arms are close to an
airbag cover, they could be injured
if the airbags inflate.
Objects on the
covers marked SRS AIRBAG
could interfere with the proper
operation of the airbags or be
propelled inside the vehicle and
hurt someone if the airbags inflate.
The seat belt system
includes an indicator on the
instrument panel to remind you and
your passenger to fasten your belts.
Your seat belt system includes lap/
shoulder belts in both seating
positions. The seat belts are also
equipped with automatic seat belt
tensioners.
If you turn the ignition switch to ON
(II) before fastening your seat belt,
the beeper sounds and the indicator
flashes. If you do not fasten your
seat belt before the beeper stops, the
indicator stops flashing but remains
on.
If you continue driving without
fastening your seat belt, the beeper
sounds and the indicator flashes
again at regular intervals.
Protecting Adults and Teens, Additional Information About Your Seat Belts
Driver and Passenger Saf ety
Additional Safety Precautions Seat Belt System Components
Two people should never use the
same seat belt.
Do not put any accessories on seat
belts.
Do not place hard or sharp objects
between yourself and an airbag.
Keep your hands and arms away
from the airbag covers.
Do not attach or place objects on
the airbag covers.
15
Main Menu
Table of Contents
The lap and shoulder belt goes over
your shoulder, across your chest,
and across your hips.
To fasten the belt, insert the latch
plate into the buckle, then tug on the
belt to make sure the buckle is
latched (see page for how to
properly position the belt).
To unlock the belt, push the red
PRESSbuttononthebuckle.Guide
the belt across your body so that it
retracts completely. After exiting the
vehicle, be sure the belt is out of the
way and will not get closed in the
door.
Both seat belts have an emergency
retractor. In normal driving, the
retractor lets you move freely in your
seat while it keeps some tension on
the belt. During a collision or sudden
stop, the retractor automatically
locks the belt to help restrain your
body.
The passenger’s seat belt has an
additional locking mechanism that
must be activated to secure a child
seat (see page ).
If the shoulder part of the belt is
pulled all the way out, the locking
mechanism will activate. The belt
will retract, but it will not allow the
passenger to move freely.
To deactivate the locking
mechanism, unlatch the buckle, and
let the seat belt fully retract. To
refasten the belt, pull it out only as
far as needed.
For added protection, the seat belts
are equipped with automatic seat
belt tensioners. When activated, the
tensioners immediately tighten the
beltstohelpholdthedriverandthe
passenger in place.
12
28
Additional Information About Your Seat Belts
Driver and Passenger Saf ety
Lap/Shoulder Belt Automatic Seat Belt Tensioners
16
Main Menu
Table of Contents
The tensioners are designed to
activate primarily in frontal collisions,
andtheyshouldactivateinany
collision severe enough to cause
airbag inflation.
However, the tensioners can be
activated during a collision in which
the airbags do not deploy. In this
case, the airbags would not be
needed, but the additional restraint
could be helpful.
When the tensioners are activated,
the seat belts will remain tight until
they are unbuckled in the normal
manner.
For safety, you should check the
condition of your seat belts regularly.
Pull each belt out fully and look for
frays, cuts, burns, and wear. Check
that the latches work smoothly and
the belts retract easily. Any belt that
is not in good condition or not
working properly will not provide
good protection and should be
replaced as soon as possible.
Acura provides a lifetime warranty
on seat belts for U.S. models. See
your
booklet for details.
If a seat belt is worn during a crash,
it must be replaced by the dealer. A
belt that has been worn during a
crash may not provide the same level
of protection in a subsequent crash.
The dealer should also inspect the
anchors for damage and replace
them if needed. If the automatic seat
belt tensioners activate during a
crash, they must be replaced.
For information on how to clean your
seat belts, see page .143
Acura Warranty Information
Additional Information About Your Seat Belts
Driver and Passenger Saf ety
Seat Belt Maintenance
17
Not checking or maintaining
seat belts can result in serious
injury or death if the seat belts
do not work properly when
needed.
Check your seat belts regularly
and have any problem
corrected as soon as possible.
Main Menu
Table of Contents
Your airbag system includes:
Two SRS (Supplemental Restraint
System) airbags. The driver’s
airbag is stored in the center of
the steering wheel; the passenger’s
airbag is stored in the dashboard.
Both are marked ‘‘SRS AIRBAG.’’
Automatic seat belt tensioners
(see page ).
Sensors that can detect a
moderate to severe frontal
collision.
A sophisticated electronic system
that continually monitors
information about the sensors, the
control unit, and the airbag
activators when the ignition is in
the ON (II) position.
An indicator on the instrument
panel that alerts you to a possible
problem with your airbags (see
page ).
Emergency backup power in case
your vehicle’s electrical system is
disconnected in a crash.
If you ever have a moderate to
severe frontal collision, sensors will
detect the vehicle’s rapid
deceleration. If the rate of
deceleration is high enough, the
control unit will instantly inflate the
drivers and passenger’s airbags.
16
20
Additional Information About Your Airbags
Driver and Passenger Saf ety
Airbag System Components How Your Airbags Work
18
Main Menu
Table of Contents
During a frontal crash, your seat belt
restrains your lower body and torso,
and the airbag helps protect your
head and chest.
Although both airbags normally
inflate within split second of each
other, it is possible for only one
airbag to deploy.
This can happen if the severity of a
collision is at the margin, or
threshold, that determines whether
or not the airbags will deploy. In
such cases, the seat belt will provide
sufficient protection, and the
supplemental protection offered by
the airbag would be minimal.
After inflating, the airbags will
immediately deflate, so they won’t
interfere with the driver’s visibility,
or the ability to steer or operate
other controls.
The total time for inflation and
deflation is one-tenth of a second, so
fast that most occupants are not
aware that the airbags deployed until
they see them lying in their laps.
After a crash, you may see what
looks like smoke. This is actually
powder from the airbag’s surface.
Although the powder is not harmful,
people with respiratory problems
mayexperiencesometemporary
discomfort. If this occurs, get out of
the vehicle as soon as it is safe to do
so.
Additional Information About Your Airbags
Driver and Passenger Saf ety
19
Main Menu
Table of Contents
The SRS indicator alerts
you to a potential problem
with your airbags or seat belt
tensioners (see page ).
When you turn the ignition to ON
(II), this indicator will come on
briefly then go out. This tells you the
system is working properly.
If the indicator comes on at any
other time, or does not come on at all,
you should have the system checked
by your dealer. For example:
If the SRS indicator does not come
on after you turn the ignition to
ON (II).
If the indicator stays on after the
engine starts.
If the indicator comes on or
flashesonandoffwhileyoudrive.
If you see any of these indications,
your airbags and seat belt tensioners
may not work properly when you
need them.
16
Additional Information About Your Airbags
Driver and Passenger Saf ety
How the SRS Indicator Works
20
Ignoring the SRS indicator can
result in serious injury or death
if the airbags or tensioners do
not work properly.
Have your vehicle checked by a
dealer as soon as possible if
the SRS indicator alerts you to
a possible problem.
Main Menu
Table of Contents
Your airbag systems are virtually
maintenance-free, and there are no
parts you can safely service.
However, you must have your
vehicle serviced if:
The
airbags, seat belt tensioners, and
control unit must be replaced. Do
not try to remove or replace the
airbags yourself.
This must be done by a Honda
dealer or a knowledgeable body
shop.
Take your vehicle to an
authorized Honda dealer as soon
as possible. If you ignore this
indication, your airbags may not
operate properly.
Together, airbags and
seat belts provide the best
protection.
Tampering could cause
the airbags to deploy, possibly
causing very serious injury.
Additional Information About Your Airbags
Driver and Passenger Saf ety
Airbag Service Additional Safety Precautions
Your airbags ever inflate.
The SRS indicator alerts you to a
problem.
Donotattempttodeactivateyour
airbags.
Do not tamper with airbag
components or wiring for any
reason.
21
Main Menu
Table of Contents
−
−
−
Children depend on adults to protect
them. However, despite their best
intentions many adults do not know
how to properly protect child
passengers.
If you ever need to drive with a child
in your vehicle, be sure to read this
section. It begins with important
general guidelines, then presents
special information for small
children and larger children.
Each year, many children are injured
or killed in vehicle crashes because
they are either unrestrained or not
properly restrained. In fact, vehicle
accidents are the number one cause
of death of children ages 12 and
under.
To reduce the number of child
deaths and injuries, every state and
Canadian province requires that
infants and children be properly
restrained when they ride in a
vehicle.
(see pages
).
(see
pages ).27 29
30
33
Protecting Children General Guidelines
Driver and Passenger Saf ety
All Children Must Be Restrained
A larger child must be restrained
with a booster until the seat belt fits
him her properly
A small child must be restrained in
an approved child seat that is
properly secured to the vehicle
22
Children who are unrestrained
or improperly restrained can be
seriously injured or killed in a
crash.
Any child too small for a seat
belt should be properly
restrained in a child seat. A
larger child should be properly
restrained with a seat belt and
use a booster if necessary.
Main Menu
Table of Contents
−
The National Highway Traffic Safety
Administration and Transport
Canada recommend that all children
age 12 and under be properly
restrained in a back seat.
Since this vehicle does not have a
back seat, we strongly recommend
that you do not carry any child who
is not large enough or mature
enough to ride in front (see page ).
Airbags have been designed to help
protect adults in a moderate to
severe frontal collision. To do this,
the passenger’s airbag is quite large
and it can inflate with enough force
to cause very serious injuries.
If the passenger’s airbag
inflates, it can hit the back of the
child seat with enough force to kill or
very seriously injure an infant.
If the vehicle seat is too
far forward, or the child’s head is
thrown forward during a collision, an
inflating passenger’s airbag can
strike the child with enough force to
kill or very seriously injure them.
If a larger child must ride in
this vehicle, see page for
important guidelines on how to
decide when a child is ready to ride
in front and how to properly protect
the child.
32
32
Protecting Children General Guidelines
Driver and Passenger Saf ety
Your Vehicle is Not
Recommended f or Child
passengers
The Passenger’s Airbag Can Pose
Serious Risks
Infants
Small Children
Larger Children
Never put a rear-f acing child seat in
this vehicle.
Placing a forward-facing child seat in
the passenger’s seat can be
hazardous.
Children who have outgrown child
seats are also at risk of being injured
or killed by an inflating passenger’s
airbag.
23
Main Menu
Table of Contents
−

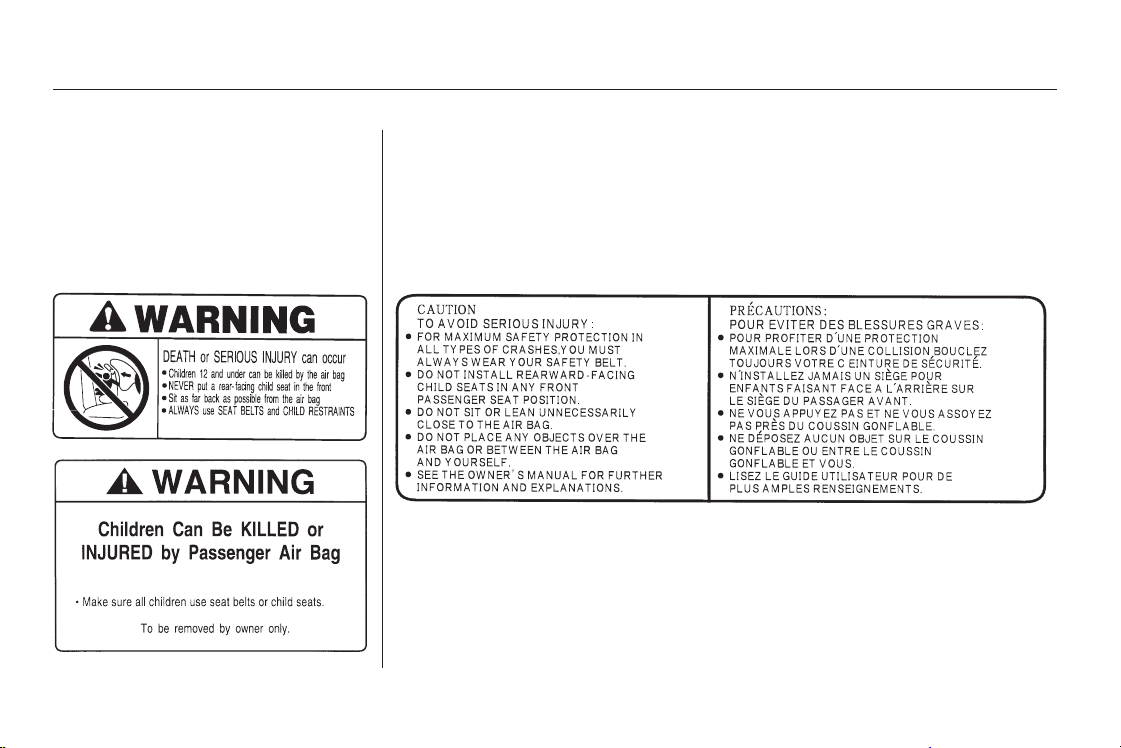

To remind you of the passenger’s
airbag hazards, your vehicle has
warninglabelsonthedashboardand
on the driver’s and passenger’s
visors. Please read and follow the
instructions on these labels.
To remind you of the airbag hazards,
your vehicle has warning labels on
the driver’s and passenger’s visors.
Please read and follow the
instructions on these labels.
Protecting Children General Guidelines
Driver and Passenger Saf ety
U.S. Models Canadian Models
24
Main Menu
Table of Contents
−
Never hold a small child on your
lap. If you are not wearing a seat
belt in crash, you could be thrown
forward and crush the child
against the dashboard. If you are
wearing a seat belt, the child can
be torn from your arms and be
seriously hurt or killed.
Never put a seat belt over yourself
and a child. During a crash, the
belt could press deep into the child
and cause serious or fatal injuries.
Never let two children use the
same seat belt. If they do, they
could be very seriously injured in a
crash.
Lock both doors and the trunk
when your vehicle is not in use.

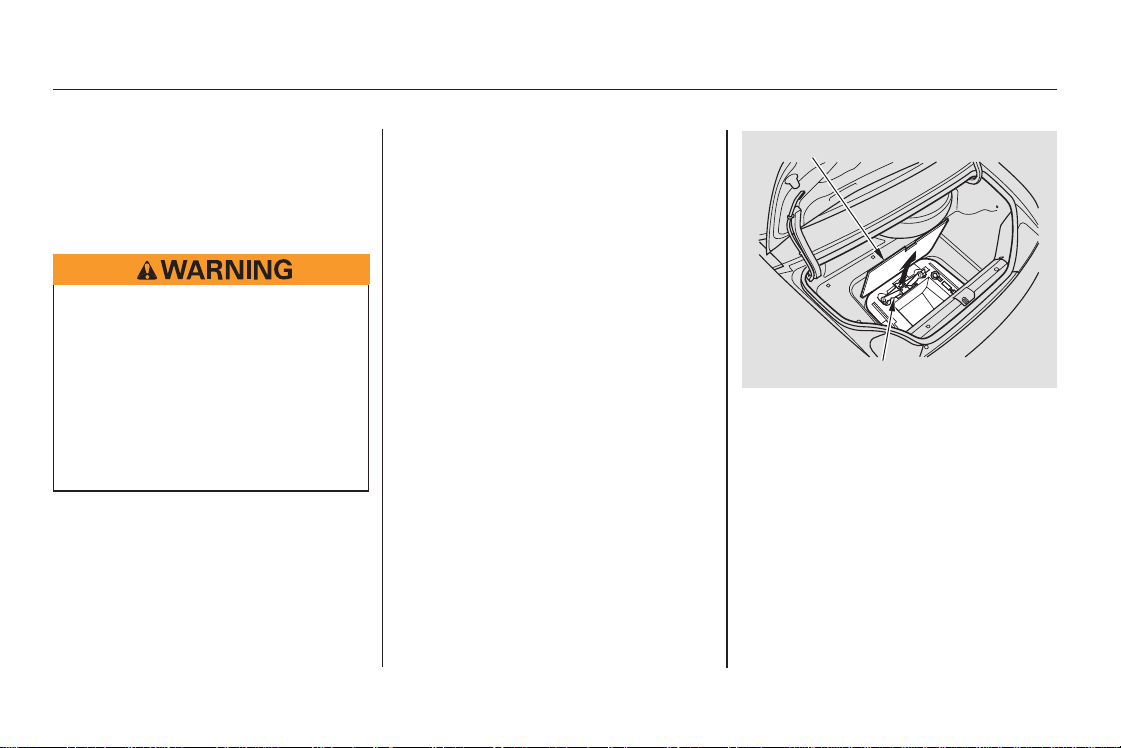

Children who play in vehicles can
accidentally get trapped inside the
trunk. Teach your children not to
play in or around vehicles. Know
how to operate the emergency
trunk opener and decide if your
children should be shown how to
use this feature (see page ).

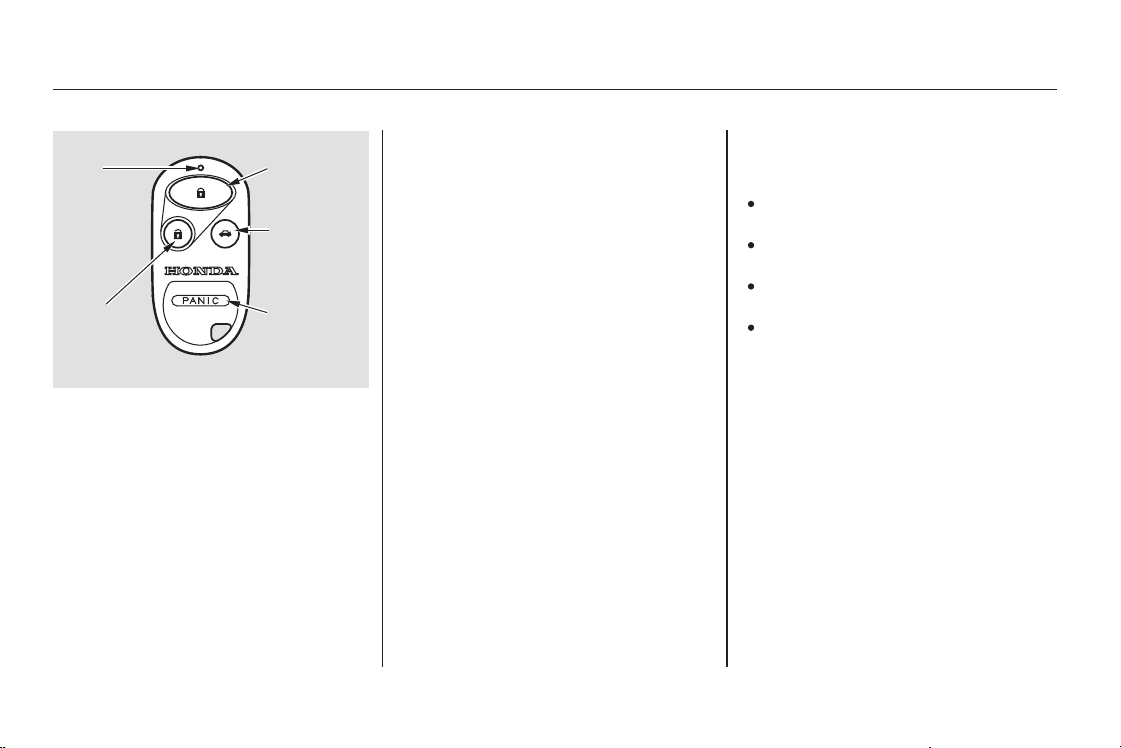

Keep vehicle keys and remote
transmitters out of the reach of
children. Even very young
children learn how to unlock
vehicle doors, turn on the ignition,
and open the trunk, which can
lead to accidental injury or death.
Do not leave children alone in a
vehicle. Leaving children without
adult supervision is illegal in most
states and Canadian provinces,
and can be very hazardous. For
example, a small child left in a
vehicle on a hot day can die from
heatstroke. A child left alone with
the key in the ignition can
accidentally set the vehicle in
motion, possibly injuring
themselves or others.
55
Protecting Children General Guidelines
Driver and Passenger Saf ety
Additional Safety Precautions
25
Main Menu
Table of Contents
Because an inflating airbag can
seriously injure or kill small children,
we recommend that you do not carry
a small child as a passenger in this
vehicle.
If you decide to transport a small
child in this vehicle, be sure to move
the passenger seat as far to the rear
as possible, and follow the
instructions and guidelines in the
following pages.
A child who is at least one year old,
and who fits within the child seat
maker’s weight and height limits,
should be restrained in a forward-
facing, upright child seat.

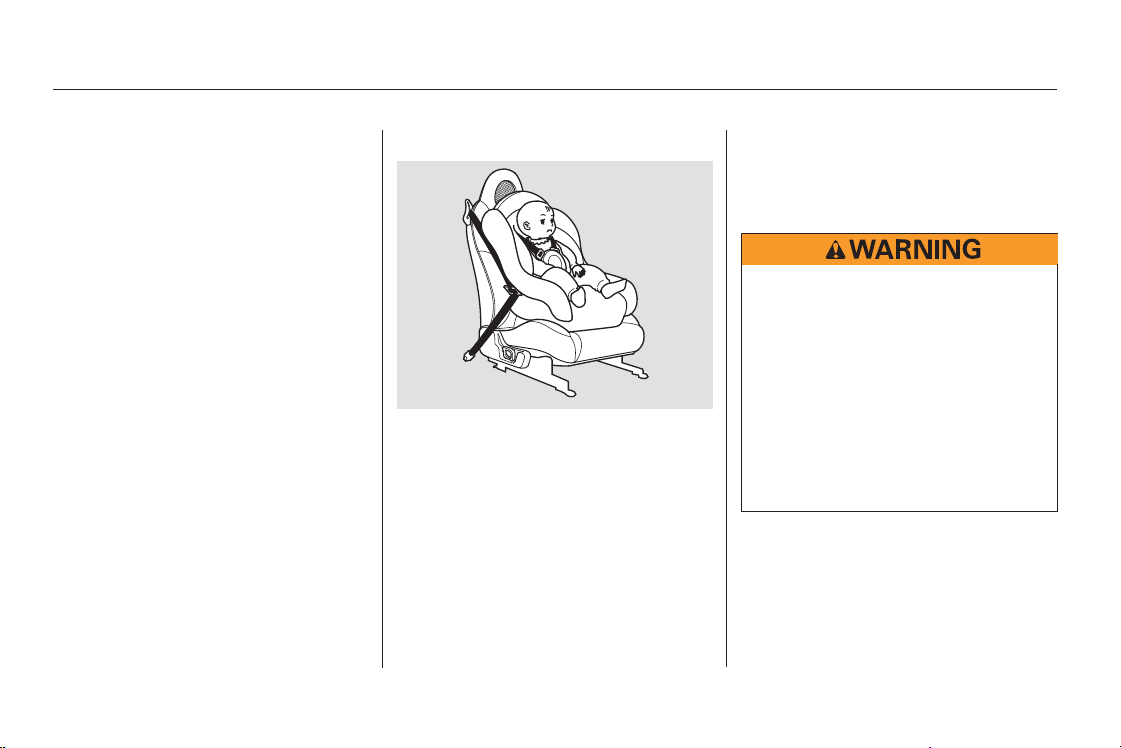

Of the different seats available, we
recommend those that have a five-
point harness system as shown.
We also recommend that a small
child uses the child seat as long as
possible, until the child reaches the
weight or height limit for the seat.
Protecting Small Children
Driver and Passenger Saf ety
Child Seat Type
26
Placing a forward-facing child
seat in the passenger’s seat
can result in serious injury or
death if the airbag inflates.
Ifyoumustplaceaforward-
facing child seat in the
passenger’s seat, move the
vehicle seat as far back as
possible, and properly restrain
the child.
Main Menu
Table of Contents
To provide proper protection, a child
seat should meet three
requirements:
Look for FMVSS
213 or CMVSS 213 on the box.
Before purchasing a child seat, or
using a previously purchased one, we
recommend that you test the seat to
make sure it fits properly in the
passenger’s seat.
After selecting a proper child seat,
there are three main steps to install
it:
All child seats must be
secured to the vehicle with the lap
part of a lap/shoulder belt. A child
whose seat is not properly secured
to the vehicle can be endangered
in a crash.
After installing a child
seat, push and pull the seat
forward and from side to side to
verify that it is secure.
Make sure the child is properly
strappedinthechildseat
according to the child seat maker’s
instructions. A child who is not
properly secured in a child seat
can be seriously injured in a crash.
The following pages provide
guidelines on how to properly install
a forward-facing child seat.
A child seat secured with a seat
belt should be installed as firmly
as possible. However, it does not
need to be ‘‘rock solid’’. Some side-
to-side movement can be expected
and should not reduce the child
seat’s effectiveness.
Selecting a Child Seat Installing a Child Seat
The child seat should meet U.S. or
Canadian Motor Vehicle Saf ety
Standard 213.
The child seat should be of the
proper type and size to f it the child.
The child seat should fit the
passenger’s seat.
Properly secure the child seat to
the vehicle.
Make sure the child seat is f irmly
secured.
Secure the child in the child seat.
1.
2.
3.
1.
2.
3.
Selecting a Child Seat, Installing a Child Seat
Driver and Passenger Saf ety
27
Main Menu
Table of Contents
The passenger’s seat belt has a
locking mechanism that must be
activated to secure a child seat.
Move the vehicle seat to the rear-
most position. Moving the seat as
far back as possible reduces the
chance of a child being injured or
killed if the passenger’s airbag
inflates.
With the child seat in position,
route the belt through the child
seat according to the seat maker’s
instructions, then insert the latch
plate into the buckle.

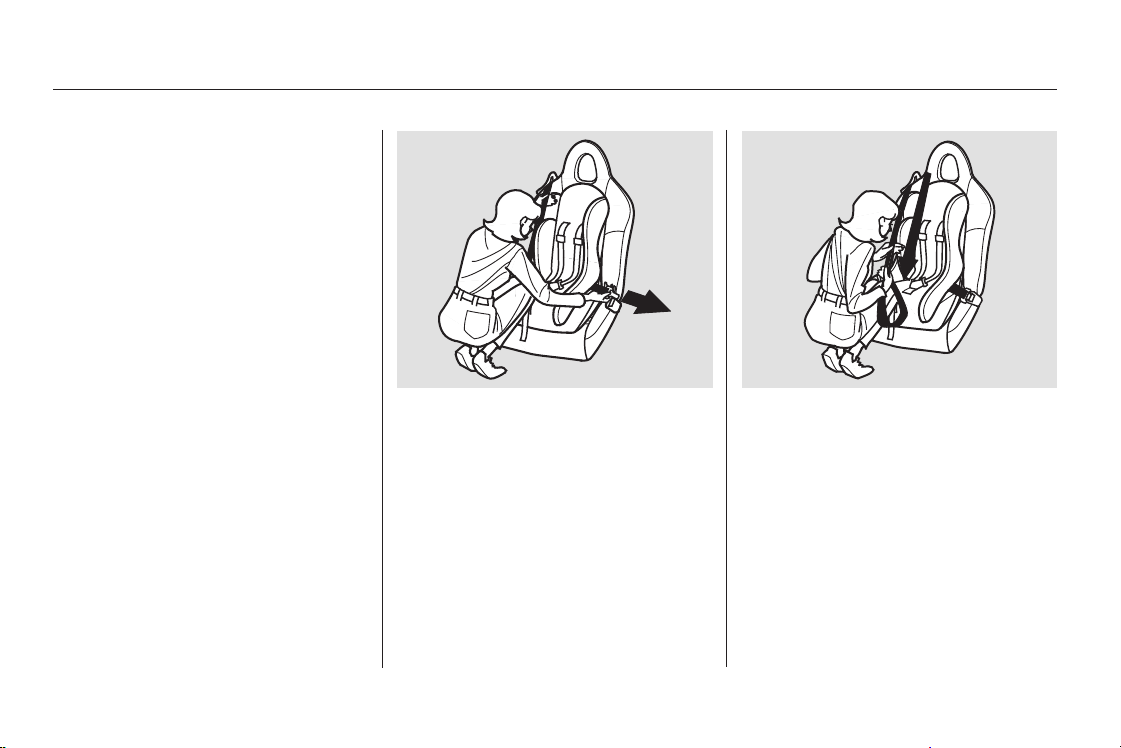

To activate the lockable retractor,
slowly pull the shoulder part of the
belt all the way out until it stops,
then let the belt feed back into the
retractor.
After the belt has retracted, tug on
it. If the belt is locked, you will not
be able to pull it out. If you can pull
thebeltout,itisnotlocked,and
you will need to repeat these steps.
1.
2.
3.
4.
Installing a Child Seat
Driver and Passenger Saf ety
Installing a Child Seat with a Lap/
Shoulder Belt
28
Main Menu
Table of Contents

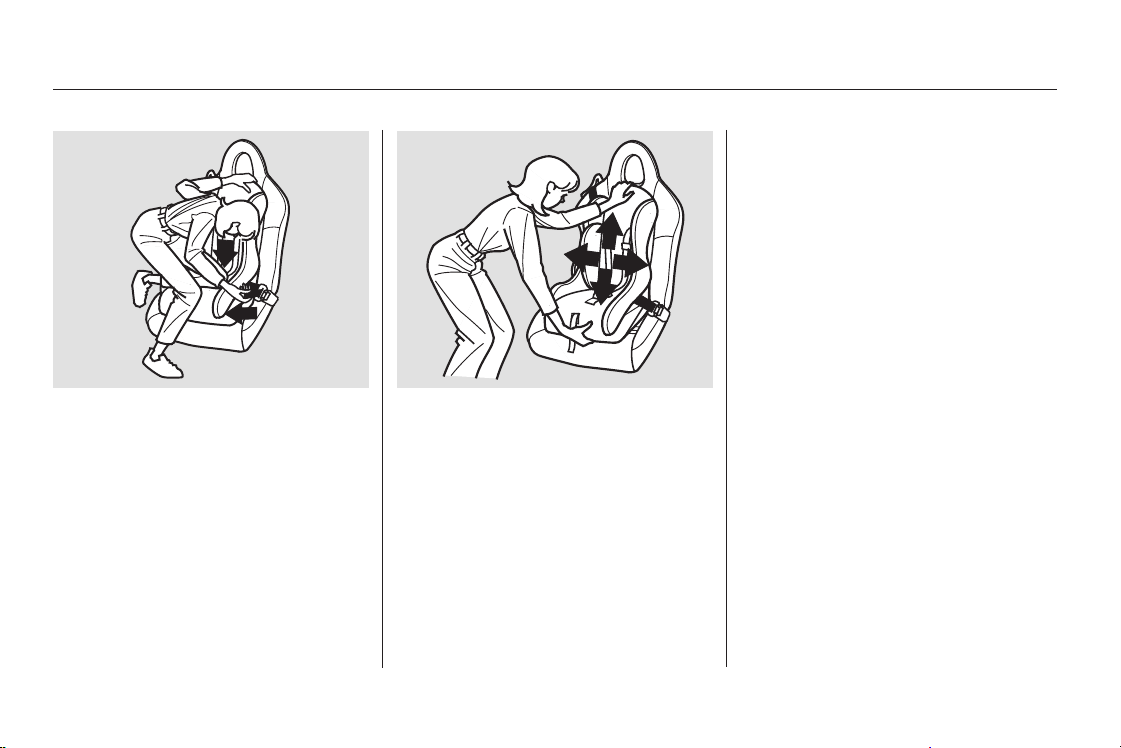

After confirming that the belt is
locked, grab the shoulder part of
the belt near the buckle, and pull
up to remove any slack from the
lap part of the belt. Remember, if
the lap part of the belt is not tight,
the child seat will not be secure.
To remove slack, it may help to
putweightonthechildseat,or
push on the back of the seat while
pulling up on the belt.
Push and pull the child seat
forward and from side to side to
verify that it is firmly secured. If
the child seat is not secure,
unlatch the belt, allow it to retract
fully, then repeat these steps.
To deactivate the locking
mechanism and remove a child seat,
unlatch the buckle, unroute the seat
belt, and let the belt fully retract.
5. 6.
Installing a Child Seat
Driver and Passenger Saf ety
29
Main Menu
Table of Contents
When a child reaches the
recommended weight or height limit
for a forward-facing child seat, the
child should sit in a back seat on a
booster and wear a lap/shoulder belt.
Since this vehicle does not have a
back seat, we recommend that you
do not carry a larger child, age 12 or
under, as a passenger.
The following pages provide
guidelines to help you decide when a
given child may ride in this vehicle,

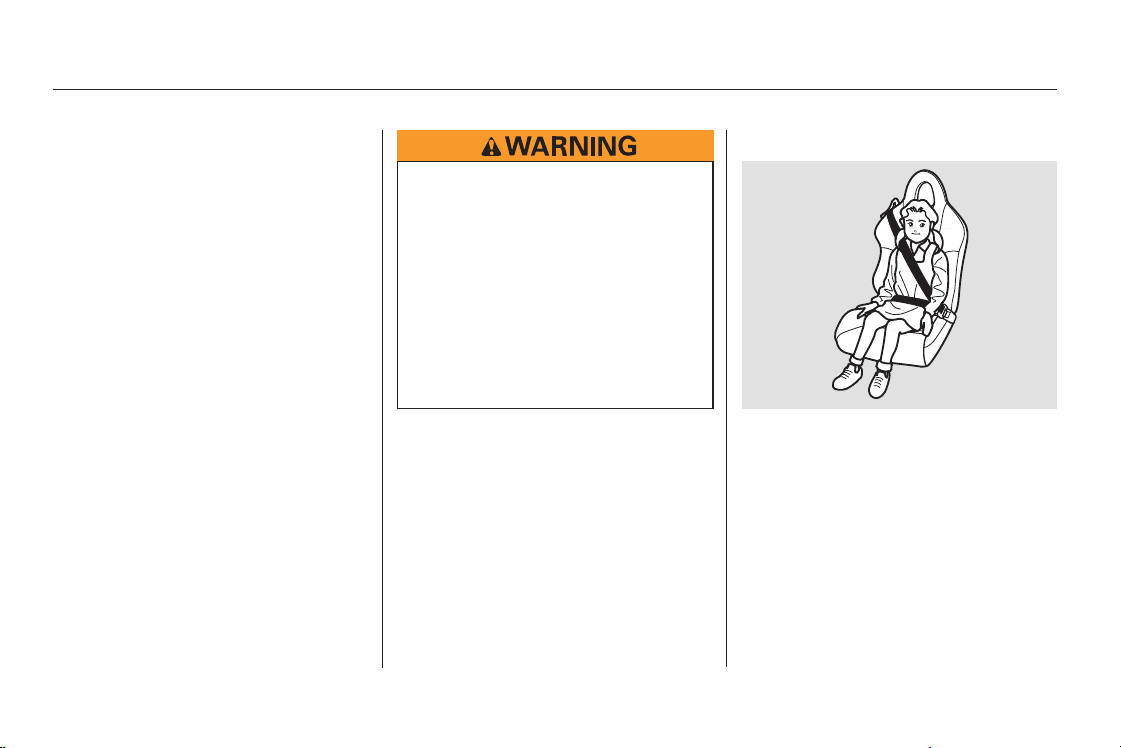

and how to properly protect the child. To determine if a lap/shoulder belt
properly fits a child, have the child
put on the seat belt, then ask
yourself:
Does the child sit all the way back
against the seat?
Do the child’s knees bend
comfortably over the edge of the
seat?
1.
2.
Protecting Larger Children
Driver and Passenger Saf ety
Checking Seat Belt Fit
30
Allowing a larger child age 12 or
under to ride in the vehicle can
result in injury or death if the
passenger’s airbag inflates.
If a larger child must ride in the
vehicle, move the vehicle seat
as far back as possible, use a
booster seat if needed, and
have the child sit up properly
and wear the seat belt properly.
Main Menu
Table of Contents
Does the shoulder belt cross
between the child’s neck and arm?
Is the lap part of the belt as low as
possible, touching the child’s
thighs?
Will the child be able to stay
seated like this for the whole trip?
If you answer yes to all these
questions, the child is ready to wear
the lap/shoulder belt correctly. If
you answer no to any question, the
child needs to ride on a booster seat. A child who has outgrown a forward-
facing child seat should use a
booster seat until the lap/shoulder
belt fits them properly without the
booster.
Some states also require children to
use a booster until they reach a
given age or weight (e.g., 6 years or
60lbs).Besuretocheckcurrent
laws in the state or states where you
intend to drive.
Booster seats can be high-back or
low-back. Whichever style you select,
make sure the booster meets federal
safety standards and that you follow
the booster seat maker’s instructions.
A child may continue using a booster
seat until the tops of their ears are
even with the top of the vehicle’s or
booster’s seat-back. A child of this
height should be tall enough to use
the lap/shoulder belt without a
booster.
3.
4.
5.
Protecting Larger Children
Driver and Passenger Saf ety
Using a Booster Seat
31
Main Menu
Table of Contents
If the passenger’s airbag inflates in a
moderate to severe frontal collision,
the airbag can cause serious injuries
to a child who is unrestrained,
improperly restrained, sitting too
close to the airbag, or out of position.
Of course, children vary widely. And
while age may be one indicator of
when a child can safely ride in this
vehicle. There are other important
factors you should consider.
To safely ride in this vehicle, a child
must be able to follow the rules,
including sitting properly, and
wearing the seat belt properly
throughout ride.
Physically, a child must be large
enough for the lap/shoulder belt to
properly fit (see page ). If the seat
belt does not fit properly, with or
without the child sitting on a booster,
the child should not sit in this vehicle.
If you decide that a child can safely
ride in this vehicle, be sure to:
Carefully read the owner’s manual,
and make sure you understand all
seat belt instructions and all safety
information.
Move the vehicle seat to the rear-
most position.
Have the child sit up straight, back
against the seat, and feet on or
near the floor.
Check that the child’s seat belt is
properly and securely positioned.
Supervise the child. Even mature
children sometimes need to be
reminded to fasten the seat belts
or sit properly.
30
Protecting Larger Children
Driver and Passenger Saf ety
When Can a Larger Child Ride in
this Vehicle
Maturity
Physical Size
32
Main Menu
Table of Contents
This could result in
serious neck injuries during a crash.
This could cause
very serious injuries during a crash.
It also increases the chance that the
child will slide under the belt in a
crash and be injured.
If they do, they could
be very seriously injured in a crash.
Devices intended to improve a
child’s comfort or reposition the
shoulder part of a seat belt can make
the belt less effective, and increase
the chance of serious injury in a
crash.
Protecting Larger Children
Driver and Passenger Saf ety
Additional Safety Precautions
Do not let a child wear a seat belt
across the neck.
Do not let a child put the shoulder
part of a seat belt behind the back or
under the arm.
Two children should never use the
same seat belt.
Do not put any accessories on a seat
belt.
33
Main Menu
Table of Contents
Your vehicle’s exhaust contains
carbon monoxide gas. You should
have no problem with carbon
monoxide entering the vehicle in
normal driving if you maintain your
vehicle properly.
Have the exhaust system inspected
for leaks whenever:
The vehicle is raised for an oil
change.
You notice a change in the sound
of the exhaust.
The vehicle was in an accident
that may have damaged the under-
side.
High levels of carbon monoxide can
collect rapidly in enclosed areas,
such as a garage. Do not run the
engine with the garage door closed.
Even with the door open, run the
engine only long enough to move the
vehicle out of the garage.
With the trunk lid open, air flow can
pull exhaust gas into your vehicle’s
interior and create a hazardous
condition. If you must drive with the
trunk lid open, open all the windows,
and set the heating and cooling
system as shown below.
If you must sit in your parked vehicle,
even in an unconfined area, with the
engine running, adjust the heating
and cooling system as follows:
Push the button.
Select the mode.
Turn the fan on high speed.
Set the temperature control to a
comfortable setting.
1.
2.
3.
4.
Carbon Monoxide Hazard
Driver and Passenger Saf ety
34
Carbon monoxide gas is toxic.
Breathing it can cause
unconsciousness and even kill
you.
Avoid any enclosed areas or
activities that expose you to
carbon monoxide.
Main Menu
Table of Contents
These labels are in the locations
shown. They warn you of potential
hazards that could cause serious
injury. Read these labels carefully. If
a label comes off or becomes hard to
read, contact your Honda dealer for
a replacement.
U.S. models Canadian models
U.S. models only
Safety Labels
Driver and Passenger Saf ety
35
BATTERY
SUN VISOR
RADIATOR
SRS
SEAT BELT TENSIONER
DASHBOARD
Main Menu
Table of Contents
36
Main Menu
This section gives information about
the controls and displays that
contribute to the daily operation of
your Honda. All the essential
controls are within easy reach.
...........................Control Locations . 38
............................Instrument Panel . 39
..........Instrument Panel Indicators . 40
.............................................Gauges . 44
.....................................Odometer . 44
....................................Trip meter . 44
...............................Select Button . 44
..................................Fuel Gauge . 45
...................Temperature Gauge . 45
............................................Clock . 45
Controls Near the Steering
...........................................Wheel . 46
Windshield Wipers and
.......................................Washers . 47
...........Turn Signal and Headlights . 48
........Instrument Panel Brightness . 49
.................Hazard Warning Button . 49
.................Rear Window Defogger . 50
...............................Keys and Locks . 51
........................Immobilizer System . 52
................................Ignition Switch . 53
......................................Door Locks . 54
......................Power Door Locks . 54
...........................................Trunk . 54
........Emergency Trunk Opener . 55
.......................Remote Transmitter . 56
.................................................Seats . 58
..............................Power Windows . 59
..............................Convertible Top . 61
.............................................Mirrors . 66
.................................Parking Brake . 67
.................................Interior Lights . 68
...........Interior Convenience Items . 69
.........................Beverage Holder . 70
...........Accessory Power Socket . 70
...............Console Compartment . 70
.................................Audio Panel . 71
Instruments and Controls
Instruments and Controls
37
Main Menu
Control Locations
Instruments and Controls
38
HEADLIGHT/TURN SIGNAL
SWITCH
HOOD RELEASE
HANDLE
DOOR LOCK
SWITCH
POWER WINDOW
SWITCHES
MIRROR
CONTROLS
ROOF SWITCH
AUDIO SYSTEM
HEATING AND AIR
CONDITIONING
REAR WINDOW DEFOGGER
BUTTON
WINDSHIELD WIPER CONTROLS
HAZARD WARNING BUTTON
(P.48)
(P.102)
(P.54)
(P.59)
(P.66)
(P.47)
(P.50)
(P.74)
(P.78)
(P.49)
(P.62)
Main Menu
Table of Contents
＊
＊
＊
The U.S. instrument panel is shown. Differences for the Canadian models are noted in the text.
Instrument Panel
Instruments and Controls
39
TURN SIGNAL AND HAZARD
WARNING INDICATORS
ANTI-LOCK BRAKE
SYSTEM (ABS)
INDICATOR
HIGH BEAM INDICATOR
LOW FUEL INDICATOR
DOOR-OPEN
INDICATOR
TRUNK-OPEN INDICATOR
IMMOBILIZER SYSTEM INDICATOR
MALFUNCTION INDICATOR LAMP
(P.42)
(P.43)
(P.42)
(P.40)
(P.40)
(P.41)
(P.42)
(P.42)
(P.40)
(P.41)
(P.41)
(P.42)
(P.167)
CHARGING SYSTEM INDICATOR LOW OIL PRESSURE INDICATOR (P.40)
PARKING BRAKE AND
BRAKE SYSTEM INDICATOR
CRUISE CONTROL INDICATORMAINTENANCE REQUIRED INDICATOR
SEAT BELT
REMINDER
INDICATOR
(P.41)
ELECTRIC POWER
STEERING
INDICATOR
(P.41)
SUPPLEMENTAL RESTRAINT
SYSTEM INDICATOR
Main Menu
Table of Contents
The instrument panel has many
indicators to give you important
information about your vehicle.
This indicator comes on when you
turn the ignition to ON (II). It is a
reminder to you and your passenger
to fasten your seat belts. A beeper
also sounds if you have not fastened
your seat belt.
The engine can be severely damaged
if this indicator flashes or stays on
when the engine is running. For
more information, see page .
This indicator has two functions:
If this indicator comes on when the
engine is running, the battery is not
being charged. For more information,
see page .
If you turn the ignition switch to ON
(II) before fastening your seat belt,
the beeper sounds and the indicator
flashes. If you do not fasten your
seat belt before the beeper stops, the
indicator stops flashing but remains
on.
If you continue driving without
fastening your seat belt, the beeper
sounds and the indicator flashes
again at regular intervals.
Itcomesonwhenyouturnthe
ignition switch to ON (II). It is a
reminder to check the parking
brake a beeper sounds if you try to
drive with the parking brake not
fully released. Driving with the
parking brake not fully released
can damage the brakes and tires.
If it remains lit after you fully
release the parking brake while
the engine is running, or if it
comes on while driving, there
could be a problem with the brake
system. For more information, see
page .
2.
1.166
166
168
Instrument Panel Indicators
Instruments and Controls
Seat Belt Reminder
Indicator
Low Oil Pressure
Indicator
Charging System
Indicator
Parking Brake and
Brake System
Indicator
40
U.S. Canada
Main Menu
Table of Contents
This indicator comes on when you
turn the ignition switch to ON (II). If
it comes on at any other time, it
indicates a potential problem with
your airbags or automatic seat belt
tensioners. For more information,
see page .
See page .
This indicator comes on if the trunk
lid is not closed tightly.
This indicator comes on if either
door is not closed tightly.
This indicator normally comes on
when you turn the ignition to ON (II)
and goes off after the engine starts.
If it comes on at any other time,
there is a problem in the Electric
Power Steering system. If this
happens, stop the vehicle in a safe
place, and turn off the engine. Reset
the system by restarting the engine,
and watch the EPS indicator. If it
does not go off, or comes back on
again while driving, take the vehicle
to your dealer to have it checked.
With the indicator on, the EPS is
turned off, making the vehicle
harder to steer.
This indicator normally comes on for
a few seconds when you turn the
ignition switch to ON (II), and when
you push the START button. If it
comes on at any other time, there is
a problem in the ABS. If this happens,
have your vehicle checked by your
Honda dealer. With this indicator on,
your vehicle still has normal braking
ability but no anti-lock. For more
information, see page .
20
167
118
Instrument Panel Indicators
Instruments and Controls
Supplemental Restraint
System Indicator
Malfunction Indicator
Lamp
Trunk-open Indicator
Door-open Indicator
Electric Power Steering
(EPS) Indicator
Anti-lock Brake System
(ABS) Indicator
41
Main Menu
Table of Contents
The left or right turn signal indicator
blinks when you signal a lane change
or turn. If the indicators do not blink
or blink rapidly, it usually means one
of the turn signal bulbs is burned out
(see page ). Replace the bulb as
soon as possible, since other drivers
cannot see that you are signaling.
WhenyouturnontheHazard
Warning switch, both turn signal
indicators blink. All turn signals on
the outside of the vehicle should
flash.
This indicator comes on with the
high beam headlights. See page
for information on the headlight
controls.
This indicator comes on when you
turn the ignition switch to ON (II)
with the headlight switch off and the
parking brake set. It should go off if
youturnontheheadlightsorrelease
the parking brake. If it comes on at
any other time, it means there is a
problem with the DRL. There may
also be a problem with the high
beam headlights.
This indicator comes on for a few
seconds when you turn the ignition
switch to ON (II). It will go off if you
have inserted a properly-coded
ignition key. If it is not a properly-
coded key, the indicator will blink
and the engine will not start (see
page ).
This indicator also blinks several
times when you turn the ignition
switch from ON (II) to ACCESSORY
(I) or LOCK (0).
This indicator comes on when you
set the cruise control. See page
for information on operating the
cruise control.
This indicator comes on as a
reminder that you must refuel soon.
139
48
52
95
Canadian models only
Instrument Panel Indicators
Instruments and Controls
Turn Signal and
Hazard Warning
Indicators
High Beam Indicator
‘‘Daytime Running
Lights’’ Indicator
Immobilizer System
Indicator
Cruise Control Indicator
Low Fuel Indicator
42
Main Menu
Table of Contents
This indicator reminds you that it is
time to take your vehicle in for
scheduled maintenance.
Refer to the Maintenance Schedules
for Normal and Severe Driving
Conditions on pages and .
When the distance driven since the
last scheduled maintenance reaches
6,000 miles (9,600 km), the indicator
starts blinking. If you exceed 7,500
miles (12,000 km), the indicator
stays on.
Turn off the engine.
Press and hold the TRIP button,
then turn the ignition switch to
ON (II).
Hold the button until the indicator
goes off.
Your dealer will reset this indicator
after completing the scheduled
maintenance. If this maintenance is
not done by a Honda dealer, reset
the indicator as follows.
1.
2.
3.
123 124
Instrument Panel Indicators
Instruments and Controls
Maintenance Required
Indicator
43
TRIP BUTTON
Main Menu
Table of Contents
The odometer shows the total
distance your vehicle has been
driven in miles and kilometers. It is
illegal under U.S. federal law and
Canadian provincial regulations to
disconnect, reset, or alter the
odometer with the intent to change
the number of miles and kilometers
indicated.
This trip meter shows the number of
miles or kilometers driven since you
last reset it.
There are two trip meters: Trip A
and Trip B. Switch between these
displays by pressing the TRIP button.
Each trip meter works independently,
so you can keep track of two
different distances.
To reset a trip meter, display it, and
then press and hold the TRIP button
until you hear a beep and the
number resets to ‘‘0.0’’.
The select button switches the
speedometer reading between miles
perhourandkilometerperhour.It
also changes the odometer and trip
meters to read in miles or kilometers
correspondingly. To change the
readings, push the SELECT button,
and hold it until you hear a beep.
Gauges
Instruments and Controls
Odometer Trip Meter
Select Button
44
TEMPERATURE GAUGETACHOMETER
SPEEDOMETER
TRIP METERODOMETER
TRIP
BUTTON
SELECT BUTTON
FUEL GAUGE
CLOCK
Main Menu
Table of Contents
＋−
＋−
−＋
This shows how much fuel you have.
It may show slightly more or less
than the actual amount.
This shows the temperature of the
engine’s coolant. During normal
operation, the reading should be in
the middle of the gauge. In severe
driving conditions, the reading may
reach near the red mark. If it
reaches the red (Hot) mark, pull
safely to the side of the road. Turn to
page for instructions and
precautions on checking the engine’s
cooling system.
The clock displays the time with the
ignition switch in the ON (II)
position.
When you finish all the
adjustments, press the CLOCK
button.
When you finish the minute
adjustment, press and release the
CLOCK button. The hour display
will blink. Adjust the hour by
pressing the or button.
Press and hold the CLOCK button
until the minute display blinks.
Adjusttheminutebypressingthe
or button.
Turn the ignition switch to ON (II).
To set the clock:
1.
2.
3.
4.
163
Gauges
Instruments and Controls
Fuel Gauge Temperature Gauge
Clock
45
NOTICE:
CLOCK BUTTON
BUTTON BUTTON
TEMPERATURE GAUGE
FUEL GAUGE
CLOCK
Avoid driving with an
extremely low fuel level. Running out
of fuel could cause the engine to
misfire, damaging the catalytic
converter.
Main Menu
Table of Contents
＊
＊
To use the horn, press the pad around the ‘‘H’’ logo.
Controls Near the Steering Wheel
46
REMOTE AUDIO
CONTROLS
HOOD RELEASE
HANDLE
INSTRUMENT PANEL BRIGHTNESS
HEADLIGHTS/TURN SIGNALS
ENGINE START BUTTON
CRUISE CONTROL MASTER SWITCH
HORN
WINDSHIELD WIPERS/WASHERS
REAR WINDOW DEFOGGER BUTTON
(P.48)
(P.93)
(P.113)
(P.102)
(P.95)
(P.47)
(P.50)
(P.49)
Main Menu
Table of Contents
−
−
−
−
−
−
−
−
−
MIST
OFF
INT Intermittent
LO Low
HI High
Windshield Washers
Push the right lever up or down to
select a position.
The wipers run at high
speed until you release the lever.
The wipers are not activated.
Pull the
wiper control lever toward you and
hold it. The washers spray until you
release the lever. The wipers run at
low speed, then complete one more
sweep after you release the lever.
The wipers operate every
few seconds. In low speed and high
speed, the wipers run continuously.
The wipers run at high speed.
The wipers run at low speed.
1.
2.
3.
4.
5.
6.
Windshield Wipers and Washers
Instruments and Controls
MIST
OFF
Windshield Washer
INT
HI
LO
47
Main Menu
Table of Contents
−
−
−
Turn Signal
Off
Parking and interior lights
Headlight on
High beams
Flashhighbeams
Push down on the
left lever to signal a left turn and up
to signal a right turn. To signal a lane
change, push lightly on the lever and
hold it. The lever will return to
center when you release it or
complete a turn.
Rotating the
switch on the left lever to the
‘‘ ’’ position turns on the parking
lights, taillights, instrument panel
lights, side-marker lights, and rear
license plate lights. Turning the
switch to the ‘‘ ’’ position turns
on the headlights. If you leave the
lights on with the key removed from
the ignition switch, you will hear a
reminder tone when you open the
driver’s door.
To turn on, push
the lever forward until you hear a
click. The blue high beam indicator
will come on (see page ). Pull it
back to return to low beams. To
flash the high beams, pull the lever
back lightly, then release it. The
high beams will stay on as long as
youholdtheleverback.
With the headlight switch off, the
high beam headlights come on with
reduced brightness when you turn
the ignition switch to ON (II) and
release the parking brake. They
remain on until you turn the ignition
off, even if you set the parking brake.
The headlights revert to normal
operation when you turn them on
with the switch.
1.
2.
3.
4.
5.
6.
42
Turn Signal, Headlights
Instruments and Controls
Turn Signal and Headlights Turn Signal
Headlights On
High Beams
Daytime Running Lights
(Canadian Models)
48
Main Menu
Table of Contents
＋−
＋−

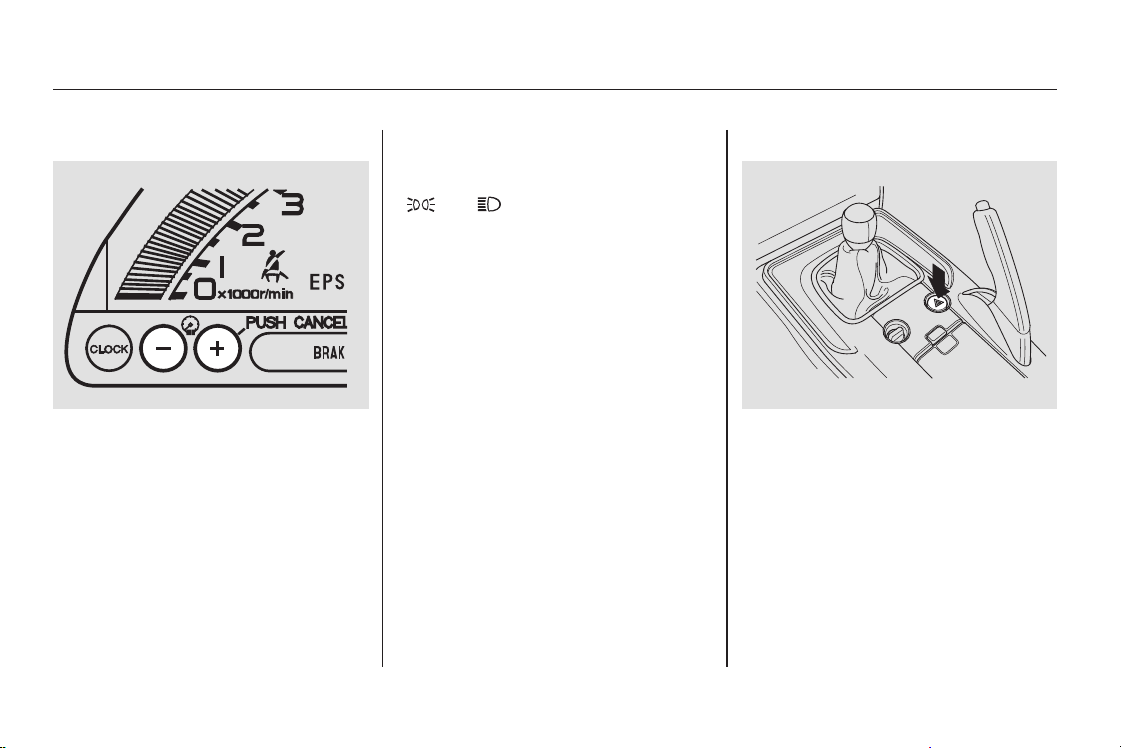

The buttons in the lower left corner
of the instrument panel adjust the
brightness of the display in five steps.
Push the or button five times
to see the full range.
To reduce glare at night, the
instrument panel illumination dims
when you turn the light switch to
or .
Push the red button next to the
parking brake to turn on the hazard
warning lights (four-way flashers).
This causes all four outside turn
signals and both indicators in the
instrument panel to flash. Use the
hazard warning lights if you need to
park in a dangerous area near heavy
traffic, or if your vehicle is disabled.
Adjust the brightness to the desired
level with the headlight switch off,
and also with the headlight switch on.
Both settings will remain at those
levels until you change them.
With the headlight switch on, you
can switch the display to full daytime
brightness by pushing and holding
the button. Push the button to
return the display to the original
brightness.
Instrument Panel Brightness, Hazard Warning Button
Instruments and Controls
Instrument Panel Brightness Hazard Warning Button
49
Main Menu
Table of Contents
The rear window defogger will clear
fog,frost,andthinicefromthe
window. Push the defogger button to
turn it on and off. The indicator in
the button comes on to show the
defogger is on. If you do not turn it
off, the defogger will shut itself off
after about 15 minutes. It also shuts
off when you turn off the ignition.
You have to turn it on again when
you restart the vehicle.
Do not push the defogger button
when the convertible top is folded.
Make sure the rear window is clear
and you have good visibility before
starting to drive.
Thedefoggerwiresontheinsideof
the rear window can be accidentally
damaged. When cleaning the glass,
always wipe side to side.
Rear Window Defogger
Instruments and Controls
Rear Window Defogger
50
Main Menu
Table of Contents

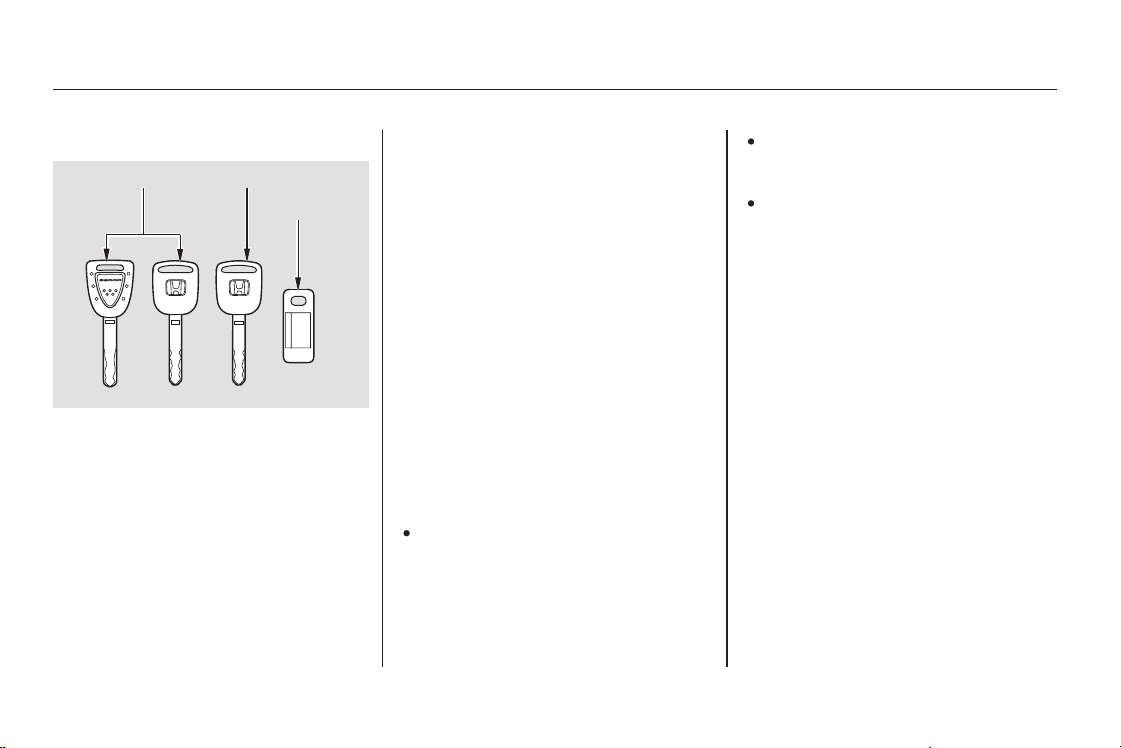

The master key fits all the locks on
your vehicle.
The valet key works only in the
ignition and the door locks. You can
keep the trunk and the lower console
compartment locked when you leave
your vehicle and the valet key at a
parking facility.
Youshouldhavereceivedakey
number tag with your keys. You will
need this key number if you ever
have to get a key replaced. Use only
Honda-approved key blanks.
These keys contain electronic
circuits that are activated by the
Immobilizer System. They will not
work to start the engine if the
circuits are damaged.
Protect the keys from direct
sunlight, high temperature, and
high humidity.
Donotdropthekeysorsetheavy
objects on them.
Keep the keys away from liquids.
If they get wet, dry them
immediately with a soft cloth.
The keys do not contain batteries.
Do not try to take them apart.
Keys and Locks
Instruments and Controls
Keys
51
VALET KEY
(GREY)
MASTER KEY
(BLACK)
KEY
NUMBER
TAG
Main Menu
Table of Contents
The Immobilizer System protects
your vehicle from theft. If an
improperly-coded key (or other
device) is used, the engine’s fuel
system is disabled.
When you turn the ignition switch to
ON (II), the Immobilizer System
indicator should come on for a few
seconds, then go out. If the indicator
starts to blink, it means the system
does not recognize the coding of the
key. Turn the ignition switch to
LOCK (0), remove the key, reinsert
it, and turn the switch to ON (II)
again.
The system may not recognize your
key’s coding if another immobilizer
key or other metal object (i.e. key
fob) is near the ignition switch when
you insert the key.
If the system repeatedly does not
recognize the coding of your key,
contact your Honda dealer.
Do not attempt to alter this system
or add other devices to it. Electrical
problems could result that may make
your vehicle undriveable.
If you have lost your key and cannot
start your engine, contact a Honda
dealer.
As required by the FCC:
This device complies with Part 15 of the
FCC rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any
interference received, including
interference that may cause undesired
operation.
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s
authority to operate the equipment.
This device complies with Industry
Canada Standard RSS-210.
Operation is subject to the following two
conditions: (1) this device may not cause
interference, and (2) this device must
accept any interference that may cause
undesired operation of the device.
Immobilizer System
Instruments and Controls
52
Main Menu
Table of Contents
−
−
−

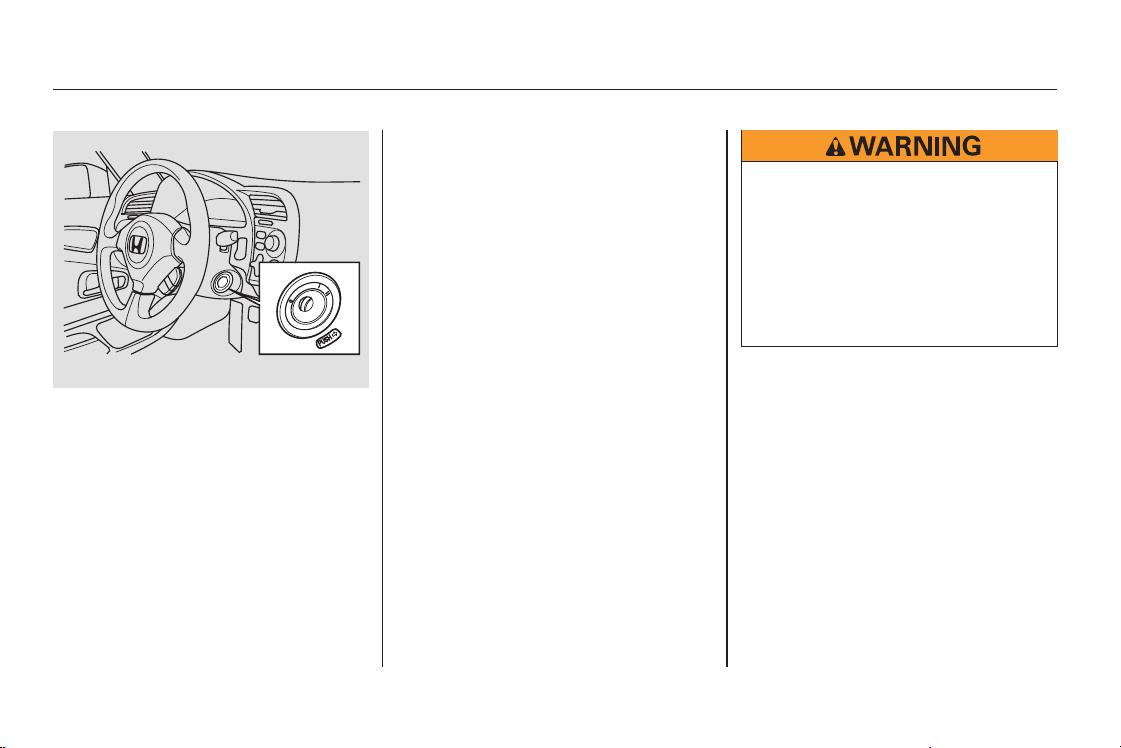

The ignition switch has three
positions: LOCK (0), ACCESSORY
(I), and ON (II).
You can insert or
remove the key only in this position.
To turn the key, you must push the
key in slightly. If the front wheels
are turned, the anti-theft lock may
make it difficult to turn the key.
Firmly turn the steering wheel to the
left or right as you turn the key.
This is the normal key
position when driving. Several of the
indicators on the instrument panel
come on as a test when you turn the
ignition switch from ACCESSORY
(I) to ON (II).
The engine can be started with the
key in this position by pressing the
engine START button (see page
).
You will hear a reminder beeper if
you leave the key in the ignition
switch in the LOCK (0) or
ACCESSORY (I) position and open
thedriver’sdoor.Removethekeyto
turn off the beeper.
You can
operate the audio system and the
accessory power socket in this
position.
113
Ignition Switch
Instruments and Controls
LOCK (0)
ON (II)
ACCESSORY (I)
53
Removing the key from the
ignition switch while driving
locks the steering. This can
cause you to lose control.
Remove the key from the
ignition switch only when
parked.
Main Menu
Table of Contents
Each door has a lock tab next to the
inside door handle. When you push
in the lock tab on the driver’s door,
both doors lock. Pulling out the lock
tab on the driver’s door only unlocks
that door. The lock tab on the
passenger’s door only locks and
unlocks that door.
To lock the passenger’s door when
getting out of the vehicle, push the
lock tab in and close the door. To
lock the driver’s door, remove the
key from the ignition switch, pull out
either the inside or outside door
handle and push the lock tab in, then
close the door.
Both doors lock when you use the
key in the driver’s door. Using the
key in the passenger’s door only
locks and unlocks that door.
To unlock only the driver’s door
from the outside, insert the key in
the driver’s door lock, turn the key
and release it. If you turn the key
and hold it, both doors will unlock.
To open the trunk, press the trunk
release button in the lower console
compartment. To protect items in
the trunk when you need to give the
key to someone else, lock the lower
console compartment with the
master key, and give the other
person the valet key.
To close the trunk, press down on
the trunk lid.
Door Locks
Instruments and Controls
Power Door Locks Trunk
54
LOCK TAB
TRUNK RELEASE BUTTON
Push
Main Menu
Table of Contents
You can also use the master key to
open the trunk lock.
To open the trunk with the remote
transmitter, press and hold the
TRUNK RELEASE button for about
1second(seepage ).
Keep the trunk lid closed at all times
while driving to avoid damaging it
and to prevent exhaust gas from
getting into the interior. See Carbon
Monoxide Hazard, page .
As a safety feature, your vehicle has
a release lever on the trunk latch so
the trunk can be opened from inside.
To open the trunk, push the release
lever to the left.
Parents should decide if their
children should be shown how to use
this feature.
56
34
Door Locks
Instruments and Controls
Emergency Trunk Opener
55
MASTER KEY
Main Menu
Table of Contents
−
−
−
Pressthisbuttontolock
both doors. Some exterior lights will
flash. When you push LOCK twice
within 5 seconds, you will hear a
beep to verify that the doors are
locked.
Press this button once
to unlock the driver’s door. Push it
twice to also unlock the passenger’s
door.
The interior light (if the interior light
switch is in the center position) will
come on when you press the
UNLOCK button. If you do not open
either door, the light will go out in
about 30 seconds and the doors will
relock. If you relock the doors with
theremotetransmitterbefore30
seconds have elapsed, the light will
go off immediately.
You cannot lock or unlock the doors
with the remote transmitter if either
door is not fully closed or the key is
in the ignition switch.
To open the trunk, push and hold the
TRUNK RELEASE button for about
1 second.
Pressthisbuttonfor
about 1 second to attract attention;
thehornwillsoundandtheexterior
lights will flash for about 30 seconds.
To cancel panic mode, press any
other button on the remote
transmitter or turn the ignition
switch to ON (II).
Avoid dropping or throwing the
transmitter.
Protect the transmitter from
extreme temperature.
Do not immerse the transmitter in
any liquid.
If you lose a transmitter, the
replacement needs to be
reprogrammed by a Honda dealer.
Remote Transmitter
Instruments and Controls
LOCK
UNLOCK
PANIC
Remote Transmitter Care
56
LED
UNLOCK
BUTTON
TRUNK
RELEASE
BUTTON
PANIC
BUTTON
LOCK
BUTTON
Main Menu
Table of Contents
＋
◎
▽
To replace the battery, remove the
round cover on the back of the
transmitter by turning it
counterclockwise with a coin. Insert
a new battery with the side facing
up. Align the mark on the cover
with the mark on the
transmitter. Set the cover in place,
andturnitclockwise.
If it takes several pushes on the
button to lock or unlock the doors,
replace the battery as soon as
possible.
Battery type: CR2025
As required by the FCC:
This device complies with Part 15 of the
FCC rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any
interference received, including
interference that may cause undesired
operation.
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s
authority to operate the equipment.
This device complies with Industry
Canada Standard RSS-210.
Operation is subject to the following two
conditions: (1) this device may not cause
interference, and (2) this device must
accept any interference that may cause
undesired operation of the device.
Remote Transmitter
Replacing the Transmitter
Battery
Instruments and Controls
57
BATTERY ROUND
COVER
Main Menu
Table of Contents
−See pages for important safety
information and warnings about how to
properly position seats and seat-backs.
10 11
Make all seat adjustments before
you start driving.
To adjust the seat forward and
backward, pull up on the lever under
the seat cushion’s front edge. Then
trytomovetheseattomakesureit
is locked in position.
To change the seat-back angle, pull
up on the lever on the outside of the
seat bottom.
Seats
Instruments and Controls
58
Main Menu
Table of Contents
You vehicle’s windows are
electrically-powered. Turn the
ignition switch to ON (II) to raise or
lower either window.
Each door has a switch that controls
its window. To open the window,
push the switch down and hold it.
Release the switch when you want
the window to stop. Close the
window by pulling back on the
switch and holding it.
The driver’s armrest has a master
power window control panel. To
open the passenger’s window, push
down on the switch and hold it until
the window reaches the desired
position. To close the window, pull
back on the window switch. Release
the switch when the window gets to
the position you want.
Power Windows
Instruments and Controls
59
DRIVER’S WINDOW SWITCH
MAIN
SWITCH
PASSENGER’S WINDOW SWITCH
Main Menu
Table of Contents
−
The master control panel also con-
tains these extra features:
To open the driver’s
window fully, push the window
switch firmly down and release it.
The window automatically goes all
the way down. To stop the window
from going all the way down, pull
back on the window switch briefly.
To open the driver’s window only
partially, push the window switch
down lightly and hold it. The window
will stop as soon as you release the
switch.
The AUTO function only works to
lower the driver’s window. To raise
the window, you must pull back on
the window switch and hold it until
the window reaches the desired
position.
The MAIN switch controls power to
the passenger’s window. With this
switch off, the passenger’s window
cannot be raised or lowered. The
MAIN switch does not affect the
driver’s window. Keep the MAIN
switch off when you have a child in
the vehicle so the child does not get
injured by operating the window
unintentionally.
Power Windows
Instruments and Controls
AUTO
60
Closing a power window on
someone’s hands or fingers can
cause serious injury.
Make sure your passenger is
away from the window before
closing it.
Main Menu
Table of Contents

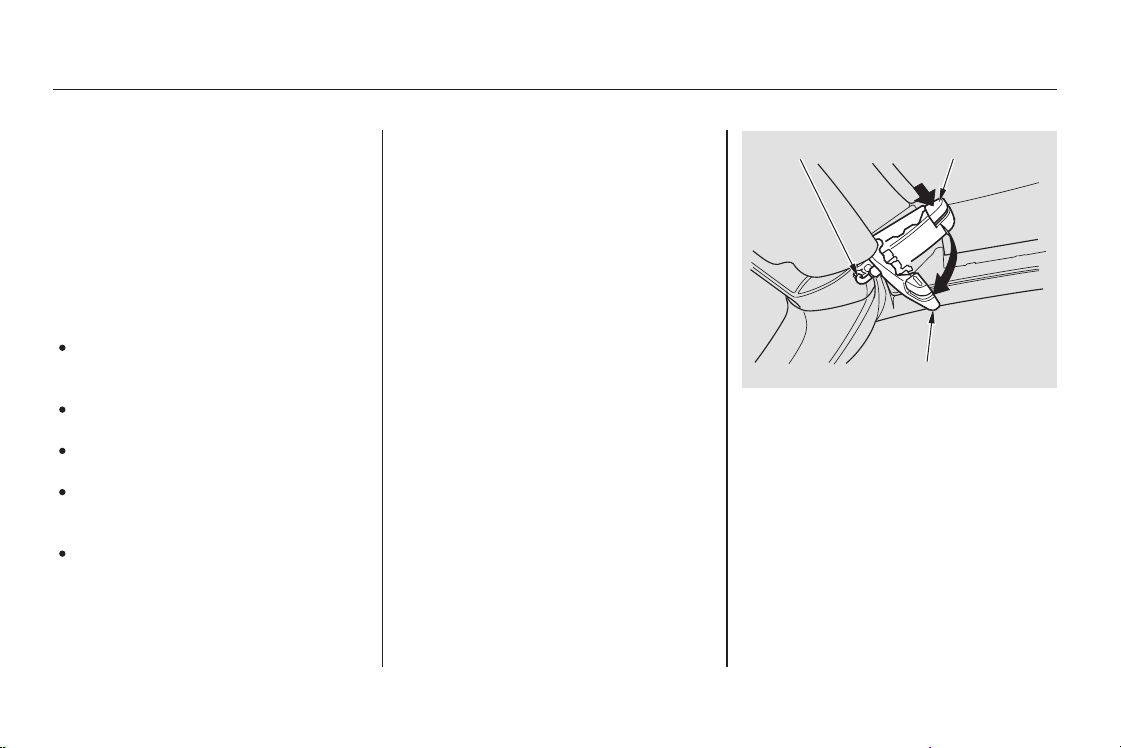

The convertible top on your Honda
lowers and raises electrically.
It is advisable to raise the top
whenever you park the vehicle. This
helps to protect the vehicle from
unexpected weather changes, and
from theft of your valuables.
Before operating the convertible top,
make sure the vehicle is parked on
level ground, the rear defogger is off,
and there is enough clearance above
the top.
Apply the parking brake. The
convertible top will not operate
unless the parking brake is fully
engaged.
Turn the ignition switch to ON (II).
Thereisalatchoneachside.Push
in the tabs, and pull the locking
levers down.
1.
2.
3.
CONTINUED
Convertible Top
Instruments and Controls
Lowering the Convertible Top
61
NOTICE:
LATCH TAB
LOCKING LEVER
Do not operate the convertible top in
freezing weather. You can damage
the material and the mechanism.
Do not operate the top if it is wet,
dirty, or covered with ice or snow.
Never drive the vehicle with the
convertible top half open.
Do not operate the convertible top if
the vehicle is on a jack, a hoist, or on
jack stands.
Park your vehicle in the shade
whenever possible. Extended
exposure to sunlight can cause the
convertible top to deteriorate.
Main Menu
Table of Contents
With the latches released, push
the locking levers up until they
latch.
PullbackandholdtheROOF
switch. The windows lower and
the roof folds back. Release the
ROOF switch when the roof is
retracted completely into the rear
shelf.
4. 5.
Convertible Top
Instruments and Controls
62
NOTICE:
LOCKING LEVER
ROOF SWITCH
Operating the convertible top
while any part of a passenger is
in the way of the convertible top
can cause serious injury.
Make sure that you, your
passenger, or any other people
around the vehicle are clear of
the moving convertible top.
Do not sit on the folded
convertible top, or any items on top of
it. You could damage the top or the
rear window.
Main Menu
Table of Contents

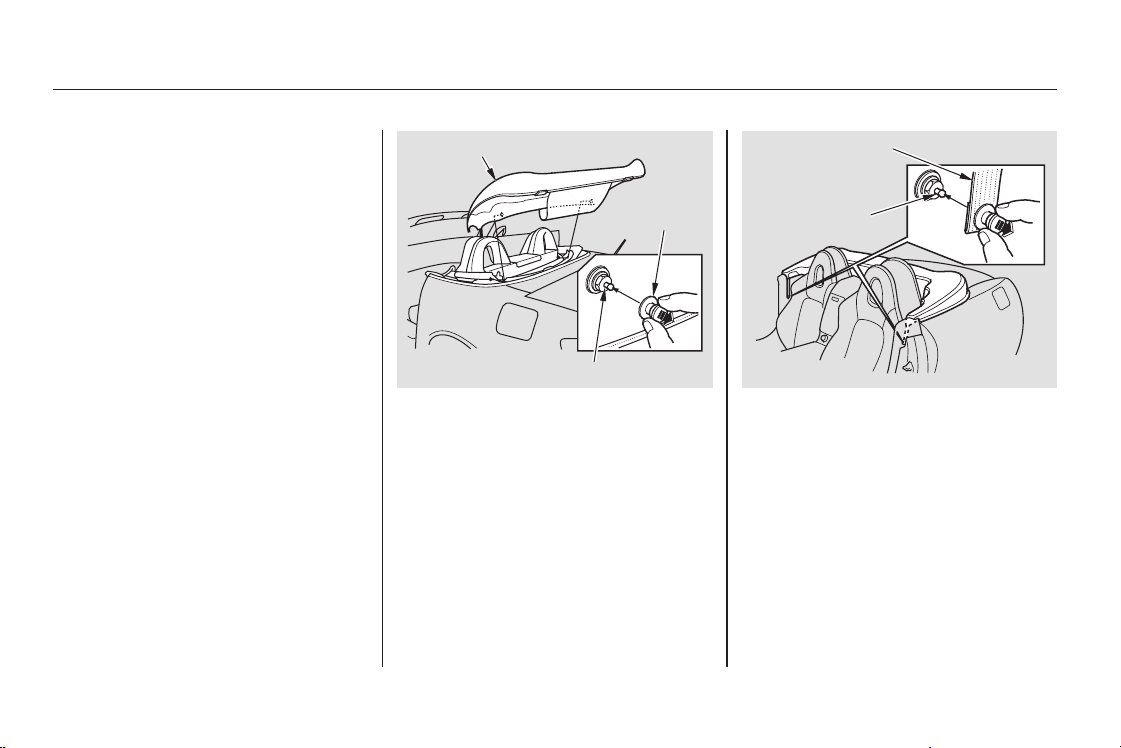

Use the convertible top cover when
the top is folded to help prevent
foreign objects, dirt, etc., from
getting into the material and the
mechanism.
Remove the convertible top cover
from the trunk.
Pull the buttons on the snaps,
place them over the pins on the
back of the roll bar, then release
the buttons. If you do not pull the
snap button before placing it on
the pin, you could break the snap.
Pull the buttons, on the fastener
straps, place them on the pin on
thesidepaneljustbehindthe
doors, then release the buttons.
Fit the rear part of the top cover
into the space behind the
convertible top.
To remove the cover, reverse this
procedure.
1.
2. 3.
4.
5.
Convertible Top
Instruments and Controls
Convertible Top Cover
63
CONVERTIBLE TOP COVER
SNAP
PIN
PIN
FASTENER STRAP
Main Menu
Table of Contents

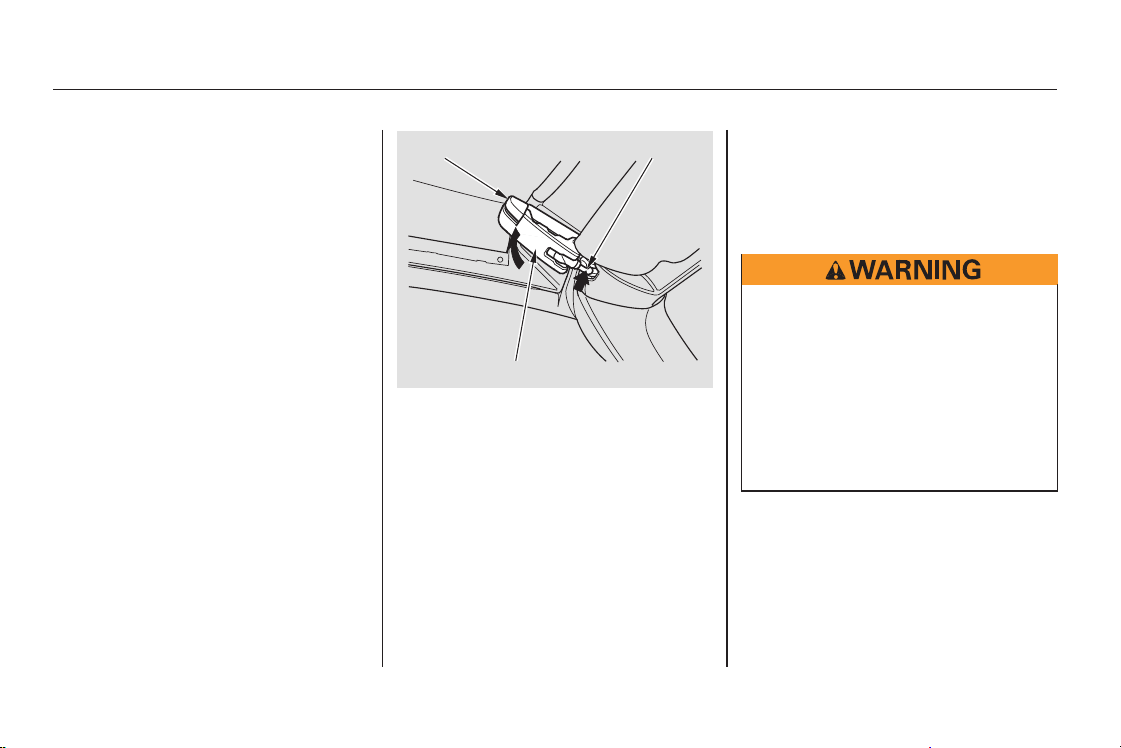

Apply the parking brake. The
convertible top will not operate
unless the parking brake is fully
engaged.
Turn the ignition switch to ON (II).
Push in the tab to release the
locking levers, and pull them down.
Note the movement of the latch
when you push in the tab.
While holding the lever down,
push in the tab to engage the latch
in the windshield header. Pull the
topdownandforwardifnecessary.
Push the locking levers up while
holding the tab. When the latch is
in place, release the tab. Make
sure the convertible top is securely
latched.
Push the ROOF switch forward
and hold it. The windows, if raised,
will lower automatically.
The convertible top will rise.
Release the ROOF switch when
the top reaches the windshield
header.
5.
6.
1.
2.
3.
4.
Convertible Top
Instruments and Controls
Raising the Convertible Top
64
NOTICE:
TAB LATCH
LOCKING LEVER
Operating the convertible top
while any part of a passenger is
in the way of the convertible top
can cause serious injury.
Make sure that you, your
passenger, or any other people
around the vehicle are clear of
the moving convertible top.
Do not put any heavy items
on the folded convertible top. You
could damage the material and the
mechanism.
Main Menu
Table of Contents
Dust is the main cause of creaks or
other sounds coming from the
convertible top.
Regularly clean the body seals with
glass cleaner and a soft cloth. Do not
use a scraper or de-icing chemicals
to remove frost, snow, or ice from
the top or the rear window.
Every three to six months,
depending on how often the top is
folded, rub a thin film of Shin-Etsu
Silicon Grease (available from your
Honda dealer, P/N 08798-9013) onto
the seals wherever they touch the
convertible top or each other.
Do not lean or sit on an open door.
Do not push or pull the door glass
to open and close the door.
The convertible top seals are
designed to promote the flow of
water off the roof. Spraying high-
pressure water directly on the
seals can distort them, causing a
leak. Use only a low-pressure
water stream when using a hose,
and avoid commercial car washes.
Convertible Top
Instruments and Controls
Maintenance To reduce the possibility of leaks:
65
Main Menu
Table of Contents
Move the selector switch to L
(driver’s side) or R (passenger’s
side).
Keeptheinsideandoutsidemirrors
clean and adjusted for best visibility.
Be sure to adjust the mirrors before
you start driving.
The inside mirror has day and night
positions. The night position reduces
glare from headlights behind you.
Flip the tab on the bottom edge of
the mirror to select the day or night
position.
Push the appropriate edge of the
adjustment switch to move the
mirrorright,left,up,ordown.
When you finish, move the
selector switch to the center (off)
position. This turns off the
adjustment switch so you can’t
move a mirror out of position by
accidentally bumping the switch.
1. 2.
3.
Mirrors
Instruments and Controls
Adjusting the Power Mirrors
66
TAB
SELECTOR SWITCH
ADJUSTMENT SWITCH
Main Menu
Table of Contents
To apply the parking brake, pull the
lever up fully. To release it, pull up
slightly, push the button, and lower
the lever. The parking brake
indicator on the instrument panel
should go out when the parking
brake is fully released (see page ).
If you try to drive the vehicle without
releasing the parking brake, the ABS
indicator may come on, and the ABS
may not work properly.
40
Parking Brake
Instruments and Controls
67
NOTICE: Driving the vehicle with the
parking brake applied can damage the
rear brakes and axles.
Main Menu
Table of Contents

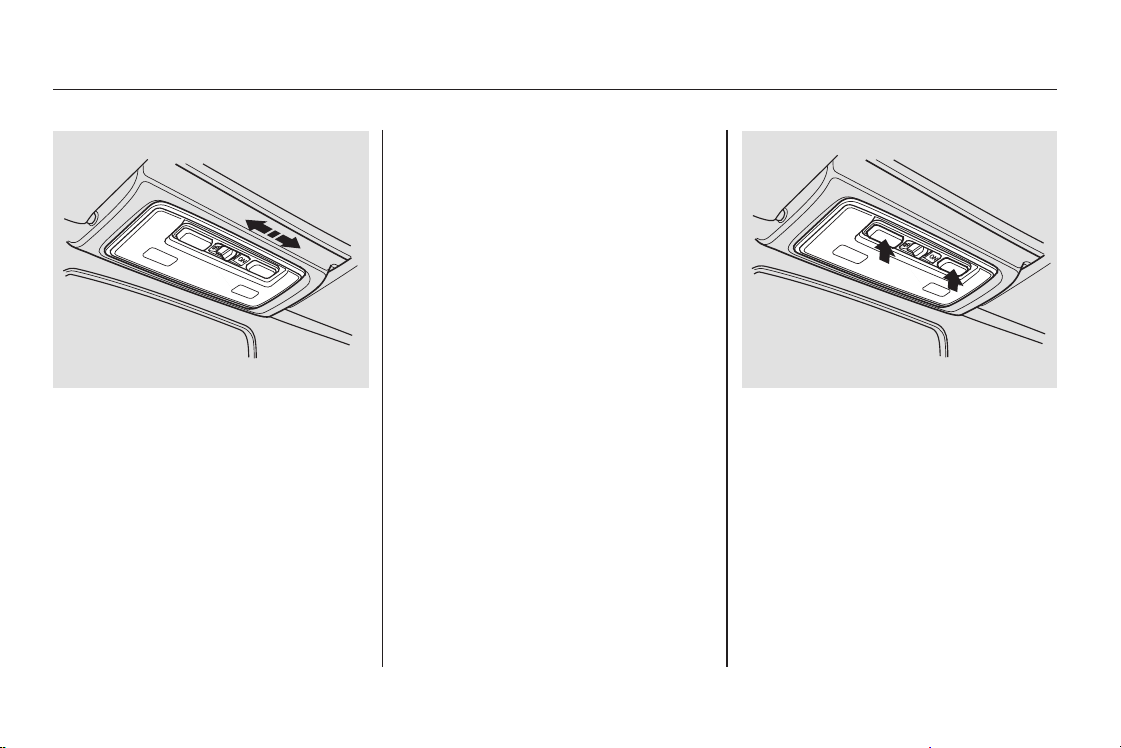

The interior light has a three-
position switch. In the OFF position,
the light does not come on. In the
center position, the interior light
comes on when you open either door.
In the ON position, the interior light
stays on continuously.
If the three-position switch is in the
center position, the interior light will
come on when you remove the key
from the ignition switch.
In addition, when the three position
switch is in the center position with
both doors closed, the two bulbs in
the interior light can be turned on
separately by the pushbutton
switches next to them. Push the
switch to turn the light on or off.
Interior Lights
Instruments and Controls
68
Main Menu
Table of Contents
Interior Convenience Items
Instruments and Controls
69
BEVERAGE HOLDER
CONSOLE COMPARTMENT ACCESSORY POWER SOCKET
AUDIO PANEL
Main Menu
Table of Contents
Open the beverage holder by
pushing on the tab. The lid will slide
open.
Be careful when you are using the
beverage holder. A spilled liquid that
is very hot can scald you or your
passenger. Spilled liquids can also
damage the upholstery, carpeting,
and electrical components in the
interior.
This socket is intended to supply
power for 12 volt DC accessories
that are rated 120 watts or less (10
amps).
The area between the seat has two
compartments. Open the lower
compartment by squeezing the
handle. Close it with a firm push.
You can lock or unlock the lower
compartment with the master key.
Interior Convenience Items
Instruments and Controls
Beverage Holder Accessory Power Socket Console Compartments
70
Main Menu
Table of Contents

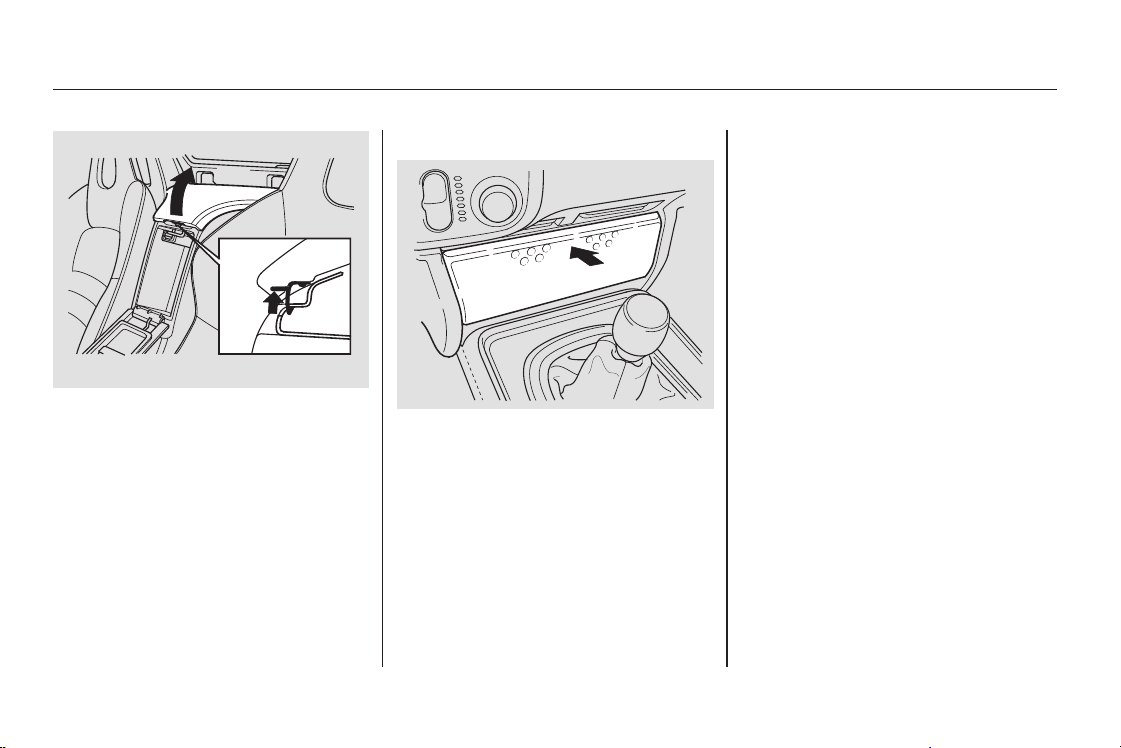

The lever to open the upper
compartment is inside the lower
compartment. Push up the lever, and
lift the lid. To close, lower the lid,
and push it down until it latches.
To open the audio panel, push on the
top center, and let the panel swing
down.Toclose,pivotthepanelup,
and push on it until it latches.
Interior Convenience Items
Instruments and Controls
Audio Panel
71
Main Menu
Table of Contents
72
Main Menu
The heating and air conditioning
systems in your Honda provide a
comfortable driving environment in
all weather conditions.
The standard audio system has
many features. This section de-
scribes those features and how to
use them. (If you selected an
optional audio system, refer to the
operating instructions that came
with it.)
...............Vents, Heating, and A/C . 74
...............................Airflow Buttons . 75
............................Playing the Radio . 78
..............................Radio Reception . 81
....................................Playing a CD . 83
.....................................CD Changer . 84
......................Protecting Your CDs . 85
...........CD Player Error Messages . 86
.......CD Changer Error Messages . 87
...Playing the XM
Satellite Radio . 88
..................Remote Audio Controls . 93
...................Radio Theft Protection . 94
.................................Cruise Control . 95
Comfort and Convenience Features
Comfort and Convenience Features
73
Main Menu
Vents, Heating, and A/C
Comfort and Convenience Features
74
RECIRCULATION
BUTTON
AIR CONDITIONING
BUTTON
FAN CONTROL LEVER
MODE CONTROL DIAL
TEMPERATURE
CONTROL DIAL
Main Menu
Table of Contents
Push this lever up and down to
increase and decrease the fan speed.
The indicators next to the lever show
you the speed selected.
Turning this dial clockwise increases
the temperature of the airflow.
This button turns the air
conditioning on and off. The
indicator in the button comes on
when the A/C is on.
This button controls the source of
the air going into the system. When
the indicator in this button is on, air
from the vehicle’s interior is sent
through the system again
(Recirculation mode). When the
indicator is off, air is brought in from
outside the vehicle (Fresh Air mode).
The outside air intakes for the
heating and cooling system are at
the base of the windshield. Keep this
area clear of leaves and other debris.
ThesystemshouldbeleftinFresh
Air mode under almost all conditions.
Keeping the system in Recirculation
mode, particularly with the A/C off,
can cause the windows to fog up.
Switch to Recirculation mode when
driving through dusty or smoky
conditions, then return to Fresh Air
mode.
This button turns the rear window
defogger off and on (see page ).
Use the mode control dial to select
the vents the air flows from. Some
air will flow from the dashboard
vents in all modes.
Air flows from the vents on
both sides of the instrument panel,
andfromthedashboardventinfront
of the passenger.
Airflow is divided between
the vents in the dashboard and the
floor vents.
Air flows from the center
vents in the dashboard above the
audio system, the vents on both
sides of the instrument panel, and
from the floor vents. Select this
position when you drive with the
convertible top folded.
Air flows from the floor
vents and the vents on both sides of
the instrument panel.
Airflow is divided between
the floor vents and the defroster
vents at the base of the windshield,
and the vents on both sides of the
instrument panel.
50
Comfort and Convenience Features
Fan Control Lever
Temperature Control Dial
Air Conditioning (A/C) Button
Recirculation Button Rear Window Defogger Button
Mode Control Dial
Airflow Buttons
75
Main Menu
Table of Contents
The flow-through ventilation system
draws in outside air, circulates it
through the interior, then exhausts it
through vents behind the seat-backs.
Turn the temperature control dial
all the way to the left.
Make sure the A/C is off.
Select and Fresh Air mode.
Set the fan to the desired speed.
The heater uses engine coolant to
warm the air. If the engine is cold, it
will be several minutes before you
feel warm air coming from the
system.
Select and Fresh Air mode.
Set the fan to the desired speed.
Adjust the warmth of the air with
the temperature control dial.
Air conditioning places an extra load
on the engine. Watch the engine
coolant temperature gauge (see page
). If it moves near the red zone,
turn off the A/C until the gauge
reads normally.
Turn on the A/C by pressing the
button. The indicator in the button
comesonwhenafanspeedis
selected.
Make sure the temperature
control dial is all the way to the left.
Select .
If the outside air is humid, select
Recirculation mode. If the outside
air is dry, select Fresh Air mode.
Set the fan to the desired speed.
you can
cool it down more rapidly by partially
opening the windows, turning on the
A/C, and setting the fan to
maximum speed in Fresh Air mode.
Air flows from the defroster
vents at the base of the windshield
and the vents on both sides of the
instrument panel.
When you select , the system
automatically switches to Fresh Air
mode and turns on the A/C.
1.
2.
3.
4.
1.
2.
3.
1.
2.
3.
4.
5.
45
If the interior is very warm,
Ventilation
Using the Heater
Using the A/C
Comfort and Convenience Features
Vents, Heating, and A/C
76
Main Menu
Table of Contents
To remove fog from the inside of the
windows:
When you switch to another mode
from , the A/C stays on.
Press the A/C button to turn it off.
Select . The system
automatically switches to Fresh
Air mode and turns on the A/C.
Select .
Set the fan and temperature
controls to the maximum level.
Air conditioning, as it cools, removes
moisture from the air. When used in
combination with the heater, it
makes the interior warm and dry.
Switch the fan on.
Turn on the air conditioning.
Select and Fresh Air mode.
Adjust the temperature control
dial to your preference.
This setting is suitable for all driving
conditions whenever the outside
temperature is above 32°F (0°C).
Set the fan to the desired speed.
Select . When you select
, the system automatically
switches to Fresh Air mode and
turns on the A/C.
Adjust the temperature control
dial so the airflow feels warm.
Select to help clear the
rear window.
To clear the windows faster, you can
close the dashboard corner vents
and the vents on both sides of the
instrument panel by rotating the
wheel below the vent. This will send
more warm air to the windshield
defroster vents. Once the windshield
is clear, select the Fresh Air mode to
avoid fogging the windows.
For your safety, make sure you have
a clear view through all the windows
before driving.
1.
2.
3.
4.
1.
2.
3.
4.
1.
2.
3.
Vents, Heating, and A/C
Comfort and Convenience Features
To Defog and Defrost To Remove Exterior Frost or Ice
From the Windows
To Dehumidify the Interior
77
Main Menu
Table of Contents
Playing the Radio
Comfort and Convenience Features
78
SCAN BUTTON
A.SEL BUTTON
TUNE KNOB
SEEK BAR
PWR/VOL KNOB
AM/FM BUTTON
A.SEL INDICATOR STEREO INDICATOR
SCAN INDICATOR
PRESET BUTTONS
Main Menu
Table of Contents
−
−
−
−
The ignition switch must be in the
ACCESSORY (I) or ON (II) position.
Turn the system on by pushing the
PWR/VOL knob or the AM/FM
button. Adjust the volume by turning
thesameknob.
The band and frequency that the
radio was last tuned to is displayed.
To change bands, press the AM/FM
button. On the FM band, ST will be
displayed if the station is broadcast-
ing in stereo. Stereo reproduction on
AM is not available.
You can use any of five methods to
find radio stations on the selected
band: the
preset buttons, and .
Use the TUNE knob to
tune the radio to a desired frequency.
Turn the knob right to tune to a
higher frequency, or left to tune to a
lower frequency.
The SEEK function
searches up and down from the
current frequency to find a station
with a strong signal. To activate it,
press the or side of the
bar, then release it.
The SCAN function
samples all stations with strong
signals on the selected band. To
activate it, press the SCAN button,
then release it. You will see SCAN in
the display. The system will scan for
a station with a strong signal. When
it finds one, it will stop and play that
station for about 5 seconds.
If you do nothing, the system will
scan for the next strong station and
play it for 5 seconds. When it plays a
station you want to listen to, press
the SCAN button again.
Each preset button can
store one frequency on AM, and two
frequencies on FM.
Select the desired band, AM or
FM. FM1 and FM2 let you store
two frequencies with each preset
button.
UsetheTUNE,SEEK,orSCAN
function to tune the radio to a
desired station.
Pick a preset button, and hold it
until you hear a beep.
Repeat steps 1 to 3 to store a total
of six stations on AM and twelve
stations on FM.
The preset frequencies will be lost if
your vehicle’s battery goes dead, is
disconnected, or the radio fuse is
removed.
1.
2.
3.
4.
To Play the Radio
To Select a Station
TUNE,SEEK,SCAN,
AUTO SELECT
TUNE
SEEK
SCAN
Preset
Playing the Radio
Comfort and Convenience Features
79
Main Menu
Table of Contents
−
−
−If you are
traveling far from home and can no
longer receive your preset stations,
you can use the Auto Select feature
to find stations in the local area.
Press the A. SEL Button. ‘‘A.SEL’’
flashes in the display, and the system
goes into scan mode for several
seconds. It stores the frequencies of
six AM, and twelve FM stations in
the preset buttons.
You will see a ‘‘0’’ displayed after
pressing a preset button if Auto
Select cannot find a strong station
for every preset button.
If you do not like the stations Auto
Select has stored, you can store
other frequencies on the preset
buttons. Use the TUNE, SEEK, or
SCAN functions to find stations, then
store them in the preset buttons as
described.
press the
A. SEL button. This restores the
presets you originally set.
Press the SOUND (TUNE) knob
repeatedly to display the Bass (BAS),
Treble (TRE), Balance (BAL), and
Fader (FAD) setting.
Eachmodeisshowninthedisplayas
it changes. Turn the SOUND
(TUNE) knob to adjust the setting to
your liking. When the level reaches
the center, you will see ‘‘C’’ in the
display. The system will
automatically return the display to
the selected audio mode about 5
seconds after you stop adjusting a
mode.
Use the TRE/BAS
modes to adjust the tone to your
liking.
These two
modes adjust the strength of the
sound coming from each speaker.
BAL adjusts the side-to-side strength,
while FAD adjusts the front-to-back
strength.
You can use the instrument panel
brightness control buttons to adjust
the illumination of the audio system
(see page ). The audio system
illuminates when the parking lights
are on, even if the radio is off.
49
To turn off Auto Select,
AUTO SELECT
Adjusting the Sound
Treble/Bass
Balance/Fader
Audio System Lighting
Playing the Radio
Comfort and Convenience Features
80
Main Menu
Table of Contents
CONTINUED
Your Honda’s radio can receive the
complete AM and FM bands.
Those bands cover these frequen-
cies:
AM band:
530 to 1,710 kilohertz
FM band:
87.7 to 107.9 megahertz
Radio stations on the AM band are
assigned frequencies at least ten
kilohertz apart (530, 540, 550).
Stations on the FM band are
assigned frequencies at least 0.2
megahertz apart (87.9, 88.1, 88.3).
Stations must use these exact
frequencies. It is fairly common for
stations to round-off the frequency in
their advertising, so your radio could
display a frequency of 100.9 even
though the announcer may identify
the station as ‘‘FM101.’’
How well your Honda’s radio
receives stations is dependent on
many factors, such as the distance
from the station’s transmitter,
nearby large objects, and atmos-
pheric conditions.
A radio station’s signal gets weaker
as you get farther away from its
transmitter. If you are listening to an
AM station, you will notice the sound
volume becoming weaker, and the
stationdriftinginandout.Ifyouare
listening to an FM station, you will
see the stereo indicator flickering off
and on as the signal weakens.
Eventually, the stereo indicator will
go off and the sound will fade
completely as you get out of range of
the station’s signal.
Driving very near the transmitter of
a station that is broadcasting on a
frequency close to the frequency of
the station you are listening to can
also affect your radio’s reception.
You may temporarily hear both
stations,orhearonlythestationyou
are close to.
Radio Reception
Comfort and Convenience Features
Radio Frequencies Radio Reception
81
Main Menu
Table of Contents

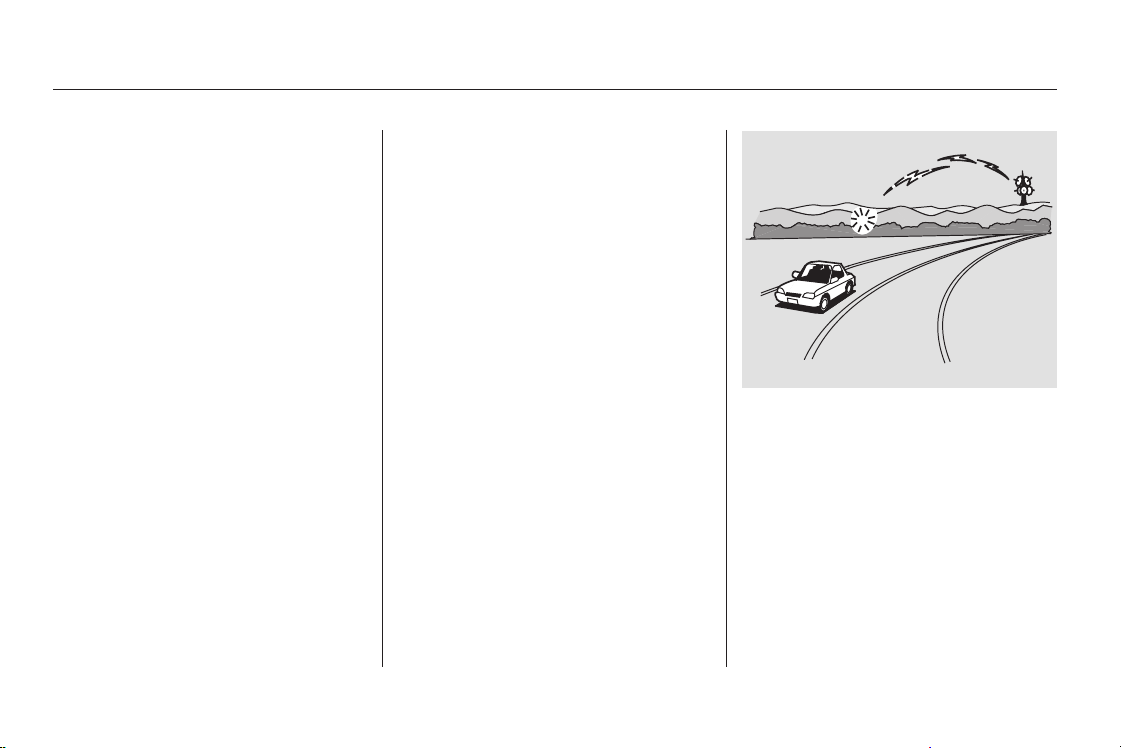

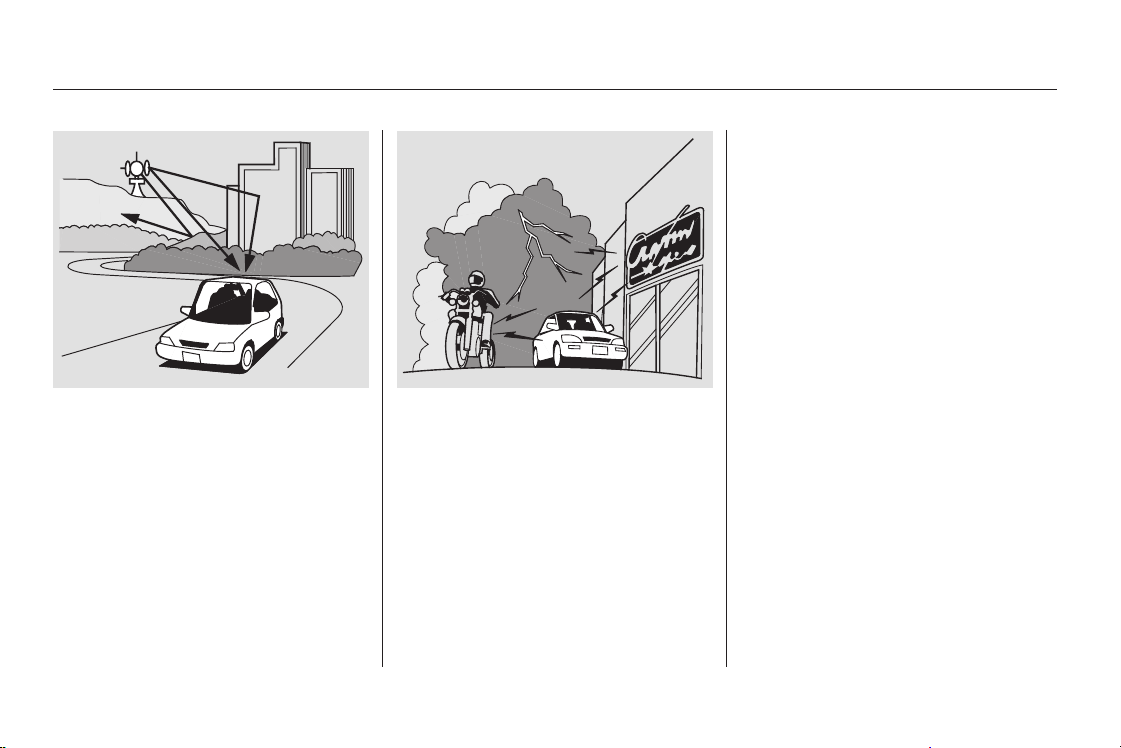

Radio signals, especially on the FM
band, are deflected by large objects
such as buildings and hills. Your
radio then receives both the direct
signal from the station’s transmitter,
and the deflected signal. This causes
the sound to distort or flutter. This is
a main cause of poor radio reception
in city driving.
Radio reception can be affected by
atmospheric conditions such as
thunderstorms, high humidity, and
even sunspots. You may be able to
receive a distant radio station one
day and not receive it the next day
because of a change in conditions.
Electrical interference from passing
vehicles and stationary sources can
cause temporary reception problems.
As required by the FCC:
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s
authority to operate the equipment.
Radio Reception
Comfort and Convenience Features
82
Main Menu
Table of Contents

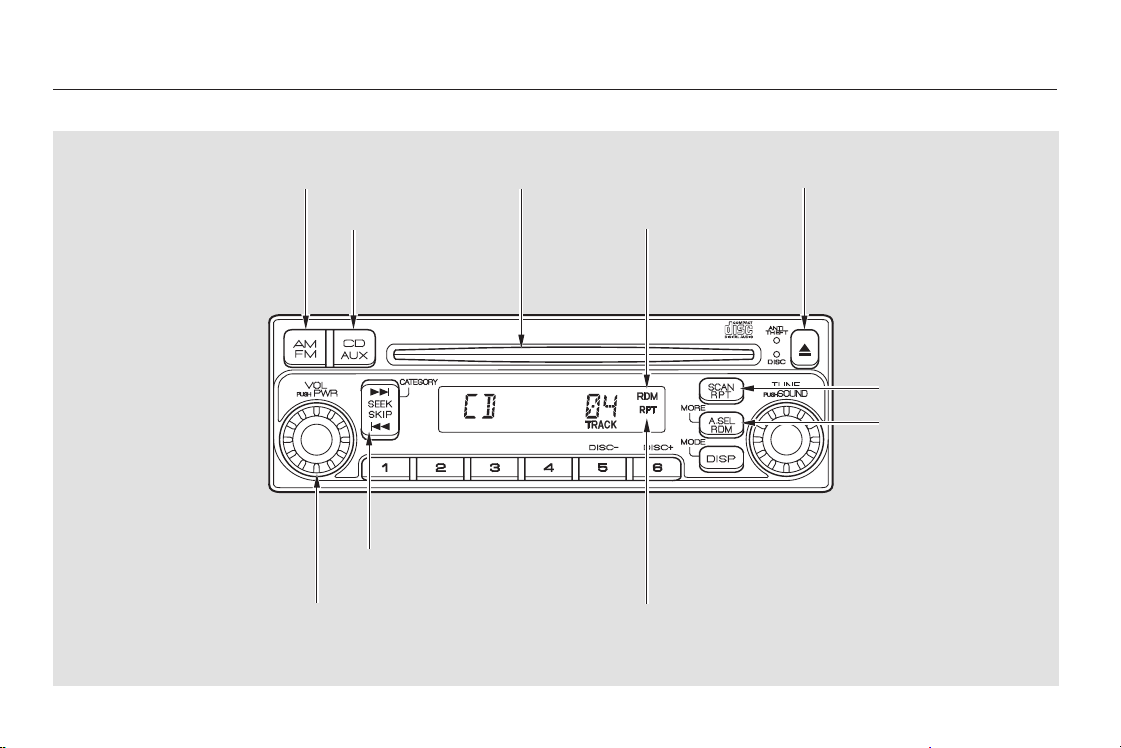

Playing a CD
Comfort and Convenience Features
83
CD BUTTON RANDOM INDICATOR
EJECT BUTTON
SEEK/SKIP BAR
CD SLOTAM/FM BUTTON
PWR/VOL KNOB REPEAT INDICATOR
REPEAT BUTTON
RANDOM BUTTON
Main Menu
Table of Contents
−
−
−＋
With the ignition in the
ACCESSORY (I) or ON (II) position,
insert a CD into the CD slot. The
drive will pull the CD in the rest of
the way and begin to play it. You
operate the CD player with the same
controls used for the radio. The
number of the track playing is shown
in the display. The system will
continuously play a CD until you
change modes.
Each time you press and release
, the player skips forward to
the beginning of the next track.
Press and release to skip
backward to the beginning of the
previous track.
To move rapidly within a track, press
and hold the or . You will
see CUE or REW in the display.
To continuously replay
a track, press and release the RPT
button. You will see RPT in the
display. Press the RPT button again
to turn it off.
This feature plays the
tracks in random order. To activate
Random Play, press and release the
RDM button. You will see RDM in
the display. This continues until you
press the RDM button again.
Press the eject button ( ) to
remove the CD. If you eject the CD,
but do not remove it from the slot,
the system will automatically reload
the CD after 15 seconds and put it in
pause mode. To begin playing, press
the CD button.
Press the AM/FM button to switch
to the radio while a CD is playing.
Press the CD button to play the CD.
If you turn the system off while a CD
is playing, either with the PWR/VOL
knob or by turning off the ignition,
the CD will stay in the drive. When
youturnthesystembackon,theCD
will begin playing where it left off.
A CD changer is available for your
vehicle. It holds up to six CDs. You
operate the CD changer with the
same controls used for the in-dash
CD player.
Load the desired CDs in the
magazine, and load the magazine in
the changer according to the
instructions that came with it.
To select the CD changer, press the
CD button. The CD and track
numbers will be displayed. To select
a different CD, use the preset 5
(DISC ) or preset 6 (DISC )
button. If you select an empty slot in
the magazine, the changer will, after
finding that slot empty, try to load
the CD in the next slot.
Playing a CD, CD Changer
Comfort and Convenience Features
CD Player
To Change Tracks (SKIP)
REPEAT
RANDOM
To Stop Playing a CD
Operating the Optional CD
Changer
84
Main Menu
Table of Contents
When using CD-R discs, use only
high quality CDs labeled for audio
use.
When recording a CD-R, the
recording must be closed for it to
be used by the CD players.
CD-RW discs will not work in this
unit.
Play only standard round CDs.
Odd-shaped CDs may jam in the
driveorcauseotherproblems.
Handle your CDs properly to
prevent damage and skipping.
When a CD is not being played, store
it in its case to protect it from dust
and other contamination. To prevent
warpage, keep CDs out of direct
sunlight and extreme heat.
To clean a CD, use a clean soft cloth.
Wipe across the CD from the center
to the outside edge.
AnewCDmayberoughonthe
inner and outer edges. The small
plastic pieces causing this roughness
can flake off and fall on the re-
cording surface of the CD, causing
skipping or other problems. Remove
these pieces by rubbing the inner
and outer edges with the side of a
pencil or pen.
Never try to insert foreign objects in
the CD player or the magazine.
Handle a CD by its edges; never
touch either surface. Do not place
stabilizer rings or labels on the CD.
These, along with contamination
from fingerprints, liquids, and felt-tip
pens, can cause the CD to not play
properly, or possibly jam in the drive.
General Inf ormation Protecting CDs
Protecting Your CDs
Comfort and Convenience Features
85
Main Menu
Table of Contents
If you see an error message in the
display while playing a CD, find the
cause in the chart to the right. If you
cannot clear the error message, take
your vehicle to a Honda dealer.
SolutionMessage Cause
Press the EJECT button and pull out the CD.
Check if the CD is inserted correctly in the CD
player.
Make sure the CD is not scratched or damaged.
Press the EJECT button and pull out the CD.
Check the CD for damage or deformation.
If the CD cannot be pulled out or the error
indication does not disappear after the CD is
ejected, see your Honda dealer.
Do not try to force the disc out of the player.
Will disappear when the temperature returns to
normal.
FOCUS Error
Mechanical Error
High temperature
CD Player Error Messages
Comfort and Convenience Features
86
Main Menu
Table of Contents
If you see an error message in the
display while playing a CD, find the
cause in the chart to the right. If you
cannot clear the error message, take
your vehicle to a Honda dealer.
SolutionMessage Cause
Press the magazine eject button and pull out
the magazine, check for error indication. Insert
the magazine again. If the code does not
disappear or the magazine cannot be pulled out,
consult your Honda dealer.
Insert CD.
Press the magazine eject button and pull it out.
Check for error indication, and insert the
magazine again. If the code does not disappear
orthemagazinecannotbepulledout,seeyour
Honda dealer.
Will disappear when the temperature returns to
normal.
Insert CD magazine.
FOCUS Error
No CD in the CD
magazine
Mechanical Error
High temperature
No CD magazine in the
CD changer
CD Changer Error Messages
Comfort and Convenience Features
87
Main Menu
Table of Contents
Your Honda is capable of receiving
XM
Satellite Radio anywhere in the
United States, except Hawaii and
Alaska.
XM
is a registered trademark of
XM Satellite Radio, Inc.
Satellite radio receives signals from
two satellites to produce clear, high-
quality digital reception. It offers
many channels in several categories.
Along with a large selection of
different types of music, satellite
radio also allows you to view channel
and category selections in the audio
display.
Optional on U.S. models
Not available on Canadian models
Comfort and Convenience Features
Playing the XM Satellite Radio
88
AM/FM BUTTON
CD/AUX BUTTON SCAN BUTTON
TUNE KNOB
CATEGORY BAR
PRESET BUTTONS
PWR/VOL
KNOB
MORE BUTTON
DISP/MODE BUTTON
Main Menu
Table of Contents
−
−
−
−
CONTINUED
To listen to satellite radio, turn the
ignition switch to the ACCESSORY
(I) or ON (II) position. Push the
PWR/VOL knob to turn on the audio
system, and press the CD/AUX
button. Adjust the volume by turning
the PWR/VOL knob. The last
channel you listened to will show in
the display.
Each time the
DISP button is pressed and released,
the display information changes in
the following sequence: channel
name, channel number, category,
airtist name, and music title.
You may experience periods when
XM radio does not transmit the artist
name and or the song title
information. If this happens, there is
nothing wrong with your system
since this information is not available
under certain situations.
IfyoupressandholdtheDISP/
MODE button for 5 seconds, it will
change between category mode and
channel mode. The display will show
CH for the channel mode or
CATEGORY for the category mode.
In the channel mode, you can receive
all of the available channels in all of
the different categories. In category
mode, you will receive only the
stations within the give category.
Expands the display to
show the six remaining letters
beyond the first ten letters in an
artist’s name or song title. The
system is set up so only 16 letters
can be displayed for any title or
name. Press MORE to view the next
six letters. The system will return to
the original display after 8 seconds.
Turn the TUNE knob left
go down the channnels or right to go
up. In the channel mode, the TUNE
knob will tune up or down through
all the channels available from the
XM radio. In the category mode, the
TUNE knob will cycle through only
the channels within the category you
have currently selected.
Use
the CATEGORY bar to select a
desired category, such as jazz, Rock,
Classical, etc. In both category mode
and channel mode, pressing the
category bar will change the
category up or down.
Playing the Satellite Radio
DISP/MODE
MORE
TUNE
CATEGORY (SEEK/SKIP)
Comfort and Convenience Features
Playing the XM Satellite Radio
89
Main Menu
Table of Contents
−
−
The SCAN function gives
you a sampling of all channels while
in the channel mode. In the category
mode, only the stations within that
category are scanned. To activate
SCAN, press the SCAN button. The
system plays each channel in
numerical order for a few seconds,
then selects the next channel. When
you hear a channel you want to
continue listening to, press the
button again.
To store a channel:
Youcanstoreupto12
preset channels using the six preset
buttons. Each button stores one
channel from the XM1 band and one
channel from the XM2 band.
To store a channel:
Pick the preset button you want
for that channel. Press and hold
the button until you hear a beep.
Repeat steps 2 to 3 to store the
first six channels.
Once a channel is stored, simply
press and release the proper preset
button to tune to it.
The presets will be lost if your
vehicle’s battery goes dead, is
disconnected, or the radio fuse is
removed.
Press the CD/AUX button. Either
XM1 or XM2 will show in the
display.
Use the TUNE knob, the
CATEGORY bar, or the SCAN
button to tune to a desired channel.
In the category mode, only channels
within that category can be selected.
In the channel mode, all channels
can be selected.
Press the CD/AUX button again.
The available XM band will show.
Store the next six channels using
steps 2 through 3.
1.
2.
3.
4.
5.
Comfort and Convenience Features
SCAN
Preset
Playing the XM Satellite Radio
90
Main Menu
Table of Contents
CONTINUED
The XM satellites are in orbit near
the equator; therefore, objects
located south of the vehicle may
cause satellite reception
interruptions. Ground repeaters help
strengthen the satellite signals, but
there may be congested areas where
these signals cannot be picked up.
Signals become weaker the farther
north you travel from the equator.
Comfort and Convenience Features
Playing the XM Satellite Radio
91
Signal may be
blocked by
mountains or
large obstacles to
the south.
Signals are weaker
in these areas.
GROUND
REPEATER
SATELLITE
Main Menu
Table of Contents
Depending on where you drive, you
may experience reception problems.
Interference can be caused by any of
these conditions:
Travelingonaneast/west
mountain road with the mountain
on the south side.
Driving alongside a large truck.
Driving in the tunnels
Driving on a road beside a vertical
wall, steep cliff, or hill.
Driving on the lower level of a
multi-tiered road.
Driving on a single lane road
alongside trees taller than 50 ft.
(15 m).
There may be other geographic
situations that could affect satellite
radio reception.
If you decide to purchase XM
Satellite Radio service, contact XM
Radio at www.xmradio.com, or at
1-800-852-9696. You will need to give
them your radio I.D. number and
your credit card number. To get your
radio I.D. number, turn the TUNE
knob until ‘‘0’’ appears in the display.
Your I.D. will appear in the display.
After you’ve registered with XM
Radio, keep your audio system in the
SAT Radio mode while you await
activation. This should take about 20
minutes.
While awaiting activation, make sure
your vehicle remains in an open area
with good reception. Once your
audio system is activated, ‘‘category’’
will appear in the display and you’ll
be able to listen to XM Radio
broadcasts. XM Radio will continue
to send an activation signal to your
vehicle for 48 hours. If the service
has not been activated after 48 hours,
contact XM Radio.
If your XM Radio service has expired,
or you purchased your vehicle from
a previous owner, you can listen to a
sampling of the broadcasts available
on XM Satellite Radio. With the
ignition switch in the ACCESSORY
(I) or ON (II) position, push the
PWR/VOL knob to turn on the audio
system, and press the CD/AUX
button. A variety of music types and
styles will play.
As required by the FCC:
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s
authority to operate the equipment.
Comfort and Convenience Features
Receiving Satellite Radio Service
Playing the XM Satellite Radio
92
Main Menu
Table of Contents
Four controls for the audio system
areontheleftsideofthedashboard
by the instrument panel. These let
you control basic functions without
distracting your attention from
driving.
Use the VOLUME lever to adjust the
volume. Push the lever up to
increase the volume and down to
decrease it. Hold the lever until the
volume reaches the desired level,
then release it.
If you want to mute the sound
temporarily, push the MUTE button.
The indicator in the button will come
on to indicate the mute function is on.
Press the button again to cancel
MUTE.
The AUDIO CONTROL button
changes the mode. Pressing the
button repeatedly selects AM, FM1,
FM2, or CD (if a CD is loaded), XM1,
XM2 (if you have the optional
satellite radio feature).
The CHANNEL button has two
functions, depending on whether you
are listening to the radio, or playing a
CD.
If you are listening to the radio, use
the CHANNEL button to change
stations. Each time you press this
button, the system advances to the
next preset station on the band you
are listening to. You will see the
number of the selected preset button
in the audio system display.
IfyouareplayingaCD,thesystem
skips to the beginning of the next
track each time you push the
CHANNEL button.
These controls work only with the
factory-installed audio system. They
will not function if you install any
other system.
Remote Audio Controls
Comfort and Convenience Features
93
AUDIO CONTROL
BUTTON
CHANNEL
BUTTON
MUTE
BUTTON
VOLUME
LEVER
Main Menu
Table of Contents
Your vehicle’s audio system will
disable itself if it is disconnected
from electrical power for any reason.
To make it work again, you must
enter a specific five-digit code in the
preset buttons. Because there are
hundreds of number combinations
possible from five digits, making the
system work without knowing the
exact code is nearly impossible.
Youshouldhavereceivedacardthat
lists your audio system’s code
number and serial number. It is best
tostorethiscardinasafeplaceat
home. In addition, you should write
the audio system’s serial number in
this Owner’s Manual.
If your vehicle’s battery is
disconnected or goes dead, or the
radio fuse is removed, the audio
system will disable itself. If this
happens, you will see ‘‘Code’’ in the
frequencydisplaythenexttimeyou
turn on the system. Use the preset
buttons to enter the five-digit code. If
it is entered correctly, the radio will
start playing.
If you make a mistake entering the
code, do not start over; complete the
five-digit sequence, then enter the
correct code. You have ten tries to
enter the correct code. If you are
unsuccessful in ten attempts, you
must then leave the system on for 1
hour before trying again.
You will have to store your favorite
stations in the preset buttons after
the system begins working. Your
original settings were lost when the
power was disconnected.
If you lose the card, you must obtain
the code number from a Honda
dealer. To do this, you will need the
system’s serial number.
Radio Theft Protection
Comfort and Convenience Features
94
Main Menu
Table of Contents
Thecruisecontrolmaynothold
the set speed when you are going
up and down hills. If your speed
increases going down a hill, use
the brakes to slow down. This will
cancelthecruisecontrol.To
resume the set speed, press the
RESUME/accel button. The
CRUISE CONTROL indicator on
the instrument panel will come
back on.
You can increase the set cruising
speed in any of these ways:
Press and hold the RESUME/
accel button. When you reach the
desired cruising speed, release the
button.
Push on the accelerator pedal.
Accelerate to the desired cruising
speed, and press the SET/decel
button.
To increase your speed in very
small amounts, tap the RESUME/
accel button. Each time you do
this, your vehicle will speed up
about 1 mph (1.6 km/h).
You can decrease the set cruising
speed in any of these ways:
Press and hold the SET/decel
button. Release the button when
you reach the desired speed.
To slow down in very small
amounts, tap the SET/decel
button. Each time you do this,
your vehicle will slow down about
1 mph (1.6 km/h).
Tap the brake or clutch pedal
lightly with your foot. The
CRUISE CONTROL indicator on
the instrument panel will go out.
When the vehicle slows to the
desired speed, press the SET/
decel button.
Cruise Control
Comfort and Convenience Features
Changing the Set Speed
96
Main Menu
Table of Contents
Even with the cruise control turned
on, you can still use the accelerator
pedal to speed up for passing. After
completing the pass, take your foot
off the accelerator pedal. The vehicle
will return to the set cruising speed.
Resting your foot on the brake or
clutch pedal will cause the cruise
control to cancel.
Youcancancelthecruisecontrolin
any of these ways:
Tap the brake or clutch pedal.
Push the CANCEL button on the
steering wheel.
When you push the CANCEL button,
or tap the brake or clutch pedal, the
system remembers the previously-
set cruising speed. To return to that
speed, accelerate to above 25 mph
(40 km/h) and then press and
release the RESUME/accel button.
The CRUISE CONTROL indicator
comes on. The vehicle will accelerate
to the same cruising speed as before.
Pressing the Cruise Control Master
Switch turns the system completely
off and erases the previous cruising
speed.
Press the Cruise Control Master
Switch.
Cruise Control
Comfort and Convenience Features
Cancelling the Cruise Control
97
Main Menu
Table of Contents
98
Main Menu
Before you begin driving your Honda,
youshouldknowwhatgasolineto
use, and how to check the levels of
important fluids. You also need to
know how to properly store luggage
or packages. The information in this
section will help you. If you plan to
add any accessories to your vehicle,
please read the information in this
section first.
.............................Break-in Period . 100
...............................Gasoline Type . 100
.........Service Station Procedures . 101
...............................Fuel Economy . 104
...Accessories and Modifications . 105
.............................Carrying Cargo . 107
.....................General Precautions . 110
Before Driving
Before Driving
99
Main Menu
Help assure your vehicle’s future
reliability and performance by paying
extra attention to how you drive
during the first 600 miles (1,000 km).
During this period:
Avoid full-throttle starts and rapid
acceleration. Do not exceed 5,500
rpm for the first 600 miles (1,000
km) of operation.
Your Honda is designed to operate
on unleaded gasoline with a pump
octane number of 91 or higher. Use
of a lower octane gasoline can cause
occasional metallic knocking noises
in the engine and will result in
decreased engine performance.
In addition, in order to maintain good
performance, fuel economy, and
emissions control, we strongly
recommend, in areas where it is
available, the use of gasoline that
does NOT contain manganese-based
fuel additives such as MMT. Use of
gasoline with these additives may
adversely affect performance, and
cause the Malfunction Indicator
Lamp on your instrument panel to
come on. If this happens, contact
your authorized Honda dealer for
service. For further important fuel-
related information, please refer to
your Quick Start Guide.
Some gasoline today is blended with
oxygenates such as ethanol or
MTBE. Your vehicle is designed to
operate on oxygenated gasoline
containing up to 10 percent ethanol
by volume and up to 15 percent
MTBE by volume. Do not use
gasoline containing methanol.
If you notice any undesirable
operating symptoms, try another
service station or switch to another
brand of gasoline.
Avoidhardbrakingforthefirst
200 miles (300 km).
Do not change the oil until the
scheduled maintenance time.
You should also follow these re-
commendations with an overhauled
or exchanged engine, or when the
brakes are replaced.
Break-in Period, Gasoline Type
Break-in Period Gasoline Type
Before Driving
100
Main Menu
Table of Contents

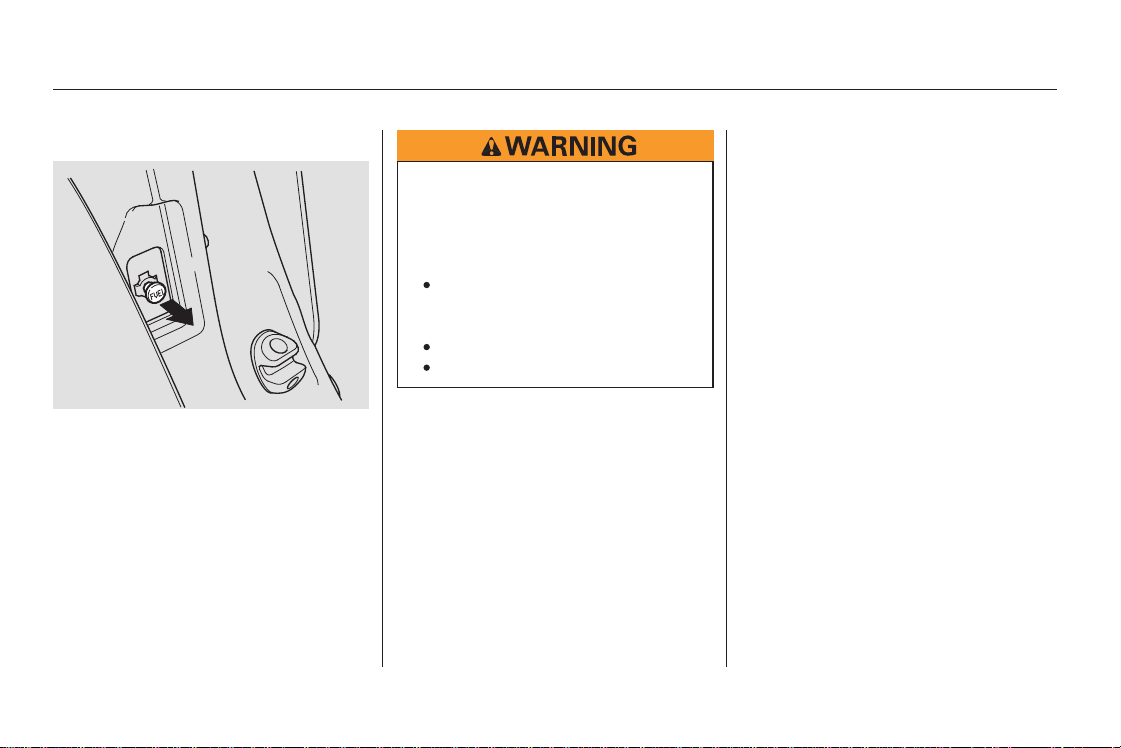

Open the fuel fill door by pulling
on the knob on the driver’s door
jamb.
Stop filling the tank after the fuel
nozzle automatically clicks off. Do
not try to ‘‘top off’’ the tank. Leave
some room for the fuel to expand
with temperature changes.
Remove the fuel fill cap slowly.
You may hear a hissing sound as
pressure inside the tank escapes.
Place the cap in the holder on the
fuel fill door.
even though the tank is not full,
there may be a problem with your
vehicle’s fuel vapor recovery
system. The system helps keep
fuel vapors from going into the
atmosphere. Consult your dealer.
Screw the fuel fill cap back on
until it clicks at least three times.
If you do not properly tighten the
cap, the Malfunction Indicator
Lampmaycomeon(seepage
).
Push the fuel fill door closed until
it latches.
Park with the driver’s side closest
to the service station pump.
1.
2.
3.
4.
5.
6.
167
If the fuel nozzle keeps clicking off
CONTINUED
Service Station Procedure
Before Driving
Refueling
101
Pull
Gasoline is highly flammable
and explosive. You can be
burned or seriously injured
when handling fuel.
Stop the engine and keep
heat, sparks, and flames
away.
Handle fuel only outdoors.
Wipe up spills immediately.
Main Menu
Table of Contents
Park the vehicle, and set the
parking brake. Pull the hood
release handle located under the
lower left corner of the dashboard.
The hood will pop up slightly.
Lift it up slightly to remove the
support rod from the hole. Put the
support rod back into its holding clip.
Lower the hood to about a foot (30
cm) above the fender, then let it
drop. Make sure it is securely
latched.Put your fingers under the front
edge of the hood to the right of
center. Slide your hand to the left
until you feel the hood latch
handle. Push this handle to the left
until it releases the hood. Lift the
hood.
If the hood latch handle moves
stiffly, or if you can open the hood
without lifting the handle, the
mechanism should be cleaned and
lubricated.
Pull the support rod out of its clip
and insert the end into the hole on
the front of the hood around the
center.
1.
2.
3.
Service Station Procedure
Opening the Hood To Close the Hood
Before Driving
102
RELEASE HANDLE
Main Menu
Table of Contents
Wait a few minutes after turning the
engine off before you check the oil.
Remove the dipstick (black
handle).
Wipe the dipstick with a clean
cloth or paper towel.
Insert it all the way back in its hole.
Remove the dipstick again and
check the level. It should be
between the upper and lower
marks.
If it is near or below the lower mark,
see on page .
Look at the coolant level in the
radiator reserve tank. Make sure it is
between the MAX and MIN lines. If
it is below the MIN line, see
on page for
information on adding the proper
coolant.
Refer to
on page for information
on checking other items in your
Honda.
3.
4.
1.
2. 129
132
122
Service Station Procedure
Oil Check
Adding Oil
Engine Coolant Check
Adding
Engine Coolant
Owner’s Maintenance
Checks
Before Driving
103
UPPER MARK
LOWER MARK
DIPSTICK
RESERVE TANK
MAX
MIN
Main Menu
Table of Contents
Try to maintain a constant speed.
Everytimeyouslowdownand
speed up, your vehicle uses extra
fuel.Usethecruisecontrolwhen
appropriate.
Combine several short trips into
one.
The air conditioning puts an extra
load on the engine which makes it
usemorefuel.Usethefresh-air
ventilation when possible.
Always maintain your vehicle
according to the maintenance
schedule. See
on page
.
an underinflated tire
causes more ‘‘rolling resistance,’’
which uses fuel.
The build-up of snow or mud on
your vehicle’s underside adds
weight and rolling resistance.
Frequent cleaning helps your fuel
mileage and reduces the chance of
corrosion.
Drive moderately. Rapid
acceleration, abrupt cornering,
and hard braking use more fuel.
Always drive in the highest gear
possible.
122
For example,
Fuel Economy
Improving Fuel Economy
Owner’s
Maintenance Checks
Before Driving
104
Main Menu
Table of Contents
Modifying your vehicle, or installing
some non-Honda accessories, can
make your vehicle unsafe. Before
you make any modifications or add
anyaccessories,besuretoreadthe
following information.
Your dealer has Honda accessories
that allow you to personalize your
vehicle. These accessories have
been designed and approved for your
vehicle, and are covered by warranty.
When properly installed, cellular
phones, alarms, two-way radios, and
low-powered audio systems should
not interfere with your vehicle’s
computer controlled systems, such
as the SRS and anti-lock brake
system.
Before installing any accessory:
Make sure the accessory does not
obscure any lights, or interfere
with proper vehicle operation or
performance.
Be sure electronic accessories do
not overload electrical circuits
(see page ) or interfere with
proper operation.
Have the installer contact your
Honda dealer for assistance before
installing any electronic accessory.
Although aftermarket accessories
may fit on your vehicle, they may not
meet factory specifications, and
could adversely affect your vehicle’s
handling and stability. (See
‘‘Modifying Your Vehicle’’ on page
for additional information.)
170
106
Before Driving
Accessories
Accessories and Modifications
105
Improper accessories or
modifications can affect your
vehicle’s handling, stability, and
performance, and cause a
crash in which you can be hurt
or killed.
Follow all instructions in this
owner’s manual regarding
accessories and modifications.
Main Menu
Table of Contents
Removing parts from your vehicle,
or replacing components with non-
Honda (aftermarket) components
could seriously affect your vehicle’s
handling, stability, and reliability.
Some examples are:
Lowering the vehicle with an
aftermarket suspension kit that
significantly reduces ground
clearance can allow the
undercarriage to hit speed bumps
or other raised objects, which
could cause the airbags to deploy.
Larger or smaller wheels and tires
can interfere with the operation of
your vehicle’s anti-lock brakes and
other systems.
Do not modify your steering wheel
or any other part of your
Supplemental Restraint System.
Modifications could make the
system ineffective. See the safety
precautions on page .
If you plan to modify your vehicle,
consult your Honda dealer.
Aftermarket wheels, because they
are a universal design, can cause
excessive stress on suspension
components.
Raising your vehicle with an
aftermarket suspension kit can
affect handling and stability.
15
Before Driving
Modifying Your Vehicle
Accessories and Modifications
106
Main Menu
Table of Contents
Your vehicle has several convenient
storage areas:
Door pockets
ConsoleSideNets
However, carrying too much cargo,
or improperly storing it, can affect
your vehicle’s handling, stability,
stopping distance, and tires, and
make it unsafe. Before carrying any
type of cargo, be sure to read the
following pages.
Upper and lower console
compartments
Carrying Cargo
Before Driving
107
UPPER AND LOWER CONSOLE
COMPARTMENTS
TRUNK
DOOR POCKET
CONSOLE SIDE NETS
Main Menu
Table of Contents
×
−
The maximum load limit for your
vehicle is 400 lbs (185 kg). This
figure includes the total weight of all
occupants, cargo, and accessories.
To determine the correct cargo and
luggage load limit:
Locate the statement, ‘‘the
combined weight of occupants and
cargo should never exceed 400 lbs
(185 kg)’’ on your vehicle’s placard
(on the driver’s doorjamb).
Determine the combined weight
of the driver and passenger that
will be riding in your vehicle. (Two
is the seating capacity of your
vehicle.)
Subtract the combined weight of
the driver and passenger from 400
lbs (185 kg).
The resulting figure equals the
available amount of cargo and
luggage load capacity.
For example, if there will be two 150
lbs (70 kg) occupants in your vehicle,
the amount of available cargo and
luggage load capacity is 100 lbs (45
kg).
2 150 lbs (70 kg) = 300 lbs (140
kg)
400 lbs (185 kg) 300 lbs (140 kg) =
100 lbs (45 kg)
Determine the combined weight
of accessories, luggage, and cargo
beingloadedinthevehicle.The
weight may not safely exceed the
available cargo and luggage load
capacity calculated in step 4.
1.
2.
3.
4.
5.
Carrying Cargo
Before Driving
108
Overloading or improper
loading can affect handling and
stability and cause a crash in
which you can be hurt or killed.
Follow all load limits and other
loading guidelines in this
manual.
Main Menu
Table of Contents
Store or secure all items that could
be thrown around and hurt
someone during a crash.
Be sure items placed on the floor
behind the seats cannot roll under
the seats and interfere with the
pedals or vehicle operation.
Distribute cargo evenly on the
floor of the trunk, placing the
heaviest items on the bottom and
as far forward as possible.
Carrying Cargo
Carrying Items in the Passenger
Compartment
Carrying Cargo in the Trunk
Before Driving
109
Main Menu
Table of Contents
Your Honda is designed to give you
optimum handling and performance
on well-maintained roads. As part of
this design, your vehicle has a
minimum of ground clearance, and
very low-profile tires.
Use caution if you ever drive your
vehicleonveryroughorrutted
roads. You could damage the
suspension and underbody by
bottoming out. Going too fast over
parking lot ‘‘speed bumps’’ can
also cause damage. Curbs and steep inclines could
damage the front and rear
bumpers. Low curbs that do not
affect the average vehicle may be
high enough to hit the bumper on
your Honda. The front or rear
bumper may scrape when trying to
drive onto an incline, such as a
steep driveway or trailer ramps.
Because of the low-profile tires
fitted to your vehicle, the alloy
wheels are closer to the ground.
Driving over a pothole or road
debris at too high a speed can
seriously damage a wheel. Slow
down under these conditions.
General Precautions
Before Driving
110
Main Menu
Table of Contents
This section gives you tips on
starting the engine under various
conditions, and how to operate the
manual transmission. It also includes
important information on parking
your vehicle, and the braking system.
........................Preparing to Drive . 112
.......................Starting the Engine . 113
....6-speed Manual Transmission . 114
...........................................Parking . 116
.............................Braking System . 116
...............Anti-lock Brakes (ABS) . 117
...........................Towing a Trailer . 118
Driving
Driving
111
Main Menu
Youshoulddothefollowingchecks
and adjustments before you drive
your vehicle.
Make sure all windows, mirrors,
and outside lights are clean and
unobstructed. Remove frost, snow,
or ice.
Check that the hood and trunk are
fully closed.
Visually check the tires. If a tire
looks low, use a gauge to check its
pressure.
Check that any items you may be
carrying are stored properly or
fastened down securely.
Fasten your seat belt. Check that
your passenger has fastened his or
her seat belt (see page ).
When you start the engine, check
the gauges and indicators in the
instrument panel (see page ).
Check the seat adjustment (see
page ).
Check the adjustment of the
inside and outside mirrors (see
page ).
Make sure the doors are securely
closed and locked.
1.
2.
3.
4.
5.
6.
7.
8.
9.
58
66
12
39
Preparing to Drive
Driving
112
Main Menu
Table of Contents
Apply the parking brake.
In cold weather, turn off all
electrical accessories to reduce
the drain on the battery.
Push the clutch pedal down all the
way. The ENGINE START button
has no effect unless the clutch
pedal is pressed.
Turn the ignition key to the ON
(II) position.
Without touching the accelerator
pedal, push the ENGINE START
button. Do not hold the ENGINE
START button for more than 15
seconds at a time. If the engine
does not start right away, pause
for at least 10 seconds before
trying again.
If the engine does not start within
15 seconds, or starts but stalls
right away, repeat step 5 with the
accelerator pedal pressed halfway
down. If the engine starts, release
pressure on the accelerator pedal
so the engine does not race.
If the engine fails to start, press
the accelerator pedal all the way
downandholdittherewhile
starting to clear flooding. If the
engine still does not start, return
to step 6.
1.
2.
3.
4.
5.
6.
7.
Starting the Engine
Driving
113
NOTICE:
ENGINE START BUTTON
The engine is harder to
start in cold weather. Also, the
thinner air found at altitudes above
8,000 feet (2,400 meters) adds to this
problem.
Main Menu
Table of Contents
The manual transmission is
synchronized in all forward gears for
smooth operation. It has a lockout so
you cannot shift directly from Fifth
to Reverse instead of Sixth (see page
). When shifting up or down,
make sure you push the clutch pedal
down all the way, shift to the next
gear, and let the pedal up gradually.
When you are not shifting, do not
rest your foot on the clutch pedal.
This can cause your clutch to wear
out faster.
Come to a full stop before you shift
into Reverse. You can damage the
transmission by trying to shift into
Reverse with the vehicle moving.
Push down the clutch pedal, and
pause for a few seconds before
shifting into Reverse, or shift into
one of the forward gears for a
moment. This stops the gears so
they won’t ‘‘grind.’’
When slowing down, you can get
extra braking from the engine by
shifting to a lower gear. This extra
braking can help you maintain a safe
speed and prevent your brakes from
overheating while going down a
steep hill. Before downshifting,
make sure engine speed will not go
into the tachometer’s red zone in the
lower gear.
115
6-speed Manual Transmission
Driving
114
Rapid slowing or speeding-up
can cause loss of control on
slippery surfaces. If you crash,
you can be injured.
Use extra care when driving on
slippery surfaces.
Main Menu
Table of Contents
If you exceed the maximum speed
for the gear you are in, the engine
speed will enter into the tachometer’s
red zone. If this occurs, you may feel
the engine cut in and out. This is
caused by a limiter in the engine’s
computer controls. The engine will
run normally when you reduce the
RPM below the red zone.
Before downshifting, make sure the
engine will not go into the
tachometer’s red zone.
The 6-speed manual transmission
has a lockout so you cannot
accidentally shift from Fifth to
Reverse instead of Sixth.
With the clutch pedal pressed, move
theshiftlevertotheReversesideof
the Neutral gate. Then push the shift
lever down, and shift to Reverse.
Shift Up
1st to 2nd
2nd to 3rd
3rd to 4th
4th to 5th
5th to 6th
Normal Acceleration
15 mph (24 km/h)
25 mph (40 km/h)
40 mph (64 km/h)
47 mph (75 km/h)
52 mph (83 km/h)
Drive in the highest gear that lets
the engine run and accelerate
smoothly. This will give you good
fuel economy and effective
emissions control. The following
shift points are recommended:
6-speed Manual Transmission
Recommended Shift Points Engine Speed Limiter Reverse Lockout
Driving
115
Main Menu
Table of Contents
Make sure the convertible top and
windows are closed.
Turn off the lights.
Place any packages, valuables, etc.,
in the trunk or take them with you.
Lock the doors.
Never park over dry leaves, tall
grass, or other flammable
materials. The hot three way
catalytic converter could cause
these materials to catch on fire.
If the vehicle is facing uphill, turn
the front wheels away from the
curb, and put the transmission in
first gear.
If the vehicle is facing downhill,
turn the front wheels toward the
curb, and put the transmission in
reverse gear.
Make sure the parking brake is
fully released before driving away.
Driving with the parking brake
partially set can overheat or
damage the rear brakes.
Your Honda is equipped with disc
brakes at all four wheels. A power
assist helps reduce the effort needed
on the brake pedal. The ABS helps
you retain steering control when
braking very hard.
Resting your foot on the pedal keeps
the brakes applied lightly, builds up
heat, and reduces their effectiveness.
It also keeps your brake lights on all
the time, confusing drivers behind
you.
Constant application of the brakes
when going down a long hill builds
up heat and reduces their effective-
ness. Use the engine to assist the
brakes by taking your foot off the
accelerator and downshifting to a
lower gear.
Always use the parking brake when
you park your vehicle. Make sure
the parking brake is set firmly or
your vehicle may roll if it is on an
incline.
Parking, Braking System
Parking
Parking Tips
Braking System
Driving
116
Main Menu
Table of Contents
Check the brakes after driving
through deep water. Apply the
brakes moderately to see if they feel
normal. If not, apply them gently and
frequently until they do. Be extra
cautious in your driving.
The hydraulic system that operates
the brakes has two separate circuits.
Each circuit works diagonally across
the vehicle (the left-front brake is
connected with the right-rear brake,
etc.). If one circuit should develop a
problem, you will still have braking
at two wheels.
If the brake pads need replacing, you
will hear a distinctive, metallic
screeching sound when you apply
the brake pedal. If you do not have
the brake pads replaced, they will
screech all the time. It is normal for
the brakes to occasionally squeal or
squeak when you apply them.
The Anti-lock Brake System (ABS)
helps prevent the brakes from
locking up and helps you retain
steering control by pumping the
brakes rapidly; much faster than a
person.
Let the ABS work for you by always
keeping firm, steady pressure on the
brake pedal. This is sometimes
referred to as ‘‘stomp and steer.’’
You will feel a pulsation in the brake
pedal when the ABS activates, and
may hear some noise. This is normal:
it is the ABS rapidly pumping the
brakes. On dry pavement, you will
need to press on the brake pedal
very hard before the ABS activates.
However, you may feel the ABS
activate immediately if you are trying
to stop on snow or ice.
You should never pump the brake pedal.
Braking System, Anti-lock Brakes (ABS)
Braking System Design
Brake Wear Indicators
Anti-lock Brakes (ABS)
Driving
117
Front
Main Menu
Table of Contents
If the ABS indicator comes on, the
anti-lock function of the braking
system has shut down. The brakes
still work like a conventional system,
but without anti-lock. You should
have the dealer inspect your vehicle
as soon as possible.
It only helps with the
steering control during braking.
such as trying to take a
corner too fast or making a sudden
lane change.
Always steer moderately
when you are braking hard. Severe
or sharp steering wheel movement
can still cause your vehicle to veer
into oncoming traffic or off the road.
on loose or
uneven surfaces, such as gravel or
snow, than a vehicle without anti-
lock.
Your vehicle is not designed to tow a
trailer. Attempting to do so can void
your warranties.
Anti-Lock Brakes (ABS), Towing a Trailer
ABS Indicator
ABS does not reduce the time or
distance it takes to stop the
vehicle.
ABS will not prevent a skid that
results from changing direction
abruptly,
ABS cannot prevent a loss of
stability.
A vehicle with ABS may require a
longer distance to stop
Towing a Trailer
Important Safety Reminders
Driving
118
ANTI-LOCK BRAKE SYSTEM
INDICATOR
Main Menu
Table of Contents
This section explains why it is
important to keep your vehicle well
maintained and how to follow basic
maintenance safety precautions.
This section also includes
Maintenance Schedules for normal
driving and severe driving conditions,
a Maintenance Record, and instruc-
tions for simple maintenance tasks
you may want to take care of
yourself.
If you have the skills and tools to per-
form more complex maintenance
tasks on your Honda, you may want
to purchase the Service Manual. See
page for information on how to
obtain a copy, or see your Honda
dealer.
......................Maintenance Safety . 120
.................Maintenance Schedule . 121
....................Maintenance Record . 125
..............................Fluid Locations . 128
........................Adding Engine Oil . 129
.........Changing the Oil and Filter . 130
..............................Engine Coolant . 132
........Manual Transmission Fluid . 134
....................Windshield Washers . 134
..........................Differential Fluid . 135
....................................Hood Latch . 135
................Brake and Clutch Fluid . 136
.............................................Lights . 137
.......................................Seat Belts . 143
.....................................Floor Mats . 143
..................Dust and Pollen Filter . 143
.................................Wiper Blades . 144
...............................................Tires . 145
...................Checking the Battery . 151
.............................Vehicle Storage . 152
195
Maintenance
Maintenance
119
Main Menu
All service items not detailed in this
section should be performed by a
Honda technician or qualified
mechanic.
To eliminate potential hazards, read
the instructions before you begin,
and make sure you have the tools
and skills required.
Make sure your vehicle is parked
on level ground, the parking brake
is set, and the engine is off.
To clean parts, use a commercially
available degreaser or parts
cleaner, not gasoline.
To reduce the possibility of fire or
explosion, keep cigarettes, sparks,
and flames away from the battery
and all fuel-related parts.
Be sure
there is adequate ventilation
whenever you operate the
engine.
Let the
engine and exhaust system cool
before touching any parts.
Some of the most important safety
precautions are given here.
However, we cannot warn you of
every conceivable hazard that can
arise in performing maintenance.
Only you can decide whether or
not you should perform a given
task.
Wear eye protection and
protective clothing when working
with the battery or compressed air. Do
not run the engine unless
instructed to do so.
Maintenance Safety
Maintenance
Important Safety Precautions
Potential Vehicle Hazards
Carbon Monoxide poison
from engine exhaust.
Burns from hot parts.
Injury from moving parts.
120
Improperly maintaining this
vehicle or failing to correct a
problem before driving can
cause a crash in which you can
be seriously hurt or killed.
Always follow the inspection,
maintenance recommendations,
and schedules in this owner’s
manual.
Failure to properly follow
maintenance instructions and
precautions can cause you to
be seriously hurt or killed.
Always follow the procedures
and precautions in this owner’s
manual.
Main Menu
Table of Contents
−
−
The maintenance schedule assumes
you will use your vehicle as normal
transportation for your passenger
and possessions. You should also
follow these recommendations:
Avoid exceeding your vehicle’s
load limit. This puts excess stress
on the engine, brakes, and many
other vehicle parts. The load limit
is shown on the tire information
label on the driver’s doorjamb.
Operate your vehicle on
reasonable roads within legal
speed limits.
Drive your vehicle regularly over a
distance of several miles
(kilometers).
Always use unleaded gasoline with
theproperoctanerating(seepage
).
Service your vehicle according to the
time and mileage periods on one of
the Maintenance Schedules on the
following pages.
Follow the
Maintenance Schedule for Severe
Conditions if you drive your vehicle
MAINLY under one or more of the
following conditions.
Driving less than 5 miles (8 km)
per trip or, in freezing
temperatures, driving less than 10
miles (16 km) per trip.
Driving in extremely hot [over
90°F (32°C)] conditions.
Used primarily as a delivery
vehicle or taxi that is driven
mostly in stop-and-go traffic and/
or parked with the engine idling.
Driving in mountainous conditions.
Driving on muddy, dusty, or de-
iced roads.
If you only
drive under a ‘‘severe’’ condition, you
should follow the Normal Conditions
Maintenance Schedule.
Follow the
Maintenance Schedule for Severe
Conditions.
100
OCCASIONALLY
Maintenance Schedule
Maintenance
Which Schedule to Follow
U.S. Owners
Canadian Owners
121
NOTE:
Main Menu
Table of Contents
＃
−
−
−
−
−
Your authorized Honda dealer
knows your vehicle best and can
provide competent, efficient service.
However, service at a dealer is not
mandatory to keep your warranties
in effect. Maintenance may be done
by any qualified service facility or
skilled person to keep your
warranties in effect. Keep all the
receipts as proof of completion, and
have the person who does the work
fill out the Maintenance Record.
Check your warranty booklet for
more information.
We recommend the use of Honda
parts and fluids whenever you have
maintenance done.
U.S. Vehicles:
According to state and federal
regulations, failure to perform
maintenance on the items marked
with will not void your emissions
warranties. However, Honda
recommends that all maintenance
services be performed at the
recommended time or mileage
period to ensure long-term reliability.
Youshouldcheckthefollowing
items at the specified intervals. If
you are unsure of how to perform
any check, turn to the appropriate
page listed.
Engine oil level Check every
time you fill the fuel tank. See
page .
Engine coolant level Check the
radiator reserve tank every time
you fill the fuel tank. See page .
Brakes Check the fluid level
monthly. See page .
Tires Check the tire pressure
monthly. Examine the tread for
wear and foreign objects. See page
.
Lights Check the operation of
the headlights, parking lights,
taillights, high-mount brake light,
and license plate lights monthly.
See page .
103
103
136
145
137
Maintenance Schedule
Maintenance
Servicing Your Vehicle
Maintenance, replacement, or
repair of emissions control
devices and systems may be done
by any automotive repair
establishment or individual using
parts that are ‘‘certified’’ to EPA
standards.
Owner’s Maintenance Checks
122
Main Menu
Table of Contents
＃
＃
＃
Maintenance
123
Check oil and coolant at each fuel stop
Every 7,500 miles (12,000 km) or every 1 year, whichever comes first
Every 7,500 miles (12,000 km)
Service the items listed at the indicated distance (or time, if given).
miles x 1,000
km x 1,000
Check inflation and condition once a month
Check engine oil and coolant
Check tires
Replace engine oil
Check tires inflation and condition
Replace engine oil filter
Check front and rear brakes
Check parking brake adjustment
Inspect the following items:
Tie-rod ends, steering gearbox, and boots
Suspension components
Driveshaft boots
Brake hoses and lines (including ABS)
All fluid levels and condition of fluids
Exhaust system
Fuel lines and connections
Inspect drive belts
Replace dust and pollen filter
Replace air cleaner element
Replace spark plugs
Inspect valve clearance
Replace manual transmission fluid
Replace rear differential fluid
Inspect idle speed
Replace engine coolant
Replace brake fluid
((OOtthheerrwwiissee aaddjjuusstt oonnllyy iiff nnooiissyy))
((OOrr eevveerryy 88 yyeeaarrss,, wwhhiicchheevveerr ccoommeess ffiirrsstt))
Inspect every 105,000 miles (168,000 km)
((OOrr eevveerryy 22 yyeeaarrss,, wwhhiicchheevveerr ccoommeess ffiirrsstt))
((OOrr eevveerryy 22 yyeeaarrss,, wwhhiicchheevveerr ccoommeess ffiirrsstt))
At 120,000 miles (192,000 km) or 10 years, then every 60,000 miles (96,000 km) or 5 years
Every 3 years (independent of mileage)
((OOrr eevveerryy 11 yyeeaarr,, wwhhiicchheevveerr ccoommeess ffiirrsstt))
15
24
30
48
45
72
60
96
75
120
90
144
105
168
120
192
135
216
150
240
See information on maintenance and emissions warranty, middle column, page .: 122
Maintenance Schedule for Normal Conditions
Main Menu
Table of Contents
＊
＃
＃
＃
＊
Maintenance
124
Service the items listed at the indicated distance (or time, if given).
miles x 1,000
km x 1,000
Check oil and coolant at each fuel stop
Check inflation and condition once a month
Every 3,750 miles (6,000 km) or every 6 months, whichever comes first
Every 7,500 miles (12,000 km)
Every 15,000 miles (24,000 km) (Use normal schedule except in dusty conditions)
((OOrr eevveerryy 11 yyeeaarr,, wwhhiicchheevveerr ccoommeess ffiirrsstt))
((OOrr eevveerryy 22 yyeeaarrss,, wwhhiicchheevveerr ccoommeess ffiirrsstt))
((OOtthheerrwwiissee aaddjjuusstt oonnllyy iiff nnooiissyy))
((OOrr eevveerryy 11 yyeeaarr,, wwhhiicchheevveerr ccoommeess ffiirrsstt))
30
48
15
24
45
72
((OOrr eevveerryy 44 yyeeaarrss,, wwhhiicchheevveerr ccoommeess ffiirrsstt))
60
96
75
120
90
144
105
168
120
192
135
216
150
240
Inspect every 105,000 miles (168,000 km)
At 120,000 miles (192,000 km) or 10 years, then every 60,000 miles (96,000 km) or 5 years
Every 3 years (independent of mileage)
Check engine oil and coolant
Check tires
Replace engine oil and oil filter
Check tires inflation and condition
Check front and rear brake
Inspect the following items:
Tie-rod ends, steering gearbox, and boots
Suspension components
Driveshaft boots
Check parking brake adjustment
Lubricate all hinges, locks, and latches
Inspect the following items:
Brake hoses and lines (including ABS)
All fluid levels and condition of fluids
Exhaust system
Fuel lines and connections
Lights and controls, Vehicle underbody
Inspect drive belts
Replace dust and pollen filter
Replace air cleaner element
Replace spark plugs
Inspect valve clearance
Replace manual transmission fluid
Replace rear differential fluid
Inspect idle speed
Replace engine coolant
Replace brake fluid
See dust and pollen filter on page for replacement information under special driving conditions.
Every 7,500 miles (12,000 km) or every 6 months, whichever comes first
See information on maintenance and emissions warranty, middle column, page .
1:
:
143
122
1
Maintenance Schedule for Severe Conditions
Main Menu
Table of Contents
(for Normal and Severe Schedules)
CONTINUED
Maintenance Record
Maintenance
125
3,750 mi
7,500 mi
11,250 mi
15,000 mi
18,750 mi
22,500 mi
26,250 mi
30,000 mi
33,750 mi
37,500 mi
41,250 mi
45,000 mi
48,750 mi
52,500 mi
56,250 mi
60,000 mi
6,000 km
12,000 km
18,000 km
24,000 km
30,000 km
36,000 km
42,000 km
48,000 km
Signature or dealer stamp mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
54,000 km
60,000 km
66,000 km
72,000 km
78,000 km
84,000 km
90,000 km
96,000 km
Signature or dealer stamp mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
You or the servicing dealer can record all completed maintenance here, whether you follow the schedule for normal conditions (page ) or severe
conditions (page ). Keep the receipts for all work done on your vehicle.
123
124
Main Menu
Table of Contents
(for Normal and Severe Schedules)
Maintenance Record
Maintenance
126
63,750 mi
67,500 mi
71,250 mi
75,000 mi
78,750 mi
82,500 mi
86,250 mi
90,000 mi
93,750 mi
97,500 mi
101,250 mi
105,000 mi
108,750 mi
112,500 mi
116,250 mi
120,000 mi
102,000 km
108,000 km
114,000 km
120,000 km
126,000 km
132,000 km
138,000 km
144,000 km
Signature or dealer stamp mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
150,000 km
156,000 km
162,000 km
168,000 km
174,000 km
180,000 km
186,000 km
192,000 km
Signature or dealer stamp mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
Main Menu
Table of Contents
(for Normal and Severe Schedules)
Maintenance Record
Maintenance
127
123,750 mi
127,500 mi
131,250 mi
135,000 mi
138,750 mi
142,500 mi
146,250 mi
150,000 mi
Signature or dealer stamp mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
198,000 km
204,000 km
210,000 km
216,000 km
222,000 km
228,000 km
234,000 km
240,000 km
Main Menu
Table of Contents

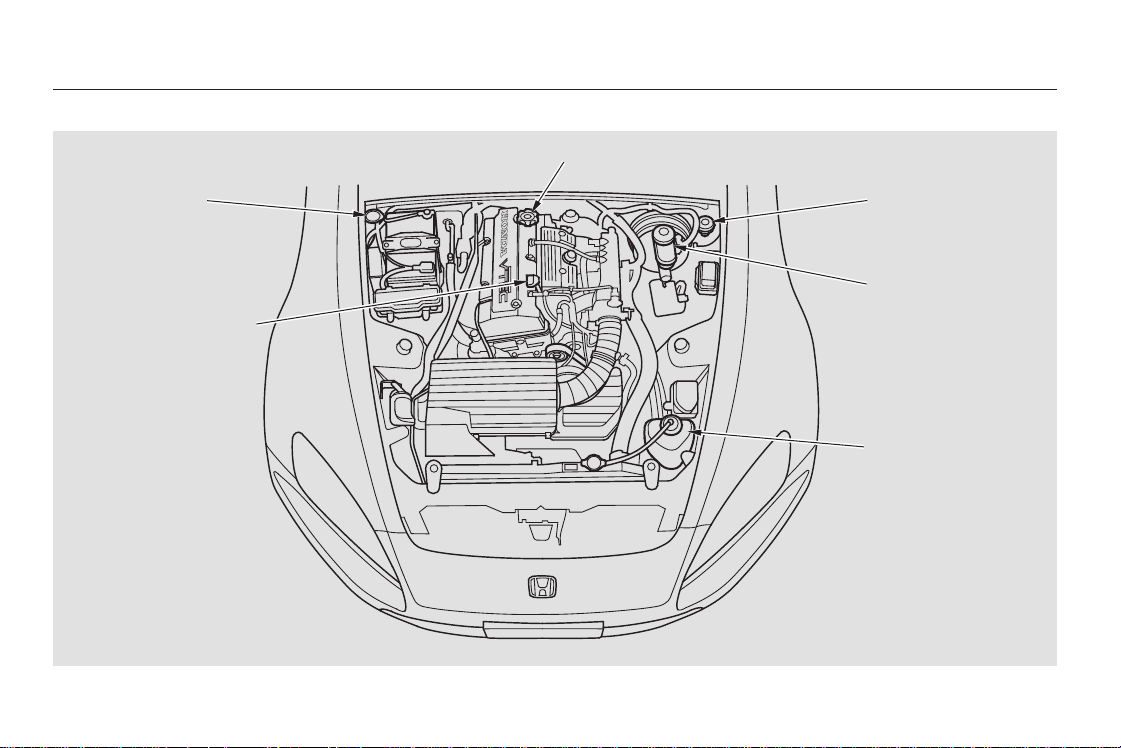

Fluid Locations
Maintenance
128
WASHER FLUID
(Blue cap)
ENGINE OIL DIPSTICK
ENGINE OIL FILL CAP
CLUTCH FLUID
(Gray cap)
BRAKE FLUID
(Gray cap)
COOLANT RESERVOIR
Main Menu
Table of Contents
CONTINUED
Unscrew and remove the engine oil
fill cap on top of the valve cover.
Pour in the oil slowly and carefully so
you do not spill. Clean up any spills
immediately. Spilled oil could
damage components in the engine
compartment. Install the engine oil
fill cap, and tighten it securely. Wait
a few minutes, and recheck the oil
level. Do not fill above the upper
mark; you could damage the engine.
Make sure the API Certification Seal
says ‘‘For Gasoline Engines’’.Oil is major contributor to your
engine’s performance and longevity.
Always use a premium-grade
detergent oil displaying the API
Certification Seal. This seal indicates
the oil is energy conserving, and that
it meets the American Petroleum
Institute’s latest requirements. It is
highly recommended that you use
Honda motor oil in your vehicle for
as long as you own it.
Adding Engine Oil
Maintenance
Recommended Engine Oil
129
API CERTIFICATION SEAL
Main Menu
Table of Contents
−
The oil’s viscosity or weight is
provided on the container’s label.
Select the oil for your vehicle
according to this chart.
An oil with a viscosity of 10W-30 is
preferred for optimum fuel economy
and year-round protection in your
Honda. You may use a 5W-40 oil if
the temperature in your area goes
below 0°F ( 20°C).
You may use a synthetic motor oil if
it meets the same requirements
given for a conventional motor oil: it
displays the API Certification Seal
and it is the proper weight. You must
follow the oil and filter change
intervals given on the maintenance
schedule.
Your Honda does not require any oil
additives. Additives may adversely
affect your engine’s or transmission’s
performance and durability.
Always change the oil and filter
according to the recommendations in
the maintenance schedule. The oil
and filter collect contaminants that
can damage your engine if they are
not removed regularly.
Changing the oil and filter requires
special tools and access from
underneath the vehicle. The vehicle
should be raised on a service station-
type hydraulic lift for this service.
Unless you have the knowledge and
proper equipment, you should have
this maintenance done by a skilled
mechanic.
Run the engine until it reaches
normal operating temperature,
then shut it off.
1.
Adding Engine Oil, Changing the Oil and Filter
Maintenance
Synthetic Oil
Engine Oil Additives
Changing the Oil and Filter
130
Ambient Temperature
Main Menu
Table of Contents
CONTINUED
Remove the oil filter, and let the
remaining oil drain. A special
wrench (available from your
Honda dealer) is required.
Install a new oil filter according to
the instructions that come with it.
Put a new washer on the drain bolt,
then reinstall the drain bolt.
Tighten it to:
Refill the engine with the
recommended oil.
Engine oil change capacity
(including filter):
Let the engine run for several
minutes, then check the drain bolt
and oil filter for leaks.
Open the hood, and remove the
engine oil fill cap. Remove the oil
drain bolt and washer from the
bottom of the engine. Drain the oil
into an appropriate container.
Install the engine oil fill cap. Start
the engine. The oil pressure
indicator should go out within 5
seconds. If it does not, turn off the
engine and check your work.
2.
4.
3.
5.
6.
7.
8.
Changing the Oil and Filter
Maintenance
131

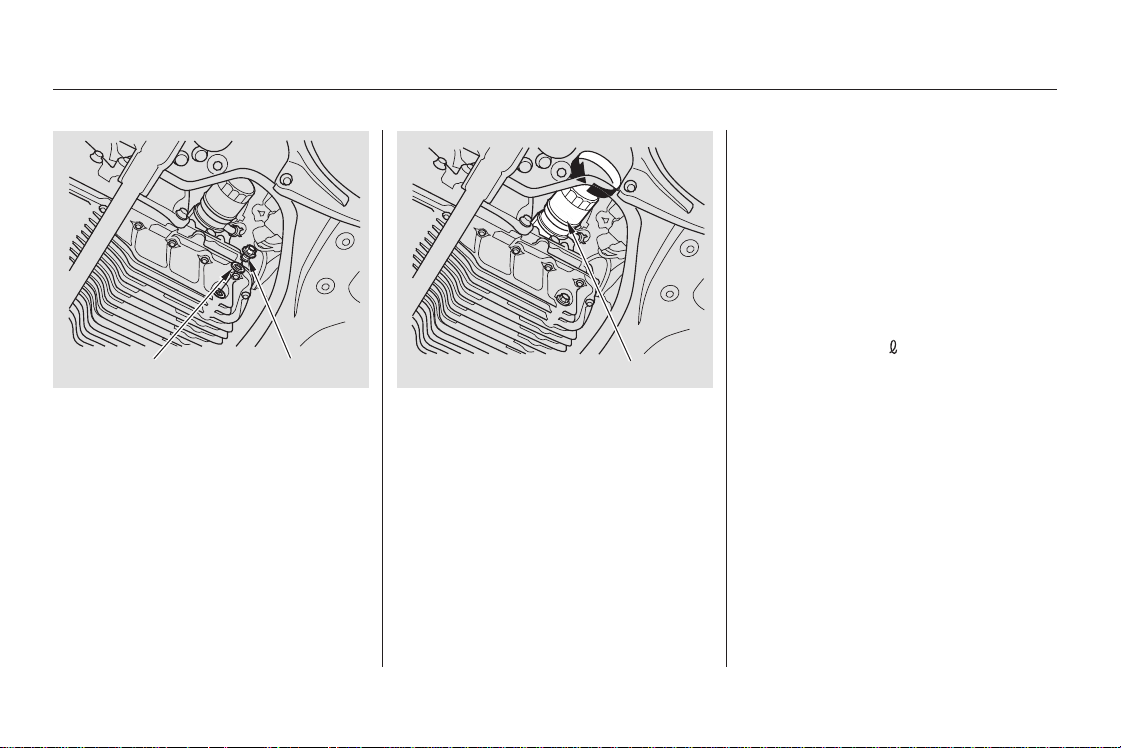

WASHER OIL DRAIN BOLT
OIL FILTER
33 lbf·ft (45 N·m , 4.6 kgf·m)
5.1 US qt (4.8
)
Main Menu
Table of Contents
Turn off the engine and let it sit
for several minutes, then check
the oil level on the dipstick. If
necessary, add more oil.
If the coolant level in the reserve
tank is at or below the MIN line, add
coolant to bring it up to the MAX line.
Inspect the cooling system for leaks.
If Honda antifreeze/coolant is not
available, you may use another
major-brand non-silicate coolant as a
temporaryreplacement.Makesureit
is a high-quality coolant
recommended for aluminum engines.
Continued use of any non-Honda
coolant can result in corrosion,
causing the cooling system to
malfunction or fail. Have the cooling
system flushed and refilled with
Honda antifreeze/coolant as soon as
possible.
Always use Honda All Season
Antifreeze/Coolant Type 2. This
coolant is pre-mixed with 50 percent
antifreeze and 50 percent water.
Never add straight antifreeze or
plain water.
9.
Changing the Oil and Filter, Engine Coolant
Maintenance
Adding Engine Coolant
132
NOTICE:
RESERVE TANK
MAX MIN
Improper disposal of engine
oil can be harmful to the environment.
If you change your own oil, please
dispose of the used oil properly. Put it
in a sealed container, and take it to a
recycling center. Do not discard it in a
trash bin or dump it on the ground.
Main Menu
Table of Contents
If the reserve tank is completely
empty, you should also check the
coolant level in the radiator.
When the radiator and engine are
cool, relieve any pressure in the
cooling system by turning the
radiator cap counterclockwise,
without pressing down.
Remove the radiator cap by
pushing down and turning
counterclockwise.
The coolant level should be up to
the base of the filler neck. Add
coolant if it is low.
Pour the coolant slowly and
carefully so you do not spill. Clean
up any spill immediately; it could
damage components in the engine
compartment.
Put the radiator cap on, and
tighten it fully.
Pour coolant into the reserve tank.
Fill it to halfway between the MAX
and MIN marks. Put the cap back
on the reserve tank.
Do not add any rust inhibitors or
other additives to your vehicle’s
cooling system. They may not be
compatible with the coolant or
engine components.
2.
3.
4.
5.
1.
Engine Coolant
Maintenance
133
RADIATOR CAP
Removing the radiator cap
while the engine is hot can
cause the coolant to spray out,
seriously scalding you.
Always let the engine and
radiator cool down before
removing the radiator cap.
Main Menu
Table of Contents
If Honda MTF is not available, you
may use an SAE 10W-30 or 10W-40
viscosity motor oil with the API
Certification seal that says ‘‘FOR
GASOLINE ENGINES’’ as a
temporary replacement. However,
motor oil does not contain the proper
additives, and continued use can
cause stiffer shifting. Replace as
soon as it is convenient.
The transmission should be drained
and refilled with new fluid according
to the time and distance recommen-
dations in the maintenance schedule.
Check the fluid level in the
windshield washer reservoir at least
monthly during normal use.
Fill the reservoir with a good-quality
windshield washer fluid. This
increases the cleaning capability and
prevents freezing in cold weather.
When you refill the reservoir, clean
the edges of the windshield wiper
blades with windshield washer fluid
on a clean cloth. This will help to
condition them.

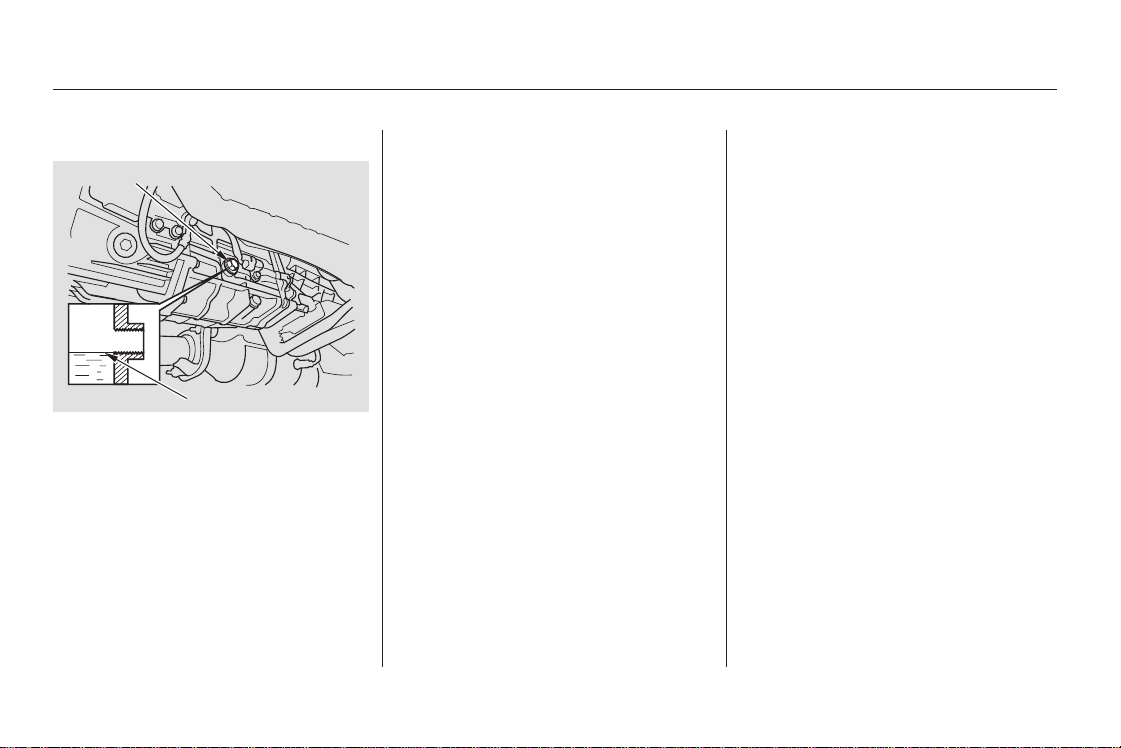

Check the fluid level with the
transmission at normal operating
temperature and the vehicle sitting
on level ground. Remove the
transmission filler bolt, and carefully
feel inside the bolt hole with your
finger. The fluid level should be up
to the edge of the bolt hole. If it is
not, add Honda Manual
Transmission Fluid (MTF) until it
starts to run out of the hole. Install
the filler bolt, and tighten it securely.
Manual Transmission Fluid, Windshield Washers
Maintenance
Windshield WashersManual Transmission Fluid
134
NOTICE:
CORRECT LEVEL
FILLER BOLT
Do not use engine antifreeze
or a vinegar/water solution in the
windshield washer reservoir. Antifreeze
can damage your vehicle’s paint, while
a vinegar/water solution can damage
the windshield washer pump. Use only
commercially available windshield
washer fluid.
Main Menu
Table of Contents
Use an SAE 90 viscosity hypoid gear
oil, API service classified GL5 or
GL6 only.
Put a new washer on the filler bolt,
then reinstall the filler bolt. Tighten
it securely. Tightening torque:
The differential should be drained
and refilled with new fluid according
to the time and distance recommen-
dations in the maintenance schedule.
Clean the hood latch assembly with a
mild cleaner, then lubricate it with a
multipurpose grease. Lubricate all
the moving parts (as shown),
including the pivot. Follow the time
and distance recommendations in
the Maintenance Schedule. If you
are not sure how to clean and grease
the latch, contact your Honda dealer.
Check the fluid level with the
differential at normal operating
temperature and the vehicle sitting
on level ground. Remove the
differential fluid filler bolt and
washer, and carefully feel inside the
bolt hole with your finger. The fluid
level should be up to the edge of the
bolt hole. If it is not, slowly add fluid
until it starts to run out of the hole.
Differential Fluid, Hood Latch
Maintenance
Hood LatchDifferential Fluid
135
CORRECT LEVEL
FILLER BOLT
PIVOTS
33 lbf·ft (45 N·m , 4.6 kgf·m)
Main Menu
Table of Contents
Check the brake fluid level in the
reservoirs monthly.
Always use Honda Heavy Duty
Brake Fluid DOT 3. If it is not
available, you should use only DOT 3
or DOT 4 fluid, from a sealed
container, as a temporary
replacement.
Using any non-Honda brake fluid can
cause corrosion and decrease the life
of the system. Have the brake
system flushed and refilled with
Honda Heavy Duty Brake Fluid
DOT 3 as soon as possible.
Brake fluid marked DOT 5 is not
compatible with your vehicle’s
braking system and can cause
extensive damage.
The fluid level should be between
theMINandMAXmarksontheside
of the reservoir. If the level is at or
below the MIN mark, your brake
system needs attention. Have the
brake system inspected for leaks or
worn brake pads.
The fluid level should be between
theMINandMAXmarksontheside
of the reservoir. If it is not, add
brake fluid to bring it up to that level.
Use the same fluid specified for the
brake system.
Low fluid level can indicate a leak in
the clutch system. Have this system
inspected as soon as possible.
Replace the brake fluid according to
the time recommendation in the
maintenance schedule.
Brake and Clutch Fluid
Maintenance
Brake System Clutch System
136
MAX
MIN
MAX
MIN
Main Menu
Table of Contents
CONTINUED
Theheadlightswereproperlyaimed
when your vehicle was new. If you
regularly carry heavy items in the
trunk, readjustment may be required.
Adjustments should be performed by
a Honda dealer or other qualified
mechanic.
The low beam headlight bulbs are a
type of high voltage discharge tube.
High voltage can remain in the
circuit even with the light switch off
and the key removed. Because of
this, you should not attempt to
examine or change a low beam
headlight bulb yourself. If a low
beam headlight bulb fails, take the
vehicle to your dealer to have it
replaced.
Halogen bulbs are used for the high
beam headlight bulbs. When
replacing a high beam headlight bulb,
handle it by its base, and protect the
glass from contact with your skin or
hard objects. If you touch the glass,
clean it with denatured alcohol and a
clean cloth.
Lights
Maintenance
Headlight Aiming Replacing a Headlight Bulb
137
NOTICE: Halogen headlight bulbs get
very hot when lit. Oil, perspiration, or a
scratch on the glass can cause the bulb
to overheat and shatter.
Main Menu
Table of Contents

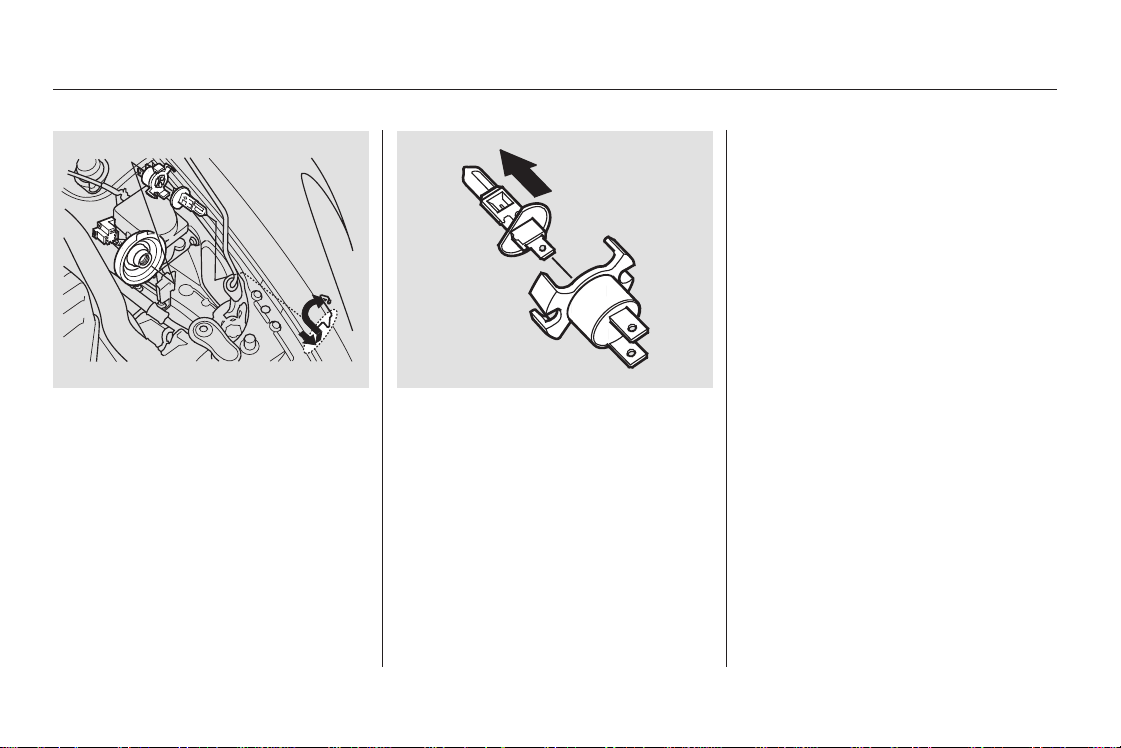

Open the hood.
If you need to change the high
beam headlight bulb on the left
side, remove the coolant reserve
tank from its holder by pulling it
straight up.
Remove the electrical connector
from the bulb by squeezing the
connector to unlock the tab, then
slide the connector off the bulb.
Remove the rubber weather seal
by pulling on the tab.
Unclip the end of the hold-down
wire from its slot. Pivot it out of
the way, and remove the bulb
socket.
Pull the bulb straight out of its
socket.
Push the new bulb straight into
the socket until it bottoms.
Insert the socket back into the
headlight assembly. Make sure
the bulb is installed correctly by
looking through the headlight lens.
The pins on the base of the bulb
should fit in the holes in the
headlight assembly. Pivot the hold-
down wire back in place, and clip
the end into the slot.
Install the rubber seal over the
back of the headlight assembly.
Push the electrical connector onto
the new bulb. Turn on the
headlights to test the new bulb.
(Left side)
Reinstall the radiator reserve tank.
1.
2.
3.
4.
5.
6.
7.
8.
9.
Lights
Maintenance
138
Main Menu
Table of Contents

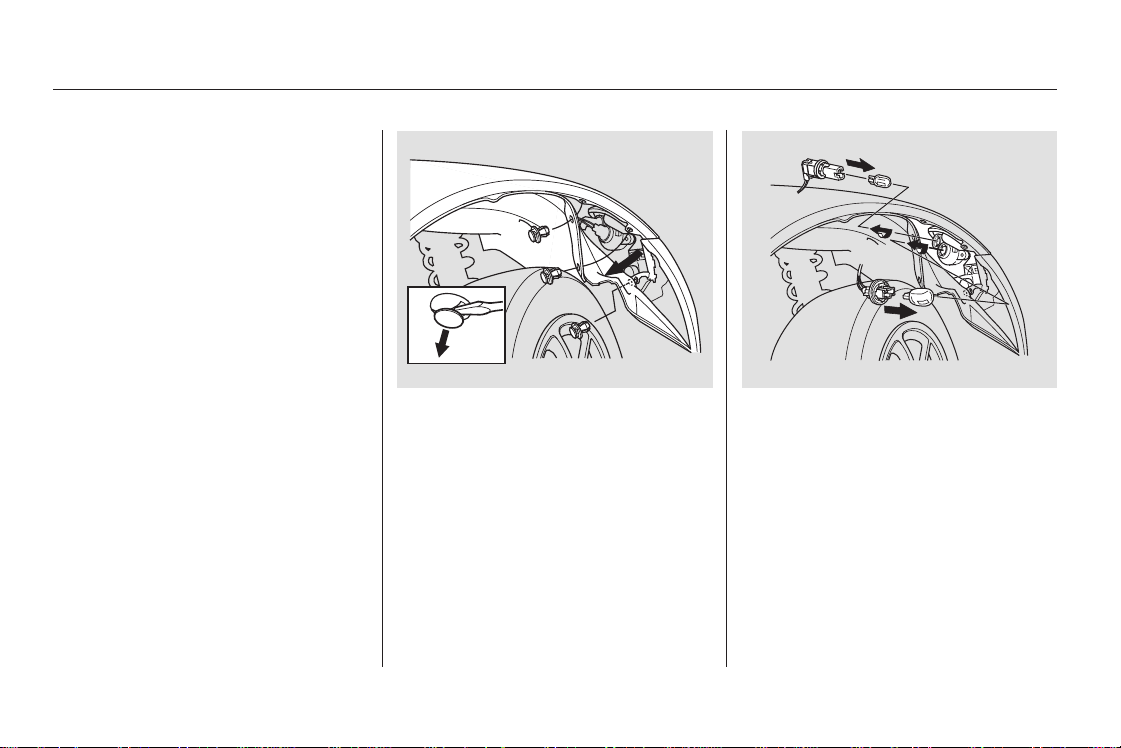

If you are changing the bulb on
the driver’s side, start the engine,
turn the steering wheel all the way
to the right, then turn off the
engine. If you are changing the
bulb on the passenger’s side, turn
the steering wheel to the left.
Use a flat-tipped screwdriver to
remove the three holding clips
from the inner fender.
Pull the inner fender cover back.
Remove the socket from the
headlight assembly by turning it
one-quarter turn counterclockwise.
Pull the bulb straight out of its
socket.
Insert the socket back into the
headlight assembly. Turn it
clockwise to lock it in place.
Install the new bulb in the socket.
Put the inner fender cover in place.
Install the three holding clips.
Lock each clip in place by pushing
on the center.
Testthelightstomakesurethe
new bulb is working.
1.
2.
3.
4.
5.
6.
7.
8.
9.
Replacing Front Turn Signal and
Side Marker Light Bulbs
Lights
Maintenance
139
Main Menu
Table of Contents
Use a small flat-tipped screwdriver
to pry carefully on the back edge
of the side turn signal assembly
until it pops out of the body.
Turn the bulb holder one-quarter
turn counterclockwise to remove it
from the lens.
Pull the bulb straight out of its
socket.
Push the new bulb straight into
the socket until it bottoms.
Put the bulb holder back into its
hole in the lens, and turn it
clockwise until it locks.
Put the side turn signal assembly
back into the body, front first.
Push on the back edge until it
snaps into place.
Testthelightstomakesurethe
new bulb is working.
1.
2.
3.
4.
5.
6.
Lights
Maintenance
Replacing a Side Turn Signal Bulb
140
Main Menu
Table of Contents

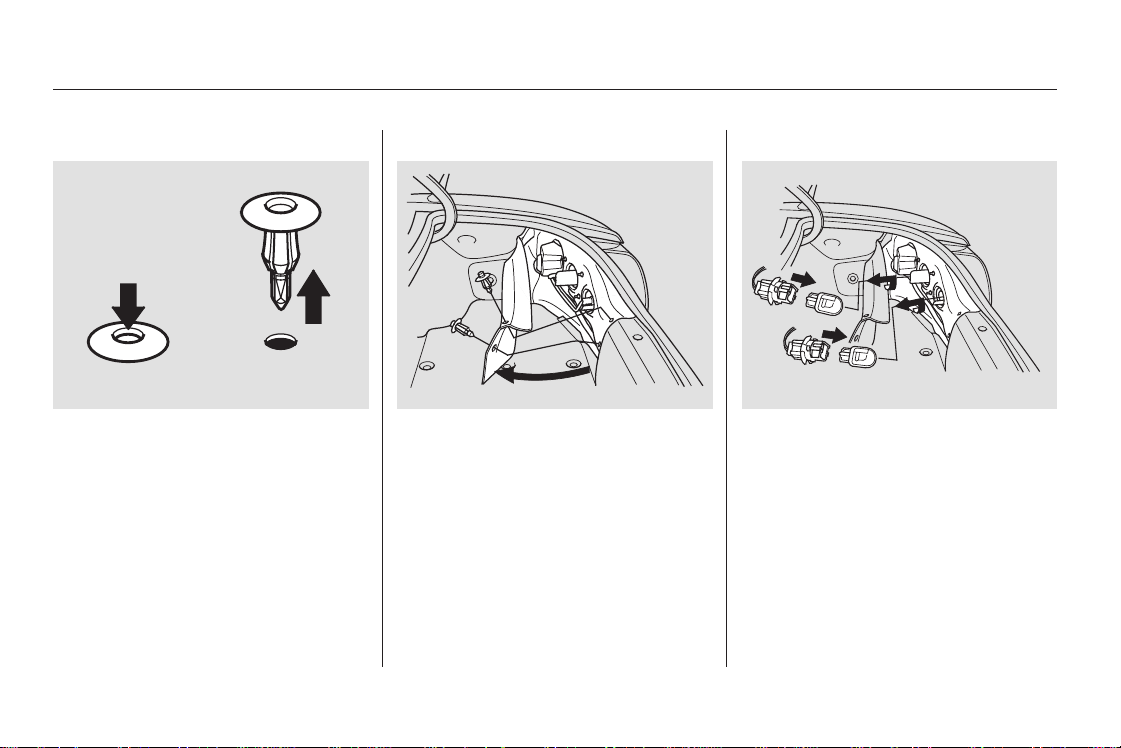

Open the trunk.
Remove the fasteners from the
trunk lining. To remove a fastener,
push on the center of the head
until it pops in, then pull the
fastener out.
Pull the lining back.
Remove the socket by turning it
one-quarter turn counterclockwise.
Remove the burned out bulb by
pulling it straight out of its socket.
Determine which bulb is burned
out: turn signal or back-up light.
1.
2.
3.
4. 5.
6.
CONTINUED
Lights
Maintenance
Replacing Rear Bulbs
141
Main Menu
Table of Contents
Install the new bulb into the
socket.
Push the socket into the light
assembly, and turn it clockwise
until it locks.
Testthelightstomakesurethe
new bulb is working.
Install the trunk lining, and secure
it with the fasteners. To reinstall a
fastener, reset the fastener by
pushing on the pointed end until it
pops back almost flush with the
fingers on the housing. Put the
fastener in the hole of the trunk
lining, and push on the center until
it locks (the center is flush with
the head).
7.
8.
9.
10.
Lights
Maintenance
142
Main Menu
Table of Contents
If your seat belts get dirty, use a soft
brush with a mixture of mild soap
and warm water to clean them. Do
not use bleach, dye, or cleaning
solvents. Let the belts air-dry before
you use the vehicle.
Dirt build-up in the loops of the seat
belt anchors can cause the belts to
retract slowly. Wipe the insides of
the loops with a clean cloth
dampened in mild soap and warm
water or isopropyl alcohol.
The driver’s floor mat that came
with your vehicle hooks over the
floor mat anchor. This keeps the
floor mat from sliding forward and
possibly interfering with the pedals.
If you remove the driver’s floor mat,
make sure to re-anchor it when you
putitbackinyourvehicle.
If you use a non-Honda floor mat,
make sure it fits properly and that it
canbeusedwiththefloormat
anchor. Do not put additional floor
mats on top of the anchored mat.
This filter removes the dust and
pollenthatisbroughtinfromthe
outside through the heating and
cooling system.
Have your Honda dealer replace this
filter every 30,000 miles (48,000 km)
under normal conditions. It should
be replaced every 15,000 miles
(24,000 km) if you drive primarily in
urban areas that have high
concentrations of soot in the air, or if
the airflow from the heating and
cooling system becomes less than
usual.
Seat Belts, Floor Mats, Dust and Pollen Filter
Maintenance
Seat Belts Floor Mats
Dust and Pollen Filter
143
Main Menu
Table of Contents
Check the condition of the wiper
blades at least every six months.
Replace them if you find signs of
cracking in the rubber, areas that are
getting hard, or if they leave streaks
and unwiped areas when used.
Raise the wiper arm off the
windshield.

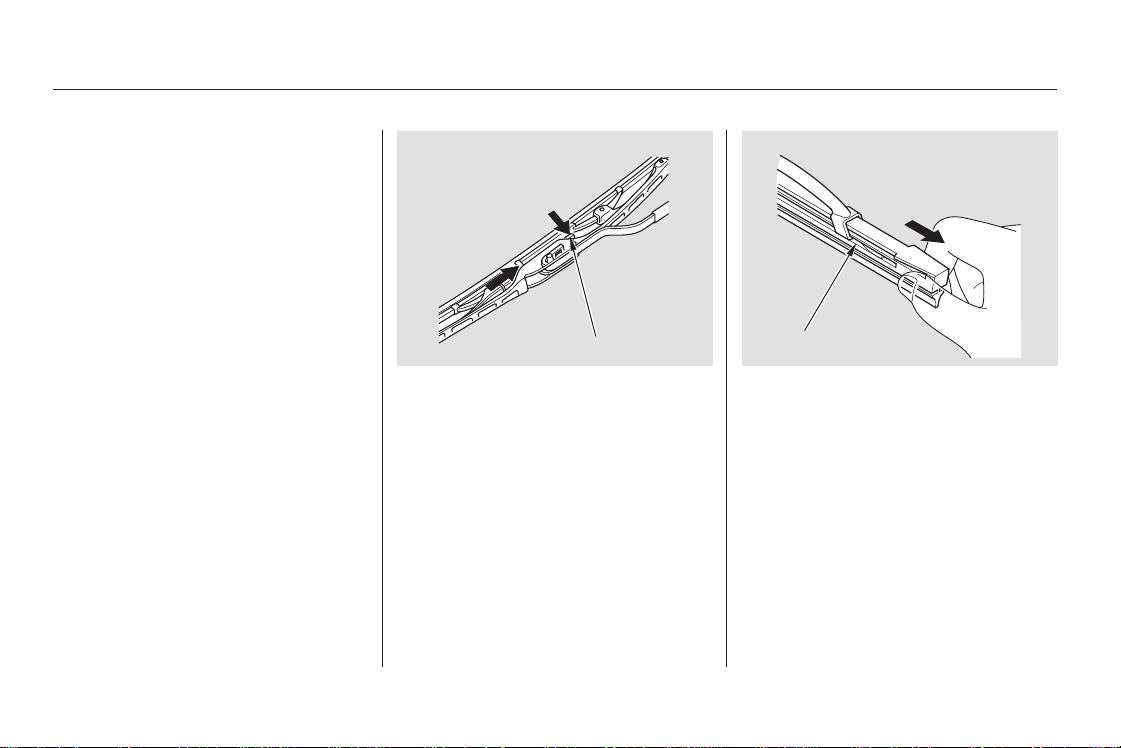

Disconnect the blade assembly
fromthewiperarmbypushingin
the lock tab. Hold the lock tab in
while you push the blade assembly
toward the base of the arm.
Remove the blade from its holder
by grasping the tabbed end of the
blade. Pull firmly until the tabs
come out of the holder.
1.
2. 3.
Windshield Washers
Maintenance
144
LOCK TAB
BLADE
Main Menu
Table of Contents
Examine the new wiper blades. If
they have no plastic or metal
reinforcement along the back
edge, remove the metal
reinforcement strips from the old
wiper blade, and install them in
the slots along the edge of the new
blade.
Slide the new wiper blade into the
holder until the tabs lock.
Slide the wiper blade assembly
onto the wiper arm. Make sure it
locks in place.
Lower the wiper arm down against
the windshield.
To safely operate your vehicle, your
tires must be the proper type and
size, in good condition with adequate
tread, and correctly inflated.
The following pages give more
detailed information on how to take
care of your tires and what to do
when they need to be replaced.
4.
5.
6.
7.
Tires
Wiper Blades, Tires
Maintenance
145
REINFORCEMENT
BLADE
Using tires that are excessively
worn or improperly inflated can
cause a crash in which you can
be seriously hurt or killed.
Follow all instructions in this
owner’s manual regarding tire
inflation and maintenance.
Main Menu
Table of Contents
Keeping the tires properly inflated
provides the best combination of
handling, tread life, and riding
comfort.
Underinflated tires wear unevenly,
adversely affect handling and fuel
economy, and are more likely to
fail from being overheated.
Overinflated tires can make your
vehicleridemoreharshly,are
more prone to damage from road
hazards, and wear unevenly.
We recommend that you visually
check your tires every day. If you
think a tire might be low, check it
immediately with a tire gauge.
Thecompactsparetirepressureis:
For convenience, the recommended
tire sizes and cold air pressures are
on a label on the driver’s doorjamb.
For additional technical information,
see page .
Tire pressure for high speed driving
is the same as for normal driving.
Use a gauge to measure the air
pressure at least once a month. Even
tires that are in good condition may
lose one to two psi (10 to 20 kPa, 0.1
to 0.2 kgf/cm ) per month.
Remember to check the spare tire at
thesametime.
Check the pressure in the tires when
they are cold. This means the vehicle
has been parked for at least three
hours, or driven less than 1 mile (1.6
km).
Add or release air, if needed, to
match the recommended cold tire
pressures.
182
Tire Size Cold Tire Pressure
for Normal Driving
Tire Size
Cold Tire Pressure
for Normal Driving
Tires
Maintenance
Inflation
146
Front:
Rear:
60 psi (420 kPa , 4.2 kgf/cm
)
215/45R17 87W 32 psi (220 kPa , 2.2
kgf/cm
)
245/40R17 91W 32 psi (220 kPa , 2.2
kgf/cm
)
Main Menu
Table of Contents
If you check the pressure when the
tires are hot (driven for several
miles), you will see readings 4 to 6
psi (30 to 40 kPa, 0.3 to 0.4 kgf/cm )
higher than the cold reading. This is
normal; do not release air to match
the cold pressure.
Tubeless tires have some ability to
self-seal if they are punctured. You
should look closely for punctures if a
tire starts losing pressure.
Youshouldgetyourowntire
pressure gauge and use it whenever
you check your tire pressures. This
will make it easier for you to tell if a
pressure loss is due to a tire problem
and not due to a variation between
gauges.
Every time you check inflation, you
should also examine the tires for
damage, foreign objects, and wear.
Youshouldlookfor:
Bumps or bulges in the tread or
side of the tire. Replace the tire if
youfindeitherortheseconditions.
Cuts, splits, or cracks in the side
of the tire. Replace the tire if you
can see fabric or cord.
Excessive tread wear.
Your vehicle’s tires have wear
indicators molded into the tread.
When the tread wears down to that
point, you will see a 1/2 inch (12.7
mm) wide band running across the
tread. This shows there is less than
1/16 inch (1.6 mm) of tread left on
the tire. A tire that is this worn gives
very little traction on wet roads. You
should replace the tire if you can see
the tread wear indicator in three or
more places around the tire.
Tires
Maintenance
Tire Inspection
147
INDICATOR LOCATION MARKS
TREAD WEAR INDICATORS
Main Menu
Table of Contents
In addition to proper inflation,
correct wheel alignment helps to
decrease tire wear. If you find a tire
is worn unevenly, have your dealer
check the wheel alignment.
Have your dealer check the tires if
you feel a consistent vibration while
driving. A tire should always be
rebalanced if it is removed from the
wheel. When you have new tires
installed, make sure they are
balanced. This increases riding
comfort and tire life. For best results,
have the installer perform a dynamic
balance.
You should not rotate your Honda’s
tires. The front and rear tires are
different sizes, so they cannot be
rotated front-to-rear. The original-
equipment tires on your Honda have
a unidirectional tread pattern, so
they cannot be rotated side-to-side.
The tires that came on your vehicle
were designed and constructed to
provide superior grip during
acceleration, braking, and cornering.
As a trade-off, they will wear more
rapidly than tires used on ordinary
passenger vehicles. Because of the
vehicle’s weight distribution, and the
fact that they are the driving wheels,
you may expect the rear tires to wear
more rapidly than the front tires.
Replace your tires with radial tires of
the same size, load range, speed
rating, and maximum cold tire
pressure rating (as shown on the
tire’s sidewall). Mixing radial and
bias-ply tires on your vehicle can
reduce braking ability, traction, and
steering accuracy. Using tires of a
different size or construction can
cause the ABS to work inconsistently.
It is best to replace all four tires at
thesametime.Ifthatisnotpossible
or necessary, replace the two front
tires or two rear tires as a pair.
Replacing just one tire can seriously
affect your vehicle’s handling.
If you ever replace a wheel, make
sure that the wheel’s specifications
match those of the original wheels.
Tires
Maintenance
Tire Maintenance Tire Rotation
Tire Wear
Replacing Tires
148
NOTICE: Improper wheel weights can
damage your vehicle’s aluminum
wheels. Use only genuine Honda wheel
weights for balancing.
Main Menu
Table of Contents
＋Wheels:
Tires:
See page for DOT tire quality
grading information, and page
for tire size explanation.
Tires marked ‘‘M S’’ or ‘‘All
Season’’ on the sidewall have an all-
weather tread design suitable for
most winter driving conditions.
For the best performance in snowy
or icy conditions, you should install
snow tires or tire chains. They may
be required by local laws under
certain conditions.
If you mount snow tires on your
Honda, make sure they are radial
tires of the same size and load range
as original tires. Mount snow tires on
all four wheels. The traction
provided by snow tires on dry roads
maybelowerthanyouroriginaltires.
Check with the tire dealer for
maximum speed recommendations.
182
184
Tires
Maintenance
Wheel and Tire Specif ications Winter Driving
Snow Tires
149
Front:
Rear:
17x7JJ
17x81/2JJ
215/45R17 87W
245/40R17 91W
Front:
Rear:
Installing improper tires on your
vehicle can affect handling and
stability. This can cause a crash
in which you can be seriously
hurt or killed.
Always use the size and type of
tires recommended in this
owner’s manual.
Main Menu
Table of Contents
When installing cables, follow the
manufacturer’s instructions, and
mount them as tight as you can.
Make sure they are not contacting
the brake lines or suspension. Drive
slowly with them installed. If you
hear them coming into contact with
the body or chassis, stop and
investigate. Remove them as soon as
you begin driving on cleared roads.
Because your Honda has limited tire
clearance, mount only SAE Class ‘‘S’’
cable-type traction devices, with
rubber chain tensioners on the rear
tires. Use traction devices only when
required by driving conditions or
local laws. Make sure they are the
correct size for your tires. Metal link-
type ‘‘chains’’ should not be used.
Tires
Maintenance
Tire Chains
150
NOTICE: Traction devices that are the
wrong size or improperly installed can
damage your vehicle’s brake lines,
suspension, body, and wheels. Stop
driving if they are hitting any part of
the vehicle.
Main Menu
Table of Contents
−

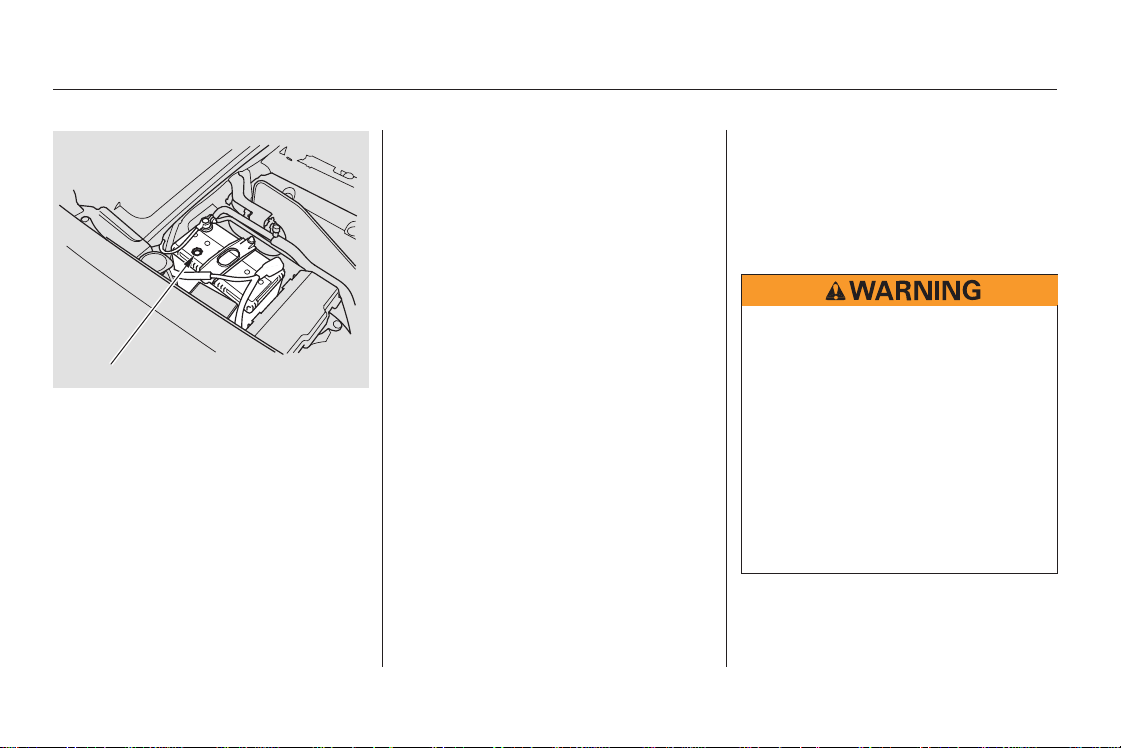

Check the condition of the battery
monthlybylookingatthetest
indicator window. The label on the
battery explains the test indicator’s
colors.
Check the terminals for corrosion (a
white or yellowish powder). To
remove it, cover the terminals with a
solution of baking soda and water. It
will bubble up and turn brown. When
this stops, wash it off with plain
water. Dry off the battery with a
cloth or paper towel. Coat the
terminals with grease to help prevent
future corrosion.
If additional battery maintenance is
needed, see your Honda dealer or a
qualified technician.
Battery posts,
terminals, and related accessories
contain lead and lead compounds.
If you need to connect the battery to
a charger, disconnect both cables to
prevent damaging your vehicle’s
electrical system. Always disconnect
the negative ( ) cable first, and
reconnect it last.
Checking the Battery
Maintenance
WARNING:
Wash your hands af ter handling.
151
TEST INDICATOR WINDOW
The battery gives off explosive
hydrogen gas during normal
operation.
A spark or flame can cause the
battery to explode with enough
force to kill or seriously hurt you.
Wear protective clothing and a
face shield, or have a skilled
mechanic do the battery
maintenance.
Main Menu
Table of Contents
If you need to park your vehicle for
an extended period (more than one
month), there are several things you
should do to prepare it for storage.
Proper preparation helps prevent
deterioration and makes it easier to
get your vehicle back on the road. If
possible, store your vehicle indoors.
Fill the fuel tank.
Change the engine oil and filter.
Wash and dry the exterior
completely.
Cleantheinterior.Makesurethe
carpeting, floor mats, etc., are
completely dry.
Raise the convertible top cover.
Leave the parking brake off. Put
the transmission in Reverse.
Block the rear wheels.
If the vehicle is to be stored for a
longer period, it should be
supported on jackstands so the
tires are off the ground.
Leave one window open slightly (if
the vehicle is being stored
indoors).
Disconnect the battery.
Cover the vehicle with a
‘‘breathable’’ cover, one made
from a porous material such as
cotton. Non-porous materials, such
as plastic sheeting, trap moisture,
which can damage the paint.
If possible, periodically run the
engine until it reaches full
operating temperature (the
cooling fans cycle on and off
twice). Preferably, do this once a
month.
If you store your vehicle for 1 year or
longer, have your Honda dealer
perform the inspections called for in
the 2 years/30,000 miles (48,000 km)
maintenance schedule (Normal
Conditions) as soon as you take it
out of storage (see page ). The
replacements called for in the
maintenance schedule are not
needed unless the vehicle has
actually reached that time or mileage.
Support the front wiper blade
arms with a folded towel or rag so
they do not touch the windshield.
To minimize sticking, apply a
silicone spray lubricant to all door
and trunk seals. Also, apply a
vehiclebodywaxtothepainted
surfaces that mate with the door
and trunk seals.
123
Maintenance
Vehicle Storage
152
Main Menu
Table of Contents
This section covers the more
common problems that motorists
experience with their vehicles. It
gives you information about how to
safely evaluate the problem and what
to do to correct it. If the problem has
stranded you on the side of the road,
you may be able to get going again.
If not, you will also find instructions
on getting your vehicle towed.
......................Compact Spare Tire . 154
....................Changing a Flat Tire . 155
.............If the Engine Won’t Start . 160
................................Jump Starting . 162
..............If the Engine Overheats . 163
.........Low Oil Pressure Indicator . 166
..........Charging System Indicator . 166
.......Malfunction Indicator Lamp . 167
...............Brake System Indicator . 168
.......Closing the Convertible Top . 169
..............................................Fuses . 170
..........Checking and Replacing . 170
..............................Fuse Locations . 172
..........If Your Vehicle Gets Stuck . 174
......................Emergency Towing . 176
Taking Care of the Unexpected
Taking Care of the Unexpected
153
Main Menu

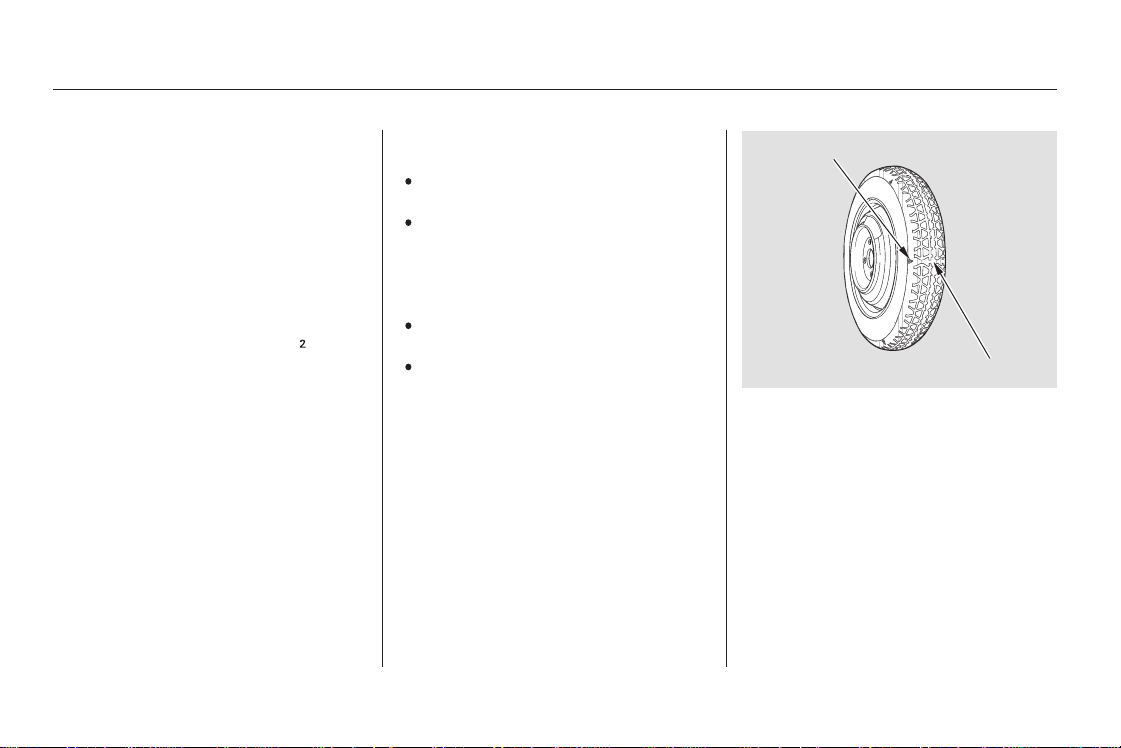

Use the compact spare tire as a
temporary replacement only. Get
your regular tire repaired or replaced
and put it back on your vehicle as
soon as you can.
Follow these precautions:
Replace the tire when you can see
the tread wear indicator bars. The
replacement should be the same size
and design tire, mounted on the
same wheel. The spare tire is not
designed to be mounted on a regular
wheel, and the spare wheel is not
designed for mounting a regular tire.
Check the inflation pressure of the
compact spare tire every time you
check the other tires. It should be
inflated to:
Never exceed 50 mph (80 km/h).
This tire gives a harsher ride and
less traction on some road sur-
faces. Use greater caution while
driving.
Do not mount snow chains on it.
Do not use your compact spare
tire on another vehicle unless it is
thesamemakeandmodel.
Compact Spare Tire
Taking Care of the Unexpected
154
INDICATOR LOCATION MARK
TREAD WEAR INDICATOR BAR
60 psi (420 kPa , 4.2 kgf/cm )
Main Menu
Table of Contents
If you have a flat tire while driving,
stop in a safe place to change it.
Drive slowly along the shoulder until
you get to an exit or an area that is
far away from the traffic lanes.
Thesizedifferencemayalsocause
damage to the rear differential, so do
not mount the compact spare on the
rear. If either rear tire goes flat,
remove the front tire on that same
side, mount the compact spare tire
on the front, then mount the front
tire on the rear.
Park the vehicle on firm, level, and
non-slippery ground. Put the
transmission in Reverse. Apply the
parking brake.
Turn on the hazard warning lights,
and turn the ignition switch to
LOCK (0). Have your passenger
get out of the vehicle while you
change the tire.
Open the trunk. Lift up the tool
box lid, and take the jack, wheel
wrench, and extension out of the
tool box.
Thecompactsparetireissmaller
than a standard tire, which will affect
the vehicle’s handling. Drive
cautiously when this spare is
mounted on your vehicle.
3.
1.
2.
CONTINUED
Changing a Flat Tire
Taking Care of the Unexpected
155
NOTICE:
TOOL BOX LID
JACK
The vehicle can easily roll off
the jack, seriously injuring
anyone underneath.
Follow the directions for
changing a tire exactly, and
never get under the vehicle
when it is supported only by the
jack.
Use the jack that came with
your vehicle. If you try to raise another
vehicle with this jack or use another
jack to raise your vehicle, the vehicle or
jack can be damaged.
Main Menu
Table of Contents
Remove the three clips holding
the spare tire cover by pulling
straight up on the rings. Remove
the spare tire cover.
Unscrew the wing bolt, and take
the spare tire out of the spare tire
shelf.
Loosen the five wheel nuts 1/2
turn with the wheel wrench.
Locate the jacking point nearest
thetireyouneedtochange.Itis
pointed to by an arrow molded into
the underside of the body. Place
the jack under the jacking point.
Turn the end bracket clockwise
until the top of the jack contacts
the jacking point. Make sure the
center of the jacking point tab is
restinginthejacknotch.
4. 5.
6.
7.
Changing a Flat Tire
Taking Care of the Unexpected
156
SPARETIRECOVER
Main Menu
Table of Contents
Use the extension and wheel
wrench as shown to raise the
vehicle until the flat tire is off the
ground.
Remove the wheel nuts and flat
tire. Temporarily place the flat tire
on the ground with the outside
surface of the wheel facing up.
Placing the wheel face down could
mar its finish.
Before mounting the spare tire,
wipe any dirt off the mounting
surface of the wheel and hub with
a clean cloth. Wipe the hub
carefully;itmaybehotfrom
driving.
8. 9. 10.
CONTINUED
Changing a Flat Tire
Taking Care of the Unexpected
157
BRAKE HUB
Main Menu
Table of Contents
Put on the spare tire. Put the
wheel nuts back on finger-tight,
then tighten them in a crisscross
pattern with the wheel wrench
until the wheel is firmly against
the hub. Do not try to tighten
them fully.
Lower the vehicle to the ground,
and remove the jack.
Tighten the wheel nuts securely in
a crisscross pattern. Have the
wheel nut torque checked at the
nearest automotive service facility.
Tighten the wheel nuts to:
13.11. 12.
Changing a Flat Tire
Taking Care of the Unexpected
158
80 lbf·ft (108 N·m , 11 kgf·m)
Main Menu
Table of Contents

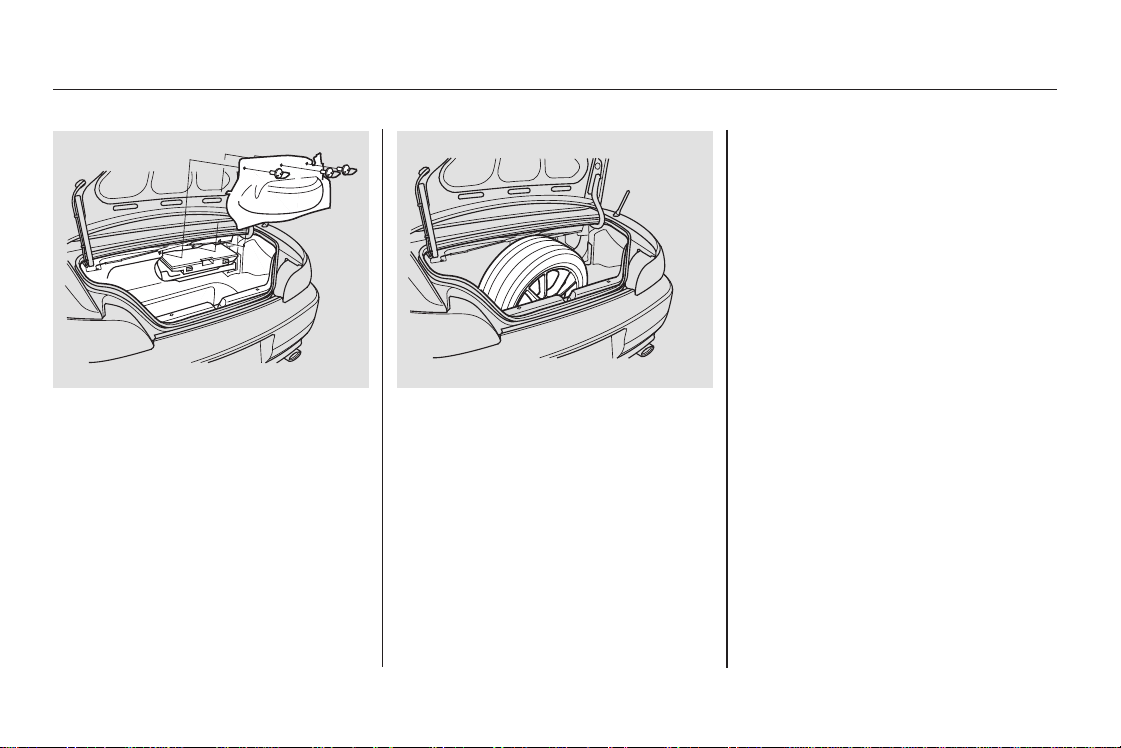

Remove the tool box from the
trunk well, and replace the jack,
wheel wrench, and extension in
the tool box.
Place the tool box into the spare
tire shelf in the trunk.
Replacethesparetirecover.
Secure it with the three clips. Push
each clip down securely, and pivot
theringdownflat.
Put the flat tire in the trunk well
vertically as shown.
14.
15. 17.
16.
Changing a Flat Tire
Taking Care of the Unexpected
159
Main Menu
Table of Contents
Diagnosing why the engine won’t
start falls into two areas, depending
on what you hear when you press
the ENGINE START button.
You hear nothing, or almost
nothing. The engine’s starter
motor does not operate at all, or
operates very slowly.
You can hear the starter motor
operating normally, or the starter
motor sounds like it is spinning
faster than normal, but the engine
does not start up and run.
When you press the ENGINE
START button, you do not hear the
normal noise of the engine trying to
start. You may hear a clicking sound
or series of clicks, or nothing at all.
Turn the ignition switch to ON (II).
Turn on the headlights, and check
their brightness. If the headlights
are very dim or don’t light at all,
the battery is discharged. See
on page .
Press the ENGINE START button,
then release it. If the headlights do
not dim, check the condition of the
fuses. If the fuses are OK, there is
probably something wrong with
the electrical circuit for the
ignition switch or starter motor.
You will need a qualified
technician to determine the
problem. (See
on page .)
Check these things:
Are you using a properly coded
key? An improperly coded key will
cause the immobilizer system
indicator in the instrument panel
to blink rapidly (see page ).
Check the transmission interlock.
The clutch pedal must be pushed
all the way to the floor or the
starter will not operate.
52
162
176
Taking Care of the Unexpected
Nothing Happens or the Starter
Motor Operates Very Slowly
Jump Starting
Emergency
Towing
IftheEngineWon’tStart
160
Main Menu
Table of Contents
If the headlights dim noticeably or
go out when you try to start the
engine, either the battery is
discharged or the connections are
corroded. Check the condition of the
battery and terminal connections
(see page ). You can then try
jump starting the vehicle from a
booster battery (see page ).
Are you using the proper starting
procedure? Refer to
on page .
In this case, the starter motor’s
speed sounds normal, or even faster
than normal, when you press the
ENGINE START button, but the
engine does not run.
Do you have fuel? Check the fuel
gauge; the low fuel indicator may
not be working.
Ifyoufindnothingwrong,youwill
need a qualified technician to find
the problem. See
on page .
There may be an electrical
problem, such as no power to the
fuel pump. Check all the fuses
(see page ).
151
176162
113
170
Taking Care of the Unexpected
The Starter Operates Normally
Starting the
Engine
Emergency
Towing
IftheEngineWon’tStart
161
Main Menu
Table of Contents
＋
＋
−

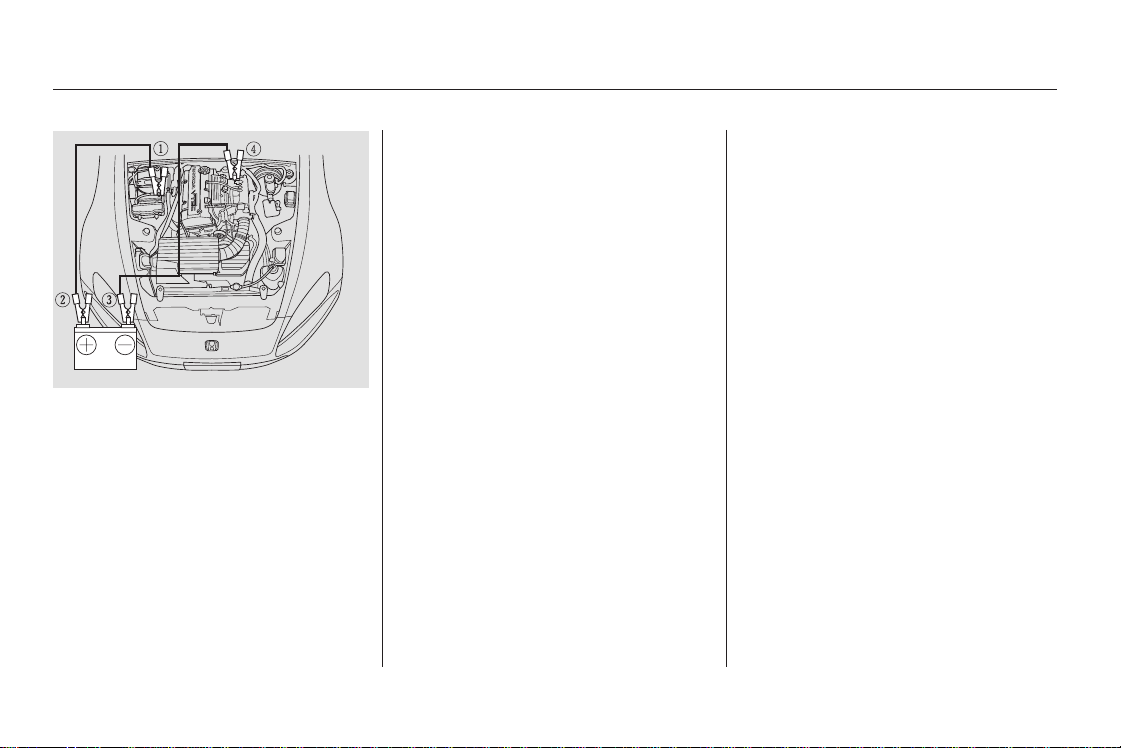

Although this seems like a simple
procedure, you should take several
precautions. Open the hood, and check the
physical condition of the battery.
In very cold weather, check the
condition of the electrolyte. If it
seems slushy or like ice, do not try
jump starting until it thaws.
Connect one jumper cable to the
positive ( ) terminal on your
battery. Connect the other end to
the positive ( ) terminal on the
booster battery.
Connect the second jumper cable
to the negative ( ) terminal on
the booster battery. Connect the
other end to the grounding strap
as shown. Do not connect this
jumper cable to any other part of
the engine.
Turn off all the electrical
accessories: heater, A/C, audio
system, lights, etc. Put the
transmission in Neutral, and set
the parking brake.
3.
1.
2.
4.
Jump Starting
Taking Care of the Unexpected
To Jump Start Your Vehicle:
162
NOTICE:
A battery can explode if you do
not follow the correct procedure,
seriously injuring anyone
nearby.
Keep all sparks, open flames,
and smoking materials away
from the battery.
If a battery sits in extreme
cold, the electrolyte inside can freeze.
Attempting to jump start with a frozen
battery can cause it to rupture.
Main Menu
Table of Contents
The reading on your vehicle’s
temperature gauge should stay in
the midrange under most conditions.
If it reaches the red mark, you
should determine the reason (hot
day, driving up a steep hill, etc.).
If your vehicle overheats, you should
takeimmediateaction.Theonly
indication may be the temperature
gauge reading reaching the red
mark. Or you may see steam or
spray coming from under the hood.
Start the vehicle. If the starter
motor still operates slowly, check
that the jumper cables have good
metal-to-metal contact.
Once your vehicle is running,
disconnect the negative cable from
your vehicle, then from the
booster battery. Disconnect the
positive cable from your vehicle,
then from the booster battery.
Keep the ends of the jumper
cables away from each other and
any metal on the vehicle until
everything is disconnected.
Otherwise, you may cause an
electrical short.
The numbers in the illustration show
you the order to connect the jumper
cables.
If the booster battery is in another
vehicle, have an assistant start
that vehicle and run it at a fast idle.
6.
7.
5.
Taking Care of the Unexpected
Jump Starting, If the Engine Overheats
If the Engine Overheats
163
NOTICE: Driving with the temperature
gauge reading at the red mark can
cause serious damage to your engine.
Main Menu
Table of Contents

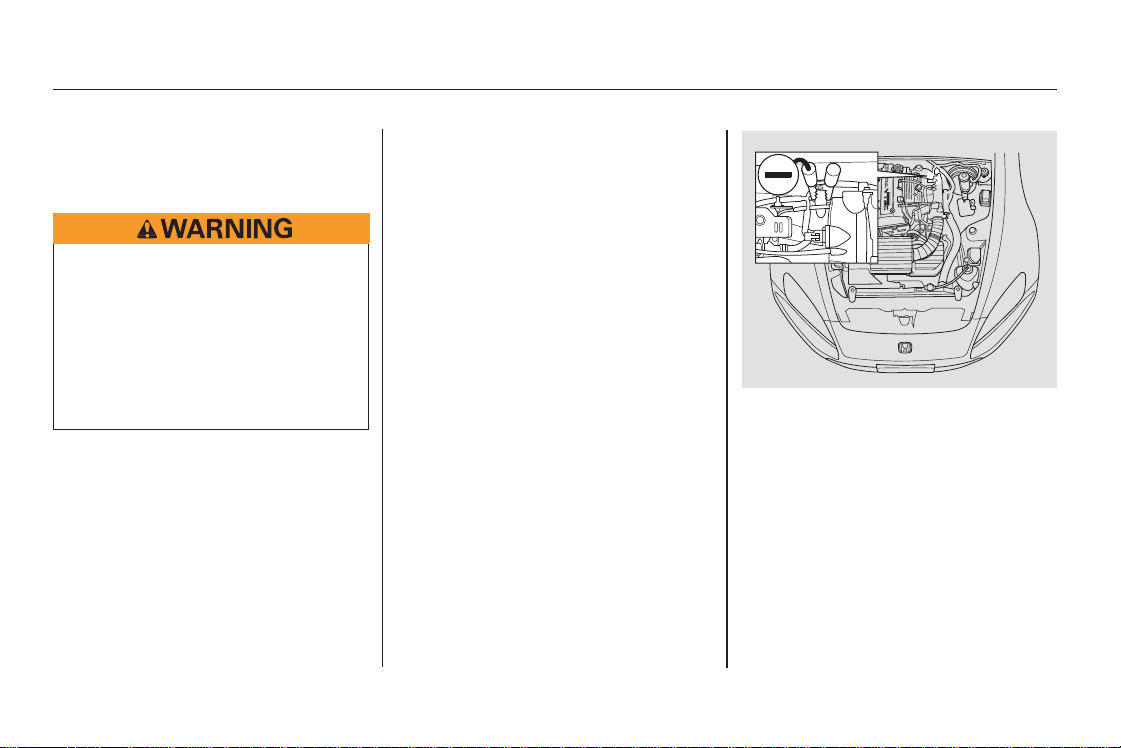

Look for any obvious coolant leaks,
such as a split radiator hose.
Everything is still extremely hot,
so use caution. If you find a leak, it
must be repaired before you
continue driving (see
on page ).
If you don’t find an obvious leak,
check the coolant level in the
radiator reserve tank. Add coolant
if the level is below the MIN mark.
If the temperature gauge stays at
the red mark, turn off the engine.
If you do not see steam or spray,
leave the engine running, and
watch the temperature gauge. If
the high heat is due to overloading,
the engine should start to cool
down almost immediately. If it
does, wait until the temperature
gauge comes down to the midpoint,
then continue driving.
If you see steam and/or spray
coming from under the hood, turn
off the engine. Wait until you see
no more signs of steam or spray,
then open the hood.
Safely pull to the side of the road.
Put the transmission in Neutral,
and set the parking brake. Turn
off the all accessories, and turn on
the hazard warning indicators.
2.
1.
3.
4.
5.
6.
176
Taking Care of the Unexpected
Emergency
Towing
IftheEngineOverheats
164
Steam and spray from an
overheated engine can
seriously scald you.
Do not open the hood if steam
is coming out.
Main Menu
Table of Contents
If there was no coolant in the
reserve tank, you may need to add
coolant to the radiator. Let the
engine cool down until the reading
reaches the middle of the
temperature gauge, or lower,
before checking the radiator.
Using gloves or large heavy cloth,
turn the radiator cap
counterclockwise, without pushing
down, to the first stop. After the
pressure releases, push down on
the cap, and turn it until it comes
off.
Start the engine, and set the
temperature control dial to
maximum. Add coolant to the
radiator up to the base of the filler
neck. If you do not have the
proper coolant mixture available,
you can add plain water.
Remember to have the cooling
system drained and refilled with
the proper mixture as soon as you
can.
Put the radiator cap back on
tightly. Run the engine, and watch
the temperature gauge. If it goes
back to the red mark, the engine
needs repair (see
on page ).
If the temperature stays normal,
check the coolant level in the
radiator reserve tank. If it has
gone down, add coolant to the
MAX mark. Put the cap back on
tightly.
9.
8.7. 10.
11.
176
Taking Care of the Unexpected
Emergency
Towing
IftheEngineOverheats
165
Removing the radiator cap
while the engine is hot can
cause the coolant to spray out,
seriously scalding you.
Always let the engine and
radiator cool down before
removing the radiator cap.
Main Menu
Table of Contents
Safely pull off the road, and shut
off the engine. Turn on the hazard
warning indicators.
Let the vehicle sit for a minute.
Open the hood, and check the oil
level (see page ). An engine
very low on oil can lose pressure
during cornering and other driving
maneuvers.
If necessary, add oil to bring the
level back to the full mark on the
dipstick (see page ).
Start the engine, and watch the oil
pressure indicator. If it does not go
out within 10 seconds, turn off the
engine. There is a mechanical
problem that needs to be repaired
before you can continue driving
(see on page
).
If the charging system
indicator comes on brightly
when the engine is running, the
battery is not being charged.
Immediately turn off all electrical
accessories. Try not to use other
electrically operated controls such as
the power windows. Keep the engine
running; starting the engine will
discharge the battery rapidly.
Go to a service station or garage
where you can get technical
assistance.
This indicator should never
come on when the engine is
running. If it starts flashing or stays
on, the oil pressure has dropped very
low or lost pressure. Serious engine
damage is possible and you should
take immediate action.
1.
2.
3.
4.
103
129
176
Low Oil Pressure Indicator, Charging System Indicator
Taking Care of the Unexpected
Low Oil Pressure Indicator
Emergency Towing
Charging System Indicator
166
NOTICE: Running the engine with low
oil pressure can cause serious
mechanical damage almost immediately.
Turn off the engine as soon as you can
safely get the vehicle stopped.
Main Menu
Table of Contents
If you have recently refueled your
vehicle, the indicator coming on
could be a loose or missing fuel fill
cap. Tighten the cap until it clicks at
least three times. Tightening the cap
will not turn the indicator off
immediately; it takes at least three
days of normal driving.
Your vehicle has certain ‘‘readiness
codes’’ that are part of the on-board
diagnostics for the emissions
systems. In some states, part of the
emissions testing is to make sure
these codes are set. If they are not
set, the test cannot be completed.
If your vehicle battery has been
disconnected or gone dead, these
codes are erased. It takes at least
three days of driving under various
conditions to set the codes again.
To check if they are set, turn the
ignition to ON (II), without starting
the engine. The Malfunction
Indicator Lamp will come on for 20
seconds. If it then goes off, the
readiness codes are set. If it blinks 5
times, the readiness codes are not
set. If possible, do not take your
vehicle for a state emissions test
until the readiness codes are set.
Refer to State Emissions Testing for
more information, on page .
If this indicator comes on
while driving, it means one
of the engine’s emission control
systems may have a problem. Even
though you may feel no difference in
your vehicle’s performance, it can
reduce your fuel economy and cause
increased emissions. Continued
operation may cause serious damage.
If the indicator comes on repeatedly,
even though it may go off as you
continue driving, have your vehicle
checked by a dealer as soon as
possible.
188
Taking Care of the Unexpected
Malfunction Indicator Lamp
Readiness Code
167
NOTICE: If you keep driving with the
Malfunction Indicator Lamp on, you
can damage your vehicle’s emissions
controls and the engine. Those repairs
may not be covered by your vehicle’s
warranties.
Main Menu
Table of Contents
If the brake system indicator comes
on while driving, the brake fluid level
is probably low. Press lightly on the
brake pedal to see if it feels normal.
If it does, check the brake fluid level
thenexttimeyoustopataservice
station (see page ).
If the fluid level is low, take your
vehicle to a dealer and have the
brake system inspected for leaks or
worn brake pads.
However, if the brake pedal does not
feel normal, you should take
immediate action. A problem in one
part of the system’s dual circuit
design will still give you braking at
two wheels. You will feel the brake
pedal go down much farther before
the vehicle begins to slow down, and
you will have to press harder on the
pedal.
Slow down by shifting to a lower
gear, and pull to the side of the road
when it is safe. Because of the long
distance needed to stop, it is
hazardous to drive the vehicle. You
should have it towed and repaired as
soon as possible (see
on page ).
If you must drive the vehicle a short
distance in this condition, drive
slowly and carefully.
The brake system indicator
normally comes on when
you turn the ignition switch
to ON (II), and as a
reminder to check the
parking brake. It will stay
on if you do not fully
release the parking brake.
176
136
Emergency
Towing
Brake System Indicator
Taking Care of the Unexpected
168
Canada
U.S.
Main Menu
Table of Contents
If the electric motor will not close
the convertible top, do the following.
Check the fuse for the convertible
top motor (see page ). If the
fuse is blown, replace it with one
ofthesameorlowerrating.
Try closing the convertible top. If
the new fuse blows immediately or
the convertible top still does not
operate, you can close it manually.
Locate the electrical connector for
the convertible top motor.
It is under the lower corner of the
dashboard on the passenger’s side.
Disconnect the connector by
pushing the tab and pulling the
connector down.
Holding each corner of the
convertible top, raise the top and
push it forward as far as it will go.
Follow steps 4 through 6 of the
closing procedure on page .
3.
1.
2.
4.
5.
170
64
Closing the Convertible Top
Taking Care of the Unexpected
169
CONNECTOR
Main Menu
Table of Contents
The interior fuse box is underneath
the dashboard on the driver’s side.
There are two under-hood fuse
boxes in the engine compartment.
The primary under-hood fuse box is
onthepassenger’ssidenexttothe
battery. To open it, push the two tabs
as shown.
The auxiliary fuse box is on the
driver’s side, near the brake fluid
reservoir. To open it, push the tab on
each side, and remove the lid.
If something electrical in your
vehicle stops working, check for a
blown fuse first. Determine from the
chart on pages and ,or the
diagram on the fuse box lid, which
fuses control that device. Check
those fuses first, but check all the
fuses before deciding that a blown
fuse is the cause. Replace any blown
fuses, and check if the device works.
172 173
Fuses
Taking Care of the Unexpected
Checking and Replacing Fuses
170
INTERIOR UNDERHOOD
(AUXILIARY)
UNDERHOOD
(PRIMARY)
Main Menu
Table of Contents
Turn the ignition switch to LOCK
(0). Make sure the headlights and
all other accessories are off.
Remove the cover from the fuse
box.
Check each of the large fuses in
the under-hood fuse box by
looking through the top at the wire
inside. Remove the screws with a
Phillips-head screwdriver.
Check the smaller fuses in the
under-hood fuse boxes and all the
fuses in the interior fuse box by
pulling out each one with the fuse
puller provided in the primary
under-hood fuse box.
Look for a burned wire inside the
fuse. If it is burned, replace it with
oneofthesparefusesofthesame
rating or lower.
If you cannot drive the vehicle
without fixing the problem, and you
do not have a spare fuse, take a fuse
of the same rating or a lower rating
from one of the other circuits. Make
sureyoucandowithoutthatcircuit
temporarily (such as the accessory
power socket or radio).
If you replace the blown fuse with a
spare fuse that has a lower rating, it
might blow out again. This does not
indicate anything wrong. Replace the
fuse with one of the correct rating as
soon as you can.
If the replacement fuse of the
same rating blows in a short time,
there is probably a serious
electrical problem in your vehicle.
Leave the blown fuse in that
circuit, and have your vehicle
checked by a qualified mechanic.
If the radio fuse is removed, the
audio system will disable itself. The
nexttimeyouturnontheradioyou
will see ‘‘Code’’ in the frequency
display. Use the preset buttons to
enter the five-digit code (see page
).
1.
2.
3.
4.
5.
6.
94
Fuses
Taking Care of the Unexpected
171
NOTICE:
BLOWN
Replacing a fuse with one
that has a higher rating greatly
increases the chances of damaging the
electrical system. If you do not have a
replacement fuse with the proper rating
for the circuit, install one with a lower
rating.
Main Menu
Table of Contents
−
−
−
−
−
＊
＊
No. Amps. No. Amps. Circuits ProtectedCircuits Protected
1
2
3
4
5
6
7
8
9
10
11
12
13
7.5 A
15 A
10 A
20 A
7.5 A
15 A
7.5 A
15 A
7.5 A
15 A
10 A
14
15
16
17
18
19
20
21
22
23
24
25
26
27
10 A
10 A
7.5 A
7.5 A
10 A
15 A
7.5 A
7.5 A
7.5 A
20 A
20 A
Daytime Running Lights
Keyless Entry
Back-up
Interior Light
Small Lights
Radio
Starter Signal
Heater Control,
Cooling Fan Relay
Power Mirrors
Right Power Window
Left Power Window
Not used
Not used
Not used
Windshield Wiper,
Auto Stop Signal
Washer Motor
Not used
Not used
Accessory Socket
Windshield Wiper
Turn signal Light
ACG
Instrument Light, Backup
Lights
Ignition Coil
Engine Start
Fuel Pump, SRS
SRS
: Canadian Model
Fuse Locations
Taking Care of the Unexpected
172
IINNTTEERRIIOORR FFUUSSEE BBOOXX
Main Menu
Table of Contents
−
−
−
−
−
−
−
−
−
−
−
No. Amps. No. Amps. Circuits Protected
No. Amps. Circuits Protected
Circuits Protected
1
2
3
4
5
6
7
8
9
10
11
12
13
40 A
20 A
30 A
20 A
40 A
20 A
14
15
16
17
18
19
20
21
22
23
24
25
20 A
15 A
10 A
20 A
15 A
20 A
20 A
30 A
100 A
40 A
Magnetic Clutch Relay
Right Headlight
ACG S
Hazard Warning Lights
Cooling Fan
Not used
Stop
Left Headlight
ABS F/S
ABS Motor
Battery
IG1 Main
1
2
3
4
5
20 A
70 A
60 A
Rear Window Defogger
Not used
Not used
EPS
Air Pump
Lighting 1 Relay
Lighting 2 Relay
Horn Relay
Power Window Motor
Right Roof Motor
Not used
Backup ACC
Left Roof Motor
Heater Motor
Condenser Fan
Not used
Condenser Fan Relay
Cooling Fan Relay
Fuse Locations
Taking Care of the Unexpected
173
(AUXILIARY FUSE BOX)
UNDER-HOOD FUSE BOXES
(PRIMARY FUSE BOX)
Main Menu
Table of Contents
If your vehicle gets stuck in sand,
mud, or snow, call a towing service
to pull it out (see page ).
For very short distances, such as
freeing the vehicle, you can use the
detachable towing hook that mounts
on the anchors in the front and rear
bumpers.
To use the towing hook:
Remove the cover from the
bumper.
Remove the towing hook, hook
extension, and wheel wrench from
the tool box.
Using the wheel wrench, fasten
the extension into the bolt hole in
the anchor.
1.
2.
3.
176
If Your Vehicle Gets Stuck
Taking Care of the Unexpected
174
Main Menu
Table of Contents
Screw the towing hook into the
extension and tighten it securely
by hand.
4.
If Your Vehicle Gets Stuck
Taking Care of the Unexpected
175
NOTICE: To avoid damage to your
vehicle, use the towing hook for
straight, flat ground towing only. Do
not tow at an angle. The tow hook
should not be used to tow the vehicle
onto a flat bed. Do not use it as a tie
down.
Main Menu
Table of Contents
−−
−
The tow
truck uses two pivoting arms that go
under the tires (front or rear) and
lifts them off the ground. The other
two tires remain on the ground.
Because the S2000 sits so low, the
body could come in contact with the
ground and be damaged.
The tow
truck uses metal cables with hooks
on the ends. These hooks go around
parts of the frame or suspension and
the cables lift that end of the vehicle
off the ground. Your vehicle’s sus-
pension and body can be seriously
damaged.
If your vehicle needs to be towed,
call a professional towing service or
organization. Never tow your vehicle
behind another vehicle with just a
rope or chain. It is very dangerous.
There are three popular types of
professional towing equipment.
The operator
loads your vehicle on the back of a
truck.
When you contact the towing agency,
inform them that you have an S2000
and that a flat-bed is required.
Emergency Towing
Wheel Lift Equipment Sling-type Equipment
Flat-bed Equipment
This
method of towing is unacceptable.
This method of towing
is unacceptable.
This is the only way your
S2000 should be transported.
Taking Care of the Unexpected
176
Main Menu
Table of Contents
Thediagramsinthissectiongive
you the dimensions and capacities of
your Honda, and the locations of the
identification numbers. It also
includes information you should
know about your vehicle’s tires and
emissions control systems.
................Identification Numbers . 178
................................Specifications . 180
DOT Tire Quality Grading
......................(U.S. Vehicles) . 182
.................................Treadwear . 182
......................................Traction . 182
.............................Temperature . 183
.................................Tire Labeling . 184
.......................Emissions Controls . 185
.....................The Clean Air Act . 185
Crankcase Emissions Control
....................................System . 185
Evaporative Emissions Control
....................................System . 185
...Exhaust Emissions Controls . 186
....................PGM-FI System . 186
Ignition Timing Control
................................System . 186
Secondary Air Injection
................................System . 186
Three Way Catalytic
...........................Converter . 186
....................Replacement Parts . 186
Onboard Refueling Vapor
................................Recovery . 186
..Three Way Catalytic Converter . 187
..............State Emissions Testing . 188
Technical Information
Technical Information
177
Main Menu
Your vehicle has several identifying
numbers located in various places.
The Vehicle Identification Number
(VIN) is the 17-digit number your
Honda dealer uses to register your
vehicle for warranty purposes. It is
also necessary for licensing and
insuring your vehicle. The easiest
placetofindtheVINisonaplate
fastened to the top of the dashboard.
Youcanseeitbylookingthrough
the windshield on the driver’s side. It
is also on the Certification label at-
tached to the driver’s doorjamb, and
is stamped on the engine com-
partment bulkhead. The VIN is also
provided in bar code on the
Certification label.
Identification Numbers
Technical Information
178
VEHICLE IDENTIFICATION NUMBER
CERTIFICATION LABEL
Main Menu
Table of Contents
The Transmission Number is on a
label underneath the transmission.
The Engine Number is stamped on
the back left corner of the engine
block, below the rear valve cover.
Identification Numbers
Technical Information
179
TRANSMISSION NUMBER
ENGINE NUMBER
Main Menu
Table of Contents
＊
＊
＋
−
＊
＊
Specifications
Technical Information
180
Dimensions
Weights
Capacities
Engine
162.0 in (4,115 mm)
68.9 in (1,750 mm)
50.6 in (1,285 mm)
94.5 in (2,400 mm)
57.9 in (1,470 mm)
59.4 in (1,510 mm)
13.2 US gal (50 )
131.6 cu-in (2,157 cm )
11.1 : 1
1.72 US gal (6.5 )
2.01 US gal (7.6 )
5.1 US qt (4.8 )
5.1 US qt (4.8 )
5.9 US qt (5.6 )
1.7 US qt (1.6 )
1.7 US qt (1.6 )
0.78 US qt (0.74
)
0.81 US qt (0.77
)
2.7 US qt (2.6 )
4.4 US qt (4.2
)3.43 x 3.57 in (87.0 x 90.7 mm)
Length
Width
Height
Wheelbase
Track
Gross vehicle weight rating
Fuel tank
Engine coolant
Engine oil
Manual
transmission
fluid
Differential
oil
Windshield
washer
reservoir
See the certification label attached
to the driver’s doorjamb.
Water cooled 4-stroke DOHC
VTEC 4-cylinder gasoline engine
Type
BorexStroke
Displacement
Compression ratio
Spark plugs
Spark Plug Gap 0.04 in (1.1 mm)
PK22PR-L11S
PFR7G-11S Including the coolant in the reserve tank and that remaining in the
engine.
Reserve tank capacity:
0.16 US gal (0.6 )
Excluding the oil remaining in the engine.
Front
Rear
1:
2:
NGK :
DENSO :
Change
Total
Change
Total
Change
Total
Change
Total
U.S. Vehicles
Canadian
Vehicles
0mm
0.1 mm
1
2
Including filter
Without filter
Main Menu
Table of Contents
−
−
−−
−−
−
−
−
−
−
−
−
−
−
−
Specifications
Technical Information
181
Battery
Fuses
Alignment
Tires
Lights
Air conditioning
55 W12 V 12 V 36 AH/5 HR
0.00 in (0.0 mm)
0.15 in (3.7 mm)
0°30’
6°
215/45R17 87W
245/40R17 91W
32 psi (220 kPa , 2.2 kgf/cm
)
32 psi (220 kPa , 2.2 kgf/cm )
60 psi (420 kPa , 4.2 kgf/cm )
T125/70D16 96M
1°30’
12 V 21 W
12 V 21 W
12 V 55 W(H1)
35 W12 V
Capacity
Under-hood
Interior
Toe
Camber
Caster
Size
Pressure
See page 173 or the fuse box
cover.
See page 172 or the fuse label
attached to the inside of the fuse
box door under the dashboard.
Headlights
Daytime running lights
Front turn signal lights
Rear turn signal lights
Side marker lights
Back-up lights
License plate light
Interior light
Trunk light
Side turn signal lights
Refrigerant type
Charge quantity
Lubricant type
HFC-134a (R-134a)
19.4 21.2 oz (550 600 g)
SP-10
12 V 5 W
12 V 21 W
12 V 5 W
12 V 5 W
12 V 5 W
5W12 V Front
Rear
Front
Rear
Front
in
Front
Rear
Spare Tire
Front
Rear
Spare Tire
High
Low
Front
Main Menu
Table of Contents
−
Quality grades can be found where
applicable on the tire sidewall
between the tread shoulder and the
maximum section width. For
example:
All passenger car tires must conform
to Federal Safety Requirements in
addition to these grades.
The treadwear grade is a compara-
tive rating based on the wear rate of
the tire when tested under controlled
conditions on a specified government
test course. For example, a tire
graded 150 would wear one and one-
half (1 1/2) times as well on the
government course as a tire graded
100. The relative performance of
tires depends upon the actual condi-
tions of their use, however, and may
depart significantly from the norm
due to variations in driving habits,
service practices, and differences in
road characteristics and climate.
The traction grades, from highest to
lowest, are AA, A, B, and C. Those
grades represent the tire’s ability to
stop on wet pavement as measured
under controlled conditions on
specified government test surfaces
of asphalt and concrete. A tire
marked C may have poor traction
performance.
Warning: The traction grade
assignedtothistireisbasedon
straight-ahead braking traction tests,
and does not include acceleration,
cornering, hydroplaning, or peak
traction characteristics.
The tires on your vehicle meet all
U.S. Federal Safety Requirements.
All tires are also graded for
treadwear, traction, and temperature
performance according to
Department of Transportation
(DOT) standards. The following
explains these gradings.
DOT Tire Quality Grading (U.S. Vehicles)
Technical Information
Uniform Tire Quality Grading
Treadwear 200
Traction AA
Temperature A
Treadwear Traction AA, A, B, C
182
Main Menu
Table of Contents
−
The temperature grades are A (the
highest), B, and C, representing the
tire’s resistance to the generation of
heat and its ability to dissipate heat
when tested under controlled
conditions on a specified indoor
laboratory test wheel. Sustained high
temperature can cause the material
of the tire to degenerate and reduce
tire life, and excessive temperature
can lead to sudden tire failure. The
grade C corresponds to a level of
performance which all passenger car
tires must meet under the Federal
Motor Vehicle Safety Standard No.
109. Grades B and A represent
higher levels of performance on the
laboratory test wheel than the
minimum required by law.
Warning: The temperature grade for
this tire is established for a tire that
is properly inflated and not over-
loaded. Excessive speed, underinfla-
tion, or excessive loading, either
separately or in combination, can
cause heat buildup and possible tire
failure.
DOT Tire Quality Grading (U.S. Vehicles)
Technical Information
Temperature A,B,C
183
Main Menu
Table of Contents
−
−
−
−
−
−
−
−
−
−
−The tires that came on your vehicle
have a number of markings. Those
you should be aware of are described
below.
Whenever tires are replaced, they
should be replaced with tires of the
same size. Following is an example
of tire size with an explanation of
what each component means.
Vehicletype(Pindicates
passenger vehicle).
Tire width in millimeters.
Aspect ratio (the tire’s section
height as a percentage of its
width).
Tire construction code (R
indicates radial).
Rim diameter in inches.
Load index (a numerical code
associated with the maximum
load the tire can carry).
Speed symbol (an
alphabetical code indicating
the maximum speed rating).
Tire Identification Number (TIN) is
a group of numbers and letters that
look like the following example TIN.
This indicates that the tire
meets all requirements of
the U.S. Department of
Transportation.
Manufacturer’s
identification mark.
Tire type code.
Date of manufacture.
P
R
DOT
B97R
FW6X
2202
245
40
17
91
W
Tire Labeling
Technical Information
Tire Size
Tire Identification Number
184
DOT B97R FW6X 2202
P245/40R17 91W
Main Menu
Table of Contents
＊
＊
The burning of gasoline in your
vehicle’s engine produces several by-
products. Some of these are carbon
monoxide (CO), oxides of nitrogen
(NOx) and hydrocarbons (HC).
Gasoline evaporating from the tank
also produces hydrocarbons. Con-
trolling the production of NOx, CO,
and HC is important to the environ-
ment. Under certain conditions of
sunlight and climate, NOx and HC
react to form photochemical ‘‘smog.’’
Carbon monoxide does not contri-
bute to smog creation, but it is a
poisonous gas.
In Canada, Honda vehicles comply
with the Canadian emission
requirements, as specified in an
agreement with Environment
Canada, at the time they are
manufactured.
Your vehicle has a Positive
Crankcase Ventilation System. This
keeps gasses that build up in the
engine’s crankcase from going into
the atmosphere. The Positive Crank-
case Ventilation valve routes them
from the crankcase back to the
intake manifold. They are then
drawn into the engine and burned.
As gasoline evaporates in the fuel
tank, an evaporative emissions
control canister filled with charcoal
adsorbs the vapor. It is stored in this
canister while the engine is off. After
the engine is started and warmed up,
the vapor is drawn into the engine
and burned during driving.
The United States Clean Air Act
sets standards for automobile
emissions. It also requires that
automobile manufacturers explain to
owners how their emissions controls
workandwhattodotomaintain
them. This section summarizes how
the emissions controls work.
Scheduled maintenance is on page
.123
Emissions Controls
Technical Information
Crankcase Emissions Control
System
Evaporative Emissions Control
System
The Clean Air Act
185
Main Menu
Table of Contents
The exhaust emissions controls
include four systems: PGM-FI,
Ignition Timing Control, Secondary
Air Injection System, and Three Way
Catalytic Converter. These four
systems work together to control the
engine’s combustion and minimize
the amount of HC, CO, and NOx that
comes out the tailpipe. The exhaust
emissions control systems are
separate from the crankcase and
evaporative emissions control
systems.
The PGM-FI System uses sequential
multiport fuel injection.
It has three subsystems: Air Intake,
Engine Control, and Fuel Control.
The Engine Control Module (ECM)
uses various sensors to determine
how much air is going into the
engine. It then controls how much
fuel to inject under all operating con-
ditions.
During engine warm-up, air is
pumped into the exhaust to reduce
emissions when the engine is cold.
The three way catalytic converter is
in the exhaust system. Through
chemical reactions, it converts HC,
CO, and NOx in the engine’s exhaust
to carbon dioxide (CO ), nitrogen
(N ), and water vapor.
The emissions control systems are
designed and certified to work to-
gether in reducing emissions to
levels that comply with the Clean Air
Act. To make sure the emissions
remain low, you should use only new
Honda replacement parts or their
equivalent for repairs. Using lower
qualitypartsmayincreasethe
emissions from your vehicle.
The emissions control systems are
covered by warranties separate from
the rest of your vehicle. Read your
warranty manual for more informa-
tion.
The Onboard Refueling Vapor
Recovery (ORVR) system captures
the fuel vapors during refueling. The
vapors are adsorbed in a canister
filled with activated carbon. While
driving, the fuel vapors are drawn
into the engine and burned off.
This system constantly adjusts the
ignition timing, reducing the amount
of HC, CO, and NOx produced.
2
2
Emissions Controls
Technical Information
Exhaust Emissions Controls
Onboard Refueling Vapor
Recovery
Replacement Parts
PGM-FI System
Secondary Air Injection System
Three Way Catalytic Converter
Ignition Timing Control System
186
Main Menu
Table of Contents
The three way catalytic converter
contains precious metals that serve
as catalysts, promoting chemical
reactions to convert the exhaust
gasses without affecting the metals.
The catalytic converter is referred to
as a three-way catalyst, since it acts
on HC, CO, and NOx. A replacement
unit must be an original Honda part
or its equivalent.
The three way catalytic converter
must operate at a high temperature
for the chemical reactions to take
place. It can set on fire any com-
bustible materials that come near it.
Parkyourvehicleawayfromhigh
grass, dry leaves, or other flamma-
bles.
A defective three way catalytic
converter contributes to air pollution,
and can impair your engine’s per-
formance. Follow these guidelines to
protect your vehicle’s three way
catalytic converter.
Always use unleaded gasoline.
Even a small amount of leaded
gasoline can contaminate the
catalyst metals, making the three
way catalytic converter ineffective.
Keep the engine tuned-up.
Have your vehicle diagnosed and
repaired if it is misfiring, back-
firing, stalling, or otherwise not
running properly.
Three Way Catalytic Converter
Technical Information
187
THREE WAY CATALYTIC CONVERTER
Main Menu
Table of Contents
If you take your vehicle for a state
emissions test shortly after the
battery has been disconnected or
gone dead, it may not pass the test.
This is because of certain ‘‘readiness
codes’’ that must be set in the on-
board diagnostics for the emissions
systems. These codes are erased
when the battery is disconnected,
and set again only after several days
of driving under a variety of
conditions.
If the testing facility determines that
the readiness codes are not set, you
will be requested to return at a later
date to complete the test. If you must
get the vehicle re-tested within the
next two or three days, you can
condition the vehicle for re-testing
by doing the following.
Make sure the gas tank is nearly,
but not completely, full (around
3/4).
Make sure the vehicle has been
parked with the engine off for 8
hours or more.
Make sure the ambient
temperature is between 20° and
95°F.
Without touching the accelerator
pedal, start the engine, and let it
idle for 20 seconds.
Keep the vehicle in Neutral.
Increase the engine speed to 2,000
rpm,andholditthereuntilthe
temperature gauge rises to at least
1/4ofthescale(about3minutes).
State Emissions Testing
Technical Information
Testing of Readiness Codes
188
Main Menu
Table of Contents
Select a nearby lightly traveled
major highway where you can
maintain a speed of 50 to 60 mph
(80to97km/h)foratleast20
minutes. Drive on the highway in
5th.Donotusethecruisecontrol.
When traffic allows, drive for 90
seconds without moving the
accelerator pedal. (Vehicle speed
may vary slightly; this is okay.) If
you cannot do this for a
continuous 90 seconds because of
traffic conditions, drive for at least
30 seconds, then repeat it two
more times (for a total of 90
seconds).
Then drive in city/suburban
traffic for at least 10 minutes.
When traffic conditions allow, let
the vehicle coast for several
seconds without using the
accelerator pedal or the brake
pedal.
If the testing facility determines the
readiness codes are still not set, see
your Honda dealer.
State Emissions Testing
Technical Information
189
Main Menu
Table of Contents
190
Main Menu
Honda dealership personnel are
trained professionals. They should
be able to answer all your questions.
If you encounter a problem that your
dealership does not solve to your
satisfaction, please discuss it with
the dealership’s management. The
Service Manager or General
Manager can help. Almost all
problems are solved in this way.
If you are dissatisfied with the
decision made by the dealership’s
management, contact your Honda
Customer Service Office.
U.S. Owners: In Puerto Rico and the U.S. Virgin
Islands:
Canadian Owners:
Vortex Motor Corp.
Bella International
P.O. Box 190816
San Juan, Puerto Rico 00919-0816
(787) 620-7020
Vehicle Identification Number
(see page )
Name and address of the dealer
who services your vehicle
Date of purchase
Mileage on your vehicle
Your name, address, and tele-
phone number
A detailed description of the
problem
Name of the dealer who sold the
vehicle to you
When you call or write, please give
us this information:
178
Customer Service Information
Warranty and Customer Relations
192
CUSTOMER RELATIONS
RELATIONS AVEC LA CLIENTÉLE
American Honda Motor Co., Inc.
Automobile Customer Service
Mail Stop 500-2N-7A
1919 Torrance Boulevard
Torrance, California 90501-2746
Tel: (800) 999-1009
Honda Canada Inc.
715 Milner Avenue
Toronto, ON
M1B 2K8
Tel: 1-888-9-HONDA-9
Fax: Toll-free 1-877-939-0909
Toronto (416) 287-4776
Main Menu
Table of Contents
−
−
−
−
−
−
−
−
−
Your new Honda is covered by these
warranties:
covers your new vehicle, except for
the battery, emissions control
systems, and accessories, against
defects in materials and
workmanship.
these two
warranties cover your vehicle’s emis-
sions control systems. Time, mileage,
and coverage are conditional. Please
read the warranty manual for exact
information.
this warranty gives up
to 100 percent credit toward a
replacement battery.
a seat
belt that fails to function properly is
coveredfortheusefullifeofthe
vehicle.
Honda Accessories are covered
under this warranty. Time and
mileage limits depend on the type of
accessory and other factors. Please
read your warranty manual for
details.
covers all Honda
replacement parts against defects in
materials and workmanship.
provides
coverageforaslongasthepur-
chaser of the muffler owns the
vehicle.
Restrictions and exclusions apply to
all these warranties. Please read the
2004 Honda Warranty Information
booklet that came with your vehicle
for precise information on warranty
coverages. Your Honda’s original
tires are covered by their
manufacturer. Tire warranty infor-
mation is in a separate booklet.
Please refer to the 2004 Warranty
Manual that came with your vehicle.
provides prorated
coverage for a replacement battery
purchased from a Honda dealer.
all exterior body panels
are covered for rust-through from
theinsideforthespecifiedtime
period with no mileage limit.
Warranty Coverages
Warranty and Customer Relations
U.S. Owners
Canadian Owners
New Vehicle Limited Warranty
Emissions Control Systems Defects
Warranty and Emissions
Performance Warranty
Original Equipment Battery Limited
Warranty
Seat Belt Limited Warranty
Accessory Limited Warranty
Replacement Parts Limited
Warranty
Replacement Muffler Lifetime
Limited Warranty
Replacement Battery Limited
Warranty
Rust Perforation Limited
Warranty
193
Main Menu
Table of Contents
If you believe that your vehicle has a
defect which could cause a crash or
could cause injury or death, you
should immediately inform the
National Highway Traffic Safety
Administration (NHTSA) in addition
to notifying American Honda Motor
Co., Inc.
If NHTSA receives similar com-
plaints, it may open an investigation,
and if it finds that a safety defect
exists in a group of vehicles, it may
order a recall and remedy campaign.
However, NHTSA cannot become
involved in individual problems
between you, your dealer, or
American Honda Motor Co., Inc.
To contact NHTSA, you may either
call the Auto Safety Hotline toll-free
at 1-800-424-9393 (or 366-0123 in
Washington D.C. area) or write to:
NHTSA, U.S. Department of
Transportation, Washington,
D.C. 20590. You can also obtain
other information about motor
vehicle safety from the Hotline.
Reporting Safety Defects (U.S. Vehicles)
Warranty and Customer Relations
194
Main Menu
Table of Contents
＊
＊
＊
−
＊
２
０
０
４
Ｈ
Ｏ
Ｎ
The publications shown below can be purchased from Helm
Incorporated. You can order in any of three ways:
Detach and mail the order form on the right half of this page
Call Helm Inc. at 1-800-782-4356
Go online at
If you are interested in other years or models, contact Helm Inc.
at 1-800-782-4356
(credit card orders only)
Valid only for sales within the U.S. Canadian owners should
contact their authorized Honda dealer.
Authorized Manuals
Purchasing Factory Authorized Manuals
(U.S. only)
195
ORDER TOLL FREE: 1-800-782-4356
OR
(NOTE: For Credit Card Holder Orders Only)
MINIMUM CREDIT CARD PURCHASE $10.00
Publication
Form Number
61S2A04
61S2A04EL
61S2A30
31S2A640
31S2AQ10
HON-R
From Description
2000-2004 Honda S2000
Service Manual
2000-2004 Honda S2000
Electrical Troubleshooting Manual
2000-2004 Honda S2000
Body Repair Manual
2004 Honda S2000
Owner’s Manual
2004 Honda S2000
Quick Start Guide
Order Form for Previous Years-
Indicate Year and Model Desired
Price
Each
$70.00
$50.00
$44.00
$34.00
$12.00
FREE
PUBLICATION NUMBER
VEHICLE MODEL
Name Year
Qty
Price
Each
Total
Price
GRAND TOTAL
HANDLING CHARGE
Mich. Purchases
Add 6% Sales Tax
TOTAL MATERIAL
$6.95
Prices are subject to change without notice and without incurring
obligation.
Monday-Friday 8:00 A.M. 6:00 P.M. EST
By completing this form you can order the materials desired. You can
pay by check or money order, or charge to your credit card. Mail to
Helm Incorporated at the address shown on the back of the order form.
Prices are subject to change without
notice and without incurring obligation.
Orders are mailed within 10 days. Please
allow adequate time for delivery.
www. helminc. com
Main Menu
Table of Contents
−
−
−
Ｓ
Ｈ
Ｉ
Ｐ
Ｔ
Ｏ
Ｐ
Ａ
Ｙ
Ｍ
Ｅ
Ｎ
Ｔ
This manual covers maintenance and recommended
procedures for repair to engine and chassis components.
It is written for the journeyman mechanic, but is simple
enough for most mechanically-inclined owners to under-
stand.
This manual complements the Service Manual by
providing in-depth troubleshooting information for each
electrical circuit in your vehicle.
This manual describes the procedures involved in the
replacement of damaged body parts.
Authorized Manuals
Service Manual:
Electrical Troubleshooting Manual:
Body Repair Manual:
196
NOTE: Dealers and Companies please provide dealer or company name,
and also the name of the person to whose attention the shipment should
be sent. For purchases outside U.S.A. please write to the address shown
below for a quotation.
P.O. BOX 07280·DETROIT, MICHIGAN 48207·1-800-782-4356
Customer Name
Attention
Apartment Number
State & Zip Code
City
Daytime Telephone Number
Check or money order enclosed payable to Helm Inc U.S. funds only.
Do not send cash
Master
Card
VISA Check here if your billing address is different
from the shipping address shown above.
Account Number
Expiration: Mo. Yr.
CUSTOMER SIGNATURE
DATE
Street Address No P.O. Box Number
()
These Publications cannot be returned for credit without receiving advance authorization within 14
days of delivery. On returns, a restocking fee may be applied against the original order.
Main Menu
Table of Contents
CONTINUED
Accessories
.................................Installation . 105
...............Accessory Power Socket . 70
ACCESSORY (Ignition Key
.......................................Position) . 53
....................Additives, Engine Oil . 130
...............................Airbag (SRS) . 9, 18
..............................Air Conditioning . 74
.......................Air Pressure, Tires . 146
.............................Alarm, Anti-theft . 53
......................................Antifreeze . 132
Anti-lock Brakes (ABS)
....................Indicator Light . 41, 118
...................................Operation . 117
.Anti-theft Steering Column Lock . 53
............................Anti-theft System . 94
......................................Audio Panel . 71
..................................Audio System . 78
...............Automatic Speed Control . 95
............................Capacities Chart . 180
.............Carbon Monoxide Hazard . 34
........................Cargo, . 107
..............CAUTION, Explanation of . ii
...........................................CD Care . 85
........................CD Error Messages . 86
.....................................CD Changer . 84
.......CD Changer Error Messages . 87
.........................................CD Player . 83
........................Certification Label . 178
...................................Chains, . 150
Changing Oil
........................................How to . 130
......................................When to . 121
....................Changing a Flat Tire . 155
...Charging System Indicator . 40, 166
............Checklist, Before Driving . 112
........Back-up Light Replacement . 141
Battery
Charging System
...........................Indicator . 40, 166
............................Jump Starting . 162
..............................Maintenance . 151
............................Specifications . 181
................................Before Driving . 99
....................................Belts,Seat .8,15
.............................Beverage Holder . 70
..................................Booster Seats . 31
............................................Brakes . 116
...........Anti-lock System (ABS) . 117
.............Break-in, New Linings . 100
...........................................Fluid . 136
.........................................Parking . 67
.................System Indicator . 40, 168
..............Wear Indicators, Disc . 117
.............................Braking System . 116
.................Break-in, New Vehicle . 100
..Brightness Control, Instruments . 49
........................Brights, Headlights . 48
.........................Bulb Replacement . 137
..........................Back-up Lights . 141
.................................Headlights . 137
...........Side Turn Signal Lights . 139
............................Specifications . 181
............Turn Signal Lights . 139, 141
..............................Bulbs, Halogen . 137
how to carry
tires
Index
B
A
C
I
Main Menu
..............................Economy, Fuel . 104
............Emergencies on the Road . 153
.............Battery, Jump Starting . 162
................Changing a Flat Tire . 155
.....Charging System Indicator . 166
..................Checking the Fuses . 170
.........Hazard Warning Flashers . 49
.....Low Oil Pressure Indicator . 166
...Malfunction Indicator Lamp . 167
..................Overheated Engine . 163
...........................Emergency Brake . 67
......................Emergency Flashers . 49
............Emergency Trunk Opener . 55
.......................Emissions Controls . 185
.....................................Child Safety . 22
..............................Booster Seats . 31
...................................Child Seats . 26
.....Important Safety Reminders . 25
..........................Larger Children . 30
......................Risk With Airbags . 23
.............................Small Children . 26
.......................................Child Seats . 26
Cleaning
.................................Floor Mats . 143
...................................Seat Belts . 143
...................................Clutch Fluid . 136
........................CO in the Exhaust . 185
.........................Compact . 154
.............Controls, Instruments and . 70
..............................Convertible Top . 61
...............Convertible Top Cover . 63
..Lowering the Convertible Top . 61
................................Maintenance . 65
.....Raising the Convertible Top . 64
Coolant
........................................Adding . 132
....................................Checking . 103
.........................Proper Solution . 132
...................Temperature Gauge . 45
Crankcase Emission Control
........................................System . 185
..............Cruise Control Operation . 95
................Cruise Control Indicator . 42
......................................Cup Holder . 70
Customer Relations
................................Information . 192
................DANGER, Explanation of . ii
.......................................Dashboard . 38
................Daytime Running Lights . 48
Daytime Running Lights
.......................................Indicator . 42
.................................Dead Battery . 162
............Defects, Reporting Safety . 194
................Defrosting the Windows . 77
....................................Dimensions . 180
...............Dimming the Headlights . 48
Dipstick
..................................Engine Oil . 103
..........................Directional Signals . 48
........Disc Brake Wear Indicators . 117
.....................Disposal of Used Oil . 132
...................Do Not Tow a Trailer . 118
Doors
..............Locking and Unlocking . 54
..............................Monitor Light . 41
......................Power Door Locks . 54
..........DOT Tire Quality Grading . 182
Downshifting, 6-speed Manual
.............................Transmission . 114
...........................................Driving . 111
....................................Economy . 104
spare tire
Index
D
E
II
Main Menu
CONTINUED
.............Halogen Headlight Bulbs . 137
..............Hazard Warning Flashers . 49
Headlights
............Daytime Running Lights . 48
..................High Beam Indicator . 42
...........................Reminder Tone . 48
........Replacing Halogen Bulbs . 137
...................................Turning on . 48
.........Heating and Cooling System . 74
.................High-Low Beam Switch . 48
................High Speed, Shifting at . 115
.............Emissions Testing, State . 188
Engine
.......................................Coolant . 132
....Coolant Temperature Gauge . 45
Malfunction Indicator
................................Lamp . 41, 167
........Oil Pressure Indicator . 40, 166
..............Oil, What Kind to Use . 129
...............................Overheating . 163
............................Specifications . 180
............................Speed Limiter . 115
.......................................Starting . 113
...................Engine, . 160
......................Ethanol in Gasoline . 100
...Evaporative Emission Controls . 185
...............................Exhaust Fumes . 34
Expectant Mothers, Use of Seat
........................................Belts by . 14
.....................................Fan, Interior . 75
Features, Comfort and
................................Convenience . 73
....................Filling the Fuel Tank . 101
Filters
...............................................Oil . 130
.............Flashers, Hazard Warning . 49
...................Flat Tire, Changing a . 155
Fluids
..........................................Brake . 136
.........................................Clutch . 136
..............Manual Transmission . 134
..................Windshield Washer . 134
..........FM Stereo Radio Reception . 81
..........................Four-way Flashers . 49
.................................................Fuel . 100
......................Fill Door and Cap . 101
...........................................Gauge . 45
................Octane Requirement . 100
........................Reserve Indicator . 42
........................Tank, Filling the . 101
..............Fuel Mileage, Improving . 104
..............Fuel Station Procedures . 101
.....................Fuses, Checking the . 170
.........................................Gasoline . 100
...............Fuel Reserve Indicator . 42
...........................................Gauge . 45
................Octane Requirement . 100
........................Tank, Filling the . 101
.............................................Gauges . 44
...Engine Coolant Temperature . 45
...............................................Fuel . 45
...............................Speedometer . 44
.................................Tachometer . 44
Gearshift Lever Positions
6-speed Manual
.........................Transmission . 114
if it won’t start
Index
F
G
H
III
Main Menu
....................................Hood Latch . 135
.......................Hood, Opening the . 102
...........................Hydraulic Clutch . 136
................Jacking Up the Vehicle . 156
.......................................Jack, Tire . 155
................................Jump Starting . 162
..................................................Keys . 51
.........................Label, Certification . 78
.................Lane Change, Signaling . 48
..................Lap/Shoulder Belts . 12, 15
Lights
....................Bulb Replacement . 137
.......................................Indicator . 40
..................................Turn Signal . 48
.....................................Load Limit . 108
...............................Loading Cargo . 107
......LOCK (Ignition Key Position) . 53
Locks
.......Anti-theft Steering Column . 53
............................Fuel Fill Door . 101
.................................Power Door . 54
...........................................Trunk . 54
........................Low Coolant Level . 103
...Lower Gear, Downshifting to a . 114
.........................Low Fuel Indicator . 42
...Low Oil Pressure Indicator . 40, 166
...Lubricant Specifications Chart . 180
...............Luggage, . 107
Identification Number,
.......................................Vehicle . 178
Ignition
..............................................Keys . 51
...........................................Switch . 53
............Timing Control System . 186
Indicator Lights, Instrument
.........................................Panel . 40
..............ABS (Anti-Lock Brake) . 41
Brake (Parking and Brake
....................................System) . 40
........................Charging System . 40
.............................Cruise Control . 42
....................................Door-open . 41
DRL(Daytime Running
......................................Lights) . 42
EPS (Electrical Power
..................................Steering) . 41
...................................High Beam . 42
........Key (Immobilizer System) . 42
......................................Low Fuel . 42
........................Low Oil Pressure . 40
...............Maintenance Required . 43
.......................................Seat Belt . 40
...............................................SRS . 41
..................................Trunk-open . 41
Turn Signal and Hazard
...................................Warning . 42
...................Inflation, Proper Tire . 146
...................................Inside Mirror . 66
.............................Inspection, Tire . 147
............................Instrument Panel . 39
........Instrument Panel Brightness . 49
.................................Interior Lights . 68
........................................Introduction . i
storing (cargo)
Index
I
J
K
L
IV
Main Menu
CONTINUED
..............Panel Brightness Control . 49
.................................Parking Brake . 67
.................................Parking Lights . 48
.............................PGM-FI System . 186
Power
..................................Door Locks . 54
..............Engine, Specifications . 180
.........................................Mirrors . 66
......................................Windows . 59
..........................Power Door Locks . 54
..................Power Socket Location . 70
..............................Power Windows . 59
.........Pregnancy, Using Seat Belts . 14
.........Protecting Adults and Teens . 10
...Additional Safety Precautions . 15
.....Advice for Pregnant Women . 14
........................Protecting Children . 22
.....................General Guidelines . 22
.......Protecting Larger Children . 30
.........Protecting Small Children . 26
..................................Maintenance . 119
Owner’s Maintenance
...................................Checks . 122
........................................Record . 125
....................................Schedule . 121
..Maintenance Required Indicator . 43
.Malfunction Indicator Lamp . 41, 167
...................Manual Transmission . 114
........Manual Transmission Fluid . 134
...............................Meters, Gauges . 44
..........................Mirrors, Adjusting . 66
...............Modifying Your Vehicle . 106
..................New Vehicle Break-in . 100
.....................Normal Shift Speeds . 115
..................NOTICE, Explanation of . ii
...............Numbers, Identification . 178
...Octane Requirement, Gasoline . 100
.........................................Odometer . 44
...............................Odometer, Trip . 44
Oil
........................Change, How to . 130
......................Change, When to . 121
......................Checking Engine . 103
..............Pressure Indicator . 40, 166
Selecting Proper Viscosity
......................................Chart . 130
...........ON (Ignition Key Position) . 53
.........................Opening the Trunk . 54
..............................Outside Mirrors . 66
....................Overheating, Engine . 163
...................Radiator Overheating . 163
.......................Radio Sound System . 78
...................Readiness Codes . 167, 188
..Rear Lights, Bulb Replacement . 141
............................Rear View Mirror . 66
................Reclining the Seat-backs . 58
.......Recommended Shift Speeds . 115
Recovery Vehicle, Emergency
.......................................Towing . 176
.............................Reminder Lights . 40
.......................Remote Transmitter . 56
Index
M
N
O
P
R
V
Main Menu
Replacement Information
................Engine Oil and Filter . 130
..........................................Fuses . 170
................................Light Bulbs . 137
....................................Schedule . 121
...........................................Tires . 148
.............................Wiper Blades . 144
Replacing Seat Belts After a
............................................Crash . 17
...............................Restraint, Child . 22
................................Rotation, Tire . 148
........................................Safety Belts . 8
............Safety Defects, Reporting . 194
.............Safety Labels, Location of . 35
...............................Safety Messages . ii
..................................Satellite Radio . 88
...........................................Seat Belts . 8
...............Additional Information . 15
.....Advice for Pregnant Women . 14
.....................................Cleaning . 143
......................Lap/Shoulder Belt . 16
................................Maintenance . 17
......Reminder Light and Beeper . 40
...................System Components . 15
...............Use During Pregnancy . 14
........................Seats, Adjusting the . 58
...............................Serial Number . 178
...........................Service Intervals . 121
.............................Service Manual . 195
.........Service Station Procedures . 101
Shifting
The 6-speed Manual
.........................Transmission . 114
Side Turn Signal, Bulb
.........................Replacement in . 140
...............................Signaling Turns . 48
6-speed Manual Transmission
...............Checking Fluid Level . 134
................................Shifting the . 114
.....................................Snow Tires . 149
..................................Sound System . 78
Spare Tire
......................................Inflating . 154
............................Specifications . 181
....................Specifications Charts . 180
..................................Speed Control . 95
...................................Speedometer . 44
..........SRS, Additional Information . 18
...Additional Safety Precautions . 21
....................Airbag Components . 18
.............................Airbag Service . 21
How the SRS Indicator
.......................................Works . 20
...........How Your Airbags Work . 18
..................SRS Indicator Light . 20, 41
.......................Starting the Engine . 113
................With a Dead Battery . 162
..............State Emissions Testing . 188
........Steam Coming from Engine . 163
Steering Wheel
.............Anti-theft Column Lock . 53
.....................Stereo Sound System . 78
....................Storing Your Vehicle . 152
................................Stuck Vehicle . 174
Supplemental Restraint System
......................................Servicing . 21
.........................SRS Indicator . 20, 41
...............Tensioners, Seat Belts . 16
.....................................Tachometer . 44
......Taillights, Changing Bulbs in . 141
.Taking Care of the Unexpected . 153
Index
S
T
VI
Main Menu
CONTINUED
Technical Descriptions
......DOT Tire Quality Grading . 182
.....Emissions Control Systems . 185
Three Way Catalytic
...............................Converter . 187
.......................Temperature Gauge . 45
...................Tensioners, Seat Belts . 16
..Three Way Catalytic Converter . 187
....................................Tire Chains . 150
.........Tire, How to Change a Flat . 155
.................................Tire Labeling . 184
...............................................Tires . 145
..............................Air Pressure . 146
...................................Balancing . 148
.........................Checking Wear . 147
.................Compact Spare Tire . 154
......DOT Tire Quality Grading . 182
......................................Inflation . 146
..................................Inspection . 147
...................................Replacing . 148
......................................Rotating . 148
...........................................Snow . 149
............................Specifications . 181
...................Tools, Tire Changing . 155
Towing
......................A Trailer, Do Not . 118
................Emergency Wrecker . 176
..................Trailer, Do Not Tow a . 118
Transmission
Checking Fluid Level, 6-speed
..........Manual Transmission . 134
...........................Fluid Selection . 134
..............Identification Number . 178
Shifting the 6-speed Manual
.........................Transmission . 114
.....................................Treadwear . 182
.......................................Trip Meter . 44
................................................Trunk . 54
........Emergency Trunk Opener . 55
.................................Opening the . 54
...................Open Monitor Light . 41
....................................Turn Signals . 48
Unexpected, Taking Care
..........................................of the . 153
....Uniform Tire Quality Grading . 182
........................Unleaded Gasoline . 100
.......Used Oil, How to Dispose of . 132
......................Vehicle Dimensions . 180
....Vehicle Identification Number . 178
.............................Vehicle Storage . 152
.................................................VIN . 178
..................................Viscosity, Oil . 130
.............WARNING, Explanation of . ii
.........Warning Labels, Location of . 35
....................Warranty Coverages . 193
Washer, Windshield
........Checking the Fluid Level . 134
.....................................Operation . 47
...........................................Wheels . 149
............Alignment and Balance . 148
......................................Wrench . 155
....Windows, Operating the Power . 59
Windshield
.....................................Defroster . 77
.......................................Washers . 47
Index
U
V
W
VII
Main Menu
Service Information Summary
Gasoline:
Fuel Tank Capacity:
Brake Fluid:
Tire Pressure (measured cold):
SpareTirePressure:
Recommended Engine Oil:
6-speed Manual Transmission
Fluid:
1.7 US qt (1.6
) 60psi(420kPa,4.2kgf/cm )
32 psi (220 kPa , 2.2 kgf/cm
)
32 psi (220 kPa , 2.2 kgf/cm
)
5.1 US qt (4.8
)
Premium unleaded gasoline,
pump octane number of 91 or
higher.
Oil change capacity (including
filter):
Honda Manual Transmission
Fluid preferred, or an SAE 10W-30
or 10W-40 motor oil as a
temporary replacement (see page
).
Capacity:
Honda Heavy Duty Brake Fluid
DOT 3 preferred, or a DOT 3 or
DOT 4 brake fluid as a temporary
replacement (see page ).
Front:
Rear:
API premium grade 10W-30
detergent oil (see page ).
Front:
129
134
136
13.2 US gal (50 )
Main Menu
