CD-BA2010H
No. S5036CDA2010H
CONTENTS
Page
SAFETY PRECAUTION FOR SERVICE MANUAL ........................................................................................................... 2
IMPORTANT SERVICE NOTES (FOR U.K. ONLY) .......................................................................................................... 3
SPECIFICATIONS ............................................................................................................................................................. 3
NAMES OF PARTS ........................................................................................................................................................... 4
OPERATION MANUAL ..................................................................................................................................................... 6
QUICK GUIDE ................................................................................................................................................................... 7
DISASSEMBLY .................................................................................................................................................................. 9
REMOVING AND REINSTALLING THE MAIN PARTS ................................................................................................... 12
ADJUSTMENT ................................................................................................................................................................. 13
NOTES ON SCHEMATIC DIAGRAM .............................................................................................................................. 19
WAVEFORMS OF CD CIRCUIT ...................................................................................................................................... 20
BLOCK DIAGRAM ........................................................................................................................................................... 21
WIRING SIDE OF P.W.BOARD / SCHEMATIC DIAGRAM .............................................................................................. 24
VOLTAGE ........................................................................................................................................................................ 43
TROUBLESHOOTING ..................................................................................................................................................... 44
FUNCTION TABLE OF IC................................................................................................................................................ 48
FL DISPLAY ......................................................................................................................................................................54
WIRING OF PRIMARILY SUPPLY LEADS (FOR U.K. ONLY) ....................................................................................... 54
REPLACEMENT PARTS LIST/EXPLODED VIEW
PACKING METHOD (FOR U.K. ONLY)
CD-BA2010H
• In the interests of user-safety the set should be restored to its
original condition and only parts identical to those specified be
used.
SERVICE MANUAL
This document has been published to be used
for after sales service only.
The contents are subject to change without notice.
SHARP CORPORATION
CD-BA2010H Mini Component System consisting of
CD-BA2010H (main unit) and CP-BA2010H (speaker system).
• Note for users in U.K.
Recording and playback of any material may require consent
which SHARP is unable to give. Please refer particularly to the
provisions of Copyright Act 1956, the Dramatic and Musical
Prefomers Protection Act 1956, the Preformers Protection Acts
1963 and 1972 and to any subsequent statutory enactments and
orders.
CD-BA2010H
– 2 –
SAFETY PRECAUTION FOR
SERVICE MANUAL
Precaution to be taken when replacing and servicing the
Laser Pickup.
The AEL (Accessible Emission Level) of Laser Power Output
for this model is specified to be lower than Class I Requirements.
However, the following precautions must be observed during
servicing to protect your eyes against exposure to the Laser
beam.
(1) When the cabinet has been removed, the power is turned
on without a compact disc, and the Pickup is on a position
outer than the lead-in position, the Laser will light for several
seconds to detect a disc. Do not look into the Pickup Lens.
(2) The Laser Power Output of the Pickup inside the unit and
replacement service parts have already been adjusted prior
to shipping.
(3) No adjustment to the Laser Power should be attempted
when replacing or servicing the Pickup.
(4) Under no circumstances look directly into the Pickup Lens
at any time.
(5) CAUTION - Use of controls or adjustments, or performance
of procedures other than those specified herein may result
in hazardous radiation exposure.
(For U.K.)
(Except for U.K.)
VAROITUS! LAITTEEN KÄYTTÄMINEN MUULLA KUIN
TÄSSÄ
KÄYTTÖOHJEESSA MAINITULLA TAVALLA SAATTAA
ALTISTAA KÄYTTÄJÄN TURVALLISUUSLUOKAN 1
YLITTÄVÄLLE NÄKYMÄTTÖMÄLLE LASERSÄTEILYLLE.
VARNING - OMAPPARATENANVÄNDS PÅ ANNAT SÄTT
ÄN I DENNA BRUKSANVISNING SPECIFICERAS. KAN
ANVÄNDAREN UTSÄTTAS FÖR OSYNLIG
LASERSTRÅLNING, SOM ÖVERSKRIDER GRÄNSEN
FÖR LASERKLASS 1.
Laser Diode Properties
Material: GaAIAs
Wavelength: 780 nm
Emission Duration: continuous
Laser Output: max. 0.6 mW
– 3 –
CD-BA2010H
General
Power source: AC 230 V, 50 Hz
Power consumption: 154 W
Dimensions: Width; 270 mm (10-5/8")
Height; 330 mm (13")
Depth; 332 mm (13-1/16")
Weight: 8.2 kg (18.0 lbs.)
Amplifier section
Output power:
(Except for U.K.)
PMPO; 668 W
MPO; 334 W (167 W + 167 W)
(DIN 45 324)
[Main speaker (woofer, tweeter and
super tweeter);
134 W (67 W + 67 W)
Subwoofer;
200 W (100 W + 100 W)]
RMS; 200 W (100 W + 100 W)
(DIN 45 324)
[Main speaker (woofer, tweeter and
super tweeter);
80 W (40 W + 40 W)
Subwoofer;
120 W (60 W + 60 W)]
RMS; 184 W (92 W + 92 W)
(DIN 45 500)
[Main speaker (woofer, tweeter and
super tweeter);
74 W (37 W + 37 W)
Subwoofer;
110 W (55 W + 55 W)]
Output power:
(For U.K.)
RMS; 200 W (100 W + 100 W)
(10 % T.H.D.)
[Main speaker (woofer, tweeter and
super tweeter);
80 W (40 W + 40 W)
Subwoofer;
120 W (60 W + 60 W)]
RMS; 184 W (92 W + 92 W)
(0.9 % T.H.D.)
[Main speaker (woofer, tweeter and
super tweeter);
74 W (37 W + 37 W)
Subwoofer;
110 W (55 W + 55 W)]
Output terminals: Speakers; 6 ohms
Headphones; 16-50 ohms
(recommended; 32 ohms)
Input terminals: Video/Auxiliary (audio signal);
500 mV/47 kohms
Compact disc player section
Type: 3-disc multi-play compact disc player
Signal readout: Non-contact, 3-beam semiconductor
laser pickup
D/A converter: 1-bit D/A converter
Frequency response: 20 - 20,000 Hz
Dynamic range: 90 dB (1 kHz)
Tuner section
Frequency range: FM; 87.5-108 MHz
AM; 522-1,620 kHz
Cassette deck section
Frequency response: 50-14,000 Hz (Normal tape)
Signal/noise ratio: 55 dB (TAPE 1, playback)
50 dB (TAPE 2, recording/playback)
Wow and flutter: 0.35 % (DIN 45 511)
(Except for U.K.)
Wow and flutter: 0.3 % (WRMS)
(For U.K.)
Type:
4-way type [16 cm (6-5/16") subwoofer,
10 cm (4") woofer,
5 cm (2") tweeter and super tweeter]
Maximum input
power: 200 W
Rated input power: 100 W
Impedance: 6 ohms
Dimensions: Width; 250 mm (9-7/8")
Height; 330 mm (13")
Depth; 240 mm (9-7/16")
Weight: 4.7 kg (10.3 lbs.)/each
Specifications for this model are subject to change without
prior notice.
SPECIFICATIONS
CD-BA2010H
CP-BA2010H
FOR A COMPLETE DESCRIPTION OF THE OPERATION OF THIS UNIT, PLEASE REFER
TO THE OPERATION MANUAL.
IMPORTANT SERVICE NOTES (FOR U.K. ONLY)
Before returning the unit to the customer after completion of a
repair or adjustment it is necessary for the following withstand
voltage test to be applied to ensure the unit is safe for the
customer to use.
Setting of Withstanding Voltage Tester and set.
Set name set value
Withstanding Voltage Tester
Test voltage 4,240 VPEAK
3,000 VRMS
Set time 6 secs
Set current (Cutoff current) 4 mA
Unit
Judgment
OK: The “GOOD” lamp lights.
NG: The “NG” lamp lights and the buzzer sounds.
SHORT-CIRCUIT
AC POWER
SUPPLY CORD
CONNECT THE PROBE
TO GND OF CHASSIS
SCREW
PROBE
AC
UNIT
WITHSTANDING
VOLTAGE TESTER
+
-
OUT
CHASSIS SCREW
CD-BA2010H
– 4 –
NAMES OF PARTS
CD-BA2010H

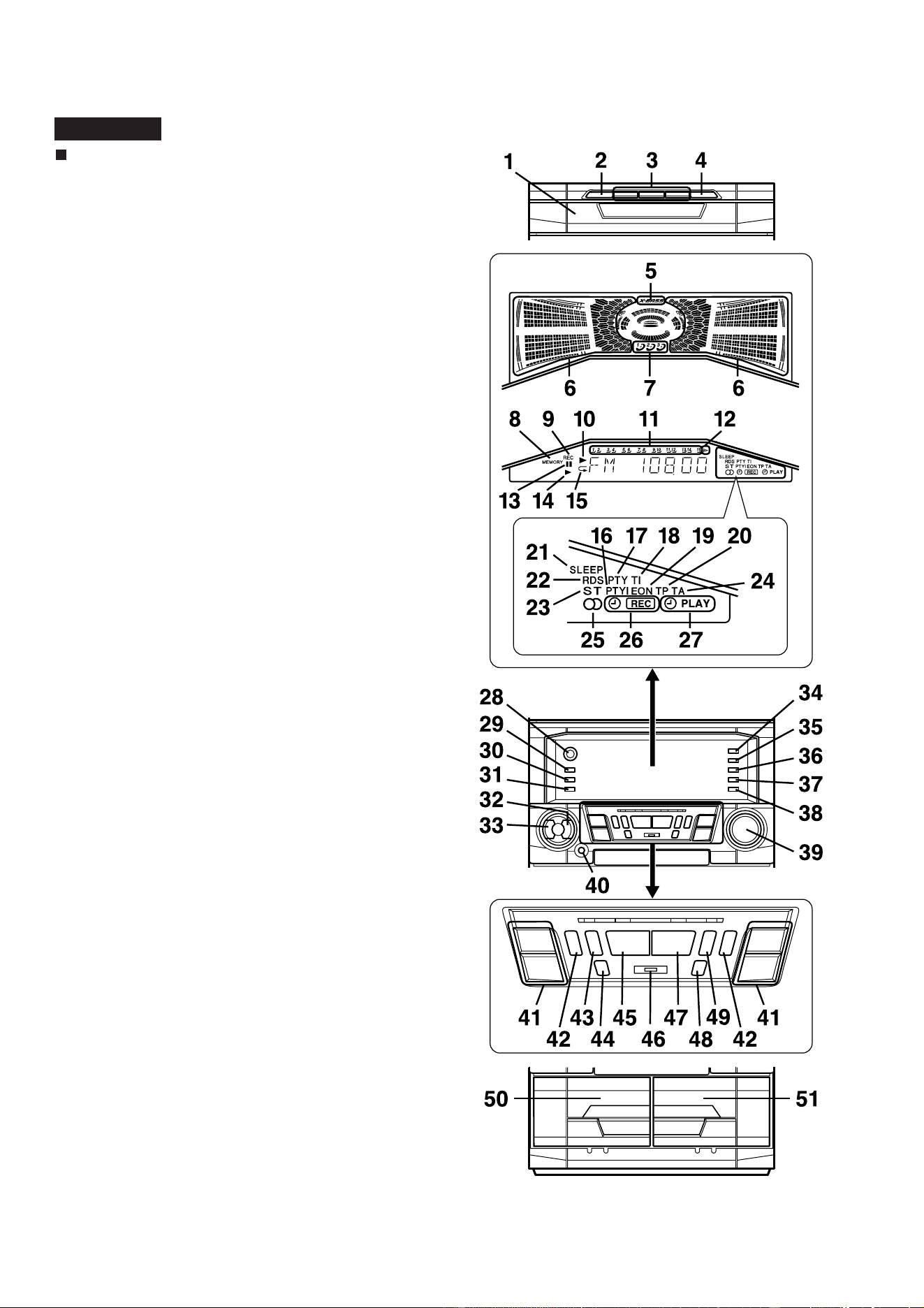

Front panel
1
. (CD) Disc Tray
2
. (CD) Disc Skip Button
3
. (CD) Disc Number Select Buttons
4
. (CD) Open/Close Button
5
. Extra Bass Indicator
6
. Spectrum Analyzer/Volume Level Indicator
7
. (CD) Disc Number Indicators
8
. (CD/TUNER) Memory Indicator
9
. (TAPE 2) Record Indicator
10
. (CD) Play Indicator
11
. (CD) Music Schedule Indicators
12
. (CD) More Tracks Indicator
13
. (CD) Pause Indicator
14
. (TAPE) Play Indicator
15
. (CD) Repeat Indicator
16
. Dynamic PTY Indicator
17
. Programme Type Indicator
18
. Traffic Information Indicator
19
. EON Indicator
20
. Traffic Programme Indicator
21
. Sleep Indicator
22
. RDS Indicator
23
. FM Stereo Mode Indicator
24
. Traffic Announcement Indicator
25
. FM Stereo Indicator
26
. Timer Record Indicator
27
. Timer Play Indicator
28
. On/Stand-by Button
29
. Clock Button
30
. Timer/Sleep Button
31
. Dimmer Button
32
. Equalizer Mode Selector Button
33
. Extra Bass/Demo Mode Button
34
. (TUNER) Programme Type/Traffic Information
Search Button
35
. (TUNER) EON Button
36
. (TUNER) ASPM Button
37
. (TUNER) Display Mode Selector Button
38
. (TUNER) Station Selector Button
39
. Volume Control
40
. Headphone Socket
41
. Function Selector Buttons
42
. Tuning and Time Up/Down Buttons
43
. (CD) Track Down/Review Button
(TUNER) Preset Down Button
(TAPE 2) Rewind Button
44
. Memory/Set Button
45
. (CD/TAPE) Stop Button
46
. Timer Set Indicator
47
. (CD) Play/Repeat Button
(TAPE) Play Button
48
. (TAPE 2) Record Pause Button
49
. (CD) Track Up/Cue Button
(TUNER) Preset Up Button
(TAPE 2) Fast Forward Button
50
. (TAPE 1) Cassette Compartment
51
. (TAPE 2) Cassette Compartment
– 5 –
CD-BA2010H
Rear panel
1
. AC Power Lead
2
. FM 75 Ohms Aerial Socket
3
. AM Loop Aerial Socket
4
. Speaker Terminals
5
. Video/Auxiliary (Audio Signal) Input Sockets
1
. Woofer
2
. Tweeter
3
. Super Tweeter
4
. Subwoofer
5
. Bass Reflex Duct
6
. Main Speaker (Woofer, Tweeter and Super Tweeter) Wire
7
. Subwoofer Wire
Remote control
1
. Remote Control Transmitter LED
CD control section
2
. Disc Number Select Buttons
3
. Memory Button
4
. Pause Button
5
. Clear Button
6
. Track Down/Review Button
7
. Track Up/Cue Button
8
. Disc Skip Button
9
. Play/Repeat Button
10
. Stop Button
11
. Random Button
Tuner control section
12
. Preset Up/Down Buttons
Tape control section
13
. (TAPE 1) Play Button
14
. (TAPE 2) Record Pause Button
15
. (TAPE 1/2) Stop Button
16
. (TAPE 2) Play Button
17
. (TAPE 2) Rewind Button
18
. (TAPE 2) Fast Forward Button
Common section
19
. Equalizer Mode Selector Button
20
. Function Selector Buttons
21
. On/Stand-by Button
22
. Extra Bass Button
23
. Volume Up/Down Buttons
CP-BA2010H
CD-BA2010H
– 6 –

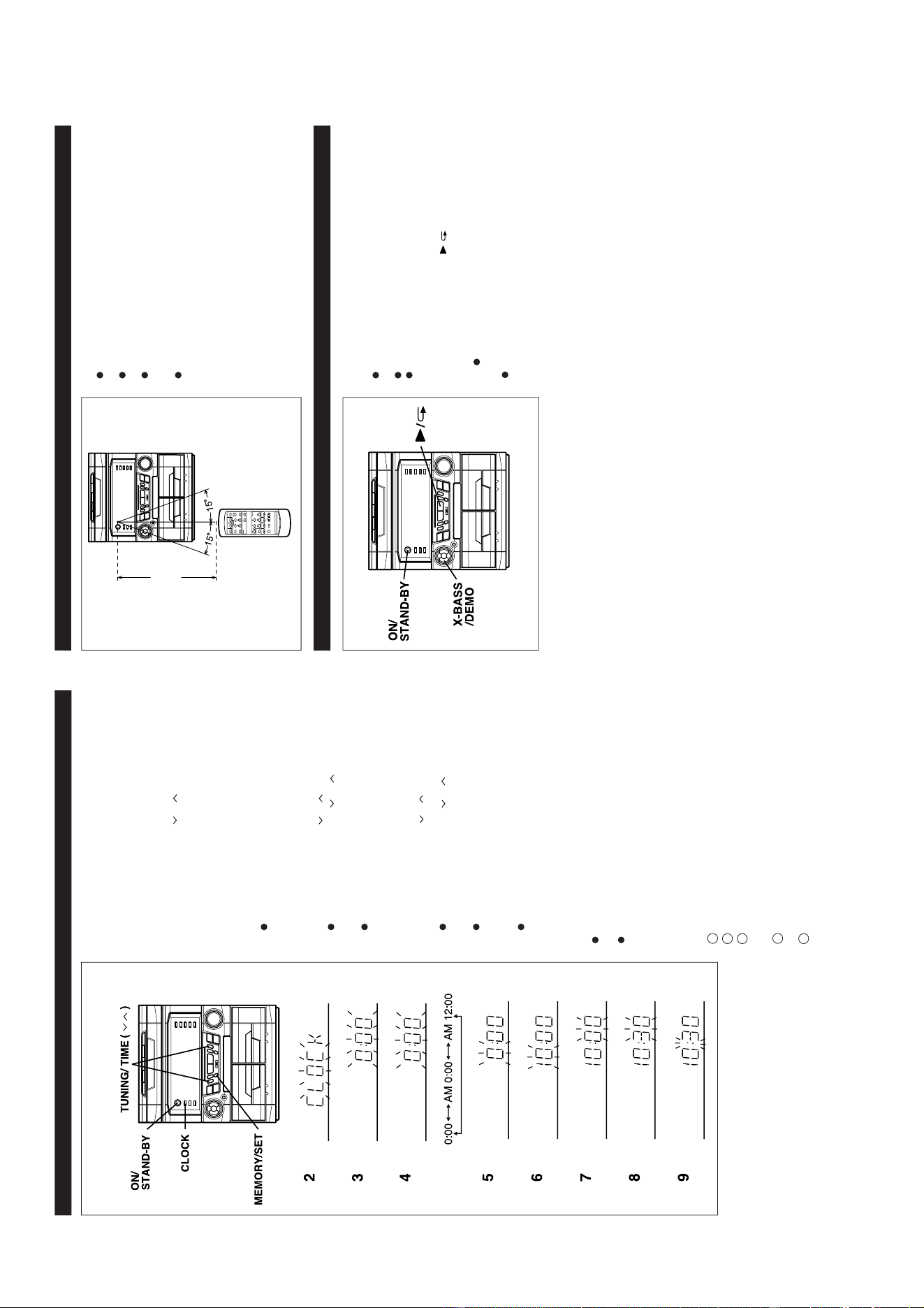

OPERATION MANUAL
SETTING THE CLOCK
In this example, the clock is set for the 24-hour (0:00) system.
1 Press the ON/STAND-BY button to enter the stand-by mode.
2 Press the CLOCK button.
3 Within 5 seconds, press the MEMORY/SET button.
4 Press theTUNING/TIME ( or ) button to select the time
display mode.
“0:00” →The 24-hour display will appear.
(0:00 - 23:59)
“AM 0:00” →The 12-hour display will appear.
(AM 0:00 - PM 11:59)
“AM 12:00” →The 12-hour display will appear.
(AM 12:00 - PM 11:59)
Note that this can only be set when the unit is first in-
stalled or it has been reset.
5 Press the MEMORY/SET button.
6 Press the TUNING/TIME ( or ) button to adjust the hour.
Press the TUNING/TIME ( or ) button once to ad-
vance the time by 1 hour. Hold it down to advance con-
tinuously.
When the 12-hour display is selected, “AM” will change
automatically to “PM”.
7
Press the MEMORY/SET button.
8 Press the TUNING/TIME ( or ) button to adjust the min-
utes.
Press the TUNING/TIME ( or ) button once to ad-
vance the time by 1 minute. Hold it down to change the
time in 5 minute intervals.
The hour setting will not advance even if minutes advance
from “59” to “00”.
9 Press the MEMORY/SET button.
The clock starts operating from “0” second.
(Seconds are not displayed.)
And then the clock display will disappear after a few sec-
onds.
To see the time display:
Press the CLOCK button.
The time display will appear for about 5 seconds.
Note:
The clock display will flash on and off at the push of the
CLOCK button when the AC power supply is restored after
a power failure occurs or after the AC power lead is discon-
nected.
If this happens, follow the procedure below to change the
clock time.
To change the clock time:
1 Press the CLOCK button.
2
Within 5 seconds, press the MEMORY/SET button.
3
Perform steps 6 - 9 above.
To change the time display mode:
1 Perform steps 1 - 2 in the section “RESETTING THE
MICROCOMPUTER”.
2
Perform steps 1 - 9 above.
(Main unit operation)
REMOTE CONTROL
0.2 m - 6 m
(8" - 20’)
Notes concerning use:
Replace the batteries if the operating distance is reduced or
if the operation becomes erratic.
Periodically clean the transmitter LED on the remote con-
trol and the sensor on the main unit with a soft cloth.
Exposing the sensor on the main unit to strong light may
interfere with operation. Change the lighting or the direction
of the unit.
Keep the remote control away from moisture, excessive heat,
shock, and vibrations.
RESETTING THE MICROCOMPUTER
Reset the microcomputer under the following con-
ditions:
To erase all of the stored memory contents (clock and timer
settings, and tuner and CD presets).
If the display is not correct.
If the operation is not correct.
1
Press the ON/STAND-BY button to enter the stand-by mode.
2
Whilst pressing down the / button and the X-BASS/
DEMO button, hold down the ON/STAND-BY button for at
least 1 second.
“CLEAR AL” will appear.
Caution:
The operation explained above will erase all data stored in
memory including clock and timer settings, and tuner and
CD presets.
– 7 –
CD-BA2010H
Check the supplied accessories
AM loop aerial
× 1
FM aerial
× 1
Remote control
× 1
Putting batteries into the remote control
Placing the system
10 cm (4")
10 cm (4")
10 cm (4")
10 cm (4")
2 "AA" size batteries
(UM/SUM-3, R6, HP-7 or similar)
1
Remove the battery cover.
2
Insert the batteries.
3
Replace the battery cover.
1
2
3
Connections
4
AM loop
aerial
AC 230 V, 50 Hz
[For U.K.] [Except for U.K.]
1
Connect the AM and FM aerials.
2
Connect the speaker system.
Blue
Red
Black
3
Connect the AC power lead.
Right speaker Left speaker
FM aerial
1
2
CD-BA2010H
– 8 –
7

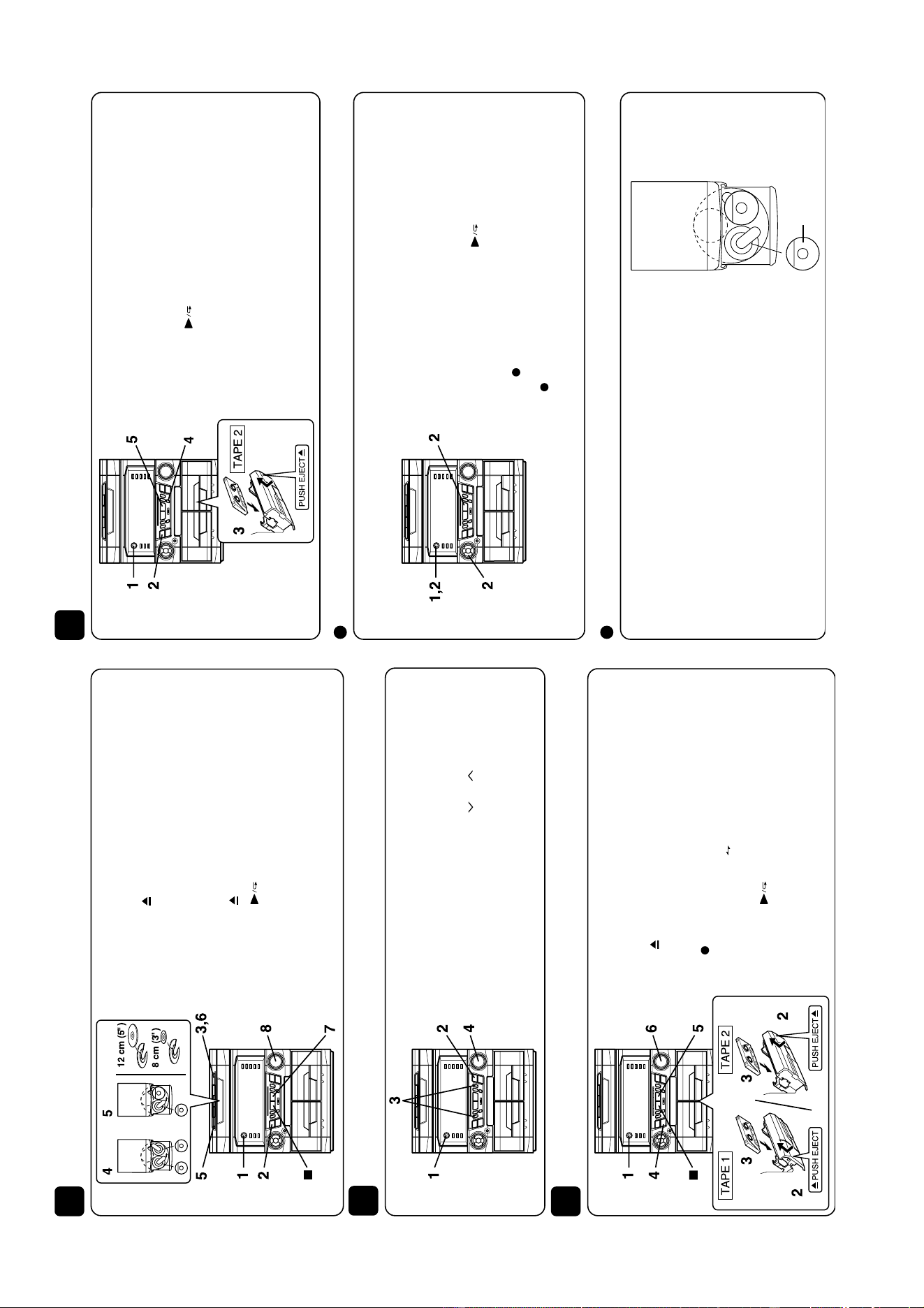

Listening to a tape
1 Press the ON/STAND-BY button to turn the power on.
4 Press the TAPE (1 2) button to select the TAPE 1
or TAPE 2.
3 Load the cassette into the TAPE 1 or TAPE 2 cassette
compartment.
2 Open the cassette door by pushing the area marked
" PUSH EJECT".
5 Press the button to start playback.
1 Press the ON/STAND-BY button to turn the power on.
2 Press the TUNER (BAND) button to select FM ST, FM
or AM.
4 Adjust the sound volume using the VOLUME control.
6
Adjust the sound volume using the VOLUME control.
3 Press the TUNING/TIME ( or ) button to tune
into the desired station.
Listening to the radio
6
1 Press the ON/STAND-BY button to turn the power on.
2 Press the CD button.
3 Press the OPEN/CLOSE button to open the disc tray.
4 Place the CD(s) on the disc tray, label side up.
5 When loading a third disc, press the DISC SKIP button
to turn the disc tray, then place the CD in the open po-
sition.
6
Press the OPEN/CLOSE button to close the disc tray.
5
7
Press the button.
8 Adjust the sound volume using the VOLUME control.
And then, close the cassette door completely until it is locked.
Listening to a CD
Whilst pressing down the button and the X-BASS/
DEMO button, hold down the
ON/STAND-BY button for
at least 1 second.
Resetting the microcomputer
1 Press the ON/STAND-BY button to enter the stand-by
mode.
2
"CLEAR AL" will appear.
Caution:
The operation explained above will erase all data stored
in memory including clock and timer settings, and tuner
and CD presets.
If this product is subjected to strong external interference
(mechanical shock, excessive static electricity, abnormal
supply voltage due to lightning, etc.) or if it is operated in-
correctly, it may malfunction or the display may not func-
tion correctly. If such a problem occurs, do the following:
CD pickup cleaning
1
Press the ON/STAND-BY button to turn the power on.
2 Press the CD button and load the desired disc.
3
Load a cassette into the TAPE 2 cassette compartment.
4 Press the REC/PAUSE button.
5 Press the button.
Recording from CDs
8
Clean the dust or stain on the CD pickup lens
using a commercial cleaning disc (brush type).
Cleaning disc
– 9 –
CD-BA2010H
DISASSEMBLY
Caution on Disassembly
Follow the below-mentioned notes when disassembling
the unit and reassembling it, to keep it safe and ensure
excellent performance:
1. Take cassette tape and compact disc out of the unit.
2. Be sure to remove the power supply plug from the wall
outlet before starting to disassemble the unit.
3. Take off nylon bands or wire holders where they need to
be removed when disassembling the unit. After servicing
the unit, be sure to rearrange the leads where they were
before disassembling.
4. Take sufficient care on static electricity of integrated
circuits and other circuits when servicing.

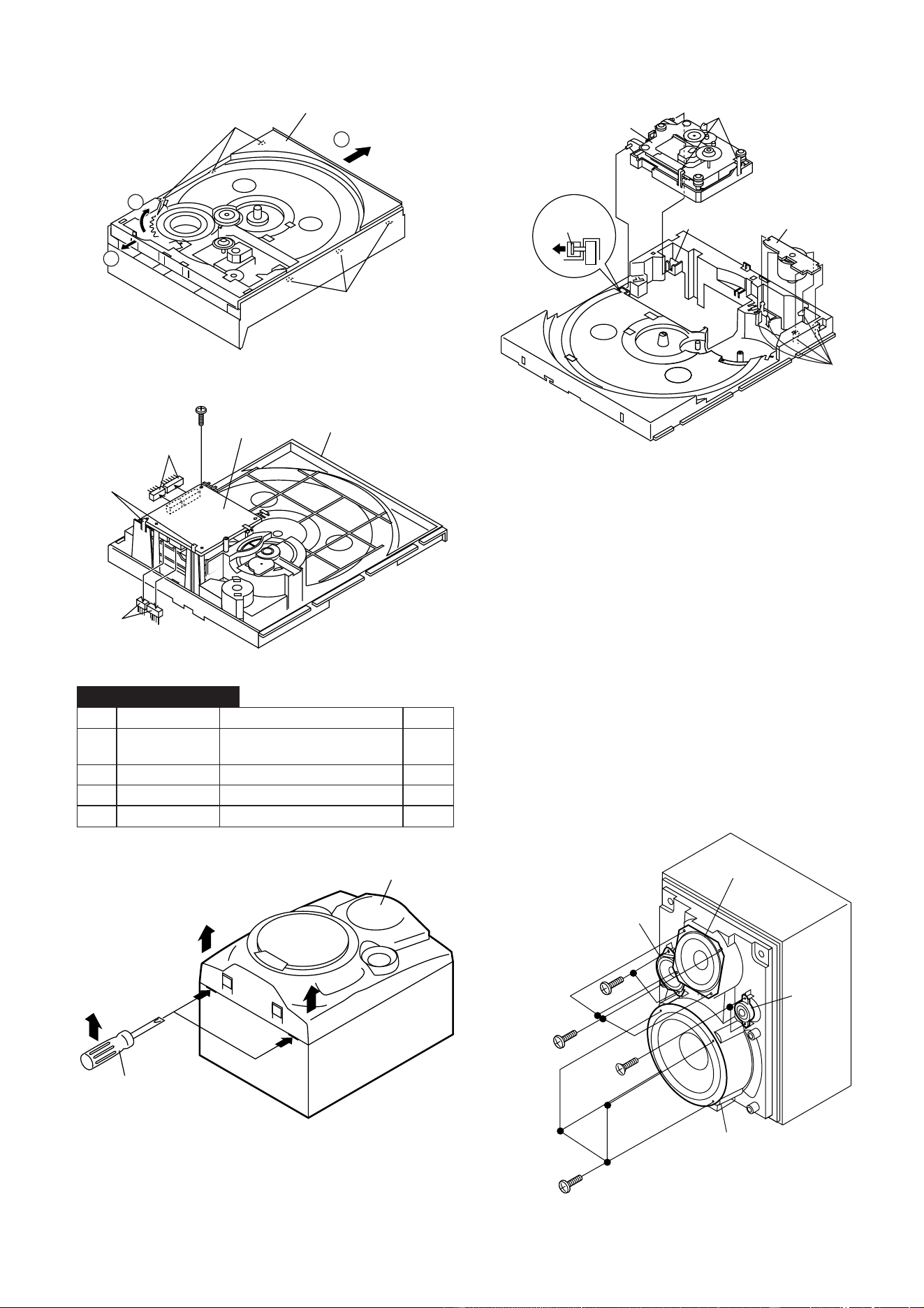

Figure 9-2
CD-BA2010H
1 Top Cabinet 1. Screw .................... (A1) x4 9-1
2 Side Panel 1. Screw .................... (B1) x8 9-1
(Left/Right)
3 CD Player Unit/ 1. Turn on the power supply, 9-2
CD Tray Cover open the disc tray, take out
the CD cover, and close.
(Note 1)
2. Screw .................... (C1) x1
3. Hook ...................... (C2) x3
4. Hook ...................... (C3) x2
5. Socket ................... (C4) x2
4 Rear Panel 1. Screw .................. (D1) x10 9-2
5 Main/RDS PWB 1. Screw .................... (E1) x3 10-3
2. Socket ................... (E2) x3
3. Flat Cable .............. (E3) x1
4. Tip Wire ................. (E4) x1
6
Power Supply PWB
1. Screw .................... (F1) x2 10-4
2. Socket ................... (F2) x4
3. Flat Wire ................ (F3) x1
7 Front Panel 1. Screw .................... (G1) x2 10-4
2. Hook ...................... (G2) x2
8
Volume Mechanism/
1. Knob ...................... (H1) x1
10-5
Volume Motor
2. Screw .................... (H2) x4
3. Socket ................... (H3) x1
4. Belt ........................ (H4) x1
5. Screw .................... (H5) x2
9 Switch PWB 1. Screw ..................... (J1) x2 10-5
2. Bracket ................... (J2) x1
10 Display/ 1. Screw .....................
(K1) x6
10-5
Headphones PWB
2. Bracket .................. (K2) x1
3. Hook ...................... (K3) x2
4. Flat Cable .............. (K4) x1
11 Tape Mechanism 1. Open the cassette holder. 10-5
2. Screw...................... (L1) x5
12 Turntable 1. Hook ..................... (M1) x2 10-6
2. Cover .................... (M2) x1
13 Disc Tray 1.
Turn fully the lock lever in the
10-1
arrow direction.
2.
While holding the lock lever, rotate
10-2
the cam gear until the cam gear
rib engages with the clamp lever.
3.
Push the slide holder backward to
11-1
engage the claw with the groove
and remove it in the direction
of the arrow. ..............
(N1) x6
14 CD Servo PWB 1. Screw .................... (P1) x1 11-2
(Note 2) 2. Hook ...................... (P2) x2
3. Socket ................... (P3) x4
15 CD Mechanism 1. Hook ...................... (Q1) x2 11-3
2. Hook ...................... (Q2) x3
16
Loading Motor PWB
1. Hook ...................... (R1) x5 11-3
STEP REMOVAL
PROCEDURE
FIGURE
Figure 9-1
CD-BA2010H
Note 1:
How to open the changer manually. (Fig. 10-1)
1. In this state, turn fully the lock lever in the arrow direction
through the hole on the loading chassis bottom.
2.
While holding the lock lever, rotate the cam gear anticlockwise
until the cam gear rib engages with the clamp lever.
(Fig. 10-2)
3. After that, push forward the CD slide holder.
Note 2:
1. After removing the connector for the optical pickup from the
connector, wrap the conductive aluminium foil around the
front end of the connector to protect the optical pickup from
electrostatic damage.
Note 3:
1. Be careful not to break the claw of the CD mechanism.
2. When fining back the cam gear assembly, let it lock by front
movement.
(B1)x4
ø3x10mm
(B1)x2
ø3x10mm
Rear
Panel
(B1)x2
ø3x10mm
Side Panel
(Right)
Side Panel
(Left)
(A1)x2
ø3x12mm
(A1)x2
ø3x12mm
Top Cabinet
(C3)x1
(D1)x2
ø3x10mm
CD Player
Unit
CD Tray Cover
Pull
(C3)x1
(C4)x2
1
1
2
CD Servo
PWB
(C1)x1
ø3x10mm
(D1)x8
ø3x10mm
Rear
Panel
Main PWB
(C2) x3
CD-BA2010H
– 10 –
Figure 10-1
Figure 10-2
Figure 10-3
Figure 10-4
Figure 10-5
Figure 10-6
Lock Lever
CD Player Unit
(Bottom View)
Clamp Lever
Cam Gear Rib
CD Player Unit
(Top View)
Main PWB
Main
PWB
Power
Supply
PWB
(E4)x1
(E2)x2
(E3)x1
(E2)x1
(E1)x1
ø3x10mm
(E1)x1
ø3x10mm
RDS PWB
Front Panel
Power
Supply
PWB
(F2)x2
(F2)x2
Front Panel
(F3)x1
Headphones
PWB
(F1)x1
ø3x10mm
(F1)x1
ø3x8mm
(G1)x2
ø3x8mm
(G2)x1
(G2)x1
Headphones
PWB
(K2)x1
(K4)x1
(H2)x4
ø3x12mm
(H5)x2
ø2x5mm
(H3)x1
(H1)x1
(K3)x1
(K3)x1
(H4)x1
Volume
Mechanism
Volume
Motor
(L1)x5
ø3x10mm
(K1)x6
ø3x10mm
(J1)x2
ø3x10mm
(J2)x1
Display PWB
Switch PWB
Open
Cassette
Holder
Tape
Mechanism
Turntable
Slide
Chassis
(M2)x1
CD Player Unit
(M1)x2
– 11 –
CD-BA2010H
Figure 11-4
Figure 11-5
Figure 11-1
1
3
2
(N1)x3
(N1)x3
Slide Chassis
(P3)x2
(P2)x2
(P3)x2
CD Servo
PWB
Slide
Chassis
(P1)x1
ø3x8mm
Figure 11-2
(Q2)x3
(Q1)x1
(R1)x5
(Q1)x1
Loading
Motor
PWB
CD
Mechanism
CP-BA2010H
1 Woofer 1. Front Panel ............ (A1) x1 11-4
2. Screw ..................... (A2) x4
2 Subwoofer 1. Screw ..................... (B1) x4 11-5
3 Tweeter 1. Screw ..................... (C1) x2 11-5
4 Super Tweeter 1. Screw ..................... (D1) x2 11-5
STEP
REMOVAL PROCEDURE FIGURE
Figure 11-3
Driver
Driver should
be pried away
from Speaker
Box.
(A1)x1
(B1)x4
Ø4x16mm
(D1)x2
Ø3x10mm
(A2)x4
Ø4x16mm
(C1)x2
Ø3x10mm
Super
Tweeter
Tweeter
Subwoofer
Woofer
CD-BA2010H
– 12 –
REMOVING AND REINSTALLING THE MAIN PARTS
TAPE MECHANISM SECTION
Perform steps 1 to 7 and 11 of the disassembly method to
remove the tape mechanism.
How to remove the record/playback and erase
heads (TAPE 2) (See Fig. 12-1)

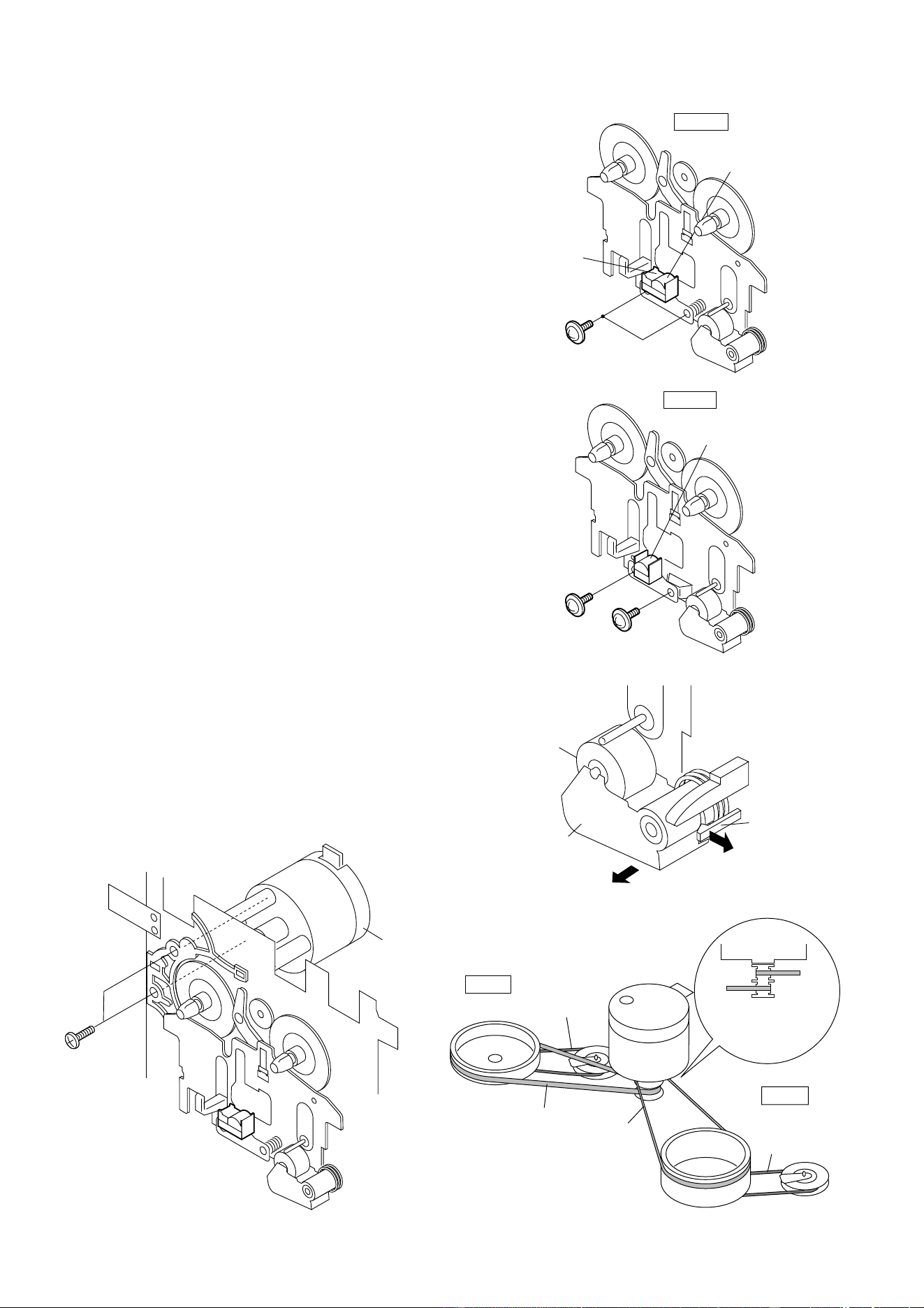

1. When you remove the screw (A1) x 2 pcs., the recording/
playback head and three-dimensional head of the erasing
head can be removed.
How to remove the playback head (TAPE 1)
(See Fig. 12-2)
1. When you remove the screw (B1) x 2 pcs., the playback
head.
How to remove the pinch roller (TAPE 1/2)
(See Fig. 12-3)
1. Carefully bend the pinch roller pawl in the direction of the
arrow <A>, and remove the pinch roller (C1) x 1 pc., in the
direction of the arrow <B>.
Note:
When installing the pinch roller, pay attention to the spring
mounting position.
How to remove the belt (TAPE 2) (See Fig. 12-4)
1. Remove the main belt (D1) x 1 pc., from the motor side.
2. Remove the FF/REW belt (D2) x 1 pc.
How to remove the belt (TAPE 1) (See Fig. 12-4)
1. Remove the main belt (E1) x 1 pc., from the motor side.
2. Remove the FF/REW belt (E2) x 1 pc.
How to remove the motor (See Fig. 12-5)
1. Remove the screws (F1) x 2 pcs., to remove the motor.
Figure 12-1
Figure 12-2
Figure 12-3
Figure 12-4Figure 12-5
TAPE 2
TAPE 1
Main Belt
(E1)x1
TAPE 2
Main Belt
(D1)x1
TAPE 1
(D1)x1
FF/REW
Belt
(D2)x1
FF/REW
Belt
(E2)x1
(E1)x1
Motor
Motor
(B1)x1
Ø2x9mm
(B1)x1
Ø2x5mm
TAPE 1
Playback
Head
Pinch Roller
(C1)x1
<A>
Pull
<B>
Pull
Pinch
Roller
Pawl
(A1)x2
Ø2x9mm
TAPE 2
Record/Playback
Head
Erase Head
(F1) x2
Ø 2.6x5mm
Motor
– 13 –
CD-BA2010H

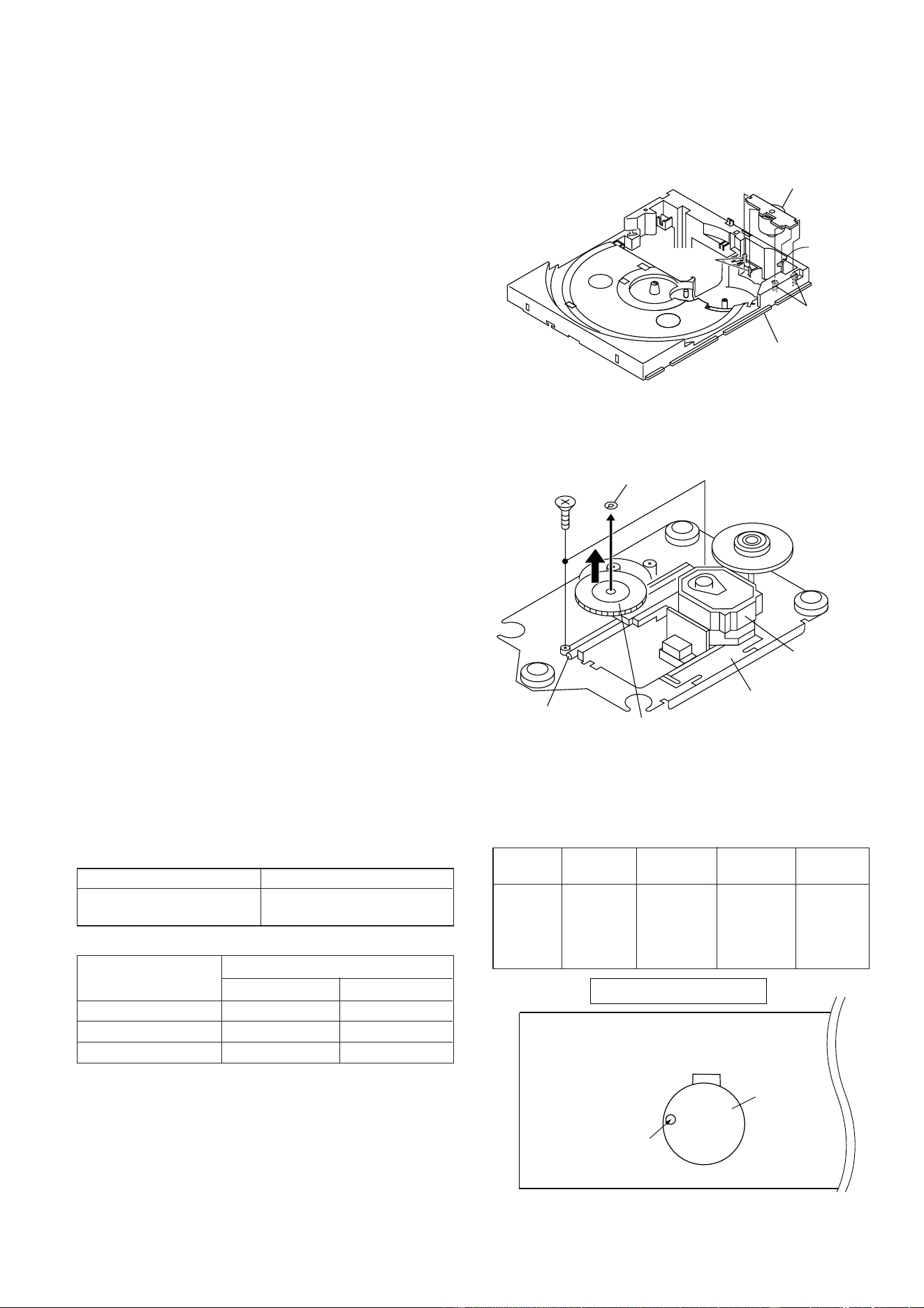

How to remove the pickup (See Fig. 13-2)
1. Remove the stop washer (B1) x 1 pc., to remove the gear
(B2).
2. Remove the screws (B3) x 2 pcs., to remove the shaft (B4).
3. Remove the pickup.
Figure 13-2
CD MECHANISM SECTION
Perform steps 1, 2, 3, 12 and 15 of the disassembly method
to remove the CD mechanism.
How to remove the loading motor
(See Fig. 13-1)
1. Bend the hooks (A1) x 5 pcs., to remove the loading motor.
Figure 13-1
Note
After removing the connector for the optical pickup from the
connector, wrap the conductive aluminium foil around the
front end of connector to protect the optical pickup from
electrostatic damage.
(A1)x2
(A1)x1
Loading Motor
Slide Chassis
(A1)x2
ADJUSTMENT
MECHANISM SECTION
• Driving Force Check
Torque Meter
Specified Value
Play: TW-2111 Tape 1: Over 80 g
Tape 2: Over 80 g
• Torque Check
Torque Meter
Tape 2
Play: TW-2111 30 to 80 g.cm 30 to 80 g.cm
Fast forward: TW-2231 — 70 to 180 g.cm
Rewind: TW-2231 — 70 to 180 g.cm
Specified Value
Tape 1
Specified
Value
Adjusting
Point
Instrument
Connection
Test Tape
Normal MTT-111 Variable 3,000 ± Speaker
speed Resistor in 30 Hz terminal
motor. (Load
(MM1) resistance:
6 ohms)
• Tape Speed
Figure 13-3
TAPE MECHANISM
Motor
Variable Resistor
in motor
(B3)x2
ø2.6x6mm
Shaft
(B4)x1
Stop Washer
(B1)x1
Gear
(B2)x1
CD Mechanism
Pickup
CD-BA2010H
– 14 –
CD SECTION
• AM IF/RF
Signal generator: 400 Hz, 30%, AM modulated
*1. Input: Antenna Output: TP302
*2. Input: Antenna Output: TP301
TUNER SECTION
fL: Low-range frequency
fH: High-range frequency
AM IF 450 kHz 1,620 kHz T351 *1
AM Band — 522 kHz (fL): T306 *2
Coverage 1.1 ± 0.1 V
AM Tracking 990 kHz 990 kHz (fL): T303 *1

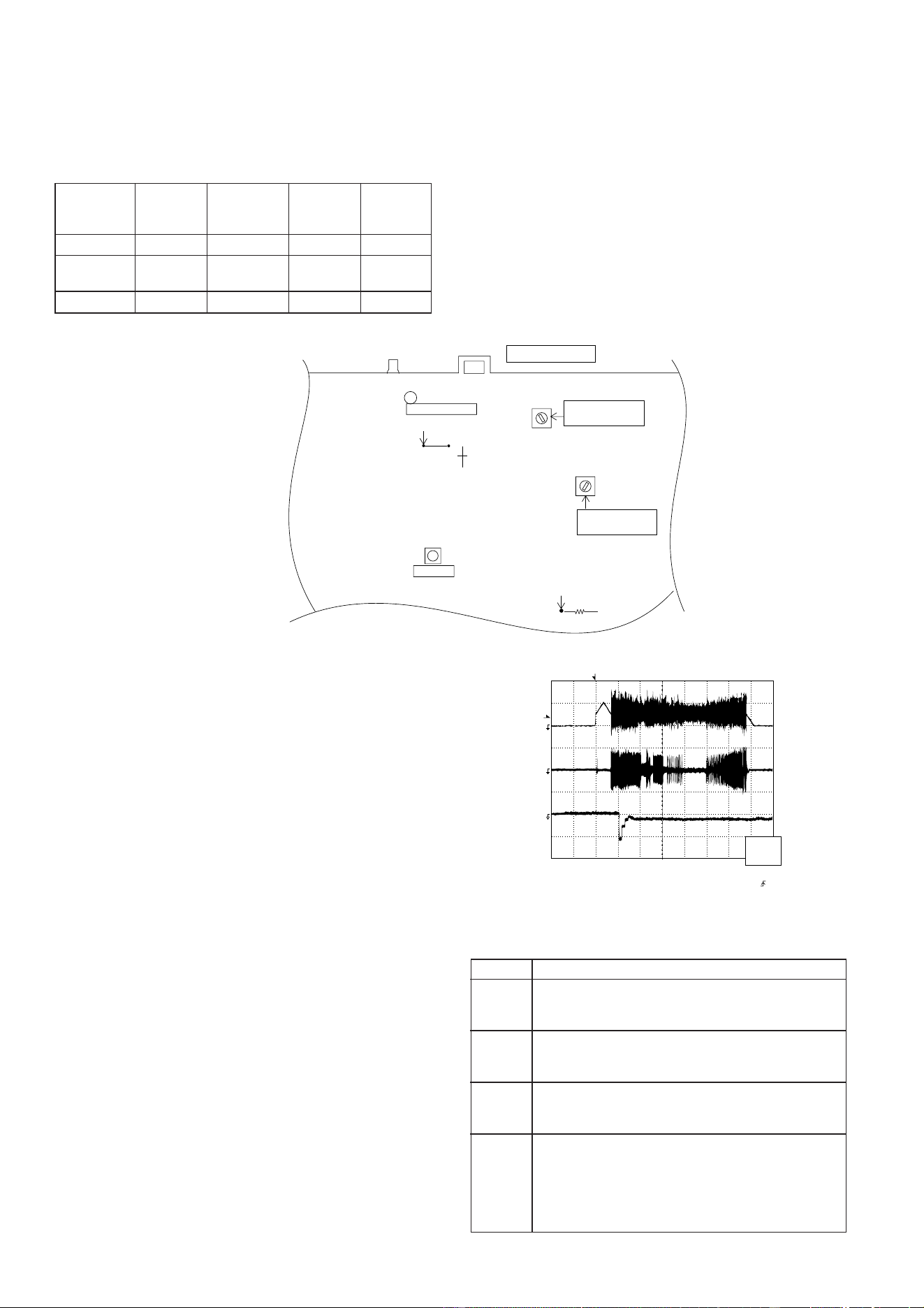

Figure 14-1 ADJUSTMENT POINTS
Test Stage Frequency
Frequency
Display
Setting/
Adjusting
Parts
Instrument
Connection
FE301
R381
TP302
TP301
R357
AM IF
T303
T306
AM
TRACKING fL
AM BAND
COVERAGE fL
T351
TUNER PWB
CNP302
AM LOOP
ANTENNA
SO301
FM ANTENNA
1
Figure 14-2
CD ERROR CODE DESCRIPTION
Error State Code
[Servo System Error]
0001 Cannot detect Pickup-in SW
0002 DSP access error
[Error during close operation]
0101 Open/Close SW not functioning (Low → High)
0103 Open/Close SW not functioning (High → Low)
[Error during open operation]
0201 Open/Close SW not functioning (Low → High)
0203 Open/Close SW not functioning (High → Low)
[Error during skip operation]
0302 Pickup-in SW is not detected
0306 During Disc 1 search, Open/Close SW or Clamp SW
or Disc SW do not change to low.
0307 Clamp SW not function (Low → High)
0308 Clamp SW not function (High → Low)
Since this CD system incorporates the following automatic
adjustment functions, readjustment is not needed when
replacing the pickup. Therefore, different PWBs and pickups
can be combined freely.
Each time a disc is changed, these adjustments are
performed automatically. Therefore, playback of each disc
can be performed under optimum conditions.
Items adjusted automatically
(1) Offset adjustment (The offset voltage between the head
amplifier output and the VREF reference voltage is
compensated inside the IC.)
* Focus offset adjustment
* Tracking offset adjustment
(2) Tracking balance adjustment (waveform drawing Fig.
14-2 EFBL)
(3) Gain adjustment (The gain is compensated inside the IC
so that the loop gain at the gain crossover frequency will
be 0dB.)
* Focus gain adjustment
* Tracking gain adjustment
• Adjustment
T
T
EFBL
FDO
TE
Stopped
CH1=500mV
DC 10:1
CH2=200mV
DC 10:1
CH3=1V
DC 10:1
500ms/div
(500ms/div)
NORM:20kS/s
1
2
3
=Record Length=
Smoothing : ON CH1 : 0.000V
CH2 : 0.000V
Main : 100K
Zoom : 2k
Mode : SINGLE
Type : EDGE CH1
Delay : 0.0ns
Hold off : 0.2us
CH3 : 0.00V
CH4 : 0.00V
BW : FULL
=Trigger==Filter= =Offset=
CH2
v/DIV
200mV
1999/04/05 20:26:47
• FM
Notes:
1: Description of the "FM IF Adjustment" is not carried on this
Manual. It is because the IF coil in the FM front end section
has been best adjusted in the factory so that its further
adjustment is not needed at the field. When replacing the
FM front end assembly, no adjustment is needed either.
2: The parts in the FM front end section are prepared in a
complete unit, so you can't obtain each part individually.
– 15 –
CD-BA2010H
ASPM, summary operation
Yes
Yes
Comparing freg.
same or not?
Between current receiving
frequency and (already)
previously memorized
frequency.
Hold down the ASPM button for 3 more second.
No operate. After displayed “END”. Return to
previous station.
“ASPM” blinks in the display.
Begin to scan start 87.50 → 108.00 MHz
Preset CH memory full over?
SD (TUNE) DET out OK?
Yes
No
No
No
No
No
If count 1st OK?
Yes
If count 2nd OK?
Yes
RDS signal or not? PI—identify
Yes
Comparing PI cord
same or not?
between current receiving
PI and before PI which is
already memorized by
ASPM on this time.
Yes
Yes
No
Comparing freg.
same or not?
between current receiving
frequency and (already)
previouslymemorized
frequency.
No
Memorized to the lowest vacant
preset channel.
No
Memorized to the lowest vacant
preset channel.
Compare the field
strength of current receiving
signal.
Is receiving signal stronger than
signal which has same PI cord
and is already memorized to
preset memory ahead of this
receiving time?
No effect
No effect
No effect
Effect
Pass
No effect
Pass
No effect
Pass
No effect
Pass
No effect
Displayed the TTL quantity of memorized
stations by ASPM operation on this time.
And return to the previous
receiving freq. automatically.
Begin to ASPM SCAN from the next
CH-SPAN again.
Repeat and continue with same format
ASPM operation untill 108 MHz.
After reached 108 MHz, displayed the TTL
quantity of memorized stations.
And return to the previous receiving freq.
automatically.
Preset CH memory become full over?
Yes
No
CD-BA2010H
– 16 –
4. No adjust type (None adjusting circuit.)
5. Added EON button.
6. Need to change RDS logo due to the addition of EON feature.
7. Added EON—TI, EON—PTY function.
3. Summary of CD-BA2010H RDS—EON operation
EON—PTY: Select and set the desired “PTY” → stand-by → switch to ON (other network) Station at the start of desired PTY
automatically → stay and listen to PTY of ON station → switch back to TN (This net) station automatically at the end
of PTY (ON) i.e. after changing to another PTY (except AFFAIRS) or cancelling to receive PTY of ON station
midway.
EON—TI: Select and set the “TI” → stand-by → switch to ON station at the start of traffic announcement automatically → stay
and listen to TA of ON station → switch back to TN station automatically at the end of TA (ON).
Ie after TA (ON) is over or cancelled to receive TA of ON station midway.
When switching TN → ON station.
In case of exist 2 more stations having the desired (specified) “PTY” or “TI”, the receiver will select and switch to ON station
comparing field strength at the same time. But when the frequency of ON station exists in the preset-memory, then receiver
switches straight to that ON station (CH), without comparing field strength so can make a quick switching from TN—ON station.
Preset memory takes priority of switching TN—ON station.
Therefore ASPM is usefull not only for PTY search but also for rapid EON switching.
Anyway CD-BA2010H EON is basically stand-by and receiving method, along with the Guidelines for EON implementation.
• ASPM SCAN: 87.50 MHz → 108.00 MHz.
• Only RDS signal is memorized by ASPM because RDS signal has PI code and is suitable and convenient for ASPM operation.
ASPM
Comparing field strength, only one strongest RDS station is memorized of all stations (repeater relay stations) that have same
PI code.
Same PI code — freq: different
(AF’S)
PS: same
PTY: same
Each PI has AF’S list by individually.
Exa: P1 has f1, f2, f3 (same PTY).
P2 has f4, f5 (same PTY).
[For example] Pickup and memorized to preset CH.
f 1
f 2 f 3
P 1 (PI code)
PS 1 (Station Name)
f 5 f 4
P 2
PS 2
f 6
f 7 f 8
P 3
PS 3
f 9 f 10
f 11 f 12 f13
P 4
PS 4
Select signals (f1, f5, f7, f10) are memorized in the preset memory by ASPM.
• If tentative - ASPM operation is repeated intentionally, never memorized (over write) at the same frequency.
1st time ASPM → strongest stations of each PI are memorized.
ASPM is not only very usefull for PTY search, but also EON operation.
2nd time ASPM → 2nd strong stations of each PI are memorized and so on.
PTY search function is equal to FM band search function as a result.
1. Introduction of RDS for CD-BA2010H
CD-BA2010H RDS function is equal to adding EON feature to the current CD-C75H RDS.
EON feature is EON—PTY and EON—TI.
Although PTY and TI indicators are separated, PTY contains TI in the PTY items (software) like current PTY search items.
NEWS, AFFAIRS, INFO, ALARM, TI (TTL 17 kinds)
EON—PTY EON—TI
Can select and stand-by Can select and stand-by
EON—PTY and EON—TI are basically stand-by → receive the desired program of ON station.
2. The difference point from current CD-C75H RDS. (CD-C75H — CD-BA2010H)
1. PTY item: added TA. (TTL 18 kind.)
2. Each “TP”, “TA” ind. Light up or go out individually.
“TA” ind. Doesn’t light up on current model, CD-C75H due to none EON—TI.
3. Added 3 indicators (in FL) due to adding EON feature.
EON: Lights up only during receiving EON data (14A).
TI: During EON-TI stand-by → Light up
During receiving ON station. → blink.
PTY: During EON-PTY stand-by → Light up
During receiving ON station. → blink.
---
---
↑
↑
– 17 –
CD-BA2010H
EON summary notice for reference
1. EON-TI/PTY EON stand-by can be set, only when EON ind. Lights up.
While EON ind. Goes out (NO EON STATION), EON stand-by can't be set.
If the EON button is pressed, then “NO EON” is indication the display.
2. EON-TI/PTY Even if switch back ON → TN station continue to keep EON stand-by.
3. EON-TI Don’t switch TN → ON during TN broadcast TA. (same item)
4. EON-TI/PTY
EON can be cancelled during receiving ON station by pressing EON button if necessary and switch back ON
→
TN.
5. EON-TI/PTY EON stand-by is perfectly cancelled (cleared) by pressing EON button 2 times during stand-by or power OFF
or Tun Up/Down or change band or recall pre-set CH.
6. EON-TI/PTY After setting EON stand-by, stand-by items can be confirmed by pressing EON button one time.
7. EON-TI/PTY EON button function: • EON setting
• Confirm stand-by items
• Cancel (ON→TN)
• EON clear cancel (2 times)
8. EON-TI/PTY After setting EON-TI and EON-PTY stand-by, if when EON data is not transmitted, EON ind goes out and
EON stand-by is automatically cancelled display “NO EON”.
9. EON-TI EON-TI stand-by can't be set. When TP=0,TA=0 (TN) even if EON ind. Lights up and the EON button is
pressed then “NO TI” is indication the display.
10. EON-PTY Don’t switch TN → ON during TN broadcast same specified PTY. (same item of PTY)
11. EON-TI/PTY Switch TN→ON → TN station one cycle.
Never switch TN → ON1 → ON2 → Other net to other net station.
12. EON-TI/PTY After switch TN → ON station. When ON station is NO RDS, NO signal, TA=OFF or different PTY items.
The receiver switch back ON → TN displaying “NO READY”.
During receive ON station. When ON station become to be NO RDS, NO signal, TA=ON to OFF or different
PTY item, The receiver switch back ON → TN.
13. EON-TI/PTY Switch TN → ON in case of 2 more stations exist, comparing field strength and switch to the strongest station,
if these signals are same strength, switch to the first previous station.
If same frequency as AF'Sexists in the preset memory, then switch TN → ON (preset memory station) straight.
In case of exist 2 more preset memories of AF’S,then switch to the preset CH which taken in EON DATA
first, also in this case no concern to field strength.
Even if switch TN → ON preset memory straight, that ON station is very weak signal, then search another
AF'S (ON) station comparing field strength and switch to the strongest station as a result. Of all stations of
AF'S are very weak or no good condition, then, switch back ON → TN automatically display "NO READY".
14. EON-TI/PTY No linkage volume, power ON/OFF, and switch function.
Traffic Programme code
(TP)
Traffic Announcement code
(TA)
Applications
OFF OFF This programme does not carry traffic announcements nor does
it refer, via EON, to a programme that does.
OFF ON This programmecarries EON information about another
programme which gives traffic information.
ON OFF This programme carries traffic announcements but none are
being broadcast at present and may also carry EON information
about other traffic announcements.
ON ON A traffic announcement is being broadcast on this programme
at present.
CD-BA2010H
– 18 –
RDS (Radio Data System) OPERATION
RDS is a broadcasting service which a growing number of FM
stations are now providing. It allows these FM stations to send
additional signals along with their regular programme signals.
For example, the stations send their station names, and infor-
mation about what type of programme they broadcast, such as
sports or music, etc.
When tuned to an FM station which provide the RDS service,
the RDS will appear, the station frequency (and then the sta-
tion name if sent) is displayed.
The TP (Traffic Programme) will appear on the display when
the received broadcast carries traffic announcements, and the
TA (Traffic Announcement) will appear whilst a traffic announce-
ment is being received.
EON will appear whilst the EON (Enhanced Other Networks
information) data is being broadcast.
The PTYI (Dynamic PTY Indicator) will appear whilst the
Dynamic PTY station is being received.
Note:
When the TP and TA appear at the same time, an an-
nouncement is being made.
When only the TA appears, an announcement is not being made.
Information Provided by RDS
With the CD-BA2010H, you can display three types of RDS
service. To show them in the display, press the DISPLAY MODE
button.
Each time you press the DISPLAY MODE button, the display
will change to show the following information.
Station names commonly known
will be displayed.
“NO PS” appears if no signal is
being received.
Programme type will be dis-
played.
“NO PTY” appears if no signal is
being received.
Radio text will be displayed.
“NO RT” appears if no signal is
being received.
Station frequencies.
↓
PS (Programme Service):
↓
PTY (Programme Type):
↓
RT (Radio Text):
↓
Station Frequency:
NEWS:
Short accounts of facts, events and publicly
expressed views, reportage and actuality.
AFFAIRS:
Topical programme expanding or enlarging
upon the news, generally in different presen-
tation style or concept, including debate, or
analysis.
INFO:
Programmes whose purpose is to impart ad-
vice in the widest sense.
SPORT:
Programme concerned with any aspect of
sport.
EDUCATE:
Programme intended primarily to educate, of
which the formal element is fundamental.
DRAMA:
All radio plays and serials.
CULTURE:
Programmes concerned with any aspect of na-
tional or regional culture, including language,
theatre, etc.
SCIENCE:
Programmes about the natural sciences and
technology.
VARIED:
Used for mainly speech-based programmes
usually of light-entertainment nature, not cov-
ered by other categories. Examples include:
quizzes, panel games, personality interviews.
POP M:
Commercial music, which would generally be
considered to be of current popular appeal,
often featuring in current or recent record sales
charts.
ROCK M:
Contemporary modern music, usually written
and performed by young musicians.
EASY M:
Cur rent contemporary music considered to
be “easy-listening”, as opposed to Pop, Rock
or Classical, or one of the specialized music
styles, Jazz, Folk or Country. Music in this cat-
egory is often but not always, vocal, and usu-
ally of short duration.
LIGHT M:
Classical Musical for general, rather than spe-
cialist appreciation. Examples of music in this
category are instrumental music, and vocal or
choral works.
CLASSICS:
Performances of major orchestral works, sym-
phonies, chamber music etc., and including
Grand Opera.
OTHER M:
Musical styles not fitting into any of the other
categories. Particularly used for specialist mu-
sic of which Rhythm & Blues and Reggae are
examples.
WEATHER:
Weather reports and forecasts and Meteoro-
logical information.
FINANCE:
Stock Market reports, commerce, trading etc.
CHILDREN:
For programmes targeted at a young audience,
primarily for entertainment and interest, rather
than where the objective is to educate.
SOCIAL:
Programmes about people and things that in-
fluence them individually or in groups. Includes:
sociology, history, geography, psychology and
society.
RELIGION:
Any aspect of beliefs and faiths, involving a God
or Gods, the nature of existence and ethics.
PHONE IN:
Involving members of the public expressing their
views either by phone or at a public forum.
TRAVEL:
Features and programmes concerned with
travel to near and far destinations, package
tours and travel ideas and opportunities. Not
for use for Announcements about problems,
delays, or roadworks affecting immediate travel
where TP/TA should be used.
LEISURE:
Programmes concerned with recreational ac-
tivities in which the listener might participate.
Examples include, Gardening, Fishing. Antique
collecting, Cooking, Food & Wine etc.
JAZZ:
Polyphonic, syncopated music characterised
by improvisation.
COUNTRY:
Songs which originate from, or continue the
musical tradition of the American Southern
States. Characterised by a straightforward
melody and narrative story line.
NATION M:
Current Popular Music of the Nation or Region
in that country’s language, as opposed to In-
ternational ‘Pop’ which is usually US or UK in-
spired and in English.
OLDIES:
Music from the so-called “golden age” of popu-
lar music.
FOLK M:
Music which has its roots in the musical cul-
ture of a particular nation, usually played on
acoustic instruments. The narrative or story
may be based on historical events or people.
DOCUMENT:
Programme concerned with factual matters,
presented in an investigative style.
TEST:
Broadcast when testing emergency broadcast
equipment or receivers.
ALARM !:
Emergency announcement made under excep-
tional circumstances to give warning of events
causing danger of a general nature.
NONE:
No programme type (receive only).
TP:
Broadcasts which carry traffic announcements.
TA:
Traffic announcements are being broadcast at
present.
(Continued)
Descriptions of the PTY (Programme Type) codes, TP (Traffic Programme) and TA (Traffic Announcement)
With the CD-BA2010H, you can search for and receive the following PTY, TP and TA signals.
Note:
When the unit is in the EON stand-by mode and a programme
is selected, the unit will display “TI” instead of “TA”.
– 19 –
CD-BA2010H

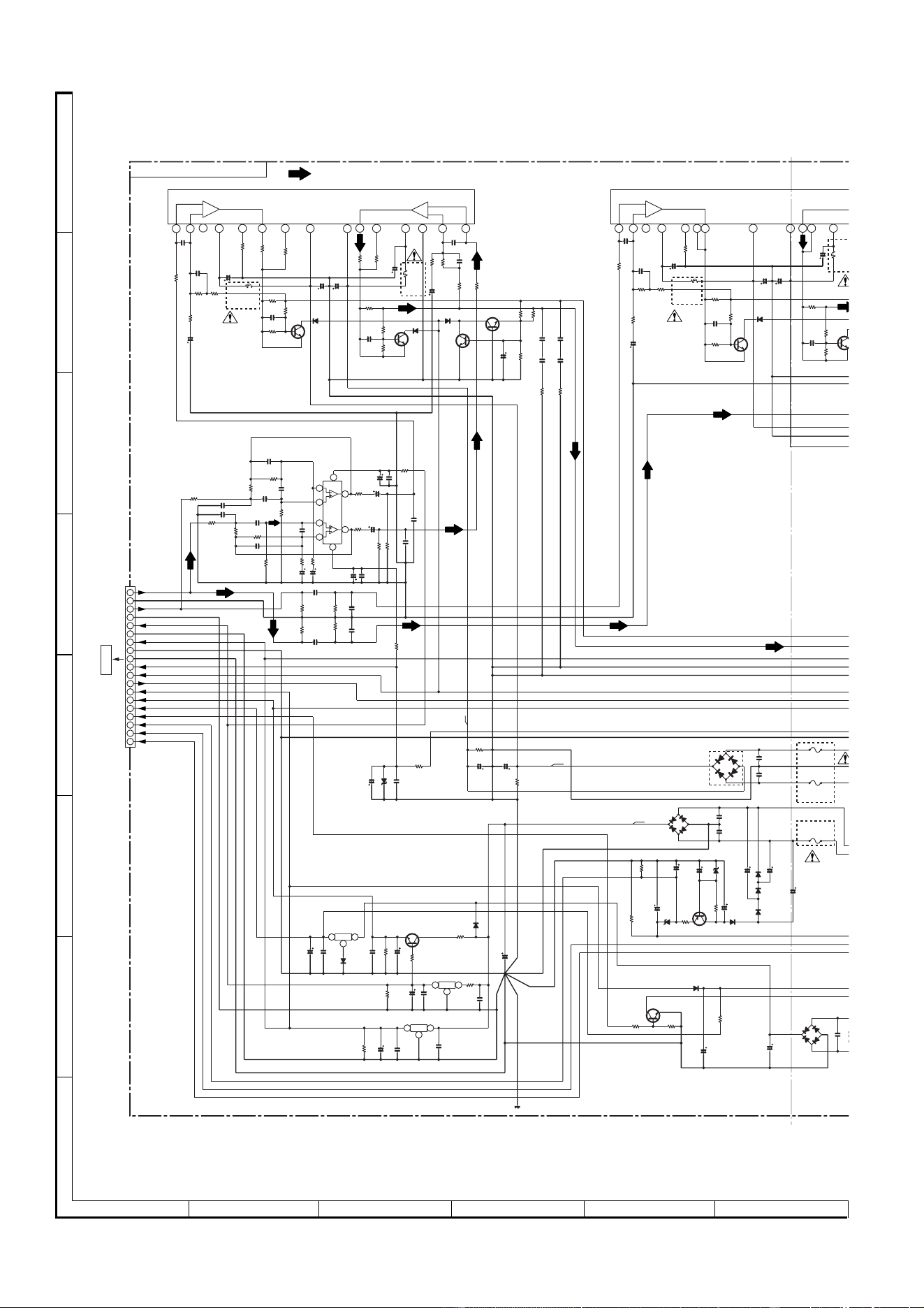

• The indicated voltage in each section is the one measured
by Digital Multimeter between such a section and the chas-
sis with no signal given.
1. In the tuner section,
( ) indicates AM
< > indicates FM stereo
2. In the main section, a tape is being played back.
3. In the deck section, a tape is being played back.
( ) indicates the record state.
4. In the power section, a tape is being played back.
5. In the CD section, the CD is stopped.
• Parts marked with “ ” ( ) are important for
maintaining the safety of the set. Be sure to replace these
parts with specified ones for maintaining the safety and
performance of the set.
NOTES ON SCHEMATIC DIAGRAM
• Resistor:
To differentiate the units of resistors, such symbol as K and
M are used: the symbol K means 1000 ohm and the symbol
M means 1000 kohm and the resistor without any symbol is
ohm-type resistor. Besides, the one with “Fusible” is a fuse
type.
• Capacitor:
To indicate the unit of capacitor, a symbol P is used: this
symbol P means micro-micro-farad and the unit of the
capacitor without such a symbol is microfarad. As to
electrolytic capacitor, the expression “capacitance/withstand
voltage” is used.
(CH), (TH), (RH), (UJ): Temperature compensation
(ML): Mylar type
(P.P.): Polypropylene type
• Schematic diagram and Wiring Side of P.W.Board for this
model are subject to change for improvement without prior
notice.
REF. NO DESCRIPTION POSITION POSITION
SW713 OPEN/CLOSE ON—OFF
SW714 DIMMER ON—OFF
SW715 X-BASS ON—OFF
SW716 EQUALIZER ON—OFF
SW722 CD ON—OFF
SW723 TAPE ON—OFF
SW724 TUNING/TIME DOWN ON—OFF
SW725 MEMORY/SET ON—OFF
SW726 PRESET DOWN ON—OFF
SW727 PRESET UP ON—OFF
SW728 PLAY/REPEAT ON—OFF
SW729 STOP ON—OFF
SW731 REC/PAUSE ON—OFF
SW732 TUNING/TIME UP ON—OFF
SW733 VIDEO/AUX ON—OFF
SW734 TUNER (BAND) ON—OFF
REF. NO DESCRIPTION
SW1 OPEN/CLOSE ON—OFF
SW2 CLAMP ON—OFF
SW3 DISC NUMBER ON—OFF
SW4 PICKUP IN ON—OFF
SW701 ON/STAND-BY ON—OFF
SW702 CLOCK ON—OFF
SW703 TIMER/SLEEP ON—OFF
SW704 RTY.TI SEARCH ON—OFF
SW705 EON ON—OFF
SW706 ASPM ON—OFF
SW707 DISPLAY MODE ON—OFF
SW708 STATION ON—OFF
SW709 DISC 1 ON—OFF
SW710 DISC 2 ON—OFF
SW711 DISC 3 ON—OFF
SW712 DISC SKIP ON—OFF
Figure 19 TYPES OF TRANSISTOR AND LED
(1) (2) (3)
(S) (G) (D)
E C B
FRONT
VIEW
2SC380 O
2SA1015 GR
2SC1845 F
KRC102 M
KRC104 M
KTA1266 GR
KTA1271 Y
KTA1273 Y
KTA1274 Y
KTC2026
KTC3199 GR
KTC3203 Y
4204SRT7
SLI325YC
FRONT
VIEW
CD-BA2010H
– 20 –

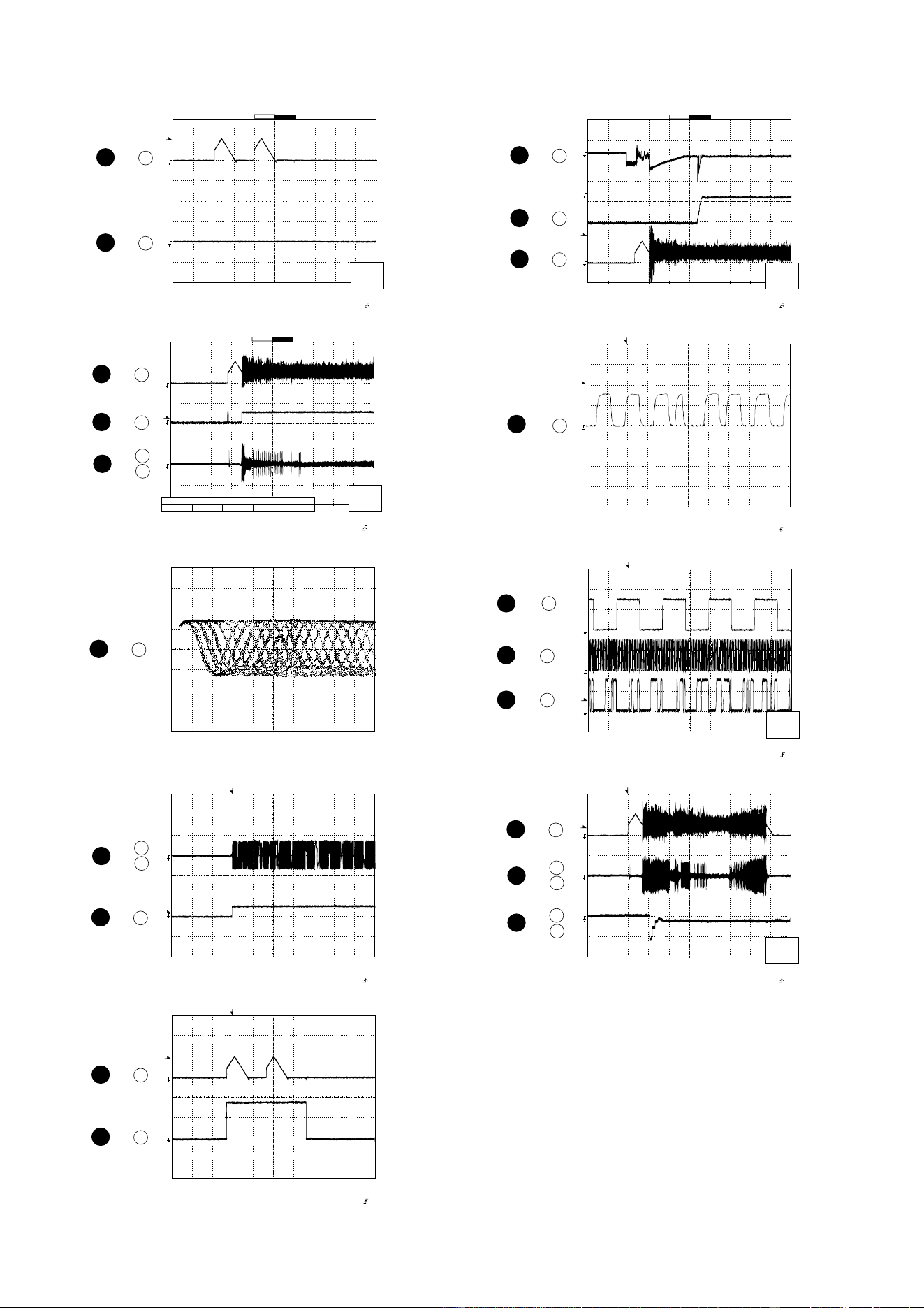

WAVEFORMS OF CD CIRCUIT
T
FDO
TDO
Stopped
CH1=500mV
DC 10:1
CH3=500mV
DC 10:1
500ms/div
(500ms/div)
NORM:20kS/s
1
3
=Record Length=
Smoothing : ON CH1 : 0.000V
CH2 : 0.0V
Main : 100K
Zoom : 2K
Mode : AUTO
Type : EDGE CH1
Delay : 0.0ns
Hold off : 0.2us
CH3 : 0.000V
CH4 : 0.00V
BW : FULL
=Trigger==Filter= =Offset=
CH1
v/DIV
500mV
1
IC2 24
2
IC2 23
T
FDO
DRF
TE
Stopped
CH1=500mV
DC 10:1
CH2=10V
DC 10:1
CH3=1V
DC 10:1
500ms/div
(500ms/div)
NORM:20kS/s
1
2
3
=Record Length=
Smoothing : ON CH1 : 0.000V
CH2 : 0.0V
Main : 100K
Zoom : 2K
Mode : AUTO
Type : EDGE CH1
Delay : 0.0ns
Hold off : 0.2us
CH3 : 0.00V
CH4 : 0.00V
BW : FULL
=Trigger==Filter= =Offset=
-3div -1div 0div +1div +3div
CH Position To
CH2
Position
0.20div
1
IC2 24
3
IC2 72
4
IC1 18 ,
IC2 16
Vp-p=1.0V~1.3V
0.5mV/div,0.5µsec/div
5
IC1 27
T
T
TE
DRF
Stopped
CH1=10V
DC 10:1
CH2=1V
DC 10:1
100ms/div
(100ms/div)
NORM:100kS/s
2
1
=Record Length=
Smoothing : ON CH1 : 0.0V
CH2 : 0.00V
Main : 100K
Zoom : 2K
Mode : NORMAL
Type : EDGE CH1
Delay : 2.924ms
Hold off : 0.2us
CH3 : 0.00V
CH4 : 0.00V
BW : FULL
=Trigger=
=Filter= =Offset=
3
IC2 72
4
IC1 18 ,
IC2 16
T
T
FDO
SPDO
Stopped
CH1=200mV
DC 10:1
CH2=500mV
DC 10:1
500ms/div
1999/04/07 09:51:15
(500ms/div)
NORM:20kS/s
2
1
=Record Length=
Smoothing : ON CH1 : 0.000V
CH2 : 0.000V
Main : 100K
Zoom : 2K
Mode : NORMAL
Type : EDGE CH2
Delay : 2.924ms
Hold off : 0.2us
CH3 : 0.00V
CH4 : 0.00V
BW : FULL
=Trigger=
=Filter= =Offset=
1
IC2 24
6
IC2 25
T
FDO
PDO2
PDO1
Stopped
CH1=500mV
DC 10:1
CH3=1V
DC 10:1
CH4=1V
DC 10:1
500ms/div
(500ms/div)
NORM:20kS/s
1
4
3
=Record Length=
Smoothing : ON CH1 : 0.000V
CH2 : 0.0V
Main : 100K
Zoom : 2K
Mode : AUTO
Type : EDGE CH2
Delay : 0.0ns
Hold off : 0.2us
CH3 : 0.00V
CH4 : 0.00V
BW : FULL
=Trigger==Filter= =Offset=
CH1
v/DIV
500mV
1999/04/05 17:33:17
1
IC2 24
7
IC2 1
8
IC2 2
T
T
DOUT
Stopped
CH1=2V
DC 10:1
500ns/div
1999/04/07 09:25:28
(500ns/div)
NORM:200MS/s
1
=Record Length=
Smoothing : ON CH1 : 0.00V
CH2 : 0.00V
Main : 1K
Zoom : 100
Mode : NORMAL
Type : EDGE CH1
Delay : 2.887ms
Hold off : 0.2us
CH3 : 0.00V
CH4 : 0.00V
BW : FULL
=Trigger=
=Filter= =Offset=
9
IC2 37
T
T
DATA
DATACK
LRSY
Stopped
CH1=2V
DC 10:1
CH2=2V
DC 10:1
CH3=2V
DC 10:1
5us/div
(5us/div)
NORM:100kS/s
1
2
3
=Record Length=
Smoothing : ON CH1 : 0.00V
CH2 : 0.00V
Main : 5K
Zoom : 100
Mode : AUTO
Type : EDGE CH3
Delay : 0.0ns
Hold off : 0.2us
CH3 : 0.00V
CH4 : 0.00V
BW : FULL
=Trigger==Filter= =Offset=
CH3
v/DIV
2 V
1999/04/05 20:50:17
10
IC2 57
IC2 58
IC2 59
11
12
T
T
EFBL
FDO
TE
Stopped
CH1=500mV
DC 10:1
CH2=200mV
DC 10:1
CH3=1V
DC 10:1
500ms/div
(500ms/div)
NORM:20kS/s
1
2
3
=Record Length=
Smoothing : ON CH1 : 0.000V
CH2 : 0.000V
Main : 100K
Zoom : 2k
Mode : SINGLE
Type : EDGE CH1
Delay : 0.0ns
Hold off : 0.2us
CH3 : 0.00V
CH4 : 0.00V
BW : FULL
=Trigger==Filter= =Offset=
CH2
v/DIV
200mV
1999/04/05 20:26:47
1
IC2 24
4
IC1 18 ,
IC2 16
IC1 13 ,
IC2 22
13
– 21 –
CD-BA2010H
CNP12
CNP11
Q2
+3.3V
+5V
CONT5
CONT2
CONT3
CONT4
CONT7
CONT6
SLD0
SPD0
FD0
TD0
+5V
TO DISPLAY SECTION
CLAMP SW
CDINT
WRQ
CE
DO
CLK
DI
CD RES
GND
DRF
CNS4
BI4
CNP4
M2
SLED
MOTOR
M1
SPINDLE
MOTOR
M
M
TRACKING COIL
FOCUS COIL
PICKUP UNIT
TE
FE
RFEV
HFL
VVDD
ADAVDD
VDD
LVDD
RVDD
XVDD
VDD5V
RFEV
FE-
FE
TE-
TE
HFL
+3.3V
Q1
LDD
PD
TIN2
TIN1
FIN2
FIN1
IC3
M63001FP
FOCUS/TRACKING/
SPIN/SLED DRIVER
IC1
LA9235M
SERVO AMP.
TO MAIN SECTION
(TO IC601)
R-CH
L-CH
AGND
DGND
+5V(+B5)
RCHO
RVSS
LVSS
LCHO
IC2
LC78641E
SERVO/SIGNAL
CONTROL
-
+
M
SW1
OPEN/
CLOSE
X1
16.9344MHz
6
5
43
3
2
5
4
1
12
34
7
8
217
89
10
12
4
3
5
SW2
CLAMP
SW3
DISC
NUMBER
M3
T/T
UP/DOWN
MOTOR
6
12
4
3
56
12
4
3
56
75
76
45 46
47 48 32 31
30
65
66
67
68
69
70
71
72
CE
CL
DI
DO
INT
WRQ
RES
DEF
52
51
XOUT
XIN
73
5
18
36
44 49 50 7 14 15 16
23
24
25
26
33
3
13
19
40
64
74
17
18 19 20
21
22
30
23
11
9
1
4567
15
16 26 27
2 1725 4142 3839
35
29
22
21
14
8
40
24
23
28
SW4
PICKUP IN
Q3
LASER
DRIVER
CONSTANT
VOLTAGE
+3.3V
+5V
VCC4
18
VCC1
TO
SP-
SP+
SL+
SL-
TR+
TR-
FO-
TD
SLDO
SPO
LD_M-
LD_M+
LOADING
M-
LOADING
M+
VCC2
VCC3
FO+

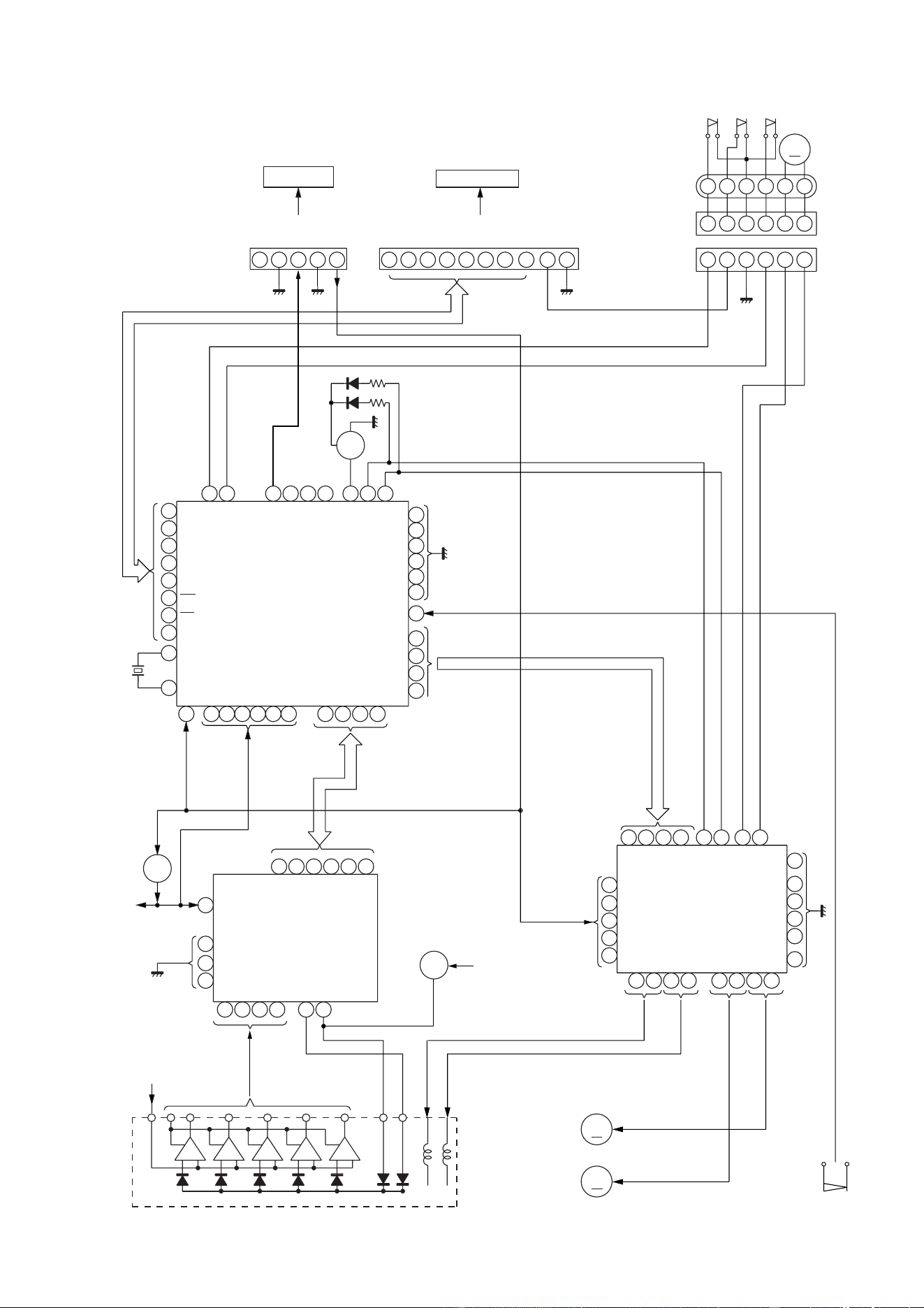

Figure 21 BLOCK DIAGRAM (1/3)
CD-BA2010H
– 22 –
Figure 22 BLOCK DIAGRAM (2/3)
-B2
+B4
-20dB
ATT
SYSTEM
MUTE
Q605
Q606
Q603
Q604
+B4
L
R
BIAS
T1/T2
REC
MUTING
Q121
Q122
AC BIAS
R
L
JK601
VIDEO IN
L
L
R
R
R
L
R
L
AUX
TAPE
TUNER
CD
P.B
CNS601
FROM CD SECTION
CNP11
ERASE
HEAD
SWITCHING
SWITCHING
SWITCHING
BIAS
Q110
Q111
Q109
Q126
SWITCHING
BIAS
OSC
Q128
L104
Q107
Q108
REC PB HEAD
TAPE 2
PB HEAD
TAPE 1
L-CH
R-CH
L-CH
R-CH
IC601
LC75341
AUDIO PROCESSOR
H/N
P.B
+B4
R
R
L
L
REC
R
L
L NF
R NF
ALC
REC
T1/T2
T1/T2
NOR/
HIGH
REF
R REC
L REC
POP REDUCE
R NF
L NF
SWITCHING
Q103-
Q106
L(T2)
R(T2)
R(T1)
L(T1)
IC101
AN7345K
PLAYBACK AND RECORD
/PLAYBACK AMP.
11
16
3
8
4
15
10
9
7
7
1
8
17
18
4
21
12
13
1
2
3
20
19
7
18
10
8
17
13
21
4
5
2
3
4
6
9
16
12
11
15
1
14
14
23
24
P.B
REC
Q124
23
+B4
OPE AMP.
KIA4558P
IC561
IC562
IC563
VCC
Q708 +B3
+B3
M
Q704
Q705
IC701
54PIN
IC701
53PIN
IC701
55PIN
TAPE
MOTOR
SOLENOID
T2 PLAY
T1 PLAY
F. PLAY
MOTOR
DRIVER
VSSD
VDDD
XIN
XOUT
VSSA
VDDA
MPX
IN
DO
CL
DI
CE
XT21
4.332MHz
ICT21
LC72722
RDS DECORDER
X351
456kHz
FM IF
CF351
+B4
+B4
+B4
+B4
QT21
AMP.
FM +B
VT
T306
T303
L341
BALUN
CF302
DO
CE
CL
DI
CF301
FE301
FM FRONT END
Q360
RL
MPX
IN
FM/AM
OUT
IF IN
IC303
LA1832
FM/AM IF MPX.
IF
OUT
SD
FM MONO/ST
MONO/ST
AM RF IN
AFC
IN
OUT
AM OSC
REG INOUT VCC
FM IF IN
FM IF
AMP
Q301
FM IF
FM
X352
4.5MHz
OSC
STEREO
IC302
LC72131
PLL (TUNER)
AM
IN
FM IN
FMOSC
T351
AM IF
GND
OSC
FM
FM IF
AM BAND
COVERAGE
VOLTAGE
REGULATOR
AM
TRACKING
AM RF
AM LOOP ANT
SO301
ANTENNA
TERMINAL
QT22
+B4
+B4
17 19 20 18 16
141211101321222324
20 22
21
13
12
1415
2021222324
15 16 11 10 13 12
67
1
3
2 4 3
4 5 6
9
7
15
8
2 6 7
3 4
5
1
1 2 3 4 5 8 9
L354
L.P.F
7 8
– 23 –
CD-BA2010H
Figure 23 BLOCK DIAGRAM (3/3)
RY801
VLOAD
+B7
SYS. STOP
RESET
IC703
KIA7042P
RESET
Q709
Q910
+B5
M901
FAN MOTOR
M
SO901
SPEAKER
TERMINAL
RY901
RY902
Q909
+B7
+B7
+B7
+B7
+B3
+B7
VDD
VDD
VDD
+B6
LCK
CL
DI
Q801
+B4
-B2
R
R
L
L
Q905
Q906
Q907
Q908
L-OUT
R-OUT
R-OUT
L-OUT
SP. DET.
Q901
Q902
Q903
Q904
UNSWITCH 5V
CD+B
+5V
A10V
M10V
+B7
+B5
+B6
+B4
+B3
Q821
IC801
KIA7805P
VOLTAGE
REGULATOR
IC802
KIA7810AP
VOLTAGE
REGULATOR
Q823
SYSTEM
MUTE
5
6
CE
DI
CL
DO
XL701
4.1943MHz
IC903
KIA4558P
OPE AMP.
Q802
D812-D815
T802
SUB POWER
TRANSFORMER
D804-D807
D802
D803
IC702
BU2902F
INPUT/OUTPUT
EXPANDER
F805
T2A L 250V
+Vcc
STK402-040
F801
T4A L 250V
F800
T4A L 250V
F803
T5A L 250V
F802
T5A L 250V
-Vcc
-Vcc
+Vcc
IC902
POWER AMP.
IC901
STK402-071
POWER AMP.
BIAS
T1/T2
REC
AVDD
KEY
SW701-SW716
SW722-SW729
SW731-SW734
TO CD
SECTION
Q701-Q703
Q710-Q712
AC POWER
SUPPLY CORD
IC701
IX0333AW
SYSTEM CONTROL
MICROCOMPUTER
FL701
DISPLAY
1
3
2
7
4
6
1
8
2
3
5
18
85
80
33
31
1
2
3
45
12
3
5
7
13
9
10
15
16
17
20
21
22
23
24
25
86
91
92
79
78
60
59
39
38
36
34
1
15
10
7
13
9
8
10
1
15
8
9
13
7
12
13
4
2
1
17
3
27
28
3
6
2
151
20
53 56
57
58
T.F
CONSTANT
VOLTAGE
REGULATOR
~~
~~~
~
11
12
100
58
57
56 55
54 53
52 51
50
49
48
47
46
44
43
42
41 40
37
35
JK601
HEADPHONES
14
~~~
29
14
8
5
~
+B4
RESET
T801
MAIN POWER
TRANSFORMER
AC 230V
50Hz
L801
LINE
FILTER
R
L
+B1
VF2
VF1
-VF
CONSTANT
VOLTAGE
REGULATOR
-B2
+B2
-B1
R
L
DRIVER
JOG701
JOG
RX701
REMOCON
SENSOR
10Hz
IC701
IX0333AW
SYSTEM
MICROCOMPUTER
63Hz
R-CH
(HI)
L-CH
(HI)
R-CH
(LOW)
L-CH
(LOW)
1516
Q713
Q716
Q714
Q715
M701
VOLUME
MOTOR
M
CD-BA2010H
– 24 –

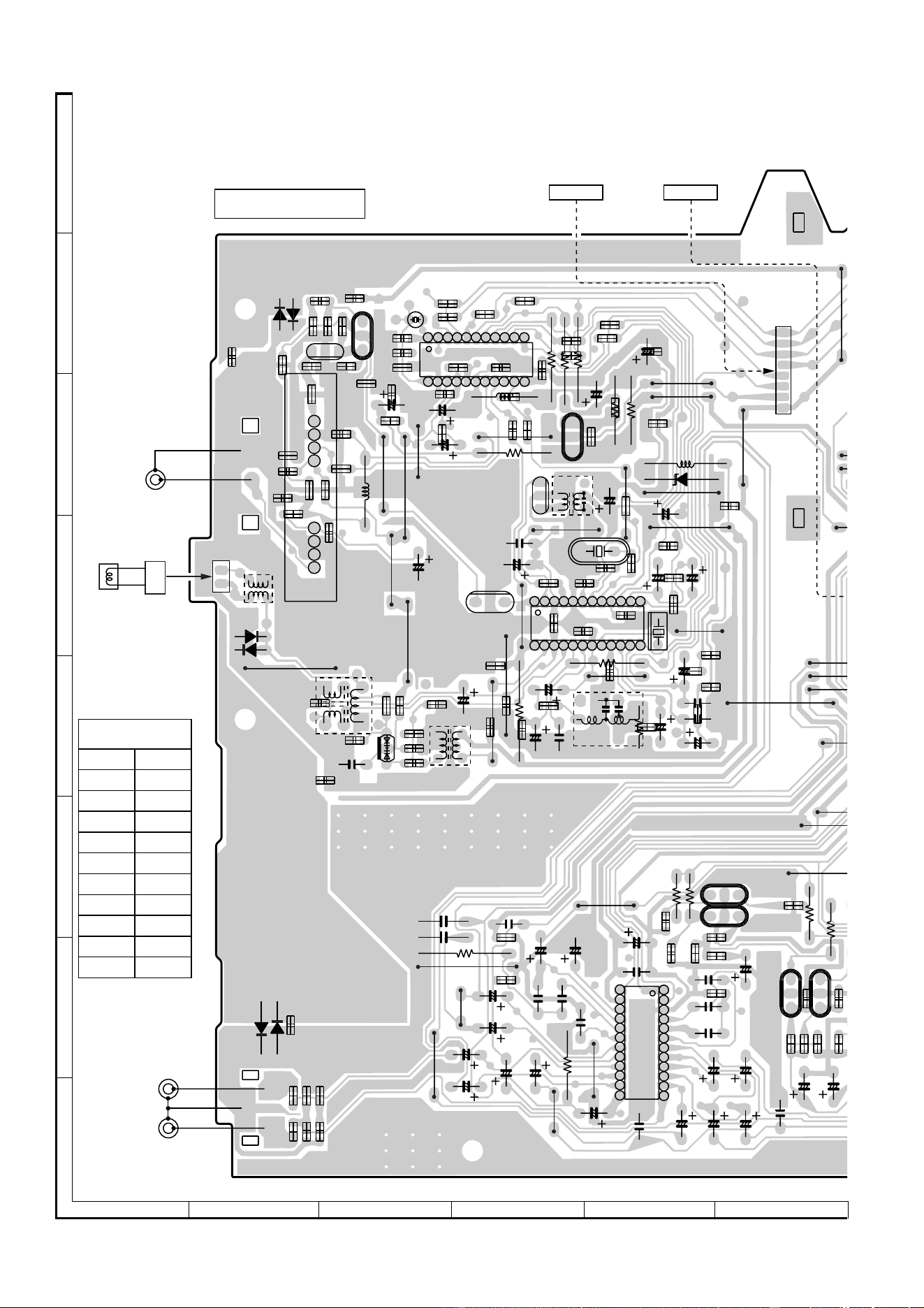

Figure 24 WIRING SIDE OF P.W.BOARD (1/8)
A
B
C
D
E
F
G
H
1
23456
CNP303
L352
ZD351
C358
C371
C373
C374
C372
R615
R616
Q604
R608
Q603
R610
R609
C613
C611
Q606
Q605
C607
C609
C621
C623
C617
C618
C645
C625
C619
C627
C646
C630
C628
C626
C629
R618
C624
IC601
C622
C612
C620
C610
C608
C604
R606
C606
C602
C614
C650
C641
C644
T306
C365
C364
L354
C368
R357
R358
C362
C367
R370
IC303
X351
CF302
C357
C352
C321
CF351
C359
C370
C398
T351
CF352
R382
C393
Q360
C380
R391
R392
L351
C391
IC302
R384
R386
R387
C396
X352
D304
D303
Q301
CF301
C394
FE301
L342
CNP302
L341
D301
D302
T303
C331
D602
D601
JK601
VIDEO IN
VD301
MAIN PWB-A1
E
C
B
1 2 3
1 2 3
1
2
3
4
5
6
7
8
2
1
AM LOOP
ANTENNA
SO301
ANTENNA
TERMINAL
2
1
1 2 3 4 5 6 7 8 9
10 11
12
1314151617
1819202122
2324
3
2
1
B
C
E
1 2 3 4 5 6 7 8 9
10 11
12
1314151617
1819202122
R-CH
L-CH
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
B C E
B C E
E
C
B
E
C
B
1
2
3
4
5
6
7
8
FC
7
CNS901
P28 4 - A
TO POWER
SUPPLY PWB
CNP304
P27 11 - A
TO RDS PWB
BR
COLOR TABLE
RD(R)
OR
YL
GR
BL
VL
GY
WH(W)
BK
PK
BROWN
RED
ORANGE
YELLOW
GREEN
BLUE
VIOLET
GRAY
WHITE
BLACK
PINK
C388
C356
R355
R363
R364
R614
R613
R611
R607
C636
C635
R605
R619
R620
R622
R621
R617
C615
C616
C335
C332
R323
R356
C363
C342
R350
C334
C361
R365
C369
C366
C399
R351
C355
C353
C354
R353
R383
R380
R395
R393
C385
R385
R377
C392
R379
C387
C386
R360
C381
C395
R359
C382
R376
R388
R374
R372
R373
R378
C302
C348
R347
R349
R399
C301
R346
R348
C397
R381
C341
C345
R345
C346
R369
C347
R336
C323
C330
C338
C634
R632
R631
R634
C632
C631
R633
R344
R352
– 25 –
CD-BA2010H
Figure 25 WIRING SIDE OF P.W.BOARD (2/8)
7
8 9 10 11 12
Q128
Q126
Q110
Q109
Q111
R160
R168
Q124
C151
L104
C150
C153
R112
CNP101
C105
CNP102
Q108
C117
Q107
C115
R119
R120
R102
L106
L105
C121
IC101
C122
C128
C133
C135
C141
C146
C142
C145
R158
Q121
C578
R581
D566
R584
R580
R577
IC563
D565
D564
C579
LUG1
D561
C572
IC562
IC561
D563
R576
C565
ZD561
D562
C564
R574
Q122
R156
R138
R132
C136
C134
R126
C132
CNP901
C116
C118
Q105
Q103
Q104
Q106
C154
CNP701A
C152
BI601
CNP303
R608
R610
R609
Q606
Q605
R612
C617
C618
C649
C647
C645
1
2
3
4
8
7
6
5
1
2
3
4
8
7
6
5
1
2
3
4
8
7
6
5
E
C
B
E
C
B
E
C
B
E
C
B
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
E C B
E C B
B C E
B C E
B C E
B C E
B C E
B C E
3 2 1
3 2 1
1
2
3
4
5
6
7
1
2
3
3
2
1
E
C
B
123456789
10111213141516171819
13579
11131517192123252729
2468
10121416182022242628
1
2
3
4
5
6
7
8
1
29
FC701
CNP701B
P27 12 - D
TO DISPLAY PWB
CNS601
RD
WH
GY
WH
GY
15
1
2
3
4
5
CNP11
TO CD SERVO
PWB
P30 4 - A
TO TAPE MECHANISM
TAPE1 HEAD
TO TAPE MECHANISM
TAPE2 HEAD
P31 11 - E
P31 10 - E
R113
R167
R114
R162
R164
R115
R109
R110
R155
C106
R108
C102
R107
C108
C101
R118
R101
C107
R117
R121
C112
C114
C119
C113
R123
R125
C127
R131
C131
R139
R141
R137
R135
R145
R146
R157
R111
R153
R570
R590
C577
C574
R582
R587
C575
R586
R588
C576
R583
R564
R585
R589
R575
R566
R562
R561
R578
R567
C563
C571
C570
R563
C562
R568
C566
R565
C561
C573
C567
R573
R569
R638
R136
R134
R140
R124
C120
R122
R105
R103
R104
R106
R166
R614
R637
R579
C569
C636
C635
R619
R620
R622
R621
R142
C568
R154
C140
C111
C139
CD-BA2010H
– 26 –
Figure 26 WIRING SIDE OF P.W.BOARD (3/8)
A
B
C
D
E
F
G
H
1
23456
FL701
R762
R761
R760
D713
D712
CNP702
C719
Q705
Q704
Q708
SW731
REC/
PAUSE
SW727
PRESET UP
SW734
TUNER
(BAND)
R785
R786
R784
R783
R782
R787
R790
R789
R788
R768
XL701
C725
R719
R705
R702
RS725
Q701
RS724
RS723
Q703
R716
SW704
PTY. TI
SEARCH
R704
Q714
Q713
R701
SW705
EON
Q712
C741
Q711
C740
SW706
ASPM
Q710
BI704
Q715
C709
Q716
SW707
DISPLAY
MODE
C726
SW708
STATION
C722
C734
R724
D715
C717
Q707
D714
C716
Q706
LED703
LED702
FW701
SW710
DISC 2
SW711
DISC 3
SW713
OPEN/
CLOSE
FW701
Q702
SW732
TUNING/
TIME UP
SW728
PLAY/REP
E
SW733
VIDEO/AUX
CNP704
BI705A
BI705B
JOG701
JOG
C720
C721
E C B
E C B
E C B
E C B
E C B
E C B
E C B
E C B
E C B
E C B
1
1
5
3
1
3
1
2
3
4
5
1
2
3
4
5
RD
WH
BK
WH
BK
CNS704
M701
VOLUME MOTOR
+
—
3
1
3
1
BK
WH
RD
A
B
JOG PWB-H2
VOLUME MOTOR
PWB-H1
SWITCH PWB-A3
DISPLAY PWB-A2
E
C
B
E
C
B
B
C
E
E
C
B
E
C
B
1
113
3579
1113
2468
1012
TO TAPE
MECHANISM PWB
FC702
1 2 3 6 7 8 9
10 11 12 13 14 15 16 17 18 19 20
P31 8 - A
R766
R
R
R718
R714
R717
R752
R736
R737
R733
R732
R757
R795
RD34
R765
RD35
RD36
R767
R769
R772
R771
R770
R775
R780
C724
R779
C723
R778
R776
R773
RD08
RS734
RD04
RS735
RS722
RD05
RS721
RS730
RS727
RD06
RS720
RS728
RS731
RS732
C738
RD07
RS704
IC702
RS709
RS703
RS710
RS702
RS701
C735
R777
R739
R735
R738
R734
RD0
9
RD11
RD10
RS708
RS729
RD30
RD33
1
5
9
10
18
15
IC701
1
5
10
15
20
25
35
40
45
5
0
5
1
55
60
65
70
75
8081
85
90
95
100
30 31
– 27 –
CD-BA2010H
Figure 27 WIRING SIDE OF P.W.BOARD (4/8)
7
8 9 10 11 12
D720
RD03
D721
SW701
ON/
STAND-BY
R700
CNP701B
SW702
CLOCK
SW703
TIMER/
SLEEP
SW714
DIMMER
BI703
RD13
SW715
X-BASS
SW716
EQUALIZER
SW723
TAPE
SW724
TUNING/
TIME DOWN
SW722
CD
R751
C727
R750
D718
Q709
D717
R758
R721
C729
L701
C731
R746
D716
IC703
R720
R715
C733
RX701
C715
7
01
R759
R744
R761
R760
R754
R755
R756
R753
SW729
STOP
LED722
0
2 LED701
LED704
SW712
DISC
SKIP
SW709
DISC 1
SW725
MEMORY/
SET
SW726
PRESET
DOWN
W
728
R
EPEAT
123
123
1 2 3
WH
GY
WH
GY
WH
GY
WH
GY
WH
RD
1
10
1
2
3
4
5
6
7
8
9
10
CNS703
CNP12
P30 5 - A
TO CD SERVO
PWB
29
1
FC701
CNP701A
TO DISPLAY PWB
1
3
5
7
9
11
13
15
17
19
21
23
25
27
29
2
4
6
8
10
12
14
16
18
20
22
24
26
28
29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 56 57 58
BR
COLOR TABLE
RD(R)
OR
YL
GR
BL
VL
GY
WH(W)
BK
PK
BROWN
RED
ORANGE
YELLOW
GREEN
BLUE
VIOLET
GRAY
WHITE
BLACK
PINK
P25 8 - A
RD01
RD02
RD14
RD27
RD25
RD26
C728
R763
R764
R749
R796
R797
C730
R798
R799
C732
R794
R740
R741
R748
R742
R743
R781
R747
RD28
RD29
RD31
RD32
R718
1
7
RD12
R
D09
50
51
RT37
RT21
CT23
CT22
CT24
CT21
QT22
RT48
LT21
RT49
RT32
ZDT21
CT36
CT43
QT21
RT34
LT22
RT33
CT37
RT51
CT25
CNP304
ICT21
CT26
XT21
CT27
CT29
RT26
RT30
RT29
RT28
RT35
RT36
CT28
B
C
E
B
C
E
1
2
3
4
5
6
7
8
9
10
11
12
15
14
13
18
17
16
21
20
19
24
23
22
12345678
CNP303
P24 4 - A
TO MAIN PWB
RDS PWB-G
CD-BA2010H
– 28 –

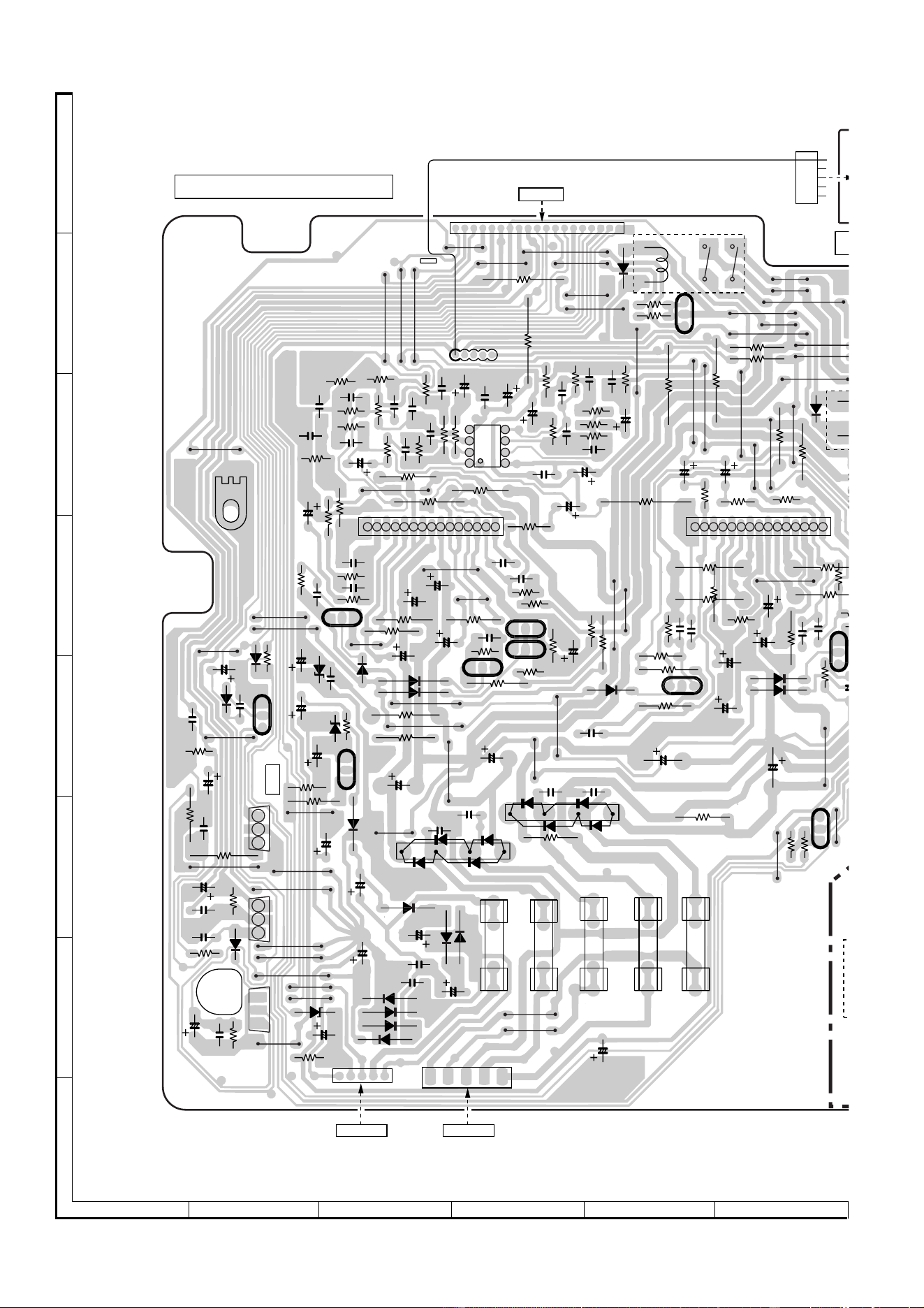

Figure 28 WIRING SIDE OF P.W.BOARD (5/8)
A
B
C
D
E
F
G
H
1
23456
RL901
R979
Q909
R980
R945
R946
R947
R944
D908
R912
R911
C908
C911
C917
R906
R917
R907
IC901
R993
R
R901
R995
C902
R994
R
R902
C909
C912
R916
C906
C907
R910
C904
R914
C903
R919
R908
D901
C914
Q902
D903
R904
C901
C814
C813
R819
Q802
R816
R817
CNP802
C819
C808
C805
C806
C807
D808
D809
D818
D802
R805
C832
C833
D803
C804
C802
C910
D906
D902
R937
D904
R939
Q905
C922
R935
Q908
C923
C932
C925
R941
R938
Q907
R940
R925
R931
C920
R927
C921
C929
C927
R929
IC902
C930
R977
R933
R934
C986
C953
C949
IC903
R962
R963
R960
R964
C947
C948
R969
R961
C959
R965
C951
C957
C956
C945
R956
C954
C952
C961
R957
R971
C955
R959
R966
R967
D907
CNS901
R973
R972
C941
C942
C943
C946
R958
R975
R970
C944
C950
R968
C960
R974
C958
LUG901
R976
C931
R932
C926
R936
R928
C924
C928
R930
Q906
R926
R924
R807
D811
C816
ZD803
D905
C830
C815
D816
C809
C829
Q821
C822
R806
ZD801
R801
R820
C810
R810
Q801
C823
C801
R804
R802
R811
D810
C821
C811
R825
C834
C826
R809
C825
D817
C824
C820
R812
D804
D807
ZD802
C827
D806
R813
C828
C812
D805
R803
CNP804
IC802
FW801
R918
R996
C803
Q823
IC801
AC PO
W
SUPPLY C
O
AC 230V
,
E
C
B
E
C
B
1 2 3 4 5 6 7 8 9
10 11 12 13 14 15
E C B
E C B
B C E
B C E
B C E
1
1
2
3
4
8
7
6
5
2 3 4 5 6 7 8 9
10 11 12 13 14 15
123456789
10 11 1213 14 151617 18 19
CNP901
P24 5 - A
TO MAIN PWB
POWER SUPPLY PWB-B
H
15
B
C
E
3
2
1
3
2
1
3
2
1
E
C
B
F805
T2A L 250V
F800
T4A L 250V
F801
T4A L 250V
F802
T5A L 250V
F803
T5A L 250V
12345
12345
TO MAIN POWER
TRANSFORMER
TO MAIN POWER
TRANSFORMER
B
C
E
P31 8 - C P31 9 - C
– 29 –
CD-BA2010H
Figure 29 WIRING SIDE OF P.W.BOARD (6/8)
7
8 9 10 11 12
LUG902
C979
C983
R989
R991
C981
C985
SO901
SPEAKER
TERMINAL
R990
C982
C987
R992
C970
C980
C989
L902
R952
D909
R955
R953
D813
D814
C937
C817
R954
Q910
C938
LUG904
CNP801
L801
C831
RL801
T802
SUB POWER
TRANSFORMER
D801
D812
R920
Q903
Q904
D815
C818
R921
C905
R913
C966
R982
C962
R948
C964
R984
C968
R950
R986
C972
C971
C973
L904
R923
C919
C974
C976
R988
R985
R951
R922
RL902
L905
R942
R949
C977
C934
R987
C936
C975
C918
L903
R981
C967
C933
R983
R943
C969
C935
C965
RL901
R979
Q909
R980
R945
R946
R947
R944
D908
R912
R911
C908
C911
C917
R906
R917
R907
IC901
R993
R903
R901
R995
C902
R994
R909
R902
C909
C912
R916
C906
C907
R915
R910
C904
Q901
R914
C903
R919
R908
D901
C914
Q902
D903
R904
C901
C814
C813
R819
Q802
R816
R817
C819
D803
0
4
0
D902
R938
C953
C949
R963
C959
9
65
C961
R971
D907
CNP803
R918
R996
C916
C963
LUG903
WT601
L601
R602
R601
1
2
AC POWER
SUPPLY CORD (229)
AC 230V, 50Hz
BL
BR
B C E
2
1
RD
CNS803
BR
2
1
M901
FAN MOTOR
When Servicing, pay attention as the
area enclosed by this line ( ) is
directly connected with AC main voltage.
E
C
B
B
C
E
E
C
B
E
C
B
R-CH (HI)
R-CH (LOW)
L-CH (LOW)
L-CH (HI)
1 2 3 4 5 6 7 8 9
10 11 12 13 14 15
E C B
1
71819
HEADPHONES PWB-A4
1
2
3
4
5
JK670
HEADPHONES
F801
T4A L 250V
F802
T5A L 250V
F803
T5A L 250V
CNS801
P31 8 - F
TO MAIN POWER
TRANSFORMER
BR
COLOR TABLE
RD(R)
OR
YL
GR
BL
VL
GY
WH(W)
BK
PK
BROWN
RED
ORANGE
YELLOW
GREEN
BLUE
VIOLET
GRAY
WHITE
BLACK
PINK
B
C
E
C639
C640
CD-BA2010H
– 30 –
Figure 30 WIRING SIDE OF P.W.BOARD (7/8)
A
B
C
D
E
F
G
H
1
23456
• The numbers 1 to 13 are waveform numbers shown in page 20.
X1
C34
C38
C39
C56
C31
CNP4
R38
C41
R16
R17
R39
R35
R44
C28
D22
D21
Q2
CNP3
C47
R96
R56
C50
R55
C49
CNP1
C52
Q3
C7
C54
R47
C51
C6
R25
C45
C11
CNP11
R58
R80
C64
ZD61
Q1
L62
R19
CNP12
R71
C24
R78
R73
R74
R75
L61
R76
R68
R67
R77
R72
CNP2
E C B
B C E
CNS601
P25 11 - A
TO MAIN PWB
CNS703
P27 12 - E
TO DISPLAY PWB
12 45312453679108
CD SERVO PWB-C
1
2
3
4
5
6
7
1
2
3
4
5
6
7
8
123456123456
1 2 3
-
M1
SPINDLE MOTOR
17
1
8
CNS1B
CNS1A
CNS2BCNS2A
CNS3B
CNS3A
BL
YL
PK
WH
BK
WH
RD
WH
RD
GY
RD
WH
GY
WH
GY
WH
GY
WH
RD
WH
GR
WH
GR
WH
BL
PK
WH
YL
BK
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
3
4
1
2
5
6
7
PICKUP UNIT(306)
CD MOTOR
PWB-D
SW4
PICKUP IN
M2
SLED MOTOR
+
-
+
12345
6
12345
6
12345
6
CNP3A
R84
C40
R20
R83
R82
C43
R81
IC2
R94
R95
R45
R46
C82
R22
C29
IC3
C46
R48
R50
R52
C55
R53
C53
R51
C8
R54
IC1
R4
C44
R3
C14
R7
C13
R5
R6
R8
C17
C18
C20
C83
C27
C42
C26
R10
C12
C22
R15
R14
C21
C81
R11
C25
R13
R79
C23
R12
C73
C74
C80
C75
C76
C77
C72
R40
R21
R42
C71
C78
C30
1
5
10
15
20
24
25
30
35
40 41
45
50
55
60
64
65
70
75
80
1
5
10
20
30
25
15 16
1
5
10
15
20
21 22
25
30
35
40
42
3
2
4
5
1 6
13
7
8
10
9
11
12
– 31 –
CD-BA2010H

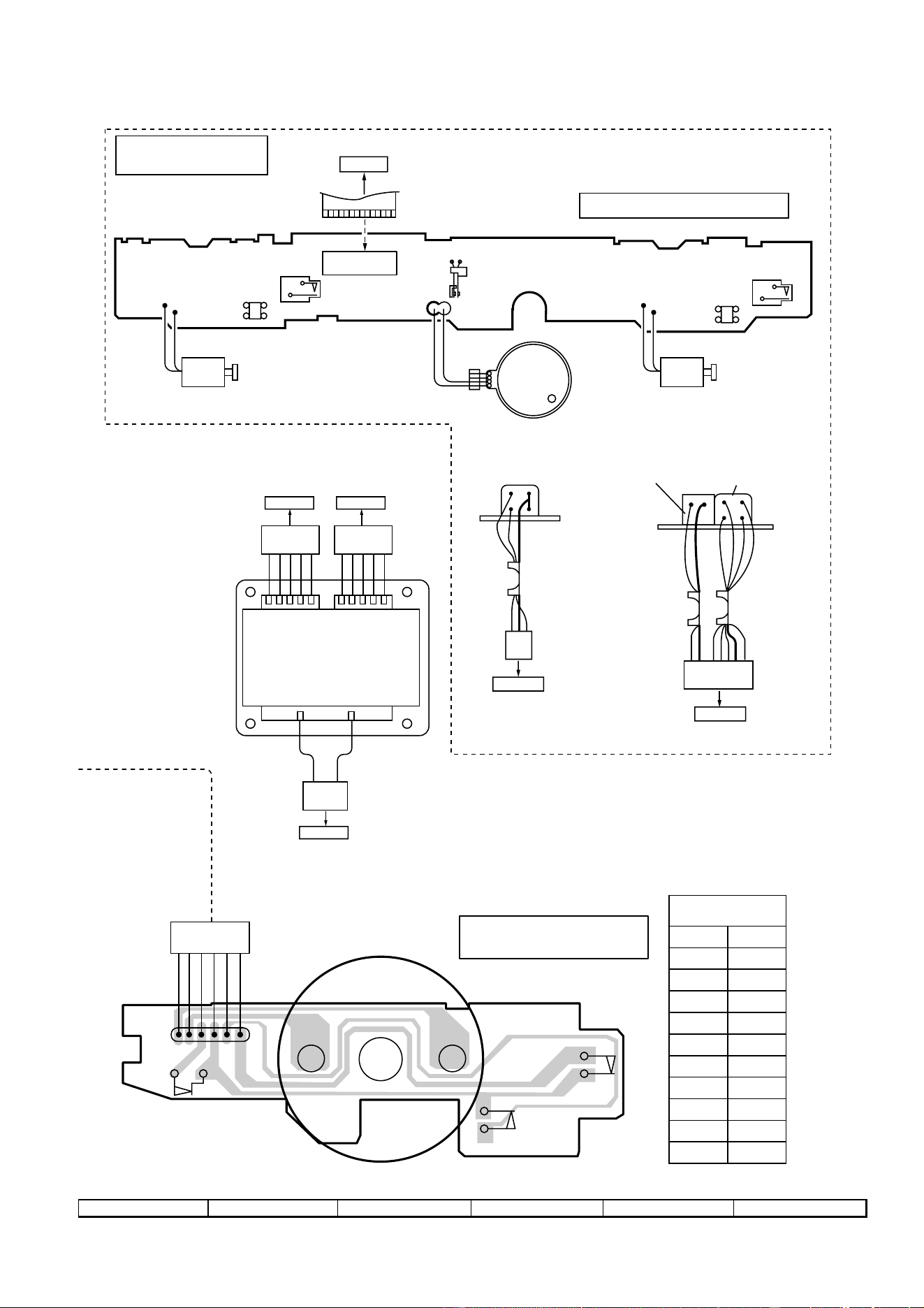

Figure 31 WIRING SIDE OF P.W.BOARD (8/8)
7
8 9 10 11 12
CD LOADING MOTOR
PWB-F
16
123
456
BI4
M3
T/T UP/DOWN
MOTOR
RD
WH
BK
WH
BK
WH
–
+
SW3
DISC
NUMBER
SW2
CLAMP
SW1
OPEN/
CLOSE
TAPE MOTOR
B
A
-
+
1
1
2
3
2
4
5
6
7
8
9
10
11
12
13
1
13
CNP702
SOLENOID
SOLENOID
TAPE MECHANISM PWB-E
TAPE MECHANISM
ASSEMBLY
P26 6 - H
TO DISPLAY PWB
BR
COLOR TABLE
RD(R)
OR
YL
GR
BL
VL
GY
WH(W)
BK
PK
BROWN
RED
ORANGE
YELLOW
GREEN
BLUE
VIOLET
GRAY
WHITE
BLACK
PINK
54321 54321
OR
OR
YL
BK
YL
RD
BL
BK
BL
RD
T801
MAIN POWER
TRANSFORMER
WH
BK
CNP801
P29 11 - G
TO POWER SUPPLY
PWB
CNP804
P28 3 - H
TO POWER
SUPPLY PWB
CNP802
P28 4 - H
TO POWER
SUPPLY PWB
21
231
WH
BK
PK
WH
BK
PK
CNP101
P25 12 - C
TO MAIN PWB
CNP102
P25 12 - C
TO MAIN PWB
BL
YL
WH
PK
WH
BK
BL
YL
WH
BK
WH
PK
BK
6754321
TAPE 1
PLAYBACK HEAD
TAPE 2
ERASE HEAD
RECORD/PLAYBACK
HEAD
FC702
CNS4
PH
SW
SW
SW
PH
CD-BA2010H
– 32 –

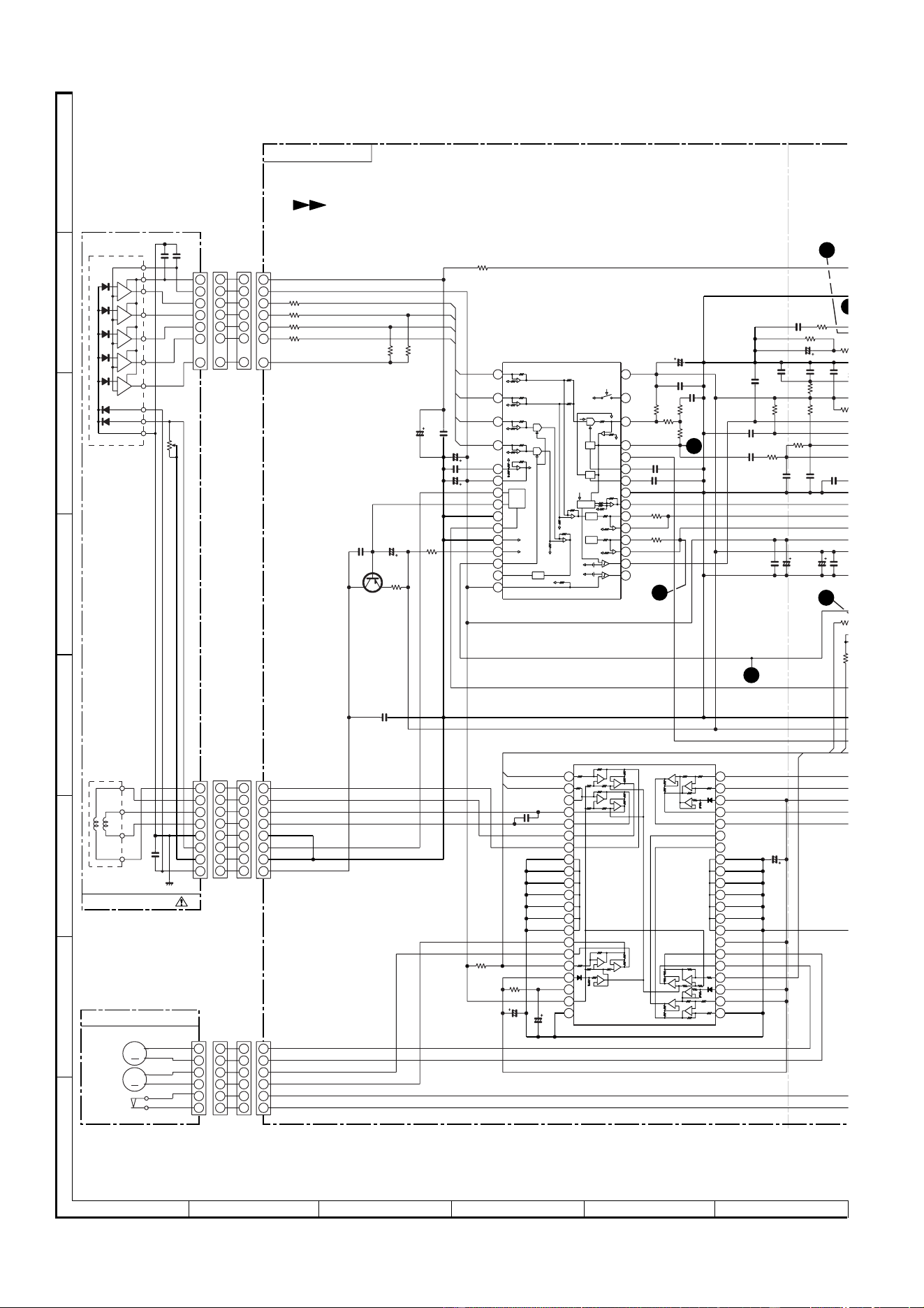

Figure 32 SCHEMATIC DIAGRAM (1/11)
A
B
C
D
E
F
G
H
1
23456
• NOTES ON SCHEMATIC DIAGRAM can be found on page 19.
CD SIGNAL
GND(D)
PUIN
SP-
SP+
SL+
SL-
CD MOTOR PWB-D
PICKUP UNIT
TR-
TR+
FO+
FO-
GND
ACTUATOR
FO+
FO-
TR-
TR+
PD
VR
LD
LD
VR
PD
GND
FO-
FO+
TR+
TR-
5
2
1
2
3
4
5
6
7
88
3
6
7
1
4
1
2
3
4
5
6
7
88
3
6
7
1
4
5
2
Vcc
C
Vref
F
B
E
A
2
5
3
1
7
6
4
4
3
2
1
7
6
5
5
1
3
7
6
4
2
4
3
2
1
7
6
5
FIN2
FIN1
TIN2
TIN1
+B
FIN1
FIN2
TIN1
LDON
EFBL
REF1
AGON
LDD
TEST0
GND
VREF
TES1
NC
TEST
HFL
TE
TE-
FE
FE-
RFEV
BH
PH
RF
RF-
RFSW
VCC
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
REF
ODRV
AGCON
ODRV
REF
REF
REF
REF
REF
REF
REF
REF
REF
REF
REF
REF
REF
REF
AGCON
ODRV
APC
LPF
DH
PH
LPF
LPF
PH/BH
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
P
S
B
P
A
A
D
PH(R
F
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
VCC3
VCC2(SPN)
SP-
SP+
SPO
GND
+B
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
SLDO
FDO
TDO
MUTE
Vref
STANDBY
VCC1
SL-
SL+
GND
TR+
TR-
FO-
FO+
FO
FD
TO
+B
+B
M
M
+
-
-
+
3
2
5
1
4
6
2
3
5
1
4
6
3
6
1
4
5
22
3
5
1
4
6
LOADING M-
VCC4
LD_M+
LD_M-
LOADING M+
SPDO
+B
-
+
-
+
+
-
+
-
-
+
-
+
+
-
+
-
-
+
+
-
-
+
+
-
+
-
-
-
+
+
+B
CNP1
TDO
FDO
+B
+B
CD SERVO PWB-C
TIN2
+B
R54 68K
R53 68K
R52 68K
R51 68K
R56
68K
R55
68K
C6
100/6.3
C54
47/10
C55
0.01
C51
47/10
C53
0.001
R25
10K
C7
10/16
C8
0.022
R47
3.3
Q3
KTA1266 GR
LASER
DRIVER
R50
47
C14
0.33
C13
0.01
R3
47K
R4
10K
C11
47/6.3
R6
27K
R7
6.8K
R5
39K
C12
0.022
C18
3P
(CH)
R8
330
R10
27K
C26
0.047
C22
100P
R80
1M
R79
1.5M
C24
2.2/50
C21
0.1
C25
0.022
C23
0.047
R12
680
R1
1.2
R11
12K
R1
3
68
0
C
8
0.0
2
C27
0.1
C17
0.0047
R15
10K
C20
0.1
C42
68P
(CH)
C41
100/6.3
C28
47/10
C82
0.022
R44
1K
C
2
0.0
EFBL
C47
100/6.3
C49
100/6.3
C50
100/6.3
C46
0.022
IC3
M63001FP
FOCUS/TRACKING/
SPIN/SLED DRIVER
R48
6.8K
R96
1.5K
C52
0.01
CNP2
CNP3
CNS3A
CNS3B
M1
SPINDLE
MOTOR
M2
SLED
MOTOR
SW4
PICKUP IN
IC1
LA9235M
SERVO AMP.
CNS1A
CNS1B
CNS2A
CNS2B
CNP3A
R42
120K
13
2
5
7
8
4
– 33 –
CD-BA2010H
Figure 33 SCHEMATIC DIAGRAM (2/11)
7
8 9 10 11 12
• The numbers 1 to 13 are waveform numbers shown in page 20.
11
10
9
8
7
6
5
4
3
2
1
PCKIST
JITTC
JITTV
EFMIN
SLCO
SLCIST
HFL
FR
VVDD
VVSS
PD02
PD01
24
23
22
21
20
19
18
17
16
15
14
13
FDO
TDO
TBLO
BHREF
PHREF
ADAVSS
ADAVDD
VREF
TE
FE
PH(RFENV)
BH
12
SPDO
FG(D_Vref)
SLDO
TEST
DOUT
VDD
C2F
PCK
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
EFLG
51
50
49
48
47
46
45
44
43
42
41
63
62
61
60
59
58
57
56
55
54
53
52
64
FSX
CONT5
CONT4
CONT3
CONT2
CONT1
LASER
SERIAL
OUT
EXTERNAL
AUDIO IN
DIGITAL
FILTER
1BIT
DAC
LPF
INTERPOLATION
MUTE
ATTENUATION
DEEMPHASIS
AUDIO
OUT
ERROR
CORRECT
FRAME SYNC
DEFECT,PROTECT
EFM DECODE
CLV
CONTROL
CLOCK
GENERATOR
GENERAL
SUBCODE
DECODE
CRC
COMMAND
INTERFACE
GENERAL
SW
SERVO
PROCESSEROR
AUTO
ADJUST
-
+
S/H
JITER
DEFECT
CONTROL
A/DSW
SLICE
LEVEL
CONTROL
PLL
VCEC
D/A
+B
EMPH
MUTEL
MUTER
LVDD
LCHO
XVDD
LVSS
RVSS
RCHO
RVDD
XIN
XOUT
XVSS
ASLRCK
ASDACK
ASDFIN
LRSY
DATACK
DATA
16M
SFSY
SBSY
PW
SBCK
CE
CL
DI
DO
INT
WRQ
RES
DEF
VDD5V
73
72
71
70
69 68
67
66
65
CONT7
CONT6
VSS
V/vP
FSEQ
EFMO
80
79 78
77
76
75
74
O/C
DISC_NO
+5V
DGND
AGND
L-CH
R-CH
+B
P34 1 - A
TO MAIN PWB
1
2
3
4
5
CNS601
INT
DRF
WRQ
CE
DO
DI
CL
RES
DRF
GND
CD RES
DI
CLK
DO
CE
WRQ
CDINT
CLAMP SW
10
9
7
1
2
3
4
5
6
8
+B
+B
+B
+B
+B
P37 10 - B
CNS703
TO DISPLAY PWB
CONSTANT
VOLTAGE
DISC_NO
O/C
GND(D)
M-
M+
1
2
3
4
5
66
5
4
3
2
1
5
4
3
2
1
6
CD LOADING
MOTOR PWB-F
1
32
+B
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
VCC3
VCC2(SPN)
SP-
SP+
SPO
GND
+B
M
LOADING M-
VCC4
LD_M+
LD_M-
LOADING M+
SPDO
+B
TDO
FDO
SLDO
SPDO
+B
+B
+B
+B
RES
WRQ
CE
DO
CL
DI
DRF
INT
+B
+B
+B
CNP4
+
-
+B
BI4
CNS4
CNP12
+B
+B
R8
330
R10
27K
C26
0.047
C22
100P
R80
1M
R79
1.5M
C24
2.2/50
C21
0.1
C25
0.022
C23
0.047
R12
680
R14
1.2K
R11
12K
R13
680
C81
0.022
C27
0.1
C17
0.0047
R15
10K
C20
0.1
C42
68P
(CH)
C41
100/6.3
C28
47/10
C82
0.022
R44
1K
C29
0.022
EFBL
R35
1K
R38
270
R39
470
R16
10K
R17 1K
R46 1K
R45 1.2K
R40 1.2K
C31
100/6.3
C30
0.022
L61
0.82µH
C64
47/6.3
ZD61
DZ3.9BSB
R19
47
C39
10/16
R58
220
Q1
KTC3203 Y
C56
330/6.3
C83
0.022
R84
10K
C40
0.0015
C43
0.0015
R83
10K
C34
0.022
R82
2.2K
R81
2.2K
C38
10/16
R20
220
X1
16.9344MHz
C45
100/6.3
C44
0.022
C80
0.022
R73 1K
R71 1K
C72 0.01
R72 1K
C71 100P
C73 100P
C75 100P
C76 100P
C77 100P
C78 100P
R75 1K
R76 1K
R77 1K
R78 1K
C74 100P
R74 1K
L62
2.2mH
R94
10K
R95
10K
R67 1K
R68 1K
CNP11
SW3
DISC
NUMBER
SW2
CLAMP
SW1
OPEN/
CLOSE
M3
T/T
UP/DOWN
LOADING
D21
1SS133
R21
470
R22
470
Q2
KRC102M
D22
1SS133
C47
100/6.3
IC2
LC78641E
SERVO/SIGNAL
CONTROL
1
6
9
13
2
10
11
12
3
7
8
CD-BA2010H
– 34 –
A
B
C
D
E
F
G
H
1
23456
• NOTES ON SCHEMATIC DIAGRAM can be found on page 19.
Figure 34 SCHEMATIC DIAGRAM (3/11)
24
23
24
25
26
27
28
29
30
31
32
33
10
11
12
9
8
7
6
5
4
3
2
1
1 2 3 4 6
17
16
5
15
14 1
21 1920 18222324
7 8 9 10 11 1
2
REC_R
0V
A_GND
L
AC_RLY CON
VF1
VF2
-VF
UN_SW 5V
M_+10V
+5V
SP_RLY
SP_DET
D_GND
-15V
A_+10V
CD_+B
CD_GND
M_GND
A_GND
A_GND
R_CH
L_CH
CHASIS
MECHA BASE
L
R
R
CD_+B
CD_GND
L-CH
A_GND
R-CH
T1_R
T1_L
A_GND
M_GND
ERASE
T2_R2
T2_R1
T2_L1
T2_L2
9.3V
8.6V
9.3V
0V
3.4V
3.4V
0V
0V
0V
0V
0.7V
0.7V
0V
0V
0V
0.7V
0V
0V
0V
0.7V
0V
0V
0V
0V
0V
0.7V
0.7
PLAYBACK HEAD
R-CH
L-CH
7
6
5
4
3
2
1
7
6
5
4
3
2
1
9
10
11
12
13
14
15
16
17
18
19
8
7
6
5
4
3
2
1
3
1
3
4
5
1
2
3
4
5
1
2
2
3
1
2
CD
TUNER
DECK
AUX
DI
CE
VSS
LOUT
LBASS
L4
L3
L2
L1
CLK
VDD
VREF
ROUT
RBASS
RTRE
RIN
RSEL0
R4
R3
R2
R1
INTERFACE
CCB
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
LSEL0
LIN
LTRE
Vcc
ALC
GND
ALC
RIPPLE
Nor/CrO2
-
+
-
+
Hich=T1
+
+
-
-
Hich=CHROME
56K
112K
56K
112K
CNP11
P33 12 - D
TO CD SERVO
PWB
CNS901
TO POWER
SUPPLY PWB
MAIN PWB-A1(1/2)
SWITCHING
SWITCHING
SWITCHING
SWITCHING
SWITCHING
SWITCHING
SWITCHING
SWITCHING
SWITCHING
1
1
23
23
TAPE 1
RECORD/
PLAYBACK HEAD
TAPE 2
R-CH
L-CH
ERASE
HEAD
MUTING
MUTIN
G
+B
+B
-B
-B
+B
+B
+B
+B
+B
+B
+B
+B
P38 1 - D
C602
22/50
C608
0.1(ML)
C610
0.1(ML)
C620
1/50
C624
1/50
C6
2
1/5
0
C628
1/50
C63
0
1/50
IC601
LC75341
AUDIO PROCESSOR
C629
1/50
C627
1/50
C609
0.1(ML)
C607
0.1(ML)
C619
1/50
C621
4.7/50
C611
0.0027(ML)
R605
3.9K
C645
0.0022(ML)
C623
1/50
C625
1/50
C641
0.0033
(ML)
R617
3.3K
C649
0.001
C606
100/16
C604
0.022
C613
10/50
R607
10K
R613
390
R615
2.2K
C615
0.001
C616
0.001
R616
2.2K
R614
390
Q603
KTC3199GR
Q604
KTC3199GR
R612
5.6K
R611
5.6K
R621
2.2K
C635
0.001
C636
0.001
R622
2.2K
Q605
KTC3199GR
Q606
KTC3199GR
R155
150
R619
22K
C617
1/50
R620
22K
C618
22/25
R609
330
R610
330
BI601
CNS601
CNP901
R114
10K
R113
10K
Q109
KTA1266GR
C102
560P
C101
560P
CNP101
R112
15K
R102
1K
R101
1K
R108
47K
R110
4.7K
Q108
KTC3199GR
C108
560P
R104
2.2K
Q104
2SC1845F
Q106
2SC1845F
R106
3.3K
C106
180P
C153
100/16
Q110
KRC104M
Q111
KRC104M
R115
4.7K
CNP102
LUG1
C105
180P
Q105
2SC1845F
R105
3.3K
R103
2.2K
Q103
2SC1845F
R109
4.7K
R107
47K
Q107
KTC3199GR
C107
560P
R111
15K
R119
56
C115
100/25
C117
0.033
C119
560P
C121
1/50
R131
33K
R125
5.6K
C127
0.022
R123
3.9K
R121
100K
L106
2.2µH
R117
1K
C113
330P
C111
330P
C128
3.3/50
R137
6.8K
R135
3.9K
C131
270P
C133
22/25
C141
47/25
R141
100
C135
0.022
C139
0.0033
R145
10K
R139
1.5K
R118
1K
C114
330P
L105
2.2µH
C112
330P
R122
100K
R124
3.9K
C118
0.033
C116
100/25
R120
56
C120
560P
C122
1/50
R126
5.6K
R132
33K
R134
68K
R136
3.9K
R138
6.8K
C132
270P
R140
1.5K
C134
22/25
C136
0.022
R142
100
C140
0.0033
R146
10K
C142
47/25
C145
22/25
C146
220/10
Q121
KTC31
9
R153
10K
R154
10K
R156
220K
Q122
KTC3199GR
IC101
AN7345K
IC101: PLAYBACK AND RECORD/PLAYBACK AMP.
– 35 –
CD-BA2010H

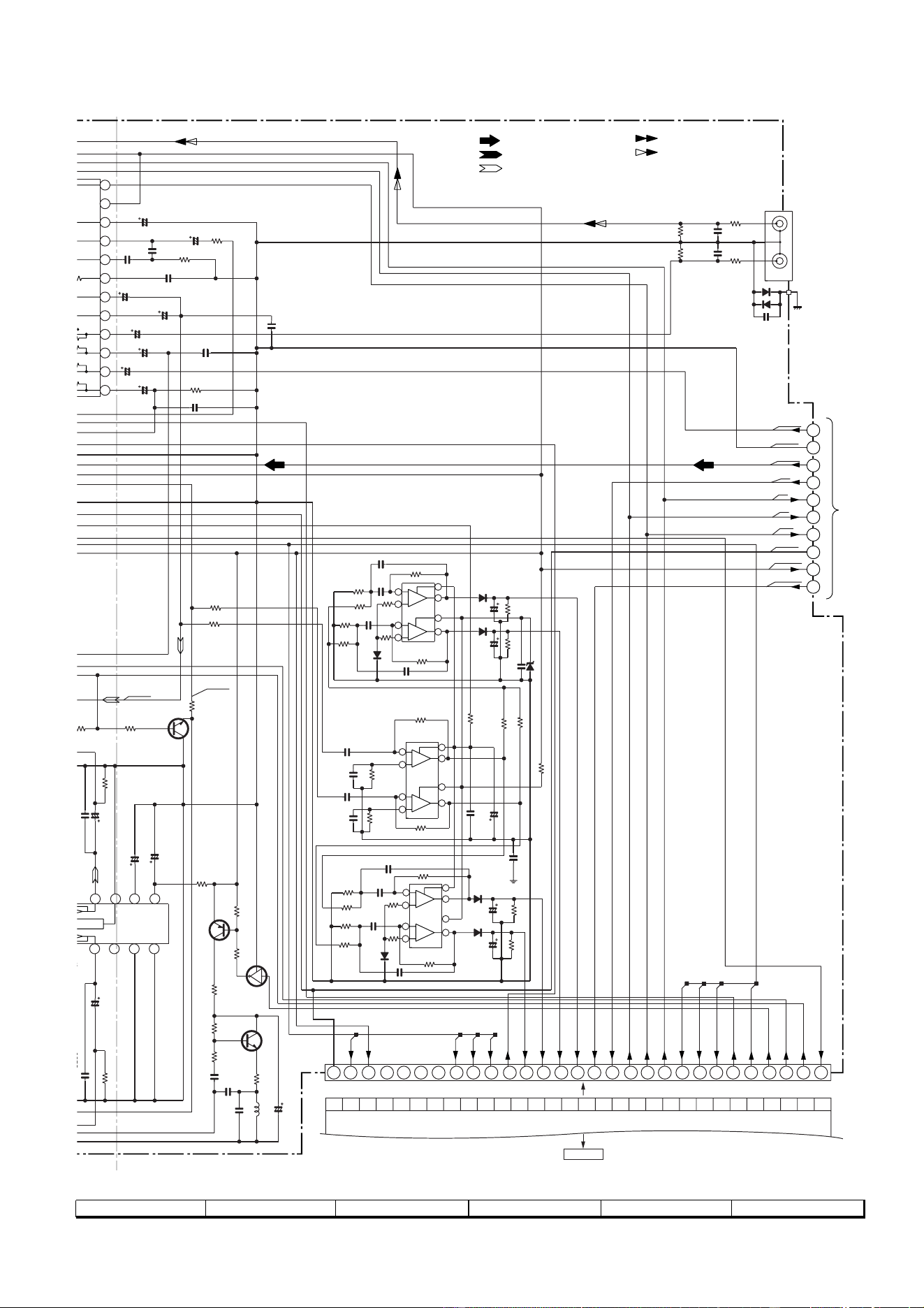

Figure 35 SCHEMATIC DIAGRAM (4/11)
7
8 9 10 11 12
24
23
24
25
26
27
28
29
30
31
32
33
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29
16 15
14 15
9 10 11 12
TUN_SM
A_+10V
D_GND
CLK
DI
CE
DO
TUN_L
A_GND
TUN_R
REC_L
REC_R
KOK OUT(R)
KOK IN(R)
M_10V
S_MUTE
16KHz
63Hz
63Hz
16KHz
R
L
L
R
-20dBATT
L-CH 1K
R-CH 1K
S_MUTE
VF1
VF2
-VF
AC_RLY
CON
UN_SW
5V
+5V
SP_RLY
SP-DET
TUN_SM
DI
CE
DO
CLK
SPAN_RCH
SPAN_LCH
A_+10V
T_T1 T2
-20dBATT
T_BIAS
REC/PLAY
D_GND
L
R
-VCC
+VCC
CHASIS
V
0.7V
0V
0V
11.7V
11.6V
11.6V
0V
0V
0V
0V
0V
Rch
Lch
8
7
6
5
4
3
2
1
8
7
6
5
4
3
2
1
8
7
6
5
4
2
1
-
-
+
+
+
+
-
-
CLK
VDD
VREF
ROUT
R
BASS
RTRE
RIN
RSEL0
R4
R3
R2
R1
-
+
+
-
Vcc
ALC
GND
ALC
RIPPLE
Nor/CrO2
H
ROME
56K
56K
N
G
MUTING
BIAS
BIAS OSC
1
23
SWITCHING
CNP701B
P36 1 - D
TO DISPLAY PWB
3
3
1
10
9
6
7
8
5
2
4
P41 10 - H
TO TUNER SECTION
-B
-B
-B
-B
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
CD SIGNAL
VIDEO SIGNAL
PLAYBACK SIGNAL
RECORD SIGNAL
FM SIGNAL
R631
6.8K
R632
6.8K
C632
390P
C631
390P
R633
33K
R634
33K
JK601
VIDEO
IN
D601
1SS133
D602
1SS133
C634
0.001
C650
0.001
R608
10K
C614
10/50
C602
22/50
R606
3.9K
C608
0.1(ML)
C610
0.1(ML)
C620
1/50
C622
4.7/50
C624
1/50
C626
1/50
C628
1/50
C630
1/50
C612
0.0027(ML)
C646
0.0022(ML)
R618
3.3K
C644
0.0033
3
5
C141
47/25
R141
100
C139
0.0033
R145
10K
Q124
2SA1015GR
C151
0.039(ML)
L104
330µH
C152
47/25
C150
0.0082
C154
0.047(ML)
R168
4.7
Q128
KTC3203Y
R167
47K
R166
22K
R160
82(1/2W)
R158
220
R162
47K
R164
4.7K
Q126
KRC104M
4
5
C140
0.0033
R146
10K
C142
47/25
C145
22/25
C146
220/10
R637
470K
R638
470K
R157
220K
Q121
KTC3199GR
R153
10K
R
154
0K
6
K
9
9GR
CNP701A
R564
33K
C561
270P
R563
12K
R562
470K
C563
0.0068
R561
47K
R565
390K
C562
270P
R566
220K
C566
0.0068
R568
2.2M
IC562
KIA4558P
D562
1SS133
C564
2.2/50
R570
100K
D563
1SS133
C565
2.2/50
C573
0.022
R569
100K
ZD561
MTZJ6.2C
R567
2.2M
D561
1SS133
C567
0.022
R573
220K
R576
330
R580
330
R577
330
R574
330
C568
0.022
R575
150K
IC561
KIA4558P
C569
0.022
C570
0.022
R578
150K
R579
220K
C571
0.022
C572
47/25
C574
0.0027
R581
68K
C575
0.0027
R582
12K
R583
68K
R584
12K
C576
0.0027
D564
1SS133
R587
390K
R586
220K
R585
220K
R588
390K
IC563
KIA4558P
C577
0.0027
D565
1SS133
C647
0.001
C579
2.2/50
R589
100K
R590
100K
C578
2.2/50
D566
1SS133
IC561~IC563: OPE AMP.
CD-BA2010H
– 36 –

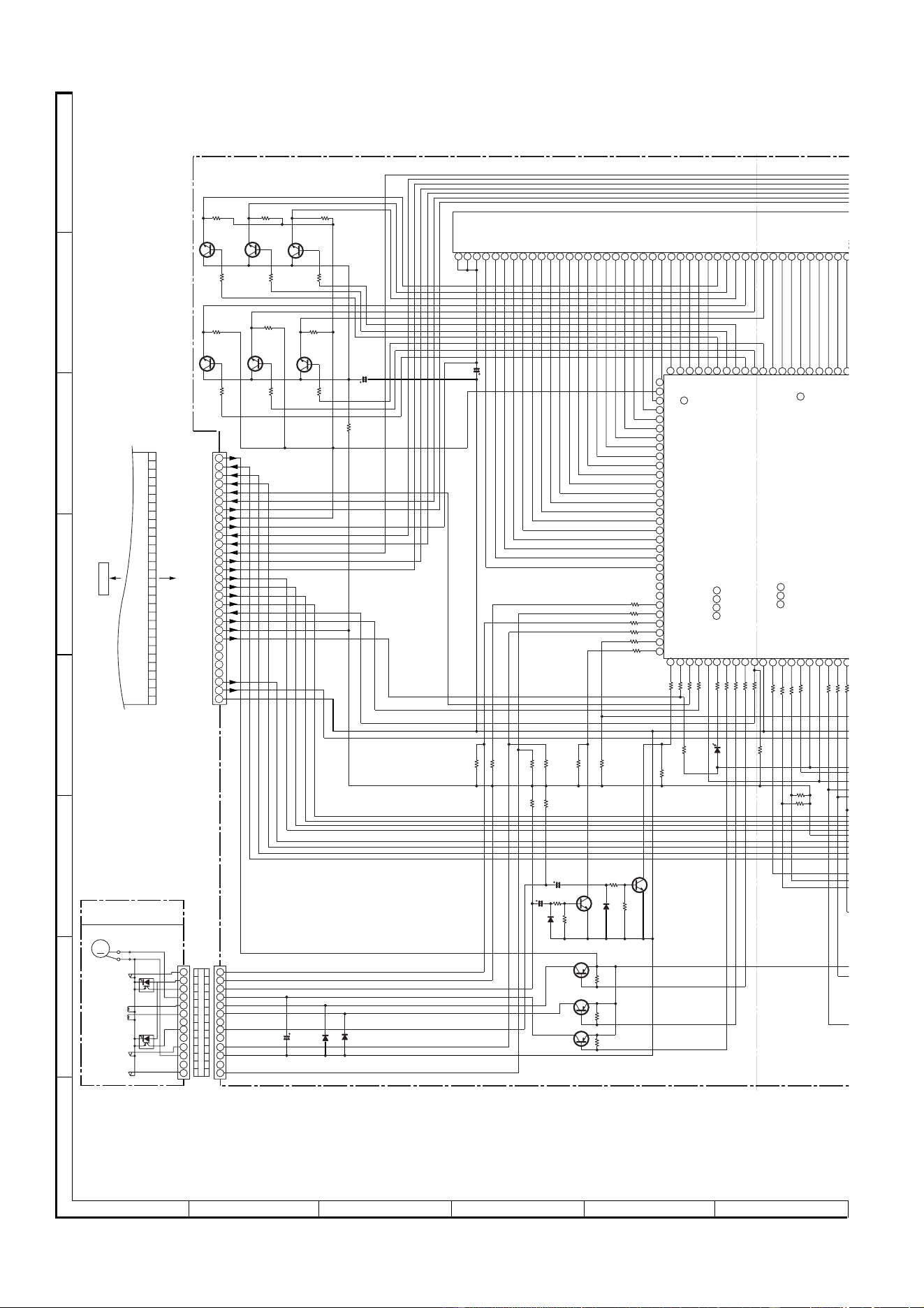

Figure 36 SCHEMATIC DIAGRAM (5/11)
A
B
C
D
E
F
G
H
1
23456
• NOTES ON SCHEMATIC DIAGRAM can be found on page 19.
0V
0V
10V
10V
10V
M_+10V
REC/PLAY
T_T1 T2
T_BIAS
SP_RLY
-20dB ATT
VF1
-VF
VF2
CE
DI
DO
CLK
TUN_SM
10KHZ
SPAN_RCH
SPAN_LCH
S_MUTE
+5V
SP DET
A_+10V
UN_SW 5V
D_GND
AC_RLY CON
63HZ
3
1
3233343536373839
404142
4344454647484950
33
32
31
10
0
81 82 83
84
85
86
87
88
89 90 91
92 93 94 95 96 97 98 99
1
VDD
-20dBAT
T
S-BUS
Y
LCK
1
LCK
0
DP RE
Q
RES OU
T
DR
F
WR
Q
RESE
T
X
2
X
1
VPP/I
C
C
E
CL
K
D
D
O
AVS
S
AVDD
AVREF
SYS STOP
JOG 1
JOG 0
REMOCON
VSS
VDD
SMUTE
T_SOL 2
T_SOL 1
T_MOTOR
TIMER LED
TUS SM/M-BUS
Y
SPEANA
1
R
SPEANA
0
L
10KHZ SPEANA
3
63HZ SPEANA
2
XT
2
CD IN
T
VD
D
CD CL
K
CD
D
CD D
O
CD C
E
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
80
53565758 49505152 45464748
38394041 34353637 30313233 18192029 1617 12131415 11 7
6
8910
424344
F
F
F
P25
P24
P23
P22
P21
P20
P19
P18
P17
P16
P15
P14
P13
P12
P11
P10
P09
P08
P07
P06
P05
P04
P03
P02
P01
G15
G14
G13
G12
G11
G10
G09
G08
G07
G06
G05
G04
G03
G02
G01
5V BACK UP
KEY 0
KEY 1
KEY 2
47
48
49
50
AC RLY_CONT
SP_RLY
SPDET
T1 RUN
T2 RUN
CD CLAMP SW
T1 PLAY SW_A
T2 PLAY SW_B
FPA (F-REC)
FPB (R-REC)
MIC IN O
KOK LATCH L
DIST_OUT/SW OUT/SPN A
P25/SPN B
P22
P21
P20
P19
P14
P13
P12
P11
P10
P9
P8
P7
VLOAD
P6
P5
P4
P3
P2
P1
G1
G2
G3
G4
G5
G6
G7
G8
G9
G10
G11
G12
G13
G14
G15
P18/DIST3
P17/DIST2
P16/DIST1
P15/DIST0
P24/MOV VOL CONT OPEN
P23/MOV VOL CONT CLOSE
F_REC
GND
T1 PLAY
9
8
7
6
5
4
3
2
1
13
12
11
10
T2 PLAY
T1 RUN
SOL1
SOL2
+MTR
T2 RUN
+5V
29
1
CNP701A
P35 10 - H
TO MAIN PWB
- -
+
M
TAPE MECHANISM
PWB-E
TAPE
MOTOR
SOLENOID
SOLENOID
T2 PLAY
T1 PLAY
F.PLAY
PH
PH
9
8
7
6
5
4
3
2
1
13
12
11
10
MOTOR
DRIVER
2
3
4
5
1
7
8
9
6
12
13
14
15
11
17
18
19
10
16
22
23
24
25
21
27
28
29
20
26
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
R795
10K
R757
10K
R721
4.7K
LED722
4204SRT7
R749
10K
R746
10K
R720
10K
R777
10K
R733
68K
R732
68K
R718
10K
R717
10K
R715
10K
R714
10K
Q707
KTC3199GR
R738
1K
R739
470K
D715
1SS133
C717
2.2/50
Q706
KTC3199GR
R735
470K
D714
1SS133
R734
1K
C716
2.2/50
Q704
KTA1271Y
Q705
KTA1271Y
R737
10K
R752
10K
Q708
KTA1273Y
R768 1K
R767 1K
R766 1K
R758 1K
R756 2.2K
R755 2.2K
R754 2.2K
R753 1.8K
R750 1K
R751 1K
R748
1K
R747
1K
R743 1K
R742 1K
R741 1K
R740 1K
R794 1K
IC701
IX0333AW
SYSTEM
MICROCOMPUTER
R
R744 1K
R759 1K
R760 1K
R761 1K
R762 1K
R736
10K
D713
1SS133
D712
1SS133
C719
47/25
CNP701B
R724
33
C715
22/50
C709
47/50
R719
1K
R705
1K
R702
1K
R701
100K
R704
100K
R716
100K
Q702
KTC3199GR
Q701
KTC3199GR
RS723
1K
RS724
1K
RS725
1K
Q710
KTC3199GR
Q711
KTC3199GR
Q712
KTC3199GR
RS720
100K
RS721
100K
RS722
100K
FL701
Q703
KTC3199GR
FC701
FC702
CNP702
– 37 –
CD-BA2010H

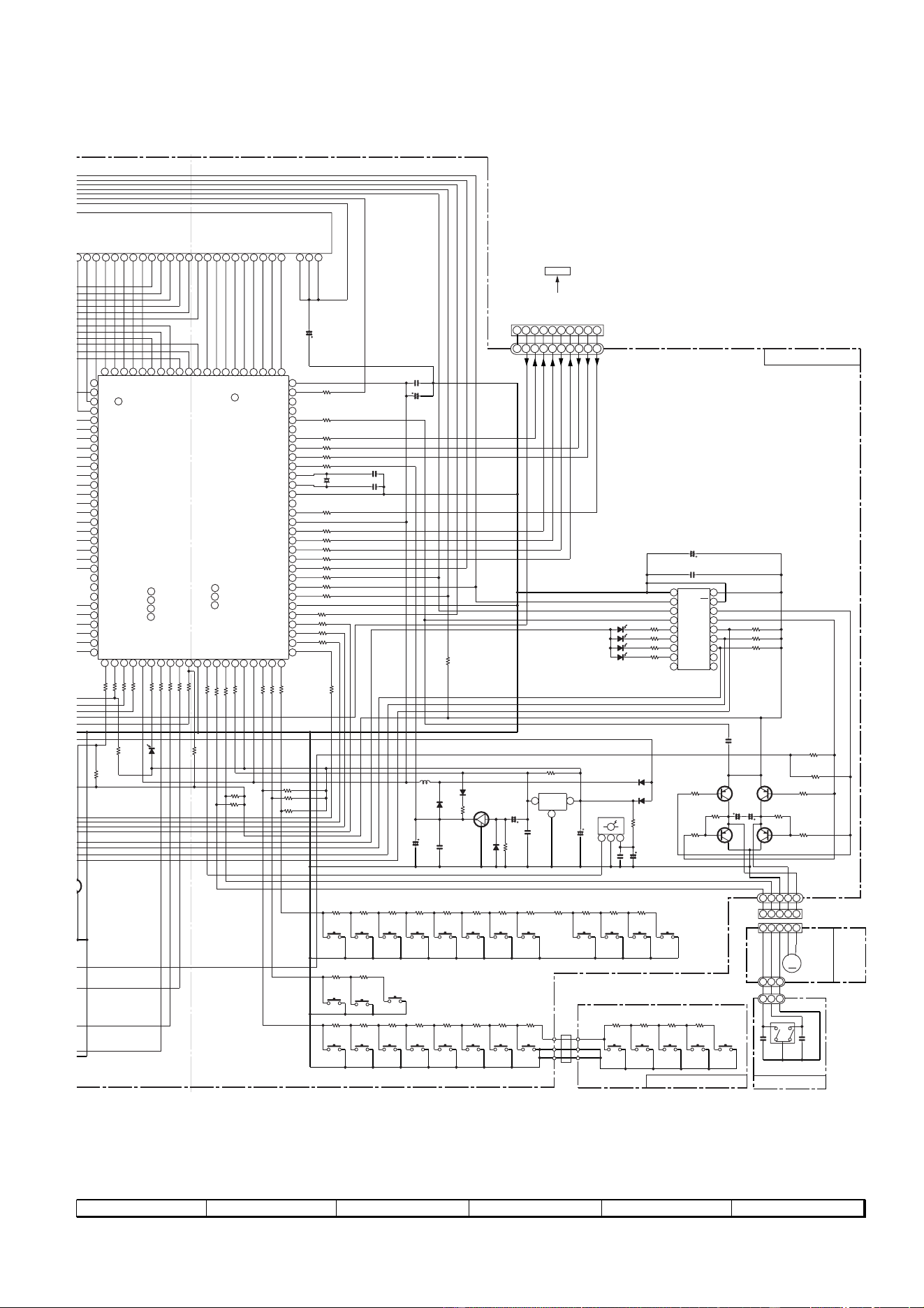

Figure 37 SCHEMATIC DIAGRAM (6/11)
7
8 9 10 11 12
M
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
3
2
1
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
313233343536373839
404142
4344454647484950
33
32
31
100
81 82 83
84
85
86
87
88
89 90 91
92 93 94 95 96 97 98 99
9
8
7
6
5
4
3
2
1
1
VDD
-20dBATT
S-BUSY
LCK 1
LCK 0
DP REQ
RES OUT
DRF
WRQ
RESET
X2
X1
VPP/IC
CE
CLK
DI
DO
AVSS
AVDD
AVREF
SYS STOP
JOG 1
JOG 0
REMOCON
VSS
VDD
SMUTE
T_SOL 2
T_SOL 1
T_MOTOR
TIMER LED
TUS SM/M-BUSY
SPEANA1
R
SPEANA0
L
10KHZ SPEANA3
63HZ SPEANA2
XT2
CD INT
VDD
CD CLK
CD DI
CD DO
CD CE
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
80
3435
3
6 30313233 18192029 1617 12131415 11 7 6 3 2 18910
P08
P07
P06
P05
P04
P03
P02
P01
G15
G14
G13
G12
G11
G10
G09
G08
G07
G06
G05
G04
G03
G02
G01
F
F
F
3 1
2
CD INT
WRQ(DSP)
DRF
CD CE
CD DO
CD DI
CD CLK
RES OUT
CLAMP SW
D_GND
1
23456789
10
10
1
2
3
4
5
6
7
8
9
VOL_MOTOR +
VOL_MOTOR -
T_REC/PLAY
T_T1/T2
T_BIAS
STOP
PLAY
VSS
DATA
CLOCK
LCK
Q0
Q1
Q2
Q3
Q4
Q6
Q5
Q8
Q7
Q10
Q11
VDD
OE
Q9
FF
REW
VOL_UP
VOL_DOWN
-
+
BA
54321
54321
543
3
OPEN/
CLOSE
DISC
SKIP
DISC 3
DISC 2DISC 1
21
321
21
STATION
DISPLAY
MODE
ASPM
EON
TIMER/
SLEEP
CLOCK
ON/
STAND-BY
DIMMER
CD
TAPE
REC/
PAUSE
TUNING/
TIME
UP
VIDEO/
AUX
TUNER
(BAND)
TUNING/
TIME
DOWN
MEMORY/
SET
PRESET
DOWN
PRESET
UP
PLAY/
REPEAT
STOP
X_BASS
EQUALIZER
PTY.TI
SEARCH
KEY 0
KEY 1
KEY 2
47
48
49
50
AC RLY_CONT
SP_RLY
SPDET
T1 RUN
T2 RUN
CD CLAMP SW
T1 PLAY SW_A
T2 PLAY SW_B
FPA (F-REC)
FPB (R-REC)
MIC IN O
KOK LATCH L
DIST_OUT/SW OUT/SPN A
P25/SPN B
P22
P21
P20
P19
P14
P13
P12
P11
P10
P9
P8
P7
VLOAD
P6
P5
P4
P3
P2
P1
G1
G2
G3
G4
G5
G6
G7
G8
G9
G10
G11
G12
G13
G14
G15
P18/DIST3
P17/DIST2
P16/DIST1
P15/DIST0
P24/MOV VOL CONT OPEN
P23/MOV VOL CONT CLOSE
CNP12
P33 12 - E
TO CD SERVO PWB
DISPLAY PWB-A2
REMOTE
SENSOR
1
2
3
Q709: RESET
1
3
1
3
SWITCH PWB-A3
JOG PWB-H2
VOLUME
MOTOR
PWB-H1
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
BI703
CNS703
C722
47/50
C725
0.022
C726
220/10
C734
47/16
C735
0.022
RS710 1K
RS709 22K
RS708 10K
IC702
BU2092F
INPUT/OUTPUT
EXPANDER
LED704
LED703
LED702
LED701
RS701 1K
RS702 1K
RS703 1K
RS704 1K
RS731
10K
RS732
10K
Q714
KTA1271Y
RS734
4.7K
RS729
10K
RS735
4.7K
C741
100/16
C740
100/16
Q716
KTA1271Y
RS730
10K
RS728
4.7K
RS727
4.7K
Q715
KTA1271Y
D721
1SS133
C738
470P
D720
1SS133
R799
100
C733
47/25
RX701
LN63H380A
C732
0.022
C731
10/50
C730
0.022
IC703
KIA7042AP
R798
4.7K
R797
100K
D717
1SS133
R796
47K
Q709
KRC102M
C729
3.3/50
D718
1SS133
C728
0.01
C727
0.1/50
D716
1SS133
L701
100µH
R795
10K
R757
10K
R721
4.7K
LED722
4204SRT7
R749
10K
R746
10K
Q707
KTC3199GR
BI704
CNS704
CNP704
BI705A
M701
VOLUME
MOTOR
BI705B
C721
0.001
JOG701
JOG
C720
0.001
SW713
RD12
100K
SW712
RD11
33K
RD10
18K
RD09
10K
SW711
SW710
SW709
RD08
5.6K
SW708
RD07
3.9K
SW707
FW701
SW706
RD06
2.7K
SW705
RD05
2.2K
SW704
RD04
1.5K
SW703
RD03
1K
SW702
RD02
820
SW701
RD01
680
SW714
RD13
680
SW715
RD14
820
SW716
SW722
RD25
680
RD26
820
SW723
RD27
1K
SW724
RD28
1.5K
SW725
RD29
2.2K
SW726
RD30
2.7K
SW727
SW728
SW729
RD31
3.9K
RD32
5.6K
RD33
10K
RD34
15K
SW731
RD35
33K
SW732
SW733
RD36
100K
SW734
R700
10K
R773
1K
R776
1K
R778 1K
R779 1K
R780 1K
R781 1K
C723
15P
C724
18P
XL701
4.1943MHz
R783 1K
R784 1K
R785 1K
R786 1K
R787 1K
R788 1K
R789 1K
R790 1K
R775 1K
R770 1K
R771 1K
R772 1K
R769 1K
R768 1K
R767 1K
R766 1K
R758 1K
R756 2.2K
R755 2.2K
R754 2.2K
R753 1.8K
R750 1K
R751 1K
R748
1K
R747
1K
1
K
1
K
1
K
1
K
1
K
IC701
IX0333AW
SYSTEM
MICROCOMPUTER
R765
10K
R764
10K
R763
10K
1
K
R759 1K
R760 1K
R761 1K
R762 1K
R782 1K
FL701
LED701~LED704: SLI325YC
IC703: RESET
CD-BA2010H
– 38 –
Figure 38 SCHEMATIC DIAGRAM (7/11)
A
B
C
D
E
F
G
H
1
23456
• NOTES ON SCHEMATIC DIAGRAM can be found on page 19.
3 1
2
7
4
6
5
3
2
1
8
3
1
2
3 1
2
+B2
+B1
-B
AC_RLY CON
VF1
VF2
-VF
UN_SW 5V
M_10V
+5V (SW)
SP_RLY
SP_DET
M_GND
CD_GND
CD_+B
A_GND
A_+10V
D_GND
-15V
A_GND
R CH
L CH
L VOUT
D_GND
UN_SW_5V
Out
-Vcc
+Vcc
Ch1
Out
9
8
6
7
5
4
3
2
1
10
11
12
13
14
15
16
17
18
19
12
9
85432
1 76
10 11
1514
13
12
9
11
8
54
3
21
76
10
Ch1
+
-
Out
Ch2
-Vcc
+Vcc
Ch1
Out
Ch1
+
-
+
-
Ch2
Q821,Q823: CONSTANT VOLTAGE REGULATOR
IC801,IC802: VOLTAGE REGULATOR
CNS901
P34 1 - C
TO MAIN PWB
+B
+B
+B
-B
-B
-B
-B
-B
-B
-B
-B
-B
-B
-B
-B
+B
+B
+B
+B +B
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
POWER SUPPLY PWB-B
FM SIGNAL
R925
100(1/4W)
C921
10/50
C920
10/50
D905
1SS133
Q906
KTC3199GR
R936
10K
C924
0.022
R938
1K
R934
0.1(1W)
C925
0.022
R935
10K
R937
1K
C923
100/50
Q905
KTC319
9
D
9
1
S
R933
0.1(1W)
C931
1/50
R930
820
R932
1K
R928
56K
C922
100/50
R926
22K
C928
15P
R976
1K
C926
220P
R924
100(1/4W)
Fusible
C916
0.1
C918
0.1(ML)
R922
4.7
R923
4.7
C919
0.1
C917
0.1
R921
56K
R920
56K
Q904
KTC3199GR
C914
47/50
R919
56K
Q903
KTC3199GR
D903
1SS133
R917
1K
R909
1K
C908
47/50
R903
56K
C909
15P
C907
220P
R910
100(1/4W)
Fusible
R907
1K
R993
0.22(2W)
C904
100/50
R995
0.22(2W)
Q901
KTC3199GR
D901
1SS133
R913
1K
R915
6.8K
C905
0.022
R911
0.1(1W)
C902
10/50
C901
10/50
D902
1SS133
Q902
KTC3199GR
R914
1K
C912
0.022
R916
6.8K
R912
0.1(1W)
R996
0.22(2W)
R994
0.22(2W)
R902
22K
C903
100/50
R901
100(1/4W)
Fusible
R908
1K
C911
47/50
R906
1K
R904
56K
C910
15P
R918
1K
C906
220P
IC901
STK402-070
POWER AMP.
R967
330
C986
0.022
C953
47/25
C961
0.1(ML)
C960
0.1(ML)
R968
1K
C958
2.2/50
R970
68K
R971
68K
C959
2.2/50
R969
1K
IC903
KIA4558P
OPE AMP.
C957
0.022
C956
47/50
R960
1.5K
C952
10/16
C951
10/16
R961
1.5K
C947
100P
R958
8.2K
C948
100P
C950
0.022
R962
4.7K
R964
18K
C946
0.15
R956
18K
C954 0.15
C955 0.15
R957
18K
R965
18K
R963
4.7K
C945
0.15
C949
0.022
R959
8.2K
R966
330
C941
0.015(ML)
R973
100K
R972
100K
C942
0.015
(ML)
R974
68K
R975
68K
C943
0.001
C944
0.001
R805
22K
C813
3300/63
R819
22K
C814
3300/63
R806
680(2W)
C815
0.022
C816
47/25
ZD803
MTZJ13C
F803
T5A L 250V
F802
T5A L 250V
C803
0.22
C804
0.22
F805
T2A L 250V
D803
TS6B04GM
C834
100/63
C808
100/50
D818
1N4004S
D810
1N4004S
C809
220/63
C807
100/50
D808
1N4004S
ZD801
MTZJ36C
C810
47/50
R801
2.2K
Q801
KTA1274Y
R802
10
C811
47/50
ZD802
MTZJ6.2A
C812
100/35
R803
12K
R804
47K
D809
1N4004S
C805
0.22
C806
0.22
D807
1N4004S
D805
1N4004S
D804
1N4004S
D806
1N4004S
C817
022
C818
470/35
D812
1N4004S
D815
1N4004S
D814
1N4004S
D813
1N4004S
R817
47K
R816
1K
Q802
KTC3199GR
D811
1SS133
R807
220
C819
1000/6.3
C820
3300/25
C821
0.022
IC802
KIA7810AP
C822
0.022
R810
22K
C823
47/25
D817
1SS133
R811
3.3(1/2W)
Q823
KTC2026
R812
33
D816
1SS133
C830
47/25
C829
0.022
C828
0.022
C827
22/25
R813
22K
Q821
AN78L05
IC801
KIA7805P
C824
0.022
C825
0.022
C826
47/25
R809
10K
CNS901
R825
3.3
(1/2W)
– 39 –
CD-BA2010H

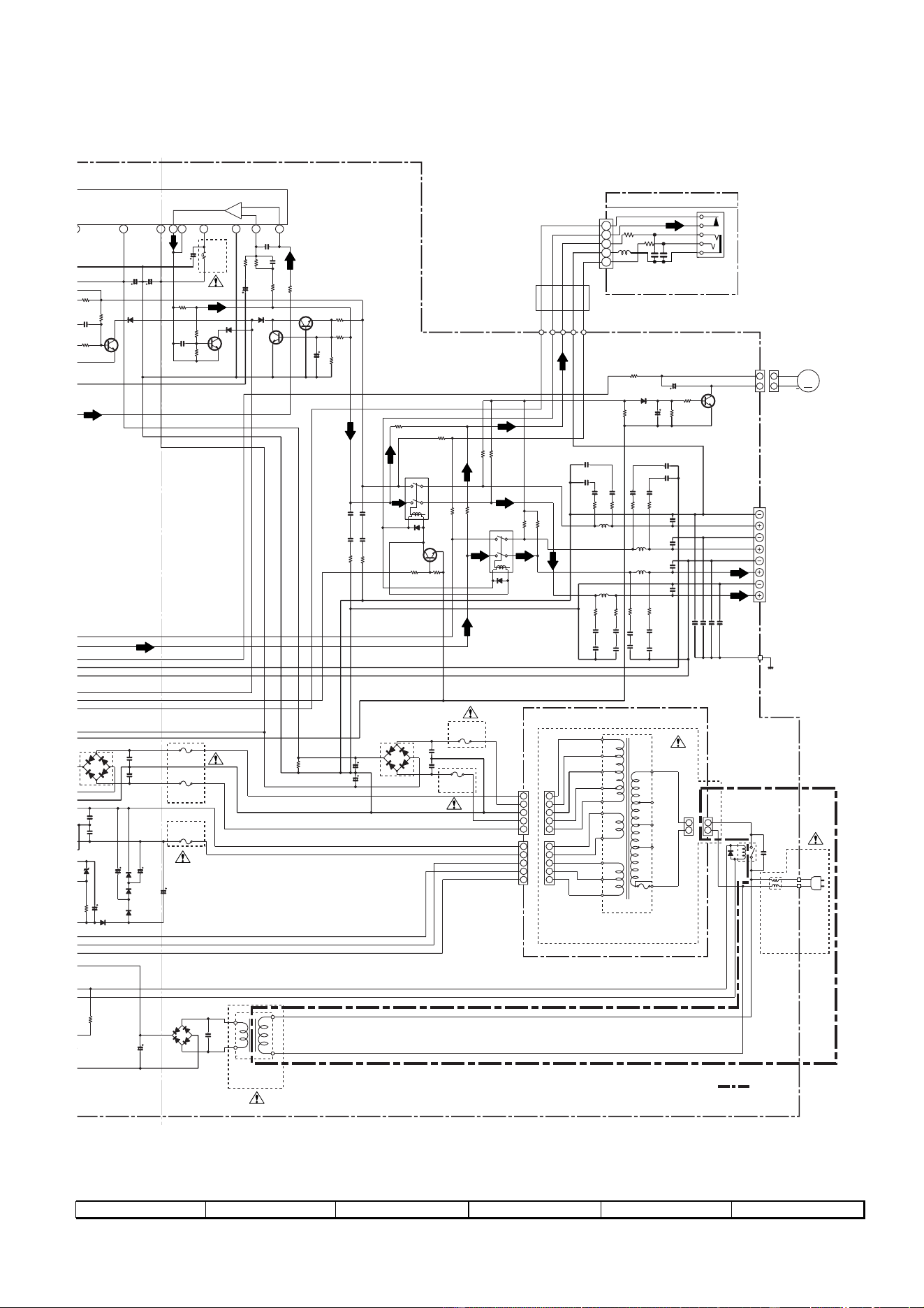

Figure 39 SCHEMATIC DIAGRAM (8/11)
7
8 9 10 11 12
SP_Lch_GND (LOW)
SP_Lch (LOW)
SP_Rch_GND (LOW)
SP_Rch (LOW)
SP_Rch_GND (HI)
SP_Lch (HI)
SP_Lch_GND (HI)
SP_Rch (HI)
3
1
2
5
4
1
2
3
4
5
Out
-Vcc
+Vcc
O
u
t
15
141312
9
8
7
10 11
1
2
5
4
2
1
2
1
3
5
4
2
1
3
+
-
Ch2
T.F.
15
1
2
DRIVER
+
M
5
4
3
2
1
HEADPHONES PWB-A4
AC POWER
SUPPLY CORD(229)
AC 230V,50Hz
2
1
When Servising, pay attention as the
area enclosed by this line( ) is
directly connection with AC main voltage.
-B
-B
-B
-B
-B
-B
-B
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
CNP803
CNS803
Q910
KTC3203Y
R954
1K
R953
68K
C937
47/50
D909
1SS133
R955
4.7(1/2W)
R952
15K
C938
10/50
FW801
C976
0.022
C972
0.022
C974
0.022
R988
6.8
R986
6.8
C970
0.022
C964
0.022
C962
0.022
C966
0.022
R982
6.8
R984
6.8
C968
0.022
L902
0.29µH
C980
0.001
C982
0.001
L904
0.29µH
C981
0.001
C979
0.001
L905
0.29µH
C983 0.022
C985 0.022
C989 0.022
C987 0.022
C977
0.022
C975
0.022
R987
6.8
R985
6.8
SO901
SPEAKER
TERMINAL
C971
0.022
C973
0.022
C965
0.022
C967
0.022
L903
0.29µH
C969
0.022
C963
0.022
R981
6.8
R983
6.8
D908
1SS133
R951
2.2K
R950
2.2K
RL902
RL901
R949
2.2K
R948
2.2K
R944
270(1/2W)
R945
270(1/2W)
R947
270
(1/2W)
R946
270
(1/2W)
R980
10K
R979
1K
Q909
KTC3199GR
D907
1SS133
C936
0.1
C934
0.1(ML)
R942
4.7
C933
0.1(ML)
R943
4.7
C935
0.1(ML)
CNP801
RL801
LUG904
LUG903
C831
0.0047/
250V
L801
LINE
FILTER
D801
1SS133
T801
MAIN POWER
TRANSFORMER
CNP802
CNP804
C832
0.22
F800
T4A L 250V
D802
TS6B04GM
C833
0.22
F801
T4AL250V
C801
2200/50
C802
2200/50
R820
22K
IC902
STK402-040
POWER AMP.
R977
1K
R931
1K
C929
15P
C930
1/50
R927
56K
R929
820
C927
220P
R925
100(1/4W)
Fusible
C921
10/50
C920
10/50
D905
1SS133
Q906
KTC3199GR
R936
10K
C924
0.022
R938
1K
R934
0
.1(1W)
C925
0.022
R935
10K
R937
1K
C923
100/50
Q907
KTC3199GR
Q905
KTC3199GR
D904
1SS133
D906
1SS133
Q908
KTC3199GR
R940
56K
R939
56K
R941
56K
C932
47/50
R933
0.1(1W)
F803
T5A L 250V
F802
T5A L 250V
C803
0.22
C804
0.22
F805
T2A L 250V
M
C834
100/63
C808
100/50
D818
1N4004S
D810
1N4004S
C809
220/63
C807
100/50
D808
1N4004S
ZD801
MTZJ36C
2.2K
7
4Y
D809
1N4004S
C805
0.22
C806
0.22
4
S
S
T802
SUB POWER
TRANSFORMER
C817
0.22
C818
470/35
D812
1N4004S
D815
1N4004S
D814
1N4004S
D813
1N4004S
3
R807
220
M901
FAN MOTOR
JK670
HEADPHONES
C640
100P
C639
100P
WT601
R601
68
L601
2.2mH
R602
68
CD-BA2010H
– 40 –
A
B
C
D
E
F
G
H
1
23456
• NOTES ON SCHEMATIC DIAGRAM can be found on page 19.

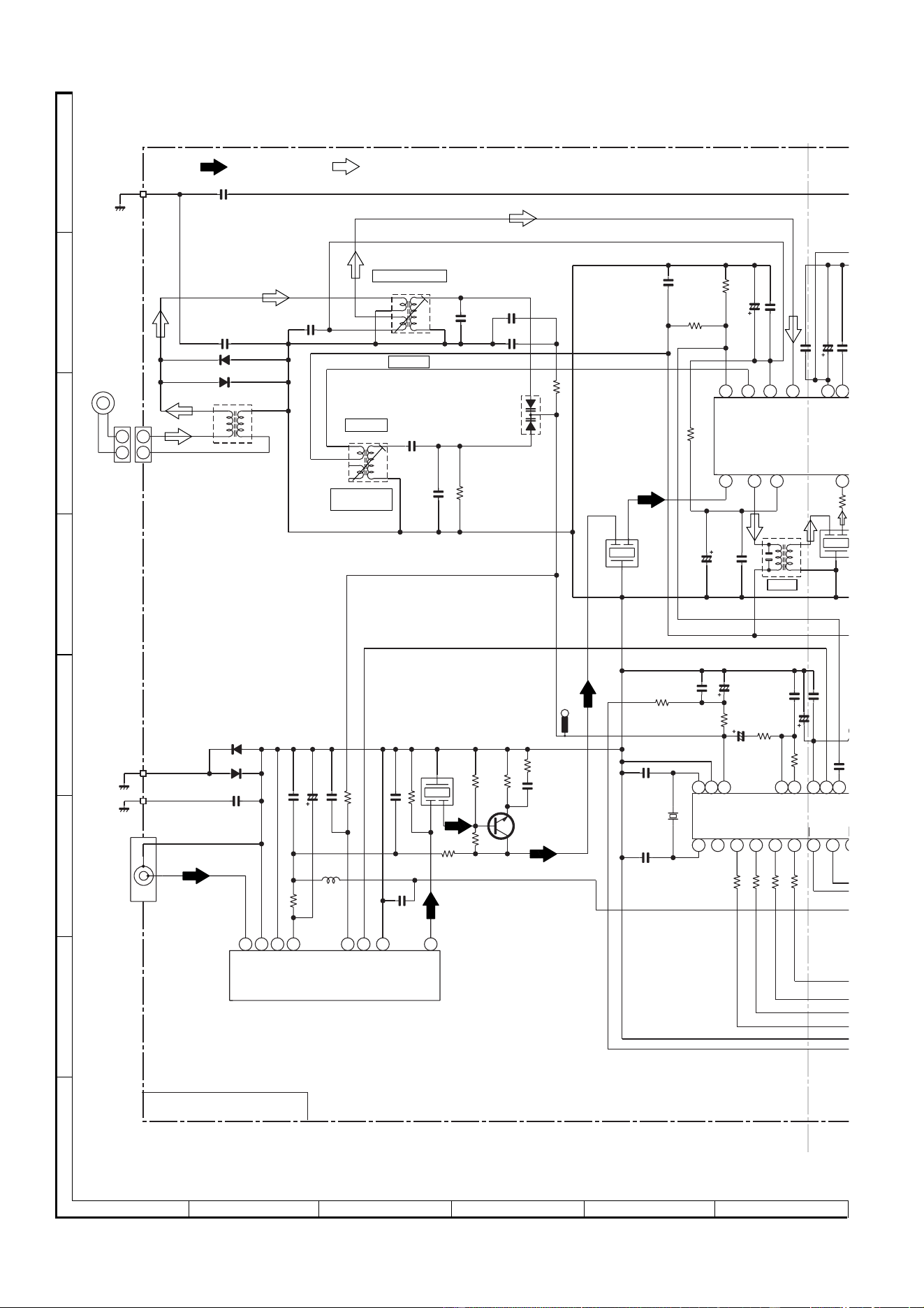

Figure 40 SCHEMATIC DIAGRAM (9/11)
8
7
6
5
4
3
2
1
19
20
21
22
23
24
4
3
2
1
15
16
17
18
19
20
21
22
8
7
6
5
4321
TP
AM LOOP
ANTENNA
F OUT
IF OUT
VCC
VT
GND
GND
GND
ANT
2
1
2
1
IF CONT
FM/AM
VSS
AOUT
AIN
PD
VDD
FM IN
AM IN
DO
CL
DI
CE
X IN X OUT
REG
AM IF IN
VSM
AM LOW
CUT
AM RF IN
AM OSC IN
FM AFC
AM OSC
OUT
AM MIX
OUT
FM IF IN
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
AM ANT.
AM TRACKING fL
AM BAND
COVERAGE fL
AM OSC.
1
2
3
FM IF AMP.
1
2
3
1
2
3
AM IF
FM SIGNAL
AM SIGNAL
MAIN PWB-A1(2/2)
FE301
FM FRONT END
L
1
0
C385
R379
2.2K
C392
0.001
C387
0.022
C380
10/16
R380
1.5K
C393
1/50
R382
150
C397
0.022
C381
12P(CH)
IC302
LC72131
PLL(TUNER)
C394
47/16
R381
10K
X352
4.5MHz
C382
15P(CH)
R378 1K
R372 1K
R373 1K
R374 1K
C365 0.022
C364 10/16
C363 0.022
C361
0.022
C362
3.3/50
R365
10K
R358
3.9K
C342
0.022
R351
5.6K
R352
1K
T351
C359
0.022
C352
10/16
CF302
C302
0.001
T303
T306
L341
BALUN
C323
0.022
C338
0.001
D301
1SS133
D302
1SS133
C335
560P
VD301
SVC348S
R323
68K
C334
27P
(UJ)
CNP302
R336
10K
C332
0.022
C331
0.047
C330
15P
(UJ)
C341
0.022
L342
2.2mH
R369
15
R347
6.8K
R346
330
C348
0.01
R399
33
R349
33
R348
680
CF301
R344 470
C301
0.01
D304
1SS133
D303
1SS133
C346
0.022
C321
100/16
C345
0.022
C347 0.022
R345
4.7K
Q301
2SC380-O
SO301
ANTENNA
TERMINAL
FM 75ohms
– 41 –
CD-BA2010H
7
8 9 10 11 12

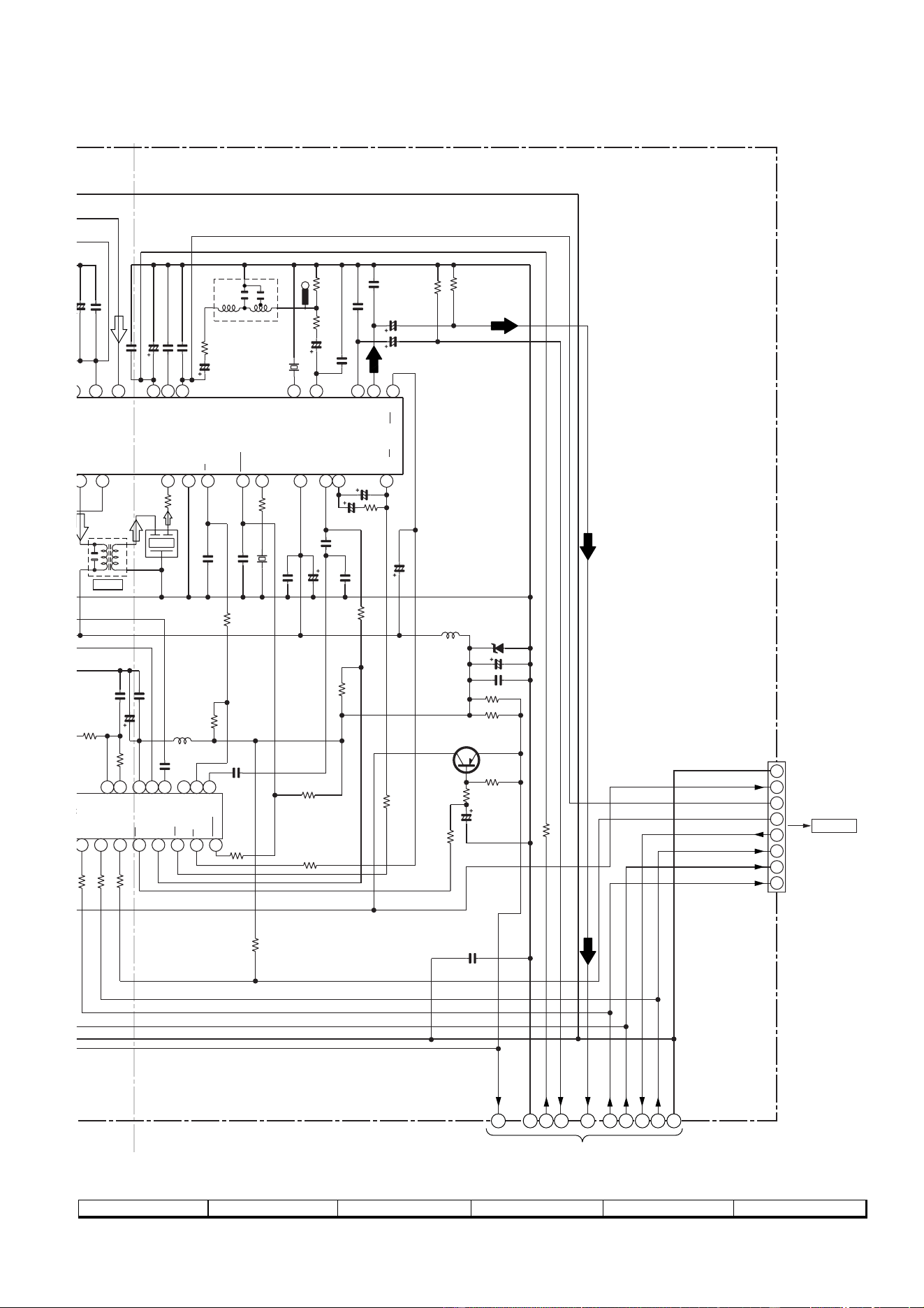

Figure 41 SCHEMATIC DIAGRAM (10/11)
8
7
6
5
4
3
2
1
9
10
11
12
13
14
15
16
17
18
19
20
21
22
3
8
7
6
5
4
3
2
9
10
11
12
13
14
15
16
17
18
19
8
7
6
5
4
DO
A_+10V
CLK
DI
CE
TUN_L
TUN_R
TUN_SM
A GND
D GND
TP
IF CONT
FM/AM
FM/AM
SD
MO/ST
ST IND
MO/ST
AIN
PD
VDD
FM IN
AM IN
DO
CL
DI
IF IN
REG
AM IF IN
GND
SD
STEREO
FM DET
VCC
IF OUT
PHASE
(FM/AM)
PHASE
L-CH OUT
R-CH OUT
MPX IN
MPX VCO
FM/AM OUT
VSM
AM LOW
CUT
AM RF IN
FM AFC
AM MIX
OUT
P35 12 - C
TO MAIN SECTION
5 6 7 8 9 10
123
4
CNP304
TO RDS PWB
+B
+B
+B
+B
+B
+B
+B
+B
+
B
+B
+B
+B
+B
+B
+B
1
2
3
AM IF
P42 3 - A
CNP303
C388
0.001
R370 1K
C391
47/16
R384
5.6K
R383
5.6K
R385
5.6K
R359
1.8K
Q360
KTA1266GR
R391
270
R392
270
C395
0.022
C396
100/10
ZD351
MTZJ5.1B
L352
100µH
R360
4.7K
R395
47K
R387
5.6K
R386
22K
C370
1/50
R355
3.3K
C357
2.2/50
C358
1/50
C356
0.001
C355
22P
R388
3.9K
C398
100/10
C399
0.022
C354
0.022
R353
270
R393
1K
C386
330P
R377
47K
L351
100µH
C385
0.01
R379
2.2K
R376
1K
C392
0.001
C387
0.022
C380
10/16
R380
1.5K
C
302
C
72131
T
UNER)
4
6
R378 1K
R372 1K
R373
1K
R363
47K
R364
47K
C371
1/50
C372
1/50
C373
0.015
C374
0.015
C369
27P(UJ)
C368
1/50
R356
1K
R357
470K
X351
456kHz
L354
LOW PASS FILTER
R350
2.7K
C367
1/50
C366 0.001
C365 0.022
C364 10/16
C363 0.022
C361
0.022
IC303
LA1832S
FM IF DET./FM MPX./AM IF
CF351
C353
0.022
CF352
R352
1K
T351
CD-BA2010H
– 42 –
A
B
C
D
E
F
G
H
1
23456
• NOTES ON SCHEMATIC DIAGRAM can be found on page 19.

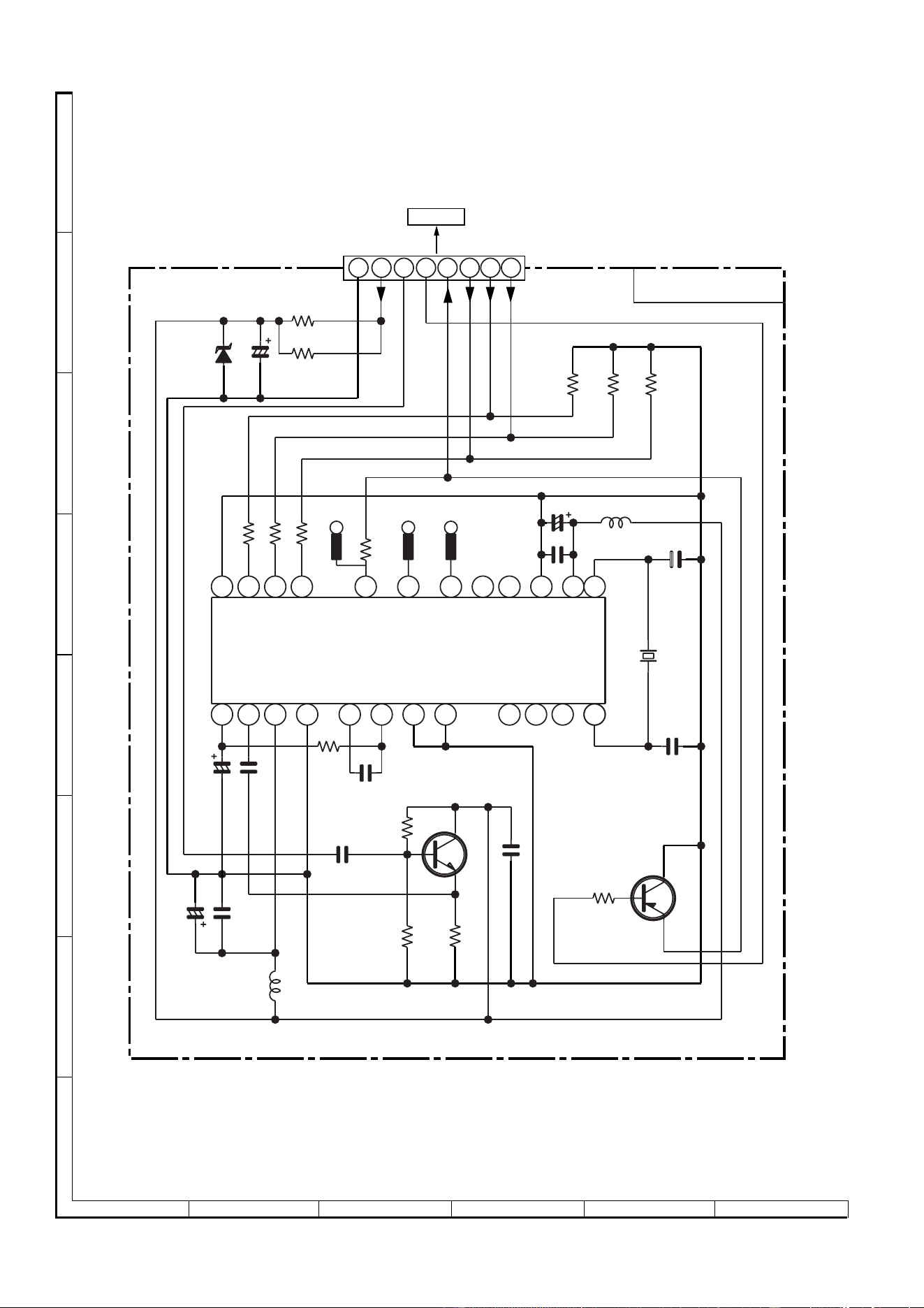

Figure 42 SCHEMATIC DIAGRAM (11/11)
8 7 6 5 4 3 2 1
13
14
11
10
9
8
7
6
5
4
3
2
1
15
16
17
18
19
2021222324
12
TP TP TP
T6
T4
VDDA
XIN
VDDD
CE
SYR
CLK
DO
RDS-ID
DI
SYNC
T7
VSSD
XOUT
T5
T3
T2
T1
CIN
MPXIN
VSSA
FLOUT
VREF
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
CNP303
P41 12 - E
TO MAIN PWB
AMP.
RDS PWB-G
CNP304
RT48
390
CT43
10/16
ZDT21
DZ5.1BSB
RT49
390
RT37
220K
RT36
220K
RT35
220K
RT26
1K
CT27
22P
(CH)
LT22
2.2µH
XT21
4.332MHz
CT28
47/16
CT29
0.022
RT28
1K
RT29
1K
RT30
1K
ICT21
LC72722
RDS DECORDER
CT23
10/16
CT24
0.022
CT37
0.022
RT21
100K
CT25
560P
QT21
KTC3199GR
RT34
56K
CT36
0.022
CT26
22P(CH)
RT51
10K
RT32
10K
RT33
56K
LT21
2.2µH
CT22
0.022
CT21
47/16
QT22
KTA1266GR
– 43 –
CD-BA2010H
VOLTAGE
0V
0V
0V
0V
0V
0V
4.6V
4.6V
0V
2.6V
4.9V
4.7V
4.9V
4.6V
0V
0V
4.6V
4.6V
4.6V
0V
0V
0V
4.8V
0V
4.9V
4.8V
0V
0V
0V
0V
0V
4.9V
5.0V
4.9V
4.6V
5.0V
4.9V
4.9V
0V
4.8V
9
8
7
6
5
4
3
2
1
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
40
39
38
37
36
35
34
33
32
31
PIN
NO. NO.
VOLTAGE
IC701
PIN
VOLTAGE
4.9V
4.9V
0V
0V
4.9V
–29.8V
–27.5V
–29.7V
–18.5V
–29.7V
–29.7V
4.9V
4.9V
0V
–34.3V
–20.1V
–16.4V
–12.2V
–16.5V
–14.2V
–31.9V
–31.9V
–18.8V
–18.8V
60
59
58
57
56
55
54
53
52
51
61
74
73
72
71
70
69
68
67
66
65
64
63
62
–31.8V
–31.8V
–31.9V
–20.5V
–20.6V
–27.6V
–27.7V
–23.4V
–23.1V
–20.9V
–34.1V
–18.9V
–28.7V
–26.0V
29.8V
–29.7V
78
77
76
75
79
90
89
88
87
86
85
84
83
82
81
3.0V
1.9V
9.1V
9.1V
0V
3.8V
4.6V
4.5V
4.5V
4.9V
50
49
48
47
46
45
44
43
42
41
–31.9V
–31.9V
–31.9V
–31.9V
–31.9V
–31.9V
–32.0V
–31.9V
–31.9V
–31.9V
100
99
98
97
96
95
94
93
92
91
80
1.9V
4.9V
0V
0V
1.6V
1.6V
2.1V
0V
0V
0V
0V
0V
2.1V
2.1V
2.1V
1.6V
1.6V
1.8V
2.1V
0V
0V
2.1V
4.9V
3.5V
4.9V
1.6V
2.1V
2.1V
0V
0V
0V
0V
0V
0V
0V
4.2V
9
8
7
6
5
4
3
2
1
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
36
35
34
33
32
31
0V
2.1V
2.1V
4.9V
2.1V
41
2.1V
42
40
39
38
37
PIN
NO.
VOLTAGE
IC3
0.3V
0.3V
0V
0V
0V
0V
8.4V
0.3V
0V
0V
0V
0V
9
8
7
6
5
4
3
2
1
12
11
10
0V
0V
4.1V
0.1V
0V
4.9V
17
16
15
14
13
18
PIN
NO.
VOLTAGE
IC702
0V
–38.5V
–0.1V
0.1V
0V
40.2V
0V
41.4V
–41.4V
0V
0V
–32.4V
9
8
7
6
5
4
3
2
1
12
11
10
–0.1V
0V
–0.1V
15
14
13
PIN
NO.
VOLTAGE
IC901
0V
–31.3V
–0.1V
0.1V
0V
32.8V
0V
33.9V
33.9V
0V
0V
–32.4V
9
8
7
6
5
4
3
2
1
12
11
10
–0.1V
0V
–0.1V
15
14
13
PIN
NO.
VOLTAGE
IC902
4.6V (4.9V)
0V (0V)
2.1V (2.1V)
4.5V (4.5V)
2.1V (2.1V)
2.1V (2.1V)
4.6V (4.9V)
2.4V (3.2V)
4.5V (4.8V)
3.9V (0V)
3.3V (1.8V)
3.3V (1.1V)
9
8
7
6
5
4
3
2
1
12
11
10
1.2V (1.2V)
3.5V (2.0V)
1.2V (1.2V)
2.0V (2.0V)
2.7V (0V)
2.1V (0.9V)
0V (1.9V)
0.3V (0.9V)
17
16
15
14
13
20
19
18
2.6V (2.0V)
2.6V (2.0V)
4.5V (4.8V)
3.0V (3.3V)
21
24
23
22
PIN
NO.
VOLTAGE
IC303
13.0V
12.8V
13.0V
13.0V
12.8V
0V
13.0V
18.3V
8
7
6
5
4
3
2
1
PIN
NO.
VOLTAGE
IC562
13.1V
1.3V
13.1V
13.1V
1.3V
0V
13.1V
18.3V
8
7
6
5
4
3
2
1
PIN
NO.
VOLTAGE
IC561
0V
0V
0V
0V
0V
12.1V
0V
8.6V
8
7
6
5
4
3
2
1
PIN
NO.
VOLTAGE
IC903
13.1V
1.4V
13.1V
13.1V
1.4V
0V
13.1V
18.3V
8
7
6
5
4
3
2
1
PIN
NO.
VOLTAGE
IC563
18.3V
0V
5.0V
3
2
1
PIN
NO.
VOLTAGE
IC801
18.7V
0V
10V
3
2
1
PIN
NO.
VOLTAGE
IC802
16.6V
5.6V
0V
3
2
1
PIN
NO.
VOLTAGE
Q823
0V
3.0V
3.3V
3.3V
0V
0V
0V
1.6V
1.6V
1.6V
1.6V
1.6V
1.6V
1.6V
1.7V
4.7V
0V
1.6V
0V
2.4V
3.3V
0V
1.6V
3.0V
0V
3.3V
0V
0.7V
0V
0V
0V
0V
0V
1.6V
3.3V
0V
1.6V
1.6V
1.6V
1.6V
0V
2.1V
2.1V
0V
3.3V
3.5V
3.3V
3.3V
3.3V
1.6V
1.6V
1.5V
0V
1.5V
3.0V
3.3V
1.8V
3.0V
0V
0V
0V
1.7V
2.4V
0V
9
8
7
6
5
4
3
2
1
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
50
49
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
PIN
NO.
VOLTAGE
51
64
63
62
61
60
59
58
57
56
55
54
53
52
3.4V
0V
0V
3.2V
0V
0V
0V
0V
0V
4.8V
4.9V
4.9V
4.6V
0V
4.9V
0V
68
67
66
65
69
80
79
78
77
76
75
74
73
72
71
70
IC2
0V (0V)
0V (0V)
0V (0V)
0V (0V)
0.5V (0.5V)
1.9V (1.9V)
0V (0V)
0.6V (0.6V)
3.3V (3.3V)
3.3V (3.3V)
0V (0V)
0V (0V)
9
8
7
6
5
4
3
2
1
12
11
10
0V (0V)
6.7V (6.7V)
4.0V (4.0V)
3.3V (3.3V)
0.6V (0.6V)
0V (0V)
0V (0V)
0V (0V)
17
16
15
14
13
20
19
18
1.9V (1.9V)
0.5V (0.5V)
0V (0V)
0V (0V)
21
24
23
22
PIN
NO.
VOLTAGE
IC101
0.1V (9.9V)
2.9V (2.9V)
2.4V (2.4V)
0V (0V)
0V (0V)
0V (0V)
4.8V (4.9V)
4.2V (0V)
3.3V (0V)
0V (3.9V)
5.1V (5.1V)
2.2V (0V)
9
8
7
6
5
4
3
2
1
12
11
10
0V (2.4V)
5.0V (5.0V)
0V (0V)
2.3V (0V)
5.0V (5.0V)
0.6V (4.8V)
0.8V (1.8V)
2.0V (1.0V)
17
16
15
14
13
20
19
18
0V (0V)
2.5V (3.0V)
21
22
PIN
NO.
VOLTAGE
IC302
1.6V
0V
1.6V
1.6V
1.6V
0V
0V
1.6V
3.3V
0V
0V
0V
0V
1.6V
1.6V
1.6V
1.6V
1.6V
1.6V
2.6V
1.6V
1.6V
1.6V
1.6V
1.6V
0V
0V
0V
1.6V
3.3V
9
8
7
6
5
4
3
2
1
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
PIN
NO.
VOLTAGE
IC1
5.0V
0V
5.0V
3
2
1
PIN
NO.
VOLTAGE
IC703
0V (0V)
2.6V (2.6V)
2.6V(2.6V)
2.6V (2.6V)
5.2V (5.2V)
0V (0V)
2.6V (2.6V)
0V (0V)
0V (0V)
0V (0V)
0V (0V)
2.6V (2.6V)
9
8
7
6
5
4
3
2
1
12
11
10
0V (0V)
2.5V (2.5V)
5.2V (5.2V)
0V (0V)
0V (0V)
0V (0V)
0V (0V)
0V (0V)
17
16
15
14
13
20
19
18
2.9V (0V)
0V (0V)
0V (0V)
0V (0V)
21
24
23
22
PIN
NO.
VOLTAGE
ICT21
CD-BA2010H
– 44 –
Parts code
1. CD optical pickup Lens cleaner disc UDSKA0004AFZZ

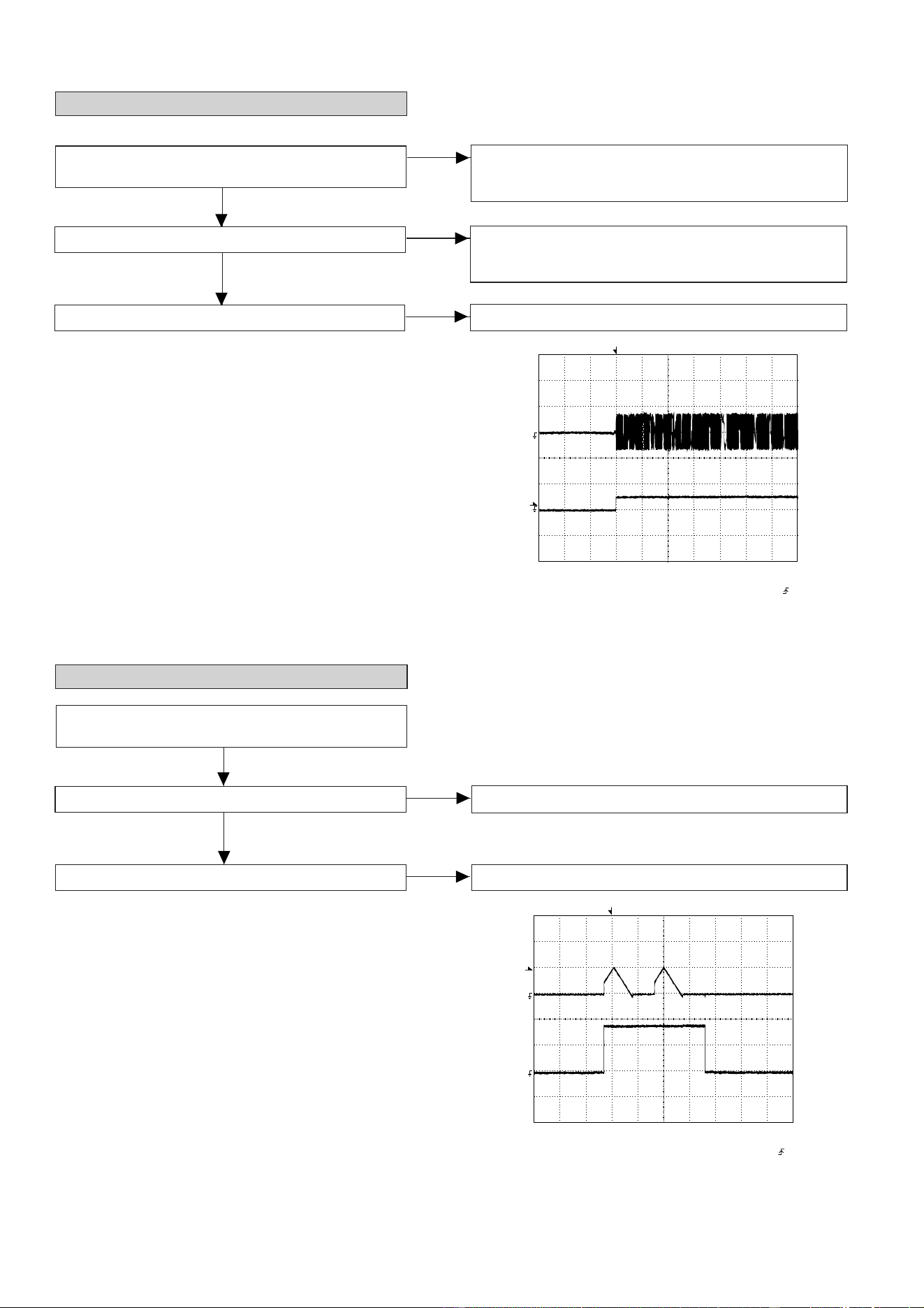

TROUBLE SHOOTING
When the CD does not function
When the CD section does not operate when the objective lens of the optical pickup is dirty, this section may not operate. Clean
the objective lens, and check the playback operation. When this section does not operate even after the above step is taken, check
the following items.
Remove the cabinet and follow the trouble shooting instructions.
"Track skipping and/or no TOC (Table Of Contents) may be caused by build up of dust other foreign matter on the laser pickup
lens. Before attempting any adjustment make certain that the lens is clean. If not, clean it as mentioned below."
Turn the power off.
Gently clean the lens with a lens cleaning tissue and a small amount of isopropyl alcohol.
Do not touch the lens with the bare hand.
HOW TO USE
CAUTION
Cleaner Fluid
Cleaner disc
Using the brush in the cleaner cap, apply 1 or 2 drops of the cleaning fluid to the
brush on the CD cleaner disc which has the mark next to it.
Place the CD cleaner disc onto the CD disc tray with the brush side down, then
press the play button.
You will hear music for about 20 seconds and the CD player will automatically stop.
If it continuous to turn, press the stop button.
1.
2.
3.
The CD lens cleaner should be effective for 30-50 operations, however if the
brushes become worn out earlier then please the cleaner disc.
If the CD cleaner brushes become very wet then wipe off any excess fluid with a soft
cloth.
Do not drink the cleaner fluid or allow it to come in contact with the eyes. In the
event of this happening then drink and / or rinse with clean water and seek medical
advice.
The CD cleaner disk must not be used on car CD players or on computer CD ROM
drives.
All rights reserved. Unauthorized duplicating, broadcasting and renting this product
is prohibited by law.
(1) Check the power to IC2 (LC78641E), the presence of the clock signal (16.93 MHz) and the status of the RESET terminal
(pin 71 on IC2).
(2) Did the pickup move to the PICKUP-IN Switch (SW4) position?
If (1) and (2) are OK, check the system microcomputer (especially the communication line with the DSP).
2. Pressing the CD operation key is accepted, butplayback does not occur.
(1) Focus-HF system check
(2) Tracking system check
(3) Spin system check
(4) PLL system check
(5) Others
1. "E-CD01" is displayed.
When a CD cannot be played
– 45 –

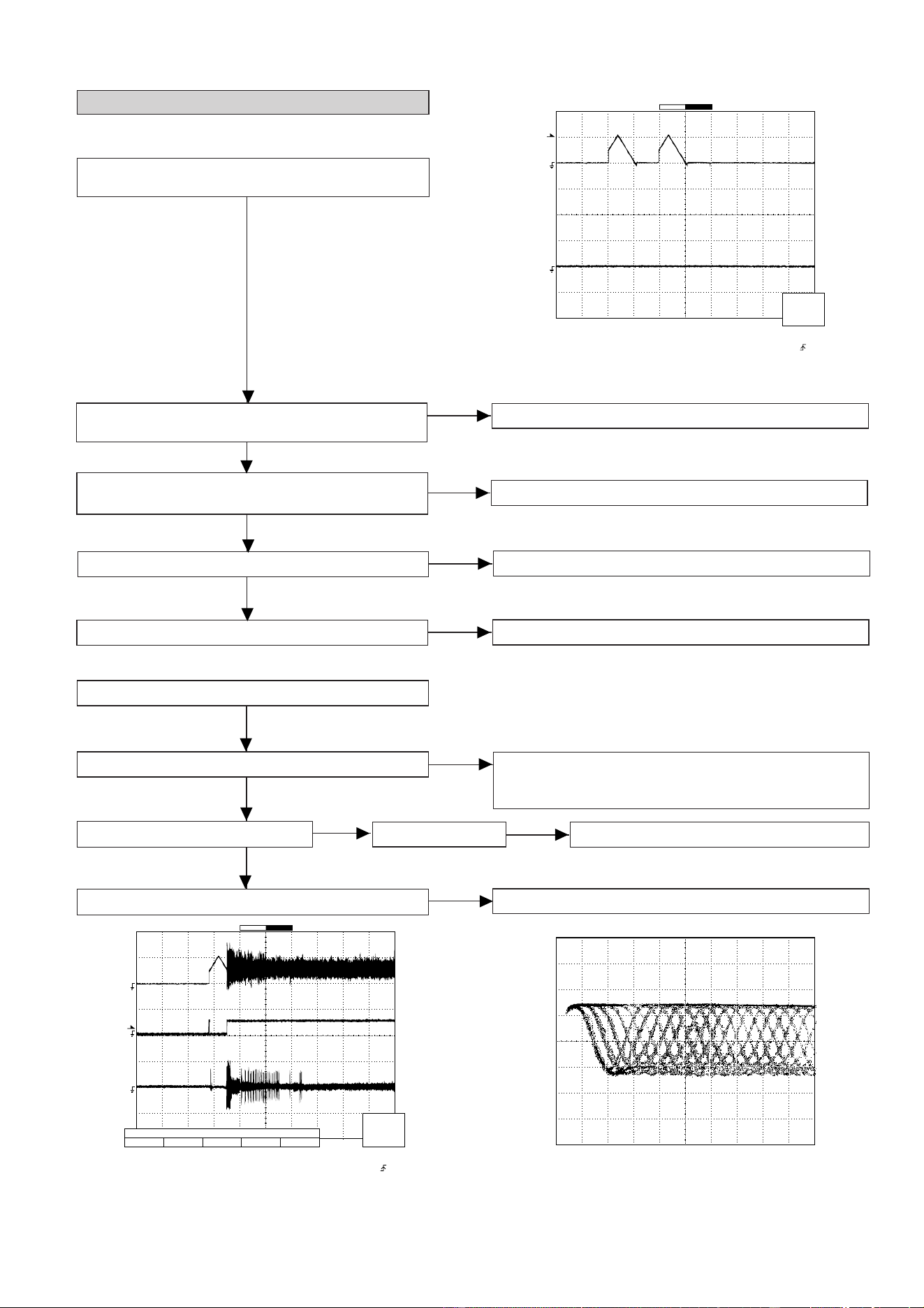

CD-BA2010H
If the level is not normal, check around pins 27~29 on IC1.
1. Is focus servo activated? (Waveform drawing 45-2)
Pins 1~11 on IC1
Check the laser diode driver Q3 peripheral circuit.
Focus error circuit (pins 20 and 21 on IC1)
When a disc is loaded, start playback operation.
2. Does DRF change from "L" to "H"?
Is the disc rotating?
3. Is the HF waveform normal? (Waveform drawing 45-3)
Check the spin system.
If the disc is spinning and a HF waveform is generated,
DRF will go H.
Figure 45-1
Check the laser diode driver Q3 peripheral circuit.
(1) Focus-HF system check
Although a CD is inserted and the cover is closed, "NO
DISC" is displayed.
1. Did the pickup move to the PICKUP-IN Switch (SW4)
position?
Sled motor (M2)
Press the OPEN/CLOSE switch (SW1) without inserting a
disc, and try starting the playback operation.
2. Does the focus (lens) move up and down?
(Waveform drawing 45-1).
Check the focus peripheral circuit.
3. Is the laser lit?
Spindle motor (M1).
4. Is the turntable rotating?
Figure 45-2
Figure 45-3
Yes
Yes
Yes
No
No
No
No
No
No
No
Yes
Yes
No
T
FDO
TDO
Stopped
CH1=500mV
DC 10:1
CH3=500mV
DC 10:1
500ms/div
(500ms/div)
NORM:20kS/s
1
3
=Record Length=
Smoothing : ON CH1 : 0.000V
CH2 : 0.0V
Main : 100K
Zoom : 2K
Mode : AUTO
Type : EDGE CH1
Delay : 0.0ns
Hold off : 0.2us
CH3 : 0.000V
CH4 : 0.00V
BW : FULL
=Trigger==Filter= =Offset=
CH1
v/DIV
500mV
T
FDO
DRF
TE
Stopped
CH1=500mV
DC 10:1
CH2=10V
DC 10:1
CH3=1V
DC 10:1
500ms/div
(500ms/div)
NORM:20kS/s
1
2
3
=Record Length=
Smoothing : ON CH1 : 0.000V
CH2 : 0.0V
Main : 100K
Zoom : 2K
Mode : AUTO
Type : EDGE CH1
Delay : 0.0ns
Hold off : 0.2us
CH3 : 0.00V
CH4 : 0.00V
BW : FULL
=Trigger==Filter= =Offset=
-3div -1div 0div +1div +3div
CH Position To
CH2
Position
0.20div
Vp-p=1.0V~1.3V
0.5mV/div,0.5µsec/div
CD-BA2010H
– 46 –
The tracking servo is not activated.
Check the peripheral circuits at pins 18 and 19 on IC1, pin 23 on
IC2, and CNS1A/B.
If the waveform shown in Figure 46-1 appears and soon after
NO DISC appears.
(2) Tracking system check
Check the TE waveform at pin 18 on IC1.
A normal jump operation cannot be completed or the beginning of
the track cannot be found.
Check the around pin 23 on IC2.
"Initialization" is possible, but play is not possible.
Data cannot be read. Check the VCO-PLL system.
"Initialization" is not possible.
Figure 46-1
Figure 46-2
Press the OPEN/CLOSE switch without inserting a disc, and
then try starting the play operation.
(3) Spin system check
The spin driver circuit is OK.
1. The turntable rotates a little. (Waveform drawing 46-2)
Check around pin 25 on IC2, pins 15 and 16 on IC3, and CNS3A/B.
2. The turntable doesn't rotate.
T
T
TE
DRF
Stopped
CH1=10V
DC 10:1
CH2=1V
DC 10:1
100ms/div
(100ms/div)
NORM:100kS/s
2
1
=Record Length=
Smoothing : ON CH1 : 0.0V
CH2 : 0.00V
Main : 100K
Zoom : 2K
Mode : NORMAL
Type : EDGE CH1
Delay : 2.924ms
Hold off : 0.2us
CH3 : 0.00V
CH4 : 0.00V
BW : FULL
=Trigger=
=Filter= =Offset=
T
T
FDO
SPDO
Stopped
CH1=200mV
DC 10:1
CH2=500mV
DC 10:1
500ms/div
1999/04/07 09:51:15
(500ms/div)
NORM:20kS/s
2
1
=Record Length=
Smoothing : ON CH1 : 0.000V
CH2 : 0.000V
Main : 100K
Zoom : 2K
Mode : NORMAL
Type : EDGE CH2
Delay : 2.924ms
Hold off : 0.2us
CH3 : 0.00V
CH4 : 0.00V
BW : FULL
=Trigger=
=Filter= =Offset=
No
Yes
No
Yes
Yes
No
– 47 –
CD-BA2010H

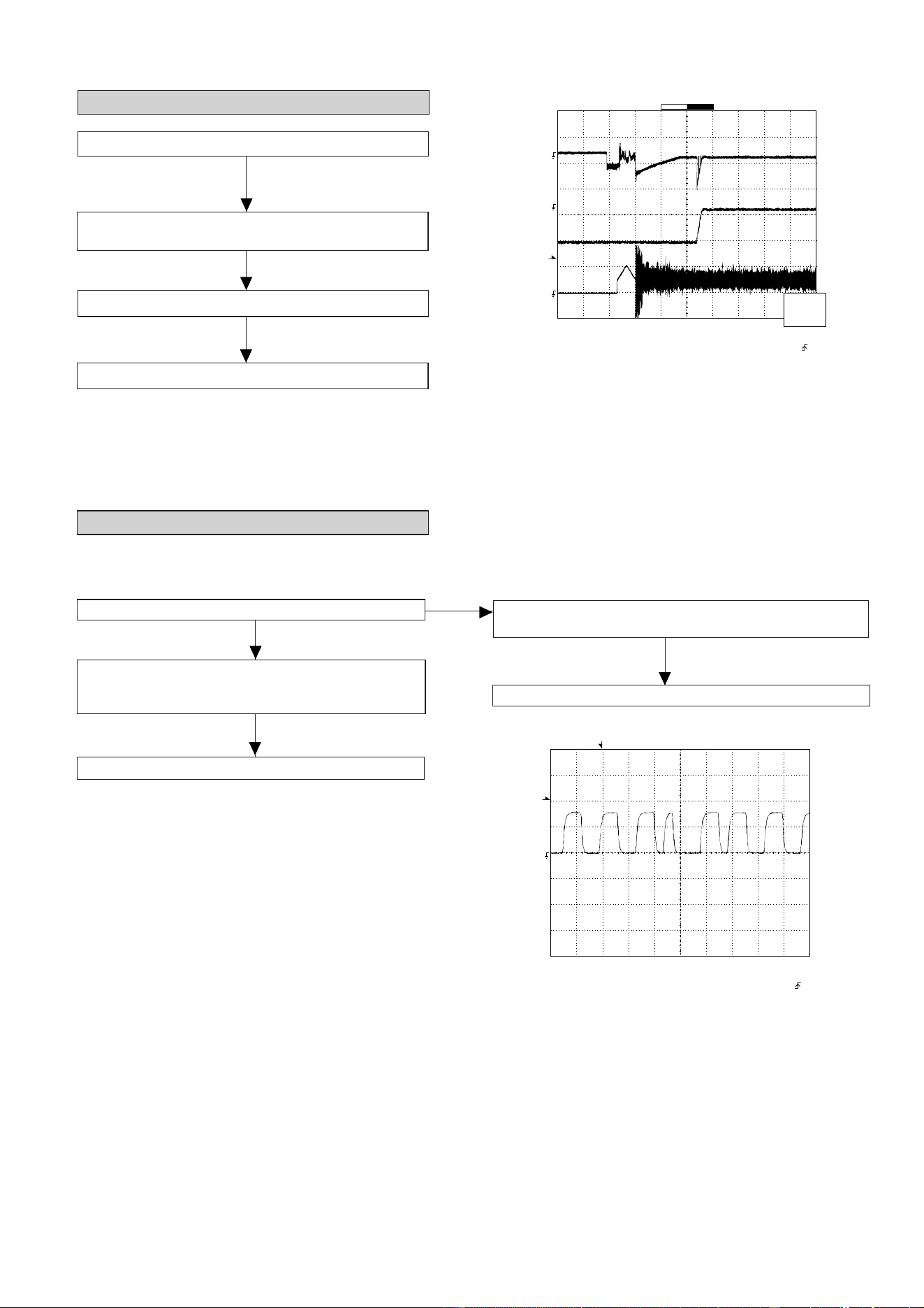

Is pin 35 (C2F) on IC2 "L"?
Yes
No
The HF waveform is normal and the time is displayed
normally, but no sound is produced. Or the sound
has dropouts.
(5) Others
There are too many error flags on a damaged disc which
makes error correction impossible.
Check again using a known good disc.
1. When playing at normal speed
Check the peripheral circuit at pin 37 (DOUT) on IC2 and
the waveform (Figure 47-2).
If both 1. and 2. are OK.
When a disc is loaded, start play operation.
(4) PLL system check
The HF waveform is normal, but the TOC data cannot be
read.
Check the PDO waveform. (Figure 47-1)
Check around pins 1~6 on IC2.
Figure 47-1
Figure 47-2
T
FDO
PDO2
PDO1
Stopped
CH1=500mV
DC 10:1
CH3=1V
DC 10:1
CH4=1V
DC 10:1
500ms/div
(500ms/div)
NORM:20kS/s
1
4
3
=Record Length=
Smoothing : ON CH1 : 0.000V
CH2 : 0.0V
Main : 100K
Zoom : 2K
Mode : AUTO
Type : EDGE CH2
Delay : 0.0ns
Hold off : 0.2us
CH3 : 0.00V
CH4 : 0.00V
BW : FULL
=Trigger==Filter= =Offset=
CH1
v/DIV
500mV
1999/04/05 17:33:17
T
T
DOUT
Stopped
CH1=2V
DC 10:1
500ns/div
1999/04/07 09:25:28
(500ns/div)
NORM:200MS/s
1
=Record Length=
Smoothing : ON CH1 : 0.00V
CH2 : 0.00V
Main : 1K
Zoom : 100
Mode : NORMAL
Type : EDGE CH1
Delay : 2.887ms
Hold off : 0.2us
CH3 : 0.00V
CH4 : 0.00V
BW : FULL
=Trigger=
=Filter= =Offset=
CD-BA2010H
– 48 –
FUNCTION TABLE OF IC

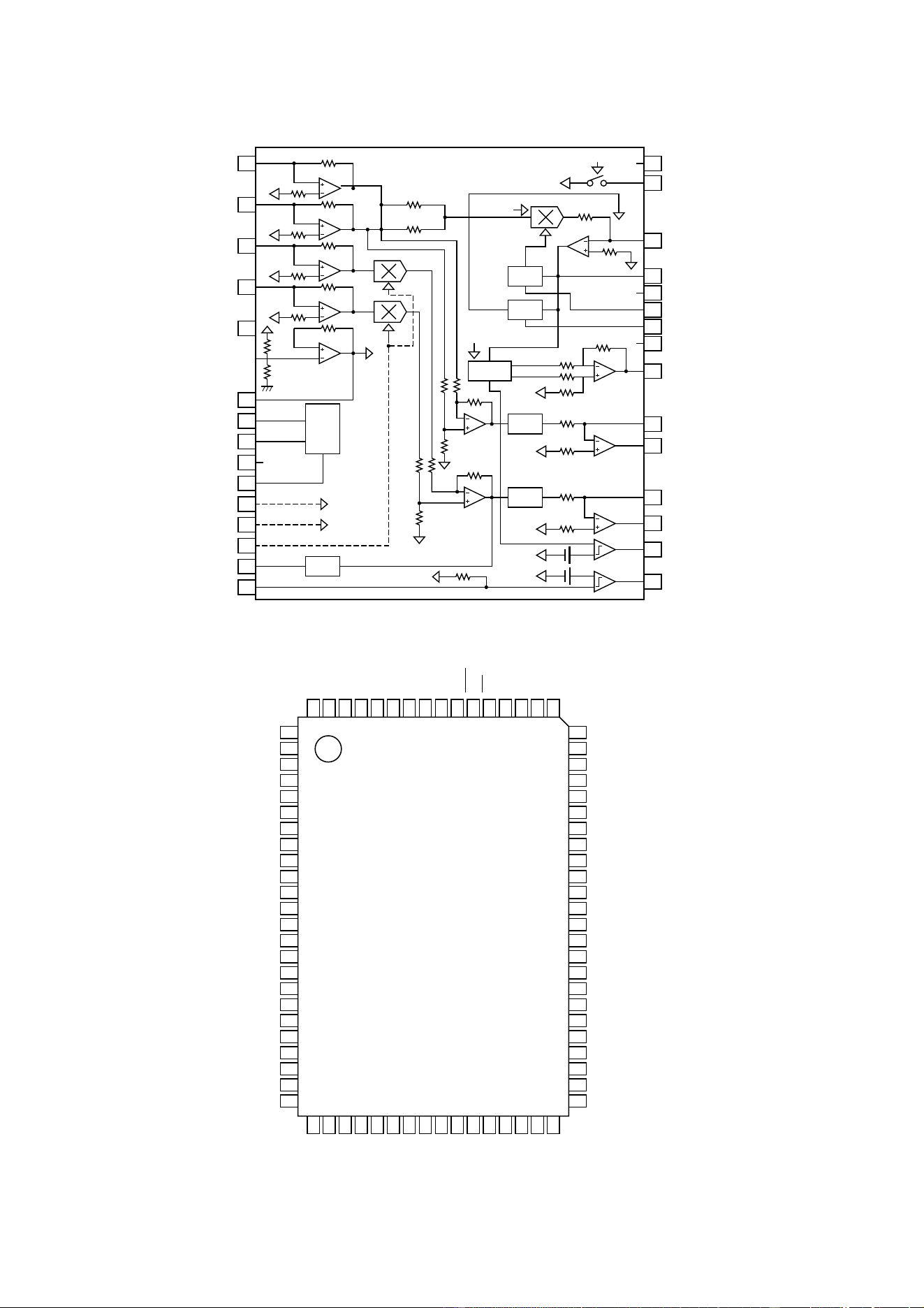

Figure 48 BLOCK DIAGRAM OF IC
IC1 VHiLA9235M/-1: Servo Amp. (LA9235M)
IC2 VHiLC78641E-1: Servo/Signal Control (LC78641E)
REF
LA9235M
REF
REF
REF
REF
REF
REF
REF
REF
AGCON
ODRV
AGCON
ODRV
REF
REF
LPF
LPF
APC
ODRV
REF
REF
REF
REF
LPF
PH/BH
PH
BH
1 30FIN1 VCC
2
29
FIN2
RFSW
3FIN3
4
27
FIN4
RF
26 N/C
25 PH
24 BH
23 N/C
5REF1
15
16
TESI
14TESO
13EFBL
12AGON
11ODRV
10LDOF
9VEE
8LDD
7LDS
6VREF
TES
17 HFL
18 TE
19 TE-
20 FE
21 FE-
22 RFEV
28 RF-
1
PDO1
2
PDO2
3
VVSS
4
PCKIST
5
VVDD
6
FR
7
HFL
8
SLCIST
9
SLCO
10
EFMIN
11
JITTV
12
JITTC
13
BH
14
PH(RFENV)
15
FE
16
TE
25
SPDO
26
SLDO
27
FG
28
LASER
29
CONT1
30
CONT2
CONT3
CONT4
CONT5
31
32
33
34
PCK
35
C2F
36
VDD
37
DOUT
38
FSX
39
EFLG
40
TEST
EFMO
DEFECT
FSEQ
V/P
CONT7
CONT6
VSS
VDD
DRF
RES
WRQ
INT
DO
DI
CL
CE
17
VREF
18
ADAVDD
19
ADAVSS
20
PHREF
21
BHREF
22
TBLO
23
TDO
24
FDO
SBCK
PW
SBSY
SFSY
16M
DATA
DATACK
LRSY
ASDACK
ASLRCK
ASDFIN
XVSS
XOUT
XIN
XVDD
RVDD
RCHO
RVSS
LVSS
LCHO
LVDD
MUTER
MUTEL
EMPH
80
79
78
77
76
75
74
73
72
71
70
69
68
67
66
65
64
63
62
61
61
59
58
57
56
55
54
53
52
51
50
49
48
47
46
45
44
43
42
41
LC78641E
– 49 –
CD-BA2010H
IC2 VHiLC78641E-1: Servo/Signal Control (LC78641E) (1/2)
1 PDO1 Output – For PULL Phase-comparison output terminal for built-in VOC control.
2 PDO2 Output – Phase-comparison output terminal for built-in VOC control.
Rough servo : OFF, phase servo : ON.
3 VVSS – – Ground terminal for built-in VCO.
4 PCKIST AI – Resistor terminal for setting the PDO output current.
5 VVDD – – Power terminal for built-in VCO.
6 FR AI – Resistor terminal for setting the VCO frequency range.
7 HFL Input – Mirror detection signal input terminal.
8 SLCIST AI – For slice level control
Resistance connection terminal for current adjustment of
SLCO output.
9 SLCO Output – Control output.
10 EFMIN Input – EFM signal input terminal.
11* JITTV Output Unfixed Jitter detection/monitor terminal.
12 JITTC Output – Jitter detection/adjustment terminal.
13 BH Input – BH signal input terminal. A/D input.
14 PH(RFENV) Input – PH signal or RFENV signal input terminal. A/D input.
15 FE Input – FE signal input terminal. A/D input.
16 TE Input – TE signal input terminal. A/D input.
17 VREF Input – VREF signal input terminal. A/D input.
18 ADAVDD – – AD for servo, D/A power terminal.
19 ADAVSS – – AD for servo, D/A ground terminal.
20* PHREF Output (1/2VDD) PH reference output terminal. D/A output.
21* BHREF Output (1/2VDD) BH reference output terminal. D/A output.
22 TBLO Output (1/2VDD) Output terminal for tracking balance. D/A output.
23 TDO Output (1/2VDD) Output terminal for tracking control. D/A output.
24 FDO Output (1/2VDD) Output terminal for focus control. D/A output.
25 SPDO Output (1/2VDD) Output terminal for spindle control. D/A output.
26 SLDO Output (1/2VDD) Output terminal for sled control. D/A output.
27* FG Input – FG signal input terminal. (When not used, connect to 0V)
28 LASER Output L LASER ON/OFF control terminal.
29 CONT1 In/Output Input mode General purpose input/output terminal 1.
Controlled with serial data command
30 CONT2 In/Output Input mode General purpose input/output terminal 2.
from microcomputer
.
When not used,
31 CONT3 In/Output Input mode General purpose input/output terminal 3.
set it as the input terminal
and
32 CONT4 In/Output Input mode General purpose input/output terminal 4.
open it by connecting
to 0V, or set it
33 CONT5 In/Output Input mode General purpose input/output terminal 5.
as the output terminal and open it.
34* PCK Output H Clock monitor terminal for EFM data replay. 4.3218 MHz as phase clock.
35* C2F Output H C2 flag output terminal.
36 VDD – – Power terminal of digital system.
37* DOUT Output L Output terminal of digital OUT. (EIAJ format)
38* FSX Output L
Output terminal of synchronous signal of 7.35 kHz divided from quartz oscillation.
39* EFLG Output L C1,C2 correct monitor terminal.
40 TEST Input – Input terminal for test. Surely connected to 0V.
41* EMPH In/Output Input mode
Emphasis terminal. After resetting, it is configured as an input terminal. It can be controlled
from the outside. It is also becomes a emphasis monitor terminal under command control.
42* MUTEL Output H Mute output terminal for L channel.
43* MUTER Output H Mute output terminal for R channel.
Pin No. FunctionTerminal Name Input/Output
Setting in Reset
In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.
CD-BA2010H
– 50 –
IC2 VHiLC78641E-1: Servo/Signal Control (LC78641E) (2/2)
44 LVDD – – L channel Power terminal for L channel.
45 LCHO Output 1/2VDD D/A converter L channel output terminal.
46 LVSS – – Ground terminal for L channel. Surely connected to 0V.
47 RVSS – – R channel Ground terminal for R channel. Surely connected to 0V.
48 RCHO Output 1/2VDD D/A converter R channel output terminal.
49 RVDD – – Power terminal for R channel.
50 XVDD – – For quartz Power terminal for quartz oscillation.
51 XIN Input Oscillation oscillation Ground terminal of 16.9344 MHz quartz oscillation.
52 XOUT Output Oscillation
53 XVSS – – Ground terminal for quartz oscillation. Surely connected to 0V.
54 ASLRCK Input – For anti L/R clock input terminal. (When not used, connect to 0V)
55 ASDACK Input – shock mode Bit clock input terminal. (When not used, connect to 0V)
56 ASDFIN Input – L/R channel data input terminal.
(When not used, connect to 0V)
57* LRSY Output L For digital L/R clock output terminal.
58* DATACK Output L data output Bit clock output terminal.
59* DATA Output L L/R channel data output terminal.
60* 16M Output Clock output 16.9344 MHz output terminal.
61* SFSY Output L Output terminal of synchronous signal of subcode frame.
It drops when subcode stand by.
62* SBSY Output L Output terminal of synchronous signal of subcode block.
63* PW Output L Output terminal of subcodes P,A,R,S,T,U and W.
64 SBCK Input – Clock input terminal to read subcode. (When not used, connect to 0V)
65 CE Input – For Chip enable signal input terminal.
66 CL Input –
microcomputer
Data transmission clock input terminal.
67 DI Input – interface Data input terminal.
68 DO Output L Data output terminal.
69 INT Output H Interruption signal output terminal.
70 WRQ Output H Interruption signal output terminal.
71 RES Input – Reset input terminal of LC78640. When turning on power, set it at "L".
72 DRF Output L Focus ON detection terminal.
73 VDD5V – – Power terminal for microcomputer interface.
74 VSS – – Ground terminal of digital system. Surely connected to 0V.
75 CONT6 In/Output Input mode General purpose input/output terminal 6.
Controlled with serial data command
from microcomputer
.
When not used,
76 CONT7 In/Output Input mode General purpose input/output terminal 7.
set it as the input terminal
and
open it by connecting
to 0V, or set it
as the output terminal and open it.
77* V/ *P Output H Monitor output terminal for automatic switch of rough servo/phase control.
"H" for rough servo, and "L" for phase servo.
78* FSEQ Output L
Output terminal synchronous signal detection. "H" is output when synchronous
signal
detected by EFM signal matches synchronous signal
internally generated.
79* DEFECT In/Output Input mode
Defect terminal. After resetting, it is configured as an input terminal. It can be controlled
from the outside. It also becomes a defect monitor terminal under command control
80* EFMO Output Unfixed
EFM signal output terminal.
Pin No.
Function
Terminal Name
Input/Output
Setting in Reset
In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.
Be sure to supply the same potential to each power terminal. (VVDD,ADAVDD,VDD,LVDD,RVDD,XVDD)
Terminal witch is controlled by the power terminal (VDD5V) for a microcomputer interface :
CE (65pin), CL (66pin), DI (67pin), DO (68pin), INT (69pin), WRQ (70pin), RES (71pin), DRF (72pin),
CONT6 (75pin), CONT7 (76pin)
– 51 –
CD-BA2010H
1 VDD VDD — (+) POWER SUPPLY
2 P37 -20dBATT Output -20dB ATTENUATOR
3* P36 S-BUSY Output Not used
4* P35 LCK1 Output LED DRIVER LCK (BU2092-2)
5 P34 LCK0 Output LED DRIVER LCK (BU2092-1)
6* P33 DP REQ Output DOLBY PROLOGIC REQ TERMINAL
7 P32 RES OUT Output CD DSP RESET&MPEG MICROCOMPUTER RESET
8 P31 DRF Input CD RF LEVEL DETECTION
9 P30 WRQ Input CD DSP WRITE REQUEST
10 RESET RESET Input MICROCOMPUTER RESET
11 X2 X2 Output MAIN CLOCK
12 X1 X1 Input MAIN CLOCK
13 VPP/IC VPP/IC — GND
14* XT2 XT2 — OPEN
15 P04 CD INT Input CD DSP INTERRUPT
16 VDD VDD — (+) POWER SUPPLY
17 P27 CD CLK/MCLK Output CD DSP CLOCK/MPEG MICROCOMPUTER CLOCK
18 P26 CD DI/MDI Output CD DSP COMMAND/MPEG MICROCOMPUTER COMMAND
19 P25 CD DO/MDO Input CD DSP CODE Q OUT/MPEG MICROCOMPUTER DATA INPUT
20 P24 CD CE Output CD DSP CE OUTPUT
21 P23 CE Output CE OUTPUT
22 P22 CLK Output CLOCK OUTPUT
23 P21 DI Output DATA OUTPUT
24 P20 DO Input DATA INPUT
25 AVSS AVSS — ANALOG GROUND
26 ANI7 TUN SM/M-BUSY Input TUNER SIGNAL METER INPUT
27 ANI6 SPEANA3 Input SPEANA DATA INPUT L, R 16 kHz
28 ANI5 SPEANA2 Input SPEANA DATA INPUT L, R 63 Hz
29 ANI4 SPEANA1 Input SPEANA DATA INPUT R-CH 1 kHz
30 ANI3 SPEANA0 Input SPEANA DATA INPUT L-CH 1 kHz
31-33 ANI2-ANI0 KEY2-KEY0 Input KEY INPUT
34 AVDD AVDD — ANALOG VDD
35 AVREF AVREF — ANALOG REF VOLTAGE
36 INTP3 SYS STOP Input SYSTEM STOP INPUT
37 INTP2 JOG1 Input KEY JOG INPUT 1
38 INTP1 JOG0 Input KEY JOG INPUT 2
39 INTP0 REMOCON Input REMOCON INPUT
40 VSS VSS — GROUND VOLTAGE
41 P74 SMUTE Output SYSTEM MUTE CONTROL
42 P73 T_SOL 2 Output TAPE 2 SOLENOID CONTROL
43 P72 T_SOL 1 Output TAPE 1 SOLENOID CONTROL
44 P71 T_MOTOR Output TAPE MOTOR CONTROL
45 P70 TIMER LED Output TIMER LED CONTROL
46 VDD VDD — (+) POWER SUPPLY
47 P127 AC RLY_CONT Output AC RELAY CONTROL
48 P126 SP RLY Output SPEAKER OUTPUT RELAY CONTROL
49 P125 SP DET Input SPEAKER OUTPUT DETECTION
50 P124 T1 RUN Input TAPE 1 RUN PULSE INPUT
51 P123 T2 RUN Input TAPE 2 RUN PULSE INPUT
52 P122 CD CLAMP SW Input CD CHANGER CLAMP SWITCH
53 P121 T1 PLAY SW_A Input PLAY SWITCH FOR T1
54 P120 T2 PLAY SW_B Input PLAY SWITCH FOR T2
IC701 RH-iX0333AWZZ: System Microcomputer (IX0333AW) (1/2)
Port Name Terminal NamePin No. Input/Output
In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.
Function
CD-BA2010H
– 52 –
55 P119 FPA Input TAPE 2 A-SIDE FULL PROOF
56 P118 FPB Input TAPE 2 B-SIDE FULL PROOF
57* P117 MIC IN Input MIC SWITCH
58* P116 KARAOKE LATCH/SPN A Output KARAOKE LATCH (When used. Connect to 0V)
59* P115
DIST_OUT/SW OUT
Output DISTINATION OUTPUT/SWITCH OUTPUT
60 P112 SPN B Input TUNER SPAN CHANGE
FIP39 P25 Output FL DISPLAY SEGMENT DRIVER
61 P111 MOV VOL CONT OPN SW Input MOVING VOLUME CONTROL OPEN SWITCH
FIP38 P24 Output FL DISPLAY SEGMENT DRIVER
62 P110 MOV VOL CONT CLS SW Input MOVING VOLUME CONTROL CLOSE SWITCH
FIP37 P23 Output FL DISPLAY SEGMENT DRIVER
63-66 FIP36-FIP33 P22-P19 Output FL DISPLAY SEGMENT DRIVER
67 P103 DIST3 Input DISTINATION INPUT
FIP32 P18 Output FL DISPLAY SEGMENT DRIVER
68 P102 DIST2 Input DISTINATION INPUT
FIP31 P17 Output FL DISPLAY SEGMENT DRIVER
69 P101 DIST1 Input DISTINATION INPUT
FIP30 P16 Output FL DISPLAY SEGMENT DRIVER
70 P100 DIST0 Input DISTINATION INPUT
FIP29 P15 Output FL DISPLAY SEGMENT DRIVER
71-78 FIP28-FIP21 P14-P7 Output FL DISPLAY SEGMENT DRIVER
79 VLOAD VLOAD — FL DRIVER (-) POWER SUPP. -30V
80-85 FIP20-FIP15 P6-P1 Output FL DISPLAY SEGMENT DRIVER
86-100 FIP14-FIP0 G15-G1 Output FL DISPLAY SEGMENT DRIVER
IC701 RH-iX0333AWZZ: System Microcomputer (IX0333AW) (2/2)
Port Name
Terminal Name
Pin No.
Input/Output
Function

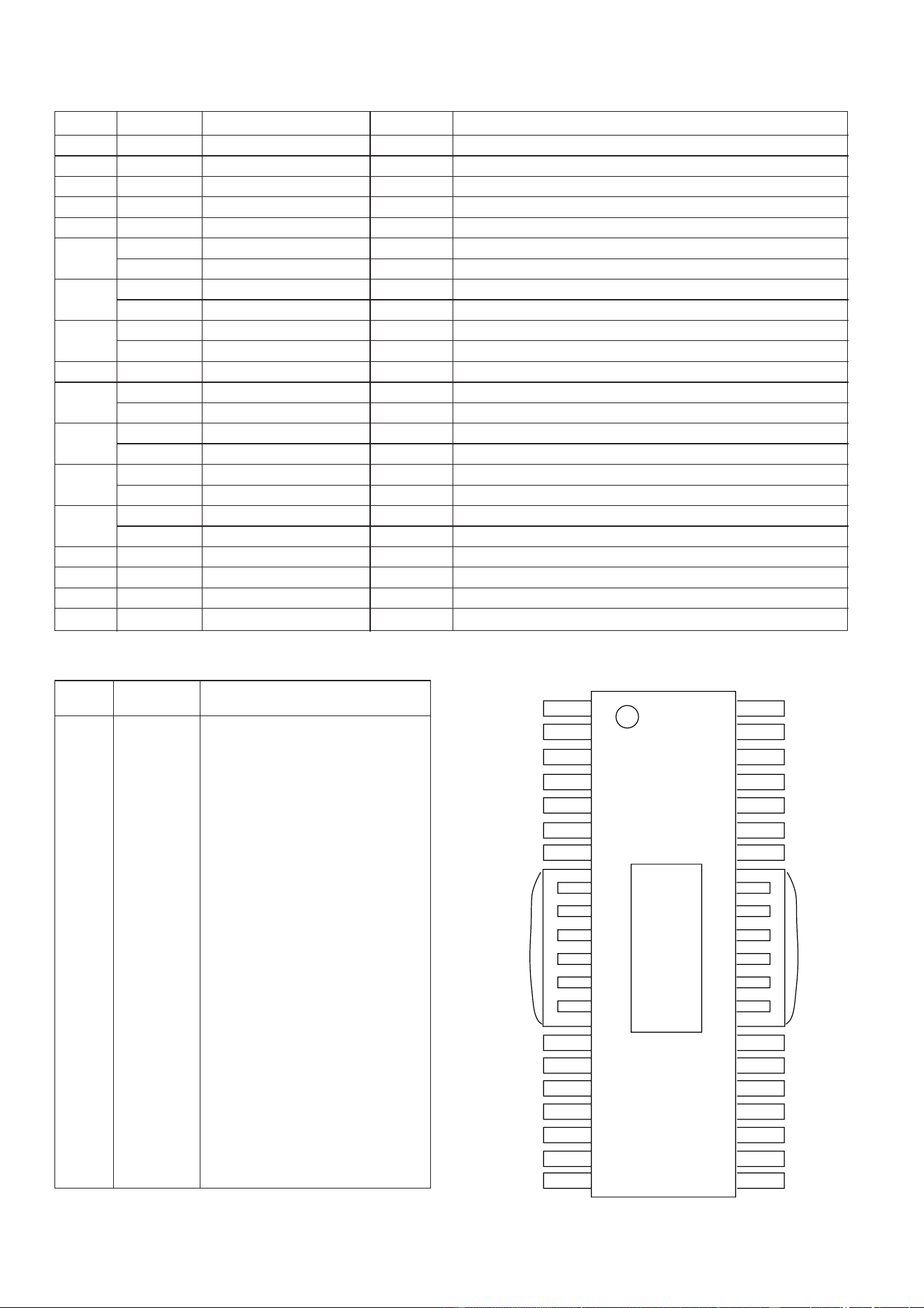

1 IN2- CH2 inverted input.
2 IN1A- CH1 inverted input.
3* IN1B- CH1 output offset control.
4 OUT1- CH1 inverted output.
5 OUT1+ CH1 non-inverted output.
6 OUT2- CH2 inverted output.
7 OUT2+ CH2 non-inverted output.
8-14 GND GND
15 OUT3+ CH3 non-inverted output.
16 OUT3- CH3 inverted output.
17 IN3- CH3 inverted input.
18 VCC1 Power supply 1 (CH1, CH2, CH3)
19 STANDBY STANDBY signal input.
20 VRFE CH1-CH4 Reference voltage input.
21 MUTE Mute signal input (CH6).
22 IN5- CH5 inverted input.
23 IN5+ CH5 non-inverted input.
24 VCC2 Power supply 2 (CH4).
25 IN4- CH4 inverted input.
26 OUT4- CH4 inverted output.
27 OUT4+ CH4 non-inverted output.
28 VCC3 Power supply 3 (CH5).
29-35 GND GND
36* OUT5+ CH5 non-inverted output.
37* OUT5- CH5 inverted output.
38 OUT6+ CH6 non-inverted output.
39 OUT6- CH6 inverted output.
40 VCC4 Power supply 4 (CH6).
41 IN6- CH6 inverted input.
42 IN6+ CH6 non-inverted input.
IC3 VHiM63001FP-1: Focus/Tracking/Spin/Sled Driver (M63001FP)
Pin No.
Terminal
Name
Function
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
27
26
25
24
23
22
IN2–
IN1A–
IN1B–
OUT1–
OUT1+
OUT2–
OUT2+
OUT3+
OUT3–
IN3–
VCC1
STANDBY
VTEF
MUTE
GND
GND
VCC3
OUT4+
OUT4–
IN4–
VCC2
IN5+
IN5–
IN6+
IN6–
VCC4
OUT6–
OUT6+
OUT5–
OUT5+
M63001FP
Figure 52 BLOCK DIAGRAM OF IC
In this unit, the terminal with asterisk mark (*) is (open)
terminal which is not connected to the outside.
In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.
– 53 –
CD-BA2010H

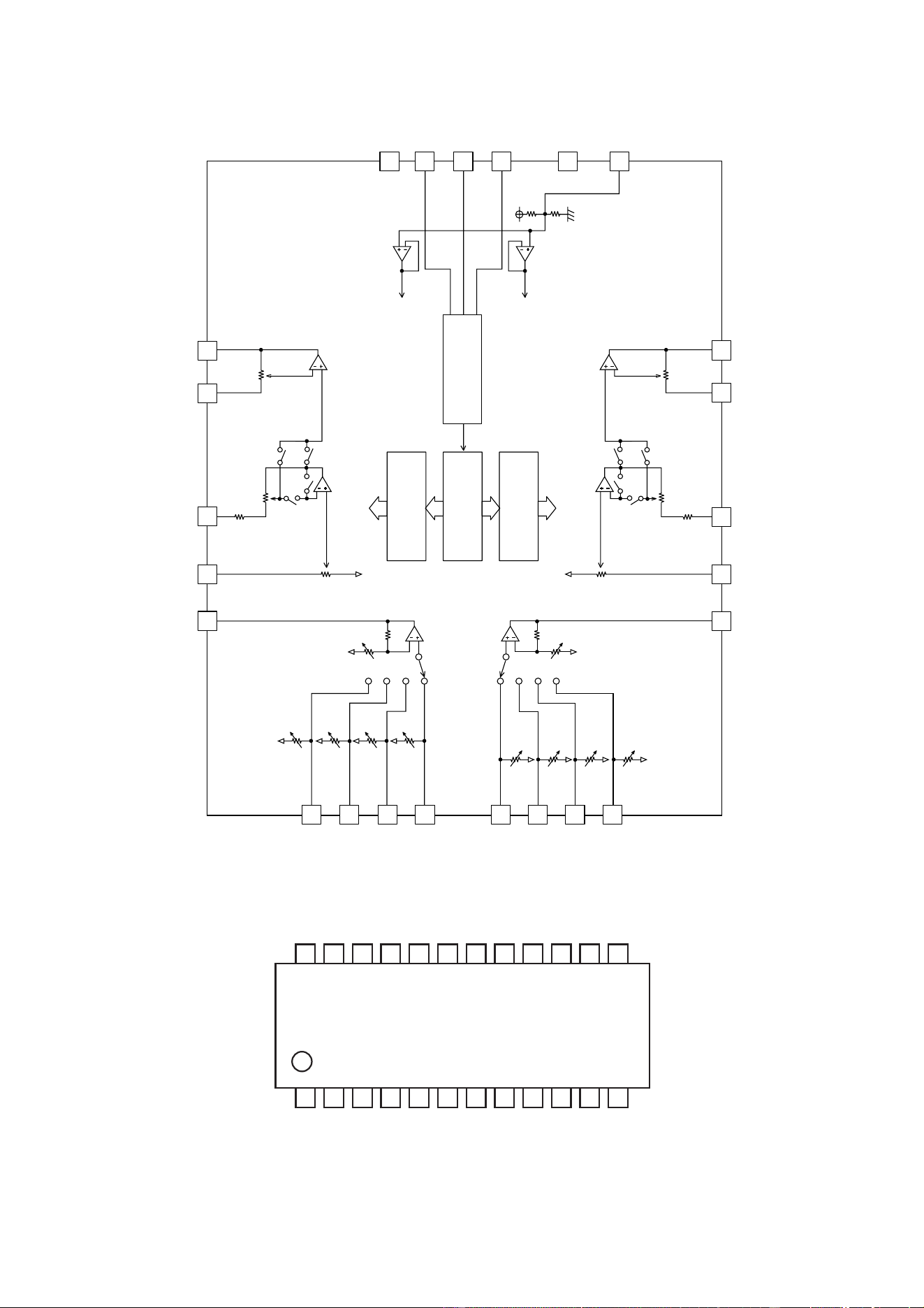

IC601 VHiLC75341/-1: Audio Processor (LC75341)
Figure 53 BLOCK DIAGRAM OF IC
19
20
21
222324
123
4
5
6
7
8
9
10 11 12 13 14 15 16
18
17
LVref
RVref
CONTROL
CIRCUIT
CONTROL
CIRCUIT
CONTROL
CIRCUIT
LOUT
LBASS
0.1uF
LIN
LSEL0
L4
L3
L2 L1
R1 R2
R3 R4
RSEL0
R1N
RTRELTRE
RBASS
0.1uF
ROUT
Yref
VDD
CL
DI
CE
YSS
CCB
INTERFACE
CD
Tuner
Tape
Video
24 23 22 21 20 19 18 17 16 15 14 13
123456789101112
LC75341
DI
CE
VSS
LOUT
LBASS
LTRE
LIN
LSEL0
L4
L3
L2
L1
CL
VDD
VREF
ROUT
RBASS
RTRB
RIN
RSEL0
R4
R3
R2
R1
CD-BA2010H
– 54 –

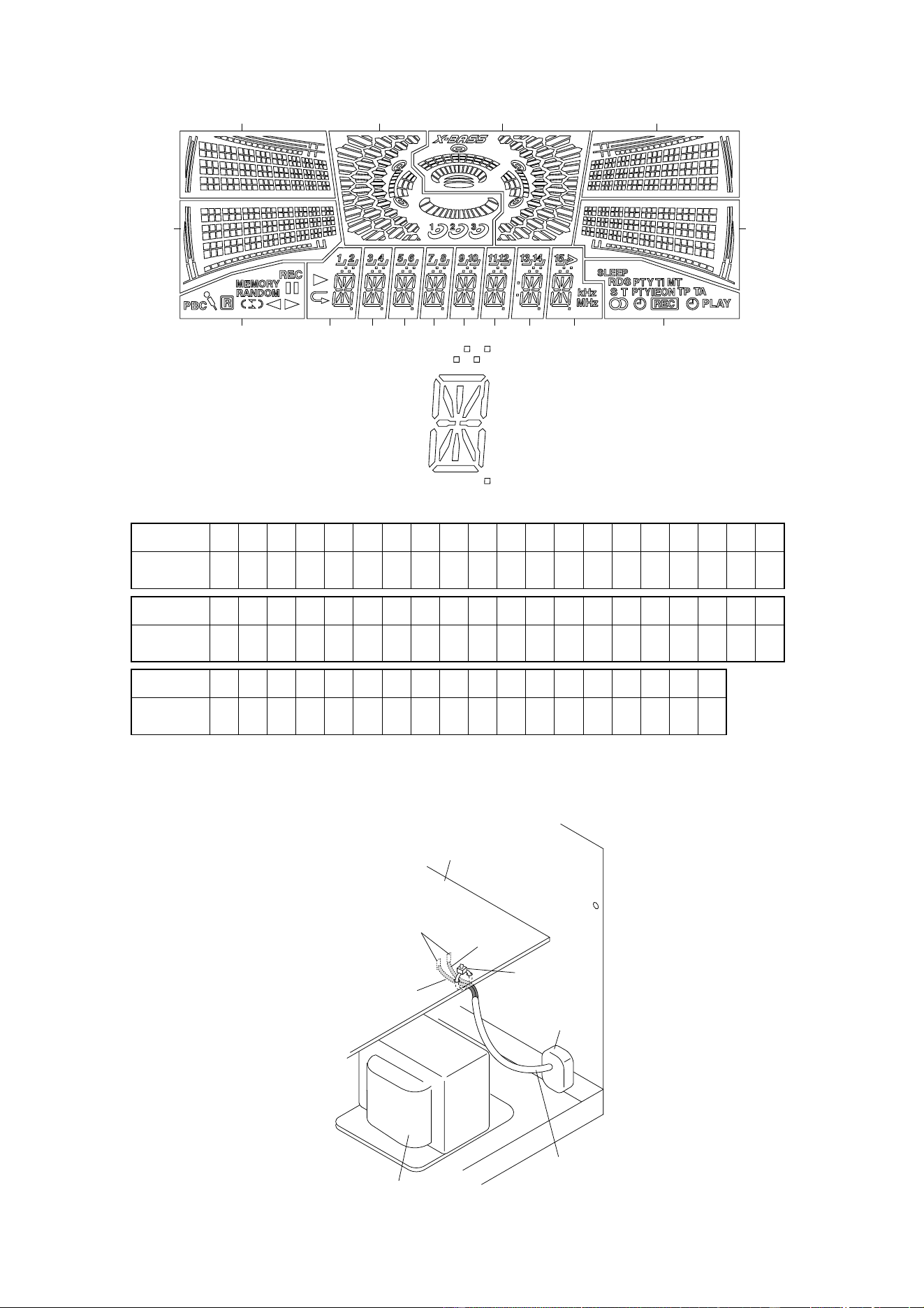

WIRING OF PRIMARILY SUPPLY LEADS (FOR U.K. ONLY)
If any one of the bands shown in Fig. 54-2 is removed some
reason, be sure replace it to the original position and same
appearance as before.
Figure 54-2
Blue
Brown
Power Supply PWB
Rear Panel
MAIN POWER
TRANSFORMER
Bushing
Lug Terminal
Nylon Band
AC Power Supply Cord
FL701 VVKBJ744GNK-1: FL Display
Figure 54-1 FL DISPLAY
S1
1G
(1G~8G)
2G 3G 4G 5G 6G 7G 8G
S2
S3
S4
f
a
bk
j
h
mg
c
n
e
r
p
Dp
d
9G9G
11G 14G 15G 13G
12G
10G
PIN CONNECTION
58 57 56 55 54 53 52 51 50
38
49 48 47 46 45 44 43 42 41
40 39
37 36 35 34 33 32 31
20 19
181716151413121110987654321
30 29 28 27 26 25 24 23 22 21
PIN NO.
PIN NO.
PIN NO.
CONNECTION
CONNECTION
CONNECTION
10G11G12G13G14G15G 9G 8G 7G 6G 5G 4G 3G 2G
P10P11P12 P9 P8 P7 P6 P5 P4 P3
P20P21P22P23P24P25 P19 P18 P17 P16 P15 P14 P13
P2
1G
F2 F2 F2
NP NP
NP NP
F1 F1 F1
NXNXNXNXNXNXNXNX
P1
– 55 –
CD-BA2010H
PARTS GUIDE
NOTE:
Parts marked with “ ” are important for maintaining the safety of the set.
Be sure to replace parts with specified ones for maintaining the safety and performance of the set.
MODEL
CD-BA2010H
“HOW TO ORDER REPLACEMENT PARTS”
To have your order filled promptly and correctly, please furnish the
following information.
1. MODEL NUMBER 2. REF. No.
3. PART NO. 4. DESCRIPTION
MARK: SPARE PARTS-DELIVERY SECTION
For U.S.A. only
Contact your nearest SHARP Parts Distributor to order.
For location of SHARP Parts Distributor,
Please call Toll-Free;
1-800-BE-SHARP
Explanation of capacitors/resistors parts codes
Capacitors
VCC ....................... Ceramic type
VCK........................ Ceramic type
VCT ........................ Semiconductor type
VC • • MF ............... Cylindrical type (without lead wire)
VC • • MN............... Cylindrical type (without lead wire)
VC • • TV................ Square type (without lead wire)
VC • • TQ ............... Square type (without lead wire)
VC • • CY ............... Square type (without lead wire)
VC • • CZ ............... Square type (without lead wire)
VC • • • • • • • • • J .. The 13th character represents capacity difference.
("J" ±5%, "K" ±10%, "M" ±20%, "N" ±30%,
"C" ±0.25 pF, "D" ±0.5 pF, "Z" +80-20%.)
If there are no indications for the electrolytic capacitors, error is ±20%.
Resistors
VRD ....................... Carbon-film type
VRS........................ Carbon-film type
VRN ....................... Metal-film type
VR • • MF ............... Cylindrical type (without lead wire)
VR • • MN............... Cylindrical type (without lead wire)
VR • • TV................ Square type (without lead wire)
VR • • TQ ............... Square type (without lead wire)
VR • • CY ............... Square type (without lead wire)
VR • • CZ ............... Square type (without lead wire)
VR • • • • • • • • • J .. The 13th character represents error.
("J" ±5%, "F" ±1%, "D" ±0.5%.)
If there are no indications for other parts, the resistors are ±5%
carbon-film type.
CD-BA2010H Mini Component System consisting of
CD-BA2010H (main unit) and CP-BA2010H (speaker system).
PRICE
RANK
DESCRIPTIONNO.
PARTS CODE NO. PARTS CODE
PRICE
RANK
DESCRIPTION
CD-BA2010H
– 1 –
INTEGRATED CIRCUITS
IC1 VHILA9235M/-1 J AQ Servo Amp.,LA9235M
IC2 VHILC78641E-1 J AV Servo/Signal Control,LC78641E
IC3 VHIM63001FP-1 J AX Focus/Tracking/Spin/Sled Driver,
M63001FP
IC101 VHIAN7345K/-1 J AM Playback and Record/Playback
Amp.,AN7345K
IC302 VHILC72131/-1 J AP PLL (Tuner),LC72131
IC303 VHILA1832S/-1 J AN FM IF Det./FM Mpx./AM IF,
LA1832S
IC561~563 VHIKIA4558P-1 J AC Ope Amp.,KIA4558P
IC601 VHILC75341/-1 J AM Audio Processor,LC75341
IC701 RH-IX0333AWZZ J AX System Microcomputer,
IX0333AW
IC702 VHIBU2092F/-1 J AM Input/Output Expander,BU2092F
IC703 VHIKIA7042AP1 J AC Reset,KIA7042AP
IC801 VHIKIA7805P-1 J AF Voltage Regulator,KIA7805P
IC802 VHIKIA7810AP1 J AF Voltage Regulator,KIA7810AP
IC901 VHISTK40271-1 J AZ Power AMP.,STK40271
IC902 VHISTK40204-1 J AX Power AMP.,STK40204
IC903 VHIKIA4558P-1 J AC Ope Amp.,KIA4558P
ICT21 VHILC72722/-1 J AY RDS Decorder,LC72722
TRANSISTORS
Q1 VSKTC3203Y/-1 J AC Silicon,NPN,KTC3203 Y
Q2 VSKRC102M//-1 J AC Digital,NPN,KRC102 M
Q3 VSKTA1266GR-1 J AB Silicon,PNP,KTA1266 GR
Q103~106 VS2SC1845F/-1 J AC Silicon,NPN,2SC1845 F
Q107,108 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR
Q109 VSKTA1266GR-1 J AB Silicon,PNP,KTA1266 GR
Q110,111 VSKRC104M//-1 J AC Digital,NPN,KRC104 M
Q121,122 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR
Q124 VS2SA1015GR-1 J AB Silicon,PNP,2SA1015 GR
Q126 VSKRC104M//-1 J AC Digital,NPN,KRC104 M
Q128 VSKTC3203Y/-1 J AC Silicon,NPN,KTC3203 Y
Q301 VS2SC380-O/-1 J AC Silicon,NPN,2SC380 O
Q360 VSKTA1266GR-1 J AB Silicon,PNP,KTA1266 GR
Q603~606 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR
Q701~703 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR
Q704,705 VSKTA1271Y/-1 J AC Silicon,PNP,KTA1271 Y
Q706,707 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR
Q708 VSKTA1273Y/-1 J AE Silicon,PNP,KTA1273 Y
Q709 VSKRC102M//-1 J AC Digital,NPN,KRC102 M
Q710~712 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR
Q713~716 VSKTA1271Y/-1 J AC Silicon,PNP,KTA1271 Y
Q801 VSKTA1274Y/-1 J AE Silicon,PNP,KTA1274 Y
Q802 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR
Q821 VHIAN78L05/-1 J AE Constant Voltage Regulator,
AN78L05
Q823 VSKTC2026//-1 J AF Silicon,NPN,KTC2026
Q901~909 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR
Q910 VSKTC3203Y/-1 J AC Silicon,NPN,KTC3203 Y
QT21 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR
QT22 VSKTA1266GR-1 J AB Silicon,PNP,KTA1266 GR
DIODES
D21,22 VHD1SS133//-1 J AA Silicon,1SS133
D301~304 VHD1SS133//-1 J AA Silicon,1SS133
D561~566 VHD1SS133//-1 J AA Silicon,1SS133
D601,602 VHD1SS133//-1 J AA Silicon,1SS133
D712~718 VHD1SS133//-1 J AA Silicon,1SS133
D720,721 VHD1SS133//-1 J AA Silicon,1SS133
D801 VHD1SS133//-1 J AA Silicon,1SS133
D802,803 VHDTS6B04GM-1 J AP Silicon,TS6B04GM
D804~810 VHD1N4004S/-1 J AB Silicon,1N4004S
D811 VHD1SS133//-1 J AA Silicon,1SS133
D812~815 VHD1N4004S/-1 J AB Silicon,1N4004S
D816,817 VHD1SS133//-1 J AA Silicon,1SS133
D818 VHD1N4004S/-1 J AB Silicon,1N4004S
D901~909 VHD1SS133//-1 J AA Silicon,1SS133
LED701~704 VHPSLI325YC-1 J AB LED,Yellow,SLI325YC
LED722 VHP4204SRT7-1 J AD LED,Red,4204SRT7
ZD61 VHEDZ3R9BSB-1 J AC Zener,3.9V,DZ3.9BSB
ZD351 VHEMTZJ5R1B-1 J AC Zener,5.1V,MTZJ5.1B
ZD561 VHEMTZJ6R2C-1 J AC Zener,6.2V,MTZJ6.2C
ZD801 VHEMTZJ360C-1 J AB Zener,36V,MTZJ36C
ZD802 VHEMTZJ6R2A-1 J AA Zener,6.2V,MTZJ6.2A
ZD803 VHEMTZJ130C-1 J AB Zener,13V,MTZJ13C
ZDT21 VHEDZ5R1BSB-1 J AC Zener,5.1V,DZ5.1BSB
FILTERS
CF301,302 RFILF0072AFZZ J AG FM IF
CF351 RFILF0003AWZZ J AK FM IF
CF352 RFILA0009AWZZ J AE AM IF
TRANSFORMERS
T303 RCILA1064AFZZ J AD AM Antenna
T306 RCILB1074AFZZ J AC AM,OSC
T351 RCILI0019AWZZ J AD AM IF
! T801 RTRNP0303AWZZ J BH Power,Main
! T802 RTRNP0313AWZZ J AN Power,Sub
COILS
L61 VP-XHR82K0000 J AC 0.82 µH
L62 VP-DH2R2K0000 J AB 2.2 mH,Peaking
L104 VP-MK331K0000 J AB 330 µH,Choke
L105,106 VP-XH2R2K0000 J AB 2.2 µH,Choke
L341 RBLN-0002AWZZ J AE Balun
L342 VP-DH2R2K0000 J AB 2.2 mH,Peaking
L351,352 VP-DH101K0000 J AB 100 µH,Choke
L354 RFILL0001AWZZ J AE Low Pass Filter
L601 VP-DH2R2K0000 J AB 2.2 mH,Peaking
L701 VP-DH101K0000 J AB 100 µH,Choke
! L801 RCILZ0022AWZZ J AG Line Filter
L902~905 RCILZ0137AFZZ J AA 0.29 µH
LT21,22 VP-XH2R2K0000 J AB 2.2 µH,Choke
VARIABLE CAPACITOR
VD301 VHCSVC348S/-1 J AK Variable Capacitance,SVC348S
VIBRATORS
X1 92LCRSTL1746A J AC Ceramic,16.9344 MHz
X351 92LCRSTL1425A J AF Crystal,456 kHz
X352 RCRSP0002AWZZ J AH Crystal,4.5 MHz
XL701 RCRSP0003AWZZ J AH Crystal,4.1943 MHz
XT21 RCRSP0010AWZZ J AH Crystal,4.332 MHz
CAPACITORS
C6 VCEAZA0JW107M J AC 100 µF,6.3V,Electrolytic
C7 VCEAZA1CW106M J AC 10 µF,16V,Electrolytic
C8 VCKYTV1EF223Z J AA 0.022 µF,25V
C11 RC-EZY476AF0J J AB 47 µF,6.3V,Electrolytic
C12 VCKYTV1EF223Z J AA 0.022 µF,25V
C13 VCKYTV1HB103K J AA 0.01 µF,50V
C14 VCFYDA1HA334J J AC 0.33 µF,50V,Polyester
C17 VCKYTV1HB472K J AA 0.0047 µF,50V
C18 VCCCTV1HH3R0C J AA 3 pF (CH),50V
C20,21 VCTYPA1CX104K J AB 0.1 µF,16V
C22 VCKYTV1HB101K J AA 100 pF,50V
C23 VCTYPA1CX473K J AA 0.047 µF,16V
C24 VCEAZA1HW225M J AB 2.2 µF,50V,Electrolytic
C25 VCKYTV1EF223Z J AA 0.022 µF,25V
C26 VCTYPA1CX473K J AA 0.047 µF,16V
C27 VCKYBT1HF104Z J 0.1 µF,50V
C28 VCEAZA1AW476M J AB 47 µF,10V,Electrolytic
C29,30 VCKYTV1EF223Z J AA 0.022 µF,25V
C31 VCEAZA0JW107M J AC 100 µF,6.3V,Electrolytic
C34 VCKZPA1HF223Z J AA 0.022 µF,50V
C38,39 VCEAZA1CW106M J AC 10 µF,16V,Electrolytic
C40 VCKYTV1HB152K J AA 0.0015 µF,50V
C41 VCEAZA0JW107M J AC 100 µF,6.3V,Electrolytic
C42 VCCCTV1HH680J J AA 68 pF (CH),50V
C43 VCKYTV1HB152K J AA 0.0015 µF,50V
C44 VCKYTV1EF223Z J AA 0.022 µF,25V
C45 VCEAZA0JW107M J AC 100 µF,6.3V,Electrolytic
C46 VCKYTV1EF223Z J AA 0.022 µF,25V
C47 VCEAZA0JW107M J AC 100 µF,6.3V,Electrolytic
C49,50 VCEAZA0JW107M J AC 100 µF,6.3V,Electrolytic
C51 VCEAZA1AW476M J AB 47 µF,10V,Electrolytic
C52 VCTYPA1CX103K J AA 0.01 µF,16V
C53 VCKYTV1HB102K J AA 0.001 µF,50V
C54 VCEAZA1AW476M J AB 47 µF,10V,Electrolytic
CD-BA2010H
NO.
PRICE
RANK
DESCRIPTIONPARTS CODE
NO. PARTS CODE
PRICE
RANK
DESCRIPTION
CD-BA2010H
C55 VCKYTV1HB103K J AA 0.01 µF,50V
C56 VCEAZA0JW337M J AC 330 µF,6.3V,Electrolytic
C64 RC-EZY476AF0J J AB 47 µF,6.3V,Electrolytic
C71 VCKYTV1HB101K J AA 100 pF,50V
C72 VCKYTV1HB103K J AA 0.01 µF,50V
C73~78 VCKYTV1HB101K J AA 100 pF,50V
C80~83 VCKYTV1EF223Z J AA 0.022 µF,25V
C101,102 VCKYMN1HB561K J AA 560 pF,50V
C105 VCKYBT1HB181K J AA 180 pF,50V
C106 VCKYMN1HB181K J AA 180 pF,50V
C107,108 VCKYMN1HB561K J AA 560 pF,50V
C111~114 VCKYMN1HB331K J AA 330 pF,50V
C115,116 VCEAZA1EW107M J AB 100 µF,25V,Electrolytic
C117,118 VCTYPA1EX333K J AA 0.033 µF,25V
C119,120 VCKYMN1HB561K J AA 560 pF,50V
C121,122 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic
C127 VCTYMN1EF223Z J AA 0.022 µF,25V
C128 VCEAZA1HW335M J AB 3.3 µF,50V,Electrolytic
C131 VCKYMN1HB271K J AA 270 pF,50V
C132 VCKYPA1HB271K J AA 270 pF,50V
C133,134 VCEAZA1EW226M J AB 22 µF,25V,Electrolytic
C135,136 VCTYPA1CX223K J AA 0.022 µF,16V
C139,140 VCTYMN1CX332K J AA 0.0033 µF,16V
C141,142 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic
C145 VCEAZA1EW226M J AB 22 µF,25V,Electrolytic
C146 VCEAZA1AW227M J AC 220 µF,10V,Electrolytic
C150 VCQPKA2AA822J J AA 0.0082 µF,100V,Polypropylene
C151 VCQYKA1HM393K J AB 0.039 µF,50V,Mylar
C152 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic
C153 VCEAZA1CW107M J AC 100 µF,16V,Electrolytic
C154 VCQYKA1HM473K J AB 0.047 µF,50V,Mylar
C301 VCTYMN1EF103Z J AB 0.01 µF,25V
C302 VCKYMN1HB102K J AA 0.001 µF,50V
C321 VCEAZA1CW107M J AC 100 µF,16V,Electrolytic
C323 VCTYMN1EF223Z J AA 0.022 µF,25V
C330 VCCUMN1HJ150J J AA 15 pF (UJ),50V
C331 VCKZPA1HF473Z J AA 0.047 µF,50V
C332 VCTYMN1EF223Z J AA 0.022 µF,25V
C334 VCCUMN1HJ270J J AA 27 pF (UJ),50V
C335 VCKYMN1HB561K J AA 560 pF,50V
C338 VCKYMN1HB102K J AA 0.001 µF,50V
C341,342 VCTYMN1EF223Z J AA 0.022 µF,25V
C345~347 VCTYMN1EF223Z J AA 0.022 µF,25V
C348 VCTYMN1EF103Z J AB 0.01 µF,25V
C352 VCEAZA1CW106M J AC 10 µF,16V,Electrolytic
C353,354 VCTYMN1EF223Z J AA 0.022 µF,25V
C355 VCCSMN1HL220J J AA 22 pF,50V
C356 VCKYMN1HB102K J AA 0.001 µF,50V
C357 VCEAEA1HW225M J AB 2.2 µF,50V,Electrolytic
C358 VCEAEA1HW105M J AB 1 µF,50V,Electrolytic
C359 VCTYBT1EF223Z J AA 0.022 µF,25V
C361 VCTYMN1EF223Z J AA 0.022 µF,25V
C362 VCEAZA1HW335M J AB 3.3 µF,50V,Electrolytic
C363 VCTYMN1EF223Z J AA 0.022 µF,25V
C364 VCEAZA1CW106M J AC 10 µF,16V,Electrolytic
C365 VCTYPA1CX223K J AA 0.022 µF,16V
C366 VCKYMN1HB102K J AA 0.001 µF,50V
C367,368 VCEAEA1HW105M J AB 1 µF,50V,Electrolytic
C369 VCCUMN1HJ270J J AA 27 pF (UJ),50V
C370~372 VCEAEA1HW105M J AB 1 µF,50V,Electrolytic
C373,374 VCTYPA1CX153K J AA 0.015 µF,16V
C380 VCEAZA1CW106M J AC 10 µF,16V,Electrolytic
C381 VCCCMN1HH120J J AA 12 pF (CH),50V
C382 VCCCMN1HH150J J AA 15 pF (CH),50V
C385 VCTYMN1CY103N J AA 0.01 µF,16V
C386 VCKYMN1HB331K J AA 330 pF,50V
C387 VCTYMN1EF223Z J AA 0.022 µF,25V
C388 VCKYMN1HB102K J AA 0.001 µF,50V
C391 VCEAZA1CW476M J AB 47 µF,16V,Electrolytic
C392 VCKYMN1HB102K J AA 0.001 µF,50V
C393 VCEAEA1HW105M J AB 1 µF,50V,Electrolytic
C394 VCEAZA1CW476M J AB 47 µF,16V,Electrolytic
C395 VCTYMN1EF223Z J AA 0.022 µF,25V
C396 VCEAZA1AW107M J AB 100 µF,10V,Electrolytic
C397 VCTYMN1EF223Z J AA 0.022 µF,25V
C398 VCEAZA1AW107M J AB 100 µF,10V,Electrolytic
C399 VCTYMN1EF223Z J AA 0.022 µF,25V
C561,562 VCKYMN1HB271K J AA 270 pF,50V
C563 VCTYMN1CX682K J AA 0.0068 µF,16V
C564,565 VCEAZA1HW225M J AB 2.2 µF,50V,Electrolytic
C566 VCTYMN1CX682K J AA 0.0068 µF,16V
C567~571 VCTYMN1EF223Z J AA 0.022 µF,25V
C572 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic
C573 VCTYMN1EF223Z J AA 0.022 µF,25V
C574~577 VCTYMN1CX272K J AA 0.0027 µF,16V
C578,579 VCEAZA1HW225M J AB 2.2 µF,50V,Electrolytic
C602 VCEAZA1HW226M J AB 22 µF,50V,Electrolytic
C604 VCTYPA1CX223K J AA 0.022 µF,16V
C606 VCEAZA1CW107M J AC 100 µF,16V,Electrolytic
C607~610 VCQYKA1HM104K J AB 0.1 µF,50V,Mylar
C611,612 VCQYKA1HM272K J AA 0.0027 µF,50V,Mylar
C613,614 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic
C615,616 VCKYMN1HB102K J AA 0.001 µF,50V
C617 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic
C618 VCEAZA1EW226M J AB 22 µF,25V,Electrolytic
C619,620 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic
C621,622 VCEAZA1HW475M J AB 4.7 µF,50V,Electrolytic
C623~630 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic
C631,632 VCKYMN1HB391K J AA 390 pF,50V
C634~636 VCKYMN1HB102K J AA 0.001 µF,50V
C639,640 VCKYMN1HB101K J AA 100 pF,50V
C641 VCQYKA1HM332K J AA 0.0033 µF,50V,Mylar
C644 VCTYBT1CX332M J AA 0.0033 µF,16V
C645,646 VCQYKA1HM222K J AA 0.0022 µF,50V,Mylar
C647 VCKYBT1HB102K J AA 0.001 µF,50V
C649 VCKYBT1HB102K J AA 0.001 µF,50V
C650 VCKYBT1HB102K J AA 0.001 µF,50V
C709 VCEAZA1HW476M J AB 47 µF,50V,Electrolytic
C715 VCEAZA1HW226M J AB 22 µF,50V,Electrolytic
C716,717 VCEAZA1HW225M J AB 2.2 µF,50V,Electrolytic
C719 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic
C720,721 VCKYBT1HB102K J AA 0.001 µF,50V
C722 VCEAZA1HW476M J AB 47 µF,50V,Electrolytic
C723 VCCSMN1HL150J J AA 15 pF,50V
C724 VCCSMN1HL180J J AA 18 pF,50V
C725 VCTYBT1EF223Z J AA 0.022 µF,25V
C726 VCEAZA1AW227M J AC 220 µF,10V,Electrolytic
C727 VCEAZA1HW104M J AB 0.1 µF,50V,Electrolytic
C728 VCTYMN1CY103N J AA 0.01 µF,16V
C729 VCEAEA1HW335M J AB 3.3 µF,50V,Electrolytic
C730 VCTYMN1EF223Z J AA 0.022 µF,25V
C731 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic
C732 VCTYMN1EF223Z J AA 0.022 µF,25V
C733 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic
C734 VCEAZA1CW476M J AB 47 µF,16V,Electrolytic
C735 VCTYMN1EF223Z J AA 0.022 µF,25V
C738 VCKYMN1HB471K J AA 470 pF,50V
C740,741 VCEAZA1CW107M J AC 100 µF,16V,Electrolytic
C801,802 VCEAZW1HW228M J AH 2200 µF,50V,Electrolytic
C803~806 VCFYDA1HA224J J AB 0.22 µF,50V,Polyester
C807,808 VCEAZA1HW107M J AC 100 µF,50V,Electrolytic
C809 VCEAZV1JW227M J AC 220 µF,63V,Electrolytic
C810,811 VCEAZA1HW476M J AB 47 µF,50V,Electrolytic
C812 VCEAZA1VW107M J AC 100 µF,35V,Electrolytic
C813,814 RC-EZ0027AWZZ J AN 3300 µF,63V,Electrolytic
C815 VCKZPA1HF223Z J AA 0.022 µF,50V
C816 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic
C817 VCFYDA1HA224J J AB 0.22 µF,50V,Polyester
C818 VCEAZV1VW477M J AD 470 µF,35V,Electrolytic
C819 VCEAZA0JW108M J AC 1000 µF,6.3V,Electrolytic
C820 VCEAZW1EW338M J AG 3300 µF,25V,Electrolytic
C821,822 VCKZPA1HF223Z J AA 0.022 µF,50V
C823 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic
C824,825 VCKZPA1HF223Z J AA 0.022 µF,50V
C826 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic
C827 VCEAZA1EW226M J AB 22 µF,25V,Electrolytic
C828,829 VCKZPA1HF223Z J AA 0.022 µF,50V
C830 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic
C831 RC-KZ002LAWZZ J AE 0.0047 µF,250V,Ceramic
C832,833 VCFYDA1HA224J J AB 0.22 µF,50V,Polyester
C834 VCEAZV1JW107M J 100 µF,63V,Electrolytic
C901,902 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic
C903,904 VCEAZA1HW107M J AC 100 µF,50V,Electrolytic
C905 VCKZPA1HF223Z J AA 0.022 µF,50V
C906,907 VCCSPA1HL221J J AA 220 pF,50V
C908 VCEAZA1HW476M J AB 47 µF,50V,Electrolytic
C909,910 VCCSPA1HL150J J AA 15 pF,50V
C911 VCEAZA1HW476M J AB 47 µF,50V,Electrolytic
C912 VCKZPA1HF223Z J AA 0.022 µF,50V
C914 VCEAZA1HW476M J AB 47 µF,50V,Electrolytic
C916,917 VCFYHA1HA104J J AB 0.1 µF,50V,Thin Film
C918 VCQYKA1HM104K J AB 0.1 µF,50V,Mylar
C919 VCFYHA1HA104J J AB 0.1 µF,50V,Thin Film
C920,921 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic
– 2 –
PRICE
RANK
DESCRIPTIONNO.
PARTS CODE NO. PARTS CODE
PRICE
RANK
DESCRIPTION
CD-BA2010H
C922,923 VCEAZA1HW107M J AC 100 µF,50V,Electrolytic
C924,925 VCKZPA1HF223Z J AA 0.022 µF,50V
C926,927 VCCSPA1HL221J J AA 220 pF,50V
C928,929 VCCSPA1HL150J J AA 15 pF,50V
C930,931 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic
C932 VCEAZA1HW476M J AB 47 µF,50V,Electrolytic
C933~935 VCQYKA1HM104K J AB 0.1 µF,50V,Mylar
C936 VCFYHA1HA104J J AB 0.1 µF,50V,Thin Film
C937 VCEAZA1HW476M J AB 47 µF,50V,Electrolytic
C938 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic
C941,942 VCQYKA1HM153K J AB 0.015 µF,50V,Mylar
C943,944 VCTYPA1CX102K J AA 0.001 µF,16V
C945,946 VCFYHA1HA154J J AC 0.15 µF,50V,Thin Film
C947,948 VCCSPA1HL101J J AA 100 pF,50V
C949,950 VCKZPA1HF223Z J AA 0.022 µF,50V
C951,952 VCEAZA1CW106M J AC 10 µF,16V,Electrolytic
C953 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic
C954,955 VCFYHA1HA154J J AC 0.15 µF,50V,Thin Film
C956 VCEAZA1HW476M J AB 47 µF,50V,Electrolytic
C957 VCKZPA1HF223Z J AA 0.022 µF,50V
C958,959 VCEAZA1HW225M J AB 2.2 µF,50V,Electrolytic
C960,961 VCQYKA1HM104K J AB 0.1 µF,50V,Mylar
C962~977 VCKZPA1HF223Z J AA 0.022 µF,50V
C979~982 VCTYPA1CX102K J AA 0.001 µF,16V
C983 VCKZPA1HF223Z J AA 0.022 µF,50V
C985~987 VCKZPA1HF223Z J AA 0.022 µF,50V
C989 VCKZPA1HF223Z J AA 0.022 µF,50V
CT21 RC-EZD476AF1C J AC 47 µF,16V,Electrolytic
CT22 VCKZPA1HF223Z J AA 0.022 µF,50V
CT23 RC-EZD106AF1C J AB 10 µF,16V,Electrolytic
CT24 VCKZPA1HF223Z J AA 0.022 µF,50V
CT25 VCCSPA1HL561K J AA 560 pF,50V
CT26,27 VCCCPA1HH220J J AA 22 pF (CH),50V
CT28 RC-EZD476AF1C J AC 47 µF,16V,Electrolytic
CT29 VCKZPA1HF223Z J AA 0.022 µF,50V
CT36,37 VCKZPA1HF223Z J AA 0.022 µF,50V
CT43 RC-EZD106AF1C J AB 10 µF,16V,Electrolytic
RESISTORS
VRD-MN2BD000C J AA 0 ohm,Jumper,ø1.4×3.5mm,Ivory
VRS-TV2AB000J J AA 0 ohm,Jumper,1.25×2mm,Green
R3 VRS-TV2AB473J J AA 47 kohms,1/10W
R4 VRS-TV2AB103J J AA 10 kohm,1/10W
R5 VRS-TV2AB393J J AA 39 kohms,1/10W
R6 VRS-TV2AB273J J AA 27 kohms,1/10W
R7 VRS-TV2AB682J J AA 6.8 kohms,1/10W
R8 VRS-TV2AB331J J AA 330 ohms,1/10W
R10 VRS-TV2AB273J J AA 27 kohms,1/10W
R11 VRS-TV2AB123J J AA 12 kohms,1/10W
R12,13 VRS-TV2AB681J J AA 680 ohms,1/10W
R14 VRS-TV2AB122J J AA 1.2 kohms,1/10W
R15 VRS-TV2AB103J J AA 10 kohm,1/10W
R16 VRD-ST2CD103J J AA 10 kohm,1/6W
R17 VRD-ST2CD102J J AA 1 kohm,1/6W
R19 VRD-ST2CD470J J AA 47 ohms,1/6W
R20 VRS-TV2AB221J J AA 220 ohms,1/10W
R21,22 VRS-TV2AB471J J AA 470 ohms,1/10W
R25 VRD-ST2CD103J J AA 10 kohm,1/6W
R35 VRD-ST2CD102J J AA 1 kohm,1/6W
R38 VRD-ST2CD271J J AA 270 ohms,1/6W
R39 VRD-ST2CD471J J AA 470 ohms,1/6W
R40 VRS-TV2AB122J J AA 1.2 kohms,1/10W
R42 VRS-TV2AB124J J AA 120 kohms,1/10W
R44 VRD-ST2CD102J J AA 1 kohm,1/6W
R45 VRS-TV2AB122J J AA 1.2 kohms,1/10W
R46 VRS-TV2AB102J J AA 1 kohm,1/10W
R47 VRD-ST2EE3R3J J AA 3.3 ohms,1/4W
R48 VRS-TV2AB682J J AA 6.8 kohms,1/10W
R50 VRS-TV2AB470J J AA 47 ohms,1/10W
R51~54 VRS-TV2AB683J J AA 68 kohms,1/10W
R55,56 VRD-ST2CD683J J AA 68 kohms,1/6W
R58 VRD-ST2CD221J J AA 220 ohms,1/6W
R67,68 VRD-ST2CD102J J AA 1 kohm,1/6W
R71~78 VRD-ST2CD102J J AA 1 kohm,1/6W
R79 VRS-TV2AB155J J AA 1.5 Mohms,1/10W
R80 VRD-ST2CD105J J AA 1 Mohm,1/6W
R81,82 VRS-TV2AB222J J AA 2.2 kohms,1/10W
R83,84 VRS-TV2AB103J J AA 10 kohm,1/10W
R94,95 VRS-TV2AB103J J AA 10 kohm,1/10W
R96 VRD-ST2CD152J J AA 1.5 kohms,1/6W
R101 VRD-MN2BD102J J AA 1 kohm,1/8W
R102 VRD-ST2CD102J J AA 1 kohm,1/6W
R103,104 VRD-MN2BD222J J AA 2.2 kohms,1/8W
R105,106 VRD-MN2BD332J J AA 3.3 kohms,1/8W
R107,108 VRD-MN2BD473J J AA 47 kohms,1/8W
R109,110 VRD-MN2BD472J J AA 4.7 kohms,1/8W
R111 VRD-MN2BD153J J AA 15 kohms,1/8W
R112 VRD-ST2CD153J J AA 15 kohms,1/6W
R113,114 VRD-MN2BD103J J AA 10 kohm,1/8W
R115 VRD-MN2BD472J J AA 4.7 kohms,1/8W
R117,118 VRD-MN2BD102J J AA 1 kohm,1/8W
R119,120 VRD-ST2CD560J J AA 56 ohms,1/6W
R121,122 VRD-MN2BD104J J AA 100 kohm,1/8W
R123,124 VRD-MN2BD392J J AA 3.9 kohms,1/8W
R125 VRD-MN2BD562J J AA 5.6 kohms,1/8W
R126 VRD-ST2CD562J J AA 5.6 kohms,1/6W
R131 VRD-MN2BD333J J AA 33 kohms,1/8W
R132 VRD-ST2CD333J J AA 33 kohms,1/6W
R134 VRD-MN2BD683J J AA 68 kohms,1/8W
R135,136 VRD-MN2BD392J J AA 3.9 kohms,1/8W
R137 VRD-MN2BD682J J AA 6.8 kohms,1/8W
R138 VRD-ST2CD682J J AA 6.8 kohms,1/6W
R139,140 VRD-MN2BD152J J AA 1.5 kohms,1/8W
R141,142 VRD-MN2BD101J J AA 100 ohm,1/8W
R145,146 VRD-MN2BD103J J AA 10 kohm,1/8W
R153,154 VRD-MN2BD103J J AA 10 kohm,1/8W
R155 VRD-MN2BD151J J AA 150 ohms,1/8W
R156 VRD-ST2CD224J J AA 220 kohms,1/6W
R157 VRD-MN2BD224J J AA 220 kohms,1/8W
R158 VRD-ST2EE221J J AA 220 ohms,1/4W
R160 VRD-RT2HD820J J AA 82 ohms,1/2W
R162 VRD-MN2BD473J J AA 47 kohms,1/8W
R164 VRD-MN2BD472J J AA 4.7 kohms,1/8W
R166 VRD-MN2BD223J J AA 22 kohms,1/8W
R167 VRD-MN2BD473J J AA 47 kohms,1/8W
R168 VRD-ST2CD4R7J J AA 4.7 ohms,1/6W
R323 VRD-MN2BD683J J AA 68 kohms,1/8W
R336 VRD-MN2BD103J J AA 10 kohm,1/8W
R344 VRD-MN2BD471J J AA 470 ohms,1/8W
R345 VRD-MN2BD472J J AA 4.7 kohms,1/8W
R346 VRD-MN2BD331J J AA 330 ohms,1/8W
R347 VRD-MN2BD682J J AA 6.8 kohms,1/8W
R348 VRD-MN2BD681J J AA 680 ohms,1/8W
R349 VRD-MN2BD330J J AA 33 ohms,1/8W
R350 VRD-MN2BD272J J AA 2.7 kohms,1/8W
R351 VRD-MN2BD562J J AA 5.6 kohms,1/8W
R352 VRD-MN2BD102J J AA 1 kohm,1/8W
R353 VRD-MN2BD271J J AA 270 ohms,1/8W
R355 VRD-MN2BD332J J AA 3.3 kohms,1/8W
R356 VRD-MN2BD102J J AA 1 kohm,1/8W
R357 VRD-ST2CD474J J AA 470 kohms,1/6W
R358 VRD-ST2CD392J J AA 3.9 kohms,1/6W
R359 VRD-MN2BD182J J AA 1.8 kohms,1/8W
R360 VRD-MN2BD472J J AA 4.7 kohms,1/8W
R363,364 VRD-MN2BD473J J AA 47 kohms,1/8W
R365 VRD-MN2BD103J J AA 10 kohm,1/8W
R369 VRD-MN2BD150J J AA 15 ohms,1/8W
R370 VRD-ST2CD102J J AA 1 kohm,1/6W
R372~374 VRD-MN2BD102J J AA 1 kohm,1/8W
R376 VRD-MN2BD102J J AA 1 kohm,1/8W
R377 VRD-MN2BD473J J AA 47 kohms,1/8W
R378 VRD-MN2BD102J J AA 1 kohm,1/8W
R379 VRD-MN2BD222J J AA 2.2 kohms,1/8W
R380 VRD-MN2BD152J J AA 1.5 kohms,1/8W
R381 VRD-MN2BD103J J AA 10 kohm,1/8W
R382 VRD-ST2EE151J J AA 150 ohms,1/4W
R383 VRD-MN2BD562J J AA 5.6 kohms,1/8W
R384 VRD-ST2CD562J J AA 5.6 kohms,1/6W
R385 VRD-MN2BD562J J AA 5.6 kohms,1/8W
R386 VRD-ST2CD223J J AA 22 kohms,1/6W
R387 VRD-ST2CD562J J AA 5.6 kohms,1/6W
R388 VRD-MN2BD392J J AA 3.9 kohms,1/8W
R391,392 VRD-ST2EE271J J AA 270 ohms,1/4W
R393 VRD-MN2BD102J J AA 1 kohm,1/8W
R395 VRD-MN2BD473J J AA 47 kohms,1/8W
R399 VRD-MN2BD330J J AA 33 ohms,1/8W
R561 VRD-MN2BD473J J AA 47 kohms,1/8W
R562 VRD-MN2BD474J J AA 470 kohms,1/8W
R563 VRD-MN2BD123J J AA 12 kohms,1/8W
R564 VRD-MN2BD333J J AA 33 kohms,1/8W
R565 VRD-MN2BD394J J AA 390 kohms,1/8W
R566 VRD-MN2BD224J J AA 220 kohms,1/8W
R567,568 VRD-MN2BD225J J AA 2.2 Mohms,1/8W
– 3 –
NO.
PRICE
RANK
DESCRIPTIONPARTS CODE
NO. PARTS CODE
PRICE
RANK
DESCRIPTION
CD-BA2010H
R569,570 VRD-MN2BD104J J AA 100 kohm,1/8W
R573 VRD-MN2BD224J J AA 220 kohms,1/8W
R574 VRD-ST2EE331J J AA 330 ohms,1/4W
R575 VRD-MN2BD154J J AA 150 kohms,1/8W
R576 VRD-ST2EE331J J AA 330 ohms,1/4W
R577 VRD-ST2CD331J J AA 330 ohms,1/6W
R578 VRD-MN2BD154J J AA 150 kohms,1/8W
R579 VRD-MN2BD224J J AA 220 kohms,1/8W
R580 VRD-ST2CD331J J AA 330 ohms,1/6W
R581 VRD-ST2CD683J J AA 68 kohms,1/6W
R582 VRD-MN2BD123J J AA 12 kohms,1/8W
R583 VRD-MN2BD683J J AA 68 kohms,1/8W
R584 VRD-ST2CD123J J AA 12 kohms,1/6W
R585,586 VRD-MN2BD224J J AA 220 kohms,1/8W
R587,588 VRD-MN2BD394J J AA 390 kohms,1/8W
R589,590 VRD-MN2BD104J J AA 100 kohm,1/8W
R601,602 VRD-ST2CD680J J AA 68 ohms,1/6W
R605 VRD-MN2BD392J J AA 3.9 kohms,1/8W
R606 VRD-ST2CD392J J AA 3.9 kohms,1/6W
R607 VRD-MN2BD103J J AA 10 kohm,1/8W
R608 VRD-ST2CD103J J AA 10 kohm,1/6W
R609,610 VRD-ST2CD331J J AA 330 ohms,1/6W
R611 VRD-MN2BD562J J AA 5.6 kohms,1/8W
R612 VRD-ST2CD562J J AA 5.6 kohms,1/6W
R613,614 VRD-MN2BD391J J AA 390 ohms,1/8W
R615,616 VRD-ST2CD222J J AA 2.2 kohms,1/6W
R617 VRD-MN2BD332J J AA 3.3 kohms,1/8W
R618 VRD-ST2CD332J J AA 3.3 kohms,1/6W
R619,620 VRD-MN2BD223J J AA 22 kohms,1/8W
R621,622 VRD-MN2BD222J J AA 2.2 kohms,1/8W
R631,632 VRD-MN2BD682J J AA 6.8 kohms,1/8W
R633,634 VRD-MN2BD333J J AA 33 kohms,1/8W
R637,638 VRD-MN2BD474J J AA 470 kohms,1/8W
R700 VRD-ST2CD103J J AA 10 kohm,1/6W
R701 VRD-ST2CD104J J AA 100 kohm,1/6W
R702 VRD-ST2CD102J J AA 1 kohm,1/6W
R704 VRD-ST2CD104J J AA 100 kohm,1/6W
R705 VRD-ST2CD102J J AA 1 kohm,1/6W
R714 VRD-MN2BD103J J AA 10 kohm,1/8W
R715 VRD-ST2CD103J J AA 10 kohm,1/6W
R716 VRD-ST2CD104J J AA 100 kohm,1/6W
R717,718 VRD-MN2BD103J J AA 10 kohm,1/8W
R719 VRD-ST2CD102J J AA 1 kohm,1/6W
R720 VRD-ST2CD103J J AA 10 kohm,1/6W
R721 VRD-ST2CD472J J AA 4.7 kohms,1/6W
R724 VRD-ST2CD330J J AA 33 ohms,1/6W
R732,733 VRD-MN2BD683J J AA 68 kohms,1/8W
R734 VRD-MN2BD102J J AA 1 kohm,1/8W
R735 VRD-MN2BD474J J AA 470 kohms,1/8W
R736,737 VRD-MN2BD103J J AA 10 kohm,1/8W
R738 VRD-MN2BD102J J AA 1 kohm,1/8W
R739 VRD-MN2BD474J J AA 470 kohms,1/8W
R740~743 VRD-MN2BD102J J AA 1 kohm,1/8W
R744 VRD-ST2CD102J J AA 1 kohm,1/6W
R746 VRD-ST2CD103J J AA 10 kohm,1/6W
R747,748 VRD-MN2BD102J J AA 1 kohm,1/8W
R749 VRD-MN2BD103J J AA 10 kohm,1/8W
R750,751 VRD-ST2CD102J J AA 1 kohm,1/6W
R752 VRD-MN2BD103J J AA 10 kohm,1/8W
R753 VRD-ST2CD182J J AA 1.8 kohms,1/6W
R754~756 VRD-ST2CD222J J AA 2.2 kohms,1/6W
R757 VRD-MN2BD103J J AA 10 kohm,1/8W
R758~762 VRD-ST2CD102J J AA 1 kohm,1/6W
R763~765 VRD-MN2BD103J J AA 10 kohm,1/8W
R766,767 VRD-MN2BD102J J AA 1 kohm,1/8W
R768 VRD-ST2CD102J J AA 1 kohm,1/6W
R769~773 VRD-MN2BD102J J AA 1 kohm,1/8W
R775,776 VRD-MN2BD102J J AA 1 kohm,1/8W
R777 VRD-MN2BD103J J AA 10 kohm,1/8W
R778~781 VRD-MN2BD102J J AA 1 kohm,1/8W
R782~784 VRD-ST2CD102J J AA 1 kohm,1/6W
R785,786 VRD-ST2CD102J J AA 1 kohm,1/6W
R787~790 VRD-ST2CD102J J AA 1 kohm,1/6W
R794 VRD-MN2BD102J J AA 1 kohm,1/8W
R795 VRD-MN2BD103J J AA 10 kohm,1/8W
R796 VRD-MN2BD473J J AA 47 kohms,1/8W
R797 VRD-MN2BD104J J AA 100 kohm,1/8W
R798 VRD-MN2BD472J J AA 4.7 kohms,1/8W
R799 VRD-MN2BD101J J AA 100 ohm,1/8W
R801 VRD-ST2CD222J J AA 2.2 kohms,1/6W
R802 VRD-ST2EE100J J AA 10 ohm,1/4W
R803 VRD-ST2CD123J J AA 12 kohms,1/6W
R804 VRD-ST2CD473J J AA 47 kohms,1/6W
R805 VRD-ST2EE223J J AA 22 kohms,1/4W
R806 VRS-VV3DA681J J AC 680 ohms,2W
R807 VRD-ST2CD221J J AA 220 ohms,1/6W
R809 VRD-ST2CD103J J AA 10 kohm,1/6W
R810 VRD-ST2CD223J J AA 22 kohms,1/6W
R811 VRD-RT2HD3R3J J AA 3.3 ohms,1/2W
R812 VRD-ST2CD330J J AA 33 ohms,1/6W
R813 VRD-ST2CD223J J AA 22 kohms,1/6W
R816 VRD-ST2CD102J J AA 1 kohm,1/6W
R817 VRD-ST2CD473J J AA 47 kohms,1/6W
R819,820 VRD-ST2EE223J J AA 22 kohms,1/4W
R825 VRD-RT2HD3R3J J AA 3.3 ohms,1/2W
! R901 VRG-ST2EC101J J AB 100 ohm,1/4W,Fusible
R902 VRD-ST2CD223J J AA 22 kohms,1/6W
R903,904 VRD-ST2CD563J J AA 56 kohms,1/6W
R906~909 VRD-ST2CD102J J AA 1 kohm,1/6W
! R910 VRG-ST2EC101J J AB 100 ohm,1/4W,Fusible
R911,912 VRN-VV3AAR10J J AB 0.1 ohm,1W
R913,914 VRD-ST2CD102J J AA 1 kohm,1/6W
R915,916 VRD-ST2CD682J J AA 6.8 kohms,1/6W
R917,918 VRD-ST2CD102J J AA 1 kohm,1/6W
R919~921 VRD-ST2CD563J J AA 56 kohms,1/6W
R922,923 VRD-ST2EE4R7J J AA 4.7 ohms,1/4W
! R924,925 VRG-ST2EC101J J AB 100 ohm,1/4W,Fusible
R926 VRD-ST2CD223J J AA 22 kohms,1/6W
R927,928 VRD-ST2CD563J J AA 56 kohms,1/6W
R929,930 VRD-ST2CD821J J AA 820 ohms,1/6W
R931,932 VRD-ST2CD102J J AA 1 kohm,1/6W
R933,934 VRN-VV3AAR10J J AB 0.1 ohm,1W
R935,936 VRD-ST2CD103J J AA 10 kohm,1/6W
R937,938 VRD-ST2CD102J J AA 1 kohm,1/6W
R939~941 VRD-ST2CD563J J AA 56 kohms,1/6W
R942,943 VRD-ST2EE4R7J J AA 4.7 ohms,1/4W
R944~947 VRD-RT2HD271J J AA 270 ohms,1/2W
R948~951 VRD-ST2CD222J J AA 2.2 kohms,1/6W
R952 VRD-ST2CD153J J AA 15 kohms,1/6W
R953 VRD-ST2CD683J J AA 68 kohms,1/6W
R954 VRD-ST2CD102J J AA 1 kohm,1/6W
R955 VRD-RT2HD4R7J J AA 4.7 ohms,1/2W
R956,957 VRD-ST2CD183J J AA 18 kohms,1/6W
R958,959 VRD-ST2CD822J J AA 8.2 kohms,1/6W
R960,961 VRD-ST2CD152J J AA 1.5 kohms,1/6W
R962,963 VRD-ST2CD472J J AA 4.7 kohms,1/6W
R964,965 VRD-ST2CD183J J AA 18 kohms,1/6W
R966,967 VRD-ST2EE331J J AA 330 ohms,1/4W
R968,969 VRD-ST2CD102J J AA 1 kohm,1/6W
R970,971 VRD-ST2CD683J J AA 68 kohms,1/6W
R972,973 VRD-ST2CD104J J AA 100 kohm,1/6W
R974,975 VRD-ST2CD683J J AA 68 kohms,1/6W
R976,977 VRD-ST2CD102J J AA 1 kohm,1/6W
R979 VRD-ST2CD102J J AA 1 kohm,1/6W
R980 VRD-ST2CD103J J AA 10 kohm,1/6W
R981~988 VRD-ST2EE6R8J J AA 6.8 ohms,1/4W
R989~992 VRD-ST2CD680J J AA 68 ohms,1/6W
R993~996 VRN-VV3DAR22J J AC 0.22 ohms,2W
RD01 VRD-MN2BD681J J AA 680 ohms,1/8W
RD02 VRD-MN2BD821J J AA 820 ohms,1/8W
RD03 VRD-ST2CD102J J AA 1 kohm,1/6W
RD04 VRD-MN2BD152J J AA 1.5 kohms,1/8W
RD05 VRD-MN2BD222J J AA 2.2 kohms,1/8W
RD06 VRD-MN2BD272J J AA 2.7 kohms,1/8W
RD07 VRD-MN2BD392J J AA 3.9 kohms,1/8W
RD08 VRD-MN2BD562J J AA 5.6 kohms,1/8W
RD09 VRD-MN2BD103J J AA 10 kohm,1/8W
RD10 VRD-MN2BD183J J AA 18 kohms,1/8W
RD11 VRD-MN2BD333J J AA 33 kohms,1/8W
RD12 VRD-MN2BD104J J AA 100 kohm,1/8W
RD13 VRD-ST2CD681J J AA 680 ohms,1/6W
RD14 VRD-MN2BD821J J AA 820 ohms,1/8W
RD25 VRD-MN2BD681J J AA 680 ohms,1/8W
RD26 VRD-MN2BD821J J AA 820 ohms,1/8W
RD27 VRD-MN2BD102J J AA 1 kohm,1/8W
RD28 VRD-MN2BD152J J AA 1.5 kohms,1/8W
RD29 VRD-MN2BD222J J AA 2.2 kohms,1/8W
RD30 VRD-MN2BD272J J AA 2.7 kohms,1/8W
RD31 VRD-MN2BD392J J AA 3.9 kohms,1/8W
RD32 VRD-MN2BD562J J AA 5.6 kohms,1/8W
RD33 VRD-MN2BD103J J AA 10 kohm,1/8W
RD34 VRD-MN2BD153J J AA 15 kohms,1/8W
RD35 VRD-MN2BD333J J AA 33 kohms,1/8W
RD36 VRD-MN2BD104J J AA 100 kohm,1/8W
– 4 –
PRICE
RANK
DESCRIPTIONNO.
PARTS CODE NO. PARTS CODE
PRICE
RANK
DESCRIPTION
CD-BA2010H
RS701~704 VRD-MN2BD102J J AA 1 kohm,1/8W
RS708 VRD-MN2BD103J J AA 10 kohm,1/8W
RS709 VRD-MN2BD223J J AA 22 kohms,1/8W
RS710 VRD-MN2BD102J J AA 1 kohm,1/8W
RS720~722 VRD-MN2BD104J J AA 100 kohm,1/8W
RS723~725 VRD-ST2CD102J J AA 1 kohm,1/6W
RS727,728 VRD-MN2BD472J J AA 4.7 kohms,1/8W
RS729~732 VRD-MN2BD103J J AA 10 kohm,1/8W
RS734,735 VRD-MN2BD472J J AA 4.7 kohms,1/8W
RT21 VRD-ST2CD104J J AA 100 kohm,1/6W
RT26 VRD-ST2CD102J J AA 1 kohm,1/6W
RT28~30 VRD-ST2CD102J J AA 1 kohm,1/6W
RT32 VRD-ST2CD103J J AA 10 kohm,1/6W
RT33,34 VRD-ST2CD563J J AA 56 kohms,1/6W
RT35~37 VRD-ST2CD224J J AA 220 kohms,1/6W
RT48,49 VRD-ST2EE391J J AA 390 ohms,1/4W
RT51 VRD-ST2CD103J J AA 10 kohm,1/6W
OTHER CIRCUITRY PARTS
BI4/CNS4 QCNWN1572AWZZ J AF Connector Ass’y,6/6Pin
BI601/CNS601 QCNWN1540AWZZ J AF Connector Ass’y,5/5Pin
BI703/CNS703 QCNWN1562AWZZ J AH Connector Ass’y,10/10Pin
BI704/CNS704 QCNWN1561AWZZ J AF Connector Ass’y,5/5Pin
BI705A/B QCNWN1580AWZZ J Connector Ass’y,3/3Pin
CNP1 QCNCM704GAWZZ J AC Plug,7Pin
CNP2 QCNCM704HAWZZ J AC Plug,8Pin
CNP3 92LCONE6P53253 J AC Plug,6Pin
CNP3A 92LCONE6P53254 J AC Plug,6Pin
CNP4 QCNCM705FAFZZ J AB Plug,6Pin
CNP11 92LCONE5P53254 J AB Plug,5Pin
CNP12 92LCONEAP53254 J AD Plug,10Pin
CNP101 QCNCM705CAFZZ J AA Plug,3Pin
CNP102 QCNCM705GAFZZ J AB Plug,7Pin
CNP302 92LCONE2P5268 J AB Plug,2Pin
CNP303 QCNCM010HAWZZ J AC Plug,8Pin
CNP304 QCNCW010HAWZZ J AD Socket,8Pin
CNP701A QCNCWZX29AWZZ J AE Plug,29Pin
CNP701B QCNCWZF29AWZZ J AE Plug,29Pin
CNP702 QCNCWZY13AWZZ J AC Plug,13Pin
CNP704 92LCONE5P53254 J AB Plug,5Pin
! CNP801 QCNCM049BAWZZ J AC Plug,2Pin
CNP802 QCNCM051EAWZZ J AD Plug,5Pin
CNP803 92LCONE2P53253 J AB Plug,2Pin
CNP804 92LCONE5P5267X J AB Plug,5Pin
CNP901 QCNCM010UAWZZ J AD Plug,19Pin
CNS1A/B QCNWN1537AWZZ J AG Connector Ass’y,7/7Pin
CNS2A/B QCNWN1538AWZZ J AG Connector Ass’y,8/8Pin
CNS3A/B QCNWN1539AWZZ J AE Connector Ass’y,6/6Pin
CNS803 QCNWN1542AWZZ J AC Connector Ass’y,2Pin
CNS901 QCNCW010UAWZZ J AD Plug,19Pin
! F800,801 92LFUSET402E J AD Fuse,T4A L 250V
! F802,803 92LFUSET502E J AC Fuse,T5A L 250V
! F805 92LFUSET202E J AC Fuse,T2A L 250V
FC701 QCNWN1545AWZZ J AG Flat Cable,29Pin
FC702 QCNWN1544AWZZ J AE Flat Cable,13Pin
FE301 RTUNS0012AWZZ J AV FM Front End
FL701 VVKBJ744GNK-1 J BD FL Display
FW701 QCNWN1649AWZZ J AC Flat Wire,3Pin
FW801 QCNWN1543AWZZ J AD Flat Wire,5Pin
JK601 QSOCJ0213AWZZ J AE Jack,Video In
JK670 QJAKM0010AWZZ J AF Jack,Headphones
JOG701 QSW-Z0010AWZZ J AF Switch,Push Type [Jog]
LG901,902 QLUGP0001AWZZ J AC Lug
LUG1 QLUGP0002AWZZ J AB Lug
! LUG903,904 92LLUG1746A J AA Lug Terminal
M1 92LMTR2790CASY J BB Motor with Chassis [Spindle]
M2 92LMTR1854BASY J AP Motor with Gear [Sled]
M3 92LTWMEN7E6Y J AR Motor with Worm Pulley
[T/T Up/Down Loading]
M701 RMOTV0027AWZZ J AM Motor,Volume
M901 RMOTV0027AWZZ J AM Motor,Air Cooling Fan
RL801 RRLYD0001SJZZ J AQ Relay
RL901,902 RRLYD0004AWZZ J AP Relay
RX701 VHLN63H380A-1 J AK Remote Sensor,N63H380A
SO301 QTANC0101AWZZ J AF Terminal,Antenna
SO901 QTANA0806AWZZ J AG Terminal,Speaker
SW1 SWMPU10780MLB J AH Switch,Push Type [Open/Close]
SW2 SWMPU11470MLB J AE Switch,Push Type [Clamp]
SW3 SWMPU11470MLB J AE Switch,Push Type [Disc Number]
SW4 QSW-F9001AW01 J AD Switch,Leaf Type [Pickup In]
SW701 92LSWICH1401AT J AC Switch,Key Type
[ON/STAND-BY]
SW702 92LSWICH1401AT J AC Switch,Key Type [CLOCK]
SW703 92LSWICH1401AT J AC Switch,Key Type
[TIMER/SLEEP]
SW704 92LSWICH1401AT J AC Switch,Key Type
[PTY.TI SEARCH]
SW705 92LSWICH1401AT J AC Switch,Key Type [EON]
SW706 92LSWICH1401AT J AC Switch,Key Type [ASPM]
SW707 92LSWICH1401AT J AC Switch,Key Type
[DISPLAY MODE]
SW708 92LSWICH1401AT J AC Switch,Key Type [STATION]
SW709 92LSWICH1401AT J AC Switch,Key Type [DISC 1]
SW710 92LSWICH1401AT J AC Switch,Key Type [DISC 2]
SW711 92LSWICH1401AT J AC Switch,Key Type [DISC 3]
SW712 92LSWICH1401AT J AC Switch,Key Type [DISC SKIP]
SW713 92LSWICH1401AT J AC Switch,Key Type
[OPEN/CLOSE]
SW714 92LSWICH1401AT J AC Switch,Key Type [DIMMER]
SW715 92LSWICH1401AT J AC Switch,Key Type [X-BASS]
SW716 92LSWICH1401AT J AC Switch,Key Type [EQUALIZER]
SW722 92LSWICH1401AT J AC Switch,Key Type [CD]
SW723 92LSWICH1401AT J AC Switch,Key Type [TAPE]
SW724 92LSWICH1401AT J AC Switch,Key Type
[TUNING/TIME DOWN]
SW725 92LSWICH1401AT J AC Switch,Key Type
[MEMORY/SET]
SW726 92LSWICH1401AT J AC Switch,Key Type
[PRESET DOWN]
SW727 92LSWICH1401AT J AC Switch,Key Type [PRESET UP]
SW728 92LSWICH1401AT J AC Switch,Key Type
[PLAY/REPEAT]
SW729 92LSWICH1401AT J AC Switch,Key Type [STOP]
SW731 92LSWICH1401AT J AC Switch,Key Type [REC/PAUSE]
SW732 92LSWICH1401AT J AC Switch,Key Type
[TUNING/TIME UP]
SW733 92LSWICH1401AT J AC Switch,Key Type [VIDEO/AUX]
SW734 92LSWICH1401AT J AC Switch,Key Type
[TUNER (BAND)]
WT601 QCNCW012EAWZZ J AC Plug,5Pin

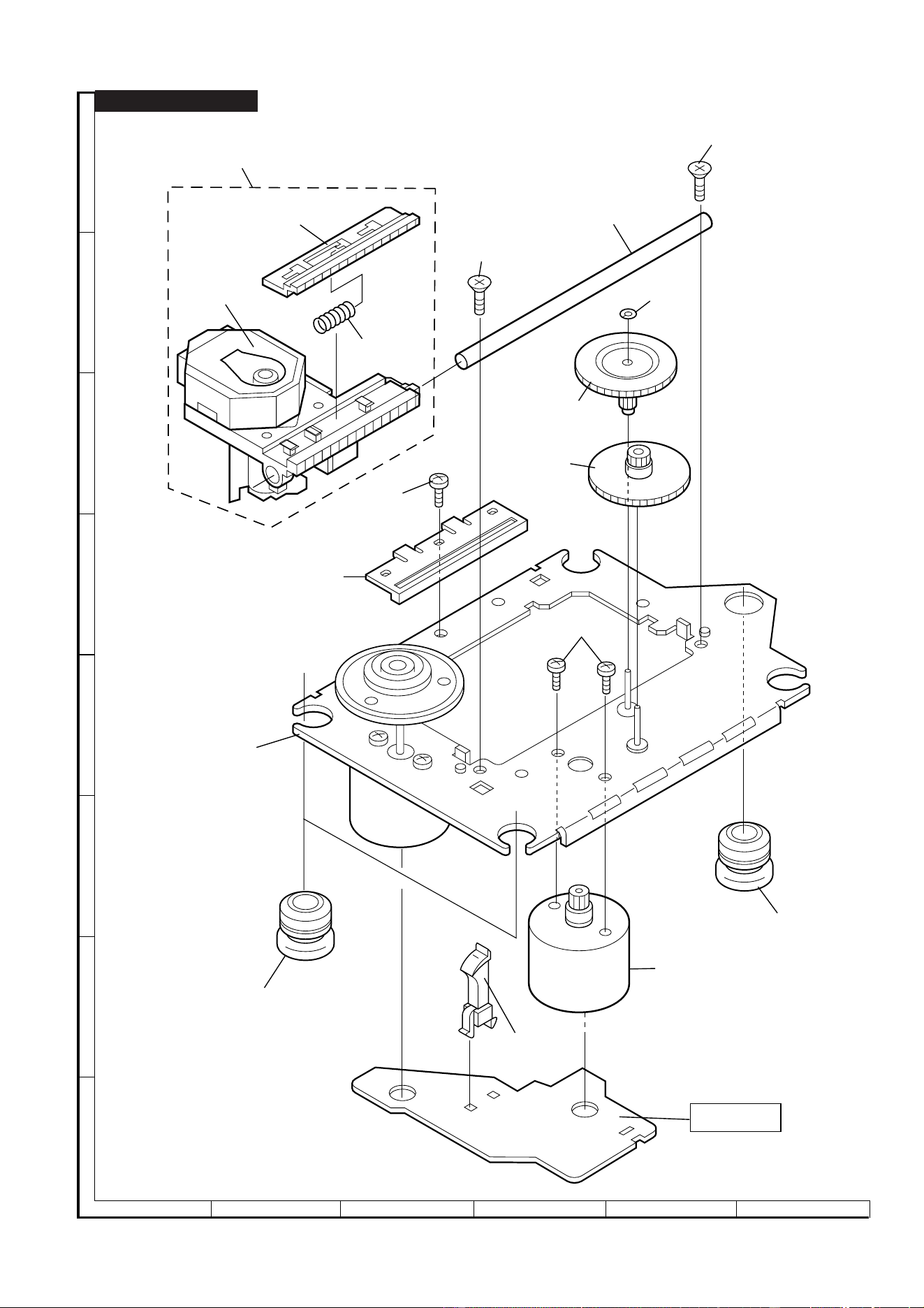

CD MECHANISM PARTS
301 NGERH0011AWZZ J AC Gear,Middle
302 NGERH0012AWZZ J AC Gear,Drive
303 MLEVP0080AWZZ J AC Rail,Guide
304 NSFTM0020AWFW J AD Shaft,Guide
305 92LM-CUSN1524A J AC Cushion
! 306 92LHPC1LXASY J BD Pickup Unit Ass’y
306- 1 ———— — Pickup Unit
(Not Replacement Item)
306- 2 NGERR0043AFZZ J AC Gear,Rack
306- 3 MSPRC0961AFZZ J AA Spring,Rack
701 XBSSD26P06000 J AA Screw,ø2.6×6mm
702 XHBSD20P05000 J AA Screw,ø2×5mm
703 XBBSD20P03000 J AA Screw,ø2×3mm
704 LX-WZ1070AFZZ J AA Washer,ø1.5×ø3.8×0.25mm
M1 92LMTR2790CASY J BB Motor with Chassis [Spindle]
M2 92LMTR1854BASY J AP Motor with Gear [Sled]
SW4 QSW-F9001AW01 J AD Switch,Leaf Type [Pickup In]

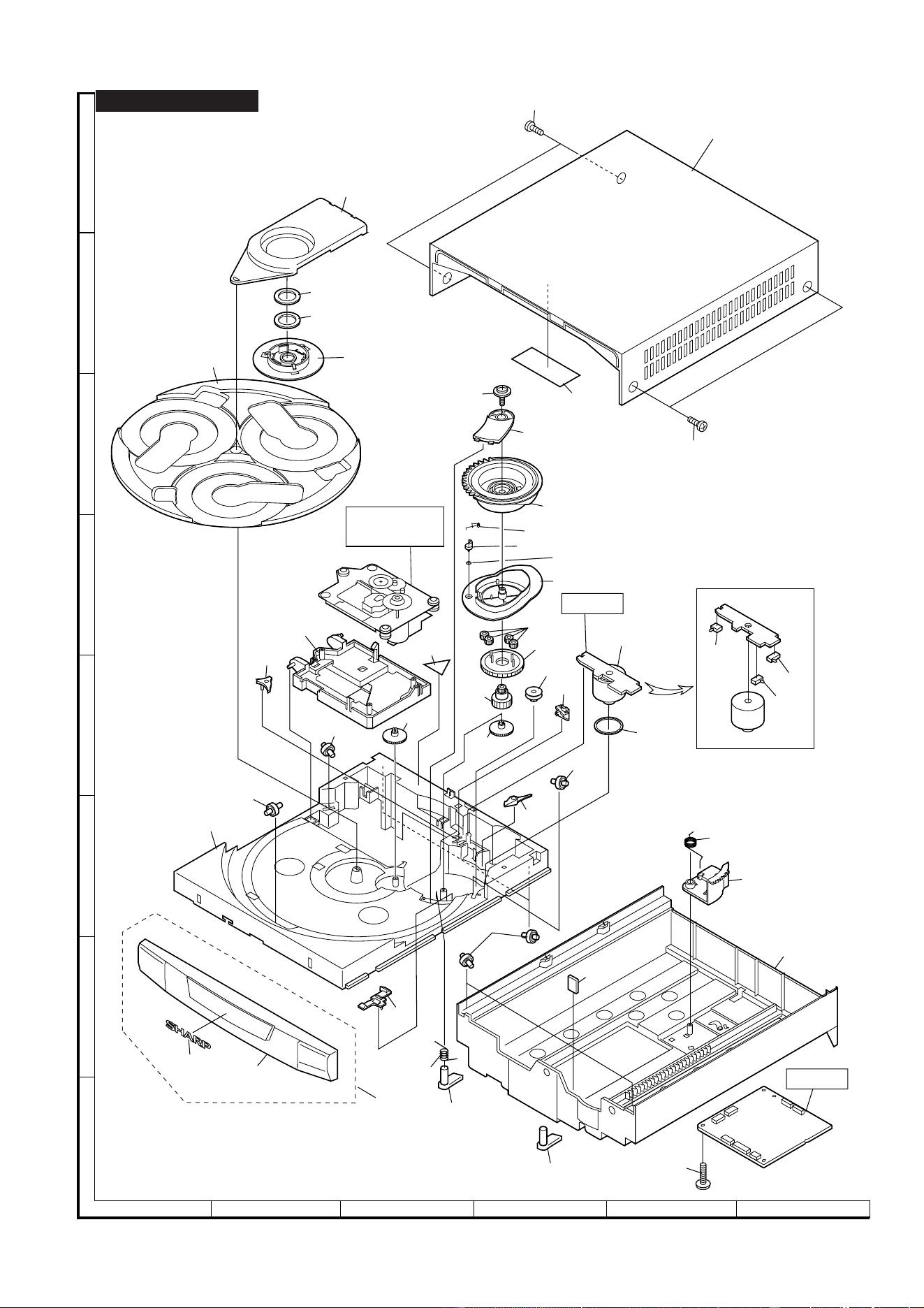

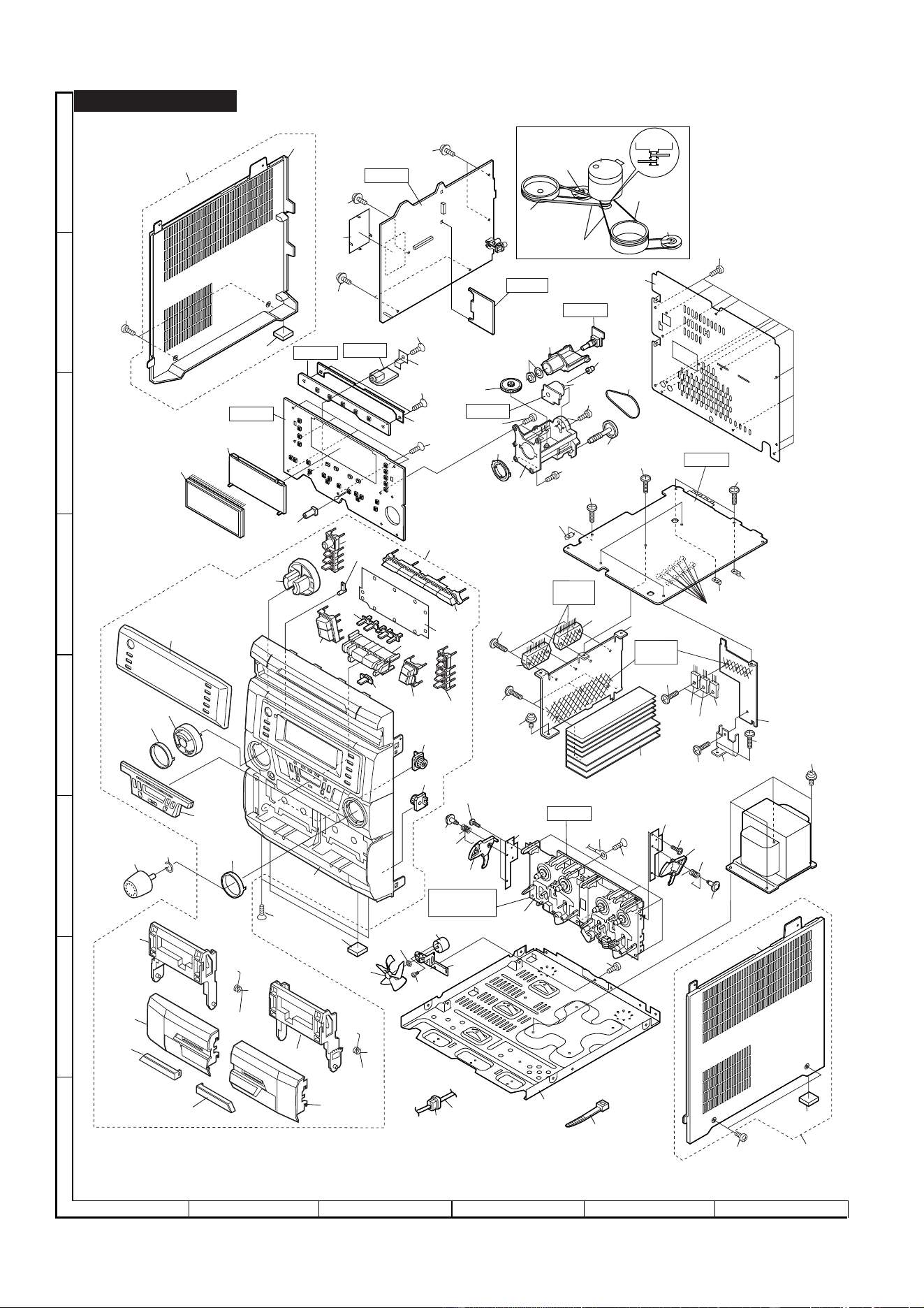

CABINET PARTS
201 92LCAB3344AASY J Front Cabinet Ass’y
201- 1 ———— — Front Panel
(Not Replacement Item)
201- 2 GDORF0076AWSA J AE Holder,Cassette,Tape 1
201- 3 GDORF0077AWSA J AE Holder,Cassette,Tape 2
201- 4 GCOVA1282AWSA J AL Cover,Cassette,Tape 1
201- 5 GCOVA1283AWSA J AL Cover,Cassette,Tape 2
201- 6 HDECQ0559AWSA J AE Panel,Cassette,Tape 1
201- 7 HDECQ0560AWSA J AE Panel,Cassette,Tape 2
201- 8 HDECQ0574AWSA J AK Panel,Amp.
201- 9 HDECQ0569AWSA J AF UV Filter
201-10 JKNBZ0702AWSA J AH Knob,Disc Control
201-11 JKNBZ0703AWSA J AG Knob,Main Control
201-12 JKNBZ0700AWSA J AG Knob,On/Stand-by/Clock/Timer/
Sleep/Dimmer
201-13 JKNBZ0705AWSA J AG Knob,CD/Tape
201-14 JKNBZ0722AWSA J AF Knob,Tuner/Video/Aux
201-15 JKNBZ0708AWSA J AM Knob,X-BASS/Equalizer
201-16 GCOVA1287AWSA J AG Cover,Remote Control Sensor
201-17 HDECQ0558AWSA J AH Panel,Main Control
201-18 HDECQ0562AWSA J AC Decoration Ring
– 5 –
NO.
PRICE
RANK
DESCRIPTIONPARTS CODE
NO. PARTS CODE
PRICE
RANK
DESCRIPTION
CD-BA2010H
201-19 GCOVA1289AWSA J AG Cover,Mode Indicator
201-20 GCOVA1290AWSA J AF Cover,Timer Rec. Indicator
201-21 MLIFP0008AWZZ J AD Damper
201-22 MSPRD0092AWFJ J AB Spring,Cassette,Tape 1
201-23 MSPRD0093AWFJ J AB Spring,Cassette,Tape 2
201-24 JKNBZ0701AWSA J AG Knob,RDS
201-25 GCOVA1286AWSA J AG Cover,X-BASS/Equalizer Knob
202 92LCAB3308BASY J Side Panel Ass’y,Left
202- 1 ———— — Side Panel,Left
(Not Replacement Item)
202- 2 PCUSG0022AWZZ J AB Cushion,Leg
203 92LCAB3308CASY J Side Panel Ass’y,Right
203- 1 ———— — Side Panel,Right
(Not Replacement Item)
203- 2 PCUSG0022AWZZ J AB Cushion,Leg
204 92LCOV3308AASY J AM CD Tray Cover Ass’y
204- 1 ———— — Cover,CD Tray
(Not Replacement Item)
204- 2 92LBADGE1671A J AC Badge,SHARP
205 GCAB-1184AWSA J AP Top Cabinet
206 GITAR0577AWSA J Rear Panel [For U.K.]
206 GITAR0579AWSA J AM Rear Panel [Except for U.K.]
207 JKNBZ0707AWSA J AG Knob,Volume
208 LANGK0110AWFW1J AD Bracket,Cassette Lock,Tape 1
209 LANGK0111AWFW1J AD Bracket,Cassette Lock,Tape 2
210 LANGK0188AWFW J AF Bracket,Fan Support
211 LANGT0042AWFW J AC Bracket,PWB Support
212 LBSHC0002AWZZ J AD Bushing,AC Power Supply Cord
213 LCHSM0096AWFW J AR Main Chassis
214 LHLDZ1254AWSA J Holder,FL Display
215 LHLDZ1230AWZZ J AC Holder,LED
216 LANGK0195AWFW J AC Bracket,Headphones Support
217 LANGK0206AWFW J Bracket,PWB Support
218 QCNWN0769AWZZ J AD Lug Wire
219 MLOKC0003AWZZ J AD Lock Lever,Cassette,Tape 1
220 MLOKC0004AWZZ J AD Lock Lever,Cassette,Tape 2
221 MSPRD0109AWFJ J AB Spring,Cassette Lock,Tape 1
222 MSPRD0110AWFJ J AB Spring,Cassette Lock,Tape 2
223 NFANP0001AWZZ J AD Rotary Fan
224 92LPT0331105 J AM Turntable
225 PCUSG0022AWZZ J AB Cushion,Leg
226 PRDAR0149AWFW J AP Heat Sink,Main
227 PRDAR0150AWFW J AS Heat Sink,Sub,A
228 PRDAR0151AWFW J AG Heat Sink,Sub,B
! 229 QACCB0009AW00 J AL AC Power Supply Cord
[For U.K.]
! 229 QACCE0010AW00 J AK AC Power Supply Cord
[Except for U.K.]
! 231 QFSHD0001AWZZ J AB Holder,Fuse
232 92LBE241414 J AD Belt
233 92LCSPR1431C J AA Spring,Ring
234 92LEVA0330702 J AD Velvet Carpet,Cushion
235 92LMAG0104302 J AE Magnet
237 92LNBAND1318A J AA Nylon Band,80mm
238 92LNM0305401 J AB Velvet Carpet
239 92LPT0303002 J AB Roller
240 92LPT0304303 J AB Lever,Stop
241 92LPT0304304 J AB Stopper
242 92LPT0304305 J AE Lever,Lock
243 92LPT0304306 J AG Stabilizer
244 92LPT0304307 J AC Support,Cam
245 92LPT0304308 J AB Lock Gear Pin
246 92LPT0304309 J AB Cap,Pulley Stopper
247 92LPT0305413 J AG Cam Gear Lower
248 92LPT0309506 J AD Gear,Turntable Drive
249 92LPT0309507 J AD Gear,Open/Close Drive
250 92LPT0309508 J AD Gear,Planet
251 92LPT0309509 J AD Gear,Drive
252 92LPT0309510 J AE Gear,Pulley
253 92LPT0309511 J AD Gear,Middle
254 92LPT0311101 J AB Lever,Clamp
255 92LPT0311102 J AC Lever,Disc
256 92LPT0312005 J AL Gear,Cam
257 92LPT0320201 J AE Support,Stabilizer
258 92LPT0330301 J AU Chassie
259 92LPT0330803 J AK CD,Chassis
260 92LPT0331003 J AT Holder,Slide
262 92LSP0304303 J AB Spring,Stopper
263 92LSP0304305 J AB Spring,Lock Lever
264 92LSP0304306 J AB Spring,Lock Gear
265 KMECB0011AWZZ J BH Tape Mechanism Ass’y
266 92LMT0304302 J AB Metal Plate
267 LANGK0189AWFW J AC
Support Bracket,Sub Heat Sink B
268 92LCAUT1706A1 J AC Label,Class 3A
269 92LCAUT1706B J AA Label,Laser
271 PGIDM0029AWZZ J AC Guide,Volume
272 LCHSZ0016AWZZ J Volume Chassis
273 NPLYM0017AWZZ J AB Volume Gear
274 NGERW0012AWZZ J AD Warm Gear
275 NBLTK0036AWZZ J AC Belt,Drive
276 NGERH0093AWZZ J AE Wheel,Volume
277 LHLDZ1257AWZZ J Holder,Volume
278 LANGK0208AWFW J Bracket,PWB Support
279 PSLDM3015AWFW J AD Shield,Tape
601 XBBSD20P04000 J AA Screw,ø2×4mm
602 XJBSF30P10000 J AA Screw,ø3×10mm
603 XEBSD30P12000 J AA Screw,ø3×12mm
605 XESSD30P10000 J AA Screw,ø3×10mm
606 XHBSD26P04000 J AA Screw,ø2.6×4mm
607 XHBSD30P06000 J AA Screw,ø3×6mm
608 XJBSD30P10000 J AA Screw,ø3×10mm
609 XJBSD30P14000 J AA Screw,ø3×14mm
610 LX-HZ0009AWFD J AC Screw,Special
611 XJSSD30P10000 J AA Screw,ø3×10mm
612 LX-BZ2222AXZZ J AB Screw,Special
613 LX-HZ0082AFZZ J AA Screw,ø4×8mm
614 LX-JZ0010AFFD J AA Screw,ø3×10mm
616 92LSC0308MBZI J AB Screw,ø3×8mm
617 92LSC0308RBZI J Screw,ø3×8mm

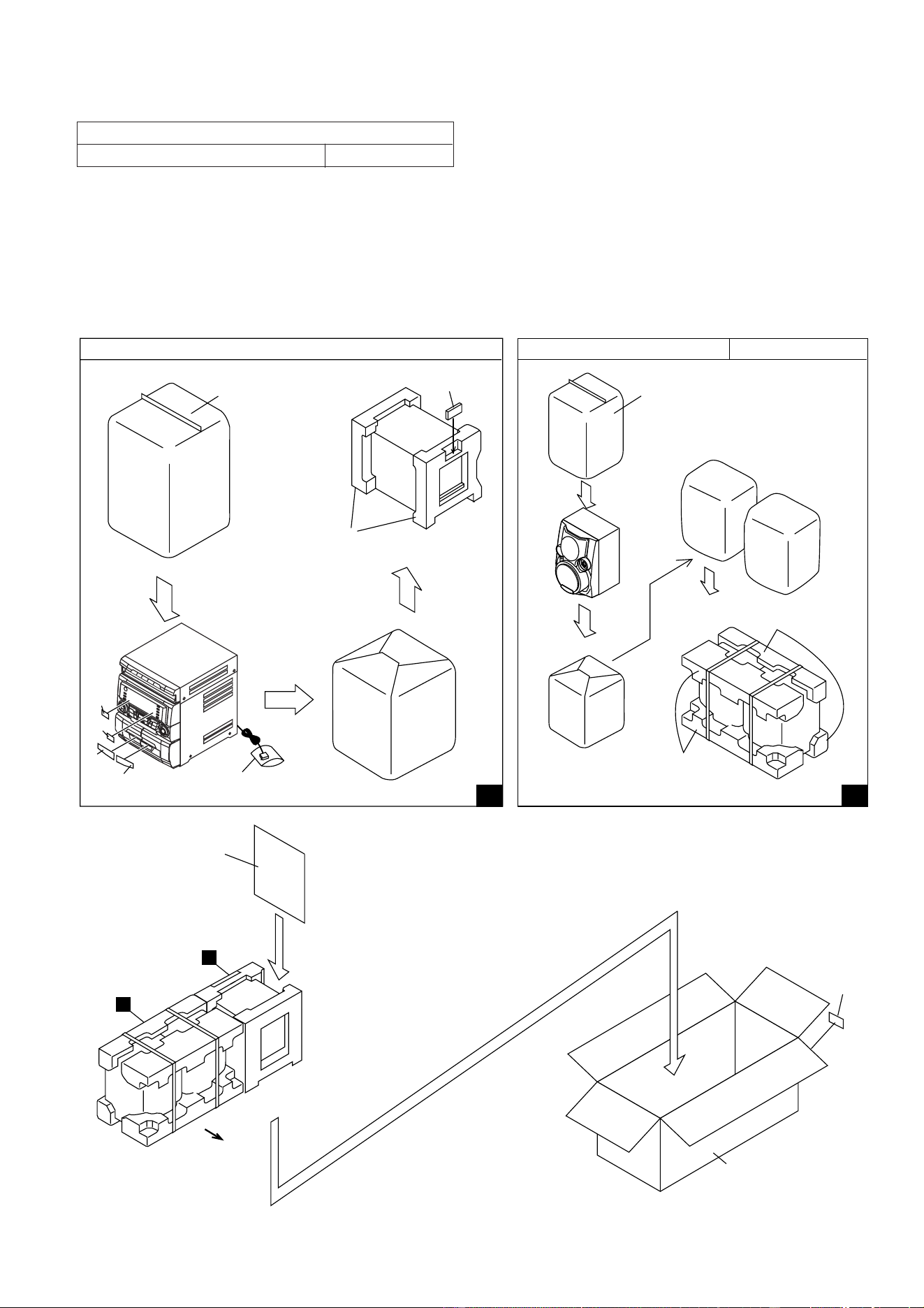

ACCESSORIES/PACKING PARTS
1 QANTL0008AWZZ J AH AM Loop Antenna
2 TGAN-3170UMZZ J AE Resistration Card [For U.K. Only]
3 TINSE0315AWZZ J AE Operation Manual [For U.K.]
3 TINSZ0573AWZZ J AP Operation Manual
[Except for U.K.]
4 TINSZ0572AWZZ J AB Quick Guide [For U.K. Only]
5 TLABE0410AWZZ J Label,Bar Code [Except for U.K.]
5 TLABE0422AWZZ J Label,Bar Code [For U.K.]
6 TLABZ0604AWZZ J AB Energy Star Label (Set)
7 TLABZ0771AWZZ J Label,Feature,Tape 1
[Except for U.K.]
7 TLABZ0785AWZZ J Label,Feature,Tape 1 [For U.K.]
8 TLABZ0772AWZZ J Label,Feature,Tape 2
9 TLABZ0605AWZZ J AB Label,Saving Energy
10 92LFANT1535A J AF FM Antenna
11 RRMCG0219AWSA J AR Remote Control
GFTAB1022AWSB J AK Battery Lid,Remote Control
12 SPAKA0255AWZZ J Packing Add.,Left/Right
13 SPAKC0884AWZZ J Packing Case [Except for U.K.]
13 SPAKC0997AWZZ J AT Packing Case [For U.K.]
14 SPAKP0013AWZZ J AC Polyethylene Bag,Unit
15 92LBAG1460C1 J AB Polyethylene Bag,Accessories
16 92LBAG1770A J AB Polyethylene Bag,AC Power
Supply Cord
P.W.B. ASSEMBLY (Not Replacement Item)
PWB-A1~4 92LPWB3344MANS J — Main/Display/Switch/Head-
phones (Combined Ass’y)
PWB-B 92LPWB3304PWRS J — Power Supply
PWB-C 92LPWB3303CDUS J — CD Servo
PWB-D QPWBF0027AWZZ J AD CD Motor (PWB Only)
PWB-E ———— — Tape Mechanism
PWB-F 92LPC99C017 J AE CD Loading Motor (PWB Only)
PWB-G 92LPWB3284RDSS J — RDS
PWB-H1,2 92LPWB3352VOLS J — Volume Motor/Jog (Combined
Ass’y)
OTHER SERVICE PART
UDSKA0004AFZZ J AZ CD Optical Pickup Lens Cleaner
Disc
– 6 –
PRICE
RANK
DESCRIPTIONNO.
PARTS CODE NO. PARTS CODE
PRICE
RANK
DESCRIPTION
CD-BA2010H

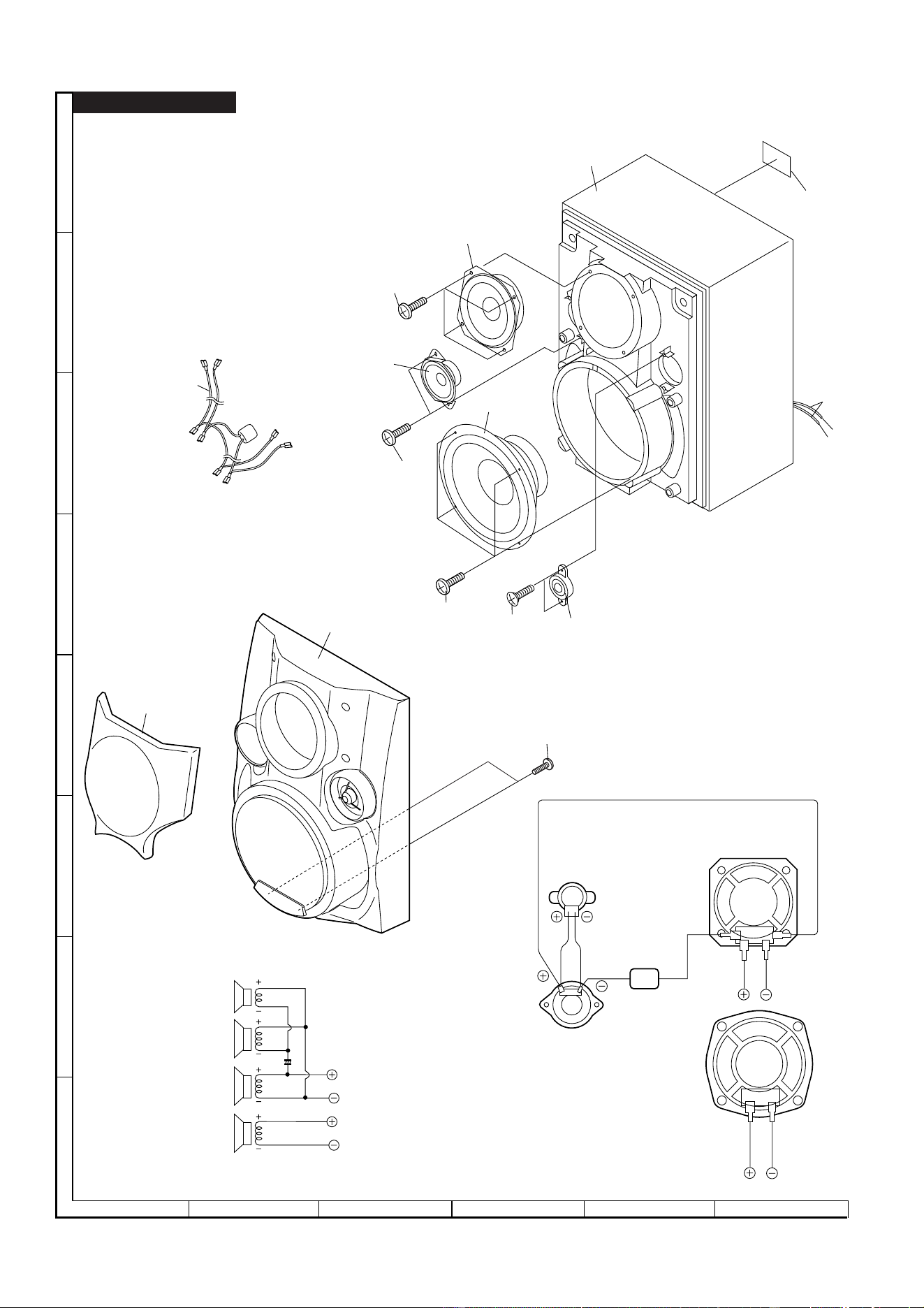

SPEAKER BOX PARTS
901 92L200L0210030 J BB Front Panel Ass’y,Left
902 92L200R0210030 J BB Front Panel Ass’y,Right
903 92L20100210010 J AM Net Frame Ass’y
904 92L100L2201010 J BH Speaker Box Ass’y,Left
(with Speaker Cord)
905 92L100R2201010 J BH Speaker Box Ass’y,Right
(with Speaker Cord)
906 92L600A2010H00 J AC Label,Specification
907 92L411B840160P J AD Screw,ø4×16mm
908 92L411B930100P J AC Screw,ø3×10mm
909 92L411F830100P J Screw,ø3×10mm
910 92L411B830120P J AB Screw,ø3×12mm
911 92L312BA210010 J
Woofer Cord Ass’y with Capacitor
912 92L3121A210010 J Subwoofer Cord
SP1,2 92L303R0300810 J AH Super Tweeter
SP3,4 VSP0051TBN36A J AQ Tweeter
SP5,6 VSPA010WB166A J AX Woofer
SP7,8 VSP0016WBF06A J BA Subwoofer
ACCESSORIES/PACKING PARTS
1 92L70032002210 J AC Polyethylene Bag,Speaker
2 92L7200A210000 J Packing Add.,Top/Bottom
CP-BA2010H
– 7 –
CD-BA2010H
A
B
C
D
E
F
G
H
1
23456
Figure 8 CD MECHANISM EXPLODED VIEW
– 8 –
CD-BA2010H
306-1
701
304
701
302
301
702
303
M1
703x2
305x2
SW4
M2
305
PWB-D
306-2
306-3
306
704
CD-BA2010H
Figure 9 CABINET EXPLODED VIEW (1/2)
A
B
C
D
E
F
G
H
1
23456
– 9 –
Note: Only tape mechanism assembly and consumable parts are supplied for replacement purposes.
CD-BA2010H
202
202-1
PWB-A1
202-2
PWB-G
PWB-A2
PWB-A4
PWB-A3
PWB-H2
275
M701
PWB-H1
201-16
201-9
201-24
201-10
201-12
201-21
214
FL701
608x2
201-21
201
207
201-1
201-2
201-4
201-6
201-7
201-5
201-3
201-22
225x2
201-23
213
237
212
229
203
203-2
203-1
201-13
201-19
201-11
201-14
201-20
201-17
201-8
614
605x2
605x5
276
614x2
614x2
277
601x2
274
603x2
608x13
613x4
611x2
608x2
271
603x2
272
273
233
267
614
607
Silicon
Grease
Silicon
Grease
211
PWB-B
278
211
231x10
226
IC901
IC902
IC802
IC801
Q823
228
607
PWB-E
218
220
222
265
208
219
221
610
606x2
605x5
606x2
610
Motor
Motor
Flywheel
Ass'y Tape2
Flywheel
Ass'y Tape1
FF/REW
Roller
Ass'y
FF/REW
Roller
ASS'Y
BELT CONNECTION
Main Belt
TAPE
MECHANISM
201-25
201-15
201-18
201-18
216
617
217
215
223
601x2
210
M901
209
608x3
227
206
279
233
608
602x4
608
608x2
609x4
608x3
with
277
CD-BA2010H
Figure 10 CABINET EXPLODED VIEW (2/2)
A
B
C
D
E
F
G
H
1
23456
– 10 –
CD-BA2010H
CD
MECHANISM
205
257
235
266
243
224
259
239
239
204-1
204-2
204
239x4
PWB-C
239
232
M3
SW3
PWB-H
603x2
603x2
SW2
SW1
254
260
242
258
263
616
245
264
245
248
253
255
252
251
269
250x4
249
256
262
241
238
247
244
268
612
246
234
240
CD-BA2010H
A
B
C
D
E
F
G
H
1
23456
Figure 11 SPEAKER EXPLODED VIEW
– 11 –
CP-BA2010H
SP7,8
SP5,6
904,905
SP1,2
SP3,4
901,902
903
907x4
909x2
910x2
C1,2
Capacitor
3.3µF,100V
C1,2
Capacitor
3.3µF,100V
Electrolytic(N.P.)
SP1,2
SUPER
TWEETER
SP3,4
TWEETER
SP5,6
WOOFER
SP7,8
SUB
WOOFER
BL
BK
RD
BK
BK
RD
YL
BK
SP1,2
SUPER
TWEETER
SP5,6
WOOFER
SP3,4
TWEETER
SP7,8
SUB
WOOFER
906
911
912
907x4
908x2
(with
Capacitor C1,2)
CD-BA2010H
PACKING METHOD (FOR U.K. ONLY)
Setting position of switches and knobs
Tape Mechanism STOP
1. AM Loop Antenna QANTL0008AWZZ
2. Resistration Card TGAN-3170UMZZ
3. Operation Manual TiNSE0315AWZZ
4. Quick Guide TiNSZ0572AWZZ
5. Label, Bar Code TLABE0422AWZZ
6. Energy Star Label TLABZ0604AWZZ
7. Feature Label, Tape1 TLABZ0785AWZZ
8. Feature Label, Tape2 TLABZ0772AWZZ
9. Label, Saving Energy TLABZ0605AWZZ
10. FM Antenna 92LFANT1535A
11. Remote Control RRMCG0219AWSA
12. Packing Add., Left/Right SPAKA0255AWZZ
13. Packing Case SPAKC0997AWZZ
14. Polyethylene Bag, Unit SPAKP0013AWZZ
15. Polyethylene Bag, Accessories 92LBAG1460C1
16. Polyethylene Bag,
AC Power Supply Cord 92LBAG1770A
17. Polyethylene Bag, Speaker 92L70032002210
18. Packing Add., Top/Bottom 92L7200A210000
– 12 –
UNIT
SIDE OF
SPEAKERS
Bottom
Bottom
TOP
A
B
A
FRONT SPEAKER CP-BA2010H
B
FRONT
Top
Top
SIDE
SIDE
SIDE
Top
SIDE
7
6
9
8
16
12
11
14 17
18
18
13
5
1,2,3,4,10,15
BACK
FRONT
CD-BA2010H
COPYRIGHT 2000 BY SHARP CORPORATION
ALL RIGHTS RESERVED.
No part of this publication may be reproduced,
stored in a retrieval system, or transmitted in
any from or by any means, electronic, mechanical,
photocopying, recording, or otherwise, without
prior written permission of the publisher.
A0005-2268DS•HA•M
SG • SK
SHARP CORPORATION
Communication Systems Group
Quality & Reliability Control Center
Higashihiroshima, Hiroshima 739-0192, Japan
Printed in Japan
©
