USER MANUAL FRENCH DOOR REFRIGERATOR

PRODUCT OVERVIEW

Product Features

The images in this guide may be different from the actual components and accessories, which are subject to change by the manufacturer without prior notice for product improvement purposes.

Exterior

1. Refrigerator

• Fresh food compartment

2. Handle

• Opens and closes the refrigerator door.

3. Freezer

• Frozen food compartment

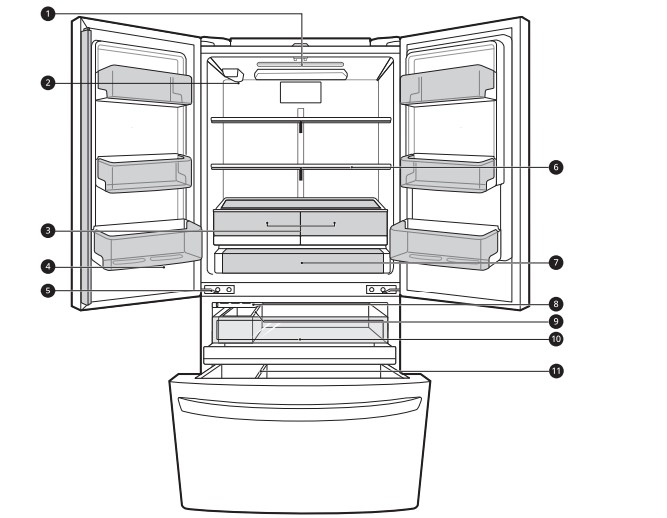

Interior

* Optional parts: not included in all models.

1. LED Interior Lighting

• Lights up the inside of the refrigerator.

2. Water Filter*

• Purifies water.
• Replace the water filter every six months. See the Replacing the Water Filter section in this manual for details.

3. Humidity Controlled Crisper

• Helps vegetables and fruit to stay crisp and controls humidity

4. Fixed Door Bin

• Store chilled food or drinks.

5. Auto-Closing Hinge

• The refrigerator doors and freezer drawers close automatically when pushed slightly. (The door only closes automatically when it is open at an angle of less than 30°.)

6. Adjustable Refrigerator Shelf

• The refrigerator shelves are adjustable to meet individual storage needs.

7. Glide'N'Serve

• Store food items at a different temperature than the regular refrigerator area.

8. Automatic Icemaker (Freezer)*

• Produces and stores ice automatically in the freezer compartment.

9. Ice Bin*

• Stores ice produced by the automatic icemaker

10. Pullout Drawer

• Provides extra storage within the freezer compartment.

11. Durabase and Durabase Divider

• Provides storage for large food items.

Product Specifications

The appearance and specifications listed in this manual may vary due to constant product improvements.

• Electrical requirements: 115 V, 60 Hz
• Min. / Max. water pressure: 20 - 120 psi (138 - 827 kPa)

INSTALLATION

Before Installing

Installation Overview

Please read the following installation instructions first after purchasing this product or transporting it to another location.

1. Unpacking the Refrigerator
2. Choosing the Proper Location
3. Disassembling/Assembling
4. Connecting the Water Line
5. Leveling and Door Alignment

Unpacking the Refrigerator

WARNING

• Use two or more people to move and install the refrigerator. Failure to do so can result in back injury or other injury.
• The refrigerator is heavy. Protect the floor when moving the refrigerator for cleaning or service. Always pull the refrigerator straight out when moving it. Do not wiggle or walk the refrigerator when trying to move it, as floor damage could occur.
• Keep flammable materials and vapors, such as gasoline, away from the refrigerator. Failure to do so can result in fire, explosion, or death.

NOTE

• Remove tape and any temporary labels from your refrigerator before using. Do not remove any warning labels, the model and serial number label, or the Tech Sheet that is located under the front of the refrigerator.
• To remove any remaining tape or glue, rub the area briskly with your thumb. Tape or glue residue can also be easily removed by rubbing a small amount of liquid dish soap over the adhesive with your fingers. Wipe with warm water and dry.
• Do not use sharp instruments, rubbing alcohol, flammable fluids, or abrasive cleaners to remove tape or glue. These products can damage the surface of your refrigerator.
• Reinstall or adjust shelves as needed. Refrigerator shelves are installed in the shipping position. Reinstall shelves according to your individual storage needs.

Choosing the Proper Location

Water

• Water supply must be easily connected for the automatic icemaker.

Electricity

• Use an individual, grounded outlet:115 Volts, 60 Hz, AC, 15 Amps minimum.

Flooring

• To avoid noise and vibration, the unit must be installed and leveled on a solidly constructed floor. If required, adjust the leveling legs to compensate for the unevenness of the floor.

Ambient Temperature

• Install this appliance in an area where the temperature is between 55 °F (13 °C) and 110 °F (43 °C).
• If the temperature around the appliance is too low or high, cooling ability may be adversely affected.

Dimensions and Clearances

• Check the dimensions of the appliance and the installation path to ensure there is sufficient room to move the refrigerator through doors or narrow openings.
• If an opening is too narrow to fit the refrigerator through, remove the refrigerator doors. See Removing/ Assembling the Doors and Drawers in this manual.
• The installation location chosen for the refrigerator should allow space behind the unit for connections and airflow and space in front to open the doors and drawers.
• Too small of a distance from adjacent items may result in lowered freezing capability and increased electricity consumption charges. Allow at least 27 inches (686 mm) in front of the refrigerator to open the doors, and at least 2 inches (51 mm) between the back of the refrigerator and the wall.

Removing/Assembling the Handles

• When moving the refrigerator through a narrow opening, removing the doors is preferred.
• The appearance of the handles may vary from what is shown.

Tools Needed

• 3/32 in. Allen wrench
• 1/8 in. Allen wrench
• 1/4 in. Allen wrench

Removing the Refrigerator Handles

1. Loosen the set screws 1 with a 3/32 in. Allen wrench and remove the handle.
2. Loosen the mounting fasteners 2 that connect to the refrigerator door and handle using a ¼ in. Allen wrench, and remove the mounting fasteners.

Assembling the Refrigerator Handles

1. Assemble the mounting fasteners 1 at both ends of the handle with a 1/4 in. Allen wrench.
2. Place the handle on the door by fitting the handle footprints over the mounting fasteners and tightening the set screws 2 with a 3/32 in. Allen wrench.

Removing the Freezer Drawer Handle

1. Loosen the set screws 1 located on the lower side of the handle with a 1/8 in. Allen wrench and remove the handle.
2. Loosen the mounting fasteners 2 with a 1/4 in. Allen wrench, and remove the mounting fasteners.

Assembling the Freezer Drawer Handle

1. Assemble the mounting fasteners 1 at both ends of the handle with a 1/4 in. Allen wrench.
2. Place the handle on the door by fitting the handle footprints over the mounting fasteners and tightening the set screws 2 with a 1/8 in. Allen wrench.

Connecting the Water Line

Before Beginning

This water line installation is not covered by the refrigerator warranty. Follow these instructions carefully to minimize the risk of expensive water damage.

If necessary, call a qualified plumber to correct water hammer before installing the water supply line to the refrigerator. Water banging in the pipes, or water hammer in residential plumbing can cause damage to refrigerator parts and lead to water leakage or flooding.

• Turn the icemaker OFF if the refrigerator will be used before the water line is connected.
• Do not install the icemaker tubing in areas where the ambient temperatures fall below freezing.

Water Pressure

You will need a cold water supply.

models with water filter

• 20 - 120 psi (138 - 827 kPa)

where reverse osmosis water filtration system is connected to a cold water supply

• 40 - 60 psi minimum to reverse osmosis system (2.8 kgf/cm2 - 4.2 kgf/ cm2, or less than 2 - 3 seconds to fill a cup of 7 oz capacity)

If the water pressure from the reverse osmosis system is less than 20 psi or 138 kPa or 1.4 kgf/ cm2 (takes more than 4 seconds to fill a cup of 7 oz or 198 cc capacity):

• Check to see if the sediment filter in the reverse osmosis system is blocked. Replace the filter if necessary.
• Allow the storage tank on the reverse osmosis system to refill after heavy usage.
• If the water pressure remains low, call a licensed, qualified plumber.
• All installations must be in accordance with local plumbing code requirements.

Supplies Needed

• Copper or PEX Tubing, ¼ in. outer diameter, to connect the refrigerator to the water supply. Be sure both ends of the tubing are cut square. To determine how much tubing you need, measure the distance from the water valve on the back of the refrigerator to the water supply pipe. Then, add 8 feet (2.4 m). Be sure there is sufficient extra tubing (about 8 feet [2.4 m] coiled into 3 turns of about 10 in. [25 cm] diameter) to allow the refrigerator to move out from the wall after installation.
• Power drill.
• ½ in. or adjustable wrench.
• Flat-blade and Phillips-head screwdrivers.
• Two ¼ in. outer diameter compression nuts and 2 ferrules (sleeves) to connect the copper tubing to the shutoff valve and the refrigerator water valve.

• If your existing copper water line has a flared fitting at the end, purchase an adapter (available at plumbing supply stores) to connect the water line to the refrigerator OR cut off the flared fitting with a tube cutter and then use a compression fitting.

• Shutoff valve to connect to the cold water line. The shutoff valve should have a water inlet with a minimum inside diameter of 5/32 in. at the point of connection to the COLD WATER LINE. Saddle-type shutoff valves are included in many water supply kits. Before purchasing, make sure a saddle-type valve complies with your local plumbing codes.

OPERATION

Control Panel

Depending on the model, some of the following functions may not be available. The actual control panel may differ from model to model.

Control Panel Features

1. Freezer

• Indicates the set temperature of the freezer compartment in Celsius (°C) or Fahrenheit (°F). The default freezer temperature is 0°F (-18 °C). Press the Freezer button repeatedly to select a new set temperature from 5 °F to -7 °F (-23 °C to -15 °C).

2. Refrigerator

• Indicates the set temperature of the refrigerator compartment in Celsius (°C) or Fahrenheit (°F). The default refrigerator temperature is 37 °F (3 °C). Press the Refrigerator button repeatedly to select a new set temperature from 43 °F to 33 °F (7 °C to 1 °C).

3. Water Filter Replace

• Replace the water filter when the Water Filter Replace indicator turns on. After replacing the water filter, press and hold the Water Filter Replace button for three seconds to turn the indicator light off. Replace the water filter approximately every six months.

4. Ice Plus

• This function increases both ice making and freezing capabilities. Press the Ice Plus button to illuminate the icon and activate the function for 24 hours. The function automatically shuts off after 24 hours. Stop the function manually by pressing the button once more.

Sabbath Mode

Using the Sabbath Mode

Sabbath mode is used on the Jewish Sabbath and holidays.

• To turn Sabbath mode on, touch the display to activate it, then press and hold the Freezer and Water Filter Replace buttons for 3 seconds until sb appears in the display.
• To turn Sabbath mode off manually, press and hold the Freezer and Water Filter Replace buttons for 3 seconds.

Automatic Icemaker

* Optional parts: not included in all models.

Freezer Icemaker

This feature is only available on some models. The feature may vary depending on model purchased.

1. Auto Shutoff (feeler arm)
2. Power Switch

Turning the Automatic Icemaker On

• To turn the automatic icemaker On/Off, press the power switch on the icemaker to the ON ( | ) or OFF (O) position.

Normal Sounds You May Hear

• Keeping the power turned on to the icemaker before the water line is connected can damage the icemaker.
• The icemaker water valve buzzes as the icemaker fills with water. If the icemaker power button is in the ON mode, it will buzz even if it has not yet been hooked up to water. To stop the buzzing, press the icemaker power button to turn it off.
• You will hear the sound of cubes dropping into the bin and water running in the pipes as the icemaker refills.

Preparing for Vacation

• Set the icemaker power button to OFF and shut off the water supply to the refrigerator.
• If the ambient temperature will drop below freezing, have a qualified technician drain the water supply system to prevent serious property damage due to flooding caused by ruptured water lines or connections.

Humidity Controlled Crispers

Using the Humidity Controlled Crispers

This feature is only available on some models.

The crispers provide fresher tasting fruit and vegetables by letting you easily control humidity inside the drawer.

You can control the amount of humidity in the moisture-sealed crispers by adjusting the control to any setting between Vegetables and Fruit.

• Vegetables keeps moist air in the crisper for best storage of fresh, leafy vegetables.
• Fruit lets moist air out of the crisper for best storage of fruit.

Removing/Assembling the Humidity Controlled Crispers

1. Pull out the crisper to full extension, lift the front up, and pull straight out.
2. Lift the front of the cover up with both hands until it detaches from the back wall of the cabinet, then pull it out.
3. To reassemble, insert the cover into the refrigerator with both hands and lower it onto the guides.
4. Slightly tilt up the front, insert the crisper into the frame and push it back into place.

MAINTENANCE

Cleaning

General Cleaning Tips

• Both the refrigerator and freezer sections defrost automatically; however, clean both sections once a month to prevent odors.
• Wipe up spills immediately.
• Unplug the refrigerator or disconnect power before cleaning.
• Remove all removable parts, such as shelves.
• Use a clean sponge or soft cloth and a mild detergent in warm water. Do not use abrasive or harsh cleaners.
• Hand wash, rinse and dry all surfaces thoroughly

Exterior

• For products with black stainless steel exterior, spray glass cleaner on a clean, microfiber cloth and rub in direction of grain. Do not spray glass cleaner directly at the display panel. Do not use harsh or abrasive cleaners.
• For products with a standard stainless steel exterior, use a damp microfiber cloth and rub in the direction of the grain. Dry with a paper towel to avoid streaks. For stubborn stains and fingerprints, use a few drops of liquid dish soap in water, and rinse with hot water before drying. Do not use abrasive or harsh cleaners.

Inside Walls

• Allow freezer to warm up so the cloth will not stick.

To help remove odors, wash the inside of the refrigerator with a mixture of baking soda and warm water. Mix 2 tablespoons of baking soda to 1 quart of water (26 g soda to 1 liter water.) Be sure the baking soda is completely dissolved so it does not scratch the surfaces of the refrigerator.

Door Liners and Gaskets

• Use a clean sponge or soft cloth and a mild detergent in warm water. Do not use cleaning waxes, concentrated etergents, bleaches, or cleaners containing petroleum on plastic refrigerator parts.

Plastic Parts (Covers and Panels)

• Use a clean sponge or soft cloth and a mild detergent in warm water. Do not use glass cleaners, abrasive cleansers, or flammable fluids. These can scratch or damage the material.

Condenser Coils

• Use a vacuum cleaner with a brush or crevice attachment to clean the condenser cover and vents. Do not remove the panel covering the condenser coil area.

TROUBLESHOOTING

FAQs

Frequently Asked Questions

Q: What are the best temperature settings for my refrigerator and freezer?

A: The default setting for the refrigerator is 37° Fahrenheit (3° Celsius). The default setting for the freezer is 0° Fahrenheit (-18° Celsius). Adjust these settings as necessary to keep food at desired temperatures. Milk should be cold when stored on the inner shelf of the refrigerator. Ice cream should be firm and ice cubes should not melt in the freezer. To switch the display from Fahrenheit to Celsius, press and hold the Freezer and Refrigerator buttons until you hear a beep and the settings in the display change.

Q: How do I set the refrigerator and freezer temperatures?

A: Continually press the Refrigerator or Freezer button on the control panel until the desired temperature appears. The numbers will cycle from highest to lowest and then return to the highest again with continuous pressing.

Q: Why do I hear a buzzing noise from my refrigerator periodically?

A: This may happen if you do not have a water source attached to your refrigerator and the icemaker is turned on. If you do not have a water source attached to the back of the refrigerator you should turn the icemaker off.

Q: Why does the icemaker tray look crooked?

A: This is a normal part of the icemaker cycle. The icemaker tray may appear level or with a slight tilt. The change in position is to assist in the freezing process.

Q: My refrigerator is powered on and the controls are working, but it’s not cooling and the display shows “OFF” (see below). What is wrong?

A: The refrigerator is in Display Mode. The Display Mode disables all cooling in the refrigerator and freezer sections to conserve energy while on display in a retail store. When activated, OFF is displayed on the control panel and the display remains on for 20 seconds. With either refrigerator door opened, press the Ice Plus button 3 times consecutively while pressing the Refrigerator button. The control panel beeps and the temperature settings display to confirm that Display Mode is deactivated. Use the same procedure to activate Display Mode.

Before Calling for Service

Review this section before calling for service; doing so will save you both time and money.

Cooling

Refrigerator and Freezer section are not cooling.

• A fuse in your home may be blown or the circuit breaker tripped. Or the appliance is connected to a GFCI (Ground Fault Circuit Interrupter) outlet, and the outlet's circuit breaker has tripped.
  • Check the main electrical box and replace the fuse or reset the circuit breaker. Do not increase fuse capacity. If the problem is a circuit overload, have it corrected by a qualified electrician.
  • Reset the circuit breaker on the GFCI. If the problem persists, contact an electrician.
• The refrigerator control is set to OFF (some models).
  • Turn the control ON. Refer to the Setting the Controls section for proper temperature settings.
• Refrigerator is set to Demo Mode.
  • Demo Mode allows the lights and control display to work normally while disabling cooling, to save energy while the refrigerator is on the showroom floor. See the FAQs section of this manual for instructions on how to disable Demo Mode.
• Refrigerator is in the defrost cycle.
  • During the defrost cycle, the temperature of each compartment may rise slightly. Wait 30 minutes and confirm the proper temperature has been restored once the defrost cycle has completed.
• Refrigerator was recently installed.
  • It may take up to 24 hours for each compartment to reach the desired temperature.
• Refrigerator was recently relocated.
  • If the refrigerator was stored for a long period of time or moved on its side, it is necessary for the refrigerator to stand upright for 24 hours before connecting it to power.

Cooling system runs too much.

• Refrigerator is replacing an older model.
  • Modern refrigerators require more operating time but use less energy due to more efficient technology.
• Refrigerator was recently plugged in or power restored.
  • The refrigerator will take up to 24 hours to cool completely
• The door is opened often or a large amount of food / hot food was added.
  • Adding food and opening the door warms the refrigerator, requiring the compressor to run longer in order to cool the refrigerator back down. In order to conserve energy, try to get everything you need out of the refrigerator at once, keep food organized so it is easy to find, and close the door as soon as the food is removed. (Refer to the Food Storage Guide.)
• Doors are not closed completely.
  • Firmly push the doors shut. If they will not shut all the way, the "Doors will not close correctly or pop open" section in Troubleshooting.
• Refrigerator is installed in a hot location.
  • The compressor will run longer under warm conditions. At normal room temperatures (70 °F or 21 °C) expect your compressor to run about 40 % to 80 % of the time. Under warmer conditions, expect it to run even more often. The refrigerator should not be operated above 110 °F (43 °C).
• Condenser / back cover is clogged.
  • Use a vacuum cleaner with an attachment to clean the condenser cover and vents. Do not remove the panel covering the condenser coil area.

Interior moisture buildup

• Doors are opened often or for long periods of time.
  • When the doors are opened often or for long periods of time, warm, humid air enters the compartment. This raises the temperature and moisture level within the compartment. To lessen the effect, reduce the frequency and duration of door openings.
• Doors are not closed correctly.
  • See the "Doors will not close correctly or pop open" section
• Weather is humid.
  • Humid weather allows additional moisture to enter the compartments when the doors are opened leading to condensation or frost. Maintaining a reasonable level of humidity in the home will help to control the amount of moisture that can enter the compartments.
• Defrost cycle recently completed.
  • During the defrost cycle, the temperature of each compartment may rise slightly and condensation may form on the back wall. Wait 30 minutes and confirm that the proper temperature has been restored once the defrost cycle has completed.
• Food is not packaged correctly.
  • Food stored uncovered or unwrapped, and damp containers can lead to moisture accumulation within each compartment. Wipe all containers dry and store food in sealed packaging to prevent condensation and frost.

Food is freezing in the refrigerator compartment.

• Food with high water content was placed near an air vent.
  • Rearrange items with high water content away from air vents.
• Refrigerator temperature control is set incorrectly.
  • If the temperature is too cold, adjust the control one increment at a time and wait for the temperature to stabilize. Refer to the Control Panel section for more information.
• Refrigerator is installed in a cold location.
  • When the refrigerator is operated in temperature below 41 °F (5 °C), food can freeze in the refrigerator compartment. The refrigerator should not be operated in temperature below 55 °F (13 °C).

Refrigerator or Freezer section is too warm.

• Refrigerator was recently installed.
  • It may take up to 24 hours for each compartment to reach the desired temperature.
• The air vents are blocked. Cold air circulates from the freezer to the fresh food section and back again through air vents in the wall dividing the two sections.
  • Locate air vents by using your hand to sense airflow and move all packages that block vents and restrict airflow. Rearrange items to allow air to flow throughout the compartment.
• Doors are opened often or for long periods of time.
  • When the doors are opened often or for long periods of time, warm, humid air enters the compartment. This raises the temperature and moisture level within the compartment. To lessen the effect, reduce the frequency and duration of door openings.
• Unit is installed in a hot location.
  • The refrigerator should not be operated in temperatures above 110 °F (43 °C).
• A large amount of food or hot food was added to either compartment.
  • Adding food warms the compartment requiring the cooling system to run. Allowing hot food to cool to room temperature before putting it in the refrigerator will reduce this effect.
• Doors are not closed correctly.
  • See the "Doors will not close correctly or pop open" section in the Troubleshooting.
• Temperature control is not set correctly.
  • If the temperature is too warm, adjust the control one increment at a time and wait for the temperature to stabilize.
• Defrost cycle has recently completed.
  • During the defrost cycle, the temperature of each compartment may rise slightly and condensation may form on the back wall. Wait 30 minutes and confirm the proper temperature has been restored once the defrost cycle has completed.

Refrigerator or Freezer section is too cold.

• Incorrect temperature control settings.
  • If the temperature is too cold, adjust the control one increment at a time and wait for the temperature to stabilize. Refer to the Control Panel for more information.

Frost or ice crystals form on frozen food (inside of sealed package).

• Condensation from food with a high water content has frozen inside of the food package.
  • This is normal for food items with a high water content.
• Food has been left in the freezer for a long period of time.
  • Do not store food items with high water content in the freezer for a long period of time.

Frost or ice crystals form on frozen food (outside of package).

• Door is opened frequently or for long periods of time.
  • When the doors are opened often or for long periods of time, warm, humid air enters the compartment. This raises the temperature and moisture level within the compartment. Increased moisture will lead to frost and condensation. To lessen the effect, reduce the frequency and duration of door openings.
• Door is not closing properly.
  • Refer to the "Doors will not close correctly or pop open" section in the Troubleshooting.

Ice & Water

Icemaker is not making enough ice.

• Demand exceeds ice storage capacity.
  • The icemaker will produce approximately 70-184 cubes in a 24 hour period.
• House water supply is not connected, valve is not turned on fully, or valve is clogged.
  • Connect the refrigerator to a cold water supply with adequate pressure and turn the water shutoff valve fully open. If the problem persists, it may be necessary to contact a plumber.
• Water filter has been exhausted.
  • Replacing the water filter is recommended: Approximately every six months. When the water filter indicator turns on. When the water dispenser output decreases. When the ice cubes are smaller than normal.
• Low house water supply pressure.
  • The water pressure must be between 20 and 120 psi on models without a water filter and between 40 and 120 psi on models with a water filter. If the problem persists, it may be necessary to contact a plumber.
• Reverse osmosis filtration system is used.
  • Reverse osmosis filtration systems can reduce the water pressure below the minimum amount and result in icemaker issues. (Refer to the Connecting the Water Line section.)
• Tubing connecting refrigerator to house supply valve is kinked.
  • The tubing can kink when the refrigerator is moved during installation or cleaning resulting in reduced water flow. Straighten or repair the water supply line and arrange it to prevent future kinks.
• Doors are opened often or for long periods of time.
  • If the doors of the unit are opened often, ambient air will warm the refrigerator which will prevent the unit from maintaining the set temperature. Lowering the refrigerator temperature can help, as well as not opening the doors as frequently.
• Doors are not closed completely.
  • If the doors are not properly closed, ice production will be affected. See the "Doors will not close correctly or pop open" section in Parts & Features Troubleshooting for more information.
• The temperature setting for the freezer is too warm.
  • The recommended temperature for the freezer compartment for normal ice production is 0°F. If the freezer temperature is warmer, ice production will be affected.

Icemaker is not making ice

• Refrigerator was recently installed or icemaker recently connected.
  • It may take up to 24 hours for each compartment to reach the desired temperature and for the icemaker to begin making ice.
• Icemaker is not turned on.
  • Locate the icemaker ON/OFF and confirm that it is turned on.
• The ice detecting sensor is obstructed.
  • Foreign substances or frost on the ice-detecting sensor can interrupt ice production. Make sure that the sensor area is clean at all times for proper operation.
• The refrigerator is not connected to a water supply or the supply shutoff valve is not turned on.
  • Connect the refrigerator to the water supply and turn the water shutoff valve fully open
• Icemaker shutoff (arm or sensor) obstructed.
  • If your icemaker is equipped with an ice shutoff arm, make sure that the arm moves freely. If your icemaker is equipped with the electronic ice shutoff sensor, make sure that there is a clear path between the two sensors.
• Reverse osmosis water filtration system is connected to your cold water supply.
  • Reverse osmosis filtration systems can reduce the water pressure below the minimum amount and result in icemaker issues. (Refer to the Connecting the Water Line section.)

Ice has bad taste or odor.

• Water supply contains minerals such as sulfur.
  • A water filter may need to be installed to eliminate taste and odor problems. NOTE: In some cases, a filter may not help. It may not be possible to remove all minerals/odor/taste in all water supplies.
• Icemaker was recently installed.
  • Ice that has been stored for too long will shrink, become cloudy, and may develop a stale taste. Throw away old ice and make a new supply.
• The food has not been stored properly in either compartment.
  • Rewrap the food. Odors may migrate to the ice if food is not wrapped properly.
• The interior of the refrigerator needs to be cleaned.
  • See the Maintenance section for more information.
• The ice storage bin needs to be cleaned.
  • Empty and wash the bin (discard old cubes). Make sure that the bin is completely dry before reinstalling it

Icemaker is making too much ice.

• Icemaker shutoff (arm/ sensor) is obstructed.
  • Empty the ice bin. If your icemaker is equipped with an ice shutoff arm, make sure that the arm moves freely. If your icemaker is equipped with the electronic ice shutoff sensor, make sure that there is a clear path between the two sensors. Reinstall the ice bin and wait 24 hours to confirm proper operation.

Ice is not dispensing

• Unable to hear the sound of ice coming out?
  • In the control panel, select the modes for cubed ice and crushed ice alternately to dispense the ice.
• Doors are not closed completely.
  • Ice will not dispense if any of the refrigerator doors are left open.
• Infrequent use of the dispenser.
  • Infrequent use of the ice dispenser will cause the cubes to stick together over time, which will prevent them from properly dispensing. Check the ice bin for ice cubes clumping/ sticking together. If they are, break up the ice cubes to allow for proper operation.
• The delivery chute is clogged with frost or ice fragments.
  • Eliminate the frost or ice fragments by removing the ice bin and clearing the chute with a plastic utensil. Dispensing cubed ice can also help prevent frost or ice fragment buildup
• The dispenser display is locked.
  • Press and hold the Lock button for three seconds to unlock the control panel and dispenser.
• Ice bin is empty.
  • It may take up to 24 hours for each compartment to reach the desired temperature and for the icemaker to begin making ice. Make sure that the shutoff (arm/sensor) is not obstructed. Once the ice supply in the bin has been completely exhausted, it may take up to 90 minutes before additional ice is available, and approximately 24 hours to completely refill the bin.

Water is dispensing slowly.

• Water filter has been exhausted.
  • Replacing the water filter is recommended: Approximately every six months. When the water filter indicator turns on. When the water dispenser output decreases. When the ice cubes are smaller than normal.
• Reverse osmosis filtration system is used.
  • Reverse osmosis filtration systems can reduce the water pressure below the minimum amount and result in icemaker issues. If the problem persists, it may be necessary to contact a plumber.
• Low house water supply pressure.
  • The water pressure must be between 20 and 120 psi on models without a water filter and between 40 and 120 psi on models with a water filter. If the problem persists, it may be necessary to contact a plumber.

Water is not dispensing.

• New installation or water line recently connected.
  • Dispense 2.5 gallons of water (flush for approximately 5 minutes) to remove trapped air and contaminants from the system. Do not dispense the entire 2.5 gallon amount continuously. Depress and release the dispenser pad for cycles of 30 seconds ON and 60 seconds OFF.
• The dispenser panel is locked.
  • Press and hold the Lock button for three seconds to unlock the control panel and dispenser.
• The dispenser is not set for water dispensing.
  • The dispenser can be set for ice or water. Make certain that the control panel is set for the proper operation. Press the Water button on the control panel to dispense water.
• Refrigerator or freezer doors are not closed properly.
  • Water will not dispense if any of the refrigerator doors are left open.
• Water filter has been recently removed or replaced.
  • After the water filter is replaced, dispense 2.5 gallons of water (flush for approximately five minutes) to remove trapped air and contaminants from the system. Do not dispense the entire 2.5 gallon amount continuously. Depress and release the dispenser pad for cycles of 30 seconds ON and 60 seconds OFF.
• Tubing connecting refrigerator to house supply valve is kinked.
  • The tubing can kink when the refrigerator is moved during installation or cleaning. Resulting in reduced water flow. Straighten or repair the water supply line and arrange it to prevent future kinks.
• The house water supply is not connected, the valve is not turned on fully, or the valve is clogged.
  • Connect the refrigerator to the water supply and turn the water shutoff valve fully open. If the problem persists, it may be necessary to contact a plumber

Dispensing warm water.

• Refrigerator was recently installed.
  • Allow 24 hours after installation for the water storage tank to cool completely.
• The water dispenser has been used recently and the storage tank was exhausted.
  • Depending on your specific model, the water storage capacity will range from approximately 20 to 30 oz.
• Dispenser has not been used for several hours.
  • If the dispenser has not been used for several hours, the first glass dispensed may be warm. Discard the first 10oz.
• Refrigerator is connected to the hot water supply.
  • Make sure that the refrigerator is connected to a cold water pipe.

WARNING: Connecting the refrigerator to a hot water line may damage the icemaker.

Water has bad taste or odor.

• Water supply contains minerals such as sulfur.
  • A water filter may need to be installed to eliminate taste and odor problems
• Water filter has been exhausted.
  • Replacing the water filter is recommended: Approximately every six months. When the water filter indicator turns on. When the water dispenser output decreases. When the ice cubes are smaller than normal.
• Refrigerator was recently installed.
  • Dispense 2.5 gallons of water (flush for approximately 5 minutes) to remove trapped air and contaminants from the system. Do not dispense the entire 2.5 gallon amount continuously. Depress and release the dispenser pad for cycles of 30 seconds ON and 60 seconds OFF.

Parts & Features

Doors will not close correctly or pop open

• Food packages are blocking the door open.
  • Rearrange food containers to clear the door and door shelves.
• Ice bin, crisper cover, pans, shelves, door bins, or baskets are out of position.
  • Push bins all the way in and put crisper cover, pans, shelves and baskets into their correct positions. See the Operation section for more information.
• The doors were removed during product installation and not properly replaced.
  • Remove and replace the doors according to the Removing and Replacing Refrigerator Handles and Doors section.
• Refrigerator is not leveled properly.
  • See Door Alignment in the Refrigeration Installation section to level refrigerator.

Doors are difficult to open

• The gaskets are dirty or sticky.
  • Clean the gaskets and the surfaces that they touch. Rub a thin coat of appliance polish or kitchen wax on the gaskets after cleaning
• Door was recently closed.
  • When you open the door, warmer air enters the refrigerator. As the warm air cools, it can create a vacuum. If the door is hard to open, wait one minute to allow the air pressure to equalize, then see if it opens more easily.

Refrigerator wobbles or seems unstable

• Leveling legs are not adjusted properly.
  • Refer to the Leveling and Door Alignment section.
• Floor is not level.
  • It may be necessary to add shims under the leveling legs or rollers to complete installation

Lights do not work.

• LED interior lighting failure.
  • The refrigerator compartment lamp is LED interior lighting, and service should be performed by a qualified technician.

Refrigerator has an unusual odor.

• The Air Filter may need to be set to the MAX setting or replaced.
  • Set the Air Filter to the MAX setting. If the odor does not go away within 24 hours, the filter may need to be replaced. See the Replacing the Air Filter section for replacement instructions.

The interior of the refrigerator is covered with dust or soot.

• The refrigerator is located near a fire source, such as a fireplace, chimney, or candle.
  • Make sure that the refrigerator is not located near a fire source, such as a fireplace, chimney or candle.

Noises

Clicking

• The defrost control will click when the automatic defrost cycle begins and ends. The thermostat control (or refrigerator control on some models) will also click when cycling on and off.
  • Normal Operation

Rattling

• Rattling noises may come from the flow of refrigerant, the water line on the back of the unit, or items stored on top of or around the refrigerator.
  • Normal Operation
• Refrigerator is not resting solidly on the floor.
  • Floor is weak or uneven or leveling legs need to be adjusted. See the Leveling and Door Alignment section.
• Refrigerator with linear compressor was jarred while running.
  • Normal Operation

Whooshing

• Evaporator fan motor is circulating air through the refrigerator and freezer compartments.
  • Normal Operation
• Air is being forced over the condenser by the condenser fan.
  • Normal Operation

Gurgling

• Refrigerant flowing through the cooling system.
  • Normal Operation

Popping

• Contraction and expansion of the inside walls due to changes in temperature.
  • Normal Operation

Sizzling

• Water dripping on the defrost heater during a defrost cycle.
  • Normal Operation

Vibrating

• If the side or back of the refrigerator is touching a cabinet or wall, some of the normal vibrations may make an audible sound.
  • To eliminate the noise, make sure that the sides and back cannot vibrate against any wall or cabinet.

Dripping

• Water running into the drain pan during the defrost cycle
  • Normal Operation

Pulsating or highpitched sound

• Your refrigerator is designed to run more efficiently to keep your food items at the desired temperature. The high efficiency compressor may cause your new refrigerator to run longer than your old one, but it is still more energy efficient than previous models. While the refrigerator is running, it is normal to hear a pulsating or highpitched sound.
  • Normal Operation

See other models: LRONC0705V LRBNC1104S WT7060CW WM4200HWA WM3600HVA
