8
2x20V 21inch Cordless Brush-
less Self-Propelled Lawn Mower
EN
TABLE OF CONTENTS
1. SAFETY INSTRUCTIONS
2. COMPONENT LIST
3. TECHNICAL DATA
4. INTENDED USE
5. ASSEMBLY & OPERATION
6. MAINTENANCE
7. STORAGE
8. TROUBLESHOOTING
1. SAFETY INSTRUCTIONS
WARNING: Some dust created by power
sanding, sawing, grinding, drilling and other
construction activities contains chemicals known
to the state of California to cause cancer, birth
defects or other reproductive harm. Some
examples of these chemicals are:
• Lead from lead-based paints;
• Crystalline silica from bricks and cement and
other masonry products ;
• Arsenic and chromium from chemically-
treated lumber.
Your risk from these exposures varies, depending
on how often you do this type of work. To reduce
your exposure to these chemical: work in a well
ventilated area, and work with approved safety
equipment, such as those dust masks that are
specially designed to lter out microscopic
particles.
WARNING: This product can expose you to
chemicals including lead and Di(2-
ethylhexyl)phthalate (DEHP) which are known to
the State of California to cause cancer and birth
defects or other reproductive harm. For more
information go to www.P65Warnings.ca.gov.
READ ALL INSTRUCTIONS
WARNING: When using electric lawn mowers,
basic safety precautions should always be
followed to reduce the risk of re, electric shock,
and personal injury, including the following:
WARNING: Risk of injury could occur if the
lawn mower is operated without the catcher
assembly attached.
WARNING: The use of any other accessory or
attachment might increase the risk of injury
CAUTION: For battery-operated lawn mowers,
use only identical replacement batteries and
specifying the battery type and manufacturer.
FOR ALL LAWN MOWERS
1) Avoid Dangerous Environment - Don’t use lawn
mowers in damp or wet locations.
2) Don’t Use In Rain.
3) Keep Children Away - All visitors should be kept
a safe distance from work area.
4) Dress Properly - Do not wear loose clothing
or jewelry. They can be caught in moving
parts. Use of rubber gloves and footwear is
recommended when working outdoors.
5) Use Safety Glasses - Always use face or dust
mask if operation is dusty.
6) Use Right Appliance - Do not use lawn mower
for any job except that for which it is intended.
7) Don’t Force Lawn Mower - It will do the job
better and safer at the rate for which it was
designed.
8) Don’t Overreach - Keep proper footing and
balance at all times.
9) Stay Alert - Watch what you are doing. Use
common sense. Do not operate lawn mower
when you are tired.
10) Store Idle Lawn Mower Indoors - When not
in use, lawn mower should be stored in an
indoor dry and locked-up place - out of reach of
children.
11) Maintain Lawn Mower With Care - Keep cutting
edges sharp and clean for best and safest
performance. Follow instructions for lubricating
and changing accessories. Keep handles dry,
clean, and free from oil and grease.
12) Keep guards in place and in working order.
13) Keep blades sharp.
14) Keep hands and feet away from cutting area.
15) Objects struck by the lawn mower blade can
cause severe injuries to persons. The lawn
should always be carefully examined and
cleared of all objects prior to each mowing.
16) If lawn mower strikes a foreign object, follow
these steps:
i) Stop lawn mower. Release the switch.
ii) Remove battery pack.
iii) Inspect for damage.
iv) Repair any damage before restarting and
operating the lawn mower.
17) Use identical replacement blades only.
FOR ALL BATTERY – OPERATED GARDENING
PRODUCTS:
1. Prevent unintentional starting. Ensure the
switch is in the off-position before connecting
to battery pack, picking up or carrying the
product. Carrying the product with your nger
on the switch or energizing product that have
the switch on invites accidents.
2. Disconnect the battery pack from the product
before making any adjustments, changing
accessories, or storing product. Such
preventive safety measures reduce the risk of
starting the product accidentally.
3. Recharge only with the charger specied by the
manufacturer .A charger that is suitable for one
9
2x20V 21inch Cordless Brush-
less Self-Propelled Lawn Mower
EN
type of battery pack may create a risk of re
when used with another battery pack.
4. Use products only with specically designated
battery packs. Use of any other battery packs
may create a risk of injury and re.
5. When battery pack is not in use, keep it away
from other metal objects, like paper clips, coins,
keys, nails, screws or other small metal objects,
that can make a connection from one terminal
to another. Shorting the battery terminals
together may cause burns or a re.
6. Under abusive conditions, liquid may be ejected
from the battery; avoid contact. If contact
accidentally occurs, ush with water. If liquid
contacts eyes, additionally seek medical help.
Liquid ejected from the battery may cause
irritation or burns.
7. Do not use a battery pack or product that is
damaged or modied. Damaged or modied
batteries may exhibit unpredictable behavior
resulting in re, explosion or risk of injury.
8. Do not expose a battery pack or product to re
or excessive temperature. Exposure to re or
temperature above 130°C( 265°F) may cause
explosion.
9. Follow all charging instructions and do not
charge the battery pack or product outside
of the temperature range specied in the
instructions. Charging improperly or at
temperatures outside of the specied range
may damage the battery and increase the risk
of re.
10. Have servicing performed by a qualied repair
person using only identical replacement parts.
This will ensure that the safety of the product is
maintained.
11. Do not modify or attempt to repair the product
or the battery pack (as applicable) except as
indicated in the instructions for use and care.
SAFETY WARNINGS FOR
BATTERY PACK
a) Do not dismantle, open or shred battery pack.
b) Do not expose battery pack to heat or re.
Avoid storage in direct sunlight.
c) Do not short-circuit a battery pack. Do not
store battery packs haphazardly in a box or
drawer where they may short-circuit each
other or be short-circuited by other metal
objects. When battery pack is not in use, keep
it away from other metal objects, like paper
clips, coins, keys, nails, screws or other small
metal objects, that can make a connection from
one terminal to another. Shorting the battery
terminals together may cause burns or re.
d) Do not subject battery pack to mechanical
shock.
e) In the event of battery leaking, do not allow
the liquid to come in contact with the skin
or eyes. If contact has been made, wash the
affected area with copious amounts of water
and seek medical advice.
f) Do not use any battery pack which is not
designed for use with the equipment.
g) Keep battery pack out of the reach of children.
h) Always purchase the battery pack
recommended by the device manufacturer for
the equipment.
i) Keep battery pack clean and dry.
j) Wipe the battery pack terminals with a clean
dry cloth if they become dirty.
k) Battery pack needs to be charged before use.
Always use the correct charger and refer to
the manufacturer’s instructions or equipment
manual for proper charging instructions.
l) Do not leave battery pack on prolonged charge
when not in use.
m) After extended periods of storage, it may
be necessary to charge and discharge the
battery pack several times to obtain maximum
performance.
n) Recharge only with the charger specied by
WorxNITRO. Do not use any charger other
than that specically provided for use with the
equipment.
o) Retain the original product literature for future
reference.
p) Use only the battery pack in the application for
which it was intended.
q) Remove the battery pack from the equipment
when not in use.
r) Dispose of properly.
s) Do not mix cells of different manufacture,
capacity, size or type within a device.
t) Keep the battery away from microwaves and
high pressure.
Safety instructions for walk-behind mowers
IMPORTANT
Safe Practices for Walk-Behind Mowers
I. GENERAL OPERATION
1. Read, understand, and follow all instructions
on the machine and in the manual(s) before
starting.
2. Do not put hands or feet near or under the
machine. Keep clear of the discharge opening
at all times.
3. Only allow responsible adults, who are familiar
with the instructions, to operate this machine.
4. Clear the area of objects such as rocks, wire,
toys, etc., which could be thrown by the blade.
Stay behind the handle when the motor is
running.
5. Be sure the area is clear of bystanders before
operating. Stop machine if anyone enters the
10
2x20V 21inch Cordless Brush-
less Self-Propelled Lawn Mower
EN
area.
6. Do not operate machine barefooted or while
wearing sandals. Always wear substantial
footwear.
7. Do not pull machine backward unless
absolutely necessary. Always look down and
behind before and while moving backward.
8. Never direct discharged material toward
anyone. Avoid discharging material against
a wall or obstruction. Material may ricochet
back toward the operator. Stop the blade when
crossing gravel surfaces.
9. Do not operate machine without the entire
grass catcher, discharge guard, rear guard, or
other safety protective devices in place and
working.
10. Never leave a running machine unattended.
11. Stop the motor and wait until the blade
comes to a complete stop before cleaning
the machine, removing grass catcher, or
unclogging the discharge guard.
12. Operate machine only in daylight or good
articial light.
13. Do not operate machine while under the
inuence of alcohol or drugs.
14. Never operate mower in wet grass. Always be
sure of your footing; walk; never run.
15. Disengage the drive system, if so equipped,
before starting the motor.
16. If the machine should start to vibrate
abnormally, stop the motor and check for the
cause immediately. Vibration is generally a
warning of trouble.
17. Always wear eye protection when operating
machine.
18. See manufacturer’s instructions for proper
operation and installation of accessories. Only
use accessories approved by the manufacturer.
II. SLOPE OPERATION
Slopes are a major factor related to slip and
fall accidents, which can result in severe injury.
Operation on all slopes requires extra caution. If you
feel uneasy on a slope, do not mow it.
1. Mow across the face of slopes; never up and
down. Exercise extreme caution when changing
direction on slopes.
2. Watch for holes, ruts, bumps, rocks, or other
hidden objects. Uneven terrain could cause
a slip and fall accident. Tall grass can hide
obstacles.
3. Do not mow on wet grass or excessively steep
slopes. Poor footing could cause a slip and fall
accident.
4. Do not mow near drop-offs, ditches, or
embankments. You could lose your footing or
balance.
III. CHILDREN
Tragic accidents can occur if the operator is not
alert to the presence of children. Children are often
attracted to the machine and the mowing activity.
Never assume that children will remain where you
last saw them.
1. Keep children out of the mowing area and
under the watchful care of a responsible adult
other than the operator.
2. Be alert and turn mower off if a child enters the
area.
3. Never allow children to operate the machine.
4. Use extra care when approaching blind corners,
shrubs, trees, or other objects that may block
your view of a child.
IV. SERVICE
GENERAL SERVICE
1. Keep all nuts and bolts tight to be sure the
equipment is in safe working condition.
2. Never tamper with safety devices. Check their
proper operation regularly.
3. Keep machine free of grass, leaves, or other
debris build-up.
4. If you strike a foreign object, stop and inspect
the machine. Repair, if necessary, before
starting.
5. Never make any adjustments or repairs with the
motor running.
6. Always unplug electric mowers before
adjusting, cleaning, or repairing.
7. Check grass catcher components and the
discharge guard frequently and replace with
manufacturer’s recommended parts, when
necessary.
8. Mower blades are sharp. Wrap the blade or
wear gloves, and use extra caution when
servicing them.
9. Maintain or replace safety and instruction
labels, as necessary.
Safe operation practices for walk-behind mowers
1. Safety Instructions
1.1 Training
a) Read the operating and service instruction
manual carefully. Be thoroughly familiar
with the controls and the proper use of the
equipment.
b) Never allow children to operate a power mower.
c) Keep the area of operation clear of all persons,
particularly small children, and pets.
d) Do not use a mower for any job except that for
which it is intended.
1.2 Preparation
a) Thoroughly inspect the area where the
equipment is to be used and remove all stones,
sticks, wires, bones, and other foreign objects.
b) Do not operate the equipment when barefoot
or wearing sandals. Always wear substantial
11
2x20V 21inch Cordless Brush-
less Self-Propelled Lawn Mower
EN
footwear.
c) Disengage the self-propelled mechanism
or drive clutch on units so equipped before
starting the motor.
d) Never attempt to make a wheel height
adjustment while the motor is running.
e) Mow only in daylight or in good articial light.
f) Never operate the equipment on wet grass.
Always be sure of your footing. Keep a rm
hold on the handle and walk, never run.
1.3 Operation
a) Do not put hands or feet near or under rotating
parts. Keep clear of the discharge opening at all
times.
b) Stop the blade(s) when crossing gravel drives,
walks, or roads.
c) After striking a foreign object, stop the motor,
unplug, thoroughly inspect the mower for
any damage, and repair the damage before
restarting and operating the mower.
d) If the equipment should start to vibrate
abnormally, stop the motor and check
immediately for the cause. Vibration is
generally a warning of trouble.
e) Stop the motor and unplug whenever you leave
the equipment, before cleaning the mower
housing, and before making any repairs or
inspections.
f) Shut the motor off and wait until the blade
comes to a complete stop before removing the
grass catcher or before unclogging the chute.
g) Mow across the face of slopes, never up and
down. Exercise extreme caution when changing
direction on slopes. Do not mow excessively
steep slopes.
h) Never operate the mower without proper
guards, plates, or other safety protective
devices in place.
i) Do not wash with a hose, avoid getting water in
motor and electrical connections.
1.4 Maintenance
a) Check the blade and the motor mounting bolts
at frequent intervals for proper tightness.
b) Keep al nuts, bolts, and screws tight to be sure
the equipment is in safe working condition.
c) Check bag frequently for deterioration and
wear, and replace worn bags. Check that
replacement bags comply with the original
manufacturer’s recommendations or
specications.
d) Replace the blade if it is bent or cracked. An
unbalanced blade causes vibration that could
damage the motor drive unit or cause personal
injury.
e) Sharpen a dull blade equally at each end to
maintain the balance.
f) Clear the blade thoroughly and check its
balance by supporting it horizontally on a thin
nail through its centre hole. The mail should
also be in a horizontal position. If either end
of the blade rotates downward, remove some
metal from the heavy or lower end until the
blade is balanced. It is balanced when neither
end drops.
SAVE THESE INSTRUCTIONS
SYMBOLS
KEEP HANDS AND FEET
AWAY
GARDER MAINS ET PIEDS À DISTANCE
CPSC Danger label
Severing of toes or ngers-Rotary
mower blade
Thrown objects from mower deck
Keep bystanders/children away
Safety alert
Slip on slope
Read the operator’s manual
Blade continues to rotate after the
machine is switched off. Wait until all
machine components have completely
stopped before touching them.
Wear protective gloves
Li-I on
Li-Ion battery, battery must be
recycled.
12
2x20V 21inch Cordless Brush-
less Self-Propelled Lawn Mower
EN
Remove battery from the socket before
carrying out any adjustment, servicing
or maintenance.
Batteries may enter water cycle if
disposed improperly, which can be
hazardous for ecosystem. Do not
dispose of waste batteries as unsorted
municipal waste.
Do not burn.
To reduce the risk of injury, user must
read instruction manual
Look behind while backing
POSITEC Inc. has established a partnership with
the RBRC Corporation to recycle any Positec
batteries with the RBRC-call2recycle seal. For
environmental protection, please do not discard
batteries in the trash. After the batteries’ life
cycle is ended, then please call 1.800-822-8837
for a free service that will properly dispose of the
battery.
2. COMPONENT LIST

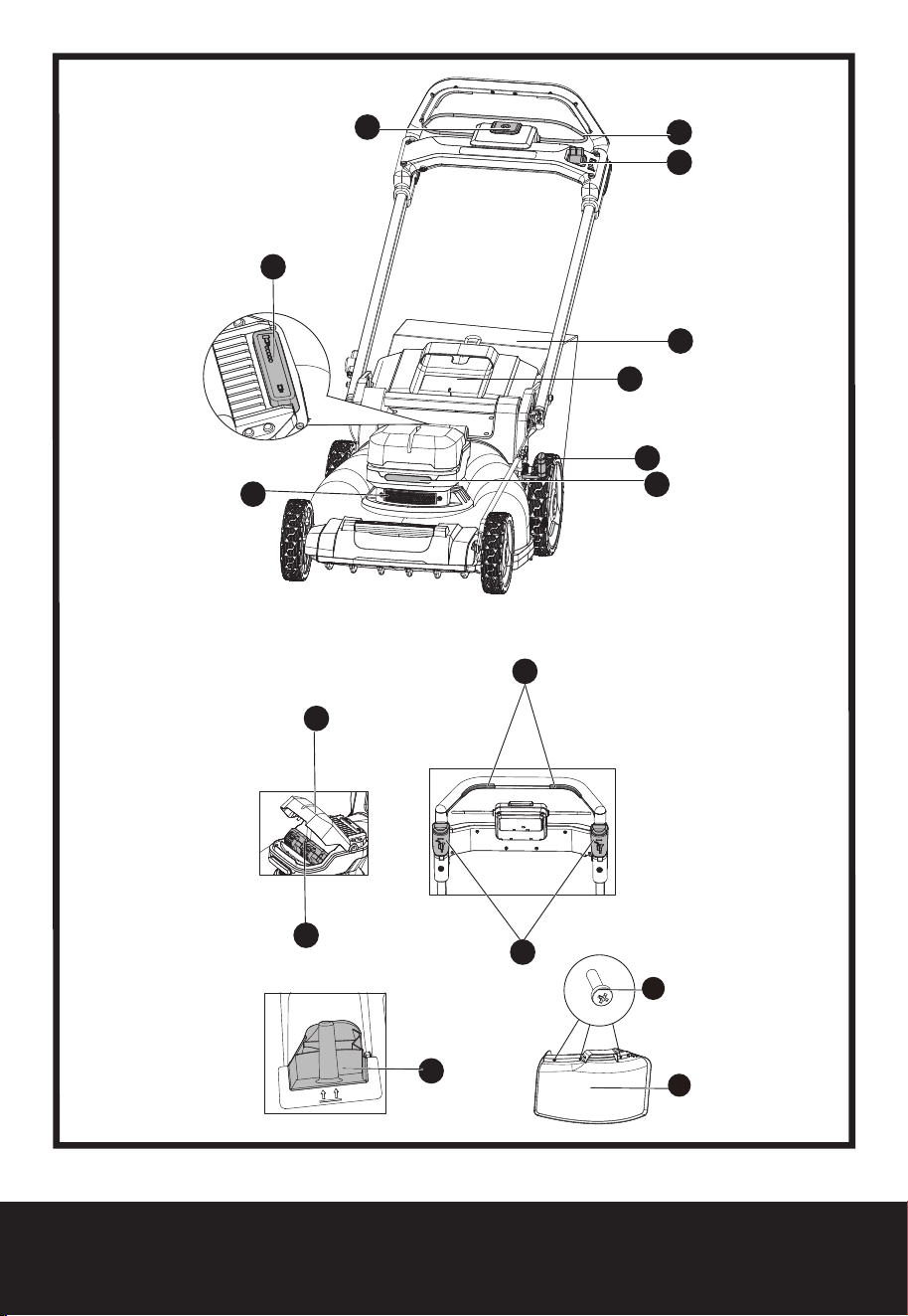

1. OPERATING BAIL
2. SAFETY BUTTON
3. SELF-PROPEL SPEED CONTROL
4. GRASS COLLECTION BAG
5. SAFETY FLAP
6.
CUTTING HEIGHT ADJUSTMENT
LEVER
7. LED HEADLIGHT
8. BATTERY POWER INDICATOR
9.
INTAKE HOOD
10. BATTERY PACK COVER
11. BATTERY PACK
12. SELF-PROPEL TRIGGER
13. QUICK FOLDING RELEASE BUTTON
14. MULCHING INSERT
15. REAR SIDE DISCHARGE CHUTE
16. REAR SIDE DISCHARGE CHUTE NUT
17. BLADE (SEE FIG.N1)
18. BLADE BOLT (SEE FIG. N1)
* Not all the accessories illustrated or described
are included in standard delivery.
3. TECHNICAL DATA
WG760 WG760.X **
Voltage
40 V Max.
(2x20 V Max.)***
No load speed 2700 /min
Deck diameter 21‘‘ (53 cm)
Cutting diameter 20‘‘ (51 cm)
Front wheel diameter 8‘‘ (200 mm)
Rear wheel diameter 10‘‘ (250 mm)
Cutting height 1-1/2’’-4’’ (40 – 100 mm)
Cutting height positions 7
Grass collection capacity 2.3 bushels (80 L)
Battery type Lithium-Ion
Machine Weight
(bare tool)
52.63 lbs. (23.85kg)
** X may be followed by one or two characters. All
models are the same except model number and
trademark. The sux in models may be number
from “1” to “999” or English letter “A” to “Z” or “M1”
to” M9” which means different package or the
various of accessories packed in the package.
*** Voltage measured without workload. Initial
battery voltage reaches maximum of 20 volts.
Nominal voltage is 18 volts.
13
2x20V 21inch Cordless Brush-
less Self-Propelled Lawn Mower
EN
SUGGESTED BATTERIES
AND CHARGERS
Category
Type Capacity
20V Battery WA3675 5.0 Ah
20V Charger WA3884 4.0 A
We recommend that you purchase your accessories
listed in the above list from the same store that sold
you the tool. Refer to the accessory packaging for
further details. Store personnel can assist you and
offer advice.
4. INTENDED USE
This product is intended for domestic lawn mowing.
5. ASSEMBLY &
OPERATION
NOTE: Read instruction handbook before
operation this machine.
ASSEMBLY & OPERATION

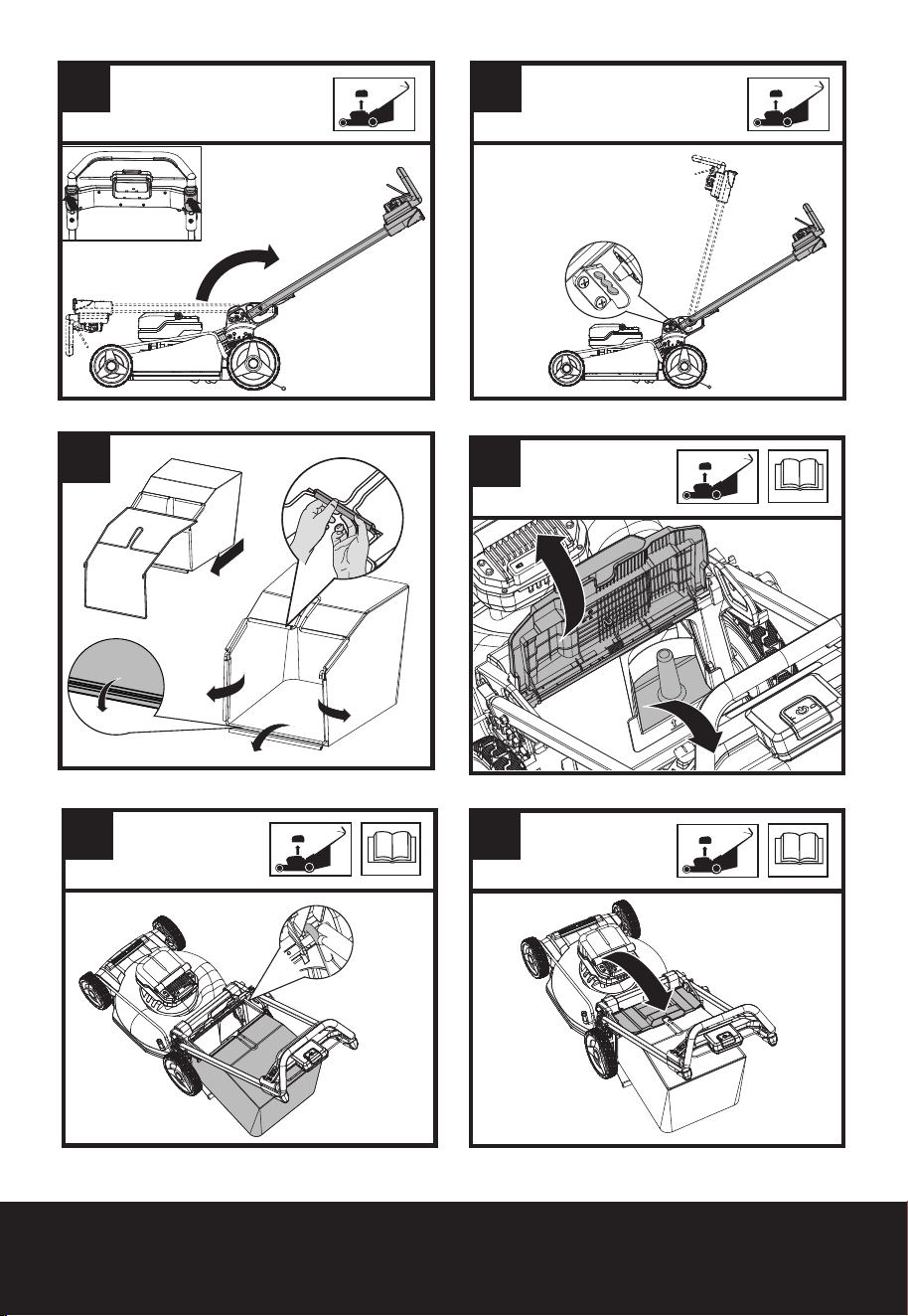

ACTION FIGURE
ASSEMBLY
Assembling the handle bar &
Adjusting Handle’s height
NOTE: Press and hold Quick-release
button during operation.
See Fig.
A1, A2
Assembling the grass collection bag
See Fig.
B
Assembling the grass collection bag
to the lawn mower
NOTE: Take the mulching insert out
of the lawn mower before tting the
grass collection bag.
NOTE: Depress the grass collection
bag slightly to ensure that it is com-
pletely installed.
NOTE: Push the mulching-bag switch
lever to open the mulching outlet
before tting the grass collection
bag.
See Fig.
C1,C2,C3

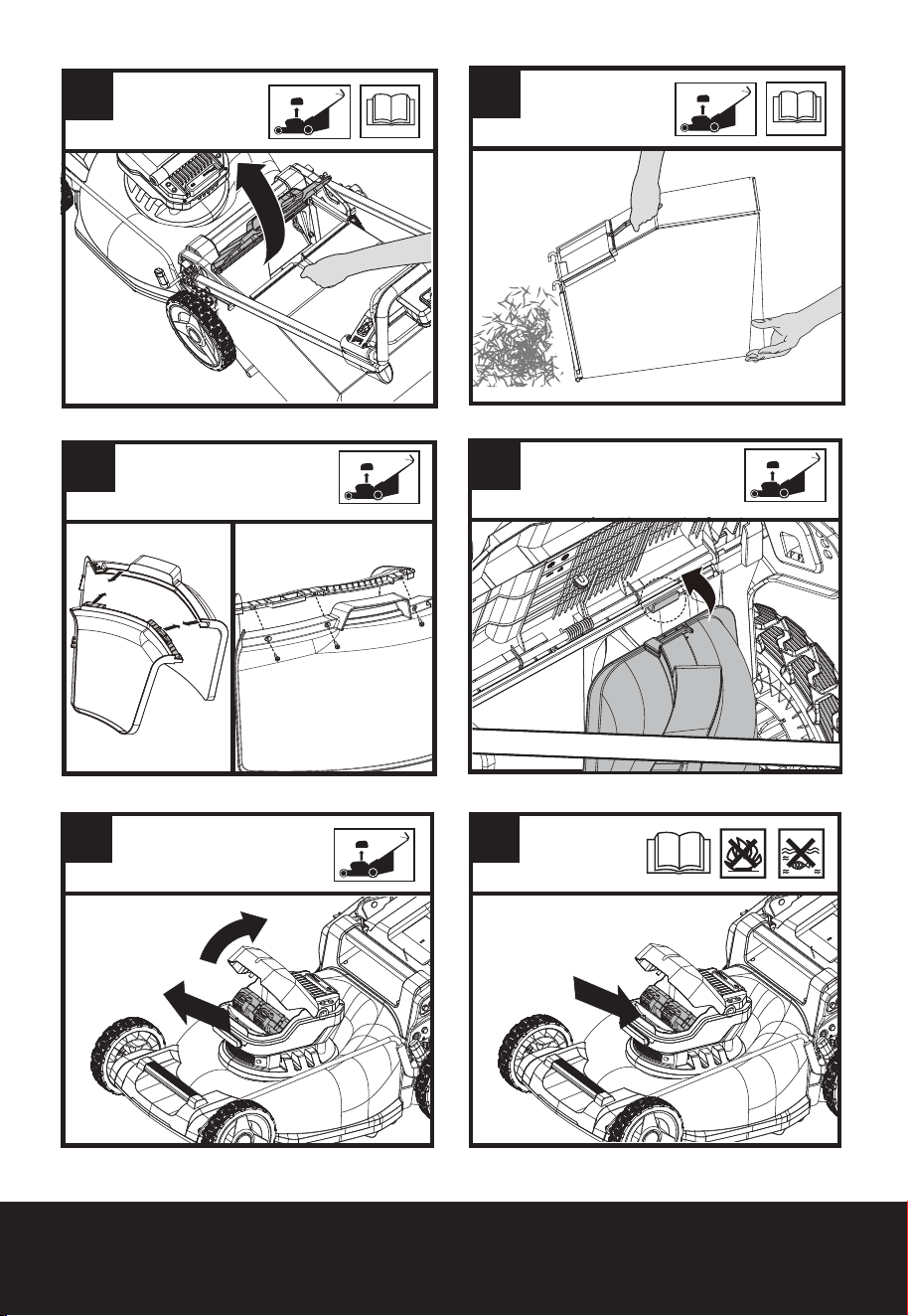

Removing/emptying grass collection bag
WARNING! Always check the safety
ap close the discharge outlet
before using. Never lift the safety ap
when the lawn mower is being used
without tted grass collection bag.
See Fig.
D1, D2
Assembling the rear side discharge chute
NOTE: Remember to remove the
grass collection bag and the
mulching plug before assembling the
rear side discharge chute.
See Fig.
E1,E2
Removing /tting the battery pack
NOTE: This machine will only run when sp
- batteries are installed. It is recommended
to use the same AH batteries and charge
the two batteries at the same time.
When you use two batteries with different
AH, the machine will only run to the lower
common denominator.
See Fig.
F1, F2

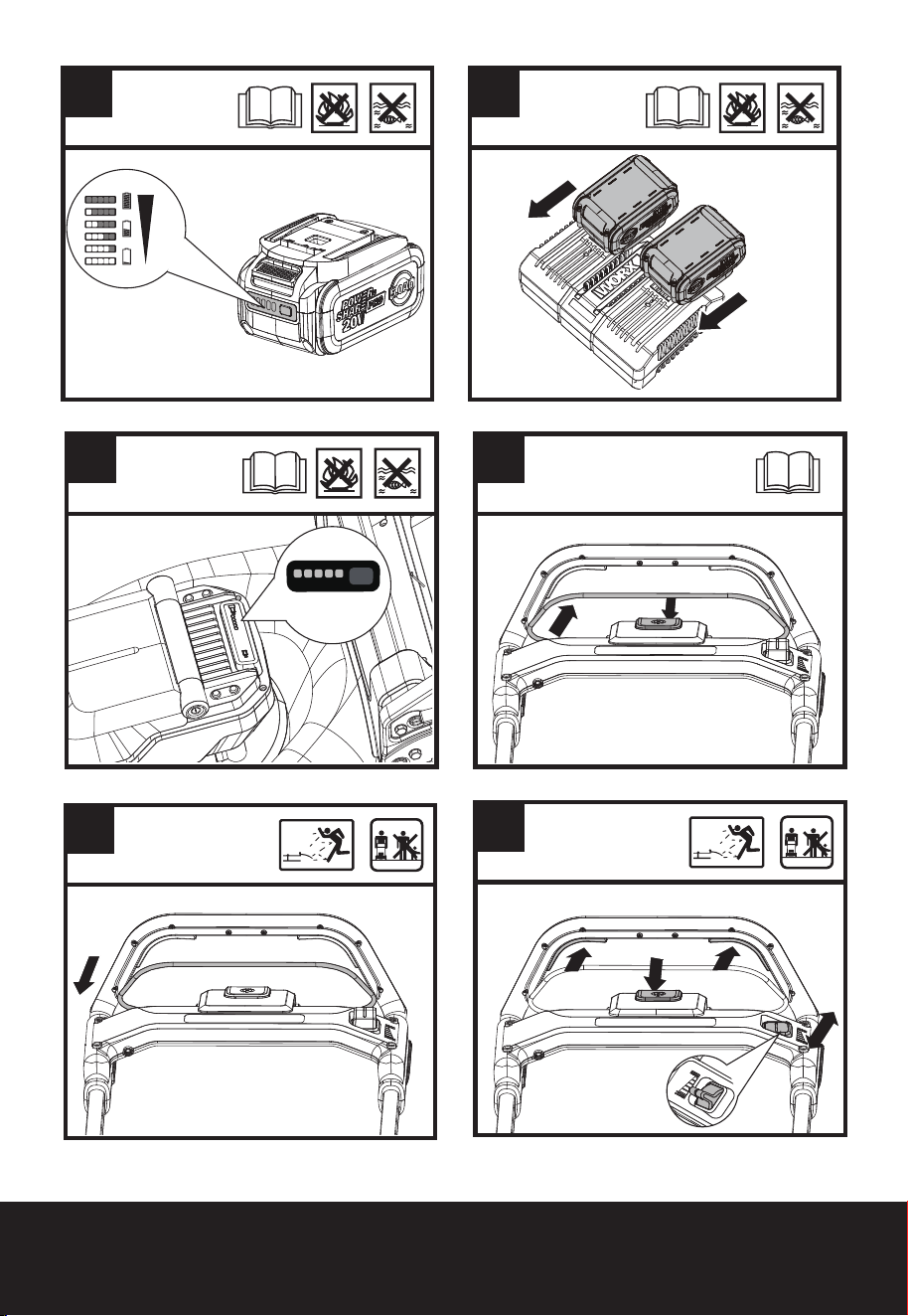

Checking the battery charge condition
NOTE: Fig.G1 only applies for the battery
pack with battery indicator light.
See Fig.
G1
Charging the battery pack
NOTE: The batteries are shipped
uncharged. Each battery must be fully
charged before the rst mow.
Always fully charge the two batteries at
same time. More details can be found in
charger’s manual.
See Fig.
G2
OPERATION
Battery power indicator
See details in BATTERY STATUS part
IMPORTANT:
When only one light is illuminated, your
battery is overly discharged, even though
the machine may still be capable to work.
Continuing to operate your machine with
the battery in this discharged condition
may reduce the life and performance of
your battery.
When no light is illuminated, at least
one battery is not fully installed or
battery may be defective, please double
check the batteries are fully seated into
position.
See Fig.
G3
Starting and Stopping
For starting, press both the Safety button
and the Operating bail at the same time.
See Fig.
H1,H2
Operating the self-propel system.
NOTE: To activate self-propel, press both
the Safety button and the Self-propel
speed-control button at the same time.
See Fig.
H3
14
2x20V 21inch Cordless Brush-
less Self-Propelled Lawn Mower
EN
Adjusting the cutting height
WARNING! Stop, release
operating bail and wait until the
motor stops before adjusting height.
The blades continue to rotate after
the machine is switched off, a
rotating blade can cause injury. Do
not touch rotating blades.
See Fig. I
LED headlight
See Fig.J
Storage
See Fig.
K1,K2
BATTERY STATUS (See Fig. G1)
• Before starting or after use, press the button
beside the power indicator light on the machine to
check the battery capacity.
• During operation, the battery capacity will be
indicated automatically by the battery power
indicator. The indicator constantly senses and
displays the battery condition as follows.
• When charging 2 different amp hour batteries, the
power indicator light displays the battery condition
with the lower one of the two batteries.
Battery power
indicator status
Battery condition
Five green lights
( ) are
illuminated.
The two batteries are in a
highly charged condition.
Two, three or four
green lights are
illuminated.
The two batteries have a
remaining charge. The more
lights are illuminated, the
more battery capacity.
Only one green
light ( ) is
illuminated.
The battery level of at least
one battery pack is very low.
Please check and charge the
battery pack.
No light is
illuminated.
At least one battery is not fully
installed or battery may be
defective.
Only one light is
ashing twice per
cycle.
At least one battery is over
discharged (please refer to
the battery charge condi-
tion), please recharge the two
batteries at once before use
again or storage.
Only one light is
ashing three
times per cycle.
At least one battery is hot,
wait for them cool down
before start again.
Only one light is
ashing four times
per cycle.
The machine is over load.
Raise the cutting height or
push slowly.
MULCHING MOWING TIPS
When in mulch mode, your new mower is designed
to cut the grass clippings into small pieces and
distribute them back into the lawn, using mulching
ns located inside the mower deck.
Under normal conditions, the mulched grass will
biodegrade quickly to provide nutrients to the lawn.
Please review the following recommendations for
optimum mulching performance,
1) Avoid mowing when the grass is wet from rain
or dew. Wet grass may form clumps which
interfere with the mulching action and reduce
runtime. The best time to mow grass is in the
late afternoon when the grass is dry and the
newly cut area will not be exposed to direct
sunlight.
2) For best mulching performance, set the cutting
height to remove about one third of the grass
blade length, ideally no more than 1.5” at
one time. If the lawn is overgrown, it may be
necessary to increase the cut height to reduce
the pushing effort and prevent overloading the
motor. The side-discharge chute can also be
used to evacuate excessively grown grass and
minimize overloading the motor. For extremely
heavy mulching, it is advisable to rst cut at a
high cut height setting, and then re-cut to the
nal cut height. Otherwise, make narrower cuts
and mow slowly.
3) For best performance, keep the mower deck free
of built-up grass. From time to time turn mower
off, remove batteries and wait for the blade to
come to a complete stop. Turn mower on its
side. Using an object such as a stick, wipe out
any accumulation of grass in the blade area. Be
careful of the sharp edges of the blade. Clean
often in wet, new grass, and always after every
use.
4) Certain types of grass or grass conditions may
require that an area be mulched a second time
to fully disperse the grass throughout the lawn.
If cutting a second time, it is advisable to cut
perpendicular (across) the rst cut pattern.
DO NOT CHANGE CUT PATTERN IN ANY WAY
THAT WOULD CAUSE MOWING DOWN A HILL.
5) Change your cutting pattern from week to week.
This will help prevent matting and graining of
the lawn.
CUTTING AREA
The cutting area can be affected by many factors
including: cutting height, operation practices (ex:
starting/stopping), lawn moisture levels, grass
length and thi ckness.
It is ideal for mowing ¼ acre to
1
/2 acre lot sizes.
TIPS:
1) Mowing the lawn frequently and reducing the
15
2x20V 21inch Cordless Brush-
less Self-Propelled Lawn Mower
EN
amount of starting/stopping procedures will help
conserve battery runtime. It is recommended to
always use the same two batteries during operation
with fully charged levels.
2) For the best cutting performance, it is
recommended to only mow up to 1/3 or less of the
current grass height at a time. Mow at a slower
pace when cutting long/thick grass to allow the
mower time to cut and to properly discharge the
clippings.
6. MAINTENANCE
WARNING: Stop the mower and remove
batteriesbefore removing the grass
collection bag.
NOTE: To ensure long and reliable service,
perform the following maintenance procedures
regularly. Check for obvious defects such as a
loose, dislodged or a damaged blade, loose ttings,
and worn or damaged components. Check that
the covers and guards are all undamaged and
are correctly attached to mower. Carry out any
necessary maintenance or repairs before operating
mower. If the mower should happen to fail despite
regular maintenance, please call our customer
helpline for advice.
BLADE SHARPENING
KEEP BLADE SHARP FOR BEST MOWER
PERFORMANCE. A DULL BLADE DOES NOT CUT
GRASS CLEANLY OR MULCH PROPERLY.
WEAR PROPER EYE PROTECTION WHILE
REMOVING, SHARPENING, AND INSTALLING
BLADE. ENSURE THE BATTERIES ARE REMOVED.
Sharpening the blade twice during a mowing
season is usually sucient under normal
circumstances. Sand causes the blade to dull
quickly. If your lawn has sandy soil, more frequent
sharpening may be required.
REPLACE BENT OR DAMAGED BLADE
IMMEDIATELY.

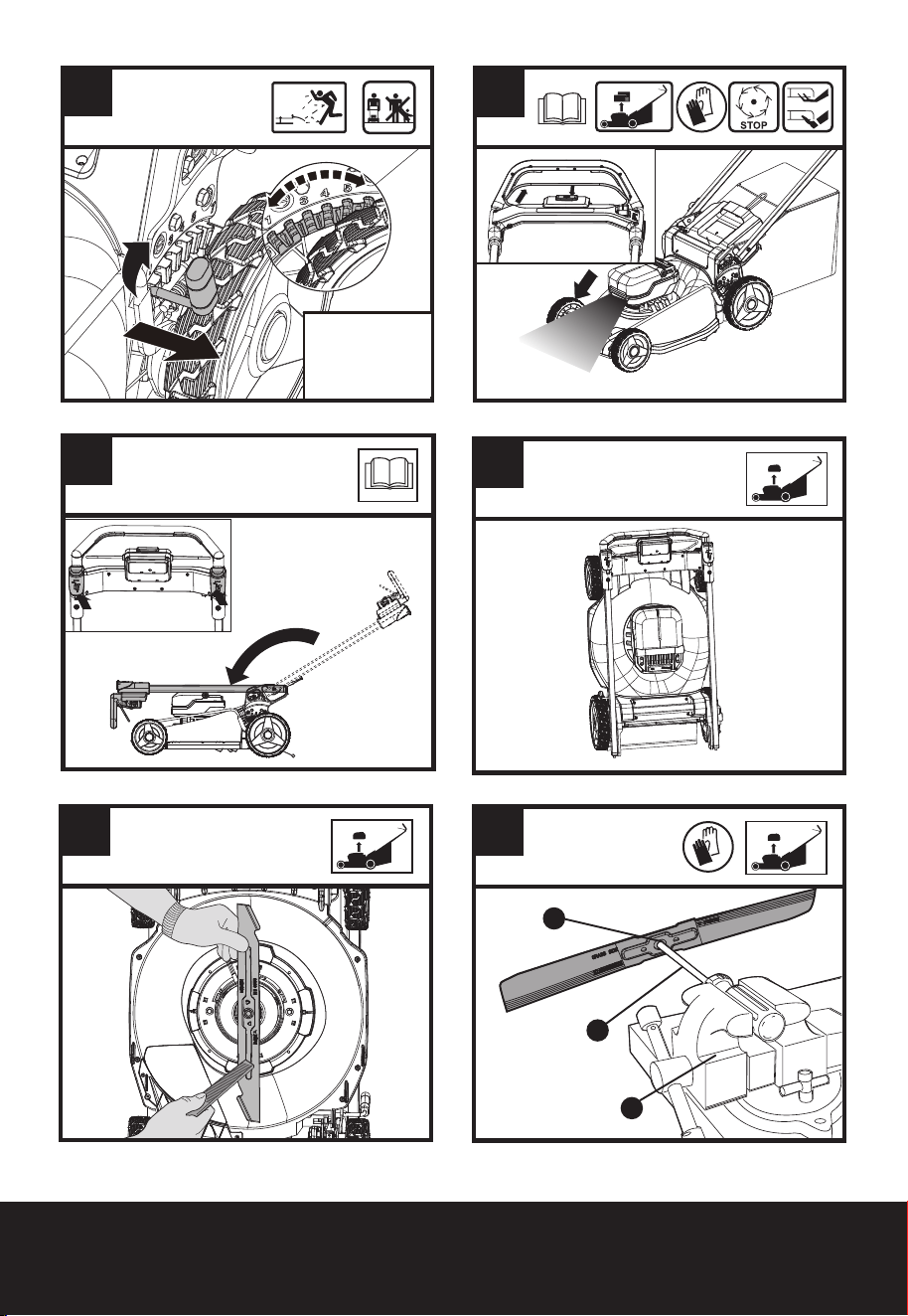

WHEN SHARPENING THE BLADE (See Fig. L)
1. Make sure blade remains balanced.
2. Sharpen blade at the original cutting angle.
3. Sharpen cutting edges on both ends of blade to
keep it balanced, removing equal amounts of
material from both ends.
NOTE:
1. Be sure the mower is turned off and remove
batteries
2. Place the mower in stand up storage mode.
BLADE BALANCING (See Fig. M)
Check balance of blade by placing center hole in
blade M-1 over a screwdriver shank M-2, clamped
horizontally in a vise M-3. If either end of the blade
rotates downward, le that end. Blade is properly
balanced when neither end drops.

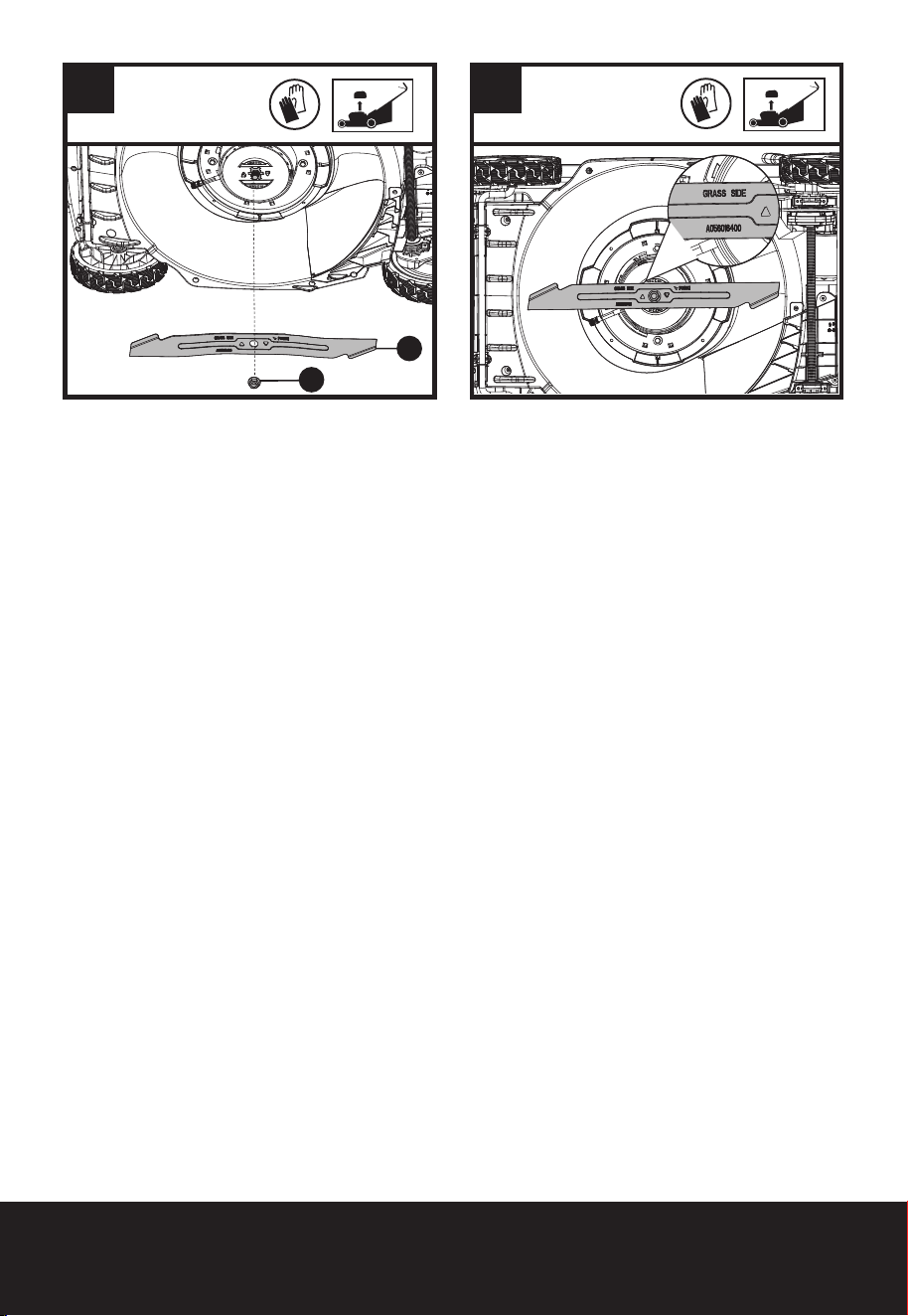

BLADE MAINTENANCE (See Fig. N1, N2)
Replace your Mower Blade after 50 hours of
mowing or 2 years of use, whichever comes rst.
Follow these procedures to remove and replace the
Blade. You will need garden gloves (not provided)
and a spanner wrench (not provided) to remove the
Blade. Make sure batteries are not installed. Wedge
a block of wood between the blade and the mower
deck to prevent the blade from turning and unscrew
the Blade Bolt counter-clockwise using a spanner
wrench, and then remove the Blade.
To re-assemble, position the Blade with the cutting
edges towards the ground. Then securely tighten
the Blade Bolt.
7. STORAGE (SEE FIG. K1,
K2)
Stop the mower and remove batteries. Clean the
exterior of the machine thoroughly using a soft
brush and cloth. Do not use water, solvents or
polishes. Remove all grass and debris, especially
from the ventilation slots.
Turn the machine on its side and clean the blade
area. If grass cuttings are compacted in the blade
area, remove with a wooden or plastic implement.
Store the machine in a dry place. Do not place other
objects on top of the machine.
To aid storage, pinch the Quick-release button and
pull it out, and then rotate the Quick-release button,
and fold the Handle bar. The mower can also be
stored in a vertical orientation to conserve space
(g. K2).
NOTE: After the Handle bar is folded, the Quick-
release button needs to be screwed back into place.
FOR BATTERY TOOLS
The ambient temperature range for the use and
storage of tool and battery is 0
o
C-45
o
C (32
o
F-113
o
F).
The recommended ambient temperature range for
the charging system during charging is 0
o
C-40
o
C
(32
o
F-104
o
F).
16
2x20V 21inch Cordless Brush-
less Self-Propelled Lawn Mower
EN
8. TROUBLE SHOOTING
Problem Solution
1. Mower
doesn’t run when
Operating Bail is
activated.
A. Release Operating Bail
to turn mower off. Remove
batteries. Turn mower
over and check that blade
is free to turn. If not free,
contact customer service.
Blade should turn freely.
Also ensure the mower is
not sitting in tall grass that
may prevent the blade from
starting to spin. If so, move
the mower into an area where
it isn’t under load to start.
B. Has battery been fully
charged? Plug in charger and
wait for green light to come
on.
C. For starting, press and
hold the safety lock-out
button, then pull back the
operating bail handle while
continuing to hold the safety
lock-out button. (See Fig. H1)
2. Motor stops
while mowing.
A. Release Operating Bail
to turn mower off. Remove
batteries. Turn mower over
and check that blade is
free to turn. If not free, call
customer service. Blade
should turn freely.
B. Raise cutting height of
wheels to highest position
and start mower.
C. Has battery been fully
charged? Plug in charger and
wait for green light to come
on.
D. Avoid overloading the
mower. Slow down the
cutting pace by pushing
mower slower or raise the cut
height. Or both.
3. Mower runs
but cutting
performance is
unsatisfactory, or
does not cut entire
lawn.
A. Has battery been fully
charged? Plug in charger and
wait for green light to come
on.”
B. Release Operating Bail
to turn mower off. Remove
batteries.Turn mower
over and check: Blade for
sharpness - Keep blade
sharp. Check deck and
discharge chute for clogging.
C. Wheel height adjustment
may be set too low for grass
condition. Raise cutting
height.
4. Mower is too
hard to push.
A. Raise cutting height to
reduce deck drag on grass.
Check each wheel for free
rotation.
5. Mower is
abnormally noisy
and vibrates.
A. Release Operating Bail
to turn mower off. Remove
batteries. Turn mower on
side and check blade to
ensure it has not been bent
or damaged. If blade is
damaged, replace with a
replacement blade. If the
underside of the deck is
damaged, call customer
service.
B. If there is no visible
damage to the blade and the
mower still vibrates: Release
Operating Bail to turn mower
off, remove batteries and
remove blade. Rotate blade
180 degrees and retighten. If
mower still vibrates, contact
customer service.
6. Battery charger
LED’s not on.
A. Check plug connection.
B. Replace charger.
7. Battery charger
LED does not ip
to green.
A. Battery needs to be
diagnosed. Contact customer
service.
8. Mower not
picking up
clippings with the
Grass Collection
Bag.
A. Rotate Mulching-bag
Switch lever to BAG mode.
B. Chute clogged. Release
Operating Bail to turn mower
off. Remove batteries. Clear
chute of grass clippings.
C. Too much cut grass is
clogging the airow. Raise
cutting height of wheels to
shorten length of the cut.
D. Bag full. Empty bag more
often.
17
2x20V 21inch Cordless Brush-
less Self-Propelled Lawn Mower
EN
9. When mulching
there are clippings
visible.
A. Too much cut grass. Raise
cutting height of wheels to
shorten length of the cut. Do
not cut off more than 1/3 of
total length.
B. Check blade for sharpness.
Always keep blade sharp.
10. Low or
diminished
run-time after
many uses.
A. Contact customer service
may need new battery.
11. The battery
charger LED
ashes red and
the battery can’t
be charged.
A. The battery overheats after
continuous use. Remove
battery from the charger and
allow it to cool to 42
o
C or
less.
