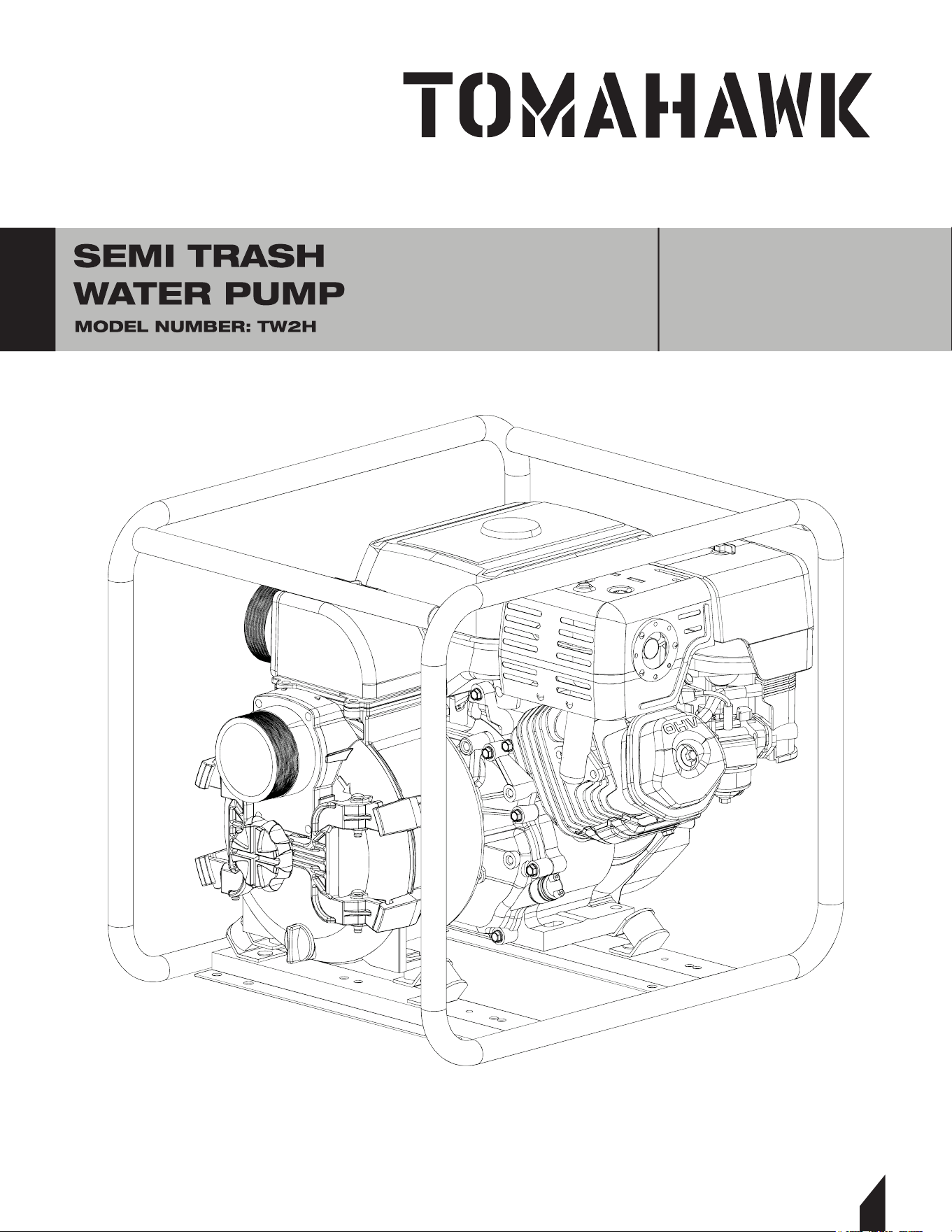

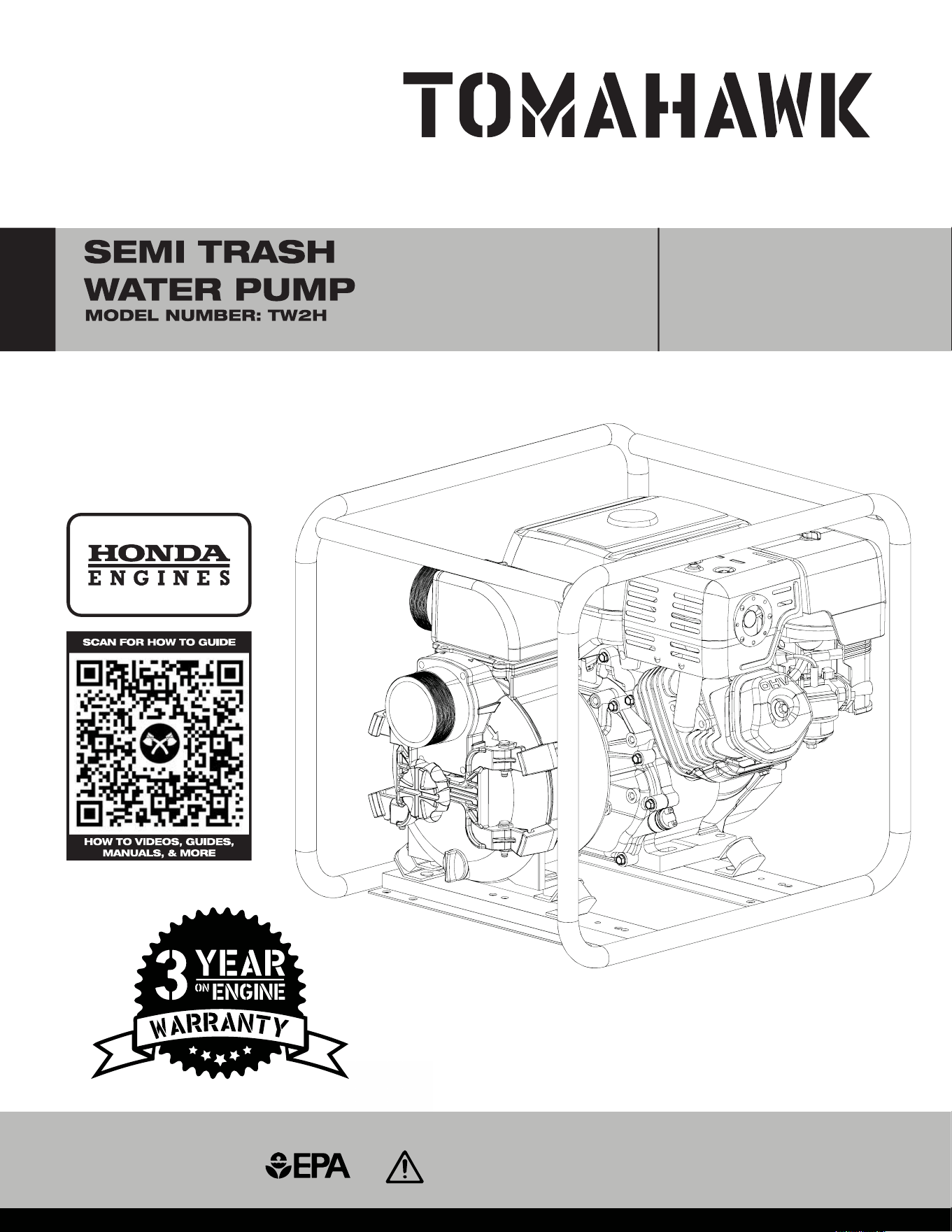

Operation Manual
To reduce the risk of injury, the user must read and understand the Operator’s
Manual before using this product. Save these instructions for future reference.
2
TABLE OF CONTENTS
1. SAFETY INFORMATION

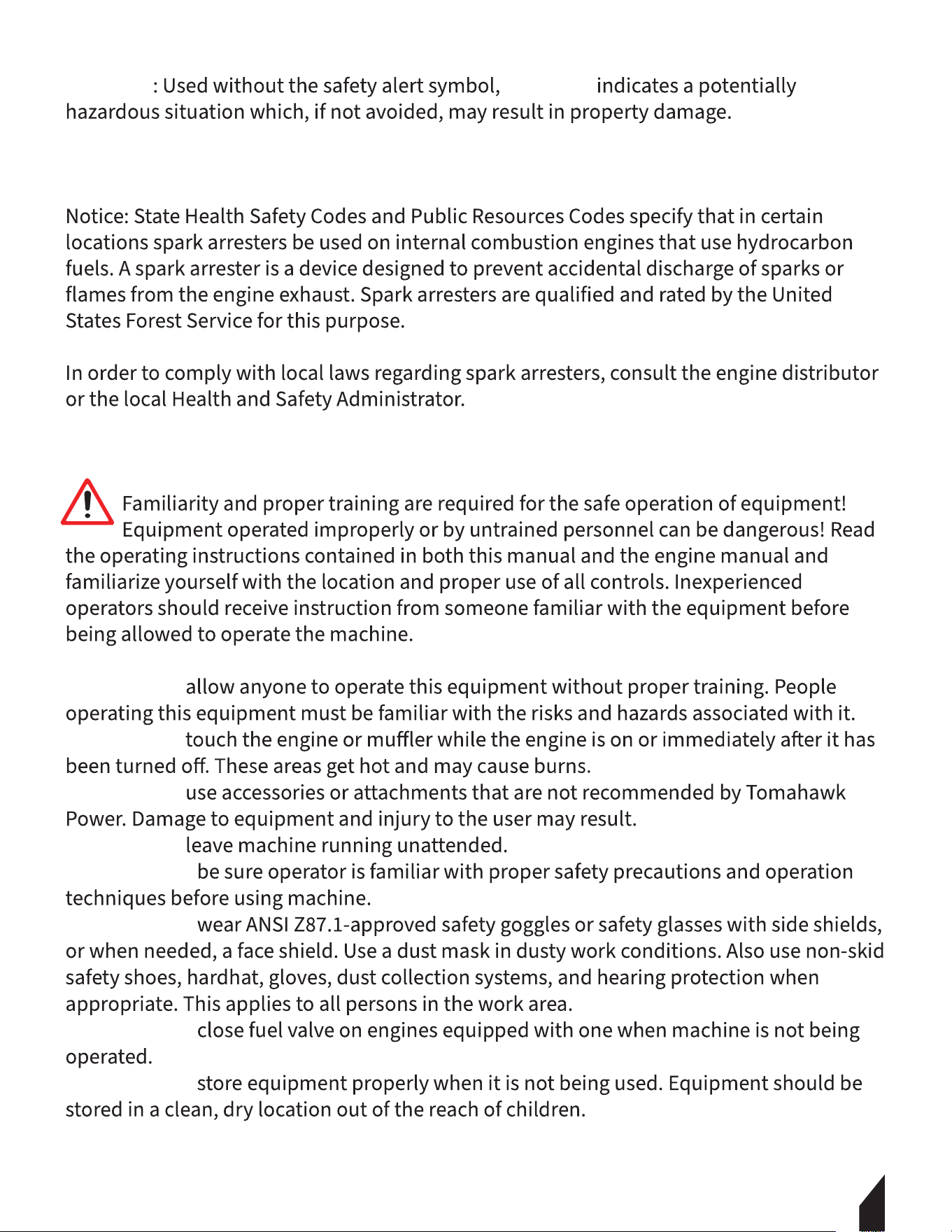

1.1 Laws Pertaining to Spark Arresters
1.2 Operating Safety
1.3 Safety While Using Combustion Engines
1.4 Service Safety
2. PRODUCT DETAILS
2.1 Product Diagram
2.2 Specifications
3. PRE-OPERATION CHECK
3.1 Check the Suction and Discharge Hoses
3.2 Check the Engine
4. OPERATION
4.1 Operating Controls
4.2. Check the Engine Oil Level
4.3 Motor Oil
4.4 Checking Oil
4.5 Priming the Pump
4.6 Check Engine Fuel
4.7 Check Fuel Level
5. START UP
6. CHANGING ENGINE OIL
7. MAINTENANCE
8. TROUBLESHOOTING
9. LIMITED WARRANTY
10. SERVICE CENTER

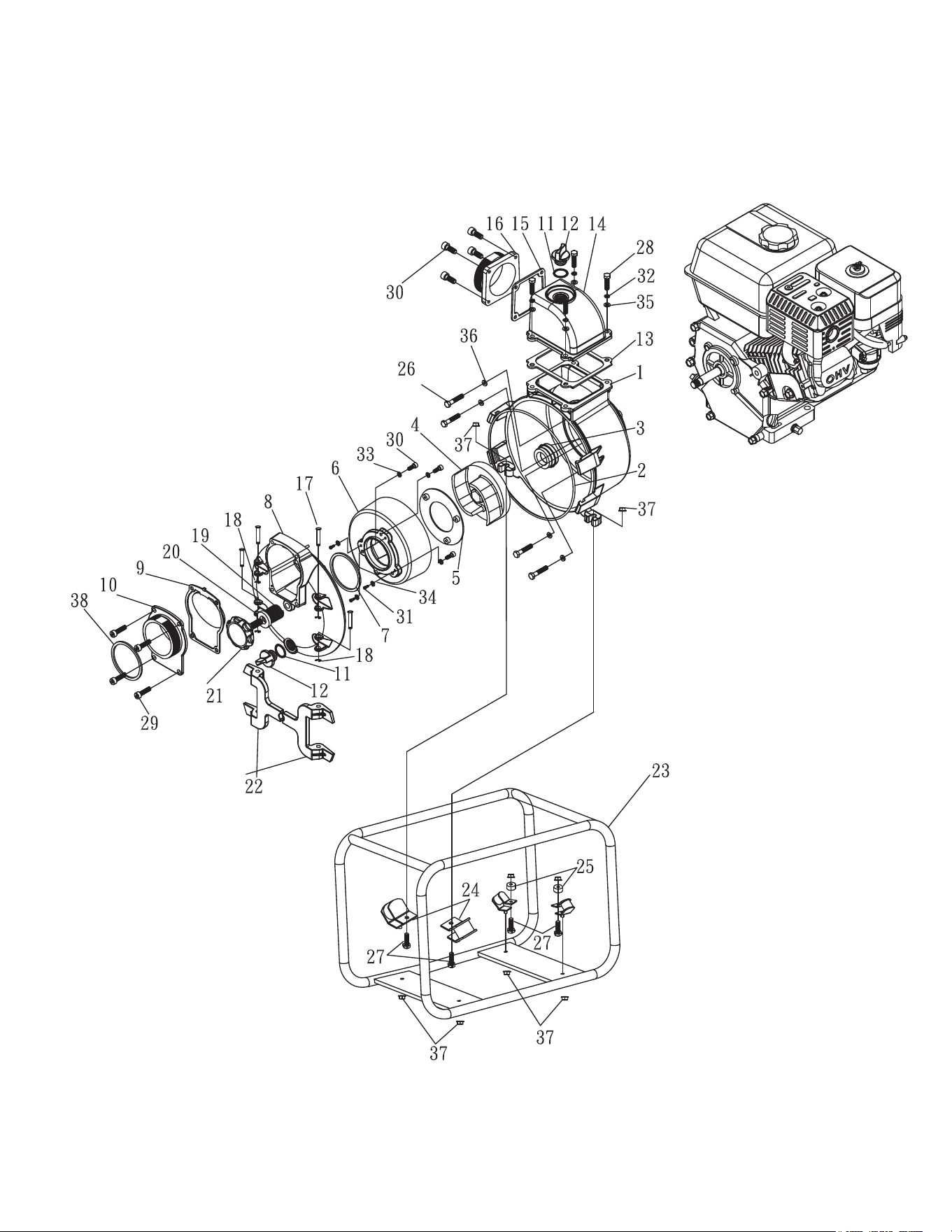

11. PARTS MANUAL
4
5
5
6
6
7
7
8
8
8
8
9
9
9
10
10
10
11
11
11
12
14
15
16
16
19
3
Register Your Equipment
T
INCLUDED WITH YOUR REGISTRATION
STEPS TO REGISTER YOUR EQUIPMENT
1. Visit www.tomahawk-power.com
2. Choose “Product Registration” at the bottom of the page
3. Enter your equipment’s serial number to get started
4. Provide all required information
5. Submit Registration
Equipment Resources
T
www.tomahawk-power.com
How To Video Library
More of a visual person? Visit our Video Library for equipment
assembly instructions, troubleshooting tips, and more!
Found on each product listing or the Service Videos Page
Manual and Assembly Guide Library
Visit our Manual Library if you are looking for a lost
operations manual or a particular spare part?
Found on each product listing or the Tomahawk Manuals Page
Service Requests
In need of a quick fix or a service center referral? Submit a
Service Request and a Tomahawk Technician will respond
shortly to get you the help you need.
Choose “Service Request” at the bottom of www.tomahawk-power.com

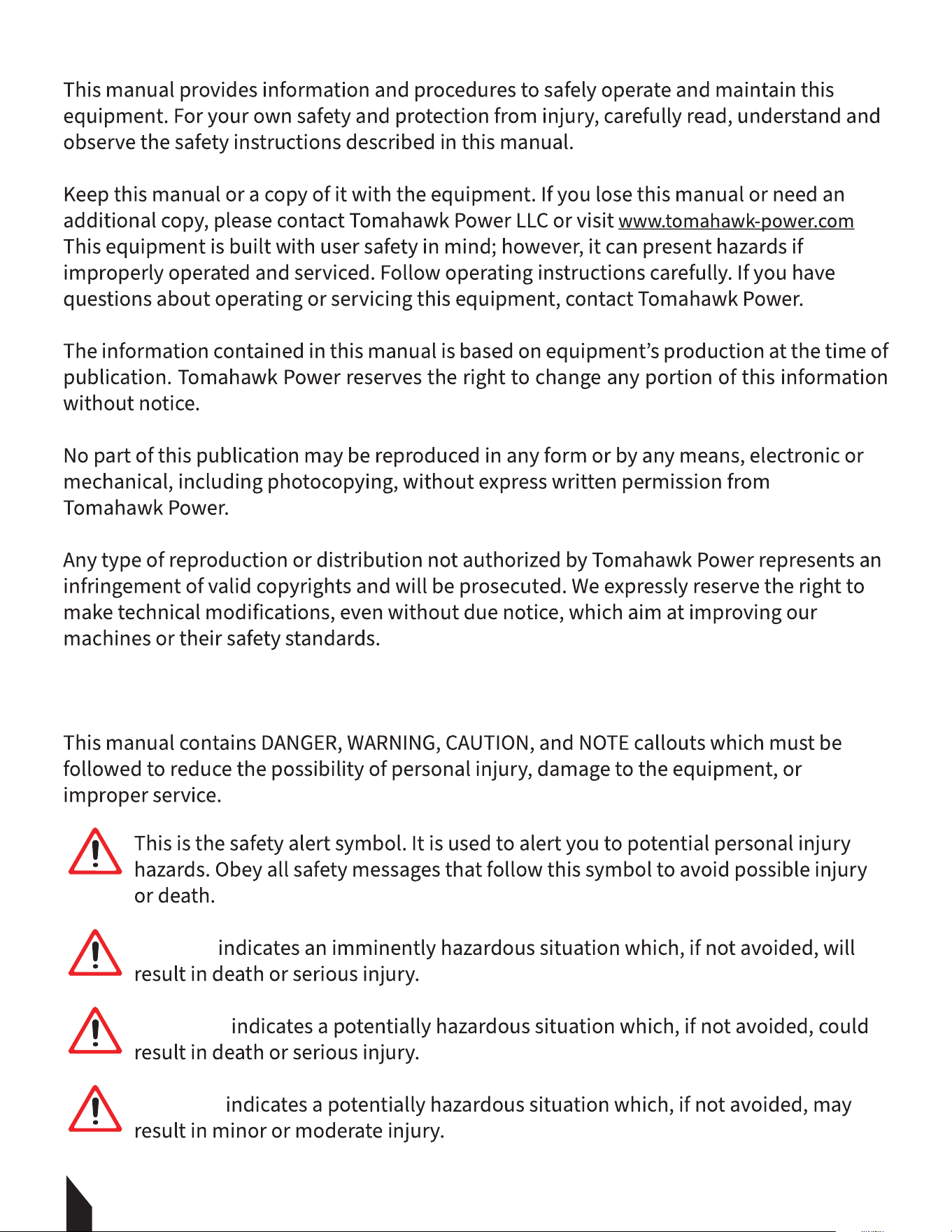

1. SAFETY INFORMATION
DANGER
WARNING
CAUTION
DANGER
WARNING
CAUTION
4
5
CAUTION CAUTION
1.1 Laws Pertaining to Spark Arresters
1.2 Operating Safety
1.2.1 NEVER
1.2.2 NEVER
1.2.3 NEVER
1.2.4 NEVER
1.2.5 ALWAYS
1.2.6 ALWAYS
1.2.7 ALWAYS
1.2.8 ALWAYS
WARNING
6
1.2.9 ALWAYS
1.2.10 ALWAYS

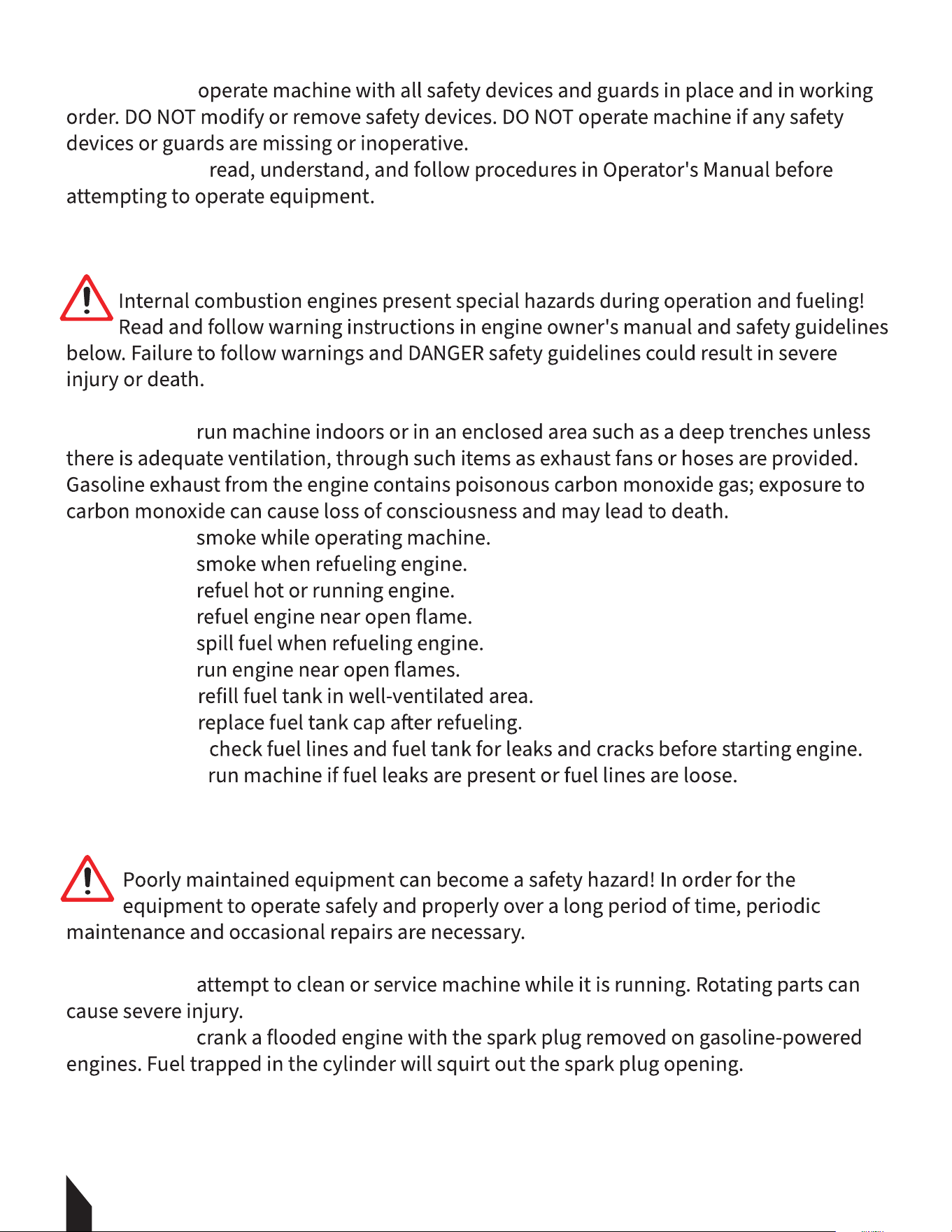

1.3 Safety While Using Combustion Engines
1.3.1 DO NOT
1.3.2 DO NOT
1.3.3 DO NOT
1.3.4 DO NOT
1.3.5 DO NOT
1.3.6 DO NOT
1.3.7 DO NOT
1.3.8 ALWAYS
1.3.9 ALWAYS
1.3.10 ALWAYS
1.3.11 DO NOT
1.4 Service Safety
1.4.1 DO NOT
1.4.2 DO NOT
DANGER
WARNING
7
1.4.3 DO NOT
1.4.4 DO NOT
1.4.5 ALWAYS
1.4.6 ALWAYS
1.4.7 ALWAYS
1.4.8 ALWAYS
1.4.9 ALWAYS
1.4.10 ALWAYS
1.4.11 ALWAYS
2. PRODUCT DETAILS

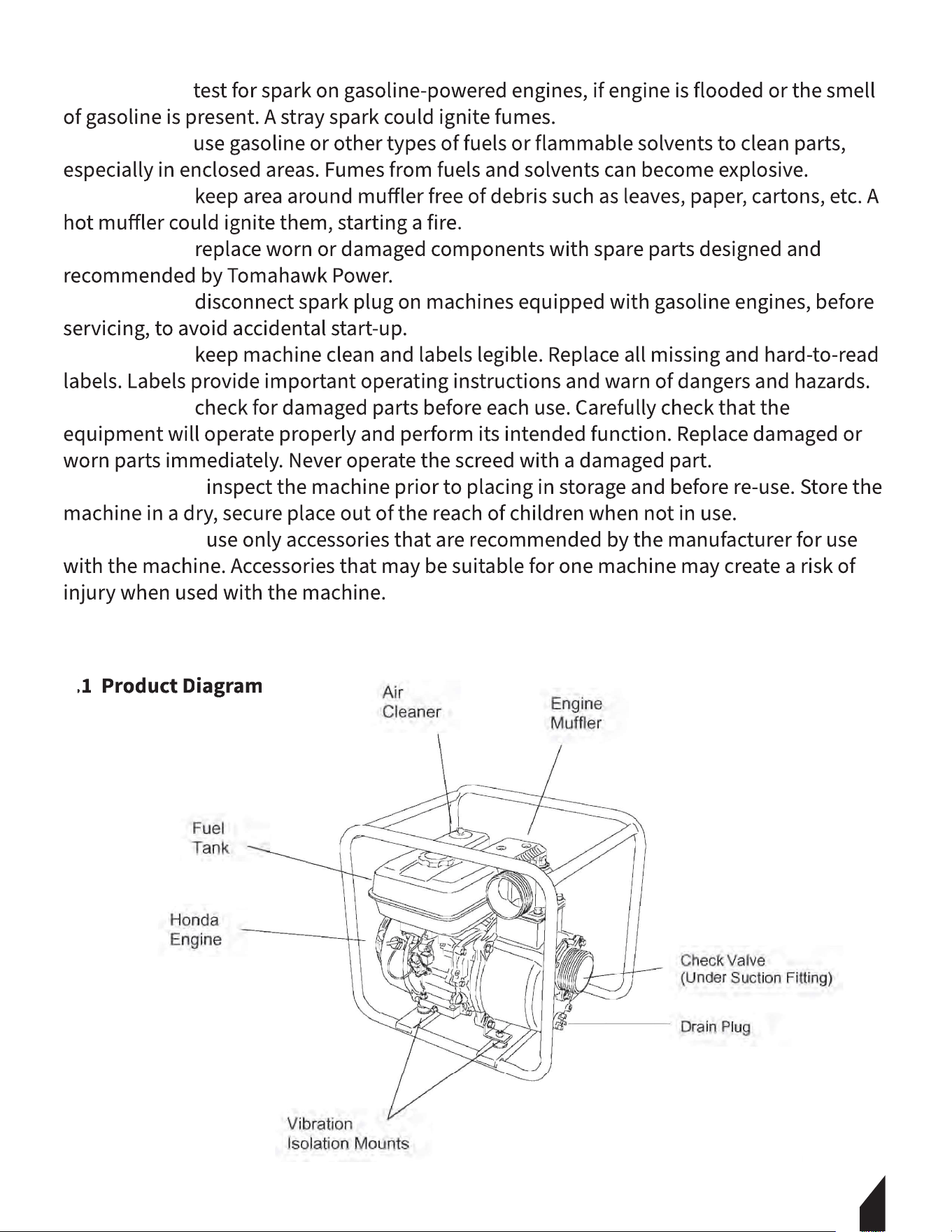

2.1 Product Diagram
8
2.2 Specifications
3. PRE-OPERATION CHECK
3.1 Check the Suction and Discharge Hoses
3.1.1 Check the general condition of the hoses. Be sure the hoses are in serviceable
condition before connecting them to the pump. Remember that the suction hose must
be reinforced construction to prevent hose collapse.
3.1.2 Check that the sealing washer in the suction hose connector is in good condition.
3.1.3 Check that the hose connectors and clamps are securely installed.
3.1.4 Check that the strainer is in good condition and is installed on the suction hose.
3.2 Check the Engine
3.2.1 Check the oil level. To avoid the inconvenience of an unexpected shut-down by the
Oil Alert system, always check the engine oil level before startup.
3.2.2 Check the air filter. A dirty air filter will restrict air flow to the carburetor, reducing
engine and pump performance.
3.2.3 Check the fuel level. Starting with a full tank will help to eliminate or reduce operating
interruptions for refueling.
Model
TW2H
Outlet Diameter
2" X 2"
Max Total Head
85 ft
Suction Head
Engine Displacement
26 ft
163 cc
Max Discharge
66 gal/min
Engine Model
GX160
Engine Brand
Honda
Horsepower
3.5
Run Time
Pump Type
Self-Priming
1.8 hrs
Fuel Tank Capacity
0.82 gal
Weight
46 lbs
Solid Capacity
0.375 in
Max PSI
42 PSI
Semi-Trash Pump
Yes
9
4. OPERATION

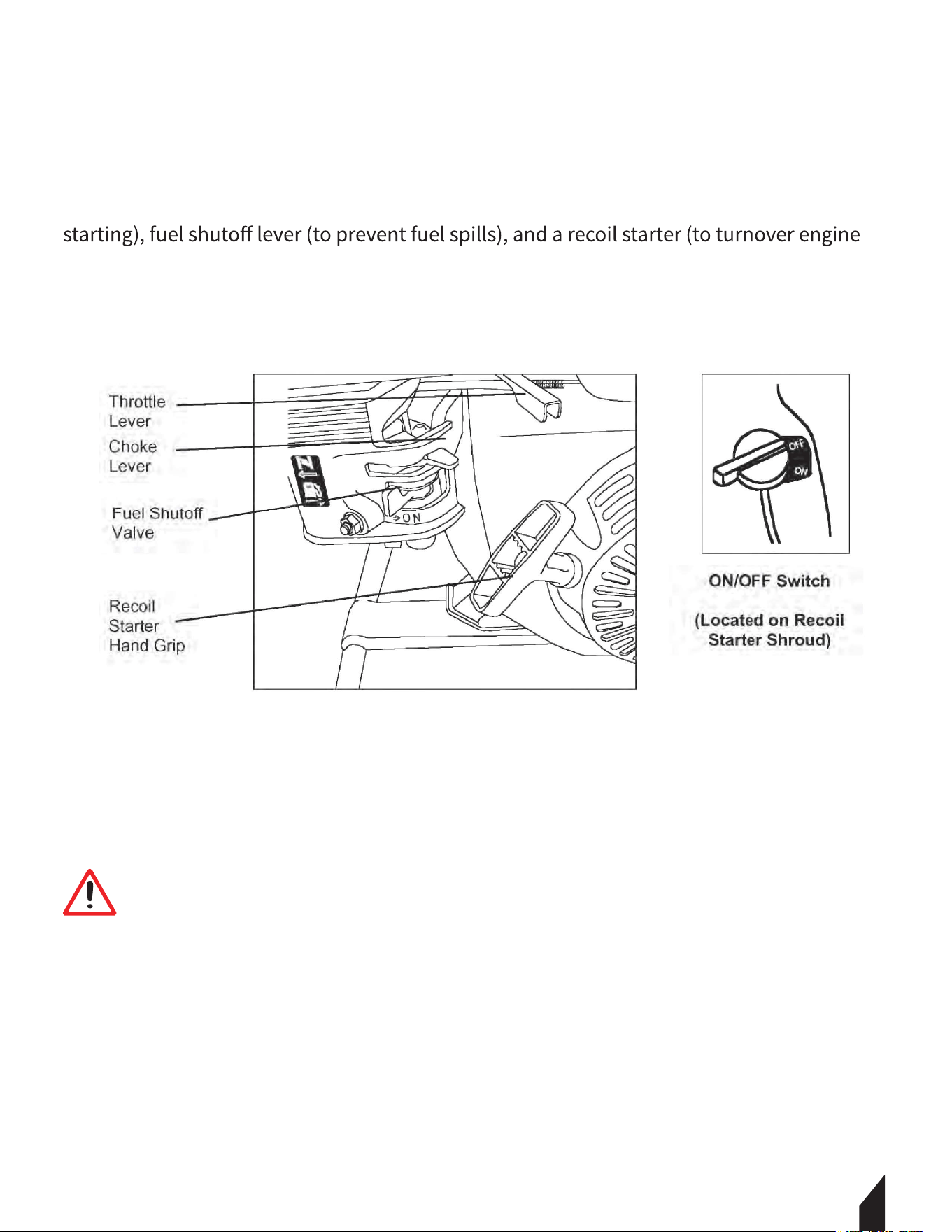

4.1 Operating Controls
4.1.1 The centrifugal pump is operated using the engine operating controls. The engine
controls are located at the engine end of the pump frame.
4.1.2 The controls consist of a throttle lever (for speed control), choke lever (for cold weather
by hand). (Refer to Figure-3.)
4.2. Check the Engine Oil Level
FIGURE-3
• ENGINE OIL IS A MAJOR FACTOR AFFECTING PERFORMANCE AND SERVICE LIFE.
NON-DETERGENT OILS AND 2-STROKE OILS ARE NOT RECOMMENDED BECAUSE
THEY HAVE INADEQUATE LUBRICATING CHARACTERISTICS
• CHECK THE OIL LEVEL WITH THE ENGINE ON A LEVEL SURFACE AND THE ENGINE
STOPPED.
WARNING
10
4.3 Motor Oil
Use Honda 4-stroke oil, or use an equivalent high detergent, premium quality motor oil
certified to meet or exceed U.S. automobile manufacturer’s requirements for Service
Classification SG, SF. Motor oils classified SG, SF will show this designation on the container.
SAE 10W/30 is recommended for general, all-temperature use. Other viscosity grades (see
Figure-4) may be used when the average temperature in your area is within the indicated
range.
4.4 Checking Oil
When checking oil, observe the following (refer to Figure-5):
4.4.1 Make sure the engine is in a level position.
4.4.2 Remove the oil filler cap/dipstick and wipe it clean.
4.4.3 Insert the filler cap/dipstick into the oil filler neck, but do not screw it in.
4.4.4 Remove the filler cap/dipstick and check the oil level.
4.4.5 If the level is low, fill to the top of the oil filler neck with the recommended oil.
4.4.6 Reinstall the oil filler cap/dipstick.
4.5 Priming the Pump
4.5.1 Before starting the water pump’s engine, remove priming plug from top of pump and
completely fill the chamber with water.
4.5.2 Reinstall the priming plug and tighten it securely.

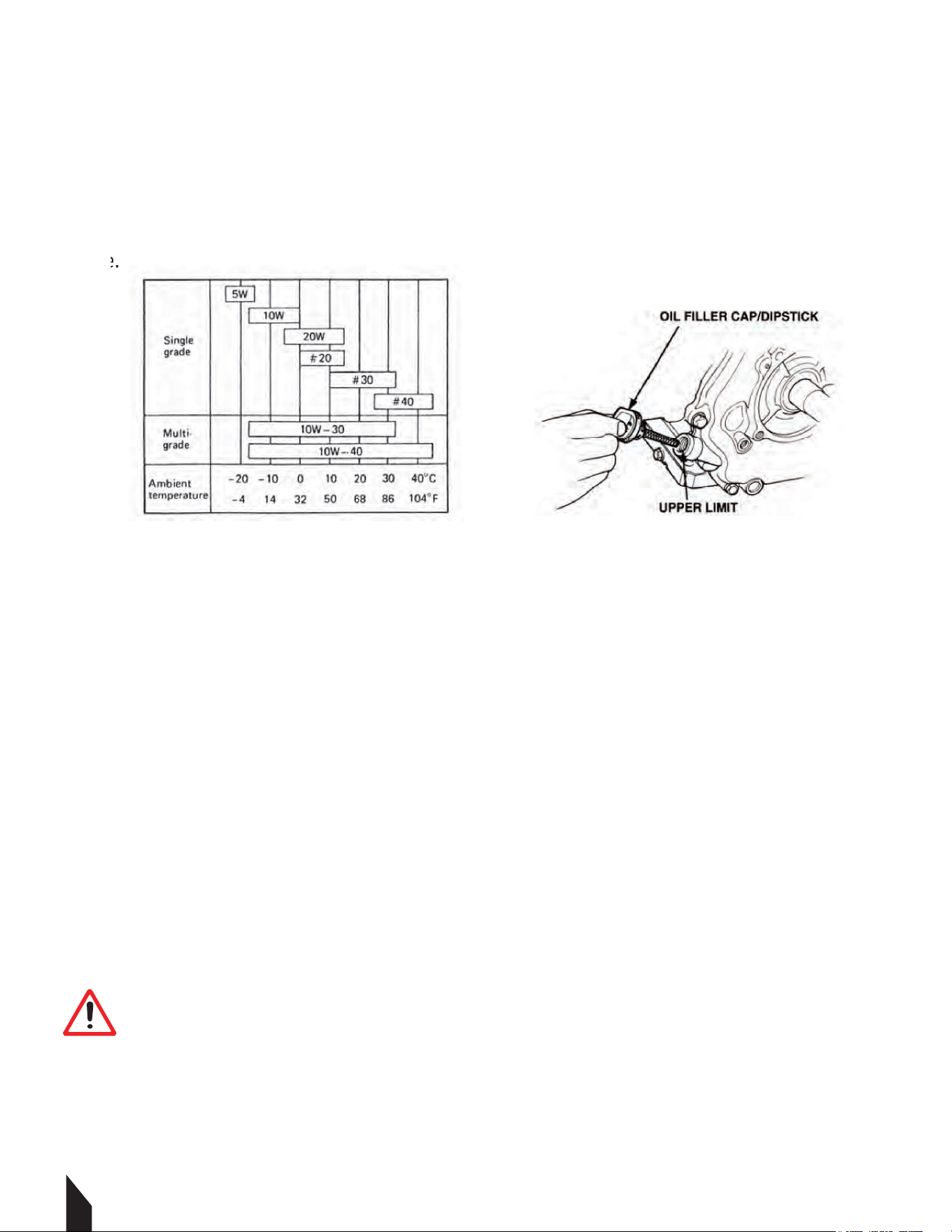

FIGURE-4 FIGURE-5
OPERATING THE WATER PUMP DRY WILL DAMAGE THE PUMP’S SEAL. IF THE WATER
PUMP HAS BEEN OPERATED DRY, STOP THE ENGINE IMMEDIATELY AND ALLOW THE
MACHINE TO COOL BEFORE PRIMING THE PUMP USING THE STEPS ABOVE.
WARNING
11
4.6 Check Engine Fuel
4.7 Check Fuel Level
A. Remove cap from fuel tank. If fuel level is low, refill with unleaded automotive gasoline.
5. START UP
5.1 Pre-Start Checks
5.1.2 Check the following items before starting the engine.
5.1.3 Fuel leakage from fuel hose, sediment cup, etc.
5.1.4 Bolts and nuts for looseness. Components for damage or breakage.
5.1.5 Check centrifugal pump surroundings.
5.1.6 Keep centrifugal pump at least three (3) feet (one [1] meter) away from buildings
or other structures.
5.1.7 Only operate centrifugal pump in a dry, well-ventilated area.
5.1.8 Keep exhaust pipe clear of foreign objects.
5.1.9 Keep centrifugal pump away from open flame.
5.1.10 Keep centrifugal pump on a stable and level surface.
5.1.11 Do not block centrifugal pump air vents with paper or other material.
• MAKE SURE YOU REVIEW EACH WARNING IN ORDER TO PREVENT FIRE HAZARD.
• KEEP AREA CLEAR OF FLAMMABLES OR OTHER HAZARDOUS MATERIALS.
• MAKE SURE YOU REVIEW EACH WARNING IN ORDER TO PREVENT FIRE HAZARD.
• DO NOT REFILL TANK WHILE ENGINE IS RUNNING OR HOT.
• CLOSE FUEL SHUT OFF VALVE BEFORE REFUELING.
• BE CAREFUL NOT TO GET DUST, DIRT, WATER OR OTHER FOREIGN OBJECTS INTO
FUEL.
• WIPE OFF SPILLED FUEL THOROUGHLY BEFORE STARTING ENGINE.
• KEEP AWAY FROM OPEN FLAMES.
• DO NOT USE SMOKING MATERIALS WHEN FILLING THE FUEL TANK.
• DO NOT REFUEL WHILE SMOKING OR NEAR OPEN FLAME OR OTHER SUCH
POTENTIAL FIRE HAZARDS. OTHERWISE FIRE ACCIDENT MAY OCCUR.
• AVOID REPEATED OR PROLONGED CONTACT WITH SKIN OR BREATHING OF VAPOR.
• KEEP OUT OF REACH OF CHILDREN.
WARNING
WARNING
5.2 Starting and Operating the Engine
5.2.1 Refer to the Honda engine owner’s manual.
5.2.2 Put the fuel valve in the ON position.
5.2.3 Move the choke lever to the closed position.
5.2.4 Set the ON/OFF switch to ON (the ON/OFF switch is mounted on the recoil shroud).
5.2.5
5.2.6 Pull the starter grip lightly until resistance is felt, then pull briskly.
5.2.7 As the engine warms up, gradually move the choke lever to the OPEN position.
5.3 Using the Centrifugal Pump
5.3.1 Connect suction and discharge hoses. Make sure suction hose is fitted with a strainer.
5.3.2 Remove priming plug from top of pump and fill chamber with water.
5.3.3 Operate the engine at idle speed for 3 to 5 minutes.
5.3.4
5.4 Stopping the Centrifugal Pump
5.4.1 Move the throttle lever fully to the right.
5.4.2 Set the ON/OFF switch to OFF.
5.4.3 Turn the fuel valve to the OFF position.
6. CHANGING ENGINE OIL
6.1 Oil Alert
6.1.1 The oil alert sensor detects the lowering of the oil level in the crankcase and
automatically stops the engine when the oil level falls below the predetermined level.
6.1.2 When the engine stops automatically, check the oil level. Refill engine oil to the upper
level and restart the engine.
6.1.3 If the engine does not start by usual starting procedures, check the oil level.
12
The choke may not be needed if the engine is warm or the air
temperature is high.
WARNING
• Do not allow the starter grip to snap back against the
engine. Return it gently to prevent damage to the starter.
WARNING
13

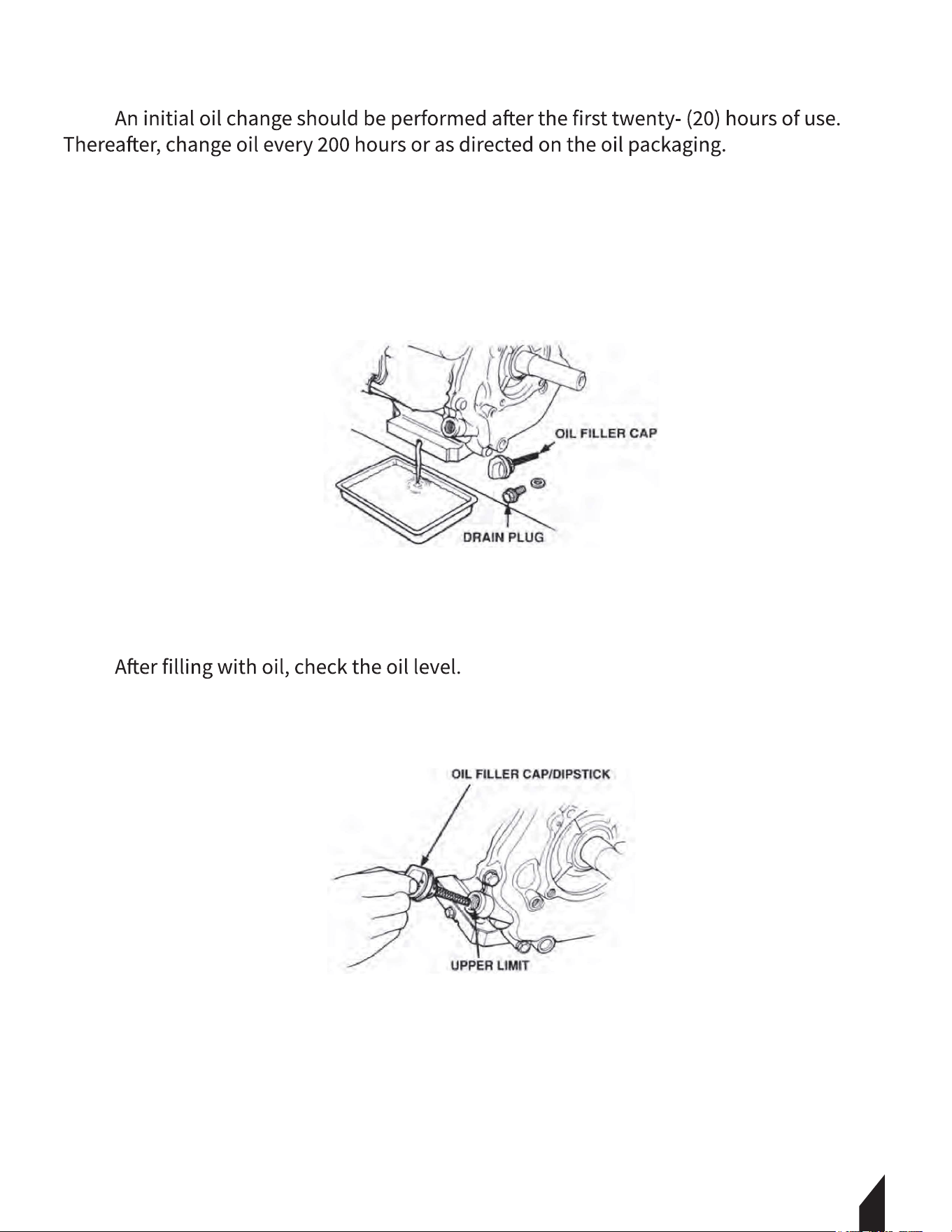

6.2 Changing Engine Oil
6.2.1
6.2.2 Before changing the oil, check for a suitable way to dispose of the used oil. Do not pour
it down sewer drains, onto garden soil or into open streams. Refer to your local zoning and
environmental regulations for disposal and handling requirements.
6.2.3 Drain the oil while the engine is still warm to assure rapid and complete draining.
6.2.4 Remove the oil filler dipstick/cap and drain plug. Allow oil to drain from the engine
(refer to Figure-6).
6.2.5 Install the drain plug, and tighten it securely.
6.2.6 Refill with the recommended oil (refer to Figure 2-2).
6.2.7
6.2.8 When oil reaches the upper limit, install the oil filler dipstick/cap (Figure-7).
NOTE:
• Engine oil capacity:
0.56 liters (0.59 U.S. Quart)
FIGURE-6
FIGURE-7
14

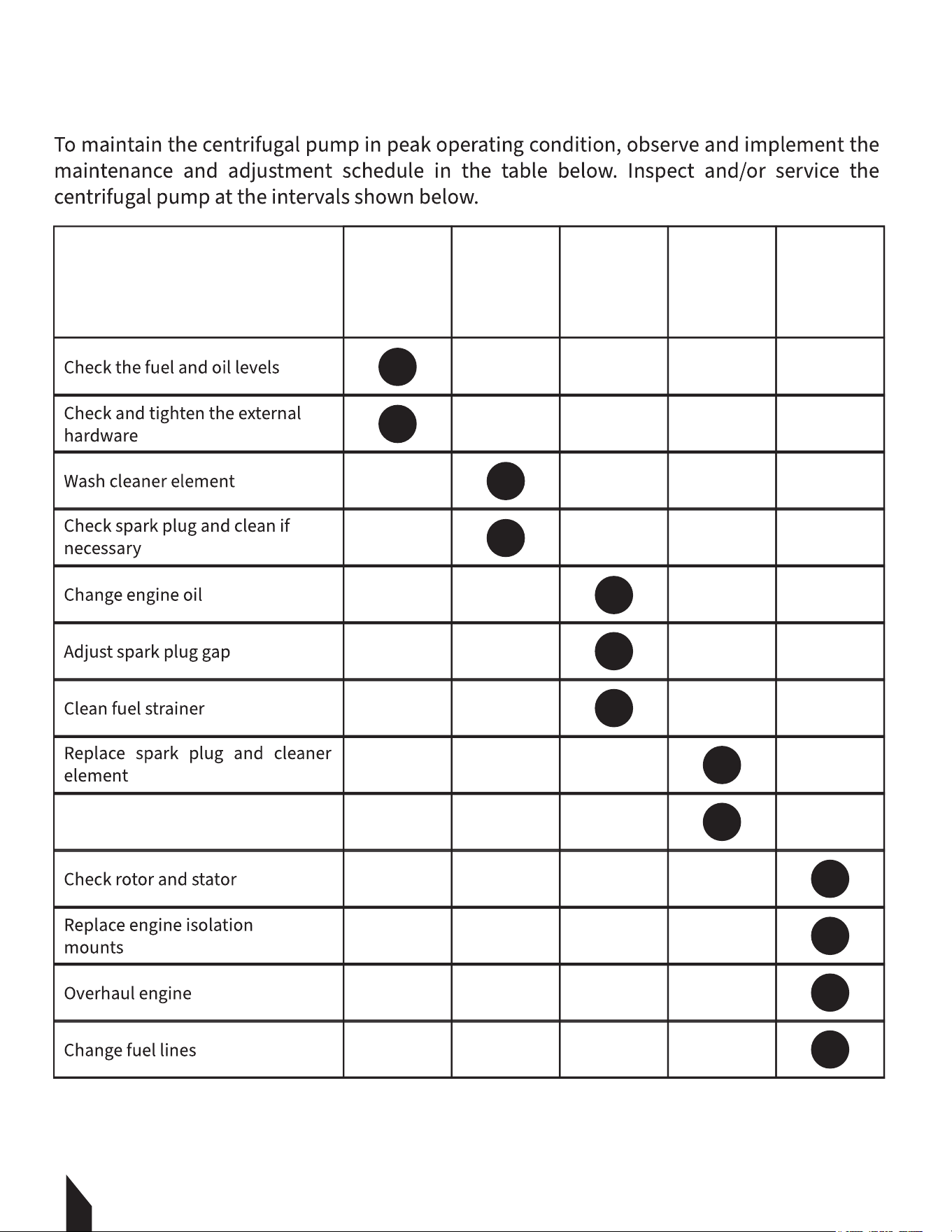

7. MAINTENANCE
Clean and adjust carburetor, valve
clearance, and valve seat
along with cylinder head
DAILY
BEFORE
STARTING
AFTER
FIRST 50
HOURS OR 3
MONTHS
AFTER
FIRST 200
HOURS OR 8
MONTHS
AFTER
FIRST 500
HOURS OR
EVERY YEAR
AFTER
FIRST 1000
HOURS OR
EVERY
2 YEARS
15
8. TROUBLESHOOTING
Fault Probable Cause Solution
Pump does not pump.
Insufficient priming water
Mechanical seal chipped or broken
Check valve damaged
Suction hose damaged or strainer clogged
Air leaks caused by O-ring damage
Add more water through priming plug
Replace mechanical seal
Replace check valve
Replace hose. Clean strainer
Replace O-rings
Discharge flow or pump
pressure too low.
Air leaks caused by O-ring damage
Suction hose or strainer clogged
Excessive impeller clearance
Engine RPM too low
Lift head too high
Replace O-rings
Replace hose. Clean strainer
Disassemble to obtain casing cover and
impeller. Determine clearance and reshim
as required (refer to Replacement of
Mechanical Seal)
Check RPM and reset throttle as required
Lower lift head
Pump primes too
slowly.
Insufficient priming water
Mechanical seal chipped or broken
Check valve damaged
Suction hose damaged or strainer clogged
Air leaks caused by O-ring damage
Engine RPM too low
Lift head too high
Add more water through priming plug
Replace mechanical seal
Replace check valve
Clean strainer.
Replace hose
Check RPM and reset throttle as required
Lower lift head
Noise or vibration Faulty mounting
Pump/engine attaching parts loose.
Tighten as required.
Damaged vibration isolation mounts.
Replace mounts.
16
9. EQUIPMENT WARRANTY
Your new TOMAHAWK® equipment is warranted to the original purchaser for a period of
one-year (12 months) from the original date of purchase. The TOMAHAWK® warranty is
against defects in design, materials and workmanship.
The following are not covered under the warranty:
9.1.1 Damage caused by abuse, misuse, dropping or other similar damage caused by or as a
result of failure to follow assembly, operation or user maintenance instructions.
9.1.2 Alterations, additions or repairs carried out by persons other than TOMAHAWK® or
their recognized agents.
9.1.3 Transportation or shipment costs to and from TOMAHAWK® or their recognized
agents, for repair or assessment against a warranty claim, on any machine.
9.1.4 Materials and/or labor costs to renew, repair or replace components due to fair
wear and tear.
9.1.5 TOMAHAWK® and/or their recognized agents, directors, employees or insurers will not
be held liable for consequential or other damages, losses or expenses in connection with or
by reason of or the inability to use the machine for any purpose.
Warranty Claims
Before submitting any warranty claim, you will need to register
your new TOMAHAWK® equipment through
www.tomahawk-power.com.
Follow the steps on page 3 or scan this QR codes to complete
all warranty claims should firstly be directed to TOMAHAWK®
through the online Service Request form found
at www.tomahawk-power.com/pages/service-request.
10. SERVICES CENTERS
Our service centers are equipped to handle your equipment maintenance and repair needs
support and genuine parts needed to keep your equipment running smoothly. All locations
are listed on the webpage .
17
Item #: TBS500
1.6HP SKID SPRAYER
+ 100FT HOSE & REEL
www.tomahawk-power.com
TRUSTED
NATIONWIDE
Powered by the industry’s most reliable
Honda GX35 engine, maintain constant,
adjustable pressure from 50 - 500 PSI with a
high flow rate of 2.8GPM to help you cover
more area so you can finish jobs faster!
1718
Item #: TBUGGY300e
HYDRAULIC BATTERY
660
CAP.
POWER BUGGY
www.tomahawk-power.com
WORK SMARTER.
NOT HARDER.
Work up to 8 hours on a single charge and never break a
sweat with the versatility of a 92° hydraulic tilt range for
headache-free dumping!
LBS
19
Parts Manual
17
TW2H SEMI TRASH PUMP
Part No. Reference No. Description Qty
30T2- 1
420012210000
Casing
1
30T2- 2
140002201000
240Mm O-Ring
1
30T2- 3
170002200000
W-Type Mechanical Seal
1
30T2-4
130002322000
Impeller
1
30T2-5
130142200000
Circle Packing
1
30T2-6
230032320000
Volute
1
30T2-7
140022201000
Volute Gasket- 88.5Mm
1
30T2-8
220052200100
Cover
1
30T2-9
140042321000
Check Valve (Flapper)
1
30T2-10
330012321100
Suction Flange
1
30T2-11
140000001000
23.7Mm O-Ring
2
30T2-12
140070000000
Cap Plug
2
30T2-13
140032201100
Square Packing (Delivery)
1
30T2-14
220032200000
Delivery Housing
1
30T2-15
140032201000
Square Packing (Flange)
1
30T2-16
330022321100
Flange
1
30T2-17
170100022000
Pin, Hinge
4
30T2-18
170100322000
Pin, Lock ( E)
4
30T2-19
170112200000
Spring
1
30T2-20
185041331863
Falte Washer
1
30T2-21
280070122001
Screw (Depressor)
1
30T2-22
220042200000
Depressor
2
30T2-23
331010203200
Roll Cage Mh030T-2
1
30T2-24
341100010000
Rubber Foot Mat (Front)
4
30T2-25
140240000000
Rubber Foot Mat (Rear)
2
30T2-26
180170080251
M8*25 Screw
4
30T2-27
180130080400
M8*40 Screw
2
30T2-27
180130080200
M8*20 Screw
2
30T2-28
180130080300
M8*30 Screw
4
30T2-29
180070080201
M8*20 Screw (Cap)
8
30T2-30
180070060201
M6*20 Screw (Cap)
3
30T2-31
180070050121
M5*12 Screw (Cap)
3
30T2-32
185050080000
M8 Spring Washer
4
30T2-33
185050060000
M6 Spring Washer
3
30T2-34
185050050000
M5 Spring Washer
3
30T2-35
185040816010
Flat Washer
4
30T2-36
185060813850
Aluminum Washer
4
30T2-37
185010080120
Nut
8
HONDA GX270
N/A Engine
1
TW2H SEMI TRASH PUMP
Rammers
8 ft Hydraulic Steer, 35 HP Vanguard,
CVT Clutch, 180 RPM
10 ft Full Hydrostatic, 74 HP Hatz
Diesel
Part#:
TPT24H
TPT36H
TPT46H
Part#:
JXPT30T
Part#:
TRT46V
TRT60V
2 ft Edger, Honda GX160, 0-28
o
Blade Pitch
3 ft, Honda GX160/GX270, 0-28
o
Blade Pitch
4 ft, Honda GX270/GX390, 0-28
o
Blade Pitch
We’re here to help!
Email us at [email protected]
Forward Plate Compactors
Reverse Plate Compactors
Part#:
TR68H
JX60H
eJX60H
TVSA-H
eTVSA
Part#:
Part#:
TPC80H
Power Screeds
Porta-Trowels
Concrete Sprayers
Walk Behind Trowels
Ride on Trowels
Early Entry Saws
Part#:
6-16 ft Magnesium Blades
Honda GX35, Adjustable Handles
6-16 ft Magnesium Blades
36V/5 Ah Battery, Adjustable Handles
Part#:
TFS6H
TFS10H
Part#:
TCS6.5
6" Blade Diameter, Blade Compatibility,
Honda GX120
10" Blade Diameter, Self Propelled,
Blade Compatibility, Honda GX270/GX390
TPC85H
TPC90H
TPC170H
TPC100H
TPC400H
Equipment Guide
3,000 lbs/sq ft, Honda, 21”x17” Plate
3,200 lbs/sq ft, Honda, 23”x17” Plate
3,400 lbs/sq ft, Honda, 22”x20” Plate
3,500 lbs/sq ft, Honda, 19”×14” Plate
7,000 lbs/sq ft, Honda, 28”x20” Plate
11,690 lbs/sq ft, Honda, 32”x22” Plate
Lightweight at 40 lbs
Adjustable 18 ft Extension Bull Float Poles
30" Diameter, 4-Blade Assembly
Adjustable Blade Pitch from 0-28
o
Adjustable from 0-450 PSI
Handles 30% + Solids,1.8 HP 2 Stroke Motor,
24" Brass Wand 0.5 GPM, Fan Nozzle Included,
Spray 15,000 ft
2
in 10 Minutes
3,550 lbs/sq ft, Honda GX120
3,350 lbs/sq ft, Honda GX100
3,350 lbs/sq ft, Honda GXE2.0S
Items Listed Includes Combo Blades
QUIET INVERTER
QUIET INVERTER
Welder GeneratorsPower Buggy
48V-20Ah Battery
Handles up to 8 cu ft or 660 lbs. Bucket Capacity
Hydraulic Bucket with 92
o
Tilt, 8 Hour Run Time
Snow Plow Attachment & Bucket Extender Available
Part#:
TGDR10
TSCP8
4,500 - 5,500 Watt Series
10,500 Watt Series
Concrete Scarifier
Floor Sweepers
Grinders and Scrapers
Part#:
TSCAR-8H
Trash Water Pumps
Part#:
TW3H
TW4H
3" Pump, Honda GX270, 375 GPM,
Elevation: 89ft, Suction: 25ft
4" Pump, Honda GX390, 581 GPM,
Elevation: 92ft, Suction: 26ft
QUIET INVERTER
tomahawk-power.com
ASSEMBLED IN THE
PARTS SOURCED GLOBALLY
TG2000i
TG3000i
2,000 - 3,300 Watt Series
Equipment Guide
10" Disc, 120V, 1/32" Per Pass,
11 AMP, 1.5 HP, 1,725 RPM
8" Blade, 120V, 11 AMP, 3/4 HP,
1,725 RPM, Carpet & Tile Remover
Honda GX160 Engine, Scarifies 350 - 500ft
2
/hr
OSHA Compliant Vacuum Port
8" Carbide Tungsten Drum Kit, 1/8" Per Pass
38" Working Width, Triple Broom
System, 14.5 Gallon
30" Working Width, Battery Powered
Triple Broom System, 13.5 Gallon
120 Amp Welder, 60% Duty Cycle,
2000w, Includes Wheel Kit
210 Amp Welder, 60% Duty Cycle,
2000w, Includes Wheel Ki
t
4,500w Max
/
3,800w Rated
5,500w Max / 5,000w Rated, 120/220V
Run Time 8 Hrs @ 50% Load
CARB Compliant, GFCI
TG4500i
TG5500i
10,500w Max
/
8,500w Rated
Voltage Selector, 120/220V
Run Time 14.5hrs @ 25% Load
CARB Compliant, GFCI, CO Detector
TG9000i
2,200w Max
/
2,000w Rated
3,300w Max
/
3,000w Rated,
120/220V, 30 AMP Twist Lock
Run Time 8 Hrs @ 50% Load
CARB Compliant, GFCI 120v
6010-7024 Rods Compatible
Part#: TBUGGY300e
Part#:
TWG120A
TWG210A
Part#:
TOS38
eTOS30
TOMAHAWK®, LLC
San Diego, CA
Sales Support
(866) 577-4476
Equipment Support
(866) 577-4476
www.tomahawk-power.com
Tomahawk understands to keep a job-site running smoothly the proper equipment and
spare parts are needed at the drop of a hat. With same day shipping and faster
delivery times, count on Tomahawk to keep you powered throughout the day! With
long lasting parts and engines, Tomahawk equipment will be the star of your fleet for
years to come. Visit www.tomahawk-power.com to get started today!
Power Your World
FACEBOOK
facebook.com/TomahawkPowerUSA
YOUTUBE
youtube.com/TomahawkPower
INSTAGRAM
@tomahawkpower
