TW3H
WATER PUMP
Operation Manual
FIND THE HOW TO GUIDE ON
YEAR
W
A
R
R
A
N
T
Y
Honda Engine
on
3
2
TABLE OF CONTENTS
1. Safety Information
1.1 Laws Pertaining to Spark Arresters
1.2 Operating Safety
1.3 Safety While Using Combustion Engines
1.4 Service Safety
2. Product Details
2.1 Product Diagram
2.2 Specifications
3. Pre-Operation Check
3.1 Check the Suction and Discharge Hoses
3.2 Check the Engine
4. Operation
4.1 Operating Controls
4.2. Check the Engine Oil Level
4.3 Motor Oil
4.4 Checking Oil
4.5 Check Engine Fuel
4.6 Check Fuel Level
5. Start Up
6. Changing Engine Oil
7. Maintenance
8. Troubleshooting
9. Limited Warranty
10. Parts Manual
11. Tomahawk Catalog and Coupon
4
5
5
6
6
7
7
8
8
8
8
9
9
9
10
10
11
11
11
12
14
15
16
19
22
3
Register Your Equipment
Thank you for purchasing TOMAHAWK equipment! Your product is covered by the
TOMAHAWK Warranty policy, but in order to activate your warranty, we need you to register
your product. In addition to activating your equipment warranty, product registration will
grant you access to important product updates, streamlined customer service and more.
INCLUDED WITH YOUR REGISTRATION
☑ Equipment Warranty Activation
☑ Product Updates
☑ Streamlined Customer Service
☑ Excusive Discounts and Sales
STEPS TO REGISTER YOUR EQUIPMENT
1. Visit www.tomahawk-power.com
2. Choose “Product Registration” at the bottom of the page
3. Enter your equipment’s serial number to get started
4. Provide all required information
5. Submit Registration
Equipment Resources
Tomahawk Customer Service doesn’t stop at checkout. We understand to keep a job-site
running smoothly - the proper equipment, spare parts, instruction manuals, and more are
needed at the drop of a hat. Visit www.tomahawk-power.com to gain access to the incredible
resources below.
How To Video Library
More of a visual person? Visit our Video Library for equipment
assembly instructions, troubleshooting tips, and more!
Found on each product listing or the Service Videos Page
Manual and Assembly Guide Library
Visit our Manual Library if you are looking for a lost
operations manual or a particular spare part?
Found on each product listing or the Tomahawk Manuals Page
Service Requests
In need of a quick fix or a service center referral? Submit a
Service Request and a Tomahawk Technician will respond
shortly to get you the help you need.
Choose “Service Request” at the bottom of www.tomahawk-power.com
This manual provides information and procedures to safely operate and maintain this
equipment. For your own safety and protection from injury, carefully read, understand and
observe the safety instructions described in this manual.
Keep this manual or a copy of it with the equipment. If you lose this manual or need an
additional copy, please contact Tomahawk Power LLC or visit www.tomahawk-power.com
This equipment is built with user safety in mind; however, it can present hazards if
improperly operated and serviced. Follow operating instructions carefully. If you have
questions about operating or servicing this equipment, contact Tomahawk Power.
The information contained in this manual is based on equipment’s production at the time of
publication. Tomahawk Power reserves the right to change any portion of this information
without notice.
No part of this publication may be reproduced in any form or by any means, electronic or
mechanical, including photocopying, without express written permission from
Tomahawk Power.
Any type of reproduction or distribution not authorized by Tomahawk Power represents an
infringement of valid copyrights and will be prosecuted. We expressly reserve the right to
make technical modifications, even without due notice, which aim at improving our
machines or their safety standards.
1. Safety Information
This manual contains DANGER, WARNING, CAUTION, and NOTE callouts which must be
followed to reduce the possibility of personal injury, damage to the equipment, or improp-
er service.
This is the safety alert symbol. It is used to alert you to potential personal injury
hazards. Obey all safety messages that follow this symbol to avoid possible injury
or death.
DANGER indicates an imminently hazardous situation which, if not avoided, will
result in death or serious injury.
WARNING indicates a potentially hazardous situation which, if not avoided, could
result in death or serious injury.
CAUTION indicates a potentially hazardous situation which, if not avoided, may
result in minor or moderate injury.
DANGER
WARNING
CAUTION
4
5
CAUTION: Used without the safety alert symbol, CAUTION indicates a potentially
hazardous situation which, if not avoided, may result in property damage.
1.1 Laws Pertaining to Spark Arresters
Notice: State Health Safety Codes and Public Resources Codes specify that in certain
locations spark arresters be used on internal combustion engines that use hydrocarbon
fuels. A spark arrester is a device designed to prevent accidental discharge of sparks or
flames from the engine exhaust. Spark arresters are qualified and rated by the United
States Forest Service for this purpose.
In order to comply with local laws regarding spark arresters, consult the engine distributor
or the local Health and Safety Administrator.
1.2 Operating Safety
Familiarity and proper training are required for the safe operation of equipment!
Equipment operated improperly or by untrained personnel can be dangerous! Read
the operating instructions contained in both this manual and the engine manual and
familiarize yourself with the location and proper use of all controls. Inexperienced
operators should receive instruction from someone familiar with the equipment before
being allowed to operate the machine.
1.2.1 NEVER allow anyone to operate this equipment without proper training. People
operating this equipment must be familiar with the risks and hazards associated with it.
1.2.2 NEVER touch the engine or muffler while the engine is on or immediately aer it has
been turned off. These areas get hot and may cause burns.
1.2.3 NEVER use accessories or attachments that are not recommended by Tomahawk
Power. Damage to equipment and injury to the user may result.
1.2.4 NEVER leave machine running unattended.
1.2.5 ALWAYS be sure operator is familiar with proper safety precautions and operation
techniques before using machine.
1.2.6 ALWAYS wear ANSI Z87.1-approved safety goggles or safety glasses with side shields,
or when needed, a face shield. Use a dust mask in dusty work conditions. Also use non-skid
safety shoes, hardhat, gloves, dust collection systems, and hearing protection when
appropriate. This applies to all persons in the work area.
1.2.7 ALWAYS close fuel valve on engines equipped with one when machine is not being
operated.
1.2.8 ALWAYS store equipment properly when it is not being used. Equipment should be
stored in a clean, dry location out of the reach of children.
WARNING
6
1.2.9 ALWAYS operate machine with all safety devices and guards in place and in working
order. DO NOT modify or remove safety devices. DO NOT operate machine if any safety
devices or guards are missing or inoperative.
1.2.10 ALWAYS read, understand, and follow procedures in Operator's Manual before
attempting to operate equipment.
1.3 Safety While Using Combustion Engines
Internal combustion engines present special hazards during operation and fueling!
Read and follow warning instructions in engine owner's manual and safety guidelines
below. Failure to follow warnings and DANGER safety guidelines could result in severe
injury or death.
1.3.1 DO NOT run machine indoors or in an enclosed area such as a deep trenches unless
there is adequate ventilation, through such items as exhaust fans or hoses are provided.
Gasoline exhaust from the engine contains poisonous carbon monoxide gas; exposure to
carbon monoxide can cause loss of consciousness and may lead to death.
1.3.2 DO NOT smoke while operating machine.
1.3.3 DO NOT smoke when refueling engine.
1.3.4 DO NOT refuel hot or running engine.
1.3.5 DO NOT refuel engine near open flame.
1.3.6 DO NOT spill fuel when refueling engine.
1.3.7 DO NOT run engine near open flames.
1.3.8 ALWAYS refill fuel tank in well-ventilated area.
1.3.9 ALWAYS replace fuel tank cap aer refueling.
1.3.10 ALWAYS check fuel lines and fuel tank for leaks and cracks before starting engine.
1.3.11 DO NOT run machine if fuel leaks are present or fuel lines are loose.
1.4 Service Safety
Poorly maintained equipment can become a safety hazard! In order for the
equipment to operate safely and properly over a long period of time, periodic
maintenance and occasional repairs are necessary.
1.4.1 DO NOT attempt to clean or service machine while it is running. Rotating parts can
cause severe injury.
1.4.2 DO NOT crank a flooded engine with the spark plug removed on gasoline-powered
engines. Fuel trapped in the cylinder will squirt out the spark plug opening.
DANGER
WARNING
7
1.4.3 DO NOT test for spark on gasoline-powered engines, if engine is flooded or the smell
of gasoline is present. A stray spark could ignite fumes.
1.4.4 DO NOT use gasoline or other types of fuels or flammable solvents to clean parts,
especially in enclosed areas. Fumes from fuels and solvents can become explosive.
1.4.5 ALWAYS keep area around muffler free of debris such as leaves, paper, cartons, etc. A
hot muffler could ignite them, starting a fire.
1.4.6 ALWAYS replace worn or damaged components with spare parts designed and
recommended by Tomahawk Power.
1.4.7 ALWAYS disconnect spark plug on machines equipped with gasoline engines, before
servicing, to avoid accidental start-up.
1.4.8 ALWAYS keep machine clean and labels legible. Replace all missing and hard-to-read
labels. Labels provide important operating instructions and warn of dangers and hazards.
1.4.9 ALWAYS check for damaged parts before each use. Carefully check that the
equipment will operate properly and perform its intended function. Replace damaged or
worn parts immediately. Never operate the screed with a damaged part.
1.4.10 ALWAYS inspect the machine prior to placing in storage and before re-use. Store the
machine in a dry, secure place out of the reach of children when not in use.
1.4.11 ALWAYS use only accessories that are recommended by the manufacturer for use
with the machine. Accessories that may be suitable for one machine may create a risk of
injury when used with the machine.
2. Product Details

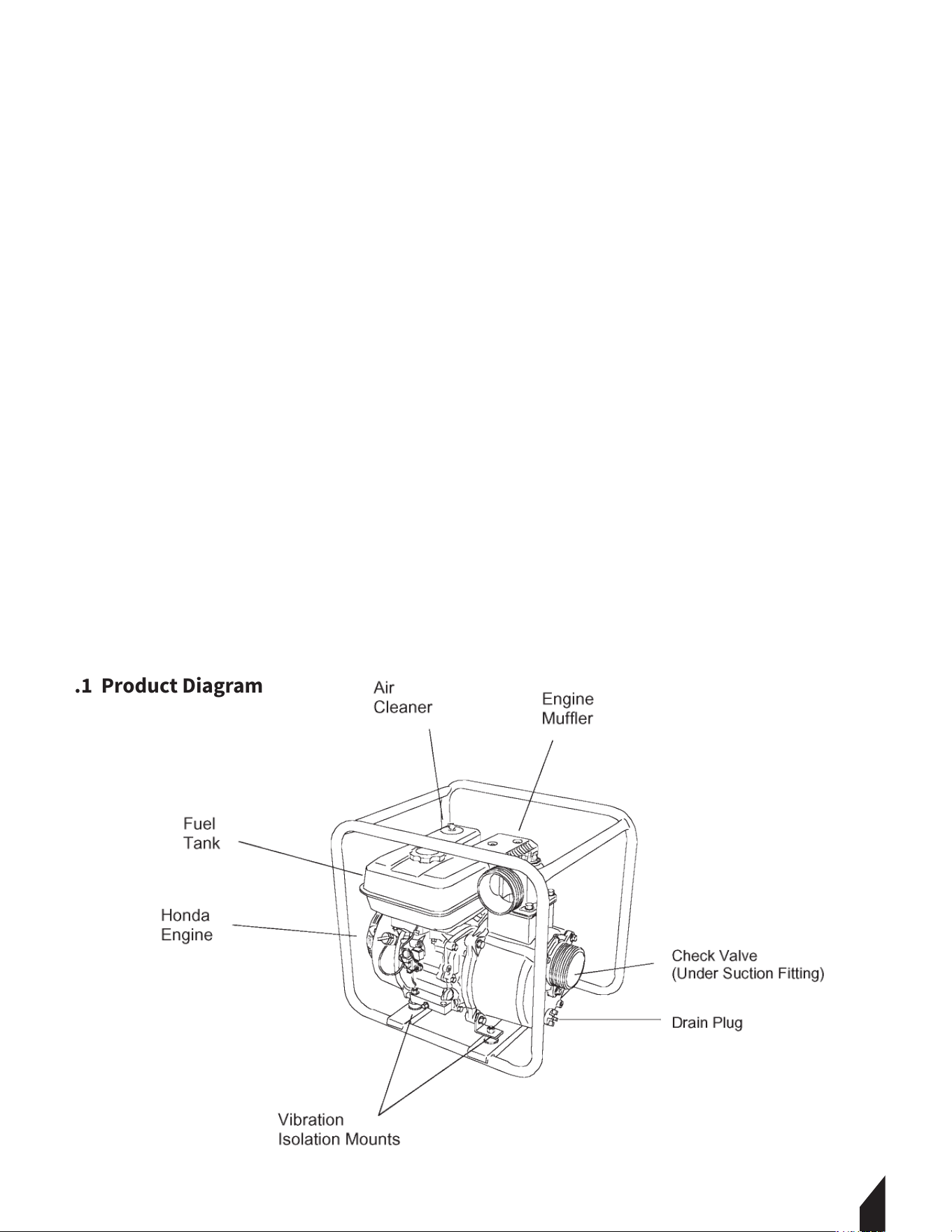

2.1 Product Diagram
8
2.2 Specifications
3. Pre-Operation Check
3.1 Check the Suction and Discharge Hoses
3.1.1 Check the general condition of the hoses. Be sure the hoses are in serviceable condi-
tion before connecting them to the pump. Remember that the suction hose must be rein-
forced construction to prevent hose collapse.
3.1.2 Check that the sealing washer in the suction hose connector is in good condition.
3.1.3 Check that the hose connectors and clamps are securely installed.
3.1.4 Check that the strainer is in good condition and is installed on the suction hose.
3.2 Check the Engine
3.2.1 Check the oil level. To avoid the inconvenience of an unexpected shut-down by the
Oil Alert system, always check the engine oil level before startup.
3.2.2 Check the air filter. A dirty air filter will restrict air flow to the carburetor, reducing
engine and pump performance.
3.2.3 Check the fuel level. Starting with a full tank will help to eliminate or reduce operating
interruptions for refueling.
Model TW3H
Outlet Diameter 3" X 3"
Max Total Head 89ft
Suction Head 25ft
Max Discharge 340 gal/min
Engine Model GX240
Engine Brand Honda
Horsepower 8
Run Time 3.25 hrs
Fuel Tank Capacity 1.5 gal
Weight 93 lbs
Product Warranty 2 Year
Engine Warranty 3 Year
9
4. Operation
4.1 Operating Controls

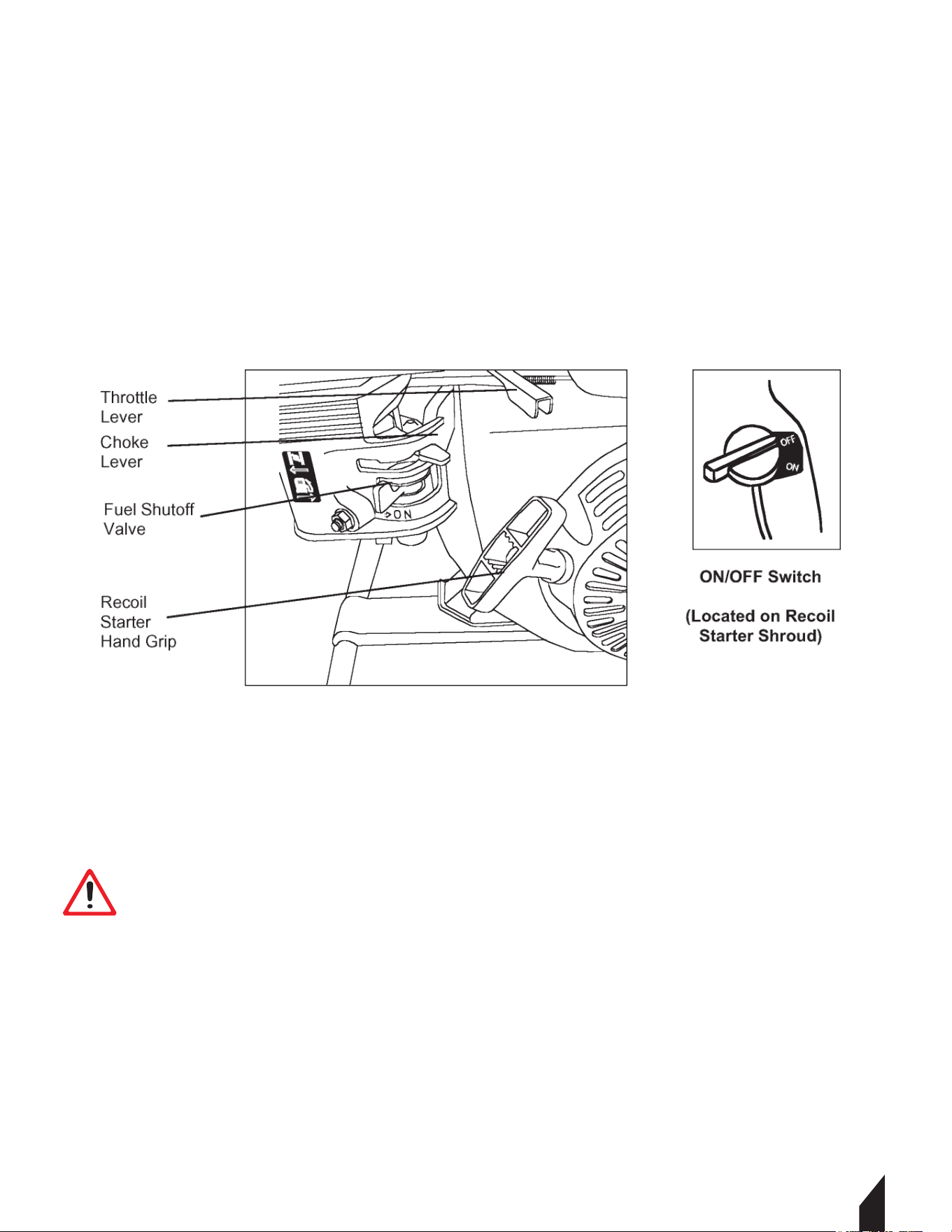

4.1.1 The centrifugal pump is operated using the engine operating controls. The engine
controls are located at the engine end of the pump frame.
4.1.2 The controls consist of a throttle lever (for speed control), choke lever (for cold weather
starting), fuel shutoff lever (to prevent fuel spills), and a recoil starter (to turnover engine
by hand). (Refer to Figure-3.)

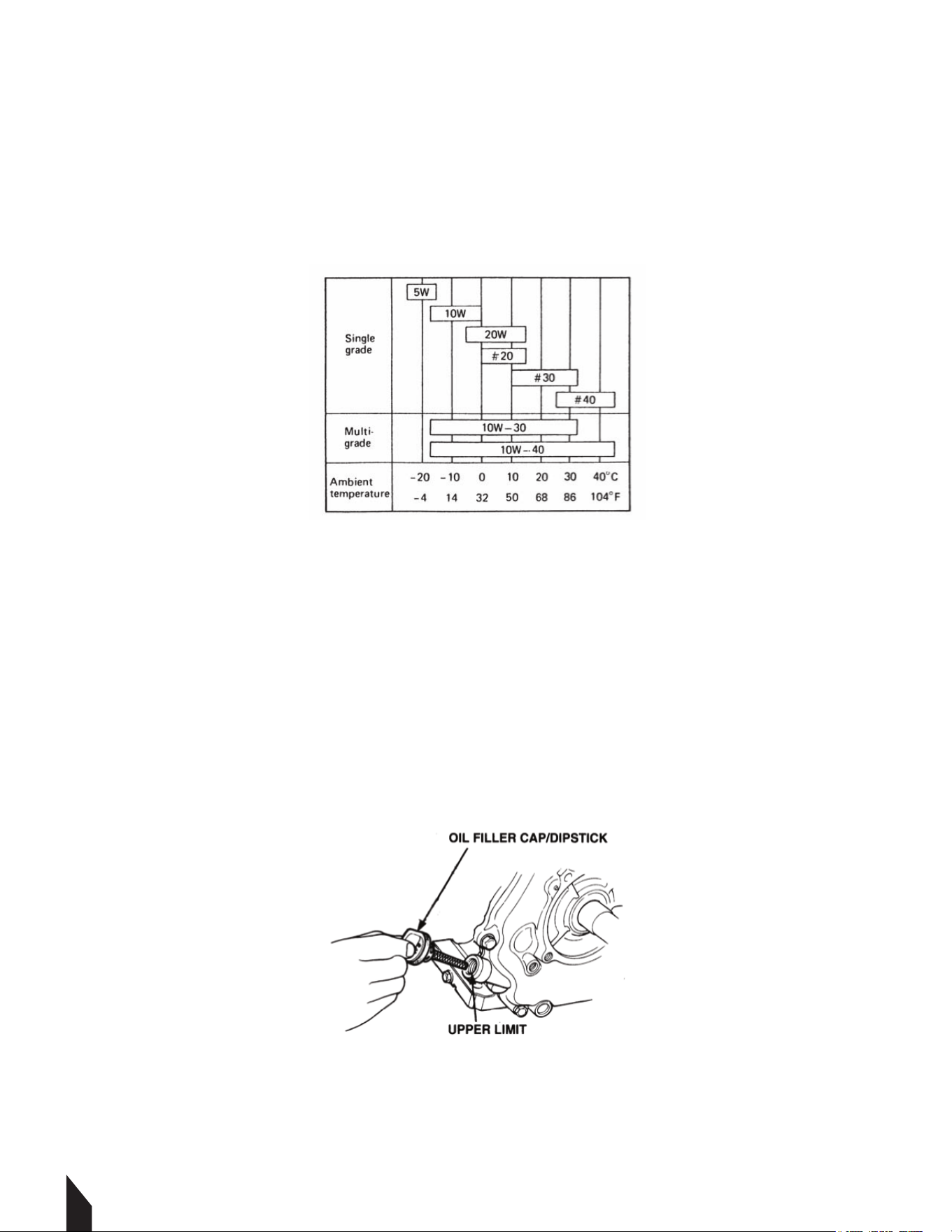

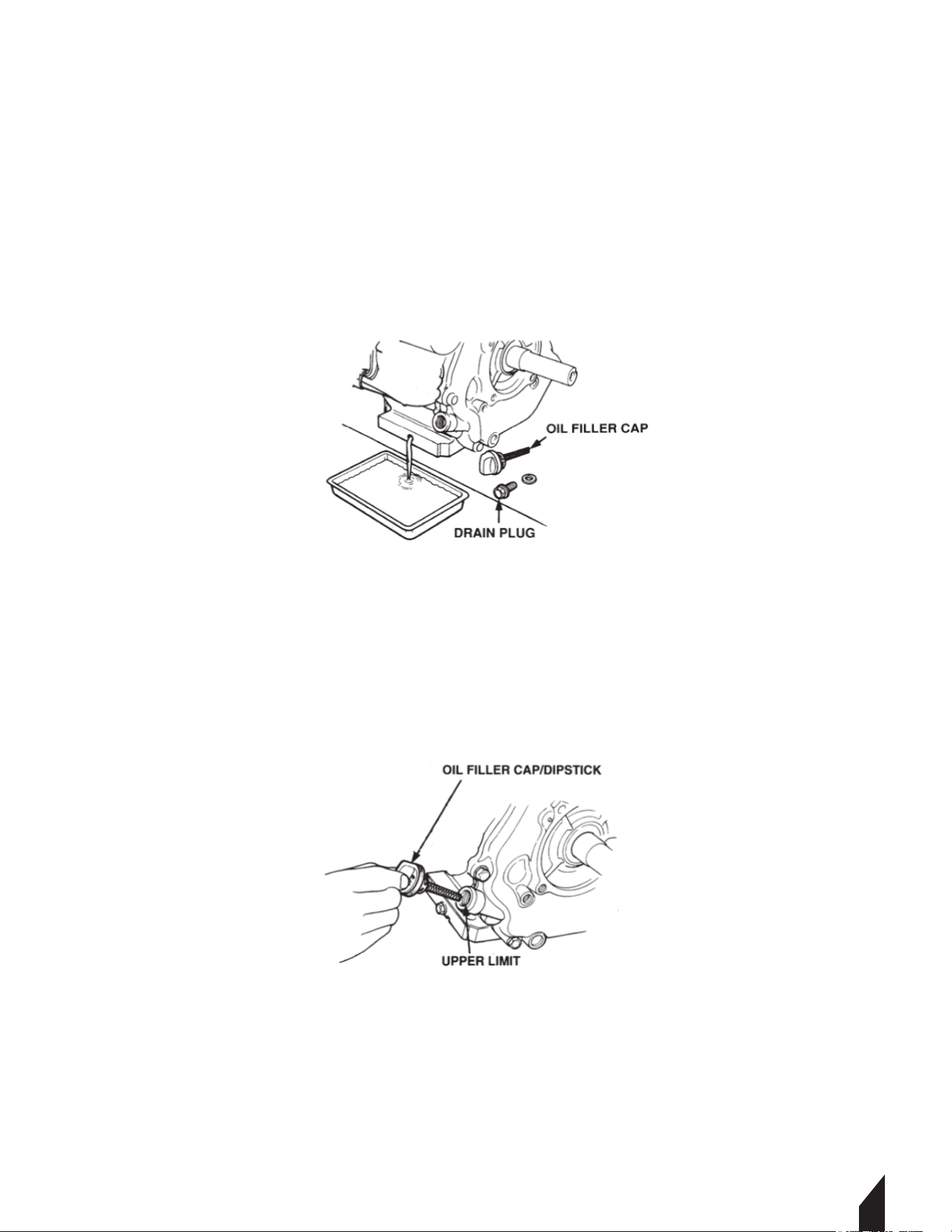

4.2. Check the Engine Oil Level
FIGURE-3
• ENGINE OIL IS A MAJOR FACTOR AFFECTING PERFORMANCE AND SERVICE LIFE.
NON-DETERGENT OILS AND 2-STROKE OILS ARE NOT RECOMMENDED BECAUSE
THEY HAVE INADEQUATE LUBRICATING CHARACTERISTICS
• CHECK THE OIL LEVEL WITH THE ENGINE ON A LEVEL SURFACE AND THE ENGINE
STOPPED.
WARNING
10
4.3 Motor Oil
Use Honda 4-stroke oil, or use an equivalent high detergent, premium quality motor oil
certified to meet or exceed U.S. automobile manufacturer’s requirements for Service
Classification SG, SF. Motor oils classified SG, SF will show this designation on the container.
SAE 10W/30 is recommended for general, all-temperature use. Other viscosity grades (see
Figure-4) may be used when the average temperature in your area is within the indicated
range.
4.4 Checking Oil
When checking oil, observe the following (refer to Figure-5):
4.4.1 Make sure the engine is in a level position.
4.4.2 Remove the oil filler cap/dipstick and wipe it clean.
4.4.3 Insert the filler cap/dipstick into the oil filler neck, but do not screw it in.
4.4.4 Remove the filler cap/dipstick and check the oil level.
4.4.5 If the level is low, fill to the top of the oil filler neck with the recommended oil.
4.4.6 Reinstall the oil filler cap/dipstick.
FIGURE-4
FIGURE-5
11
4.5 Check Engine Fuel
4.6 Check Fuel Level
A. Remove cap from fuel tank. If fuel level is low, refill with unleaded automotive gasoline.
5. Start Up
5.1 Pre-Start Checks
5.1.2 Check the following items before starting the engine.
5.1.3 Fuel leakage from fuel hose, sediment cup, etc.
5.1.4 Bolts and nuts for looseness. Components for damage or breakage.
5.1.5 Check centrifugal pump surroundings.
5.1.6 Keep centrifugal pump at least three (3) feet (one [1] meter) away from buildings
or other structures.
5.1.7 Only operate centrifugal pump in a dry, well-ventilated area.
5.1.8 Keep exhaust pipe clear of foreign objects.
5.1.9 Keep centrifugal pump away from open flame.
5.1.10 Keep centrifugal pump on a stable and level surface.
5.1.11 Do not block centrifugal pump air vents with paper or other material.
• MAKE SURE YOU REVIEW EACH WARNING IN ORDER TO PREVENT FIRE HAZARD.
• KEEP AREA CLEAR OF FLAMMABLES OR OTHER HAZARDOUS MATERIALS.
• MAKE SURE YOU REVIEW EACH WARNING IN ORDER TO PREVENT FIRE HAZARD.
• DO NOT REFILL TANK WHILE ENGINE IS RUNNING OR HOT.
• CLOSE FUEL SHUT OFF VALVE BEFORE REFUELING.
• BE CAREFUL NOT TO GET DUST, DIRT, WATER OR OTHER FOREIGN OBJECTS INTO
FUEL.
• WIPE OFF SPILLED FUEL THOROUGHLY BEFORE STARTING ENGINE.
• KEEP AWAY FROM OPEN FLAMES.
• DO NOT USE SMOKING MATERIALS WHEN FILLING THE FUEL TANK.
• DO NOT REFUEL WHILE SMOKING OR NEAR OPEN FLAME OR OTHER SUCH
POTENTIAL FIRE HAZARDS. OTHERWISE FIRE ACCIDENT MAY OCCUR.
• AVOID REPEATED OR PROLONGED CONTACT WITH SKIN OR BREATHING OF VAPOR.
• KEEP OUT OF REACH OF CHILDREN.
WARNING
WARNING
5.2 Starting and Operating the Engine
5.2.1 Refer to the Honda engine owner’s manual.
5.2.2 Put the fuel valve in the ON position.
5.2.3 Move the choke lever to the closed position.
5.2.4 Set the ON/OFF switch to ON (the ON/OFF switch is mounted on the recoil shroud).
5.2.5 Move the throttle lever slightly to the le.
5.2.6 Pull the starter grip lightly until resistance is felt, then pull briskly.
5.2.7 As the engine warms up, gradually move the choke lever to the OPEN position.
5.3 Using the Centrifugal Pump
5.3.1 Connect suction and discharge hoses. Make sure suction hose is fitted with a strainer.
B. Remove priming plug from top of pump and fill chamber with water.
5.3.2 Operate the engine at idle speed for 3 to 5 minutes.
5.3.3 Aer engine warm up, move the throttle lever to the operating speed.
5.4 Stopping the Centrifugal Pump
5.4.1 Move the throttle lever fully to the right.
5.4.2 Set the ON/OFF switch to OFF.
5.4.3 Turn the fuel valve to the OFF position.
6. Changing Engine Oil
6.1 Oil Alert
6.1.1 The oil alert sensor detects the lowering of the oil level in the crankcase and
automatically stops the engine when the oil level falls below the predetermined level.
6.1.2 When the engine stops automatically, check the oil level. Refill engine oil to the upper
level and restart the engine.
6.1.3 If the engine does not start by usual starting procedures, check the oil level.
12
The choke may not be needed if the engine is warm or the air
temperature is high.
WARNING
• Do not allow the starter grip to snap back against the
engine. Return it gently to prevent damage to the starter.
WARNING
13
6.2 Changing Engine Oil
6.2.1 An initial oil change should be performed aer the first twenty- (20) hours of use.
Thereaer, change oil every 200 hours or as directed on the oil packaging.
6.2.2 Before changing the oil, check for a suitable way to dispose of the used oil. Do not pour
it down sewer drains, onto garden soil or into open streams. Refer to your local zoning and
environmental regulations for disposal and handling requirements.
6.2.3 Drain the oil while the engine is still warm to assure rapid and complete draining.
6.2.4 Remove the oil filler dipstick/cap and drain plug. Allow oil to drain from the engine
(refer to Figure-6).
6.2.5 Install the drain plug, and tighten it securely.
6.2.6 Refill with the recommended oil (refer to Figure 2-2).
6.2.7 Aer filling with oil, check the oil level.
6.2.8 When oil reaches the upper limit, install the oil filler dipstick/cap (Figure-7).
NOTE:
• Engine oil capacity:
1.1 liters (1.16 U.S. Quart)
FIGURE-6
FIGURE-7
14
7. Maintenance
To maintain the centrifugal pump in peak operating condition, observe and implement the
maintenance and adjustment schedule in the table below. Inspect and/or service the
centrifugal pump at the intervals shown below.
Check the fuel and oil levels
Overhaul engine
Change fuel lines
Check and tighten the external
hardware
Wash cleaner element
Check spark plug and clean if
necessary
Change engine oil
Adjust spark plug gap
Clean and adjust carburetor, valve
clearance, and valve seat
along with cylinder head
Check rotor and stator
Replace engine isolation
mounts
Replace spark plug and cleaner
element
Clean fuel strainer
DAILY
BEFORE
STARTING
AFTER
FIRST 50
HOURS OR 3
MONTHS
AFTER
FIRST 200
HOURS OR 8
MONTHS
AFTER
FIRST 500
HOURS OR
EVERY YEAR
AFTER
FIRST 1000
HOURS OR
EVERY
2 YEARS
15
8. Troubleshooting
The troubleshooting tables below can be used as a guide to isolate centrifugal pump faults.
Refer to these tables when the engine fails to start aer several attempts. If, aer following
these procedures, the pump fails to start, contact the nearest Tomahawk pump dealer.
Fault Probable Cause Solution
Pump does not pump.
Insufficient priming water
Mechanical seal chipped or broken
Check valve damaged
Suction hose damaged or strainer clogged
Air leaks caused by O-ring damage
Add more water through priming plug
Replace mechanical seal
Replace check valve
Replace hose. Clean strainer
Replace O-rings
Discharge flow or pump
pressure too low.
Air leaks caused by O-ring damage
Suction hose or strainer clogged
Excess
ive impeller clearance
Engine RPM too low
Lift head too high
Replace O-rings
Replace hose. Clean strainer
Disassemble to obtain casing cover and
impeller. Determine clearance and reshim
as required (refer to Replacement of
Mechanical Seal)
Check RPM and reset throttle as required
Lower lift head
Pump primes too
slowly.
Insufficient priming water
Mechanical seal chipped or broken
Check valve damaged
Suction hos
e damaged or strainer clogged
Air leaks caused by O-ring damage
Engine RPM too low
Lift head too high
Add more water through priming plug
Replace mechanical seal
Replace check valve
Clean strainer.
Replace hose
Check RPM and reset throttle as required
Lower lift head
Noise or vibration Faulty mounting
Pump/engine attaching parts loose.
Tighten as required.
Damaged vibration isolation mounts.
Replace mounts.
9. Limited Warranty
Tomahawk Power LLC. ("We'' or "Us'') warrants to the original purchaser only ("You'' or
“Your”) that the Tomahawk product purchased will be free from material defects in both
materials and workmanship, normal wear and tear excepted, for a period of 1 year from
date of ourchase. The foregoing warranty is valid only if the installation and use of the
product is strictly in accordance with product instructions. There are no other warranties,
express or implied, including the warranty of merchantability or fitness for a particular
purpose. If the product does not comply with this limited warranty, Your sole and exclusive
remedy is that We will, at our sole option and within a commercially reasonable time,
either replace the product or product component without charge to You or refund the
purchase price (less shipping). This limited warranty is not transferable.
Limitations on the Warranty
This limited warranty does not cover: (a) normal wear and tear; (b) damage through abuse,
neglect, misuse, or as a result of any accident or in any other manner; (c) damage from
misapplication, overloading, or improper installation; (d) improper maintenance and
repair; and (e) product alteration in any manner by anyone other than Us, with the sole
exception of alterations made pursuant to product instructions and in a workmanlike
manner.
Obligations of Purchaser
You must retain Your product purchase receipt to verify date of purchase and that You are
the original purchaser. To make a warranty claim, contact Us at (866) 577-4476, identify the
product by make and model number, and follow the claim instructions that will be
provided. The product and the purchase receipt must be provided to Us in order to process
Your warranty claim. Any returned product that is replaced or refunded by Us becomes our
property. You will be responsible for return shipping costs or costs related to Your return
visit to a retail store.
Remedy Limits
Product replacement or a refund of the purchase price is Your sole remedy under this
limited warranty or any other warranty related to the product. We shall not be liable for:
service or labor charges or damage to Your property incurred in removing or replacing the
product; any damages, including, without limitation, damages to tangible personal
property or personal injury, related to Your improper use, installation, or maintenance of
the product or product component; or any indirect, incidental or consequential damages
of any kind for any reason.
16
Assumption of Risk
You acknowledge and agree that any use of the product for any purpose other than the
specified use(s) stated in the product instructions is at Your own risk.
Governing Law
This limited warranty gives You specific legal rights, and You also may have other rights
which vary from state to state. Some states do not allow limitations or exclusions on
implied warranties or incidental or consequential damages, so the above limitations may
not apply to You. This limited warranty is governed by the laws of the State of California,
without regard to rules pertaining to conflicts of law. The state courts located in San Diego
County, California shall have exclusive jurisdiction for any disputes relating to this
warranty.
17
Item #: TBS500
1.3HP SKID SPRAYER
+ 100FT HOSE & REEL
www.tomahawk-power.com
TRUSTED
NATIONWIDE
Powered by the industry’s most
reliable Honda GX35 engine,
maintain constant, adjustable
pressure from 50 - 500 PSI with
a high flow rate of 2.8GPM to
help you cover more area so
you can finish jobs faster!
1718
Item #: TBUGGY300e
HYDRAULIC BATTERY
660
CAP. POWER BUGGY
www.tomahawk-power.com
WORK SMARTER.
NOT HARDER.
Work up to 8 hours on a single charge and never break a
sweat with the versatility of a 92° hydraulic tilt range for
headache-free dumping!
LBS
19
TW3H
FULL TRASH PUMP
Parts Manual
1720

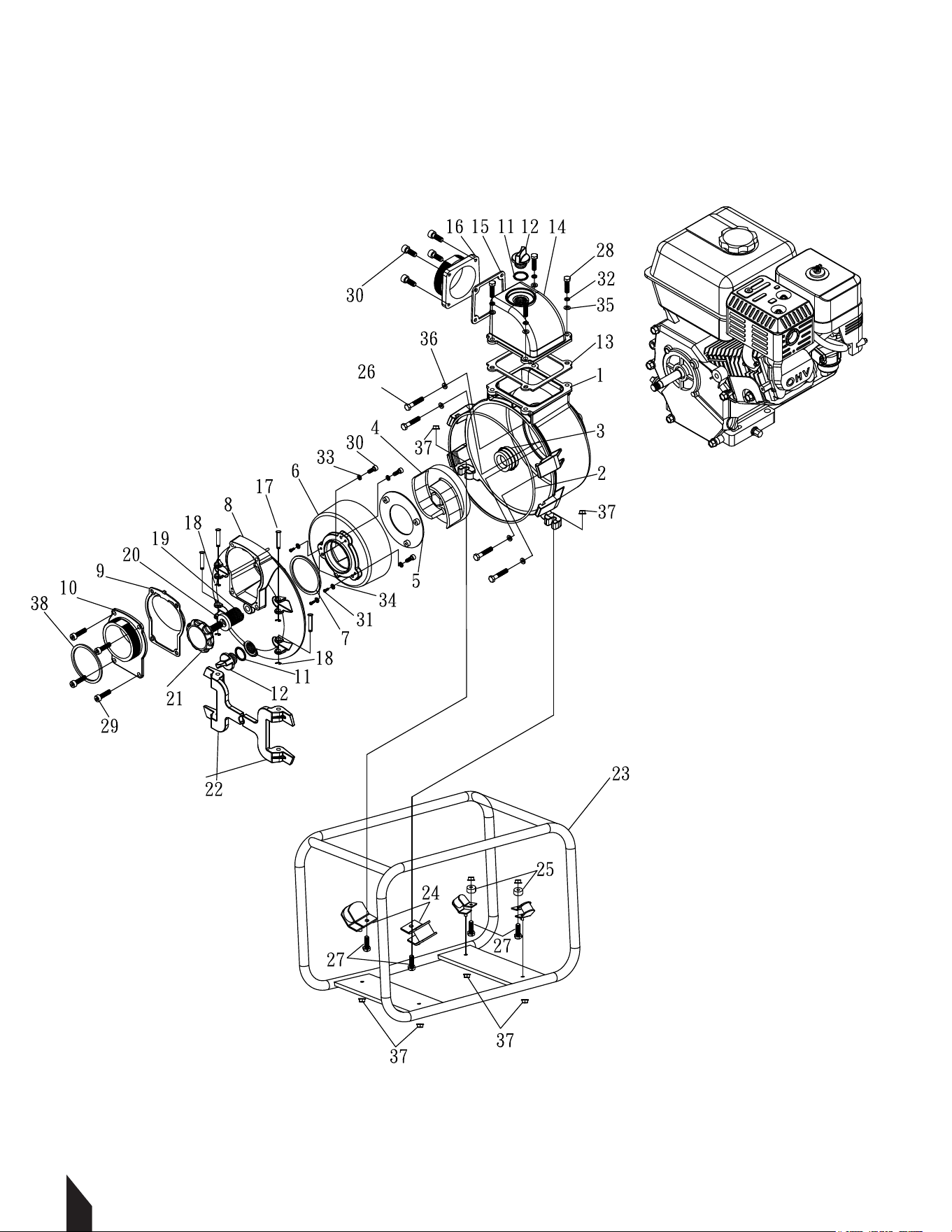

TW3H FULL TRASH PUMP
21
Part No. Reference No. Description Qty
30T2- 1
420012210000
Casing
1
30T2- 2
140002201000
240Mm O-Ring
1
30T2- 3
170002200000
W-Type Mechanical Seal
1
30T2-4
130002322000
Impeller
1
30T2-5
130142200000
Circle Packing
1
30T2-6
230032320000
Volute
1
30T2-7
140022201000
Volute Gasket- 88.5Mm
1
30T2-8
220052200100
Cover
1
30T2-9
140042321000
Check Valve (Flapper)
1
30T2-10
330012321100
Suction Flange
1
30T2-11
140000001000
23.7Mm O-Ring
2
30T2-12
140070000000
Cap Plug
2
30T2-13
140032201100
Square Packing (Delivery)
1
30T2-14
220032200000
Delivery Housing
1
30T2-15
140032201000
Square Packing (Flange)
1
30T2-16
330022321100
Flange
1
30T2-17
170100022000
Pin, Hinge
4
30T2-18
170100322000
Pin, Lock ( E)
4
30T2-19
170112200000
Spring
1
30T2-20
185041331863
Falte Washer
1
30T2-21
280070122001
Screw (Depressor)
1
30T2-22
220042200000
Depressor
2
30T2-23
331010203200
Roll Cage Mh030T-2
1
30T2-24
341100010000
Rubber Foot Mat (Front)
4
30T2-25
140240000000
Rubber Foot Mat (Rear)
2
30T2-26
180170080251
M8*25 Screw
4
30T2-27
180130080400
M8*40 Screw
2
30T2-27
180130080200
M8*20 Screw
2
30T2-28
180130080300
M8*30 Screw
4
30T2-29
180070080201
M8*20 Screw (Cap)
8
30T2-30
180070060201
M6*20 Screw (Cap)
3
30T2-31
180070050121
M5*12 Screw (Cap)
3
30T2-32
185050080000
M8 Spring Washer
4
30T2-33
185050060000
M6 Spring Washer
3
30T2-34
185050050000
M5 Spring Washer
3
30T2-35
185040816010
Flat Washer
4
30T2-36
185060813850
Aluminum Washer
4
30T2-37
185010080120
Nut
8
HONDA GX240
N/A Engine
1
TW3H FULL TRASH PUMP
17
22
1.6HP Backpack Concrete Vibrator
Part#: TVIBH + TVW10-P
1.6 HP Honda GX35 engine
Consolidation with speeds of 10,000-12,000 VPM
Quick Connect centrifugal clutch vibrator
1” and 2” Diameter Whips Available in 10ft Length
3 Year Engine Warranty & 1 Year Product Warranty
8” Gas Powered Concrete Scarifier
Part#: TSCAR8H
5.5 HP Honda GX160 Engine
Remove traffic lines at 800 - 1,000 linear ft/hr
Tungsten Carbide Blade Kit Available
OSHA approved dust port for silica vacuum removal
3 Year Engine Warranty & 1 Year Product Warranty
36” & 46” Concrete Power Trowel
Part#: TPT36H/K & TPT46H/K
6 HP/14HP Kohler & 5.5HP/8.5HP Honda Engines
Adjust trowel blade pitch from 0-28°
60-115 RPM rotor speed for superior concrete finishes
Includes float pan and trowel blades
3 Year Engine Warranty & 1 Year Product Warranty
HAVE QUESTIONS?
Contact us. We’re here to help!
Email us at [email protected]
3,550 lbs/ft Vibratory Rammer
Part#: TR68H
3.6 HP Honda GXR120 Engine
Easily achieve a 100% compaction rating
3-in-One Fuel System with carburetor protection
13” x 11” plate for narrow trenches and corners
3 Year Engine Warranty & 1 Year Product Warranty
3,400 lbs/ft Plate Compactor
Part#: TPC90H
5.5 HP Honda GX160 Engine
Easily achieve a 100% compaction rating
22” x 20” cold, rolled steel beveled base plate
Includes 3.5 gallon water tank for asphalt compaction
3 Year Engine Warranty & 1 Year Product Warranty
3,000 lbs/ft Plate Compactor
Part#: TPC80 & TPC80H
6 HP Kohler CH260 & 5.5 HP Honda GX160 Engines
Easily achieve a 100% compaction rating
16.5” x 21.5” plate for narrow trenches and corners
Optional Honda Engine model: TPC80H
3 Year Engine Warranty & 1 Year Product Warranty
COMPACTION
6.5 Gal Backpack Concrete Sprayer
Part#: TCS6.5
Maintain constant, adjustable pressure up to 450 PSI
Achieve superior concrete finishes with even spraying
Spray 15,000 sq ft in less than 10 minutes
Compatible with major manufacturer wands
1 Year Product Warranty
1.6 HP Vibratory Concrete Screed
Part#: TVSA-H
1.6 HP Honda GX35 Engine
Aluminum Magnesium blades available from 8ft - 14ft
Finish concrete 4X faster than other screed methods
360° adjustable handle placement
3 Year Engine Warranty & 1 Year Product Warranty
6” Early Entry Green Concrete Saw
Part#: TFS6H
5.5 HP Honda GX160 Engine
Maximum cutting depth of 1 3/16 inches
OSHA compliant vacuum port for dust collection
Includes 6” early entry concrete blade
3 Year Engine Warranty & 1 Year Product Warranty
FINISHINGFINISHING
1.6HP Backpack Concrete Vibrator
Part#: TVIBH + TVW10-P
1.6 HP Honda GX35 engine
Consolidation with speeds of 10,000-12,000 VPM
Quick Connect centrifugal clutch vibrator
1” and 2” Diameter Whips Available in 10ft Length
3 Year Engine Warranty & 1 Year Product Warranty
8” Gas Powered Concrete Scarifier
Part#: TSCAR8H
5.5 HP Honda GX160 Engine
Remove traffic lines at 800 - 1,000 linear ft/hr
Tungsten Carbide Blade Kit Available
OSHA approved dust port for silica vacuum removal
3 Year Engine Warranty & 1 Year Product Warranty
36” & 46” Concrete Power Trowel
Part#: TPT36H/K & TPT46H/K
6 HP/14HP Kohler & 5.5HP/8.5HP Honda Engines
Adjust trowel blade pitch from 0-28°
60-115 RPM rotor speed for superior concrete finishes
Includes float pan and trowel blades
3 Year Engine Warranty & 1 Year Product Warranty
PRODUCT
CATALOG
HAVE QUESTIONS?
Contact us. We’re here to help!
Email us at [email protected]
3,550 lbs/ft Vibratory Rammer
Part#: TR68H
3.6 HP Honda GXR120 Engine
Easily achieve a 100% compaction rating
3-in-One Fuel System with carburetor protection
13” x 11” plate for narrow trenches and corners
3 Year Engine Warranty & 1 Year Product Warranty
3,400 lbs/ft Plate Compactor
Part#: TPC90H
5.5 HP Honda GX160 Engine
Easily achieve a 100% compaction rating
22” x 20” cold, rolled steel beveled base plate
Includes 3.5 gallon water tank for asphalt compaction
3 Year Engine Warranty & 1 Year Product Warranty
3,000 lbs/ft Plate Compactor
Part#: TPC80 & TPC80H
6 HP Kohler CH260 & 5.5 HP Honda GX160 Engines
Easily achieve a 100% compaction rating
16.5” x 21.5” plate for narrow trenches and corners
Optional Honda Engine model: TPC80H
3 Year Engine Warranty & 1 Year Product Warranty
COMPACTION
6.5 Gal Backpack Concrete Sprayer
Part#: TCS6.5
Maintain constant, adjustable pressure up to 450 PSI
Achieve superior concrete finishes with even spraying
Spray 15,000 sq ft in less than 10 minutes
Compatible with major manufacturer wands
1 Year Product Warranty
1.6 HP Vibratory Concrete Screed
Part#: TVSA-H
1.6 HP Honda GX35 Engine
Aluminum Magnesium blades available from 8ft - 14ft
Finish concrete 4X faster than other screed methods
360° adjustable handle placement
3 Year Engine Warranty & 1 Year Product Warranty
6” Early Entry Green Concrete Saw
Part#: TFS6H
5.5 HP Honda GX160 Engine
Maximum cutting depth of 1 3/16 inches
OSHA compliant vacuum port for dust collection
Includes 6” early entry concrete blade
3 Year Engine Warranty & 1 Year Product Warranty
FINISHINGFINISHING
23
3.7 Gallon 3HP Backpack Fogger
Part#: TMD14
Turbo Boosted Pump with 40ft + Horizontal Reach
Sprays 1 acre in 30 minutes
10X Faster than Manual Pump Sprayers
Converts to Leaf Blower with 200 MPH Air Velocity
1 Year Product Warranty
Commercial 38" Push Sweeper
Part#: TOS38
Collect up to 14.5 gallons of dust and debris
Can be used indoors & outdoors on wet or dry surfaces
Includes integrated airflow control and fine dust filter
Lightweight design, capable of fitting through doorways
1 Year Product Warranty
INVERTER SERIES
210 Amp Portable Welder Generator
Part#: TWG210A
Steady 50 - 210 Amp DC welding output
60% Duty Cycle for extended use
Suitable for welding rods from 6010 to 7024
Electric Key Start with battery included
2 Year Product Warranty
7000 Watt Generators
Part#: TG7000
7000 Max Watts, 5500 Rated Watts
Voltage Selector gives Full Wattage for 120V or 240V
Run Time of 8 hours at 50% Load
OSHA and GFCI Compliant
2 Year Product Warranty
INVERTER SERIES
Part#: TG2000i
2000 Max Watts, 1600 Rated Watts
Run Time of 8 hours on 1 gallon of gas
OSHA and GFCI Compliant
Parallel technology capable for double the power
2 Year Product Warranty
2000 Watt Inverter Generator
5 Gallon Backpack Power Sprayer
Part#: TPS25
Reach Up to 30ft Horizontal Reach
Sprays acres in 10 minutes
10X Faster than Manual Pump Sprayers
50-435 Adjustable PSI Commercial Grade Pump
1 Year Product Warranty
4.75 Gallon Battery Power Sprayer
Part#: eTPS18
Reach Up to 30ft Horizontal Reach
Sprays 6000 sq ft in 10 minutes
10X Faster than Manual Pump Sprayers
70 PSI Commercial Grade Pump
1 Year Product Warranty
4 Gal. Backpack Fertilizer Spreader
Part#: TGS30
Reach up to 30ft Horizontally
Sprays 1 acre in 30 minutes
20X Faster than push spreaders
Converts to Leaf Blower with 200 MPH Air Velocity
1 Year Product Warranty
3” Full Trash Water Pump
Part#: TW3H
Moves liquids at a rate up to 375 gal/min
Handle solids up to 1.5"
Silicone carbide seals and a chrome plated volute
8 HP engine protected by rugged all purpose frame
3 Year Engine Warranty & 1 Year Product Warranty
AND MORE GENERATORSWELDING / POWER
www.tomahawk-power.com
(866) 577-4476
ASSEMBLED IN THE
PARTS SOURCED GLOBALLY
USA
INVERTER SERIESINVERTER SERIES
Part#: TG2000i
2000 Max Watts, 1600 Rated Watts
Run Time of 8 hours on 1 gallon of gas
OSHA and GFCI Compliant
Parallel technology capable for double the power
2 Year Product Warranty
2000 Watt Inverter Generator
AND MORE POWER / WELDINGPEST CONTROL
www.tomahawk-power.com
(866) 577-4476
ASSEMBLED IN THE
PARTS SOURCED GLOBALLY
USA
* All coupons in this manual are valid only for orders placed on www.tomahawk-power.com, unless otherwise noted. Coupon codes
may only be used once per customer and may not be combined with any other offer. Coupons may expire at any time without notice.
TOMAHAWK®, LLC
San Diego, CA
Sales Support
(866) 577-4476
Equipment Support
(866) 577-4476
www.tomahawk-power.com
Tomahawk understands to keep a job-site running smoothly the proper equipment and
spare parts are needed at the drop of a hat. With same day shipping and faster
delivery times, count on Tomahawk to keep you powered throughout the day! With
long lasting parts and engines, Tomahawk equipment will be the star of your fleet for
years to come. Visit www.tomahawk-power.com to get started today!
Power Your World
FACEBOOK
facebook.com/TomahawkPowerUSA
YOUTUBE
youtube.com/TomahawkPower
INSTAGRAM
@tomahawkpower
