16.5 CU FT Multi Door Refrigerator — User Manual
Model: RM-4165SLG1
2
ENGLISH
TABLE OF CONTENTS
IMPORTANT SAFETY & PRECAUTIONS � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 3
UNIT DIAGRAM � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 4
INSTALLATION INSTRUCTIONS � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 5
POSITIONING � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 7
LOCATION � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 7
MULTI-TEMPERATURE ZONES � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 8
ELECTRICAL CONNECTION � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 8
TEMPERATURE CONTROL & SETTINGS � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 9
DAILY USE � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 10
CLEANING & MAINTENANCE � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 11
TROUBLESHOOTING � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 11
CUSTOMER SUPPORT � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 12
ONE-YEAR LIMITED WARRANTY � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 13
3
ENGLISH
IMPORTANT SAFETY & PRECAUTIONS
What You Need To Know About Safety Instructions:
Warnings and important safety instructions in this manual do not cover all possible conditions
and situations that may occur� It is your responsibility to use common sense, caution, and care
when installing, maintaining, and operating this appliance�
Important Safety Symbols & Precaution Warnings:
⚠
WARNING: This symbol indicates that hazards or unsafe practices may cause serious
personal injury or death� To reduce the risk of fire, explosion, electric shock, or personal
injury when using your appliance, these basic safety precautions must be followed� Keep this
section for future reference�
State of California Proposition 65 Warnings:
⚠
WARNING: This product contains chemicals known to the State of California to cause
cancer, birth defects, or other reproductive harm� This appliance can cause low-level
exposure to substances like benzene, formaldehyde, and carbon monoxide�
General Safety Precautions:
• Read all instructions before using this appliance�
• Plug into a grounded three-prong outlet�
• Do not remove the ground prong or use an adapter�
• Do not use an extension cord�
• Disconnect power before servicing�
• Replace all parts and panels before operating�
• Remove doors from your old refrigerator to prevent accidental entrapment�
• Use non-flammable cleaner�
• Keep flammable materials and vapors, such as gasoline, away from the refrigerator�
• Use two or more people to move and install the refrigerator�
• Do not store explosive substances such as aerosol cans with flammable propellants inside
this appliance�
• The refrigerant isobutane (R600a) is contained within the refrigerant circuit of the appliance, a
natural gas with high environmental compatibility, but it is flammable�
• During transportation and installation of the appliance, be sure none of the components of
the refrigeration circuit become damaged�
4
ENGLISH
1� Avoid open flames and sources of ignition�
2� Thoroughly ventilate the room in which the appliance is located�
• Do not modify or alter this product in any way� Any damage to the cord may cause a short
circuit, fire, or electric shock�
• This appliance is intended for household use and similar applications, such as:
1� Sta kitchen areas in shops, oices, and other working environments�
2� Clients in hotels, motels, and other residential environments�
3� Catering and similar non-retail applications�

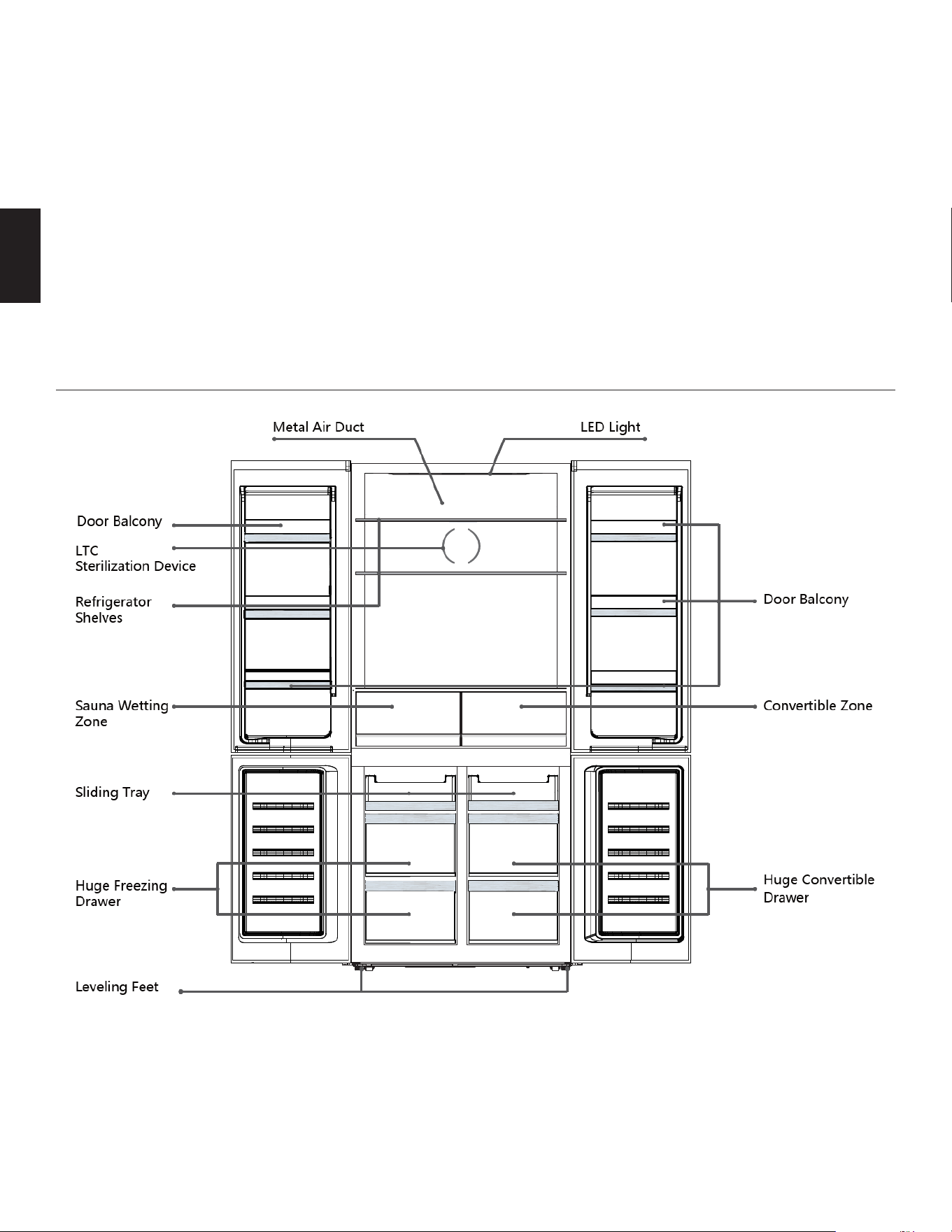

UNIT DIAGRAM
5
ENGLISH
INSTALLATION INSTRUCTIONS
Critical Installation Warnings:
⚠
The installation of this appliance must be performed by a qualified technician or service
company� Failing to have a qualified technician install the refrigerator may result in
electric shock, fire, explosion, product malfunction, or injury�
Before Using Your Refrigerator:
• Remove all exterior and interior packaging�
• Before connecting the refrigerator to the power source, let it stand upright for approximately 4
hours to reduce the possibility of a malfunction in the cooling system from improper handling
during transportation�
• Clean the interior surface using lukewarm water and a so cloth�
Installing Your Refrigerator:
• Place the refrigerator on a floor strong enough to support it when fully loaded�
• Allow 2 inches of space between the back of the refrigerator and the wall for proper air
ventilation� Adjust the feet to keep the refrigerator level�
• Keep the refrigerator away from direct sunlight and heat sources� Direct sunlight may aect
the exterior, and heat sources may increase energy consumption�
• Avoid placing the refrigerator in moist areas�
• Plug the refrigerator into a dedicated, properly installed grounded wall outlet� Do not cut or
remove the third (ground) prong from the power cord� If you have any questions concerning
power or grounding, consult a certified electrician or authorized service center�
• Aer plugging in the appliance, allow it to cool down for 2-3 hours before placing food inside�
A 31 inches
B 29 inches
C 71 inches
D 2 inches
E 2 inches
F 2 inches
G 62 inches
H 60 inches
I 135°
6
ENGLISH
Leveling the Unit
To level the unit, adjust the two leveling feet at the front of the unit�
Level Doors
Aer transportation or when door balconies are loaded with food or
beverages, the upper two doors may not be aligned� There are 3 C-type
washers used to adjust the doors� Follow the steps below to level the
doors:
Before checking door alignment, ensure the appliance is standing level�
If the tops of the upper two doors are not aligned, slightly li the lower door and insert a C-type
washer using a clip between the bottom of the door and the middle hinge�
⚠
WARNING: Be careful to avoid pinching your fingers in the door� Use a tool for the
adjustment�
⚠
WARNING: Keep C-type washers away from children to prevent swallowing, as they are
small parts�
7
ENGLISH
Rubber Blocks
Each door has a rubber block, which acts as a spring to absorb the impact
when the door closes�
Do not pull the rubber blocks� If they are missing from the doors, take one
from the accessory bag and insert it into the hole on the door�
⚠
WARNING: Keep rubber blocks away from children to prevent
swallowing, as they are small parts�
POSITIONING
Install this appliance in a location where the ambient temperature corresponds to the climate
class indicated on the rating plate of the appliance:
• Extended temperate (SN): This appliance is intended for use at ambient temperatures
ranging from 50°F to 89�6°F�
• Temperate (N): This appliance is intended for use at ambient temperatures ranging from
60�8°F to 89�6°F�
• Subtropical (ST): This appliance is intended for use at ambient temperatures ranging from
60�8°F to 100�4°F�
• Tropical (T): This appliance is intended for use at ambient temperatures ranging from 60�8°F
to 109�4°F�
LOCATION
The appliance should be installed well away from sources of heat such as radiators, boilers, and
direct sunlight� Ensure that air can circulate freely around the back of the cabinet� For optimal
performance, if the appliance is positioned below an overhanging wall unit, there should be
a minimum distance of 2 inches between the top of the cabinet and the wall unit� Ideally, the
appliance should not be positioned under overhanging wall units� Accurate leveling is ensured
by adjusting the feet at the base of the cabinet�
8
ENGLISH
This refrigerating appliance is not intended to be used as a built-in appliance�
⚠
WARNING: It must be possible to disconnect the appliance from the mains power supply�
The plug must, therefore, be easily accessible aer installation�
ELECTRICAL CONNECTION
Before plugging in, ensure that the voltage and frequency shown on the rating plate correspond
to your domestic power supply� The appliance must be earthed� The power supply cable plug
is provided with a grounding contact for this purpose� If the domestic power supply socket is
not earthed, connect the appliance to a separate earth in compliance with current regulations,
consulting a qualified electrician� The manufacturer declines all responsibility if the above safety
precautions are not followed� This appliance complies with E�E�C� Directives�
MULTI-TEMPERATURE ZONES
1. Fridge Temp: 35�6°F ~ 46�4°F� Controlled by the operating display panel��
2. Fresh Temp: 35�6°F ~ 46�4°F�
3. Freezer Temp: -7�6°F ~ 6�8°F� Controlled by the operating display panel��
4. Convertible Zone Temp: 26�6°F ~ 41°F� Controlled by the operating display
panel�
9
ENGLISH

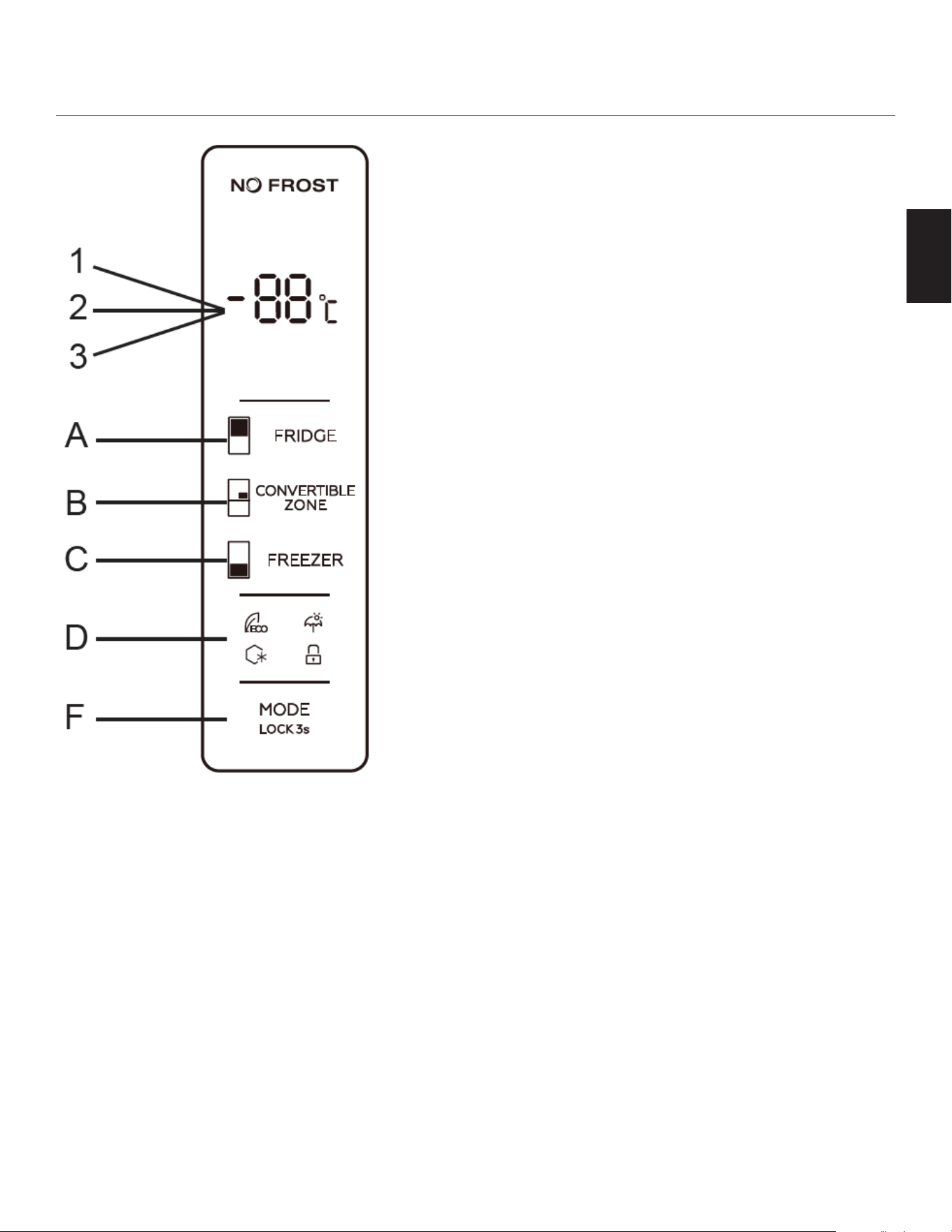

LED DISPLAY
1. Temperature of Fridge Comparment
2. Temperature of Freezer Comparment
3. Temperature of Converible Comparment
KEY OPERATIONS
A. Fridge Temperature Setting
B. Convertible Zone Temperature Setting
C. Freezer Temperature setting
D. Mode Setting (ECO, Holiday, Super Freezing)
E. Locking/Unlocking Setting
TEMPERATURE CONTROL & SETTINGS
Fridge Temperature Control:
Adjust the fridge temperature by pressing the fridge temperature button� The temperature will
cycle through 35�6°F to 46�4°F� Aer selecting the desired temperature, the button will flash for 5
seconds to confirm the selection�
Freezer Temperature Control:
Adjust the freezer temperature by pressing the freezer temperature button, cycling through
temperatures from 6�8°F to -7�6°F� The selected temperature will flash for 5 seconds to confirm�
10
ENGLISH
Convertible Compartment Temperature Control:
Adjust the temperature of the convertible compartment from 41°F to 26�6°F by pressing the
corresponding button� The temperature will be confirmed aer flashing for 5 seconds�
Modes:
• ECO Mode: Optimizes energy consumption by adjusting the fridge and freezer
temperatures�
• Holiday Mode: Fixes the fridge temperature at 62�6°F for periods of extended absence�
• Super Freezing Mode: Freezes items rapidly at a temperature of -13°F�
Display & Operation Conditions:
The control panel will light up for 3 seconds aer the door is opened or a key is pressed� The
system will automatically lock 25 seconds aer the last key operation� The display will turn o
120 seconds aer the last operation� The temperatures of the fridge, freezer, and convertible
compartments will be displayed individually�
Lock/Unlock Function:
• To lock the control panel, press the lock button for 3 seconds� A beep will confirm that all
buttons are locked�
• To unlock, press the lock button again for 3 seconds� A beep will confirm that all buttons are
unlocked�
DAILY USE
Positioning Food in Dierent Compartments:
• Fridge Door: Store foods with natural preservatives like jams, juices, drinks, and condiments�
Do not store perishable foods here�
• Crisper Zone: Store fruits, herbs, and vegetables in the crisper bin� Do not store bananas,
onions, potatoes, or garlic in the refrigerator�
• Fridge Shelf: Store dairy products, eggs, cakes, pasta, and ready-to-eat food such as deli
meats and leovers�
• Convertible Compartment:
• 37�4°F to 41°F: Store fresh fruit and vegetables�
• 32°F to 35�6°F: Store drinks, beer, and red wine�
• 26�6°F to 30�2°F: Store raw meat, fish, and seafood for short-term storage�
• Freezer Compartment: Store foods for long-term storage such as seafood, fish, meat, and
frozen baked goods�
11
ENGLISH
Temperature Setting Recommendations:
The recommended fridge setting is 35�6°F, and the recommended freezer setting is 0°F�
Freezing Fresh Food:
Place fresh food to be frozen in the freezer compartment� The maximum amount of food that
can be frozen in 24 hours is specified on the rating plate� The freezing process takes 24 hours,
during which no additional food should be added�
Storing Frozen Food:
Let the appliance run for at least 2 hours on a higher setting before placing frozen food in the
freezer� If accidental defrosting occurs, consume the food quickly or cook it immediately and
refreeze it aer cooking�
CLEANING & MAINTENANCE
Cleaning:
For hygienic reasons, clean the appliance interior and accessories regularly� Disconnect the
appliance from the mains before cleaning to avoid electrical shock� Never use a steam cleaner,
as moisture can accumulate in electrical components, causing electrical shock� Use lukewarm
water and a so cloth for cleaning� Do not use abrasive cleaners�
TROUBLESHOOTING
⚠
WARNING: Before attempting any troubleshooting, disconnect the appliance from the
power supply� Only a qualified electrician should handle repairs not covered in this
manual�
Common Issues:
Appliance Not Working:
Ensure the mains plug is properly inserted into the outlet�
Check the fuse and replace it if necessary�
If the socket is defective, contact an electrician�
Unusual Noises:
Ensure the appliance is level and not touching nearby objects�
12
ENGLISH
If a pipe at the rear of the appliance is vibrating, adjust it carefully�
Temperature Issues:
Ensure the appliance is not located near a heat source�
Adjust the temperature settings accordingly�
Avoid keeping the door open for extended periods�
CUSTOMER SUPPORT
Visit our website to contact us, find answers to Frequently Asked Questions, and for other resources which may
include an updated version of this user’s guide.
www.impecca.com
If you wish to contact us by phone, please be sure to have your model number and serial number ready and call
us between 9:00am and 6:00pm ET, at +1 888-943-2111.
Keep tabs on Courant’s newest innovations & enter contests via our social network feeds:
www�facebook�com/Impecca/
www�instagram�com/impecca/
@impeccausa
13
ENGLISH
Impecca™ warrants this product against defects in material
and workmanship to the original purchaser as specified be-
low.
PARTS AND LABOR– if the product is determined to
have a manufacturing defect, within a period of one
year from the date of the original purchase, Impec-
ca™, at its own discretion, will repair or replace the
product parts at no charge to you in the U.S.A.
To obtain warranty service by an authorized Impecca™ ser-
vice center, please email us at: service@impecca.com to ob-
tain a Repair and Maintenance Authorization (RMA) number
and received instructions on how the repair and/or replace-
ment procedure will take place.
Any glass materials included with the appliance will
be covered for a period of 60 days from purchase.
Impecca™ specifically excludes from this warranty any
non-electric/mechanical attachments, accessories and
disposable parts including but not limited to outside case,
connecting cables, batteries and AC adapters. Impecca™ re-
serves the right to repair or replace defective products with
the same, equivalent or newer models.
We reserve the right to either repair or replace product at our
discretion. Replacement may be either new or refurbished
and while every endeavor will be made to ensure it is the
same model, if not possible it will be equal or higher spec-
ification.
Normal “Wear and Tear” is not covered by this warranty. Fur-
ther, Impecca™ hereby reserves the right to determine “Wear
and Tear” on any and all products. Tampering or opening the
product casting or shell will void this warranty in its entirety.
Exclusions: This warranty does not cover the following:
1. Any product that has a defaced or covered serial num-
ber.
2. Products that have been transferred to a second owner.
3. Rust on the interior or exterior of the unit.
4. Products listed as “As-Is” or “Refurbished.”
5. Food loss due to any product failure.
6. Window air conditioners installed in a wall.
7. The product if used in a commercial setting.
8. Service calls that do not involve product malfunction.
9. Service calls for a product ruined by not following the
provided instructions.
10. Service calls to correct improper installation.
11. Costs associated with making the product accessible
for servicing (including but not limited to removal of
trim/molding/cabinetry, etc.)
12. Service calls to replace any consumables such as light
bulbs, filters, etc.
13. Surcharges that may apply to service calls on weekends,
nights, holidays. Damages to the finish of appliance or
household furnishings due to installation of appliance.
14. Damages caused by any of the following: Acts of God;
fires; misuse; accidents; incorrect power supply; service
performed by unauthorized persons; use of non-genu-
ine Impecca parts, etc.
ALL IMPLIED WARRANTIES, INCLUDING IMPLIED WARRAN-
TIES OF MERCHANTABILITY AND FITNESS FOR A PARTICU-
LAR PURPOSE ARE LIMITED IN DURATION TO 1 YEAR FROM
THE DATE OF THE ORIGINAL RETAIL PURCHASE OF THIS
PRODUCT.
THESE WARRANTIES AND REMEDIES ARE THE SOLE AND
EXCLUSIVE WARRANTIES AND REMEDIES IN CONNECTION
WITH THE SALE AND USE OF THE PRODUCT. NO OTHER
WARRANTIES, ORAL OR WRITTEN, EXPRESSED OR IMPLIED,
ARE GIVEN.
IMPECCA™ IS NOT RESPONSIBLE OR LIABLE FOR ANY DAM-
AGE, WHETHER SPECIAL, INCIDENTAL, CONSEQUENTIAL,
DIRECT OR OTHERWISE, OR WHETHER KNOWN OR SHOULD
HAVE BEEN KNOWN TO IMPECCA™, INCLUDING LOST PROF-
ITS, GOODWILL, AND PROPERTY AND PERSONAL INJURY RE-
SULTING FROM ANY BREACH OF WARRANTY, THE INABILITY
TO USE THE PRODUCT OR UNDER ANY LEGAL THEORY IN
CONTRACT OR TORT. IMPECCA LIABILITY IS LIMITED TO THE
ACTUAL PURCHASE PRICE PAID TO THE RETAIL SELLER OF
THE DEFECTIVE PRODUCT.
No Impecca™ dealer, agent or employee is authorized to
make any modification, extension, change or amendment to
this warranty without the written consent and authorization
from Impecca™.
Some states do not allow the exclusion or limitation of im-
plied warranties or liability for incidental or consequential
damages, or do not allow a limitation on how long an im-
plied warranty lasts, so the above limitations or exclusions
may not apply to you. This warranty gives you specific legal
rights, and you have other rights, which vary from state to
state.
Note: Our Warranty center services only to Continental U.S.A.
ONE-YEAR LIMITED APPLIANCE WARRANTY (US)
ONE-YEAR LIMITED WARRANTY
