Camera User Guide
Camera User Guide
CEL-SG9GA210 © 2007 CANON INC.
ENGLISH
DIGITAL CAMERA
Ensure that you read the Safety Precautions (pp. 162–167).
Getting Started
Learning More
Components Guide
Basic Operations
Commonly Used Shooting Functions
Shooting Using the Mode Dial
Various Shooting Methods
Playback/Erasing
Print Settings/Transfer Settings
Connecting to a TV
Troubleshooting
List of Messages
Appendix
Workflow and Reference Guides
The following guides are available. Refer to them as necessary according to the
flowchart below.
Camera User Guide
Getting Started
Guide
Learning More (p. 37)
Prepare the camera for use
Connect the camera
to other devices
• Connecting to a printer
• Connecting to a TV set
• Connecting to a computer
Direct Print User
Guide
Software Starter
Guide
Using the camera
Camera User Guide
Learn more about the camera
Getting Started (p. 7)
Check the package contents
: Contents of This Guide
Viewing the PDF Manuals
Adobe Reader must be installed to view the PDF Manuals. If this
software is not installed in your computer, access the following
web site and download the software.
http://www.adobe.com
1
Checking the Package Contents
The following items are included in the package. If something is missing,
please contact the retail outlet at which you purchased the product.
You may not be able to achieve the full performance of this camera
with the included memory card.
You can use SD memory cards, SDHC (SD High
Capacity) memory cards, MultiMediaCards, MMCplus
cards and HC MMCplus cards in this camera. These
cards are collectively referred to as memory cards in
this guide.
a
bc
de
gh
Camera AA Alkaline Batteries (x2) Memory Card
(16MB)
Interface Cable
IFC-400PCU
AV Cable
AVC-DC300
Canon Digital Camera
Solution Disk
European Warranty
System (EWS) Booklet
User Guides
i
f
Wrist Strap
WS-200
• Canon Digital Camera
Manuals Disk
• Getting Started Guide
2
Table of Contents
Items marked with a are lists or charts that summarize camera
functions or procedures.
Please Read 6
Components Guide 38
Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Power Saving Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Basic Operations 42
Menus and Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Menus and Default Settings. . . . . . . . . . . . . . . . . . . . . . . . . 44
Using the LCD Monitor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Information Displayed on the LCD Monitor . . . . . . . . . . . . . 50
Resetting Settings to Their Default Values . . . . . . . . . . . . . 55
Formatting Memory Cards . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Commonly Used Shooting Functions 57
Changing the Recording Pixels/ Compression (Still Images) 57
Shooting with the Optical Zoom. . . . . . . . . . . . . . . . 59
Using the Digital Zoom/Digital Tele-Converter. . . . . . . . . . . 60
Using the Flash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Learning More . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Preparations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Shooting Still Images ( Auto Mode) . . . . . . . . . . . . . . . . . .14
Viewing Still Images . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Shooting Movies ( Standard Mode) . . . . . . . . . . . . . . . . . .18
Viewing Movies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Erasing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Printing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Downloading Images to a Computer. . . . . . . . . . . . . . . . . . . 24
System Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . 7
3
Shooting Close-ups (Macro) . . . . . . . . . . . . . . . . . . . . . 65
Using the Self-Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Setting the Image Stabilizer Function . . . . . . . . . . . . . . . . . 68
Configuring the Postcard Mode . . . . . . . . . . . . . . . . . . . . . . 70
Embedding the Date in the Image Data. . . . . . . . . . . . . . . . 71
Shooting Using the Mode Dial 73
Mode Dial. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Shooting Modes for Specific Scenes . . . . . . . . . . . . . . . . . . 74
Shooting Panoramic Images (Stitch Assist) . . . . . . . . 77
Movie Shooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Program AE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Setting the Shutter Speed. . . . . . . . . . . . . . . . . . . . . . . 83
Setting the Aperture . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Manually Setting the Shutter Speed and Aperture . . . . . 86
Various Shooting Methods 87
Continuous Shooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Setting the Red-Eye Reduction Function. . . . . . . . . . . . . . . 88
Setting the Slow Synchro Function . . . . . . . . . . . . . . . . . . . 89
Selecting an AF Frame Mode . . . . . . . . . . . . . . . . . . . . . . . 90
Shooting Hard-to-Focus Subjects (Focus Lock, AF Lock, Manual
Focus, Safety MF). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
Locking the Exposure Setting (AE Lock) . . . . . . . . . . . . . . . 98
Locking the Flash Exposure Setting (FE Lock) . . . . . . . . . . 99
Adjusting the ISO Speed . . . . . . . . . . . . . . . . . . . . . . . . . . 100
Adjusting the Exposure Compensation . . . . . . . . . . . . 101
Switching between Metering Modes . . . . . . . . . . . . . . . . . 102
Adjusting the Tone (White Balance) . . . . . . . . . . . . . . . . . 104
Shooting in a My Colors Mode. . . . . . . . . . . . . . . . . . . . . . 107
Switching between Flash Adjustment Settings . . . . . . . . . 109
Adjusting Flash Compensation Settings . . . . . . . . . . . . . . 110
Setting the Flash Output . . . . . . . . . . . . . . . . . . . . . . . . . . 111
Switching the Timing at which the Flash Fires. . . . . . . . . . 112
Adjusting Exposure for Built-in Flash Shooting (Safety FE) 113
Registering Settings to the Print/Share Button . . . . 114
Setting the Auto Rotate Function. . . . . . . . . . . . . . . . . . . . 115
Setting the Display Overlays . . . . . . . . . . . . . . . . . . . . . . . 117
4
Creating an Image Destination (Folder). . . . . . . . . . . . . . . 118
Resetting the File Number . . . . . . . . . . . . . . . . . . . . . . . . . 120
Playback/Erasing 122
Magnifying Images . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122
Viewing Images in Sets of Nine (Index Playback). . . . 123
Jumping to Images. . . . . . . . . . . . . . . . . . . . . . . . . . . . 124
Viewing Movies (Operating the Movie Control Panel) . . . 125
Rotating Images in the Display . . . . . . . . . . . . . . . . . . . . . 127
Playback with Transition Effects . . . . . . . . . . . . . . . . . . . . 128
Automated Playback (Auto Play) . . . . . . . . . . . . . . . . . . . . 129
Red-Eye Correction Function. . . . . . . . . . . . . . . . . . . . . . . 130
Resizing Images . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134
Attaching Sound Memos to Images . . . . . . . . . . . . . . . . . . 136
Protecting Images . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
Erasing All Images . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138
Print Settings/Transfer Settings 139
Setting the DPOF Print Settings . . . . . . . . . . . . . . . . . . . . 139
Setting the DPOF Transfer Settings . . . . . . . . . . . . . . . . . 144
Connecting to a TV 146
Shooting/Playback Using a TV . . . . . . . . . . . . . . . . . . . . . 146
Troubleshooting 147
List of Messages 158
Appendix 162
Safety Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162
Preventing Malfunctions. . . . . . . . . . . . . . . . . . . . . . . . . . . 167
Battery Handling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168
Handling the Memory Card . . . . . . . . . . . . . . . . . . . . . . . . 170
Using the Power Kits (Sold Separately). . . . . . . . . . . . . . . 172
Using the Lenses (Sold Separately) . . . . . . . . . . . . . . . . . 175
Using an Externally Mounted Flash (Sold Separately) . . . 180
Replacing the Date Battery . . . . . . . . . . . . . . . . . . . . . . . . 182
Camera Care and Maintenance. . . . . . . . . . . . . . . . . . . . . 184
Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 185
5
Index 196
Functions Available in Each Shooting Mode 200
Symbol Conventions in this Guide
Explanations in this guide are based on the camera's default settings
at time of purchase.
Mode switch position:
Rec. ( )/Play ( )
Available shooting modes
These modes are available
These modes are not available
This mark denotes issues that may affect the
camera’s operation.
This mark denotes additional topics that
complement the basic operating procedures.
6
Please Read
Test Shots
Before you try to photograph important subjects, we highly recommend that you
shoot several trial images to confirm that the camera is operating and being
operated correctly.
Please note that Canon Inc., its subsidiaries and affiliates, and its distributors are
not liable for any consequential damages arising from any malfunction of a
camera or accessory, including memory cards, that results in the failure of an
image to be recorded or to be recorded in a way that is machine readable.
Warning Against Copyright Infringement
Please note that Canon digital cameras are intended for personal use and should
never be used in a manner that infringes upon or contravenes international or
domestic copyright laws and regulations. Please be advised that in certain cases
the copying of images from performances, exhibitions, or commercial properties
by means of a camera or other device may contravene copyright or other legal
rights even if the image was shot for personal use.
Warranty Limitations
For information on your camera's warranty, please refer to the Canon European
Warranty System (EWS) Booklet supplied with your camera.
For Canon Customer Support contacts, please see the European Warranty
System (EWS) Booklet.
Video Format
Please set the camera's video signal format to the one used in your region before
using it with a TV monitor.
Language Setting
Please see Setting the Display Language (p. 13) to change the language setting.
Camera Body Temperature
If your camera is used for prolonged periods, the camera body may become
warm. Please be aware of this and take care when operating the camera for an
extended period.
About the LCD Monitor
The LCD monitor is produced with extremely high-precision manufacturing
techniques. More than 99.99% of the pixels operate to specification. Less than
0.01% of the pixels may occasionally misfire or appear as red or black dots.
This has no effect on the recorded image and does not constitute a malfunction.
Preparations
8
Getting Started
Preparations
Attaching the Wrist Strap
1. Slide the battery cover lock in the direction of the arrow
(a) and hold it there while moving the entire cover in
the direction of the arrow (b) and opening it up in the
direction of the arrow (c).
It is recommended to use the Wrist Strap to avoid dropping
during camera use.
Installing the batteries
c
b
a
Battery Cover Lock
Preparations
9
Getting Started

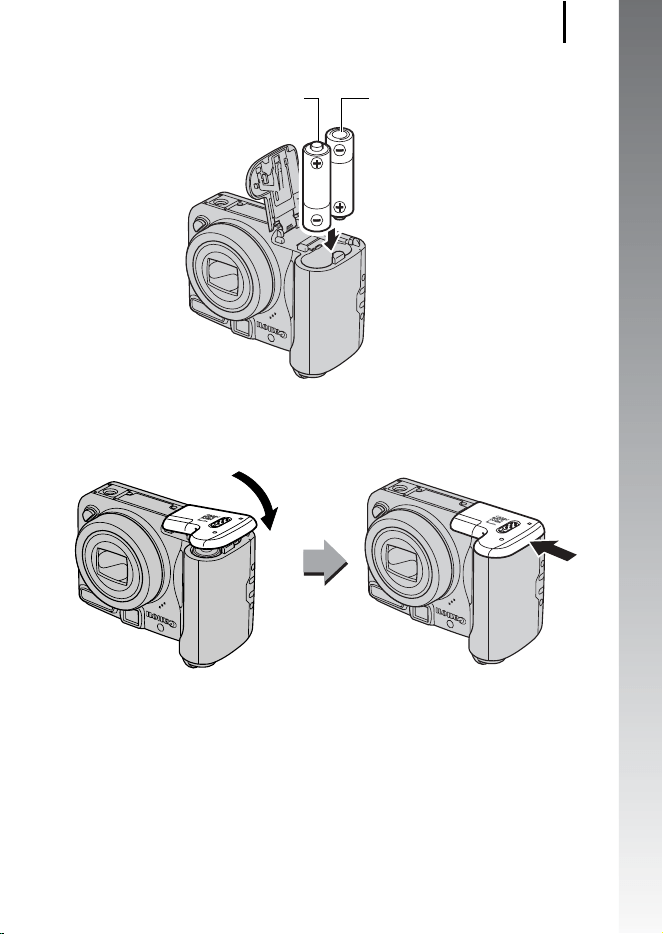

2. Install two batteries.
3. Close the cover (a), and press downward as you slide
it until it clicks into place (b).
Positive end (+) Negative end (–)
a
b
Preparations
10
Getting Started
1. Slide the battery cover lock in the direction of the arrow
(a) and hold it there while moving the entire cover in
the direction of the arrow (b) and opening it up in the
direction of the arrow (c).
2. Insert the memory card until its clicks into place.
Inserting the Memory Card
c
b
a
Battery Cover Lock
Front
• Confirm that the Write
Protect Tab is unlocked
(only SD memory cards).
• Check the card for the
correct orientation.
Write Protect Tab
(Only SD memory cards)
Preparations
11
Getting Started

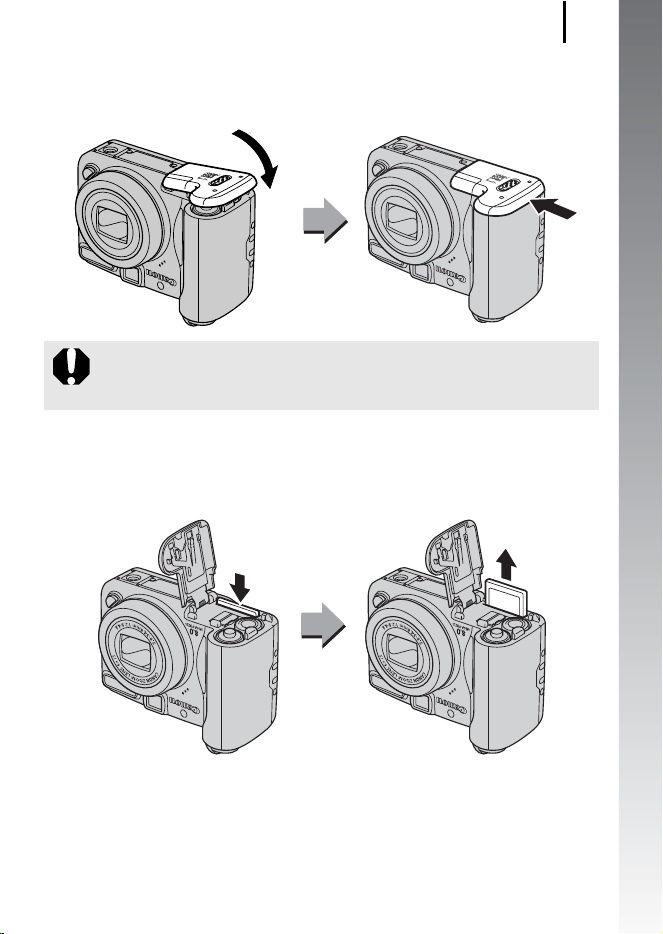

3. Close the cover (a), and press downward as you slide
it until it clicks into place (b).
To Remove the Memory Card
• Push the memory card with your finger until the memory card clicks
and then release it.
Ensure that the memory card is correctly oriented before
inserting it in the camera. Inserting it backward may cause the
camera to fail to recognize the memory card or to malfunction.
a
b
Preparations
12
Getting Started
The Date/Time settings menu will appear the first time the power is
turned on. Set the date and time as shown in steps 3 and 4 in the
explanation below.
1. Press the power button.
2. Select [Date/Time].
1. Press the button.
2. Use the or button to select
the [ (Set up)] menu.
3. Use the or button to select
[Date/Time].
4. Press the button.
3. Select the year, month, day and time, and the display
order.
1. Use the or button to select a
category.
2. Use the or button to set the
value.
4. Press the button.
5. Press the button.
Setting the Date and Time
/ / / Buttons
Button
Button
Power Button
Preparations
13
Getting Started
You can change the language displayed in the LCD monitor menus
and messages.
1. Set the mode switch to (Playback).
2. Hold down the button and press the button.
3. Use the , , or button to select a language.
4. Press the button.
You can imprint the date and time you have set onto images
(p. 71).
Setting the Display Language
/ / / Buttons
Button
Button
Mode Switch
Shooting Still Images
14
Getting Started
Shooting Still Images
1. Press the power button.
• The start-up sound will play and the start-up image will display in
the LCD monitor.
• Pressing the power button again turns the power off.
2. Select a shooting mode.
1. Set the mode switch to
(Shooting).
2. Set the mode dial to (Auto).
3. Aim the camera at the subject.
( Auto Mode)
Power Button
Mode Dial
Shutter Button
Indicators
Button
Mode Switch
Shooting Still Images
15
Getting Started
4. Press the shutter button lightly (press halfway) to set
the focus.
• When the camera focuses, it beeps
twice and the indicator lights green
(orange when the flash fires).
• AF frames will display in green on the
LCD monitor at the points of focus.
5. Without changing anything else, press the shutter
button all the way (press fully) to shoot.
• The shutter sound will play once and
the image will record.
• The indicator will blink green and the
file will record to the memory card.
Mute Setting
Pressing the DISP. button while switching on the camera power will
set the mute setting to [On] to silence all camera sounds except for
warning sounds. The setting can be changed with the [Mute] option in
the [ (Set up)] Menu (p. 46).
Shooting Preparations
Complete: lights green
AF frame
Recording: blinks green
Shooting Still Images
16
Getting Started
Recorded images are displayed on the LCD monitor for approximately
2 seconds immediately after shooting.
You can also use the following methods to continue displaying the
image immediately after shooting so that you can check it.
z Keep the shutter button pressed fully.
z Press the button while the recorded image is
displayed.
Confirm that the operation sound beeps.
You can shoot by pressing the shutter button even when an image
is being displayed.
Reviewing an Image Right After
Shooting (Rec. Review)
Shutter Button
Button
Viewing Still Images
17
Getting Started
Viewing Still Images
1. Set the mode switch to (Playback).
• The last recorded image will display.
2. Use the or button to display the image you wish to
view.
• Use the button to move to the
previous image and the button to
move to the next image.
• The images advance more quickly if
you keep the button pressed
continuously, but they will appear
coarse.
If you have replayed images, the last image viewed will display
(Resume Playback). If the memory card has been switched, or
the images on the memory card have been edited with a
computer, the newest image on the memory card appears.
Mode Switch
/ Buttons
Shooting Movies
18
Getting Started
Shooting Movies
1. Press the power button.
2. Select a shooting mode.
1. Set the mode switch to
(Shooting).
2. Set the mode dial to (
Movie
).
• Confirm that the camera is set to
(Standard).
3. Aim the camera at the subject.
z Do not touch the microphone while
recording.
z Do not press any buttons other than the
shutter button. The sound that buttons
make will be recorded in the movie.
( Standard Mode)
Power Button
Shutter Button
Mode Switch
Mode Dial
Microphone
Shooting Movies
19
Getting Started
4. Press the shutter button lightly (press halfway) to set
the focus.
• An electronic beep will sound twice
and the indicator will light green when
the camera focuses.
• The exposure, focus and white
balance are automatically set when
you press the button halfway.
5. Without changing anything else, press the shutter
button all the way (press fully) to shoot.
• Recording starts.
• During the recording, the elapsed
recording time and [zRec.] will
display in the LCD monitor.
6. Press the shutter button fully
again to stop recording.
• The indicator will blink green and the
data will be recorded onto the memory
card.
• Recording will stop automatically
when the maximum recording time
elapses, or the built-in memory or
memory card become full.
Shooting Preparations
Complete: lights green
Elapsed time
Recording: blinks green
Viewing Movies
20
Getting Started
Viewing Movies
1. Set the mode switch to (Playback).
2. Use the or button to display a movie and press the
button.
• Images with a icon are movies.
3. Use the or button to select
(Play) and press the button.
• The movie will start playing.
• If you press the FUNC./SET button
during playback, you can pause and
restart the movie.
• You can adjust the playback volume
with the or button.
Button
Mode Switch
/ / / Buttons
Erasing
21
Getting Started
Erasing
1. Set the mode switch to (Playback).
2. Use the or button to select an image to erase and
press the button.
3. Confirm that [Erase] is selected and press the
button.
• To exit instead of erasing, select
[Cancel].
Please note that erased images cannot be recovered. Exercise
adequate caution before erasing an image.
Button
Button
/ Buttons
Mode Switch
Printing
22
Getting Started
Printing
1.
Connect the camera to a direct print compatible printer*
1
.
• Open the Camera’s terminal cover and insert the interface cable
all the way into the connector.
• See the printer’s user guide for connection instructions.
Power Button
Button
/ Buttons
Mode Switch
*1 Since this camera uses a standard protocol (PictBridge), you can use it with other
PictBridge-compliant printers in addition to Canon-brand printers.
*2 You can also use the CP-10/CP-100/CP-200/CP-300.
SELPHY Series Compact
Photo Printers*
2
Inkjet Printers
Canon Brand Printers
Interface Cable
Camera
Printing
23
Getting Started
2. Turn on the printer.
3. Set the camera’s mode switch to (Playback) and
press the power button.
• The button will light blue.
• A , or icon will appear in
the LCD monitor if the connection is
correct (the displayed icons differ
according to the connected printer).
• will display for movies.
4. Use the or button to select an image to print and
press the button.
• The button will blink blue and printing will start.
After you finish printing, turn off the camera and the printer and
disconnect the interface cable.
Downloading Images to a Computer
24
Getting Started
Downloading Images to a Computer
Items to Prepare
• Camera and computer
• Canon Digital Camera Solution Disk supplied with the camera
• Interface cable supplied with the camera
System Requirements
Please install the software on a computer meeting the following
minimum requirements.
Windows
Macintosh
OS Windows Vista
Windows XP Service Pack 2
Windows 2000 Service Pack 4
Computer Model The above OS should be pre-installed on computers with built-
in USB ports.
CPU Windows Vista Pentium 1.3 GHz or higher
Windows XP/Windows 2000 Pentium 500 MHz or higher
RAM Windows Vista 512 MB or more
Windows XP/Windows 2000 256 MB or more
Interface USB
Free Hard Disk
Space
• Canon Utilities
- ZoomBrowser EX 200 MB or more
- PhotoStitch 40 MB or more
• Canon Camera TWAIN Driver25 MB or more
Display 1,024 x 768 pixels/High Color (16 bit) or better
OS Mac OS X (v10.3–v10.4)
Computer Model The above OS should be pre-installed on computers with built-
in USB ports.
CPU PowerPC G3/G4/G5 or Intel Processor
RAM 256 MB or more
Interface USB
Free Hard Disk
Space
• Canon Utilities
- ImageBrowser 300 MB or more
- PhotoStitch 50 MB or more
Display 1,024 x 768 pixels/32,000 Colors or better
Downloading Images to a Computer
25
Getting Started
1. Installing the software.
Windows
1. Place the Canon Digital Camera Solution Disk in the
computer's CD-ROM drive.
2. Click [Easy Installation].
Follow the onscreen messages to
proceed with the installation.
3. Click [Restart] or [Finish] once the
installation is complete.
When the installation is complete,
[Restart] or [Finish] will display. Click
the button that appears.
4. Remove the CD-ROM from the
drive when your normal desktop
screen appears.
Macintosh
Double-click the icon in the CD-
ROM window. When the installer
panel appears, click [Install]. Follow
the onscreen instructions to
proceed.
Preparing to Download Images
Ensure that you install the software first before connecting the
camera to the computer.
Downloading Images to a Computer
26
Getting Started
2. Connecting the camera to a computer.
1. Connect the supplied interface cable to the computer's USB
port and to the camera's DIGITAL terminal.
• Open the Camera's terminal cover and insert the interface
cable all the way into the connector.
3. Preparing to download images to the computer.
1. Set the camera's mode switch to (Playback) and press
the power button.
Always grasp the sides of the connector when disconnecting
the interface cable from the camera's DIGITAL terminal.
If the Digital Signature Not Found window appears, click [Yes].
The USB driver will automatically finish installing onto the
computer when you attach the camera and open a connection.
Interface Cable
DIGITAL Terminal
USB Port
Interface Cable
Power Button
Downloading Images to a Computer
27
Getting Started
Windows
Select [Canon CameraWindow] and
click [OK].
CameraWindow will display.
Preparations for downloading images are now finished. Please
proceed to the Downloading Images Using the Camera (Direct
Transfer) section (p. 29) (except Windows 2000).
If this Events dialog does not appear, click the [Start] menu and
select [All Programs] or [Programs], followed by [Canon
Utilities], [CameraWindow], [CameraWindow] and
[CameraWindow].
With Windows 2000, you can download images using the
computer. Please refer to the Software Starter Guide for
details.
Downloading Images to a Computer
28
Getting Started
Macintosh
CameraWindow will appear when you establish a connection
between the camera and computer. If it fails to appear, click the
[CameraWindow] icon on the Dock (the bar which appears at the
bottom of the desktop).
Preparations for
downloading images are now finished. Please proceed to the
Downloading Images Using the Camera (Direct Transfer) section
(p. 29).
Please refer to the Software Starter Guide regarding how to
download images using the computer.
Downloading Images to a Computer
29
Getting Started
Use this method to download images using camera operations (except
Windows 2000).
Downloading Images Using the Camera
(Direct Transfer)
Install the software before downloading images via the Direct
Transfer method for the first time (p. 25).
All Images
Transfers and saves all images to the
computer.
New Images
Transfers and saves to the computer only the
images that have not been previously
transferred.
DPOF Trans.
Images
Transfers and saves to the computer only the
images with DPOF Transfer Order settings.
Select & Transfer
Transfers and saves single images to the
computer as you view and select them.
Wallpaper
Transfers and saves single images to the
computer as you view and select them. The
transferred images as the background on the
computer desktop.
/ / / Buttons
Button
Button
Button
Downloading Images to a Computer
30
Getting Started
1. Confirm that the Direct Transfer menu is displayed on
the camera's LCD monitor.
• The button will light blue.
• Press the MENU button if the Direct
Transfer menu fails to appear.
All Images/New Images/DPOF Trans. Images
2. Use the or button to select , or and press
the button.
• The images will download. The
button will blink blue while
downloading is in progress.
• The display will return to the Direct
Transfer menu when the download is
complete.
• To cancel the download, press the
FUNC./SET button.
Select & Transfer/Wallpaper
2. Use the or button to select or and press the
(or ) button.
3. Use the or button to select images to download
and press the button.
• The images will download. The
button will blink blue while
downloading is in progress.
• Pressing the FUNC./SET button will
cancel a download in progress.
Direct Transfer Menu
Downloading Images to a Computer
31
Getting Started
4. Press the button after downloading finishes.
• You will return to the Direct Transfer menu.
Click at the bottom right of the window to close the CameraWindow
and the downloaded images will display on the computer.
By default, images are saved on the computer in folders according to
the shooting date.
Only JPEG images can be downloaded as wallpaper for a
computer.
The option selected with the button is retained even when
the camera's power is turned off. The previous setting will be in
effect the next time the Direct Transfer menu is displayed. The
image selection screen will appear directly when the [Select &
Transfer] or the [Wallpaper] option was last selected.
Windows Macintosh
ZoomBrowser EX ImageBrowser
System Map
32
Getting Started
System Map
Wrist Strap
WS-200
AA Alkaline
Batteries (x2)
Compact Power Adapter
CA-PS800
Power Cord
AC Adapter Kit ACK800
Supplied with
Camera
Interface Cable IFC-400PCU*
1
Memory Card (16MB)
Canon Digital Camera
Solution Disk
AV Cable AVC-DC300*
1
Waterproof Case
WP-DC16
Battery and Charger Kit
CBK4-300*
5
Waterproof Case
Weight WW-DC1
Battery Charger CB-5AH/
CB-5AHE
AA-size NiMH batteries NB-
3AH (x4)
• NiMH Battery NB4-300 (set of 4
AA-size) also available separately
System Map
33
Getting Started
USB Port
PC Card Slot
Direct Interface Cable*
2
USB Card
Reader
PCMCIA
Adapter
SD Memory Card*
5
• SDC-128M
• SDC-512MSH
Compact Photo Printers*
2
*
3
(SELPHY Series)
Direct Print Compatible
Inkjet Printers*
4
Video IN Terminal
Audio IN Terminal
*1 Also available for purchase separately.
*2 See the user guide supplied with the printer for more information on the printer.
*3 This camera can also be connected to the CP-10/CP-100/CP-200/CP-300.
*4 See the user guide supplied with the inkjet printer for more information on the printer
and interface cables.
*5 Not sold in some regions.
High-Power Flash
HF-DC1
Close-up Lens
250D (58mm)
Tele-converter
TC-DC58N
Wide Converter
WC-DC58N
Conversion Lens Adapter
LA-DC58G
TV/Video
System Map
34
Getting Started
The following camera accessories are sold separately.
Some accessories are not sold in some regions, or may no longer be
available.
Lenses, Lens Adapter
• Conversion Lens Adapter LA-DC58G
This adapter is required for mounting the wide converter, tele-
converter and close-up lens to the camera.
• Wide Converter WC-DC58N
Converts the focal distance of the body lens by a factor of
approximately 0.7 when attached.
• Tele-converter TC-DC58N
Converts the focal distance of the body lens by a factor of
approximately 1.75 when attached.
• Close-up Lens 250D (58mm)
A lens for shooting subjects at high magnifications.
Flash
• High-Power Flash HF-DC1
This attachable supplementary flash can be used to capture
photographic subjects that are too distant for the built-in flash to
illuminate.
Power Supplies
• AC Adapter Kit ACK800
This kit lets you power the camera from any standard household
power outlet. Recommended to power a camera for an extended
period of time or when connecting to a computer.
• Battery and Charger Kit CBK4-300
This dedicated battery charger kit includes both a charger unit and
four rechargeable AA-size NiMH (nickel metal hydride) batteries.
Convenient when taking or playing back large numbers of images.
• NiMH Battery NB4-300
A set of four rechargeable AA-size NiMH batteries. (This camera
requires two batteries.)
Optional Accessories
System Map
35
Getting Started
Other Accessories
• SD Memory Card
SD Memory Cards are used to store images recorded by the camera.
Canon brand cards are available in 128 MB and 512 MB capacities.
• Interface Cable IFC-400PCU
Use this cable to connect the camera to a computer, Compact Photo
Printer (SELPHY series), or to an inkjet printer (refer to your inkjet
printer user guide).
• AV Cable AVC-DC300
Use this cable to connect the camera to a TV set.
• Waterproof Case WP-DC16
When you attach this waterproof case to the camera, you can use it
to take underwater shots at depths of up to 40 meters (130 feet), and
of course it is ideal for taking worry-free pictures in the rain, at the
beach, or on the ski slopes.
Canon offers the following separately sold printers for use with the
camera. You can produce photo quality prints quickly and easily by
connecting them to the camera with a single cable and operating the
camera's controls.
• Compact Photo Printers (SELPHY series)
• Inkjet Printers
For more information, visit your nearest Canon retailer.
Direct Print Compatible Printers
Use of genuine Canon accessories is recommended.
This product is designed to achieve excellent performance when used with
genuine Canon accessories. Canon shall not be liable for any damage to
this product and/or accidents such as fire, etc., caused by the malfunction
of non-genuine Canon accessories (e.g., a leakage and/or explosion of a
battery pack). Please note that this warranty does not apply to repairs
arising out of the malfunction of non-genuine Canon accessories, although
you may request such repairs on a chargeable basis.
36
Getting Started
37
Learning More
Components Guide
38
Front View
a
Microphone
b AF-assist Beam (p. 45)
c Red-Eye Reduction Lamp (p. 88)
d Self-Timer Lamp (p. 66)
e Speaker
f Viewfinder Window
g Flash (p. 64)
h Terminal Cover
i A/V OUT (Audio/Video output) Terminal (p. 146)
j DIGITAL Terminal (p. 26)
k DC IN (Power input) Terminal (p. 174)
l Ring Release Button (p. 177)
m Ring (p. 177)
n Lens
Components Guide
af
e
g
h
l
nm
i
j
k
bcd
Components Guide
39
Back View
a LCD Monitor (p. 49)
b Viewfinder
c Wrist Strap Mount
d Memory Card Slot / Battery Cover Lock (pp. 8, 10)
e Memory Card Slot / Battery Cover (pp. 8, 10)
f Tripod Socket
The LCD monitor may be covered with a thin plastic film for
protection against scratches during shipment. If so, remove the
film before using the camera.
Using the Viewfinder
The viewfinder can be used to conserve power by turning the LCD
monitor off (p. 49) while shooting.
ab
c
def
Components Guide
40
Controls
a
Indicators (p. 41)
b Power Lamp
c Power Button (p. 14)
d Zoom Lever (pp. 59, 122)
Shooting: (Wide Angle)/ (Telephoto)
Playback: (Index)/ (Magnify)
e Shutter Button (p. 14)
f Mode Dial (pp. 14, 73)
g Mode Switch (p. 14)
h (Print/Share) Button (pp. 22, 29, 114)
i FUNC./SET Button (p. 42)
j MENU Button (p. 43)
k DISP. Button (p. 49)
l (Exposure)/ (Single Image Erase) Button (pp. 21, 101)
m Button
n (Flash)/ (Jump)/ Button (pp. 64, 124)
o Button
p (Macro)/ (Manual Focus)/ Button (pp. 65, 96)
abcde
f
g
h
i
j
m
n
o
p
kl
Components Guide
41
The camera indicators on the back of the camera will light or blink
under the following conditions.
• Upper Indicator
• Lower Indicator
This camera is equipped with a power saving function. The power will
shut off in the following circumstances. Press the power button again to
restore power.
* This time can be changed.
Indicators
Green: Ready to shoot (camera beeps twice)
Blinking Green: Image recording/reading/erasing/transferring (when
connected to a computer)
Orange: Ready to shoot (flash on)
Blinking Orange: Ready to shoot (camera shake warning), charging
flash
Yellow: Macro mode/Manual focus mode/AF lock mode
Blinking Yellow: Focusing difficulty (camera beeps once)
Never do the following while the indicator blinks green. These
actions may corrupt image data.
- Shake or jolt the camera
- Shut off the power, or open the memory card slot/battery
cover
Power Saving Function
Shooting Mode Powers down approximately 3 minutes after the
last control is accessed on the camera. The LCD
monitor automatically turns off 1 minute* after
the last control is accessed even if [Auto Power
Down] is set to [Off]. Press any button other than
the power button or change the camera
orientation to turn the LCD monitor back on.
Playback Mode
Connected to a Printer
Powers down approximately 5 minutes after the
last control is accessed on the camera.
z The power saving function will not activate during an Auto
Play or while the camera is connected to a computer.
z The power saving function settings can be changed (p. 47).
Basic Operations
42
Settings for the shooting or playback modes or such camera settings
as the print settings, date/time and sounds are set using the FUNC.
menu or the Rec., Play, Print or Set up menu.
Button
This menu sets many of the common shooting functions.
Menus and Settings
1
Set the mode switch to .
2
Press the button.
3
Use the or button to select a menu item.
• Some items may not be selectable in some shooting modes.
4
Use the or button to select an option for
the menu item.
• You can select further options with the DISP. button for some
options.
• After selecting an option, you can press the shutter button to
shoot immediately. After shooting, this menu will appear again,
allowing you to adjust the settings easily.
5
Press the button.
Basic Operations
(FUNC. Menu)
This example shows the FUNC. menu in (Auto) mode.
12 5
34
Basic Operations
43
Button
Convenient settings for shooting, playback or printing can be set with
these menus.
1
Press the button.
2
Use the or button to switch between menus.
• You can also use the zoom lever to switch between menus.
• The following menus are displayed.
Shooting: Rec. / Set up
Playback: Play / Print / Set up
3
Use the or button to select a menu item.
• Some items may not be selectable in some shooting modes.
4
Use
the or button
to select an option.
• Menu items followed by an ellipsis (...) can only be set after
pressing the FUNC./SET button to display the next menu. Press
the FUNC./SET button again to confirm the setting, then press
the MENU button to return to the menu screen.
5
Press the button.
(Rec., Play, Print and Set up Menus)
This example shows the Rec. menu in (Auto) mode.
You can switch
between menus with
the
or button.
(Rec.) Menu
(Set up) Menu
1
2
5
34
Basic Operations
44
See Functions Available in Each Shooting Mode
FUNC. Menu
The icons shown here indicate the default settings (factory settings).
Rec. Menu
Menus and Default Settings
Menu Item Page Menu Item Page
ISO Speed p. 100 Metering Mode p. 102
White Balance p. 104
Compression
(Still image)
p. 57
Drive Mode p. 87
Recording Pixels
(Still image)
p. 57
My Colors p. 107
Recording Pixels
(Movie)
p. 81
Flash Adjustment
p. 110
Flash Output p. 111
Menu Item Options Page/Topic
AF Frame
p. 90
// /
///
Face Detect*/AiAF/Center
/ / / Center*/FlexiZone/Face Detect/
AiAF
AF Frame Size Normal*/Small p. 92
Digital Zoom
p. 60
(Still image) Standard*/Off/1.6x/2.0x
(Movie) Standard*/Off
(In standard movie mode only)
Flash Sync 1st-curtain/2nd-curtain p. 112
Slow Synchro On/Off* p. 89
Flash Adjust Auto*/Manual p. 109
Red-Eye On*/Off p. 88
*Default setting
Basic Operations
45
Safety FE On*/Off p. 113
Spot AE Point Center*/AF Point p. 103
MF-Point Zoom On*/Off p. 96
Safety MF On*/Off p. 97
AF-assist Beam On*/Off p. 151
Review Off/2*–10 seconds/Hold You can set the
length of time
images display
after being shot
(p. 16).
Disp. Overlay
p. 117(Still image) Off*/Grid Lines/3 : 2 Guide/Both
(Movie) Off*/Grid Lines
IS Mode
p. 68
(Still image) Continuous*/Shoot Only/
Panning/Off
(Movie) Continuous*/Off
Converter None*/WC-DC58N/
TC-DC58N/250D
p. 179
Date Stamp Off*/Date/Date & Time p. 71
Set button
*
/
/////
p. 114
Menu Item Options Page/Topic
Basic Operations
46
Play Menu Print Menu
Set up Menu
Menu Item Page Menu Item Page
Auto Play p. 129 Print
p. 139
Red-Eye
Correction
p. 130
Select Image & Qty.
Select All Images
Resize p. 134 Clear All Selections
Sound Memo p. 136 Print Settings
Protect p. 137
Rotate p. 127
Erase all p. 138
Transfer Order p. 144
Transition p. 128
Menu Item Options Page/Topic
Mute On/Off* Set to [On] to silence all operation
sounds except for the warning sounds.
Volume Off/1/2*/3/4/5 Adjusts the volume of the start-up
sound, operation sound, self-timer
sound, shutter sound and playback
sound. The volume cannot be
adjusted if [Mute] is set to [On].
Start-up Vol. Adjusts the volume of the start-up
sound when the camera is turned on.
Operation Vol. Adjusts the volume of the operation
sound that beeps when any button
other than the shutter button is
pressed.
Selftimer Vol. Adjusts the volume of the self-timer
sound played 2 sec. before the shutter
is released.
*Default setting
Basic Operations
47
Shutter
Volume
Adjusts the volume of the sound
played when the shutter releases. The
shutter sound does not play when a
movie is recording.
Playback Vol. Adjusts the playback volume of
movies and sound memos.
Start-up Image On*/Off Sets whether or not the Start-up Image
appears when the camera is powered
on.
Power Saving p. 41
Auto Power
Down
On*/Off Sets whether or not the camera
automatically powers down after a set
period of time elapses without the
camera being operated.
Display Off 10 sec./20
sec./30 sec./1
min.*/2 min./3
min.
Sets the length of time before the LCD
monitor turns off when no camera
operation is performed.
Date/Time p. 12
Format You can also select a low level format
(p. 56).
File Numbering Continuous*/
Auto Reset
p. 120
Create Folder p. 118
Create New
Folder
Check mark
(On)/
No check mark
(Off)
Creates a folder during the next
shooting session.
Auto Create Off*/Daily/
Monday-
Sunday/
Monthly
You can also set an auto creation time.
Auto Rotate On*/Off p. 115
Distance Units m/cm* /ft/in Sets the units for the MF indicator
distance unit (p. 96).
Menu Item Options Page/Topic
Basic Operations
48
*1 You can change the printer connection method. There is usually no need to change
the settings, but select when you print an image recorded in the
(Widescreen) mode at the full page setting for wide paper using a Canon SELPHY
CP750/740/730/CP720/CP710/CP510 Compact Photo Printer. Since this setting is
saved even when the power is turned off, ensure that you return the setting to [Auto]
to print other image sizes. (However, it cannot be changed while the printer is
connected.)
Lens Retract 1 minute* /
0 seconds
Sets the lens retraction timing when
switching from shooting mode to
playback mode.
Language p. 13
Video System NTSC/PAL p. 146
Print Method Auto*/ See below*
1
.
Reset All p. 55
Menu Item Options Page/Topic
Basic Operations
49
Using the LCD Monitor
1
Press the button.
• The display mode changes as follows with each press.
• The shooting information displays for approximately 6 sec.
when a setting is changed, regardless of the selected display
mode.
z The LCD monitor on or off setting is retained even after the
camera power is turned off.
z The LCD monitor does not shut off in the or mode.
z The LCD monitor will not switch to the detailed display in the
Magnified Display
(p. 122) or the index playback mode
(p. 123).
Night Display
When shooting in dark conditions, the camera automatically
brightens the LCD monitor to suit the brightness of the subject*,
making it easier to frame the subject.
* Although noise may appear and the movement of the subject shown on the LCD
monitor may appear somewhat jagged, there is no effect on the recorded image.
The brightness of the image displayed in the monitor, and the brightness of the
actual image recorded will be different.
Playback Mode ( )
No Information
Standard
Detailed
Shooting Mode ( )
Standard
(No Information)
Detailed
(Information View)
Off
Basic Operations
50
Shooting Information (Shooting Mode)
Information Displayed on the LCD Monitor
a
ISO Speed*
(
•••
)
p. 100
White Balance p. 104
Drive Mode pp. 66, 87
My Colors p. 107
Flash Exposure
Compensation/Flash Output
pp. 110,
111
Metering Mode p. 102
Compression (Still image) p. 57
Recording Pixels (Still image) p. 57
Recording Pixels (Movies) p. 81
b
Digital Tele-Converter/Zoom
Magnification
p. 60
Flash p. 64
Auto Rotate p. 115
Shooting Mode p. 74
Movie Recording [z
Rec.] (Red) p. 79
Low Battery (Red)
c
Image Stabilizer p. 68
Spot AE Point Frame/
AF Frame
3:2 Guide
a
c
d
Grid Lines
b
Basic Operations
51
* Displays when the shutter button is pressed halfway. During flash photography,
however, the camera automatically readjusts the ISO speed, shutter speed or
aperture setting to an optimal setting, which may cause the playback information to
differ from the displayed information.
c
Create Folder p. 118
Stills: Recordable Shots
Movies: Remaining Time/Elapsed Time
Camera Shake Warning (Red)
d
AE Lock/FE Lock pp. 98, 99
Shutter Speed* 15–1/2000 pp. 83, 86
Aperture Value* F2.8–F8.0 pp. 85, 86
Exposure Compensation ••• p. 101
Macro p. 65
AF Lock/Manual Focus pp. 95, 96
If the indicator blinks orange and the camera shake warning
icon displays, this indicates that a slow shutter speed may
have been selected due to insufficient illumination. Use the
following methods to shoot:
- Set the IS mode to any setting other than [off]
(p. 68)
- Raise the ISO speed (p. 100)
- Select a setting other than (flash off) (p. 64)
- Attach the camera to a tripod or other device
Basic Operations
52
Playback Information (Playback Mode)
Standard
Detailed
a
Displayed image number/Total number of images –
Folder Number-File Number p. 121
b
Compression (Still Images) p. 57
Recording Pixels (Still Images)
p. 57
Movie p. 125
Red-Eye Correction/Resize
pp. 130, 134
WAVE Format Sound
p. 136
Protection Status p. 137
Shooting Date/Time p. 71
a
Shooting Mode p. 74
Metering Mode p. 102
ISO Speed ••• p. 100
a
b
a
Histogram (p. 54)
b
c
d
e
f
Basic Operations
53
The following information may also be displayed with some images.
b
Shutter Speed 15–1/2000 pp. 83, 86
Aperture Value F2.8–F8.0 pp. 85, 86
c
Recording Pixels/Frame Rate
(Movies)
p. 57
Exposure Compensation ••• p. 101
Flash Exposure
Compensation/Flash Output
•••
pp. 110,
111
d
White Balance p. 104
My Colors p. 107
Red-Eye Correction Function
p. 130
AF Lock/Manual Focus pp. 95, 96
Macro p. 65
e
File size p. 192
f
Still Image: Recording Pixels
Movies: Movie Length
pp. 190,
191
A sound file in a format other than the WAVE format is attached or
the file format is not recognized.
JPEG image not conforming to Design rule for Camera File System
Standards (p. 187)
RAW image
Image recording pixel setting not recognized
z Information for images shot on other cameras may not
display correctly.
z Overexposure Warning
In the following cases, overexposed portions of the image
blink.
- When reviewing an image right after shooting in the LCD
monitor (information view)
- When using the detailed display mode of the Playback
mode
Basic Operations
54
Histogram Function
The histogram is a graph that allows you to check the brightness of
the image. The greater the bias toward the left in the graph, the
darker the image. The greater the bias toward the right, the brighter
the image.
If the image is too dark, adjust the exposure compensation to a
positive value. Similarly, adjust the exposure compensation to a
negative value if the image is too bright (p. 101).
Sample Histograms
Balanced ImageDark Image Bright Image
Basic Operations
55
Resetting Settings to Their Default Values
1
Select [Reset All].
1. Press the button.
2. Use the or button to select
[ ] Menu.
3. Use the or button to select
[Reset All].
4. Press the button.
2
Accept the setting.
1. Use the or button to select
[OK]
2. Press the button.
z Settings cannot be reset when the camera is connected to a
computer or to a printer.
z The following cannot be reset.
- Shooting mode
- The [Date/Time], [Language] and [Video System] options
in the menu (pp. 47, 48)
- White balance data recorded with the custom white
balance function (p. 105)
Basic Operations
56
You should always format a new memory card or one from which you
wish to erase all images and other data.
Formatting Memory Cards
Please note that formatting (initializing) a memory card erases
all data, including protected images and other file types.
1
Select [Format].
1. Press the button.
2. Use the or button to select
[ ] Menu.
3. Use the or button to select
[Format].
4. Press the button.
2
Accept the setting.
1. Use the or button to select
[OK]
2. Press the button.
• To perform a low level format, use
the button to select [Low Level
Format] and the or button to
add a check mark.
• You can stop formatting a card when
[Low Level Format] is selected by pressing the FUNC./SET
button. You can still use a card without problem when
formatting is halted, but its data will be erased.
Low Level Format
We recommend you select [Low Level Format] when you think
that the recording/reading speed of a memory card has
dropped. A low level format may require 2 to 3 minutes with
some memory cards.
Commonly Used Shooting Functions
57
See Functions Available in Each Shooting Mode (p. 200).
Changing the Recording Pixels/
Compression (Still Images)
Shooting Mode
1
Select a resolution setting.
1. Press the button.
2. Use the or button to select
and the or button to change
the option.
3. Press the button.
2
Select a compression setting.
1. Press the button.
2. Use the or button to select
and the or button to change
the option.
3. Press the button.
Commonly Used Shooting Functions
Commonly Used Shooting Functions
58
Approximate Values for Recording Pixels
•
:
Approximate number of recording pixels. (M is short for megapixels.)
* Paper sizes vary according to region.
Approximate Values for Compression Settings
Recording Pixels Purpose*
(Large)
8M
3264 x 2448
pixels
High Printing to about A3-size
297 x 420 mm (11.7 x 16.5
in.)
(Medium 1)
5M
2592 x 1944
pixels
Printing to about A4-size
210 x 297 mm (8.3 x 11.7 in.)
Printing to about Letter-size
216 x 279 mm (8.5 x 11 in.)
(Medium 2)
3M
2048 x 1536
pixels
Printing to about A5-size
148 x 210 mm (6 x 8.3 in.)
(Medium 3)
2M
1600 x 1200
pixels
Print postcard-size prints
148 x 100 mm (6 x 4 in.)
Print L-size prints
119 x 89 mm (4.7 x 3.5 in.)
(Small)
0.3M
640 x 480
pixels
Low
Send images as e-mail
attachments or shoot more
images
or
(Postcard)
1600 x 1200 pixels When printing to postcards (p. 70).
(Widescreen)
3264 x 1832 pixels
Printing on wide size paper (you can
check the composition at a 16:9 aspect
ratio. Areas that will not be recorded
appear on the LCD monitor as a black
border.)
Compression Purpose
Superfine
High Quality Shoot higher quality images
Fine
Shoot normal quality images
Normal
Normal Shoot more images
z See Image Data Sizes (Estimated) (p. 192).
z See Memory Cards and Estimated Capacities (p. 190).
Commonly Used Shooting Functions
59
See Functions Available in Each Shooting Mode (p. 200).
The zoom can be adjusted from 35 mm – 210 mm (focal length) in
35mm film equivalent terms. The zoom bar will display while you adjust
the zoom.
Shooting with the Optical Zoom
Shooting Mode
1
Press the zoom lever toward or .
• Wide Angle: Zooms out from the
subject.
• Telephoto: Zooms in on the
subject.
Commonly Used Shooting Functions
60
See Functions Available in Each Shooting Mode (p. 200).
* Digital tele-converter cannot be set.
You can combine digital zoom with optical zoom when shooting.
The available shooting characteristics and focal lengths (35mm film
equivalent) are as follows:
Using the Digital Zoom/Digital Tele-Converter
Shooting Mode
Selection Focal Length Shooting Characteristics
Standard 35 – 840 mm
Enables shooting at zoom factors of up to
24x with digital and optical zoom
combined. In movie mode, only the
Standard mode can be selected.
Off 35 – 210 mm
Enables shooting without digital zoom.
1.6x 56 – 336 mm
Digital zoom is fixed at the selected zoom
factor, and the focal length shifts to
maximum telephoto. This enables a faster
shutter speed and less chance of camera
shake than a shot taken at the same angle
of view with [Standard] or [Off].
2.0x 70 – 420 mm
z The digital zoom cannot be used when the LCD monitor is
turned off.
z The digital zoom cannot be used in or (Postcard), or
(Widescreen) modes.
*
Commonly Used Shooting Functions
61
Shooting with the Digital Zoom
1
Select [Digital Zoom].
1. Press the button.
2. In the [ ] menu, use the or
button to select [Digital Zoom].
2
Accept the setting.
1. Use the or button to select
[Standard].
2. Press the button.
3
Press the zoom lever toward and shoot.
• The combined digital and optical
zoom setting will display in the LCD
monitor.
• The image may appear coarse
depending upon the selected
recording pixels (the zoom factor
appear in blue).
• Press the zoom lever toward to
zoom out.
Commonly Used Shooting Functions
62
Safety Zoom Zone
Depending on the number of recording pixels set, you can shift from
optical zoom to digital zoom without pausing up to a factor where the
image quality does not deteriorate (Safety Zoom).
The displays when reaching the maximum zoom factor without
image deterioration (not available in ).
Safety Zoom factor
Zoom Bar Colors
• White: Optical Zoom (Zone without deterioration)
• Yellow: Digital Zoom (Zone without deterioration)
• Blue: Digital Zoom (Zoom with deterioration)
Recording
pixels
Optical Zoom Digital Zoom
6.0x Î
7.6x Î
9.6x Î
12x Î
24x Î
Commonly Used Shooting Functions
63
Shooting with the Digital Tele-Converter
The digital tele-converter feature uses digital zoom to achieve the
effects of a tele-converter (a lens used in telephoto shooting).
1
Select [Digital Zoom].
1. Press the button.
2. In the [ ] menu, use the or
button to select [Digital Zoom].
2
Accept the setting.
1. Use the or button to select
[1.6x] or [2.0x].
2. Press the button.
3
Adjust the angle of view with the zoom lever
and shoot.
• will appear on the LCD monitor.
• The image may appear coarse
depending upon the selected
recording pixels (the icon and the
zoom factor appear in blue).
Commonly Used Shooting Functions
64
See Functions Available in Each Shooting Mode (p. 200).
*
Cannot be set in mode.
Using the Flash
Shooting Mode
1
Press the button.
1. Use the or button to change
the flash mode.
• : [Auto]
• : [On]
• : [Off]
You are recommended to shoot with the camera attached to a
tripod or other device if the camera shake warning icon
appears.
When the LCD monitor is on and flash recharging begins, the
indicator blinks orange and the LCD monitor turns off. When
recharging ends, the indicator turns off and the LCD monitor
turns on. The time required for flash recharging will change
depending on usage conditions and remaining battery power.
*
Commonly Used Shooting Functions
65
See Functions Available in Each Shooting Mode (p. 200).
*
Cannot be set in mode.
Use this mode to shoot close-ups of flowers or small items. At
maximum wide angle, the image area is 24 x 18 mm (0.94 x 0.71 in.)
when at the minimum focusing distance (1 cm from the end of the lens
to the subject).
To Cancel the Macro Mode
Press and use the or button to select (Normal).
Shooting Close-ups (Macro)
Shooting Mode
1
Press the button.
1. Use the or button to select
.
• The zoom bar will display while you
adjust the zoom. In macro mode the
bar will appear yellow when the
zoom range prohibits focusing. The
icon will gray out and the image
range becomes that of normal
shooting mode.
z Use the LCD monitor to compose close-ups in macro mode
since images composed with the viewfinder may be off-
center.
z Using the flash in macro mode may cause image edges to
darken.
*
Commonly Used Shooting Functions
66
See Functions Available in Each Shooting Mode (p. 200).
*
Cannot be set in mode.
You can set the time delay and the numbers of shots you wish to take
in advance.
To Cancel the Self-Timer: Select .
Using the Self-Timer
Shooting Mode
10 sec. Self-Timer: shoots 10 seconds after you press the
shutter button.
• 2 seconds before the shutter releases, the self-timer lamp and
sound speed up.
2 sec. Self-Timer: shoots 2 seconds after you press the shutter
button.
• The self-timer sound beeps quickly when you press the shutter
button and the shutter releases 2 seconds later.
Custom Timer: you can change the delay time (0–10, 15, 20, 30
sec.) and number of shots (1–10).
• When [Delay] is set to 2 or more seconds, the self-timer sound
beeps quickly 2 seconds before the shutter releases. When
[Shots] is set to more than 1, the self-timer sound only beeps
before the first shot.
1
Configure the self-timer
mode.
1. Press the button.
2. Use the or button to select
and the or button to change
the option.
3. Press the button.
2
Shoot.
• When the shutter button is pressed fully, the self-timer will
activate and the self-timer lamp will blink (when using red-eye
reduction, it will stay lit for the last 2 seconds).
**
Commonly Used Shooting Functions
67
Changing the Delay Time and Number of Shots ( )
1
Select .
1. Press the button.
2. Use the or button to select
and choose with the or
button.
3. Press the button.
2
Accept the setting.
1. Use the or button to select
[Delay] or [Shots] and change the
settings with the or button.
2. Press the button.
3. Press the button.
If the [Shots] option is set to 2 or more shots, the following
occurs.
- The exposure and white balance are locked at the settings
selected for the first shot.
- If the flash is used, the interval between shots lengthens
because the flash must charge.
- The interval between shots may lengthen when the built-in
memory of the camera fills.
- Shooting will automatically cease if the memory card
becomes full.
Commonly Used Shooting Functions
68
See Functions Available in Each Shooting Mode (p. 200).
* Only [Continuous] can be set.
The lens shift type image stabilizer function allows you to minimize the
camera shake effect (blurred images) when you shoot distant subjects
that have been magnified or when you shoot in dark conditions without
a flash.
Setting the Image Stabilizer Function
Shooting Mode
Continuous
You can check the effect of the IS mode on image blur on
the LCD monitor since the IS mode runs continually. This
makes it easier to compose images and focus on
subjects.
Shoot Only
IS mode is only activated when the shutter button is
pressed, so subjects will be captured with reduced blur
even if their movements on the LCD monitor are not
smooth.
Panning
This option only stabilizes the effect of up and down
camera motions on the image. This option is
recommended for shooting objects moving horizontally.
1
Select [IS Mode].
1. Press the button.
2. In the [ ] menu, use the or
button to select [IS Mode].
2
Accept the setting.
1. Use the or button to select
[Continuous], [Shoot Only],
[Panning] or [Off].
2. Press the button.
*
Commonly Used Shooting Functions
69
LCD Monitor Icons
[Continuous] [Shoot Only]
[Panning]
[Converter] setting
in Rec. menu
Reference
Page
None
p. 179
WC-DC58N/
TC-DC58N/250D
z Camera shake may not be fully corrected when shooting
with slow shutter speeds, such as with evening shots. Use of
a tripod is recommended.
z If camera shake is too strong, it may not be fully corrected.
z Hold the camera horizontally while panning (stabilization
does not work when the camera is held vertically).
z If you select [Shoot Only] or [Panning] in shooting mode (still
images) and then switch to movie mode, the setting will
change to [Continuous].
Commonly Used Shooting Functions
70
See Functions Available in Each Shooting Mode (p. 200).
You can shoot images with the optimal settings for postcards by
composing them inside the print area (width-to-height ratio of
approximately 3:2) shown in the LCD monitor.
Configuring the Postcard Mode
Shooting Mode
1
Select .
1. Press the button.
2. Use the or button to select
and choose with the or
button.
3. Press the button.
• The area that will not print displays
in gray.
• The recording pixel and
compression settings are fixed (2M: 1600 x 1200, Fine).
The digital zoom or the digital tele-converter cannot be used in
this mode.
For printing instructions, refer to the Direct Print User Guide.
Commonly Used Shooting Functions
71
See Functions Available in Each Shooting Mode (p. 200).
You can embed the date in the image data when (Postcard) is
selected.
Embedding the Date in the Image Data
Shooting Mode
1
Select .
1. Press the button.
2. Use the or button to select
and choose with the or
button.
3. Press the button.
2
Select [Date Stamp].
1. Press the button.
2. In the [ ] menu, use the or
button to select [Date Stamp].
3
Set the date and time.
1. Use the or button to select
[Date] or [Date & Time].
2. Press the button.
LCD Monitor Display
• : [Off]
• : [Date]/[Date & Time]
z
Ensure that the camera’s date/time is set beforehand (p. 12).
z The date stamp cannot be deleted from the image data once
it has been embedded.
Commonly Used Shooting Functions
72
To imprint the date on all but (postcard) size images, use
the supplied software (ZoomBrowser EX or ImageBrowser) or
printer settings. For details, please see the user guide for each
product.
Shooting Using the Mode Dial
73
Mode Dial
Auto
The camera automatically selects settings.
(p. 14)
Image zone
When a shooting mode appropriate for the shooting conditions is selected,
the camera automatically adjusts settings for optimal shooting. (p. 74)
Portrait
Landscape
Night Snapshot
Kids & Pets
Indoor
Special Scene (p. 75)
Stitch Assist (p. 77)
Movie (p. 79)
Creative zone
With these settings, you select parameters such as the shutter speed or
aperture stop to achieve a range of effects.
Program AE (p. 82)
Setting the Shutter Speed (p. 83)
Setting the Aperture (p. 85)
Manually Setting the Shutter Speed and Aperture (p. 86)
Shooting Using the Mode Dial
Creative zone
Auto
Image zone
Shooting Using the Mode Dial
74
See Functions Available in Each Shooting Mode (p. 200).
When a shooting mode appropriate for the shooting conditions is
selected, the camera automatically adjusts settings for optimal
shooting.
Shooting Modes for Specific Scenes
Shooting Mode
1
Set the mode dial to , , ,
or .
Portrait
Produces a soft effect when photographing people.
Landscape
Optimized for shooting landscape scenes which
contain both near and far subjects.
Night Snapshot
Allows you to take snapshots of people against
twilight or night backgrounds by reducing the effects
of camera shake even without using a tripod.
Kids&Pets
Allows you to capture subjects that move around,
such as children and pets, without missing photo
opportunities.
Shooting Using the Mode Dial
75
(Special Scene)
You can shoot with the most appropriate settings for the scene.
Indoor
Prevents camera shake and maintains the subject’s
true color when shooting under fluorescent or
tungsten lighting.
1
Set the mode dial to .
2
Use the or button to select a shooting
mode.
Night Scene
Allows you to capture human subjects against the
backdrop of an evening sky or night scene. The
flash is directed at the person and the shutter speed
is slow, so both the person and the background can
be beautifully shot.
Foliage
Shoots trees and leaves—such as new growth,
autumn leaves or blossoms—in vivid colors.
Snow
Shoots without a blue tinge and without making
people appear dark against a snowy background.
Shooting Using the Mode Dial
76
Beach
Shoots without making people appear dark near
water or sand where reflected sunlight is strong.
Fireworks
Captures fireworks in the sky sharply and at optimal
exposure.
Aquarium
Selects the optimal ISO speed, white balance and
color balance to capture fish and other items in an
indoor aquarium.
Underwater
Appropriate for shooting images with Waterproof
Case WP-DC16 (sold separately). This mode uses
an optimal white balance setting to reduce bluish
tones and record images with a natural hue.
z The shutter speed is slow in or mode. Always use a
tripod to avoid camera shake.
z In , , , or mode, the ISO speed may
increase and cause noise in the image depending on the
scene being shot.
Install the camera in Waterproof Case WP-DC16 to shoot
underwater. You are also recommended to use this case for
shooting in rainy conditions, at the beach or on the ski slopes.
Shooting Using the Mode Dial
77
See Functions Available in Each Shooting Mode (p. 200).
Stitch Assist can be used to shoot overlapping images that can later be
merged (stitched) to create one panoramic image on a computer.
Shooting Panoramic Images (Stitch Assist)
Shooting Mode
1
Set the mode dial to
.
2
Select a shooting direction.
1. Use the or button to select a
shooting direction.
Left to right horizontally
Right to left horizontally
The overlapping seams of several
adjacent images can be joined
into a single panoramic image.
Shooting Using the Mode Dial
78
3
Shoot the first image in the
sequence.
• The exposure and white balance are
set and locked with the first image.
4
Compose the second image so that it overlaps
a portion of the first and shoot.
• You can press the or button to return to the previously
recorded image to retake the shot.
• Minor discrepancies in the overlapping portions can be
corrected when the images are stitched together.
5
Repeat the procedure for additional images.
• A sequence may contain up to 26 images.
6
Press the button after the last shot.
z You cannot display the images on a TV when shooting in
Stitch Assist mode.
z The settings for the first image are applied to the second
image onward (except for Macro setting).
z Use PhotoStitch, a supplied software program, to merge the
images on a computer.
z When the button is pressed, you can switch between the
items which you can set.
- Exposure compensation/Shooting direction selection
Shooting Using the Mode Dial
79
See Functions Available in Each Shooting Mode (p. 200).
The following movie modes are available.
The recording time will vary according to the capacity of the memory
card you use (p. 191).
* Even if the clip size has not reached 4 GB, recording will stop at the moment the clip
length reaches 1 hour. Depending on the volume and data writing speed of the
memory card, recording may stop before reaching 1 hour or before the recorded data
volume has reached 4 GB.
Movie Shooting
Shooting Mode
Standard
You can select the recording pixels and record until the memory card
is full (when a super high-speed memory card is used, such as the
recommended SDC-512MSH). The digital zoom can be used while
shooting in this mode (p. 60).
• Maximum Size: 4 GB*/movie
Compact
Since there are few recording pixels and also the data size is small,
this mode is convenient for sending movies as e-mail attachments or
when the memory card capacity is low.
• Maximum Clip Length: 3 minutes
1
Set the mode dial to .
2
Select a shooting mode.
1. Use the or button to select a
shooting mode.
Shooting Using the Mode Dial
80
3
Shoot.
• Pressing the shutter button halfway automatically sets the
exposure, focus and white balance settings.
• Pressing the shutter button fully starts recording video and
sound simultaneously.
• During shooting, the recording time and [
z
Rec] appear on the
LCD monitor.
• Pressing the shutter button fully again stops recording.
Recording will stop automatically under the following
circumstances.
- When the maximum recording time elapses
- When the built-in memory or memory card becomes full
z You are recommended to use a memory card that has been
formatted in your camera to shoot movies (p. 56). The
memory card supplied with the camera may be used without
further formatting.
z Be careful of the following while recording.
- Do not touch the microphone (p. 38).
- Do not press any buttons other than the shutter button.
The sound that buttons make will be recorded in the
movie.
- The camera will automatically adjust the exposure and
white balance to suit the shooting conditions during
recording. Please note, however, that the sounds made
by the camera automatically adjusting the exposure may
also be recorded.
z The focus and optical zoom settings remain fixed for
subsequent frames at the values selected for the first frame.
QuickTime is required to play back movies (Data type: AVI/
Compression method: Motion JPEG) on a computer (Only
Windows 2000).
Shooting Using the Mode Dial
81
Changing Recording Pixels
You can change the recording pixels when the movie mode is set to
(Standard) (frame rate is fixed).
Recording Pixels and Frame Rates
Frame rates indicate the number of frames recorded or played back
each second. The higher the frame rate, the smoother the
appearance of motion.
1
Select the number of
recording pixels.
1. Press the button.
2. Use the or button to select
and the or button to
change the option.
3. Press the button.
*1 Default setting.
*2 To give priority to recording length over quality, select the option displaying [LP]
(Long Play). For the same file size, you can record approximately twice the
length.
Standard
*
1
640 x 480 pixels, 30 frames/sec.
*
2
640 x 480 pixels, 30 frames/sec. LP
320 x 240 pixels, 30 frames/sec.
Compact 160 x 120 pixels, 15 frames/sec.
z See Memory Cards and Estimated Capacities (p. 190).
z See Image Data Sizes (Estimated) (p. 192).
Shooting Using the Mode Dial
82
See Functions Available in Each Shooting Mode (p. 200).
The camera automatically sets the shutter speed and aperture value to
match the brightness of the subject. You can freely configure such
settings as the ISO speed, exposure compensation and white balance.
Program AE
Shooting Mode
1
Set the mode dial to
.
2
Shoot.
The shutter speed and aperture values are shown in red on the
LCD monitor if a correct exposure cannot be obtained when
the shutter button is pressed halfway. Use the following
shooting methods to obtain the correct exposure and make
them show in white.
- Using the flash (p. 64)
- Changing the ISO speed (p. 100)
- Changing the metering method (p. 102)
Shooting Using the Mode Dial
83
See Functions Available in Each Shooting Mode (p. 200).
When you set the shutter speed, the camera automatically selects an
aperture value to match the brightness of the subject. Faster shutter
speeds allow you to catch an instantaneous image of a moving subject,
while slower speeds create a flowing effect and allow you to shoot
without a flash in dark areas.
Setting the Shutter Speed
Shooting Mode
1
Set the mode dial to
.
2
Configure the shutter speed.
1. Use the or button to change the shutter speed.
3
Shoot.
• If the aperture value is shown in red when the shutter button is
pressed halfway, the image is underexposed (insufficient light)
or overexposed (too much light). Use the or button to
adjust the shutter speed until the aperture value shows in
white.
The nature of CCD image sensors is such that noise in the
recorded image increases at slow shutter speeds. This
camera, however, applies special processing to images shot at
shutter speeds of 1.3 seconds or slower to eliminate the noise,
thereby producing high-quality images. (However, a certain
amount of processing time may be required before the next
image can be shot.)
Shooting Using the Mode Dial
84
z The aperture value and shutter speed change according to
the zoom state as follows
z The fastest shutter speed for flash synchronization is 1/500
second. The camera automatically resets the shutter speed
to 1/500 second if a faster speed is selected.
Shutter Speed Display
z
The following shutter speeds can be set. 1/160 indicates 1/160
second. Also, 0"3 indicates 0.3 second and 2" indicates 2 seconds
.
Shooting
Mode
Aperture
Value
Shutter Speed
(seconds)
Maximum
Wide Angle
, f/2.8 – 3.5 15 – 1/1500
, f/4.0 – 8.0 15 – 1/2000
Maximum
Telephoto
, f/4.8 – 6.3 15 – 1/1500
, f/7.1 – 8.0 15 – 1/2000
15" 13" 10" 8" 6" 5" 4" 3"2 2"5 2" 1"6 1"3 1" 0"8 0"6 0"5 0"4 0"3
1/4 1/5 1/6 1/8 1/10 1/13 1/15 1/20 1/25 1/30 1/40 1/50 1/60
1/80 1/100 1/125 1/160 1/200 1/250 1/320 1/400 1/500 1/640
1/800 1/1000 1/1250 1/1500 1/1600 1/2000
Shooting Using the Mode Dial
85
See Functions Available in Each Shooting Mode (p. 200).
The aperture adjusts the amount of light entering through the lens.
When you set the aperture value, the camera automatically selects a
shutter speed to match the brightness.
Selecting a lower aperture value (opening the aperture) allows you to
blur the background and create a beautiful portrait. A higher aperture
value (closing it) brings the entire range from foreground to
background into focus. The larger the aperture value, the greater the
range of the image brought into clear focus.
Setting the Aperture
Shooting Mode
1
Set the mode dial to
.
2
Configure the aperture setting.
1. Use the or button to change the aperture setting.
3
Shoot.
• If the shutter speed is shown in in red when the shutter button
is pressed halfway, the image is underexposed (insufficient
light) or overexposed (too much light). Adjust the aperture
value using the or button until the shutter speed display
turns to white.
Some aperture values may not be available with certain zoom
positions (p. 84).
z
In this mode, the shutter speed range with synchronized flash is 1/
60 second to 1/500 second. The aperture value setting may
therefore be changed automatically to match the synchronized
flash speed even if its value was set previously.
Aperture Value Display
z The larger the aperture value, the smaller the lens aperture.
F2.8 F3.2 F3.5 F4.0 F4.5 F4.8 F5.0 F5.6 F6.3 F7.1 F8.0
Shooting Using the Mode Dial
86
See Functions Available in Each Shooting Mode (p. 200).
You can manually set the shutter speed and aperture to shoot images.
Manually Setting the Shutter Speed
and Aperture
Shooting Mode
1
Set the mode dial to
.
2
Configure the shutter speed and aperture set-
ting.
1. Use the button to select shutter speed or aperture, and use
the or button to change the option.
3
Shoot.
• When you press the shutter button halfway, the difference
between the correct exposure* and the selected exposure
appears on the LCD monitor. If the difference is more than ±2
stops, “–2” or “+2” appears in red.
* Correct exposure levels are calculated by measuring light according to the
currently selected metering mode.
z
If the zoom is adjusted after these values are set, the shutter
speed or aperture value may change in accordance with the
zoom position
(p. 84)
.
z The LCD monitor’s brightness matches the selected shutter
speed and aperture value.
When you select a fast shutter speed or shoot a subject in a
dark place, the image will always be bright if the flash is set
to (Flash on).
Various Shooting Methods
87
See Functions Available in Each Shooting Mode (p. 200).
In this mode, the camera shoots continuously while the shutter button
is held down. If you use the recommended memory card*1, you can
shoot continuously (smooth continuous shooting) at a set shooting
interval until the memory card is full (p. 190).
To Cancel Continuous Shooting
Follow step 1 to display .
Continuous Shooting
Shooting Mode
*Recommended Memory Card:
Super high-speed SDC-512MSH memory card (sold separately) to
which low-level formatting (p. 56) is conducted immediately before
shooting.
• This reflects standard shooting criteria established by Canon. Actual results may
vary according to the subject and shooting conditions.
• Even if continuous shooting suddenly stops, the memory card may not be full.
1
Select .
1. Press the button.
2. Use the or button to select
and choose with the or
button.
3. Press the button.
2
Shoot.
• The camera will continue to record successive images while
the shutter button is held down. Recording will cease when the
shutter button is released.
Various Shooting Methods
Various Shooting Methods
88
See Functions Available in Each Shooting Mode (p. 200).
* 1
Cannot be set in mode.
You can set whether or not the red-eye reduction
*2
lamp automatically
fires with the flash.
*2 This function reduces the red appearance of eyes when they reflect light back
from the flash.
z The interval between shots lengthens when the built-in
memory of the camera fills.
z If the flash is used, the interval between shots lengthens
because the flash must charge.
Setting the Red-Eye Reduction Function
Shooting Mode
1
Select [Red-Eye].
1. Press the button.
2. In the [ ] menu, use the or
button to select [Red-Eye].
2
Accept the setting.
1. Use the or button to select
[On] or [Off].
2. Press the button.
*
1
Various Shooting Methods
89
See Functions Available in Each Shooting Mode (p. 200).
You can shoot with the flash at slow shutter speeds. This is handy for
shooting at night or under artificial lighting indoors.
Setting the Slow Synchro Function
Shooting Mode
1
Select [Slow Synchro].
1. Press the button.
2. In the [ ] menu, use the or
button to select [Slow Synchro].
2
Set Slow Synchro.
1. Use the or button to select
[On] or [Off].
2. Press the button.
z In , and modes Slow Synchro is set to [On].
z Please note that camera shake becomes a factor when
[Slow Synchro] is set to [On]. If this occurs, you are
recommended to fix the camera to a tripod to shoot in this
mode.
Various Shooting Methods
90
See Functions Available in Each Shooting Mode (p. 200).
*
Cannot be set in mode.
The AF frame indicates the area of the composition on which the
camera focuses. You can set the AF frame in the following ways.
Selecting an AF Frame Mode
Shooting Mode
Face
Detect
You can have the camera automatically detect
the position of a face and use this data to set
the focus and exposure* while shooting. In
addition, the camera will meter the subject so
that the face is correctly illuminated when the
flash fires. If a face is not detected, shooting
will take place with [AiAF].
* Only in evaluative metering mode (p. 102).
AiAF
The camera automatically selects between 9
AF frames to focus on according to the
shooting conditions.
Center
The camera fixes the AF frame at the center.
This is convenient for making sure the focus is
exactly where you want it.
FlexiZone
Shooting mode: / / /
The camera sets the focus from an AF frame
you select. This is convenient for ensuring
that the intended subject is in focus.
1
Select [AF Frame].
1. Press the button.
2. In the [ ] menu, use the or
button to select [AF Frame].
*
Various Shooting Methods
91
2
Accept the setting.
1. Use the or button to select
[Face Detect], [AiAF], [Center] or
[FlexiZone].
2. Press the button.
• Changing the AF Frame Size (p. 92)
• Changing the AF Frame Position
(p. 93)
z [Face Detect] and [FlexiZone] cannot be used when the LCD
monitor is turned off.
z The AF frame appears as follows (when the LCD monitor is
on) when the shutter button is pressed halfway.
Face Detect Feature
z Maximum of three AF frames will be displayed at the position of the
face the camera recognizes. At this point, the frame the camera
judges to be the main subject appears in white while the others
appear in gray. When the shutter button is pressed halfway, up to 9
green AF frames may appear.
z The camera will shoot using [AiAF] not the [Face Detect] function if
a white frame fails to appear and only grey frames display, or if a
face is not detected.
z
The camera may mistakenly identify non-human subjects as a face.
z In certain cases, faces may not be detected.
Examples:
- If faces are at the edge of the screen, or appear extremely small,
large, dark or bright, relative to the overall composition.
- Faces turned to the side or at a diagonal, or faces with a portion
hidden.
- Green : Shooting preparations complete
- Yellow : Focusing difficulty ([Center], [FlexiZone]
options)
- No AF frame : Focusing Difficulty ([Face Detect], [AiAF]
options)
Various Shooting Methods
92
Changing the AF Frame Size ([Center] or [Flexi-
Zone])
You can change the AF frame size to better suit the size of a subject.
You reduce the area used to set the focus when you reduce the AF
frame to match a small subject or to focus on a particular portion of a
subject.
1
Change the AF frame
size.
1. Press the button.
2. In the [ ] menu, use the or
button to select [AF Frame
Size].
2
Accept the setting.
1. Use the or button to select
[Normal] or [Small].
2. Press the button.
The setting is configured to [Normal] when the digital zoom
or digital tele-converter is used.
Various Shooting Methods
93
Changing the AF Frame Position ([FlexiZone])
You can move the AF frame to any position (FlexiZone AF/AE). This
allows you to set the focus more precisely on your target subject.
1
Press repeatedly until the AF frame turns
green.
• In some shooting modes, pressing the button switches
between the following settings categories.
2
Use the , , or but-
ton to move the AF frame
to the desired position
and press the button.
• Pressing the MENU button shifts
the AF frame to a face detected
by the camera.
• You can change the AF frame size by pressing the DISP.
button (the change remains in effect even after the camera
power is switched off).
• Continuing to press the button causes the AF frame to
return to its original position.
z When the metering option is set to [Spot], you can make
the AF frame and spot metering frame correspond
(p. 102).
z This option cannot be selected in manual focusing mode
(p. 96).
z The AF frame returns to the center position when the
power is switched off.
Exposure compensation/AF Frame
Shutter speed/Exposure compensation/AF Frame
Aperture value/
Exposure compensation/AF Frame
Shutter speed/Exposure compensation/AF Frame
Various Shooting Methods
94
See Functions Available in Each Shooting Mode (p. 200).
* Cannot be used in mode.
It may be difficult to focus on the following types of subjects.
• Subjects with extremely low contrast to the surroundings
• Scenes with a mixture of near and far subjects
• Subjects with extremely bright objects at the center of the composition
• Subjects that are moving quickly
• Subjects through glass: Try to shoot as close to the glass as possible
to reduce the chances of light reflecting back off the glass.
Shooting with the Focus Lock
Shooting Hard-to-Focus Subjects (Focus
Lock, AF Lock, Manual Focus, Safety MF)
Shooting Mode
1
Aim the camera so that an object at the same
focal distance as the main subject is centered
in the viewfinder or in the AF frame displayed
on the LCD monitor.
2
Press the shutter button halfway to lock the
focus.
3
Keep the shutter button pressed halfway while
you recompose the image and press the shut-
ter button all the way to shoot the image.
*
Various Shooting Methods
95
Shooting with the AF Lock
To Release the AF Lock
Press the button and use the or button to select
(Normal).
1
Turn on the LCD monitor.
2
Aim the camera so that an object at the same
focal distance as the main subject is centered
in the AF frame.
3
Press and hold the shutter button halfway and
press the button.
• The icon and the MF indicator will appear on the LCD
monitor, and the distance to the subject can be confirmed.
4
Re-aim the camera to compose the shot as
desired and shoot.
z The AF lock cannot be used in the and modes.
z Since AF frames do not display in mode, aim the camera
so that the focus is on the target subject.
z When shooting with the focus lock or AF lock using the LCD
monitor, setting [AF Frame] to [Center] (p. 90) makes
shooting easier since the camera focuses using the center
AF frame only.
z The AF lock is convenient because you can let go of the
shutter button to compose the image. Moreover, the AF lock
is still effective after the picture is taken, allowing you to
capture a second image with the same focus.
Various Shooting Methods
96
Shooting in Manual Focus Mode
The focus can be manually set.
1
Turn on the LCD monitor.
2
Press the button several times.
• and the MF indicator are
displayed.
• When the [ ] menu’s [MF-Point
Zoom] is set to [On], the portion of
the image in the AF frame will
appear magnified*. The magnified
position will differ depending on the
AF Frame Mode (p. 90) setting.
- When set to [Face Detect], [AiAF]
or [Center], the center of the LCD
monitor is magnified.
- When set to [FlexiZone], the location of the AF frame
displayed immediately prior to setting the manual focus will
display magnified.
* The image will not appear magnified in mode, when the digital
zoom or digital tele-converter is activated or when a TV is used as the
display.
* Can also be set so that the image displayed is not magnified (p. 45).
• Depending on the shooting mode, pressing the button will
switch between the setting items as follows:
3
Press the or button and adjust the focus.
• The MF indicator shows approximate figures. Use them as a
shooting guideline only.
MF indicator
,,
,,,
Exposure compensation/
mode/Exposure compensation/
mode/
Shutter speed/Exposure compensation/
Aperture value/Exposure compensation/
Shutter speed/Aperture value/
Various Shooting Methods
97
To Cancel the Manual Focus
Press the button and use the or button to select (Normal).
Using the Manual Focus in Combination with
the Auto Focus (Safety MF)
First, manual focus is used to roughly focus, then from that focus
position the camera automatically focuses more accurately.
Not available in or modes.
1
Select [Safety MF].
1. Press the button.
2. In the [ ] menu, use the or
button to select [Safety MF].
2
Accept the setting.
1. Use the or button to select
[On].
2. Press the button.
3
First focus manually and then press the shut-
ter button halfway.
• The camera will fine-tune the focus to the best position.
4
To shoot, press the shutter button all the way
down (press fully).
Not available in or mode.
Various Shooting Methods
98
See Functions Available in Each Shooting Mode (p.200).
You can set the exposure and focus separately. This is effective when
the contrast is too strong between the subject and background or when
a subject is backlit.
To Release the AE Lock
Operate a button other than the or button.
Locking the Exposure Setting
(AE Lock)
Shooting Mode
You must set the flash to . When the flash fires, images will
be shot using the FE lock (p.99).
1
Turn on the LCD monitor.
2
Aim the camera at the subject on which you
wish to lock the exposure.
3
Press the shutter button halfway and press the
button.
• The icon will display.
4
Re-aim the camera to compose the shot as
desired and press the shutter button fully.
Various Shooting Methods
99
See Functions Available in Each Shooting Mode (p.200).
You can lock the flash exposure so that the exposure settings are
correctly set regardless of the composition of your subject.
To Release the FE Lock
Operate a button other than the or button.
Locking the Flash Exposure Setting
(FE Lock)
Shooting Mode
1
Turn on the LCD monitor.
2
Press the button and select (flash on).
3
Aim the camera at the subject on which you
wish to lock the exposure.
4
Press the shutter button halfway and press the
button.
• The flash will pre-fire and will display.
5
Re-aim the camera to compose the shot as
desired and press the shutter button fully.
The FE lock cannot be used when [Flash Adjust] is set to
[Manual].
Various Shooting Methods
100
See Functions Available in Each Shooting Mode (p.200).
Raise the ISO speed to use a fast shutter speed when you wish to
reduce the effects of camera shake or avoid blurry subjects, or to turn
the flash off when shooting in a dark area.
{:Available *:Default
Adjusting the ISO Speed
Shooting Mode
{* { ––––––
{* {{{{{{{
{*– {{{{{{
{*– {{{{{{
––{* {{{{{
1
Adjust the ISO Speed
1. Press the button.
2. Use the or button to select
and the or button to change
the setting.
3. Press the button.
• Selecting (Auto) puts priority on image quality in setting the
optimal ISO speed for the light level when shooting. Since the
ISO speed setting will automatically be raised in dark places,
the camera will select a faster shutter speed and reduce the
chances of camera shake.
• Selecting (High ISO Auto)* sets a higher sensitivity than for
. As the shutter speed becomes even faster, camera shake
and blurred photos caused by subject movement will be
reduced even more than when shooting the same scene in .
* Noise may increase in the captured image compared to .
z The camera automatically applies noise reduction
processing when you shoot at a high ISO speed.
z If the camera is set at or , the ISO speed
automatically set by the camera will be displayed when
pressing shutter button halfway or in playback information.
Various Shooting Methods
101
See Functions Available in Each Shooting Mode (p.200).
Adjust the exposure compensation to a positive value to avoid making the
subject too dark when it is backlit or shot against a bright background.
Adjust the exposure compensation to a negative value to avoid making the
subject too bright in night shots or when shot against a dark background.
To Cancel the Exposure Compensation
Follow step 3 to restore the compensation value to [0].
Adjusting the Exposure Compensation
Shooting Mode
1
Turn on the LCD monitor.
2
Press repeatedly to display the exposure
compensation bar.
3
Configure the setting.
1. Use the or button to select a
compensation setting.
2. Press .
• Each press of the button
switches between the following categories of settings that can
be adjusted according to the selected shooting mode.
Exposure Compensation Bar
* Only with the [FlexiZone] selection for the AF frame type (p.90).
mode/Exposure compensation
Sequence Direction Selection/Exposure compensation
Exposure compensation/AF Frame* or
Shutter speed/Exposure compensation/AF Frame*or
Aperture value/Exposure compensation/AF Frame*or
Various Shooting Methods
102
See Functions Available in Each Shooting Mode (p.200).
Switching between Metering Modes
Shooting Mode
Evaluative
Appropriate for standard shooting conditions,
including backlit scenes. The camera divides
images into several zones for metering. It
evaluates complex lighting conditions, such as
the position of the subject, the brightness, the
direct light, and the backlighting, and adjusts
the settings to the correct exposure for the
main subject.
Center Weighted
Avg.
Averages the light metered from the entire
frame, but gives greater weight to the subject
matter at the center.
Spot Meters within the spot metering frame.
Center
Fixes the spot metering frame to the center of
the LCD monitor.
AF Point
Causes the position of the spot metering frame
to correspond to the AF frame.
1
Change the metering method.
1. Press the button.
2. Use the or button to select
and the or button to change
the option.
3. Press the button.
Various Shooting Methods
103
Setting the Spot Metering Frame to the Cen-
ter/To Correspond with the AF Frame
1
Select [Spot AE Point].
1. Press the button.
2. In the [ ] menu, use the or
button to select [Spot AE
Point].
2
Accept the setting.
1. Use the or button to select
[Center] or [AFPoint].
2. Press the button.
• [Center]: spot metering frame
appears at the center
• [AF Point]: spot metering frame
appears at the selected AF frame
You can only select [AF Point] when the AF frame is set to
[FlexiZone] (p.90).
Various Shooting Methods
104
See Functions Available in Each Shooting Mode (p.200).
Normally, the (Auto) white balance setting selects an optimal white
balance. When the setting cannot produce natural looking colors,
change the white balance using a setting appropriate for the light
source.
Adjusting the Tone (White Balance)
Shooting Mode
Auto Settings are automatically set by the camera.
Day Light For recording outdoors on a bright day.
Cloudy For recording under overcast, shady or twilight skies.
Tungsten
For recording under tungsten and bulb-type 3-
wavelength fluorescent lighting.
Fluorescent
For recording under warm-white, cool-white or
warm-white (3-wavelength) fluorescent lighting.
Fluorescent H
For recording under daylight fluorescent, or daylight
fluorescent-type 3-wavelength fluorescent lighting.
Underwater
Appropriate for shooting images underwater with the
Waterproof Case WP-DC16 (sold separately). This
mode yields image data in the optimal white balance
to record images with natural hues by reducing the
bluish tone.
Custom
For recording with the optimal white balance data
memorized in the camera from a white-colored
object, such as white paper or cloth.
1
Select a white balance set-
ting.
1. Press the button.
2. Use the or button to select
and the or button to change
the option.
3. Press the button.
The white balance setting cannot be adjusted when or
is selected for My Colors.
Various Shooting Methods
105
Using the Custom White Balance
You can set a custom white balance to obtain the optimal setting for
the shooting conditions by having the camera evaluate an object,
such as a piece of white paper or cloth, or a photo-quality gray card
that you wish to establish as the standard white color.
In particular, take a custom white balance reading for the following
situations that are difficult for the
(Auto) setting to detect correctly.
• Shooting close-ups (Macro)
• Shooting subjects of monotone color (such as sky, sea or forest)
• Shooting with a particular source of light (such as a mercury-vapor lamp)
1
Select .
1. Press the button.
2. Use the or button to select
and choose with the or
button.
2
Aim the camera at a
piece of white paper or
cloth and press
.
• If you are viewing it with the LCD
monitor, ensure that the center
frame is completely filled with the
white image. If you are using the
optical viewfinder, ensure that the entire field is filled.
Please note, however, that the center frame will not display
when the digital zoom or is in use.
3
Press the button.
Various Shooting Methods
106
z You are recommended to set the shooting mode to
and the exposure compensation setting to [±0] before
setting a custom white balance.
The correct white balance may not be obtained when the
exposure setting is incorrect (image appears completely
black or white).
z Shoot with the same settings as when reading the white
balance data. If the settings differ, the optimal white
balance may not be set.
In particular, the following should not be changed.
-ISO Speed
-Flash
Setting the flash to [On] or [Off] is recommended. If
the flash fires when reading the white balance data
with the flash set to [Auto], make sure that you also
use the flash when you shoot.
z Since the white balance data cannot be read in Stitch
Assist mode, preset the white balance in another
shooting mode beforehand.
z Recorded white balance data will be retained even when
the camera's power is turned off.
Various Shooting Methods
107
See Functions Available in Each Shooting Mode (p.200).
You can change the look of an image when it is shot.
Configuring My Colors Settings ( / / / )
Shooting in a My Colors Mode
Shooting Mode
My Colors Off Records normally with this setting.
Vivid
Emphasizes the contrast and color saturation to
record bold colors.
Neutral
Tones down the contrast and color saturation to
record neutral hues.
Sepia Records in sepia tones.
B/W Records in black and white.
Custom Color
Use this option to adjust contrast, sharpness and
saturation before shooting.
1
Select a My Colors setting.
1. Press the button.
2. Use the or button to select
and the or button to change
the option.
3. Press the button.
• Return to the shooting screen and shoot.
Various Shooting Methods
108
Setting the Camera to a Custom Color Mode
1
Select .
1. Press the button.
2. Use the or button to select
and choose with the or
button.
2
Select the mode.
1. Press the button.
2. Use the or button to select
[Contrast], [Sharpness] or
[Saturation].
3. Use the or button to adjust the
setting.
• The adjustment results show in the LCD monitor.
• Press the DISP. button to return to the My Colors Mode
selection screen.
4. Press the button.
• Return to the shooting screen and shoot.
Various Shooting Methods
109
See Functions Available in Each Shooting Mode (p.200).
Although the built-in flash will fire with automatic flash adjustments, it is
also possible to set it so that it fires without any adjustments.
Switching between Flash Adjustment
Settings
Shooting Mode
1
Select [Flash Adjust].
1. Press the button.
2. In the [ ] menu, use the or
button to select [FlashAdjust].
2
Accept the setting.
1. Use the or button to select
[Auto] or [Manual].
2. Press the button.
Various Shooting Methods
110
See Functions Available in Each Shooting Mode (p.200).
Flash exposure compensation can be adjusted in the range of -2 to +2
stops in 1/3-stop increments.
You can combine the flash exposure compensation with the camera’s
exposure compensation function for balanced exposure of the
background when doing flash photography.
In and shooting modes, please set [Flash Adjust] to [Auto]
(p.109).
Adjusting Flash Compensation Settings
Shooting Mode
1
Adjust the flash compensation setting.
1. Press the button.
2. Use the or button to select
and the or button to change
the option.
3. Press the button.
Various Shooting Methods
111
See Functions Available in Each Shooting Mode (p.200).
When shooting, the flash output can be controlled in three steps, up to
FULL.
In and shooting modes, please set [Flash Adjust] to [Manual]
(p.109).
Setting the Flash Output
Shooting Mode
1
Configure the flash output setting.
1. Press the button.
2. Use the or button to select
and the or button to change
the option.
3. Press the button.
Various Shooting Methods
112
See Functions Available in Each Shooting Mode (p.200).
Switching the Timing at which the Flash Fires
Shooting Mode
1st-curtain
The flash fires right after the shutter opens, regardless of the
shutter speed. Usually, the 1st-curtain is used when
shooting.
2nd-curtain
The flash fires right before the shutter closes. Compared
with the 1st-curtain, the flash fires later and allows you to
shoot images in which, for example, a car’s taillights seem to
trail off behind.
1
Select [Flash Sync].
1. Press the button.
2. In the [ ] menu, use the or
button to select [FlashSync].
2
Accept the setting.
1. Use the or button to select
[1st-curtain] or [2nd-curtain].
2. Press the button.
Image shot with the1st-
curtain setting
Image shot with the2nd-
curtain setting
Various Shooting Methods
113
See Functions Available in Each Shooting Mode (p.200).
The camera automatically changes the shutter speed or aperture value
when the flash fires to avoid overexposing and blowing out the
highlights in the scene. In and shooting modes, ensure that
the flash adjustment setting is configured to [Auto] in advance (p.109).
Adjusting Exposure for Built-in Flash
Shooting (Safety FE)
Shooting Mode
1
Select [Safety FE].
1. Press the button.
2. In the [ ] menu, use the or
button to select [SafetyFE].
2
Accept the setting.
1. Use the or button to select
[On] or [Off].
2. Press the button.
Various Shooting Methods
114
See Functions Available in Each Shooting Mode (p.200).
You can register a function that you often use when shooting with the
button. The following functions can be registered.
To Cancel the shortcut button
Select in Step 2.
Registering Settings to the Print/
Share Button
Shooting Mode
Menu Item Page Menu Item Page
Not Assigned
—
Digital Tele-converter p63
ISO Speed p100 DISP. Overlay p117
White Balance p104 Display Off p47
Custom White
Balance
p105
1
Select [Set button].
1. Press the button.
2. In the [ ] menu, use the or
button to select [Set button].
3. Press the button.
2
Accept the setting.
1. Use the , , or button to
select the function you wish to
register.
2. Press the button.
• If displays to the icon’s lower
right, you can register the function,
but you cannot to use it with some shooting modes or settings
even if you press the button.
Various Shooting Methods
115
Using the Button
See Functions Available in Each Shooting Mode (p.200).
Your camera is equipped with an Intelligent Orientation sensor that
detects the orientation of an image shot with the camera held vertically
and automatically rotates it to the correct orientation when viewing it in
the LCD monitor.
1
Press the button.
• Each time that the button is pressed, the settings of the
registered functions are switched.
- For and , the corresponding setup screen is
displayed.
- Each press of the button records the white balance
data with the option. Since the frame does not appear at
this point, ensure that the white paper or cloth is positioned
so it appears at the center of the LCD monitor and then
press the button. After using this function once, the
white balance setting changes to the custom white balance
setting.
Setting the Auto Rotate Function
Shooting Mode
1
Select [Auto Rotate].
1. Press the button.
2. Use the or button to select the
[ ] menu.
3. Use the or button to select
[Auto Rotate].
Various Shooting Methods
116
2
Accept the setting.
1. Use the or button to select
[On] or [Off].
2. Press the button.
• When the Auto Rotate function is set
to [On] and the LCD monitor is set to
the detailed display mode during
shooting, (normal), (right end is down) or (left end is
down) will appear in the display.
z This function may not operate correctly when the camera is
pointed straight up or down. Check that the arrow is
pointing in the right direction and if it is not, then set the Auto
Rotate function to [Off].
z Even if the Auto Rotate function is set to [On], the orientation
of images downloaded to a computer will depend upon the
software used to download the images.
When the camera is held vertically to shoot, the Intelligent
Orientation sensor judges the upper end to be “up” and the
lower end to be “down”. It then regulates the optimal white
balance, exposure and focus for vertical photography. This
function operates regardless of the on/off status of the Auto
Rotate function.
Various Shooting Methods
117
See Functions Available in Each Shooting Mode (p.200).
* Only [Grid Lines] can be set.
You can display vertical and horizontal grid lines, a 3:2 print area
guide, or both on the LCD monitor while shooting to help check the
position of your subject.
Setting the Display Overlays
Shooting Mode
Grid Lines
Displays grid lines to divide the screen into 9 parts. Helps
confirm the vertical and horizontal positioning of the
subject.
3:2 Guide
Helps confirm the print area for a 3:2 print.*
Areas outside the printable area are grayed out.
* Images are still recorded at the standard aspect ratio of 4:3.
Both
Displays both the grid lines and the 3:2 guide
simultaneously.
1
Select [Disp. Overlay].
1. Press the button.
2. In the [ ] menu, use the or
button to select [Disp.Overlay].
2
Accept the setting.
1. Use the or button to select
[Off], [Grid Lines], [3:2 Guide] or
[Both].
2. Press the button.
z Only grid lines can be configured for the or mode.
z The grid lines and 3:2 guide will not be recorded in the
image.
*
Various Shooting Methods
118
See Functions Available in Each Shooting Mode (p.200).
You can create a new folder at any time and the recorded images will
be automatically saved to that folder.
Creating a Folder the Next Time You Shoot.
Creating an Image Destination (Folder)
Shooting Mode
Create New
Folder
Creates a new folder the next time you shoot images. To
create an additional folder, insert the check mark again.
Auto Create
You can also specify a date and time if you wish to create a
new folder using a shooting time after the specified date
and time.
1
Select [Create Folder].
1. Press the button.
2. Use the or button to select the
[ ] menu.
3. Use the or button to select
[Create Folder].
4. Press the button.
2
Accept the setting.
1. Use the or button to check
mark [Create New Folder].
2. Press the button.
• will be displayed on the LCD
monitor when shooting. The symbol
will cease to display after the new
folder is created.
Various Shooting Methods
119
Setting the Day or Time for Automatic Folder Creation.
1
Select [Create Folder].
1. Press the button.
2. Use the or button to select the
[ ] menu.
3. Use the or button to select
[Create Folder].
4. Press the button.
2
Accept the setting.
1. Use the or button to select
[Auto Create] and the or button
to select a creation date.
2. Use the or button to select
[Time] and the or button to
select a time.
3. Press the button.
•
displays when the specified time arrives. The symbol will
cease to display after the new folder is created.
Up to 2000 images can be saved into one folder. A new folder
will automatically be created when you record more than that
number even if you are not creating new folders.
Various Shooting Methods
120
See Functions Available in Each Shooting Mode (p.200).
The images you shoot are automatically assigned file numbers. You
can select how the file number is assigned.
Resetting the File Number
Shooting Mode
Continuous
A number one higher than the last one recorded is assigned
to the next image. This is convenient for managing all your
images together on a computer because you avoid file name
duplication when changing folders or memory cards.*
* When a blank memory card is used. If a memory card with recorded
data is used, the 7-digit number for the last recorded folder and
image is compared with the last one on the card, and the larger of
the two is utilized as the basis for new images.
Auto Reset
The image and folder number are reset to the starting value
(100-0001).* This is convenient for managing images on a
folder-by-folder basis.
* When a blank memory card is used. If a memory card with recorded
data is used, the number following the 7-digit number for the last
recorded folder and image on the card is utilized as the basis for
new images.
1
Select [File Numbering].
1. Press the button.
2. Use the or button to select the
[ ] menu.
3. Use the or button to select
[File Numbering].
2
Accept the setting.
1. Use the or button to select
[Continuous] or [AutoReset].
2. Press the button.
Various Shooting Methods
121
File and Folder Numbers
Recorded images are assigned consecutive file numbers starting with
0001 and ranging up to 9999, while folders are assigned numbers
starting with 100 and ranging up to 999. Up to 2,000 images can be
saved into a single folder.
• Images may be saved to a new folder when there is insufficient free
space even if the total number of images in a folder is less than 2,000
because the following types of images are always saved together into
the same folder.
- Images from continuous shooting
- Self-timer images (custom)
- Stitch Assist mode images
• Images cannot be played back when the folder numbers are
duplicated or image numbers are duplicated within folders.
• Please refer to the Software Starter Guide for information regarding
folder structures or image types.
New Folder Created
Memory Card Exchanged for
Another
Continuous
Memory Card 1
Memory Card 1 Memory Card 2
Auto Reset
Memory Card 1
Memory Card 1 Memory Card 2
Playback/Erasing
122
To Cancel the Magnified Display
Press the zoom lever toward . (You can also cancel it immediately
by pressing the MENU button.)
Magnifying Images
1
Press the zoom lever toward .
• will display and a magnified
portion of the image will display.
• Images can be magnified up to a
factor of approximately 10x.
2
Use the , , or button to move around
the image.
• If you press the FUNC./SET button while in magnified display,
the camera switches to image advance mode and will
display. You can use the or button to advance to the next
or previous image at the same level of magnification. The
image advance mode is cancelled when you press the FUNC./
SET button again.
• You can change the magnification level with the zoom lever.
Movie frames and index playback images cannot be magnified.
Playback/Erasing
Approximate Location
of the Displayed Area
Playback/Erasing
123
To Return to Single Image Playback
Press the zoom lever toward .
Viewing Images in Sets of Nine
(Index Playback)
1
Press the zoom lever toward .
• Up to nine images can be viewed at
once in index playback.
• Use the , , or button to
change the image selection.
Switching between Sets of Nine Images
The jump bar will display if you press the zoom lever toward while
in index playback and you can switch the display between sets of nine
images.
• Use the or button to move to the
previous or next set of 9 images.
• Hold the FUNC./SET button down and
press the or button to jump to the
first or last set.
Selected Image
Movie
Jump Bar
Playback/Erasing
124
When you have many images recorded onto a memory card, it is
handy to use the five search keys below to jump over images to find
the object of your search.
To Return to Single Image Playback
Press the MENU button.
Jumping to Images
Jump 10 Images Jumps over 10 images at a time.
Jump 100 Images Jumps over 100 images at a time.
Jump Shot Date Jumps to the first image of each shooting date.
Jump to Movie Jumps to a movie.
Jump to Folder Jumps to the first image of each folder.
1
In single image playback
mode, press the button.
• The camera will switch to jump
search mode.
• The screen sample will vary slightly
according to the search key.
2
Use the or button to select a search key
and press the or button.
Location of
image currently
being displayed
Number of images
matching search key
Playback/Erasing
125
Viewing Movies
(Operating the Movie Control Panel)
Movies cannot be played in the index playback mode.
1
Display the movie file.
1. Use the or button to select a
movie.
2. Press the button.
•Images with a icon are mov-
ies.
2
Play the movie.
1. Use the or button to select
.
2. Press the button.
• The movie will pause if you press
the FUNC./SET button during
playback. It will resume when you
press the button again.
• When playback ends, the movie
stops at the last frame displayed.
Press the FUNC./SET button to
display the movie control panel.
• You can switch between showing/
hiding the playback progress bar by pressing the DISP. button
while playing a movie.
• If playback was halted partway through in the prior viewing
session, playback will resume from the last frame displayed.
Volume Level
(Adjust it with the or
button)
Movie Control Panel
Playback Progress Bar
Time movie was shot
Playback/Erasing
126
Operating the Movie Control Panel
Ends playback and returns to single image playback
Prints (An icon will display when a printer is connected. See the Direct
Print User Guide for details.)
Play
Slow Motion Playback (You can use the button to slow down or
the button to speed up playback.)
Displays the first frame
Previous Frame (Rewinds if the FUNC./SET button is held down.)
Next Frame (Fast Forwards if the FUNC./SET button is held down.)
Displays the last frame
z Use the television’s controls to adjust the volume when
playing a movie on a TV set (p. 146).
z The sound cannot be played in slow motion playback.
Playback/Erasing
127
Images can be rotated clockwise 90° or 270° in the display.
Rotating Images in the Display
1
Select [Rotate].
1. Press the button.
2. In the [ ] menu, use the or
button to select .
3. Press the button.
2
Rotate the image.
1. Use the or button to select an image to rotate.
2. Press the button.
• Cycle through the 90°/270°/original orientations with each
press of the FUNC./SET button.
• This also can be set in the index playback mode.
When images are downloaded to a computer, the orientation of
images rotated by the camera will depend upon the software
used to download the images.
Original 90° 270°
Playback/Erasing
128
You can select the transition effect displayed when switching between
images.
Playback with Transition Effects
No transition effect.
The displayed image darkens and the next image gradually brightens
until it is displayed.
Press the button to have the previous image display from the left
and the button to have the next image display from the right.
1
Select [Transition].
1. Press the button.
2. In the [ ] menu, use the or
button to select .
2
Accept the setting.
1. Use the or button to select ,
or .
2. Press the button.
Playback/Erasing
129
Use this feature to automatically play back all of the images in the
memory card. The LCD monitor displays each image for approximately
3 seconds.
Automated Playback (Auto Play)
1
Select [Auto Play].
1. Press the button.
2. In the [ ] menu, use the or
button to select .
3. Press the button.
• During automated playback, the
following functions are possible:
- Pausing/resuming the Auto Play: Press the FUNC./SET
button
- Fast forwarding/rewinding: Press the or button
(holding down the button will increase the speed of the Fast
Forward)
- Stopping the Auto Play: Press the MENU button
If transition effects is selected (p. 128), the selected transition
effects appear between images.
Playback/Erasing
130
You can correct red eyes in recorded images.
Red-Eye Correction Function
Red eyes may not be automatically detected in some images
or the results may not turn out as you intended.
Examples:
- Faces near the screen edges or faces that appear extremely
small, large, dark or bright in relation to the overall image.
- Faces turned to the side or at a diagonal, or faces with a
portion hidden.
1
Select [Red-Eye Correc-
tion].
1. Press the button.
2. In the [ ] menu, use the or
button to select .
3. Press the button.
2
Select an image.
1. Use the or button to select the
image you wish to correct red eyes.
2. Press the button.
• A frame will automatically display
where a red eye is detected.
• If red-eye is not automatically
detected, select [Add Frame] with or button and press
FUNC./SET button (p. 132).
• To cancel the correction frame, select [Remove Frame] and
press the FUNC./SET button (p. 133).
Playback/Erasing
131
3
Correct the image.
1. Use the or button to select
[Start].
2. Press the button.
4
Save the image.
1. Use the or button to select
[New File] or [Overwrite].
2. Press the button.
• [New File]: Saved as new file with a
new name. The uncorrected image
is stored. The new image is stored
as the last file.
• [Overwrite]: Saved with the same file name as the uncorrected
image. The uncorrected image is erased.
• When [New File] is selected, proceed to the step 5.
5
Display the saved image.
1. Press the button.
2. Use the or button to select
[Yes].
3. Press the button.
• Selecting [No] returns to the Play
menu.
z Red-eye correction cannot be performed on movies.
z Overwriting cannot be performed on protected images.
Playback/Erasing
132
z When there is not enough space left on the memory card,
red-eye correction cannot be performed.
z Although you can apply red eye correction any number of
times to an image, the image quality will gradually
deteriorate with each application.
z Since the correction frame will not appear automatically on
images that have already been corrected once with the
(Red-Eye Correction) function, use the [Add Frame] option
to correct them.
Add Correction Frame
1
Select [Add Frame].
1. Use the or button to select
[Add Frame].
2. Press the button.
• A green frame will display.
2
Adjust the position of the
frame.
1. Use the , , or button
to move the frame.
• Size of the frame can be
changed with the zoom lever.
3
Add a correction frame.
1. Press the button.
• The correction frame will be added and the frame color will
change to white.
• Press the FUNC./SET button to add additional frames.
• Up to 35 frames may be added.
• Press the MENU button to finish adding correction frames.
Playback/Erasing
133
Removing Correction Frames
To correctly perform red-eye correction, take note of the
following (refer to the image in step 2 on page 132):
- Adjust the correction frame size so that it only surrounds
the red-eye portion to be corrected.
- When there are several subjects with red-eye, be sure to
add one correction frame per subject.
1
Select [Remove Frame].
1. Use the or button to select
[Remove Frame].
2. Press the button.
2
Adjust the position of the
frame.
1. Use the or button to select
a frame to remove.
• The selected frame will appear in
green.
3
Delete the frame.
1. Press the button.
• The selected frame will disappear.
• To continue deleting frames, return to Step 2.
• When you finish deleting frames, press the MENU button.
Playback/Erasing
134
You can resave images that were recorded at high recording pixel
settings at lower settings.
Resizing Images
1600 x 1200 pixels
640 x 480 pixels
320 x 240 pixels
1
Select [Resize].
1. Press the button.
2. In the [ ] menu, use the or
button to select .
3. Press the button.
2
Select an image.
1. Use the or button to select an
image to resize.
2. Press the button.
• The FUNC./SET button is not
selectable for images that cannot be
resized.
3
Select the recording pixels.
1. Use the or button to select ,
or .
2. Press the button.
• Some recording pixel settings
cannot be selected depending on
the available space of the memory
card.
Playback/Erasing
135
4
Save the image.
1. Use the or button to select
[OK].
2. Press the button.
• The resized image will be saved in a
new file.
5
Display the saved image.
1. Press the button.
2. Use the or button to select
[Yes].
3. Press the button.
• Selecting [No] returns to the Play
menu.
Movies and images shot in Widescreen mode cannot be
resized.
Playback/Erasing
136
In playback mode, you can attach sound memos (up to 1 min.) to an
image. The sound data is saved in the WAVE format.
Attaching Sound Memos to Images
1
Select [Sound Memo].
1. Press the button.
2. In the [ ] menu, use the or
button to select .
3. Press the button.
2
Select an image.
1. Use the or button to select an
image to which you wish to attach a
sound memo.
2. Press the button.
• The sound memo control panel will
display.
3
Record the memo.
1. Use the or button to select
.
2. Press the button.
• The elapsed time and the remaining
time display.
• Pressing the FUNC./SET button
pauses the recording. Pressing it
again resumes recording.
• Up to 1 minute of recordings can be
added to any one image.
• Press the MENU button several
times to complete the setting. The
screen will return to the Play menu.
Volume
(Adjust it with the or
button)
Elapsed Time/
Remaining Time
Sound Memo Panel
Playback/Erasing
137
Sound Memo Panel
Use the or button to select an option and press FUNC./SET
You can protect important images and movies from accidental erasure.
Exit
Record
Pause
Play
Erase
Select [Erase] in the confirmation screen and press the FUNC./SET
button.
z You cannot attach sound memos to movies.
z Sound memos for protected images cannot be erased.
Protecting Images
1
Select [Protect].
1. Press the button.
2. In the [ ] menu, use the or
button to select .
3. Press the button.
2
Protect the image.
1. Use the or button to select an
image to protect.
2. Press the button.
• Pressing the FUNC./SET button
again cancels the setting.
• You can also protect images in the
index playback mode.
• Press the MENU button several times to complete the setting.
The screen will return to the Play menu.
Protection Icon
Playback/Erasing
138
Erasing All Images
z Note that erased images cannot be recovered. Exercise
adequate caution before erasing an image.
z Protected images cannot be erased with this function.
1
Select [Erase all].
1. Press the button.
2. In the [ ] menu, use the or
button to select .
3. Press the button.
2
Erase the images.
1. Use the or button to select
[OK].
2. Press the button.
• To exit instead of erasing, select
[Cancel].
• Press the MENU button several
times to complete the setting. The screen will return to the Play
menu.
Please format the memory card when you want to erase not
only image data but also all the data contained on the memory
card (p. 56).
Print Settings/Transfer Settings
139
You can select images on a memory card for printing and specify the
number of print copies in advance using the camera. The settings used
on the camera comply with the Digital Print Order Format (DPOF)
standards. This is extremely convenient for printing on a direct print
compatible printer, or for sending the images to a photo developing
service that supports DPOF.
Single Images
Setting the DPOF Print Settings
The icon may display for a memory card with print settings
set by a different DPOF-compliant camera. These settings will
be overwritten by those set by your camera.
1
Select [Select Images & Qty.].
1. Set the mode switch to .
2. Press the button.
3. Use the or button to select the
[ ] menu.
4. Use the or button to select
[Select Images & Qty.].
5. Press the button.
• Selecting [Clear All Selections] cancels all print settings.
Print Settings/Transfer Settings
Print Settings/Transfer Settings
140
2
Select the images.
• Selection methods differ for the Print Type settings (p. 142).
Standard ()/Both ()
1. Use the or button to select the
images.
2. Press the button.
3. Use the or button to select
the number of print copies
(up to 99).
• When the camera is connected to a
printer, the button will light in
blue while images are being selected. At this time, press the
button, confirm that [Print] is selected, and when the
FUNC./SET button is pressed, printing will begin.
4. Press the button.
Index ( )
1. Select and deselect with .
• When the camera is connected to a
printer, the button will light in
blue while images are being
selected. At this time, press the
button, confirm that [Print] is
selected, and when the FUNC./SET
button is pressed, printing will begin.
2. Press the button.
• You can also select images in the index playback mode.
Number of Print Copies
Index Print Selection
Print Settings/Transfer Settings
141
All the Images on a Memory Card
1
Select [Select All Images].
1. Set the mode switch to .
2. Press the button.
3. Use the or button to select the
[ ] menu.
4. Use the or button to select
[Select All Images].
5. Press the button.
• One copy of every image will be set to print.
• When the camera is connected to a printer, the button will
light blue. At this time, press the button, confirm that
[Print] is selected, and when the FUNC./SET button is pressed,
printing will begin.
• Selecting [Clear All Selections] cancels all print settings.
2
Select [OK].
1. Use the or button to select
[OK].
2. Press the button.
z The output of some printers or photo developing services
may not reflect the specified print settings.
z Print settings cannot be set for movies.
z Images are printed in order according to the file number.
z A maximum of 998 images can be selected.
z When [Print Type] is set to [Both], the number of copies can
be set. When it is set to [Index], the number of copies cannot
be set (only one copy will be printed).
Print Settings/Transfer Settings
142
Setting the Print Style
After setting the print style, select the images for printing. The following
settings can be selected.
* Default setting
Print
Type
Standard* Prints one image per page.
Index
Prints the selected images together at a
reduced size in an index format.
Both
Prints the images in both the standard and
index formats.
Date (On/Off*) Adds the date to the print.
File No. (On/Off*) Adds the file number to the print.
Clear DPOF data (On*/Off)
Clears all print settings after the images
print.
1
Select [Print Settings].
1. Set the mode switch to .
2. Press the button.
3. Use the or button to select the
[ ] menu.
4. Use the or button to select
[Print Settings].
5. Press the button.
2
Accept the setting.
1. Use the or button to select
[Print Type], [Date], [File No.] or
[Clear DPOF data].
2. Use the or button to select a
setting to configure.
3. Press the button.
Print Settings/Transfer Settings
143
z The Date and File No. settings change according to the Print
Type as follows.
- Index
[Date] and [File No.] cannot be set to [On] at the same
time.
- Standard or Both
[Date] and [File No.] can be set to [On] at the same time,
however, the printable information may vary between
printers.
z Images dated using (Postcard Date Imprint mode)
(p. 71) are always printed with the date, regardless of the
[Date] setting. As a result, some printers may print the date
twice on these images if [Date] is also set to [On].
z Dates print in the style specified in the [Date/Time] menu
(p. 12).
Print Settings/Transfer Settings
144
You can use the camera to specify settings for images before
downloading to a computer. Refer to the Software Starter Guide for
instructions on how to transfer images to your computer.
The settings used on the camera comply with the DPOF standards.
Single Images
Setting the DPOF Transfer Settings
The icon may display for a memory card with transfer
settings set by a different DPOF-compliant camera. These
settings will be overwritten by those set by your camera.
1
Select [Transfer Order].
1. Set the mode switch to .
2. Press the button.
3. In the [ ] menu, use the or
button to select .
4. Press the button.
2
Select [Order].
1. Use the or button to select
[Order].
2. Press the button.
• Selecting [Reset] cancels all transfer
order settings.
3
Select the images.
1. Use the or button to select
images to transfer.
2. Press the button.
• Pressing the FUNC./SET button
again deselects the setting.
• You can also select images in the
index playback mode.
• Press the MENU button several times to complete the setting.
The screen will return to the Play menu.
Transfer Selection
Print Settings/Transfer Settings
145
All the Images on a Memory Card
1
Select [Transfer Order].
1. Set the mode switch to .
2. Press the button.
3. In the [ ] menu, use the or
button to select .
4. Press the button.
2
Select [Mark all].
1. Use the or button to select
[Mark all]
2. Press the button.
• Selecting [Reset] cancels all transfer
order settings.
3
Select [OK].
1. Use the or button to select
[OK].
2. Press the button.
• Press the MENU button several
times to complete the setting. The
screen will return to the Play menu.
z Images are transferred in order according to the file number.
z A maximum of 998 images can be selected.
Connecting to a TV
146
You can use the supplied AV cable to shoot or playback images using
a TV.
Shooting/Playback Using a TV
1
Turn off the camera and the TV.
2
Connect the AV cable to
the camera’s A/V OUT ter-
minal.
• Open the terminal cover and plug
the AV cable in all the way.
3
Plug the other ends of the
AV cable to the VIDEO IN
and AUDIO IN jacks on the
TV.
4
Turn on the TV and switch it to video mode.
5
Turn on the camera.
z The video output signal can be switched (NTSC or PAL) to
accommodate different regional standards (p. 48). The
default setting varies between regions.
- NTSC: Japan, U.S.A., Canada, Taiwan and others
- PAL: Europe, Asia (excluding Taiwan), Oceania and others
z If the video system is set incorrectly, the camera output may
not display properly.
Connecting to a TV
VIDEO
IN
Yellow
Black
AUDIO
Troubleshooting
147
• Camera (p. 147)
• When the power is turned on (p. 148)
• LCD monitor (p. 148)
• Shooting (p. 150)
• Shooting movies (p. 154)
• Playback (p. 155)
• Battery (p. 156)
• TV monitor output (p. 156)
• Printing with a direct print compatible printer (p. 157)
Camera
Camera will not operate.
Power is not turned on. z Press the power button (p. 14).
Memory card slot/battery
cover is open.
z Confirm that the cover is securely
closed (p. 8).
Batteries are loaded in the
wrong direction.
z Reload the batteries in the correct
direction (p. 9).
Batteries are not the right
type.
z Use only unused AA-size alkaline
batteries or Canon AA-size NiMH
batteries (p. 168).
Battery charge is low and
the camera will not operate.
(“Change the batteries”
message displays).
z Replace the camera batteries with 2
unused or fully charged batteries
(p. 168).
z Use the AC Adapter Kit ACK800 (sold
separately) (p. 174).
Poor contact between
camera and battery
terminals.
z Wipe the battery terminals with a
clean dry cloth.
z Reload the batteries several times.
Troubleshooting
Troubleshooting
148
Sounds come from the camera interior.
The camera’s horizontal/
vertical orientation was
changed.
z The camera’s orientation mechanism
is operating. There is no malfunction.
When the power is turned on
“Card locked!” message appears.
The SD memory card’s or
SDHC memory card’s write
protect tab is set to “Write
protect”.
z When recording to, erasing from or
formatting the memory card, slide the
write protect tab upward (p. 170).
The Date/Time menu appears.
The lithium date/time battery
charge is depleted.
z Replace the lithium date/time battery
(p. 182).
LCD monitor
Not displayed.
LCD monitor is set to Off. z Press DISP. button and turn on the
LCD monitor (p. 49).
The display darkens.
The image in the LCD
monitor will darken in strong
sunlight or bright light.
z This is a normal occurrence in
devices containing CCDs and does
not constitute a malfunction. This
image will not be recorded when
shooting still photos, but it will be
recorded when shooting movies.
Display flickers.
Display flickers when shot
under fluorescent lighting.
z This is not a camera malfunction
(flickering recorded in movies, but not
in still images).
Troubleshooting
149
A bar of light (purplish red) appears on the LCD
monitor.
Sometimes appears when
shooting a bright subject,
such as the sun or other
light source.
z This is a normal occurrence in
devices containing CCDs and does
not constitute a malfunction. This bar
of light will not be recorded when
shooting still photos, but it will be
recorded when shooting movies.
appears.
A slow shutter speed has
likely been selected
because of insufficient
lighting.
z Set the IS Mode to any setting other
than [Off] (p. 68).
z Raise the ISO speed (p. 100).
z Select a setting other than (flash
off) (p. 64).
z Set the self-timer and attach the
camera to a tripod or other device
(p. 66).
appears.
This displays when using a
memory card that has print
settings or transfer settings
set by other DPOF-
compliant cameras.
z These settings will be overwritten by
those set by your camera (pp. 139,
144).
Noise displays./Subject’s movements are irregular.
Camera automatically
lightened the image
displayed on the LCD
monitor to make it easier to
see when shooting in a dark
area (p. 49).
z There is no effect on the recorded
image.
Troubleshooting
150
Shooting
Camera will not record.
Mode switch is set to
(playback).
z Set the mode switch to (shooting)
(p. 14).
Flash is charging. z When the flash is charged, the
indicator will light orange. Shooting is
now possible (p. 41).
Memory card is full. z Insert a new memory card (p. 10).
z If required, download the images to a
computer and erase them from the
memory card to make space.
Memory card is not
formatted correctly.
z Format the memory card (p. 56).
z If reformatting does not work, the
memory card logic circuits may be
damaged. Consult the nearest Canon
Customer Support Help Desk.
SD memory card or SDHC
memory card is write
protected.
z Slide the write protect tab upward
(p. 170).
Image Seen in viewfinder vs. recorded image
Usually the recorded image
contains more of the scene
than is seen in the
viewfinder.
z Confirm the actual image size with
the LCD monitor. Use the LCD
monitor when taking close-up shots
(p. 65).
Image is blurred or out of focus.
The camera moves when
the shutter button is
pressed.
z Confirm the procedures in
“ appears” (p. 149).
Troubleshooting
151
AF-assist Beam is set to
[Off].
z In dark places where it is difficult for
the camera to focus, the AF-assist
Beam will emit to assist focusing. As
the AF-assist Beam will not function
when turned off, set it [On] to activate
it (p. 45). Take care not to obstruct
the AF-assist Beam with your hand
when used.
Subject is out of focal range. z Shoot with the subject at the correct
focusing distance (p. 185).
z The camera may be set to an
unintended function (such as Macro
or Manual Focus mode). Cancel the
setting.
The subject is hard to focus
on.
z Use the focus lock, AF lock or manual
focus to shoot (p. 94).
Subject in recorded image is too dark.
Insufficient light for shooting. z Set the flash to (Flash on) (p. 64).
The subject is
underexposed because the
surroundings are too bright.
z Set the exposure compensation to a
positive (+) setting (p. 101).
z Use the AE Lock or spot metering
functions (pp. 98, 102).
Subject is too far away for
flash to reach.
z Shoot with the subject within the
correct flash range when using the
built-in flash (p. 186).
z Raise the ISO speed and then shoot
(p. 100).
Subject in recorded image is too bright, or image
flashes white.
Subject is too close, making
the flash too strong.
z Shoot with the subject within the
correct flash range when using the
built-in flash (p. 186).
z Set the Safety FE to [On] (p. 113).
The subject is overexposed
because the surroundings
are too dark.
z Set the exposure compensation to a
negative (–) setting (p. 101).
z Use the AE Lock or spot metering
functions (pp. 98, 102).
Troubleshooting
152
Too much light is shining
directly into the camera, or
is being reflected off the
subject.
z Change the shooting angle.
Flash is set to on. z Set the flash to (Flash off) (p. 64).
Image contains noise.
ISO speed is too high. z Higher ISO speeds and (High ISO
Auto) setting may increase image
noise. For higher image quality, use
as low an ISO speed as possible
(p. 100).
z In , , and , modes in
the mode, the ISO speed
increases and noise can appear.
White dots appear on the image.
Light from the flash has
reflected off dust particles or
insects in the air. This is
particularly noticeable when
shooting using the wide
angle or when you increase
the aperture value in the
aperture-priority Av mode.
z This is a phenomenon that occurs
with digital cameras and does not
constitute a malfunction.
Troubleshooting
153
Eyes appear red.
Light is reflected back from
the eyes when the flash is
used in dark areas.
z In the Rec. menu set the Red-Eye
setting to [On] (p. 88). For this mode
to be effective, the subject must be
looking right at the red-eye reduction
lamp. Try asking them to look directly
at the lamp.
Even better results can be obtained
by increasing the lighting in indoor
settings or approaching closer to the
subject. The shutter will not activate
for approximately 1 second after the
red-eye reduction lamp fires in order
to improve the effect.
z You can correct red eyes in images
using the Red-Eye Correction
function (p. 130).
Continuous shooting slows down.
The memory card’s
performance has dropped.
z To enhance the continuous shooting
performance, you are recommended
to format the memory card in the
camera after you save all its images
to your computer (p. 56).
Recording images to memory card takes a long
time.
Memory card was formatted
in another device.
z Use a memory card formatted in your
camera (p. 56).
Lens will not retract.
Memory card slot/battery
cover was opened with
power on.
z After closing the memory card slot/
battery cover, turn the power on then
back off.
Troubleshooting
154
Shooting movies
The recording time may not display properly or
shooting may stop unexpectedly.
The following types of
memory cards are used.
- Slow recording cards.
- Cards formatted on a
different camera or a
computer.
- Cards which have had
images recorded and
erased repeatedly.
z Although the recording time may not
display properly during shooting, the
movie will be recorded correctly on
the memory card. Recording time will
display properly if you format the
memory card in this camera
(excluding slow recording memory
cards) (p. 56).
“!” displayed on the LCD monitor in red and
shooting automatically stopped.
There is insufficient free
space in the camera’s built-
in memory.
z
Try the following procedures.
- Format the card with a low level
format before shooting (p. 56)
- Lower the recording pixels (p. 81)
- Use a high-speed memory card
(SDC-512MSH, etc.)
Zoom does not operate.
Zoom lever was pressed
while shooting in movie
mode.
z Operate the zoom before shooting in
movie mode (p. 59). Note the digital
zoom is available while shooting, but
only in Standard movie mode.
Troubleshooting
155
Playback
Cannot play back.
You attempted to play back
images shot with another
camera or images edited
with a computer.
z Computer images that cannot be
played back may play back if they are
added to the camera using the
supplied software program
ZoomBrowser EX or ImageBrowser.
File name was changed with
a computer or file location
was changed.
z Set the file name or location on the
file format/structure of the camera.
(Refer to the Software Starter Guide
for details).
Movies do not play back correctly.
Movies recorded with high recording pixels may momentarily stop
playing if played on slow reading memory cards.
You may experience frame dropping and audio breakup when
playing back a movie on a computer with insufficient system
resources.
Reading images from memory card is slow.
Memory card was formatted
in another device.
z Use a memory card formatted in your
camera (p. 56).
Troubleshooting
156
Battery
Batteries consumed quickly.
Batteries are not the right
type.
z Use only unused AA-size alkaline
batteries or Canon AA-size NiMH
batteries (p. 168).
Battery capacity drops due
to low ambient
temperatures.
z If shooting in a cold location, warm
the batteries such as by placing them
in your pocket before using them.
Battery terminals are dirty. z Wipe the terminals well with a dry
cloth before use.
z Reload the batteries several times.
If using Canon AA-size NiMH batteries
As the batteries have not
been used for over a year,
their recharging capacity
has decreased.
z Their charging performance should
return to normal after fully recharging
and fully depleting them over several
times.
Battery life has been
exceeded.
z Replace both batteries with new
ones.
TV monitor output
Image is distorted or not showing on TV monitor.
Incorrect video system
setting.
z Set the video system to the
appropriate setting, NTSC or PAL, for
your TV (p. 48).
Shooting in Stitch Assist
mode.
z The output will not appear on a TV in
Stitch Assist mode. Shoot in a
different shooting mode (p. 73).
Troubleshooting
157
Printing with a direct print compatible
printer
Cannot print
The camera and printer are
not properly connected.
z Securely connect the camera and
printer with the specified cable.
The printer power is not
turned on.
z Turn on the printer power.
The print connection method
is not correct.
z In the [ ] menu, select [Print
Method] and select [Auto] (p. 48).
List of Messages
158
The following messages may appear on the LCD monitor during
shooting or playback. Please refer to the Direct Print User Guide for
the messages that display during a printer connection.
Busy...
Image is being recorded to the memory card, or the playback mode
is starting up.
No memory card
You turned on the camera without a memory card installed, or with a
memory card installed in the wrong orientation (p. 10).
Card locked!
The SD memory card or SDHC memory card is write-protected
(p. 170).
Cannot record!
You attempted to shoot an image without a memory card installed,
with a memory card installed in the wrong orientation, or attempted
to attach a sound memo to a movie.
Memory card error
There may be something wrong with the memory card. By
formatting the malfunctioning memory card with the camera, you
may be able to continue using it. However, if this error message
appears even when using the supplied memory card, contact your
Canon Customer Support Help Desk as there may be a problem
with the camera.
Memory card full
Memory card is full of images and no more can be recorded or
saved, or no more image settings, sound recorder files or sound
memos can be recorded.
List of Messages
List of Messages
159
Naming error!
The file name could not be created because there is an image with
the same name as the folder that the camera is attempting to create,
or the highest possible file number has already been reached. In the
Set up menu, set [File Numbering] to [Auto Reset]; alternatively,
save all the images you wish to retain onto a computer, then
reformat the memory card. Please note that formatting will erase all
the existing images and other data.
Change the batteries
Battery charge is insufficient to operate the camera. Replace both
batteries immediately with unused AA-size alkaline batteries or fully
charged Canon AA-size NiMH batteries.
No image.
No images recorded on memory card.
Image too large.
You attempted to play back an image larger than 5616 x 3744 pixels
or with a large data size.
Incompatible JPEG
You attempted to play back an incompatible JPEG image (edited
with a computer, etc.).
RAW
You attempted to play back an incompatible RAW image.
Unidentified Image
You attempted to play back an image with corrupted data, an image
with a recording type specific to another manufacturer’s camera, or
an image that has been downloaded to a computer and altered.
Cannot magnify!
You attempted to magnify an image recorded in a different camera
or data type, an image edited with a computer, or a movie.
Cannot rotate
You attempted to rotate the image shot with a different camera or
data type, or an image edited with a computer.
List of Messages
160
Incompatible WAVE
A sound memo cannot be added to this image since the data type of
the existing sound memo is incorrect. In addition, sound cannot be
played back.
Cannot modify image
You attempted to resize or perform red eye correction on a movie or
an image recorded with another camera. Or you attempted to resize
an image recorded using , or already resized to .
Cannot Modify
Cannot apply red-eye correction as no red-eye is detected.
Cannot transfer!
When transferring images to your computer using the Direct
Transfer menu, you attempted to select an image with corrupted
data or an image taken with another camera. You may have also
attempted to select a movie when [Wallpaper] was selected in the
Direct Transfer menu.
Protected!
You attempted to erase a protected image, movie or sound memo.
Too many marks.
Too many images have been marked with print settings or transfer
settings. Cannot process any more.
Cannot complete!
Could not save a part of the print or transfer settings.
Unselectable image.
You attempted to set the print settings for a non-JPEG image.
Communication error
The computer was unable to download the image due to the large
amount of images (approx. 1000) stored on the memory card. Use a
USB card reader or a PCMCIA card adapter to download the
images.
List of Messages
161
Lens error, restart camera
An error was detected while the lens was in motion, and the power
has been automatically turned off. This error can occur if you hold
the lens while it is in motion or you operate it in a location with
excessive dust or sand in the air. Try turning the power back on, and
resume shooting or playback. If this message continues to display,
contact your Canon Customer Support Help Desk as there may be a
problem with the lens.
Exx
(xx: number) Camera detected error. Turn the power off and then
back on, then shoot or play back. A problem exists if the error code
reappears. Note the number and contact your Canon Customer
Support Help Desk. If an error code displays directly after taking a
picture, the shot may not have been recorded. Check image in
playback mode.
Appendix
162
z Before using the camera, please ensure that you read the safety
precautions described below and in the “Safety Precautions” section.
Always ensure that the camera is operated correctly.
z The safety precautions noted on the following pages are intended to
instruct you in the safe and correct operation of the camera and its
accessories to prevent injuries or damage to yourself, other persons
and equipment.
z Equipment refers to the camera, battery, battery charger (sold
separately) and compact power adapter (sold separately).
Safety Precautions
Appendix
Appendix
163
Warnings
Equipment
z Do not point the camera directly at the sun or bright light
sources.
Doing so could damage the camera's CCD or your eyesight.
z Store this equipment out of the reach of children and infants.
Accidental damage by a child could result in serious injury.
• Wrist strap: Placement of the strap around the child’s neck could
result in asphyxiation.
• Memory card: It may be swallowed accidentally. If this occurs,
contact a doctor immediately.
z Do not attempt to disassemble or alter any part of the
equipment that is not expressly described in this guide.
z To avoid the risk of high-voltage electrical shock, do not touch
the flash portion of the camera if it has been damaged.
z Stop operating the equipment immediately if it emits smoke or
noxious fumes.
z Do not allow the equipment to come into contact with, or
become immersed in, water or other liquids. If the exterior
comes into contact with liquids or salt air, wipe it dry with a
soft, absorbent cloth.
Continued use of the equipment may result in fire or electrical
shock. Immediately turn the camera power off and remove the
camera batteries or unplug the battery charger or compact power
adapter from the power outlet. Please consult your camera
distributor or the closest Canon Customer Support Help Desk.
Appendix
164
z Do not use substances containing alcohol, benzine, thinners
or other flammable substances to clean or maintain the
equipment.
z Do not cut, damage, alter or place heavy items on the power
cord.
z Use only recommended power accessories.
z Remove the power cord on a regular periodic basis and wipe
away the dust and dirt that collects on the plug, the exterior of
the power outlet and the surrounding area.
z Do not handle the power cord if your hands are wet.
Continued use of the equipment may result in fire or electrical
shock.
Battery
z Do not place the batteries near a heat source or expose it to
direct flame or heat.
z The batteries should not be immersed in water or sea water.
z Do not attempt to disassemble, alter or apply heat to the
batteries.
z Avoid dropping or subjecting the batteries to severe impacts
that could damage the casing.
z Use only recommended batteries and accessories.
Failure to follow these precautions may cause explosions or leaks,
resulting in fire, injury and damage to the surroundings. In the event
that a battery leaks and the eyes, mouth, skin or clothing contact
these substances, immediately flush with water and seek medical
assistance.
z Disconnect the battery charger and compact power adapter
from both the camera and the power outlet after recharging or
when not in use to avoid fire and other hazards.
z Do not place anything, such as tablecloths, carpets, bedding or
cushions, on top of the battery charger while it is charging.
Leaving the units plugged in for a long period of time may cause
them to overheat and distort, resulting in fire.
Equipment
Appendix
165
z When recharging the Canon AA-size NiMH batteries, use only a
specified battery charger.
z The compact power adapter is designed for exclusive use with
this equipment. Do not use it with other products.
There is a risk of overheating and distortion which could result in fire
or electrical shock.
z Before you discard a battery, cover the terminals with tape or
other insulators to prevent direct contact with other objects.
Contact with the metallic components of other materials in waste
containers may lead to fire or explosions.
Others
z Do not trigger the flash in close proximity to human or animal
eyes. Exposure to the intense light produced by the flash may
damage eyesight.
In particular, remain at least one meter (39 inches) away from
infants when using the flash.
z Keep objects that are sensitive to magnetic fields (such as
credit cards) away from the speaker of the camera.
Such items may lose data or stop working.
z Exercise due caution when screwing on the separately sold
wide converter, tele-converter, close-up lens and conversion
lens adapter.
If they loosen, fall off and shatter, the glass shards may cause
injury.
Battery
Appendix
166
Cautions
Equipment
z Be careful not to bang the camera or subject it to strong
impacts or shocks that could lead to injury or damage the
equipment when wearing or holding it by the strap.
z Do not store the equipment in humid or dusty areas.
z Do not allow metal objects (such as pins or keys) or dirt to
contact the charger terminals or plug.
Such conditions could lead to fire, electrical shock or other damage.
z Avoid using, placing or storing the equipment in places
subject to strong sunlight or high temperatures, such as the
dashboard or trunk (boot) of a car.
z Do not use the equipment in a manner that exceeds the rated
capacity of the electrical outlet or wiring accessories. Or, do
not use the equipment if the cable or plug is damaged, or if the
plug is not fully inserted into the power outlet.
z Do not use in locations with poor ventilation.
The above-mentioned can cause leakage, overheating or explosion,
resulting in fire, burns or other injuries. High temperatures may also
cause deformation of the casing.
z When not using the camera for extended periods of time,
remove the batteries from the camera or battery charger and
store the equipment in a safe place.
If the batteries are left inside the camera, damage caused by
leakage may occur.
z Do not connect compact power adapters or battery chargers to
devices such as electrical transformers for foreign travel
because it may lead to malfunctions, excessive heat
generation, fire, electric shock or injury.
Appendix
167
Flash
z Do not operate the flash with dirt, dust or other items stuck to
the surface of the flash.
z Be careful not to cover the flash with your fingers or clothing
when shooting.
The flash may be damaged and emit smoke or noise. The resulting
heat build-up could damage the flash.
z Do not touch the surface of the flash after taking several
pictures in rapid succession.
Doing so could result in burns.
Preventing Malfunctions
Avoid Strong Magnetic Fields
z Never place the camera in close proximity to electric motors or
other equipment generating strong electromagnetic fields.
Exposure to strong magnetic fields may cause malfunctions or
corrupt image data.
Avoid Condensation Related Problems
z When moving the equipment rapidly from cold to hot
temperatures, you can avoid condensation by placing the
equipment in an airtight, resealable plastic bag and letting it
adjust to temperature changes slowly before removing it from
the bag.
Moving the equipment rapidly from cold to hot temperatures may
cause condensation (water droplets) to form on its external and
internal surfaces.
If Condensation Forms Inside the Camera
z Stop using the camera immediately.
Continued use may damage the equipment. Remove the memory
card and batteries or compact power adapter from the camera and
wait until the moisture evaporates completely before resuming use.
Appendix
168
Battery Handling
Battery Charge
The following icon and message will display.
Battery Handling Precautions
z This camera uses AA-size alkaline batteries or Canon AA-size
NiMH batteries (sold separately).
While it is possible to use AA-size nickel-cadmium batteries,
performance is unreliable and their use is not recommended.
z Since the performance of alkaline batteries may differ
according to brand, the operating time of the batteries you
purchase may not be as long as the batteries that came with
the camera.
z When using the camera under low temperature conditions or
over long periods, you are recommend to use of Canon AA-
size NiMH batteries (sold separately).
Camera operating time may shorten at low temperatures when
alkaline batteries are used. Also due to their specifications, alkaline
batteries may expire faster than NiMH batteries.
z Never mix unused and partially used batteries.
The partially used batteries may leak.
z Do not install the batteries with their terminals ( and )
reversed.
z Do not mix batteries of different types or from different
manufacturers.
Battery charge is low. If using
the camera for an extended
period, replace the batteries
as soon as possible.
Change the batteries
Batteries are fully depleted
and the camera can no longer
operate. Replace the batteries
immediately.
Appendix
169
z Before installing the batteries, wipe the battery terminals well
with a dry cloth.
If the battery terminals are soiled with oil from one’s skin or other
dirt, the number of recordable images may be considerably
diminished, or the amount of time the camera can be used may be
reduced.
z At low temperatures, battery performance may be reduced and
the low battery icon ( ) may appear earlier than usual.
Under these conditions, restore the battery performance by
warming it in a pocket immediately before use.
z Do not put the batteries into a pocket together with metallic
items such as a key ring.
The batteries may be short circuited.
z When not using the camera for long periods, remove the
batteries from the camera and store them separately.
If the batteries are left inside the camera, the camera may become
damaged from battery leakage.
WARNING
Never use damaged batteries or batteries whose outer seal is
completely or partially missing or peeled off, as there is risk that such
batteries may leak, overheat, or burst. Always check the seals on
store-bought batteries before loading them, as some batteries may
come with defective seals. Do not use batteries with defective seals.
Never use batteries that look like this.
Batteries with all or part of the seal (electrical insulation
sheath) peeled off.
The positive electrode (plus terminal) is flat.
The negative terminal is correctly formed (protruding from
the metal base), but the seal does not extend up over the
edge of the metal base.
Appendix
170
Handling the Memory Card
SD memory card or SDHC memory card
Write Protect Tab
Cautions When Handling
z Memory cards are high-precision electronic devices. Do not
bend them, apply force to them, or subject them to shocks or
vibration.
z Do not attempt to disassemble or alter the memory card.
z Do not allow dirt, water or foreign objects to contact the
terminals on the back of the card. Do not touch the terminals
with your hands or metal objects.
z Do not peel away the original label on the memory card or
cover it with another label or sticker.
z When writing on the memory card, do not use a pencil or ball-
point pen. Only use a soft point pen (e.g. felt-tip pen).
z Do not use or store memory cards in the following locations.
• Locations subject to dust or sand
• Locations subject to high humidity and high temperatures
z Since some or all of the data recorded on the memory card
may be corrupted or erased by electrical noise, static
electricity, camera or card malfunction, making a backup copy
of important data is recommended.
Slide the switch up.
Slide the switch down
(you can protect the
images and other
data on the card)
Write Protect Tab
Writing/Erasing Possible Writing/Erasing Impossible
Appendix
171
Formatting
z Please note that formatting (initializing) an memory card
erases all data, including protected images.
z You are recommended to use memory cards that have been
formatted in your camera.
• The card supplied with the camera may be used without further
formatting.
• When the camera is malfunctioning, a corrupted memory card
might be the cause. Reformatting the memory card may solve the
problem.
• When a non-Canon brand memory card is malfunctioning,
reformatting it may solve the problem.
• Memory cards formatted in other cameras, computers, or
peripheral devices may not operate correctly in this camera. When
that happens, reformat the memory card with this camera.
z If formatting in the camera does not work properly, turn the
camera off and re-insert the memory card. Then turn the
camera back on and format again.
z Be careful when transferring or disposing of a memory card.
Formatting or erasing the data on a memory card merely
changes the file management information on the card and does
not ensure that its contents are completely deleted.
When disposing of a memory card, take precautions, such as
physically destroying the card, to prevent personal information
leaks.
Appendix
172
Using Rechargeable Batteries
(Battery and Charger Kit CBK4-300)
This kit includes a battery charger and four rechargeable AA-size
NiMH (nickel metal hydride) batteries. Charge batteries as shown
below. Recharging is also possible using two batteries.
• After inserting the batteries, plug the charger (CB-5AH) into an outlet,
or attach the power cord to the charger (CB-5AHE, not shown) and
plug the other end into an outlet.
• Do not insert and charge additional batteries once charging has
begun.
• The charge indicator blinks while charging, then remains lit when
charging is finished.
Using the Power Kits (Sold Separately)
z The CB-5AH/CB-5AHE battery charger can only be used to
charge Canon AA-size NiMH batteries NB-3AH and NB-
2AH. Please do not attempt to charge other type of battery.
z Do not mix batteries with different purchase dates or
different charge states. When recharging batteries, always
recharge both of them at the same time.
z Do not attempt to recharge fully charged batteries, as doing
so may reduce or impair battery performance. Also, do not
charge batteries for more than 24 consecutive hours.
z Do not recharge batteries in enclosed areas that tend to
retain heat.
z Do not recharge the batteries until the LCD monitor displays
the “Change the batteries” message. Repeatedly recharging
batteries before they become fully depleted may cause
batteries to lose capacity.
Charge Indicator
To a power outlet To a power outlet
4 batteries 2 batteries
Appendix
173
z Wipe the battery terminals well with a dry cloth in the
following situations, as the terminals may be soiled with oil
from one’s skin or other dirt:
- If the battery usage time has considerably diminished
- If the number of recordable images has considerably
diminished
- When charging the batteries (insert and remove the
batteries two or three times before charging)
- When charging completes in a space of a few minutes
(the battery charger indicator remains lit)
z You may not be able to fully charge the batteries due to their
specifications right after purchase or after long periods of
nonuse. If this happens, after fully charging them, use the
batteries until their charge is depleted. After doing this
several times, battery performance will be restored.
z If you store batteries for a long period of time (about 1 year),
it is recommended that you fully deplete the batteries in the
camera and to then store them at room temperature (0 to
30°C/32 to 90°F) in low humidity. Storing them in a fully
charged condition can shorten their lifespan or degrade their
performance.
Again, if you do not use batteries for more than 1 year, fully
charge them once a year and deplete them in the camera
before storing them.
z If the battery usage time has become considerably low
despite wiping the terminals and charging them until the
battery charger indicator remains lit, this may indicate that
the batteries have reached the end of their lifespan. Replace
them with new batteries. If you are purchasing new batteries,
look for Canon AA-size NiMH batteries.
z Leaving batteries in the camera or charger may result in
damage from battery leakage. When not in use, remove the
batteries from the camera or charger and store them in a
cool, dry location.
Appendix
174
Using the AC Adapter Kit ACK800
It is best to power the camera with AC Adapter Kit ACK800 (sold
separately) when you are using it for long periods of time or connecting
it to a computer.
z It takes approximately 4 hours 40 minutes for the charger to
fully recharge the batteries after they have been depleted.
When two batteries are placed on each side of the charger,
recharging will take approximately two hours (as determined
by testing at Canon facilities).
Charge batteries in an environment where the temperature
is in the range of 0 to 35°C (32 to 95°F).
z The charging time varies according to the ambient
temperature and to the battery charge state.
z The battery charger may emit noise while charging. This is
not a malfunction.
z Battery and Charger Kit CBK4-200 can also be used.
Turn the camera power off before connecting or disconnecting
the AC adapter.
1
Connect the power cord to
the compact power
adapter first and then plug
the other end into the
power outlet.
2
Open the terminal cover
and attach the cord to the
DC IN terminal.
Compact Power
Adapter CA-PS800
DC IN Terminal
Appendix
175
The camera supports use of the separately sold Wide Converter WC-
DC58N, Tele-converter TC-DC58N and Close-up lens 250D (58mm).
In order to attach these lenses, you also need to use the separately
sold Conversion Lens Adapter LA-DC58G.
Wide Converter WC-DC58N
Use this converter for taking wide-angle shots. The wide converter
changes the focal length of the camera body’s lens by a factor of 0.7x
(the thread diameter is 58 mm).
Tele-converter TC-DC58N
This lens is used for taking telephoto shots. The lens changes the focal
length of the camera body’s lens by a factor of 1.75x (the thread
diameter is 58 mm).
Using the Lenses (Sold Separately)
z When attaching the wide converter, tele-converter or close-
up lens be sure to screw it on securely. If they come loose,
they may fall from the lens adapter, posing risk of injury from
shattered glass.
z Never look into the sun or into strong light through the wide
converter, tele-converter or close-up lens as this can result
in blindness or impairment of vision.
z If you use the flash when shooting with these attachments,
the outer area of the recorded image (especially lower right
corner) will come out relatively dark.
z When using the tele-converter, please set the focal length to
the telephoto end. At other zoom settings, the image will
appear as if its corners have been cut off.
z When using the wide converter, please set the camera to the
wide angle end.
z If you use the viewfinder for shooting, a portion of the view
will be blocked by these attachments. Please use the LCD
monitor.
It is not possible to attach a lens hood or filter to the wide
converter or tele-converter.
Appendix
176
Close-up lens 250D (58 mm)
This lens makes taking macro shots easy.
Focusing Range and Image Area
Conversion Lens Adapter LA-DC58G
This is the lens adapter for attaching the wide converter, tele-converter
and close-up lens to the camera. It can be divided into two: the front
section and the rear section.
z To Attach Wide Converter WC-DC58N or Tele-converter TC-DC58N
Detach the front section of the conversion lens adapter and fit only
the rear section to the camera.
z To Attach Close-up Lens 250D
Keep the two sections of the conversion lens adapter together to fit it
to the camera.
Maximum wide angle Maximum telephoto
Focusing
range
(from end of
lens)
Image area
at minimum
focusing
distance
Focusing
range
(from end of
lens)
Image area
at minimum
focusing
distance
Normal
mode
18 - 25 cm
(7.1 - 9.8 in.)
183 x 137 mm
(7.2 - 5.4 in.)
18 - 25 cm
(7.1 - 9.8 in.)
36 x 27 mm
(1.4 - 1.1 in.)
Macro
mode
0 - 17 cm
(0 - 6.7 in.)
46 x 34 mm
(1.8 - 1.3 in.)
––
Attach
Detach
Rear Section
Front Section
Appendix
177
Attaching a Lens
1
Be sure that the camera is turned off.
2
Press the ring release button and hold it down
(a), and turn the ring in the direction of the arrow
(b).
3
When the mark on the camera and the
mark on the ring are aligned, lift off the ring.
4
Detach the front section of the conversion lens
adapter (p. 176).
• Keep the front and rear sections of the conversion lens adapter
together to attach a close-up lens to the camera.
b
a
Ring
Ring Release Button
Appendix
178
5
Align the z mark on the conversion lens
adapter with the mark on the camera, and
turn the adapter in the direction of the arrows
as far as the mark on the camera.
• To remove the conversion lens adapter, turn the adapter in the
opposite direction with holding down the ring release button.
6
Set the lens on the adapter,
and turn it in the indicated
direction to attach it
securely.
z Completely remove all dust and dirt from conversion lenses
with a lens blower brush before use. The camera may focus
on any dirt that remains.
z Be careful when handling the lenses since it is easy to get
finger prints on them.
z Be careful not to drop the camera or adapter when removing
the ring.
z When using these lens attachments, you should not shoot
images in mode. It will not be possible to use the
PhotoStitch software from your computer to accurately stitch
the images together.
Appendix
179
Converter Settings
Settings for when shooting using [IS Mode] (p. 68) with the separately
sold Wide Converter WC-DC58N, Tele-converter TC-DC58N or Close-
up lens 250D attached.
1
Set the mode switch to .
2
Select [Converter].
1. Press the button.
2. In the [ ] menu, use the or
button to select [Converter].
3
Accept the setting.
1. Use the or button to select
[WC-DC58N], [TC-DC58N] or
[250D].
2. Press the button.
• Select the attached converter.
When you remove the converter from the camera, return the
converter setting to [Off].
Appendix
180
High-Power Flash HF-DC1
This flash is used to supplement the camera’s built-in flash when the
subject is too far away for proper illumination. Use the following
procedures to affix the camera and High-Power Flash to the supporting
bracket.
Please read the instructions accompanying the flash along with this
explanation.
Using an Externally Mounted Flash
(Sold Separately)
z The High-Power Flash will not fire in the following situations:
- When shooting in mode
- When Flash Sync is set to [2nd-curtain]
- When Flash Adjust is set to [Manual]
z The flash charge time will lengthen as the battery charge
gets weaker. Always set the power/mode switch to [OFF]
when you finish using the flash.
z Be careful not to touch the flash window or sensor windows
with your fingers while the flash is in use.
z The flash may fire if another flash is being used in close
proximity.
z The High-Power Flash may not fire outdoors in daylight or
when there are no reflective items.
Tripod
Sockets
Bracket
(Comes with the flash)
Appendix
181
Batteries
z Charge becomes Severely Limited
If the battery usage time has considerably diminished, wipe the battery
terminals well with a dry cloth. The terminals may be dirty from
fingerprints.
z Usage in Cold Temperatures
Get a spare generic lithium battery (CR123A or DL123). You are
recommended to place the spare battery in your pocket to warm it up
before switching it for the battery in the flash.
z Non-Use over Extended Periods
Leaving batteries in the High-Power Flash could allow the battery fluid
to leak, damaging the product. Remove the batteries from the High-
Power Flash and store them in a cool, dry place.
z For continuous shooting, although the flash fires for the first
shot, it does not fire for subsequent shots.
z Fasten the attachment screws securely so that they do not
loosen. Failure to do so may lead to the dropping of the
camera and flash resulting in damage to both.
z Before attaching the bracket to the flash, check that the
lithium battery (CR123A or DL123) is installed.
z To illuminate the subjects properly, install the flash so that it
is up against the side of the camera and parallel with the
camera’s front panel.
z A tripod can be used even when the flash is attached.
Appendix
182
If the Date/Time menu appears when the camera power is turned on,
the date battery charge is low and the date and time settings have
been lost. Please purchase a lithium coin battery (CR1220) and
replace it as follows.
Replacing the Date Battery
Please note that the first date battery may appear to expire
relatively quickly after you purchase the camera. This is
because it is installed in the camera at the point of manufacture,
not when you make the purchase.
Be particularly careful to keep the date batteries out of the
reach of children. Seek medical assistance immediately if a
child swallows a battery since corrosive battery fluids can
damage the stomach or intestinal walls.
1
Confirm that the camera is turned off.
2
Slide the battery cover lock and open the
cover (p. 8).
3
Hook your nail onto the date
battery holder and lightly
pull it up.
Appendix
183
4
Remove the battery holder
in the direction indicated
by the arrow.
5
Remove the battery by pull-
ing it up in the direction
indicated by the arrow.
6
Insert a new battery with the (–) side facing up.
7
Replace the battery holder and close the
cover.
8
When the Date/Time menu appears, set the
date and time (p. 12).
After purchasing the camera and turning on the power for the
first time, although the Date/Time menu will appear, you do not
need to replace the date battery.
If you ever dispose of your camera, first remove the date battery for
recycling according to the recycling system of your country.
(–) Side
Appendix
184
Camera Body
Gently wipe dirt off the camera body with a soft cloth or eyeglass lens
wiper.
Lens
First use a lens blower brush to remove dust and dirt, then remove any
remaining dirt by wiping the lens lightly with a soft cloth.
Viewfinder and LCD Monitor
Use a lens blower brush to remove dust and dirt. If necessary, gently
wipe with a soft cloth or an eyeglass lens wiper to remove stubborn
dirt.
Camera Care and Maintenance
Never use thinners, benzine, detergents or water to clean the
camera. These substances may distort or damage the
equipment.
Never use organic solvents on the camera body or lens. If dirt
remains, contact the closest Canon Customer Support Help
Desk as listed on the rear of the European Warranty System
(EWS) Booklet.
Never rub or press strongly on the LCD monitor. These actions
may damage it or lead to other problems.
Appendix
185
All data is based on Canon’s standard testing methods. Subject to
change without notice.
PowerShot A720 IS
Specifications
(W): Max. wide angle (T): Max. telephoto
Camera Effective Pixels : Approx. 8.0 million
Image Sensor : 1/2.5-inch type CCD (Total number of pixels:
Approx. 8.3 million)
Lens : 5.8 (W) – 34.8 (T) mm
(35mm film equivalent: 35 (W) – 210 (T) mm)
f/2.8 (W) – f/4.8 (T)
Digital Zoom : Approx. 4.0x (Up to approx. 24x in combination
with the optical zoom)
Optical Viewfinder : Real-image zoom viewfinder
LCD Monitor : 2.5-inch type, amorphous silicon TFT color
LCD, approx. 115,000 pixels (Picture coverage
100%)
AF System : TTL autofocus
AF lock and Manual focus are available
Focusing frame: Face Detect/AiAF(9-point)/
Center*/FlexiZone
* Size of AF frame can be selected
Focusing Range : Normal: 55 cm (1.8 ft.) – infinity
Macro: 1 – 55 cm (W) (0.4 in. – 1.8 ft. (W))
Manual focus: 1 cm (0.4 in.) – infinity (W),
55 cm (1.8 ft.) – infinity (T)
Kids&Pets: 1 m (3.3 ft.) – infinity
Shutter : Mechanical shutter • electronic shutter
Shutter Speeds : 15 – 1/2000 sec.
• The shutter speed varies depending on the
shooting mode.
• Slow shutter speeds of 1.3 sec. or slower
operate with noise reduction.
Image Stabilization : Lens shift type
Continuous/Shoot Only*/Panning*/Off
* Still images only
Appendix
186
Metering System : Evaluative*
1
, Center-weighted average or
Spot*
2
*1 When [AF Frame] is set to [Face Detect], the
brightness of the face is also evaluated
*2 Fixed to center/AF Point
Exposure Compensation : ±2 stops in 1/3-stop increments
ISO speed
(Standard Output
Sensitivity,
Recommended
Exposure Index)
: Auto*, High ISO Auto*, ISO 80/100/200/400/
800/1600
* Camera automatically sets the optimal speed.
White Balance : Auto, Day Light, Cloudy, Tungsten,
Fluorescent, Fluorescent H, Underwater or
Custom
Built-in Flash : Auto*, on*, off
* Red-eye reduction is available.
FE Lock/Slow Synchro/2nd-curtain/Flash
output /Safety FE settings are available.
Compensation Range of
Built-In Flash
: 30 cm – 3.5 m (1.0 – 11 ft.) (W),
55 cm – 2.5 m (1.8 – 8.2 ft.) (T)
(ISO speed: Auto)
Flash Exposure
Compensation
: ±2 stops in 1/3-stop increments
Shooting Modes : Auto
Creative zone:
Program, Shutter-speed priority, Aperture
priority, Manual
Image zone:
Portrait, Landscape, Night Snapshot,
Kids&Pets, Indoor, Special Scene*
1
, Stitch
Assist and Movie*
2
*1 Night Scene, Foliage, Snow, Beach, Fireworks,
Aquarium and Underwater.
*2 Standard and Compact.
Continuous Shooting : Approx. 1.3 shots/sec. (Large/Fine mode)
Self-timer : Activates shutter after an approx. 10-sec./
approx. 2-sec. delay, Custom Timer
Appendix
187
Recording Media : SD memory card/SDHC memory card/
MultiMediaCard/MMCplus memory card/HC
MMCplus memory card
File Format : Design rule for camera file system and DPOF
compliant
Data Type (Still images) : Exif 2.2 (JPEG)*
Sound memos: WAVE (monaural)
(Movies) : AVI (Image data: Motion JPEG; Audio data:
WAVE (monaural))
* This digital camera supports Exif 2.2 (also called
“Exif Print”). Exif Print is a standard for enhancing
the communication between digital cameras and
printers. By connecting to an Exif Print-compliant
printer, the camera’s image data at the time of
shooting is used and optimized, yielding extremely
high quality prints.
Compression : Superfine, Fine, Normal
Number of
Recording
Pixels
(Still images) : Large: 3264 x 2448 pixels
Medium 1: 2592 x 1944 pixels
Medium 2: 2048 x 1536 pixels
Medium 3: 1600 x 1200 pixels
Small: 640 x 480 pixels
Postcard: 1600 x 1200 pixels
Widescreen: 3264 x 1832 pixels
(Movies) : Standard:
640 x 480 pixels (30 frames/sec.)
640 x 480 pixels (30 frames/sec. LP)
320 x 240 pixels (30 frames/sec.)
Recording can continue until the memory card
is full*
1
(can record up to a maximum of 4 GB
at one time)*
2
Compact: (can record for 3 min.)
160 x 120 pixels (15 frames/sec.)
*1 Using super high-speed memory cards (SDC-512
MSH recommended).
*2 Even if the clip size has not reached 4 GB,
recording will stop at the moment the clip length
reaches 1 hour. Depending on the volume and data
writing speed of the memory card, recording may
stop before reaching 1 hour or before the recorded
data volume has reached 4 GB.
Appendix
188
Playback Modes : Single (histogram displayable), Index (9
thumbnail images), Magnified (approx. 10x
(max.) in LCD monitor, advance or reverse
through magnified images possible), Jump (it is
possible to jump to every tenth or hundredth
image, to the first image of each shooting date,
to movies or to the first image in each folder. In
index playback mode, it displays 9 images at
once.), Auto Play, Red-Eye Correction, Sound
memos (up to 1 min.), Movie (slow motion play
back possible) or Resize.
Direct Print : PictBridge compliant, and Canon Direct Print
and Bubble Jet Direct compatible
Interface : USB 2.0 Hi-Speed (mini-B) Audio/Video output
(NTSC or PAL selectable, monaural audio)
Communication Settings MTP, PTP
Power Source : 2 AA-size alkaline batteries
2 AA-size NiMH batteries NB4-300 (sold
separately)
AC Adapter Kit ACK800 (sold separately)
Operating Temperatures : 0 – 40 °C (32 – 104 °F)
(0 – 35 °C (32 – 95 °F) when NB-3AH is used.)
Operating Humidity : 10 – 90%
Dimensions
(excluding protrusions)
: 97.3 x 67.0 x 41.9 mm
(3.83 x 2.64 x 1.65 in.)
Weight
(camera body only)
: Approx. 200 g (7.05 oz.)
Appendix
189
Battery Capacity
z The actual figures will vary according to the shooting conditions and
settings.
z Movie data is excluded.
z At low temperatures, the battery performance may diminish and the
low battery icon may appear very rapidly. In these circumstances,
the performance can be improved by warming the battery in a pocket
before use.
Test Conditions
Number of Images Shot
Playback
Time
LCD Monitor
On (Based on
the CIPA
standard)
LCD Monitor
Off
AA-size Alkaline
Batteries (included
with the camera)
Approx. 140
images
Approx. 500
images
Approx.
9 hours
AA-size NiMH
Batteries (NB-3AH
(fully charged))
Approx. 400
images
Approx. 900
images
Approx.
11 hours
Shooting: Normal temperature (23°C ±2°C/73°F ±3.6°F), normal
relative humidity (50% ±20%), alternating wide angle end
and telephoto end shots at 30 second intervals with the flash
fired once every two shots and the camera power turned off
after every tenth shot. Power is left off for a sufficient amount
of time*, then the power is turned back on and the testing
procedure is repeated.
• A Canon-brand memory card is used.
* Until the battery returns to normal temperature
Playback: Normal temperature (23°C ±2°C/73°F ±3.6°F), normal
relative humidity (50% ±20%), continuous playback at 3
seconds per image.
See Battery Handling Precautions (p. 168).
Appendix
190
Memory Cards and Estimated Capacities
: Card included with the camera
• Capable of smooth continuous shooting (p. 87) when card has been
formatted with a low level format.
• This reflects standard shooting criteria established by Canon. Actual results
may vary according to the subject and shooting conditions.
Recording Pixels
Compress
ion
16MB SDC-128M
SDC-
512MSH
(Large)
3264 x 2448 pixels
335139
659231
13 123 479
(Medium 1)
2592 x 1944 pixels
549190
987339
19 173 671
(Medium 2)
2048 x 1536 pixels
876295
15 136 529
30 269 1041
(Medium 3)
1600 x 1200 pixels
13 121 471
24 217 839
47 411 1590
(Small)
640 x 480 pixels
52 460 1777
81 711 2747
128 1118 4317
(Post card)
1600 x 1200 pixels
24 217 839
(Widescreen)
3264 x 1832 pixels
547183
879307
18 166 642
Appendix
191
Movie
:Card included with the camera
• Maximum movie clip length at : 3 min. The figures indicate the
maximum continuous recording time.
Recording Pixels
/Frame Rate
16MB SDC-128M SDC-512MSH
Standard
640 x 480 pixels
30 frames/sec.
6 sec. 1 min. 4 sec. 4 min. 9 sec.
640 x 480 pixels
30 frames/sec. LP
14 sec. 2 min. 7 sec. 8 min. 14 sec.
320 x 240 pixels
30 frames/sec.
20sec. 3min. 1sec.
11 min.
42 sec.
Compact
160 x 120 pixels
15 frames/sec.
1min.
40 sec.
14 min.
29 sec.
55 min.
57 sec.
Appendix
192
Image Data Sizes (Estimated)
Recording Pixels
Compression
3264 x 2448 pixels 3436 KB 2060 KB 980 KB
2592 x 1944 pixels 2503 KB 1395 KB 695 KB
2048 x 1536 pixels 1602 KB 893 KB 445 KB
1600 x 1200 pixels 1002 KB 558 KB 278 KB
640 x 480 pixels 249 KB 150 KB 84 KB
1600 x 1200 pixels — 558 KB —
3264 x 1832 pixels 2601 KB 1540 KB 736 KB
Frame Rate/Recording Pixels File size
Standard
640 x 480 pixels, 30 frames/sec. 1920 KB/sec.
640 x 480 pixels, 30 frames/sec. LP 960 KB/sec.
320 x 240 pixels, 30 frames/sec. 660 KB/sec.
Compact
160 x 120 pixels, 15 frames/sec. 120 KB/sec.
Appendix
193
MultiMediaCard
SD Memory Card
NiMH Battery NB-3AH
(Supplied with the separately sold NiMH Battery NB4-300 set or the
Battery and Charger Kit CBK4-300)
Interface Compatible with MultiMediaCard standards
Dimensions 32.0 x 24.0 x 1.4 mm (1.3 x 0.9 x 0.06 in.)
Weight Approx. 1.5 g (0.05 oz.)
Interface Compatible with SD memory card standards
Dimensions 32.0 x 24.0 x 2.1 mm (1.3 x 0.9 x 0.1 in.)
Weight Approx. 2 g (0.07 oz.)
Type AA-size nickel metal hydride battery
Nominal Voltage 1.2 V DC
Typical Capacity 2500 mAh (min.: 2300 mAh)
Cycle Life Approx. 300 times
Operating
Temperatures
0 – 35 °C (32 – 95 °F)
Dimensions
Diameter: 14.5 mm (0.57 in.)
Length: 50.0 mm (1.97 in.)
Weight Approx. 30 g (1.06 oz.)
Appendix
194
Battery Charger CB-5AH/CB-5AHE
(Supplied with the separately sold Battery and Charger Kit CBK4-300)
*1 When charging four NB-3AH batteries
*2 When charging two NB-3AH batteries loaded one on each side of the battery
charger
Compact Power Adapter CA-PS800
(Included with the separately sold AC Adapter Kit ACK800)
Wide Converter WC-DC58N (Sold Separately)
Rated Input 100 – 240 V AC (50/60 Hz)
Rated Output
565 mA*
1
, 1275 mA*
2
Charging Time
Approx. 4 hours 40 min.*
1
, Approx. 2 hours*
2
Operating
Temperatures
0 – 35 °C (32 – 95 °F)
Dimensions 65.0 x 105.0 x 27.5 mm (2.56 x 4.13 x 1.08 in.)
Weight (body only) Approx. 95 g (3.35 oz.)
Rated Input 100 – 240 V AC (50/ 60 Hz)
Rated Output 3.15 V DC, 2.0 A
Operating
Temperatures
0 – 40 °C (32 – 104 °F)
Dimensions 42.6 x 104.0 x 31.4 mm (1.68 x 4.09 x 1.24 in.)
Weight Approx. 180 g (6.35 oz.) (excluding power cord)
Magnification Approx. 0.7x
Focal Length*
1
24.5 mm (35mm film equivalent)
Focusing Range*
1
Approx. 25 cm (9.8 in.) – infinity (W)*
2
Thread Diameter 58 mm standard filter thread*
3
Dimensions Diameter: 94.5 mm (3.7 in.)
Length: 54.9 mm (2.2 in.)
Weight Approx. 275 g (9.70 oz.)
Appendix
195
Tele-converter TC-DC58N (Sold Separately)
Close-up Lens 250D 58 mm (Sold Separately)
Conversion Lens Adapter LA-DC58G (Sold Separately)
(W): Max. wide angle (T): Max. telephoto
*1 When mounted on PowerShot A720 IS (Max. wide angle)
*2 From front of the mounted tele-converter.
*3 Conversion Lens Adapter LA-DC58G is required when mounted on
PowerShot A720 IS
*4 When mounted on PowerShot A720 IS (Max. telephoto)
Magnification Approx. 1.75x
Focal Length*
4
368 mm (35mm film equivalent)
Focusing Range*
4
Approx. 1.8 m (5.9 ft.) – infinity (T)*
2
Thread Diameter
58 mm standard filter thread*
3
Dimensions
Diameter: 75.0 mm (3.0 in.)
Length: 50.0 mm (2.0 in.)
Weight Approx. 185 g (6.53 oz.)
Focusing Range
(from front of lens)
18 – 25 cm (7.1 – 9.8 in.) (W/T)
Thread Diameter
58 mm standard filter thread*
3
Dimensions
Diameter: 60.0 mm (2.36 in.)
Length: 12.0 mm (0.47 in.)
Weight Approx. 80 g (2.82 oz.)
Thread Diameter 58 mm standard filter thread
Dimensions
Diameter x Length
Front Section: 62.6 mm x 10.8 mm (2.5 in. x
0.43 in.)
Rear Section: 62.3 mm x 43.3 mm (2.5 in. x 1.7 in.)
Weight
Front Section: Approx. 7 g (0.25 oz.)
Rear Section: Approx. 23 g (0.81 oz.)
Index
196
Numerics
1st-curtain
................................112
2nd-curtain
...............................112
3:2 Guide
.................................117
A
AC Adapter Kit ACK800
............174
AE Lock
.....................................98
AF Frame
.............................50, 90
AF Lock
.....................................95
AF-assist Beam
..................45, 151
AiAF
..........................................90
Aperture Value
.....................85, 86
Auto Play
.................................129
Auto Rotate Function
................115
AV cable
..................................146
B
Battery
Battery Capacity ................. 189
Charging .............................172
Handling ..............................168
Installing ..................................8
C
Compression
..............................57
Continuous Shooting
..................87
Create Folder
...........................118
Custom White Balance
.............105
D
Date/Time
..................................12
Digital Tele-Converter
.................60
DIGITAL Terminal
................26, 38
Digital Zoom
...............................60
Direct Transfer
........................... 29
Distance Units
............................ 47
Downloading Images to a Computer
24
DPOF Print Order
.................... 139
DPOF Transfer Order
............... 144
E
Erasing
All Images ........................... 138
Single Images ....................... 21
Exposure Compensation
.......... 101
F
Face Detect
............................... 91
FE Lock
..................................... 99
File Number
............... 52, 120, 142
Flash
......................................... 64
Flash Adjustment
..................... 110
Flash Output
............................ 111
FlexiZone
................................... 90
Focus
AF Lock ................................ 95
Lock ...................................... 94
Manual .................................. 96
Safety MF ............................. 97
Focus Lock
................................ 94
Frame Rate
................................ 81
FUNC./SET
.......................... 40, 42
G
Grid Lines
................................ 117
H
HF-DC1
................................... 180
Index
Index
197
Histogram
..................................54
I
Image Data Sizes (Estimated)
...192
Image Stabilizer Function
...........68
Index Playback
.........................123
Indicator
.....................................41
Interface Cable
.....................22, 26
ISO Speed
...............................100
J
Jump (Image Search)
...............124
L
Language
...................................13
LCD Monitor
Night Display .........................49
Playback Information ............52
Shooting Information .............50
Using the LCD Monitor ..........49
Lens
Conversion Lens Adapter ... 176
Tele-converter .....................175
Wide Converter ...................175
List of Messages
......................158
M
Macro
........................................65
Magnifying
...............................122
Maintenance
............................184
Manual Focus
.............................96
Memory Card
Estimated Capacities ..........190
Formatting .............................56
Handling ..............................170
Inserting ................................10
Menu
FUNC. Menu ...................42, 44
MENU Button ........................43
Menus and Settings ........ 42, 43
Play Menu ....................... 43, 46
Print Menu ............................ 46
Rec. Menu ............................ 44
Set up Menu ......................... 46
Metering Modes
....................... 102
MF-Point Zoom
.................... 45, 96
Mode Dial
...................... 14, 40, 73
Mode Switch
........................ 14, 40
Movie
......................................... 18
Playback ............................. 125
Shooting ............................... 79
Mute
.................................... 15, 46
My Colors
................................ 107
O
Overexposure Warning
............... 53
P
Playback
............................ 17, 122
Postcard
.................................... 70
Power Button
....................... 14, 40
Power Saving
....................... 41, 47
Print Style
................................ 142
Print/Share Button
.. 22, 29, 40, 114
Printing
.............................. 22, 139
Program AE
............................... 82
Protect
..................................... 137
R
Recording Pixels
.................. 44, 58
Red-Eye Correction
.................. 130
Red-Eye Reduction
.............. 38, 88
Reset All
.................................... 55
Resize
..................................... 134
Resume Playback
...................... 17
Review
................................ 16, 45
Rotate
...................................... 127
Index
198
S
Safety FE
.................................113
Safety MF
..................................97
Safety Zoom
...............................62
Self-Timer
..................................66
Shooting
....................................14
Shooting Mode
Creative Zone ....................... 73
Av ......................................85
M .......................................86
P .......................................82
Tv ......................................83
Functions Available .............200
Image Zone ...........................73
Movie ................................79
Special Scene ...................75
Stitch Assist ......................77
Shutter Button
............................40
Fully ................................15, 19
Halfway .................................15
Shutter Speed
................83, 85, 86
Slow Synchro Function
...............89
Smooth Continuous Shooting
.....87
Sound Memo
............................136
Spot AE Point Frame
..........50, 103
Stitch Assist
...............................77
System Requirements
................24
T
Telephoto
...................................59
Troubleshooting
.......................147
V
Video System
...........................146
W
White Balance
..........................104
Wide Angle
................................59
Wrist Strap
...................................8
Z
Zoom
......................................... 59
199
Trademark Acknowledgments
• Microsoft, Windows Vista and the Windows Vista logo are trademarks
or registered trademarks of Microsoft Corporation in the United
States and/or other countries.
• Macintosh, the Mac logo, QuickTime and the QuickTime logo are
trademarks of Apple Inc., registered in the U.S. and other countries.
• The SDHC logo is a trademark.
Copyright © 2007 Canon Inc. All rights reserved.
Disclaimer
• While every effort has been made to ensure that the information
contained in this guide is accurate and complete, no liability can be
accepted for any errors or omissions.
• Canon reserves the right to change the specifications of the
hardware and software described herein at anytime without prior
notice.
• No part of this guide may be reproduced, transmitted, transcribed,
stored in a retrieval system, or translated into any language in any
form, by any means, without the prior written permission of Canon.
• Canon makes no warranties for damages resulting from corrupted
or lost data due to a mistaken operation or malfunction of the
camera, the software, SD memory cards (SD cards), personal
computers, peripheral devices, or use of non-Canon SD cards.
Functions Available in Each Shooting Mode
200
Function
Exposure Compensation (p. 101)
– { { { { – {{
ISO Speed (p. 100)
Auto
– { { {{ {{{
High ISO Auto
–––{ – { ––
ISO 80/100/200/400/800/
1600
{ { { { ––––
White Balance
(p. 104)
Auto
{ { { { {{{{
Auto, Day Light, Cloudy,
Tungsten, Fluorescent,
Fluorescent H, Underwa-
ter, Custom
{ { { { { –––
Drive Mode
(pp. 87, 66)
Single Shot
{ { { { { { { {
Continuous
{{{{ ––{{
Self Timer
(2 sec.
10 sec.)
{{{{{ { {{
Custom Timer
{{{{ – {{{
My Colors (p. 107)
{ { { { { –––
Flash Compensation (p. 110)
– { { {{ –––
Flash Output (p. 111)
{ { { –– – ––
Metering System
(p. 102)
Evaluative
{ { { {{{{{
Center Weighted Avg.
{ { { { ––––
Spot
{{{{ ––––
Recording Pixels (Still Images) (p. 57)
{ { { { {*
1
{ { {
Recording Pixels/
Frame Rate (Movies)
(p. 81)
640 x 480, 30 fps
––––– – ––
640 x 480, 30 fps LP
––––– – ––
320 x 240, 30 fps
––––– – ––
160 x 120, 15 fps
––––– – ––
Av/Tv Settings (pp. 83, 85)
{ {*
2
{*
3
–– – ––
AE/FE Lock (pp. 98, 99)
– {{{ ––––
Macro (p. 65)
{{{{{ { { –
Manual Focus (p. 96)
{{{{ ––{{
Flash (p. 64)
Auto
–––{ – { {{
On
{ { { {{ – {{
Off
{ { { { {{{{
LCD Monitor Setting
(p. 49)
Off
{ { { { – { { {
LCD Monitor
(no information)
{ { { { – { { {
LCD Monitor
(information view)
{ { { {{ { { {
Functions Available in Each Shooting Mode
Functions Available in Each Shooting Mode
201
Set each function according to the shooting conditions and then shoot.
Only functions with settings that change with the shooting mode are
listed here.
Reference
Pages
{{{{{{{{{{ ––
p 101
{{{{{{{{{{{{
p 100
––––––––––––
––––––––––––
{{{{{{{{{{
{ {
p 104
––––––––––{ {
{ { { { { { { { { { { {
pp. 66, 87
{{{{{{{{{{ ––
{{{{{{{{{{{{
{{{{{{{{{{ ––
––––––––––
{ {
p 107
––––––––––––
p 110
––––––––––––
p 111
{{{{{{{{{{{{
p 102
––––––––––––
––––––––––––
{ { { { { { { { { { ––
p57
––––––––––{ –
p81
––––––––––{ –
––––––––––
{ –
–––––––––––{
––––––––––––
pp. 83, 85
––––––––––––
pp. 98, 99
{ – {{{{{ – {{{{
p65
{{{{{{{ – {{{{
p96
{ { { {{{ { ––{ ––
p64
{{{{{{{ – {{ ––
{{{{
{{{{{{ ––
{ { { { { { { { { { ––
p49
{ { { { { { { { { { { {
{ { { { { { { { { { { {
Functions Available in Each Shooting Mode
202
*1 Postcard date imprint and Widescreen are not available.
*2 Can only be set in (Setting the aperture).
*3 Can only be set in (Shutter speed).
*4 Always set to [On].
*5 Always set to [Off].
*6 Only available when the flash is set to [On].
AF Frame (p. 90)
Face Detect
{ { { { – { { {
AiAF (9 point)
{ { { { – { { {
Center
{ { { {{ { { {
FlexiZone
{ { { { ––––
AF Frame Size (p. 92)
{ { { { ––––
Digital Zoom
Standard (p. 61)
{ { { { – { { {
Digital Tele-Converter
(p. 63)
{ { { { – { { {
Flash Sync (2nd-curtain) (p. 112)
{ { { { ––––
Slow Synchro (p. 89)
{*
4
{{*
4
{ { ––{*
4
Flash Adjust (Manual) (p. 109)
{*
5
{ { –– – ––
Red-Eye (p. 88)
{ { { { { { { {
Safety FE (p. 113)
– { { { ––––
Spot Metering Frame
(p. 103)
Center
{ { { {{{{{
AF Point
{ { { { ––––
MF-Point Zoom (p. 96)
{ { { { ––{ {
Safety MF (p. 97)
{ { { { ––{ {
AF-assist Beam (p. 45)
{ { { { { { { {
Rec. Review (p. 16)
{ { { { { { { {
Disp. Overlay (p. 117)
Grid Line
{ { { { – { { {
3:2 Guide/Both
{ { { { – { { {
IS Mode (p. 68)
Continuous
{ { { { { { { {
Shooting Only/Panning
{ { { { { { { {
Converter (p. 179)
{ { { { { { { {
Date Stamp (p. 71)
{ { { { – { { {
Set Button
(p. 114)
{ { { { { { { {
{: Setting available or optimum value is automatically set by the camera. As a
rule, with the "Stitch Assist", only the first image is available.
–: Not available.
(Shaded Area): Setting is retained even when the camera power is shut off
Function
Functions Available in Each Shooting Mode
203
{ { { { { { { – { { ––
p90
{ { { { { { { – { {{{
{ { { { { { {{{ { ––
––––––––––––
––––––––––––
p92
{ { { { { { { { { { { –
p61
{ { { { { { { { { { ––
p63
––––––––––––
p 112
{*
4
––{*
4
––––––––
p89
––––––––––––
p 109
{ { { { { { { – { { ––
p88
––––––––––––
p 113
{{{{{{{{{{{{
p 103
––––––––––––
{ { { { { { { – { { ––
p96
{ { { { { { { – { { { {
p97
{ { { { { { { – {*
6
{ { {
p45
{ { { { { { { { { { ––
p16
{ { { { { { { { { { { {
p 117
{ { { { { { { { { { ––
{ { { { { { { { { { { {
p68
{ { { { { { { { { { ––
{ { { { { { { { { { { {
p 179
{ { { { { { { { { { ––
p71
{ { { { { { { { { { { {
p 114
Reference
Pages
Camera User Guide
Camera User Guide
CEL-SG9GA210 © 2007 CANON INC.
ENGLISH
DIGITAL CAMERA
Ensure that you read the Safety Precautions (pp. 162–167).
Getting Started
Learning More
Components Guide
Basic Operations
Commonly Used Shooting Functions
Shooting Using the Mode Dial
Various Shooting Methods
Playback/Erasing
Print Settings/Transfer Settings
Connecting to a TV
Troubleshooting
List of Messages
Appendix
