Thank you for choosing a Marantz Pre
Amplifier.
This guide provides step-by-step
instructions for setting up your Pre
Amplifier.
Please do not return this unit to the
store – call for assistance.
If you need help… :
If you need additional help in solving
problems, contact Marantz customer
service in your area.
www.marantz.com
Welcome Before You Begin

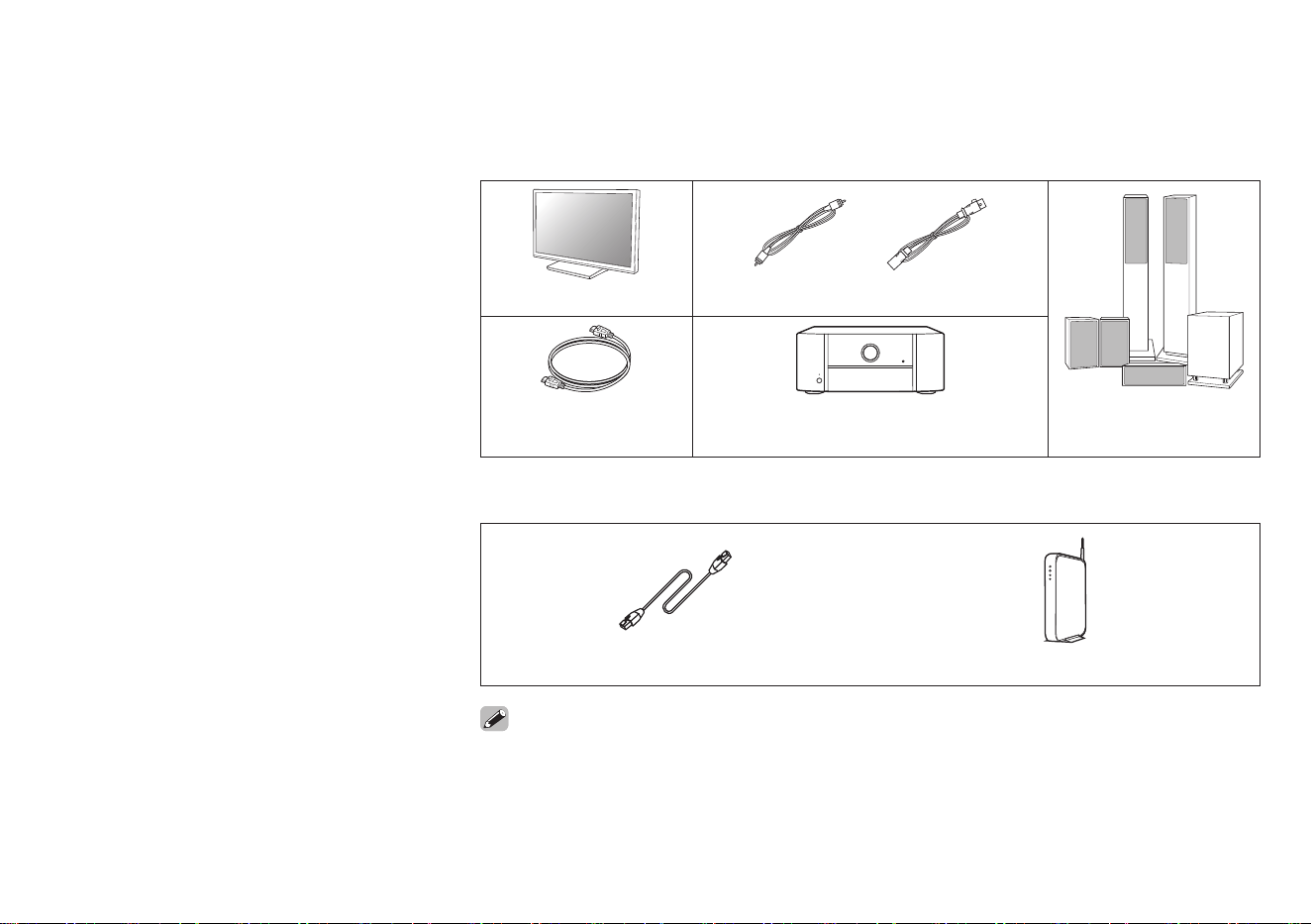

Required for Setup
or
TV RCA cables XLR cables
HDMI cable Power amplifier Speakers /
Speaker cables
Optional
LAN cable Wi-Fi router
• When connecting this unit to a device that is compatible with the Deep Color, 4K, ARC and eARC
functions, use a “High Speed HDMI cable with Ethernet” that displays the HDMI logo.
• When connecting this unit to a device that is compatible with the 8K and 4K 120Hz video, use a
“Ultra High Speed 48 Gbps HDMI cable” that displays the HDMI logo.
• These drawings are for illustrative purposes only and may not represent the actual product(s).
or
1. AV8805AN_QSG_ENG_00A_201029.indd 11. AV8805AN_QSG_ENG_00A_201029.indd 1 2020/10/29 16:06:092020/10/29 16:06:09
PrintingColor:Black
2

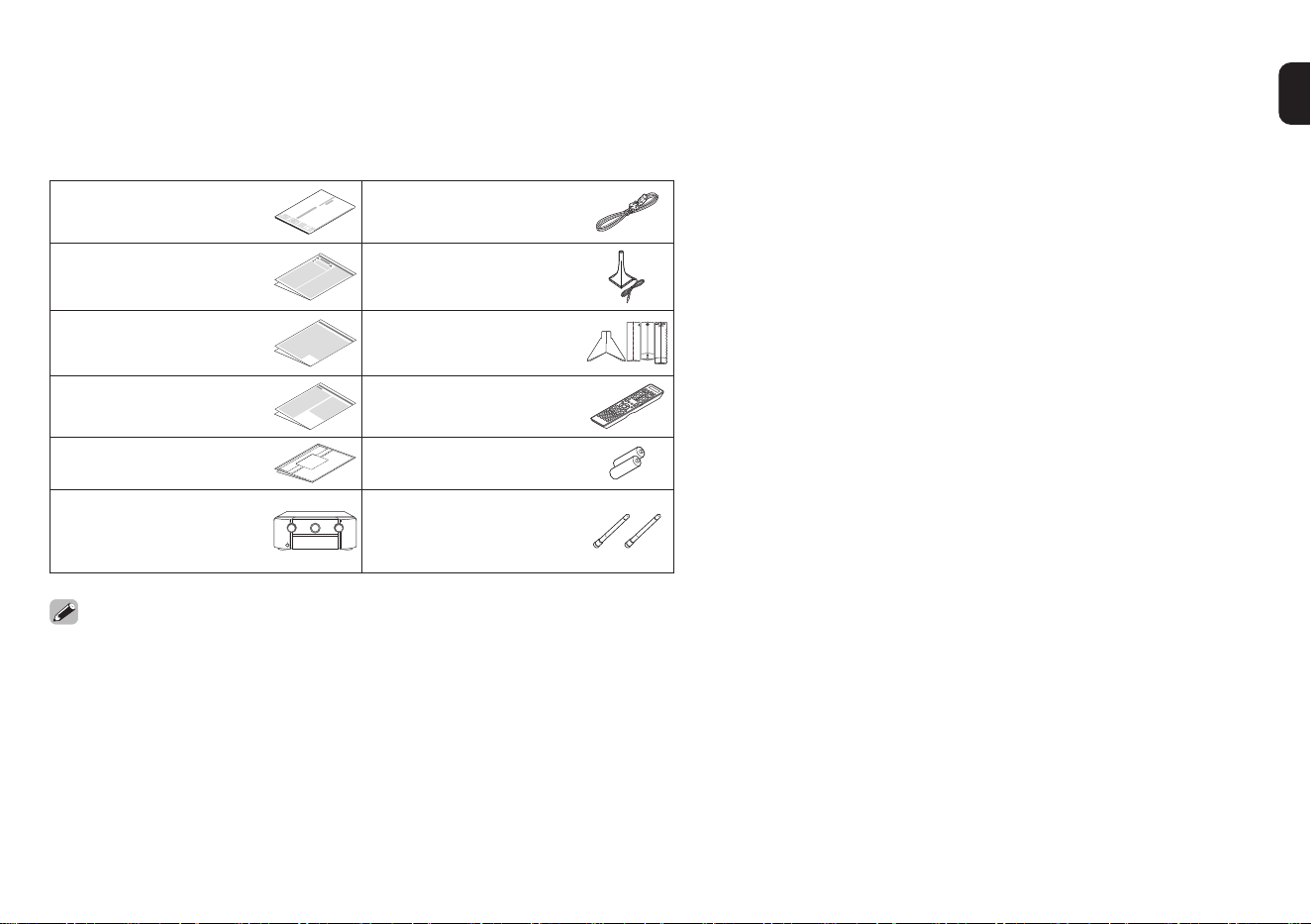

What’s In the Box
Quick Start Guide Power cord
Safety Instructions Sound calibration
microphone
Cautions on Using
Batteries
Sound calibration
microphone stand
Notes on radio Remote control unit
(RC039SR)
Cable labels R03/AAA batteries
Pre Amplifier External antennas
for Bluetooth/
wireless connectivity
• The included sound calibration microphone stand is convenient for use
when performing Speaker Calibration. Using your own tripod or the supplied
Sound calibration microphone stand enables settings to be automatically
configured to the optimum listening environment, providing exceptionally
high performance.
1. AV8805AN_QSG_ENG_00A_201029.indd 21. AV8805AN_QSG_ENG_00A_201029.indd 2 2020/10/29 16:06:092020/10/29 16:06:09
PrintingColor:Black
3
Important: External Antennas
The removable external antennas are required for both
Bluetooth and Wireless network connectivity. Please make
sure to connect the antennas before attempting to use the
Bluetooth or Wi-Fi features of the AV8805A.

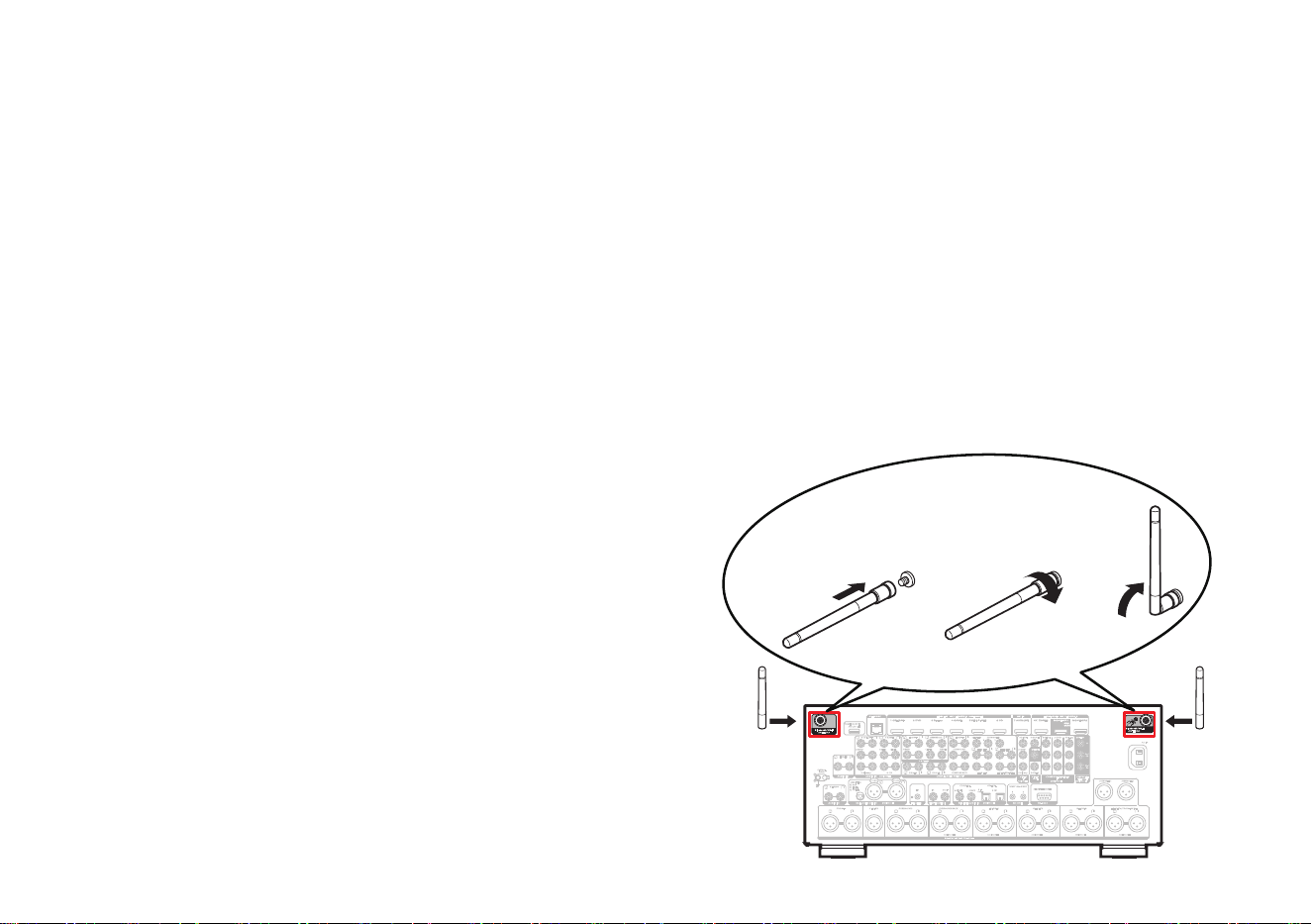

n Connecting the external antennas for
Bluetooth/Wireless connectivity
For each of the two antennas:
q Place the antenna evenly over the antenna terminal
located at the upper left or right corner of the rear panel.
w Turn the antenna clockwise until it is fully connected. Do
not over tighten.
e Rotate the antenna upwards for the best possible
reception.
1 CBL/SAT
PHONO
2 DVD
1 CBL/SAT
2 CD
1 TV
AUDIO
5 MEDIA PLAYER
2 DVD
3 Blu-ray 6 CD
4 GAME
1 CBL/SAT
1 CBL/SAT
2 DVD
2 DVD
3 Blu-ray
4 GAME
RS-232C
7.1CH IN
REMOTE CONTROL
DC OUT
UNBALANCED PRE OUT
(ASSIGNABLE)
(ASSIGNABLE) (ASSIGNABLE)
VIDEO
IN
COMPONENT VIDEO
IN
VIDEO
OUT
COMPONENT
VIDEO OUT
MONITOR
MONITOR/ZONE3
ZONE2
3 Blu-ray
COAXIAL
OPTICAL
STRAIGHT CABLE
IN
IR
IN
OUT
DC12V 150mA MAX.
1 2
ZONE2
ZONE3
FRONTFRONT
SURROUND
SURROUND
CENTER
SUBWOOFER
SURROUND BACK
CENTER
SURROUND BACK
HEIGHT2
HEIGHT4/FRONT WIDE
HEIGHT1
AUDIO IN
(ASSIGNABLE)
(ASSIGNABLE)
(ASSIGNABLE)
ASSIGNABLE ASSIGNABLE ASSIGNABLE ASSIGNABLE ASSIGNABLE
AUDIO IN BALANCED XLR IN
BALANCED XLR PRE OUT
FLASHER DIGITAL AUDIO IN
AC IN
NETWORK
Y
P
B
/
C
B
P
R
/
C
R
POWER SUPPLY
5V/1.5A
CONNECTION
GND
HOT(+)
COLD(-)
HEIGHT3
FRONT
CENTER
SURROUND
SURROUND BACK
HEIGHT1
HEIGHT2
HEIGHT3
HEIGHT4/FRONT WIDE
SUBWOOFER1
SUBWOOFER2
1 2
SUBWOOFER
Bluetooth
/
Wi-Fi
ANTENNA
Bluetooth
/
Wi-Fi
ANTENNA
TUNER
AUDIO IN
SIGNAL
GND
q w e
1. AV8805AN_QSG_ENG_00A_201029.indd 31. AV8805AN_QSG_ENG_00A_201029.indd 3 2020/10/29 16:06:102020/10/29 16:06:10
PrintingColor:Black
4
1

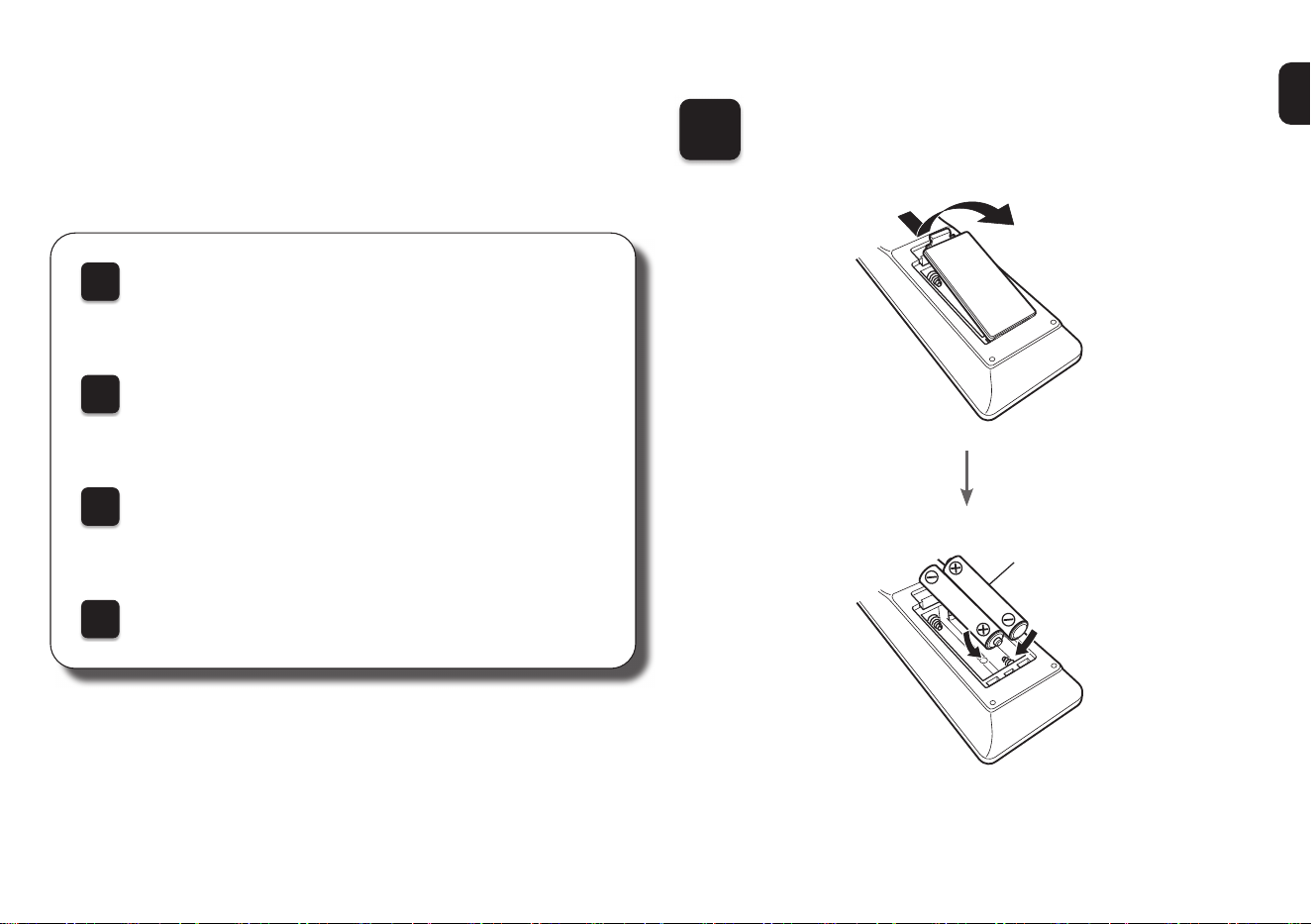

Installing batteries in the
remote control unit
Batteries
There are four steps to the setup
process.
1
Installing batteries in the remote control unit
2
Connecting the Pre Amplifi er, Power
Amplifi er and your TV
3
Following the On-Screen Setup Assistant
4
Downloading the Mobile Apps
Setup
1. AV8805AN_QSG_ENG_00A_201029.indd 41. AV8805AN_QSG_ENG_00A_201029.indd 4 2020/10/29 16:06:102020/10/29 16:06:10
PrintingColor:Black
5
2
Connecting the Pre Amplifi er, Power Amplifi er and your TV

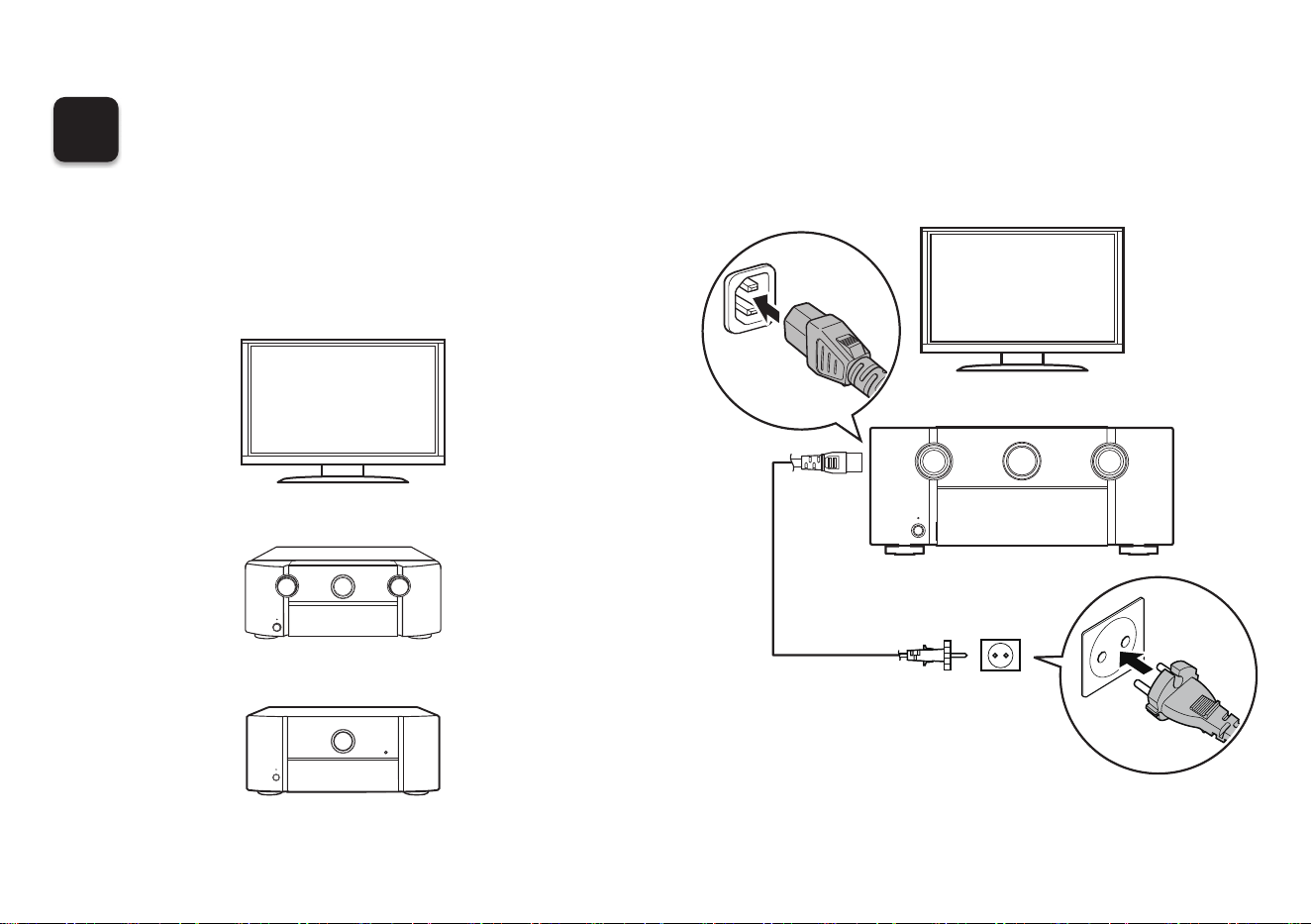

1) Place the Pre Amplifi er and Power
Amplifi er near your TV and connect
the power cord
TV
Pre Amplifi er
Power Amplifi er
TV
Pre Amplifi er
Power cord
(supplied)
Connect to household
power outlet
(AC 230 V, 50/60 Hz)
1. AV8805AN_QSG_ENG_00A_201029.indd 51. AV8805AN_QSG_ENG_00A_201029.indd 5 2020/10/29 16:06:102020/10/29 16:06:10
PrintingColor:Black
6

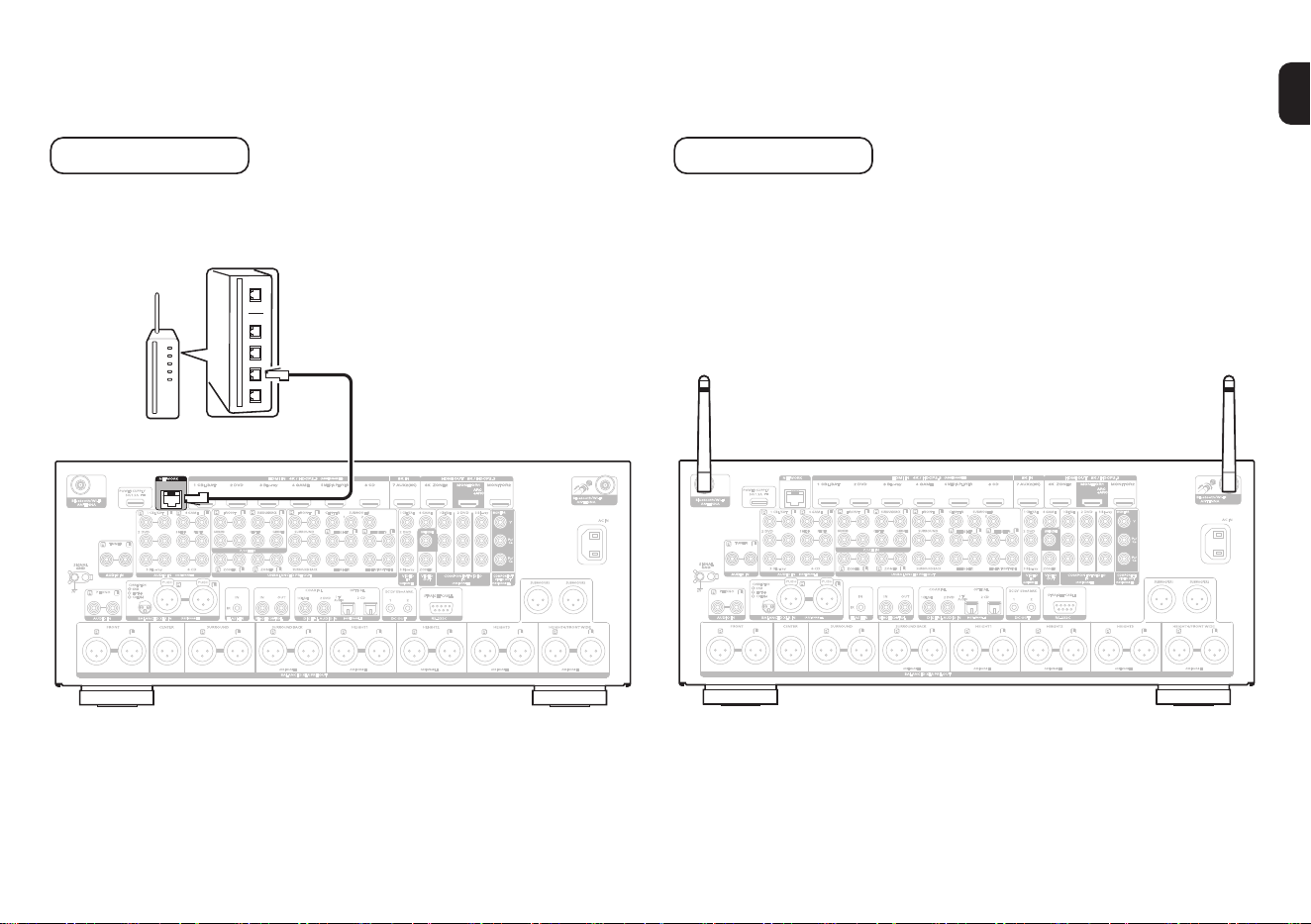

2) Connect the Pre Amplifier to your home network
Wired LAN
Connect an Ethernet cable (not included) between your Pre
Amplifier and your network router.
1 CBL/SAT
PHONO
2 DVD
1 CBL/SAT
2 CD
1 TV
AUDIO
5 MEDIA PLAYER
2 DVD
3 Blu-ray 6 CD
4 GAME
1 CBL/SAT
1 CBL/SAT
2 DVD
2 DVD
3 Blu-ray
4 GAME
RS-232C
7.1CH IN
REMOTE CONTROL
DC OUT
UNBALANCED PRE OUT
(ASSIGNABLE)
(ASSIGNABLE) (ASSIGNABLE)
VIDEO
IN
COMPONENT VIDEO
IN
VIDEO
OUT
COMPONENT
VIDEO OUT
MONITOR
MONITOR/ZONE3
ZONE2
3 Blu-ray
COAXIAL
OPTICAL
STRAIGHT CABLE
IN
IR
IN
OUT
DC12V 150mA MAX.
1 2
ZONE2
ZONE3
FRONTFRONT
SURROUND
SURROUND
CENTER
SUBWOOFER
SURROUND BACK
CENTER
SURROUND BACK
HEIGHT2
HEIGHT4/FRONT WIDE
HEIGHT1
AUDIO IN
(ASSIGNABLE)
(ASSIGNABLE)
(ASSIGNABLE)
ASSIGNABLE ASSIGNABLE ASSIGNABLE ASSIGNABLE ASSIGNABLE
AUDIO IN BALANCED XLR IN
BALANCED XLR PRE OUT
FLASHER DIGITAL AUDIO IN
Bluetooth
/
Wi-Fi
ANTENNA
Bluetooth
/
Wi-Fi
ANTENNA
NETWORK
Y
P
B
/
C
B
P
R
/
C
R
POWER SUPPLY
5V/1.5A
CONNECTION
GND
HOT(+)
COLD(-)
HEIGHT3
FRONT
CENTER
SURROUND
SURROUND BACK
HEIGHT1
HEIGHT2
HEIGHT3
HEIGHT4/FRONT WIDE
SUBWOOFER1
SUBWOOFER2
1 2
SUBWOOFER
AC IN
Router
To LAN port
Wireless LAN
When connecting to wireless LAN (Wi-Fi), follow the
instructions in “Connecting the external antennas for
Bluetooth/Wireless connectivity” and connect the antennas.
1 CBL/SAT
PHONO
2 DVD
1 CBL/SAT
2 CD
1 TV
AUDIO
5 MEDIA PLAYER
2 DVD
3 Blu-ray 6 CD
4 GAME
1 CBL/SAT
1 CBL/SAT
2 DVD
2 DVD
3 Blu-ray
4 GAME
RS-232C
7.1CH IN
REMOTE CONTROL
DC OUT
UNBALANCED PRE OUT
(ASSIGNABLE)
(ASSIGNABLE) (ASSIGNABLE)
VIDEO
IN
COMPONENT VIDEO
IN
VIDEO
OUT
COMPONENT
VIDEO OUT
MONITOR
MONITOR/ZONE3
ZONE2
3 Blu-ray
COAXIAL
OPTICAL
STRAIGHT CABLE
IN
IR
IN
OUT
DC12V 150mA MAX.
1 2
ZONE2
ZONE3
FRONTFRONT
SURROUND
SURROUND
CENTER
SUBWOOFER
SURROUND BACK
CENTER
SURROUND BACK
HEIGHT2
HEIGHT4/FRONT WIDE
HEIGHT1
AUDIO IN
(ASSIGNABLE)
(ASSIGNABLE)
(ASSIGNABLE)
ASSIGNABLE ASSIGNABLE ASSIGNABLE ASSIGNABLE ASSIGNABLE
AUDIO IN BALANCED XLR IN
BALANCED XLR PRE OUT
FLASHER DIGITAL AUDIO IN
Bluetooth
/
Wi-Fi
ANTENNA
Bluetooth
/
Wi-Fi
ANTENNA
NETWORK
Y
P
B
/
C
B
P
R
/
C
R
POWER SUPPLY
5V/1.5A
CONNECTION
GND
HOT(+)
COLD(-)
HEIGHT3
FRONT
CENTER
SURROUND
SURROUND BACK
HEIGHT1
HEIGHT2
HEIGHT3
HEIGHT4/FRONT WIDE
SUBWOOFER1
SUBWOOFER2
1 2
SUBWOOFER
AC IN
1. AV8805AN_QSG_ENG_00A_201029.indd 61. AV8805AN_QSG_ENG_00A_201029.indd 6 2020/10/29 16:06:112020/10/29 16:06:11
PrintingColor:Black
7

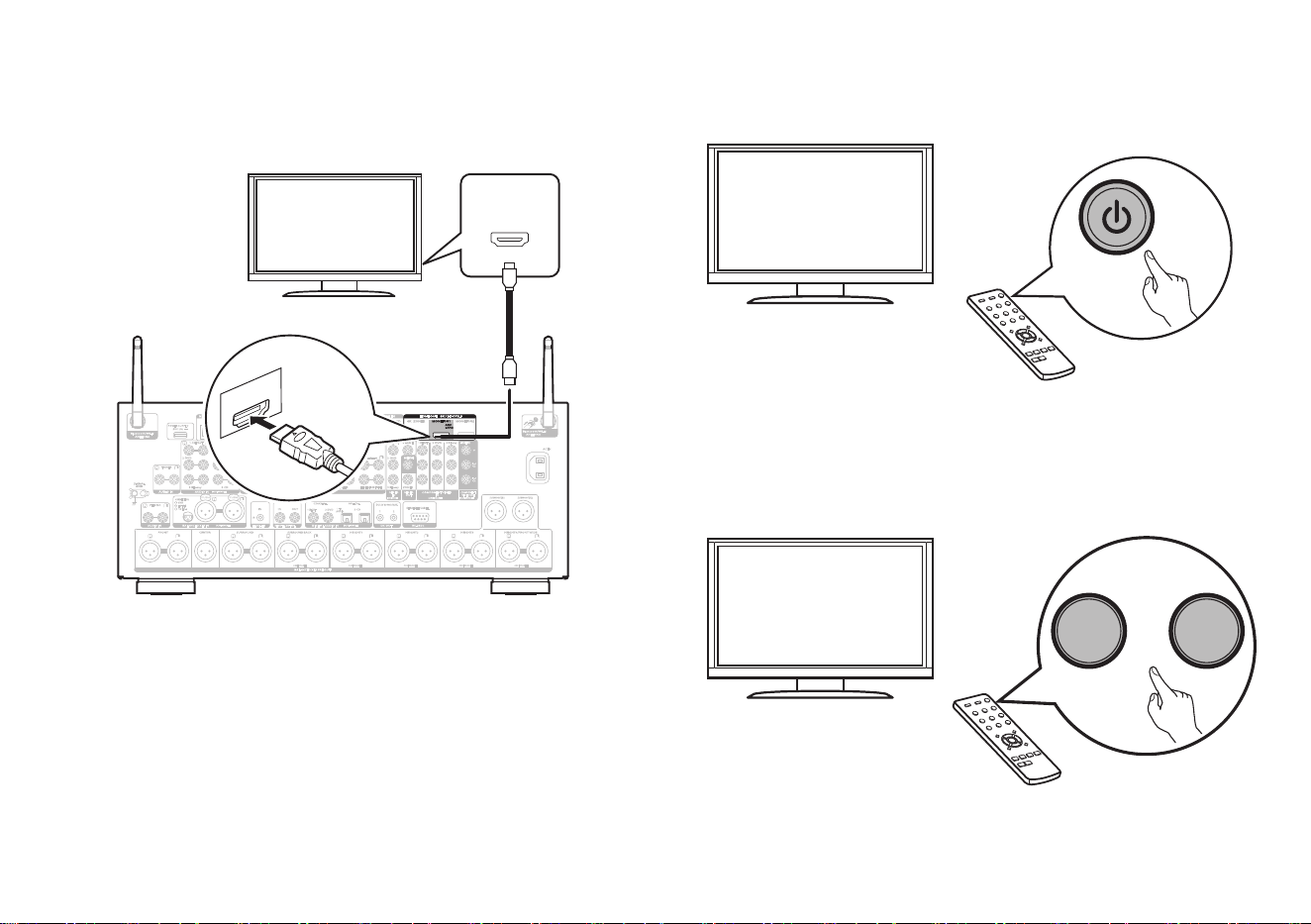

3) Connect the Pre Amplifier to your TV
with an HDMI cable
1 CBL/SAT
PHONO
2 DVD
1 CBL/SAT
2 CD
1 TV
AUDIO
5 MEDIA PLAYER
2 DVD
3 Blu-ray 6 CD
4 GAME
1 CBL/SAT
1 CBL/SAT
2 DVD
2 DVD
3 Blu-ray
4 GAME
RS-232C
7.1CH IN
REMOTE CONTROL
DC OUT
UNBALANCED PRE OUT
(ASSIGNABLE)
(ASSIGNABLE) (ASSIGNABLE)
VIDEO
IN
COMPONENT VIDEO
IN
VIDEO
OUT
COMPONENT
VIDEO OUT
MONITOR
MONITOR/ZONE3
ZONE2
3 Blu-ray
COAXIAL
OPTICAL
STRAIGHT CABLE
IN
IR
IN
OUT
DC12V 150mA MAX.
1 2
ZONE2
ZONE3
FRONTFRONT
SURROUND
SURROUND
CENTER
SUBWOOFER
SURROUND BACK
CENTER
SURROUND BACK
HEIGHT2
HEIGHT4/FRONT WIDE
HEIGHT1
AUDIO IN
(ASSIGNABLE)
(ASSIGNABLE)
(ASSIGNABLE)
ASSIGNABLE ASSIGNABLE ASSIGNABLE ASSIGNABLE ASSIGNABLE
AUDIO IN BALANCED XLR IN
BALANCED XLR PRE OUT
FLASHER DIGITAL AUDIO IN
Bluetooth
/
Wi-Fi
ANTENNA
Bluetooth
/
Wi-Fi
ANTENNA
NETWORK
Y
P
B
/
C
B
P
R
/
C
R
POWER SUPPLY
5V/1.5A
CONNECTION
GND
HOT(+)
COLD(-)
HEIGHT3
FRONT
CENTER
SURROUND
SURROUND BACK
HEIGHT1
HEIGHT2
HEIGHT3
HEIGHT4/FRONT WIDE
SUBWOOFER1
SUBWOOFER2
1 2
SUBWOOFER
AC IN
(ARC)
HDMI IN
HDMI OUT
MONITOR 1
(ARC/eARC)
ARC
MONITOR1
eARC
HDMI cable
Pre Amplifier (Rear panel)
ARC (Audio Return Channel) and eARC (Enhanced Audio
Return Channel) support:
If your TV supports ARC, your TV can send audio back to the Pre Amplifier
when you are using your TV’s built-in video sources (TV tuner, Smart TV
streaming services, etc.) ARC requires that you enable HDMI CEC on your
TV. Please refer to your TV’s Owner’s Manual for instructions on how to
setup HDMI CEC. In addition, if your TV supports eARC, it can also send
back high bitrate audio formats such as Dolby TrueHD, Dolby Atmos, DTS-
HD Master Audio and DTS:X. Please refer to your TV’s Owner’s Manual
for additional information about enabling the eARC function.
4) Turn on the TV
TV remote control unit
5) Select the appropriate HDMI input on
your TV
HDMI
or
TV/
VIDEO
INPUT
TV remote control unit
1. AV8805AN_QSG_ENG_00A_201029.indd 71. AV8805AN_QSG_ENG_00A_201029.indd 7 2020/10/29 16:06:112020/10/29 16:06:11
PrintingColor:Black
8

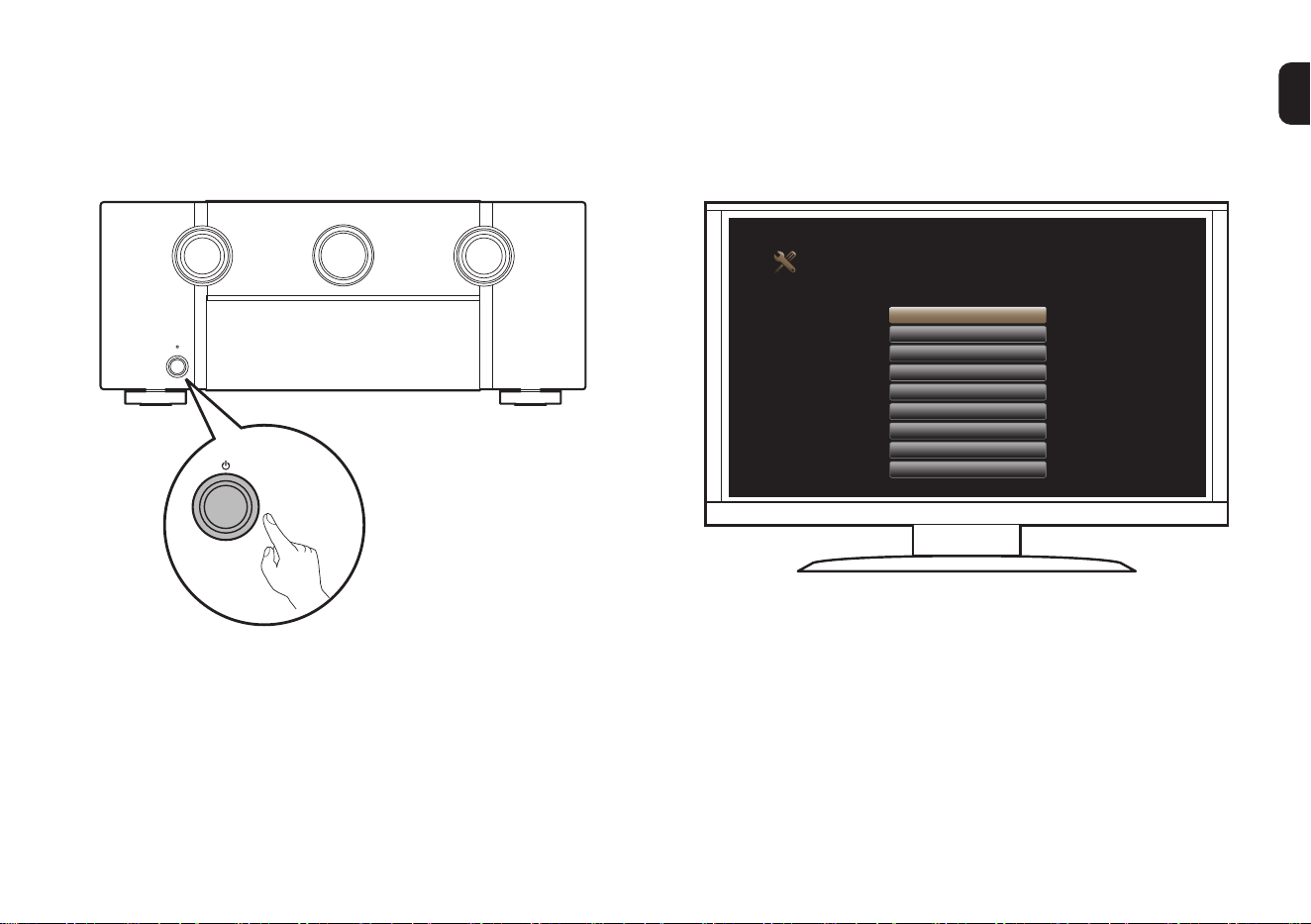

6) Turn on the Pre Amplifier
• Press X to turn on the Pre Amplifier.
7) Verify the connection
• Verify that you can see this screen on your TV.
AV Preamp Setup Assistant
Please select a language...
Deutsch
Français
English
Italiano
Español
Nederlands
Svenska
Pусский
Polski
If this screen is not displayed, please go back and retry
the steps again in the recommended sequence.
1. AV8805AN_QSG_ENG_00A_201029.indd 81. AV8805AN_QSG_ENG_00A_201029.indd 8 2020/10/29 16:06:112020/10/29 16:06:11
PrintingColor:Black
9
3

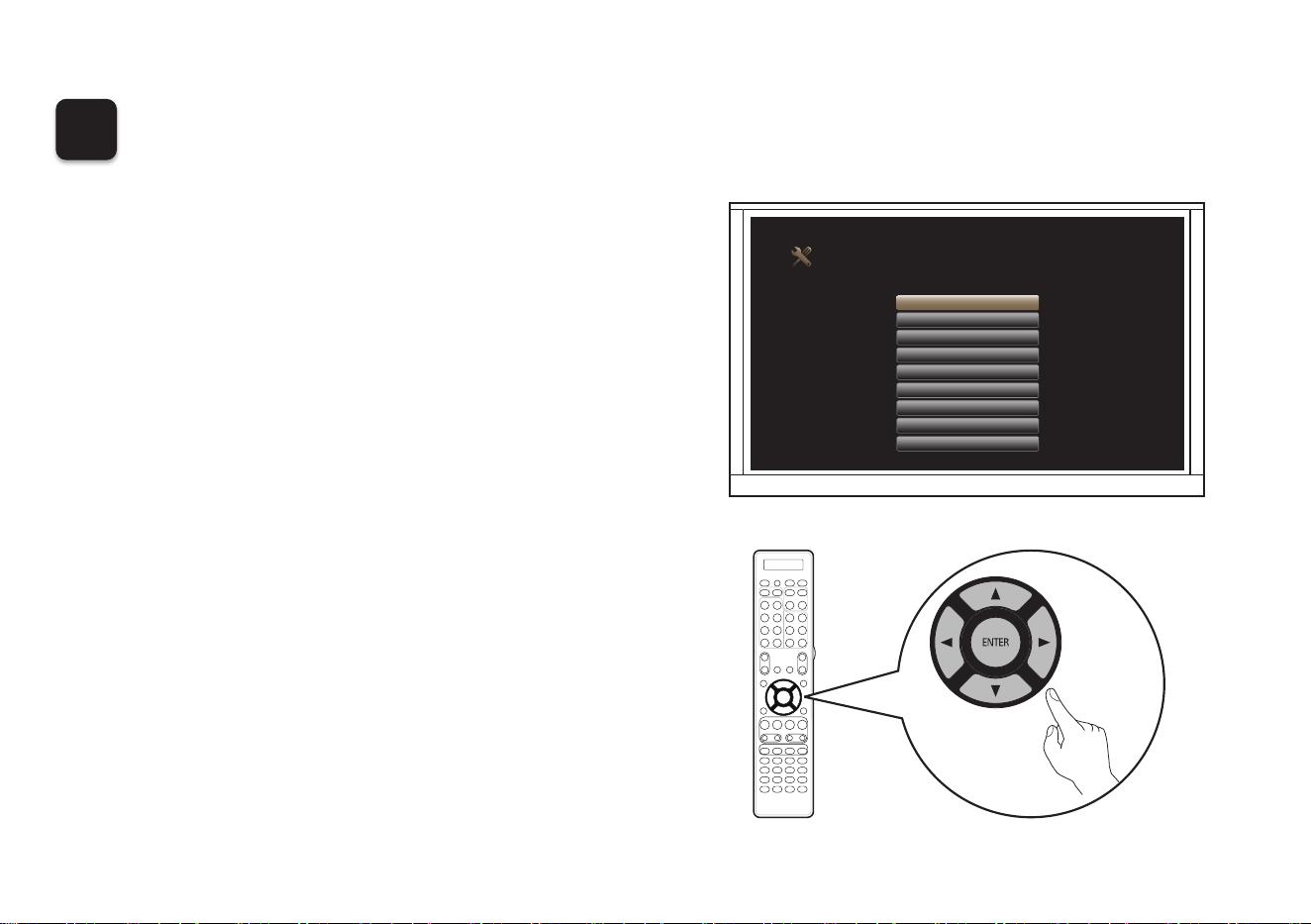

Following the On-Screen Setup Assistant
Now TV is connected to the Pre Amplifi er.
The Setup Assistant will walk you through connecting and
confi guring your Power Amplifi er and components to your
Marantz Pre Amplifi er. Please use the remote control and
follow the on-screen instructions.
AV Preamp Setup Assistant
Please select a language...
Deutsch
Français
English
Italiano
Español
Nederlands
Polski
Pусский
Svenska
1. AV8805AN_QSG_ENG_00A_201029.indd 91. AV8805AN_QSG_ENG_00A_201029.indd 9 2020/10/29 16:06:122020/10/29 16:06:12
PrintingColor:Black
10
4
Downloading the Mobile Apps
Download both the “HEOS” App and the “Marantz 2016 AVR Remote” App for the full home entertainment experience.
The HEOS App is required to access online music through your Pre Amplifi er.
HEOS
The HEOS App allows you to explore,
browse, and play music from many online
streaming services or from your own music
library.
Marantz 2016 AVR Remote
Control your new Pre Amplifi er with the
latest Marantz 2016 AVR Remote App.
Volume control, sound mode selection and
advanced settings are always only a tap
away.
1. AV8805AN_QSG_ENG_00A_201029.indd 101. AV8805AN_QSG_ENG_00A_201029.indd 10 2020/10/29 16:06:122020/10/29 16:06:12
PrintingColor:Black
11
Owner’s Manual
Online Manual
• For more information, visit www.marantz.com
• Refer to the Online Manual for other functions
information and operation procedure details.
manuals.marantz.com/AV8805A/EU/EN/
1. AV8805AN_QSG_ENG_00A_201029.indd 111. AV8805AN_QSG_ENG_00A_201029.indd 11 2020/10/29 16:06:122020/10/29 16:06:12
PrintingColor:Black
1. AV8805AN_QSG_ENG_00A_201029.indd 121. AV8805AN_QSG_ENG_00A_201029.indd 12 2020/10/29 16:06:122020/10/29 16:06:12
PrintingColor:Black
Printed in Japan 5411 11882 10AM
© 2021 Sound United. All Rights Reserved.
10.AV8805AN_QSG_BackPage_10A_210219.indd 110.AV8805AN_QSG_BackPage_10A_210219.indd 1 2021/02/19 15:16:422021/02/19 15:16:42
PrintingColor:Black
