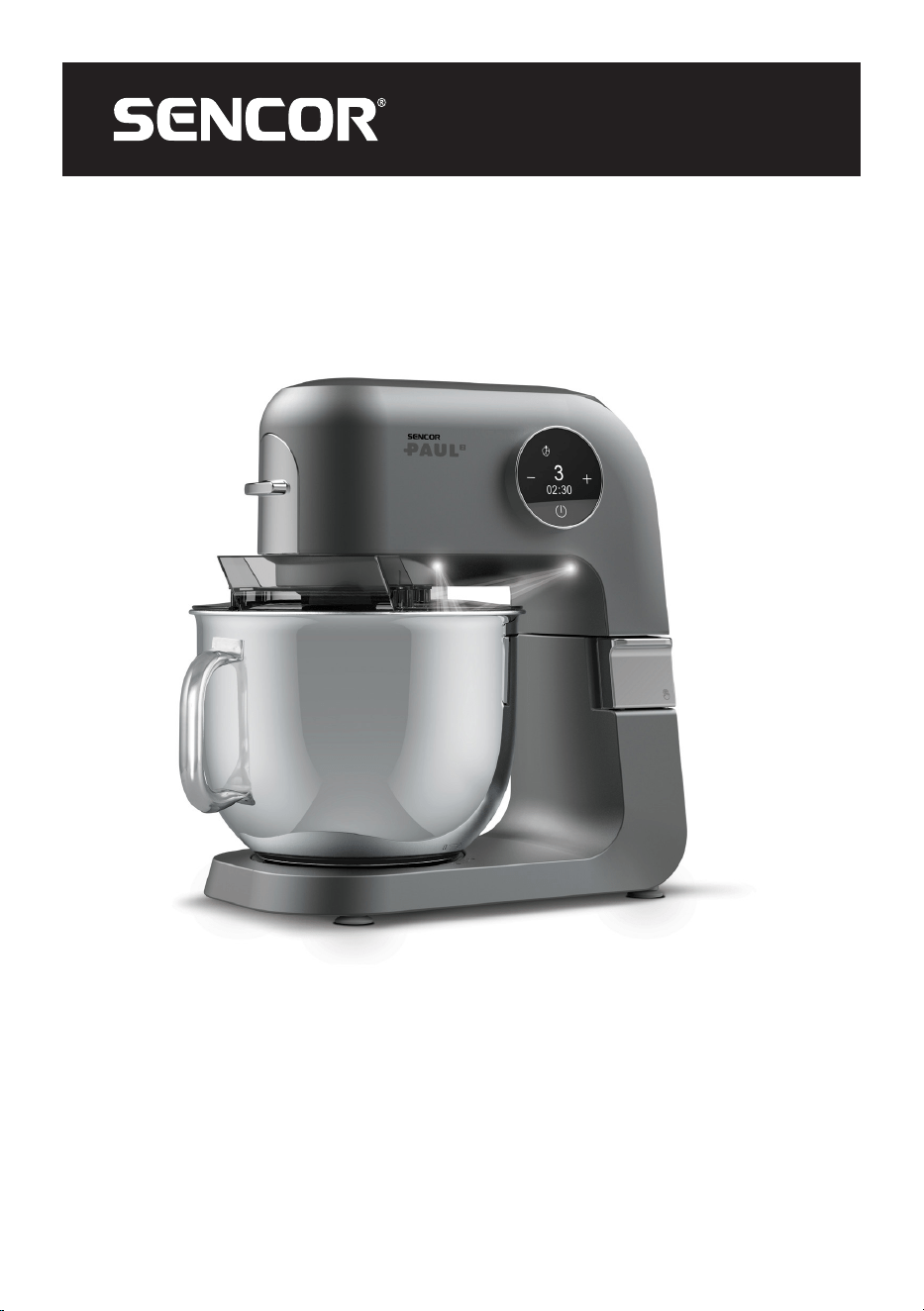

MULTIFUNCTIONAL STAND MIXER
Translation of the original manual
STM 7740
STM 7740
A
Z18817_4-118-0410 - VCES3B Essence_vyrobni_prikaz
Z18817_4-118-0410 - VCES3B Essence_vyrobni_prikaz
1
3
2
4
7
8
9
5
6
11
10
14
15
12
13
16
13
17
18
B
1
2
4
5
3
6
C
9
2
3
4
5
768
10
1
11
15
13
14
12
16
17
C
1
C
2
C
3
C
4
D
10
8
9
11
12
2
3
1
5
6
4
7
E
1
2
3
4
5
7
6
5
- 1 -
Revision 10/2023
Copyright © 2023, Fast ČR, a.s.
EN Multifunctional Stand Mixer
Important safety instructions
READ CAREFULLY AND STORE FOR FUTURE USE.
General warnings
• This appliance may be used by persons with physical,
sensory or mental impairments or by persons with
insufficient experience and knowledge, if they are properly
supervised or have been informed about how to use the
appliance in asafe manner and understand the potential
dangers.
• This appliance may not be used by children. Keep the
appliance and its power cord away from children.
• Children must not play with the appliance.
• Cleaning and maintenance performed by the user must
not be performed by unsupervised children.
• In the event that the power cord is damaged, have it
repaired at aprofessional service centre to prevent causing
adangerous situation. It is forbidden to use the appliance if
it has adamaged power cord.
Warning:
Incorrect use may lead to injuries.
• Pay increased attention not to injure yourself on the sharp
parts when handling the grinding blade of the grinder,
- 2 -
Revision 10/2023
Copyright © 2023, Fast ČR, a.s.
especially when assembling and disassembling the
grinder and when cleaning it.
• The surfaces of the appliance and its accessories that
come into contact with food must always be cleaned
according to the instructions in this user'smanual.
• This user'smanual includes processing times and speed
settings for the individual types of accessories.
• Always disconnect the appliance from the power socket
when not using it, when leaving it without supervision, and
before assembling, disassembling, cleaning or moving it.
• Before replacing the accessories or accessible parts that
move during use, turn the appliance off and disconnect it
from the power supply.
Electrical safety
• Before connecting this appliance to an electrical power socket, make sure that the voltage stated on its rating label corresponds to the voltage in
your power socket.
• Connect the appliance only to aproperly grounded socket. Do not use an extension cord.
• Fully unwind the power cord before use.
• Ensure that the power plug contacts do not come into contact with water or any other liquid.
• Do not disconnect the appliance from the power socket by pulling on the power cord. This could damage the power cord or the power socket.
Disconnect the cord from the power socket by gently pulling the plug of the power cord.
• Do not connect and disconnect the appliance'spower plug to and from the power socket with wet hands.
• Do not place any items on the power cord. Make sure the power cord does not hang over the edge of atable and that it is not touching ahot surface
or sharp objects.
• Keep the power cord dry.
• Do not wind the power cord around the appliance.
• To avoid the danger of injury by electrical shock, do not repair the appliance yourself or make any adjustments to it. Have all repairs or adjustments
of the appliance performed at an authorised service centre. Tampering with the appliance during the warranty period may void the warranty.
• To prevent the risk of injury by electrical shock, never submerge the appliance nor its power cord in water or any other liquid, or wash these under
running water.
• Always turn off the appliance and disconnect it from the power socket when you have finished using it.
• In the event that the appliance falls into water, under no condition continue using it. Hand it over to an authorised service centre for inspection.
• The appliance is not intended for operation by means of an external timer switch or any other component that switches the appliance on and off
automatically.
Safety during use
• The appliance is designed for household use and is constructed for processing the usual amount of food in ahousehold. Do not use it for commercial
purposes or for purposes other than those for which it is intended.
• This appliance is designed for use in indoor areas only. Never use it in industrial surroundings or outdoors.
• Only use the appliance with the original accessories from the manufacturer.
Warning:
Using non-original accessories may result in adangerous situation arising.
• It is forbidden to modify the surface of the appliance in any way, e.g. with self-adhesive wallpaper, foils, etc.
• Do not cover the appliance'svents.
- 3 -
Revision 10/2023
Copyright © 2023, Fast ČR, a.s.
• Do not place the appliance nor its accessories on an electric or gas stove or in its vicinity, on the edge of atable or on an unstable surface. Do not
place the appliance nor its accessories near heaters, open fires or other sources of heat. Only place the appliance on aclean, even, dry and stable
surface.
• Do not use the appliance when it is not functioning correctly or after it has fallen on the floor, been submerged in water or is damaged in any other
way. Hand it over to an authorised service centre for inspection or repair.
• Do not expose the appliance and its accessories to the outdoor environment, extreme temperatures, direct sunlight, excessive humidity or
excessively dusty environments.
• Only use the appliance and its accessories in accordance with the instructions contained in this user'smanual.
• Before first use, it is necessary to thoroughly wash the individual parts of the removable accessories using warm water and kitchen detergent, then
rinse them with clean water and wipe them thoroughly until dry using awiping cloth. Never rinse the multifunctional stand mixer or its power cord
under water or submerge it in water.
• Before starting to assemble the appliance, always make sure that it is disconnected from the power socket.
• Before attaching the removable accessories to the appliance, make sure that they are clean and dry, and that they are not damaged in any way.
Never use the appliance with adamaged accessory.
• When tilting down the multi-function head, pay increased attention not to crimp your fingers between the tilting and rigid part of the multifunctional
stand mixer.
• Before connecting the appliance to apower socket, check that it is properly assembled, that the multi-function head is secured in the horizontal
position. When using an accessory that is intended for beating, kneading or whipping, ensure that it is submerged in the stainless steel bowl with the
ingredients.
• Do not turn on the appliance when it is empty. Incorrect use of the appliance may negatively affect its lifetime.
• When handling the appliance, ensure that your hands are clean and dry.
• To prevent the risk of injury, avoid coming into contact with the rotating parts of the appliance.
• It takes ashort while for the rotating parts come to acomplete stop after the appliance is turned off. Always keep hands at asafe distance from the
rotating parts of the appliance.
• Whilst the multi-function head is secured in the horizontal position and the appliance is connected to apower socket, pay increased attention and
keep hands at asafe distance from parts that rotate during use.
• During operation, never place hands, forks or any other utensils into the bowl with the ingredients, and keep hair, clothing, etc. at asufficient distance
from the rotating parts of the appliance. If afork or another utensil falls into the container while the appliance is running, immediately turn it off and
disconnect it from the power socket.
• Ensure that hair, clothing or other items do not enter into the feed tube of the meat grinder while it is running. Do not put anything other than the
ingredients that are to be processed into the filling opening.
• Never use your fingers or other items to push ingredients through the meat grinder feed tube. For this purpose there is apusher that is included as an
accessory to this appliance.
• In order to prevent adangerous situation from arising, never use the appliance to process hard ingredients such as, for example bones, etc.
• Never tilt open the multi-function head during operation.
• Hot steam or splattering hot foods or liquids may cause scalding. Therefore, always pay increased attention when handling hot liquids and
foodstuffs.
• The surfaces of the accessories that are used may be hot after use. Do not touch the hot surface. For carrying the stainless steel bowl, use the
handle intended for this purpose. In the event that the stainless steel bowl does not have handles, use oven mitts.
• Always disconnect the appliance from the power socket when not using it, when leaving it without supervision, and before assembling,
disassembling, cleaning or moving it.
• Prior to replacing accessories or accessible parts that move during use, turn off the appliance and disconnect it from the el. power supply.
• Never assemble or disassemble accessories that consist of multiple parts while mounted on the appliance.
• No accessories of this appliance are intended for use in amicrowave or electric oven, etc.
• To prevent injury caused by sharp edges, be especially careful when handling the grinding blade of the meat grinder. Increased attention must also
be paid when assembling the meat grinder, when removing the grinding blade from the grinding chamber, and when cleaning the appliance.
• The maximum continuous operating time of the appliance is 10 minutes. Before using it again, allow the appliance to cool down for 30minutes. Do
not exceed the maximum continuous operating time and adhere to the time necessary for the cooling down of the appliance before further use.
Safety during cleaning and maintenance
• Before cleaning, always turn off the appliance, disconnect it from the power socket and allow it to cool down completely.
• Regularly clean the appliance after each use according to the instructions in chapter Cleaning and maintenance. Do not perform any maintenance
on the appliance except for cleaning as described in this user'smanual.
• Do not wash the multi-function head or the base unit under running water or submerge it in water or another liquid. Neither the appliance nor its
accessories are intended for washing in adishwasher.
• Store the appliance in adry, clean environment. Before storing the appliance, check that the multi-function head is secured in the horizontal position.
- 4 -
Revision 10/2023
Copyright © 2023, Fast ČR, a.s.
• Thank you for purchasing aSENCOR brand product and we hope that
you will be happy with it.
• Prior to using this appliance, please read the user'smanual
thoroughly, even in cases, when one has already familiarised
themselves with previous use of similar types of appliances. Only use
the appliance in the manner described in this user’smanual. Keep this
user'smanual in asafe place where it can be easily retrieved for future
use. In the event that you hand this appliance over to somebody else,
make sure to also include this user'smanual.
• Carefully unpack the appliance and take care not to throw away any
part of the packaging before you find all its parts. We recommend
saving the original cardboard box, packaging material, purchase
receipt and responsibility statement of the vendor or warranty card for
at least the duration of the legal liability for unsatisfactory performance
or quality. In the event of transportation, we recommend that you pack
the appliance in the original box from the manufacturer.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DESCRIPTION OF THE APPLIANCE AND ACCESSORIES
A1 Tilting multi-function head
with illumination of the
stainless steel bowl area
A2 Button for releasing the
meat grinder from the front
attachment hub
A3 Front meat grinder
attachment hub
A4 Removable cover of the front
meat grinder attachment hub
A5 Attachment shaft for the
whisk, beater or kneading
hook
A6 Base with space for mounting
the stainless steel bowl
A7 Control panel with display
A8 Multi-function head lock/
release lever
A9 Anti-slip feet
A10 Stainless steel bowl
forprocessing food with atotal
capacity of 6l.
The maximum filling capacity
of the stainless steel bowl
tank is 4.5l.
A11 2-piece transparent lid against
the splashing of ingredients
with ahole for the gradual
addition of ingredients into the
stainless steel bowl A10/A17
A12 Balloon whisk
A13 Beater
A14 Kneading hook
A15 Beater with spatula
A16 Lid of the stainless steel bowl
serves to cover the stainless
steel bowl A10 for when you
want to store processed
ingredients in it
A17 Stainless steel bowl
forprocessing food with atotal
capacity of 3.5l
The maximum filling capacity
of the stainless steel bowl is 3l.
A18 Stainless steel bowl lid
servesto cover the stainless
steel bowl A17 when you
wish to temporarily keep your
processed ingredients in it.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Control panel with display
B1 Accessory indicator
changes with the speed
setting anddisplays the
accessories suitable for the
given speed
B2 Speed indicator
shows the set speed
B3 Touch button −
for setting the speed and time
of operation
B4 Touch button +
for setting the speed and time
of operation
B5 Operating time indicator
shows the set, elapsed and
remaining operating time
B6 Touch button
serves to turn on the
illumination light for the
stainless steel bowl, to
confirm aperformed setting
and for starting, pausing or
ending the operation of the
appliance
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Meat grinder
C1 Grinding chamber C2 Feed tube
C3 Screw shaft insertion hole
C4 Hopper
C5 Pusher
C6 Screw shaft
C7 Grinding blade
C8 Fine grinding plate
C9 Medium fine grinding plate
C10 Coarse grinding plate
C11 Screw ring
C12 Separator
C13 Kibbeh attachment
C14 Conical attachment
C15 Sausage stuffer attachment
C16 Cookie maker holder
C17 Cookie maker
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
INTENDED USE OF THE APPLIANCE
• The multifunctional stand mixer is intended for processing astandard
amount of food in the household. It is suitable for beating, whipping
and kneading of ingredients, for meat grinding, for making kibbeh
meat balls or sausages and for making cookies.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
BEFORE FIRST USE
• Clean the external surface of the multifunctional stand mixer using
alightly dampened wiping cloth, whilst taking care to prevent any
moisture from entering the control panel A7.
• Only clean the front grinder attachment hub A3 using adry wiping
cloth.
Warning:
Never rinse the multifunctional stand mixer or its
power cord under water or submerge it in water.
• Prior to first use, clean all the removable parts of the accessories that
are intended for coming into contact with food in the following manner.
• Wash the stainless steel bowl A10 and A17, lid A16 and A18, cover
A11, attachments A12−A15 and parts of the grinder C1−C17 in warm
water using aneutral kitchen detergent. Then thoroughly rinse them
with clean water and allow them to dry naturally or dry them out using
awiping cloth.
Warning:
NEITHER the multifunctional stand mixer NOR any
parts of its accessories are designed to be washed in
adishwasher!
When cleaning the grinding plates C8−C10, grinding
blade C7 and the screw shaft C6, pay increased
attention not to injure yourself on the sharp cutting
edges.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
INSTALLATION LOCATION OF THE APPLIANCE
• Place the appliance on an even, dry, clean and especially stable
surface, for example on akitchen countertop.
• Always locate the appliance so that nobody can brush against it
and thereby pull or push it over. Never locate it on the edge of the
countertop or table, the vibrations during use could cause it to move
resulting in asubsequent fall.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
MOTOR PROTECTION
• The motor of the multifunctional stand mixer is equipped with asafety
mechanism that protects it against damage in the situation where it
is subjected to an excessively high load or if it remains in operation
for too long. In the event that such asituation occurs, the safety
mechanism will be triggered and the operation of the multifunctional
EN
Multifunctional Stand Mixer
User'smanual
- 5 -
Revision 10/2023
Copyright © 2023, Fast ČR, a.s.
stand mixer will be stopped. Error message E2 will appear on the
display A7. Disconnect the power cord from the power socket and
allow the multifunctional stand mixer to cool down for at least 30
minutes.
• Do not leave the multifunctional stand mixer in operation for too
long under ahigh load. Separate large batches into several smaller
batches.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
BEATING, WHIPPING AND KNEADING
Planetary mixing system
• the multifunctional stand mixer is equipped with aplanetary mixing
system, which works on the principle of adual rotation of the
attachment. The attachment rotates anticlockwise along the inner
perimeter of the bowl while rotating around its own axis in the opposite
direction. This ensures that ingredients inside the stainless steel bowl
are processed thoroughly and evenly.
Selecting an attachment type
Attachment type Operation
Balloon whisk
A12
It is used for whisking whole eggs or egg whites,
whipped cream, whipping creams, foamy creams,
etc. Do not use it for beating or kneading doughs.
Otherwise, this may damage it.
Beater A13
It is used for beating light and medium heavy
yeast-free doughs, for preparing icings, creams or
cake mixes, for creaming butter and sugar, etc. Do
not use it for kneading heavy doughs.
Kneading hook
A14
It is used for kneading various types heavy and
thick doughs such as for example bread dough,
pizza dough, fresh pasta doughs, etc.
Beater with
spatula A15
It is used similarly to the beater A13. It is fitted
with an additional spatula, which gradually wipes
the wall of the stainless steel bowl, whereby it
achieves better processing of all the ingredients.
Assembling the multifunctional stand mixer for operation with the
kneading hook, whisk or beater (fig. D)
Warning:
Before installing or removing accessories, the
multifunctional stand mixer must always be turned off
and disconnected from the power socket.
When installing or removing accessories to the multi-
function head A1, whilst the multifunctional stand mixer
is connected to the power grid, it could happen that it is
accidentally turned on and cause serious injury.
• Make sure that the multifunctional stand mixer is disconnected from
the power socket. Cover A4 must be mounted in place.
• Use one hand to slightly push down the multi-function head A1 and
press the release lock A8 with the other. This will release the multi-
function head A1. Slowly tilt the multi-function head A1 upwards all
the way until it is secured in the open position. This is indicated by an
audible click.
• Insert the stainless steel bowl A10 or A17 into the base unit A6 and
secure it in place by turning it clockwise The locking direction of
the stainless steel bowl is also marked on the base A6. When the
stainless steel bowl is properly mounted on the base unit A6, it cannot
be lifted up separately.
• Depending on the purpose of use, select asuitable type of accessory
and slide it onto the shaft A5 so that the shape of the end of the
attachment corresponds to the shape of the shaft A5. Push the
attachment onto the shaft A5 all the way and simultaneously turn
it anticlockwise all the way. Then gently pull on the end of the
attachment downwards in order to secure it properly in place.
• Fill the stainless steel bowl with the ingredients that you wish to
process. Proceed as described in chapter Adding ingredients into the
bowl.
• Use one hand to gently lift up the multi-function head A1 and press the
release lock A8 with the other. Push the multi-function head A1 down
slightly, release the lock A8 and slowly tilt down the multi-function
head A1 to the horizontal position. The locking of the multi-function
head A1 in the horizontal position is indicated by an audible click.
Attention:
When tilting down the multi-function head A1, pay
increased attention not to crimp your fingers between
the tilting and rigid part of the multifunctional stand
mixer.
• Put the transparent cover A11 onto the stainless steel bowl. The
transparent cover consists of an outer lid and ahopper for adding
ingredients. First place the outer lid onto the stainless steel bowl so that
it sits flush on the stainless steel bowl around its entire perimeter and
then turn it so that it is possible to put the hopper onto it. Now, attach the
hopper to the outer lid. Turn the assembled cover A11 so that it is easy to
add ingredients into the stainless steel bowl.
Adding ingredients into the bowl
• Put the ingredients that you wish to process into the stainless steel
bowl. Do not fill the stainless steel bowl above the maximum mark.
The maximum capacity of the stainless steel bowl A10 is 4.5litres.
The maximum capacity of the stainless steel bowl A17 is 3 litres.
• If an insufficient amount of ingredients are put in the bowl then they
may not be optimally processed.
• The minimum and maximum amounts of ingredients that can be
processed in asingle batch are specified in the following table. Various
recipes may include various ratios of dry and liquid ingredients, and
therefore it is also necessary to take the overall composition of the
given recipe into consideration.
Ingredients/Type of
dough
Minimum amount Maximum amount
Stainless
steel
bowl A10
Stainless
steel
bowl A17
Stainless
steel
bowl A10
Stainless
steel
bowl A17
Egg whites 4 pcs 12 pcs
8 pcs
Whipping cream 200 ml 800 ml
500 ml
Cake mix, etc. 200 g 2,700 g
1,800 g
Bread dough, pizza
dough, fresh pastry
dough, etc.
200 g 1,000 g
650 g
• When processing yeast or starter, it is necessary to take into
consideration that they will increase in volume during the leavening
process. Enough space should be left in the bowl for the leavening
process.
Operation of the multifunctional stand mixer with the kneading hook,
beater or whisk
• Before connecting the multifunctional stand mixer to apower
socket, always check that it is correctly assembled according to the
instructions in this user'smanual and that the multi-function head A1
is tilted down into the horizontal position.
Attention:
When the multi-function head A1 is not properly
secured in the horizontal position, the safety
mechanism will not enable the multifunctional stand
mixer to be started after it is connected to the power
socket.
• Connect the power cord to an el. power socket. When it is connected
to apower socket, it will beep and the display A7 will be lit. Indicator
B2 shows the speed 0 and indicator B5 shows the time 00:00. The
illumination of the stainless steel bowl is turned off. Turn the illumination
of the stainless steel bowl on and off using the touch button B6 in the
default setting mode, when the display A7 is showing the speed 0 and
- 6 -
Revision 10/2023
Copyright © 2023, Fast ČR, a.s.
time 00:00. To turn on the illumination, press the touch button B6 once.
If you leave out this step, automatic illumination will be activated when
the multifunctional stand mixer is put into operation
• To set the speed, use the touch buttons B4 and B3. The speed can
be set in the range from 1 to 7. In the speed setting mode, the indicator
B2 is flashing. When the set speed is 0, the indicator B2 is lit. The
accessory indicator B1, showing the suitable type of accessory for the
given speed, also changes simultaneously when the speed is set.
Note:
You can change the speed setting at any time while the
appliance is in operation. We recommend to always first start
with the lowest speed setting. As soon as the ingredients are
mixed together, you can increase the speed to the required
level. We recommend that runny doughs are processed at
alower speed; this will prevent ingredients from splashing
out. The processing time is only several minutes. The
recommended food processing times and speed settings are
provided in the table Quick guide to processing ingredients.
• Confirm the speed setting by pressing the touch button B6. The
operating time indicator B5 will start flashing.
• In the event that you do not want to set the operating time, press the
touch button B6 again to put the multifunctional stand mixer into
operation. The display A7 will start counting the elapsed time of operation.
• In the event that you wish to set the operating time, use the touch
buttons B4 and B3. The time shown on the display A7 changes in
one-minute intervals. The maximum operating time that can be set
is 10 minutes. To confirm the settings, press the touch button B6. The
multifunctional stand mixer will start and the time remaining until the
end will start counting down on the display A7.
Attention:
The maximum continuous operating time is
10minutes. Then allow the appliance to cool down for
approximately 30 minutes.
Do not process more than 1 kg of dense, heavy dough
in asingle batch.
When kneading larger batches of thick, heavy dough,
do not allow the appliance to run for longer than
5minutes.
• It is not possible to adjust the set time during operation. The speed
can be changed using touch buttons B4 and B3 in order to allow the
ingredients to first be incorporated at alower speed and thereafter
processed to the required consistency at acorresponding speed.
• The appliance can be paused at any time by pressing the button B6.
The display A7 will show the set speed and the elapsed or remaining
time of operation. Pressing the button B6 again, will put the appliance
back into operation.
Attention:
Never tilt open the multi-function head A1 during
operation. In the event that you release or tilt open the
multi-function head A1 during operation, the safety
mechanism will automatically stop the appliance. The
values shown on the display A7 will flash.
Never insert items such as spoons, kitchen knives,
forks, etc. into the stainless steel bowl during
operation as this could result in serious injury or
damage to the appliance.
• To end the operation of the appliance, hold down button B6 for
2seconds at any time. The appliance will stop running and the display
A7 will show the default settings, speed 0 and time 00:00.
• In the event that the operating time was not set, after the ingredients
are processed to the required consistency, stop the operation
of the appliance by holding down button B6 for 2 seconds. The
multifunctional stand mixer will automatically stop after 10 minutes
unless its operation is stopped sooner.
• If the operating time was set, after the set time has elapsed, the
multifunctional stand mixer will automatically stop, unless it is stopped
earlier using the button B6.
• When you have finished using the appliance, always disconnect the
power cord from the power socket. Remove the used accessories and
clean them according to the instructions provided below.
Quick guide to processing ingredients
Attachment Ingredients Minimum amount Maximum amount Recommended
speed
Recommended
processing time
Stainless
steel bowl
A10
Stainless
steel bowl
A17
Stainless
steel bowl
A10
Stainless
steel bowl
A17
Balloon whisk A12
Egg whites 4 pcs 12 pcs 8 pcs 5–7 2−4 minutes
Whipping cream 200 ml 800 ml 500 ml 5–7 2−8 minutes
Beater A13 or beater
with spatula A15
Cake mix, etc. 200 g 2.700 g 1.800 g 2–4 3−5 minutes
Kneading hook A14
Bread dough, pizza dough or
fresh pasta dough, etc.
200 g 1.000 g 650 g 1–3 3−6 minutes
Note:
The speeds and processing times provided above are only aguide. To prevent ingredients from splattering out of the stainless steel bowl,
select an initial speed level of 1 or 2. Later set ahigher speed based on requirements.
For the kneading hook A14 it is not recommended to set aspeed higher than specified in thetable.
For easier mixing of dough we recommended margarine or softened butter.
When whipping egg whites, the stainless steel bowl A10/A17 and the whisk A12 must be perfectly clean and dry. Even asmall amount of
fat may result in that the egg whites will not be whipped to the desired snowy consistency.
Whipping cream should be cooled to atemperature of 6°C prior to being whipped. Prior to processing them, allow the ingredients used for
making various doughs to rest at room temperature.
Removing or releasing stuck-on ingredients
• In the event that it is necessary to remove ingredients or if the
ingredients (e.g. dough) are stuck on the wall of the bowl and it is
necessary to remove them, then stop the multifunctional stand mixer
by pressing and holding down button B6 for 2 seconds. Attention:
Ending the operation of the appliance will cancel all previous settings.
• Disconnect the power cord from the power socket.
• In the event that you have used the cover A11, first remove the hopper
and then the outer lid. Tilt open the multi-function head A1. Check
that it is properly secured in the top open position and remove apart
of the ingredients or wipe the stuck on ingredients as necessary from
the wall of the bowl. It is possible to use astandard kitchen spatula for
this purpose.
• Ensure that only ingredients that can be processed are placed inside
the stainless steel bowl and tilt the multi-function head A1 back to the
- 7 -
Revision 10/2023
Copyright © 2023, Fast ČR, a.s.
horizontal position. Put the cover A11 back in its place. Connect the
multifunctional stand mixer to an el. power socket. Set the settings as
required and continue processing the ingredients.
Removing the accessories
• After you have finished using the appliance, always check that the
multifunctional stand mixer is turned off and disconnect the power
cord from the power socket.
• In the event that you have used the transparent cover A11, first remove
the hopper and then the outer lid.
• Use one hand to slightly push down the multi-function head A1 and
press the release lock A8 with the other. This will release the multi-
function head A1. Slowly tilt the multi-function head A1 upwards all
the way until it is secured in the open position. This is indicated by an
audible click.
• Push the attachment that you used upwards towards the multi-
function head A1 and simultaneously turn it clockwise. This will
release it and you can take it off the shaft A5.
• Turn the stainless steel bowl anticlockwise and carefully remove it
from the base unit A6.
• After removing the accessory and taking the stainless steel bowl off
the base unit A6, it is necessary to set the multi-function head A1 back
to the horizontal position. Use one hand to gently lift up the multi-
function head A1 and press the release lock A8 with the other. Push
the multi-function head A1 down slightly, release the lock A8 and
slowly tilt down the multi-function head A1 to the horizontal position.
The locking of the multi-function head A1 in the horizontal position is
indicated by an audible click.
• Clean the accessories after each use according to the instructions in
chapter CLEANING AND MAINTENANCE.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
GRINDING MEAT, STUFFING SAUSAGE CASINGS, MAKING KIBBEH
AND MAKING COOKIES
Assembling the multifunctional stand mixer for operation with the
grinder
Warning:
Before installing or removing accessories, the
multifunctional stand mixer must always be turned off
and disconnected from the power socket.
When installing or removing accessories to/from the
multi-function head A1, whilst the multifunctional
stand mixer is connected to the power grid, it could
happen that it is accidentally turned on and could
cause serious injury.
Assembling the grinder for grinding meat (fig. C and C
1
)
• Insert the screw shaft C6 into the grinding chamber C1. At the same
time, make sure that the screw shaft C6 is inserted in the grinding
chamber C1 in the correct direction and that it fits in properly.
• Place the grinding blade C7 onto the shaft C6 with the edge facing
outwards from the chamber C1 and onto it attach agrinding plate C8,
C9 or C10 depending on the preferred consistency the grind. Make
sure that the grinding plate properly slides along the perimeter into the
hole in the grinding chamber C1.
Attention:
When handling the grinding blade C7 and the
grinding plates C8, C9 or C10, pay increased attention
so as not to injure yourself on the sharp parts.
• Place the screw ring C11 onto the grinding chamber C1 and tighten it
securely by screwing it in.
Assembling the grinder for making kibbeh (fig. C and C
2
)
• Insert the screw shaft C6 into the grinding chamber C1. At the same
time, make sure that the screw shaft C6 is inserted in the grinding
chamber C1 in the correct direction and that it fits in properly.
• Place the kibbeh attachment C13 onto the shaft C6 and make
sure that along the perimeter it properly slides into the hole in the
grinding chamber C1. Put the conical attachment C14 onto the kibbeh
attachment C13.
• Install the complete the assembly by screwing the screw ring C11 onto
the grinding chamber C1. Pull the screw ring C11 tight with appropriate
force.
Assembling the grinder for stuffing casings (fig. C and C
3
)
• Insert the screw shaft C6 into the grinding chamber C1. At the same
time, make sure that the screw shaft C6 is inserted in the grinding
chamber C1 in the correct direction and that it fits in properly.
• Place the separator C12 onto the shaft C6 and make sure that along
the perimeter it properly slides into the hole in the grinding chamber
C1. Put the sausage stuffer attachment C15 onto the separator C12.
• Install the complete the assembly by screwing the screw ring C11 onto
the grinding chamber C1. Pull the screw ring C11 tight with appropriate
force.
Assembling the grinder for making cookies (fig. C and C
4
)
• Insert the screw shaft C6 into the grinding chamber C1. At the same
time, make sure that the screw shaft C6 is inserted in the grinding
chamber C1 in the correct direction and that it fits in properly.
• Place the separator C12 onto the shaft C6 and make sure that along
the perimeter it properly slides into the hole in the grinding chamber
C1. Insert the cookie maker holder C16 into the screw ring C11.
• Screw the screw ring C11 together with the cookie maker holder
C16 onto the grinding chamber C1. Pull the screw ring C11 tight with
appropriate force.
• Complete the assembly by inserting the cookie maker C17 into the
holder C16.
Mounting the assembled grinder onto the multifunctional stand mixer
(fig. E)
Note:
The procedure described below applies for the grinder
assembled for the purpose of grinding meat as well as making
kibbeh, filling casings and making cookies.
• Make sure that the multifunctional stand mixer is disconnected from
the power socket. The multi-function head A1 must be tilted down to
the horizontal position and none of the attachments A12, A13 or A14 or
A15 may be mounted on it.
• Remove the front cover A4 from the multi-function head A1. First,
gently pull the cover A4 away from the multi-function head A1 and
then remove it by pulling it downwards and simultaneously away
from the multi-function head A1.
• Place the assembled grinder onto the front attachment hub A3 at an
angle of 45° and secure it in the operating position by turning it all the
way in the anticlockwise direction.
• Put the stainless steel hopper C4 onto the feed tube of the grinder C2,
and place asuitable container for collecting the food underneath the
grinder. You can use the stainless steel bowl A10 or A17. When using
the grinder for making kibbeh or for making cookies, we recommend
using atray.
Preparing the multifunctional stand mixer for use with the grinder
Preparation for grinding meat
• Prior to grinding, it is necessary to remove all bones, tendons, cartilage
and cut the meat into 2×2×6cm size pieces that will freely pass
through the feed tube C2.
Attention:
Never attempt to grind meat together with bones.
It is necessary to allow frozen meat to defrost before
grinding it.
Preparation for making kibbeh
• Prepare apre-ground kibbeh meat mixture and place it onto the
hopper C4.
- 8 -
Revision 10/2023
Copyright © 2023, Fast ČR, a.s.
Preparation for stuffing sausage casings
• Prepare asausage casing that you will stuff with pre-ground meat and
allow it to soak in lukewarm water for approx. 10 minutes. Place the
ground meat mixture onto the hopper C4. Take the sausage casing out
of the water and skewer or tie up one end and slide the other end like
asock onto the sausage stuffer attachment C15.
Preparation for making cookies
• Prepare the dough and place it onto the hopper C4.
• Slide the cookie maker C17 to the left or right to set the desired cookie
shape.
Operating the multifunctional stand mixer with the grinder
• Before connecting the multifunctional stand mixer to apower
socket, always check that it is correctly assembled according to the
instructions in this user'smanual, that the multi-function head A1 is
properly secured in the horizontal position.
• Connect the power cord to an el. power socket. When it is connected
to apower socket, it will beep and the display A7 will be lit. Indicator
B2 shows the speed 0 and indicator B5 shows the time 00:00.
• To set the speed, use the touch buttons B4 and B3. The accessory
indicator B1, showing the suitable type of accessory for the given
speed, also changes when the speed is set. The recommended speed
setting for the grinder is 4−5, which is shown by the indicator B1 on
the display A7.
• Confirm the speed setting by pressing the touch button B6. Pressing
the button B6 again, will put the multifunctional stand mixer into
operation. The display A7 will count the elapsed time of operation. The
touch buttons B4 andB3 can be used to change the speed during
operation.
• The appliance can be paused at any time by pressing the button
B6. Pressing the button B6 again, will put the appliance back into
operation.
Attention:
The maximum continuous operating time is 10
minutes. Then allow the appliance to cool down for
approximately 30 minutes.
Instructions for grinding meat
• Gradually place the meat pieces into the feed tube C2 and push them
in using the pusher C5. Take care not to clog up the feed tube C2 by
an excessive amount of meat. Do not process more than 5kg of meat
per batch. The processing time is only several minutes.
Warning:
Never use fingers or other items to push the meat in.
For this, always use the provided pusher C5.
• Ground meat will fall into the container located underneath the grinder.
The meat that remains in the grinding chamber C1 can be removed by
grinding aslice of bread or abread roll.
Instructions for making kibbeh
• Gradually place the pre-ground meat mixture into the feed tube C2
and push it in using the pusher C5.
• The result will be ahollow meat tube that is then cut into smaller
pieces. The kibbeh is atraditional meal from the Middle East made
predominantly from ground meat and bulgur.
Instructions for stuffing sausage casings
• With one hand hold the sausage casing on the attachment C15 and
use the other hand to push the ground meat mixture with the pusher
C5 through the feed tube of the grinder C2. If the sausage casing sticks
to the attachment C15, it is necessary to moisten it with water again.
Warning:
Never use fingers or other items to push the meat
mixture in. For this, always use the provided pusher
C5.
Instructions for making cookies
• Use the pusher C5 to push the dough through the feed tube C2.
The result will be adough having the shape that you set using the
cookie maker C17. We recommend that you place atray or your palm
underneath the pushed out dough. Then cut the formed dough into
smaller pieces.
Warning:
Never use fingers or other items to push the dough in.
For this, always use the provided pusher C5.
Ending operation of the multifunctional stand mixer with the grinder
• To end operation, press and hold down button B7 for 2 seconds. The
appliance will stop running and the display A7 will show the default
settings, speed 0 and time 00:00. The multifunctional stand mixer will
automatically stop after 10 minutes of operation, unless it is stopped
sooner.
• When you have finished using the appliance, always disconnect the
power cord from the power socket. Remove the used accessories and
clean them according to the instructions provided below.
Removing the grinder
• After you have finished using the appliance, always check that the
multifunctional stand mixer is turned off and disconnect the power
cord from the power socket.
• To remove the meat grinder from the multifunctional stand mixer, first
remove the hopper C4. Then press the button A2, turn the grinder
clockwise and pull it away from the multi-function head A1 to remove
it. After removing the grinder, put the front attachment hub cover A4
back in its place.
• When disassembling the meat grinder into its individual parts, proceed
in the reverse sequence.
• Clean the accessories after each use according to the instructions in
chapter CLEANING AND MAINTENANCE.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CLEANING AND MAINTENANCE
Warning:
Prior to any cleaning or maintenance of the
multifunctional stand mixer, always disconnect it
from the power socket and allow it to cool down
completely. Check that the multifunctional stand
mixer is turned off before disconnecting it from the
power socket.
Never use chemicals, metal or silicone dishwashing
steel wool or cleaning products containing abrasive
materials. Otherwise the surface of the appliance or
its accessories may be damaged.
Never rinse the multifunctional stand mixer nor its
power cord under water or submerge it in water.
NEITHER the multifunctional stand mixer NOR any
parts of its accessories are designed to be washed in
adishwasher!
• Prior to cleaning, it is always necessary to remove the removable
accessories from the multi-function head A1 and then to disassemble
them if they comprise of multiple parts. Never disassemble an
accessory while it is mounted on the multi-function head A1. In the
event that the stainless steel bowl A10 or A17 was used, remove it from
the base unit A6.
• Wash the stainless steel bowl A10/A17, lid A16/A18, cover A11,
attachments A12−A15 and parts of the grinder C1−C17 in warm water
with the addition of aneutral kitchen detergent. If you whisked egg
whites, first rinse the stainless steel bowl A10/A17 and the whisk
- 9 -
Revision 10/2023
Copyright © 2023, Fast ČR, a.s.
A12 under cold water. If you were to use warm water, the egg white
remains would harden and their removal would be more difficult.
• Thoroughly rinse the removable parts that you washed with the
kitchen detergent using clean water and allow them to dry naturally or
carefully wipe them dry using afine wiping cloth.
• It is appropriate to treat the grinding plates C8−C10 and the grinding
blade C7 using standard cooking oil after cleaning.. Put adrop of oil
onto aclean rag and gently wipe the surface of the grinding plate or
blade.
Attention:
When handling the grinding plates C8−C10, grinding
blade C7 and the screw shaft C6, pay increased
attention not to injure yourself on the sharp cutting
edges.
• Clean the outer surface of the multifunctional stand mixer using only
alightly dampened cloth. While doing this, take care that no water
enters into the control panel with display A7.
• Only clean the front grinder attachment hub A3 using adry wiping
cloth.
• Only clean the power cord of the multifunctional stand mixer using
adry wiping cloth.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
STORING THE APPLIANCE
• Make sure that the multifunctional stand mixer is disconnected from
the power socket and that the accessories are properly cleaned and
completely dry.
• Store the multifunctional stand mixer and its accessories in aclean,
dry place out of the reach of children and animals. Prior to storage,
secure the stainless steel bowl A10 or A17 into the base unit A6 and tilt
the multi-function head A1 to the horizontal position.
Attention:
Do not expose the multifunctional stand mixer to
extreme temperatures, direct sunlight, excessive
humidity, do not put in in an excessively dusty
environment or put it down on its side, etc. Do not
leave the meat grinder connected to the multi-
function head A1. Do not place anything on the stored
appliance.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
TECHNICAL SPECIFICATIONS
Rated voltage range ................................................................................ 220−240 V
Rated frequency ......................................................................................... 50−60 Hz
Rated power input ...........................................................................................1,500 W
Weight (without accessories) ...........................................................................6.8 kg
Total volume of stainless steel bowl A10 ............................................................. 6 l
Maximum filling capacity of stainless steel bowl A10 ..................................4.5l
Total volume of stainless steel bowl A17 ..........................................................3.5 l
Maximum filling capacity of stainless steel bowl A17 ..................................... 3l
Maximum time of continuous operation ..............................................10 minutes
Cooling time between two operation cycles .................................... 30 minutes
Noise level ........................................................................................................ 85 dB(A)
The declared noise emission level of the appliance is 85dB(A), which
represents alevel Aof acoustic power with respect to areference acoustic
power of 1pW.
Changes to text and technical parameters are reserved.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
INSTRUCTIONS AND INFORMATION REGARDING THE DISPOSAL OF
USED PACKAGING MATERIALS
Dispose of used packaging material at asite designated for waste in your
municipality.
DISPOSAL OF USED ELECTRICAL AND ELECTRONIC EQUIPMENT
This symbol on products or original documents means that
used electric or electronic products must not be added to
ordinary municipal waste. For proper disposal, renewal and
recycling, hand over these products at determined
collection points. Alternatively, in some European Union
states or other European countries you may return your
products to the local retailer when buying an equivalent
new product.
Correct disposal of this product helps save valuable natural resources
and prevents potential negative effects on the environment and human
health, which could result from improper waste disposal. Ask your local
authorities or collection facility for more details.
In accordance with national regulations penalties may be imposed for the
incorrect disposal of this type of waste.
For business entities in European Union states
If you want to dispose of electrical or electronic equipment, ask your
retailer or supplier for the necessary information.
Disposal in other countries outside the European Union.
This symbol is valid in the European Union. If you wish to dispose of this
product, request the necessary information about the correct disposal
method from the local council or from your retailer.
This product meets all the basic requirements of EU
directives related to it.
FAST ČR, a.s.
U Sanitasu 1621
CZ-251 01 Říčany
www.sencor.eu
