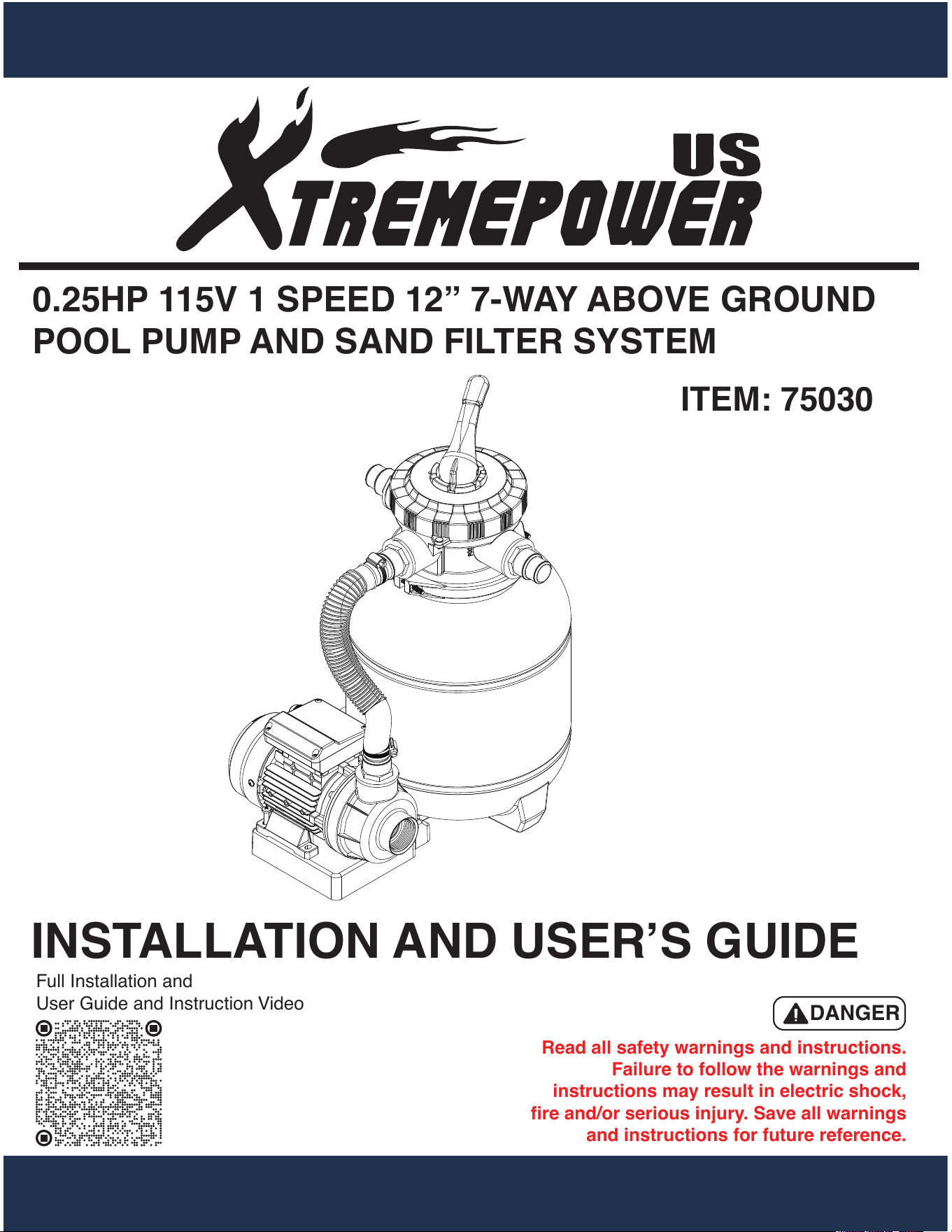

0.25HP 115V 1 SPEED 12” 7-WAY ABOVE GROUND
POOL PUMP AND SAND FILTER SYSTEM
ITEM: 75030
INSTALLATION AND USER’S GUIDE
Read all safety warnings and instructions.
Failure to follow the warnings and
instructions may result in electric shock,
fire and/or serious injury. Save all warnings
and instructions for future reference.
Full Installation and
User Guide and Instruction Video
DANGER

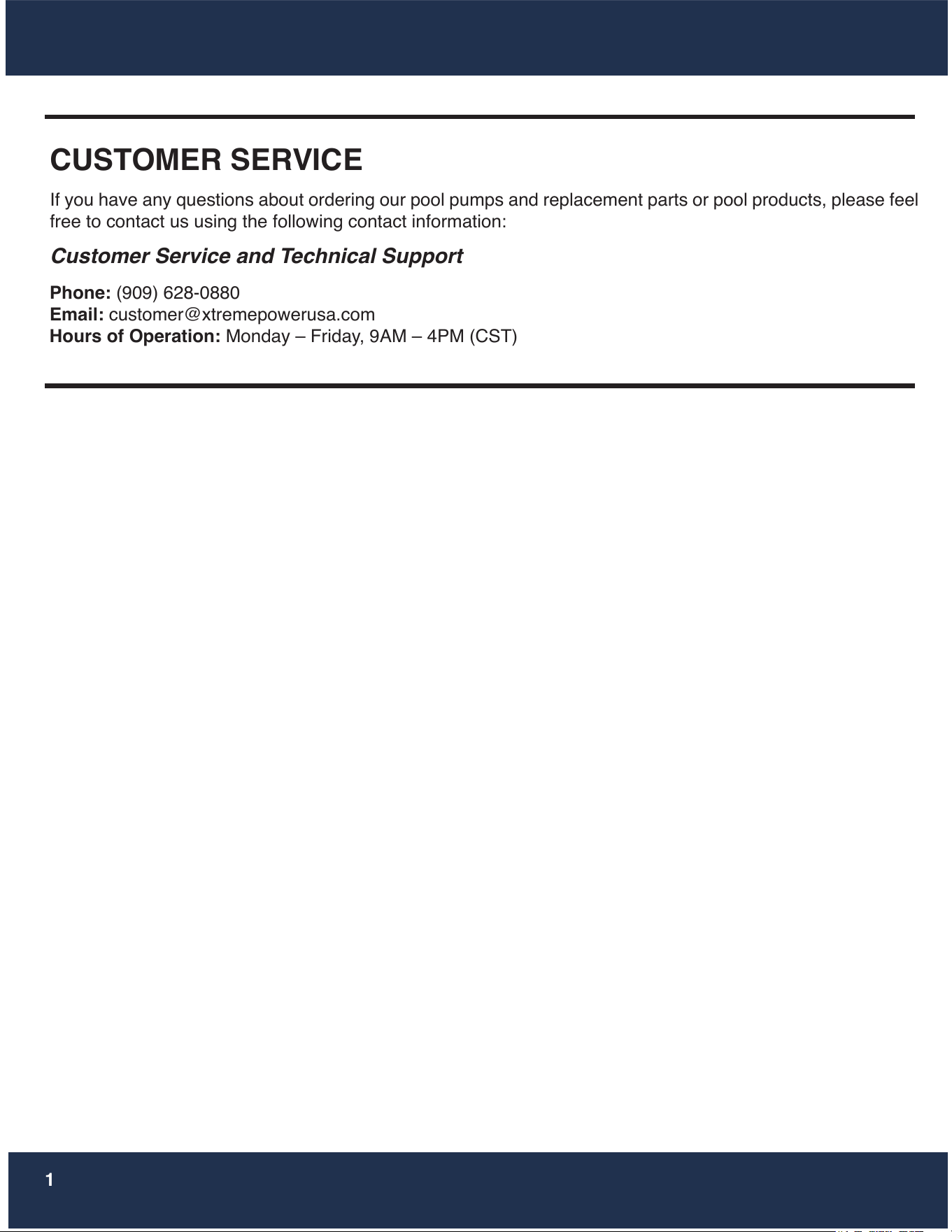

CUSTOMER SERVICE
If you have any questions about ordering our pool pumps and replacement parts or pool products, please feel
free to contact us using the following contact information:
Customer Service and Technical Support
Phone: (909) 628-0880
Email: [email protected]
Hours of Operation: Monday – Friday, 9AM – 4PM (CST)

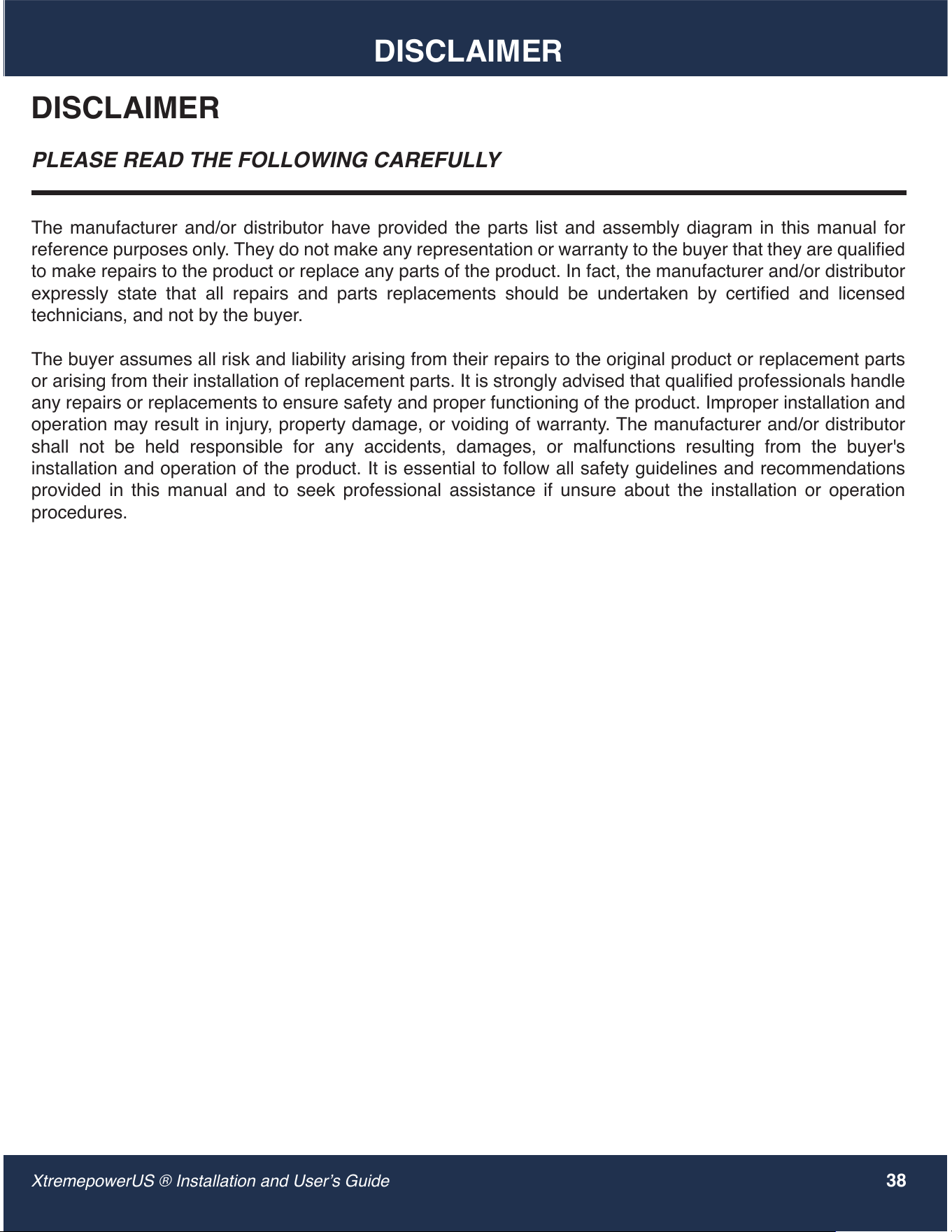

38DISCLAIMER

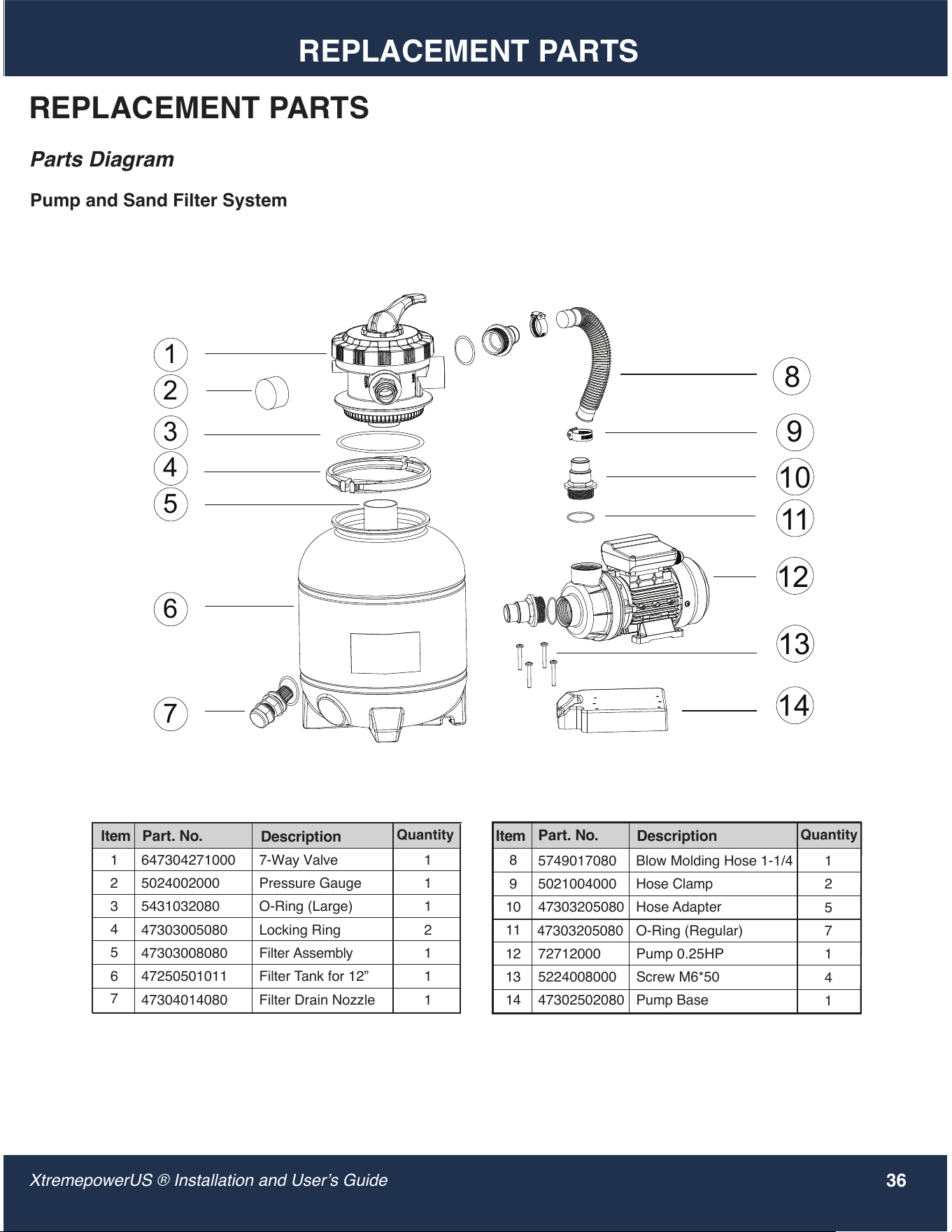

36Parts Diagram

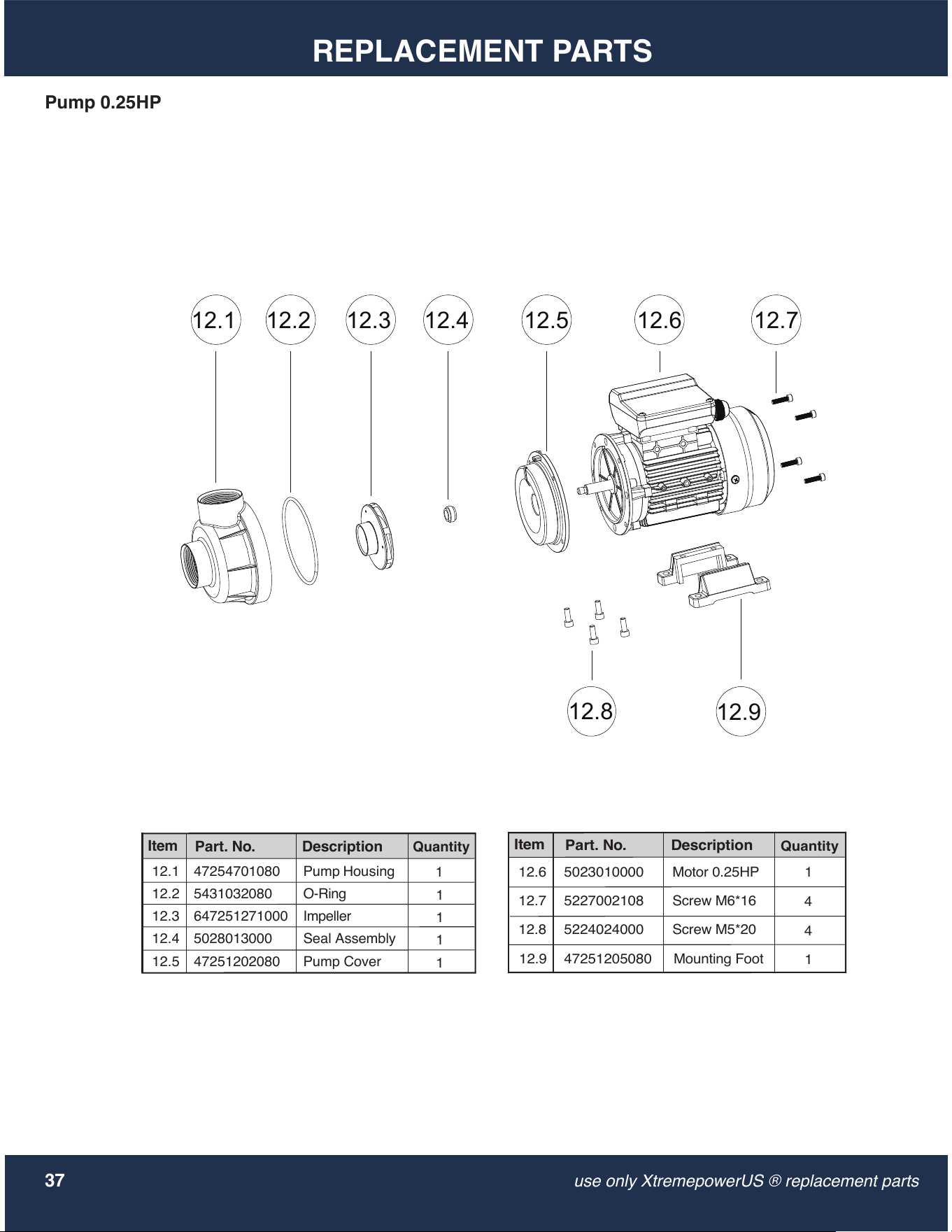

36REPLACEMENT PARTS

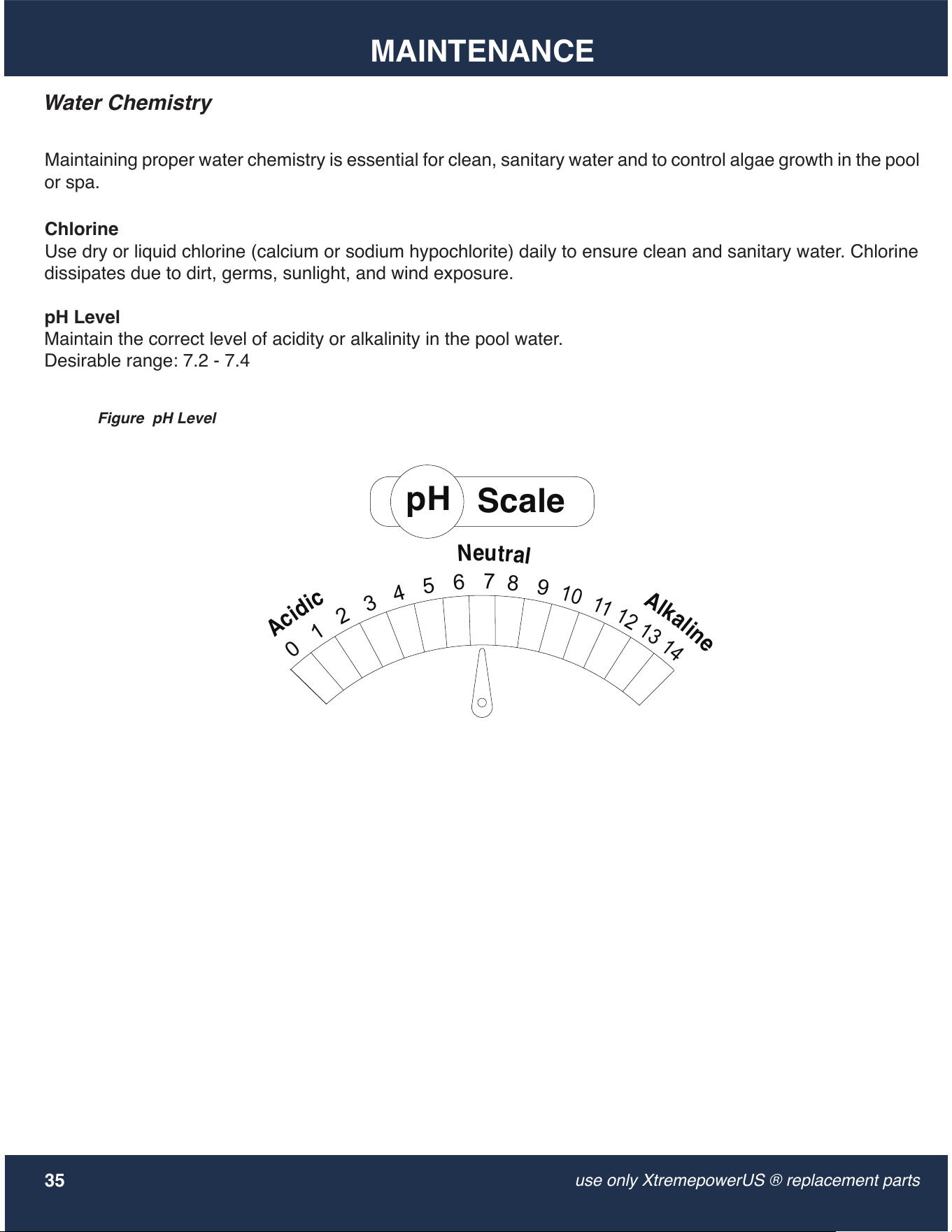

35Water Chemistry
34Pump Protection
34Pump Maintenance

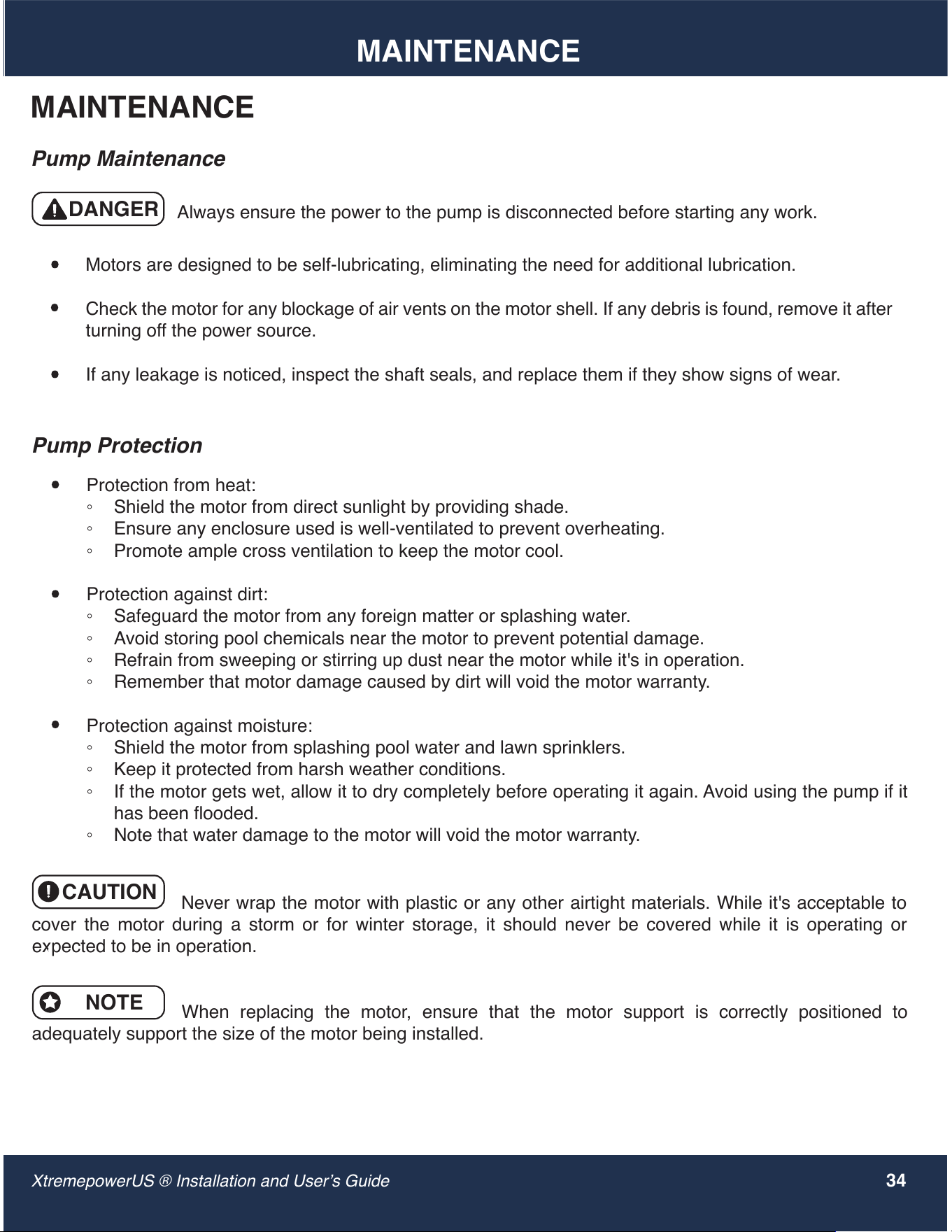

34MAINTENANCE

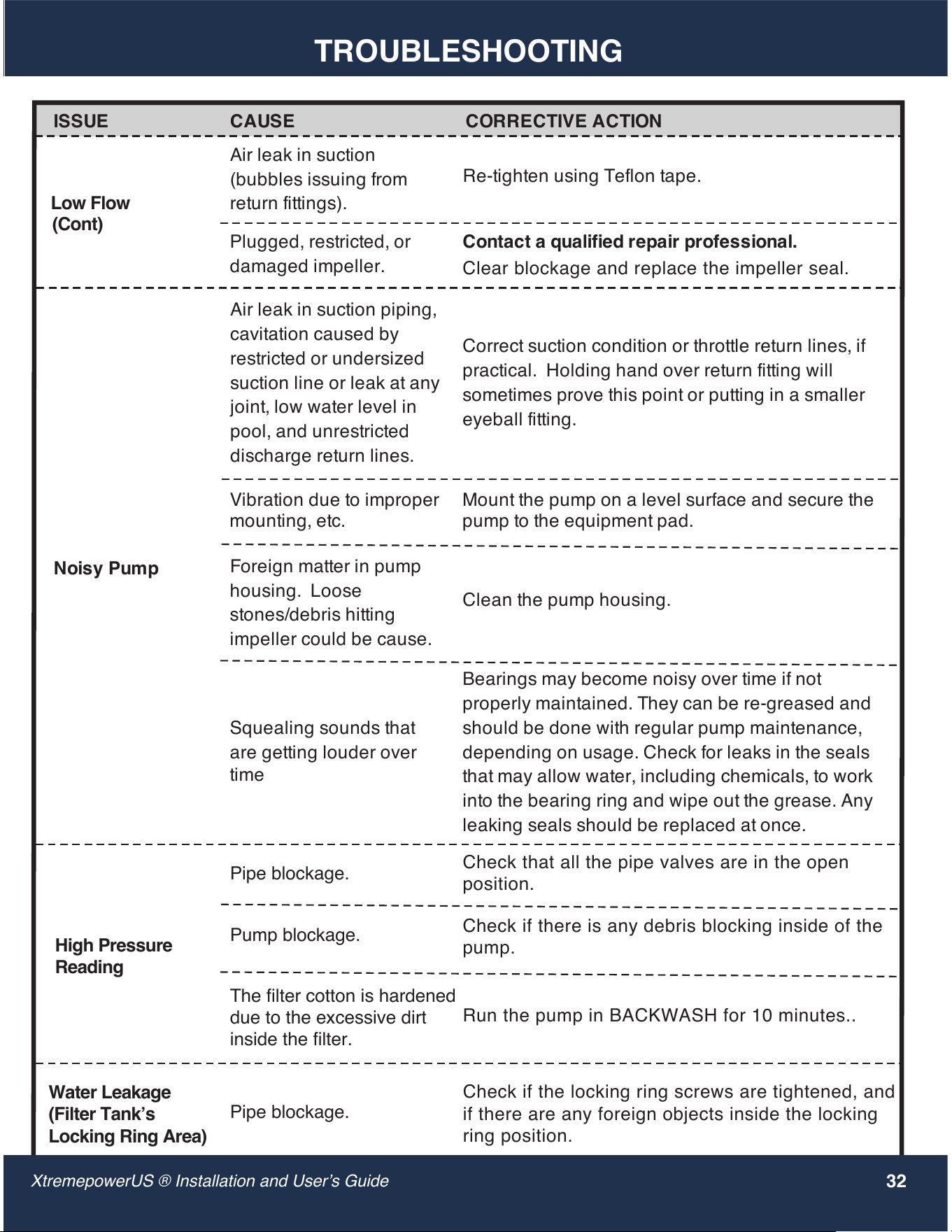

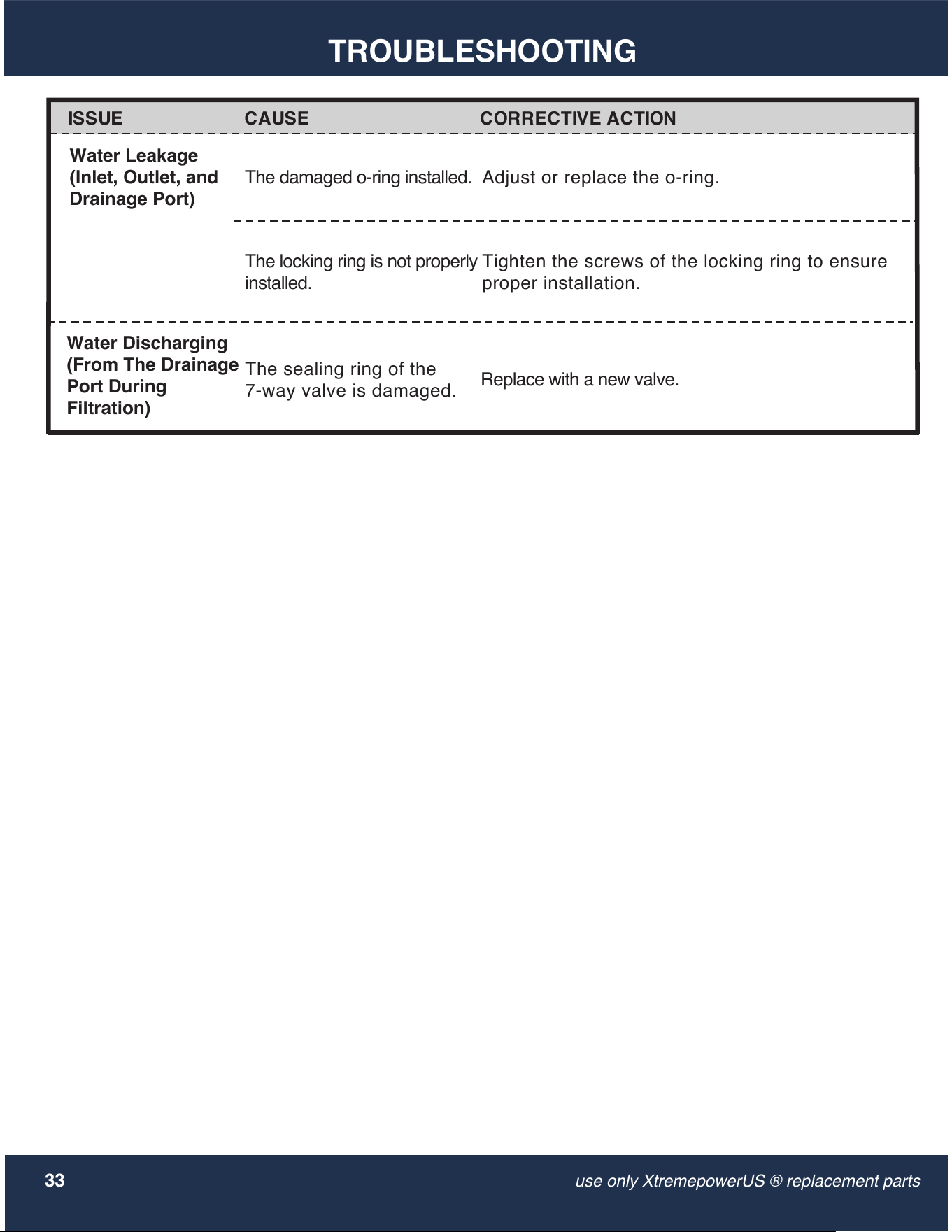

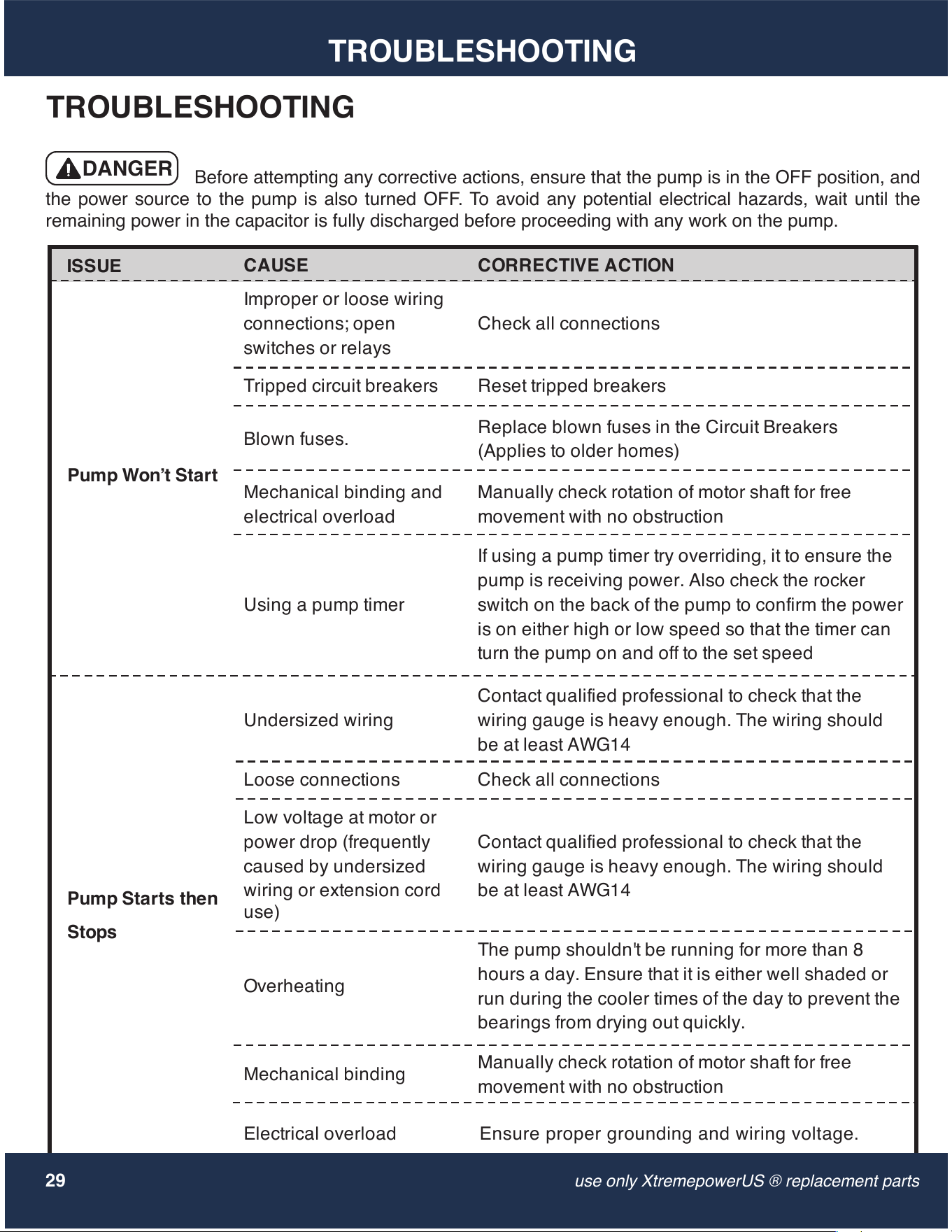

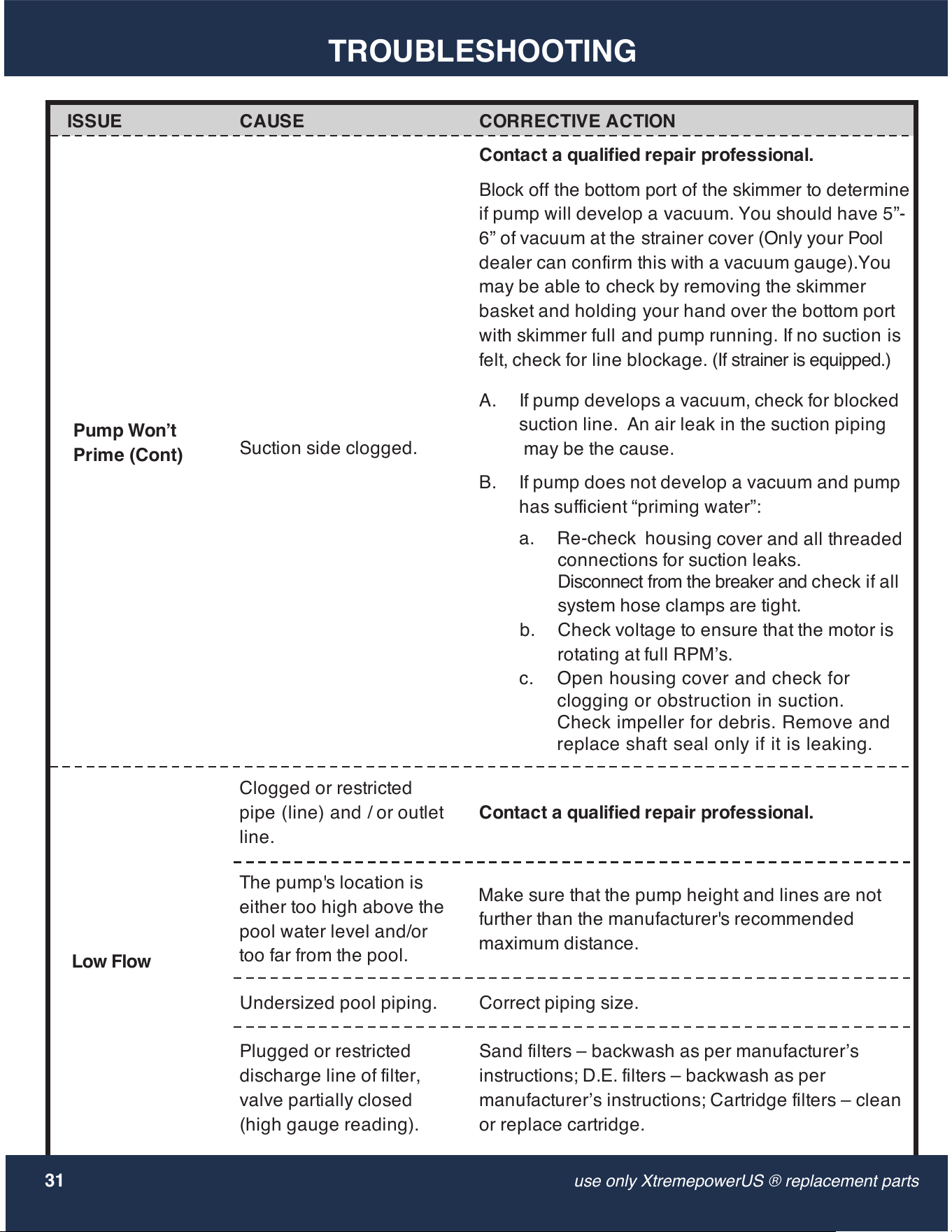

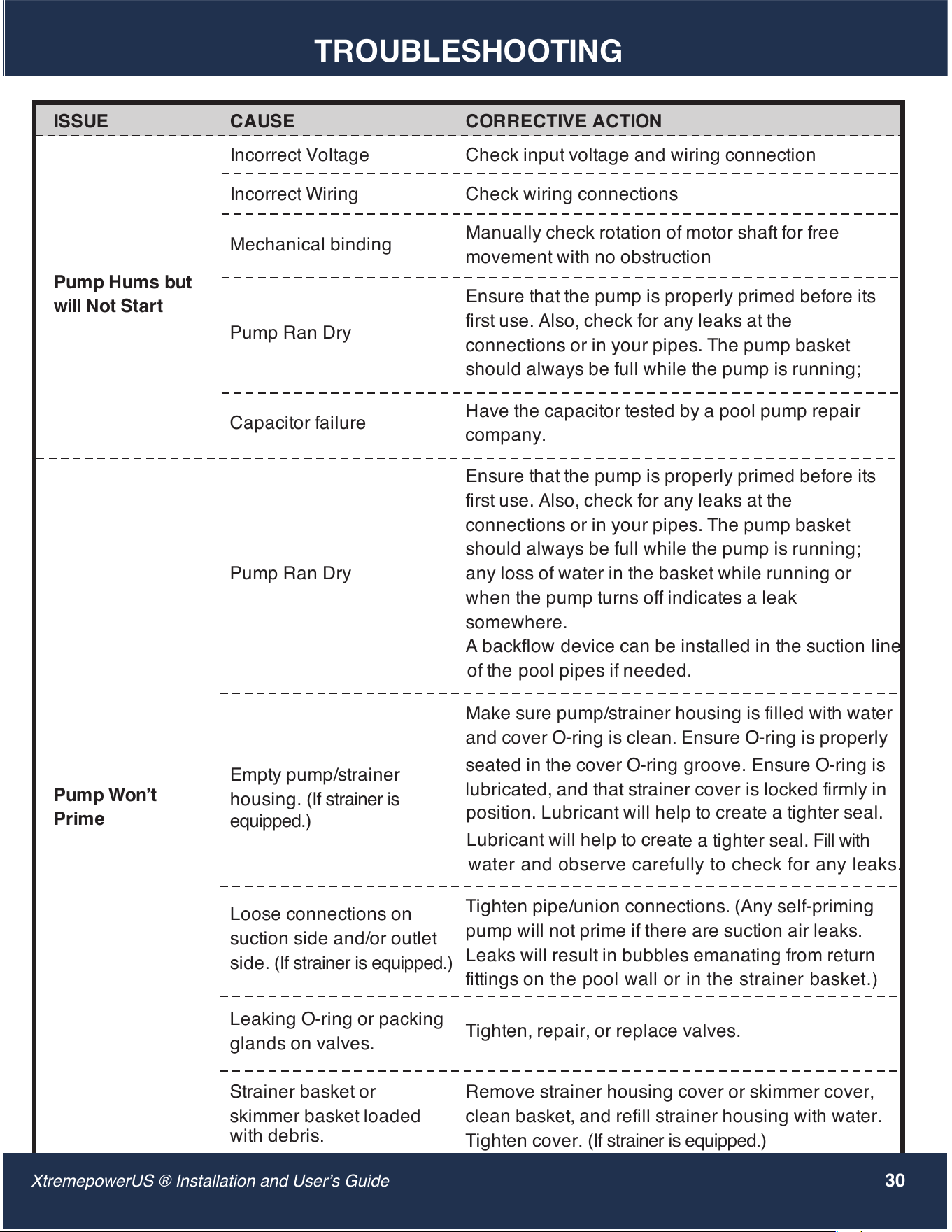

29TROUBLESHOOTING
28

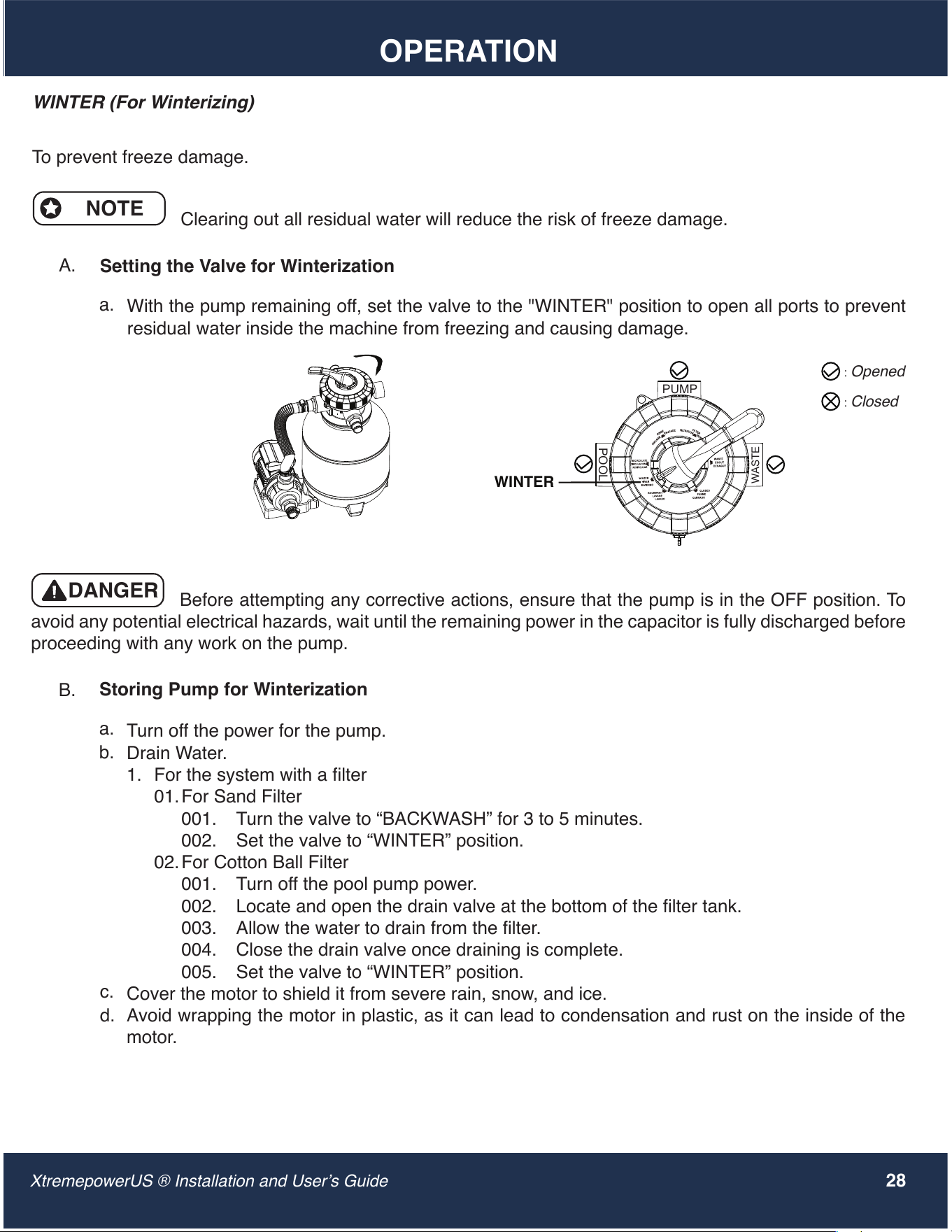

WINTER (For Winterizing)
27
CLOSED (Shut Off The Flow To The Filter and Pool)
27

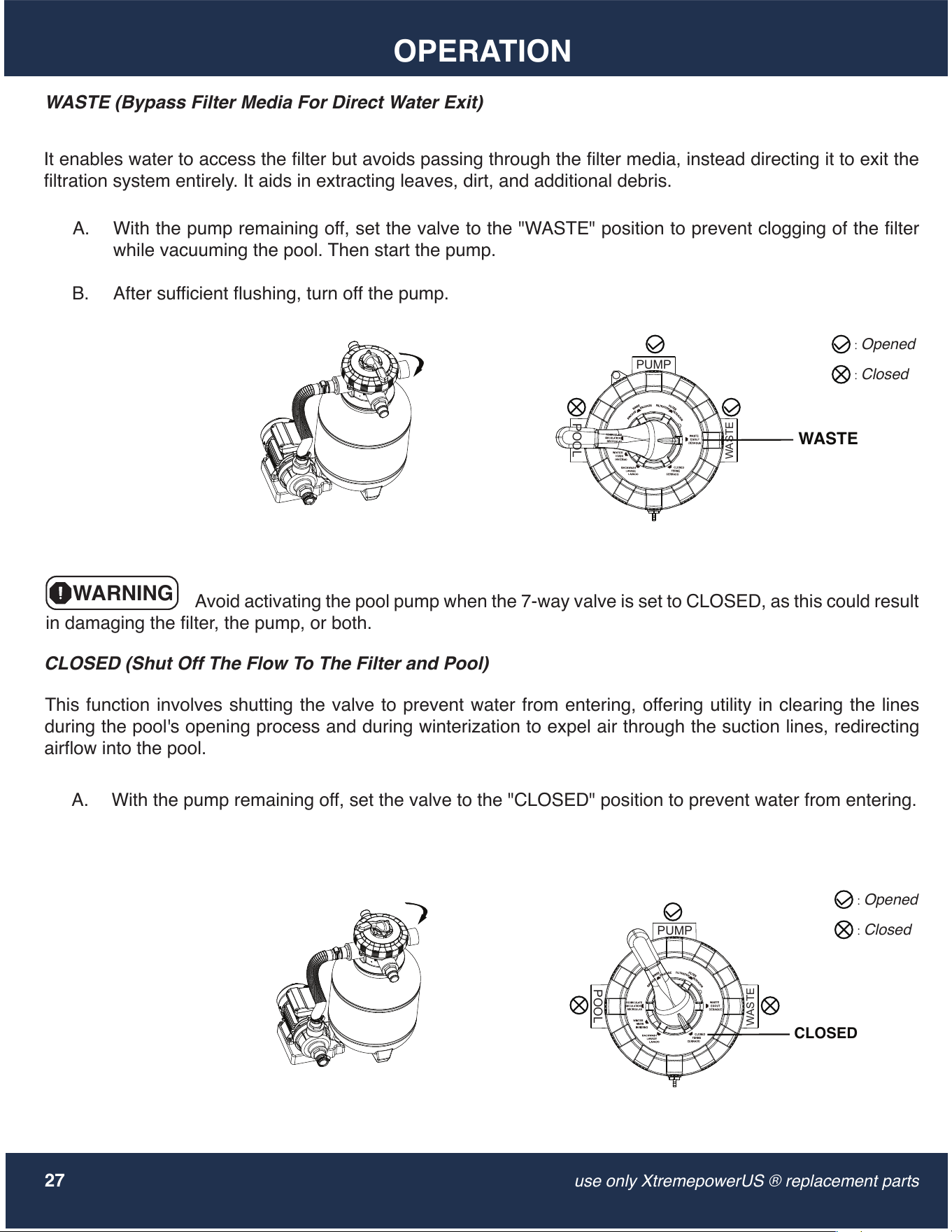

WASTE (Bypass Filter Media For Direct Water Exit)
26
RECIRCULATE (Move The Water Around Without Filtering)
26

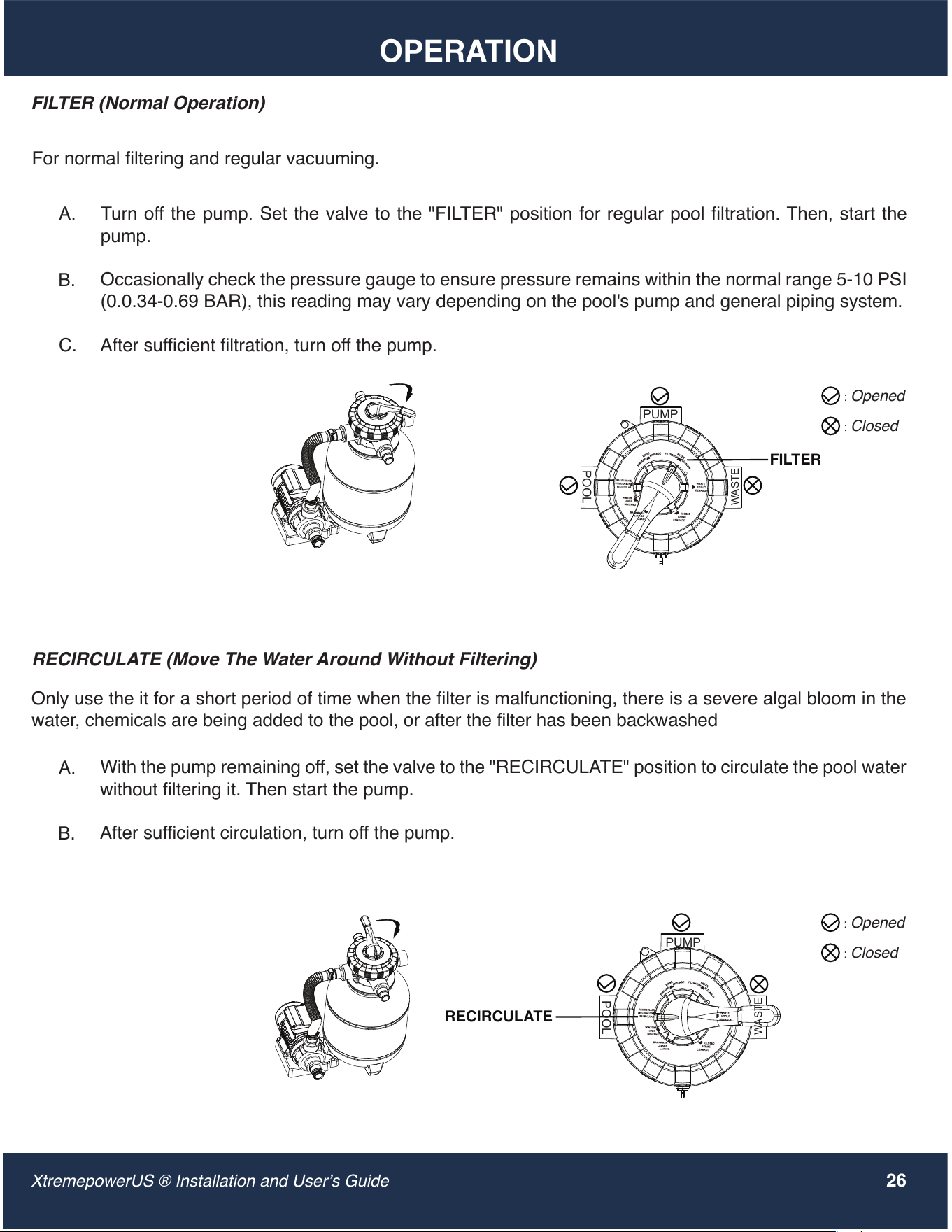

FILTER (Normal Operation)
25
RINSE (Initial Run)
25
BACKWASH (Initial Run)

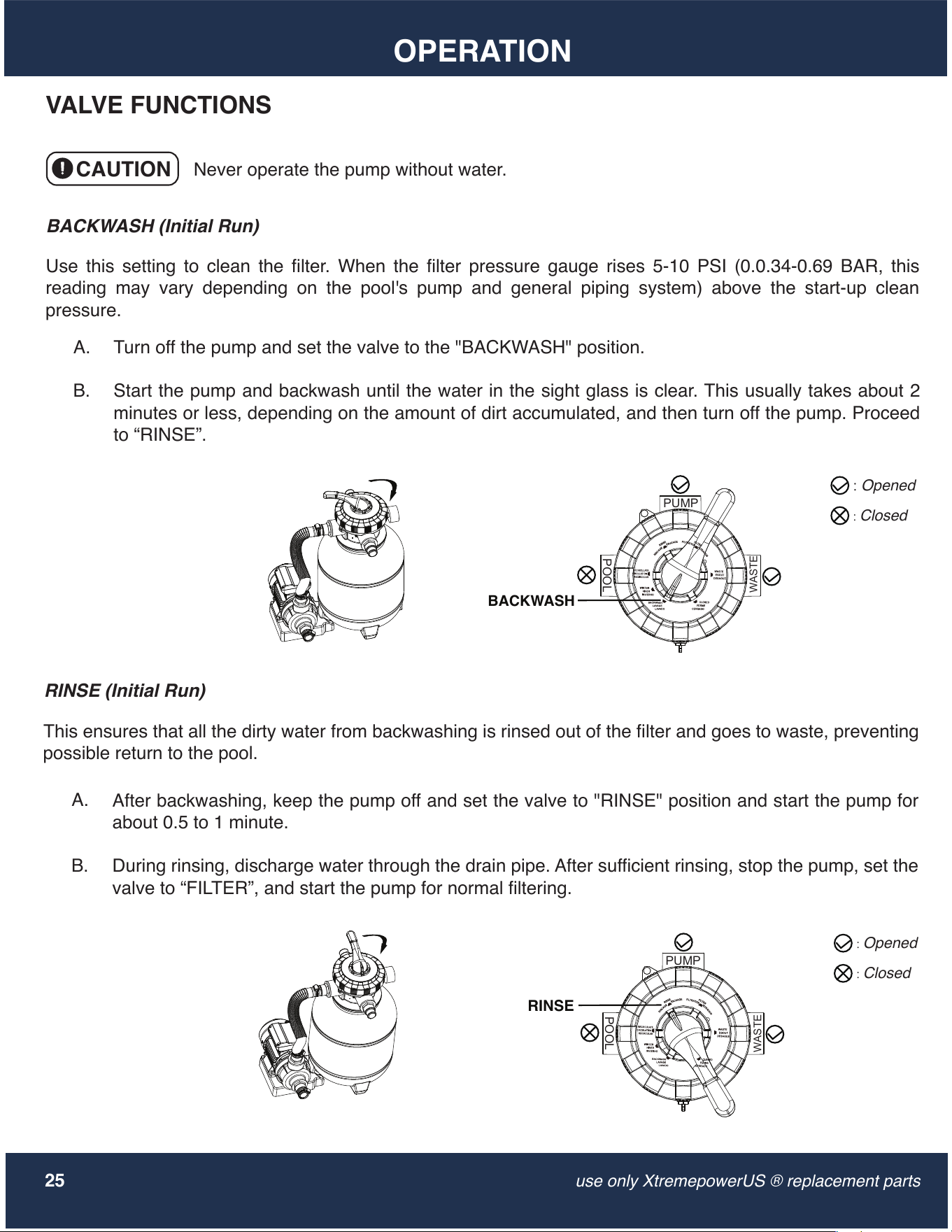

25VALVE FUNCTIONS
24AFTER PRIMING THE PUMP

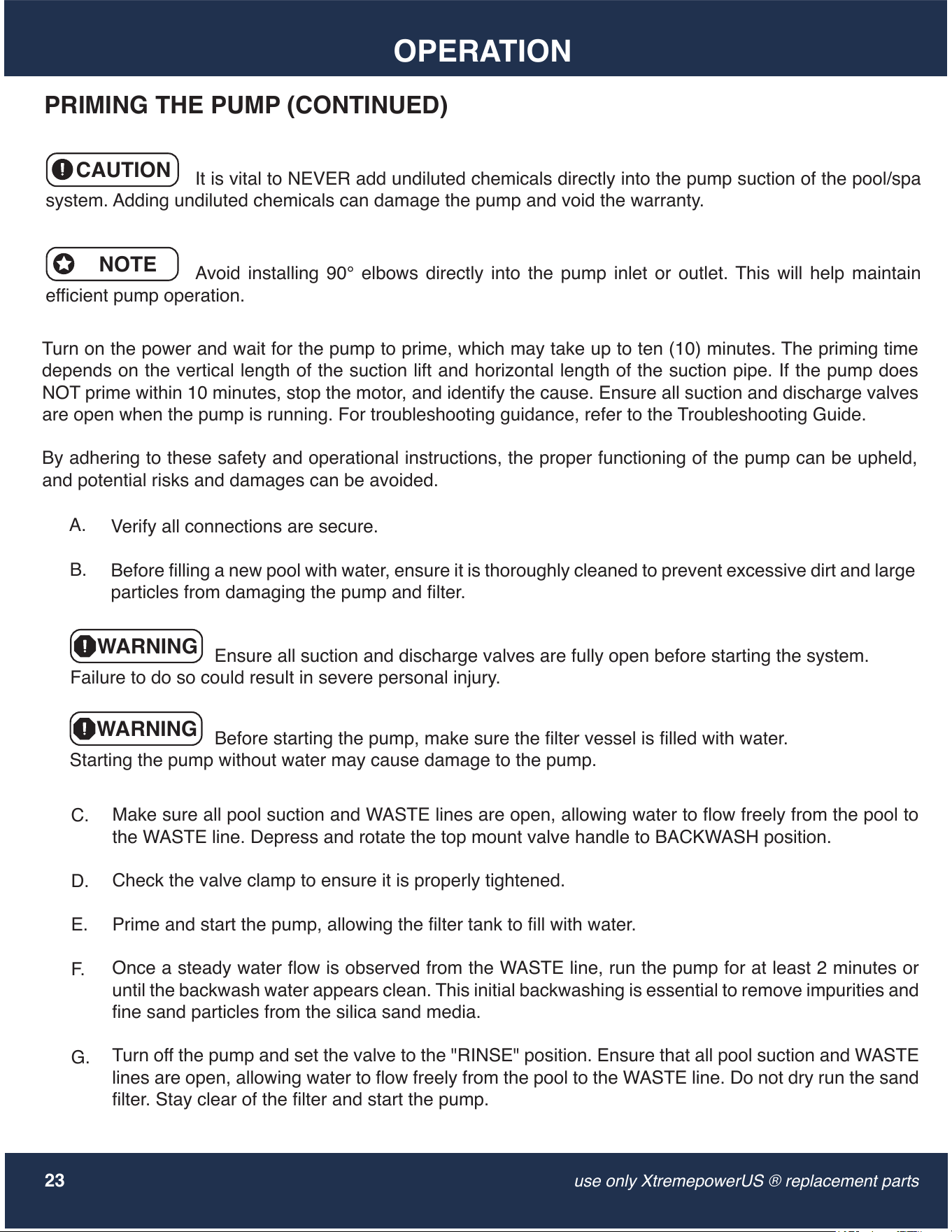

22PRIMING THE PUMP
22PRIOR TO START-UP

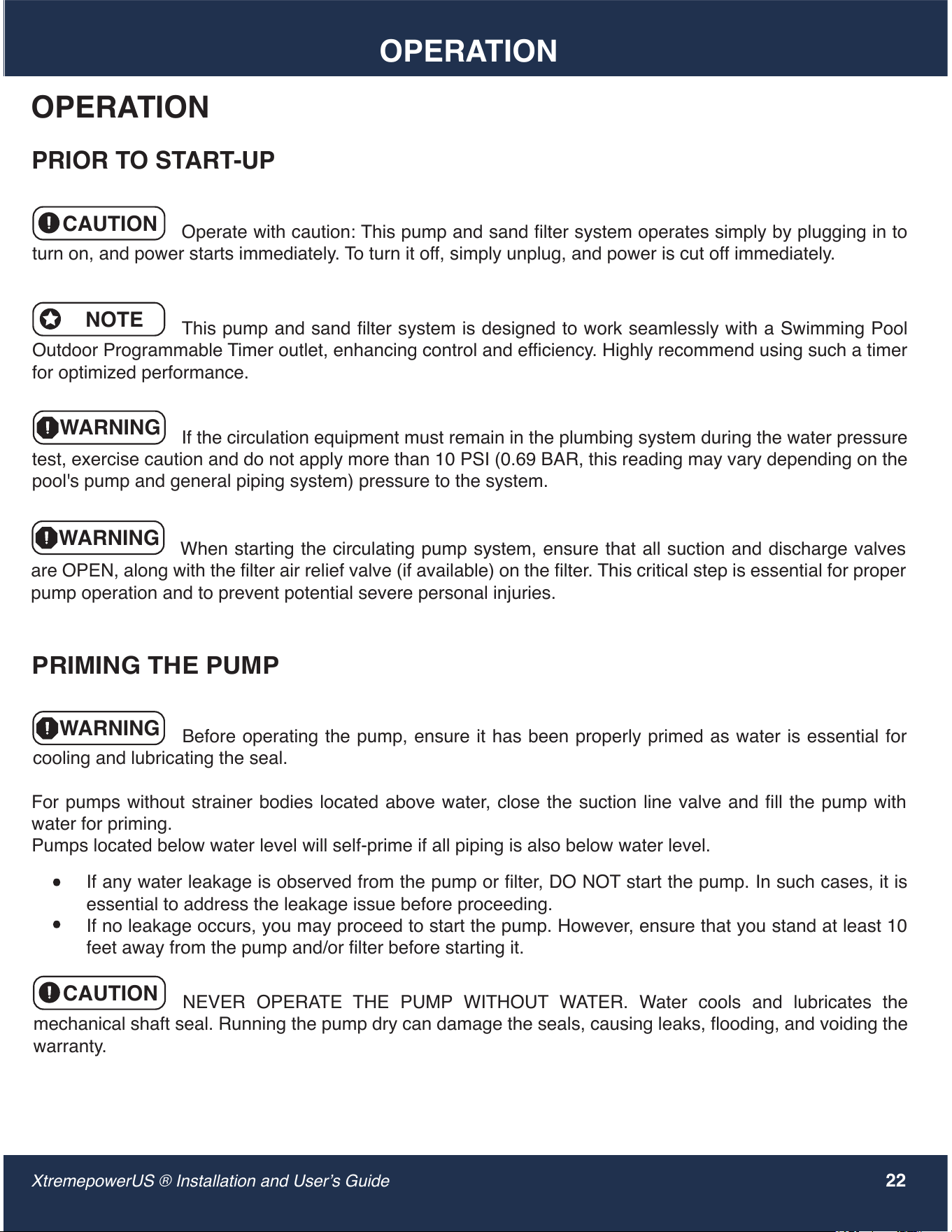

22OPERATION

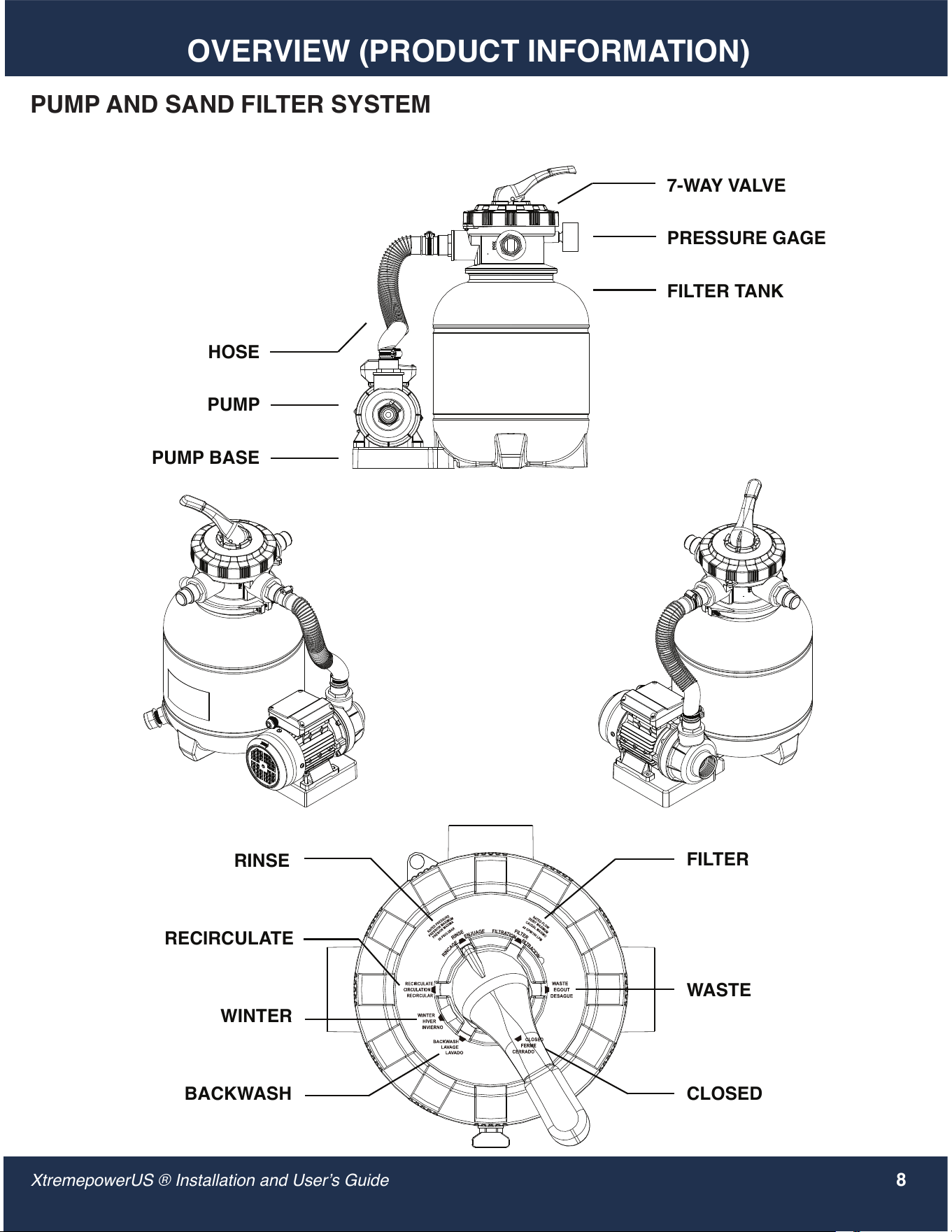

PUMP AND SAND FILTER SYSTEM

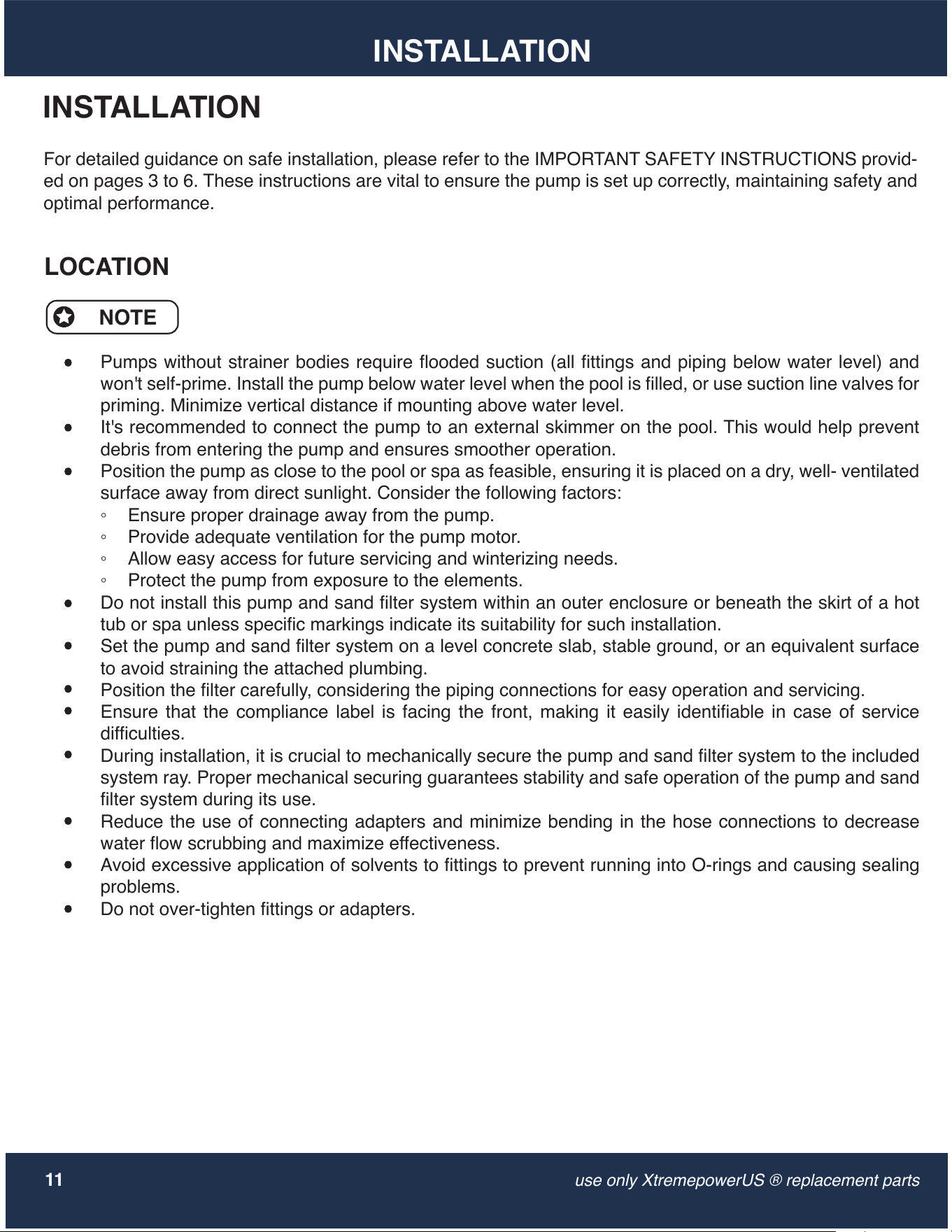

11LOCATION
11INSTALLATION

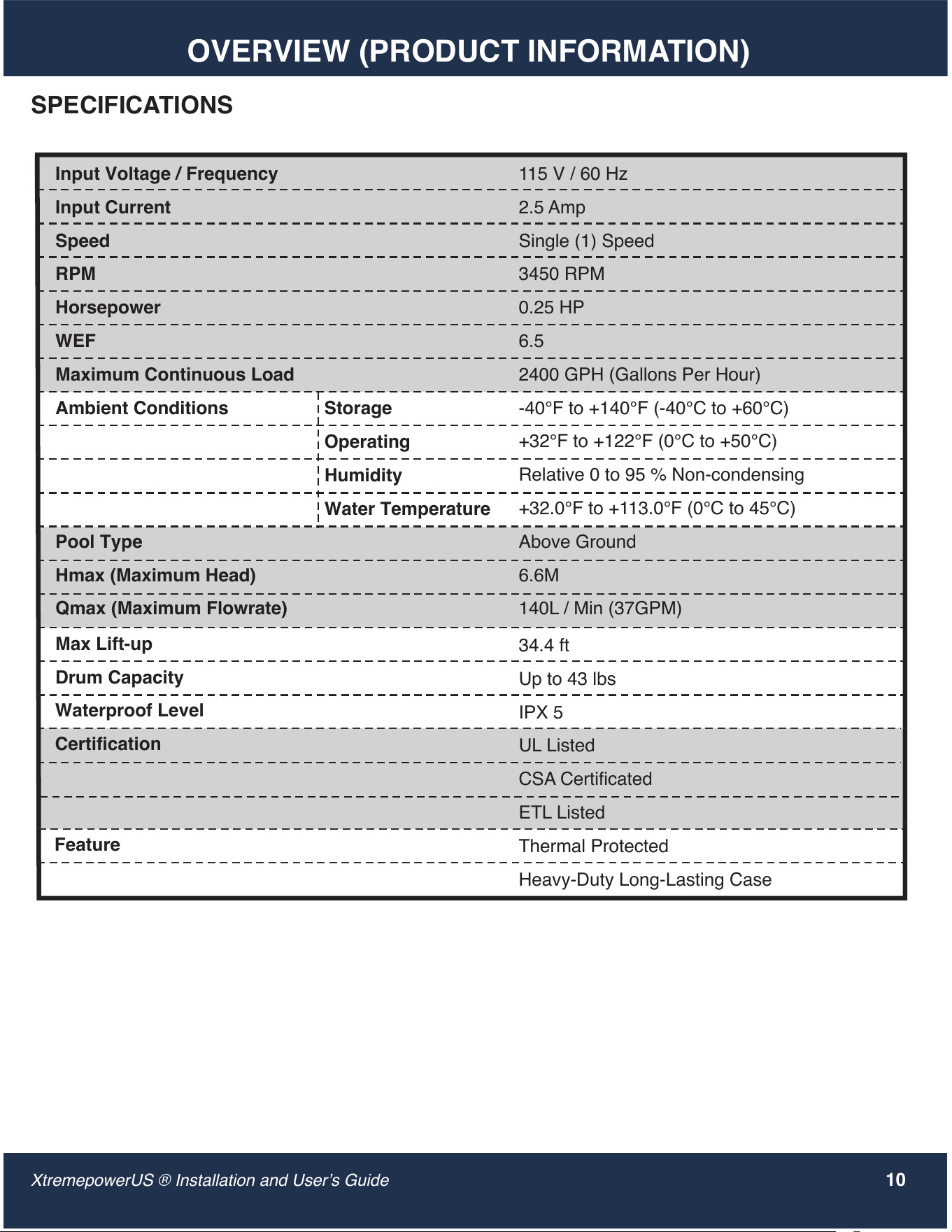

10SPECIFICATIONS

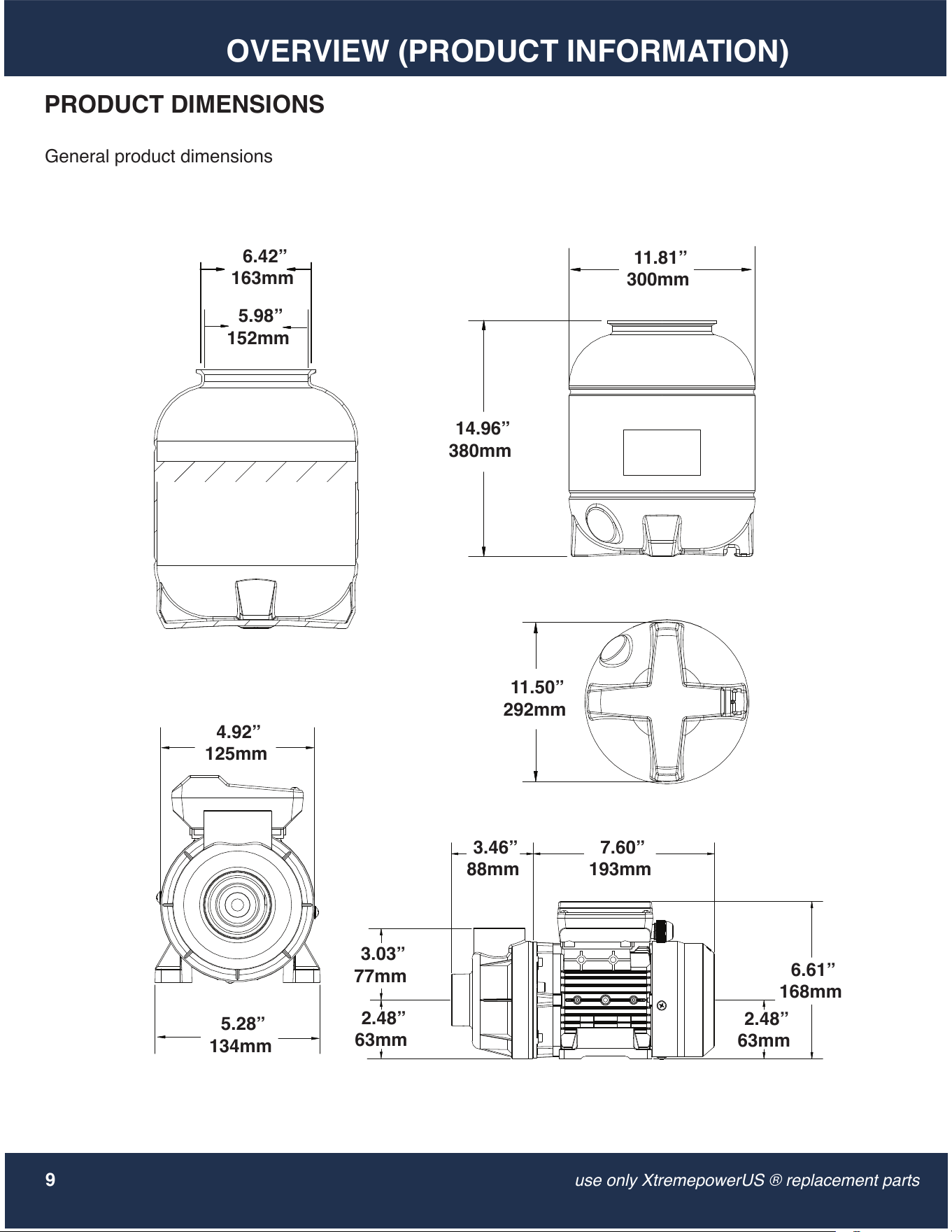

9PRODUCT DIMENSIONS
8

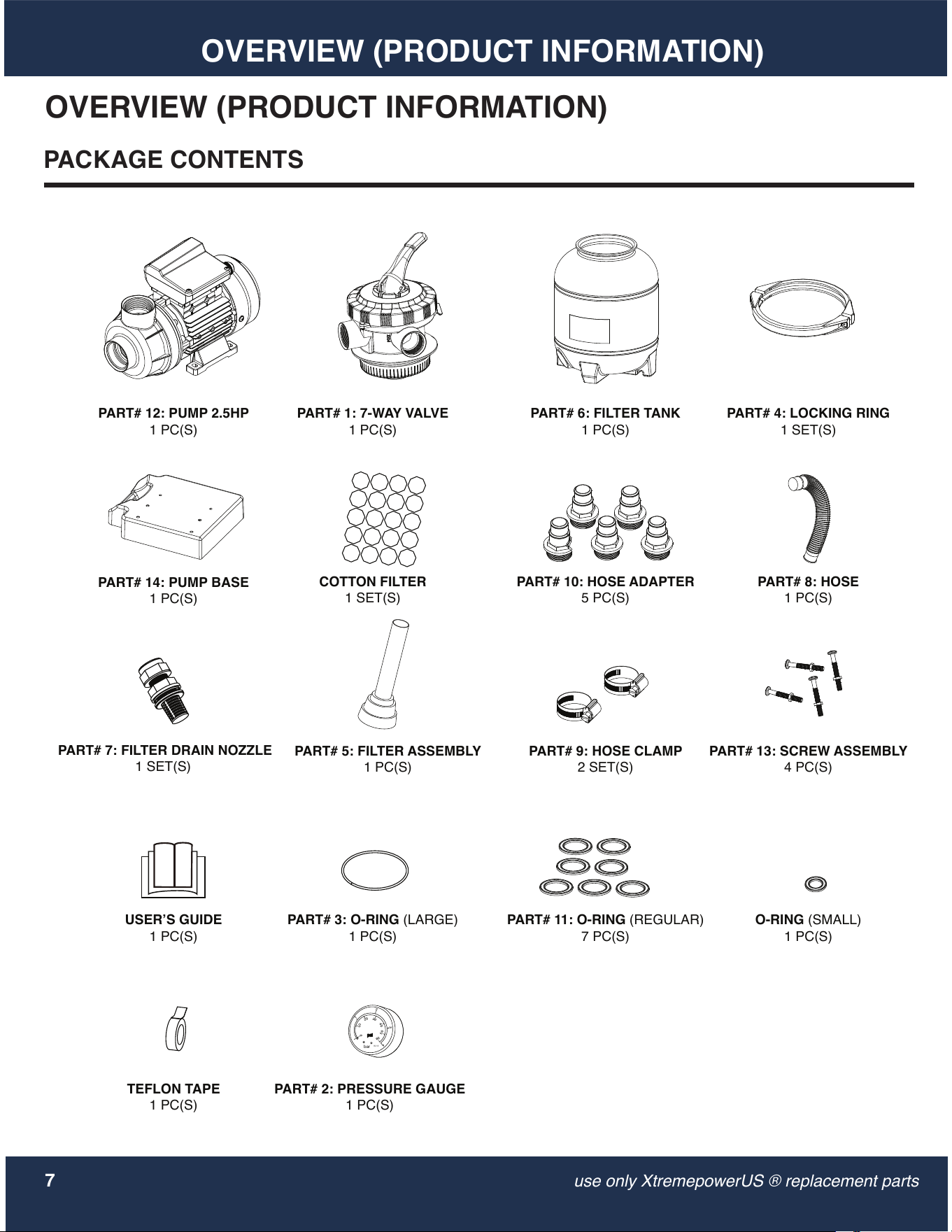

7PACKAGE CONTENTS
7OVERVIEW (PRODUCT INFORMATION)
5GENERAL SAFETY
3
Legends and Symbols
3IMPORTANT SAFETY INSTRUCTIONS

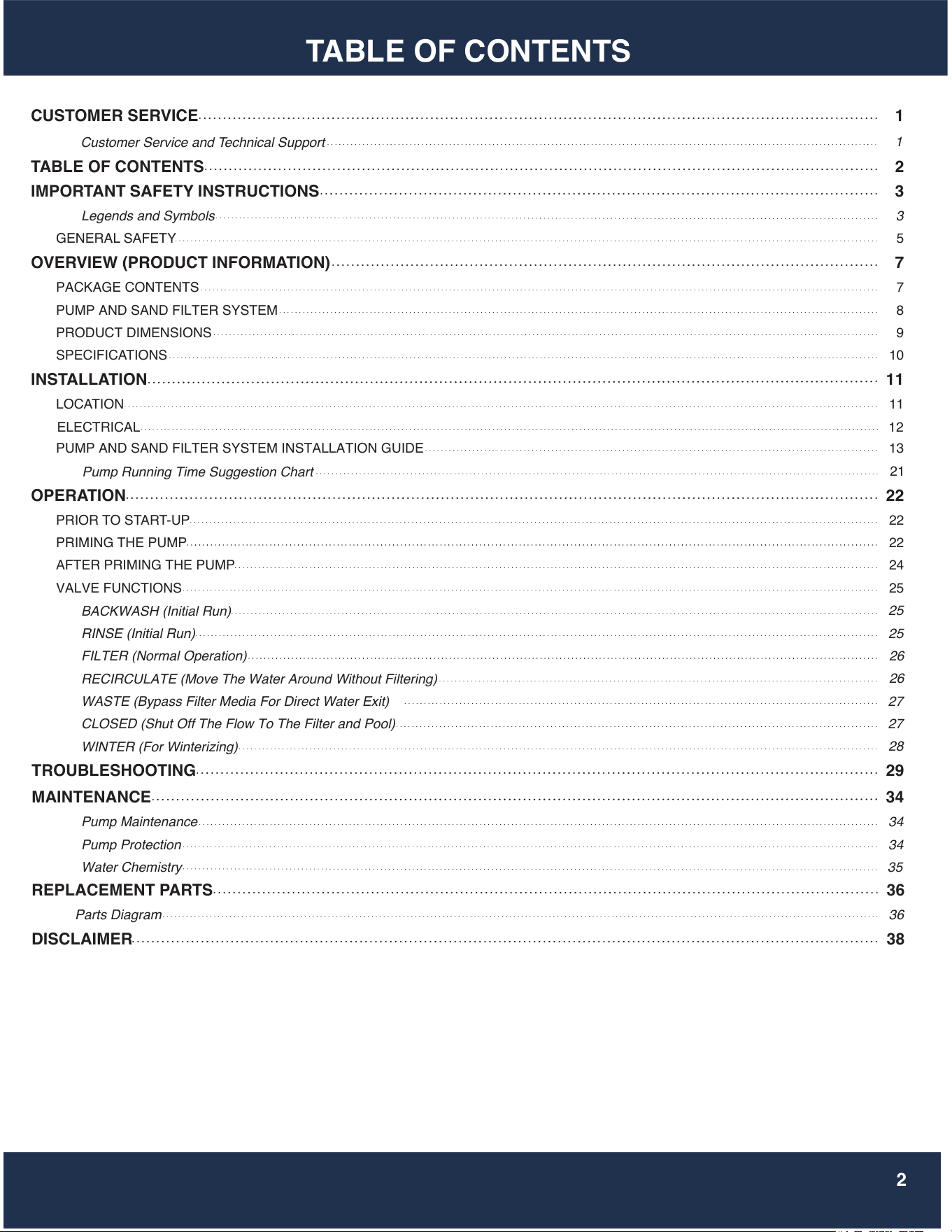

2TABLE OF CONTENTS
1
Customer Service and Technical Support
1CUSTOMER SERVICE
12ELECTRICAL

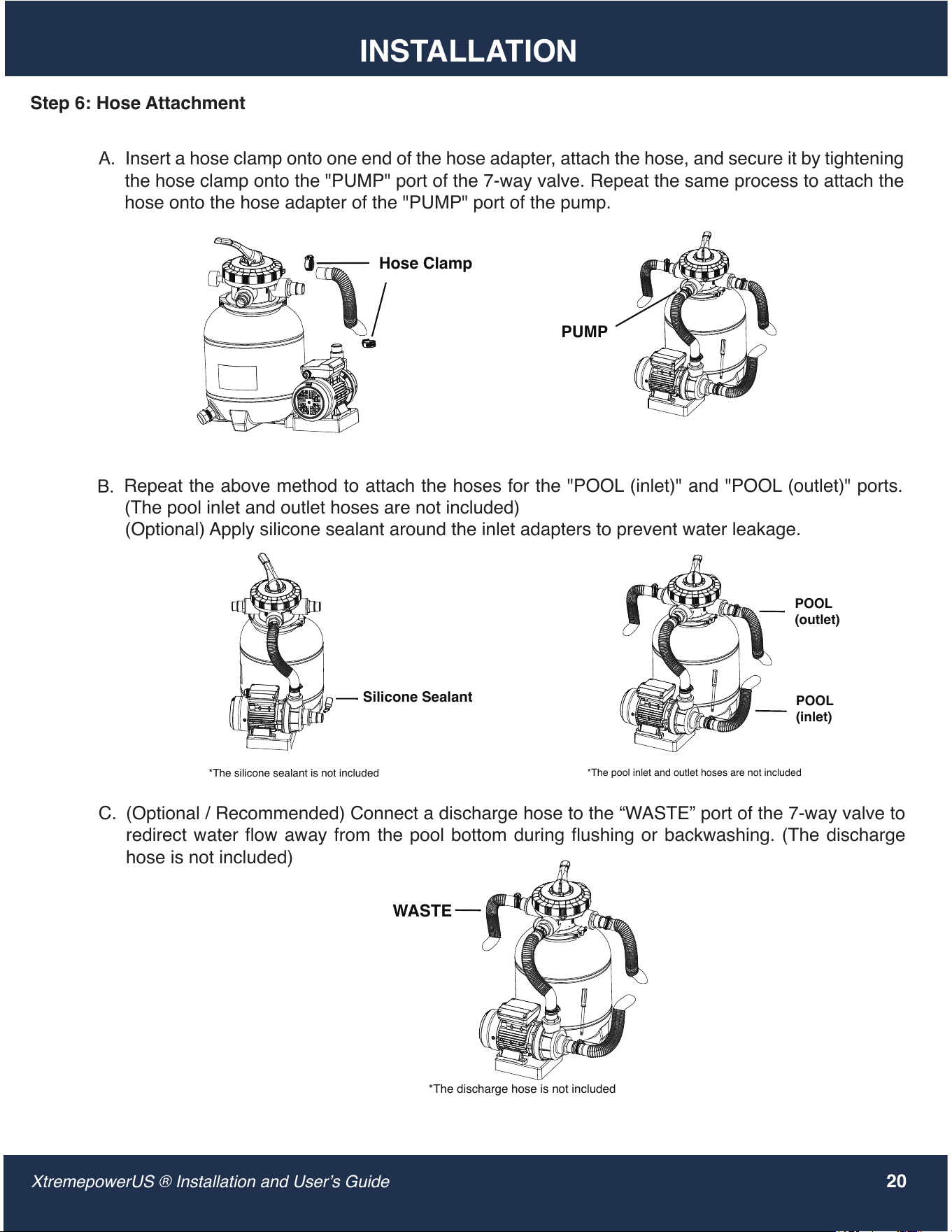

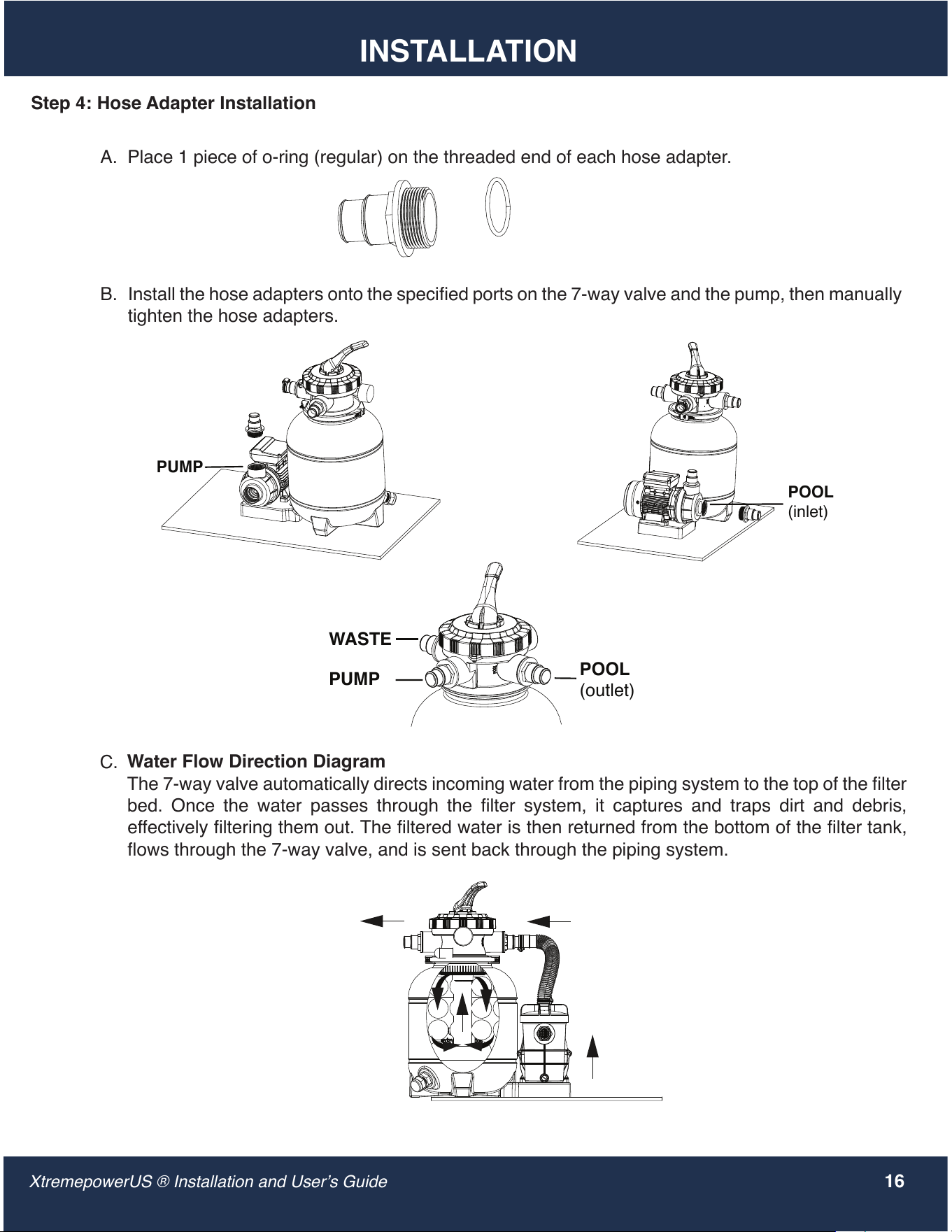

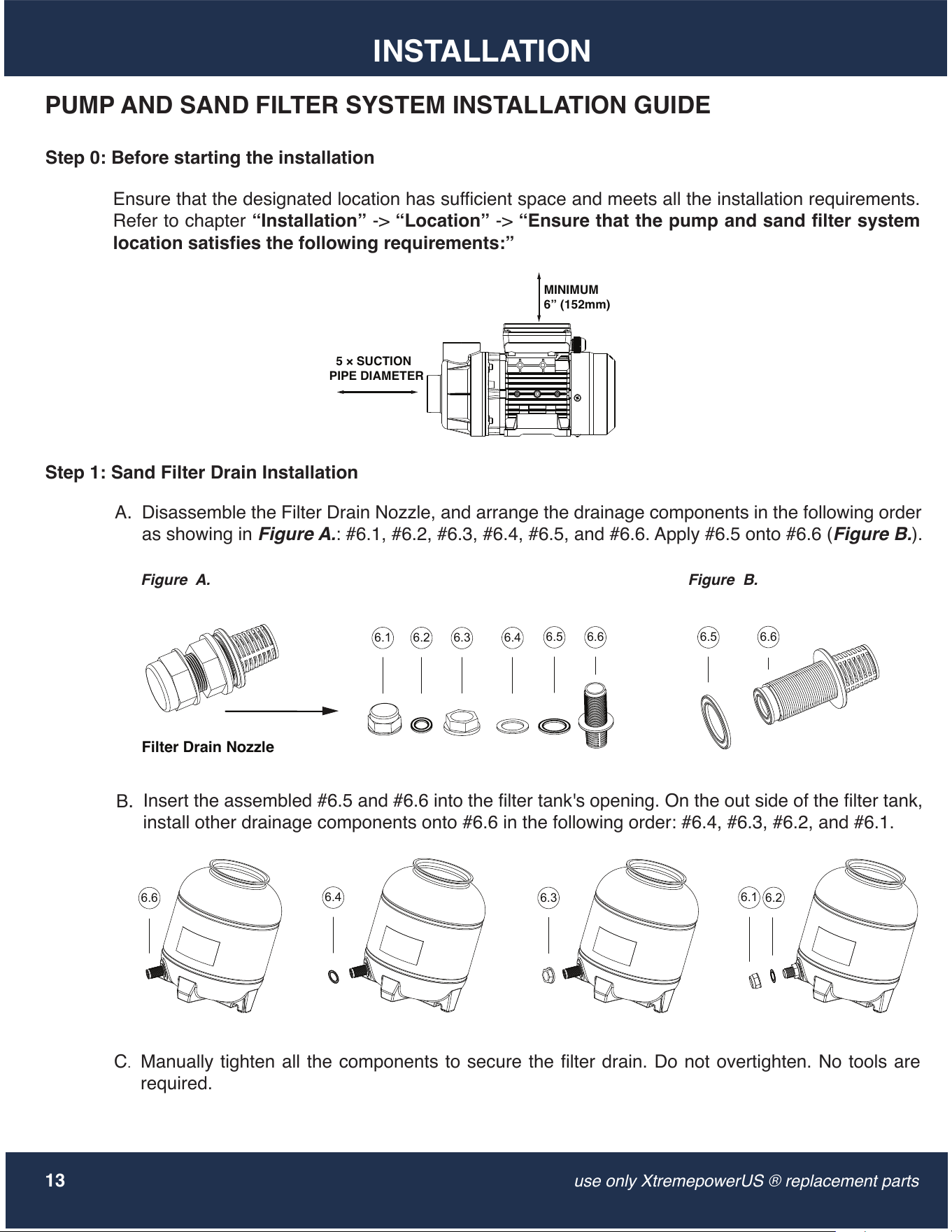

13PUMP AND SAND FILTER SYSTEM INSTALLATION GUIDE
21

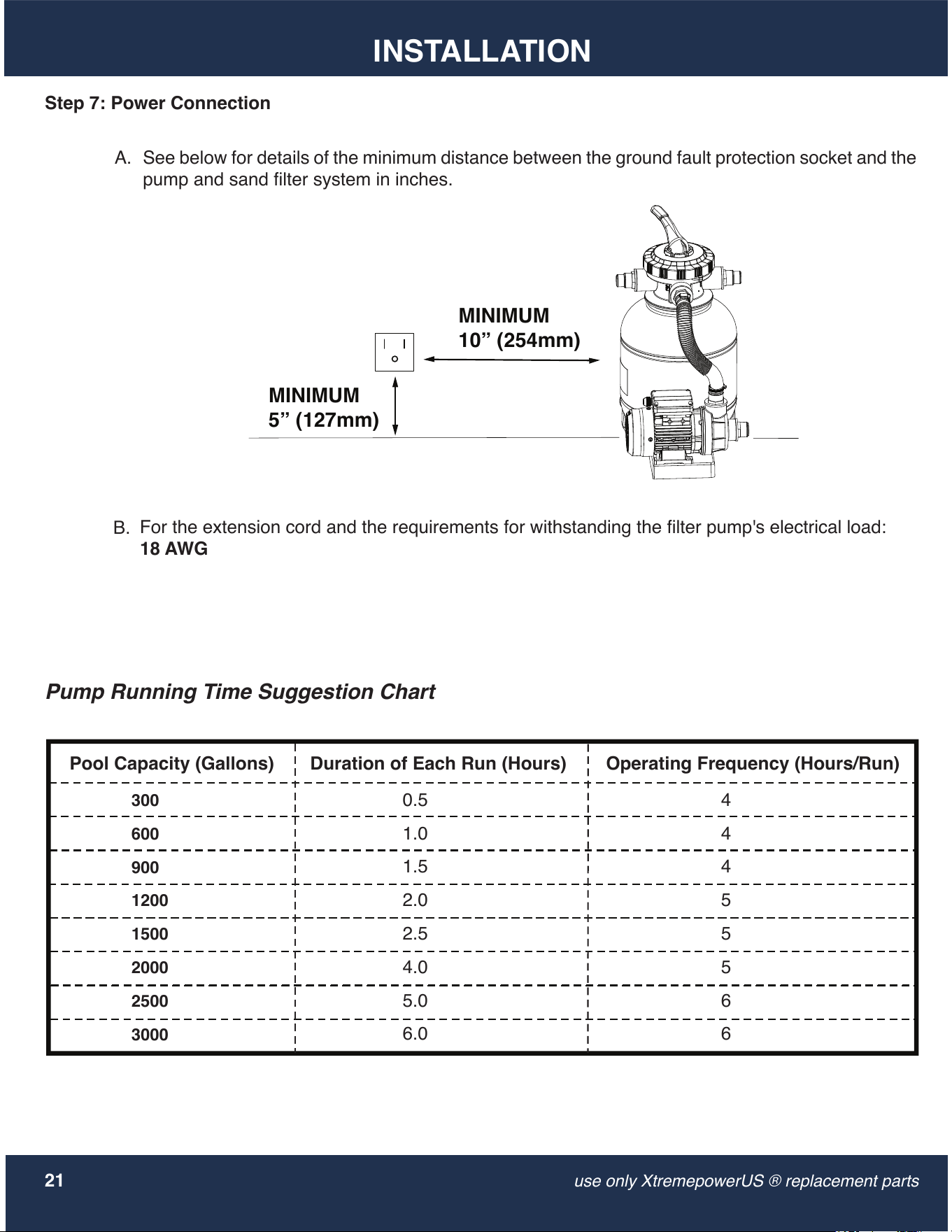

Pump Running Time Suggestion Chart
1 2
TABLE OF CONTENTS
CUSTOMER SERVICE
If you have any questions about ordering our pool pumps and replacement parts or pool products, please feel
free to contact us using the following contact information:
Customer Service and Technical Support
Phone: (909) 628-0880
Email: [email protected]
Hours of Operation: Monday – Friday, 9AM – 4PM (CST)
38DISCLAIMER
36Parts Diagram
36REPLACEMENT PARTS
35Water Chemistry
34Pump Protection
34Pump Maintenance
34MAINTENANCE
29TROUBLESHOOTING
28
WINTER (For Winterizing)
27
CLOSED (Shut Off The Flow To The Filter and Pool)
27
WASTE (Bypass Filter Media For Direct Water Exit)
26
RECIRCULATE (Move The Water Around Without Filtering)
26
FILTER (Normal Operation)
25
RINSE (Initial Run)
25
BACKWASH (Initial Run)
25VALVE FUNCTIONS

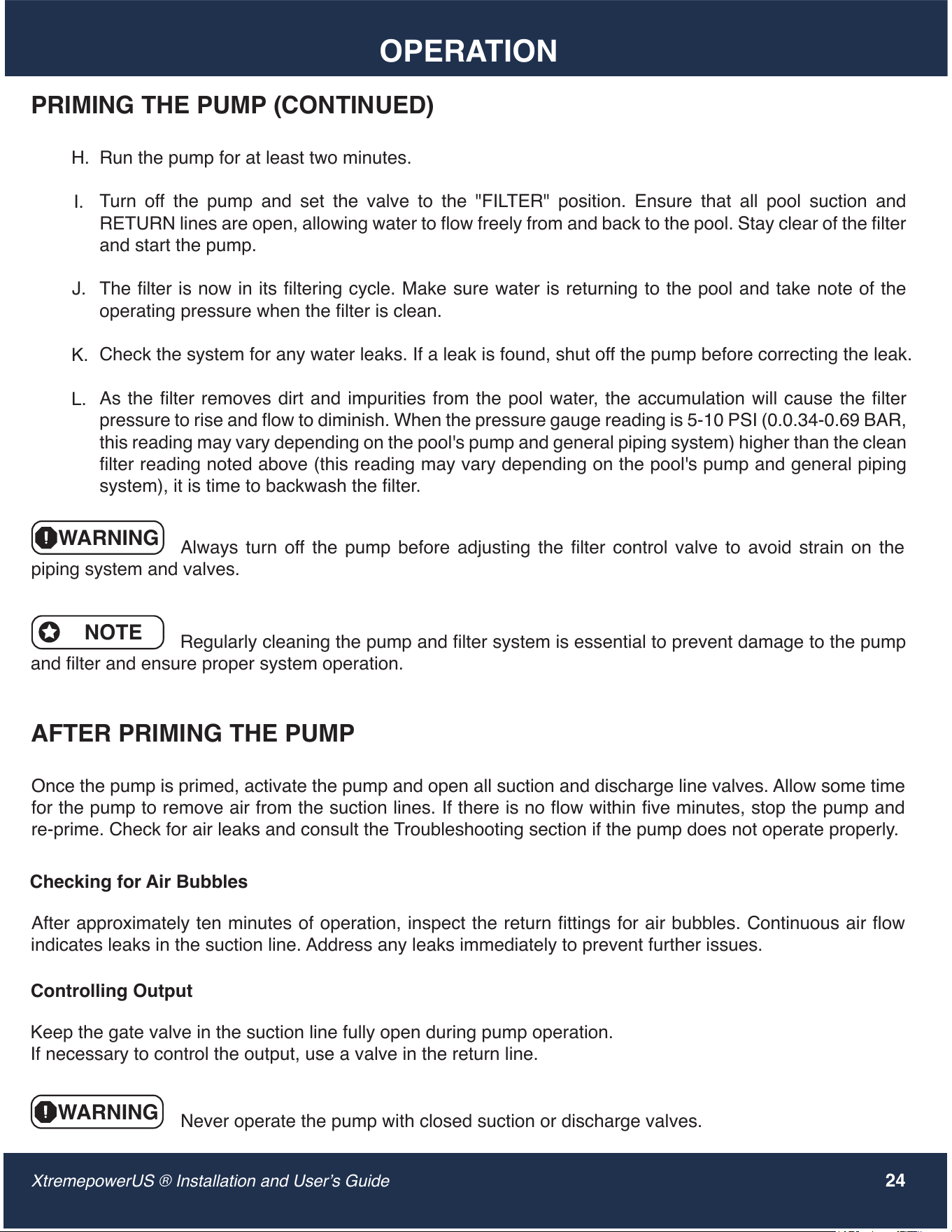

24AFTER PRIMING THE PUMP
22PRIMING THE PUMP
22PRIOR TO START-UP
22OPERATION
PUMP AND SAND FILTER SYSTEM
11LOCATION
11INSTALLATION
10SPECIFICATIONS
9PRODUCT DIMENSIONS
8
7PACKAGE CONTENTS
7OVERVIEW (PRODUCT INFORMATION)
5GENERAL SAFETY
3
Legends and Symbols
3IMPORTANT SAFETY INSTRUCTIONS
2TABLE OF CONTENTS
1
Customer Service and Technical Support
1CUSTOMER SERVICE
12ELECTRICAL
13PUMP AND SAND FILTER SYSTEM INSTALLATION GUIDE
21
Pump Running Time Suggestion Chart
1 2
TABLE OF CONTENTS

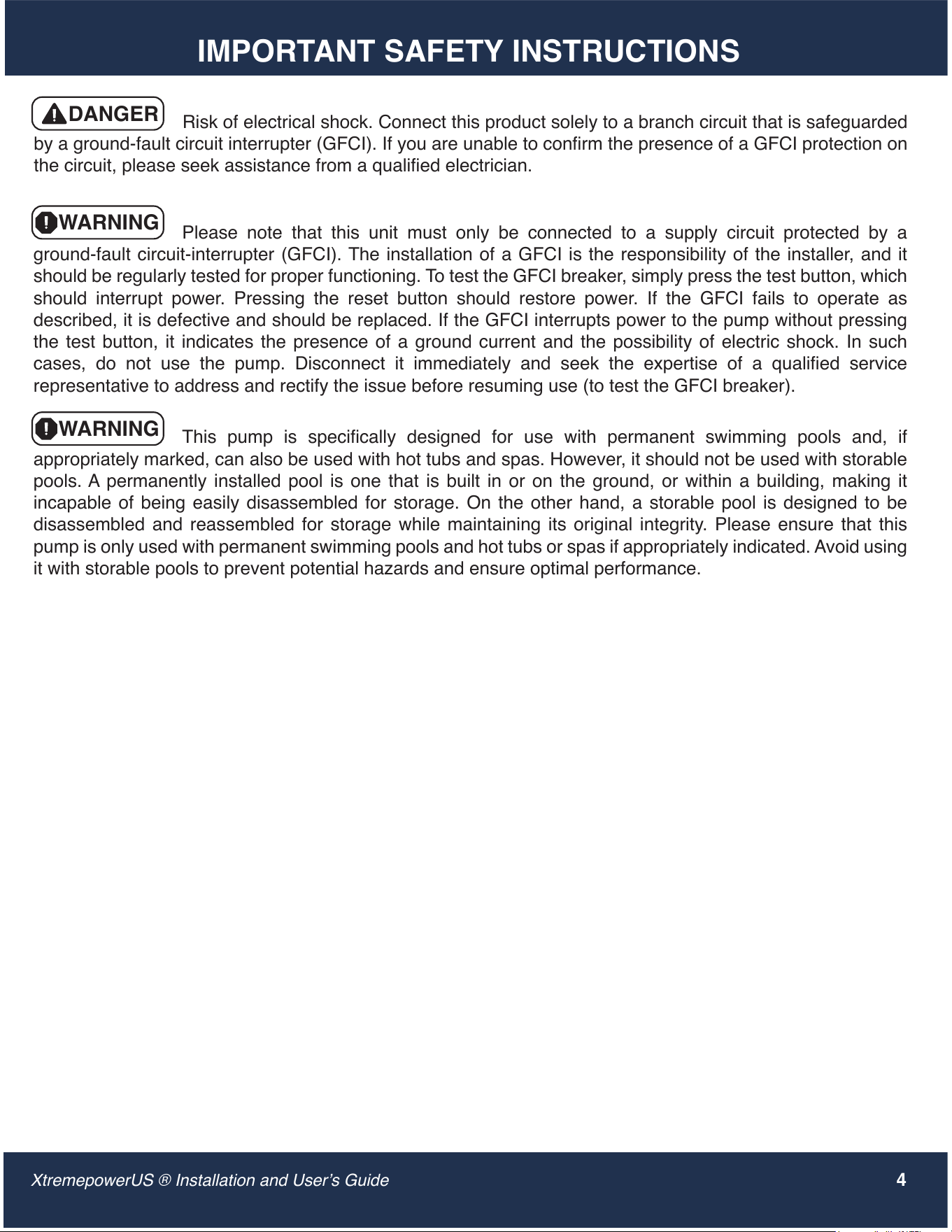

This pump is specifically designed for use with permanent swimming pools and, if
appropriately marked, can also be used with hot tubs and spas. However, it should not be used with storable
pools. A permanently installed pool is one that is built in or on the ground, or within a building, making it
incapable of being easily disassembled for storage. On the other hand, a storable pool is designed to be
disassembled and reassembled for storage while maintaining its original integrity. Please ensure that this
pump is only used with permanent swimming pools and hot tubs or spas if appropriately indicated. Avoid using
it with storable pools to prevent potential hazards and ensure optimal performance.
Please note that this unit must only be connected to a supply circuit protected by a
ground-fault circuit-interrupter (GFCI). The installation of a GFCI is the responsibility of the installer, and it
should be regularly tested for proper functioning. To test the GFCI breaker, simply press the test button, which
should interrupt power. Pressing the reset button should restore power. If the GFCI fails to operate as
described, it is defective and should be replaced. If the GFCI interrupts power to the pump without pressing
the test button, it indicates the presence of a ground current and the possibility of electric shock. In such
cases, do not use the pump. Disconnect it immediately and seek the expertise of a qualified service
representative to address and rectify the issue before resuming use (to test the GFCI breaker).
Risk of electrical shock. Connect this product solely to a branch circuit that is safeguarded
by a ground-fault circuit interrupter (GFCI). If you are unable to confirm the presence of a GFCI protection on
the circuit, please seek assistance from a qualified electrician.
For safety reasons, children should not be allowed to use this product.
Failure to comply with all instructions and warnings may lead to severe bodily injury or even
death. Having a qualified plumbing professional handle the pump installation is essential. Prior to using this
pump, installers, pool operators, and owners must carefully review these warnings and all instructions
provided in the owner's manual. It is essential to leave these warnings and the owner's manual with the pool
owner for their reference and safety.
ATTENTION INSTALLER: This manual contains vital information regarding the installation, operation, and
safe use of this variable speed pump. It is essential to provide this manual to the end user of the product.
Failure to read and follow all instructions could lead to severe injuries.
USE OF NON-XTREMEPOWERUS REPLACEMENT PARTS VOIDS WARRANTY
DANGER: Ignoring these hazards can result in death, severe personal injury, or significant
property damage.
WARNING: Indicates potential hazards that can result in severe personal injury, death, or
significant property damage. Ignoring these warnings presents a real danger.
CAUTION: Indicates potential hazards that can result in minor or moderate personal injury,
property damage, or actions that are unpredictable and unsafe. Ignoring these cautions
presents a potential hazard.
NOTICE: This label indicates important special instructions that are not directly related to
hazards.

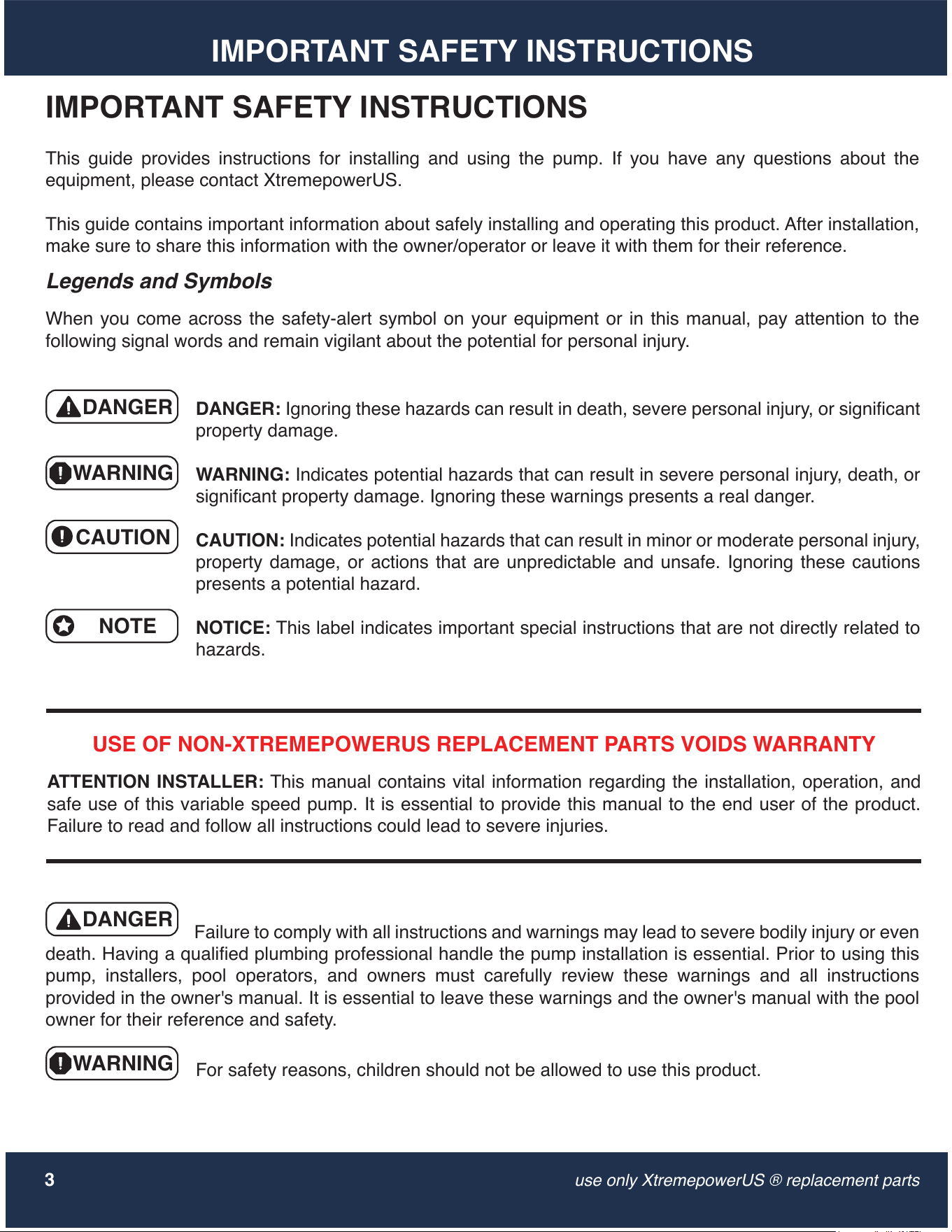

This guide provides instructions for installing and using the pump. If you have any questions about the
equipment, please contact XtremepowerUS.
This guide contains important information about safely installing and operating this product. After installation,
make sure to share this information with the owner/operator or leave it with them for their reference.
Legends and Symbols
When you come across the safety-alert symbol on your equipment or in this manual, pay attention to the
following signal words and remain vigilant about the potential for personal injury.
IMPORTANT SAFETY INSTRUCTIONS
DANGER
DANGER
WARNING
WARNING
WARNING
WARNING
CAUTION
NOTE
DANGER
3 4use only XtremepowerUS ® replacement parts XtremepowerUS ® Installation and User’s Guide
IMPORTANT SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS
This pump is specifically designed for use with permanent swimming pools and, if
appropriately marked, can also be used with hot tubs and spas. However, it should not be used with storable
pools. A permanently installed pool is one that is built in or on the ground, or within a building, making it
incapable of being easily disassembled for storage. On the other hand, a storable pool is designed to be
disassembled and reassembled for storage while maintaining its original integrity. Please ensure that this
pump is only used with permanent swimming pools and hot tubs or spas if appropriately indicated. Avoid using
it with storable pools to prevent potential hazards and ensure optimal performance.
Please note that this unit must only be connected to a supply circuit protected by a
ground-fault circuit-interrupter (GFCI). The installation of a GFCI is the responsibility of the installer, and it
should be regularly tested for proper functioning. To test the GFCI breaker, simply press the test button, which
should interrupt power. Pressing the reset button should restore power. If the GFCI fails to operate as
described, it is defective and should be replaced. If the GFCI interrupts power to the pump without pressing
the test button, it indicates the presence of a ground current and the possibility of electric shock. In such
cases, do not use the pump. Disconnect it immediately and seek the expertise of a qualified service
representative to address and rectify the issue before resuming use (to test the GFCI breaker).
Risk of electrical shock. Connect this product solely to a branch circuit that is safeguarded
by a ground-fault circuit interrupter (GFCI). If you are unable to confirm the presence of a GFCI protection on
the circuit, please seek assistance from a qualified electrician.
For safety reasons, children should not be allowed to use this product.
Failure to comply with all instructions and warnings may lead to severe bodily injury or even
death. Having a qualified plumbing professional handle the pump installation is essential. Prior to using this
pump, installers, pool operators, and owners must carefully review these warnings and all instructions
provided in the owner's manual. It is essential to leave these warnings and the owner's manual with the pool
owner for their reference and safety.
ATTENTION INSTALLER: This manual contains vital information regarding the installation, operation, and
safe use of this variable speed pump. It is essential to provide this manual to the end user of the product.
Failure to read and follow all instructions could lead to severe injuries.
USE OF NON-XTREMEPOWERUS REPLACEMENT PARTS VOIDS WARRANTY
DANGER: Ignoring these hazards can result in death, severe personal injury, or significant
property damage.
WARNING: Indicates potential hazards that can result in severe personal injury, death, or
significant property damage. Ignoring these warnings presents a real danger.
CAUTION: Indicates potential hazards that can result in minor or moderate personal injury,
property damage, or actions that are unpredictable and unsafe. Ignoring these cautions
presents a potential hazard.
NOTICE: This label indicates important special instructions that are not directly related to
hazards.
This guide provides instructions for installing and using the pump. If you have any questions about the
equipment, please contact XtremepowerUS.
This guide contains important information about safely installing and operating this product. After installation,
make sure to share this information with the owner/operator or leave it with them for their reference.
Legends and Symbols
When you come across the safety-alert symbol on your equipment or in this manual, pay attention to the
following signal words and remain vigilant about the potential for personal injury.
IMPORTANT SAFETY INSTRUCTIONS
DANGER
DANGER
WARNING
WARNING
WARNING
WARNING
CAUTION
NOTE
DANGER
3 4use only XtremepowerUS ® replacement parts XtremepowerUS ® Installation and User’s Guide
IMPORTANT SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS

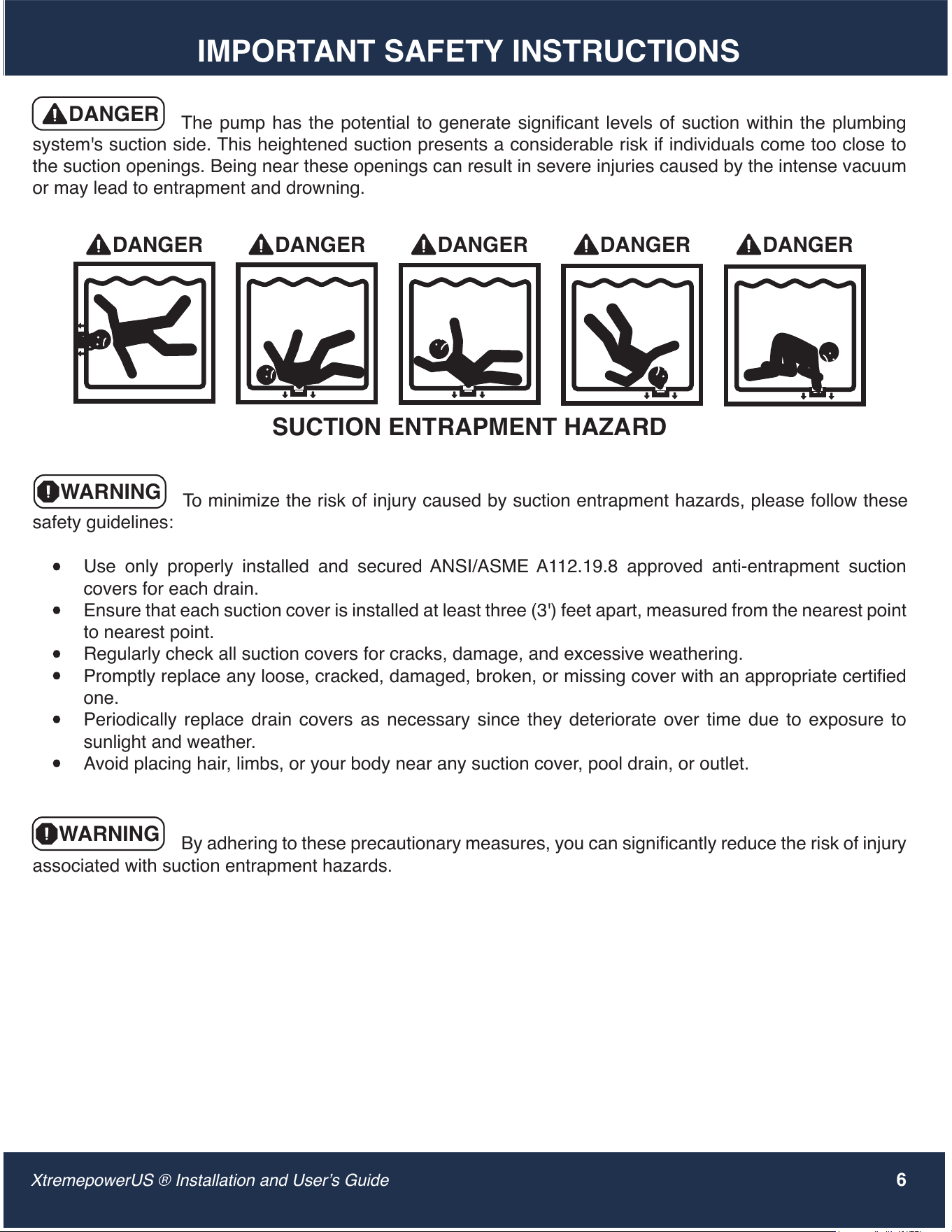

SUCTION ENTRAPMENT HAZARD
DANGER DANGER DANGER DANGER DANGER
Use only properly installed and secured ANSI/ASME A112.19.8 approved anti-entrapment suction
covers for each drain.
Ensure that each suction cover is installed at least three (3') feet apart, measured from the nearest point
to nearest point.
Regularly check all suction covers for cracks, damage, and excessive weathering.
Promptly replace any loose, cracked, damaged, broken, or missing cover with an appropriate certified
one.
Periodically replace drain covers as necessary since they deteriorate over time due to exposure to
sunlight and weather.
Avoid placing hair, limbs, or your body near any suction cover, pool drain, or outlet.
To minimize the risk of injury caused by suction entrapment hazards, please follow these
safety guidelines:
By adhering to these precautionary measures, you can significantly reduce the risk of injury
associated with suction entrapment hazards.
The pump has the potential to generate significant levels of suction within the plumbing
system's suction side. This heightened suction presents a considerable risk if individuals come too close to
the suction openings. Being near these openings can result in severe injuries caused by the intense vacuum
or may lead to entrapment and drowning.

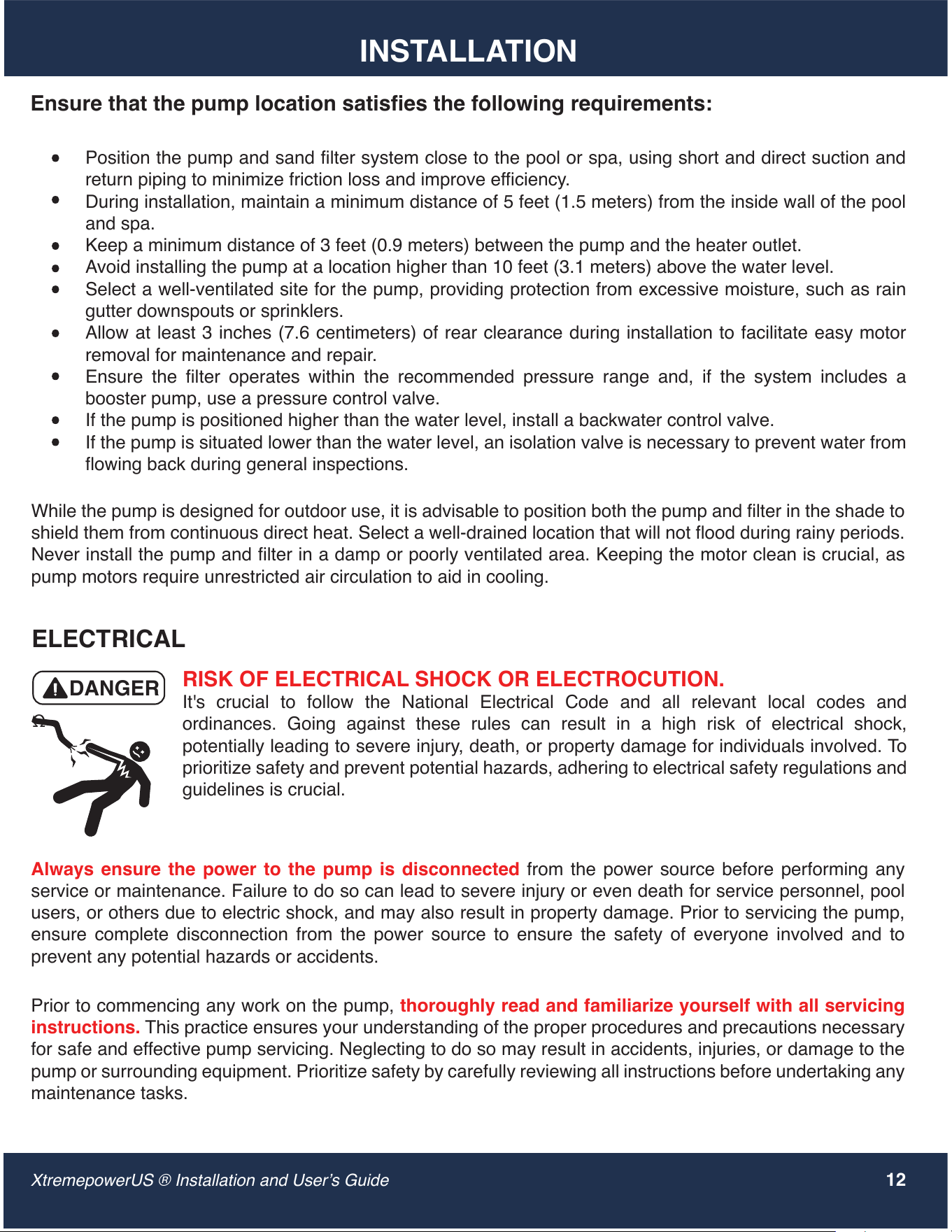

During installation, ensure proper drainage around the pump to prevent water from entering the
electrical components.
To ensure optimal performance, it is crucial to use the proper size pump for the specific application and
install it correctly. Only through meticulous sizing and installation can the pump function as intended.
The use of pumps that are improperly sized, installed, or employed for applications other than their
intended purpose can lead to severe personal injury or even death. These risks encompass potential
hazards such as electric shock, fire, flooding, suction entrapment, or critical injuries and property
damage resulting from structural failures of the pump or other system components. It is essential to
strictly adhere to the correct sizing, installation, and designated usage to mitigate these potential
dangers and ensure the safety of all users and the surrounding environment.

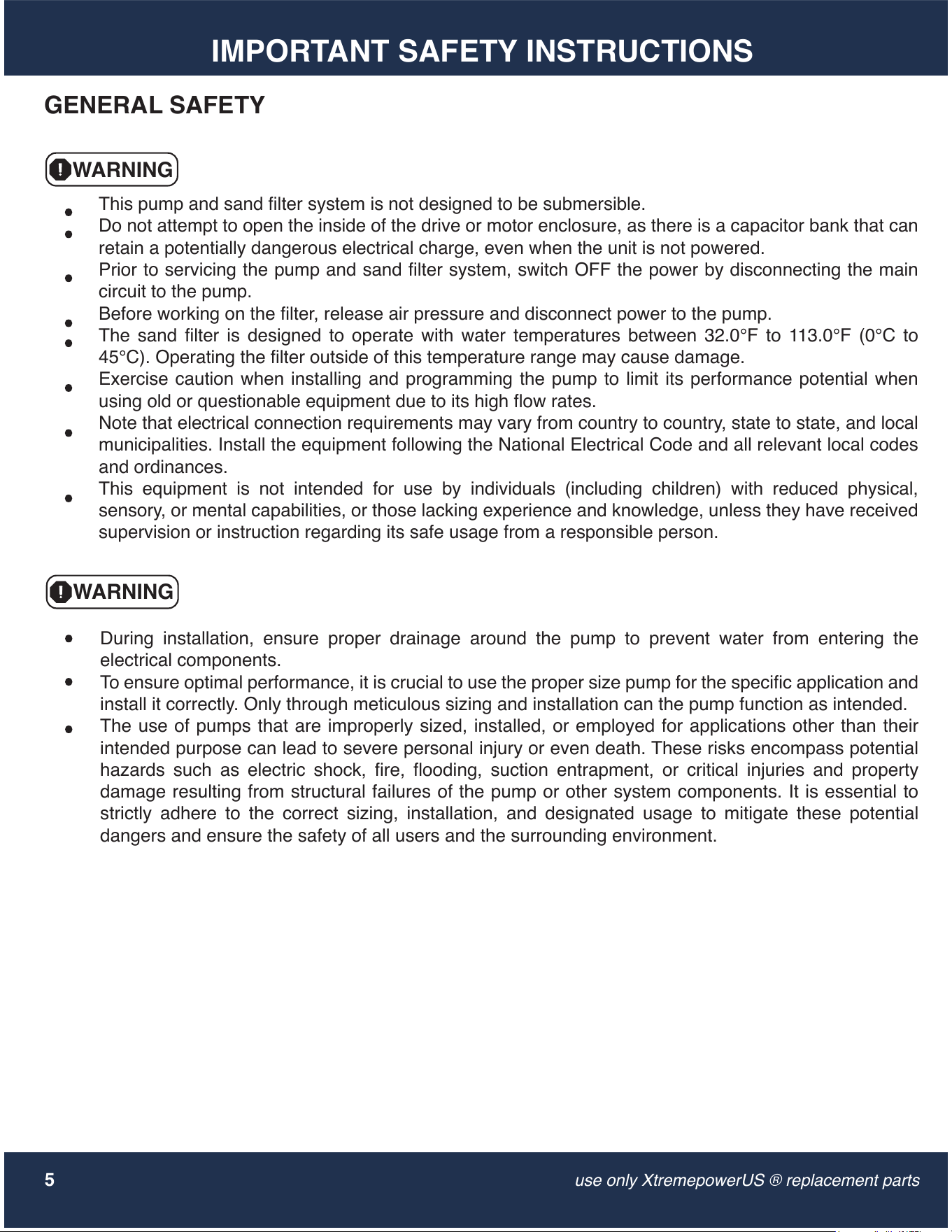

This pump and sand filter system is not designed to be submersible.
Do not attempt to open the inside of the drive or motor enclosure, as there is a capacitor bank that can
retain a potentially dangerous electrical charge, even when the unit is not powered.
Prior to servicing the pump and sand filter system, switch OFF the power by disconnecting the main
circuit to the pump.
Before working on the filter, release air pressure and disconnect power to the pump.
The sand filter is designed to operate with water temperatures between 32.0°F to 113.0°F (0°C to
45°C). Operating the filter outside of this temperature range may cause damage.
Exercise caution when installing and programming the pump to limit its performance potential when
using old or questionable equipment due to its high flow rates.
Note that electrical connection requirements may vary from country to country, state to state, and local
municipalities. Install the equipment following the National Electrical Code and all relevant local codes
and ordinances.
This equipment is not intended for use by individuals (including children) with reduced physical,
sensory, or mental capabilities, or those lacking experience and knowledge, unless they have received
supervision or instruction regarding its safe usage from a responsible person.
GENERAL SAFETY
DANGER
WARNING
WARNING
WARNING
WARNING
5 6use only XtremepowerUS ® replacement parts XtremepowerUS ® Installation and User’s Guide
IMPORTANT SAFETY INSTRUCTIONSIMPORTANT SAFETY INSTRUCTIONS
SUCTION ENTRAPMENT HAZARD
DANGER DANGER DANGER DANGER DANGER
Use only properly installed and secured ANSI/ASME A112.19.8 approved anti-entrapment suction
covers for each drain.
Ensure that each suction cover is installed at least three (3') feet apart, measured from the nearest point
to nearest point.
Regularly check all suction covers for cracks, damage, and excessive weathering.
Promptly replace any loose, cracked, damaged, broken, or missing cover with an appropriate certified
one.
Periodically replace drain covers as necessary since they deteriorate over time due to exposure to
sunlight and weather.
Avoid placing hair, limbs, or your body near any suction cover, pool drain, or outlet.
To minimize the risk of injury caused by suction entrapment hazards, please follow these
safety guidelines:
By adhering to these precautionary measures, you can significantly reduce the risk of injury
associated with suction entrapment hazards.
The pump has the potential to generate significant levels of suction within the plumbing
system's suction side. This heightened suction presents a considerable risk if individuals come too close to
the suction openings. Being near these openings can result in severe injuries caused by the intense vacuum
or may lead to entrapment and drowning.
During installation, ensure proper drainage around the pump to prevent water from entering the
electrical components.
To ensure optimal performance, it is crucial to use the proper size pump for the specific application and
install it correctly. Only through meticulous sizing and installation can the pump function as intended.
The use of pumps that are improperly sized, installed, or employed for applications other than their
intended purpose can lead to severe personal injury or even death. These risks encompass potential
hazards such as electric shock, fire, flooding, suction entrapment, or critical injuries and property
damage resulting from structural failures of the pump or other system components. It is essential to
strictly adhere to the correct sizing, installation, and designated usage to mitigate these potential
dangers and ensure the safety of all users and the surrounding environment.
This pump and sand filter system is not designed to be submersible.
Do not attempt to open the inside of the drive or motor enclosure, as there is a capacitor bank that can
retain a potentially dangerous electrical charge, even when the unit is not powered.
Prior to servicing the pump and sand filter system, switch OFF the power by disconnecting the main
circuit to the pump.
Before working on the filter, release air pressure and disconnect power to the pump.
The sand filter is designed to operate with water temperatures between 32.0°F to 113.0°F (0°C to
45°C). Operating the filter outside of this temperature range may cause damage.
Exercise caution when installing and programming the pump to limit its performance potential when
using old or questionable equipment due to its high flow rates.
Note that electrical connection requirements may vary from country to country, state to state, and local
municipalities. Install the equipment following the National Electrical Code and all relevant local codes
and ordinances.
This equipment is not intended for use by individuals (including children) with reduced physical,
sensory, or mental capabilities, or those lacking experience and knowledge, unless they have received
supervision or instruction regarding its safe usage from a responsible person.
GENERAL SAFETY
DANGER
WARNING
WARNING
WARNING
WARNING
5 6use only XtremepowerUS ® replacement parts XtremepowerUS ® Installation and User’s Guide
IMPORTANT SAFETY INSTRUCTIONSIMPORTANT SAFETY INSTRUCTIONS
PUMP
HOSE
7-WAY VALVE
PRESSURE GAGE
PUMP BASE
FILTER TANK
RECIRCULATE
RINSE
WINTER
BACKWASH
FILTER
WASTE
CLOSED
psi
bar
KL1.6
1
0
10
20
30
40
50
60
2
3
4
PUMP AND SAND FILTER SYSTEM
PACKAGE CONTENTS
OVERVIEW (PRODUCT INFORMATION)
PART# 12: PUMP 2.5HP
1 PC(S)
PART# 1: 7-WAY VALVE
1 PC(S)
PART# 6: FILTER TANK
1 PC(S)
PART# 14: PUMP BASE
1 PC(S)
PART# 8: HOSE
1 PC(S)
PART# 4: LOCKING RING
1 SET(S)
COTTON FILTER
1 SET(S)
PART# 2: PRESSURE GAUGE
1 PC(S)
PART# 11: O-RING (REGULAR)
7 PC(S)
PART# 13: SCREW ASSEMBLY
4 PC(S)
TEFLON TAPE
1 PC(S)
PART# 7: FILTER DRAIN NOZZLE
1 SET(S)
PART# 9: HOSE CLAMP
2 SET(S)
PART# 10: HOSE ADAPTER
5 PC(S)
PART# 5: FILTER ASSEMBLY
1 PC(S)
USER’S GUIDE
1 PC(S)
PART# 3: O-RING (LARGE)
1 PC(S)
O-RING (SMALL)
1 PC(S)
7
8
use only XtremepowerUS ® replacement parts
XtremepowerUS ® Installation and User’s Guide
OVERVIEW (PRODUCT INFORMATION)OVERVIEW (PRODUCT INFORMATION)
PUMP
HOSE
7-WAY VALVE
PRESSURE GAGE
PUMP BASE
FILTER TANK
RECIRCULATE
RINSE
WINTER
BACKWASH
FILTER
WASTE
CLOSED
psi
bar
KL1.6
1
0
10
20
30
40
50
60
2
3
4
PUMP AND SAND FILTER SYSTEM
PACKAGE CONTENTS
OVERVIEW (PRODUCT INFORMATION)
PART# 12: PUMP 2.5HP
1 PC(S)
PART# 1: 7-WAY VALVE
1 PC(S)
PART# 6: FILTER TANK
1 PC(S)
PART# 14: PUMP BASE
1 PC(S)
PART# 8: HOSE
1 PC(S)
PART# 4: LOCKING RING
1 SET(S)
COTTON FILTER
1 SET(S)
PART# 2: PRESSURE GAUGE
1 PC(S)
PART# 11: O-RING (REGULAR)
7 PC(S)
PART# 13: SCREW ASSEMBLY
4 PC(S)
TEFLON TAPE
1 PC(S)
PART# 7: FILTER DRAIN NOZZLE
1 SET(S)
PART# 9: HOSE CLAMP
2 SET(S)
PART# 10: HOSE ADAPTER
5 PC(S)
PART# 5: FILTER ASSEMBLY
1 PC(S)
USER’S GUIDE
1 PC(S)
PART# 3: O-RING (LARGE)
1 PC(S)
O-RING (SMALL)
1 PC(S)
7
8
use only XtremepowerUS ® replacement parts
XtremepowerUS ® Installation and User’s Guide
OVERVIEW (PRODUCT INFORMATION)OVERVIEW (PRODUCT INFORMATION)
3.03”
77mm
2.48”
63mm
6.61”
168mm
2.48”
63mm
7.60”
193mm
3.46”
88mm
6.42”
163mm
5.98”
152mm
4.92”
125mm
5.28”
134mm
14.96”
380mm
11.81”
300mm
11.50”
292mm
PRODUCT DIMENSIONS
General product dimensions
SPECIFICATIONS
Input Voltage / Frequency
Input Current
Speed
RPM
Horsepower
WEF
Maximum Continuous Load
Ambient Conditions
Pool Type
Hmax (Maximum Head)
Qmax (Maximum Flowrate)
115 V / 60 Hz
2.5 Amp
Single (1) Speed
3450 RPM
0.25 HP
6.5
2400 GPH (Gallons Per Hour)
-40°F to +140°F (-40°C to +60°C)
+32°F to +122°F (0°C to +50°C)
Relative 0 to 95 % Non-condensing
+32.0°F to +113.0°F (0°C to 45°C)
Above Ground
6.6M
140L / Min (37GPM)
Storage
Operating
Humidity
Water Temperature
Max Lift-up
Drum Capacity
Waterproof Level
Certification
Feature
34.4 ft
Up to 43 lbs
IPX 5
UL Listed
CSA Certificated
ETL Listed
Thermal Protected
Heavy-Duty Long-Lasting Case
9 10
use only XtremepowerUS ® replacement parts XtremepowerUS ® Installation and User’s Guide
OVERVIEW (PRODUCT INFORMATION)OVERVIEW (PRODUCT INFORMATION)
3.03”
77mm
2.48”
63mm
6.61”
168mm
2.48”
63mm
7.60”
193mm
3.46”
88mm
6.42”
163mm
5.98”
152mm
4.92”
125mm
5.28”
134mm
14.96”
380mm
11.81”
300mm
11.50”
292mm
PRODUCT DIMENSIONS
General product dimensions
SPECIFICATIONS
Input Voltage / Frequency
Input Current
Speed
RPM
Horsepower
WEF
Maximum Continuous Load
Ambient Conditions
Pool Type
Hmax (Maximum Head)
Qmax (Maximum Flowrate)
115 V / 60 Hz
2.5 Amp
Single (1) Speed
3450 RPM
0.25 HP
6.5
2400 GPH (Gallons Per Hour)
-40°F to +140°F (-40°C to +60°C)
+32°F to +122°F (0°C to +50°C)
Relative 0 to 95 % Non-condensing
+32.0°F to +113.0°F (0°C to 45°C)
Above Ground
6.6M
140L / Min (37GPM)
Storage
Operating
Humidity
Water Temperature
Max Lift-up
Drum Capacity
Waterproof Level
Certification
Feature
34.4 ft
Up to 43 lbs
IPX 5
UL Listed
CSA Certificated
ETL Listed
Thermal Protected
Heavy-Duty Long-Lasting Case
9 10
use only XtremepowerUS ® replacement parts XtremepowerUS ® Installation and User’s Guide
OVERVIEW (PRODUCT INFORMATION)OVERVIEW (PRODUCT INFORMATION)
INSTALLATION
For detailed guidance on safe installation, please refer to the IMPORTANT SAFETY INSTRUCTIONS provid-
ed on pages 3 to 6. These instructions are vital to ensure the pump is set up correctly, maintaining safety and
optimal performance.
While the pump is designed for outdoor use, it is advisable to position both the pump and filter in the shade to
shield them from continuous direct heat. Select a well-drained location that will not flood during rainy periods.
Never install the pump and filter in a damp or poorly ventilated area. Keeping the motor clean is crucial, as
pump motors require unrestricted air circulation to aid in cooling.
Ensure that the pump location satisfies the following requirements:
Position the pump and sand filter system close to the pool or spa, using short and direct suction and
return piping to minimize friction loss and improve efficiency.
During installation, maintain a minimum distance of 5 feet (1.5 meters) from the inside wall of the pool
and spa.
Keep a minimum distance of 3 feet (0.9 meters) between the pump and the heater outlet.
Avoid installing the pump at a location higher than 10 feet (3.1 meters) above the water level.
Select a well-ventilated site for the pump, providing protection from excessive moisture, such as rain
gutter downspouts or sprinklers.
Allow at least 3 inches (7.6 centimeters) of rear clearance during installation to facilitate easy motor
removal for maintenance and repair.
Ensure the filter operates within the recommended pressure range and, if the system includes a
booster pump, use a pressure control valve.
If the pump is positioned higher than the water level, install a backwater control valve.
If the pump is situated lower than the water level, an isolation valve is necessary to prevent water from
flowing back during general inspections.
LOCATION
Pumps without strainer bodies require flooded suction (all fittings and piping below water level) and
won't self-prime. Install the pump below water level when the pool is filled, or use suction line valves for
priming. Minimize vertical distance if mounting above water level.
It's recommended to connect the pump to an external skimmer on the pool. This would help prevent
debris from entering the pump and ensures smoother operation.
Position the pump as close to the pool or spa as feasible, ensuring it is placed on a dry, well- ventilated
surface away from direct sunlight. Consider the following factors:
◦ Ensure proper drainage away from the pump.
◦ Provide adequate ventilation for the pump motor.
◦ Allow easy access for future servicing and winterizing needs.
◦ Protect the pump from exposure to the elements.
Do not install this pump and sand filter system within an outer enclosure or beneath the skirt of a hot
tub or spa unless specific markings indicate its suitability for such installation.
Set the pump and sand filter system on a level concrete slab, stable ground, or an equivalent surface
to avoid straining the attached plumbing.
Position the filter carefully, considering the piping connections for easy operation and servicing.
Ensure that the compliance label is facing the front, making it easily identifiable in case of service
difficulties.
During installation, it is crucial to mechanically secure the pump and sand filter system to the included
system ray. Proper mechanical securing guarantees stability and safe operation of the pump and sand
filter system during its use.
Reduce the use of connecting adapters and minimize bending in the hose connections to decrease
water flow scrubbing and maximize effectiveness.
Avoid excessive application of solvents to fittings to prevent running into O-rings and causing sealing
problems.
Do not over-tighten fittings or adapters.
Ω
ELECTRICAL
RISK OF ELECTRICAL SHOCK OR ELECTROCUTION.
It's crucial to follow the National Electrical Code and all relevant local codes and
ordinances. Going against these rules can result in a high risk of electrical shock,
potentially leading to severe injury, death, or property damage for individuals involved. To
prioritize safety and prevent potential hazards, adhering to electrical safety regulations and
guidelines is crucial.
Always ensure the power to the pump is disconnected from the power source before performing any
service or maintenance. Failure to do so can lead to severe injury or even death for service personnel, pool
users, or others due to electric shock, and may also result in property damage. Prior to servicing the pump,
ensure complete disconnection from the power source to ensure the safety of everyone involved and to
prevent any potential hazards or accidents.
Prior to commencing any work on the pump,
thoroughly read and familiarize yourself with all servicing
instructions. This practice ensures your understanding of the proper procedures and precautions necessary
for safe and effective pump servicing. Neglecting to do so may result in accidents, injuries, or damage to the
pump or surrounding equipment. Prioritize safety by carefully reviewing all instructions before undertaking any
maintenance tasks.
DANGER
NOTE
11 12use only XtremepowerUS ® replacement parts XtremepowerUS ® Installation and User’s Guide
INSTALLATIONINSTALLATION
INSTALLATION
INSTALLATION
For detailed guidance on safe installation, please refer to the IMPORTANT SAFETY INSTRUCTIONS provid-
ed on pages 3 to 6. These instructions are vital to ensure the pump is set up correctly, maintaining safety and
optimal performance.
While the pump is designed for outdoor use, it is advisable to position both the pump and filter in the shade to
shield them from continuous direct heat. Select a well-drained location that will not flood during rainy periods.
Never install the pump and filter in a damp or poorly ventilated area. Keeping the motor clean is crucial, as
pump motors require unrestricted air circulation to aid in cooling.
Ensure that the pump location satisfies the following requirements:
Position the pump and sand filter system close to the pool or spa, using short and direct suction and
return piping to minimize friction loss and improve efficiency.
During installation, maintain a minimum distance of 5 feet (1.5 meters) from the inside wall of the pool
and spa.
Keep a minimum distance of 3 feet (0.9 meters) between the pump and the heater outlet.
Avoid installing the pump at a location higher than 10 feet (3.1 meters) above the water level.
Select a well-ventilated site for the pump, providing protection from excessive moisture, such as rain
gutter downspouts or sprinklers.
Allow at least 3 inches (7.6 centimeters) of rear clearance during installation to facilitate easy motor
removal for maintenance and repair.
Ensure the filter operates within the recommended pressure range and, if the system includes a
booster pump, use a pressure control valve.
If the pump is positioned higher than the water level, install a backwater control valve.
If the pump is situated lower than the water level, an isolation valve is necessary to prevent water from
flowing back during general inspections.
LOCATION
Pumps without strainer bodies require flooded suction (all fittings and piping below water level) and
won't self-prime. Install the pump below water level when the pool is filled, or use suction line valves for
priming. Minimize vertical distance if mounting above water level.
It's recommended to connect the pump to an external skimmer on the pool. This would help prevent
debris from entering the pump and ensures smoother operation.
Position the pump as close to the pool or spa as feasible, ensuring it is placed on a dry, well- ventilated
surface away from direct sunlight. Consider the following factors:
◦ Ensure proper drainage away from the pump.
◦ Provide adequate ventilation for the pump motor.
◦ Allow easy access for future servicing and winterizing needs.
◦ Protect the pump from exposure to the elements.
Do not install this pump and sand filter system within an outer enclosure or beneath the skirt of a hot
tub or spa unless specific markings indicate its suitability for such installation.
Set the pump and sand filter system on a level concrete slab, stable ground, or an equivalent surface
to avoid straining the attached plumbing.
Position the filter carefully, considering the piping connections for easy operation and servicing.
Ensure that the compliance label is facing the front, making it easily identifiable in case of service
difficulties.
During installation, it is crucial to mechanically secure the pump and sand filter system to the included
system ray. Proper mechanical securing guarantees stability and safe operation of the pump and sand
filter system during its use.
Reduce the use of connecting adapters and minimize bending in the hose connections to decrease
water flow scrubbing and maximize effectiveness.
Avoid excessive application of solvents to fittings to prevent running into O-rings and causing sealing
problems.
Do not over-tighten fittings or adapters.
Ω
ELECTRICAL
RISK OF ELECTRICAL SHOCK OR ELECTROCUTION.
It's crucial to follow the National Electrical Code and all relevant local codes and
ordinances. Going against these rules can result in a high risk of electrical shock,
potentially leading to severe injury, death, or property damage for individuals involved. To
prioritize safety and prevent potential hazards, adhering to electrical safety regulations and
guidelines is crucial.
Always ensure the power to the pump is disconnected from the power source before performing any
service or maintenance. Failure to do so can lead to severe injury or even death for service personnel, pool
users, or others due to electric shock, and may also result in property damage. Prior to servicing the pump,
ensure complete disconnection from the power source to ensure the safety of everyone involved and to
prevent any potential hazards or accidents.
Prior to commencing any work on the pump,
thoroughly read and familiarize yourself with all servicing
instructions. This practice ensures your understanding of the proper procedures and precautions necessary
for safe and effective pump servicing. Neglecting to do so may result in accidents, injuries, or damage to the
pump or surrounding equipment. Prioritize safety by carefully reviewing all instructions before undertaking any
maintenance tasks.
DANGER
NOTE
11 12use only XtremepowerUS ® replacement parts XtremepowerUS ® Installation and User’s Guide
INSTALLATIONINSTALLATION
INSTALLATION
MINIMUM
6” (152mm)
5 × SUCTION
PIPE DIAMETER
Pump Installation
6.1 6.2
6.3
6.4
6.5 6.6
6.6
6.5
6.4
6.3 6.2
6.1
Filter Drain Nozzle
6.6

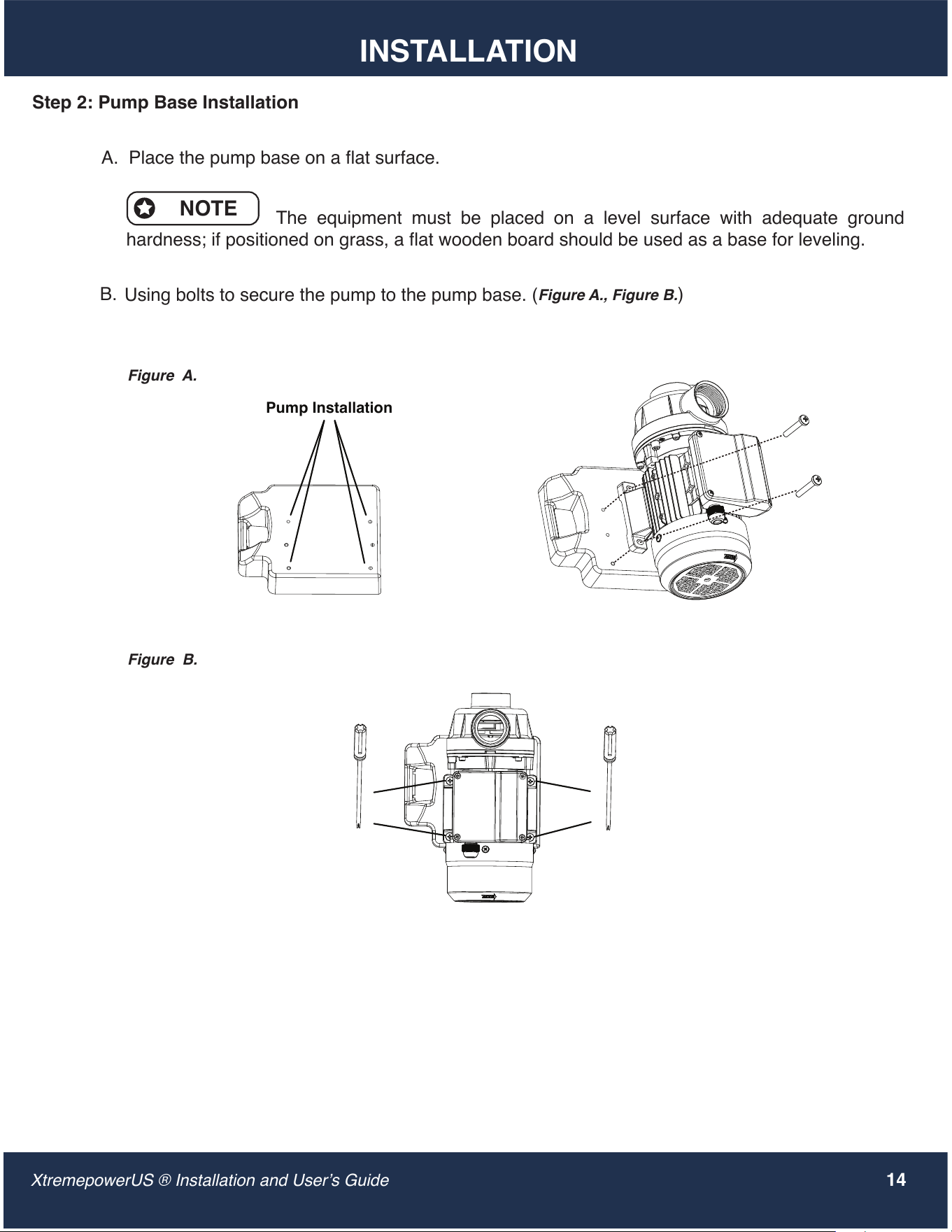

Step 2: Pump Base Installation
Place the pump base on a flat surface.
Using bolts to secure the pump to the pump base. (
Figure A., Figure B.)
A.
B.
Figure A.
Figure B.
PUMP AND SAND FILTER SYSTEM INSTALLATION GUIDE
Step 0: Before starting the installation
Ensure that the designated location has sufficient space and meets all the installation requirements.
Refer to chapter “Installation” -> “Location” -> “Ensure that the pump and sand filter system
location satisfies the following requirements:”
Step 1: Sand Filter Drain Installation
Disassemble the Filter Drain Nozzle, and arrange the drainage components in the following order
as showing in Figure A.: #6.1, #6.2, #6.3, #6.4, #6.5, and #6.6. Apply #6.5 onto #6.6 (Figure B.).
Insert the assembled #6.5 and #6.6 into the filter tank's opening. On the out side of the filter tank,
install other drainage components onto #6.6 in the following order: #6.4, #6.3, #6.2, and #6.1.
Manually tighten all the components to secure the filter drain. Do not overtighten. No tools are
required.
A
.
B.
C.
Figure B.Figure A.
The equipment must be placed on a level surface with adequate ground
hardness; if positioned on grass, a flat wooden board should be used as a base for leveling.
NOTE
13
14
use only XtremepowerUS ® replacement parts
XtremepowerUS ® Installation and User’s Guide
INSTALLATIONINSTALLATION
MINIMUM
6” (152mm)
5 × SUCTION
PIPE DIAMETER
Pump Installation
6.1 6.2
6.3
6.4
6.5 6.6
6.6
6.5
6.4
6.3 6.2
6.1
Filter Drain Nozzle
6.6
Step 2: Pump Base Installation
Place the pump base on a flat surface.
Using bolts to secure the pump to the pump base. (
Figure A., Figure B.)
A.
B.
Figure A.
Figure B.
PUMP AND SAND FILTER SYSTEM INSTALLATION GUIDE
Step 0: Before starting the installation
Ensure that the designated location has sufficient space and meets all the installation requirements.
Refer to chapter “Installation” -> “Location” -> “Ensure that the pump and sand filter system
location satisfies the following requirements:”
Step 1: Sand Filter Drain Installation
Disassemble the Filter Drain Nozzle, and arrange the drainage components in the following order
as showing in Figure A.: #6.1, #6.2, #6.3, #6.4, #6.5, and #6.6. Apply #6.5 onto #6.6 (Figure B.).
Insert the assembled #6.5 and #6.6 into the filter tank's opening. On the out side of the filter tank,
install other drainage components onto #6.6 in the following order: #6.4, #6.3, #6.2, and #6.1.
Manually tighten all the components to secure the filter drain. Do not overtighten. No tools are
required.
A
.
B.
C.
Figure B.Figure A.
The equipment must be placed on a level surface with adequate ground
hardness; if positioned on grass, a flat wooden board should be used as a base for leveling.
NOTE
13
14
use only XtremepowerUS ® replacement parts
XtremepowerUS ® Installation and User’s Guide
INSTALLATIONINSTALLATION
psi
bar
KL1.6
1
0
10
20
30
40
50
60
2
3
4
Pressure Gauge
Port Plug
POOL
(outlet)
WASTE
PUMP
PUMP
POOL
(inlet)
Step 4: Hose Adapter Installation
Place 1 piece of o-ring (regular) on the threaded end of each hose adapter.
Water Flow Direction Diagram
The 7-way valve automatically directs incoming water from the piping system to the top of the filter
bed. Once the water passes through the filter system, it captures and traps dirt and debris,
effectively filtering them out. The filtered water is then returned from the bottom of the filter tank,
flows through the 7-way valve, and is sent back through the piping system.
Install the hose adapters onto the specified ports on the 7-way valve and the pump, then manually
tighten the hose adapters.
A.
B.
C.

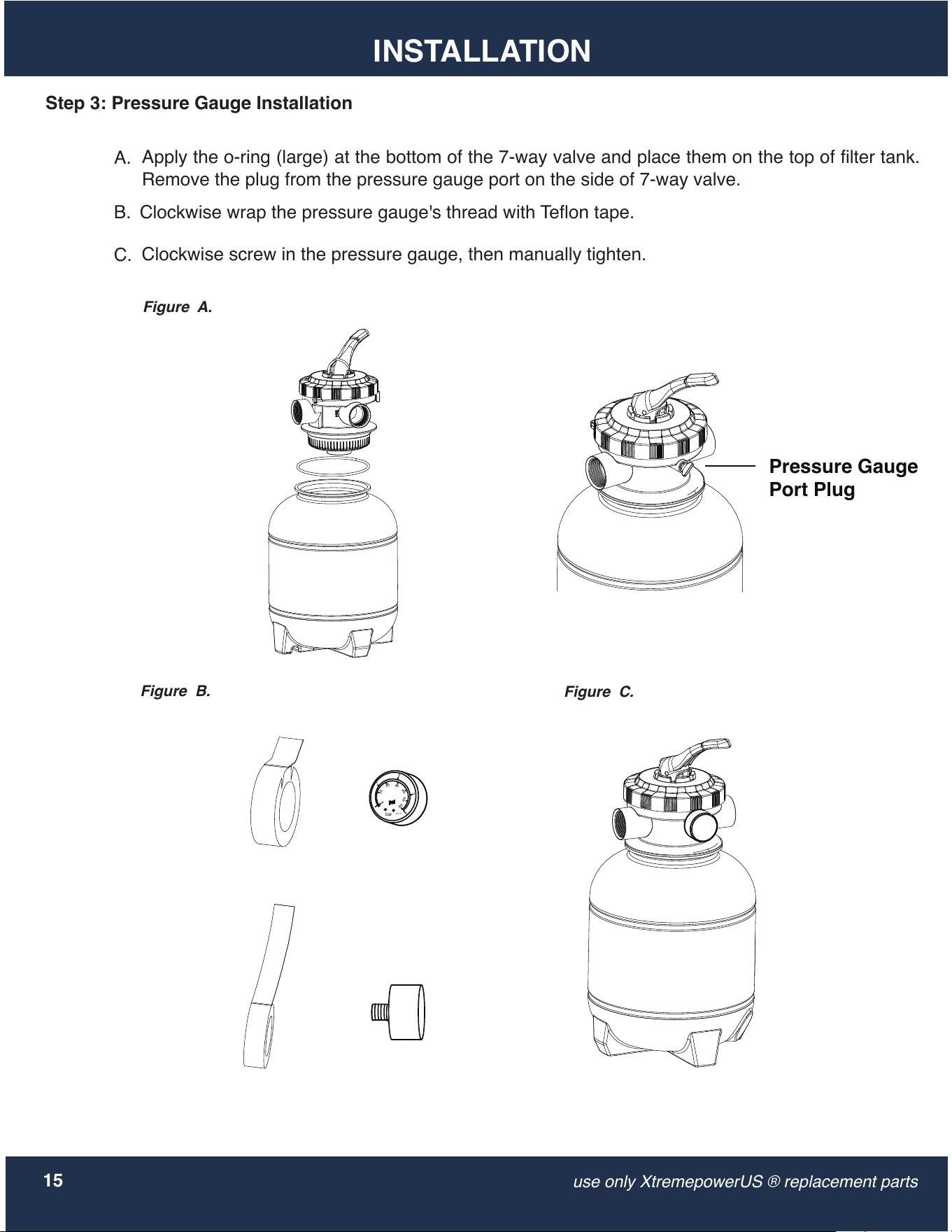

Step 3: Pressure Gauge Installation
Apply the o-ring (large) at the bottom of the 7-way valve and place them on the top of filter tank.
Remove the plug from the pressure gauge port on the side of 7-way valve.
Clockwise wrap the pressure gauge's thread with Teflon tape.
Clockwise screw in the pressure gauge, then manually tighten.
A.
B.
C.
Figure A.
Figure B.
Figure C.
15
16
use only XtremepowerUS ® replacement parts XtremepowerUS ® Installation and User’s Guide
INSTALLATIONINSTALLATION
psi
bar
KL1.6
1
0
10
20
30
40
50
60
2
3
4
Pressure Gauge
Port Plug
POOL
(outlet)
WASTE
PUMP
PUMP
POOL
(inlet)
Step 4: Hose Adapter Installation
Place 1 piece of o-ring (regular) on the threaded end of each hose adapter.
Water Flow Direction Diagram
The 7-way valve automatically directs incoming water from the piping system to the top of the filter
bed. Once the water passes through the filter system, it captures and traps dirt and debris,
effectively filtering them out. The filtered water is then returned from the bottom of the filter tank,
flows through the 7-way valve, and is sent back through the piping system.
Install the hose adapters onto the specified ports on the 7-way valve and the pump, then manually
tighten the hose adapters.
A.
B.
C.
Step 3: Pressure Gauge Installation
Apply the o-ring (large) at the bottom of the 7-way valve and place them on the top of filter tank.
Remove the plug from the pressure gauge port on the side of 7-way valve.
Clockwise wrap the pressure gauge's thread with Teflon tape.
Clockwise screw in the pressure gauge, then manually tighten.
A.
B.
C.
Figure A.
Figure B.
Figure C.
15
16
use only XtremepowerUS ® replacement parts XtremepowerUS ® Installation and User’s Guide
INSTALLATIONINSTALLATION
*The sand is not included
B.2

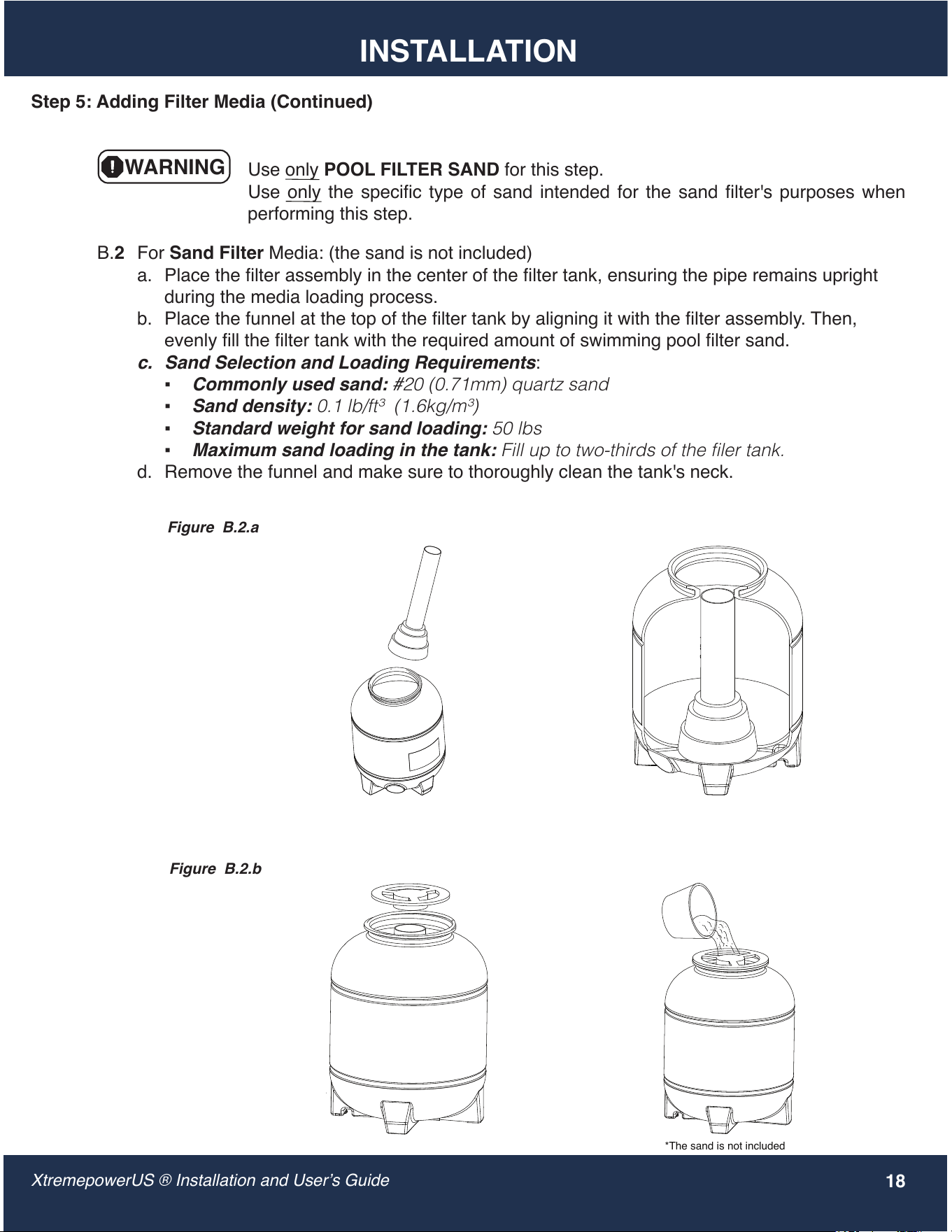

For Sand Filter Media: (the sand is not included)
a. Place the filter assembly in the center of the filter tank, ensuring the pipe remains upright
during the media loading process.
b. Place the funnel at the top of the filter tank by aligning it with the filter assembly. Then,
evenly fill the filter tank with the required amount of swimming pool filter sand.
c. Sand Selection and Loading Requirements:
▪ Commonly used sand: #20 (0.71mm) quartz sand
▪ Sand density: 0.1 lb/ft³ (1.6kg/m³)
▪ Standard weight for sand loading: 50 lbs
▪ Maximum sand loading in the tank: Fill up to two-thirds of the filer tank.
d. Remove the funnel and make sure to thoroughly clean the tank's neck.
Use only POOL FILTER SAND for this step.
Use only the specific type of sand intended for the sand filter's purposes when
performing this step.

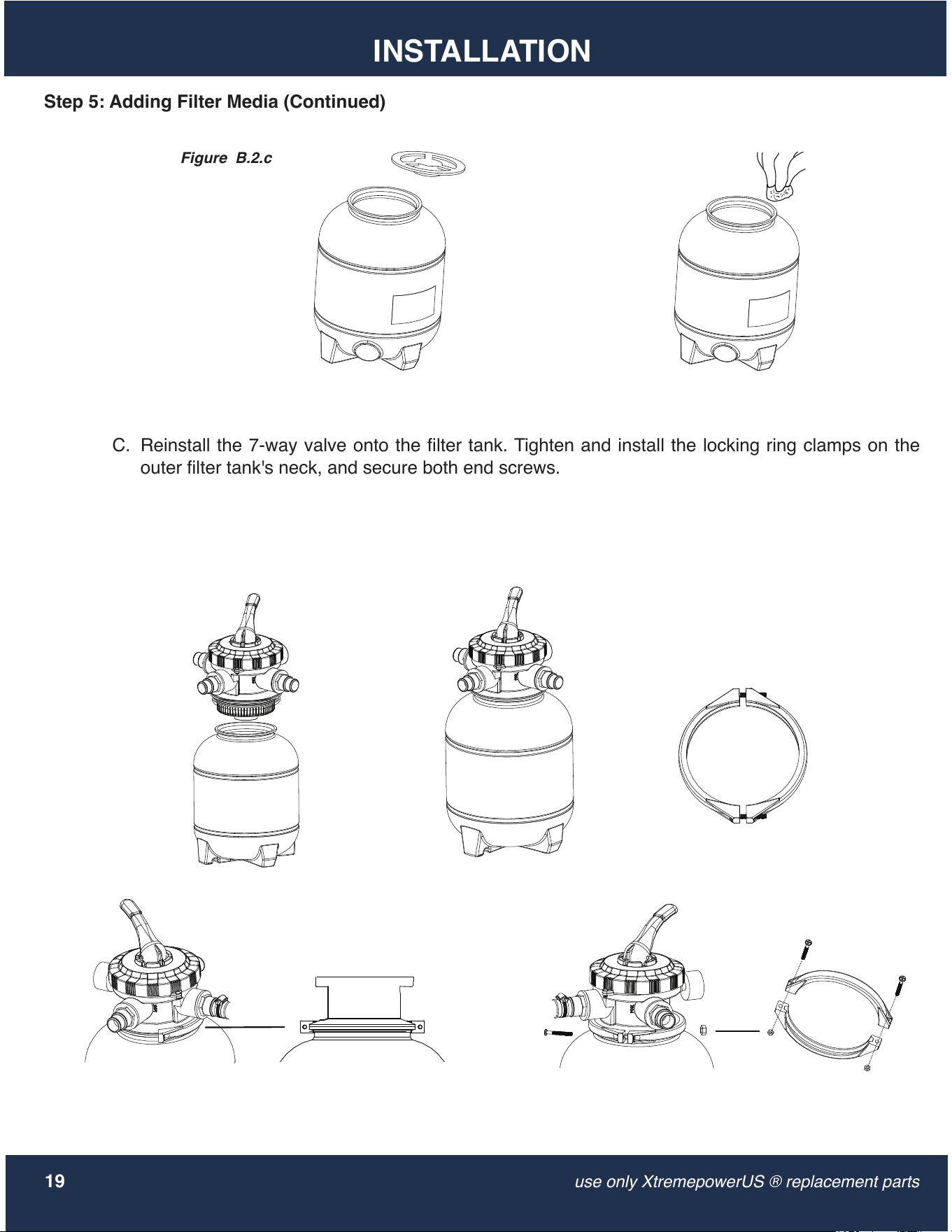

Step 5: Adding Filter Media (Continued)
Figure B.2.a
Figure B.2.b

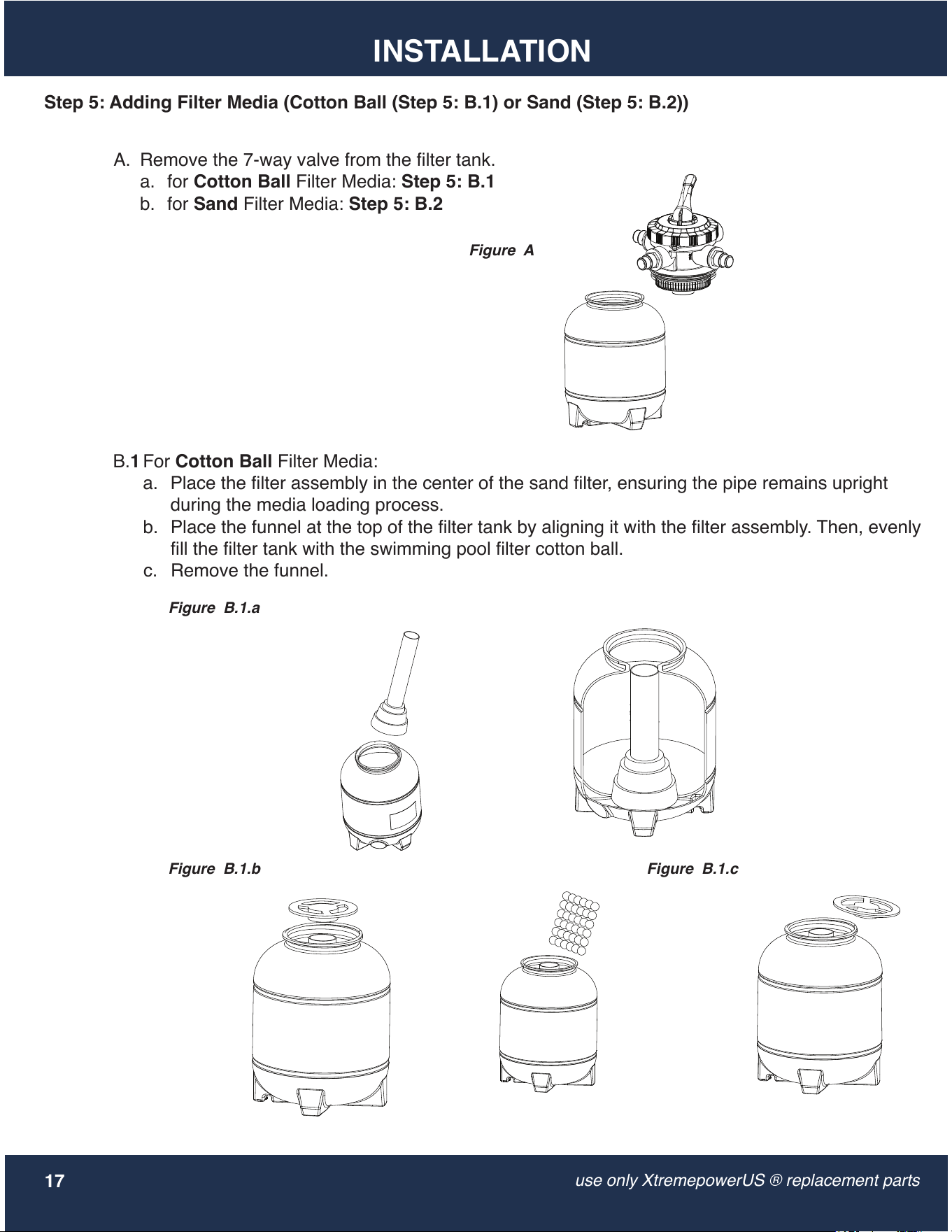

Step 5: Adding Filter Media (Cotton Ball (Step 5: B.1) or Sand (Step 5: B.2))
Remove the 7-way valve from the filter tank.
a. for Cotton Ball Filter Media: Step 5: B.1
b. for Sand Filter Media: Step 5: B.2
A.
B.1 For Cotton Ball Filter Media:
a. Place the filter assembly in the center of the sand filter, ensuring the pipe remains upright
during the media loading process.
b. Place the funnel at the top of the filter tank by aligning it with the filter assembly. Then, evenly
fill the filter tank with the swimming pool filter cotton ball.
c. Remove the funnel.
Figure B.1.a
Figure B.1.b Figure B.1.c
Figure A
WARNING
17 18
use only XtremepowerUS ® replacement parts XtremepowerUS ® Installation and User’s Guide
INSTALLATIONINSTALLATION
*The sand is not included
B.2
For Sand Filter Media: (the sand is not included)
a. Place the filter assembly in the center of the filter tank, ensuring the pipe remains upright
during the media loading process.
b. Place the funnel at the top of the filter tank by aligning it with the filter assembly. Then,
evenly fill the filter tank with the required amount of swimming pool filter sand.
c. Sand Selection and Loading Requirements:
▪ Commonly used sand: #20 (0.71mm) quartz sand
▪ Sand density: 0.1 lb/ft³ (1.6kg/m³)
▪ Standard weight for sand loading: 50 lbs
▪ Maximum sand loading in the tank: Fill up to two-thirds of the filer tank.
d. Remove the funnel and make sure to thoroughly clean the tank's neck.
Use only POOL FILTER SAND for this step.
Use only the specific type of sand intended for the sand filter's purposes when
performing this step.
Step 5: Adding Filter Media (Continued)
Figure B.2.a
Figure B.2.b
Step 5: Adding Filter Media (Cotton Ball (Step 5: B.1) or Sand (Step 5: B.2))
Remove the 7-way valve from the filter tank.
a. for Cotton Ball Filter Media: Step 5: B.1
b. for Sand Filter Media: Step 5: B.2
A.
B.1 For Cotton Ball Filter Media:
a. Place the filter assembly in the center of the sand filter, ensuring the pipe remains upright
during the media loading process.
b. Place the funnel at the top of the filter tank by aligning it with the filter assembly. Then, evenly
fill the filter tank with the swimming pool filter cotton ball.
c. Remove the funnel.
Figure B.1.a
Figure B.1.b Figure B.1.c
Figure A
WARNING
17 18
use only XtremepowerUS ® replacement parts XtremepowerUS ® Installation and User’s Guide
INSTALLATIONINSTALLATION
Hose Clamp
PUMP
WASTE
*The discharge hose is not included
POOL
(inlet)
POOL
(outlet)
*The pool inlet and outlet hoses are not included
Silicone Sealant
*The silicone sealant is not included
Reinstall the 7-way valve onto the filter tank. Tighten and install the locking ring clamps on the
outer filter tank's neck, and secure both end screws.
C.
Step 5: Adding Filter Media (Continued)
Figure B.2.c
Step 6: Hose Attachment
Insert a hose clamp onto one end of the hose adapter, attach the hose, and secure it by tightening
the hose clamp onto the "PUMP" port of the 7-way valve. Repeat the same process to attach the
hose onto the hose adapter of the "PUMP" port of the pump.
Repeat the above method to attach the hoses for the "POOL (inlet)" and "POOL (outlet)" ports.
(The pool inlet and outlet hoses are not included)
(Optional) Apply silicone sealant around the inlet adapters to prevent water leakage.
(Optional / Recommended) Connect a discharge hose to the “WASTE” port of the 7-way valve to
redirect water flow away from the pool bottom during flushing or backwashing. (The discharge
hose is not included)
A.
B.
C.
19 20
use only XtremepowerUS ® replacement parts XtremepowerUS ® Installation and User’s Guide
INSTALLATIONINSTALLATION
Hose Clamp
PUMP
WASTE
*The discharge hose is not included
POOL
(inlet)
POOL
(outlet)
*The pool inlet and outlet hoses are not included
Silicone Sealant
*The silicone sealant is not included
Reinstall the 7-way valve onto the filter tank. Tighten and install the locking ring clamps on the
outer filter tank's neck, and secure both end screws.
C.
Step 5: Adding Filter Media (Continued)
Figure B.2.c
Step 6: Hose Attachment
Insert a hose clamp onto one end of the hose adapter, attach the hose, and secure it by tightening
the hose clamp onto the "PUMP" port of the 7-way valve. Repeat the same process to attach the
hose onto the hose adapter of the "PUMP" port of the pump.
Repeat the above method to attach the hoses for the "POOL (inlet)" and "POOL (outlet)" ports.
(The pool inlet and outlet hoses are not included)
(Optional) Apply silicone sealant around the inlet adapters to prevent water leakage.
(Optional / Recommended) Connect a discharge hose to the “WASTE” port of the 7-way valve to
redirect water flow away from the pool bottom during flushing or backwashing. (The discharge
hose is not included)
A.
B.
C.
19 20
use only XtremepowerUS ® replacement parts XtremepowerUS ® Installation and User’s Guide
INSTALLATIONINSTALLATION
MINIMUM
10” (254mm)
MINIMUM
5” (127mm)
PRIOR TO START-UP
PRIMING THE PUMP
Before operating the pump, ensure it has been properly primed as water is essential for
cooling and lubricating the seal.
For pumps without strainer bodies located above water, close the suction line valve and fill the pump with
water for priming.
Pumps located below water level will self-prime if all piping is also below water level.
If any water leakage is observed from the pump or filter, DO NOT start the pump. In such cases, it is
essential to address the leakage issue before proceeding.
If no leakage occurs, you may proceed to start the pump. However, ensure that you stand at least 10
feet away from the pump and/or filter before starting it.
NEVER OPERATE THE PUMP WITHOUT WATER. Water cools and lubricates the
mechanical shaft seal. Running the pump dry can damage the seals, causing leaks, flooding, and voiding the
warranty.
OPERATION
If the circulation equipment must remain in the plumbing system during the water pressure
test, exercise caution and do not apply more than 10 PSI (0.69 BAR, this reading may vary depending on the
pool's pump and general piping system) pressure to the system.
When starting the circulating pump system, ensure that all suction and discharge valves
are OPEN, along with the filter air relief valve (if available) on the filter. This critical step is essential for proper
pump operation and to prevent potential severe personal injuries.
Step 7: Power Connection
See below for details of the minimum distance between the ground fault protection socket and the
pump and sand filter system in inches.
For the extension cord and the requirements for withstanding the filter pump's electrical load:
18 AWG
A.
B.
This pump and sand filter system is designed to work seamlessly with a Swimming Pool
Outdoor Programmable Timer outlet, enhancing control and efficiency. Highly recommend using such a timer
for optimized performance.
NOTE
4
4
4
5
5
5
6
6
0.5
1.0
1.5
2.0
2.5
4.0
5.0
6.0
Pool Capacity (Gallons) Duration of Each Run (Hours) Operating Frequency (Hours/Run)
300
600
900
1200
1500
2000
2500
3000
Pump Running Time Suggestion Chart
WARNING
WARNING
WARNING
CAUTION
Operate with caution: This pump and sand filter system operates simply by plugging in to
turn on, and power starts immediately. To turn it off, simply unplug, and power is cut off immediately.
CAUTION
21 22
use only XtremepowerUS ® replacement parts XtremepowerUS ® Installation and User’s Guide
INSTALLATION OPERATION
MINIMUM
10” (254mm)
MINIMUM
5” (127mm)
PRIOR TO START-UP
PRIMING THE PUMP
Before operating the pump, ensure it has been properly primed as water is essential for
cooling and lubricating the seal.
For pumps without strainer bodies located above water, close the suction line valve and fill the pump with
water for priming.
Pumps located below water level will self-prime if all piping is also below water level.
If any water leakage is observed from the pump or filter, DO NOT start the pump. In such cases, it is
essential to address the leakage issue before proceeding.
If no leakage occurs, you may proceed to start the pump. However, ensure that you stand at least 10
feet away from the pump and/or filter before starting it.
NEVER OPERATE THE PUMP WITHOUT WATER. Water cools and lubricates the
mechanical shaft seal. Running the pump dry can damage the seals, causing leaks, flooding, and voiding the
warranty.
OPERATION
If the circulation equipment must remain in the plumbing system during the water pressure
test, exercise caution and do not apply more than 10 PSI (0.69 BAR, this reading may vary depending on the
pool's pump and general piping system) pressure to the system.
When starting the circulating pump system, ensure that all suction and discharge valves
are OPEN, along with the filter air relief valve (if available) on the filter. This critical step is essential for proper
pump operation and to prevent potential severe personal injuries.
Step 7: Power Connection
See below for details of the minimum distance between the ground fault protection socket and the
pump and sand filter system in inches.
For the extension cord and the requirements for withstanding the filter pump's electrical load:
18 AWG
A.
B.
This pump and sand filter system is designed to work seamlessly with a Swimming Pool
Outdoor Programmable Timer outlet, enhancing control and efficiency. Highly recommend using such a timer
for optimized performance.
NOTE
4
4
4
5
5
5
6
6
0.5
1.0
1.5
2.0
2.5
4.0
5.0
6.0
Pool Capacity (Gallons) Duration of Each Run (Hours) Operating Frequency (Hours/Run)
300
600
900
1200
1500
2000
2500
3000
Pump Running Time Suggestion Chart
WARNING
WARNING
WARNING
CAUTION
Operate with caution: This pump and sand filter system operates simply by plugging in to
turn on, and power starts immediately. To turn it off, simply unplug, and power is cut off immediately.
CAUTION
21 22
use only XtremepowerUS ® replacement parts XtremepowerUS ® Installation and User’s Guide
INSTALLATION OPERATION
PRIMING THE PUMP (CONTINUED)
AFTER PRIMING THE PUMP
Once the pump is primed, activate the pump and open all suction and discharge line valves. Allow some time
for the pump to remove air from the suction lines. If there is no flow within five minutes, stop the pump and
re-prime. Check for air leaks and consult the Troubleshooting section if the pump does not operate properly.
Checking for Air Bubbles
After approximately ten minutes of operation, inspect the return fittings for air bubbles. Continuous air flow
indicates leaks in the suction line. Address any leaks immediately to prevent further issues.
Controlling Output
Keep the gate valve in the suction line fully open during pump operation.
If necessary to control the output, use a valve in the return line.
Never operate the pump with closed suction or discharge valves.
PRIMING THE PUMP (CONTINUED)
Run the pump for at least two minutes.
Turn off the pump and set the valve to the "FILTER" position. Ensure that all pool suction and
RETURN lines are open, allowing water to flow freely from and back to the pool. Stay clear of the filter
and start the pump.
The filter is now in its filtering cycle. Make sure water is returning to the pool and take note of the
operating pressure when the filter is clean.
Check the system for any water leaks. If a leak is found, shut off the pump before correcting the leak.
As the filter removes dirt and impurities from the pool water, the accumulation will cause the filter
pressure to rise and flow to diminish. When the pressure gauge reading is 5-10 PSI (0.0.34-0.69 BAR,
this reading may vary depending on the pool's pump and general piping system) higher than the clean
filter reading noted above (this reading may vary depending on the pool's pump and general piping
system), it is time to backwash the filter.
Always turn off the pump before adjusting the filter control valve to avoid strain on the
piping system and valves.
Regularly cleaning the pump and filter system is essential to prevent damage to the pump
and filter and ensure proper system operation.
Avoid installing 90° elbows directly into the pump inlet or outlet. This will help maintain
efficient pump operation.
Turn on the power and wait for the pump to prime, which may take up to ten (10) minutes. The priming time
depends on the vertical length of the suction lift and horizontal length of the suction pipe. If the pump does
NOT prime within 10 minutes, stop the motor, and identify the cause. Ensure all suction and discharge valves
are open when the pump is running. For troubleshooting guidance, refer to the Troubleshooting Guide.
By adhering to these safety and operational instructions, the proper functioning of the pump can be upheld,
and potential risks and damages can be avoided.
Verify all connections are secure.
Before filling a new pool with water, ensure it is thoroughly cleaned to prevent excessive dirt and large
particles from damaging the pump and filter.
Ensure all suction and discharge valves are fully open before starting the system.
Failure to do so could result in severe personal injury.
Before starting the pump, make sure the filter vessel is filled with water.
Starting the pump without water may cause damage to the pump.
Make sure all pool suction and WASTE lines are open, allowing water to flow freely from the pool to
the WASTE line. Depress and rotate the top mount valve handle to BACKWASH position.
Check the valve clamp to ensure it is properly tightened.
Prime and start the pump, allowing the filter tank to fill with water.
Once a steady water flow is observed from the WASTE line, run the pump for at least 2 minutes or
until the backwash water appears clean. This initial backwashing is essential to remove impurities and
fine sand particles from the silica sand media.
Turn off the pump and set the valve to the "RINSE" position. Ensure that all pool suction and WASTE
lines are open, allowing water to flow freely from the pool to the WASTE line. Do not dry run the sand
filter. Stay clear of the filter and start the pump.
It is vital to NEVER add undiluted chemicals directly into the pump suction of the pool/spa
system. Adding undiluted chemicals can damage the pump and void the warranty.
A.
B.
C.
D.
E.
F.
G.
H.
K.
L.
I.
J.
NOTE
CAUTION
WARNING
WARNING
WARNING
NOTE
WARNING
23
24
use only XtremepowerUS ® replacement parts XtremepowerUS ® Installation and User’s Guide
OPERATION OPERATION
PRIMING THE PUMP (CONTINUED)
AFTER PRIMING THE PUMP
Once the pump is primed, activate the pump and open all suction and discharge line valves. Allow some time
for the pump to remove air from the suction lines. If there is no flow within five minutes, stop the pump and
re-prime. Check for air leaks and consult the Troubleshooting section if the pump does not operate properly.
Checking for Air Bubbles
After approximately ten minutes of operation, inspect the return fittings for air bubbles. Continuous air flow
indicates leaks in the suction line. Address any leaks immediately to prevent further issues.
Controlling Output
Keep the gate valve in the suction line fully open during pump operation.
If necessary to control the output, use a valve in the return line.
Never operate the pump with closed suction or discharge valves.
PRIMING THE PUMP (CONTINUED)
Run the pump for at least two minutes.
Turn off the pump and set the valve to the "FILTER" position. Ensure that all pool suction and
RETURN lines are open, allowing water to flow freely from and back to the pool. Stay clear of the filter
and start the pump.
The filter is now in its filtering cycle. Make sure water is returning to the pool and take note of the
operating pressure when the filter is clean.
Check the system for any water leaks. If a leak is found, shut off the pump before correcting the leak.
As the filter removes dirt and impurities from the pool water, the accumulation will cause the filter
pressure to rise and flow to diminish. When the pressure gauge reading is 5-10 PSI (0.0.34-0.69 BAR,
this reading may vary depending on the pool's pump and general piping system) higher than the clean
filter reading noted above (this reading may vary depending on the pool's pump and general piping
system), it is time to backwash the filter.
Always turn off the pump before adjusting the filter control valve to avoid strain on the
piping system and valves.
Regularly cleaning the pump and filter system is essential to prevent damage to the pump
and filter and ensure proper system operation.
Avoid installing 90° elbows directly into the pump inlet or outlet. This will help maintain
efficient pump operation.
Turn on the power and wait for the pump to prime, which may take up to ten (10) minutes. The priming time
depends on the vertical length of the suction lift and horizontal length of the suction pipe. If the pump does
NOT prime within 10 minutes, stop the motor, and identify the cause. Ensure all suction and discharge valves
are open when the pump is running. For troubleshooting guidance, refer to the Troubleshooting Guide.
By adhering to these safety and operational instructions, the proper functioning of the pump can be upheld,
and potential risks and damages can be avoided.
Verify all connections are secure.
Before filling a new pool with water, ensure it is thoroughly cleaned to prevent excessive dirt and large
particles from damaging the pump and filter.
Ensure all suction and discharge valves are fully open before starting the system.
Failure to do so could result in severe personal injury.
Before starting the pump, make sure the filter vessel is filled with water.
Starting the pump without water may cause damage to the pump.
Make sure all pool suction and WASTE lines are open, allowing water to flow freely from the pool to
the WASTE line. Depress and rotate the top mount valve handle to BACKWASH position.
Check the valve clamp to ensure it is properly tightened.
Prime and start the pump, allowing the filter tank to fill with water.
Once a steady water flow is observed from the WASTE line, run the pump for at least 2 minutes or
until the backwash water appears clean. This initial backwashing is essential to remove impurities and
fine sand particles from the silica sand media.
Turn off the pump and set the valve to the "RINSE" position. Ensure that all pool suction and WASTE
lines are open, allowing water to flow freely from the pool to the WASTE line. Do not dry run the sand
filter. Stay clear of the filter and start the pump.
It is vital to NEVER add undiluted chemicals directly into the pump suction of the pool/spa
system. Adding undiluted chemicals can damage the pump and void the warranty.
A.
B.
C.
D.
E.
F.
G.
H.
K.
L.
I.
J.
NOTE
CAUTION
WARNING
WARNING
WARNING
NOTE
WARNING
23
24
use only XtremepowerUS ® replacement parts XtremepowerUS ® Installation and User’s Guide
OPERATION OPERATION
FILTER
RECIRCULATE
BACKWASH
RINSE
FILTER (Normal Operation)
For normal filtering and regular vacuuming.
Turn off the pump. Set the valve to the "FILTER" position for regular pool filtration. Then, start the
pump.
Occasionally check the pressure gauge to ensure pressure remains within the normal range 5-10 PSI
(0.0.34-0.69 BAR), this reading may vary depending on the pool's pump and general piping system.
After sufficient filtration, turn off the pump.
RECIRCULATE (Move The Water Around Without Filtering)
Only use the it for a short period of time when the filter is malfunctioning, there is a severe algal bloom in the
water, chemicals are being added to the pool, or after the filter has been backwashed
With the pump remaining off, set the valve to the "RECIRCULATE" position to circulate the pool water
without filtering it. Then start the pump.
After sufficient circulation, turn off the pump.
A.
B.
C.
A.
B.
VALVE FUNCTIONS
Never operate the pump without water.
BACKWASH (Initial Run)
Use this setting to clean the filter. When the filter pressure gauge rises 5-10 PSI (0.0.34-0.69 BAR, this
reading may vary depending on the pool's pump and general piping system) above the start-up clean
pressure.
Turn off the pump and set the valve to the "BACKWASH" position.
Start the pump and backwash until the water in the sight glass is clear. This usually takes about 2
minutes or less, depending on the amount of dirt accumulated, and then turn off the pump. Proceed
to “RINSE”.
RINSE (Initial Run)
This ensures that all the dirty water from backwashing is rinsed out of the filter and goes to waste, preventing
possible return to the pool.
After backwashing, keep the pump off and set the valve to "RINSE" position and start the pump for
about 0.5 to 1 minute.
During rinsing, discharge water through the drain pipe. After sufficient rinsing, stop the pump, set the
valve to “FILTER”, and start the pump for normal filtering.
A.
B.
A.
B.
: Opened
: Closed
: Opened
: Closed
: Opened
: Closed
: Opened
: Closed
CAUTION
PUMP
POOL
PUMP
WASTE
POOL
PUMP
POOL
PUMP
POOL
WASTE
WASTE
WASTE
25
26
use only XtremepowerUS ® replacement parts XtremepowerUS ® Installation and User’s Guide
OPERATION OPERATION
FILTER
RECIRCULATE
BACKWASH
RINSE
FILTER (Normal Operation)
For normal filtering and regular vacuuming.
Turn off the pump. Set the valve to the "FILTER" position for regular pool filtration. Then, start the
pump.
Occasionally check the pressure gauge to ensure pressure remains within the normal range 5-10 PSI
(0.0.34-0.69 BAR), this reading may vary depending on the pool's pump and general piping system.
After sufficient filtration, turn off the pump.
RECIRCULATE (Move The Water Around Without Filtering)
Only use the it for a short period of time when the filter is malfunctioning, there is a severe algal bloom in the
water, chemicals are being added to the pool, or after the filter has been backwashed
With the pump remaining off, set the valve to the "RECIRCULATE" position to circulate the pool water
without filtering it. Then start the pump.
After sufficient circulation, turn off the pump.
A.
B.
C.
A.
B.
VALVE FUNCTIONS
Never operate the pump without water.
BACKWASH (Initial Run)
Use this setting to clean the filter. When the filter pressure gauge rises 5-10 PSI (0.0.34-0.69 BAR, this
reading may vary depending on the pool's pump and general piping system) above the start-up clean
pressure.
Turn off the pump and set the valve to the "BACKWASH" position.
Start the pump and backwash until the water in the sight glass is clear. This usually takes about 2
minutes or less, depending on the amount of dirt accumulated, and then turn off the pump. Proceed
to “RINSE”.
RINSE (Initial Run)
This ensures that all the dirty water from backwashing is rinsed out of the filter and goes to waste, preventing
possible return to the pool.
After backwashing, keep the pump off and set the valve to "RINSE" position and start the pump for
about 0.5 to 1 minute.
During rinsing, discharge water through the drain pipe. After sufficient rinsing, stop the pump, set the
valve to “FILTER”, and start the pump for normal filtering.
A.
B.
A.
B.
: Opened
: Closed
: Opened
: Closed
: Opened
: Closed
: Opened
: Closed
CAUTION
PUMP
POOL
PUMP
WASTE
POOL
PUMP
POOL
PUMP
POOL
WASTE
WASTE
WASTE
25
26
use only XtremepowerUS ® replacement parts XtremepowerUS ® Installation and User’s Guide
OPERATION OPERATION
: Opened
: Closed
: Opened
: Closed
: Opened
: Closed
WASTE
CLOSED
WASTE (Bypass Filter Media For Direct Water Exit)
It enables water to access the filter but avoids passing through the filter media, instead directing it to exit the
filtration system entirely. It aids in extracting leaves, dirt, and additional debris.
With the pump remaining off, set the valve to the "WASTE" position to prevent clogging of the filter
while vacuuming the pool. Then start the pump.
After sufficient flushing, turn off the pump.
CLOSED (Shut Off The Flow To The Filter and Pool)
This function involves shutting the valve to prevent water from entering, offering utility in clearing the lines
during the pool's opening process and during winterization to expel air through the suction lines, redirecting
airflow into the pool.
With the pump remaining off, set the valve to the "CLOSED" position to prevent water from entering.
Avoid activating the pool pump when the 7-way valve is set to CLOSED, as this could result
in damaging the filter, the pump, or both.
A.
B.
A.
WARNING
PUMP
POOL
WASTE
PUMP
POOL
WASTE
Turn off the power for the pump.
Drain Water.
1. For the system with a filter
01.For Sand Filter
001. Turn the valve to “BACKWASH” for 3 to 5 minutes.
002. Set the valve to “WINTER” position.
02.For Cotton Ball Filter
001. Turn off the pool pump power.
002. Locate and open the drain valve at the bottom of the filter tank.
003. Allow the water to drain from the filter.
004. Close the drain valve once draining is complete.
005. Set the valve to “WINTER” position.
Cover the motor to shield it from severe rain, snow, and ice.
Avoid wrapping the motor in plastic, as it can lead to condensation and rust on the inside of the
motor.
WINTER (For Winterizing)
To prevent freeze damage.
With the pump remaining off, set the valve to the "WINTER" position to open all ports to prevent
residual water inside the machine from freezing and causing damage.
Setting the Valve for Winterization
Clearing out all residual water will reduce the risk of freeze damage.
Storing Pump for Winterization
Before attempting any corrective actions, ensure that the pump is in the OFF position. To
avoid any potential electrical hazards, wait until the remaining power in the capacitor is fully discharged before
proceeding with any work on the pump.
A.
a.
B.
a.
c.
d.
NOTE
DANGER
b.
WINTER
PUMP
POOL
WASTE
27 28
use only XtremepowerUS ® replacement parts XtremepowerUS ® Installation and User’s Guide
OPERATION OPERATION
: Opened
: Closed
: Opened
: Closed
: Opened
: Closed
WASTE
CLOSED
WASTE (Bypass Filter Media For Direct Water Exit)
It enables water to access the filter but avoids passing through the filter media, instead directing it to exit the
filtration system entirely. It aids in extracting leaves, dirt, and additional debris.
With the pump remaining off, set the valve to the "WASTE" position to prevent clogging of the filter
while vacuuming the pool. Then start the pump.
After sufficient flushing, turn off the pump.
CLOSED (Shut Off The Flow To The Filter and Pool)
This function involves shutting the valve to prevent water from entering, offering utility in clearing the lines
during the pool's opening process and during winterization to expel air through the suction lines, redirecting
airflow into the pool.
With the pump remaining off, set the valve to the "CLOSED" position to prevent water from entering.
Avoid activating the pool pump when the 7-way valve is set to CLOSED, as this could result
in damaging the filter, the pump, or both.
A.
B.
A.
WARNING
PUMP
POOL
WASTE
PUMP
POOL
WASTE
Turn off the power for the pump.
Drain Water.
1. For the system with a filter
01.For Sand Filter
001. Turn the valve to “BACKWASH” for 3 to 5 minutes.
002. Set the valve to “WINTER” position.
02.For Cotton Ball Filter
001. Turn off the pool pump power.
002. Locate and open the drain valve at the bottom of the filter tank.
003. Allow the water to drain from the filter.
004. Close the drain valve once draining is complete.
005. Set the valve to “WINTER” position.
Cover the motor to shield it from severe rain, snow, and ice.
Avoid wrapping the motor in plastic, as it can lead to condensation and rust on the inside of the
motor.
WINTER (For Winterizing)
To prevent freeze damage.
With the pump remaining off, set the valve to the "WINTER" position to open all ports to prevent
residual water inside the machine from freezing and causing damage.
Setting the Valve for Winterization
Clearing out all residual water will reduce the risk of freeze damage.
Storing Pump for Winterization
Before attempting any corrective actions, ensure that the pump is in the OFF position. To
avoid any potential electrical hazards, wait until the remaining power in the capacitor is fully discharged before
proceeding with any work on the pump.
A.
a.
B.
a.
c.
d.
NOTE
DANGER
b.
WINTER
PUMP
POOL
WASTE
27 28
use only XtremepowerUS ® replacement parts XtremepowerUS ® Installation and User’s Guide
OPERATION OPERATION
TROUBLESHOOTING
Before attempting any corrective actions, ensure that the pump is in the OFF position, and
the power source to the pump is also turned OFF. To avoid any potential electrical hazards, wait until the
remaining power in the capacitor is fully discharged before proceeding with any work on the pump.
Check all connections
Reset tripped breakers
Replace blown fuses in the Circuit Breakers
(Applies to older homes)
Manually check rotation of motor shaft for free
movement with no obstruction
If using a pump timer try overriding, it to ensure the
pump is receiving power. Also check the rocker
switch on the back of the pump to confirm the power
is on either high or low speed so that the timer can
turn the pump on and off to the set speed
Contact qualified professional to check that the
wiring gauge is heavy enough. The wiring should
be at least AWG14
Check all connections
Contact qualified professional to check that the
wiring gauge is heavy enough. The wir
ing should
be at least AWG14
The pump shouldn't be running for more than 8
hours a day. Ensure that it is either well shaded or
run during the cooler times of the day to prevent the
bearings from drying out quickly.
Manually check rotation of motor shaft for free
movement with no obstruction
Ensure proper grounding and wiring voltage.
ISSUE
CAUSE
Pump Won’t Start
Improper or loose wiring
connections; open
switches or relays
Tripped circuit breakers
Blown fuses.
Mechanical binding and
electrical overload
Using a pump timer
Pump Starts then
Stops
Undersized wiring
Loose connections
Low voltage at motor or
power drop (frequently
caused by undersized
wiring or extension cord
use)
Overheating
Mechanical binding
Electrical overload
CORRECTIVE ACTION
ISSUE CAUSE CORRECTIVE ACTION
Pump Hums but
will Not Start
Incorrect Voltage Check input voltage and wiring connection
Incorrect Wiring Check wiring connections
Mechanical binding
Manually check rotation of motor shaft for free
movement with no obstruction
Ensure that the pump is properly primed before its
first use. Also, check for any leaks at the
connections or in your pipes. The pump basket
should always be full while the pump is running;
Capacitor failure
Have the capacitor tested by a pool pump repair
company.
Pump Won’t
Prime
Pump Ran Dry
Pump Ran Dry
Ensure that the pump is properly primed be
fore its
first use. Also, check for any leaks at the
connections or in your pipes. The pump basket
should always be full while the pump is running;
any loss of water in the basket while running or
when the pump turns off indicates a leak
somewhere.
A backflow device can be installed in the suction line
Empty pump/strainer
housing. (If strainer is
equipped.)
Make sure pump/strainer housing is filled with water
and cover O-ring is clean. Ensure O-ring is properly
seated in the cover O-ring groove. Ensure O-ring is
lubricated, and that strainer cover is locked firmly in
position. Lubricant will help to create a tighter seal.
Lubricant will help to crea
te a tighter seal. Fill with
Loose connections on
suction side and/or outlet
side. (If strainer is equipped.)
Tighten pipe/union connections. (Any self-priming
pump will not prime if there are suction air leaks.
Leaks will result in bubbles emanating from return
fittings on the pool wall or in the strainer basket.)
Leaking O-ring or packing
glands on valves.
Tighten, repair, or replace valves.
Strainer basket or
skimmer basket loaded
with debris.
Remove strainer housing cover or skimmer cover,
clean basket, and refill strainer housing with water.
Tighten cover. (If strainer is equipped.)
of the pool pipes if needed.
water and observe carefully to check for any leaks.
OPERATION OPERATION
DANGER
29 30use only XtremepowerUS ® replacement parts XtremepowerUS ® Installation and User’s Guide
TROUBLESHOOTINGTROUBLESHOOTING
TROUBLESHOOTING
Before attempting any corrective actions, ensure that the pump is in the OFF position, and
the power source to the pump is also turned OFF. To avoid any potential electrical hazards, wait until the
remaining power in the capacitor is fully discharged before proceeding with any work on the pump.
Check all connections
Reset tripped breakers
Replace blown fuses in the Circuit Breakers
(Applies to older homes)
Manually check rotation of motor shaft for free
movement with no obstruction
If using a pump timer try overriding, it to ensure the
pump is receiving power. Also check the rocker
switch on the back of the pump to confirm the power
is on either high or low speed so that the timer can
turn the pump on and off to the set speed
Contact qualified professional to check that the
wiring gauge is heavy enough. The wiring should
be at least AWG14
Check all connections
Contact qualified professional to check that the
wiring gauge is heavy enough. The wir
ing should
be at least AWG14
The pump shouldn't be running for more than 8
hours a day. Ensure that it is either well shaded or
run during the cooler times of the day to prevent the
bearings from drying out quickly.
Manually check rotation of motor shaft for free
movement with no obstruction
Ensure proper grounding and wiring voltage.
ISSUE
CAUSE
Pump Won’t Start
Improper or loose wiring
connections; open
switches or relays
Tripped circuit breakers
Blown fuses.
Mechanical binding and
electrical overload
Using a pump timer
Pump Starts then
Stops
Undersized wiring
Loose connections
Low voltage at motor or
power drop (frequently
caused by undersized
wiring or extension cord
use)
Overheating
Mechanical binding
Electrical overload
CORRECTIVE ACTION
ISSUE CAUSE CORRECTIVE ACTION
Pump Hums but
will Not Start
Incorrect Voltage Check input voltage and wiring connection
Incorrect Wiring Check wiring connections
Mechanical binding
Manually check rotation of motor shaft for free
movement with no obstruction
Ensure that the pump is properly primed before its
first use. Also, check for any leaks at the
connections or in your pipes. The pump basket
should always be full while the pump is running;
Capacitor failure
Have the capacitor tested by a pool pump repair
company.
Pump Won’t
Prime
Pump Ran Dry
Pump Ran Dry
Ensure that the pump is properly primed be
fore its
first use. Also, check for any leaks at the
connections or in your pipes. The pump basket
should always be full while the pump is running;
any loss of water in the basket while running or
when the pump turns off indicates a leak
somewhere.
A backflow device can be installed in the suction line
Empty pump/strainer
housing. (If strainer is
equipped.)
Make sure pump/strainer housing is filled with water
and cover O-ring is clean. Ensure O-ring is properly
seated in the cover O-ring groove. Ensure O-ring is
lubricated, and that strainer cover is locked firmly in
position. Lubricant will help to create a tighter seal.
Lubricant will help to crea
te a tighter seal. Fill with
Loose connections on
suction side and/or outlet
side. (If strainer is equipped.)
Tighten pipe/union connections. (Any self-priming
pump will not prime if there are suction air leaks.
Leaks will result in bubbles emanating from return
fittings on the pool wall or in the strainer basket.)
Leaking O-ring or packing
glands on valves.
Tighten, repair, or replace valves.
Strainer basket or
skimmer basket loaded
with debris.
Remove strainer housing cover or skimmer cover,
clean basket, and refill strainer housing with water.
Tighten cover. (If strainer is equipped.)
of the pool pipes if needed.
water and observe carefully to check for any leaks.
OPERATION OPERATION
DANGER
29 30use only XtremepowerUS ® replacement parts XtremepowerUS ® Installation and User’s Guide
TROUBLESHOOTINGTROUBLESHOOTING
ISSUE CAUSE CORRECTIVE ACTION
Suction side clogged.
Contact a qualified repair professional.
if pump will develop a vacuum. You should have 5”-
6” of vacuum at the strainer cover (Only your Pool
dealer can confirm this with a vacuum gauge).You
may be able to check by removing the skimmer
basket and holding your hand over the bottom port
with skimmer full and pump running. If no suction is
felt, check for line blockage. (If strainer is equipped.)
A. If pump develops a vacuum, check for blocked
suction line. An air leak in the suction piping
may be the cause.
B. If pump does not develop a vacuum and pump
has sufficient “priming water”:
a. Re-check hou
sing cover and all threaded
connections for suction leaks.
system hose clamps are tight.
b. Check voltage to ensure that the motor is
c. Open housing cover and check for
clogging or obstruction in suction.
Check impeller for debris. Remove and
replace shaft seal only if it is leaking.
rotating at full RPM’s.
Low Flow
Clogged or restricted
pipe (line) and / or outlet
line.
Contact a qualified repair professional.
The pump's location is
either too high above the
pool water level and/or
too far from the pool.
Make sure that the pump height and lines are not
further than the manufacturer's recommended
maximum distan
ce.
Undersized pool piping. Correct piping size.
Plugged or restricted
discharge line of filter,
valve partially closed
(high gauge reading).
Sand filters – backwash as per manufacturer’s
instructions; D.E. filters – backwash as per
manufacturer’s instructions; Cartridge filters – clean
or replace cartridge.
Block off the bottom port of the skimmer to determine
Disconnect from the breaker and check if all
Pump Won’t
Prime (Cont)
(Cont)
Low Flow
Contact a qualified repair professional.
ISSUE CAUSE CORRECTIVE ACTION
Air leak in suction
(bubbles issuing from
return fittings).
Re-tighten using Teflon tape.
Plugged, restricted, or
damaged impeller.
Clear blockage and replace the impeller seal.
Noisy Pump
Air leak in suction piping,
cavitation caused by
restricted or undersized
suction line or leak at any
joint, low water level in
pool, and unrestricted
discharge return lines.
Correct suction condition or throttle return lines, if
practical. Holding hand over return fitting will
sometimes prove this point or putting in a smaller
eyeball fitting.
Vibration due to improper
mounting, etc.
Mount the pump on a level surface and secure the
pump to the equipment pad.
Foreign matter in pump
housing. Loose
stones/debris hitting
impeller could be cause.
Clean the pump housing.
Squealing sounds that
are getting louder over
time
Bearings may become noisy over time if not
properly maintained. They can be re-greased and
should be done with regular pump maintenance,
depending on usage. Check for leaks in the seals
that may allow water, including chemicals, to work
into the bearing ring and wipe out the grease. Any
leaking seals should be replaced at once.
Pipe blockage.
Check that all the pipe valves are in the open
position.
Pump blockage.
Check if there is any debris blocking inside of the
pump.
The filter cotton is hardened
due to the excessive dirt
inside the filter.
High Pressure
Reading
Run the pump in BACKWASH for 10 minutes..
Pipe blockage.
Check if the locking ring screws are tightened, and
if there are any foreign objects inside the locking
ring position.
Water Leakage
(Filter Tank’s
Locking Ring Area)
31
32
use only XtremepowerUS ® replacement parts
XtremepowerUS ® Installation and User’s Guide
TROUBLESHOOTINGTROUBLESHOOTING
ISSUE CAUSE CORRECTIVE ACTION
Suction side clogged.
Contact a qualified repair professional.
if pump will develop a vacuum. You should have 5”-
6” of vacuum at the strainer cover (Only your Pool
dealer can confirm this with a vacuum gauge).You
may be able to check by removing the skimmer
basket and holding your hand over the bottom port
with skimmer full and pump running. If no suction is
felt, check for line blockage. (If strainer is equipped.)
A. If pump develops a vacuum, check for blocked
suction line. An air leak in the suction piping
may be the cause.
B. If pump does not develop a vacuum and pump
has sufficient “priming water”:
a. Re-check hou
sing cover and all threaded
connections for suction leaks.
system hose clamps are tight.
b. Check voltage to ensure that the motor is
c. Open housing cover and check for
clogging or obstruction in suction.
Check impeller for debris. Remove and
replace shaft seal only if it is leaking.
rotating at full RPM’s.
Low Flow
Clogged or restricted
pipe (line) and / or outlet
line.
Contact a qualified repair professional.
The pump's location is
either too high above the
pool water level and/or
too far from the pool.
Make sure that the pump height and lines are not
further than the manufacturer's recommended
maximum distan
ce.
Undersized pool piping. Correct piping size.
Plugged or restricted
discharge line of filter,
valve partially closed
(high gauge reading).
Sand filters – backwash as per manufacturer’s
instructions; D.E. filters – backwash as per
manufacturer’s instructions; Cartridge filters – clean
or replace cartridge.
Block off the bottom port of the skimmer to determine
Disconnect from the breaker and check if all
Pump Won’t
Prime (Cont)
(Cont)
Low Flow
Contact a qualified repair professional.
ISSUE CAUSE CORRECTIVE ACTION
Air leak in suction
(bubbles issuing from
return fittings).
Re-tighten using Teflon tape.
Plugged, restricted, or
damaged impeller.
Clear blockage and replace the impeller seal.
Noisy Pump
Air leak in suction piping,
cavitation caused by
restricted or undersized
suction line or leak at any
joint, low water level in
pool, and unrestricted
discharge return lines.
Correct suction condition or throttle return lines, if
practical. Holding hand over return fitting will
sometimes prove this point or putting in a smaller
eyeball fitting.
Vibration due to improper
mounting, etc.
Mount the pump on a level surface and secure the
pump to the equipment pad.
Foreign matter in pump
housing. Loose
stones/debris hitting
impeller could be cause.
Clean the pump housing.
Squealing sounds that
are getting louder over
time
Bearings may become noisy over time if not
properly maintained. They can be re-greased and
should be done with regular pump maintenance,
depending on usage. Check for leaks in the seals
that may allow water, including chemicals, to work
into the bearing ring and wipe out the grease. Any
leaking seals should be replaced at once.
Pipe blockage.
Check that all the pipe valves are in the open
position.
Pump blockage.
Check if there is any debris blocking inside of the
pump.
The filter cotton is hardened
due to the excessive dirt
inside the filter.
High Pressure
Reading
Run the pump in BACKWASH for 10 minutes..
Pipe blockage.
Check if the locking ring screws are tightened, and
if there are any foreign objects inside the locking
ring position.
Water Leakage
(Filter Tank’s
Locking Ring Area)
31
32
use only XtremepowerUS ® replacement parts
XtremepowerUS ® Installation and User’s Guide
TROUBLESHOOTINGTROUBLESHOOTING
MAINTENANCE
Pump Maintenance
Motors are designed to be self-lubricating, eliminating the need for additional lubrication.
Check the motor for any blockage of air vents on the motor shell. If any debris is found, remove it after
turning off the power source.
If any leakage is noticed, inspect the shaft seals, and replace them if they show signs of wear.
Always ensure the power to the pump is disconnected before starting any work.
ISSUE CAUSE CORRECTIVE ACTION
Water Leakage
(Inlet, Outlet, and
Drainage Port)
The damaged o-ring installed. Adjust or replace the o-ring.
Water Discharging
(From The Drainage
Port During
Filtration)
The sealing ring of the
7-way valve is damaged.
Replace with a new valve.
The locking ring is not properly
installed.
Tighten the screws of the locking ring to ensure
proper installation.
Protection from heat:
◦ Shield the motor from direct sunlight by providing shade.
◦ Ensure any enclosure used is well-ventilated to prevent overheating.
◦ Promote ample cross ventilation to keep the motor cool.
Protection against dirt:
◦ Safeguard the motor from any foreign matter or splashing water.
◦ Avoid storing pool chemicals near the motor to prevent potential damage.
◦ Refrain from sweeping or stirring up dust near the motor while it's in operation.
◦ Remember that motor damage caused by dirt will void the motor warranty.
Protection against moisture:
◦ Shield the motor from splashing pool water and lawn sprinklers.
◦ Keep it protected from harsh weather conditions.
◦ If the motor gets wet, allow it to dry completely before operating it again. Avoid using the pump if it
has been flooded.
◦ Note that water damage to the motor will void the motor warranty.
When replacing the motor, ensure that the motor support is correctly positioned to
adequately support the size of the motor being installed.
Never wrap the motor with plastic or any other airtight materials. While it's acceptable to
cover the motor during a storm or for winter storage, it should never be covered while it is operating or
expected to be in operation.
Pump Protection
NOTE
CAUTION
DANGER
33 34use only XtremepowerUS ® replacement parts XtremepowerUS ® Installation and User’s Guide
MAINTENANCETROUBLESHOOTING
MAINTENANCE
Pump Maintenance
Motors are designed to be self-lubricating, eliminating the need for additional lubrication.
Check the motor for any blockage of air vents on the motor shell. If any debris is found, remove it after
turning off the power source.
If any leakage is noticed, inspect the shaft seals, and replace them if they show signs of wear.
Always ensure the power to the pump is disconnected before starting any work.
ISSUE CAUSE CORRECTIVE ACTION
Water Leakage
(Inlet, Outlet, and
Drainage Port)
The damaged o-ring installed. Adjust or replace the o-ring.
Water Discharging
(From The Drainage
Port During
Filtration)
The sealing ring of the
7-way valve is damaged.
Replace with a new valve.
The locking ring is not properly
installed.
Tighten the screws of the locking ring to ensure
proper installation.
Protection from heat:
◦ Shield the motor from direct sunlight by providing shade.
◦ Ensure any enclosure used is well-ventilated to prevent overheating.
◦ Promote ample cross ventilation to keep the motor cool.
Protection against dirt:
◦ Safeguard the motor from any foreign matter or splashing water.
◦ Avoid storing pool chemicals near the motor to prevent potential damage.
◦ Refrain from sweeping or stirring up dust near the motor while it's in operation.
◦ Remember that motor damage caused by dirt will void the motor warranty.
Protection against moisture:
◦ Shield the motor from splashing pool water and lawn sprinklers.
◦ Keep it protected from harsh weather conditions.
◦ If the motor gets wet, allow it to dry completely before operating it again. Avoid using the pump if it
has been flooded.
◦ Note that water damage to the motor will void the motor warranty.
When replacing the motor, ensure that the motor support is correctly positioned to
adequately support the size of the motor being installed.
Never wrap the motor with plastic or any other airtight materials. While it's acceptable to
cover the motor during a storm or for winter storage, it should never be covered while it is operating or
expected to be in operation.
Pump Protection
NOTE
CAUTION
DANGER
33 34use only XtremepowerUS ® replacement parts XtremepowerUS ® Installation and User’s Guide
MAINTENANCETROUBLESHOOTING
1
2
4
5
6
7
8
9
10
11
13
12
pH
Scale
A
c
i
d
i
c
N
e
u
t
r
a
l
A
l
k
a
l
i
n
e
0
1
2
3
4
5
6
7
8
9
1
0
1
1
1
2
1
3
1
4
14
3
REPLACEMENT PARTS
Parts Diagram
Item Part. No.
Description
Quantity
7-Way Valve1 647304271000
5024002000
47303005080
47303008080
47250501011
47304014080
2
3
4
5
6
Filter Assembly
Pressure Gauge
Locking Ring
Filter Tank for 12”
Filter Drain Nozzle
1
1
2
1
1
1
Pump and Sand Filter System
Item
Part. No.
Description
12
5749017080
5021004000
47303205080
72712000
5224008000
47302502080
8
9
10
11
Screw M6*50
Hose Clamp
Pump Base
Hose Adapter
Pump 0.25HP
Blow Molding Hose 1-1/4
1
2
5
1
4
1
Water Chemistry
Maintaining proper water chemistry is essential for clean, sanitary water and to control algae growth in the pool
or spa.
Chlorine
Use dry or liquid chlorine (calcium or sodium hypochlorite) daily to ensure clean and sanitary water. Chlorine
dissipates due to dirt, germs, sunlight, and wind exposure.
pH Level
Maintain the correct level of acidity or alkalinity in the pool water.
Desirable range: 7.2 - 7.4
Figure pH Level
5431032080 O-Ring (Large) 1
7
13
14
47303205080
7
O-Ring (Regular)
Quantity
35
use only XtremepowerUS ® replacement parts XtremepowerUS ® Installation and User’s Guide
36
MAINTENANCE REPLACEMENT PARTS
1
2
4
5
6
7
8
9
10
11
13
12
pH
Scale
A
c
i
d
i
c
N
e
u
t
r
a
l
A
l
k
a
l
i
n
e
0
1
2
3
4
5
6
7
8
9
1
0
1
1
1
2
1
3
1
4
14
3
REPLACEMENT PARTS
Parts Diagram
Item Part. No.
Description
Quantity
7-Way Valve1 647304271000
5024002000
47303005080
47303008080
47250501011
47304014080
2
3
4
5
6
Filter Assembly
Pressure Gauge
Locking Ring
Filter Tank for 12”
Filter Drain Nozzle
1
1
2
1
1
1
Pump and Sand Filter System
Item
Part. No.
Description
12
5749017080
5021004000
47303205080
72712000
5224008000
47302502080
8
9
10
11
Screw M6*50
Hose Clamp
Pump Base
Hose Adapter
Pump 0.25HP
Blow Molding Hose 1-1/4
1
2
5
1
4
1
Water Chemistry
Maintaining proper water chemistry is essential for clean, sanitary water and to control algae growth in the pool
or spa.
Chlorine
Use dry or liquid chlorine (calcium or sodium hypochlorite) daily to ensure clean and sanitary water. Chlorine
dissipates due to dirt, germs, sunlight, and wind exposure.
pH Level
Maintain the correct level of acidity or alkalinity in the pool water.
Desirable range: 7.2 - 7.4
Figure pH Level
5431032080 O-Ring (Large) 1
7
13
14
47303205080
7
O-Ring (Regular)
Quantity
35
use only XtremepowerUS ® replacement parts XtremepowerUS ® Installation and User’s Guide
36
MAINTENANCE REPLACEMENT PARTS
12.1 12.3 12.4 12.5 12.6 12.7
12.8
12.9
12.2
DISCLAIMER
PLEASE READ THE FOLLOWING CAREFULLY
The manufacturer and/or distributor have provided the parts list and assembly diagram in this manual for
reference purposes only. They do not make any representation or warranty to the buyer that they are qualified
to make repairs to the product or replace any parts of the product. In fact, the manufacturer and/or distributor
expressly state that all repairs and parts replacements should be undertaken by certified and licensed
technicians, and not by the buyer.
The buyer assumes all risk and liability arising from their repairs to the original product or replacement parts
or arising from their installation of replacement parts. It is strongly advised that qualified professionals handle
any repairs or replacements to ensure safety and proper functioning of the product. Improper installation and
operation may result in injury, property damage, or voiding of warranty. The manufacturer and/or distributor
shall not be held responsible for any accidents, damages, or malfunctions resulting from the buyer's
installation and operation of the product. It is essential to follow all safety guidelines and recommendations
provided in this manual and to seek professional assistance if unsure about the installation or operation
procedures.
Item
12.1
Part. No.
47254701080
5431032080
647251271000
5028013000
47251202080
12.3
12.4
12.5
12.2
Number
1
1
1
1
1
Description
Pump Housing
Impeller
O-Ring
Seal Assembly
Pump Cover
Item
Part. No.
Quantity
Item Part. No.
5023010000
5227002108
5224024000
47251205080
12.6
12.7
12.8
12.9
Number
1
4
4
1
Description
Motor 0.25HP
Screw M6*16
Screw M5*20
Mounting Foot
Item
Part. No.
Quantity
Pump 0.25HP
DISCLAIMER
37 38use only XtremepowerUS ® replacement parts XtremepowerUS ® Installation and User’s Guide
REPLACEMENT PARTS DISCLAIMER
12.1 12.3 12.4 12.5 12.6 12.7
12.8
12.9
12.2
DISCLAIMER
PLEASE READ THE FOLLOWING CAREFULLY
The manufacturer and/or distributor have provided the parts list and assembly diagram in this manual for
reference purposes only. They do not make any representation or warranty to the buyer that they are qualified
to make repairs to the product or replace any parts of the product. In fact, the manufacturer and/or distributor
expressly state that all repairs and parts replacements should be undertaken by certified and licensed
technicians, and not by the buyer.
The buyer assumes all risk and liability arising from their repairs to the original product or replacement parts
or arising from their installation of replacement parts. It is strongly advised that qualified professionals handle
any repairs or replacements to ensure safety and proper functioning of the product. Improper installation and
operation may result in injury, property damage, or voiding of warranty. The manufacturer and/or distributor
shall not be held responsible for any accidents, damages, or malfunctions resulting from the buyer's
installation and operation of the product. It is essential to follow all safety guidelines and recommendations
provided in this manual and to seek professional assistance if unsure about the installation or operation
procedures.
Item
12.1
Part. No.
47254701080
5431032080
647251271000
5028013000
47251202080
12.3
12.4
12.5
12.2
Number
1
1
1
1
1
Description
Pump Housing
Impeller
O-Ring
Seal Assembly
Pump Cover
Item
Part. No.
Quantity
Item Part. No.
5023010000
5227002108
5224024000
47251205080
12.6
12.7
12.8
12.9
Number
1
4
4
1
Description
Motor 0.25HP
Screw M6*16
Screw M5*20
Mounting Foot
Item
Part. No.
Quantity
Pump 0.25HP
DISCLAIMER
37 38use only XtremepowerUS ® replacement parts XtremepowerUS ® Installation and User’s Guide
REPLACEMENT PARTS DISCLAIMER
