Sencor SCB 7000WH Food chopper User Manual

SCB 7000WH

FOOD CHOPPER

Translation of the original manual

SCB 7000WH

MAX

Max.

20 s

MAX

MAX MAX

MAX

max. 55 °C

MAX

- 1 -

01/2025

2025, .

Food Chopper

User Manual

Important Safety Instructions

READ CAREFULLY AND STORE FOR FUTURE USE.

General Warnings

• This appliance may be used by persons with physical,

sensory or mental impairments or by inexperienced

persons, if they are properly supervised or have been

informed about how to use of the product in a safe manner

and understand the potential dangers.

• This appliance is not to be used by children. Keep the

appliance and its power cord out of the reach of children.

• Children must not play with the appliance.

• This appliance is intended for domestic use only.

The appliance is not intended for use in premises such as:

– kitchenettes in shops, offices and other work

environments;

– agricultural farms;

– hotels, motels and other residential environments;

– bed and breakfast establishments.

• This appliance is not intended for commercial use in order

to conduct business.

• If the power cord is damaged, have it replaced in a

professional service centre in order to prevent a dangerous

situation. It is forbidden to use the appliance with the

power cord damaged.

FOOD CHOPPER

- 2 -

01/2025

2025, .

• To avoid injury from the chopping blades, take extra care

when handling the blade unit, especially when assembling

the appliance, removing the blade unit from the container,

emptying the container and during cleaning. Do not touch

the chopping blades.

• General warning for food preparation andprocessing

machines andblenders: Take special care if you pour hot

liquid into the appliance container, as it may splash out of

the appliance due to sudden evaporation.

Warning:

Improper or unintended use can lead to injury.

• Food processing times and speed settings are listed

in thechapter QUICK GUIDE TO PROCESSING

INGREDIENTS.

• The maximum continuous operation time of the appliance

is 20 seconds. Allow the appliance to cool down for at

least 2 minutes before the next operating cycle. After

two 20-second operating cycles, allow the appliance to

cool down for 15 minutes. Do not exceed the maximum

operating time andobserve the cooling time of the

appliance.

Warning:

If you need to press down the food in the container,

use a suitable kitchen utensil such as a kitchen

spatula. Do not use your fingers to avoid being

injured by theblade unit. The chopping blades are

very sharp.

- 3 -

01/2025

2025, .

• Before replacing the accessories or accessible movable

parts, please turn the appliance off and disconnect it from

the power supply.

• Always disconnect the appliance from the power socket

if you are leaving it unattended and before assembly,

disassembly or cleaning.

• Clean the food contact surfaces of the appliance and its

accessories according to the instructions in the chapter

CLEANING AND MAINTENANCE.

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Additional Important Safety Instructions forUse of the

Appliance

• Use the appliance and its accessories in accordance with the instructions in this manual.

• The appliance is designed to process food of solid consistency. Do not process liquids in it. Do not use the appliance for purposes other than those

for which it was designed.

• The appliance is intended for indoor use only. Do not use it in industrial surroundings or outdoors.

• It is forbidden to modify the surface of the appliance in any way, e.g. using self-adhesive foil, etc.

• Do not expose the appliance or its accessories to the outdoor environment, extreme temperatures, rapid temperature changes, direct sunlight or

excessive dust.

• Always place the appliance on a clean, flat, dry and stable surface. Do not place it on the edge of the table to prevent it from falling.

• Do not place the appliance or its accessories on or near an electric or gas hob. Keep it at a sufficient distance from open fire, heating elements

andother sources of heat. Do not place it or any part of it into the freezer.

• Do not place any items on the appliance or its power cord.

• Ensure that the power cord does not hang over the edge of the table or touch hot surfaces or sharp objects.

• Before connecting this appliance to a power socket, make sure the rated voltage stated on the product's rating label corresponds to the voltage in

your power socket.

• The use of an extension cable is not recommended.

• Before use, always make sure that no part of the appliance is damaged. Do not use the appliance if it is damaged in any way.

• Only use the appliance with original accessories from the manufacturer.

Warning:

The use of non-original accessories can lead to a dangerous situation.

• Prior to connecting the appliance to apower socket, make sure that the appliance is properly assembled according to the instructions in this

user'smanual.

• The appliance is equipped with a safety lock that will not allow it to start if the motor unit is not properly seated on the lid of the container.

• The appliance may vibrate during operation. Do not use the appliance without an anti-skid base.

• Do not overfill the appliance container. The maximum capacity of the food chopper container is indicated by the MAX mark.

• Before processing food in the appliance, remove nut shells, bones, hard fruit stones, etc.

• Do not process ingredients such as baking soda, baking powder, yeast, etc. in the appliance.

• This appliance is not intended for preparing dough, mashed potatoes or whipping egg whites, etc.

• To avoid damage to the blade unit, do not use the appliance to process hard ingredients such as cereals, coffee beans, nutmeg, frozen foods, ice

cubes, hard bread crusts, etc.

• Take extra care when handling hot liquids and food. Hot steam or splashes of hot liquids or food can cause scalding.

• The appliance container is temperature resistant up to 55 °C. Do not put food at higher temperatures into it. For added safety, allow hot foods to cool

to room temperature before placing them in the container.

• If you place hot food in the container, the surface will heat up. Avoid contact with heated surfaces.

• Do not place the lid on the container if hot food is inserted init. Wait until the food has cooled down to room temperature.

- 4 -

01/2025

2025, .

• Never process hot food. Allow hot foods to cool to room temperature before processing.

• Do not open the lid or remove the motor unit while the appliance is running.

• Do not turn the appliance on when empty. Improper use can adversely affect the life of the appliance.

• Do not leave the motor unit running empty. If food is sticking to the sides of the container and the blade unit is running empty, stop the appliance.

Disconnect the appliance from the power socket. Wait until the rotating parts come to a stop. Remove the motor unit and lid. Use a spatula to loosen

the food from the sides of the container. Do not release food with your hands to avoid injury from thechopping blade.

• After use, switch off and disconnect the appliance from the power socket. Wait for the rotating parts to stop before removing the motor unit from the

container lid. Carefully remove the blade unit from the container first andthen the food to avoid injury from thechopping blade.

• Unplug the appliance from the power socket by pulling the plug. Do not pull the power cord. Otherwise, damage to the power cable or the socket

may occur.

• Do not connect or disconnect the power cord plug to or from the power socket with wet hands.

• None of the components of this appliance are intended for use ina microwave or electric oven, etc.

• The appliance container is not designed forstoring food.

• To avoid the risk of electric shock, do not immerse the motor unit, power cord or power cord plug in water or any other liquid, or wash these parts

under running water.

• Do not use the appliance if it is not working properly, if the motor unit has been immersed in water or if it shows any signs of damage. Take it to an

authorised service centre for inspection or repair.

• Do not make any adjustments to the appliance. Do not disassemble the motor unit.

• To avoid a dangerous situation, never repair the appliance yourself. All repairs should be carried out by an authorised service centre. Tampering with

the appliance during the validity of the warranty may result in the loss of your legal rights regarding faulty performance or warranty for quality.

• Store the appliance in a dry and clean environment out of the reach of children and animals.

EXPLANATION OF SYMBOLS PLACED ON THE PRODUCT OR INTHE ACCOMPANYING DOCUMENTATION

Product with protection class II

The product meets all the basic requirements of the applicable EU directives.

This symbol on products or original documents means that used electric or electronic products must not be added to ordinary municipal

waste.

- 5 -

01/2025

2025, .

• Thank you for purchasing our SENCOR product; we hope it will serve

to your satisfaction.

• Prior to using this appliance, please read the user manual thoroughly,

even in cases when you are already familiar with the use of similar

types of appliances. Use the appliance only as described in this

user manual. Keep the manual for future reference. If you pass the

appliance on to another person, ensure that this user manual is

included.

• Carefully unpack the appliance and make sure not to discard any part

of the packaging material until you have found all its components. It

is recommended to keep the original packaging, packing material,

receipt and confirmation of the extent of the seller'sliability or warranty

certificate at least for the duration of the legal right of defective

performance or quality guarantee. When transporting the appliance,

we recommend packaging it again in the original box provided by the

manufacturer.

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

DESCRIPTION OF THE CHOPPER AND ITS ACCESSORIES (FIG. A)

A1 Power switch

A2 Speed regulator Min to Max

– low to high speed

A3 Motor unit

A4 Container lid

with acentral

andcircumferential seal

A5 2-piece blade unit with six

chopping blades

A6 Glass container with handles

– total volume 2.7 l, max.

filling capacity 1.5 l

A7 Centre pin

A8 Anti-skid base

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

THE PURPOSE OF USING THE CHOPPER

• The food chopper is designed for chopping foods such as fruit,

vegetables, semi-hard or hard cheeses, nuts, herbs or lean meat, and

for preparing fruit or vegetable purees or spreads.

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

BEFORE FIRST USE

• Take the appliance and its accessories out of the packaging materials.

• Wash the A6 glass container, A4 container lid, A5 blade unit and A8

anti-skid base thoroughly with warm water using afew drops of hand

dishwashing liquid. Then thoroughly rinse everything under running

water to remove any dishwashing detergent residue andwipe dry with

akitchen towel.

Warning:

When handling and cleaning the A5 blade unit, take

extra care not to cut yourself on the chopping blades.

Clean each part of the A5 blade unit separately

andhold it by the central part. The chopping blades

are very sharp. Do not touch them.

• Wipe the A3 motor unit with alightly damp cloth anddry with

akitchen towel.

Warning:

To avoid the risk of electric shock, do not immerse

the A3 motor unit, power cord or power cord plug in

water or any other liquid, or wash these parts under

running water.

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

ASSEMBLY AND DISASSEMBLY OF THE BLADE UNIT (FIG. B)

• The A5 blade unit consists of basic chopping blades, which are put

on the A7 centre pin on the bottom of the A6 container, andadditional

chopping blades. Additional chopping blades are attached to thebase

blades.

• Place the basic chopping blades on the table. Carefully slide the

auxiliary blade unit onto the central part of the basic blade unit. Hold

the basic blade unit from above by the central part andturn the

additional blade unit counterclockwise until it stops.

• In the opposite way, disassemble the A5 blade unit into its individual

parts. To remove the additional chopping blades, hold the basic

chopping blades from above by the central section. Carefully rotate

the central part of the additional chopping blades clockwise, slide the

additional blades upwards and remove them from the basic chopping

blades.

Warning:

When handling the A5 blade unit, take extra care

not to injure yourself on the chopping blades. The

chopping blades are very sharp. Do not touch them.

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

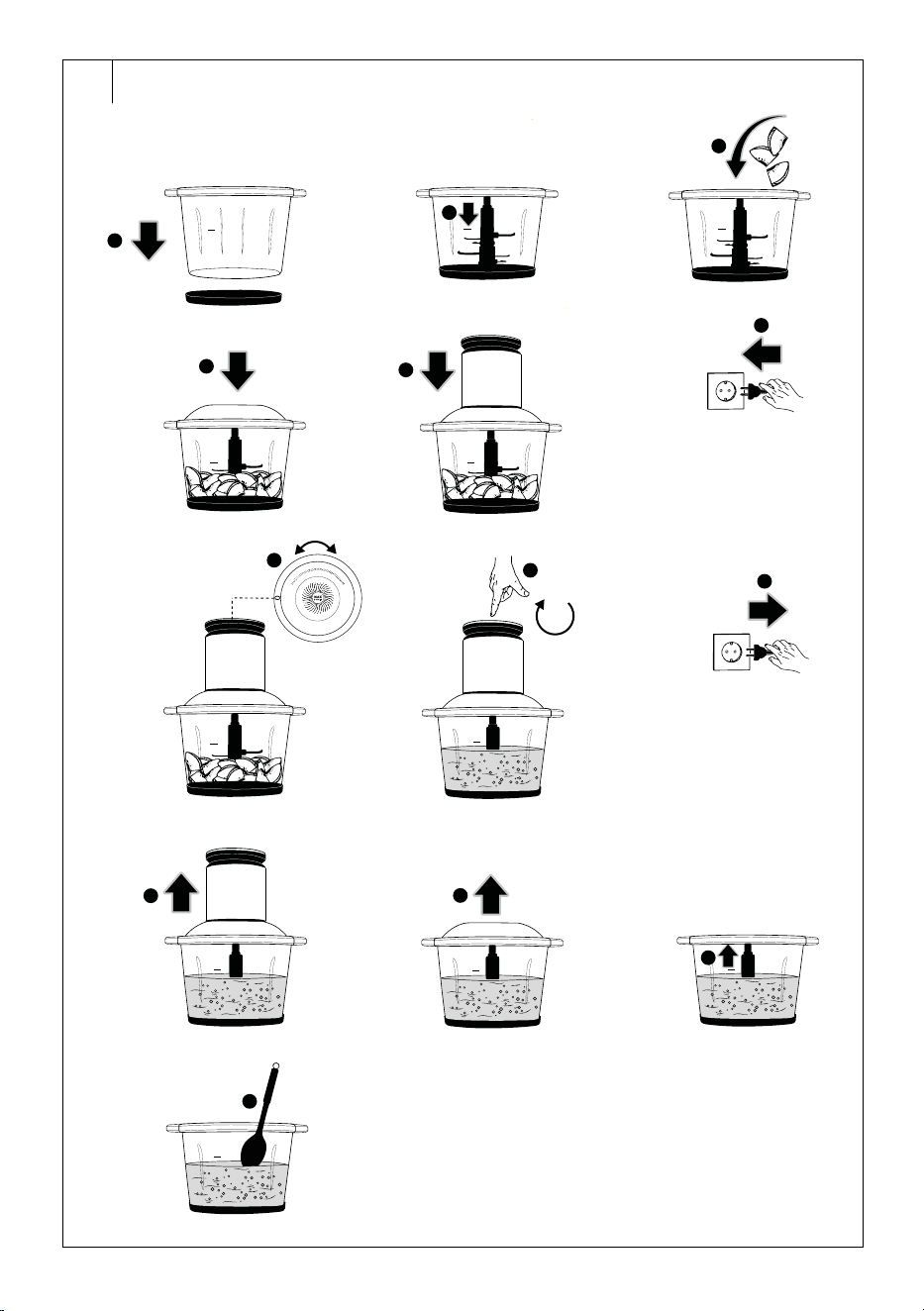

USING THE CHOPPER (FIG. C)

• Check that the A3 motor unit is disconnected from the power socket.

• Place the A8 anti-skid base on aflat, dry and stable surface, e.g. on

akitchen worktop. Select alocation withinreach of the power socket.

• Insert the A6 container into the A8 anti-skid base. Place the A5

assembled blade unit on the A7 centre pin on the bottom of the A6

container.

• Prepare the food you will be processing. Cut them into cubes up to

2 cm in size or follow the chapter QUICK GUIDE TO PROCESSING

INGREDIENTS.

• Place the prepared food into the A6 container. When filling the A6

container, do not go above the MAX mark.

• Place the A4 lid on the A6 container so that it follows the

circumference of the A6 container. Push the A4 lid down so that it

seats around the entire perimeter on the A6 container.

• Place the A3 motor unit on the A4 lid. Make sure that the A3 motor

unit fits into the A4 lid and the shaft of the A5 blade unit fits into the

A3 motor unit.

Warning:

The safety lock will not allow the chopper to start if

the A3 motor unit is not properly located in the A4 lid.

• Connect the power cord plug to apower socket. Adjust the speed by

turning the A2 speed regulator. The groove marked on the A2 speed

regulator faces theset speed. Press the A1 switch to put the A3 motor

unit into operation. Hold the A6 container by the handle with one hand

during operation, especially when processing harder foods. Release

the A1 switch to stop the A3 motor unit.

• Forsome foods, it is advisable to use pulse switching, i.e. alternately

press andrelease the A1 switch and repeat this procedure until

the ingredients are processed. Recommended speed settings

and processing times are given in the chapter QUICK GUIDE TO

PROCESSING INGREDIENTS.

Warning:

The maximum continuous operation time of the

appliance is 20 seconds. Allow the appliance to cool

down for at least 2 minutes before the next operating

cycle. After two 20-second operating cycles, allow

the appliance to cool down for 15 minutes. Do not

exceed the maximum operating time andobserve the

cooling time of the appliance.

• Release the A1 switch to stop the operation of the A3 motor unit

whenever food gets stuck to the walls of the A6 container and the

A3 motor unit is running idle. Disconnect the A3 motor unit from the

power socket. Wait until the rotating parts come to astop. Remove

the A3 motor unit and A4 lid. Use aspatula to loosen the food from

Food Chopper

User Manual

- 6 -

01/2025

2025, .

the walls of the A6 container. Do not use your hands to avoid injury from thechopping blade. Reassemble the chopper, connect it toawall socket

andcontinue processing the food.

• After use, disconnect the A3 motor unit from the power socket. Wait for the rotating parts to come to acomplete stop.

• Remove the A3 motor unit from the A4 lid. Remove the A4 lid from the A6 container.

• First remove the A5 blade unit from the A6 container andonly then remove the processed food.

Warning:

When handling the A5 blade unit, take extra care not to injure yourself on the chopping blades. The chopping blades are very

sharp. Do not touch them.

• After each use, properly clean the parts that have come into contact with food according to the instructions in the chapter CLEANING AND

MAINTENANCE.

QUICK GUIDE TO PROCESSING INGREDIENTS

Ingredients | dishes Preparing the ingredients

before processing

Maximum amount per

dose

Speed setting Recommended chopping

time

Apple puree Peel the apples, remove the

cores, cut them into 2 cm

cubes andlet them stew

until soft.

600g Low to medium speed 10−15 s

Onion Peel the onion andcut it into

quarters.

For larger onions, cut the

quarters in half crosswise.

600g Medium speed 10−15 spulse switching

Walnuts Remove the nuts from the

shells.

450g Medium to high speed 20 s

Semi-hard cheeses Cut the cheese into 2 cm

cubes.

500g Medium to high speed 10−15 s

Hard cheeses Cut the cheese into 2 cm

cubes.

500g High speed 2× 20 s*

Hard pastry for

breadcrumbs

Cut the bread into 2 cm cubes. 140g (approx. 3 rolls) High speed 2× 20 s*pulse switching

Baby biscuits or cookies Break the biscuits or cookies

into smaller pieces.

150g High speed 2× 20 s*pulse switching

Lean meat Remove the bones from the

meat andcut 2 cm cubes.

600g Medium to high speed 20 s

Fresh herbs Cut the stems to alength

of 5 cm.

45g Low to medium speed 10 spulse switching

* Observe a2-minute break between operating cycles.

Note:

The Quick Guide to Processing Ingredients provides only

arepresentative list of ingredients.

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

CLEANING AND MAINTENANCE (Fig. D)

• Before any cleaning or maintenance work, the appliance must be

switched off and disconnected from the power socket. Disassemble

the appliance into its individual parts before cleaning. Wait for the

rotating parts to stop before dismantling. Be sure to disassemble the

A5 blade unit into its individual parts.

• Never use thinners, metal or other dish scourers or abrasive cleaners

for cleaning. The finish of the appliance and its accessories could be

damaged.

Warning:

To avoid the risk of electric shock, do not immerse

the A3 motor unit, power cord or power cord plug in

water or any other liquid, or wash these parts under

running water.

Warning:

When handling and cleaning the A5 blade unit,

take extra care not to cut yourself on the chopping

blades. The chopping blades are very sharp. Do not

touch them.

• Clean the appliance immediately after use. Do not store food in the A6

container or allow food remains to dry init. Dried food residues would

be more difficult to remove.

• Wash the A6 glass container, the lid of the A4 container and the A5

blade unit thoroughly with warm water using afew drops of hand

dishwashing liquid. Pay special attention to the cleaning of the central

andcircumferential sealing of the lid and the area underneath it. Do

not wash the A5 blade unit by immersing it in afoamed detergent

solution. When covering the chopping blades with foam, cleaning

could causeinjuries. Then thoroughly rinse everything under running

water to remove any dishwashing detergent residue andwipe dry with

akitchen towel.

• The A6 glass container can be washed inthe upper dishwasher

basket at temperatures up to 55°C. Other components of the

appliance are not dishwasher safe.

• Always check that the central andcircumferential seals of the A4 lid

are clean. Residual dirt could cause the seal to not perform its purpose

properly.

• Use alightly dampened cloth to clean the A3 motor unit. Wipe the

cleaned surface of the A3 motor unit dry with asoft cloth.

- 7 -

01/2025

2025, .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

STORAGE

• Clean the chopper and its accessories according to the instructions

in the chapter CLEANING AND MAINTENANCE. Before storing, the

chopper andits accessories must be clean anddry.

• Store the chopper and its accessories in aclean, dry place out of the

reach of children and pets.

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

TECHNICAL SPECIFICATIONS

Rated voltage range ..............................................................................220 − 240 V

Rated frequency .......................................................................................50 − 60 Hz

Rated input power ..............................................................................................800 W

Safety class (for electric shock protection) ............................................................ II

Noise level .........................................................................................................78 dB(A)

Total container volume ...........................................................................................2.7 l

Maximum filling capacity of the container ........................................................1.5 l

The declared noise emission level of the appliance is 78 dB(A), which

represents alevel Aof acoustic power with respect to areference acoustic

power of 1 pW.

Glossary of technical terms

Safety Class for Electric Shock Protection:

Class II – Electric shock protection is provided by double or heavy-duty

insulation.

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

INSTRUCTIONS AND INFORMATION ON DISPOSAL OF USED

PACKAGING MATERIAL

Dispose of used packaging material at the location designated by the

municipality for waste disposal.

DISPOSAL OF USED ELECTRICAL AND ELECTRONIC EQUIPMENT

Used electrical andelectronic products must not be added to ordinary

municipal waste. For proper disposal and recycling of these products,

deliver them to designated collection points. Alternatively, in some

European Union states or other European countries the products can be

returned to the local retailer when buying an equivalent new product. By

properly disposing of this product, you help preserve valuable natural

resources and contribute to preventing potential negative impacts on the

environment and human health resulting from improper waste disposal.

For further details, contact your local authorities or the nearest collection

point. Fines may be imposed for improper disposal of this type of waste in

accordance with national regulations.

For Business Entities in European Union States

To dispose of electric or electronic equipment, request necessary

information from your retailer or supplier.

Disposal in Other Countries Outside the European Union

If you wish to dispose of this product, request the necessary information

about the correct disposal method from the local council or from your

retailer.

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Changes to text and technical parameters are reserved.

- 8 -

01/2025

2025, .

Sencor SCB 7000WH Food chopper

Product's Documents

User Manual

Specifications

Sencor SCB 7000WH Questions and Answers
