Technical specifications /
Spécifications techniques
UTOPIA

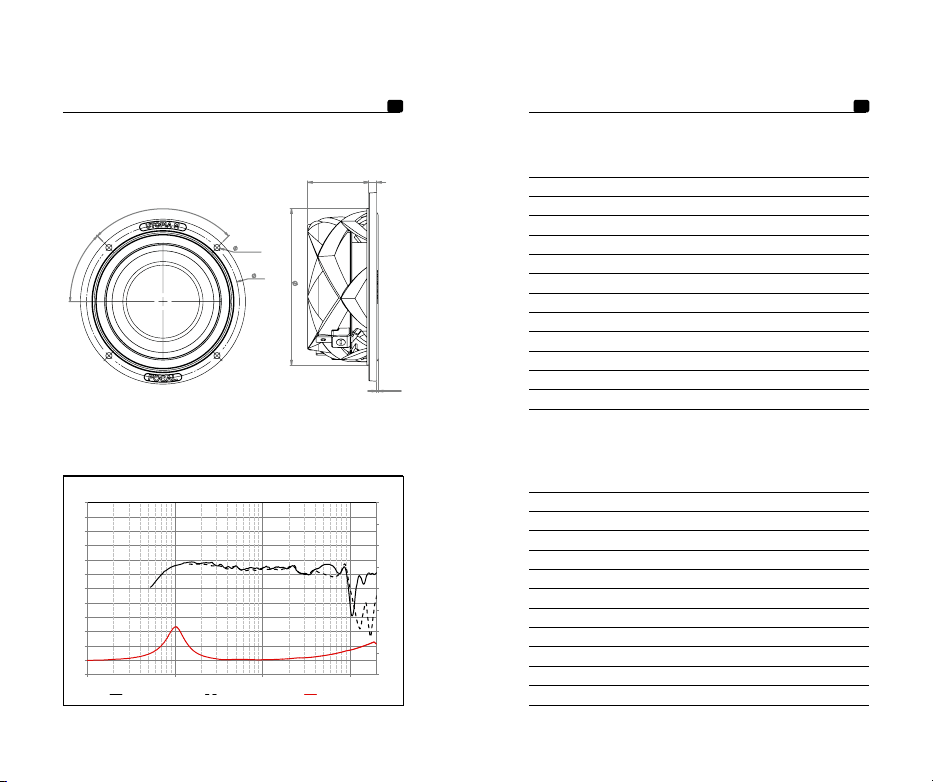

6WM
Technical specifications
3
6WM
Woofer 6
1/2
"
2
MECHANICAL DRAWING SPECIFICATIONS
FREQUENCY RESPONSE PARAMETERS
Rdc 2.7Ω
Fs 70Hz
Mms 14.5g
Cms 0.36mm/N
Vas 8.5l
Qts 0.79
Qes 0.86
Qms 10.5
Bxl 4.4N/A
Sd 132.7cm
2
SPL 89.3dB
Xmax 5.5mm
0
5
10
15
20
25
30
35
40
50
55
60
65
70
75
80
85
90
95
100
105
110
10 100 1000 10000
Frequency response - 0° Frequency response - 30° Impedance
Impedance (Ohm)
SPL(dB) -2.83V, 1m
45°
90°
156
4 x
4,50
5,4
5 51,50
141
6WM - UTOPIA M
Nominal power 100W
Maximum power 200W
Sensitivity (2.83V/1m) 91.5dB
Nom. impedance 4Ω
Cone W
Surround Butyl
DC resistance 2.7Ω
VC diameter 80mm 3
1/8
''
Former Glass Fiber
Layers 1
Wire CCAW
Magnet D x H 75x4mm 2
15/16
'' x 0
3/16
''
Net weight 1,050g 2.3lbs
45°
90°
156
4 x
4,50
5,4
5 51,50
141
6WM - UTOPIA M
Dimensions in mm
54
MECHANICAL DRAWING SPECIFICATIONS
FREQUENCY RESPONSE PARAMETERS
60°
30°
6 x
5,8
204
7,8
7
52
185
8WM - UTOPIA M
Rdc 2.7Ω
Fs 49Hz
Mms 23g
Cms 0.45mm/N
Vas 30l
Qts 0.9
Qes 1
Qms 9
Bxl 4.4N/A
Sd 216.4cm
2
SPL 89.5dB
Xmax 5.5mm

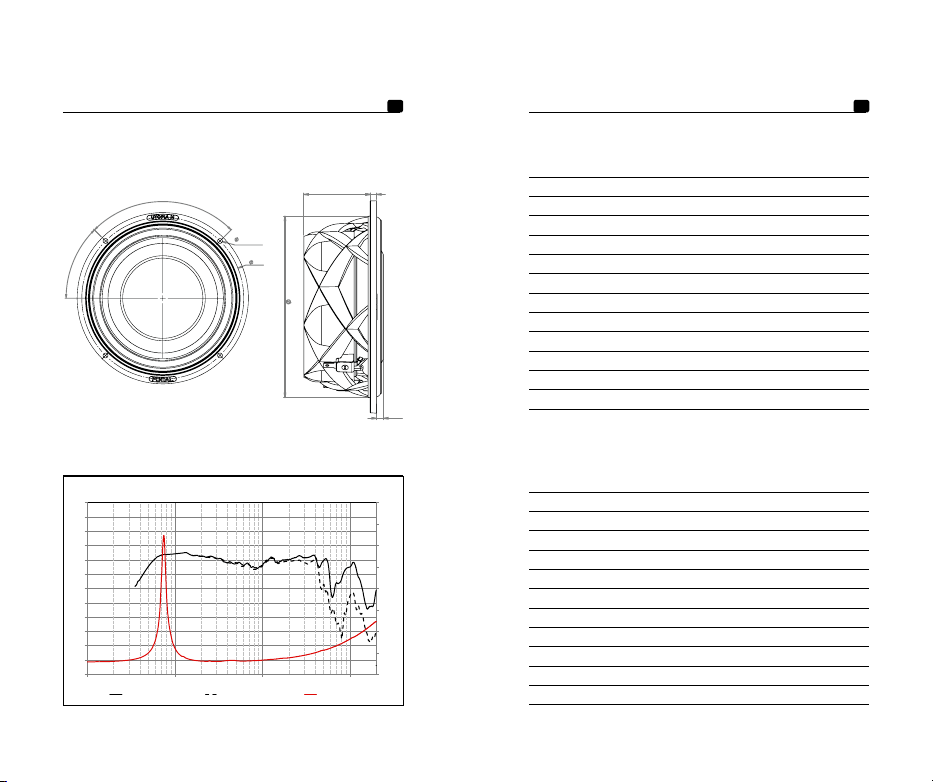

8WM
Technical specifications
8WM
Woofer 8"
Nominal power 100W
Maximum power 200W
Sensitivity (2.83V/1m) 91.8dB
Nom. impedance 4Ω
Cone W
Surround Butyl
DC resistance 2.7Ω
VC diameter 80mm 3
1/8
''
Former Glass Fiber
Layers 1
Wire CCAW
Magnet D x H 75x4mm 2
15/16
'' x 0
3/16
''
Net weight 1,200g 2.6lbs
0
5
10
15
20
25
30
35
40
50
55
60
65
70
75
80
85
90
95
100
105
110
10 100 1000 10000
Frequency response - 0° Frequency response - 30° Impedance
Impedance (Ohm)
SPL(dB) -2.83V, 1m
60°
30°
6 x
5,8
204
7,8
7
52
185
8WM - UTOPIA M
Dimensions in mm
76
MECHANICAL DRAWING SPECIFICATIONS
67,50
32
74,50
46,50
2 20,50
1,30
69,50
32
46,50
4 x
3,50
64,50
57,50
4,80
9
51

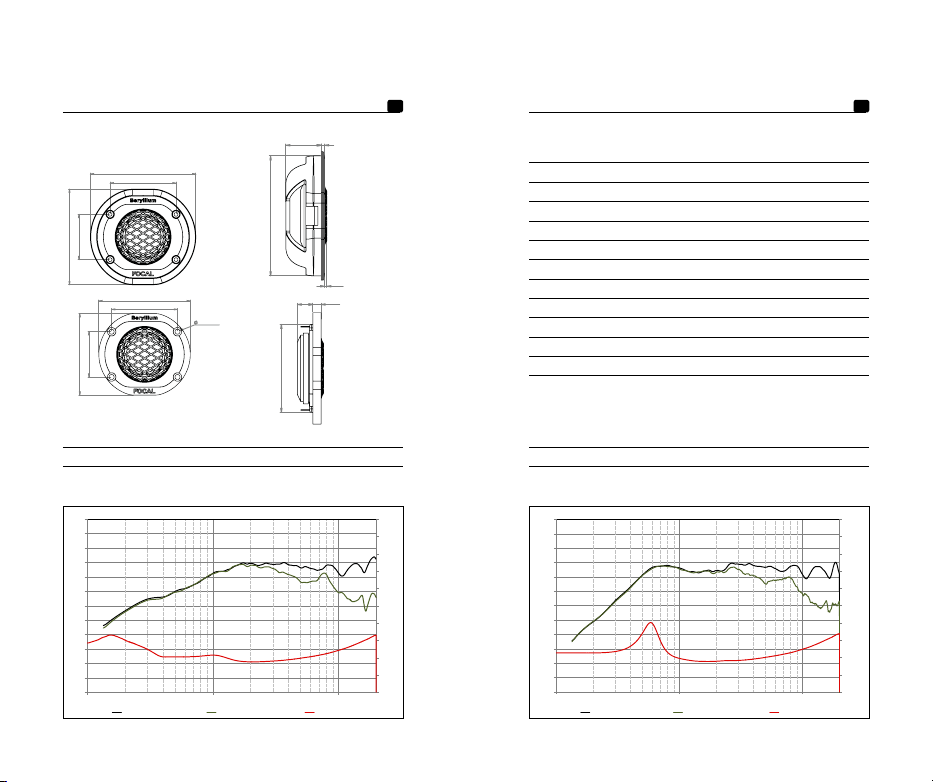

TBM - UTOPIA M
FREQUENCY RESPONSE FREQUENCY RESPONSE
PARAMETERS IAL
PARAMETERS SMALL VOLUME
Rdc 4Ω
Fs 280Hz
Rdc 4Ω
Fs 1,550Hz

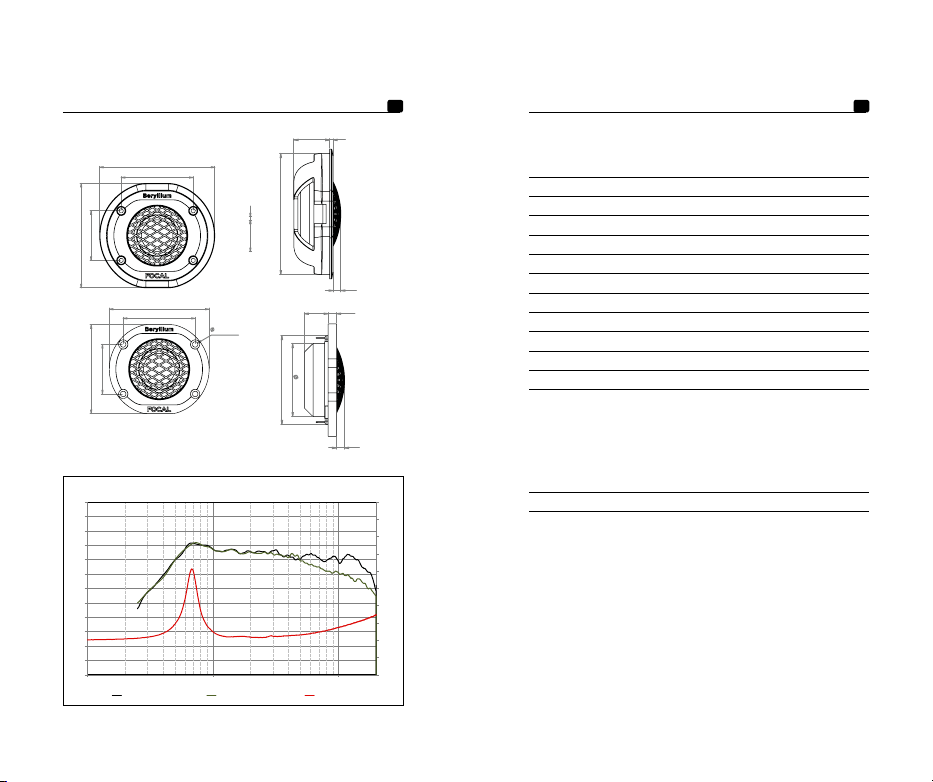

TBM
Technical specifications
TBM
Tweeter
Nominal power 20W
Maximum power 200W
Sensitivity (2.83V/1m) 95dB
Nom. impedance 4Ω
Cone Beryllium 'M'-shape
Surround Rubber, TMD
DC resistance 4Ω
VC diameter 25mm 1''
Former Kapton
Layers 2
Wire Alu
Net weight 120g 0.2lbs
0
2
4
6
8
10
12
14
16
18
20
50
55
60
65
70
75
80
85
90
95
100
105
110
200 2000 20000
Frequency response - 0° Frequency response - 30° Impedance
Impedance (Ohm)
SPL(dB) -2.83V, 1m, IAL
0
2
4
6
8
10
12
14
16
18
20
50
55
60
65
70
75
80
85
90
95
100
105
110
200 2000 20000
Frequency response - 0° Frequency response - 30° Impedance
Impedance (Ohm)
SPL(dB) -2.83V, 1m, Small Volume
67,50
32
74,50
46,50
2 20,50
1,30
69,50
32
46,50
4 x
3,50
64,50
57,50
4,80
9
51
TBM - UTOPIA M
67,50
32
74,50
46,50
2 20,50
1,30
69,50
32
46,50
4 x
3,50
64,50
57,50
4,80
9
51
TBM - UTOPIA M
Dimensions in mm
67,50
32
74,50
46,50
2 20,50
1,30
69,50
32
46,50
4 x
3,50
64,50
57,50
4,80
9
51
TBM - UTOPIA M
98
MECHANICAL DRAWING SPECIFICATIONS
FREQUENCY RESPONSE PARAMETERS
45°
90°
4 x
3,4
88
3.5WM - UTOPIA M
0,7
4
31
79
Rdc 3.1Ω
Fs 105Hz
Mms 4g
Cms 0.5mm/N
Vas 1l
Qts 0.58
Qes 1
Qms 2
Bxl 3N/A
Sd 38.5cm
2
SPL 85dB
Xmax 2.5mm

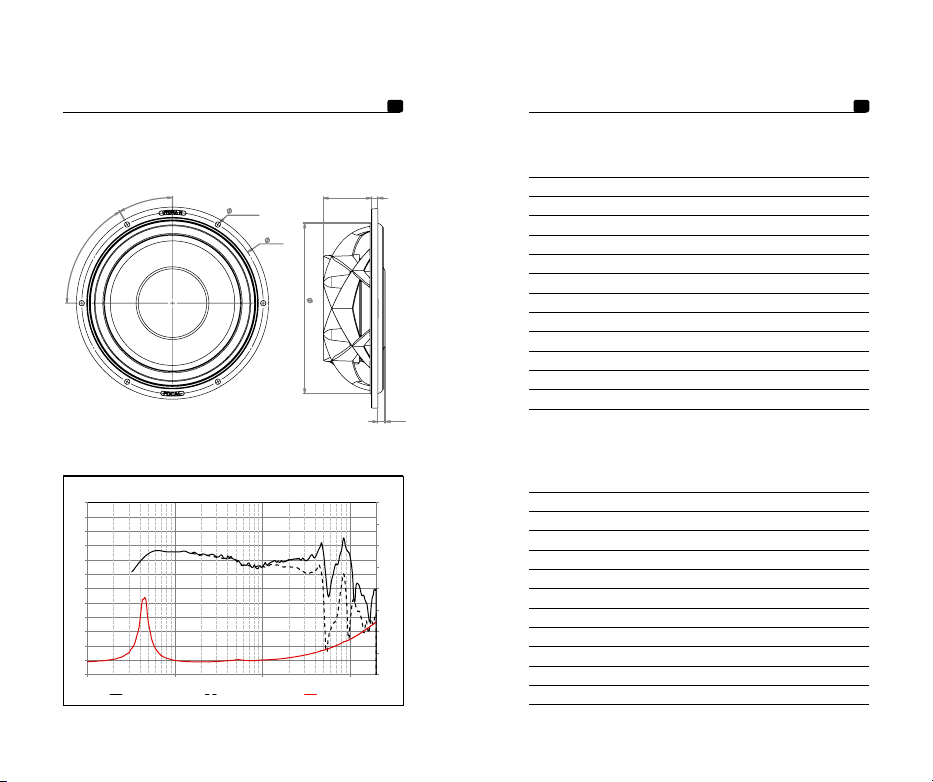

3.5WM
Technical specifications
3.5WM
Midrange 3
1/2
"
Nominal power 50W
Maximum power 100W
Sensitivity 88dB
Nom. impedance 4Ω
Cone W
Surround Butyl
DC resistance 3.1Ω
VC diameter 45mm 1
49/64
"
Former Glass Fiber
Layers 1
Wire CCAW
Magnet D x H 42x4mm 1
21/32
" x 0
3/16
"
Net weight 250g 0.55lbs
0
5
10
15
20
25
30
35
40
50
55
60
65
70
75
80
85
90
95
100
105
110
10 100 1000 10000
Frequency response - 0° Frequency response - 30° Impedance
Impedance (Ohm)
SPL(dB) -2.83V, 1m
45°
90°
4 x
3,4
88
3.5WM - UTOPIA M
0,7
4
31
79
Dimensions in mm
1110
MECHANICAL DRAWING SPECIFICATIONS
FREQUENCY RESPONSE PARAMETERS
65
70
75
80
85
90
95
20 200
SUB10WM - Closed box frequency response
10 liters 15 liters
Frequency (Hz)
dB SPL
C
M
J
CM
MJ
CJ
CMJ
N
SUB10WM_FT.pdf 1 14/02/2018 12:22:57
22,50°
45°
8 x
6
258
15,3
10 108
234
10WM - UTOPIA M
Rdc 3.1+3.1Ω
Fs 31Hz
Mms 138g
Cms 0.18mm/N
Vas 28l
Qts 0.65
Qes 0.76
Qms 6.7
Bxl 16N/A
Sd 327cm²
SPL 84.5dB
Xmax 17mm

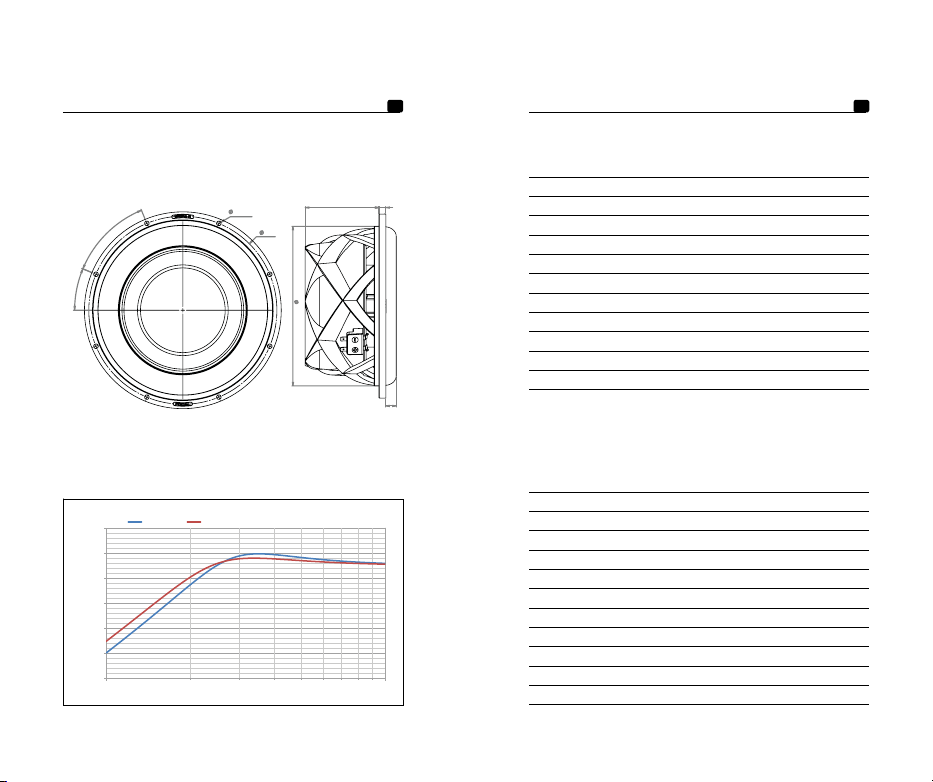

SUB10WM
Technical specifications
SUB10WM
Subwoofer 10"
Nominal power 400W
Maximum power 800W
Sensitivity (2.83V/1m) 87.5dB
Nom. impedance 4+4Ω
Cone W
Surround Butyl
DC resistance 3.1+3.1Ω
VC diameter 120mm 4
23/32
"
Former Glass fiber
Layers 2
Wire CCAW
Net weight 8,100g 17.85lbs
22,50°
45°
8 x
6
258
15,3
10
108
234
10WM - UTOPIA M
Dimensions in mm
1312
MECHANICAL DRAWING SPECIFICATIONS
FREQUENCY RESPONSE PARAMETERS
45°
90°
4 x
4,50
156
6
4,7
74
142
165 W-XP - UTOPIA M
Rdc 1,9Ω
Fs 58.5Hz
Mms 16.3g
Cms 0.454mm/N
Vas 11.31l
Qts 0.6
Qes 0.665
Qms 5.52
Bxl 4.19N/A
Sd 132.73cm
2
SPL 89dB
Xmax 4.5mm

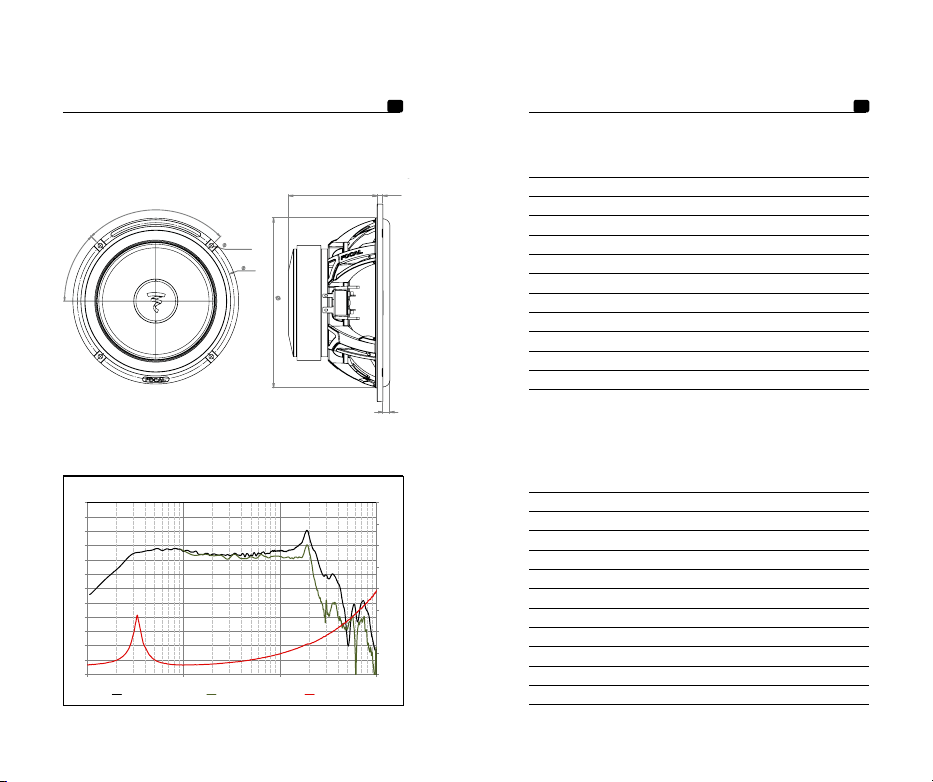

165W-XP
Technical specifications
165W-XP
Woofer 6
1/2
"
Nominal power 100W
Maximum power 200W
Sensitivity (2.83V/1m) 93dB
Nom. impedance 2Ω
Cone W
Surround Butyl
DC resistance 1.8Ω
VC diameter 32mm 1
1/4
''
Former Kapton
Layers 2
Wire CCAW
Net weight 1,400g 3.1lbs
0
5
10
15
20
25
30
35
40
50
55
60
65
70
75
80
85
90
95
100
105
110
20 200 2000 20000
Frequency response - 0° Frequency response - 30° Impedance
Impedance (Ohm)
SPL(dB) -2.83V, 1m
45°
90°
4 x
4,50
156
6
4,7
74
142
165 W-XP - UTOPIA M
Dimensions in mm
1514
MECHANICAL DRAWING SPECIFICATIONS
FREQUENCY RESPONSE PARAMETERS
46,50
32
74,50
67,50
2 20,50
4,4
69,50
46,50
32
57,50
64,50
4 x
3,50
4,6
4,80 13,70
51
42
TBXP - UTOPIA M
Rdc 4Ω
Fs 1,350Hz
165W-XP
Technical specifications
165W-XP
Tweeter
Nominal power 15W
Maximum power 150W
Sensitivity (2.83V/1m) 94dB
Nom. impedance 4Ω
Cone Beryllium
Surround Poron
DC resistance 4Ω
VC diameter 20mm 0
13/16
''
Former Kapton
Layers 2
Wire Alu
Net weight 150g 0.1lbs
0
2
4
6
8
10
12
14
16
18
20
50
55
60
65
70
75
80
85
90
95
100
105
110
200 2000 20000
Frequency response - 0° Frequency response - 30° Impedance
Impedance (Ohm)
SPL(dB) -2.83V, 1m
46,50
32
74,50
67,50
2 20,50
4,4
69,50
46,50
32
57,50
64,50
4 x
3,50
4,6
4,80 13,70
51
42
TBXP - UTOPIA M
46,50
32
74,50
67,50
2 20,50
4,4
69,50
46,50
32
57,50
64,50
4 x
3,50
4,6
4,80 13,70
51
42
TBXP - UTOPIA M
Dimensions in mm
