HIGH PRESSURE
WASHER
User manual
WARNING: SAVE THIS MANUAL FOR FUTURE REFERENCE
This manual contains important information regarding safety. Operation,
maintenance and storage of this product. Before use, read carefully and
understand all cautions, warnings, instructions and product labels. Failure
to do so could result in serious personal injury and/or property damage.
R
CONTENTS
PRODUCT SPECIFICATIONS ............................................................................................1
SAFETY
Safety Symbols And Meanings ........................................................................................... 3
Operating Instructions and Precautions .............................................................................. 4
SETUP
Know Your Pressure Washer .............................................................................................. 10
Assembly .......................................................................................................................... 14
General Information .......................................................................................................... 17
OPERATION
Pre-start Checks ............................................................................................................... 19
Starting The Engine .......................................................................................................... 20
Pressure Washer Operation ............................................................................................. 21
Stopping The Engine And Pressure Washer .................................................................... 24
High Altitude Operation ..................................................................................................... 24
MAINTENANCE
Engine Maintenance Schedule ......................................................................................... 25
Pump Maintenance ........................................................................................................... 26
Cleaning Pressure Washer ............................................................................................... 26
Changing Engine Oil ......................................................................................................... 26
Adding Engine Oil ............................................................................................................. 27
Spark Plug Maintenance ................................................................................................... 27
Air Filter Maintenance ....................................................................................................... 28
Long-term Storage ............................................................................................................ 28
Trouble Shooting ................................................................................................................ 30
1
PRODUCT SPECIFICATIONS
1
Nozzle Type 27#(0°, 25°), soap
Starting Mode Recoil Start
PRESSURE
WASHER
ENGINE
Model
Pump
MAX Pressure (PSI)
Rated Pressure (PSI)
Rated Fiow (GPM)
MAX Fiow (GPM)
High Pressure Hose (m)
Model
Displacement (cc)
Engine Type
Cooling System
Oil System
Fuel Type
Fuel Capacity (L)
Engine Oil Type
Engine Oil Capacity (L)
GPW2500V-E
Swash Plate Pump
2300
2700
2.05
2.3
7.6
1P65FE/P-1A
161
Single Cylinder 4-Stroke OHV
Air Cooled
Splash lubrication
92+ Octane Unleaded Gasoline
1.2
SAE 10W-30
0.5
GPW3000-E GPW3000-SP
29#(0°, 25°), soap
Recoil Start
2500
3000
2.1
2.4
7.6
170F/P
212
3.6
SAE 10W-30
0.6
29#(0°, 25°, 40°), soap
Recoil Start
2500
3000
2.1
2.4
7.6
170F/P
212
3.6
SAE 10W-30
0.6
Nozzle Type
29#(0°, 15°, 25°, 40°), soap
Starting Mode Recoil Start
PRESSURE
WASHER
ENGINE
Model
Pump
MAX Pressure (PSI)
Rated Pressure (PSI)
Rated Fiow (GPM)
MAX Fiow (GPM)
High Pressure Hose (m)
Model
Displacement (cc)
Engine Type
Cooling System
Oil System
Fuel Type
Fuel Capacity (L)
Engine Oil Type
Engine Oil Capacity (L)
GPW3000-A
2500
3000
2.1
2.4
7.6
170F/P
212
Single Cylinder 4-Stroke OHV
92+ Octane Unleaded Gasoline
3.6
SAE 10W-30
0.6
Swash Plate Pump
Air Cooled
Splash lubrication
GPW3200-A
Recoil Start
2700
3200
2.25
2.5
7.6
170F/P-1
223
3.6
SAE 10W-30
0.6
29#(0°, 15°, 25°, 40°), soap29#(0°, 15°, 25°, 40°), soap
Recoil Start
GPW3000-B
2500
3000
2.25
2.5
10
170F/P
212
3.6
SAE 10W-30
0.6
The crankshaft pump
Swash Plate Pump
2
PRODUCT SPECIFICATIONS
1
Nozzle Type
Starting Mode
PRESSURE
WASHER
ENGINE
Model
Pump
MAX Pressure (PSI)
Rated Pressure (PSI)
Rated Fiow (GPM)
MAX Fiow (GPM)
High Pressure Hose (m)
Model
Displacement (cc)
Engine Type
Cooling System
Oil System
Fuel Type
Fuel Capacity (L)
Engine Oil Type
Engine Oil Capacity (L)
Single Cylinder 4-Stroke OHV
Air Cooled
Splash lubrication
92+ Octane Unleaded Gasoline
GPW4200-A
Recoil Start/Electric
3600
4200
3.6
4
15
192FD/P-1
458
6
SAE 10W-30
1.1
40#(0°, 15°, 25°, 40°), soap
GPW3200-B
Recoil Start
2700
3200
2.7
3
15
170F/P
212
3.6
SAE 10W-30
0.6
29#(0°, 15°, 25°, 40°), soap
NOTICE: We are always working to improve our products. Therefore, final product may vary
from images shown.
The crankshaft pump The crankshaft pump
3
This Operating Manual has been designed to instruct you on the correct operation of your
product. Your satisfaction with this product and its safe operation is our ultimate concern.
Therefore， please take the time to read the entire manual， especially the safety symbols
and instructions They will help you to avoid potential hazards that may exist when working
with this product. Every effort has been made to ensure that information in this manual is
accurate and current. However, we reserve the right to change, alter, or otherwise improve
the product and this document at any time without prior notice.
Fire
Explosion
Electrical Shock
Projectile
Chemical Burns
Electrical Hazard
Slippery Surface
Fall
Safety Alert
Read Operators Manual
Asphyxiation Hazard
Eye Protection
Hot Surface
Fluid Injection
Kickback
Moving Parts
SAFETY
2
Safety Symbols and Warnings:
DANGER: indicates a hazard which, if
not avoided, will result in death or serious
injury.
WARNING: indicates a hazard which,
if not avoided, could result in death or
serious injury.
Safety symbols and their meanings:
The following symbols will appear in this manual and on the product. For safe use of this
product,be sure to study them and know their meanings.
CAUTION: indicates a hazard which,
if not avoided, could result in minor or
moderate injury.
NOTICE: Indicates information, or
addresses practices that are important, but
not related to personal injury.
1
4
Important Operation Instructions and Precautions:
DANGER: POISONOUS GAS HAZARD
Engine exhaust contains carbon monoxide, a poisonous gas that WILL kill you
in minutes. You CANNOT smell it, see it, or taste it. Even if you do not smell
exhaust fumes, you could still be exposed to carbon monoxide gas. Some chemicals or
detergents could also be harmful if inhaled or ingested, resulting in death, serious injury,
nausea, fainting or poisoning.
• Operate this product ONLY outside far away from windows, doors and vents to
reduce the risk of carbon monoxide gas from accumulating and potentially being
drawn towards occupied spaces.
• DO NOT run this product inside homes, garages, basements, crawlspaces, sheds, or
other partially enclosed spaces, even if using fans or opening doors and windows for
ventilation. Carbon monoxide can quickly build up in these spaces and can linger for
hours, even after this product has been shut off.
• ALWAYS place this product downwind and point the engine exhaust away from
occupied spaces.
If you start to feel sick, dizzy, or weak while using this product, shut it off and get to
fresh air RIGHT AWAY. See a doctor, as you may have carbon monoxide poisoning.
•
SAFETY
2
1
5
WARNING: READ AND UNDERSTAND ALL SAFETY INSTRUCTIONS
• Keep guards in place and in working order. Never operate this product with any guard or
cover removed. Make sure all guards are intact and operating properly before each use.
• Remove adjusting tools and wrenches. If any adjustments or maintenance has been
performed, make sure that all tools and adjusting wrenches are removed from product
before use.
• To reduce the risk of injury, keep all children and visitors away from product when in use.
All visitors should wear safety glasses and be kept a safe distance from work area.
• Keep the work area clear of all persons, particularly small children, and pets.
• Use product for its intended use. Don' t force product or attachment to do a job it was not
designed for. Do not use it for a purpose not intended. Use only recommended accessories
with this product. The use of improper and or modified accessories may cause risk of injury.
• Use proper clothing. Wear long pants and long sleeves. Do not wear loose clothing,
neckties, or jewelry. They can get caught and draw you into moving parts. Rubber gloves
and nonskid footwear are recommended when working outdoors. Do not operate the
equipment while barefoot or when wearing sandals or similar lightweight footwear Also
wear protective hair covering to contain long hair.
• Always wear proper eye protection with side shields marked to comply with ANSI Z87.1.
Following this rule will re-duce the risk of serious personal injury.
• Do not overreach or stand on a ladder, rooftop, or other unstable support structure. Keep
proper footing and balance at all times.
• Never leave product running unattended. Turn power off. Don' t leave product until it
comes to a complete stop.
• Keep the engine and pump free of grass, leaves, oil, or grease to reduce the chance of a
fire hazard.
• Keep the exhaust outlet free of foreign objects.
• Be completely knowledgeable with product controls. Know how to stop the product and
bleed pressure quickly.
• Stay alert and exercise control. Watch what you are doing at all times and use common
sense. Do not operate tool when you are tired. Do not rush.
• Do not operate the product while under the influence of drugs, alcohol, or any
medication.
• Check the work area before using product. Remove all objects such as rocks, broken
glass, nails, wire, or string which can be thrown or become tangled in the product.
• Do not direct high pressure spray stream at any persons, animals and pets. Do not direct
spray stream.
• Never lift or carry the product or attempt to make adjustments while the engine is running
or hot.
• Do not attempt to touch the spark plug or plug wire while the engine is running.
• Use only cold water with this product.
• For outdoor use only.
SAFETY
2
1
6
WARNING: Fire / Hot Surface Hazard
• DO NOT touch hot parts and AVOID hot exhaust gases.
• Allow equipment to cool before touching.
• Keep at least 5 feet (1.5 m) of clearance on all sides of pressure washer including
overhead.
• Replacement part must be the same and installed in the same position as the original.
WARNING: Slip or Fall Hazard
Use of pressure washer
could create slippery
surfaces causing you to fall resulting in
death or serious injury.
• Kickback from spray gun could cause
you to fall resulting in death or serious
injury.
• Operate pressure washer from a
stable surface.
• The cleaning area should have
adequate slopes and drainage to
reduce the possibility of a fall due to
slippery surfaces.
• Be extremely careful if you must use
the pressure washer from a ladder,
scaffolding, or any other similar
location.
• Firmly grasp spray gun with both
hands when using high pressure
spray to avoid injury when spray gun
kicks back.
WARNING: Kickback Hazard
Starter cord kickback (rapid
retraction) will pull hand and
arm toward engine faster than you can
let go, which could cause fractures,
bruises, or sprains resulting in serious
injury.
•
NEVER pull starter cord without first
relieving spray gun pressure.
When starting engine, pull cord slowly
until resistance is felt and then pull
rapidly to avoid kickback.
After each starting attempt, where
engine fails to run, always point spray
gun in safe direction, disengage trigger
lock and squeeze spray gun trigger to
release high pressure.
Firmly grasp spray gun with both
hands when using high pressure spray
to avoid injury when spray gun kicks
back.
•
•
•
SAFETY
2
1
Exhaust could ignite combustibles, resulting in death or serious injury.
Contact with muffler area could cause burns resulting in serious injury.
7
WARNING: Fire / Explosion Hazard
Fuel and its vapors are extremely flammable and explosive which could
cause burns, fire or explosion resulting in death or serious injury.
Risk of fire and serious burns: Never remove fuel cap when unit is running. Shut off
engine and allow the unit to cool at least five minutes. Remove cap slowly.
WHEN ADDING OR DRAINING FUEL
• Turn pressure washer engine OFF and let it cool at least 2 minutes before removing
fuel cap. Loosen cap slowly to relieve any pressure remaining in tank.
• Fill or drain fuel tank outdoors.
• DO NOT overfill tank. Allow space for fuel expansion.
• If fuel spills, wait until it evaporates before starting engine.
• Keep fuel away from sparks, open flames, pilot lights, heat, and other ignition sources.
• Check fuel lines, tank, cap and fittings frequently for cracks or leaks. Replace if
necessary.
• DO NOT light a cigarette or smoke.
WHEN STARTING EQUIPMENT
• Ensure spark plug, muffler, fuel cap, and air filter are in place.
• DO NOT crank engine with spark plug removed.
WHEN OPERATING EQUIPMENT
• DO NOT operate this product inside any building, carport, porch, mobile equipment,
marine applications, or enclosure.
• DO NOT tip engine or equipment at angle which causes fuel to spill.
• DO NOT spray flammable liquids.
WHEN TRANSPORTING, MOVING OR REPAIRING EQUIPMENT
• Transport/move/repair with fuel tank EMPTY or with fuel shutoff valve OFF.
• DO NOT tip engine or equipment at angle which causes fuel to spill.
• Disconnect spark plug wire.
WHEN STORING FUEL OR EQUIPMENT WITH FUEL IN TANK
Store away from furnaces, stoves, water heaters, clothes dryers, or other appliances
that have pilot light or other ignition source because they could ignite fuel vapors.
WARNING: Fire and Electrical Shock
Unintentional sparking could cause fire or electric shock, resulting in death or
serious injury.
WHEN ADJUSTING OR MAKING REPAIRS TO YOUR PRESSURE WASHER
• Disconnect the spark plug wire from the spark plug and place the wire where it cannot
contact spark plug.
WHEN TESTING FOR ENGINE SPARK
• Use approved spark plug tester.
• DO NOT check for spark with spark plug removed.
SAFETY
2
1
8
WARNING: Fluid Injection
The high-pressure water that
this equipment produces could
cut through skin and its underlying
tissues, resulting in serious injury and
possible amputation.
• Spray gun traps high water pressure,
even when engine is stopped and
water is disconnected, which could
result in serious injury.
• If cut by fluid, call physician
immediately. DO NOT treat as a
simple cut.
• DO NOT allow CHILDREN to operate
pressure washer.
• NEVER repair high pressure hose.
Replace it.
• NEVER repair leaking connections
with sealant of any kind. Replace
o-ring or seal.
• NEVER connect high pressure hose
to nozzle extension.
• Keep high pressure hose connected
to pump and spray gun while system
is pressurized.
• ALWAYS point spray gun in safe
direction, disengage trigger lock and
squeeze spray gun trigger to release
high pressure, every time you stop
engine.
• NEVER aim spray gun at people,
animals, or plants.
• DO NOT secure spray gun in open
position.
• DO NOT leave spray gun unattended
while machine is running.
• NEVER use a spray gun which does
not have a trigger lock or trigger guard
in place and in working order.
• Always be certain spray gun, nozzles
and accessories are correctly
attached.
WARNING: Moving parts hazard
Starter and other rotating parts
could entangle hands, hair,
clothing or accessories, resulting in
serious injury.
• NEVER operate pressure washer
without protective housing or covers.
• DO NOT wear loose clothing, jewelry
or anything that could be caught in the
starter or other rotating parts.
• Tie up long hair and remove jewelry.
WARNING: Projectile hazard
Risk of eye or bodily injury.
Spray could splash back or
propel objects resulting in serious injury.
• Always wear safety goggles marked to
comply with ANSI Z87.1 when using or
in vicinity of this equipment.
• Always wear protective clothing such
as a long-sleeved shirt, long pants and
close-toed shoes.
• NEVER operate pressure washer
when barefoot or wearing sandals.
CAUTION: Engine Speed
Excessively high operating speeds could
result in minor injury. Excessively low
speeds impose a heavy load on engine.
• DO NOT tamper with governor spring,
links or other parts to increase engine
speed. Pressure washer supplies
correct rated pressure and flow when
running at governed speed.
• DO NOT modify pressure washer in
any way.
SAFETY
2
1
9
WARNING: Electrical Shock
Contact with power source could
cause electric shock or burn
resulting in death or serious
injury.
• Never spray at or near an electric
power source.
WARNING: Chemical Burn
Chemicals could cause burns
resulting in death or serious
injury.
• DO NOT use caustic liquid with
pressure washer.
• Use ONLY pressure washer safe
detergents/ soaps. Follow all
manufacturer’ s instructions.
WARNING: California Proposition 65
This product, the engine exhaust and other substances that may become airborne from
its use contains chemicals, including lead, known to the State of California to cause
cancer, birth defects, or other reproductive harm. Wash your hands after handling
product.
NOTICE: High pressure spray could damage fragile items including glass.
• DO NOT point spray gun at glass when using red (0°) nozzle.
• NEVER aim spray gun at plants.
NOTICE: Improper treatment of pressure washer could damage it and shorten its life.
• NEVER operate units with broken or missing parts, or without protective housing or
covers.
DO NOT by-pass any safety device on this machine.
DO NOT tamper with governed speed.
DO NOT operate pressure washer above rated pressure.
DO NOT modify pressure washer in any way.
Before starting pressure washer in cold weather, check all parts of the equipment to
be sure ice has not formed there.
NEVER move machine by pulling on hoses. Use handle provided on unit.
•
•
•
•
•
•
SAFETY
2
1
10
SETUP
CAUTION: Read Manual
Read the entire SAFETY section at the beginning of this manual including all text
under subheadings therein before set-up or use of this product.

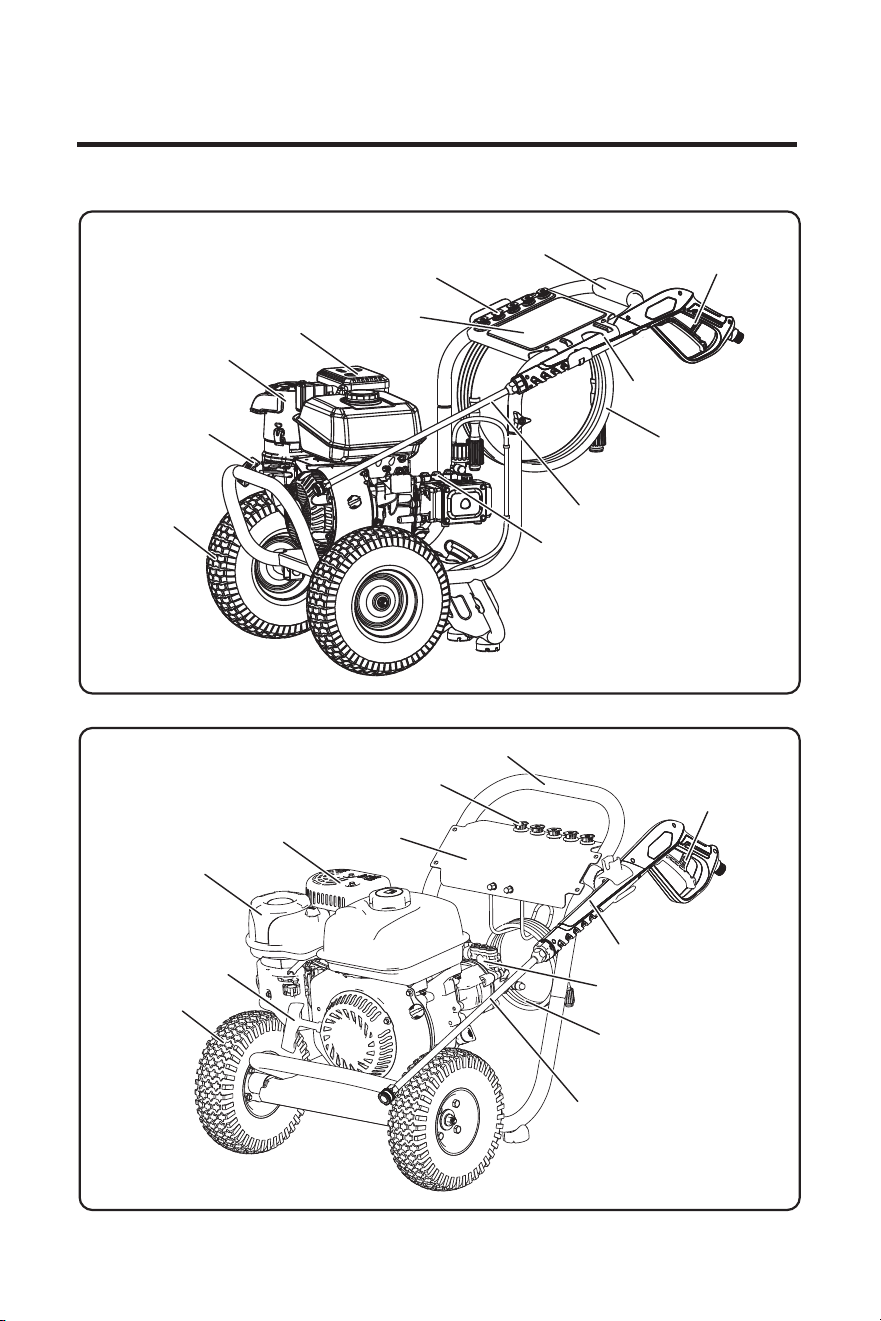

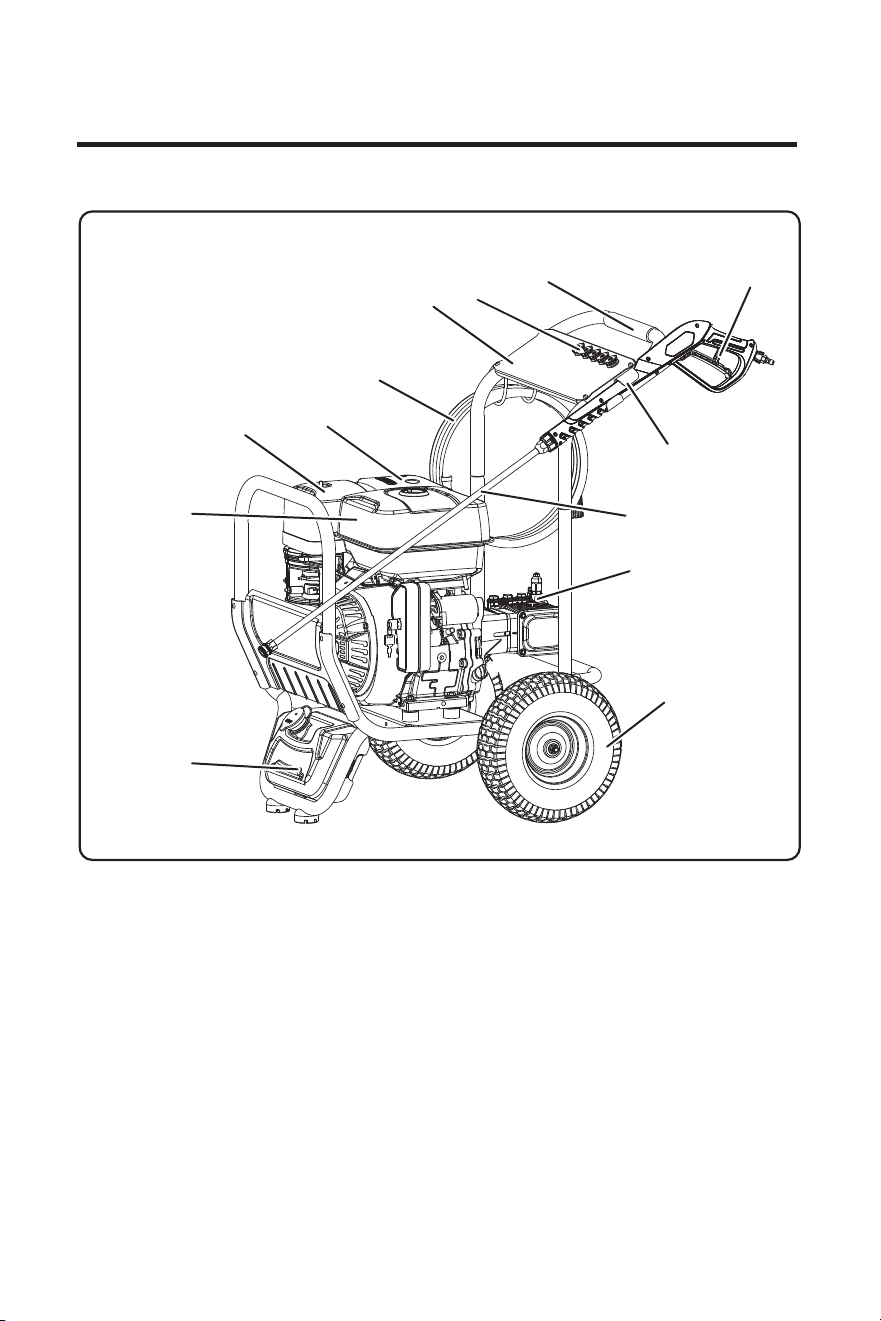

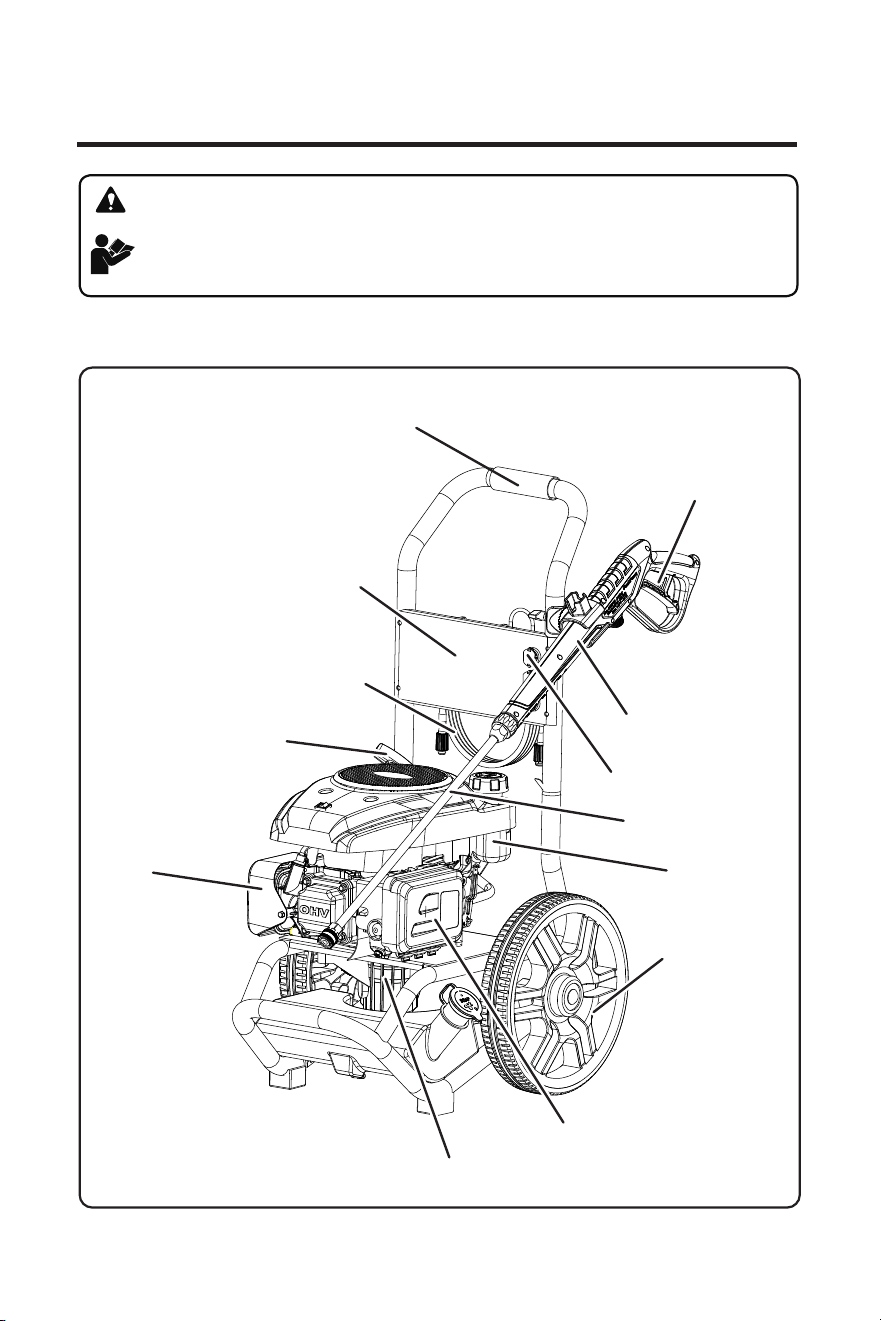

High pressure washer component identification
2
1
Handle
Trigger
Panel
Nozzle
Spray Gun
Pressure Hose
Pump
Muffler
Recoil Handle
Wheel
Wand
Fuel Tank
Air filter
GPW2500V-E
11
SETUP
2
1
High pressure washer component identification
GPW3000-E
Trigger
Handle
Panel
Spray Gun
Nozzle
Wand
Recoil Handle
Air filter
Wheel
Fuel Tank
Pressure Hose
Pump
GPW3000-SP
Trigger
Handle
Panel
Spray Gun
Nozzle
Wand
Recoil Handle
Air filter
Wheel
Fuel Tank
Pressure Hose
Pump
Muffler
Muffler
12
SETUP
2
1

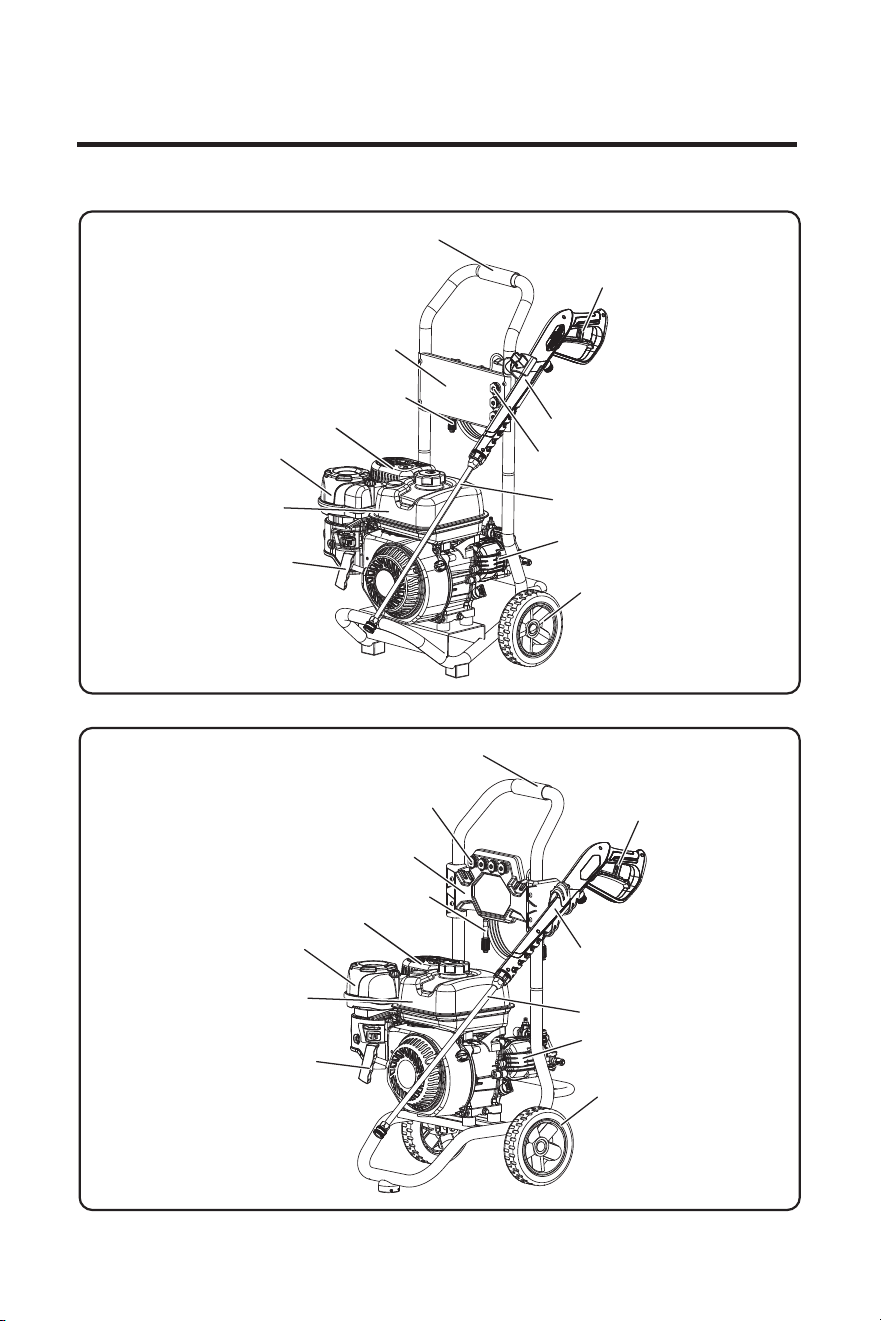

High pressure washer component identification
GPW3000-B
GPW3200-A
Trigger
Handle
Spray Gun
Nozzle
Panel
Wand
Pressure Hose
Pump
Wheel
Recoil Handle
Air filter
Muffler
Wheel
Recoil Handle
Air filter
Muffler
Panel
Nozzle
Handle
Pressure Hose
Wand
Pump
Spray Gun
Trigger
13
SETUP
2
1
High pressure washer component identification
GPW4200-AE
Handle
Trigger
Spray Gun
Nozzle
Panel
Pressure Hose
Wand
Pump
Wheel
Air filter
Fuel Tank
Muffler
Soap Box
14
SETUP
2
1

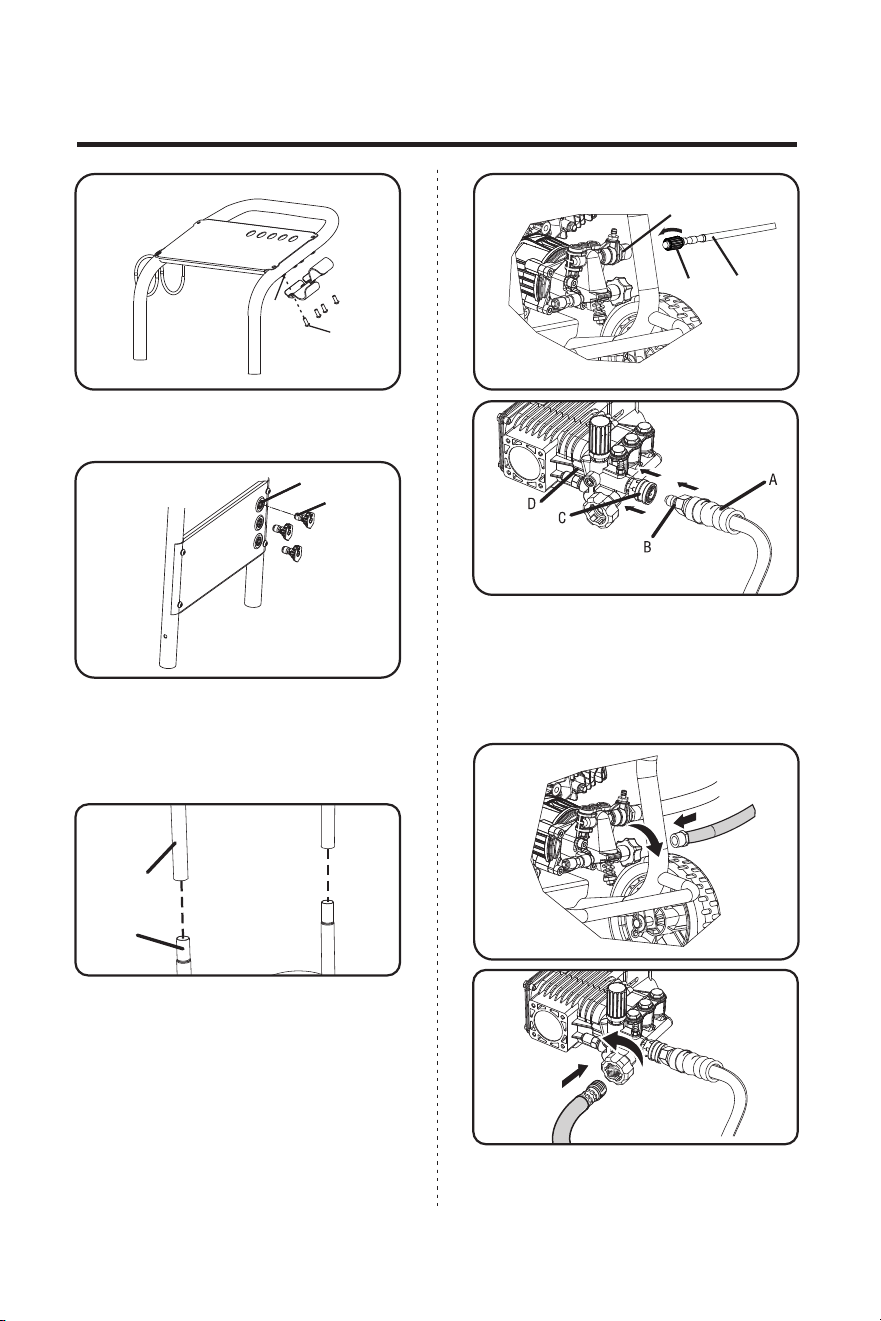

ASSEMBLY:
1. Installation method of hose support:
a. Insert the hose holder (A) through holes
in the panel (B).
b. Pass hose support (A) through handle
hole (B) and tighten nut (C).
2. Panel Installation Method:
a. b. c. b. Pass the panel bolt (A) through
the handle hole (B) and tighten the bolt.
B
A
B
c.
A
A
B
a.
d.
B
A
b.
A
B
a.
b.
A
B
C
3. Installation method of gun hook:
a. Pass the gun hook (A) through the
handle hole (B) and tighten the nut (C).
b. Pass bolt (A) through hook and handle
hole (B) and tighten.
a.
A
B
C
15
SETUP
2
1
b.
A
B
4. Push the nozzle (A) into the panel
nozzle hole (B)
B
A
B
A
5.Push and hold the button on the frame(B)
as you slide the handle(A) out the holes in
the frame, rotate 180°, then push and hold
the button on the frame as you slide the
handle into the frame.
A
B
6. High pressure hose connection method:
a. Insert the high-pressure hose (A) into the
hose connector (B) and tighten the hose
elastic ring (C) .
b. Attach high pressure hose(A) to the
pump(D), pull back the quick-connect
collar(C) of pump, insert hose connector(B)
and then release the quick-connect collar,
pull on the hose to make sure it is firmly
attached.
b.
B
A
a.
C
7. Connecting method of water supply
hose:
a. b. Connect the water supply hose (A) to
the inlet pipe connector (B) of the pump
and tighten the inlet pipe connector by
hand.
b.
a.
16
SETUP
2
1

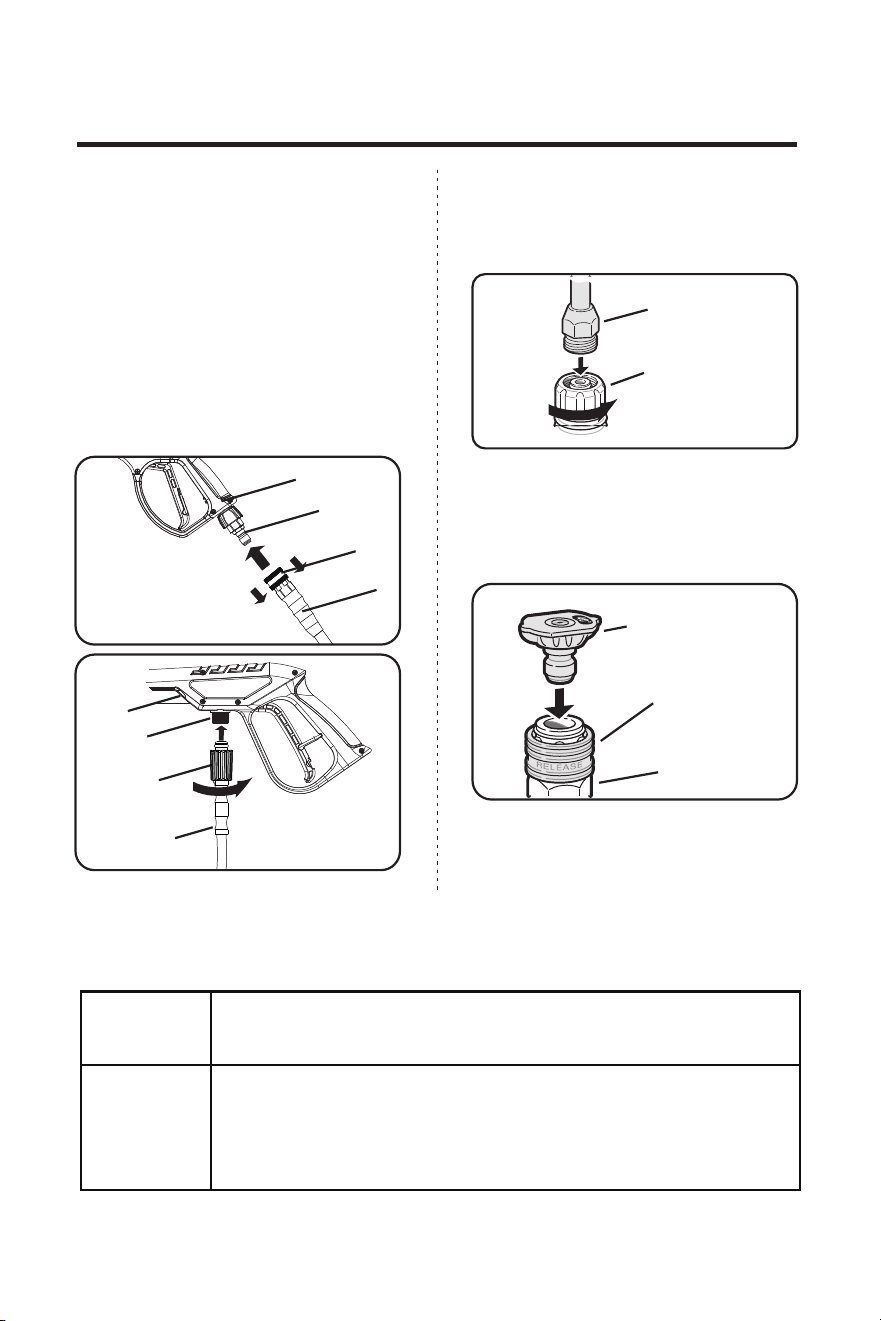

8.Connecting method of spray gun:
a. Attach high pressure hose(D) to the
gun(A), pull back the quick-connect
collar(C) of hose and insert the spray
gun connector(B) and then release the
quick-connect collar(C). Once the hose
is connected, pull on the hose to make
sure it is firmly attached.
b. Attach high pressure hose(D) to the
gun(A),Connect the spray gun connector
(B) to the hose connector (C) and
tighten the threaded connector (C).
a.
A
B
C
D
A
B
C
D
b.
9. Remove the protective cap on the
Wand inlet. Insert the Wand into the
Spray Gun tip and tighten the nut firmly
by hand.
Wand
Spray Gun Tip
10. Attach the Nozzle to the Wand by
pulling back the quick connect collar and
pushing the Nozzle onto the end of the
Wand. Make sure the quick connect
collar locks the Nozzle in place.
Nozzle
Wand
Quick Connect
Collar
GENERAL INFORMATION:
Fuel Use fresh high-quality unleaded gasoline (minimum 87 octane),
containing up to 10% ethanol.
Do not use fuel with high ethanol content; E15 or E85.
Oil Engine oil: Use only SAE 10W-30, 0.6 Quart non-detergent oil
(supplied).
Pump Oil: The pump was lubricated and sealed at the factory, and is
maintenance free for the life of the product, under normal operation. Do
not attempt to change or add oil to the pump.
17
Water Use only cold water.
Do not operate pressure washer with clogged or missing water inlet filter
screen.
Do not operate pressure washer without adequate water supply.
Pressure
Adjustment
Pressure setting is pre-set at factory.
For lowering pressure, refer to“Pressure Adjustment".
High Pressure
Pump
There are no serviceable parts to the high-pressure pump. Do not
attempt to repair or service the pump, as you may damage it and void
your warranty. If you feel that the pump needs service, please submit to
an authorized dealer.
Do not allow water to freeze in pump. If product is stored in an area
that will have temperatures of below 32° F, 0°C, make sure all water is
removed from the pump, or a suitable pump protection product has been
used. Failure to protect the pump form cold temperatures will cause
damage and possibly void your warranty.
By-pass
Mode
When you release the trigger of the gun, the pump goes into bypass
mode. It is good practice to never let the pump run in bypass mode for
more than 2 minutes. Damage to pump could be possible.
Thermal
Relief Valve
Pump is equipped with a thermal relief valve. If during bypass mode the
water overheats, this valve opens releasing the hot water and letting
new cool water enter the pump. Afterwards, the valve closes returning
pump to normal operation. Caution, the valve opens with no warning,
and the water will be hot. Possible injury can occur. Always keep hands
and feet away from thermal relief valve.
Do not allow hoses to come in contact with engine muffler during use or
immediately after use.
DO NOT attempt to move unit by pulling on high-pressure hose.
High Pressure
Hose
Engine Do not adjust or attempt maintenance without reading owner's manual.
Add fuel stabilizer (not supplied) to fuel tank and let engine run for 5
minutes before storage. Always turn on water before starting engine.
Soap /
Chemicals
Use only soaps and chemicals detergents designed for pressure
washer use. Always follow detergent manufacturer's instructions on
their container. DO NOT use bleach, acid, any flammable materials, or
industrial solvents.
Nozzle Always keep nozzles clean and unclogged. Use the nozzle needle
to clean if clogged. Use ONLY detergent nozzle (black) when using
chemical and cleaning solvents.
Storage /
Winterizing
Run clean water through chemical tank / inlet to clear any residual
detergent. Add stabilizer to any remaining fuel in fuel tank. See ENGINE
section above. Do not allow water to freeze in pressure pump, spray
gun, spray wand or hoses.
GENERAL INFORMATION:
SETUP
2
1
18
OPERATION
1. Adding Engine Oil
1.1 Move the Pressure Washer OUTSIDE
and place on a flat and level surface.
1.2 Make sure the engine is stopped, cool
and is level.
1.3 Close the Fuel Valve.
1.4 Clean the top of the Dipstick and the
area around it. Remove the Dipstick
by turning it counterclockwise, and
wipe it off with a clean, lint free rag.
1.5 Place a funnel in the oil reservoir.
1.6 Pour engine oil(SAE 10W-30 is
recommended for general use).
CAUTION: Read Manual
Read the entire SAFETY and SET UP sections at the beginning of this manual
including all text under subheadings therein before operation of this product.
Improper use or treatment of Pressure Washer can damage internal components and
shorten the life of unit. Failure to follow this warning will void warranty.
DO NOT overfill. Consult the separate
engine manufacturers manual if

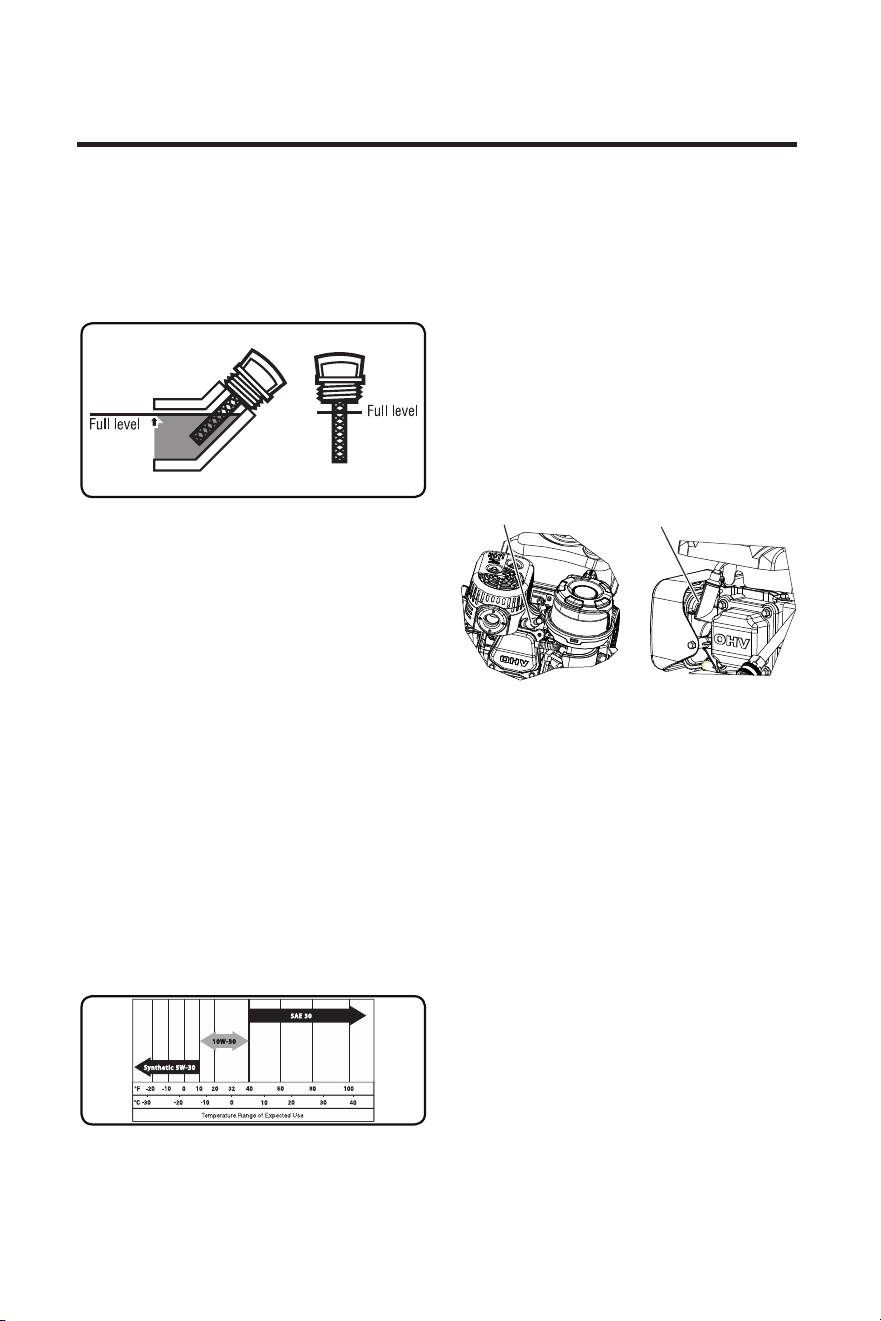

available. See figure A
section shows other viscosities to use
1.7 Reinsert the Dipstick without threading
it in and remove it again to check the
oil level. The oil level should be up to
the full level as shown above.
1.8 If the oil level is at or below the low
mark, add the appropriate type of
oil until the oil level is at the proper
level. (The SAE Viscosity Grade Chart
in the MAINTENANCE section shows
other viscosities to use in different
average temperatures. )
1.9 Replace the dipstick and fully tighten.
Pre-Start Checks
Inspect engine and equipment looking for damaged, loose and missing parts before setting
up and starting.
Figure A
NOTICE: Your Warranty is VOID if the engine's crankcase is not properly flled with oil
before each use. Before each use, check the oil level. Your engine may be equipped with a
low-oil shutdown feature. If so equipped, the engine will not start with low or no engine oil in
the crankcase.
2
1
19
2. Adding Fuel
2.1 Move the Pressure Washer OUTSIDE
of any building, or partially enclosed
structure, and place on a flat and level
surface.
2.2 Clean the Fuel Cap and the area
around it before removing.
2.3 Make sure Pressure Washer is OFF
and let it cool for at least two minutes
before removing fuel cap. Unscrew
slowly to release any built-up pressure
and remove the Fuel Cap.
2.4 Remove the Strainer and remove
any dirt and debris. Then replace the
Strainer.
WARNING: Fire / Explosion Hazard
Fuel and fuel vapor are extremely flammable and explosive. Fire or explosion
from misuse of fuel can cause severe burns and even death.
• Fill the fuel tank in a well-ventilated area away from ignition sources. If the engine is
hot from use, shut the engine off and wait for it to cool before adding fuel.
• Do not smoke near open fuel tank or container.
• Failure to use fuel as recommended in this manual will void the warranty.
2.5
If needed, fill the Fuel Tank to about
1 inch under the fill neck of the
Fuel Tank with 87 octane or higher
unleaded gasoline that has been
treated with a fuel stabilizer additive.
Follow fuel stabilizer manufacturer's
recommendations for use.
2.6 Replace the Fuel Cap, making sure it
is tight ans sealed.
2.7 Wipe up any spilled fuel and allow
excess to evaporate before starting
engine. To prevent FIRE, do not start
the engine while the smell of fuel
hangs in the air.
NOTICE: Do not use gasoline that has been stored in a dirty fuel container. It can cause
particles to enter the carburetor, affecting engine performance and / or causing damage.
Be sure the fuel tank strainer is clean and in place before adding fuel to tank.
NOTICE: When adding fuel to pressure washer, observe the following:
• DO NOT use unapproved gasoline such as E15 or E85 (15% ethanol, 85% ethanol).
This is a four-cycle engine, DO NOT mix oil with gasoline.
DO NOT modify engine to run on alternate fuels. Any modifications to the engine will
void your warranty.
Pre-Start Checks (Continued)
•
•
OPERATION
2
1
20

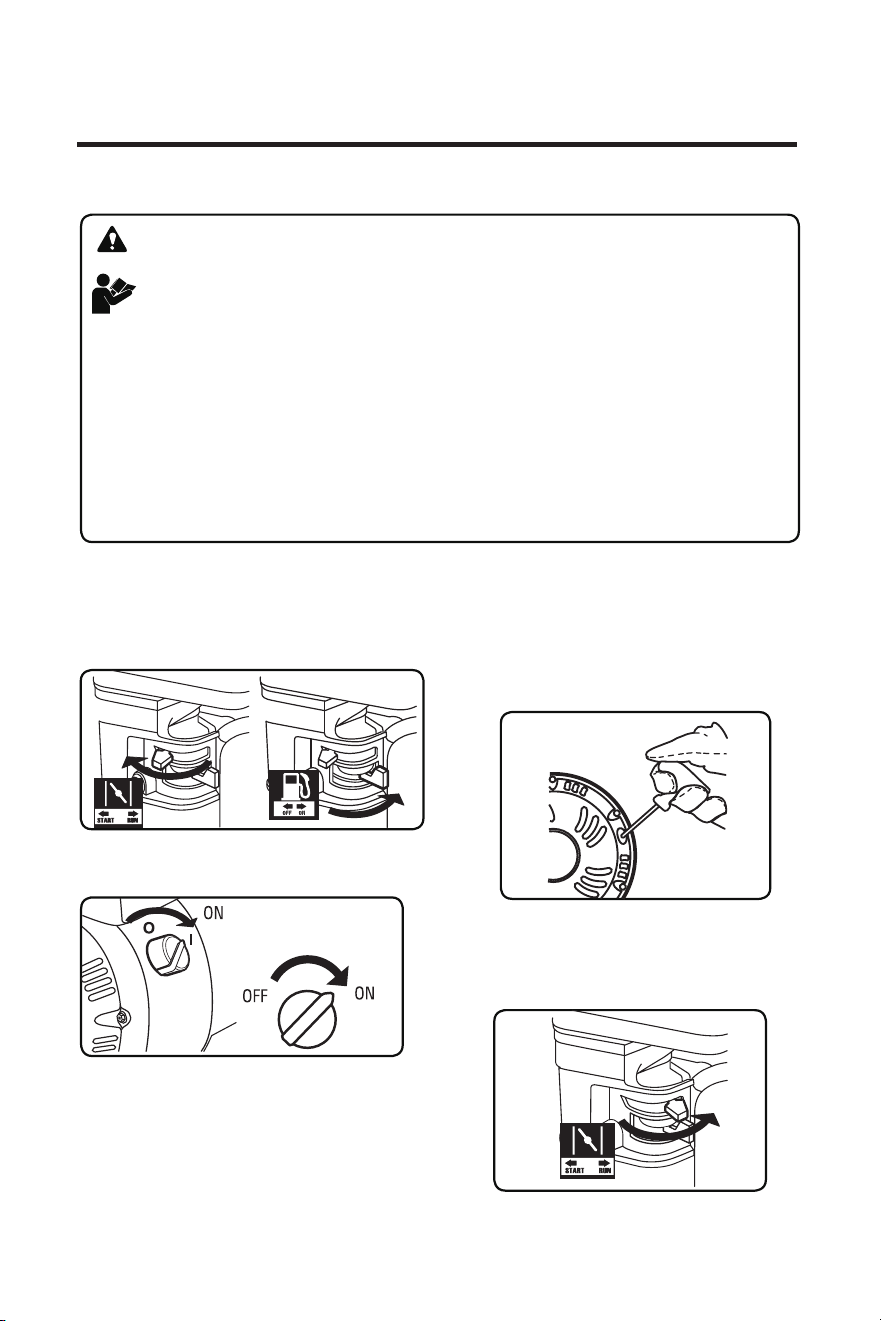

Starting the Engine
CAUTION: Read Manual
Read the entire Pre-Start Checks section of this manual before attempting to start
the engine. Be sure to inspect the equipment and engine for any missing or loose
guards or parts. Check both the fuel and oil levels of the engine before starting.
• Turn fuel valve to open, if so equipped.
• Turn on water supply, remove nozzle, point wand in safe direction, and hold down
trigger until all air is released from the system, at least 30 seconds.
• Then release the trigger, lock it in the safety position and replace nozzle before
starting engine.
• Do not let the Starter Handle snap back against the engine housing.
• If starter handle become difficult to pull, release pressure in the hose by squeezing
the trigger on the gun.
NOTICE: If engine does not start, check
engine oil level. If equipped with low oil
shutdown, the engine will not start with low
or no engine oil. If oil is low, see ADDING
ENGINE OIL section earlier in this manual.
4. Allow the Engine to run for several
seconds. Then, if the Choke lever is in
the START position, move the Choke
Lever very slowly to its RUN position.
1. To start a cold engine, move the Choke
to the START position. To restart a warm
engine, leave the Choke in the RUN
position. Move the Fuel Valve to the ON
position.
2. Turn the Engine Switch to the on
position.
3. Grip the Starter Handle of the Engine
loosely and pull it slowly two times
to allow the gasoline to flow into the
Engine's carburetor. Then pull the Starter
Handle gently until resistance is felt, then
pull it quickly to start. Repeat until the
engine starts.
OPERATION
2
1
21
Pressure Washer Operation
WARNING: Eye protection / Fluid Injection hazard
ALWAYS wear approved safety glasses when operating Pressure
Washers. Spray can splash back or propel objects, including incorrectly
attached accessories. The high-pressure stream of water that this equipment produces
can cut through skin and its underlying tissues, leading to possible amputation. The
spray gun traps high water pressure, even when the motor is stopped and water source
is disconnected, which can cause injury.
• Do not direct spray from the Pressure Washer at any persons or animals.
Keep children and pets away from the work area.
Keep work area clean of loose rocks, glass and debris.
The high pressure water stream could cause serious injury.
•
•
•
WARNING: Asphyxiation Hazard
Use the Pressure Washer only outside in a fully ventilated area.
• Operate this product ONLY outside far away from windows, doors and vents.
• DO NOT run this product inside homes, garages, basements, crawlspaces, or sheds.
• ALWAYS place this product downwind and point the engine exhaust away from
occupied spaces.
• If you start to feel sick, dizzy, or weak while using this product, shut it off and get to
fresh air RIGHT AWAY. See a doctor, as you may have carbon monoxide poisoning.
1. Selecting the Right Nozzle for the job.
Your product is supplied with a selection
of quick connect nozzle tips. The nozzles
are sized specifically to give you maximum
pressure at all times. Each nozzle is
marked and rated in degrees of fan. They
are also color coded (see chart on opposite
page). The higher the number of the fan
degree, the wider the fan pattern is. The
tighter the spray fan the more impact on
the surface, which is good for cleaning
tough jobs. The wider the spray fan, the
more spread out the impact on the surface,
so they are better for easy jobs, or soft
surfaces. Finding the correct nozzle for the
job at hand make take some experimenting.
Always start with the widest fan degree and
continue to the lower degree fans until the
best work result is achieved. Always test
the nozzle on an area that is not noticeable.
NOTICE: Not all models come with all nozzles described in this section. Use only the
information pertaining to the nozzles supplied with your product.

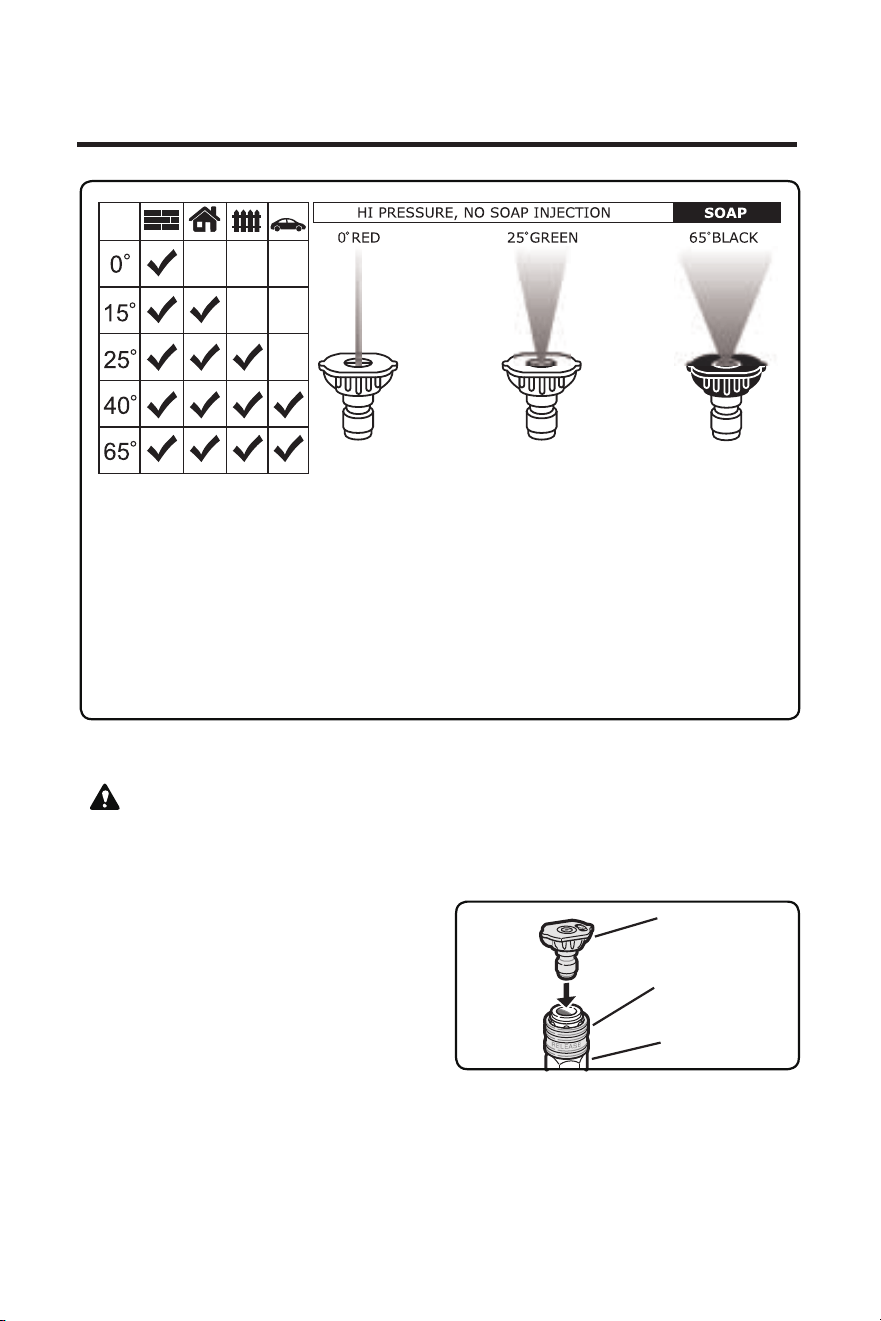

(Nozzle selection Chart)
OPERATION
2
1
22
0° Nozzle . Red: This nozzle delivers a pinpoint stream of pressurized water and is
extremely powerful. Use it for the toughest cleaning jobs, although It covers only a
small area. This nozzle should only be directed at surfaces that can withstand intense
high pressure such as metal or concrete. Do not use this nozzle to clean wood or soft
surfaces.
25° Nozzle - Green: This nozzle delivers a 25-degree spray pattern for general tasks. It
should only be used on surfaces that can withstand pressure from this nozzle.
65° Chemical Nozzle - Black: This nozzle is used to apply special chemicals and
cleaning solutions. This nozzle produces the weakest pressure stream of the nozzles.
2. Connecting Nozzle to Spray Wand.
WARNING:
• Never place hands in front of nozzle, or
point nozzle at your face.
Never attempt to clean a clogged nozzle
while attached to the wand.
Never attempt to attach or remove spray
wand or hose fittings while Pressure
Washer system is pressurized.
Turn off Pressure Washer. While pointing
spray in a save direction, release
pressure by squeezing trigger. Then lock
the Gun Trigger before attempting to
change pressure nozzles.
•
•
•
2.1 To attach, pull quick connect collar
back, insert nozzle into female quick-
disconnect spray wand and press to
lock in place. Make sure collar snaps
into place.
2.2 To detach, pull quick connect collar
back and pull nozzle to remove.
Nozzle
Wand
Quick Connect
Collar
OPERATION
2
1
23
3. Using the Spray Gun.
WARNING:
• To prevent accidental discharge of high-
pressure washer, the trigger lock on the
trigger should be engaged whenever the
pressure washer is not in use.
To disengage the Trigger Lock, push the
lock down and into its original position.
•
To Operate the Trigger:
Squeeze the trigger
to start water flow
through the nozzle.
Release the trigger
to stop water flow.
3.2
4.Washing/ Cleaning
4.1 Firmly grip spray gun with both hands.
4.2 Start with a high degree fan Nozzle,
and gradually use lower unit the
nozzle meets the task.
4.3 Point the nozzle to a safe direction
and squeeze the spray gun trigger
to allow the pump to purge air and
impurities in the system and then
redirect the nozzle to the working
surface.
4.4 Clean vertical and sloped surfaces
from the top down.
4.5 When cleaning horizontal surfaces,
occasionally use the stream to clear
the area of excess water.
WARNING: Hot Surface / Fluid
Injection hazard
SOME ENGINE .
PARTS CAN BECOME
EXTREMELY HOT.
Do not allow the pressure hose to come
in contact with engine exhaust system
which can cause damage to the hose.
Damaged hoses can burst and can
cause injection injuries.
4.6
For most effective cleaning, keep
spray nozzle from 8 to 24 inches
away from cleaning surface. If you
get spray nozzle too close, you may
damage surface being cleaned. It is
not recommended to get closer than 6
inches when cleaning tires.
5. Pressure Adjustment
5.1 Vary your distance: To change the
effect of the pressure on the surface
being cleaned, vary the distance
between spray nozzle and the surface
being cleaned. The closer to the
surface the higher the effect of the
pressure. As you pull away from
the surface, the pressure effect will
reduce. For most effective cleaning,
keep the nozzle between 8 to 24
inches from surface being cleaned.
6.Using Chemicals
NOTICE: Use only soaps and chemicals
designed for use with a Pressure Washer.
DO NOT USE CHLORINE BLEACH,
ACIDS OR INDUSTRIAL SOLVENTS.
Chemicals, soaps and cleaning solvents
will not siphon when a high-pressure nozzle
is used. Only use the Black (low pressure)
Nozzle when spraying detergents. Fill
Detergent Tank (if so equipped) with
prepared detergent solution and close the
cap. The Pressure Washer will draw one
gallon of detergent for every seven gallons
of water.
6.1 If your Pressure Washer is equipped
with an on board soap tank:
6.2 Fill the soap tank with detergent and
close the lid.
6.3 Change the nozzle in the wand to
Black Nozzle
6.4 Start the engine, and spray with soap.
6.5 If the Pressure Washer is not equipped
with a soap tank:
6.6
Make sure the Siphon Tube with
Strainer is connected to the brass
Trigger Lock
Trigger
3.1
OPERATION
2
1
24
barb near the high-pressure hose
connection area of the pump.
6.7 Submerge the strainer end of the
siphon tube in the soap/detergent
solution bottle or bucket.
6.8 Change the nozzle to black nozzle.
6.9 Start engine and spray with soap.
7. To Rinse
7.1 Replace the nozzle with an appropriate
high-pressure nozzle (see “Selecting The
Right Nozzle”). Squeeze the trigger and wait
for the detergent to clear.
7.2 Keep the spray gun a safe distance
from the area you plan to spray.
7.3 Apply a high-pressure spray to a small
area, and then check the surface for
damage. If no damage is found, it is okay to
continue cleaning.
7.4 For a vertical surface, start at the top of
the area to be rinsed, working down with
same overlapping strokes as you used for
washing and applying detergent.
8. Cleaning Tips
NOTICE: Never use the Pressure Washer
garden hose inlet to siphon detergent
or wax. Leaving chemicals and cleaning
solutions inside the pressure pump could
damage it. Damages created by leaving
soaps, chemicals and cleaning solutions
inside the pump can void the warranty.
9. Stopping the Pressure Washer
To stop the engine in an emergency, turn
the Engine Switch to the off position.
Under normal conditions, use the following
procedure:
WARNING: Hot Surface / Fluid
Injection hazard
SOME ENGINE
PARTS CAN BECOME
EXTREMELY HOT.
Release pressure from high-pressure
hose before removing from pump or gun.
If you intend to disconnect the high-
pressure hose after completing a wash,
avoid touching the engine exhaust
system while disconnecting the high-
pressure hose from the pump.
9.1 Release the Trigger on the Spray Gun
handle.
Turn the Engine Switch off.
Turn the water supply off.
9.2
9.3
9.4 Squeeze the Trigger to release excess
pressure.
9.5 If pressure washer detergent has been
used, run clean water through the
system to eliminate detergent residue
using the following procedure:
Turn off the Engine as detailed in step
2.
9.6
9.7 Fill the Detergent Tank (Not supplied)
with clean water.
9.8 Remove the Nozzle and restart the
Engine (Following directions in
“Starting the Engine” on Page 15).
9.9 Point Wand in safe direction and hold
down to flush water through system
until clean.
Turn the Engine switch to the off
position.
9.10
NOTICE: High Altitude Operation
At high altitudes over 3,000 feet, the engine
carburetor and any other parts that control
the fuel-air ratio will be affected, which
will decrease performance, increase fuel
consumption and increase emission. Proper
operation can be ensured by installing an
altitude kit by a qualified mechanic when
use at altitude higher than 3,000 feet.
OPERATION
2
1
25
MAINTENANCE
NOTICE: Regular maintenance will improve the performance and extend the life of your
Pressure Washer. Service should be done by a qualified person or technician.
Pressure Washer's warranty does not cover items that have been subjected to operator
abuse or negligence. Only by maintaining Pressure Washer in accordance with instructions
in this manual will the full value of the warranty be honored. Some adjustments will need to
be made periodically to properly maintain the Pressure Washer. All service and adjustments
should be made at least one time each season. It is important that the maintenance chart
below be followed.
Many maintenance procedures, including any not detailed in this manual, will need to be
performed by a qualified technician for safety. If you have any doubts about your ability to
safely service the equipment or engine, have a qualified technician service the equipment
instead.
Engine Maintenance Schedule
NOTICE: This maintenance schedule is intended solely as a general guide. If performance
decreases or if equipment operates unusually, check systems immediately. The
maintenance needs of each piece of equipment will differ depending on factors
such as duty cycle, temperature, air quality, fuel quality, and other factors.
NOTICE: The following procedures are in addition to the regular checks and maintenance
explained as part of the regular operation of the engine and equipment.
ENGINE MAINTENANCE CHART
ITEM TASK EACH USE 3 MONTH 6 MONTHS 1 YEAR
ENGINE OIL
Check Level X
Replace X*
AIR FILTER
Check X
Clean X
Replace X*
SPARK PLUG
Clean, adjust X**
Replace X* **
SPARK
ARRESTER
Clean X
* Recommended to be performed more frequently if used in a dusty environment.
** Set gap to 0.6 - 0.7mm
2
1
26
Pump Maintenance
NOTICE: The pressure pump is
maintenance free. If you notice any sign of
oil leakage in and around the pump, DO
NOT operate the pressure washer.
Cleaning Nozzle:
Occasionally, the spray wand can become
clogged with foreign materials such as dirt.
When this happens, excessive pressure
can develop. Whenever the pressure
nozzle becomes particularly clogged, the
pump pressure will pulsate. It should be
immediately cleaned.
1. Make sure Pressure Washer is off and
spray gun is locked.
2. Remove high pressure spray nozzle
from the spray wand. Using the nozzle
cleaning needle (provided), remove any
obstructions by inserting and carefully
moving the pin back-and-forth through
nozzle hole under clean running water.
3. After cleaning, remove the needle from
nozzle and store for future use.
4. Reassemble pressure nozzle to spray
wand.
Cleaning Water Inlet Screen Filter:
The pump water inlet has
a filter screen that should
be checked periodically
and cleaned if necessary.
• Disconnect inlet water hose.
Remove filter by grasping end and pull
straight out.
Clean screen filter by flushing both sides
with water.
Insert screen filter back inside water inlet
port.
•
•
•
NOTICE: Do not operate Pressure Washer
without water inlet screen filter in place.
Cleaning Pressure Washer
Daily or before use inspections should
include areas around and underneath
Pressure Washer looking for signs of fuel
or oil leaks. Preventative maintenance
should be taken if leakage is found. Clean
accumulated debris from outside and inside
Pressure Washer. Ensure all linkages,
springs and other engine controls are
kept clean. Inspect cooling air slots and
openings on Pressure Washer. Openings
must be kept clean and unobstructed for
peak performance of Pressure Washer.
Engine components should be kept clean
reducing risk of overheating and ignition of
accumulated debris.
• Use a damp cloth to wipe exterior
surfaces clean.
Use a soft bristle brush to loosen caked
on dirt or oil.
Use a shop-vacuum to pick up any loose
dirt and debris.
•
•
Changing Engine Oil
WARNING: Hot Surface
Oil is very hot during operation
and can cause sevier burns.
Before changing engine oil, wait for 30
minutes after shutting engine down, to
be sure engine oil has cooled.
1. Draining Engine Oil:
1. Make sure the engine is stopped, cool
and is on a level surface.
2. Close the Fuel Valve.
3. Place a drain pan (not included)
underneath the crankcase's drain plug,
located on bottom side of engine.
4. Clean the top of the Dipstick and the
area around it. Remove the Dipstick by
turning it counterclockwise, and wipe it
off with a clean, lint free rag.
MAINTENANCE
2
1
27
1. Place product on flat level surface.
2. Fill crankcase with required amount of
fresh clean engine oil (0.6 Quart), using
table below to determine the correct
viscosity.
3. Replace dipstick in hole, but don't thread
in. Remove the dipstick to confirm oil level.
Replace dipstick and tighten to finger tight,
DO NOT Use a tool to tighten. Over
tightening will break or damage the dipstick
threads.
NOTICE: All oil should meet minimum
American Petroleum Institute (API) Service
Class SJ, SL or better. Use no special
additives. Select the oil's Viscosity grade
according to the expected operating
temperature.
(See chart below)
• Above 40° F, use 10W-30
Between 40° F and 10°F, use 10W-30
Below 10°F, use synthetic 5W-30
•
•
1. Remove the drain plug and, if possible,
tilt the crankcase slightly to help drain the
oil out into the pan. Recycle used oil.
2. Replace the drain plug and tighten it.
2. Adding Engine Oil:
NOTICE: Do not run the engine with too
little oil. If equipped with Low Oil
Shutdown, the engine will not start with
low or no engine oil.
Spark Plug Maintenance:
1. Disconnect spark plug cap from end of
plug. Clean out debris from around spark
plug.
2. Using a spark plug wrench, remove the
spark plug.
3. Inspect the spark plug:
• If the electrode is oily, clean it using a
clean, dry rag.
If the electrode has deposits on it, polish
it using emery paper.
If the white insulator is cracked or
chipped, the spark plug needs to be
replaced.
•
•
NOTICE: Using an incorrect spark plug
may damage the engine. DO NOT over
tighten spark plug, or engine threads can
be damaged.
4. When installing a new spark plug, adjust
the plug's gap to the specification on the
Specifications chart. Do not pry against the
electrode, the spark plug can be damaged.
• Install the new spark plug or the cleaned
spark plug into the engine.
Gasket-style - Finger-tighten until the
gasket contacts the cylinder head, then
tighten about 1/2-2/3 turn more.
•
5. Non-gasket-style - Finger-tighten until the
plug contacts the cylinder head, then tighten
about 1/16 turn more.
6. Reattach the spark plug cap securely.
Spark Plug Cap
MAINTENANCE
2
1
Spark Plug Cap
28
Air Filter Maintenance:
1. Remove the Air Filter Cover and the air
filter(s) and check for dirt. Clean as
described below.
2. Cleaning:
• For paper filters: To prevent injury from
dust and debris, wear ANSI-approved safety
goggles, NIOSH-approved dust
mask/respirator, and heavy-duty work
gloves. In a well-ventilated area away from
bystanders, use pressurized air to blow
dust out of the filter. If this does not get the
filter clean, replace it.
• For foam filters: Wash the filter in warm
water and mild detergent several times.
Rinse. Squeeze out excess water and allow
it to dry completely. Soak the filter in
lightweight oil briefly, then squeeze out the
excess oil.
3. Install the cleaned filter(s). Secure the Air
Filter Cover before use.
Long-term Storage
When the equipment is to remain idle for
longer than 20 days, prepare the Engine
for storage as follows:
1. Cleaning. Wait for Engine to cool, then
clean Engine with dry cloth.
WARNING: Fire / Explosion
Hazard
Fuel and its vapors are
extremely flammable and
explosive which could cause burns, fire
or explosion resulting in death or serious
injury. Fill tank only in a well-ventilated
area away from ignition sources. If the
engine is hot from use, shut down and
wait for it to cool before adding fuel. Do
not smoke, or have open flame near fuel,
or area when refueling.
1. Fuel. Gasoline fuel can become stale
when stored over 30 days, which
will cause acid and gum deposits
to form in the fuel system or crucial
carburetor parts. To keep fuel fresh, add
fuel stabilizer to the fuel tank. Draining
gasoline is unnecessary if the fuel
stabilizer is used according to the
instructions that come with it. Run Pressure
Washer engine for a minimum of five
minutes, after stabilizer is added to fuel, to
allow it to circulate throughout the engine.
The engine and fuel can be stored up to 24
months.
NOTICE: Be sure to have the water connected
to the pump when running the engine for any
purpose.
Lubrication:
1. To protect against rust formation during
storage, oil the cylinder bore:
2. Change engine oil.
3. Clean out area around spark plug.
Remove spark plug and pour approximately
1/2 oz (15 ml) of clean engine oil into cylinder
through spark.
4. Replace spark plug, but leave spark plug
cap disconnected.
5. Pull Starter Handle to distribute oil in cylinder.
Stop after one or two
revolutions when you feel the piston start the
compression stroke (when you start to feel
resistance).
Disconnect spark plug wire from spark plug
and cover tip of spark plug wire with insulating
tape and place wire where it cannot come in
contact with spark plug or Pressure Washer
frame.
WARNING: Fire / Electrical Shock
Unintentional sparking can
cause fire or electrical shock.
Failure to observe this
warning can cause severe property
damage, severe burns and even death.
MAINTENANCE
2
1
29
Storing Accessories
The pressure washer is equipped with
a place to store accessories.
1. Place Spray Gun into Gun Holder
2. Place nozzles in the top panel.
3. Coil and tie Pressure Hose and hang on
the hose hanger.
Pump Preparation
1. Disconnect the high-pressure hose and
the water supply hose from the pump.
2. Pull starter rope handle several times to
expel water from the pump.
NOTICE: It is normal to see water exit
both inlet and outlet of pump during this
exercise.
Storage Area
Cover and store in a dry, level, well-
ventilated area out of reach of children.
Storage area should also be away from
ignition sources, such water heaters,
clothes dryers and furnaces.
Preparation for Use After Storage
1. Slowly pull the starter cord a few times
to clean oil from the cylinder or to eject any
pump protector from the pump which may
have been added prior to storage.
2. Remove the spark plug from the cylinder.
Wipe oil from the spark plug and return it to
the cylinder and re-tighten.
3. Reconnect the spark plug wire.
4. Refuel engine per earlier instructions in
this manual.
CAUTION: Cold storage location
• If product will be exposed to temperatures below 32° F / 0° C during storage, the
use of a pump protection product (not included) is required. Use the pump protection
product per the pump protection manufacturer's instructions.
• Failure to prepare the pump for exposure to cold temperature will cause damage to
the pump and void your warranty.
MAINTENANCE
2
1
30
Trouble Shooting
Problem Possible Causes Possible Solutions
Engine will
not start.
No fuel in tank or fuel valve is in
“OFF” position.
Fill fuel tank with fresh 87 + octane
unleaded stabilizer-treated gasoline
and turn fuel valve to “ON” position.
Do not use gasoline with more than
10% ethanol (E15, E20, E85, etc.).
Low quality, stale, dirty or
deteriorated gasoline.
Drain fuel tank and carburetor; fill
with fresh fuel.
Choke not in START position, cold
engine.
Move Choke to START position.
Carburetor not primed. Pull on Starter Handle to prime.
Dirty fuel passageways in
carburetor.
Clean out passageways using fuel
additive. Heavy deposits may require
further cleaning.
Carburetor needle stuck. Gently tap side of carburetor float
chamber with screwdriver handle.
Too much fuel in cylinder. This can
be caused by the carburetor needle
sticking.
Turn Choke to RUN position.
Remove spark plug and pull the start
handle several times to air out the
chamber. Reinstall spark plug and
set Choke to START position.
Intake valve stuck open or closed. please submit to an authorized
dealer.
Clogged Fuel Filter. Replace Fuel Filter.
Spark plug cap not secured Connect spark plug cap properly.
Spark plug electrode wet or dirty. Clean spark plug.
Incorrect spark plug gap Set spark plug gap to 0.6 - 0.7mm
Spark plug cap broken. Replace spark plug cap
Incorrect spark timing or faulty
ignition system.
please submit to an authorized
dealer.
Cylinder not lubricated.
(problem after long storage
periods).
Pour tablespoon of oil into spark
plug hole. Crank engine a few times
and try to start again.
MAINTENANCE
2
1
31
Problem
Engine will
not start.
(cont).
Loose or broken spark plug.
(Hissing noise will occur when
trying to start.)
Tighten spark plug. If that does not
work, replace spark plug.
If problem persists, may have head
gasket problem.
Loose cylinder head or damaged
head gasket. (Hissing noise will
occur when trying to start.)
Tighten head.
If that does not remedy problem,
replace head gasket
Engine valves or tappets mis-
adjusted or stuck.
please submit to an authorized
dealer.
Low engine oil. Fill engine oil to proper level.
Product on slope or unleveled
surface, triggering low oil shutdown.
Move product to level surface.
Engine
“hunts” or
falters
Carburetor is running too rich or too
lean.
Engine
lacks
power
Cylinder compression is low.
Dirty air filter.
Clogged or dirty fuel filter.
Clean or replace fuel filter.
Engine
misfires
Spark plug cap loose. Check all wire connections.
Clean or replace fuel filter.
Incorrect or defective spark plug. Re-gap or replace spark plug.
Defective spark plug cap. Replace spark plug cap.
Old or low quality gasoline. Use only fresh 87+ octane stabilizer-
treated unleaded gasoline. Do not
use gasoline with more than
10% ethanol (E15, E20, E85, etc.).
Incorrect compression.
Engine
suddenly
stops
Fuel tank empty or full of impure or
low quality gasoline.
Fill fuel tank with fresh 87+ octane
stabilizer-treated unleaded gasoline.
Do not use gasoline with more than
10% ethanol (E15, E20, E85, etc.).
Low oil shutdown. Fill engine oil to proper level.
Troubleshooting continued
Possible Causes Possible Solutions
please submit to an authorized
dealer.
please submit to an authorized
dealer.
please submit to an authorized
dealer.
MAINTENANCE
2
1
32
Engine
suddenly
stops
(cont).
Defective fuel tank cap creating
vacuum, preventing
proper fuel flow.
Test/replace fuel tank cap.
Faulty magneto. please submit to an authorized
dealer.
Disconnected or improperly
connected spark plug cap.
Secure spark plug cap.
Engine
stop under
heavy load
Engine running cold. Allow engine to warm up prior to
operating equipment.
Dirty air filter Clean or replace filter element.
Engine
knocks
Old or low quality gasoline. Use only fresh 87+ octane stabilizer-
treated unleaded gasoline. Do not
use gasoline with more than
10% ethanol (E15, E20, E85, etc.).
Engine overloaded. Do not exceed equipment's load
rating.
Incorrect spark timing, deposit
buildup, worn engine, or other
mechanical problem.
Engine
backfires
Impure or low quality gasoline.
Engine too cold. Allow engine to warm up prior to
operating equipment.
Intake valve stuck or overheated
engine.
Incorrect engine timing.
No
pressure
or low
pressure
No nozzle inserted into wand quick
connect fitting
See “Selecting The Right Nozzle”.
Inadequate water supply. Water supply must be 5 GPM @ 20
PSI minimum.
Nozzle is clogged Clean Nozzle (See “Cleaning
Nozzle”).
Hose fitting leaking Check and tighten all hose fittings
Air in hose. Squeeze trigger to remove air.
Water inlet filter screen obstructed. Remove and clean filter screen.
Choke lever in “START “ position. Move choke to “RUN” position.
please submit to an authorized
dealer.
Use only fresh 87+ octane stabilizer-
treated unleaded gasoline. Do not
use gasoline with more than
10% ethanol (E15, E20, E85, etc.).
please submit to an authorized
dealer.
MAINTENANCE
2
1
33
Output
pressure
varies
Not enough water supply. Check water supply hose for kinks,
leaks, or blockage. Open faucet all
the way.
Water inlet screen is clogged.
Nozzle is clogged. Clean Nozzle (See “Cleaning
Nozzle”).
Remove and clean filter screen.
Nozzle has mineral build up Remove Nozzle and clean with
vinegar.
Water
or Oil
Leaking
at Pump
Loose connections. Check and tighten all connections.
Worn or broken O-rings. please submit to an authorized
dealer.
Pump head or tubes damaged from
freezing.
No intake
of
detergent
Detergent hose not properly
inserted into unit.
Soap injector hose cracked or split. Replace hose.
Push firmly onto injector fitting.
Wrong Nozzle.
Injector turned off.
Switch to black SOAP nozzle.
Turn on injector
Injection hose strainer clogged Clean hose and strainer.
Nozzle blocked. Clean nozzle.
Dried detergent in injector. Dissolve by running warm water
through the injection hose. Run
clean water through injector until
clear.
Water
leaking
at spray
gun/wand
connection
Loose hose connection. Check and tighten all connections.
Worn, broken or missing O-ring. please submit to an authorized
dealer.
Troubleshooting continued
Problem Possible Causes Possible Solutions
MAINTENANCE
2
1
34
6800.W01.GEM.02.01 V3
