OWNER’S MANUAL AND SAFETY INSTRUCTIONS
1” AIR IMPACT WRENCH
ITEM # 44404
SAVE THIS MANUAL. KEEP THIS MANUAL FOR SAFETY WARNINGS, PRECAUTIONS, ASSEMBLY,
OPERATION, INSPECTION, MAINTENANCE AND CLEANING PROCEDURES. WRITE THE PRODUCT’S
SERIAL NUMBER ON THE BACK OF THE MANUAL, OR THE MONTH AND YEAR OF PURCHASE IF
PRODUCT HAS NO SERIAL NUMBER
FOR QUESTIONS, PLEASE CALL CUSTOMER SERVICE: 909.628.4900
SAFETY WARNINGS
Read all safety warnings and instructions. Failure to follow the warnings and
instructions may result in injury and/or property damage. Save all warnings and
instructions for future reference.
The warning and safety instructions in this manual are not meant to cover all possible conditions and
situations that may occur. Common sense, caution and care must be exercised when operating or
cleaning tools and equipment. Always contact your dealer, distributor, service agent or manufacturer
about problems or conditions you do not understand before operating the product.
Keep the work area clean and well lit. A cluttered work area may cause accidents. Never allow children to
use this product. When operating this product, keep children and animals at a safe distance from the work
area.
Stay alert. Watch what you are doing and use common sense when operating the tool. Do not use the tool
while tired or under the inuence of drugs, alcohol, or medication. A moment of inattention while operating the
tool increases the risk of injury to persons.
1
Dress properly. Do not wear loose clothing or jewelry. contain long hair. Keep hair, clothing, and gloves away
from moving parts. Loose clothes, jewelry, or long hair increases the risk of injury to persons as a result of
being caught in moving parts.
Avoid unintentional starting. Be sure the switch is o before connecting to the air supply. Do not carry the
tool with your nger on the switch or connect the tool to the air supply with the switch on.
Remove adjusting keys and wrenches before turning the tool on. A wrench or a key that is left attached
to a rotating part of the tool increases the risk of personal injury.
Do not overreach. Keep proper footing and balance at all times. Proper footing and balance enables better
control of the tool in unexpected situations.
Use safety equipment. A dust mask, non-skid safety shoes and a hard hat must be used for the applicable
conditions.
Use clamps or another practical way to secure and support the workpiece to a stable platform. Holding
the work by hand or against the body is unstable and is able to lead to loss of control.
Do not force the tool. Use the correct tool for the application. The correct tool will do the job better and safer
at the rate for which the tool is designed.
Do not use the tool if the switch does not turn the tool on or o. Any tool that cannot be controlled with
the switch is dangerous and must be repaired.
Disconnect the tool from the air source before making any adjustments, changing accessories, or
storing the tool. Such preventive safety measures reduce the risk of starting the tool unintentionally. Turn o
and detach the air supply, safely discharge any residual air pressure, and release the throttle and/or turn the
switch to
Store the tool when it is idle out of reach of children and other untrained persons. A tool is dangerous
in the hands of untrained users.
Maintain the tool with care. Keep a cutting tool sharp and clean. A properly maintained tool, with sharp
cutting edges reduces the risk of binding and is easier to control.
Check for misalignment or binding of moving parts, breakage of parts, and any other condition that aects
the tool’s operation. If damaged, have the tool serviced before using. Many accidents are caused by poorly
maintained tools. There is a risk of bursting if the tool is damaged.
SAFETY WARNINGS
SAVE THESE WARNINGS
2
The amount of actual torque may vary depending on the cleanness and condition of the threads and other
factors. If tightening critical components, check the actual torque applied to the fastener with a mechanical
torque wrench (not supplied).
The warnings and precautions discussed in this manual cannot cover all possible conditions and situations
that may occur. It must be understood by the operator that common sense and caution are factors which
cannot be built into this product, but must be supplied by the operator.
WARNING: Some dust created by power sanding, sawing, grinding, drilling, and other construction activities,
contains chemicals known to the State of California to cause cancer and birth defects or other reproductive
harm. Some examples of these chemicals are:
• Lead from lead-based paints
• Crystalline silica from bricks and cement or other masonry products
• Arsenic and chromium from chemically treated lumber
Your risk from these exposures varies, depending on how often you do this type of work. To reduce your
exposure to these chemicals:
work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are
specially designed to lter out microscopic particles. (California Health & Safety Code § 25249.5, et seq.)
Only use with accessories rated to handle the forces exerted by this tool during operation. Other accessories
not designed for the forces generated may break and forcefully launch pieces.
Attach all accessories properly to the tool before connecting the air supply. A loose accessory may detach or
break during operation.
Use this tool with both hands only. Using tools with only one hand can result in loss of control.
Do not lay the tool down until it has come to a complete stop. Moving parts can grab the surface and pull the
tool out of your control.
Anyone using vibrating tools regularly or for an extended period should rst be examined by a doctor and
then have regular medical check-ups to ensure medical problems are not being caused or worsened from
use. Pregnant women or people who have impaired blood circulation to the hand, past hand injuries, nervous
system disorders, diabetes, or Raynaud’s Disease should not use this tool. If you feel any symptoms related
to vibration (such as tingling, numbness, and white or blue ngers), seek medical advice as soon as possible.
• Do not smoke during use. Nicotine reduces the blood supply to the hands and ngers, increasing the risk of
vibration-related injury.
• Wear suitable gloves to reduce the vibration eects on the user.
• Use tools with the lowest vibration when there is a choice.
• Include vibration-free periods each day of work.
• Grip tool as lightly as possible (while still keeping safe control of it). Let the tool do the work.
• To reduce vibration, maintain tool as explained in this manual. If abnormal vibration occurs, stop immediately.
PRODUCT INFORMATION
3
This Air Impact Wrench is made of wear-resistant and shockproof materials under strict quality control. Before
each use, make sure to lubricate the tool with 3 - 5 drops of engine oil through the air inlet. Do not add oil with
high viscosity. Re-connect air. Run impact wrench at low throttle without load for a few seconds to distribute the
oil throughout tool.
Keep the Air Cylinder and Gas Container clean and dry and make sure there is no leakage in the Air Supply
Tube.
Drain water from air compressor tank daily, as well as any condensation from air lines. Water in the air line may
enter the tool and cause damage.
Rule of Thumb
If it takes more than 8 seconds to tighten or loosen a bolt or nut with an air impact wrench at maximum setting,
the air wrench is too small or the air compressor CFM is not powerful enough for the job. Continued use in either
capacity will cause damage to the tool.
Square Drive...............1”(25.4mm)
Rated No Load Speed........4800RPM
Maximum T
orque...............1800N-m
Capacity Bolt Dia........1.8in
Air Pressure........17.6-22lbs/cm2
Net Weight................19lbs

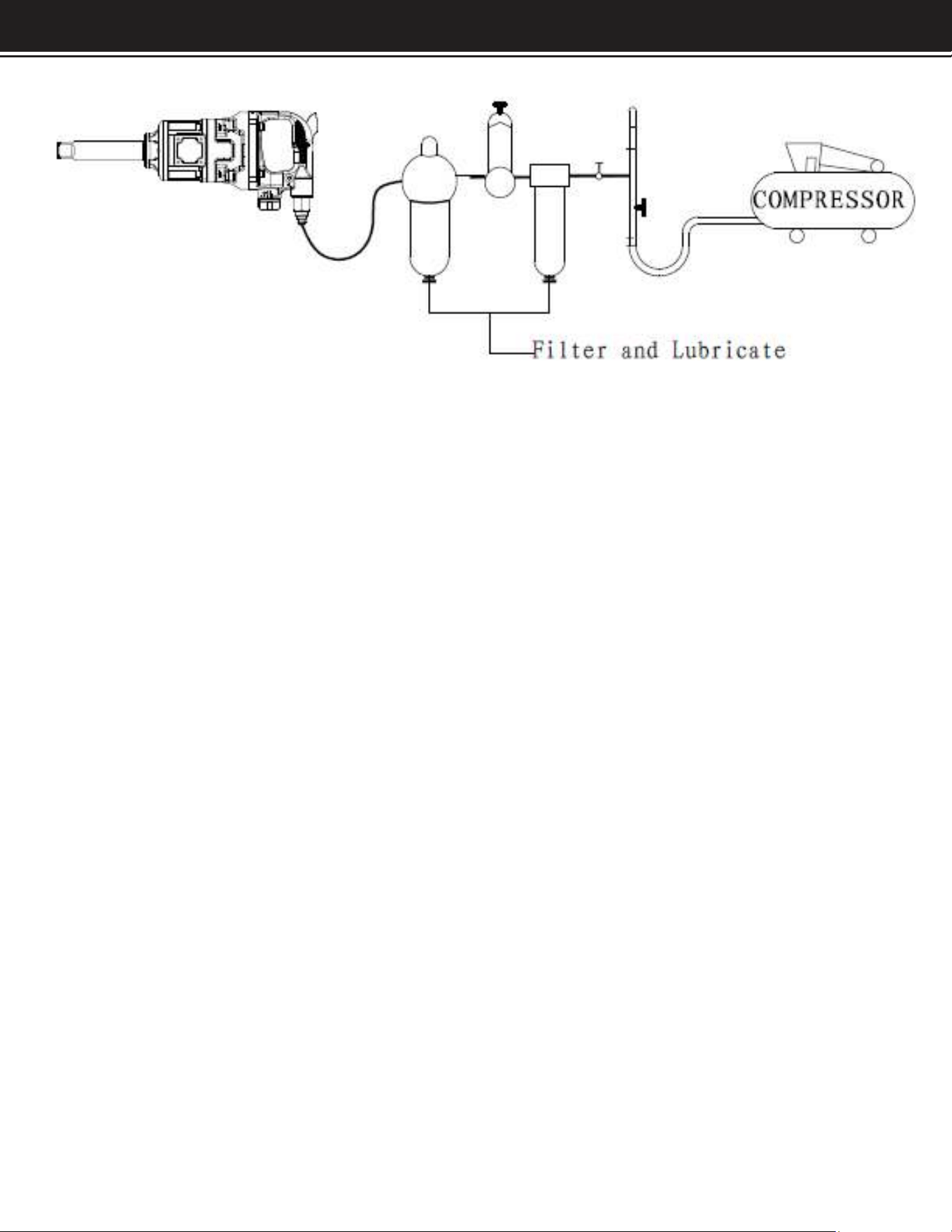

OPERATION
4
DISCLAIMER
5
PLEASE READ THE FOLLOWING CAREFULLY

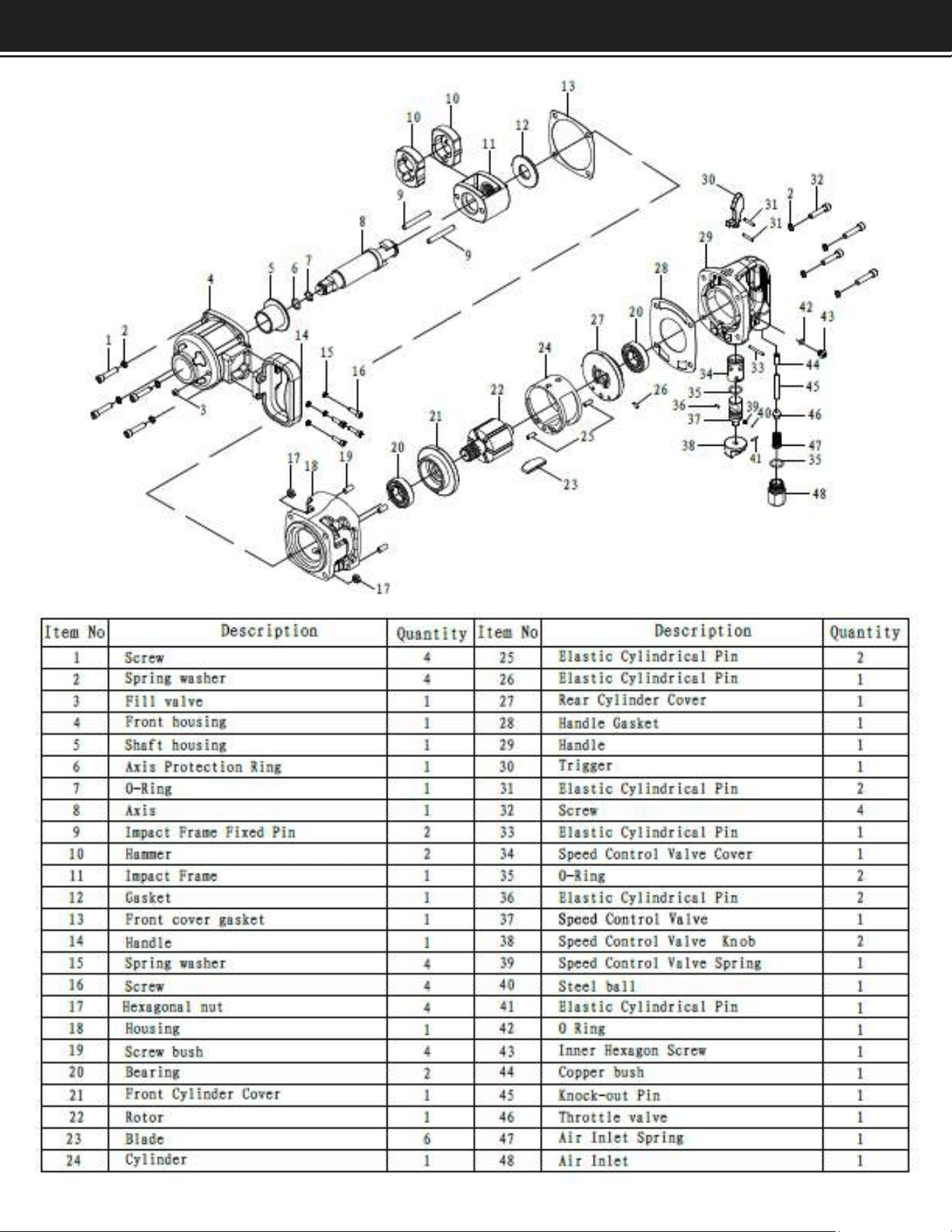

THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY
DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR
DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE
OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED
TO REPLACE ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR DISTRIBUTOR
EXPRESSLY STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN
BY CERTIFIED AND LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER ASSUMES
ALL RISK AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR
REPLACEMENT PARTS THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT
PARTS THERETO.
Record Product’s Serial Number Here:
Note: If product has no serial number, record month and year of purchase instead.
Note: Some parts are listed and shown for illustration purposes only and are not available
individually as replacement parts.
MADE IN CHINA
