User Manual
3
User Manual
– WARNING: Do not use electrical appliances inside the
compartments.
– WARNING: Do not store explosive substances such as
aerosol cans with a flammable propellant in this
appliance.
– WARNING: This appliance is intended to be used in
household and similar applica�ons such as:
- Staff kitchen areas in shops, offices and other working
environments;
- Farm houses and by clients in hotels, motels and other
residen�al type environments;
- Bed and breakfast type environments;
- Catering and similar non-retail applica�ons
– WARNING: Do not use electrical appliances inside the
food storage compartments of the appliance, unless
they are the type recommended by the manufacturer.
– WARNING: If the power cord is damaged, it must be
replaced by the manufacturer, its service agent or
similarly qualified persons in order to avoid a hazard.
– WARNING: When posi�oning the appliance ensure the
supply cord is not trapped or damaged.
WARNING: Do not locate mul�ple portable socket-
outlets or portable power supplies at the rear of the
appliance.
– WARNING: Your appliance is fi�ed with long life LED
ligh�ng. In the unlikely event the LED lights should fail,
then the LED lights should be serviced by the
manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
– WARNING: In Queensland Australia, the authorised
pers on must hold a Gas Work Authorisa�on for
hydrocarbon refrigerants, before carrying out servicing
or repairs which involve the removal of covers.
The environment and personal safety must be
considered when disposing of this appliance.
Please ensure the appliance is taken to a recycle centre
for safe recycling.
This appliance contains insula�on formed with
flammable blowing gases and flammable refrigerant.
Avoid safety hazards by carefully disposing of this
appliance.
It is hazardous for anyone other than an Authorised
Service Person to carry out servicing or repairs to this
appliance.
– WARNING: Keep ven�la�on openings in the appliance
enclosure or in the slot-in structure clear of
obstruc�on.
– WARNING: Do not use mechanical devices or other
means to accelerate the defros�ng process, other than
those recommended by the manufacturer.
– WARNING: Do not damage the refrigerant circuit.
- The room for installing the appliance must be at least 1
cubic metre per 8 grams of refrigerant. The refrigerant
quan�ty contained in this appliance is listed above in
grams; it is also noted on the Ra�ng Plate of the
appliance.
The informa�on in this document is subject to
modifica�on without any prior no�ce.
Some models are available in dedicated countries only.
VINTEC offers no guarantee for our Wine Cellar if it is being
used for any purpose other than that for which it was
specifically designed.
VINTEC cannot be held responsible for any error in this
manual.
This appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabili�es, or lack of experience and knowledge,
unless they have been given supervision or instruc�on
concerning use of the appliance by a person responsible
for their safety.
Children should be supervised to ensure they do not play
with the appliance (AU & NZ).
This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabili�es or lack of experience and knowledge
if they have been given supervision or instruc�on
concerning use of the appliance in a safe way and
understand the hazards involved. Children shall not play
with the appliance. Cleaning and user maintenance shall
not be made by children without supervision.
This appliance uses flammable refrigerant, please
secure the cooling pipe during the delivery process.
Posi�on the wine cellar away from direct sunlight and
sources of heat (stove, heater, radiator, etc.). Never
clean appliance parts with flammable fluids. The fumes
can create a fire hazard or explosion. When disposing
your appliance, please choose an authorized disposal site.
Children should be supervised to ensure that they do
not play with the appliance.
R600A WARNINGS
The following models use small quan�ty of R600A
(iso-butane) flammable refrigerant:
VWS830FCB-X/ VWS830FAS-X：–30g
For your safety please observe the following
recommenda�ons :
- This appliance contains a small quan�ty of R600A
refrigerant which is flammable. Avoid safety hazards
by carefully installing, handling, servicing and disposing
of this appliance.
- During transporta�on and installa�on, ensure that the
tubing of the refrigerant circuit is not damaged.
- Avoid using or manipula�ng sharp objects near the
appliances.
- Leaking refrigerant can ignite and may damage the eyes.
- In the event any damage does occur, avoid exposure to
open fires and any device which creates a spark.
Disconnect the appliance from the mains power.
- Thoroughly ven�late the room in which the appliance is
located for several minutes.
- No�fy Customer Service for necessary ac�on and advice.
socket to country standards, linked to the ground)．It is
NOT recommended to use a mul�-socket or extension
lead;
- have a surge protector fi�ed to the electrical outlet;
- away from the microwave oven. Certain microwave
ovens do not have wave interference shield.When
placed within 1 meter vicinity of the wine cellar, they
may affect the opera�on of the wine cabinet.
The Wine Cellar Should be placed on a level surface in a
dry, well ven�lated room (max.75% rela�ve air humidity).
In hot humid climate areas and par�cularly on hot rainy
days, humidity in the ambient air can condense on the
cold external surfaces, glass door or door sealing gasket
strip. Especially when appliance is set at the coldest
temperature se�ng in a long period of �me during high
humid days which is a natural phenomenon.During mon-
soon season or high humidity days, we recommend se�ng
the temperature at warmer or at cellaring temperature
mode. Or you can simply wipe off any moisture or water
droplets with so� dry cloth.Condensa�on will disappear
when humidity level drops or temperature set to a warmer
se�ng.
The Wine Cellar should be placed where declares climate
class.
If the ambient temperature is above or below this range,
the performance of the unit may be affected.Placing
your unit in extreme cold or hot condi�ons may cause
interior temperatures to fluctuate.The ideal range of

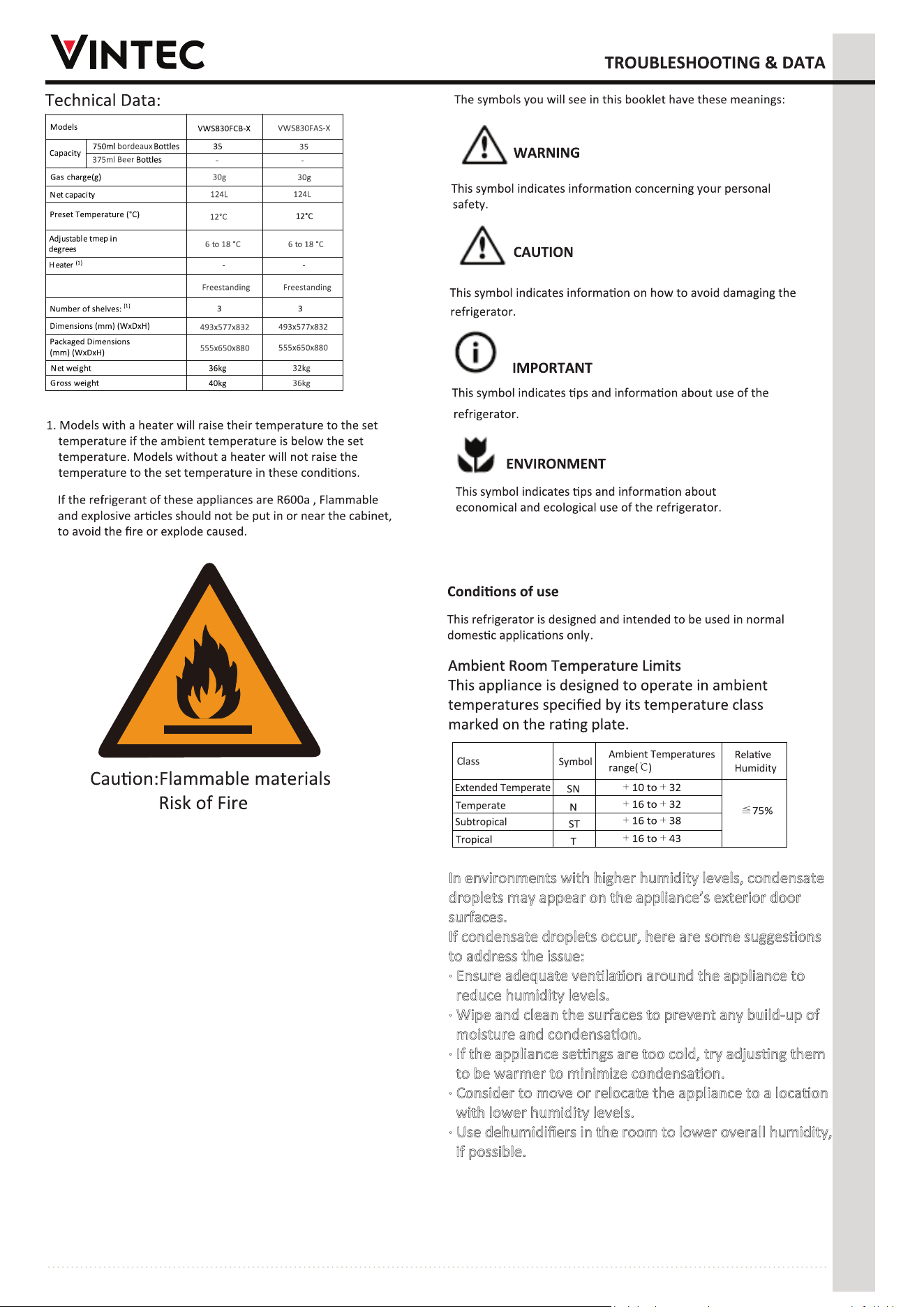

temperature may not be reached. (See Climate Class
at the end of this manual).
Grounding instrucons
The Wine Cellar must be grounded in case of an electrical
short circuit. Grounding reduces the risk of electrical shock.
The Wine Cellar is equipped with a power cord having a
grounding wire and plug. The Wine Cellar plug must be
plugged into a properly affixed and grounded electrical
outlet.
Note:In loca�ons where there is frequent lightning, it is
advisable to use surge protectors.
Improper use of the grounding plug can result in the risk
of electric shock. Consult a qualified electrician or service
person if the grounding instruc�ons are not completely
understood. If the supply cord is damaged,it must be
replaced by a qualified person in order to avoid
electrical hazard.
- not be too damp (laundry, pantry, bathroom etc.);
- have a flat floor;
- have a standard and reliable electricity supply (standard
- be unencumbered and well ven�lated;
- be well away from any heat source and direct sunlight;
Allow 24 hours before switching on the Wine Cellar .
During this me we recommend that you leave the door
open to clear any residual odours.
BEFORE LOADING & PLUGGING IN THE WINE CELLAR.
Important: All models without front venng (air opening)
are strictly for free standing only.
Recommendaons:
The loca�on you have selected for your Wine Cellar should:
- WARNING: Ensure the plug is accessible when the
appliance is in posi�on,or a switch is incorporated in
fixed wiring according to the wiring rules.
(See licensed electrician for further advice).
INSTALLATION
VWS830FCB-X and VWS830FAS-X models are free
standing only, can not build-in or under counter. The
minimum distance between the wine cooler and the
adjacent furniture as below drawing.
Levelling your Wine Cellar : Wine Cellar must be
leveled BEFORE loading your wines.Your Vintec Wine
Cellar is equipped with 4 adjustable feet to facilitate
easy leveling.
VINTEC recommends that you �ghten the back feet to
the maximum and adjust the front feet to level of the
Wine Cellar.
Fixing the Back spacer:
Compressor run appliances require good ven�la�on
for effec�ve and longer usage.Your Vintec Wine Cellar
is supplied with a back spacer.
Affix the back spacer at the back of the cellar for air
circula�on and heat evacua�on.
4
User Manual
TURNING ON YOUR WINE CELLAR
Plug in and switch on the cellar by pressing on the power
bu�on for a few seconds.
When you use the Wine Cellar for the first �me (or restart
the Wine Cellar a�er having it shut off for a long �me),
there will be a few degrees variance between the
temperature.
You have selected and the one indicated on the LED
readout.This is normal and it is due to the length of the
ac�va�on �me. Once the Wine Cellar is running for a
few hours everything will stabilise.
OPERATING NOISES
To reach the desired temperature se�ngs, VINTEC
Wine Cellar, like all Wine Cellar and may produce the
following types of noises. These noises are normal and
may occur as follows:
- Gurgling sound - caused by the refrigerant flowing
through the appliance’s coils.
- Cracking/popping sounds - resul�ng from the
contrac�on and expansion of the refrigerant gas to
produce cold.
- Fan opera�ng sound - to circulate the air within the
Wine Cellar.
An individual’s percep�on of noise is directly linked to
the environment in which the Wine Cellar is located,
as well the specific type of models.
VINTEC Wine Cellar are in line with interna�onal standards
for such appliances.
VINTEC will always do its utmost to sa�sfy its customers
but will not retake possession of the goods due to
complaints based on normal opera�ng noise occurrences.
LOADING YOUR WINE CELLAR
You may load your wine bo�les in single or double rows
while taking note of the following: if you do not have
enough bo�les to fill your Wine Cellar, it is be�er to
distribute the load throughout the Wine Cellar so as to
avoid all on top or all below type loads.
- Do remove or relocate adjustable wooden shelves to
accommodate larger type of bo�les or increase the
capacity of the cellar by stacking the bo�les up when

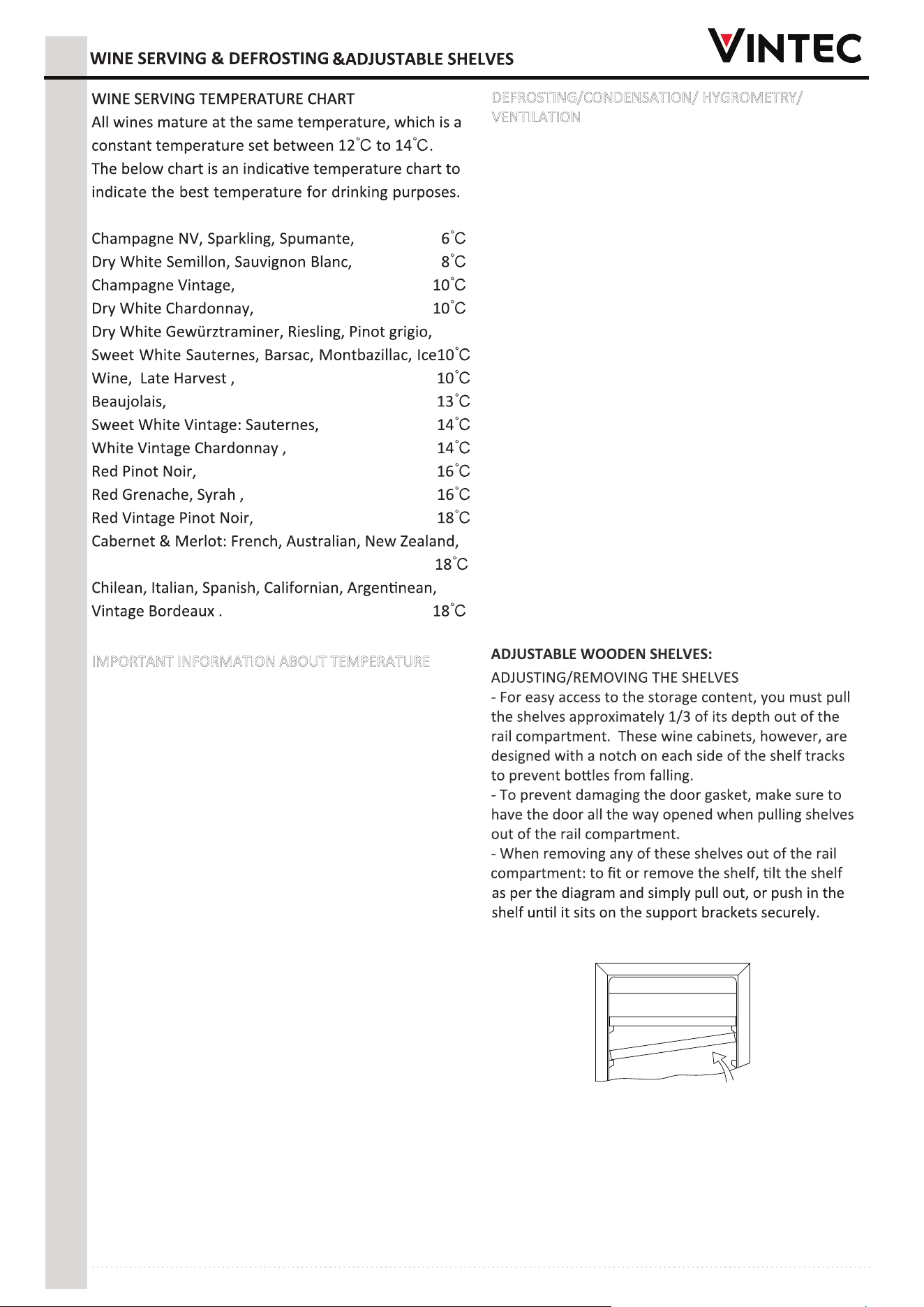

necessary. (See removing shelves).
- Keep smalls gap between the walls and the bo�les to
allow air circula�on. Like an underground cellar air
circula�on is important to prevent mould and for a
be�er homogeneous temperature within the cellar.
- Do not over load your Wine Cellar to facilitate air
circula�on.
- Do not stack more than 1.5 rows of standard 0.75L
bo�les per shelves to facilitate air circula�on.
- Avoid obstruc�ng the internal fans (Located inside
on the back panel of the Wine Cellar).
- Do not slide the shelves outwards beyond the
fixed posi�on to prevent the bo�les from falling.
- Do not pull out more than one loaded shelf at a
�me as this may cause the Wine Cellar to �lt
forward.
- Do not cover the wooden shelves with alloy foil or
other materials, as it will obstruct air circula�on.
- Do not move your Wine Cellar while it is loaded
with wines. This might distort the body of the
Wine Cellar and cause back injury.
TEMPERATURE STABILITY AND WINE STORAGE
Please note that depending on the loading and
se�ngs chosen it takes about 24 hours for the Wine
Cellar to see the temperature stabilising.
It is normal and this process occurs whenever the
se�ng is modified and/or whenever a large amount
of bo�les are added to the cellar. Designed to store and
mature all wines: red, white and sparkling.
These Wine Cellar reproduce the ideal condi�ons for
wine storage, at a constant recommended temperature
of 12°C. They can also be set to provide ideal serving
temperature for full enjoyment of the wine’s quali�es.
Unless stated by the wine maker on the bo�le,
VINTEC recommends 7°C for your champagne,
12°C for whites and 18°C for reds. (Refer to Wine
Service Temperature recommenda�on chart).
Designed to store wines at the correct temperature
for best enjoyment. The chamber can hold 35 bo�les,
at a temperature of 6°C to 10°C dedicated mainly to
white, sparkling wines and champagnes. mainly for
red wines, which could be stored either at room
temperature (18°C-20°C) for consump�on or at 12°C
for a longer �me of storage.
TEMPERATURE SETTINGS
This appliance memorizes and saves its set temperature.
In case of a power outage, the unit adjusts to its previous
temperature se�ng when power resumes.
User Manual
5
It is important to understand that there is a difference
between the air temperature inside the Wine Cellar
and the actual temperature of the wine: You will need
to wait approximately 12 hours before no�cing the
effects of temperature
adjustment due to the cri�cal
mass within a full Wine Cellar.
Once the temperature is set, it is strongly advised not
to toy with it or adjust frequently. The thermostat
will maintain the temperature inside the Wine Cellar
within a +/- 2.5°C range.
But the thermal iner�a of the wine and the glass is
such that within this temperature range, the actual
temperature of the wine will only fluctuate 0.5°C
to 1°C.
Control panel Opera�on
Internal light
In order to reduce energy consump�on, this wine
cabinet will automa�cally switch off the LED lights a�er
10 minutes.
If you want the LED light to remain on con�nuously,
this is possible. Please press and hold the " " bu�on
for 5 seconds, the display will show "LP".A�er 4 seconds
the display will revert back to normal and the light will
remain on un�l manually switched off.
If you want to revert back and conserve energy
(recommended), please press and hold the " " bu�on
for 5 second, the display will show "LF",a�er 4 seconds
the display will revert back to normal, and the light will
automa�cally switch off a�er 10 minutes.
6
User Manual
IMPORTANT INFORMATION ABOUT TEMPERATURE
Your VINTEC Wine Cellar has been designed to
guarantee op�mum condi�ons for storing and/or
serving your wines.
Fine wines require long and gentle developments and
need specific condi�ons in which to reach their full
poten�al.
All wines mature at the same temperature, which is a
constant temperature set between 12
℃ to 14℃. Only
the temperature of degusta�on (wine apprecia�on)
varies according to the type of wines (see Wine Serving
Temperature Chart above). This being said and as it is
for natural cellars used by wine producers for long
periods of storage, it is not the exact temperature that
is important, but its consistency. In other words, as
long as the temperature of your Wine Cellar is constant
(between 12
℃ to 14℃) your wines will be stored in
perfect condi�ons.
Not all wines will improve over the years. Some should
be consumed at an early stage (2 to 3 years) while
others have tremendous ageing capability (50 and
over). All wines have a peak in maturity. Do check with
your wine merchant to get the relevant informa�on.
DEFROSTING/CONDENSATION/ HYGROMETRY/
VENTILATION
Your Wine Cellar is designed with Auto-cycle defrost
system. During Off-cycle the refrigerated surfaces of
the Wine Cellar defrost automa�cally.
Defrost water from the Wine Cellar storage compart-
ment drains automa�cally and part of it goes into a
drainage container, which is located at the back of the
Wine Cellar next to the compressor.The heat is transf-
erred from the compressor and evaporates any on
that has collected in the pan. Part of the remaining
water is collected within the Wine Cellar for humidity
purposes.
This system enables the crea�on of the correct humid-
ity level inside your Wine Cellar required by the natural
cork to maintain a long las�ng seal.
Notes: The water collected by condensa�on, is there-
fore recycled.
The Wine Cellar is not totally sealed; Some fresh air is
allowed through the drainpipe.
Air is circulated through the cellar by means of a fan/fans
and the hollow shelves.
Notes: During the refrigera�ng cycle, heat is given off which
disperses through the external surfaces of the Wine Cellar.
Avoid touching the surfaces during those cycles.
7
User Manual
User Manual
8
9
User Manual
OPERATION ANOMALIES
Ensure that there is power to the electrical supply plug
by connec�ng another electrical appliance to it. Check
fuse, if any. Make sure that the door is closed properly.
If your Wine Cellar appears to be malfunc�oning,
unplug it and contact your VINTEC’s a�er sales service.
Any interven�on on the cold circuit should be performed
by a refrigera�on technician who should carry out
an inspec�on of the circuit sealing system. Similarly,
any interven�on on the electrical circuit shouldbe
performed bya qualified electrician.
Notes : Any interven�on performed by a non-authorised
technician by Vintec will lead to the warranty being
considered as null and void.
POWER FAILURES
This appliance memorizes and saves its set
temperature. In case of a power outage, the unit
adjusts to its previous temperature se�ng when
power resumes.
To avoid sudden change of temperature while the
power is off, you should avoid opening the door.
For longer periods of power failure, do take steps
to protect your wine.
Irrespec�ve of the cause, if you no�ce either abnormal
temperature or humidity levels inside your Wine Cellar,
be reassured that only long and frequent exposure to
these abnormal condi�ons can cause a detrimental effect
on your wines.
TROUBLESHOOTING GUIDE
Common problems may easily be solved, saving you
the cost of a possible service call.
Please read carefully the instruc�on manual and refer
to the troubleshoo�ng guide chart.
PROBLEM
POSSIBLE CAUSE
Wine Cellar does not operate.
Wine Cellar is not cold enough.
Turns on and off frequently.
The light does not work.
Not plugged in.
The appliance is turned off.
The circuit breaker tripped or the fuse is
broken.
Check the temperature control se�ng.
External environment may require a
higher se�ng.
The door is opened too o�en.
The door is not closed completely.
The door gasket does not seal properly.
The room temperature is higher than
normal.
A large amount of contents has been
added to the Wine Cellar.
The door is opened too o�en.
The door is not closed completely.
The temperature control is not set
correctly.
The door gasket does not seal properly.
Not plugged in.
The circuit breaker tripped or a blown
fuse.
The bulb is out of order.
The light bu�on is “OFF”.
Check to assure that the Wine Cellar
is level.
Vibra�ons.
The door will not close properly.
The Wine Cellar is not level.
The door was reversed and not properly
installed.
The gasket is faulty. (Magnet or rubber
is spoiled).
The shelves are out of posi�on.
The Wine Cellar seems to make
too much noise.
A Gurgling noise may come from the low
side of the refrigerant system, which is
normal as each cycle ends in your Wine
Cellar.
Contrac�on and expansion of the inside
walls may cause popping and crackling
noises.
The Wine Cellar is not level.
Place appliance in a lower humidity area.
warmer above the coldest temperature
lower levels (recommended place appli-
air humidity area)
exterior surfaces, glass door,
sealing gasket strip.
This is a natural phenomenon
10
User Manual
Freestanding or Slot-in
In environments with higher humidity levels, condensate
droplets may appear on the appliance’s exterior door
surfaces.
If condensate droplets occur, here are some sugges�ons
to address the issue:
· Ensure adequate ven�la�on around the appliance to
reduce humidity levels.
· Wipe and clean the surfaces to prevent any build-up of
moisture and condensa�on.
· If the appliance se�ngs are too cold, try adjus�ng them
to be warmer to minimize condensa�on.
· Consider to move or relocate the appliance to a loca�on
with lower humidity levels.
· Use dehumidifiers in the room to lower overall humidity,
if possible.
This document sets out the terms and conditions of the product
warranties for Vintec Appliances. It is an important document.
Please keep it with your proof of purchase documents in a safe place
for future reference should there be a manufacturing defect in your
Appliance. This warranty is in addition to other rights you may have
under the Australian Consumer Law.
1. In this warranty:
(a) ‘ACL’ or ‘Australian Consumer Law’ means Schedule 2 to the
Competition and Consumer Act 2010;
(b) ‘Appliance’ means any Electrolux product purchased by you and
accompanied by this document;
(c) ‘ASC’ means Electrolux’s authorised serviced centres;
(d) ‘Vintec’ is the brand controlled by Electrolux Home Products Pty Ltd
of 163 O’Riordan Street, Mascot NSW 2020, ABN 51 004 762 341
in
respect of Appliances purchased in Australia and Electrolux (NZ) Limited
(collectively “Electrolux”) of 3-5 Niall Burgess Road, Mount Wellington, in
respect of Appliances purchased in New Zealand;
(e)
‘Warranty
Period’ means the period
in clause 3 of this
warranty;
(f) ‘you’ means the purchaser of the Appliance not having purchased
the Appliance for re-sale, and ‘your’ has a corresponding meaning.
2. Application: This warranty only applies to new Appliances, purchased
and used in Australia or New Zealand and is in addition to (and does not
exclude, restrict, or modify in any way) other rights and remedies under
a law to which the Appliances or services relate, including any non-
3.
4. Repair or replace warranty: During the Warranty Period, Electrolux
or its ASC will, at no extra charge if your Appliance is readily accessible
for service, without special equipment and subject to these te
rms and
conditions, repair or replace any parts which it considers to be defective.
Electrolux may, in its absolute discretion, choose whether the remedy
for a valid warranty claim is repair or replacement. Electrolux
or
its
ASC may use refurbished parts to repair your Appliance. You agree that
any replaced Appliances or parts become the property of Electrolux.
5. Travel and transportation costs: Subject to clause 7, Electrolux will
bear the reasonable cost of transportation, travel and delivery of the
Appliance to and from Electrolux or its ASC. Travel and transportation will
be arranged by Electrolux as part of any valid warranty claim.
6. Proof of purchase is required before you can make a claim under this
warranty.
7. Exclusions: You may not make a claim under this warranty unless the
defect claimed is due to faulty or de
fective parts or workmanship. This
warranty does not cover:
(c)
cosmetic
damage which does not
the operation of the
Appliance;
(d) damage to the Appliance caused by:
(i) negligence or accident;
(ii) misuse or abuse, including failure to properly maintain or service;
(iii) improper, negligent or faulty servicing or repair works done by
anyone other than an Electrolux authorised repairer or ASC;
(iv) normal wear and tear;
(v) power surges, electrical storm damage or incorrect power supply;
(vi) incomplete or improper installation;
(vii) incorrect, improper or inappropriate operation;
(viii) insect or vermin infestation;
(ix) failure to comply with any additional instructions supplied with
the Appliance;
In addition, Electrolux is not liable under this warranty if:
(a) the Appliance has been, or Electrolux reasonably believes that the
Appliance has been, used for purposes other than those for which
the Appliance was intended, including where the Appliance has
been used for any non-domestic purpose;
(b) the Appliance is
without authority from Electrolux in writing;
(c) the Appliance’s serial number or warranty seal has been removed
or defaced.
8.
How to claim under this warranty: To enquire about claiming under
this warranty, please follow these steps:
(a) carefully check the operating instructions, user manual and the
terms of this warranty;
(b) have the model and serial number of the Appliance available;
(c) have the proof of purchase (e.g. an invoice) available;
(d) telephone the numbers shown below.
9. Australia: For Appliances and services provided by Electrolux in
Australia: Electrolux goods come with guarantees that cannot be
excluded under the Australian Consumer Law. You are entitled to a
replac
ement or refund for a major failure and for compensation for any
other reasonably foreseeable loss or damage. You are also entitled to
have the Appliance repaired or replaced if the Appliance fails to be of
acceptable quality and the failure does not amount to a major failure.
‘Acceptable quality’ and ‘major failure’ have the same meaning as
referred to in the ACL.
10. New Zealand: For Appliances and services provided by Electrolux
in New Zealand, the Appliances come with a guarantee by Electrolux
pursuant to the provisions of the Consumer Guarantees Act, the Sale
of Goods Act and the Fair Trading Act. Where the Appliance was
purchased in New Zealand for commercial purposes the Consumer
Guarantee Act does not apply.
11.
You accept that if you make a warranty claim, Electrolux
and its agents including ASC may exchange information in relation to you
to enable Electrolux to meet its obligations under this warranty.
Warranty
FOR SALES IN AUSTRALIA AND NEW ZEALAND
APPLIANCE: VINTEC
Vintec Undercounter_Warr_Oct24
Important Notice
Before calling for service, please ensure that the steps listed in clause 8 above have been followed.
AUSTRALIA
FOR SERVICE
or to the address of your nearest
authorised service centre in Australia
PLEASE CALL 1800 666 778
For the cost of a local call
FOR ACCESSORIES
PLEASE CALL 1800 666 778
For the cost of a local call (Australia only)
or visit www.vintecclub.com
NEW ZEALAND
FOR SERVICE
or to the address of your nearest
authorised service centre in New Zealand
PLEASE CALL 0800 10 66 10
FOR ACCESSORIES
PLEASE CALL 0800 550 020
(New Zealand only)
or visit www.vintecclub.com
Warranty Period: Subject to these terms and conditions, this warranty
continues for in Australia for a period of 24 months and in new Zealand
for a period of 24 months, following the date of original purchase of the
Appliance. Specific components are warranted against manufacturing
defects in Australia and New Zealand for the periods listed below;
• Compressor - Further 3 years
(b) parts and Appliances not supplied by Electrolux;
(a) light globes, batteries,
or similar perishable parts;
vintec.com
Vintec. We are part of the
Electrolux Family. To add
a touch of professional
inspiration to your home,
visit electrolux.com.au
© 2019 Electrolux Home Products Pty Ltd. ABN 51 004 762 341
Rev00_Sep 2024
Stay in touch and share your
user experience by following us:
@vintecclub
Service and support
1800 666 778
customercare@vintec.com.au
In the rare event that your Vintec cabinet does not perform
to your satisfaction, contact our dedicated support team:
