BULLETIN NO.
PN0004154
SERVICE PARTS LIST
CATALOG NO. 49-40-6215
REVISED BULLETIN
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS
6" Tuckpointing Dust Shroud
SERIAL NO.
DATE
Nov. 2025
WIRING INSTRUCTION
R40A
0
00
EXAMPLE:
Component Parts (Small #)
Are Included When Ordering
The Assembly (Large #).
MILWAUKEE TOOL
l
www.milwaukeetool.com
13135 W. LISBON RD., BROOKFIELD, WI 53005

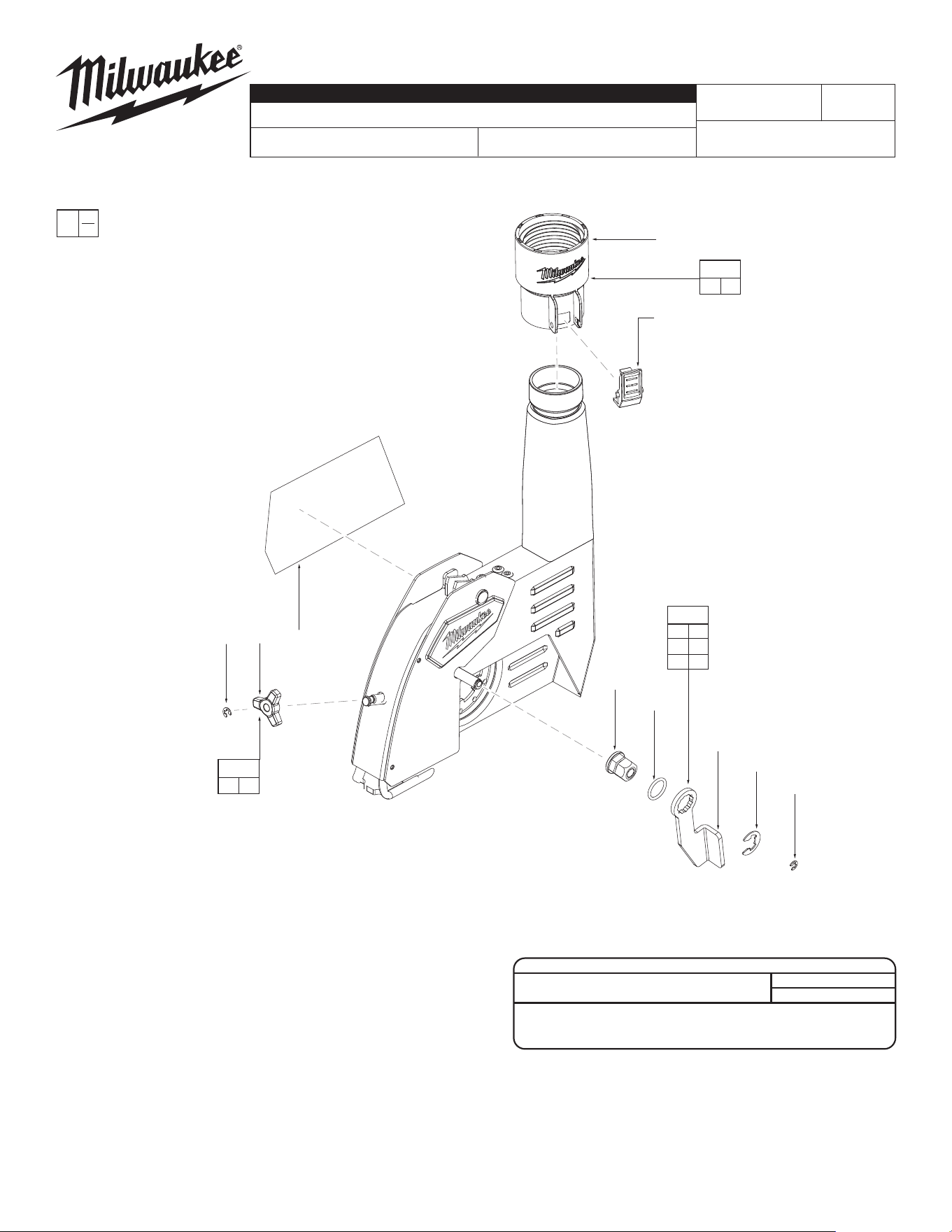

Drwg. 1
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 --------------- E-Ring (2)
2 --------------- Guide Adjustment Knob (1)
10 --------------- Lever Nut (1)
11 --------------- O-Ring (1)
12 --------------- Lever (1)
13 --------------- E-Ring (1)
14 12-20-9110 Service Nameplate (1)
16 --------------- Locking Master Coupler Body (1)
17 --------------- Locking Master Coupler Clip (1)
21 31-55-0504 Locking Assembly (1)
22 14-46-0809 Guide Adjustment Kit 6" (1)
23 31-58-0501 Locking Master Coupling Kit (1)
FIG. NOTES
14 A clean, dry surface is essential for proper performance
for any adhesive system. The area intended for application
of any adhesive label or nameplate must be prepared by
cleaning with isopropyl alcohol. The solvent is to be applied
with a clean, lint free applicator and the surface allowed to
dry before applying the label or nameplate.
TORQUE SPECIFICATIONS
SEAT TORQUE
FIG. PART NO. WHERE USED (kgf-cm) (lb-in)
2 --------------- Pivoting Cover 5±1 4±1
10 --------------- Lever Nut 6±1 5±1
