10
12
(2x)
4
14
3
11
9
7
2
6
(2x)
1
8
(5x)
13
(2x)
3 4
5 6
7 12
13 14
21
5
BULLETIN NO.
PN0004160
SERVICE PARTS LIST
CATALOG NO. 49-40-6220
REVISED BULLETIN
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS
7" Concrete Surface Grinding Dust Shroud
SERIAL NO.
DATE
Nov. 2025
WIRING INSTRUCTION
R42A
0
00
EXAMPLE:
Component Parts (Small #)
Are Included When Ordering
The Assembly (Large #).
MILWAUKEE TOOL
l
www.milwaukeetool.com
13135 W. LISBON RD., BROOKFIELD, WI 53005

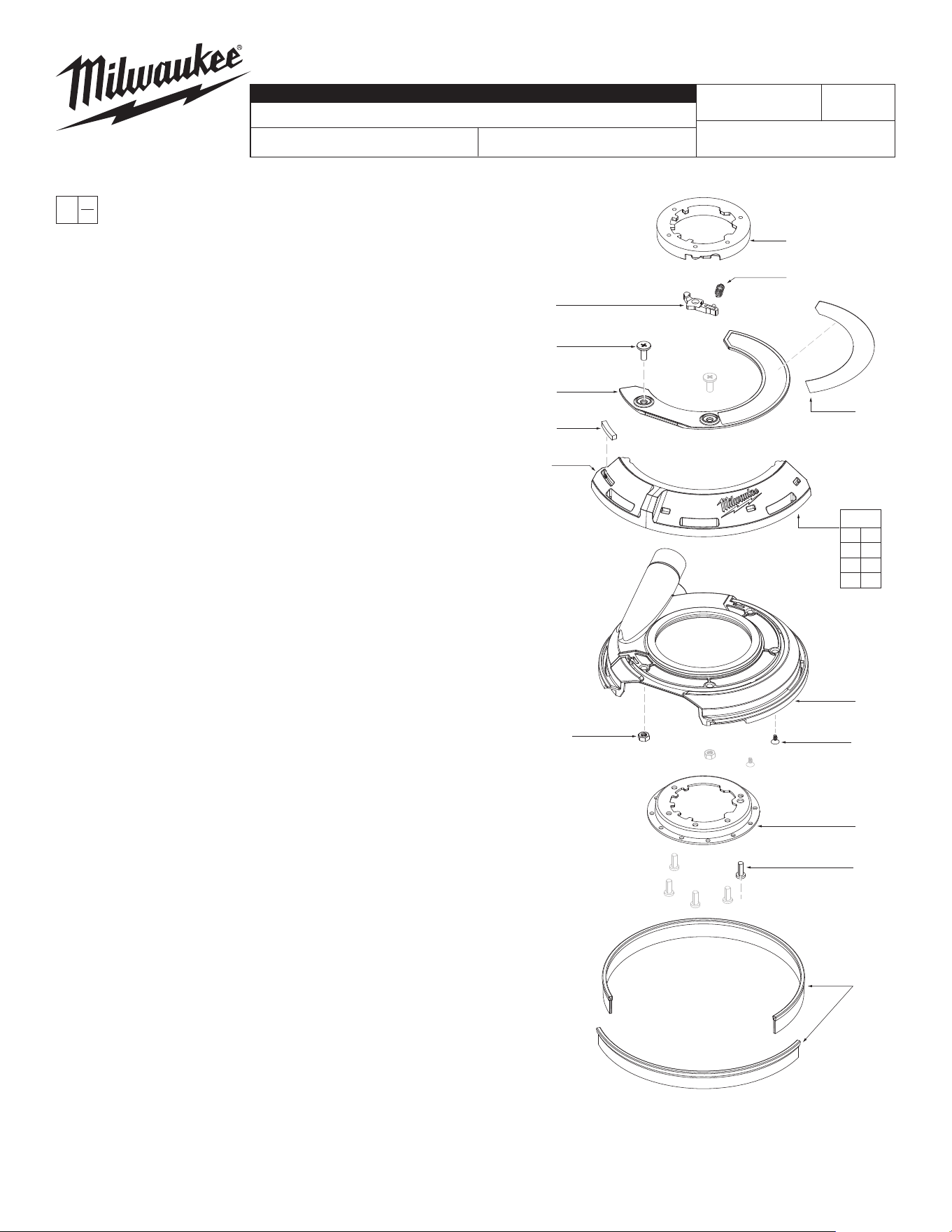

Drwg. 1
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 --------------- Bracket (1)
2 --------------- Shroud Body (1)
3 --------------- Sliding Cover (1)
4 --------------- Retaining Ring (1)
5 --------------- Brush Set (1)
6 --------------- M4 x 8mm Flat Head Screw (2)
7 12-20-9120 Service Nameplate (1)
8 --------------- 10-24 Plastite T-25 Screw (5)
9 --------------- Lever Spring (1)
10 --------------- Lever (1)
11 --------------- Collar (1)
12 --------------- M6 x 15mm Screw (2)
13 --------------- M6 Hex Nut (2)
14 --------------- EVA Foam Plug (1)
21 31-15-0504 7" Sliding Cover Assembly (1)
22 14-46-0063 Washer Kit (Not Shown) (1)
FIG. SERVICE NOTES
7 A clean, dry surface is essential for proper performance
for any adhesive system. The area intended for application
of any adhesive label or nameplate must be prepared by
cleaning with isopropyl alcohol. The solvent is to be applied
with a clean, lint free applicator and the surface allowed to
dry before applying the label or nameplate.
