8
(2x)
4
7
3
1
2
9
(2x)
6
(2x)
5
3 4
5 6
7 8
9
15
BULLETIN NO.
PN0004155
SERVICE PARTS LIST
CATALOG NO. 49-40-6200
REVISED BULLETIN
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS
5" Concrete Surface Grinding Dust Shroud
SERIAL NO.
DATE
Nov. 2025
WIRING INSTRUCTION
R41A
0
00
EXAMPLE:
Component Parts (Small #)
Are Included When Ordering
The Assembly (Large #).
MILWAUKEE TOOL
l
www.milwaukeetool.com
13135 W. LISBON RD., BROOKFIELD, WI 53005

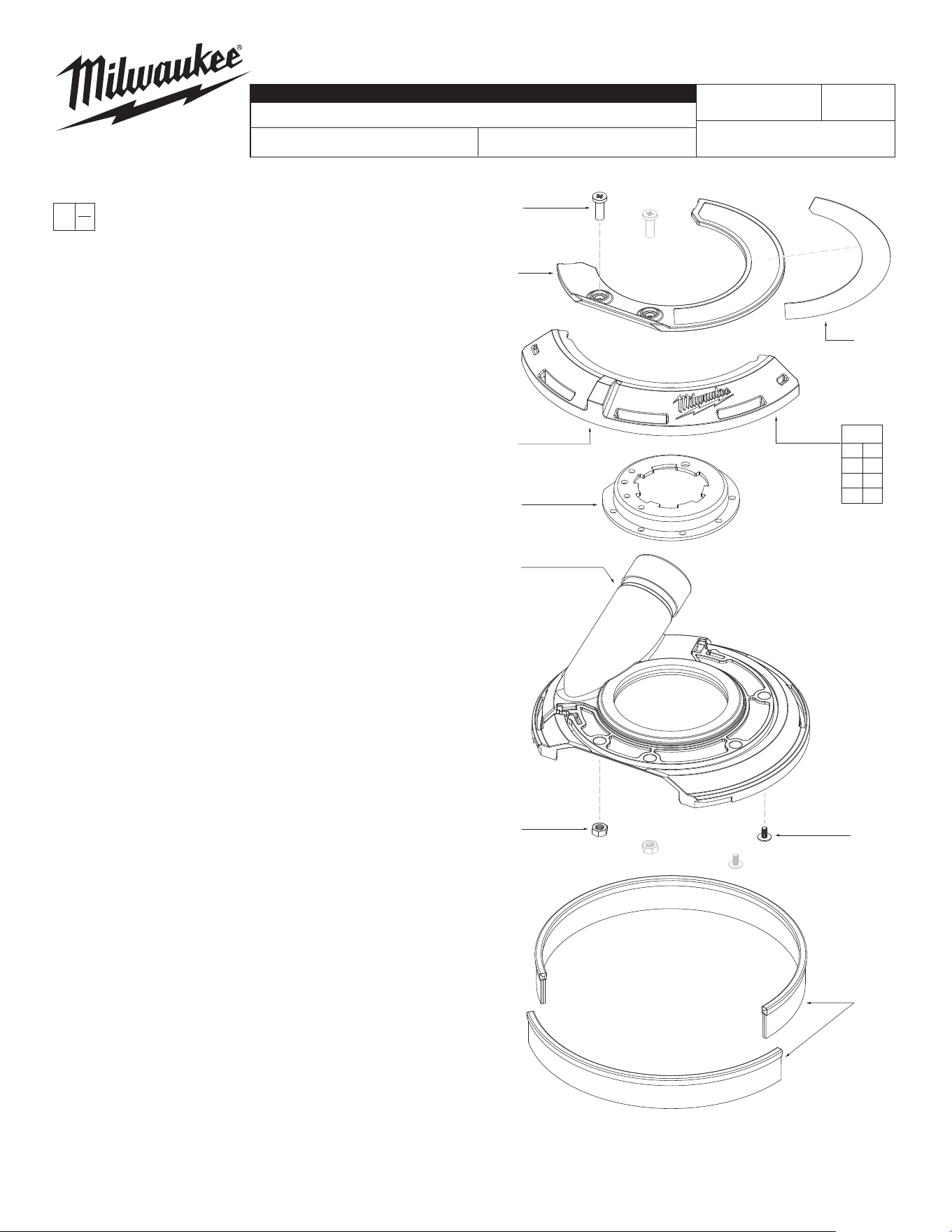

Drwg. 1
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 --------------- Bracket (1)
2 --------------- Shroud Body (1)
3 --------------- Sliding Cover (1)
4 --------------- Retaining Ring (1)
5 --------------- Brush Set (1)
6 --------------- #4 Wide Head Screw (2)
7 12-20-9115 Service Nameplate (1)
8 --------------- M5 x 13mm Screw (2)
9 --------------- M5 Hex Nut (2)
15 31-15-0503 5" Sliding Cover Assembly (1)
16 14-46-0063 Washer Kit (Not Shown) (1)
FIG. NOTES
7 A clean, dry surface is essential for proper performance
for any adhesive system. The area intended for application
of any adhesive label or nameplate must be prepared by
cleaning with isopropyl alcohol. The solvent is to be applied
with a clean, lint free applicator and the surface allowed to
dry before applying the label or nameplate.
